4
PRESENTATION
Within the chapters symbols draw your attention to specific
information:
directs you to the chapter and section which contains detailed
information concerning a function,
indicates important information relating to use of the
equipment,
alerts you to the safety of individuals and equipment on board.
The Expert handbook is designed to familiarise you with the
new vehicle from the moment you get behind the wheel and to
describe the operating features.
Reading the handbook is made easy by a content consisting of
10 identified chapters which can be located by means of a colour
code specific to each one. Its sections cover, by theme, all of the
functions of the vehicle in its most complete specification.
Chapter 9 indicates all of the technical data relating to your
vehicle. At the end of the handbook, diagrams of the outside
and inside of the vehicle will assist you in locating equipment or
functions and page numbers refer you to the relevant section of
the handbook.
COMMUNICATION PEUGEOT PUTS AN INTERNET SITE AT YOUR DISPOSAL
http://public.infotec.peugeot.com, select:
- the vehicle documentation/handbooks item,
- your model,
- the body type: saloon, CC, SW, estate, van, … ,
- the period corresponding to the date of first registration,
- the "Latest Information" section.
The technical data, equipment and accessories may change
during the year. To obtain this new data, refer to the "Latest
Information" section on the INFOTEC Internet site.
Simple registration permits access to the site and free
consultation of the vehicle documentation.
5
1

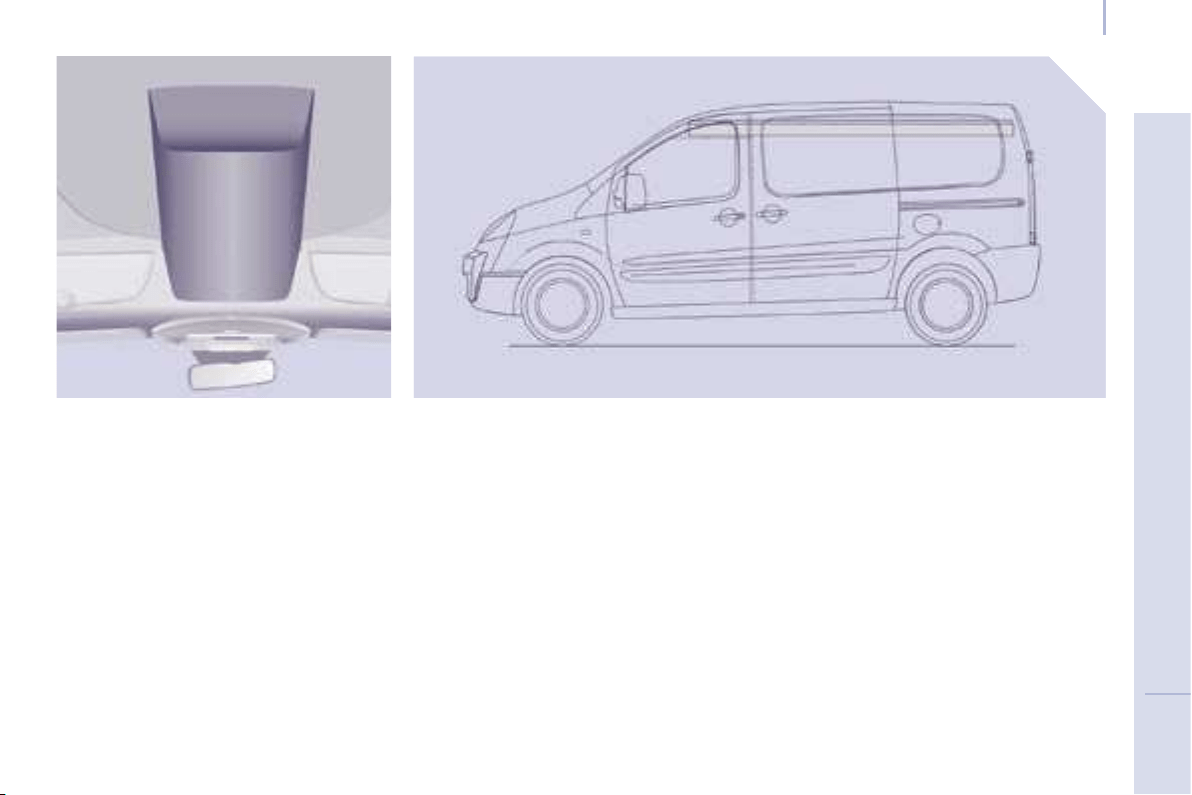

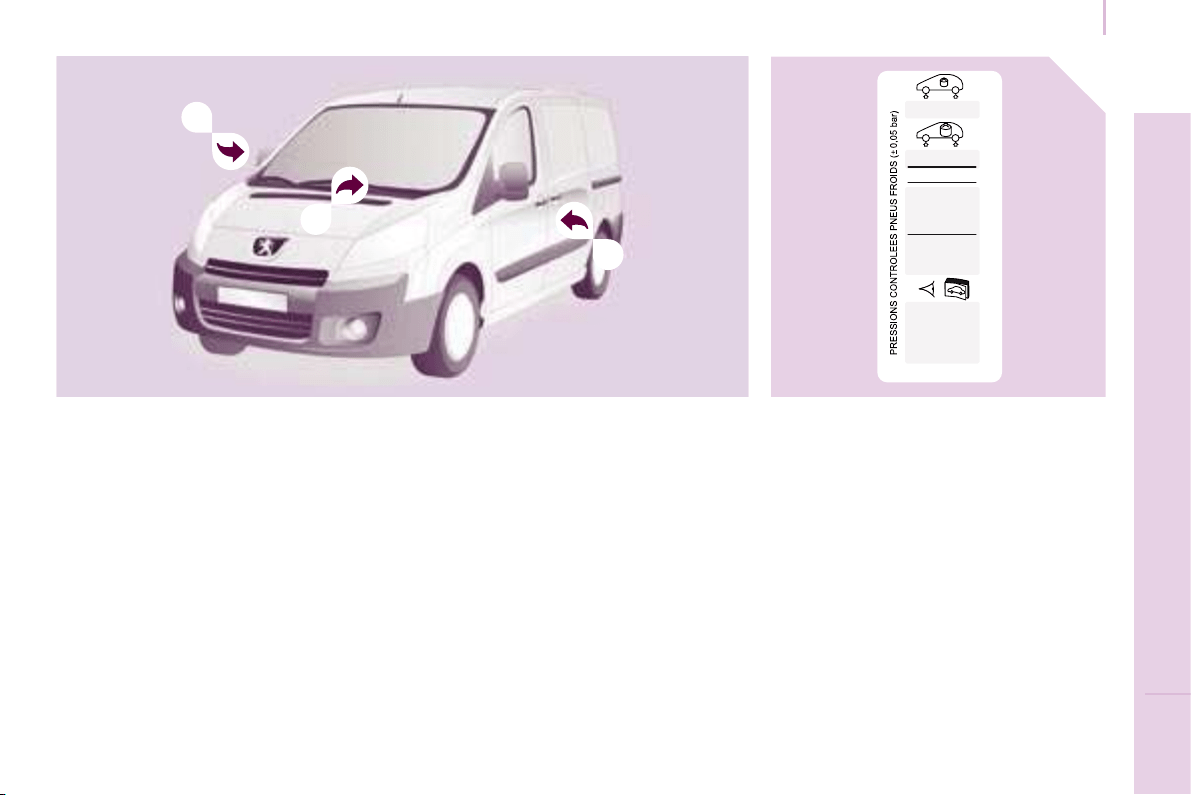

A tour of the Expert in pictures
A TOUR OF THE EXPERT IN PICTURES
OPEN

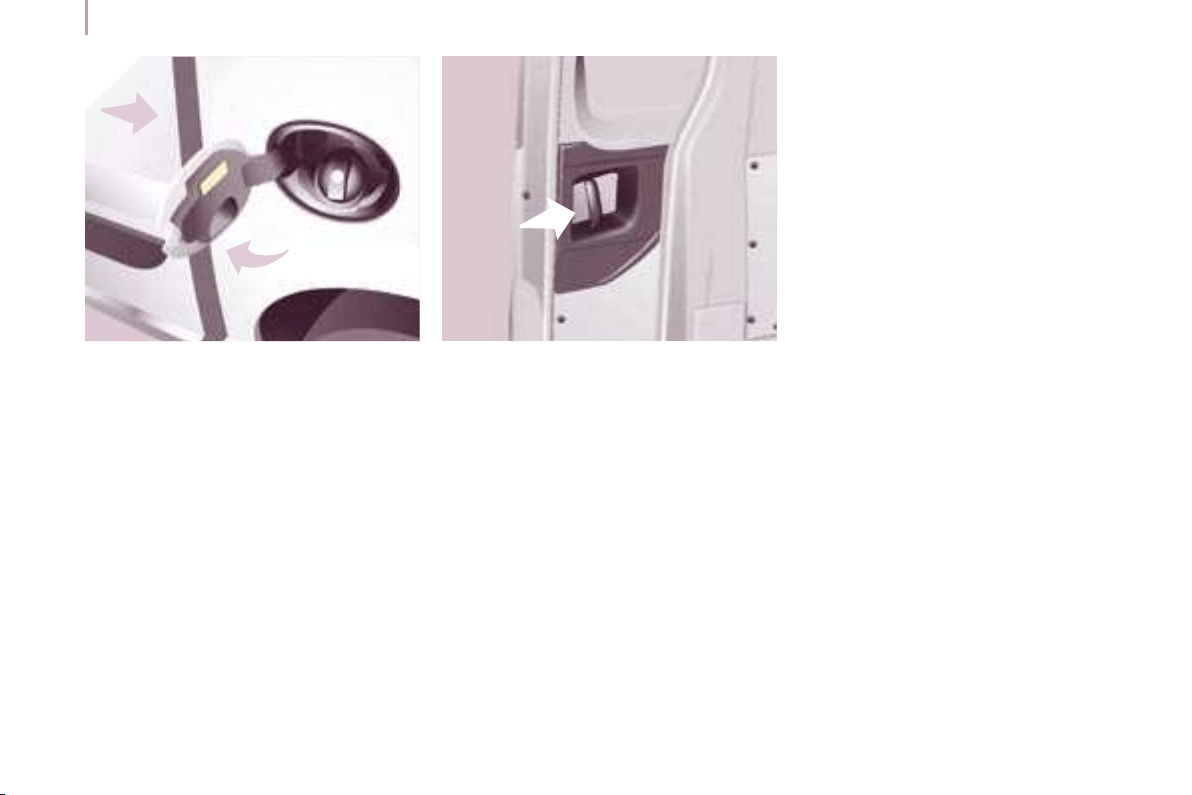

KEYS FRONT DOOR FUEL
FILLER FLAP
REAR
DOOR
2 2 7 2
SPARE
WHEEL
8
SLIDING SIDE
DOOR

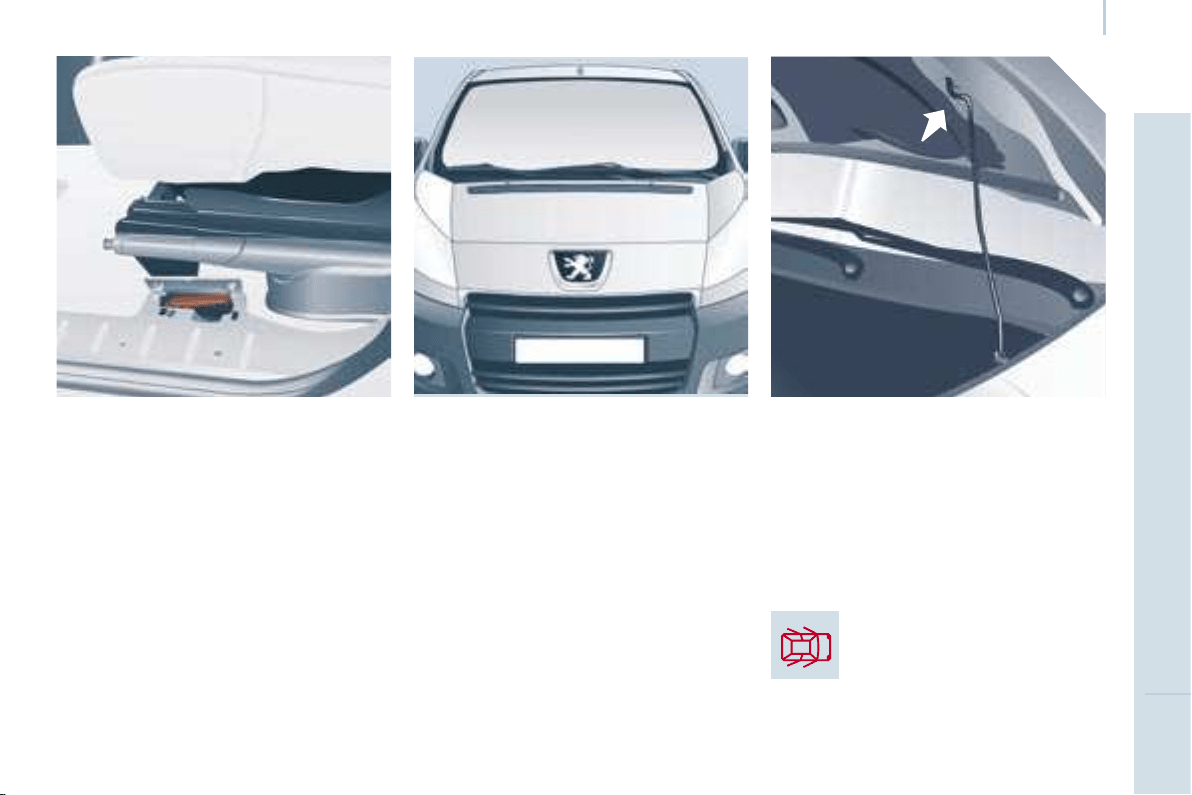

BONNET
2 7
ENGINE
LEVELS
7
QUICK REFERENCE GUIDE
6

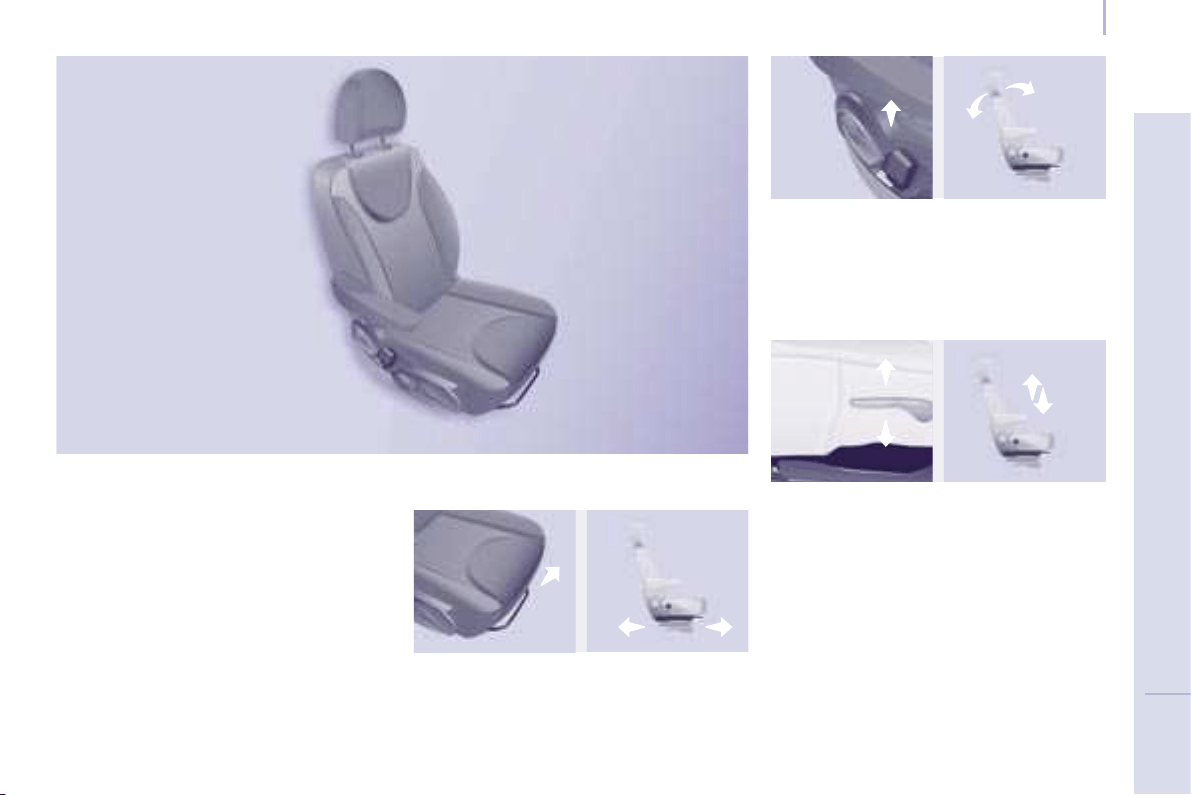

DRIVER’S SEAT STEERING WHEEL MIRRORS SEAT BELTS
SIT COMFORTABLY
2 3 3 5
A tour of the Expert in pictures
1
2
11
13
9
8
12
10
7
6
5
4
3
6
7
1

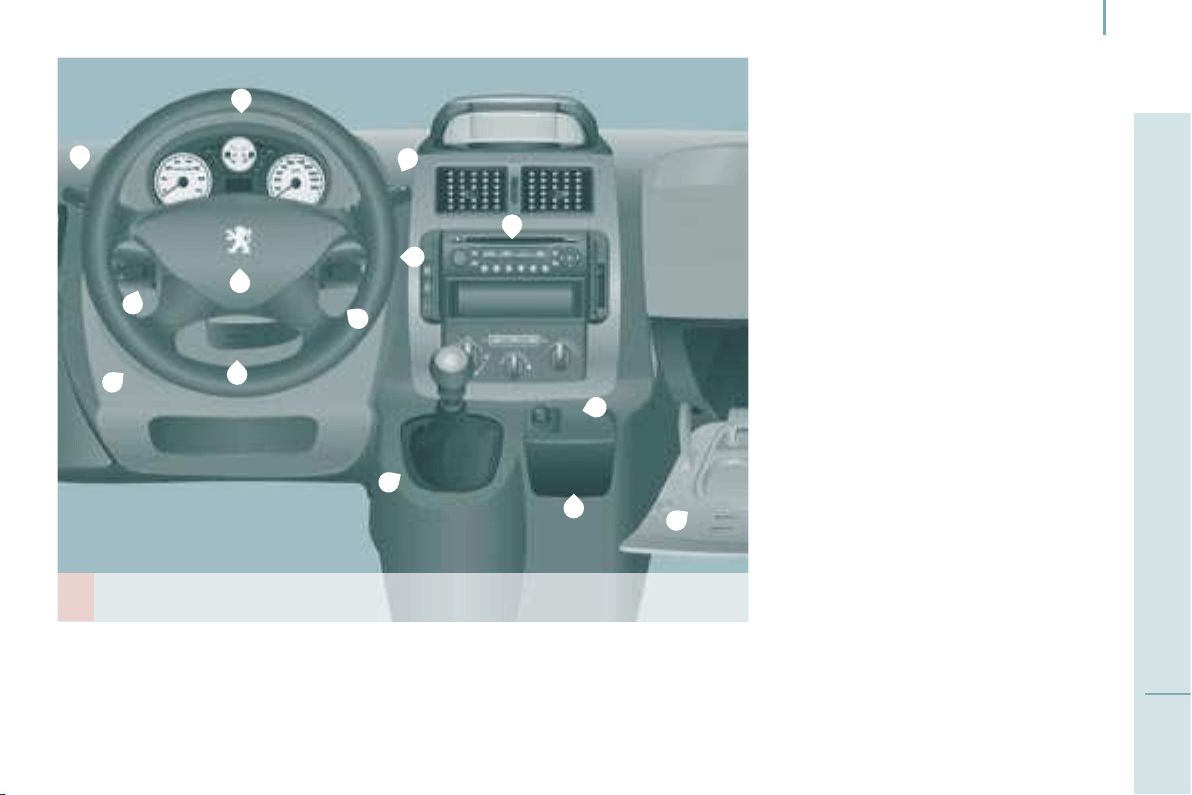

A tour of the Expert in pictures
1 - Lights and direction indicators
stalk.

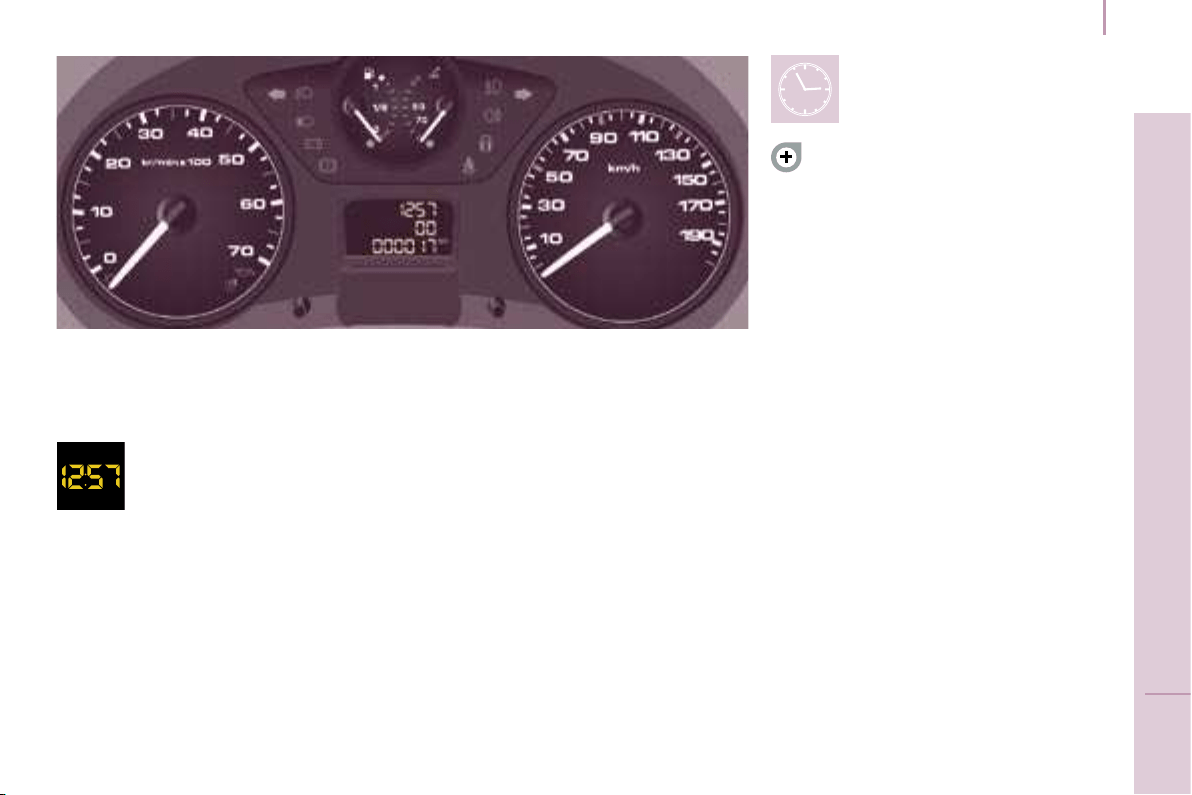

2 - Instrument panel with display.

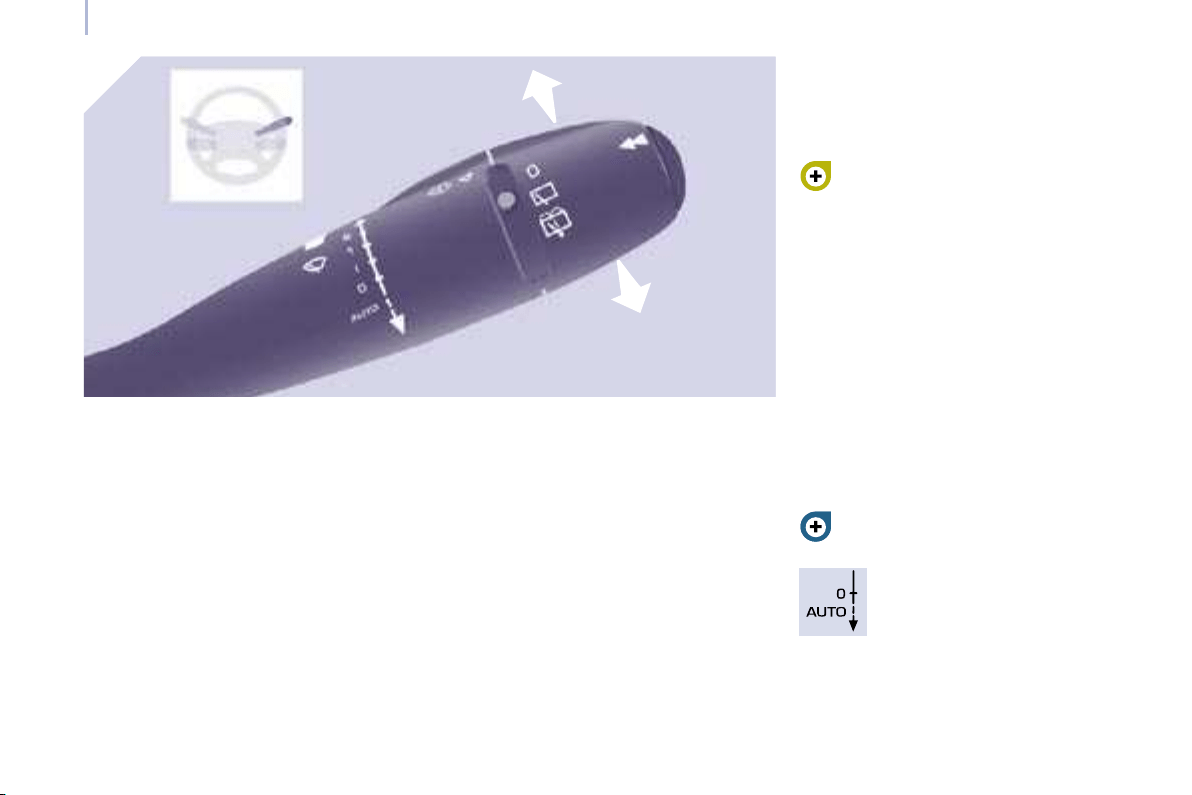

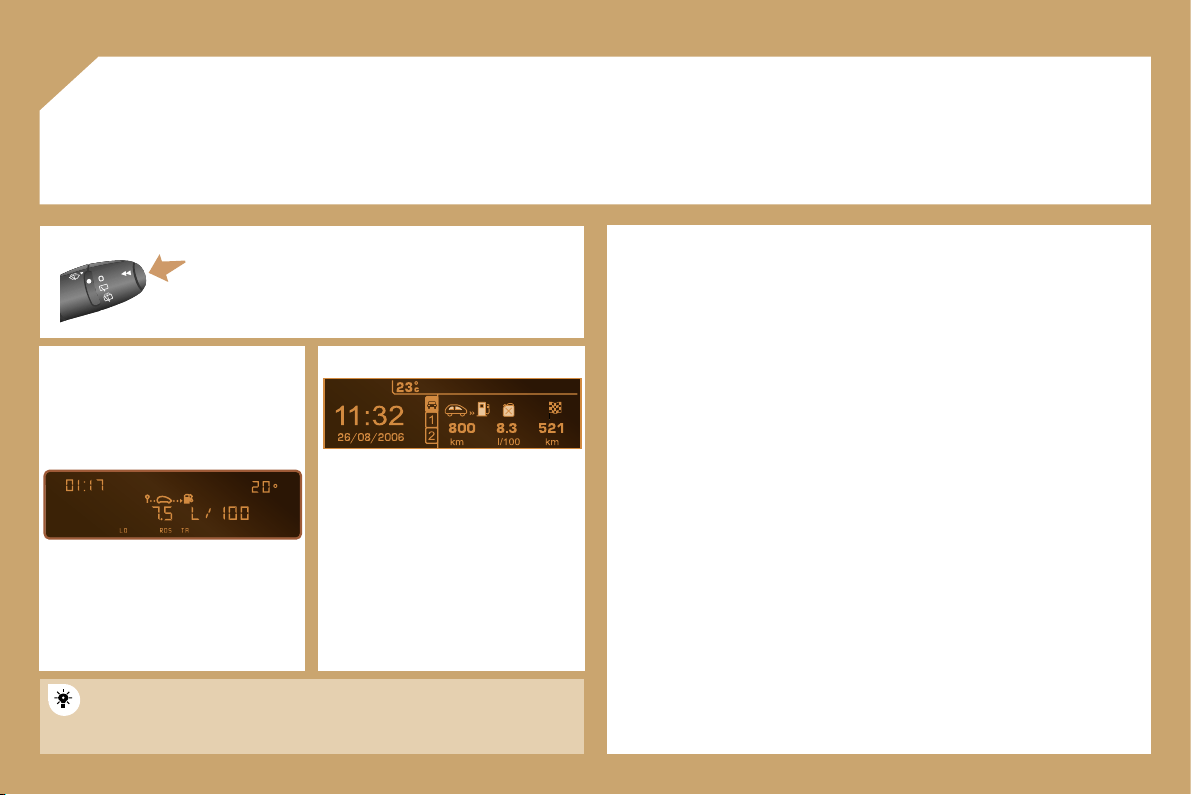

3 - Wipers, wash-wipe, trip computer
controls.
4 - Gear lever.
5 - Ignition.
6 - Audio RD4 or RT3 controls.
7 - Driver’s air bag, horn.
8 - Steering wheel height and depth
adjustment.

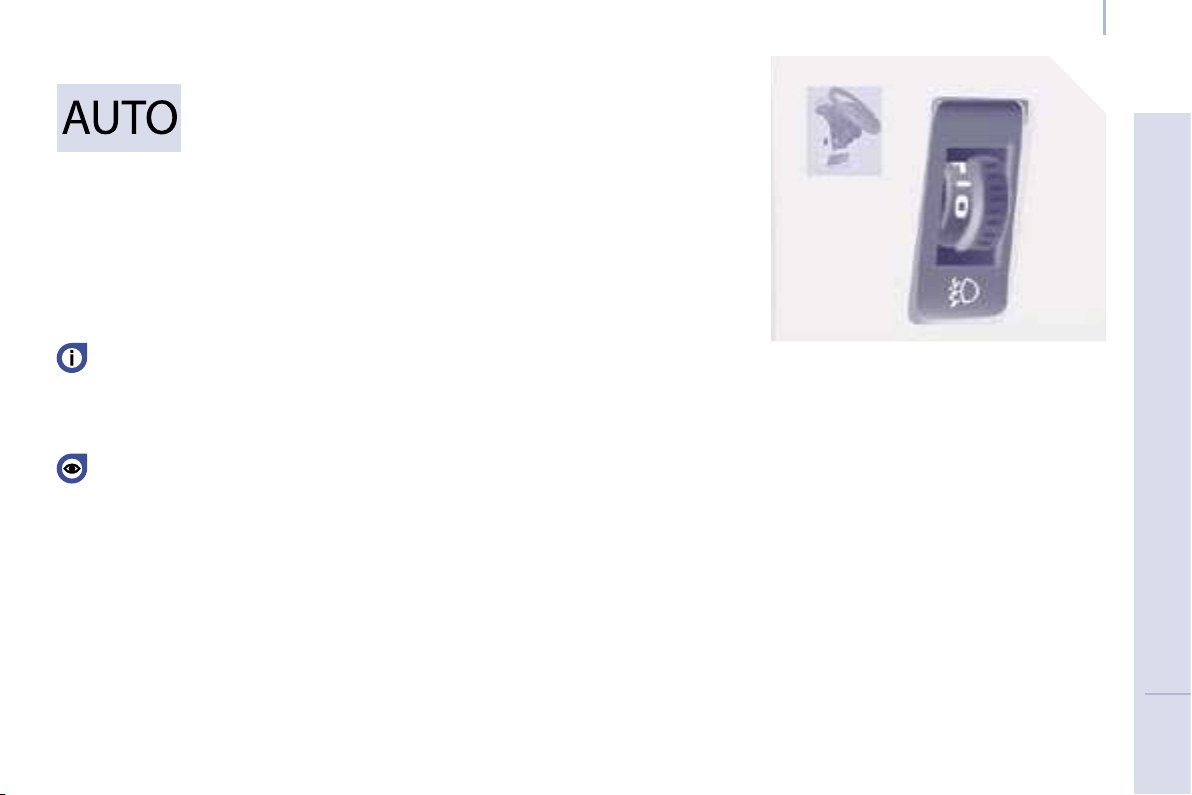

9 - Headlamp beam adjustment.
10 - Cruise control, speed limiter switch.
11 - Lighter, 12 volt accessories socket
(120 W max).
12 - Ashtray.
13 - Glove box, auxiliary socket, passenger
air bag disarming switch.
DISCOVER
Instruments and controls
2
QUICK REFERENCE GUIDE
1
2
4
3
5
6
7
8
9
10
11
A tour of the Expert in pictures
Centre console and overhead
storage unit
1 - Location of the controls:
- central locking/unlocking,
- locking/unlocking of the load space.
2 - Heating and/or air conditioning controls.
3 - Location of the ticket/
card storage or controls:
- deactivation of the ESP,
- disarming of the interior
protection alarm, alarm
diode,
- deactivation of the parking
assistance.
4 - CD changer or storage compartment.
5 - Audio RD4 or RT3 or storage compartment.
6 - Central adjustable vents.
7 - Hazard warning lights button.
8 - Display or storage compartment.
9 - Courtesy light.
10 - Warning lights:
- driver and passenger seat belt not
fastened,
- passenger air bag disarmed.
11 - Location of the ticket/card storage,
heated seat controls.

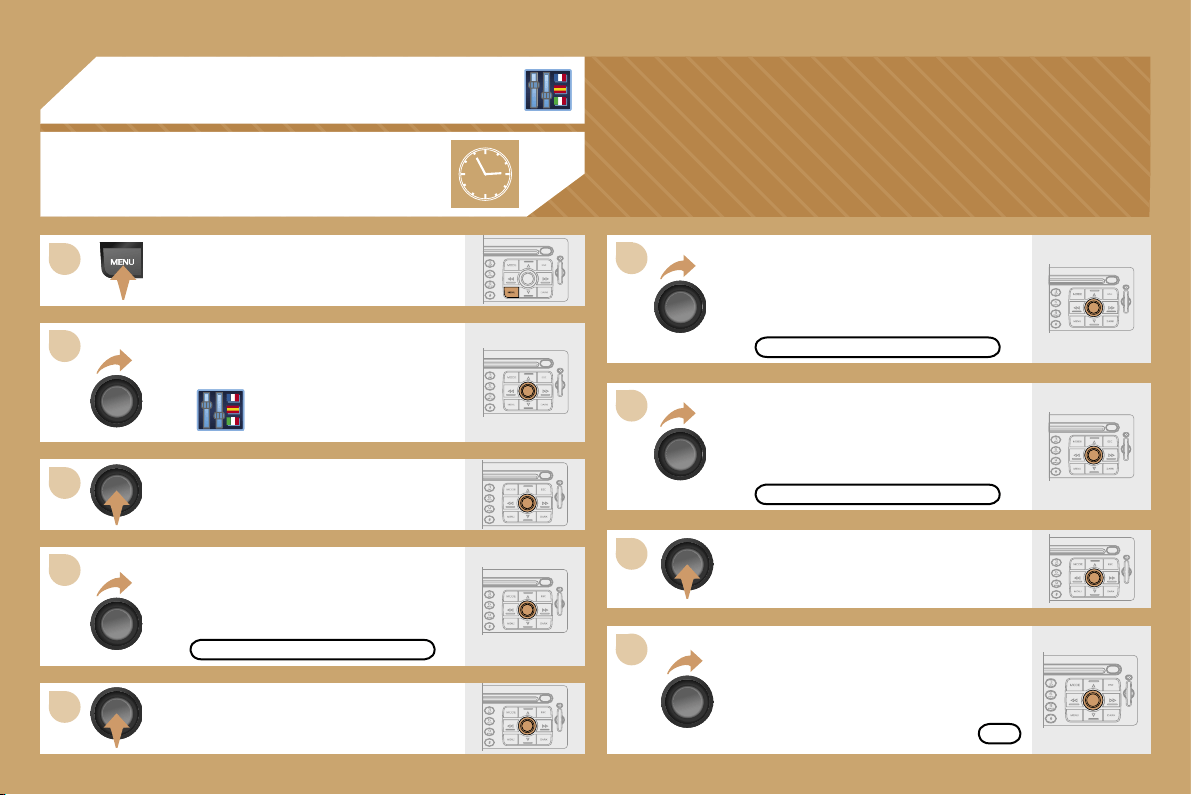

ADJUSTING THE TIME
Depending on the configuration
of your vehicle, you have either:
- a centre console with display:
refer to the "Adjusting the date
and time" section of chapter 4,
- a centre console without display: refer to
the "Instruments and controls" section of
chapter 2.
8
2 4
STARTING AND
STOPPING

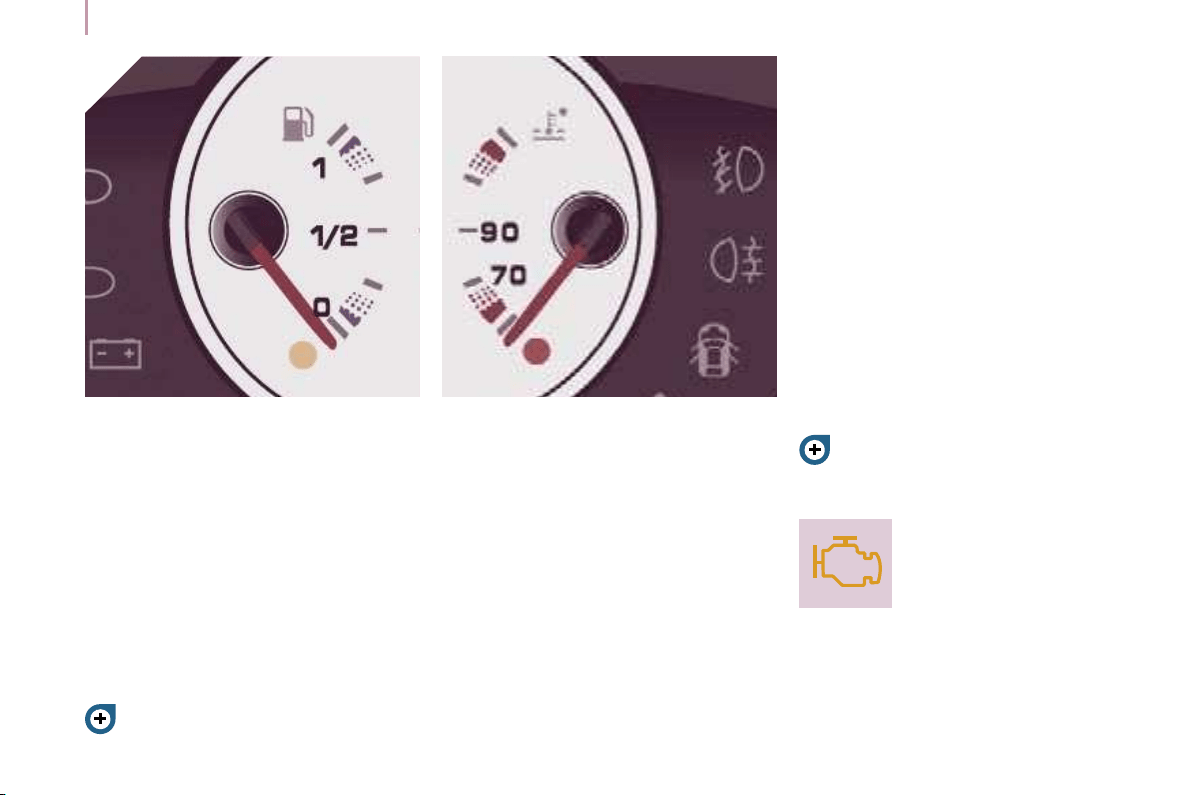

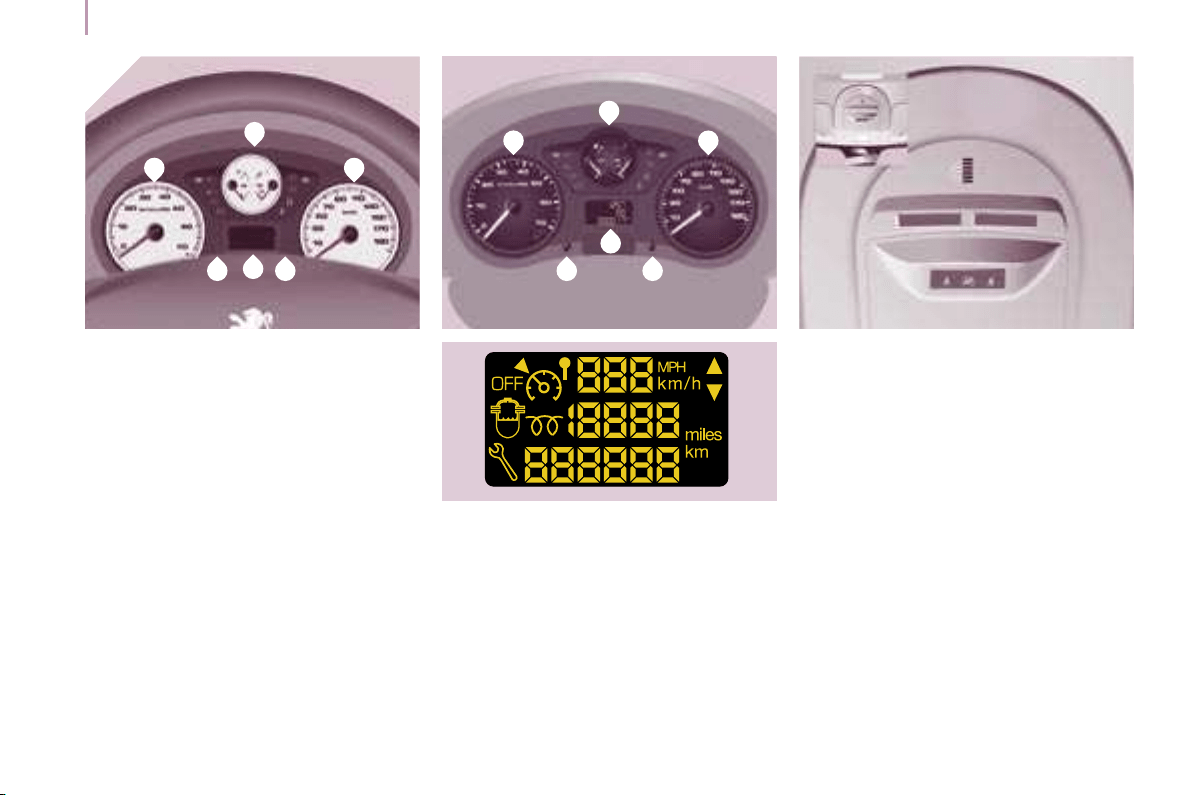

INSTRUMENT PANEL GAUGE
START
WARNING LIGHTS

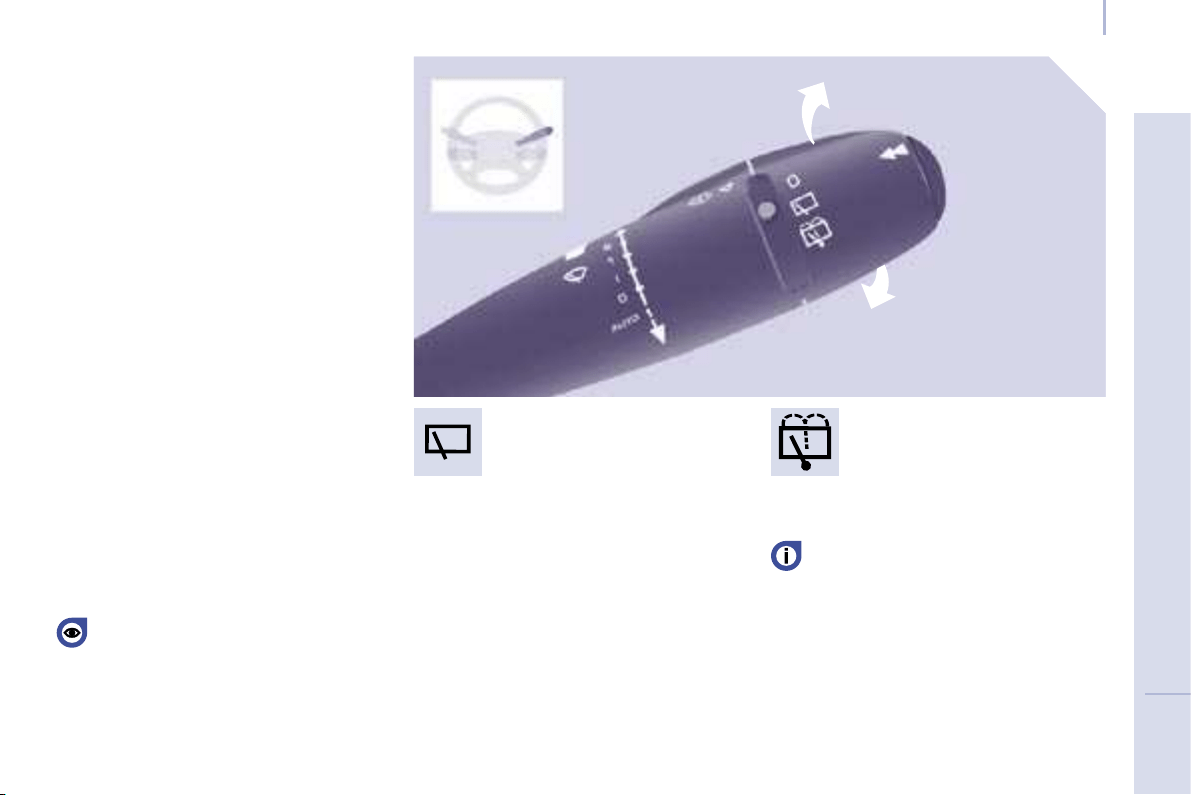

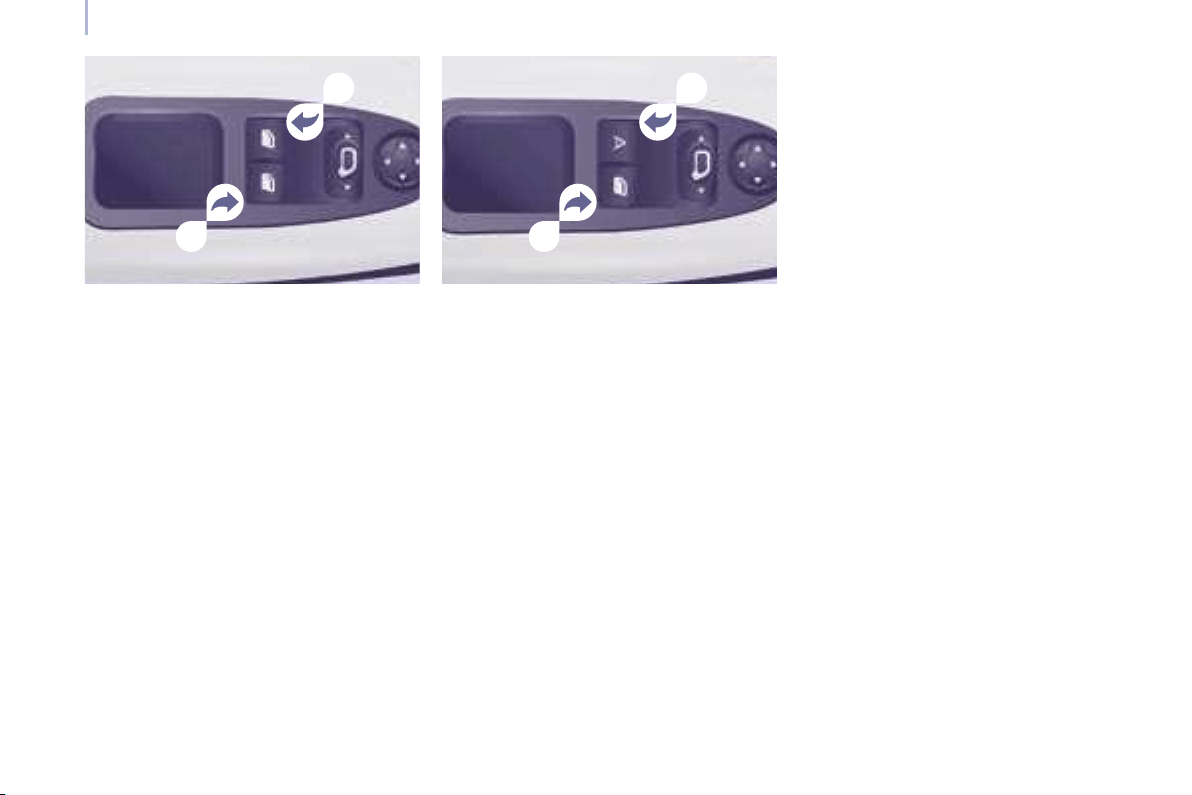

LIGHTING VENTILATION WIPERS ELECTRIC WINDOW
OPERATE
3 3 3 3
2 2 2 2
8 8
9
A tour of the Expert in pictures
QUICK REFERENCE GUIDE
1
10
TWO-SEAT
BENCH

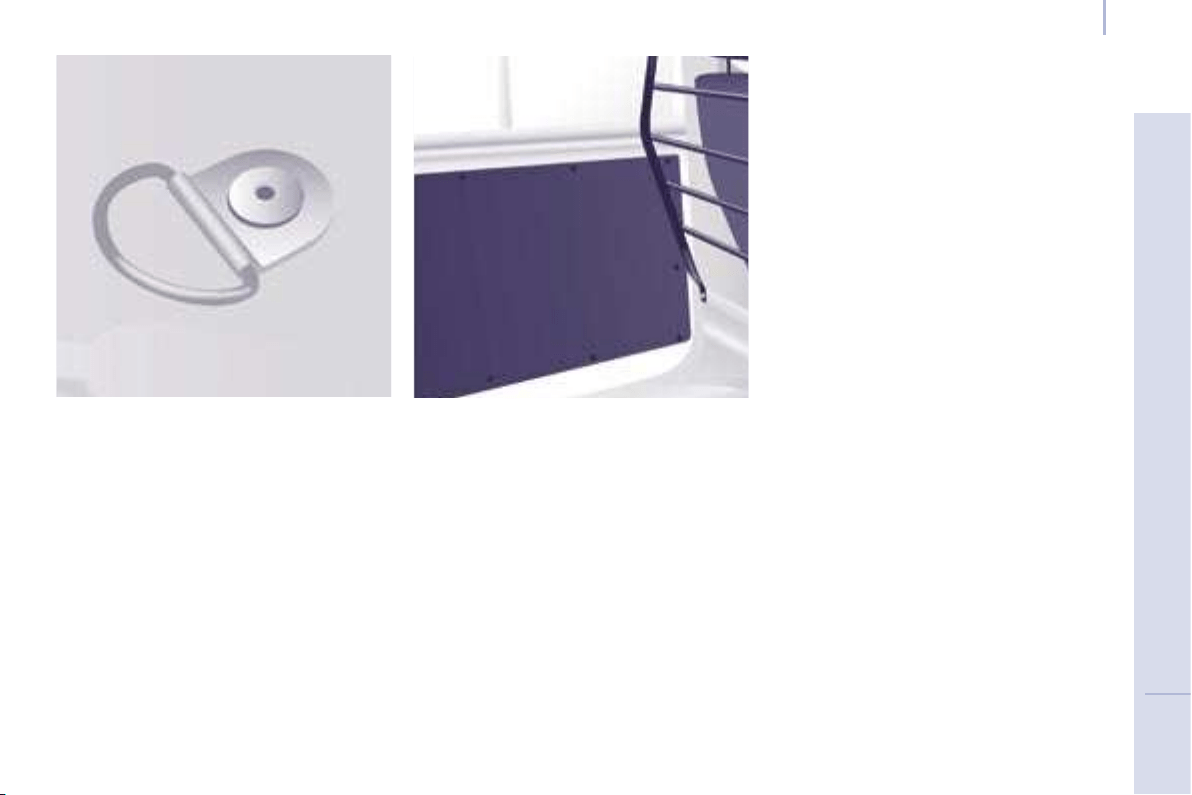

LOAD SPACE
TRANSPORT
TRIP COMPUTER CRUISE CONTROL/
SPEED LIMITER

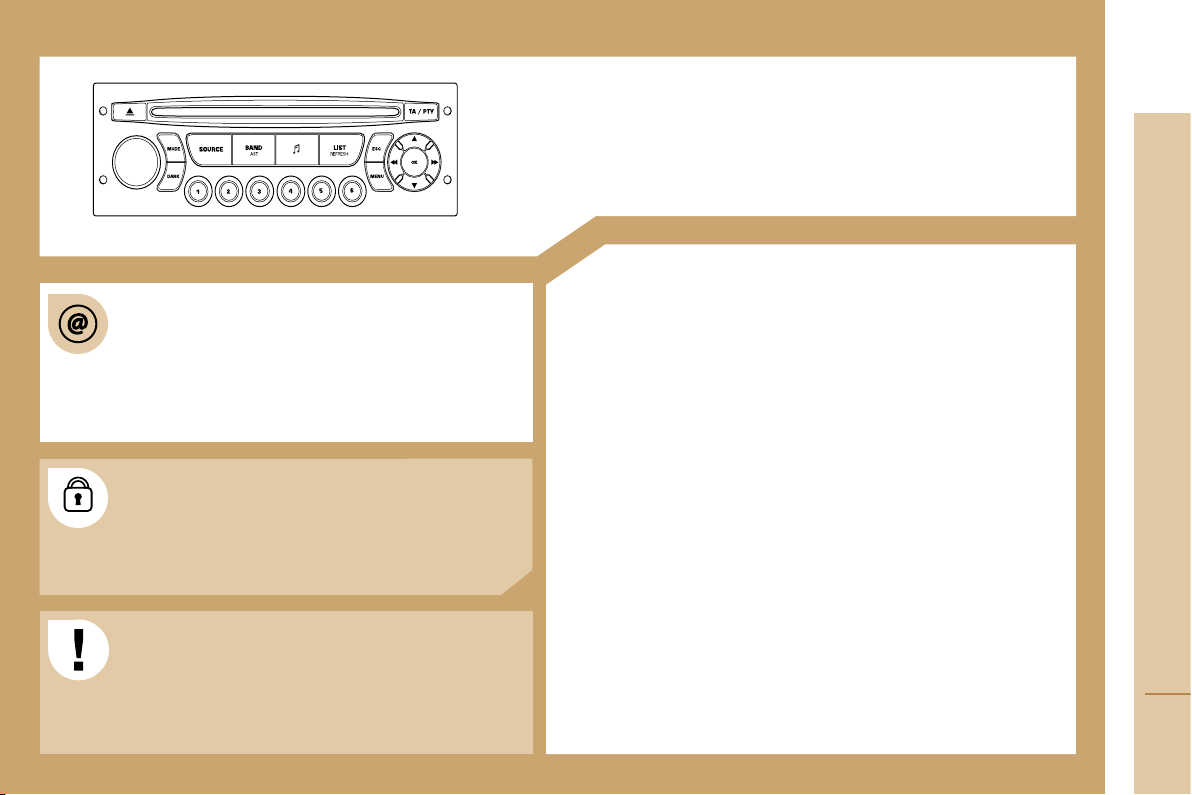

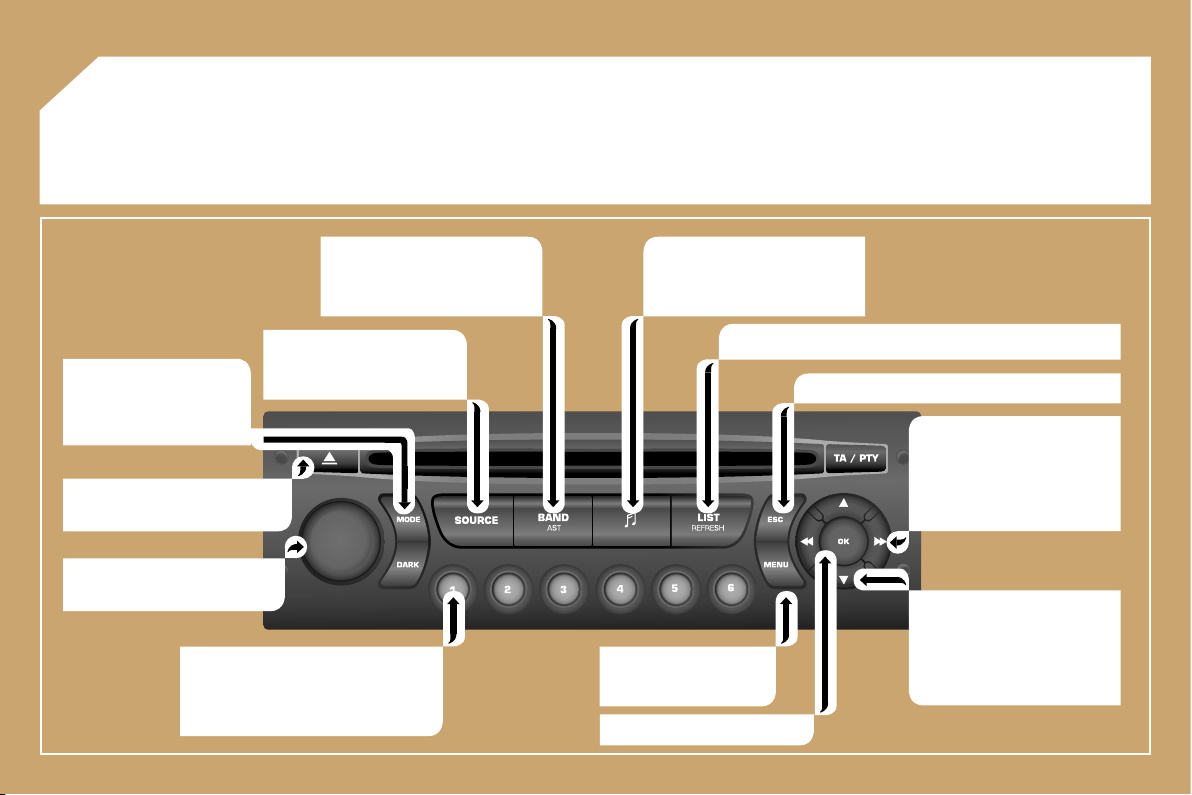

AUDIO RD4/RT3
CONFIGURE

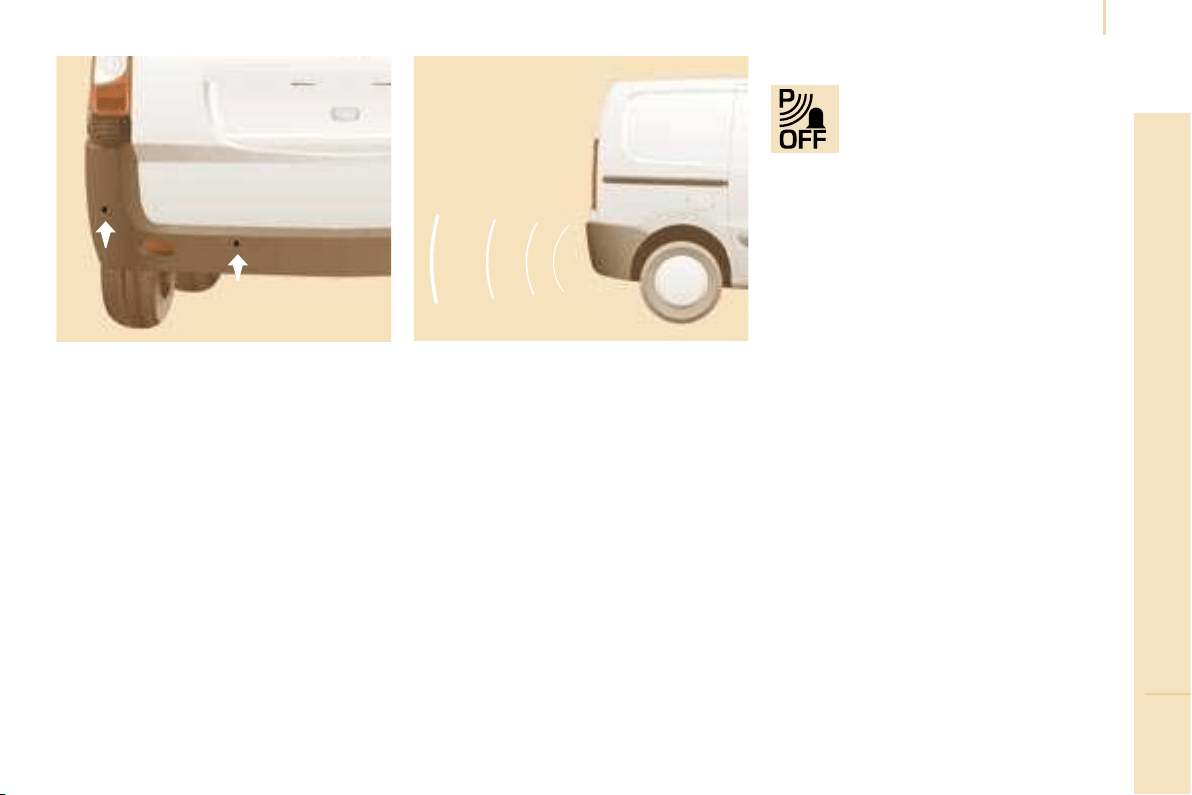

PARKING
ASSISTANCE
3 3
4 4 4 4
LAYOUT
3
DATE AND TIME ON THE
DISPLAY
4

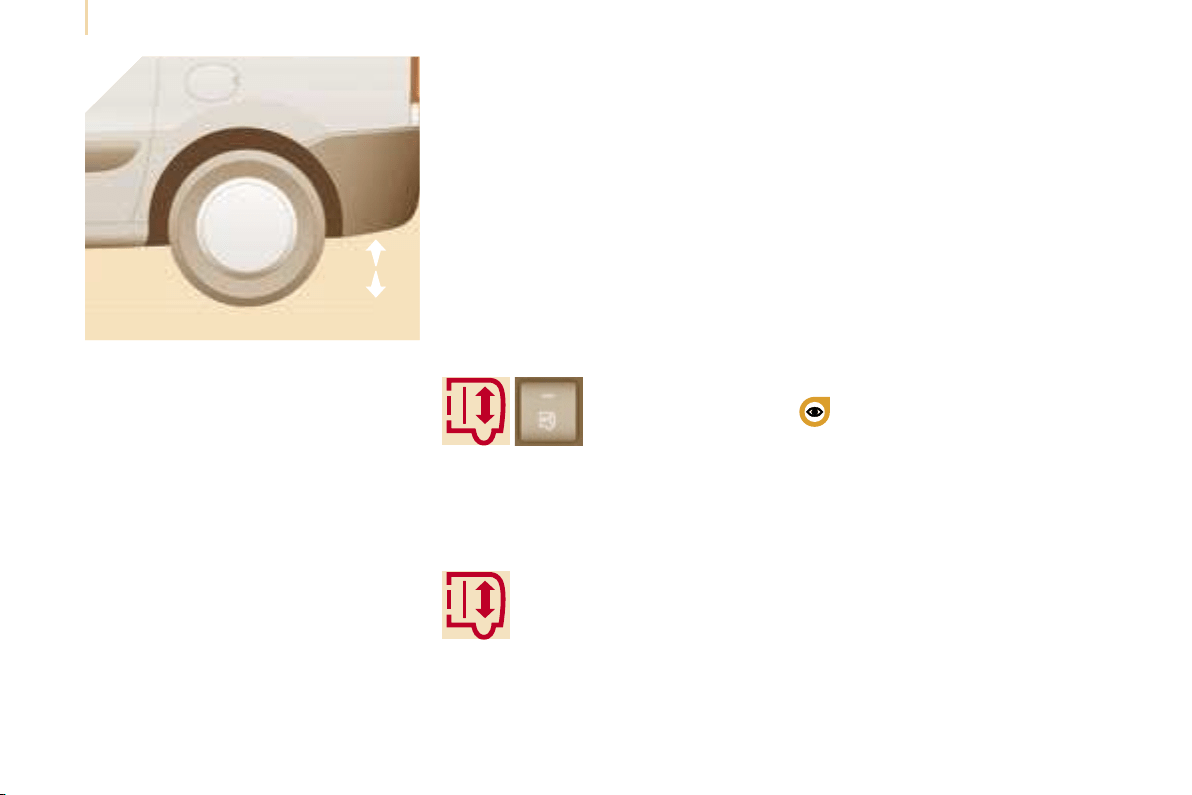

REAR SUSPENSION
4
ACCESSORIES
6
A tour of the Expert in pictures
11
2
and the load space, contact a PEUGEOT
dealer.
Unlocking the load space
Press this button to unlock all of
the rear doors.
This separation of the locking
of the cab and load space is an
operating security feature. It enables you
to prevent access to the part of the vehicle
from which you are absent.
Central locking
Press this button to lock your
vehicle, cab and rear doors.
The direction indicators flash
once.
If one of the front doors is open or is not
closed correctly, the central locking will not
work.
Deadlocking
If your vehicle is fitted with deadlocking, a
second press on the closed padlock on
the remote control within five seconds after
locking changes the locking to deadlocking.

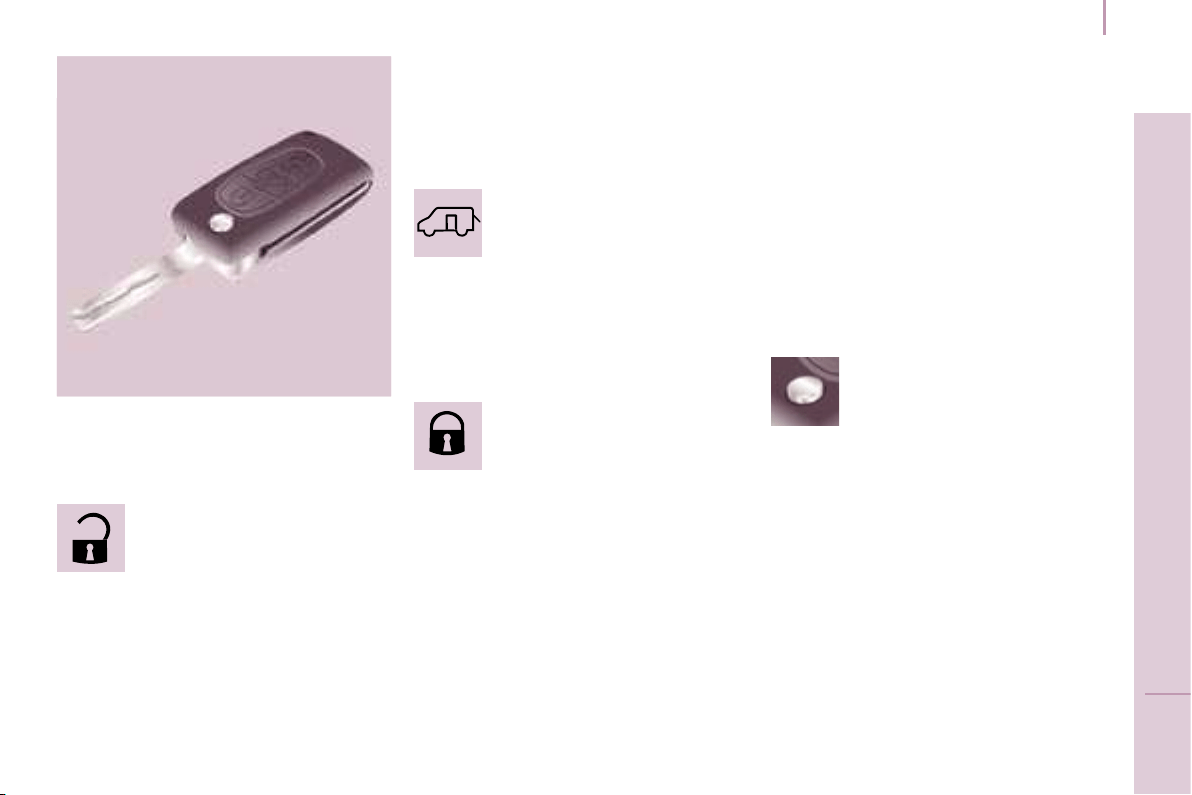

REMOTE CONTROL
Unlocking the cab
Press this button once to unlock
your vehicle’s cab.
The direction indicators flash twice.
Press this button a second time to unlock
the side door(s) and the rear doors.
This selective function of the accesses is
active when the vehicle is delivered.
At your request, the network can deactivate
this selectivity of opening between the cab
This is confirmed by fixed lighting of the direction
indicators for approximately two seconds.
Deadlocking renders the exterior and interior
door opening handles inoperative: do not
leave anyone inside the vehicle when it is
deadlocked.
If deadlocking is activated from inside the
vehicle, it will change to normal locking
when the vehicle is started.
Folding/unfolding the key
Press this button to release the
key from its housing.
To fold the key, press the
chromed button then fold the key
into the housing. If you do not press the
button, the mechanism may be damaged.
Good practice
Take care not to allow the remote control to
come into contact with grease, dust, rain or
a damp environment.
A heavy object attached to the key (keyring, ...)
weighing on the shaft of the key in the switch,
may cause a malfunction.
ACCESSES
Accesses
READY TO SET OFF
12

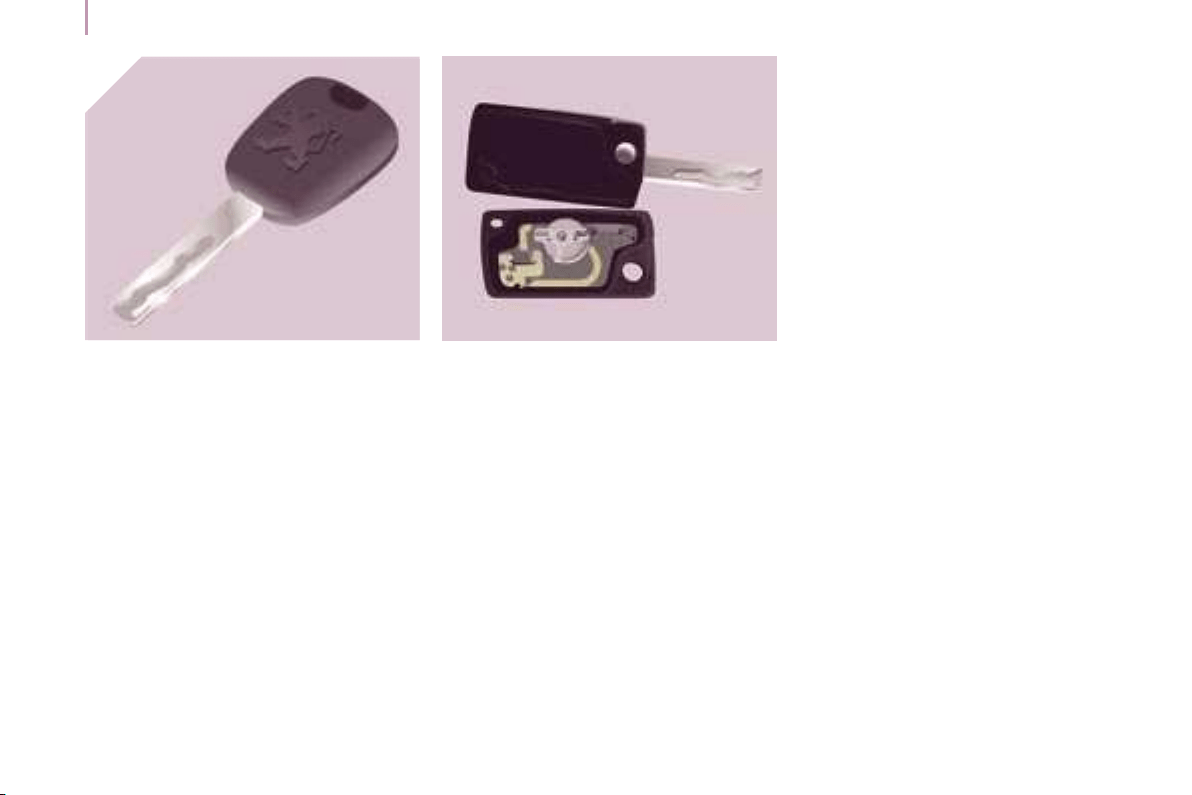

KEY
This locks and unlocks the locks on the
vehicle and starts the engine.
REMOTE CONTROL
Changing the battery
Battery ref.: CR1620/3 volts.
The information "battery flat" is given by an
audible signal, accompanied by a message
on the multifunction display.
To replace the battery, unclip the casing
using a coin at the ring. If the remote control
does not work after the battery has been
changed, re-programme the remote control.
There is a risk of damage if the replacement
battery does not conform.
ELECTRONIC IMMOBILISER
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition.
After the ignition is switched on, a dialogue
is established between the key and the
electronic immobiliser system.
The metal part of the key must be unfolded
correctly for correct dialogue to take place.
Good practice
Make a careful note of the number of the
keys. If they are lost, your PEUGEOT dealer
will be able to carry out his work more
quickly and effectively if you give him this
number and the confidential card.
Do not make any modifications to the
electronic immobiliser system.
Programming
the remote control
Following changing of the remote control
battery or disconnection of the vehicle
battery, the remote control must be
reprogrammed.
- Wait at least one minute before using the
remote control.
- Switch on the ignition.
- Press one of the two padlocks for at least
five seconds within the next ten seconds.
- Switch off the ignition.
- Wait at least one minute before using the
remote control.
The remote control is now working again.
Use only identical batteries or batteries of an
equivalent type to those recommended by a
PEUGEOT dealer.
Do not discard the remote control batteries,
they contain metals which are harmful to the
environment.
Deposit them at a PEUGEOT dealership, or
at any other approved collection point.
Accesses
13
2
ALARM
If fitted on your vehicle, this provides two
types of protection:
- exterior protection: it sounds if a front/rear
door or the bonnet is opened.
- interior protection: it sounds if the volume
inside the passenger compartment
changes (breaking of a window or a
movement inside the vehicle).
If your vehicle is fitted with a separation
partition, the interior protection is not active
in the load space.
Locking the vehicle with complete
alarm
Setting the alarm
Switch off the ignition and get out of the vehicle.
Set the alarm within five minutes of
getting out of the vehicle, by locking or
deadlocking using the remote control.
The red diode, located on the centre
console, flashes once per second.
Disarming
Unlock the vehicle with the remote control
or switch on the ignition, the red diode
goes out.
Locking the vehicle with exterior
protection only
If, while you are away from the vehicle, you
wish to leave a window partially open or a
pet inside the vehicle, you should choose
exterior protection only.
Switch off the ignition.
In the next ten seconds, press this
button, located on the centre
console, until the red diode is on
continuously.
Get out of the vehicle.
Within the next five minutes, set the
alarm by locking or deadlocking using the
remote control (the red diode flashes once
a second).
Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
However, if none of the doors are opened
within approximately thirty seconds following
unlocking, the doors relock automatically.
The simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.
The remote control does not operate while
the key is in the ignition, even if the ignition
is off.
When purchasing a second-hand vehicle:
- ensure that you are given the confidential
card,
- have the keys memorised by a PEUGEOT
dealer to ensure that the keys in your
possession are the only ones which can
start the vehicle.
Driving with the doors locked may
make access to the passenger
compartment by the emergency services
more difficult in an emergency.
As a safety precaution (with children on
board), remove the key from the ignition when
leaving the vehicle, even for a short time.
Accesses
READY TO SET OFF
12
KEY
This locks and unlocks the locks on the
vehicle and starts the engine.
REMOTE CONTROL
Changing the battery
Battery ref.: CR1620/3 volts.
The information "battery flat" is given by an
audible signal, accompanied by a message
on the multifunction display.
To replace the battery, unclip the casing
using a coin at the ring. If the remote control
does not work after the battery has been
changed, re-programme the remote control.
There is a risk of damage if the replacement
battery does not conform.
ELECTRONIC IMMOBILISER
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition.
After the ignition is switched on, a dialogue
is established between the key and the
electronic immobiliser system.
The metal part of the key must be unfolded
correctly for correct dialogue to take place.
Good practice
Make a careful note of the number of the
keys. If they are lost, your PEUGEOT dealer
will be able to carry out his work more
quickly and effectively if you give him this
number and the confidential card.
Do not make any modifications to the
electronic immobiliser system.
Programming
the remote control
Following changing of the remote control
battery or disconnection of the vehicle
battery, the remote control must be
reprogrammed.
- Wait at least one minute before using the
remote control.
- Switch on the ignition.
- Press one of the two padlocks for at least
five seconds within the next ten seconds.
- Switch off the ignition.
- Wait at least one minute before using the
remote control.
The remote control is now working again.
Use only identical batteries or batteries of an
equivalent type to those recommended by a
PEUGEOT dealer.
Do not discard the remote control batteries,
they contain metals which are harmful to the
environment.
Deposit them at a PEUGEOT dealership, or
at any other approved collection point.
Accesses
13
2
ALARM
If fitted on your vehicle, this provides two
types of protection:
- exterior protection: it sounds if a front/rear
door or the bonnet is opened.
- interior protection: it sounds if the volume
inside the passenger compartment
changes (breaking of a window or a
movement inside the vehicle).

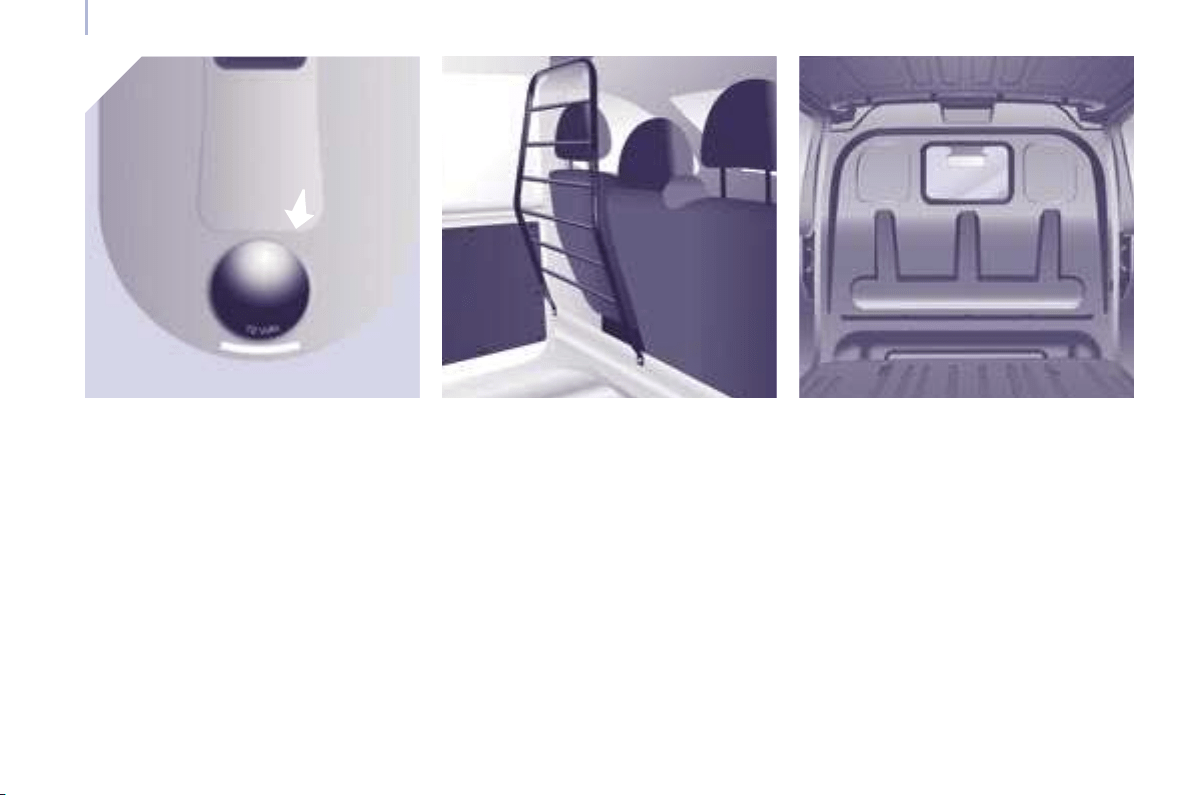

If your vehicle is fitted with a separation
partition, the interior protection is not active
in the load space.
Locking the vehicle with complete
alarm
Setting the alarm
Switch off the ignition and get out of the vehicle.
Set the alarm within five minutes of
getting out of the vehicle, by locking or
deadlocking using the remote control.
The red diode, located on the centre
console, flashes once per second.
Disarming
Unlock the vehicle with the remote control
or switch on the ignition, the red diode
goes out.
Locking the vehicle with exterior
protection only
If, while you are away from the vehicle, you
wish to leave a window partially open or a
pet inside the vehicle, you should choose
exterior protection only.
Switch off the ignition.
In the next ten seconds, press this
button, located on the centre
console, until the red diode is on
continuously.
Get out of the vehicle.
Within the next five minutes, set the
alarm by locking or deadlocking using the
remote control (the red diode flashes once
a second).
Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
However, if none of the doors are opened
within approximately thirty seconds following
unlocking, the doors relock automatically.
The simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.
The remote control does not operate while
the key is in the ignition, even if the ignition
is off.
When purchasing a second-hand vehicle:
- ensure that you are given the confidential
card,
- have the keys memorised by a PEUGEOT
dealer to ensure that the keys in your
possession are the only ones which can
start the vehicle.
Driving with the doors locked may
make access to the passenger
compartment by the emergency services
more difficult in an emergency.
As a safety precaution (with children on
board), remove the key from the ignition when
leaving the vehicle, even for a short time.
Accesses
READY TO SET OFF
12
KEY
This locks and unlocks the locks on the
vehicle and starts the engine.
REMOTE CONTROL
Changing the battery
Battery ref.: CR1620/3 volts.
The information "battery flat" is given by an
audible signal, accompanied by a message
on the multifunction display.
To replace the battery, unclip the casing
using a coin at the ring. If the remote control
does not work after the battery has been
changed, re-programme the remote control.
There is a risk of damage if the replacement
battery does not conform.
ELECTRONIC IMMOBILISER
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition.
After the ignition is switched on, a dialogue
is established between the key and the
electronic immobiliser system.
The metal part of the key must be unfolded
correctly for correct dialogue to take place.
Good practice
Make a careful note of the number of the
keys. If they are lost, your PEUGEOT dealer
will be able to carry out his work more
quickly and effectively if you give him this
number and the confidential card.
Do not make any modifications to the
electronic immobiliser system.
Programming
the remote control
Following changing of the remote control
battery or disconnection of the vehicle
battery, the remote control must be
reprogrammed.
- Wait at least one minute before using the
remote control.
- Switch on the ignition.
- Press one of the two padlocks for at least
five seconds within the next ten seconds.
- Switch off the ignition.
- Wait at least one minute before using the
remote control.
The remote control is now working again.
Use only identical batteries or batteries of an
equivalent type to those recommended by a
PEUGEOT dealer.
Do not discard the remote control batteries,
they contain metals which are harmful to the
environment.
Deposit them at a PEUGEOT dealership, or
at any other approved collection point.
Accesses
13
2
ALARM
If fitted on your vehicle, this provides two
types of protection:
- exterior protection: it sounds if a front/rear
door or the bonnet is opened.
- interior protection: it sounds if the volume
inside the passenger compartment
changes (breaking of a window or a
movement inside the vehicle).
If your vehicle is fitted with a separation
partition, the interior protection is not active
in the load space.
Locking the vehicle with complete
alarm
Setting the alarm
Switch off the ignition and get out of the vehicle.
Set the alarm within five minutes of
getting out of the vehicle, by locking or
deadlocking using the remote control.
The red diode, located on the centre
console, flashes once per second.
Disarming
Unlock the vehicle with the remote control
or switch on the ignition, the red diode
goes out.
Locking the vehicle with exterior
protection only
If, while you are away from the vehicle, you
wish to leave a window partially open or a
pet inside the vehicle, you should choose
exterior protection only.
Switch off the ignition.
In the next ten seconds, press this
button, located on the centre
console, until the red diode is on
continuously.
Get out of the vehicle.
Within the next five minutes, set the
alarm by locking or deadlocking using the
remote control (the red diode flashes once
a second).
Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
However, if none of the doors are opened
within approximately thirty seconds following
unlocking, the doors relock automatically.
The simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.
The remote control does not operate while
the key is in the ignition, even if the ignition
is off.
When purchasing a second-hand vehicle:
- ensure that you are given the confidential
card,
- have the keys memorised by a PEUGEOT
dealer to ensure that the keys in your
possession are the only ones which can
start the vehicle.
Driving with the doors locked may
make access to the passenger
compartment by the emergency services
more difficult in an emergency.
As a safety precaution (with children on
board), remove the key from the ignition when
leaving the vehicle, even for a short time.
Accesses
READY TO SET OFF
14
CONFIDENTIAL CARD
This is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a PEUGEOT
dealer on the electronic immobiliser system.
This code is hidden by a film, which should
be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.
Triggering
The siren sounds, the direction indicators
flash for approximately 30 seconds and the
red diode flashes rapidly.
To switch it off, insert the key and switch
on the ignition.
When the alarm has been triggered ten
times in succession (when triggered for the
eleventh time) it is deactivated. Repeat the
rules for setting the alarm.
Locking the vehicle without alarm
Insert the key in the lock on the driver’s
door and lock it.
Do not set the alarm when washing your
vehicle.
Failure of the remote control
When the alarm is set but the remote control
does not operate:
Unlock the doors with the key and open
the door. The alarm is triggered.
Switch on the ignition in the next ten
seconds. The alarm is disarmed.
Incorrect operation
When the ignition is switched on, if the red
diode remains on for ten seconds, there is a
fault in the siren connection.
Contact a PEUGEOT dealer to have the
system checked.
Automatic setting of the alarm
Depending on the country in which the
vehicle is sold, the alarm is set automatically
approximately 2 minutes after the last door
is closed.
To prevent triggering of the alarm when a
door is opened, it is imperative to press the
remote control unlocking button again.
Do not make any modifications to
the alarm system as this could cause
faults.
Accesses
14
CONFIDENTIAL CARD
This is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a PEUGEOT
dealer on the electronic immobiliser system.
This code is hidden by a film, which should
be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.
Triggering
The siren sounds, the direction indicators
flash for approximately 30 seconds and the
red diode flashes rapidly.
To switch it off, insert the key and switch
on the ignition.
When the alarm has been triggered ten
times in succession (when triggered for the
eleventh time) it is deactivated. Repeat the
rules for setting the alarm.
Locking the vehicle without alarm
Insert the key in the lock on the driver’s
door and lock it.
Do not set the alarm when washing your
vehicle.
Failure of the remote control
When the alarm is set but the remote control
does not operate:
Unlock the doors with the key and open
the door. The alarm is triggered.
Switch on the ignition in the next ten
seconds. The alarm is disarmed.
Incorrect operation
When the ignition is switched on, if the red
diode remains on for ten seconds, there is a
fault in the siren connection.
Contact a PEUGEOT dealer to have the
system checked.
Automatic setting of the alarm
Depending on the country in which the
vehicle is sold, the alarm is set automatically
approximately 2 minutes after the last door
is closed.
To prevent triggering of the alarm when a
door is opened, it is imperative to press the
remote control unlocking button again.
Do not make any modifications to
the alarm system as this could cause
faults.
Accesses
15
2
DOORS
From the outside
Use the remote control to lock/unlock the
vehicle.
Insert the metal part of the key in the lock on
the driver’s side if the remote control does
not work.
From the inside
Load space
Pressing permits locking/
unlocking of the rear doors from
the cab.
This selective accesses function is activated
on delivery. At your request, the network
can deactivate this opening selectivity
between the cab and load space, contact a
PEUGEOT dealer.
The doors can still be opened from the
inside.
The indicator light on the controls:
- flashes if the accesses are
locked when stationary with the
engine off,
- comes on if the accesses are
locked and from the time the
ignition is switched on.
Protection against attack
When the vehicle is started, the system
automatically locks the front doors. When
you reach approximately 6 mph (10 km/h),
the system locks the rear doors.
Activation/deactivation of the
function
With the ignition on, a long
press on this button activates or
deactivates the function.
Opening warning light
If this warning light comes on,
check that the cab doors and
the rear or side doors are closed
correctly.
Cab and load space
The first press permits central
locking of the front and rear
doors, if they are closed.
A second press permits central unlocking of
the vehicle.
The control does not work if the vehicle has
been locked using the remote control or the
key from the outside.
Accesses
READY TO SET OFF
16
SLIDING SIDE DOOR
If fitted on your vehicle, do not open the left-
hand side door while filling with fuel as you
risk damaging the fuel filler flap.
From the outside
Pull the handle towards you then towards
the rear.
From the inside
To unlock and open, push the handle
towards the rear. Ensure that the door opens
fully to lock the device at the base of the
door.
Good practice
Take care not to block the guide space on
the floor to allow the door to slide correctly.
For safety and operation reasons, do not
drive with the sliding side door open.
Accesses
17
2
HINGED REAR DOORS
From the outside
The two hinged doors open to 90°.
To open, pull the handle towards you then
pull the lever to open the left-hand door.
To close, start with the left-hand door then
close the right-hand door.
Opening to 180°
A retractable check strap system permits
extension of the opening from 90° to 180°.
Disengage the check strap towards you
when the door is partially open.
The check strap will re-attach automatically
on closing.
When parked with the rear
doors open to 90°, the doors
mask the rear lights.
To signal your position to
road users travelling in the
same direction who may
not have noticed that you
have stopped, use a warning
triangle or any other device
stipulated by the legislation
and regulations of your
country.
TAILGATE
From the outside
If fitted on your vehicle, locking/unlocking is
via the remote control.
To open, press the control then raise the
tailgate.
A strap is provided to secure the tailgate in
the upper position.
From inside
Emergency control
In the event of a central unlocking operating
fault, this permits unlocking of the tailgate
from the inside.
Fold the rear seats to gain access to the
lock.
Insert a small screwdriver in this opening to
unlock the tailgate.
Accesses
READY TO SET OFF
1
1
2
2
3
3
4
4
6
5
6
5
18
INSTRUMENT PANEL
1 - Distance recorder in kilometres/miles.
2 - Display.
3 - Fuel level, coolant temperature.
4 - Rev counter.
5 - Instrument panel lighting rheostat.
6 - Trip distance recorder/service indicator
zero reset.
Instrument panel display
- Speed limiter/cruise control.
- Kilometres/Miles travelled.
- Service indicator, engine oil level indicator,
total kilometres/miles.
- Presence of water in the diesel filter.
- Diesel pre-heating.
Warning lights and controls on the
overhead storage unit
- Driver/passenger seat belt not fastened
warning lights (version with 2 front seats).
- Passenger air bag disarmed warning light.
- Driver/passenger heated seat controls
(version with 2 front seats).
INSTRUMENTS AND CONTROLS
Instruments and controls
19
2
Instruments and controls
ADJUSTING THE TIME
Instrument panel without display
Centre console without display
To adjust the time of the clock
on the instrument panel, use
the left-hand button on the
instrument panel then carry out
the operations in the following order:
- turn to the left: the minutes flash,
- turn to the right to increase the minutes
(hold the button to the right for rapid
scrolling),
- turn to the left: the hours flash,
- turn to the right to increase the hours (hold
the button to the right for rapid scrolling),
- turn to the left: 24 H or 12 H is displayed,
- turn to the right to select 24 H or 12 H,
- turn to the left to complete the time
adjustment.
After approximately 30 seconds without any
action, the display returns to the normal
display.
Centre console with display
To adjust the time and date indicated
on the display, refer to the "Adjusting
the date and time" section of chapter 4.
READY TO SET OFF
20
Instruments and controls
WARNING LIGHTS
Each time the vehicle is started: a series of warning lights come on applying a check auto-test. They switch off almost immediately. Engine
running: the warning light becomes a warning if it remains on continuously or flashes. This initial warning may be accompanied by an audible
signal and a message on the display. "Do not ignore these warnings."
Warning light
is
indicates Solution - action
STOP
lit, associated
with another
warning light and
accompanied by
a message on the
display.
major faults linked with the "Brake
fluid level", "Engine oil pressure
and temperature", "Coolant
temperature", "Electronic brake
force distribution" and "Power
steering" warning lights.
You must stop, park, switch off the ignition and call a
PEUGEOT dealer.
Handbrake/
Brake fluid
level/EBFD
lit.
handbrake applied or not released
correctly.
lit.
remaining on,
even though the
level is correct and
associated with the
ABS warning light.
failure of the electronic brake force
distribution.
Releasing the handbrake switches off the warning light.
Top up using a fluid recommended by PEUGEOT.
You must stop, park, switch off the ignition and call a
PEUGEOT dealer.
low brake fluid level.
Engine oil
pressure and
temperature
lit while driving.
remaining on, even
though the level is
correct.
major fault.
Park, switch off the ignition and allow to cool. Visually check
the level. Chapter 7, "Levels" section.
Call a PEUGEOT dealer.
insufficient pressure or temperature
too high.
21
2
Instruments and controls
Warning light
is
indicates Solution - action
Coolant
temperature and
level
lit with needle in the
red zone.
abnormal increase in temperature.
Park and switch off the ignition then allow to cool. Visually
check the level.
flashing.
drop in coolant level. Chapter 7, "Levels" section. Contact a PEUGEOT dealer.
lit temporarily.
minor faults or warnings.
Service
Consult the warnings log on the display or on the screen. See
chapter 4, "RD4/RT3 - Trip computer" section, depending on
the seriousness of the fault, contact a PEUGEOT dealer.

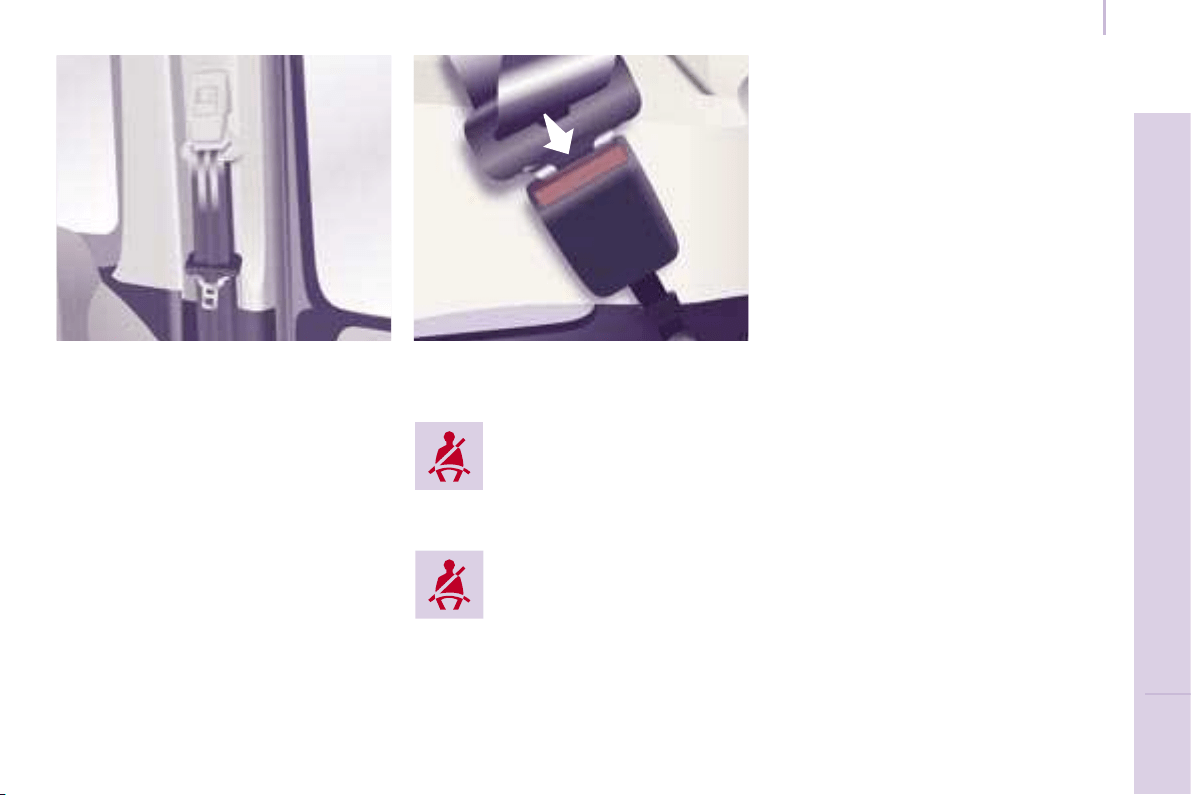

1st row seat belt
not fastened
lit then flashing.
accompanied by an
audible signal then
remains on.
the vehicle is moving with the driver
or front passenger seat belt not
fastened.
Pull the strap then insert the tongue in the buckle.
Check that the seat belt is fastened by pulling the strap.
Chapter 5, "Seat belts" section.
the driver or a front passenger has
not fastened his seat belt.
Driver’s seat belt
not fastened
(warning light
on the overhead
storage unit)
lit.
the driver has not fastened his seat
belt.
Pull the strap then insert the tongue in the buckle.
Passenger
seat belt not
fastened
(warning
light on the
overhead
storage unit)
lit.
the front passenger has not
fastened his seat belt.
Pull the strap then insert the tongue in the buckle.
remaining on.
major faults.
READY TO SET OFF
22
Instruments and controls
Warning light
is
indicates
Solution - action
Low fuel level
lit with gauge
needle in the red
zone.
fuel reserve being used.
Fill up with fuel without delay. The evaluation of the fuel
reserve is a parameter which is sensitive to the style of driving,
the profile of the road, the time elapsed and the distance
travelled from the time the warning light comes on.
EOBD emission
control system
flashing or
remaining on.
failure of the system.
Have the system checked by a PEUGEOT dealer as soon as
possible.
Battery charge
lit.
remaining on, in
spite of the checks.
faulty circuit, injection or ignition
malfunction.
Check the battery terminals, … Chapter 8, "Battery" section.
Call a PEUGEOT dealer.
fault in the charging circuit.
Front/side air
bag
flashing or
remaining on.
failure of an air bag.
Have the system checked by a PEUGEOT dealer without delay.
Chapter 5, "Air bags" section.
Front passenger
air bag disarmed
lit.
intentional disarming of this air bag
in the presence of a rear facing child
seat.
Chapter 5, "Air bags-children on board" section.
flashing.
cutting off of the supply following a
serious impact.
Restore the supply. Chapter 7, "Fuel" section.
flashing.
Chapter 8, "Battery" section.
placing of the active functions on
standby (economy mode).
ABS
23
2
Instruments and controls
Warning light
is
indicates Solution - action
Power steering
lit.
system malfunction.
The vehicle retains conventional steering without assistance.
Have the system checked by a PEUGEOT dealer.
Opening
detection
lit and accompanied
by a message on
the display.
access not closed correctly.
Check that the cab doors, the rear and side doors and the
bonnet are closed (if your vehicle is fitted with an alarm).
ABS
remaining on.
failure of the anti-lock braking
system.
The vehicle retains conventional braking without assistance but
you are advised to stop. Call a PEUGEOT dealer.
Rear suspension
with pneumatic
compensation
flashing.
abnormal difference between
the detected sill height and the
optimum sill height.
In automatic correction mode: drive slowly (approximately
6 mph (10 km/h)) until the warning light is switched off.
In manual correction mode: return the sill which is still at
the upper or lower limit to an optimum height. Chapter 4,
"Suspension with compensation" section.
ESP
flashing. wheel skid avoided.
The system optimises drive and permits improvement of the
directional stability of the vehicle. Chapter 5, "Driving safety"
section.
remaining on.
system malfunction.
E.g.: under-inflation of the tyres.
Check the pressure of the tyres. Call a PEUGEOT dealer.
remaining on with
the diode on the
button (on the
fascia) lit.
deactivation of the system.
Operation of the system is deactivated.
lit on starting or
while driving.
failure of the pneumatic
compensation.
You must stop. Call a PEUGEOT dealer.
READY TO SET OFF
24
Instruments and controls
Warning light
is
indicates Solution - action
pulling of the stalk towards you.
Pull the stalk to return to dipped headlamps.
Direction
indicators
flashing with buzzer.
change of direction via the lights
stalk, to the left of the steering
wheel.
To the Right: control to be pushed upwards.
To the Left: control to be pushed downwards.
Front fog lamps
lit.
manual selection.
The fog lamps only operate if the side lights or dipped
headlamps are on.
Rear fog lamps
lit.
Dipped
headlamps/
Daytime lights
lit.
lighting of the dipped headlamps from
the time the ignition is switched on
- daytime lights.
Rotate the ring on the lights stalk to the second position.
Depending on the country in which the vehicle is sold.
Chapter 3, "Steering wheel controls" section.
manual selection or automatic
lighting.
Main beam
headlamps
Brake pads
lit.
brake pad wear.
Have the pads replaced by a PEUGEOT dealer.
manual selection.
The fog lamps only operate if the side lights or dipped
headlamps are on. In conditions of normal visibility, take care
to switch them off on penalty of being booked. "This light is a
dazzling red."
25
2
Instruments and controls
Service spanner lit.
service due shortly.
Refer to the list of checks in the servicing booklet. Have the
service carried out by a PEUGEOT dealer.
Display
is
indicates
Time
displayed.
adjustment of the time.
Use the left-hand button on the instrument panel. Chapter 2, at
the beginning of the "Instruments and controls" section.
Diesel pre-
heating
lit.
climatic conditions requiring pre-
heating.
Wait until the warning light is switched off before operating the
starter.

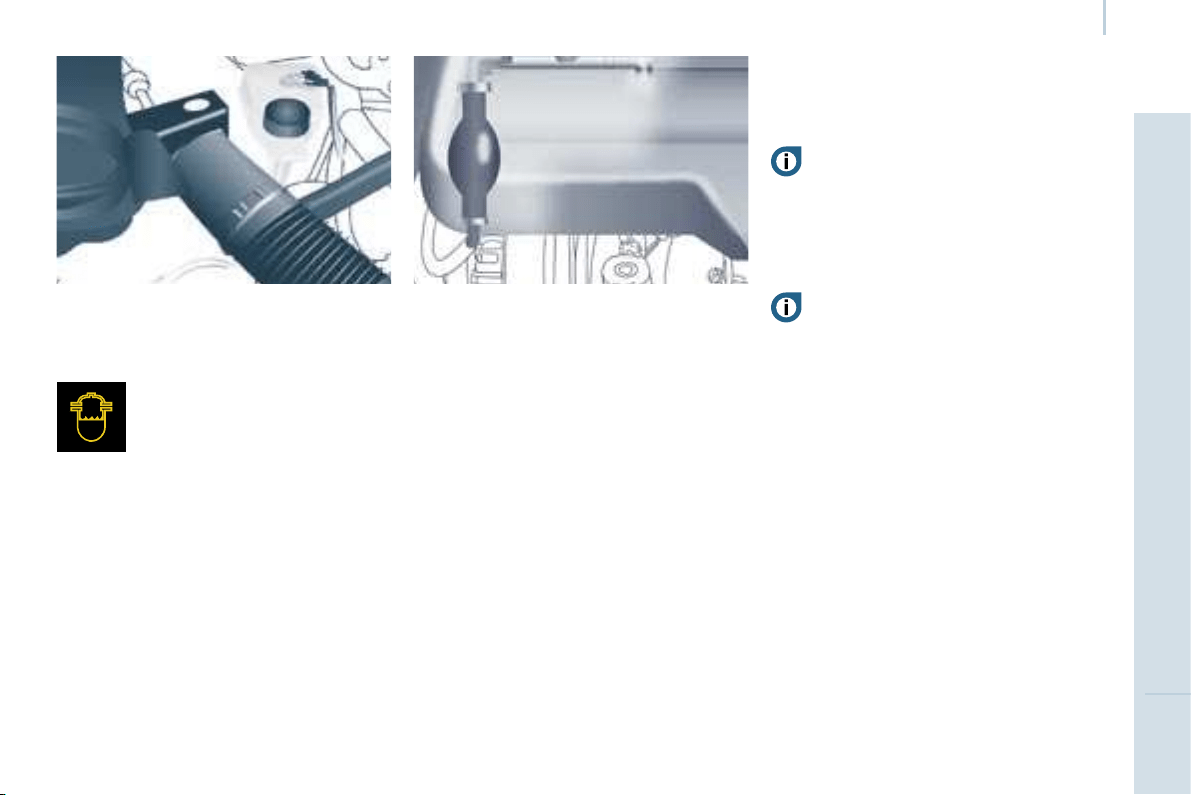

Presence of
water in the
diesel filter
lit and accompanied
by a message on
the display.
water in the diesel filter.
Have the filter bled by a PEUGEOT dealer without delay.
Chapter 7, "Checks" section.
Cruise control
lit. cruise control selected. Manual selection. Chapter 3, "Steering wheel controls" section.
Speed limiter
lit. speed limiter selected. Manual selection. Chapter 3, "Steering wheel controls" section.
Solution - action
READY TO SET OFF
26
Instruments and controls
FUEL GAUGE
The fuel level is tested each time the key is
turned to the "running" position.
The gauge is positioned on:
- 1: the fuel tank is full, approximately 80 litres.
- 0: the reserve is now being used, the
warning light comes on continuously.
The reserve when the warning first comes
on is approximately 8 litres.
Refer to the "Fuel" section of chapter 7.
COOLANT TEMPERATURE
The needle is positioned between the
blue zone and the red zone: normal
operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations.
What you should do if the needle enters
the red zone, or if the warning light
comes on:
- stop immediately, switch off the ignition.
The fan may continue to operate for
a certain time up to approximately
10 minutes.
- wait for the engine to cool down in order to
check the level and top it up if necessary.
As the cooling system is pressurised, follow
this advice in order to avoid any risk of
scalding:
- unscrew the cap by two turns to allow the
pressure to drop,
- when the pressure has dropped, check the
level on the expansion bottle,
- if necessary, remove the cap to top up.
If the needle remains in the red zone,
contact a PEUGEOT dealer.
Refer to the "Levels" section of chapter 7.
EMISSION CONTROL
EOBD (European On Board
Diagnosis) is a diagnostics
system which complies with,
among others, the standards
concerning authorised
emissions of:
- CO (carbon monoxide),
- HC (unburnt hydrocarbons),
- NOx (nitrogen oxides) or particles,
detected by oxygen sensors placed
26
Instruments and controls
FUEL GAUGE
The fuel level is tested each time the key is
turned to the "running" position.
The gauge is positioned on:
- 1: the fuel tank is full, approximately 80 litres.
- 0: the reserve is now being used, the
warning light comes on continuously.
The reserve when the warning first comes
on is approximately 8 litres.
Refer to the "Fuel" section of chapter 7.
COOLANT TEMPERATURE
The needle is positioned between the
blue zone and the red zone: normal
operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations.
What you should do if the needle enters
the red zone, or if the warning light
comes on:
- stop immediately, switch off the ignition.
The fan may continue to operate for
a certain time up to approximately
10 minutes.
- wait for the engine to cool down in order to
check the level and top it up if necessary.
As the cooling system is pressurised, follow
this advice in order to avoid any risk of
scalding:
- unscrew the cap by two turns to allow the
pressure to drop,
- when the pressure has dropped, check the
level on the expansion bottle,
- if necessary, remove the cap to top up.
If the needle remains in the red zone,
contact a PEUGEOT dealer.
Refer to the "Levels" section of chapter 7.
EMISSION CONTROL
EOBD (European On Board
Diagnosis) is a diagnostics
system which complies with,
among others, the standards
concerning authorised
emissions of:
- CO (carbon monoxide),
- HC (unburnt hydrocarbons),
- NOx (nitrogen oxides) or particles,
detected by oxygen sensors placed
27
2
Instruments and controls
Operation
A few moments after the ignition has been
switched on, the spanner indicating a
service operation lights up; the display for
the total distance recorder tells you (in round
figures) the distance remaining before the
next service.
The points at which a service is due are
calculated from the last indicator zero reset.
The point at which a service is due is
determined by two parameters:
the distance travelled.
the time which has elapsed since the last
service.

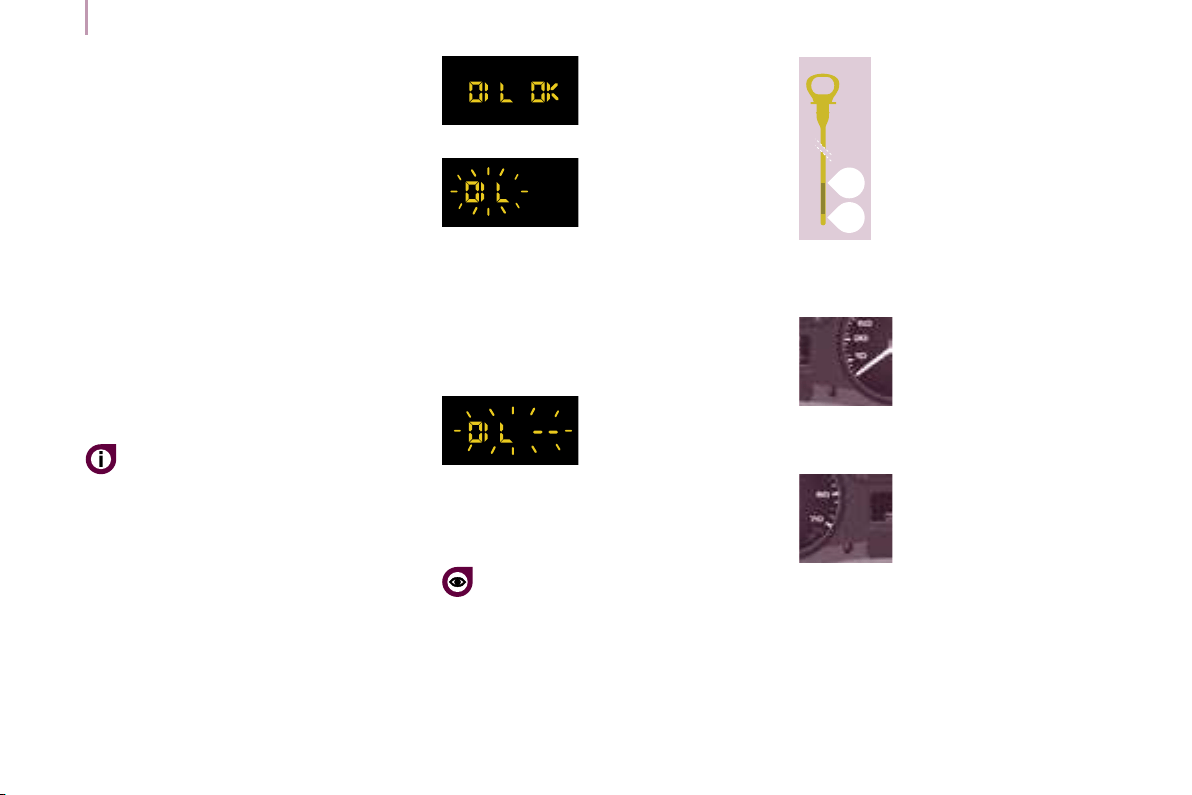

A few seconds after the ignition is switched
on, the oil level is displayed, then the total
distance recorder resumes normal operation
showing the total and trip distances.
Less than 1 000 miles/km before the next
service is due
Each time the ignition is switched on and
for a few seconds, the spanner flashes and
the number of miles/kilometres remaining is
displayed:
A few seconds after the ignition is switched
on, the oil level is displayed, then the total
distance recorder resumes normal operation
and the spanner remains lit. This indicates
that a service should be carried out shortly.
Service overdue
Each time the ignition is
switched on and for a few
seconds, the spanner flashes
and the excess distance is
displayed.
With the engine running the spanner
remains lit until the service has been
carried out.
First of the two terms reached: the spanner
also lights up if the two-year interval has
elapsed.
The distance remaining before the next
service may be weighted by the time
factor, depending on the driver’s driving
habits.
More than 1 000 miles/km before the next
service is due
Example: 4 800 miles/km remain before
the next service is due. When the ignition
is switched on and for a few seconds, the
display shows:
SERVICE INDICATOR
This programmes service intervals according
to the use of the vehicle.
upstream and downstream of the catalytic
converters.
Therefore, the driver is warned of any
malfunction of this emission control system
by the lighting of this specific warning light
on the instrument panel.
READY TO SET OFF
27
2
Instruments and controls
Operation
A few moments after the ignition has been
switched on, the spanner indicating a
service operation lights up; the display for
the total distance recorder tells you (in round
figures) the distance remaining before the
next service.
The points at which a service is due are
calculated from the last indicator zero reset.
The point at which a service is due is
determined by two parameters:
the distance travelled.
the time which has elapsed since the last
service.
A few seconds after the ignition is switched
on, the oil level is displayed, then the total
distance recorder resumes normal operation
showing the total and trip distances.
Less than 1 000 miles/km before the next
service is due
Each time the ignition is switched on and
for a few seconds, the spanner flashes and
the number of miles/kilometres remaining is
displayed:
A few seconds after the ignition is switched
on, the oil level is displayed, then the total
distance recorder resumes normal operation
and the spanner remains lit. This indicates
that a service should be carried out shortly.
Service overdue
Each time the ignition is
switched on and for a few
seconds, the spanner flashes
and the excess distance is
displayed.
With the engine running the spanner
remains lit until the service has been
carried out.
First of the two terms reached: the spanner
also lights up if the two-year interval has
elapsed.
The distance remaining before the next
service may be weighted by the time
factor, depending on the driver’s driving
habits.
More than 1 000 miles/km before the next
service is due
Example: 4 800 miles/km remain before
the next service is due. When the ignition
is switched on and for a few seconds, the
display shows:
SERVICE INDICATOR
This programmes service intervals according
to the use of the vehicle.
upstream and downstream of the catalytic
converters.
Therefore, the driver is warned of any
malfunction of this emission control system
by the lighting of this specific warning light
on the instrument panel.
READY TO SET OFF
A
B
A
B
28
Instruments and controls
After this operation, if you wish to
disconnect the battery, lock the vehicle
and wait for at least five minutes, otherwise
the zero re-set will not be registered.
Zero re-set
Your PEUGEOT dealer carries out this
operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as follows:
Switch off the ignition,
Press and hold the trip recorder re-set
button,
Switch on the ignition.
The display begins a countdown.
When the display shows "=0", release the
button; the spanner disappears.
Engine oil level indicator
When the ignition is switched on, the engine
oil level is indicated for a few seconds, after
the service information.
Oil level correct
Lack of oil
Flashing of "OIL", linked
with the service warning
light, accompanied by
an audible signal and a
message on the display, indicates a lack of
oil which could damage the engine.
If the lack of oil is confirmed by a check
using the dipstick, it is essential that the
level is topped up.
Oil level gauge fault
Flashing of "OIL --"
indicates a malfunction
of the engine oil level
gauge. Contact a
PEUGEOT dealer.
The level read will only be correct
if the vehicle is on level ground and
the engine has been off for more than
15 minutes.

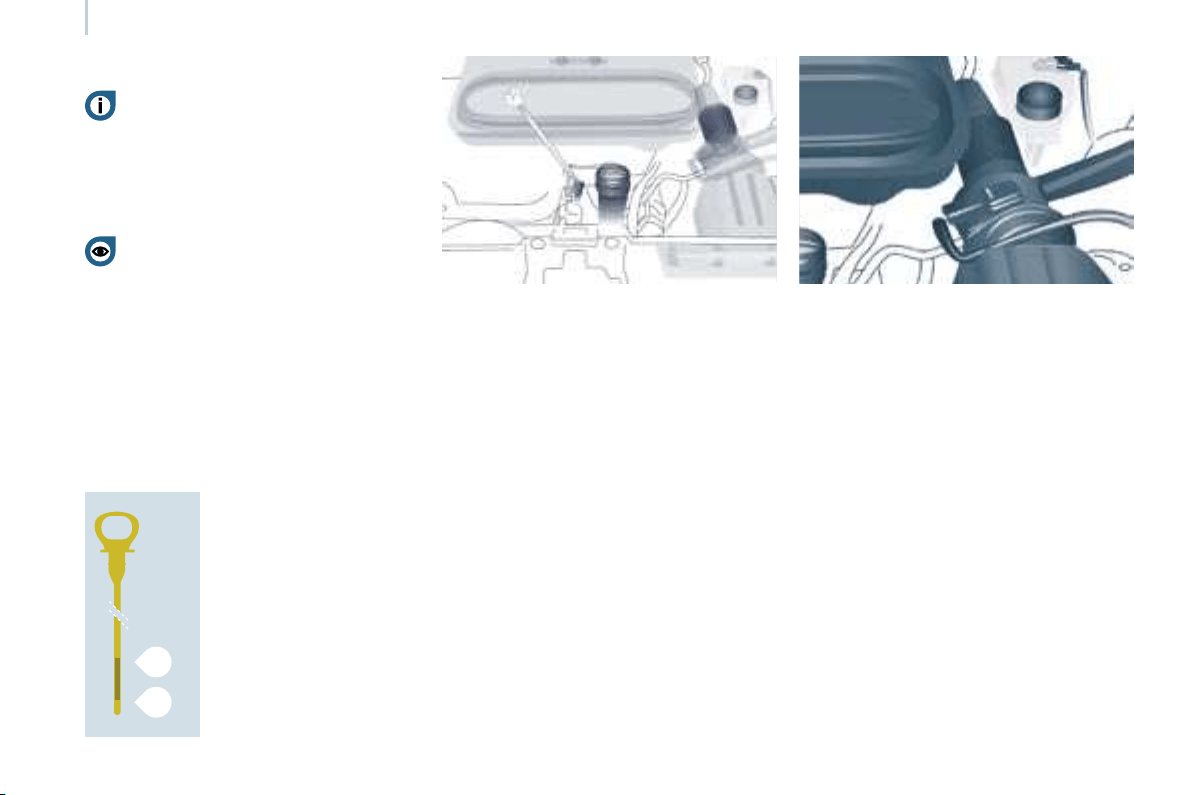

Dipstick
A = maximum, never exceed
this level as a surplus of oil may
damage the engine.
Contact a PEUGEOT dealer
without delay.
B = minimum, top up the level via
the oil filler cap, using the type of
oil suited to your engine.
Trip recorder zero reset
button
With the ignition on, press the
button until the zeros appear.
Lighting rheostat
With the lights on, press the
button to vary the intensity of
the lighting of the instruments
and controls. When the
lighting reaches the minimum (or maximum)
setting, release the button then press it
again to increase (or reduce) the brightness.
As soon as the lighting is of the required
brightness, release the button.
A
B
A
B
28
Instruments and controls
After this operation, if you wish to
disconnect the battery, lock the vehicle
and wait for at least five minutes, otherwise
the zero re-set will not be registered.
Zero re-set
Your PEUGEOT dealer carries out this
operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as follows:
Switch off the ignition,
Press and hold the trip recorder re-set
button,
Switch on the ignition.
The display begins a countdown.
When the display shows "=0", release the
button; the spanner disappears.
Engine oil level indicator
When the ignition is switched on, the engine
oil level is indicated for a few seconds, after
the service information.
Oil level correct
Lack of oil
Flashing of "OIL", linked
with the service warning
light, accompanied by
an audible signal and a
message on the display, indicates a lack of
oil which could damage the engine.
If the lack of oil is confirmed by a check
using the dipstick, it is essential that the
level is topped up.
Oil level gauge fault
Flashing of "OIL --"
indicates a malfunction
of the engine oil level
gauge. Contact a
PEUGEOT dealer.
The level read will only be correct
if the vehicle is on level ground and
the engine has been off for more than
15 minutes.
Dipstick
A = maximum, never exceed
this level as a surplus of oil may
damage the engine.
Contact a PEUGEOT dealer
without delay.
B = minimum, top up the level via
the oil filler cap, using the type of
oil suited to your engine.
Trip recorder zero reset
button
With the ignition on, press the
button until the zeros appear.
Lighting rheostat
With the lights on, press the
button to vary the intensity of
the lighting of the instruments
and controls. When the
lighting reaches the minimum (or maximum)
setting, release the button then press it
again to increase (or reduce) the brightness.
As soon as the lighting is of the required
brightness, release the button.
29
2
Gearboxes and steering wheel
To change gear easily, always press the
clutch pedal fully.
To prevent the mat from becoming caught
under the pedal:
- ensure that the mat is positioned correctly,
- never fit one mat on top of another.
When driving, avoid leaving your hand on
the gear knob as the force exerted, even if
slight, may wear the internal components of
the gearbox over time.
6-speed reverse gear
Raise the collar under the gear knob to
engage reverse gear.
Never engage reverse gear before the
vehicle is completely stationary.
The lever should be moved slowly to reduce
the noise on engaging reverse gear.
STEERING WHEEL HEIGHT AND
DEPTH ADJUSTMENT
When the vehicle is stationary, unlock the
steering wheel by lowering the lever.
Adjust the height and depth of the steering
wheel, then lock by pushing the lever fully
upwards.
GEARBOXES AND STEERING WHEEL
6-speed gearbox5-speed gearbox
READY TO SET OFF
30
Starting and stopping

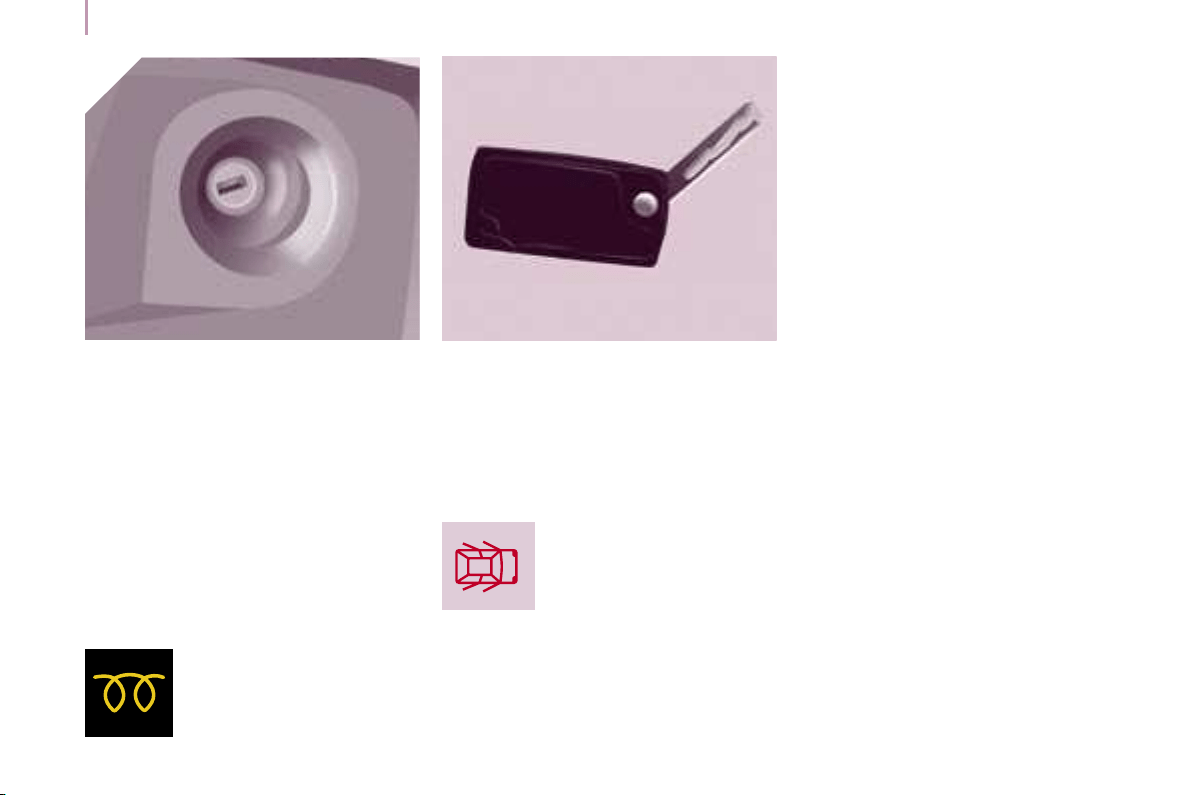

STARTING AND STOPPING
Running and accessories position.
Certain accessories can be used.
Starting position.
The starter is operated.
STOP position: steering lock.
The ignition is off.
Good practice when starting
Diesel pre-heating warning
light
Turn the key to the Running
position.
In cold weather, wait for this warning light to
switch off then operate the starter (Starting
position) until the engine starts.
If the temperature is high enough, the
warning light comes on for less than one
second, you can start without waiting.
Door or bonnet open
warning light
If this comes on, a door or the
bonnet is not closed correctly,
check!
Key
Take care not to allow the key to come into
contact with grease, dust, rain or a damp
environment.
A heavy object attached to the key (keyring,
...) weighing on the shaft of the key in the
switch may cause a malfunction.
Good practice when stopping
Minimise engine and gearbox wear
When switching off the ignition, let the
engine run for a few seconds to allow the
turbocharger to return to idle.
Do not press the accelerator when switching
off the ignition.
There is no need to engage a gear after
parking the vehicle.
B
A
Dipped beam/main beam change
Pull the stalk fully towards you.
Lights-on buzzer
When the ignition is switched off, when the
driver’s door is opened, a buzzer sounds if
you have left your lights on.
Automatic lights
If your vehicle is fitted with a
brightness sensor.
Lights off
Dipped beam (green)
Main beam (blue)
LIGHTING CONTROL
Front and rear lights
Selection is by turning ring A.
STEERING WHEEL CONTROLS
Checking by means of the indicator
lights on the instrument panel is
described in the "Instruments and controls"
section of chapter 2.
Side lights
Steering wheel controls
31
ERGONOMICS and COMFORT
3
32
Front fog lights (green)
and rear fog lights (amber,
2nd rotation of the ring
forwards).
To switch off the front and rear fog
lights, turn the ring rearwards twice in
succession.
Direction indicators
(green flashing)
Left: downwards.
Right: upwards.
In clear weather or in rain, both day
and night, rear fog lights dazzle and
are prohibited.
Do not forget to switch them off when they
are no longer needed.
Automatic switching on of the lights switches
off the rear fog lamps, but the front fog
lamps remain on.
Daytime lights
Depending on the country in which the
vehicle is sold, the vehicle may be equipped
with daytime lights.
The dipped headlamps come on when the
vehicle is started.
This warning light comes on on
the instrument panel.
The instruments and controls
(instrument panel, display, air
conditioning control panel, ...) are only lit
on switching to the automatic switching on
of the lights mode or when the lights are
switched on manually.
Front and rear fog lights
Rotate ring B forwards to switch on and
rearwards to switch off. The status is
confirmed by the light on the instrument
panel.
These operate with the side lights and the
dipped beam headlamps.
Front fog lights (green, 1st
rotation of the ring forwards).
Steering wheel controls
33
3
In foggy weather or in snow, the
brightness sensor can detect sufficient
light. As a consequence, the lights will not
come on automatically.
Automatic switching on of the lights
If your vehicle is fitted
with a brightness sensor,
the side lights and dipped
beam headlamps switch
on automatically if the light
is poor, or during operation of the windscreen
wipers. They switch off as soon as the light
becomes bright enough or the windscreen
wipers stop. This function is not compatible with
the daytime lights.
Activation
Turn the ring to the AUTO position. The
activation of this function is accompanied by
a message on the display.
Deactivation
Turn the ring forwards or rearwards. The
deactivation of this function is accompanied
by a message on the display.
The function is deactivated temporarily when
you use the manual lights stalk.
If the brightness sensor does not
function correctly, the lights come on
accompanied by the service warning light,
an audible signal and a message on the
display.
Contact a PEUGEOT dealer.
HEADLAMP BEAM
Depending on the load in your vehicle, the
beam setting must be adjusted.
0 - No load.
1 - Partial load.
2 - Average load.
3 - Maximum authorised load.
Initial setting is position 0.
Do not cover the brightness sensor
located on the windscreen, behind the
mirror. It is used for the automatic switching
on of the lights and for the automatic wipers.
Steering wheel controls
ERGONOMICS and COMFORT
34
WINDSCREEN WIPER STALK
Manual windscreen wipers
The command must be reactivated
whenever the ignition has been switched
off for more than one minute:
move the stalk to any position,
then move it back to the required position.
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
l Intermittent wipe.
0 Off.
Single wipe (press downwards).
In the Intermittent position, the wiping speed
is in proportion to the vehicle speed.
Special position of the windscreen
wipers
In the minute following switching off of the
ignition, any action on the stalk positions the
wipers against the windscreen uprights.
Vehicle fitted with the
automatic windscreen
wipers control
Do not cover this rain sensor,
located in the centre of the windscreen,
behind the mirror.
On vehicles which are fitted with this control,
in the AUTO position, the windscreen wipers
This action enables you to position the
wiper blades for winter parking, cleaning or
replacement.
Refer to the "Changing a windscreen
wiper blade" section of chapter 8.
To park the wipers in their normal position
after this has been done, switch on the
ignition and move the stalk.
Wash-wipe and headlamp wash
Pull the stalk towards you, the wash-wipe
is accompanied by a timed sweep of the
wipers.
If your vehicle is fitted with this function, the
headlamp wash is linked with the wash-
wipe, it is triggered if the dipped headlamps
are on.
To top up the levels, refer to the
"Levels" section of chapter 7.
Steering wheel controls
35
3
operate automatically and adapt their
speed to the intensity of the rainfall.
When not in AUTO mode, for the other
positions, refer to the manual windscreen
wipers section.
Activation
Press the control downwards. Activation of
the function is accompanied by a message
on the display.
The automatic windscreen wipers
function must be reactivated if the ignition
has been switched off for more than one
minute, by pressing the stalk downwards.
Deactivation/Switching off
Place the windscreen wipers stalk in position
I, 1 or 2. Deactivation of the function is
accompanied by a message on the display.
In the event of malfunction of the
automatic windscreen wipers, the
windscreen wipers will operate in
intermittent mode.
Contact a PEUGEOT dealer to have the
system checked.
When using an automatic car wash,
switch off the ignition.
In winter, it is advisable to wait for the
windscreen to completely clear of ice before
operating the automatic wipe.
Rear windscreen wiper
If fitted on your vehicle, turn the
ring to the first notch.
Rear windscreen wash
Turn the ring past the first notch:
the windscreen wash then the
windscreen wiper operate for a
fixed time.
In winter, in the event of a considerable
amount of snow or ice, switch on the
rear screen demister. Once de-icing is
complete, remove the snow or ice which has
accumulated on the rear wiper blade. You
can then operate the rear windscreen wiper.
Steering wheel controls
ERGONOMICS and COMFORT
36
Steering wheel controls
CRUISE CONTROL "CRUISE"
"This is the speed at which the driver wishes
to drive".
This aid to driving in free-flowing traffic
enables the vehicle to maintain the speed
programmed by the driver, unless a steep
gradient makes this impossible.
In order for it to be programmed or
activated, the vehicle speed must be greater
than 25 mph (40 km/h) with at least 4th gear
engaged.
If the vehicle is fitted with a speed limiter
and cruise control (according to the country
in which the vehicle is sold and the engine),
these functions cannot be activated at the
same time.
Function selected,
displaying of the "Cruise
Control” symbol.
Function deactivated,
OFF (example at
107 km/h).
Function activated
(example at 107 km/h).
Vehicle speed above
(e.g. 118 km/h),
the programmed speed
is displayed flashing.
Operating fault detected,
OFF - the dashes flash.
This cruise control shows the function
selection status on the instrument panel and
displays the programmed speed:
37
3
Selecting the function
Place the switch in the CRUISE position.
The cruise control is selected but is not yet
active and no speed has been programmed.
First activation/
programming a
speed
Reach the chosen
speed by pressing the
accelerator.
Press the SET - or
SET + button.
This programmes/activates the reference
speed and the vehicle will maintain this
speed.
Temporary
exceeding of the speed
It is possible to accelerate and drive
momentarily at a speed greater than the
programmed speed. The value programmed
flashes.
When the accelerator pedal is released, the
vehicle will return to the programmed speed.
Reactivation
Following deactivation of the cruise
control, press this button.
Your vehicle will return to the last
programmed speed.
Alternatively, you can repeat the "first
activation" procedure.
Deactivation (off)
Press this button or the
brake or clutch pedal.
Steering wheel controls
ERGONOMICS and COMFORT
38
Switching the function off
Place the dial in position 0 or switch off
the ignition to switch everything off.
Cancelling the programmed
reference speed
When the vehicle becomes stationary, after
switching off the ignition, the system no
longer memorises a speed.
Good practice
When changing the programmed reference
speed by means of a maintained press,
pay attention as the speed can increase or
decrease rapidly.
Do not use the cruise control on slippery
roads or in heavy traffic.
In the event of a steep slope, the cruise
control cannot prevent the vehicle from
exceeding the programmed speed.
In any event, the cruise control cannot
replace the need to observe the speed
limits, nor can it replace the need for
vigilance and responsibility on the part of the
driver.
To avoid any jamming under the pedals:
- ensure that the mat is positioned correctly,
- never place one mat on top of another.
Changing the
programmed speed
There are two methods of
memorising a speed higher
than the previous one:
Without using the accelerator:
press the Set + button.
A brief press increases the speed by
1 mph (km/h).
A maintained press increases the speed in
steps of 5 mph (km/h).
Using the accelerator:
exceed the memorised speed until the
speed required is reached,
press the Set + or Set - button.
To memorise a speed lower than the
previous one:
press the Set - button.
A brief press decreases the speed by
1 mph (km/h).
A maintained press decreases the speed
in steps of 5 mph (km/h).
Operating fault
The programmed speed is cleared then
replaced by three dashes.
Contact a PEUGEOT dealer to have the
system checked.
Steering wheel controls
39
3
SPEED LIMITER "LIMIT"
"This is the selected speed which the driver does
not wish to exceed". This selection is made with
the engine running while stationary or with the
vehicle moving. The minimum speed which can
be programmed is 20 mph (30 km/h).
The speed of the vehicle responds to the
pressure of the driver’s foot as far as the
accelerator pedal point of resistance which
indicates that the programmed speed has been
reached.
However, pressing the pedal beyond this point of
resistance to the floor permits exceeding of the
programmed speed.
To resume use of the limiter, simply reduce
the pressure on the accelerator pedal
gradually and return to a speed below that
programmed.
If the vehicle is fitted with a speed limiter
and cruise control (according to the country
in which the vehicle is sold and the engine),
these functions cannot be activated at the
same time.
The operating actions may be carried out
when stationary, with the engine running,
or with the vehicle moving.
Function selected,
displaying of the "Speed
Limiter" symbol.
Function deactivated,
last programmed speed
- OFF
(example at 107 km/h).
Function activated
(example at 107 km/h).
Vehicle speed above
(example 118 km/h),
the programmed speed
is displayed flashing.
Operating fault detected,
OFF - the dashes flash.
This speed limiter shows the function
selection status on the instrument panel and
displays the programmed speed:
Steering wheel controls
ERGONOMICS and COMFORT
40
Selecting the function
Place the dial in the LIMIT position.
The limiter is selected but is not yet active.
The display indicates the last programmed
speed.
Programming a speed
A speed can be programmed without
activating the limiter but with the engine
running.
To memorise a speed higher than the previous
one:
press the Set + button.
A brief press increases the speed by
1 mph (km/h).
A maintained press increases the speed in
steps of 5 mph (km/h).
To memorise a speed lower than the previous
one:
press the Set - button.
A brief press decreases the speed by 1 mph
(km/h).
A maintained press decreases the speed in
steps of 5 mph (km/h).
Activation/Deactivation (off)
Pressing this button once activates the
limiter, pressing the button again deactivates
it (OFF).
Steering wheel controls
41
3
Switching the function off
Place dial in position 0 or switch off the
ignition to switch the system off. The
last programmed speed remains in the
memory.
Exceeding the programmed speed
Pressing the accelerator pedal in order to
exceed the programmed speed will have
no effect unless you press the pedal firmly
beyond the point of resistance.
The limiter is deactivated temporarily and
the programmed speed flashes.
To return to the limiter function, reduce your
speed to below the programmed speed.
Flashing of the speed
The speed flashes:
following forcing of the accelerator point of
resistance,
when the limiter cannot prevent an
increase in the vehicle speed due to the
profile of the road or on a steep descent,
in the event of sharp acceleration.
Good practice
In any event, the speed limiter cannot
replace the need to observe speed limits,
nor can it replace the need for vigilance and
responsibility on the part of the driver.
Always pay attention to the profile of the
road and take care on sharp acceleration.
To avoid any jamming under the pedals:
- ensure that the mat is positioned correctly,
- never place one mat on top of another.
Operating fault
The programmed speed is cleared then
replaced by three dashes.
Contact a PEUGEOT dealer to have the
system checked.
Steering wheel controls
ERGONOMICS and COMFORT
42
Press the air recirculation
temporarily (diode lit).
Ventilation
Returning to exterior air intake open
permits renewal of the air in the passenger
compartment (diode off).
VENTILATION
Direct the control to this air
distribution setting.
Direct the control to this
temperature setting.
Increase the air flow setting.
DE-ICING AND DEMISTING
Manual mode
Press the air conditioning if fitted
on your vehicle.
43
3
Ventilation
De-icing the rear screen and
mirrors
If fitted on your vehicle, pressing this button,
with the engine running, activates the rapid
demisting - de-icing of the rear screen and
mirrors.
This function switches off:
- when the button is pressed,
- when the engine is switched off,
- automatically to prevent excessive energy
consumption.
Automatic air conditioning: visibility
programme
The comfort programme (AUTO) may not
be sufficient to quickly demist or de-ice the
windows (humidity, several passengers, ice).
In this case, select the visibility programme.
The visibility programme indicator light
comes on.
It activates the air conditioning, the air flow,
the de-icing of the rear screen and provides
optimum distribution of the ventilation to the
windscreen and side windows.
It deactivates the air recirculation.
ERGONOMICS and COMFORT
44
Ventilation
CORRECT USE OF THE AIR
CONDITIONING
In all seasons, if fitted on your vehicle, the
air conditioning should only be used with
the windows closed. However, if the interior
temperature remains high after a prolonged
period parked in the sun, do not hesitate to
ventilate the passenger compartment for a
few minutes.
For even air distribution, ensure that the
exterior air intake grille located at the base
of the windscreen is not obstructed and that
the side and central vents, the air outlets on
the floor and the air extractor at the rear are
open.
The air conditioning is useful in all seasons
as it eliminates condensation and air
humidity.
VENTS
"Leave them open"
For optimum distribution and diffusion of hot
or cool air in the passenger compartment,
there are 4 adjustable central and side vents
which can be directed sideways (right or
left) towards the top of the body. For your
comfort while driving, do not close them,
direct the flow of air towards the windows
instead.
The air vents directed towards the floor of
the vehicle complete the equipment.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in perfect working order.
It is normal that the condensation created by
the air conditioning system results in a flow
of water which may form a puddle under the
vehicle when parked.
If the system does not produce cold air,
do not use it and contact your PEUGEOT
dealer.
Passenger compartment filter, pollen
filter
Ensure that this filter is in good condition
and have all of the filter elements replaced
regularly.
Refer to the "Levels and checks" section of
chapter 7.
We recommend the use of a combined
passenger compartment filter. By means of
its second special active filter, it contributes
to the purification of the air breathed by
the occupants and to the cleanness of
the passenger compartment (reduction of
allergic symptoms, unpleasant odours and
greasy deposits).
The pollen filter permits continuous and
effective filtering of dust.
45
3
Ventilation
WITH MANUAL ADJUSTMENT
If your vehicle is fitted with these controls,
they are located on the control panel of the
fascia centre console.
Air conditioning A/C
If fitted on your vehicle, the air conditioning
can only operate with the engine running.
Pressing the button triggers the operation
of the air conditioning, the diode
is lit. Pressing the button again
switches the function off and the
diode is switched off.
the side vents and the central
vents,
the side vents, the central vents
and the footwells,
the footwells,
the windscreen and the footwells,
the windscreen.
Air flow
The force of the blown air, from
the vents, varies from 1 to the
strongest 4. Position 0 switches
it off.
Remember to adjust this control in order to
reach the ambient air comfort level.
Air distribution
The air supply distribution is directed by the
control turned towards:
The air conditioning does not operate if the
air flow is set to 0.
Temperature adjustment
Control positioned:
- in the blue zone, triggers cool air,
- in the red zone, triggers heating
of the interior ambient air.
The air distribution can be
modulated by placing the control
in the intermediate positions,
marked "".
ERGONOMICS and COMFORT
46
Intake of exterior air
The diode on the button is off.
This is the preferred operating
position.
Recirculation of interior air
The diode on the button is lit.
Recirculation temporarily prevents
exterior odours and smoke
from entering the passenger
compartment. Used with the air conditioning
switched on and setting of the force of blown
air (from 1 to 4), recirculation enables you to
obtain the required ambient air comfort level
more quickly with both hot or cold settings.
This position should only be temporary.
When your ambient air comfort level has
been reached, return to the intake of exterior
air position to permit renewal of the air in the
passenger compartment and avoid misting.
This operating mode is preferable.
Ventilation
Recommended settings
For optimum operation of the manual system, the settings below are recommended:
If I require... Air distribution Temperature Air flow Air recirculation Air conditioning
A/C
Heating
Cooling
Deicing
Demisting
47
3
Ventilation
AUTOMATIC AIR CONDITIONING WITH SEPARATE ADJUSTMENTS
Good practice
For maximum cooling or heating of the
passenger compartment, it is possible to
exceed the value 15 by turning until LO is
displayed or the value 27 by turning until HI
is displayed.
For optimum comfort, the difference between
the value displayed for the driver and for the
passenger should not be greater than 3.
If your vehicle is fitted with this control
panel, it is located on the centre console.
On entering the vehicle, the inside
temperature may be much colder (or
warmer) than is comfortable. There is no
advantage in changing the value displayed
in order to quickly reach the level of comfort
required. The system will use its maximum
performance to reach the comfort value set.
ERGONOMICS and COMFORT
48
Ventilation
Driver or passenger side comfort value
The value indicated on the display
corresponds to a level of comfort and
not a temperature in degrees Celsius or
Fahrenheit.
Turn this control to the left or to
the right to decrease or increase
the value. A setting around the
value 21 provides optimum
comfort. However, depending on your
requirements, a setting between 18 and 24
is usual.
Automatic operation
AUTO comfort programme
This is the normal air conditioning system
operating mode.
Press this button, the AUTO
symbol is displayed.
In accordance with the comfort
value selected, the system
controls the distribution, the flow and the
intake of air to guarantee comfort and a
sufficient circulation of air in the passenger
compartment. No further action on your part
is required.
When the engine is cold, to prevent an
excessive diffusion of cold air, the ventilation
will reach its optimum level gradually.
For your comfort, the settings are stored
when the ignition is switched off and are
reinstated the next time the vehicle is
started, if the temperature in the passenger
compartment has not changed significantly;
otherwise, operation resumes in automatic
mode.
Do not cover the sunshine sensor,
located on the windscreen behind the
mirror, it is used for regulation of the air
conditioning.
49
3
Ventilation
Air flow
Press the small fan button to
reduce the flow or the large fan
button to increase the flow.
On the display, the blades of the fan darken
when the flow is increased.
Deactivating the system
Press the air flow small fan
button until the fan symbol
disappears.
This action deactivates all of the system’s
functions, with the exception of the air
recirculation and rear screen demisting (if
fitted on your vehicle). Your comfort setting
is no longer maintained and is switched off.
For your comfort, do not deactivate the
system for long periods.
Pressing the large fan button or
the AUTO button reactivates the
system with the values set before
it was deactivated.
Manual operation
You can, according to your requirements,
make a different selection from that offered
by the system by changing a setting.
The other functions will still be controlled
automatically. Pressing the AUTO button
restores fully automatic operation.
Air distribution
Pressing this button several times
in succession directs the air flow
towards:
the windscreen,
the windscreen and footwells,
the footwells,
the side vents, central vents and footwells,
the side vents and central vents.
Intake of exterior air/
Recirculation of interior air
Press this button to recirculate
the interior air. The recirculation
symbol is displayed.
Recirculation prevents exterior odours
and smoke from entering the passenger
compartment. Avoid prolonged operation
in interior air recirculation mode (risk of
condensation, odour and humidity).
Pressing this button again activates the
intake of exterior air.
Switching the air conditioning
On/Off
Press this button, the A/C
symbol is displayed and the air
conditioning is activated.
Pressing this button again switches off the
air cooling.
ERGONOMICS and COMFORT
50
Ventilation
Good practice
To avoid any risk of poisoning or
asphyxiation, the heater must not be used,
even for short periods, in an enclosed space
such as a garage or workshop which is not
fitted with an exhaust gas extraction system.
Do not park the vehicle on an inflammable
surface (dry grass, dead leaves, paper…),
there is a risk of fire.
The temperature near the heater must not
exceed 120 °C. A temperature
higher than this (for example in the case
of painting in an oven) could damage the
components of the electronic circuits.
The heater is supplied by the vehicle’s fuel
tank. Ensure that the fuel gauge indicator
light is not at reserve.
ADDITIONAL HEATING
Coolant circuit heater
This is an additional and autonomous
system which heats the diesel engine hot
coolant loop to make starting easier.
It improves the de-icing and demisting
performance.
Vehicles fitted with an HDi engine may be
fitted with a heater. When the engine is at
idle or the vehicle is stationary, it is normal
to notice a high-pitched whistling noise and
a slight emission of smoke and odour.
51
3
Ventilation
Have the heater checked at least
once a year at the beginning of winter.
Maintenance and repairs should only be
carried out by a PEUGEOT dealer. Use
recommended replacement parts only.
ERGONOMICS and COMFORT
52
Improved comfort
IMPROVED COMFORT
Treatment of the bodywork leading
to acoustic comfort
The underseal under the body, on the body
sills and on the wheel arches considerably
reduces noise and protects the body from
external attack. The Expert is treated by
cataphoresis, ensuring perfect protection
against corrosion. The anticorrosion
warranty has a duration of 6 years.
Protection of the driving position
The Expert is fitted with a ladder type
separation with load retainer at the base, so
protecting the front occupants against the
risks of load movement.
As an option, panel or glazed separation
partitions permit separation of the load
space from the cab for increased protection
and improved acoustic and temperature-
related comfort.
53
3
Seats
FRONT SEATS
Depending on the version and configuration
of your vehicle, different front seats are
fitted, either:
- a driver’s seat and a passenger seat,
- an individual driver’s seat and a two-seat
passenger bench.
Depending on the models, the following
adjustments are available:
3 - Driver’s seat height adjustment
Depending on the version and configuration
of your vehicle, you have either:
- a passive adjustment: pull the handle
upwards then take your weight off the seat
to raise, or push on the seat to lower,
2 - Seat back angle adjustment
Pull the lever upwards and set the required
angle.
SEATS
1 - Forwards/backwards adjustment
Lift the bar and slide the seat forwards or
backwards.
ERGONOMICS and COMFORT
54
Seats
- an active adjustment: manoeuvre the handle
upwards or downwards until the desired
position is reached.
Head restraint height adjustment
To raise or lower the restraint, pull it
forwards, then slide it.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
To remove it, set it in the high position, press
the tabs and pull upwards and forwards at
the same time.
To re-install, engage the head restraint rods
in the holes, making sure they are aligned
with the seat back.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
Front heated seat controls
Press the corresponding control,
located on the overhead storage
unit.
The temperature is controlled
automatically.
Pressing a second time stops operation.
Adjustable armrest
To place the armrest in its rest position:
- raise it until it is in the centreline of the
seat back.
To place the armrest in a position for use:
- fold it down fully,
- raise it slowly to the required position,
- if you pass the required position, raise it
fully then repeat the operations above.
4 - Driver’s seat lumbar adjustment
Move the lever up or down to obtain the
required position.
55
3
Seats
2-SEAT FRONT BENCH
If your vehicle is fitted with this bench seat,
it is fixed and has a 3rd seat belt.
Head restraint
Press the tab to adjust the height of the
head restraint.
To remove the head restraint, press the tabs
and raise the head restraint.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Storage basket
This is located under the seat.
ERGONOMICS and COMFORT
56
Seats
Writing table
The back of the centre seat folds to form a
writing table and two cup holder recesses.
Pull the handle located at the top of the seat
back cushion.
57
3
Practical information
CAB LAYOUT
Depending on the vehicle’s equipment, the
various fittings below enhance your cab.
Sun visor
To prevent dazzle from ahead, fold the sun
visor down.
A pocket is provided in the driver’s sun visor
for storing toll cards, tickets, ...
Glove box
This is fitted with a lock, you can lock it
using the key.
If the vehicle is fitted with air conditioning,
it can be cooled. It contains three sockets
for the connection of portable electronic
equipment (video equipment, ...) if the
vehicle is fitted with the RT3.
It also contains can holders and
compartments for storing maps, a packet of
cigarettes, an A4 format document, a pen,
etc.
Storage compartment
PRACTICAL INFORMATION
ERGONOMICS and COMFORT
58
Ashtray
Lighter/12 volt socket
Press and wait a few minutes until the lighter
pops out automatically.
The maximum power of the socket is 120 W.
Storage tray and bottle holder (1.5 L)
Cup holder
Any liquid transported in the vehicle in
a cup (mug or similar), which may spill,
presents a risk of damage on contact with
the instrument panel and centre console
controls. "Take care".
Practical information
59
3
Practical information
Ticket storage
According to the configuration of the vehicle.
Overhead storage unit
This is located above the sun visors and has
two compartments, with or without a cover,
for storing a jumper, a file, ...
Be aware that storing a hard object in direct
contact with the compartment may result in
noise.
Tip: the central cavity of the overhead
storage unit, located in the extension of the
vehicle’s roof between the rear space and
the cab, permits the transportation of long
objects. Take care to support and wedge
them securely.
The tunnel may be added to by an internal
rack, offered as an accessory by PEUGEOT
Accessories.
For raised vehicles, a shelf located above
the overhead storage unit permits the
storing of small objects and materials
(straps, cloths, gloves, helmets, etc...).
ERGONOMICS and COMFORT
60
Practical information

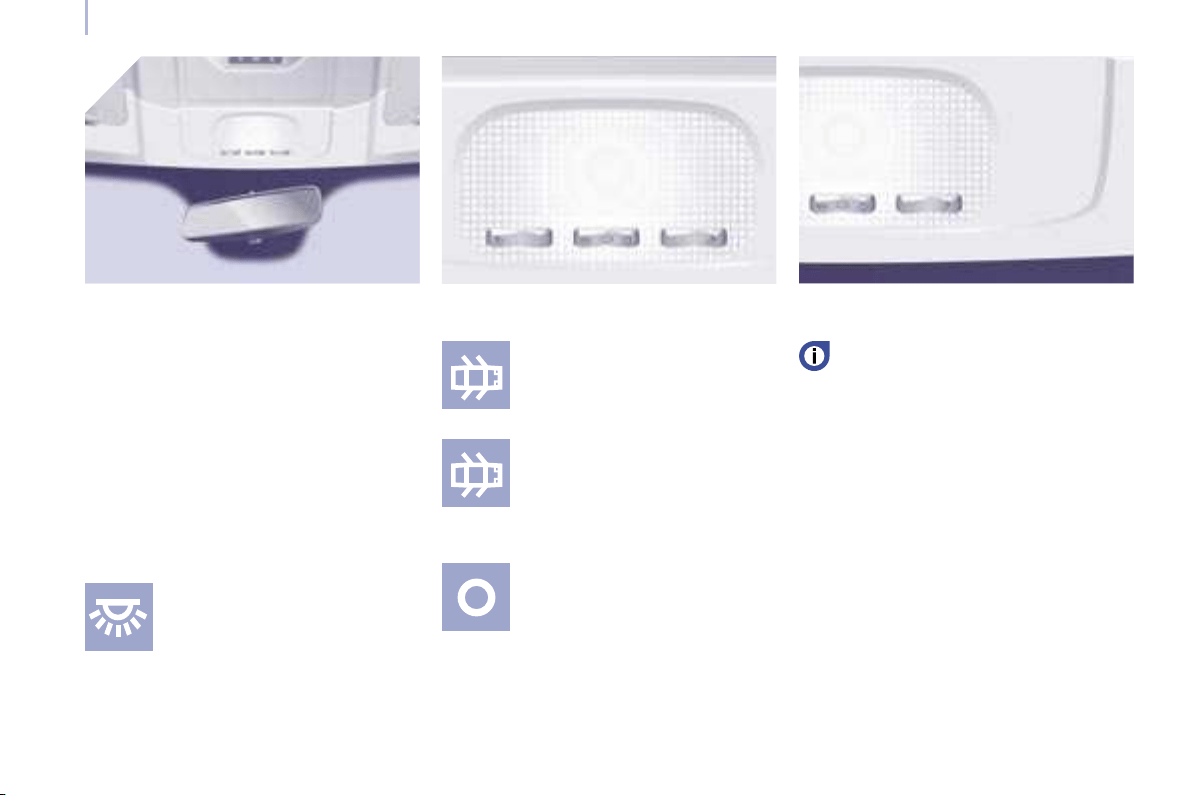

LOAD SPACE COURTESY LIGHTS
Automatic switching on/off
The front courtesy light comes on when
the key is removed from the ignition, when
the vehicle is unlocked, when one of the
front doors is opened and for location of the
vehicle using the remote control.
It switches off gradually after the ignition is
switched on and when the vehicle is locked.
Permanently on, ignition on.
Cab: comes on when one of the
front doors is opened.
Load space: comes on when one
of the rear doors is opened. If the
doors remain open for a few
minutes, the courtesy lights are
switched off.
Permanently off.
Front individual reading light
Rear courtesy light
If fitted on the vehicle, these are
switched on and off by means of a
manual switch, with the ignition on.
Areas for toll cards/car park tickets
The athermic windscreen has two non-
reflective zones located either side of the
base of the interior mirror.
They are intended for affixing toll cards
and/or car park tickets.
Front courtesy light
61
3
Practical information
LOAD SPACE LAYOUT
Depending on the vehicle’s equipment, the
various fittings below enhance your load
space.
Stowing rings
Use the stowing rings on the rear floor to
secure your loads.
As a safety precaution in case of sharp
braking, you are advised to place heavy
objects as far forwards towards the cab as
possible.
Locations for stowing rail
Locations for securing a stowing rail are
available on each side of the vehicle.
Trims
The lower parts of the sides are fitted with
load protection trims.
Roof box on raised version
This is a storage compartment located in the
load space, above the cab roof.
ERGONOMICS and COMFORT
62
Practical information
12 volt socket
This operates with the ignition off, therefore
limit its use to avoid discharging the battery.
Maximum power: 120 W.
Ladder type vertical separation or
partition
Behind the driver’s seat, a ladder type
vertical separation or partition protects the
driver against the risk of load movement.
Load retainer
On the floor, behind the front seats, a
horizontal partition protects the driver and
front passengers against the risk of load
movement.
Panel or glazed separation partitions permit
separation of the load space from the cab.
63
3
Practical information
Tunnel and internal rack
Located above the cab, access to the tunnel
is via the load space.
The tunnel can be added to by an internal
rack which will enable you to transport long,
light items (electrical rods, pipes, etc...).
ERGONOMICS and COMFORT
A
B
64
MIRRORS
The mirror is supplemented by a 2nd lower
mirror. This mirror is spherical to broaden
the field of side vision. Objects observed
are, in reality, closer than they appear.
Therefore, take this into account in order to
judge the distance correctly.
Electric exterior mirrors
Move switch A to the right or to the left to
select the corresponding mirror.
Move knob B in all four directions to
adjust.
Return switch A to the centre position.
MIRRORS AND WINDOWS
Electric folding/unfolding
If your vehicle is fitted with this function, the
mirrors can be folded or unfolded electrically
from the inside, with the vehicle parked and
the ignition on:
Place switch A in the centre position.
Pull switch A rearwards.
Heated mirrors
If your vehicle is fitted with this function,
press the rear screen demisting button.
Manual Exterior Mirrors
Move the lever in all four directions to
adjust.
When the vehicle is parked, the exterior
mirrors can be folded back manually.
If the mirror casing has come out of its
initial location, with the vehicle stationary,
reposition the mirror casing manually or use
the electric folding switch.
There is no risk of breakage even in the
presence of ice.
Mirrors and windows
65
3
Mirrors and windows
Manual interior mirror
The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other, push or
pull the lever on the lower edge of the mirror.
ERGONOMICS and COMFORT
2
1
2
1
66
Mirrors and windows
ELECTRIC WINDOWS
1 - Driver’s electric window control
2 - Passenger electric window control
There are two operating modes:
Manual mode
Press or pull the control, without passing the
point of resistance. The window stops when
you release the control.
Automatic mode
Press or pull the control, beyond the point
of resistance. The window opens or closes
fully when the control is released. Pressing
the control again stops the movement of the
window.
The electrical functions of the electric
windows are deactivated:
- approximately 45 seconds after the ignition
is switched off,
- after one of the front doors is opened, if the
ignition is off.
Safety auto-reverse
If your vehicle is fitted with the safety auto-
reverse function, when the window rises and
meets and obstacle, it stops and partially
lowers.
In the event of unwanted opening of the
window on closing, press the control until
the window is fully open. Within the next
4 seconds, pull the control until the window
is fully closed.
The safety auto-reverse does not operate
during these operations.
Reinitialisation
Following reconnection of the battery,
the safety auto-reverse function must be
reinitialised.
Lower the window fully, then raise it, it will
rise in steps of a few centimetres each time
the control is pressed. Repeat the operation
until the window is fully closed.
Continue to press the control for at least one
second after the window closed position has
been reached.
The safety auto-reverse does not operate
during these operations.
Good practice
If the electric windows meet an obstacle
during operation, you must reverse the
movement of the window. To do this, press
the control concerned.
When the driver operates the passenger
electric window controls, he must ensure
that no one is preventing correct closing of
the windows.
The driver must ensure that the passengers
use the electric windows correctly.
Be aware of children when operating the
windows.
67
RD4
AUDIO EQUIPMENT
CONTENTS
• 01 First steps pg. 68
• 02
Displays and general menu
pg. 69
• 03 Audio pg. 71
• 04 Hands-free kit pg. 73
• 05 Trip computer pg. 74
• 06 Control short-cuts pg. 75
• 07 Configuration pg. 76
• 08 Display flow charts pg. 78
The INFOTEC internet site provides additional
animated information on the RD4. It can be consulted
at the following address:
http://public.infotec.peugeot.com
Simple registration permits access and free
consultation of the handbook.
The RD4 audio equipment is coded in such a way that
it will only operate in your vehicle. If it is to be installed
in another vehicle, contact your PEUGEOT dealer for
configuration of the system.
IN-CAR TECHNOLOGY
4
The audio equipment function is shared by the
whole PEUGEOT range. On the EXPERT, the audio
equipment may only offer some of the functions
mentioned depending on the specification and the
characteristics specific to the country in which it is sold.
68
01 FIRST STEPS
On/Off and volume adjustment.
CD eject.
Selection of the FM1, FM2,
FMast and AM wavebands.
Displaying of the general
menu.
- Selection of a lower/higher
frequency.
-
Selection of the previous/next
CD.
- Automatic search for a
lower/higher frequency.
- Selection of previous/next
CD track.
Selection of the source:
radio, CD and CD changer.
- Storing of a station.
- Selection of a stored radio station.
- Selection of a CD in the CD
changer.
Setting the audio options:
Front/rear balance, left/right
balance, loudness, sound
ambiences.
Displaying of the local stations or of the tracks on the CD.
Abandon current operation.
Selection of the screen
display mode, if your
vehicle is fitted with the
trip computer.
Confirmation.
69
02 DISPLAY AND GENERAL MENU
Press the MENU button then OK.
> GENERAL MENU
> MONOCHROME DISPLAY A
This displays the following information, via the RD4 audio equipment
control pad:
- the time,
- the date,
- the exterior temperature (this flashes if there is a risk of ice),
- the audio source displays (radio, CD, ...),
- the accesses check (doors, boot, ...),
- the warning messages or information messages displayed temporarily,
can be cleared by pressing the "ESC" button,
- the trip computer,
RADIO: RDS search, REG mode. CD: introscan, random play, repeat.
VEHICLE CONFIGURATION: activation/deactivation of the equipment.
OPTIONS: equipment status diagnostics.
DISPLAY ADJUST: year, month, day, hour, minute,
12 or 24 hour mode.
LANGUAGES.
UNITS: temperature (°C or °F), fuel consumption (l/100, mpg or km/l).
70

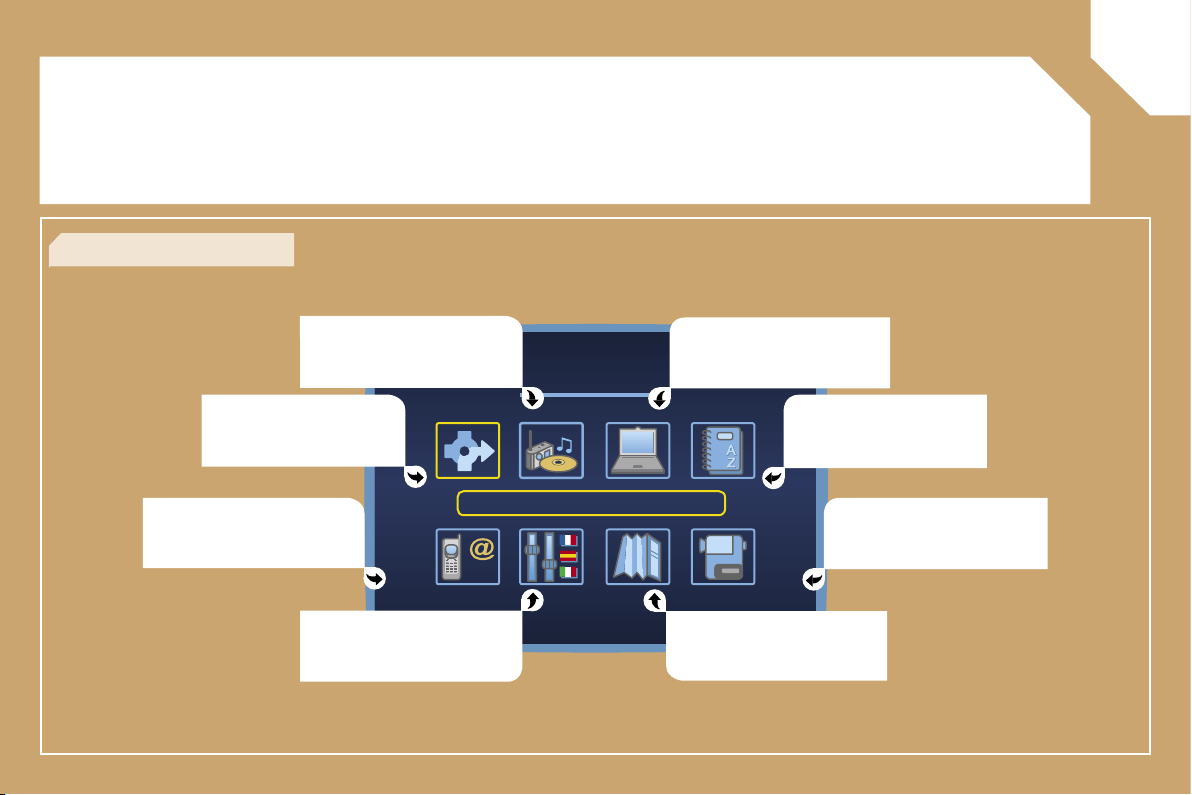

02 DISPLAY AND GENERAL MENU
AUDIO FUNCTION: radio,
CD, options.
PERSONALISATION-
CONFIGURATION: vehicle
parameters, display,
languages.
TRIP COMPUTER: distance
entering, warnings, status of
functions.
> GENERAL MENU> MONOCHROME DISPLAY C
This displays the following information, via the RD4 audio equipment
control pad:
- the time,
- the date,
- the exterior temperature (this flashes if there is a risk of ice),
- the audio source displays (radio, CD, ...),
- the accesses check (doors, boot, ...),
- the warning messages or information messages displayed temporarily,
can be cleared by pressing the "ESC" button,
- the trip computer,
TELEPHONE: hands-free
kit, matching, management
of a communication.
1
2
4
1
3
71

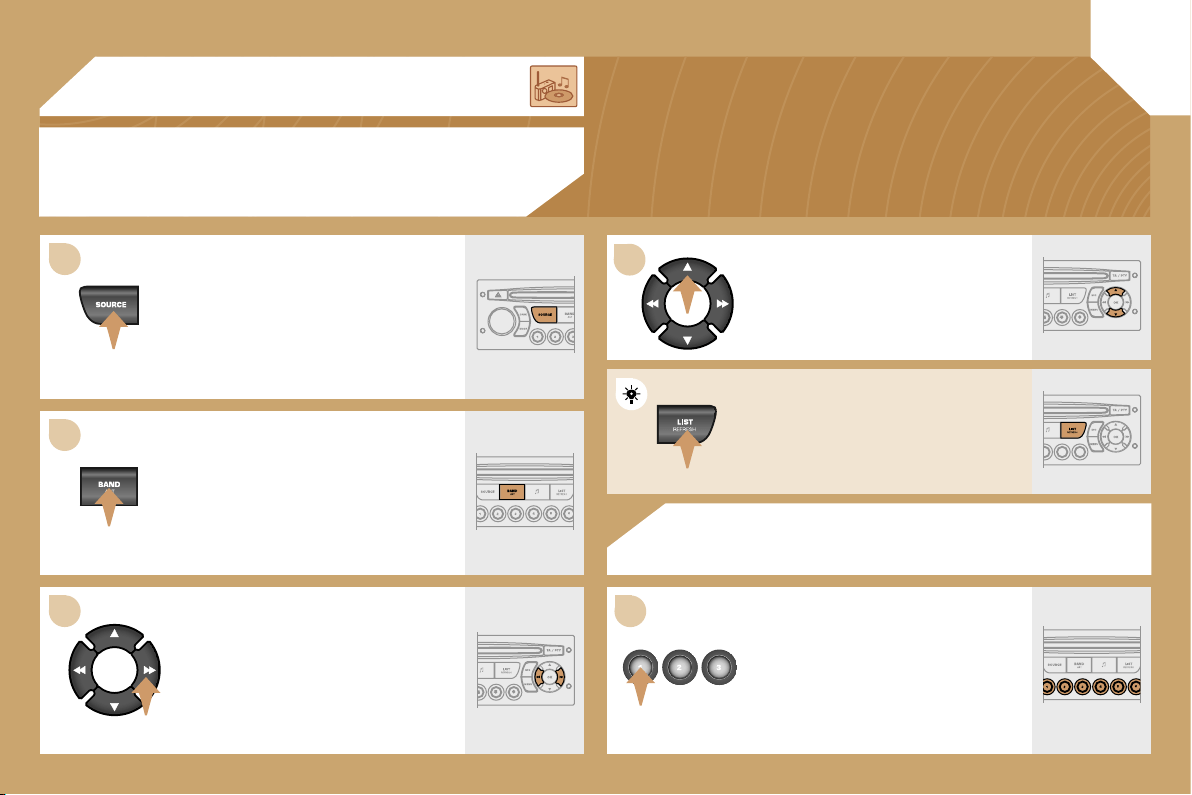

03 AUDIO
RADIO
SELECTING A STATION
RADIO
STORING A STATION
Press the SOURCE button several
times in succession and select the
radio.
Press the BAND/AST button to select
a waveband: FM1, FM2, FMast, AM.
Briefly press one of the buttons to
carry out an automatic search of the
radio stations.
Press one of the buttons to carry out a
manual search of the radio stations.
Press one of the buttons on the
numeric keypad for more than
2 seconds to store the current station.
Press the LIST REFRESH button to
display the list of stations received
locally.
To update this list, press for more than
two seconds.
1
2
3
1
2
72

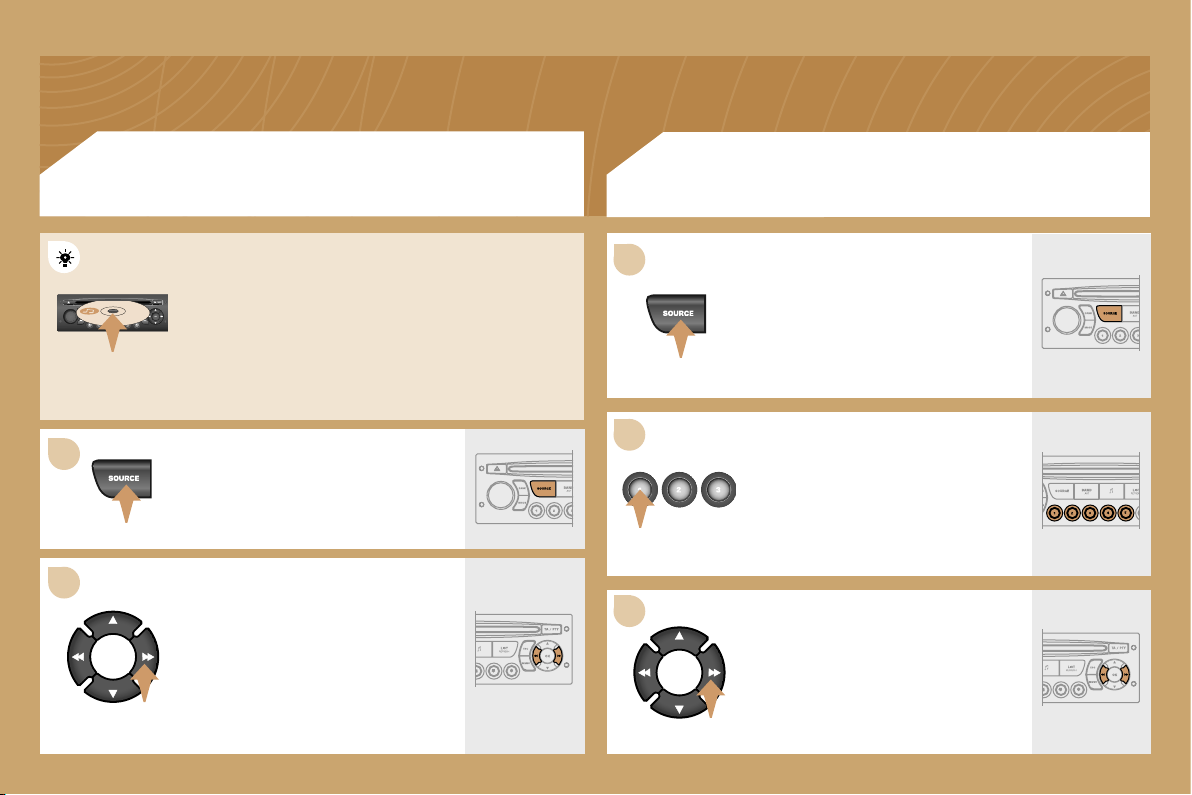

CD CHANGER
PLAYING A CD
Insert one or more CDs in the
changer.
Press the SOURCE button several
times in succession and select CD
CHANGER.
Press one of the buttons on the
numeric keypad to select the
corresponding CD.
Press one of the buttons to select a
track on the CD.
Press and hold one of the buttons for
fast forwards or backwards play.
CD
PLAYING A CD
Insert circular compact discs only. Some anti-pirating
systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no
reflection on the quality of the original player.
Insert a CD in the player, play begins automatically.
If the player already contains a disc,
press the SOURCE button several
times in succession and select CD.
Press one of the buttons to select a
track on the CD.
Press the LIST REFRESH button to
display the list of tracks on the CD.
Press and hold one of the buttons for
fast forwards or backwards play.
73

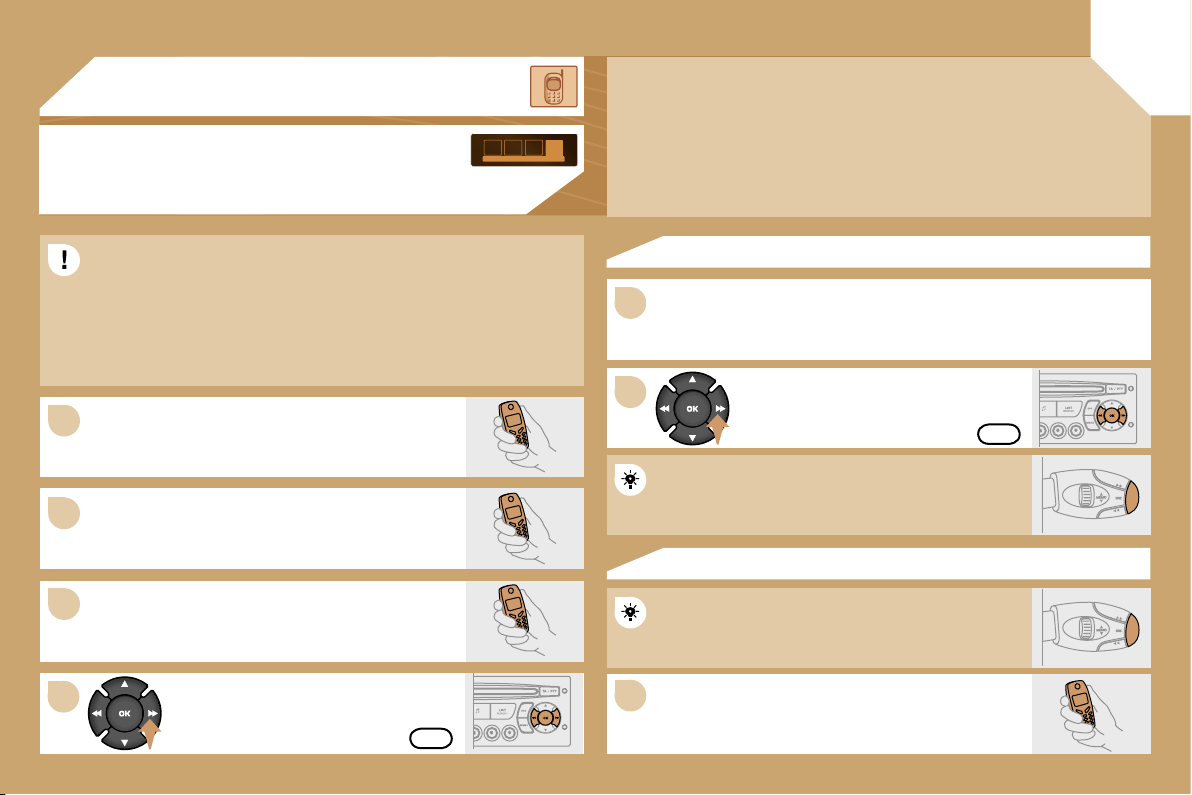

1
2
3
4
1
2
1
Press the end of the steering wheel stalk to accept
the call.
The services offered by the hands-free kit depend on the network, the
SIM card and the compatibility of the Bluetooth equipment used.
Consult your telephone’s manual and your operator to find out which
services are available to you. A list of mobile telephones which offer
the best range of services is available from the network. Contact a
PEUGEOT dealer.
MAKING A CALL
Press and hold the end of the steering wheel stalk to
access your directory.
To dial a number, use the keypad on your telephone.
For safety reasons and because they require prolonged attention
on the part of the driver, the operations for matching of the
Bluetooth mobile telephone with the RD4 hands-free kit must be
carried out with the vehicle stationary and the ignition on.
Activate the telephone’s Bluetooth function and
carry out a search of the Bluetooth accessories
present for the telephone.
Select the accessory which corresponds to the
name of the vehicle, a superimposed configuration
display appears on the multifunction display.
Enter the vehicle’s authentication code (=1234).
Depending on the telephone, you may be asked
to enter this code before the superimposed
configuration display appears.
Select the YES tab on the display
using the buttons then confirm by
pressing OK.
RECEIVING A CALL
An incoming call is announced by a ring and a superimposed
display on the multifunction display.
Select the YES tab on the display
using the buttons and confirm by
pressing OK.
MATCHING A TELEPHONE
DISPLAY C
YES
YES
04 HANDS-FREE KIT
74
05 TRIP COMPUTER
Each press of the button, located at the end of the
wipers stalk, permits displaying of the different trip
computer data in succession, depending on the display.
- the "vehicle" tab with:
• the range, the current
consumption and the distance
remaining to the destination,
- the "1" tab (route 1) with:
• the average speed, the average
consumption and the distance
travelled calculated over route
"1",
- the "2" tab (route 2) with the
same characteristics for a second
route.
A few definitions
Range: Displays the distance which can be travelled with the remaining fuel
detected in the tank, in relation to the average consumption over the last few miles
(kilometres).
This displayed value may vary significantly following a change in the vehicle
speed or the relief of the route.
When the range falls below 20 miles (30 km), dashes are displayed. After filling with
at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds
60 miles (100 km).
If, whilst driving, dashes are displayed continuously in place of digits, contact a
PEUGEOT dealer.
Current consumption: only calculated and displayed above 20 mph (30 km/h).
Average consumption: this is the average quantity of fuel consumed since the last
trip recorder zero reset.
Distance travelled: calculated since the last trip computer zero reset.
Distance remaining to the destination (display C only): calculated with reference
to the final destination, entered by the user. If guidance is activated, the navigation
system calculates it as a current value.
Average speed: this is the average speed calculated since the last trip computer
zero reset (ignition on).
Zero reset
When the required route is displayed, press the end of the control for
more than two seconds.
DISPLAY CDISPLAY A
75
RADIO: selection of a higher stored station
CD CHANGER: selection of the next CD
Selection of the next item on a menu.
RADIO: selection of a lower stored station
CD CHANGER: selection of the previous CD
Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency
CD/CD CHANGER: selection of the next track
Continuous press: fast forwards play
Selection of the previous item.
RADIO: automatic search for a lower frequency
CD/CD CHANGER: selection of the previous track
Continuous press: fast backwards play
Selection of the next item.
Volume increase.
Volume decrease.
06 CONTROL SHORT-CUTS
Mute: press the volume
increase and decrease
buttons simultaneously.
Restore the sound by pressing
one of the two volume buttons.
- Change of sound source
- Confirmation of a selection
- Pick up/Hang up the telephone
- Press for more than 2 seconds:
access to the telephone menu.
STEERING WHEEL CONTROLS
76
4
5
6
1
2
3

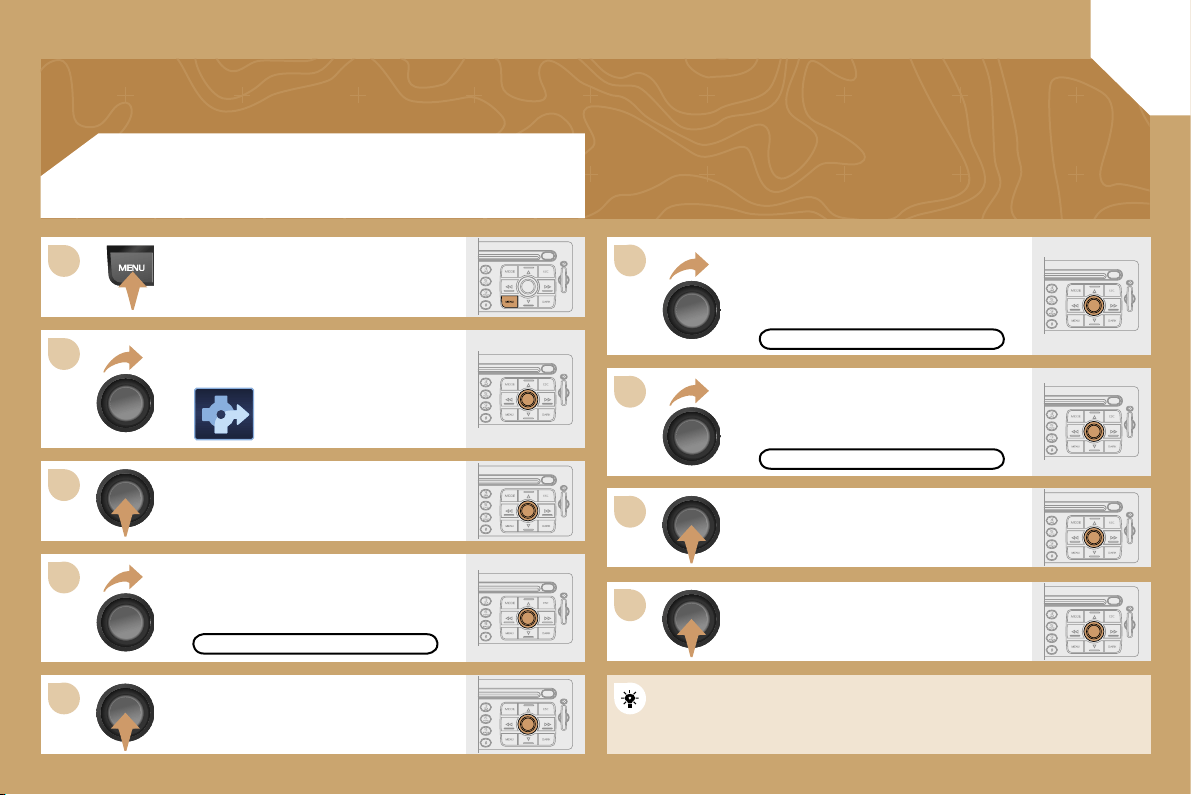

07 CONFIGURATION
ADJUSTING THE DATE AND TIME
DISPLAY A
Press the MENU button.
Using the arrows, select the
DISPLAY ADJUST function.
Press to confirm the selection.
Press to confirm the selection.
Using the arrows, select one of these
functions: YEAR/MONTH/DAY/HOUR/
MINUTES/12 OR 24.
Adjust the parameters one by one
confirming by pressing the OK button.
Next select the OK tab on the display
then confirm.
OK
DISPLAY ADJUST
The display - time sequence is linked according to model (version). The
access to the Date is only active when the model version offers a date in
words.
5
6
7
8
1
2
3
4
77
ADJUSTING THE DATE AND TIME
DISPLAY C
Press the MENU button.
Using the arrows, select
the PERSONALISATION
CONFIGURATION
function.
Press to confirm the selection.
Using the arrows, select the
DISPLAY CONFIGURATION function.
Press to confirm the selection.
Press to confirm the selection.
Using the arrows, select the
ADJUST DATE AND TIME function.
Adjust the parameters one by one
confirming by pressing the OK button.
Next select the OK tab on the display
then confirm.
PERSONALISATION CONFIGURATION
DISPLAY CONFIGURATION OK
ADJUST DATE AND TIME
1
2
3
3
2
3
3
2
3
3
2
3
3
2
3
3
1
2
3
3
2
3
3
1
2
3
3
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
1
2
2
1
2
3
2
3
2
3
3
78
VEHICLE CONFIG
REV WIPE ACT
active
inactive
AUTO LAMPS
active
inactive
PARKING ASSIST
active
inactive
RADIO-CD
RDS SEARCH
active
inactive
REG MODE
active
inactive
INTROSCAN
active
inactive
CD REPEAT
active
inactive
RANDOM PLAY
active
inactive
LANGUAGES
FRANCAIS
ITALIANO
NEDERLANDS
PORTUGUES
PORTUGUES-BRASIL
DEUTSCH
ENGLISH
ESPANOL
OPTIONS
ABANDON/CONSULT LIST OF FAULTS
functions activated (or not)
warning messages
DISPLAY ADJUST
YEAR
MONTH
DAY
HOUR
MINUTES
12 H/24 H MODE
UNITS
TEMPERATURE:
O
CELSIUS/
O
FAHRENHEIT
FUEL CONSUMPTION: KM/L - L/100 - MPG
08 DISPLAY FLOW CHART monochrome A
MAIN FUNCTION
CHOICE A
choice A1
choice A2
CHOICE B...
A
1
2
3
2
3
1
2
2
4
3
4
4
4
3
4
4
4
3
4
1
2
3
4
3
4
4
2
3
4
3
4
1
2
3
2
3
2
3
1
2
3
4
3
4
3
4
4
4
2
3
4
3
4
3
4
2
3
3
3
4
2
3
3
3
3
3
3
3
3
3
79
AUDIO FUNCTIONS
FM BAND PREFERENCES
alternative frequencies (RDS)
activate/deactivate
regional mode (REG)
activate/deactivate
radio-text information (RDTXT)
activate/deactivate
AUDIO CD PREFERENCES
cd changer repeat (RPT)
activate/deactivate
track random play (RDM)
activate/deactivate
TELEPHONE
CONSULTING DIRECTORIES**
telephone directory
directory list
call log
call list
services directory
customer contact centre
breakdown call
emergency call
CONFIGURATION
deletion of a match
list of matches
consulting matches
list of matches
choice of a mobile to connect
list of mobiles
MANAGEMENT OF A COMMUNICATION
switch**
terminate the current call
secret mode
activate/deactivate
08 DISPLAY FLOW CHART monochrome C
PERSONALISATION-CONFIGURATION
DEFINE THE VEHICLE PARAMETERS*
DISPLAY CONFIGURATION
video brightness adjustment
normal video
inverse video
brightness (- +) adjustment
date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode
choice of units
l/100 km - mpg - km/l
°Celsius/°Fahrenheit
CHOICE OF LANGUAGE
Deutsch
English
Espanol
Français
Italiano
Nederlands
Portugues
Portugues-brasil
MAIN FUNCTION
CHOICE A
choice A1
choice A2
CHOICE B...
TRIP COMPUTER
ENTER DISTANCE TO DESTINATION
distance: x km
WARNING LOG
diagnostics
STATUS OF FUNCTIONS
functions activated or deactivated
* The parameters vary according to vehicle.
** According to compatibility of Bluetooth telephone and
service contract.
C
81
RT3
AUDIO EQUIPMENT/TELEPHONE/GPS
CONTENTS
• 01 First steps pg. 82
• 02 Display and general menu pg. 83
• 03 GPS pg. 85
• 04 Audio pg. 92
• 05 Telephone pg. 94
• 06 Trip computer pg. 97
• 07 Control short-cuts pg. 98
• 08 Configuration pg. 100
• 09 Display flow chart pg. 102
The INFOTEC internet site provides additional
animated information on the RT3. It can be consulted
at the following address:
http://public.infotec.peugeot.com
Simple registration permits access and free
consultation of the handbook.
The RT3 GPS audio/telephone is coded in such a
way that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact your PEUGEOT
dealer for configuration of the system.
For safety reasons, the driver must carry out
operations which require prolonged attention while the
vehicle is stationary.
The audio equipment function is shared by the
whole PEUGEOT range. On the EXPERT, the audio
equipment may only offer some of the functions
mentioned depending on the specification and the
characteristics specific to the country in which it is sold.
82
01 FIRST STEPS
Selection of the source: radio,
CD, CD changer and auxiliary
(AUX).
Long press on the SOS button:
emergency call.
On/Off.
Volume adjustment.
Selection of the FM1, FM2,
FMast, AM wavebands.
Keypad for entering
descriptions by means of
successive presses.
Access to the "PEUGEOT"
services menu.
Displaying of the general
menu.
SIM card flap.
Cancellation of the current
operation.
- Selection of a lower/higher frequency.
- Selection of the previous/next CD.
- Selection of the previous/next MP3
directory.
- Automatic search for a lower/
higher frequency.
- Selection of the previous/next
track on CD or MP3.
Selection and
confirmation.
Selection of the
screen display mode.
83
02 DISPLAY AND GENERAL MENU
AUDIO FUNCTIONS: radio,
CD, parameters, options.
TELEPHONE functions:
services, telephone functions,
SMS.
CONFIGURATION: vehicle
parameters, display, time,
languages.
MAP: GPS, details,
orientation.
VIDEO: activation, parameters.
DIRECTORY: telephone
and GPS.
NAVIGATION: GPS, traffic
information, options.
> GENERAL MENU COLOUR DT
TRIP COMPUTER: speed,
consumption, distance.
84
02 DISPLAY AND GENERAL MENU
> COLOUR DISPLAY DT
This displays the following information, via the RT3 audio/telephone
control pad:
- the time,
- the date,
- the exterior temperature (if there is a risk of ice, you are warned by a
message),
- the audio source displays (radio, CD, ...),
- the telematic system displays (telephone, services, ...),
- the accesses check (doors, boot, ...),
- the warning messages (e.g.: "Fuel level low") and vehicle function
status messages (e.g.: "Auto lighting activated") displayed temporarily,
- the trip computer display,
- the satellite navigation system displays.
In order to be able to use all of the functions of your system, you have two CD-ROMs:
- one, "Configuration", contains the software and the various display and vocal information languages,
- the other, "Navigation", contains the satellite navigation system map data.
1
2
3
5
7
4
6
8
85

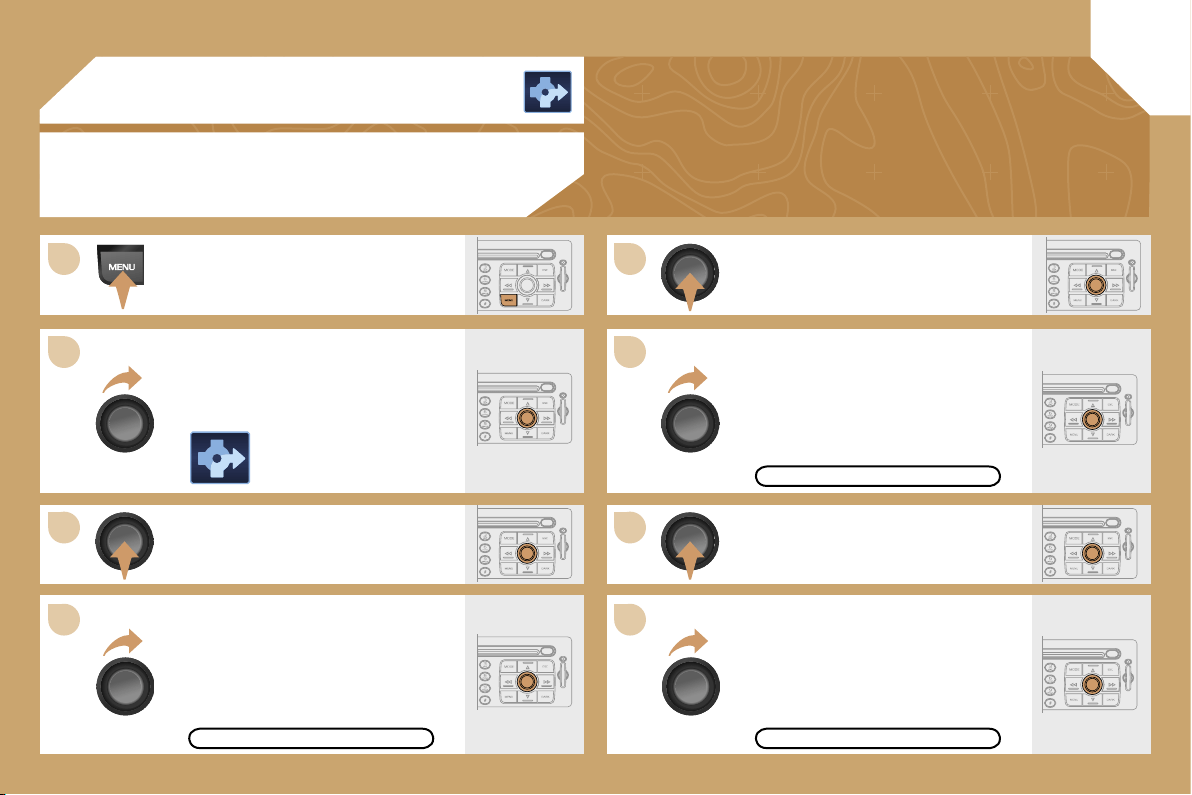

03 GPS
ENTERING AN ADDRESS AND
ACTIVATING GUIDANCE
Press the MENU button.
Turn the dial and select the
NAVIGATION function.
Press the dial to confirm the selection.
Turn the dial and select the
DESTINATION CHOICE function.
Press the dial to confirm the selection.
Press the dial to confirm the selection.
Turn the dial and select the
ENTER AN ADDRESS function.
Turn the dial and select the TOWN
function.
TOWN
ENTER AN ADDRESS
The navigation CD ROM:
Insert the navigation CD ROM in the drive on the control panel and leave it
there in order to use the Navigation functions.
DESTINATION CHOICE
9
11
12
13
15
10 14
86
Press the dial to confirm the selection.
Turn the dial and select the letters of
the town one by one confirming each
time by pressing the dial.
Turn the dial and select the OK
function.
Press the dial to confirm the selection.
Use the alphanumeric keypad to enter the letters and
digits and * to correct.
Press the dial to confirm the
selection.
Select the OK function on the ENTER
AN ADDRESS page.
Repeat steps 8 to 12 for the ROAD and
N° functions.
PARIS
OK
OK
Select the STORE function to record the address entered in a
directory record and press the dial to confirm the selection.
STORE
1
2
3
4
5
6
7
8
87
03 GPS
GUIDANCE OPTIONS
Press the MENU button.
Turn the dial and select the
NAVIGATION function.
Press the dial to confirm the
selection.
Turn the dial and select the
GUIDANCE OPTIONS function.
Press the dial to confirm the
selection.
Press the dial to confirm the selection.
Turn the dial and select the DEFINE
CALCULATION CRITERIA function.
Turn the dial and select, for example,
the FASTEST ROUTE function.
GUIDANCE OPTIONS FASTEST ROUTE
DEFINE CALCULATION CRITERIA
9
10
11
12
13
1
2
3
4
5
88
Press the dial to confirm the selection.
Press the dial to confirm the selection.
Turn the dial and select the WITH
TOLLS function if it is not ticked.
SPEECH SYNTHESIS
Press the MENU button.
Turn the dial and select the
NAVIGATION function.
Press the dial to confirm the selection.
Turn the dial and select the
GUIDANCE OPTIONS function.
WITH TOLLS
GUIDANCE OPTIONS
Press the dial to confirm the selection.
Turn the dial and select the OK
function.
Press the dial to confirm the selection.
OK
6
7
8
9
1
2
3
4
89
Press the dial to confirm the selection.
Turn the dial and select the
ADJUST SPEECH SYNTHESIS
function.
Turn the dial and select the ACTIVATE
function.
Press the dial to confirm the function.
03 GPS
SPEECH SYNTHESIS
ADJUST SPEECH SYNTHESIS
ACTIVATE
Press the MENU button.
Turn the dial and select the MAP
function.
Press the dial to confirm the selection.
Turn the dial and select the
MAP DETAILS function.
Permits selection of the services
which can be seen on the map (hotels,
restaurants...).
ACTIONS ON THE MAP
MAP DETAILS
1
2
3
4
5
6
7
8
90

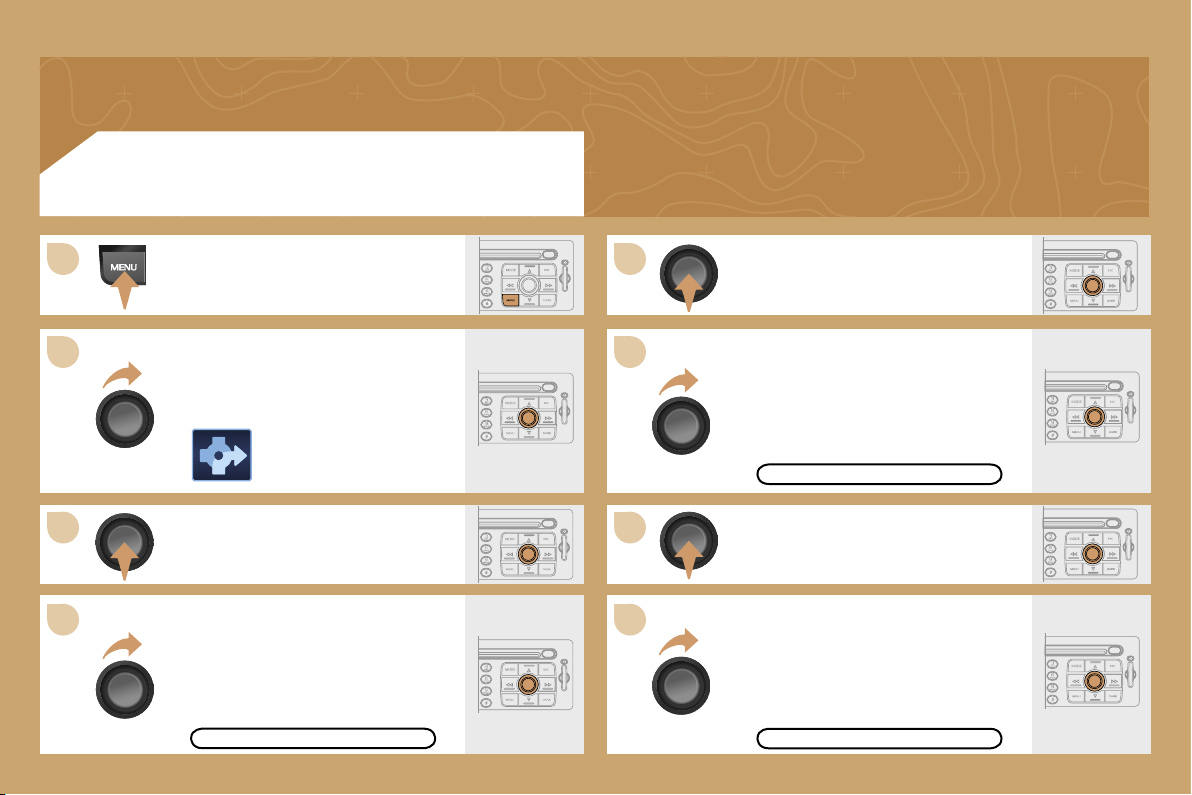

ACTIVATING THE ROUTE FILTER
Press the MENU button.
Turn the dial and select the
NAVIGATION function.
Press the dial to confirm the selection.
Turn the dial and select the
TRAFFIC INFORMATION function.
TRAFFIC INFORMATION
Press the dial to confirm the selection.
Turn the dial and select the
FILTER THE TMC INFORMATION
function.
FILTER THE TMC INFORMATION
Press the dial to confirm the selection.
Turn the dial and select the
ACTIVATE ROUTE FILTER function.
ACTIVATE ROUTE FILTER
1
2
3
4
6
5
7
8
8
91
ADDING A STAGE
Press the MENU button.
Turn the dial and select the
NAVIGATION function.
Press the dial to confirm the selection.
Turn the dial and select the
STAGES AND ROUTE function.
STAGES AND ROUTE
Turn the dial and select the
ADD A STAGE function.
Press the dial to confirm the selection.
ADD A STAGE
Press the dial to confirm the selection.
Enter an address (see GPS section)
or select SERVICE CHOICE
(restaurants, hotel...).
SERVICE CHOICE
Press the dial to confirm the selection.
Press the dial to confirm the order of
the stages.
Once the stage has been reached, guidance is redirected towards the
destination. Any stage can be deleted before it has been reached,
without losing guidance towards the stored destination or the next
stage.
1
2
3
4
1
92
04 AUDIO
RADIO
SELECTING A STATION
RADIO
STORING A STATION
Press the SOURCE button several
times in succession and select the
RADIO.
Press the BAND/AST button to select
a waveband: FM1, FM2, FMast, AM.
Briefly press one of the buttons to carry
out an automatic search of the radio
stations.
Press one of the buttons on the
alphanumeric keypad for more than
2 seconds to store the frequency of the
current station.
Press one of the buttons to carry out a
manual search of the radio stations.
Press the LIST button to display the list
of stations received locally.
To update this list, press for more than
two seconds.
1
2
1
2
3
93
CD
PLAYING A CD OR AN MP3 COMPILATION
CD CHANGER
PLAYING A CD (NOT MP3 COMPATIBLE)
If the GPS is used, the navigation CD ROM must
remain in the RT3 audio/telephone player. In this case,
audio CDs must be inserted in the CD changer.
Otherwise, insert an audio CD or an MP3 compilation
in the player, play begins automatically.
If the player already contains a disc,
press the SOURCE button several
times in succession and select CD.
Press one of the buttons to select a
track on the CD.
Press the LIST button to display the list
of tracks on the CD or of the directories
of the MP3 compilation.
Insert one or more CDs in the changer.
Press the SOURCE button several
times in succession and select CD
CHANGER.
Press one of the buttons on the
alphanumeric keypad to select the
corresponding CD.
Press one of the buttons to select a
track on the CD.
The playing and displaying of an MP3 compilation may depend on
the recording programme and/or the parameter settings used. We
recommend use of the ISO 9660 recording standard.
1 1
94
2
3
2

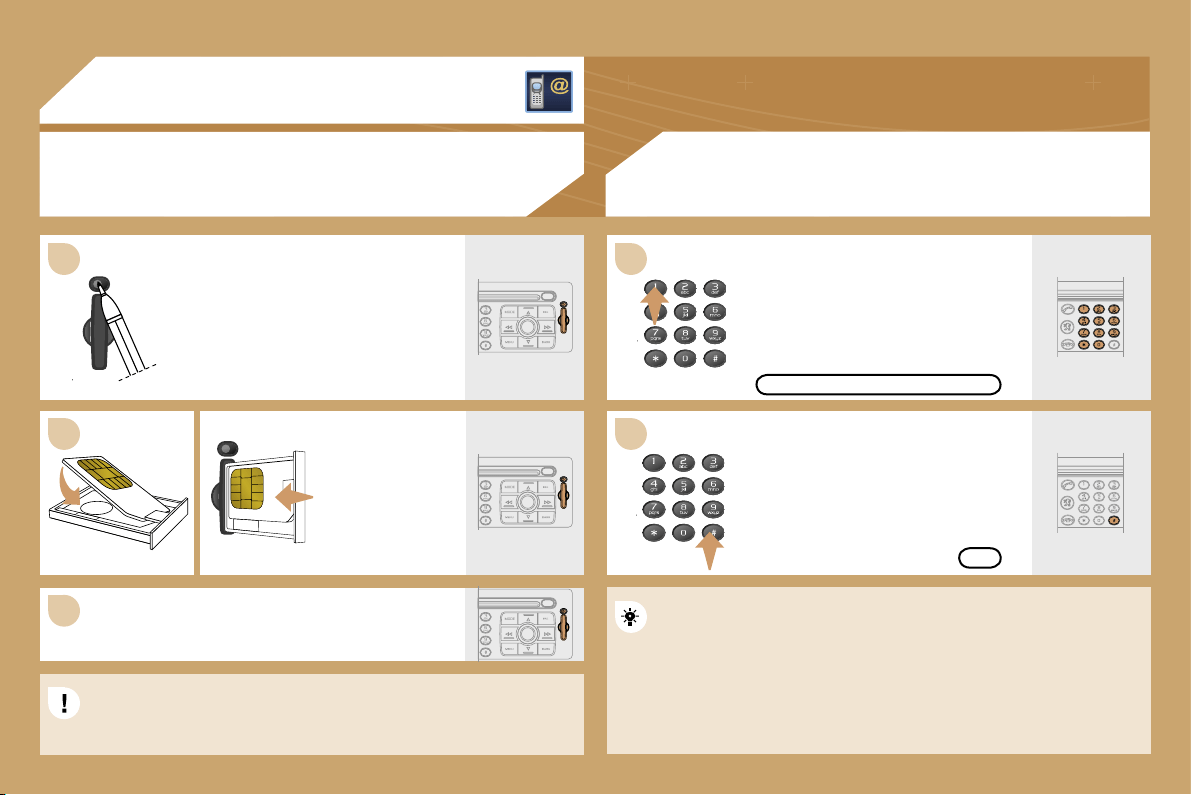

05 TELEPHONE
INSTALLING THE SIM CARD
(NOT SUPPLIED)
ENTERING THE PIN CODE
Access the slot by pressing the button
using the tip of a pen.
Install the SIM
card in the holder
and then insert it
in the slot.
To remove the SIM card, repeat step 1.
The SIM card must be installed and removed with the RT3 GPS
audio/telephone switched off and the ignition off.
Enter the PIN code on the keypad.
Confirm the PIN code by pressing
button # or by selecting the OK tab
on the display.
PIN CODE
OK
When entering the PIN code, tick the STORE PIN tab to gain
access to the telephone without having to enter this code when it is
used subsequently.
1
2
3
4
5
6
1
1
95
05 TELEPHONE
CALLING A CONTACT
Turn the dial and select the DIAL
function.
Press the PICK UP button to display
the superimposed telephone menu.
Press the dial to confirm the selection.
Dial the telephone number of your
contact using the alphanumeric
keypad.
Press the PICK UP button to call the
number dialled.
Press the HANG UP button to end the
call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button.
Press the HANG UP button.
The call will then be transferred to your
voice mailbox.
DIAL
1
2
3
96
Turn the dial and select the MAILBOX
function.
Press the PICK UP button.
Press the dial to confirm the selection.
CONSULTING THE MAILBOX
CONSULTING THE SERVICES
Press the LION button to gain access
to the PEUGEOT services.
The services and options are subject
to conditions and availability.
In an emergency, press the SOS button
until you hear an audible signal and
a CONFIRMATION/CANCELLATION
screen is displayed.
The services and options are subject
to conditions and availability.
MAILBOX
OPERATOR SERVICES
PEUGEOT ASSISTANCE
CUSTOMER CONTACT CENTRE
Press the end of the steering wheel stalk for more
than 2 seconds to gain access to the telephone
menu: call log, directory, mailbox.
RECEIVED MESSAGES
3
97
06 TRIP COMPUTER
Each press of the button, located at the end of the
wipers stalk, permits displaying of the different trip
computer data in succession, depending on the display.
- the "Current info" with:
• the range,
• the current consumption,
• the distance remaining to the
destination,
- "Route 1" with:
• the distance travelled,
• the average consumption,
• the average speed,
- "Route 2" with the same
characteristics for a second
route.
A few definitions
Range: Displays the distance which can be travelled with the remaining fuel
detected in the tank, in relation to the average consumption over the last few miles
(kilometres).
This displayed value may vary significantly following a change in the vehicle
speed or the relief of the route.
When the range falls below 20 miles (30 km), dashes are displayed. After filling with
at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds
60 miles (100 km).
If, whilst driving, dashes are displayed continuously in place of digits, contact a
PEUGEOT dealer.
Current consumption: only calculated and displayed above 20 mph (30 km/h).
Average consumption: this is the average quantity of fuel consumed since the last
trip recorder zero reset.
Distance travelled: calculated since the last trip computer zero reset.
Distance remaining to the destination: calculated with reference to the final
destination, entered by the user. If guidance is activated, the navigation system
calculates it as a current value.
Average speed: this is the average speed calculated since the last trip computer
zero reset (ignition on).
Zero reset
When the required route is displayed, press the control for more than
two seconds.
98
RADIO: selection of the previous stored station.
CD CHANGER: selection of the previous CD.
Selection of the previous item on a menu.
MP3: selection of the previous directory.
Backwards scrolling of the RADIO and CD lists.
RADIO: selection of the next stored station.
CD CHANGER: selection of the next CD.
Selection of the next item on a menu.
MP3: selection of the next directory.
Forwards scrolling of the RADIO and CD lists.
RADIO: automatic search for a higher frequency.
CD/CD CHANGER/MP3: selection of the next track.
Continuous press: fast forwards play.
RADIO: automatic search for a lower frequency.
CD/CD CHANGER/MP3: selection of the previous
track.
Continuous press: fast backwards play.
- Change of sound source.
- Confirmation of a selection.
- Pick up/Hang up the telephone.
- Press for more than 2 seconds:
access to the telephone menu.
Volume increase.
Volume decrease.
07 CONTROL SHORT-CUTS
STEERING WHEEL CONTROLS
Mute: press the volume
increase and decrease
buttons simultaneously.
The sound is restored by
pressing one of the two
volume buttons.
2
1
99
Press the end of the lights stalk to start the voice
recognition.
Say the words one by one and wait for the audible
confirmation signal between each word.
The list which follows is not exhaustive.
AUDIO
- RADIO then NEXT
- CD PLAYER then NEXT TRACK
- CD CHANGER then NEXT DISK
...
TELEPHONE
- TELEPHONE then REDIAL
- TELEPHONE then ADDRESS BOOK then DESCRIPTION
- TELEPHONE then VOICE MAIL
...
GPS
- NAVIGATION then SHOW then DESTINATION
- NAVIGATION then STOP
- NAVIGATION then ZOOM IN
...
VOICE COMMANDS
To display the list of available voice commands, press
the end of the lights stalk to start the voice recognition,
then say HELP or WHAT CAN I SAY.
For the same operation, press and
hold the MENU button and select
the function VOICE COMMANDS
LIST.
VOICE COMMANDS LIST
1
2
3
4
5
6
7
8
9
100
08 CONFIGURATION
ADJUSTING THE DATE AND TIME
Press the MENU button.
Turn the dial and select the
CONFIGURATION function.
Press the dial to confirm the selection.
Turn the dial and select the
DISPLAY CONFIGURATION function.
Press the dial to confirm the
selection.
Turn the dial and select the
ADJUST THE DATE AND TIME
function.
Adjust the parameters one by one
confirming by pressing the OK
button. Next select the OK tab on
the display then confirm.
DISPLAY CONFIGURATION
ADJUST THE DATE AND TIME
OK
Press the dial to confirm the selection.
Turn the dial and select the
INTERNATIONAL PARAMETERS
function then confirm.
INTERNATIONAL PARAMETERS
2
3
4
5
6
7
1
2
1
101

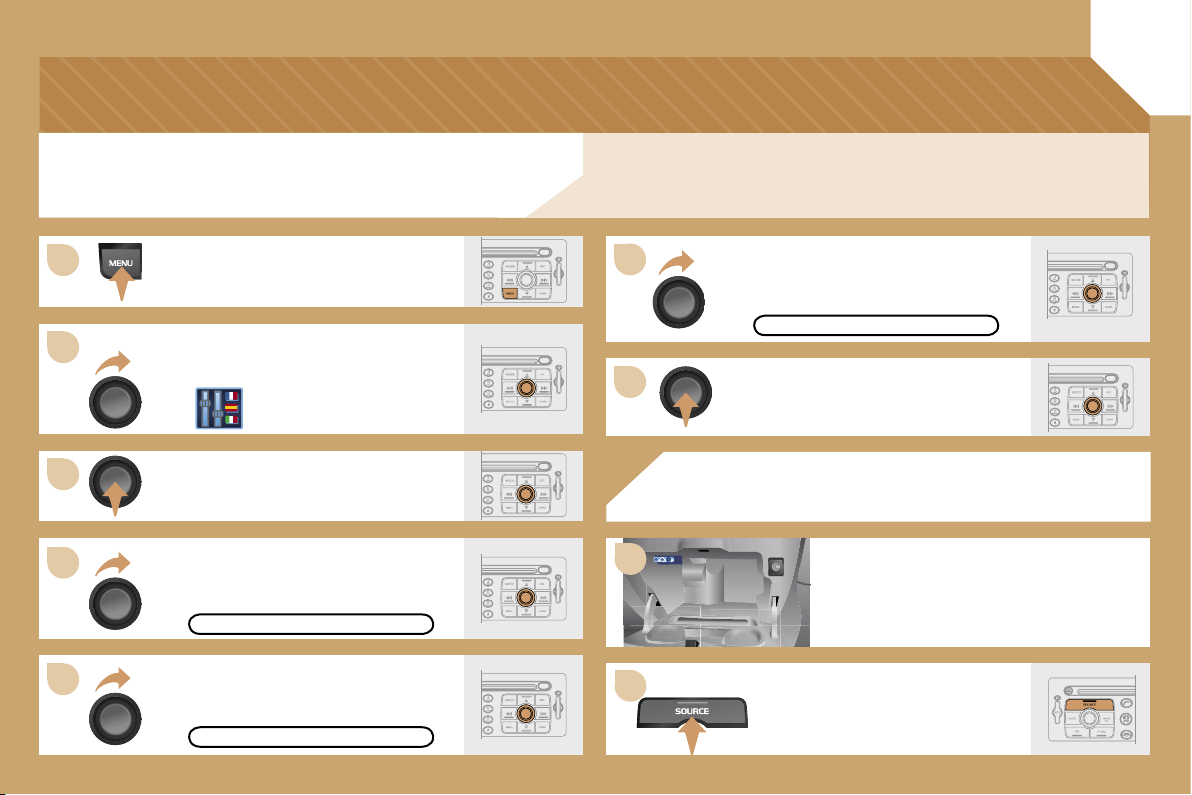

ACTIVATING THE AUXILIARY INPUT (AUX)
Press the MENU button.
Turn the dial and select the
CONFIGURATION function.
Press the dial to confirm the selection.
Turn the dial and select the
DISPLAY CONFIGURATION function
then confirm.
DISPLAY CONFIGURATION
Turn the dial and select the SOUND
function then confirm.
ACTIVATE AUX INPUT
SOUND
Turn the dial and select the
ACTIVATE AUX INPUT function.
USING THE AUXILIARY INPUT (AUX)
CABLE NOT SUPPLIED
Press the SOURCE button several
times in succession and select AUX.
Connect the portable equipment
(MP3 player…) to the audio sockets (white
and red, RCA type) located in the glove box.
Press the dial to confirm the selection.
The auxiliary input permits the connection of portable equipment
(MP3 player...).
1
2
3
2
3
1
2
3
4
5
4
4
4
4
4
3
4
5
5
4
5
5
5
5
5
5
4
5
5
5
5
5
4
5
5
5
5
5
4
5
5
5
5
5
5
3
4
5
5
3
4
5
5
2
3
4
5
5
5
5
6
6
4
4
5
6
6
4
5
6
6
3
3
4
5
4
4
3
4
4
2
5
3
4
4
4
4
4
4
3
4
4
3
3
3
4
5
2
3
3
4
5
5
55
5
4
102
MAIN FUNCTION
CHOICE A
choice A1
choice A2
CHOICE B...
09 DISPLAY FLOW CHART
skating rinks, bowling alleys
winter sports centres
parks & gardens
theme parks
transport & automobile
ports, airports
station, bus stations
automatic checks*
vehicle hire
rest areas, car parks
service stations, garages
directory
nav directory
town, street, n°
ok
previous destinations
list of destinations
town, street, n°
ok
STAGES AND ROUTES
add a stage
enter an address
town
street
junction n°
gps
longitude
latitude
centre of interest
administration & security
hotels, restaurants & businesses
culture, tourism & shows
sports centres & outdoor pursuits
transport & automobile
directory
nav directory
town, street, n°
ok
previous destinations
list of destinations
town, street, n°
ok
arrange/delete stages
divert route
divert route over 2 km
the best diversion possible is 3 km. continue?
range 1-50
ok
chosen destination
town, street, n°
change
GUIDANCE OPTION
define the calculation criteria
the fastest
the shortest
distance/time
with tolls
with ferry
traffic info
adjust speech synthesis
volume
activate/deactivate
activate/deactivate street names
description of the cd-rom
delete the previous destinations
do you want to delete the list of previous
destinations?
yes/no
TMC TRAFFIC INFORMATION
consult the messages
filter the TMC traffic information
activate/deactivate the route filter
filter by event
DT
NAVIGATION/TRAFFIC INFO
CHOICE OF DESTINATION
enter an address
town
street
junction n°
gps
longitude
latitude
centre of interest
administration & security
town halls, town centre
universities, colleges
hospitals
hotels, restaurants & businesses
hotels
restaurants
vinyards
business centres
supermarkets, shopping
craft centres
culture, tourism & shows
tourism, historical monuments
culture, museums & theatres
shows & exhibitions
casinos & nightlife
cinemas
sports centres & outdoor pursuits
sports centres, complexes
golf courses
* Function not currently available .
5
5
5
5
6
6
5
6
7
6
6
5
3
4
3
4
3
4
5
5
2
3
4
3
3
4
4
2
3
1
2
3
4
6
6
7
6
6
6
6
4
3
6
6
6
6
5
5
3
4
2
5
4
5
5
4
3
6
6
6
4
5
1
2
2
2
2
1
2
3
3
4
4
4
4
4
4
2
3
3
3
4
4
4
4
1
2
3
2
3
3
3
4
2
3
4
5
6
5
4
5
3
4
4
4
3
4
4
4
5
5
5
5
5
3
3
3
3
3
4
4
5
6
2
3
103
AUDIO FUNCTIONS
ACTIVATE/DEACTIVATE RDS ALTERNATIVE FREQUENCIES
ACTIVATE/DEACTIVATE REGIONAL MODE
ACTIVATE/DEACTIVATE RADIO TEXT INFO
ACTIVATE/DEACTIVATE CD DETAILS INFO
traffic information
traffic information
road closures
road restrictions
road conditions
weather & visibility
urban information
parking
public transport
demonstrations
geographical filter
around the vehicle
around a place/select
filter radius 50 km
choice of TMC station
station name
next station
speech synthesis
volume
activate/deactivate
activate/deactivate traffic information
RESUME/STOP GUIDANCE
TRIP COMPUTER
TRIP COMPUTER CONFIGURATION
enter distance to destination
0 km
select units
l/100 & km
mpg & miles
km/l & km
°c/°f
bar, psi
DIAGNOSTICS
warning log
equipment backup supply
GPS coverage
STATUS OF FUNCTIONS
list of functions
DIRECTORY
MANAGEMENT OF DIRECTORY FILES
consult or change a file
entire directory
name
voice recording
notes
address
town
street
n°
number
display
list of numbers
change
add
delete
e-mail
display
list of numbers
change
add
delete
add a file
description
delete a file
entire directory
delete all files
do you want to delete all of the files in the directory
(non sim)?
yes
no
CONFIGURATION OF THE DIRECTORY
select a directory
user xxxx
name a directory
select the starting directory
user xxx
last directory used
FILE TRANSFER
infrared exchange
send all files
send one file
receive by infrared
exchange with the sim card
send all files
send one file
receive all files
receive one file
TELEPHONE AND TELEMATIC SERVICES
CALL
warning log
dial
directory
voice mail
SERVICE
customer contact centre
PEUGEOT assistance
PEUGEOT mobile services (if services available
and/or activated)
messages received
list of v-cards
TELEPHONE FUNCTIONS
network
network search mode
automatic mode
manual mode
list of networks
networks available
list of networks
duration of calls
partial counter
total duration
zero reset
manage the pin code
activate
store the pin code
change the pin code
entering the pin code
old code
> new code
confirmation
>> correct
call options
4
5
5
4
5
3
2
3
4
3
4
3
4
4
5
6
6
5
6
1
2
3
4
4
4
3
4
4
3
4
5
6
6
5
6
6
5
6
5
6
4
5
5
3
4
5
5
5
4
5
5
5
5
5
3
4
4
5
4
4
3
4
2
3
5
4
104
delete the list of calls and sms
do you want to delete the list of calls and sms from the
equipment?
configure the calls
displaying of my number
automatic pick-up after 3 rings
ring options
for voice calls
volume
type of ring
for text messages (sms)
text message buzzer
voice call diversion n°
TEXT MESSAGES (SMS)
reading the text message received
list of text messages received
sending a text message
list of saved text messages
typing a text mesage
text message
message sent
delete the list of text messages
CONFIGURATION
DISPLAY CONFIGURATION
select the colours
6 colours
night
automatic day/night
luminosity & brightness
luminosity
brightness
sound
speech synthesis adjustment
volume of guidance instructions
volume
activate/deactivate
volume of other messages
volume
activate/deactivate
select a voice
male/female
speech synthesis
activate/deactivate
voice command adjustment
volume
activate/deactivate
aux input
activate/deactivate
international parameters
adjust the date & time
day, month, year
time, 12 h, 24 h, am/pm
adjusting the minutes on gps
select the units
l/100 & km
mpg & miles
km/l & km
°c/°f
bar, psi
choice of language
list of languages available
DEFINE THE VEHICLE PARAMETERS*
parking assistance
parking assistance
triggering of rear wiper in reverse gear
lighting and signalling
automatic switching on of the headlamps
* The parameters vary according to vehicle.
2
3
4
2
3
2
3
2
4
4
3
4
4
4
4
4
4
3
4
4
4
4
4
3
4
4
4
4
4
4
3
4
4
4
4
4
1
2
3
2
4
4
3
3
3
1
3
2
4
4
105
Flow chart version 6.61
MAP
MOVE THE MAP
MAP ORIENTATION
north oriented map
vehicle oriented map
CENTRE AROUND THE VEHICLE
MAP DETAILS
administration & security
town halls, town centre
universities, colleges
hospitals
hotels, restaurants & businesses
hotels
restaurants
vinyards
business centres
supermarkets, shopping
craft centres
culture, tourism & shows
tourism, historical monuments
culture, museums & theatres
shows & exhibitions
casinos & nightlife
cinemas
sports centres & outdoor pursuits
sports centres, complexes
golf courses
skating rinks, bowling alleys
winter sports centres
parks & gardens
theme parks
transport & cars
ports, airports
station, bus stations
automatic checks*
vehicle hire
rest areas, car parks
service stations, garages
STORE THE CURRENT POSITION
description
deleted
VIDEO
ACTIVATE VIDEO MODE
VIDEO PARAMETERS
display formats
16/9 (full screen)
4/3 (conventional)
adjust the brightness
adjust the colours
adjust the contrast
106
Two types of suspension are offered.
Metal suspension
This equipment adopts long movement
limiters which make it possible to guarantee
stable behaviour both when loaded and
when empty. No action on your part is
required except to ensure that maintenance
is carried out and that the authorised loads
are complied with.
Rear suspension with pneumatic
compensation
If fitted on your vehicle, this type of
suspension regulates the variations in the
height of the rear platform of your vehicle
irrespective of the weight of the load, within
the limit of the authorised values. On board,
the increasing or lightening of the load on
the vehicle’s platform is detected by two
height sensors. When all of the doors are
closed, the sensors trigger the automatic
compensation and determine the optimum
height of the sill for the vehicle’s driving
conditions.
Two functions
1 - Automatic correction
2 - Manual correction
1 - Automatic correction of the
height of the rear sill
The pneumatic suspension automatically
regulates the variations in the height of the
rear platform of your vehicle. A red warning
light on your instrument panel
flashes if the height is not at
its optimum level and requires
correction, drive slowly until this
warning light is switched off.
The automatic compensation is temporarily
inactive:
- if a door/the tailgate is open,
- when braking or when stopped at a red
light (brake pedal pressed)
Deactivation of the automatic correction
The control which permits deactivation of the
automatic control is located on the right-
hand side, at the rear of the vehicle.
With the vehicle stationary:
- press and hold,
- release the control when a bleep is heard.
Deactivation is confirmed by two consecutive
bleeps, the diode on the control remains lit.
You must deactivate the automatic
correction manually in the following
situations:
- when working underneath the vehicle,
- when changing a wheel,
- when the vehicle is being transported by
lorry, train, ferry, boat, ...
Return to automatic correction
With the vehicle stationary:
- press and hold,
- release the control when a bleep is heard.
Return to automatic correction is confirmed
by two consecutive bleeps, the diode on the
control is switched off.
REAR SUSPENSION
Suspension with pneumatic compensation
107
4
2 - Manual correction of the height
of the rear sill
If your vehicle is fitted with this adjustment,
the control is located on the right-hand side
at the rear of the vehicle.
This manual adjustment permits "lowering"
or "raising" of the height of the sill of the rear
platform to facilitate operations in a parking
area.
This adjustment of the height of the sill is
restricted by a lower limit and an upper limit.
Carry out these operations with the vehicle
still stationary and:
- with the front and side doors closed,
- with the handbrake applied,
- do not leave your foot on the brake pedal.
First use
To initialise the function, press the control
for approximately 2 seconds.
Lower: downwards adjustment
of the platform sill
Press the control downwards
continuously.
Release the button to stop the movement,
"3 bleeps" indicate that you have reached
the maximum limit, the movement stops
automatically.
Raise: upwards adjustment of
the platform sill
Press the control upwards
continuously.
Release the button to stop the movement,
"3 bleeps" indicate that you have reached
the maximum limit, the movement stops
automatically.
Return to the optimum sill height
Press the control up or down twice in
succession, the opposite of the position of
the load sill.
Operating faults
If the load sill is not adjusted when the
control is pressed, "3 bleeps" indicate a
malfunction for the following reasons:
- foot on the brake pedal with the key in the
ignition,
- excessive use of the manual correction,
- low battery charge,
- failure of the system.
If the audible signal persists, contact a
PEUGEOT dealer.
Suspension with pneumatic compensation
IN-CAR TECHNOLOGY
108
Deactivation of the manual
correction
With the vehicle stationary:
- press and hold,
- release the control when a bleep is heard.
Deactivation is confirmed by two
consecutive bleeps, the diode on the control
remains lit.
To activate the correction, press and hold
then release the control when a bleep is
heard. The diode on the control switches off
accompanied by two bleeps.
You must deactivate the manual
correction in the following situations:
- when working underneath the vehicle,
- when changing a wheel,
- when the vehicle is being transported by
lorry, train, ferry, boat, ...
Good practice
When stationary and with the ignition key
removed, excessive use of the system
consumes battery charge.
Driving with the height of the rear platform:
- too low, risks damaging the technical
components underneath the vehicle,
- too high, risks unstable driving.
If you start and the warning light flashes, to
switch it off:
- correct the position of the manual control
which is still at the lower or upper limit,
- or drive slowly at above 6 mph (10 km/h),
until the compensation returns to automatic
mode.
Parking for a long duration
Avoid parking for a long duration on ground
which could present a potential obstacle as
your vehicle could lower.
Following a long period out of use, the
height of the platform may change due to the
automatic compensation on unlocking or on
opening one of your vehicle’s doors.
Warning light
Refer to the "Instruments and controls"
section of chaper 2.
Suspension with pneumatic compensation
109
4
If fitted on your vehicle, the system is
audible and/or visual and consists of four
proximity sensors, installed in the rear
bumper.
The sensors detect any obstacle: person,
vehicle, tree, fence, behind the vehicle
during the manoeuvre.
Objects the size or thickness of which are
detected at the beginning of the manoeuvre
will no longer be detected at the end of the
manoeuvre: blind spots between and below
the sensors.
Examples: stake, roadworks cone or
pavement post.
Engage reverse gear
An audible signal confirms the activation of
the system by engaging reverse gear.
The proximity information is indicated by an
audible signal which becomes more rapid as
the vehicle approaches the obstacle. When
the distance between the rear of the vehicle
and the obstacle is less than approximately
thirty centimetres, the audible signal
becomes continuous.
If fitted on your vehicle, a graphic appears
on the display.
Stop the assistance
Change to neutral.
Activation/Deactivation
You can activate or deactivate the
system by pressing this button.
The activation or deactivation of
the system is stored when the
vehicle stops.
Operating fault
The engagement of reverse gear is not
confirmed by an audible signal and the
diode on the button is lit accompanied by
an audible signal and a message on the
display. Contact a PEUGEOT dealer.
Good practice
In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or snow.
The system will be deactivated automatically
if a trailer is being towed (vehicle fitted with
a towbar recommended by PEUGEOT).
You are advised to deactivate the system if
your vehicle is fitted with a rear ladder.
The parking assistance cannot, in any
circumstances, take the place of the
vigilance and responsibility of the driver.
AUDIBLE AND/OR VISUAL REAR PARKING ASSISTANCE
Parking assistance
IN-CAR TECHNOLOGY
110
HANDBRAKE
Applying
When parking, pull the handbrake to
immobilize your vehicle.
Check that it is applied firmly before leaving
the vehicle.
If the handbrake is still on or has
not been released properly, this
is indicated by this warning light
which comes on on the instrument
panel.
When parking on a slope, direct your
wheels towards the pavement and pull the
handbrake.
Engaging a gear after parking the vehicle
has no effect, especially when the vehicle is
loaded.
Releasing
Pull on the handle and press the button to
release the handbrake.
HAZARD WARNING LIGHTS
Press this button, the direction indicators
flash.
They can operate with the ignition off.
DRIVING SAFETY
Driving safety
ABS
ABS
111
5
HORN
Press the centre of the steering wheel.
ANTI-LOCK BRAKING SYSTEM
(ABS - EBFD)
The ABS and EBFD (electronic brake force
distribution) systems improve the stability
and manoeuvrability of your vehicle on
braking, in particular on poor or slippery
surfaces.
The ABS prevents locking of the wheels,
the EBFD provides control of the braking
pressure wheel by wheel.
Good practice
The anti-lock braking system comes into
operation automatically when there is a risk
of wheel lock. It does not reduce the braking
distance.
On very slippery surfaces (ice, oil, etc...)
the ABS may increase the braking distance.
When braking in an emergency, do not
hesitate to press the brake pedal firmly,
without releasing the pressure, even on a
slippery surface, you will then be able to
continue to manoeuvre the vehicle to avoid
an obstacle.
Normal operation of the ABS may be felt by
slight vibration of the brake pedal.
When changing wheels (tyres and rims),
ensure that these are recommended by
PEUGEOT.
If this warning light comes on,
accompanied by an audible signal
and a message on the display, it
indicates a malfunction of the ABS
which could result in a loss of
control of the vehicle on braking.
If this warning light comes on,
together with the brake and STOP
warning lights, accompanied by
an audible signal and a message
on the display, it indicates a malfunction of
the electronic brake force distribution which
could result in a loss of control of the vehicle
on braking.
Stop immediately.
In both cases, contact a PEUGEOT dealer.
EMERGENCY BRAKING
ASSISTANCE SYSTEM (EBA)
In an emergency, this system enables the
optimum braking pressure to be reached
more quickly, thus reducing the stopping
distance.
It is triggered by the speed at which the
brake pedal is activated. This alters the
resistance of the brake pedal under your
foot.
To prolong the operation of the emergency
braking assistance system: keep your foot
on the brake pedal.
Driving safety
SAFETY
112
TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP)
These systems are linked and complement
the ABS.
The ASR system is very useful for
maintaining optimum drive and avoiding
losses of control of the vehicle on
acceleration.
The system optimises drive to prevent the
wheels skidding, by acting on the brakes of
the drive wheels and on the engine. It also
allows the directional stability of the vehicle
to be improved on acceleration.
Use the ESP to hold your course without
attempting to countersteer.
If there is a variation between the trajectory
followed by the vehicle and that required
by the driver, the ESP system automatically
acts on the engine and the brake of one
or more wheels, in order to put the vehicle
back on course.
Operation of the ASR and ESP
systems
The warning light flashes when
the ASR or ESP is triggered.
DISARMING THE ASR/ESP SYSTEMS
In certain exceptional conditions (starting
the vehicle when stuck in mud or snow, or
on loose ground...), it could prove useful to
disarm the ASR and ESP systems to make
the wheels spin and regain grip.
Press the button, situated on the centre
console.
The indicator light comes on:
the ESP and ASR systems no longer act.
They engage again:
automatically above approx 30 mph
(50 kmh),
manually by pressing the button again.
Operating check
When a malfunction of the
systems occurs, the indicator light
comes on, accompanied by an
audible signal and a message on
the display.
Contact a PEUGEOT dealer to have the
system checked.
The warning light may also come on if the
tyres are under-inflated. Check the pressure
of each tyre.
Good practice
The ASR/ESP systems offer increased
safety during normal driving, but should not
incite the driver to take risks or to drive at
high speed.
The operation of these systems is ensured
if the recommendations of the manufacturer
regarding the wheels (tyres and rims),
the braking components, the electronic
components and the fitting and repair
procedures within the PEUGEOT network
are observed.
After an impact, have these systems
checked by a PEUGEOT dealer.
Driving safety
113
5
Seat belts
Height adjustment
Squeeze the control with the return and slide
the assembly on the driver’s seat side and
on the individual passenger seat side.
If your vehicle is fitted with a front bench,
the height of the seat belt associated with
the centre seat cannot be adjusted.
Fastening
Pull the strap, then insert the tongue into the
buckle.
Check that the seat belt is fastened correctly
by pulling the strap.
Unfastening
Press the red button.
Driver’s seat belt not fastened
warning light
When the vehicle is started, this
warning light comes on if the
driver has not fastened his seat belt.
Passenger seat belt not
fastened warning light
If your vehicle is fitted with a front
passenger seat, when the vehicle
is started, this warning light comes on if the
passenger has not fastened his seat belt.
SEAT BELTS
Good practice
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
The seat belts are fitted with an inertia reel
which automatically adjusts the length of the
strap to your size. The seat belt is rolled up
automatically when not in use.
Ensure that the seat belt is rolled up
correctly after use.
After folding or moving a rear seat or bench
seat, ensure that the seat belt is rolled up
correctly in its compartment and that the
buckle is ready to accommodate the tongue.
Depending on the nature and seriousness
of any impact, the pretensioning device may
be triggered before and independently of
inflation of the air bags. It instantly tightens
the seat belts against the body of the
occupants.
The force limiter reduces the pressure of the
seat belt against the body of the occupants.
The equipment fitted to these seat belts is
operational when the ignition is switched on.
The inertia reels are fitted with a device
which automatically locks the strap in the
event of a collision or emergency braking.
You can release the seat belt and allow the
strap to roll up.
SAFETY
114
The air bag warning light comes on if the
pretensioners are triggered. Contact a
PEUGEOT dealer.
In order to be effective, a seat belt must:
- restrain one person only,
- must not be twisted, check by pulling in
front of you with an even movement,
- be tightened as close to the body as
possible.
The upper part of the seat belt should be
positioned in the hollow of the shoulder.
The lap part should be placed as low as
possible on the pelvis.
Do not invert the seat belt buckles as they
will not fulfil their role completely. If the
seats are fitted with armrests, the lap part of
the seat belt should always pass under the
armrest.
Check that the seat belt is fastened correctly
by pulling the strap firmly.
Recommendations for children:
- use a suitable child seat if the passenger is
less than 12 years old or shorter than one
metre fifty,
- never allow a child to travel on your lap,
even with the seat belt fastened.
For further information regarding child seats,
refer to the "Children on board" section of
chapter 5.
In accordance with current safety
regulations, your PEUGEOT dealer
guarantees all work or any checks, from
testing to maintenance, on your seat belt
equipment.
Have the seat belts checked regularly
(even after a minor impact) by a PEUGEOT
dealer: they must not show any signs of
wear, cutting or fraying and they must not be
transformed or modified.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold
by PEUGEOT dealers.
Seat belts
FRONT SEAT BELTS
With front air bags
The front seats are fitted with pretensioners
and force limiters.
Without front air bag
If your vehicle is fitted with a front bench
without front air bag, the centre passenger’s
seat belt does not have a pretensioner.
115
5
Improved safety and security
IMPROVED SAFETY AND SECURITY
In situations of extreme transverse
acceleration, this module limits the risks
of the vehicle rolling over by acting on the
brakes.
* Roll-over prevention system.
ROLL OVER MITIGATION*
This system, linked with the ESP,
supplements the ABS-EBFD, ASR-ESP and
EBA braking functions, already covered in
this handbook, to guarantee a high level of
active safety. Indeed, the ROM system was
intended originally for top-of-the-range 4x4
type vehicles and today it is fitted on your
Expert.
SAFETY
116
Air bags
The air bags have been designed to
maximise the safety of the occupants in the
event of a serious collision; they work in
conjunction with the force limiting seat belts.
In the event of a serious collision, the
electronic detectors record and analyse any
abrupt deceleration of the vehicle: if the
triggering threshold is reached, the air bags
inflate instantly and protect the occupants of
the vehicle.
Immediately after the impact, the air bags
deflate rapidly, so that they do not hinder the
visibility of the occupants nor their possible
exit from the vehicle.
The air bags will not be deployed in
collisions which are not serious, for
which the seat belt is sufficient to provide
maximum protection. The seriousness of
the collision depends on the nature of the
obstacle and the speed of the vehicle at the
moment of impact.
Air bags only operate when the ignition is
switched on.
Front air bags
These are folded in the centre of the
steering wheel for the driver and in the
fascia for the front passenger. They are
deployed simultaneously, unless the
passenger air bag has been disarmed.
Front air bag malfunction
If this warning light comes on,
accompanied by a buzzer and a
message on the display, contact
a PEUGEOT dealer to have the system
checked.
The gas escaping from the inflated air
bags can be a minor irritant.
AIR BAGS
117
5
Air bags
With the ignition switched off, insert the key
into the passenger air bag disarming switch,
turn it to the "OFF" position then remove the
key keeping the slot in this position.
The air bag warning light on the instrument
panel is lit throughout the disarming process.
In the "OFF" position, the passenger air bag
will not be triggered in the event of an impact.
As soon as the child seat is removed, turn the
air bag slot to the "ON" position to re-activate
the air bag and thus ensure the safety of your
passenger in the event of an impact.
Disarming check
This is confirmed by the lighting of an
indicator light.
DISARMING THE PASSENGER
AIR BAG
If fitted on your vehicle, to ensure the safety
of your child, it is essential to disarm the
passenger air bag when you install a rear-
facing child seat on the front passenger
seat. Otherwise, the child would risk being
killed or seriously injured if the air bag were to
inflate.
With the ignition on, illumination
of this warning light indicates that
the passenger air bag is disarmed
(switch in the "OFF" position).
Side air bags
If fitted on your vehicle, the side air bags are
incorporated into the front seat backs on the
door side.
They are deployed independently of each
other depending on which side the collision
occurs.
Operating check
This is confirmed by lighting of
this indicator light, accompanied
by an audible signal and a
message on the display.
If this indicator light comes on, accompanied
by an audible signal and a message on the
display, contact a PEUGEOT dealer to have
the system checked.
In the event of permanent lighting of
the two air bag warning lights, do not
install a rear facing child seat. Contact a
PEUGEOT dealer.
SAFETY
118
Air bags
Good pratice
If your vehicle is fitted with front and side
air bags, in order for these to be fully
effective, observe the following safety
rules:
Wear a correctly adjusted seat belt.
Sit in a normal upright position.
Do not leave anything between the
occupants and the air bags (child, animal,
object...).
This could hamper the operation of the air
bags or injure the occupants.
All work on the air bag systems is strictly
prohibited unless it is carried out by qualified
personnel of the PEUGEOT network.
After an accident or if the vehicle has been
stolen or broken into, have the air bag
systems checked.
Front air bags
Do not drive holding the steering wheel
by its spokes or resting your hands on the
centre part of the wheel.
Passengers must not place their feet on the
fascia.
Smoke as little as possible; deployment of
the air bags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel
or hit it violently.
Side air bags
Only put approved covers on the front seats.
Contact your PEUGEOT dealer.
Do not fix or glue anything to the front seat
backs. This could cause injury to the chest
or arms when the side air bag is deployed.
Do not sit with the upper part of the body
any nearer to the door than necessary.
117
5
Air bags
With the ignition switched off, insert the key
into the passenger air bag disarming switch,
turn it to the "OFF" position then remove the
key keeping the slot in this position.
The air bag warning light on the instrument
panel is lit throughout the disarming process.
In the "OFF" position, the passenger air bag
will not be triggered in the event of an impact.
As soon as the child seat is removed, turn the
air bag slot to the "ON" position to re-activate
the air bag and thus ensure the safety of your
passenger in the event of an impact.
Disarming check
This is confirmed by the lighting of an
indicator light.
DISARMING THE PASSENGER
AIR BAG
If fitted on your vehicle, to ensure the safety
of your child, it is essential to disarm the
passenger air bag when you install a rear-
facing child seat on the front passenger
seat. Otherwise, the child would risk being
killed or seriously injured if the air bag were to
inflate.
With the ignition on, illumination
of this warning light indicates that
the passenger air bag is disarmed
(switch in the "OFF" position).
Side air bags
If fitted on your vehicle, the side air bags are
incorporated into the front seat backs on the
door side.
They are deployed independently of each
other depending on which side the collision
occurs.
Operating check
This is confirmed by lighting of
this indicator light, accompanied
by an audible signal and a
message on the display.
If this indicator light comes on, accompanied
by an audible signal and a message on the
display, contact a PEUGEOT dealer to have
the system checked.
In the event of permanent lighting of
the two air bag warning lights, do not
install a rear facing child seat. Contact a
PEUGEOT dealer.
SAFETY
118
Air bags
Good pratice
If your vehicle is fitted with front and side
air bags, in order for these to be fully
effective, observe the following safety
rules:
Wear a correctly adjusted seat belt.
Sit in a normal upright position.
Do not leave anything between the
occupants and the air bags (child, animal,
object...).
This could hamper the operation of the air
bags or injure the occupants.
All work on the air bag systems is strictly
prohibited unless it is carried out by qualified
personnel of the PEUGEOT network.
After an accident or if the vehicle has been
stolen or broken into, have the air bag
systems checked.
Front air bags
Do not drive holding the steering wheel
by its spokes or resting your hands on the
centre part of the wheel.
Passengers must not place their feet on the
fascia.
Smoke as little as possible; deployment of
the air bags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel
or hit it violently.
Side air bags
Only put approved covers on the front seats.
Contact your PEUGEOT dealer.
Do not fix or glue anything to the front seat
backs. This could cause injury to the chest
or arms when the side air bag is deployed.
Do not sit with the upper part of the body
any nearer to the door than necessary.
119
5
Child safety
GENERAL POINTS RELATING TO
CHILD SEATS
Although one of PEUGEOT’s main criteria
when designing your vehicle, the safety of
your children also depends on you.
For maximum safety, please follow these
precautions:
- in accordance with Directive 2003/20, all
children under the age of 12 or less than
one metre fifty tall must travel in approved
child seats suited to their weight, on seats
fitted with a seat belt or ISOFIX mountings,
- statistically, the safest seats in your vehicle
for the transportation of children are the
rear seats,
- a child weighing less than 9 kg must travel
in the "rearwards-facing" position both in
the front and in the rear.
PEUGEOT recommends that children should
travel in the rear seats of your vehicle:
- "rearwards-facing" up to the age of 2,
- "forwards-facing" over the age of 2.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat, it
is essential that the passenger air bag is
disarmed. Otherwise, the child would risk
being seriously injured or killed if the air bag
were to inflate.
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat, leave
the passenger air bag armed.
Intermediate longitudinal position
If your vehicle is fitted with a passenger seat
with longitudinal adjustment, adjust it to the
intermediate longitudinal position, seat back
upright.
The rules for transporting children are specific
to each country. Consult the current legislation
in your country.
Please consult the list of seats approved in
your country. The isofix mountings, the rear
seats, the passenger air bag and the disarming
of this air bag depend on the version sold.
CHILD SAFETY
INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT
SAFETY
ON
OFF
AIRBAGPASS.
O
N
O
F
F
A
IRBAGPASS
.
120
Child safety
Chapter 5, "Air bags" section.
The child seats function is shared by
the entire PEUGEOT range. However,
each individual model has its own special
features.
If your vehicle is fitted with this function,
the passenger air bag disarming switch is
located in the glove box.
The 2-seat bench is fixed and therefore has
no longitudinal adjustment.
The passenger must not travel with a child
on his lap.
121
5
Child safety
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured using a three point seat belt:
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1 "BRITAX Babysure"
(E11 0344117)
Installed in the rear-facing
position.
L2 "ROMER Baby-Safe"
(E1 03301146)
Installed in the rear-facing
position.
L3 "MAXI COSI Cabrio"
(E4 03443301/E4 04443517)
Installed in the rear-facing
position.
L4 "KIDDY Life"
(E1 03301135)
For the safety of young children (from 9 to 18 kg),
PEUGEOT recommends use of the restraining cushion.
Groups 1, 2 and 3: from 9 to 36 kg
Groups 2 and 3: from 15 to 36 kg
L5 "RECARO Start"
(E1 03301108)
L6 "KLIPPAN Optima"
(E17 030007)
From the age of 6 years (approximately 22 kg),
the booster is used on its own.
SAFETY
122
Child safety
a: Group 0: from birth to 10 kg.
b: consult the legislation in force in your country before installing your child on this seat.
U: seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear facing" and/or "forward facing".
INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT
In accordance with the European regulation (Directive 2000/3), this table indicates the options for installing child seats secured using a seat belt and
universally approved in accordance with the weight of the child and the seat in the vehicle.
Seat
Weight of the child and indicative age
From 9 to 18 kg From 15 to 25 kg From 22 to 36 kgUnder 13 kg
(group 1) (group 2) (group 3)(groups 0 (a) and 0+)
1 to 3 years approx 3 to 6 years approx 6 to 10 years approxUp to approx 1 year
Row 1 (b)
U U U U
Bench, side seat
U U U U
Bench, centre seat
L2, L3 L4 L4, L5, L6 L4, L5, L6
Individual seat
123
5
ADVICE ON CHILD SEATS
The incorrect installation of a child seat in a
vehicle compromises the child’s protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child’s body to a minimum,
even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle’s seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent.
Disarm the passenger air bag* when a "rear
facing" child seat is installed on the front
seat. Otherwise, the child would risk being
seriously injured or killed if the air bag were
to inflate.
Installing a booster seat
The chest part of the seat belt must be
positioned on the child’s shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child’s thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fitted with a
seat belt guide at shoulder level.
As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
- the keys within reach of children inside the
vehicle.
To prevent accidental opening of the doors,
use the "Child lock"*.
Take care not to open the rear windows by
more than one third*.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
* According to version.
Child safety
SAFETY
124
For more information about weights,
refer to the administrative documents
(V5 registration document, ...) or to
the "Weights" section of chapter 9.
Driving advice
A towed vehicle must free wheel:
gearbox in neutral.
TOWING A TRAILER, CARAVAN, BOAT, ETC...
Distribution of loads:
distribute the load in the trailer so that the
heaviest objects are as close as possible
to the axle and the nose weight is close to
the maximum authorised without, however,
exceeding it.
Cooling:
towing a trailer on a slope increases
the coolant temperature.
As the fan is electrically controlled,
its cooling capacity is not dependent on
the engine speed.
On the contrary, use a high gear to lower
the engine speed and reduce your speed.
Towing a trailer
125
6
In all cases, pay attention to the coolant
temperature.
Good Practice
In certain cases of particularly arduous
use (towing the maximum load up a steep
slope in high temperatures), the engine
automatically limits its power. In this
case, the automatic cutting off of the air
conditioning allows the engine power to be
recovered.
If the coolant temperature warning
light comes on, stop the vehicle
and switch off the engine as soon
as possible.
Tyres: check the tyre pressures of the
towing vehicle (see the "Identification
features" section of chapter 9) and of
the trailer, observing the recommended
pressure.
Brakes:
towing increases the braking distance. Drive
at a moderate speed, change down early
and brake gradually.
Side wind:
sensitivity to side wind is increased. Drive
smoothly and at a moderate speed.
ABS:
the system only controls the vehicle, not
the trailer.
Rear parking assistance:
the assistance does not function while
the vehicle is towing.
Towbar
We recommend the use of original
PEUGEOT towbars and harnesses, which
have been tested for endurance from
the design stage of your vehicle.
Towing equipment must be fitted in
accordance with the manufacturer’s
instructions, with particular attention to
the towing capacities of your vehicle,
the load towed, the nose weight and the
electrical connection. As this fitting should
be carried out by a professional, we
recommend that you entrust the fitting of
this equipment to a PEUGEOT dealer.
In accordance with the general instructions
a reminder of which has been given above,
we draw your attention to the risk linked with
fitting a towbar or electrical accessory not
recommended by PEUGEOT.
Fitting such equipment could result in
the failure of your vehicle’s electronic
system. Please contact a PEUGEOT dealer
for information before fitting this type of
equipment.
See the "Levels" section of chapter 7.
Towing a trailer
ACCESSORIES
126
OTHER ACCESSORIES
These accessories and parts, having been
tested and approved for reliability and
safety, are all adapted to your Expert.
A wide range recommended by PEUGEOT
and original parts are offered by PEUGEOT
"Accessories", in a catalogue and on line at
PEUGEOT dealerships.
Range of professional equipment
Pièces et Services technical information
publishes an Expert accessories catalogue
offering various equipment and fittings, such
as:
Roof bars for short, medium and long
wheelbase (load retainers for all models).
Sill plate, loading roller, sill.
Towbar, towbar harness: trailer towbar which
must be fitted by the PEUGEOT network.
Roof bars for the various heights, roof bars,
ladder.
Separation partitions and grilles, smooth,
non-slip wooden protective floor.
Protective grilles, multimedia.
"Accessories"
Another range is also available from
PEUGEOT Accessories, structured around
5 groups:
"Protection": anti-theft alarm,
window engraving, first aid kit, high
visibility safety jacket, rear parking
assistance, warning triangle, ...
"Touring": front seat covers
compatible with air bags, bench,
rubber mats, carpet mats.
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat is positioned correctly,
- never fit one mat on top of another.
Snow chains.
"In-car technology": audio
equipment, hands-free kit, speakers,
CD changer, navigation, ...
Regardless of the audio and
telematic equipment offered on the
market, the technical constraints linked with
the fitting of equipment of these families of
products mean that the special features of
the equipment and its compatibility with the
capacities of the your vehicle’s standard
equipment must be taken into account.
Please contact a PEUGEOT dealer for
information before fitting such equipment.
"Styling": front mud flaps, rear mud
flaps, ...
The fitting of electrical equipment
or accessories which are not
recommended by Automobiles PEUGEOT
may result in the failure of your vehicle’s
electronic system. Please note this specific
warning. You are advised to contact a
representative of the Marque to be shown
the range of recommended equipment and
accessories.
Depending on the country in which the
vehicle is sold or operated, it is compulsory
to have a high visibility safety jacket,
warning triangle and replacement bulbs
available in the vehicle.
"Universal": screenwash,
interior and exterior cleaning and
maintenance products, replacement
bulbs, ...
For further information, refer to the site
http://public.infotec.peugeot.com.
ROOF BARS
To install the transverse roof bars, use
the fixings provided for this purpose.
Maximum load: 170 kilogrammes.
Equipment
127
7
OPENING THE BONNET
From inside:
- lift the cover located at the left foot of the
driver’s seat.
- pull the control upwards.
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet is
properly locked.
"Bonnet open" warning
This warning is linked to the alarm option only.
With the engine running or the
vehicle moving, a warning light
and a diagram on the display,
accompanied by an audible
signal, warn you that the bonnet
is not properly closed.
From outside: lift the catch and raise the
bonnet.
Bonnet strut
Secure the strut in one of the two notches,
according to the height required, to hold the
bonnet open.
Before closing the bonnet, replace the strut
in its housing.
Opening the bonnet
CHECKS
4
3
7
1
2
5
6
8
9
11
10b
10a
128
DIESEL ENGINES
4 - Brake and clutch fluid reservoir.
5 - Air filter.
6 - Dipstick.
7 - Engine oil filler cap.
8 - Power steering reservoir.
9 - Removable towing eye.
10 - Repriming pump
(a: 1.6 litre HDi; b: 2 litre HDi).
11 - Engine oil filling funnel (2 litre HDi).
UNDER THE BONNET
1 - Windscreen/headlamp wash reservoir.
2 - Fuse box.
3 - Coolant reservoir.
Under the bonnet
4
3
7
1
2
5
8
9
6
129
7
PETROL ENGINE
4 - Brake and clutch fluid reservoir.
5 - Air filter.
6 - Dipstick.
7 - Engine oil filler cap.
8 - Power steering reservoir.
9 - Removable towing eye.
1 - Windscreen/headlamp wash reservoir.
2 - Fuse box.
3 - Coolant reservoir.
Under the bonnet
CHECKS
A
B
130
Levels
LEVELS
These regular maintenance operations
will keep your vehicle in good running
order. Consult the instructions at PEUGEOT
dealerships, on the Infotec site or in the
servicing booklet enclosed in the handbook
pack.
If you have to remove/refit the engine
style cover, handle it with care to avoid
damaging the fixing clips.
Oil level
Check the level regularly and top up between
changes. The maximum consumption is 0.5 litre
per 600 miles (1 000 km).
Check the level with the vehicle level,
engine cold, using the dipstick.
Dipstick
There are two marks on the
dipstick:
A = maximum
If you fill past this mark,
contact a PEUGEOT dealer.
B = minimum
Never allow the level to fall
below this mark.
To maintain the reliability
of engines and emission
control systems, the use of additives in
engine oil is prohibited.
Oil change
It is imperative that this is carried out at the
intervals specified and the viscosity grade of
the oil selected must fulfil the requirements
in accordance with the manufacturer’s
servicing schedule. Consult the instructions at
PEUGEOT dealerships or on the Infotec site.
Remove the dipstick before filling.
For the 2 litre HDi engine, use the funnel
supplied when filling via the sump opening.
Check the level after filling (never exceed
the max mark).
Screw the cap back onto the sump before
closing the bonnet.
Viscosity selection
In all cases, the oil selected must meet the
manufacturer’s requirements.
Changing the brake fluid
The brake fluid must be changed at
the intervals stated, according to the
manufacturer’s servicing schedule.
Use fluids recommended by the
manufacturer, which fulfil DOT4 standards.
The level must be between the MIN and
MAX marks on the reservoir.
If fluid has to be added frequently, this
indicates a failure which must be checked by
a PEUGEOT dealer as soon as possible.
Warning lights
Checking by means of the warning lights on
the instrument panel is described in chapter 2,
refer to the "Instruments and controls" section.
131
7
Levels
Cooling system
Only use the fluid recommended by the
manufacturer.
Otherwise, you risk seriously damaging your
engine.
When the engine is warm, the temperature
of the coolant is controlled by the engine
fan. As this fan can operate with the ignition
key removed and because the cooling
system is pressurised, wait for at least one
hour after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to release
the pressure to prevent any risk of scalding.
When the pressure has dropped, remove the
cap and top up the level with coolant.
If fluid has to be added frequently, this
indicates a failure which must be checked by
a PEUGEOT dealer as soon as possible.
Topping up
The level must be between the MIN and
MAX marks on the expansion bottle. If
more than 1 litre of fluid is required to top
up the level, have the system checked by a
PEUGEOT dealer.
Power steering fluid level
The vehicle must be parked on level ground
with the engine cold. Unscrew the cap
integrated with the gauge and check the
level which must be between the MIN and
MAX marks.
Windscreen wash and headlamp
wash level
For best quality cleaning and for your safety,
we would advise that you use products of
the PEUGEOT Universal range.
Capacity of the screenwash reservoir:
approximately 4.5 litres.
If your vehicle is fitted with headlamp
washers, the capacity of the reservoir is
7.5 litres.
Diesel additive level (Diesel
with particle emission filter)
The minimum level of this additive
is indicated by lighting of the
service warning light, accompanied by
an audible signal and a message on the
display.
Topping up
It is imperative that this additive is topped up
by a PEUGEOT dealer without delay.
Used oil
Avoid prolonged contact of used oil with the
skin.
Brake fluid is harmful to health and very
corrosive.
Do not dispose of used oil, brake fluid or
coolant into drains or into the ground but
into the containers dedicated to this use at
PEUGEOT dealerships.
CHECKS
132
Checks
CHECKS
Battery
At the start of winter, have your battery
checked by a PEUGEOT dealer.
Brake pads
Brake pad wear depends on the style of
driving, in particular for vehicles which are
used in town, over short distances.
It may be necessary to check the thickness
of the pads, even between services.
Unless there is a leak on the circuit, a drop
in the brake fluid level indicates that the
brake pads are worn.
Brake disc/drum wear status
For any information relating to checking
the brake disc/drum wear status, contact a
PEUGEOT dealer.
Handbrake
Where the handbrake travel is too great
or there is a reduction in the performance
of the system, the handbrake should be
adjusted, even between services.
Have the system checked by a PEUGEOT
dealer.
Oil filter
Change the filter regularly, in accordance
with the servicing schedule.
Air filter and passenger
compartment filter
If the passenger compartment filter becomes
clogged, this may reduce the performance
of the air conditioning system and generate
unpleasant odours.
Refer to the servicing booklet to find out the
replacement interval for these components.
Depending on the environment (dusty
atmosphere...) and the use of the vehicle
(urban driving...), change them twice as
often if necessary, refer to the "Under the
bonnet" section of chapter 7.
Particle emission filter (Diesel)
It is imperative that particle emission filter
maintenance is carried out by a PEUGEOT
dealer.
On acceleration after the vehicle has been
running for a prolonged period at very low
speed or at idle, you may, in exceptional
circumstances, notice the emission of water
vapour at the exhaust.
This water vapour does not have any
adverse effect on vehicle handling or the
environment.
133
7
Manual gearbox
Have the level checked in accordance with
the manufacturer’s servicing schedule.
To check the main levels and certain
components, in accordance with the
manufacturer’s servicing schedule, refer
to the pages of the servicing booklet which
correspond to your vehicle’s engine.
Only use products recommended by
PEUGEOT or products of equivalent
quality and characteristics.
In order to optimise the operation of units as
important as the braking circuit, PEUGEOT
selects and offers specific products.
In order to avoid damaging the electrical
units, high pressure washing of the engine
compartment is strictly prohibited.
Checks
Bleeding the water contained in
the diesel filter
If this warning light comes on,
bleed the filter. Otherwise bleed
regularly each time the engine is
drained.
To evacuate the water, unscrew the bleed
screw located on the filter.
Operate until all of the water in the
transparent pipe has been drained out
then tighten the bleed screw.
HDi engines use advanced technology.
All work requires a special qualification
which is guaranteed by a PEUGEOT dealer.
1.6 litre HDi 2 litre HDi
CHECKS
135
7
FILLING WITH FUEL
Low fuel level
When the needle is at the start of
the red zone, the minimum fuel
tank level is reached when this
warning light comes on.
At this moment, you have approximately
8 litres of fuel remaining. Fill up without
delay to avoid running out of fuel.
FUEL CIRCUIT DISARMED
In a serious collision, a mechanism
automatically prevents fuel from reaching
the engine.
The flashing of this warning light
is accompanied by a message on
the display.
Check that there is no odour or leakage of
fuel outside the vehicle and re-establish the
fuel supply:
- switch off the ignition (STOP position).
- remove the key.
- put the key back in the ignition.
- switch on the ignition and start.
The fuel tank must be filled with the engine
off.
When filling with fuel, do not open the
left-hand side door, if fitted on your
vehicle, as there is a risk of damage to the
fuel filler flap.
- Open the fuel filler flap.
- Insert the key, then turn it a quarter turn.
- Remove the cap and hook it onto the clip
located on the inside of the flap.
A label affixed to the inside of the flap
reminds you of the type of fuel to be used.
When filling the fuel tank, do not continue
after the 3rd cut-off of the nozzle. This could
cause malfunctions.
The capacity of the fuel tank is
approximately 80 litres.
- After filling the fuel tank, lock the cap and
close the flap.
Fuel
DIESEL REPRIMING PUMP
If you should run out of fuel, it is necessary
to re-prime the circuit:
- fill the fuel tank with at least five litres of
diesel,
- squeeze and release the manual re-priming
pump, under the bonnet under the protective
cover, until fuel appears in the transparent
pipe,
- operate the starter until the engine starts.
CHECKS
136
BATTERY
This is housed in a compartment located
underneath the floor, in front of the driver’s
seat.
To charge the battery using
a battery charger
Disconnect the battery,
Follow the instructions for use given by
the battery charger manufacturer,
Reconnect starting with the negative (-)
terminal,
Check that the terminals and connectors
are clean. If they are covered with
sulphate (white or greenish deposit),
disconnect them and clean them.
To start the vehicle from another battery
Connect the red cable to the positive (+)
terminals of the two batteries,
Connect one end of the green or black
cable to the negative (-) terminal of the
slave battery,
Connect the other end of the green or
black cable to an earth point on the
broken down vehicle as far as possible
from the battery,
Operate the starter, let the engine run,
Wait for the engine to return to idle, then
disconnect the cables.
Before disconnecting the battery, you
must wait for 2 minutes after switching off
the ignition.
Never disconnect a terminal when the
engine is running.
Never charge a battery without first
disconnecting the terminals.
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised.
If slight difficulties are experienced after this,
please contact a PEUGEOT dealer.
It is advisable to disconnect the battery
if the vehicle is not to be used for a
period of more than one month.
Battery
ECONOMY MODE FUNCTION
After the engine has stopped, with the key
in the ignition position, certain functions
(windscreen wiper, electric windows,
courtesy lights, audio equipment, etc.) can
only be used for a cumulative duration of
thirty minutes, to prevent discharging of the
battery.
Once the thirty minutes are over, the active
functions are put on standby and the battery
warning light flashes accompanied by a
message on the display.
To resume the use of these functions
immediately, start the engine and let it run
for a few minutes.
The time available will then be double
the time for which the engine was left
running. However, this time will always
be between five and thirty minutes.
A flat battery will prevent the engine from
starting.
1
2
3
137
8
Changing a wheel
CHANGING A WHEEL
1. Parking the vehicle
- If possible, park the vehicle on level, stable
and non-slippery ground.
- Apply the handbrake, switch off the ignition
and engage first or reverse gear.
- If available, place a chock under the wheel
diagonally opposite the one to be changed.
On certain types of ground and/or if
considerable loads are being transported,
the vehicle must be raised in order to
disengage the spare wheel from the carrier.
Call a PEUGEOT dealer.
If your vehicle is fitted with suspension with
pneumatic compensation, please deactivate
the system. Refer to the "Suspension with
compensation" section of chapter 4.
2. Tools
- If fitted on your vehicle, open the
plastic flap located at the rear left of
the vehicle.
- Unscrew the nut then take out the jack and
the wheelbrace.
1 - Wheelbrace.
2 - Jack.
3 - Alloy wheel embellisher remover.
TROUBLESHOOTING
138
Open the cover, located on the sill, to
access the carrier bolt.
Unscrew the bolt using the wheelbrace
until the carrier is lowered fully.
Detach the carrier from the hook and place
the spare wheel near the wheel to be
changed.
3. Spare wheel
Gain access to the spare wheel
from the rear.
Open the rear doors.
You can switch on the courtesy light to
increase the light.
Changing a wheel
139
8
4. Operating procedure
Do not extend the jack until you have started
unscrewing the bolts on the wheel to be
changed and have placed the chock under
the wheel diagonally opposite.
Remove the trim pulling it using
the embellisher remover.
Loosen the wheel bolts and start
unscrewing them.
Place the jack in contact with the locating
point provided, the one which is closest to
the wheel to be changed. Ensure that the
base of the jack is in contact with
the ground, and straight above.
Extend the jack to lift the wheel clear of
the ground.
Resume and complete the unscrewing of
the wheel bolts.
Remove the bolts and remove the wheel.
Special tools for vehicles fitted
with alloy wheels
If your vehicle has wheels with alloy rims:
The embellisher is removed using
the alloy wheel embellisher remover.
Each wheel is fitted with an anti-theft bolt.
These bolts can be loosened using your
anti-theft socket (given to you on delivery
of your vehicle along with your confidential
card) and the wheelbrace.
Changing a wheel
TROUBLESHOOTING
140
Lower the vehicle completely by folding
the jack, then remove the jack.
Tighten the bolts again using the wheelbrace,
tighten them fully without forcing them.
Place the wheel to be repaired in the carrier.
Secure the carrier on the hook then
raise the carrier using the bolt and the
wheelbrace.
Remember to close the flap, located on
the sill.
Store the trim in the vehicle.
Never go underneath a vehicle that is
supported only by a jack (use a ramp).
Never use a screwdriver in place of the
wheelbrace.
5. Fitting the spare wheel
Position the wheel on the hub and start
tightening the bolts by hand.
Carry out an initial tightening of the bolts
using the wheelbrace.
Changing a wheel
A
B
B
141
8
6. Refitting the repaired wheel
The wheel is refitted as described in step 5,
not forgetting to refit the wheel trim.
The spare wheel is not designed to be
used over long distances. Have the
tightening of the bolts and the tyre pressure
checked by a PEUGEOT dealer as soon as
possible.
Also, have the original wheel repaired and
refitted by a PEUGEOT dealer as soon as
possible.
Refer to the "Identification features"
section of chapter 9 to locate the tyre
label.

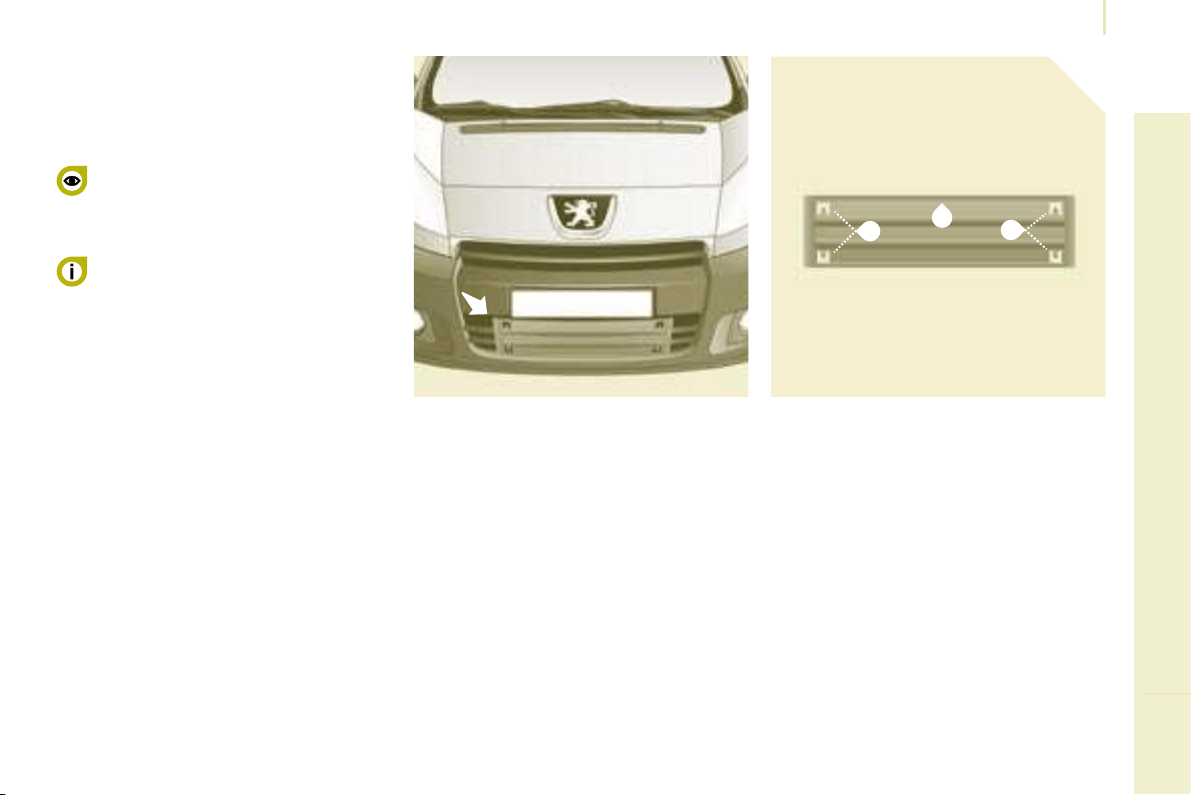

REMOVABLE SNOW SCREEN
According to country, the removable snow
screen is installed on the lower part of the
front bumper to prevent the accumulation
of snow at the radiator cooling fan.
When the snow has cleared, do not forget
to remove the snow screen.
FITTING
Offer up the screen snow screen facing its
centring pin A on the front bumper.
Put it in place by pressing at each clip B
located in the four corners.
REMOVAL
Pass a screwdriver into the hole located
near each of the clips.
Use the screwdriver as a lever to unclip
the four clips B in turn.
Snow screen
TROUBLESHOOTING
A
B
B
141
8
6. Refitting the repaired wheel
The wheel is refitted as described in step 5,
not forgetting to refit the wheel trim.
The spare wheel is not designed to be
used over long distances. Have the
tightening of the bolts and the tyre pressure
checked by a PEUGEOT dealer as soon as
possible.
Also, have the original wheel repaired and
refitted by a PEUGEOT dealer as soon as
possible.
Refer to the "Identification features"
section of chapter 9 to locate the tyre
label.
REMOVABLE SNOW SCREEN
According to country, the removable snow
screen is installed on the lower part of the
front bumper to prevent the accumulation
of snow at the radiator cooling fan.
When the snow has cleared, do not forget
to remove the snow screen.
FITTING
Offer up the screen snow screen facing its
centring pin A on the front bumper.
Put it in place by pressing at each clip B
located in the four corners.
REMOVAL
Pass a screwdriver into the hole located
near each of the clips.
Use the screwdriver as a lever to unclip
the four clips B in turn.
Snow screen
TROUBLESHOOTING
A
C
B
142
Changing a bulb
Type A Entirely glass bulb: pull gently as it
is fitted by pressure.
Type B Bayonet bulb: press on the bulb
then turn it anticlockwise.
Type C Halogen bulb: release the retaining
spring from its housing.
Halogen bulbs must be changed after
the headlamp has been off for several
minutes (risk of serious burns). Do not
touch the bulb directly with your fingers, use
lint-free cloths.
When each operation has been completed,
check the operation of the lights.
CHANGING A BULB
Types of bulb
Various types of bulb are installed on your
vehicle. To remove them:
143
8
Changing a bulb
3 - Direction indicators
Type B, PY 21 W - 21 W (amber)
- Turn the bulb holder a quarter turn
anticlockwise.
- Remove the bulb by pressing it lightly while
turning it anticlockwise.
- Change the bulb.
4 - Fog lamps
Type C, H1 - 55 W
Contact a PEUGEOT dealer.
- Ensure that the cover is refitted correctly
over its entire periphery to guarantee
sealing.
2 - Side lights
Type A, W 5 W - 5 W
- Remove the cover by pulling the flexible
rubber tab.
- Remove the bulb holder fitted by pressure
by pulling the connector.
- Change the bulb.
- Ensure that the cover is refitted correctly
over its entire periphery to guarantee
sealing.
FRONT LIGHTS
Open the bonnet. To access the bulbs, reach
behind the headlamp unit.
Carry out the operations in reverse order to
refit each bulb.
1 - Dipped headlamps/Main beam
headlamps
Type C, H4 - 55 W
-
Remove the centre cover by pulling the
flexible rubber tab.
- Disconnect the electrical connector.
- Release the retaining spring.
- Change the bulb taking care to align the
metal part with the grooves on the light.
TROUBLESHOOTING
144
DIRECTION INDICATOR SIDE
REPEATER
Type A, WY 5 W (amber)
- Push the repeater towards the rear and
disengage it.
- Support the connector and turn the bulb
holder a quarter turn to the left.
- Turn the bulb a quarter turn to the left,
remove it and change it.
- When refitting, engage the repeater
towards the rear and bring it towards the
front.
Amber coloured bulbs (direction indicators
and side repeaters) must be replaced with
bulbs of identical specification and colour.
Front/Rear
COURTESY LIGHTS
Type A, 12 V 5 W - 5 W
- Unclip the lens by sliding a screwdriver in
the slots on each side of the courtesy light.
- Pull the bulb and change it.
- Clip the lens in its housing and ensure that
it is secured correctly.
Changing a bulb
2
3
4
1
145
8
REAR LIGHTS
For further information concerning the bulbs,
refer to the "Types of bulb".
1 - Brake lights/side lights
Type B, P 21/5 W - 21/5 W
2 - Direction indicators
Type B, PY 21 W - 21 W (amber)
3 - Reversing lights
Type B, P 21 W - 21 W
4 - Fog lamps
Type B, P 21 W - 21 W
- Identify the faulty bulb then open the rear
doors to 180°. Refer to the "Accesses"
section of chapter 2.
- Remove the two fixing nuts.
- Pull the lens block from the outside.
- Holding the light, disconnect the electrical
connector.
Changing a bulb
- Move aside the 8 tabs then extract the bulb
holder.
- Remove the faulty bulb by pressing it
lightly while turning it anticlockwise.
- Change the bulb.
When refitting, take care to correctly
reposition:
- the 8 tabs,
- the two white lugs in the two rubber holes
to maintain the sealing of the light,
- the supply wire to avoid trapping it.
TROUBLESHOOTING
146
Changing a bulb
THIRD BRAKE LIGHT
Type A, W 5 W - 5 W
Light located on the outside
(hinged doors)
- Unscrew the two screws using a Torx
TM
screwdriver with 20 socket.
- Remove the light.
NUMBER PLATE
LIGHTS
Type A, W 5 W - 5 W
With tailgate
- Move aside the plastic lens using a
screwdriver, on the point indicated by the
arrow.
- Change the bulb.
- Replace the plastic lens and press on it.
With hinged doors
- Unclip the interior trim.
- Disconnect the connector by moving
aside its tab.
- Remove the plastic cover.
- Turn the bulb holder a quarter turn
anticlockwise.
- Change the bulb.
Type B, P 21 W - 21 W
Light located on the inside (tailgate)
- Unscrew the two screws using a Torx
TM
screwdriver with 20 socket.
- Remove the plastic cover.
- Remove the bulb holder moving aside the
two tabs.
- Remove the faulty bulb by pressing it
lightly while turning it anticlockwise.
- Change the bulb.
Type B, P 21 W - 21 W
Light on high door
- Remove the screws using an 8 wrench.
- Remove the faulty bulb by pressing it
lightly while turning it anticlockwise.
- Change the bulb.
147
8
Changing a fuse
CHANGING A FUSE
The three fuse boxes are placed:
- in the fascia panel on the right-hand
side (behind the storage compartment,
retractable),
- in the passenger compartment (battery
compartment),
- under the bonnet.
If fitted on your vehicle, a further fuse
box is added for towing, the towbar and
the connections for the coachbuilder and
platform cab conversions. It is located on the
right behind the load retaining partition.
The descriptions communicated are only
the fuses which can be changed by the
user using the pliers and replacement fuses
located behind the fascia panel storage
compartment on the right-hand side. For any
other operations, visit a PEUGEOT dealer.
Intended for professionals: for
complete fuse and relay information,
consult the "Methods" diagram via the
Network or the INFOTEC site.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified.
- Use the pliers.
Always replace a faulty fuse with a fuse
of the same rating.
TROUBLESHOOTING

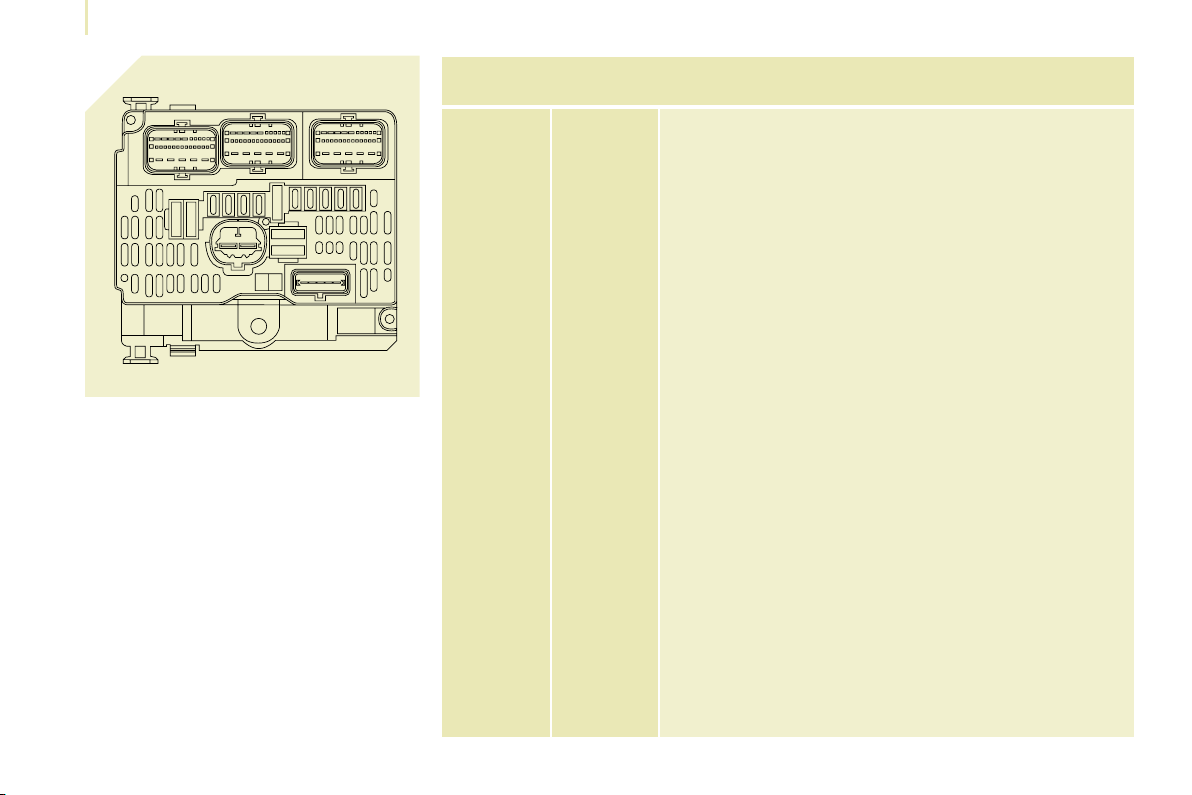

F1F11
F17F16/SHUNT
F4F3F13 F12F9F14F10F15F7F8F5F6
148
Fuses A (amps) Allocation
1 15 Rear wiper
2 - Not used
3 5 Air bag control unit
4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor,
Manual ventilation,
Clutch switch, Headlamp beam height,
Particle emission filter pump
5 30 Electric mirrors, Passenger electric window motor
6 30 Front electric windows supply
7 5 Courtesy lights and glove box light
8 20 Multifunction display, Anti-theft alarm siren, Audio equipment,
Compact disc changer,
Audio/telephone, Trailer fuse box (accessory),
Coachbuilder/vehicle modifier unit (platform cab)
9 10 Lighter, Load space accessories socket
10 30 Rear ride height corrector, Steering wheel switching, Instrument
panel
11 15 Diagnostic socket, Ignition switch
12 15 Hands-free kit, Air bag control unit, Parking assistance control unit
13 5 Engine fuse box, Trailer fuse box
14 15 Rain sensor, Automatic air conditioning, Instrument panel
15 30 Locking/unlocking/deadlocking of the accesses
16 - Not used
17 40 Heated rear screen, Heated mirrors*
17* 10* Heated mirrors only
Changing a fuse
RIGHT-HAND SIDE FASCIA PANEL
FUSES
- Tilt the storage compartment then pull it
firmly to access the fuses.
F1
F1
F4F3F4F5
F2
F3
149
8
Changing a fuse

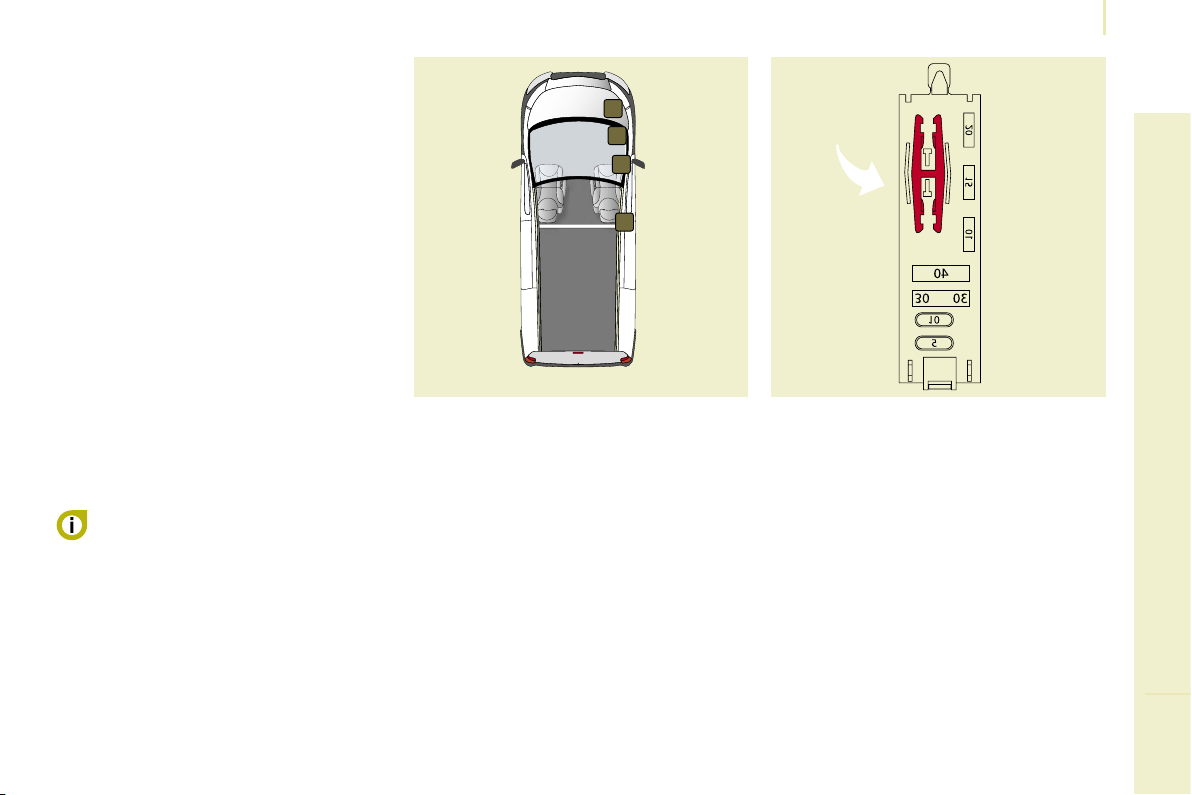

PASSENGER COMPARTMENT
FUSES
- Unclip the battery compartment cover.
- Remove the red battery terminal (+).
When you have finished, close the cover
carefully.
Fuses A (amps) Allocation
1 30 Heated seats
2 Not used
3 40/50 Trailer fuse box (accessory)/
Coachbuilder/vehicle modifier unit (platform cab)
4 - Not used
36 15 Hinged door locks
37 10 Hinged door locks
38 20 Hinged door rear wiper
39 - Not used
40 5 Folding mirrors
TROUBLESHOOTING
30
30
40
40
30
20
15
15
10
10
10
1011
12
34
5678
12
21
13
14
10
10
150
FUSES UNDER THE BONNET
- After opening the bonnet, slide the
screenwash support to make access
easier.
- Unclip and tilt the box to access the fuses.
Fuses A (amps) Allocation
1 20 Engine control unit, Fuel supply and air supply systems,
Fan assembly
2 15 Horn
3 10 Front and rear wash-wipe pump
4 20 Headlamp wash pump
5 15 Fuel supply system
6 10 Power steering, Secondary brake pedal switch
7 10 Braking system (ABS/ESP)
8 20 Starter control
9 10 Main brake pedal switch
10 30 Fuel supply and air supply systems, Emission control systems
11 40 Front ventilation
12 30 Windscreen wipers
13 40 Built-in systems interface
14 30 Not used
Changing a fuse
F1
F2
F3
F4
F5
151
8
Changing a fuse
TOWING/TOWBAR/
COACHBUILDERS/PLATFORM
CAB FUSES
The descriptions communicated are an
indication only as this additional box relates
to other information which depends on the
coachbuilder/vehicle modifier for which the
handbook cannot act as a technical support.
Fuses A (amps) Allocation
1 15 Not used
2 15 Ignition relay and optional generator
3 15 Trailer 12 V supply
4 15 Permanent supply for vehicle modifiers
5 10 Hazard warning lights
TROUBLESHOOTING
152
Changing a wiper blade
Placing the wiper blades in the
special position
- Less than a minute after switching off the
ignition, press the wipers stalk downwards
to position the wiper blades along
the windscreen uprights (special position).
Changing a front wiper blade
- Lift the wiper arm.
- Unclip the blade and remove it.
- Fit the new blade.
- Push back the wiper arm.
To return the windscreen wipers to their
normal position, switch on the ignition and
operate the wipers stalk.
Changing the rear wiper blade
If your vehicle is fitted with a rear wiper
blade.
- Lift the wiper arm, then unclip the blade
and remove it.
- Fit the new blade and push back
the wiper arm.
CHANGING A WINDSCREEN WIPER BLADE
153
8
Without lifting (4 wheels on the
road)
You should always use a towbar.
The removable towing eye is inside
the engine compartment.
From the front
- Unclip the cover by pressing the bottom
part.
- Screw in the removable towing eye until
it locks.
From the rear
- Unclip the cover using a coin or the flat
part of the towing eye,
- Screw in the removable towing eye until
it locks.
BEING TOWED
Lifting
(2 wheels on the road only)
It is preferable to raise the vehicle using
professional lifting equipment.
When towing with the engine switched
off, there is no braking or steering
assistance.
Having your vehicle towed
TROUBLESHOOTING
155
9
Environment
ENVIRONMENT
With you, PEUGEOT acts to protect the
environment.
On the www.peugeot.com site, you are
invited to consult,
the < Tradition & Innovation >
tab, the < Environnement > item and then
specifically to visit the nursery of
< Opération Carbone >.
the < Tradition & Innovation >
tab, the < Environment > item and then
specifically to visit the nursery of the Fazenda
via < Opération Carbone > (the carbon sink
project).
PEUGEOT’s clean HDi Diesel engines
(Common Rail diesel direct injection)
have the characteristic of offering low
consumption and minimising emissions of
CO
2
. In addition to this contribution, these
engines provide a highly acclaimed level of
driving pleasure.
As the driver, you also can contribute to
protecting the environment by following
certain rules:
- adopt a preventive style of driving, without
frequent and sharp acceleration.
Refer to the starting and stopping "good
practice" advice in this handbook at the end
of chapter 2,
- observe the service intervals; we
recommend that services are carried out by
a PEUGEOT dealer authorised to collect
used batteries and fluids,
- in order to preserve the reliability of the
engine and emission control system, do not
use engine oil additives.

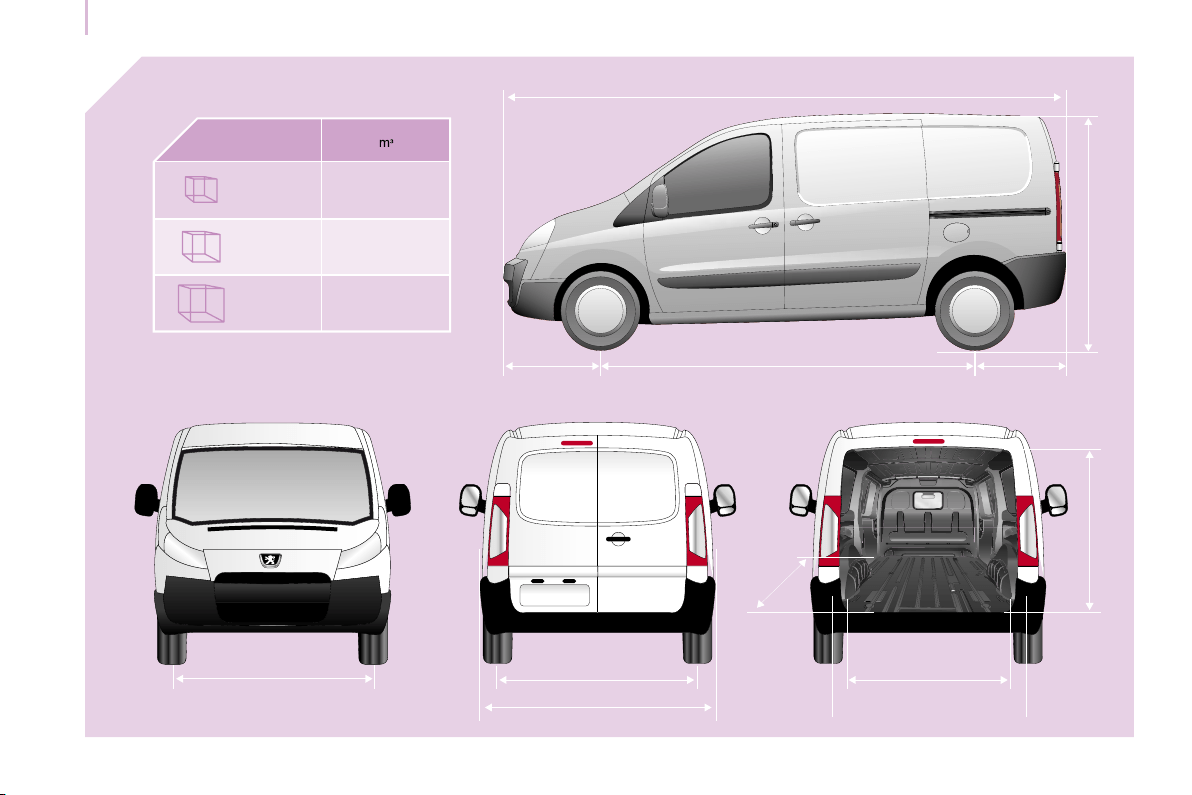

TECHNICAL DATA
L1H1 5
L2H1 6
L2H2 7
H
F
D
M
I
J
K
A
L
B
E
C
156
Dimensions
157
9
Overall length 4 805 to 4 813 5 135 to 5 143
H1
L1 L2
VAN (mm)
DIMENSIONS
The vehicle is available in 2 lengths (L1, L2) and 2 heights
(H1, H2), refer to the tables:
L
H1 H2
Overall height 1 894*/1 942H
On roof 170
Wheelbase 3 000 3 122A
Payload 1 000 to 1 200
Front overhang 975B
Maximum loads (kg)
Rear overhang 830 to 838 1 038 to 1 046C
Turning circle pitch diameter between kerbs (m) 12.18 12.59
Overall width:
D
Interior width between wheel arches 1 245M
- on panel 1 870
Maximum interior width 1 600K
- with mouldings 1 895
- with mirrors folded 1 986
- maximum 1 449 1 750
- with mirrors unfolded 2 194
Interior height under roofJ
Width of front tracks 1 562 to 1 570E
Length of interior floor 2 254 2 584I
Width of rear tracks 1 596 to 1 604F
2 204*/2 276
Dimensions
TECHNICAL DATA
N N
O O
158
Useful height of the hinged doors 1 272
O
Useful width of the hinged doors
1 237
H1
L1 L2
REAR DOORS (mm)
N
H1 H2
1630
Dimensions
P
Q
159
9
Height 1 293 1301
Q Width
H1
L1 L2
SLIDING SIDE DOOR (mm)
P
924
H1 H2
Dimensions
TECHNICAL DATA
E
E
CAB
L
D
160
Dimensions
161
9
Overall length 5 016
Wheelbase 3 122
B
Front overhang 975
Rear overhang 920
Max passable rear overhang
1 420
L2
PLATFORM CAB (mm)
L
A
C
Overall width (excluding mirrors) 1 895
E
Width of front tracks 1 574
Width of rear tracks 1 574
Gross vehicle weight
2 900
D
F
Max weight at the front
1 400
Max weight at the rear
1 700
Dimensions
TECHNICAL DATA
162
WEIGHTS AND TOWED LOADS (KG)
For further information, refer to your registration certificate.
In each country, it is imperative that the towed loads permitted by local legislation are complied with. To find out your vehicle’s towing
capabilities and its gross train weight, contact a PEUGEOT dealer.
Load transfer
If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the weight of the trailer and the GTW, indicated on your registration certificate.
Comply with the towing capacities of your vehicle.
Engine Body type
Number of
seats
Kerb
weight
Maximum
weight (1)
Maximum
payload
Payload without
driver
Braked
towed
weight (2)
1.6 HDi 90
2
3
2
3
2
3
2
3
Short (L1-H1)
227
Short (L1-H1)
229
Long (L2-H1)
229
Raised (L2-H2)
229
1 661
1 673
1 661
1 673
1 660
1 692
1 700
1 712
2 661
2 661
2 861
2 861
2 880
2 880
2 900
2 900
1 000
988
1 200
1 188
1 200
1 188
1 200
1 188
925
913
1 125
1 113
1 125
1 113
1 125
1 113
1 672
1 672
1 472
1 472
1 453
1 453
1 433
1 433
Weights
163
9
2.0 HDi 120
2
3
2
3
2
3
2
3
Short (L1-H1)
227
Short (L1-H1)
229
Long (L2-H1)
229
Raised (L2-H2)
229
1 702
1 714
1 702
1 714
1 732
1 744
1 763
1 775
2 702
2 702
2 902
2 902
2 932
2 932
2 963
2 963
1 000
988
1 200
1 188
1 200
1 188
1 200
1 188
925
913
1 125
1 113
1 125
1 113
1 125
1 113
2 000
2 000
2 000
2 000
2 000
2 000
1 997
1 997
(1) Gross vehicle weight (GVW).
(2) Braked towed weight with load transfer: this can be increased on condition that the equivalent of this load is removed from the vehicle so
that the GTW is not exceeded.
High exterior temperatures may result in a reduction in the performance of the vehicle to protect the engine. When the exterior temperature
is higher than 37 °C, limit the towed weight to 700 kg, without load transfer.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
Engine Body type
Number of
seats
Kerb
weight
Maximum
weight (1)
Maximum
payload
Payload without
driver
Braked
towed
weight (2)
TECHNICAL DATA
Weights
164
Weights
Engine Body type
Number of
seats
Kerb weight
Maximum
weight (1)
Maximum
payload
Payload without
driver
Braked
towed
weight (2)
2.0 HDi 136
2
3
2
3
2
3
Short (L1-H1)
227
Short (L1-H1)
229
Long (L2-H1)
229
1 717
1 729
1 717
1 729
1 746
1 758
2 717
2 717
2 917
2 917
2 946
2 946
1 000
988
1 200
1 188
1 200
1 188
925
913
1 125
1 113
1 125
1 113
2 000
2 000
1 863
1 863
1 834
1 834
165
9
Weights
2.0 PETROL 140
2
3
2
3
2
3
Short (L1-H1)
227
Short (L1-H1)
229
Long (L2-H1)
229
1 661
1 673
1 661
1 673
1 680
1 692
2 661
2 661
2 861
2 861
2 880
2 880
1 000
988
1 200
1 188
1 200
1 188
925
913
1 125
1 113
1 125
1 113
1 389
1 389
1 189
1 189
1 170
1 170
(1) Gross vehicle weight (GVW).
(2) Braked towed weight with load transfer: this can be increased on condition that the equivalent of this load is removed from the vehicle so
that the GTW is not exceeded.
High exterior temperatures may result in a reduction in the performance of the vehicle to protect the engine. When the exterior temperature
is higher than 37 °C, limit the towed weight to 700 kg, without load transfer.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
Engine Body type
Number of
seats
Kerb weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked
towed
weight (2)
2
3
Raised (L2-H2)
229
1 700
1 712
2 900
2 900
1 200
1 188
1 125
1 113
1 150
1 150
TECHNICAL DATA
166
Diesel - Petrol engines
ENGINES AND GEARBOXES
1.6 HDi 90 2.0 HDi 120 2.0 HDi 136 2.0 PETROL 140
Diesel Petrol
Gearbox Manual
Gears 5 6 6 5
Power (bhp) 90 120 136 138
Power (DIN) 92 122 138 143
Cubic capacity (cm
3
) 1 560 1 997 1 997 1 997
Bore x stroke (mm) 75 x 88 85 x 88 85 x 88 85 x 88
EU standard maximum power (kW) 66 88 100 103
Max power engine speed (rpm) 4 000 4 000 4 000 4 000
EU standard max torque (Nm) 180 300 320 180
Max torque engine speed (rpm) 1 750 2 000 2 000 2 500
Fuel Diesel Diesel Diesel Unleaded
Particle emission filter No No Yes /
Catalytic converter Yes Yes Yes -
For further information, refer to the INFOTEC site at the address: http://public.infotec.peugeot.com
A
B
C
Bar
Bar
3.6 4.0
3.6 4.0
215/60 R16C 109
MICHELIN
AGILIS 51
BRIDGES
E R410
PRESSION ROUE
SECOURS
4.0 Bar
10728U9
EWPA
152254
167
9
Identification features
IDENTIFICATION FEATURES
A. Manufacturer’s label.
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle.
B. Model serial number.
Use the flat end piece of the towing eye to
open the flap.
C. Tyres and paint colour
reference.
The label C on the pillar, driver’s side, gives:
- the wheel and tyre sizes,
- the brands of tyres approved by the
manufacturer,
- the tyre pressures (the tyre pressure must
be checked when the tyre is cold, at least
once a month),
- the paint colour reference.
TECHNICAL DATA
173
10
Model code
Consult your registration certificate.
This table presents the Petrol and Diesel Model Codes.
MODEL CODE
EXPERT
Body types
X
X*____/_
1 000 kg van, short L1, low H1 XS____/_
1 200 kg van, short L1, low H1 XT____/_
1 200 kg van, long L2, low H1 XU____/_
1 200 kg van, long L2, high H2 XV____/_
1 200 kg platform XW____/_
Engines X_***_/_
Diesel
1.6 HDi 90 X_9HU_/_
2.0 HDi 120 X_RHK_/_
2.0 HDi 136 with PEF X_RHR_/_
Petrol
2.0 PETROL 140 X_RFH_/_
Versions
The version code is a combination determined by the type of manual gearbox and the associated emission control level.
Manual gearbox:
- 5-speed X____*/_
- 6-speed X____*/_
Variants
X____*/_
The variant code is determined in relation to the parameters authorised when the vehicle was manufactured.
X_____/*
LOCATION
