SIDE BY SIDE
REFRIGERATOR
RM255AB*
RM257AB*
OWNER’S MANUAL AND INSTALLATION
DA99-01418A REV(0.1)
CONTENTS
SAFETY WARNING SIGNS .............................................................. 2
OPERATING INSTRUCTIONS ....................................................... 4
SETTING UP THE REFRIGERATOR ....................................................... 4
MAJOR FEATURES .................................................................................... 4

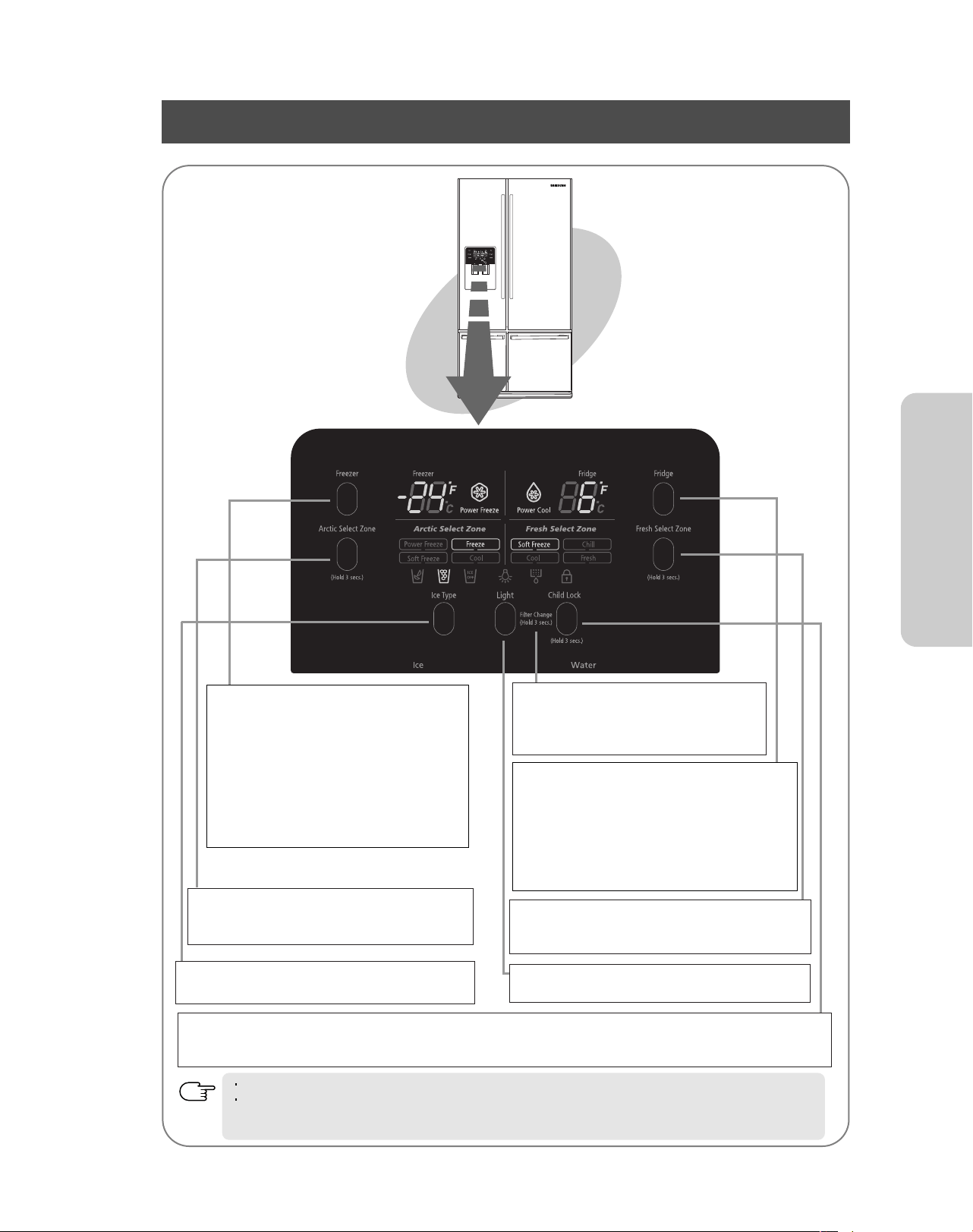

CONTROL PANEL ...................................................................................... 5
DIGITAL PANEL........................................................................................... 6
TEMPERATURE CONTROL ..................................................................... 7

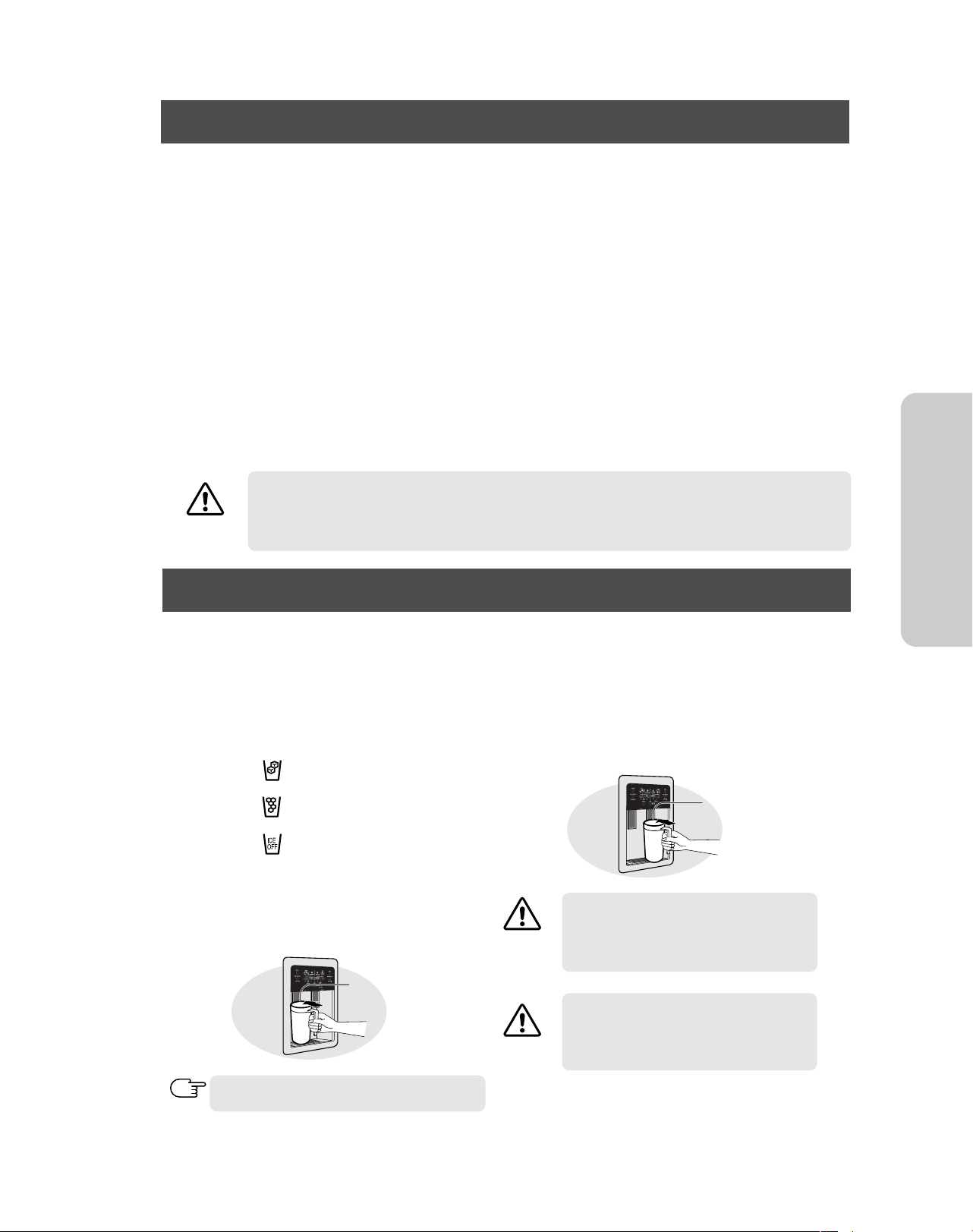

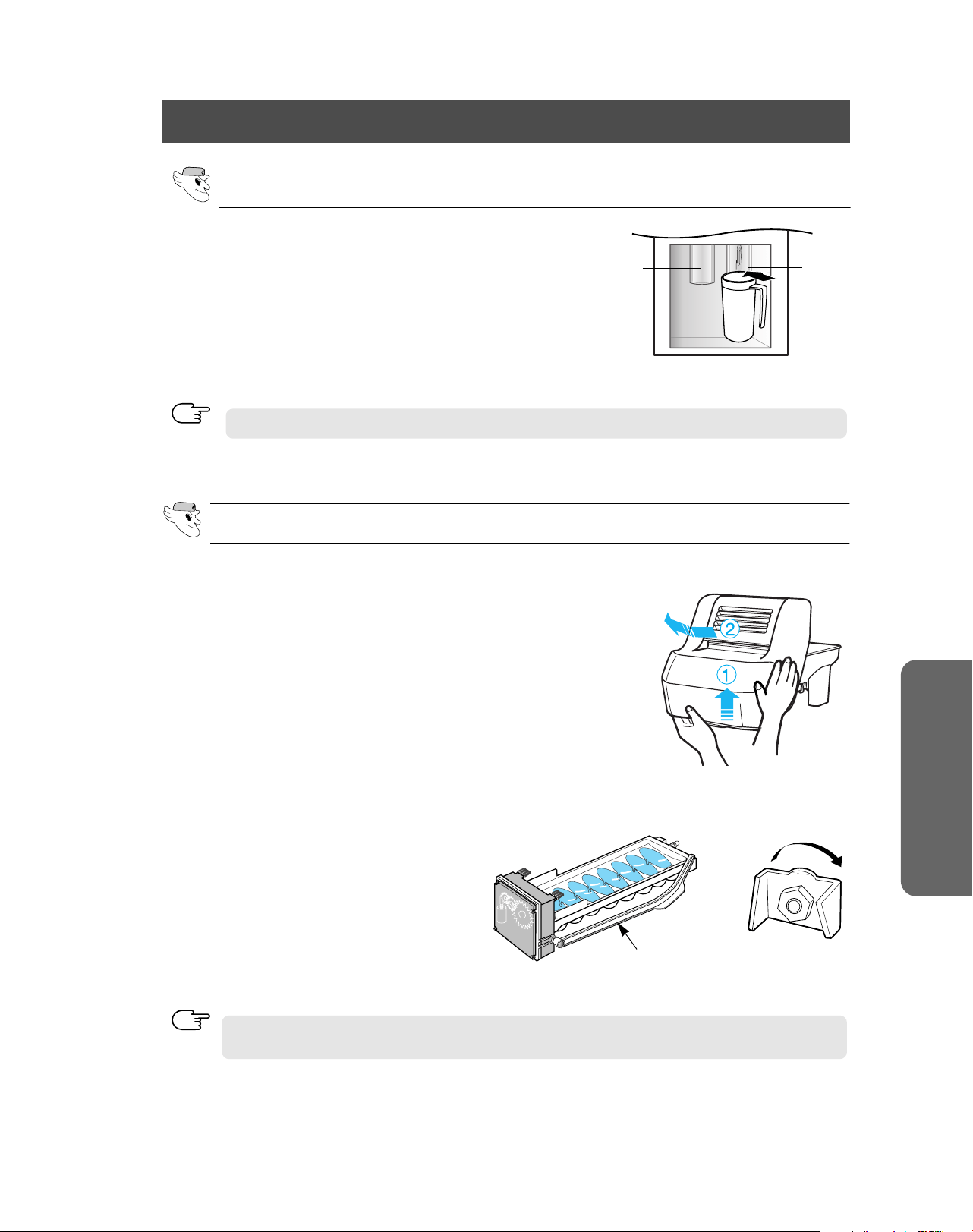

ICE AND COLD WATER DISPENSER ..................................................... 7
SHELVES AND BINS.................................................................................. 8
FOOD STORAGE GUIDE .......................................................................... 9
ARCTIC SELECT ZONE
TM
DRAWER GUIDE ......................................... 11
FRESH SELECT ZONE
TM
DRAWER GUIDE........................................... 12
REMOVING THE FREEZER ACCESSORIES......................................... 13
REMOVING THE FRIDGE ACCESSORIES.......................................... 13

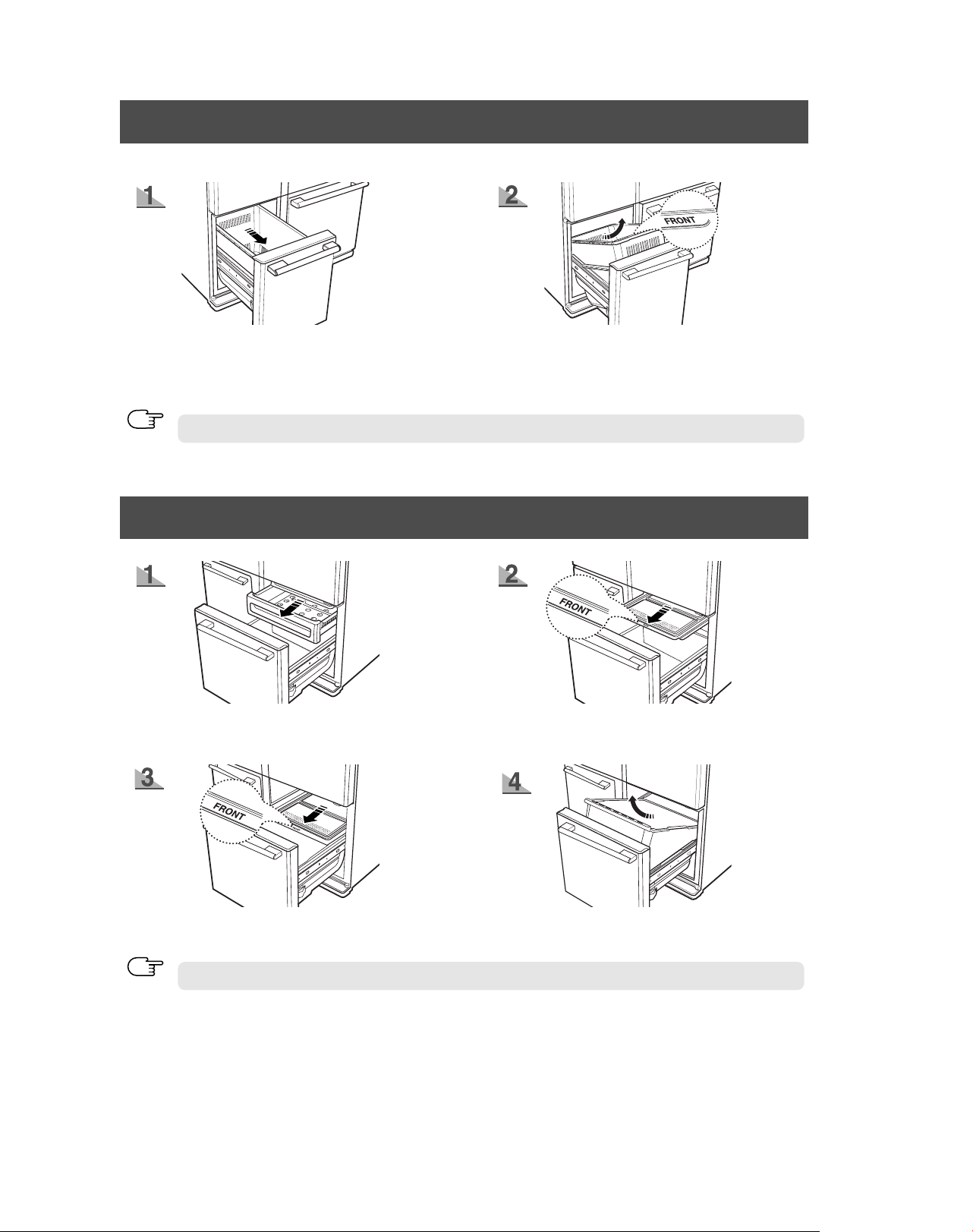

REMOVING THE ARCTIC SELECT ZONE ACCESSORIES................. 14
REMOVING THE FRESH SELECT ZONE ACCESSORIES .................. 14
CLEANING THE ACCESSORIES ............................................................ 15
CHANGING THE INTERIOR LIGHT ........................................................ 16
WATER FILTER ......................................................................................... 18
DOORS...................................................................................................... 18
INSTALLATION INSTRUCTIONS............................................... 19

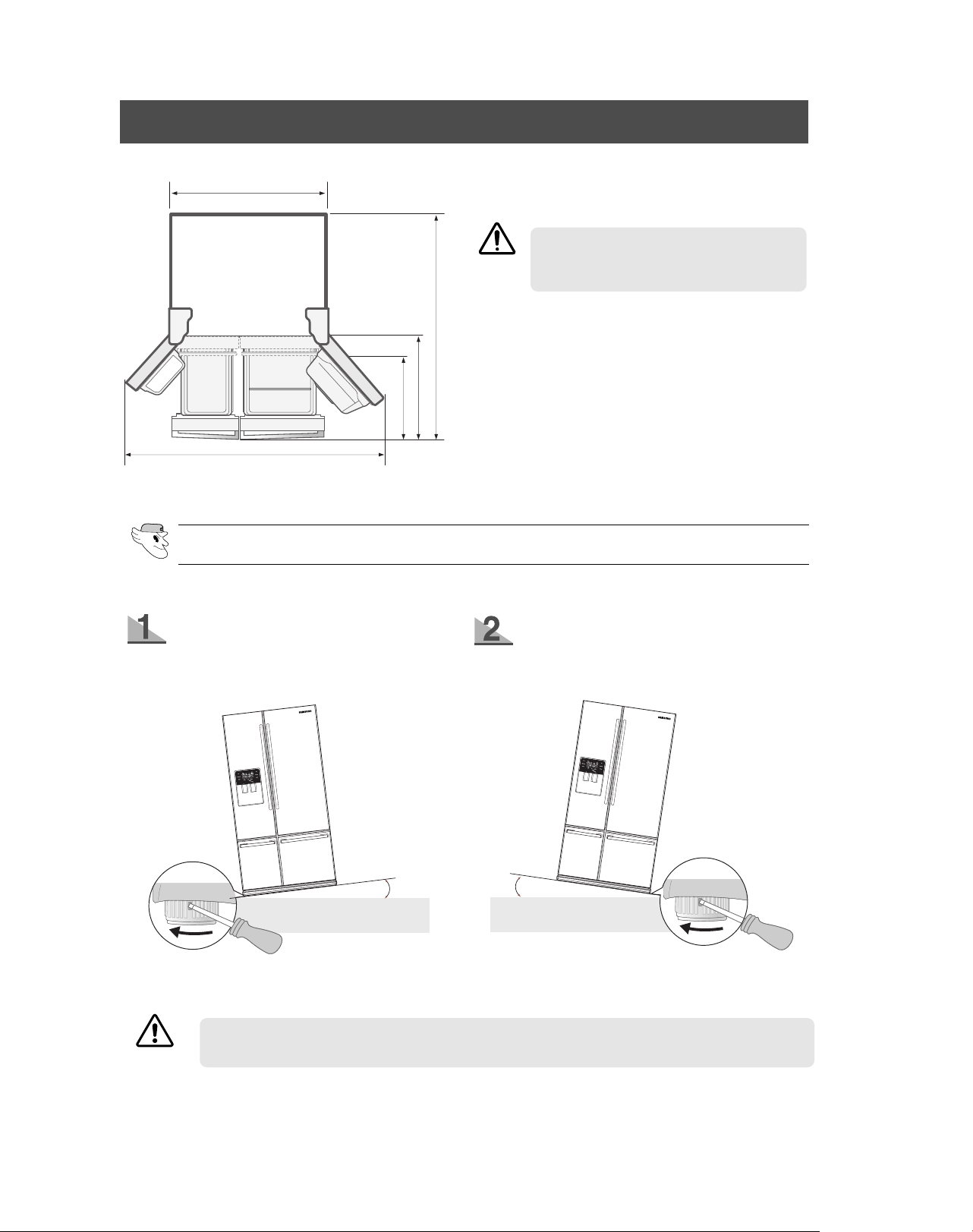

INSTALLATION OF THE REFRIGERATOR ............................................ 20

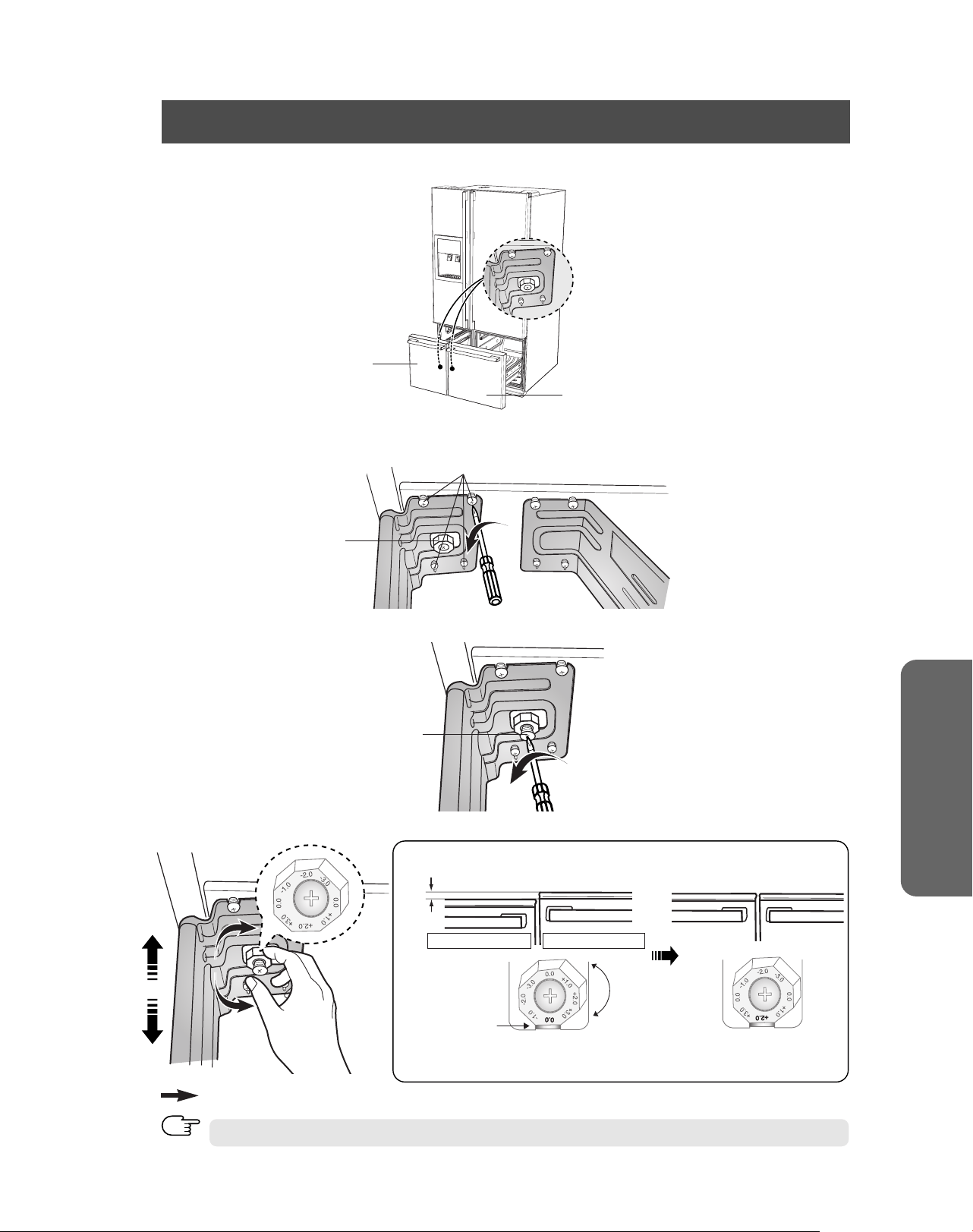

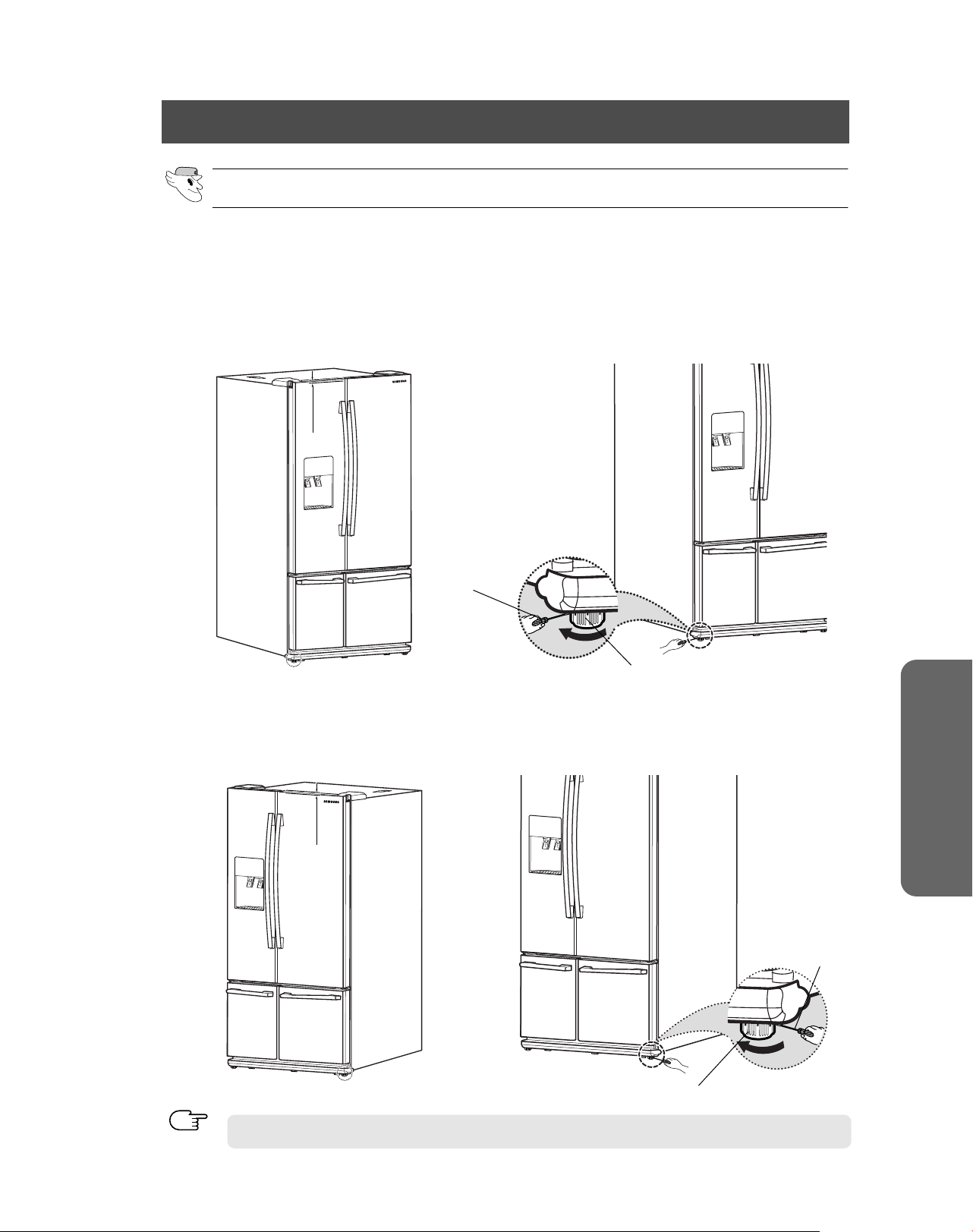

ADJUSTING THE HEIGHT BETWEEN THE DOORS ............................ 21

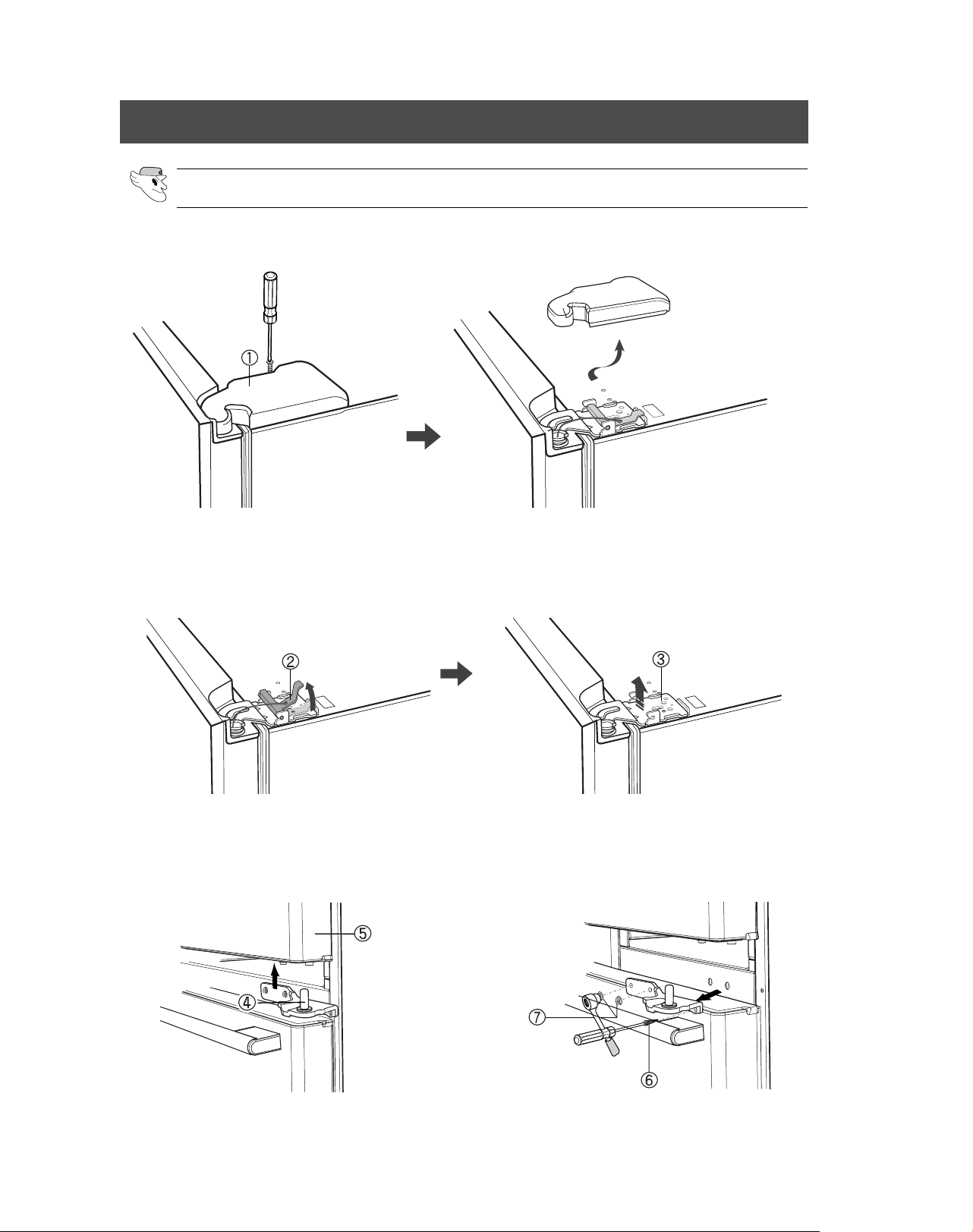

REMOVING THE REFRIGERATOR DOORS.......................................... 24
REATTACHING THE REFRIGERATOR DOORS .................................... 25
CHECKING THE WATER DISPENSER LINE.......................................... 32

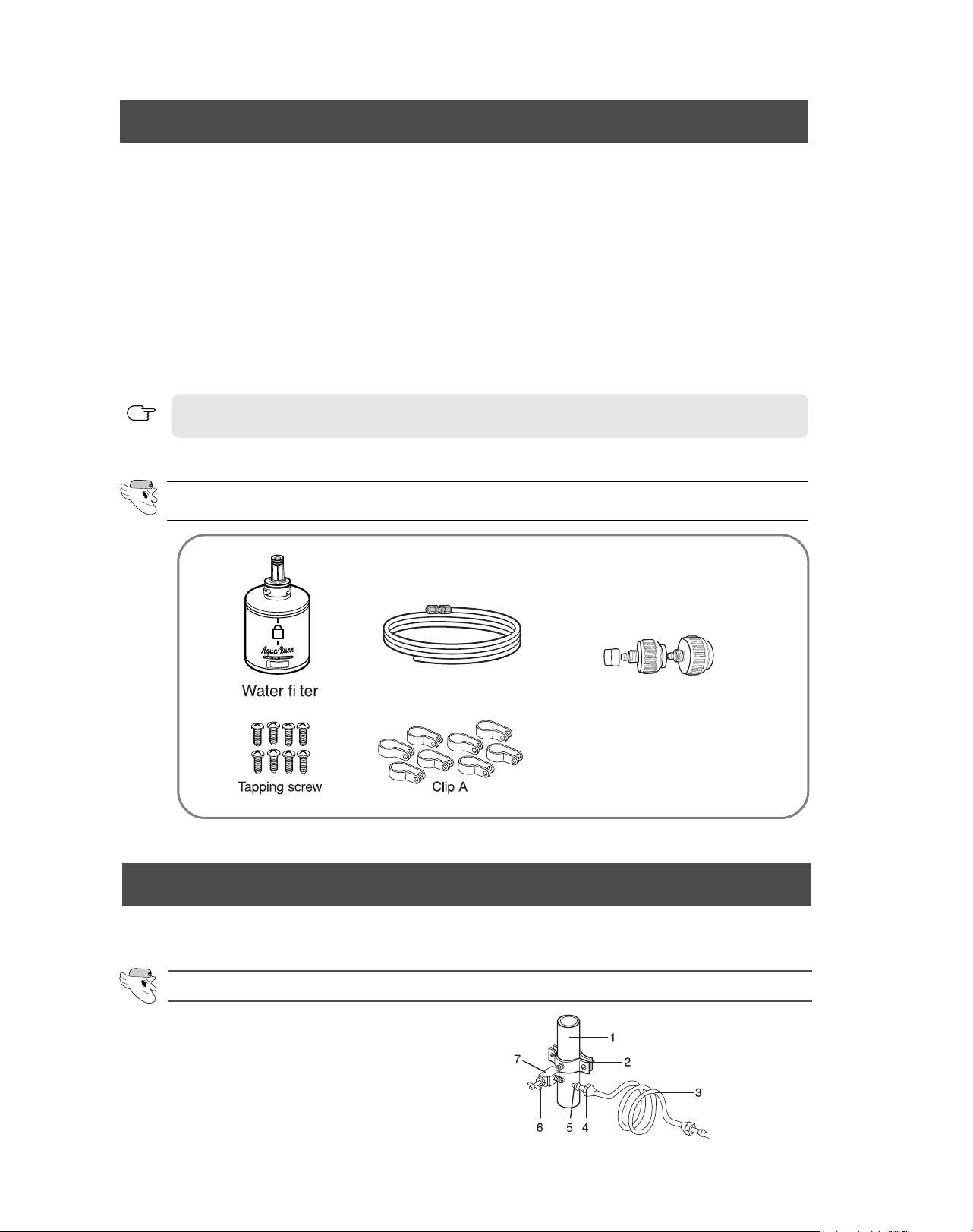

INSTALLATION OF THE WATER DISPENSER LINE ............................. 32
BEFORE YOU CALL FOR SERVICE....................................................... 37
Register your product at www.samsung.com/global/register
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페이지1 i n
SAFETY WARNING SIGNS
2
Please follow the Safety Warning Signs to prevent injury to users or other persons.
After reading these owner’s manual, please keep it in a safe place for reference.
WARNING
• Before operating the appliance, please read and retain this manual thoroughly for your reference.
• Because the following operating instructions cover various models, the characteristics of your refrigerator may
differ slightly from those described in this manual.
• The appliance is not intended for use by children or infirm persons without adult supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• This refrigerator must be properly installed and located in accordance with the manual before it is used.
• Use this appliance only for its intended purpose as described in this instruction manual.
• We strongly recommend that any servicing be performed by a qualified individual.
• This product is intended only for the storage of food in a domestic environment.
Do not plug several appliances into the same multiple
receptacle.
• This could cause overheating and the risk of fire.
Make sure that the power plug is not squashed or dam-
aged by the back of the refrigerator.
• A damaged power plug may overheat and cause fire.
Do not directly spray water inside or outside the refrig-
erator
/
freezer.
• There is a risk of electric shock.
Do not use aerosols near the refrigerator.
• There is a risk of explosion or fire.
Do not bend the power cord excessively or place heavy
articles on it.
• This constitutes a fire hazard. If the power cord is dam-
aged, have it replaced immediately by the manufacturer
or its service agent.
Do not insert the power plug with wet hands.
• You may receive an electric shock.
Do not put a container filled with water on the refrigerator.
• If spilled, there is a risk of fire or electric shock.
Do not install the refrigerator in a damp place or a
place where it may come in contact with water.
• Deteriorated insulation of the electrical parts may cause
electric shock or fire.
Do not store volatile or flammable substances in the
refrigerator.
• The storage of benzene, thinner, alcohol, ether, LP gas
and other such products may cause explosions.
Pull the power plug out of the socket before
changing the refrigerator’s interior light.
• Otherwise, there is a risk of electric shock.
If you wish to dispose of the
refrigerator,
throw it
away by first removing the doors and seals.
• Do so in a way that it is not possible for a child to
remain trapped inside.
Do not disassemble or repair the
refrigerator
by yourself.
• You run the risk of causing a fire, malfunction and/or
personal injury.
Do not use a cord that shows cracks or abrasion dam-
age along its length or at either end.
Do not use mechanical devices or any other means to
accelerate the defrosting process,
other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not place or use an electrical appliance inside the
refrigerator/freezer, unless they are of a type recom-
mended by the manufacturer.
WARNING SIGNS
The refrigerator must be grounded.
•
You must ground the refrigerator to prevent any
power leakages or electric shocks caused by current
leakage from the refrigerator.
Never use gas pipes, telephone lines or other
potential lightening rods as ground.
•
Improper use of the ground plug can result in a risk of
electric shock.
CAUTION/WARNINGS USED OTHER SIGNS USED
Indicates that a danger of
death or serious injury exists.
Indicates that a risk of
personal injury or material
damage exists.
WARNING
CAUTION
Represents something you must NOT touch.
Represents something you must follow.
Indicates that you must disconnect the
power plug from the socket.
Represents that a ground is needed to pre-
vent electric shock.
Represents something you must NOT
disassemble.
Represents something you must NOT do.
It is recommended that this should be
handled by a service center.
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페이지2 i n
3
SAFETY WARNING SIGNS
SAFETY WARNING SIGNS
Do not disconnect the power cord by pulling on it.
• Damage to the cord may cause a short-circuit, fire
and/or electric shock.
• If the power cord is damaged, it must be replaced
by the manufacturer, a certified service agent or
qualified service personnel.
Do not store articles on the top of the appliance.
•
When you open or close the door, the articles may fall
and cause personal injury and/or material damage.
Do not store pharmaceutical products, scientific
materials and temperature-sensitive products in
the refrigerator.
• Products that require strict temperature controls
must not be stored in the refrigerator.
Do not let children hang on the door because a
serious injury may occur.
If you sense chemical odor or smoke, pull out the
power plug immediately and contact your SAM-
SUNG Electronics service center.
Do not re-freeze frozen foods that have thawed
completely.
Do not touch the inside walls of the freezer or
products stored in the freezer with wet hands.
• It may cause frostbite.
Do not insert your hands into the bottom area
under the appliance.
• Any sharp edges may cause personal injury.
If the refrigerator is not to be used for a long
period of time, pull out the power plug.
• Deterioration in the insulation may cause fire.
Never put fingers or other objects into the
dispenser hole and ice chute. It may cause personal
injury or material damage.
Do not use a wet or damp cloth when cleaning the
plug. Remove any foreign matter or dust from the
power plug pins.
• Otherwise there is a risk of causing a fire.
• If the refrigerator is disconnected from the power sup-
ply, you should wait for at least five minutes before
plugging it back in.
• The appliance is not intended for use by young chil-
dren or infirm persons without supervision.
Young children should be supervised to ensure that
they do not play with the appliance.
• If the key is provided with refrigerator, the keys
should be kept out of the reach of children and not in
the vicinity of the appliance.
• Do not place the equipment directly under sunlight.
• The appliance must be positioned so that the plug is
accessible after installation.
• If the power cord is damaged, it must be replaced by
the manufacturer, a certified service agent or a
qualified service personnel.
• If you have a long vacation planned, empty the
refrigerator and turn it off. Wipe excess moisture
from the inside and leave the doors open. Otherwise,
odor and mold may develop.
• There is no need to disconnect the refrigerator from
the power supply if you will be away for less than
three weeks. But, remove all the food if you are
going away for the three weeks or more. Unplug the
refrigerator and clean it, rinse and dry
•
Most power failures that are corrected in an hour or two
will not affect your refrigerator temperatures. However,
you should minimize the number of door openings while
the power is off. But should the power failure last more
than 24hours, remove all frozen food.
If this appliance contains isobutane refrigerant
(R600a)then the following warnings are applicable.
R600a is a natural gas with high environmental com-
patibility however, it is also combustible. When trans-
porting and installing the appliance, care should be
taken to ensure that no parts of the refrigerating circuit
are damaged.
Refrigerant squirting out of the pipes could ignite or
cause an eye injury. If a leak is detected, avoid any
naked flames or potential sources of ignition and air
the room in which the appliance is standing for several
minutes.
• In order to avoid the creation of a flammable gas-air
mixture if a leak in the refrigerating circuit occurs, the
size of the room in which the appliance may be sited
depends on the amount of refrigerant used.
The room must be 1m
3
in size for every 8 g of R600a
refrigerant inside the appliance. The amount of refrig-
erant in your particular appliance is shown on the
identification plate inside the appliance.
• Never start up an appliance showing any signs of
damage. If in doubt, consult your dealer.
CAUTION SIGNS
Do not overfill the refrigerator with food.
• When you open the door, an item may fall out and
cause personal injury or material damage.
Do not put bottles or glass containers in the freezer.
• When the contents freeze, the glass may break and
cause personal injury.
If the wall socket is loose, do not insert the power
plug.
• There is a risk of electric shock or fire.
DANGER
Risk of child entrapment. Before you throw away
your old refrigerator or freezer
• Take off the doors
• Leave the shelves in places so that children may not
easily climb inside.
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페이지3 i n
4
MAJOR FEATURES
TDM System (Time-Divided-Multi-Evaporator system)
•
Each compartment has an evaporator, microprocessors and a refriger-
ant-control-valve to control the refrigeration cycle. The 4 evaporators
enable improved efficiency and humidity in the fridge. Food odor from
the refrigerator does not affect food in other compartments because
the cooler and air flow systems are separate.
Multi-Flow System
•
Cool air circulates through multiple vents on every shelf level. This pro-
vides even distribution of cooling inside cabinets to keep your food
fresh longer.
Door Alarm
•
Beeper reminds you that the door is open.
Xtra Fresh
TM
• Optimized humidity control keeps vegetables & fruits fresh.
Arctic Select Zone
TM
Drawer
• Arctic Select Zone Drawer can be changed from a freezer to
refrigerator with the TDM system.You can select Power Freeze,
Freeze, Soft Freeze, or Cool depending on the food stored.
Fresh Select Zone
TM
Drawer
• You can select Soft Freeze, Chill, Cool or Fresh depending on the
food stored.
With the Cool and Fresh settings, the humidity is controlled by TDM
system.
SETTING UP THE REFRIGERATOR
Once you have performed the following steps, your refrigerator should be fully operational. If not, check
the power supply and electricity source. If you have any questions, contact your SAMSUNG Electronics
service center.
Place the refrigerator in an appropriate
location with reasonable clearance between
the wall and the refrigerator. (refer to instal-
lation instructions in this mannal)
Set the temperature control to the coldest
temperature and wait for an hour. The
freezer should get slightly chilled and the
motor should run smoothly.
Once the refrigerator temperature is suffi-
ciently low, you can store food in it.
After starting the refrigerator, it takes a few
hours to reach the appropriate tempera-
ture.
When the refrigerator is plugged in,
the interior light should come on when
you open the doors.
-
You can arrange the Power cable with this
Cable tie, after you plug in the refrigerator.
- If the refrigerator is not to be used for a long
period of time, you can also arrange the
power cable with this cable clamp located in
the top of the refrigerator as shown.
Cable tie
Cable clamp
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페이지4 i n
5
OPERATING INSTRUCTIONS
CONTROL PANEL
Freezer Button
Set the desired temperature of the freezer com-
partment or select/cancel the Power Freeze by
pressing this button.
Temperature Range of Freezer Compartment :
-14°F ~
6°F
(Recommended Setting
Temperature: -2°F)
The freezer temperature bars shift in 5 steps
according to the temperature setting of the
freezer compartment.
Fridge Button
Set the desired temperature of the fridge compart-
ment or select/cancel the Power Cool by pressing
this button.
Temperature Range of Fridge Compartment : 34°F
~ 46°F (Recommended Setting Temperature: 38°F)
The fridge temperaato the temperature setting of
the fridge compartment.
Fresh Select Zone Button
Functions are selected in the order of Soft Freeze
→
Chill
→
Cool
→
Fresh.
Light Button
Use this button to turn the dispenser light on and off.
Child Lock Button
Press Ice Off and Light buttons simultaneously and hold 3 seconds. All buttons will be locked and will not work.
Water and ice dispenser levers also will not work.
Filter Change Button
After changing the water filter, press the
Cubed and Crushed buttons simultaneously
and hold 3 seconds.
Ice Type Button
Use this button to turn the Icemaker off.
Arctic Select Zone Button
Functions are selected in the order of Power Freeze
→
Freeze
→
Soft Freeze
→
Cool.
Press the “ Ice Off” Button and perform the “Child Lock” function, then the heater for sweat is off.
If moisture appears around the cover dispenser or beverage station with this function, press these buttons
for 3 seconds again. Then, the light will turn off and there will be generated to prevent moisture around
the cover dispenser.
NOTE
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페이지5 i n
6
DIGITAL PANEL
•
The upper right part of display shows the Fresh Food compartment information.
The two digit number indicates the current fridge temperature.
There are 5 level bars that indicate the current freezer setting temperature from
34°F ~
46
°F. (5 bars is the coolest setting)
The “Power Cool” indicator shows that the Power Cool function is working.
•
The lower left part of display shows the lower left drawer compartment information.
“Power Freeze” speeds up the freezing process
. It works for about two and half hours.
“Freeze” is the working freezing temperature, that is, the same temperature set with the
Freezer button.
“Soft Freeze” keeps foods fresh at about 19.4
°F
.
“Cool” is the current refrigerating temperature.
Arctic Select Zone
•
The lower right part of display shows the lower right drawer compartment information.
“Soft Freeze” keeps foods fresh at about 19.4
°F.
“Chill” keeps foods fresh at about 30
°F.
“Cool” is the working refrigerating temperature, that is, the same temperature set with the
Fridge button.
“Fresh” keeps veggies and fruits fresh.
Fresh Select Zone
Fridge
•
The upper left part of display shows the Freezer compartment information.
The two digit number indicates the current freezer temperature.
There are 5 level bars that indicate the current freezer setting temperature from
-14°F ~ 6°F. (5 bars is the coldest setting) The “Power Freeze” indicator shows that
the Power freeze function is working.
Freezer
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페이지6 i n
7
OPERATING INSTRUCTIONS
ICE and COLD WATER DISPENSER
TEMPERATURE CONTROL
Freezer
•
The freezer temperature can be set between
-14°F and 6°F.
•
Press the Freezer button repeatedly until the desired
set temperature is shown in the temperature display.
•
The temperature display changes in sequence
between -14°F and 6°F.
•
After five seconds, the display reverts to the actual
freezer temperature, which changes as the freezer
reaches the new temperature.
Power Freeze
•
If you select “Power Freeze”, the inside temperature of
the freezer will decrease for about two and a half hours.
•
After “Power Freeze” finishes, it automatically returns to
freezer setting temperature.
Fridge
•
The refrigerator temperature can be set between
34°F and 46°F.
•
Press the Fridge button repeatedly until the desired
temperature is shown in the temperature display.
•
The temperature display changes in sequence and
reverts in the same way as the freezer.
Power Cool
•
If you select “Power Cool”, the inside temperature of
the fridge will decrease for about two and a half hours.
•
After “Power Cool” finishes, it automatically returns to
original fridge temperature you set.
•
When ice cream is stored above 4°F in freezer, it may melt.
•
The temperature of the freezer or the fridge rises from frequent openings and from warm food.
This may cause the digital display to blink . The digital display will stop blinking when the freezer
and refrigerator return to the normal temperature.
WARNING
Press the Ice Type button to choose Cubed ice,
Crushed ice or Ice off to stop making ice.
•
Cubed ice
•
Crushed ice
•
Ice off
Push the ice dispenser lever with a cup.
•
Place a cup to the dispenser lever line to prevent
the ice from dropping out.
Ice Dispenser
The ice maker produces 8 cubes at once and about 120 cubes
a day automatically.
This quantity may be influenced by factors
such as the freezer temperature, Power Freeze function and the
number of door openings. When your
refrigerator
is plugged in,
the Cubed ice mode is automatically selected .
Water Dispenser
The capacity of the water tank is approximately 0.3 gal.
Cold Water
•
Push the water dispenser lever with a cup.
•
If you have just installed the
refrigerator
, throw away
the first six glassfuls of water to flush out impurities
in the water supply system.
If you have a long vacation or business
trip and won’t use the water or ice dis-
pensers, close the water valve.
Otherwise, water leakage may occur.
Push
Push
CAUTION
CAUTION
Preparing for Vacation
Set the type of ice to the ICE OFF posi-
tion and shut off the water supply to the
refrigerator.
Never put fingers or any other objects in the
dispenser opening. It may cause injury.
NOTE
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페이지7 i n
8
SHELVES AND BINS
Freezer & Fridge
Arctic Select Zone
TM
and Fresh Select Zone
TM
Dairy Bin
Water Filter
Spill Proof Glass
Shelf
Door Bin
Drawer
Upper Drawer
Drawer
Door Bin
Tempered
Glass Shelf
Ice Chute
Ice Bucket
Door Bin
Drawer
Drawer
Foldable Shelf
Egg Container
(optional)
This refrigerator contains four compartments:
1. Fridge - For your fresh/perishable food items.
2. Freezer - For your Frozen food items.
3. Arctic Select Zone - For your Frozen food, but also can be set to function as a refrigerator drawer.
4. Fresh Select Zone - For your Fresh food, but can also be set as a freezer drawer.
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페이지8 i n
9
OPERATING INSTRUCTIONS

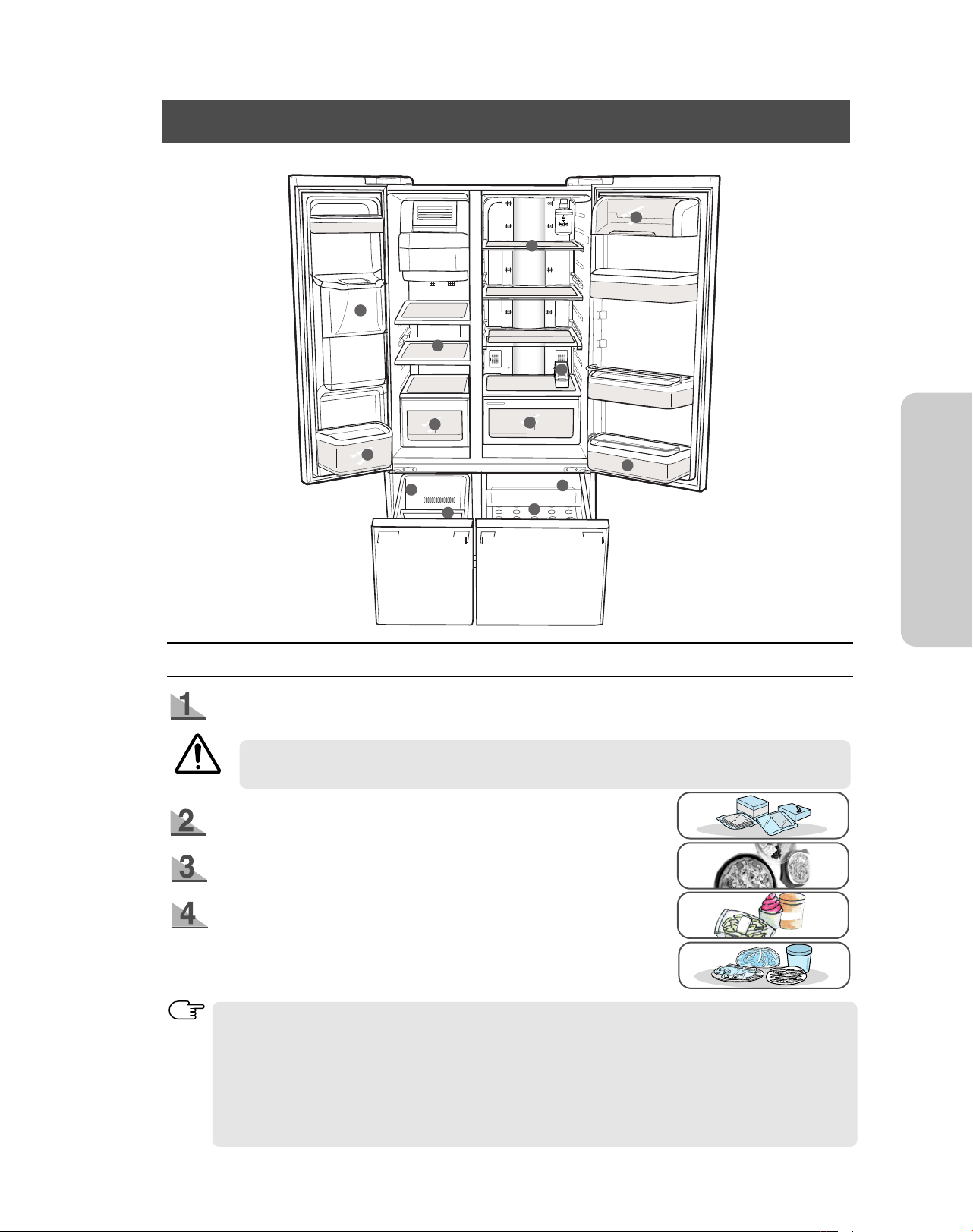

FOOD STORAGE GUIDE
10
11
12
13
1
4
5
6
7
8
9
3
2
FROZEN FOOD STORAGE IN FREEZER
Ice Chute
Door Bin (Fixed Pocket)
•
Can be used for small packages of frozen food
Tempered Glass Shelf
•
Can be used to store all types of frozen food.
Drawer
•
Can be used to store meat and dry foods. Stored food should be wrapped
securely using foil or other suitable wrapping materials or containers.
WARNING
Do not put your fingers, hands or any other unsuitable objects in the chute or ice-maker bucket,
as this may result in personal injury or material damage.
•
To get the best performance from your Refrigerator
- Do not place foods too closely in front of the vents at the rear of the appliance as it can obstruct
free air circulation in the freezer compartment.
-
Wrap up food properly or place it in an airtight container before putting it in the fridge or freezer
•
Do not place carbonated or fizzy drinks in the freezer compartment
•
Please observe maximum storage times and expiration dates of frozen goods.
NOTE
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페이지9 i n
10
FOOD STORAGE GUIDE
FRESH FOOD STORAGE IN FRIDGE
•
If you have a long vacation planned, empty the refrigerator and turn it off. Wipe excess moisture
from the inside and leave the doors open. Otherwise, odor and mold may develop.
•
If condensation forms inside the refrigerator, simply wipe it away with a dry cloth or towels.
WARNING
•
Bottles should be stored tightly together so they do not fall out.
•
The appliance might not operate consistently (possibility of defrosting of contents or tempera-
ture becoming too warm in the frozen food compartment) when sited for an extended period of
time below the cold end of the range of temperatures for which the refrigerating appliance is
designed.
•
Do not store food which goes bad easily at low temperature, such as bananas, melons.
•
Your appliance is frost free, which means there is no need to manually defrost your appliance,
as this will be carried out automatically.
•
Temperature rising during the defrost can comply with ISO requirement. But If you want to pre-
vent an undue rise in the temperature of the frozen food while defrosting the appliance, please
wrap the frozen food in several layers of kitchentowel.
•
Any increase in temperature of frozen food during defrosting can shorten its storage life.
NOTE
Tempered Spill Proof Glass Shelf
•
Can be used to store all types of chilled food.
•
Safe and break resistant.
•
Circular marks on the glass surface are a normal phenomenon.
Egg Container (on some models)
•
Put eggs in the container and place them on the shelf.
Fruit & Vegetable Drawer
•
Is used to store fruits and vegetables.
•
This drawer is airtight. Optimized humidity control design helps to preserve
the freshness of stored vegetables and fruits.
Dairy Compartment
•
Can be used to store butter or margarine.
Gallon Door Bins
•
Can be used to store foods in small packages, such as milk and yogurt.
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페 이 지 1 0 i n
11
OPERATING INSTRUCTIONS
ARCTIC SELECT ZONE
TM
DRAWER GUIDE
Partition
•
Use to organize foods in the drawer.
Drawer
•
The drawer can be converted to store either fresh or frozen food.
Convertible Function
•
By pressing the “Arctic Select Zone” button, you can select the proper temperature function for your foods.
•
It changes in the following sequence: Power Freeze, Freeze, Soft Freeze and Cool.
Power Freeze
•
You can use “Power Freeze” function to freeze foods faster.
•
Power Freeze works for about two and a half hours continuously, then returns to the set freezer tempera-
ture automatically after finishing.
☞ Do not put bottles and glass containers in the freezer
☞ Power Freeze may be influenced by many factors such as the size and weight of foods, the space of
foods, the number times the door is opened, etc.
☞ If his drawer was operating as a “Cool” zone, move fresh food to the fridge before the “Power Freeze”
works.
Freeze
•
“Freeze” function keeps the freezer setting temperature.
For example, if Freeze is set to -2°F, the
Arctic Select Zone
will be adjusted to the same temperature.
Soft Freeze
•
You can use “Soft Freeze” function to help keep meat and fish fresh for longer than the Fridge.
•
When "Soft Freeze" mode is selected, the compartment temperature will be approximately 19.4
°F(depending
on the ambient temperature & amount stored).
- Meat can be stored safely for a longer period of time in this mode than in the other modes and has the
advantage that the meat will remain soft enough to be easily sliced.
- Do not put bottles and glass containers or foods that have a high water content as these are liable to burst
due to the low temperature.
Cool
•
You can use the “Cool” function to store more fresh foods.
•
“Cool” temperature is about 38
°F
.
-
If “Freeze” or “Soft Freeze” is selected, move the frozen foods to the freezer before the “Cool” works.
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페 이 지 1 1 i n
Fresh Function
•
By pressing the “Fresh Select Zone” button, you can select proper temperature function for your foods.
•
It changes in the following sequence: Soft Freeze, Chill, Cool and Fresh.
Soft Freeze
•
You can use “Soft Freeze” function to help keep meat and fish fresh for longer than the Fridge.
•
When "Soft Freeze" mode is selected, the compartment temperature will be approximately 19.4
°F
(depending on
the ambient temperature & amount stored).
- Meat can be stored safely for a longer period of time in this mode than in the other modes and has the advantage
that the meat will remain soft enough to be easily sliced.
- Do not put bottles and glass containers or foods that have a high water content as these are liable to burst due to
the low temperature.
Chill
•
You can use “Chill” function to help keep fresh at about 30
°F
.
•
At 30
°F
, near the water Freezing temperature, foods can be stored safely for longer than the refrigerating tem-
perature.
-
Do not put bottles and glass containers or foods that have a high water content in the drawer, because the
“Chill” temperature is below 32
°F.
Cool
•
“Cool” function keeps the set fridge temperature.
For example, if the Fridge is set to 38
°F
, the Fresh Select Zone will be the same.
•
The Cool function keeps humidity of this compartment high.
-
If you put foods that contain a lot of water without lids or wrapping paper, water droplets may form on the side
wall, because of high humidity.
Fresh
•
You can use “Fresh” function to help keep vegetables and fruits fresher.
•
“Fresh” temperature is about 39
°F
. The humidity is kept high for veggie and fruit storage.
12
FRESH SELECT ZONE
TM
DRAWER GUIDE
Upper Drawer
•
The humidity in the drawer is high when fresh food is stored in “Cool” or “Fresh” mode.
Drawer
•
You can also store bottles in “Fresh” mode.
The humidity in the drawer is kept high in “Cool” and “Fresh” mode.
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페 이 지 1 2 i n
13
OPERATING INSTRUCTIONS
REMOVING THE FREEZER ACCESSORIES
•
Do not use excessive force when
removing the cover. It may cause an injury.
Tray Shelf (optional)
•
Pull the shelf out as far as
it goes. Then lift it up and
remove it.
Door Bin
•
Hold the door bin with both
hands and then lift it up.
Drawer
•
Remove the drawer by
pulling it out and slightly lift-
ing it up.
Ice Bucket
•
Remove the bucket by
lifting it up and pulling it
out.

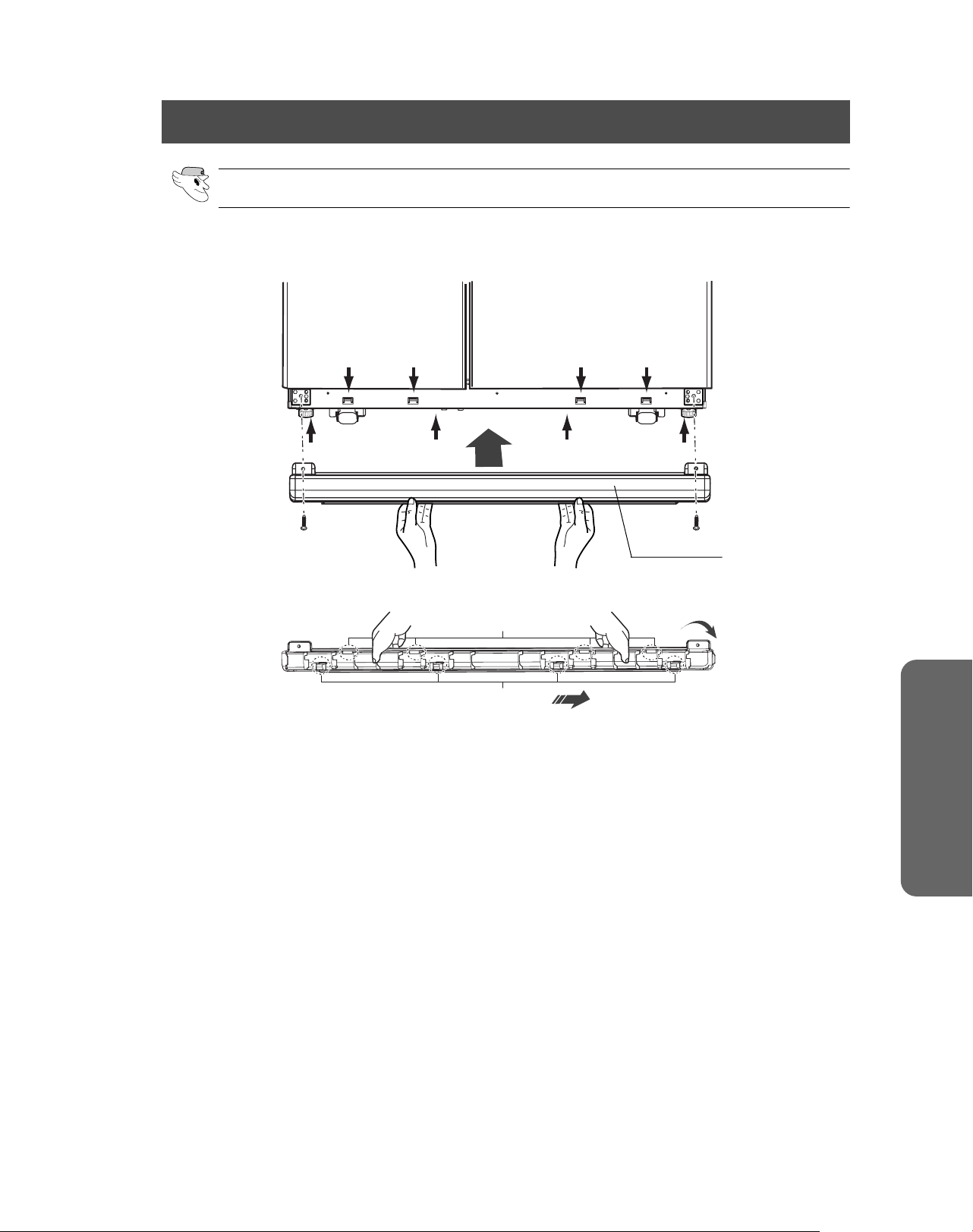

Front Leg Cover
•
Remove two screws.
•
Lift it up and pull the cover off.
•
To reattach the front leg
cover, attach it closely to
the refrigerator, then slide it
down.
NOTE
REMOVING THE FRIDGE ACCESSORIES
Spill Proof Glass Shelf
•
Pull the shelf out as far as it will go. Then lift it up and
gently remove it.
Foldable Shelf
❶
Slide the glass shelf (
) under the glass shelf (
).
❷
Tilt up the glass shelves (
&
) as shown below and lift up the
shelves with both hands.
❸
Hold the raised glass shelves (
&
) and pull out with care.
Vegetable & Fruit Drawer
•
Remove the drawer by holding the handle, pulling the drawer out, and then lifting up the side of the
drawer bottom smoothly with the other hand.
Gallon Door Bin
•
Hold the bin with both hands and remove it by lifting it up.
NOTE
•
Before removing the freezer and fridge accessories, please remove the food.
NOTE
•
When you replace the Foldable Shelf, follow the above instructions in reverse.
7
❶ ❷❸
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페 이 지 1 3 i n
14
REMOVING THE ARCTIC SELECT ZONE ACCESSORIES
REMOVING THE FRESH SELECT ZONE ACCESSORIES
NOTE
•
Empty the basket first before taking it out.
NOTE
•
Empty the basket before taking it out.
Open the door, and pull the Arctic Select Zone Door
out to the end to take the basket out.
Lift the front side of basket first,
and take it out carefully (using both hands).
Open the Fresh Select Zone Door.
Hold the front side of upper drawer, and pull it out.
Pull the front side of upper cover out.
Pull the front side of cover out. Lift the front side of basket first,
and take it out carefully (using both hands).
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페 이 지 1 4 i n
15
OPERATING INSTRUCTIONS

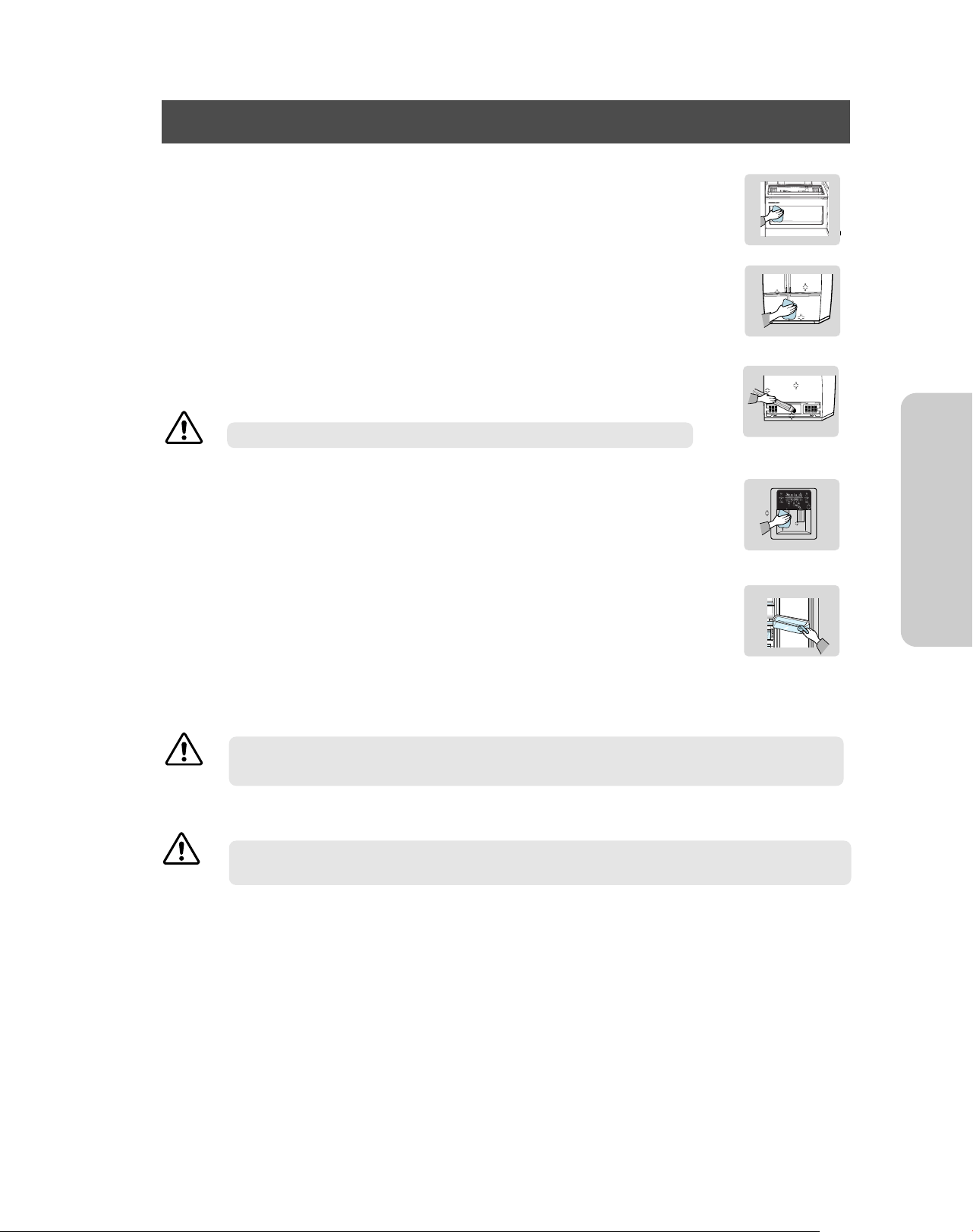

CLEANING THE ACCESSORIES
•
Do not spray the refrigerator with water while it is plugged in, as it may cause an electric shock.
•
Do not clean it with benzene, thinner or car detergent. It may cause a fire.
Ice and water dispenser
•
Use a damp cloth to clean the ice and water dispenser. Then wipe it out with a dry cloth.
•
To keep the drainage grid dry, do not touch the ice and water dispenser.
Interior
•
Clean the accessories with a mild detergent, then wipe out with a dry cloth.
•
After washing the accessories, make sure that they are dry before using them again.
Exterior
•
Wipe the digital panel and display panel with a clean cloth.
•
The doors, handles and cabinet surfaces should be cleaned with a mild detergent and soft
cloth, then wiped off with a dry cloth.
- Do not use Benzene, Thinner or Clorox
TM
for cleaning.
- Do not spray water directly on the surface of the refrigerator while cleaning.
Rear
•
Use a vacuum cleaner to remove dust once or twice a year.
WARNING
•
Do not remove the cover as there is a risk of shock.
WARNING
• Wipe excess moisture from the inside and leave the doors open.
- Otherwise, odor and mold may develop.
CAUTION
Rubber door seals
•
If the rubber door seals are dirty, the door will not close properly, and the refrigerator will not
be able to function efficiently. Clean the doors with a mild detergent and damp cloth. Then
wipe with a dry cloth.
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페 이 지 1 5 i n
16
CHANGING THE INTERIOR LIGHT
INTERIOR LIGHT IN THE FRIDGE
Before changing the interior light, unplug the
refrigerator
from the power supply.
If you have difficulty with changing the light, contact your service center.
WARNING
Light bulbs may be hot.
CAUTION
Push both sides of the upper
lamp cover, marked ➞ around
the top of cold air duct, then pull
out the air duct.
Push both sides of the bottom
lamp cover, marked ➞ on the
air duct, then pull out.
Upper
After changing the bulb,
reattach the bottom light
cover, then the upper light
cover.
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페 이 지 1 6 i n
17
OPERATING INSTRUCTIONS
CHANGING THE INTERIOR LIGHT
NOTE
Push the center of the light
cover’s upper side, and then
pull down the light cover.
Change the bulb with a
new one.
Reattach the light cover.
First, align the rear hook of
light cover to light case, and
then push the front hook.
Replacement bulbs for both the freezer and fridge are at available retail outlets such as Wal-mart,
The Home Depot and Lowe's.
Use replacement bulb size A15, maximum 40 watts.
The freezer light is located in the bottom of the auger motor case.
front hook
rear hook rear hook
INTERIOR LIGHT IN ARCTIC & FRESH SELECT ZONE
NOTE
Check the lamp-cover
attached to the lower part of
Partition in the refrigerator.
Replace the lamp with a new
one.
Fit the rear hook of cover lamp into
the groove first, and lift it to fit onto
the front hook into the groove.
Push the front side of the lamp
cover inside refrigerator to sepa-
rate the front hook. Push it down
to separate.
Replacement bulbs for both the Arctic & Fresh Select Zone are at available retail outlets such as Walmart.
The Home Depot and Lowe’s.
Use replacement bulb size E17, maximum 30watts.
The Arctic & Fresh Select Zone light is located in the bottom of partition in the refrigerator.
Before changing the interior light, unplug the
refrigerator
from the power supply.
If you have difficulty with changing the light, contact your service center.
WARNING
Light bulbs may be hot.
CAUTION
INTERIOR LIGHT IN THE FREEZER
Open the door of the compart-
ment where you want to
replace the lamp, and empty it
of all food.
rear hook rear hook
front hook
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페 이 지 1 7 i n
18
WATER FILTER
The water “Filter Indicator” light
•
“Filter Indicator” light lets you know when it is time to change your water filter cartridge. The light
will change from green to orange. This tells you that it is almost time to change the current cartridge.
It is recommended that you replace the cartridge when the light changes to red.
(see “Install the water filter” section for more information)
•
If you install water filter, throw away the first six glassfulls of water filter, or until water flows clearly to
flush impurities in the water supply system.
Using the dispenser without the water filter
•
You can not use the water and ice dispenser without a water filter cartridge because the water line
blocks at the water supply.
Ordering replacement filters
•
To order more water filter cartridges, call 1-800-SAMSUNG and ask for accessory Part # DA29-
00003B or contact your authorized Samsung dealer.
DOORS
The refrigerator doors have a special door opening and closing feature to make sure that the doors
close all the way and are securely sealed.
When opening the door, it will only open so far. After reaching a certain point, it will remain open.
When the door is partially open, it will close automatically.
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페 이 지 1 8 i n
19
INSTALLATION OF THE REFRIGERATOR
Check the dimensions of your entrance door to determine whether the refrigerator can pass
through it.
• Select a location with easy access to the water supply.
• Select a location with enough space for the refrigerator.
• Select a location without direct exposure to sunlight.
• Select a location with a level floor or close to it.
• Before disassembling the freezer door, the water supply line needs to be disconnected.
(If not, the water supply line may be damaged.)
• See “Removing the Freezer Door” on page 25.
Dimension
(inches)
Width
Capacity (Cu. Ft)
Model
RM255AB* / RM257AB*
24.55
without hinge
Case Height
with hinge
with handle
Depth
without door
35 3/4"
68 5/8"
70"
36 1/10"
30 3/8"
Checking the Dimensions of your Entrance Door
Selecting the Location for the Refrigerator
• Allow clearance to the right, left, back and top when installing the refrigerator.
This has the advantage of reducing power consumption.
• Do not install the refrigerator where the temperature will go below 50°F (10°C).
Allow sufficient space for air circulation of the internal cooling system.
•
When the refrigerator does not have enough space, the internal cooling system may not work correctly.
NOTE
1 inch
1/8 inch
1 inch
NOTE
INSTALLATION INSTRUCTIONS
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페 이 지 1 9 i n
INSTALLATION OF THE REFRIGERATOR
LEVELLING
If the front of the appliance is slightly higher than the rear, the door can be opened and closed easier.
The appliance tilts down to the left.
Turn the left adjusting leg in the direction of
the arrow with a flat head screwdriver until
the appliance is level.
The appliance tilts down to the right.
Turn the right adjusting leg in the direction of
the arrow with a flat head screwdriver until
the appliance is level.
• Be careful when opening the door so
that it does not come in contact with
other parts of the refrigerator.
CAUTION
63.661"
35.748"
50.630"
25.693"
20.827"
• Allow sufficient space to install the refrigerator on a flat surface.
- If your refrigerator is not level, the internal cooling system may not work correctly.
WARNING
20
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페 이 지 2 0 i n
21
INSTALLATION INSTRUCTIONS
ADJUSTING THE HEIGHT BETWEEN THE DOORS
The doors will be uneven if the refrigerator is not level.
Case 1) Freezer door is lower than
the refrigerator door.
Insert a flat-blade screwdriver (-) (
➀
) into a slot of
the control lever (➁), turn it clockwise and level the
refrigerator.
Case 2) Freezer door is higher than
the fridge door
Insert a flat-blade screwdriver (-) (
➀
) into a slot of
the control lever (➁), turn it clockwise and level
the refrigerator.
Do not make small adjustments with the control lever, Please refer to the next page.
DIFFERENCE OF HEIGHT
DIFFERENCE OF HEIGHT
➀
DRIVER(-)
➀
DRIVER(-)
➁ CONTROL LEVER
➁ CONTROL LEVER
Please level the refrigerator first
NOTE
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페 이 지 2 1 i n
22
ADJUSTING THE HEIGHT BETWEEN THE DOORS
Making small adjustments between doors.
If the door of fridge is lower than that of the freezer,
1) If you open the Fresh Select Zone Door (➀), you can see the hinge-mid (➁).
2) Insert enclosed hex wrench (
➂
) into the shaft (
➃
) of the hinge mid.
3) Please adjust the height difference between the doors turning the hex wrench (
➂
) clockwise ( )
or counter clockwise ( ).
4) After adjusting the doors, please insert enclosed fastener-ring (➄) using a plier (➅) in the gap between
the hinge-grommet (➆) and the hinge-mid (
➇
).
The number of the fastener-ring to insert depends on the gap.
When you turn counter clockwise ( ), the door goes up.
NOTE
Four fastener-rings are enclosed with the refrigerator.
NOTE
adjustment part
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페 이 지 2 2 i n
INSTALLATION INSTRUCTIONS
ADJUSTING THE HEIGHT BETWEEN THE DOORS
The adjuster in the Fresh Select Zone can be used in the same way.
NOTE
If the Arctic Select Zone Door is lower than the Fresh Select Zone Door.
1) Locate the height-adjuster (➀) in the Arctic Select Zone.
Unscrew the four phillips screws (➁) slightly to loosen the door.
2) Unscrew the adjuster-phillips screw (
➂
) two turns to rotate the adjuster.
3) Find the best adjuster-level to align the door gap.
After adjustment, tighten the screws (
➁ & ➂
) in reverse order.
adjustment part
Arctic Select Zone
Fresh Select Zone
- Rotate down the adjuster-face with
+
2.0 number to reduce the door gap.
- The number of the adjuster to rotate depends on the gap.
Arctic Select Zone Door Fresh Select Zone Door
gap
CASE) The gap is about 2mm (0.08inch) as shown below.
reference plane
23
➁
➀
➂
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페 이 지 2 3 i n
24
1) With the door closed,remove the upper hinge cover (➀) using a screwdriver, and then remove the
water tube by pressing the coupler-ring (➁) and pulling the water tube (
➂
) away.
Unscrew two phillips screws from the front leg cover.
Pull the front leg-cover down with both hands and remove it by lifting it up with the upper rib.
Then, disengage the lower hooks.
Removing the Freezer Door
•
Lift the door straight up.
•
Be careful not to pinch the water tubing and wire harness on the door.
•
Place doors on a protected surface.
NOTE
REMOVING THE REFRIGERATOR DOORS
FRONT LEG COVER
RIB
HOOK
Removing the Front Leg Cover
Do not cut the water tube. Separate it from the coupler.
NOTE
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페 이 지 2 4 i n
25
INSTALLATION INSTRUCTIONS
4) Remove the door from the lower
hinge(
➇
)carefully lifting the door(➈).
5) Remove the phillips screw(➉)and two hex
head screws ( )from the lower hinge
11
Removing the Freezer Door
REMOVING THE REFRIGERATOR DOORS
2) Disengage the hooks on the connector - cover (
➃
) protecting the connector and open it.
Push the lever-hook (➄) on the connector and disconnect the wires.
3) Pull and open the latch (➅), and take off the door hinge (➆) along the arrow.
Be careful when removing the door to ensure that it does not fall on you.
DA99-01418A (EN)-0.1 2007.6.5 10:31 AM 페 이 지 2 5 i n
26
REMOVING THE REFRIGERATOR DOORS
3) Remove
the door from the lower hinge
(
➃
)
by
lifting the door (
➄
).
4) Remove the phillips screw (➅) and two hex
head screws (➆) from the lower hinge.
1) With the door closed, remove the upper hinge cover (➀) using a screwdriver.
2) Pull and open the latch (➁), and take off the door hinge (
➂
) along the arrow.
Removing the Fridge Door
DA99-01418A (EN)-0.1 2007.6.5 10:32 AM 페 이 지 2 6 i n
27
INSTALLATION INSTRUCTIONS
REMOVING THE REFRIGERATOR DOORS

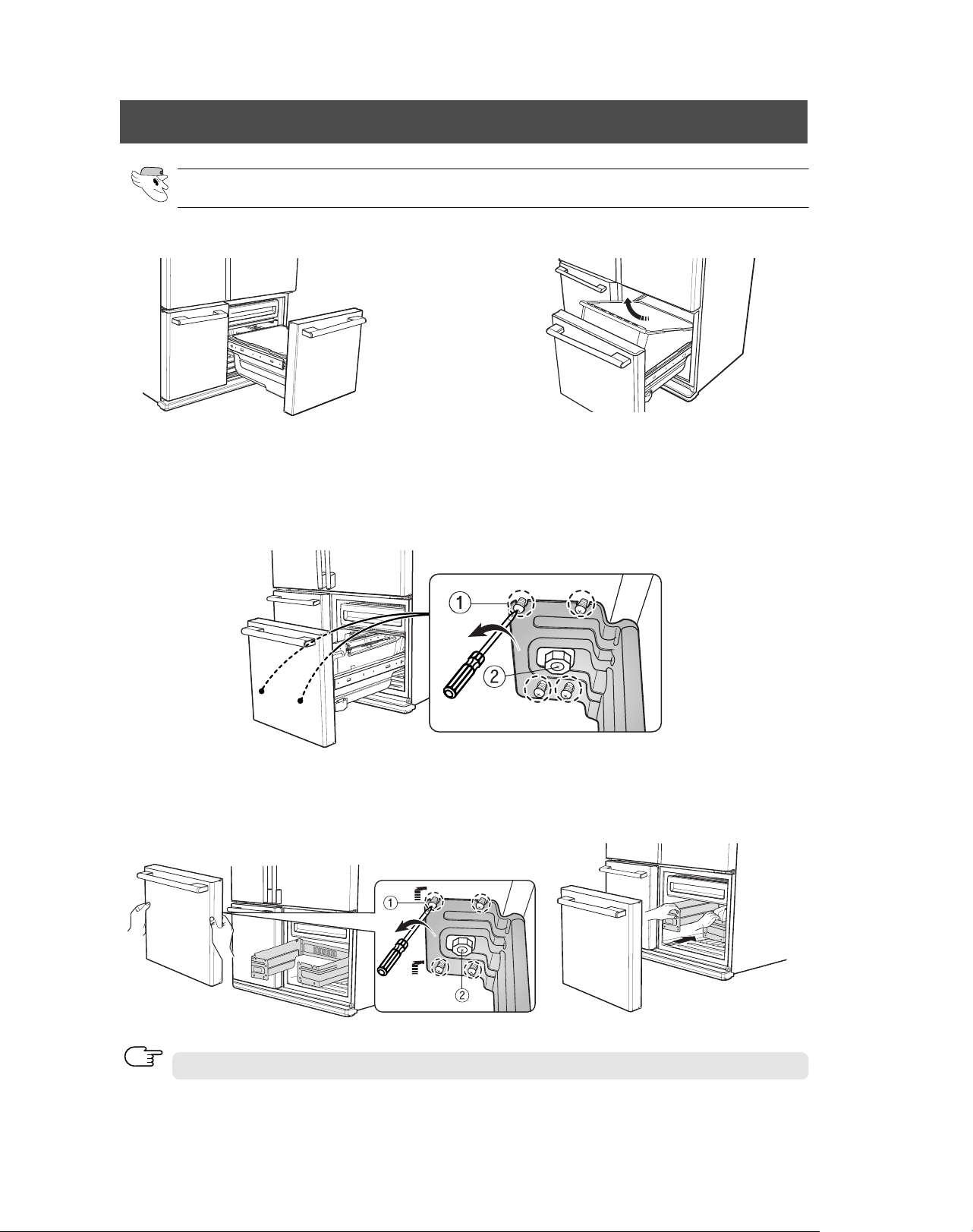

How to disassemble/assemble the Arctic Select Zone Door
1) Open the Arctic Select Zone Door.
3) Locate the eight phillips screws in the Arctic Select Zone. To lift the door up, unscrew the eight
phillips screws(➀) four turns. Do not remove the screws (➀) out.
(You don’t need to unscrew the adjuster-phillips screw(➁ )
2) Take out the box in the Arctic Select
Zone Door.
4) Remove the door carefully from the rail lifting up
the door with both hands.
To allow screw(➀) heads to pass through the rail
holes.
5) Slide the rail carefully to the inside.
When you assemble the Arctic Select Zone Door, follow the instructions above in reverse order.
NOTE
DA99-01418A (EN)-0.1 2007.6.5 10:32 AM 페 이 지 2 7 i n
28
REMOVING THE REFRIGERATOR DOORS
How to disassemble/assemble the Fresh Select Zone Door
4) Remove the door carefully from the rail lifting up
the door with both hands.To allow screw(➀) heads
to pass through the rail holes.
3) Locate the eight phillips screws in the Fresh Select Zone. To lift the door up, unscrew the eight phillips
screws(➀) four turns. Do not remove the screws (➀) out.
(You don’t need to unscrew the adjuster-phillips screw(➁)
1) Open the Fresh Select Zone Door. 2) Take out the box in the Fresh Select Zone.
5) Slide the rail carefully to the inside.
When you assemble the Fresh Select Zone Door, follow the instructions above in reverse order.
NOTE
DA99-01418A (EN)-0.1 2007.6.5 10:32 AM 페 이 지 2 8 i n
29
INSTALLATION INSTRUCTIONS
Reattaching the Freezer Door
REATTACHING THE REFRIGERATOR DOORS
1) Reattach a phillips screw (
➀
) and two hex head
screws (➁) to the hinge.
2) Place the hole in the bottom of the door (➃)
over the hinge (
➂
).
3) Insert the upper hinge shaft (➄) into the hole (➅). After levelling between the hinge brackets (➆).
Reattach and close the latch (
➇
) along the arrow.
Connect the water tube (➈) and the wires (
➉
). Then, place the water tube(➈) on the hanger ( )
4) Put the connector ( ) in the guide ( ) of the
connector-cover and close it.
5) Put the front part of the upper hinge cover ( )
on the front part of the upper hinge ( ) and
reattach it from the front of the upper hinge
cover first.
6)
Reattach a phillips screw to the hinge cover ( ).
Be sure to insert the water tube and push to the end.
NOTE
14
15
16
12 13
11
DA99-01418A (EN)-0.1 2007.6.5 10:32 AM 페 이 지 2 9 i n
30
REATTACHING THE REFRIGERATOR DOORS
Reattaching the Fridge Door
1) Reattach a phillips screw (
➀
) and two hex head
screws (➁) to the hinge.
2) Place the hole in the bottom of the door (➃)
over the hinge (
➂
).
3) Insert the upper hinge shaft (➄) into the hole (➅). After levelling between the hinge brackets (➆).
Reattach and close the latch (
➇
) along the arrow.
4)
Put the front part of the upper hinge cover (
➈
) on the front part of the upper hinge (
➉
) and reattach it
from the front part of the upper hinge cover first.
5)
Reattach a phillips screw to the hinge cover ( ).
11
DA99-01418A (EN)-0.1 2007.6.5 10:32 AM 페 이 지 3 0 i n
31
INSTALLATION INSTRUCTIONS
REATTACHING THE REFRIGERATOR DOORS
FRONT LEG COVER
Reattaching the Front Leg Cover
Hold the front leg-cover with both hands and insert it by sliding the hooks along the
guide at the bottom.
Then, lift up the leg-front-cover a little bit and snap the upper ribs into the locking tabs.
Tighten two phillips screws to the front leg cover.
RIB
HOOK
DA99-01418A (EN)-0.1 2007.6.5 10:32 AM 페 이 지 3 1 i n
32
CHECKING THE WATER DISPENSER LINE
1) In order to operate the ice maker properly, water pressure of 1.4 ~ 8.5kgf/cm
2
(0.14~0.83Mpa,
19.9~120.9psi, 1.37~8.3bar) is required.
In this range a 100 cc paper cup can be filled in 10 seconds.
2) The water filter removes particles. It does not sterilize or destroy any micro-organisms.
3) If the refrigerator is installed in an area with low water pressure (1.4kgf/cm
2
, 0.14Mpa, 19.9psi,
1.37bar), you should install a booster pump to compensate for the low pressure.
4) Ensure the water storage tank inside the refrigerator is preperly filled initially. Push the water
dispenser lever until the water runs from the outlet.
NOTE
A universal water supply kit is available at extra cost from your dealer. The refrigerator
manufacturer recommends using a water supply kit containing copper tubing.
A universal water supply kit is available at extra cost from your dealer. The refrigerator
manufacturer recommends using a water supply kit containing copper tubing.
Checking the Parts
Water pipe Pipe-Connect Water Packing
Connecting to water supply line
(Case 1)
- Shut off the main water supply line and turn the Ice
maker to the off position.
- Locate the nearest cold drinking water line.
- Follow the instructions in the ice maker installation kit.
1. Cold Water line
2. Pipe Clamp.
3.Copper (or Plastic) line
4.Compression Nut
5.Compression Sleeve
6.Shut Off Valve
7.Packing Nut.
INSTALLATION OF THE WATER DISPENSER LINE
DA99-01418A (EN)-0.1 2007.6.5 10:32 AM 페 이 지 3 2 i n
33
INSTALLATION INSTRUCTIONS
INSTALLATION OF THE WATER DISPENSER LINE
Connect the water line to the refrigerator.
Water line must be connected to drinkable water only.
Cut off 1/4 inch of the provided plastic tubing squarely to prevent leaks when reconnecting.
Do not overtighten the compression nut.
NOTE
NOTE
Compression Nut (1/4″)
(Provided)
Compression Fitting
(Provided)
Compression Nut (1/4″)
(Purchased)
Plastic Tubing
(Purchased)
Copper Tubing
(Purchased)
Ferrule
(Purchased)
Household Water Line
Refrigerator
1) Slip the compression nut through the provided
plastic tubing.
2) Tighten the compression nut onto the 1/4”
compression fitting.
3) Tighten the compression nut onto the com-
pression fitting.
4) Turn water on and check for any leakage.
●
Using Copper Tubing
- Slip the compression nut and ferrule on
copper tubing as shown.
●
Using Plastic Tubing
- Insert the molded end of the plastic tubing
into the compression fitting.
WARRANTY INFORMATION
This water line installation is not covered by the Samsung
refrigerator's warranty.
Follow these instructions carefully to minimise the risk of
expensive water damage.
Note:
If the coupler does not fit on the current tap, go
the nearest authorized service dealer and purchase
the right coupler fittings.
Check the water supply line
Connect the water line to the refrigerator.
Connect the water pipe with coupler and tap.
- Close the main water tap.
- Connect coupler “A” to the tap.
- Every joint should be protected with sealing tape.
(Case 2)
COUPLER “A”
TA P
CAUTION
The water line must be connected
to the cold water pipe.
If it is connected to the hot water
pipe, it may cause the
purifier to malfunction.
- Remove the compressor cover of the refrigerator.
- Connect the water line to the valve, as shown in the figure.
- When connected, check if there is any leakage.
If any, repeat the connection.
- Reattach the compressor cover of the refrigerator.
WATER LINE
CONNECTION NUT
COMPRESSOR COVER OF
REFRIGERATOR
DA99-01418A (EN)-0.1 2007.6.5 10:32 AM 페 이 지 3 3 i n
34
INSTALLATION OF THE WATER DISPENSER LINE
- Using clip ”A”, fix the water line to the wall (the back of refrigerator).
- When the water line is secure, make sure it is not excessively bent, pinched or
squashed.
Complete the installation of the water supply line.
- Power on the refrigerator and press the lever on the right of the
dispenser until water runs out through the water line and all air has been emptied.
- At this time, check for any possible leakages at the join point in the water line.
After securing the water line, move the refrigerator to the required location.
CLIP A
WATER LINE
Secure the water line.
COVER FILTER
(A)
ALIGN THE INDICATION MARK
WITH LOCK POSITION.
1) Remove the fixed cap (A) as shown. the fixed cap separates from
the Water Filter Compartment by rotating it counterclockwise.
Remove the water filter from the box and put a month indicator
stick on the filter as shown.
2) If the water filter was installed in March, put on the "SEP" sticker.
3) Remove the Red protective cap from the filter, then position and
insert the filter as shown.
4) Slowly turn the water filter clockwise 90º to align
the indication mark on the cover, locking the filter in
position. Do not overtighten.
Please check that the indication line aligns with the lock position.
NOTE
Keep the cap(A) in a safe place for recapping, when you
don’t need to use the filter.
NOTE
SEPARATION
OF RED CAP
STICKER
(MONTH INDICATION)
Install the water filter.
DA99-01418A (EN)-0.1 2007.6.5 10:32 AM 페 이 지 3 4 i n
35
INSTALLATION INSTRUCTIONS
WATER
ICE
INSTALLATION OF THE WATER DISPENSER LINE
Remove any residual matter inside the water supply line after installing filter.
1) Turn on the main water supply & shut-off the valve of the
water supply line.
2) Run water through the dispenser until the water runs clear
(6~7 minutes). This will clean the water supply system and
clear air from the lines.
3) Additional flushing may be required in some households.
4) Open the fridge door and check if water leaks around the
water filter.
•
A newly-installed water filter cartridge may cause water to briefly spurt from the dispenser.
NOTE
•
Place the ice tray at the originally provided posistion by manufacturer in order to achieve optimal
ice-freezing.
NOTE
Check the amount of water supplied to the ice tray.
1) To remove : Set the type of ice to the “Ice Off” position. Lift up
(①) and pull out (➁) the ice bucket in the freezer.
To replace : When replacing the drawer, be sure to press it firm-
ly into place. If it does not go all the way back, remove it and
rotate the drive mechanism 1/4 turn. Then push the drawer back
again.
2) Throw away the first few batches of ice to allow the water line to
clear.
Be sure nothing interferes with the sweep of the feeler arm.
When the bin fills to the level of the feeler arm, the icemaker will
stop producing ice.
It is normal for several cubes to be joined
together.
If ice is not used frequently, old ice cubes will
become cloudy, taste stale and shrink.
Rotate
Drive
Mechanism
Feeler Arm
ICE BUCKET
ICE MAKER
DA99-01418A (EN)-0.1 2007.6.5 10:32 AM 페 이 지 3 5 i n
36
INSTALLATION OF THE WATER DISPENSER LINE
3)
Important Facts About Your Dispenser :
Do not add ice from trays or bags to the storage bin. It may not crush or dispense well.
Avoid overfilling glass with ice and use of narrow or extra-tall glasses. Backed-up ice can jam the
chute or cause the door in the chute to freeze shut. If ice is blocking the chute, poke it through with
a wooden spoon.
Beverages and foods should not be quick-chilled in the ice storage bin.
To keep dispensed ice from missing the glass, put the glass close to, but not touching, the dis-
penser opening.
Some crushed ice may be dispensed even though you selected CUBES. This happens occasionally
when a few cubes accidentally get directed to the crusher.
After crushed ice is dispensed, some water may drip from the chute.
4) Water Supply to the Icemaker :
The icemaker must be connected to a cold water line.
5) Start the Icemaker :
Set the type of ice to the "Cubed Ice" or "Crushed Ice" position. The icemaker will not begin to oper-
ate until it reachs its operating of 10.4°F( -12°C) or below. It will then begin operation automatically if
the type of ice is in the "Cubed Ice" or "Crushed Ice" position.
•
If there is no water supply, turn off the icemaker to save energy.
•
In lower water pressure conditions, the water valve may turn on up to 3 times to make sure enough
water reaches the icemaker.
•
Allow the appliance to stand for 2hours after installation.
NOTE
Use only the ice maker provided with the refrigerator.
WARNING
DA99-01418A (EN)-0.1 2007.6.5 10:32 AM 페 이 지 3 6 i n
37
INSTALLATION INSTRUCTIONS
BEFORE YOU CALL FOR SERVICE...
Problem
The refrigerator does not
work sufficiently or at all
The food in the refrigera-
tor is frozen
Unusual noises or
sounds are heard
The front corners and
sides of the cabinet are
hot; condensation occurs
Ice is not dispensed
You can hear water bub-
bling in the refrigerator
There is a bad smell in
the refrigerator
Frost forms on the wall of
the freezer
No water is supplied
Door/ drawer does not
close by itself
• Disconnected power plug
• Is the temperature control on the display
panel set to the correct temperature?
• Is the refrigerator in direct sunlight or locat-
ed near a heat source?
• Is the back of the refrigerator too close to
the wall?
• Is the temperature control on the display
panel set to the correct temperature?
• Is the temperature in the room too low?
•
Did you store the food with a high water
content in the coldest part of the refrigerator.
• Is the back of the refrigerator too near to the
wall?
• Was anything dropped behind or under the
refrigerator?
• A “ticking” sound may be heard from inside
the refrigerator. This is normal and occurs
because various accessories contract or
expand.
• Anti-condensators are installed in the front
corners of the refrigerator to prevent con-
densation.
• Condensation can occur when you leave the
door open for a long time.
• Did you stop the ice making function?
• Is there any ice in the storage unit?
• Is the water pipe connected and the shut-off
valve open?
• Is the freezer temperature too warm?
• Did you wait for 12 hours after installation
of the water supply line before making ice?
• The bubbling comes from the refrigerant
circulating in the refrigerator and is normal.
• Wrap strong smelling food so that it is air-
tight. Throw away any rotten food.
• Is the air vent blocked?
• Is the door closed properly?
• Is the water pipe connected and the shut-off
valve open?
• Is the water supply pipe crushed?
• Is the water tank frozen because the refrig-
erator temperature is too low? Select a
warmer setting on the display panel.
• Leveling legs need adjusting
• Check that the power plug is properly con-
nected.
• Try setting it to a lower temperature.
• Move the refrigerator to the proper loca-
tion.
• Try setting it to a warmer temperature.
• Check that the floor is levelled and stable.
•
Move the refrigerator to the proper location.
• Remove the foreign object.
• Normal state
• See the control panel.
• See the ice container.
• See the valve.
• Set the temperature lower.
• Normal state
• Allow sufficient space between stored food
for efficient air circulation.
• See installation of the refrigerator
Possible Causes What To Do
DA99-01418A (EN)-0.1 2007.6.5 10:32 AM 페 이 지 3 7 i n
38
BEFORE YOU CALL FOR SERVICE...
Problem
Small or hollow cubes
Slow ice cube freezing
Orange glow in the freezer
Cube dispenser does not
work(on some models)
Water has poor taste/odor
(on some models)
Water in first glass is
warm (on some models)
Water dispenser does not
work(on some models)
Water spurting from dis-
penser (on some models)
Water is not dispensed
(on some models) but
icemaker is working
Water on kitchen floor or
on bottom of freezer
No water or ice cube
production
Water filter clogged.
Door left open.
Temperature control was not
set cold enough.
Defrost heater is on.
Icemaker turned off or water
supply turned off.
Ice cubes are frozen to ice-
maker feeler arm.
Irregular ice clumps in stor-
age container.
Dispenser is LOCKED.
Water dispenser has not
been used for a long time.
Normal when refrigerator is
first installed.
Water dispenser has not
been used for a long time.
Water system has been drained.
Water supply line turned off or
not connected.
Water filter clogged.
Air may be trapped in the
water system.
Dispenser is LOCKED.
Newly-installed filter cartridge.
Water in reservoir is frozen.
Refrigerator control setting is
too cold.
Ice cubes stuck in icemaker.
(Green power light on
icemaker blinking).
Drain in the bottom of the
freezer clogged.
Cubes jammed in chute.
Supply line or shutoff valve is
clogged.
Water filter clogged.
Dispenser is LOCKED.
•
Replace the filter cartridge with a new cartridge or with plug.
• Check to see if package is holding door open.
• See about the controls.
• This is normal.
• Turn on icemaker or water supply.
• Remove cubes and move the feeler arm to the ON position.
• Break up and discard remaining clumps.
• Freezer may be too warm. Adjust the freezer control to a
colder setting, one position at a time, until clumps do not
form.
• Press and hold the CHILD LOCK for 3 seconds.
• Dispense water until all water in system is replenished.
• Wait 24 hours for the refrigerator to completely cool down.
• Dispense water until all water in system is replenished.
• Allow several hours for replenished supply to chill.
• See Installing the water line.
• Replace filter cartridge or remove filter and install plug.
• Press the dispenser arm for at least two minutes.
• Press and hold the CHILD LOCK pad for 3 seconds.
• Run water from the dispenser for 3 minutes (about one and
a half gallons).
• Call for service.
• Set to a warmer setting.
• Turn off the icemaker, remove cubes, and turn the icemaker
back on.
• See Care and cleaning.
• Check the filter lock.
• Poke ice through with a wooden spoon.
• Call a plumber.
• Replace filter cartridge or remove filter and install plug.
• Press and hold the CHILD LOCK pad for 3 seconds.
Possible Causes What To Do
DA99-01418A (EN)-0.1 2007.6.5 10:32 AM 페 이 지 3 8 i n
LIMITED WARRANTY TO ORIGINAL PURCHASER
SAMSUNG REFRIGERATOR
This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new,
in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials
and workmanship for a limited warranty period of:
One (1) Year Parts and Labor on Refrigerator
Five (5) Years Parts and Labor on Sealed Refrigeration System Only*
(*Compressor, evaporator, condenser, drier, connecting tubing)
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United
States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures.
Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be
presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center.
SAMSUNG will repair or replace any part found to be defective, at our option and at no charge as stipulated herein, with new or
reconditioned parts during the limited warranty period specified above. All replaced parts and products become the property of
SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or
ninety (90) days, whichever is longer.
In-home service will be provided during the warranty labor period subject to availability within the contiguous United States. In-
home service is not available in all areas. To receive in-home service, the product must be unobstructed and accessible from floor
level to service personnel. If during in-home service repair cannot be completed, it may be necessary to remove, repair and return
the product. If in-home service is unavailable, SAMSUNG may elect, at our option, to provide for transportation of our choice to
and from a SAMSUNG authorized service center. Otherwise, transportation to and from the SAMSUNG authorized service center
is the responsibility of the purchaser.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of
this product, and shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and
installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or
exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities,
services, parts, supplies, accessories, applications, installations, repairs, external plumbing and leaks, external wiring, circuit
breakers, fuses or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service
problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions,
cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; loss of food due to
spoilage; consumable items including filters and light bulbs.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES
WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY
PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR
CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE
LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS
PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE
GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE
ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS,
DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY
ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY
BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE
ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights,
and you may also have other rights, which vary from state to state.
To obtain warranty service, please contact SAMSUNG at:
SAMSUNG CUSTOMER CARE CENTER
Samsung Electronics America, Inc.
105 Challenger Road Ridgefield Park NJ 07660-0511
1-800-SAMSUNG (1-800-726-7864) and www.samsung.com
061002
DA99-01418A (EN)-0.1 2007.6.5 10:32 AM 페 이 지 3 9 i n
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
SAMSUNG ELECTRONICS AMERICA, INC.
105 Challenger Road Ridgefield Park, NJ 07660-0511
1-800-SAMSUNG(1-800-726-7864)
www.samsung.com
DA99-01418A (EN)-0.1 2007.6.5 10:32 AM 페 이 지 4 0 i n
