COSMOGRAPH DAYTONA
OYSTER PERPETUAL
WEARING THE WATCH
FOR THE FIRST TIME
Before being worn for the first time, or if it has
stopped, a Rolex watch must be wound manually
in order to function correctly and precisely.
Towind the watch manually, unscrew the winding
crown completely, then turn it several times
clockwise. (Turning in the other direction has
noeffect.) A minimum of 25turns is required for
adequate partial winding. The watch will then
bewound automatically as long as it is worn on
the wrist. Carefully screw the crown back down
against the case to ensure waterproofness.
The green seal accompanying your
Rolex watch is a symbol of its status
as a Superlative Chronometer. This
exclusive designation attests that it
has successfully undergone a series of
specific final controls by Rolex in its own
laboratories in addition to the official
COSC certification of its movement.
This unique testing of its chronometric
precision, waterproofness, self-winding
and reliability pushes back the
boundaries of performance and makes
Rolex a benchmark for excellence
in mechanical watches. For further
information, please visit rolex.com.
THE HEART OF THE COSMOGRAPH DAYTONA MODEL
OYSTER PERPETUAL COSMOGRAPH DAYTONA 4-5
USING YOUR WATCH
OVERVIEW 6-7
SETTING THE WATCH 8-13
EASYLINK COMFORT EXTENSION LINK 14-15
ROLEX SERVICE
CARING FOR YOUR ROLEX 16-17
AFTER-SALES SERVICE 18-19
WORLDWIDE SERVICE NETWORK 20
ROLEX.COM
21
5
USING
YOUR WATCH
ROLEX
SERVICE
THE HEART OF THE
COSMOGRAPH DAYTONA MODEL
OYSTER PERPETUAL
COSMOGRAPH DAYTONA
The Oyster Perpetual Cosmograph
Daytona is the benchmark for those with
a passion for driving and speed. Of
legendary relia bility, this model features
a centre chronograph seconds hand,
30-minute and 12-hour counters and
a tachymetric bezel, making it the
instrument of choice for measuring
elapsed time and calculating average
speeds.
The dial offers exceptional legibility
thanks to its Chromalight display
elements filled with a high-performance
luminescent material.
Its 40 mm Oyster case, guaranteed
waterproof to a depth of 100 metres
(330feet), is a paragon of robustness
and reliability. Its Triplock winding crown,
with a triple waterproofness system, is
protected by a crown guard crafted as an
integral part of the middle case. Both
the winding crown and the chronograph
pushers screw down against the case. Its
sapphire crystal is virtually scratchproof.
The Oyster Perpetual Cosmograph
Daytona is equipped with a self-winding
mechanical movement entirely
manufactured by Rolex.
6
USING
YOUR WATCH
ROLEX
SERVICE
THE HEART OF THE
COSMOGRAPH DAYTONA MODEL
OVERVIEW
Hour hand
Minute hand
Small seconds
Chronograph seconds hand
30-minute counter
12-hour counter
Upper pusher (start/stop)
Lower pusher (reset)
Bezel with tachymetric scale
Triplock winding crown with
triple waterproofness system
8
USING
YOUR WATCH
ROLEX
SERVICE
THE HEART OF THE
COSMOGRAPH DAYTONA MODEL
SETTING THE WATCH
Screwed-down position (crown in
position0, pushers screwed down)
The crown and pushers are completely
screwed down against the case.
When the crown and pushers are in
this position, the Oyster Perpetual
Cosmograph Daytona is guaranteed
waterproof to a depth of 100metres
(330 feet).
Manual winding (crown in position1)
The crown is unscrewed. To wind
the watch manually, turn the crown
clockwise; turning in the other direction
has no effect. When setting the watch
for the first time or after the watch
has stopped, complete a minimum of
25turns for partial winding.
Setting the time (crown in position2)
The crown is unscrewed and pulled out
to the first notch. The small seconds
hand is stopped, allowing you to set
the time to the precise second. To set
the hour and minute, turn the crown
ineitherdirection.
Unscrew and then pull out
Initial winding and setting
A. Wind the watch manually (position1).
B. Set the time (position2).
After every use, carefully screw the crown
back down against the case to guarantee the
waterproofness. Return the crown to position1
and apply light pressure on it while screwing
it down clockwise against the case. The crown
should never be unscrewed underwater.
10
USING
YOUR WATCH
ROLEX
SERVICE
THE HEART OF THE
COSMOGRAPH DAYTONA MODEL
MEASURING ELAPSED TIME

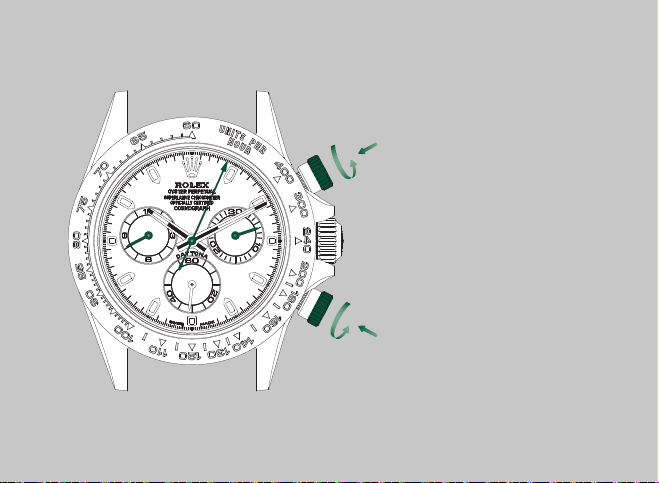

To measure elapsed time, follow the
steps in the order given:
– Completely unscrew the pushers by
turning them counterclockwise.
– Ensure that the chronograph seconds
hand is stopped. If necessary, stop it
by pressing the upper pusher.
– Press the lower pusher to reset the
chronograph seconds hand and
counters to zero.
– Press the upper pusher to start timing.
– Press the upper pusher again to
stoptiming.
– Read the elapsed time. The centre
seconds hand displays the elapsed
seconds, for a precise reading. The two
counters at 3 o’clock and 9 o’clock
on the dial indicate respectively the
elapsed minutes and hours.
– Screw the pushers back down by
turning them clockwise.
* Elapsed time in this illustration is 8 h 06 min 04 s
Starting and stopping the timing
Resetting the chronograph seconds hand
and counters to zero
12
USING
YOUR WATCH
ROLEX
SERVICE
THE HEART OF THE
COSMOGRAPH DAYTONA MODEL
CALCULATING AVERAGE SPEED
PER HOUR
The Oyster Perpetual Cosmograph
Daytona can be used to calculate
average speeds per hour over a given
distance (1km, 1mile, etc.).
To calculate average speed per hour,
follow the steps in the order given:
– Completely unscrew the pushers by
turning them counterclockwise.
– Ensure that the chronograph seconds
hand is stopped. If necessary, stop it
by pressing the upper pusher.
– Press the lower pusher to reset the
chronograph seconds hand and
counters to zero.
– At the starting point of the distance
to be covered, press the upper pusher
tostart timing.
– When the distance has been covered,
press the upper pusher to stop timing.
– The chronograph seconds hand
indicates the average speed per hour
on the graduated bezel (chosen unit
ofdistance/h).
– Screw the pushers back down by
turning them clockwise.
* Over a distance of 1 km, the average speed
inthis illustration is 160 km/h
Starting and stopping the timing
Resetting the chronograph seconds hand
and counters to zero
14
USING
YOUR WATCH
ROLEX
SERVICE
THE HEART OF THE
COSMOGRAPH DAYTONA MODEL

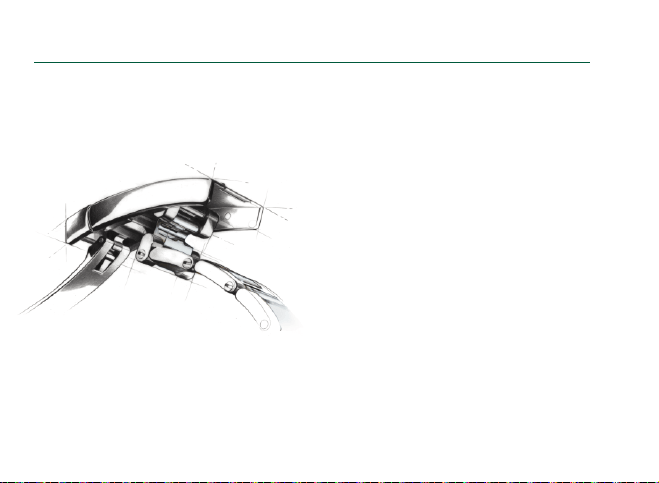

EASYLINK COMFORT
EXTENSION LINK
To ensure optimal comfort when wearing
your watch in any circumstances, Rolex
created the Easylink comfort extension
link, which is available on some models.
Its exclusive design, which was patented,
allows the length of the bracelet to
be adjusted by approximately 5 mm,
without the use of tools.

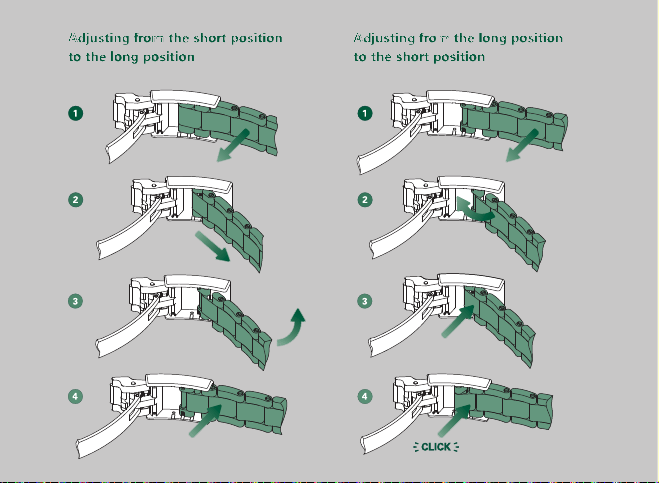

Adjusting from the short position
Adjusting from the short position
to the long position
to the long position
Adjusting from the long position
Adjusting from the long position
to the short position
to the short position
16
THE HEART OF THE
COSMOGRAPH DAYTONA MODEL
USING
YOUR WATCH
ROLEX
SERVICE
CARING FOR
YOUR ROLEX
Thanks to Rolex expertise, your watch
will require very little day-to-day care.
You can help preserve its lustre by
cleaning it occasionally with a microfibre
cloth. You can also wash the case and
bracelet from time to time using soapy
water and a soft brush. After wearing
your watch in the sea, it is important to
rinse it with fresh water to remove any
salt and sand deposits.
17
Before cleaning your watch, always
ensure that the crown is screwed down
properly against the case to guarantee
waterproofness.
18
THE HEART OF THE
COSMOGRAPH DAYTONA MODEL
USING
YOUR WATCH
ROLEX
SERVICE
AFTER-SALES
SERVICE
Rolex watch servicing ensures that
your timepiece will continue to
perform optimally and meet Rolex’s
stringent requirements in terms of
precision, reliability and waterproofness
throughout its life.
The timekeeping accuracy of your watch
is largely dependent on high-performance
lubricants specially developed by Rolex
to minimize friction and prevent wear
of components. To guarantee continued
accuracy and waterproofness, Rolex
recommends that you periodically return
your watch to an Official Rolex Retailer or
Service Centre for professional servicing.
When your watch is serviced by a Rolex
watchmaker, the watch is completely
dismantled and all of its components
are cleaned. Each individual component
is closely examined and those that
nolonger meet Rolex’s functional and
aesthetic specifications are replaced
with genuine Rolex parts.
The movement is carefully lubricated
then tested to guarantee its timing
accuracy; the case and the metal bracelet
are meticulously refinished to restore
19
their lustre. Your Rolex then undergoes
a series of rigorous technical tests and
checks to guarantee its waterproofness,
power reserve and precision.
After a complete Rolex service, your
watch is covered by a service guarantee.
20
THE HEART OF THE
COSMOGRAPH DAYTONA MODEL
USING
YOUR WATCH
ROLEX
SERVICE
WORLDWIDE SERVICE
NETWORK
The network of Official Rolex Retailers
and Service Centres covers more than
100 countries around the world and
draws on the expertise of highly skilled
watchmakers, carefully selected and
trained by Rolex.
Official Rolex Retailers can advise you on
all the technical aspects of your watch’s
functions. Whether your bracelet needs
sizing or it is time for a complete service,
highly qualified Rolex watchmakers are
on hand worldwide to meet all of your
service needs.
For a list of Official Rolex Retailers and
Service Centres, please visit rolex.com.
21
ROLEX.COM
We invite you to visit rolex.com,
a privileged place to learn more about
the functions of your Rolex watch
and about the quality, know-how and
fundamental values of the brand.
Welcome to the world of Rolex.
Rolex reserves the right to modify the models illustrated in this publication at any time.
© Rolex SA, 3-5-7, rue François-Dussaud, 1211 Geneva 26, Switzerland
IMR-DAY-EN-19 - 5.2020 - Printed in Switzerland rolex.com
