SUBMARINER
SUBMARINER DATE
OYSTER PERPETUAL
WEARING THE WATCH
FOR THE FIRST TIME
Before being worn for the first time, or if it has
stopped, a Rolex watch must be wound manually
in order to function correctly and precisely.
Towind the watch manually, unscrew the winding
crown completely, then turn it several times
clockwise. (Turning in the other direction has
noeffect.) A minimum of 25turns is required for
adequate partial winding. The watch will then
bewound automatically as long as it is worn on
the wrist. Carefully screw the crown back down
against the case to ensure waterproofness.
The green seal accompanying your
Rolex watch is a symbol of its status
as a Superlative Chronometer. This
exclusive designation attests that it
has successfully undergone a series of
specific final controls by Rolex in its own
laboratories in addition to the official
COSC certification of its movement.
This unique testing of its chronometric
precision, waterproofness, self-winding
and reliability pushes back the
boundaries of performance and makes
Rolex a benchmark for excellence
in mechanical watches. For further
information, please visit rolex.com.
THE HEART OF THE SUBMARINER MODELS
OYSTER PERPETUAL SUBMARINER 4-5
OYSTER PERPETUAL SUBMARINER DATE 6-7
USING YOUR WATCH
OVERVIEW 8-9
SETTING THE OYSTER PERPETUAL SUBMARINER 10-11
SETTING THE OYSTER PERPETUAL SUBMARINER DATE 12-13
UNIDIRECTIONAL ROTATABLE BEZEL 14-15
ROLEX GLIDELOCK FINE-ADJUSTMENT SYSTEM 16-17
ROLEX SERVICE
CARING FOR YOUR ROLEX 18-19
AFTER-SALES SERVICE 20-21
WORLDWIDE SERVICE NETWORK 22
ROLEX.COM
23
5
USING
YOUR WATCH
ROLEX
SERVICE
THE HEART OF THE
SUBMARINER MODELS
OYSTER PERPETUAL
SUBMARINER

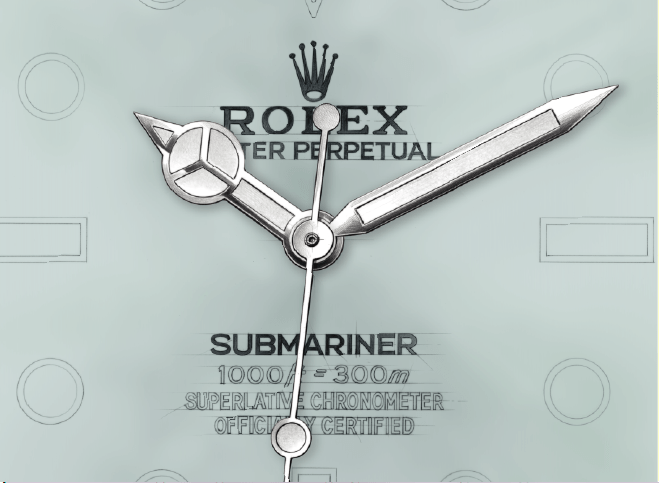

Archetype of the divers’ watch created
in1953, the Oyster Perpetual Submariner
epitomizes the historic link between
Rolex and the underwater world. Its
41mm case, guaranteed waterproof to
a depth of 300metres (1,000feet), and
its unidirectional rotatable bezel with
graduated Cerachrom insert make it
an essential instrument for every diver.
Its dial offers exceptional legibility
thanks to its Chromalight hour markers
and hands coated with a luminescent
material emitting a long-lasting blue glow
in dark conditions. Its Triplock winding
crown, with a triple waterproofness
system, is protected by a crown guard
that is an integral part of the middle
case. Its sapphire crystal is virtually
scratchproof.
The Oyster Perpetual Submariner is
equipped with a self-winding mechanical
movement entirely manufactured
byRolex.
The Oyster Perpetual Submariner features
an Oyster bracelet with an Oysterlock
safety clasp and a Rolex Glidelock fine-
adjustment system.
7
USING
YOUR WATCH
ROLEX
SERVICE
THE HEART OF THE
SUBMARINER MODELS

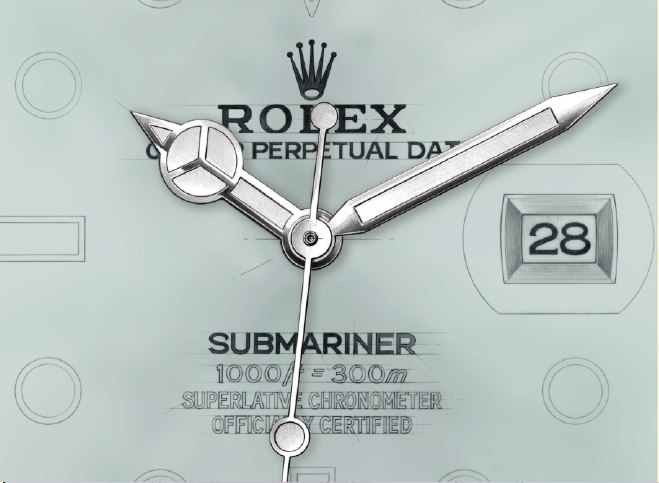

The Oyster Perpetual Submariner Date
is the benchmark for divers’ watches.
Having evolved from the legendary
Oyster Perpetual Submariner, it adds
a date display and a Cyclops lens at
3 o’clock on the virtually scratchproof
sapphire crystal. Its 41mm case,
guaranteed waterproof to a depth
of 300metres (1,000feet), and its
unidirectional rotatable bezel with
graduated Cerachrom insert make it an
essential diving instrument. Its dial
offers exceptional legibility thanks to
the Chromalight hour markers and hands
coated with a luminescent material
emitting a long-lasting blue glow in dark
conditions. Its Triplock winding crown,
with a triple waterproofness system,
is protected by a crown guard that is an
integral part of the middle case.
The Oyster Perpetual Submariner Date is
equipped with a self-winding mechanical
movement entirely manufactured
byRolex.
The Oyster Perpetual Submariner Date
features an Oyster bracelet with an
Oysterlock safety clasp and a Rolex
Glidelock fine-adjustment system.
OYSTER PERPETUAL
SUBMARINER DATE
8
USING
YOUR WATCH
ROLEX
SERVICE
THE HEART OF THE
SUBMARINER MODELS
Hour hand
Minute hand
Seconds hand
Date window (Oyster Perpetual
Submariner Date only)
Unidirectional rotatable bezel with
60-minute graduated Cerachrom
insert in ceramic
Triplock winding crown with triple
waterproofness system

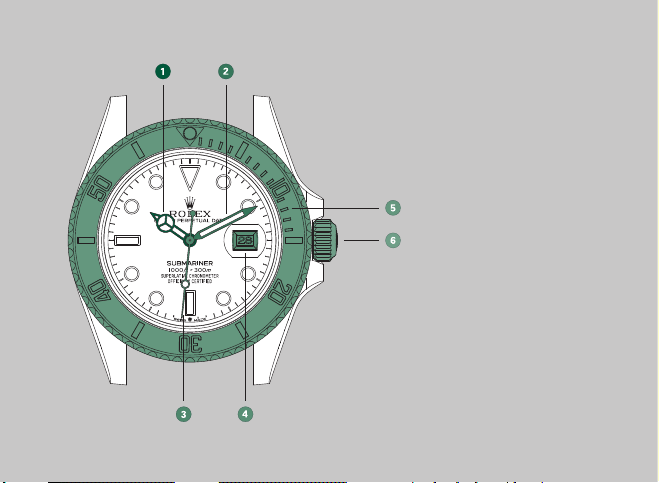

OVERVIEW
Diagram of the Oyster Perpetual
Submariner Date
10
USING
YOUR WATCH
ROLEX
SERVICE
THE HEART OF THE
SUBMARINER MODELS
SETTING THE
OYSTER PERPETUAL SUBMARINER
Screwed-down position (position 0)
The crown is completely screwed down
against the case. When the crown
is in this position, the Oyster Perpetual
Submariner is guaranteed waterproof
to a depth of 300 metres (1,000 feet).
Manual winding (position 1)
The crown is unscrewed. To wind the
watch manually, turn the crown
clockwise; turning in the other direction
has no effect. When setting the watch
for the first time or after the watch
has stopped, complete a minimum
of25turns for partial winding.
Setting the time (position 2)
The crown is unscrewed and pulled out
to the first notch. The seconds hand
is stopped, allowing you to set the
time to the precise second. To set the
hour and minute, turn the crown in
eitherdirection.

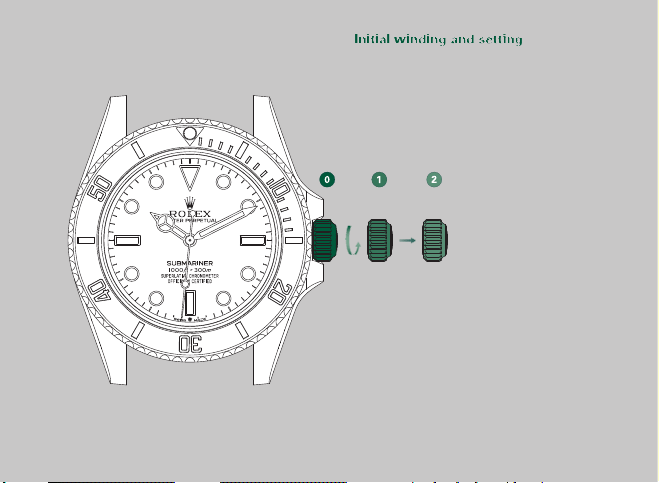

Initial winding and setting
Initial winding and setting
A. Wind the watch manually (position 1).
B. Set the time (position 2).
Unscrew and then pull out
After every use, carefully screw the crown
back down against the case to guarantee the
waterproofness. Return the crown to position1
and apply light pressure on it while screwing
it down clockwise against the case. The crown
should never be unscrewed underwater.
12
USING
YOUR WATCH
ROLEX
SERVICE
THE HEART OF THE
SUBMARINER MODELS
SETTING THE
OYSTER PERPETUAL SUBMARINER DATE
Screwed-down position (position 0)
The crown is completely screwed down
against the case. When the crown
is in this position, the Oyster Perpetual
Submariner Date is guaranteed waterproof
to a depth of 300 metres (1,000 feet).
Manual winding (position 1)
The crown is unscrewed. To wind the
watch manually, turn the crown
clockwise; turning in the other direction
has no effect. When setting the watch
for the first time or after the watch
has stopped, complete a minimum
of25turns for partial winding.
Setting the date (position 2)
The crown is unscrewed and pulled out
to the first notch. To set the date, turn
the crown clockwise; turning in the other
direction has no effect. During this
operation, the watch continues to function.
Setting the time (position 3)
The crown is unscrewed and pulled out to
the second notch. The seconds hand is
stopped, allowing you to set the time to the
precise second. To set the hour and minute,
turn the crown in either direction. To avoid
confusion between a.m. and p.m. hours,
move the hour hand to 12 o’clock. If the
date changes, it is midnight.

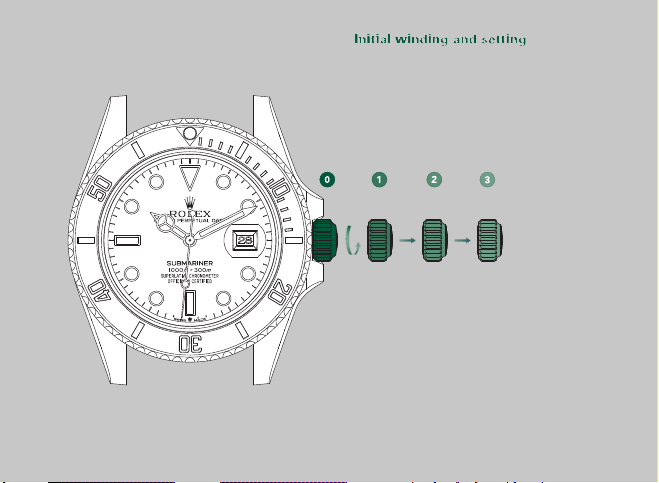

Initial winding and setting
Initial winding and setting
A. Wind the watch manually (position 1).
B. Note the date change at midnight,
then set the time (position 3).
C. Set the date (position 2).
Unscrew and then pull out
After every use, carefully screw the crown
back down against the case to guarantee the
waterproofness. Return the crown to position1
and apply light pressure on it while screwing
it down clockwise against the case. The crown
should never be unscrewed underwater.
15
ROLEX
SERVICE
USING
YOUR WATCH
THE HEART OF THE
SUBMARINER MODELS
UNIDIRECTIONAL
ROTATABLE BEZEL
The Oyster Perpetual Submariner and the
Oyster Perpetual Submariner Date allow
divers to safely monitor their dive time
thanks to the unidirectional rotatable bezel
with a 60-minute graduated Cerachrom
insert in ceramic, a material that is
resistant to environmental effects.
Before the dive
Before beginning your descent, turn
the bezel until the triangle on the
graduation is opposite the minute hand.
This indicates the beginning of the dive
and remains visible in the dark thanks
to a phosphorescent capsule.
During the dive
The duration of the dive is indicated
on the graduation on the Cerachrom
insert by the minute hand.
For safety reasons, the bezel turns only
counterclockwise. Accidental rotation
of the bezel can therefore only shorten
the dive time.
16
USING
YOUR WATCH
ROLEX
SERVICE
THE HEART OF THE
SUBMARINER MODELS
ROLEX GLIDELOCK
FINE-ADJUSTMENT SYSTEM
On the Oyster bracelet, the Rolex
Glidelock fine-adjustment system
enables you to adjust the bracelet length
in approximately 2mm increments
up to around 20mm, which allows you
to wear the watch over a diving suit.

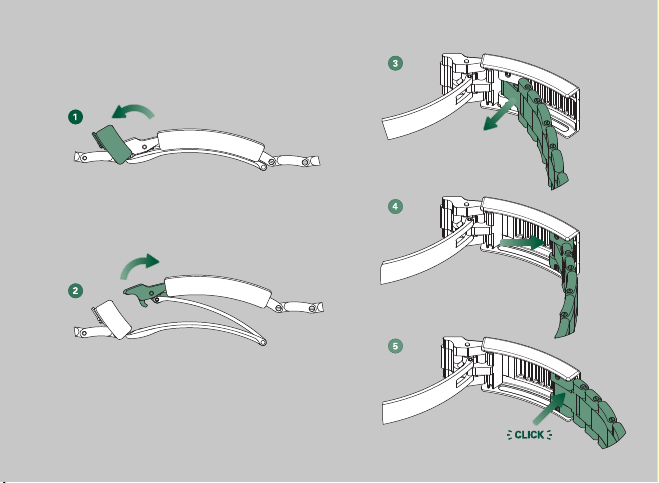

Adjusting the bracelet
Open the safety catch
Open the clasp
Pull on the bracelet to release it
from the notch in the rack
Adjust the position of the bracelet
to the desired length
Lock down the bracelet
18
THE HEART OF THE
SUBMARINER MODELS
ROLEX
SERVICE
USING
YOUR WATCH
CARING FOR
YOUR ROLEX
Thanks to Rolex expertise, your watch
will require very little day-to-day care.
You can help preserve its lustre by
cleaning it occasionally with a microfibre
cloth. You can also wash the case and
bracelet from time to time using soapy
water and a soft brush. After wearing
your watch in the sea, it is important to
rinse it with fresh water to remove any
salt and sand deposits.
19
Before cleaning your watch, always
ensure that the crown is screwed down
properly against the case to guarantee
waterproofness.
20
THE HEART OF THE
SUBMARINER MODELS
ROLEX
SERVICE
USING
YOUR WATCH
AFTER-SALES
SERVICE
Rolex watch servicing ensures that
your timepiece will continue to
perform optimally and meet Rolex’s
stringent requirements in terms of
precision, reliability and waterproofness
throughout its life.
The timekeeping accuracy of your watch
is largely dependent on high-performance
lubricants specially developed by Rolex
to minimize friction and prevent wear
of components. To guarantee continued
accuracy and waterproofness, Rolex
recommends that you periodically return
your watch to an Official Rolex Retailer or
Service Centre for professional servicing,
which will always be carried out by a
Rolex-approved watchmaker.
During a complete service, the watch is
dismantled and all of its components
– the case, bracelet and movement – are
closely examined.
The movement is entirely disassembled
and all the parts are carefully inspected.
Those that no longer meet Rolex
requirements are systematically replaced
by new components. The movement
is lubricated on reassembly. The case
21
and bracelet are re-polished or satin-
finished according to their original finish,
restoring their shine and lustre while
removing any marks or scratches.
At the end of the process, your Rolex
watch undergoes a series of tests to
verify its functions, waterproofness and
power reserve, as well as the precision
of its movement.
After a complete Rolex service, your
watch is covered by a service guarantee.
22
THE HEART OF THE
SUBMARINER MODELS
ROLEX
SERVICE
USING
YOUR WATCH
WORLDWIDE SERVICE
NETWORK
The network of Official Rolex Retailers
and Service Centres covers more than
100 countries around the world and
draws on the expertise of highly skilled
watchmakers, carefully selected and
trained by Rolex.
Official Rolex Retailers can advise you on
all the technical aspects of your watch’s
functions. Whether your bracelet needs
sizing or it is time for a complete service,
highly qualified Rolex watchmakers are
on hand worldwide to meet all of your
service needs.
For a list of Official Rolex Retailers and
Service Centres, please visit rolex.com.
23
ROLEX.COM
We invite you to visit rolex.com,
a privileged place to learn more about
the functions of your Rolex watch
and about the quality, know-how and
fundamental values of the brand.
Welcome to the world of Rolex.
Rolex reserves the right to modify the models illustrated in this publication at any time.
© Rolex SA, 3-5-7, rue François-Dussaud, 1211 Geneva 26, Switzerland
IMR-SUB-EN-20 - 7.2020 - Printed in Switzerland rolex.com
