en
3
Table of contents
[en]I ns t r u ct i on manual Combi nat i on st eam oven
8 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
( Important safety information . . . . . . . . . . . . . . . 5
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Steam. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cleaning function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
] Causes of damage . . . . . . . . . . . . . . . . . . . . . . . . 6
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Steam. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
7 Environmental protection . . . . . . . . . . . . . . . . . . 7
Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Environmentally-friendly disposal . . . . . . . . . . . . . . . . . 8
* Getting to know your appliance . . . . . . . . . . . . . 9
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Heating types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Steam. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Further information . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cooking compartment functions . . . . . . . . . . . . . . . . 12
Water tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
_ Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Accessories included . . . . . . . . . . . . . . . . . . . . . . . . . 13
Inserting accessories . . . . . . . . . . . . . . . . . . . . . . . . . 13
Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . 14
K Before using for the first time. . . . . . . . . . . . . . 15
Before using for the first time . . . . . . . . . . . . . . . . . . . 15
Initial use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Calibrating the appliance and cleaning the cooking
compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cleaning the accessories. . . . . . . . . . . . . . . . . . . . . . 16
1 Operating the appliance . . . . . . . . . . . . . . . . . . 16
Switching the appliance on and off . . . . . . . . . . . . . . 16
Starting the operation. . . . . . . . . . . . . . . . . . . . . . . . . 16
Selecting an operating mode . . . . . . . . . . . . . . . . . . . 17
Setting the type of heating and temperature . . . . . . . 17
Rapid heating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
` Steam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Steaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Steam baking – Steam-assisted cooking . . . . . . . . . .19
Reheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Dough proving setting . . . . . . . . . . . . . . . . . . . . . . . .19
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Filling the water tank. . . . . . . . . . . . . . . . . . . . . . . . . .20
After every steam operation . . . . . . . . . . . . . . . . . . . .21
O Time-setting options . . . . . . . . . . . . . . . . . . . . . 23
Setting the cooking time. . . . . . . . . . . . . . . . . . . . . . .23
Setting the end time . . . . . . . . . . . . . . . . . . . . . . . . . .23
Setting the timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
A Childproof lock. . . . . . . . . . . . . . . . . . . . . . . . . . 25
Activating and deactivating. . . . . . . . . . . . . . . . . . . . .25
Q Basic settings. . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Changing the basic settings . . . . . . . . . . . . . . . . . . . .25
List of basic settings. . . . . . . . . . . . . . . . . . . . . . . . . .25
Power cut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Changing the time . . . . . . . . . . . . . . . . . . . . . . . . . . .26
F Sabbath mode . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Starting Sabbath mode. . . . . . . . . . . . . . . . . . . . . . . .27
o Home Connect . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Setting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Remote Start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Home Connect settings . . . . . . . . . . . . . . . . . . . . . . .29
Remote diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . .30
About data protection . . . . . . . . . . . . . . . . . . . . . . . . .30
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . .30
D Cleaning agent . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Suitable cleaning agents . . . . . . . . . . . . . . . . . . . . . .31
Surfaces in the cooking compartment . . . . . . . . . . . .32
Keeping the appliance clean . . . . . . . . . . . . . . . . . . .32
. Cleaning function. . . . . . . . . . . . . . . . . . . . . . . . 33
EcoClean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Descaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
p Rails. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

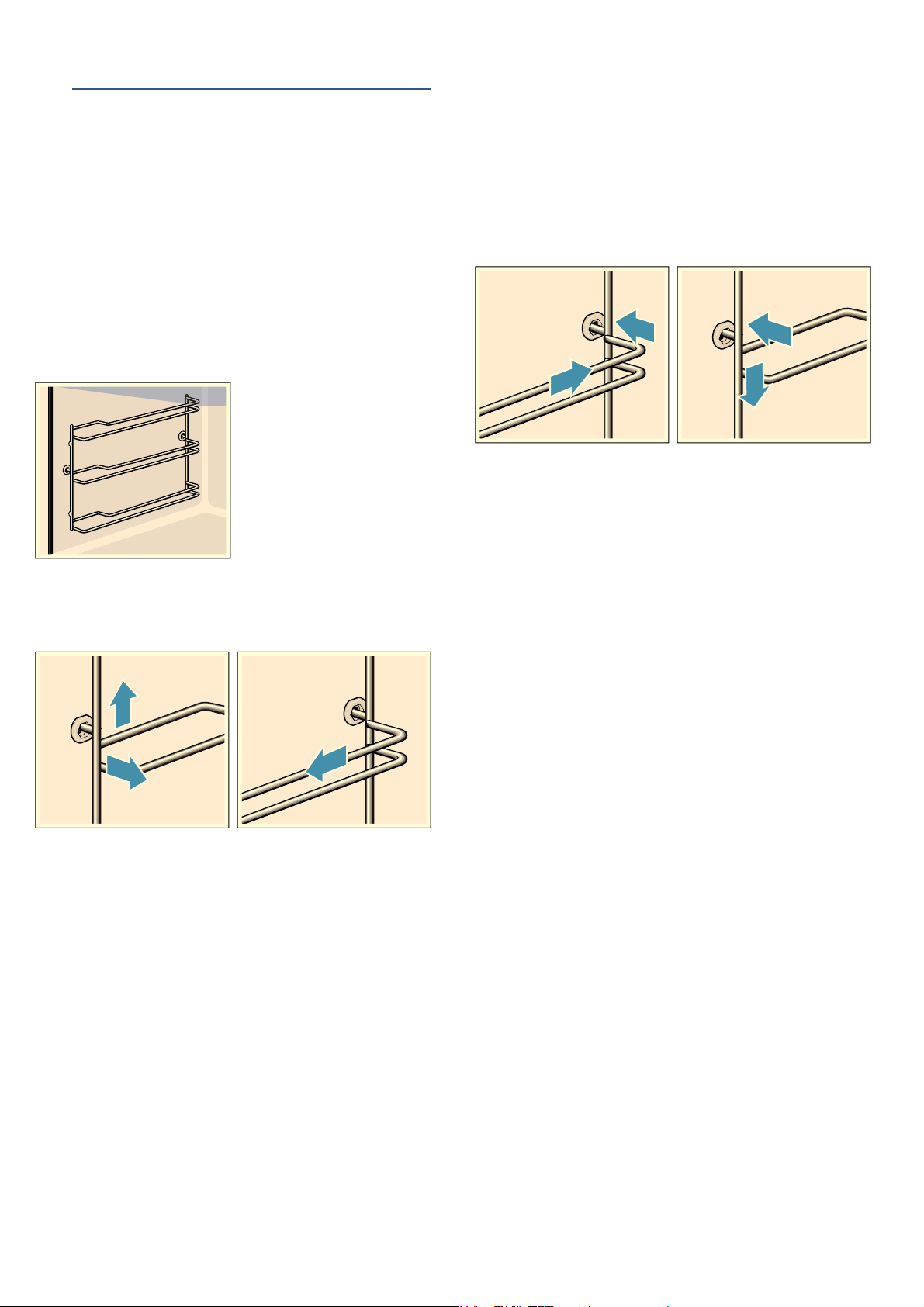

Detaching and refitting the rails . . . . . . . . . . . . . . . . .35
q Appliance door . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Removing and fitting the appliance door . . . . . . . . . .36
Removing the door cover . . . . . . . . . . . . . . . . . . . . . .37
Removing and installing the door panels . . . . . . . . . .37
en Intended use
4
3 Trouble shooting . . . . . . . . . . . . . . . . . . . . . . . . 38
Rectifying faults yourself. . . . . . . . . . . . . . . . . . . . . . . 38
Maximum operating time . . . . . . . . . . . . . . . . . . . . . . 39
Cooking compartment bulbs . . . . . . . . . . . . . . . . . . . 39
4 Customer service. . . . . . . . . . . . . . . . . . . . . . . . 40
E number and FD number . . . . . . . . . . . . . . . . . . . . .40
P Dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Information on the settings. . . . . . . . . . . . . . . . . . . . . 40
Selecting a dish . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Applying settings for dishes . . . . . . . . . . . . . . . . . . . . 41
J Tested for you in our cooking studio. . . . . . . . 42
Silicone moulds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Roasting and braising . . . . . . . . . . . . . . . . . . . . . . . .45
Grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Convenience products . . . . . . . . . . . . . . . . . . . . . . . . 51
Steaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Yogurt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Eco heating functions. . . . . . . . . . . . . . . . . . . . . . . . . 56
Acrylamide in foodstuffs . . . . . . . . . . . . . . . . . . . . . . . 57
Slow cook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Drying. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Preserving and juicing . . . . . . . . . . . . . . . . . . . . . . . . 59
Sterilising bottles and hygiene . . . . . . . . . . . . . . . . . . 60
Allowing the dough to prove at dough proving
setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Defrosting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Reheating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Keeping warm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Test dishes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Produktinfo
Additional information on products, accessories,
replacement parts and services can be found at
www.bosch-home.com and in the online shop
www.bosch-eshop.com
8Intended use
Intended us e
Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for future
use or for subsequent owners.
This appliance is only intended to be fully fitted
in a kitchen. Observe the special installation
instructions.
Check the appliance for damage after
unpacking it. Do not connect the appliance if it
has been damaged in transport.
Only a licensed professional may connect
appliances without plugs. Damage caused by
incorrect connection is not covered under
warranty.
This appliance is intended for domestic use
only. The appliance must only be used for the
preparation of food and drink. The appliance
must be supervised during operation. Only
use this appliance indoors.
This appliance is intended for use up to a
maximum height of 2000 metres above sea
level.
This appliance may be used by children over
the age of 8 years old and by persons with
reduced physical, sensory or mental
capabilities or by persons with a lack of
experience or knowledge if they are
supervised or are instructed by a person
responsible for their safety how to use the
appliance safely and have understood the
associated hazards.
Children must not play with, on, or around the
appliance. Children must not clean the
appliance or carry out general maintenance
unless they are at least 15 years old and are
being supervised.
Keep children below the age of 8 years old at
a safe distance from the appliance and power
cable.
Always slide accessories into the cooking
compartment the right way round.
~ "Accessories" on page 13
Important safety information en
5
(Important safety
information
Impor t ant safety informat i on
General information
:Warning – Risk of fire!
■ Combustible items stored in the cooking
compartment may catch fire. Never store
combustible items in the cooking
compartment. Never open the appliance
door if there is smoke inside. Switch off the
appliance and unplug it from the mains or
switch off the circuit breaker in the fuse box.
Risk of fire!
■ Loose food remnants, fat and meat juices
may catch fire. Before using the appliance,
remove the worst of the food remnants from
the cooking compartment, heating elements
and accessories.
Risk of fire!
■ A draught is created when the appliance
door is opened. Greaseproof paper may
come into contact with the heating element
and catch fire. Do not place greaseproof
paper loosely over accessories during
preheating. Always weight down the
greaseproof paper with a dish or a baking
tin. Only cover the surface required with
greaseproof paper. Greaseproof paper
must not protrude over the accessories.
:Warning – Risk of burns!
■ The appliance becomes very hot. Never
touch the interior surfaces of the cooking
compartment or the heating elements.
Always allow the appliance to cool down.
Keep children at a safe distance.
Risk of serious burns!
■ Accessories and ovenware become very
hot. Always use oven gloves to remove
accessories or ovenware from the cooking
compartment.
Risk of burns!
■ Alcoholic vapours may catch fire in the hot
cooking compartment. Never prepare food
containing large quantities of drinks with a
high alcohol content. Only use small
quantities of drinks with a high alcohol
content. Open the appliance door with care.
:Warning – Risk of scalding!
■ The accessible parts become hot during
operation. Never touch the hot parts. Keep
children at a safe distance.
Risk of scalding!
■ When you open the appliance door, hot
steam can escape. Steam may not be
visible, depending on its temperature. When
opening, do not stand too close to the
appliance. Open the appliance door
carefully. Keep children away.
Risk of scalding!
■ Water in a hot cooking compartment may
create hot steam. Never pour water into the
hot cooking compartment.
:Warning – Risk of injury!
■ Scratched glass in the appliance door may
develop into a crack. Do not use a glass
scraper, sharp or abrasive cleaning aids or
detergents.
Risk of injury!
■ The hinges on the appliance door move
when opening and closing the door, and
you may be trapped. Keep your hands away
from the hinges.
:Warning – Risk of electric shock!
■ Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the appliance
from the mains or switch off the circuit
breaker in the fuse box. Contact the after-
sales service.
Risk of electric shock and serious injury!
■ The cable insulation on electrical
appliances may melt when touching hot
parts of the appliance. Never bring
electrical appliance cables into contact with
hot parts of the appliance.
Risk of electric shock!
■ Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Risk of electric shock!
■ A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
:Warning – Hazard due to magnetism!
Permanent magnets are used in the control
panel or in the control elements. They may
affect electronic implants, e.g. heart
pacemakers or insulin pumps. Wearers of
electronic implants must stay at least 10 cm
away from the control panel.
en Causes of damage
6
Steam
:Warning – Risk of scalding!
■ The water in the water tank may become
very hot if you continue to operate the
appliance. Empty the water tank after every
operation with steam.
Risk of scalding!
■ Hot steam is generated in the cooking
compartment. Do not reach into the
cooking compartment during any operation
with steam.
Risk of scalding!
■ Hot liquid may spill over the sides of the
accessory when it is removed from the
cooking compartment. Remove hot
accessories with care and always wear
oven gloves.
:Warning – Risk of injury and risk of fire!
Flammable liquids can catch fire in the
cooking compartment when it is hot
(explosion). Do not fill the water tank with any
flammable fluids (e.g. alcoholic drinks). Only
fill the water tank with water or with the
descaling solution that is recommended by us.
Cleaning function
:Warning – Risk of burns!
; The appliance will become very hot on the
outside during the cleaning function. Never
touch the appliance door. Allow the appliance
to cool down. Keep children away from the
appliance.
]Causes of damage
Ca u s e s of damage
General information
Caution!
■ Accessories, foil, greaseproof paper or ovenware on
the cooking compartment floor: do not place
accessories on the cooking compartment floor. Do
not cover the cooking compartment floor with any
sort of foil or greaseproof paper. Do not place
ovenware on the cooking compartment floor if a
temperature of over 50 ºC has been set. This will
cause heat to accumulate. The baking and roasting
times will no longer be correct and the enamel will
be damaged.
■ Aluminium foil: Aluminium foil in the cooking
compartment must not come into contact with the
door glass. This could cause permanent
discolouration of the door glass.
■ Water in a hot cooking compartment: do not pour
water into the cooking compartment when it is hot.
This will cause steam. The temperature change can
cause damage to the enamel.
■ Moisture in the cooking compartment: Over an
extended period of time, moisture in the cooking
compartment may lead to corrosion. Allow the
cooking compartment to dry after use. Do not keep
moist food in the closed cooking compartment for
extended periods of time. Do not store food in the
cooking compartment.
■ Cooling with the appliance door open: Following
operation at high temperatures, only allow the
cooking compartment to cool down with the door
closed. Do not trap anything in the appliance door.
Even if the door is only left open a crack, the front of
nearby furniture may become damaged over time.
Only leave the cooking compartment to dry with the
door open if a lot of moisture was produced whilst
the oven was operating.
■ Fruit juice: when baking particularly juicy fruit pies,
do not pack the baking tray too generously. Fruit
juice dripping from the baking tray leaves stains that
cannot be removed. If possible, use the deeper
universal pan.
■ Extremely dirty seal: If the seal is very dirty, the
appliance door will no longer close properly during
operation. The fronts of adjacent units could be
damaged. Always keep the seal clean.
■ Appliance door as a seat, shelf or worktop: Do not
sit on the appliance door, or place or hang anything
on it. Do not place any cookware or accessories on
the appliance door.
■ Inserting accessories: depending on the appliance
model, accessories can scratch the door panel
when closing the appliance door. Always insert the
accessories into the cooking compartment as far as
they will go.
■ Carrying the appliance: do not carry or hold the
appliance by the door handle. The door handle
cannot support the weight of the appliance and
could break.
Environmental protection en
7
Steam
Caution!
■ Baking tins: Ovenware must be heat and steam
resistant. Silicone baking tins are not suitable for
combined operation with steam.
■ Ovenware with areas of rust: Do not use any
ovenware which displays areas of rust. Even the
smallest spots of rust can lead to corrosion in the
cooking compartment.
■ Dripping liquids: When steaming with a perforated
cooking container, always insert the baking tray, the
universal pan or the solid cooking container
underneath. Dripping liquid is caught.
■ Hot water in the water tank: Hot water can damage
the pump. Only fill the water tank with cold water.
■ Enamel damage: Do not start any operations when
there is water on the cooking compartment floor.
Before operation, wipe away the water from the
cooking compartment floor.
■ Descaling solution: Do not allow any descaling
solution to come into contact with the control panel
or other surfaces on the appliance. This damages
the surfaces. If this does happen, remove the
descaling solution immediately with water.
■ Cleaning the water tank: Do not clean the water tank
in the dishwasher. Otherwise, the water tank will be
damaged. Clean the water tank with a soft cloth and
standard washing-up liquid.
7Environmental protection
En v i r o n ment al pr ot ect i on
Your new appliance is particularly energy-efficient.
Here you can find tips on how to save even more
energy when using the appliance, and how to dispose
of your appliance properly.

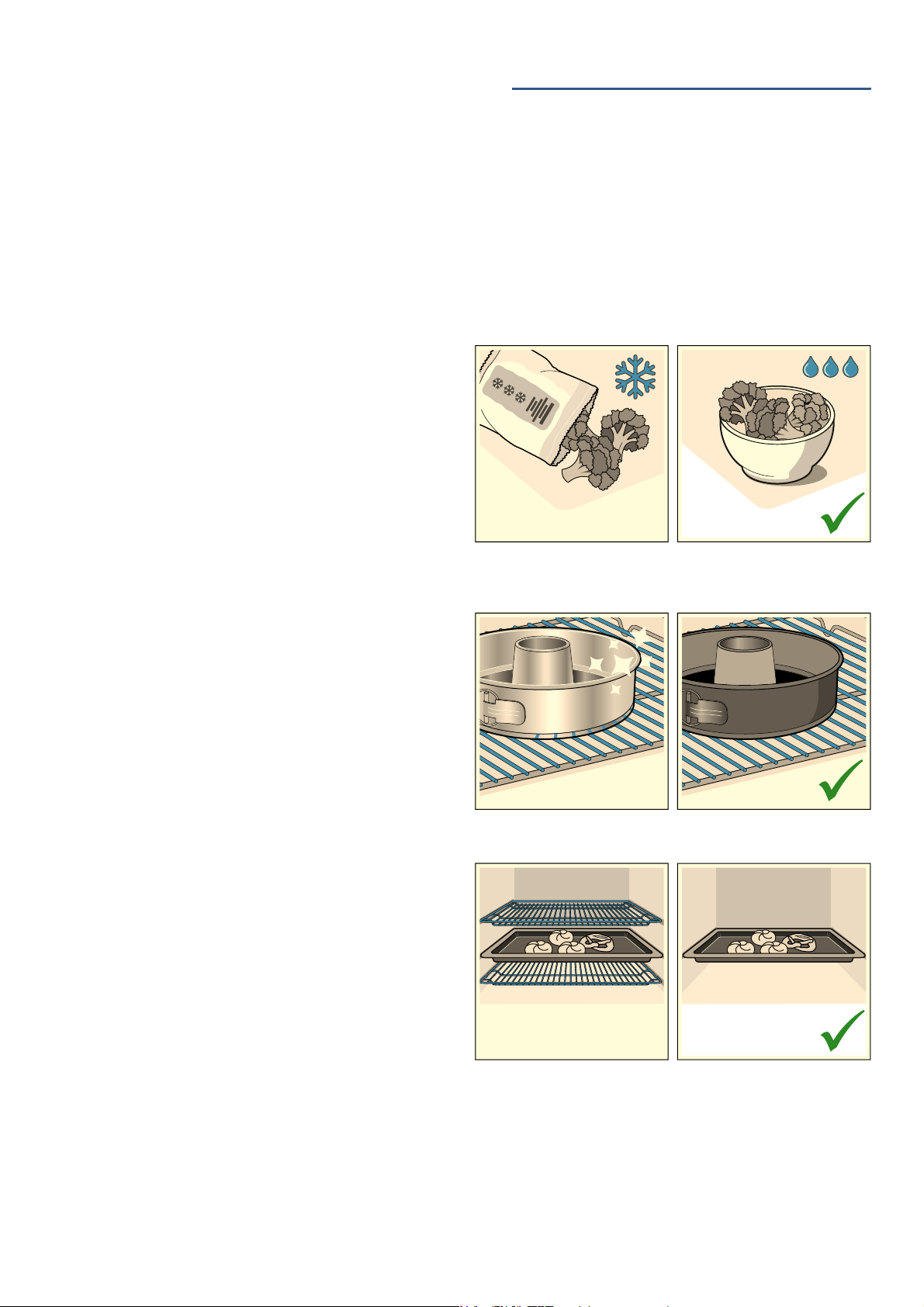

Saving energy
■ Only preheat the appliance if this is specified in the
recipe or in the tables in the operating instructions.
■ Leave frozen food to defrost before placing it in the
cooking compartment.
■ Use baking tins that are dark-coloured, painted black
or have an enamel coating. These absorb the heat
particularly well.
■ Remove any unnecessary accessories from the
cooking compartment.
en Environmental protection
8
■ Open the appliance door as infrequently as possible
when the appliance is in use.
■ It is best to bake several cakes one after the other.
The cooking compartment stays warm. This reduces
the baking time for the second cake. You can place
two cake tins next to each other in the cooking
compartment.
■ For longer cooking times, you can switch the
appliance off 10 minutes before the end of the
cooking time and use the residual heat to finish
cooking.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly
manner.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning
used electrical and electronic appliances
(waste electrical and electronic equipment -
WEEE). The guideline determines the
framework for the return and recycling of used
appliances as applicable throughout the EU.
Getting to know your appliance en
9
*Getting to know your
appliance
Get t i ng to know your appl i anc e
In this chapter, we will explain the indicators and
controls. You will also find out about the various
functions of your appliance.
Note: Depending on the appliance model, individual
details and colours may differ.
Control panel
In the control panel, you can use the various buttons,
touch fields, touch-screen displays and the rotary
selector to set the different appliance functions. The
current settings are shown on the display.
The overview shows the control panel when the
appliance is switched on with the menu display.
Controls
The individual controls are adapted for the various
functions of your appliance. You can set your appliance
simply and directly.
Buttons and touch fields
Here you can find a short explanation of the various
buttons and touch fields.
--------
Rotary selector
You can use the rotary selector to change the setting
values shown on the display.
You can also use the rotary selector to scroll through
the selection lists on the touch-screen displays.
In most selection lists, you have to turn the rotary
selector in the opposite direction once you reach the
beginning or the end of the list.
#
+ +
&OHDQLQJ
6HOHFW
0DLQPHQX
%DVLF
VHWWLQJV
+RPH&RQQHFW
$VVLVWDQW
6WHDP
$VVLVW
7\SHVRI
KHDWLQJ
( Buttons
The buttons on the left- and right-hand side of the
control panel have a pressure point. Press these
buttons to activate them.
For appliances that do not have a stainless steel
front, these two button touch fields do not have a
pressure point.
0 Touch fields
There are sensors under the touch fields. Simply
touch the respective symbol to select the function.
8 Rotary selector
The rotary selector is fitted so that you can turn it
indefinitely to the left or right. Press it lightly and
move it in the direction required using your finger.
@ Display
You can see the current adjustment values,
options or notes in the display.
H Touch-screen displays
You can see the current selection options in the
touch-screen displays. You can select these here
directly by touching the appropriate text field. The
text fields change depending on the selection.
Symbol Meaning
Buttons
ÿ on/off Switching the appliance on and off
l Start/Stop Starting, pausing or cancelling (hold down
for approx. 3 secs) an operation
Touch fields
Menu Menu Opens the "Operating modes" menu
t Timer Selects the timer
° Information Displays information
D Childproof lock Activating and deactivating (hold down for
approx. 4 secs) the childproof lock
v Open cover Filling or emptying the water tank
en Getting to know your appliance
10
Display
The display is structured so that the information can be
read at a glance in any situation.
The value that you can currently set is highlighted and
displayed in white text. The value in the background is
displayed in grey.
Display ring
The display ring can be found around the outside of the
display.
If you change a value, the display ring shows you where
you are in the selection list. Depending on the settings
area and length of the selection list, the display ring
may be continuous or divided into segments.
During operation, the display ring turns red at second-
long intervals. After every full minute, the segments turn
red again from the beginning. As the cooking time
counts down, one segment disappears every second.
Temperature display
After the operation has started, the current cooking
compartment temperature is displayed graphically on
the display.
Note: Due to thermal inertia, the temperature displayed
may be slightly different to the actual temperature inside
the oven.
Touch-screen displays
The touch-screen displays are both a display medium
and control element at the same time. They show the
options that you can select for a function and the
current setting. To select a function, simply touch the
text field directly.
The function currently selected is identified by a red
vertical bar next to it. Its corresponding value is
highlighted in white on the display.
The small red arrow next to the text field shows the
functions to which you can scroll forwards or
backwards.
Operating modes
Your appliance has various operating modes which
make your appliance easier to use.
You can find more precise descriptions of these in the
corresponding sections.
You can open the "Operating modes" menu by pressing
the menu field.
--------
Highlighted The highlighted value can be changed directly
without first being selected.
After starting an operation, either the temperature
or the level is always highlighted. At the same
time, the white line is the heating line and gradu-
ally turns red.
Enlarged Whilst you are changing the highlighted value
using the rotary selector, only this value is
enlarged on the display.
Heating line The white line under the temperature turns red from
left to right as the cooking compartment heats up.
When you are preheating the appliance, the optimal
time to place the food in the cooking compartment
is when the line has completely turned red.
For set levels, e.g. the grill setting, the heating line
turns red immediately.
Residual heat
indicator
When the appliance is switched off, the display ring
shows the residual heat in the cooking compart-
ment. As the residual heat cools down, the display
ring becomes darker and disappears completely at
some point.
`
&
7HPSH
UDWXUH
P
V
a
&
Operating mode Use
Heating types
~ "Operating the appliance"
on page 16
There are various finely tuned heating
types for the optimal preparation of
your food.
Assist
~ "Dishes" on page 40
For many dishes, there are prepro-
grammed setting values.
Steam
~ "Steam" on page 18
There are various finely tuned steam
types of heating for the optimal prepa-
ration of your food.
Cleaning
~ "Cleaning function"
on page 33
There are several cleaning functions
available: EcoClean, Descaling and
Drying.
Home Connect Assistant
~ "Home Connect"
on page 27
This function allows you to connect
your oven with a mobile device.
Basic settings
~ "Basic settings"
on page 25
You can change your appliance's
basic settings to suit your needs.
7\SHRIKHDWLQJ
'KRWDLU
7HPSHUDWXUH
Getting to know your appliance en
11
Heating types
In order for you to find the correct heating type for your
dish, we have explained the differences and scopes of
application here.
--------
Default values
For each heating type, the appliance specifies a default
temperature or level. You can accept this value or
change it in the appropriate area.
Type of heating Temperature Use
<
4D hot air * 30-250 °C For baking and roasting on one or more levels.
The fan distributes the heat from the ring heating element in the back panel
evenly around the cooking compartment.
%
Top/bottom heating * 30-250 °C For traditional baking and roasting on one level. Especially suitable for cakes with
moist toppings.
Heat is emitted evenly from the top and bottom.
.
Hot air eco 30-250 °C For gently cooking selected types of food on one level without preheating.
The fan distributes the heat from the ring-shaped heating element in the back
panel around the cooking compartment.
This heating function is most effective between 125 and 250 °C.
This heating function is used to measure both the energy consumption in air recir-
culation mode and the energy efficiency class.
#
Top/bottom heating eco 30-250 °C For gently cooking selected types of food.
Heat is emitted from above and below.
This heating function is most effective between 150 and 250 °C.
This heating function is used to measure the energy consumption in the conven-
tional mode.
7
Hot air grilling * 30-250 °C For roasting poultry, whole fish and larger pieces of meat.
The grill element and the fan switch on and off alternately. The fan circulates the
hot air around the food.
(
Grill, large area Grill settings:
1 = low
2 = medium
3 = high
For grilling flat items for grilling, such as steaks and sausages, for making toast,
and for cooking au gratin.
The whole area below the grill element becomes hot.
*
Grill, small area Grill settings:
1 = low
2 = medium
3 = high
For grilling small amounts of steaks or sausages, for making toast, and for cook-
ing au gratin.
The centre area under the grill heating element becomes hot.
$
Pizza setting 30-250 °C For preparing pizza and dishes which require a lot of heat from underneath.
The bottom heating element and the ring heating element in the back panel heat
up.
.
Slow cooking 70-120 °C For gentle and slow cooking of seared, tender pieces of meat in ovenware without
a lid.
The heat is emitted evenly from the top and bottom at low temperatures.
$
Bottom heating 30-250 °C For cooking in a bain marie and for the final baking stage.
The heat is emitted from below.
O
Keeping warm * 60-100 °C For keeping cooked food warm.
P
Preheat ovenware 30-70 °C For preheating ovenware.
* Possible to use steam for this type of heating (operation only possible when the water tank is full)
en Getting to know your appliance
12
Steam
To enable you to find the correct steam type of heating
for your dish, we have explained the differences and
scopes of application here.
--------
Further information
In most cases, the appliance provides notes and further
information on the action just carried out.
Touch the ° field. The note is shown in the display for a
few seconds. Use the rotary selector to scroll to the end
of longer notes.
Some notes are displayed automatically, for example as
confirmation, or to provide an instruction or warning.
Cooking compartment functions
The functions in the cooking compartment make your
appliance easier to use. This, for example, enables the
cooking compartment to be well lit and a cooling fan to
prevent the appliance from overheating.
Opening the appliance door
If you open the appliance door during an on-going
operation, the operation is paused. The operation
continues to run when you close the door.
Interior lighting
When you open the appliance door, the interior lighting
switches on. If the door remains open for longer than
around 15 minutes, the lighting switches off again.
For most operating modes, the interior lighting switches
on as soon as the operation is started. When the
operation has finished, the lighting switches off.
Note: You can set the interior lighting not to come on
during the operation in the basic settings. ~ "Basic
settings" on page 25
Cooling fan
The cooling fan switches on and off as required. The
hot air escapes above the door.
Caution!
Do not cover the ventilation slots. Otherwise, the
appliance may overheat.
So that the cooking compartment cools down more
quickly after the operation, the cooling fan continues to
run for a certain period afterwards.
Note: You can change how long the cooling fan
continues to run in the basic settings. ~ "Basic
settings" on page 25
Water tank
The appliance is fitted with a water tank. The water tank
is behind the panel. For operations with steam, fill the
water tank with water. ~ "Steam" on page 18
Type of heating Temperature Use
S
Steaming 30-100 °C For vegetables, fish, side dishes, for juicing fruit and for blanching
U
Reheating 80-180 °C For plated meals and baked items
Cooked food is gently reheated. The steam ensures that the food does not dry out.
T
Dough proving 30-50 °C For yeast dough and sourdough
Dough will rise considerably more quickly than at room temperature. The surface
of the dough does not dry out.
B
Defrosting 30-60 °C For vegetables, meat, fish and fruit
The moisture gently transfers the heat to the food. The food does not dry out or
lose its shape.
( Tank cover
0 Filling opening
8 Handle for removing and inserting the water tank
Accessories en
13
_Accessories
Accessor i es
Your appliance is accompanied by a range of
accessories. Here, you can find an overview of the
accessories included and information on how to use
them correctly.
Accessories included
Your appliance is equipped with the following
accessories:
--------
Only use genuine accessories. They are specially
adapted for your appliance.
You can buy accessories from the after-sales service,
from specialist retailers or online.
Note: The accessories may become deformed when
they become hot. This does not affect their function.
Once they cool down again, they regain their original
shape.
Note: You can use the steam container with all heating
modes involving steam without any restrictions. If you
set other heating modes at high temperatures, take the
steam container out of the cooking compartment. High
temperatures can cause permanent deformations and
discolouration of the steam container.
Inserting accessories
The cooking compartment has three shelf positions.
The shelf positions are counted from the bottom up.
Always insert the accessory between the two guide
rods for a shelf position.
The accessories can be pulled out approximately
halfway without tipping.
Notes
■ Ensure that you always insert the accessories into
the cooking compartment the right way round.
■ Always insert the accessories fully into the cooking
compartment so that they do not touch the appliance
door.
Locking function
The accessories can be pulled out approximately
halfway until they lock in place. The locking function
prevents the accessories from tilting when they are
pulled out. The accessories must be inserted into the
cooking compartment correctly for the tilt protection to
work properly.
When inserting the wire rack, ensure that lug ‚ is at the
rear and is facing downwards. The open side must be
facing the appliance door and the outer rail must be
facing downwards ¾.
When inserting baking trays, ensure that lug ‚ is at the
rear and is facing downwards. The sloping edge of the
accessory ƒ must be facing towards the appliance
door.
Example in the picture: Universal pan
Wire rack
For ovenware, cake tins and ovenproof
dishes.
For roasts, grilled items and frozen
meals.
Universal pan
For moist cakes, other baked items, fro-
zen meals and large roasts.
It can be used to catch dripping fat when
you are grilling directly on the wire rack.
During operation with steam, it can also
be used to catch drops of water.
Steam container, perforated, size S
For steaming vegetables, juicing berries
and defrosting.
Steam container, unperforated, size
S
For cooking rice, pulses and cereals.
Steam container, perforated, size XL
For steaming large quantities.
D
D
D
D
E
en Accessories
14
Combining accessories
You can insert the wire rack and the universal pan at
the same time to catch drops of liquid.
When inserting the wire rack, ensure that both spacers
‚ are at the rear edge. When inserting the universal
pan, the wire rack is on top of the upper guide rod of
the shelf position.
Example in the picture: Universal pan
Small steam containers may only be placed in the
cooking compartment with the wire rack.
Optional accessories
You can buy optional accessories from the after-sales
service, from specialist retailers or online. *You will find
a comprehensive range of products for your appliance
in our brochures and online.
Both availability and whether it is possible to order
online differ between countries. Please see your sales
brochures for more details.
Note: Not all optional accessories are suitable for every
appliance. When purchasing, please always quote the
exact identification number (E-no.) of your appliance.
~ "Customer service" on page 40
--------
Special accessories
Wire rack
For ovenware, cake tins and ovenproof dishes, and for roasts and
grilled food.
Universal pan
For moist cakes, pastries, frozen meals and large roasts.
It can be used to catch dripping fat when you are grilling directly on
the wire rack.
Baking tray
For tray bakes and small baked products.
Wire insert
For meat, poultry and fish.
For inserting into the universal pan to catch dripping fat and meat
juices.
Universal pan, non-stick
For moist cakes, pastries, frozen meals and large roasts.
Pastries and roasts can be removed more easily from the universal
pan.
Baking tray, non-stick
For tray bakes and small baked products.
The pastries can be removed more easily from the baking tray.
D
D
D
Profi pan
For preparing large quantities.
Lid for the Profi pan
The lid turns the Profi pan into a Profi roasting dish.
Pizza tray
For pizzas and large round cakes.
Grill tray
Use for grilling in place of the wire rack or as a splatter guard.Only use
in the universal pan.
Bread-baking stone
For home-made bread, bread rolls and pizzas that require a crispy
base.
The baking stone must be preheated to the recommended tempera-
ture.
Glass roasting dish (5.1 litres)
For stews and bakes.
Particularly suitable for the "Meals" operating mode.
Glass tray
For large roasts, moist cakes and bakes.
Steam container, perforated, size XL
For steaming large quantities.
Steam container, perforated, size S
For steaming vegetables, juicing berries and defrosting.
Steam container, solid, size S
For cooking rice, pulses and cereals.
Porcelain cooking container, solid, size S
For steaming and serving meat, fish and vegetables.
Porcelain cooking container, solid, size L
For steaming and serving meat, fish and vegetables.
Pull-out system, 1 level
The pull-out rails at level 1 allow you to pull the accessories out further
without them tipping.
Decorative trims
For concealing the lower shelf of the unit and the base of the appli-
ance.
Before using for the first time en
15
KBefore using for the first
time
Be f o r e usi ng for the first time
Before you can use your new appliance, you must
make some settings. You must also clean the cooking
compartment and accessories.
Before using for the first time
Before using the appliance for the first time, ask your
water supplier about the hardness of your tap water.
To ensure that the appliance can reliably remind you to
descale it when required, you must set your water
hardness range correctly.
Caution!
■ The appliance may become damaged due to the
use of unsuitable liquids.
Do not use distilled water, highly chlorinated tap
water (>40 mg/l) or other liquids.
Only use cold, fresh tap water, softened water or
non-carbonated mineral water.
■ Malfunctions may occur when using filtered or
demineralised water.
The appliance may request that you top up the water
tank even though it may be full, or operation with
steam is cancelled after approx. two minutes.
If required, mix filtered or demineralised water with
the bottled non-carbonated mineral water with a ratio
of one to one.
Notes
■ If your water is very hard, we recommend that you
use softened water.
■ If you only use softened water, you can set the water
hardness range to "softened".
■ If you use mineral water, set the water hardness
range to "4 very hard".
■ If you use mineral water, you must only use non-
carbonated mineral water.
Initial use
After connecting the appliance to the power or following
a power cut, the settings for initial use are shown on the
display. It may take a few seconds for the instruction to
appear.
Note: You can change these settings at any time in the
basic settings. ~ "Basic settings" on page 25
With HomeConnect
You can apply the initial settings on the appliance or
with Home Connect on your mobile device.
1. Touch the "With Home Connect" text field.
2. Follow the instructions in the "Home Connect"
section.~ "Home Connect" on page 27
On the appliance
Apply the following initial settings on the appliance:
Setting the language
The language is the first setting displayed. "German" is
the preset language.
1. Turn the rotary selector to set the required language.
2. Touch the next text field to confirm.
The next setting appears.
Setting the clock
The clock starts at "12:00".
1. Touch the "Clock" text field.
2. Set the clock using the rotary selector.
3. Touch the next text field to confirm.
The next setting appears.
Setting the water hardness
The default water hardness setting is "very hard".
1. Use the rotary selector to set the water hardness.
2. Touch the "Complete the settings" text field to
confirm.
A note appears in the display confirming that the initial
use has been completed.
Switch the appliance off using the ÿ On/Off button if
you do not need to use it.
Calibrating the appliance and cleaning the
cooking compartment
The boiling point of water depends on the air pressure.
During calibration, the appliance self-adjusts to the
pressure ratio at the installation location. This will
happen automatically the first time steam-assisted
cooking is used. This produces a lot of steam.
Preparing the appliance for calibration
1. Remove the accessories from the cooking
compartment.
2. Remove any leftover packaging, such as polystyrene
pellets, from the cooking compartment.
3. Before calibrating the appliance, wipe the smooth
surfaces in the cooking compartment with a soft,
damp cloth.
Calibrating the appliance and cleaning the cooking
compartment
Notes
■ Calibration cannot be started until the cooking
compartment is cold (room temperature).
■ Do not open the appliance door while calibration is
in progress, as this will abort the calibration process.
1. Press the on/off button ÿ to switch on the
appliance.
2. Fill the water tank. ~ "Filling the water tank"
on page 20
Water hardness range Setting
0 00 softened
1 (up to 1.3 mmol/l) 01 soft
2 (1.3 - 2.5 mmol/l) 02 medium
3 (2.5 - 3.8 mmol/l) 03 hard
4 (above 3.8 mmol/l) 04 very hard
en Operating the appliance
16
3. Set the specified type of heating, temperature and
duration for the calibration, then start the appliance.
~ "Steaming" on page 18
4. Heat up the appliance following calibration.
Caution!
Enamel damage
Do not use the appliance if there is water on the
cooking compartment floor. Before using the
appliance, wipe away the water from the cooking
compartment floor.
5. Dry the cooking compartment floor.
6. Set the specified type of heating and temperature for
heating, then start the appliance. ~ "Operating the
appliance" on page 16
7. Keep the kitchen ventilated while the appliance is
heating.
8. Stop the appliance once the specified time has
elapsed. Press the on/off button ÿ to switch off the
appliance.
9. Wait for the cooking compartment to cool down.
10. Clean the smooth surfaces with soapy water and a
dish cloth.
11. Empty the water tank and dry the cooking
compartment. ~ "After every steam operation"
on page 21
Notes
■ When relocating the appliance, restore its factory
settings once it is installed so that it can adapt to its
new location. Repeat the procedures for initial start-
up and calibration.
■ The appliance retains the calibration settings, even
in the event of a power cut or disconnection from the
mains. Calibration does not need to be repeated.
Cleaning the accessories
Clean the accessories thoroughly using soapy water
and a dish cloth or soft brush.
1Operating the appliance
Oper at i ng the appl i anc e
You have already learnt about the controls and how
they work. Now we will explain how to set your
appliance. You will learn about what happens when you
switch the appliance on and off, and how to select the
operating mode.
Switching the appliance on and off
Before you are able to set the appliance, you must
switch it on.
Note: The childproof lock and the timer can also be set
when the appliance is switched off. Certain displays and
notes, such as those relating to the residual heat in the
cooking compartment, remain visible on the display
after the appliance has been switched off.
Switch off your appliance when you do not need to use
it. If no settings are applied for a long time, the
appliance switches itself off automatically.
Switching on the appliance
Press the ÿ On/Off button to switch on the appliance.
The Bosch logo appears on the display, followed by the
selection list for the types of heating.
Note: In the basic settings, you can specify which
operating mode should appear after the appliance is
switched on. ~ "Basic settings" on page 25
Switching off the appliance
Press the ÿ On/Off button to switch off the appliance.
Any functions that may be running are cancelled.
The time, or if applicable, the residual heat indicator,
appears on the display.
Note: You can set whether or not the time should be
displayed when the appliance is switched off in the
basic settings. ~ "Basic settings" on page 25
Starting the operation
You must press the l Start/Stop button to start each
operation.
After starting the appliance, the time display is shown
on the display along with the settings. The display ring
and the heating line also appear.
Pausing the operation
You can also interrupt and then continue an operation
using the l Start/Stop button.
If you press and hold the l Start/Stop button for
approx. 3 seconds, the operation is cancelled and all
settings are reset.
Note: The fan may continue to run after an operation
has been paused or cancelled.
Settings
Type of heating Steam S
Temperature 100 °C
Cooking time 30 minutes
Heating up
Type of heating 4D hot air <
Temperature Maximum
Cooking time 30 minutes
Operating the appliance en
17
Selecting an operating mode
Once the appliance is switched on, the default
operating mode is displayed.
If you would like to select a different operating mode,
you can do so using the menu. You can find detailed
descriptions of the individual operating modes in the
corresponding sections.
The following always applies:
1. Touch the appropriate text field.
The function is highlighted.
2. Turn the rotary selector to change the highlighted
selection.
3. If necessary, apply other settings.
To do this, touch the appropriate text field and
change the value using the rotary selector.
4. Press the l Start/Stop button to start.
The appliance starts the operation.
Setting the type of heating and temperature
If the "Types of heating" operating mode has not been
selected, touch the "Types of heating" text field in the
menu. The selection list for the types of heating appears
on the touch-screen displays.
Example in the picture: Hot air eco . at 195 °C.
1. Touch the text field with the required type of heating.
If necessary, scroll though the selection list using the
rotary selector.
The temperature is highlighted white.
2. Set the temperature using the rotary selector.
3. Press the l Start/Stop button to start.
The time on the display shows how long the
operation has already been running.
The appliance begins to heat up.
When your dish is ready, switch off the appliance using
the ÿ On/Off button.
Note: You can also set the cooking time and an end
time for the operation on the appliance. ~ "Time-
setting options" on page 23
Changing
After starting the appliance, the temperature is
highlighted. When you move the rotary selector, the
temperature is changed and applied immediately.
To change the type of heating, first use the l Start/Stop
button to interrupt the operation and then touch the
"Type of heating" text field. The selection list is
displayed. Touch the required type of heating. The
corresponding default temperature appears on the
display.
Note: When you change the type of heating, the other
settings are also reset.
Rapid heating
With Rapid heating, you can shorten the heat-up time
for some heating types.
The heating types suitable for Rapid heating are:
■ < 4D hot air
■ % Top/bottom heating
To achieve an even cooking result, do not place your
food or accessories into the cooking compartment until
"Rapid heating" is complete.
Applying settings
Ensure you have selected a suitable type of heating and
set a temperature of at least 100 °C. Otherwise, rapid
heating cannot be activated.
1. Set the type of heating and temperature.
2. Touch the "Rapid heating" text field.
"On" is displayed in the text field. A confirmation
message appears on the display.
When rapid heating comes to an end, an audible signal
sounds and a message appears on the display. "Off" is
displayed in the text field. Place your dish in the
cooking compartment.
6HOHFW
+RWDLUHFR
+RWDLUJULOOLQJ
7RS_
ERWWRPKHDWLQJ
*ULOO
ODUJHDUHD
7RS_ERWWRP
KHDWLQJHFR
'KRWDLU
7\SHV
RIKHDWLQJ
`
&
7HPSHUDWXUH
(QG
PV
&RRNWLPH
+RWDLUHFR
7\SHRIKHDWLQJ
7HPSH
UDWXUH
P
V
a
&
&WLPH
PV
(QG
en Steam
18
Note: The "Cooking time" time-setting option starts at
the same time as rapid heating. Therefore, only set a
cooking time when rapid heating has come to an end.
Cancelling
To cancel the rapid heating, touch the "Rapid heating"
text field again. "Off" is displayed in the text field.
`Steam
St e a m
Food can be cooked particularly gently using steam.
With some heating modes, you can prepare food with
steam assistance. In addition, the Dough proving,
Defrost and Reheat heating modes are available.
:Warning – Risk of scalding!
When you open the appliance door, hot steam can
escape. Steam may not be visible, depending on its
temperature. When opening, do not stand too close to
the appliance. Open the appliance door carefully. Keep
children away.
Noise
Pump
You will hear a humming noise while the pump is in
operation and after switching it off. This noise is caused
by the pump function test. It is a normal operating
noise.
Control panel
You will hear a humming or clicking noise when
opening the control panel. These noises are caused by
the control panel being pushed out. They are normal
operating noises.
Steaming
During steaming, hot steam surrounds the food and
therefore prevents loss of nutrients from the food. The
shape, colour and typical aroma of the dishes are
retained as a result of this preparation method.
Note: If the water tank runs dry during steaming,
operation is interrupted. Fill the water tank.
Starting
1. Fill the water tank.
Note: Only switch on steaming once the cooking
compartment has cooled down completely (to room
temperature).
2. Touch the Menu field.
The list of operating modes is displayed.
3. Touch the "Steaming" text field.
4. Touch the "Steaming" text field.
The temperature is in focus.
5. Turn the rotary selector to set the temperature.
6. Touch the "Duration" text field and set the duration.
Note: A duration is always required for the steam
types of heating.
7. Press the l Start/Stop button to start.
The appliance begins to heat up.
Once the cooking time has elapsed, an audible signal
sounds. The appliance stops heating up. The duration
00 m 00 s is shown on the display.
When your dish is ready, use the ÿ On/Off button to
switch off the appliance.
Steam en
19
Changing
You can change the settings as usual.
To change the temperature or the duration, touch the
corresponding text field and change using the rotary
selector. The change is adopted immediately.
To change the type of heating, interrupt the operation
beforehand using the l Start/Stop button.
Menu cooking
With steam, you can cook a whole menu at once,
without the different flavours mixing. ~ "Tested for you
in our cooking studio" on page 42
Steam baking – Steam-assisted cooking
When you cook with steam assistance, steam is
introduced into the cooking compartment at various
intervals and with varying degrees of intensity. This
gives you a better cooking result.
Your food
■ Becomes crispy on the outside
■ Develops a shiny surface
■ Is succulent and tender on the inside
■ Only undergoes a minimum reduction in volume
You set the type of heating and steam intensity
combination that you want. Use the information in the
tables to select a suitable type of heating and steam
intensity, or select a programme.
Steam intensity
Different intensity levels are available when adding
steam:
Suitable types of heating
You can switch on steam assistance for these types of
heating:
■ 4D hot air <
■ Top/bottom heating %
■ Hot air grilling 7
■ Keeping warm O
Starting
1. Fill the water tank.
2. Set the type of heating and temperature.
3. Touch the "Added steam" text field.
In the display, the steam level is displayed in white
and in focus.
4. Turn the rotary selector to set the steam level.
5. Press the l Start/Stop button to start.
The appliance begins to heat up.
Note: If the water tank runs dry during an operation with
steam assistance, a message appears on the display
prompting you to fill up the water tank. The operation
continues without adding steam.
Changing and cancelling
To change the steam level, touch the "Steam level" text
field. The steam level is highlighted, and can be
changed using the rotary selector. The change is
adopted immediately.
If you want to cancel steam assistance, reset the
"Added steam" to "0".
Note: The operation continues without adding steam.
Reheating
With the "Reheating U" type of heating, you can gently
reheat food that has already been cooked or crisp up
day-old baked goods. Steam is switched on
automatically.
Note: If the water tank runs dry during the operation
with the Reheating setting, the operation is interrupted.
Fill the water tank.
Starting
1. Fill the water tank.
2. Touch the Menu field.
The options for selecting an operating mode are
displayed.
3. Touch the "Steaming" text field.
4. Touch the "Reheating" text field.
The temperature is in focus.
5. Set the temperature using the rotary selector.
6. Touch the "Duration" text field and set the duration.
Note: A duration is always required for the steam
types of heating.
7. Press the l Start/Stop button to start.
The appliance begins to heat up.
Once the duration has elapsed, an audible signal
sounds. The appliance stops heating. The duration 00
m 00 s is shown in the display.
When your dish is ready, switch off the appliance using
the ÿ On/Off button.
Changing
You can change the settings as usual.
To change the temperature or the duration, touch the
corresponding text field and change using the rotary
selector. The change is adopted immediately.
To change the type of heating, interrupt the operation
beforehand using the l Start/Stop button.
Dough proving setting
Dough will prove considerably more quickly using the
"Dough proving T" type of heating than at room
temperature and does not dry out.
Use the information in the tables to select the
appropriate setting. ~ "Tested for you in our cooking
studio" on page 42
Note: If the water tank runs dry during the operation
with the Dough proving setting, the operation is
interrupted. Fill the water tank.
Intensity Setting
Low 01
Medium 02
High 03
en Steam
20
Starting
1. Fill the water tank.
Note: Only switch on the Dough proving setting
once the cooking compartment has completely
cooled down (to room temperature).
2. Touch the Menu field.
3. Touch the "Steaming" text field.
4. Touch the "Dough proving" text field.
The temperature is in focus.
5. Set the temperature using the rotary selector.
6. Touch the "Duration" text field and set the duration.
Note: A duration is always required for the steam
types of heating.
7. Press the l Start/Stop button to start.
The appliance begins to heat up.
Once the duration has elapsed, an audible signal
sounds. The appliance stops heating. The duration 00
m 00 s is shown in the display.
When your dish is ready, switch off the appliance using
the ÿ On/Off button.
Changing
You can change the settings as usual.
To change the temperature or the duration, touch the
corresponding text field and change using the rotary
selector. The change is adopted immediately.
To change the type of heating, interrupt the operation
beforehand using the l Start/Stop button.
Defrosting
Use the "Defrosting B" type of heating to defrost frozen
products.
Note: If the water tank runs dry during the operation
with the Defrosting setting, the operation is interrupted.
Fill the water tank.
Starting
1. Fill the water tank.
2. Touch the Menu field.
3. Touch the "Steaming" text field.
4. Touch the "Defrosting" text field.
The temperature is in focus.
5. Set the temperature using the rotary selector.
6. Touch the "Duration" text field and set the duration.
Note: A duration is always required for the steam
types of heating.
7. Press the l Start/Stop button to start.
The appliance begins to heat up.
Once the duration has elapsed, an audible signal
sounds. The appliance stops heating. The duration 00
m 00 s is shown in the display.
When your dish is ready, switch off the appliance using
the ÿ On/Off button.
Changing
You can change the settings as usual.
To change the temperature or the duration, touch the
corresponding text field and change using the rotary
selector. The change is adopted immediately.
To change the type of heating, interrupt the operation
beforehand using the l Start/Stop button.
Filling the water tank
The water tank is located behind the control panel.
Before starting an operation with steam, open the
control panel and fill the water tank with water.
Make sure that you have set the water hardness range
correctly. ~ "Basic settings" on page 25
:Warning – Risk of injury and risk of fire!
Only fill the water tank with water or with the descaling
solution that is recommended by us. Do not pour any
flammable liquids (e.g. alcoholic drinks) into the water
tank. Due to hot surfaces, vapours from flammable
liquids may catch fire in the cooking compartment
(explosion). The appliance door may spring open. Hot
steam and jets of flame may escape.
:Warning – Risk of burns!
The water tank may heat up while the appliance is in
operation. Wait until the water tank has cooled down
after the previous appliance operation. Remove the
water tank from the water tank recess.
Caution!
The appliance may become damaged due to the use of
unsuitable liquids.
Do not use distilled water, highly chlorinated tap water
(> 40 mg/l) or other liquids.
Only use cold, fresh tap water, softened water or
uncarbonated mineral water.
Caution!
Malfunctions may occur when using filtered or
demineralised water.
The appliance may request that you top up the water
tank even though it may be full, or operation with steam
is cancelled after approx. two minutes.
If required, mix filtered or demineralised water with the
bottled non-carbonated mineral water with a ratio of
one to one.
Notes
■ If your water is very hard, we recommend that you
use softened water.
■ If you use only softened water, you can set your
appliance to the "softened" water hardness range.
■ If you use mineral water, set the water hardness
range to "4 very hard".
■ If you use mineral water, you must only use non-
carbonated mineral water.
Steam en
21
1. Touch the v field.
The control panel is pushed forwards automatically.
2. Pull the control panel forwards with both hands and
then push it upwards until it locks into place (Fig. !).
3. Lift the water tank and remove it from the water tank
recess (Fig. ").
4. Press down on the cover along the seal to prevent
water from leaking out of the water tank.
5. Take out the cover ‚ (Fig. #).
Note: Whether or not there is a cover ‚ depends on
the appliance type.
6. Fill the water tank with cold water up to the "max."
mark (Fig. $).
7. Put the cover ‚ back into the opening on the water
tank.
8. Insert the filled water tank (Fig. %). Ensure that the
water tank locks into place behind both holders ƒ
(Fig. &).
9. Slowly slide the control panel downwards and then
push it towards the rear until it is closed completely.
The water tank has been filled. You can start using
operating modes with steam.
Refilling the water tank
Notes
■ Steam-assisted operations continue without adding
steam.
■ If the water tank runs dry during the operation with
the Steaming, Reheating, Dough proving or
Defrosting settings, the operation is interrupted. Fill
the water tank.
1. Open the control panel.
2. Remove and refill the water tank.
3. Insert the filled water tank and close the control
panel.
After every steam operation
:Warning – Risk of scalding!
When you open the appliance door, hot steam can
escape. Steam may not be visible, depending on its
temperature. When opening, do not stand too close to
the appliance. Open the appliance door carefully. Keep
children away.
:Warning – Risk of burns!
The appliance becomes hot during operation. Allow the
appliance to cool down before cleaning.
Caution!
Enamel damage: Do not start any operations when
there is water on the cooking compartment floor. Before
operation, wipe away the water from the cooking
compartment floor.
The remaining water is pumped back into the water
tank after every operation with steam. Then empty and
dry the water tank. Moisture remains in the cooking
compartment. To dry the cooking compartment, you
can either use the "Drying" operating mode or dry the
cooking compartment by hand.
Notes
■ Once the appliance has been switched off, the v
field remains lit for a little longer to remind you to
empty the water tank.
■ Remove limescale marks with a cloth soaked in
vinegar, then wipe with clean water and dry with a
soft cloth.
Emptying the water tank
Caution!
■ Do not dry the water tank in the hot cooking
compartment. This will damage the water tank.
■ Do not clean the water tank in the dishwasher. This
will damage the water tank.
1. Open the control panel.
2. Remove water tank.
3. Carefully remove the lid of the water tank.
4. Empty the water tank, clean it with detergent and
then rinse it thoroughly with clean water.
5. Dry all parts with a soft cloth.
6. Rub the seal on the lid until dry.
7. Leave to dry with the lid open.
8. Place the lid on the water tank and push it down.
9. Insert the water tank and close the control panel.
2I
1
D
E
E
I
en Steam
22
Cleaning the drip trough
1. Allow the appliance to cool down.
2. Open the appliance door.
3. Soak up the water in the drip trough ‚ with a sponge
cloth and wipe it carefully (figure !).
When you wipe it, be careful not to detach the seal ƒ
from the drip trough (figure ").
The drip trough ‚ is
located below the cooking compartment (figure #).
Note: If the seal has become detached, fit the seal
back onto the drip trough. ~ "Appliance door"
on page 36
Starting drying
To dry the cooking compartment, it is heated up so that
the moisture in the cooking compartment evaporates.
You will then need to open the appliance door to allow
the steam to escape from the cooking compartment.
Caution!
Enamel damage: Do not start any operations when
there is water on the cooking compartment floor. Before
operation, wipe away the water from the cooking
compartment floor.
1. Leave the appliance to cool down.
2. Remove the worst dirt from the cooking
compartment immediately and wipe away moisture
from the cooking compartment floor.
3. If necessary, press the # On/Off button to switch on
the appliance.
4. Touch the Menu field.
The options for selecting an operating mode are
displayed.
5. Touch the "Cleaning" text field.
6. Touch the "Drying" text field.
The duration is displayed. It cannot be changed.
7. Press the l Start/Stop button to start.
The drying function starts and ends automatically
after 10 minutes.
8. Open the appliance door and leave it open for 1 to 2
minutes so that the moisture in the cooking
compartment can escape.
Drying the cooking compartment by hand
1. Allow the appliance to cool down.
2. Remove any food remnants from the walls of the
cooking compartment.
3. Dry the cooking compartment with a sponge.
4. Leave the appliance door open for 1 hour so that the
cooking compartment dries completely.
E
2
D
1
D
Time-setting options en
23
OTime-setting options
Ti me- set t i ng opt i ons
Your appliance has different time-setting options.
You can call up the cooking time and the end time after
setting an operation using the touch-screen displays.
The timer has a separate field t and can be adjusted at
any time.
An audible signal sounds after a cooking time or timed
period has elapsed. You can cancel the audible signal
early by touching a field or touch-screen display.
Note: You can change how long the audible signal
sounds for in the basic settings. ~ "Basic settings"
on page 25
Setting the cooking time
You can set the cooking time for your dish on the
appliance. This means that the cooking time is not
unintentionally exceeded and you do not need to
interrupt other work in order to end the operation.
Applying settings
Depending on which direction you turn the rotary
selector first, the cooking time starts at a particular
default value: Left = 10 minutes, right = 30 minutes.
The cooking time can be set in one-minute increments
up to one hour, and then in five-minute increments.
The maximum setting is 23 hours and 59 minutes.
Example in the picture: It is 10:00, cooking time of 45
minutes.
1. Set the operating mode, and temperature or level.
2. Before starting the operation, touch the "Cooking
time" text field.
The cooking time is highlighted white in the display.
3. Turn the rotary selector to set the cooking time.
The end time is calculated automatically.
4. Press the l Start/Stop button to start.
The cooking time counts down.
The appliance begins to heat up.
Once the cooking time has elapsed, an audible signal
sounds. The appliance stops heating. The cooking time
00 m 00 s is shown on the display.
You can reset the cooking time using the "Cooking
time" text field or you can press the l Start/Stop button
to continue the operation without a cooking time.
When your dish is ready, switch the appliance off using
the ÿ On/Off button.
Changing and cancelling
To change the cooking time, touch the "Cooking time"
text field. The cooking time is highlighted, and can be
changed using the rotary selector. The change is
adopted immediately.
If you want to cancel the cooking time, reset the
cooking time to zero. After the change has been
adopted, operating continues without a cooking time.
Setting the end time
You can delay the time that the cooking time ends. You
can, for example, put your dish in the cooking
compartment in the morning and set the cooking time
so that it is ready at lunch time.
Notes
■ Ensure that food is not left in the cooking
compartment for too long as it may spoil.
■ Do not adjust the end time once the operation has
started. The cooking result would no longer be
satisfactory.
Applying settings
The end of the cooking time can be delayed by a
maximum of 23 hours and 59 minutes.
Example in the picture: It is 10:00, the set cooking time
is 45 minutes and the dish should be ready at 12:00.
1. Set the operating mode, and temperature or level.
2. Set the cooking time.
3. Before starting the operation, touch the "End" text
field.
The projected end time is highlighted white in the
display.
Time-setting option Use
q Cooking time After the set cooking time has elapsed, the
appliance ends the operation automatically.
r End Enter a cooking time and the required end
time. The appliance starts automatically so
that the operation ends at the required time.
t Timer The timer functions like an egg timer. It runs
independently of the operation and the other
time-setting options. After the set time has
elapsed, the appliance does not switch on or
off automatically.
T
P
V
(QG
&RRNWLPH
&
7HPSHUDWXUH
+RWDLUHFR
7\SHRIKHDWLQJ
&RRNWLPH
P
V
a
&
&WLPH
PV
(QG
en Time-setting options
24
4. Set a later end time using the rotary selector.
5. Press the l Start/Stop button to start.
The time at which the appliance will start is shown in
the display.
The appliance is in standby mode. When the appliance
starts, the cooking time counts down on the display.
Once the cooking time has elapsed, an audible signal
sounds. The appliance stops heating. The cooking time
00 m 00 s is shown on the display.
You can reset the cooking time using the "Cooking
time" text field or you can press the l Start/Stop button
to continue the operation without a cooking time.
When your dish is ready, switch the appliance off using
the ÿ On/Off button.
Changing and cancelling
After starting the appliance, the end time can no longer
be changed.
If you want to cancel the cooking time and end time,
interrupt the operation by pressing the l Start/Stop
button. You can continue the operation without a
cooking time or end time.
Setting the timer
The timer runs alongside other settings. You can set it
at any time, even if the appliance is switched off. It has
its own audible signal so that you can tell whether it is
the timer or a cooking time which has elapsed.
Adjusting settings
The timer duration always starts at zero minutes.
The higher the value, the greater the time steps when
setting the timer.
The maximum setting is 24 hours.
1. Touch the t field.
The symbol lights up red. On the display, the timer
duration is shown in white and in focus.
2. Set the timer duration using the rotary selector.
3. Press the t field to start.
Note: After a few seconds, the timer also starts
automatically.
The timer duration counts down.
The timer remains visible on the display if the appliance
is switched off. When an operation is running, the
settings for this operation are shown in the foreground.
When you touch the t field, the timer duration is
displayed for a few seconds.
When the timer duration comes to an end, an audible
signal sounds and a note appears on the display. The
symbol is no longer lit up.
Tip: If the set timer duration relates to the appliance
operation, use the cooking time. The time is visible in
the foreground and the appliance switches off
automatically.
Changing and cancelling
To change the timer duration, touch the t field. The
timer duration is displayed in white and in focus, and
can be changed by using the rotary selector.
If you want to cancel the timer, reset the timer duration
to zero. Once the change has been applied, the symbol
is no longer lit up.
U
PV
&RRNWLPH
(QG
&
7HPSHUDWXUH
+RWDLUHFR
7\SHRIKHDWLQJ
(QG
6WDUW
&RRNWLPH
PV
(QG
Childproof lock en
25
AChildproof lock
Childproof lock
Your appliance is equipped with a childproof lock so
that children cannot switch it on accidentally or change
any settings.
The control panel is locked and no settings can be
made. The appliance can only be switched off using the
ÿ On/Off button.
Activating and deactivating
You can activate and deactivate the childproof lock
when the appliance is switched on or off.
In each case, press the D field for approx. 4 seconds.
A confirmation note appears on the display.
The D field lights up red when the appliance is
switched on. The D field does not light up when the
appliance is switched off.
QBasic settings
Ba s i c set t i ngs
There are various settings available to you in order to
help use your appliance effectively and simply. You can
change these settings as required.
Changing the basic settings
The appliance must be switched on.
1. Touch the menu field.
The options for selecting an operating mode are
displayed.
2. Touch the "Basic settings" text field.
The settings appear on the touch-screen displays.
3. Touch the text field with the required setting.
The red bar next to the text field identifies the setting
that is currently selected.
Its corresponding value is shown on the display.
4. Turn the rotary selector to change the value as
required.
5. Touch the text field for the next setting.
Its value is shown on the display and can be
changed using the rotary selector.
6. Work through the settings and use the rotary
selector to make changes as required.
To scroll through the settings, touch the "Further
settings" text field.
7. Touch the Menu field to confirm.
A query is displayed asking whether the changes
should be saved.
8. Touch the "Save" text field.
A message is shown on the display to confirm that the
settings have been saved.
Cancelling
If you do not want to save the settings, touch the
Menu field and then touch the "Do not save" text field. A
message is shown on the display to confirm that the
settings have not been saved. Switch off the appliance
using the ÿ On/Off button if you do not need to use it.
List of basic settings
Depending on the features of your appliance, not all
basic settings are accessible.
Setting Options
Language Additional languages are possible.
Clock Clock in 24-hour format
Water hardness 00 (softened)
01 (soft)
02 (medium)
03 (hard)
04 (very hard)*
Home Connect Switching WiFi on and off
~ "Home Connect" on page 27
Factory settings Restore
Do not restore*
en Basic settings
26
--------
Note: Changes to the language, button tone and
display brightness settings take effect immediately. All
other changes take effect after the settings have been
changed.
Power cut
The changes you make to the settings are saved even
after a power cut.
You only have to reset the settings for the initial use
following a long-term power cut. The appliance can
bridge a short-term power cut.
Changing the time
If you want to change the time, for example from
summer to winter time, you must change the basic
setting.
The appliance must be switched on.
1. Touch the Menu field.
The options for selecting an operating mode are
displayed.
2. Touch the "Basic settings" text field.
The settings appear on the touch-screen displays.
3. Touch the "Clock" text field.
The time appears on the display.
4. Turn the rotary selector to change the time.
5. Touch the Menu field to confirm.
A query is displayed asking whether the changes
should be saved.
6. Touch the "Save" text field.
A message is shown on the display to confirm that the
settings have been saved.
Audible signal Short cooking time (30 sec.)
Medium cooking time (1 min.)*
Long cooking time (5 min.)
Volume Levels 01 - 05
Button tone Switched on
Switched off* (tone remains for ÿ On/
Off)
Display brightness 5 levels
Clock display Off
Digital*
Lighting Off during operation
On during operation*
Operation after switching
on
Main menu
Types of heating*
Steam
Assist
Night-time darkening Switched off*
Switched on
Brand logo Display*
Do not display
Fan run-on time Recommended*
Minimum
Pull-out system Not retrofitted* (for rails and single pull-
out system)
Retrofitted (for double and triple pull-out
systems)
Sabbath mode Switched on
Switched off*
* Factory setting (factory settings may vary depending on the appli-
ance model)
Sabbath mode en
27
FSabbath mode
Sabbat h mode
With the Sabbath mode, a cooking time of up to 74
hours can be set. You can keep the food in the cooking
compartment warm without having to switch the oven
on or off.
Starting Sabbath mode
Before you are able to use the Sabbath mode, you must
activate it in the basic settings. ~ "Basic settings"
on page 25
When the basic setting has been changed accordingly,
Sabbath mode is listed with the types of heating as the
last type of heating.
The appliance heats up with top/bottom heating. You
can set a temperature between 85 °C and 140 °C.
The "Types of heating" operating mode must be
selected. The selection list for the types of heating
appears on the touch-screen displays.
1. Touch the "Sabbath mode" text field.
The default temperature is highlighted white in the
display.
2. Set the required temperature using the rotary
selector.
3. Before starting the operation, touch the "Cooking
time" text field.
The default cooking time is highlighted white in the
display.
4. Set the required cooking time using the rotary
selector.
Note: The end time is calculated automatically but
cannot be changed.
5. Press the l Start/Stop button to start.
The cooking time counts down on the display.
The appliance begins to heat up.
When the cooking time for Sabbath mode has ended,
an audible signal sounds. The appliance stops heating.
The cooking time 00 m 00 s is shown on the display.
Press the ÿ On/Off button to switch off the appliance.
Note: The operation is not interrupted if you open the
appliance door.
Changing and cancelling
After starting the appliance, the settings can no longer
be changed.
If you would like to cancel Sabbath mode, switch the
appliance off using the ÿ On/Off button. You can no
longer pause the operation using the l Start/Stop
button.
oHome Connect
Ho me Co n n e c t
This appliance is Wi-Fi-capable and can be remotely
controlled using a mobile device.
If the appliance is not connected to the home network,
the appliance functions in the same way as an oven
with no network connection and can still be operated
via the display.
The availability of the Home Connect function depends
on the availability of Home Connect services in your
country. Home Connect services are not available in
every country. You can find more information on this at
www.home-connect.com.
Notes
■ Ensure that you follow the safety instructions in this
instruction manual and that you comply with these
even when you are away from home and are
operating the appliance via the Home Connect app.
You must also follow the instructions in the
Home Connect app.~ "Important safety
information" on page 5
■ Operating the appliance directly from the appliance
always has priority. During this time, it is not possible
to operate the appliance using the Home Connect
app.
Setting up
To implement settings via Home Connect, you must
have installed and set up the Home Connect app on
your mobile device.
Observe the Home Connect documents supplied for
this.
Follow the steps specified by the app to make the
settings.
The app must be open in order to perform the setup
process.
Automatic registration in the home network
Notes
■ You require a router that has WPS functions.
■ You can start the Home Connect Assistant during
initial start-up or using the main menu.
1. Touch the Menu field.
2. Touch the "Home Connect Assistant" text field.
The appliance is ready to connect to the network
automatically.
'
1HWZRUN
FRQQHFWLRQ
0DQXDOO\
FRQQHFW
&DQFHO
DVVLVWDQW
3UHVVWKH:36
EXWWRQRQWKH
URXWHU
PV
$XWRPDWLF
en Home Connect
28
3. Press the WPS button on the router.
Wait until "Network connection successful" is shown
in the display.
4. Touch "Connect to the app".
The appliance is ready to connect to the app.
5. Start the app on the mobile device and follow the
instructions for automatic network registration.
The process for registering is completed once
"Successfully connected to the app" is shown in the
display.
Manual registration in the home network
Note: You can start the Home Connect Assistant during
initial start-up or using the menu.
1. Touch the Menu field.
2. Touch the "Home Connect Assistant" text field.
3. Touch the "Connect manually" text field.
The appliance is ready to connect to the network
manually.
The SSID and the key for the oven network are
shown in the display.
4. Use the SSID "HomeConnect" and the key
"HomeConnect" to register the mobile device on the
oven network.
Wait until "Network connection successful" is shown
in the display.
5. Touch "Connect to the app".
The appliance is ready to connect to the app.
'
1HWZRUN
FRQQHFWLRQ
6XFFHVV
IXO
'
&RQQHFW
ZLWKDSS
'LVFRQQHFW
IURPQHWZRUN
(QG
DVVLVWDQW
6XFFHVV
IXO
1HWZRUN
FRQQHFWLRQ
'
&RQQHFW
WRDSS
6XFFHVV
IXO
'
1HWZRUN
FRQQHFWLRQ
0DQXDOO\
FRQQHFW
&DQFHO
DVVLVWDQW
3UHVVWKH:36
EXWWRQRQWKH
URXWHU
PV
$XWRPDWLF
'
1HWZRUN
FRQQHFWLRQ
&RQQHFW
DXWRPDWLFDOO\
&DQFHO
DVVLVWDQW
.H\
+RPH&RQQHFW
66,'
+RPH&RQQHFW
PV
0DQXDO
'
1HWZRUN
FRQQHFWLRQ
6XFFHVV
IXO
'
&RQQHFW
ZLWKDSS
'LVFRQQHFW
IURPQHWZRUN
(QG
DVVLVWDQW
6XFFHVV
IXO
1HWZRUN
FRQQHFWLRQ
Home Connect en
29
6. Start the app on the mobile device and follow the
instructions for manual network registration.
The process for registering is completed once
"Successfully connected to the app" is shown in the
display.
Remote Start
If you want to start an oven operation using your mobile
device, you must activate remote start.
Notes
■ The "Remote start" text field is only visible if the
Home Connect Assistant has been successfully
completed.
■ Note that some operating modes can only be started
on the oven itself.
1. Touch the Menu field.
2. Touch the "Remote Start" text field.
C appears in the display
Remote start is automatically deactivated in the
following situations:
■ The oven door is opened 15 minutes after remote
start is activated.
■ The oven door is opened 15 minutes after the oven
operation ends.
■ 24 hours after remote start is activated.
When you start the oven operation on the appliance,
remote start is automatically activated. You can
therefore make changes on your mobile device or start
a new programme.
Home Connect settings
You can adjust Home Connect to suit your
requirements at any time.
Note: In the Home Connect settings, press the ° field to
display network and device information.
WiFi
If WiFi is activated, you can use the Home Connect
functions.
Note: In the networked standby mode, your appliance
requires a maximum of 3 W.
1. Touch the Menu field.
2. Touch the "Basic settings" text field.
3. Touch the "Home Connect" text field.
4. Touch the "WiFi" text field to switch the wireless
module on or off.
Disconnecting from the network
Di s c o n n e c t i n g from the net wor k
You can disconnect your oven from the network at any
time.
Note: If your oven is disconnected from the network, it
is not possible to operate the oven using Home
Connect.
1. Touch the Menu field.
2. Touch the "Basic settings" text field.
3. Touch the "Home Connect" text field.
4. Touch the "Disconnect from network" text field.
Connecting to the network
Connec t i ng to the net wor k
1. Touch the Menu field.
2. Touch the "Basic settings" text field.
3. Touch the "Home Connect" text field.
4. Touch the "Connect to network" text field.
5. Touch the
"Connect manually" or
"Connect automatically" text field.
6. Follow the notes in the section
"Manual registration in the home network" or
"Automatic registration in the home network".
'
&RQQHFW
WRDSS
6XFFHVV
IXO
L
&
0DLQPHQX
6HOHFW
J
'
'LVFRQQHFW
IURPQHWZRUN
&RQQHFW
ZLWKDSS
2Q
5HPRWHFRQWURO
:L)L
2Q
6HWWLQJV
%DFN
+RPH
&RQQHFW
J
'
'LVFRQQHFW
IURPQHWZRUN
&RQQHFW
ZLWKDSS
2Q
5HPRWHFRQWURO
:L)L
2Q
6HWWLQJV
%DFN
+RPH
&RQQHFW
en Home Connect
30
Connect to the app
If the Home Connect app is installed on your mobile
device. you can connect it to your oven.
Note: The appliance must be connected to the network.
1. Touch the Menu field.
2. Touch the "Basic settings" text field.
3. Touch the "Home Connect" text field.
4. Touch the "Connect to the app" text field.
Remote control
You can use the Home Connect app to easily access
the functions of your oven.
Notes
■ Operation on the appliance always has priority.
During this time, it is not possible to operate the
appliance using the Home Connect app.
■ The remote control is activated when the appliance
is first delivered.
■ If the remote control has been deactivated, only the
oven's operating statuses are displayed in the Home
Connect app.
■ The remote control is automatically activated when
the remote start is activated.
1. Touch the Menu field.
2. Touch the "Basic settings" text field.
3. Touch the "Home Connect" text field.
4. Touch the "Remote control" text field to switch
operation via the Home Connect app on or off.
Remote diagnostics
If a fault occurs, the after-sales service can use remote
diagnostics to access your appliance.
Contact the after-sales service, making sure that your
appliance is connected to the Home Connect server
and checking that the remote diagnostics service is
available in your country.
Note: For more information and to check whether the
remote diagnostics service is available in your country,
please visit the Help & Support area of the Home
Connect website for your country: www.home-
connect.com
About data protection
When your appliance is connected for the first time to a
WLAN network, which is connected to the Internet, your
appliance transmits the following categories of data to
the Home Connect server (initial registration):
■ Unique appliance identification (consisting of
appliance codes as well as the MAC address of the
installed WiFi communication module).
■ Security certificate of the WiFi communication
module (to ensure a secure IT connection).
■ The current software and hardware version of your
domestic appliance.
■ Status of any previous resetting to factory settings.
This initial registration prepares the Home Connect
functions for use and is only required when you want to
use these Home Connect functions for the first time.
Note: Ensure that the Home Connect functions can be
used only in conjunction with the Home Connect app.
Information on data protection can be accessed in the
Home Connect app.
Declaration of Conformity
Robert Bosch Hausgeräte GmbH hereby declares that
the appliance which features Home Connect is in
accordance with the basic requirements and the other
relevant provisions of the directive 2014/53/EU.
A detailed RED Declaration of Conformity can be found
online at www.bosch-home.com/de on the product
page for appliance in the additional documents.
2.4 GHz band: max. 100 mW
5 GHz band: max. 100 mW
J
'
'LVFRQQHFW
IURPQHWZRUN
&RQQHFW
ZLWKDSS
2Q
5HPRWHFRQWURO
:L)L
2Q
6HWWLQJV
%DFN
+RPH
&RQQHFW
J
'
'LVFRQQHFW
IURPQHWZRUN
&RQQHFW
ZLWKDSS
2Q
5HPRWHFRQWURO
:L)L
2Q
6HWWLQJV
%DFN
+RPH
&RQQHFW
y
BE BG CZ DK DE EE IE EL
ES FR HR IT CY LV LT LU
HU MT NL AT PL PT RO SI
SK FI SE UK NO CH TR
5 GHz Wi-Fi: for indoor use only
Cleaning agent en
31
DCleaning agent
Cl eani ng agent
With good care and cleaning, your appliance will retain
its appearance and remain fully functioning for a long
time to come. We will explain here how you should
correctly care for and clean your appliance.
Suitable cleaning agents
To ensure that the different surfaces are not damaged
by using the wrong cleaning agent, observe the
information in the table. Depending on the appliance
model, not all of the areas listed may be on/in your
appliance.
Caution!
Risk of surface damage
Do not use:
■ Harsh or abrasive cleaning agents,
■ Cleaning agents with a high alcohol content,
■ Hard scouring pads or cleaning sponges,
■ High-pressure cleaners or steam cleaners,
■ Special cleaners for cleaning the appliance while it is
hot.
Wash new sponge cloths thoroughly before use.
Tip: Highly recommended cleaning and care products
can be purchased through the after-sales service.
Observe the respective manufacturer's instructions.
:Warning – Risk of burns!
The appliance becomes very hot. Never touch the
interior surfaces of the cooking compartment or the
heating elements. Always allow the appliance to cool
down. Keep children at a safe distance.
--------
Area Cleaning
Appliance exterior
Stainless steel
front
Hot soapy water:
Clean with a dish cloth and then dry with a soft
cloth.
Remove flecks of limescale, grease, starch and
albumin (e.g. egg white) immediately. Corrosion
can form under such flecks.
Special stainless steel cleaning products suitable
for hot surfaces are available from our after-sales
service or from specialist retailers. Apply a very
thin layer of the cleaning product with a soft cloth.
Plastic Hot soapy water:
Clean with a dish cloth and then dry with a soft
cloth.
Do not use glass cleaner or a glass scraper.
Painted surfaces Hot soapy water:
Clean with a dish cloth and then dry with a soft
cloth.
Control panel Hot soapy water:
Clean with a dish cloth and dry with a soft cloth.
Do not use glass cleaner or a glass scraper.
If descaler comes into contact with the control
panel, wipe it off immediately. If you leave it, it may
stain the control panel.
Door panels Hot soapy water:
Clean with a dish cloth and then dry with a soft
cloth.
Do not use a glass scraper or a stainless steel
scouring pad.
Door handle Hot soapy water:
Clean with a dish cloth and then dry with a soft
cloth.
If descaler comes into contact with the door han-
dle, wipe it off immediately. Otherwise, any stains
will not be able to be removed.
Appliance interior
Enamel surfaces
and self-cleaning
surfaces
Observe the instructions for the surfaces of the
cooking compartment that follow the table.
Glass cover for
the interior light-
ing
Hot soapy water:
Clean with a dish cloth and then dry with a soft
cloth.
If the cooking compartment is heavily soiled, use
oven cleaner.
Door seal
Do not remove.
Hot soapy water:
Clean with a dish cloth.
Do not scour.
Door cover made from stainless steel:
Use stainless steel cleaner. Follow the manufac-
turers' instructions. Do not use stainless steel
care products.
made from plastic:
Clean using hot soapy water and a dish cloth. Dry
with a soft cloth. Do not use glass cleaner or a
glass scraper.
Remove the door cover for cleaning.
Rails Hot soapy water:
Soak and clean with a dish cloth or brush.
Pull-out system Hot soapy water:
Clean with a dish cloth or a brush.
Do not remove the lubricant while the pull-out rails
are pulled out – it is best to clean them when they
are pushed in. Do not clean in the dishwasher.
Accessories Hot soapy water:
Soak and clean with a dish cloth or brush.
Clean dirt on stainless steel roasting dishes
caused by starchy foods (e.g. rice) using a vinegar
solution.
Water tank Hot soapy water:
Clean with a dish cloth and rinse thoroughly to
remove residual detergent.
Then dry with a soft cloth. Leave the water tank to
dry with the lid open. Rub the seal on the lid until
dry.
Do not clean in the dishwasher.
en Cleaning agent
32
Notes
■ Slight differences in colour on the front of the
appliance are caused by the use of different
materials, such as glass, plastic and metal.
■ Shadows on the door panels, which look like
streaks, are caused by reflections made by the
interior lighting.
■ Enamel is baked on at very high temperatures.This
can cause some slight colour variation. This is
normal and does not affect operation.
The edges of thin trays cannot be completely
enamelled. As a result, these edges can be rough.
This does not impair the anti-corrosion protection.
Surfaces in the cooking compartment
The back wall, ceiling and side parts in the cooking
compartment are self-cleaning. You can tell this from
the rough surface.
The cooking compartment floor is enamelled and has
smooth surfaces.
Cleaning enamel surfaces
Clean the smooth enamel surfaces with a dish cloth
and hot soapy water or a vinegar solution. Then dry
them with a soft cloth.
Soften baked-on food remnants with a damp cloth and
soapy water. Use stainless steel wire wool or oven
cleaner to remove stubborn dirt.
Caution!
Never use oven cleaner in the cooking compartment
when it is still warm. This may damage the enamel.
Remove all food remnants from the cooking
compartment and the appliance door before you next
heat up the appliance.
Leave the cooking compartment open to dry after
cleaning it.
Note: Food residues can cause white deposits to form.
These are harmless and do not affect how the
appliance works. You can remove these residues using
lemon juice if required.
Cleaning self-cleaning surfaces
The self-cleaning surfaces are coated with a porous,
matte ceramic layer. This coating absorbs and dispels
splashes from baking and roasting while the appliance
is in operation.
If the self-cleaning surfaces no longer clean themselves
sufficiently and dark stains appear, they can be cleaned
using the cleaning function. To do this, refer to the
information in the relevant section. ~ "Cleaning
function" on page 33
Caution!
Do not use oven cleaner on self-cleaning surfaces. This
will damage the surfaces. If oven cleaner does get onto
these surfaces, dab it off immediately using water and a
sponge cloth. Do not rub the surface and do not use
abrasive cleaning aids.
Keeping the appliance clean
Always keep the appliance clean and remove dirt
immediately so that stubborn deposits of dirt do not
build up.
:Warning – Risk of fire!
Loose food remnants, fat and meat juices may catch
fire. Before using the appliance, remove the worst of the
food remnants from the cooking compartment, heating
elements and accessories.
Tips
■ Clean the cooking compartment after each use. This
will ensure that dirt cannot be baked on.
■ Always remove flecks of limescale, grease, starch
and albumin (e.g. egg white) immediately.
■ Use the universal pan for baking very moist cakes.
■ Use suitable ovenware for roasting, e.g. a roasting
dish.
Cleaning function en
33
.Cleaning function
Cl eani ng function
Your appliance has the "EcoClean" and "Descaling"
operating modes. The self-cleaning surfaces in the
cooking compartment are cleaned with the “EcoClean”
cleaning function. You can use the "Descaling"
operating mode to remove limescale from the
evaporator.
EcoClean
The self-cleaning surfaces in the cooking compartment
are cleaned when the operating mode is set to
"Cleaning function".
The self-cleaning surfaces (back panel, ceiling panel
and side panels) are coated with a porous, matt
ceramic material. This coating absorbs and breaks
down splashes from baking, roasting and grilling while
the oven is in operation. If the surfaces no longer clean
themselves adequately and dark patches appear, the
surfaces can be cleaned by the cleaning function.
Note: The appliance records the number of times it is
used.The appliance indicates when it has reached a
point in time after which cleaning is recommended. The
recommendation is displayed until the cleaning function
has finished.
If you do not act on this recommendation, the self-
cleaning surfaces may become damaged.
If your appliance is already prematurely very dirty or if
you notice dark patches on the back panel, do not wait
until your appliance recommends cleaning to do so.
This is because the more often the appliance is
cleaned, the longer the self-cleaning surfaces will retain
their cleaning capability. You can clean your appliance
at any time as required using the cleaning function.
Prior to initiating the cleaning function
Remove shelves, rails, accessories and ovenware from
the cooking compartment.
Cleaning the cooking compartment floor and the
inside of the appliance door
Remove the worst dirt from the cooking compartment
floor, the inside of the appliance door and the interior
lighting. Otherwise, patches will appear that can no
longer be removed.
Caution!
Do not use oven cleaner on the self-cleaning surfaces.
This will damage the surfaces. If oven cleaner does
come into contact with these surfaces, dab it off
immediately with water and a sponge cloth. Please to
not rub or use any abrasive cleaning materials.
:Warning – Risk of burns!
; The appliance will become very hot on the outside
during the cleaning function. Never touch the appliance
door. Allow the appliance to cool down. Keep children
away from the appliance.
Setting the cleaning function
Before setting the cleaning function, ensure that you
have followed all instructions for preparation.
The duration for the cleaning function is preset to 1
hour. It cannot be changed.
1. Touch the Menu field.
The list of operating modes are displayed.
2. Touch the "Cleaning" text field.
3. Touch the "EcoClean" text field.
4. Press the l Start/Stop button to start.
The time counts down on the display. The heating
line does not appear for the cleaning function.
The cleaning function starts.
Ventilate the kitchen when the cleaning function is
running.
When the cleaning function has ended, an audible
signal sounds. The duration 00 m 00 s is shown on the
display. Press the ÿ On/Off button to switch off the
appliance.
Setting a later end time
You can set a later end time. Before starting the
appliance, touch the "End" text field and set a later end
time using the rotary selector.
The appliance switches to standby after it is started. The
end time can no longer be changed.
Cancel
If you would like to cancel the cleaning function, switch
the appliance off using the ÿ On/Off button. You can
no longer pause the operation using the l Start/Stop
button.
Note: The operating hour counter is not reset. The
instruction for the cleaning function is still shown on the
display.
Once the cleaning function has ended
Once the cooking compartment has cooled down, wipe
down the cooking compartment with a damp cloth if
necessary.
Note: During operation and while the cleaning function
is active, reddish patches may form on the surfaces.
This is not rust, but food residues. These patches are
not hazardous to your health and do not limit the
cleaning capacity of the self-cleaning surfaces.
en Cleaning function
34
Descaling
The appliance must be descaled regularly in order for it
to continue operating correctly.
There are several steps in the descaling programme.
For hygiene reasons, the descaling programme must
be run through completely so that the appliance can be
ready for operation again.In total, the descaling
programme runs for approx. 70-95 minutes.
■ Descale (approx. 55-70 minutes), then empty and
refill the water tank
■ First rinsing cycle (approx. 9-12 minutes), then
empty and refill the water tank
■ Second rinsing cycle (approx. 9-12 minutes), then
empty and dry the water tank
If the descaling process is interrupted (for example, due
to a power failure or because the appliance has been
switched off), you are prompted to rinse the appliance
twice after it is switched back on. The appliance cannot
be used until the second rinsing cycle has come to an
end.
The frequency with which the appliance must be
descaled depends on the hardness of the water used.
When only five more steam-assisted operations are
possible, or fewer, the appliance reminds you to
descale it with a message on the display. The number
of remaining operations is displayed after the appliance
is switched on. You can therefore prepare for the
descaling in good time.
Starting
Caution!
■ Risk of damage to the appliance: Only use liquid
descalers recommended by us for the descaling
programme. The time the product needs to work
during descaling depends on the type of descaler
used. Other descalers may damage the appliance.
Descaler order no. 311 680
■ Descaling solution: Do not allow any descaling
solution or descaler to come into contact with the
control panel or other surfaces on the appliance.
This damages the surfaces. If this does happen,
remove the descaling solution immediately with
water.
If you have used a steam-assisted operation
immediately before descaling, you must first switch the
appliance off so that the residual water is pumped out
of the evaporator system.
1. Mix 400 ml water with 200 ml liquid descaler to
make a descaling solution.
2. Use the ÿ On/Off button to start.
3. Remove the water tank and fill it with descaling
solution.
4. Once the water tank has been filled with descaling
solution, push it back in again fully.
5. Close the control panel.
6. Touch the Menu field.
The list of operating modes is displayed.
7. Touch the "Cleaning" text field.
8. Touch the "Descaling" text field.
The duration of the descaling programme is
displayed. It cannot be changed.
9. Press the Start/Stop button l to start.
The appliance is now descaled. The time counts down
in the display.
Once the cooking time has elapsed, an audible signal
sounds.
First rinsing cycle
1. Open the control panel.
2. Remove the water tank, rinse thoroughly, fill with
water and reinsert.
3. Close the control panel.
4. Press the l Start/Stop button to start.
The appliance rinses.
Once the duration has elapsed, an audible signal
sounds.
Second rinsing cycle
1. Open the control panel.
2. Remove the water tank, rinse thoroughly, fill with
water and reinsert.
3. Close the control panel.
4. Press the l Start/Stop button to start.
The appliance rinses.
Once the duration has elapsed, an audible signal
sounds.
Rinsing
1. Open the control panel.
2. Empty and dry the water tank.
3. Press the # On/Off button to switch off the
appliance.
Descaling is complete and the appliance is ready for
use again.
Rails en
35
pRails
Rails
With good care and cleaning, your appliance will retain
its appearance and remain fully functional for a long
time to come. This will tell you how to remove the
shelves and clean them.
Detaching and refitting the rails
:Warning – Risk of burns!
The rails become very hot. Never touch the hot rails.
Always allow the appliance to cool down. Keep children
away from the appliance.
Detaching the rails
1. Lift the rail slightly at the front ‚ and detach it ƒ
(figure !).
2. Then pull the whole rail towards you and take it out
(figure ").
Clean the rails with cleaning agent and a sponge. For
stubborn deposits of dirt, use a brush.
Attaching the rails
The rails only fit on the right or the left side. For both
rails, ensure that the curved rods are at the front.
1. First, insert the rail in the middle of the rear socket ‚,
until the rail rests against the cooking compartment
wall, and push it back ƒ (figure !).
2. Then insert the rail into the front socket „, until the
rail also rests against the cooking compartment wall
here, and press it downwards … (figure ").
2
D
E
1
F
G
2
D
E
1
en Appliance door
36
qAppliance door
Ap p l i a n c e door
With good care and cleaning, your appliance will retain
its appearance and remain fully functional for a long
time to come. This will tell you how to remove the
appliance door and clean it.
Removing and fitting the appliance door
For cleaning purposes and to remove the door panels,
you can detach the appliance door.
The appliance door hinges each have a locking lever.
When the locking levers are closed (figure !), the
appliance door is secured in place. It cannot be
detached.
When the locking levers are open in order to detach the
appliance door (figure "), the hinges are locked. They
cannot snap shut.
:Warning
Risk of injury!
■ If the hinges are not locked, they can snap shut with
great force. Ensure that the locking levers are always
fully closed or, when detaching the appliance door,
fully open.
Risk of injury!
■ The hinges on the appliance door move when
opening and closing the door, and you may be
trapped. Keep your hands away from the hinges.
Removing the appliance door
1. Open the appliance door fully and push it in the
direction of the appliance.
2. Fold up the two locking levers on the left and right
(figure !).
3. Close the appliance door as far as it goes ‚. With
both hands, grip the door on the left- and right-hand
side and pull it up and out (figure ").
Fitting the appliance door
1. Press down on the seal ‚ along the drip trough
(figure !); otherwise, the seal ‚ may become
detached during cleaning.
2. Follow the instructions in the opposite order to refit
the appliance door.
When fitting the appliance door, ensure that both
hinges are inserted straight into the opening
(figure
").
Place both hinges at the bottom on the outer panel
and use this as a guide.
Ensure that the hinges are inserted into the correct
opening. You must be able to insert them easily and
without resistance. If you can feel any resistance,
check that the hinges are inserted into the correct
opening.
3. Open the appliance door fully.Close the two locking
levers (figure #).
4. Close the cooking compartment door.
21
2
E
E
D
1I
1
D
2
Appliance door en
37
Removing the door cover
The stainless steel inlay in the door cover may become
discoloured. To carry out thorough cleaning, you can
remove the cover.
1. Open the appliance door slightly.
2. Press on the right and left side of the cover (figure
!).
3. Remove the cover (figure ").
Close the appliance door carefully.
Note: Clean the stainless steel inlay in the cover with
stainless steel cleaner. Clean the rest of the door
cover with soapy water and a soft cloth.
4. Open the appliance door again slightly. Put the
cover back in place and press on it until it clicks
audibly into place (figure #).
5. Close the appliance door.
Removing and installing the door panels
To facilitate cleaning, you can remove the glass panels
from the appliance door.
Removing the door from the appliance
1. Open the appliance door slightly.
2. Press on the right and left side of the cover (figure
!).
3. Remove the cover (figure ").
4. Loosen and remove the screws on the left and right
of the appliance door (figure #).
5. Before closing the door again, trap a tea towel which
has been folded several times in the door (figure $).
Pull out the front panel upwards and lay it on a flat
surface with the door handle facing downwards.
Clean the panels with glass cleaner and a soft cloth.
:Warning
Risk of injury!
■ Scratched glass in the appliance door may develop
into a crack. Do not use a glass scraper, sharp or
abrasive cleaning aids or detergents.
Risk of injury!
■ The hinges on the appliance door move when
opening and closing the door, and you may be
trapped. Keep your hands away from the hinges.
Fitting the door on the appliance
1. Insert the front panel at the bottom into the retainers
(figure !).
2. Close the front panel until both upper hooks are
opposite the opening (figure ").
3. Press the front panel at the bottom until it clicks
audibly into place (figure #)
4. Open the appliance door again slightly and remove
the tea towel.
5. Screw both screws back in on the left and right.
6. Put the cover back in place and press on it until it
clicks audibly into place (figure $).
7. Close the appliance door.
2
1
21
21
en Trouble shooting
38
Caution!
Do not use the cooking compartment again until the
panels have been correctly fitted.
3Trouble shooting
Tr oub l e shoot i ng
If a fault occurs, there is often a simple explanation.
Before calling the after-sales service, please refer to the
fault table and attempt to correct the fault yourself.
Rectifying faults yourself
You can often easily rectify technical faults on the
appliance yourself.
If a dish does not turn out exactly as you wanted, you
can find many tips and instructions for preparation at
the end of the operating manual. ~ "Tested for you in
our cooking studio" on page 42
Fault Possible cause Notes/remedy
The appliance does not work. Faulty fuse. Check the circuit breaker in the fuse box.
Power cut Check whether the kitchen light or other kitchen appliances are working.
"Sprache Deutsch" appears on the
display.
Power cut Reset the language and the time.
The time does not appear when the
appliance is switched off.
Basic setting is changed. Change the basic setting for the clock display.
The appliance does not heat up; the
m symbol lights up on the display.
Demo mode is activated in the
basic settings.
Briefly disconnect the appliance from the mains (switch off the circuit breaker
in the fuse box) and then deactivate demo mode in the basic settings within 3
minutes.
The appliance will not start and
"Cooking compartment too hot"
appears on the display
The cooking compartment is
too hot for the selected dish
or type of heating
Allow the cooking compartment to cool down and start again
The rotary selector has fallen out of
the support in the control panel.
The rotary selector has been
accidentally disengaged.
The rotary selector can be removed. Simply place the rotary selector back in
its support in the control panel and push it in so that it engages and can be
turned as usual.
The rotary selector can no longer be
turned easily.
There is dirt under the rotary
selector.
The rotary selector can be removed. To disengage the rotary selector, simply
remove it from the support. Alternatively, press on the outer edge of the rotary
selector so that it tips and can be picked up easily.
Carefully clean the rotary selector and its support on the appliance using a
cloth and soapy water. Dry with a soft cloth. Do not use any sharp or abrasive
materials. Do not soak or clean in the dishwasher.
Do not remove the rotary selector too often so that the support remains sta-
ble.
Home Connect does not work cor-
rectly.
Go to www.home-connect.com
Operations with steam or descaling
do not start or do not continue
Water tank empty Refill water tank
The panel is open Close the panel
Descaling locks operations
with steam
Carry out descaling
Faulty sensor Call the after-sales service
The appliance prompts you to rinse The power supply was inter-
rupted or the appliance was
switched off during the desca-
ling process
Once the appliance is switched on again, rinse it twice
The appliance prompts you to descale
without the counter appearing before-
hand
The set water hardness range
is too low
Carry out descaling
Check the set water hardness range and adjust it, if necessary
Buttons flash Normal occurrence caused by
condensation behind the con-
trol panel
As soon as the condensation has evaporated, the buttons no longer flash
Trouble shooting en
39
--------
:Warning – Risk of injury!
Incorrect repairs are dangerous. Do not attempt to
repair the appliance yourself. Repairs must only be
carried out by one of our trained after-sales engineers. If
the appliance is defective, call the after-sales service.
:Warning – Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be
carried out and damaged power cables replaced by
one of our trained after-sales technicians. If the
appliance is defective, unplug the appliance from the
mains or switch off the circuit breaker in the fuse box.
Contact the after-sales service.
Error messages on the display
When an error message appears on the display with "D"
or "E", e.g. D0111 or E0111, switch the appliance off
and on again using the ÿ On/Off button.
If it was a one-off error, the display goes out. If the error
message appears again, call the after-sales service and
quote the exact error message.
Maximum operating time
If you do not change the settings on your appliance for
several hours, the appliance stops heating up
automatically. This prevents unwanted continuous
operation.
The respective settings for the operating mode govern
when the maximum operating time is reached.
Maximum operating time reached
A note appears on the display confirming that the
maximum operating time has been reached.
To continue operation, touch any field or turn the rotary
selector.
Switch the appliance off using the ÿ On/Off button if
you do not need to use it.
Tip: Set a cooking time so that the appliance does not
switch off when you do not want it to, e.g. with an
extremely long preparation time. The appliance heats
up until the set cooking time has elapsed.
Cooking compartment bulbs
To light the interior of your cooking compartment, your
appliance has one or more long-life LED bulbs.
However, if ever an LED bulb or the bulb's glass cover
is defective, call the after-sales service. The lamp cover
must not be removed.
Cooked dishes turn out too moist or
too dry when cooking with steam-
assisted applications
The wrong steam intensity
was selected
Select a higher or lower steam intensity
The "Fill water tank" message
appears even though the water tank
is full
The panel is open Close the panel
The water tank is not clicked
into place
Click the water tank into place
~ "Steam" on page 18
Faulty sensor Call the after-sales service
The water tank has fallen off.
Due to the impact, compo-
nents inside the water tank
have come loose, and the
tank is leaking.
Order a new water tank
The panel for removing the tank does
not open
The plug is not plugged into
the mains
Connect the appliance to the electricity supply
Power cut Check whether other kitchen appliances are working
The circuit breaker is faulty Check in the fuse box to make sure that the fuse for the appliance is in work-
ing order
v field sensor faulty Call the after-sales service
If required, empty the water tank: Open the appliance door, take hold of the
lower part of the panel on the left and right with your fingers and pull out the
panel
When you cook with steam, a lot of
steam is produced
The appliance is being auto-
matically calibrated
Normal procedure
When cooking with steam, a lot of
steam is produced repeatedly
The appliance is unable to cal-
ibrate itself automatically if
cooking times are too short
Reset the appliance to the factory settings and repeat the calibration process
There is a "pop" noise during cooking Cold/warm effect with frozen
food, caused by the steam
Not possible
en Customer service
40
4Customer service
Cu s t o mer ser vi ce
Our after-sales service is there for you if your appliance
needs to be repaired. We will always find an
appropriate solution, also in order to avoid after-sales
personnel having to make unnecessary visits.
E number and FD number
When calling us, please quote the full product number
(E no.) and the production number (FD no.) so that we
can provide you with the correct advice. The rating plate
bearing these numbers can be found when you open
the appliance door.
On some appliances with a steam-assisted cooking
function, you will find the rating plate behind the control
panel.
To save time, you can make a note of the numbers for
your appliance and the telephone number of the after-
sales service in the space below in case you need
them.
Please note that a visit from an after-sales service
engineer is not free of charge in the event that the
appliance has been misused, even during the warranty
period.
Please find the contact data of all countries in the
enclosed customer service list.
To book an engineer visit and product advice
Rely on the professionalism of the manufacturer. You
can therefore be sure that the repair is carried out by
trained service technicians who carry original spare
parts for your appliances.
PDishes
Di shes
You can use the "Dishes" operating mode to prepare a
wide variety of food. The appliance chooses the optimal
setting for you.
To achieve good results, the cooking compartment
must not be too hot for the type of food you have
selected. If it is, a message will appear on the display.
Allow the cooking compartment to cool down and start
again.
Information on the settings
■ The cooking result depends on the quality of the
food and the size and type of cookware. For an
optimal cooking result, use food that is in good
condition and chilled meat only. For frozen food, use
food straight out of the freezer only.
■ For some food, a temperature, heating mode and
cooking time is suggested. The temperature and the
cooking time can be changed according to your
requirements.
■ For other dishes, you will be asked to enter the
weight. Always enter the total weight unless the
appliance asks for something different. The
appliance will then apply the time and temperature
settings for you.
It is not possible to set weights outside of the
intended weight range.
■ When roasting dishes for which the appliance will
apply the temperature selection for you,
temperatures of up to 300 °C can be saved.
Therefore, make sure that you use cookware that is
sufficiently heat resistant.
■ Information is provided, e.g. on cookware, shelf
position or the addition of liquid when cooking meat.
Some food requires turning or stirring, etc., during
cooking. This is shown in the display shortly after
operation starts. An audible signal will remind you at
the right time.
■ Information on the right kind of cookware to use and
tips and tricks for the preparation can be found at
the end of the instruction manual. ~ "Tested for you
in our cooking studio" on page 42
Steam
For some food, the steam function is automatically
activated. General information on the steam function
can be found in the relevant section. ~ "Steam"
on page 18
The cooking time is displayed after operation starts. It
does not start counting down until the set temperature
has been reached.
:Warning – Risk of scalding!
When you open the appliance door, hot steam can
escape. Steam may not be visible, depending on its
temperature. When opening, do not stand too close to
the appliance. Open the appliance door carefully. Keep
children away.
E no.
FD no.
After-sales service O
GB 0344 892 8979
Calls charged at local or mobile rate.
IE 01450 2655
0.03 € per minute at peak. Off peak 0.0088 €
per minute.
=1U)'(1U
7\SH
Dishes en
41
Selecting a dish
The dishes are arranged in a uniform structure:
■ Category
■ Food
■ Dish
The following table lists the categories with the
corresponding food. One or more dishes are listed
beside each food.
Applying settings for dishes
You will be guided through the entire setting process for
your chosen food.
Use the rotary selector to scroll through the individual
levels.
1. Touch the Menu field.
The list of operating modes is displayed.
2. Touch the "Assist" text field.
The categories are displayed.
3. Touch the required category.
The foods in this category are displayed.
4. Touch the required food.
The individual dishes are displayed.
5. Touch the required dish.
The settings for this dish appear on the display. For
many dishes, you can change the settings to suit
your needs.
For some dishes, you must set the weight instead.
Tip: The "Tip" text field provides you with information
about accessories and shelf height.
6. Press the l Start/Stop button to start.
The cooking time counts down in the display.
The appliance begins to heat up.
Once the cooking time has elapsed, an audible signal
sounds. The appliance stops heating up.
When your dish is ready, use the ÿ On/Off button to
switch off the appliance.
Continue cooking
After the cooking time has ended, you can leave some
dishes to continue cooking if you are not satisfied with
the cooking result.
A query appears on the display, which asks if you want
to continue cooking. If you want to continue cooking,
touch the "Extend cooking time" text field. A cooking
time is suggested, which can be changed. Press the
l Start/Stop button to start.
Note: You can extend the cooking time as often as
required.
If you are satisfied with the cooking result, touch the
"Finish" text field.
Press the ÿ On/Off button to switch off the appliance.
Setting a later end time
You can set a later end time for some dishes. Before
starting the appliance, touch the "End" text field and set
a later end time using the rotary selector.
The appliance switches to standby after it is started. The
end time can no longer be changed.
Categories Food
Cake
Cakes in tins
Cakes on baking trays
Small baked items
Biscuits
Bread, bread rolls
Bread
Bread rolls
Pizza, savoury cakes
Pizza
Savoury cakes, quiches
Bakes, soufflés
Lasagne, fresh
Soufflé in individual moulds
Fruit crumble
Yorkshire pudding
Frozen products
Pizza
Bread rolls
Bakes
Potato products
Poultry, fish
Vegetables
Poultry
Chicken
Duck, goose
Turkey
Meat
Pork
Beef
Lamb
Meat dishes
Fish
Fish, whole
Fish fillets
Fish steaks
Fish dishes
Seafood
Side dishes, vegeta-
bles
Vegetables
Potatoes
Rice
Cereals
Pulses
Pasta, dumplings
Eggs
Dessert, compote Dessert, compote
Preserve, juice, ster-
ilise
Sterilising bottles
Reheat, crisp up
Vegetables
Menu
Baked goods
Side dishes
Defrosting food Fruit, vegetables
Categories Food
en Tested for you in our cooking studio
42
Changing and cancelling
After starting the appliance, the settings can no longer
be changed.
If you would like to cancel the operation, switch the
appliance off using the ÿ On/Off button. You can no
longer pause the operation using the l Start/Stop
button.
JTested for you in our
cooking studio
Tes t e d for you in our cook i ng st udi o
Here, you can find a selection of dishes and the ideal
settings for them. We will show you which type of
heating and temperature are best suited to your dish.
You will get information on suitable cooking
accessories and the height at which they should be
placed in the oven. You will also get tips about
cookware and preparation methods.
Note: A lot of steam can build up in the cooking
compartment when cooking food.
Your appliance is very energy-efficient and radiates very
little heat to its surroundings during operation. Due to
the high difference in temperature between the
appliance interior and the external parts of the
appliance, condensation may build up on the door,
control panel or adjacent kitchen cabinet panels. This is
a normal physical phenomenon. Condensation can be
reduced by preheating the oven or opening the door
carefully.
When steaming or during operation with steam
assistance, it is desirable that there is a significant
build-up of steam in the cooking compartment. Wipe the
cooking compartment clean after cooking, once it has
cooled off.
Silicone moulds
For the best cooking results, we recommend dark-
coloured metal baking tins/dishes.
Nevertheless, if you wish to use silicone moulds, follow
the manufacturer's instructions and recipes. Silicone
moulds are often smaller than normal baking tins.
Quantity and recipe specifications may vary.
Silicone moulds are unsuitable for steam-assisted
cooking and steaming.
Baking
Here, you can find recommended settings for many
dishes.
Also refer to the notes in the section on allowing dough
to rise.
Only use original accessories supplied with your
appliance. These have been tailored to the cooking
compartment and the operating modes of your
appliance.
Steam- assisted baking
Certain types of baked item (e.g. yeast-risen pastries)
get a more crispy crust and a more glossy surface if
baked with the steam assist mode. The baked item
does not dry out as much.
Steam-assisted baking is only possible on one level.
Some food turns out better if it is baked in several
stages. These dishes are indicated in the table.
Tested for you in our cooking studio en
43
Shelf positions
Use the indicated shelf positions.
Baking on one level
When baking on one level, use the following shelf
position:
■ Level 1
Baking on two levels
Use 4D hot air. Baked items that are placed into the
oven on trays or in baking tins/dishes at the same time
will not necessarily be ready at the same time.
■ Universal pan: Level 3
Baking tray: Level 1
■ Baking tins/dishes on the wire rack
First wire rack: Level 3
Second wire rack: Level 1
By preparing several dishes at the same time, you can
make energy savings of up to 45 per cent. Position
baking tins/dishes next to one another or offset and
vertically stacked in the cooking compartment.
Accessories
Ensure that you always use suitable accessories and
that they are placed in the oven the right way around.
Wire rack
Insert the wire rack with the open side facing the
appliance door and the curved lip pointing downwards.
Always place ovenware, tins and dishes on the wire
rack.
Universal pan or baking tray
Slide the universal pan or the baking tray in carefully as
far as the limit stop with the bevelled edge facing the
appliance door.
When baking moist cakes or pastries with many
toppings, use the universal pan so that any excess
liquid does not overflow and make the cooking
compartment dirty.
Baking tins
Dark- coloured metal baking tins are most suitable.
Tinplate baking tins, ceramic dishes and glass dishes
extend baking time and mean that the baked item will
not brown evenly.
The baking tins must be resistant to heat and steam for
use in steam-assisted baking.
Greaseproof paper
Only use greaseproof paper that is suitable for the
selected temperature. Always cut greaseproof paper to
size.
Recommended setting values
The table lists the optimal heating type for various
baked items. The temperature and baking time depend
on the amount and consistency of the dough/mixture.
For this reason, the table specifies setting ranges. Try
using the lower values to start with. A lower temperature
will result in more even browning. You can use a higher
setting next time if necessary.
Note: Baking times cannot be reduced by using higher
temperatures. Cakes or small baked items would only
be cooked on the outside, and would not be fully baked
in the middle.
The setting values apply to food that is placed into a
cold cooking compartment; by doing this, you can
make energy savings of up to 20 per cent.If you preheat
the oven, you can reduce the indicated baking times by
several minutes.
Preheating is necessary for selected food, and this is
indicated in the table. Do not place your food or
accessories into the cooking compartment until it has
finished preheating.
If you wish to follow one of your own recipes when
baking, you should use the setting values listed for
similar baked items in the table as reference.Additional
information can be found in the baking tips listed after
the settings table.
Remove unused accessories from the cooking
compartment. This will ensure that you achieve the best
possible cooking results and energy savings of up to
20 per cent.
Types of heating used:
■ < 4D hot air
■ $ Pizza setting
■ S Steaming
The levels of steam intensity are indicated as numbers
in the table:
■ 1 = Low
■ 2 = Medium
■ 3 = High
Dish Accessories/cookware Shelf po-
sition
Type of
heating
Tempera-
ture in °C
Steam in-
tensity
Cooking
time in mins.
One level baking
Victoria sponge cake 2x Ø20 cm tins 1 < 160-170* - 20-30
Victoria sponge cake 2x Ø20 cm tins 1 < 150-160 1 25-35
Light fruit cake high Ø20cm tin 1 < 140-160 - 70-90
Light fruit cake high Ø20 cm tin 1 < 140-150 1 90-100
Rich Fruit Cake high Ø23cm tin 1 < 130-150 - 150-180
Fruit crumble flat glass dish 2 < 150-170* - 30-45
Sponge Cake (fatless), 3 eggs springform cake tin, Ø26 cm 1 < 160-170* - 25-35
* Preheat
en Tested for you in our cooking studio
44
Sponge Cake (fatless), 3 eggs springform cake tin, Ø26 cm 1 < 150-160 1 10
- 25-35
Sponge flan, 6 eggs springform cake tin, Ø28 cm 1 < 150-170* - 30-50
Sponge flan, 6 eggs springform cake tin, Ø28 cm 1 < 150-160 1 10
- 30-35
Swiss Roll swiss roll tin 2 < 180-190* - 10-18
Swiss Roll swiss roll tin 2 < 180-190* 1 10-15
Fruit Pie plate Ø20cm or pie tin 1 $ 180-190 - 45-50
Quiche quiche tin (dark coated) 1 $ 190-210 - 30-45
(White) Bread loaf tin (1x 900 g or 2x 450 g) 1 < 190-210* - 20-30
(White) Bread loaf tin (1x 900 g or 2x 450 g) 1 < 210-220 3 10-15
180-190 - 25-35
Scones baking tray 1 < 180-200* - 10-14
Biscuits baking tray 2 < 140-160* - 10-25
Small cakes 12-cup-tin 1 < 140-160* - 20-35
Puff pastry slices baking tray 2 < 170-190* - 20-45
Puff pastry slices baking tray 1 < 210-220* 1 15-25
Jam tarts 12-cup-tin 2 < 160-180* - 15-30
Meringue baking tray 2 < 90-100* - 100-130
Pavlova baking tray 2 < 90-100* - 120-180
Soufflé 1,2 L-soufflé dish 1 < 160-170* - 40-50
Soufflé 1,2 L-soufflé dish 1 < 170-180 2 35-45
Soufflé individual moulds 1 S 100 - 40-45
Choux pastry baking tray 1 < 190-210* - 30-40
Choux pastry baking tray 1 < 200-220* 1 25-35
Meat Pie rectangular pie tin 1 < 180-190 - 40-50
Meat Pie rectangular pie tin 1 < 170-180 2 40-50
Yorkshire Pudding 12-cup-tin 1 < 200-220* - 15-25
Jacket potatoes baking tray 2 < 150-170 - 75-90
Jacket potatoes baking tray 2 < 180-190 1 40-50
Pizza, homemade baking tray 1 $ 200-220 - 20-30
Pizza, homemade baking tray 1 < 220-230 - 25-30
Pizza, homemade, thin base pizza tray 1 $ 210-230 - 20-30
Multishelf baking
Victoria sponge cake, 2 levels 4x Ø20 cm tins 3+1 < 160-170* - 20-35
Scones, 2 levels 2 baking trays 3+1 < 180-200* - 12-16
Biscuits, 2 levels 2 baking trays 3+1 < 140-160* - 15-30
Small cakes, 2 levels 2x 12-cup-tins 3+1 < 140-160* - 22-32
Puff pastry slices, 2 levels 2 baking trays 3+1 < 170-190* - 20-45
Jam tarts, 2 levels 2x 12-cup-tins 3+1 < 160-180* - 20-35
Meringues, 2 levels 2 baking trays 3+1 < 90-100* - 100-130
Jacket potatoes, 2 levels universal pan + baking tray 3+1 < 150-170* - 75-90
Pizza, homemade, 2 levels universal pan + baking tray 3+1 < 180-200 - 35-45
Dish Accessories/cookware Shelf po-
sition
Type of
heating
Tempera-
ture in °C
Steam in-
tensity
Cooking
time in mins.
* Preheat
Tested for you in our cooking studio en
45
Tips on baking
Roasting and braising
Here, you can find information on roasting and braising
poultry and meat. You can find the ideal settings for
many dishes in the settings tables.
Poultry
For duck or goose, pierce the skin on the underside of
the wings. This allows the fat to run out.
If using duck breast, score the skin. Do not turn duck
breasts.
When you turn poultry, ensure that the breast side or
the skin side is underneath at first.
Poultry will turn out particularly crispy and brown if you
baste it towards the end of the roasting time with butter,
salted water or orange juice.
Meat
Baste lean meat with fat as required or cover it with
strips of bacon.
Score the rind crosswise. If you turn the joint when
cooking, ensure that the rind is underneath at first.
When the joint is ready, turn off the oven and allow it to
rest for another 10 minutes in the cooking
compartment. This allows the meat juices to be better
distributed. Wrap the joint in aluminium foil if necessary.
The recommended resting time is not included in the
cooking time indicated.
Roasting on the wire rack
On the wire rack, poultry and meat will become very
crispy on all sides. Roasting on the wire rack is well
suited for larger poultry or for multiple pieces at the
same time.
Depending on the size and type of the meat, add up to
^ litres of water to the universal pan. Any dripping fat
and meat juices will be caught. You can prepare a
sauce using these meat juices. In addition, less smoke
is generated, and the cooking compartment stays
cleaner.
Slide the universal pan into the oven at the indicated
shelf position with the wire rack attached. Ensure that
the wire rack is correctly positioned on the universal
pan. ~ "Accessories" on page 13
You want to find out whether the cake
is completely cooked in the middle.
Push a cocktail stick into the highest point on the cake. If the cocktail stick comes out clean with no dough res-
idue, the cake is ready.
The cake collapses. Next time, use less liquid. Alternatively, set the temperature to be 10 °C lower and extend the baking time.
Adhere to the specified ingredients and preparation instructions in the recipe.
The cake has risen in the middle but
is lower around the edge.
Only grease the base of the springform cake tin. After baking, loosen the cake carefully with a knife.
The fruit juice overflows. Next time, use the universal pan.
Small baked items stick to one
another during baking.
There should be a gap of approx. 2 cm around each item. This gives enough space for the baked items to
expand well and brown on all sides.
The cake is too dry. Set the temperature 10 °C higher and shorten the baking time.
The cake is generally too light in col-
our.
If the shelf position and the cookware are correct, then you should increase the temperature if necessary or
extend the baking time.
The cake is too light on top, and too
dark underneath.
Bake the cake one level higher in the oven the next time.
The cake is too dark on top, and too
light underneath.
Bake the cake one level lower in the oven the next time. Select a lower temperature and extend the baking
time.
Cakes baked in a tray or tin are too
brown at the back.
Place the baking tray in the middle of the accessories, not directly against the back wall.
The whole cake is too dark. Select a lower temperature next time and extend the baking time if necessary.
The cake is unevenly browned. Select a slightly lower temperature.
Protruding greaseproof paper can affect the air circulation. Always cut greaseproof paper to size.
Ensure that the baking tin does not stand directly in front of the openings in the cooking compartment back
wall.
When baking small items, you should use similar sizes and thicknesses wherever possible.
You were baking on several levels.
The items on the top baking tray are
darker than those on the lower baking
tray.
Always select 4D hot air when baking on several levels. Baked items that are placed into the oven on trays or
in baking tins/dishes at the same time will not necessarily be ready at the same time.
The cake looks good, but is not
cooked properly in the middle.
Use a lower temperature and bake slightly longer; if necessary, add slightly less liquid. For cakes with a moist
topping, bake the base first. Sprinkle it with almonds or breadcrumbs and then place the topping on top.
The cake cannot be turned out of the
dish when it is turned upside down.
Allow the cake to cool down for 5 to 10 minutes after baking. If it still sticks, carefully loosen the cake around
the edges again using a knife. Turn the cake tin upside down again and cover it several times with a cold, wet
cloth. Next time, grease the baking tin/dish and sprinkle with breadcrumbs.
en Tested for you in our cooking studio
46
Roasting and braising in cookware
It is more convenient to roast and braise meat in
cookware. You can take the joint out of the cooking
compartment more easily in the cookware, and prepare
the sauce in the cookware itself.
Only use cookware which is suitable for use in an oven.
Check whether the cookware fits in the cooking
compartment.
Glass cookware is most suitable. Place hot glass
cookware onto a dry mat after cooking. If the surface is
damp or cold, the glass may crack.
Add in a little liquid for roasting if the meat is lean. A
covering of approx. ^ cm depth should be applied to
the base of any glass cookware.
The amount of liquid is dependent on the type of meat,
the cookware material and also on whether or not a lid
is used. If preparing meat in an enamelled or dark metal
roasting dish, it will need a little more liquid than if
cooked in glass cookware.
The steam evaporates in the cookware when roasting.
Carefully pour in more liquid if required.
Shiny roasting dishes made from stainless steel or
aluminium reflect heat like a mirror and are therefore
not particularly suitable. The meat cooks more slowly
and will not brown so much. Use a higher temperature
and/or a longer cooking time.
Observe the manufacturer's instructions for your
roasting cookware.
Roasting in uncovered cookware
It is best to use a deep roasting tin/dish for roasting
poultry and meat. Place the tin/dish onto the wire rack.
If you do not have any suitable cookware, use the
universal pan.
Braising in covered cookware
When preparing food with covered cookware, the
cooking compartment remains considerably cleaner.
Ensure that the lid fits well and closes properly. Place
the cookware onto the wire rack.
The distance between the meat and the lid must be at
least 3 cm. The meat may rise.
Very hot steam may escape when opening the lid after
cooking. Lift the lid at the rear, so that the hot steam
can escape away from you.
If necessary, braise the meat first by searing it. Add
water, wine, vinegar or a similar liquid to the braising
liquid. A covering at least 2 cm deep should be applied
to the base of the cookware.
The steam evaporates in the cookware when roasting.
Carefully pour in more liquid if required.
Steam- assisted roasting and braising
Certain dishes become crispier if cooked using steam,
and do not dry out as much.
Use uncovered cookware. Cookware must be heat- and
steam-resistant.
The joints do not have to be turned.
Use steam-assisted cooking if it is indicated in the
settings table. Some dishes turn out best if they are
cooked in several stages. These are indicated in the
table.
Steaming
By contrast to the steam assistance function, the
steaming function cooks the meat particularly gently,
but it does not become crispy on the outside. It remains
very succulent. As an alternative, you can also fry
pieces of meat quickly before steaming; the cooking
time will be reduced.
Larger pieces require a longer heating-up time and a
longer cooking time. If you are using several pieces
which are the same weight, the heating-up time is
increased, and not the cooking time.
Pieces of meat do not need to be turned.
Use the perforated steam container (size XL) and slide
the universal pan in underneath. You can also use a
glass tray and place this onto the wire rack.
Recommended setting values
In the table, you can find the ideal heating type for
poultry and meat. Temperature and cooking time
depend on the quantity, composition and temperature
of the food. Different settings ranges are indicated for
this reason. Try using the lower values at first. You can
increase the temperature next time if necessary.
The setting values are based on the assumption that
unstuffed, chilled, ready-to-roast poultry and meat are
placed into a cold cooking compartment. By doing so,
you can make energy savings of up to 20 per cent. If
you preheat the oven, the indicated cooking times will
be reduced by several minutes.
In the table, you can find specifications for poultry and
meat with default values for the weight. If you wish to
prepare heavier poultry or meat, use the lower
temperature in every case. If roasting several joints, use
the weight of the heaviest piece as a basis for
determining the cooking time. The individual pieces
should be approximately equal in size.
A general rule: the larger the poultry or piece of meat is,
the lower the cooking temperature and the longer the
cooking time.
Turn the poultry and meat after approx. ^ to Z of the
indicated time.
Remove unused accessories from the cooking
compartment. This will achieve the best possible
cooking results and energy savings of up to 20 per
cent.
Cooking time calculation (e. g. 20+35):
Please calculate the cooking time with 20 minutes per
500 g meat + 35 minutes additional time. For 1,5 kg
the calculated cooking time would be 95 minutes.
Cooking time range (e. g. 10-15):
The food is done within the stated minutes.
Type of heating used:
■ < 4D hot air
The levels of steam intensity are indicated as numbers
in the table:
■ 1 = Low
■ 2 = Medium
■ 3 = High
Tested for you in our cooking studio en
47
Dish Accessories/cookware Shelf po-
sition
Type of
heating
Tempera-
ture in °C
Steam in-
tensity
Time in min.
Beef
Slow roasting joint wire rack 1 < 140-150 - 35+40
Slow roasting joint, 1.5 kg wire rack 1 < 130-140 1 70-80
- 40-50
Top side / Top rump wire rack 1 < 160-170 - 30+25
Top side / Top rump wire rack 1 < 170-180 1 100-120
Lamb
Leg (bone-in) wire rack 1 < 160-170 - 25+25
Leg (bone-in), 1.5 kg wire rack 1 < 180-190 1 80-90
Shoulder (bone-in) wire rack 1 < 160-170 - 25+20
Shoulder (boned and rolled) wire rack 1 < 170-180 - 25+25
Rack of lamb*** wire rack 1 < 180-190* - 15+25
Rack of lamb, each 700 g wire rack 1 < 200 - 20
170-180 1 25-30
Pork
Roasting joint wire rack 1 < 180-190 - 30+35
Roasting joint, 1.5 kg wire rack 1 < 120 3 30
190-200 - 30
160-170 1 80-100
Loin joint wire rack 1 < 180-190 - 35+35
Loin joint, 1 kg wire rack 1 < 180-190 - 25-30
170-180 1 70-80
Belly wire rack 1 < 170-180 - 30+25
Gammon joint wire rack 1 < 160-170 - 30+30
Gammon joint, 1.5 kg wire rack 1 < 170-180 2 100-120
Poultry
Chicken, whole wire rack 1 < 170-180 - 25+15
Chicken, whole, 1.5 kg wire rack 1 < 180-190 2 65-75
Chicken, portion, 200-250 g each** wire rack 1 < 190-200 - 35-45
Chicken, portion, 200-250 g each** wire rack 2 < 200-210 2 35-45
Duck wire rack 1 < 180-190 - 25+20
Duck, 2-3 kg wire rack 1 < 160-170 2 70-90
170-180 - 30-40
Turkey, crown**** wire rack 1 < 150-160 - 20+15
Turkey, crown, 3 kg cookware, uncovered 1 < 140-150 2 100-140
Turkey, thighs wire rack 1 < 170-180 - 25+30
Turkey, whole, 4-8 kg wire rack 1 < 150-160 - 12+12
Turkey, whole, 7 kg universal pan 1 < 140-150 2 120-150
170-180 - 30-40
Meat dishes
Meat loaf cookware, uncovered 1 < 170-180 - 20+35
* Preheat
** skin side down
*** without fat layer (best and neck), do not turn
**** bone side down, do not turn
en Tested for you in our cooking studio
48
Tips on roasting and braising
Grilling
Here, you can find information on grilling poultry, meat
and fish, as well as toast. You can find the ideal settings
for certain dishes in the settings tables.
Grilling with circulated air
Circulated air grilling is very well suited to the
preparation of whole poultry, fish, and also meat, e.g.
roast pork with crackling.
Poultry
For duck or goose, pierce the skin on the underside of
the wings. This allows the fat to run out.
If using duck breast, score the skin. Do not turn duck
breasts.
When you turn poultry, ensure that the breast side or
the skin side is underneath at first.
Poultry will turn out particularly crispy and brown if you
baste it towards the end of the roasting time with butter,
salted water or orange juice.
Meat
Baste lean meat with fat as required or cover it with
strips of bacon.
Score the rind crosswise. If you turn the joint when
cooking, ensure that the rind is underneath at first.
Meat loaf, 1 kg cookware, uncovered 1 < 190-200 1 70-80
Casserole
Diced meat (beef, pork, lamb), 500 g
meat
cookware, covered 1 < 140* - 100-120
Braising steak cookware, covered 1 < 140 - 65+60
Chicken pieces (boned), 500 g meat cookware, covered 1 < 140* - 90-100
Complete meal
With beef wire rack + wire rack 3+1 < 160, then
200 (York-
shire Pud-
ding)
- calculation for
meat (see table
above) + 15-25 for
Yorkshire Pudding
With chicken wire rack + wire rack 3+1 < 180 - calculation for
chicken (see table
above)
With chicken wire rack + wire rack 3+1 < 180 low
(steam 0
when
Yorkshire
Pudding
is
inserted)
65-75
Dish Accessories/cookware Shelf po-
sition
Type of
heating
Tempera-
ture in °C
Steam in-
tensity
Time in min.
* Preheat
** skin side down
*** without fat layer (best and neck), do not turn
**** bone side down, do not turn
The cooking compartment becomes
very dirty.
Prepare your food in an enclosed roasting dish with higher temperature or use the grill tray. You will achieve
the best roasting results if you use the grill tray. The grill tray can be bought later as a special accessory.
The roast is too dark and the crack-
ling is burned in places, and/or the
roast is too dry.
Check the shelf position and temperature. Select a lower temperature the next time and reduce the roasting
time if necessary.
The crackling is too thin. Increase the temperature or switch on the grill briefly at the end of the roasting time.
The roast looks good but the juices
are burnt.
Next time, use a smaller roasting dish and add more liquid if necessary.
The roast looks good but the juices
are too clear and watery.
Next time, use a larger roasting dish and add less liquid if necessary.
The meat gets burned during brais-
ing.
The roasting dish and lid must fit together well and close properly.
Reduce the temperature and add more liquid when braising if necessary.
Tested for you in our cooking studio en
49
When the joint is ready, turn off the oven and allow it to
rest for another 10 minutes in the cooking
compartment. This allows the meat juices to be better
distributed. Wrap the joint in aluminium foil if necessary.
The recommended resting time is not included in the
cooking time indicated.
Fish
Fish cooked whole does not have to be turned. Place
the whole fish into the cooking compartment in
swimming position with the dorsal fin facing upwards.
Placing half a potato or a small oven-proof container in
the stomach cavity of the fish will provide stability.
You can tell when the fish is cooked because the dorsal
fin can be removed easily.
Roasting on the wire rack
On the wire rack, poultry and meat will become very
crispy on all sides. Roasting on the wire rack is well
suited for larger poultry or for multiple pieces at the
same time.
Depending on the size and type of the meat, add up to
^ litres of water to the universal pan. Any dripping fat
and meat juices will be caught. You can prepare a
sauce using these meat juices. In addition, less smoke
is generated, and the cooking compartment stays
cleaner.
Slide the universal pan into the oven at the indicated
shelf position with the wire rack attached. Ensure that
the wire rack is correctly positioned on the universal
pan. ~ "Accessories" on page 13
Roasting in cookware
It is more convenient to roast and braise meat in
cookware. You can take the joint out of the cooking
compartment more easily in the cookware, and prepare
the sauce in the cookware itself.
Only use cookware which is suitable for use in an oven.
Check whether the cookware fits in the cooking
compartment.
Glass cookware is most suitable. Place hot glass
cookware onto a dry mat after cooking. If the surface is
damp or cold, the glass may crack.
Add in a little liquid if the meat is lean. A covering of
approx. ^ cm depth should be applied to the base of
any glass cookware.
The quantity of liquid is dependent on the type of meat,
the cookware material and also on whether or not a lid
is used. If preparing poultry, meat or fish in an
enamelled or dark metal roasting dish, it will need a
little more liquid than if cooked in glass cookware.
The steam evaporates in the cookware when roasting.
Carefully pour in more liquid if required.
Shiny roasting dishes made from stainless steel or
aluminium reflect heat like a mirror and are therefore
not particularly suitable. The meat cooks more slowly
and will not brown so much. Use a higher temperature
and/or a longer cooking time.
Observe the manufacturer's instructions for your
roasting cookware.
Uncovered cookware
Use a deep roasting tin/dish for roasting meat. Place
the tin/dish onto the wire rack. If you do not have any
suitable cookware, use the universal pan.
Covered cookware
When cooking with covered cookware, the cooking
compartment remains considerably cleaner. Ensure that
the lid fits well and closes properly. Place the cookware
onto the wire rack.
The distance between the meat and the lid must be at
least 3 cm. The meat may rise.
Very hot steam may escape when opening the lid after
cooking. Lift the lid at the rear, so that the hot steam
can escape away from you.
If necessary, braise the meat first by searing it. Add
water, wine, vinegar or a similar liquid to the braising
liquid. A covering approx. 1-2 cm deep should be
applied to the base of the cookware.
The steam evaporates in the cookware when roasting.
Carefully pour in more liquid if required.
Meat can also become crispy in a covered roasting
dish. To do so, use a roasting dish with a glass lid and
set a higher temperature.
Steam- assisted roasting
Certain foodstuffs will become crispier during steam-
assisted cooking. Their surface becomes glossier and
they dry out less.
Use uncovered cookware. Cookware must be heat- and
steam-resistant.
Use steam-assisted cooking if it is indicated in the
settings table. Some dishes turn out best if they are
cooked in several stages. These are indicated in the
table.
Grilling flat pieces
Flat pieces of poultry, meat and fish, such as steaks,
drumsticks and burgers, can be prepared well using the
"Grill" heating type. Excellent results are also achieved
when grilling toast.
Grilling
Keep the appliance door closed when using the grill.
Never grill with the appliance door open.
Place the food to be grilled on the wire rack. In addition,
slide the universal pan in at least one shelf position
lower, with the slanted edge facing the appliance door.
Any dripping fat will be caught.
When grilling, try wherever possible to use pieces of
food which are of a similar thickness and weight. This
will allow them to brown evenly and remain succulent
and juicy. Place the food to be grilled directly onto the
wire rack.
Use tongs to turn the pieces of food you are grilling. If
you pierce the meat with a fork, the juices will run out
and it will become dry.
Do not add salt until after the meat has been grilled.
Salt draws water from the meat.
en Tested for you in our cooking studio
50
Notes
■ The grill element switches itself continuously on and
off; this is normal. The grill setting determines how
frequently this occurs.
■ Smoke may be produced when grilling.
Recommended setting values
In the table, you can find the ideal heating type for your
poultry, meat and fish, in addition to toast. Temperature
and cooking time depend on the quantity, composition
and temperature of the food. Settings ranges are
indicated for this reason. Try using the lower values at
first. You can use a higher setting next time if
necessary.
The setting values are based on the assumption that
unstuffed, chilled, ready-to-roast poultry, meat and fish
are placed into a cold cooking compartment.
In the table, you can find specifications for poultry, meat
and fish with default values for the weight. If you wish to
prepare heavier poultry, meat or fish, use the lower
temperature in every case. If roasting several joints, use
the weight of the heaviest piece as a basis for
determining the cooking time. The individual pieces
should be approximately equal in size.
A general rule: the larger the poultry, meat or fish is, the
lower the cooking temperature and the longer the
cooking time.
Turn the poultry, meat and fish after approx.^ to Z of
the indicated time.
Remove unused accessories from the cooking
compartment. This will achieve the best possible
cooking results and energy savings of up to 20 per
cent.
Cooking time calculation (e. g. 20+35):
Please calculate the cooking time with 20 minutes per
500 g meat + 35 minutes additional time. For 1,5 kg
the calculated cooking time would be 95 minutes.
Cooking time range (e. g. 10-15):
The food is done within the stated minutes.
Types of heating used:
■ 7 Circulated air grilling
■ ( Grill, large area
The levels of steam intensity are indicated as numbers
in the table:
■ 1 = Low
■ 2 = Medium
■ 3 = High
Dish Accessories Shelf po-
sition
Type of
heating
Temperature in C /
Grill setting
Steam in-
tensity
Time in min.
Beef
Steaks, height 2-3 cm wire rack 2 ( 3 - 1st side 8-10
2nd side 5-7
Burger, height 1-2 cm wire rack 2 ( 3* - 1st side 6-8
2nd side 4-6
Top side / Top rump wire rack 2 7 150-160 - 30+30
Lamb
Steaks, height 2-3 cm wire rack 2 ( 3* - 1st side 8-10
2nd side 4-6
Chops, height 2-3 cm wire rack 2 ( 3 - 1st side 6-8
2nd side 6-8
Leg (bone-in) wire rack 1 7 170-180 - 25+30
Leg (bone-in), 1.5 kg wire rack 1 7 170-180 1 80-90
Shoulder (bone-in) wire rack 1 7 170-190 - 25+15
Shoulder (boned and rolled) wire rack 1 7 170-180 - 20+15
Rack of lamb wire rack 1 7 190-200 - 15+25
Pork
Steaks, height 2 cm wire rack 3 ( 2 - 1st side 12-14
2nd side 6-8
Chops, height 2-3 cm wire rack 2 ( 3* - 1st side 10-12
2nd side 9-10
* Preheat
** Preheat 3 minutes
*** Preheat 5 minutes
**** Preheat 3 minutes, turn over several times
***** Skin side down
Tested for you in our cooking studio en
51
Convenience products
Here, you can find the ideal settings for preparing
chilled and frozen food.
Only use original accessories supplied with your
appliance. These have been tailored to the cooking
compartment and the operating modes of your
appliance.
Tips
■ The cooking result greatly depends on the quality of
the food. Pre-browning and unevenness may already
be present on the packaged product.
■ Do not use frozen products that are heavily frosted.
Remove any ice on the food.
Burger, height 1-2 cm wire rack 2 ( 3* - 1st side 6-8
2nd side 4-6
Bacon rashers wire rack 2 ( 3*** - 1st side 4-5
2nd side 3-4
Sausages, thickness 2-4 cm wire rack 2 ( 3**** - 10-15
Roasting joint wire rack 1 7 180-200 - 30-40
Loin joint wire rack 1 7 170-180 - 35+35
Belly wire rack 1 7 200-220 - 30+25
Belly, 1 kg wire rack 1 7 170-180 1 50-60
190-200 - 25-35
Gammon joint wire rack 2 7 180-200 - 30+25
Poultry
Chicken drumstick, 150 g each wire rack 2 7 210-230 - 20-30
Chicken drumstick, 150 g each wire rack 2 7 210-220 2 30-40
Chicken breast, boned, 150 g
each
wire rack 2 ( 3** - 1st side 10-15
2nd side 10-15
Chicken breast, boned, 150 g
each
wire rack 2 7 200-210 2 20-30
Chicken, whole wire rack 1 7 200-220 - 25+15
Chicken, whole, 1.5 kg wire rack 1 7 180-190 2 65-75
Chicken, portion, 200-250 g
each*****
wire rack 2 7 200-220 - 30-45
Chicken, portion, 200-250 g
each*****
wire rack 2 7 200-210 2 35-45
Duck, 2-3 kg wire rack 1 7 190-200 - 20+20
Duck, 2-3 kg wire rack 1 7 150-160 2 100-120
Turkey thighs wire rack 1 7 180-190 - 25+30
Turkey, whole, 4-8 kg wire rack 1 7 140-160 - 12+12
Fish
Trout, whole, 300 g each wire rack 1 7 170-190 - 20-30
Fillets, each 150 g wire rack 2 ( 1** - 1st side 5-10
2nd side 5-10
Toast
Grilling white bread wire rack 3 ( 3 - 2-6
Dish Accessories Shelf po-
sition
Type of
heating
Temperature in C /
Grill setting
Steam in-
tensity
Time in min.
* Preheat
** Preheat 3 minutes
*** Preheat 5 minutes
**** Preheat 3 minutes, turn over several times
***** Skin side down
en Tested for you in our cooking studio
52
■ Distribute foods which are in pieces, such as bread
rolls and potato products, so that they are spread
flat and evenly on the accessories. Leave a little
space between the individual pieces.
■ Observe the instructions on the packaging.
Steam- assisted baking
Certain types of baked item (e.g. yeast-risen pastries)
get a more crispy crust and a more glossy surface if
baked with the steam assist mode. The baked item
does not dry out as much.
Steam-assisted baking is only possible on one level.
Shelf positions
Use the indicated shelf positions.
Baking on one level
When baking on one level, use the following shelf
position:
■ Level 1
Baking on two levels
Use 4D hot air. Baked items that are placed into the
oven on trays or in baking tins/dishes at the same time
will not necessarily be ready at the same time.
■ Universal pan: Level 3
Baking tray: Level 1
Accessories
Ensure that you always use suitable accessories and
that they are placed in the oven the right way around.
Wire rack
Insert the wire rack with the open side facing the
appliance door and the curved lip pointing downwards.
Always place ovenware, tins and dishes on the wire
rack.
Universal pan or baking tray
Slide the universal pan or the baking tray in carefully as
far as the limit stop with the bevelled edge facing the
appliance door.
Greaseproof paper
Only use greaseproof paper that is suitable for the
selected temperature. Always cut greaseproof paper to
size.
Recommended setting values
In the table, you can find the ideal heating type for
various dishes. Temperature and cooking time depend
on the quantity and composition of the product. Setting
ranges are indicated for this reason. Try using the lower
values at first. A lower temperature results in more even
browning. You can use a higher setting next time if
necessary.
Note: Cooking times cannot be reduced by using
higher temperatures. The dish would only be cooked on
the outside, but would not be fully cooked in the middle.
The setting values apply to dishes placed into a cold
cooking compartment. By doing so, you can make
energy savings of up to 20 per cent. If you preheat the
oven, the indicated cooking times will be reduced by
several minutes.
Preheating is necessary for selected dishes, and this is
indicated in the table.
Remove unused accessories from the cooking
compartment. This will achieve the best possible
cooking results and energy savings of up to 20 per
cent.
Types of heating used:
■ < 4D hot air
■ % Top/bottom heating
■ $ Pizza setting
The levels of steam intensity are indicated as numbers
in the table:
■ 1 = Low
■ 2 = Medium
■ 3 = High
Dish Accessories/cookware Shelf po-
sition
Type of
heating
Tempera-
ture in °C
Steam in-
tensity
Cooking
time in mins.
Pizza, chilled
Pizza, chilled wire rack 1 $ 210-230 - 10-20
Pizza, frozen
Pizza, thin base wire rack 1 $ 210-230 - 10-20
Pizza, thin base, 2 levels 2 wire racks 3+1 < 200-220 - 15-25
Pizza, thick base wire rack 1 % 190-210 - 20-30
Pizza, thick base, 2 levels 2 wire racks 3+1 < 160-180 - 25-35
Pizza baguette wire rack 1 < 200-220 - 20-30
Potatoe products, frozen
Oven chips* baking tray 1 $ 190-210 - 20-30
Oven chips, 2 levels* universal pan + baking tray 3+1 < 200-220 - 30-40
Croquettes baking tray 1 % 200-220 - 15-25
Hash browns* universal pan 2 $ 200-220 - 20-30
Potatoe wedges baking tray 1 < 200-220 - 20-30
* Turn during cooking
Tested for you in our cooking studio en
53
Steaming
Only use original accessories. When steaming in the
perforated steam container (size XL), always slide the
universal pan in underneath as well. Dripping liquid is
caught.
Steaming on one level
Use the shelf positions indicated in the settings tables.
Steaming on two levels
Steaming on two levels is very well suited to
simultaneously cooking broccoli and potatoes, for
example. In cases where the cooking times are
different, insert the foodstuff with the shorter cooking
time later.
■ Wire rack and attached steam container (size S),
perforated and/or unperforated: Level 3
■ Perforated steam container (size XL): Level 2
Cookware
If you use cookware, place it onto the wire rack or the
perforated steam container, size XL.
Ovenware must be heat and steam resistant. Cooking
times are increased when using cookware with thick
edges.
Food which would normally be prepared in a water bath
should always be covered with foil.
Cooking time and quantity
Cooking times when steaming are dependent on the
size of the pieces, but not dependent on the total
quantity. If a larger total quantity is used, the heating-up
time is increased and not the cooking time.
Larger pieces require a longer heating-up time and a
longer cooking time. If you are using several pieces
which are the same weight, the heating-up time is
increased, and not the cooking time.
Observe the unit sizes indicated in the settings table.
The cooking time is reduced for smaller pieces and
increased for larger ones. Cooking time is also
influenced by the quality and ripeness of the food. This
means that the setting values indicated are purely
guidelines.
Always distribute the food evenly in the cookware. It will
not cook evenly if the layers are of different depths.
When layering delicate foods in the cooking container,
do not pile them too high. It is better to use two
containers.
Rice and cereals
Add water or liquid in the proportion indicated. E.g.
"1:1.5" means adding 150 ml liquid per 100 g rice.
Menu cooking
With your appliance you can cook a whole menu at
once without the different flavours or aromas mixing
with each other.
Place the food with the longest cooking time in the
appliance first and add the rest at the appropriate time.
This means that all the food will be ready at the same
time.
The overall cooking time is extended with menu
cooking, as a little steam escapes each time the
appliance door is opened and has to be reheated.
Baked goods, frozen, prebaked
Rolls, baguettes universal pan 2 % 200-220 - 15-25
Rolls, baguettes universal pan 2 % 180-200 1 15-25
Rolls, baguettes, 2 levels grid + universal pan 3+1 < 160-180 - 15-25
Fried food, frozen
Fish fingers* baking tray 1 $ 220-240 - 10-20
Chicken nuggets universal pan 2 $ 200-220 - 10-20
Food, chilled
Lasagna, 500 g ovenproof dish on wire rack 1 % 180-200 - 30-40
Lasagna, 500 g ovenproof dish on wire rack 1 < 180-190 2 30-40
Lasagna, 1,5 kg ovenproof dish on universal pan 1 < 180-200 - 35-45
Lasagna, 1,5 kg ovenproof dish on wire rack 1 < 160-170 2 35-45
Food, frozen
Lasagna, 500 g ovenproof dish on universal pan 1 $ 190-210 - 30-40
Lasagna, 500 g ovenproof dish on wire rack 1 < 180-190 2 40-50
Lasagna, 1,5 kg ovenproof dish on universal pan 1 < 160-180 - 60-80
Lasagna, 1,5 kg ovenproof dish on wire rack 1 < 160-170 2 45-55
Dish Accessories/cookware Shelf po-
sition
Type of
heating
Tempera-
ture in °C
Steam in-
tensity
Cooking
time in mins.
* Turn during cooking
en Tested for you in our cooking studio
54
Observe the information in the relevant paragraphs of
this section:
■ The heating-up time varies depending on the size
and weight of the food
■ The cooking time does not depend on the quantity
■ Use cookware that is steam-resistant
■ Cover soufflé with foil
■ Always insert the universal pan at level 1
Shelf positions for accessories
Always insert accessories in the following order:
■ Level 3: Wire rack with steam container, size S
■ Level 2: Steam container, size XL
■ Level 1: Universal pan
Making rice pudding
1. Weigh the rice and add 2.5 times as much milk.
2. Fill a bowl with the rice and milk so that the mixture
is max. 2.5 cm deep.
You can also use the universal pan for large
quantities.
3. Use the settings indicated in the table.
4. Stir after cooking.
The remaining milk is quickly absorbed.
Compote
Weigh the fruit and add approx. Y as much water. Add
sugar and spices to taste. Use the settings indicated in
the table.
Crème caramel and soufflé
Place the small dishes directly into the perforated steam
container (size XL). A water bath is not required. Use
the settings indicated in the table.
Food which would normally be prepared in a water bath
should always be covered with foil.
Dampfnudeln (steamed bread rolls)
Prepare the yeast dough according to your recipe
without cooking. Place the shaped balls into a greased,
perforated steam container (size XL), and allow them to
prove. Use the settings indicated in the table.
Recommended setting values
Type of heating used:
■ S Steaming
Dish Accessories/cookware Shelf po-
sition
Type of
heating
Tempera-
ture in °C
Cooking
time in mins.
Poultry
Chicken breast, 150 g each steam container 2 S 100 15-25
Pork
Pork fillet, 400 g steam container 2 S 100 18-20
Fish
Fish, whole 300 g, e.g. trout steam container, perforated 2 S 80-90 15-25
Fish, whole 1,5 kg, e.g. cod steam container, perforated 2 S 80-90 35-50
Fish fillet, 200 g steam container, perforated 2 S 80-100 10-16
Fish, frozen
Fish, whole 300 g, e.g. trout steam container, perforated 2 S 80-100 20-25
Fish dishes
Fish terrine bain marie 2 S 70-80 45-80
Potatoes
Unpeeled boiled potatoes steam container, perforated 2 S 100 35-45
Boiled potatoes, quartered steam container, perforated 2 S 100 20-25
Vegetables, fresh
Artichokes, whole steam container, perforated 2 S 100 30-35
Cauliflower, whole steam container, perforated 2 S 100 25-35
Broccoli, florets steam container, perforated 2 S 100 6-9
Tested for you in our cooking studio en
55
Green beans steam container, perforated 2 S 100 18-25
Carrots, slices steam container, perforated 2 S 100 10-20
Cabbage turnip, slices steam container, perforated 2 S 100 17-20
Leek, slices steam container, perforated 2 S 100 6-9
Sweetcorn, whole steam container, perforated 2 S 100 30-40
Beetroot, whole steam container, perforated 2 S 100 43-50
White asparagus, whole steam container, perforated 2 S 100 7-15
Spinach steam container, perforated 2 S 100 2-3
Courgette, slices steam container, perforated 2 S 100 3-4
Vegetables, frozen
Cauliflower steam container, perforated 2 S 100 15-25
Green beans steam container, perforated 2 S 100 5-8
Broccoli steam container, perforated 2 S 100 6-10
Peas steam container, perforated 2 S 100 6-10
Carrots steam container, perforated 2 S 100 3-10
Brussel sprouts steam container, perforated 2 S 100 4-6
Mixed vegatables, 1 kg steam container, perforated 2 S 100 5-10
Rice
Basmati rice, 1:1,5 cookware, flat 1 S 100 10-15
Long-grain rice, 1:1,5 cookware, flat 1 S 100 20-30
Brown rice, 1:1,5 cookware, flat 1 S 100 30-40
Parboiled rice, 1:1,5 cookware, flat 1 S 100 15-20
Risotto, 1:2 cookware, flat 1 S 100 25-35
Cereals
Couscous, 1:1 cookware, flat 1 S 100 6-10
Millet, whole, 1:1,25 cookware, flat 1 S 100 25-35
Polenta, 1:5 cookware, flat 1 S 100 20-45
Egg
Hard-boiled eggs steam container, perforated 2 S 100 9-11
Soft-boiled eggs steam container, perforated 2 S 100 6-8
Dessert
Crème Brulée individual moulds 1 S 85 20-30
Crème caramel individual moulds 1 S 85 25-35
Soufflé individual moulds 1 S 100 40-45
Yeast dumplings universal pan 1 S 100 25-30
Rice pudding, 1:2,5 universal pan 1 S 100 25-35
Fruit compote, 1/3 water universal pan 1 S 100 10-20
Complete meal
Frozen salmon fillet steam container, solid, size S 3 S 100 20
Broccoli, florets steam container, perforated, size XL 2 S 100 9
Potatoes boiled steam container, perforated, size S 3 S 100 25
Dish Accessories/cookware Shelf po-
sition
Type of
heating
Tempera-
ture in °C
Cooking
time in mins.
en Tested for you in our cooking studio
56
Yogurt
You can make your own yogurt using your appliance.
Making yoghurt
Remove accessories and shelf supports from the
cooking compartment. The cooking compartment must
be empty. Do not open the appliance door while the
appliance is in operation.
1. Heat 1 litre of milk (3.5% fat) to 90 °C on the hob
and then leave it to cool down to 40 °C.
It is sufficient to heat UHT milk to 40 °C.
2. Stir in 150 g (chilled) yoghurt.
3. Pour into cups or small jars and cover with cling film.
4. Place the cups or jars onto the cooking
compartment floor and use the settings indicated in
the table.
5. After making the yoghurt, leave it to cool in the
refrigerator.
Type of heating used:
■ T Dough proving
Eco heating functions
Hot air eco and Top/bottom heating eco are intelligent
heating functions that allow you to gently cook meat,
fish and baked items. The appliance optimally controls
the supply of energy to the cooking compartment.The
food is cooked in phases using residual heat. This
means that it remains more succulent and browns less.
Depending on the method of preparation and the type
of food, it is possible to save energy. If you open the
appliance door before the food has finished cooking or
if you preheat the appliance, you may not be able to
achieve this result.
Only use genuine accessories for your appliance.
These have been tailored to the cooking compartment
and the operating modes of your appliance.Remove
any accessories that are not being used from the
cooking compartment.
Place the food into the empty cooking compartment
before the oven is heated up. For Hot air eco, select a
temperature of between 125 and 275 °C, and for Top/
bottom heating eco, select a temperature of between
150 and 250 °C. Always keep the appliance door
closed when cooking. Only cook on one level when
using this function.
The Hot air eco heating function is used to measure
both the energy consumption in air recirculation mode
and the energy efficiency class. The Top/bottom
heating eco heating function is used to measure the
energy consumption in the conventional mode.
Accessories
Ensure that you always use suitable accessories and
that they are placed in the oven the right way around.
Wire rack
Insert the wire rack with the open side facing the
appliance door and the curved lip pointing downwards.
Always place ovenware, tins and dishes on the wire
rack.
Universal pan or baking tray
Slide the universal pan or the baking tray in carefully as
far as the limit stop with the bevelled edge facing the
appliance door.
Baking tins and cookware
Dark- coloured metal baking tins are most suitable.
These allow you to make energy savings of up to 35
per cent.
Cookware made from stainless steel or aluminium
reflects heat like a mirror. Non-reflective cookware
made from enamel, heat-resistant glass or coated, die-
cast aluminium is more suitable.
Tinplate baking tins, ceramic dishes or glass dishes
prolong baking time, and the cake will not brown so
evenly.
Greaseproof paper
Only use greaseproof paper that is suitable for the
selected temperature. Always cut greaseproof paper to
size.
Recommended setting values
Here, you can find specifications for various dishes. The
temperature and baking time are dependent on the
quantity and composition of the dough. Different
settings ranges are indicated for this reason. Try using
the lower values at first. A lower temperature results in
more even browning. If necessary, use a higher setting
the next time.
Note: Baking times can not be reduced by using higher
temperatures. Cakes or baked items would only be
cooked on the outside, but would not be cooked
completely in the middle.
Types of heating used:
■ . Hotair Eco
■ # Top/bottom heating Eco
Dish Cookware Shelf position Type of
heating
Tempera-
ture in °C
Cooking
time in hours
Yoghurt individual moulds cooking compartment floor T 35-40 5-6
Tested for you in our cooking studio en
57
Acrylamide in foodstuffs
Acrylamide is mainly produced in grain and potato
products prepared at high temperatures, such as potato
crisps, chips, sliced bread, bread rolls, bread or fine
baked goods (biscuits, gingerbread, spiced biscuit).
Slow cook
Slow cooking is a technique for cooking food over a
long period at low temperatures. For this reason, it is
also called "low-temperature cooking".
Slow cooking is ideal for all prime cuts (e.g. tender
portions of beef, veal, pork, lamb or poultry) which are
to be cooked "à point". The meat will remain succulent
and tender.
The benefit of this cooking method is that it allows lots
of scope for menu planning because slow-cooked meat
is easy to keep warm. You do not have to turn the meat
Dish Accessories/cookware Shelf po-
sition
Type of
heating
Tempera-
ture in °C
Cooking
time in mins.
Baking
Victoria sponge cake 2x Ø20 cm tins 1 . 170-180 25-35
Light fruit cake high Ø20 cm tin 1 . 150-170 70-90
Rich Fruit Cake high Ø23 cm tin 1 . 140-160 120-180
Fruit crumble flat glass dish 1 . 160-180 40-60
Sponge cake (fatless), 3 eggs springform cake tin, Ø26 cm 1 . 160-170 25-35
Swiss Roll swiss roll tin 1 . 180-200 10-20
Fruit Pie plate Ø20 cm or pie tin 1 . 170-190 60-75
Quiche quiche tin (dark coated) 1 . 190-210 35-45
(White) Bread loaf tin (1x 900 g or 2x 450 g) 1 . 190-200 45-55
Scones baking tray 1 . 190-210 15-20
Biscuits baking tray 2 . 140-160 15-30
Jam tarts 12-cup-tin 1 . 170-190 15-30
Soufflé 1,2 L-soufflé dish 1 . 160-170 40-50
Meat Pie rectangular pie tin 1 . 190-210 40-55
Jacket potatoes baking tray 2 . 150-170 60-90
Meat
Beef, slow roast joint wire rack 1 . 140+150 35+40
Casserole
Diced meat (beef, pork, lamb), 500 g meat cookware, covered 1 . 140 100-120
Braising steak cookware, covered 1 . 140 65+60
Fish
Fish, braised, whole 300 g, e.g. trout cookware, covered 1 # 190-210 25-35
Fish, braised, whole 1,5 kg, e.g. salmon cookware, covered 1 # 190-210 45-55
Fish fillet, plain, braised, 100 g cookware, covered 1 # 190-210 15-35
Tips for keeping acrylamide to a minimum
General ■ Keep cooking times as short as possible.
■ Cook food until it is golden brown, but not too dark.
■ Large, thick pieces of food contain less acrylamide.
Baking With top/bottom heating at max. 200 °C.
With hot air at max. 180 °C.
Biscuits With top/bottom heating at max. 190 °C.
With hot air at max. 170 °C.
Egg or egg yolk reduces the production of acrylamide.
Oven chips Spread out a single layer evenly on the baking tray. Cook at least 400 g at once on a baking tray so that
the chips do not dry out.
en Tested for you in our cooking studio
58
when cooking. Keep the appliance door closed in order
to maintain an even cooking climate.
Only use fresh, clean and hygienic meat without bones.
Carefully remove sinews and fat from around the edge.
Fat develops a strong, distinct flavour during slow
cooking. You can also use seasoned or marinated
meat. Do not use defrosted meat.
Meat can be carved immediately following slow
cooking. No standing time is required. Due to the
special cooking method, the meat looks pink, but is not
raw or undercooked.
Note: Delayed-start operation with an end time is not
possible for the slow cooking heating type.
Cookware
Use flat cookware, e.g. a glass/porcelain serving dish.
Place the cookware into the cooking compartment to
preheat it.
Always place the uncovered cookware onto the wire
rack at level 1.
You can find additional information in the tips on slow
cooking attached to the settings table.
Your appliance features the heating type "Slow cook".
Only start operation when the cooking compartment
has fully cooled down. Allow the cooking compartment
to warm up for around 10 minutes with the cookware
inside.
Sear the meat on the hotplate at a very high heat and
for a sufficiently long time on all sides, even on the
ends. Place into the preheated cookware right away.
Place the cookware containing the meat into the
cooking compartment once again and cook slowly.
Recommended setting values
The slow cooking temperature and cooking time are
dependent on the size, thickness and quality of the
meat. Different settings ranges are indicated for this
reason.
Type of heating used:
■ . Slow cooking
Dish Cookware Shelf posi-
tion
Heating
function
Searing time
in mins
Tempera-
ture in °C
Cooking
time in
mins
Poultry
Duck breast, medium rare, 300 g
each
Cookware, uncovered 1 . 6-8 95* 45-60
Chicken breast fillet, 200 g each, well
done
Cookware, uncovered 1 . 4 120* 45-60
Turkey breast, boned, 1 kg, well done Cookware, uncovered 1 . 6-8 120* 100-130
Pork
Pork tenderloin steak, 5-6 cm thick,
1.5 kg
Cookware, uncovered 1 . 6-8 85* 130-180
Fillet of pork, whole Cookware, uncovered 1 . 4-6 85* 45-70
Beef
Joint of beef (rump), 6-7 cm thick,
1.5 kg
Cookware, uncovered 1 . 6-8 100* 150-190
Fillet of beef, 1 kg Cookware, uncovered 1 . 4-6 85* 90-120
Sirloin, 5-6 cm thick Cookware, uncovered 1 . 6-8 85* 120-180
Beef medallions/rump steak, 4 cm
thick
Cookware, uncovered 1 . 4 85* 40-60
Veal
Joint of veal, 4-5 cm thick, 1.5 kg Cookware, uncovered 1 . 6-8 85* 100-130
Joint of veal, 7-10 cm thick, 1.5 kg Cookware, uncovered 1 . 6-8 85* 150-210
Fillet of veal, whole, 800 g Cookware, uncovered 1 . 4-6 85* 70-120
Veal medallions, 4 cm thick Cookware, uncovered 1 . 4 80* 40-60
Lamb
Saddle of lamb, boneless, 200 g each Cookware, uncovered 1 . 4 85* 30-45
Leg of lamb, boned, medium, 1 kg,
tied
Cookware, uncovered 1 . 6-8 95* 120-180
* Preheat
Tested for you in our cooking studio en
59
Tips for slow cooking
Drying
With 4D hot air, you can dry foods with outstanding
results. With this type of preserving, flavourings are
concentrated by the dehydration.
Only use unblemished fruit, vegetables and herbs and
wash them thoroughly. Line the wire rack with
greaseproof paper or parchment paper. Drain the
excess water from the fruit and dry it.
If necessary, cut it into equal chunks or thin slices.
Place unpeeled fruit onto the dish with the sliced
surfaces facing upwards. Ensure that neither fruit nor
mushrooms overlap on the wire rack.
Grate vegetables and then blanch them. Allow the
blanched vegetables to drain off and distribute them
evenly on the wire rack.
Dry herbs on the stem. Position the herbs evenly and
slightly heaped on the wire rack.
Use the following shelf positions when drying:
■ 1 wire rack: Level 2
■ 2 wire racks: Level 3+1
Turn very juicy fruit and vegetables several times. After
drying, remove the dried products from the paper
immediately.
Recommended setting values
In the table, you can find settings for drying various
foodstuffs. The temperature and cooking time are
dependent on the type, moisture, ripeness and
thickness of the food to be dried. The longer you leave
the food to be dried, the better it will be preserved. The
thinner the slices are, the quicker the drying process
will be and the more aromatic the dried food will
remain. Setting ranges are indicated for this reason.
If you wish to dry additional foodstuffs, you should use
similar foodstuffs in the table as a reference.
Type of heating used:
■ < 4D hot air
Preserving and juicing
Your appliance is also suitable for preserving and
juicing.
Preserving
You can preserve fruit and vegetables using your
appliance.
:Warning – Risk of injury!
If the food is preserved incorrectly, the preserving jars
may burst. Follow the instructions for preserving.
Jars
Use only clean and undamaged preserving jars. Only
use heat-resistant, clean and undamaged rubber rings.
Check clips and clamps in advance.
Tip: You can use the disinfecting function to clean the
jars.
For each preserving process, only use preserving jars
that are the same size and contain the same food. In
the cooking compartment, you can preserve the
contents of a maximum of six ^, 1 or 1^-litre
preserving jars at the same time. Do not use jars that
are larger or taller than this. The lids could rupture.
Preserving jars must not touch one another in the
cooking compartment during the preserving process.
Preparing fruit and vegetables
Only use fruit and vegetables that are in good condition.
Wash them thoroughly.
Peel, core and chop fruit and vegetables appropriate to
their type and fill the preserving jars with them up to
approx. 2 cm below the rim.
Fruit: Fill the preserving jars with the fruit along with a
hot, skimmed sugar solution (approx. 400 ml for a 1-
litre jar). For one litre of water:
■ Approx. 250 g sugar for sweet fruit
■ Approx. 500 g sugar for sour fruit
Vegetables: Fill the jars with the vegetables along with
hot, boiled water.
Slow-cooking duck breast. Place the cold duck breast into a pan and fry the skin side first. After slow cooking, grill for 3 to 5 minutes until
crispy.
The slow-cooked meat is not as hot as
conventionally roasted meat.
So that the roasted meat does not cool so quickly, warm the plates and serve the sauces very hot.
Dish Accessories Shelf posi-
tion
Type of
heating
Tempera-
ture in °C
Cooking
time in
hours
Pomes (apple rings, 3 mm thick, 200 g per
wire rack)
Wire rack 2 < 80 4-7
Stone fruit (plums) Wire rack 2 < 80 8-10
Root vegetables (carrots), grated, blanched Wire rack 2 < 80 4-7
Sliced mushrooms Wire rack 2 < 60 6-8
Herbs, washed 1-2 wire racks - < 60 2-6
en Tested for you in our cooking studio
60
Wipe the rims of the jars, as they must be clean. Place
a damp rubber ring and a lid on each jar. Seal the jars
with clamps. Place the jars into the perforated steam
container (size XL) so that they do not touch each other.
Pour 500 ml hot water (approx. 80 °C) into the
universal pan. Use the settings indicated in the table.
Ending the preserving process
After the specified cooking time, open the appliance
door. Do not remove the preserving jars from the
cooking compartment until they have completely cooled
down.
Wipe the cooking compartment clean afterwards.
Juicing
Before juicing, place the berries in a bowl and sprinkle
with sugar. Leave to stand for at least one hour to draw
out the juice.
Then fill the perforated steam container (size XL) with
the berries and insert into the oven at level 2. Slide the
universal pan in underneath to collect any juice. Use the
settings indicated in the table.
After cooking, wrap the berries in a cloth and squeeze
out the remaining juice.
Wipe the cooking compartment clean afterwards.
Recommended setting values
The times indicated in the settings table are guideline
values for preserving fruit and vegetables and for
juicing fruit. They may be influenced by room
temperature, number of jars, quantity, heat and the
quality of the jar contents. The specifications are based
on 1-litre round jars.
Type of heating used:
■ S Steaming
Sterilising bottles and hygiene
Using your appliance, you can very easily sterilise
cookware and baby feeding bottles. The process
corresponds to normal sterilisation by boiling.
Sterilising bottles
Always clean the bottles with a bottle brush
immediately after use. Then clean them in the
dishwasher.
Place the bottles into the steam container, size XL, so
that they do not touch each other. Start the programme
"Sterilising". After sterilising, wipe the appliance down
inside. Dry the bottles with a clean cloth after sterilising.
Hygiene
Your appliance is also suitable for preparing jam jars or
preserving jars and their corresponding lids.
Post-treatment of jam is also possible. This improves
the storage life of the jam.
Recommended setting values
Only use clean, intact jars and lids. They should ideally
be cleaned in the dishwasher in advance. Cookware
must be heat- and steam-resistant.
The recommended times are dependent on the jars
used.
Type of heating used:
■ S Steaming
Dish Accessories/cookware Shelf posi-
tion
Type of
heating
Tempera-
ture in °C
Cooking
time in
mins.
Preserving
Vegetables, e.g. carrots 1-litre preserving jars + XL steam container 1 S 100 30-120
Stone fruit, e.g. cherries, damsons 1-litre preserving jars + XL steam container 1 S 100 25-30
Pomes, e.g. apples, strawberries 1-litre preserving jars + XL steam container 1 S 100 25-30
Juicing
Raspberries Steam container 2 S 100 30-45
Redcurrants Steam container 2 S 100 40-50
Dish Accessory Shelf po-
sition
Type of
heating
Tempera-
ture in °C
Cooking
time in
mins.
Hygiene
Preparing jam jars or preserving jars XL steam container 1 S 100 10-15
Post-treating jam jars XL steam container 1 S 100 15-20
Sterilising clean cookware* XL steam container 1 S 100 15-20
* This process corresponds to normal sterilisation by boiling.
Tested for you in our cooking studio en
61
Allowing the dough to prove at dough
proving setting
Yeast dough will prove considerably more quickly using
the "Dough proving" heating type than at room
temperature and does not dry out. Only start operation
when the cooking compartment has fully cooled down.
Always allow yeast dough to prove twice. Observe the
specifications in the settings tables for the 1st and 2nd
proving processes (dough fermentation and final
fermentation).
Dough fermentation
Position the dough bowl on the wire rack for the dough
fermentation. Use the settings indicated in the table.
Do not open the appliance door during the proving
process, as moisture will escape. Do not cover the
dough.
Final fermentation
Place your baked item into the oven at the shelf position
indicated in the table.
Wipe moisture from the cooking compartment before
baking.
Recommended setting values
The temperature and proving time are dependent on
the type and quantity of the ingredients. The values in
the table are therefore only meant to be average values.
Type of heating used:
■ T Dough proving
Defrosting
The steam function "Defrost" is suitable for defrosting
frozen fruit and vegetables. Use heating type 4D hot air
to defrost baked items. Poultry, meat and fish should
ideally be defrosted in the refrigerator.
Remove frozen food from any packaging when
defrosting it.
Place frozen fruit and vegetables into the perforated
steam container (size XL) and slide the universal pan in
underneath. This means that the food does not remain
in the meltwater and that any dripping liquid will be
caught. Use the universal pan or cookware on the wire
rack for frozen food where liquid should remain in the
dish, e.g. frozen creamed spinach.
Place the baked item onto the wire rack.
Dish Accessories/cookware Shelf posi-
tion
Type of
heating
Step Tempera-
ture in °C
Cooking
time in
mins.
Yeast dough, sweet
E.g. small baked items Bowl 1 T Dough fer-
mentation
35-40 30-45
Universal pan 1 T Final fermen-
tation
35-40 10-20
Rich dough, e.g. panettone Bowl 1 T Dough fer-
mentation
35-40 20-40
Tin on wire rack 1 T Final fermen-
tation
35-40 10-20
Yeast dough, savoury
E.g. pizza Bowl 1 T Dough fer-
mentation
40-45 40-90
Universal pan 1 T Final fermen-
tation
40-45 30-60
Bread dough
White bread Bowl 1 T Dough fer-
mentation
35-40 30-40
Universal pan 1 T Final fermen-
tation
35-40 15-25
Multigrain bread Bowl 1 T Dough fer-
mentation
35-40 25-40
Universal pan 1 T Final fermen-
tation
35-40 10-20
Bread rolls Bowl 1 T Dough fer-
mentation
35-40 30-40
Universal pan 1 T Final fermen-
tation
35-40 15-25
en Tested for you in our cooking studio
62
Recommended setting values
The times in the table are average values. They are
dependent on the quality, freezing temperature (-18 °C)
and composition of the food. Time ranges are indicated.
Set the shortest time first and then increase the time if
necessary.
Tip: Items which were frozen flat or portioned defrost
faster than those frozen in a block.
Types of heating used:
■ < 4D hot air
■ B Defrosting
Reheating
Using heating type "Reheating", food is reheated gently
using steam. It tastes and looks as though it has been
freshly prepared. Even baked items from the day before
can be re-crisped.
Use containers which are as flat, wide and heat-
resistant as possible. Cold containers prolong the
reheating process.
Where possible, only reheat dishes of the same size
and type at the same time. If this is not possible, the
time required for the component with the longest
reheating time should be used as a basis.
Do not cover food while it is being reheated.
Place the food in the cookware onto the wire rack or
place it directly onto the wire rack at level 1.
Do not open the appliance door during operation, as a
lot of steam will escape.
Recommended setting values
In the table, you can find the ideal settings for various
dishes. The times specified are only average values.
They are dependent on the cookware used, the quality,
temperature and consistency of the food. Time ranges
are indicated. Set the shortest time first and then extend
the time if necessary.
The values in the table apply to dishes placed into a
cold cooking compartment. Preheating is necessary for
selected dishes, and this is indicated in the table.
Remove unused accessories from the cooking
compartment. This will allow you to achieve ideal
cooking results and save energy.
Type of heating used:
■ U Reheating
Dish Accessories Shelf posi-
tion
Type of
heating
Tempera-
ture in °C
Cooking
time in
mins.
Bread, bread rolls
General Baking tray 1 < 50 40-70
Cake
Cake, moist Baking tray 1 < 50 70-90
Cake, dry Baking tray 1 < 60 60-75
Fruit, vegetables
Berries Steam container 2 B 30-40 10-15
Vegetables Steam container 2 B 40-50 15-50
Dish Accessories/cookware Shelf posi-
tion
Type of
heating
Tempera-
ture in °C
Cooking
time in
mins.
Vegetables, chilled
1 kg Cookware, uncovered 1 U 120-130 15-25
250 g Cookware, uncovered 1 U 120-130 5-15
Dishes, chilled
Plated meal, 1 portion Cookware, uncovered 1 U 120-130 15-25
Soup, stew, 400 ml Cookware, uncovered 1 U 120-130 10-25
Side dishes, e.g. pasta, dumplings, potatoes,
rice
Cookware, uncovered 1 U 120-130 8-25
Bakes, e.g. lasagne, potato gratin Cookware, uncovered 1 U 120-140 10-25
Pizza, cooked Wire rack 1 U 170-180* 5-15
* Preheat
Tested for you in our cooking studio en
63
Keeping warm
You can keep cooked dishes warm using the "Keeping
warm" heating type. You can use the various moisture
levels to prevent the cooked dishes from drying out.
Do not cover the food.
Do not keep cooked dishes warm for longer than two
hours. Be aware that some dishes may continue
cooking whilst being kept warm. Do not cover the food.
The various steam levels are suitable for keeping the
following foods warm:
■ Level 1: Roasted joints and pan-fried foods
■ Level 2: Bakes and side dishes
■ Level 3: Stews and soups
Test dishes
These tables have been produced for test institutes to
facilitate appliance testing.
As per EN 60350-1.
Baking
Baked items that are placed into the oven on trays or in
baking tins/dishes at the same time will not necessarily
be ready at the same time.
Shelf positions for baking on two levels:
■ Universal pan: Level 3
Baking tray: Level 1
Apple pie
Apple pie on one level: place dark-coloured springform
cake tins diagonally next to each other.
Cakes in tinplate springform cake tins: bake on one
level with top/bottom heating. Place the springform
cake tin onto the universal pan instead of onto the wire
rack.
Notes
■ The setting values apply to dishes placed into a cold
cooking compartment.
■ Please note the information in the tables about
preheating. The setting values are valid without rapid
heating-up.
■ For baking, use the lower of the indicated
temperatures first.
Types of heating used:
■ < 4D hot air
■ % Top/bottom heating
■ $ Pizza setting
The levels of steam intensity are indicated as numbers
in the table:
■ 1 = Low
■ 2 = Medium
■ 3 = High
Baked goods
Bread rolls, baguette, baked Wire rack 1 U 150-160* 10-20
Pastries (vol-au-vents) Wire rack 1 U 180* 4-10
Baked goods, frozen
Pizza, cooked Wire rack 1 U 170-180* 5-15
Bread rolls, baguette, baked Wire rack 1 U 160-170* 10-20
Dish Accessories/cookware Shelf posi-
tion
Type of
heating
Tempera-
ture in °C
Cooking
time in
mins.
* Preheat
Dish Accessories/cookware Shelf posi-
tion
Type of
heating
Tempera-
ture in °C
Steam in-
tensity
Cooking
time in
mins.
Baking
Shortbread Baking tray 1 % 150-160* - 25-40
Shortbread Baking tray 1 < 140-150* - 25-35
Shortbread, 2 levels Universal pan + baking tray 3+1 < 140-150* - 30-40
Small cakes Baking tray 1 % 160* - 25-35
Small cakes Baking tray 1 < 150* - 25-35
Small cakes, 2 levels Universal pan + baking tray 3+1 < 150* - 25-35
Fatless sponge cake Springform cake tin, diameter 26 cm 1 % 160-170** - 25-35
Fatless sponge cake Springform cake tin, diameter 26 cm 1 < 160-170** - 25-35
* Preheat for 5 mins, do not use quick heat function
** Preheat, do not use quick heat function
en Tested for you in our cooking studio
64
Steam
Slide the universal pan in under the perforated steam
container (size XL) if indicated in the table. Any dripping
liquid is caught.
Shelf positions for steaming on one level (use a
maximum of 2.5 kg):
■ Perforated steam container (size XL): Level 2
Shelf positions for steaming on two levels (use a
maximum of 1.8 kg per level):
■ Perforated steam container (size XL): Level 3
■ Perforated steam container (size XL): Level 2
Type of heating used:
■ S Steaming
Grilling
Also slide in the universal pan. The liquid will be caught
and the cooking compartment stays cleaner.
Type of heating used:
■ ( Grill, large area
Fatless sponge cake Springform cake tin, diameter 26 cm 1 < 150-160 1 10
- 20-30
Apple pie 2 x black plate tins, diameter 20 cm 1 % 180-200 - 60-70
Apple pie 2 x black plate tins, diameter 20 cm 1 $ 170-180 - 60-80
Dish Accessories/cookware Shelf posi-
tion
Type of
heating
Tempera-
ture in °C
Steam in-
tensity
Cooking
time in
mins.
* Preheat for 5 mins, do not use quick heat function
** Preheat, do not use quick heat function
Dish Accessories Shelf posi-
tion
Type of
heating
Tempera-
ture in °C
Cooking
time in
mins.
Steam
Peas, frozen, two containers, 1.8 kg each XL steam container x 2 + universal pan 3+2+1 S 100 3-15**
Broccoli, fresh, 300 g XL steam container 2 S 100* 6-7***
Broccoli, fresh, one container XL steam container 2 S 100* 6-7***
* Preheat
** Test is over when 85°C is reached at the coldest spot (see IEC 60350-1)
*** A comparable degree of cooking between reference sample and main sample is achieved if the reference sample is
cooked for 5 minutes (produced as described in IEC 60350-1).
Dish Accessories Shelf posi-
tion
Type of
heating
Grill
setting
Cooking
time in
mins.
Grilling
Browning toast Wire rack 3 ( 3 2-6
Beefburgers, x 12* Wire rack 2 ( 3 20-30
* Turn after 2/3 of the total time
6
6
6
5IBOLZPVGPSCVZJOHB
#PTDI)PNF"QQMJBODF
5HJLVWHU\RXUQHZGHYLFHRQ0\%RVFKQRZDQGSURILWGLUHFWO\IURP
t&YQFSUUJQTUSJDLTGPSZPVSBQQMJBODF
t8BSSBOUZFYUFOTJPOPQUJPOT
t%JTDPVOUTGPSBDDFTTPSJFTTQBSFQBSUT
t%JHJUBMNBOVBMBOEBMMBQQMJBODFEBUBBUIBOE
t&BTZBDDFTTUP#PTDI)PNF"QQMJBODFT4FSWJDF
)UHHDQGHDV\UHJLVWUDWLRQ²DOVRRQPRELOHSKRQHV
XXXCPTDIIPNFDPNXFMDPNF
-PPLJOHGPSIFMQ
:PV}MMGJOEJUIFSF
([SHUWDGYLFHIRU\RXU%RVFKKRPHDSSOLDQFHVQHHGKHOSZLWKSUREOHPV
RUDUHSDLUIURP%RVFKH[SHUWV
)LQGRXWHYHU\WKLQJDERXWWKHPDQ\ZD\V%RVFKFDQVXSSRUW\RX
XXXCPTDIIPNFDPNTFSWJDF
$POUBDUEBUBPGBMMDPVOUSJFTBSFMJTUFEJOUIFBUUBDIFETFSWJDFEJSFDUPSZ
3PCFSU#PTDI)BVTHFSÉUF(NC)
&DUO:HU\6WUDH
0QFKHQ
*HUPDQ\
XXXCPTDIIPNFDPN
*9001268351*
9001268351
980705
