Assembly Instructions for Model: VMPL250
Thank you for choosing a Sanus Systems Vision Mount Wall Mount. This product is designed to mount at panel televisions up to 50” and weighing
up to 130 lbs. only 1.25” off of the wall.
Safety Warning: If you do not understand these directions, or have any doubts about the safety of the installation, please call a qualied contractor or
contact Sanus at 800.359.5520 or www.sanus.com. We can quickly assist you with installation questions and missing or damaged parts. Replacement
parts for Sanus products purchased through authorized dealers will be shipped directly to you. Check carefully to make sure there are no missing or
defective parts. Never use defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is
not explicitly specied by Sanus Systems. Sanus Systems can not be liable for damage or injury caused by incorrect mounting, incorrect assembly, or
incorrect use.
Note: The supplied wall mounting hardware is not for steel stud walls or old cinder block walls. If you are uncertain about the nature of your wall,
consult an installation contractor. Sanus makes every effort to assure all necessary television mounting hardware is included. If the hardware you need
is not included please consult your local hardware store or call Sanus Systems.
Required Tools: 3/16 drill bit, 1/2” Masonry Bit for brick concrete or concrete block installations, wrench or socket set, Phillips screw driver.

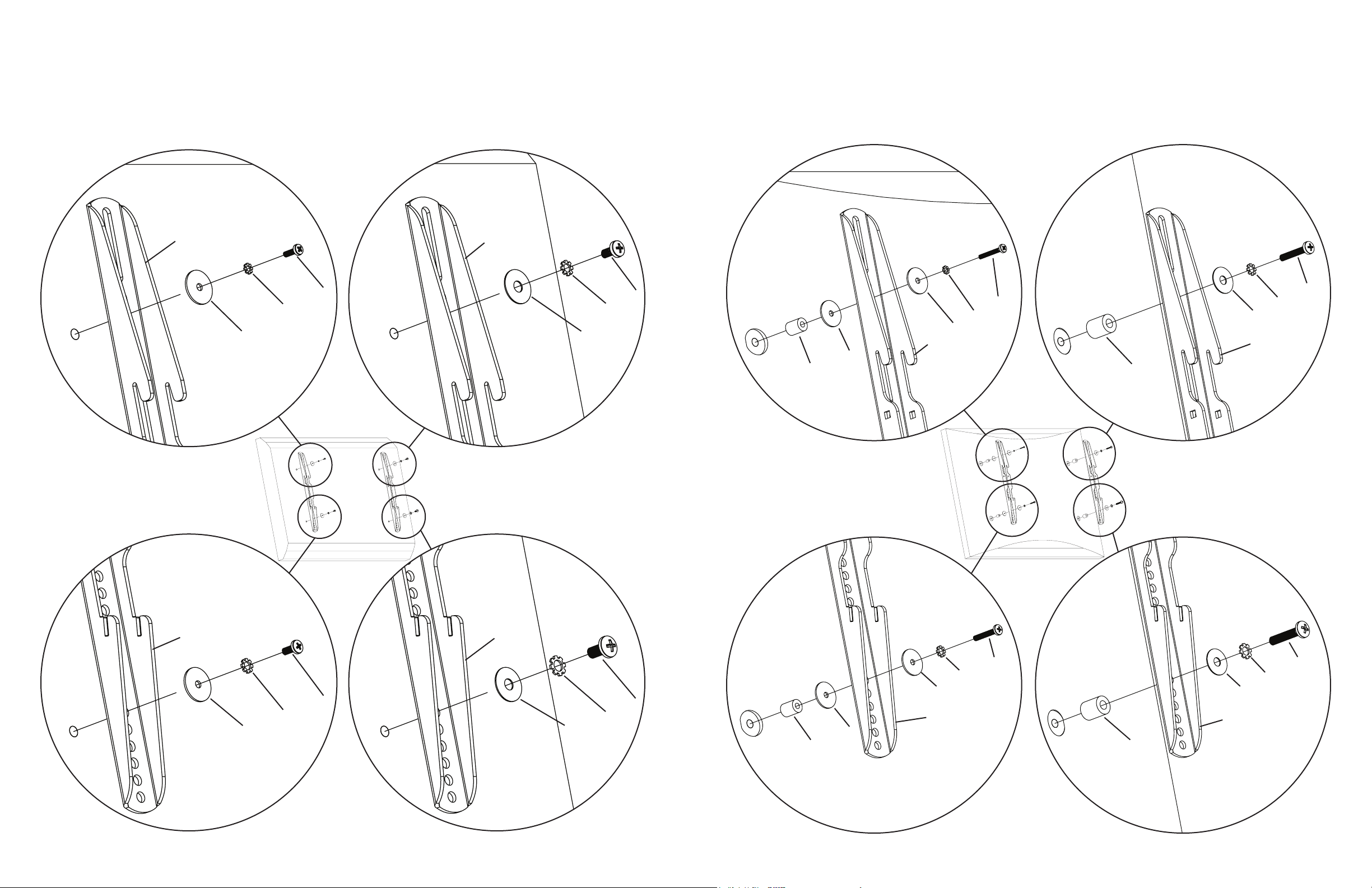

Supplied Parts: *Not shown as actual size
(1) Wall Plate - a* (1) Safety Bar - b* (2) Monitor Bracket - c*
(4) M4 x 12 Bolt - d (4) M5 x 12 Bolt - e (4) M6 x 12 Bolt - f (4) M8 x 16 Bolt - g
(4) M4 x 30 Bolt - h (4) M5 x 30 Bolt - i (4) M6 x 35 Bolt - j (4) M8 x 40 Bolt - k
(4) M4 Lock Washer - l (4) M5 Lock Washer - m (4) M6 Lock Washer - n (4) M8 Lock Washer - o
(4) M4/M5 Spacer - p (4) M6/M8 Spacer - q (8) M4/M5 Washer - r (4) M6/M8 Washer - s
(6) Lag Bolt - t (6) Lag Bolt Washer - u (6) Concrete Anchor - v
Sanus Systems 2221 Hwy 36 West. St. Paul, MN 55113
www.sanus.com 800.359.5520 8.11.05
Step 3: Mounting the Wall Plate: Wood Stud, Brick, Solid Concrete, and Concrete Block mounting options are provided.
Wood Stud mounting:
The Wall Plate (a) must be mounted to two wood studs at least 12" apart. Use a high quality stud sensor to locate two adjacent
studs. It is a good idea to verify where the studs are located with an awl or thin nail shown in Diagram 3a. Pre-drill a 2.5" deep hole at
the desired height in each stud using a 3/16" drill bit. Make sure these holes are in the center area of the studs and level with each other.
Use the Wall Plate as a template to mark the location of the second hole in each stud. Drill 2.5" deep holes using the 3/16" drill bit in the
marked location. Attach the Wall Plate to the wall using the four Lag Bolts (t) and four Lag Bolt Washers (u). Make sure the Wall Plate
is oriented so the at surface in the center of the plate is against the wall and that a set of Lag Bolts is on each side of the center of the
Wall Plate as shown in Diagram 3b.
Brick, Solid Concrete and Concrete Block mounting:
Use the Wall Plate (a) as a template to mark 6 hole locations on the wall. Locate the outer holes as far to the outer edges of the wall
plate as possible. Three in the top row of slots and three more in the bottom row. Make sure these holes are level and there is at least 6"
between any two holes. Pre-Drill these holes with a 1/2" masonry bit to at least 2.5" in depth. Insert a Concrete Anchor (v) into each of
these holes. Make sure the anchor is seated completely ush with the concrete surface even if there is a layer of drywall or other material
in front. Attach the Wall Plate to the wall using six Lag Bolts (t) and six Lag Bolt Washers (u).
Diagram 3a Diagram 3b
a
t u
Step 4: Hang the TV onto the Wall Plate:
First, hook the Monitor Brackets (c) over the top of the Wall Plate (a), then let the bottom of the Monitor Brackets rotate in under the
bottom of the Wall Plate as shown in Diagram 4a. Insert the Safety Bar (b) into the slots in the bottom of the Monitor Brackets so that
it sits behind the bottom tab on the Wall Plate as shown in Diagram 4b. The bend in the end of the Safety Bar should face toward the
wall. Once the bar passes out the other side of the Wall Plate a padlock (sold seperately) can be added to the hole in the Safety Bar for
additional security.
Diagram 4a Diagram 4b
c
slot in
monitor
bracket
a
a
wall
c b
