Napoleon TQ285-X-BL-AU Travel Q 285 With Scissor Cart Portable LPG BBQ

User Manual - Transcript

• Page 1 - English - : PG15 DANGER IF YOU SMELL GAS Shut o gas to the appliance Exnguish any open ame Open lid If odor connues keep away from the appliance and immediately call your gas supplier or re department APPLY SERIAL NUMBER LABEL FROM CARTON Serial No XXXXXX000000 MODEL NO This gas grill must be used only outdoors in a wellvenlated space and must not be used inside a building garage screenedin porch gazebo or any other enclosed area N4150340 AU JUL 0416 Noce to Installer Leave these instrucons with the grill owner for future reference Adults and especially children should be alerted to the hazards of high surface temperatures Young children should be supervised near the gas grill TQ285X WARNING Failure to follow these instrucons exactly could result in re or explosion which could cause property damage personal injury or death WARNING Do not try to light this appliance without reading the LIGHTING instrucons secon of this manual Do not store or use gasoline or other ammable liquids or vapors in the vicinity of this or any other appliance An LP cylinder not connected for use must not be stored in the vicinity of this or any other appliance If the informaon in these instrucons is not followed exactly a re or explosion may result causing property damage personal injury or death SAI Global SAI400093 AS4557 DO NOT REMOVE wwwgtrcgov au Napoleon Group of Companies 214 Bayview Dr Barrie Ontario Canada L4N 4Y8 Phone 17057264278 Fax 7057274282 wwwnapoleongrillscom Customer Soluons 18668208686 or grillsnapoleonproductscom DO NOT DISCARD
• Page 2 - English - : wwwnapoleongrillscom THANK YOU FOR CHOOSING NAPOLEON NAPOLEON products are designed with superior components and materials and are assembled by trained crasmen who take great pride in their work This grill has been thoroughly inspected by a qualied technician before packaging and shipping to ensure that you the customer receive the quality product you expect from NAPOLEON We at Napoleon are dedicated to you our valued customer It is our goal to provide you with the necessary tools for an unforgeable grilling experience This manual is provided to assist you in assuring your new grill is assembled installed maintained and cared for properly It is important to read and understand this enre manual before operang your new grill to ensure you fully understand all the safety precauons and features your grill has to oer By carefully following these instrucons you will enjoy years of troublefree grilling If this product fails to meet your expectaons for any reason please call our customer soluons department at 18668208686 between 9 AM and 5 PM Eastern Standard Time or visit our Website at wwwnapoleongrillscom Napoleon Gas Grill Presidents Limited Warranty NAPOLEON warrants that components in your new NAPOLEON product will be free from defects in material and workmanship from the date of purchase for the following period Lid Assembly 5 years plus5 Base Casng 5 years plus5 Stainless steel tube burners 5 years plus5 Porcelainenameled cast iron cooking grids 5 years plus5 Plasc components 5 years All other parts 2 years plus5 indicates a period of extended warranty coverage whereby the replacement part will be made available to the consumer for an addional 5 years at 50 of the current retail price Condions and Limitaons NAPOLEON warrants its products against manufacturing defects to the original purchaser only provided that the purchase was made through an authorized NAPOLEON dealer and is subject to the following condions and limitaons This factory warranty is nontransferable and may not be extended whatsoever by any of our representaves This limited warranty does not cover damages caused by misuse lack of maintenance grease res hosle environments accident alteraons abuse or neglect and parts installed from other manufacturers will nullify this warranty Discoloraon to plasc parts from chemical cleaners or UV exposure is not covered by this warranty This limited warranty further does not cover any scratches dents painted or plated nishes corrosion or discoloring by heat abrasive and chemical cleaners nor chipping on porcelain enamel parts Should deterioraon of parts occur to the degree of nonperformance rusted through or burnt through within the duraon of the warranted coverage a replacement part will be provided Aer the rst year with respect to this Presidents Limited Warranty NAPOLEON may at its discreon fully discharge all obligaons with respect to this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defecve parts NAPOLEON will not be responsible for the installaon labor or any other costs or expenses related to the re installaon of a warranted part and such expenses are not covered by this warranty Notwithstanding any provision contained in this Presidents Limited Warranty NAPOLEONs responsibility under this warranty is dened as above and it shall not in any event extend to any incidental consequenal or indirect damages This warranty denes the obligaon and liability of NAPOLEON with respect to the NAPOLEON gas grill and any other warranes expressed or implied with respect to this product its components or accessories are excluded NAPOLEON neither assumes nor authorizes any third party to assume on its behalf any other liabilies with respect to the sale of this product NAPOLEON will not be responsible for over ring blow outs caused by environmental condions such as strong winds or inadequate venlaon Any damages to the gas grill due to weather damage hail rough handling damaging chemicals or cleaners will not be the responsibility of NAPOLEON The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from NAPOLEON NAPOLEON reserves the right to have its representave inspect any product or part prior to honoring any warranty claim NAPOLEON shall not be liable for any transportaon charges labor costs or export dues
• Page 3 - English - : wwwnapoleongrillscom This instrucon manual contains important informaon necessary for the proper assembly and safe use of the appliance Read and follow all warnings and instrucons before assembly and using the appliance Follow all warnings and instrucons when using the appliance Safe Operang Pracces This gas grill must be assembled exactly according to the instrucons in the manual If the grill was store assembled you must review the assembly instrucons to conrm correct assembly and perform the required leak tests before operang the grill Read the enre instrucon manual before operang the gas grill This gas grill must only be used outdoors in a wellvenlated space and must not be used inside a building garage screened in porch gazebo or any other enclosed area Do not use this grill under extended awnings Failure to follow these instrucons could result in a re or personal injury This gas grill must not be installed in or on recreaonal vehicles andor boats This gas grill is designed for Universal LPG only Do not locate in windy sengs High winds adversely aect the cooking performance of the gas grill Under no circumstances should this gas grill be modied Do not operate unit under any combusble construcon Maintain proper clearance to combusbles 18 457mm to rear of unit 18 457mm to sides Addional clearance is recommended near vinyl siding or panes of glass The gas supply hose oponal must be installed in a manner that will not allow contact with any hot surfaces of the grill while in use or in the storagetravel mode The propane cylinder must be disconnected when the gas grill is not in use When the propane cylinder is connected to the appliance the gas grill and cylinder must be stored outdoors in a wellvenlated space When the gas grill is to be stored indoors the connecon between the propane cylinder and the gas grill must be disconnected and the cylinder removed and stored outdoors in a well venlated space out of reach of children Disconnected cylinders must not be stored in a building garage or any other enclosed area Inspect the gas supply hose oponal before each use If there is evidence of excessive abrasion or wear or the hose is cut it must be replaced prior to using the gas grill with a replacement pressure regulator and hose assembly specied by the grill manufacturer Do not route hose oponal underneath drip pan proper hose clearance to boom of unit must be maintained Leak test the unit before inial use annually and whenever any gas components are replaced Follow the lighng instrucons carefully when operang grill Do not light burners with lid closed The use of alcohol prescripon or nonprescripon drugs may impair the consumers ability to properly assemble or safely operate the gas grill Do not leave grill unaended when operang Keep children and pets away from the appliance at all mes Do not move grill when hot or operang Keep any electrical supply cord and fuel supply hose away from any heated surfaces Clean grease tray regularly to avoid buildup which may lead to grease res Do not use water beer or any other liquids to control areups Do not use a pressure washer to clean any part of the unit This gas grill is not intended for commercial use This gas grill is not intended for and should never be used as a heater
• Page 4 - English - : wwwnapoleongrillscom Locang Your Outdoor Gas Grill It is important when selecng a locaon for your gas grill to ensure clearances to adjacent combusbles are met This appliance is intended for installaon on an outdoor pao or in your yard This appliance shall only be used in an above ground openair situaon with natural venlaon without stagnant areas where gas leakage and products of combuson are rapidly dispersed by wind and natural convecon Any enclosure in which the appliance is used shall comply with one of the following An enclosure with walls on all sides but at least one permanent opening at ground level and no overhead cover Within a paral enclosure that includes an overhead cover and no more than two sidewalls These sidewalls may be parallel as in a breezeway or at right angles to each other Within a paral enclosure which includes an overhead cover and more than two walls the following shall apply a at least 25 of the total wall area is completely open and b at least 30 of the remaining wall area is open and unrestricted In the case of balconies at least 20 of the total of the side back and front wall areas shall be and remain open and unrestricted Locaon Open both ends Open side at least 25 of total wall area 30 or more in total of the remaining wall area is open and unrestricted Open side at least 25 of total wall area 30 or more in total of the remaining wall area is open and unrestricted

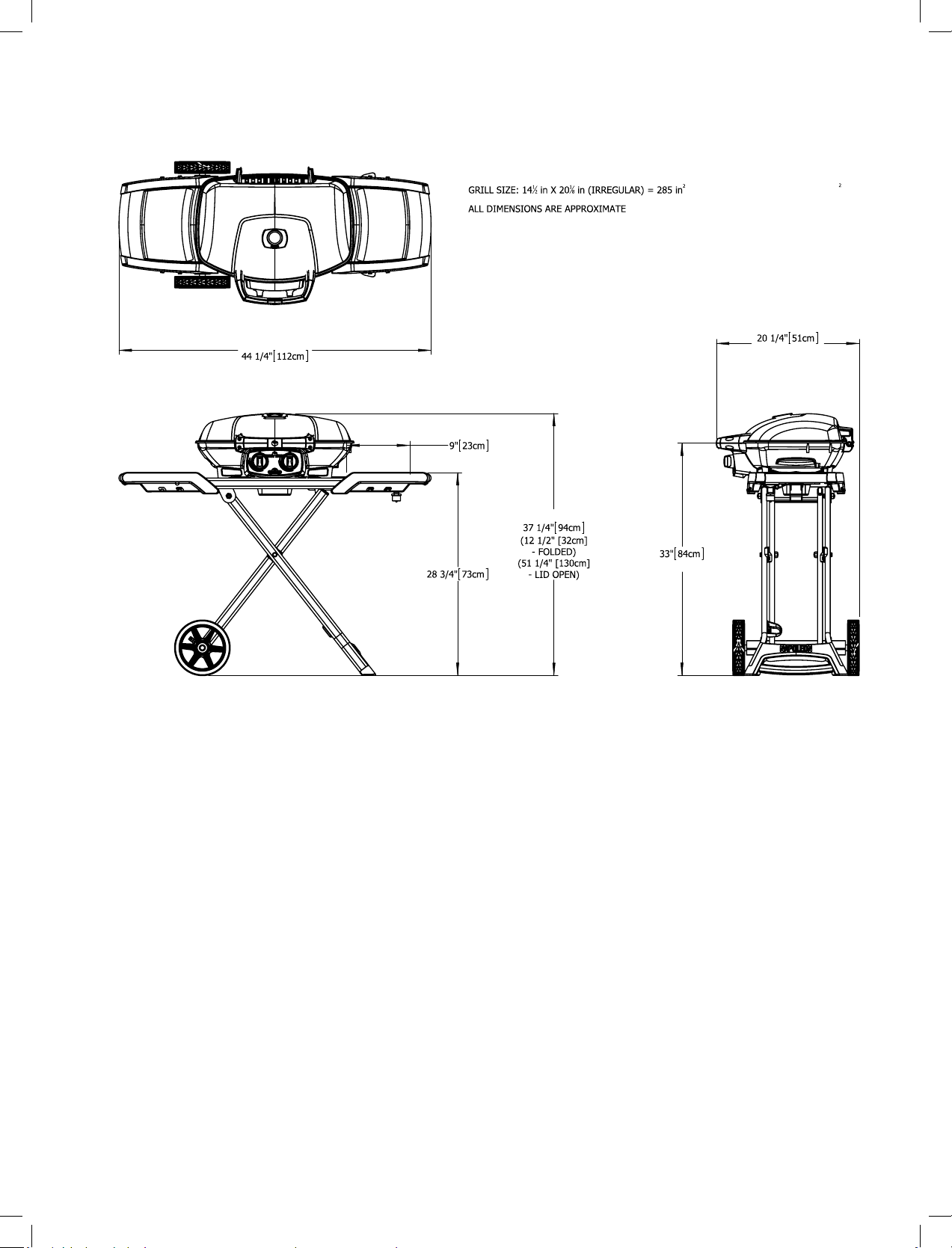

• Page 5: wwwnapoleongrillscom OVERALL HEIGHT 37 cm X 54 cm IRREGULAR 1840 cm DIMENSIONS
• Page 6 - English - : wwwnapoleongrillscom Handle With Care CAUTION Use care when handling or transporng your grill to prevent damage and misalignment of internal components Although this grill has been designed with mobility in mind rough handling or abuse will result in damage to internal components prevenng your grill from operang properly WARNING The dust cap should be in place when the propane cylinder is not in use to prevent dirt and debris from entering WARNING Review instrucons on propane cylinder prior to using A dented or rusted cylinder may be hazardous Discard cylinder if rust parcles or debris are in the connecon area of the propane cylinder General Informaon This gas grill is cered for outdoor use and should be installed to conform to local codes Check gas type and specicaons on the rang plate located on the control panel of the grill Use only the pressure regulator provided with this barbecue Replacement pressure regulators must be supplied by or specied by the manufacturer The regulator supplies a pressure of 275 kilopascals to the gas grill and has a female CGA600 type ng Cylinder Installaon 1 lb 454kg disposable cylinders to be used with this unit must be equipped with a male CGA 600 type connecon This cylinder has a posive seang connecon which will not allow gas ow unl a posive seal has been achieved To install the cylinder simply screw it into the regulator ghten hand ght WARNING Use cylinders that are marked Propane Fuel only WARNING Be careful not to cross thread when installing the cylinder Do not use tools to ghten the cylinder WARNING Do not operate the grill if the regulator shows signs of impact damage
• Page 7 - English - : wwwnapoleongrillscom Oponal Supply Hose Instrucons An oponal hose is available from your Napoleon Dealer that allows the grill to be connected to a 20 lb 91 kg cylinder A dented or rusted cylinder may be hazardous and should be checked by your propane supplier Never use a cylinder with a damaged valve WARNING If these instrucons are not followed exactly a re causing death or serious injury may occur This gas grill has been designed for use with an approved 9 kg size propane cylinder not supplied The propane cylinder must be equipped with a POL tank valve connecon A dented or rusty cylinder may be hazardous and should be checked by your propane supplier Never use a cylinder with a damaged valve The cylinder supply system must be arranged for vapor withdrawal and the cylinder shall include a dust cap to protect the cylinder valve The cylinder shall incorporate a listed OPD overll protecon device Do not store a spare LPgas cylinder under or near this appliance Never ll the cylinder beyond 80 percent full Cylinder Connecon 20 lb 91 kg Ensure that the gas regulator hose is kink free Remove the cap or plug from the cylinder fuel valve Insert the POL regulator nipple onto the POL fuel valve Hand ghten counterclockwise Do not use tools Leak test all joints prior to using the barbecue A leak test must be performed annually and each me a cylinder is hooked up or if a part of the gas system is replaced Check that the cylinder valve is closed by turning the knob clockwise Check that the grills burner knobs are in the o posion Posion the cylinder so that the valve faces toward the front of the unit Aach regulator hose WARNING Use only the pressure regulator and hose assembly provided with this barbecue Replacement pressure regulators and hose assemblies must be specied by the manufacturer Do not store a spare propane cylinder on the shelf beneath the barbecue if applicable The regulator must be aached so that no part of the hose touches the underside of the grill or drippan A re will result if these direcons are ignored
• Page 8 - English - : wwwnapoleongrillscom Leak Tesng Instrucons WARNING A leak test must be performed annually and each me a cylinder is hooked up or if a part of the gas system is replaced WARNING Never use an open ame to check for gas leaks Be certain no sparks or open ames are in the area while you check for leaks Sparks or open ames will result in a re or explosion damage to property serious bodily injury or death Leak tesng This must be done before inial use annually and whenever any gas components are replaced or serviced Do not smoke while performing this test and remove all sources of ignion See Leak Tesng Diagram for areas to check Turn all burner controls to the o posion Turn gas supply valve on Brush a halfandhalf soluon of liquid soap and water onto all joints and connecons of the regulator hose manifolds and valves Bubbles will indicate a gas leak Either ghten the loose joint or have the part replaced with one recommended by the Napoleon Customer Soluons department and have the grill inspected by a cered gas installer If the leak cannot be stopped immediately shut o the gas supply disconnect it and have the grill inspected by a cered gas installer or dealer Do not use the grill unl the leak has been corrected STOP X
• Page 9 - English - : wwwnapoleongrillscom Lighng Instrucons WARNING Open lid WARNING Ensure all burner controls are in the o posion Connect a disposable cylinder or slowly turn on the gas supply valve large propane cylinder Main Burner Lighng 1 Open grill lid 2 Push and turn any main burner control knob slowly to the hi posion This acon will ignite the selected burner 3 If the burner does not ignite then immediately turn the control knob back to the o posion and repeat step 2 several mes 4 If the burner will not ignite within 5 seconds turn the control knob to the o posion and wait 5 minutes for any excess gas to dissipate either repeat steps 2 and 3 or light with a match 5 If lighng the unit with a match clip the match into the supplied lighng rod Hold the lit match down through the grill while turning the corresponding burner valve to high Burner Control
• Page 10 - English - : wwwnapoleongrillscom Cooking Instrucons Inial Lighng When lit for the rst me the gas grill emits a slight odor This is a normal temporary condion caused by the burnin of internal paints and lubricants used in the manufacturing process and does not occur again Simply run the main burners on high for approximately onehalf hour Cleaning Instrucons Note Stainless steel tends to oxidize or stain in the presence of chlorides and suldes parcularly in coastal areas and other harsh environments such as the warm highly humid atmosphere around pools and hot tubs These stains could be perceived as rust but can be easily removed or prevented To provide stain prevenon and removal wash all stainless steel and chrome surfaces every 34 weeks or as oen as required with fresh water andor stainless steel cleaner Cleaning Inside The Gas Grill Remove the cooking grids Use a brass wire brush to clean loose debris from casng sides and underneath the lid Brush all debris from inside the gas grill into the removable drip pan WARNING Do not use this grill under extended awnings Failure to follow these instrucons could result in a re or personal injury DANGER Do not put this grill in storage or travel mode immediately aer use Allow the grill to cool to the touch before moving or storing Failure to do so could result in a re resulng in property damage personal injury or death WARNING Always wear protecve gloves and safety glasses when servicing your grill WARNING To avoid the possibility of burns maintenance should be done only when the grill is cool Avoid unprotected contact with hot surfaces Ensure all burners are turned o Clean grill in an area where cleaning soluons will not harm decks lawns or paos Do not use oven cleaner to clean any part of this gas grill Do not use a selfcleaning oven to clean cooking grids or any other parts of the gas grill Barbecue sauce and salt can be corrosive and will cause rapid deterioraon of the gas grill components unless cleaned regularly Cast Iron Cooking Grids The cast iron cooking grids supplied with your new grill oer superior heat retenon and distribuon By regularly seasoning your grids you are adding a protecve coang which will aid in resisng corrosion and increase your grids nonsck capabilies First Time Use Wash the cooking grids by hand with mild dish soap and water to remove any residue from the manufacturing process never wash in a dish washer Rinse thoroughly with hot water and dry completely with a so cloth This is important to avoid moisture from entering the cast iron Seasoning Using a so cloth spread VEGETABLE SHORTENING over the enre grid surface ensuring all grooves and corners are covered Do not use salted fats such as buer or margarine Preheat your grill for 15 minutes then place the seasoned cooking grids in the grill Turn the burner control knobs to medium with the lid closed Allow the cooking grids to heat for approximately onehalf hour Turn all the burners to the OFF posion and turn the gas o at the source Let the cooking grids stand unl cool This procedure should be repeated several mes throughout the season although it is not required for daily use follow daily usage procedure below Daily Usage Before preheang and cleaning with a brass wire grill brush coat the enre top surface of the cooking grids with VEGETABLE SHORTENING Preheat the grill and then brush away any unwanted residue with a brass wire brush Main Burner Use When searing foods the lid must be kept open and the burners can be set to high If cooking with the lid closed preheat grill on high for 10 minutes with the lid closed and then turn the main burners to low Food cooked for short periods of me sh vegetables can be grilled with the lid open Cooking with the lid closed will ensure higher more even temperatures that can reduce cooking me and cook meat more evenly Food that has a cooking me longer than 30 minutes such as roasts can be cooked indirectly with the burner lit opposite to the food placement When cooking very lean meats such as chicken breasts or lean pork the grids can be oiled before preheang to reduce scking Cooking meat with a high degree of fat content can create areups Either trim the fat or reduce temperatures to inhibit this Should a areup occur move food away from the ames and reduce the heat Leave the lid open See Your All Season Grill cookbook by Napoleon for more detailed instrucons
• Page 11 - English - : wwwnapoleongrillscom Drip Pan Accumulated grease is a re hazard Clean the drip pan frequently to avoid grease buildup Grease and excess drippings pass through to the drip pan located beneath the gas grill and accumulate To clean slide the drip pan free of the grill Never line the drip pan with aluminum foil sand or any other material as this could prevent the grease from owing properly The pan should be scraped out with a puy knife or scraper CAUTION Ensure drip pan is empty and clean before transporng grill in vercal posion Cleaning The Outer Grill Surface Do not use abrasive cleaners or steel wool on any painted porcelain or stain less steel parts of your Napoleon Grill Doing so will scratch the nish Exterior grill surfaces should be cleaned with warm soapy water while the metal is sll warm to the touch To clean stainless surfaces use a stainless steel or a nonabrasive cleaner Always wipe in the direcon of the grain Over me stainless steel parts discolor when heated usually to a golden or brown hue This discoloraon is normal and does not aect the performance of the grill Porcelain enamel components must be handled with addional care The bakedon enamel nish is glasslike and will chip if struck Touchup enamel is available from your Napoleon Grill dealer WARNING Always wear protecve gloves and safety glasses when cleaning your grill WARNING Turn o the gas at the source and disconnect the unit before servicing To avoid the possibility of burns maintenance should be done only when the grill is cool A leak test must be performed annually and whenever any component of the gas train is replaced or gas smell is present Maintenance Instrucons We recommend this gas grill be thoroughly inspected and serviced annually by a qualied service person At all mes keep the gas grill area free from combusble materials gasoline and other ammable vapors and liquids Do not obstruct the ow of venlaon and combuson air Combuson Air Adjustment This must be done by a qualied gas installer The air shuer is factory set and should not need adjusng under normal condions Under extreme eld condions adjustments might be required When the air shuer is adjusted correctly the ames will be dark blue pped with light blue and occasionally yellow With too lile air ow to the burner the ames are lazy yellow and can produce soot With too much air ow the ames li erracally and can cause dicules when lighng Adjusng the air shuer 1 Loosen airshuer lock screw located under the control panel and open or close air shuer as required The normal seng for the tube burner is 116 15mm 2 Light burner and set to high Visually inspect burner ames When shuers are set turn burner o ghten locking screw Be sure the air shuer does not move when ghtening the screw Light Blue Yellow Tipping Dark Blue Burner Burner Port Approximately 12 13mm
• Page 12 - English - : wwwnapoleongrillscom WARNING Hose oponal Check for abrasions melng cuts and cracks in the hose If any of these condions exist do not use the gas grill Have the part replaced by your Napoleon Gas Grill dealer or qualied gas installer WARNING When reinstalling the burner aer cleaning it is very important that the valveorice enters the burner tube before lighng your gas grill If the valve is not inside the burner tube a re or explosion could occur Burner The burner is made from heavy wall 304 stainless steel but extreme heat and a corrosive environment can cause surface corrosion to occur This can be removed with a brass wire brush CAUTION Beware of Spiders Spiders and insects are aracted to the smell of propane and natural gas The burner is equipped with an insect screen on the air shuer which reduces the likelihood of insects building nests inside the burner but does not enrely eliminate the problem A nest or web can cause the burner to burn with a so yellow or orange ame or cause a re ashback at the air shuer underneath the control panel To clean the inside of the burner it must be removed from the gas grill Remove the screw s that aach the cross light bracket and the burner to the base Slide the burner back and upwards to remove Cleaning Use a exible venturi tube brush to clean the inside of the burner Shake any loose debris from the burner through the gas inlet Check the burner ports and valve orices for blockages Burner ports can close over me due to cooking debris and corrosion use an opened paperclip to clean them The ports are easier to clean if the burner is removed from the grill but it can also be done with the burner installed CAUTION Take care not to enlarge the holes Ensure the insect screen is clean ght and free of any lint or other debris Reinstallaon Reverse the procedure to reinstall the burner Check that the valve enters the burner when installing Replace cross light bracket and ghten screws to complete reinstallaon
• Page 13 - English - : wwwnapoleongrillscom Troubleshoong Problem Possible Causes Soluon Low heat Low ame when valve turned to high Blockage of gas Improper preheang Cylinder freezing up Check for spider webs in the burner or orice Preheat grill with main burners on high for 5 to 10 minutes When cooking for long periods of me or when the cylinder is close to being empty or low outside air temperatures 1 lb cylinders do not have enough weed surface area to allow liquid propane to turn to vapour Put on a fresh 1 lb cylinder or hookup to a 20 lb tank Excessive areups uneven heat Improper preheang Excessive grease and ash build up in drip pan Preheat grill with both main burners on high for 5 to 10 minutes Clean drip pan regularly Do not line pan with aluminum foil Refer to cleaning instrucons Burners burn with yellow ame accompanied by the smell of gas Possible spider web or other debris or improper air shuer adjustment Thoroughly clean burner by removing See general maintenance instrucons Open air shuer slightly according to combuson air adjustment instrucons This must be done by a qualied gas installer Flames li away from burner accompanied by the smell of gas and possibly dicules in lighng Improper air shuer adjustment Close air shuer slightly according to combuson air adjustment instrucons This must be done by a qualied gas installer Burner will not light with the igniter but will light with a match Jetre outlet is dirty or clogged Clean jetre outlet with a so bristle brush Humming regulator Normal occurrence on hot days This is not a defect It is caused by internal vibraons in the regulator and does not aect the performance or safety of the gas grill Humming regulators will not be replaced Paint appears to be peeling inside lid or hood Grease buildup on inside surfaces This is not a defect The lid and hood are stainless steel and will not peel The peeling is caused by hardened grease which dries into paintlike shards that ake o Regular cleaning will prevent this See cleaning instrucons Burner output on high seng is too low Rumbling noise and uering blue ame at burner surface Lack of gas Supply hose is pinched Dirty or clogged orice Spider webs or other maer in venturi tube Check gas level in propane cylinder Reposion supply hose as necessary Clean burner orice Clean out venturi tube
• Page 14 - English - : wwwnapoleongrillscom KEEP YOUR RECEIPT AS PROOF OF PURCHASE TO VALIDATE YOUR WARRANTY Ordering Replacement Parts Warranty Informaon MODEL DATE OF PURCHASE SERIAL NUMBER Record informaon here for easy reference Before contacng the Customer Soluons Department check the Napoleon Website for more extensive cleaning maintenance troubleshoong and parts replacement instrucons at wwwnapoleongrillscom Contact your local distributor directly refer to the distributor contact list provide with your grill for replacement parts and warranty claims To process a claim we must be provided with the following informaon 1 Model and serial number of the unit 2 Part number and descripon 3 A concise descripon of the problem broken is not sucient 4 Proof of purchase photocopy of the invoice In some cases the Customer Soluons Representave could request to have the parts returned to the factory for inspecon before providing replacement parts These parts must be shipped prepaid to the aenon of the Customer Soluons Department with the following informaon enclosed 1 Model and serial number of the unit 2 A concise descripon of the problem broken is not sucient 3 Proof of purchase photocopy of the invoice 4 Return Authorizaon Number provided by the Customer Soluons Representave Before contacng Customer Soluons Representave please note that the following items are not covered by the warranty Costs for transportaon brokerage or export dues Labour costs for removal and reinstallaon Costs for service calls to diagnose problems Discoloraon of stainless steel parts Part failure due to lack of cleaning and maintenance or use of improper cleaners oven cleaner
• Page 15 - English - : wwwnapoleongrillscom CAUTION During unpacking and assembly we recommended you wear work gloves and safety glasses for your protecon Although we make every eort to make the assembly process as problem free and safe as possible it is characterisc of fabricated steel parts that the edges and corners might be sharp and could cause cuts if handled incorrectly
• Page 16: wwwnapoleongrillscom If necessary the axle cap can be tapped with a rubber mallet N4500043 8mm x2
• Page 18: wwwnapoleongrillscom N5700110 1420 10mm x2
• Page 19: wwwnapoleongrillscom CAUTION Ensure drip pan is empty and clean before transporng grill in vercal posion
• Page 21: wwwnapoleongrillscom Fold unit as per instrucons on page 20 Remove screws Aach bracket and reghten screws
• Page 22 - English - : wwwnapoleongrillscom Item Part Descripon 1 N3250085SS1SG handle cart x 2 N1200023 cap nylon x 3 Z5700036 screw 1420 x 78quot x 4 N3250086SS1SG handle cart shelf x 5 N1200022 cap shelf x 6 N1200021 cap shelf x 7 N5700013 screw 8 x 58quot x 8 N5900237 shelf le right x 9 N5700076 screw 8 x 12quot x 10 N5700111 screw 14 x 1 14quot x 11 N0100804SS1SG cart front beam x N1600017 clip rear burner tube x 12 N0100805SS1SG cart rear beam x 13 N5250047BK1SG rail sliding track x 14 N5300049 regulator x 15 N0800326BK1SG bracket regulator mount x 16 N5700086 screw 14 x 12quot x 17 N1350045BK1HT base x 18 N5700104 screw 1024 x 38quot x 19 N4750319 control panel x 20 N0100773 manifold x 21 N5700078 screw M4 x 8mm x 22 N5850089BK1HT heat shield control panel x 23 N3800020RD control knob x 24 N2000109BK1HT cover right leg x 25 N2000108BK1HT cover le leg x 26 N7100079 drip pan x 27 N0100821 bracket drip pan le x 28 N0100822 bracket drip pan right x 29 N5700073 screw 1420 x 38quot x 30 Z5700033 screw 1024 x 12mm x 31 N1000047 burner right x 32 N1000046 burner le x 33 N6550158 support handle le x 34 N6550159 support handle right x 35 Z5700029 screw 1024 x 35mm x 36 N3250082 handle topboom x 37 N4850020 clevis pin x 38 N4850021 coer pin x 39 N0800302 cross light bracket x 40 N3050087BK2FL cooking grid le x 41 N3050088BK2FL cooking grid right x 42 N7350018 washer leg pivot x 43 N7200067SS1SG tube cart side x 44 N2720001 foot scissor cart x 45 N3250084 handle scissor cart foot x 46 N2000107 dust cover regulator x 47 N0100806SS1SG cart wheel side x 48 Z7450001 wheel 8quot x 49 N0150009 axle x 50 N1600026 clip tubing x 51 N4500043 nut axle cap x Parts List
• Page 23 - English - : wwwnapoleongrillscom Item Part Descripon 52 N6550156 support lid handle le x 53 N6550157 support lid handle right x 54 N3900003 latch handle x 55 N0510009 bezel temperature gauge x 56 N6850015 temperature gauge x 57 N3300021 hinge right x 58 N3300020 hinge le x 59 N0100776BL4HM lid blue x N0100776RD4HM lid red x 60 N2150013 wind shield x 61 N7350019 washer 8mm x 62 N5700108 screw M8 x 35mm x 63 N5700109 screw M8 x 60mm x 64 Z4500015 nut M8 x 65 N4850022 clevis pin 8mm x 50mm x 66 N5700110 screw shoulder x 67 N7200060 ex connector manifold x 68 N5550058 lighng rod x 69 N3900004BK1SG latch slide x 70 N6300006 spring x 71 N3900005SS1SG latch handle x 72 N5000042B rubber handle x 73 Z5700023 screw 1024 x 6mm x 74 N0100776BL4HMSER assembly lid blue x N0100776RD4HMSER assembly lid red x 75 N4750319SER assembly control panel x 76 N3250082TSER assembly handle top x 77 N0100820SER assemlby side shelf x 78 N3250082BSER assembly handle boom x 79 N3300021SER assembly hinge right x 80 N3300020SER assembly hinge le x 81 N3250084SER assembly handle scissor cart foot x 82 N5250047BK1SGSER assembly rail sliding track x 83 Z5700037 screw 1420 x 84 Z4500009 nut 1420 x 85 N0800357BK1SG bracket all terrain x 86 56080 griddle ac 66011 adapter hose ac 68286 vinyl cover ac x standard ac accessory Parts List
• Page 24: wwwnapoleongrillscom 79 80 Parts Diagram
• Page 28: N4150340AU Napoleon products are protected by one or more US and Canadian andor foreign patents or patents pending
