Panasonic DMR-PWT560GL DVD Player User Manual

SQT1112-1

Getting started

Watching broadcasts

Recording

Playing back video

Editing video

Copying video

Photo and Music

Network

With Other Equipment

Convenient functions

Setup

Reference

Thank you for purchasing this product.

Please read these instructions carefully before using this

product, and save this manual for future use.

Operating Instructions

Blu-ray Disc™ Player / HDD Recorder

Model No. DMR-PWT560

Software (Firmware) Update

To support the latest features, it’s very

important you install the latest updates

to maintain proper operation of your unit.

For details, refer to “Software

(Firmware) Update” (> 59) or

http://panasonic.jp/support/global/cs/

(This site is in English only.)

until

2016/04/04

DMRPWT560GN_eng.book 1 ページ２０１６年４月１４日　木曜日　午後１時９分

SQT1112

Unit

• To reduce the risk of fire, electric shock or

product damage,

- Do not expose this unit to rain, moisture,

dripping or splashing.

- Do not place objects filled with liquids, such as

vases, on this unit.

- Use only the recommended accessories.

- Do not remove covers.

- Do not repair this unit by yourself. Refer

servicing to qualified service personnel.

- Do not let metal objects fall inside this unit.

- Do not place heavy items on this unit.

AC mains lead

• To reduce the risk of fire, electric shock or

product damage,

- Ensure that the power supply voltage

corresponds to the voltage printed on this unit.

- Insert the mains plug fully into the socket

outlet.

- Do not pull, bend, or place heavy items on the

lead.

- Do not handle the plug with wet hands.

- Hold onto the mains plug body when

disconnecting the plug.

- Do not use a damaged mains plug or socket

outlet.

• The mains plug is the disconnecting device.

Install this unit so that the mains plug can be

unplugged from the socket outlet immediately.

Unit

• This unit utilizes a laser. Use of controls or

adjustments or performance of procedures other

than those specified herein may result in

hazardous radiation exposure.

• Do not place sources of naked flames, such as

lighted candles, on this unit.

• This unit may receive radio interference caused

by mobile telephones during use. If such

interference occurs, please increase separation

between this unit and the mobile telephone.

• This unit is intended for use in moderate

climates.

Placement

• Place this unit on an even surface.

• To reduce the risk of fire, electric shock or

product damage,

- Do not install or place this unit in a bookcase,

built-in cabinet or in another confined space.

Ensure this unit is well ventilated.

- Do not obstruct this unit’s ventilation openings

with newspapers, tablecloths, curtains, and

similar items.

- Do not expose this unit to direct sunlight, high

temperatures, high humidity, and excessive

vibration.

Safety precautions

WARNING

Small object

• Keep the Memory Card out of reach of children

to prevent swallowing.

CAUTION

DMRPWT560GN_eng.book 2 ページ２０１６年４月１４日　木曜日　午後１時９分

SQT1112

Batteries

• Danger of explosion if battery is incorrectly

replaced. Replace only with the type

recommended by the manufacturer.

• Mishandling of batteries can cause electrolyte

leakage and may cause a fire.

- Do not mix old and new batteries or different

types at the same time.

- Do not heat or expose to flame.

- Do not leave the battery(ies) in a car exposed

to direct sunlight for a long period of time with

doors and windows closed.

- Do not take apart or short circuit.

- Do not recharge alkaline or manganese

batteries.

- Do not use batteries if the covering has been

peeled off.

- Remove batteries if you do not intend to use

the remote control for a long period of time.

Store in a cool, dark place.

• When disposing of the batteries, please contact

your local authorities or dealer and ask for the

correct method of disposal.

Please check and identify the supplied

accessories.

(Product numbers are correct as of March 2016.

These may be subject to change.)

• Do not use AC mains lead with other equipment.

Insert batteries

Insert so the poles (i and j) match those in the

remote control.

Indemnity concerning recorded content

Panasonic does not accept any responsibility for

damages directly or indirectly due to any type of

problems that result in loss of recording or edited

content (data), and does not guarantee any

content if recording or editing does not work

properly. Likewise, the above also applies in a

case where any type of repair is made to the unit

(including any other non-HDD related

component).

Supplied accessories

Remote control (N2QAYB001077): 1pc.

Batteries for remote control: 2 pcs.

AC mains lead: 1pc.

RF coaxial cable: 1pc.





R6/LR6, AA

(Alkaline or manganese batteries)

DMRPWT560GN_eng.book 3 ページ２０１６年４月１４日　木曜日　午後１時９分

SQT1112

Table of contents

Safety precautions . . . . . . . . . . . . . . . . . . . . 2

Supplied accessories . . . . . . . . . . . . . . . . . . 3

Getting started

Unit care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Main unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Remote Control. . . . . . . . . . . . . . . . . . . . . . . 8

Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

HDD and media information . . . . . . . . . . . 14

FUNCTION MENU screen . . . . . . . . . . . . 19

Watching broadcasts

Watching broadcasts . . . . . . . . . . . . . . . . . 20

Recording

Recording TV programmes. . . . . . . . . . . . 23

Timer recording. . . . . . . . . . . . . . . . . . . . . . 25

Keyword Recording . . . . . . . . . . . . . . . . . . 29

Playing back video

Playing titles on the HDD . . . . . . . . . . . . . 31

Playing titles on the media . . . . . . . . . . . . 34

Operation during play. . . . . . . . . . . . . . . . . 36

Playback menu . . . . . . . . . . . . . . . . . . . . . . 39

Editing video

Deleting/Editing titles . . . . . . . . . . . . . . . . . 41

Copying video

Copying titles. . . . . . . . . . . . . . . . . . . . . . . . 44

Photo and Music

Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Network

Enjoying Network Service . . . . . . . . . . . . . 51

TV Anytime . . . . . . . . . . . . . . . . . . . . . . . . . 51

Smart Home Networking (DLNA) . . . . . . 52

With Other Equipment

Copying the HD Video (AVCHD) . . . . . . . 56

Registering

the external HDD (USB HDD)

. . . . . . . . . 56

Convenient functions

VIERA Link functions . . . . . . . . . . . . . . . . . 58

Software (Firmware) Update . . . . . . . . . . 59

4K Networking. . . . . . . . . . . . . . . . . . . . . . . 60

Other operations. . . . . . . . . . . . . . . . . . . . . 60

Setup

Basic Settings . . . . . . . . . . . . . . . . . . . . . . . 62

Reference

Troubleshooting guide . . . . . . . . . . . . . . . . 71

Specifications . . . . . . . . . . . . . . . . . . . . . . . 77

Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Limited Warranty

(ONLY FOR AUSTRALIA)

. . . . . . . . . . . . 81

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

About descriptions in these operating

instructions

• Pages to be referred to are indicated as “> ±±”.

• Images are for illustration purpose, contents may change

without notice.

DMRPWT560GN_eng.book 4 ページ２０１６年４月１４日　木曜日　午後１時９分

Getting started

SQT1112

Unit care

• The HDD is a high precision recording

instrument and is easily susceptible to damage.

Therefore, be careful of the following points

while the unit is turned on, especially during

operation, otherwise the HDD and the recorded

content may be damaged:

- Do not subject the unit to any vibration and

shock.

- Do not remove the AC mains lead from the

household mains socket.

• If the HDD or USB HDD is damaged, the

recorded content cannot be recovered.

• Do not place on anything that generates heat

like a Set Top Box, etc.

• Place in an area where condensation does

not occur. Conditions where condensation

may occur

- When there is an extreme change in

temperature.

In the above situation, without turning the unit

on, let the unit adjust to the room temperature

and wait 2–3 hours until condensation is gone.

• The unit may breakdown if cigarette smoke

or bug spray/vapour, etc. gets inside the

unit.

Before moving the unit, ensure the disc tray is

empty.

1 Switch the unit to standby mode. (Wait until

“BYE” disappears from the display.)

2 Remove the AC mains lead from the

household mains socket.

3 Move only after the unit has come to a

complete stop (approx. 3 minutes) in order to

avoid subjecting to vibration and shock. (Even

after the unit is switched to standby mode, the

HDD continues operating for a short time.)

The registration of the USB HDD may be

cancelled in the process of repairing this unit.

You can use the USB HDD again by

re-registering, but all recorded content already on

the USB HDD will be lost. In such cases, the

recorded content (data) cannot be recovered.

This unit may contain private information. Before

disposing of or transferring this unit, perform the

following to delete the data, including personal or

secret information:

- Format HDD (> 64)

- Perform “Shipping Condition” (> 70)

HDD/USB HDD handling care

• The HDD is a temporary storage device

This unit cannot save (backup) the HDD titles to

media. You have to be very careful when

handling the unit and editing the title.

Setup precautions

Getting started

When moving the unit

Cleaning

• Wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to

clean this unit.

• Before using chemically treated cloth, carefully

read the instructions that came with the cloth.

• Use the lens cleaner (not supplied) to clean the

unit’s lens.

When requesting this unit for repair

To dispose or transfer this unit

DMRPWT560GN_eng.book 5 ページ２０１６年４月１４日　木曜日　午後１時９分

Getting started

SQT1112

Main unit

• While writing to/reading from the media, do not switch the

unit to standby mode or remove the media. Such action

may result in loss of the media contents.

• When inserting the media, ensure that it is facing the right

way up.

• The USB port on the front side does not support

USB HDDs. Connect a USB HDD to the USB port on the

rear side. (> 57, Connecting the USB HDD)

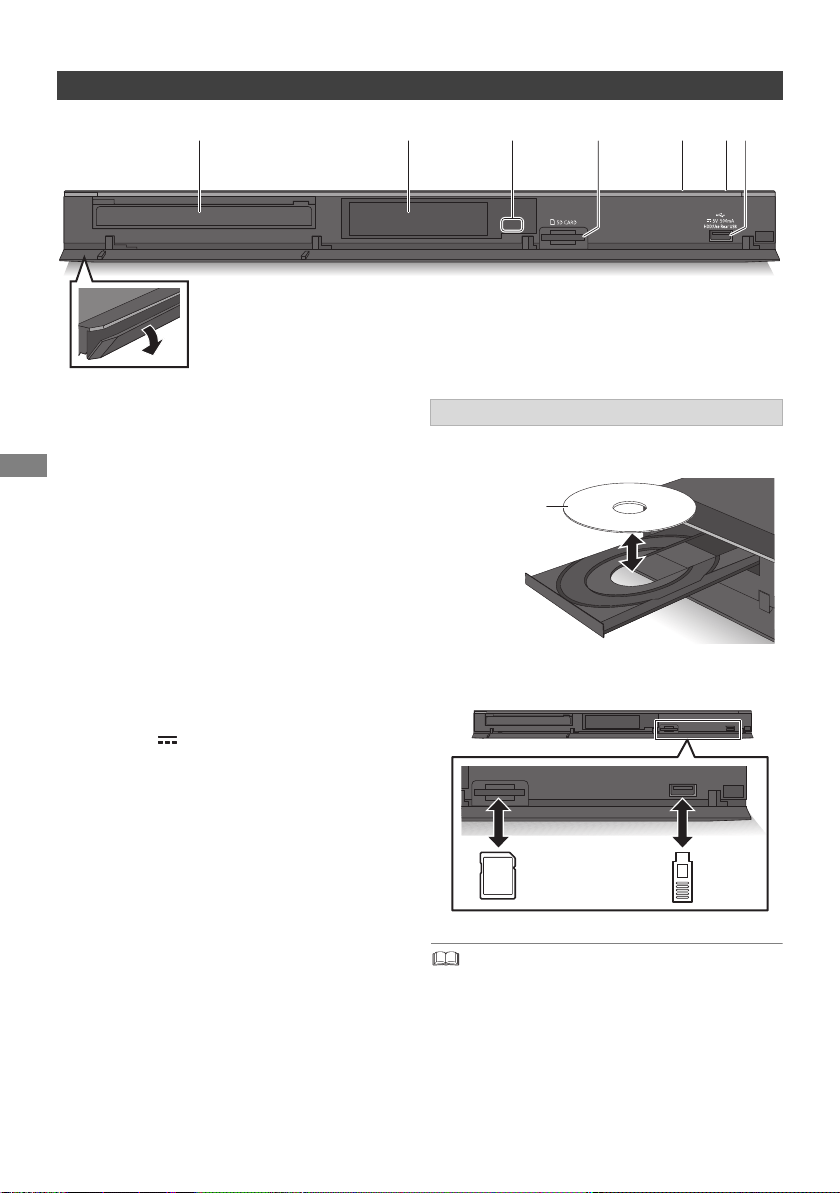

Front

  

  

Pull to flip down

the front panel.

1 Disc tray

2 Display (> 7)

3 Remote control signal sensor

• Angle: Approx. 20° up and down, 30° left and

right

• Distance: Within approx. 7 m in front of the

unit

4 SD card slot

• When removing the SD card, press on the

centre of the card and pull it straight out.

5 Open/close disc tray

6 Standby/on switch (Í/I)

Press to switch the unit from on to standby

mode or vice versa. In standby mode, the unit

is still consuming a small amount of power.

7 USB port ( DC 5 V 500 mA)

Inserting or removing media

∫ Disc

∫ SD Card/USB device

Disc

DMRPWT560GN_eng.book 6 ページ２０１６年４月１４日　木曜日　午後１時９分

Getting started

SQT1112

Class II equipment (The construction of the

product is double-insulated.)

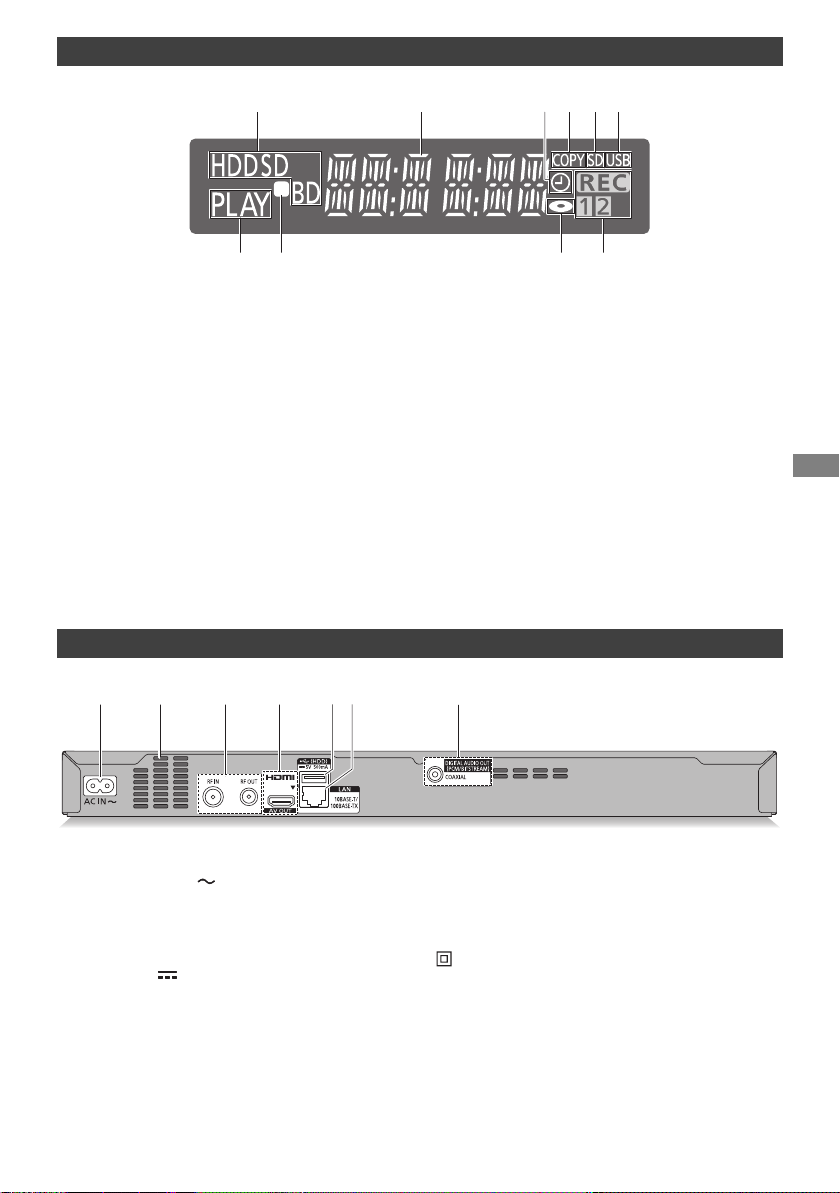

Display





 

   

 

1 Drive (HDD, BD or SD) indicator

2 Main display section indicator

• Messages and other information are

displayed. (> 76)

3 Timer recording indicator

• This indicator lights up when the timer

recording standby or Keyword Recording

standby is activated.

4 Copying indicator

5 SD card slot indicator

6 USB port indicator

7 Playback indicator

8 Remote control signal indicator

9 Disc indicator

: Recording indicator

• “REC” lights up while recording is in

progress.

• “1” flashes when the first timer recording

standby is activated or recording is paused,

and lights up while recording is in progress.

(In the same way as “1”, “2” lights up or

flashes for the second recording.)

Rear

   

1 AC IN terminal ( )

2 Ventilation hole

3 RF IN/OUT terminal

4 HDMI terminal

5 USB port ( DC 5 V 500 mA)

• Connect a USB HDD to this USB port.

6 LAN port

7 COAXIAL terminal

DMRPWT560GN_eng.book 7 ページ２０１６年４月１４日　木曜日　午後１時９分

Getting started

SQT1112

Remote Control

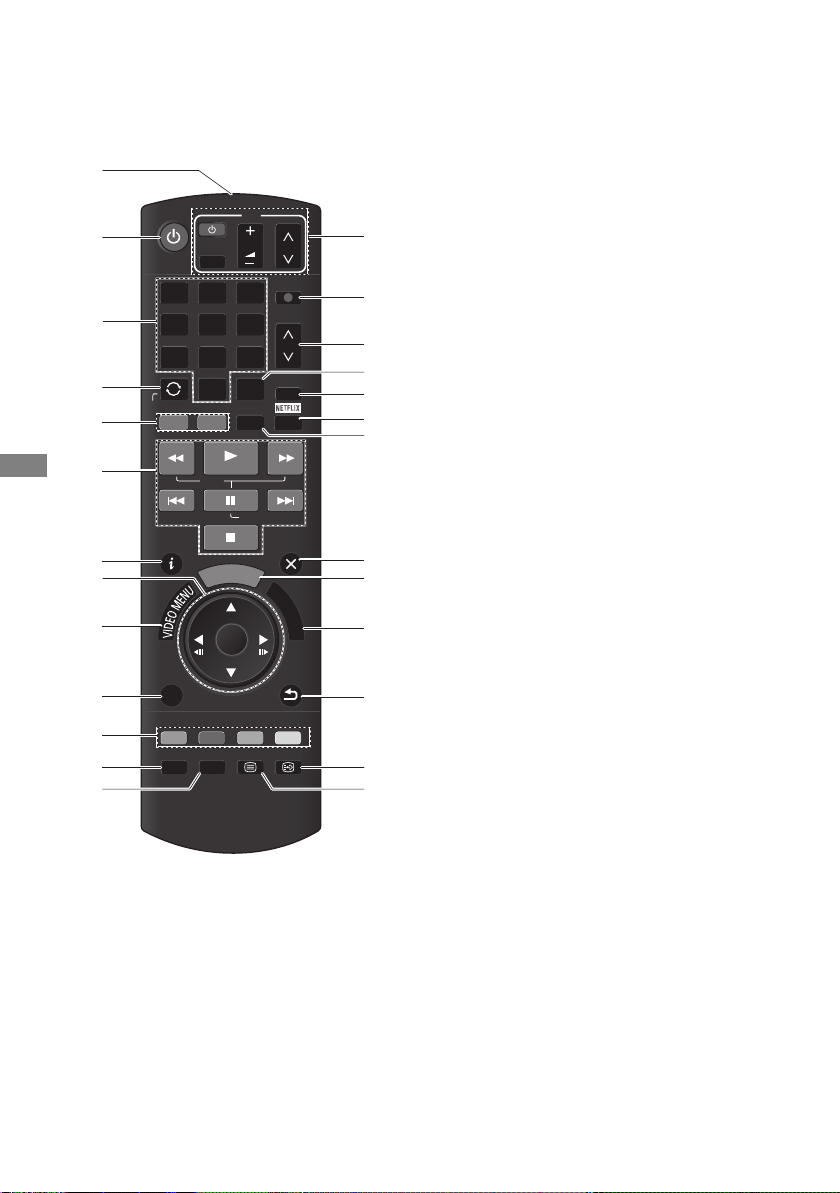

Instructions for operations are generally described using the remote control.

PAGE

INPUT

VOL

RETURN

OPTION

DELETE

AUDIO

REC

TEXT

STTL

-10s

+60s

INTERNET

REWIND LIVE TV

abc

jkl

tuv

ghi

qrs

def

mno

xyz

STATUS

EXIT

SLOW

DRIVE

SELECT

x1.3

PAUSE LIVE TV

PROG

CHECK

LAST VIEW





















































1 Transmit the remote control signal

• Point it at remote control signal sensor on

this unit. (> 6)

2 Switch the unit from on to standby mode or

vice versa

3 Select channels and title numbers, etc./Enter

numbers or characters

4 Switch to the previously watched channel

(> 20)

5 Manual skip (> 37)

-10s: Skip approx. 10 seconds backward

+60s: Skip approx. 1 minute forward

6 Basic operations for recording and play,

REWIND LIVE TV/PAUSE LIVE TV (> 22)

7 Show Information (> 20, 32, 36)

8 Selection/OK, Frame-by-frame (> 36)

9 Show Video Menu, Top Menu, Pop-up Menu

(> 31, 37)

: Show OPTION menu (> 39, 41, 48)

; Colour buttons (red, green, yellow, blue)

(Use in accordance with instruction on the

screen.)

< Select audio (> 21, 37)

= To delete unwanted recorded titles, timer

programmes, video, photo or music (> 41)

> TV operation buttons (> 11)

? Start recording (> 23)

@ Channel select (> 20)/Change pages in the

Video Menu screen etc.

A Select drive (HDD, Disc, SD or USB)

B Show the Timer recording screen (> 26)

C Show NETFLIX screen

D Show the Network Service screen (> 51)

E Exit the menu screen

F Show the TV Guide screen (> 21)

G Show the FUNCTION MENU screen (> 19)

H Return to previous screen

I Show subtitles (> 20, 37)

J Show Teletext (> 20)

DMRPWT560GN_eng.book 8 ページ２０１６年４月１４日　木曜日　午後１時９分

Getting started

SQT1112

Connection

• Keep the RF coaxial cables as far away as possible from other cables.

3D programmes or 4K images can be played back when this unit is connected to a 3D or 4K

compatible terminal of a 3D or 4K compatible TV.

• Before connection, turn off all equipment and read the appropriate operating instructions.

• Use the High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilized.

It is recommended that you use Panasonic’s HDMI cable.

When outputting 1080p or 24p (4K) signal, please use HDMI cables 5.0 meters or less.

• When the unit is not to be used for a long time

To save power, unplug it from the household mains socket. This unit consumes a small amount of

power, even when the unit is in standby mode. (> 77)

Basic connections

HDMI

VHF/UHF

RF IN

This unit’s rear panel

Household mains socket

(AC 220 to 240 V, 50 Hz)

AC mains lead

(supplied)

• Connect only after all other

connections are complete.

HDMI cable

To the aerial

Aerial cable

RF coaxial cable

(supplied)

DMRPWT560GN_eng.book 9 ページ２０１６年４月１４日　木曜日　午後１時９分

Getting started

SQT1112

• When using a TV or an amplifier/receiver that does not

display “ARC” on the HDMI terminal, it is necessary to

connect the TV and the amplifier/receiver with a digital

audio cable to enjoy the TV audio on the amplifier/receiver.

• When you do not want the audio to be output from the TV,

set “HDMI Audio Output” to “Off” (> 67).

When this unit is connected to the network, you

can enjoy network functions (DLNA function,

Network Service, TV Anytime, etc.).

For details about connection method, refer to the

instructions supplied with the connected

equipment.

• Use category 5 or above straight LAN cables (STP) when

connecting to peripheral devices.

About wireless LAN connection (> 12, Easy

Network Setting)

• For up-to-date compatibility information on your Wireless

router, refer to

http://panasonic.jp/support/global/cs/

(This site is in English only.)

• The unit is not compatible with public wireless LAN

services.

Amplifier/receiver connections

HDMI terminal

• You will not be able to view 3D programmes or

4K images with this connection if your

amplifier/receiver is not 3D or 4K compatible.

DIGITAL AUDIO OUT terminal

HDMI cable

Amplifier/

receiver

HDMI cable

COAXIAL IN

Amplifier/receiver

Coaxial cable

Network connection

After you make the LAN cable/Wireless LAN

connection, the network setting is needed.

(> 12, Easy Network Setting)

LAN cable connection

Wireless LAN connection

Broadband

router, etc.

Internet

LAN (ethernet)

cable

DMRPWT560GN_eng.book 10 ページ２０１６年４月１４日　木曜日　午後１時９分

Getting started

SQT1112

Settings

The TV can be operated from the TV operation

buttons of the remote control.

• Perform the setting if you cannot operate the TV

with the TV operation buttons.

While pressing [TV Í], enter the code with

the number buttons.

Manufacturer and Code No.

• If your TV brand has more than one code listed, select the

one that allows correct operation.

• If the brand of your TV is not listed or the code number is

invalid for your TV, this remote control is not compatible

with your TV.

1 Turn on the TV, then select the appropriate

AV input to suit the connections to this unit.

2 Press [Í] on the remote control or [Í/I] on

this unit.

• The Easy Setting will start at the initial power on.

3 Select the country you live in, and press

[OK].

• [For_Australia]

If you select “Australia”, the “Region Selection” will

appear. Select the region you live in, and press [OK].

• [For_New_Zealand]

If you select “New Zealand”, a screen asking you to

restart this unit will appear. Press [OK] to restart it.

Wait until a screen appears again. After the screen

appears, Easy Setting resumes.

4 Follow the on-screen instructions and

perform the settings.

Auto Setup starts.

(This operation may take some time.)

e.g., [For_Australia]

5 Clock is set automatically.

If the clock setting screen appears, set the

time manually. (> 70, Clock)

6 Set “Quick Start” to “On”, “Off” or “Timer

Setting for Quick Start”, then press [OK].

For details, refer to “Quick Start”. (> 69)

7 Select the aspect ratio that matches the

connected TV.

For details, refer to “TV Aspect”. (> 66)

When “Easy Setting has been completed.”

appears, Easy Setting is completed.

• Select “Yes” to set network settings.

• Select “No” to finish the Easy Setting.

TV operation buttons

Manufacturer Code Manufacturer Code

AIWA 35

BENQ 58/59

BRANDT 10/15

CENTREX 66

CURTIS 05

DESMET 05

ELEMIS 05

FINLUX 61

Panasonic 01/02/03/04

AKAI 27/30

BEKO 05/71/72/73/74

BUSH 05

DAEWOO 64/65

DUAL 05

FERGUSON 10/34

FISHER 21

MITSUBISHI 05/19/20/47

METZ 05/28/79

MIVAR 24

NEC 36

NOKIA 25/26/27/60/61

OLEVIA 45

ORION 05

PHILCO 41/48/64

PHONOLA 05

PROVIEW 52

RADIOLA 05

NOBLEX 33

NORDMENDE 10

ONWA 30/39/70

PEONY 49/69

PHILIPS 05/06/46

PIONEER 37/38

PYE 05

SABA 10

FUJITSU 53

ITT

GOLDSTAR 05/50/51

GRADIENTE 36

JVC 17/30/39/70

KOLIN 45

05/50/51

MAG 52

FUNAI 63/67

GOODMANS 05

GRUNDIG 09

IRRADIO 30

KDS 52

KONKA 62

HITACHI 05/22/23/40/41

SALORA 26

SANSUI 05

32/42/43/65/68SAMSUNG

SCHNEIDER 05/29/30

SELECO 05/25

SIEMENS 09

SONY 08

TELEFUNKEN 10/11/12/13/14

TOSHIBA 16/57

YAMAHA 18/41

WHITE

WESTINGHOUSE

SANYO 21/54/55/56

05/69/75/76/77/78

SEG

SINUDYNE 05

31/33/66/67/69TCL

TEVION 52

THOMSON 10/15/44

SHARP 18

Easy Setting

Progress

Digital TV Auto Tuning

CH 6 69

RF Ch

Digital TV: 2

Searching

Quality

Type

Channel Name

This will take about 3 minutes.

Digital TV

DMRPWT560GN_eng.book 11 ページ２０１６年４月１４日　木曜日　午後１時９分

Getting started

SQT1112

To stop partway

Press [RETURN ].

To restart setup (> 62, Auto Setup)

• If tuning is cancelled partway through, it may not be

possible to receive the channels. Restart setup again.

Easy Network Setting

After completing “Easy Setting”, you can continue

with “Easy Network Setting”.

Select “Wired” or “Wireless”, then press [OK].

LAN cable connection (“Wired”)

Follow the on-screen instructions to apply your

connection settings.

Wireless LAN connection (“Wireless”)

Before beginning wireless connection setup

• Obtain your network name (SSID

§1

• If your wireless connection is encrypted, please

be sure that you know your encryption key.

• The default SSID,

Password (Key) etc., may

be printed on the router.

Select “Search for wireless network” or “WPS

(PUSH button)” and press [OK], then follow the

on-screen instructions and apply the settings.

Search for wireless network:

The available wireless networks will be displayed.

Select your network name and press [OK].

- If your Network name is not displayed, search

again by pressing the red button on the remote

control.

- Stealth SSID

§2

will not be displayed. Enter

manually by using “Wireless Settings”. (> 67)

• If your wireless network is encrypted, Encryption

Key Input Screen will be displayed.

Input the encryption key of your network.

WPS (PUSH button):

If your Wireless router supports WPS (PUSH

button), you can easily perform the settings by

pressing WPS button on it.

WPS (Wi-Fi Protected Setup™) is a standard that

facilitates settings relating to the connection and

security of wireless LAN devices.

1 Press WPS button or corresponding button of

Wireless router until the lamp starts flashing.

• For details, refer to the operating instructions

of Wireless router.

2 Press [OK].

§1

SSID:

An SSID (Service Set IDentification) is a name used by

wireless LAN to identify a particular network.

Transmission is possible if the SSID matches for both

devices.

§2

Depending on the settings of the wireless router, its SSID

may not be found. For details, refer to the operating

instructions for the wireless router.

§3

The wireless router compatible with Wi-Fi Protected

Setup

may have the mark.

Easy Network Setting

Settings and tests for connection required

for home network and the Internet will be

conducted.

First, please select a connection mode.

LAN cable connection:

Connect a LAN cable to the unit and select “Wired”.

Wireless LAN connection:

Select “Wireless”.

Current setting : Wired

Wired

Wireless

SSID XXXXXXXXXXXX

KEY XXXXXXXXXXXX

PIN XXXXXXXXX

e.g.,

Wireless

router

DMRPWT560GN_eng.book 12 ページ２０１６年４月１４日　木曜日　午後１時９分

Getting started

SQT1112

To restart Easy Network Setting

1 Press [FUNCTION MENU]. (> 19)

2 Select “Basic Settings” in “Setup”, then press

[OK].

3 Select “Easy Network Setting” in “Network”,

then press [OK].

To redo settings individually

If “Easy Network Setting” did not work properly or

when you change the settings individually,

perform the following steps:

1 Press [FUNCTION MENU]. (> 19)

2 Select “Basic Settings” in “Setup”, then press

[OK].

3 Select “Network Settings” in “Network”, then

press [OK].

4 Refer to “Network Settings”. (> 67)

Check security before using Home Network

function

If you set “Home Network function” to “On”, all

connected devices on the same network can

access this unit. Ensure that the router for your

home network has adequate security system to

prevent unauthorised access.

• Refer to the operating instructions of the hub or router.

• If you set “Home Network function” or “TV Anytime” to “On”,

the setting for “Quick Start” is fixed to “On”.

• Do not use this unit to connect to any wireless network for

which you do not have usage rights.

During automatic searches in a wireless network

environment, wireless networks (SSID) for which you do

not have usage rights may be displayed; however, using

these networks may be regarded as illegal access.

• After performing network settings on this unit, the settings

(encryption level, etc.) of the Wireless router might change.

When you have trouble getting online on your PC, perform

the network settings on your PC in accordance with the

settings of Wireless router.

• Please be aware that connecting to a network without

encryption may result in the content of the communication

being illegitimately viewed by a third party, or the leaking of

data such as personal or secret information.

DMRPWT560GN_eng.book 13 ページ２０１６年４月１４日　木曜日　午後１時９分

Getting started

SQT1112

HDD and media information

For more details, refer also to the specifications. (> 77)

(–: Impossible)

Recordable/playable contents

Media type Standard symbol Playable contents Recordable contents

Built-in hard disk drive

(HDD)

[HDD]

•Video

• AVCHD/AVCHD 3D

•MKV

•MP4

• MPEG2

•JPEG

• MPO (3D photo)

•AAC

•ALAC

•DSD

•FLAC

•MP3

•WAV

•WMA

External hard disk drive

(USB HDD)

(> 17)

[USB_HDD]

•Video

§1

• AVCHD/AVCHD 3D

§2, 3

–

•MKV

•MP4

• MPEG2

•JPEG

•MPO

(3D photo)

• AAC

•ALAC

•DSD

•FLAC

•MP3

•WAV

•WMA

BD-Video

[BD-V]

•Video

–

BD-RE

BD-RE DL

[BD-RE]

•Video

• AVCHD/AVCHD 3D

•JPEG

• MPO (3D photo)

–

BD-R

BD-R DL

[BD-R]

•Video

• AVCHD/AVCHD 3D

§2

•MKV

–

DVD-Video

§4

[DVD-V]

•Video

–

DVD-R

DVD-R DL

[DVD-R]

•Video

• AVCHD

§2

•MKV

•JPEG

•MPO

(3D photo)

• AAC

•ALAC

•DSD

•FLAC

•MP3

•WAV

•WMA

–

DMRPWT560GN_eng.book 14 ページ２０１６年４月１４日　木曜日　午後１時９分

Getting started

SQT1112

(–: Impossible)

• With certain recording states and folder structures, the play order may differ or playback may not be possible.

• It may not be possible to play the above media in some cases due to the type of media, the condition of the recording, the

recording method, and how the files were created.

Media type Standard symbol Playable contents Recordable contents

DVD-RW

[DVD-RW]

•Video

•AVCHD

§2

–

+R/+R DL [+R]

•Video

•AVCHD

§2

• JPEG

•MPO

(3D photo)

• AAC

•ALAC

•DSD

•FLAC

•MP3

•WAV

•WMA

–

+RW [+RW]

•Video

•AVCHD

§2

–

Audio CD (CD-DA)

[CD]

•Music

–

(including CD-R/RW)

•MKV

• JPEG

•MPO

(3D photo)

• AAC

•ALAC

•FLAC

•MP3

•WAV

•WMA

–

SD Cards

[SD]

•MP4

•MPEG2

• JPEG

• MPO (3D photo)

• AVCHD/AVCHD 3D

§2

–

USB memory [USB]

• AVCHD/AVCHD 3D

§2, 3

–

•MKV

•MP4

•MPEG2

• JPEG

•MPO

(3D photo)

• AAC

•ALAC

•DSD

•FLAC

•MP3

•WAV

•WMA

§1

It cannot be recorded directly. (Only compatible with copying from the built-in HDD)

§2

Recorded with AVCHD format compatible devices (Panasonic video camera, etc.). It may not be

able to play back depending on the device.

§3

It cannot be played back directly from the USB HDD or USB memory. Playback is possible by

copying to the built-in HDD. (> 56)

§4

Includes finalised DVD-R, DVD-R DL, DVD-RW, +R and +R DL.

DMRPWT560GN_eng.book 15 ページ２０１６年４月１４日　木曜日　午後１時９分

Getting started

SQT1112

∫ Broadcast Recordings

Numbers of titles that can be recorded:

• Maximum numbers of titles are including recordings of

HD CAMCORDER.

∫ HD CAMCORDER Recordings

MPEG-4 AVC/H.264 (based on AVCHD)

Numbers of titles that can be recorded:

• Maximum numbers of titles are including recordings of

Broadcast.

∫ Photo files

Compatible pixels:

Between 34k34 and 8192k8192 pixels

Sub sampling: 4:2:2, 4:2:0

(Motion JPEG is not supported.)

Maximum numbers of contents:

∫ Video files/Audio files

Numbers of contents that can be copied to

internal HDD:

USB device:

• Each folder can store up to 1000 files.

• We recommend that you limit the depth of

folder trees to about five levels.

• Bit rate up to 100 Mbps/resolution up to

3840k2160 25p/30p, 4096k2160 24p. (MP4

only)

• The video file and subtitle text files are inside the same

folder, and the file names are the same except for the file

extensions.

• Some files may not be played back even if they have these

extensions.

Information about contents

Media

Maximum

titles

HDD 3000

Media

Maximum

titles

HDD 3000

Media Folders Files

HDD – 20000

BD-RE, DVD-R,

+R, CD-R, CD-RW,

USB device, SD

500 10000

Contents

Maximum numbers of

folders and files

Video 20000

Audio 20000

About extension of files

Contents

Example of file

extension

MKV “.mkv”

MKV

(Subtitle text files)

“.srt”

“.sub”

“.txt”

MP4

“.mp4”

“.mov”

MPEG2

“.mpg”

“.mpeg”

“.m2ts”

“.mts”

“.ts”

JPEG “.jpg”

MPO “.mpo”

AAC “.m4a”

ALAC “.m4a”

DSD

“.dsf”

“.dff”

FLAC “.flac”

MP3 “.mp3”

WAV “.wav”

WMA “.wma”

DMRPWT560GN_eng.book 16 ページ２０１６年４月１４日　木曜日　午後１時９分

Getting started

SQT1112

§1

The SD quality programme cannot be converted to HD quality.

§2

[For_New_Zealand]

§3

You cannot select during play whether it activates or deactivates.

§4

You cannot select during play whether it appears or disappears.

Approximate recording times

Refer to “Recording modes and approximate recording times”. (> 77)

You can use an external HDD (USB HDD) in the

following two ways (A single HDD cannot handle

those two ways simultaneously.), and a USB

memory for data files.

• For recorded titles

Moving titles in the built-in HDD to a USB HDD

to save the capacity of the built-in HDD.

• The USB HDD must first be registered on this

unit. (> 56)

• The USB HDD over 3 TB is not usable.

• For data files

Playing back MP4, JPEG, MP3, etc. in a USB

device with this unit.

• The USB device must be formatted in FAT12,

FAT16, FAT32 or NTFS file system.

• The USB device over 2 TB is not usable.

• This unit supports USB 2.0 High Speed.

• This unit can use USB 3.0 devices as USB 2.0 devices.

• This unit does not recognize USB HDDs other than those in

which the size of one sector is 512-bytes or 4096-bytes.

(For details, consult the dealer of your USB HDD.)

• This unit supports USB mass storage device class.

• This unit does not guarantee connection with all USB

devices.

Recording mode (Conversion)

Recording Mode DR HG/HX/HE/HL/HM XP/SP/LP/EP

Feature Programmes can be

recorded in a nearly

perfect broadcasted state.

Recording can be done

with reduced recording

volume in High definition

(HD) quality

§1

Recording can be done

with reduced recording

volume in Standard

definition (SD) quality.

Multiple audio,

Audio

Description

§2

Record all multiple audio

Record only one audio

§3

Subtitles Can be recorded

Can be recorded (only one subtitle)

§4

Surround audio Surround audio as the

broadcast

Stereo audio

Notes

Notes for the USB device

DMRPWT560GN_eng.book 17 ページ２０１６年４月１４日　木曜日　午後１時９分

Getting started

SQT1112

Notes for the disc

• Region management information

The unit can play back BD-Video/DVD-Video

discs of the following regions codes, including

“ALL”:

e.g., BD-Video DVD-Video

• Disc recorded on another device

• It may be necessary to finalise the disc or

close the session on the equipment used for

recording to play on this unit.

• Discs that cannot be played

- Unformatted disc

- DVD-Audio

-DVD-RAM

- Super Video CD, Super Audio CD, Video CD

• Operation and sound quality of CDs that do not conform to

CD-DA specifications (copy control CDs, etc.) cannot be

guaranteed.

Notes for the SD cards

• Compatible SD card

- SD Memory Card

(from 8 MB to 2 GB, FAT12 and FAT16

formats)

- SDHC Memory Card

(from 4 GB to 32 GB, FAT32 format)

- SDXC Memory Card

(48 GB, 64 GB, exFAT format)

• Using miniSD card or microSD card

Mini-type and micro-type cards can also be

used, but must be used with adaptor cards

(optional).

• If the SD card is formatted on other equipment, the time

necessary for recording may be longer or the card may not

be able to be used on this unit. In these cases, format the

card on this unit.

• For playback of 4K videos stored on an SD card, use an SD

card conforming to Class 10 of the SD Speed Class Rating.

Media handling

• Do not touch the recorded surface of the discs

or the terminal surface of the SD cards.

• Wipe with a damp cloth and then wipe dry.

• Do not attach labels or stickers to discs.

• Do not use disc cleaning sprays, benzine,

thinner, static electricity prevention liquids or

any other solvent.

• Do not use the following discs:

- Discs with exposed adhesive from removed

stickers or labels (rental discs, etc.).

- Discs that are badly warped or cracked.

- Irregularly shaped discs, such as heart

shapes.

• Do not expose the terminals of the SD card to

water, garbage or other strange things.

DO NOT

DMRPWT560GN_eng.book 18 ページ２０１６年４月１４日　木曜日　午後１時９分

Getting started

SQT1112

FUNCTION MENU

screen

You can easily access the desired functions, such

as playback, timer recording, the unit’s settings

etc. via the FUNCTION MENU.

1 Press [FUNCTION MENU].

2 Select the item, then press [OK].

TV Guide

Home Network

Copy VideoSetup

Timer Recording

Contents on HDDNetwork Service

Media

Keyword Recording

FUNCTION MENU

RETURN

FUNCTION MENU list

• Keyword Recording (> 29)

•TV Guide (> 21)

• Timer Recording (> 26)

• Network Service (> 51)

• Contents on HDD

- Recorded Programmes (> 31)

- Video ( AVCHD ) (> 31)

- Video ( MP4 / MKV ) (> 34)

-Photo (> 46)

-Music (> 50)

• Home Network

- Miracast (> 55)

- DLNA Client (> 53)

- Media Renderer (> 54)

- Wi-Fi Direct (> 54)

•Setup

- Basic Settings (> 62)

• You can change the unit’s settings of Digital

TV Tuning, Sound, Display, Connection,

Network etc.

- TV Anytime (> 51)

- Wallpaper

Personalise a background of the FUNCTION

MENU.

• To select from among “Photo”, register photo

in advance. (> 46)

- BD-Video Data Management (> 35)

•Media

-Disc

- SD Card

- USB device

- USB HDD

• Copy Video (> 45)

DMRPWT560GN_eng.book 19 ページ２０１６年４月１４日　木曜日　午後１時９分

Watching broadcasts

SQT1112

Watching broadcasts

To switch to the channel you have previously

watched

Press [LAST VIEW ].

• This function will work only for the channels you

have watched for more than 10 seconds.

If you have set a ratings level (> 63, Child Lock

( Parental Rating )), you may be asked to enter

the PIN. In that case, enter the 4-digit PIN with the

number buttons by following the on-screen

instructions.

• Make a note of the PIN you have decided on

in case you forget it.

• PIN can be changed via “PIN Entry”. (> 70)

While watching a programme

Press [STATUS ].

Channel Information appears.

 Current Category



[For_New_Zealand] Audio Description

3 Set timer (> 27)

4 Subtitle

5 Te le tex t

6 Multiple audio

7 Data service (> 21)

To show detailed information

Press [STATUS ] again.

To hide the information screen

Press [EXIT ].

To change Category

Press the blue button.

• To register your favourite channels (> 62)

To switch between the current programme

and the next programme

Press [2, 1].

To switch to another channel

Press [3, 4], then press [OK].

When “ ” appears in Channel Information

Press [STTL ].

• Press again to hide subtitle.

When “ ” appears in Channel Information

1 Press [TEXT ].

2 Use [3, 4, 2, 1], number buttons or colour

buttons, etc. according to on-screen

instructions.

• You can change the display mode. (> 66, Teletext)

Press [CH WX] to select the channel.

• You can also select the channel by the

following operations

- Using number buttons.

- Using Channel Information (> below)

- Using TV Guide system (> 21)

- Using Channel List (> 22)

If this unit requests a PIN

Using Channel Information

Wat ching

broadcasts

XXXX

Now

HE-AAC ADRating: G

Change category

All Digital Channels

XXXX - XXXX

Set timer





 

e.g.,

To show subtitle

To show Teletext

DMRPWT560GN_eng.book 20 ページ２０１６年４月１４日　木曜日　午後１時９分

Watching broadcasts

SQT1112

Press [AUDIO].

• Audio will switch according to the contents of

the programme every time it is pressed.

You can switch the aspect ratio of the screen

mode. (> 61)

To use the data service function (Catch Up

Service), connect to a network and set up the

network settings. (> 10, 12)

• [For_Australia ]

Hybrid Broadcast Broadband TV

Set “HbbTV Setting” to “On”. (> 63)

• [For _New_Zealand]

FreeviewPlus

Set “FreeviewPlus” to “On”. (> 63)

To view the data service, follow the on-screen

instructions. (e.g., “Press colour button.” etc.)

• Operations may vary depending on the broadcaster.

• On-screen instructions may not correspond to the remote

control buttons.

• It may take some time to show the data service.

• Some functions of the data service may be deactivated

during recording.

1 Press [GUIDE].

TV Guide screen appears.

2 Select the programme, then press [OK].

3 Select “View”, then press [OK].

To change TV Guide view

Press [GUIDE] to switch between “Landscape”

view and “Portrait” view.

Page up/down

Press [CH WX].

To view a programme list for another day

Press the green button (Previous) or the yellow

button (Next).

To see programme information

Press [STATUS ].

To set a timer Recording using the TV Guide

System

Refer to “Timer recording”. (> 25)

To search the programmes (> 26)

• Selection of channel is made easy by creating a Favourite

of the channels you watch often. (> 62, Favourites Edit)

Switching audio

[For_New_Zealand]

To listen to the Audio Description

When “AD” appears in Channel Information

(> 20)

Audio Description adds an additional soundtrack

to describe events on screen (narration) and aids

understanding and enjoyment, particularly for

visually-impaired viewers.

Press [AUDIO] to select the soundtrack of Audio

Description.

• If “Audio Description” is set to “Automatic”, Audio

Description will be given priority when watching, if

available. (> 63)

Aspect

To use data service

Using TV Guide system

e.g. Landscape view

[For_A us t ra lia]

Page Down

Information

Page Up

Keyword Recording+24 hoursTimer Rec.

Portrait/Landscape

GUIDE

TUE 05.01

TV Guide

XXXXX - XXXXX

TUE 05.01.2016 XXXXX

Category: All Digital Channels

XXXXX XXXXX XXXXX XXXXX XXXXX XXXXX

Landscape

RETURNOPTION

DMRPWT560GN_eng.book 21 ページ２０１６年４月１４日　木曜日　午後１時９分

Watching broadcasts

SQT1112

You can select from the list of channel names.

1 Press [OK].

2 Select the channel, then press [OK].

To edit the channel list

Refer to “Channel List”. (> 62)

This unit temporarily saves a live TV programme

you are watching with this unit’s tuner on HDD.

REWIND LIVE TV

PAUSE LIVE TV

You can pause live TV programme and restart

watching from the paused position.

1 While watching TV

REWIND LIVE TV:

Press [6] to rewind.

PAUSE LIVE TV:

Press [;] to pause.

• The maximum amount of the temporary

save is 1.5 hours.

2 When you want to resume:

Press [1a1.3].

• You can perform search or Quick View, etc.

• If temporary save stops, playback will be

performed by that point.

While pausing or rewinding a broadcast:

Press [STATUS ].

• Press [STATUS ] again.

 The time that you can rewind the live

programme.

 The amount of time temporarily saved on

HDD.

3 The time of the current playback position.

To stop REWIND LIVE TV or PAUSE LIVE TV

1Press [∫].

2 Select “Yes”, then press [OK].

To hide the display information

Press [EXIT ].

• Temporary save stops in the following cases:

- When switching to other channels or other screen

- When the unit has started recording using all tuners

- When performing PAUSE LIVE TV or REWIND LIVE TV

for more than 8 hours (This may vary depending on the

HDD free space.)

• These functions do not work in the following cases:

- When the clock is not set

- When all tuners are being used to record programmes

- While copying

- While watching a programme being recorded

- When a radio programme is selected

Using Channel List

REWIND LIVE TV/PAUSE LIVE TV

You can rewind live TV programme to the point

where temporary save has started (up to

1.5 hours).

All Digital Channels

Select

View

RETURN

Page up

Page down

Channel names

Display information

Pause

XXXXX







XXXXXXX 01.01.2016

Play



XXXXXXX

DMRPWT560GN_eng.book 22 ページ２０１６年４月１４日　木曜日　午後１時９分

Recording

SQT1112

Recording

TV programmes

• If a timer recording reaches its start time when all tuners

are being used for recording, the recording (OTR) of one of

the programmes terminates.

• Teletext will not be recorded.

• Following contents or media cannot be played back while

recording.

- video file

- photo

- USB HDD (For data files, > 17) and USB memory

• Copying cannot be performed while recording.

• When “Automatic Standby after OTR” is set to “On” (> 69),

this unit is turned to standby mode if this unit is not

operated for approximately 5 minutes after completing

“Automatic Stop” or “Recording Time”.

1 Select “Recording Time” or “Continuous

recording” in step 3 (> left).

Recording Time:

You can set the length of recording time from

30 minutes to 4 hours.

• You can select the recording time with [

2 Press [OK].

This unit will record the programmes in DR mode

once, and then automatically convert to the selected

recording mode while this unit is in standby.

1 Press [OPTION].

2 Select “Recording Mode”.

3 Select the recording mode, then press [OK].

• Recording mode (Conversion) (> 17)

• The recording mode set here is used as an

initial value for the next recording.

To convert the recording mode after recording

in DR mode (> 42, File Conversion)

To confirm whether the conversion is

completed (> 43)

To cancel a conversion (> 43)

• The title before conversion (the title recorded in DR mode)

will be deleted once the conversion is completed.

• Conversion will take about the same time as the recorded duration.

• When the HDD does not have enough remaining space,

conversion will not start.

• Conversion is stopped when this unit is turned on.

Conversion will start from the beginning again once the unit

is switched to standby mode.

• When converted, audio content, subtitle and Audio

Description [For_New_Zealand] will be converted with the

same settings as at the start of recording.

The titles can only be recorded to built-in

HDD and cannot be copied from built-in HDD

to the media other than USB HDD.

• This unit can record two programmes being

broadcasted at the same time.

Preparation

If you want to change the recording mode (

right)

1 Select the channel to record.

2 Press [REC ¥].

Recording will start.

3 Select “Automatic Stop”, then press

[OK].

• One touch recording (OTR)

Recording stops automatically when the

programme ends.

Recording

Automatic Stop at XXXXXX

REC1/OTR

Recording Time

Continuous recording

30 min

XXXXXX - XXXXXX

e.g., [For_A us t ra lia]

To set the recording time

To change the recording (conversion) mode

Off (DR)

Recording Mode ( Conversion )

RETURN

HDD Remain (DR)m

High

Definition

Data Size

Large

Small

Large

Small

Standard

Definition

DMRPWT560GN_eng.book 23 ページ２０１６年４月１４日　木曜日　午後１時９分

Recording

SQT1112

Press [STATUS ].

e.g., While recording two programmes simultaneously

Press [∫].

When recording one programme:

If the following screen appears

Select “Yes”, then press [OK].

After displaying the recording programme, press

[;].

• Press again to restart recording.

(A title is not split into separate titles.)

• Timer recording programme cannot be paused.

While recording, perform steps 1–3 on page 23.

• Channel can only be switched between the recording

programmes.

You can play the recording title from the beginning

or the titles previously recorded to the HDD.

1 Press [VIDEO MENU].

“[” (red) is displayed on the recording

programme.

2 Select the title, then press [OK].

Operation during Recording

To check the recording programme

To stop recording

When recording two programmes:

Following screen appears

1 Select the programme, then press [OK].

2 Select “Yes”, then press [OK].

REC2

HDD

REC1/OTR AUTO

Recording programme

displayed on the TV

Recording programme not displayed on the TV

Stop Recording

Yes

Recording of this programme is in progress.

Stop this recording ?

RETURN

Stop Recording

2 recordings are in progress.

Which recording would you like to stop ?

RETURN

To pause recording

To record two programmes simultaneously

Simultaneous rec and play

Start Time

Prog.Type:

Rec time

Channel Date Title Name

XXXX

XXXXX 0:01

DMRPWT560GN_eng.book 24 ページ２０１６年４月１４日　木曜日　午後１時９分

Recording

SQT1112

Timer recording

To use TV Guide system (> 21)

Operation during Recording (> 24)

To edit the timer programme (> 28)

Select “Single Timer Rec.” or “Series Timer Rec.”

(> 26), then press [OK].

• The overlapped programmes are displayed

with if their repeat programmes (the

same programmes broadcast at different

times) are available for timer recording.

• You can enter up to 32 programmes within a

month in advance. (Each daily, weekly or

series programme is counted as one

programme.)

• This unit can record two programmes being

broadcasted at the same time.

Preparation

If you want to change the recording mode (> 23)

1 Press [GUIDE].

TV Guide screen appears.

2 Select the programme, then press the

red button.

The timer icon “F” (red) is displayed.

• If on-screen instructions are displayed,

follow them.

• Some broadcasters may not send programme information.

When programme information is not displayed correctly,

use manual timer recording. (> 26)

• You can set the start and finish time to make the timer

recording work successfully. (> 64, Timer Record Start

Buffer, Timer Record Stop Buffer)

If the screen for selecting single or series

timer recording appears

To edit the timer recording on the TV Guide

screen

1 Select the programme to edit, then press the

red button.

2 Select “Timer Rec Edit”, then press [OK].

3 Go to step 3 on page 26, “Manually

programming timer recording”.

To cancel a timer recording on the TV Guide

screen

1 Select the programme to cancel, then press

the red button.

2 Select “Timer Rec Cancel”, then press [OK].

(“F” disappears.)

If “Overlapped Timer Recording” screen

appears

You can eliminate the overlapping or may change

with repeat event for the duplicated programme.

1 Select “Change”, then press [OK].

2 Follow the on-screen instructions.

Red: Delete programme

Green: Record repeat programme

Yellow: Exit (Overlapping is not resolved)

Timer programme overlaps with others.

Some part or all of programmes may not be recorded completely.

Overlapped Timer Recording

Keep Change

Please delete unnecessary programme to resolve.

RETURN

Overlapped Timer Recording

New Programme

ConfirmDelete Repeat

THU 11.10

XXXX - XXXX

TWO Wales

Existing Programmes

THU

11.10

Holiday

THU

11.10

Animals

Episode 01/ 02

XXXX - XXXX

DMRPWT560GN_eng.book 25 ページ２０１６年４月１４日　木曜日　午後１時９分

Recording

SQT1112

1 On the TV Guide screen:

Press [OPTION].

2 Select the item, then press [OK].

Keyword Search

Displays programmes including the input

keyword.

• Refer to “Entering text”. (> 61)

Prog.Type Search

Displays programmes of the selected type.

If, for example, you select “Arts/Culture”, only

the programmes related to arts and culture are

displayed. Use this search function to find the

programme you want to watch quicker.

• Select the programme type, then press [OK].

Category Selection

Displays channels in the selected category.

(Radio etc.) You can find the programme you

want to watch quicker by narrowing down the

channels to be displayed.

• To return to the previous TV Guide list

Select “All Digital Channels”.

3 Select the programme, then press the red

button for timer recording.

• Category may not be assigned correctly depending on the

programme information.

This unit has several functions that enable timer

recordings to be controlled by the signal sent from

the broadcaster.

Guide Link

The recording’s start and stop times can be

controlled by the broadcaster, e.g. delayed start.

• The Guide Link function may not work if you

manually change the start time or the stop time

over 10 minutes.

• [For_Australia ] To use this function, set “Guide

Link” to “ON”. (> 27)

Series Timer Recording

You can record all the episodes of a series by

setting just one timer recording.

[For_New_Zealand] Split Programme

You can record a programme separated into two or

more parts by some other programmes, e.g. news.

• If the signal is not sent correctly, the recording may lack the

beginning or the ending part of the programmes.

• If the same episode has already been set for series timer

recording at a different time or on another channel (Repeat

programmes), “Series Timer Rec.” will not be selectable.

• Titles recorded using “Series Timer Rec.” are bundled and

displayed as a “group” in the Video Menu screen (> 31).

• The series recording will be cancelled if there has been no

episode of the series for 13 weeks.

2 Select “New Timer Programme”, then press

[OK].

3 Select the items and change the items.

(> 27, Timer recording options)

4 Press [OK].

The timer programme is stored.

To confirm and edit the timer programme

(> 28)

Operation during Recording (> 24)

To search the programmes

Various functions with TV Guide

Manually programming timer

recording

1 Press [PROG/CHECK].

Channel Name

Schedule

Mode

Space

RETURN

Page Up

Page Down

Turn

Timer Off

Total 0/32

Timer Recording

30:30 DRHDD TUE 05.01.2016 XXXXX

Delete

New Timer Programme

Info

Keyword List

Resolve overlap

Channel Name

Schedule

Mode

Space

Timer Recording

30:30 DRHDD TUE 05.01.2016 XXXXX

New Timer Programme

Programme Name

SAT 16.01

XXXXX - XXXXX

DMRPWT560GN_eng.book 26 ページ２０１６年４月１４日　木曜日　午後１時９分

Recording

SQT1112

Select the items and change the settings.

Channel

You can select Category with the red button.

Day/Date

You can select “Date” or “Weekly” by pressing the

green button.

Auto Renewal Recording

(Only daily/weekly/series timer recording)

The unit will record the new programme over the

old one.

Press the yellow button.

“Renew : ON” is displayed.

Start/Stop

Press and hold [3, 4] to alter in 15-minute

increments.

Mode/Conv.

Refer to “To change the recording (conversion)

mode” (> 23).

Subtitles

You can choose whether or not to record the

subtitle at conversion.

(Only when item other than “OFF” is selected in

“Conv.”)

Title Name

1 Select “Title Name”, then press [OK].

2 Refer to “Entering text”. (> 61)

[For_Australia] To use Guide Link

You can choose whether or not to use the Guide

Link function by pressing the blue button.

You can make timer recording of the current or

next programme.

1 While watching a programme

Press [STATUS ].

2 Display the Channel Information of a

programme to record.

• Switch the programme with [2, 1].

3 Press the yellow button.

4 Go to step 3 on page 26, “Manually

programming timer recording”.

Timer recording options

Timer Recording TUE 05.01.2016 XXXXX

30:24 DR

Channel

1 TUE 01.01

Day/Date Stop

XXXXX XXXXX

Start

Title Name

DR OFF

Mode

OFF

Conv. Subtitles

HDD

Date

Guide Link : OFF

e.g., [For_Australia]

Timer recording from Channel

Information

Notes on timer recording

• When you programme successive timer

recordings to start, about last 1 minute of earlier

programme will not be recorded.

• Timer recording will not start while:

- copying HD Video (AVCHD) from USB device

or SD card

- converting a title in “File Conversion” (Only

when “Now” is selected)

- copying video/photos/music files

-formatting

• When “Pure Sound mode” is activated, timer

recording does not start during playback of

BD-Video, DVD-Video or music CD. (> 63)

• When recording except in DR mode, the audio

content etc. will be selected according to the

following settings:

- “Audio Type for Digital Broadcast” (> 66)

- [For_New_Zeal and] “Multi Audio”, “Subtitles” of

“Preferred Language” (> 63)

- [For_New_Zeal and] “Audio Description” (> 63)

XXXX

Now

Dolby D ADRating: G

Change category

All Digital Channels

XXXX - XXXX

Set timer

e.g.,

DMRPWT560GN_eng.book 27 ページ２０１６年４月１４日　木曜日　午後１時９分

Recording

SQT1112

2 Select the programme, then perform the

operations.

To edit a timer programme

1 Press [OK].

2 Change the timer recording options.

• Refer to “Timer recording options”. (

27)

3 Press [OK].

To exit the timer recording list

Press [EXIT ].

• Programmes to be recorded with Keyword recording (> 29)

are not displayed.

To confirm and edit a timer

programme

1 Press [PROG/CHECK].

• Red:

Deactivate a timer programme

- The timer icon “F” will change from red to

grey.

- Press the red button again to activate

timer recording standby.

(The timer icon “F” will change to red.)

• Green:

Resolve an overlap timer programme

- The overlapped timer recording list will

appear. (> 25)

• [DELETE]: Delete a timer programme

• [STATUS ]: Show programme information

Channel Name

Schedule

Mode

Space

RETURN

Page Up

Page Down

Turn

Timer Off

Total 3/32

Timer Recording

30:30 DRHDD TUE 05.01.2016 XXXXXX

Delete

Info

New Timer Programme

TUE 12.01

XXXXXX - XXXXXX

TUE 12.01

Keyword List

Resolve overlap

Guide

e.g.,

Screen icons

Red: Timer recording standby is

activated.

Grey: Timer recording standby is

deactivated.

[

(Red)

Currently recording programme

A part or all of the programme will not

be recorded since the programme is

overlapping.

The HDD is full.

Copy-protected programme

It was not recorded.

The recording of the programme was

not completed because of some

reason.

Auto Renewal Recording is set.

(> 27)

Guide Link (> 27)

Series Timer Recording (> 26)

Displayed if the recording can fit in the

remaining space

(Date)

Daily or weekly timer programme is set.

• The timer remains active until the

date indicated below .

It may not be possible to record

because:

- there is not enough space left.

- the number of possible titles has

reached its maximum. (> 16)

- programmes are deactivated, etc.

[For_New_Zealand]

Split Programme (> 26)

DMRPWT560GN_eng.book 28 ページ２０１６年４月１４日　木曜日　午後１時９分

Recording

SQT1112

Keyword Recording

• Programmes that are set to be recorded automatically with

Keyword Recording are not displayed on the Timer

Recording confirmation screen (> 28). (“> 30, To display

the list of programmes found with the set keyword”)

• When a search brings up too many programmes, we

recommend revising the search settings.

• On the TV Guide screen, up to 128 programmes are

displayed with the Keyword Recording icon “F” (blue).

The unit can find programmes that include

specified keywords from programme names and

programme information on TV Guide, and record

the programmes automatically.

• This unit can record two programmes being

broadcasted at the same time.

• Notes on timer recording (> 27)

1 On the TV Guide screen:

Select the programme for keyword

recording and press the blue button.

2 Select the items and change the items if

necessary.

• Refer to “Keyword Recording conditions”.

(> right)

3 Select “Set”, then press [OK].

4 Press [OK].

The Keyword Recording icon “F” (blue) is

displayed on the TV Guide screen.

Keyword Recording

FRI 08.01.2016 XXXXXX

Keyword1

Olympic

Search Target

Extra Word Settings

Programme Name only

Category

Narrow down the channels to be searched.

Programmes in the selected category that

match the specified keywords will be recorded.

Detail Search Condition

Prog.Type

Select the programme type.

If, for example, you select “Arts/Culture”,

programmes related to arts and culture that

match the specified keywords will be

recorded.

[For_New_Zealand] Video Format

Select whether to include HD and/or SD

programmes in the search.

Remove Duplicates

When there are multiple programmes with the

same title, start time and length, only the

programme closest to the top of the channel

list will be recorded.

Recording Settings:

Conversion Mode (> 23)

Subtitle

You can choose whether or not to record the

subtitle at conversion.

(Only when item other than “Off (DR)” is

selected in “Conversion Mode”)

Guide Link (> 26)

[For_Australia] You can choose whether or not to

use the Guide Link function.

[For_New_Zealand] The Guide Link function is

always activated.

DMRPWT560GN_eng.book 29 ページ２０１６年４月１４日　木曜日　午後１時９分

Recording

SQT1112

To display the list of programmes found with

the set keyword

Press the yellow button in “Keyword Recording” screen.

Recording takes place in the following order of priority:

Keyword Recording may not work in some cases.

To avoid recording failure, we recommend using

Timer Recording instead of Keyword Recording.

Changing the recording method

Select the programme marked “

F” (Blue), then

press the red button on the Keyword Recording

status screen (> above) or TV Guide screen.

You can also set keywords from FUNCTION

MENU.

By default, when the HDD capacity is low, the unit

automatically deletes titles recorded with Keyword

Recording, starting from the one with the oldest

recording date.

Perform the following not to delete them as

necessary. (> 33)

- Protect titles.

- Change Delete Settings.

- Remove titles from “Keyword Record”.

- Copy titles before deleting them.

F Blue: Recording has already been set with a

different Keyword.

F Red: Timer recording standby is activated.

Priority order of Keyword Recording

1 A programme that is already being recorded

2 Timer Recording

3 A programme with a smaller keyword

number (1 to 16)

4 A programme that starts first

• Programmes set for timer recordings are not treated as

Keyword Recording programmes.

Displaying the Keyword List

1 Press [FUNCTION MENU].

2 Select “Keyword Recording”, then press [OK].

SAT 22.01

XXXXXX - XXXXXX Olympic opening ceremony

XXXXXX - XXXXXX Olympic Soccer

XXXXXX - XXXXXX Olympic Judo

XXXXXX - XXXXXX Olympic Boxing

Schedule Programme Name

Keyword Recording FRI 08.01.2016 XXXXX

The programme including keyword is searched every day and timer registration is carried out automatically.

Keyword 1 World cup

All Keywords Search Timer RecordingTurn Keyword Off Video Menu

Delete

DELETE

RETURNOPTION

Keyword 2 Soccer

Keyword 3 Premier League

Keyword 4 Olympic

Keyword 5 --- (No Keyword)

Keyword 6 --- (No Keyword)

Keyword 7 --- (No Keyword)

Keyword 8 --- (No Keyword)

To add/edit the Keyword

Select the Keyword and press [OK], then

make required settings.

• Refer to “Keyword Recording conditions”

(> 29)

To deactivate the Keyword Recording

Select the Keyword, then press the red button.

• Press again to return back to the Keyword

Recording standby.

To search programmes matched with any

of the registered keywords

Press the yellow button.

To play programmes recorded with

Keyword Recording

Press the green button.

• Refer to “Playing Keyword Recording titles”

(> 33)

To delete the registered Keyword

1 Select the Keyword, then press [DELETE].

2 Select “Yes”, then press [OK].

To change the recording priority of

keywords

• Refer to “Priority order of Keyword

Recording” (> left)

1 Press [OPTION].

2 Select “Change Priority”, then press [OK].

3Press [3, 4] to shift the position, then

press [OK].

Automatic deletion of Keyword Recording

DMRPWT560GN_eng.book 30 ページ２０１６年４月１４日　木曜日　午後１時９分

Playing back video

SQT1112

Playing titles

on the HDD

AVCHD tab

[USB_HDD]

When connecting registered USB HDD,

“USB HDD” tab and registration number appears.

Select “USB HDD” tab.

“For recorded titles (> 17)” only

1 Press [FUNCTION MENU].

2 Select “Contents on HDD”, then press

[OK].

e.g.,

3 To play recorded titles:

Select “Recorded Programmes”, then

press [OK].

The Video Menu screen appears (> right).

To play HD Video (AVCHD):

Select “Video ( AVCHD )”, then press

[OK].

The AVCHD tab appears on the Video Menu

screen (> right).

To play video files:

Select “Video ( MP4 / MKV )”, then press

[OK].

The video list screen appears (> 34).

4 Select the title, then press [OK].

Playing

back video

Contents on HDD

Recorded programmes can be played.

RETURN

Video ( AVCHD )

Recorded Programmes

Video ( MP4 / MKV )


Music

Video Menu screen

e.g.,

 Tab (> 32)

 Programme type

3 Keyword Recording

Refer to “Playing Keyword Recording titles”

(> 33)

4 AVCHD tab

e.g.,

Time Remaining 45:54 (DR)

HDD

Page

Select Copy

Grouped Titles

Start Time

Prog.Type:

Rec time

Play

RETURN

Xxxxxx

AVCHDXxxxxxNot Viewed

Video Menu

Channel Date Title Name Titles

All

Keyword Record

Delete

Page Up

Page Down

XXXXXX

XXXXX 0:01(DR)



Time Remaining 45:54 (DR) Registration number 1

USB-HDD

Grouped Titles

Xxxxxx

AVCHD

Xxxxxx

Not Viewed

Keyword Record

Video Menu

All

USB HDD

DMRPWT560GN_eng.book 31 ページ２０１６年４月１４日　木曜日　午後１時９分

Playing back video

SQT1112

You can quickly find the recorded titles by

selecting the tab.

To select the tab

Press [2, 1].

To change the displayed programme type tab

1 Select the programme type, then press the

green button.

2 Select the item, then press [OK].

Select the title, then press [STATUS ].

1 Press [OPTION].

2 Select “Grouped Titles” or “All Titles”, then

press [OK].

All Titles

Screen icons

[

(Red)

Currently recording programme

Protected title

Title was not recorded due to

recording protection

Title cannot be played

(When data is damaged etc.)

Grouped titles

[

(Blue)

Title has not yet been played

Title is recorded using a different

encoding system from that of the unit.

Change the “TV System” (> 66).

Radio programme

3D contents

Recorded in 1080/50p contents

Recorded in 1080/60p contents

Title is restricted by Child Lock

( Parental Rating ) (> 63).

Title has been recorded in Series

timer recording.

Title has been recorded in Series

timer recording and has not yet been

played.

Recording did not complete as the

timer recording has started.

Keyword recording title which has not

yet been played

Grouped Keyword recording titles

Keyword recording title which has

already been played

Notification icon for a new Keyword

Recording

Title cannot be played from DLNA

client not compatible with DTCP-IP

(> 52)

Tab

Showing Information

Showing grouped title

Grouped Titles:

• Two or more titles recorded in the

daily/weekly/series timer recording mode are

bundled and displayed as one item.

• Two or more Keyword recording titles

recorded from the same Keyword.

Playing back grouped titles

1 On the Grouped Titles screen:

Select the item marked with or .

2 When playing all titles:

Press [1a1.3].

When playing the individual title:

Press [OK] and select the title, then press

[OK].

DMRPWT560GN_eng.book 32 ページ２０１６年４月１４日　木曜日　午後１時９分

Playing back video

SQT1112

1 Select the title or the group, then press the

yellow button.

• A check mark is displayed. Repeat this step.

• Press the yellow button again to cancel.

2 Press [OPTION].

3 Select the item, then press [OK].

Create Group:

Selected titles are bundled to form a group.

Release Grouping:

All the titles in the group are released.

Remove:

Selected titles are removed from the group.

1 Select the title, then press [OPTION].

2 Select “Chapter View”, then press [OK].

e.g., [HDD]

3 Select the chapter, then press [OK].

To edit the chapter in Chapter View

Refer to “Editing chapters”. (> 43)

1 Select the title, then press the red button in

step 3. (> above)

2 Select “Set up Protection”, then press [OK].

You can delete keywords and all titles found with

the keywords.

1 Press [DELETE] in step 2. (> above)

2 Select “Delete”, then press [OK].

Keyword Recording titles removed from “Keyword

Record” will be treated as normal titles.

1 Select the title, then press [OPTION] in step 3.

(> above)

2 Select “Remove from Keyword Record”, then

press [OK].

3 Select “Remove”, then press [OK].

If you select keywords before copying, you can

copy all the titles contain the keywords.

• For information on copy operations, refer to

“Displaying the Keyword List”. (> 30)

Editing the grouped titles

Playback from Chapter View

Press OK to start playing from

the selected chapter.

Selected chapter can be edited

via OPTION.

Press RETURN to go back to

previous menu.

Page 001/001

0:00.00

001

0:12.29

Play

SelectEdit Chapter Mark

Play

RETURN

Delete

Playing Keyword Recording titles

1 Select “Keyword Record” tab.

Recording mode for conversion (> 42)

2 Select the Keyword, then Press [OK].

3 Select the title, then press [OK].

To protect Keyword Recording titles

To delete Keyword Recording titles

To remove Keyword Recording titles from

“Keyword Record”

To copy Keyword Recording titles

Time Remaining 45:54 (DR)

HDD

1: World Cup

2: Soccer

3: Premier League

4: Olympic

5: --- (No Keyword)

6: --- (No Keyword)

7: --- (No Keyword)

Rec Mode

Xxxxxx

AVCHDXxxxxxNot Viewed

Video Menu

Titles will be deleted if not enough space on HDD. Press RED button to change.

All

Keyword Record

(DR HX)

DMRPWT560GN_eng.book 33 ページ２０１６年４月１４日　木曜日　午後１時９分

Playing back video

SQT1112

e.g.,

• When the following conditions are met, videos are played

back in 4K regardless of the image quality:

- When this unit is connected to a TV that is 4K and

24p/25p compatible

- When “HDMI Video Format” is set to “Automatic” (> 66)

- When “24p / 25p Conversion” is set to “Auto” (> 40)

This unit can not output 4K image when playing back in 3D.

Playing titles

on the media

To play back the playlist created on other

equipment

1 Press [FUNCTION MENU].

2 Select “Disc” in “Media”, then press [OK].

3 Select “Playlists”, then press [OK].

4 Select the playlist, then press [OK].

Selecting screen for each operation is displayed

when the media is inserted, and you can access

the operation screen easily.

e.g., [USB]

• Display items differ depending on what is

recorded in each media.

Video list screen

Screen icons

Folder

Titles

Titles (4K)

Copy to SD card is not available

Move to the parent folder

Parent Folder

Video Menu

\ Video \

Folder 01

Folder 02

video01.mpeg

video02.mpeg

video03.mpeg

video04.mpeg

HDD

Page 0001/0003

Select CopyParent Folder

Play

RETURN

Delete

Page Up

Page Down

DELETE

Play

08/02/2013 13:45

08/02/2012 12:45

08/02/2011 11:45

08/02/2010 10:45

“For data files (> 17)” only

1 Insert the media.

• AVCHD: If the menu screen is not displayed

Press [1a1.3].

2 When the Video Menu screen or menu

screen etc., appears:

Select the item or title, then press [OK].

• Repeat this step if necessary.

• When the following conditions are met, videos are played

back in 4K regardless of the image quality:

- When this unit is connected to a TV that is 4K and

24p/25p compatible

- When “HDMI Video Format” is set to “Automatic” (> 66)

- When “24p / 25p Conversion” is set to “Auto” (> 40)

This unit can not output 4K image when playing back in 3D.

• To enjoy BD-Video that supports Dolby Atmos

or DTS:X

(> 67)

Menu screen

USB Device

RETURN

USB device is inserted.

View Photos

Play / Copy Video

Play / Copy Music

Copy Video ( AVCHD )

Copy New Photos

DMRPWT560GN_eng.book 34 ページ２０１６年４月１４日　木曜日　午後１時９分

Playing back video

SQT1112

If the menu screen is not displayed, display it

by performing the following operation.

1 While stopped

Press [FUNCTION MENU].

2 Select “Media”, then press [OK].

3 Select the media, then press [OK].

e.g.,

About screen icons

Refer to “Screen icons”. (> 34)

Showing Information

Select the title, then press [STATUS ].

Playback from Chapter View (> 33)

[SD]

Showing Information

1 Select the title, then press [OPTION].

2 Select “Information”, then press [OK].

[BD-V]

BD-Live allows you to enjoy more functions such

as subtitles, exclusive images and online games.

Preparation

1 Perform network connection and settings.

(> 10, 12)

2 Insert a disc.

For the playback method, refer to the

instructions for the disc.

If you no longer need BD-Live data recorded on

the built-in HDD, you can delete data with the

following operation.

1 Press [FUNCTION MENU].

2 Select “BD-Video Data Management” in

“Setup”, then press [OK].

3 Select “Delete BD-Video data”, then press

[OK].

4 Select “Yes”, then press [OK].

5 Select “Start”, then press [OK].

6 Press [OK].

• You can restrict Internet access when BD-Live functions are

used (> 63, BD-Live).

• When “Pure Sound mode” is set to “On”, this unit cannot

use BD-Live functions. (> 63)

Video list screen

Video Menu screen

e.g.,

Parent Folder

Video Menu

\ Video \

Folder 01

Folder 02

video01.mpeg

video02.mpeg

video03.mpeg

video04.mpeg

Page 0001/0003

Select CopyParent Folder

Play

RETURN

Page Up

Page Down

Play

08/02/2013 13:45

08/02/2012 12:45

08/02/2011 11:45

08/02/2010 10:45

USB

BD-RE

Page 003/003

All Titles

04.10

29.10

Start Time XXXXXX Rec time 0:10(HM)

Play

RETURN

Video Menu

Channel Date Title Name

All

Page Up

Page Down

Video Menu ( AVCHD ) screen

e.g.,

Notes for BD-Live discs

Delete BD-Video data

Video Menu ( AVCHD )

RETURN

Date Day

Time

Title Name

Rec time

0:30.41

Page 03/03

Page Up

Page Down

No.

01.01

XXXXX

Birds

02.01

XXXXX

World news

03.01

XXXXX

Football

03.01

XXXXX

House dog

04.01

XXXXX

Hunting

05.01

XXXXX

Shopping

05.01

XXXXX

Venus

06.01

XXXXX

Kitten

06.01

XXXXX

Moon

01.01

SUN

MON

TUE

WED

THU

FRI

SUN

XXXXX

Dogs and Cats

Play

SD Card

001

002

003

004

005

006

007

008

009

010

DMRPWT560GN_eng.book 35 ページ２０１６年４月１４日　木曜日　午後１時９分

Playing back video

SQT1112

Operation during play

• Discs continue to rotate while menus are displayed. Press

[∫] when you have finished playback to protect the unit’s

motor, your TV screen, etc.

Press [STATUS ] twice.

Press [∫].

Resume play function

Press [1a1.3] to restart from the stopped

position.

• Discs: Only previous stopped position is memorised. The

position may be cleared if the tray is opened or the unit is

switched to standby mode.

Press and hold [1a1.3].

• Press again to return to normal speed.

• MKV, MP4 and MPEG2: Quick View is not effective.

• Quick View is not effective when playing back the disc.

Press [6] or [5].

•Press [1a1.3] to restart play.

Press [;].

•Press [1a1.3] to restart play.

While paused, press [6] or [5].

•Press [1a1.3] to restart play.

While paused, press [2](2;) or [1](;1).

• Each press shows the next frame.

• Press and hold to change in succession forward

or backward.

•Press [1a1.3] to restart play.

General operations

Status messages

e.g.,

Stop

Quick View

XXXXXXX 01.01.2016

0:30.00

Remain HDD

0:05.14 DR

• The speed increases up to 5 steps.

([+R] [+RW]: Up to 3 steps)

• MKV, MP4 and MPEG2: Audio is not heard during all

levels search.

Pause

Slow-motion

• The speed increases up to 5 steps.

• MKV, MP4 and MPEG2: Slow-motion is not effective.

• [BD-V], AVCHD ([DVD-R] [SD]): Forward direction [5] only.

Frame-by-frame

• MKV, MP4 and MPEG2: Frame-by-frame is not effective.

• [BD-V], AVCHD ([DVD-R] [SD]): Forward direction [1](;1)

only.

DMRPWT560GN_eng.book 36 ページ２０１６年４月１４日　木曜日　午後１時９分

Playing back video

SQT1112

Skip forward 1 minute:

Press [+60s].

Skip backward 10 seconds:

Press [-10s].

• Depending on the content that you play back, this function

is not available.

• [For_New_Zealand] This function does not work for titles

containing recorded broadcasts.

[BD-V] [DVD-V]

1 Press [OPTION].

2 Select “Playback Menu”, then press [OK].

3 Select “Top Menu”, “Pop-up Menu” or “Menu”,

then press [OK].

Press [:] or [9].

• [HDD] [USB_HDD] (For recorded titles, > 17): It will not skip

the title. But the title in the grouped titles will be skipped.

(> 32)

Press [AUDIO].

• It will switch depending on the contents

recorded every time it is pressed.

• [For _New_Zealand] If “Audio Description” is set to

“Automatic”, Audio Description will be given

priority when playing, if available. (> 63)

1 Press [STTL ].

2 Press [OK].

3 Select “On” or “Off”, then press [OK].

• If you want to switch the subtitle language,

select it in the Basic Operation menu (> 39).

[BD-V] [DVD-V], MKV:

Display with “Subtitle Settings” in the Basic

Operation menu (> 39).

You can switch the aspect ratio of the screen.

(> 61)

Preparation

Connect 3D compatible TV to this unit. (> 9)

• Perform the necessary preparations for the TV.

Play back following the instructions displayed

on the screen.

3D BD-Video Playback

It is also possible to play back 3D discs in 2D

(conventional video). (> 63)

3D Type

If 3D video cannot be played back in 3D, you may

be able to play it in 3D by changing the setting.

(> 66)

3D AVCHD Output

If 2D AVCHD video is recognised as 3D video and

cannot be played back correctly, you may be able

to play it by changing the setting. (> 66)

3D Playback Message

Hide the 3D viewing warning screen. (> 66)

Manual Skip

To display menu

Skipping the title or chapter

Changing audio

Switching subtitles

[HDD] [USB_ HDD] (For recorded titles, > 17)

[BD-RE] [BD-R]

Aspect

3D video playback

Preparatory 3D settings

DMRPWT560GN_eng.book 37 ページ２０１６年４月１４日　木曜日　午後１時９分

Playing back video

SQT1112

Change this setting when the screen is not

correctly displayed for 3D compatible

programmes.

Graphic Display Level

Adjust the 3D position for the playback menu or

message screen etc.

• Please refrain from viewing 3D images if you do not feel

well or are experiencing visual fatigue.

In the event that you experience dizziness, nausea, or other

discomfort while viewing 3D images, discontinue use and

rest your eyes.

• Depending on the connected TV, the video being played

back might switch to 2D video due to changes in resolution

etc. Check the 3D setting on the TV.

• 3D video might not output the way it is set in “HDMI Video

Format” (> 66) and “24p Output” (> 67).

• It may display as Side-by-Side (2 screen structure) when

playback of the 3D video is started.

• This unit only guarantees the playback of the Frame

Sequential and the Side-by-Side (Half) programme types.

3D settings during playback

1 Press [OPTION].

2 Select “Playback Settings” in “Playback

Menu”, then press [OK].

3 Select “3D Settings”, then press [OK].

4 Select the item, then press [OK].

Signal Format

- Original:

Keep original picture format.

- Side by side:

3D picture format comprising of left and right

screens.

- 2D to 3D:

Converts 2D pictures to 3D effect while playing.

3D Picture Mode

-Normal:

-Soft:

This function cannot be enabled when “Signal

Format” is set to “2D to 3D”.

- Manual:

3D effects set manually (> below)

Manual Settings

(To change the setting, set “3D Picture Mode” to

“Manual”.)

Distance

Set the amount of depth perception.

Screen Type

Selects how the screen appears during 3D

playback (flat or round).

Frame Width

Set the amount of feathering at the edge of

screen.

Frame Colour

Set the colour of feathering at the edge of

screen.

DMRPWT560GN_eng.book 38 ページ２０１６年４月１４日　木曜日　午後１時９分

Playing back video

SQT1112

Playback menu

A variety of playback operations and settings can

be performed from this menu.

Available options differ depending on the playing

contents and the condition of the unit.

2 Select the menu, then press [OK].

3 Select the item, then press [OK].

4 Change the setting.

To clear the Playback menu

With some discs, you may only be able to

make changes using the menus on the disc.

1 Display the Playback menu.

1 Press [OPTION].

2 Select “Playback Settings” in “Playback

Menu” or select “Playback Settings”, then

press [OK].

Press [RETURN ] until the Playback menu

disappears.

Basic Operation

Primary Video MPEG-4 AVC

Repeat Play Off

Angle -

Subtitle Settings

Secondary Video

Aspect Normal

Soundtrack

1ENG DTS-HD MSTR Multi

Item

Setting

e.g.,

Basic Operation

Soundtrack

Show or change the soundtrack.

[For_Australia] Audio Selection

Switch in the case of multiple audio.

[For_New_ Zeal and] Audio Selection/AD

Switch in the case of multiple audio and Audio

Description.

Audio Channel

Change audio (LR/L/R) during playback.

Subtitle Settings

Turn the subtitle on/off, and change the

language depending on the media.

Subtitle Settings

Subtitle Style

Subtitle Position

Subtitle Luminance

Subtitle Language

Select the subtitle language in the case of

multiple languages.

Angle

Change the number to select an angle.

Repeat Play

Select the item which you want to repeat.

Random

Select whether to play random or not.

Video

The original video recording method

(MPEG-4 AVC etc.) appears.

Primary Video

The original video recording method appears.

Secondary Video

Video

Select on/off of images.

The original video recording method appears.

Soundtrack

Select on/off of audio and the language.

Aspect (> 61)

Reception

The radio wave status during the playback of

Smart Home Networking (DLNA) is displayed.

(Only when a wireless connection is used)

DMRPWT560GN_eng.book 39 ページ２０１６年４月１４日　木曜日　午後１時９分

Playing back video

SQT1112

• The menu is not displayed when playing photos.

Display language list

Picture Settings

Picture Type

Select the picture quality mode during play.

Sharpness Adjustment

Noise Reduction

Luminance/Colour Adjustment

Bandwidth Limitation

Adjusts the bandwidth limitations.

24p / 25p Conversion

Plays back videos with film-like motion.

• This function is available on the following

conditions:

- “HDMI Video Format” set to “Automatic”,

“1080i”

or “1080p”

(> 66)

Only for 24p Conversion

- Connect 24p/25p compatible TV.

• Noise may appear on the image when you

switch the setting.

Progressive

Select the method of conversion for

progressive output to suit the type of title being

played.

•Auto

Automatically detects the film and video

content, and appropriately converts it.

•Video

Select this setting when the content is

distorted if “Auto” is selected.

•Film

Select this if the edges of the film content

appear jagged or rough when “Auto” is

selected. However, if the video content is

distorted, then select “Auto”.

Reset to Default Picture Settings

Restores the default settings of the Picture

Settings menu.

Sound Effect Settings

DSD Decode Sampling Frequency

Select the settings that suit your sound quality

preferences.

DSD LPF Setting

Select the settings that suit your sound quality

preferences.

Sound Settings

Sound Effects

• This function is effective when “Digital Audio

Output” is set to “PCM”. (> 65)

Night Surround

Enjoy a movie with powerful sound even

when the volume is kept low at night.

Re-master 1/Re-master 2

Sound becomes more natural by adding

higher frequency signals not recorded on

the track.

Dialogue Enhancer

The volume of the centre channel is raised to

make dialogue easier to hear.

3D Settings (> 38)

Signal Format

3D Picture Mode

Manual Settings

Graphic Display Level

ENG English JPN Japanese ARA Arabic

FRA French CHI Chinese HIN Hindi

DEU German KOR Korean PER Persian

ITA Italian MAL Malay IND Indonesian

ESP Spanish VIE Vietnamese MRI Maori

NLD Dutch THA Thai BUL Bulgarian

SVE Swedish POL Polish RUM Romanian

NOR Norwegian CES Czech GRE Greek

DAN Danish SLK Slovak TUR Turkish

POR Portuguese HUN Hungarian ¢ Others

RUS Russian FIN Finnish

DMRPWT560GN_eng.book 40 ページ２０１６年４月１４日　木曜日　午後１時９分

Editing video

SQT1112

Deleting/Editing titles

Once deleted, divided or partially deleted,

content cannot be restored to its original

state. Make certain before proceeding.

“For recorded titles (> 17)” only

1 On the Video Menu screen:

Select the title.

2 Press [DELETE].

3 Select “Delete”, then press [OK].

Multiple selection

Select the title, then press the yellow button.

A check mark

is displayed. Repeat this step.

• Press the yellow button again to cancel.

1 Press [DELETE] while playing.

2 Select “Delete”, then press [OK].

1 On the Video Menu screen:

Select the title.

• Multiple selection (> above)

2 Press [OPTION].

3 Select the item, then press [OK].

e.g.,

1 Select “Enter Title Name” in “Edit”, then press

[OK].

2 Refer to “Entering text”. (> 61)

Protection setting prevents the title from

accidental deletion.

1 Select “Set up Protection” or “Cancel

Protection” in “Edit”, then press [OK].

2 Select “Yes”, then press [OK].

appears when setting the protection.

1 Select “Partial Delete” in “Edit”, then press

[OK].

2 Press [OK] at the start point and end point to

delete.

• You can find the desired point by using play,

search, etc. (> 36)

3 Select “Continue”, then press [OK].

• Select “Next”, then press [OK] to delete other

sections. Up to 20 sections can be set.

(> go to step 2)

4 Select “Delete”, then press [OK].

5 Press [RETURN ].

• Chapter Mark is generated in the scene that was partially

deleted.

• PIN is required to edit the titles with in some functions.

(> 32)

Deleting recorded titles

Deleting during play

Editing recorded titles

Editing video

Time Remaining 45:54 (DR)

HDD

Page

Select Copy

Grouped Titles

Start Time

Prog.Type:

Rec time

Play

RETURN

Xxxxx AVCHDXxxxxxNot Viewed

Video Menu

Channel Date Title Name Titles

All

Keyword Record

Delete

Page Up

Page Down

Xxxxxx

XXXXX 0:01(DR)

Entering title name

Setting protection

Partial deleting

Set up Protection

Cancel Protection

Partial Delete

Divide Title

File Conversion

Enter Title Name

Delete Title

Playback

Information

Chapter View

Create Group

Release Grouping

Edit

All Titles

DMRPWT560GN_eng.book 41 ページ２０１６年４月１４日　木曜日　午後１時９分

Editing video

SQT1112

1 Select “Divide Title” in “Edit”, then press [OK].

2 Press [OK] at the point to divide the title.

• You can find the desired point by using play,

search, etc. (> 36)

3 Select “Continue”, then press [OK].

4 Select “Divide”, then press [OK].

To confirm the division point

After performing step 2.

Select “Preview”, then press [OK].

• The unit plays 10 seconds before and after the

division point.

To change the division point

After performing step 2.

Restart play and select “Divide”, then press [OK]

at the division point.

• Divided titles will become a group of titles.

File Conversion is a function to convert the

recording mode of the title in DR mode and

AVCHD contents. The size of the converted title

will be small regularly. It will take about the same

time as the recorded duration.

1 Select “File Conversion” in “Edit”, then press

[OK].

2 Set the conversion options, then press [OK].

Recording Mode (> 17):

• [USB_HDD] You cannot select XP, SP, LP and

EP mode.

Subtitles:

• Automatic

Subtitles will be recorded if they are included

in the title.

•Off

Subtitle will not be recorded.

[For_New_Ze al and] Audio Description:

• Automatic

Audio Description will be recorded if they are

included in the title.

•Off

Audio Description will not be recorded.

Timing:

•Now

Conversion begins immediately after step 4.

• Timer recording will not be performed

during conversion.

• During standby

Conversion will be performed after the unit is

switched to standby mode.

3 Select the item, then press [OK].

Convert & Delete:

The original title will be deleted to save HDD

capacity after conversion.

Convert Only:

The original title remains after conversion.

To cancel a “Now” conversion

Press and hold [RETURN ] for more than

3 seconds.

Dividing title

File Conversion

e.g., [For_New_Zealand]

File Conversion

Convert the selected title by changing its recording mode.

Please select recording mode and other options, then press OK.

RETURN

Subtitles

Off

Audio Description

Off

Recording Mode

HL -- Longer Play

Timing

During standby

4 “Now” conversion:

Select “Start”, then press [OK].

“During standby” conversion:

Press [OK].

• Conversion will be performed after the unit is

switched to standby mode.

“COPY” or “CONV” on the front panel display

remains lighted during conversion.

DMRPWT560GN_eng.book 42 ページ２０１６年４月１４日　木曜日　午後１時９分

Editing video

SQT1112

To confirm whether the conversion is

completed

Press [VIDEO MENU].

When “±± > ±± (Recording mode for

conversion)” is displayed, the conversion has not

finished.

To cancel a “During standby” conversion

After performing steps 1–2 (> 41, Editing

recorded titles)

1 Select “File Conversion” in “Edit”, then press

[OK].

2 Select “Yes”, then press [OK].

1 Select “Chapter View”, then press [OK].

2 Perform the editing operations.

Edit Chapter Mark:

Select the point where you want to start a new

chapter while viewing the title.

1 Press the green button.

2 Press [OK] at the point you want to divide.

• Repeat this step.

3 Press [RETURN ] to go to Chapter View

screen.

To delete the chapter:

1 Select the chapter, then press [DELETE].

• Multiple selection (> 41)

2 Select “Delete”, then press [OK].

To combine chapters (Delete chapter

mark):

1 Select the chapter, then press [OPTION].

2 Select “Combine Chapters”, then press

[OK].

3 Select “Combine”, then press [OK].

The selected chapter is combined to the

next chapter.

Playback from Chapter View

Refer to “Playback from Chapter View”. (> 33)

• The maximum number of chapters:

(Depends on the state of recording.)

Approx. 1000 per title

• When the title has the maximum number of chapters, you

cannot perform the Resume play function (> 36).

• Multiple selection (> 41)

2 Press [DELETE].

3 Select “Yes”, then press [OK].

• All files in the folder will be deleted.

e.g.,

• To use “File Conversion”, the HDD needs enough storage

capacity.

• File Conversion is stopped when this unit is turned on

during performing “During standby” conversion. Conversion

will start from the beginning again once the unit is switched

to standby mode.

• When converted, 3D information may not be retained.

• When converted, the audio content will be selected

according to the following settings:

- “Audio Type for Digital Broadcast” (> 66)

- [For_New_Zealand]

“Multi Audio” and “Subtitles” of “Preferred Language”

(> 63)

Editing chapters

Start Time

Prog.Type:

Rec time

Channel Date Title Name Titles

Xxxxx

XXXXX

1:00(DR HL)

Deleting video files on the HDD

1 On the video list screen:

Select the file or folder.

e.g.,

Parent Folder

Video Menu

\ Video \

Folder 01

Folder 02

video01.mpeg

video02.mpeg

video03.mpeg

video04.mpeg

HDD

Page 0001/0003

Select CopyParent Folder

Play

RETURN

Delete

Page Up

Page Down

DELETE

Play

08/02/2013 13:45

08/02/2012 12:45

08/02/2011 11:45

08/02/2010 10:45

DMRPWT560GN_eng.book 43 ページ２０１６年４月１４日　木曜日　午後１時９分

Copying video

SQT1112

Copying titles

To register the external HDD (USB HDD)

(> 57)

To copy video files (> 45)

1 Select “No”, then press [OK] in step 6 (> left).

2 Select the title, then press the yellow button.

Repeat this step to select titles.

3 Press the blue button.

4 Go to step 6 (> left).

About screen icons on the Video Menu

Refer to “Screen icons”. (> 32)

“For recorded titles (> 17)” only

• The title in the source media will be deleted.

• The recording mode cannot be changed.

1 Connect the USB HDD.

2 Press [FUNCTION MENU].

3 Select “Recorded Programmes” in

“Contents on HDD”, then press [OK].

4 Select the title.

• Multiple selection

Select the title, then press the yellow

button.

A check mark

is displayed. Repeat this

step.

• Press the yellow button again to cancel.

5 Press the blue button.

6 Select “Yes”, then press [OK].

• If you select “No”, you can change the

selection. (> right, To change the

selection)

7 Set other settings, then press [OK].

(> right, “Setting the copying options”)

8 Select “Yes”, then press [OK].

Copying video

To change the selection

Setting the copying options

1 Select the item in step 7 (> left).

2 Press [2, 1] to change the settings.

• Automatic Standby after Copy

On:

This unit is turned to standby mode when it is

not operated for approximately 5 minutes

after completing copy.

DMRPWT560GN_eng.book 44 ページ２０１６年４月１４日　木曜日　午後１時９分

Copying video

SQT1112

1 Press [FUNCTION MENU].

2 Select “Copy Video”, then press [OK].

Cancel All: To cancel all registered copying

settings and lists

3 Make the copying settings. (Copy Direction

etc.)

4 Select “Start Copying”, then press [OK].

5 Select “Yes”, then press [OK].

• Titles in the grouped titles and other titles cannot be

registered simultaneously.

About other screen icons

Refer to “Screen icons”. (> 32)

2 Press the blue button.

3 Select “Yes”, then press [OK].

To stop copying

Press and hold [RETURN ] for 3 seconds.

About the screen icons

Refer to “Screen icons”. (> 34)

• All files in the folder will be copied.

• The names of folders/files cannot be changed after they are

copied to the HDD. We recommend that you create a folder

with an easily identifiable name on a PC or other device first

and use the folder to perform copying.

• Up to 1000 files can be copied at once.

•MKV: Copying from the HDD to the SD card is not possible.

• While copying, no other operations can be performed.

Timer recordings will not proceed.

Copying titles with copying list

Screen icons

Titles that cannot be copied

Title contains photos

• Photos cannot be copied.

(NTSC)

(PAL)

Title recorded using a different

encoding system from that of the unit.

• Titles displaying these marks

cannot be selected.

Copy

HDD

USB HDD

Source

Destination

Cancel All

Copy Direction

Copy Mode

Create List

Start Copying

HDD USB HDD

High Speed

Select the copy direction.

RETURN

Copying video files

[HDD] ,. [SD]

[USB] > [HDD]

1 On the video list screen:

Select the file or folder.

• Multiple selection (> 44)

e.g.,

Parent Folder

Video Menu

\ Video \

Folder 01

Folder 02

video01.mpeg

video02.mpeg

video03.mpeg

video04.mpeg

Page 0001/0003

Select CopyParent Folder

Play

RETURN

Page Up

Page Down

Play

08/02/2013 13:45

08/02/2012 12:45

08/02/2011 11:45

08/02/2010 10:45

USB

DMRPWT560GN_eng.book 45 ページ２０１６年４月１４日　木曜日　午後１時９分

Photo and Music

SQT1112


§1

§2

§3

§1

“For data files (> 17)” only (JPEG, MPO)

§2

[BD-RE] only

§3

[DVD-R] [+R] only

2 Select the folder, then press [OK].

• Photo menu screen appears. (> 47)

3 Select the photo, then press [OK].

• Press [2, 1] to display the previous or

next photo.

• When the following conditions are met, photos are played

back in 4K regardless of the image quality:

- When this unit is connected to a TV that is 4K and 30p

compatible

- When “HDMI Video Format” is set to “Automatic” (> 66)

This unit can not output 4K image when playing back in 3D.

1 While displaying a photo:

Press [OPTION].

2 Select the item, then press [OK].

Playing photos

1 [HDD]:

1 Press [FUNCTION MENU].

2 Select “Photo” in “Contents on HDD”,

then press [OK].

Except [HDD]:

1 Insert or connect the media.

The menu screen appears. (> 34)

2 Select “View Photos”, then press [OK].

Photo and Music

Photo play option

Graphic Display Level

You can change the 3D position of the

screen display, etc., during the 3D photo

playback.

Photo Menu

• Start Slideshow

You can start a slideshow.

• Rotate RIGHT/Rotate LEFT

• The information of the rotated photos will

not be stored depending on the media.

• This function is not available during the

3D photo playback.

• Information

Information (shooting date etc.) is shown.

• Wallpaper

A photo being played back is registered as

wallpaper on the FUNCTION MENU

screen. (> 19)

DMRPWT560GN_eng.book 46 ページ２０１６年４月１４日　木曜日　午後１時９分

Photo and Music

SQT1112

e.g., [HDD]

Photos imported to the HDD (> 48) are managed

using folders.

Folders and photos can be edited by pressing

[OPTION]. (> 48)

To select the tab

Press [2, 1].

To start Slideshow

Refer to “Slideshow settings”. (> right)

[HDD] To display or exit the Calendar screen

Press [;].

1 On the Photo Menu screen:

Press the green button.

2 Select the item, then press [OK].

To pause the Slideshow

Press [;].

•Press [;] again to restart.

To stop the Slideshow

Press [RETURN ].

Photo Menu screen

Screen icons

(Tab)

3D photos (MPO)

Select from this tab to play back in

3D.

Photo protected

New photo which is not viewed

HDD

Page

SelectSlideshow

Calendar

03.01.2012

29.10.2012

25.02.2013

15.03.2013

0002/0002

Copy

RETURN

Photo Menu

All

Page Up

Page Down

Tab

Slideshow settings

Start Slideshow

Interval

Set up the time until the next photo is to

display.

Transition Effect

Effect for the next photo to display can be

set.

Repeat Play

Music Selection

Select background music on (either from

HDD or USB) or off.

Background Music

Select background music from HDD or USB

(Folder).

Random BGM

Play back the BGM (Background Music) in

random order.

This function is not available during the

3D photo playback.

Slideshow

RETURN

Start Slideshow

Interval

Transition Effect

Repeat Play

Normal

Fade

Music Selection

No background music

Background Music

No List

Random BGM

Off

DMRPWT560GN_eng.book 47 ページ２０１６年４月１４日　木曜日　午後１時９分

Photo and Music

SQT1112

[HDD] [SD]

2 Press [OPTION].

• Selectable items will change depending on

the media and the type of file.

3 Select the item, then press [OK].

To stop copying

Press and hold [RETURN ] for 3 seconds.

• The name of the copied photos will be changed.

Editing photos

1 On the Photo Menu screen:

To edit the folder:

Select the folder.

To edit the photo:

1 Select the folder, then press [OK].

2 Select the photo to edit.

• To select multiple folders or photos

Press the yellow button when selecting the

folder or photo.

A check mark

is displayed. Repeat this

step.

• Press the yellow button again to cancel.

Enter Folder Name

Refer to “Entering text”. (> 61)

Combine Folders

[HDD]

Delete Folder

Move Photos

[HDD]

Select “Move to new folder” or “Move to

another folder”, then press [OK].

• If “Move to another folder” is selected, set a

destination folder.

Delete Photos

Set up Protection

[SD]

appears.

• Even if the protection is set, the photo may

be deleted by another unit.

Cancel Protection

[SD]

Selecting and copying the photos

[HDD] > [SD]

[BD-RE] [DVD-R] [+R] [CD] > [HDD] [SD]

[USB_HDD] [SD] [USB] > [HD D]

1 On the Photo Menu screen:

To copy the folder:

Select the folder, then press the blue button.

To copy the photo:

1 Select the folder, then press [OK].

2 Select the photos to copy, then press the

blue button.

• To select multiple folders or photos

Press the yellow button when selecting the

folder or photo.

A check mark is displayed. Repeat this

step.

• Press the yellow button again to cancel.

If the copy destination selection screen is

displayed:

Select the copying destination, then press

[OK].

2 Select “Yes”, then press [OK].

Copying will start.

DMRPWT560GN_eng.book 48 ページ２０１６年４月１４日　木曜日　午後１時９分

Photo and Music

SQT1112

Newly added photos will automatically be copied

to the HDD.

4 Once the copy is completed, select “Yes” or

“No”, then press [OK].

To stop copying

Press and hold [RETURN ] for 3 seconds.

• Photos without shooting date will be categorised using the

creation date.

• The name of the copied photos will be changed.

Music

§1

§2

§1

“For data files (> 17)” only

§2

[DVD-R] [+R] only

[CD] (CD-DA)

Insert the disc. Playback will automatically start.

To play other music (track)

Select the item, then press [OK].

[USB_HDD] [DVD-R] [+R] [CD] [USB]

1 Insert or connect the media.

The menu screen appears. (> 34)

• The track/artist/album name will be displayed if the

information is contained in music file.

Copying automatically

[USB_HDD] [BD-RE] [DVD-R]

[+R] [CD] [SD] [USB]

> [HDD]

1 Insert the media.

The menu screen appears. (> 34)

2 Select “Copy New Photos”, then press [OK].

e.g., [USB]

3 Select “Yes”, then press [OK].

Copying will start.

Yes No

Start copying ?

Copy New Photos

RETURN

HDD

USB

Playing music CD (CD-DA)

Playing music file on the media

2 Select “Play / Copy Music”, then press [OK].

The music list screen appears.

3 Select the item, then press [OK].

• Repeat this step if necessary.

Playback will start.

Music Menu

No.

Track Name Play Time

Track List

3.43

0.02

Track 1

e.g.,

Parent Folder

Music Menu \ Music \

Folder 01

Folder 02

music01.mp3

music02.mp3

music03.mp3

music04.mp3

Page 0001/0003

Select Copy

Play

RETURN

Parent Folder

USB

Page Up

Page Down

DMRPWT560GN_eng.book 49 ページ２０１６年４月１４日　木曜日　午後１時９分

Photo and Music

SQT1112

[HDD]

1 Press [FUNCTION MENU].

2 Select “Music” in “Contents on HDD”, then

press [OK].

The music list screen appears.

3 Go to step 3 (> 49, Playing music file on the

media).

Press [∫].

Press [;].

•Press [1a1.3] to restart play.

Press [6] or [5].

•Press [1a1.3] to restart play.

Press [:] or [9].

Refer to “Repeat Play” or “Random” in Basic

Operation menu (> 39).

Refer to “Sound Effects” in Sound Settings menu

(> 40).

To play music continuously even if the Power

off link works

Refer to “Playing music continuously even after

turning off power to the TV”. (> 58)

[USB_HDD] [DVD-R] [+R] [CD]

[USB] > [HDD]

Except [CD] (CD-DA)

2 Press the blue button.

3 Select “Yes”, then press [OK].

To stop copying

Press and hold [RETURN ] for 3 seconds.

Multiple selection

Select the file or folder, then press the yellow

button.

A check mark

is displayed. Repeat this step.

• Press the yellow button again to cancel.

• While copying, no other operations can be performed.

Timer recordings will not proceed.

• All files in the folder will be copied.

• Up to 1000 files can be copied at once.

[HDD]

1 On the music list screen:

Select the file or folder.

• Multiple selection (> above)

2 Press [DELETE].

3 Select “Yes”, then press [OK].

• All files in the folder will be deleted.

Screen icons

Folder

Music

Move to the parent folder

Playing music file on the HDD

Operations during music play

Stop

Pause

Skip

Repeat Play/Random

Sound Effects

Copying music

1 On the music list screen:

Select the file or folder.

Deleting music

e.g.,

Parent Folder

Music Menu \ Music \

Folder 01

Folder 02

music01.mp3

music02.mp3

music03.mp3

music04.mp3

Page 0001/0003

Select Copy

Play

RETURN

Parent Folder

USB

Page Up

Page Down

DMRPWT560GN_eng.book 50 ページ２０１６年４月１４日　木曜日　午後１時９分

Network

SQT1112

Enjoying

Network Service

Network Service allows you to access some

specific websites supported by Panasonic, and

enjoy Internet contents such as photos, videos,

etc. from Network Service home screen.

Preparation

• Perform network connection and settings.

(> 10, 12)

1 Press [INTERNET].

• The message is displayed. Please read it

carefully and then press [OK].

• NETFLIX can be accessed directly by

pressing [NETFLIX] button.

2 Select the item, then press [OK].

• Operable buttons:

[3, 4, 2, 1], [OK], [RETURN ], colour

buttons and number buttons.

To exit

Press [EXIT ].

• Some features of websites or content of the service may

not be available.

• This unit does not support 4K streaming.

• If using slow Internet connection, the video may not be

displayed correctly. A high-speed Internet service with a

speed of at least 6 Mbps is recommended.

• The services through Network Service are operated by their

respective service providers, and service may be

discontinued either temporarily or permanently without

notice. Therefore, Panasonic will make no warranty for the

content or the continuity of the services.

• In the following cases, settings are possible using “Network

Service Settings” (> 68)

- When restricting the use of Network Service.

- When the audio is distorted.

• A separate subscription is required to watch Netflix.

TV Anytime

Operations such as the ones below can be

performed from anywhere with a smartphone or

tablet installed with Media Center App.

- Setting a recording

- Watching TV with this unit’s tuner

- Playing back titles recorded on this unit

(Use the Media Center App to complete user

registration to use these functions.)

Available for PCs.

For details, please check the following website.

http://panasonic.jp/support/global/cs/

(This site is in English only.)

Preparation

• Perform network connection and settings.

(> 10, 12)

• TV Anytime Settings (> 68)

• This unit will always be connected to the Internet when this

function is activated.

• Please note that a regular maintenance or unexpected

trouble may interrupt the service, and that the service

content may be changed or revoked and operation menu

screens may be changed with or without a prior notice.

• We recommend that you use a high-speed connection,

such as LTE or Wi-Fi.

• TV Anytime services may be discontinued temporarily or

permanently without notice.

Network

BACK

XXX

XXXX

e.g.,

This unit

Internet

Timer recording

Watching TV

Playback titles

Smartphone

or tablet

DMRPWT560GN_eng.book 51 ページ２０１６年４月１４日　木曜日　午後１時９分

Network

SQT1112

Smart Home

Networking (DLNA)

Smart Home Networking (DLNA) allows you to

watch the contents and broadcasts on Server

equipment connected on the same network from

Client equipment.

This unit can be used both as Server and Client.

Additionally, if used as Client, this unit can also be

used as Media Renderer, which can be controlled

by a Smartphone, etc.

Preparation

• Perform network connection and settings.

(> 10, 12)

• Perform Home Network settings of the DLNA

compatible equipment.

• Ensure that the router for your home network has adequate

security system to prevent unauthorised access.

• If using slow network connection, the video may not be

displayed correctly. A high-speed home network with a

speed of at least 20 Mbps is recommended.

• Some video or broadcasts cannot be enjoyed depending on

the DLNA (Client) compatible equipment, the condition of

this unit, or the file type.

You can watch broadcasts received by this unit

(Multiroom TV Streaming), videos and photos

saved on HDD of this unit on DLNA (Client)

compatible equipment.

For details regarding the connection and

operation of equipment connected via a network,

refer to their respective operating instructions.

DLNA function compatible software should be

installed.

Preparation

• Perform Home Network settings. (> 68)

1 Operate the playback equipment (Client) to

display the list of contents on this unit.

2 Select the item, then press [OK].

• The DLNA compatible device that is to be connected to the

unit should be connected to the same hub or broadband

router as the unit.

• The titles with access restriction (e.g., copy restriction)

signals sent from broadcasters are not available for this

function.

• You cannot play back music from the playback equipment

(Client).

• If video frames are dropped, change the following settings.

- Conversion Setting for DLNA (> 68)

- Resolution Setting for DLNA (> 68)

• Files not on the HDD cannot be played back.

• Playing back 3D video recorded on this unit may not work

properly.

• 3D photos copied to this unit cannot be played back in 3D.

For more details, refer to the following website

and the operating instructions for each item of

equipment.

http://panasonic.jp/support/global/cs/

(This site is in English only.)

Using this unit as Server

This unit (Server)DLNA compatible

equipment (Client)

DMRPWT560GN_eng.book 52 ページ２０１６年４月１４日　木曜日　午後１時９分

Network

SQT1112

You can share videos, photos and music stored in

the DLNA Certified media server.

1 Press [FUNCTION MENU].

2 Select “DLNA Client” in “Home Network”,

then press [OK].

A list of equipment connected via the

network is displayed.

• This list can be updated by pressing the red

button.

3 Select the equipment, then press [OK].

4 Select the item, then press [OK].

• Menu structure will be different depending

on the equipment. Select the contents by

repeating the operation.

• Convenient functions can be used by pressing

[OPTION] depending on the contents.

• Control Panel

Control Panel is displayed once the

playback starts.

• Press [OK] if the Control Panel is not

displayed. (It may not be displayed

depending on the conditions of use.)

• (While playing video or photo) Press

[RETURN ] to hide the Control Panel.

• If you want to display the playback menu while playing back

a video on the Panasonic DLNA compatible equipment,

press [AUDIO].

• Playlist of Windows Media

Player can play back only the

contents that are stored in the libraries.

• While playing back the 3D programme, you cannot set “3D

Settings”. (> 37)

When this unit works as a DLNA client, following

contents are playable.

Video


§1

Only when the server is another Panasonic

Blu-ray Disc Recorder, etc.

§2

2D playback only.

§3

[For_New_Ze al and]

Audio

• Depending on the server, the contents other

than stated above can be played back.

Using this unit as Client

This unit (Client)

DLNA compatible

equipment (Server)

Playable contents

Container

Video

codec

Audio codec

Example of

file

extension

Recorded

programmes

(XP/SP/LP/

EP/FR)

MPEG2

Dolby

Digital

Linear PCM

.mpg

.mpeg

Recorded

programmes

(DR/HG/HX/

HE/HL/HM)

§1

MPEG2

H.264

MPEG

HE-AAC

§3

Dolby

Digital

.m2ts

.ts

AVCHD

§1

H.264

Dolby

Digital

.mts

MP4 H.264 AAC .mp4

MPEG2 MPEG2

Dolby

Digital

Linear PCM

.mpg

.mpeg

MKV H.264 AAC-LC

MP3

Dolby

Digital

PCM

Vorbis

FLAC

.mkv

Format Example of file extension

JPEG .jpg

MPO

§1, 2

.mpo

Audio codec Example of file extension

MP3 .mp3

WAV .wav

AAC .m4a, .adts

WMA .wma

FLAC .flac

DSD .dsf, .dff

ALAC .m4a

Linear PCM –

DMRPWT560GN_eng.book 53 ページ２０１６年４月１４日　木曜日　午後１時９分

Network

SQT1112

This unit will work as Media Renderer, which

allows you to play back the contents on DLNA

Server by operating a Digital Media Controller (a

smartphone, etc.).

Digital Media Controller compatible software

should be installed.

Following steps are necessary to use this unit as

Media Renderer.

1 Press [FUNCTION MENU].

2 Select “Media Renderer” in “Home Network”,

then press [OK].

3 Operate the Digital Media Controller

compatible equipment.

To exit from Home Network ( Media Renderer )

screen

Press [RETURN ].

Wi-Fi Direct is a standard that enables wireless

LAN devices to communicate each other directly

without a wireless broadband router.

This unit can be connected wirelessly and directly

to other DLNA compatible equipment on a

temporary basis, regardless of the network

connection and settings of this unit.

1 Press [FUNCTION MENU].

2 Select “Wi-Fi Direct” in “Home Network”,

then press [OK].

3 Select the item, then press [OK].

• Set up the device to be connected so that a

Wi-Fi Direct connection can be made. For

details, refer to the operating instructions

for the device to be connected.

4 Select the device to be connected, then

press [OK].

• If the device you want to connect to is not

displayed, switch the connection method

by pressing the yellow button.

Using this unit as Media Renderer

This unit

(Media Renderer)

Server

Controller

Server

This unit

(Media Renderer)

Using Smart Home Networking

(DLNA) with Wi-Fi Direct

5 When selected “DLNA Client”:

Go to step 4 on page 53.

When selected “DLNA Server”:

Operate the playback equipment (Client).

When selected “Media Renderer”:

Operate the Digital Media Controller.

Wi-Fi Direct compatible

equipment

This unit

Connecting temporarily

DMRPWT560GN_eng.book 54 ページ２０１６年４月１４日　木曜日　午後１時９分

Network

SQT1112

If the corresponding device is not found even after

the search is run again, select “Next” and change

the connection method.

Select the connection method according to the

device to be connected.

You can enjoy the content you are viewing on a

Miracast-compatible smartphone, etc. on the big

screen of your TV.

• Compatible with Android

device, ver. 4.2 and

above and Miracast certified.

For information on whether the smartphone, etc.

supports Miracast, contact the manufacturer of

the device.

1 Press [FUNCTION MENU].

2 Select “Miracast” in “Home Network”, then

press [OK].

3 Operate the Miracast compatible equipment.

To exit from Miracast

Press [EXIT ].

When no devices are found

Wi-Fi Direct Connection

Device not found.

To connect with a Wi-Fi Direct compatible device,

please check connection mode of pairing device and

select “Search again”.

To connect with a Wi-Fi Direct incompatible device,

please select “Next”.

Search again

Wi-Fi Direct Connection

Please select connection method. Press RED button to

change the wireless type of connection with

the pairing device.

Press RETURN to finish.

Current Wireless type :

Wireless type

802.11n/g/b (2.4GHz)

RETURN

WPS (PUSH button)

Manual setting

WPS (PIN code)

Using Miracast

Miracast compatible

equipment

This unit

DMRPWT560GN_eng.book 55 ページ２０１６年４月１４日　木曜日　午後１時９分

With Other Equipment

SQT1112

Copying the HD Video

(AVCHD)

“For data files (> 17)” only

e.g., Connecting to the Panasonic video camera

Connect the video camera or insert the media.

• Make the video camera ready for data transfer.

The menu screen appears. (> 34)

2 Select “Copy Video ( AVCHD )”, then press

[OK].

The confirmation screen appears.

3 Press [OK].

4 Select the title, then press the yellow button.

A check mark is displayed. Repeat this step.

• Press the yellow button again to cancel.

(All the recordings on the same date

become a title.)

5 Press [OK].

6 Select “Start”, then press [OK].

To stop copying

Press and hold [RETURN ] for 3 seconds.

About other screen icons

Refer to “Screen icons”. (> 32)

Registering

the external HDD

(USB HDD)

“For recorded titles (> 17)” only

If you intend to move recorded titles to a

USB HDD, the USB HDD must be registered to

this unit first.

Limitation information

• A USB HDD with a capacity of less than 160 GB

cannot be used.

• Registering of a USB HDD will format the

USB HDD and all the content already recorded

will be deleted.

• Up to eight USB HDDs can be registered on this

unit. If you have already registered eight

USB HDDs, it will be necessary to delete one or

more of them before registering a new

USB HDD.

• Registered USB HDDs cannot be used with

devices other than this unit.

• Certain non-recommended USB HDDs cannot

be used with this unit.

• If a problem occurs with the USB HDD, please

contact the manufacturer of the device.

This unit cannot copy the titles in the HDD to

the media. Be careful when deleting the

original title after copying to the HDD.

USB connection cable (optional)

Screen icons

(NTSC)

(PAL)

Title recorded using a different

encoding system from that of the unit.

• Titles displaying these marks cannot be

selected.

With Other

Equipment

video camera, etc.

Regarding the external HDD (USB HDD)

Please use a recommended USB HDD.

For the latest information on recommended

USB HDDs, please check the following website.

http://panasonic.jp/support/global/cs/

DMRPWT560GN_eng.book 56 ページ２０１６年４月１４日　木曜日　午後１時９分

With Other Equipment

SQT1112

Connect this unit with optional USB HDD.

• Only one USB HDD (For recorded titles, > 17)

can be connected at the same time.

• Do not connect additional HDDs using a USB

hub.

• For details about connection method, refer to

the instructions supplied with the USB HDD.

• The USB HDD can be connected to the USB

port on the rear of this unit.

Disconnecting without following this procedure

may result in the loss of recorded content from

the USB HDD or the internal HDD.

1 Press [FUNCTION MENU].

2 Select “Basic Settings” in “Setup”, then press

[OK].

3 Select “Settings for USB HDD” in “HDD /

Disc / USB HDD”, then press [OK].

4 Select “USB HDD Disconnection”, then

press [OK].

5 Select “Yes”, then press [OK].

6 Disconnect the USB HDD from this unit.

• If the registering screen appears when

connecting the USB HDD, go to step 5.

1 Press [FUNCTION MENU].

2 Select “Basic Settings” in “Setup”, then press

[OK].

3 Select “Settings for USB HDD” in “HDD /

Disc / USB HDD”, then press [OK].

4 Select “USB HDD Registration”, then press

[OK].

5 Select “Yes”, then press [OK].

6 When the registering is complete, message

screen appears.

Press [OK].

7 The confirmation screen appears.

Press [OK].

To cancel all USB HDD registrations (> 65)

• It is not possible to play back the content on the USB HDD

whose registration has been cancelled.

• You can check the registration number of the USB HDD on

the Video Menu. (> 31)

Connecting the USB HDD

Disconnecting the USB HDD

This unit’s rear panel

e.g.,

USB HDD

Registering the USB HDD

DMRPWT560GN_eng.book 57 ページ２０１６年４月１４日　木曜日　午後１時９分

Convenient functions

SQT1112

VIERA Link functions

What is VIERA Link?

VIERA Link is a convenient function which will link

the operations of this unit and a Panasonic TV

(VIERA) or an amplifier/receiver. You can use this

function by connecting the equipment with the

HDMI cable. See the operating instructions for

connected equipment.

Automatic input switching/

Power on link

When the following operations are performed, the

input channel of the TV will be automatically

switched and the screen of this unit will be

displayed. Additionally when the TV is off, the TV

will automatically turn on.

- When play starts on this unit

- When an action that uses Video Menu etc, is

performed

Power off link

When you set the TV to standby mode, this unit is

also automatically set to standby mode.

• Power off link function does not work when

manual recording, copying etc.

Playing music continuously even after

turning off power to the TV

The following operations make it possible to keep

the power of the unit on and to play music

continuously.

When the unit is directly connected to an

amplifier/receiver.

1 While playing music

Press [OPTION].

2 Select “TV Power Off”, then press [OK].

• Sound may be discontinued for several seconds

when the power to the TV is turned off.

Convenient

functions

Easy control only with Panasonic TV’s

remote control

You can operate this unit using the TV remote

control.

Refer to the operating instructions of the TV about

the buttons that you can use.

• VIERA Link, based on the control functions provided by

HDMI which is an industry standard known as HDMI CEC

(Consumer Electronics Control), is a unique function that

we have developed and added. As such, its operation with

other manufacturers’ equipment that supports HDMI CEC

cannot be guaranteed.

• These functions may not work normally depending on the

equipment condition.

• Use the remote control supplied with this unit if you cannot

operate this unit using buttons on the TV remote control.

DMRPWT560GN_eng.book 58 ページ２０１６年４月１４日　木曜日　午後１時９分

Convenient functions

SQT1112

Software (Firmware)

Update

Software of this unit can be updated automatically

by the following methods at the specified time.

(Default setting is 3 a.m. > 70, Software Update

in Standby)

• From broadcasts ([For_New_Zealand])

Software of this unit will be updated from

broadcasts if update information is detected.

• From Internet

Network connection and setting are required.

(> 10, 12)

If a software (firmware) update is available, a

notification is displayed.

• It is displayed on the Channel Information

(> 20) when the Software (Firmware) can be

updated immediately.

To execute, press the red button while the

Channel Information is displayed, and follow the

instructions on the screen.

Update of the software (firmware) will start when

the unit is turned to standby mode.

Use the “Software Update Now ( Broadcast )”

([For_New_Zealand]) function or “Software Update

Now ( Internet )” function. (> 70)

You cannot operate the unit until the update

is complete. Don’t remove the AC mains lead

during the update. Removing the AC mains

lead while the update is in progress may

damage the unit.

Update software (firmware) of this unit

New software version has been found.

The software will be updated automatically

after this unit is switched to standby.

Do not disconnect the AC mains lead.

XXXXXX

Now

Dolby DRating: G

Change category

All Digital Channels

NEWS

XXXXX - XXXXX

Software update

e.g.,

To update the software (Firmware)

immediately

• It may take up to a few hours until the update is completed

depending on the network or broadcast environment.

• The timer recording always takes preference over the

software (Firmware) download; if the timer recording is

scheduled to start, the downloading will be performed at the

next opportunity.

• You can also download the latest software (firmware) from

the following website.

http://panasonic.jp/support/global/cs/

DMRPWT560GN_eng.book 59 ページ２０１６年４月１４日　木曜日　午後１時９分

Convenient functions

SQT1112

4K Networking

You can save 4K videos/photos recorded with

digital cameras and other 4K-compatible devices

to the HDD of this unit and play them back.

Compatible 4K content

• MP4/MOV (4K/24p, 25p and 30p)

- bit rate up to 100 Mbps

- resolution up to 3840k2160 25p/30p,

4096k2160 24p

• JPEG, MPO

- resolution 3840k2160

Photos with a resolution greater than

3840k2160 are played back in 3840k2160.

Preparation

• Connect a 4K-compatible TV to this unit. (> 9)

∫ 4K videos

[HDD]

Refer to “Playing titles on the HDD”. (> 31)

[SD] [USB]

Refer to “Playing titles on the media”. (> 34)

∫ Photos

Refer to “Playing photos”. (> 46)

• Video may not be played back smoothly depending on the

USB device.

• You can also watch the 4K contents stored in the DLNA Certified

media server. (

52, Smart Home Networking (DLNA))

∫ 4K videos

Refer to “Copying video files”. (> 45)

∫ Photos

Refer to “Selecting and copying the photos”. (

48)

Other operations

Format SD Card

Playing back 4K content

Copying 4K content

[HDD] ,. [SD]

[USB] > [HDD]

Format SD Card

[SD]

Formatting deletes all contents (including

computer data), and they cannot be restored.

Check carefully before proceeding.

1 Press [FUNCTION MENU].

2 Select “SD Card” in “Media”, then press

[OK].

3 Select “SD Card Management”, then press

[OK].

4 Select “Format SD Card”, then press [OK].

5 Select “Yes”, then press [OK].

6 Select “Start”, then press [OK].

7 Press [OK].

• Do not disconnect the AC mains lead while formatting.

This can cause the card unusable.

• The contents are deleted when you format a card even if

you have set protection.

• When a card has been formatted using this unit, it may not

be possible to use it on any other equipment.

DMRPWT560GN_eng.book 60 ページ２０１６年４月１４日　木曜日　午後１時９分

Convenient functions

SQT1112

Preparation

• Show the “Enter Title Name” screen, etc.

1 Select a character, then press [OK].

Repeat this step to enter other characters.

2 Press [∫] (Finish).

“Writing...” appears then the screen returns

to the previous screen and so on.

To end partway

Press [RETURN ]. (Text is not added.)

• The maximum number of characters depends on the media.

When the image does not match the screen size of

the TV, you can enlarge the image to fill the screen.

2 Select “Aspect” in “Basic Operation”, then

press [OK].

3 Select the item, then press [OK].

Normal:

Normal output

Side cut:

The black bars on the right and left sides of

the 16:9 image disappear and the image is

enlarged.

Zoom:

The black bars on the top and bottom sides

of the 4:3 image disappear and the image is

enlarged.

• This function does not work on 3D contents.

• The screen mode is switched to “Normal” in the following

situations:

- when you change the channel

- when you start or end the playback of a title

- when you switch the unit on or to standby mode.

• [BD-V] [DVD-V] “Side cut” does not have any effect.

• When “TV Aspect” (> 66) is set to “Pan & Scan” or

“Letterbox”, the “Zoom” effect is disabled.

The HOLD function deactivates all buttons on the

unit and remote control.

Press and hold [OK] and [RETURN ]

simultaneously until “X HOLD” appears on the

front panel display.

To cancel the HOLD function

Press and hold [OK] and [RETURN ]

simultaneously until “X HOLD” disappears.

Entering text

• Red: Enter Symbols

• Green: Enter Alphanumeric characters

• Yellow: Enter Other Characters, such as

umlaut mark or accent grave

•[;]: Delete a character

•[1a1.3]: Shift the alphabetic characters

on the screen to upper case/lower case

RETURN



Delete

;

‘

s d f g h j k l .

“

Symbols

Alphanumeric



Shift

Enter Title Name



Finish

Other Characters

Name field: shows the text you have

entered

e.g.,

Switching the aspect ratio of the

screen

1 Display the Playback menu.

1 Press [OPTION].

2 Select “Playback Settings” in “Playback

Menu”, then press [OK].

HOLD function

DMRPWT560GN_eng.book 61 ページ２０１６年４月１４日　木曜日　午後１時９分

Setup

SQT1112

Basic Settings

You can change the unit’s settings of Digital TV

Tuning, Sound, Display, Connection, Network etc.

in the menu.

1 Press [FUNCTION MENU].

2 Select “Basic Settings” in “Setup”, then press

[OK].

3 Select the menu, then press [OK].

4 Select the item, then make the setting.

To return to the previous screen

Press [RETURN ].

Digital TV Tuning

Favourites Edit

You can create four favourites of channels for

making viewing and recording easier.

After editing as follows, save the Favourites.

Press [RETURN ], then press [OK].

• To select the other Favourites list:

Press the green button.

• To add channels to the Favourites list:

Select the channel in the “All Digital Channels”

column, then press [OK]. Repeat this step.

• Yellow: Add all the available channels to the

Favourites. (This function is available only

when there are no channels in the

“Favourites”.)

• To change the order of the channels list:

1 Select the channel in the “Favourites”

column to move, then press the green

button.

2 Select the new position, then press the

green button.

Setup

Basic Settings

RETURN

Digital TV Tuning

HDD / Disc / USB HDD


Sound

Display

Connection

Network

Others

• To delete channels:

Select the channel in the “Favourites” column,

then press [OK].

• Yellow: Delete all channels.

• To change the name of the Favourites list:

1 Press the red button in the “Favourites”

column.

2Press [3, 4, 2, 1] to select a character,

then press [OK].

Repeat this step to enter other characters.

• Red: Delete a character.

• Blue: Delete all characters.

3 Press [RETURN ].

Channel List

You can edit the channel list.

• To hide unwanted channels

1 Select the channel.

2 Press [OK].

The check mark is removed.

• Yellow: Reveal all channels.

• To change the channel number assignment

1 Select the channel to change, then press the

green button.

2 Enter the channel number to reassign with

the number buttons.

3 Press [OK].

• To set the channel manually

1 Press the red button.

2 Refer to “Manual Tuning”. (> below)

Auto Setup

You can restart the Auto Setup. (> 11)

Select “Yes”, then press [OK].

• The timer recording programmes are cancelled.

Manual Tuning

You can add new channels manually.

1Press [3, 4] to select the physical channel.

• Adjust the frequency by checking the signal

strength and signal quality displays.

2 Press [OK] to start scan.

• The set channel is displayed in the table.

Update Channel List

You can update the channel list to the latest one.

DMRPWT560GN_eng.book 62 ページ２０１６年４月１４日　木曜日　午後１時９分

Setup

SQT1112

Child Lock ( Parental Rating )

You can restrict the viewing of channels

unsuitable to children.

Set a ratings level to limit broadcast viewing and

playback.

• PIN is required to change. (> 20)

Signal Condition

You can check the quality and strength of signals.

Press [CH WX] to select the channel.

• The channels you can receive are affected by weather

conditions, seasons, time (day/night), region, length of the

cable that is connected to the aerial, etc.

• When the signal is too strong (red bar), reduce the signal

amplification at your aerial. (For details, consult your

dealer.)

[For_Aust ra lia]

New Channel Message

Set whether to obtain the information

automatically when a new digital channel is

added.

[For_Aust ra lia]

HbbTV Setting

Turn on/off the HbbTV service.

• When “On” is selected, HbbTV service are

available.

[For_New_Ze aland]

Preferred Language

Select the language for multi broadcast.

If the selected language is not available, then the

original language will be selected.

[For_New_Ze aland]

Audio Description

(When Audio Description is available in the

programme)

When “Automatic” is selected, Audio Description

will be set as default while watching. When timer

recording and copying, Audio Description will be

recorded.

[For_New_Ze aland]

FreeviewPlus

Turn on/off the FreeviewPlus service.

• When “On” is selected, FreeviewPlus service

are available.

HDD / Disc / USB HDD

Settings for Playback

3D BD-Video Playback

Select the playback method of 3D compatible

video software.

Soundtrack

Select the audio language.

• Enter a code with the number buttons when

you select “Other ¢¢¢¢”.

(> 78, Language code list)

Subtitles

Select the language for subtitle.

• Enter a code with the number buttons when

you select “Other ¢¢¢¢”.

(> 78, Language code list)

Select the language for disc menus.

• Enter a code with the number buttons when

you select “Other ¢¢¢¢”.

(> 78, Language code list)

BD-Live

You can restrict Internet access when BD-Live

functions are used.

• If “On ( Limit )” is selected, Internet access is

permitted only for BD-Live contents which

have content owner certificates.

BD-Video Parental Control

Set an age limit of BD-Video play.

• PIN is required to change. (> 20)

DVD-Video Parental Control

Set a rating level to limit DVD-Video play.

• PIN is required to change. (> 20)

Pure Sound mode

You can enjoy movies or music in an

environment more suitable for viewing by

stopping the rotation of the HDD when playing

back commercial BD-Videos, DVD-Videos or

music CDs.

• If “On” is selected, timer recording does not

start while playing back BD-Video,

DVD-Video or music CD.

DMRPWT560GN_eng.book 63 ページ２０１６年４月１４日　木曜日　午後１時９分

Setup

SQT1112

Settings for Recording

Timer Record Start Buffer

This function sets the timer recording to start

earlier than the TV Guide time.

Timer Record Stop Buffer

This function sets the timer recording to stop

later than the TV Guide time.

REWIND LIVE TV

Turn on/off the REWIND LIVE TV function.

• When “Automatic Standby” is set to “Off”

(> 69), “On” cannot be selected.

Aspect for Recording

Sets the aspect ratio when recording or

copying except in DR mode.

• “HG”, “HX”, “HE”, “HL” or “HM” mode:

If “Automatic” is selected, the title will be

recorded with the original aspect ratio.

• “XP”, “SP” or “LP” mode:

If “Automatic” is selected, the title will be

recorded with the original aspect ratio at the

time when recording started (including when

recording started at a commercial, etc.).

• “EP” mode:

If “Automatic” is selected, aspect is fixed to

4:3.

[For_Austr alia]

Chapter Creation

Set the Chapter Creation method.

• Even if “Automatic” is selected, depending

on the programme to be recorded, the

chapter may not be created correctly.

HDD Management

Press and hold [OK] for 3 seconds to show the

following settings.

Delete all titles

Delete all recorded programmes and AVCHD

on the built-in HDD.

• Delete does not work if one or more titles are

protected.

Delete all videos ( MP4 / MKV )

Delete all videos (MP4/MKV) on the built-in

HDD.

Delete all photos

Delete all photos on the built-in HDD.

Delete all music

Delete all Music on the built-in HDD.

Format HDD

Formatting deletes all contents on the

built-in HDD, and they cannot be restored.

Check carefully before proceeding.

Settings for USB HDD

USB HDD Registration

USB HDD Disconnection

This function puts the USB HDD in a state in

which it can be safely disconnected. (> 57)

USB HDD Management

Press and hold [OK] for 3 seconds to show

the following settings.

Delete all titles

Delete all titles on the USB HDD.

• Delete does not work if one or more titles

are protected.

Format USB HDD

Formatting deletes all contents, and

they cannot be restored. Check

carefully before proceeding.

DMRPWT560GN_eng.book 64 ページ２０１６年４月１４日　木曜日　午後１時９分

Setup

SQT1112

Cancellation of all USB HDD Registrations

This function cancels the registrations of all

the USB HDDs registered on this unit.

Only do this if you are going to dispose of this

unit.

• Before operation, perform “USB HDD Disconnection”

(> 64) and remove the USB HDD.


Still Mode

Select the type of picture shown when you pause

play.

•Field:

Select if jittering occurs when “Automatic” is

selected. (The picture is coarser.)

• Frame:

Select if small text or fine patterns cannot be

seen clearly when “Automatic” is selected. (The

picture is clearer and finer.)

Sound

Dynamic Range Compression

To lower the dynamic range for playback (e.g., at

night).

• This does not work depending on broadcasts

and recorded titles.

Downmix

Select the downmix system of multi-channel to

2-channels sound.

• Select “Surround encoded”, when the

connected equipment supports the virtual

surround function.

• There is no effect on “Bitstream” via HDMI AV

OUT and DIGITAL AUDIO OUT terminal.

• The audio will be output in “Stereo” in the

following cases.

- AVCHD playback

- [BD-V] : Playback of clicking sound on the

menu and audio with secondary video in

picture-in-picture mode.

Bilingual Audio Selection

Select whether to record the audio type (“M1” or

“M2”) when File Conversion (> 42).

Digital Audio Output

PCM Down Conversion

Select how to output audio with a sampling

frequency of 96 kHz.

•On:

Signals are converted to 48 kHz.

(Choose when the connected equipment

cannot process signals with a sampling

frequency of 96 kHz.)

• Off:

Signals are output as 96 kHz.

• The signals will be converted to 48 kHz

regardless of the setting in the following

cases.

- The signals have a sampling frequency

of over 96 kHz.

- The disc has copy protection.

- “BD-Video Secondary Audio” is set to

“On”. ([BD-V]) (> below)

Dolby D / Dolby D + / Dolby TrueHD

DTS / DTS-HD

MPEG

Select the audio signal to output.

• Select “PCM” when the connected

equipment cannot decode the respective

audio format.

• Not making the proper settings may result in

noise.

System Volume Adjustment

If the volume of a programme being watched

through this unit is different than the volume of

a programme being watched directly on the TV,

changing this setting may reduce the gap. (This

function works only while you are watching a

programme or playing back a programme

recorded in DR mode with this unit.)

BD-Video Secondary Audio

Turn on/off the clicking sound on the menu

and audio with secondary video.

DMRPWT560GN_eng.book 65 ページ２０１６年４月１４日　木曜日　午後１時９分

Setup

SQT1112

Audio Delay

Mis-sync between the video and audio is

corrected by delaying the audio output.

Audio Type for Digital Broadcast

If the programme has more than one track (Dolby

Digital, etc.), you can set priorities.

• This setting will give effect in the following

conditions.

- The default setting when watching

broadcasts.

- The default setting when playing back the title

recorded in DR mode.

- File Conversion (> 42)

Display

On-Screen Information

Select the time until the Channel Information

screen (> 20) disappears automatically.

Front Panel Display

Changes the brightness of the front panel display.

Screen Saver

This is to prevent image retention on the screen.

Teletext

Select the Teletext (> 20) display mode.

Connection

3D Settings

3D Type

If 3D video cannot be played back in 3D, you

may be able to play it in 3D by changing the

setting.

• Change the settings for 3D on the TV also

when “Side by side” is selected.

3D AVCHD Output

If 2D AVCHD video is recognised as 3D video

and cannot be played back correctly, you may

be able to play it by changing the setting.

3D Playback Message

Set to display or hide the 3D viewing warning

screen.

TV Aspect

Set to match the type of TV connected.

• Pan & Scan:

Side picture is trimmed for 16:9

picture.

The pictures may be shown in

the letterbox style depending on

the content.

• Letterbox:

Black bands appear for 16:9

picture.

Aspect for 4:3 Video

To play a 4:3 title, set how to show pictures on a

16:9 TV.

•4:3:

Picture output expands left or right.

• 16:9:

Picture is output as original aspect with side

panels.

TV System

Set in accordance with the TV System for the

connected TV.

HDMI Connection

HDMI Video Format

You can only select items compatible with the

connected equipment.

• If “Automatic” is selected, the output

resolution best suited to the connected TV

(4K, 1080p, 1080i, 720p or 576p/480p) is

automatically selected.

• To enjoy High Quality Video up-converted to

1080p, you need to connect the unit to

1080p compatible HDTV. If this unit is

connected to an HDTV through other

equipment, it must also be 1080p

compatible.

DMRPWT560GN_eng.book 66 ページ２０１６年４月１４日　木曜日　午後１時９分

Setup

SQT1112

24p Output

When playing BD-Video recorded in

24 frames, this unit displays each frame at

1/24 second intervals–the same interval

originally shot with the film movie.

• When this unit is connected to TV

compatible with 4K/24p and “HDMI Video

Format” is set to “Automatic”, images will be

output in 4K/24p.

• When this unit is connected to a TV

compatible with 1080/24p and “HDMI Video

Format” is set to “Automatic”, “1080i” or

“1080p”, images will be output in 1080/24p.

• When BD-Video images other than 24p are played,

images are output at 60p.

• This unit can not output 4K image when playing back in

3D.

Deep Colour Output

Deep Colour output when a TV that supports

Deep Colour is connected.

HDMI Audio Output

Select “Off” when connected to an amplifier/

receiver with a DIGITAL AUDIO OUT terminal.

• To enjoy BD-Video that supports Dolby Atmos

DTS:X

Connect this unit to an AV amplifier or similar device

that

supports it with an HDMI cable, and select the

following settings:

- Dolby D / Dolby D + / Dolby TrueHD: “Bitstream”

- DTS / DTS-HD: “Bitstream”

- BD-Video Secondary Audio: “Off”

Dolby Atmos is a trademark of Dolby Laboratories.

Contents Type Flag

If “Automatic” is selected, the optimal method

of playback depending on the TV (e.g.

cinema) will automatically be selected (only

when the TV supports Contents Type Flag).

VIERA Link

Select “Off” when you do not want to use

VIERA Link.

Network

Easy Network Setting

Press [OK] to start Easy Network Setting. (> 12)

Network Settings

LAN Connection Mode

Select the LAN connection method.

• When not using wireless LAN (when turning

it off), select “Wired”.

Wireless Settings

This allows to set and check the connection

settings of the Wireless router.

Search for wireless network

WPS (PUSH button)

WPS (PIN code)

Manual setting

Select a connection method to wireless

access point.

IP Address / DNS Settings

Check the connection of the network or set

the IP address and DNS.

• To set the IP address and DNS

1 Set “IP Address Auto-Assignment” and

“DNS-IP Auto-Assignment” to “Off”.

2 Select the item, then press [OK] to show

the respective setting.

• When the router’s DHCP server function is

not activated, check the numbers of other

connected devices such as personal

computers, then assign a number different

from those of other devices for the “IP

Address” and assign the same number for

“Subnet Mask” and “Gateway Address”.

DMRPWT560GN_eng.book 67 ページ２０１６年４月１４日　木曜日　午後１時９分

Setup

SQT1112

Proxy Server Settings

Check and set the connection to the Proxy

server.

• Press [OK] to show the respective setting.

Network Service Settings

Second Screen Browsing

When this function is set to “On”, you can

enjoy the content you are viewing on a

Network Service application of

smartphone, etc. with the home network

on the big screen of your TV.

Lock

You can restrict using Network Service.

• PIN is required to change. (> 20)

Automatic Volume Control

Volume is adjusted automatically to the

standard volume while using Network

Service.

• Depending on contents, this function will

not work.

• Select “Off” when the audio is warped.

Notice

Displays the terms of service for the cloud

services.

• You must agree to the terms of use for

the Internet function and the privacy

policy.

TV Anytime Settings

You must register to a service to use this

function. (> 51)

TV Anytime

When you control this unit from a

smartphone or a tablet away from home,

set this function to “On”. (> 51)

Device ID

This is the device ID and device password

required for registering to and using a

service.

Initialize Device Password

The device password for this unit is

initialized.

• When you initialize the device password,

you will not be able to use TV Anytime.

To use the TV Anytime again, you must

re-register to the service.

Home Network Settings

You can set the DLNA (Server) function.

(> 52)

Home Network function

You can switch between enable/disable of

the DLNA (Server) and DMR (Media

Renderer) function.

• If “On” is selected, the setting for “Quick

Start” is fixed to “On”. (> 69)

• If “Off” is selected, the setting for “TV

Anytime” is fixed to “Off”. (> left)

• This cannot be set to “On” if the

connection with the wireless broadband

router is not encrypted in the wireless

connection.

Setting device name

It is also possible to change the name of

this unit on the network.

• Select from a preset list

Select the preset name, then press [OK].

• Create name

Enter the name.

Refer to “Entering text”. (> 61)

Conversion Setting for DLNA

•On:

When playing back on DLNA (Client)

compatible equipment, this setting

reduces the chance of break-ups and

freezing of an image by lowering the

image quality.

• When this is set to “On”, switching the channel or

starting playback will take longer.

Resolution Setting for DLNA

When “Conversion Setting for DLNA” is set

to “On”, select the image quality.

DMRPWT560GN_eng.book 68 ページ２０１６年４月１４日　木曜日　午後１時９分

Setup

SQT1112

Registration type for remote devices

• Automatic:

All connected devices on the same

network can access this unit.

• Manual:

Only registered devices can access this

unit.

Remote device list

• To register equipment manually

1 Select the device name or the MAC

Address for the device you want to

2 Select “Yes”, then press [OK].

• To deregister equipment

1 Select the registered equipment, then

press [OK].

2 Select “Yes”, then press [OK].

• This function cannot be enabled when “Automatic”

is selected in “Registration type for remote

devices”. (> above)

• The maximum number of equipment that can be

registered is 16.

Others

Standby Settings

Quick Start

•On:

It is possible to start quickly from standby

mode.

• Off:

Power consumption in standby mode is

minimized. (> 77)

However, startup time from standby mode

will be longer.

• Timer Setting for Quick Start:

“Quick Start” is activated when the set time

comes.

• If you set “Home Network function” (> 68) or “TV

Anytime” (> 68) to “On”, the setting for “Quick Start” is

fixed to “On”.

Automatic Standby

Set the time to turn the unit to standby mode

automatically.

When the unit is not operating, the unit will be

turned to standby mode once the set time has

passed.

• When “REWIND LIVE TV” is set to “On”

(> 64), “Off” cannot be selected.

Automatic Standby after OTR

•On:

This unit is turned to standby mode when it

is not operated for approximately 5 minutes

after completing “Automatic Stop” or

“Recording Time” (> 23).

Automatic Standby after Copy

•On:

This unit is turned to standby mode when it

is not operated for approximately 5 minutes

after completing copy (> 44).

RF OUT ( Aerial Signal )

Set whether to output the broadcasting signal

from RF OUT or not while in standby mode

(When “Quick Start” is not activated).

• If “On” is selected, the aerial signal is output

from this unit.

Power Save for Network Standby

You can minimize power consumption in

standby mode even when the “Quick Start”

function is activated. (> 77)

Remote Control

Change the remote control code on the main unit

and the remote control if you place other

Panasonic products close together.

• Use “Set Code1”, the factory set code, under

normal circumstances.

1 Select the code, then press [OK].

2 While pressing [OK], press and hold the number

button ([1] to [6]) for more than 5 seconds.

3 Press and hold [OK] for more than 5 seconds.

4 Press [OK].

DMRPWT560GN_eng.book 69 ページ２０１６年４月１４日　木曜日　午後１時９分

Setup

SQT1112

Clock

If the time is not set correctly, use the settings

listed in the method below.

• Automatic

This unit usually obtains time and date

information from digital broadcasts.

• [For_Australia] Region Selection

Select the region where you live to adjust the

standard time.

• The time contained in the broadcast signal is

UTC (Universal time, coordinated).

• Daylight Saving Time

Select time offset from the standard time for

Summer Time.

• If there is a gap between displayed time and

actual time, set this function.

• Manual Setting

1 Select “Off” of “Automatic”, then press [OK].

2 Select the item you want to change.

3 Change the setting.

4 Press [OK] when you have finished the

settings.

PIN Entry

You can set/change the PIN for parental control.

1 Enter your 4-digit PIN with the number

buttons.

2 Enter the new 4-digit PIN with the number

buttons.

• Make a note of PIN in case you forget it.

e.g.,

3 Press [OK].

Remember the PIN.

PIN Entry

0 0 0 0

System Update

Software Update in Standby

When you set this unit to standby mode,

software (firmware) updates (> 59) are

downloaded automatically at the time you

have specified.

[For_New_Zealand]

Software Update Now ( Broadcast )

Refer to “Software (Firmware) Update”.

(> 59)

Software Update Now ( Internet )

Refer to “Software (Firmware) Update”.

(> 59)

Software Licence

Information about the software licence is

displayed.

System Information

Display Software (firmware) version and Wireless

Module version (When using wireless connection

only) of this unit.

Initialize

Shipping Condition

All the settings except for basic settings return

to the factory preset.

• The timer recording programmes are also

cancelled.

• The device password is also initialized.

(> 68)

Default Settings

All the settings other than the tuning settings,

clock settings, disc language settings, rating

PIN, remote control code, device password,

etc. return to the factory presets.

DMRPWT560GN_eng.book 70 ページ２０１６年４月１４日　木曜日　午後１時９分

Reference

SQT1112

Troubleshooting guide

Before requesting service, make the following

checks. If the problem still persists, consult

your dealer for instructions.

Updating to the latest software (firmware) may

solve the problem. (> 59)

The unit does not work.

• Check the connections. (> 9)

• One of the unit’s safety devices may have been

activated.

Reset the unit as follows:

1Press [Í/I] on the main unit to switch the unit

to standby.

• If the unit does not switch to standby, press

[Í/I] on the main unit for about 3 seconds.

The unit is forcibly switched to standby.

Alternatively, disconnect the AC mains

lead, wait one minute, then reconnect it.

2Press [Í/I] on the main unit to switch it on. If

the unit still cannot be operated, consult the

dealer.

Cannot eject a disc.

1 Press and hold [Í/I] on the main unit for at

least 3 seconds when it is turned off.

2 Press and hold [OK], the yellow button and the

blue button at the same time for more than

5 seconds.

• “00 RET” is displayed on the front panel

display.

3 Repeatedly press [1] (right) until “06 FTO” is

displayed on the front panel display.

4 Press [OK].

The remote control does not work.

• The remote control and main unit are using

different codes. Change the code on the remote

control.

“Remote Control ” appears on the right side of

the screen.

(“∑” stands for a number.)

Startup is slow.

• Startup takes time in the following situations:

- A disc is inserted.

- The clock is not set.

- Immediately after a power failure or the AC

mains lead is connected.

- When a BD-J application is executing.

- When the “Quick Start” is not activated. (> 69)

“0:00” is flashing on the front panel display.

• Set the clock. (> 70)

The clock does not display on the unit when

switched to standby.

• The clock does not display when “Quick Start” is

not activated. (> 69)

The followings do not indicate a problem

with this unit:

• Regular disc rotating sounds or HDD rotating

sounds.

• Poor reception due to atmospheric conditions.

• When you switch the unit on or to standby

mode, there may be an unexpected sound.

General operation

Reference

Front panel display

Press and hold [OK] and

the indicated number

button at the same time

for more than 5 seconds.

(> 69)

Displays

DMRPWT560GN_eng.book 71 ページ２０１６年４月１４日　木曜日　午後１時９分

Reference

SQT1112

Screen size is wrong.

• Check the “TV Aspect” or “Aspect for 4:3 Video”.

(> 66)

• Adjust the aspect ratio setting on TV.

• Adjust the aspect ratio setting on this unit. (

61)

• Check “Aspect for Recording” before recording

or file conversion. (> 64)

The black screen appears on the TV.

• This phenomenon may occur, depending on the

TV setting, when “Quick Start” is activated.

Depending on the TV, this phenomenon may be

prevented by reconnecting to a different HDMI

input terminal.

TV reception is not displayed.

• Broadcast signals are not output from this unit’s

RF OUT terminal. Select “On” in “RF OUT

( Aerial Signal )”. (> 69)

The screen changes automatically.

• If “Screen Saver” set to “On”, the screen saver

function will be activated when there is no

operation for 5 minutes or more. (> 66)

There is a lot of image lag when playing video.

• Set to “0” all items in the “Noise Reduction”.

(> 40)

• Set “Audio Delay”. (> 66)

The images do not appear on the TV.

The picture is distorted during play, or video

is not played correctly.

• Check the connections. (> 9)

• Check the settings of the connected TV, etc.

• An incorrect resolution is selected in “HDMI

Video Format”. (> 66) Reset the setting as

follows:

1 While the unit is on, press and hold [OK], the

yellow button and the blue button at the

same time for more than 5 seconds.

• “00 RET” is displayed on the front panel

display.

2 Repeatedly press [1] (right) until “04 PRG”

is displayed on the front panel display.

3 Press and hold [OK] for at least 3 seconds.

Set the item again.

• When Dolby Digital Plus, Dolby TrueHD,

and DTS-HD

audio are not output

properly, select “Yes” in “Default Settings”

and make proper settings. (> 70)

• The unit’s TV System is different from that of the

disc. Change the TV System. (> 66, TV

System)

• The picture may be distorted or a black screen

may appear between scenes recorded with

different aspect ratios.

• Set “Deep Colour Output” (> 67) or “Contents

Type Flag” (> 67) to “Off”.

• The country setting is not set correctly. Perform

“Shipping Condition” (> 70) first, and then set

the country you live in again.

TV screen and video

DMRPWT560GN_eng.book 72 ページ２０１６年４月１４日　木曜日　午後１時９分

Reference

SQT1112

3D video is not output correctly.

• 3D video may be output correctly by changing

the following settings:

- “3D Type” of “3D Settings” (> 66)

- “Signal Format” (> 38, 3D settings during

playback)

• Check the settings of the connected TV.

• When a non-3D compatible amplifier/receiver is

connected between this unit and a TV, 3D video

is not output. (> 10)

• When “HDMI Audio Output” is set to “Off”, 3D

video may not be output correctly. (> 67)

No sound.

Distorted sound.

• Check the connections. (> 9)

• Check the settings of the connected TV, etc.

• Press [AUDIO] to select the audio. (> 21, 37)

• To output audio from a device connected with an

HDMI cable, set “HDMI Audio Output” to “On”.

(> 67)

Cannot change audio channel.

• You cannot change the audio channel if “Digital

Audio Output” is set to “Bitstream”. (> 65)

Cannot record.

Cannot copy.

• Some broadcasts are copyright protected.

• You cannot record to the disc.

Timer recording does not work properly.

• When is displayed on the screen. (> 28)

Auto Renewal Recording does not work

properly.

• The programme will not be overwritten in the

following cases:

- the programme is protected

- any programme is being played back or copied

- a screen such as Video Menu is displayed

Instead, the programme will be saved as a

separate programme and that will be overwritten.

A part or whole of a recorded title has been

lost.

• If there is a power failure or the AC mains lead is

disconnected from the household mains socket

while recording or editing, the title may be lost or

the HDD may become unusable. We cannot

offer any guarantee regarding lost programmes.

Keyword Recording does not work properly.

• The unit may not record a Keyword Recording

programme when part of its broadcast time

overlaps with that of another timer-recording

programme. When this occurs, the Keyword

Recording does not start even after the

timer-recording has finished.

• The unit cannot run a search correctly if Search

Conditions are not appropriate. Revise the

Search Conditions. (> 29)

Sound

Recording, timer recording and

copying

DMRPWT560GN_eng.book 73 ページ２０１６年４月１４日　木曜日　午後１時９分

Reference

SQT1112

Cannot play back.

• The disc is dirty. (> 18)

• The disc is scratched or marked.

• The disc may not be able to play back if it was

not finalised or a Top Menu was not created on

the equipment used for recording.

• Refer to “Screen icons”. (> 32)

Audio and video momentarily pause.

• DVD-R DL and +R DL discs have two writable

layers on one side. Video and audio may

momentarily cut out when the unit is switching

layers.

You have forgotten your rating PIN.

• The rating level returns to the factory preset.

1 While the unit is on, press and hold [OK], the

yellow button and the blue button at the

same time for more than 5 seconds.

• “00 RET” is displayed on the front panel

display.

2 Repeatedly press [1] (right) until “03 VL” is

displayed on the front panel display.

3 Press [OK].

• “INIT” is displayed on the front panel display.

Image for the Quick View is not smooth.

• Image may not be played back smoothly in case

of high definition titles.

Cannot edit.

• You may not be able to edit on the HDD if there

is no available space. Delete any unwanted

titles to create empty space. (> 41)

Photos do not play back normally.

• The images that were edited on the PC, such as

Progressive JPEG, etc., may not play back.

(> 16)

This unit does not recognize the USB device

correctly.

• If inserted during playback the USB device may

not be recognized by this unit.

Disconnect and reconnect the USB device. If it

still does not recognize the connection, switch

the unit to standby mode and turn it on again.

• USB devices connected using a USB extension

cable other than a dedicated one or a USB hub

may not be recognized by this unit.

The TV Guide information is not displayed

properly.

• Set the clock correctly. (> 70, Clock)

• There was a programme change, or TV Guide

information from a broadcast station was

possibly not correctly transmitted.

• If signal quality is bad, the TV Guide system

may not be able to receive any data.

• It may take time until the TV Guide screen is

displayed correctly. Wait for about a day.

Play Edit


The contents of the SD card cannot be read.

• Remove the card from the slot and then insert

again. If this does not solve the problem, switch

the unit to standby mode and turn it on again.

USB

TV Guide

DMRPWT560GN_eng.book 74 ページ２０１６年４月１４日　木曜日　午後１時９分

Reference

SQT1112

Picture regularly breaks up on some channels.

• Adjust the reception with “Manual Tuning”. (

62)

You cannot access this unit from DLNA

compatible equipment on the network.

• Check the network connection and the network

settings. (> 10, 12)

• It may not be possible to connect depending on

the types of the equipment or the status of the

equipment.

When using this unit as a server, video frames

are dropped.

• Change the following settings:

- Conversion Setting for DLNA (> 68)

- Resolution Setting for DLNA (> 68)

When using Wireless LAN connection, video

from the DLNA Certified media server is not

played back or video frames are dropped

during playback.

• Use 802.11n (2.4 GHz or 5 GHz) Wireless

router.

Simultaneous use with a microwave, cordless

telephone etc. at 2.4 GHz may result in

connection interruptions or other problems.

• On the “Wireless Settings” screen (> 67), the

continuous lighting of at least four “Reception”

indicators is the target for a stable connection. If

three or fewer indicators are lit or the connection

is being interrupted, change the position or

angle of your Wireless router. If there is no

improvement, connect to a wired network and

perform the “Easy Network Setting” (> 12, 67)

again.

To return all the settings to the factory preset

Perform “Shipping Condition” or “Default

Settings”. (> 70)

Broadcast

Network

You cannot play contents properly from DLNA

compatible equipment on the network.

• There may be some video that cannot be played

back on DLNA compatible equipment

depending on the equipment.

• Following titles may not be played back:

- A title with access restriction

- A title with incompatible format

• Playback via DLNA compatible equipment may

not be performed when this unit is in the

following conditions:

- While playing back a BD-Video

- While simultaneously copying and recording

- While displaying the Basic Settings menu

- While executing functions using a network,

such as Network Service

• [For _New_Zealand] If the DLNA compatible

equipment is not capable of outputting HE-AAC

audio format, etc., sound may not be played

back.

Reset

DMRPWT560GN_eng.book 75 ページ２０１６年４月１４日　木曜日　午後１時９分

Reference

SQT1112

The following messages or service numbers appear on the

front panel display when something unusual is detected.

Selected titles in the USB HDD are being converted.

Do not disconnect the USB HDD from this unit.

TV Guide data is being downloaded.

• The disc is dirty. (> 18) The unit cannot read the disc.

• The lens cleaner has finished cleaning.

Press [< OPEN/CLOSE] on the main unit to eject the disc.

• Displayed when the unit is started and is switched to

standby mode.

• There was a power failure or the AC plug was disconnected

while the unit was on. The unit is carrying out its recovery

process. Wait until the message disappears.

There are already 32 timer programmes. Delete unnecessary

timer programmes. (> 28)

The USB device is drawing too much power. Remove the

USB device.

The remote control and main unit are using different codes.

Change the code on the remote control. (> 71)

Update of the software (firmware) is started. You cannot

operate the unit until the update is complete. (> 59)

Software (firmware) is downloading.

Download will stop when the unit is turned on, or the timer

recording starts. (> 59)

When “FINISH” is displayed, update of the software

(firmware) has completed.

The media is not supported.

The software (firmware) is being updated. You cannot

operate the unit until the update is complete. (> 59)

An error has occurerd in the antenna’s power supply. Check

to see if the antenna’s cable core and braided wire shield are

in contact with each other.

The unit is hot. The unit switches to standby for safety

reasons. Wait for about 30 minutes until the message

disappears.

Install or place this unit with good ventilation.

(When a disc is not inserted) A malfunction has occurred. The

unit is trying to restore to the normal operation. Once the

message disappears you can use the unit again. If it remains

displayed, consult the dealer.

HDMI cannot be output because it is connected to a model

that does not support copyright protection.

Due to the current disc not having authorised copyright

information, video output is not performed.

(When a disc is inserted) There was something unusual

detected with the disc or the unit. The unit is trying to restore

to the normal operation. Once the message disappears you

can use the unit again. If it remains displayed, consult the

dealer.

The unit fails to operate properly. Press [Í/I] on the main unit

to switch the unit to standby mode. Now press [Í/I] on the

main unit again to turn the unit on.

The HOLD function is activated. (> 61)

Messages on the front panel display

CONV

GUIDE

NoREAD

PLEASE WAIT

PROG FULL

REMOVE

SET 

(“∑” stands for a number.)

START

SW-DL

UNSUPPORT

UPD /

(“∑” stands for a number.)

U50

U59

U61

U76

U77

U88

U99

XHOLD

DMRPWT560GN_eng.book 76 ページ２０１６年４月１４日　木曜日　午後１時９分

Reference

SQT1112

Specifications

Specifications are subject to change without

notice.

Depending on the content being recorded, the

recording time may become shorter than indicated.

• Recording time of DR mode may vary

depending on the bit rate of broadcasting.

[For_Austr alia]

- High Definition (HD) quality: estimated bit rate

is 15 Mbps

- Standard Definition (SD) quality: estimated bit

rate is 8 Mbps

[For_New_Zealand]

- High Definition (HD) quality: estimated bit rate

is 14 Mbps

- Standard Definition (SD) quality: estimated bit

rate is 5 Mbps

∫ General

Dimensions: 430 mm (W)

41.5 mm (H)

(including the projecting parts)

193 mm (D)

Mass: Approx. 1.8 kg

Power supply: AC 220 V to 240 V, 50 Hz

Power consumption: Approx. 26 W

Power consumption in standby mode:

“Quick Start” is not activated and

“RF OUT ( Aerial Signal )” is set to “Off”

Approx. 0.2 W

Operating temperature: 5 oC to 40 oC

Operating humidity range: 10 % to 80 % RH

(no condensation)

∫ TV system

Tuner System: DVB-T

Country: Australia, New Zealand

Channel Coverage:

[For_Austr alia] VHF 6~12

UHF 27~69

[For_New_Zealand] UHF 21~69

∫ Video/Audio terminals

Digital audio output (coaxial): 1 pc.

HDMI output (19 pin type A): 1 pc.

∫ Internal HDD capacity

500 GB

∫ Other terminals

USB Port (Type A): USB2.0

2pcs.

SD Card Slot: 1 pc.

LAN (Ethernet) Port: 1 pc.

10BASE-T/100BASE-TX

∫ Wireless LAN

Standard compliance: IEEE802.11a/b/g/n

Frequency range: 2.4 GHz / 5 GHz band

Security:

WPA™/WPA2™

(Encryption type: TKIP/AES,

Authentication type: PSK)

WEP (64 bit/128 bit)

∫ LASER specification

Class 1 LASER Product

Wave length:

405 nm (BDs)

660 nm (DVDs)

790 nm (CDs)

Laser power:

No hazardous radiation is emitted with

the safety protection

Recording modes and approximate recording

times

Recording Mode HDD (500 GB)

DR (HD quality) [For_Australia] 69 hours

[For_New_Zealand] 75 hours

DR (SD quality) [For_Australia ] 131 hours

[For_New_Zealand] 211 hours

HG 78 hours

HX 117 hours

HE 176 hours

HL 235 hours

HM 341 hours

XP 107 hours

SP 215 hours

LP 430 hours

EP 860 hours

DMRPWT560GN_eng.book 77 ページ２０１６年４月１４日　木曜日　午後１時９分

Reference

SQT1112

The audio output differs depending on which

terminals are connected to the amplifier/receiver,

and the setting on this unit. (> 65, Digital Audio

Output)

• The number of channels listed is the maximum

possible number of output channels when

connected to amplifier/receiver compatible with

the respective audio format.

§1

The maximum possible number of Dolby

sound is 2ch PCM.

§2

When “BD-Video Secondary Audio” is set to

“On”, the audio will be output as Dolby Digital,

DTS Digital Surround

or 5.1ch PCM.

§3

The audio output is amplified from 5.1ch or

6.1ch to 7.1ch depending on the DTS, Inc.

specifications.

Audio information

Terminal

Digital Audio Output

Bitstream

PCM

§1

HDMI AV

OUT

Output using

original audio

§2

BD-Video:

7.1ch PCM

§2, 3

DVD-Video:

5.1ch PCM

DIGITAL

AUDIO

OUT

Dolby Digital/

DTS Digital

Surround

Down-mixed 2ch

PCM

Language code list

Abkhazian: 6566

Afar: 6565

Afrikaans: 6570

Albanian: 8381

Amharic: 6577

Arabic: 6582

Armenian: 7289

Assamese: 6583

Aymara: 6589

Azerbaijani: 6590

Bashkir: 6665

Basque: 6985

Bengali; Bangla: 6678

Bhutani: 6890

Bihari: 6672

Breton: 6682

Bulgarian: 6671

Burmese: 7789

Byelorussian: 6669

Cambodian: 7577

Catalan: 6765

Chinese: 9072

Corsican: 6779

Croatian: 7282

Czech: 6783

Danish: 6865

Dutch: 7876

English: 6978

Esperanto: 6979

Estonian: 6984

Faroese: 7079

Fiji: 7074

Finnish: 7073

French: 7082

Frisian: 7089

Galician: 7176

Georgian: 7565

German: 6869

Greek: 6976

Greenlandic: 7576

Guarani: 7178

Gujarati: 7185

Hausa: 7265

Hebrew: 7387

Hindi: 7273

Hungarian: 7285

Icelandic: 7383

Indonesian: 7378

Interlingua: 7365

Irish: 7165

Italian: 7384

Japanese: 7465

Javanese: 7487

Kannada: 7578

Kashmiri: 7583

Kazakh: 7575

Kirghiz: 7589

Korean: 7579

Kurdish: 7585

Laotian: 7679

Latin: 7665

Latvian, Lettish: 7686

Lingala: 7678

Lithuanian: 7684

Macedonian: 7775

Malagasy: 7771

Malay: 7783

Malayalam: 7776

Maltese: 7784

Maori: 7773

Marathi: 7782

Moldavian: 7779

Mongolian: 7778

Nauru: 7865

Nepali: 7869

Norwegian: 7879

Oriya: 7982

Pashto, Pushto: 8083

Persian: 7065

Polish: 8076

Portuguese: 8084

Punjabi: 8065

Quechua: 8185

Rhaeto-Romance: 8277

Romanian: 8279

Russian: 8285

Samoan: 8377

Sanskrit: 8365

Scots Gaelic: 7168

Serbian: 8382

Serbo-Croatian: 8372

Shona: 8378

Sindhi: 8368

Singhalese: 8373

Slovak: 8375

Slovenian: 8376

Somali: 8379

Spanish: 6983

Sundanese: 8385

Swahili: 8387

Swedish: 8386

Tagalog: 8476

Tajik: 8471

Tamil: 8465

Tatar: 8484

Telugu: 8469

Thai: 8472

Tibetan: 6679

Tigrinya: 8473

Tonga: 8479

Turkish: 8482

Turkmen: 8475

Twi: 8487

Ukrainian: 8575

Urdu: 8582

Uzbek: 8590

Vietnamese: 8673

Volapük: 8679

Welsh: 6789

Wolof: 8779

Xhosa: 8872

Yiddish: 7473

Yo r u b a : 8 9 7 9

Zulu: 9085

DMRPWT560GN_eng.book 78 ページ２０１６年４月１４日　木曜日　午後１時９分

Reference

SQT1112

Licenses

“AVCHD”, “AVCHD 3D”, “AVCHD Progressive” and “AVCHD 3D/Progressive” are trademarks of Panasonic Corporation and

Sony Corporation.

is a Verance Corporation trademark. Protected by U.S. Patent 7,369,677

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living

Network Alliance.

DVB and the DVB logos are trademarks of the DVB Project.

Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS

Licensing Limited. DTS, DTS-HD, the Symbol, & DTS and the Symbol together are

registered trademarks, and DTS-HD Master Audio | Essential is a trademark of DTS, Inc.

“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

This product is licensed under the AVC patent portfolio license for the personal use of a consumer or other uses in which it

does not receive remuneration to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC

Video that was encoded by a consumer engaged in a personal activity and/or was obtained from a video provider licensed to

provide AVC Video.

No license is granted or shall be implied for any other use.

Additional information may be obtained from MPEG LA, L.L.C.

See http://www.mpegla.com

This product is licensed under the VC-1 patent portfolio license for the personal and non-commercial use of a consumer to (i)

encode video in compliance with the VC-1 Standard (“VC-1 Video”) and/or (ii) decode VC-1 Video that was encoded by a

consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide

VC-1 video.

No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C.

See http://www.mpegla.com

SDXC Logo is a trademark of SD-3C, LLC.

The Wi-Fi CERTIFIED

Logo is a certification mark of Wi-Fi Alliance

The Wi-Fi Protected Setup

Identifier mark is a certification mark of Wi-Fi Alliance

“Wi-Fi

” and “Wi-Fi Direct

” are registered trademarks of Wi-Fi Alliance

“Wi-Fi Protected Setup

”, “Miracast

”, “WPA

”, and “WPA2

” are trademarks of Wi-Fi Alliance

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks

of HDMI Licensing LLC in the United States and other countries.

DMRPWT560GN_eng.book 79 ページ２０１６年４月１４日　木曜日　午後１時９分

Reference

SQT1112

Java is a registered trademark of Oracle and/or its affiliates.

Windows is a trademark or a registered trademark of Microsoft Corporation in the United States and other countries.

Android is a trademark of Google Inc.

This product incorporates the following software:

(1) the software developed independently by or for Panasonic Corporation,

(2) the software owned by third party and licensed to Panasonic Corporation,

(3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0),

(4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL V2.1), and/or

(5) open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1.

The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without

even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed

terms and conditions thereof shown in the Basic Settings menu.

At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact

information provided below, for a charge no more than our cost of physically performing source code distribution, a complete

machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL V2.1 or the other licenses with the

obligation to do so, as well as the respective copyright notice thereof.

Contact Information: [email protected]

The source code and the copyright notice are also available for free in our website below.

http://panasonic.net/avc/oss/

MS/PlayReady/Final Product Labeling

This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology

outside of this product is prohibited without the appropriate license(s) from Microsoft.

MS/PlayReady/End User Notices

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including

copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or

WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require

Microsoft to revoke the device’s ability to consume PlayReady-protected content.

Revocation should not affect unprotected content or content protected by other content access technologies. Content owners

may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access

content that requires the upgrade.

Vorbis, FLAC, WPA Supplicant

The software licenses are displayed when “Software Licence” in the Basic Settings menu is selected. (> 70)

Restriction on use of unauthorized copied content

This unit adopts the following technology for copyright protection.

Cinavia Notice

This product uses Cinavia technology to limit the use of unauthorized copies of some

commercially-produced film and videos and their soundtracks. When a prohibited use of an

unauthorized copy is detected, a message will be displayed and playback or copying will be

interrupted. More information about Cinavia technology is provided at the Cinavia Online

Consumer Information Center at http://www.cinavia.com

. To request additional information about

Cinavia by mail, send a postcard with your mailing address to:

Cinavia Consumer Information Center, P.O.

Box 86851, San Diego, CA, 92138, USA.

DMRPWT560GN_eng.book 80 ページ２０１６年４月１４日　木曜日　午後１時９分

Reference

SQT1112

Limited Warranty (ONLY FOR AUSTRALIA)

Panasonic Warranty

1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or its

Authorised Service Centre will perform necessary service on the product without charge for parts or labour, if in the opinion of

Panasonic, the product is found to be faulty within the warranty period.

2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised

Distributors or Dealers and only where the products are used and serviced within Australia or it's territories. Warranty cover only

applies to service carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when

warranty service is requested.

3. This warranty only applies if the product has been installed and used in accordance with the manufacturer’s recommendations (as

noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers normal

domestic use only and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect installation,

accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm

activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised alterations),

introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the

product, exposure to abnormally corrosive conditions or any foreign object or matter having entered the product.

5. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will not cover

6. To claim warranty service, when required, you should:

7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or

re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other

ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or replacement of and

do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such installation,

de-installation, re-installation or transit.

Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however,

coverage will vary dependant on product. For advice on exact Authorised Service Centre locations for your product, please telephone

our Customer Care Centre on 132600 or visit our website and use the Service Centre Locator.

In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under the

Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to have

the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods. You are

also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not amount to a

major failure.

If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by

contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to repair

or replace the product and will do so in a reasonable period of time from receiving notice from you.

If you require assistance regarding warranty conditions or any other enquiries, please visit the

Panasonic Australia

website www.panasonic.com.au or contact by phone on 132 600

If phoning in, please ensure you have your operating instructions available.

(a) Internet and or DLNA connection / setup related problems

(b) Access fees and or charges incurred for internet connection

and

(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to the internet or

any other device.

4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:

(a) Cabinet Part(s) (e) DVD, Blu-ray or Recordable Discs

(b) Video or Audio Tapes (f) Video / Audio Heads from wear and tear in normal use

(d) User replaceable Batteries (h) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)

etc

Telephone Panasonic’s Customer Care Centre on 132600 or visit our website referred to below and use the Service Centre

Locator for the name/address of the nearest Authorised Service Centre.

Send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt as a proof of

purchase date. Please note that freight and insurance to and / or from your nearest Authorised Service Centre must be arranged

by you.

Note that home or pick-up/delivery service is available for the following products in the major metropolitan areas of Australia or the

normal operating areas of the nearest Authorised Service Centres:

Plasma/LCD televisions / displays (screen size greater than 103 cm)

THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)

SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES

Panasonic Australia Pty. Limited

ACN 001 592 187 ABN 83 001 592 187

1 Innovation Road, Macquarie Park NSW 2113

PRO-031-F11 Issue: 4.0 01-01-2011

DMRPWT560GN_eng.book 81 ページ２０１６年４月１４日　木曜日　午後１時９分

Reference

SQT1112

Index

Aspect . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 61

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 37, 78

Audio Description (AD) . . . . . . . . . . . . . . 21, 39

Auto Setup . . . . . . . . . . . . . . . . . . . . . . . . 11, 62

AVCHD . . . . . . . . . . . . . . . . . . . . . . . . 31, 34, 56

Basic Settings . . . . . . . . . . . . . . . . . . . . . . . . 62

BD-Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

BD-Live . . . . . . . . . . . . . . . . . . . . . . . . . . 35, 63

3D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Channel Information . . . . . . . . . . . . . . . . . . . 20

Channel List . . . . . . . . . . . . . . . . . . . . . . . 22, 62

Chapter . . . . . . . . . . . . . . . . . . . . . . . . 33, 43, 64

Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

BD-Video Parental Control . . . . . . . . . . . . . . 63

DVD-Video Parental Control . . . . . . . . . . . . . 63

HOLD function . . . . . . . . . . . . . . . . . . . . . . . . 61

Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

HD Video (AVCHD) . . . . . . . . . . . . . . . . . . . 56

Delete

Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50, 64

Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48, 64

Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41, 64

Delete BD-Video data . . . . . . . . . . . . . . . . . . 35

Disc

Media information . . . . . . . . . . . . . . . . . . . . . 14

DVD-Video . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Easy setting . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Entering text . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Favourites . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Format

HDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

USB HDD . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

FUNCTION MENU . . . . . . . . . . . . . . . . . . . . . 19

HDD

Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Media information . . . . . . . . . . . . . . . . . . . . . 14

Keyword Recording . . . . . . . . . . . . . . . . . 29, 33

Language code list . . . . . . . . . . . . . . . . . . . . 78

Lens cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Manual Tuning . . . . . . . . . . . . . . . . . . . . . . . . 62

Media Renderer . . . . . . . . . . . . . . . . . . . . . . . 54

Menu screen . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Miracast

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Network

BD-Live . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Connection . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Easy Network Setting . . . . . . . . . . . . . . . 12, 67

Miracast

. . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Network Service . . . . . . . . . . . . . . . . . . . . . . 51

Smart Home Networking (DLNA) . . . . . . 52, 68

Wi-Fi Direct

. . . . . . . . . . . . . . . . . . . . . . . . . 54

PAUSE LIVE TV . . . . . . . . . . . . . . . . . . . . . . . 22

Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 70

Playback menu . . . . . . . . . . . . . . . . . . . . . . . 39

Protection

Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Pure Sound Mode . . . . . . . . . . . . . . . . . . . . . 63

DMRPWT560GN_eng.book 82 ページ２０１６年４月１４日　木曜日　午後１時９分

Reference

SQT1112

Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Series Timer recording . . . . . . . . . . . . . . . . . 26

Timer recording . . . . . . . . . . . . . . . . . . . . . . . 25

Recording mode (Conversion) . . . . . . . . . . . 17

Recording time . . . . . . . . . . . . . . . . . . . . . . . . 77

Remote control . . . . . . . . . . . . . . . . . . . . . . . . 8

HOLD function . . . . . . . . . . . . . . . . . . . . . . . . 61

Remote control code . . . . . . . . . . . . . . . . . . . 69

TV operation . . . . . . . . . . . . . . . . . . . . . . . . . 11

Reset . . . . . . . . . . . . . . . . . . . . . . . . . . 70, 74, 75

REWIND LIVE TV . . . . . . . . . . . . . . . . . . . 22, 64

SD Card

Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Media information . . . . . . . . . . . . . . . . . . 14, 18

miniSD / microSD . . . . . . . . . . . . . . . . . . . . . 18

Search the programmes . . . . . . . . . . . . . . . . 26

Series Timer Recording . . . . . . . . . . . . . . . . 26

Setting

Auto Setup . . . . . . . . . . . . . . . . . . . . . . . 11, 62

Easy setting . . . . . . . . . . . . . . . . . . . . . . . . . .11

Slideshow . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Smart Home Networking (DLNA)

Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Media Renderer . . . . . . . . . . . . . . . . . . . . . . 54

Server . . . . . . . . . . . . . . . . . . . . . . . . . . . 52, 68

Software (Firmware) Update . . . . . . . . . . . . . 59

Timer recording . . . . . . . . . . . . . . . . . . . . . . . 25

Troubleshooting guide . . . . . . . . . . . . . . . . . 71

Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Tuning

Channel List . . . . . . . . . . . . . . . . . . . . . . . . . 62

Manual Tuning . . . . . . . . . . . . . . . . . . . . . . . 62

Parental Rating . . . . . . . . . . . . . . . . . . . . . . . 63

Signal Condition . . . . . . . . . . . . . . . . . . . . . . 63

TV Anytime . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

TV Guide

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Timer recording . . . . . . . . . . . . . . . . . . . . . . . 25

TV System . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

USB HDD

Cancellation of all USB HDD

Registrations . . . . . . . . . . . . . . . . . . . . . . . . . 65

Disconnection . . . . . . . . . . . . . . . . . . . . . 57, 64

Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Media information . . . . . . . . . . . . . . . . . . 14, 17

Registration . . . . . . . . . . . . . . . . . . . . . . . 57, 64

USB memories

Media information . . . . . . . . . . . . . . . . . . 14, 17

Video

AVCHD . . . . . . . . . . . . . . . . . . . . . . . . . . 31, 34

BD-Video . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

DVD-Video . . . . . . . . . . . . . . . . . . . . . . . . . . 34

MKV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Playback . . . . . . . . . . . . . . . . . . . . . . . . . 31, 34

Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Video Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 31

3D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

VIERA Link . . . . . . . . . . . . . . . . . . . . . . . . 58, 67

Wi-Fi Direct

. . . . . . . . . . . . . . . . . . . . . . . . . . 54

3D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

4K Networking . . . . . . . . . . . . . . . . . . . . . . . . 60

DMRPWT560GN_eng.book 83 ページ２０１６年４月１４日　木曜日　午後１時９分

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycle systems

These symbols are only valid in the European Union and countries with recycle

systems.

If you wish to discard this product, please contact your local authorities or dealer and

ask for the correct method of disposal.

The recording and playback of content on this or any other device may require permission from the

owner of the copyright or other such rights in that content. Panasonic has no authority to and does

not grant you that permission and explicitly disclaims any right, ability or intention to obtain such

permission on your behalf. It is your responsibility to ensure that your use of this or any other device

complies with applicable copyright legislation in your country. Please refer to that legislation for

more information on the relevant laws and regulations involved or contact the owner of the rights in

the content you wish to record or playback.

Personal information handling

To provide functions and services of this unit, a device ID, device password and usage history

information are stored and managed securely in an appropriate security environment of Panasonic.

Please note that usage history and other information may be collected for purposes such as

improving products and services in such a way that individuals cannot be identified.

CLASS 1

LASER PRODUCT

(Inside of product)

Panasonic Corporation

Web Site: http://www.panasonic.com

SQT1112-1

F0316MH1046

DMRPWT560GN_eng.book 84 ページ２０１６年４月１４日　木曜日　午後１時９分

Panasonic DMR-PWT560GL DVD Player

Product's Documents

User Manual

Specifications

Panasonic DMR-PWT560GL Questions and Answers

Related Products

Panasonic DVD-S700 DVD / CD Player

Panasonic DMP-BD90P-K Blu-ray DVD Player, Full HD, Dolby Digital Sound

Panasonic DMP-BD84P-K Blu-ray DVD Player Full HD, Dolby Digital Sound

Panasonic DMR-PWT550EB Smart Network 3D Blu-ray Disc/DVD Player/HDD Recorder

GE QISMD-B1400 Backlit Universal Remote Control for Samsung, Vizio, LG, Sony, Sharp, Roku, Apple TV, RCA, Panasonic, Smart TV, Streaming Players, Blu-Ray, DVD, 4-Device
