Samsung DVE54R7200 Electric Dryer

User Manual

For DVE54R7200. Additionally, the document applies to other Samsung models: DVE(G)54R7600*, DVE(G)54R7200*

PDF File Manual, 124 pages, Read Online | Download pdf file

DVE54R7200 photo
background
Dryer
User manual
DVE(G)54R7600*/DVE(G)54R7200*
Untitled-9 1 2019-07-19  4:30:39
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...
Loading page 21...
Loading page 22...
Loading page 23...
Loading page 24...
Loading page 25...
Loading page 26...
Loading page 27...
Loading page 28...
Loading page 29...
Loading page 30...
Loading page 31...
Loading page 32...
Loading page 33...
Loading page 34...
Loading page 35...
Loading page 36...
Loading page 37...
Loading page 38...
Loading page 39...
Loading page 40...
Loading page 41...
Loading page 42...
Loading page 43...
Loading page 44...
Loading page 45...
Loading page 46...
Loading page 47...
Loading page 48...
Loading page 49...
Loading page 50...
Loading page 51...
Loading page 52...
Loading page 53...
Loading page 54...
Loading page 55...
Loading page 56...
Loading page 57...
Loading page 58...
Loading page 59...
Loading page 60...
Loading page 61...
Loading page 62...
Loading page 63...
Loading page 64...
Loading page 65...
Loading page 66...
Loading page 67...
Loading page 68...
Loading page 69...
Loading page 70...
Loading page 71...
Loading page 72...
Loading page 73...
Loading page 74...
Loading page 75...
Loading page 76...
Loading page 77...
Loading page 78...
Loading page 79...
Loading page 80...
Loading page 81...
Loading page 82...
Loading page 83...
Loading page 84...
Loading page 85...
Loading page 86...
Loading page 87...
Loading page 88...
Loading page 89...
Loading page 90...
Loading page 91...
Loading page 92...
Loading page 93...
Loading page 94...
Loading page 95...
Loading page 96...
Loading page 97...
Loading page 98...
Loading page 99...
Loading page 100...
Loading page 101...
Loading page 102...
Loading page 103...
Loading page 104...
Loading page 105...
Loading page 106...
Loading page 107...
Loading page 108...
Loading page 109...
Loading page 110...
Loading page 111...
Loading page 112...
Loading page 113...
Loading page 114...
Loading page 115...
Loading page 116...
Loading page 117...
Loading page 118...
Loading page 119...
Loading page 120...
Loading page 121...
Loading page 122...
Loading page 123...
Loading page 124...

Other documents for Samsung DVE54R7200

The following documents are available:
User Manual Photos

Specifications

Samsung DVE54R7200 Questions and Answers

Find answers or Ask a question.


  • Total questions: 1
  • Questions unAnswered : 1

#1 Does it include drying rack? We did not receive a rack with our dryer.

This model does not come with a drying rack. However, you can check with our parts distributor to see if there is a compatible rack you can purchase for this dryer

#2 How many volts is this dryer?

This 7.4 cu ft dryer is 220v.

#3 Does it come with the 3 or 4 prong cords and duct or does that have to be bought separate?

The cord is sold separately to allow each user to purchase one that is compatible with the outlet available in their home

#4 Can this dryers door be swapped to open the other direction?

Yes, It shows you how to do it in the instruction manual and if you don't the manual you can look it up online.

User Manual - Transcript

  • Page 1: Dryer User manual DVEG54R7600DVEG54R7200 Untitled9 1 20190719 43039
  • Page 2 - English - : English2 Contents Contents Safety information 4 What you need to know about the safety instructions 4 Important safety symbols 4 CALIFORNIA PROPOSITION 65 WARNING 5 Important safety precautions 5 Warnings 8 Cautions 8 Installation requirements 10 Key installation requirements 10 Location considerations 10 Ducting requirements 14 Exhausting requirements 15 Gas requirements 16 Electrical requirements 17 Installation 20 Whats included 20 Stepbystep installation 22 Vent blockage test 29 Exhaust ducting guide 30 Switching the door position 31 Before you start 34 Sort and load 34 Functional prerequisite 34 Rack Dry DVEG54R7600 models only 35 Operations 37 Control panel 37 Simple steps to start 40 Cycle overview 41 Cycle chart 43 Cycle guide 46 Special features 47 Untitled9 2 20190719 43039
  • Page 3 - English - : English 3 Contents Maintenance 49 Cleaning 49 Troubleshooting 50 Checkpoints 50 Information codes 53 Specications 54 Fabric care chart 54 Protecting the environment 55 Specication sheet 56 Untitled9 3 20190719 43039
  • Page 4 - English - : SAVE THESE INSTRUCTIONS English4 Safety information Congratulations on your new Samsung dryer This manual contains important information on the installation use and care of your appliance Please take some time to read this manual to take full advantage of your dryers many benets and features What you need to know about the safety instructions Please read this manual thoroughly to ensure that you know how to safely and efciently operate the extensive features and functions of your new appliance Please store the manual in a safe location close to the appliance for future reference Use this appliance only for its intended purpose as described in this instruction manual Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur It is your responsibility to use common sense caution and care when installing maintaining and operating your dryer Because the following operating instructions cover various models the characteristics of your dryer may differ slightly from those described in this manual and not all warning signs may be applicable If you have any questions or concerns contact your nearest service center or nd help and information online at wwwsamsungcom Important safety symbols What the icons and signs in this user manual mean WARNING Hazards or unsafe practices that may result in severe personal injury death andor property damage CAUTION Hazards or unsafe practices that may result in personal injury andor property damage NOTE Indicates that a risk of personal injury or material damage exists These warning signs are here to prevent injury to yourself and others Please follow them explicitly After reading this manual store it in a safe place for future reference Read all instructions before using the appliance As with any equipment that uses electricity and moving parts potential hazards exist To safely operate this appliance familiarize yourself with its operation and exercise care when using it Safety information Untitled9 4 20190719 43040
  • Page 5 - English - : SAVE THESE INSTRUCTIONS English 5 Safety information WARNING Risk of Fire Clothes dryer installation must be performed by a qualied installer Install the clothes dryer according to the manufacturers instructions and local codes Do not install a clothes dryer with exible plastic venting materials If exible metal foil type duct is installed it must be of a specic type identied by the appliance manufacturer as suitable for use with clothes dryers Flexible venting materials are known to collapse be easily crushed and trap lint These conditions will obstruct clothes dryer airow and increase the risk of re To reduce the risk of severe injury or death follow all installation instructions Save these instructions CALIFORNIA PROPOSITION 65 WARNING WARNING Cancer and Reproductive Harm wwwP65Warningscagov Important safety precautions WARNING To reduce the risk of re electric shock or injury to persons when using your appliance follow basic precautions including the following 1 Read all instructions before using this appliance 2 Do not dry articles that have been previously cleaned in washed in soaked in or spotted with gasoline drycleaning solvents or other ammable or explosive substances as they give off vapors that could ignite or explode 3 Do not use the dryer to dry clothes which have traces of any ammable substance such as vegetable oil cooking oil machine oil ammable chemicals paint thinner etc or anything containing wax or chemicals such as mops and cleaning cloths Flammable substances may cause the fabric to catch re by itself 4 Do not store or use gasoline or other ammable vapors and liquids near this or any other appliance 5 Do not allow children to play on or in the appliance Close supervision of children is necessary when the appliance is used near children Untitled9 5 20190719 43041
  • Page 6 - English - : SAVE THESE INSTRUCTIONS Safety information English6 Safety information 6 Before the appliance is removed from service or discarded remove the door to the drying compartment 7 Do not reach into the appliance if the drum is moving 8 Do not install or store this appliance where it will be exposed to the weather 9 Do not tamper with internal controls 10 Do not repair or replace any part of the appliance or attempt any service unless specically recommended in the usermaintenance instructions or in published user repair instructions that you understand and have the skills to carry out 11 Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product 12 Clean the lint screen before or after each load 13 Do not use heat to dry articles containing foam rubber or similarly textured rubberlike materials 14 Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint dust and dirt 15 The interior of the appliance and exhaust duct should be cleaned periodically by qualied service personnel 16 Do not place items exposed to cooking oils in your dryer Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch re To reduce the risk of re due to contaminated loads the nal part of a tumble dryer cycle occurs without heat cool down period Avoid stopping a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated 17 This appliance must be grounded See Electrical requirements and Grounding in Installation section 18 Do not allow children to play on or in the appliance Close supervision of children is necessary when the appliance is used near children 19 Do not insert your hand under the dryer This may result in injury 20 Take care that childrens ngers are not caught in the door when closing it This may result in injury 21 Control board and inlet valve are intentionally not grounded and may present a risk of electric shock only during servicing Do not contact this part while appliance is energized Untitled9 6 20190719 43041
  • Page 7 - English - : SAVE THESE INSTRUCTIONS English 7 Safety information WARNING To reduce the risk of re or explosion Do not dry items that have been previously cleaned washed soaked or spotted with gasoline dry cleaning solvents or other ammable or explosive substances They emit vapors that could ignite or explode Any material that has been in contact with a cleaning solvent or ammable liquids or solids should not be placed in the dryer until all traces of these ammable liquids or solids and their fumes have been removed There are many highly ammable items used in homes such as acetone denatured alcohol gasoline kerosene some liquid household cleaners some spot removers turpentine wpees and wpe removers Items containing foam rubber may be labeled latex foam or similarly textured rubberlike materials must not be dried on a heat setting Heated foam rubber materials can under certain circumstances produce re by spontaneous combustion WARNING What to do if you smell gas Do not try to light any appliance Do not turn on the appliance Do not touch any electrical switch Do not use any phone in your building Clear the room building or area of all occupants Immediately call your gas supplier from a neighbors phone Follow the gas suppliers instructions If you cannot reach your gas supplier call the re department Installation and service must be performed by a qualied installer service agency or the gas supplier Untitled9 7 20190719 43041
  • Page 8 - English - : SAVE THESE INSTRUCTIONS Safety information English8 Safety information Warnings WARNING Ensure pockets are free from small irregularly shaped hard objects foreign material etc ie coins knives pins etc These objects could damage your dryer Gas leaks may occur in your system resulting in a dangerous situation Cautions CAUTION Do not allow children or pets to play on in or in front of the appliance Close supervision is necessary when the appliance is used near children and pets Before discarding or removing your dryer from service remove the door to the drying compartment to prevent children or animals from becoming trapped inside Do not reach into the appliance when the drum is moving Do not install or store this appliance where it will be exposed to the weather Do not tamper with controls Do not repair replace or attempt to service any part of the appliance unless specically instructed to in the userrepair instructions and you have the understanding and skills to carry out the procedure Do not use fabric softeners or products to eliminate static unless the softener or product is recommended for dryer use by the manufacturer of the fabric softener or product Clean the lint screen before or after each load Keep the area around the exhaust opening and surrounding areas free from lint dust and dirt The interior of the dryer and exhaust duct should be cleaned periodically by qualied service personnel This appliance must be properly grounded Never plug the power cord into a receptacle that is not grounded adequately or not in accordance with local and national codes See installation instructions for information about grounding this appliance Do not sit on top of the dryer Do not wash clothing with large buckles buttons or other heavy metal or solid objects Gas leaks may not be detected by smell alone Gas suppliers recommend you purchase and install a ULapproved gas detector Install and use in accordance with the manufacturers instructions Untitled9 8 20190719 43042
  • Page 9 - English - : SAVE THESE INSTRUCTIONS English 9 Safety information Do not place items in your dryer that have been spotted or soaked with vegetable oil or cooking oil Even after being washed these items may contain signicant amounts of these oils Residual oil on clothing can ignite spontaneoulsy The potential for spontaneous combustion increases when items containing vegetable oil or cooking oil are exposed to heat Heat sources such as your dryer can warm these items allowing an oxidation reaction in the oil to occur Oxidation creates heat If this heat cannot escape the items can become hot enough to catch re Piling stacking or storing these kinds of items may prevent heat from escaping and can create a re hazard All washed and unwashed fabrics that contain vegetable oil or cooking oil can be dangerous Washing these items in hot water with extra detergent will reduce but not eliminate the hazard Always use the Cool Down cycle for these items to reduce their temperature Never remove these items from the dryer hot or interrupt the drying cycle until the items have run through the Cool Down cycle Never pile or stack these items when they are hot Untitled9 9 20190719 43042
  • Page 10 - English - : English10 Installation requirements Read through the following instructions before installing the dryer and keep this manual for future reference WARNING Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing Service Personnel Do not contact the following parts while the appliance is energized Control board and inlet valve Key installation requirements A grounded electrical outlet A power cord for electric dryers except in Canada Gas lines for gas models that must meet national and local regulations An exhaust system made of rigid metal or exible stiffwalled metal exhaust ducting WARNING Remove the door from all discarded appliances to prevent a child from suffocating Location considerations Adequate clearances between the dryer and adjacent walls or other surfaces Adequate air circulation for ventilation and gas combustion Away from water and weather WARNING Make sure to exhaust the dryer outdoors to reduce the risk of re Keep the dryer area clear of combustible materials gasoline and other ammable vapors and liquids Do not install other fuelburning appliances around or in the same place as the dryer Place the dryer at least 18 in 460 mm above the oor for garage installation Installation requirements Untitled9 10 20190719 43042
  • Page 11 - English - : English 11 Installation requirements Dimensions U A Type Front loading dryer Dimensions in mm A Overall height 446 1132 B Width 270 686 C Depth with door open 501 1273 D Depth 302 768 Untitled9 11 20190719 43043
  • Page 12 - English - : Installation requirements English12 Installation requirements Clearance requirement This clearance requirement is applicable for dryers only NOTE For washers clearance requirement see the washers user manual If the washer and dryer have different clearance requirements use the one with the larger value Alcove or closet installations WARNING The dryer must be exhausted to the outside to reduce the risk of re when installed in an alcove or closet No other fuelburning appliance should be installed in the same closet as the dryer Place the dryer at least 18 in 460 mm above the oor for garage installation Minimum clearance for stable operation Sides Top Rear Front 1 in 25 mm 17 in 432 mm 59 in 150 mm 1 in 25 mm If both the washer and a dryer are installed in the same location the front of the alcove or closet must have two unobstructed air openings for a combined minimum total area of 72 in² 465 cm² Untitled9 12 20190719 43043
  • Page 13 - English - : English 13 Installation requirements This clearance requirement is applicable for washer and dryer pair installation Side by side installation A A C D B A 1 in 25 mm B 21 in 533 mm C 1 in 25 mm D 59 in 150 mm Untitled9 13 20190719 43043
  • Page 14 - English - : Installation requirements English14 Installation requirements Ducting requirements Recommended Use only for shortrun installation Weather hood type 4 102 cm 25 64 cm No of 90 elbows Rigid Rigid 0 80 ft 244 m 74 ft 226 m 1 68 ft 207 m 62 ft 189 m 2 57 ft 174 m 51 ft 155 m 3 47 ft 143 m 41 ft 125 m NOTE Use a 4inch 102 cm diameter rigid aluminum or galvanized steel duct If you integrate the dryers vent system with an existing exhaust system make sure The exhaust system meets all applicable local state and national regulations Not to use a exible plastic duct To regularly check and clean all lint buildup from inside the existing ducts The duct is not kinked or crushed The exhaust hood damper opens and closes freely Manometer measurements The static pressure in any exhaust system must not exceed 083 inches of water column or be less than 0 Note that these values are measured with the dryer running with a manometer presented to the exhaust duct that connects to the dryer The dryer tumbler must be empty and lint lter clean Untitled9 14 20190719 43045
  • Page 15 - English - : English 15 Installation requirements Exhausting requirements The dryer must not be exhausted into a chimney a wall a ceiling an attic a crawl space or a concealed space of a building Exhausting the dryer to the outside will prevent large amounts of lint and moisture from being blown into the room In the United States and Canada All dryers must be exhausted to the outside The required exhaust duct is 4 inches 102 cm in diameter See Ducting requirements in the Installation section for the maximum duct length and number of bends that can be used The total length of exible metal duct must not exceed 7 10 12 24 m Do not assemble the duct with screws or other fastener means that extend into the duct and catch lint For the United States only Use only those foiltype exible ducts if any specically identied for use with the appliance by the manufacturer and that comply with the Outline for Clothes Dryer Transition Duct Use Subject 2158A Outside the United States and Canada Refer to the local codes WARNING You must exhaust the dryer to the outside to reduce the risk of re when you install the dryer in an alcove or closet Do not use a plastic or nonmetal exible duct If your existing ductwork is plastic non metal or combustible replace it with metal Use only a metal exhaust duct that is nonammable to ensure containment of exhaust air heat and lint Untitled9 15 20190719 43045
  • Page 16 - English - : Installation requirements English16 Installation requirements Gas requirements WARNING Use only natural or LP liquid propane gases The installation must be conformed with local codes or in the absence of local codes with the national fuel gas code ANSI Z2231NFPA 54 latest revision for the UNITED STATES or with the natural gas and propane installation code CSA B1491 for Canada Gas dryers are equipped with a burner vent for use with natural gas If you plan to use your dryer with LP liquid propane gas it must be converted for safe and proper performance by a qualied service technician LNG models only You must check the burner of your model and use the proper LP Kit accordingly To check the detail information of the burner open the door and check the rating label location on the door frame 20000 BTU LPKIT4XAA DC98 04114A 22000 BTU LPKIT3XAA DC99 00792A A 12 127 cm gas supply line is recommended and must be reduced to connect to the 38 1 cm gas line on your dryer The National Fuel Gas Code requires that an accessible approved manual gas shutoff valve be installed within 6 of your dryer Gas dryers installed in residential garages must be raised 18 inches 46 cm above the oor Additionally a 18 03 cm NPT National Pipe Thread plugged tapping accessible for test gauge connection must be installed immediately upstream of your dryers gas supply connection Your dryer must be disconnected from the gas supply pipe system during any pressure testing of the system Do not reuse old exible metal gas lines Flexible gas lines must be designed and certied by the standard for connectors for Gas Appliances ANSI Z2124 CSA 610 NOTE Your dryer uses an automatic ignition system to ignite the burner There is no constant burning pilot Any pipe joint compound used must be resistant to the action of any liqueed petroleum gas As a courtesy most local gas utilities will inspect a gas appliance installation Commonwealth of Massachusetts installation instructions Your dryer must be installed by a licensed plumber or gas tter A T handle manual gas valve must be installed in the gas supply line to your dryer If a exible gas connector is used to install your dryer the connector can be no longer than 3 36 WARNING Gas leaks may occur in your system creating a dangerous situation Gas leaks may not be detected by smell alone Gas suppliers recommend you purchase and install a ULapproved gas detector Untitled9 16 20190719 43045
  • Page 17 - English - : English 17 Installation requirements Install and use in accordance with the manufacturers instructions Electrical requirements The wiring diagram is located on the plate under the control panel or rear frame WARNING Improperly connecting the equipment grounding conductor can result in a risk of electric shock Check with a qualied electrician or serviceman if you are in doubt as to whether your dryer is properly grounded Do not modify the plug provided with your dryer if it doesnt t the outlet have a proper outlet installed by a qualied electrician To prevent unnecessary risk of re electrical shock or personal injury all wiring and grounding must be done in accordance with local codes or in the absence of local codes in accordance with the National Electrical Code ANSI NFPA No 70Latest Revision for the US or the Canadian Electrical Code CSA C221 Latest Revisions and local codes and ordinances It is your responsibility to provide adequate electrical service for your dryer All gas installations must be done in accordance with the national Fuel Code ANSIZ2231 Latest Revision for the US or CANCGA B149 Installation Codes Latest Revision for Canada and local codes and ordinances Grounding This dryer must be grounded In the event of malfunction or breakdown the ground will reduce the risk of electrical shock by providing a path of least resistance for the electrical current Gas models WARNING Your dryer has a cord with an equipmentgrounding conductor and a grounding plug The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances Do not modify the plug provided with your dryer if it doesnt t the outlet have a proper outlet installed by a qualied electrician Do not connect the ground wire to plastic plumbing lines gas lines or hot water pipes Untitled9 17 20190719 43045
  • Page 18 - English - : Installation requirements English18 Installation requirements Electric models WARNING Your dryer has an optional cord with an equipmentgrounding conductor and a grounding plug This cord is sold separately The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances Do not modify the plug provided with your dryer if it doesnt t the outlet have a proper outlet installed by a qualied electrician If a power cord is not used and the electric dryer is to be permanently wired the dryer must be connected to a permanently grounded metal wiring system or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dryer Electrical connections Before operating or testing follow all grounding instructions in the Grounding section An individual branch or separate circuit serving only your dryer is recommended Do not use an extension cord Gas models US and Canada A 120 volt 60 Hz AC approved electrical service with a 15ampere fuse or circuit breaker is required Electric models US only Most US dryers require a 120 240 volt 60 Hz AC approved electrical service Some require 120 208 volt 60 Hz approved electrical service The electric service requirements can be found on the data label located behind the door A 30ampere fuse or circuit breaker on both sides of the line is required If a power cord is used the cord should be plugged into a 30ampere receptacle The power cord is not provided with US electric model dryers This cord is sold separately Untitled9 18 20190719 43045
  • Page 19 - English - : English 19 Installation requirements WARNING Risk of Electric Shock When local codes allow you can connect the dryers electrical supply with a new power supply cord kit marked for use with a dryer that is UL listed and rated at a minimum of 120 240 volts 30amperes with three No 10 copper wire conductors terminated with closed loop terminals openend spade lugs with turned up ends or with tinned leads Do not reuse a power supply cord from an old dryer The power cord electric supply wiring must be supported at the dryer cabinet by a suitable ULlisted strain relief Grounding through the neutral conductor is prohibited for 1 new branchcircuit installations 2 mobile homes 3 recreational vehicles and 4 areas where local codes prohibit grounding through the neutral conductor Use a 4prong plug for a 4 wire receptacle NEMA type 1430R Electric models Canada Only A 120 240 volt 60 Hz AC approved electrical service fused through a 30ampere fuse or circuit breaker on both sides of the line is required All Canadian models are shipped with the power cord attached The power cord should be plugged into a 30ampere receptacle NOTE In Canada you may not convert a dryer to 208 volts Untitled9 19 20190719 43046
  • Page 20 - English - : English20 Installation This dryer must be installed by a qualied technician The installer is responsible for connecting the dryer to the main power while observing the relevant safety regulations of your area Whats included Make sure all the parts are included in the product package If you have a problem with the dryer or the parts contact a local Samsung customer center or the retailer 01 Control panel 02 Worktop 03 Lint lter 04 Door 05 Exhaust duct Installation Untitled9 20 20190719 43046
  • Page 21 - English - : English 21 Installation Parts supplied Yconnector Short water hose Tools needed for installation Pliers Cutting knife Pipe wrench gas models only Nut driver Level Phillips screwdriver Duct tape Wrench LPGsafe compound or Teon Tape for gas installation WARNING Packing materials can be dangerous to children Keep all packing materials plastic bags polystyrene etc out of childrens reach Untitled9 21 20190719 43050
  • Page 22 - English - : Installation English22 Installation Stepbystep installation Make sure you have a qualied technician install the dryer Step by step installation instructions start below Do not remove the protective lm on the door before completing the product installation If you remove the protective lm before the installation is complete the door may get scratched or damaged during installation Make sure the installation location allows enough space for the dryer door to be fully open STEP 1 Install the exhaust system 1 Select a location and move the dryer to the site For easy access we recommend you install the dryer in the same location as your washer 2 To change the door direction see Switching the door position on page 31 3 Install the exhaust system as instructed in the Exhaust ducting guide section CAUTION Before installing your dryer remove the packing in the duct NOTE To move the dryer easily lay two of the carton cushionfrom the packaging on the oor Tip the dryer on its side so it lies across both cushiontops Push the dryer so that it is near its nal location and then set the dryer upright Secure room around the dryer to facilitate ducting and wiring STEP 2 Connect the gas line for gas models Before connecting the gas line make sure you have read the Gas requirements section on page 16 1 Remove the protective cap from the gas pipe 2 Apply an LPG Liqueed Petroleum Gassafe compound or 15 wraps of Teon tape to all threaded connections 3 Connect the gas supply to the dryer An additional tting is required to connect the 34 19 cm female thread end of a exible connector to the 38 1 cm male threaded end on the dryer Tighten up the tting over all threads 4 Turn on the gas supply and check for any leaks using a soap solution If a leak is found tighten the connections and try again Do not use an open ame to check for gas leaks Untitled9 22 20190719 43051
  • Page 23 - English - : English 23 Installation STEP 3 Connect the electrical wiring for electric models Before connecting the electrical wiring make sure you have read the Electrical requirements section on page 17 3wire system A B E C D A External ground connector B Neutral grounding wire white C Center silvercolored terminal block screw D Neutral wire white or center wire E 34 19 cm ULlisted strain relief 1 Loosen or remove the center terminal block 2 Connect the neutral wire white or center wire of the power cable to the center silvercolored terminal screw of the terminal block Tighten the screws 3 Connect the other wires to outer terminal block screws Tighten the screws 4 Tighten the strain relief screws 5 Insert the terminal block cover into the rear panel of the dryer Then secure the cover with a holddown screw CAUTION To convert from the 4wire system to 3wire system connect the ground strap to the terminal block support to ground the dryer frame to the neutral conductor Ringtype terminals are recommended If using strap terminals make sure they are tightened Untitled9 23 20190719 43052
  • Page 24 - English - : Installation English24 Installation 4wire system A B C D F E A External ground connector B Green or bare copper wire of power cord C 34 19 cm ULlisted strain relief D Center silvercolored terminal block screw E Neutral grounding wire white F Neutral wire white or center wire 1 Remove the external ground connectors screw and connect the ground wire green or unwrapped of the power cable to the screw CAUTION To connect the ground wire to the neutral position without through contact A cabinet ground contact a technician This is not user serviceable Ringtype terminals are recommended If using strap terminals make sure they are tightened 2 Loosen or remove the screws from the center terminal block 3 Connect the neutral wire white or center wire and ground wire white to the center screw of the terminal block Tighten the screw 4 Connect the other wires to the outer terminal block screws Tighten the screws 5 Tighten the strain relief screws 6 Insert the tab of the terminal block cover into the rear slot of the dryer Secure the cover with a holddown screw WARNING All US models are designed for a 3wire system connection The dryer frame is grounded to the neutral conductor at the terminal block A 4wire system connection is required for new or remodeled construction mobile homes or if local codes do not permit grounding through neutral If you use the 4wire system you cannot ground the dryer frame to the neutral conductor at the terminal block Remove the terminal block cover plate Insert the power cord with a ULlisted strain relief through the hole provided in the cabinet near the terminal block Untitled9 24 20190719 43053
  • Page 25 - English - : English 25 Installation A strain relief must be used Do not loosen the nuts already installed on the terminal block Be sure they are tight Use a 38 1 cm deep well socket STEP 4 Connect the water hose The dryer must be connected to a cold water tap using the provided water hoses 1 Close the cold water tap If you have a washers cold water hose attached to the cold water tap unscrew and remove the hose Then connect the female end of the Yconnector to the cold water tap 2 Connect the straight end of the water hose to the Yconnector 3 Using pliers tighten the coupling an additional twothirds turn Do not overtighten because the coupling may be damaged 4 Connect the angled end of the water hose to the lling valve at the bottom of the rear frame Turn the coupling manually until it is tight 5 Using pliers tighten the coupling an additional twothirds turn Do not overtighten because the coupling may be damaged 6 If you detached the cold water hose from your washer attach the hose to the open end of the Yconnector tighten the coupling by hand until it is tight and then using a pliers tighten an additional twothirds turn 7 Open the cold water tap and then check for any leaks If the Yconnector cannot be directly connected to the cold water tap use the short hose See the Using the short hose as an extension section on page 26 Untitled9 25 20190719 43055

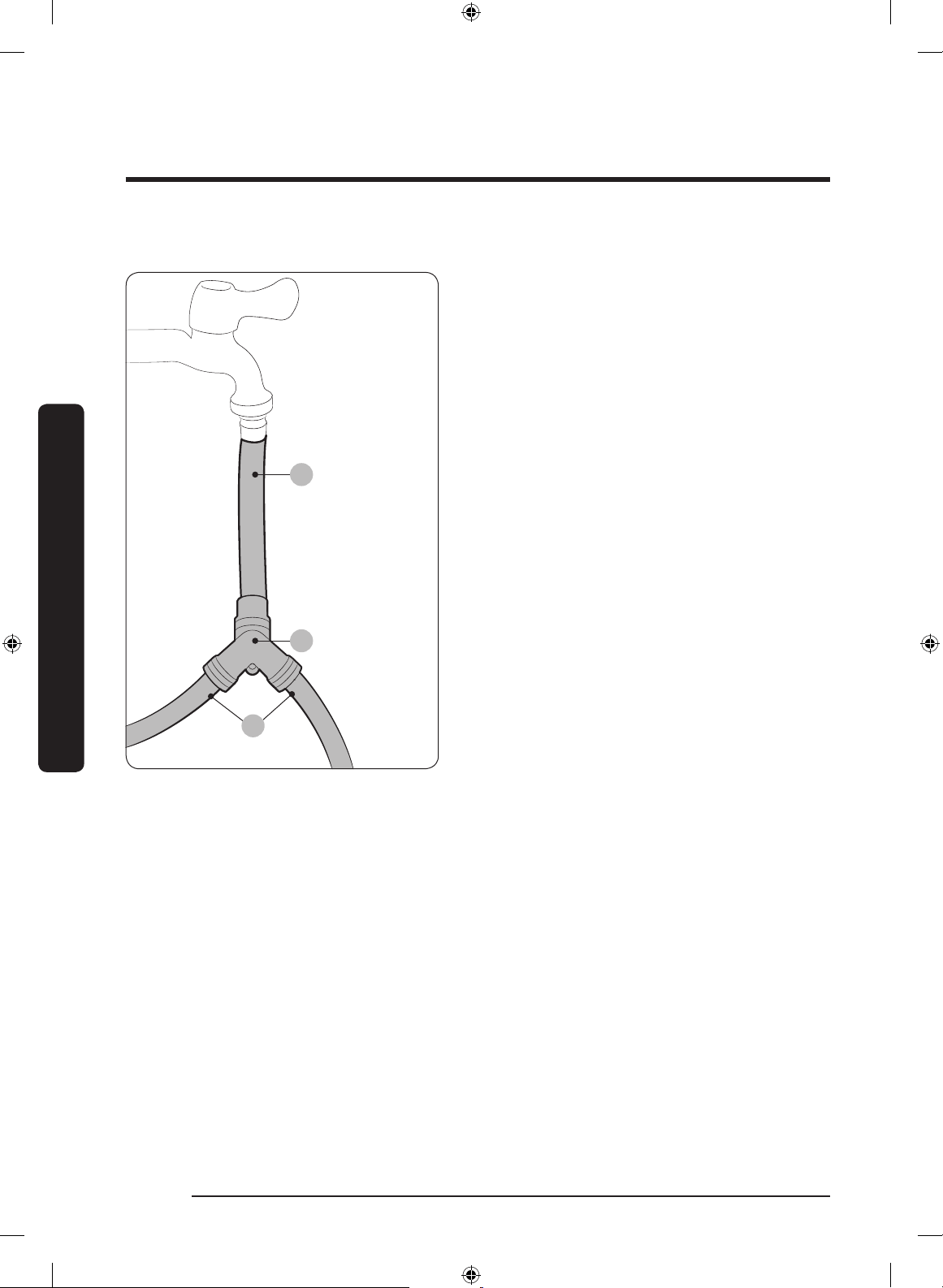

  • Page 26 - English - : Installation English26 Installation Using the short hose as an extension B A C 1 Close the cold water tap If you have a washers cold water hose attached to the cold water tap unscrew and remove the hose Then connect the short hose B to the cold water tap Turn the coupling by hand until it is tight 2 Using pliers tighten the coupling an additional twothirds turn Do not overtighten because the coupling may be damaged 3 Connect the Yconnector A to the brass male end of the short hose Turn the coupling by hand until it is tight 4 Using pliers tighten the coupling an additional twothirds turn Do not overtighten because the coupling may be damaged 5 Connect the angled end of the water hoses C to the lling valve at the bottom of the rear frame Turn the coupling manually until it is tight 6 Using pliers tighten the coupling an additional twothirds turn Do not overtighten because the coupling may be damaged 7 If you detached the cold water hose from your washer attach the hose to the free end of the Yconnector tighten the coupling by hand until it is tight and then using a pliers tighten an additional twothirds turn 8 Open the cold water tap and then check for any leaks Untitled9 26 20190719 43055
  • Page 27 - English - : English 27 Installation STEP 5 Level the dryer To ensure optimal performance the dryer must be level A B Using a level A check if the dryer is level side to side and then front to back If the dryer is not level turn the leveling feet B clockwise to lower the dryer or counterclockwise to raise the dryer A B NOTE To set the dryer to the same height as your washer fully retract A the leveling feet by turning them counterclockwise then loosen B the feet by turning them clockwise Once the dryer is the same height as the washer follow the directions above to level the dryer Adjust the leveling feet only as much as necessary to level the dryer Extending the leveling feet more than necessary can cause the dryer to vibrate Untitled9 27 20190719 43056
  • Page 28 - English - : Installation English28 Installation STEP 6 Power on for gas models Make sure all gas connections the exhaust line and all wiring is connected correctly Then plug the power cord into a power source and check the dryers installation and operation using the nal checklist in Step 7 below STEP 7 Final check When installation is complete conrm that The dryer is plugged into an electrical outlet and grounded properly The exhaust ductwork is connected and the joints are taped You have used rigid or stiffwalled exible metal duct material not plastic exible duct The dryer is level and is sitting rmly on the oor The dryer starts runs heats and shuts off properly For gas models The gas is supplied properly with no leaks For gas models only CAUTION The burner may not ignite initially due to air in the gas line Allowing your dryer to operate on a heat setting will purge the line If the gas does not ignite within 5 minutes turn your dryer off and wait 5 minutes Be sure the gas supply to your dryer has been turned on To conrm gas ignition check the exhaust for heat Untitled9 28 20190719 43057
  • Page 29 - English - : English 29 Installation Vent blockage test After the dryer is installed start the Vent Blockage Test to check if the duct system is properly installed The Vent Blockage Test automatically detects the status of the ducts and reports any blockage or problems Proper ducting can reduce drying time and save energy NOTE The Vent Blockage Test must run when the dryer is cool If the dryer warms up after the installation check run the AIR FLUFF cycle for several minutes to reduce its internal temperature Running the vent blockage test 1 Make sure the drum is empty and then close the door If there are any clothes or other items in the drum the test will not give accurate results 2 Press the Power button to turn the dryer on then simultaneously press and hold the Adjust Time and Dryness buttons for 3 seconds InS or In appears in the dryers display If you have started other procedures before the Vent Blockage Test the dryer will not enter the Vent Blockage Test mode 3 Press the StartPause Hold to Start button The Vent Blockage Test starts immediately During the test the number indicator makes a circle in 6 clockwise steps The test takes about 2 minutes Do not open the door during the test 4 After 2 minutes when the test is complete the results are displayed and the dryer sounds a tone If status of the duct system is normal End or 0 appears and the dryer sounds a completion tone If the duct system can not exhaust properly CLg or Cg appears and the dryer sounds an alarm tone If there are any other problems an information code appears in the display For information about the code see the Information codes section on page 53 To stop or cancel the Vent Blockage Test press the Power button to turn off your dryer During the test if dc appears in the display make sure the door is closed If C1 is displayed see if there is laundry inside drum If there is stop the test and remove it Then start the test again The results remain on the display for about 5 minutes and then automatically turn off You can turn the results off immediately by pressing the Power button NOTE During or after the test the internal drum is hot Use caution to prevent burns The Vent Blockage Test is used to check for problems in the current duct system when the dryer is installed for the rst time Untitled9 29 20190719 43057
  • Page 30 - English - : Installation English30 Installation If the test result displays CLg or Cg the duct system is blocked refer to the Ducting requirements section on page 14 and the Exhaust ducting guide section below and then take proper measures to correct any problems If the test is suspended it could result in incorrect results Follow the proper procedures when testing the dryer Even if the test result is normal End or 0 the duct system could be blocked slightly Properly install all duct work according to the installation instructions in this manual Exhaust ducting guide Ducting 1 Make sure the dryer is installed properly so the air exhausts freely 2 Use 4inch rigid metal ducts Tape all joints including the dryer connection Never use linttrapping screws 3 To facilitate the exhaust keep the ducts as straight as possible Cleaning Clean all old ducts before installing the dryer and make sure the vent ap opens and closes freely We recommend that you to clean the exhaust system annually or on a regular basis WARNING To prevent re do not use plastic thinfoil or nonmetal exible ducts of any kind Do not use a poor exhaust system because it slows down the dryers performance Do not use excessively long ducts that have multiple elbows Do not use crushed or clogged venting or ducts Untitled9 30 20190719 43058
  • Page 31 - English - : English 31 Installation Switching the door position To reverse the direction of the door we recommend that you contact a qualied technician 1 Put a soft rug on the oor to rest the door on after you have removed it This will prevent the door from being scratched 2 Unplug the power cord of the dryer 3 Remove the four hinge screws from the door and then remove the door by lifting it up slightly 4 Remove the two screws from the lever holder and then remove the holder cover 5 Put the lever holder on the other side as shown and then tighten the screws Install the holder cover on the opposite side as shown 6 Use a athead screwdriver to remove the two hinge covers from the original side Install the hinge covers on the opposite side as shown Untitled9 31 20190719 43059
  • Page 32 - English - : Installation English32 Installation B 7 Locate and remove the 10 screws as shown Note that screw B x2 is longer than the others 8 Remove the glass holder and switch the positions of a the hinge cover and the door handle b the hinge holder and the glassguide holder 9 Remove the door lever and then move it to the other side as shown B C 10 Remove the hole cover C and then insert and tighten the glass holder using the removed 10 screws 11 Install the hole cover on the opposite side as shown Untitled9 32 20190719 43100
  • Page 33 - English - : English 33 Installation 12 Reinstall the door on the front frame and then carefully insert and tighten the 4 hinge screws Untitled9 33 20190719 43101
  • Page 34 - English - : English34 Before you start Here are a few things you should know before starting your dryer Sort and load Put one wash load in the dryer at a time Do not mix heavy and lightweight items together To improve drying efciency for one or two items add a dry towel to the load For best results untangle items before inserting them into the dryer Tangled items may degrade the drying efciency or cause the door to open Overloading reduces the tumbling performance resulting in uneven drying and wrinkling Unless recommended on the care label do not dry woolens or berglass items Avoid drying unwashed items Do not dry items soiled with oil alcohol gasoline etc Functional prerequisite Lint lter A To prevent a risk of re make sure to clean the lint lter before or after every load 1 Turn off the dryer 2 Open the door and pull out the lint lter A from inside the drum 3 Remove the lint and then clean the lint lter 4 Reinsert the lint lter and then close the door CAUTION Do not operate the dryer without the lint lter in place Do not use a damaged or broken lint lter This may reduce performance andor cause re Before you start Untitled9 34 20190719 43102
  • Page 35 - English - : English 35 Before you start Rack Dry DVEG54R7600 models only Some models come with a drying rack which is inserted into the drum at the factory If your model came with a drying rack remove the rack from the drum before you use the dryer for the rst time To remove the rack pull the rack straight up and then take it out of the drum Remove the drying rack from its packaging and store the rack for later use A If a drying rack is not provided you can purchase it at a local Samsung service center Part Code DC6103052B To use the drying rack follow these steps 1 Insert the drying rack A inside the tumbler with the lter handle to the front 2 Insert the rear legs of the drying rack into the recessed areas of the rear wall and then press down the middle of the drying rack to secure it in place 3 Put items to dry on the rack Make sure to leave space between the items for air ow 4 Press Rack Dry and then select the drying time 5 When the items are dry remove the them from the dryer and then remove the drying rack Untitled9 35 20190719 43102
  • Page 36 - English - : Before you start English36 Before you start Drying rack drying suggestions Item Cycle settings Washable sweaters block to shape and lay at on rack TIME DRY with the Extra Low temperature setting Stuffed toys cotton or polyester ber lled Stuffed toys foam or rubberlled AIR FLUFFFoam rubber pillows Sneakers WARNING Make sure to unpack the drying rack before using it Otherwise the dryer can be damaged or its performance diminished Drying foam rubber plastic or rubber on a heat setting may damage the items and create a re hazard Untitled9 36 20190719 43102
  • Page 37 - English - : English 37 Operations WARNING To reduce the risk of re electric shock or injury to persons read the Safety information before operating this appliance Control panel DVEG54R7600 03 04 05 06 DVEG54R7200 03 04 05 06 01 Cycle Selector Turn the Cycle Selector to select a desired cycle When a cycle is selected the cycle indicator lights up Steam Cycles The dryer sprays water into the drum to deodorize clothes and reduce static electricity and wrinkles Manual Dry The drying time is xed 02 Digital Graphic Display Displays all cycle information including the cycle time information code and operating status Operations Untitled9 37 20190719 43104
  • Page 38 - English - : Operations English38 Operations 03 Dryness Press to select a dry level You can select from 5 different options Less to More Please refer to following recommendations to select the appropriate dryness For larger or bulkier loads select More for complete dryness For items that needs to lay at or hang to dry use Less to partially dry items NOTE This option is not available with REFRESH WRINKLE AWAY STEAM SANITIZE ACTIVEWEAR TIME DRY QUICK DRY and AIR FLUFF 04 Temp Press to change the temperature of the current cycle You can select from 5 different options Low to High Please select the appropriate temperature depending on the items in the load High For sturdy cottons or those labeled Tumble Dry Medium For permanent press synthetics lightweight cottons or items labeled Tumble Dry Medium Low For heat sensitive items labeled Tumble Dry Low or Tumble Dry Warm Provides the lowest heated drying temperature possible 05 Time Press to adjust the drying time for the Manual Dry cycles This is not available with the Sensor Dry cycles because the dryer determines the drying time by sensing the current moisture level of the load 06 Wrinkle Prevent Wrinkle Prevent provides approximately 180 minutes of intermittent tumbling in unheated air at the end of the cycle to reduce wrinkling Press Wrinkle Prevent to activate this feature The load is dry and can be removed at any time during the Wrinkle Prevent cycle 07 Eco Dry This function is available with NORMAL and TIME DRY With the Eco Dry activated drying takes a longer time but the power consumption is reduced The drying time can be extended by up to 3 times depending on the temperature and load The Eco Dry function is enabled by default Untitled9 38 20190719 43105
  • Page 39 - English - : English 39 Operations 08 Damp Alert This alert is available for all Sensor Dry cycles except for SANITIZE and ACTIVEWEAR Available dry levels are Normal More and Extra If a load contains mixed fabrics the Damp Alert indicator blinks when average dryness of the items in the load is 80 dry This lets you take items that you dont want fully dried or that dry quickly out of the dryer early while letting others continue to dry 09 Drum Light Press to turn the interior lamp on or off The lamp stays lit for 2 minutes after it has turned on regardless of whether the power is on or off or the door is open or closed and then turns off automatically 10 Adjust Time You can change the set time in the Manual Dry cycles QUICK DRY TIME DRY AIR FLUFF and WRINKLE RELEASE and WRINKLE AWAY To change the cycle time press or until the desired time is displayed 11 Smart Care This function enables you to check the status of the dryer using a smartphone 12 Power Press to turn onturn off the dryer 13 StartPause Hold to Start Press to start or stop operation NOTE Do not take extremely tangled items from your washer and put them into the dryer They can degrade the drying efciency of the dryer or cause the door to open We recommend that you untangle the items before putting them into the dryer Also do not put objects on the dryer especially on the control panel CAUTION Do not spray water directly onto the control panel This may cause a system failure Untitled9 39 20190719 43105
  • Page 40 - English - : Operations English40 Operations Simple steps to start 1 Press Power to turn the dryer on 2 Turn the Cycle Selector to select a cycle 3 Change the cycle settings Dryness Temp and Time as necessary 4 Select desired options as necessary 5 Press and hold StartPause Hold to Start To change the cycle during operation 1 Press StartPause Hold to Start to stop operation 2 Select a different cycle and repeat steps 24 above if necessary 3 Press and hold StartPause Hold to Start again to start the new cycle Untitled9 40 20190719 43106
  • Page 41 - English - : English 41 Operations Cycle overview Standard Cycles Cycle Description NORMAL For most fabrics including cottons and linens If NORMAL is selected the Eco Dry function is enabled by default For more information see Eco Dry in the Control panel section HEAVY DUTY For drying items made out of heavy fabrics such as jeans corduroys or work clothes with high temperature heat BEDDING For bulky items such as blankets sheets and comforters DELICATES For heatsensitive items at a low drying temperature PERM PRESS For drying wrinklefree cottons synthetic fabrics knits and permanent press fabrics automatically ACTIVEWEAR DVEG54R7600 models only For exercise wear and outdoor wear such as sports jerseys training pants waterrepellent jackets and other performance clothing Thick fabrics like a zipper or velcro closure of a jacket or training socks may not be completely dried Untitled9 41 20190719 43106
  • Page 42 - English - : Operations English42 Operations Manual Dry You can change the drying settings manually to your preference QUICK DRY A quick drying cycle running for 30 minutes The default cycle time is 30 minutes However you may manually change the cycle time if necessary TIME DRY You can specify a cycle time in minutes If TIME DRY is selected the Eco Dry function is enabled by default For more information see Eco Dry in the Control panel section AIR FLUFF DVEG54R7600 models only Tumbles the load in room temperature air Steam Cycles Use steam to reduce wrinkling and odors on items Cycle Description STEAM SANITIZE Use to sanitize items by applying steam and hightemperature heat to the fabric This cycle can make items soft and reduce smells Conrm that the laundry load is wet or partially wet before starting this cycle REFRESH Use to smooth out wrinkles and reduce odors in loads of one to four items With this cycle selected a small amount of water is sprayed into the dryer drum after several minutes of tumbling with heat Conrm that the laundry load is dry WRINKLE AWAY For best results load 23 items at once You can extend the drying time by a minimum of 20 minutes depending on the item type or load Conrm that the laundry load is dry Untitled9 42 20190719 43106
  • Page 43 - English - : English 43 Operations Cycle chart NOTE For best results follow the load size recommendations for each dry cycle Large load Fill the drum to about 34 full Do not add items over this level as they need to tumble freely Medium load Fill the drum to about 12 full Small load Fill the drum with 35 items not more than 14 full Cycle Recommended items Load size Dry level NORMAL Cottons work clothes linens mixed loads Normal dry Adjustable HEAVY DUTY Heavy fabrics such as jeans corduroys heavy work clothes Normal dry Adjustable BEDDING Bulky items such as blankets sheets comforters pillows Normal dry Adjustable DELICATES Underwear blouses lingerie Normal dry Adjustable PERM PRESS Shirts synthetic fabrics knits wrinklefree cottons permanent press Normal dry Adjustable ACTIVEWEAR DVEG54R7600 models only Waterrepellent wear performance clothes sports wear Maximum 4 lbs Normal dry Not adjustable QUICK DRY Small loads TIME DRY Any load AIR FLUFF DVEG54R7600 models only Foamrubber plastic STEAM SANITIZE Bedding curtains childrens clothing Very dry Not adjustable REFRESH Shirts trousers comforters pillows WRINKLE AWAY Shirts trouser blouses Untitled9 43 20190719 43108
  • Page 44 - English - : Operations English44 Operations NOTE factory setting can be selected Cycle Functions Temp Control Time High Low NORMAL HEAVY DUTY BEDDING DELICATES PERM PRESS ACTIVEWEAR DVEG54R7600 models only QUICK DRY TIME DRY AIR FLUFF DVEG54R7600 models only STEAM SANITIZE REFRESH WRINKLE AWAY Untitled9 44 20190719 43108
  • Page 45 - English - : English 45 Operations Cycle Options Adjust Time Damp Alert Eco Dry AntiStatic Wrinkle Prevent NORMAL HEAVY DUTY BEDDING DELICATES PERM PRESS ACTIVEWEAR DVEG54R7600 models only QUICK DRY TIME DRY AIR FLUFF DVEG54R7600 models only STEAM SANITIZE REFRESH WRINKLE AWAY Untitled9 45 20190719 43109
  • Page 46 - English - : Operations English46 Operations Cycle guide The best way to dry items is to follow the instructions on the care label If no drying instructions are provided see the following table for reference Cycle Description Bedspreads amp Comforters Follow the care label instructions or dry using BEDDING Make sure the item is thoroughly dry before using or storing May require repositioning in the drum to ensure even drying Blankets Use NORMAL and dry only one blanket at a time for best tumbling action Make sure blankets are thoroughly dry before using or storing Curtains amp Draperies Use PERM PRESS and the Medium temperature setting to help minimize wrinkling Dry curtains and draperies in small loads for best results and remove as soon as possible Cloth Diapers Use NORMAL and the Medium temperature setting for soft uffy diapers Downlled Items jackets sleeping bags comforters etc Use NORMAL and the Medium temperature setting Add a couple of dry towels to absorb moisture and shorten drying time Foam Rubber rug backs stuffed toys shoulder pads etc Do not dry on a heat setting WARNING Drying a rubber item with heat may damage it or cause a re Pillows Use NORMAL Add a couple of dry towels and a pair of clean sneakers to help the tumbling action and to uff the items Do not dry kapok or foam pillows using a heated drying cycle Plastics shower curtains outdoor furniture covers etc Use TIME DRY and the Low or Extra Low temperature settings depending on the care label instructions WARNING Do not dry Fiberglass items curtains draperies etc Woolens unless recommended on the label Items spotted or soaked with vegetable or cooking oils Untitled9 46 20190719 43109
  • Page 47 - English - : English 47 Operations Special features Child Lock Child Lock prevents children from playing with the dryer When Child Lock is activated all buttons except for the Power button are disabled To activatedeactivate Child Lock simultaneously press and hold Dryness and Temp for 3 seconds NOTE Once Child Lock is activated it will remain active even after you restart the dryer If other buttons except for the Power button do not respond check the Child Lock indicator If the indicator is on follow the instructions above to turn Child Lock off Alarm Off You can turn the alarm on or off When the alarm is off the melody of cycle completion and the poweroff beep will not sound However the other sounds stay active Press and hold Drum Light for 3 seconds to turn the alarm on or off Your setting will be retained even after you turn off the dryer You can turn the alarm back on by pressing and holding the same button for 3 seconds Untitled9 47 20190719 43110
  • Page 48 - English - : Operations English48 Operations Smart Care To enable this function you must rst download the SmartThings app at the Play Store or the App Store and install it on a mobile device featuring a camera function The Smart Care function has been optimized for Galaxy amp iPhone series applicable models only 1 When the dryer detects an issue to check an information code appears on the display To enter Smart Care mode press Smart Care 2 The dryer starts the selfdiagnosis procedure and displays an information code if a problem is detected 3 Run the SmartThings app on your mobile device and then tap Smart Care 4 Put the mobile device close to the dryers display so that the smartphone camera and the dryer face each other The app automatically recognizes the information code 5 When the information code is recognized correctly the app provides detailed information about the problem with applicable solutions NOTE The function name Smart Care may differ depending on the language If light is reected off the dryers display the app may fail to recognize the information code If the app fails to recognize the information code you can enter the code manually in the app Untitled9 48 20190719 43110
  • Page 49 - English - : English 49 Maintenance Keep the dryer clean for best performance and to lengthen its life cycle WARNING Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing Service Personnel Do not contact the following parts while the appliance is energized Control board and inlet valve Cleaning Control panel Clean with a soft damp cloth Do not use abrasive substances Do not spray liquid cleaning agents directly onto the dryer display Some laundry pretreatment soil and stain removers may damage the control panel When using liquid cleaning agents apply them to the cleaning cloth Do not apply them directly to the dryer Wipe up any spills or overspray immediately Drum Remove any stains from the drum with an allpurpose cleaner Tumble old towels or rags to remove any remaining stains or cleaning substances Stains may be still visible but will not affect subsequent loads Powder coated drum To clean the powder coated drum use a damp cloth with a mild nonabrasive cleaner suitable for easily marred surfaces Remove cleaner residue and dry with a clean cloth Dryer exterior Clean with a soft damp cloth Do not use abrasive substances Protect the surface from sharp objects Do not place any heavy or sharp objects or a detergent container on the dryer They can scratch or damage the top cover of the dryer The dryer has a highgloss nish on the entire surface Be careful not to scratch or damage the surface Exhaust system Check and clean the exhaust system on a regular basis to maintain optimum performance The external exhaust hood must be cleaned frequently to ensure proper air ow Maintenance Untitled9 49 20190719 43110
  • Page 50 - English - : English50 Troubleshooting Checkpoints If the dryer operates abnormally rst check the list of problems in the table below and try the suggested actions Problem Action Does not run Make sure the door is latched shut Make sure the power cord is plugged into a live electrical outlet Check your homes circuit breakers or fuses Press or tap StartPause Hold to Start again if the door is opened during a cycle Clean the lint lter Does not heat Check your homes circuit breakers or fuses Some cycles do not require heating Check the selected cycle again For a gas dryer make sure the gas supply is on Clean the lint lter and exhaust duct The dryer may have moved into the cooldown phase of the cycle Turn off the Eco Dry option for the NORMAL or TIME DRY cycles When the Eco Dry option is on the dryer performs an air dry process in the beginning of the cycle to reduce energy consumption The air dry process does not use heated air so you may feel that the dryer is not being heated but this is normal Troubleshooting Untitled9 50 20190719 43110
