Frigidaire FGEX26D6QF gallery 26 cu. ft. side-by-side User Manual

TABLE OF CONTENTS

www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352

All about the

Use & Care

of your Refrigerator

Important Safety Instructions ......................2

Features at a Glance ...................................4

Installation ................................................5

Door Removal Instructions ..........................7

Handle Installation .....................................9

Connecting Water Supply .......................... 10

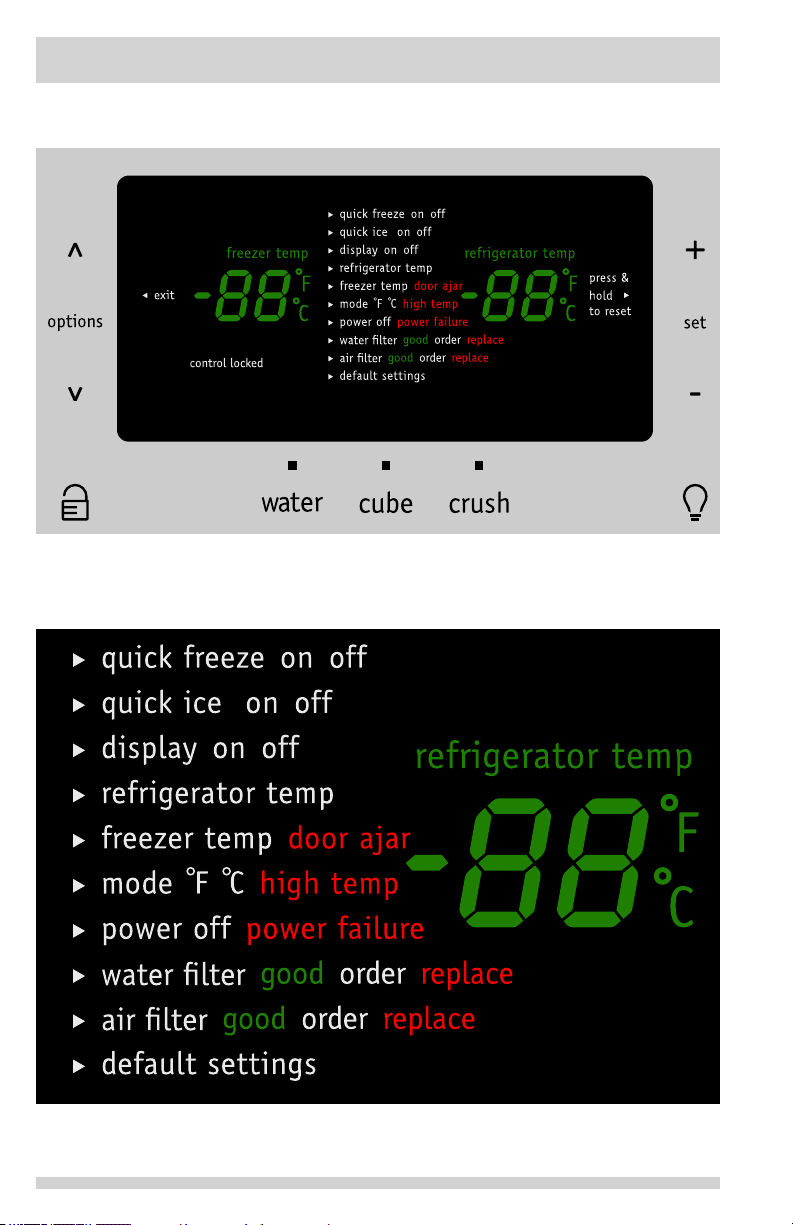

Controls ...................................................12

242288200 (November 2012)

Storage Features ...................................... 15

Automatic Ice & Water Dispenser ..............17

Changing the Filter ................................... 20

Normal Operating Sounds and Sights ......... 22

Care and Cleaning ....................................23

Before you Call .........................................28

Major Appliance Warranty .........................32

WARNING

WARNING indicates a potentially hazardous

situation which, if not avoided, could result

in death or serious injury.

IMPORTANT

IMPORTANT indicates installation, operation

or maintenance information which is

important but not hazard-related.

DANGER

DANGER indicates an imminently hazardous

situation which, if not avoided, will result in

death or serious injury.

Denitions

This is the safety alert symbol. It is

used to alert you to potential personal injury

hazards. Obey all safety messages that follow

this symbol to avoid possible injury or death.

Doors

 Handles are secure and tight

 Door seals completely to cabinet on

all sides

 Freezer door is level across the top

Leveling

 Refrigerator is level, side-to-side and

tilted ¼” (6mm) front-to-back

 Toe grille is properly attached

to refrigerator

 Cabinet is setting solid on all corners

Electrical Power

 House power turned on

 Refrigerator plugged in

Ice Maker

 House water supply connected

to refrigerator

 No water leaks present at all connections

- recheck in 24 hours

 Ice maker is turned ON

 Ice & water dispenser operates correctly

 Frontltermustbeushwithlter

housing (select models)

Final Checks

 Shipping material removed

 Fresh food and freezer temperatures set

 Crisper humidity controls set

 Registration card sent in

Installation Checklist

CAUTION

CAUTION indicates a potentially hazardous

situation which, if not avoided, may result in

minor or moderate injury.

For your Safety

• DO NOT store or use gasoline, or other

ammableliquidsinthevicinityofthisor

any other appliance. Read product labels

forwarningsregardingammabilityand

other hazards.

• DO NOT operate the refrigerator in the

presence of explosive fumes.

• Avoid contact with any moving parts of

automatic ice maker.

• Remove all staples from the carton. Staples

can cause severe cuts, and also destroy

nishesiftheycomeincontactwithother

appliances or furniture.

WARNING

Please read all instructions before using this

refrigerator.

Child Safety

Destroy or recycle the carton, plastic bags, and

any exterior wrapping material immediately

after the refrigerator is unpacked. Children

should NEVER use these items to play.

Cartons covered with rugs, bedspreads, plastic

sheets or stretch wrap may become airtight

chambers,andcanquicklycausesuffocation.

Proper Disposal of your

Refrigerator or Freezer

Risk of child entrapment

Child entrapment and suffocation are not

problems of the past. Junked or abandoned

refrigerators or freezers are still dangerous

IMPORTANT SAFETY INSTRUCTIONS

Grounding type wall receptacle

Do not, under

any circumstances,

cut, remove,

or bypass the

grounding prong.

Power cord with

3-prong gounded plug

Electrical information

• The refrigerator must be plugged into its

own dedicated 115 Volt, 60 Hz., 15 Amp,

AC only electrical outlet. The power cord

oftheapplianceisequippedwithathree-

prong grounding plug for your protection

against electrical shock hazards. It must be

plugged directly into a properly grounded

three prong receptacle. The receptacle must

be installed in accordance with local codes

andordinances.Consultaqualiedelectrician.

WARNING

These guidelines must be followed to ensure

that safety mechanisms in this refrigerator

will operate properly.

IMPORTANT

Pressing and holding the On/Off button for

three seconds, located on the temperature

control panel (Electronic controls), or turning

the Freezer and Fresh Food controls to

“0” (Mechanical controls) will disable your

refrigerator’s cooling system, but does not

disconnect the power to the light bulb and

other electrical components. To turn off power

to your refrigerator you must unplug the

power cord from the electrical outlet.

CAUTION

To avoid personal injury or property damage,

handle tempered glass shelves carefully. Shelves

may break suddenly if nicked, scratched, or

exposed to sudden temperature change.

Avoid connecting refrigerator to a Ground

Fault Interrupter (GFI) circuit. Do not use an

extension cord or adapter plug.

• If the power cord is damaged, it should be

replaced by an authorized service technician

to prevent any risk.

• Never unplug the refrigerator by pulling on the

powercord.Alwaysgriptheplugrmly,and

pull straight out from the receptacle to prevent

damaging the power cord.

• Unplug the refrigerator before cleaning

and before replacing a light bulb to avoid

electrical shock.

• Performance may be affected if the voltage

varies by 10% or more. Operating the

refrigeratorwithinsufcientpowercan

damage the compressor. Such damage is not

covered under your warranty.

• Do not plug the unit into an electrical outlet

controlled by a wall switch or pull cord to

prevent the refrigerator from being turned

off accidentally.

– even if they will sit for “just a few days”. If

you are getting rid of your old refrigerator or

freezer, please follow the instructions below to

help prevent accidents.

Proper Disposal of Refrigerators/Freezers

We strongly encourage responsible appliance

recycling/disposal methods. Check with your utility

company or visit www.energystar.gov/recycle for

more information on recycling your old refrigerator.

Before you throw away your old

refrigerator/freezer:

• Remove doors.

• Leave shelves in

place so children

may not easily

climb inside.

• Have refrigerant

removed by a

qualiedservice

technician.

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT

CFC/HCFC Disposal

Your old refrigerator may have a cooling system

thatusedCFCsorHCFCs(chlorouorocarbons

orhydrochlorouorocarbons).CFCsandHCFCs

are believed to harm stratospheric ozone if

released to the atmosphere. Other refrigerants

may also cause harm to the environment if

released to the atmosphere.

If you are throwing away your old refrigerator,

make sure the refrigerant is removed for

properdisposalbyaqualiedtechnician.If

you intentionally release refrigerant, you may

besubjecttonesandimprisonmentunder

provisions of environmental legislation.

IMPORTANT

Features not included with your refrigerator can be purchased at

www.frigidaire.com or by calling 1-800-944-9044.

FEATURES AT A GLANCE

Features may vary according to model

Dairy

Compartment

Door Bin

SpillSafe

Adjustable Shelf

Tall Bottle

Retainer

Wine Rack

Door Bin

Special Item

Rack

Meat Keeper

and Cover

Can Rack

Crisper Pan

and Cover

Fixed

Door Bin

Toe Grille

Fixed

Door Bin

Ice

Container

Shelf

Tilt Out

Door Bin

Small Basket

Large

Glide Out

Basket

SpillSafe

Adjustable Shelf

Water Filter

Ice Cream Shelf

Ice Maker

Air Filter



NOTE

If your refrigerator is placed with the door

hinge side against a wall, you may have to

allow additional space so the door can be

opened wider.

INSTALLATION

CAUTION

Do Not install the refrigerator where

the temperature will drop below 55° F

(13° C) or rise above 110° F (43° C). The

compressor will not be able to maintain

proper temperatures inside the refrigerator.

Do Not block the toe grille on the lower front

ofyourrefrigerator.Sufcientaircirculation

is essential for the proper operation of

your refrigerator.

This Use & Care Guide provides general

operating instructions for your model. Use the

refrigerator only as instructed in this Use & Care

Guide. Before starting the refrigerator,

follow these important rst steps.

Location

• Choose a place that is near a grounded

electrical outlet. Do Not use an extension

cord or an adapter plug.

• If possible, place the refrigerator out of

direct sunlight and away from the range,

dishwasher or other heat sources.

• Therefrigeratormustbeinstalledonaoor

that is level and strong enough to support

a fully loaded refrigerator.

• Consider water supply availability for

modelsequippedwithanautomaticice

maker. If you do not hook up water to

the refrigerator, remember to turn the ice

maker off.

Installation

Installation clearances

• Allow the following clearances for ease

of installation, proper air circulation, and

plumbing and electrical connections:

 Sides&Top ⅜inch

Back 1 inch

Toe Grille Installation and Removal

To install toe grille

1 Open both doors. Slide left and right sides of

toe grille over lower hinges of refrigerator.

2 Whilepushingtoegrillermlyagainst

cabinet, fasten bottom clips of toe grille

to cabinet.

3 Fasten top clips to cabinet.

4 Close the doors. Fasten right and left side

clips into groove of bottom hinge.

To remove toe grille

1 With both doors closed, unfasten right

and left side clips of toe grille from bottom

hinge groove.

2 Openbothdoors.Pressrmlyontopof

toe grille until top of toe grille pops off.

3 Pull toe grille outward toward your body

and off of lower hinges.

Installing Toe Grille

Removing Toe Grille

INSTALLATION



NOTE

The refrigerator doors are designed to shut

by themselves within a 20 degree opening.

Raise

Door Opening

Your refrigerator should be positioned to

allow easy access to a counter or table when

removing food. For best use of drawers and

freezer baskets, the refrigerator should be

in a position where both the refrigerator and

freezer doors can be fully opened.

Guidelines for nal positioning of

your refrigerator:

• All four corners of the cabinet must rest

rmlyontheoor.

• The cabinet should be level at the front

and rear.

• The sides should tilt ¼ inch (6 mm) from

front to back (to ensure that doors close

and seal properly).

• Doors should align with each other and

be level.

All of these conditions can be met by raising

or lowering the adjustable front rollers.

To level the cabinet using the front rollers:

1 Open both doors and remove the toe

grille (see “Toe Grille Installation and

Removal” in the “Installation” section).

2 Closethedoorsanduseaat-blade

screwdriveror⅜inchsocketwrenchto

raise or lower the front rollers.

3 Ensure both doors are bind-free with their

seals touching the cabinet on all four sides.

Set Screw

(some models)

Hinge

Flange

Open Door

7/16" Wrench

and

3/32" Hex Key

(some models)

Door Stop

Flange

6 Replacethetoegrillebyttingitinto

place (see “Toe Grille Installation and

Removal” in the “Installation” section).

Raise

Door

Raise

Door

To level the doors using the adjustable

lower hinge (some models):

1 Before leveling either door, remove set

screw that locks door height into position.

(The door cannot be adjusted without set

screw removed).

2 If the refrigerator door is lower than the

freezer door, raise the refrigerator door by

turning the adjustment screw clockwise

using a

inch wrench. (See illustration.)

3 If the freezer door is lower than the

refrigerator door, raise the freezer door by

turning the adjustment screw clockwise

using a

inch wrench. (See illustration.)

4 After leveling, verify door stop contacts

lower hinge and top of door does

not contact upper hinge through full

movement of door (from fully closed to

fully open).

5 Reinstall set screw, locking the

door height.

DOOR REMOVAL INSTRUCTIONS

Getting through narrow spaces

Ifyourrefrigeratorwillnottthroughan

entrance area, you can reduce its size by

removingthedoors.Checkrstbymeasuring

the entrance.

To prepare for removing the doors:

1 Make sure the electrical power cord is

unplugged from the wall outlet.

2 Open both doors and remove the toe grille

(as explained in the Installation Instructions

that came with your appliance).

3 Remove any food from the door shelves.

4 Close the doors.

To remove the refrigerator top

hinge cover:

1 Remove the three screws from each cover

over the top door hinges.

2 Lift hinge cover straight up and off.

To remove the refrigerator door:

1 Trace lightly around the door’s top hinge with

a pencil. This makes reinstallation easier.

Rear Cover

Screw

Front Cover

Screws

Top

Hinge

Cover

Hinge

Screws

Top

Hinge

Phillips™

Head

Tools Necessary:

Socket

Wrench Set

Adjustable

Wrench

3/8" Fixed

Wrench

Top Hinge

Cover Front

Screw

Top

Hinge

Screw

Bottom

Hinge

Screw

Top Hinge

Cover Rear

Screw

2 Remove the two screws from the top

hinge. Lift the door off of the bottom

hinge and set it aside.

To remove the freezer top hinge cover:

1 Remove the two screws from each cover

over the top door hinges.

2 Lift hinge cover straight up and off.

Front

Cover Screws

Rear

Cover

Screw

Top Hinge

Cover

Hinge

Screws

Multi-Wire

Cable

Top

Hinge

To remove the freezer door:

1 Detach the multi-wire cable connector

located above the top hinge. Grasp both

sidesoftheconnectorrmlyandpullapart.

Door

Hinge

Assembly Screws

Water

Line

Tubing

Non-Adjusting Hinge (some models)

Closer

Hinge

Door

Water

Line

Tubing

Screws

Hinge

Assembly

Adjustable Hinge (some models)

2 Trace lightly around the hinge with a

pencil. This makes reinstallation easier.

3 Detach the water tube from the connector

located below the freezer door. The

connector releases when you press its

outer sleeve inward.

4 Remove the screws from the top hinge

and pull the multi-wire cable through it.

Lift the door off of the bottom hinge.

5 Remove the two bottom hinge screws and

hinge if necessary.

DOOR REMOVAL INSTRUCTIONS

Adjustable Hinge (some models)

Door

Hinge

Assembly

Closer

HingeScrews

3 Remove the two bottom hinge screws and

hinge if necessary.

CAUTION

Be sure doors are set aside in a secure position

where they cannot fall and cause personal injury.

To reinstall the refrigerator door, reverse the

above steps.

To Disconnect

1. Press outer ring against face

of fitting

2. Pull to

remove tube

To Connect

Insert tube and

push until mark touches face of fitting

6 Lay the door on its side to avoid damage

to the water tube extending from the

bottom hinge.

To reinstall the freezer door, reverse the above steps.

HANDLE INSTALLATION

IMPORTANT

To ensure proper installation of

handles, please review these

instructions and illustrations thoroughly

prior to installing the handles.

CAUTION

Wear gloves and safety goggles and

use extreme CAUTION when installing

these handles. The rounded end of the

handles may be sharp (some models).

Ensure Handle Set Screws

are Facing Each Other

with Doors Closed

Freezer Upper

End Cap

Refrigerator Lower

End Cap

Refrigerator Upper

End Cap

Freezer Lower

End Cap

Frigidaire Professional

1 Remove handles from carton and

any other protective packaging.

2 Position freezer handle end caps

over upper and lower pre-installed

shoulder bolts (A) that are fastened

into door, ensuring the holes for the

set screws are facing towards the

refrigerator door.

3 Whileholdinghandlermlyagainst

door, fasten upper and lower Allen set

screws (B) with supplied Allen wrench.

4 Repeat steps 2 and 3 to install

refrigerator handle. Ensure the

holes for the set screws are facing

towards the freezer door.



NOTE

All set screws should be tightened

andsub-ush(Allensetscrewshould

be seated just below the surface of

the end cap) of handle end cap. The

end caps should be drawn tight to

freezer and refrigerator doors with

no gaps.

Freezer Upper

End Cap

Refrigerator Upper

End Cap

Frigidaire Gallery

Refrigerator Lower

End Cap

Freezer Lower

End Cap

WARNING

To avoid electric shock, which can cause

death or severe personal injury, disconnect

the refrigerator from electrical power

before connecting a water supply line to the

refrigerator.



NOTE

Check with your local building authority

for recommendations on water lines and

associated materials prior to installing your

new refrigerator. Depending on your local/

state building codes, Frigidaire recommends

for homes with existing valves its Smart

Choice

water line kit 5305513409 (with

a 6 ft. Stainless Steel Water Line) and for

homes without an existing valve, Frigidaire

recommends its Smart Choice

water line kit

5305510264 (with a 20 ft. copper water line

with self-tapping saddle valve). Please refer

to www.frigidaire.com/store for

more information.

CAUTION

To Avoid Property Damage:

• Copper or Stainless Steel braided tubing

is recommended for the water supply

line. Water supply tubing made of ¼

inch plastic is not recommended to be

used. Plastic tubing greatly increases

the potential for water leaks, and the

manufacturer will not be responsible for

any damage if plastic tubing is used for

the supply line.

• DO NOT install water supply tubing in

areas where temperatures fall

below freezing.

• Chemicals from a malfunctioning softener

can damage the ice maker. If the ice

maker is connected to soft water, ensure

that the softener is maintained and

working properly.

IMPORTANT

Ensure that your water supply line

connections comply with all local

plumbing codes.

CONNECTING THE WATER SUPPLY

Before Installing The Water Supply Line, You

Will Need:

• BasicTools:adjustablewrench,at-blade

screwdriver, and Phillips

screwdriver

• Access to a household cold water line with

water pressure between 30 and 100 psi.

• A water supply line made of ¼ inch

(6.4 mm) OD, copper or stainless steel

tubing. To determine the length of tubing

needed, measure the distance from the

ice maker inlet valve at the back of the

refrigerator to your cold water pipe. Then

add approximately 7 feet (2.1 meters),

so the refrigerator can be moved out for

cleaning (as shown).

To Connect Water Supply Line To Ice Maker

Inlet Valve

1 Disconnect refrigerator from electric

power source.

2 Place end of water supply line into sink or

bucket.TurnONwatersupplyandush

supply line until water is clear. Turn OFF

water supply at shutoff valve.

3 Remove plastic cap from water valve inlet

and discard cap.

4 If you use copper tubing - Slide brass

compression nut, then ferrule (sleeve)

onto water supply line. Push water supply

line into water valve inlet as far as it

will go (¼ inch/6.4 mm). Slide ferrule

(sleeve)intovalveinletandngertighten

compression nut onto valve. Tighten

another half turn with a wrench; DO NOT

over tighten. See Figure 1.

If you use stainless steel tubing - The

nut and ferrule are already assembled on

the tubing. Slide compression nut onto

valveinletandngertightencompression

nut onto valve. Tighten another half turn

with a wrench; DO NOT over tighten. See

Figure 2.

• A shutoff valve to connect the water supply

line to your household water system. Do

not use a self-piercing type shutoff valve.

• Donotre-usecompressionttingoruse

thread seal tape.

• A compression nut and ferrule (sleeve) for

connecting a copper water supply line to

the ice maker inlet valve.

IMPORTANT

After connecting the water supply, refer to

“How to Prime the Water Supply System”

for important information about priming an

empty water supply system.

Your refrigerator’s water supply system

includesseveraltubinglines,awaterlter,

a water valve, and a water tank. To ensure

that your water dispenser works properly,

thissystemmustbecompletelylled

withwaterwhenyourrefrigeratorisrst

connected to the household water

supply line.

Steel

Clamp

Stainless

Steel

water line

Water Valve

Bracket

Valve Inlet

Water Valve

Plastic Water Tubing

to Ice Maker

Fill Tube

6 ft. Stainless Steel water line

from household water supply

Figure 2

Figure 1

Plastic Water

Tubing to Ice

Maker Fill

Tube

Steel

Clamp

Brass

Compression

Nut

Ferrule

(Sleeve)

Copper

water line

Water Valve

Bracket

Valve Inlet

Water Valve

Copper water line

from household

water supply

(Include enough tubing in loop

to allow moving refrigerator out

for cleaning.)

CONNECTING THE WATER SUPPLY

5 With steel clamp and screw, secure water

supply line (copper tubing only) to rear

panel of refrigerator as shown.

6 Coil excess water supply line (copper

tubing only), about 2½ turns, behind

refrigerator as shown and arrange coils so

they do not vibrate or wear against any

other surface.

7 Turn ON water supply at shutoff valve and

tighten any connections that leak.

8 Reconnect refrigerator to electrical

power source.

9 To turn ice maker on, lower wire signal

arm (side mounted) or set the ice maker’s

On/Off power switch to the “I” position

(rear mounted).

CONTROLS

Enlarged view of user interface display menu (varies by model)

User Interface (varies by model)

CONTROLS

options

(∧ or ∨)

Used to enter and exit the

options menu and make

selections.

exit Toggles the options and run

modes.

control

locked

While in the locked state,

you will not be able to

change any settings on the

display nor dispense ice and

water. The “Control Locked”

indicatorwillashandan

audible warning tone is

played.

light Toggles dispenser light On

and Off.

quick

freeze

on off

Activates a faster rate for

freezing food. Deactivates

after 12 hours.

quick ice

on off

Increases the production

of ice. Deactivates after 12

hours.

display

on off

Toggles the temperature

displays On and Off.

refrigerator

temp

Allows the temperature set-

points to be adjusted. Control

temperatures range from

+33° F / +1° C to +47° F /

+8° C.

freezer

temp

Allows the temperature

set-points to be adjusted.

Control temperatures range

from -6° F / -21° C to +6° F

/ -15° C.

mode

° F ° C

Toggles display from Fahrenheit

to Celsius.

power off Press and hold for three

seconds to turn off the

cooling system. It also turns

off the ice maker and all

dispenser functions. The

display will read “power off”.

water lter Displays the current status of

thewaterlter(Good,Order,

orReplace).Toresetthelter

status to “Good”, press and

hold the “set” key for three

seconds.

air lter Displays the current status of

theairlter(Good,Order,or

Replace).Toresetthelter

status to “Good”, press and

hold the “set” key for three

seconds.

default

settings

While in the default option,

press and hold the set key

for three seconds to reset all

refrigerator settings to their

factory default settings.

set (+ or -) Selects the current menu

selection option.

water Press the “water” key

to select water. A green

indicator light will be

illuminated above the active

feature.

cube Press the “cube” key to

select cubed ice. A green

indicator light will be

illuminated above the active

feature.

crush Press the “crush” key

to select crushed ice. A

green indicator light will be

illuminated above the active

feature.

Setting cooling temperatures



NOTE

Whenyourstpowerontherefrigerator,

the temperature displays 0° F and 37° F.

After a few seconds, both of the displays will

switch to “HI”. The displays will continue to

show “HI” for 20 minutes. After 20 minutes,

the High Temp alarm will sound and both

displays will show the actual temperature.

1 Plus (+) and Minus (-) indicators are

located on the right side of the control

panel.

2 Press the + or - indicator to adjust the

temperature to the desired setting.

CONTROLS

Alarms Sabbath Mode

The Sabbath Mode is a feature that disables

portions of the refrigerator and its controls

in accordance with observance of the weekly

Sabbath and religious holidays within the

Orthodox Jewish community.

Sabbath Mode is turned ON and OFF by

pressing and holding both the “∨” and “+” for

veseconds.Thedisplayshows“Sb”whilein

Sabbath mode.

In the Sabbath Mode, the High Temp alarm is

active for health reasons. If a high temperature

alarm is activated during this time, for example

due to a door left ajar, the alarm will sound

intermittently for about two minutes. The

alarm will then silence on its own and a red

high temperature icon will display. The high

temp icon will continue to display, even if

the door is closed, until the Sabbath mode

is exited and the icon reset. The refrigerator

will function normally once the door is closed,

without any violation of the Sabbath/Holidays.

For further assistance, guidelines for proper

usage and a complete list of models

with the Sabbath feature, please visit

the web at http:\\www.star-k.org.



NOTE

While in Sabbath Mode, neither the lights,

dispenser, nor the control panel will work

until Sabbath Mode is deactivated.

Refrigerator stays in Sabbath Mode

after power failure recovery. It must be

deactivated with the buttons on the

control panel.



NOTE

Although you have entered the Sabbath

Mode, the ice maker will complete the

cycle it had already initiated. The ice cube

compartment will remain cold and new ice

cubes can be made with standard trays.

Power

Failure

In the event of a power failure,

the power fail alert will be

illuminated. Press alarm reset to

acknowledge the alarm. Other

modes may be turned off until

the alarm is acknowledged.

When the power fail alert is

acknowledged, the refrigerator

will resume normal operation.

The high temp alarm may

also be illuminated until a safe

operating range temperature

has been reached.

Freezer

Temp

If the freezer temperature

reaches 26° F or greater,

the alarm will sound and the

temperaturewillash.Youcan

disable the alarm by pressing

the set key but the “High Temp”

indicator will illuminate until the

temperature goes below 26° F.

Fresh Food

Temp

If the fresh food temperature

reaches 55° F or greater,

the alarm will sound and the

temperaturewillash.Youcan

disable the alarm by pressing

the set key but the “High Temp”

indicator will illuminate until the

temperature goes below 55° F.

Door Ajar If the freezer or fresh food

doors have been left open for

veminutesormore,analarm

will sound and the door ajar

indicator will illuminate on the

display. Press the set key to

reset any system alarms.

Flapper When “Cube” or “Crush” is

selected,iftheapper(orice

chute door) is being held open

by a jammed ice cube, an alarm

will sound for two minutes.

The alarm will reset after two

minutes or when the ice cube

is removed and the set key is

pressed to reset.

CAUTION

To avoid personal injury or property damage,

handle tempered glass shelves carefully.

Shelves may break suddenly if nicked,

scratched, or exposed to sudden temperature

change. Allow the glass shelves to stabilize

to room temperature before cleaning. Do not

wash in dishwasher.

STORAGE FEATURES

Cantilever Sliding

Glass Shelf

Cantilever Glass Shelf

Cantilever Shelf Adjustment

Refrigerator shelves are easily adjusted to suit

individual needs. Before adjusting the shelves,

remove all food. Cantilever shelves are

supported at the back of the refrigerator.

To adjust cantilever shelves:

1 Lift front edge up.

2 Pull shelf out.

Replace the shelf by inserting the hooks at

rear of the shelf into the wall bracket. Lower

the shelf into the desired slots and lock into

position.

SpillSafe

glass shelves (some models) catch

and hold accidental spills. In some models, the

SpillSafe

shelves slide out for easy access

to food and for fast cleaning. The shelves slide

out independently of their mounting brackets.

Just pull the front of the shelf forward.

Shelves can be extended as far as the stopper

will allow but are not removable from their

mounting brackets.

Door storage

Door bins and shelves are provided for convenient

storageofjars,bottles,andcans.Frequentlyused

itemscanbequicklyselected.

Some models have door bins that can

accommodate gallon-sized plastic drink containers

and economy-sized jars and containers. Some bins

are adjustable for maximum storage capacity.

Crisper Drawer

Crisper Humidity Control

Higher Humidity Lower Humidity

Cool Drawer (some models)

SomemodelsareequippedwithaCoolDrawer

for storage of luncheon meats, spreads,

cheeses, and other deli items. This drawer

does not have a separate temperature control.



NOTE

Leafy vegetables keep best when stored

with the humidity control set on Higher

Humidity, or in a drawer without a Humidity

Control. This keeps incoming air to a

minimum and maintains maximum

moisture content.

Crispers

Crispers allow you

theexibilitytostore

any manner of items

including fruits,

vegetables, nuts, etc.

Crispers do not feature

humidity controls.

Fresh Drawers with Humidity

Control (some models)

The fresh drawers, located under the bottom

refrigerator shelf, are designed for storing fruits,

vegetables, and other fresh produce. The fresh

drawers feature humidity control which allows you

to adjust the humidity within the drawer. This can

extend the life of fresh vegetables that keep best

in high humidity. Wash items in clear water and

remove excess water before placing them in the

crispers. Items with strong odors or high moisture

content should be wrapped before storing.

The dairy compartment, which is warmer than the

general food storage section, is intended for short

term storage of cheese, spreads, or butter.

Chill Drawer (some models)

SomemodelsareequippedwithaChillDrawer.ChillDrawertemperaturescanbeadjustedby

sliding the Chill Drawer Temperature Control in either direction. Use this pan for short term

storage of bulk meat items. If meats are to be kept longer than one or two days, they should be

frozen.TheChillDrawerisxedandcannotbemovedupordown.Iffruitsorvegetablesareto

be stored in the Chill Drawer, set the Chill Drawer Temperature Control to a warmer setting to

prevent freezing.

Colder

Warmer

Chill Drawer

with Temperature Control

STORAGE FEATURES

AUTOMATIC ICE & WATER DISPENSER

Priming the Water Supply System

Your refrigerator’s water supply system includes

severaltubinglines,anadvancedwaterlter,

a distribution valve bank, and a reserve tank

to ensure ample supply to the ice and water

dispenser at all times. This system needs to be

completelylledwithwaterwhenrstconnected

to an external supply line.

To prime the water supply system:

1 Beginllingthetankbypressingandholding

a drinking glass against the water dispenser

paddle.

2 Keep the glass in this position until water

comes out of the dispenser. It may take

about 1½ minutes.

3 Continue dispensing water for about four

minutestoushthesystemandplumbing

connections of any impurities (stopping to

empty the glass as necessary).

Ice Maker Operation & Care

The ice maker, ice bin, and dispenser feeding

mechanism are located in the top of the freezer

compartment. After the refrigerator is installed

properly and has cooled for several hours, the ice

maker can produce ice within 24 hours. It can

completelyllanicebininabouttwodays.



NOTE

The water dispenser has a built-in device that

shutsoffthewaterowafterthreeminutesof

continuous use. To reset this shutoff device,

simply release the dispenser paddle.

CAUTION

For proper dispenser operation, recommended

water supply pressure should fall between

30 psi and 100 psi. Excessive pressure may

causewaterltertomalfunction.

IMPORTANT

Your ice maker is shipped from the factory

with the wire signal arm in the ON position

(side mounted) or with the switch turned

ON (rear mounted). To ensure proper

function of your ice maker, hook up water

supply immediately or turn ice maker OFF

by lifting the wire signal arm until it clicks

and locks in the UP position (side mounted)

or turn the On/Off switch to the Off (0)

position (rear mounted). If the ice maker

is not turned off and the water supply

is not connected, the water valve will

make a loud chattering noise.

Using the Ice Maker after

Installation

Beforemakingiceforthersttime,besure

to prime the water supply system. Air in new

plumbing lines can result in two or three empty

ice maker cycles. Furthermore, if the system

isnotushed,thersticecubesmaybe

discoloredorhaveanoddavor.

Ice Production: What to Expect

How Much Ice Will a Side Mounted Ice

Maker Produce in 24 Hours?

A side mounted ice maker will produce 4 to

4.5 pounds of ice every 24 hours, depending on

usage conditions. Ice is produced at a rate of

8 cubes every 75 to 90 minutes.

How Much Ice Will a Rear Mounted Ice

Maker Produce in 24 Hours?

A rear mounted ice maker will produce 3 to

4 pounds of ice every 24 hours, depending on

usage conditions. Ice is produced at a rate of

8 cubes every 75 to 90 minutes.

Wire

Signal Arm

Off On

Turning the REAR MOUNTED Ice

Maker On and Off

Ice production is controlled by the ice maker’s

ON/OFF power switch. To gain access to the

ice maker, pull the ice cream shelf out. Press

the switch to the “O” position to turn it Off and

press it to the “I” position to turn it On. The

ice maker also has a built-in wire signal arm,

which automatically stops ice production when

the ice bin is full. DO NOT use this signal arm

to manually stop the ice maker.

AUTOMATIC ICE & WATER DISPENSER

IMPORTANT

Small ice cubes or ice chips jamming in the

icemakermaybeasignthatyourwaterlter

needs changing. If you have a side mounted

ice maker you may also experience hollow

cubes partially frozen cubes with water inside.

When these cubes are harvested, they break

open and spill water over the other ice cubes

in the ice container, forming a solid mass of

ice.Asthewaterlternearstheendofits

useful life and becomes clogged with particles,

less water is delivered to the ice maker during

eachcycle.Theicemakercan’tlleverycube

in the ice maker mold, leading to small cubes

or chips that can get caught between the ice

ejector blades and the stripper. Remember,

if your ice maker is jamming with small ice

cubes or it’s been six months or longer since

youlastchangedyourwaterlterreplace

thewaterlterwithanewone.Poorquality

householdwatermayrequiretheltertobe

changedmorefrequently.

Ice Maker/Dispenser Tips

• Ice cubes stored too long may develop

anoddavor.Emptytheicecontaineras

explained below.

• Occasionally shake the ice container to

keep ice separated.

• If your refrigerator is not connected to a

water supply or the water supply is turned

off, turn Off the ice maker.

• Ifyouneedalargequantityoficeatone

time, it is best to get cubes directly from

the ice container.

• The following sounds are normal when the

ice maker is operating:

- Motor running

- Ice dropping into ice container

- Water valve opening or closing

- Ice loosening from tray

- Running water

• When dispensing ice, you will hear a

snapping or clicking sound when the ice

chute opens and closes.

• Turn Off the ice maker when cleaning the

freezer and during vacations.

- If you turn Off the ice maker for a

long period of time, you should also

turn off the water supply valve.

CAUTION

Chemicals from a malfunctioning water

softener can damage the ice maker. If the

water supply to your refrigerator is softened,

be sure the softener is maintained to work

properly.

Auger

CAUTION

NEVER use an ice pick or similar sharp

instrument to break up the ice. This could

damage the ice storage bin and dispenser

mechanism.

IMPORTANT

When removing or replacing the ice bin,

DO NOT rotate the auger in the ice bin. If

the auger is accidentally rotated, you must

realign the auger by turning it in 90 degree

turns(seebelow)untiltheicebintsinto

place with the drive mechanism. If the

auger is not properly aligned when

replacing the ice bin, the refrigerator will

only dispense Crushed Ice. The freezer door

may also not close properly causing warm

air to leak into the freezer.

Cleaning the Ice Maker

Clean the ice maker and ice bin at regular

intervals, particularly before you take a

vacation or move.

To clean the ice maker:

1 Turn Off the ice maker.

2 Remove the ice bin by lifting up and out.

3 Empty and carefully clean the ice bin with

mild detergent. Rinse with clear water. Do

not use harsh or abrasive cleaners.

4 Allow the ice bin to dry completely before

replacing in the freezer.

5 Remove ice chips and clean the ice bin

shelf and the freezer door chute.

6 Replace the ice bin. Turn On the ice maker

to resume ice production.

Remove and empty the ice storage bin if:

• An extended power failure (one hour or

longer) causes ice cubes in the ice storage

bin to melt and freeze together, jamming

the dispenser mechanism.

• Youdonotusetheicedispenserfrequently.

Ice cubes will freeze together in the bin,

jamming the dispenser mechanism.

Remove the ice storage bin and shake to

loosen the cubes or clean as explained above.

AUTOMATIC ICE & WATER DISPENSER

CHANGING THE FILTER

Air Filter (some models)

Theairlterislocatedatthetopofthefresh

foodcompartmentnexttothewaterlter.

Replacing the Air Filter

Ingeneral,youshouldchangetheairlter

everysixmonths(thelterstatuslighton

the control panel prompts you to replace

thelteraftersixmonths)toensureoptimal

lteringofrefrigeratorodors.Youmaywant

to adjust this time period depending on the

types and amounts of food you typically

store in your refrigerator. To replace your

PureSource Ultra

airlter:

1 Pulltheairlterhousingstraightout.

2 Removetheoldlteranddiscardit.

3 Unpackthenewlterandplaceitinside

the housing.

4 Slide the housing back into position.

Air Filter

Locating the Filter

Yourrefrigeratorisequippedwithawater

lteringsystem.Thewaterltersystemlters

all dispensed drinking water, as well as the

water used to produce ice.

Ordering Replacement Filters

Toorderyourreplacementlters,pleasevisit

our online store at www.frigidaire.com/store,

by calling toll-free at 877-808-4195, or by

visiting the dealer where you purchased your

refrigerator. Frigidaire recommends that you

orderextralterswhenyourstinstallyour

refrigerator,andthatyoureplaceyourltersat

least once every six months.

Herearetheproductnumberstorequest

when ordering:

PureSource Ultra

Water Filter

Part# ULTRAWF

Water Filter

Thewaterlterislocatedatthetoprightside

of the fresh food compartment.

Replacing the Water Filter

In general, you should change the water

ltereverysixmonthstoensurethe

highestpossiblewaterquality.Water

Filter Status on the user interface prompts

youtoreplacethelterafterastandard

amount of water (200 gallons/757 liters for

PureSource Ultra

)hasowedthroughthe

system.

If your refrigerator has not been used for a period

of time (during moving for example), change the

lterbeforereinstallingtherefrigerator.

Filter Cartridge

CHANGING THE FILTER

Do not use with water that is microbiologically

unsafeorofunknownqualitywithoutadequate

disinfection before or after the system.

Systemscertiedforcystreductionmaybe

used on disinfected waters that may contain

lterablecysts.

Test & certication results:

• Rated Capacity - 200 gallons/757 liters for

PureSource Ultra

iceandwaterlter

• Ratedserviceow-.50gallonsperminute

• Operating Temp.: Min. 33°F, Max. 100°F

• Maximum Rated Pressure - 100 pounds per

squareinch

• Recommended Minimum Operating

Pressure:30poundspersquareinch

To replace your water lter:

It is not necessary to turn the water supply off

tochangethelter.Bereadytowipeupany

small amounts of water released during the

lterreplacement.

1 Turn Off the ice maker.

2 Removethelterbypushingontheend/

faceofthelter.

3 Slidetheoldwaterltercartridgestraight

out of the housing and discard it.

4 Unpackagethenewltercartridge.Using

the alignment guide, slide it gently into

thelterhousinguntilitstopsagainst

the snap-in connector at the back of the

housing.

5 Pushrmlyuntilthecartridgesnapsinto

place (you should hear a click as the

cartridge engages the snap-in connector).

6 Press a drinking glass against the water

dispenser while checking for any leaks at

thelterhousing.Anyspurtsandsputters

that occur as the system purges air out of

the dispenser system are normal.

More about your Advanced

Water Filter

The PureSource Ultra

ice

andwaterltersystemistested

andcertiedtoNSF/ANSI

Standards 42 and 53 for the

reductionofclaimsspeciedon

the performance data sheet.

7 Afterllingoneglassofwater,continue

ushingthesystemforaboutfour

minutes.

8 Turn On the ice maker.

9 Press and hold the Water Filter button

on the Ice & Water Dispenser control

panel for three seconds. When the display

changes from “Red” to “Green,” the status

has been reset.



NOTE

Energyefcientfoaminyourrefrigeratoris

not a sound insulator.

Understanding the Sounds you

may Hear

Yournew,high-efciencyrefrigeratormay

introduce unfamiliar sounds. These sounds

normally indicate your refrigerator is operating

correctly.Somesurfacesonoors,walls,and

kitchen cabinets may make these sounds more

noticeable.

Following is a list of major components in your

refrigerator and the sounds they can cause:

A Evaporator Refrigerant through the

evaporator may create a boiling or

gurgling sound.

B Evaporator fan You may hear air being

forced through the refrigerator by the

evaporator fan.

C Defrost heater During defrost cycles,

water dripping onto the defrost heater

may cause a hissing or sizzling sound.

After defrosting, a popping sound may

occur.

D Automatic ice maker When ice has

been produced, you will hear ice cubes

falling into the ice bin.

E Electronic control & automatic

defrost control These parts can produce

a snapping or clicking sound when turning

the cooling system on and off.

F Condenser fan You may hear air being

forced through the condenser.

G CompressorModern,high-efciency

compressors run much faster than in the

past. The compressor may have a high-

pitched hum or pulsating sound.

H Water valve Makes a buzzing sound each

timeitopenstolltheicemaker.

I Drain pan (not removable) You may hear

water dripping into the drain pan during

the defrost cycle.

J Condenser May create minimal sounds

from forced air.

K Motorized damper May produce a light

humming during operation.

L Ice chute When dispensing ice, you will

hear a snapping or clicking sound when

the solenoid opens and closes the ice

chute.



NOTE

During automatic defrost cycle, a red glow

in the back wall vents of your freezer

compartment is normal.

NORMAL OPERATING SOUNDS AND SIGHTS

IMPORTANT

If you store or move your refrigerator in freezing temperatures, be sure to completely drain

the water supply system. Failure to do so could result in water leaks when the refrigerator is

put back into service. Contact a service representative to perform this operation.

CAUTION

• Pull the refrigerator straight out to move it. Shifting it from side to side may damage

ooring.Becarefulnottomovetherefrigeratorbeyondtheplumbingconnections.

• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or

damp hands.



NOTE

If you set your temperature controls to turn off cooling, power to lights and other electrical

components will continue until you unplug the power cord from the wall outlet.

Protecting your investment

Keeping your refrigerator clean maintains appearance and prevents odor build-up. Wipe up any

spills immediately and clean the freezer and fresh food compartments at least twice a year.

When cleaning, take the following precautions:

• Never use CHLORIDE or cleaners with bleach to clean stainless steel.

• Do not wash any removable parts in a dishwasher.

• Always unplug the electrical power cord from the wall outlet before cleaning.

• Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which

can scratch the appliance surface.

• Do not remove the serial plate.

Donotuseabrasivecleanerssuchaswindowsprays,scouringcleansers,brushes,ammable

uids,cleaningwaxes,concentrateddetergents,bleachesorcleanserscontainingpetroleum

products on plastic parts, interior doors, gaskets or cabinet liners. Do not use paper towels,

metallic scouring pads, or other abrasive cleaning materials or strong alkaline solutions.

CARE & CLEANING

Vacation and moving tips

Occasion Tips

Short

Vacations

• Leave refrigerator operating during vacations of three weeks or less.

• Use all perishable items from refrigerator compartment.

• Turn automatic ice maker off and empty ice bucket, even if you will only be

gone a few days.

Long

Vacations

• Remove all food and ice if you will be gone one month or more.

• Turn the cooling system off (see “Controls” section for location of On/Off

button) and disconnect power cord.

• Turn water supply valve to closed position.

• Clean interior thoroughly.

• Leave both doors open to prevent odors and mold build-up. Block doors

open if necessary.

Moving • Remove all food and ice.

• If using a handcart, load from the side.

• Adjust rollers all the way up to protect them during sliding or moving.

• Pad cabinet to avoid scratching surface.

CARE & CLEANING

Care and Cleaning Tips

Part Cleaning Agents Tips and Precautions

Interior

& Door

Liners

• Soap and water

• Baking soda and

water

• Usetwotablespoonsofbakingsodainonequart

of warm water.

• Be sure to wring excess water out of sponge or

cloth before cleaning around controls, light bulb or

any electrical part.

Door

Gaskets

• Soap and water • Wipe gaskets with a clean soft cloth.

Drawers &

Bins

• Soap and water • Use a soft cloth to clean drawer runners and

tracks.

• Do not wash any removable items (bins, drawers,

etc.) in dishwasher.

Glass

Shelves

• Soap and water

• Glass cleaner

• Mildliquidsprays

• Allow glass to warm to room temperature before

immersing in warm water.

Toe Grille • Soap and water

• Mildliquidsprays

• Vacuum

• Remove toe grille (see Installation Instructions).

• Vacuum both sides and wipe with sudsy cloth or

sponge. Rinse and dry.

Exterior &

Handles

• Soap and water

• Non abrasive

glass cleaner

• Do not use commercial household cleaners

containing ammonia, bleach or alcohol to clean

handles.

• Use a soft cloth to clean smooth handles.

• Do not use a dry cloth to clean smooth doors.

Exterior &

Handles

(Stainless

Steel

Models

Only)

• Soap and water

• Stainless steel

cleaners

• Never use CHLORIDE or cleaners with bleach to

clean stainless steel.

• Clean stainless steel front and handles with non-

abrasive soapy water and a dishcloth. Rinse with

clean water and a soft cloth.

• Use a non-abrasive stainless steel cleaner.

These cleaners can be purchased at most home

improvement or major department stores. Always

follow manufacturer’s instruction. Do not use

household cleaners containing ammonia or bleach.

NOTE: Always clean, wipe and dry with grain to

prevent scratching.

• Wash the rest of the cabinet with warm water and

mildliquiddetergent.Rinsewellandwipedrywith

a clean soft cloth.

Replacing

Light Bulbs

• Unplug

refrigerator

• Wear gloves

• Remove light

cover

• Replace old bulb

• Replace light

cover

• Plug in the

refrigerator

CAUTION: Wear gloves when replacing light

bulbs to avoid getting cut.

Use same wattage when replacing bulb.

Ice Chute Extension (some models)

The ice chute extension is designed to better

directiceowintocontainers.

Push Upward Until the

Extension Snaps In Place

Pull Down

Press Here

Firmly

CARE & CLEANING

Removing the Ice Chute

Extension For Cleaning

1 Turn the refrigerator off using the

button on the control panel (refer to the

“Controls” section of this Manual).

2 Pressinwardrmlyonthefrontofthe

chute and pull down.

3 Turn your refrigerator back on.

Installing the Ice Chute

Extension

1 Turn the refrigerator off using the

button on the control panel (refer to the

“Controls” section of this Manual).

2 Align the extension with the ice chute so

that the snap clips are just inside the front

edge of the chute.

3 Push upward until the extension snaps

into place.

4 Turn your refrigerator back on.

CARE & CLEANING



NOTE

LED lights are in series so if one is bad or

unplugged, several lights may not light up.

Replacing LED Lights (select models)

The fresh food compartments of your refrigerator

may have LED lights. Always use Frigidaire parts

for replacement.

To replace LED Lights:

1 Unplug your refrigerator’s power cord.

2 Remove lens cover.

3 Remove LED board.

4 Replace LED board and snap in place

assuring the light is facing in toward the

unit (inside fresh food).

5 Replace lens cover.

Ordering Replacement LED Lights

Order new LEDs by calling 877-808-4195,

online at www.frigidaire.com/store, or through

the dealer where you bought the refrigerator.

Hereistheproductnumbertorequestwhen

ordering:

LED Light, Part #242196201

LED Light Board Removal

Lens Removal

Replacing light bulbs (select models)

Both the freezer and fresh food compartments

of your refrigerator include light bulbs that

will need replacing from time to time. Some

lights have covers that you will need to remove

before replacing the bulbs. Always use bulbs

that are designed for appliance lighting.

To replace light bulbs:

1 Unplug your refrigerator’s power cord.

2 Wear gloves as protection against possible

broken glass.

3 Remove light cover, if necessary.

4 Unscrew and replace old bulb with an

appliance bulb of the same type and

wattage (normally 40 watts).

5 Replace light cover, if necessary.

6 Plug in the refrigerator’s power cord.

CAUTION

Wear gloves when replacing light bulbs to

avoid getting cut.

Light

Bulbs

Light Socket

Located Behind

Rear of Crispers

Crisper Light

Cover

Light Socket

Located Behind Right

Rear of Ice Container

Light Bulb

CARE & CLEANING

Water

Filter

Bulbs

BEFORE YOU CALL

Visit our web site at

www.frigidaire.com

1-800-944-9044 (United States)

1-800-265-8352 (Canada)

CONCERN CAUSE SOLUTION

AUTOMATIC ICE MAKER

Ice maker is

not making any

ice.

• Ice maker is turned off.

• Refrigerator is not

connected to water line or

water valve is not open.

• The water supply line is

kinked.

• Thewaterlterisnot

seated properly.

• Thewaterltermaybe

clogged with foreign

material.

• Freezer ice maker wire

signal arm is being

held up by an item not

allowing it to go in the

on or down position.

• Turn on ice maker. For the fresh food ice

maker, press and hold the “Ice Off” button

for three seconds until the indicator light

is off. For the freezer ice maker, lower the

wire signal arm.

• Connect the unit to the household water

supply and ensure the water valve is open.

• Ensure that the supply line does not kink

when the refrigerator is pushed into place

against the wall.

• Removeandre-installthewaterlter.Be

suretopushthelterrmlysothatyou

hear it lock solidly into position.

• If water dispenses slowly or not at all, or

ifthelterissixmonthsoldorolder,it

should be replaced.

• Move any item or frozen ice cubes that

may block the signal arm from being in the

on or down position. See Automatic Ice

Maker-Freezer section in manual.

Ice maker is

not making

enough ice.

• Ice maker is producing

less ice than you expect.

• Thewaterltermaybe

clogged with foreign

material.

• The water supply line is

kinked.

• Saddle valve on cold

water pipe is clogged

or restricted by foreign

material.

• Heavytrafc,opening

or closing of the doors

excessively.

• Freezer control is set

too warm (freezer ice

maker).

• The fresh food and freezer ice makers will

each produce approximately 2.5 pounds

of ice every 24 hours depending on usage

conditions.

• If water dispenses slower than normal,

orifthelterissixmonthsoldorolder,it

should be replaced.

• Ensure that the supply line does not kink

when the refrigerator is pushed into place

against the wall.

• Turn off household water line valve.

Remove valve. Ensure that valve is not

a self-piercing saddle valve. Clean valve.

Replace valve if necessary.

• Press Fast Freeze to temporarily increase

ice production rate.

• Set freezer control to colder setting to

improve performance of the ice maker

(freezer ice maker). Allow 24 hours for

temperature to stabilize.

BEFORE YOU CALL

CONCERN CAUSE SOLUTION

AUTOMATIC ICE MAKER (Continued)

Freezer ice

maker will not

stop making

ice (select

models).

• Ice maker wire signal

arm is being held down

by a package in the

freezer that has fallen

against ice maker.

• Move any item or frozen ice cubes that

may block the signal arm from being in the

off or upward position. See Automatic Ice

Maker-Freezer section in manual.

Ice cubes

are freezing

together.

• Ice cubes are not being

usedfrequentlyenough

or interruption of power

for prolonged time.

• Ice cubes are hollow

(shells of ice with water

inside). The hollow cubes

break open in the bin

and leak their water onto

existing ice, which causes

it to freeze together.

• Remove ice container and discard ice. The

ice maker will produce fresh supply. Ice

should be used at least twice weekly to

keep the cubes separated.

• This generally occurs when the ice maker

does not get enough water. This is usually

theresultofacloggedwaterlteror

restricted water supply. Replace the water

lterandiftheconditionstilloccurscheck

for a Saddle Valve, water valve not turned

on all the way or kinked water supply line.

DISPENSER (Ice & Water)

Dispenser will

not dispense

ice.

• Dispenser lock out is

engaged.

• There is no ice in the bin

to be dispensed.

• The refrigerator doors are

not completely closed.

• Dispenser paddle has

been pressed too long

and the dispenser motor

has overheated.

• Press and hold control lock for three

seconds.

• See the “Ice maker is not making any ice”

section above.

• Be sure the refrigerator doors are

completely closed.

• The motor overload protector will reset in

about three minutes and then ice can be

dispensed.

Ice dispenser is

jammed.

• Ice has melted and

frozen around auger

duetoinfrequentuse,

temperatureuctuations,

and/or power outages.

• Ice cubes are jammed

between ice maker and

back of ice container.

• Remove ice container, thaw, and empty the

contents. Clean container, wipe dry, and

replace in proper position. When new ice is

made, dispenser should operate.

• Remove ice cubes that are jamming the

dispenser.

Dispenser will

not dispense

water.

• Dispenser lock out is

engaged.

• Waterlternotseated

properly.

• Waterlterisclogged.

• Household water line

valve is not open.

• Press and hold control lock for three

seconds.

• Removeandreinstallthewaterlter.Be

suretopushthelterrmlysothatyou

hear it lock solidly into position.

• Replaceltercartridge.Besuretoremove

protectivecapsandpushthelterrmlyso

that you hear it lock solidly into position.

• Open household water line valve. See

CONCERN column AUTOMATIC ICE MAKER.

BEFORE YOU CALL

CONCERN CAUSE SOLUTION

DISPENSER (Ice & Water) (Continued)

Water has an

odd taste and/

or odor.

• Water has not been

dispensed for an

extended period of time.

• Unit not properly connected

to cold water line.

• Draw and discard 10-12 glasses of water

to freshen the supply.

• Connect unit to cold water line that

supplies water to the kitchen faucet.

Water pressure

is extremely

low.

• Cut-off and cut-on

pressures are too low

(well systems only).

• Reverse osmosis system

is in regenerative phase.

• Have someone turn up the cut-off and cut-

on pressure on the water pump

system (well systems only).

• It is normal for a reverse osmosis system to be

below 20 psi during the regenerative phase.

Water not cold

enough.

• As warmer tap water goes

throughthelterand

enters the water tank the

chilled water is pushed

through to the dispenser.

Once the chilled water is

used up it will take several

hours to bring the freshly

replaced water to a cooler

temperature.

• Add ice to cup or container before

dispensing water.

OPENING/CLOSING OF DOORS/DRAWERS

Door(s) will

not close.

• Door was closed too

hard, causing other door

to open slightly.

• Refrigerator is not level.

Itrocksontheoor

when moved slightly.

• Refrigerator is touching

a wall or cabinet.

• Close both doors gently.

• Ensureoorislevelandsolid,andcan

adequatelysupporttherefrigerator.Contacta

carpentertocorrectasaggingorslopingoor.

• Ensureoorislevelandsolid,andcan

adequatelysupporttherefrigerator.Contacta

carpentertocorrectasaggingorslopingoor.

Drawers are

difcult to

move.

• Food is touching shelf

on top of drawer.

• Track that drawers slide

on is dirty.

• Remove top layer of items in drawer.

• Ensure drawer is properly installed on track.

• Clean drawer, rollers, and track. See Care

& Cleaning.

RUNNING OF REFRIGERATOR

Compressor

does not run.

• Freezer control is set to

“OF” or “0”.

• Refrigerator is in defrost

cycle.

• Plug at electrical outlet

is disconnected.

• House fuse blown or

tripped circuit breaker.

• Power outage.

• Set freezer control.

• This is normal for a fully automatic defrost

refrigerator. The defrost cycle occurs

periodically, lasting about 30 minutes.

• Ensure plug is tightly pushed into outlet.

• Check/replace fuse with a 15 amp

time-delay fuse. Reset circuit breaker.

• Check house lights. Call local electric

company.

BEFORE YOU CALL

CONCERN CAUSE SOLUTION

RUNNING OF REFRIGERATOR (Continued)

Refrigerator

runs too much

or too long.

• Room or outside

weather is hot.

• Doors are opened too

frequentlyortoolong.

• Fresh Food/freezer door

may be slightly open.

• Freezer control is set

too cold.

• Fresh Food/freezer

gasket is dirty, worn,

cracked,orpoorlytted.

• Condenser is dirty.

• It’s normal for the refrigerator to work

longer under these conditions.

• Warm air entering the refrigerator causes it

to run more. Open doors less often.

• Ensure refrigerator is level. Keep food and

contains from blocking door. See PROBLEM

column OPENING/CLOSING OF DOORS/

DRAWERS.

• Set Fresh Food control to warmer

setting until refrigerator temperature

is satisfactory. Allow 24 hours for

temperature to stabilize.

• Clean or change gasket. Leaks in door

seal will cause refrigerator to run longer in

order to maintain desired temperatures.

• Clean condenser. See Care & Cleaning.

Compressor

goes off and on

frequently.

• Thermostat keeps the

refrigerator at a

constant temperature.

• This is normal. Refrigerator goes on and

off to keep temperature constant.

DIGITAL TEMPERATURE DISPLAY

Digital

temperature

displays are

ashing.

• Electronic control system

has detected a

performance problem.

• Call your Frigidaire service representative,

who can interpret any messages or

numbercodesashingonthedigital

displays.

WATER/MOISTURE/FROST INSIDE REFRIGERATOR

Moisture collects

on inside of

refrigerator

walls.

• Weather is hot and

humid.

• Door is slightly open.

• The rate of frost buildup and internal

sweating increases.

• See PROBLEM column OPENING/CLOSING

OF DOORS/DRAWERS.

Water collects

on bottom

side of drawer

cover.

• Vegetables contain and

give off moisture.

• It is not unusual to have moisture on the

bottom side of the cover.

• Move humidity control (some models) to

lower setting.

Water collects

in bottom of

drawer.

• Washed vegetables and

fruit drain while in the

drawer.

• Dry items before putting them in the

drawer. Water collecting in bottom of

drawer is normal.

WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR

Moisture

collects on

outside of

refrigerator or

between doors.

• Weather is humid.

• Door is slightly open,

causing cold air from

inside refrigerator to

meet warm air from

outside.

• This is normal in humid weather. When

humidity is lower, the moisture should

disappear.

• See PROBLEM column OPENING/CLOSING

OF DOORS/DRAWERS.

MAJOR APPLIANCE WARRANTY

Your appliance is covered by a one year limited warranty. For one year from your original date of

purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove

to be defective in materials or workmanship when such appliance is installed, used and maintained

in accordance with the provided instructions.

Exclusions

If You Need Service

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside

the USA or Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased “as-is” are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances

not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,

shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10. Servicecallstorepairorreplaceappliancelightbulbs,airlters,waterlters,other

consumables, or knobs, handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry

trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damagestothenishofapplianceorhomeincurredduringinstallation,includingbutnot

limitedtooors,cabinets,walls,etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than

genuine Electrolux parts or parts obtained from persons other than authorized service companies; or

externalcausessuchasabuse,misuse,inadequatepowersupply,accidents,res,oractsofGod.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT

REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,

INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE

LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE

YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH

AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS

WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO

NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,

OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR

EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL

RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted

by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In

Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to

change or add to any obligations under this warranty. Obligations for service and parts under this

warranty must be performed by Electrolux or an authorized service company. Product features or

specicationsasdescribedorillustratedaresubjecttochangewithoutnotice.

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty

periodshouldserviceberequired.Ifserviceisperformed,itisinyourbestinteresttoobtainand

keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the

addresses or phone numbers below.

USA

1.800.944.9044

Frigidaire

10200 David Taylor Drive

Charlotte, NC 28262

Canada

1.800.265.8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

L5V 3E4

Frigidaire FGEX26D6QF gallery 26 cu. ft. side-by-side refrigerator

Product's Documents

User Manual

Specifications

Frigidaire FGEX26D6QF Questions and Answers

Related Products

Frigidaire Gallery 26 Cu. Ft. 36" Side-by-Side Refrigerator with Free Additional Filter Kit Features and Reliability

Frigidaire Gallery 26 Cu. Ft. 36” Side-by-Side Refrigerator GRSN2620AF-C1

Frigidaire GLHS65EHB2 Gallery 26 Cu. Ft. Side-by-Side Refrigerator

Frigidaire GLHS269ZDW2 Gallery 26 Cu. Ft. Side-by-Side Refrigerator

Frigidaire GLRS267ZAQ2 Gallery 26 Cu. Ft. Side-by-Side Refrigerator

Frigidaire GLRS267ZDB1 Gallery 26 Cu. Ft. Side-by-Side Refrigerator
