QUICK SETUP GUIDE
RF-WRSK18 / RF-WRSK18-C, Wireless Rear Speaker Kit
Wireless receiver

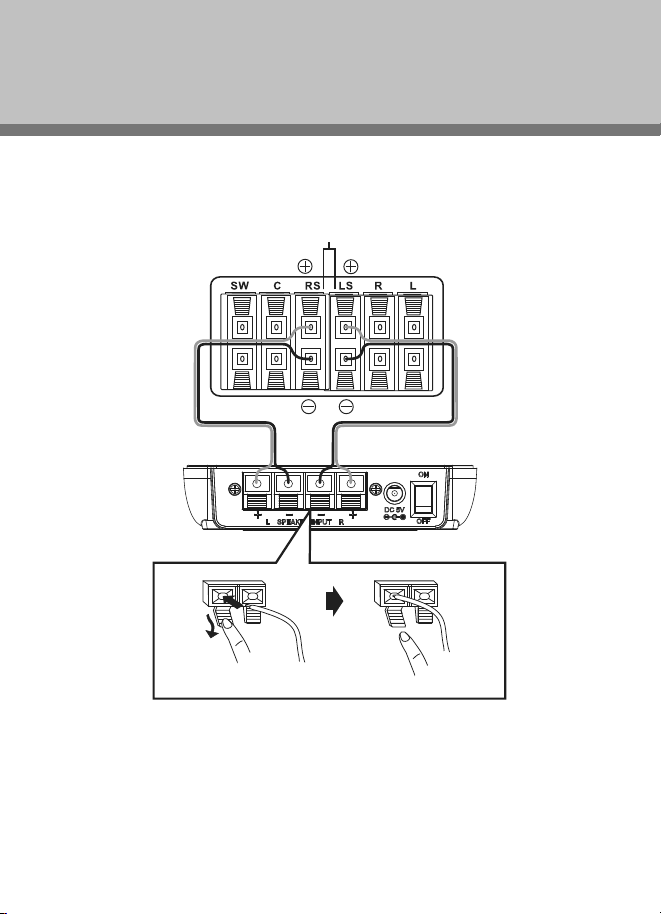

SETTING UP YOUR WIRELESS REAR SPEAKER KIT CONNECTING THE WIRELESS SENDER TO YOUR
HOME THEATER RECEIVER
Caution: Turn o your home theater receiver while connecting the speaker kit.
1 Using the included two-foot speaker cords, connect the right rear
speaker terminals of your home theater receiver to the right speaker
terminals of the wireless sender by connecting the red wire to the red
(+) terminals, and the black wire to the black (-) terminals.
2 Connect the left rear speaker terminals of the home theater receiver the
same way.
PACKAGE CONTENTS
• Wireless sender • 5V DC Power adapter (wireless sender)
• Wireless receiver • 18V DC Power adapter (wireless receiver)
• 2-foot speaker wires (2) • Quick Setup Guide
FEATURES
• 2.4 GHz wireless sender and wireless receiver
• Transmits high quality audio over a radio
frequency communication link
• Compact size
• Hidden antennas
• Low power consumption
Wireless sender
Before using your new product, please read these instructions to prevent any damage.
Left rear
speaker
Right rear
speaker
Front view
Power
indicator LED
Back view
Left speaker
input terminals
Power switch
DC IN jack
(5V DC)
Right speaker
input terminals

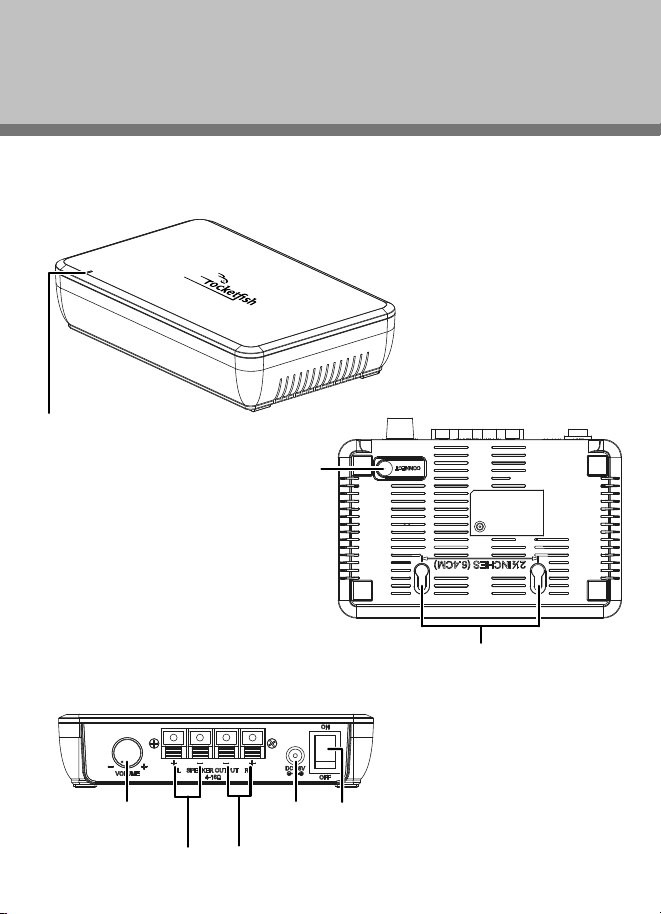

Front view
Power indicator LED
Bottom view
CONNECT
button
Hanging holes for wall
mounting the wireless receiver
Home theater receiver back panel
Wireless sender back panel
Press and hold
Release
Back view
Volume
control knob
Power switch
DC IN jack
(18V DC)
Right speaker
output terminals
Left speaker
output terminals

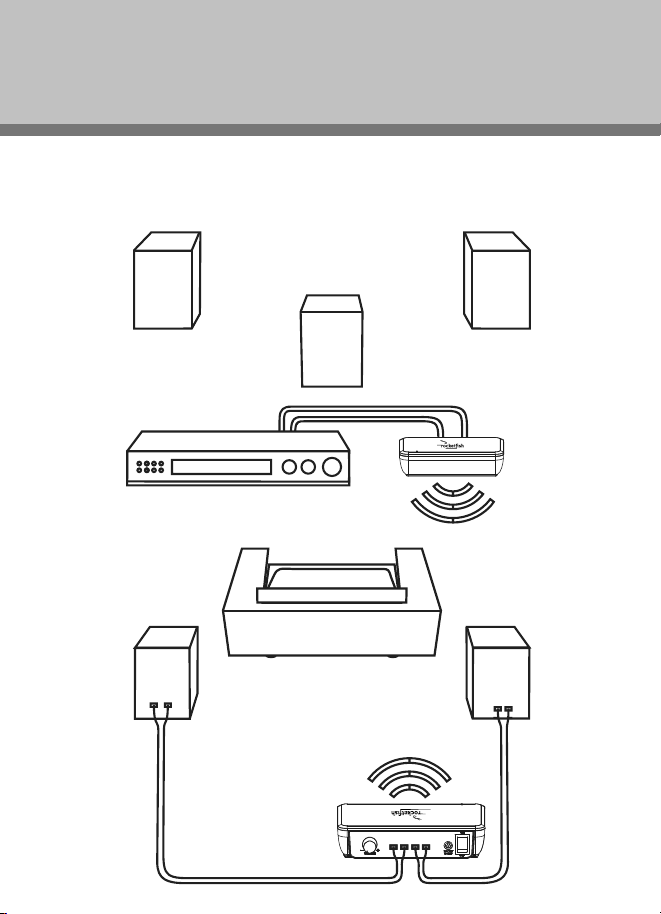

Left speaker Right speaker
Center speaker
Home theater receiver
Wireless sender
Wireless receiver
Right rearLeft rear
Bottom view
Hanging holes for wall
mounting the wireless sender
CONNECT
button
CONNECTING THE WIRELESS RECEIVER TO YOUR
REAR SPEAKERS
1 Connect the right speaker to the right speaker terminals of the wireless
receiver, and the left speaker to the left speaker terminals.
2 If the speaker wires are attached to the speakers already, connect the
positive (+) wire from the right speaker to the red (+) terminal for the
right speaker on the wireless receiver and the negative (-) wire from the
right speaker to the black (-) terminal for the right speaker on the
wireless receiver.
3 Connect the left speaker the same way.
