HTS7201
HTS7202
HTS7212
Register your product and get support at
www.philips.com/welcome
EN User manual
DA Brugervejledning
DE Benutzerhandbuch
EL Εγχειρίδιο χρήσης
ES Manual del usuario
FI Käyttöopas
FR Mode d’emploi
IT Manuale utente
NL Gebruiksaanwijzing
NO Brukerhåndbok
PT Manual do utilizador
SV Användarhandbok
TR Kullanım kılavuzu
3
English
7 Use your home theater 18
Choose sound 18
Discs 19
USB storage devices 22
DivX 22
Audio, video, and picture options 23
Radio 24
MP3 player 25
iPod or iPhone 25
Use smartphone 26
Browse PC through DLNA 27
Browse Net TV 30
Rent online video 30
EasyLink 31
8 Change settings 33
Picture 33
Sound 34
Language 34
Parental control 35
Energy saving 35
Apply factory settings 36
9 Update software 36
Check software version 36
Update software through the Internet 36
Update software through USB 37
10 Product specications 38
11 Troubleshooting 41
12 Language code 43
13 Index 44
Contents
1 Using help 4
Navigate the onscreen help 4
2 Help and support 5
Update your onscreen help 5
Tutorials 6
FAQs 6
Contact Philips 6
3 Notice 6
Open source software 6
Trademarks 6
4 Important 8
Safety 8
Care for your product 8
Care of the environment 8
3D health warning 9
5 Your home theater 9
Main unit 9
Remote control 10
6 Connect your home theater 12
Speakers 12
Connectors 13
Connect to TV 14
Connect audio from TV and other devices 15
Computers and the Internet 16
Name your home theater 18
EN
4
Navigate the onscreen help
a HELP
Access the onscreen help.
b OK
Display the selected page, or expand topics
in Contents.
c Navigation buttons
• Up: Scroll up or move to the previous
page.
• Down: Scroll down or move to the
next page.
• Right: Navigate to the right panel or
next index entry.
• Left: Navigate to the left panel or
previous index entry.
d BACK
Move up in the Contents or Index.
From the right panel, move to the Contents
on the left panel.
e / (Previous/Next)
• : Display the last viewed page in
history.
• : Display the next page from history.
1 Using help
Philips is committed to develop products that
contribute to a greener environment. To save paper
and the environment, access the help on your home
theater through the onscreen interface.
The onscreen help contains all the information that
you need to set up your home theater. However, if
you prefer to print the user manual, download the
PDF version from www.philips.com/support. Follow
the instructions on the website to select your
language, and then enter your model number.
Access the onscreen help by pressing HELP
(yellow button) on your remote control.
The onscreen help has two panels.
• The left panel contains the Contents and
Index. Navigate the Contents or Index to
select a page.
• The right panel contains the content of each
page. Select Related topics for additional
help on the content.
EN
5
English
Step 2: Download the latest onscreen help
1 ConnectaUSBashdrivetoyourcomputer.
2 In your web browser, go to
www.philips.com/support.
3 AtthePhilipssupportwebsite,ndyour
product and click on User manuals, and
then locate the User Manual Upgrade
Software.
» Thehelpupdateisavailableasaziple.
4 Savethezipleintherootdirectoryof
yourUSBashdrive.
5 Use the archive utility to extract the help
updateleintherootdirectoryoftheUSB
ashdrive.
» Alenamed‘HTSxxxxeDFU.zip’is
extracted under the UPG_ALL folder
ofyourUSBashdrive,‘xxxx’beingthe
model number of your home theater.
6 DisconnecttheUSBashdrivefromyour
computer.
Step 3: Update onscreen help
Caution
•
BeforeyouconnecttheUSBashdriveto
your home theater, make sure that there is
no disc in the disc compartment, and the disc
compartment is closed.
1 Switch on the TV.
2 ConnecttheUSBashdrivecontainingthe
downloadedletoyourhometheater.
3 Press (Home).
4 Enter 338 on the remote control.
» Follow the instructions on the TV to
conrmtheupdate.Donotswitchoff
the home theater or remove the USB
ashdriveduringtheupdate.
5 DisconnecttheUSBashdrivefromthe
home theater.
Warning
•
If power fails during the update, do not remove
theUSBashdrivefromthehometheater.
• If an error occurs during the update, retry
the procedure. If the error reoccurs, contact
Philips Consumer Care.
2 Help and support
Watch video tutorials, download a software
update,andndanswerstomanyfrequently
answeredquestions(FAQs)onyourproductat
www.philips.com.
Update your onscreen help
Philips continually tries to improve its products.
To make sure that your onscreen help is up to
date with the latest information, update your
home theater with the latest onscreen help.
Download the latest help from
www.philips.com/support.
What you need
• AUSBashdrive,withatleast35MBof
memory.TheUSBashdrivemustbeFAT
or NTFS formatted. Do not use a USB hard
drive.
• A computer with Internet access.
• An archive utility that supports the ZIP
leformat(forexample,WinZip®for
Microsoft®Windows®orStuft®for
Macintosh®).
Step 1: Check the current version of help
Check the current version of onscreen help
installed in your home theater. If the version is
lower than the version available at
www.philips.com/support, download and install
the latest onscreen help.
The last two digits indicate the version of the
onscreen help installed in your home theater.
For example, if the version in the home theater
is‘SubsystemSW:35-00-00-05’,‘05’represents
the version of the onscreen help currently
installed.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Advanced] > [Version Info.], and
then press OK.
EN
6
3 Notice
This section contains the legal and trademark
notices.
Open source software
Philips Electronics Singapore Pte Ltd hereby
offerstodeliver,uponrequest,acopyofthe
complete corresponding source code for the
copyrighted open source software packages used
inthisproductforwhichsuchofferisrequested
by the respective licenses. This offer is valid up
to three years after product purchase to anyone
in receipt of this information. To obtain source
code, please contact open.source@philips.com.
If you prefer not to use email or if you do not
receiveconrmationreceiptwithinaweekafter
mailing to this email address, please write to
“Open Source Team, Philips Intellectual Property
& Standards, P.O. Box 220, 5600 AE Eindhoven,
The Netherlands”. If you do not receive timely
conrmationofyourletter,pleaseemailtothe
email address above. The texts of the licenses
and acknowledgements for open source
software used in this product are included in the
user manual.
Trademarks
“Blu-ray3D”and“Blu-ray3D”logoare
trademarksofBlu-rayDiscAssociation.
‘DVDVideo’isatrademarkofDVDFormat/
Logo Licensing Corporation.
Tutorials
To set up your home theater and get additional
information, refer to the video tutorials at
www.philips.com/support.
FAQs
Ifyouhaveaproblem,refertothefrequently
askedquestions(FAQs)forthishometheaterat
www.philips.com/support.
If you still need help, contact Philips Consumer
Care in your country.
Warning
•
Do not attempt to repair your home theater
yourself. This may cause severe injury,
irreparable damage to your home theater, or
void your warranty.
Contact Philips
If you contact Philips, you will be asked for the
model and serial number of your product. The
model number and serial number are on the
back or bottom of your product. Note the
numbers before you call Philips:
Model No. __________________________
Serial No. ___________________________
EN
7
English
DivX ,DivXCertied , DivX Plus™ HD and
associated logos are trademarks of DivX, Inc. and
are used under license.
ABOUTDIVXVIDEO:DivX®isadigital
video format created by DivX, Inc. This is an
ofcialDivXCertied®devicethatplaysDivX
video. Visit divx.com for more information and
softwaretoolstoconvertyourlesintoDivX
video.
ABOUTDIVXVIDEO-ON-DEMAND:This
DivXCertied
device must be registered
inordertoplaypurchasedDivXVideo-on-
Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section
in your device setup menu. Go to vod.divx.com
for more information on how to complete your
registration.
HDMI,theHDMIlogo,andHigh-Denition
Multimedia Interface are trademarks or
registered trademarks of HDMI licensing LLC in
the United States and other countries.
SDHCLogoisatrademarkofSD-3C,LLC.
CLASS 1
LASER PRODUCT
Java and all other Java trademarks and logos are
trademarks or registered trademarks of Sun
Microsystems, Inc. in the United States and/or
other countries.
BONUSVIEW™
‘BDLIVE’and‘BONUSVIEW’aretrademarksof
Blu-rayDiscAssociation.
‘AVCHD’and‘AVCHD’logoaretrademarksof
Matsushita Electric Industrial Co., Ltd and Sony
Corporation.
‘x.v.Colour’isatrademarkofSony
Corporation.
Manufactured under license under U.S. Patent
#’s:5,451,942;5,956,674;5,974,380;5,978,762;
6,226,616;6,487,535;7,392,195;7,272,567;
7,333,929;7,212,872&otherU.S.andworldwide
patents issued & pending. DTS and the Symbol
areregisteredtrademarks,&DTS-HD,andDTS-
HD Master Audio | Essential and the DTS logos
are trademarks of DTS, Inc. Product includes
software.
DTS, Inc. All Rights Reserved.
Manufactured under license from Dolby
Laboratories.Dolbyandthedouble-Dsymbol
are trademarks of Dolby Laboratories.
EN
8
• Never place the product or any objects on
powercordsoronotherelectricalequipment.
• If the product is transported in
temperatures below 5°C, unpack the
product and wait until its temperature
matches room temperature before
connecting it to the power outlet.
• Visible and invisible laser radiation when
open. Avoid exposure to beam.
• Do not touch the disc optical lens inside the
disc compartment.
• Parts of this product can be made of glass.
Handle with care to avoid injury and damage.
Risk of overheating!
• Neverinstallthisproductinaconned
space. Always leave a space of at least four
inches around the product for ventilation.
Ensure curtains or other objects never
cover the ventilation slots on the product.
Risk of contamination!
• Do not mix batteries (old and new or
carbon and alkaline, etc.).
• Remove batteries if they are exhausted or
if the remote control is not to be used for a
long time.
• Batteries contain chemical substances, they
should be disposed of properly.
Risk of swallowing batteries!
• The product/remote control may contain a
coin type battery, which can be swallowed.
Keep the battery out of reach of children at
all times!
Care for your product
• Do not insert any objects other than discs
into the disc compartment.
• Do not insert warped or cracked discs into
the disc compartment.
• Remove discs from the disc compartment
if you are not using the product for an
extended period of time.
• Useonlymicroberclothtocleantheproduct.
Care of the environment
Your product is designed and manufactured with
highqualitymaterialsandcomponents,which
can be recycled and reused.
4 Important
Read and understand all instructions before you
use your home theater. If damage is caused by
failure to follow instructions, the warranty does
not apply.
Safety
Risk of electric shock or re!
• Never expose the product and accessories
torainorwater.Neverplaceliquid
containers, such as vases, near the product.
Ifliquidsarespiltonorintotheproduct,
disconnect it from the power outlet
immediately. Contact Philips Consumer
Care to have the product checked before
use.
• Never place the product and accessories
nearnakedamesorotherheatsources,
including direct sunlight.
• Never insert objects into the ventilation
slots or other openings on the product.
• Where the mains plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
• Disconnect the product from the power
outlet before lightning storms.
• When you disconnect the power cord,
always pull the plug, never the cable.
Risk of short circuit or re!
• Before you connect the product to the
power outlet, ensure that the power
voltage matches the value printed on the
back or bottom of the product. Never
connect the product to the power outlet if
the voltage is different.
Risk of injury or damage to the home theater!
• Forwall-mountableproducts,useonlythe
supplied wall mount bracket. Secure the
wall mount to a wall that can support the
combined weight of the product and the
wall mount. Koninklijke Philips Electronics
N.V. bears no responsibility for improper
wall mounting that results in accident, injury
or damage.
• For speakers with stands, use only the
supplied stands. Secure the stands to the
speakers tightly. Place the assembled stands
onat,levelsurfacesthatcansupportthe
combined weight of the speaker and stand.
EN
9
English
5 Your home theater
Congratulations on your purchase, and welcome
toPhilips!Tofullybenetfromthesupportthat
Philips offers, register your home theater at
www.philips.com/welcome.
Main unit
a (Standby-On)
Switch the home theater on or to standby.
b SOURCE
Select an audio or video source for the
home theater.
c VOL +/-
Increase or decrease volume.
d (Stop)
Stop play.
e (Play/Pause)
Start, pause or resume play.
f (Open/Close)
Open or close the disc compartment, or
eject the disc.
g Display panel
h Disc compartment
Whenthiscrossed-outwheeledbinsymbolis
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local
separate collection system for electrical and
electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste.
Correct disposal of your old product helps to
preventpotentialnegativeconsequencesforthe
environment and human health.
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries because correct
disposalhelpstopreventnegativeconsequences
for the environmental and human health.
3D health warning
If you or your family has a history of epilepsy
or photosensitive seizures, consult a medical
professionalbeforeexposingyourselftoashing
lightsources,rapidimagesequencesor3D
viewing.
To avoid discomfort such as dizziness, headache
or disorientation, we recommend not watching
3D for extended periods of time. If you
experience any discomfort, stop watching 3D
and do not immediately engage in any potentially
hazardous activity (for example driving a car)
until your symptoms have disappeared. If
symptoms persist, do not resume watching 3D
withoutconsultingamedicalprofessionalrst.
Parents should monitor their children during 3D
viewing and ensure they do not experience any
discomfort as mentioned above. Watching 3D is
not recommended for children under six years of
age as their visual system is not fully developed
yet.
EN
10
a POP-UP MENU/DISC MENU
Access or exit the disc menu when you play
a disc.
b BACK
• Return to a previous menu screen.
• In radio mode, press and hold to erase
the current preset radio stations.
c SOUND SETTINGS
Access or exit sound options.
d OPTIONS
• Access more play options while playing
a disc or a USB storage device.
• In radio mode, set a radio station.
a OK
Conrmanentryorselection.
b Navigation buttons
• Navigate menus.
• In radio mode, press left or right to
start auto search.
• In radio mode, press up or down to
tunetheradiofrequency.
Remote control
This section includes an overview of the remote
control.
Overview
Control your home theater with the remote
control.
a (Standby-On)
• Switch the home theater on or to
standby.
• When EasyLink is enabled, press
and hold for at least three seconds
to switch all connected HDMI CEC
compliant devices to standby.
b Source buttons / Color buttons
• Color buttons: Select tasks or options
forBlu-raydiscs.
• DISC: Switch to disc source.
• DOCK for iPod: Switch to Philips dock
for iPod or iPhone.
• HELP: Access the onscreen help.
• SOURCE: Select an audio input
source or radio source.
c (Home)
Access the home menu.
EN
11
English
a Alphanumeric buttons
• Enter values or letters (using SMS style
entry).
• In radio mode, select a preset radio
station.
b TOP MENU
Access the main menu of a video disc.
c SUBTITLE
Select subtitle language for video.
EasyLink controls
With Easylink, you can control your home
theater and the TV with the following buttons
on your home theater remote control (see
‘EasyLink’onpage31).
• (Standby-On): Press and hold to switch
your home theater, TV and the connected
devices to standby.
• (Play): When a video disc is in the disc
compartment, wake up the TV from
standby, and then play a disc.
c (Mute)
Mute or restore volume.
d +/- (Volume)
Increase or decrease volume.
a (Stop) / (Eject/ Open/Close)
• Stop play.
• Press and hold for three seconds to
open or close the disc compartment,
or eject the disc.
b (Play)
Start or resume play.
c / (Previous/Next)
• Skip to the previous or next track,
chapterorle.
• In radio mode, select a preset radio
station.
d (Pause)
Pause play.
e / (Fast Backward/Fast Forward)
Search backwards or forward. Press
repeatedly to change the search speed.
EN
12
Note
•
Surround sound depends on various factors
such as room shape and size, type of wall and
ceiling,windowsandreectivesurfaces,and
speaker acoustics.
Follow these general guidelines, and then set up
your subwoofer.
1 Seating position:
This is the center of your listening area.
2 SPEAKER LEFT (speaker left) and
SPEAKER RIGHT (speaker right) speakers:
Place the left and right speakers in the
front,andequidistantfromthemainunit
in an arc, so that the two speakers are at
same distance from your seating position.
For best effect, point the speakers towards
the seating position and place the speakers
close to the ear level (when seated).
3 SUBWOOFER (subwoofer):
Place the subwoofer at least one meter to
the left or right of the TV. Leave about ten
centimeter clearance from the wall.
Connect
Connect your speakers and the subwoofer to
yourhometheaterasdescribedinthequick
start guide.
Setup
Set up your subwoofer through the audio menu.
1 Connect your subwoofer as described in
thequickstartguide.
2 Press (Home) on your home theater
remote control, and select [Setup] >
[Audio] > [Subwoofer volume].
3 Change the volume.
6 Connect your home
theater
This section helps you connect your home theater
to a TV and other devices.
For information about the basic connections of
yourhometheaterandaccessories,seethequick
start guide. For a comprehensive interactive guide,
see www.connectivityguide.philips.com.
Note
•
Foridenticationandsupplyratings,referto
the type plate at the back or bottom of the
product.
• Before you make or change any connections,
make sure that all devices are disconnected
from the power outlet.
Speakers
Position, connect, and set up your speakers for
best surround sound.
Position
Speaker position plays a critical role in setting up
a surround sound effect.
For best results, place your speakers and the
subwoofer as shown below.
EN
13
English
Rear center

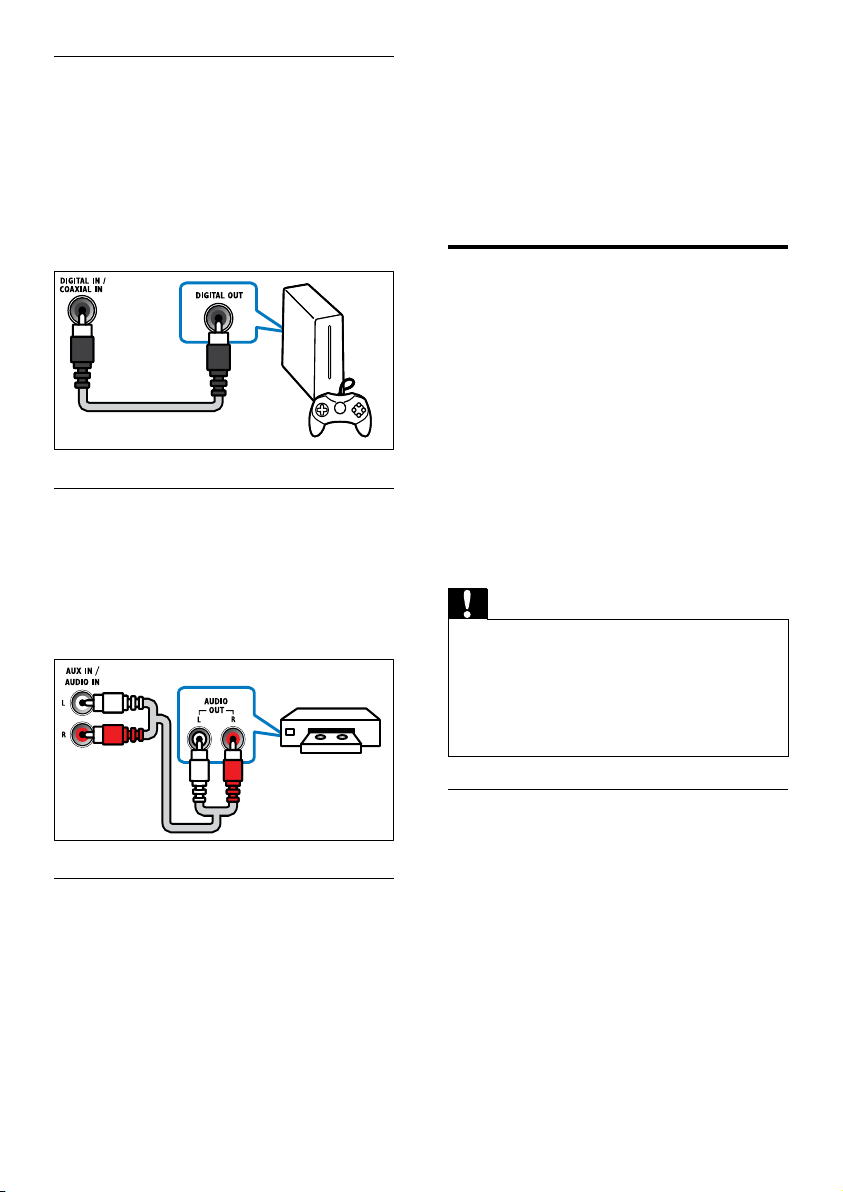

a DIGITAL IN-COAXIAL
Connect to a coaxial audio output on the
TV or a digital device.
b AUDIO IN-AUX 1/AUX 2
Connect to an analog audio output on the
TV or an analog device.
c DIGITAL IN-OPTICAL
Connect to an optical audio output on the
TV or a digital device.
d DOCK for iPod
Connect to a Philips dock for iPod
or iPhone.(Model: Philips DCK3060/
DCK3061).
e Wi-Fi
ConnecttoaWi-Fidongle(Model:Philips
WUB1110).
Rear right
a ANTENNA FM 75
Signal input from an antenna, cable or
satellite.
b SD CARD-FOR VOD/BD-LIVE ONLY
Slot for SD card. The SD card is used to
rentonlinevideosandaccessBD-Live.
Connectors
Connect other devices to your home theater.
Side left
a (USB)
Audio, video or picture input from a USB
storage device.
b MUSIC iLINK
Audio input from an MP3 player.
Rear left
a AC MAINS~
Connect to the power supply.
b SPEAKER RIGHT/SPEAKER LEFT
Connect to the supplied speakers.
c SUBWOOFER
Connect to the supplied subwoofer.
EN
14
2 OnyourTV,turnonHDMI-CEC.For
details, see the TV user manual.
» When you play a disc on your home
theater, the video is automatically
displayed on TV and the audio is
automatically played on the home theater.
3 If audio from the TV does not play
automatically on your home theater, set up
theaudiomanually(see‘Setupaudiofor
connecteddevices’onpage16).
Option 2: Connect to TV through HDMI
Best quality video
If your TV is not HDMI ARC compliant, connect
your home theater to the TV through a standard
HDMI connection.
With a standard HDMI connection, you need an
additional audio cable to play the audio from the
TVthroughyourhometheater(see‘Connect
audiofromTVandotherdevices’onpage15).
1 Using a High Speed HDMI cable, connect
the HDMI OUT (ARC) connector on your
home theater to the HDMI connector on
the TV.
The HDMI connector on the TV might be
labeled HDMI IN.
2 OnyourTV,turnonHDMI-CEC.For
details, see the TV user manual.
» When you play a disc on your home
theater, the video is automatically
displayed on TV and the audio is
automatically played on the home theater.
3 To play audio from TV programs through
your home theater, connect an additional
audiocable(see‘ConnectaudiofromTV
andotherdevices’onpage15).
TV
c VIDEO OUT-VIDEO
Connect to the composite video input on
the TV.
d HDMI OUT (ARC)
Connect to the HDMI input on the TV.
e LAN
Connect to the LAN input on a broadband
modem or router.
Connect to TV
Connect your home theater to a TV to watch
videos. You can listen to audio from TV programs
through your home theater speakers. Use the best
qualityconnectionavailableonyourhometheater
and TV.
Option 1: Connect to TV through HDMI
(ARC)
Best quality video
Your home theater supports HDMI version
1.4-AudioReturnChannel(ARC).IfyourTV
is HDMI ARC compliant, connect your home
theater to the TV through the HDMI ARC
connectionforeasyandquicksetup.
With HDMI ARC, you do not need an additional
audio cable to play audio from TV through your
home theater.
1 Using a High Speed HDMI cable, connect
the HDMI OUT (ARC) connector on your
home theater to the HDMI ARC connector
on the TV.
The HDMI ARC connector on the TV
might be labeled HDMI IN or HDMI. For
details on TV connectors, see the TV user
manual.
TV
EN
15
English
Connect audio from TV and
other devices
Play audio from TV or other devices through
your home theater.
Usethebestqualityconnectionavailableonyour
TV, home theater, and other devices.
Note
•
The audio connections in this user manual are
only recommendations. You can use other
connections too.
• When your home theater and TV are
connected through HDMI ARC, an audio
connectionisnotrequired.
Option 1: Connect audio through a digital
optical cable
Best quality audio
Using an optical cable, connect the OPTICAL
connector on your home theater to the
OPTICAL OUT connector on the TV or other
device.
The digital optical connector might be labeled
SPDIF, SPDIF OUT, or OPTICAL.
TV
4 If audio from the TV does not play
automatically on your home theater, set up
theaudiomanually(see‘Setupaudiofor
connecteddevices’onpage16).
Note
•
If your TV has a DVI connector, you can use an
HDMI/DVI adapter to connect to TV.
Option 3: Connect to the TV through
composite video
Basic quality video
If your TV does not have HDMI connectors,
connect your home theater to the TV through a
composite connection. A composite connection
doesnotsupporthigh-denitionvideo.
With a composite connection, you need an
additional audio cable to play the audio from the
TVthroughyourhometheater(see‘Connect
audiofromTVandotherdevices’onpage15).
1 Using a composite video cable, connect the
VIDEO connector on your home theater to
the composite video connector on the TV.
The composite video connector might be
labeled AV IN, VIDEO IN, COMPOSITE,
or BASEBAND.
2 On your TV, switch to the correct video
input.
3 To play audio from TV programs through
your home theater, connect an additional
audiocable(see‘ConnectaudiofromTV
andotherdevices’onpage15).
On your home theater, press SOURCE
repeatedly to select the correct audio input.
TV
EN
16
3 On your home theater, turn on System
Audio Control, and then map the audio
of the connected device to the correct
connectorsonyourhometheater(see‘Play
audiofromhometheater’onpage32).
IftheconnecteddeviceisnotHDMI-CEC
compliant, press SOURCE repeatedly on your
home theater to select the correct audio input.
Computers and the Internet
Connect your home theater to your computer
network and the internet, and enjoy:
• Multimedia content streamed from your
computer: Play music, photo, and video
from a computer or other media server
onyournetwork(see‘BrowsePCthrough
DLNA’onpage27).
• Net TV (Not available in China):
Browse Net TV services to access online
information, games, news, music, and other
services(see‘BrowseNetTV’onpage30).
• Software update:Update the home theater
softwarethroughthenetwork(see‘Update
softwarethroughtheInternet’onpage36).
Caution
•
Before you try to connect the home theater to
a computer network, familiarize yourself with
the network router, media server software
and networking principles. If necessary, read
documentation that accompanies the network
components. Philips is not responsible for lost,
damaged, or corrupt data.
Wired connection
Connect your home theater to your router
through a network cable.
What you need
• A network router (with DHCP enabled).
• A network cable (RJ45 straight cable).
• A computer with media server software
installed(see‘Setupmediaserversoftware’
on page 27).
• For Net TV and software update, make sure
that the network router has access to the
Internet,andisnotrestrictedbyrewallsor
other security systems.
Option 2: Connect audio through a digital
coaxial cable
Good quality audio
Using a coaxial cable, connect the COAXIAL
connector on your home theater to the
COAXIAL/DIGITAL OUT connector on the TV
or other device.
The digital coaxial connector might be labeled
DIGITAL AUDIO OUT.
Option 3: Connect audio through analog
audio cables
Basic quality audio
Using an analog cable, connect the AUX
connectors on your home theater to the
AUDIO OUT connectors on the TV or other
device.
Set up audio for connected devices
When you connect a device to your home
theater, check the audio settings.
1 On your TV and other devices, turn on
HDMI-CEC.Fordetails,seetheuser
manual of the TV and the other device.
2 Select‘Amplier’fromtheTVspeakers
menu. For details, see the TV user manual.
VCR
EN
17
English
Wireless connection
Connect your home theater to your router
through a wireless connection.
What you need
• A network router (with DHCP enabled).
• AWi-Fidongle(Model:PhilipsWUB1110).
• A computer with media server software
installed(see‘Setupmediaserversoftware’
on page 27).
• For Net TV and software update, make sure
that the network router has access to the
Internetandisnotrestrictedbyrewallsor
other security systems.
Set up the wireless network
Connect your home theater to your router as
shown below, and then switch on the devices.
1 Connect the home theater to a network
router through a wireless connection (see
‘Wirelessconnection’onpage17).
2 Turn on your TV, and switch to the correct
source for the home theater.
3 Press (Home).
4 Select [Setup], and then press OK.
5 Select [Network] > [Network Installation]
> [Wireless (Wi-Fi)], and then press OK.
6 Follow the instructions on the TV to
complete the setup.
» The home theater connects to the
internet. If connection fails, select [Retry],
and then press OK.
7 Select [Finish], and then press OK to exit.
Set up the wired network
Connect your home theater to your router as
shown below, and then switch on the devices.
1 Connect the home theater to a network
router through a wired connection (see
‘Wiredconnection’onpage16).
2 Turn on your TV, and switch to the correct
source for the home theater.
3 Press (Home).
4 Select [Setup], and then press OK.
5 Select [Network] > [Network Installation]
> [Wired (Ethernet)], and then press OK.
6 Follow the instructions on the TV to
complete the setup.
» The home theater connects to the
internet. If connection fails, select [Retry],
and then press OK.
7 Select [Finish], and then press OK to exit.
Check wired network settings
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Network] > [View Network
Settings], and then press OK.
» The current network settings are
displayed.
LAN
www
EN
18
7 Use your home
theater
This section helps you use the home theater to
play media from a wide range of sources.
Before you start
• Make the necessary connections described
inthequickstartguideandtheonscreen
help.
• Completetherst-timesetup.First-time
setup appears when you turn on the home
theaterforthersttime.Ifyoudonot
complete the setup, you are prompted
to complete it each time you turn on the
home theater.
• Switch the TV to the correct source for the
home theater.
Choose sound
This section helps you choose the ideal sound for
your video or music.
1 Press SOUND SETTINGS.
2 Press the Navigation buttons (left/ right) to
access the sound options on the display.
Sound settings Description
SOUND Select a sound mode.
SURROUND Select surround sound or
stereo sound.
TREBLE Changethehighfrequency
output.
MID Changethemiddlefrequency
output.
BASS Changethelowfrequency
output.
AUD SYNC Delay the audio to match the
video.
3 Select an option, and then press OK.
4 Press BACK to exit.
If you do not press a button within a
minute, the menu exits automatically.
Check wireless network settings
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Network] > [View Wireless
Settings], and then press OK.
» ThecurrentWi-Fisettingsaredisplayed.
Name your home theater
To easily identify your home theater on a network,
name your home theater.
1 Turn on your TV, and switch to the correct
source for the home theater.
2 Press (Home).
3 Select [Setup], and then press OK.
4 Select [Network] > [Name your Product:],
and then press OK.
5 Press the Alphanumeric buttons to enter
the name.
6 Select [Done], and then press OK to exit.
EN
19
English
Discs
Your home theater can play DVDs, VCDs, CDs,
andBlu-raydiscs.Itcanalsoplaydiscsthatyou’ve
madeathome,suchasCD-Rdiscsofphotosand
music.
What you need
For audio or 2D video:
• Audio and video connection between your
home theater and the TV.
• An audio or a video disc.
For 3D video:
• A 3D TV.
• An HDMI connection between your home
theater and the TV.
• ABlu-ray3Ddisc.
• A pair of 3D glasses that are compatible
with your 3D TV.
Play discs
1 Insert a disc into the home theater.
» Your TV switches to the correct source
and the disc plays automatically.
2 If the disc does not play automatically, press
DISC or select [play Disc] in the home
menu, and then press OK.
3 For a 3D video, put on your 3D glasses.
4 Press the play buttons to control play (see
‘Playbuttons’onpage20).
Note
•
For a 3D video, during search forward or
backward, and in some other play modes, the
video displays in 2D. It returns to 3D display
when you play normally again.
Tip
•
Toavoidickering,changethebrightnessof
thedisplay(see‘Displaypanel’onpage36).
Sound mode
Selectpredenedsoundmodestosuityour
video or music.
1 Press SOUND SETTINGS.
2 Select SOUND, and then press OK.
3 Press the Navigation buttons (up/down) to
select a setting on the display:
• MOVIE: Enjoy a cinematic audio
experience, specially enhanced for
movies.
• MUSIC: Recreate the original recording
environment of your music, in the
studio or at a concert.
• ORIGINAL: Experience the original
sound of your movies and music,
without added sound effects.
• NEWS: Hear every word with
optimized speech and clear vocals.
• GAMING: Enjoy thrilling arcade
sounds,idealforaction-packedvideo
games or loud parties.
4 Press OKtoconrm.
Surround sound mode
Experience an immersive audio experience with
surround sound modes.
1 Press SOUND SETTINGS.
2 Select SURROUND, and then press OK.
3 Press the Navigation buttons (up/down) to
select the following settings:
• AUTO: Surround sound based on the
audio stream.
• V SURR: Virtual Surround.
• STEREO:Two-channelstereosound.
Ideal for listening to music.
4 Press OKtoconrm.
Equalizer
Changethehighfrequency(treble),mid
frequency(mid),andlowfrequency(bass)
settings of the home theater.
1 Press SOUND SETTINGS.
2 Select TREBLE, MID or BASS, and then
press OK.
3 Press the Navigation buttons (up/down) to
changethefrequency.
4 Press OKtoconrm.
EN
20
Display menu for VCD and SVCD
Display the content menu on VCD and SVCD discs.
1 Press (Home).
2 Select [Setup] > [Preference], and then
press OK.
3 Select [VCD PBC] > [On], and then press OK.
Note
•
To skip the content menu, select [Off].
Synchronize picture and sound
If the audio and video are not synchronized,
delay the audio to match the video.
1 Press SOUND SETTINGS.
2 Select AUD SYNC, and then press OK.
3 Press the Navigation buttons (up/down) to
synchronize the audio with the video.
4 Press OKtoconrm.
Bonus View on Blu-ray
OnBlu-raydiscsthatsupporttheBonus
View,enjoyextracontent,suchasadirector’s
commentary, while you watch the main feature.
BonusViewisalsoknownaspicture-in-picture.
1 EnableBonusView(picture-in-picture)in
theBlu-raydiscmenu.
2 While you play the main feature, press
OPTIONS.
» The options menu is displayed.
3 Select [PIP Selection] > [PIP], and then
press OK.
» Depending on the video, PIP option [1]
or [2] is displayed.
» Thepicture-in-picturevideoisdisplayed
in a small window.
4 Select [2nd Audio Language] or [2nd
Subtitle Language], and then press OK.
5 Select the language, and then press OK.
Note
•
To turn off Bonus View, press OPTIONS,
select [PIP Selection] > [Off], and then press
OK.
Play buttons
Button Action
Navigation
buttons
Navigate menus.
OK Conrmanentryorselection.
(Play)
Start or resume play.
Pause play.
Stop play.
/
Skip to the previous or next
track,chapterorle.
/
Fast backwards or fast
forwards. Press repeatedly to
change the search speed.
Navigation
buttons (up/
down)
Rotate the picture clockwise
orcounter-clockwise.
SUBTITLE Select subtitle language for
video.
POP-UP
MENU/DISC
MENU
Access or exit the disc menu.
OPTIONS
Access the advanced options
when you play your audio,
video,ormediales(see
‘Audio,video,andpicture
options’onpage23).
For video formats such as DivX and WMV:
• To stop play, press .
• To resume the video from where you
stopped, press
(Play).
• To play the video from the start, press OK.
Play 3D discs in 2D mode
If you do not have a 3D TV, watch the 3D disc in
2D mode.
1 Press (Home).
2 Select [Setup] > [Video] > [Watch 3D
video] > [Off].
3 Press OK.
4 PlayyourBlu-ray3Ddisc.
» The 3D video is displayed in 2D.
EN
21
English
Access BD-Live with an SD card
1 Connect your home theater to the home
networkandinternet.(see‘Computersand
theInternet’onpage16)
2 Insert the SD memory card into the SD
CARD slot on your home theater.
» ThersttimeyouinsertanSDmemory
card, the card is formatted. After
formatting, leave the card in the home
theater(see‘FormatanSDcard’onpage
31).
3 Press (Home).
4 Select [Setup], and then press OK.
5 Select [Advanced] > [Local Storage] > [SD
card], and then press OK.
6 SelecttheBD-Liveiconinthediscmenu,
and then press OK.
» BD-Livestartstoload.Theloadingtime
depends on the disc and your internet
connection.
7 Press the Navigation buttons to navigate
BD-Live,andthenpressOK to select an
item.
Clear memory
If your storage device does not have enough
memoryfortheBD-Livecontent,clearthe
memory on the storage device.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Advanced] > [Clear memory], and
then press OK.
» This clears the local memory and deletes
theBD-Livelesthatyoudownloaded
on your storage device.
BD-Live on Blu-ray
OnBlu-raydiscswithBD-Livecontent,access
additional features, such as internet chats with
the director, the latest movie trailers, games,
wallpaper, and ringtones.
What you need
• aBlu-raydiscwithBD-Livecontent
• an internet connection
• a storage device:
• a USB storage device, with at least 1
GB of memory, or
• an SD memory card of type SDHC
Class 6, with at least 8 GB of memory.
Note
•
BD-Liveservicesvaryfromcountrytocountry,
and depend on the disc.
• WhenyouuseBD-Live,dataonthediscand
home theater are accessed by the content
provider.
Access BD-Live with a USB storage
device
1 Connect your home theater to the home
networkandinternet(see‘Computersand
theInternet’onpage16).
2 Connect the USB storage device to the
home theater.
• The USB storage device is used
tostorethedownloadedBD-Live
content.
3 Press (Home).
4 Select [Setup], and then press OK.
5 Select [Advanced] > [Local Storage] >
[USB], and then press OK.
6 SelecttheBD-Liveiconinthediscmenu,
and then press OK.
» BD-Livestartstoload.Theloadingtime
depends on the disc and your internet
connection.
7 Press the Navigation buttons to navigate
BD-Live,andthenpressOK to select an
item.
EN
22
Play buttons
Button Action
Navigation
buttons
Navigate menus.
OK Conrmanentryorselection.
(Play)
Start or resume play.
Pause play.
Stop play.
/
Skip to the previous or next
track,chapterorle.
/
Fast backwards or fast
forwards. Press repeatedly to
change the search speed.
Navigation
buttons (up/
down)
Rotate the picture clockwise or
counter-clockwise.
SUBTITLE Select subtitle language for
video.
OPTIONS
Access the advanced options
when you play your audio,
video,ormediales(see
‘Audio,video,andpicture
options’onpage23).
For video formats such as DivX and WMV:
• To stop play, press .
• To resume the video from where you
stopped, press
(Play).
• To play the video from the start, press OK.
DivX
Play DivX videos from :
• adisc(see‘Discs’onpage19),
• aUSBstoragedevice(see‘USBstorage
devices’onpage22),or
• anonlinevideostore(see‘Rentonline
video’onpage30).
Note
•
ToplayDivXDRMprotectedlesfromadisc,
a USB storage device, or an online video store,
connect your home theater to a TV through
an HDMI cable.
Disable BD-Live
TorestrictaccesstoBD-Live,turnontheBD-
Live security.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Advanced] > [BD-Live security] >
[On], and then press OK.
» BD-Liveaccessisrestricted.
Note
•
You cannot restrict internet access on
commercialBlu-raydiscs.
USB storage devices
Enjoy pictures, audio and video on a USB storage
device.
What you need
• A USB storage device that is formatted for
FATorNTFSlesystems,andcomplies
with the Mass Storage Class.
• A USB extension cable, if the USB storage
devicedoesnottintotheconnector.
Note
•
You can use digital cameras connected by USB
iftheycanplaytheleswithoutusingaspecial
computer program.
• ToplayDivXDRM-protectedlesfrom
a USB storage device, connect your home
theater to a TV through an HDMI cable.
Play les
1 Connect the USB storage device to the
home theater.
2 Press (Home).
» The home menu is displayed.
3 Select [browse USB], and then press OK.
» A content browser is displayed.
4 Selectale,andthenpressOK.
5 Press the playback buttons to control play
(see‘Playbuttons’onpage22).
EN
23
English
Character
Set
Language
[Standard] English, Albanian, Danish, Dutch,
Finnish, French, Gaelic, German,
Italian, Kurdish (Latin), Norwegian,
Portuguese, Spanish, Swedish and
Turkish
[Central
Europe]
Albanian, Croat, Czech, Dutch,
English, German, Hungarian, Irish,
Polish, Romanian, Slovak, Slovene
and Sorbian
[Cyrillic] Bulgarian, Belorussian, English,
Macedonian, Moldavian, Russian,
Serbian and Ukrainian
[Greek] Greek
Audio, video, and picture
options
Use advanced features when you play audio, video,
ormedialesfromadiscoraUSBstoragedevice.
Audio options
While playing audio, repeat an audio track, a disc,
or a folder.
1 Press OPTIONS repeatedly to cycle
through the following functions:
• RPT TRAC / RPT FILE: Repeat the
currenttrackorle.
• RPT DISC / RPT FOLD: Repeat all the
tracks on the disc or the folder.
• RPT RAND: Play audio tracks in
random order.
• RPT OFF: Turn off the repeat mode.
Video options
While watching video, select options such as
subtitles, audio language, time search, and picture
settings. Depending on the video source, some
options are not available.
1 Press OPTIONS.
» The video options menu is displayed.
2 Press the Navigation buttons and OK to
select and change:
• [Audio Language]: Select audio
language for video.
VOD code for DivX
Before you purchase DivX videos and play them
on your home theater, register the home theater
on www.divx.com using the DivX VOD code.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Advanced] > [DivX® VOD Code],
and then press OK.
» The DivX VOD registration code for
your home theater is displayed.
Subtitles
If your video has subtitles in multiple languages,
select a subtitle language.
1 While playing video, press SUBTITLE to
select a language.
Note
•
Makesurethatthesubtitlelehasthesame
nameasthevideole.Forexample,ifthe
videoleisnamed‘movie.avi’,savethesubtitle
leas‘movie.srt’or‘movie.sub’.
• Yourhometheatercanplaysubtitlelesinthe
following formats: .srt, .sub, .txt, .ssa, .ass, smi,
and.sami.Theselesdonotappearinthele
navigation menu.
• If the subtitles do not appear correctly, change
the character set.
Subtitle character set
If the subtitles do not appear correctly, change
the character set that supports the DivX subtitle.
1 Press OPTIONS.
» The options menu is displayed.
2 Press the Navigation buttons to select
[Character Set], and then press OK.
3 Select a character set.
EN
24
• [Duration per slide]: Select the display
speed for each picture in a slide show.
• [Slide Animation]: Select animation for
the slide show.
• [Picture Settings]:Selectapredened
color setting.
• [Repeat]: Repeat a selected folder.
Slideshows
While playing audio, access fun features such as
picture and musical slideshows.
Picture slideshows
View a slideshow of your pictures stored in your
disc or a USB storage device.
1 Select a picture from a disc or USB storage
device, and then press
(Play).
2 Press OPTIONS.
3 Press Navigation buttons and OK to select
the following settings:
• [Slide Animation]: Select an animation
for the slideshow.
• [Duration per slide]: Select a display
speed for each picture in a slideshow.
4 Press to stop the slideshow.
Musical slideshows
Create a musical slideshow to play music and
pictures at the same time.
1 Select a music track, and then press OK.
2 Press BACK, and go to the picture
folder.
3 Select a picture, and then press (Play) to
start the slideshow.
4 Press to stop slideshow.
5 Press again to stop music.
Radio
Listen to FM radio on your home theater, and
store up to 40 radio stations.
What you need
• FM antenna.
• [Subtitle Language]: Select subtitle
language for video.
• [Subtitle Shift]: Change the subtitle
position on the screen.
• [Info]: Display information about what
is playing.
• [Character Set]: Select a character set
that supports the DivX subtitle.
• [Time Search]:Skiptoaspecicpart
of the video by entering the time of
the scene.
• [2nd Audio Language]: Select the
secondaudiolanguageforBlu-ray
video.
• [2nd Subtitle Language]: Select the
secondsubtitlelanguageforBlu-ray
video.
• [Titles]:Selectaspecictitle.
• [Chapters]:Selectaspecicchapter.
• [Angle List]: Select a different camera
angle.
• [Menus]: Display the disc menu.
• [PIP Selection]:DisplayPicture-in-
PicturewindowwhenplayingaBlu-ray
disc that supports the Bonus View.
• [Zoom]: Zoom into a video scene or
picture. Press the Navigation buttons
(left/right) to select a zoom factor.
• [Repeat]: Repeat a chapter or title.
• [Repeat A-B]: Mark two points within
a chapter or track to repeat play, or
turn off the repeat mode.
• [Picture Settings]:Selectapredened
color setting.
Picture options
While viewing a picture, zoom into the picture,
rotate it, add animation to a slideshow, and
change the picture settings.
1 Press OPTIONS.
» The picture options menu appears.
2 Press the Navigation buttons and OK to
select and change the following settings:
• [Rotate +90]: Rotate the picture 90
degree clockwise.
• [Rotate -90]: Rotate the picture 90
degreecounter-clockwise.
• [Zoom]: Zoom into a video scene or
picture. Press the Navigation buttons
(left/right) to select a zoom factor.
• [Info]: Display picture information.
EN
25
English
Listen to radio
1 Press SOURCE repeatedly until RADIO
appears on the display panel.
• To listen to a preset station, press
or
.
• To search for a radio station, and then
listen, press Navigation buttons (left/
right).
2 Press +/- (Volume) to change the volume.
MP3 player
ConnectyourMP3playertoplayyouraudioles
or music.
What you need
• An MP3 player.
• A 3.5mm stereo audio cable.
Play music
1 Connect the MP3 player to the home
theaterasdescribedinthequickstartguide.
2 Press SOURCE repeatedly until MUSIC
I-LINK appears on the display panel.
3 Press the buttons on the MP3 player to
selectandplayaudiolesormusic.
iPod or iPhone
When you connect a Philips dock for iPod/iPhone,
you can use the home theater to play music,
movies and photos from your iPod or iPhone.
What you need
• A Philips dock (Model: Philips DCK3060/
DCK3061).
• A yellow composite cable.
Note
•
Charge your iPod/iPhone on the dock while
the home theater is in iPod mode.
Note
•
AM and digital radio are not supported.
• If no stereo signal is detected, you are
prompted to install the radio stations again.
• For the best reception, place the antenna away
from the TV or other sources of radiation.
Tune stations
1 Connect the FM antenna as described in the
quickstartguide.
2 Press SOURCE repeatedly until RADIO
appears on the display panel.
» If you have already installed the radio
stations, the last channel that you listened
to is played.
» If you have not installed any radio
stations, the message AUTO INSTALL...
PRESS PLAY appears on the display
panel. Press
(Play).
3 Press the following buttons to listen or to
change radio stations:
Button Action
/ or
Alphanumeric
buttons
Select a preset radio station.
Navigation
buttons (left/
right)
Search for a radio station.
Navigation
buttons (up/
down)
Finetunearadiofrequency.
Press to stop the installation of
radio stations.
BACK
Press and hold to erase the
preset radio station.
OPTIONS
Manual: Press once to access
program mode, and press again
to store the radio station.
Automatic: Press and hold for
three seconds to reinstall the
radio stations.
EN
26
Before you start
• Connect your home theater to your home
network(see‘ComputersandtheInternet’
on page 16).
• Nameyourhometheater(see‘Nameyour
hometheater’onpage18).
• Connect your smartphone to the same
home network. For details, see your
smartphone user manual.
Download MyRemote application
Download the Philips application, MyRemote
(MyRemote) to your smartphone. This
application is free.
Note
•
Philips MyRemote is only available for iPhones
and Android smartphones.
1 Tap the App Store (App Store) icon on the
iPhone or the Market (Market) icon on the
Android smartphone.
2 Searchfor‘PhilipsMyRemote’application.
3 Follow the instructions on your smartphone
to download the application.
» The MyRemote (MyRemote) icon is
added to the home screen of your
smartphone.
Access MyRemote application
Access the MyRemote application from your
smartphone, and then identify your home
theater on the home network.
1 Tap MyRemote (MyRemote) on your
smartphone.
» Your home theater and the other devices
on the network are displayed on your
smartphone. A browsing bar with Devices,
Remote, and Source tabs is also displayed.
2 If your home theater is not found, check the
networkconnection(see‘Computersand
theInternet’onpage16).
Then, tap the Devices (Devices) tab on
your smartphone to search again.
3 Tap the home theater icon on the smartphone.
» The virtual remote control is displayed
on the smartphone.
4 To exit the application, press the home
button on your smartphone.
Dock your iPod or iPhone
1 Move the slide at the bottom of the dock to
STANDARD, and then connect the dock to
the home theater.
2 Connect the yellow composite cable to the
dock and TV.
3 Switch on the iPod or iPhone, and place it
on the dock.
Play music
1 DockyouriPodoriPhone(see‘Dockyour
iPodoriPhone’onpage26).
2 Press DOCK for iPod on the home theater
remote control.
3 Browse on the iPod or iPhone screen to
select music tracks.
• To view the playlist on your TV and
use the home theater remote control
to select a track, press DOCK for iPod
again.
Play video and slideshows
1 DockyouriPodoriPhone(see‘Dockyour
iPodoriPhone’onpage26).
2 On the home theater remote control, press
(Home).
3 Select [browse iPod], and then press OK.
4 Switch the TV to the AV/VIDEO source
(corresponding to the yellow composite
cable).
» The TV screen goes blank.
5 Browse on the iPod or iPhone screen to
select videos or photos.
6 Press (Play) to play the videos or photos.
Use smartphone
Turn your iPhone or Android smartphone into
a virtual remote control, or use it to browse the
contents of a disc or USB storage device on your
home theater.
What you need
• An iPhone (iOS 3.1.3 and above) or
Android (Android 2.1 and above)
smartphone.
• A wired or wireless home network.
EN
27
English
5 To access the remote control while you
browse the contents, tap the Remote
(Remote) tab on your smartphone.
Browse PC through DLNA
When you connect your home theater to your
home network, you can enjoy music, photo, and
video stored on a computer or other media
server on the network.
What you need
• A wired or wireless home network,
connected with a Universal Plug and Play
(uPnP) router.
• A Philips wireless USB adapter or a LAN
cable to connect your home theater to your
home network.
• A media server such as:
• PC running Windows Media Player 11
orhigher;or
• Mac running Twonky Media Server.
Note
•
For help to use other media servers, such as
TVersity, see the web site of the media server.
Set up media server software
To enable media sharing, set up the media server
software.
Before you start
• Connect your home theater to your home
network(see‘ComputersandtheInternet’
on page 16).
• Connect your computer to the same home
network.
• MakesurethatyourPCrewallallowsyou
to run Windows Media Player programs.
• Switch on your computer and the router.
Use your smartphone as a remote
control
The virtual remote control is displayed in
multiple screens on the smartphone. To access
the buttons, swipe the smartphone screen to the
left or right.
Only the control buttons that are relevant to the
play mode are enabled on your smartphone. For
example, if you play pictures, only the remote
control buttons that are used to control the
pictures are enabled. However, if you play a
video, additional buttons, such as SUBTITLE and
TOP MENU, are enabled on your smartphone.
1 Launch the application on your smartphone
(see‘AccessMyRemoteapplication’onpage
26).
» Depending on the play mode, the
relevant remote control buttons are
enabled.
2 If the remote control buttons do not
appear, tap the Remote (Remote) tab on
your smartphone.
3 Swipe to the left or right screen to access
more buttons.
Note
•
Some control functions are not available on
smartphones.
Browse a disc or USB storage device
Browse a disc or USB storage device from
your smartphone, and play an audio, video, or
multimediale.
1 Launch the remote control application on
yoursmartphone(see‘AccessMyRemote
application’onpage26).
2 Load a data disc or connect a USB storage
device into your home theater.
3 On your smartphone, tap the Source
(Source) tab, and then select DISC (DISC)
or USB (USB).
» The folders in your disc or USB storage
device are displayed.
4 Select a folder to browse, and then select a
letoplay.
» The relevant remote control buttons are
enabled on your smartphone.
EN
28
» The Add to Library screen is displayed.
» If necessary, select Advanced options to
display a list of monitored folders.
7 Select My folders and those of others I can
access, and then click Add.
8 Follow the onscreen instructions to add the
otherfoldersthatcontainyourmediales.
Microsoft Windows Media Player 12
Note
•
Depending on your version of Microsoft
Windows, the screens might look different to
the following screens.
1 Start Windows Media Player on your PC.
2 In Windows Media Player, click the Stream
tab, and then select Turn on media
streaming.
» The Media streaming options screen is
displayed.
Microsoft Windows Media Player 11
Note
•
Depending on your version of Microsoft
Windows, the screens might look different to
the following screens.
1 Start Windows Media Player on your PC.
2 Click the Library tab, and then select Media
Sharing.
3 ThersttimeyouselectMedia Sharing on
yourPC,apop-upscreenappears.Check
the Share my media box and click OK.
» The Media Sharing screen is displayed.
4 In the Media Sharing screen, make sure
that you see a device marked as Unknown
Device.
» Ifyoudon’tseeanunknowndevice
after a minute or so, check that your PC
rewallisnotblockingtheconnection..
5 Select the unknown device and click Allow.
» A green tick appears next to the device.
6 By default, Windows Media Player shares
from these folders: My Music, My Pictures,
and My Videos.Ifyourlesareinother
folders, select Library > Add to Library.
EN
29
English
Follow the onscreen instructions to add the
otherfoldersthatcontainyourmediales.
Macintosh OS X Twonky Media (v4.4.2)
Note
•
Depending on which version of the Mac
operating system you use, your screens might
look different to the following screens.
1 Visit http://www.twonkymedia.com to
purchase the software, or download a free
30-daytrialtoyourMacintosh.
2 Start Twonky Media on the Macintosh.
3 In the Twonky Media Server screen, select
Basic Setup and First Steps.
» The First steps screen is displayed.
4 Type a name for your media server, and
then click Save changes.
5 Back in the Twonky Media screen, select
Basic Setup and Sharing.
» The Sharing screen is displayed.
3 Click Turn on media streaming.
» You return to Windows Media Player
screen.
4 Click the Stream tab and select More
streaming options.
» The Media streaming options screen is
displayed.
5 Make sure that you see a media program in
the Local network screen.
» Ifyoudon’tseeamediaprogram,check
thatyourPCrewallisnotblockingthe
connection.
6 Select the media program and click
Allowed.
» A green arrow appears next to the
media program.
7 By default, Windows Media Player shares
from these folders: My Music, My Pictures,
and My Videos.Ifyourlesareinother
folders, click the Organize tab and select
Manage libraries > Music.
» The Music Library Locations screen is
displayed.
EN
30
Access Net TV
1 Connect your home theater to a home
networkandtheInternet(see‘Computers
andtheInternet’onpage16).
2 Press (Home).
» The home menu is displayed.
3 Select [browse Net TV], and then press
OK.
» The Net TV home page is displayed. The
rsttimeyouaccessNetTV,followthe
onscreen instructions to agree to the
terms and conditions, and then register
with Club Philips.
4 Press the Navigation buttons to select
App Gallery (App Gallery) or Internet
(Internet), and then press OK.
• Access App Gallery (App Gallery) to
add more Apps to your screen.
• Access Internet (Internet) to browse
the Internet.
5 Press BACK to return to the previous
page, or press
(Home) to exit.
Clear browsing history
Clear the browsing history to remove passwords,
cookies, and browsing data from your home
theater.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Network] > [Clear Net TV
Memory], and then press OK.
Rent online video
Not available in China
Rent videos from online stores, through your home
theater. You can watch them right away or later.
Many online video stores offer a huge choice of
video, with different rental prices, periods, and
conditions. For some stores, you must create an
account before you can rent.
What you need
• Ahigh-speedinternetconnectiontothe
home theater.
• An HDMI connection between your home
theater and TV.
• An SD memory card of type SDHC Class 6,
with at least 8 GB of memory.
6 Browse and select folders to share, and
then select Save Changes.
» Your Macintosh rescans the folders
automatically so that they are ready to share.
Play les from your PC
Note
•
Before you play multimedia content from the
computer, make sure that the home theater
is connected to the home network, and the
media server software is properly set up.
1 Switch your TV to the correct HDMI source
for your home theater.
2 Press (Home).
» The home menu is displayed.
3 Select [browse PC], and then press OK.
» A content browser is displayed.
4 Selectale,andthenpressOK.
5 Press the playback buttons to control play
(see‘Playbuttons’onpage22).
Browse Net TV
Not available in China
Use Net TV to access variety of internet
applications and specially adapted internet
websites.
For interactive discussions on Net TV services, visit
the Net TV forum at www.supportforum.philips.com
Note
•
Koninklijke Philips Electronics N.V. bears no
responsibility for content provided by Net TV
service providers.
EN
31
English
• The video is downloaded to your SD
memory card. You can watch it now or
at any time within the rental period.
• When you have downloaded a video
to your card, you can watch it only on
yourhometheater.Youcan’tmovethe
card and watch it on another device.
• If you move the card and format it
in another device, your downloaded
video is erased. Download your video
again before you watch.
7 Press the play buttons on your remote
control to play, pause, search, or stop the
video.
EasyLink
The home theater supports Philips EasyLink, which
usestheHDMI-CEC(ConsumerElectronics
Control)protocol.EasyLink-compliantdevicesthat
are connected through HDMI can be controlled
by a single remote control.
Philips does not guarantee 100% interoperability
withallHDMI-CECdevices.
What you need
• HDMI-CECcompliantdevices.
• An HDMI connection between the
connected devices.
Switch on
1 On the TV and other connected devices,
turnontheHDMI-CECoperations.For
details, see the manual of the TV or other
devices.
2 Press (Home).
3 Select [Setup], and then press OK.
4 Select [EasyLink] > [EasyLink], and then
press OK.
5 Select [On], and then press OK.
Format an SD card
BeforeyoudownloadanyonlinevideoorBD-
Live content, your SD card must be in the SD
card slot of your home theater, and formatted.
1 Switch your TV to the correct HDMI source
for your home theater.
2 Insert the SD memory card into the SD
CARD slot on your home theater.
3 Follow the onscreen instructions to format
the card.
» Any content on the card is erased during
formatting.
4 After formatting, leave the card in the SD
CARD slot.
Rent and play online video
1 Connect your home theater to the home
networkandinternet(see‘Computersand
theInternet’onpage16).
2 Press (Home).
3 Select [browse Net TV], and then press
OK.
» The online services available in your
country are displayed.
4 Press the Navigation buttons to go to a
video store, and then press OK.
5 If prompted, follow the video store
instructions to register or log in to an
account.
» You see an option to rent videos.
» If you have rented videos and are still
within the rental period, you also see an
option to watch the videos.
6 Follow the video store instructions to rent
or watch a video.
EN
32
Play audio from home theater
Play the audio from a connected device through
your home theater.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [EasyLink] > [System Audio
Control] > [On], and then press OK.
• To play the audio from the TV
speakers, select [Off], and skip the
following steps.
4 Select [EasyLink] > [Audio Input Mapping],
and then press OK.
5 Follow the instructions on the TV to map
the audio of the connected device to the
audio inputs on your home theater.
Note
•
If you connect your home theater to the TV
through an HDMI ARC connection, make sure
that the TV audio is mapped to the ARC input
on your home theater.
Control devices
Control the home theater and the other
connectedHDMI-CECcompliantdeviceswitha
single remote control.
One-touch play
IfyouenableOne-touchplay,theTV
automatically switches to the correct channel
when you play a disc in your home theater.
One-touch standby
When you press and hold
(Standby) on the
remote control, the home theater and all the
connectedHDMI-CECdevices(thatsupport
one-touchstandby)switchtothestandby
mode.
Ifone-touchstandbyisenabledonyourhome
theater, you can switch to standby with the
remotecontroloftheTVorotherHDMI-CEC
devices.
System Audio Control
When you play a device that has its audio
output routed to the home theater, the home
theater switches to the corresponding audio
source automatically.
Touseone-touchaudio,turnonSystemAudio
Control and follow the instructions on the TV
to map connected devices to the audio input
connectors of the home theater.
Audio Input Mapping
When you connect a new device to your home
theater, map the device to the audio input
connector(see‘Playaudiofromhometheater’
on page 32).
EN
33
English
Picture color
Deep Color recreates the natural world on your
TV screen and displays vivid images in over a
billion of colors.
If your TV supports Deep Color and is
connected to your home theater through an
HDMI cable, you can change the Deep Color.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Video] > [HDMI Deep Color], and
then press OK.
4 Select the following options, and then press
OK:
• [Auto]: Automatically select HDMI
Deep Color.
• [On]: View vivid images.
• [Off]:Displaystandard24-bitcolor.
Picture resolution
For HDMI video settings, connect your home
theater to the TV through an HDMI cable.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Video] > [HDMI Video], and then
press OK.
4 Change the HDMI resolution setting, and
then press OK.
Blu-ray 3D video
To play 3D video, connect your home theater to
a 3D TV through an HDMI cable.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Video] > [Watch 3D video] >
[Auto], and then press OK.
Subtitle position
Automatically change the position of the subtitles
totyourTVscreen.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Auto Subtitle Shift]
> [On], and then press OK.
8 Change settings
This section helps you to change the settings of
your home theater.
Caution
•
Mostofthesettingsarealreadycongured
with the best value for your home theater.
Unless you have a reason to change a setting, it
is best to leave it at the default value.
Note
•
You cannot change a setting that is grayed out.
• To return to the previous menu, press
BACK. To exit the menu, press
(Home).
Change the picture settings to suit your
preferences.
Note
•
The best setting is automatically selected for
the TV. If you change the setting, make sure
that the TV supports the new settings.
Picture settings and format
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Video], and then press OK.
4 Change the following settings, and then
press OK:
• [TV Display]: Picture format.
• [Picture Settings]:Predenedcolor
settings.
EN
34
Restore sound mode settings
Restoretheequalizersettingsofallthesound
modes to the default values.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Audio] > [Default sound settings],
and then press OK.
Language
Select a language for the home menu, audio, and
subtitles.
Home menu
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Menu language], and
then press OK.
4 Select a menu language, and then press OK.
Disc audio
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Audio], and then
press OK.
4 Select an audio language for discs, and then
press OK.
Note
•
If your preferred disc language is not available,
select [Others] from the list, and enter the
4-digitlanguagecodefoundattheendofthis
usermanual(see‘Languagecode’onpage43).
• If you select a language that is not available
on a disc, the home theater uses the default
language of the disc.
Sound
Change the sound settings to suit your preference.
HDMI audio
To hear an HDMI audio output from your TV,
connect your home theater to the TV through
an HDMI cable.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Audio] > [HDMI Audio], and then
press OK.
4 Select the following options, and then press
OK:
• [Bitstream]: Enable bitstream output
over HDMI.
• [Auto]: Automatically select the best
supported audio format.
• [Off]: Disable audio from the TV.
Audio post processing
Toselectapredenedsoundmode,enable
audiopostprocessingatthespeaker(see‘Sound
mode’onpage19).
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Advanced] > [Enhanced Audio] >
[On], and then press OK.
Note
•
To play the original audio of the disc, select
[Off].
Night mode
Forquietlistening,decreasethevolumeofloud
sounds when you play discs. Night mode is only
availableforDolby-encodedDVDandBlu-ray
discs.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Audio] > [Night Mode] > [On], and
then press OK.
EN
35
English
Ratings
Some discs are recorded with ratings according
to age. You can set up your home theater to play
only discs with an age rating lower than your
child’sage.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Parental Control],
and then press OK.
» A message prompts you to enter the
password.
4 Enter the password with the Numeric
buttons.
5 Select an age rating, and then press OK.
• To play all discs irrespective of the
rating, select level 8 or [Off].
Energy saving
Save energy by changing the following settings.
Auto standby
When playing a disc or a USB storage device,
automatically switch your home theater to
standby if:
• it is in pause or stop mode, and
• no button is pressed for 30 minutes.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Auto Standby] >
[On], and then press OK.
Sleep timer
Set timers to switch the home theater to
standbyafteraspeciedtime.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Sleep Timer], and
then press OK.
4 Select the duration of the sleep timer.
» The sleep timer can be set up to 60
minutes. If the sleep timer is set to [Off],
it switches off.
5 Press OK to activate.
» The home theater switches to standby
afterthespeciedtime.
Disc subtitle
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Subtitle], and then
press OK.
4 Select a subtitle language for discs, and then
press OK.
Disc menu
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Disc Menu], and
then press OK.
4 Select a menu language for discs, and then
press OK.
Note
•
If your preferred disc language is not available,
select [Others] from the list, and enter the
4-digitlanguagecodefoundatthetheendof
thisusermanual(see‘Languagecode’onpage
43).
• If you select a language that is not available
on a disc, the home theater uses the default
language of the disc.
Parental control
Restrict access to discs that are recorded with
ratings.
Password
You can set or change your password to play a
restricted disc.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Change Password],
and then press OK.
» A change password menu is displayed.
4 Follow the instructions on the TV to set or
change password.
• If you do not have a password or you
have forgotten, enter 0000.
5 Press OK.
EN
36
9 Update software
To continue to get the best features and support
for your home theater, update the software
regularly. Compare the version of your current
software with the latest version on
www.philips.com/support.
Check software version
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Advanced] > [Version Info.], and
then press OK.
» The software version is displayed.
Update software through the
Internet
1 Connect your home theater to the
network. Use a
• wirednetworkconnection(see‘Setup
thewirednetwork’onpage17),or
• a wireless network connection (see
‘Setupthewirelessnetwork’onpage
17).
2 Press (Home).
3 Select [Setup], and then press OK.
4 Select [Advanced] > [Software Update] >
[Network].
» If an upgrade media is detected, you are
prompted to start or cancel the update.
5 FollowtheinstructionontheTVtoconrm
the update.
» When the software update is complete,
the home theater automatically switches
off and restarts. If it does not, disconnect
the power cord for a few seconds and
then reconnect it.
Note
•
If the home theater cannot connect to the
Philips server, press
(Home), and then
select [Setup] > [Network] > [Network
Installation] to set up the network.
Screen saver
Automatically switch your home theater to
screen saver mode if:
• it is in pause or stop mode, and
• no button is pressed for 10 minutes.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Screen Saver] >
[On], and then press OK.
Display panel
Change the brightness of the home theater
display panel.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Display Panel], and
then press OK.
4 Select the brightness, and then press OK.
Apply factory settings
Reset your home theater to the default settings.
You cannot reset the parental control settings.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Advanced] > [Restore default
settings], and then press OK.
4 Select [OK], and then press OK.
EN
37
English
Step 2: Update the software
Caution
•
BeforeyouconnecttheUSBashdriveto
your home theater, make sure that there is
no disc in the disc compartment, and the disc
compartment is closed.
1 ConnecttheUSBashdrivetoyourhome
theater.
2 Switch your TV to the correct source for
your home theater.
3 Press (Home), and then select [Setup].
4 Select [Advanced] > [Software Update] >
[USB].
5 Follow the instructions on the TV to
conrmtheupdate.
» When the software update is complete,
the home theater automatically switches
off and restarts. If it does not, disconnect
the power cord for a few seconds, and
then reconnect it.
Note
•
When the software update is in progress, do
not turn off the power or remove the USB
ashdrive.
Update software through USB
What you need
• AUSBashdrive,withatleast75MBof
memory.TheUSBashdrivemustbeFAT
or NTFS formatted. Do not use a USB hard
drive.
• A computer with Internet access.
• An archive utility that supports the ZIP
leformat(forexample,WinZip®for
Microsoft®Windows®orStuft®for
Macintosh®).
Step 1: Download the latest software
1 ConnectaUSBashdrivetoyour
computer.
2 In your web browser, go to www.philips.
com/support.
3 AtthePhilipsSupportwebsite,ndyour
product and locate the Software and
drivers.
» The software update is available as a zip
le.
4 Savethezipleintherootdirectoryof
yourUSBashdrive.
5 Use the archive utility to extract the
softwareupdateleintherootdirectoryof
theUSBashdrive.
» ThelesareextractedundertheUPG_
ALL folderofyourUSBashdrive.
6 DisconnecttheUSBashdrivefromyour
computer.
EN
38
File formats
• Audio: .aac, .mka, .mp3, .wma, .wav, .mp4,
.m4a
• Video:
• .avi, .divx, .mp4, .mkv, .asf, .wmv, .mpg,
.mpeg,
• .rmvb, .rm (Available only in Asia
PacicandChina)
• Picture: .jpg, .jpeg, .gif, .png
Audio formats
Your home theater supports the following audio
les.
Extension Container Audio
codec
Bit rate
.mp3 MP3 MP3 32 kbps ~
320 kbps
.wma ASF WMA 64 kbps ~
160 kbps
.aac AAC AAC,HE-
AAC
192 kbps
.wav WAV PCM 1.4 Mbps
.m4a MKV AAC 192 kbps
.mka MKA PCM 27.648
Mbps
.mka MKA Dolby
Digital
640 kbps
.mka MKA DTS core 1.54 Mbps
.mka MKA MPEG 912 kbps
.mka MKA MP3 32 kbps ~
320 kbps
.mka MKA WMA 64 kbps ~
160 kbps
.mka MKA AAC,HE-
AAC
192 kbps
Video formats
IfyouhaveahighdenitionTV,yourhome
theaterallowsyoutoplayyourvideoleswith:
• Resolution: 1920 x 1080 pixels at
• Frame rate: 6 ~ 30 frames per second.
10 Product
specifications
Note
•
Specicationsanddesignaresubjecttochange
without notice.
Region codes
The type plate on the back or bottom of the
home theater shows which regions it supports.
Media formats
• AVCHD,BD,BD-R/BD-RE,BD-Video,
DVD-Video,DVD+R/+RW,DVD-R/-RW,
DVD+R/-RDL,CD-R/CD-RW,AudioCD,
VideoCD/SVCD,Pictureles,MP3media,
WMA media, DivX Plus HD media, USB
storage device
Country
DVD BD
Europe,
United Kingdom
Korea
Latin America
Australia,
New Zealand
Russia, India
China
AA
AA
CC
CC
Asia Pacific, Taiwan,
EN
39
English
.mkv les in MKV container
Audio codec Video codec Bit rate
PCM, Dolby
Digital, DTS
core, MPEG,
MP3, WMA,
AAC,HE-
AAC
MPEG 1, MPEG 2 20 Mbps (peak
40 Mbps)
MPEG 4 ASP 10 Mbps max
H.264/AVC
HP@4.1/4.0;
[email protected]/3.1/3.0
20 Mbps (peak
40 Mbps)
WMV9 20 Mbps
.asf and .wmv les in ASF container
Audio codec Video codec Bit rate
PCM,
Dolby
Digital,
MP3, WMA
MPEG 4 ASP 10 Mbps max
H.264/AVC
HP@4.1/4.0;
[email protected]/3.1/3.0
20 Mbps (peak
40 Mbps)
WMV9 20 Mbps
.mpg and .mpeg les in PS container
Audio codec Video codec Bit rate
PCM, DTS
core, MPEG,
MP3
MPEG 1, MPEG
2
20 Mbps (peak
40 Mbps)
MPEG 1, MPEG
2
20 Mbps (peak
40 Mbps)
.rm and .rmvb les in RM container (Available
only in Asia Pacic and China)
Audio codec Video codec Bit rate
AAC,
COOK
RV30, RV40 20 Mbps (peak 40
Mbps)
.avi les in AVI container
Audio
codec
Video codec Bit rate
PCM,
Dolby
Digital,
DTS
core,
MP3,
WMA
DivX 3.11, DivX 4.x,
DivX 5.x, DivX 6.x
10 Mbps max
MPEG 1, MPEG 2 20 Mbps
(peak 40
Mbps)
MPEG 4 ASP 10 Mbps max
H.264/AVC
HP@4.1/4.0;
[email protected]/3.1/3.0
20 Mbps
(peak 40
Mbps)
WMV9 20 Mbps
.divx les in AVI container
Audio
codec
Video codec Bit rate
PCM,
Dolby
Digital,
MP3,
WMA
DivX 3.11, DivX 4.x,
DivX 5.x, DivX 6.x
10 Mbps
max
MPEG 1, MPEG 2 20 Mbps
(peak 40
Mbps)
MPEG 4 ASP 10 Mbps
max
.mp4 or .m4v les in MP4 container
Audio
codec
Video codec Bit rate
Dolby
Digital,
MPEG,
MP3,
AAC,HE-
AAC
MPEG 1, MPEG 2 20 Mbps (peak
40 Mbps)
MPEG 4 ASP 10 Mbps max
H.264/AVC
HP@4.1/4.0;
[email protected]/3.1/3.0
20 Mbps (peak
40 Mbps)
EN
40
Main unit
• Power supply:
• Europe/China:220-240V~,50Hz
• LatinAmerica/AsiaPacic:110-127
V/220-240V~,50-60Hz
• Russia/India:220-240V~,50Hz
• Power consumption: 85 W
• Standbypowerconsumption:≤0.5W
• Dimensions (WxHxD): 360 x 70 x 345 mm
• Weight: 4.36 kg
Subwoofer
• Output power: 200W RMS (30% THD)
• Impedance: 3 ohm
• Speaker drivers: 165 mm (6.5”) woofer
• Frequencyresponse:20Hz-150Hz
• Dimensions (WxHxD): 196 x 395 x 342
mm
• Weight: 5.3 kg
• Cable length: 3 m
Speakers
• Output power: 2 x 120W RMS (30% THD)
• Speaker impedance: 5 ohm
• Speakerdrivers:2x76.2mm(3”)woofer+
1 x 25.4 mm (1”) tweeter
• Frequencyresponse:150Hz-20kHz
• Dimensions (WxHxD): 97 x 301 x 120 mm
• Weight: 1.45 kg/each
• Cable length: 4 m
Remote control batteries
• 2xAAA-R03-1.5V
Laser
• Laser Type (Diode): InGaN/AIGaN (BD),
AIGaInP (DVD/CD)
• Wavelength:405+7nm/-7nm(BD),655
+10nm/-10nm(DVD),790+10nm/-20
nm (CD)
• Output power (Max. ratings): 20 mW (BD),
6 mW (DVD), 7 mW (CD)
Amplier
• Total output power: 440W RMS (30%
THD)
• Frequencyresponse:20Hz-20kHz/±3dB
• Signal-to-noiseratio:>65dB(CCIR)/
(A-weighted)
• Input sensitivity:
• AUX1, AUX2: 500 mV
• Music iLink: 300 mV
Video
• Signal system: PAL / NTSC
• HDMI output: 480i/576i, 480p/576p, 720p,
1080i, 1080p, 1080p24
Audio
• S/PDIF Digital audio input:
• Coaxial:IEC60958-3
• Optical: TOSLINK
• Samplingfrequency:
• MP3: 32 kHz, 44.1 kHz, 48 kHz
• WMA: 44.1 kHz, 48 kHz
• Constant bit rate:
• MP3:32kbps-320kbps
• WMA:48kbps-192kbps
Radio
• Tuning range:
• Europe/China:FM87.5-108MHz(50
kHz)
• AsiaPacic/Russia/LatinAmerica:FM
87.5-108MHz(50/100kHz)
• Signal-to-noiseratio:FM55dB
• Frequencyresponse:FM60Hz-12.5kHz/
±3dB
USB
• Compatibility:Hi-SpeedUSB(2.0)
• Class support: USB Mass Storage Class
(MSC)
• File system: FAT16, FAT32, NTFS
• Maximum memory support: < 160 GB
EN
41
English
Sound
No sound from home theater speakers.
• Connect the audio cable from your home
theater to your TV or other devices. You
do not need a separate audio connection
when:
• the home theater and TV are
connected through an HDMI ARC
connection, or
• a device is connected to the HDMI IN
connector on your home theater.
• Set up the audio for the connected device
(see‘Setupaudioforconnecteddevices’on
page 16).
• Reset your home theater to its factory
settings(see‘Applyfactorysettings’onpage
36), and then switch it off and switch on
again.
• On your home theater, press SOURCE
repeatedly to select the correct audio input.
Distorted sound or echo.
• If you play audio from the TV through the
home theater, make sure that the TV is
muted.
Audio and video are not synchronized.
• 1) Press SOUND SETTINGS. 2) Press
the Navigation buttons (left/right) to select
AUD SYNC, and then press OK. 3) Press
the Navigation buttons (up/down) to
synchronize the audio with the video.
Play
Cannot play a disc.
• Clean the disc.
• Make sure that the home theater supports
thetypeofdisc(see‘Mediaformats’on
page 38).
• Make sure that the home theater supports
theregioncodeofthedisc(see‘Region
codes’onpage38).
• IfthediscisaDVD±RWorDVD±Rdisc,
makesurethatitisnalized.
Cannot play a DivX le.
• MakesurethattheDivXleisencoded
accordingtothe‘HomeTheaterProle’
with the DivX encoder.
• MakesurethattheDivXleiscomplete.
DivX or RMVB/RM subtitles do not display
correctly.
• Makesurethatthesubtitlelenameisthe
sameasthemovielename(see‘Subtitles’
on page 23).
11 Troubleshooting
Warning
•
Risk of electric shock. Never remove the
casing of the product.
To keep the warranty valid, never try to repair the
product yourself.
If you have problems using this product, check the
followingpointsbeforeyourequestservice.Ifyou
still have a problem, register your product and get
support at www.philips.com/welcome.
Main unit
The buttons on the home theater do not work.
• Disconnect the home theater from the
power supply for a few minutes, then
reconnect.
No picture.
• Make sure that the TV is switched to the
correct source for the home theater.
No picture on a TV connected through HDMI.
• Make sure that you use a High Speed HDMI
cable to connect the home theater and TV.
Some Standard HDMI cables do not display
properly for some images, 3D video, or
Deep Color.
• Make sure that the HDMI cable is not faulty.
If it is faulty, replace it with a new cable.
• Press (Home) and then 731 on the
remote control to restore the default
picture resolution.
• Change the HDMI video setting, or wait for
10secondsforautorecovery(see‘Picture
resolution’onpage33).
Disc does not play high-denition video.
• Makesurethatthedisccontainshigh-
denitionvideo.
• MakesurethattheTVsupportshigh-
denitionvideo.
• Use an HDMI cable to connect to the TV.
EN
42
• Switch the TV to the AV/VIDEO source
(corresponding to the yellow composite
cable).
• Press the play button on the iPod or iPhone
to start a slideshow.
• Make sure that the iPod or iPhone software
has not been tampered with or illegally
modied.
Play 3D video in 2D mode.
• Make sure that your home theater is
connected to a 3D TV through an HDMI
cable.
• MakesurethatthediscisaBlu-ray3Ddisc,
andtheBlu-ray3Dvideooptionison(see
‘Blu-ray3Dvideo’onpage33).
TV screen is black when you play a Blu-ray 3D
video or a DivX copy protected video.
• Make sure that the home theater is
connected to the TV through an HDMI
cable.
• Switch to the correct HDMI source on the
TV.
Cannot download video from an online video
store.
• Make sure that your home theater is
connected to the TV through an HDMI
cable.
• Make sure that the SD card is formatted,
has enough memory to download the
video, and is of type SDHC Class 6.
• Make sure that you have paid for the video,
and it is within the rental period.
• Make sure that the network connection
is good. Use a wired network connection
(see‘Wiredconnection’onpage16)ora
wirelessnetworkconnection(see‘Wireless
connection’onpage17).
• Visit the video store website for more
information.
Network
Wireless network distorted or not found.
• Make sure that the wireless network is
not disturbed by microwave ovens, DECT
phones,orotherneighboringWi-Fidevices.
• If the wireless network does not work
properly, try a wired network installation
(see‘Setupthewirednetwork’onpage
17).
• Select the correct character set: 1) Press
OPTIONS. 2) Select [Character Set].
3) Select the supported character set.
4) Press OK.
Cannot read the contents of a USB storage
device.
• Make sure that the format of the USB
storage device is compatible with the home
theater.
• MakesurethatthelesystemontheUSB
storage device is supported by the home
theater.
‘No entry’ or ‘x’ sign appears on the TV.
• The operation is not possible.
EasyLink does not work.
• Make sure that the home theater is
connected to a Philips brand EasyLink TV,
andtheEasyLinkoptionison(see‘EasyLink’
on page 31).
When you switch on the TV, the home theater
automatically switches on.
• This behavior is normal when you are using
PhilipsEasyLink(HDMI-CEC).Tomakethe
home theater work independently, switch
off EasyLink.
Cannot access BD-Live features.
• Make sure that the home theater is
connected to the network. Use a
wirednetworkconnection(see‘Wired
connection’onpage16)orwireless
networkconnection(see‘Wireless
connection’onpage17).
• Make sure that the network is set up. Use
awirednetworkinstallation(see‘Setup
thewirednetwork’onpage17)orwireless
networkinstallation(see‘Setupthe
wirelessnetwork’onpage17).
• MakesurethattheBlu-raydiscsupports
BD-Livefeatures.
• Clearmemorystorage(see‘Clearmemory’
on page 21).
Cannot play video or photos from an iPod or
iPhone on the TV.
• Browse and select videos and photos from
the iPod or iPhone screen, and play them
on your TV.
• Make sure that the iPod or iPhone software
has not been tampered with or illegally
modied.
Cannot view pictures from an iPod or iPhone on
the TV.
• Connect a yellow composite cable to the
iPod dock and the TV.
EN
43
English
12 Language code
Abkhazian 6566
Afar 6565
Afrikaans 6570
Amharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Avestan 6569
Aymara 6589
Azerhaijani 6590
Bahasa Melayu 7783
Bashkir 6665
Belarusian 6669
Bengali 6678
Bihari 6672
Bislama 6673
Bokmål, Norwegian 7866
Bosanski 6683
Brezhoneg 6682
Bulgarian 6671
Burmese 7789
Castellano, Español 6983
Catalán 6765
Chamorro 6772
Chechen 6769
Chewa; Chichewa; Nyanja 7889
9072
Chuang; Zhuang 9065
Church Slavic; Slavonic 6785
Chuvash 6786
Corsican 6779
Česky 6783
Dansk 6865
Deutsch 6869
Dzongkha 6890
English 6978
Esperanto 6979
Estonian 6984
Euskara 6985
6976
Faroese 7079
Français 7082
Frysk 7089
Fijian 7074
Gaelic; Scottish Gaelic 7168
Gallegan 7176
Georgian 7565
Gikuyu; Kikuyu 7573
Guarani 7178
Gujarati 7185
Hausa 7265
Herero 7290
Hindi 7273
Hiri Motu 7279
Hrwatski 6779
Ido 7379
Interlingua (International)7365
Interlingue 7365
Inuktitut 7385
Inupiaq 7375
Irish 7165
Íslenska 7383
Italiano 7384
Ivrit 7269
Japanese 7465
Javanese 7486
Kalaallisut 7576
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kernewek 7587
Khmer 7577
Kinyarwanda 8287
Kirghiz 7589
Komi 7586
Korean 7579
Kuanyama; Kwanyama 7574
Kurdish 7585
Lao 7679
Latina 7665
Latvian 7686
Letzeburgesch; 7666
Limburgan; Limburger 7673
Lingala 7678
Lithuanian 7684
Luxembourgish; 7666
Macedonian 7775
Malagasy 7771
Magyar 7285
Malayalam 7776
Maltese 7784
Manx 7186
Maori 7773
Marathi 7782
Marshallese 7772
Moldavian 7779
Mongolian 7778
Nauru 7865
Navaho; Navajo 7886
Ndebele, North 7868
Ndebele, South 7882
Ndonga 7871
Nederlands 7876
Nepali 7869
Norsk 7879
Northern Sami 8369
North Ndebele 7868
Norwegian Nynorsk; 7878
Occitan; Provencal 7967
Old Bulgarian; Old Slavonic 6785
Oriya 7982
Oromo 7977
Ossetian; Ossetic 7983
Pali 8073
Panjabi 8065
Persian 7065
Polski 8076
Po
rtuguês 8084
Pushto 8083
Russian 8285
Quechua 8185
Raeto-Romance 8277
Romanian 8279
Rundi 8278
Samoan 8377
Sango 8371
Sanskrit 8365
Sardinian 8367
Serbian 8382
Shona 8378
Shqip 8381
Sindhi 8368
Sinhalese 8373
Slovensky 8373
Slovenian 8376
Somali 8379
Sotho; Southern 8384
South Ndebele 7882
Sundanese 8385
Suomi 7073
Swahili 8387
Swati 8383
Svenska 8386
Tagalog 8476
Tahitian 8489
Tajik 8471
Tamil 8465
Tatar 8484
Telugu 8469
Thai 8472
Tibetan 6679
Tigrinya 8473
To nga (Tonga Islands) 8479
Tsonga 8483
Tswana 8478
Türkçe 8482
Tu rkmen 8475
Tw i 8487
Uighur 8571
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapuk 8679
Walloon 8765
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 8973
Yo ruba 8979
Zulu 9085
Ё᭛
EN
44
browse
disc 20
from iPhone 27
from iPod 26
Net TV 30
online video stores 31
USB storage device 22
C
care
environment 8
health 9
product 8
character set 23
close disc compartment 9
computer
connect to 16
DLNA 27
media server software 27
computer network 16
connect
audio (analog cable) 16
audio(coaxialcable-digital) 16
audio(opticalcable-digital) 15
audio from TV and other devices 15
computer 27
home network 16
speakers 12
to Internet 16
TV (Composite) 15
TV (HDMI ARC) 14
TV (HDMI) 14
connectors
backconnectors-center 13
backconnectors-left 13
backconnectors-right 13
side connectors 13
control
disc play 20
Easylink(HDMI-CEC) 11
main unit 9
parental control 35
radio 25
USB storage device 22
D
disable
audio post processing 34
BD-Live 22
HDMI-CEC 31
13 Index
2
2D video 20
3
3D
3D disc in 2D mode 20
3D safety 9
3D video 19
A
advanced
BD-Livesecurity 22
enhanced audio 34
restore default settings 36
software update 36
software version 36
amplier 40
audio
formats 38
HDMI audio 34
input mapping 32
language 34
night mode 34
options 23
post processing 34
predenedmodes 19
quality 15
settings 34
source 16
specications 40
subwoofer volume 12
audio formats 38
audio input mapping 32
audio language 34
audio options 23
auto standby 35
B
bass 19
BD-Live
BD-Live(SDcard) 21
BD-Live(USB) 21
clear memory 21
disable 22
troubleshooting 41
Blu-ray 19
Bonus View 20
brightness 36
EN
45
English
format 40
format SD card 31
H
HDMI
audio 34
Deep color 33
TV (HDMI ARC) 14
video 33
HDMI-CEC 31
help
navigate 4
read 4
update 5
I
Internet
BD-Live 21
connect to 16
online video stores 31
update home theater software 36
iPod and iPhone
dock your iPod or iPhone 26
music 26
Philips dock 13
video and slideshow 26
L
language
2nd audio language 20
2nd subtitle language 20
audio 34
disc menu 35
language code 43
onscreen menu 34
subtitle 35
legal notices 6
M
Macintosh Twonky Media 29, 27
main unit
overview 9
specications 40
troubleshooting 41
media formats 38
media server software 27
Microsoft Windows Media Player 11 28
Microsoft Windows Media Player 12 28
MP3
play 25
discs
2D video 20
3D disc in 2D mode 20
3D video 19
audio 23
audio language 34
BD-Live 21
Bonus View 20
control buttons 20
DivX 22
eject disc 9
menu language 35
options 23
picture 24
picture-in-picture 20
play 19
subtitle 35
synchronize picture and sound 20
time search 23
titles 23
display panel 9
DivX
character set 23
subtitles 23
VOD code 23
DLNA 27
dock your iPod or iPhone 26
E
EasyLink (HDMI-CEC)
audio input mapping 32
control buttons 11
one-touchplay 32
one-touchstandby 32
system audio control 32
eject disc 9
enable
auto standby 35
auto subtitle shift 33
BD-Live 22
HDMI-CEC 31
predenedsoundmode 34
screen saver 36
energy
auto standby 35
brightness 36
screen saver 36
sleep timer 35
F
factory settings 36
FAQs 6
FM antenna 13
EN
46
PC
connect to 16
DLNA 27
media server software 27
Philips Easylink 31
options 24
rotate 24
settings 33
slideshows 24
troubleshooting 41
zoom 24
picture options 24
picture-in-picture
2nd audio language 20
2nd subtitle language 20
play
discs 19
DivX 22
from PC 30
iPod and iPhone 25
MP3 25
online video 31
radio 40
troubleshooting 41
USB 22
position
connectors 13
position 12
subtitle 33
power options
auto standby 35
brightness 36
screen saver 36
sleep timer 35
preference
audio 34
auto standby 35
auto subtitle shift 33
change password 35
disc menu 35
display panel 36
menu language 34
parental control 35
screen saver 36
sleep timer 35
subtitle 35
product specications 38
multimedia content
from disc 19
from online stores 30
from PC 27
from USB storage device 22
N
Net TV
access 30
clear browsing history 30
online video stores 31
watch Net TV page 30
network
home network 16
name a device 18
settings 16
troubleshooting 42
update home theater software 36
Wi-Fi 17
wired connection 16
wireless connection 17
night mode 34
O
one-touch play 32
one-touch standby 32
online video stores
format SD card 31
rent and play video 31
troubleshooting 41
open disc compartment 9
open source software 6
options
audio 23
picture 24
video 23
overview
browse PC 27
connectors 13
HDMI-CEC 31
main unit 9
Net TV 30
online video stores 31
remote control
1010
settings 33
P
parental control
password 35
ratings 35
password 35
EN
47
English
slideshows
animation 24
duration 24
musical 24
picture 24
smartphone
browse disc or USB from smartphone 27
smartphone as remote control 27
software
check current version 36
electronic user manual 5
update 36
sound
bass 19
equalizer 19
predenedsoundmode 19
surround sound 19
synchronize picture and sound 20
treble 19
troubleshooting 41
speaker setup
predenedmodes 19
settings 34
speakers
2.1 speakers 12
connect 12
position 12
specications 40
surround sound 19
specications 38
specications 40
standby 35
subtitle
character set 23
language 35
position 33
subwoofer
specications 40
subwoofer volume 12
synchronize picture and sound 20
system audio control 32
T
time search 23
titles 23
R
radio
control buttons 25
FM antenna 13
listen to radio 25
specications 40
tune stations 25
ratings 35
recycling 8
region codes 38
remote control
batteries 40
overview 10
rent video
format SD card 31
online video stores 31
troubleshooting 41
repeat 23
S
safety
disposal 8
use of the product 8
watching 3D 9
screen saver 36
SD card 31
settings
3D video 33
audio 34
auto subtitle shift 33
default 36
disc language 35
HDMI audio 34
HDMI video 33
HDMI-CEC 31
menu language 34
parental rating
password 35
ratings 35
password 35
picture 33
power 35
ratings 35
resolution 33
restore 36
screen saver 36
sleep timer 35
subtitle language 35
video 33
side connectors 13
sleep timer 35
EN
48
W
wired network
settings 17
wired connection 16
wireless network
settings 18
Wi-Fi 17
Wi-Fidongle 17
wireless connection 17
trademarks 6
treble 19
troubleshooting
connection 41
main unit 41
network 42
picture 41
play 41
serial number 6
sound 41
tutorials 6
U
update software
check current version 36
electronic user manual 5
from a USB storage device 37
from network 36
USB storage device
control buttons 22
options 23
play 22
specications 40
update home theater software 37
user manual
download 5
navigate 4
read 4
update 5
V
video
HDMI deep color 33
online video 31
picture resolution 33
picture settings 33
specications 40
synchronize picture and sound 20
video and slideshow 26
VOD code for DivX 23
watch 3D 20
video formats 40
video on demand
format SD card 31
online video stores 31
video options 23
VOD code for DivX 23
EN
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
sgptt_1127/12_v3
book1 back page.indd 4book1 back page.indd 4 12/29/2010 3:28:13 PM12/29/2010 3:28:13 PM
