User manual Refrigerator
PARTS AND FEATURES
1. Freezer compartment
2. Temperature control dial
3. Drip tray
4. Removable shelf
5. Bottle storage
6. Can dispenser
7. Tall Bottle storage

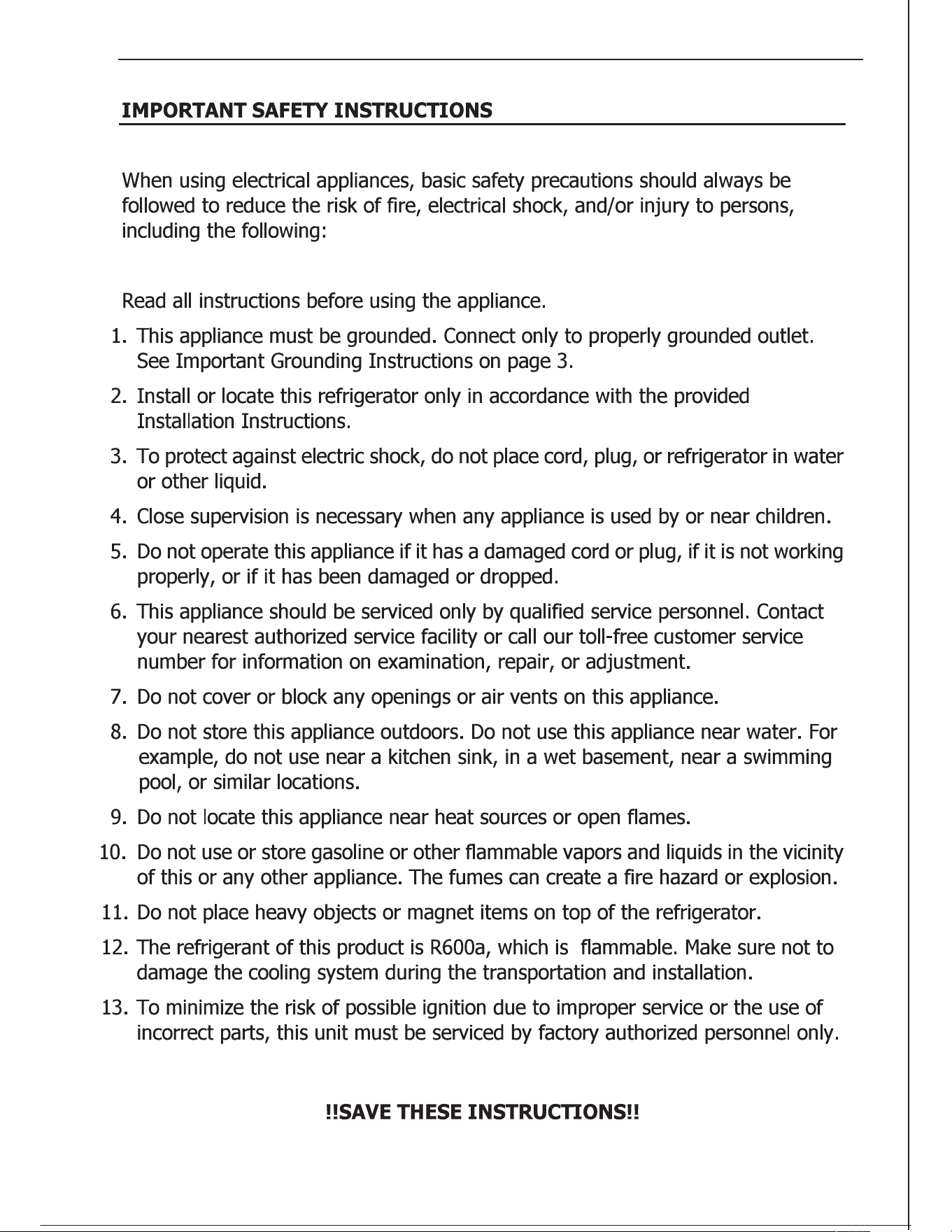

IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances. basic safety precautions should always be followed to reduce the risk of fire. electrical shock. and/or injury to persons. including the following:
Read all instructions before using the appliance.
1. This appliance must be grounded. Connect only to properly grounded outlet.
See Important Grounding Instructions on page 3.
2. Install or locate this refrigerator only in accordance with the provided
Installation Instructions.
3. To protect against electric shock. do not place cord. plug. or refrigerator in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
6.This appliance should be serviced only by qualified service personnel. contact your nearest authorized service facility or call our toll-free customer service number for information on examination, repair, or adjustment.
7. Do not cover or block any openings or air vents on this appliance.
8. Do not store this appliance outdoors. Do not use this appliance near water For example, do not use near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
9. Do not locate this appliance near heat sources or open flames.
10. Do not use or store gasoline or other flammable vapors and liquid in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
11. Do not place heavy objects or magnet items on top of the refrigerator.
12. The refrigerant of this product is R600a, which is flammable. Make sure not to damage the cooling system during the transportation and installation.
13. To minimize the risk of possible ignition due to improper service or the use of incorrect parts, this unit must be serviced by factory authorized personnel only.

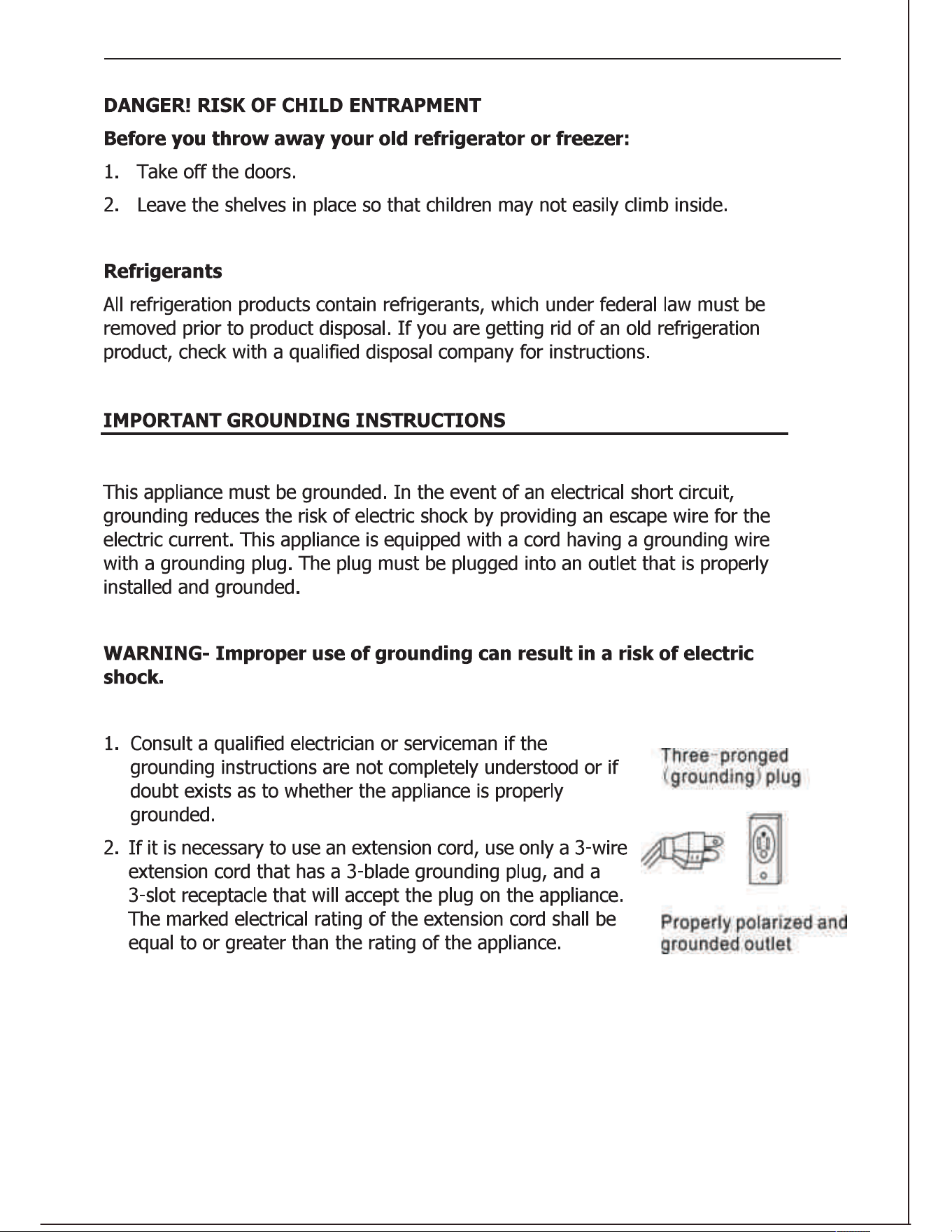

IMPORTANT GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit. grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
WARNING-Improper use of grounding can result in a risk of electric shock.
1. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.
2. If it is necessary to use an extension cord. use only 3-wire extension cord that has a 3-blade grounding plug. and a 3-slot receptacle that will accept the plug on the appliance. The marked electrical rating of the extension cord shall be equal to or greater than the rating of the appliance.

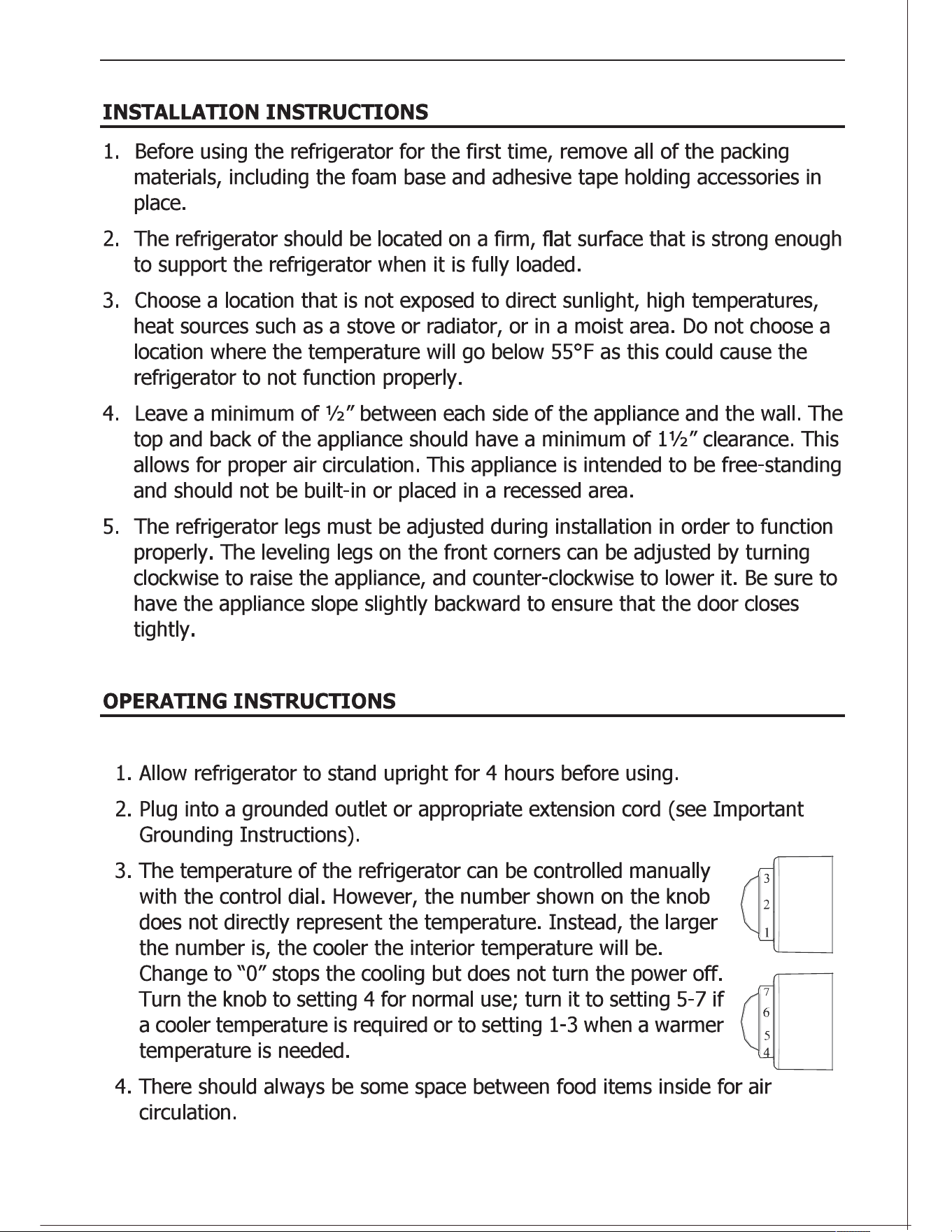

INSTALLATION INSTRUCTIONS
1. Before using the refrigerator for the first time. remove all of the packing materials.
2. The refrigerator should be located on a firm. flat surface that is strong enough to support the refrigerator when it is fully loaded.
3. Choose a location that is not exposed to direct sunlight. high temperatures. heat
4. Leave a minimum of ½" between each side of the appliance and the wall. The top
5. The refrigerator legs must be adjusted during installation in order to function
OPERATING INSTRUCTIONS
1. Allow refrigerator to stand upright for 4 hours before using.
2. Plug into a grounded outlet or appropriate extension cord (see Important Grounding Instructions).
3. The temperature of refrigerator can be controlled
4. Food should be kept in sealed containers to prevent
5. Hot food should be cooled down before placing into the appliance to prevent
6. Reducing the frequency of door opening can lower power consumption.

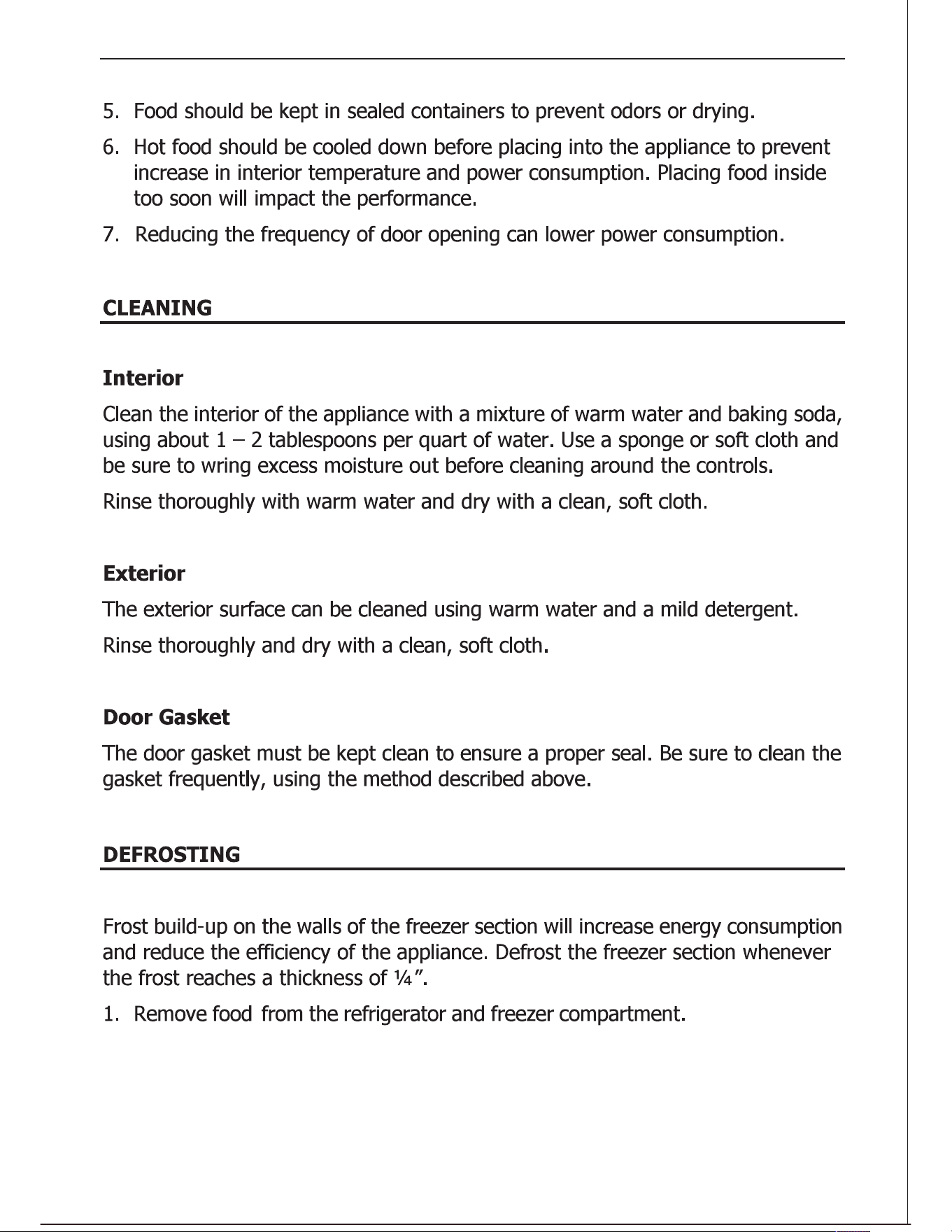

CLEANING
Interior
Clean the interior of the appliance with a mixture of warm water and baking soda. using about 1-2 tablespoons per quart of water. Use a sponge or soft cloth and be sure to wring excess moisture out before cleaning around the controls.
Rinse thoroughly with warm water and dry with a clean. soft cloth.
Exterior
The exterior surface can be cleaned using warm water and a mild detergent.
Rinse thoroughly and dry with a clean. soft cloth.
Door Gasket
The door gasket must be kept clean to ensure a proper seal. Be sure to clean the gasket frequently. using the method described above.
DEFROSTING
Frost build-up on the walls of the freezer section will increase energy consumption and reduce the efficiency of the appliance. Defrost the freezer section whenever the frost reaches a thickness of ¼".
1. Remove food from the refrigerator and freezer compartment.

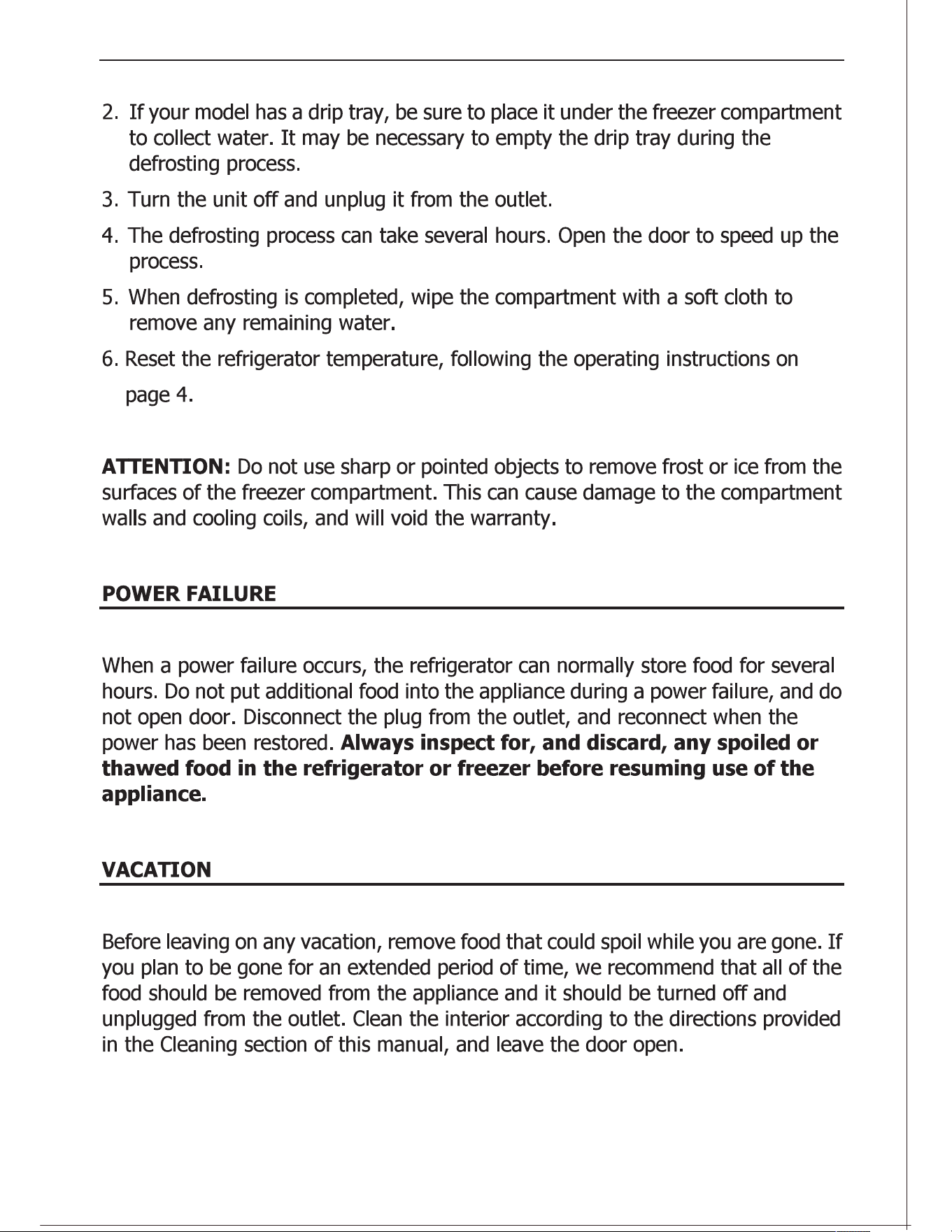

2. If your model has a drip tray. be sure to place it under the freezer compartment
3. Turn the unit off and unplug it from the outlet.
4. The defrosting process can take several hours. Open the door to speed up the process.
5. When defrosting is completed, wipe the compartment with a soft cloth to remove any remaining water.
6. Reset the refrigerator temperature, following the operating instructions on page 4
ATTENTION: Do not use sharp or pointed objects to remove frost or ice from the surfaces of the freezer compartment. This can cause damage to the compartment walls and cooling coils, and will void the warranty.
POWER FAILURE
When a power failure occurs. the refrigerator can normally store food for several hours. Do not put additional food into the appliance during a power failure. and do not open door. Disconnect the plug from the outlet. and reconnect when the power has been restored. Always inspect for. and discard. any spoiled or thawed food in the refrigerator or freezer before resuming use of the appliance.
VACATION
Before leaving on any vacation. remove food that could spoil while you are gone.If you plan to be for an extended period of time. we recommend that all of the food should be removed from the appliance and it should be turned off and unplugged from the outlet. Clean the interior according to the directions provided in the Cleaning section of this manual. and leave the door open.

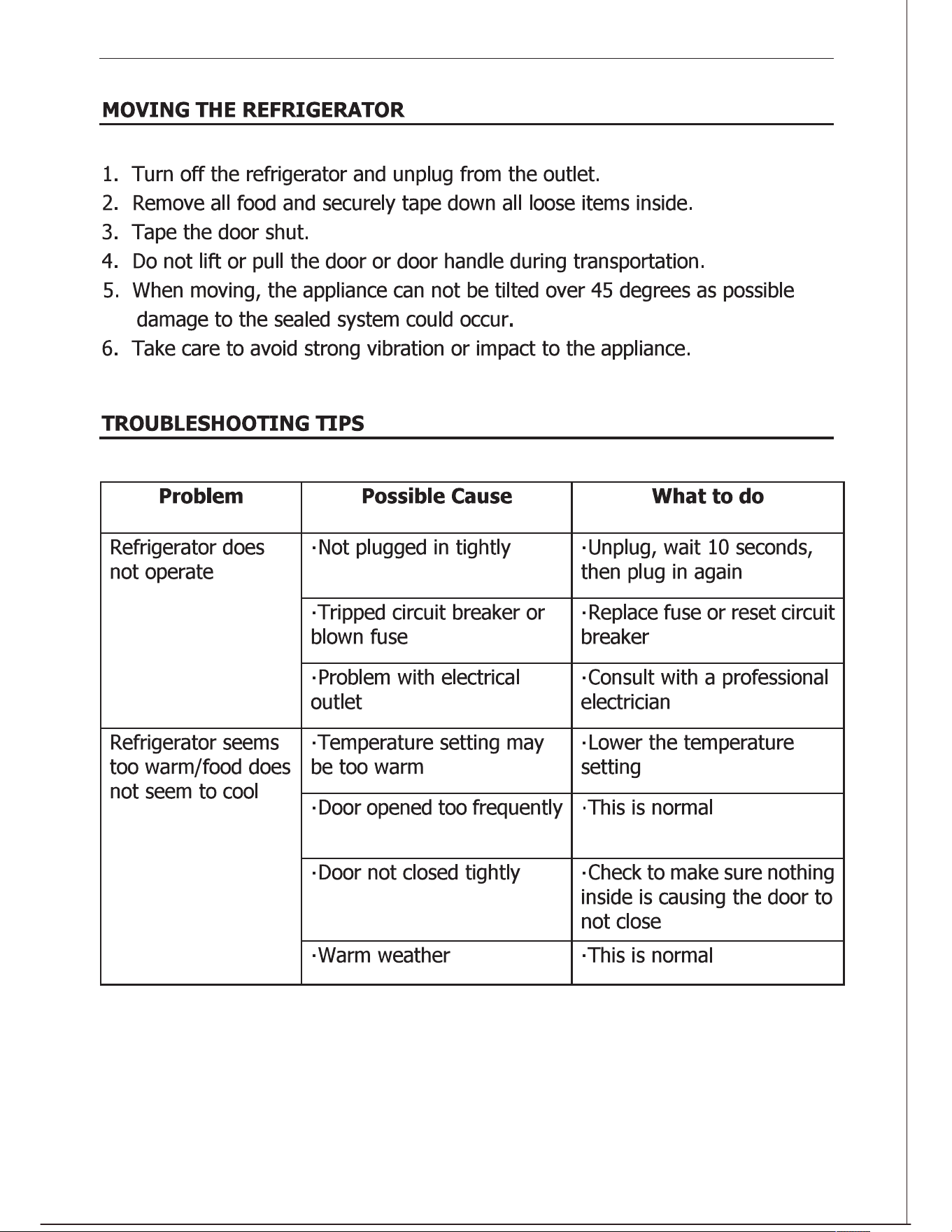

MOVING THE REFRIGERATOR
1. Turn off the refrigerator and unplug from the outlet.
2. Remove all food and securely tape down all loose items inside.
3. Tape the door shut.
4. Do not lift or pull the door of door handle during transportation.
5. When moving. the appliance can not be tilted over 45 degrees as possible
6. Take care to avoid strong vibration or impact to the appliance.
SPECIFICATIONS
TROUBLESHOOTING TIPS
Problem | Possible Cause | What to do |
Refrigerator does not operate | Not plugged in tightly | Unplug, wait 10 seconds, then plug in again |
Tripped circuit breaker of blown fuse | Replace fuse or reset circuit breaker | |
Problem with electrical outlet | Consult with a professional electrician | |
Refrigerator seems too warm/food does not seem to cool | Temperature setting may be too warm | Lower the temperature setting |
Door opened too frequently | Check to make sure nothing inside is causing the door to not close | |
Warm weather | This is normal | |
Compressor runs too long, or cycles on and off frequently | Hot weather | This is normal |
Door opened too frequently | Check to be sure nothing inside the refrigerator is preventing the door from closing | |
Temperature control set at coldest setting | Adjust temperature to a warmer setting | |
Large amounts of food placed in refrigerato | This is normal | |
Moisture forms on the outside of the appliance | This is normal during periods of high humidit | Wipe the surface dry using a soft cloth |
The door is slightly open | Close the door tightly | |
Moisture forms on the inside of the appliance | This is normal during periods of high humidity | This is normal |
Door is opened too long or too frequently | Do not open the door too long or too frequently | |
Vibration noise | Refrigerator is on an uneven surface | Adjust the leveling legs |
Refrigerator is touching a wall | Move the refrigerator away from the wall | |
|
The following are normal conditions that can be encountered during the operation of this appliance:
- The flow of refrigerant through the coils can cause a noise.
- The sides of the appliance may become warm as a result of the cooling function.
INSTALL THE HANDLES
1. Take out accessory from packing bags: one handle, one handle cover, and three screws.
2. Prepare a cross screwdriver.
