Installation instructions
Washing machine
One-family household
1014123-R03
31/10/2017
1014123-R03
1
For Service and Spare Part Information please contact: V-ZUG AUSTRALIA Pty. Ltd. Tel+61732096822
The appliance should be installed by qualified personnel only.
Each step must be carried out and checked in full in the order specified.
Validity
These installation instructions apply to the models: L (11010), S (11011), SL (11012), SLQ (11013), SLQ WP (11014)
Identification plate
1
▸ Open the drain tray below the appliance door (see «1. Opening
the appliance door»)
– Identification plate 1
Transport
If the weight of the appliance is greater than your lifting capacity, the appliance must be transported by several
people or using a transport aid. The weight of the appliance is given on the appliance packaging and in the operating
instructions.
Transport the appliance in an upright position only! Transporting it in any other position will cause damage. When
carried carefully without being shaken, the appliance may be tilted a maximum of 90° to the right (viewed from the
front).
Applicable only to model SLQ WP:
In the event that the appliance is tilted during transportation or installation it must not be put into operation for 2
hours.
Installation accessories supplied
The necessary installation accessories are located in the washing drum and in the appliance packaging.
Designation Article no. Number See installation step
Installation set, incl.:
▪ Rubber stopper
▪ Screw material
▪ External drain hose
▪ Wire hose clamp
▪ Hose support
W41152 1

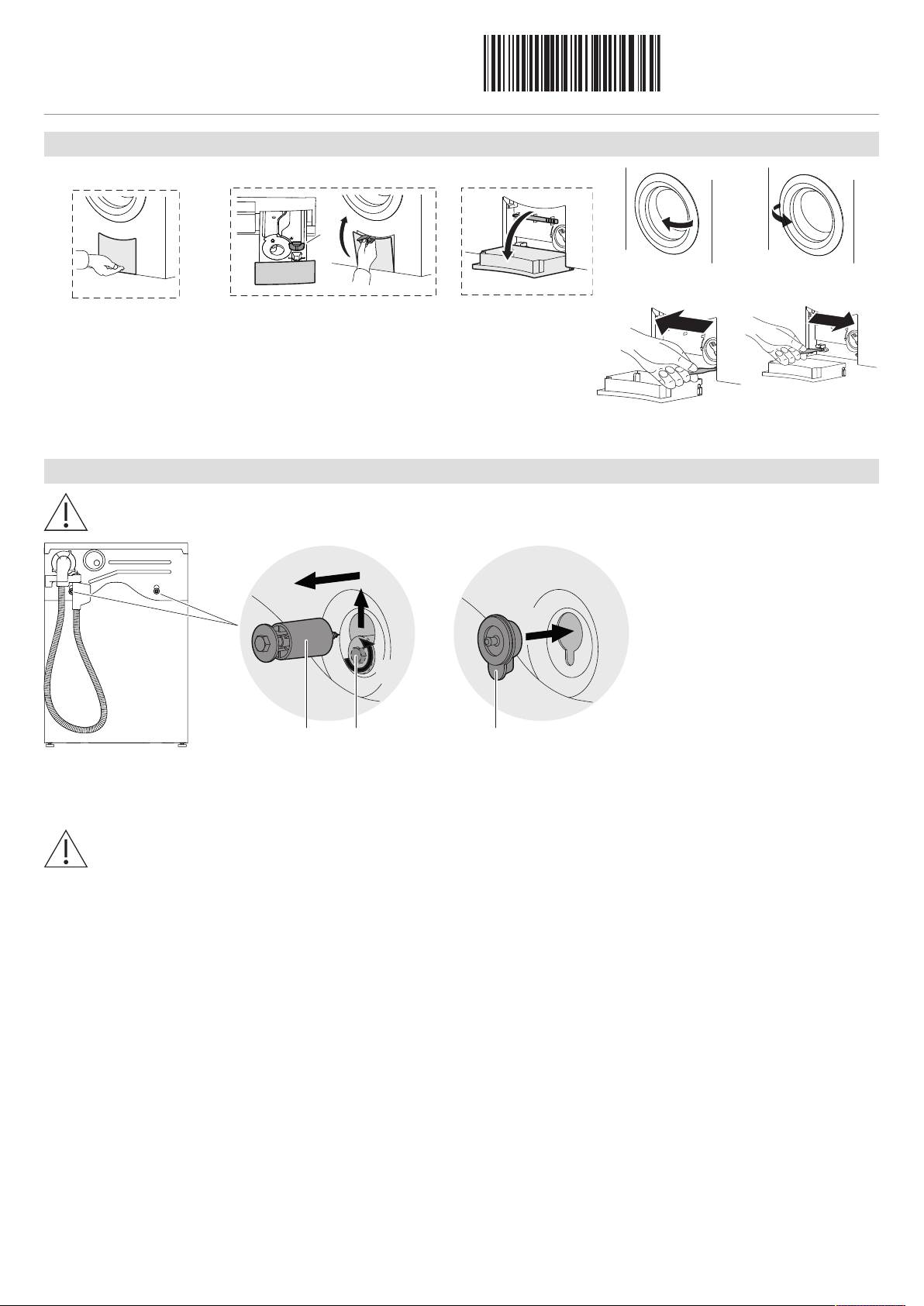

2 2. Removing the transport lock

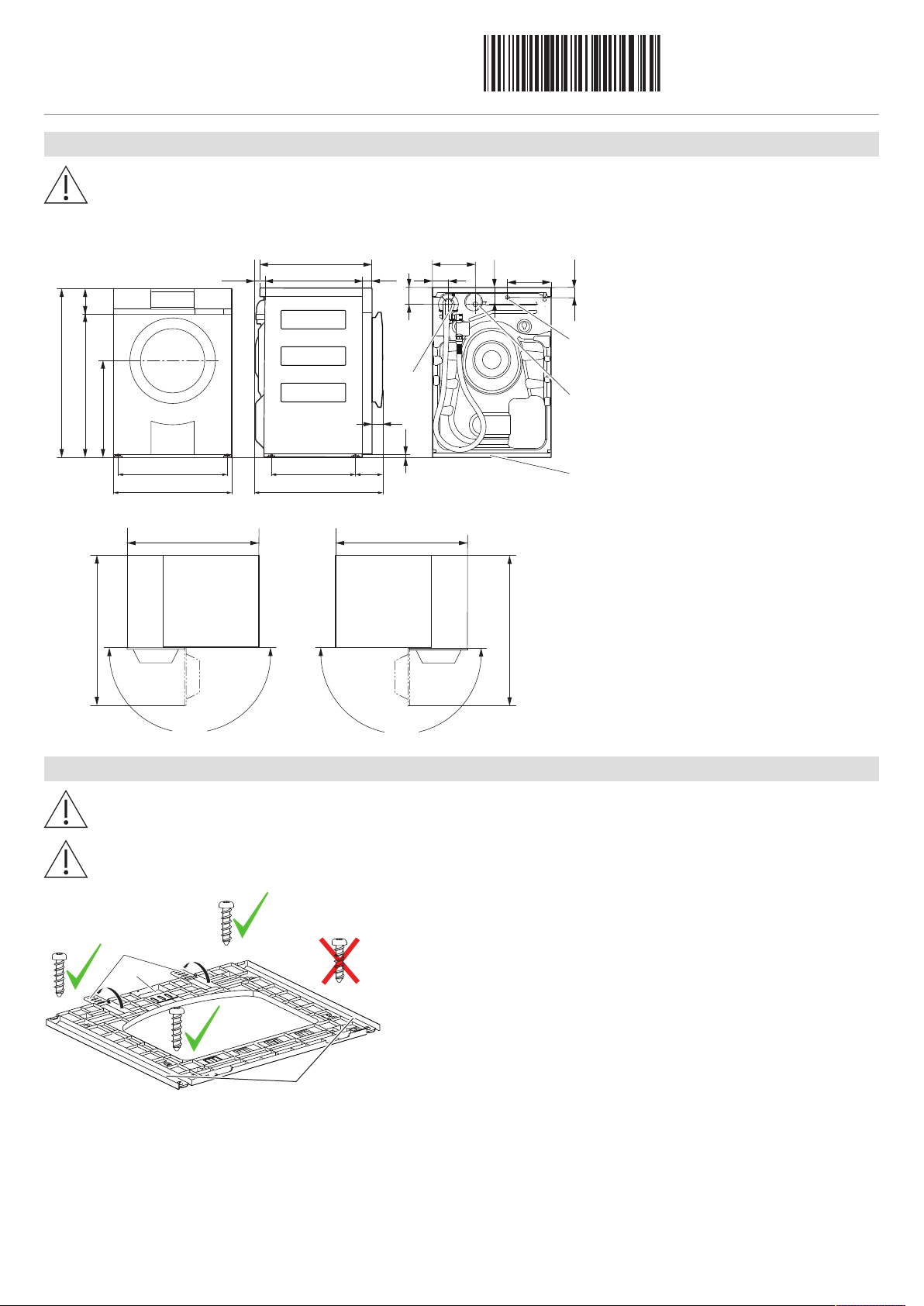

1 4. Positioning the installation plate

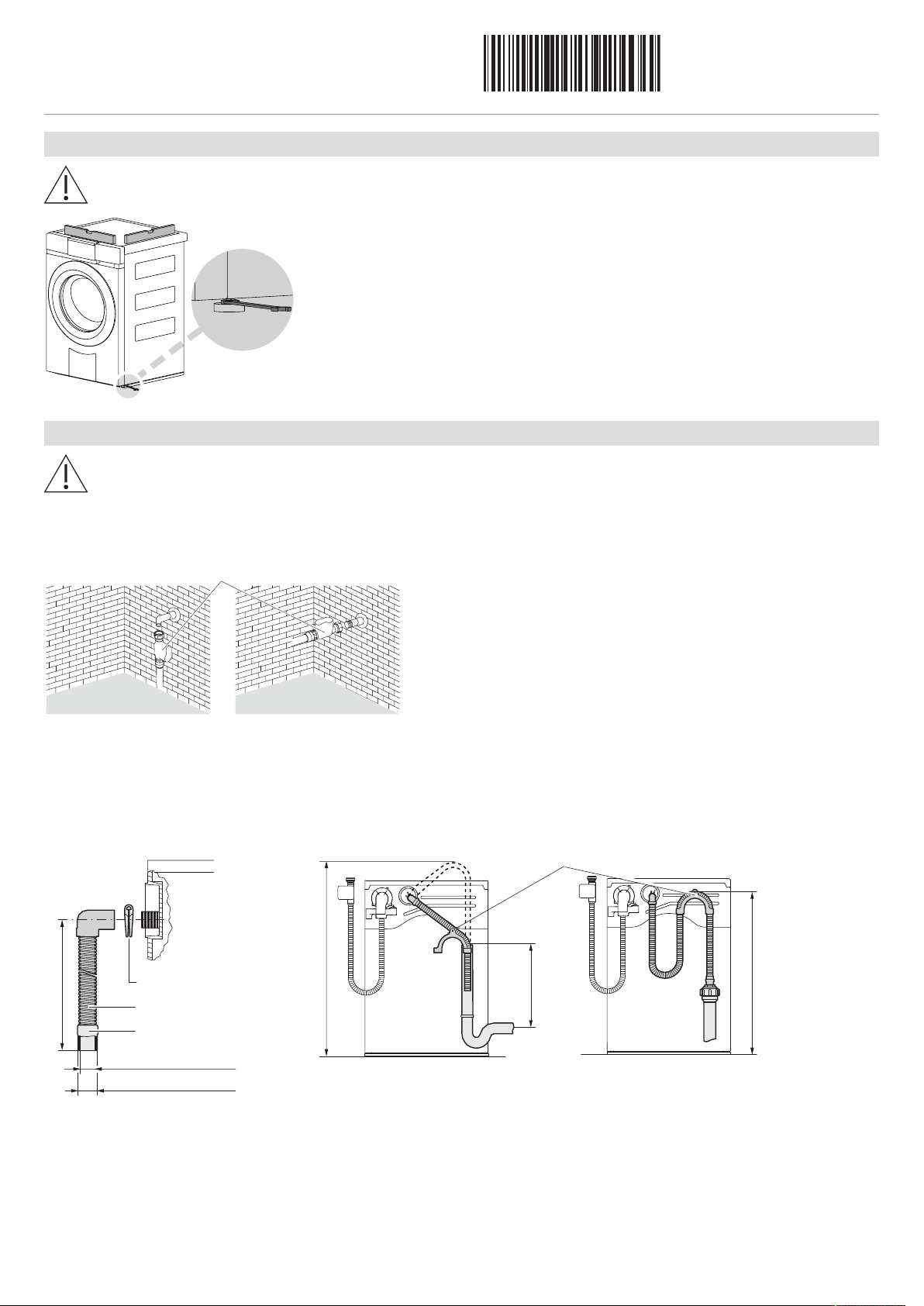

1 5. Plumbing in
1 5. Plumbing in
1 5. Plumbing in
Installation plate (incl. double-sided
adhesive tape)
W40653 1 4. Positioning the installation plate
