User Manual Comfee ‎CLV16N2AMG - 1.6 Cu.ft Portable Washing Machine

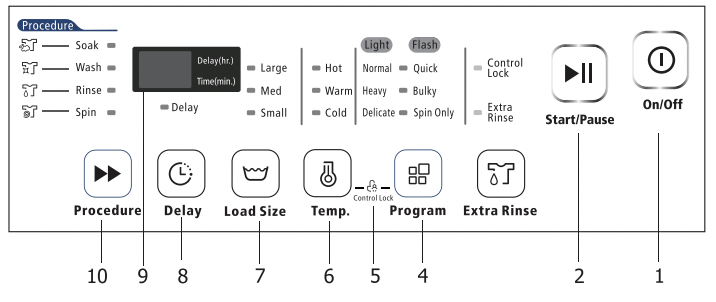

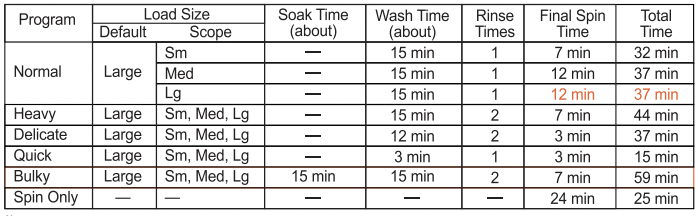

First, select your desired washing program.

Normal. (light)

Quick (Flash)

Heavy. (light)

Bulky. (Flash)

Delicate. (light)

Spin Only (Flash)

The Spin Only cycle can help remove some moisture from clothing to reduce drying time and cost.

Third, select your desired wash cycle steps. If you want the wash cycle to perform all four steps, just keep them lighted. Pressing the button will change the number of steps performed.

In addition to Soak / Wash / Rinse / Spin you can select Wash / Rinse / Spin, Wash /Rinse, Rinse /Spin, Wash, or Spin.

Fourth, select your desired water temperature for washing action. For some cycles, options in this function will be limited accordingly.

Cold light only indicates Cold Water selection

Warm light only indicates Warm Water selection.

Hot light only indicates Hot Water selection.

Note: The temperature setting is just for washing action. Rinsing action is cold water only for all cycles.

Last, you may delay the start time for washing if desired. Press the Delay button. The display will change from minutes to hours. Each further press of the Delay button will add 1 hour to the display up to 24 hours. One more press will cancel the Delay function and the display light will turn off.

Press and hold the “Temp.” and “Program” buttons simultaneously to activate this function.The Control lock will light.

Press and hold the “Temp” and “Program” buttons simultaneously again to deactivate this function.

When Control Lock is activated, no buttons will function except for POWER and the ability to deactivate Control Lock as described above.

Problem

Possible Cause

Solutions

Thumping sound

Heavy wash loads may produce a thumping sound. Washer load may be out of balance.

This is normal. If sound continues, washer is probably out of balance. Stop and redistribute wash load. Pause the cycle and redistribute the load.

Vibrating noise

Packaging materials were not removed.

Wash load may be unevenly distributed in the tub.

Not all leveling fee t are resting firmly and evenly on the floor.

Floor not rigid enough.

See the UNPACKING AND REMOVING SHIPPING MATERIAL section in the installation instructions.

Pause the cycle and redistribute the load. See Leveling the Washer in the Installation Instructions.

Make sure that the floor is solid and does not flex.

See Flooring in the Installation Requirements.

Excessive sudsing

Too much detergent or incorrect detergent.

HE detergents are formulated specifically for High-Efficiency washers and contain suds reducing agents. Only use detergent with the High-Efficiency (HE) logo.

Water leaking

Inlet hose connection is loose at faucet or washer. House drain pipes are clogged. Drain hose has come out of drain or is not inserted far enough. A large item such as a pillow or blanket is above the top of the tub.

Check hoses for leaks, cracks and splits. Check and tighten hose connections.

The washer pumps out water very rapidly. Check for water backing up out of the drain pipe during drain. If water is seen coming out of the drain, check for proper drain hose installation and check for restrictions in the drain. Contact a plumber to repair drain pipe.

Tie drain hose to inlet hose or standpipe to prevent it from coming out during drain. For smaller drain pipes, insert the drain hose into the pipe as far as the drain hose flange. For larger drain pipes, insert the drain hose into the pipe 1-2 in. past the flange.

Stop the washer and check the load. Make sure the load does not crest above the top edge of the tub.

Rattling and clanking noise

Foreign objects, such as keys, coins, or safety pins, may be in tub or pump.

Stop washer, check tub and drain filter for foreign objects.

If noise continues after washer is restarted, call for service.

Wrinkling

Washer not unloaded promptly.

Washer overloaded. Hot and cold water inlet hoses are reversed.

Always remove items from the washer as soon as the cycle is complete.

The washer can be fully loaded, but the tub should not be tightly packed with items. The lid of the washer should close easily.

Hot water rinse can set wrinkles in garments. Check the inlet hose connections.

Staining

Washer was not unloaded promptly.

Clothes were not properly sorted.

Always remove items from the washer as soon as possible after the cycle is complete. Always wash dark colors separately from light colors and whites to prevent discoloration. Never wash heavily soiled items washed with lightly soiled items.

Wash cycle time is longer than usual

The washer automatically adjusts the wash time for the amount of laundry, water pressure and other operating conditions.

This is normal. The washer adjusts cycle time automatically to provide optimal results for the selected cycle. The time remaining shown in the display is only an estimate. Actual time may vary.

Musty or mildewy odor in washer

Incorrect or too much detergent has been used. Inside of tub was not cleaned properly.

Use only High-Efficiency (HE) detergent in accordance with the manufacturer’s instructions. Run an Express cycle with bleach once a month to clean tub and remove any mold from inside washer.

Washer will not turn ON

NOTE:

If the washer stopped during a cycle due to a loss of power, the washer will resume the cycle where It stopped when the power is restored.

Power cord is not properly plugged in.

House fuse is blown, circuit breaker has tripped, or power outage has occurred.

House fuse is blown, circuit breaker has tripped, due to multiple appliances on one outlet.

Make sure that the plug is plugged securely into a grounded,3-prong, 120-VAC, 60-Hz outlet.

Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.

Reset circuit breaker or replace fuse. If more than one appliance is connected to the outlet, call an electrician to have an additional circuit installed.

Water leaks

Over sudsing of detergent.

Overs sudsing may create leaks, and may be caused by the type and amount of detergent used.

High-Efficiency detergent is the only detergent recommended. Make sure that detergent and any additives are put into the correct dispenser compartments.

The normal amount of detergent to use is 1/4 to 1/2 of the maximum amount recommended by the detergent manufacturer. Always reduce the amount of detergent if the load is small or lightly soiled, or if your water big very soft.

Never use more than the maximum amount recommended by the detergent manufacturer

Poor stain removal

Previously set stains.

Articles that have previously been washed may have stains that have been set. These stains may be difficult to remove and may require hand washing or pre-treating to aid in stain removal.

Washer will not drain water

Kinked drain hose. Drain located higher than 48 in. above the floor.

Ensure that the drain hose is not kinked. Make sure that the drain hose is no higher than 4 ft. above the bottom of the washer and is no more than 5 ft. away from the washer.

Washer will not operate

Water supply is turned off. Control panel has powered off due to inactivity.

Washer is unplugged. Controls are not set properly.

Lid is open.

Circuit breaker/fuse is tripped/blown.

Control needs to be reset. START/PAUSE was not pressed after a cycle was set.

Extremely low water pressure.

Washer is too cold.

Washer is running under Delay start program.

This is normal. Press the POWER button to turn the washer on.

Make sure cord is plugged securely into a working outlet.

Turn both hot and cold faucets fully on. Make sure the cycle was set correctly, close the lid and press the START/ PAUSE button.

The washer will not operate if the lid is open. Close the lid and make sure that nothing is caught under the lid preventing it from closing completely.

Check house circuit breakers/fuses. Replace fuses or reset breaker. The washer should be on a dedicated branch circuit. The washer will resume the cycle where it stopped once power is restored. Press the POWER button, then re-select the desired cycle and press the START/ PAUSE button.

Press the POWER button then re-select the desired cycle and press the START/ PAUSE button. The washer will shut off if the START/PAUSE button is not pressed within ten minutes.

Check another faucet in the house to make sure that household water pressure is adequate.

If the washer has been exposed to temperatures below freezing for an extended period of time, allow it to warm up before pressing the POWER button. Otherwise, the display will not come on. It’s normal if the unit doesn’t operate under Delay start function. It will start automatically after the delay time is out.

Washer not filling properly

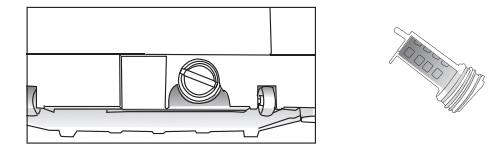

Filter clogged.

Inlet hoses may be kinked. Insufficient water supply. The washer lid is open.

Hot and cold inlet hoses are reversed.

Water level is too low. Water inlet valve damaged.

Disassemble the water inlet hose and clean the inlet point. Check that inlet hoses are not kinked or clogged.

Make sure that both hot and cold water faucets are turned on all the way.

The washer will not operate if the lid is open. Close the lid and make sure that nothing is caught under the lid preventing it from closing completely.

Check inlet hose connections. Make sure the hot water supply is connected to the hot inlet valve, and the cold water supply is connected to the cold inlet valve.

This is a high efficiency washer. The water will not normally cover the clothes. The fill level is optimized for the wash motion to achieve the best wash performance.

Call to the service center for service.

Water leaks every load

Hoses not installed correctly.

Check all fiII and drain hose connections to ensure that they are tight and secure.

Error Code

Possible Cause

Solutions

E1

It takes over 30 minutes to fill water but cannot achieve its preset water level.

Check for Washer not filling properly and Water leakage.

E2

It takes over 10 minutes to drain water but can not drain the washer empty.

Check for Washer will not drain water.

E3

The top lid is open.

Close the lid and Press the ON/OFF button.

E4

The washer runs out of balance for three times.

Redistribute the load.

XX

Others

Please try again first, call up service line if there are still troubles.
