SETTING UP THE ADAPTER
Note: The driver software must be installed before you
connect the adapter. The adapter does not need to be
connected for the software to install.
To install on a Windows PC:
Note: If your computer does not have a disc
drive, you can download the driver from
www.insigniaproducts.com. Search for your
model number (NS-PU98505) to nd the driver
on the product page. Or, attach an external disc
drive to your computer.
1 Insert the driver CD into the optical drive on
your computer. The software should run
automatically.
The initial installation screen
opens.
Note: If the software does not run automatically,
locate and double-click Run.exe on the driver CD.
2 Click on your operating system, then follow
on-screen instructions.
Note: Windows 10 and Windows 8.1 have a built-in
driver. It allows you to use the adapter's basic
functions without installing the drivers. For other
situations, you must install the drivers from the CD.

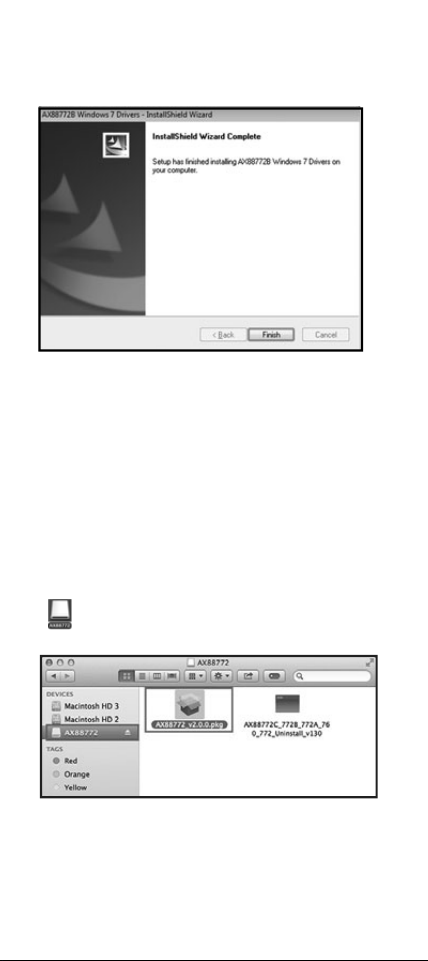

3 When the installation is complete, click
Finish to restart your computer and nish
the installation.
4 Connect the USB connector on the adapter
to an open USB port on your desktop or
laptop computer.
5 Connect a network cable to the Ethernet port
on the adapter.
To install on a Mac:

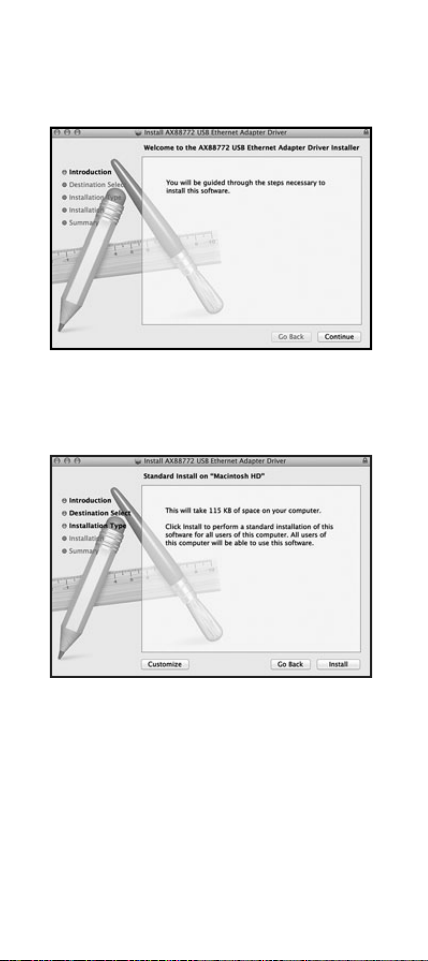

1 Insert the driver CD into the optical drive of
your computer. On the driver CD, locate and
click AX88772.dmg. Click the AX88772 icon
( ). The driver setup driver setup dialog
box opens.
Before using your new product, please read these instructions to prevent any damage.
PACKAGE CONTENTS
• USB to Ethernet Adapter
• Driver CD
• Quick Setup Guide
SYSTEM REQUIREMENTS
•
Windows10®, Windows® 8.1, Windows® 8,
Windows® 7,
OR
Mac OS 10.4.X or higher
• Available USB port
Use this adapter to instantly connect to a 10/100
Mbps network from the USB port on your desktop
or laptop computer.
QUICK SETUP GUIDE
USB to
Ethernet Adapter
NS-PU98505/NS-PU98505-C
