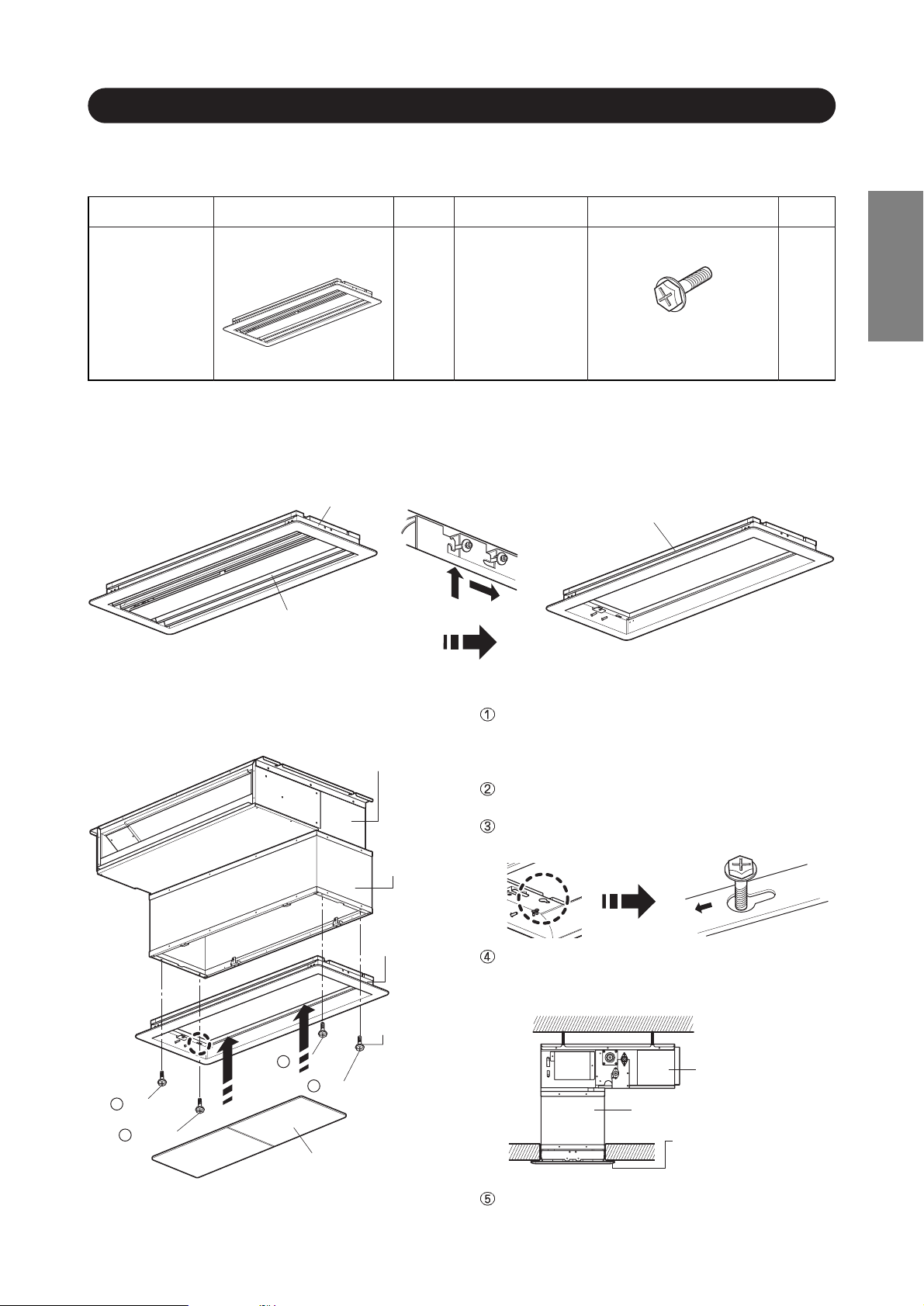

1. Check the parts.
- This manual and the parts listed below are included in the box.
2. Preparation to attach the suction grille
- As shown below, pull the central suction inlet to the side by pressing in the arrow direction to separate it
to the bottom direction.
- Remove the filter from the left and right side of the filter fixation part.
3. How to attach the suction grille
1) When using the suction canvas
Name Specification EA Name Secification EA
Suction Panel
(with air filter)
P/NO.: MFL36475201
1 4
Suction Panel
Fix bolt
Panel external housing
Internal grille
Panel external housing
Air conditioner indoor unit
Suction panel
fixation bolt (4 EA)
3
Reference
Canvas for suction panel
Canvas for suction panel
Canvas for suction panel
Air filter
3 Reference
2
Reference
2
Reference
Reference
Panel external housing
Panel external housing
Panel external housing
Attach the canvas for suction panel on the air
conditioner indoor unit.(Refer to the canvas
installation manual on details of how to attach the
canvas.)
First install 2 fixation bolts for suction panel on the
suction canvas.
Move the panel external housing in the same direction
shown below to the 2 bolts and hook them tightly.
Connect the 2 remaining bolts and tighten the bolts so
that the gap between bolt and the suction canvas is
about 3~5mm.
Fit in the air filter to the left and right filter fixation part.
M5 x 18
Air conditioner indoor unit
Canvas for suction panel
Panel external housing
Suction Grille Installation Manual(for Built-in duct)
ENGLISH
4. Attaching the suction grille to the internal grille
- When fixing the internal grille to the external grille, arrange the fixing chain not to appear by grille gap.
-
Attach the internal grill to the panel external housing in the reverse order of internal grille disassembly in 2.
First tighten 2 fixation bolts for suction panel on the
main unit of the air conditioner about 1/3.
Move the panel external housing in the same direction
shown below to the 2 bolts and hook them tightly.
Connect the 2 remaining bolts and tighten the bolts so
that the gap between bolt and the suction canvas is
about 3~5mm.
If there is a gap with the ceiling, adjust the height of
the main unit of the air conditioner.
Fit in the air filter to the left and right filter fixation part.
Panel external housing
Air conditioner indoor unit

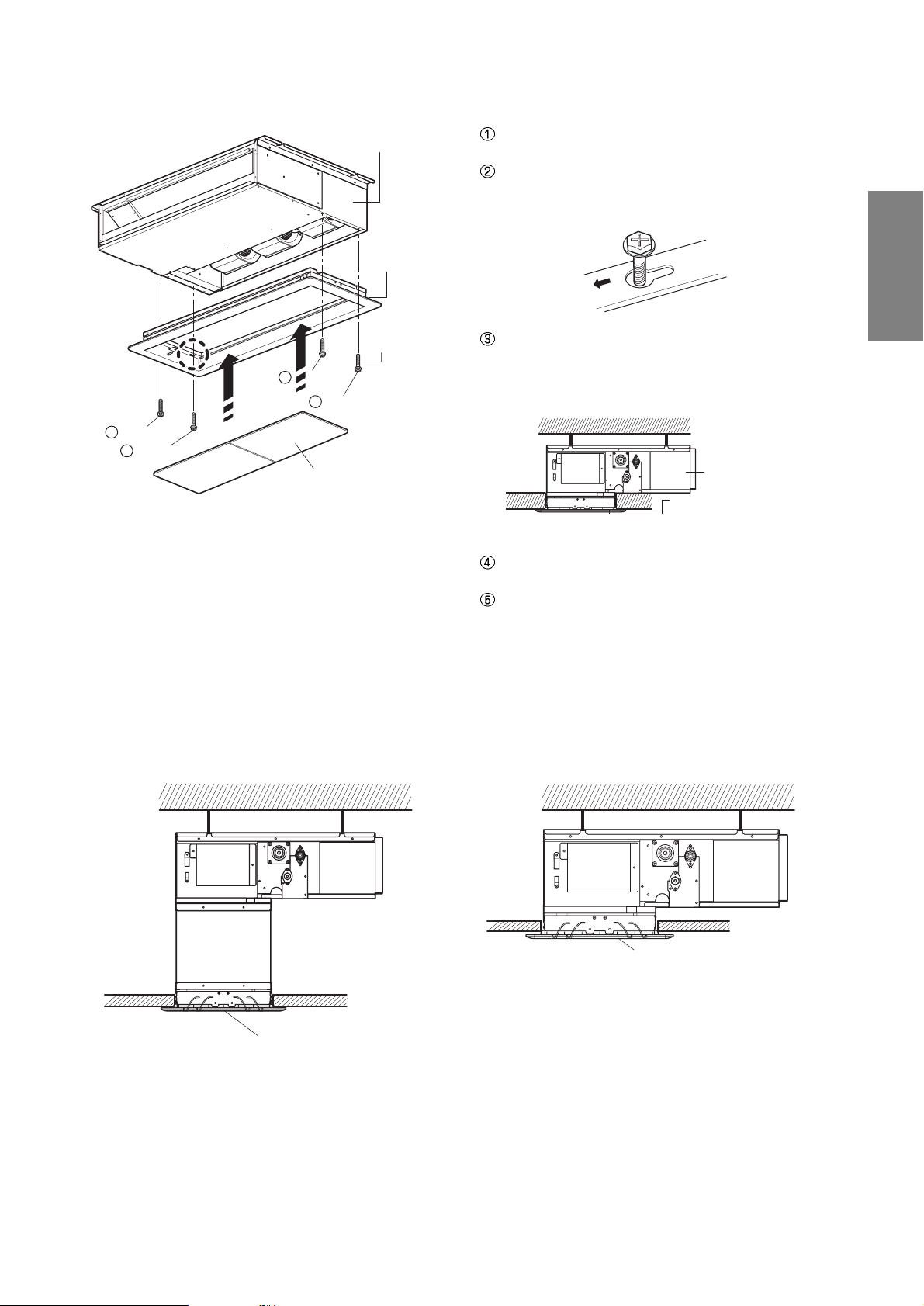

2) When attaching directly on the product
1) When using the suction canvas 2) When attaching directly on the product
Air conditioner indoor unit
Panel external housing
Suction panel
fixation bolt (4 EA)
3 Reference
Air filter
3 Reference
2
Reference
2 Reference
Reference
Reference
Internal grille
Internal grille
ENGLISH
