ENGLISH
2
ENGLISH
TABLE OF CONTENTS
4 IMPORTANT PRECAUTIONS
4 Electrical Power Related Precautions
5 Precautions for installing the Product.
6 Precautions for Moving the Product
6 Precautions for Using/Cleaning the
Product
7 On Disposal (Only, Hg lamp used LCD
Monitor)
8 LICENSES
9 ASSEMBLY AND PREPARATION
9 Optional Accessories

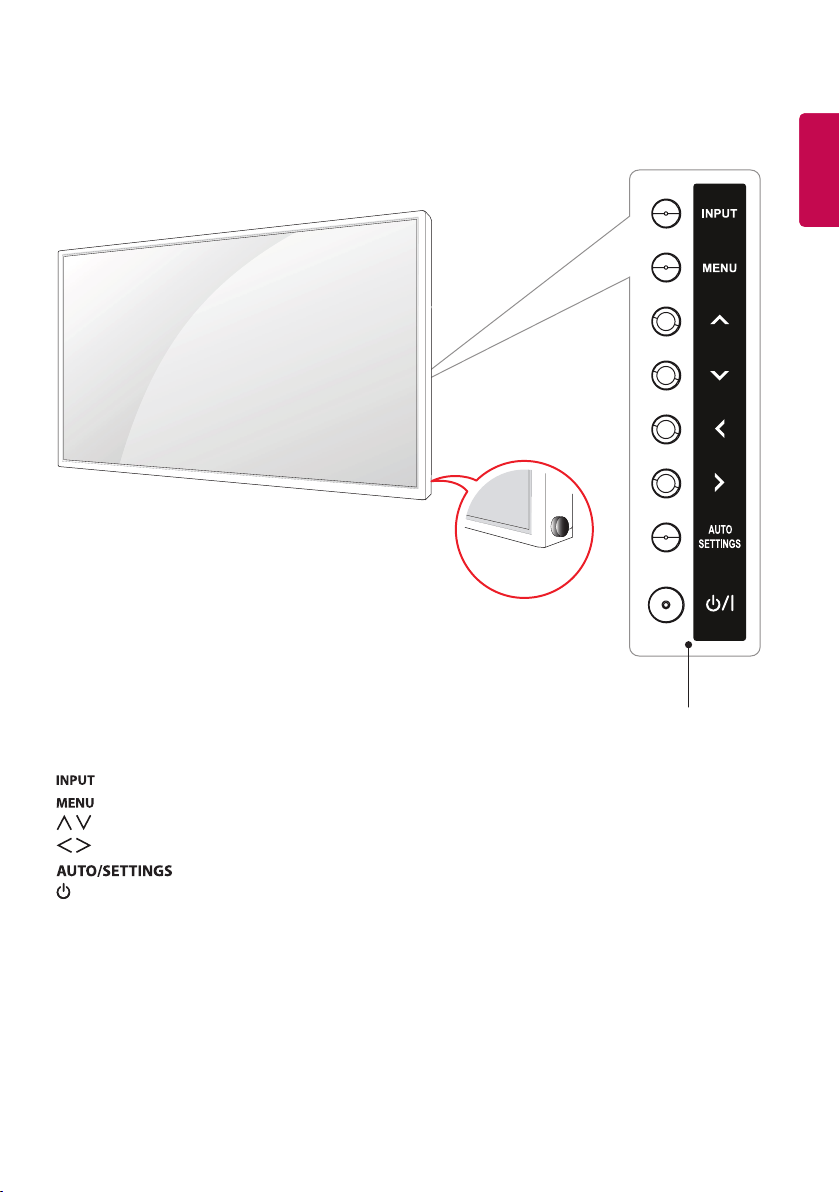

11 Parts and Buttons
12 Connecting the Speaker

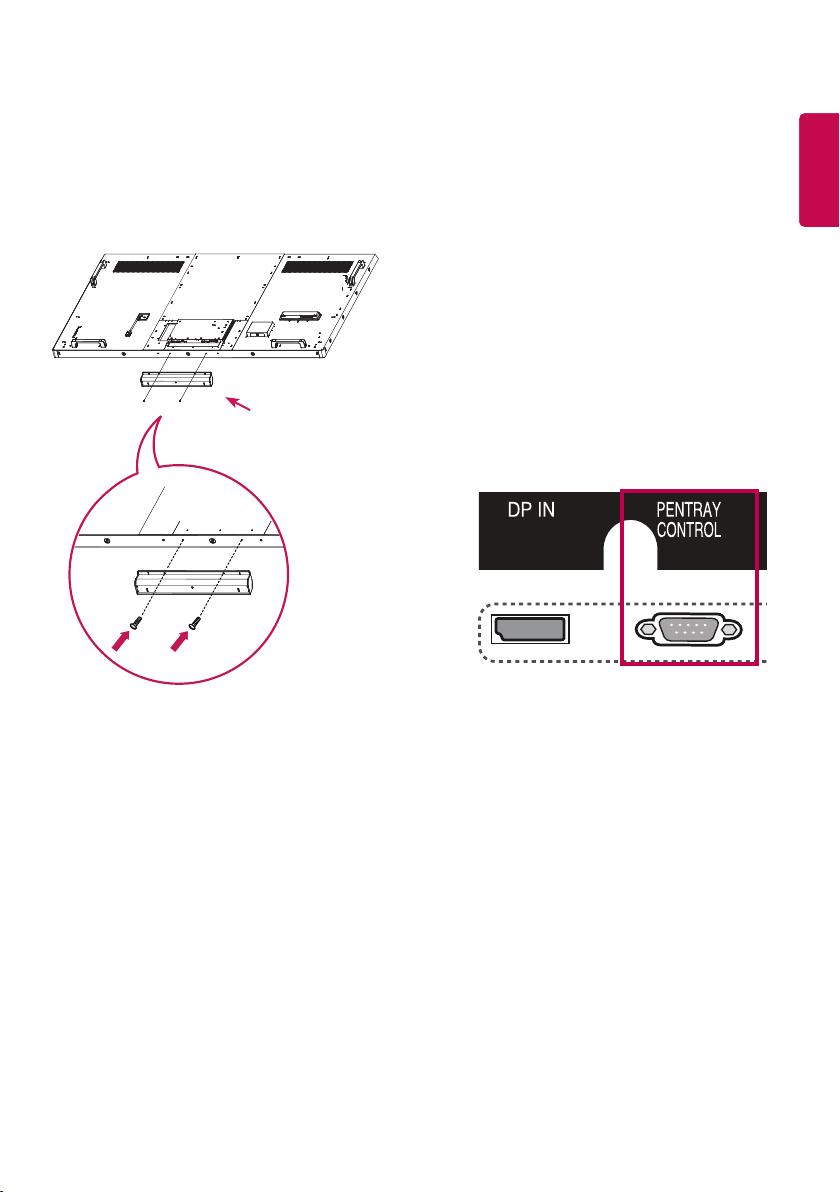

13 Connecting the PENTRAY Assembly
13 Connecting the PENTRAY CONTROL
cable

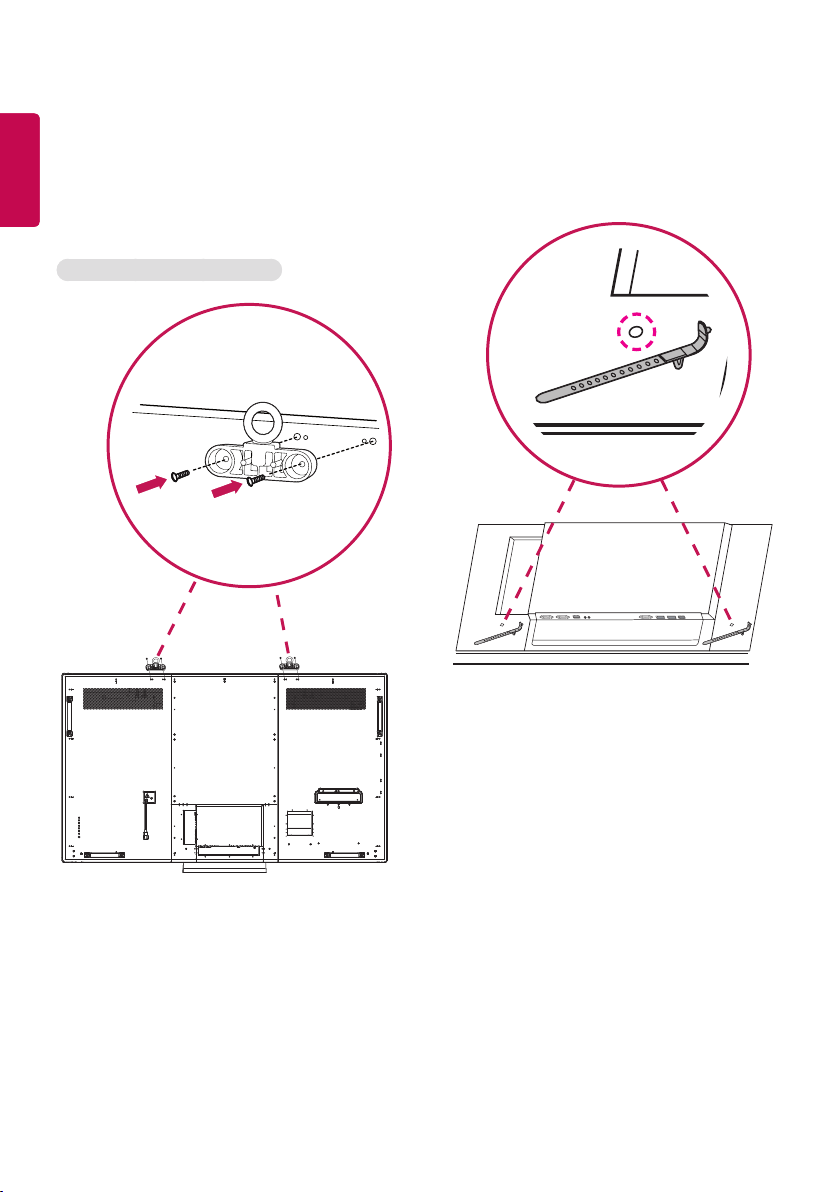

14 Connecting the Eye-Bolt Bracket
14 Using the Mounting Cable Tie
15 Connecting IR and Light Sensor
16 Connecting the Media Player

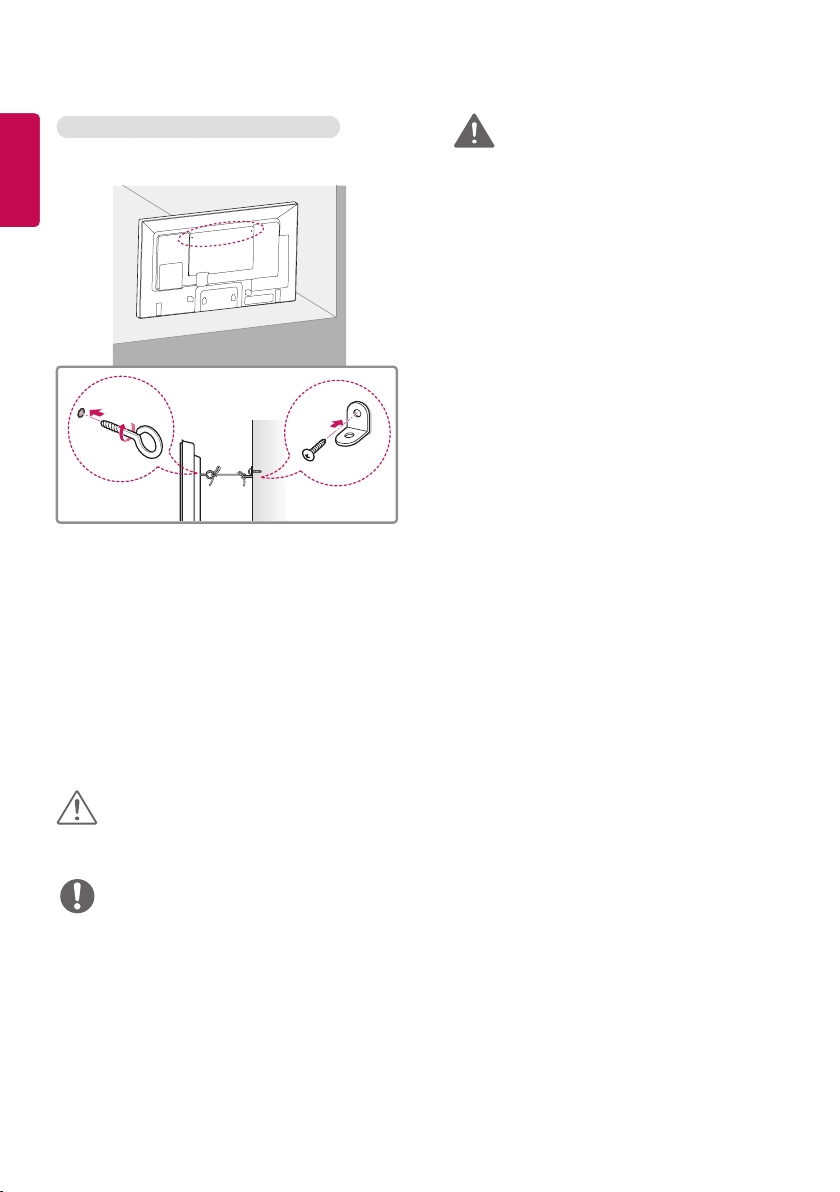

17 Installing on a Wall

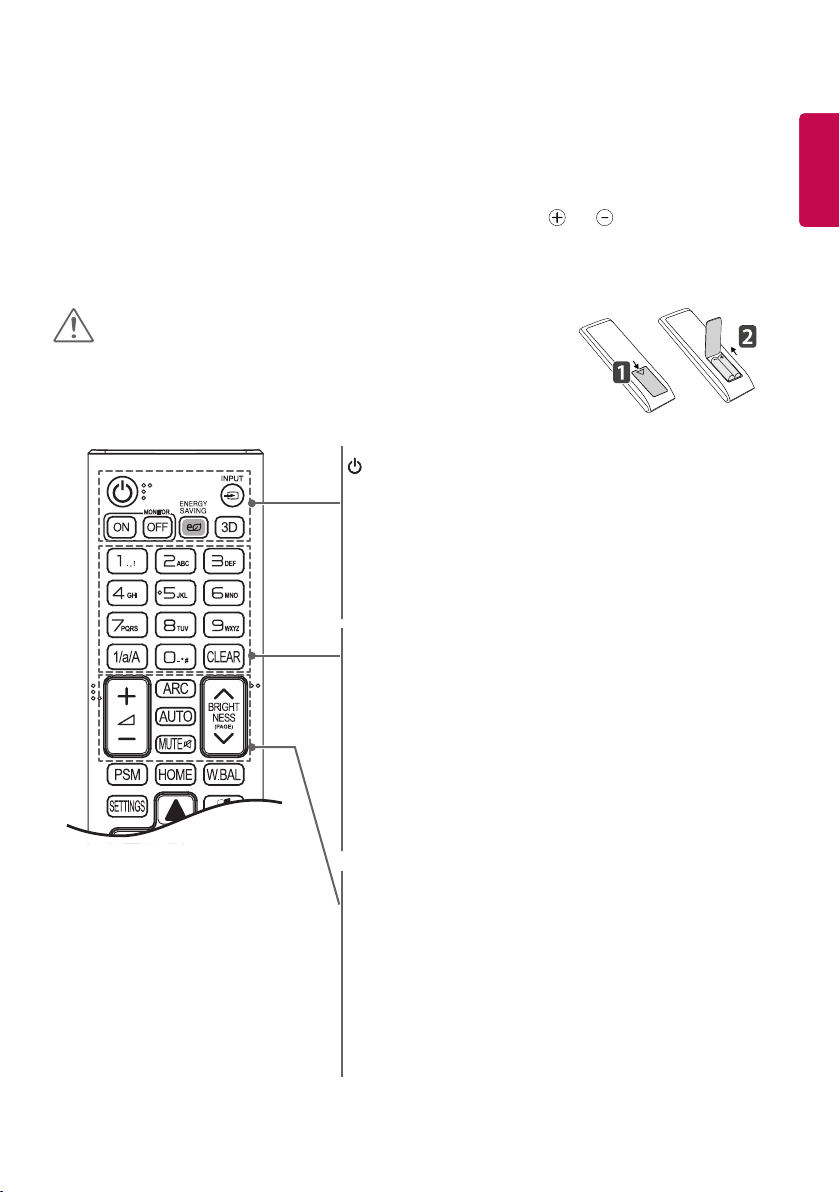

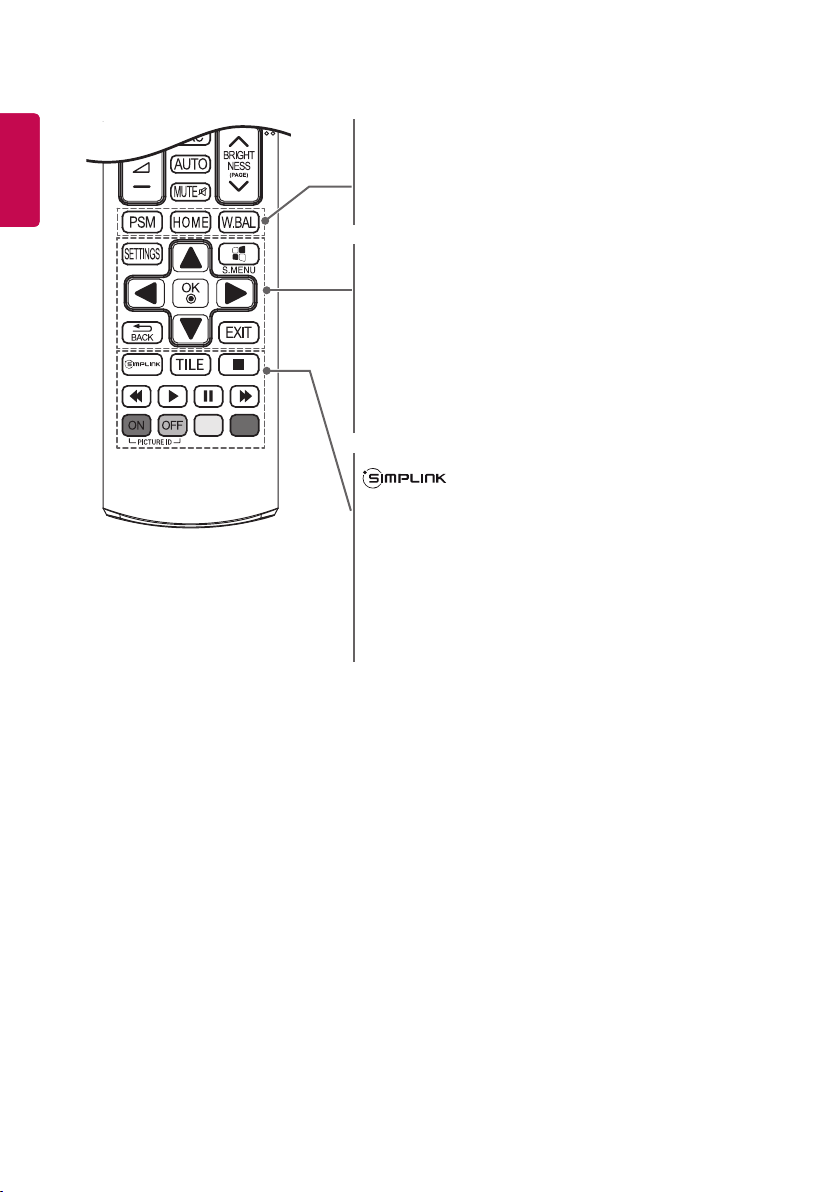

19 REMOTE CONTROL
21 USING THE MONITOR
21 Connecting to a PC
24 Using the Input List
24 ENTERTAINMENT
24 Using My Media
24 - Connecting USB storage devices
26 - Files Supported by My Media
29 - Viewing Videos
29 - Viewing Photos
30 Information
30 File Manager
31 - Listening to Music
32 - Settings
33 Screen Share
34 Picture ID Settings
35 USER SETTINGS
35 Main Menu Settings
35 - Quick Settings
36 - Picture Setting
40 - Sound Settings
41 - Network Settings
44 - General Settings
45 USING THE TOUCH SCREEN
45 To Use the Touch Screen on Windows
7 / 8.x
46 Gestures and Settings on Windows 7 /
8.x
46 Precaution When Using the Touch
Screen
46 Precaution When Using the Stylus
47 LG Touch Screen Software
47 - Specifications
47 - Precaution When Using LG Touch
Screen Software
WARNING: This product contains chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm.
Wash hands after handling
.
ENGLISH
4
ENGLISH
Important
Precautions
Please read these safety precautions carefully before
using the product.
WARNING
Failure to follow those warnings may result in
death, serious injury or damage to the product or
other property.
WARNING
• Indoor Use Only.
Electrical Power Related
Precautions
WARNING
• Use only the power cord supplied with the unit or
another manufacturer’s authorized cord.
► Failure to do so may result in fire or electrical
shock or damage to the product.
• Use only a properly grounded plug and receptacle.
► If you do not you may be electrocuted or
injured. Or the product might be damaged.
• Do not use a damaged or loose plug.
► This may cause electrical shock or fire.
• Operate the display only from a power source (i.e.
voltage) indicated in the product specification.
► Otherwise the product can be damaged, fire
can occur or you may be electrocuted. If you are
not sure what type of power supply you have,
consult a certified electrician.
• In the presence of thunder and lightning, never
touch the power cord and signal cable because it
can be very dangerous.
► It can cause electric shock.
• Do not connect several extension cords, electrical
appliances or electrical heaters to a single outlet.
Use a power strip with a grounding terminal
designed for exclusive use with the computer.
► A fire can break out due to overheating.
• Do not touch the power plug with wet hands.
Additionally, if the cord pin is wet or covered with
dust, dry the power plug completely or wipe dust
off before plugging in the cord.
► You may be electrocuted due to excess
moisture.
• If you don’t intend to use the product for a long
time, unplug the power cable from the product.
► Covering dust can cause a fire, or insulation
deterioration can cause electric leakage, electric
shock or fire.
• Insert the power plug firmly so it cannot come
loose.
► A loose connection can cause fire.
• Hold the plug when pulling out the power cable.
Do not pull the plug out by the wire. Do not bend
the power cord with excessive force or put heavy
objects on the power cord.
► The power line can be damaged, which may
cause electric shock or fire.
• Do not insert metal or other conductive materials
into the product openings. Additionally, do not
touch the power cable right after plugging into the
wall input terminal.
► You may be electrocuted.
• The appliance coupler is used as the disconnect
device.
• Please make sure the device is installed near the
wall outlet to which it is connected and that the
outlet is easily accessible.
• Do not unplug the power cord while the product
is in use.
► Electrical shock can damage the product.
• As long as this unit is connected to the AC wall
outlet, it is not disconnected from the AC power
source even if the unit is turned off.
ENGLISH
5
ENGLISH
Precautions for installing the
Product
WARNING
• Keep away from heat sources like heaters or open
flames.
► Electrical shock, fire, malfunction or deformation
may occur.
• Keep the packing anti-moisture material or vinyl
packing out of the reach of children.
► Anti-moisture material is harmful if swallowed. If
swallowed by mistake, force the patient to vomit
and visit the nearest hospital. Additionally, vinyl
packing can cause suffocation. Keep it out of the
reach of children.
• Do not put heavy objects on the product or sit
upon it.
► If the product collapses or is dropped, you
may be injured. Children must pay particular
attention.
• Do not leave the power or signal cable where
someone can trip over it.
► The passerby can falter, which can cause
electrical shock, fire, product breakdown, or
injury.
• Install the product in a neat and dry place. Do not
use near water.
► Dust or moisture can cause electrical shock, fire,
or product damage.
• Do not add accessories that have not been
designed for this display.
• If you smell smoke or other odors or hear a strange
sound from the product unplug the power cord and
contact LG Customer Service.
► If you continue to use without taking proper
measures, electrical shock or fire can occur.
• If you dropped the product or the case is broken,
turn off the product and unplug the power cord.
► If you continue to use without taking proper
measures, electrical shock or fire can occur.
Contact LG Customer Service.
• Do not drop an object on or apply impact to the
product. Do not throw any toys or objects at the
product.
► It can cause injury to humans, problems to the
product and damage the display.
• Keep out of reach of children and do not place toys
near the product.
• Make sure the product ventilation hole is not
blocked. Install the product more than 100 mm (3.9
inches) from the wall.
► If you install the product too close to the wall,
it may be deformed or fire can break out due to
internal heat build-up.
• Do not cover the product with cloth or other
material (e.g., plastic) while plugged in.
► The product can be deformed or fire can break
out due to internal overheating.
• Place the product on a flat and stable surface that is
large enough to support the product.
► If the product is dropped, you may be injured or
the product may be broken.
• Install the product where no electromagnetic
interference occurs.
• Keep the product away from direct sunlight.
► The product can be damaged.
• Do not place the product on the floor.
► Small children and others may trip over it.
• Do not install this product on a wall if it could be
exposed to oil or oil mist.
► This may damage the product and cause it to
fall.
• For displays with glossy bezels the user should
consider the placement of the display as the bezel
may cause disturbing reflections from surrounding
light and bright surfaces.
ENGLISH
6
ENGLISH
Precautions for Moving the
Product
WARNING
• Make sure to turn off the product.
► You may be electrocuted or the product can be
damaged.
• Make sure to remove all cables before moving the
product.
► You may be electrocuted or the product can be
damaged.
• When lifting or moving the product, do not hold it
upside down while holding only the stand.
► This may cause the product to fall resulting in
damage or injury.
• Do not shock the product when moving it.
► You may be electrocuted or the product can be
damaged.
• Make sure the panel faces forward and hold it with
both hands to move.
► If you drop the product, the damaged product
can cause electric shock or fire.
• Do not place the product face down.
► This may damage the TFT-LCD screen.
Precautions for Using/Cleaning
the Product
WARNING
• Do not attempt to disassemble, repair or modify the
product yourself.
► Fire or electric shock can occur.
► Contact LG Customer Service for repair.
• When cleaning the product, unplug the power
cord and scrub gently with a soft cloth to prevent
scratching. Do not clean with a wet cloth or spray
water or other liquids directly onto the product.
An electric shock may occur. (Do not use chemicals
such as benzene, paint thinners, or alcohol.)
• Keep the product away from water.
► Fire or electric shock accident can occur.
• Avoid high temperatures and humidity.
• Do not put or store flammable substances near the
product.
► There is a danger of explosion or fire.
• Keep the product clean at all times.
• Take a comfortable and natural position when
working with the product.
• Take a regular break when working with the
product for a long time.
• Do not press on the panel with a hand or sharp
object such as nail, pencil or pen, or make a scratch
on it.
• Keep proper distance from the product and rest
from time-to-time.
► Your vision may be impaired if you look at the
product too closely or for too long.
• Set the appropriate resolution by referring to the
User’s Guide.
• Keep small accessories out of the reach of children.
• Displaying a still image for long time on the
monitor may leave persistent image or stain on the
monitor screen. To avoid this problem, use a screen
saver and power off when this product is not used.
Persistent image or screen burn caused by long
time usage are not covered by the warranty on this
product.
ENGLISH
7
ENGLISH
• Do not use products using high voltage around the
Monitor. (e.g., a bug zapper.)
► Monitor may exhibit signs of incorrect operation
due to electromagnetic pulses from high
voltage devices.
• Spray water onto a soft cloth 2 to 4 times, and use it
to clean the front frame; wipe in one direction only.
Too much moisture may cause staining.
On Disposal (Only, Hg lamp used
LCD Monitor)
• The fluorescent lamp used in this product contains
a small amount of mercury.
• Do not dispose of this product with general
household waste.
• Disposal of this product must be carried out
in accordance to the regulations of your local
authority.
ENGLISH
8
ENGLISH
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo
are trademarks or registered trademarks of HDMI Licensing LLC in the United States
and other countries.
This DivX Certified® device has passed rigorous testing to ensure it plays DivX® video.
To play purchased DivX movies, first register your device at vod.divx.com. Find your
registration code in the DivX VOD section of your device setup menu.
DivX Certified® to play DivX® video up to HD 1080p, including premium content.
DivX®, DivX Certified® and associated logos are trademarks of DivX, LLC and are used
under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710;
8,656,183; 8,731,369; RE45,052.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS
Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered
trademarks, and DTS 2.0 Channel is a trademark of DTS, Inc. © DTS, Inc. All Rights
Reserved.
NOTE
• The warranty will not cover any damages caused by using the product in an excessively dusty environment.
• Avoid using the product in a high temperature and high humidity area. Moving the monitor from a environment
like this to an air conditioned area may cause moisture formation inside the glass. This moisture will be dissipate
over time, which may vary depending on the operating environment.
ENGLISH
9
ENGLISH
ASSEMBLY AND PREPARATION
CAUTION
• Do not use any unapproved items to ensure the safety and product life span.
• Any damages or injuries by using unapproved items are not covered by the warranty.
NOTE
• The accessories supplied with your product may vary depending upon the model.
• Product specifications or contents in this manual may be changed without prior notice due to upgrade of product
functions.
• SuperSign Software and Manual
- Downloading from the LG Electronics website.
- Visit the LG Electronics website (www.lgecommercial.com/supersign) and download the latest software for your
model.
Optional Accessories
Without prior notice, optional accessories are subject to change to improve the performance of the product, and
new accessories may be added. The illustrations in this manual may differ from the actual product and accessories.
Media Player Kit
Media Player Screws CD (Owner's Manual) / Card
Wi-Fi Dongle kit
AN-WF500
ENGLISH
10
ENGLISH
Speaker kit
Speakers SP-2100
Cable Holders/ Cable
Ties
Screws
Diameter 4.0 mm x
Pitch 0.7 mm x
Length 8 mm
(0.1 inches x 0.02 inches x
0.3 inches)
(including spring washer)
Screws
Diameter 4.0 mm x
Pitch 1.6 mm x
Length 10 mm
(0.1 inches x 0.06 inches x
0.3 inches)
NOTE
• Cable holder/Cable tie may not be available in some areas or for some models.
• Optional accessories are available for some models. If necessary, please purchase them separately.
ENGLISH
11
ENGLISH
Parts and Buttons
/
Screen Buttons
• : Changes the input source.
• : Accesses the main menus, or saves your input and exits the menus.
• : Adjust the up and down.
• : Moves left and right.
• : Displays the current signal and mode.
• /I: Turns the power on or off.
ENGLISH
12
ENGLISH
Connecting the Speaker
- Only on some models.
1 Connect the input signal cable to the monitor
before installing the speakers. Use a cable tie to
organize the cables.
2 Mount the speakers using the screws as shown in
the following image.
3 After installing the speakers, Connect the speaker
cables and use the holders and cable ties to
organize the speaker cables.
NOTE
• Remove or connect the speaker cable while the
power is Off.
• If you remove or connect the speaker cable with the
monitor power On, the sound may not come out.
• This feature is to prevent the set and the speaker
from malfunctioning. If no sound comes out, turn
the power Off and On.
ENGLISH
13
ENGLISH

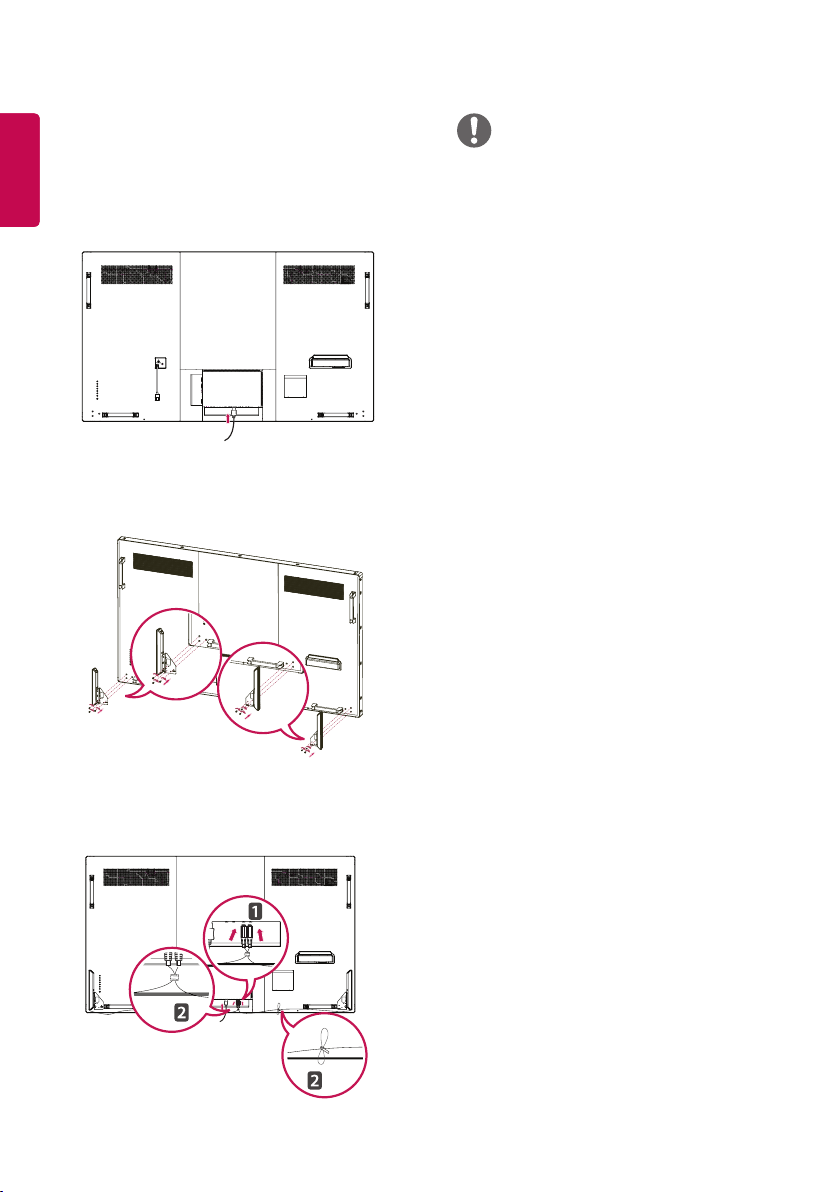

Connecting the PENTRAY
CONTROL cable
(When connecting KT-WT1)
The PENTRAY CONTROL port is a dedicated port for
use with the PENTRAY model (KT-WT1, purchased
separately).
Do not connect the cable to a product other than
the PENTRAY model (KT-WT1, purchased separately).
When the cable is connected to a product other
than the PENTRAY model, the product may not work
properly.
Connect the PENTRAY CONTROL cable only when
the power is turned off. When the power is on and
the cable is connected, the product may not work
properly.
Connecting the PENTRAY
Assembly
(When assembling the provided PENTRAY)
Use the screws provided to attach the PENTRAY
assembly
PENTRAY Assembly
ENGLISH
14
ENGLISH
Connecting the Eye-Bolt Bracket
The eye-bolt bracket is designed to be used to lift the
set up.
Attach the bracket to the product using the two
screws provided.
Installing in Landscape Position
Using the Mounting Cable Tie
Insert the two cable ties into the bottom hole on the
back of the set as shown in the figure to organize
cables.
ENGLISH
15
ENGLISH
Connecting IR and Light Sensor
When you connect the cable to the product, the
feature for receiving remote control signals is
activated. The IR & light sensor is magnetic. Attach it
to the side of the product for use.
[Front]
CAUTION CAUTION
NOTE
• Connect the IR & Light sensor to the dedicated
jack properly. If it is connected to a jack other than
the dedicated one, the set or sensor may not work
properly.
ENGLISH
16
ENGLISH
3 Attach the Media Player using the four provided
screws.
NOTE
• Use the screws provided with the product.
(diameter 3.0 mm x pitch 0.5 mm x length 6.0 mm
(diameter 0.1 inches x pitch 0.01 inches x
length 0.2 inches))

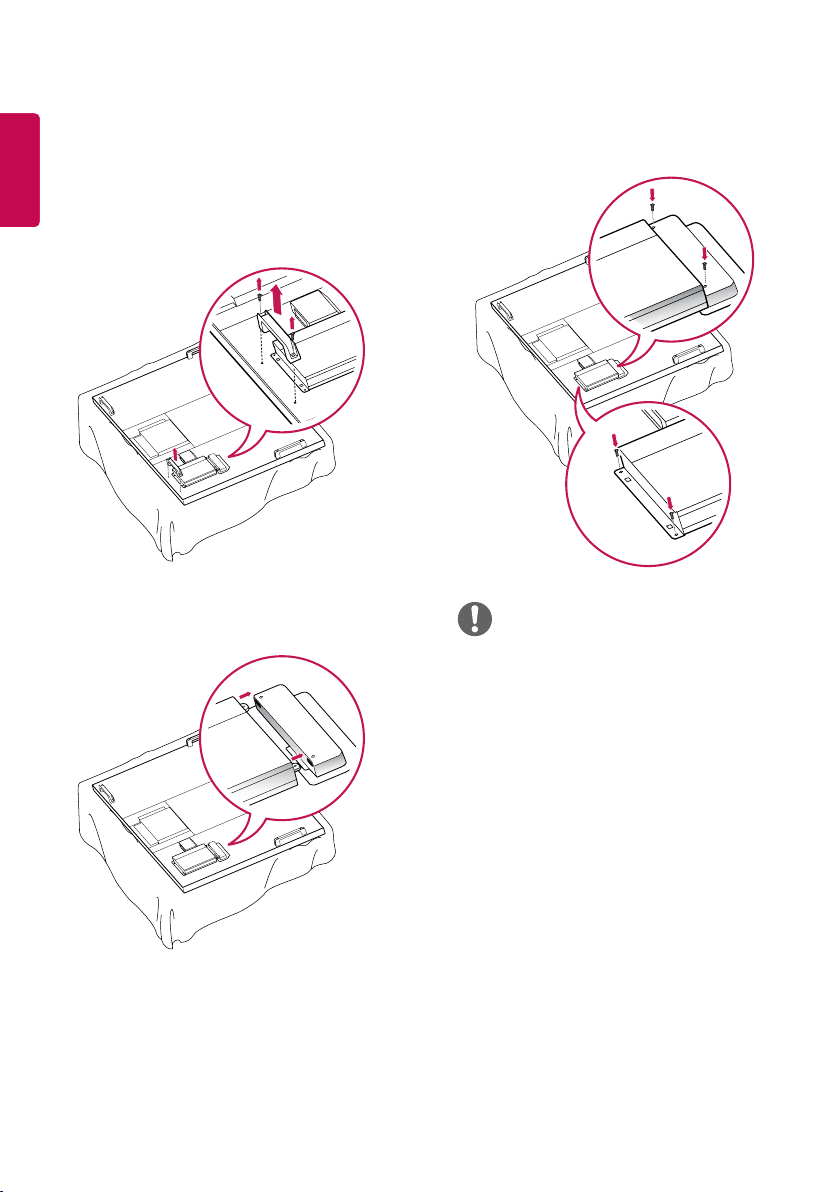

Connecting the Media Player
1 Place a soft cloth on the table and put the set with
the screen facing downward. Remove the handle
at the bottom of the section where the Media
Player is mounted on the set.
2 To mount the Media Player, push it into the special
compartment located on the back of the monitor.
ENGLISH
17
ENGLISH
Installing on a Wall
For proper ventilation, allow a clearance of 100 mm
(3.9 inches) on each side and from the wall. Detailed
installation instructions are available from your
dealer, see the optional Tilt Wall Mounting Bracket
Installation and Setup Guide.
100 mm
100 mm
(3.9 inches)
100 mm
100 mm
100 mm
To install your monitor on a wall, attach a wall
mounting bracket (optional part) to the back of the
monitor.
Make sure that the wall mounting bracket is securely
fixed to the monitor and to the wall.
1 Use only screws and wall mounting brackets that
conform to VESA standards.
2 Screws which are longer than standard length
may damage the inside of the monitor.
3 A non-VESA standard screw may damage
the product and cause the monitor to fall. LG
Electronics is not liable for any accidents related
to the use of non-standard screws.
4 Please use VESA standard as below.
• 785 mm (30.9 inches) and above
* Fixing screws: Diameter 8.0 mm x
Pitch 1.25 mm x Length 16 mm
(Diameter 0.3 inches x Pitch 0.04 inches x
Length 0.6 inches)
* Wall mounting screw spec. (M8 screw)
- Minimum ultimate tensile load : Min. 12,100N
(1,230 kgf)
- Proofing Load : Min. 8,840N (902 kgf)
CAUTION
• Disconnect the power cord before moving or
installing the monitor to avoid risk of electric shock.
• If you install the monitor on a ceiling or slanted wall,
it may fall and result in injury. Use an authorized
LG wall mount and contact your local dealer or
qualified personnel to assist with the installation.
• Do not over tighten the screws as this may damage
the monitor and void your warranty.
• Use only screws and wall mounting brackets that
meet the VESA standard. Any damage or injuries
caused by misuse or use of improper accessories are
not covered by the warranty.
NOTE
• The wall mount kit includes an installation manual
and necessary parts.
• The wall mount bracket is optional. You can obtain
additional accessories from your local dealer.
• The length of screws may differ depending on the
wall mount. Be sure to use the proper length.
• For more information, refer to the instructions
supplied with the wall mount.
ENGLISH
18
ENGLISH
Securing the product to a wall (optional)
(Depending on model)
1 Insert and tighten the eye-bolts, or product
brackets and bolts on the back of the product.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the product.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
4 Make sure to keep the rope horizontal with the
flat surface.
CAUTION
• Make sure that children do not climb on or hang on
the product.
NOTE
• Use a platform or cabinet that is strong and large
enough to support the product securely.
• Brackets, bolts, and ropes are optional. You can
obtain additional accessories from your local dealer.
WARNING
• If a product is not positioned in a sufficiently stable
location, it can be potentially hazardous due to
falling. Many injuries, particularly to children, can be
avoided by taking simple precautions such as:
» Using cabinets or stands recommended by the
manufacturer of the product.
» Only using furniture that can safely support the
product.
» Ensuring the product is not overhanging the
edge of the supporting furniture.
» Not placing the product on tall furniture (for
example, cupboards or bookcases) without
anchoring both the furniture and the product to
a suitable support.
» Not standing the product on cloth or other
materials placed between the product and
supporting furniture.
» Educating children about the dangers of
climbing on furniture to reach the product or
its controls.
ENGLISH
19
ENGLISH
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully to
use the monitor correctly.
To install batteries, open the battery cover, place batteries (1.5 V AAA) matching and terminals to the labels
inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse. The illustrations may differ from the actual
accessories.
CAUTION
• Do not mix old and new batteries, as this may damage the remote control.
• Be sure to point the remote control toward the remote control sensor on the
monitor.
(POWER) Turns the monitor on or off.
MONITOR ON Turns the monitor on.
MONITOR OFF Turns the monitor off.
ENERGY SAVING Reduces power consumption by adjusting peak
screen brightness.
INPUT Selects the input mode.
3D Used for viewing 3D videos. (This model does not support this.)
1/a/A Toggles between numerical and alphabetical.
(Depending upon the model, this feature may not be
supported.)
Number and Alphabet buttons
Enters numerical or alphabetical characters depending upon the
setting. (Depending upon the model, this feature may not be
supported.)
CLEAR Deletes the entered numerical or alphabetical character.
(Depending upon the model, this feature may not be
supported.)
Volume Up/Down Button Adjusts the volume.
ARC Selects the Aspect Ratio mode.
AUTO Automatically adjusts picture position and minimizes image
instability (available for RGB input only). (Depending upon
the model, this feature may not be supported.)
MUTE Mutes all sounds.
BRIGHTNESS Adjusts the brightness of the display. PAGE function
is not supported in this model. (Depending upon the
model, this feature may not be supported.)
ENGLISH
20
ENGLISH
PSM Selects the Picture Mode.
HOME Activates the Launcher.
W.BAL Enters the White Balance menu. (This model does not
support this.)
SETTINGS Accesses the main menus or saves your input and exit
menus.
S.MENU SuperSign menu key (This model does not support this.)
Navigation Buttons Scrolls through menus or options.
OK Selects menus or options and confirms your input.
BACK Allows you to move back one step in the user interaction
function.
EXIT Quit all OSD tasks and applications.
Allows you to control various multimedia devices to
enjoy multimedia simply by using the remote control
through the SimpLink menu. (Depending upon the
model, this feature may not be supported.)
TILE Selects the TILE Mode. (This model does not support this.)
PICTURE ID ON/OFF When the Picture ID number matches the
Set ID number, you can control whichever
monitor you want in multi-display format.
USB Menu Control Controls media playback.
ENGLISH
21
ENGLISH
USING THE MONITOR
Connecting to a PC
Your Monitor supports the Plug & Play* feature.
* Plug & Play: This is the function that allows a PC to use the monitor without installing a driver.
NOTE
• It is recommended you use an HDMI connection for the best image quality.
• To comply with the standard specifications of the product, use a shielded interface cable with a ferrite core.
• If you turn the Monitor on when the set is cold, the screen may flicker. This is normal.
• Some red, green, or blue spots may appear on the screen. This is normal.
• For some graphic cards, the screen may not display properly when you use dual monitors.
CAUTION
• Connect the signal input cable and tighten it by turning the screws clockwise.
• Do not press the screen with your finger for a long time as this may result in temporary distortion on the screen.
• Avoid displaying a fixed image on the screen for a long period of time to prevent image burn. Use a screensaver if
possible.
• A wireless communication device near your monitor can affect the image.
ENGLISH
22
ENGLISH
NOTE
• Use the standard Macintosh adapter since an incompatible adapter is available in the market. (Different signaling
system)
• Apple computers may require an adapter to connect to this monitor. Call or visit their web site for more
information.
• Use a High Speed HDMI®/
TM
Cable.
• Please check the PC environment if you cannot hear audio in HDMI mode. Some PCs require you to manually
change the default audio output to HDMI.
• If you want to use HDMI PC mode, you must set PC/DTV to PC mode.
• When HDMI PC is used, a compatibility problem might occur.
• Make sure the power cable is disconnected.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not
display or a connection error may occur.
• Recommended HDMI cable types
- High-Speed HDMI®/
TM
cable
- High-Speed HDMI®/
TM
cable with Ethernet
• It is recommended to use the following specifications to play 3840 x 2160 video seamlessly in HDMI or DP modes.
» Recommended PC specifications - CPU: Intel core i7 or higher, graphic card: NVIDIA GTX TITAN or higher, AMD
HD7000 series or higher.
» Recommended video - For H.264, 140 Mbps or lower data transmission rate.
ENGLISH
23
ENGLISH
HDMI (4K @ 60 Hz) input 1 (HDCP2.2), 2 (10 Bit)
HDMI (4K @ 60 Hz) input ports: When using HDMI (4K @ 60 Hz) input port 2 (10-bit), use the provided HDMI cable.
When using an HDMI cable that was not provided, please use a high-speed HDMI cable (shorter than 3 meters).
(Information may vary depending on the model.)
4K @ 60 Hz input supported formats
Resolution
Vertical frequency
(Hz)
Color depth
3840 X 2160p 59.94
60
HDMI1 HDMI2
8 bit 8 bit 10 bit
YCbCr 4:2:0 YCbCr 4:2:0
- YCbCr 4:2:2 -
- YCbCr 4:4:4 -
- RGB 4:4:4 -
• HDMI specifications may vary depending on the input port. Check the specifications of each device before
connecting.
• HDMI input port 2 is best suited for 4K at 60 Hz (4:4:4, 4:2:2) to enjoy high definition video. However, video or audio
may not be supported depending on the specifications of the external devices. In that case, please connect to
another HDMI port.
NOTE
• DisplayPort does not supportDeepColor (YCbCr 4:2:0, YCbCr 4:2:2).
ENGLISH
24
ENGLISH
ENTERTAINMENT
Using My Media
Connecting USB storage devices
Connect a USB storage device such as a USB flash
memory or an external hard drive to the display and
use multimedia features.
Connect a USB flash memory or USB memory card
reader to the display as shown in the following
illustration.
or
CAUTION
• Do not turn off the monitor or remove a USB
storage device when the My Media screen is
activated. This could result in loss of files or damage
to the USB storage device.
• Back up files you have saved on a USB storage
device frequently, as loss or damage to the files may
be not covered by the warranty.
Using the Input List
Remote Control (HOME)
Input Mode Description
HDMI1 You can watch content on a
PC, DVD player, Digital set-top
box, and other high definition
devices.
HDMI2
DISPLAYPORT
DVI-D/SuperSign
COMPONENT
NOTE
• External inputs supported: Component, HDMI1,
HDMI2, DVI-D, DisplayPort and SuperSign
• Input labels available: Satellite, Set-top Box, DVD,
Blu-ray, Home theater, game console, streaming
box, Camera, PC and mobile device
• The set Input Label is displayed on the Input List, or
when switching the input.
ENGLISH
25
ENGLISH
Tips for using USB storage devices
• Only a USB storage device can be recognized.
• A USB device does not work effectively when it is connected via a USB hub.
• A USB storage device using an automatic recognition program may not be recognized.
• A USB storage device using its own driver may not be recognized.
• The recognition speed of a USB storage device may depend on each device.
• Please do not turn off the display or unplug the USB storage device when the connected device is working. If the
USB storage device is suddenly disconnected, the stored files or the device itself may be damaged.
• Please do not connect a USB storage device which was modified to work on a PC. The device may cause the
monitor to malfunction or the content fail to be played. Use only a USB storage device which contains normal
music, image or video files.
• A USB storage device formatted as a utility program not supported by Windows may not be recognized.
• A USB storage device (over 0.5 A) which requires an external power supply must be connected to a power supply
separately. If it is not, the device may not be recognized.
• Please connect the USB storage device using the cable provided by the device manufacturer.
• Some USB storage devices may not be supported or operate smoothly.
• File alignment method of USB storage devices is similar to that of Window XP and filenames can recognize up to
100 English characters.
• Back up important files regularly as data stored on a USB storage device may be damaged. We will not be
responsible for any data loss.
• If the USB HDD does not have an external power source, the USB device may not be detected. To ensure the device
is detected, connect the external power source.
- Please use a power adapter for an external power source. We do not provide a USB cable for an external power
source.
• If your USB storage device has multiple partitions, or if you use a USB multi-card reader, you can use up to four
partitions or USB storage devices.
• If a USB storage device is connected to a USB multi-card reader, its volume data may not be detected.
• If the USB storage device does not work properly, disconnect and reconnect it.
• Detection speed differs from device to device.
• If the USB storage device is connected in Standby Mode, the specific hard disk will automatically be loaded when
the display is turned on.
• The recommended capacity is 1 TB or less for a USB external hard drive and 32 GB or less for USB memory stick.
• Any device with more than the recommended capacity may not work properly.
• If a USB external hard drive with an “Energy Saving” function does not work, try turning the hard drive off and on
again.
• USB storage devices below USB 2.0 are also supported but may not function correctly in the videos.
• A maximum of 999 sub-folders or files can be recognized under one folder.
NOTE
• Connecting guide for USB 3.0
- Some USB device may not work if it does not meet USB 3.0 standard. In this case, connect it to USB IN 2 or
USB IN 3 port.
- Total Internal memory is 3.68 GB, however it may vary due to the bad block issue.
ENGLISH
26
ENGLISH
Files Supported by My Media
Supported External Subtitle Format
• *.smi, *.srt, *.sub (MicroDVD, SubViewer 1.0/2.0), *.ass, *.ssa, *.txt (TMPlayer), *.psb (PowerDivX)
To use Select Play,
Remote Control (HOME) Photos/ Videos/ Music
• Play Selection: plays back selected content.
To set Device Selection,
Remote Control (HOME) Photos/ Videos/ Music
• Device Selection: import contents from the selected device.
ENGLISH
27
ENGLISH
Supported Internal Subtitle Format
• FULL HD Video
1920 X 1080: XSUB (Supports internal subtitles generated from DivX6)
Supported Video Codec
Extension Codec
.asf
.wmv
Videos VC-1 Simple and Main Profiles
Audio
WMA Standard (excluding WMA v1/ WMA Speech), WMA9 Professional
.dvix
.avi
Videos DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC, Motion Jpeg, MPEG-4 Part 2
Audio
MPEG-1 Layer I II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, LPCM,
ADPCM, DTS
.mp4
.m4v
.mov
Videos
H.264 / AVC , MPEG-4 Part 2
Audio
AAC, MPEG-1 Layer III (MP3)
.3gp
.3g2
Videos H.264/AVC, MPEG-4 Part 2
Audio AAC, AMR-NB, AMR-WB
.mkv
Videos H.264 / AVC
Audio HE-AAC, Dolby Digital
.ts
.trp
.tp
.mts
.m2ts
Videos
H.264 / AVC, MPEG-2, VC-1
Audio
MPEG-1 Layer I, II / MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC
.vob
Videos MPEG-1, MPEG-2
Audio Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM
.mpg
.mpeg
.dat
Videos MPEG-1, MPEG-2
Audio
MPEG-1 Layer I, II / MPEG-1 Layer III (MP3), AAC
ENGLISH
28
ENGLISH
Supported Audio File
File Format Item Information
MP3
Bit rate 32 Kbps to 320 Kbps
Sample freq. 32 KHz to 48 KHz
Support MPEG1, MPEG2, MPEG2.5, Layer2, Layer3
.wav Support PCM
.ogg Support Vorbis
.wma Support WMA
Supported Photo File
File Format Format Item
2D
(jpeg, jpg, jpe)
JPEG • Minimum : 64 x 64
• Maximum: Normal Type: 15360 (W) x 8640 (H) /
Progressive Type: 1920 (W) x 1440 (H)
2D (png)
PNG • Minimum : 64 x 64
• Maximum: 1920 (W) x 1080 (H)
2D (bmp)
BMP • Minimum : 64 x 64
• Maximum: 1920 (W) x 1080 (H)
ENGLISH
29
ENGLISH
Viewing Videos
Play video files on display. All of the saved video files are shown in your display.
To play video files on display,
Remote Control (HOME) Videos
Tips for Playing Video Files
• Some subtitles created by users may not work properly.
• The video and subtitle files should be placed in the same folder. For subtitles to display correctly, the video and
subtitle files must have the same name.
• Subtitles on an NAS (Network Attached Storage) device may not be supported depending on the manufacturer
and model.
• We do not support any stream that contains GMC (Global Motion Compensation) or Qpel (Quarterpel Motion
Estimation).
• The file size limit is dependent on the encoding environment.
• It works only the above version of Window Media Audio V2.
• It’s not supported AAC Main Profile.
• Video files created by some encoders may not be played back.
• Video files in formats other than the ones specified here may not be played back.
• Playback of video files stored on the USB device that do not support High Speed, may not work properly.
• The monitor supports DTS audio codec when the USB/HDMI video file playback.
NOTE
• When restarting a video file after stopping it, you can play from the point at which it was stopped.
• Only 10,000 sync blocks can be supported within the subtitle file.
• When playing a video, you can adjust the picture size by pressing the ARC button.
• Korean subtitle is supported only when the OSD menu is in Korean.
• The code page options may be disabled depending on the language of the subtitle files.
• Select the appropriate code page for the subtitle files.
Viewing Photos
The displays on the screen may differ from the model.
Viewing image files
Remote Control (HOME) Photos
ENGLISH
30
ENGLISH
Information
To check the basic information of Signage
Remote Control (HOME)
You can see the basic information on Signage.
You can also switch to Smart Energy Saving Mode
or configure Fail Over settings. (You can only switch
to Smart Energy Saving Mode when Energy Saving
Mode is set to Off.)
File Manager
You can move, copy or delete files.
To move, copy, or delete files
Remote Control (HOME)
• You can move or copy files or folders from internal
to external memory.
• You can move or copy files or folders from external
to internal memory.
• You can delete files or folders from internal or
external memory.
NOTE
• Those files bigger than internal remaining memory
aren`t allowed to be copied or moved to the
internal memory.
• You cannot copy or move a file to the internal
storage if the file size is larger than the available
free space of the internal storage.
ENGLISH
31
ENGLISH
Listening to Music
Viewing music files
Remote Control (HOME) Music
NOTE
• Files with unsupported extensions are not displayed.
• If a file is invalid, a broken image and the message ‘Unrecognizable file’ are displayed.
• Damaged music files are displayed as 00:00 and will not be played.
• A music file downloaded from a paid service with copyright protection will not play, and inappropriate information
may be displayed during playback.
• You can use , , , , buttons on the remote control also in this mode.
• You can use the button to select the next track and the button to select the previous track.
• If you press the button within 5 seconds after playing the song, you will return to the previous song; if you
press the same button after 5 seconds, you will return to the start of the song.
ENGLISH
32
ENGLISH
Settings
You must register your product to play a DRM-protected DivX video.
In order to register/deregister purchased or rented DivX ® VOD contents
Remote Control (HOME) Settings DivX ® VOD
In order to play purchased or rented DivX® VOD contents, you should register your device with 10 digit DivX
registration code from your device at www.divx.com/vod.
• Registration: view the registration code of your display.
• Deregistration: cancel the registration.
NOTE
• While you are checking the registration code, some buttons may not work.
• If you use the DivX registration code of another device, you cannot play rented or purchased DivX files. Use only
the DivX registration code assigned to your product.
• Video or audio files that are not converted using the standard DivX codec may be corrupted or not play.
• The DivX VOD code allows you to activate up to 6 devices under one account.
• After deregistration, you must register your device again to see DivX® VOD contents.
ENGLISH
33
ENGLISH
Screen Share
Allows the screen of a user's device such as a mobile or PC Windows to be shared with a display using a wireless
connection such as WiDi or Miracast.
To use Screen Share
Remote Control (HOME)
When the Screen Share app is running, the wireless connection such as WiDi or Miracast is automatically set to ON
and the display is automatically changed to the connection ready mode. In this state, you can use Screen Share by
turning on the wireless connection on the device and selecting the display to establish a connection between the
device and the display.
Configuring WiDi (Wireless Display)
WiDi, which is short for Wireless Display, is a system that wirelessly transmits video and sound files from a laptop that
supports Intel WiDi to the display.
For more information on how to use Intel WiDi, visit http://intel.com/go/widi.
[Microsoft Windows 8.1 WiDi Configuration]
1 On the desktop, move the mouse cursor to the top right.
2 Select a device.
3 Select a project.
4 Search for Signage or a TV to add.
NOTE
• The wireless environment may affect the screen from displaying. If the connection is poor, the Screen Share
(Miracast/WiDi) connection may be lost.
• Using Screen Share requires no AP connection. However, it is recommended that you connect both the Signage
and device (laptop or smartphone) in the same AP of the 5GHz frequency band.
• Connecting to a device other than an LG device may cause failure when searching or connecting.
• It may take up to one minute to reconnect, once Screen Share is disconnected.
• WiDi works on Microsoft Windows 8.1 or later.
• Disconnecting Screen Share switches to the input screen before connecting. (The Screen Share app may be
displayed while disconnecting.)
CAUTION
• To use Screen Share, an additional accessory is required.
ENGLISH
34
ENGLISH
Picture ID Settings
Picture ID is used to change the settings of a specific
set (display) using a single IR receiver for multi-vision.
Communication is possible between a monitor with
an IR receiver and other monitors using RS-232C
cables. Each monitor is identified by a Set ID. If you
assign the Picture ID using the remote control, only
displays with matching Picture ID and Set ID can be
controlled remotely.

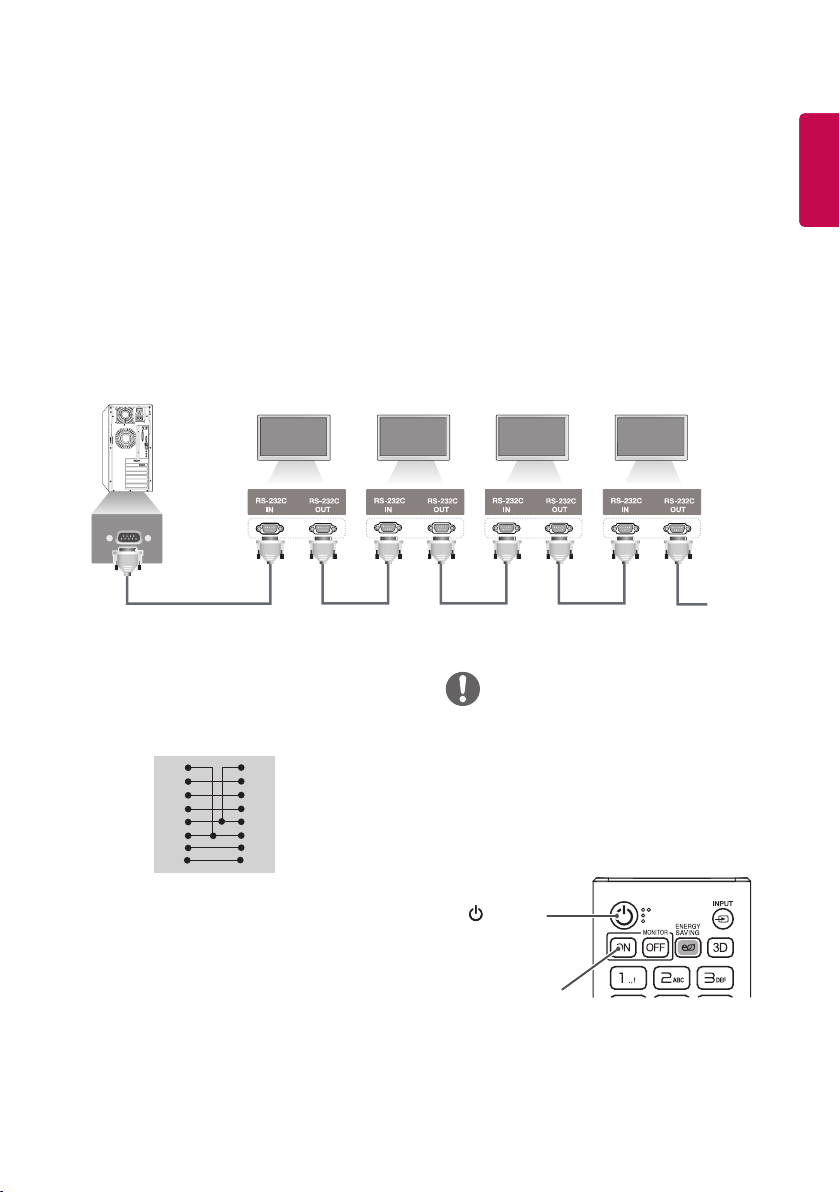

1 Assign the Set ID to the installed monitors as
shown below.
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
IR and Light Sensor
RS-232C Cables

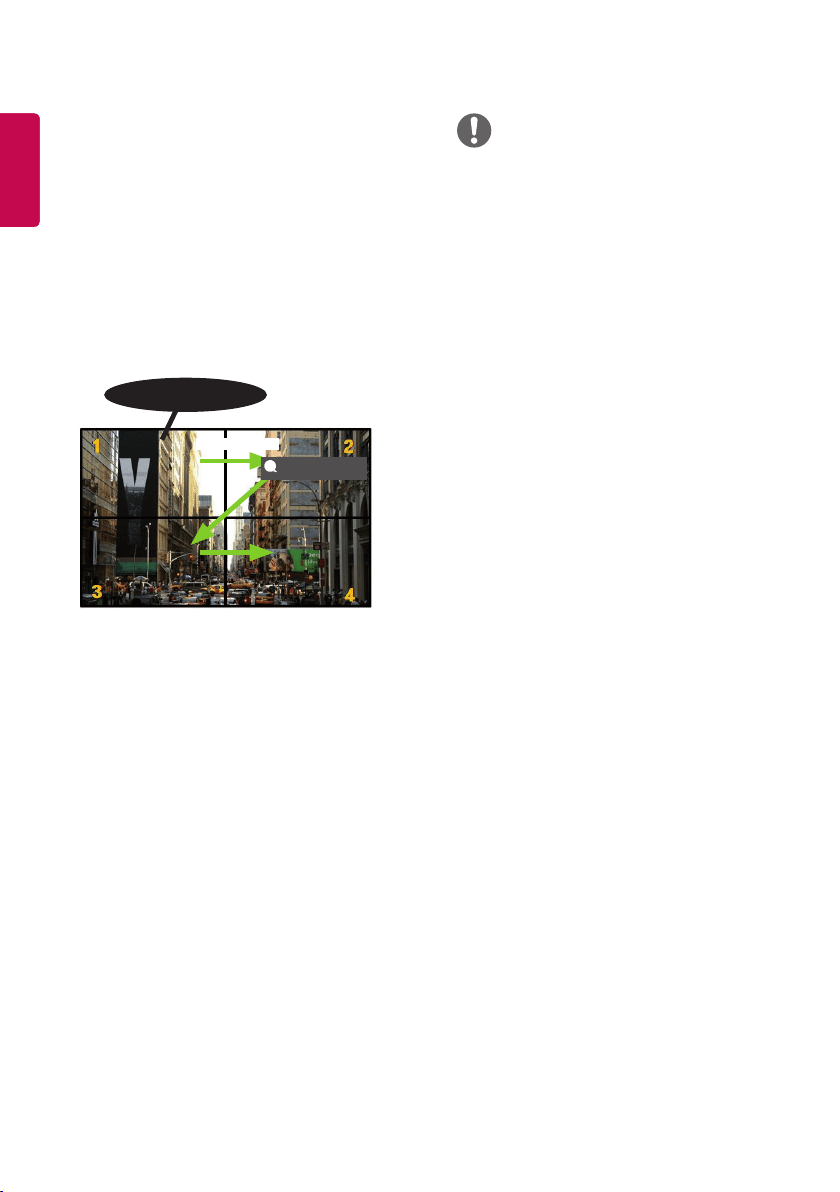

PICTURE ID ON [2]
2 Press the red ON button on the remote control to
assign the PICTURE ID.
3 Assign the Set ID to the selection of your choice.
• A set with a different Set ID from the Picture ID
cannot be controlled by IR signals.
NOTE
• If Picture ID is set to 2, only the upper right
monitor, which has a Set ID of 2, can be controlled
by IR signals.
• If you press the green OFF button for PICTURE ID,
the Picture IDs for all monitors are turned off. If you
then press any button on the remote control, all
monitors can be controlled by IR signals regardless
of Set ID.
• With PICTURE ID ON, you can only increase the
Picture ID by 1. You cannot decrease it.
ENGLISH
35
ENGLISH
USER SETTINGS
Main Menu Settings
Quick Settings
Configures frequently used settings menus.
To turn your monitor on or off automatically
Remote Control (SETTINGS) Quick On Timer/Off Timer
You can set the On/Off Timer for your monitor. If you do not want to set the On/Off Timer, select Off.
To set the backlight and contrast automatically
Remote Control (SETTINGS) Quick Smart Energy Saving
According to picture brightness, the brightness of the monitor will be adjusted automatically to save energy.
• Off: disables the Smart Energy Saving function.
• On: enables the Smart Energy Saving function.
ENGLISH
36
ENGLISH
Picture Setting
To Select Picture Mode
Remote Control (SETTINGS) Picture Picture Mode
Select the picture mode that is best suited to the video type.
• Vivid: adjusts the video image for a retail environment by enhancing the contrast, brightness, and sharpness.
• Standard: adjusts the video image for a normal environment.
• APS: APS (Auto power saving ) mode reduces power consumption by dimming control.
• Cinema: optimizes the video image for watching movies.
• Sports: optimizes the video image for watching sports. Even fast actions such as kicking or throwing a ball are
rendered clearly on the screen.
• Touch: Optimizes the image for touch.
• Photo: This mode is optimized for viewing pictures. It displays photos smoothly while minimizing the loss of the
original photo quality.
• Expert 1/Expert 2: allows an expert, or anyone interested in high quality pictures, to manually tune the picture for
the best picture quality.
NOTE
• Depending on the input signal, the available Picture modes may differ.
• Expert is an option that allows a picture quality expert to fine-tune the picture quality using a specific image. Thus,
it may not be effective for a normal picture.
ENGLISH
37
ENGLISH
To fine-tune the picture mode
Remote Control (SETTINGS) Picture Picture Adjust
• Backlight: adjusts the brightness of the screen by controlling the LCD backlight. The closer the value is to 100, the
brighter the screen is.
• Contrast: adjusts the difference between the light and dark areas of the picture. The closer the value is to 100, the
greater the difference is.
• Brightness: adjusts the overall brightness of the screen. The closer the value is to 100, the brighter the screen is.
• Sharpness: adjusts the sharpness of the edges of objects. The closer the value is 50, the clearer and the sharper the
edge becomes.
• H Sharpness: adjusts the sharpness of the contrast edges on the screen from a horizontal point of view.
• V Sharpness: adjusts the sharpness of the contrast edges on the screen from a vertical point of view.
• Color: softens or deepens the tints on the screen. The closer the value is 100, the deeper the colors become.
• Tint: adjusts the balance between red and green levels displayed on the screen. The closer the value is to Red 50,
the deeper the color red becomes, and the closer the value is to Green 50, the deeper the color green becomes.
• Color Temperature: adjusts the tints of the screen to evoke feelings of warmth or coolness.
• Advanced Control/Expert Control: customizes the advanced options.
Dynamic Contrast
Optimizes the difference between the light and dark parts of the screen according to the
brightness of the image.
Super Resolution Sharpens the blurry or indistinguishable parts of the picture.
Color Gamut Selects the range of colors to display.
Dynamic Color Adjusts the tint and saturation of the image for a more vivid and lively display.
Edge Enhancer Provides much sharper and clearer edges to the picture.
Color Filter Accurately adjusts color and tint by filtering a specific color area of RGB space.
Preferred Color
Adjusts the skin tint, grass tint, and sky tint to your preference.
Gamma
Adjusts the medium brightness of the image.
White Balance
Adjusts the overall tint of the picture to your preference.
In Expert mode, you can fine-tune the picture using the Method/Pattern options.
Color Management
System
Experts use the color management system when they adjust the colors by using the test
pattern. The color management system allows you to make an adjustment by selecting
from among 6 different color spaces (Red/Yellow/Blue/Cyan/Magenta/Green) without
affecting other colors. You may not see tints change in a normal picture even after
adjustment.
NOTE
• Depending on the input signal or the selected picture mode, the available options may differ.
ENGLISH
38
ENGLISH
• Picture Options: customizes the picture options.
Noise Reduction
Removes irregularly generated tiny dots for a clear picture.
MPEG Noise
Reduction
Reduces the noise produced while creating digital video signals.
Black Level Adjusts the black level of the picture to correct the brightness and contrast of the picture.
Real Cinema Optimizes the video image for a cinematic look.
TruMotion
Displays fast-moving pictures with optimal picture quality.
- Off: Turns off the TruMotion.
- Smooth: displays fast-moving pictures smoothly.
- Clear: displays fast-moving pictures clearly.
- User: set de-judder manually.
* De-judder: adjusts judder on the screen.
• Reset: resets the picture settings.
NOTE
• You can adjust advanced settings only in the User mode.
To set the aspect ratio,
Remote Control (SETTINGS) Picture Aspect Ratio
Changes the aspect ratio to view the image in its optimal size.
• 16:9: displays the image with a 16:9 aspect ratio.
• Just Scan: displays the image in the original size without cutting off the edges.
Original is available in HDMI (720p or higher) mode.
• Set By Program: automatically changes the aspect ratio to 4:3 or 16:9 depending on the input video signal.
• 4:3: displays the image with a 4:3 aspect ratio.
• Zoom: expands the image to fit to the width of the screen. The top and bottom of the image may be cropped.
• Cinema Zoom: enlarges the image to have a cinemascope ratio of 2.35:1 without distortion.

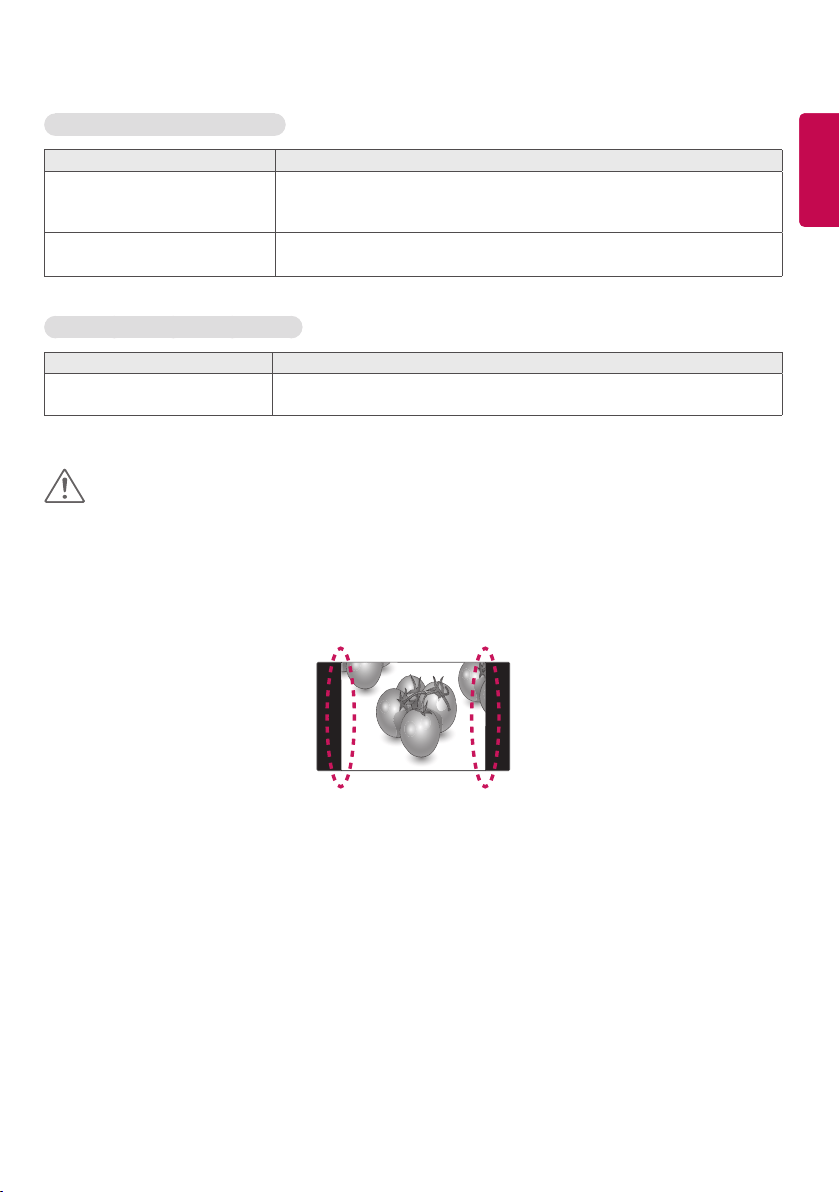

CAUTION
• If a fixed image is displayed on the screen for a long period of time, it will be imprinted and become a permanent
disfigurement on the screen. This image burn or burn-in is not covered by the warranty.
• If the aspect ratio is set to 4:3 for a long period of time, image burn may occur on the letterboxed area of the
screen.
• The options may differ depending upon the model.
• Depending on the input signal, the available aspect ratio may differ.
ENGLISH
39
ENGLISH
To use the Energy Saving function
Remote Control (SETTINGS) Picture Energy Saving
Reduces power consumption by adjusting peak screen brightness.
• Auto: adjusts the brightness of the monitor according to ambient light. (This feature is available only with certain
models.)
• Off: disables the Energy Saving mode.
• Minimum/Medium/Maximum: uses the Energy Saving according to the Energy Saving level specified for your
monitor.
• Screen Off: turns off the screen. You will only hear audio. You can turn on the screen again by pressing any button
on the remote control except the power button.
To use the Smart Energy Saving function
Remote Control (SETTINGS) Picture Smart Energy Saving
According to picture brightness, the brightness of the monitor will be adjusted automatically to save energy.
• Off: disables the Smart Energy Saving function.
• On: enables the Smart Energy Saving function.
To run a Picture Test
Remote Control (SETTINGS) Picture Picture Test
Run a Picture Test to check that picture signals are outputted normally, then solve any problems by selecting the
relevant option on the screen. If there are no problems with the Test Picture, check connected external devices.
HDMI UHD Deep Colour
Remote Control (SETTINGS) Picture HDMI UHD Deep Colour
• HDMI2 port supports UHD Deep Colour.
• If you connect an HDMI device to one of the Deep Color adjustable ports, you can select Deep Color On (6G) or Off
(3G) in the HDMI ULTRA HD Deep Colour settings menu.
• If the device connected to HDMI2 also supports UHD Deep Colour, your picture may be clearer.
• However, if the device doesn’t support it, it may not work properly.
• In that case, connect the device to a different HDMI port or change the UHD Deep Colour setting to OFF.
ENGLISH
40
ENGLISH
Sound Settings
To select a Sound Mode
Remote Control (SETTINGS) Sound Sound Mode
The best sound quality will be selected automatically depending on the video type currently being watched.
• Standard: this sound mode works well for content of all types.
• News: optimizes sound for watching news.
• Music: optimizes sound for listening to music.
• Cinema: optimizes sound for watching movies.
• Sports: optimizes sound for watching sports.
• Game: optimizes sound for playing videogames.
To use the Sound Effects function
Remote Control (SETTINGS) Sound Sound Effects
• Clear Voice ll: enjoy clearer sound with the three-level adjustment.
• Equalizer: manually adjust sound by using the equalizer.
• Balance: adjust the output volume for the left speaker and the right speaker.
• Reset: reset the sound settings.
To select a Volume Increase Rate
Remote Control (SETTINGS) Sound Volume Increase Rate
You can set the volume range by selecting any of Low/ Medium/ High.
To sync audio with video
Remote Control (SETTINGS) Sound AV Sync. Adjust
• Speaker: adjusts the sync between video and audio coming from external speakers, such as those connected to
the digital audio output port, LG audio equipment, or headphones. From the default value, the closer the value is
to -, the faster the sound output becomes, and the closer the value is to +, the slower the sound output becomes.
• Bypass: audio coming from external devices without delay. Audio may be outputted earlier than video due to the
processing time for video that is inputted into the monitor.
To Run a sound test
Remote Control (SETTINGS) Sound Sound Test
Run a sound test to check that sound signals are outputted normally, then solve any problems by selecting the
relevant option on the screen. If there are no problems with the Sound Test, check connected external devices.
ENGLISH
41
ENGLISH
Network Settings
To Set a Signage Name
Remote Control (SETTINGS) Network Signage Name
You can set a name for Signage Monitor that will be used on the network by using the on-screen keyboard.
To Set Your Network
Remote Control (SETTINGS) Network Wired Connection (Ethernet)
• Connecting to a wired network: Connect your monitor to a local area network (LAN) via the LAN port, and
configure the network settings. Only wired network connections are supported. After making a physical
connection, a small number of networks may require the display network settings to be adjusted. For most
networks, the display will automatically make a connection without any adjustments. For detailed information,
contact your Internet provider or consult your router manual.
To Set Your Wireless Network
Remote Control (SETTINGS) Network Wi-Fi Connection
If you have set the display up for a wireless network, you can check and connect to the available wireless Internet
networks.
• Add a Hidden Wireless Network: If you input the name of network directly, you can add a wireless network.
• Connect via WPS PBC: Connects easily when the button of a wireless AP supporting PBC is pressed.
• Connect via WPS PIN: Connects easily when the PIN of the wireless AP that you wish to connect to is entered in to
the AP configuration webpage.
• Advanced Settings: If you input the information of network directly, you can enter a wireless network. If there is
no wireless network available, click Advanced Settings. You can add a network.
CAUTION
• Additional accessories are required to use a wireless network.
ENGLISH
42
ENGLISH
Tips for Network Setting
• Use a standard LAN cable (Cat5 or higher with a RJ45 connector) with this display.
• Many network connection problems during set-up can often be fixed by re-setting the router or modem. After
connecting the display to the home network, quickly power off and/or disconnect the power cable of the home
network router or cable modem, then power on and/or connect the power cable again.
• Depending on the Internet Service Provider (ISP), the number of devices that can receive Internet service may be
limited by the applicable terms of service. For details, contact your ISP.
• LG is not responsible for any malfunction of the display and/or the Internet connection feature due to
communication errors/malfunctions associated with your Internet connection, or other connected equipment.
• LG is not responsible for problems with your Internet connection.
• You may experience undesired results if the network connection speed does not meet the requirements of the
content being accessed.
• Some Internet connection operations may not be possible due to certain restrictions set by the Internet Service
Provider (ISP) supplying your Internet connection.
• Any fees charged by an ISP including, without limitation, connection charges are your responsibility.
NOTE
• If you want to access the Internet directly on your display, the Internet connection should always be on.
• If you cannot access the Internet, check the network conditions from a PC on your network.
• When you use Network Setting, check the LAN cable or check if DHCP in the router is turned on.
• If you do not complete the network settings, the network may not function correctly.
CAUTION
• Do not connect a modular telephone cable to the LAN port.
• Since there are various connection methods, please follow the specifications of your telecommunication carrier or
Internet Service Provider.
• Network Setting menu will not be available until the display is connected to a physical network.
ENGLISH
43
ENGLISH
Tips for Wireless Network Setting
• Wireless networks can be subject to interference from other devices operating at a frequency of 2.4 GHz (wireless
phones, Bluetooth devices or microwave ovens). There may also be interference from devices with a frequency of
5 GHz, same as other Wi-Fi devices.
• The surrounding wireless environment can cause the wireless network service to run slowly.
• If you do not turn off the entire local home network, network traffic may occur on some devices.
• For an AP connection, an access point device that supports wireless connection is required and the wireless
connection feature must be enabled on the device. Contact your service provider regarding availability of wireless
connection on your access point.
• Check the SSID and security settings of the AP for AP connection. Refer to the appropriate documentation for SSID
and security settings of the AP.
• Invalid settings on network devices (wired/wireless line sharer, hub) can cause the monitor to run slowly or not
operate properly. Install the devices correctly according to the appropriate manual and set the network.
• Connection method may differ according to the AP manufacturer.
ENGLISH
44
ENGLISH
General Settings
To configure the language
Remote Control (SETTINGS) General Menu Language
Select one of the languages on the menu displayed on the screen.
• Menu Language: sets a language for Signage.
To set the time/date
Remote Control (SETTINGS) General Time & Date
You can check or change the time.
• Time: you can set the time manually.
• Date: you can set the date manually.
To turn your monitor on or off automatically
Remote Control (SETTINGS) General Timers
You can set the On/Off Timer for your monitor.
• On Timer: you can set the time when your monitor turns on.
• Off Timer: you can set the time when your monitor turns off.
• No Signal Power Off (15 minutes): If you do not press any button within 15 minutes of the monitor being
turned on by the On Timer feature, the monitor turns off automatically. To ensure the monitor does not turn off
automatically, set Auto Off to Off.
• Auto Power Off: If you do not press any button within four hours of the monitor being turned on, the monitor
enters Standby mode automatically.
NOTE
• On Time/Off Time can be saved for up to seven schedules; the monitor is turned on or off at the preset time in the
schedule list. If multiple preset times are stored in the schedule list, this function works at the nearest time from the
current time.
• Once the on or off time is set, these functions operate daily at the preset time.
• The scheduled power-off function works properly only when the device time is set correctly.
• When the scheduled power-on and power-off times are the same, the power-off time has priority over the power-
on time if the set is turned on, and vice versa if the set is turned off.
To reset your monitor settings
Remote Control (SETTINGS) General Reset to Initial Settings
Resets all monitor settings.
ENGLISH
45
ENGLISH
USING THE TOUCH
SCREEN

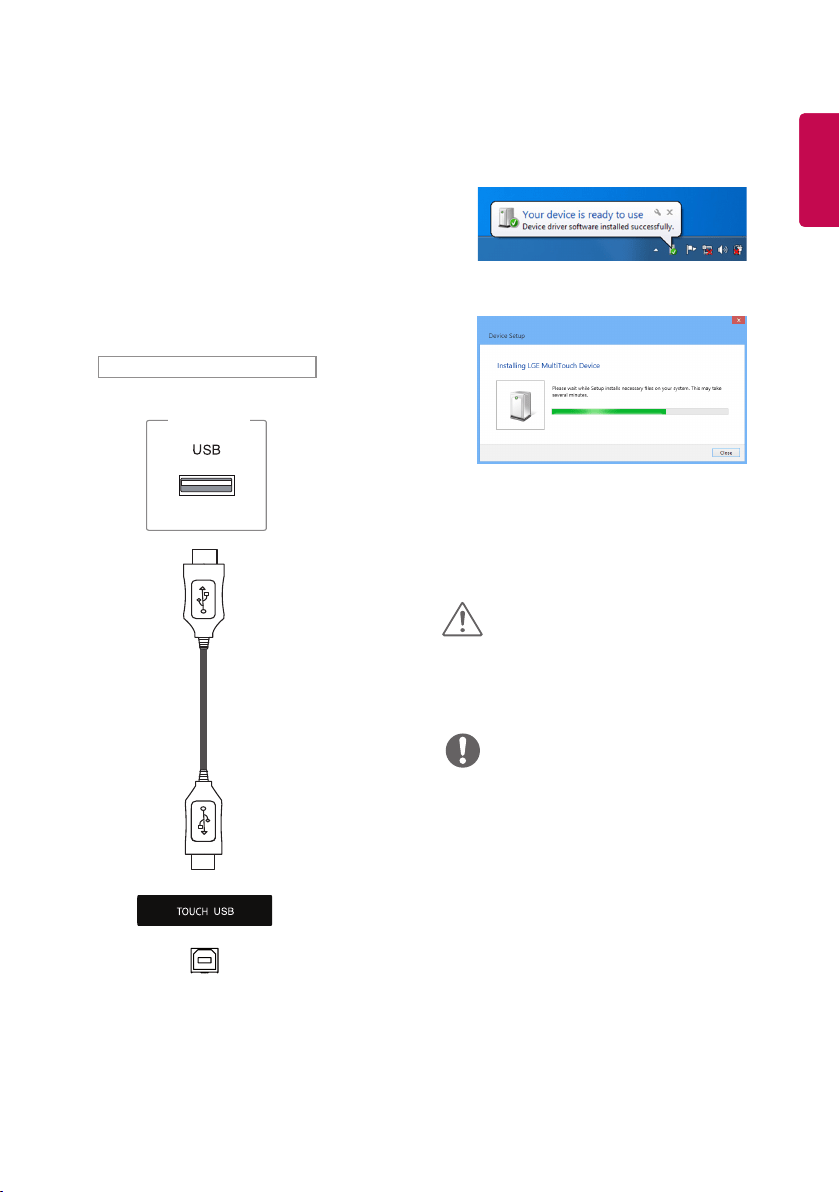

To Use the Touch Screen on
Windows 7 / 8.x
Plug a USB cable into a TOUCH USB port on the back
of the monitor.
Back of the product
PC
Then, connect the USB cable to your PC so that it
automatically recognizes the touch screen monitor.
* Windows 7
* Windows 8.x
Go to Control Panel > System and Security > System.
You will see the number of touch-points supported
under Pen and Touch.
CAUTION
• Once your PC recognizes the monitor, you will be
able to use the touch screen.
NOTE
• The monitor can respond to 10 Touch Points when
connected to a Windows 7 / 8.x computer.
• When using the touch screen monitor, it is
recommended to set the screen aspect ratio to Just
Scan.
• For more information about gestures and settings
on Windows 7 / 8.x, refer to Windows Help.
ENGLISH
46
ENGLISH
Gestures and Settings on Windows 7 / 8.x
For information about gestures and settings on Windows 7 / 8.x, refer to the Windows Help.
Precaution When Using the Touch Screen
CAUTION
• The monitor is optimized for indoor use.
• The touch screen monitor is optimized for Windows 7 / 8.x.
• Do not remove the USB cable when using the touch screen monitor.
• If touch does not respond, remove the USB cable and connect it back in ten seconds.
• Touch responds when the monitor is powered on.
• Touch accuracy is optimized by using full screen mode.
• Your action may not work properly on the edge area of the touch screen.
• If the 10 touch-points are not detected, restart your PC. (Windows 7 / 8.x)
• The touch operation (e.g. touches count, gesture, etc.) may vary depending on the content.
• The spot that you try to touch and the one which is actually touched on the screen may differ depending on the
angle you view the monitor screen.
Precaution When Using the Stylus
CAUTION
• During multi-point touch operations, the multi-touch function may not work properly when the stylus touches the
screen together with a large object such as a human finger.
ENGLISH
47
ENGLISH
LG Touch Screen Software
Specifications
Minimum System Requirements for
Windows PC
CPU Intel Core 2 Duo or higher
RAM 1 GB or more
Recommended System
Requirements for Windows PC
CPU Intel Core i3 or higher
RAM 2 GB or more
Supported OS Windows 7 professional/Ultimate, Windows 8/8.x (32/64 bit)
Precaution When Using LG Touch Screen Software
CAUTION
• When running a separate application on LG Touch Screen software, the application screen may flicker.
• When using multi-touch feature while running PowerPoint on LG Touch Screen software, the Touch Screen software
may be closed abnormally.
• To play or record video on the LG Touch Screen software, Windows Media Player 10 or higher and Microsoft
Expression Encoder 4 SP2 are required.
• LG Touch Screen software supports Microsoft Office 2007 or a later version.
• If the print area is not aligned to the paper size, select the “Fit to Page” option.
• When you print to the XPS document writer, the "Save the file as" pop-up window may appear behind the LG Touch
Screen software.
• To underline the text in the textbox, apply the underline after entering the text.
• The video player in LG Touch Screen software works the same as Windows Media Player in Windows.
• On LG Touch Screen software, characters may be cropped when fonts from languages other than Korean are
applied to Korean.
• Depending on the status of the PC where LG Touch Screen Software is installed, an abnormal shutdown or problem
with the thumbnail images and skins may occur during the use of Internet Explorer.
• When you create a drawing on MS Office in App mode, flashing or afterimage may occur, and it may look different
from the drawing in Note mode.
ENGLISH
48
ENGLISH
TROUBLESHOOTING
No image is displayed.
Problem Resolution
Is the product power cord
connected?
• See if the power cord is properly connected to the outlet.
• See if the power switch is turned on.
Power is on, but the screen
appears extremely dark.
• Adjust brightness and contrast again.
• Backlight may need repair.
Is the product in Power Saving
Mode?
• If the product is in power saving mode, move the mouse or
press any key.
• Turn both devices off and then back on.
Does the “Invalid Format” message
appear?
• The signal from the PC (graphic card) is out of the vertical or horizontal
frequency range of the product. Adjust the frequency range by referring to
the Specifications in this manual.
Does the “No Signal” message
appear?
• The signal cable between PC and product is not connected. Check the signal
cable.
• Press the INPUT menu in the remote Control to check the input signal.
'Unknown Product' message appears when the product is connected.
Problem Resolution
Did you install the driver? • See if the plug&play function is supported by referring to the video card user
manual.
ENGLISH
49
ENGLISH
The screen image looks abnormal.
Problem Resolution
Is the screen position wrong? • See if the graphic card resolution and frequency are supported by the
product. If the frequency is out of range, set to the recommended resolution
in the Control Panel "Display" Setting menu.
The screen is displayed
abnormally.
• The proper input signal is not connected to the signal port. Connect the
signal cable that matches with the source input signal.
After-image appears on the product.
Problem Resolution
After-image appears when the
product is turned off.
• If you use a fixed image for a long time, the pixels may be damaged quickly.
Use the screen-saver function.
PRECAUTIONS TO TAKE TO PREVENT IMAGE RETENTION
• If a static image is displayed for an extended period of time, the screen may be damaged and the image retention
can last for a long time or could be permanent. Damage resulting from long-term static images is not covered by
the product warranty.
• Do not display a static image on the screen for more than two hours. Displaying images in a 4:3 aspect ratio for an
extended period of time may cause image retention around the border of the screen. Most third-party products
have the same issue and this will not be accepted as a cause for refund or exchange.
ENGLISH
50
ENGLISH
The audio function does not work.
Problem Resolution
No sound? • See if the audio cable is connected properly.
• Adjust the volume.
• See if the sound is set properly.
Sound is too dull. • Adjust the Clear Voice ll, Treble, and Bass appropriately.
Sound is too low. • Adjust the volume.
Screen color is abnormal.
Problem Resolution
Screen has poor color resolution
(16 colors).
• Set the number of colors to more than 24 bits (true color) Select Control
Panel - Display - Settings - Color Table menu in Windows.
Screen color is unstable or mono-
colored.
• Check the connection status of the signal cable. Or, re-insert the PC graphic
card.
Do black spots appear on the
screen?
• Several pixels (red, green, white, or black color) may appear on the screen,
which can be attributable to the unique characteristics of the LCD panel. It is
not a malfunction of the LCD.
When I set Input Label to PC in
the Input List, some letters are
displayed with a different color
than the original color.
• For Windows 7, go to Start -> Control Panel -> Appearance and
Personalization -> Font and select Adjust ClearType text.
* If you are using a specific graphic card that supports the UHD resolution,
the problem may not be solved due to compatibility issues.
The operation does not work normally.
Problem Resolution
The power suddenly turned off. • Is the sleep timer set?
• Check the power control settings. Power interrupted
ENGLISH
51
ENGLISH
I have a problem with touch response.
Problem Resolution
Touch does not respond. • Check the USB cable connection.
- This may occur when the USB cable between PC and monitor is not
connected. Check the USB cable and make it firmly connected.
* Check the connection on Windows 7 / 8.x Control Panel > System and
Security > System
- Check the number of touch-points supported under Pen and Touch.
• Check the PC power.
- This may occur when the PC is powered off. Make sure that your PC's
power cord is firmly plugged into a power outlet.
• Restart your PC.
- Touch may not respond when the system is down due to the unstable
network. Reconnect the LAN cable or restart your PC.
• Check the signal cable connection.
- If your PC and monitor are not connected using a signal cable, touch does
not respond. Check the signal cable connection.
• Check the monitor power.
- Touch may not respond when the monitor is powered off.
• Check if the screen is currently on.
The location of a touch does
not correspond to the touch
coordinates.
• Change your tablet PC settings (Windows 7 / 8.x).
- This may occur when the touch screen is not calibrated properly.
Control Panel > Hardware and Sound > Tablet PC Settings > Display >
Display options > Calibrate or Reset
* For information about gestures and settings on Windows 7 / 8.x, refer to
the Windows Help.
A touch is applied to a monitor
other than the one I intended.
• Set the monitor as the default monitor.
- This may occur if the monitor is not set as the default monitor when you
are using multiple monitors.
Go to Control Panel > Display > Settings tab > Select the monitor > Use
this device as the primary monitor (U) > Apply (A)
• Change your tablet PC settings (Windows 7 / 8.x).
- This may occur when the touch screen is not calibrated properly.
Go to Control Panel > Hardware and Sound > Tablet PC Settings > Display
> Display options > Calibrate or Reset
ENGLISH
52
ENGLISH
Problem Resolution
I cannot use 10 touch points in
Windows 7 / 8.x.
• Make sure that you use a content that supports up to 10 touch points.
- The content played (e.g. Flash Player, Paint, etc.) may not support 10 touch
points.
• Remove the USB cable and connect it again in 10 seconds.
• Run the content (e.g. Flash Player, Paint, etc.) again.
• Restart your PC.
• If the gap between two touch points is 20 mm (0.78 inches) or less, the touch
error may occur.
• On the edge of the touch screen, 10 touch points may work unstably.
ENGLISH
53
ENGLISH
SPECIFICATIONS
LCD Panel Screen Type TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel.
Pixel Pitch 0.4845 mm (H) x 0.4845 mm (V)
(0.01 inches (H) x 0.01 inches (V))
Video Signal Max. Resolution DVI-D: 1920 x 1080 @ 60 Hz
DISPLAYPORT: 3840 x 2160 @ 30 Hz
HDMI 1: 3840 x 2160 @ 60 Hz (YCbCr 4:2:0)
HDMI 2: 3840 x 2160 @ 60 Hz
- I t may not be supported depending on the OS or Graphic card
type.
Recommended Resolution DVI-D : 1920 x 1080 @ 60 Hz
DISPLAYPORT / HDMI 1 : 3840 x 2160 @ 30 Hz
HDMI 2 : 3840 x 2160 @ 60 Hz
- I t may not be supported depending on the OS or Graphic card
type.
Horizontal Frequency
DVI-D/ HDMI 1/ HDMI 2/ DISPLAYPORT:
15 kHz to 83 kHz, 112.5 kHz(HDMI2),135 kHz(HDMI2)
Vertical Frequency
DVI-D/ HDMI 1/ HDMI 2/ DISPLAYPORT:
24 Hz to 76 Hz
Synchronization Type Digital
Input/ Output ports
RS-232C IN/OUT, LAN, COMPONENT IN, DVI-D IN, DP IN,
PENTRAY CONTROL, HDMI1, HDMI2, AUDIO IN/OUT, USB IN
1/2/3, IR&LIGHT SENSOR, SPEAKER OUT, TOUCH USB
Embedded battery
Applied
Power Power Rating
AC 100-240 V~ 50/60 Hz 5.7 A
Power Consumption On Mode: 400 W (Typ.)
Sleep Mode : ≤ 3 W
Off Mode : ≤ 1 W
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C (32 °F to 104 °F)
10 % to 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C (-68 °F to 140 °F)
5 % to 95 %
Dimensions (Width x Height x Depth) / Weight 1951.2 mm x 1137.2 mm x 111.9 mm / 104 kg
(76.8 inches x 44.7 inches x 4.4 inches / 229.2 lbs)
Product specifications shown above may be changed without prior notice due to upgrade of product functions.
“ ” refers to alternating current (AC), and “ ” refers to direct current (DC).
ENGLISH
54
ENGLISH
* Touch Screen
OS (Operating
System)
Windows 7 / 8.x 10 Points
Space between touches : at least 20 mm (0.78 inches) or more
* Applicable only for models that support the speakers
Audio RMS Audio Output 10 W + 10 W (R + L)
Input Sensitivity 0.7 Vrms
Speaker Impedance 8 Ω
Product specifications shown above may be changed without prior notice due to upgrade of product functions.
ENGLISH
55
ENGLISH
HDMI (PC) Support Mode
Resolution
Horizontal
frequency
(kHz)
Vertical
frequency
(Hz)
Remarks
640 x 350 31.468 70.09
720 x 400 31.469 70.08
640 x 480 31.469 59.94
800 x 600 37.879 60.317
1024 x 768 48.363 60.004
1152 x 864 54.348 60.053
1280 x 1024 63.981 60.02
1920 x 1080 67.5 60
3840 x 2160 54 24
3840 x 2160 56.25 25
3840 x 2160 67.5 30
3840 x 2160 112.5 50 HDMI2
3840 x 2160 135 60 HDMI2
DVI-D Support Mode
Resolution
Horizontal
frequency
(kHz)
Vertical
frequency (Hz)
640 x 350 31.469 70.8
720 x 400 31.468 70.8
640 x 480 31.469 59.94
800 x 600 37.879 60.317
832 x 624 49.725 74.55
1024 x 768 48.363 60
1366 x 768 47.7 60
1280 x 1024 63.981 60.02
1680 x 1050 65.290 59.954
1920 x 1080 67.5 60
HDMI (DTV) Support Mode
Resolution
Horizontal
frequency
(kHz)
Vertical
frequency
(Hz)
Remarks
640 x 480 31.469 59.94
640 x 480 31.5 60
720 x 480 15.73 59.94
720 x 480 15.75 60
720 x 576 15.625 50
720 x 480 31.47 59.94
720 x 480 31.5 60
720 x 576 31.25 50
1280 x 720 44.96 59.94
1280 x 720 45 60
1280 x 720 37.5 50
1920 x 1080 28.125 50
1920 x 1080 33.72 59.94
1920 x 1080 33.75 60
1920 x 1080 26.97 23.976
1920 x 1080 27 24
1920 x 1080 33.71 29.97
1920 x 1080 33.75 30
1920 x 1080 56.25 50
1920 x 1080 67.432 59.94
1920 x 1080 67.5 60
3840 x 2160 53.95 23.976
3840 x 2160 54 24
3840 x 2160 56.25 25
3840 x 2160 61.43 29.97
3840 x 2160 67.5 30
3840 x 2160 112.5 50 HDMI2
3840 x 2160 135 60 HDMI2
ENGLISH
56
ENGLISH
DISPLAYPORT (PC) Support Mode
Resolution
Horizontal
frequency (kHz)
Vertical
frequency (Hz)
640 x 480 31.469 59.94
800 x 600 37.879 60.317
1024 x 768 48.363 60
1280 x 720 44.772 59.855
1152 x 864 53.783 59.959
1280 x 1024 63.981 60.02
1920 x 1080 67.5 60
3840 x 2160 67.5 30
DISPLAYPORT (DTV) Support Mode
Resolution
Horizontal
frequency (kHz)
Vertical
frequency (Hz)
720 x 480p 31.5 60
720 x 576p 31.25 50
1280 x 720p 37.5 50
1280 x 720p 45 60
1920 x 1080i 28.1 50
1920 x 1080i 33.75 60
1920 x 1080p 56.25 50
1920 x 1080p 67.5 60
3840 x 2160p 67.5 30
SUPERSIGN (PC) Support Mode
Resolution
Horizontal
frequency (kHz)
Vertical
frequency (Hz)
640 x 480 31.469 59.94
800 x 600 37.879 60.317
1024 x 768 48.363 60.004
1152 x 864 54.348 60.053
1280 x 1024 63.981 60.02
1920 x 1080 67.5 60
3840 x 2160 54 24
3840 x 2160 56.25 25
3840 x 2160 67.5 30
COMPONENT Mode
Resolution
Horizontal
frequency (kHz)
Vertical
frequency (Hz)
720 x 480i 15.73 59.94
720 x 480i 15.73 60
720 x 576i 15.625 50
720 x 480p 31.47 59.94
720 x 480p 31.5 60
720 x 576p 31.25 50
1280 x 720 44.96 59.94
1280 x 720 45 60
1280 x 720 45 50
1920 x 1080 28.125 50
1920 x 1080 33.72 59.94
1920 x 1080 33.75 60
1920 x 1080 56.25 50
1920 x 1080 67.5 60
NOTE
• Vertical frequency: The product display functions
by the screen image changing dozens of times
every second like a fluorescent lamp. The vertical
frequency or refresh rate is the number of image
displays per second. The unit is Hz.
• Horizontal frequency: The horizontal interval is the
time taken to display one horizontal line. When 1
is divided by the horizontal interval, the number
of horizontal lines displayed every second can be
tabulated as the horizontal frequency. The unit is
kHz.
ENGLISH
57
ENGLISH
IR CODES
All models do not support the HDMI/USB function.
Some key codes may not be supported depending upon the model.
Code (Hex) Function Remarks
08
(POWER)
Remote control button
C4 ON Remote control button
C5 OFF Remote control button
95 Energy Saving Remote control button
0B INPUT Remote control button
10 Number Key 0
Remote control button
11 Number Key 1 Remote control button
12 Number Key 2
Remote control button
13 Number Key 3
Remote control button
14 Number Key 4 Remote control button
15 Number Key 5 Remote control button
16 Number Key 6
Remote control button
17 Number Key 7 Remote control button
18 Number Key 8 Remote control button
19 Number Key 9 Remote control button
02
Volume
Remote control button
03
Volume
Remote control button
E0 (Page Up)
Remote control button
E1 (Page Down)
Remote control button
DC 3D Remote control button
32 1/a/A Remote control button
2F CLEAR Remote control button
7E Remote control button
79 ARC(MARK) (Aspect Ratio) Remote control button
4D PSM (Picture Mode)
Remote control button
09 MUTE Remote control button
43 SETTINGS (Menu) Remote control button
99 Auto Config. Remote control button
40 Up ▲ Remote control button
41 Down ▼ Remote control button
06 Right ► Remote control button
07 Left ◄ Remote control button
44 OK Remote control button
ENGLISH
58
ENGLISH
Code (Hex) Function Remarks
28 BACK Remote control button
7B TILE Remote control button
5B
EXIT Remote control button
72
PICTURE ID ON (RED) Remote control button
71
PICTURE ID OFF (GREEN) Remote control button
63
YELLOW Remote control Button
61
BLUE Remote control button
B1
Remote control button
B0
Remote control button
BA
Remote control button
8F
Remote control button
8E
Remote control button
5F
W.BAL Remote control button
3F
S.MENU Remote control button
7C
HOME Remote control button
ENGLISH
59
ENGLISH
TO CONTROL MULTIPLE PRODUCTS
Use this method to connect several products to a single PC. You can control several products at a time by connecting
them to a single PC.
In the Installation menu, the Set ID must be between 1 and 1000 without being duplicated.
Connecting the cable
Connect the RS-232C cable as shown in the picture.
The RS-232C protocol is used for communication between the PC and product. You can turn the product on or off,
select an input source or adjust the OSD menu from your PC.
Monitor 1 Monitor 2 Monitor 3 Monitor 4
PC
RS-232C Cable
RS-232C Configurations
8-Wire Configurations (Standard RS-232C cable)
DCD
RXD
TXD
GND
DTR
DSR
RTS
CTS
DCD
TXD
RXD
GND
DSR
DTR
CTS
RTS
PC Set
1
2
3
5
4
6
7
8
1
3
2
5
6
4
8
7
D-Sub 9 D-Sub 9
(Female) (Female)
Communication Parameter
Baud Rate: 9600 BPS
Data Length: 8 bit
Parity Bit: None
Stop Bit: 1 bit
Flow Control: None
Communication Code: ASCII code
Use a crossed (reverse) cable
NOTE
• When using three-wire connections (non-standard),
an IR daisy chain cannot be used.
• When monitors connected via Daisy Chain (that
controls multiple monitors) are turned off and on
successively, some monitors may not turn on. In this
case, you can turn those monitors on by pressing
the MONITOR ON button, not the POWER button.
ID
BACK
TILE
ON
OFF
EXIT
MONITOR ON
(POWER)
ENGLISH
60
ENGLISH
Command Reference List
COMMAND
DATA
(Hexadecimal)
1 2
01 Power k a 00 to 01
02 Select input x b See Select Input
03 Aspect Ratio k c See Aspect Ratio
04 Energy Saving j q See Energy Saving
05 Picture Mode d x See Picture Mode
06 Contrast k g 00 to 64
07 Brightness k h 00 to 64
08 Sharpness k k 00 to 32
09 Color k i 00 to 64
10 Tint k j 00 to 64
11 Color temperature x u 00 to 64
12 Balance k t 00 to 64
13 Sound Mode d y See Sound Mode
14 Mute k e 00 to 01
15 Volume Control k f 00 to 64
16 Time 1 (year/month/day) f a See Time 1
17 Time 2 (hour/minute/second) f x See Time 2
18 Off time schedule f c 00 to 01
19 On Time Schedule f b 00 to 01
20 Off Timer (Repeat/Time) f e See Off Timer
21 On Timer (Repeat/Time) f d See On Timer
22 On Timer Input f u Refer to On Timer Input.
23 No Signal Power Off (15Min) f g 00 to 01
24 Auto Power Off (4 Hours) m n 00 to 01
25 Language f i See Language
26 Reset f k 00, 02
27 Current Temperature d n FF
28 Key m c See Key
29 Time Elapsed d l FF
30 Product Serial Number f y FF
31 Software Version f z FF
32 White Balance Red Gain j m 00 to FE
33 White Balance Green Gain j n 00 to FE
ENGLISH
61
ENGLISH
COMMAND
DATA
(Hexadecimal)
1 2
34 White Balance Blue Gain j o 00 to FE
35 White Balance Red Offset s x 00 to FE
36 White Balance Green Offset s y 00 to FE
37 White Balance Blue Offset s z 00 to FE
38 Backlight m g 00 to 64
39 Screen off k d 00 to 01
40 Tile Mode d d 00 to FF
41 Check Tile Mode d z FF
42 Tile ID d i See Tile ID
43 Natural Mode d j 00 to 01
44 DPM Select f j 00 to 07
45 Remote Control/Local Key Lock k m 00 to 01
46 Power On Delay f h 00 to 64
47 Fail Over Select m i 00 to 02
48 Fail Over Input Select m j See Fail Over Input Select
49 IR Operation t p 00 to 02
50 Local Key Operation t o 00 to 02
51 Check the status s v See Check the status
52 Check Screen t z 00 to 01
53 Speakers d v 00 to 01
* Note: Only the power and key commands can be used while media files are playing from a USB device or internal/
external memory. The commands other than the power and key commands will be treated as NG. Some commands
may not be supported depending upon the model.
ENGLISH
62
ENGLISH
Transmission/Reception Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
• [Command1]: identifies between the factory setting and the user setting modes.
• [Command2]: controls monitor sets.
• [Set ID]: Used for selecting a set you want to control. A unique Set ID can be assigned to each set ranging from 1 to
255 (01H~FFH) under Settings in the OSD menu.
- Selecting ‘00H’ for Set ID allows the simultaneous control of all connected monitors.
- The maximum value of Set ID may differ depending on the model.
• [Data]: Transmits command data.
- Data count may increase depending on the command.
• [Cr]: Carriage Return. Corresponds to ‘0x0D’ in ASCII code.
• [ ]: White Space. Corresponds to ‘0x20’ in ASCII code.
Acknowledgement
[Command2][ ][Set ID][ ][OK/NG][Data][x]
• The Product transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,
if the data is FF, it indicates the present status data. If the data is in data write mode, it returns the data of the PC
computer.
• If a command is sent with Set ID ‘00’ (=0x00), the data is reflected to all monitor sets and each monitor set does not
send an acknowledgement (ACK).
• If the data value ‘FF’ is sent in control mode via RS-232C, the current setting value of a function can be checked
(only for some functions).
• Some commands are not supported depending upon the model.
ENGLISH
63
ENGLISH
01. Power (Command: k a)
Controls the power on/off of the set.
Transmission
[k][a][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data][x]
• The acknowledgement signal is returned properly
only when the monitor is fully powered on.
• There may be a delay between the transmission and
acknowledgement signals.
02. Select Input (Command: x b)
Selects an input signal.
Transmission
[x][b][ ][Set ID][ ][Data][Cr]
Data 40: COMPONENT
70: DVI-D (PC)
80: DVI-D (DTV)
90: HDMI1 (DTV)
A0: HDMI1 (PC)
91: HDMI2 (DTV)
A1: HDMI2 (PC)
C0: DISPLAYPORT (DTV)
D0: DISPLAYPORT (PC)
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
• Some input signals may not be supported
depending upon the model.
03. Aspect Ratio (Command: k c)
Adjusts the aspect ratio.
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
Data 01: 4:3
02: 16:9
04: Zoom
06: Set by Program
09: Just Scan (720p or higher)
10 to 1F: Cinema Zoom 1 to 16
• Available data types differ depending on the input
signal. For more information, see the aspect ratio
section of the owner’s manual.
• The aspect ratio may differ depending upon the
model's input configuration.
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
04. Energy Saving (Command: j q)
Sets the Energy Saving.
Transmission
[j][q][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: Minimum
02: Medium
03: Maximum
04: Automatic
05: Screen off
Acknowledgement
[q][ ][Set ID][ ][OK/NG][Data][x]
• This may not be supported depending upon the
model.
ENGLISH
64
ENGLISH
05. Picture Mode (Command: d x)
Selects a picture mode.
Transmission
[d][x][ ][Set ID][ ][Data][Cr]
Data 00: Vivid
01: Standard
02: Cinema
03: Sports
04: Game
05: Expert 1
06: Expert 2
08: APS
09: Photo
10: Touch
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data][x]
• Depending upon the model, some picture modes
may not be supported.
06. Contrast (Command: k g)
Adjusts the screen contrast.
Transmission
[k][g][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Contrast 0 to 100
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
07. Brightness (Command: k h)
Adjusts the screen brightness.
Transmission
[k][h][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Brightness 0 to 100
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
08. Sharpness (Command: k k)
Adjusts the screen sharpness.
Transmission
[k][k][ ][Set ID][ ][Data][Cr]
Data 00 to 32: Sharpness 0 to 50
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
09. Color (Command: k i)
Adjusts the screen color.
Transmission
[k][i][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Color 0 to 100
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
10. Tint (Command: k j)
Adjusts the screen tint.
Transmission
[k][j][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Tint red 50 to green 50
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
11. Color Temperature (Command: x u)
Adjusts the screen color temperature.
Transmission
[x][u][ ][Set ID][ ][Data][Cr]
Data 00 to 64: warm 50 to cool 50
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
ENGLISH
65
ENGLISH
12. Balance (Command: k t)
Adjusts the sound balance.
Transmission
[k][t][ ][Set ID][ ][Data][Cr]
Data 00 to 64: left 50 to right 50
Acknowledgement
[t][ ][Set ID][ ][OK/NG][Data][x]
13. Sound mode (Command: d y)
Selects a sound mode.
Transmission
[d][y][ ][Set ID][ ][Data][Cr]
Data 01: Standard
02: Music
03: Cinema
04: Sports
05. Game
07: News
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
14. Mute (Command: k e)
Mutes/unmutes the sound.
Transmission
[k][e][ ][Set ID][ ][Data][Cr]
Data 00: Mute
01: Unmute
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data][x]
15. Volume Control (Command: k f)
Adjusts the playback volume.
Transmission
[k][f][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Volume 0 to 100
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
16. Time 1 (year/month/day) (Command: f a)
Adjusts the Time 1 (year/month/day) value.
Transmission
[f][a][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1 04 to 1B: year 2014 to 2037
Data2 01 to 0C: January to December
Data3 01 to 1F: 1st to 31st
• Enter "fa [Set ID] ff" to view the Time 1 (year/month/
day) settings.
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
17. Time 2 (hour/minute/second) (Command: f x)
Adjusts the Time 2 (hour/minute/second) value.
Transmission
[f][x][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1 00 to 17: 00 to 23 hours
Data2 00 to 3B: 00 to 59 minutes
Data3 00 to 3B: 00 to 59 seconds
• Enter "fx [Set ID] ff" to view the Time 2 (hour/
minute/second) settings.
• This function is only available when Time 1 (year/
month/day) is set.
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
ENGLISH
66
ENGLISH
18. Off Time Schedule (Command: f c)
Enables/disables the Off Time Schedule.
Transmission
[f][c][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
19. On Time Schedule (Command: f b)
Enables/disables the On Time schedule.
Transmission
[f][b][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
20. Off Timer (Repeat/Time) (Command: f e)
Configures Off Timer (Repeat/Time) settings.
Transmission
[f][e][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
1. f1h to f7h (reading data)
F1: reads the 1st Off Timer data
F2: reads the 2nd Off Timer data
F3: reads the 3rd Off Timer data
F4: reads the 4th Off Timer data
F5: reads the 5th Off Timer data
F6: reads the 6th Off Timer data
F7: reads the 7th Off Timer data
2. e1h-e7h (delete one index), e0h (delete all indexes)
E0: erases all Off Timer settings
E1: erases the 1st Off Timer setting
E2: erases the 2nd Off Timer setting
E3: erases the 3rd Off Timer setting
E4: erases the 4th Off Timer setting
E5: erases the 5th Off Timer setting
E6: erases the 6th Off Timer setting
E7: erases the 7th Off Timer setting
3. 01h to 0Ch (sets the day of the week for the Off
Timer)
01: Once
02. Daily
03: Mon - Fri
04: Mon - Sat
05: Sat - Sun
06. Every Sunday
07. Every Monday
08. Every Tuesday
09. Every Wednesday
0A. Every Thursday
0B. Every Friday
0C. Every Saturday
Data2 00 to 17: 00 to 23 hours
Data3 00 to 3B: 00 to 59 minutes
• To read or delete the Off Time Schedule list, [Data2]
[Data3] must be set to FFH.
Example 1: fe 01 f1 ff ff – reads the first index data
in Off Timer.
Example 2: fe 01 e1 ff ff - deletes the first index data
from Off Timer.
Example 3: fe 01 04 02 03 - sets Off Timer to 02:03
from Monday to Saturday.
• This function is only available when Time 1 (year/
month/day) and Time 2 (hour/minute/second) are
set.
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
21. On timer (Repeat/Time) (Command: f d)
Configures On Timer (Repeat/Time) settings.
Transmission
[f][d][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
1. f1h to f7h (reading data)
F1: reads the 1st On Timer data
F2: reads the 2nd On Timer data
F3: reads the 3rd On Timer data
ENGLISH
67
ENGLISH
22. On Timer Input (Command: f u)
Select an external input for the current On Time
setting and add a new schedule.
Transmission
[f][u][ ][Set ID][ ][Data1][Cr]
[f][u][ ][Set ID][ ][Data1][ ][Data2][Cr]
Data (Add schedule)
40: COMPONENT
70: DVI-D (PC)
A0: HDMI1 (PC)
A1: HDMI2 (PC)
D0: DISPLAYPORT (PC)
Data1 (Read schedule)
1. f1h to f7h (Read data)
F1: Select the 1st schedule input
F2: Select the 2nd schedule input
F3: Select the 3rd schedule input
F4: Select the 4th schedule input
F5: Select the 5th schedule input
F6: Select the 6th schedule input
F7: Select the 7th schedule input
Data2 (Read schedule)
FF
• To read the schedule input, enter FF for [Data2].
If no schedule is available for [Data1] when
attempting to read the schedule data, the text ‘NG’
will be displayed and the operation will fail.
(Example 1: fu 01 90 - Move each schedule input
down one row and save the 1st schedule input in
HDMI mode.)
(Example 2: fu 01 f1 ff - Read the 1st schedule
input.)
• This function is supported only when 1 (Year/
Month/Day), 2 (Hour/Minute/Second), On Time
(Repeat Mode/Time) are set.
• It may not be supported depending upon the
model.
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
[u][ ][Set ID][ ][OK/NG][Data1][Data2][x]
F4: reads the 4th On Timer data
F5: reads the 5th On Timer data
F6: reads the 6th On Timer data
F7: reads the 7th On Timer data
2. e1h to e7h (delete one index), e0h (delete all
indexes)
E0: erases all On Timer settings
E1: erases the 1st On Timer setting
E2: erases the 2nd On Timer setting
E3: erases the 3rd On Timer setting
E4: erases the 4th On Timer setting
E5: erases the 5th On Timer setting
E6: erases the 6th On Timer setting
E7: erases the 7th On Timer setting
3. 01h to 0Ch (sets the day of the week for the On
Timer)
01: Once
02. Daily
03: Mon - Fri
04: Mon - Sat
05: Sat - Sun
06. Every Sunday
07. Every Monday
08. Every Tuesday
09. Every Wednesday
0A. Every Thursday
0B. Every Friday
0C. Every Saturday
Data2 00 to 17: 00 to 23 hours
Data3 00 to 3B: 00 to 59 minutes
• To read or delete an On Time schedule list, [Data2]
[Data3] must be set to FFH.
Example 1: fd 01 f1 ff ff - reads the first index data
from On Timer.
Example 2: fd 01 e1 ff ff - deletes the first index data
from On Timer.
Example 3: fd 01 04 02 03 - sets On Timer to 02:03
from Monday to Saturday.
• This function is only available when Time 1 (year/
month/day) and Time 2 (hour/minute/second) are
set.
• This feature works as normal when the values for 22.
On timer input are entered.
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
ENGLISH
68
ENGLISH
23. No Signal Power Off (15Min) (Command: f g)
The monitor will enter Automatic Standby mode if
there is no signal for 15 minutes.
Transmission
[f][g][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
24. Auto Power Off (4 Hours) (Command: m n)
The monitor will Auto Power Off after 4 hours.
Transmission
[m][n][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: 4 hours
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
25. Language (Command: f i)
Sets the OSD language.
Transmission
[f][i][ ][Set ID][ ][Data][Cr]
Data 00: Czech
01: Danish
02: German
03: English
04: Spanish (Europe)
05: Greek
06: French
07: Italian
08: Dutch
09: Norwegian
0A: Portuguese
0B: Portuguese (Brazil)
0C: Russian
0D: Finnish
0E: Swedish
0F: Korean
10: Chinese (Mandarin)
11: Japanese
12: Chinese (Cantonese)
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
26. Reset (Command: f k)
Performs the Picture Reset/Reset functions.
Transmission
[f][k][ ][Set ID][ ][Data][Cr]
Data 00: Picture Reset
02: Initial Settings
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
ENGLISH
69
ENGLISH
27. Current temperature (Command: d n)
Checks the inside temperature.
Transmission
[d][n][ ][Set ID][ ][Data][Cr]
Data FF: Check the status
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
• Temperature is displayed as a hexadecimal value.
28. Key (Command: m c)
Sends a key code for the IR remote control.
Transmission
[m][c][ ][Set ID][ ][Data][Cr]
Data IR_KEY_CODE
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
• For key codes, see IR Codes.
• Some key codes are not supported Depending
upon the model.
29. Time Elapsed (Command: d l)
Checks the elapsed time.
Transmission
[d][l][ ][Set ID][ ][Data][Cr]
Data FF: Read status
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
• The data received is shown as a hexadecimal value.
30. Product serial number (Command: f y)
Checks the serial number of the product.
Transmission
[f][y][ ][Set ID][ ][Data][Cr]
Data FF: Check product serial number
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
• Data is in ASCII code.
31. Software Version (Command: f z)
Checks the software version of the product.
Transmission
[f][z][ ][Set ID][ ][Data][Cr]
Data FF: Check software version
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data][x]
32. White balance red gain (Command: j m)
Adjusts the white balance red gain value.
Transmission
[j][m][ ][Set ID][ ][Data][Cr]
Data 00 to FE: Red Gain 0 to 254
FF: checks the red gain value
Acknowledgement
[m][ ][Set ID][ ][OK/NG][Data][x]
ENGLISH
70
ENGLISH
33. White Balance Green Gain (Command: j n)
Adjusts the white balance green gain value.
Transmission
[j][n][ ][Set ID][ ][Data][Cr]
Data 00 to FE: Green Gain 0 to 254
FF: checks the green gain value
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
34. White Balance Blue Gain (Command: j o)
Adjusts the white balance blue gain value.
Transmission
[j][o][ ][Set ID][ ][Data][Cr]
Data 00 to FE: Blue Gain 0 to 254
FF: checks the blue gain value
Acknowledgement
[o][ ][Set ID][ ][OK/NG][Data][x]
35. White Balance Red Offset (Command: s x)
Adjusts the white balance red offset value.
Transmission
[s][x][ ][Set ID][ ][Data][Cr]
Data 00 to 7F: Red Offset 0 to 127
FF: checks the red offset value
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data][x]
36. White Balance Green Offset (Command: s y)
Adjusts the white balance green offset value.
Transmission
[s][y][ ][Set ID][ ][Data][Cr]
Data 00 to 7F: Green Offset 0 to 127
FF: checks the green offset value
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
37. White Balance Blue Offset (Command: s z)
Adjusts the white balance blue offset value.
Transmission
[s][z][ ][Set ID][ ][Data][Cr]
Data 00 to 7F: Blue Offset 0 to 127
FF: checks the blue offset value
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data][x]
38. Backlight (Command: m g)
Adjusts the backlight brightness.
Transmission
[m][g][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Backlight 0 to 100
Acknowledgement
[g][][set ID][][OK/NG][Data][x]
ENGLISH
71
ENGLISH
39. Screen Off (Command: k d)
Turns the screen on or off.
Transmission
[k][d][ ][Set ID][ ][Data][Cr]
Data 00: turns the screen on
01: turns the screen off
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data][x]
40. Tile Mode (Command: d d)
Sets the Tile Mode and sets values for the tile rows
and columns.
Transmission
[d][d][ ][Set ID][ ][Data][Cr]
Data 00 to FF: The first byte - tile column
The second byte - tile row
• 00, 01, 10, and 11 mean that the tile mode is off.
• The maximum values of the rows and columns in
Tile Mode may differ depending on the model.
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data][x]
• This may not be supported depending upon the
model.
41. Check Tile Mode (Command: d z)
Checks the tile mode.
Transmission
[d][z][ ][Set ID][ ][Data][Cr]
Data FF: checks the tile mode
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
Data1 00: tile mode off
01: tile mode on
Data2 00 to 0F: tile column
Data3 00 to 0F: tile row
42. Tile ID (Command: d i)
Sets the tile ID value of the product.
Transmission
[d][i][ ][Set ID][ ][Data][Cr]
Data 01 to E1: Tile ID 1 to 225**
FF: checks the tile ID
** The data value cannot exceed the value of row x
column.
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
• When a data value that exceeds the value of row x
column is entered (except 0xFF), ACK becomes NG.
43. Natural Mode (in Tile mode) (Command: d j)
When displaying the image naturally, the part of the
image that would normally be displayed in the gap
between the monitors is omitted.
Transmission
[d][j][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
44. DPM Select (Command: f j)
To set the DPM (Display Power Management)
function.
Transmission
[f][j][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: 5 seconds
02: 10 seconds
03: 15 seconds
04: 1 minutes
05: 3 minutes
06: 5 minutes
07: 10 minutes
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
ENGLISH
72
ENGLISH
45. Remote Control/Local Key Lock
(Command: k m)
Adjusts the remote control/local key (front) lock.
Transmission
[k][m][ ][Set ID][ ][Data][Cr]
Data 00: Off (Lock Off)
01: On (Lock On)
• When the remote control and front keys are locked
in Standby mode, you cannot turn on the power on
by using the remote control or front power button.
Acknowledgement
[m][ ][Set ID][ ][OK/NG][Data][x]
46. Power On Delay (Command: f h)
Sets the schedule delay when the power turns on.
(unit: seconds).
Transmission
[f][h][ ][Set ID][ ][Data][Cr]
Data 00 to 64: min. 0 to maximum 100 (seconds)
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
• The maximum Power On delay time may differ
depending on the model.
47. Fail Over Select (Command: m i)
Selects an input mode for auto switch.
Transmission
[m][i][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: Auto
02: Manual
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
48. Fail Over Input Select (Command: m j)
Selects an input source for auto switch.
* This command is only available when the Fail Over
(auto) mode is set to Custom.
Transmission
[m][j][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][ ]
[Data4][ ][Data5][Cr]
Data 1 to 5 (Input priority: 1 to 5)
40: COMPONENT
70: DVI-D
90: HDMI1
91: HDMI2
C0: DISPLAYPORT
Acknowledgement
[j][ ][SetID][ ][OK/NG][Data1][Data2][Data3][Data4]
[Data5][x]
Data 1 to 5 (Input priority: 1 to 5)
40: COMPONENT
70: DVI-D
90: HDMI1
91: HDMI2
C0: DISPLAYPORT
• Some input signals may not be supported
depending upon the model.
49. IR Operation (Command: t p)
Configures the IR operation settings of the product.
Transmission
[t][p][ ][Set ID][ ][Data][Cr]
Data 00: locks off all of the keys
01: locks on all of the keys except the Power key
02: locks on all of the keys
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data][x]
• When the monitor is turned off, the power key still
functions, even in the locks on all of the keys (02)
mode.
ENGLISH
73
ENGLISH
50. Local Key Operation (Command: t o)
Configures the local key operation settings of the
product.
Transmission
[t][o][ ][Set ID][ ][Data][Cr]
Data 00: locks off all of the keys
01: locks on all of the keys except the Power
key
02: locks on all of the keys
Acknowledgement
[o][ ][Set ID][ ][OK/NG][Data][x]
• When the monitor is turned off, the power key still
functions, even in the locks on all of the keys (02)
mode.
51. Status (Command: s v)
Checks the current signal status of the product.
Transmission
[s][v][ ][Set ID][ ][Data][ ][FF][Cr]
Data 02: checks whether there is a signal or not
10: RGB sensing OK/NG (Check Screen)
Acknowledgement
[v][ ][Set ID][ ][OK/NG][Data][Data1][x]
Data: 02 (when a signal is found)
Data1 00: no signal
01: there is a signal
Data: 10 (Check Screen)
Data1 00: Check Screen result NG
07: Check Screen result OK
• Treated as NG if Check Screen is set to Off.
52. Check Screen (Command: t z)
Sets Check Screen.
Transmission
[t][z][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data][x]
• Depending upon the model, Check Screen may not
be supported.
53. Speaker (Command: d v)
Sets the speaker function.
Transmission
[d][v][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[v][ ][Set ID][ ][OK/NG][Data][x]
