Your new washing machine
You have chosen a Bosch washing
machine.
Please take a few minutes to read and
become familiar with the advantages of
your washing machine.
To meet the high quality demands
required by Bosch, every washing
machine that leaves our factory is
carefully checked to ensure that it
functions correctly and is in perfect
condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.bosch-
home.com or contact our after-sales
service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before switching on the
washing machine.
Display rules
: Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■ / -
Lists are represented by a small box or
a dash.
en
3
Contents
enInstruction Manual and Installation Instructions
8 Intended use. . . . . . . . . . . . . . . . .4
( Safety instructions . . . . . . . . . . .5
Children/people/pets . . . . . . . . . . . . . 5
Installation. . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning/Maintenance . . . . . . . . . . . 10
7 Environmental protection . . . . .11
Packaging/used appliance . . . . . . . . 11
Tips on economical use . . . . . . . . . . 11
5 Positioning and connecting . . .12
Included with the appliance . . . . . . . 12
Safety instructions. . . . . . . . . . . . . . . 13
Installation surface . . . . . . . . . . . . . . 13
Installation on a base or a wooden joist
floor . . . . . . . . . . . . . . . . . . . . . . . . . 13
Installation on a platform with drawer 13
Installing the appliance in a kitchenette
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Removing the transport locks . . . . . . 14
Hose and cable lengths . . . . . . . . . . 14
Water inlet. . . . . . . . . . . . . . . . . . . . . 15
Water outlet . . . . . . . . . . . . . . . . . . . 16
Levelling . . . . . . . . . . . . . . . . . . . . . . 16
Electrical connection. . . . . . . . . . . . . 17
Before using the appliance for the first
time. . . . . . . . . . . . . . . . . . . . . . . . . . 17
Transportation. . . . . . . . . . . . . . . . . . 18
* Familiarising yourself with your
appliance . . . . . . . . . . . . . . . . . .19
Washing machine . . . . . . . . . . . . . . . 19
Controls . . . . . . . . . . . . . . . . . . . . . . 20
Z Laundry. . . . . . . . . . . . . . . . . . . .22
Prepare the laundry . . . . . . . . . . . . . 22
Sorting laundry . . . . . . . . . . . . . . . . . 22
Starching . . . . . . . . . . . . . . . . . . . . . 22
Dyeing/bleaching . . . . . . . . . . . . . . . 22
Soaking . . . . . . . . . . . . . . . . . . . . . . 23
C Detergent . . . . . . . . . . . . . . . . . . 23
Correct selection of detergent . . . . . .23
Saving energy and detergent . . . . . .24
0 Programme default settings. . . 24
Temperature . . . . . . . . . . . . . . . . . . .24
Spin speed . . . . . . . . . . . . . . . . . . . .24
Ready in time . . . . . . . . . . . . . . . . . .24
Memory programme . . . . . . . . . . . . .25
\ Additional programme settings25
SpeedPerfect. . . . . . . . . . . . . . . . . . .25
EcoPerfect. . . . . . . . . . . . . . . . . . . . .25
Water&Rinse+ . . . . . . . . . . . . . . . . . .25
Prewash . . . . . . . . . . . . . . . . . . . . . .26
Easy-Iron . . . . . . . . . . . . . . . . . . . . . .26
Rinse hold . . . . . . . . . . . . . . . . . . . .26
Stains choice. . . . . . . . . . . . . . . . . . .26
1 Operating the appliance . . . . . . 27
Preparing the washing machine . . . .27
Switching on the appliance/selecting a
programme . . . . . . . . . . . . . . . . . . . .27
Change the programme default settings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Select additional programme settings27
Placing laundry into the drum . . . . . .28
Measure and add detergent and care
products . . . . . . . . . . . . . . . . . . . . . .28
Start the programme . . . . . . . . . . . . .29
Childlock/operation lock . . . . . . . . . .29
Adding laundry . . . . . . . . . . . . . . . . .30
Changing the programme . . . . . . . . .30
Cancel the programme . . . . . . . . . . .30
Programme end during rinse hold. . .30
Programme end . . . . . . . . . . . . . . . .30
Removing laundry/switching off the
appliance. . . . . . . . . . . . . . . . . . . . . .31
Q Appliance settings . . . . . . . . . . 31
Activating the setting mode . . . . . . . .31
Changing the signal volume . . . . . . .31
Changing the brightness of the touch
display. . . . . . . . . . . . . . . . . . . . . . . .32
en Intended use
4
Select/deselect the memory function for
drum care . . . . . . . . . . . . . . . . . . . . 32
Exiting setting mode . . . . . . . . . . . . 32
H Sensors . . . . . . . . . . . . . . . . . . . 32
Automatic load sensing . . . . . . . . . . 32
Unbalanced load detection system . 32
VoltCheck . . . . . . . . . . . . . . . . . . . . 32
2 Cleaning and maintenance . . . 33
Machine housing/control panel . . . . 33
Drum . . . . . . . . . . . . . . . . . . . . . . . . 33
Descaling. . . . . . . . . . . . . . . . . . . . . 33
The drain pump is blocked, emergency
draining . . . . . . . . . . . . . . . . . . . . . . 33
The drain hose at the siphon is blocked
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Filter in the water supply blocked . . 34
3 Faults and what to do about them.
. . . . . . . . . . . . . . . . . . . . . . . . . . 35
Emergency release . . . . . . . . . . . . . 35
Information on the display panel . . . 36
Faults and what to do about them. . 37
4 After-sales service . . . . . . . . . . 39
J Technical data. . . . . . . . . . . . . . 39
r Aqua-Stop warranty . . . . . . . . . 40
8 Intended use
Intended use
■ This appliance is intended for private
domestic use only.
■ Do not install or operate this
appliance anywhere that is liable to
experience frost and/or outdoor
conditions. There is a risk that the
appliance will be damaged if
residual water in it freezes. If hoses
freeze up, they may crack/burst.
■ This appliance must only be used for
washing domestic laundry,
consisting of machine-washable
items and hand-washable woollens
(see label on item). Using the
appliance for any other purpose is
outside of the scope of its intended
application and is forbidden.
■ This appliance is suitable for
operation with mains water and
commercially available detergents
and care products (must be suitable
for use in washing machines).
■ This appliance is intended for use up
to a maximum height of
4000 metres above sea level.
Before you switch on the appliance:
Check that there is no visible damage to
the appliance. Do not operate the
appliance if it is damaged. Should you
have any problems, please contact your
specialist dealer or our customer
service.
Read and follow the operating and
installation instructions and all other
information provided with this appliance.
Retain the documents for subsequent
use or for subsequent owners.
Safety instructions en
5
( Safety instructions
Safety instructi ons
The following safety information
and warnings are provided to
protect you from injury and to
prevent material damage to
your surroundings.
It is nevertheless important to
take the necessary precautions
and to proceed with care when
installing, maintaining, cleaning
and operating the appliance.
Children/people/pets
:Warning
Risk of death!
Children and other people who
are unable to assess the risks
involved when using the
appliance may injure
themselves or may find
themselves in life-threatening
situations. Therefore please
note:
■ The appliance may be used
by children over the age of 8
years and by persons with
reduced physical, sensory or
mental capacity or by
persons with a lack of
experience or knowledge as
long as they are supervised
or have received instruction
on how to use the appliance
safely and they have
understood the potential
risks of using the appliance.
■ Children must not play with
this appliance.
■ Do not allow children to
clean or maintain this
appliance unsupervised.
■ Keep children under 3 years
and pets away from this
appliance.
■ Do not leave the appliance
unattended when children or
other people who are unable
to assess the risks are in the
vicinity.
:Warning
Risk of death!
Children may lock themselves
inside appliances and find
themselves in a life-threatening
situation.
■ Do not position the
appliance behind a door, as
this may obstruct the
appliance door or prevent it
from opening completely.
■ Once an appliance has
reached the end of its life,
pull the mains plug from the
socket before severing the
mains cable, and then
destroy the lock on the
appliance door.
:Warning
Risk of suffocation!
If allowed to play with the
packaging/plastic film or
packing components, children
may become caught in these or
pull them over their heads and
suffocate.
en Safety instructions
6
Keep packaging, plastic film
and packing components away
from children.
:Warning
Risk of poisoning!
Detergents and care products
may result in poisoning if
consumed.
If accidentally swallowed, seek
medical advice. Keep
detergents and care products
out of the reach of children.
:Warning
Risk of burns!
When washing at high
temperatures, the glass in the
appliance door becomes hot.
Stop children from touching the
appliance door when it is hot.
:Warning
Eye/skin irritation!
Contact with detergents or care
products may cause eye/skin
irritation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. Keep detergents and
care products out of the reach
of children.
Installation
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance is not installed
properly, this may lead to a
dangerous situation. Ensure
the following:
■ The mains voltage on your
power socket must match
the rated voltage specified
on the appliance
(identification plate). The
connected loads and the
required fuse protection are
specified on the identification
plate.
■ The mains plug and the
protective contact socket
must match and the earthing
system must be correctly
installed.
■ The installation must have an
adequate cross section.
■ The mains plug must be
freely accessible at all times.
If this is not possible, in
order to comply with the
relevant safety regulations, a
switch (all pole
disconnection) must be built
into the permanent
installation in accordance
with electrical installation
regulations.
■ If using a residual current
circuit breaker, only use one
that bears the following
mark: z. The presence of
this mark is the only way to
be sure that it fulfils all the
applicable regulations.
Safety instructions en
7
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance's mains cable is
altered or damaged, this may
result in electric shock, short
circuiting or fire due to
overheating.
The mains cable must not be
kinked, crushed or altered, and
must not come into contact with
any heat sources.
:Warning
Risk of fire/material damage/
damage to the appliance!
The use of extension cords or
power strips may result in fire
due to overheating or short
circuiting.
Connect the appliance directly
to an earthed socket that has
been correctly installed. Do not
use extension cords, power
strips or multi-way couplers.
:Warning
Risk of injury/material
damage/damage to the
appliance!
■ The appliance may vibrate or
move when in operation,
potentially resulting in injury
or material damage.
Place the appliance on a
clean, even, solid surface
and, using a spirit level to
guide you, level it with the
screw-in feet.
Risk of injury/material damage/damage to the appliance!
■ If you take hold of any of the
appliance's protruding parts
(e.g. the appliance door) in
order to lift or move it, these
parts may break off and
cause injury.
Do not take hold of any of
the appliance's protruding
parts in order to move the
appliance.
:Warning
Risk of injury!
■ The appliance is very heavy.
Lifting it may result in injury.
Do not lift the appliance on
your own.
Risk of injury!
■ The appliance has sharp
edges on which you could
cut your hands.
Do not take hold of the
appliance by its sharp
edges. Wear protective
gloves to lift it.
Risk of injury!
■ If the hoses and mains
cables are not correctly
routed, they may constitute a
tripping hazard, which may
result in injury.
Route hoses and cables
such that they do not
constitute a tripping hazard.
en Safety instructions
8
Caution!
Material damage/damage to
the appliance
■ If the water pressure is too
high or too low, the
appliance may not be able to
operate properly, and it may
also result in material
damage or damage to the
appliance.
Make sure that the water
pressure in the water supply
facility is at least
100 kPa (1 bar), and does
not exceed
1000 kPa (10 bar).
Material damage/damage to the appliance
■ If the water hoses are altered
or damaged, this may result
in material damage or
damage to the appliance.
The water hoses must not be
kinked, crushed, altered or
severed.
Material damage/damage to the appliance
■ The use of hoses supplied
by other brands to connect
to the water supply may
result in material damage or
damage to the appliance.
Use the hoses supplied with
the appliance or genuine
spare part hoses only.
Material damage/damage to the appliance
■ The appliance is secured for
transportation by transport
locking devices. If the
transport locking devices are
not removed before the
appliance is operated, this
may result in damage to the
appliance.
It is important to completely
remove all transport locking
devices before using the
appliance for the first time.
Make sure that you retain
these transport locking
devices separately. It is
important to refit the
transport locking devices if
the appliance is to be
transported, in order to
prevent the appliance from
being damaged in transit.
Operation
:Warning
Risk of explosions/fire!
Laundry that has been
pretreated with cleaning agents
that contain solvents, e.g. stain
remover/cleaning solvent, may
cause an explosion in the drum.
Rinse the laundry thoroughly
with water before washing it in
the machine.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Safety instructions en
9
Do not use cleaning agents that
contain solvents.
:Warning
Risk of injury!
■ If you support your weight/sit
on the appliance door when
it is open, the appliance may
tip over, which may result in
injury.
Do not support your weight
on the appliance door when
it is open.
Risk of injury!
■ If you climb onto the
appliance, the worktop may
break, which may result in
injury.
Do not climb onto the
appliance.
Risk of injury!
■ If you reach into the drum
while it is still rotating, you
risk injuring your hands.
Wait until the drum has
stopped rotating.
:Warning
Risk of scalding!
When washing at high
temperatures, there is a risk of
scalding if you come into
contact with hot detergent
solution (e.g. when draining hot
detergent solution into a
washbasin).
Do not reach into the hot
detergent solution.
:Warning
Eye/skin irritation!
Detergent and care products
may spray out if the detergent
drawer is opened while the
appliance is in operation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. If accidentally
swallowed, seek medical
advice.
Caution!
Material damage/damage to
the appliance
■ If the amount of laundry in
the appliance exceeds its
maximum load capacity, it
may not be able to operate
properly, or this may result in
material damage or damage
to the appliance.
Do not exceed the maximum
load capacity of dry laundry.
Make sure you comply with
the maximum load capacities
specified for each of the
programs.
Material damage/damage to the appliance
■ If you pour the wrong
quantity of detergent or
cleaning agent into the
appliance, this may result in
material damage or damage
to the appliance.
Use detergents/care
products/cleaning agents
and softeners in accordance
with the manufacturers'
instructions.
en Safety instructions
10
Cleaning/Maintenance
:Warning
Risk of death!
The appliance is powered by
electricity. There is a risk of
electric shock if you come into
contact with live components.
Therefore please note:
■ Switch off the appliance.
Disconnect the appliance
from the power supply (pull
out the plug).
■ Never take hold of the mains
plug with wet hands.
■ When removing the mains
plug from the socket, always
take hold of the plug itself
and never the mains cable,
otherwise this may damage
the mains cable.
■ Do not make any technical
modifications to the
appliance or its features.
■ Repairs and any other work
on the appliance must only
be conducted by our
customer service or by an
electrician. The same applies
for replacing the mains cable
(when necessary).
■ Spare mains cables can be
ordered from our customer
service.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of electric shock/material
damage/damage to the
appliance!
If moisture penetrates the
appliance, this may cause it to
short circuit.
Do not use a pressure washer,
steam cleaner, hose or spray
gun to clean your appliance.
Environmental protection en
11
:Warning
Risk of injury/material
damage/damage to the
appliance!
The use of spare parts and
accessories supplied by other
brands is dangerous and may
result in injury, material damage
or damage to the appliance.
For safety reasons, use
genuine spare parts and
accessories only.
Caution!
Material damage/damage to
the appliance
Cleaning agents and agents for
pretreating laundry (e.g. stain
removers, prewash sprays, etc.)
may cause damage if they
come into contact with the
surfaces of the appliance.
Therefore please note:
■ Do not allow these agents to
come into contact with the
surfaces of the appliance.
■ Clean the appliance with
nothing but water and a soft,
damp cloth.
■ Remove any detergent,
spray or other residues
immediately.
7 Environmental
protection
Environmental protection
Packaging/used appliance
Tips on economical use
■ Always utilise the maximum amount
of washing for the particular
programme.
Overview of programmes ~
Supplementary sheet for the
operating and installation
instructions.
■ Wash normally soiled laundry
without prewash.
■ For light and normal soiling in
laundry, you can save energy and
detergent. ~ Page 24
■ The selectable temperatures apply
to the care labels on the textiles. The
temperatures in the machine may
deviate from this so that you get the
optimum mix of energy-saving and
washing results.
■ Information on energy and water
consumption:
The displays provide information
about the relative level of energy and
water consumption in the selected
programmes.
)
Dispose of packaging in an
environmentally-responsible
manner.
This appliance is labelled in
accordance with European
Directive 2012/19/EU
concerning used electrical and
electronic appliances (waste
electrical and electronic
equipment - WEEE).
The guideline determines the
framework for the return and
recycling of used appliances
as applicable throughout the
EU.
en Positioning and connecting
12
The more display segments are
visible, the higher the respective
consumption.
This enables you to compare the
consumption levels of the different
programmes when choosing your
programme settings and decide on
an energy- and water-saving
programme setting.
– é Energy consumption
– æ Water consumption
■ Energy-saving mode: The touch
display lighting goes out after a few
minutes, the A button flashes.
Touch the touch display to activate
the lighting.
Energy-saving mode is not activated
if a programme is running.
■ Automatic switch off (only before
the programme starts or after the
programme ends) If the appliance is
not operated for a prolonged period,
it automatically switches off to save
energy. Press the main switch again
to switch on the appliance.
■ If the washing will be dried in a
dryer, select the spin speed
according to the dryer
manufacturer's instructions.
5 Positioning and
connecting
Positioning and connecting
Included with the appliance
Note: Check the machine for transport
damage. Never use a damaged
machine. If you have a complaint,
please contact the retailer from whom
you purchased the appliance, or our
after-sales service.
´
9
9
( Mains cable
0 Bag:
■ Installation and operating instructions
■ After-sales service location directory*
■ Warranty*
■ Cover caps for openings left after
removing the transport locks
■ Wrench*
8 Water supply hose on Aqua-Stop models
@ Water drain hose
H Elbow for securing the water drain hose*
#
3
+
Positioning and connecting en
13
In addition, a hose clamp ( 24 - 40 mm
diameter, available from specialist
dealers) is required to connect the
water drain hose to a siphon.
Useful tools
■ Spirit level for levelling
■ Wrench with:
– WAF 13 for loosening the
transport locks, and
– WAF 17 for aligning the
appliance feet
Safety instructions
:Warning
Risk of injury!
■ The washing machine is very heavy.
Be careful when lifting/transporting
the washing machine.
■ When the washing machine is lifted
by its protruding parts (e.g. the
washing machine door), the
components may break off and
cause injuries.
Do not lift the washing machine by
protruding parts.
■ If the hose and mains cables are not
routed properly, there is a risk of
tripping and injury.
Lay hoses and cables in such a way
that there is no risk of tripping.
Caution!
Damage to the appliance
Frozen hoses may rip/burst.
Do not install the washing machine in
areas exposed to frost or outdoors.
Caution!
Water damage
The connection points for the water
supply hose and water drain hose are
under high water pressure. To prevent
leaks and water damage, you must
follow the instructions in this section.
Notes
■ In addition to the safety information
listed here, the local water and
electricity supplier may have special
requirements.
■ If in doubt, have the appliance
connected by a specialist.
Installation surface
Note: The washing machine be stable
so that it does not move around.
■ The installation surface must be firm
and level.
■ Soft floors/floor coverings are not
suitable.
Installation on a base or a
wooden joist floor
Caution!
Damage to the appliance
The washing machine may "wander"
and tip/topple from the base when
spinning.
The feet of the appliance must be
secured with holding brackets.
Order no. WMZ 2200, WX 9756,
Z 7080X0
Note: On wooden joist floors, install the
washing machine:
■ In a corner, if possible,
■ On a water-resistant wooden board
(min. 30 mm thick) which is screwed
tightly to the floor.
Installation on a platform with
drawer
Platform order no.: WMZ 20490, WZ
20490, WZ 20510, WZ 20520
P Water supply hose on standard/Aqua-
Secure models
*depending on the model
en Positioning and connecting
14
Installing the appliance in a
kitchenette
:Warning
Danger of death!
There is a risk of electric shock if you
touch live components.
Do not remove the appliance covering
plate.
Notes
■ Recess width of 60 cm required.
■ Only install the washing machine
underneath a continuous worktop
that is securely connected to
adjacent cabinets.

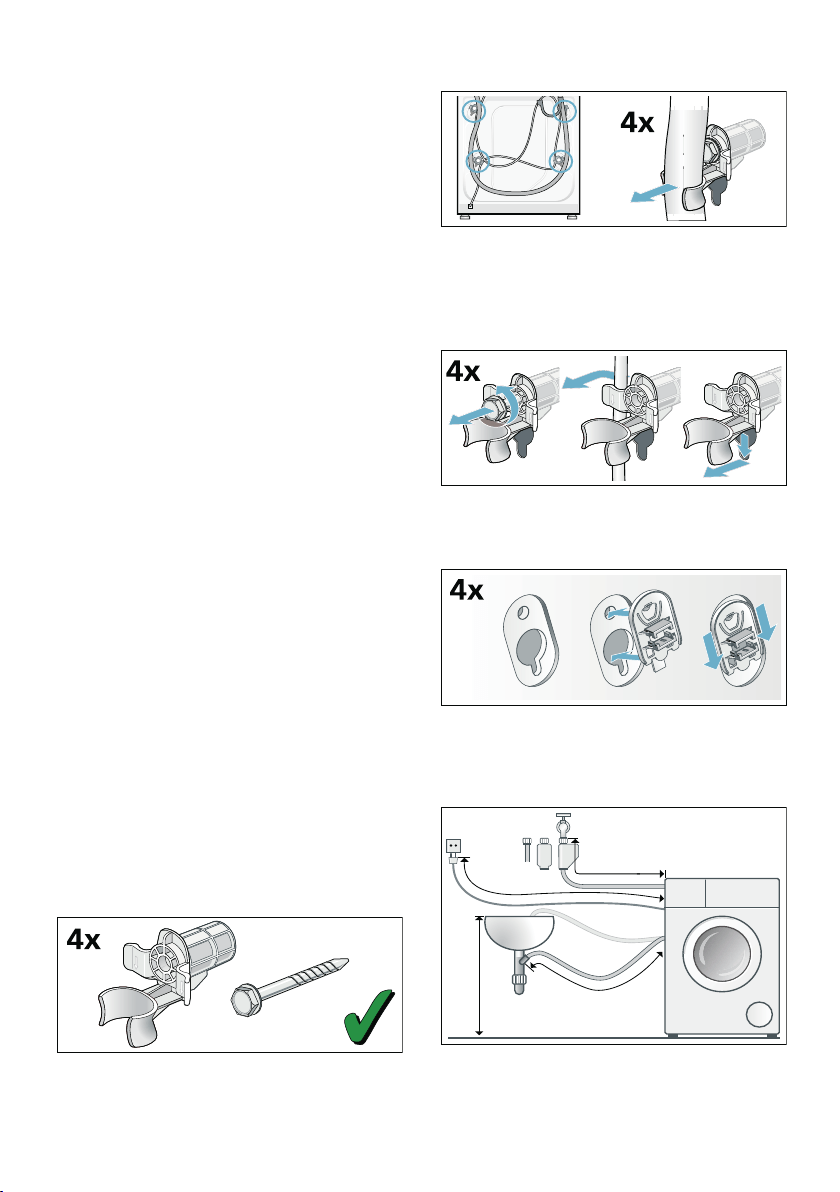

Removing the transport locks
Caution!
Damage to the appliance
■ The machine is secured for
transportation using transport locks.
If the transport locks are not
removed, the drum, for example,
may become damaged when the
machine is operated.
Before using the appliance for the
first time, make sure that you
completely remove all four transport
locks. Keep the locks in a safe
place.
■ To prevent transport damage from
occurring if the appliance is moved
at a later date, you must refit the
transport locks before transporting
the appliance.
Note: Keep the screws and sleeves in
a safe place.
1. Take the hoses out of the holders.
2. Unscrew and remove all four
transport brace screws.
Remove the sleeves. To do this,
remove the mains cable from the
holders.
3. Fit the covers. Lock the covers firmly
in place by applying pressure to the
snap-in hooks.

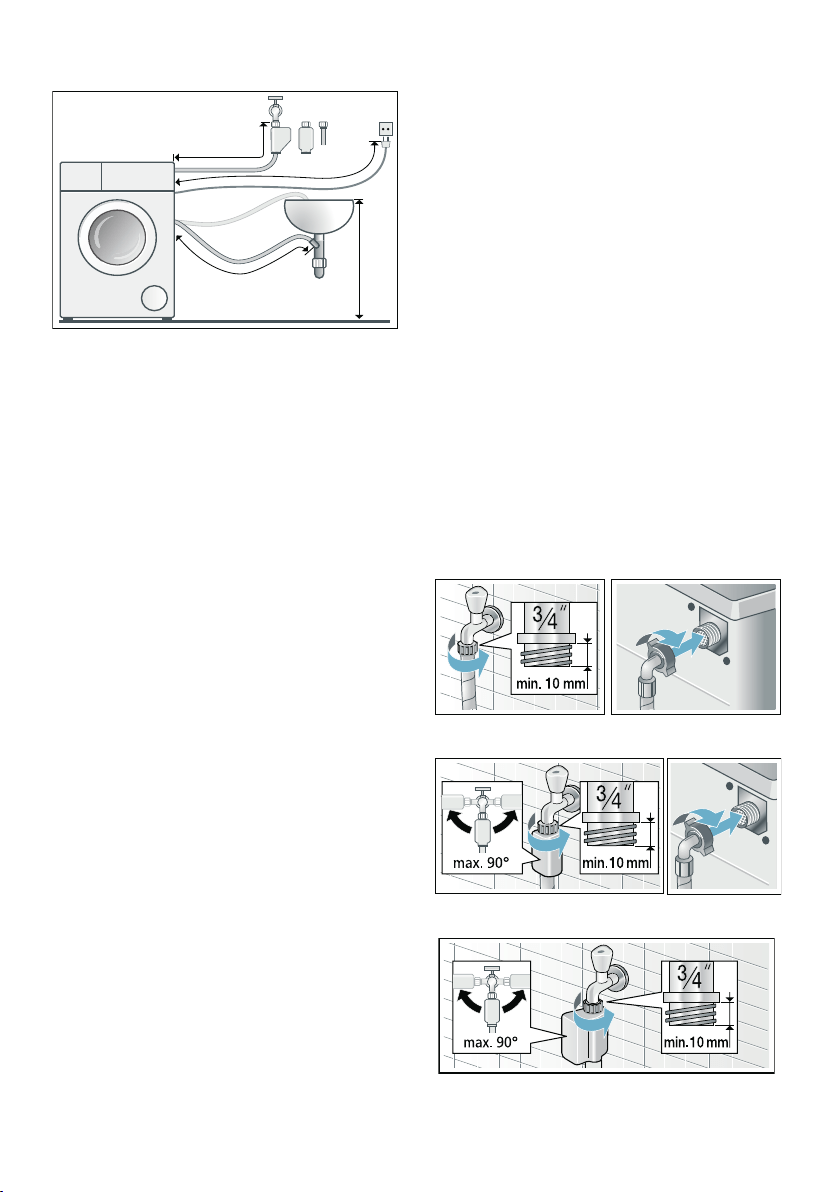

Hose and cable lengths
■ Left-hand connection
■ Right-hand connection
PD[FP
aFP
aFP
aFP
Positioning and connecting en
15
Tip: The following are available from
specialist dealers/the after-sales
service:
■ An extension for Aqua-Stop or cold
water supply hose (approx. 2.50 m);
order no. WMZ2380, WZ10130,
CZ11350, Z7070X0
■ A longer supply hose (approx.
2.20 m) for standard model
Water inlet
:Warning
Danger of death!
There is a risk of electric shock if you
touch live components.
Do not immerse the Aqua-Stop safety
valve in water (it contains an electric
valve).
Observe the following when connecting
the machine:
Notes
■ Only operate the washing machine
using cold mains water.
■ Do not connect the machine to the
mixer tap of an unpressurised hot-
water boiler.
■ Do not use a used supply hose. Only
use the supply hose supplied or one
that was purchased from an
authorised specialist retailer.
■ Do not bend, squash, modify or cut
through the water supply hose
(otherwise its strength is no longer
guaranteed).
■ Only tighten the screw connections
by hand. If the screw connections
are tightened too much with a tool
(pliers), the thread may be
damaged.
Optimum water pressure in the supply
network
At least 100 kPa (1 bar)
Maximum 1000 kPa (10 bar)
When the tap is open, the water flow is
at least 8 l/min.
If the water pressure is higher than this,
a pressure-reducing valve must be
installed.
Connection
Connect the water supply hose to the
water tap (¾" = 26.4 mm) and to the
appliance (not necessary for Aqua-Stop
models as this is permanently installed):
■ Model: Standard
■ Model: AquaSecure
■ Model: Aqua-Stop
aFP
PD[FP
aFP
aFP
en Positioning and connecting
16
Note: Open the water tap carefully,
checking the leak tightness of the
connection points. The screw
connection is under mains water
pressure.
Water outlet
:Warning
Risk of scalding!
When washing at high temperatures,
there is a risk of scalding if you come
into contact with hot detergent solution
(e.g. when draining hot detergent
solution into a washbasin).
Do not reach into the hot detergent
solution.
Caution!
Water damage
When water is being pumped away, the
outlet hose is under water pressure and
may slip out of the wash basin or
connection point.
Secure the outlet hose so that it cannot
slip out.
Caution!
Damage to the appliance/fabrics
If the end of the outlet hose is immersed
in the drained water, water may be
sucked back into the appliance and
may damage the appliance/fabrics.
Make sure that:
■ The plug does not block drainage
from the wash basin.
■ The end of the drain hose is not
immersed in the drained water.
■ The water drains away quickly
enough.
Note: Do not kink the water drain hose
or stretch it lengthways.
Connection

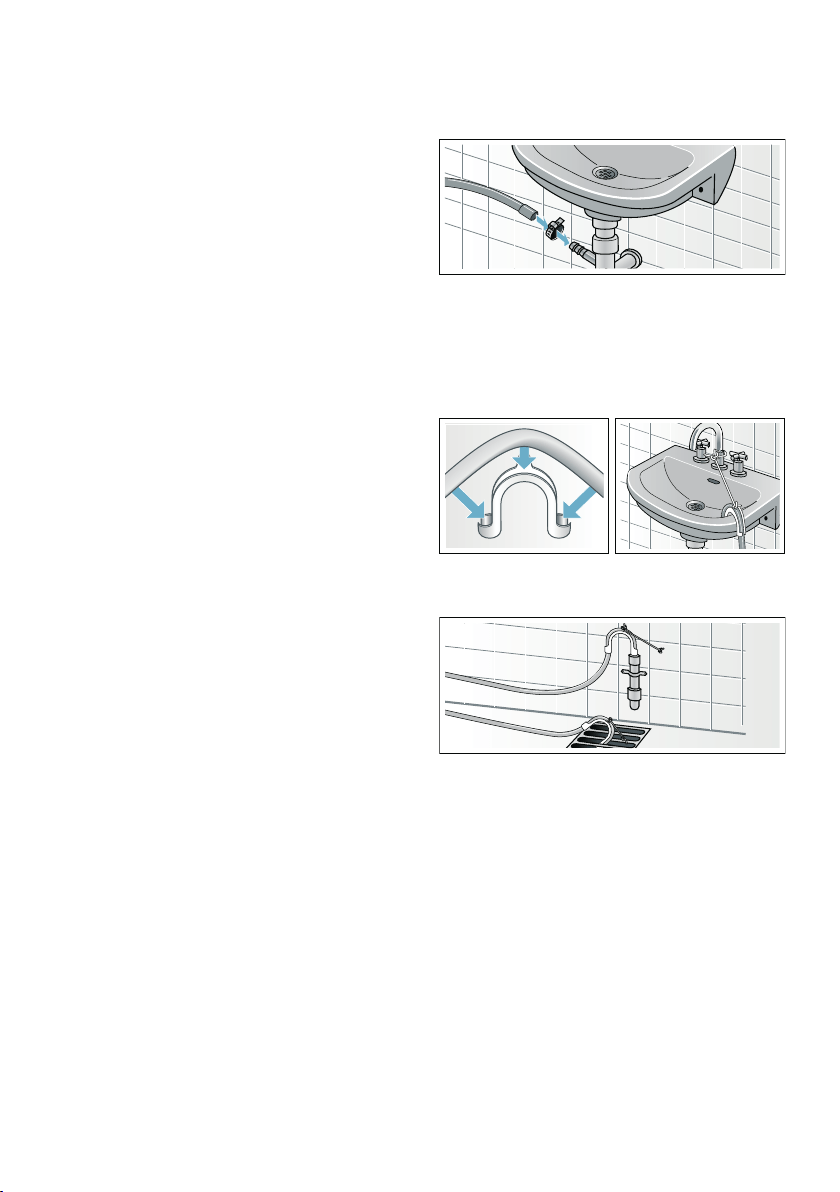

■ Drainage into a siphon
The connection point must be
secured using a hose clamp with a
diameter of 24–40 mm (available
from specialist dealers).
■ Drainage into a wash basin
Secure the outlet hose so that it
cannot slip out.
Elbow available from after-sales
service:
Individual part number 00655300
■ Drainage into a plastic pipe with
rubber sleeve or into a gully
Levelling
Level the appliance using a spirit level.
Incorrect levelling may result in intense
noise, vibrations and "wandering".
1. Loosen the lock nuts using a
wrench, by turning it in a clockwise
direction.
2. Check the alignment of the washing
machine with a spirit level, and
adjust it if necessary. Change the
height by turning the appliance feet.
All four appliance feet must stand
firmly on the ground.
Positioning and connecting en
17
3. Tighten the lock nut against the
housing.
In doing so, hold the foot tight and
do not adjust its height.
The lock nuts on all four appliance
feet must be screwed tightly against
the housing.
Electrical connection
:Warning
Danger of death!
There is a risk of electric shock if you
touch live components.
■ Never touch or hold the mains plug
with wet hands.
■ Only pull out the mains cable by the
plug and never by the cable, as this
could damage it.
■ Never unplug the mains plug during
operation.
Observe the following information and
ensure that:
Notes
■ The mains voltage and voltage
indicated on the washing machine
(rating plate) are the same.
The connected load and fuse
required are specified on the rating
plate.
■ The washing machine is only
connected to an alternating current
via a properly installed earthed
socket.
■ The mains plug fits the socket.
■ The cable cross-section is adequate.
■ The earthing system is properly
installed.
■ The mains cable is only replaced by
a qualified electrician (if this is
necessary). Replacement mains
cables are available from the after-
sales service.
■ No multiple plugs/couplings or
extension cables are used.
■ If an earth-leakage circuit breaker is
used, only a type which displays this
symbol is used: z.
Only this symbol guarantees
compliance with the currently
applicable regulations.
■ The mains plug must be freely
accessible at all times. If this is not
possible, in order to comply with the
relevant safety regulations, a switch
(2-pole switch-off) must be built into
the permanent installation in
accordance with electrical
installation regulations.
■ The mains cable is not bent,
squashed, modified, cut through, or
in contact with heat sources.
Before using the appliance for
the first time
The washing machine was thoroughly
tested before leaving the factory.To
remove any water that may be left over
from the test, run the first wash cycle
without any laundry.
Notes
■ The washing machine must be
correctly installed and connected.
From ~ Page 12
■ Never use a machine if it is
damaged. Inform the after-sales
service.
Preparatory work:
1. Check the machine.
2. Remove the protective film from the
control panel.
3. Plug in the mains plug.
4. Turn on the tap.
en Positioning and connecting
18
Running the programme without
laundry:
1. Switch on the appliance.
2. Close the door (do not load any
laundry).
3. Set the Drum Clean Û 90 °C
programme.
4. Open the detergent drawer.
5. Pour approximately 1 litre of water
into compartment II.
6. Pour standard washing powder into
compartment II.
Note: To prevent foaming, only use
half the amount of detergent
recommended by the detergent
manufacturer.Do not use detergents
intended for woollens or delicates.
7. Close the detergent drawer.
8. Press the A button.
9. Switch off the appliance at the end of
the programme.
Your washing machine is now ready to
use.
Transportation
e.g. when moving home
Preparatory work:
1. Turn off the water tap.
2. Reduce the water pressure in the
supply hose.
Maintenance – filter in the water
supply ~ Page 34
3. Drain the remaining detergent
solution.
Maintenance – detergent solution
pump blocked
4. Disconnect the washing machine
from the mains.
5. Remove the hoses.

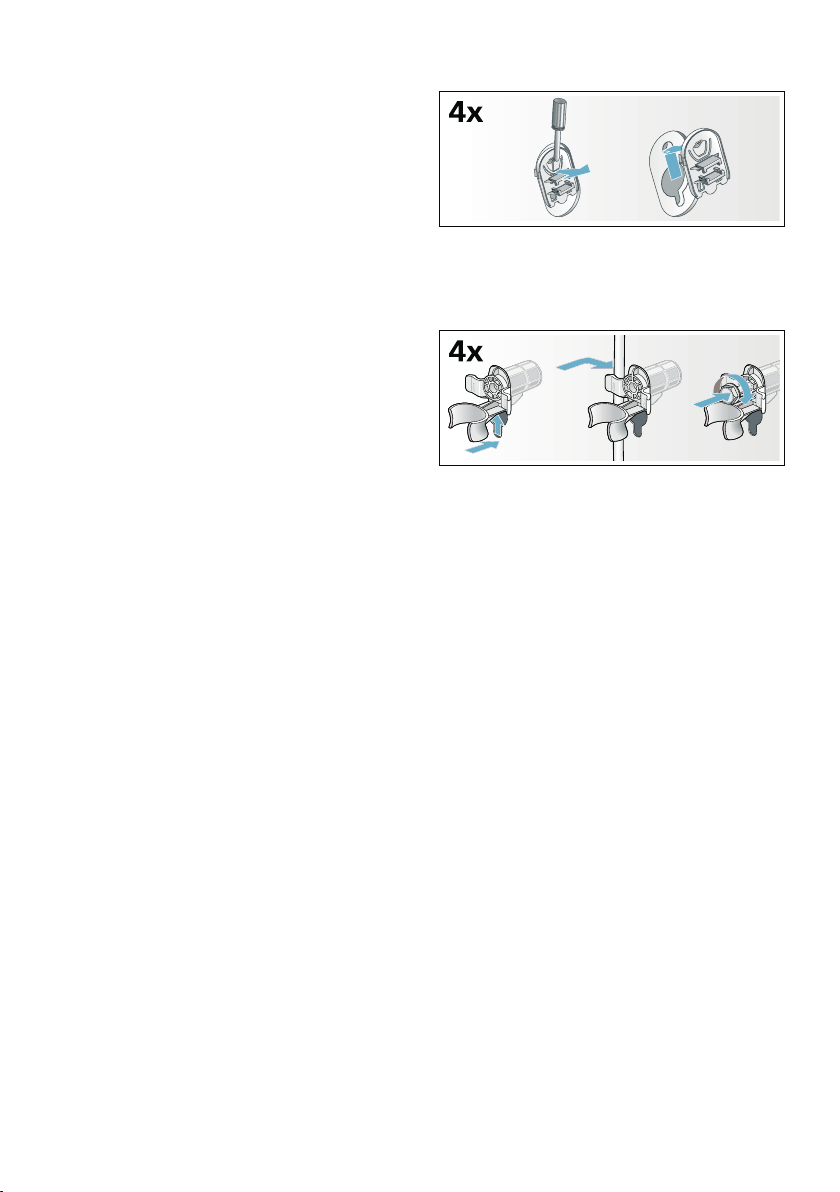

Installing the transport locks:
1. Remove the covers and keep them
in a safe place.
Use a screwdriver if necessary.
2. Insert all four sleeves.
Clip the mains cable securely in the
holders. Insert and tighten the
screws.
Before switching on the appliance
again:
Notes
■ The transport braces must be
removed.
■ To prevent unused detergent from
flowing straight into the drain during
the next wash: Pour approx. 1 litre of
water into compartment II and start
the Empty [ program.
Familiarising yourself with your appliance en
19
* Familiarising yourself with your appliance
Familiari sing yourself with your appliance

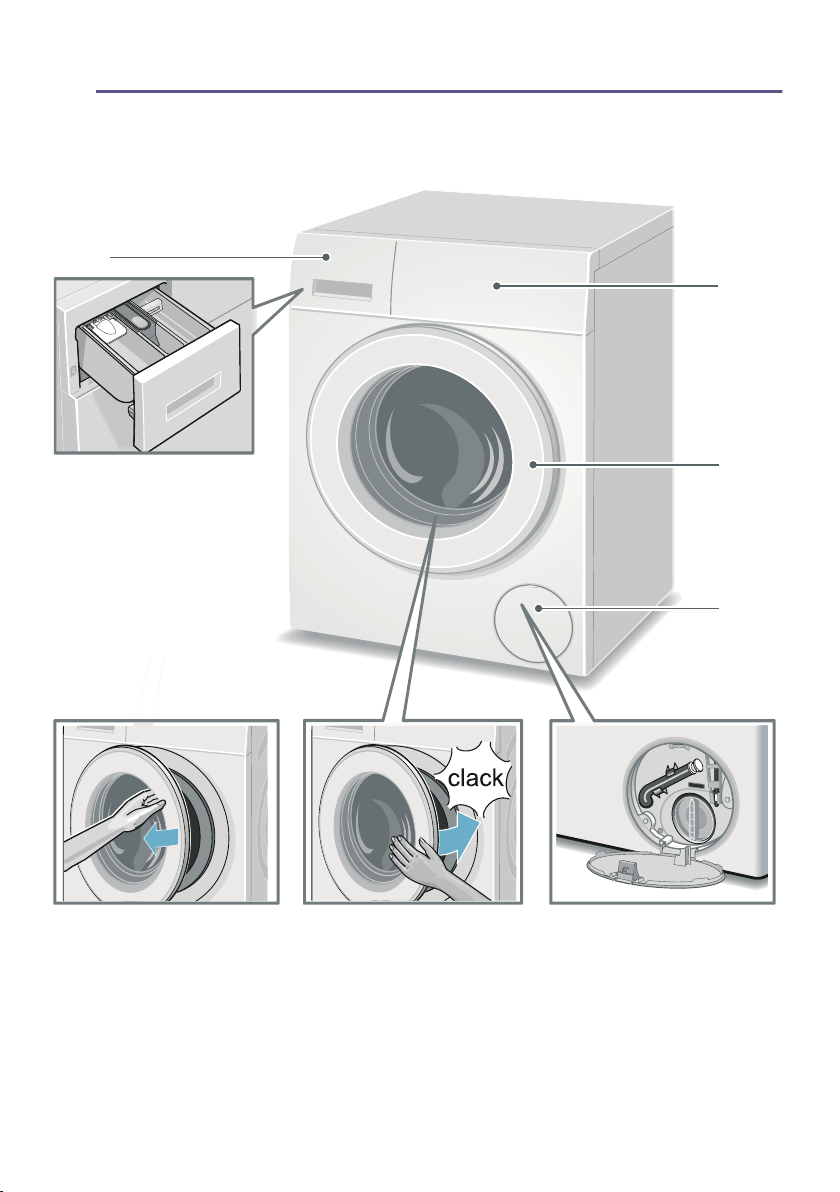

Washing machine
6 7
#
( Detergent drawer ~ Page 28
0 Controls
8 Washing machine door with
handle
9S Opening the washing machine
door
9T Closing the washing machine
door
@ Service flap
en Familiarising yourself with your appliance
20

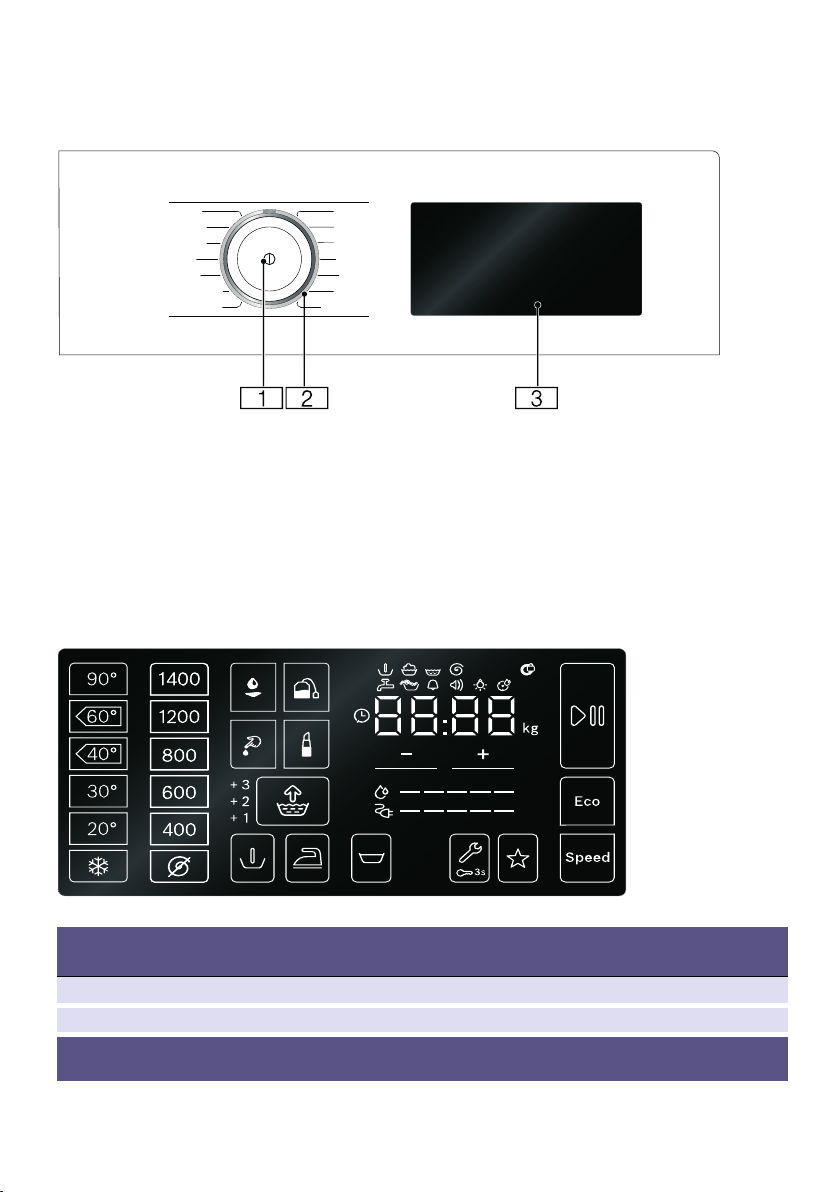

Controls
Content* of the touch display (*
depending on the model)
( Main switch
You can use the # button to
switch the appliance on and off.
0 Programme selector
You can turn the programme
selector in both directions
(clockwise and anti-clockwise).
8 Touch display
This shows you the programme
information and selection options
for settings, and you can select
the settings by touching the
framed or underlined areas.
Indicators and buttons on the
control panel
Display for set-
tings
Setting
90°, ú, û, 30°, 20°, — Temperature in °C; — = cold
1400*, 1200, 800, 600, 400, 2 Spin speed; 2 = no spin
* Maximum spin speed depends on the appliance
** Depending on the model
Familiarising yourself with your appliance en
21
|, Ê**, ·**, º**, À**, y**, ¤**, ¡** Stains choice
Speed SpeedPerfect
Eco EcoPerfect
ë +1, +2, +3, off Water&Rinse+; + additional rinse cycles
Q Easy-Iron
T Prewash
$ Rinse Stop = no final spin
E 3 sec Childlock / control panel lock
â Memory programme
A Start/pause
œ U C B Û Appliance settings: Information signal, operating
signal, brightness of the touch display, memory
function for drum care
N, M Change the settings
Note: Where there are multi-level settings, pressing and holding N,
M will scroll through all the settings automatically until the end.
Touching it again will allow you to change the settings again.
Indicators and buttons on the
control panel
Display for set-
tings
Setting
* Maximum spin speed depends on the appliance
** Depending on the model
Other indicators Information on
é - - - - - Energy consumption
æ - - - - - Water consumption
T N O 0 Programme status: Pre-wash, wash, rinse, spin
è Door locked
r Tap off/water pressure too low
Å Foam detected
Ò Ò : Ò Ò Programme duration, e.g. 1:51; Ready in, e.g. ð 8.5 h; recommended load, e.g.
8.0 kg; programme status, e.g. End
en Laundry
22
Z Laundry
Laundry
Prepare the laundry
Caution!
Damage to the appliance/fabrics
Foreign objects (e.g. coins, paperclips,
needles, nails) may damage the laundry
or components in the washing machine.
You should therefore note the following
tips when preparing your laundry:
■ Empty any pockets.
■ Look out for metal items (paperclips,
etc.) and remove them.
■ Wash delicates in a laundry bag
(tights, underwired bras, etc.).
■ Close any zips; button up any cover
buttons.
■ Brush sand out of pockets and
collars.
■ Remove curtain fittings or place
curtains in a laundry bag.
Sorting laundry
Sort your laundry according to the care
instructions and manufacturer's
information on the care labels,
depending on:
■ Type of fabric/fibre
■ Colour
Note: Laundry can discolour or not
be cleaned correctly. Wash white
and coloured items separately.
Wash new coloured items separately
the first time you wash them.
■ Soiling
Wash laundry with the same level of
soiling together.
Some examples of soiling levels can
be found on ~ Page 24.
– Light: Do not prewash, select the
Speed setting if necessary
– Normal
– Heavy: Load less laundry, select
a program with prewash
– Stains: Remove/pretreat stains
while they are fresh. Firstly, dab
with soapy water; do not rub.Then
wash the items of laundry with
the appropriate program.
Stubborn or dried-in stains can
sometimes only be removed by
washing several times.
■ Symbols on the care labels
Note: The numbers in the symbols
indicate the maximum washing
temperature that may be used.
Starching
Note: Laundry should not be treated
with fabric softener.
Liquid starch can be used to stiffen
fabrics particularly in the Rinse and
Cottons programmes. Measure starch
into compartment M in accordance with
the manufacturer's instructions (clean
first if necessary).
Dyeing/bleaching
Dye should only be used in normal
household quantities. Salt may damage
M Suitable for normal washing
process;
e.g. Cottons program
N A gentle washing process is
required;
e.g. Easy-Care program
O An especially gentle washing
process is required; e.g.
Delicate/Silk program
W Suitable for washing by hand;
e.g. W Wool program
Ž Do not machine wash.
Detergent en
23
stainless steel. Always follow the dye
manufacturer's instructions.
Do not use the washing machine to
bleach clothes.
Soaking
1. Switch on the appliance.
2. Select the i Cottons 20 °C
program.
3. Pour soaking agent/detergent into
compartment II in accordance with
the manufacturer’s instructions.
4. Press the A button.
5. After approx. 10 minutes, press the
A button to pause the program.
6. Leave the laundry to soak for as long
as required, then either press the A
button again to continue the
program or change the program.
Notes
■ Load laundry of the same colour.
■ No additional detergent is required;
the soaking solution is used for
washing.
C Detergent
Detergent
Correct selection of detergent
The care label is crucial for selecting
the correct detergent, temperature and
treatment of the laundry. ~ See also
www.sartex.ch
If you visit www.cleanright.eu, you will
find further information on detergents,
care products and cleaning agents for
domestic use.
■ Standard detergent with optical
brighteners
Suitable for boil-washable white
laundry made from linen or cotton
Programme: Cottons/
cold - max. 90 °C
■ Detergent for colours without
bleach or optical brighteners
Suitable for coloured laundry made
from linen or cotton
Programme: Cottons/
cold - max. 60 °C
■ Detergent for colours/delicates
without optical brighteners
Suitable for coloured laundry made
from easy-care fibres, synthetic
fibres
Programme: Easy-Care/
cold - max. 60 °C
■ Detergent for delicates
Suitable for delicate, fine fabrics, silk
or viscose
Programme: Delicate/Silk/
cold - max. 40 °C
■ Detergent for woollens
Suitable for wool
Wool programme/
cold - max. 40 °C
en Programme default settings
24
Saving energy and detergent
For light and normal soiling, you can
save energy (lower washing
temperature) and detergent.
Note: When measuring the amount of
all detergents/additives/care products
and cleaning agents, please always
check the manufacturer's instructions
and information. ~ Page 28
0 Programme default
settings
Programme default sett ings
The programme default settings are
displayed and can be changed in the
touch display after the programme is
selected.
You can find an overview of all possible
program settings on the supplementary
sheet for the installation and operating
instructions.
Temperature
Depending on what stage the
programme is in, you can change the
set temperature before and during the
programme.
The maximum temperature that can be
set depends on the programme that has
been selected.
Spin speed
Depending on what stage the
programme is in, you can change the
spin speed (in rpm; revolutions per
minute) before and during the
programme.
Setting 2: No spin; the water is only
drained. The laundry stays wet inside
the drum, e.g. for items that should not
be spun.
The maximum speed that can be set
depends on the model and the
programme that has been selected.
Ready in time
After selecting a programme, the
programme duration is displayed, e.g.
1:51 (in h:min (hours:minutes)).
Before the programme starts, you can
move the time at which the programme
Saving Soiling/note
Reduced temper-
ature and deter-
gent quantity as
per the recom-
mended dosage
Light
No visible dirt or stains. Cloth-
ing has taken on some body
odour, e.g.:
■ Light summer/sports
clothing (worn for a few
hours)
■ T-shirts, shirts, blouses
(worn for up to one day)
■ Guest bed linen and hand
towels (used for one day)
Normal
Visible dirt or a few light
stains, e.g.:
■ T-shirts, shirts, blouses
(sweat soaked, worn a
few times)
■ Towels, bedding (used for
up to one week)
Temperature as
per the care label
and detergent
quantity as per
the recom-
mended dosage
for heavy soiling
Heavy
Dirt and/or stains clearly visi-
ble, e.g. tea towels, baby
items, work clothing
Additional programme settings en
25
should be finished backwards, in
increments of 30 minutes and up to a
maximum of 24 h (h=hour).
After the programme starts, the selected
time, e.g. 8.5 h is displayed and counted
down until the washing programme starts.
The duration of the programme is then
displayed.
Note: The programme duration is
automatically adjusted when the
programme is running. Changes to the
programme default settings or programme
settings, foam detection function,
unbalanced load detection, the load or
soiling may also change the programme
duration
.
After the programme starts, and while
the selected time is counting down, you
can change this as follows:
1. Touch the control panel A.
2. Touch N or M to change the time.
3. And touch A again.
After starting the programme, while the
programme is running, you can add or
remove laundry if necessary.
~ Page 30
Memory programme
â
You can save a selected programme with
your favourite settings here.
To store:
1. Switch on the appliance.
2. Select a programme.
3. Change the settings and/or select
additional settings.
4. Press and hold â on the control panel
for approx. three seconds.
The programme is saved if all of the
settings flash briefly.
To use the saved programme, touch â
briefly after you switch on the appliance.
To change the saved programme, press
and hold â again for approx. three
seconds after selecting the new settings.
\ Additional programme
settings
Additi onal programme settings
You can find an overview of all of the
additional settings that can be selected
depending on the programme on the
printed supplement to the installation
and operating instructions.
SpeedPerfect
Speed
Washing in a shorter time while
achieving a washing result that is
consistent with, but uses more energy
than, the selected programme, without
the SpeedPerfect setting.
Note: Do not exceed the maximum
load.
EcoPerfect
Eco
Energy-optimised washing by reducing
the temperature while achieving a
washing result that is consistent with the
selected programme, without the
EcoPerfect setting.
Water&Rinse+
ë
Adjustment values:
Higher water level and additional rinse
cycles depending on the programme,
longer programme duration for
particularly sensitive skin and/or for
areas with very soft water.
The number of rinse cycles that the
appliance actually runs depends on the
+1 + 1 rinse
+2 + 2 rinses
+3 + 3 rinses
off Setting deselected
en Additional programme settings
26
number that is set as a basic setting for
the program in question.
Prewash
T
For heavily soiled laundry.
Note: Pour detergent into
compartments I and II.
Easy-Iron
Q
Reduces creasing thanks to a special
spin sequence followed by fluffing and
reduced spin speed.
Note: The washing's residual moisture
is increased.
Rinse hold
$
If final spinning is not selected, the
laundry will remain in the water after the
final rinse.
You can select "Rinse Stop" to prevent
creasing if the laundry will not be taken
out of the washing machine immediately
after the programme has ended.
To continue/end the programme
~ Page 30
Stains choice
There are four types of stain to choose
from.
Types of stain that can be selected:
Do not let stains dry. Remove solid
substances beforehand.
Select a programme with a stain type:
1. Pu together a load of laundry as
usual.
2. Select a programme.
3. Load the washing machine
4. Select a stain type (depending on
the selected programme).
5. Start the programme.
The washing machine adjusts the
average washing temperature, drum
movement and soaking time to the
specific type of stain. Hot or cold water,
gentle or intensive washing and long or
short soaking ensure that the wash
programme sequence is specially
adapted to each type of stain. This
means that stains are treated in the best
possible way.
| Blood
Ê Grease and oil
· Grass*
º Red wine*
À Coffee*
y Sweat*
¤ Tea*
¡ Cosmetics*
Off Setting deselected
* Depending on the model
Operating the appliance en
27
1 Operating the
appliance
Operati ng the appliance
Preparing the washing
machine
Note: The washing machine must be
correctly installed and connected.
From ~ Page 12
1. Connect the mains plug.
2. Turn on the water tap.
3. Open the door.
4. Check that the drum is completely
drained. Drain if necessary.
Switching on the appliance/
selecting a programme
Press the # button. The appliance is
switched on.
The i Cottons programme set at the
factory is then always displayed.
The current settings and programme
information light up at full brightness
and the display A flashes.
The settings that can be selected light
up at half brightness.
Notes
■ Temporary flashing of the displayÛ
informs you to run the programme
Drum Clean Û or any other
programme soon at a washing
temperature of at least 60 °C.
■ If the E 3 sec display flashes, the
childproof lock is active.
You must deactivate this first before
you can change settings or start the
programme. ~ Page 29
In appliances with a drum light:
The drum is lit after switching on the
appliance, after opening and closing the
door and after starting a programme.
The light switches off automatically.
You can:
■ Use this programme and load
laundry. ~ Page 28
■ Or select another programme.
You can find an overview of all
programmes on the printed
supplement for the installation and
operating instructions.
■ Or change the programme default
settings. ~ Page 27
■ And/or select additional programme
settings. ~ Page 27
Change the programme
default settings
To change the current settings, touch
the button you require on the control
panel and the relevant indicator will
switch to full brightness.
You can change Finished in-time by
touching N or M.
Programme default settings
~ Page 24
Select additional programme
settings
By selecting additional settings, you can
better adapt the washing process to
your items of laundry.
To do this, touch the required control
panel; the relevant display switches to
full brightness.
Additional programme settings
~ Page 25
en Operating the appliance
28
Placing laundry into the drum
:Warning
Danger of death!
Items of laundry pretreated with
cleaning agents that contain solvents,
e.g. stain remover/cleaning solvent,
may cause an explosion after being
loaded into the washing machine.
Hand-rinse items of laundry thoroughly
beforehand.
Notes
■ Mix items of laundry of varying sizes.
Laundry items of different sizes
distribute themselves better during
the spin cycle. Individual items of
laundry may lead to imbalances.
■ Observe the specified maximum
load. Overfilling has a negative
impact on the washing result and
promotes creasing.

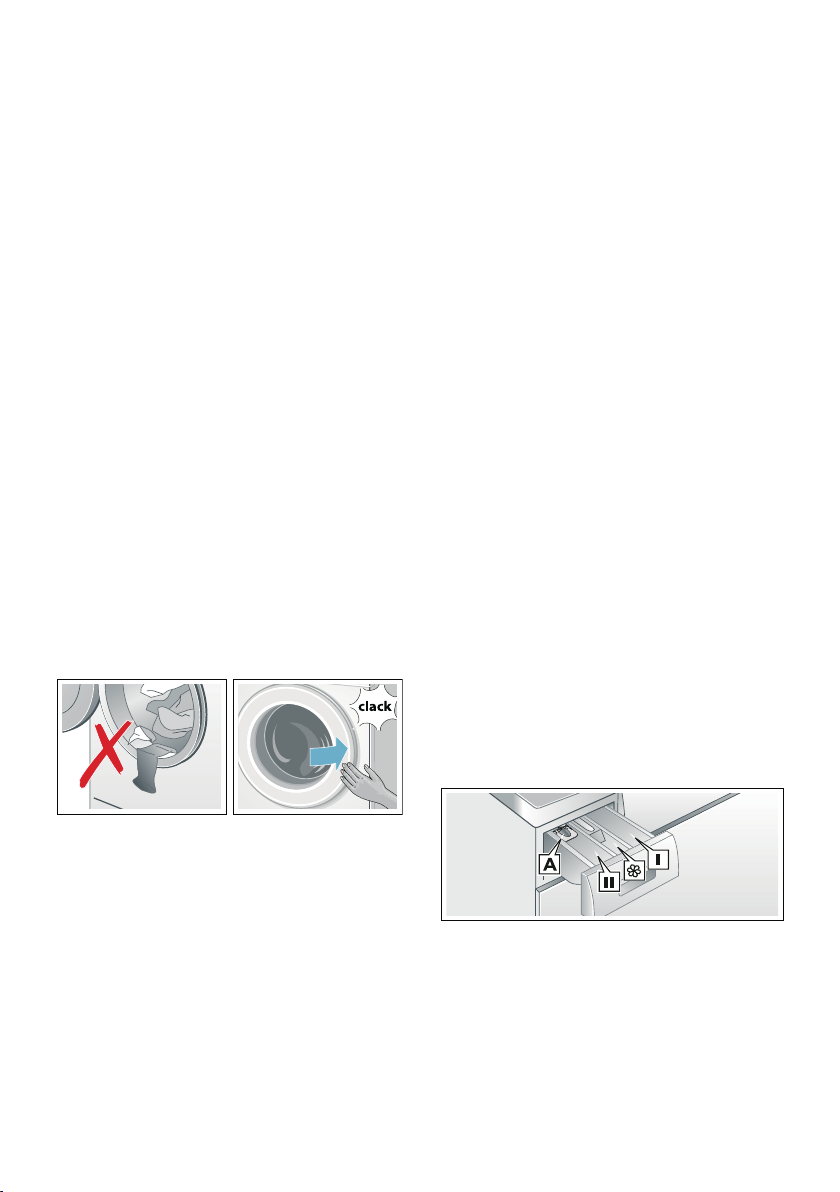

1. Place presorted items of laundry
unfolded in the washing drum.
2. Make sure that no items of laundry
are trapped between the washing
machine door and the rubber seal,
and close the door.
Measure and add detergent
and care products
Caution!
Damage to the appliance
Cleaning agents and agents for
pretreating laundry (e.g. stain removers,
prewash sprays, etc.) may cause
damage if they come into contact with
the surfaces of the washing machine.
Do not allow these agents to come into
contact with the surfaces of the washing
machine. If necessary, immediately wipe
away spray residue and other residues/
droplets with a damp cloth.
Dosing
Dose the detergents and care products
according to:
■ Water hardness (ask your water
supply company)
■ The manufacturer's instructions on
the packaging
■ The amount of laundry
■ Soiling ~ Page 24
Filling
:Warning
Eye/skin irritation!
Detergent and care products may spray
out if the detergent drawer is opened
while the machine is in operation.
Open the drawer carefully.
Rinse eyes/skin thoroughly if they come
into contact with detergents or care
products.
If swallowed accidentally, seek medical
advice.
Note: Dilute viscous fabric softener and
fabric conditioner with water to prevent
blockages.
Pour the detergent and care products
into the appropriate compartments:
Measuring aid A for liquid detergent
Dispenser II Detergent for the main wash,
water softener, bleach, stain
remover
Operating the appliance en
29
1. Pull out the detergent drawer as far
as possible.
2. Add detergent and/or care products.
3. Close the detergent drawer.
Measuring aid* for liquid detergent
Position the measuring aid for dosing
the correct amount of liquid detergent:
1. Pull out the detergent drawer.Press
down the insert and fully remove the
drawer.
2. Slide the measuring aid forwards,
fold it down and click it into place.
3. Reinsert the drawer.
Note: Do not use the measuring aid for
gel detergents and washing powder, or
for programs with prewash or when the
Ready in time is selected.
Start the programme
Touch the control panel A.
The programme starts and the
A display lights up permanently.
The door is locked and the
corresponding display è lights up.
During the programme, the current
programme information is displayed:
■ Finished in-time or, after the washing
programme has started, the
programme duration
■ And the displays for the
programme's progress light up.
Information on the following programme
steps and settings, which can be
changed during the programme
sequence, light up at half brightness.
Note: Foam detection
If the Å display also lights up, the
washing machine has detected too
much foam during the washing
programme and automatically activated
additional rinse cycles to remove the
foam.
Add less detergent to the next washing
cycle with the same load.
If you want to lock the programme to
prevent it from being inadvertently
adjusted, you can select the childproof
lock as follows.
Childlock/operation lock
E 3 sec
You can lock the washing machine to
prevent the functions you have set from
being changed inadvertently in the
control panel.
To activate/deactivate the childproof
lock, touch and hold the control panel
E 3 sec for approx. three seconds. The
display switches to full brightness.
If you turn the programme selector or
touch the control panel while the
childproof lock is active, the E 3 sec
indicator flashes briefly and a signal
sounds. The programme runs through
to the end unchanged.
Notes
■ The childproof lock can be activated
regardless of the appliance's status.
■ The childproof lock remains active,
even once the washing machine has
been switched off.
■ If the appliance is switched off while
the programme is running and the
childproof lock has been activated,
the programme will resume when the
appliance is switched back on.
Dispenser i Softener, starch,
do not exceed max.
Dispenser I Detergent for prewash
en Operating the appliance
30
Adding laundry
After starting the programme, you can
add or remove laundry if necessary.
To do this, touch the control panel A.
The indicator flashes. The machine is
paused and checks whether a top-up is
possible.
If the display è goes out, a top-up is
possible. The door is then unlocked and
can be opened.
To continue the programme. touch A
again. The programme continues
automatically.
Notes
■ Do not leave the door open for too
long when adding laundry as water
from the laundry may leak out.
■ For safety reasons, the door remains
locked when the water level or
temperature is high, or while the
drum is turning, and it is not possible
to add laundry during this time.
Follow the information on the display
panel.
■ The load display is not active during
reloading.
Changing the programme
If you have started the wrong
programme by mistake, you can
change the programme as follows:
1. Touch the control panel A.
2. Select another programme.
3. And touch A again.The new
program starts from the beginning.
Cancel the programme
For programs at high temperature:
1. Touch the control panel A.
2. To cool the laundry: Select Rinse à.
3. And touch A again.
For programmes at low temperatures:
1. Touch A.
2. Select Spin 0 or Empty [.
3. And touch A again.
Programme end during rinse
hold
The A indicator flashes in the display
panel, and the preset spin speed and
remaining programme length are
displayed for the selected programme.
Continue the programme by:
■ Touching A on the control panel or
■ Changing the spin speed and then
touching A or
■ Selecting the Easy-Iron Q setting
and then touching A or
■ Turning the programme selector to
Empty [ and then touching A.
Programme end
End lights up in the display panel and
the A and è displays are off.
Note: If the Û display flashes, this
informs you to run the Drum Clean Û
programme or any other programme at
a washing temperature of at least
60 °C.
Appliance settings en
31

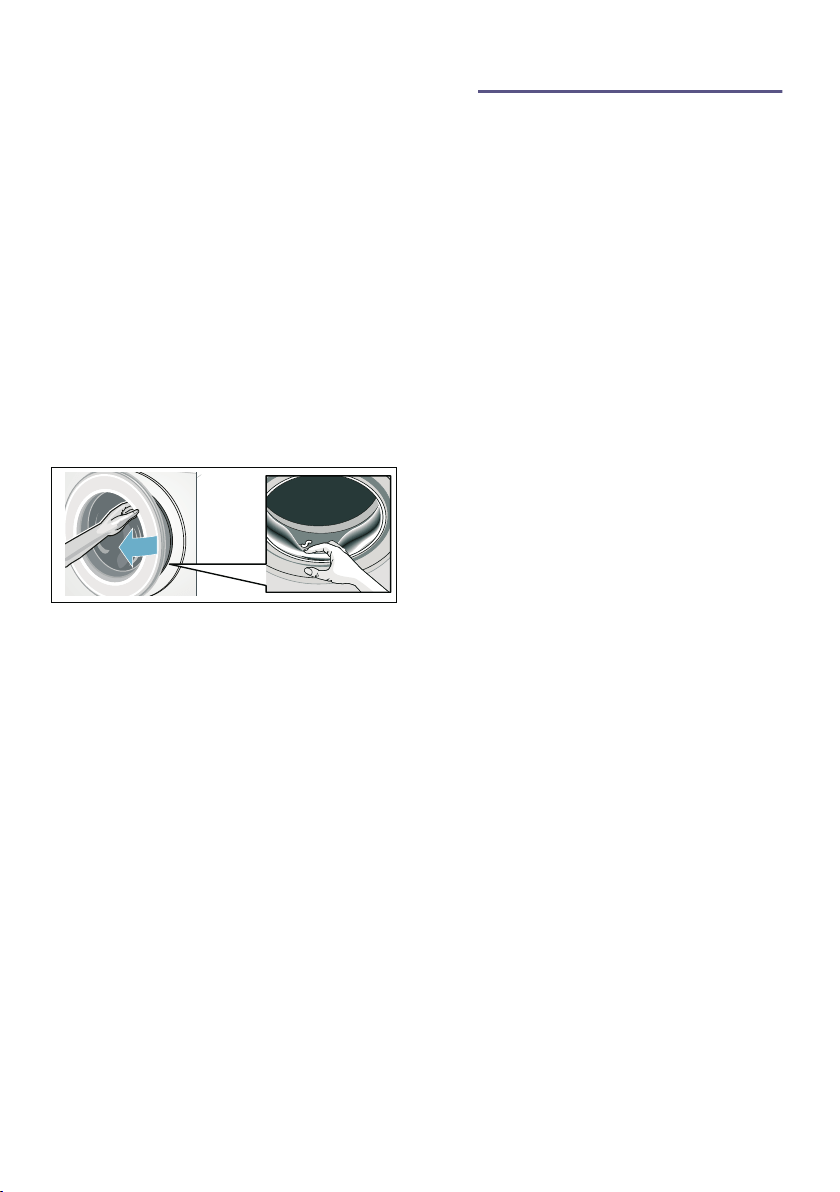

Removing laundry/switching
off the appliance
1. Open the loading door and remove
the laundry.
2. Switch off the appliance.
3. Turn off the tap.
Note: Not required for AquaStop
models.
Notes
■ Do not leave any items of laundry in
the drum. They may shrink in the
next wash or discolour another item.
■ Remove any foreign objects from the
drum and the rubber seal – risk of
rusting.
■ Wipe the rubber gasket dry.
■ Leave the washing machine door
and detergent drawer open so that
any residual water can dry away.
■ Always wait for the end of the
programme, otherwise the appliance
may still be locked. Then switch on
the appliance and wait for it to
unlock.
Q Appliance settings
Appliance setti ngs
You can change the following settings
in the control and display panel:
■ The volume of the information signal
(e.g. at the end of the programme),
■ The volume of the operating signals,
■ The brightness of the operating and
display field,
■ Select/deselect the memory function
for drum care.
You will need to activate the setting
mode in order to change these settings.
Activating the setting mode
1. Switch on the appliance. The
settings for the current programme
are displayed.
2. Touch the control panel œ.
The setting mode is activated and the
displays for the information signals U
and the preset volume light up.
You can now change the settings:
Changing the signal volume
To do this, touch N or M on the control
panel until the required adjustment
value for the volume of the information
signals appears:
Adjustment values:
Exit setting mode or:
Touch œ again. The display for the
operating signals C and the preset
volume light up.
Touch N or M to change the
adjustment value (as above).
Exit setting mode or:
0 off
1 quiet
2 Medium
3 loud
4 very loud
en Sensors
32
Changing the brightness of
the touch display
Touch œ again. The display for the
touch display's brightness B and the
preset brightness light up.
Change the adjustment value by
touching N or M:
Adjustment values:
Exit setting mode or:
Select/deselect the memory
function for drum care
Touch œ again. The display for the
memory function for cleaning the drum
Û lights up.
Touch N or M to select (on) or deselect
(off) the memory function.
Exiting setting mode
To exit and save the settings:
■ Wait for approx. 15 minutes or
■ Touch œ one last time or
■ Switch off the appliance. The
selected settings will take effect the
next time the washing machine is
switched on.
H Sensors
Sensors
Automatic load sensing
The automatic load sensing function
adapts the water consumption ideally to
each programme depending on the
type of fabric and the load.
Unbalanced load detection
system
The automatic unbalanced load
detection system detects imbalances
and ensures even distribution of the
laundry by repeatedly starting and
stopping drum spinning.
If the laundry is extremely unevenly
distributed, the speed is reduced or the
spin cycle is not performed for safety
reasons.
Note: Place large and small items of
laundry evenly in the drum. ~ Page 37
VoltCheck
depending on the model
The colon in the Finished in-time
display:
■ Flashes , if the voltage is currently
too low.
■ Pulses, if insufficient voltage was
detected during the programme.
Note: Insufficient voltage may lead to
programme extensions and/or a non-
satisfactory spin result, for example.
1 Not very bright
2 Normal level of
brightness
3 Bright
4 Very bright
Cleaning and maintenance en
33
2 Cleaning and
maintenance
Cleaning and maintenance
:Warning
Danger of death!
There is a risk of electric shock if you
touch live components.
Switch off the appliance and pull out the
mains plug.
:Warning
Risk of poisoning!
Toxic vapours can be produced by
cleaning agents that contain solvents,
e.g. cleaning solvent.
Do not use cleaning agents that contain
solvents.
Caution!
Damage to the appliance
Cleaning agents that contain solvents,
e.g. cleaning solvent, can damage
surfaces and components in the
machine.
Do not use cleaning agents that contain
solvents.
Prevent detergent residue from
building up and odours from forming
by following these instructions:
Notes
■ Ensure the room in which the
washing machine is set up is well
ventilated.
■ Leave the door and detergent
dispenser tray open slightly when
the washing machine is not in use.
■ Occasionally run a wash using the i
Cottons 60 °C programme and
powder detergent.
Machine housing/control
panel
■ Wipe the housing and the control
panel with a soft, damp cloth.
■ Remove the detergent residue
immediately.
■ Do not clean with a water jet.
Drum
Use chlorine-free cleaning agents, do
not use steel wool.
If there are odours in the washing
machine, or to clean the drum, run the
Drum Clean Û 90 °C programme
without laundry. Add washing powder.
Descaling
Descaling should not be necessary if
the detergent is measured out correctly.
However, if it is required, follow the
manufacturer's instructions for the
descaling agent. Suitable descalers can
be obtained via our website or from
customer services. ~ Page 39
The drain pump is blocked,
emergency draining
:Warning
Risk of scalding!
When you wash at high temperatures,
the water gets very hot. If you come into
contact with the hot water, you may be
scalded.
Allow the detergent solution to cool
down.
1. Turn off the water tap so that no
more water can flow in and has to be
drained via the drain pump.
2. Switch off the appliance. Pull out the
mains plug.
3. Open and remove the service flap.
en Cleaning and maintenance
34

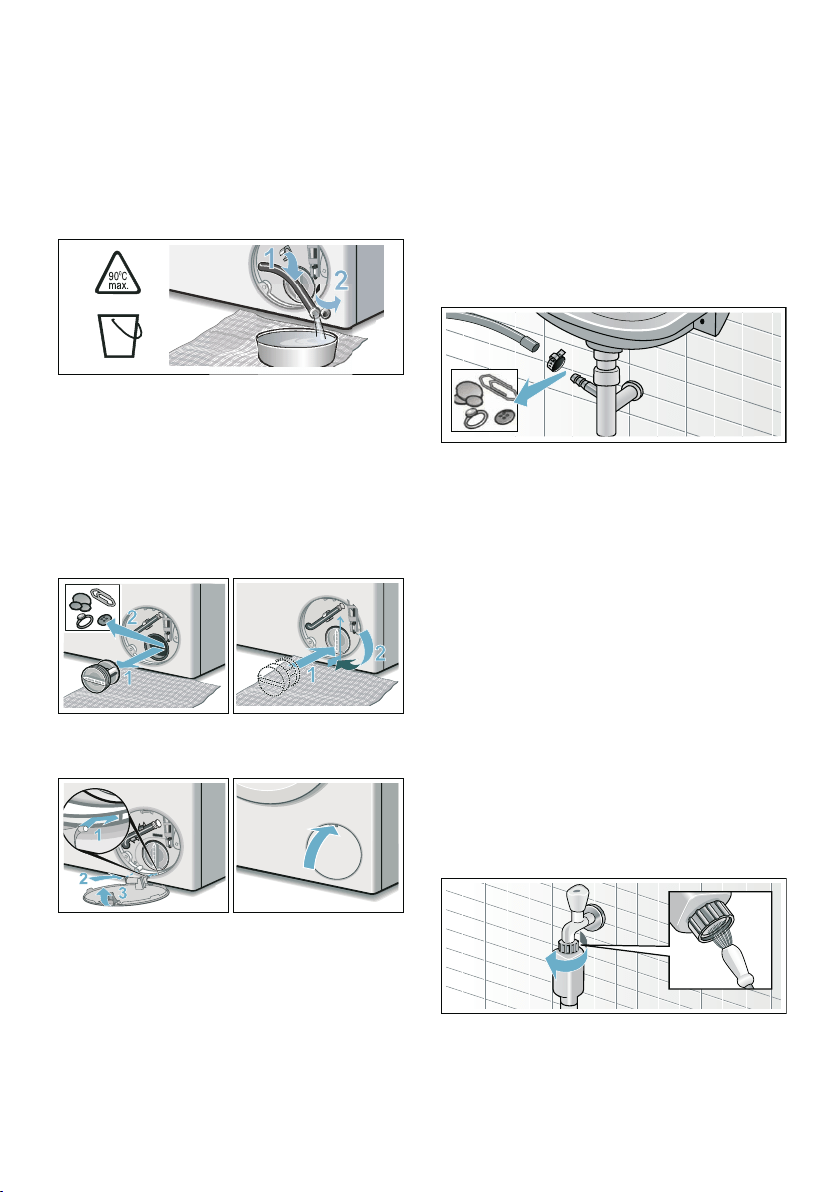

4. Take the auxilary drain hose out of
the holder.
Remove the locking cap and drain
off the water into a suitable
container.
Replace the locking cap and place
the drain hose back in the holder.
5. Carefully unscrew the pump cover;
remaining water may leak out.
Clean the interior, pump cover
thread and pump housing. The
impeller in the drain pump must be
able to rotate.
Refit and screw on the pump cover.
The handle must be in a vertical
position.
6. Put the service flap back on, engage
and close it.
Note: To prevent unused detergent
from flowing straight into the drain
during the next wash: Pour 1 litre of
water into the left-hand compartment
and start the programme Empty [.
The drain hose at the siphon
is blocked
1. Switch off the appliance. Pull out the
mains plug.
2. Loosen the hose clamp. Carefully
remove the drain hose; residual
water may leak out.
3. Clean the drain hose and siphon
connecting piece.
4. Re-attach the drain hose and secure
the connection point using the hose
clamp.
Filter in the water supply
blocked
1. Release water pressure in the supply
hose:
a) Turn off the tap.
b) Select any programme (except
Rinse à/Spin 0/Empty [).
c) Start the programme and leave it
to run for approx. 40 seconds.
d) Switch off the appliance.
e) Pull out the mains plug.
2. Clean the filters:
a) Disconnect the hose from the
tap.
Clean the filter with a small brush.
Faults and what to do about them. en
35

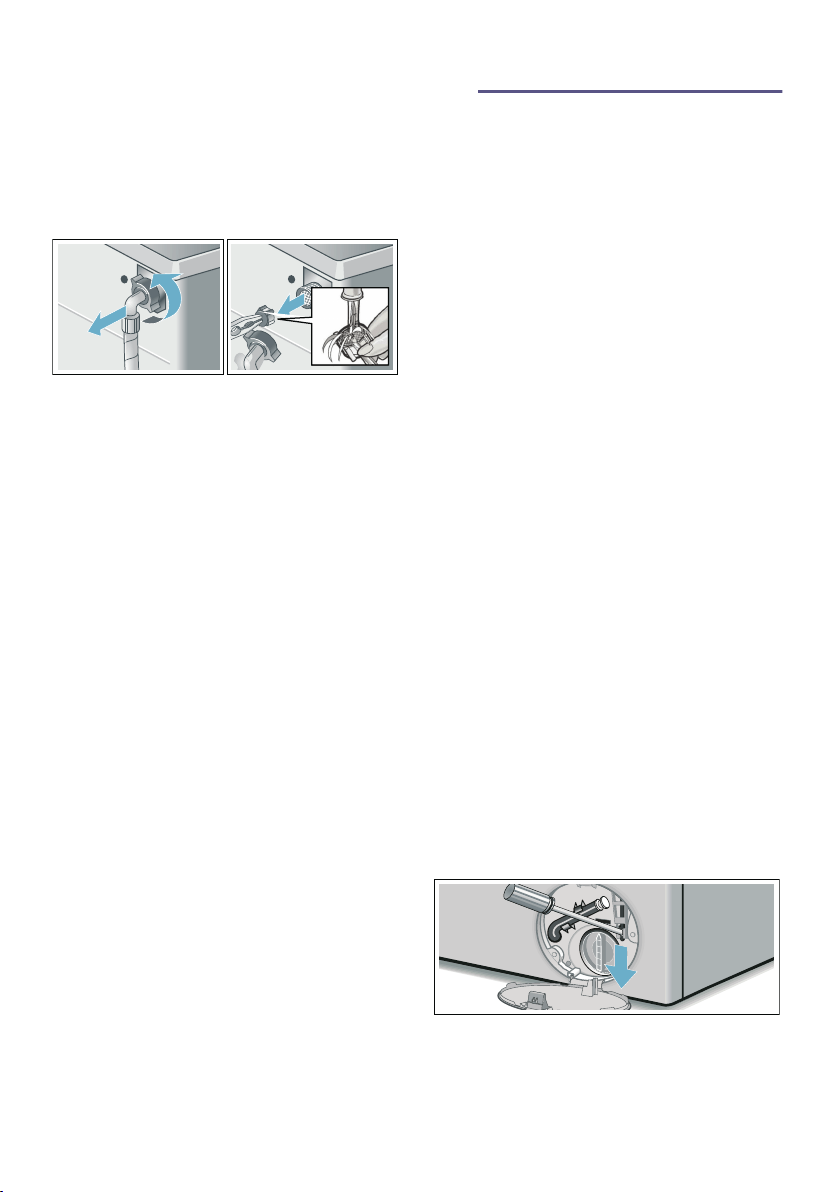

b) For standard and Aqua-Secure
models, clean the filter on the
rear of the appliance:
Disconnect the hose from the
rear of the appliance.
Use pliers to remove the filter and
then clean it.
c) Connect the hose and check for
leaks.
3 Faults and what to do
about them.
Faults and what to do about them.
Emergency release
E.g. in the event of a power cut
The programme continues when the
power supply is restored.
However, if the laundry has to be
removed, the washing machine door can
be opened as follows:
:Warning
Risk of scalding!
When you are washing at high
temperatures, there is a risk of scalding if
you come into contact with hot water and
laundry.
If possible, leave it to cool down first.
:Warning
Risk of injury!
You may injure your hands if you reach
into the drum while it is turning.
Do not reach into the drum when it is
turning.
Wait until the drum has stopped turning.
Caution!
Water damage
Any escaping water may cause water
damage.
Do not open the door if water can be seen
through the glass.
1. Switch off the appliance. Pull out the
mains plug.
2. Drain the water.
~ Page 33
3. Pull the emergency release
downwards with a tool and release.
The door can then be opened.
en Faults and what to do about them.
36
Information on the display panel
Indicator Cause/remedy
è off The door is unlocked, at the end of the programme or when paused, if laundry can
be added.
è is lit up ■ During the programme: Door locked.
■ Paused: Temperature too high. Wait until the temperature drops.
■ Paused: Spin speed too high. Wait until the drum comes to a halt.
■ Paused: Water level too high. It is not possible to add laundry. Touch A to
continue the programme.
■ Have you selected $ (Rinse Stop = no final spin)? ~ Page 26
è is flashing ■ Slowly: The door cannot currently be locked or unlocked. Waiting time
required.
■ Quickly: Close the door because water can flow out from the laundry.
A off At the end of the programme, while the door is open
A is lit up After the programme has started
A is flashing Before the programme starts, paused
r is lit up Water pressure too low, may increase the length of the programme.
r is flashing No water supply:
■ Turn the tap on fully,
■ The supply hose is kinked/trapped,
■ Clean the filter if necessary. ~ Page 34
E 3 sec is lit up The childproof lock is activated – deactivate it. ~ Page 29
E 3 sec is flashing The childproof lock is activated – the programme selector has been turned or the
control panel touched.
Û is flashing Run the Drum Clean Û 90 °C programme or a 60 °C programme to clean and
care for the drum and the outer tub.
Notes
■ Run the programme without laundry.
■ Use standard washing powder or a detergent that contains bleach. To prevent
foaming, only use half the amount of detergent recommended by the detergent
manufacturer. Do not use detergents intended for woollens or delicates.
■ Switching the information signal on/off ~ Page 32
Å is lit up Too much foam has been detected and additional rinse cycles have been activated.
Add less detergent to the next wash cycle with the same load.
E:60 alternating with
- 2b and End
At the end of the programme.
Not an appliance fault – the unbalanced load detection system has interrupted the
spin cycle because the laundry is unevenly distributed.
Distribute small and large items of laundry evenly in the drum. Spin the laundry
again if necessary.
E:35 alternating with
- 10
There is water in the base trough; the appliance is leaking. Turn off the tap. Call the
after-sales service. ~ Page 39
Faults and what to do about them. en
37
Faults and what to do about them.
E:36 alternating with
- 10
■ The drain pump is blocked. Clean the drain pump. ~ Page 33
■ The drain hose/drain pipe is blocked. Clean the drain hose at the siphon.
~ Page 34
Other indicators Switch off the appliance, wait for five seconds and then switch it on again. If the indi-
cator appears again, call the after-sales service. ~ Page 39
Faults Cause/remedy
Water is leaking from the
machine.
■ Attach the drain hose correctly or replace it.
■ Tighten the threaded joint on the supply hose.
The appliance is not filling
with water.
Detergent is not being dis-
pensed.
■ Will the programme start?
■ Is the tap turned on?
■ Could the filter be clogged? Clean the filter.~ Page 34
■ Is the supply hose kinked or trapped?
The door will not open. ■ The safety function is active. Do you want to stop the programme?
~ Page 30
■ Have you selected $ (Rinse Stop = no final spin)? ~ Page 30
■ Can the door only be opened by the emergency release? ~ Page 35
■ If you switch to a different programme, the door will remain locked for a
short time until there is no longer any active oxygen in the drum.
The programme will not
start.
■ Have you started the programme or selected Finished in-time?
■ Is the door closed?
■ Is the childproof lock activated? Deactivate it. ~ Page 29
The drum briefly jerks or
judders after the pro-
gramme has started.
Not a fault – the internal motor test may cause the drum to jerk or judder briefly
when the wash programme starts.
The water is not draining. ■ Have you selected $ (Rinse Stop = no final spin)? ~ Page 30
■ Clean the drain pump. ~ Page 33
■ Clean the drain pipe and/or the drain hose.
Water is not visible in the
drum.
Not a fault – the water is below the visible area.
The spin result is not sat-
isfactory.
Laundry wet/too damp.
■ Not a fault – the unbalanced load detection system has interrupted the spin
cycle because the laundry is unevenly distributed.
Distribute small and large items of laundry evenly in the drum.
■ Is Easy-Iron selected? ~ Page 26
■ Is the selected speed too low?
The spin cycle runs sev-
eral times.
Not a fault – the unbalanced load detection system is adjusting an imbalance.
Indicator Cause/remedy
en Faults and what to do about them.
38
The programme is taking
longer than usual.
■ Not a fault – the unbalanced load detection system is adjusting an imbal-
ance by repeatedly redistributing the laundry.
■ Not a fault – the foam detection system is active – a rinse cycle has been
activated.
The length of the pro-
gramme changes during
the wash cycle.
Not a fault – the programme sequence is optimised for the specific washing
process. This may change the length of the programme shown on the display
panel.
Water remaining in the
care product compart-
ment i.
■ Not a fault – the effectiveness of the care product is not affected.
■ Clean the insert if necessary.
Odours in the washing
machine.
Run the Drum Clean Û or i Cottons 90 °C programme without laundry.
Add standard washing powder or a detergent that contains bleach.
Note: To prevent foaming, only use half the amount of detergent recommended
by the detergent manufacturer. Do not use detergents intended for woollens or
delicates.
The Å indicator has lit
up in the touch display.
Foam may also be leaking
from the detergent
drawer.
Have you used too much detergent?
Mix one tablespoon of fabric softener with half a litre of water and pour it into
compartment II (not suitable for outdoor clothing, sportswear or items made
with down).
Use less detergent for the next wash cycle.
Loud noises, vibrations
and machine “wander-
ing” during the spin cycle.
■ Is the appliance level? Level the appliance. ~ Page 16
■ Are the appliance's feet secured? Secure the appliance's feet. ~ Page 16
■ Have the transportation securing means been removed? Remove the trans-
portation securing means. ~ Page 14
The touch display does
not work while the appli-
ance is running.
■ Has there been a power failure?
■ Have the fuses blown/has the circuit breaker tripped? Switch on the circuit
breaker/replace the fuses.
■ If the fault occurs repeatedly, call the after-sales service.
There is detergent resi-
due on the laundry.
■ Some phosphate-free detergents contain water-insoluble residue.
■ Select Rinse à or brush the laundry after washing.
When the appliance is
paused, A flashes and
è lights up.
■ The water level is too high. It is not possible to add laundry. Close the door
immediately if necessary.
■ Touch A to continue the programme.
A flashes when the
appliance is paused and
è is off.
The door is unlocked. It is possible to add laundry.
If you cannot rectify a fault yourself (after switching the machine off and then on again) or a repair is required:
■ Switch off the appliance and pull the mains plug out of the socket.
■ Turn off the tap and call the after-sales service.
Faults Cause/remedy
After-sales service en
39
4 After-sales service
After- sales service
If you cannot rectify a fault yourself,
contact customer services. ~ Cover
page
We will always find an appropriate
solution in order to avoid unnecessary
visits by engineers.
Please give customer services the
product number (E no.) and the
production number (FD) of the
appliance.
You can find this information
*depending on the model:
On the inside of the door*/in the
opened service flap* and on the rear of
the appliance.
Trust the expertise of the
manufacturer.
Contact us for assistance. By doing so,
you will ensure that the repairs are
carried out by trained service personnel
using genuine spare parts.
J Technical data
Technical data
Dimensions:
85 x 60 x 59 cm
(height x width x depth)
Weight:
66 - 73 kg*
Mains connection:
Nominal voltage: 220-240 V / 50 Hz
Nominal current: 10 A
Nominal power: 1900 - 2300 W
Water pressure:
100 - 1000 kPa (1-10 bar)
* Depending on the model
E no. Product number
FD Production number
(1U )'
en Aqua-Stop warranty
40
r Aqua-Stop warranty
Aqua-Stop warranty
Only for appliances with Aqua-Stop
In addition to warranty claims against
the vendor based on the purchase
agreement and to our appliance
warranty, we will provide compensation
under the following conditions:
1. If water damage is caused due to a
fault in our Aqua-Stop system, we
will compensate domestic
customers for the damage caused.
2. The liability guarantee is valid for the
service life of the appliance.
3. It is a prerequisite of all warranty
claims that the appliance with Aqua-
Stop must have been installed and
connected correctly in accordance
with our instructions; this also
includes a correctly fitted Aqua-Stop
extension (genuine accessories).
Our warranty does not cover
defective feed lines or fittings
leading to the Aqua-Stop connection
at the tap.
4. Appliances with Aqua-Stop do not
need to be supervised during
operation, nor secured afterwards by
turning off the tap.
The tap only needs to be turned off if
you are away from home for a long
period, e.g. for several weeks'
holiday.
6
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
*9001158087*
9001158087 (9905)
en
Thank you for buying a Bosch
Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help?
You´ll find it here.
Expert advice for your Bosch home appliances, need help with problems or a repair from
Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service directory.
