JET 300 ELLIPTICAL
ASSEMBLY GUIDE
reebokļ¬tness.com
REEBOKFITNESS.COM
JET 300
ELLIPTICAL ASSEMBLY GUIDE
Z10E
P6 x4
P3 x2
P8 x4
P16 x2 P4 x2
P1 x12P15 x4
P10 x2P11 x4
P2 x2
P9 x4
Z10E
P14 x4
P12 x4
P13 x4 P7 x10
P5 x4
P17 x4
Allen Key x1
Box Spanner x2

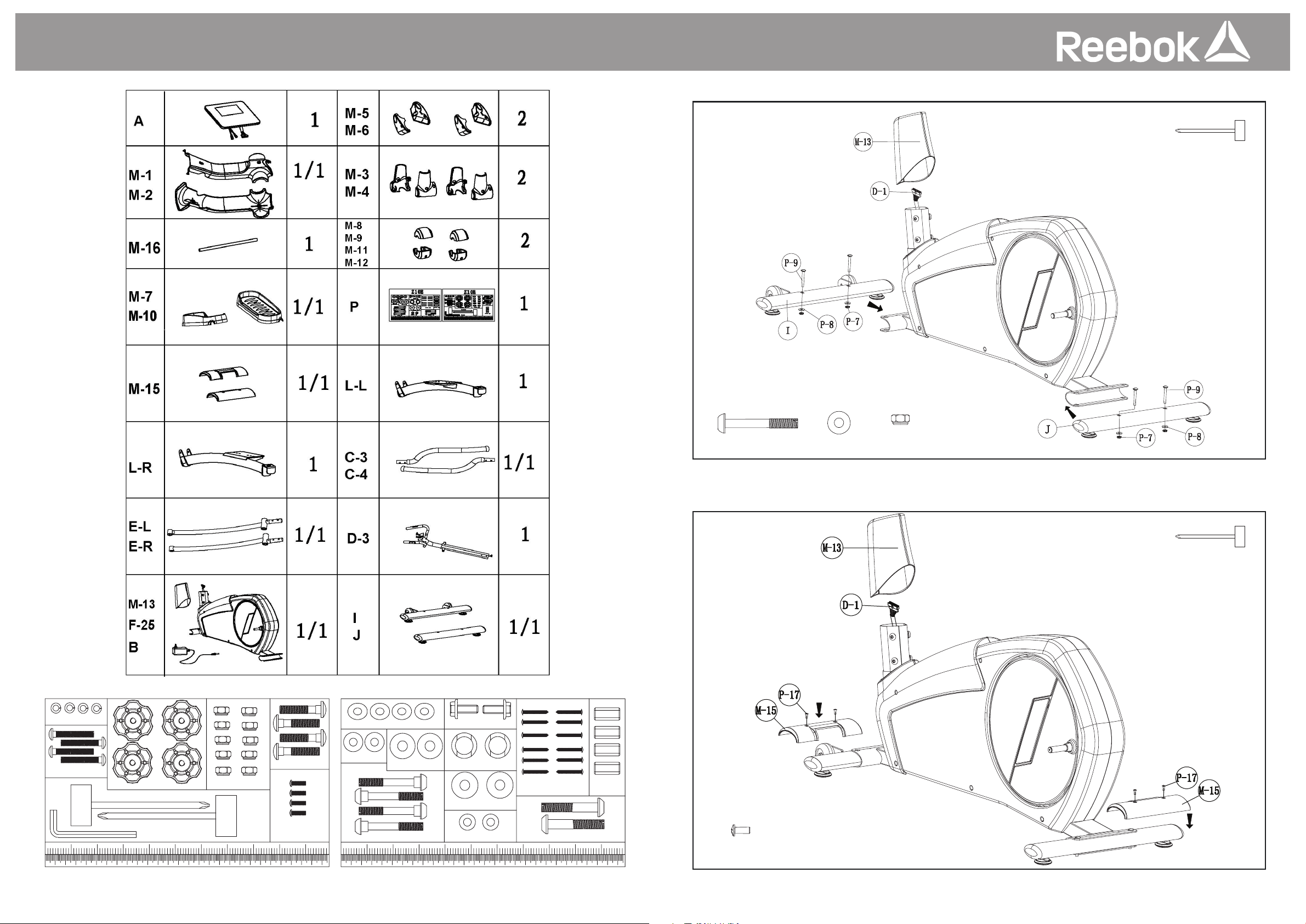

01
P9 x4P8 x4P7 x4 P5 x12
P9 x4 P8 x4 P7 x4
02
P17 x4
REEBOKFITNESS.COM
JET 300
ELLIPTICAL ASSEMBLY GUIDE

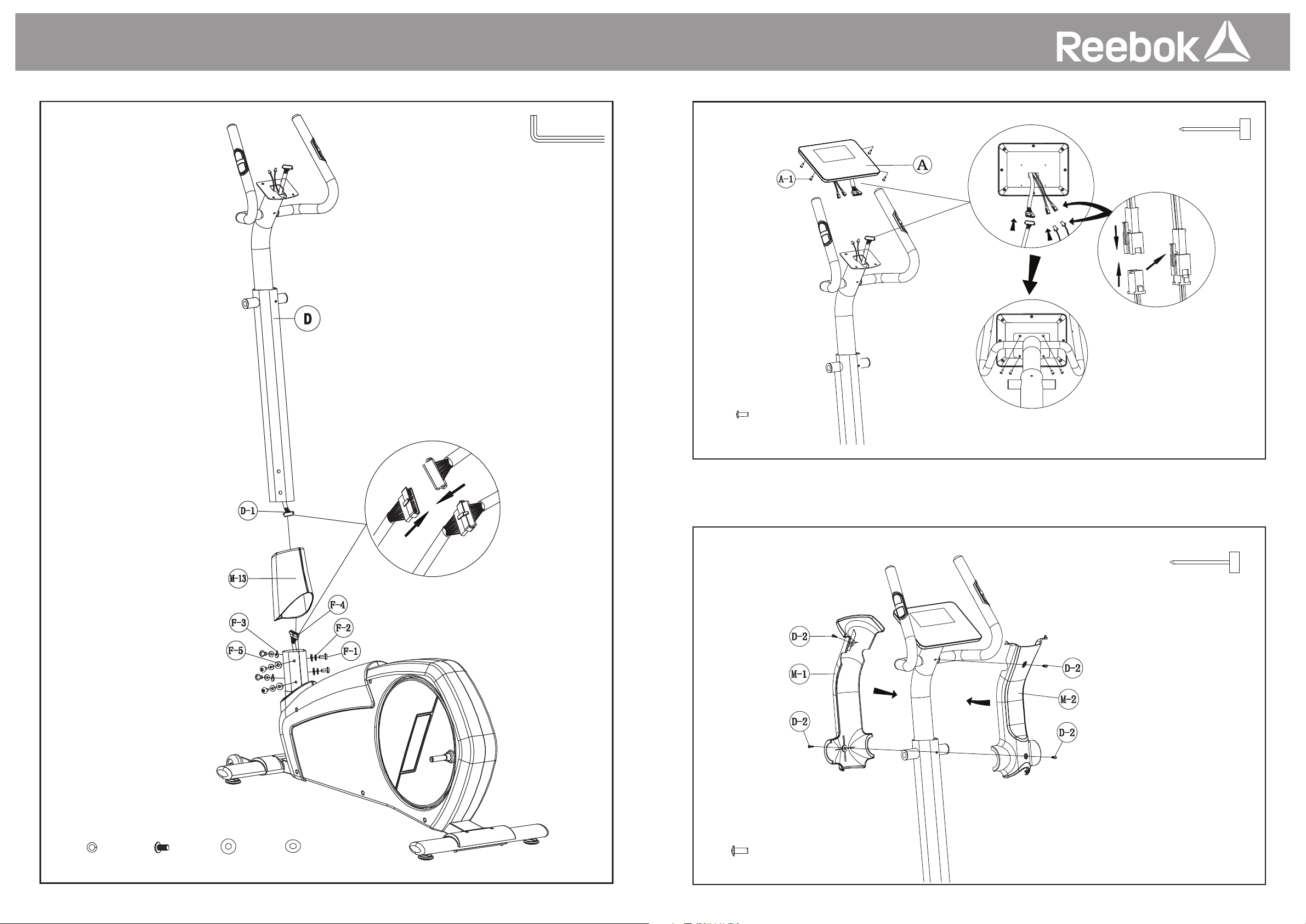

03
F1 x6F2 x6 F5 x4 F3 x2
04
A1 x4
05
D2 x4
REEBOKFITNESS.COM
JET 300
ELLIPTICAL ASSEMBLY GUIDE

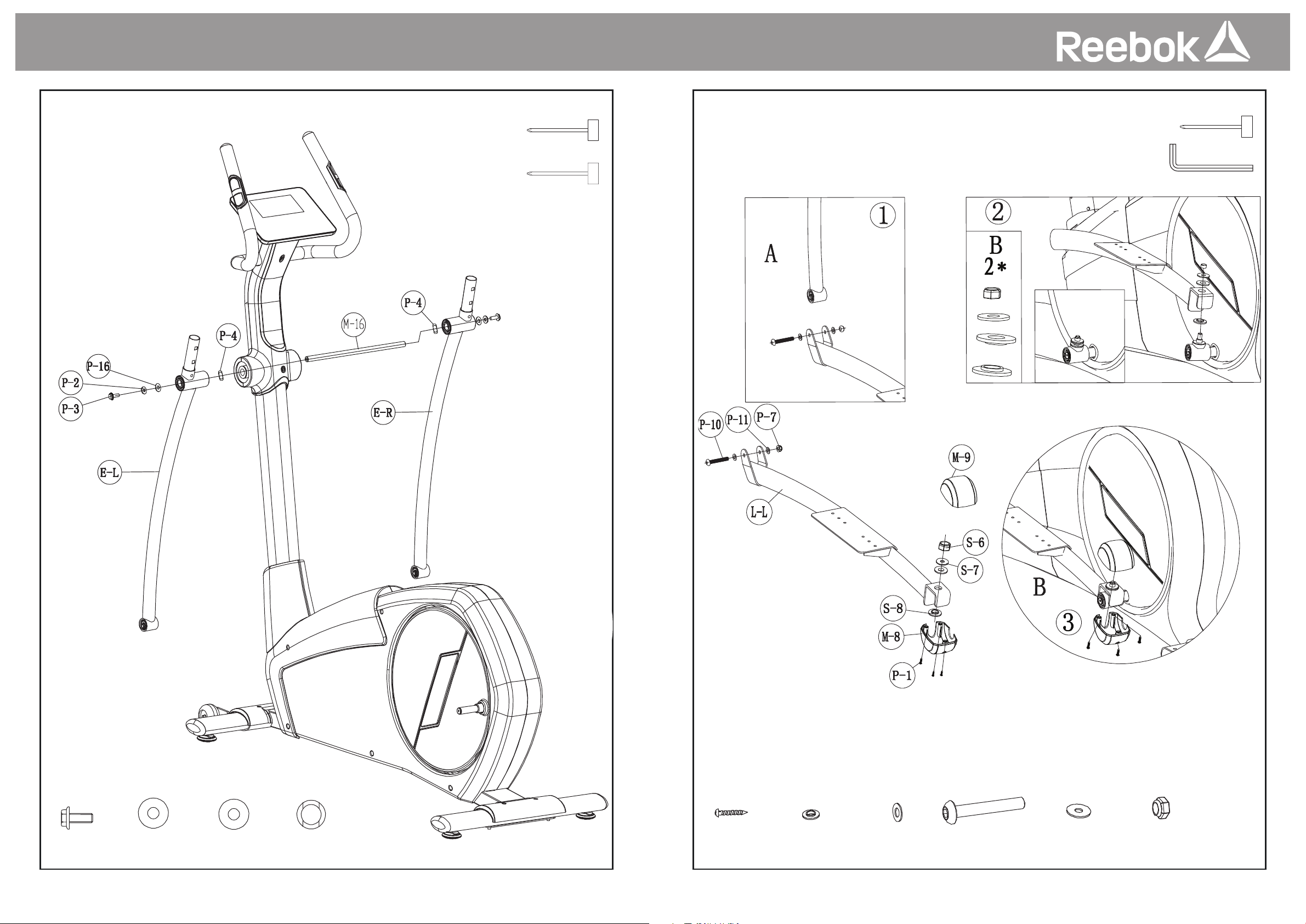

06
P3 x2 P16 x2 P2 x2 P4 x2
07
P1 x6
P10 x2 P7 x2P11 x4
S7 x2S8 x4
REEBOKFITNESS.COM
JET 300
ELLIPTICAL ASSEMBLY GUIDE

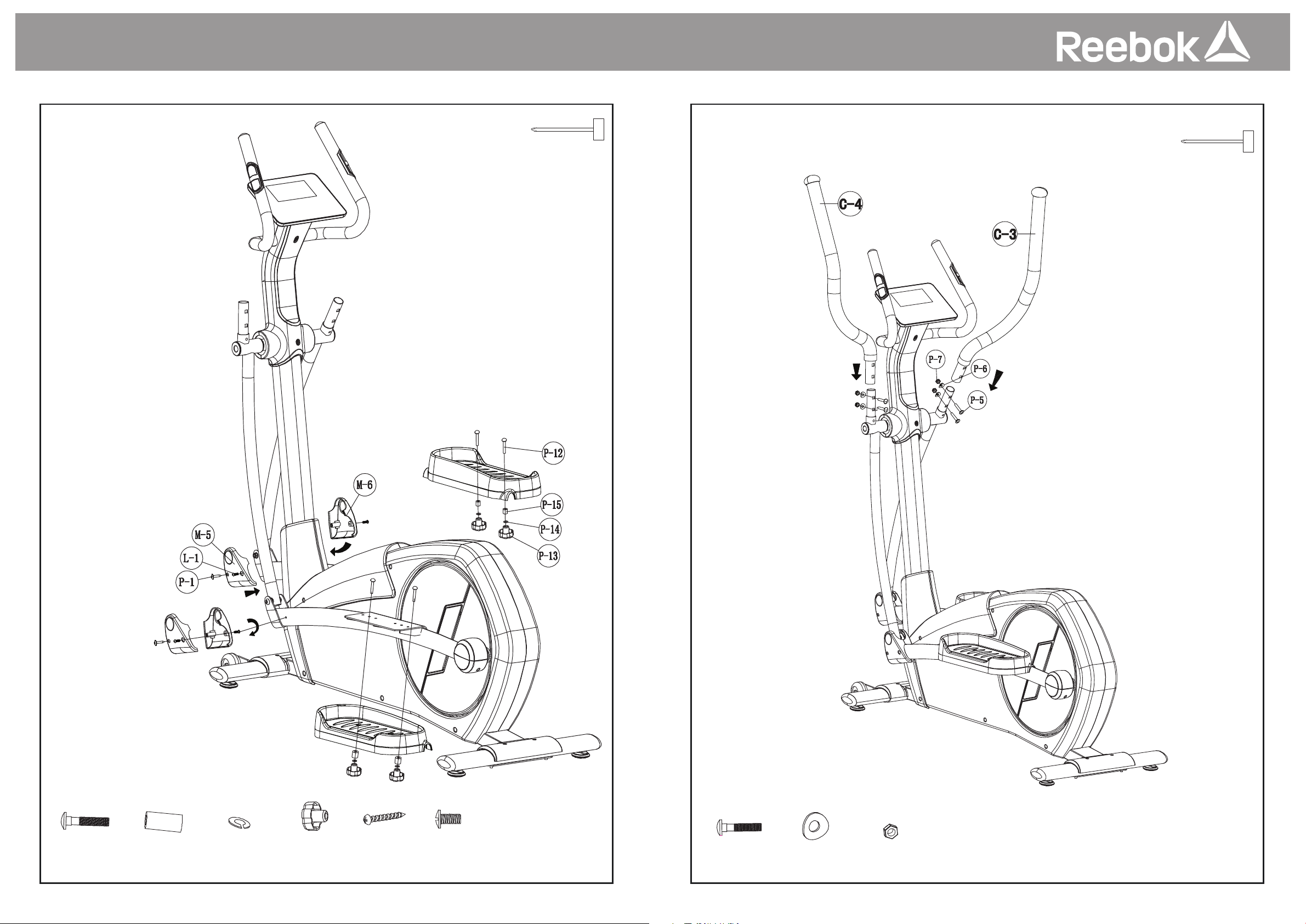

08
P12 x4 P15 x4 P14 x4 P13 x4 L1 x4P1 x2
9
P5 x4 P6 x4 P7 x4
REEBOKFITNESS.COM
JET 300
ELLIPTICAL ASSEMBLY GUIDE
10
E7 x4 P1 x4
E7 x4 P1 x4
11
REEBOKFITNESS.COM
JET 300
ELLIPTICAL ASSEMBLY GUIDE
REEBOKFITNESS.COM
JET 300
ELLIPTICAL ASSEMBLY GUIDE

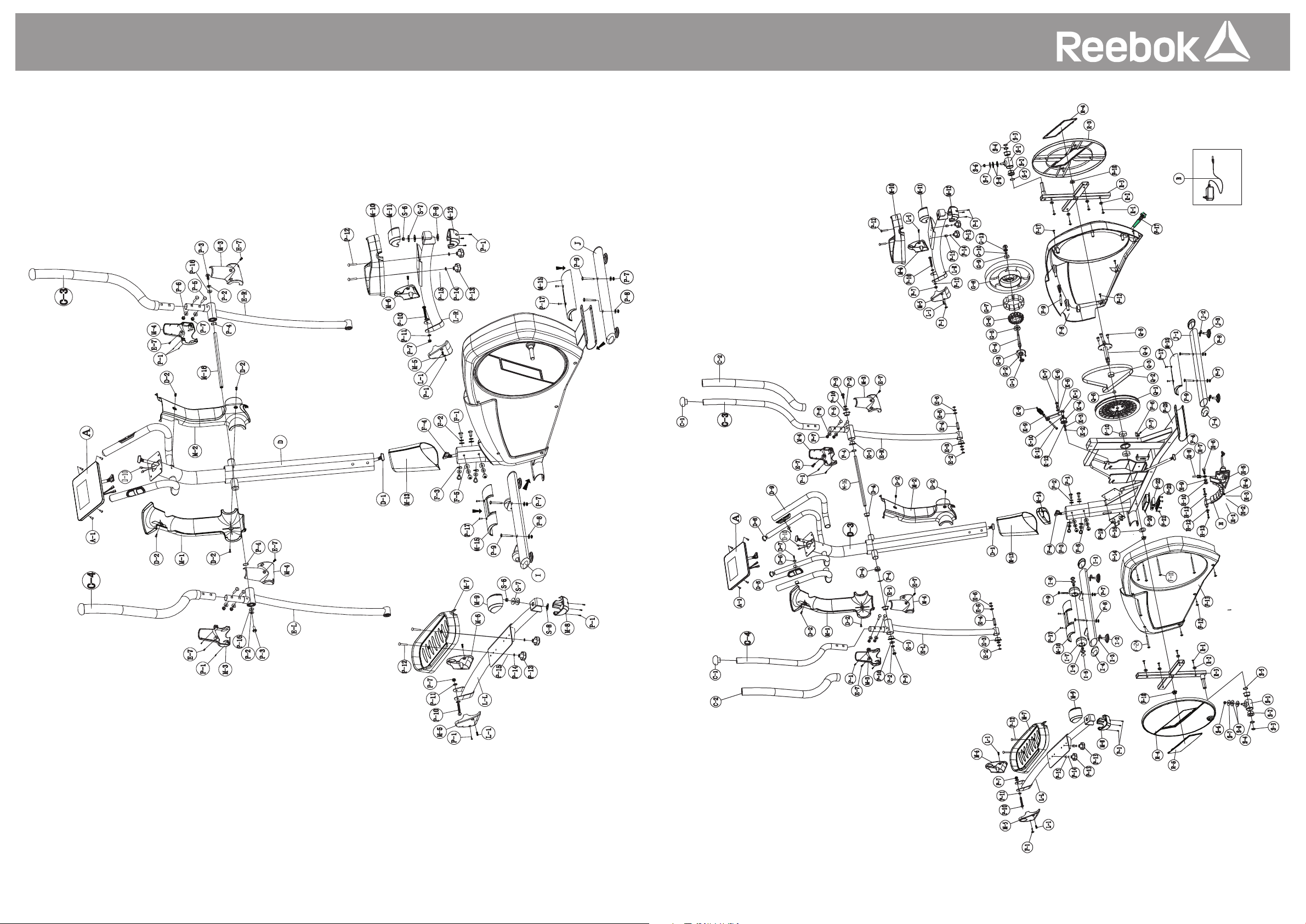

No.DescriptionQuantityNo. DescriptionQuantity
A
Console1
I-3
cap for adjust foot cap 2
A- 1
Screw4
I-4
End cap for stabilizer2
B
Adaptor1
I-5
Nut2
C
Upper handlebar set (incl. C-1~C-4) 1
I-6
Bushing2
C- 1
End cap2
I-7
Transportation wheel 2
C- 2
2
I-8
C type ring2
C- 3
Right upper handlebar 1
J
Rear stabilizer set (incl. J-1~J4) 1
C- 4
Left upper handlebar 1
J- 1
Rear stabilizer1
D
Handlebar post 1
J- 2
cap for adjust foot cap 2
D- 1
Upper cable wire1
J- 3
Adjust foot cap 2
D- 2
Screw4
J- 4
End cap for stabilizer2
D- 3
Handlebar post 1
K
Idler set1
D- 4
Bushing2
K- 1
Idler1
D- 5
Handle Pulse 2
K- 2
Hex. Screw1
D- 6
Semi circle washer 2
K- 3
Flat washer1
D- 7
Screw2
K- 4
Idler wheel 1
D- 8
Cap 2
K- 5
Flat washer1
D- 9
Foam grip for handlebar2
K- 6
Hex. Screw1
D- 10
Handpulse wire1
K- 7
Nylon Nut1
E
Lower handlebar set (incl. E-L~E-7)1
K- 8
Spring 1
E- L
Left lower handlebar 1
K- 9
Spring bracket 1
E- R
Right lower handlebar1
K- 10
Wave washer2
E- 1
Bushing4
K- 11
Hex. Screw1
E- 2
C type ring4
K- 12
Flat washer1
E- 3
Bushing4
L
Pedal arm set1
E- 4
Bushing2
L- L
Left pedal arm1
E- 5
Flat washer4
L- 1
Screw4
E- 6
Wave washer4
L- R
Right pedal arm1
E- 7
Screw4
M-1
Front cover for handlebar1
F
Main frame set 1
M-2
Rear cover for handlebar 1
F- 1
Screw6
M-3
Front cover for upper handlebar 2
F- 2
Spring washer6
M-4
Rear cover for upper handlebar 2
F- 3
Semi circle washer 2
M-5
Left front cover for pedal arm2
F- 4
Lower cable wire 1
M-6
Right front cover for pedal arm 2
F- 5
Flat washer4
M-7
Pedal(Left)1
F- 6
Sensor bracket 1
M-8
Left upper rear cover for pedal arm1
F- 7
Screw1
M-9
Left lower rear cover for pedal arm 1
F- 8
Right chain cover1
M-10
Pedal (Right)1
F- 9
Connecting pole for chain cover 1
M-11
Right upper rear cover for pedal arm 1
F- 10
6004RS bearing 2
M-12
Right lower rear cover for pedal arm1
F- 11
Screw4
M-13
Cover for handlebar post 1
F- 12
Screw8
M-14
Sleeve for handlebar post 1
F- 13
Left chain cover 1
M-15
Cover for rear stabilizer2
F- 14
C type ring1
M-16
Axle for handlebar 1
F- 15
Wave washer1
P
Hardware kit 1
F- 16
Flat washer1
P- 1
Screw12
F- 17
DC wire1
P- 2
Flat washer2
F- 18
Nute 2
P- 3
Nylok screw2
F- 19
Control board1
P- 4
Wave washer2
F- 20
Lower cover for battery box 1
P- 5
Carriage screw4
F- 21
Screw4
P- 6
Semi circle washer 4
F- 22
Battery5
P- 7
Nylon Nut10
F- 23
Upper cover for battery box1
P- 8
Flat washer4
F- 24
Screw1
P- 9
Carriage screw4
F- 25
Main frame 1
P- 10
Screw2
G
Flywheel set (incl. G-1~G-11) 1
P- 11
Flat washer4
G- 1
Nut1
P- 12
Carriage screw4
G- 2
Screw3
P- 13
Knob for pedal 4
G- 3
End cap for coil set 1
P- 14
Spring washer4
G- 4
1
P- 15
Bushing4
G- 5
6202RS bearing1
P- 16
2
G- 6
Coil set1
P- 17
Screw4
G- 7
Magnet 10
Q
Axle set (incl. Q-1~Q-6) 1
G- 8
Flywheel 1
Q- 1
Pulley1
G- 9
6000RS bearing1
Q- 2
Belt 1
G- 10
Flat washer1
Q- 3
Bushing1
G- 11
Nut1
Q- 4
Axle 1
H
Magnetic set (incl. H-1~H13) 1
Q- 5
Hex. Screw3
H- 1
Hex. Screw1
Q- 6
Magnet for pulley1
H- 2
Flat washer1
R
Disc Set (incl. R-1~R-5) 2
H- 3
Bushing1
R- 1
Screw4
H- 4
Nylon Nut1
R- 2
Flat washer4
H- 5
Gear box 1
R- 3
Disc 1
H- 6
Screw1
R- 4
Disc cover 1
H- 7
Hex. Screw2
R- 5
Cap for disc cover 1
H- 8
Adjustor 1
S
Universal linkage of pedal arm set (incl. S-1~S-8)2
H- 9
Bushing1
S- 1
Universal linkage of pedal arm1
H- 10
Flat washer1
S- 2
Bushing2
H- 11
Spring washer2
S- 3
C type ring1
H- 12
Flat washer2
S- 4
Flat washer1
H- 13
Hex. Screw2
S- 5
Wave washer1
I
Front stabilizer set (incl. I-1~I-8) 1
S- 6
Nylon Nut1
I-1
Front stabilizer 1
S- 7
Flat washer1
I-2
Adjust foot cap 2
S- 8
Sleeve 2
