2
GB
Owner’s Record
The model number is located at the rear panel and the
serial number is located inside the battery
compartment. Record these numbers in the space
provided below. Refer to these numbers whenever
you call upon your Sony dealer regarding this
product.
Model No. __________________________________
Serial No. __________________________________
The following FCC statement applies only to the
version of this model manufactured for sale in the
USA. Other versions may not comply with FCC
technical regulations.
INFORMATION
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or modifications
not expressly approved in this manual could void your
authority to operate this equipment.
If you have any questions about this product, you may
call: Sony Customer Information Service Center
1-800-222-7669 or http://www.sony.com/
RECYCLING NICKEL METAL HYDRIDE
BATTERIES
Nickel metal hydride batteries are
recyclable.
You can help preserve our
environment by returning your used
rechargeable batteries to the
collection and recycling location
nearest you.
For more information regarding recycling of
rechargeable batteries, call toll free 1-800-822-8837,
or visit http://www.rbrc.org/.
Caution: Do not handle damaged or leaking nickel
metal hydride batteries.
Declaration of Conformity
Trade Name : SONY
Model : ICD-UX512
Responsible Party : Sony Electronics Inc.
Address : 16530 Via Esprillo,
San Diego, CA 92127 USA
Telephone Number : 858-942-2230
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
3
GB
Notice for users
All rights reserved. This manual or the software
described herein, in whole or in part, may not be
reproduced, translated or reduced to any machine
readable form without prior written approval from
Sony Corporation.
IN NO EVENT SHALL SONY CORPORATION BE
LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES,
WHETHER BASED ON TORT, CONTRACT, OR
OTHERWISE, ARISING OUT OF OR IN
CONNECTION WITH THIS MANUAL, THE
SOFTWARE OR OTHER INFORMATION
CONTAINED HEREIN OR THE USE THEREOF.
Sony Corporation reserves the right to make any
modification to this manual or the information
contained herein at any time without notice.
The software described herein may also be governed
by the terms of a separate user license agreement.
• This software is for Windows and cannot be used
for Macintosh.
• The supplied connection support cable is for the IC
recorder ICD-UX512. You cannot connect other IC
recorders.
• The recorded music is limited to private use only.
Use of the music beyond this limit requires
permission of the copyright holders.
• Sony is not responsible for incomplete recording/
downloading or damaged data due to problems of
the IC recorder or computer.
• Depending on the types of the text and characters,
the text shown on the IC recorder may not be
displayed properly on device. This is due to:
– The capacity of the connected IC recorder.
– The IC recorder is not functioning normally.
– Content information is written in the language
or the character that is not supported by the IC
recorder.
What you record is for personal
enjoyment and use only. Copyright laws
prohibit other forms of use without the
permission of the copyright holders.
The use of Memory Stick™ media for
recording copyright-protected graphics or
other data is limited to the restrictions
specified under applicable copyright
laws. Any use beyond those restriction is
prohibited.
This product supports “Memory Stick
Micro™ (M2™) ” media. “M2™” is an
abbreviated form of “Memory Stick
Micro™.” Hereinafter, “M2™” is used in
this document.
4
GB
Trademarks
• Microsoft, Windows, Windows Vista and Windows
Media are registered trademarks or trademarks of
Microsoft Corporation in the United States and/or
other countries.
• Macintosh and Mac OS are trademarks of Apple
Inc., registered in the USA and other countries.
• Pentium is a registered trademark of Intel
Corporation.
• MPEG Layer-3 audio coding technology and
patents licensed from Fraunhofer IIS and Thomson.
• microSD and microSDHC logos are trademarks of
SD-3C, LLC.
• “Memory Stick Micro,” “M2” and are
trademarks or registered trademarks of Sony
Corporation.
• “MagicGate” is a trademark of Sony Corporation.
• Nuance, the Nuance logo, Dragon, Dragon
NaturallySpeaking, and RealSpeak are trademarks
and/or registered trademarks of Nuance
Communications Inc., and/or its affiliates in the
United States and/or other countries.
• US and foreign patents licensed from Dolby
Laboratories.
All other trademarks and registered trademarks are
trademarks or registered trademarks of their
respective holders. Furthermore, “ ™ ” and “
®
” are
not mentioned in each case in this manual.
The “Sound Organizer” uses software modules as
shown below:
Windows Media Format Runtime
This product contains technology subject to certain
intellectual property rights of Microsoft.
Use or distribution of this technology outside of this
product is prohibited without the appropriate
license(s) from Microsoft.
5
GB
Table of Contents
Getting Started
Step 1: Checking the Contents of the
Package .....................................................8

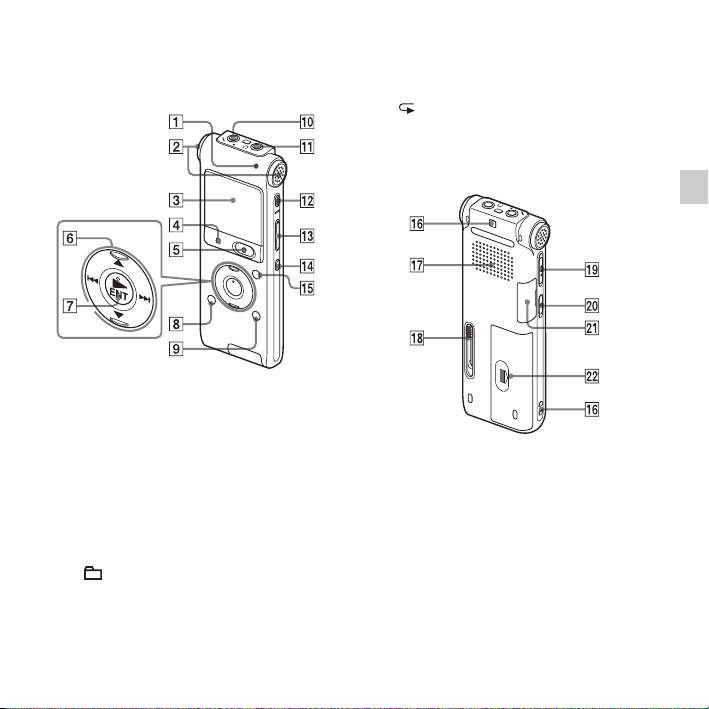

Index to parts and controls ...................9
Preventing unintentional operations
(HOLD) ..............................................10
Step 2: Recharging the Battery ...............11

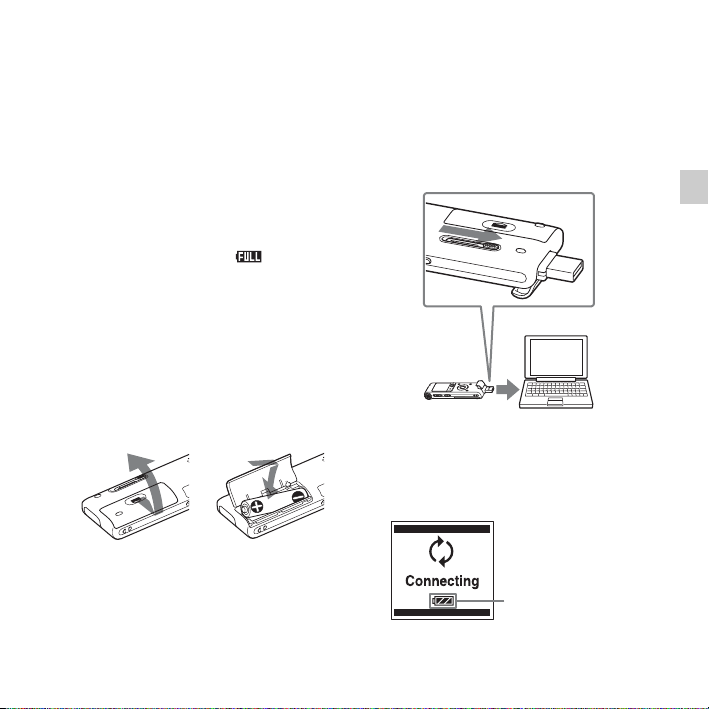

Recharging the battery using a
computer .............................................11
Recharging the battery using a
USB AC adaptor .................................13
When to charge/replace the battery ......13
Step 3: Turning the IC Recorder On .......14
Turning the power on .........................14
Turning the power off .........................14
Step 4: Setting the Clock ........................15
Setting the clock after recharging the
battery .................................................15
Setting the clock using the menu ........15
Step 5: Setting the Language to Be
Used in the Display Window ..................18
Basic Operations
Recording .......................................19
Listening .........................................23
Erasing ............................................28
Other Recording Operations
Changing the Recording Settings ............30
Selecting a recording scene for each
situation ...............................................30
Starting to record automatically in
response to sound
– the VOR function .............................35
Recording on a Memory Card .................36
Recording via Other Devices ..................40
Recording with an external
microphone .........................................40
Recording from other equipment ........41
Operation during Recording ....................44
Monitoring the recording ....................44
Other Playback Operations
Changing the Playback Settings ..............45
Convenient playback methods ............45
Reducing noise in the playback
sound and making the human voice
clearer – the noise cut function ...........46
Adjusting the playback speed
– the DPC (Digital Pitch Control)
function ...............................................47
Selecting the sound effect ...................48
Selecting the playback mode ..............50
Playing Back a File at a Desired Time
with an Alarm ..........................................52
6
GB
Playback via Other Devices ....................54
Recording with other equipment ........ 54
Editing Files
Arranging Files in a Folder .....................55
Moving a file to a different folder ......55
Copying a file to the other
memory ...............................................56
Erasing all files in a folder ..................57
Using a Track Mark ................................59
Adding a track mark ...........................59
Erasing a track mark ...........................60
Erasing all the track marks in the
selected file at one time ......................61
Dividing a File ........................................62
Dividing a file at the current
position ...............................................62
Dividing a file at all the track mark
positions ..............................................63
Protecting a File ......................................65
About the Menu Function
Making Settings for the Menu ................66
Menu Settings .........................................67
Utilizing Your Computer
Using the IC Recorder with Your
Computer .................................................80
Connecting the IC recorder to your
computer .............................................80
Structure of folders and files ...............81
Disconnecting the IC recorder
from your computer ............................85
Copying Files from the IC Recorder to
Your Computer .......................................86
Copying Music Files from Your
Computer to the IC Recorder and
Playing Them Back .................................87
Copying a music file from your
computer to the IC recorder
(drag and drop) ...................................87
Playing back music files copied
from your computer using
the IC recorder ....................................87
Using the IC Recorder as
USB Memory ..........................................89
Using the Supplied Sound Organizer
Software ..................................................90
What you can do using Sound
Organizer ............................................90
System requirements for your
computer .............................................91
Installing Sound Organizer .................92

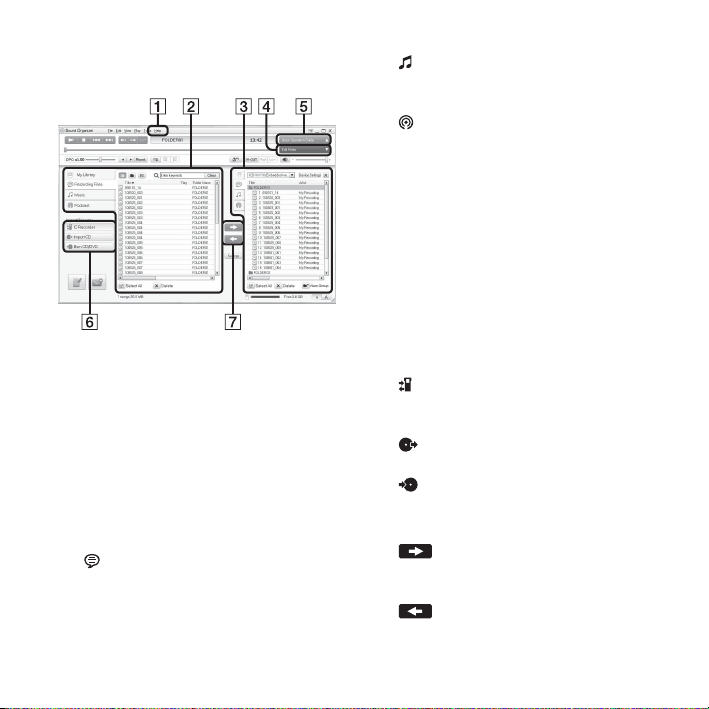

The Sound Organizer window ............94
7
GB
Additional Information
Using a USB AC Adaptor .......................95
Disconnecting the IC recorder
from the AC outlet ..............................96
Precautions ..............................................97
Specifications ........................................100
System requirements ........................100
Design and specifications .................101
Battery life ........................................104
Troubleshooting
Troubleshooting ....................................105
Message List .........................................114
System Limitations ...............................118
Display Window Guide ........................119
Index .....................................................124
8
GB
Getting Started
Step 1: Checking the Contents of the
Package
IC Recorder (1)
Remove the film on the display window
before you use the IC recorder.
Stereo headphones (1)
USB connection support cable (1)
If the IC recorder cannot be connected to a
computer directly, use the supplied USB
connection support cable.
NH-AAA (size AAA) rechargeable
battery (1)
Battery case (1)
Application software, Sound
Organizer (CD-ROM) (1)
Operating Instructions
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
9
GB
Getting Started
Index to parts and controls
Front
A Operation indicator
B Built-in microphones (stereo)
C Display window
D
x STOP button
E
z REC (record)/PAUSE button
F Control button (
v, V / . (review/fast
backward),
> (cue/fast forward))
G
N (play)/ENT (enter) button*
H (folder) button
I MENU/NOISE CUT button
J m (microphone) jack*
K i (headphone) jack
L ERASE button
M VOL (volume) –/+* button
N (repeat) A-B button
O T-MARK (Track mark) button
Rear
P Strap hole (A strap is not supplied.)
Q Speaker
R USB slide lever
S HOLD/POWER switch
T DPC(SPEED CTRL) switch
U M2™/microSD memory card slot
V Battery compartment
* These buttons and the jack have a tactile dot.
Use it as a reference point for operations, or
to identify each terminal.
10
GB
Preventing unintentional
operations (HOLD)
You can disable all the buttons (HOLD) in
order to prevent unintentional operations
when you carry the IC recorder, etc.
To put the IC recorder in the
HOLD status
Slide the HOLD/POWER switch in the
direction of “HOLD.”
“HOLD” will appear for approximately 3
seconds, indicating that all the button
operations are disabled.
To release the IC recorder from
the HOLD status
Slide the HOLD/POWER switch towards
the center.
P Note
When the HOLD function is activated during
recording, all the button operations are
disabled. To stop recording, cancel the HOLD
function first.
z
Tip
Even if the HOLD function is activated, you
can stop the alarm playback by pressing any
button. (You cannot stop normal playback.)
11
GB
Getting Started
Step 2: Recharging the Battery
Recharging the battery
using a computer
Remove the film on the display window
before you use the IC recorder.
Connect the IC recorder to a running
computer, and charge the battery until the
battery indicator indicates “ .”
It takes about 3 hours and 30 minutes to
fully charge an exhausted battery.*
1
1 Insert a rechargeable battery.
Slide and lift the battery compartment
lid, insert an NH-AAA rechargeable
battery with correct polarity, and close
the lid.
2 Connect the IC recorder to your
computer.
Slide the USB slide lever on the back of
the IC recorder in the direction of the
arrow, and insert the USB DIRECT
connector into the USB port of a running
computer.*
2
While the battery is charging,
“Connecting” and the battery indicator
are displayed in an animation.
Computer
IC recorder
To USB port of
your computer
Battery indicator
12
GB
When the battery is fully charged, the
battery indicator will indicate “ .”
3 Disconnect the IC recorder from your
computer.
Follow the procedures below; otherwise,
when the IC recorder contains data files,
the files may be damaged or become
unplayable.
1 Make sure that the operation indicator
does not light.
2 Perform the following operation on
your computer.
On a Windows screen, left-click the
icon at the bottom of the desktop of
the computer.
t Left-click “Eject IC
RECORDER.”
The icon and menu displayed can be
different on different operating systems.
On a Macintosh screen, drag “IC
RECORDER” on the desktop to
“Trash” and drop it there.
For details on disconnecting the IC
recorder from your computer, refer to the
operating instructions supplied with your
computer.
3 Disconnect the IC recorder from the
USB port of the computer, and slide
the USB slide lever in the direction of
the arrow to retract the USB DIRECT
connector.
*
1
This is an approximation for the time it
takes to charge from no remaining battery
power to full battery power at room
temperature. It varies depending on the
remaining power and the condition of the
battery. It also takes more time if the
temperature of the battery is low, or if the
battery is charged while you are transferring
data to the IC recorder.
*
2
If the IC recorder cannot be connected to a
computer directly, use the supplied USB
connection support cable.
Fully charged
indicator
13
GB
Getting Started
P Note
If the battery indicator is not displayed in an
animation, charging has not been done
properly. See “Troubleshooting” on page 105.
When using a fully charged
battery or an LR03 (size AAA)
alkaline battery
Follow the step 1.
P Note
You cannot charge an LR03 (size AAA)
alkaline battery (not supplied).
z
Tips
• Do not use a manganese battery for this IC
recorder.
• When replacing the battery, files recorded or
alarm settings are not erased even when you
remove the battery.
• When replacing the battery, the clock
continues moving for about 1 minute after
you remove the battery.
Recharging the battery
using a USB AC adaptor
You can also charge the battery by using an
AC-U501AD USB AC adaptor, etc. (not
supplied) (page 95).
When to charge/replace the
battery
The battery indicator on the display shows
the battery condition in an animation.
Battery remain indication
: “Low Battery Level” appears.
Charge the rechargeable battery or
replace the old battery with a new
one.
m
: “Low Battery” appears and the IC
recorder will stop operation.
14
GB
Step 3: Turning the IC Recorder On
Turning the power on
Slide the HOLD/POWER switch in the
direction of “POWER” for more than 1
second. The IC recorder is turned on, and
the “Accessing...” animation is displayed.
Turning the power off
Slide the HOLD/POWER switch in the
direction of the “POWER” for more than 2
seconds, and “Power Off” animation is
displayed.
z Tips
• When you are not going to use the IC
recorder for a long time, we recommend to
turn off the IC recorder.
• When the IC recorder is in the stop mode,
and you leave the IC recorder without
attempting an operation for a certain length
of time, the auto power off function will take
effect. (The length of time before auto power
off is set to “10min” when you purchase the
IC recorder.) You can select the length of
time before auto power off takes effect in the
menu (page 78).
15
GB
Getting Started
Step 4: Setting the Clock
You need to set the clock to use the alarm
function or record the date and time.
When you insert a battery for the first time,
or when you insert a battery after the IC
recorder has been without a battery for
more than 1 minute, the “Set Date&Time”
animation appears, and then the year
section begins to flash in the clock setting
display window.
Setting the clock after
recharging the battery
1 Press v or V on the control button to set
the year, month, day, hour, and minute in
sequence, and then press
N/ENT.
Select the last two digits of the year
when you set the year.
2 Press x STOP to return to the stop mode
display.
Setting the clock using the
menu
While the IC recorder is in the stop mode,
you can set the clock using the menu.
1 Select “Date&Time” in the menu.
1 Press MENU/NOISE CUT to enter
the menu mode.
x STOP
N/ENT
v, V
MENU/NOISE CUT
.
16
GB
The menu mode window will be
displayed.
2 Press . on the control button, press
v or V on the control button to select
the (IC recorder setting) tab, and
then press
N/ENT.
3 Press v or V on the control button to
select “Date&Time,” and then press
N/ENT.
2 Press v or V on the control button to
select “Auto” or “Manual,” and then
press
N/ENT.
When you selected “Auto,” the clock is
automatically adjusted using the clock in
the computer connected to the IC
recorder and on which the supplied
Sound Organizer software is started.
When you select “Manual,” proceed to
the next steps.
3 Press v or V on the control button to
select “10y1m1d,” and then press
N/
ENT.
4 Press v or V on the control button to set
the year, month, day, hour, and minute in
sequence, and then press
N/ENT.
Select the last two digits of the year
when you set the year.
5 Press x STOP to exit the menu mode.
17
GB
Getting Started
P Note
If you do not press N/ENT within 1 minute
of entering the clock setting data, the clock
setting mode is canceled and the window will
return to the display of the stop mode.
To display the current date and
time
While the IC recorder is in the stop mode,
press
x STOP to display the current date
and time for about 3 seconds.
18
GB
Step 5: Setting the Language to Be Used in
the Display Window
You can select the language to be used for
messages, menus, folder names, file names,
etc. from 3 languages.
1 Select the (IC recorder setting) tab
t “Language” in the menu, and then
press
N/ENT.
2 Press v or V on the control button to
select the language that you want to use,
and then press
N/ENT.
You can select the following languages.
English, Español (Spanish), Français
(French)
3 Press x STOP to exit the menu mode.
x STOP
N/ENT
v, V
19
GB
Basic Operations
Basic Operations
Recording
P Notes
• Before making a recording, be sure to check the battery indicator (page 13).
• Noise may be recorded if an object, such as your finger, etc., accidentally rubs or scratches the IC
recorder during recording.
z
Tip
Before you start recording, we recommend you make a trial recording first, or monitor the
recording (page 44).
Selecting a folder
1 Slide the HOLD/POWER switch towards the center to
release the IC recorder from the HOLD status
(page 10).
2 Press to display the folder selection window.
20
GB
3 Press . on the control button, press v or V on the
control button to select the (Voice) tab, and then
press
> on the control button.
P Note
Only the (Voice) tab will be displayed when you
purchase the IC recorder.
The (Music) tab and the (Podcast) tab will be
displayed when you transfer files from your computer
(page 87, 91). The (Built-in memory) tab will be
displayed when you insert a memory card into the IC
recorder (page 37).
4 Press v or V on the control button to select the folder in
which you want to record files.
When you purchase the IC recorder, there are 5 folders
already available ( FOLDER01-05).
., >
v
, V
v
V
21
GB
Basic Operations
Starting to record (Auto (AGC) recording)
5 Press N/ENT.
1 Place the IC recorder so that the built-in microphones
face the direction of the source to be recorded.
2 Press z REC/PAUSE in the stop mode.
The operation indicator lights in red.
You do not need to press and hold
z REC/PAUSE
while recording.
The new file will be automatically recorded after the
last recorded file.
N/ENT
Operation
indicator
z REC/
PAUSE
22
GB
To stop recording
Note while accessing
The IC recorder is recording data and storing it on the memory media when the “Accessing...”
animation appears on the display. While the IC recorder is accessing data, do not remove the battery
or connect or disconnect the USB AC adaptor (not supplied). Doing so may damage the data.
Other operations
z Tips
• You can record up to 199 files in each folder.
• You can make new folders or erase unwanted folders using the supplied Sound Organizer
software (page 90).
1 Press x STOP.
The “Accessing...” animation appears and the IC recorder
stops at the beginning of the current recording file.
pause recording* Press z REC/PAUSE. During recording pause, the operation indicator
flashes in red and “ ” begins to flash in the display window.
release pause and
resume recording
Press
z REC/PAUSE again. Recording resumes from that point. (To stop
recording after pausing recording, press
x STOP.)
review the current
recording instantly
Press
N/ENT. Recording stops and playback starts from the beginning of
the file just recorded.
review during
recording
Press and hold
. on the control button during recording or recording
pause. Recording stops and you can search backwards while listening to fast
playback sound. After you release
. on the control button, playback
starts from that point.
* 1 hour after you pause recording, recording pause is automatically released and the IC recorder enters
the stop mode.
x STOP
23
GB
Basic Operations
Listening
Starting playback
1 Slide the HOLD/POWER switch towards the center to
release the IC recorder from the HOLD status
(page 10).
2 Press .
3 Press . on the control button, press v or V on the
control button to select the (Voice) tab, the
(Music) tab, or the (Podcast) tab, and then press
> on the control button.
4 Press v or V on the control button to select the folder.
., >
v
, V
v
V
24
GB
5 Press > on the control button.
6 Press v or V on the control button to select the file you
want to play.
7 Press N/ENT.
Playback will start soon, and the operation indicator
will light in green. (When “LED” is set to “OFF” in the
menu (page 76), the operation indicator does not light.)
8 Press VOL –/+ to adjust the volume.
>
v
V
Operation
indicator
N/ENT
VOL –/+
25
GB
Basic Operations
To stop playback
Other operations
1 Press x STOP.
stop at the current position
(Playback Pause function)
Press N/ENT. To resume playback from that point, press N/ENT
again.
go back to the beginning of
the current file
Press
. on the control button once.*
1
*
2
go back to previous files Press . on the control button repeatedly. (During the stop mode,
keep the button pressed to go back the files continuously.*
3
)
skip to the next file Press
> on the control button once.*
1
*
2
skip to the succeeding files Press > on the control button repeatedly. (During the stop mode,
keep the button pressed to skip the files continuously.*
3
)
*
1
When a track mark is set, the IC recorder goes backward or forward to the track mark before or after
the current point (page 59).
*
2
These operations are for when “Easy Search” is set to “OFF” (page 45).
*
3
In the continuous searching mode, the IC recorder does not locate track marks.
x STOP
26
GB
About the tab view
The recordable area and the playback-only area of folders stored on the IC recorder are
managed separately, and are displayed with tabs. When you choose a folder, you can move to
one of those the areas by switching a tab.
(Voice): Recordable area. This is the area used to manage files recorded with the IC recorder.
(Music): Playback-only area. This is the area used to manage music files transferred from
your computer.
(Podcast): Playback-only area. This is the area used to manage podcast files transferred
from your computer.
(Built-in memory) or (External memory): You can switch between the built-in
memory and external memory (memory card) of the IC recorder (page 38).
Only the (Voice) tab will be displayed when you purchase the IC recorder.
The (Music) tab and the (Podcast) tab will be displayed when you transfer files from
your computer (page 87, 91). The (Built-in memory) tab will be displayed when you
insert a memory card into the IC recorder (page 37).
Display when playing back a file
Tabs
27
GB
Basic Operations
A File information
Press
v or V on the control button to check the file information during playback.
A file recorded using the IC recorder is displayed as follows.
B Counter information
You can select the display mode in the menu (page 75).
Elapsed time: The elapsed playback time of one file
Remaining time: The remaining playback time of one file
Recording date: Date recorded
Recording time: Time recorded
C Remaining recording time
Displays the remaining recording time in hours, minutes, and seconds.
If there is more than 10 hours time remaining, the time is displayed in hours.
If there is more than 10 minutes and less than 10 hours time remaining, the time is
displayed in hours and minutes.
If there is less than 10 minutes time remaining, the time is displayed in minutes and
seconds.
: Folder name: FOLDER01-FOLDER05
: File name: Date_file number (e.g. 100101_001)
: Artist name (e.g. My Recording)
: Title: Date_file number (e.g. 100101_001)
28
GB
Erasing
P Note
Once a recording has been erased, you cannot retrieve it.
Selecting a file and erasing it
1 Slide the HOLD/POWER switch towards the center to
release the IC recorder from the HOLD status
(page 10).
2 Select the file you want to erase when the IC recorder is
in the stop or playback mode.
3 Press ERASE.
“Erase?” is displayed and the specified file is played
back for confirmation.
4 Press v or V on the control button to select “Execute.”
ERASE
v
V
29
GB
Basic Operations
To cancel erasing
To erase another file
Proceed with steps 2 through 5 in “Selecting a file and erasing it.”
To erase a part of a file
Divide the file into two files first (page 62), and then proceed with steps 2 through 5 in
“Selecting a file and erasing it.”
5 Press N/ENT.
The “Erasing...” animation appears in the display
window and the selected file will be erased.
When a file is erased, the remaining files will advance
so that there will be no space between files.
1 Select “Cancel” in step 4 of “Selecting a file and
erasing it,” and then press
N/ENT.
N/ENT
N/ENT
30
GB
Other Recording Operations
Changing the Recording Settings
Selecting a recording scene
for each situation
According to various recording scene, you
can change the items for recording, such as
REC Mode (page 70), Mic Sensitivity
(page 70), etc., to the recommended
settings in bulk. You can change the
settings for each item.
1 Select the (Recording) tab t “Scene
Select” in the menu, and then press
N/
ENT.
The Scene Select window will be
displayed.
2 Press v or V on the control button to
select a scene you want, and then press
N/ENT.
3 Press v or V on the control button to
select “Save Scene Setting,” and then
press
N/ENT.
4 Press x STOP to exit the menu mode.
N/ENT
v, V
x
STOP
31
GB
Other Recording Operations
P Notes
• You cannot set a scene during recording.
• When 60 seconds have passed without any
operation after the Scene Select display
appeared in steps 1 through 3, the stop mode
display will be displayed.
Tips for better recording
There are ways of making better recordings
other than using scene selection.
Recording at a meeting
By placing the IC recorder on a stand or a
handkerchief substituting for a stand, you
can record with clear, low-noise sound,
without vibration noise from the desk.
(Meeting)
To record in a variety of
situations, such as recording
in a spacious conference
room.
(Voice Notes)
To record dictation with a
microphone in front of your
mouth.
(Interview)
To record human voice at a
distance of 1 to 2 meters (40
to 80 in.).
(Lecture)
To record a wide range of
sound, such as a lecture in a
classroom or a chorus lesson.
(Audio IN)
To record from external
equipment, such as a portable
CD/MD player or a tape
recorder, connected to the IC
recorder via an audio output
connector (stereo mini-jack).
Also used for dubbing.
(My Scene)
Use to keep your favorite
settings.
32
GB
Recording a voice note
By placing the IC recorder close to one side
of your mouth, you can prevent breathing
on the built-in microphones, and record
with clear sound.
Recording an interview
Place the IC recorder so that the built-in
microphones face the interviewee.
Recording a music performance
By attaching a tripod (not supplied) or
placing the recorder on a stand or table, you
can adjust the angle of the IC recorder and
the built-in microphones more precisely.
When recording a chorus or piano
performance, for example, place the IC
recorder on a table approximately 2 to 3
meters (80 to 120 in.) from the
performer(s). Set up the IC recorder with
the display window facing up, and with the
built-in microphones pointing towards the
sound source.
Built-in
microphones
33
GB
Other Recording Operations
To change the settings when you
set the scene
1 Select the scene you want to edit in step
2 of “Selecting a recording scene for
each situation,” press
v or V on the
control button to select “Edit from
Current Setting” or “Edit,” and then
press
N/ENT.
2 Press v or V on the control button to
select the menu item you want to change,
and then press
N/ENT.
3 Press v or V on the control button to
select a setting item, and then press
N/
ENT.
For details on the menu items and
settings, see pages 70 through 71.
4 Press v or V on the control button to
select “Edit Complete,” and then press
N/ENT.
5 Press x STOP to exit the menu mode.
P Note
Even if the settings are changed, the selection
of the scene will be continued.
To set the menu item settings of
the Scene Select to the default
values
1 Select the scene you want to set the
settings to the default value in step 2 of
“Selecting a recording scene for each
situation,” press
v or V on the control
button to select “Set Default Value,” and
then press
N/ENT.
34
GB
“Default Value?” will be displayed.
2 Press v or V on the control button to
select “Execute,” and then press
N/
ENT.
The menu item settings will be set to the
default settings.
3 Press x STOP to exit the menu mode.
Default settings
For details on the menu items and settings,
see pages 70 through 71.
(Meeting)
(Voice
Notes)
(Interview)
REC Mode MP3
192kbps
MP3
128kbps
MP3
192kbps
Mic
Sensitivity
High Low Medium
LCF(Low
Cut)
ON ON ON
VOR OFF OFF OFF
SYNC
REC
OFF OFF OFF
Select
Input
MIC IN MIC IN MIC IN
(Lecture)
(Audio
IN)
(My
Scene)
REC Mode MP3
192kbps
MP3
192kbps
MP3
192kbps
Mic
Sensitivity
Medium Low Medium
LCF(Low
Cut)
OFF OFF OFF
VOR OFF OFF OFF
SYNC REC OFF ON OFF
Select Input MIC IN Audio IN MIC IN
(Meeting)
(Voice
Notes)
(Interview)
35
GB
Other Recording Operations
Starting to record
automatically in response to
sound – the VOR function
You can set the VOR (Voice Operated
Recording) function to “ON,” to make the
IC recorder start recording when the IC
recorder detects sound, and pause when no
sound is heard, eliminating recording
during soundless periods.
1 Select the (Recording) tab t “VOR”
in the menu when the IC recorder is in
the stop or recording mode, and then
press
N/ENT.
2 Press v or V on the control button to
select “ON,” and then press
N/ENT.
“VOR” is set to “OFF” when you
purchase the IC recorder.
3 Press x STOP to exit the menu mode.
4 Press z REC/PAUSE.
“ ” appears in the display window.
The recording pauses when no sound is
detected and “ ” flashes. When
the IC recorder detects sound again, the
recording starts again.
To cancel the VOR function
Set “VOR” to “OFF” in step 2.
P Notes
• The VOR function is affected by the sound
around you. Set “Mic Sensitivity” in the menu
according to the recording conditions. If
recording is not satisfactory after you have
changed the “Mic Sensitivity” setting, or for
an important recording, set “VOR” to “OFF”
in the menu.
• If you press z REC/PAUSE to pause
recording during VOR recording, only
“” flashes.
• During synchronized recording (page 42),
the VOR function does not work.
N/ENT
z REC/PAUSE
x STOP
v, V
36
GB
Recording on a Memory Card
In addition to the built-in memory, you can
record files on a memory card.
About compatible memory cards
Memory cards that you can use with the IC
recorder are as follows:
• Memory Stick Micro™ (M2™) media:
Up to 16 GB is supported.
• microSD card: A microSD (FAT16) card
smaller than 2 GB and a microSDHC
(FAT32) card from 4 GB to 32 GB are
supported.
A memory card of 64 MB or less is not
supported.
The microSD/microSDHC cards that have
been tested according to our standards are
as follows.
microSD/microSDHC cards
a: Operation tested
–: Operation not tested
As of September 2010
For ICD-UX512, the operational tests
performed were using memory cards available
as of September 2010.
N/ENT
x STOP
v, V
Insert M2™ with the terminal side
facing toward you.*
Insert microSD card with the label
side facing toward you.*
* When you are
inserting a memory
card with the back side
of the IC recorder
facing toward you.
.
z REC/PAUSE
Supplier 2 GB 4 GB 8 GB 16 GB 32 GB
SONY
aaa
——
Toshiba
aaaa
—
Panasonic
aaaa
—
SanDisk
aaaa a
37
GB
Other Recording Operations
For the latest information about the memory
cards that have been tested, please access the
support home page for the IC recorder:
http://www.sony.com/recordersupport
In this manual, M2™ and microSD cards are
generally referred to as a “memory card.”
The M2™/microSD card slot is referred to as
the “memory card slot.”
Due to the file system specifications of the
IC recorder, you can record and play back
an LPCM file smaller than 2 GB, and an
MP3/WMA/AAC-LC file smaller than
1 GB using a memory card.
You can record up to 4,074 files on an
M2™ media.
P Note
Operations of all types of compatible memory
cards are not guaranteed.
To insert a memory card
Before recording, be sure to copy all the
data stored on the memory card to your
computer and format the memory card on
the IC recorder (page 79) so it contains no
data.
1 Open the cover of the memory card slot
in the stop mode.
2 Insert an M2™ or microSD card, in the
direction shown in the illustration on
page 36, securely to the end of the slot
until it clicks into place. Then close the
cover.
To remove a memory card
Push the memory card into the slot. When it
pops out, remove it from the memory card
slot.
Structure of folders and files
5 folders are created in a memory card in
addition to those in the built-in memory.
The structure of folders and files is
somewhat different from that of the built-in
memory (page 83).
P Notes
• Do not insert or remove a memory card
during recording/playback/formatting.
Doing so may cause a malfunction of the IC
recorder.
• Do not remove a memory card while the
“Accessing...” animation appears in the
display window. Doing so may damage the
data.
• If a memory card is not recognized, remove
it and then insert it into the IC recorder
again.
• Close the cover of the memory card slot
firmly. Also, do not insert any liquid, metal,
flammable or any object other than a
38
GB
memory card into the slot. Doing so may
cause fire, electric shock, or malfunctions.
To switch the IC recorder
destination to the memory card
(from the folder selection
window)
1 Press .
The folder selection window will be
displayed.
2 Press . on the control button, press v
or
V on the control button to select the
(Built-in memory) tab, and then
press
N/ENT.
3 Press v or V on the control button to
select “Memory Card,” and then press
N/ENT.
The (Built-in memory) tab changes
to the (External memory) tab, and
then the folder selection window will be
displayed.
4 Press x STOP to return to the stop mode
display.
To use the built-in memory
Select “Built-In Memory” in step 3.
To switch the IC recorder
destination to the memory card
(from the menu)
1 Select the (IC recorder setting) tab
t “Select Memory” in the menu, and
then press
N/ENT.
39
GB
Other Recording Operations
2 Press v or V on the control button to
select “Memory Card,” and then press
N/ENT.
“Select Memory” is set to “Built-In
Memory” when you purchase the IC
recorder.
If the memory card has already been
formatted, proceed to step 5.
3 When the memory card is not formatted,
select the (IC recorder setting) tab
t “Format” in the menu, and then press
N/ENT.
“Erase All Data?” will be displayed.
4 Press v or V on the control button to
select “Execute,” and then press
N/
ENT.
5 Press x STOP to exit the menu mode.
To use the built-in memory
Select “Built-In Memory” in step 2.
To start recording
Select the folder and then press z REC/
PAUSE. For details on recording, see page
19.
40
GB
Recording via Other Devices
Recording with an external
microphone
1 Connect an external microphone to the
m (microphone) jack when the IC
recorder is in the stop mode.
“Select Input” appears in the display
window.
If “Select Input” is not displayed, set it in
the menu (page 71).
2 Press v or V on the control button to
select “MIC IN,” and then press
N/
ENT.
“Select Input” is set to “MIC IN” when
you purchase the IC recorder.
3 Press x STOP to exit the menu mode.
4 Press z REC/PAUSE to start recording.
The built-in microphones are
automatically cut off.
If the input level is not strong enough,
adjust the “Mic Sensitivity” setting on
the IC recorder.
When a plug in power type microphone
is connected, power is automatically
supplied to the microphone from the IC
recorder.
v, V
m (microphone) jack
z REC/PAUSE
x STOP
N/ENT
Stereo microphone
41
GB
Other Recording Operations
z Recommended microphones
You can use the Sony ECM-CS10,
ECM-CZ10 electret condenser microphone
(not supplied).
To record sound from a
telephone or a cell phone
You can use the ECM-TL1 headphone-type
electret condenser microphone (not
supplied) to record sound from a telephone
or a cell phone.
For details on how to make the connection,
refer to the operating instructions supplied
with the ECM-TL1 microphone.
P Notes
• After you have made the connection, check
the sound quality of the conversation and the
recording level before you start recording.
• If the beep of the telephone or a dial tone is
recorded, the conversation may be recorded
with lower level of sound. In this case, start
recording after the conversation has started.
• The VOR function (page 35) may not work,
depending on the kind of telephone or the
line condition.
• We assume no responsibility whatsoever for
any inconvenience, even if you cannot
record a conversation using the IC recorder.
Recording from other
equipment
You can make music files without using the
computer by recording sound from other
equipment connected to the IC recorder.
When you select “Audio IN” from the
“Scene Select” menu, the settings suitable
for recording from other equipment are
already selected. For details on setting, see
page 30.
v, V
x
STOP
z REC/PAUSE
N/ENT
CD player, etc.
m (microphone) jack
42
GB
z Tips
• Before you start recording, we recommend
you make a trial recording first.
• If the input level is not strong enough,
connect the headphone jack (minijack,
stereo) of other equipment to the
m (microphone) jack of the IC recorder and
adjust the volume level on the piece of
equipment connected to the IC recorder.
To record using the
synchronized recording function
The IC recorder pauses when no sound is
detected for more than 2 seconds. The IC
recorder starts recording again as a new file
when sound is detected.
When you select “Audio IN” from the
“Scene Select” menu, the “SYNC REC” is
already set to “ON.”
1 Select the (Recording) tab t
“SYNC REC” in the menu, and then
press
N/ENT.
2 Press v or V on the control button to
select “ON,” and then press
N/ENT.
“SYNC REC” is set to “OFF” when you
purchase the IC recorder.
3 Press x STOP to exit the menu mode.
4 Connect other equipment to the IC
recorder when the IC recorder is in the
stop mode.
Connect the audio output connector
(stereo mini-plug) of other equipment to
the m (microphone) jack of the IC
recorder using an audio connecting cable
(page 54).
“Select Input” appears in the display
window.
If “Select Input” is not displayed, set it in
the menu (page 71).
5 Press v or V on the control button to
select “Audio IN,” and then press
N/
ENT.
“Select Input” is set to “MIC IN” when
you purchase the IC recorder.
43
GB
Other Recording Operations
6 Press z REC/PAUSE to start recording.
“ ” flashes and the IC recorder
enters the recording pause mode.
7 Start playback on the piece of equipment
connected to the IC recorder.
“ ” appears on the display and
synchronized recording starts.
The synchronized recording pauses when
no sound is detected for more than 2
seconds, and “ ” begins to flash.
The IC recorder starts recording again as a
new file when sound is detected.
P Notes
• During synchronized recording, you cannot
pause recording (page 22), record with the
VOR function (page 35), and add a track
mark (page 59).
• Depending on the piece of equipment
connected to the IC recorder, the
synchronized recording function may not
operate properly due to a difference in the
audio input level.
• When recording from other equipment, the
“Mic Sensitivity” setting cannot be changed.
To record without using the
synchronized recording function
Select “OFF” in step 2 of “To record using
the synchronized recording function” on
page 42, and then proceed with steps 3
through 7. When you press
z REC/PAUSE
in step 6, the built-in microphones are
automatically cut off and the sound from
the connected piece of equipment is
recorded.
44
GB
Operation during Recording
Monitoring the recording
If you connect the supplied stereo
headphones to the i (headphone) jack, you
can monitor the recording. You can adjust
the monitoring volume by pressing
VOL –/+, but the recording level is fixed.
P Note
When the cord of the headphones touches the
IC recorder while you are monitoring the
recording, the IC recorder may record a
rustling noise. The rustling noise can be
reduced by holding the cord away from the IC
recorder.
i (headphone) jack
VOL –/+
45
GB
Other Playback Operations
Other Playback Operations
Changing the Playback Settings
Convenient playback
methods
Listening with better sound
quality
• To listen with the headphones:
Connect the supplied stereo headphones
to the
i (headphone) jack. The built-in
speaker will be automatically
disconnected.
• To listen from an external speaker:
Connect an active or passive speaker (not
supplied) to the i (headphone) jack.
Quickly locating the point you
wish to start playback (Easy
search)
When “Easy Search” is set to “ON”
(page 73) in the menu, you can quickly
locate the point at which you wish to start
playback by pressing
> or . on the
control button repeatedly during playback.
You can go back approx. 3 seconds by
pressing
. on the control button once, or
advance approx. 10 seconds by pressing
> on the control button once. This
function is useful for locating a desired
point in a long recording.
Searching forward/backward
during playback (Cue/Review)
• To search forward (Cue):
Press and hold
> on the control button
during playback and release it at the point
you wish to resume playback.
• To search backward (Review):
Press and hold
. on the control button
during playback and release it at the point
you wish to resume playback.
The IC recorder searches at slow speed with
playback sound. This is useful to check one
word forward or back. Then, if you press
and hold the button, the IC recorder starts to
search at higher speed.
z When files are played back to the
end of the last file
• When you play back or fast play back to the
end of the last file, “FILE END” lights up for
approx. 5 seconds.
• When “FILE END” and the operation
indicator go off, the IC recorder will stop at
the beginning of the last file.
• If you press and hold
. on the control
button while “FILE END” is lit, the files are
played back rapidly, and normal playback
will start at the point you release the button.
46
GB
• If the last file is long and you wish to start
playback at a later part of the file, press and
hold
> on the control button to go to the
end of the file, and then press
. on the
control button while “FILE END” is lit to go
back to the desired point.
• For files other than the last one, go to the
beginning of the next file and play backward
to the desired point.
Reducing noise in the
playback sound and making
the human voice clearer –
the noise cut function
When the noise cut function is effective in
the playback mode, ambient noise other
than the human voice is reduced. A file is
played back with clear sound quality
because the noise of all frequency bands
including a human voice is reduced.
P Notes
• The effect of the noise cut function may be
different depending on the condition of the
recorded voice.
• When you are using the built-in speaker, the
noise cut function does not work.
• When the noise cut function is effective, the
effect function does not work.
• When you are listening an AAC-LC and
WMA file, the noise cut function does not
work.
1 Press and hold MENU/NOISE CUT for
approximately 2 seconds or longer when
the IC recorder is in the stop or playback
mode.
The “Noise Cut” setting window will be
displayed.
2 Press v or V on the control button to
select “Maximum” or “Medium,” and
then press
N/ENT.
“Noise Cut” is set to “OFF” when you
purchase the IC recorder.
N/ENT
v, V
x
STOP
MENU/NOISE CUT
47
GB
Other Playback Operations
3 Press x STOP to exit the menu mode.
To cancel the noise cut function
Select “OFF” in step 2.
To set the noise cut function in the
menu
Select and set “Noise Cut” from the
(Playback) tab of the menu.
Adjusting the playback
speed – the DPC (Digital
Pitch Control) function
Rear
Front
You can adjust the playback speed in a
range from 0.50 times to 2.00 times. The
file is played back in natural tones by
means of a digital processing function.
1 Slide the DPC(SPEED CTRL) switch to
“ON.”
2 During playback, press v or V on the
control button to adjust the playback
speed.
V: Decreases the speed by 0.05 times
each time this button is pressed (from
×0.50 to ×1.00).
v: Increases the speed by 0.10 times
each time this button is pressed (from
×1.00 to ×2.00).
When you press and hold each button,
you can change the speed continuously.
v, V
48
GB
The playback speed is set to “×0.70”
when you purchase the IC recorder.
To resume normal playback
speed
Slide the DPC(SPEED CTRL) switch to
“OFF.”
P Note
You can only adjust the playback speed in a
range from
0.50 times to 1.00 time when files
are recorded as LPCM/WMA/AAC-LC files.
If you attempt to adjust the playback speed
beyond this range, “NO FAST” appears in the
display window.
Selecting the sound effect
You can set the effect you want for the
playback in the menu.
1 Select the (Playback) tab t “Effect”
in the menu when the IC recorder is in
the stop or playback mode, and then
press
N/ENT.
2 Press v or V on the control button to
select effect you want for the playback,
and then press
N/ENT.
3 Press x STOP to exit the menu mode.
N/ENT
v, V
x
STOP
., >
49
GB
Other Playback Operations
“Effect” is set to “OFF” when you purchase
the IC recorder.
To set your favorite sound level
1 Set “Effect” to “Custom” in step 2, and
then press
N/ENT.
The custom setting window will be
displayed.
2 When you adjust the sound level for the
100 Hz, 300 Hz, 1 kHz, 3 kHz, and
10 kHz bands, press
. or > on the
control button to move to the band to the
left or right, and then press
v or V on the
control button.
The setting can be adjusted in 7 steps
from –3 to +3.
3 Press N/ENT.
4 Press x STOP to exit the menu mode.
P Notes
• When you are using the built-in speaker, this
setting is invalid.
• When the noise cut function is effective, the
effect function does not work.
Pop Stresses middle ranges, ideal for
vocals.
Rock Emphasizes high and low ranges for
a powerful sound.
Jazz Emphasizes high ranges for lively
sound.
Bass1 Emphasizes the bass sound.
Bass2 Emphasizes the bass sound even
more.
Custom You can design your own custom
sound level for 5 bands.
OFF
Disables the effect function.
50
GB
Selecting the playback
mode
You can select the playback mode in the
menu.
1 Select the (Playback) tab t “Play
Mode” in the menu when the IC recorder
is in the stop or playback mode, and then
press
N/ENT.
2 Press v or V on the control button to
select “1,” “ ,” “ALL,” “ 1,”
“ ,” or “ ALL,” and then press
N/ENT.
3 Press x STOP to exit the menu mode.
“Play Mode” is set to “ ” when you
purchase the IC recorder.
N/ENT
v, V
x
STOP
A-B
1 A file is played back.
Files in one folder are played back
continuously.
ALL All the files are played back
continuously.
1 One file is played back repeatedly.
Files in one folder are played back
repeatedly.
ALL All the files are played back
repeatedly.
51
GB
Other Playback Operations
To play back a specified section
repeatedly – A-B repeat
1 During playback, press (repeat) A-B
to specify the starting point A.
“A-B B?” is displayed.
2 Press (repeat) A-B again to specify
the finishing point B.
“ A-B” is displayed and the specified
section is played back repeatedly.
To resume normal playback:
Press
N/ENT.
To stop A-B repeat playback:
Press
x STOP.
To change the segment specified for A-B
repeat playback:
During A-B repeat playback, press
(repeat) A-B again to specify a new
starting point A. Then specify a new
finishing point B, as in step 2.
P Note
You cannot set the points A and B near the
beginning of a file or the end of a file, and
around track mark.
52
GB
Playing Back a File at a Desired Time with an
Alarm
You can sound an alarm and start playback
of a selected file at a desired time. You can
have a file played back on a specified date,
once every week, or at the same time every
day. You can set an alarm for a file.
1 Select the file you want to play back with
an alarm.
2 Enter the alarm setting mode.
1 Select the (Playback) tab t
“Alarm” in the menu when the IC
recorder is in the stop mode, and then
press
N/ENT.
2 Press v or V on the control button to
select “ON,” and then press
N/ENT.
3 Set the alarm date and time.
1 Press v or V on the control button to
select “Date,” a day of the week, or
“Daily,” and then press
N/ENT.
2 When you select “Date”:
Set the year, month, day, hour, and
minute in sequence, as described in
“Step 4: Setting the Clock” on page 15.
When you select a day of the week
or “Daily”:
Press
v
or
V
on the control button to
set the hour, and then press
N
/ENT,
press
v
or
V
on the control button to set
the minute, and then press
N
/ENT.
4 Press v or V on the control button to
select a favorite alarm pattern, and then
press
N/ENT.
x STOP
N/ENT
v, V
53
GB
Other Playback Operations
“Executing...,” is displayed.
5 Press x STOP to exit the menu mode.
The setting process is finished and “
,”
(alarm indicator) appears in the display
window.
To change the alarm setting
Select the file you want to change its alarm
setting, and then follow steps 2 through 5
on page 52 through this page.
To cancel the alarm setting
Follow steps 1 and 2 on page 52. In step 2-
2 select “OFF” and press
N/ENT. The
alarm will be canceled and the alarm
indicator will disappear from the display
window.
When the set date and time comes
At the set time, “ALARM” is displayed in
the display window and the alarm and the
selected file will be played back using the
selected alarm pattern.
When the playback ends, the IC recorder
will stop automatically. (When the alarm
pattern is set to “Beep&Play” or “Play,” the
IC recorder will stop at the beginning of the
selected file.)
To stop the alarm playback
Press any button other than VOL –/+ while
the alarm sound is heard. If the HOLD
function is activated, you can stop the alarm
playback by pressing any button.
P Notes
• You can set only one alarm each one file.
• When the clock has not been set or no files
are recorded, you cannot set the alarm.
• The alarm sounds even if you set “Beep” to
“
OFF” in the menu (page 77).
• If the alarm time comes while you are
updating data, the alarm will be canceled
automatically.
• If more than one alarm time comes, only the
first file will be played back with an alarm.
• If you divide a file you have set an alarm for,
the alarm setting remains on only the first
part of the divided file.
• If you erase a file in which you have set an
alarm, that alarm will be also canceled.
• You cannot set alarm in podcast files.
• You cannot set an alarm in the files stored on
a memory card.
54
GB
Playback via Other Devices
Recording with other
equipment
You can record the sound of the IC recorder
with other equipment.
Before you start recording, we recommend
you make a trial recording first.
1 Connect the i (headphone) jack of the
IC recorder to the external input terminal
of other equipment using an audio
connecting cable.*
2 Press N/ENT to start playback and at
the same time set the connected
equipment to the recording mode.
A file from the IC recorder will be
recorded on the equipment connected.
3 Press x STOP on the IC recorder and the
connected equipment at the same time to
stop recording.
z Tip
If the volume of the recorded sound is not
strong enough, adjust the playback sound of
the IC recorder (page 24).
* Optional audio connecting cables
(not supplied)
Tape recorder,
Mini disc recorder,
etc.
x STOP
N/ENT
i (headphone) jack
To the IC
recorder
To the other
equipment
RK-G139 Stereo
mini-plug*
Mini-plug
(monaural)*
RK-G136 Stereo
mini-plug*
Stereo
mini-plug*
*(without resistor)
55
GB
Editing Files
Editing Files
Arranging Files in a Folder
Moving a file to a different
folder
1 Select the file you want to move.
2 Select the (Edit) tab t “Move File”
in the menu when the IC recorder is in
the stop mode, and then press
N/ENT.
3 Press . on the control button, press v
or
V on the control button to select the
(Voice) tab or the (Music) tab,
and then press
>.
4 Press v or V on the control button to
select the folder that you want to move
the file into, and then press
N/ENT.
“Moving File...” animation is displayed
and the file is moved to the last position
in the destination folder.
When you move a file to another folder,
the original file in the previous folder
will be erased.
5 Press x STOP to exit the menu mode.
N/ENT
v, V
x
STOP
., >
56
GB
To cancel moving the file
Press x STOP before step 4.
P Notes
• You cannot move podcast files.
• You cannot move protected files (page 65).
• You cannot move files to the other memory
media.
Copying a file to the other
memory
You can copy files between the built-in
memory and a memory card, which is
useful in saving a backup. Before starting
the operation, insert a memory card to be
used for copying into the memory card slot.
1 Select the file you want to copy.
When you want to copy a file from a
memory card to the built-in memory, set
the source memory media to “Memory
Card” (page 38).
2 Select the (Edit) tab t “File Copy”
in the menu, and then press
N/ENT.
The “Copy to Memory Card Select
Folder”or the “Copy to Built-In Memory
Select Folder” animation appears and the
folder selection window is displayed.
3 Press . on the control button, press v
or
V on the control button to select the
(Voice) tab or the (Music) tab,
and then press
>.
N/ENT
Memory card slot
., >
x
STOP
v, V
57
GB
Editing Files
4 Press v or V on the control button to
select the folder that you want to copy
the file into, and then press
N/ENT.
The “Copying...” animation appears and
the file is copied as the last file in the
destination folder. A file will be copied
with the identical file name.
5 Press x STOP to exit the menu mode.
To cancel the copy operation
Press x STOP before step 4.
To cancel the copy operation
during copying
While the “Copying...” animation is
displayed in step 4, press
x STOP.
P Notes
• Before starting to copy the target file, make
sure to check the battery indicator. If the
battery is weak, you may not be able to copy
files.
• If the remaining memory capacity of the
destination memory media is insufficient,
you may not be able to copy files.
• You cannot copy the podcast files.
• Do not remove or insert a memory card, or
turn off the IC recorder while copying. Files
may be damaged.
Erasing all files in a folder
P Note
If the selected folder contains a protected file
(page 65), you cannot erase the protected file
in that folder.
1 Select the folder containing the files you
want to erase when the IC recorder is in
the stop mode.
x STOP
N/ENT
v, V
58
GB
2 Select the (Edit) tab t “Erase All”
in the menu, and then press
N/ENT.
“Erase All Files in the Folder?” will be
displayed.
3 Press v or V on the control button to
select “Execute,” and then press
N/
ENT.
The “Erasing...” animation appears in the
display window and all files in the
selected folder will be erased.
4 Press x STOP to exit the menu mode.
To cancel erasing
Select “Cancel” in step 3, and then press
N/ENT.
59
GB
Editing Files
Using a Track Mark
Adding a track mark
You can add a track mark at a point at
which you would like to divide a file later
or locate during playback. You can add a
maximum of 98 track marks to each file.
During recording, playing back, or pausing,
press T-MARK at the position you want to
add a track mark.
The (Track mark) indicator flashes three
times, and a track mark is added.
P Notes
• You can add a track mark only to files
recorded using the IC recorder. However,
when you edit files using the supplied Sound
Organizer software, adding a track mark to
the files may not be possible.
• You cannot add a track mark at a point
within 0.5 seconds from another track mark.
• You cannot add a track mark at the very
beginning or at the very end of the file.
• If there are already 98 track marks in a file,
you cannot add any more track marks.
• When a track mark is added during
playback, the playback stops.
Locating a track mark and
starting playback at the track
mark
Press . or > on the control button in
the stop mode. When the (Track mark)
indicator flashes once, press
N/ENT.
N/ENT
T-MARK
., >
60
GB
Erasing a track mark
1 Stop at a position after the track mark
you would like to erase.
2 Select the (Edit) tab t “Erase Track
Mark” in the menu, and then press
N/
ENT.
“Erase Track Mark?” will be displayed.
3 Press v or V on the control button to
select “Execute,” and then press
N/
ENT.
The “Erasing...” animation appears in the
display window and the selected track
mark will be erased.
The track mark just before the stop position
will be erased.
4 Press x STOP to exit the menu mode.
To cancel erasing
Select “Cancel” in step 3, and then press
N/ENT.
x STOP
N/ENT
v, V
Stop position
Erase track
mark
61
GB
Editing Files
Erasing all the track marks
in the selected file at one
time
1 Select a file from which you want to
erase the track marks.
2 Select the (Edit) tab t “Erase All
Track Marks” in the menu, and then
press
N/ENT.
“Erase All Track Marks?” will be
displayed.
3 Press v or V on the control button to
select “Execute,” and then press
N/
ENT.
The “Erasing...” animation appears in the
display window and all the track marks
will be erased at one time.
4 Press x STOP to exit the menu mode.
To cancel erasing
Select “Cancel” in step 3, and then press
N/ENT.
x STOP
N/ENT
v, V
62
GB
Dividing a File
Dividing a file at the current
position
You can divide a file in the stop mode, so
that the file is divided into two parts and a
new file number is added to the newer part
of the divided file. By dividing a file, you
can easily find the point from which you
want to play back when you make a long
recording such as at a meeting. You can
divide a file until the total number of files in
the folder reaches the maximum number
allowed.
1 Stop the file at the position where you
want to divide a file.
2 Select the (Edit) tab t “Divide
Current Position” in the menu, and then
press
N/ENT.
“Divide?” will be displayed.
3 Press v or V on the control button to
select “Execute,” and then press
N/
ENT.
The “Dividing...” animation appears, and
the divided files will be suffixed with a
sequential number (“_1” for the original
file, and “_2” for the new file).
A suffix made up of a sequential number is
added to each of the divided files.
4 Press x STOP to exit the menu mode.
x STOP
N/ENT
v, V
File 1 File 2 File 3
File 1 File 2_1 File 3File 2_2
A file is divided.
63
GB
Editing Files
P Notes
• You need a certain amount of free space in
the memory media to divide a file.
• When you divide a file with a title and artist
name, the newer part has the same title, and
artist name.
• You cannot divide files other than those
recorded using the IC recorder (e.g., a file
transferred from a computer). Moreover,
when you edit files using the supplied Sound
Organizer software, dividing files may not
be possible.
• Once a file is divided, you cannot return it to
the original status again.
• If you divide a file at the position within 0.5
seconds from a track mark, the track mark
will be erased.
• Because of the system limitations, you
cannot divide a file at the very beginning or
at the very end of the file.
To cancel dividing
Select “Cancel” in step 3, and then press
N/ENT.
Dividing a file at all the track
mark positions
1 Select the file you want to divide.
2 Select the (Edit) tab t “Divide All
Track Marks” in the menu when the IC
recorder is in the stop mode, and then
press
N/ENT.
“Divide All Track Marks?” will be
displayed.
x STOP
N/ENT
v, V
64
GB
3 Press v or V on the control button to
select “Execute,” and then press
N/
ENT.
The “Dividing...” animation appears, and
the file is divided at all the track mark
positions. All the existing track marks in
the files will be erased.
A suffix made up of a sequential number is
added each of the divided files.
4 Press x STOP to exit the menu mode.
To cancel dividing
Select “Cancel” in step 3, and then press
N/ENT.
z Tip
To cancel division during the operation at all
the remaining track marks, press
x STOP.
The files that have been divided before the
cancellation remain divided.
P Notes
• You need a certain amount of free space in
the memory media to divide a file.
• When you divide a file with a title and artist
name, the newer part has the same title, and
artist name.
• You cannot divide files other than those
recorded using the IC recorder (e.g., a file
transferred from a computer). Moreover,
when you edit files using the supplied Sound
Organizer software, dividing files may not
be possible.
• Once a file is divided, you cannot return it to
the original status again.
File 1
A file is divided.
File 1_01 File 1_02 File 1_03
65
GB
Editing Files
Protecting a File
To prevent a file from being accidentally
erased or edited, you can protect an
important file. A protected file is marked
with the (protect) indicator and is
regarded as a read-only file you cannot
erase or edit.
1 Display the file which you want to
protect from the (Voice) tab or the
(Music) tab.
2 Select the (Edit) tab t “Protect” in
the menu when the IC recorder is in the
stop mode, and then press
N/ENT.
“Set Protection?” will be displayed.
3 Press v or V on the control button to
select “Execute,” and then press
N/
ENT.
The file is protected. A protected file is
marked with the (protect) indicator.
4 Press x STOP to exit the menu mode.
To release protection
Select the protected file, and then proceed
with steps 2 through 4. In this case, “Erase
Protection?” will be displayed in step 2.
P Note
You cannot set protection to the files in the
(Podcast) tab.
x STOP
N/ENT
v, V
66
GB
About the Menu Function
Making Settings for the Menu
1 Press MENU/NOISE CUT to enter the
menu mode.
The menu mode window will be displayed.
2 Press . on the control button, press v
or
V on the control button to select the
(Recording) tab, the (Playback)
tab, the (Edit) tab, the (Display)
tab, or the (IC recorder setting) tab,
and then press
N/ENT.
3 Press v or V on the control button to
select the menu item for which you want
to make setting, and then press
N/ENT.
4 Press v or V on the control button to
select the setting that you want to set,
and then press
N/ENT.
5 Press x STOP to exit the menu mode.
P Note
If you do not press any button for 60 seconds,
the menu mode is automatically canceled and
the window will return to the normal display.
To return to the previous window
Press . on the control button during
menu mode.
To exit the menu mode
Press x STOP or MENU/NOISE CUT.
x STOP
N/ENT
MENU/NOISE CUT
v, V
.
67
GB
About the Menu Function
Menu Settings
Tabs Menu items Operation mode
(
a
: the setting can be made / —: the setting cannot be made)
Stop mode Playback mode Recording mode
(Recording)
Scene Select
a
——
REC Mode
a
——
Mic Sensitivity
a
—
a
LCF(Low Cut)
a
—
a
VOR
a
—
a
SYNC REC
a
——
Select Input
a
——
(Playback)
Noise Cut
aa
—
Effect
aa
—
Easy Search
aa
—
Play Mode
aa
—
Alarm
a
——
(Edit) Protect
a
——
Divide Current Position
a
——
Move File
a
——
File Copy
a
——
Erase Track Mark
a
——
Erase All Track Marks
a
——
Divide All Track Marks
a
——
Erase All
a
——
68
GB
(Display)
Display
aaa
LED
a
——
Backlight
a
——
(IC recorder
setting)
Select Memory
a
——
Language
a
——
Date&Time
a
——
Time Display
a
——
Beep
a
——
USB Charge
a
——
Auto Power Off
a
——
Format
a
——
Tabs Menu items Operation mode
(
a
: the setting can be made / —: the setting cannot be made)
Stop mode Playback mode Recording mode
69
GB
About the Menu Function
Tabs Menu items Settings (*: Initial setting) See page
(Recording)
Scene Select
Allows you to choose a recording scene item for each
situation as follows: (Meeting), (Voice Notes),
(Interview), (Lecture), (Audio IN), (My
Scene). You can also edit the settings of the various
recording menu items which are pre-set in the “Scene
Select” menu.
Save Scene Setting
Saves the changed settings and completes the menu
operation process.
Edit from Current Setting:
Changes the settings that is pre-set in the menu.
Set Default Value:
Changes the settings to the default settings.
Execute: Changes the settings to the default
settings and completes the process.
Cancel: Completes the process without changing
the settings.
Edit:
Changes the settings from the settings in the selected
scene item.
z
Tip
You can edit the following menu items: “REC Mode”
(page 70), “Mic Sensitivity” (page 70), “LCF(Low
Cut)” (page 71), “VOR” (page 35) “SYNC REC”
(page 42), “Select Input” (page 40). When you select
“Edit Complete,” the process will be completed.
30
70
GB
(Recording)
REC Mode
Sets the recording mode.
LPCM 44.1kHz/16bit:
LPCM (not compressed) in stereo high-quality
recording mode
MP3 192kbps*:
MP3 (compressed) in stereo standard-quality
recording mode
MP3 128kbps:
MP3 (compressed) in long play stereo recording
mode
MP3 48kbps(MONO):
MP3 (compressed) in monaural standard recording
mode
MP3 8kbps(MONO):
MP3 (compressed) in long play monaural recording
mode
–
Mic Sensitivity
Sets the microphone sensitivity.
High :
To record a sound far away from the IC recorder or a
low sound, such as recording in a spacious room.
Medium *:
To record the sound of a normal conversation or
meeting, such as recording in a meeting space or
during interview.
Low :
To record dictation with a microphone in front of your
mouth, a sound near the IC recorder, or a loud sound.
–
Tabs Menu items Settings (*: Initial setting) See page
71
GB
About the Menu Function
(Recording)
LCF(Low Cut)
Sets the LCF (Low Cut Filter) function to cut a low
frequency to reduce the roaring noise from wind;
therefore you can record a file more clearly.
ON:
The LCF function is activated.
OFF*:
The LCF function is canceled.
–
VOR
Sets the VOR (Voice Operated Recording) function.
ON:
Recording starts when the IC recorder detects sound
and pauses when no sound is heard, eliminating
recording during soundless periods. The VOR
function is activated when
z REC/PAUSE is
pressed.
OFF*:
The VOR function does not work.
35
SYNC REC
When set to “ON,” the IC recorder enters the recording
pause mode when no sound is detected for more than 2
seconds, and the IC recorder starts recording again as a
new file when any sound is detected.
ON:
The synchronized recording function is activated.
OFF*:
The synchronized recording function is canceled.
42
Select Input
Selects the external input to be recorded that is
connected to the m (microphone) jack.
MIC IN*:
Select when you record files using an external
microphone.
Audio IN:
Select when you record using other equipment.
40, 41
Tabs Menu items Settings (*: Initial setting) See page
72
GB
(Playback)
Noise Cut
Sets the noise cut function and the noise cut level to use
when the IC recorder play a file back which is recorded
with noise cut function.
Maximum:
The noise cut levels will be more intense.
Medium:
The noise cut level will be weakened. Select when
you cannot catch the sound easily by setting “Noise
Cut” to “Maximum.”
OFF*:
The noise cut function is canceled.
46
Effect
Sets the effect you want for the playback.
Pop:
Stresses middle ranges, ideal for vocals.
Rock:
Emphasizes high and low ranges for a powerful sound.
Jazz:
Emphasizes high ranges for lively sound.
Bass1:
The bass sound is emphasized.
Bass2:
The bass sound is emphasized even more.
Custom:
You can design your own custom sound level for 5
bands of EQ (100 Hz, 300 Hz, 1 kHz, 3 kHz and 10
kHz) in 7 steps (–3 to +3).
OFF*:
The effect function does not work.
P Note
When playing back files using the built-in speaker or
when the noise cut function is effective (page 46), the
effect function does not work.
48
Tabs Menu items Settings (*: Initial setting) See page
73
GB
About the Menu Function
(Playback)
Easy Search
Sets the easy search function.
ON:
You can go forward for about 10 seconds by pressing
> on the control button and go back for about 3
seconds by pressing
. on the control button. This
function is useful when attempting to locate desired
point in a long recording.
OFF*:
The easy search function does not work. When you
press
> or . on the control button, a file will be
moved forward or backward.
45
Play Mode
Sets the playback mode.
1:
A file is played back.
*:
Files in one folder are played back continuously.
ALL:
All the files are played back continuously.
1:
One file is played back repeatedly.
:
Files in one folder are played back repeatedly.
ALL:
All the files are played back repeatedly.
50
Tabs Menu items Settings (*: Initial setting) See page
74
GB
(Playback)
Alarm
Sets the alarm.
ON:
The alarm function is effective. Set the date, time or
day of the week or choose daily for playback, and set
the following alarm pattern.
Beep&Play: The selected file is played back after
the alarm sounds.
Beep: Only the alarm sounds.
Play: Only the selected file is played back.
OFF*:
The alarm function is canceled.
52
(Edit)
Protect
Protects the selected file to prevent the file from being
erased, divided, or being moved.
Execute:
The selected file will be protected. If you specify a
file that has already been protected, cancel the
protection.
Cancel:
Protection or cancel protection is not executed.
65
Divide Current
Position
Divides a file into two.
Execute:
A file will be divided into two.
Cancel:
Division is not executed.
62
Move File
Moves the selected file to the selected folder.
Before attempting to move a file, select the file to be
moved, and then go to the menu window.
55
File Copy
Copies the selected file from the built-in memory to the
desired folder on a memory card, or from a memory
card to the desired folder on the built-in memory.
Before attempting to copy a file, select the file to be
copied and then go to the menu window.
56
Tabs Menu items Settings (*: Initial setting) See page
75
GB
About the Menu Function
(Edit)
Erase Track
Mark
Erases the track mark just before the current position.
Execute:
The track mark will be erased.
Cancel:
The track mark will not be erased.
60
Erase All Track
Marks
Erases all the track marks of the selected file.
Execute:
All the track marks will be erased.
Cancel:
All the track marks will not be erased.
61
Divide All Track
Marks
Divides a file at all the track mark positions.
Execute:
The track mark division is executed.
Cancel:
The track mark division is not executed.
63
Erase All
Erases all files in the selected folder.
Press to return to the folder window before erasing
the files and select a folder from which all files are to be
erased, and then go to the menu window.
Execute:
All files in the selected folder will be erased.
Cancel:
All files will not be erased.
57
(Display)
Display
Changes the display mode.
Elapsed Time*:
Elapsed playback time of one file
Remain Time:
During stop or playback, the remaining time of one file
During recording, the available recording time
REC Date:
Date recorded
REC Time:
Time recorded
–
Tabs Menu items Settings (*: Initial setting) See page
76
GB
(Display)
LED
Turns the operation indicator on or off during operation.
ON*:
During recording or playback, the operation
indicator lights or flashes.
OFF:
The operation indicator does not light or flash, even
during operation.
P Note
When the IC recorder is connected to a computer, the
operation indicator lights or flashes even if “LED” is set
to “OFF.”
–
Backlight
Turns the backlight in the display window on or off.
ON*:
The backlight in the display window lights up for
approx. 10 seconds.
OFF:
The backlight in the display window does not light,
even during operation.
–
(IC recorder
setting)
Select Memory
Selects the memory media on which you want to store a file,
or which contains the file you want to play, edit, or copy.
Built-In Memory*:
The built-in memory of the IC recorder is selected.
Memory Card:
The memory card inserted in the memory card slot is
selected.
P Note
When no memory card is currently inserted in the IC
recorder, the built-in memory is automatically selected.
38
Tabs Menu items Settings (*: Initial setting) See page
77
GB
About the Menu Function
(IC recorder
setting)
Language
Sets the language to be used for messages, menus,
folder names, file names, etc.
English*, Español (Spanish), Français (French)
18
Date&Time
Auto*:
When the IC recorder is connected to a computer that
is running the Sound Organizer, the clock will be
automatically adjusted according to that computer.
Manual:
Sets the clock by setting year, month, day, hour, and
minute in sequence.
15
Time Display
Sets the clock display.
12-Hour*:
12:00AM = midnight, 12:00PM = noon
24-Hour:
0:00 = midnight, 12:00 = noon
–
Beep
Sets whether a beep will be heard or not.
ON*:
A beep will sound to indicate that an operation has
been accepted or an error has occurred.
OFF:
No beep sound will be heard.
P Note
The alarm sounds even if you set “Beep” to “OFF” in
the menu.
–
Tabs Menu items Settings (*: Initial setting) See page
78
GB
(IC recorder
setting)
USB Charge
Sets whether battery will be charged using a USB
connection or not.
ON*:
The battery will be charged.
OFF:
The battery will not be charged.
P Note
If you use a USB AC adaptor (not supplied) to connect
the IC recorder to the AC outlet (page 95), you can
charge battery regardless this setting.
–
Auto Power Off
If the IC recorder is on and left for the period you have
set, the IC recorder turns off automatically.
5min:
The IC recorder will be turned off after approx. 5
minutes.
10min*:
The IC recorder will be turned off after approx. 10
minutes.
30min:
The IC recorder will be turned off after approx. 30
minutes.
60min:
The IC recorder will be turned off after approx. 60
minutes.
OFF:
The IC recorder will not be turned off automatically.
–
Tabs Menu items Settings (*: Initial setting) See page
79
GB
About the Menu Function
(IC recorder
setting)
Format
Formats the memory media currently selected (the
built-in memory or the memory card), erasing all the
data in the memory and resetting the folder structure to
its default status.
Execute:
The “Formatting...” animation appears and the
memory media will be formatted.
Cancel:
The memory media will not be formatted.
P Notes
• Use the IC recorder formatting function to format the
memory media.
• Switch the memory media to the one to be formatted
before you start the format operation (page 38).
• When you format the memory media, all the data
which you have stored on the IC recorder will be
erased. Once the memory media has been erased, you
cannot retrieve the data that was erased.
–
Tabs Menu items Settings (*: Initial setting) See page
80
GB
Utilizing Your Computer
Using the IC Recorder with Your Computer
When the IC recorder is connected to your
computer, you can transfer data between
them.
Copying files from the IC
recorder to your computer to
store them (page 86)
Copying music files from your
computer to the IC recorder to
play them back (page 87)
Using the IC recorder as USB
memory (page 89)
You can store image data or text data stored
on the computer temporarily in the IC
recorder.
Managing and editing files using
the Sound Organizer software
(page 90)
The supplied Sound Organizer software
allows you to transfer the files that you
have recorded using the IC recorder to your
computer to manage and edit them. You can
also transfer music files and podcast files
stored on your computer to the IC recorder.
System requirements for your
computer
For details on the system requirements for
your computer, see page 91, 100.
Connecting the IC recorder
to your computer
To exchange files between the IC recorder
and your computer, connect the IC recorder
to your computer.
1 Slide the USB slide lever on the back of
the IC recorder, and insert the USB
IC recorder
Computer
To USB port of your computer
81
GB
Utilizing Your Computer
DIRECT connector into the USB port of
a running computer.
2 Make sure the IC recorder has been
recognized properly.
On the Windows screen; open “My
Computer” or “Computer,” and make sure
that “IC RECORDER” or “MEMORY
CARD” has been recognized.
On the Macintosh screen; make sure that
an “IC RECORDER” or “MEMORY
CARD” drive is displayed on the desktop.
The IC recorder is recognized by the
computer as soon as the connection is
made. While the IC recorder is connected to
the computer, “Connecting” is displayed in
the display window of the IC recorder.
If the IC recorder cannot be connected to a
computer directly, use the supplied USB
connection support cable.
P Notes
• If you connect more than two USB devices
to your computer, normal operation will not
be guaranteed.
• Use of this IC recorder with a USB hub or a
USB cable other than the supplied USB
connection support cable is not guaranteed.
• A malfunction may occur depending on the
USB devices connected at the same time.
• Before connecting the IC recorder to your
computer, check that the battery is inserted
in the IC recorder.
• It is recommended that you disconnect the
IC recorder from the computer when you are
not using the IC recorder connected to the
computer.
Structure of folders and files
The folders and files are displayed on the
computer screen as shown.
On a Windows screen using Explorer, and
on a Macintosh screen using Finder, folders
and files can be displayed by opening “IC
RECORDER” or “MEMORY CARD.”
USB connection support cable
(supplied)
82
GB
Built-in memory
*
1
Even if a file is transferred directly under
the VOICE folder, it will not be displayed
on the (Voice) tab of the IC recorder.
When you transfer a file from your
computer to the IC recorder, put the file in
the folders under the VOICE folder.
*
2
The name of a folder in which music files
are stored will be displayed on the IC
recorder as it is, so it is convenient if you
put an easy-to-remember name on the
folder in advance.
Folders shown in the illustration are
examples of folder names.
*
3
The IC recorder can recognize up to 8 levels
of folders transferred to the IC recorder.
*
4
If you transfer music files separately, they
are classified as being in “No Folder.”
z
Tips
• The title or artist name, etc., registered in the
music files, can be displayed on the IC
recorder. It is useful if you input the ID3 tag
information using the software you use to
make the music files on your computer.
• If no title, or artist name has been registered
“Unknown” will be displayed in the display
window of the IC recorder.
When connecting the IC recorder with your
computer after the destination memory
media has been set to “Memory Card”
(page 38), the structure of folders is
different from that when the destination
memory media is set to “Built-In Memory.”
“IC RECORDER”
Folder for files recorded
using the IC recorder
Folder transferred from
your computer
VOICE*
1
FOLDER01
FOLDER05
Conversation
*
2
MUSIC
POP
J-POP*
2
*
4
*
3
*
3
LPCM
AAC-LC
MP3
AAC-LC
LPCM
MP3
MP3
WMA
PODCASTS
NEWS*
2
83
GB
Utilizing Your Computer
Memory Stick Micro™ (M2™) microSD card
“MEMORY CARD”
Folder for files recorded
using the IC recorder
Folder transferred from
your computer
VOICE
FOLDER01
FOLDER05
Conversation
MUSIC
POP
J-POP
LPCM
AAC-LC
MP3
AAC-LC
LPCM
MP3
MP3
WMA
PODCASTS
NEWS
MSSONY
“MEMORY CARD”
Folder for files recorded
using the IC recorder
Folder transferred from
your computer
VOICE
FOLDER01
FOLDER05
Conversation
MUSIC
POP
J-POP
LPCM
AAC-LC
MP3
AAC-LC
LPCM
MP3
MP3
WMA
PODCASTS
NEWS
Sony
PRIVATE
84
GB
Structure of folders displayed in
the display window of the IC
recorder
The display of the structure of the folders
seen in the display window of the IC
recorder is different from that seen on the
display of a computer.
The folder indicators in the display window
of the IC recorder are as follows:
P Note
If folders have no files that can be played back
using the IC recorder, those folders will not be
displayed in the display window of the IC
recorder.
Folders displayed on the
(Voice) tab of the IC recorder
Folders for files recorded using the IC
recorder (folders under the VOICE folder)
will be displayed.
P Note
Even if a file is transferred directly under the
VOICE folder, it will not be displayed on the
(Voice) tab of the IC recorder.
Folders displayed on the
(Music) tab of the IC recorder
The following folders will be displayed
among the folders forwarded from a
computer.
• Folders under the MUSIC folder which
contains a file (when some folders have
multiple levels, all folders will be
displayed in parallel.)
: Folder for files recorded using the
IC recorder
: Folder transferred from a computer
(They are displayed when music
files have been transferred from a
computer.)
: Folder for podcast files transferred
from a computer (These folders are
displayed when podcast files have
been transferred from a computer.)
85
GB
Utilizing Your Computer
• Folders transferred to places other than
under the MUSIC folder or the
PODCASTS folder
• A folder called “No Folder” (If you
transfer music files separately, those files
will be displayed under this folder.)
Folders displayed on the
(Podcast) tab of the IC recorder
Folders for podcast files transferred from a
computer will be displayed.
When you transfer podcast files from your
computer to the IC recorder, use the
supplied Sound Organizer software.
Disconnecting the IC
recorder from your
computer
Follow the procedures below; otherwise,
data may be damaged.
1 Make sure that the operation indicator of
the IC recorder does not light.
2 Perform the following operation on your
computer.
On a Windows screen, left-click the icon
at the bottom of the desktop of the
computer.
t Left-click “Eject IC RECORDER.”
The icon and menu displayed can be
different on different operating systems.
On a Macintosh screen, drag “IC
RECORDER” on the desktop to “Trash”
and drop it there.
For details on disconnecting the IC
recorder from your computer, refer to the
operating instructions supplied with your
computer.
3 Disconnect the IC recorder from the
USB port of the computer, and slide the
USB slide lever in the direction of the
arrow to retract the USB DIRECT
connector.
86
GB
Copying Files from the IC Recorder to Your
Computer
You can copy the files and folders from the
IC recorder to your computer to store them.
1 Connect the IC recorder to your
computer (page 80).
2 Copy files or folders you want to transfer
to your computer.
Drag and drop the files or folders you
want to copy from “IC RECORDER” or
“MEMORY CARD” to the local disk on
your computer.
z To copy a file or folder (Drag and
drop)
3 Disconnect the IC recorder from your
computer (page 85).
1 Click and hold,
2 drag,
3 and then drop.
87
GB
Utilizing Your Computer
Copying Music Files from Your Computer to
the IC Recorder and Playing Them Back
You can copy music or the other audio files
(LPCM(.wav)/MP3(.mp3)/WMA(.wma)/
AAC-LC(.m4a)*) from your computer to
the IC recorder by dragging and dropping
them, and you can play them back using the
IC recorder.
* For the file formats that can be played back
using the IC recorder, see “Specifications”
(page 100).
Copying a music file from
your computer to the IC
recorder (drag and drop)
1 Connect the IC recorder to your
computer (page 80).
2 Copy the folder in which the music files
are stored to the IC recorder.
On a Windows screen using Explorer, or
on a Macintosh screen using Finder, drag
and drop the folder containing the music
files onto “IC RECORDER” or
“MEMORY CARD.”
The IC recorder can recognize up to 400
folders. You can copy up to 199 files to
one folder. Moreover, the IC recorder
can recognize up to a total of 4,095
folders and files for one memory media.
3 Disconnect the IC recorder from your
computer (page 85).
Playing back music files
copied from your computer
using the IC recorder
1 Press .
2 Press . on the control button, press v
or
V on the control button to select the
(Music) tab, and then press
>.
88
GB
3 Press v or V on the control button to
select the folder ( ) in which music
files are stored, and then press
> on
the control button.
4 Press v or V on the control button to
select the music file you want to play.
5 Press N/ENT to start playback.
6 Press x STOP to stop playback.
The maximum playback time (files*), when
playing music files using the IC recorder, is
as follows.
* In the case where MP3 files of 4 minutes each
are transferred to the IC recorder.
P Notes
• A music file copied from your computer can
be played back with the IC recorder.
Dividing a file and setting a track mark,
however, may not be performed.
• If you have copied music files using your
computer, those files may not be copied in
order of transfer because of system
limitations. If you copy music files from
your computer to the IC recorder one by one,
you can display and play back the music files
in copied order.
Display when playing back a
music file
Press v or V on the control button to check
the music file information during playback.
48 kbps 128 kbps 256 kbps
89 hr. 25 min.
(1,341 files)
33 hr. 30 min.
(502 files)
16 hr. 45 min.
(251 files)
(hr.: hours/min.: minutes)
: Folder name
: File name
: Artist name
: Title
89
GB
Utilizing Your Computer
Using the IC Recorder as USB Memory
When the IC recorder is connected to your
computer, image data or text data on the
computer, as well as files recorded using
the IC recorder can be temporarily stored
on the IC recorder.
Your computer must meet the specified
system requirements to use the IC recorder
as USB memory.
For details on the system requirements, see
page 100.
90
GB
Using the Supplied Sound Organizer
Software
What you can do using
Sound Organizer
Sound Organizer allows you to exchange
files with an IC recorder or memory card.
The songs imported from music CDs and
other media, MP3 and other audio files
imported from a computer, and podcasts
can also be played and transferred to an IC
recorder. Various operations can be
performed for imported files, including
playback, editing and conversion to MP3
and other formats. You can also burn CDs
of the music you like, and send audio files
by mail.
Importing files recorded with an
IC recorder
You can import recording files that were
recorded with an IC recorder into Sound
Organizer.
The imported files are saved to the
computer.
Importing songs from a music CD
You can import the songs of a music CD
into Sound Organizer.
The imported songs are saved to the
computer.
Importing songs on the computer
You can import music and other files saved
to the computer into Sound Organizer.
Subscribing to and updating
podcasts
You can subscribe to podcasts in Sound
Organizer.
Subscribing to and updating podcasts
enables you to download (subscription) and
enjoy the latest data from the Internet.
Playing files
You can play the files imported into Sound
Organizer.
Changing the file information of
files
You can change the title name, artist name,
and other file information displayed in the
file list.
Dividing files
You can divide one file into multiple files.
91
GB
Utilizing Your Computer
Combining files
You can combine multiple files into one file.
Deleting files from an IC recorder
You can delete a file saved to an IC recorder.
Use this operation to delete files in the IC
recorder when you want to increase the
amount of free space in the IC recorder or
there are unnecessary files.
Transferring files to an IC
recorder
You can transfer a file from Sound
Organizer to an IC recorder or memory card.
You can enjoy transferred music, podcasts,
and other content on your IC recorder.
Burning a music CD
You can select your favorite songs from the
songs imported into Sound Organizer and
then burn your own original music CD.
Other convenient uses
• You can start the mail software and send a
recording file attached to mail.
• You can use the voice recognition
software Dragon NaturallySpeaking (not
supplied) which is compatible with Sound
Organizer to perform voice recognition
for a file and convert the voice to text.
System requirements for
your computer
The following shows the system
requirements for using Sound Organizer.
Operating systems
• Windows 7 Ultimate
• Windows 7 Professional
• Windows 7 Home Premium
• Windows 7 Starter (32 bit version)
• Windows Vista Ultimate Service Pack 2
or higher
• Windows Vista Business Service Pack 2
or higher
• Windows Vista Home Premium Service
Pack 2 or higher
• Windows Vista Home Basic Service Pack
2 or higher
• Windows XP Media Center Edition 2005
Service Pack 3 or higher
• Windows XP Media Center Edition 2004
Service Pack 3 or higher
• Windows XP Professional Service Pack 3
or higher
• Windows XP Home Edition Service Pack
3 or higher
Pre-installed.
92
GB
P Notes
• Operation is not guaranteed if any operating
system other than those indicated listed
above is used.
• 64 bit versions of Windows XP are not
supported.
IBM PC/AT or compatible
•CPU
Windows XP: Pentium III processor of
500 MHz or faster
Windows Vista: Pentium III processor of
800 MHz or faster
Windows 7: Pentium III processor of
1 GHz or faster
• Memory
Windows XP: At least 256 MB
Windows Vista: At least 512 MB (In the
case of Windows Vista Ultimate/
Business/Home Premium, at least 1 GB is
recommended.)
Windows 7: At least 1 GB (32 bit
version)/At least 2 GB (64 bit version)
• Free hard disk space
At least 400 MB is required.
Depending on the version of Windows,
more than 400 MB may be used.
Also, free space for handling music data
is required.
• Display settings
Screen resolution: 800 × 600 pixels or
higher (1,024 × 768 pixels is
recommended)
Screen color: High Color (16 bit) or
higher
• Sound card
A SoundBlaster compatible card is
recommended.
• USB port
A compatible USB port is required to use
devices and media.
Operation via a USB hub is not guaranteed
except for models for which operation has
been specifically guaranteed.
Installing Sound Organizer
Install Sound Organizer on your computer.
P Notes
• When installing Sound Organizer, log in to
an account with administrator privileges.
Also, if you are using Windows 7 and the
[User Account Control] screen appears,
confirm the contents of the screen and then
click [Yes] ([Continue] in the case of
Windows Vista).
• Sound Organizer cannot be started by a user
with limited privileges in Windows XP.
93
GB
Utilizing Your Computer
• To use the software update function in
Windows XP, you must log on to an account
with computer administrator privileges.
• The Windows Media Format Runtime
module is added by the installer of Sound
Organizer. This module is not removed
when Sound Organizer is uninstalled.
However, it may not be installed if it has
been preinstalled.
• The data in the content storage folders is not
deleted when Sound Organizer is
uninstalled.
• In an installation environment in which
multiple operating systems are installed on
one computer, do not install Sound
Organizer in each of the operating systems.
Doing so may result in data inconsistencies.
1 Make sure that the IC recorder is not
connected, then turn on your computer
and start up Windows.
2 Insert the supplied CD-ROM into the
CD-ROM drive.
The [Sound Organizer - InstallShield
Wizard] menu starts up automatically
and the [Welcome to Sound Organizer
Installer] window appears.
If the [Welcome to Sound Organizer
Installer] menu does not start up, open
Windows Explorer, right-click the
CD-ROM drive, double-click
[SoundOrganizerInstaller.exe], and then
follow the instructions on the screen.
3 Make sure that you accept the terms of
the license agreement, select [I accept the
terms in the license agreement], then
click [Next].
4 When the [Setup Type] window appears,
select [Standard] or [Custom], and then
click [Next].
Follow the instructions on the screen and
set the installation settings when you
select [Custom].
5 When the [Ready to Install the Program]
window appears, click [Install].
The installation starts.
6 When [Sound Organizer has been
installed successfully.] window appears,
check [Launch Sound Organizer Now],
and then click [Finish].
P Note
You may need to restart your computer after
installing Sound Organizer.
94
GB
The Sound Organizer window
A Help
Displays the help of Sound Organizer.
For details on each operation, refer to
these help files.
B The file list of Sound Organizer (My
Library)
Displays a list of files included in My
Library of Sound Organizer in
accordance with the operation.
Recording Files : Displays a list of
recording files.
Recording files that were recorded with
an IC recorder appear in this library
when they are imported.
Music: Displays a list of music files.
Songs imported from a music CD
appear in this library.
Podcast: Displays a list of podcasts.
C The file list of the IC recorder
Displays the files saved to the
connected IC recorder or memory card.
D Edit Mode button
Displays the edit area so that you can
edit a file.
E Quick Operation Guide button
Displays the Quick Operation Guide to
receive guidance on the basic features
of Sound Organizer.
F Sidebar (Import/Transfer)
IC Recorder: Displays the transfer
screen. A list of files on a connected
device appears.
Import CD: Displays the screen for
importing music CDs.
Burn CD/DVD: Displays the
screen for burning discs.
G Transfer buttons
: Transfers the files of Sound
Organizer to an IC recorder or memory
card.
: Imports the files of an IC
recorder or memory card to My Library
of Sound Organizer.
95
GB
Additional Information
Additional Information
Using a USB AC Adaptor
You can charge the rechargeable battery by
connecting the IC recorder to an AC outlet
using a USB AC adaptor AC-U501AD (not
supplied). You can charge the battery while
you are using the IC recorder, so that it is
useful when you want to record for a long
time.
When you use the IC recorder for the first
time, or after you have not used the IC
recorder for a certain period of time, charge
the battery continuously until “ ” is
displayed.
It takes about 3 hours 30 minutes to fully
charge an exhausted battery.*
1 Connect a USB AC adaptor (not
supplied) to an AC outlet.
2 Slide the USB slide lever on the back of
the IC recorder and connect the USB
DIRECT connector to the USB AC
adaptor.
While the battery is charging, the battery
indicator is displayed in an animation.
Now you can use the IC recorder while
charging the battery.
* This is an approximation for the time it takes
to charge from no remaining battery power
to full battery power at room temperature. It
varies depending on the remaining power
and the condition of the battery. It also takes
more time if the temperature of the battery is
low, or if the battery is charged while you
are transferring data to the IC recorder.
P Notes
• While playing back files using the built-in
speaker, you cannot charge the battery.
• You cannot charge an LR03 (size AAA)
alkaline battery (not supplied).
USB AC adaptor (not supplied)
USB connector of the IC recorder
Battery indicator
96
GB
Disconnecting the IC
recorder from the AC outlet
Follow the procedures below; otherwise,
when the IC recorder contains data files, the
files may be damaged or become
unplayable.
1 If you are recording or playing back a
file, press
x STOP to put the IC recorder
into the stop mode.
2 Make sure that the operation indicator of
the IC recorder does not light.
3 Disconnect the IC recorder from the
USB AC adaptor, and then disconnect
the USB AC adaptor from the AC outlet.
P Notes
• During recording (the operation indicator
lights or flashes in red) or accessing data (the
operation indicator flashes in orange),
– the IC recorder should not be connected to
or disconnected from the USB AC adaptor
connected to the AC outlet.
– the USB AC adaptor connected to the IC
recorder should not be connected to or
disconnected from the AC outlet.
Doing so may damage the data. If the IC
recorder is required to process a large
amount of data, the start-up window may be
displayed for an extended period of time.
This is not a malfunction of the IC recorder.
Wait until the start-up display disappears
from the display window.
• While a USB AC adaptor is being used, the
battery indicator does not appear in the
display window.
97
GB
Additional Information
Precautions
On power
Operate the unit only on 1.2 V or 1.5 V DC.
Use one NH-AAA rechargeable battery or
one LR03 (size AAA) alkaline battery.
On safety
Do not operate the unit while driving,
cycling or operating any motorized vehicle.
On handling
• Do not leave the unit in a location near heat
sources, or in a place subject to direct
sunlight, excessive dust or mechanical shock.
• Should any solid object or liquid fall into
the unit, remove the battery and have the
unit checked by qualified personnel
before operating it any further.
• Be careful not to allow water to splash on
the unit. The unit is not water-proof. In
particular, be careful in the following
situations.
– When you have the unit in your pocket
and go to the bathroom, etc.
When you bend down, the unit may
drop into the water and may get wet.
– When you use the unit in an
environment where the unit is exposed
to rain, snow, or humidity.
– In circumstances where you get sweaty.
If you touch the unit with wet hands or
if you put the unit in the pocket of
sweaty clothes, the unit may get wet.
• You may feel pain in your ears if you use
the headphones when the ambient air is
very dry. This is not because of a
malfunction of the headphones, but because
of static electricity accumulated in your
body. You can reduce static electricity by
wearing non-synthetic clothes that prevent
the emergence of static electricity.
On noise
• Noise may be heard when the unit is
placed near an AC power source, a
fluorescent lamp or a mobile phone
during recording or playback.
• Noise may be recorded when an object,
such as your finger, etc., rubs or scratches
the unit during recording.
On maintenance
To clean the exterior, use a soft cloth
slightly moistened in water. Then use a soft
dry cloth to wipe the exterior. Do not use
alcohol, benzine or thinner.
98
GB
If you have any questions or problems
concerning your unit, please consult your
nearest Sony dealer.
On using a memory card
P Notes
• When formatting (initializing) a memory card,
make sure to use the IC recorder to format it.
Operations of the memory cards formatted with
Windows or other devices are not guaranteed.
• If you format a memory card containing
recorded data, the recorded data will be
deleted. Be careful not to delete important data.
• Do not leave a memory card within the reach of
small children. They might accidentally
swallow it.
• Do not insert or remove a memory card
during recording/playback/formatting.
Doing so may cause a malfunction of the IC
recorder.
• Do not remove a memory card while the
“Accessing...” animation appears in the
display window or the indicator is flashing in
orange. Doing so may damage the data.
• We do not guarantee the operations of all
types of compatible memory cards with the
IC recorder.
• For compatible M2™, please refer to the
Sony web site (page 101).
• “MagicGate™” is the collective name of
content protection technologies developed by
Sony. The IC recorder does not support data
recording/playback that requires MagicGate™
functions.
• The IC recorder does not support parallel
data transfer.
• You cannot use a ROM (read-only-memory)
type or write-protected memory card.
• Data may be corrupted in the following cases:
– When a memory card is removed or the IC
recorder is turned off during a read or write
operation.
– When a memory card is used in locations
subject to static electricity or electrical
noise.
• We assume no responsibility for any loss or
damage of recorded data.
• We recommend that you save a backup copy
of the important data.
• Do not touch the terminal of a memory card
with your hand or a metal object.
• Do not strike, bend or drop a memory card.
• Do not disassemble or modify a memory card.
• Do not expose a memory card to water.
Backup recommendations
To avoid potential risk of data loss
caused by accidental operation or
malfunction of the IC recorder, we
recommend that you save a backup copy
of your recorded files to a computer, etc.
99
GB
Additional Information
• Do not use a memory card under the
following conditions:
– Locations beyond the required operating
conditions, including locations, such as the
hot interior of a car parked in the sun and/
or in the summer, the outdoors exposed to
direct sunlight, or a place near a heater.
– Humid locations or locations with
corrosive substances present.
• When using a memory card, make sure to
check the correct insertion direction into the
memory card slot.
100
GB
Specifications
System requirements
To use your computer with the
Sound Organizer software
To use your computer with the Sound
Organizer software, see “System
requirements for your computer” on
page 91.
To use your computer without
the Sound Organizer software
To use your computer with the IC recorder
without the Sound Organizer software, or to
use the IC recorder as a USB mass storage
device, your computer must meet the
operating system requirements and port
environment described below.
Operating systems:
– Windows 7 Ultimate
– Windows 7 Professional
– Windows 7 Home Premium
– Windows 7 Home Basic
– Windows 7 Starter
– Windows Vista Ultimate Service Pack 2
or higher
– Windows Vista Business Service Pack 2
or higher
– Windows Vista Home Premium Service
Pack 2 or higher
– Windows Vista Home Basic Service Pack
2 or higher
– Windows XP Media Center Edition 2005
Service Pack 3 or higher
– Windows XP Media Center Edition 2004
Service Pack 3 or higher
– Windows XP Media Center Edition
Service Pack 3 or higher
– Windows XP Professional Service Pack 3
or higher
– Windows XP Home Edition Service Pack
3 or higher
– Mac OS X (v10.2.8-v10.6)
Pre-Installed
P Notes
• Operation is not guaranteed if any operating
system other than those indicated on the left
(Windows 98, Windows 2000 or Linux, etc.)
is used.
• 64 bit versions of Windows XP are not
supported.
101
GB
Additional Information
• For the latest version information and
compatibility with your operating system,
please access the support home page for the
IC recorder:
http://www.sony.com/recordersupport
Hardware environment:
– Sound board: Sound cards compatible
with any of the supported Microsoft
Windows operating systems
– Port: USB port
P Note
• The following systems are not supported:
– Operating systems other than the ones
indicated on page 100
– Personally constructed computers or
operating systems
– Upgraded operating systems
– Multi-boot environment
– Multi-monitor environment
Design and specifications
IC recorder section
Capacity (User available capacity)
2 GB equals 2,147,483,648 bytes, a portion of
which is used for system management and/or
application files.
Available capacity is approximately 1.80 GB
(1,932,735,283 bytes).
Frequency range
• LPCM 44.1kHz/16bit: 50 Hz - 20,000 Hz
• MP3 192kbps: 50 Hz - 20,000 Hz
• MP3 128kbps: 50 Hz - 16,000 Hz
• MP3 48kbps(MONO): 50 Hz - 14,000 Hz
• MP3 8kbps(MONO): 60 Hz - 3,400 Hz
Bit rate and sampling frequencies for
MP3 files
*1
Bit rate: 32 kbps - 320 kbps, VBR
Sampling frequencies:
16/22.05/24/32/44.1/48 kHz
File extension: .mp3
*
1
The playback of MP3 files recorded using
the IC recorder is also supported. Not all
encoders are supported.
Bit rate and sampling frequencies for
WMA files
*2
Bit rate: 32 kbps - 192 kbps, VBR
Sampling frequencies: 44.1 kHz
File extension: .wma
*
2
WMA Ver. 9 is compatible, however, MBR
(Multi Bit Rate), Lossless, Professional, and
Voice are not supported. Copyright-protected
file cannot be played back. Not all encoders
are supported.
Bit rate and sampling frequencies for
AAC-LC files*
3
Bit rate: 16 kbps - 320 kbps, VBR
Sampling frequencies:
11.025/12/16/22.05/24/32/44.1/48 kHz
File extension: .m4a
102
GB
*
3
Copyright-protected file cannot be played
back. Not all AAC encoders are supported.
Sampling frequencies and bit for linear
PCM files
Sampling frequencies: 44.1 kHz
Bit: 16 bit
File extension: .wav
General
Speaker
Approx. 16 mm (21/32 in.) dia.
Input/Output
• Microphone jack (minijack, stereo)
– input for plug in power, minimum input
level
– 0.9 mV
• Headphone jack (minijack, stereo)
– output for 8 ohms - 300 ohms impedance
headphones
• USB connector (Type-A)
– High-Speed USB compatible
• Memory Stick Micro™ (M2™)/microSD
memory card slot
Playback speed control (DPC)
2.00 times - 0.50 times (MP3)
1.00 time - 0.50 times (LPCM/WMA/AAC-LC)
Power output
90 mW
Power requirements
One NH-AAA rechargeable battery (supplied):
1.2 V DC
One LR03 (size AAA) alkaline battery (not
supplied): 1.5 V DC
Operating temperature
5°C - 35°C (41°F - 95°F)
Dimensions (w/h/d) (not incl. projecting
parts and controls) (JEITA)
*4
Approx. 36.6 mm × 102.0 mm × 14.6 mm
(1 1/2 in. × 4 1/8 in. × 19/32 in.)
Mass (JEITA)
*4
Approx. 59 g (2 1/8 oz) including one
NH-AAA rechargeable battery
*
4
Measured value by the standard of JEITA
(Japan Electronics and Information
Technology Industries Association)
Supplied accessories
See page 8.
Optional accessories
Memory Stick Micro™ (M2™) MS-A16GU2,
MS-A8GU2, MS-A4GU2, MS-A2GU2
microSD/microSDHC SR-8A4, SR-4A4,
SR-2A1
Active speaker SRS-M50
Electret condenser microphone ECM-CS10,
ECM-CZ10, ECM-TL1
Audio connecting cable RK-G136, RK-G139
Rechargeable battery NH-AAA-B2KN
USB AC adaptor AC-U501AD
Design and specifications are subject to
change without notice.
103
GB
Additional Information
Maximum recording time
*5*6
The maximum recording time of all the folders is as follows.
*
5
When you are going to record continuously for a long time, you may have to replace the battery
with new one in the midst of recording. For details on the battery life, see the next table.
*
6
The maximum recording time varies if you record files in mixed recording mode.
*
7
Default settings
REC Mode Recording
scene*
7
Built-in
memory
Memory card
ICD-
UX512
2 GB 4 GB 8 GB 16 GB
32 GB
LPCM
44.1kHz/
16bit
3 hr.
0 min.
3 hr.
0 min.
6 hr.
0 min.
12 hr.
5 min.
24 hr.
15 min.
48 hr.
40 min.
MP3
192kbps
(Meeting)
(Interview)
(Lecture)
(Audio IN)
(My Scene)
22 hr.
20 min.
22 hr.
20 min.
44 hr.
40 min.
89 hr.
25 min.
178 hr.
0 min.
357 hr.
0 min.
MP3
128kbps
(Voice
Notes)
33hr.
30 min.
33 hr.
30 min.
67 hr.
5 min.
134 hr.
0 min.
268 hr.
0 min.
536 hr.
0 min.
MP3 48kbps
(MONO)
89 hr.
25 min.
89 hr.
25 min.
178 hr.
0 min.
357 hr.
0 min.
715 hr.
0 min.
1,431 hr.
0 min.
MP3 8kbps
(MONO)
536 hr.
0 min.
536 hr.
0 min.
1,073 hr.
0 min.
2,147 hr.
0 min.
4,294 hr.
0 min.
8,589 hr.
0 min.
(hr.: hours/min.: minutes)
104
GB
Battery life
When using a Sony NH-AAA rechargeable battery*
1
(hr.: hours/min.: minutes)
When using a Sony LR03 (SG) (size AAA) alkaline battery*
1
(hr.: hours/min.: minutes)
*
1
The battery life is measured in testing using methods proprietary to Sony. The battery life may
shorten depending on how you operate the IC recorder.
*
2
When playing back music through the internal speaker with the volume level set to 14
REC Mode Recording
Playback through
speaker*
2
Playback using the
headphones
LPCM 44.1kHz/16bit 21 hr. 0 min. 16 hr. 0 min. 34 hr. 0 min.
MP3 192kbps 23 hr. 0 min. 17 hr. 0 min. 41 hr. 0 min.
MP3 128kbps 23 hr. 0 min. 17 hr. 0 min. 41 hr. 0 min.
MP3 48kbps(MONO) 24 hr. 0 min. 17 hr. 0 min. 41 hr. 0 min.
MP3 8kbps(MONO) 29 hr. 0 min. 17 hr. 0 min. 41 hr. 0 min.
Music file (128 kbps/44.1kHz) – 17 hr. 0 min. 41 hr. 0 min.
REC Mode Recording
Playback through
speaker*
2
Playback using the
headphones
LPCM 44.1kHz/16bit 22 hr. 0 min. 21 hr. 30 min. 49 hr. 0 min.
MP3 192kbps 27 hr. 0 min. 23 hr. 0 min. 61 hr. 0 min.
MP3 128kbps 30 hr. 30 min. 23 hr. 0 min. 61 hr. 0 min.
MP3 48kbps(MONO) 32 hr. 30 min. 23 hr. 0 min. 61 hr. 0 min.
MP3 8kbps(MONO) 42 hr. 0 min. 23 hr. 0 min. 61 hr. 0 min.
Music file (128 kbps/44.1kHz) – 23 hr. 0 min. 61 hr. 0 min.
105
GB
Troubleshooting
Troubleshooting
Troubleshooting
Before taking the IC recorder for repair, check the following sections. Should any problem
persist after you have made these checks, consult your nearest Sony dealer.
Please note that recorded files may be deleted during service or repair work.
Symptom Remedy
Noise is heard. • An object, such as your finger, etc., accidentally rubbed or
scratched the IC recorder during recording so that noise was
recorded.
• The IC recorder was placed near an AC power source, a
fluorescent lamp or a mobile phone during recording or playback.
• The plug of the connected microphone is dirty. Clean the plug.
• The plug of the connected headphones is dirty. Clean the plug.
• Noise may be heard during recording pause of an MP3 file, VOR
recording, or synchronized recording.
• When you are listening an AAC-LC and WMA file, the noise cut
function does not work.
You cannot charge the
battery by connecting the IC
recorder to your computer.
• When you connect the IC recorder to a computer which is not
running, the battery will not be charged.
• Even if the computer is on, and the computer is in a mode of
reduced operation (standby or sleep), you cannot charge the
battery.
• “USB Charge” is set to “OFF” in the menu. To charge the battery
using your computer, set it to “ON” (page 78).
• Disconnect the IC recorder from your computer and reconnect it.
• Operation is not guaranteed if you use any system requirements
other than those described on page 100.
106
GB
The charging indicator is not
displayed or disappears in
the middle of charging.
• A rechargeable battery has not been inserted, or a battery other
than a rechargeable battery (alkaline battery, manganese battery,
etc.) has been inserted.
• A rechargeable battery has been inserted with incorrect polarity.
• A rechargeable battery other than NH-AAA has been inserted.
• The rechargeable battery has deteriorated. Replace the old
rechargeable battery with a new one.
• The USB DIRECT connector of the IC recorder is not connected
properly.
• “USB Charge” is set to “OFF” in the menu. To charge the battery
using your computer, set it to “ON” (page 78).
• While playing back files using the built-in speaker, you cannot
charge the battery.
The IC recorder cannot be
turned off.
• Slide the HOLD/POWER switch in the direction of “POWER” for
more than 2 seconds when the IC recorder is stopped (page 14).
The IC recorder cannot be
turned on.
• The power to the IC recorder is off. Slide the HOLD/POWER
switch in the direction of “POWER” for more than 1 second
(page 14).
• The battery has been inserted with incorrect polarity (page 11).
The IC recorder is powered
off automatically.
• When the IC recorder is in the stop mode and you leave the IC
recorder without attempting an operation for a certain length of
time, the auto power off function will take effect. (The length of
time before auto power off is set to “10min” when you purchase
the IC recorder.) You can select the length of time before auto
power off takes effect in the menu (page 78).
The IC recorder does not
operate correctly.
• Take out the battery and insert it again.
It takes a long time for the IC
recorder to start.
• If the IC recorder is required to process a large amount of data, it
may take longer for the IC recorder to start. This is not a
malfunction of the IC recorder. Wait until the start-up display
disappears.
Symptom Remedy
107
GB
Troubleshooting
The IC recorder does not
operate.
• You may have formatted the memory of the IC recorder using the
computer. Use the IC recorder formatting function to format the
memory (page 79).
The IC recorder does not
operate, even if you press
any button.
• The battery is weak (page 13).
• The power to the IC recorder is off. Slide the HOLD/POWER
switch in the direction of “POWER” for more than 1 second
(page 14).
• The HOLD function is activated. Slide the HOLD/POWER switch
in the center direction (page 10).
No sound comes from the
speaker.
• The volume is turned down completely (page 24).
• Headphones are plugged in (page 45).
Sound comes from the
speaker even when the
headphones are plugged in.
• If you plug in the headphones not securely during playback, the
sound may come from the speaker. Unplug the headphones, and
then insert them securely.
The operation indicator does
not light.
• “LED” is set to “OFF.” Display the menu and set “LED” to “ON”
(page 76).
The “Memory Full”
animation is displayed and
you cannot start recording.
• The memory is full. Erase some of the files (page 28) or erase all
the files after you store them on the other memory media or on
your computer.
The “File Full” animation is
displayed and you cannot
operate the IC recorder.
• 199 files have been recorded in the selected folder ( ) or 4,074
files (when there are 21 folders) in total have been recorded.
Therefore you cannot record another file, or move a file. Erase
some of the files (page 28) or erase all the files after you store
them on the other memory media or on your computer.
You cannot record a file. • The remaining memory capacity is insufficient.
• You cannot record a file when you select a folder in the playback-
only area (the (Music) tab and the (Podcast) tab).
Symptom Remedy
108
GB
The playback volume is low. • The volume is turned down completely. Press VOL+ or – to adjust
the volume (page 24).
• The recording scene is set to (Voice Notes) or (Audio IN).
Select a recording scene depending on the current situation
(page 30).
• “Mic Sensitivity” is set to “Low .”Set it to “High ,” or
“Medium .” (page 70).
Recording is interrupted. • The VOR function is activated. Set “VOR” to “OFF” in the menu
(page 35).
The VOR function does not
work.
• During synchronized recording, the VOR function does not work
(page 42).
When recording from other
equipment, the input level is
too strong or not strong
enough.
• Connect the headphone jack of other equipment to the
m (microphone) jack of the IC recorder and adjust the volume
level on the piece of equipment connected to the IC recorder.
Playback speed is too fast or
too slow.
• The playback speed is adjusted in DPC. Slide the
DPC(SPEED
CTRL)
switch to “OFF” or press v or V on the control button to
adjust the speed in DPC again (page 47).
You cannot divide a file. • You need a certain amount of free space in the memory to divide a
file.
• 199 files have been recorded in the selected folder ( ). Erase
some of the files (page 28) or erase all the files after you store
them on the other memory media or on your computer.
• Because of the system limitations, you may not be able to divide a
file at the very beginning or at the very end of the file.
• You cannot divide files other than those recorded using the IC
recorder (e.g., a file transferred from a computer).
Symptom Remedy
109
GB
Troubleshooting
The memory card is not
recognized.
• Since the memory card may contain image data or other files, the
memory required for creating initial folders is insufficient. Use
Windows Explorer, Macintosh desktop, or other tools to erase
unwanted files or initialize the memory card on the IC recorder.
• Switch the memory media of the IC recorder to “Memory Card”
(page 38).
• Remove a memory card and check the side of the memory card.
Then insert it with correct side and direction.
“--:--” is displayed. • You have not set the clock (page 15).
“--y--m--d” or “--:--” is
displayed on the REC Date
display.
• The date of recording will not be displayed if you recorded the file
when the clock was not set.
There are fewer menu items
displayed in the menu mode.
• The menu items displayed are different depending on the
operation modes (stop mode, playback mode, or recording mode)
(page 67).
The remaining time
displayed in the display
window is shorter than that
displayed in the supplied
Sound Organizer software.
• The IC recorder requires a certain amount of memory for system
operation. That amount is subtracted from the remaining time,
which is the reason for the difference.
The battery life is short. • The battery life on page 104 is based on playback with the volume
level set to 14. The battery life may shorten depending on the
operation of the IC recorder.
There is no battery power
remaining after you have left
the battery inserted for long
time without using the IC
recorder.
• Even if you do not use the IC recorder, the battery is consumed
slightly. If you do not intend to use the IC recorder for an
extended period of time, it is recommended that you turn the
power off (page 14) or remove the battery. Moreover, if you set
“Auto Power Off” to a short span in the menu (page 78), you can
prevent the battery from being consumed due to forgetting to turn
the IC recorder off.
Symptom Remedy
110
GB
There is no battery power
remaining when you
disconnect the IC recorder
from the USB AC adaptor
after you have left the IC
recorder connected for long
time, fully charged.
• Once the battery is fully charged, it is not recharged
automatically, even if you leave the IC recorder connected to the
USB AC adaptor. You can use the IC recorder while it is
connected to the USB AC adaptor, but charge it again after
disconnecting it.
“” or “” is
flashing instead of the
battery indicator.
• The environmental temperature is out of the range for charging.
Charge the battery in an environment with a temperature of 5 °C -
35 °C (41 °F - 95 °F).
The battery life of the
rechargeable battery is short.
• You are using the rechargeable battery in an environment with a
temperature of under 5 °C (41 °F). Charge the battery in an
environment with a temperature of 5 °C - 35 °C (41 °F - 95 °F).
• The IC recorder has not been used for a certain time. Charge and
discharge the rechargeable battery using the IC recorder several
times.
• Replace the old rechargeable battery with a new one.
• The battery indicator is displayed only for a short time, however,
the rechargeable battery is not charged completely. It takes about
3 hours 30 minutes to fully charge an exhausted battery.
Menu does not reflect the
change in settings.
• If the battery is removed just after the menu setting is changed, or
the menu setting is changed using “IC Recorder Setting” of the
Sound Organizer software with the exhausted battery inserted, the
menu setting may not function.
A character in a folder or file
name is displayed in
unreadable characters.
• The IC recorder cannot support or display some special characters
and symbols that are entered on a computer using Windows
Explorer or the Macintosh desktop.
The “Accessing...”
animation display does not
disappear.
• If the IC recorder is required to process excessive amount of data,
the animation may be displayed for an extended period of time.
This is not a malfunction of the IC recorder. Wait until the
message disappears.
Symptom Remedy
111
GB
Troubleshooting
It takes a long time to copy a
file.
• If the file size of a file is large, it takes a considerable time to
finish copying. Wait until the copying is finished.
The transferred files are not
displayed.
• The IC recorder can recognize up to 8 levels of folders transferred
to the IC recorder.
• If files are incompatible, other than an LPCM(.wav)/MP3(.mp3)/
WMA(.wma)/AAC-LC(.m4a) file that the IC recorder supports,
they may not be displayed. See page 101.
The IC recorder is not
recognized by your
computer.
A folder/file cannot be
transferred from your
computer.
• Disconnect the IC recorder from your computer and reconnect it.
• Do not use a USB hub or USB extension cable other than supplied
USB connection support cable. Connect the IC recorder directly to
your computer or use the supplied USB connection support cable.
• Operation is not guaranteed if you use any system requirements
other than those described on page 100.
• Depending on the USB port position, the IC recorder may not be
recognized. If this happens, try another port.
The file transferred from
your computer cannot be
played back.
• The file format may differ from those that can be played back
using the IC recorder (LPCM(.wav)/MP3(.mp3)/WMA(.wma)/
AAC-LC(.m4a)). Check the file name (page 101).
The computer cannot start. • If you reboot the computer with the IC recorder connected to the
computer, the computer may freeze or may not start properly.
Disconnect the IC recorder from the computer and reboot the
computer again.
Symptom Remedy
112
GB
Sound Organizer
Refer to the help files of the Sound Organizer software, too.
Symptom Cause/Remedy
The Sound Organizer
software cannot be installed.
• The free disk or memory space on the computer is too small.
Check the hard disk and memory space.
• You are trying to install the software into the operating system
that the Sound Organizer software does not support. Install the
software into the supported operating system (page 91).
• In Windows XP, you have logged on using a user name belonging
to a user account with limitations. Or in Windows Vista or
Windows 7, you have logged on using a guest account. Make sure
to log on using a user name with computer administrator
privileges.
The IC recorder cannot be
properly connected.
• Check that the installation of the software has been successful.
Also check the connection as follows:
– When using an external USB hub, connect the IC recorder
directly to the computer or use the supplied USB connection
support cable.
– Disconnect and then connect the IC recorder.
– Connect the IC recorder to another USB port.
• Your computer may be in the system standby/hibernate mode. Do
not let your computer enter into the system standby/hibernate
mode while being connected to the IC recorder.
• Save a backup copy of all of the data stored on the built-in
memory or the memory card, and then format the built-in memory
or the memory card using the formatting function in the menu
(page 79).
113
GB
Troubleshooting
Playback sound from the
computer is low./No sound is
emitted from the computer.
• No sound board is installed.
• No speaker is built-in or connected to the computer.
• The volume of the sound is turned down.
• Turn up the volume on the computer. (Refer to the instruction
manual of the computer.)
• The volume of WAV files can be changed and saved using the
“Increase Volume” feature of the Microsoft Sound Recorder.
Stored files cannot be played
back or edited.
You cannot play back files whose file format the Sound Organizer
software does not support. Depending on the file format, you cannot
use part of editorial features of the software. Refer to the help files
of the Sound Organizer software.
The counter or slider moves
incorrectly, or noise is heard.
• This happens when you play back files that you divided. Store a
file on your computer first*, and then add it to the IC recorder.
(*Select the saving file format that suits the IC recorder you use.)
Operation is slow when there
are many files.
• When the total number of files increases, the operation becomes
slower, regardless of the length of the recording time.
Display does not work
during saving, adding, or
deleting of files.
• It takes a longer time to copy or delete long files. Wait until the
copying is finished. After completing operations, the display
works normally.
The software ‘hangs’ when
the Sound Organizer
software starts up.
• Do not disconnect the connector of the IC recorder while the
computer is communicating with the IC recorder. Otherwise the
computer operations become unstable or the data inside the IC
recorder may be damaged.
• There may be conflict between the software and other driver or
application.
Symptom Cause/Remedy
114
GB
Message List
Message Cause/Remedy
HOLD • All the button operations are disabled because the IC recorder is in
the HOLD status to prevent unintentional operations. Slide the
HOLD/POWER switch towards the center to release the IC
recorder from the HOLD status (page 10).
Low Battery • The battery is exhausted. Replace the old LR03 (size AAA)
alkaline battery with a new one. Or charge the rechargeable
battery (page 11) or replace the old rechargeable battery with a
new one.
Memory Card Error • An error occurred while a memory card was being inserted into
the memory card slot. Remove and try inserting it again. If this
message persists, use a new memory card.
Memory Card Not Supported • A memory card that the IC recorder does not support is inserted.
See “About compatible memory cards” on page 36.
Memory Card Locked • The memory card is write-protected. A write-protected memory
card cannot be used with the IC recorder.
Read Only Memory Card • A read-only memory card is inserted. A read-only memory card
cannot be used with the IC recorder.
Memory Card Access
Denied
• Since a memory card containing an access control function is
inserted, you cannot use it.
Memory Full • The remaining memory capacity of the IC recorder is insufficient.
Erase some files before recording.
File Full • When there are already the maximum number of files in the
selected folder or the total number of files stored on the IC
recorder has exceeded the maximum, you cannot record a new
file. Erase some files before recording.
115
GB
Troubleshooting
File Damaged • You cannot play back or edit files, because the data of the selected
file is damaged.
Format Error • The IC recorder cannot be turned on using the computer because
there is no copy of the control file required for operation. Format
the IC recorder using the formatting function in the menu
(page 79). Do not use your computer to format the IC recorder.
Process Error • The IC recorder failed in memory access. Remove and then re-
insert the battery.
• Save a backup copy of your data and format the IC recorder using
the menu (page 79).
Stop and Reinsert Memory
Card
• A memory card was inserted during recording or playback.
Remove the memory card and insert it while the IC recorder is in
the stop mode.
Set Date&Time • Set the clock; otherwise, you cannot set the alarm.
Track Marks are Full • You can set up to 98 track marks for a file. Cancel unwanted track
marks (page 60).
No File • The selected folder does not have any files. You cannot move a
file or set the alarm, etc., because of this.
No Track Marks • There are no track marks when you attempt to erase a track mark
or track marks, or divide a file at all the track mark positions.
Low Battery Level • You cannot format the memory or erase all the files in a folder
because of insufficient battery power. Replace the old LR03 (size
AAA) alkaline battery with a new one. Or charge the rechargeable
battery (page 11) or replace the old rechargeable battery with a
new one.
File Protected • The selected file is protected or is a “Read only” file. You cannot
erase it. Cancel the protection on the IC recorder or cancel “Read
only” on your computer to edit the file using the IC recorder
(page 65).
Message Cause/Remedy
116
GB
Already Set • You set the alarm to play back a file at a date and time previously
set on another file. Change the alarm setting.
Past Date/Time • You set the alarm when the time has already passed. Check it and
set the appropriate date and time (page 52).
Unknown Data • This data is not in a file format that is supported by the IC
recorder. The IC recorder supports LPCM(.wav)/MP3(.mp3)/
WMA(.wma)/AAC-LC(.m4a) files. For details, see “Design and
specifications” on page 101.
• You cannot play back copyright protected files.
Invalid Operation • You cannot divide or set a track mark in files in the folder in the
playback-only area (the (Music) tab and the (Podcast) tab).
• When a memory card has a bad block on it, the card cannot be
written to. Prepare a new memory card to replace the current one.
• The file name has reached the maximum number of characters;
you cannot divide the file. Shorten the file name.
• The “Divide All Track Marks” function cannot be used because
there is a track mark within 0.5 seconds from the dividing position.
• The “Divide All Track Marks” function cannot be used because
there is a track mark within 0.5 seconds from the beginning of a
file or the end of a file.
• The file length is less than 1 second; you cannot divide such a
short file.
• The “Divide Current Position” function cannot be used at a position
within 0.5 seconds from the beginning of a file or the end of a file.
New File • The file being recorded has reached the maximum size limit
(2 GB for an LPCM file, and 1 GB for an MP3 file). The file will
be divided automatically and recording will continue as a new file.
Invalid when Noise Cut is
ON
• When the noise cut function is effective, the effect function does
not work. Cancel the noise cut setting (page 46).
Message Cause/Remedy
117
GB
Troubleshooting
Change Folder • If there are no files in the or folder, no folders are
displayed in the display window. Only a folder with a file will be
displayed.
Cannot Divide - Exceeds
Max 199 Files in Folder
• When there are already 199 files in the selected folder or the total
number of files stored on the IC recorder exceeds the maximum,
you cannot divide a file. Erase some files before dividing a file.
Same File Name Exists • A file of the same file name already exists in the folder when a file
is divided, or a file is copied or moved.
No Memory Card • There is no memory card inserted into the memory card slot when
you attempt to set the “Select Memory,” or “File Copy” menus.
Erased Track Marks too near
Divide Point
• When there is a track mark set within 0.5 seconds from the
dividing position, the track mark is automatically erased.
No operation with Memory
Card
• You cannot set an alarm in a file stored on a memory card. Switch
the memory media of the IC recorder to “Built-In Memory”
(page 38, 39).
System Error • A system error other than the above has occurred. Remove the
battery and re-insert it.
Message Cause/Remedy
118
GB
System Limitations
There are some system limitations of the IC recorder. Troubles as mentioned below are not
malfunctions of the IC recorder.
Symptom Cause/Remedy
You cannot record files
up to the maximum
recording time.
• If you record files in a mixture of the recording modes, the recordable
time varies from the maximum recording time of the highest recording
mode to those of the lowest recording mode.
• The sum of the number on the counter (elapsed recording time) and the
remaining recording time may be less than the IC recorder’s maximum
recording time.
You cannot display or
play back music files in
order.
• If you have transferred music files using your computer, those files may
not be transferred in order of transfer because of system limitations. If you
transfer music files from your computer to the IC recorder one by one, you
can display and play back the music files in transferred order.
A file is divided
automatically.
• The file being recorded has reached the maximum size limit (2 GB for an
LPCM file, and 1 GB for an MP3 file). Therefore it is automatically divided.
You cannot enter lower-
case characters.
• Depending on the combination of the characters used for the folder
name that was made on your computer, those characters may change to
all capitals.
“
s
” is displayed in place
of a folder name, title,
artist name, or file name.
• A character which cannot be displayed on the IC recorder has been
used. Using your computer, replace it with one which can be displayed
on the IC recorder.
When you set A-B
repeat playback, the set
positions move a little.
• Depending on the files, the set positions may move.
The remaining recording
time becomes shorter
when you divide a file.
• You need a certain amount of free space for a file management area to
divide a file, therefore the remaining recording time will be shortened.
119
GB
Troubleshooting
Display Window Guide
Display when stopped
A Newly arriving podcast indication
B Scene select indication
Displays the currently selected scene
used for recording. Appears when a
scene is set.
: Meeting
: Voice Notes
: Interview
: Lecture
: Audio IN
: My Scene
C File information type indicator
: A folder where you can record a file
: A folder for playback only
: A folder for podcast files
: Title name
: Artist name
: File name
D Microphone sensitivity indicator
: High
: Medium
: Low
E File information
Displays the information for each file
according to the file information type
(folder name, title name, artist name,
file name).
F File information switch operation guide
You can switch the file information
display in order by pushing
v or V on
the control button.
G Operation mode indicator
Displays the following, depending on
the current operation of the IC recorder.
: stop
: playback
: recording
120
GB
: recording standby/recording
pause (flashing)
: recording with the VOR
function
: recording pause with the
VOR function (flashing)
If you press
z
REC/PAUSE to pause
recording when “VOR” is set to “ON”
in the menu, only “ ” flashes.
: synchronized recording
: synchronized recording
pause (flashing)
: review/fast backward, cue/
fast forward
: going backward/forward
continuously
H Elapsed time/Remaining time/
Recording date and time indication
I Track mark indicator
Displays the track mark number just
before the current position. Appears
when a track mark is set for a file.
J Alarm indicator
Appears when the alarm is set in a file.
K File number
The selected file number is displayed in
the numerator and the total number of
files in the folder is displayed in the
denominator.
L Recording mode indicator
Displays the recording mode set using
the menu when the IC recorder is in the
stop mode, and displays the current
recording mode when the IC recorder is
in the playback or recording mode.
: LPCM file recorded or
transferred with the IC recorder
, , ,
: MP3 file recorded or
transferred with the IC recorder
When the files are transferred from your
computer, file formats only ( /
) are displayed.
: WMA files transferred
: AAC-LC files transferred
Displays as follows when the IC
recorder cannot get the recording mode.
: Unknown
M Protect indicator
Appears when the protection is set for a
file.
N Memory card indication
When “Memory Card” is selected as
“Select Memory,” the indication is
displayed. When “Built-In Memory” is
selected, no indication is displayed.
121
GB
Troubleshooting
O LCF (Low Cut Filter) indicator
Appears when “LCF(Low Cut)” is set
to “ON” in the menu.
P Battery indicator
Q Remaining recording time
Displays the remaining recording time in
hours, minutes, and seconds.
If there is more than 10 hours time
remaining, the time is displayed in hours.
If there is more than 10 minutes and less
than 10 hours time remaining, the time is
displayed in hours and minutes.
If there is less than 10 minutes time
remaining, the time is displayed in
minutes and seconds.
Display when recording
R Recording progress animation display
Displays the progress of an auto
(AGC), VOR, or synchronized
recording in animation.
122
GB
Display during playback
S Playback mode indicator
1: Appears when a file is played back.
: Appears when files in one folder
are played back continuously.
ALL: Appears when all the files are
played back continuously.
1:Appears when one file is played
back repeatedly.
: Appears when files in one
folder are played back repeatedly.
ALL: Appears when all the files are
played back repeatedly.
T Noise cut/Effect indicator
Appears when the noise cut function is
effective or “Effect” is set in the menu.
: Noise cut
: Pop
: Rock
: Jazz
: Bass1
: Bass2
: Custom
124
GB
Index
A
AAC-LC files ........................................101
A-B repeat ...............................................51
Adjusting the volume ........................24, 44
Alarm .......................................... 52, 67, 74
Alkaline battery ....................................104
Auto (AGC) recording ............................ 21
B
Battery indicator .....................................13
Battery life ............................................104
Built-in microphones ..............................21
C
Changing the Scene Select
settings ........................................33, 67, 69
Connecting the IC recorder to your
computer .................................................80
Copying a file to the other memory
media ...........................................56, 67, 74
Copying files to your computer ..............86
Copying music files to the
IC recorder ..............................................87
Cue ..........................................................45
D
Display the current date and time ...........17
Dividing a file at all the track mark
positions ......................................63, 67, 75
Dividing a file at the current
position ........................................62, 67, 74
DPC (Digital Pitch Control) ....................47
E
Easy search ..................................45, 67, 73
Editing files .............................................55
Effect ...........................................48, 67, 72
Erasing ....................................................28
Erasing a track mark ...................60, 67, 75
Erasing all files in a folder ..........57, 67, 75
Erasing all the track marks ..........61, 67, 75
External microphone ...............................40
F
Folder ....................................19, 23, 55, 81
H
HOLD ......................................................10
HOLD/POWER switch .....................10, 14
125
GB
Index
I
Index to parts and controls
Display window ................................119
Front .....................................................9
Rear ....................................................... 9
Input selection .............................40, 67, 71
M
Maintenance ............................................97
Memory card ..................................... 36, 98
Memory Stick Micro™ (M2™) .......36, 83
Menu
Alarm ............................................67, 74
Auto Power Off ............................ 68, 78
Backlight ....................................... 68, 76
Beep ..............................................68, 77
Date&Time ...................................68, 77
Display ..........................................68, 75
Divide All Track Marks ................ 67, 75
Divide Current Position ................67, 74
Easy Search ..................................67, 73
Effect ............................................67, 72
Erase All .......................................67, 75
Erase All Track Marks ..................67, 75
Erase Track Mark .........................67, 75
File Copy ......................................67, 74
Format ...........................................68, 79
Language .......................................68, 77
LCF(Low Cut) ..............................67, 71
LED ...............................................68, 76
Making settings ...................................66
Menu settings ......................................67
Mic Sensitivity ..............................67, 70
Move File ......................................67, 74
Noise Cut ......................................67, 72
Play Mode .....................................67, 73
Protect ...........................................67, 74
REC Mode ....................................67, 70
Scene Select ..................................67, 69
Select Input ...................................67, 71
Select Memory ..............................68, 76
SYNC REC ...................................67, 71
Time Display ................................68, 77
USB Charge ..................................68, 78
VOR ..............................................67, 71
Message list ...........................................114
microSD/microSDHC .......................36, 83
Monitoring the recording ........................44
Moving a file ...............................55, 67, 74
MP3 files ...............................................101
N
Noise .......................................................97
Noise cut .....................................46, 67, 72
126
GB
P
Pause recording .......................................22
Playback ............................................23, 45
Playback modes ..........................50, 67, 73
Podcast ....................................................90
Precautions ..............................................97
Protecting a file ........................... 65, 67, 74
R
Rechargeable battery ................11, 95, 104
Recharging the battery ............................11
Recording ..........................................19, 30
Recording from a telephone ....................41
Recording from other equipment ............41
Recording time ......................................103
Recording with other equipment ............54
Review ..............................................22, 45
S
Scene selection ........................................30
Selecting a folder ....................................19
Setting the clock .........................15, 68, 77
Setting the language ....................18, 68, 77
Sound Organizer .....................................90
Specifications ........................................100
Switching the memory ................38, 68, 76
Synchronized recording ..............42, 67, 71
System limitations .................................118
System requirements .......................91, 100
T
Tab view ..................................................26
Track mark ..............................................59
Troubleshooting ....................................105
U
USB AC adaptor .....................................95
USB memory ...........................................89
Using the IC Recorder with Your
Computer .................................................80
V
VOR (Voice Operated
Recording) ...................................35, 67, 71
W
WMA files .............................................101
127
GB
Index
