OWNER’S MANUAL

Please read this manual carefully before operating your set and retain it

for future reference.

EC93**

EC97**

EG97**

*MFL68601902*

ENG

ENGLISH

TABLE OF CONTENTS

WARNING

If you ignore the warning message, you may

be seriously injured or there is a possibility of

accident or death.

CAUTION

y If you ignore the caution message, you may be

slightly injured or the product may be damaged.

NOTE

y The note helps you understand and use the

product safely. Please read the note carefully

before using the product.

TABLE OF CONTENTS

3 LICENSES

3 OPEN SOURCE SOFTWARE NOTICE

3 EXTERNAL CONTROL DEVICE

SETUP

4 SAFETY INSTRUCTIONS

9 - Viewing 3D Imaging

10 INSTALLATION PROCEDURE

10 ASSEMBLING AND PREPARING

10 Unpacking

12 Separate purchase

13 Parts and buttons

15 - Using the joystick button

16 Lifting and moving the TV

17 Setting up the TV

17 - Detaching the stand

18 - Attaching the AV cover

18 Mounting on a table

20 Mounting on a wall

21 Wall Type Set-up Guide

21 - How to detach the stand

23 Tidying cables

24 Using Built-in Camera

25 - Preparing Built-in Camera

25 - Name of Parts of Built-in camera

25 - Checking the Camera’s Shooting Range

26 MAKING CONNECTIONS

26 Antenna connection

27 HDMI connection

29 DVI to HDMI connection

30 Component connection

31 Composite connection

31 Audio connection

31 - Digital optical audio connection

32 Headphone connection

32 MHL connection

34 USB connection

35 REMOTE CONTROL

36 MAGIC REMOTE FUNCTIONS

37 Registering Magic Remote

37 How to use magic remote

37 Precautions to Take when Using the Magic

Remote

38 USING THE USER GUIDE

39 MAINTENANCE

39 Cleaning Your TV

39 - Screen, frame, cabinet and stand

39 - Power cord

39 TROUBLESHOOTING

40 ENVIRONMENTAL INFORMATION

40 WEEE

41 SPECIFICATIONS

TABLE OF CONTENTS

ENG

ENGLISH

LICENSES / OPEN SOURCE SOFTWARE NOTICE / EXTERNAL CONTROL DEVICE SETUP

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product,

please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for

download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such

distribution (such as the cost of media, shipping and handling) upon email request to [email protected]. This offer is

valid for three (3) years from the date on which you purchased the product.

EXTERNAL CONTROL DEVICE SETUP

To obtain the external control device setup information, please visit www.lg.com.

ENG

ENGLISH

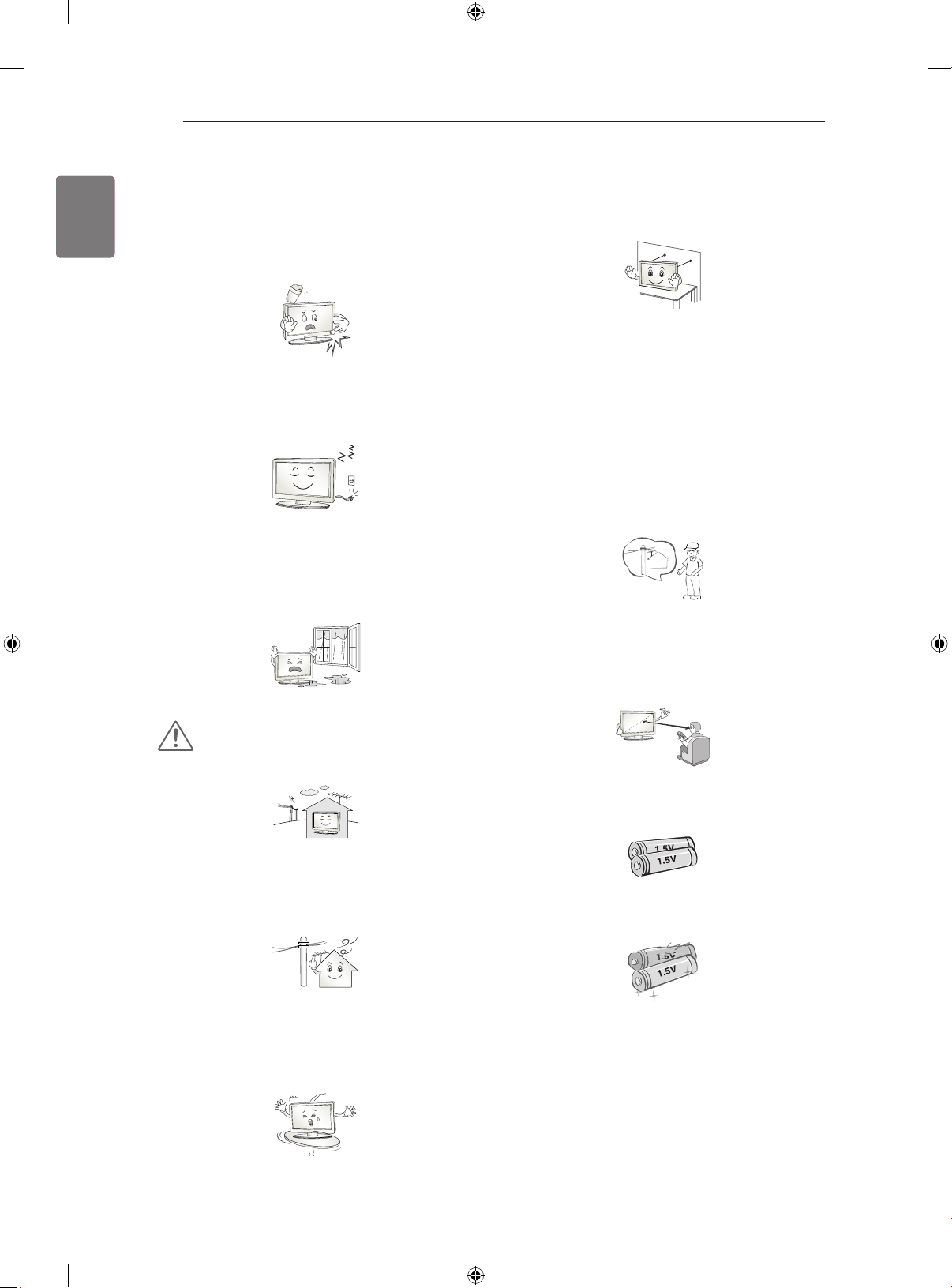

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

WARNING

y Do not place the TV and/or remote control in the

following environments:

- A location exposed to direct sunlight

- An area with high humidity such as a bathroom

- Near any heat source such as stoves and other

devices that produce heat

- Near kitchen counters or humidifiers where they

can easily be exposed to steam or oil

- An area exposed to rain or wind

- Near containers of water such as vases

Otherwise, this may result in fire, electric shock,

malfunction or product deformation.

y Do not place the product where it might be exposed

to dust.

This may cause a fire hazard.

y Mains Plug is the TV connecting/disconnecting

device to AC mains electric supply. This plug must

remain readily attached and operable when TV is

in use.

y Do not touch the power plug with wet hands. Ad-

ditionally, if the cord pin is wet or covered with dust,

dry the power plug completely or wipe dust off.

You may be electrocuted due to excess moisture.

y Make sure to connect Mains cable to compliant AC

mains socket with Grounded earth pin. (Except for

devices which are not grounded on earth.) Other-

wise possibility you may be electrocuted or injured.

y Insert power cable plug completely into wall socket

otherwise if not secured completely into socket, fire

ignition may break out.

y Ensure the power cord does not come into contact

with hot objects such as a heater.

This may cause a fire or an electric shock hazard.

y Do not place a heavy object, or the product itself, on

power cables.

Otherwise, this may result in fire or electric shock.

y Bend antenna cable between inside and outside

building to prevent rain from flowing in.

This may cause water damaged inside the Product

and could give an electric shock.

y When mounting TV onto wall make sure to neatly

install and isolate cabling from rear of TV as to not

create possibility of electric shock /fire hazard.

y Do not plug too many electrical devices into a single

multiple electrical outlet.

Otherwise, this may result in fire due to over-

heating.

ENG

ENGLISH

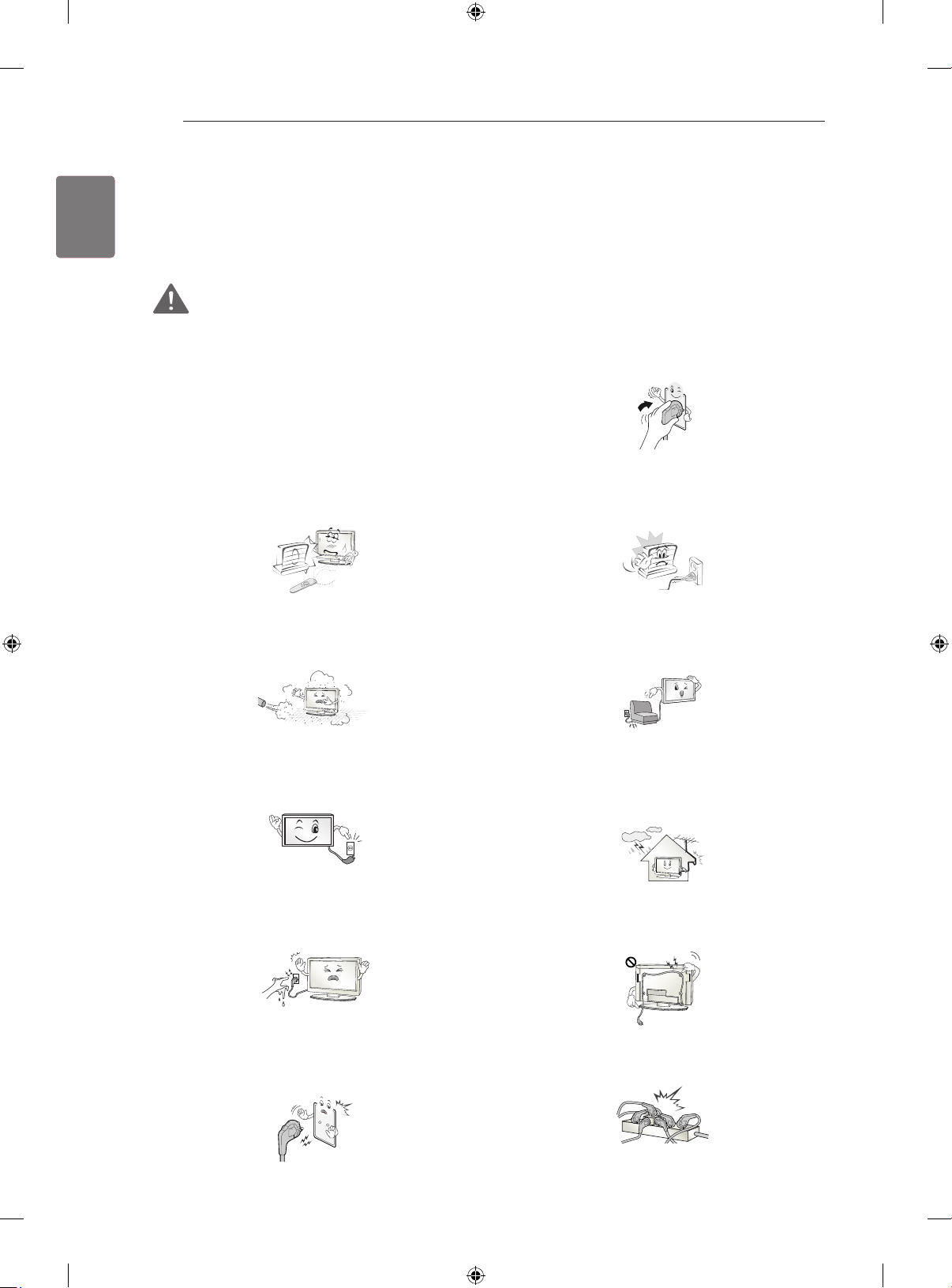

SAFETY INSTRUCTIONS

y Do not drop the product or let it fall over when con-

necting external devices.

Otherwise, this may result in injury or damage to the

product.

y Keep the anti-moisture packing material or vinyl

packing out of the reach of children.

Anti-moisture material is harmful if swallowed. If

swallowed by mistake, force the patient to vomit and

visit the nearest hospital. Additionally, vinyl packing

can cause suffocation. Keep it out of the reach of

children.

y Do not let your children climb or cling onto the TV.

Otherwise, the TV may fall over, which may cause

serious injury.

y Dispose of used batteries carefully to ensure that

a small child does not consume them. Please seek

Doctor- Medical Attention immediately if child con-

sumes batteries.

y Do not insert any metal objects/conductors (like a

metal chopstick/cutlery/screwdriver) between power

cable plug and input Wall Socket while it is con-

nected to the input terminal on the wall. Additionally,

do not touch the power cable right after plugging

into the wall input terminal. You may be electro-

cuted. (Depending on model)

y Do not put or store inflammable substances near

the product. There is a danger of combustion/explo-

sion or fire due to careless handling of the inflam-

mable substances.

y Do not drop metallic objects such as coins, hair

pins, chopsticks or wire into the product, or inflam-

mable objects such as paper and matches. Children

must pay particular attention. Electrical shock, fire

or injury can occur. If a foreign object is dropped into

the product, unplug the power cord and contact the

service centre.

y Do not spray water on the product or scrub with an

inflammable substance (thinner or benzene). Fire or

electric shock accident can occur.

y Do not allow any impact, shock or any objects to

fall into the unit, and do not drop anything onto the

screen.

You may be injured or the product can be damaged.

y Never touch this product or antenna during a thun-

der or lighting storm.

You may be electrocuted.

y Never touch the wall outlet when there is leakage of

gas, open the windows and ventilate.

It may cause a fire or a burn by a spark.

y Do not disassemble, repair or modify the product at

your own discretion.

Fire or electric shock accident can occur.

Contact the service centre for check, calibration or

repair.

ENG

ENGLISH

SAFETY INSTRUCTIONS

y If any of the following occur, unplug the product im-

mediately and contact your local service centre.

- The product has been impacted by shock

- The product has been damaged

- Foreign objects have entered the product

- The product produced smoke or a strange smell

This may result in fire or electric shock.

y Unplug the TV from AC mains wall socket if you do

not intend to use the TV for a long period of time.

Accumulated dust can cause fire hazard and insula-

tion deterioration can cause electric leakage/shock/

fire.

y Apparatus shall not be exposed to dripping or

splashing and no objects filled with liquids, such as

vases, shall be placed on the apparatus.

CAUTION

y Install the product where no radio wave occurs.

y There should be enough distance between an

outside antenna and power lines to keep the former

from touching the latter even when the antenna

falls.

This may cause an electric shock.

y Do not install the product on places such as unsta-

ble shelves or inclined surfaces. Also avoid places

where there is vibration or where the product cannot

be fully supported. Otherwise, the product may fall

or flip over, which may cause injury or damage to

the product.

y If you install the TV on a stand, you need to take

actions to prevent the product from overturning.

Otherwise, the product may fall over, which may

cause injury.

y If you intend to mount the product to a wall, attach

VESA standard mounting interface (optional parts)

to the back of the product. When you install the set

to use the wall mounting bracket (optional parts), fix

it carefully so as not to drop.

y Only use the attachments / accessories specified by

the manufacturer.

y When installing the antenna, consult with a qualified

service technician. If not installed by a qualified

technician, this may create a fire hazard or an elec-

tric shock hazard.

y We recommend that you maintain a distance of at

least 2 to 7 times the diagonal screen size when

watching TV.

If you watch TV for a long period of time, this may

cause blurred vision.

y Only use the specified type of battery.

This could cause damage to the remote control.

y Do not mix new batteries with old batteries. This

may cause the batteries to overheat and leak.

y Batteries should not be exposed to excessive heat.

For example, keep away from direct Sunlight, open

fireplace and electric heaters.

ENG

ENGLISH

SAFETY INSTRUCTIONS

y Do not place non-rechargeable batteries in charging

device.

y Make sure there are no objects between the remote

control and its sensor.

y Signal from Remote Control can be interrupted due

to external/internal lighting eg Sunlight, fluorescent

lighting.If this occurs turn off lighting or darken view-

ing area.

y When connecting external devices such as video

game consoles, make sure the connecting cables

are long enough.

Otherwise, the product may fall over, which may

cause injury or damage the product.

y Do not turn the product On/Off by plugging-in or

unplugging the power plug to the wall outlet. (Do not

use the power plug for switch.)

It may cause mechanical failure or could give an

electric shock.

y Please follow the installation instructions below to

prevent the product from overheating.

- The distance between the product and the wall

should be more than 10 cm.

- Do not install the product in a place with no venti-

lation (e.g., on a bookshelf or in a cupboard).

- Do not install the product on a carpet or cushion.

- Make sure the air vent is not blocked by a table-

cloth or curtain.

Otherwise, this may result in fire.

y Take care not to touch the ventilation openings

when watching the TV for long periods as the

ventilation openings may become hot. This does not

affect the operation or performance of the product.

y Periodically examine the cord of your appliance,

and if its appearance indicates damage or deteriora-

tion, unplug it, discontinue use of the appliance, and

have the cord replaced with an exact replacement

part by an authorized servicer.

y Prevent dust collecting on the power plug pins or

outlet.

This may cause a fire hazard.

y Protect the power cord from physical or mechani-

cal abuse, such as being twisted, kinked, pinched,

closed in a door, or walked upon. Pay particular

attention to plugs, wall outlets, and the point where

the cord exits the appliance.

y Do not press strongly upon the panel with a hand or

sharp object such as nail, pencil or pen, or make a

scratch on it, as it may cause damage to screen.

y Avoid touching the screen or holding your finger(s)

against it for long periods of time. Doing so may

produce some temporary or permanent distortion/

damage to screen.

y When cleaning the product and its components,

unplug the power first and wipe it with a soft cloth.

Applying excessive force may cause scratches or

discolouration. Do not spray with water or wipe with

a wet cloth. Never use glass cleaner, car or indus-

trial shiner, abrasives or wax, benzene, alcohol etc.,

which can damage the product and its panel.

Otherwise, this may result in fire, electric shock or

product damage (deformation, corrosion or break-

age).

y As long as this unit is connected to the AC wall out-

let, it is not disconnected from the AC power source

even if you turn off this unit by SWITCH.

ENG

ENGLISH

SAFETY INSTRUCTIONS

y When unplugging the cable, grab the plug and un-

plug it, by pulling at the plug. Don’t pull at the cord

to unplug the power cord from the power board, as

this could be hazardous.

y When moving the product, make sure you turn

the power off first. Then, unplug the power cables,

antenna cables and all connecting cables.

The TV set or power cord may be damaged, which

may create a fire hazard or cause electric shock.

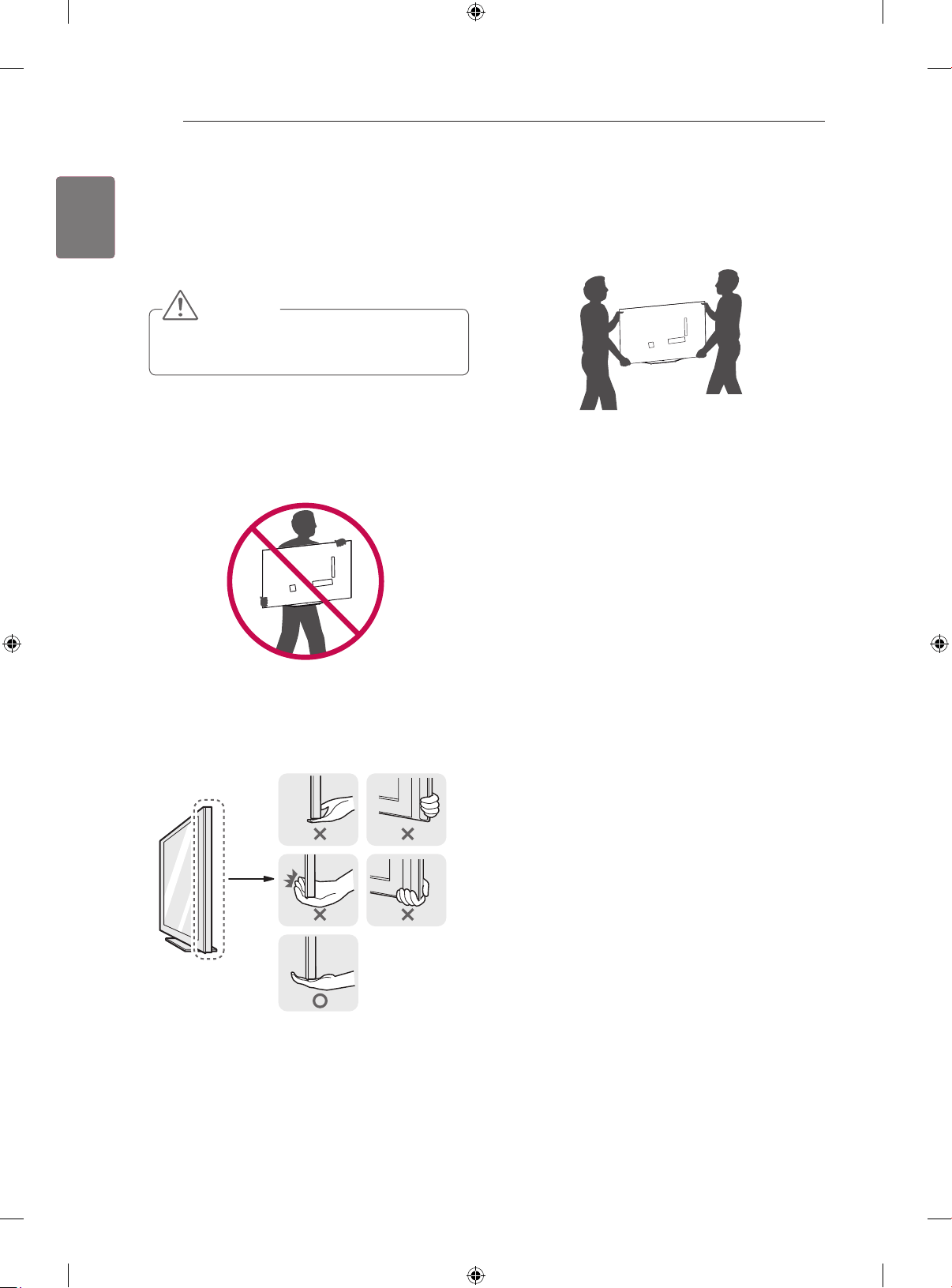

y When moving or unpacking the product, work in

pairs because the product is heavy.

Otherwise, this may result in injury.

y Contact the service centre once a year to clean the

internal parts of the product.

Accumulated dust can cause mechanical failure.

y Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has

been exposed to rain or moisture, does not operate

normally, or has been dropped.

y If the product feels cold to the touch, there may be

a small “flicker” when it is turned on. This is normal,

there is nothing wrong with product.

y The panel is a high technology display product with

resolution of two million to six million pixels. You

may see tiny black dots and/or brightly coloured

dots (red, blue or green) at a size of 1 ppm on the

panel. This does not indicate a malfunction and

does not affect the performance and reliability of the

product.

This phenomenon also occurs in third-party prod-

ucts and is not subject to exchange or refund.

y You may find different brightness and colour of the

panel depending on your viewing position(left/right/

top/down).

This phenomenon occurs due to the characteristic

of the panel. It is not related with the product per-

formance, and it is not malfunction.

y Displaying a still image (e.g., broadcasting channel

logo, on-screen menu, scene from a video game or

computer screen) for a prolonged time may cause

damage to the screen, resulting in retention of the

image, which is known as image sticking. It can re-

main for long time or never disappear. The warranty

does not cover the product for image sticking.

Avoid displaying a fixed image on your television’s

screen for a prolonged period (1 or more hours for

OLED).

Also, if you watch the TV at a ratio of 4:3 for a long

time, image sticking may occur on the borders of

the panel.

This phenomenon also occurs in third-party prod-

ucts and is not subject to exchange or refund.

y Generated Sound

“Cracking” noise: A cracking noise that occurs

when watching or turning off the TV is generated by

plastic thermal contraction due to tempera-ture and

humidity. This noise is common for products where

thermal deformation is required. Electrical circuit

humming/panel buzzing: A low level noise is gener-

ated from a high-speed switching circuit, which sup-

plies a large amount of current to operate a product.

It varies depend-ing on the product.

This generated sound does not affect the perform-

ance and reliability of the product.

y Do not use high voltage electrical goods near the

TV(e.g. electric mosquito-swatter). This may result

in product malfunction.

ENG

ENGLISH

SAFETY INSTRUCTIONS

Viewing 3D Imaging

WARNING

Viewing Environment

y Viewing Time

- When watching 3D contents, take 5 - 15 minute

breaks every hour. Viewing 3D contents for a

long period of time may cause headache, dizzi-

ness, fatigue or eye strain.

Those that have a photosensitive seizure

or chronic illness

y Some users may experience a seizure or other

abnormal symptoms when they are exposed to a

ashing light or particular pattern from 3D contents.

y Do not watch 3D videos if you feel nausea, are

pregnant and/ or have a chronic illness such

as epilepsy, cardiac disorder, or blood pressure

disease, etc.

y 3D Contents are not recommended to those who

suffer from stereo blindness or stereo anomaly.

Double images or discomfort in viewing may be

experienced.

y If you have strabismus (cross-eyed), amblyopia

(weak eyesight) or astigmatism, you may have

trouble sensing depth and easily feel fatigue due to

double images. It is advised to take frequent breaks

than the average adult.

y If your eyesight varies between your right and left

eye, revise your eyesight prior to watching 3D

contents.

Symptoms which require discontinuation

or refraining from watching 3D contents

y Do not watch 3D contents when you feel fatigue from

lack of sleep, overwork or drinking.

y When these symptoms are experienced, stop using/

watching 3D contents and get enough rest until the

symptom subsides.

- Consult your doctor when the symptoms persist.

Symptoms may include headache, eyeball

pain, dizziness, nausea, palpitation, blurriness,

discomfort, double image, visual inconvenience

or fatigue.

CAUTION

Viewing Environment

y Viewing Distance

- Maintain a distance of at least twice the screen

diagonal length when watching 3D contents.

If you feel discomfort in viewing 3D contents,

move further away from the TV.

Viewing Age

y Infants/Children

- Usage/ Viewing 3D contents for children under

the age of 5 are prohibited.

- Children under the age of 10 may overreact and

become overly excited because their vision is in

development (for example: trying to touch the

screen or trying to jump into it. Special monitor-

ing and extra attention is required for children

watching 3D contents.

- Children have greater binocular disparity of 3D

presentations than adults because the distance

between the eyes is shorter than that of adults.

Therefore they will perceive more stereoscopic

depth compared to adults for the same 3D im-

age.

y Teenagers

- Teenagers under the age of 19 may react with

sensitivity due to stimulation from light in 3D

contents. Advise them to refrain from watching

3D contens for a long time when they are tired.

y Elderly

- The elderly may perceive less 3D effect com-

pared to the young. Do not sit closer to the TV

than the recommended distance.

Cautions when using the 3D glasses

y Make sure to use LG 3D glasses. Otherwise, you

may not be able to view 3D videos properly.

y Do not use 3D glasses instead of your normal

glasses, sunglasses or protective goggles.

y Using modied 3D glasses may cause eye strain or

image distortion.

y Do not keep your 3D glasses in extremely high or

low temperatures. It will cause deformation.

y The 3D glasses are fragile and are easily scratched.

Always use a soft, clean piece of cloth when wiping

the lenses.

Do not scratch the lenses of the 3D glasses with

sharp objects or clean/wipe them with chemicals.

ENG

ENGLISH

INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.

2 Connect an external device to the TV set.

3 Make sure the network connection is available.

You can use the TV network functions only when the network connection is made.

* If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV may take a few

minutes.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you

purchased your product.

The illustrations in this manual may differ from the actual product and item.

CAUTION

y Do not use any unapproved items to ensure the safety and product life span.

y Any damages or injuries by using unapproved items are not covered by the manufacturer’s warranty.

y Some models have a thin film attached on to the screen and this must not be removed.

NOTE

y The items supplied with your product may vary depending on the model.

y Product specifications or contents of this manual may be changed without prior notice due to upgrade of product func-

tions.

y For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width.

Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB

port.

A 10 mm

*B 18 mm

NOTE

y Image shown may differ from your TV.

y Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

y The available menus and options may differ from the input source or product model that you are using.

y New features may be added to this TV in the future.

y The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it

will not be watched for some time, as this will reduce energy consumption.

y The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and

this will reduce the overall running cost.

ENG

ENGLISH

ASSEMBLING AND PREPARING

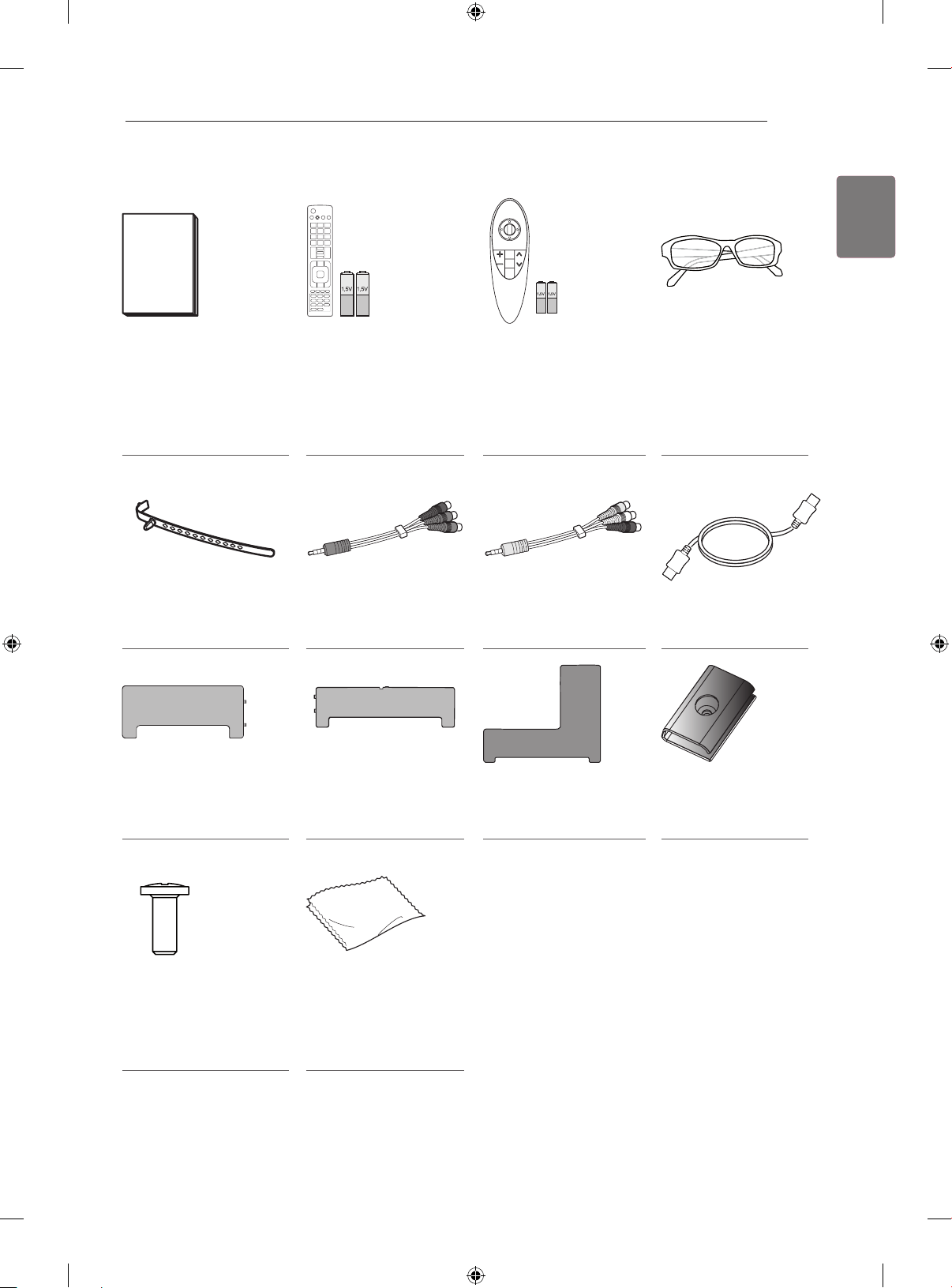

Owner’s manual Remote control,

batteries (AAA)

The remote control will not

be included for all sales

market.

(Depending on model)

(See p.35)

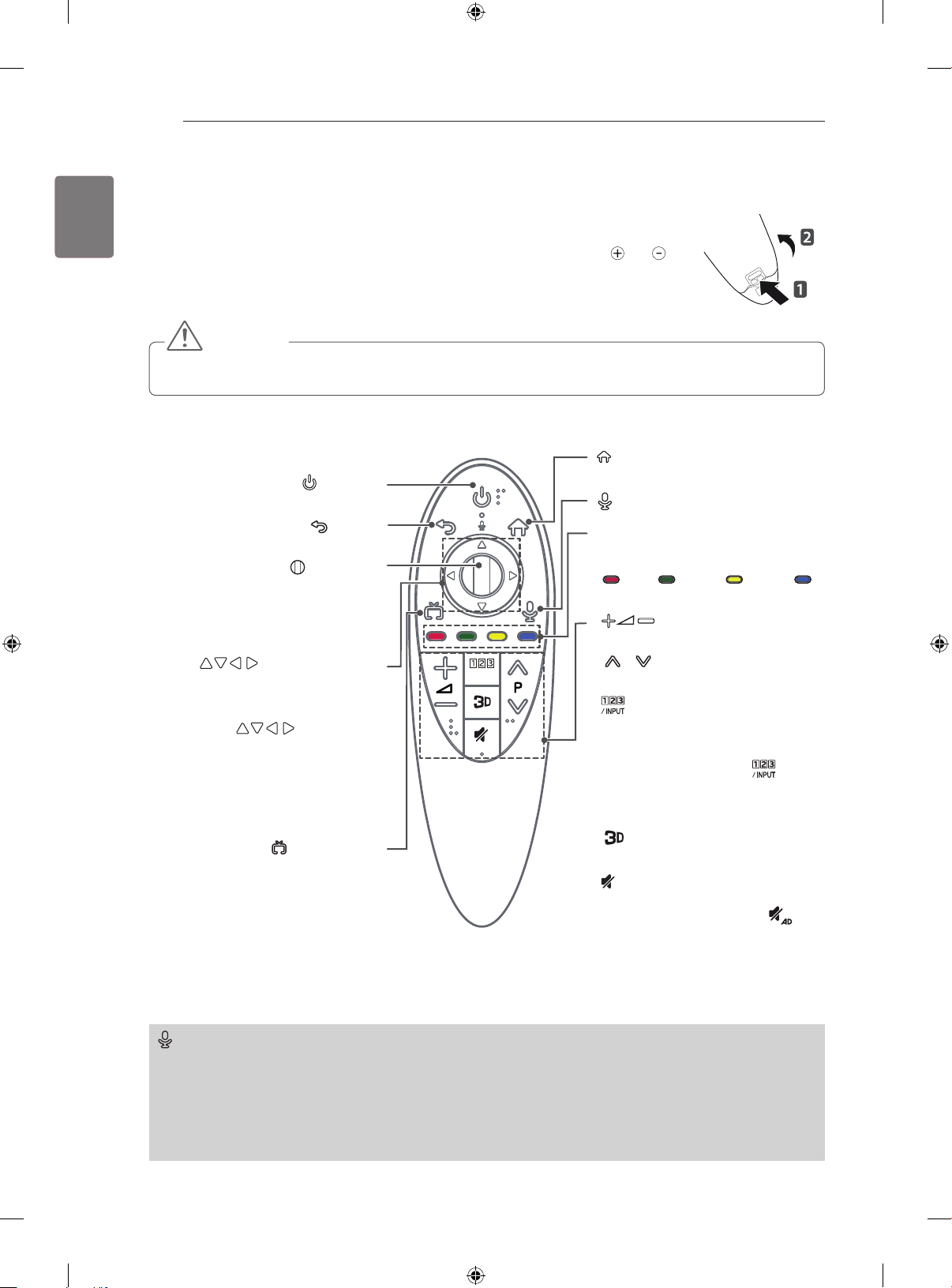

Magic remote,

Batteries (AA)

(See p.36)

Cinema 3D glasses

The number of 3D glasses

may differ depending on

the model or country.

Cable Holder

(See p.23, 24)

Component gender cable

(See p.30)

Composite gender cable

(See p.30, 31)

HDMI Cable

(Only EC97**, EG97**)

(See p.27, 28)

AV Cover

(Only EC93**)

(See p.18)

AV Cover

(Only EC97**)

(See p.18)

AV Cover

(Only EG97**)

(See p.18)

Cable Managements

2 EA

(Only EC97**)

(See p.23)

Cable Management

Screws

2 EA, M4 x L10

(Only EC97**)

(See p.23)

Cleaning Cloth

(Depending on model)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Separate purchase

Separate purchase items can be changed or modied for quality improvement without any notication.

Contact your dealer to buy these items.

These devices only work with certain models.

AG-F***

Cinema 3D Glasses

AN-MR500

Magic Remote

AN-VC5**

Video call camera

AG-F***DP

Dual Play Glasses

LG Audio Device

Compatibility

EC93** EC97** EG97**

AG-F***

Cinema 3D Glasses

• • •

AN-MR500

Magic Remote

• • •

AN-VC5**

Video call camera

•

AG-F***DP

Dual Play Glasses

• • •

LG Audio Device • • •

The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circum-

stances or policies.

ENG

ENGLISH

ASSEMBLING AND PREPARING

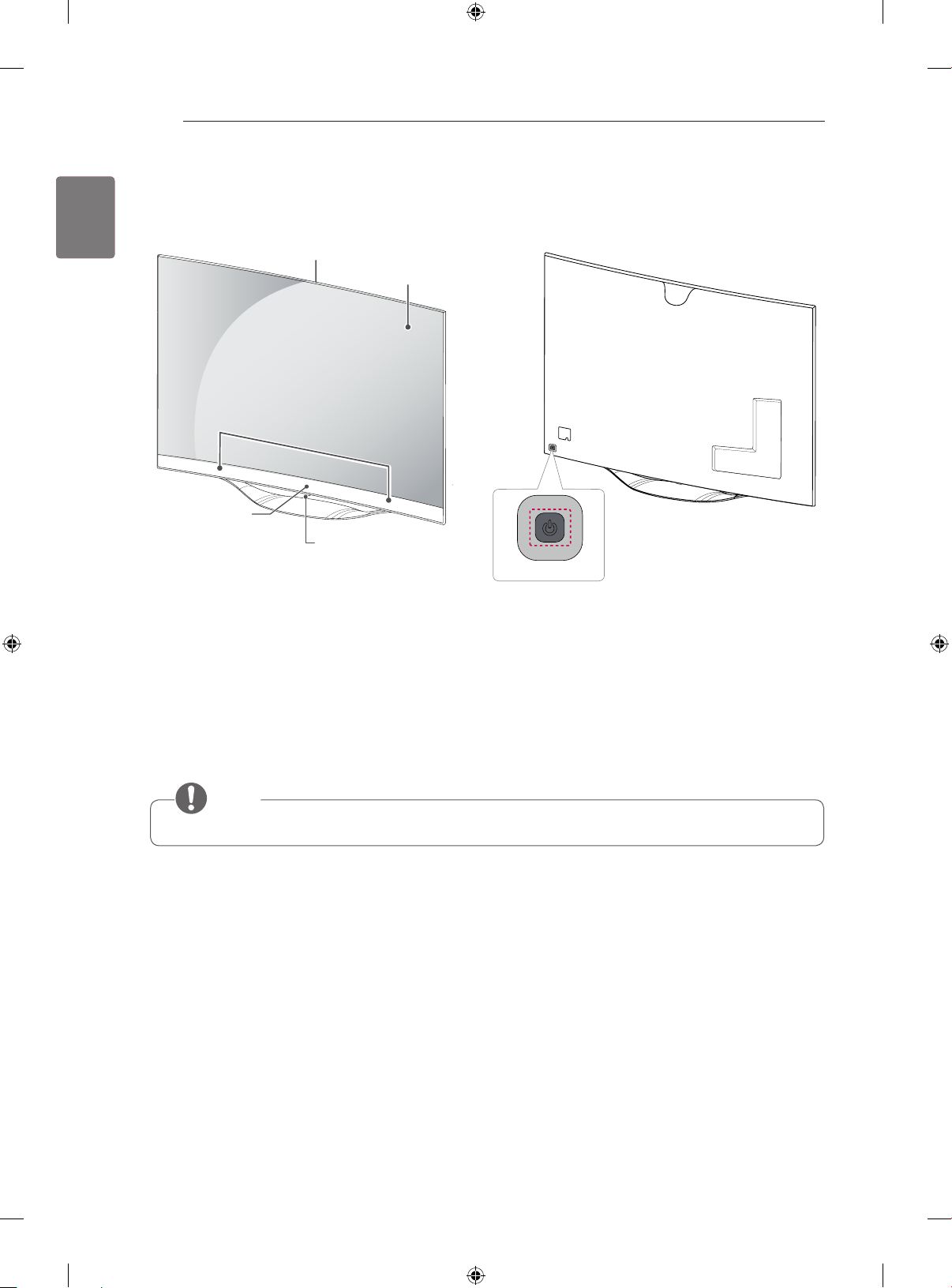

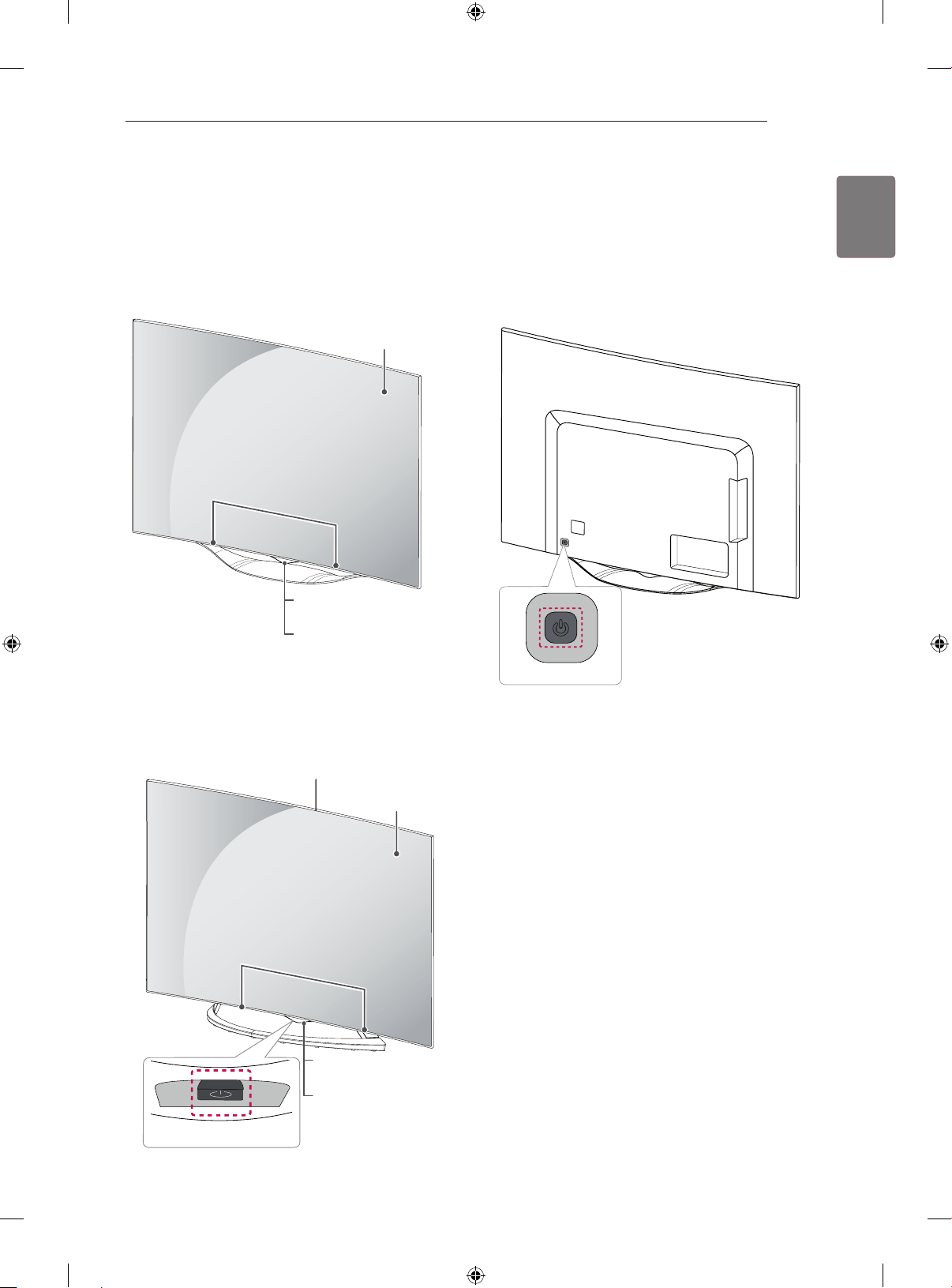

Parts and buttons

Joystick button

<Rear>

Remote Control Sensor and

Intelligent Sensor

LG Logo Light

Screen

Speakers

<Front>

A type : EC93**

B type : EC97**

Built-In Camera

Remote Control Sensor

and Intelligent Sensor

LG Logo Light

Screen

Speakers

Joystick button

ENG

ENGLISH

ASSEMBLING AND PREPARING

NOTE

y You can set the LG Logo Light to on or off by selecting GENERAL in the main menus.

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.

2 Joystick Button - This button is located behind the TV screen.

3 Joystick Button - This button is located below the TV screen.

C type : EG97**

Joystick button

<Rear>

Built-In Camera

Remote Control Sensor and

Intelligent Sensor

LG Logo Light

Screen

Speakers

<Front>

ENG

ENGLISH

ASSEMBLING AND PREPARING

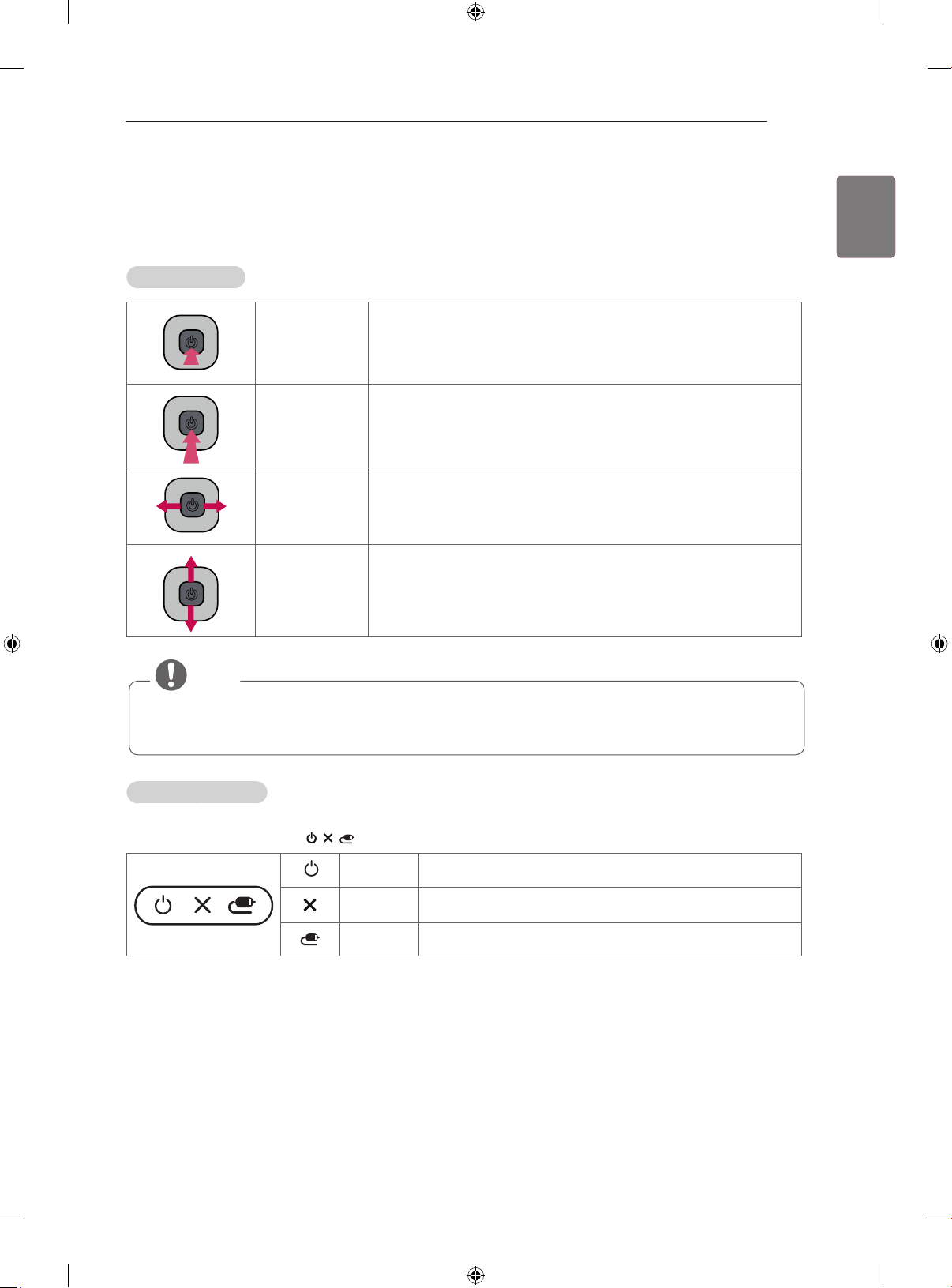

Using the joystick button

You can operate the TV by pressing the button or moving the joystick left, right, up, or down.

Basic Functions

Power On

When the TV is turned off, place your finger on the joystick button and press

it once and release it.

Power Off

When the TV is turned on, place your finger on the joystick button and press

it once for a few seconds and release it.

Volume Control

If you place your finger over the joystick button and move it left or right, you

can adjust the volume level you want.

Programmes

Control

If you place your finger over the joystick button and move it up or down, you

can scrolls through the saved programmes you want.

NOTE

y When your finger over the joystick button and push it to the up, down, left or right, be careful not to press the

joystick button. If you press the joystick button first, you may not be able to adjust the volume level and saved

programmes.

Adjusting the Menu

When the TV is turned on, press the joystick button one time.

You can adjust the Menu items ( , , ) moving the joystick button left or right.

TV OFF Turns the power off.

CLOSE Clears on-screen displays and returns to TV viewing.

INPUT Changes the input source.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Lifting and moving the TV

Please note the following advice to prevent the TV from

being scratched or damaged and for safe transportation

regardless of its type and size.

CAUTION

y Avoid touching the screen at all times, as this may

result in damage to the screen.

It is recommended to move the TV in the box or

packing material that the TV originally came in.

Before moving or lifting the TV, disconnect the

power cord and all cables.

When holding the TV, the screen should face away

from you to avoid damage.

Hold the top and bottom of the TV frame firmly.

Make sure not to hold the transparent part, speaker,

or speaker grill area.

When transporting a large TV, there should be at

least 2 people.

When transporting the TV by hand, hold the TV as

shown in the following illustration.

When transporting the TV, do not expose the TV to

jolts or excessive vibration.

When transporting the TV, keep the TV upright,

never turn the TV on its side or tilt towards the left or

right.

Do not apply excessive pressure to cause flexing /

bending of frame chassis as it may damage screen.

Be sure to keep your TV upright instead of laying or

tilting it while moving the TV.

When handling the TV, be careful not to damage the

protruding joystick button.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Setting up the TV

(Image shown may differ from your TV.)

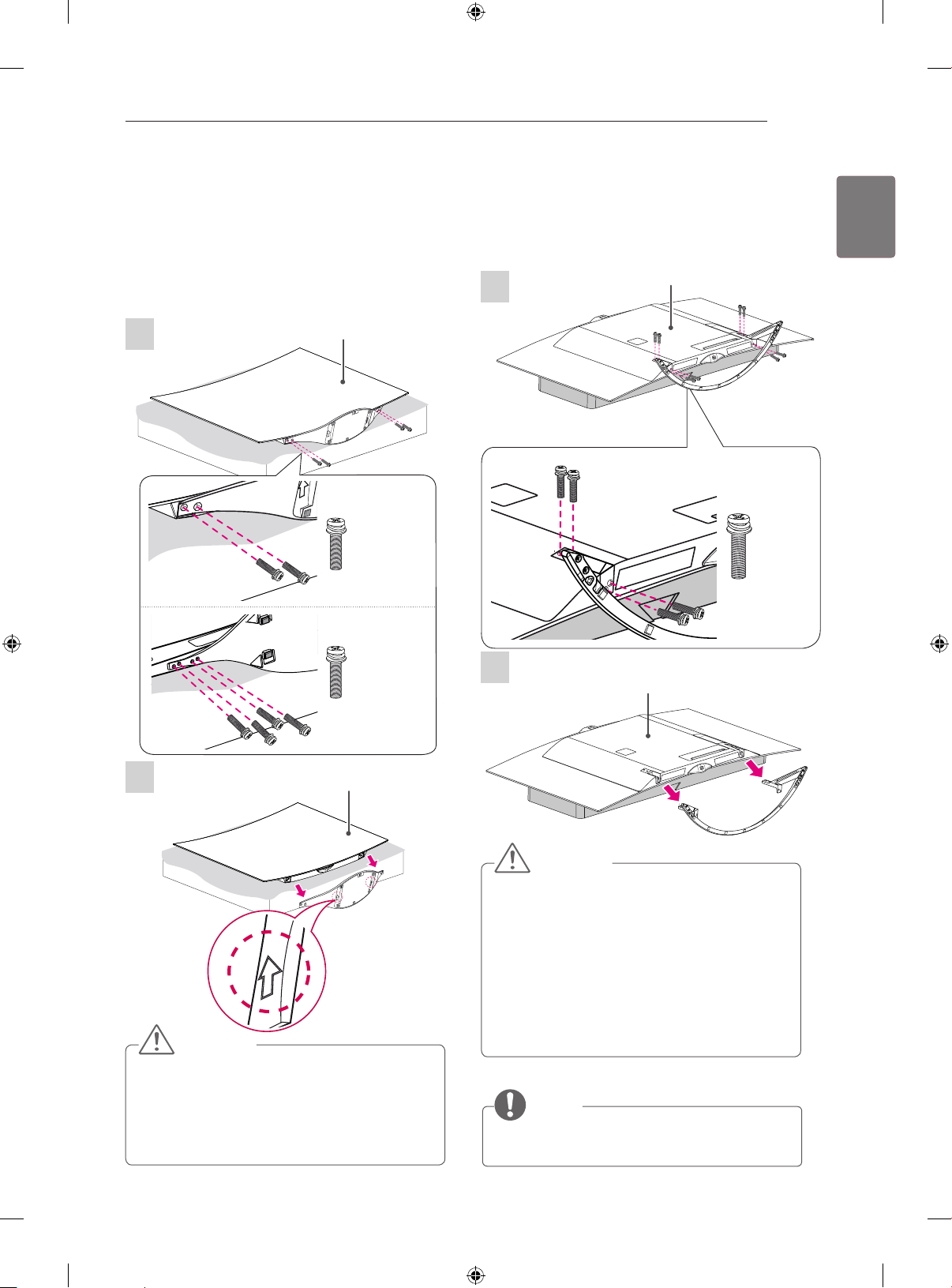

Detaching the stand

(Only EC93**, EG97**)

Screen

(Only EC93**)

4 EA

M4 x L20

(Only EG97**)

8 EA

M4 x L20

Screen

CAUTION

y When you assemble the stand, have the arrows on

the bottom of the stand base looking towards the

same direction as the screen.

y When detaching the stand, make sure to hold it

firmly while removing the screws to stop it from

falling.

(Only EC97**)

Back cover

8 EA

M4 x L20

Back cover

CAUTION

y When detaching the stand to the TV set, place the

screen(or back) facing down on a cushioned table

or flat surface to protect the screen(or back) from

scratches.

y Make sure that the screws are inserted correctly

and fastened securely. (If they are not fastened

securely enough, the TV may tilt forward after be-

ing installed.)

Do not use too much force and over tighten the

screws; otherwise screw may be damaged and not

tighten correctly.

NOTE

y When you assemble the stand again, performing

the stand detaching in reverse.

ENG

ENGLISH

ASSEMBLING AND PREPARING

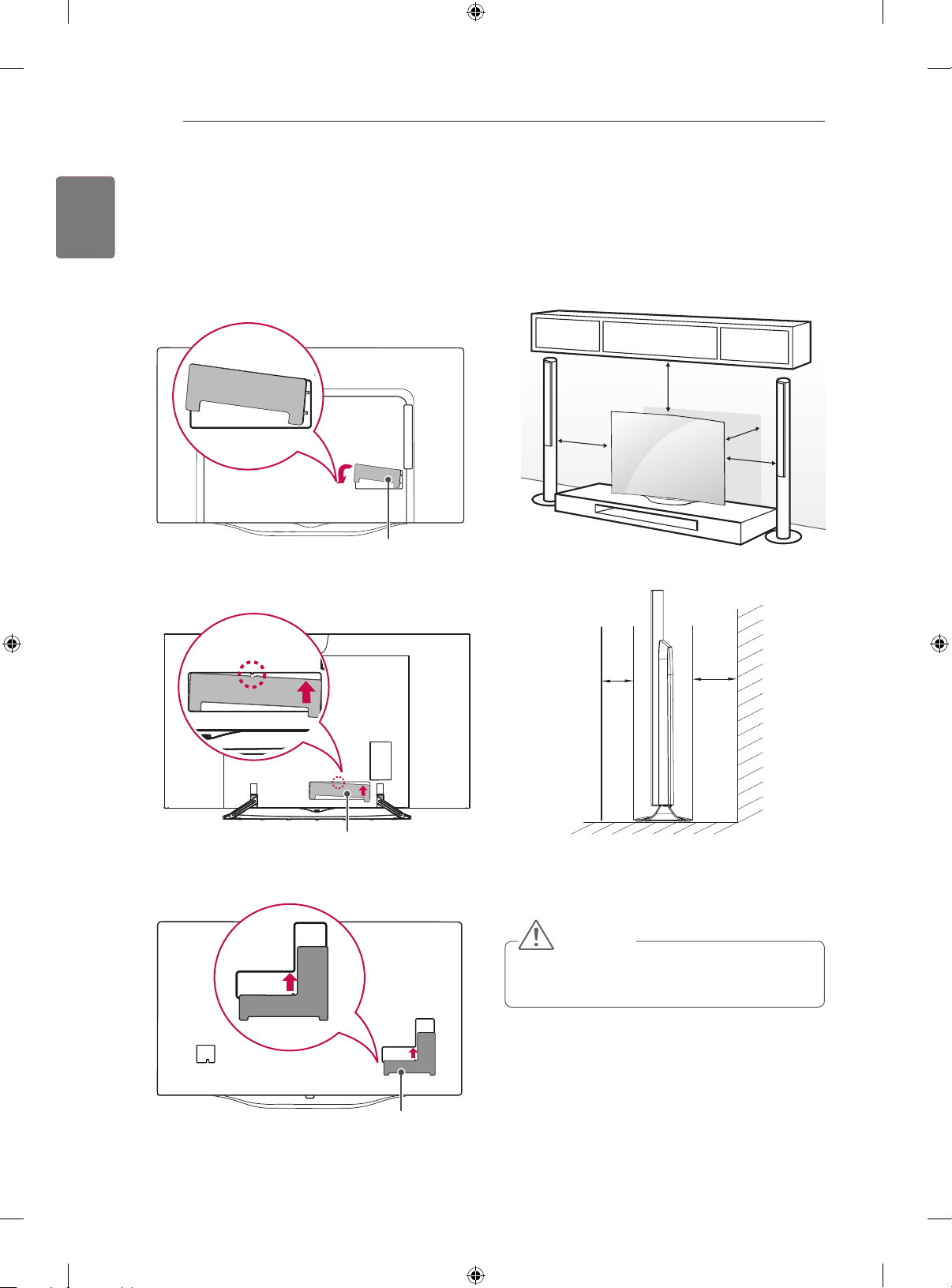

Attaching the AV cover

Assemble the AV Cover as shown.

(Only EC93**)

AV cover

(Only EC97**)

AV cover

(Only EG97**)

AV cover

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

- Leave a 10 cm (minimum) space from the wall for

proper ventilation.

10 cm

5 cm

10 cm

2 Connect the power cord to a wall outlet.

CAUTION

y Do not place the TV near or on sources of heat, as

this may result in fire or other damage.

ENG

ENGLISH

ASSEMBLING AND PREPARING

WARNING

y If a television is not positioned in a sufficiently

stable location, it can be potentially hazardous

due to falling. Many injuries, particularly to

children, can be avoided by taking simple

precautions such as:

» Using cabinets or stands recommended by

the manufacturer of the television.

» Only using furniture that can safely support

the television.

» Ensuring the television is not overhanging

the edge of the supporting furniture.

» Not placing the television on tall furniture (for

example, cupboards or bookcases) without

anchoring both the furniture and the televi-

sion to a suitable support.

» Not standing the televisions on cloth or other

materials placed between the television and

supporting furniture.

» Educating children about the dangers of

climbing on furniture to reach the television

or its controls.

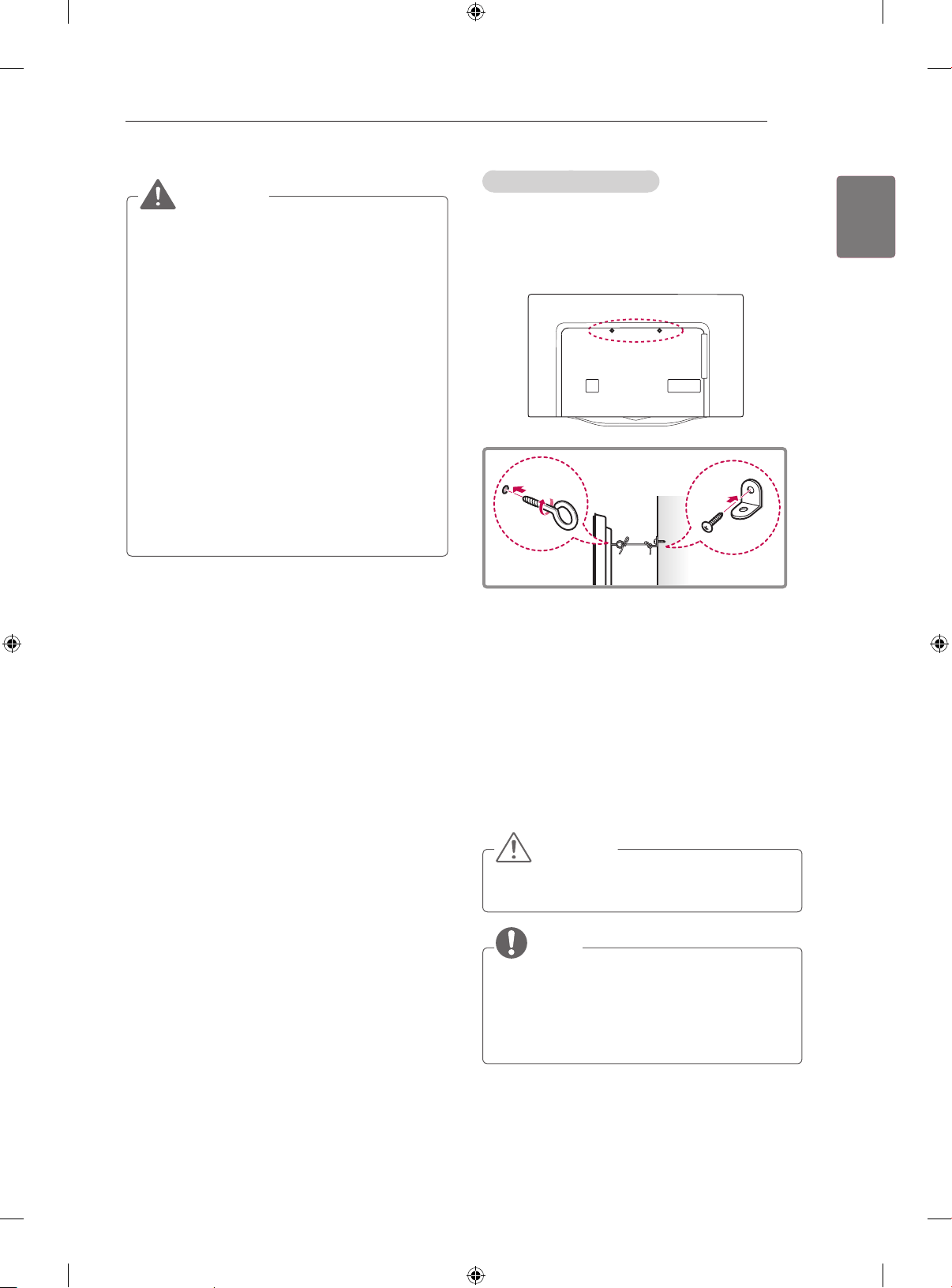

Securing the TV to a wall

(This feature is not available for all models.)

To use the desk-type stand safely, make sure to securely

attach it to a wall.

1 Insert and tighten the eye-bolts, or TV brackets and

bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts posi-

tion, remove the bolts first.

2 Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eye-

bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a

sturdy rope.

Make sure to keep the rope horizontal with the at

surface.

CAUTION

y Make sure that children do not climb on or hang

on the TV.

NOTE

y Use a platform or cabinet that is strong and large

enough to support the TV securely.

y Brackets, bolts and ropes are not provided. You

can obtain additional accessories from your local

dealer.

ENG

ENGLISH

ASSEMBLING AND PREPARING

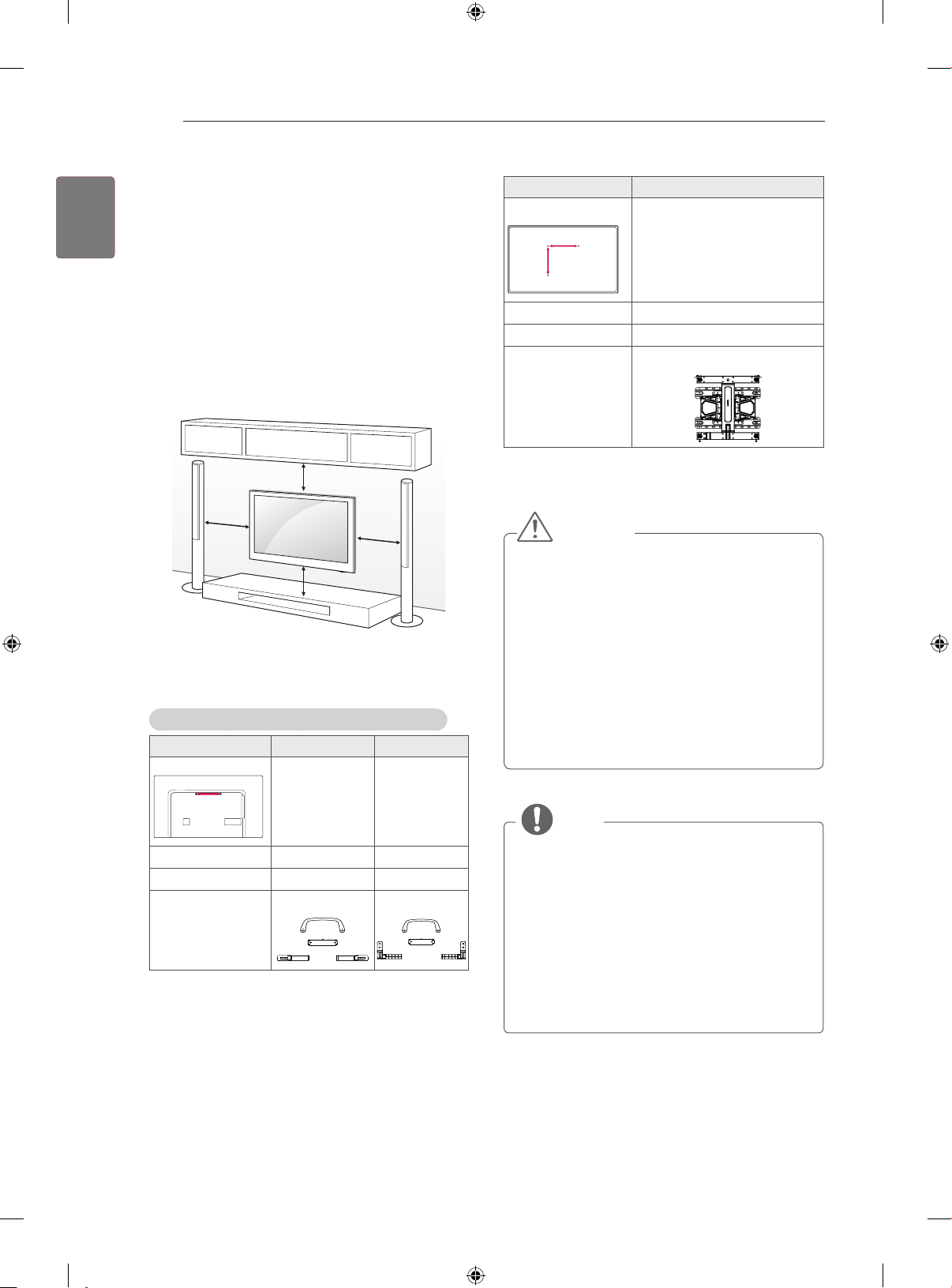

Mounting on a wall

Attach an optional wall mount bracket at the rear of the

TV carefully and install the wall mount bracket on a solid

wall perpendicular to the floor. When you attach the

TV to other building materials, please contact qualified

personnel.

LG recommends that wall mounting be performed by a

qualified professional installer.

We recommend the use of LG’s wall mount bracket.

When you do not use LG’s wall mount bracket,

please use a wall mount bracket where the device is ad-

equately secured to the wall with enough space to allow

connectivity to external devices.

10 cm

Make sure to use screws and wall mount bracket that

meet the VESA standard. Standard dimensions for the

wall mount kits are described in the following table.

Separate purchase(Wall Mounting Bracket)

Model 55EC93** 65EC97**

(A)

210 210

Standard screw

M6 M6

Number of screws

2 2

Wall mount bracket

OSW100

OSW200

Model 77EG97**

VESA (A x B)

400 x 400

Standard screw M6

Number of screws 4

Wall mount bracket

LSW420BX

CAUTION

y Disconnect the power first, and then move or

install the TV. Otherwise electric shock may

occur.

y If you install the TV on a ceiling or slanted wall, it

may fall and result in severe injury.

Use an authorized LG wall mount and contact the

local dealer or qualified personnel.

y Do not over tighten the screws as this may cause

damage to the TV and void your warranty.

y Use the screws and wall mounts that meet the

VESA standard. Any damages or injuries by

misuse or using an improper accessory are not

covered by the manufacturer’s warranty.

NOTE

y Use the screws that are listed on the VESA

standard screw specifications.

y The wall mount kit includes an installation manual

and necessary parts.

y The wall mount bracket is not provided. You can

obtain additional accessories from your local

dealer.

y The length of screws may differ depending on the

wall mount. Make sure to use the proper length.

y For more information, refer to the manual supplied

with the wall mount.

ENG

ENGLISH

ASSEMBLING AND PREPARING

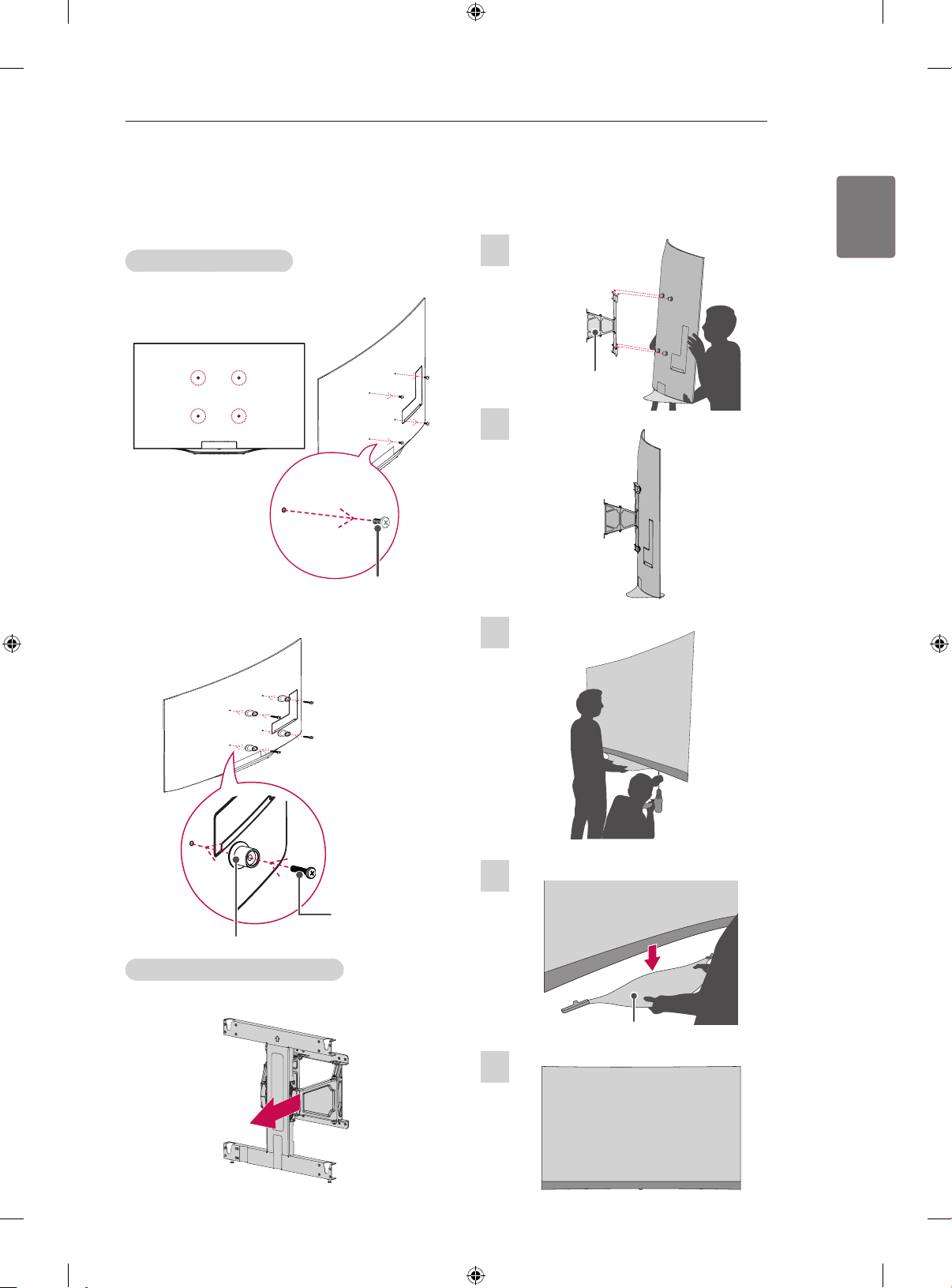

Wall Type Set-up Guide

(Only EG97** - Separate purchase)

Guide spacer assembly

1 Remove the VESA screws (4 EA).

VESA screw

2 Assemble Guide spacer (4 EA) and Guide spacer

screws (4 EA).

Guide spacer

screw

Wall mount bracket installation

1 After installation, move the bracket forward.

How to detach the stand

Type 1. Hanging the TV on the wall before removing a

stand.

Wall mount

bracket

Stand

ENG

ENGLISH

ASSEMBLING AND PREPARING

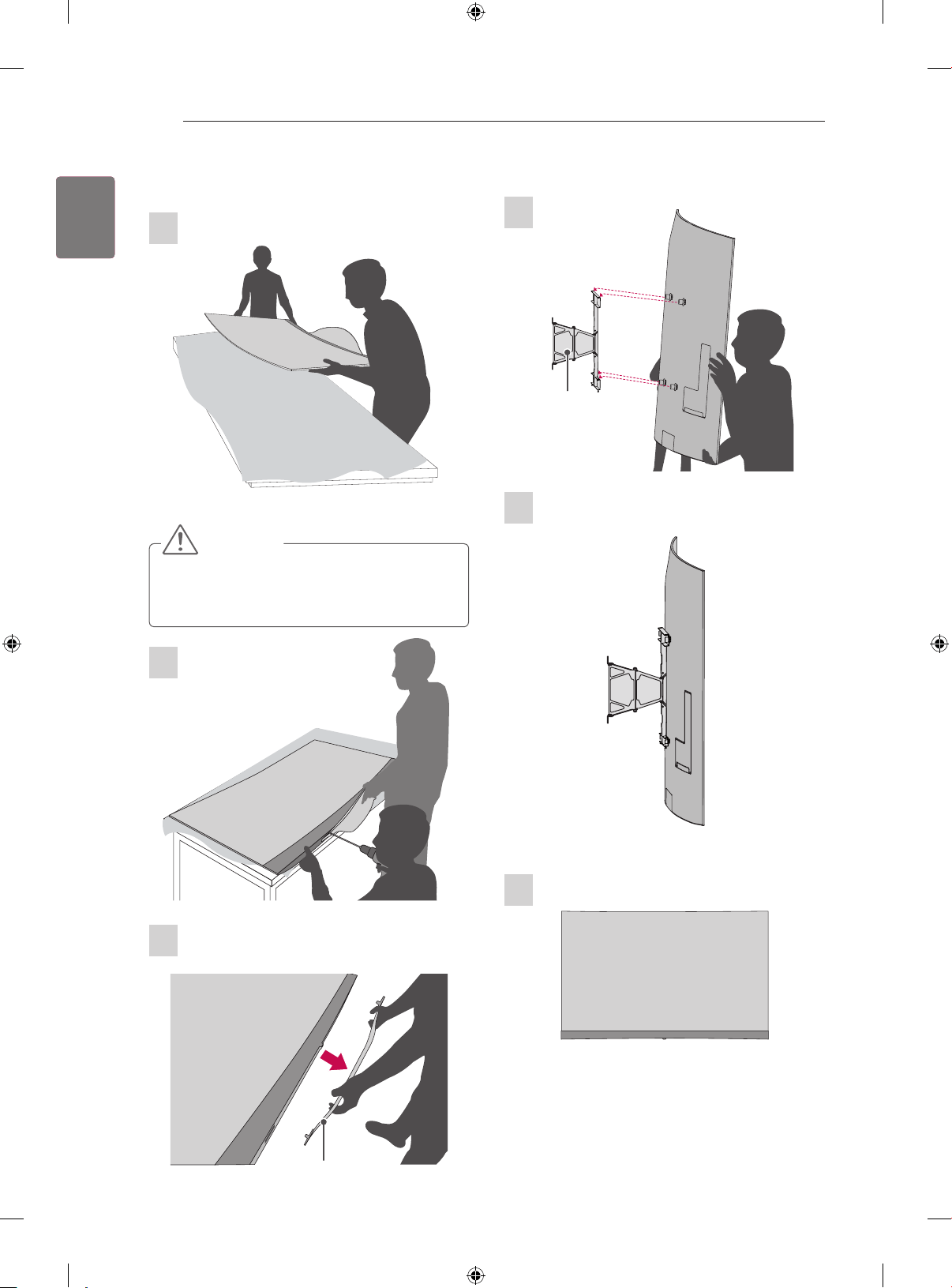

Type 2. Hanging the TV on the wall after removing a

stand.

CAUTION

y When laying the TV on its back on a padded

table or surface, be careful to prevent the TV from

being damaged.

Stand

Wall mount

bracket

ENG

ENGLISH

ASSEMBLING AND PREPARING

2 Fix the cable management with cable management

screw.

M4 x L10

2 EA

NOTE

y When attaching the cable management, use a

magnetic screwdriver.

y If you don’t have a magnetic screwdriver, insert

the screws into the cable management and then

attach it to the TV.

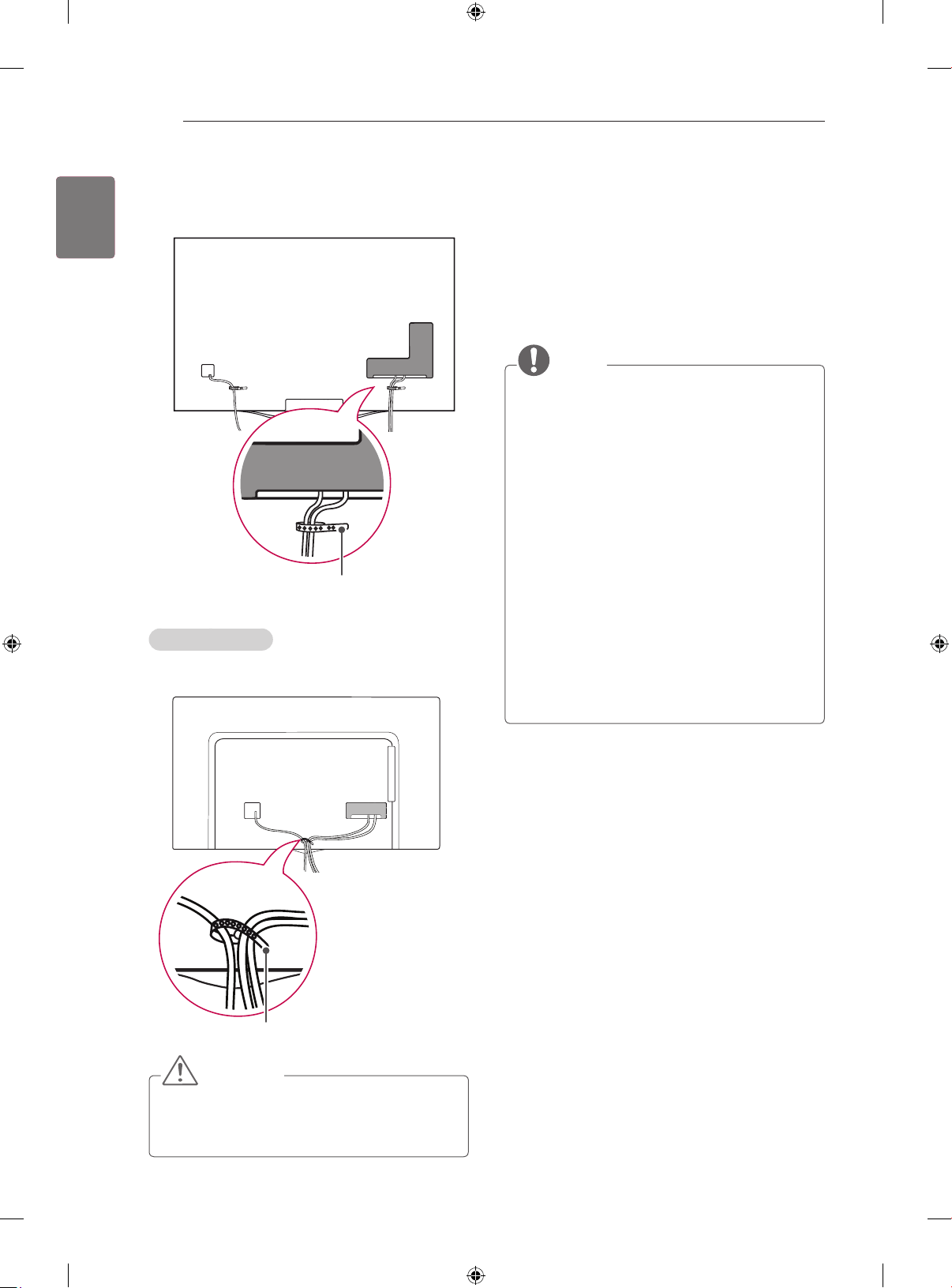

Gather and bind the cables with the cable holder.

Arrange the cables in the cable mangement.

Cable Management

Cable Holder

Tidying cables

(Image shown may differ from your TV.)

Stand Type

(Only EC93**)

Gather and bind the cables with the cable holder.

Cable Holder

(Only EC97**)

1 Put the cable management in the hole of TV back

cover.

Cable

Management

2 EA

ENG

ENGLISH

ASSEMBLING AND PREPARING

(Only EG97**)

Gather and bind the cables with the cable holder.

Cable Holder

Wall Mount Type

(Only EC93**)

Cable Holder

CAUTION

y Do not move the TV by holding the cable holder,

as the cable holder may break, and injuries and

damage to the TV may occur.

Using Built-in Camera

(Only EC97**, EG97**)

You can make a video call or use the motion recognition

function using the built-in camera of the TV. This TV

does not support the use of an external camera.

NOTE

Before using the built-in camera, you must recognize

the fact that you are legally responsible for the use

or misuse of the camera by the relevant national

laws including the criminal law.

The relevant laws include the Personal Information

Protection law which regulates the processing and

transferring of personal information and the law

which regulates the monitoring by camera in a

workplace and other places.

When using the built-in camera, avoid questionable,

illegal, or immoral situations. Other than at public

places or events, consent to be photographed may

be required. We suggest avoiding the following

situations :

(1) Using the camera in areas where the use of

camera is generally prohibited such as restroom,

locker room, fitting room and security area.

(2) Using the camera while causing the infringement of

privacy.

(3) Using the camera while causing the violation of

the relevant regulations or laws.

ENG

ENGLISH

ASSEMBLING AND PREPARING

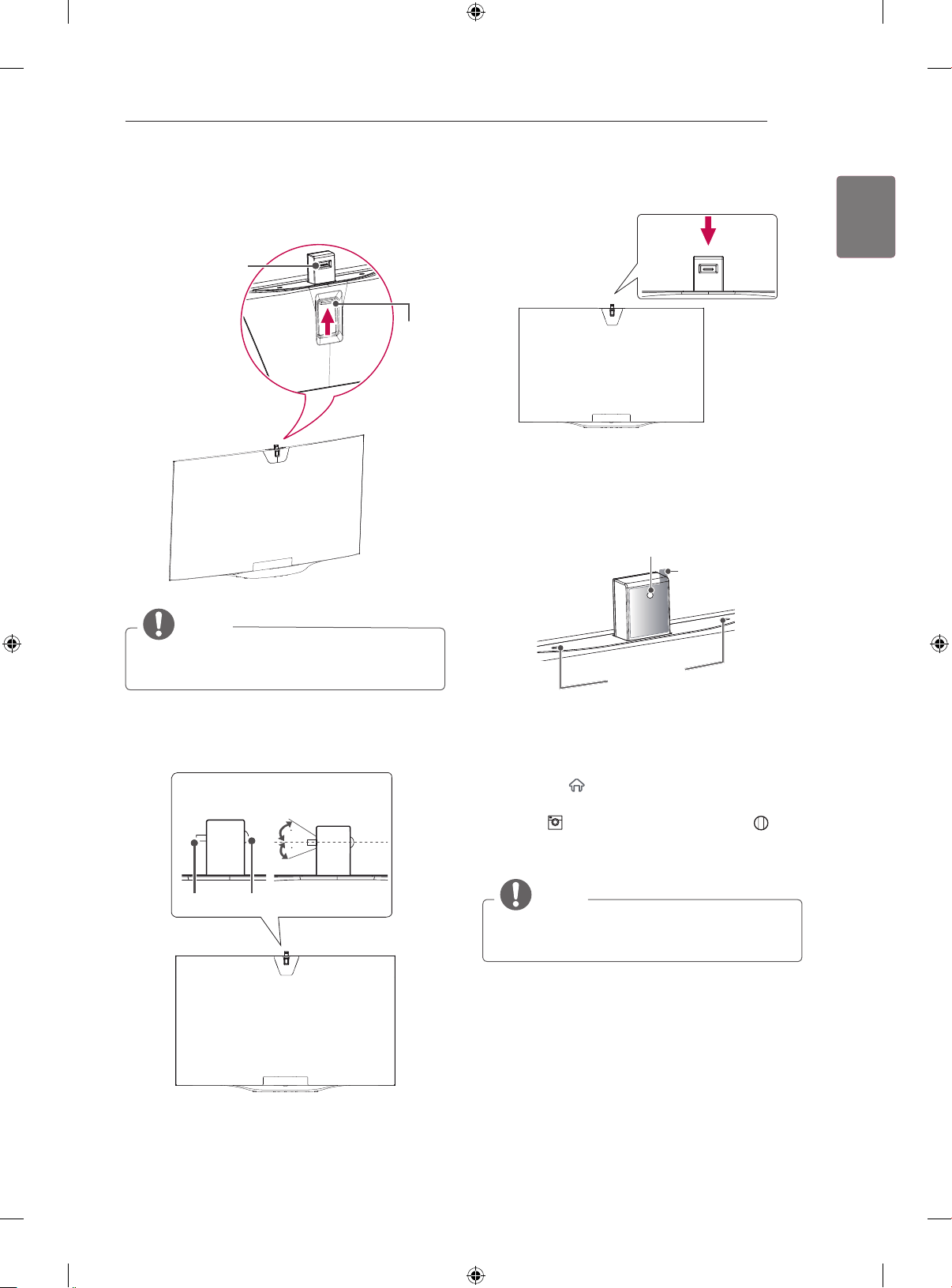

Preparing Built-in Camera

1 Pull up the built-in camera at the back of the TV.

Slide

Angle Adjustment

Lever

NOTE

Remove the protective film before using the built-in

camera.

2 You can adjust the angle of the camera with the

angle adjustment lever on the back on the back of

the built-in camera.

Lever

Lens

[Side View]

3 Push down the built-in camera when you are not

using it.

Name of Parts of Built-in camera

Microphone

Camera Lens

Protective

Film

Checking the Camera’s

Shooting Range

1 Press the (Home) button on the remote

control to display the HOME menu.

2 Select

CAMERA and then press the

Wheel(OK) button.

NOTE

The optimal distance from the camera to use the

motion recgnition function is between 1.5 m and 4.5 m.

ENG

ENGLISH

MAKING CONNECTIONS

This section on MAKING CONNECTIONS mainly uses

diagrams for the EC97** models.

Connect various external devices to the TV and switch in-

put modes to select an external device. For more informa-

tion on external device’s connection, refer to the manual

provided with each device.

Available external devices are: HD receivers, DVD play-

ers, VCRs, audio systems, USB storage devices, PC,

gaming devices, and other external devices.

NOTE

y The external device connection may differ from

the model.

y Connect external devices to the TV regardless of

the order of the TV port.

y If you record a TV program on a DVD recorder or

VCR, make sure to connect the TV signal input

cable to the TV through a DVD recorder or VCR.

For more information of recording, refer to the

manual provided with the connected device.

y Refer to the external equipment’s manual for

operating instructions.

y If you connect a gaming device to the TV, use the

cable supplied with the gaming device.

y In PC mode, there may be noise associated

with the resolution, vertical pattern, contrast or

brightness. If noise is present, change the PC

output to another resolution, change the refresh

rate to another rate or adjust the brightness and

contrast on the PICTURE menu until the picture

is clear.

y In PC mode, some resolution settings may not

work properly depending on the graphics card.

y If Ultra HD content is played via PC, the video

or audio may have disruptions intermittently

depending on your PC’s performance.

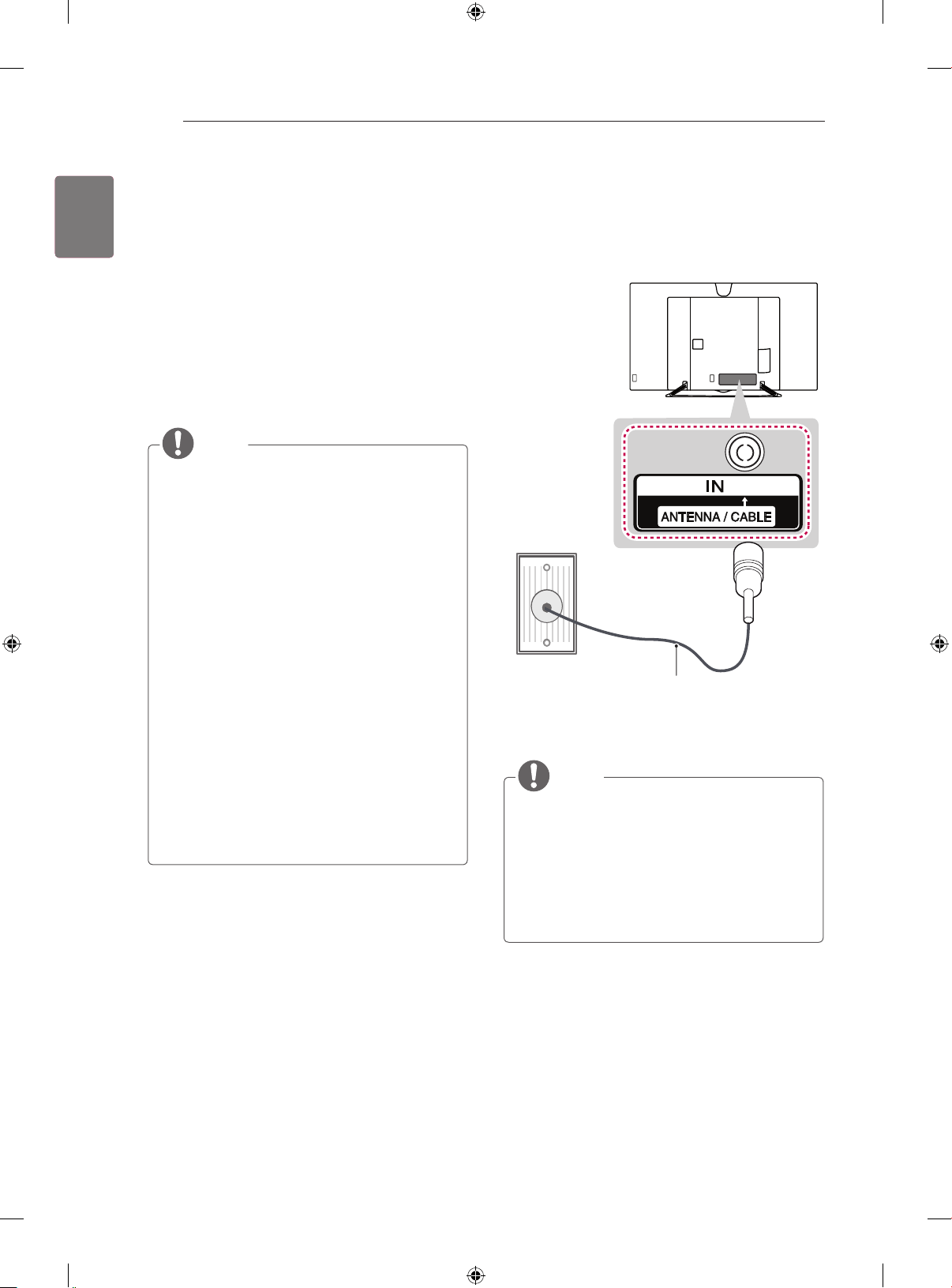

Antenna connection

Connect the TV to a wall antenna socket with an RF cable

(75 Ω).

(*Not

Provided)

Wall Antenna

Socket

NOTE

Use a signal splitter to use more than 2 TVs.

If the image quality is poor, install a signal

amplifier properly to improve the image quality.

If the image quality is poor with an antenna

connected, try to realign the antenna in the

correct direction.

An antenna cable and converter are not provided.

Supported DTV Audio: MPEG, Dolby Digital,

Dolby Digital Plus, HE-AAC

ENG

ENGLISH

MAKING CONNECTIONS

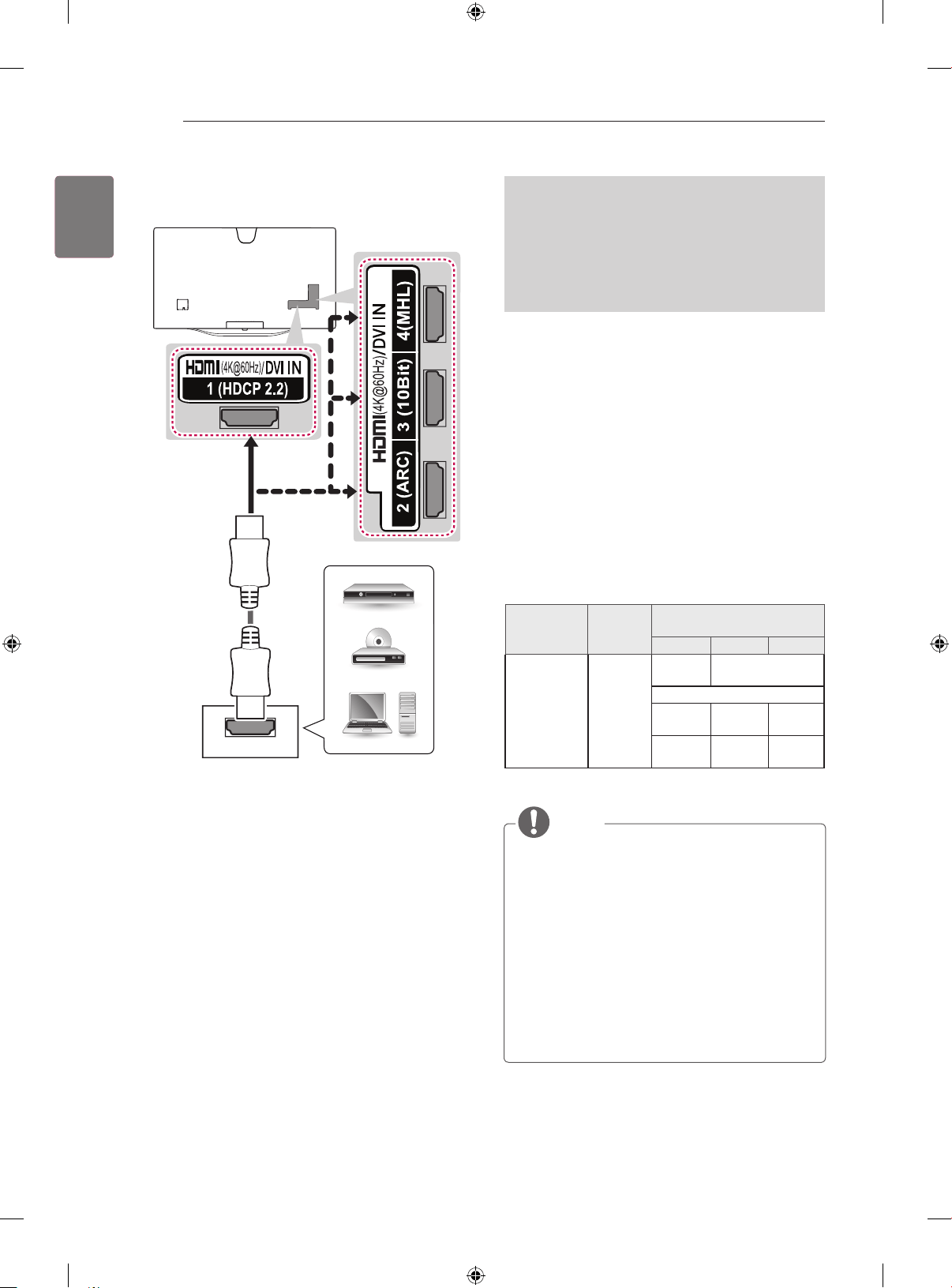

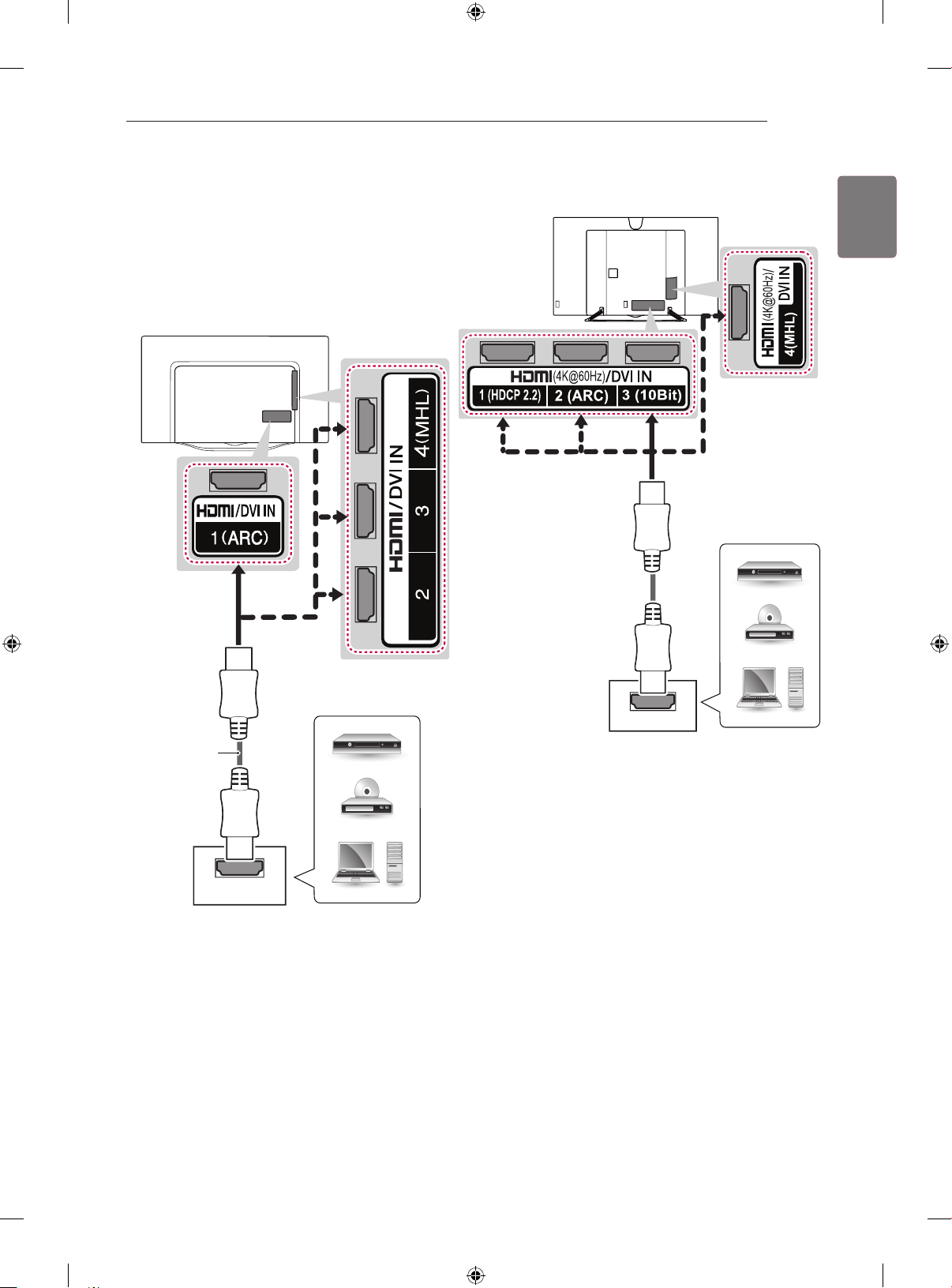

HDMI connection

Transmits the digital video and audio signals from an

external device to the TV. Connect the external device

and the TV with the HDMI cable as shown.

(Only EC93**)

HDMI

DVD / Blu-Ray / PC /

HD Cable Box / HD STB

(*Not Provided)

(Only EC97**)

HDMI

DVD / Blu-Ray / PC /

HD Cable Box / HD STB

ENG

ENGLISH

MAKING CONNECTIONS

ARC (Audio Return Channel)

An external audio device that supports

SIMPLINK and ARC must be connected using

HDMI/DVI IN 1 (ARC) or HDMI(4K @ 60 Hz)/DVI

IN 2 (ARC) port.

When connected with a high-speed HDMI cable,

the external audio device that supports ARC

outputs optical SPDIF without additional optical

audio cable and supports the SIMPLINK function.

(Only EC97**, EG97**)

1) HDMI specifications may be different for each input

port, so make sure to check the device specifications

before connecting.

2) The HDMI IN 3 port is especially suitable for the

specifications to enjoy UHD Video (4:4:4, 4:2:2) of 4K

@ 50/60 Hz.

However, video or audio may not be supported

depending on the specifications of the external

equipment. In that case, use any other HDMI IN port.

3) Contact customer service for more information on the

HDMI specifications of each input port.

4K @ 50/60 Hz Support Format

Resolution

Frame

rate (Hz)

Colour Depth /

Chroma Sampling

8 bit 10 bit 12 bit

3840 x 2160p

4096 x 2160p

50.00

59.94

60.00

YCbCr

4:2:0

YCbCr 4:2:0

YCbCr 4:2:2

YCbCr

4:4:4

- -

RGB

4:4:4

- -

1: Only Supported at HDMI IN 3 Port

NOTE

It is recommended to use the TV with the HDMI

connection for the best image quality.

Use the latest High Speed HDMI™ Cable with

CEC (Customer Electronics Control) function.

High Speed HDMI™ Cables are tested to carry an

HD signal up to 1080p and higher.

Supported HDMI Audio format : Dolby Digital

(32 KHz, 44.1 KHz, 48 KHz), DTS (44.1 KHz, 48

KHz), PCM (32 KHz, 44.1 KHz, 48 KHz, 96 KHz,

192 KHz)

When you use HDMI IN 3 port, it is recommended

that you use the cable provided. If you want to use

a regular HDMI cable, use one that is a highspeed

HDMI cable (3m or less). (Only EC97**, EG97**)

(Only EG97**)

DVD / Blu-Ray / PC /

HD Cable Box / HD STB

HDMI

ENG

ENGLISH

MAKING CONNECTIONS

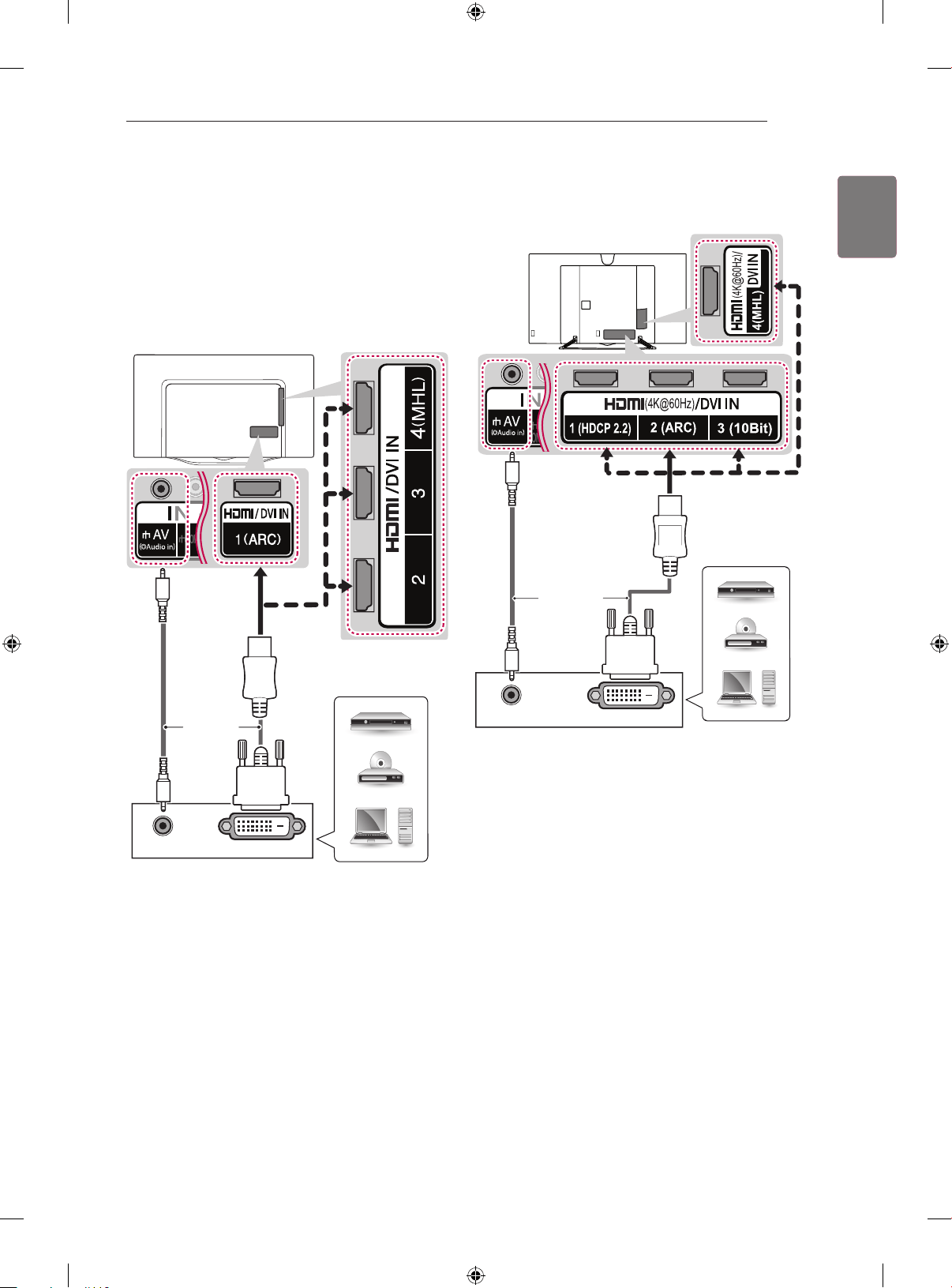

DVI to HDMI connection

Transmits the digital video signal from an external device

to the TV. Connect the external device and the TV with

the DVI-HDMI cable as shown. To transmit an audio

signal, connect an audio cable.

(Only EC93**)

AUDIO OUT

DVI OUT

DVD / Blu-Ray / PC /

HD Cable Box / HD STB

(*Not

Provided)

(Only EC97**)

AUDIO OUT

DVI OUT

DVD / Blu-Ray / PC /

HD Cable Box / HD STB

(*Not

Provided)

ENG

ENGLISH

MAKING CONNECTIONS

Component connection

Transmits analogue video and audio signals from an

external device to the TV. Connect the external device

and the TV with a component gender cable as shown.

VIDEO

AUDIO

L R

COMPONENT

AUDIO

VIDEO

GREEN GREEN

GREEN

BLUE

RED

RED RED

RED

WHITE

YELLOW

(Use the composite

gender cable

provided.)

GREEN

(Use the component

gender cable

provided.)

DVD / Blu-Ray / HD Cable Box

(*Not Provided)

NOTE

y If cables are not installed correctly, it could cause

this image to display in black and white or with

distorted colours.

(Only EG97**)

AUDIO OUT

DVI OUT

DVD / Blu-Ray / PC /

HD Cable Box / HD STB

(*Not

Provided)

NOTE

Depending on the graphics card, DOS mode may

not work if a HDMI to DVI Cable is in use.

When using the HDMI / DVI cable, Single link is

only supported.

ENG

ENGLISH

MAKING CONNECTIONS

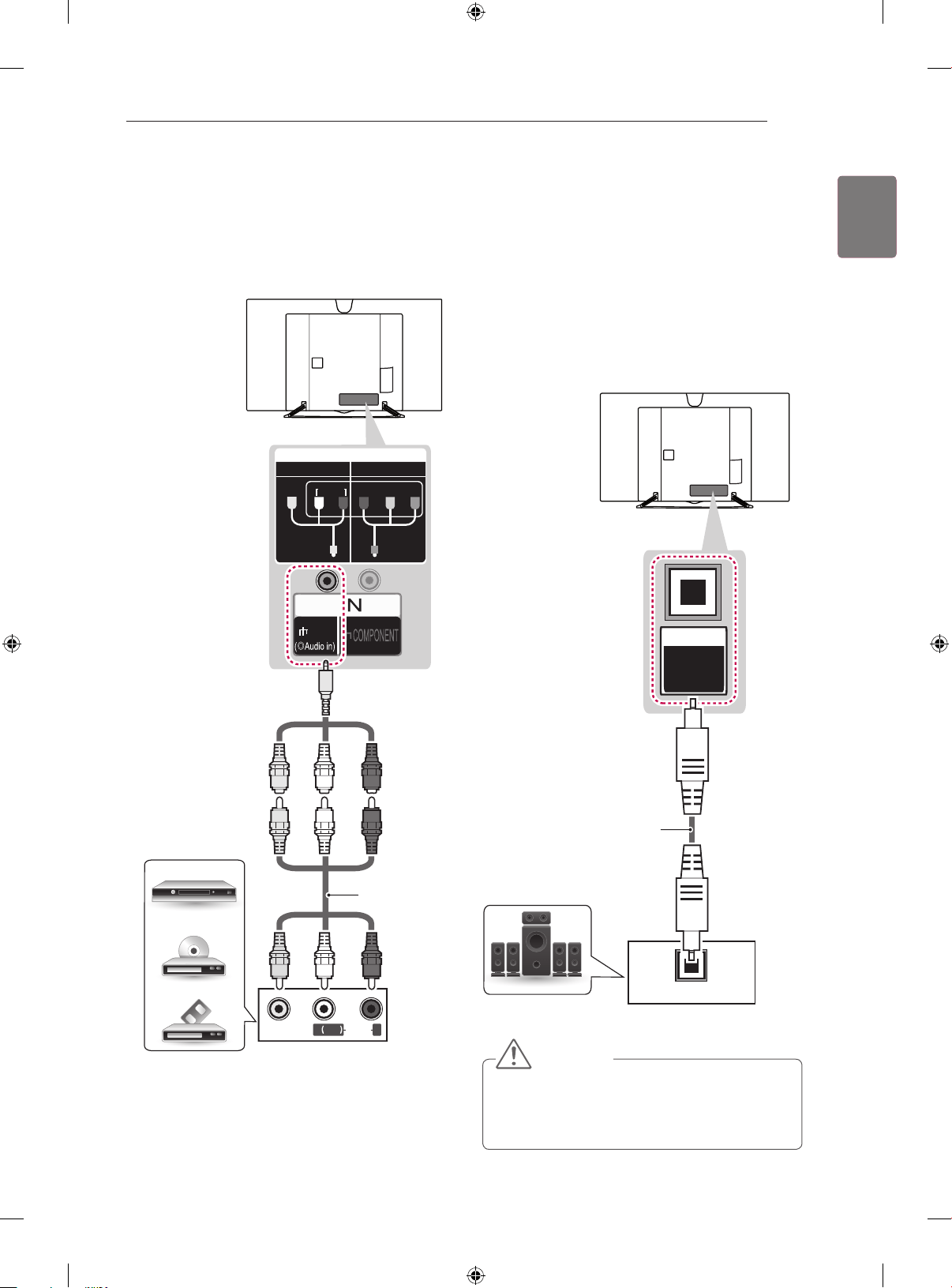

Composite connection

Transmits analogue video and audio signals from an

external device to the TV. Connect the external device

and the TV with a composite gender cable as shown.

VIDEO

MONO

( )

AUDIO

L R

COMPONENT

AUDIO

VIDEO

RED RED

RED

WHITE

YELLOW YELLOW

YELLOW

(Use the composite gender

cable provided.)

(*Not Provided)

DVD / Blu-Ray / HD Cable Box / VCR

Audio connection

You may use an external audio system instead of the

built-in speaker.

Digital optical audio connection

Transmits a digital audio signal from the TV to an

external device. Connect the external device and the TV

with the optical audio cable as shown.

OUT

OPTICAL

DIGITAL

AUDIO

OPTICAL

AUDIO IN

(*Not Provided)

Digital Audio System

CAUTION

y Do not look into the optical output port. Looking at

the laser beam may damage your vision.

y Audio with ACP (Audio Copy Protection) function

may block digital audio output.

ENG

ENGLISH

MAKING CONNECTIONS

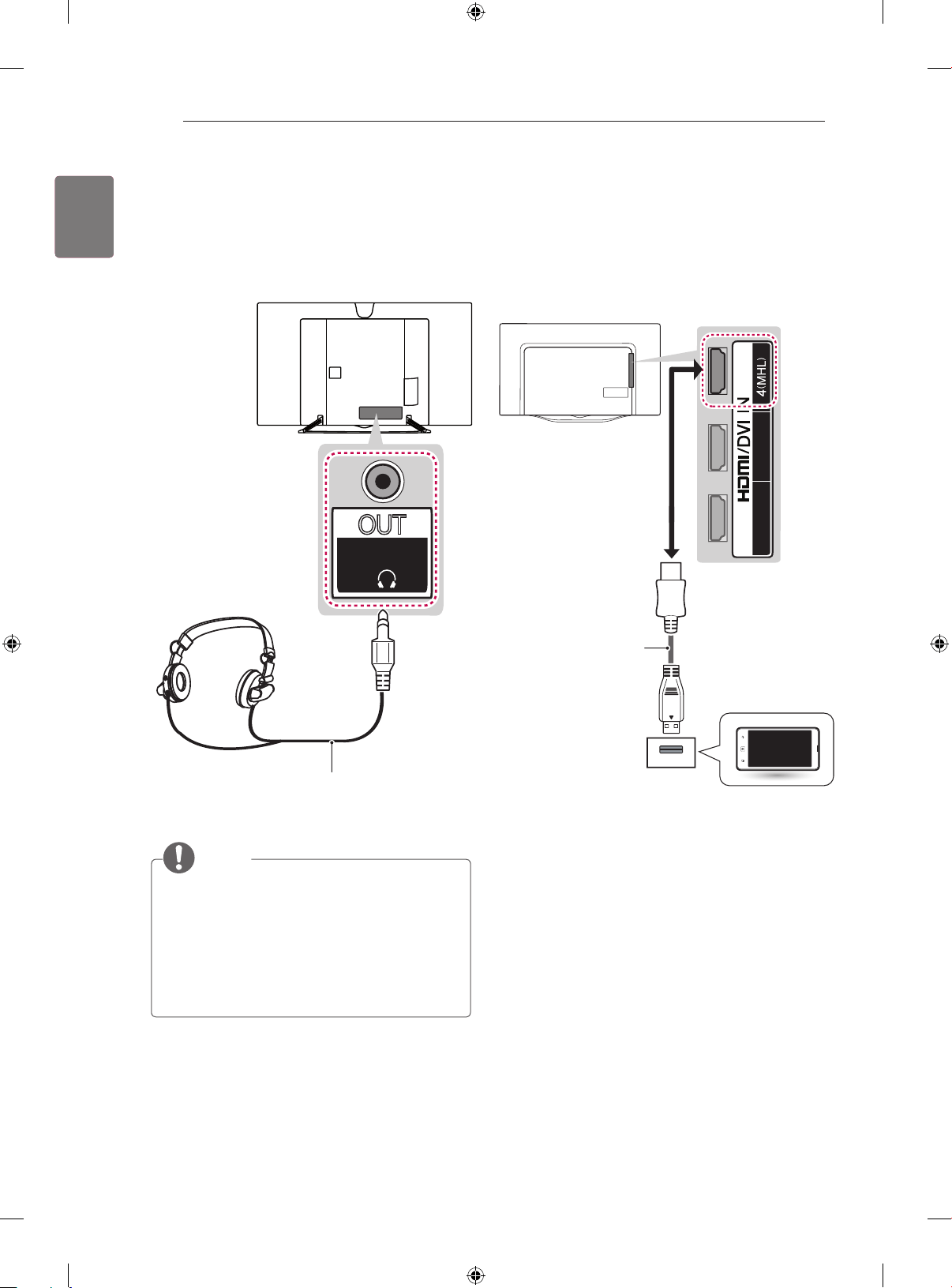

Headphone connection

Transmits the headphone signal from the TV to an exter-

nal device. Connect the external device and the TV with

the headphone as shown.

Ext.Speaker

H/P

OUT

(*Not Provided)

NOTE

y AUDIO menu items are disabled when connect-

ing a headphone.

y Optical Digital Audio Out is not available when

connecting a headphone.

y Headphone impedance: 16 Ω

y Max audio output of headphone: 0.627 mW to

1.334 mW

y Headphone jack size: 0.35 cm

MHL connection

Mobile High-definition Link (MHL) is an interface for

transmitting digital audiovisual signals from mobile

phones to television sets.

(Only EC93**)

MHL passive cable

(*Not Provided)

Mobile phone

ENG

ENGLISH

MAKING CONNECTIONS

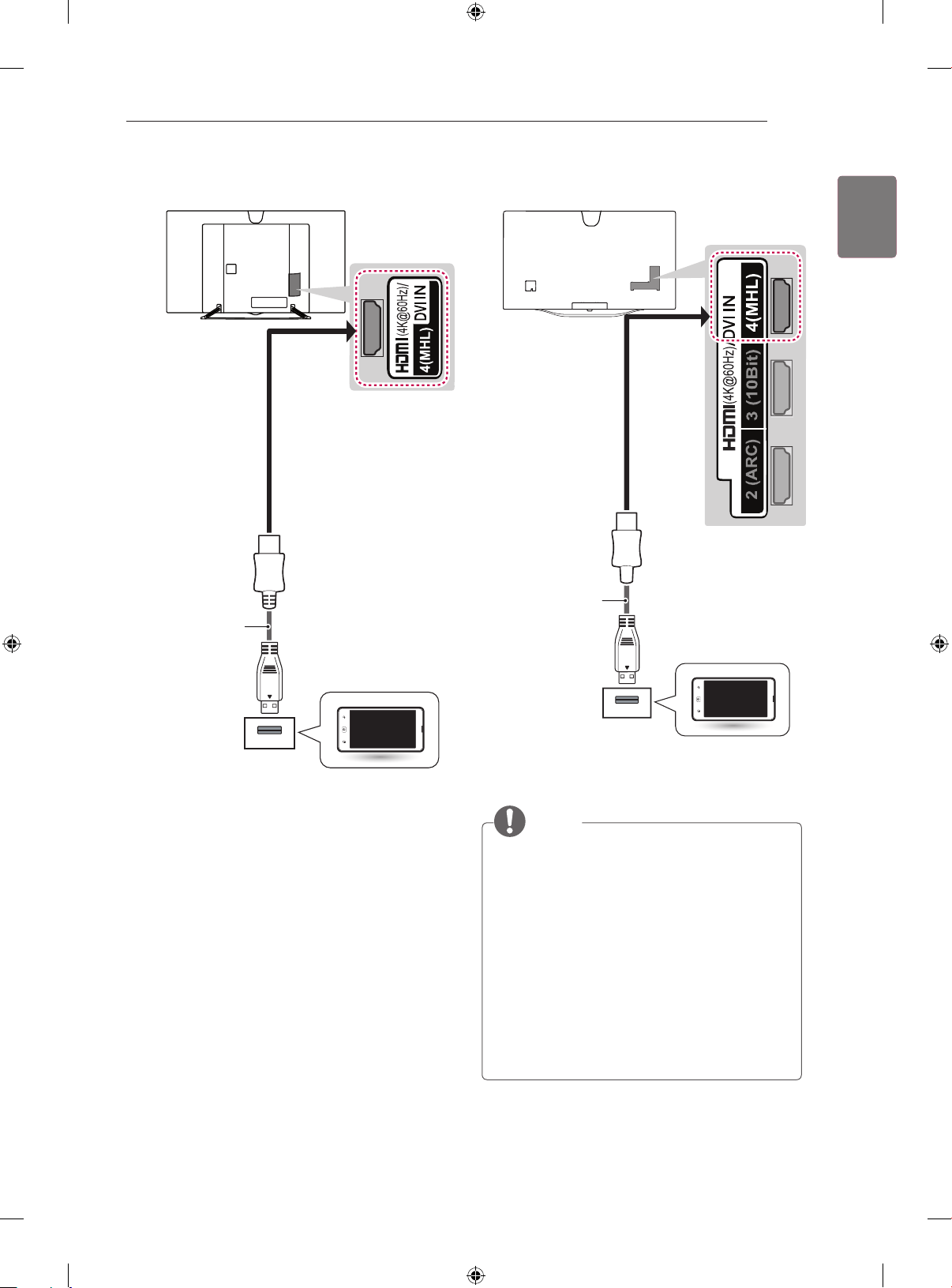

(Only EC97**)

MHL passive cable

(*Not Provided)

Mobile phone

(Only EG97**)

MHL passive cable

(*Not Provided)

Mobile phone

NOTE

Connect the mobile phone to the HDMI/DVI IN

4(MHL) or HDMI(4K @ 60 Hz)/DVI IN 4(MHL)

port to view the phone screen on the TV.

The MHL passive cable is needed to connect the

TV and a mobile phone.

This only works for the MHL-enabled phone.

Some applications can be operated by the remote

control.

For some mobile phones supporting MHL, you

can control with the magic remote control.

Remove the MHL passive cable from the TV

when:

» the MHL function is disabled

» your mobile device is fully charged in standby

mode

ENG

ENGLISH

MAKING CONNECTIONS

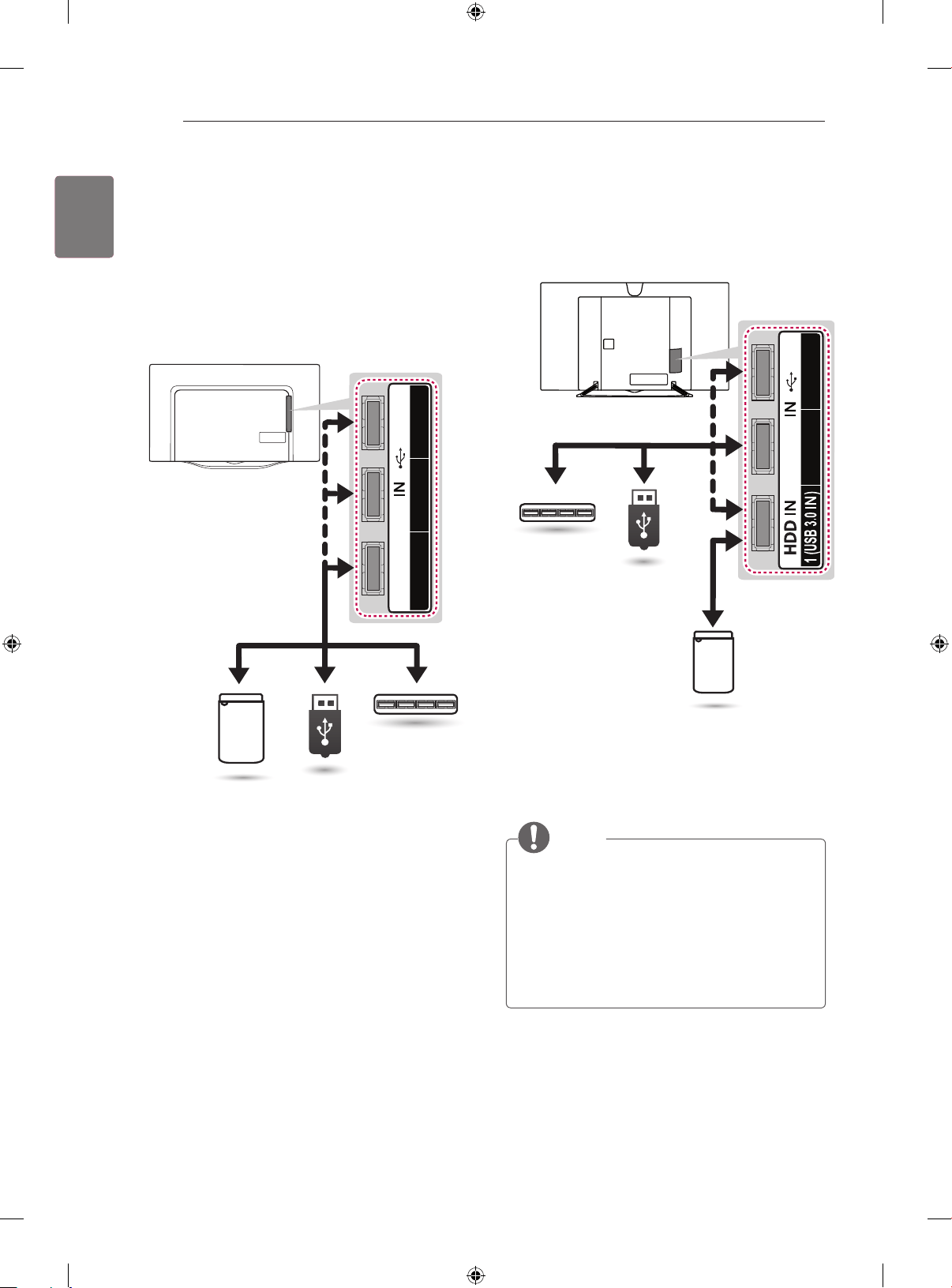

USB connection

Connect a USB storage device such as a USB flash

memory, external hard drive or a USB memory card

reader to the TV and access the Smart Share menu to

use various multimedia files.

(Only EC93**)

USB

(*Not Provided)

HUB

USB

(*Not Provided)

HDD

(Only EC97**, EG97**)

USB

(*Not Provided)

HUB

USB

(*Not Provided)

HDD

NOTE

Some USB Hubs may not work. If a USB device

connected using a USB Hub is not detected,

connect it to the USB IN port on the TV directly.

Connect the external power source if your USB is

needed.

Connecting via USB 3.0 : Some USB device may

not work if it dose not meet USB 3.0 standard. In

case, connect it to USB IN 2 or USB IN 3 port.

(Only EC97**, EG97**)

ENG

ENGLISH

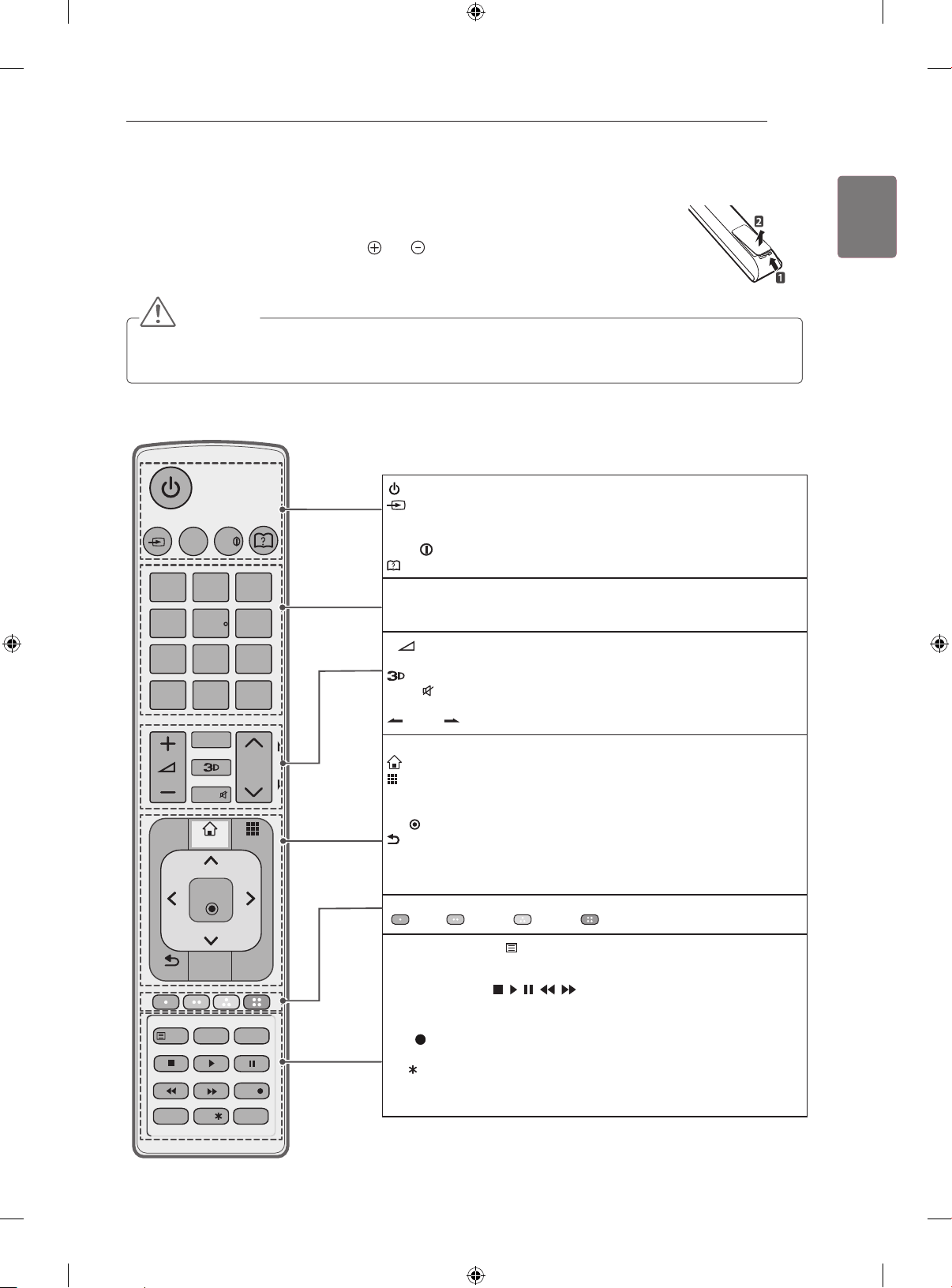

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control. Please read

this manual carefully and use the TV correctly. To replace batteries, open the battery cover, re-

place batteries (1.5 V AAA) matching the

and ends to the label inside the compartment,

and close the battery cover. To remove the batteries, perform the installation actions in reverse.

REMOTE CONTROL

FAV

MUTE

INPUT

EXIT

1 2

4 5 6

7 8

GUIDE

Q.VIEW

MY APPS

INFO

LIVE TV

SUBTITLE

REC

Q.MENU

T.OPTTEXT

SMART

SETTINGS

BACK

AD/

SLEEP

TV/RAD

LIVE MENU

RECENT

(POWER) Turns the TV on or off.

INPUT Changes the input source.

Q.MENU

Accesses the Quick menus.

SETTINGS

Accesses the main menus.

INFO

Views the information of the current programme and screen.

(User Guide) Sees User Guide.

Number buttons Enters numbers.

GUIDE Shows programme guide.

Q.VIEW Returns to the previously viewed programme.

- Adjusts the volume level.

FAV Accesses your favourite programme list.

Uses for viewing 3D video.

MUTE Mutes all sounds.

ꕌPꕍ Scrolls through the saved programmes.

PAGE Moves to the previous or next screen.

RECENT Shows the previous history.

SMART

Accesses the HOME menu.

MY APPS

Shows the list of Apps.

Navigation Buttons (up/down/left/right)

Scrolls through menus or op-

tions.

OK Selects menus or options and confirms your input.

BACK Returns to the previous level.

LIVE MENU Shows the list of Recommended, Programmes, Search

and Recorded.

EXIT

Clears on-screen displays and return to TV viewing.

Coloured buttons These access special functions in some menus.

(

: Red, : Green, : Yellow, : Blue)

TELETEXT buttons(

TEXT, T.OPT) These buttons are used for teletext.

SLEEP Sets the length of time until the TV to turns off.

LIVE TV

Returns to the LIVE TV.

Control buttons (

) Controls the Premium contents, Time

Machine or SmartShare menus or the SIMPLINK compatible devices

(USB or SIMPLINK or Time Machine

REC

Uses to adjust Time Machine menu.

SUBTITLE Recalls your preferred subtitle in digital

mode.

AD/ By pressing the AD button, audio descriptions function will be

enabled.

TV/RAD

Selects Radio, TV and DTV programme.

(Depending on model)

CAUTION

Do not mix old and new batteries, as this may damage the remote control.

In Analogue TV and some countries, some remote control buttons may not work.

The remote control will not be included for all sales market.

Make sure to point the remote control toward the remote control sensor on the TV.

ENG

ENGLISH

MAGIC REMOTE FUNCTIONS

When the message "Magic remote battery is low. Change the battery." is displayed, replace the

battery.

To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching

and

ends to the label inside the compartment, and close the battery cover. Be sure to point the magic

remote toward the remote control sensor on the TV.

To remove the batteries, perform the installation actions in reverse.

CAUTION

y Do not mix old and new batteries, as this may damage the remote control.

y In Analogue TV and some countries, some remote control buttons may not work.

Wheel (OK)

Press the center of the Wheel button to

select a menu.

You can change programmes by using

the wheel button.

(BACK)

Returns to the previous screen.

(POWER)

Turns the TV on or off.

(Home)

Accesses the Home menu.

Coloured buttons

These access special functions in some

menus.

(

: Red, : Green, : Yellow,

: Blue)

(EXIT to LIVE)

Switches among broadcast (antenna)

and various inputs.

Adjusts the volume level.

Scrolls through the saved programmes.

Displays the Screen Remote.

* Accesses the Universal Control

Menu. (Depending on model)

* Pressing and holding the

but-

ton will display a menu to select an

external device that is connected to

the TV.

Used for viewing 3D video.

(MUTE)

Mutes all sounds.

* By pressing and holding the

but-

ton, audio descriptions function will

be enabled. (Depending on model)

Navigation buttons

(up/down/left/right)

Press the up, down, left or right button to

scroll the menu.

If you press

buttons while

the pointer is in use, the pointer will

disappear from the screen and Magic

Remote will operate like a general

remote control.

To display the pointer on the screen again,

shake Magic Remote to the left and right.

(Voice recognition)

/INPUT

(Voice recognition)

Network connection is required to use the voice recognition function.

1. Press the voice recognition button.

2. Speak when the voice display window appears on the left of the TV screen.

• Use the Magic Remote no further than 10 cm from your face.

• The voice recognition may fail when you speak too fast or too slowly.

• The recognition rate may vary depending on the user’s characteristics (voice, pronunciation, intonation, and

speed) and the environment (noise and TV volume).

ENG

ENGLISH

MAGIC REMOTE FUNCTIONS

Registering Magic Remote

How to register the Magic Remote

BACK

HOME

MY APPS

(Wheel)

To use the Magic Remote, rst pair

it with your TV.

1 Put batteries into the Magic Re-

mote and turn the TV on.

2 Point the Magic Remote at your

TV and press the

Wheel (OK)

on the remote control.

* If the TV fails to register the Magic

Remote, try again after turning the

TV off and back on.

How to deregister the Magic Remote

(BACK)

(Home)

Press the

(BACK) and

(Home) buttons at the same time,

for ve seconds, to unpair the Magic

Remote with your TV.

* Pressing and holding the

(EXIT

to LIVE) button will let you cancel

and re-register Magic Remote at

once.

How to use magic remote

y Shake the Magic Remote slightly

to the right and left or press

(Home), , buttons to make

the pointer appear on the screen.

(In some TV models, the pointer

will appear when you turn the

Wheel button.)

y If the pointer has not been used for

a certain period of time or Magic

Remote is placed on a flat surface,

then the pointer will disappear.

y If the pointer is not responding

smoothly, you can reset the point-

er by moving it to the edge of the

screen.

y The Magic Remote depletes bat-

teries faster than a normal remote

due to the additional features.

Precautions to Take when Using

the Magic Remote

y Use the Magic Remote within the maximum

communication distance (10 m). Using the Magic

Remote beyond this distance, or with an object

obstructing it, may cause a communication failure.

y A communication failure may occur due to nearby

devices. Electrical devices such as a microwave

oven or wireless LAN product may cause interfer-

ence, as these use the same bandwidth (2.4 GHz)

as the Magic Remote.

y The Magic Remote may be damaged or may mal-

function if it is dropped or receives a heavy impact.

y Take care not to bump into nearby furniture or

other people when using the Magic Remote.

y Manufacturer and installer cannot provide service

related to human safety as the applicable wireless

device has possibility of electric wave interference.

y It is recommended that an Access Point (AP) be

located more than 1 m away from the TV. If the

AP is installed closer than 1 m, the Magic Remote

may not perform as expected due to frequency

interference.

ENG

ENGLISH

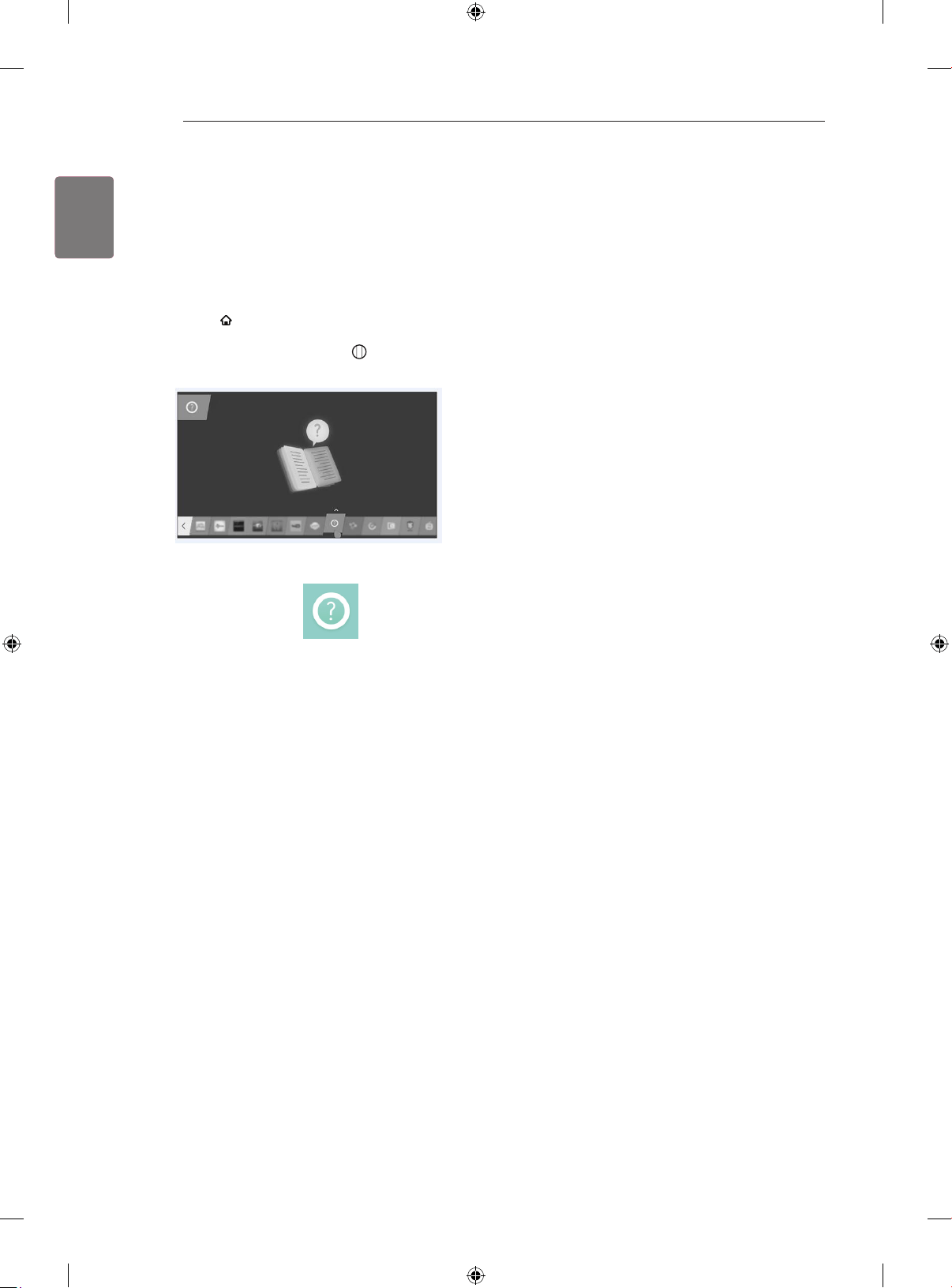

USING THE USER GUIDE

User Guide allows you to more easily access the detailed

TV information.

1 Press the (Home) button to access the Home menu.

2 Select User Guide and press the Wheel(OK)

button.



ENG

ENGLISH

MAINTENANCE / TROUBLESHOOTING

MAINTENANCE

Cleaning Your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION

y Make sure to turn the power off and disconnect the power cord and all other cables first.

y When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to

prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

y To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

y To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then

wipe immediately with a dry cloth.

CAUTION

y Avoid touching the screen at all times, as this may result in damage to the screen.

y Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in

scratches on the screen and image distortions.

y Do not use any chemicals as this may damage the product.

y Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

Problem Solution

Cannot control the TV with

the remote control.

y Check the remote control sensor on the product and try again.

y Check if there is any obstacle between the product and the remote control.

y Check if the batteries are still working and properly installed (

to , to ).

No image display and no

sound is produced.

y Check if the product is turned on.

y Check if the power cord is connected to a wall outlet.

y Check if there is a problem in the wall outlet by connecting other products.

The TV turns off suddenly. y Check the power control settings. The power supply may be interrupted.

y Check if the Sleep Timer or Timer Power Off feature is activated in the TIMERS set-

tings.

y If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes

of inactivity.

When connecting to the PC

(HDMI/DVI), ‘No signal’ or

‘Invalid Format’ is displayed.

y Turn the TV off/on using the remote control.

y Reconnect the HDMI cable.

y Restart the PC with the TV on.

ENG

ENGLISH

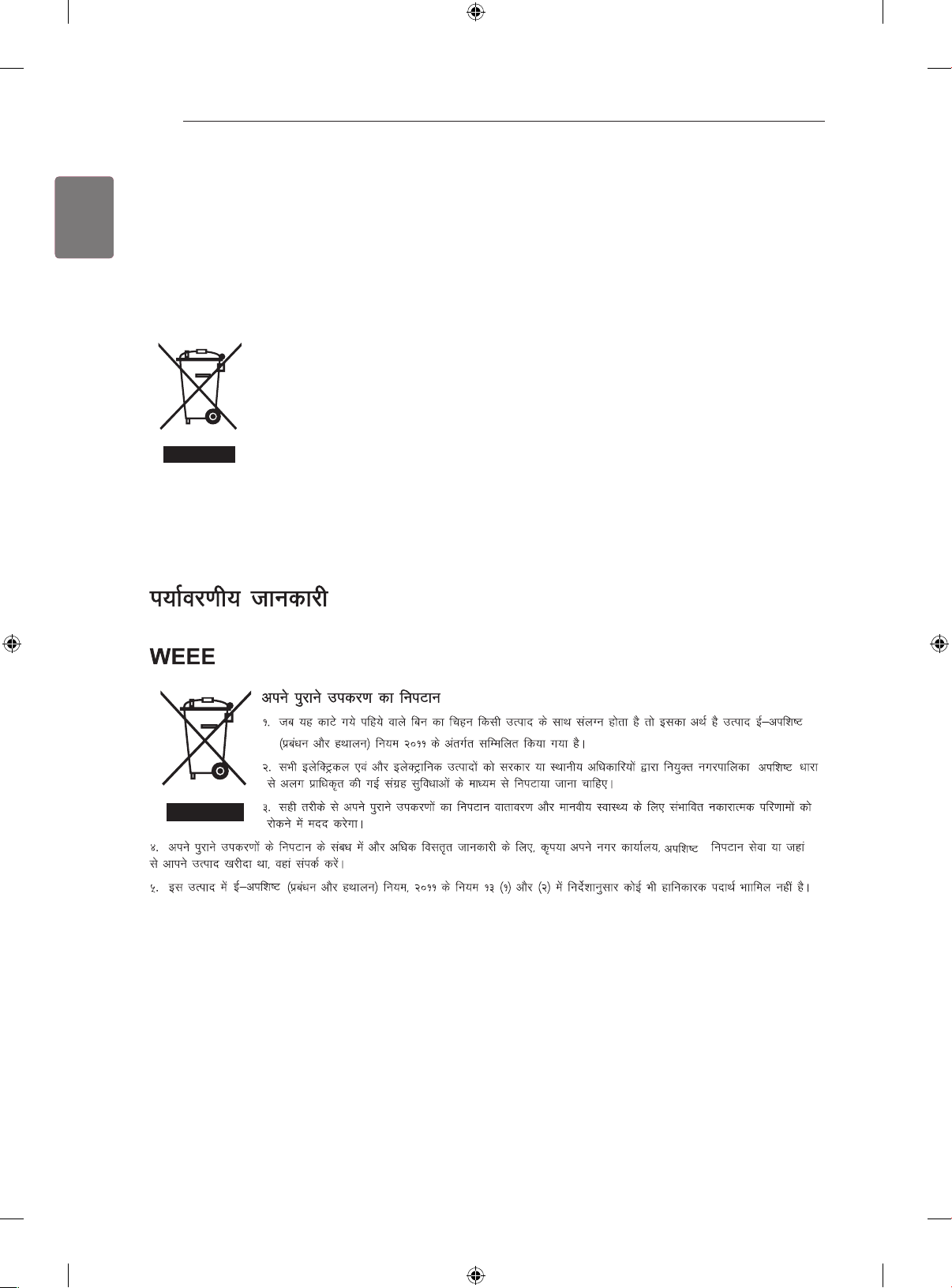

ENVIRONMENTAL INFORMATION

(Only India)

WEEE

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered

by the e-waste (Management and Handling) Rules, 2011.

2. All electrical and electronic products should be disposed of separately from the municipal waste

stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative

consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city office,

waste disposal service or the shop where you purchased the product.

5. This product does not contain any of the hazardous substances as specified in the rule 13 (1) and (2) of the e-waste

(Management and Handling) Rules, 2011.

ENG

ENGLISH

SPECIFICATIONS

(Only EC93**)

Wireless module (LGSBW41) Specication

Wireless LAN Bluetooth

Standard IEEE 802.11a/b/g/n Standard Bluetooth Version 3.0

Frequency Range

2400 to 2483.5 MHz

5150 to 5250 MHz

5725 to 5850 MHz (for Non EU)

Frequency Range 2400 to 2483.5 MHz

Output Power

(Max.)

802.11a: 13 dBm

802.11b: 15 dBm

802.11g: 14 dBm

802.11n - 2.4GHz: 16 dBm

802.11n - 5GHz: 16 dBm

Output Power

(Max.)

10 dBm or Lower

y Because band channel used by the country could be different, the user can not change or adjust the operating fre-

quency and this product is set for the regional frequency table.

y This device should be installed and operated with minimum distance 20 cm between the device and your body. And

this phrase is for the general statement for consideration of user environment.

0197

(Only EC97**, EG97**)

Wireless module (LGSWF41) Specication

Standard IEEE 802.11a/b/g/n/ac

Frequency Range

2400 to 2483.5 MHz

5150 to 5250 MHz

5725 to 5850 MHz (for Non EU)

Output Power

(Max.)

802.11a: 14.5 dBm

802.11b: 16 dBm

802.11g: 13.5 dBm

802.11n - 2.4GHz: 14 dBm

802.11n - 5GHz: 15.5 dBm

802.11ac - 5GHz: 16 dBm

y Because band channel used by the country could be different, the user can not change or adjust the operating fre-

quency and this product is set for the regional frequency table.

y This device should be installed and operated with minimum distance 20 cm between the device and your body.

And this phrase is for the general statement for consideration of user environment.

0197

Bluetooth module (BM-LDS401) Specication

Standard Bluetooth Version 3.0

Frequency Range 2400 to 2483.5MHz

Output Power

(Max.)

10dBm or Lower

ENG

ENGLISH

SPECIFICATIONS

Product specifications may be changed without prior notice due to upgrade of product functions.

For the power supply and power consumption, refer to the label attached to the product.

MODEL

55EC93**

55EC930T-TA

55EC939Y-TA

Dimensions

(W x H x D)

With stand (mm)

1225 x 753 x 204

Without stand (mm)

1225 x 715 x 44

Weight

With stand (kg) 16.7

Without stand (kg) 14.7

Power requirement

AC 100-240 V~ 50 / 60 Hz

MODEL

65EC97**

65EC970T-TA

65EC979Y-TA

Dimensions

(W x H x D)

With stand (mm)

1447 x 880 x 256.6

Without stand (mm)

1447 x 844 x 56.3

Weight

With stand (kg) 25.5

Without stand (kg) 24.1

Power requirement

AC 100-240 V~ 50 / 60 Hz

MODEL

77EG97**

77EG970T-TA

77EG979Y-TA

Dimensions

(W x H x D)

With stand (mm)

1718 x 1110 x 322

Without stand (mm)

1718 x 1064 x 34.7

Weight

With stand (kg) 43.3

Without stand (kg) 39.9

Power requirement

AC 100-240 V~ 50 / 60 Hz

Environment

condition

Operating Temperature 0 °C to 40 °C

Operating Humidity Less than 80 %

Storage Temperature -20 °C to 60 °C

Storage Humidity Less than 85 %

Digital TV

(Depending on Country)

Analogue TV

(Depending on Country)

Television System DVB-T(*DVB-T/T2)

PAL B/B, PAL B/G, PAL D/K, PAL-I

SECAM B/G, SECAM D/K

NTSC-M

Programme Coverage VHF, UHF VHF, UHF, CATV

Maximum number of storable

programmes

DVB-T/T2 & Analogue TV : 1,500

External Antenna Impedance 75 Ω

* : Only DVB-T2 support models.

Record the model number and serial number of

the TV.

Refer to the label on the back cover and quote

this information to your dealer when requiring

any service.

MODEL

SERIAL

(Only DTV)

OWNER’S MANUAL

EXTERNAL CONTROL

DEVICE SETUP

Please read this manual carefully before operating the set and retain it for

future reference.

www.lg.com

ENG

ENGLISH

KEY CODES

• This feature is not available for all models.

Code

(Hexa)

Function Note

Code

(Hexa)

Function Note

00 CH +, PR + R/C Button 53 List R/C Button

01 CH -, PR - R/C Button 5B Exit R/C Button

02 Volume + R/C Button 60 PIP(AD) R/C Button

03 Volume - R/C Button 61 Blue R/C Button

06 > (Arrow Key / Right Key) R/C Button 63 Yellow R/C Button

07 < (Arrow Key / Left Key) R/C Button 71 Green R/C Button

08 Power R/C Button 72 Red R/C Button

09 Mute R/C Button 79 Ratio / Aspect Ratio R/C Button

0B Input R/C Button 91 AD (Audio Description) R/C Button

0E SLEEP R/C Button 7A User Guide R/C Button

0F TV, TV/RAD R/C Button 7C Smart / Home R/C Button

10 - 19 * Number Key 0 - 9 R/C Button 7E SIMPLINK R/C Button

1A Q.View / Flashback R/C Button 8E ►►(Forward) R/C Button

1E FAV (Favorite Channel) R/C Button 8F ◄◄(Rewind) R/C Button

20 Text (Teletext) R/C Button AA Info R/C Button

21 T. Opt (Teletext Option) R/C Button AB Program Guide R/C Button

28 Return (BACK) R/C Button B0 ►(Play) R/C Button

30 AV (Audio / Video) Mode R/C Button B1 ꕗ (Stop / File List) R/C Button

39 Caption/Subtitle R/C Button BA

ꕘ (Freeze / Slow Play /

Pause)

R/C Button

40 Λ

(Arrow Key / Cursor Up)

R/C Button BB Soccer R/C Button

V (Arrow Key / Cursor

Down)

R/C Button BD ꔄ (REC) R/C Button

42 My Apps R/C Button DC 3D R/C Button

43 Menu / Settings R/C Button 99 AutoConfig R/C Button

44 OK / Enter R/C Button 9F App / * R/C Button

45 Q.Menu R/C Button

4C List, - (ATSC Only) R/C Button

* Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel.

(For South Korea, Japan, North America, Latin America except Colombia models)

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

• Image shown may differ from your TV.

Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer

or an A/V control system) to control the product’s functions externally.

Note: The type of control port on the TV can be different between model series.

* Please be advised that not all models support this type of connectivity.

* Cable is not provided.

USB to Serial converter with USB Cable

USB Type

USB IN

(TV)

(PC )

RS-232C IN

(CONTROL & SERVICE)

(TV)

(PC )

(TV)

(PC )

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter

which is not made nor provided by LG.

• It can be purchased from computer stores that carry accessories for IT support professionals.

RS-232C With RS232C Cable

DE9 (D-Sub 9pin) Type

• You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C cable required

for the connection between the PC and the TV, which is specified in the manual.

USB IN

(TV)

(PC )

RS-232C IN

(CONTROL & SERVICE)

(TV)

(PC )

(TV)

(PC )

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

The connection interface may differ from your TV.

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

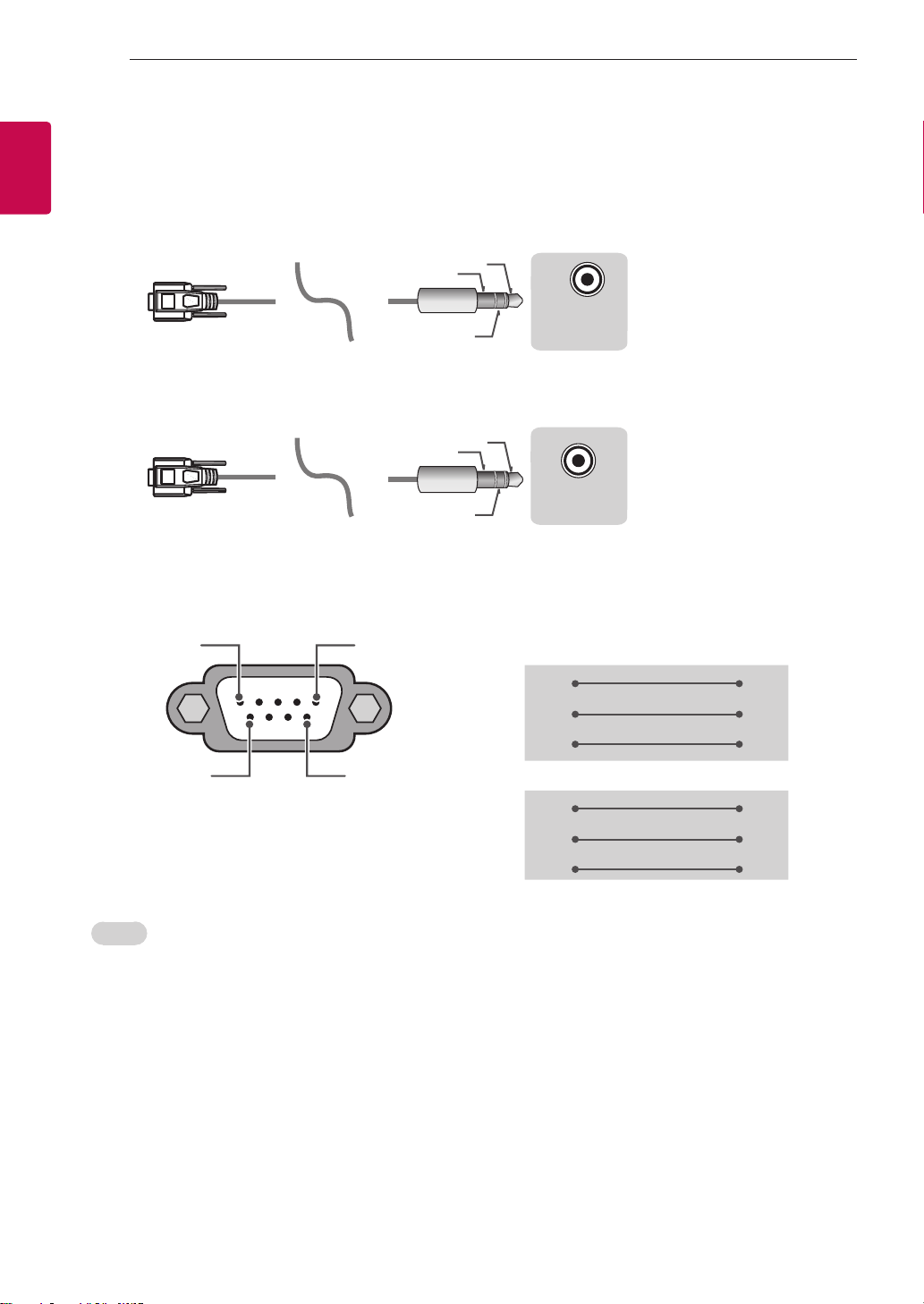

Phone jack Type

• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and

the TV, which is specified in the manual.

* For other models, connect to the USB port.

* The connection interface may differ from your TV.

USB IN

(TV)

(PC )

RS-232C IN

(CONTROL & SERVICE)

(TV)

(PC )

(TV)

(PC )

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

- or

USB IN

(TV)

(PC )

RS-232C IN

(CONTROL & SERVICE)

(TV)

(PC )

(TV)

(PC

)

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

Customer Computer RS-232C configurations

3-Wire Configurations(Not standard)

PC TV

RXD 2 2 TXD

TXD 3 1 RXD

GND 5 3 GND

RXD 3 2 TXD

TXD 2 1 RXD

GND 5 3 GND

D-Sub 9 Phone

RS-232C

(Serial port)

Set ID

For Set ID number, see "Real Data Mapping" on p.6

1. Press SETTINGS to access the main menus.

2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.

3. Press the Navigation buttons to scroll to SET ID and press OK.

4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.

5. When you are finished, press EXIT.

* (Depending on model)

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

Communication Parameters

• Baud rate : 9600 bps (UART)

• Data length : 8 bits

• Parity : None

• Stop bit : 1 bit

• Communication code : ASCII code

• Use a crossed (reverse) cable.

Command reference list

(Depending on model)

COMMAND1 COMMAND2

DATA

(Hexadecimal)

COMMAND1 COMMAND2

DATA

(Hexadecimal)

01. Power* k a 00 to 01 15. Balance k t 00 to 64

02. Aspect

Ratio

k c (p.7)

16. Color

(Colour)

Temperature

x u 00 to 64

03. Screen

Mute

k d (p.7)

17. ISM

Method (Only

Plasma TV)

j p (p.8)

04. Volume

Mute

k e 00 to 01 18. Equalizer j v (p.8)

05. Volume

Control

k f 00 to 64

19. Energy

Saving

j q 00 to 05

06. Contrast k g 00 to 64

20. Tune

Command

m a (p.9)

07.

Brightness

k h 00 to 64

21. Channel

(Programme)

Add/Del(Skip)

m b 00 to 01

08. Color/

Colour

k i 00 to 64 22. Key m c Key Codes

09. Tint k j 00 to 64

23. Control

Backlight,

Control Panel

Light

m g 00 to 64

10.

Sharpness

k k 00 to 32

24. Input

select (Main)

x b (p.11)

11. OSD

Select

k l 00 to 01

25. 3D (Only

3D models)

x t (p.11)

12. Remote

Control Lock

Mode

k m 00 to 01

26. Extended

3D (Only 3D

models)

x v (p.11)

13. Treble k r 00 to 64

27. Auto

Configure

j u (p.12)

14. Bass k s 00 to 64

* Note: During playing or recording media, all commands except Power (ka) and Key (mc) are not

executed and treated as NG.

With RS232C cable, TV can communicate "ka command" in power-on or power-off status. but with

USB-to-Serial converter cable, the command works only if TV is on.

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

Transmission / Receiving Protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

[Command 1] : First command to control the TV. (j, k, m or x)

[Command 2] : Second command to control the TV.

[Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu.

Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set

can be controlled.

* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on

transmission/receiving protocol.

[DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command.

[Cr] : Carriage Return - ASCII code ‘0x0D’

[ ] : Space – ASCII code ‘0x20’

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,

if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the

data of the PC computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from

non-viable functions or communication errors.

Data 00: Illegal Code

Real data mapping (Hexadecimal b Decimal)

* When you enter the [data] in hexadecimal, refer to following conversion table.

* Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.

00 : Step 0 32 : Step 50 (Set ID 50) FE : Step 254

01 : Step 1 (Set ID 1) 33 : Step 51 (Set ID 51) FF : Step 255

... ... ...

0A : Step 10 (Set ID 10) 63 : Step 99 (Set ID 99) 01 00 : Step 256

... ... ...

0F : Step 15 (Set ID 15) C7 : Step 199 27 0E : Step 9998

10 : Step 16 (Set ID 16) C8 : Step 200 27 0F : Step 9999

... ... ...

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

* Commands may work differently depending on model and signal.

01. Power (Command: k a)

► To control Power *On or Off of the set.

Transmission[k][a][ ][Set ID][ ][Data][Cr]

Data 00 : Power Off 01 : *Power On

Ack [a][ ][Set ID][ ][OK/NG][Data][x]

► To Show TV is Power On or *Off

Transmission [k][a][ ][Set ID][ ][FF][Cr]

Ack [a][ ][Set ID][ ][OK][Data][x]

* Similarly, if other functions transmit ‘FF’ data

based on this format, Acknowledgement feedback

presents status about each function.

02. Aspect Ratio (Command: k c)

(Main Picture Size)

► To adjust the screen format. (Main picture format)

You can also adjust the screen format using the

Aspect Ratio in the Q.MENU. or PICTURE menu.

Transmission [k][c][ ][Set ID][ ][Data][Cr]

Data 01 : Normal screen

(4:3)

02 : Wide screen

(16:9)

04 : Zoom

05 : Zoom 2

(Latin America

except Colombia

Only)

06 : Set by Program/

Original

07 : 14:9

(Europe, Colombia, Mid-East,

Asia except South Korea and

Japan)

09 : * Just Scan

0B : Full Wide

(Europe, Colombia, Mid-

East, Asia except South

Korea and Japan)

10 to 1F : Cinema Zoom 1

to 16

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

* Using the PC input, you select either 16:9 or 4:3

screen aspect ratio.

* In DTV/HDMI/Component mode (high-definition),

Just Scan is available.

* Full wide mode may work differently based on

model and is supported for DTV fully, and ATV,

AV partially.

03. Screen Mute (Command: k d)

► To select screen mute on/off.

Transmission [k][d][ ][Set ID][ ][Data][Cr]

Data 00 : Screen mute off (Picture on)

Video mute off

01 : Screen mute on (Picture off)

10 : Video mute on

Ack [d][ ][Set ID][ ][OK/NG][Data][x]

* In case of video mute on only, TV will display On

Screen Display(OSD). But, in case of Screen mute

on, TV will not display OSD.

04. Volume Mute (Command: k e)

► To control volume mute on/off.

You can also adjust mute using the MUTE button

on remote control.

Transmission [k][e][ ][Set ID][ ][Data][Cr]

Data 00 : Volume mute on (Volume off)

01 : Volume mute off (Volume on)

Ack [e][ ][Set ID][ ][OK/NG][Data][x]

05. Volume Control (Command: k f)

► To adjust volume.

You can also adjust volume with the volume

buttons on remote control.

Transmission [k][f][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [f][ ][Set ID][ ][OK/NG][Data][x]

06. Contrast (Command: k g)

► To adjust screen contrast.

You can also adjust contrast in the PICTURE

menu.

Transmission [k][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

07. Brightness (Command: k h)

► To adjust screen brightness.

You can also adjust brightness in the PICTURE

menu.

Transmission [k][h][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [h][ ][Set ID][ ][OK/NG][Data][x]

08. Color/Colour (Command: k i)

► To adjust the screen Color(Colour).

You can also adjust colour in the PICTURE menu.

Transmission [k][i][ ][Set ID][ ][Data][Cr]

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

Data Min : 00 to Max : 64

Ack [i][ ][Set ID][ ][OK/NG][Data][x]

09. Tint (Command: k j)

► To adjust the screen tint.

You can also adjust tint in the PICTURE menu.

Transmission [k][j][ ][Set ID][ ][Data][Cr]

Data Red : 00 to Green : 64

Ack [j][ ][Set ID][ ][OK/NG][Data][x]

10. Sharpness (Command: k k)

► To adjust the screen sharpness.

You can also adjust sharpness in the PICTURE

menu.

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 32

Ack [k][ ][Set ID][ ][OK/NG][Data][x]

11. OSD Select (Command: k l)

► To select OSD (On Screen Display) on/off when

controlling remotely.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 00 : OSD off 01 : OSD on

Ack [l][ ][Set ID][ ][OK/NG][Data][x]

12. Remote control lock mode (Command: k m)

► To lock the front panel controls on the monitor and

remote control.

Transmission [k][m][ ][Set ID][ ][Data][Cr]

Data 00 : Lock off 01 : Lock on

Ack [m][ ][Set ID][ ][OK/NG][Data][x]

* If you are not using the remote control, use this

mode.

When main power is off & on (plug-off and plug-in,

after 20 - 30 seconds), external control lock is

released.

* In the standby mode (DC off by off timer or ‘ka’,

‘mc’ command), and if key lock is on, TV will not

turn on by power on key of IR & Local Key.

13. Treble (Command: k r)

► To adjust treble.

You can also adjust in the AUDIO menu.

Transmission [k][r][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [r][ ][Set ID][ ][OK/NG][Data][x]

* (Depending on model)

14. Bass (Command: k s)

► To adjust Bass.

You can also adjust in the AUDIO menu.

Transmission [k][s][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [s][ ][Set ID][ ][OK/NG][Data][x]

* (Depending on model)

15. Balance (Command: k t)

► To adjust balance.

You can also adjust balance in the AUDIO menu.

Transmission [k][t][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [t][ ][Set ID][ ][OK/NG][Data][x]

16. Color(Colour) Temperature (Command: x u)

► To adjust colour temperature. You can also adjust

Color(Colour) Temperature in the PICTURE menu.

Transmission [x][u][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [u][ ][Set ID][ ][OK/NG][Data][x]

17. ISM Method (Command: j p) (Only Plasma TV)

► To control the ISM method. You can also adjust

ISM Method in OPTION menu.

Transmission [j][p][ ][Set ID][ ][Data][Cr]

Data Min : 02: Orbiter

08: Normal

20: Color(Colour) Wash

Ack [p][ ][Set ID][ ][OK/NG][Data][x]

18. Equalizer (Command : j v)

► Adjust EQ of the set.

Transmission [j][v][ ][Set ID][ ][Data][Cr]

0 0 0 0 0 0 0 0

MSB

Frequency Data

LSB

7 6 5

Frequency

4 3 2 1 0 Step

0 0 0

1st Band

0 0 0 0 0

0(decimal)

0 0 1

2nd Band

0 0 0 0 1

1(decimal)

0 1 0

3rd Band

... ... ... ... ...

...

0 1 1

4th Band

0 0 0 1 1

19(decimal)

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

1 0 0

5th Band

0 0 1 0 1

20(decimal)

Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]

* It depends on model, and can adjust when sound

mode is EQ adjustable value.

19. Energy Saving (Command: j q)

► To reduce the power consumption of the TV. You

can also adjust Energy Saving in PICTURE menu.

Transmission [j][q][ ][Set ID][ ][Data][Cr]

Data

00 : Off

01 : Minimum

02 : Medium

03 : Maximum

04 : Auto (For LCD TV / LED TV) /

Intelligent sensor (For PDP TV)

05 : Screen off

* (Depending on model)

Ack [q][ ][Set ID][ ][OK/NG][Data][x]

20. Tune Command (Command: m a)

* This command may work differently depending on

model and signal.

• For Europe, Mid-East, Colombia, Asia except

South Korea and Japan Model

► Select channel to following physical number.

Transmission [m][a][ ][Set ID][ ][Data 00][ ]

[Data 01][ ][Data 02][Cr]

* Analog Antenna/Cable

[Data 00][Data 01] Channel Data

Data 00 : High byte channel data

Data 01 : Low byte channel data

- 00 00 ~ 00 C7 (Decimal : 0 ~ 199)

Data 02 : Input Source (Analog)

- 00 : Antenna TV (ATV)

- 80 : Cable TV (CATV)

* Digital Antenna/Cable/Satellite

[Data 00][Data 01]: Channel Data

Data 00 : High Channel data

Data 01 : Low Channel data

- 00 00 ~ 27 0F (Decimal: 0 ~ 9999)

Data 02 : Input Source (Digital)

- 10 : Antenna TV (DTV)

- 20 : Antenna Radio (Radio)

- 40 : Satellite TV (SDTV)

- 50 : Satellite Radio (S-Radio)

- 90 : Cable TV (CADTV)

- a0 : Cable Radio (CA-Radio)

* Tune Command Examples:

1. Tune to the Analog antenna (PAL) Channel 10.

Set ID = All = 00

Data 00 & 01 = Channel Data is 10 = 00 0a

Data 02 = Analog Antenna TV = 00

Result = ma 00 00 0a 00

2. Tune to the digital antenna (DVB-T) Channel 01.

Set ID = All = 00

Data 00 & 01 = Channel Data is 1 = 00 01

Data 02 = Digital Antenna TV = 10

Result = ma 00 00 01 10

3. Tune to the satellite (DVB-S) Channel 1000.

Set ID = All = 00

Data 00 & 01 = Channel Data is 1000 = 03 E8

Data 02 = Digital Satellite TV = 40

Result = ma 00 03 E8 40

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][x][a][ ][Set ID][ ][NG][Data 00][x]

• For South Korea, North/Latin America except

Colombia Model

► To tune channel to following physical/major/minor

number.

Transmission [m][a][ ][0][ ][Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

Digital channels have a Physical, Major, and Minor

channel number. The Physical number is the actual

digital channel number, the Major is the number that

the channel should be mapped to, and the Minor is

the sub-channel. Since the ATSC tuner automatically

maps the channel from the Major / Minor number,

the Physical number is not required when sending a

command in Digital.

* Analog Antenna/Cable

Data 00 : Physical Channel Number

- Antenna (ATV) : 02~45 (Decimal: 2 ~ 69)

- Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)

[Data 01 ~ 04]: Major/Minor Channel Number

Data 01 & 02: xx (Don't care)

Data 03 & 04: xx (Don't care)

Data 05: Input Source (Analog)

- 00 : Antenna TV (ATV)

- 01 : Cable TV (CATV)

* Digital Antenna/Cable

Data 00 : xx (Don't care)

[Data 01][Data 02]: Major Channel Number

Data 01 : High byte Channel Data

Data 02 : Low byte Channel Data

- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)

[Data 03][Data 04]: Minor Channel Number

Data 03 : High byte Channel Data

Data 04 : Low byte Channel Data

Data 05 : Input Source (Digital)

- 02 : Antenna TV (DTV) – Use Physical Channel

Number

- 06 : Cable TV (CADTV) – Use Physical Channel

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

Number

- 22 : Antenna TV (DTV) – Don’t Use Physical

Channel Number

- 26 : Cable TV (CADTV) - Don’t Use Physical

Channel Number

- 46 : Cable TV (CADTV) – Use Major Channel

Number Only (One Part Channel)

Two bytes are available for each major and minor

channel data, but usually the low byte is used alone

(high byte is 0).

* Tune Command Examples:

1. Tune to the Analog cable (NTSC) channel 35.

Set ID = All = 00

Data 00 = Channel Data is 35 = 23

Data 01 & 02 = No Major = 00 00

Data 03 & 04 = No Minor = 00 00

Data 05 = Analog Cable TV = 01

Total = ma 00 23 00 00 00 00 01

2. Tune to the digital antenna (ATSC) channel 30-3.

Set ID = All = 00

Data 00 = Don’t know Physical = 00

Data 01 & 02 = Major is 30 = 00 1E

Data 03 & 04 = Minor is 3 = 00 03

Data 05 = Digital Antenna TV = 22

Total = ma 00 00 00 1E 00 03 22

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][Data 03][Data 04][Data 05]

[x][a][ ][Set ID][ ][NG][Data 00][x]

• For Japan Model

► To tune channel to following physical/major/minor

number.

Transmission [m][a][ ][0][ ][Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

* Digital Antenna/Satellite

Data 00: xx (Don't care)

[Data 01][Data 02]: Major Channel Number

Data 01: High byte Channel Data

Data 02: Low byte Channel Data

- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)

[Data 03][Data 04]: Minor/Branch Channel Number

(Don’t care in Satellite)

Data 03: High byte Channel Data

Data 04: Low byte Channel Data

Data 05 : Input Source (Digital/Satellite for Japan)

- 02 : Antenna TV (DTV)

- 07 : BS (Broadcasting Satellite)

- 08 : CS1 (Communication Satellite 1)

- 09 : CS2 (Communication Satellite 2)

* Tune Command Examples:

Tune to the digital antenna (ISDB-T) channel 17-1

Set ID = All = 00

Data 00 = Don’t know Physical = 00

Data 01 & 02 = Major is 17 = 00 11

Data 03 & 04 = Minor/Branch is 1 = 00 01

Data 05 = Digital Antenna TV = 02

Total = ma 00 00 00 11 00 01 02

2. Tune to the BS (ISDB-BS) channel 30.

Set ID = All = 00

Data 00 = Don’t know Physical = 00

Data 01 & 02 = Major is 30 = 00 1E

Data 03 & 04 = Don’t Care = 00 00

Data 05 = Digital BS TV = 07

Total = ma 00 00 00 1E 00 00 07

* This feature is varied based on the model.

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][Data 03][Data 04][Data 05]

[x][a][ ][Set ID][ ][NG][Data 00][x]

21. Channel(Programme) Add/Del(Skip)

(Command: m b)

► To skip current channel(programme) for next time.

Transmission [m][b][ ][Set ID][ ][Data][Cr]

Data 00 : Del(ATSC,ISDB)/Skip(DVB) 01 : Add

Ack [b][ ][Set ID][ ][OK/NG][Data][x]

* Set the saved channel status to del(ATSC, ISDB)/

skip(DVB) or add.

22. Key (Command: m c)

► To send IR remote key code.

Transmission [m][c][ ][Set ID][ ][Data][Cr]

Data Key code - p.2.

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

23. Control Backlight (Command: m g)

• For LCD TV / LED TV

► To control the backlight.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

Control Panel Light (Command: m g)

• For Plasma TV

► To control the panel light.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

24. Input select (Command: x b)

(Main Picture Input)

► To select input source for main picture.

Transmission [x][b][ ][Set ID][ ][Data][Cr]

Data

00 : DTV

02 : Satellite DTV

ISDB-BS (Japan)

03 : ISDB-CS1 (Japan)

04 : ISDB-CS2 (Japan)

11 : CATV

01 : CADTV

10 : ATV

20 : AV or AV1 21 : AV2

40 : Component1

60 : RGB

41 : Component2

90 : HDMI1

92 : HDMI3

91 : HDMI2

93 : HDMI4

Ack [b][ ][Set ID][ ][OK/NG][Data][x]

* This function depends on model and signal.

25. 3D(Command: x t) (only 3D models)

(Depending on model)

► To change 3D mode for TV.

Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01]

[ ][Data 02][ ][Data 03][Cr]

* (Depending on model)

Data Structure

[Data 00] 00 : 3D On

01 : 3D Off

02 : 3D to 2D

03 : 2D to 3D

[Data 01] 00 : Top and Bottom

01 : Side by Side

02 : Check Board

03 : Frame Sequential

04 : Column interleaving

05 : Row interleaving

[Data 02] 00 : Right to Left

01 : Left to Right

[Data 03] 3D Effect(3D Depth): Min : 00 - Max : 14

(*transmit by Hexadecimal code)

* [Data 02], [Data 03] functions depend on model

and signal.

* If [Data 00] is 00 (3D On), [Data 03] has no

meaning.

* If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data

01], [Data 02] and [Data 03] have no meaning.

* If [Data 00] is 03 (2D to 3D), [Data 01] and

[Data 02] have no meaning.

* If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data

03] works when 3D Mode (Genre) is manual only.

* All 3D pattern options ([Data 01]) may not be

available according to broadcasting/video signal.

[Data 00] [Data 01] [Data 02] [Data 03]

00 O O O

01 X X X

02 X X X

03 X O O

X : don’t care

Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]

[Data03][x]

[t][ ][Set ID][ ][NG][Data00][x]

26. Extended 3D(Command: x v) (only 3D models)

(Depending on model)

► To change 3D option for TV.

Transmission [x][v][ ][Set ID][ ][Data 00][ ]

[Data 01][Cr]

[Data 00] 3D option

00 : 3D Picture Correction

01 : 3D Depth (3D Mode is Manual Only)

02 : 3D Viewpoint

06 : 3D Color Correction

07 : 3D Sound Zooming

08 : Normal Image View

09 : 3D Mode (Genre)

[Data 01] It has own range for each 3D option

determined by [Data 00].

1) When [Data 00] is 00

00 : Right to Left

01 : Left to Right

2) When [Data 00] is 01, 02

Data Min: 0 - Max: 14 (*transmit by Hexadecimal

code)

Data value range(0 - 20) converts Viewpoint range

(-10 - +10) automatically (Depending on model)

* This option works when 3D Mode (Genre) is manual

only.

3) When [Data 00] is 06, 07

00 : Off

01 : On

4) When [Data 00] is 08

00 : Revert to 3D video from 3D-to-2D

converted 2D video

01 : Change 3D video to 2D video, except

2D-to-3D video

* If conversion condition doesn’t meet, command is

treated as NG.

5) When [Data 00] is 09

00 : Standard

02 : Cinema

04 : Manual

01 : Sport

03 : Extreme

05 : Auto

Ack [v][ ][Set ID][ ][OK][Data00][Data01][x]

[v][ ][Set ID][ ][NG][Data00][x]

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

27. Auto Configure (Command: j u)

(Depending on model)

► To adjust picture position and minimize image

shaking automatically. It works only in RGB (PC)

mode.

Transmission [j][u][ ][Set ID][ ][Data][Cr]

Data 01 : To set

Ack [u][ ][Set ID][ ][OK/NG][Data][x]
