Samsung XE530QDA-KA2U Computing

User Manual

For XE530QDA-KA2US.

PDF File Manual, 68 pages, Read Online | Download pdf file

background
www.samsung.com
User Manual
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...
Loading page 21...
Loading page 22...
Loading page 23...
Loading page 24...
Loading page 25...
Loading page 26...
Loading page 27...
Loading page 28...
Loading page 29...
Loading page 30...
Loading page 31...
Loading page 32...
Loading page 33...
Loading page 34...
Loading page 35...
Loading page 36...
Loading page 37...
Loading page 38...
Loading page 39...
Loading page 40...
Loading page 41...
Loading page 42...
Loading page 43...
Loading page 44...
Loading page 45...
Loading page 46...
Loading page 47...
Loading page 48...
Loading page 49...
Loading page 50...
Loading page 51...
Loading page 52...
Loading page 53...
Loading page 54...
Loading page 55...
Loading page 56...
Loading page 57...
Loading page 58...
Loading page 59...
Loading page 60...
Loading page 61...
Loading page 62...
Loading page 63...
Loading page 64...
Loading page 65...
Loading page 66...
Loading page 67...
Loading page 68...

User Manual - Transcript

  • Page 2 - English - : Getting started 3 About this manual 7 Layout 11 Turning the computer on and off Basics 14 Using the computer as a tablet 15 Touch screen 18 Keyboard 20 Touchpad 22 Memory card slot 24 Wireless LAN Chrome OS 25 Using applications 25 All about Chrome OS 27 Get on the web 30 Using the Web Store 31 Using the Google Play Store 32 FAQ 32 Recovery Settings amp Upgrade 34 LCD brightness 35 Volume 36 Battery Appendix 38 Product specifications 39 Ergonomic tips 43 Safety precautions 52 Important safety information 54 Replacement parts and accessories 57 Regulatory compliance statements 65 WEEE symbol information 67 Samsung package Take Back program USA only Table of contents
  • Page 3 - English - : Getting started About this manual This user manual is specially designed to detail the computers functions and features The user manual supplied with the computer may vary depending on the model Please read this manual before using the computer to ensure safe and proper use Optional accessories some devices and software referred to in this manual may not be provided or may not be subject to upgrades Note that the computer environment referred to in the user manual may not be the same as your environment Available features and additional services may vary depending on the computer or operating system This user manual describes procedures for using the touchpad mouse and touch screen Instructions for using the touch screen are for models with the touch screen feature Images and screenshots are those of the representative model of the series and may differ in appearance from the actual product Content may differ from the final product and is subject to change without prior notice For the latest version of the manual refer to the Samsung website wwwsamsungcom Instructional icons and expressions Warning situations that could cause injury to yourself or others Caution situations that could cause damage to the computer or other equipment Note notes usage tips or additional information The path you should follow to carry out an instruction For example select Settings Devices indicates that you should select Settings and then Devices Select Click the mouse or tap the touchpad or touch screen
  • Page 4 - English - : Getting started Copyright Copyright 2020 Samsung Electronics Co Ltd This manual is protected under international copyright laws No part of this manual may be reproduced distributed translated or transmitted in any form or by any means electronic or mechanical including photocopying recording or storing in any information storage and retrieval system Computer specifications or the contents of this manual may be changed without prior notice due to an upgrade of the computers functions To service your computer For inquiries about the Chrome operating system or applications visit wwwgooglecomsupportchromeos If you have a problem while using the Chromebook hardware please contact our Samsung Service Center below or visit wwwsamsungcomsecsupportguaranteedo If you replace or upgrade the hardware yourself the Chrome operating system will not be automatically updated and the product will not work properly
  • Page 5 - English - : Getting started Chrome OS Software License The software included in this product contains copyrighted software that is licensed under the GPLLGPL You may obtain the complete Corresponding Source code from website httpgitchromiumorggitweb This offer is valid to anyone in receipt of this information As an ENERGY STAR Partner Samsung has determined that this product meets the ENERGY STAR guidelines for energy efficiency The ENERGY STAR Program has reduced greenhouse gas emissions and saved energy through voluntary labeling Power management setting of this product has been enabled by default and has various timing settings from 1 minute to 5 hours The product can wake with a button press on the chassis from sleep mode Trademarks Samsung and the Samsung logo are trademarks or registered trademarks of Samsung Electronics Co Ltd Bluetooth is a registered trademark of Bluetooth SIG Inc worldwide WiFi WiFi Direct WiFi CERTIFIED and the WiFi logo are registered trademarks of the WiFi Alliance All other trademarks and copyrights are the property of their respective owners
  • Page 6 - English - : Getting started Product capacity representation Memory Capacity Representation The memory capacity reported in the Chrome OS is less than the actual capacity of memory This is because BIOS or a video adapter uses a portion of memory or claims it for further use Eg For 1 GB1024 MB memory installed OSWindows Chrome etc may report the capacity as 1022 MB or less Operating system and software support If a problem occurs because of the reinstallation of other operating systems OS or a previous version of an OS preinstalled on this computer or a software that does not support the OS the company will not provide technical support a replacement or refund and if our service engineer visits you due to this problem a service charge will be applied Performance Restrictions Online games and some games3D 2D may not be supported and Full HD video and some high bit rate HD video playback may be slow and stutter on this computer

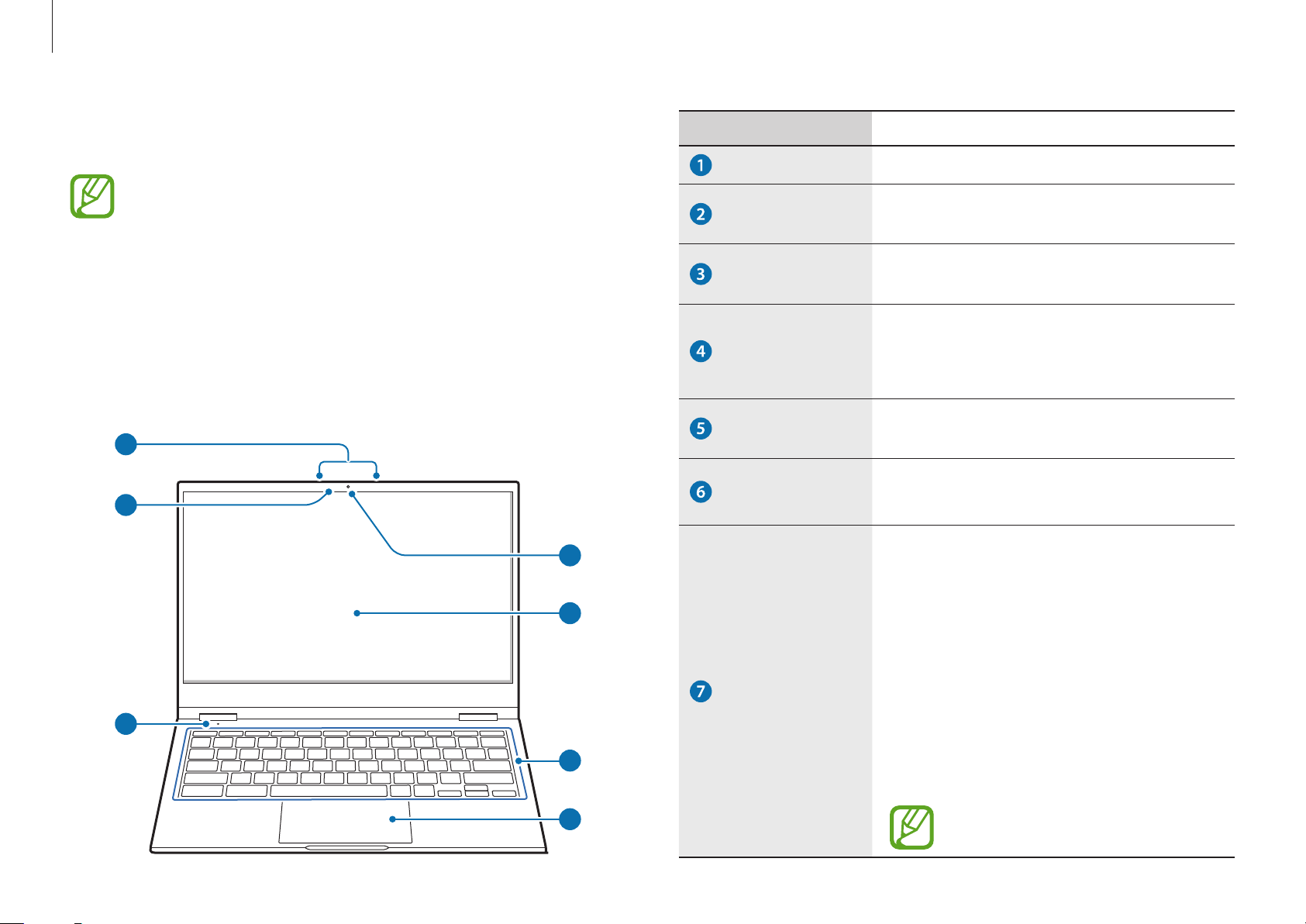

  • Page 7 - English - : Getting started NumberName Description Microphone You can use the builtin microphone Front camera indicator light This indicates the front camera operating status Front camera Using this camera you can take still pictures and record video LCDTouch screen The screens images are displayed here Recognizes touch interactions Keyboard Enter text or control computer functions Touchpad Moves the cursor and selects options Functions as a mouse Ambient light sensor Recognizes the brightness of the environment where you use the computer When the surroundings become dark the keyboard backlight turns on When the surroundings become bright the keyboard backlight turns off Do not cover the ambient light sensor Layout Features or options may differ depending on the model The items marked as optional may not be provided or may be provided in different locations Since some storage space is reserved for system recovery and operations the available storage space may be less than the actual capacity Front view

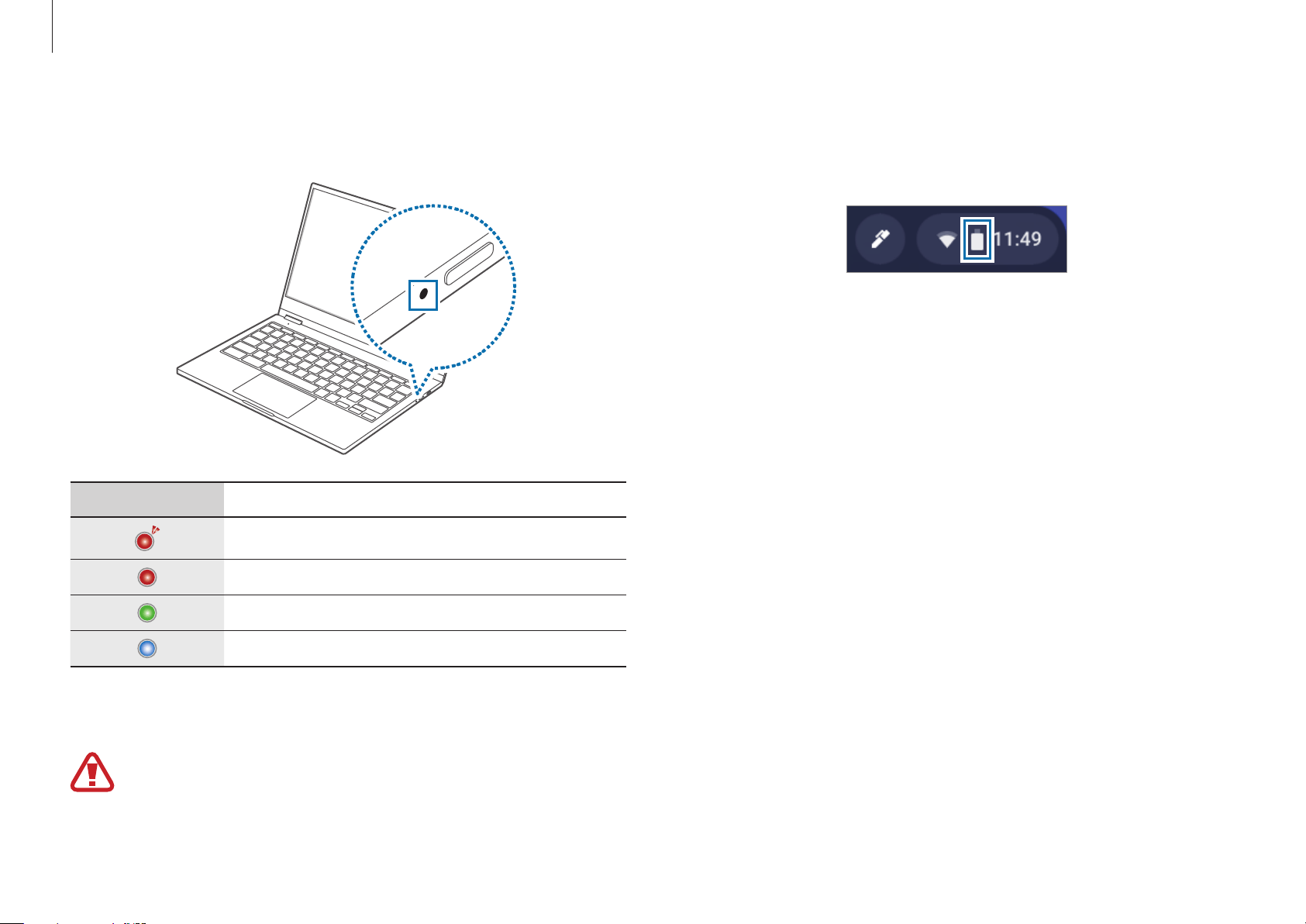

  • Page 8 - English - : Getting started NumberName Description Power LED Power button Turns the computer on and off Shows the operating status of the computer Blinks red Precharging Red Charging Green Fully charged Blue Turned on USBC port The USBC port can be used to connect and charge a USBC device or connect to an external display device Purchase an adapter separately to connect to an external display Right view
  • Page 9 - English - : Getting started The charging feature of the USBC port It may take longer to charge the battery when charging a connected device The battery power level may be reduced when charging a connected device while the computer is powered by the battery The charging status of the connected device is not displayed on the computer This charging feature may not be available on some devices When the computer is turned off the device connected to the USBC port is not charged Left view 1 2 3 4 NumberName Description USBC port The USBC port can be used to connect and charge a USBC device or connect to an external display device Purchase an adapter separately to connect to an external display Earpiece Headset jack Connect an earpiece or a headset to the computer to listen to audio Volume button Adjusts the volume level Memory card slot Insert a memory card into the slot
  • Page 10 - English - : Getting started NumberName Description Air vents The internal heat of the computer is emitted through these holes If the vents are blocked the computer may overheat Avoid blocking the vents as this may be dangerous Internal battery Provides power to the computer when not connected to an AC adapter To remove or replace the internal battery take it to a Samsung Service Center You will be charged for this service If the bottom of the computer is replaced the model name serial number and some logos will no longer be present For more information contact the Samsung Service Center to request assistance Bottom view
  • Page 11 - English - : Getting started The computer turns on automatically when the LCD panel is opened If the computer does not turn on automatically press the Power button Turning the computer on and off Fully charge the battery using the AC adapter before using the computer for the first time Turning the computer on Before turning on the computer check that the battery is charged and charge it if necessary Open the LCD panel
  • Page 12 - English - : Getting started Using the Power button Press and hold the Power button for about 2 seconds and select Power off to shut down the device To shut down the device when the system has frozen unexpectedly press and hold the Power button for at least 8 seconds Turning the computer off Using screen buttons Select the status area on the shelf Select Save all data before turning off the computer If the screen is locked in power saving mode Tap the touchpad or press any key to turn the screen on and enter the password to unlock the screen

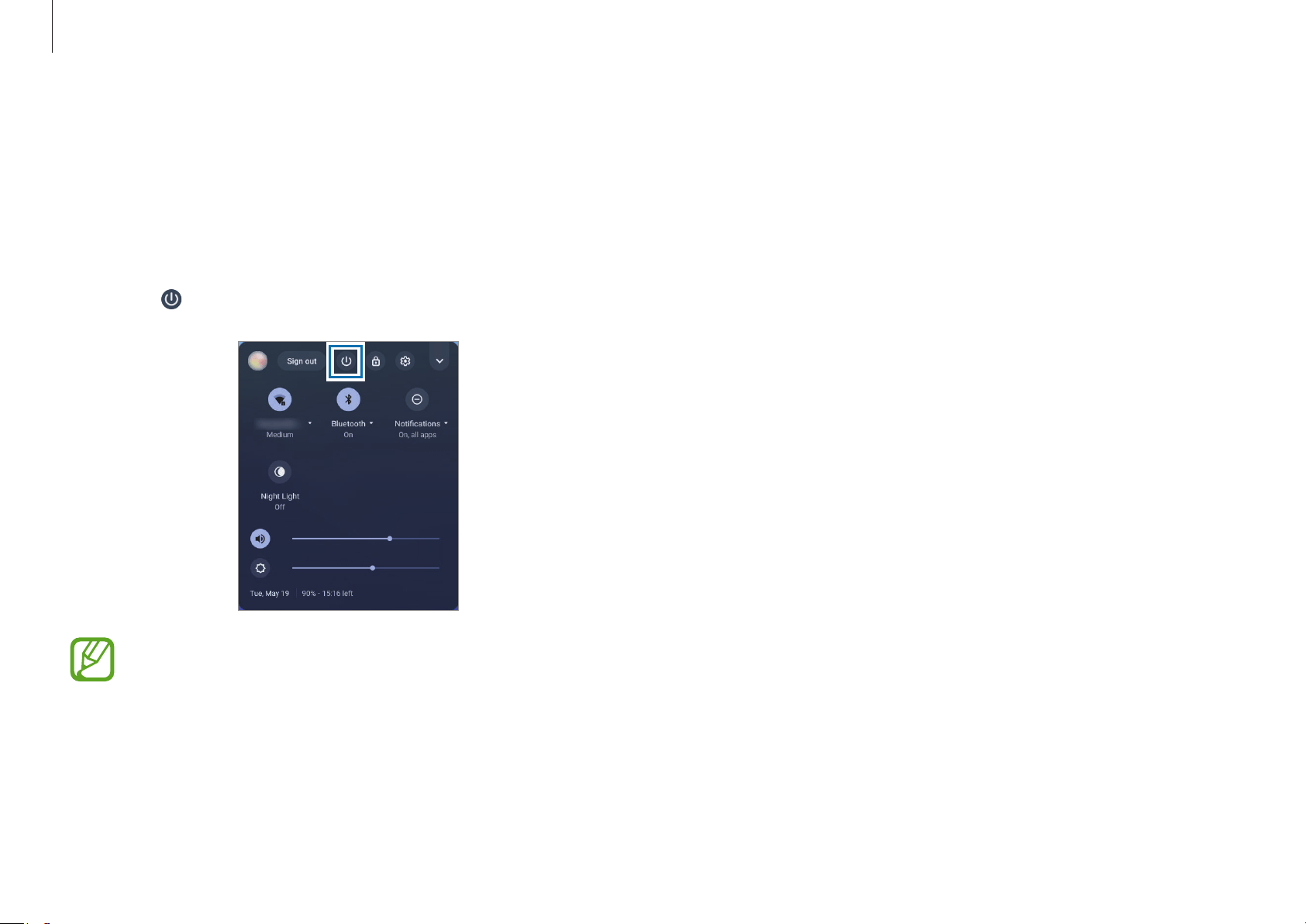

  • Page 13 - English - : Getting started Controlling the power of the device You can adjust the settings for the selected power options Tap the status area on the shelf tap to open the Settings window and then tap Device Power to select the power options If the LCD panel is closed If there is no input for a predetermined period of time If the Power button is pressed and held Signedin state Enters power saving mode Enters power saving mode The power menu appears Signedout state The computer is turned off The computer is turned off The power menu appears If the screen is locked in power saving mode Tap the touchpad or press any key to turn the screen on and enter the password to unlock the screen

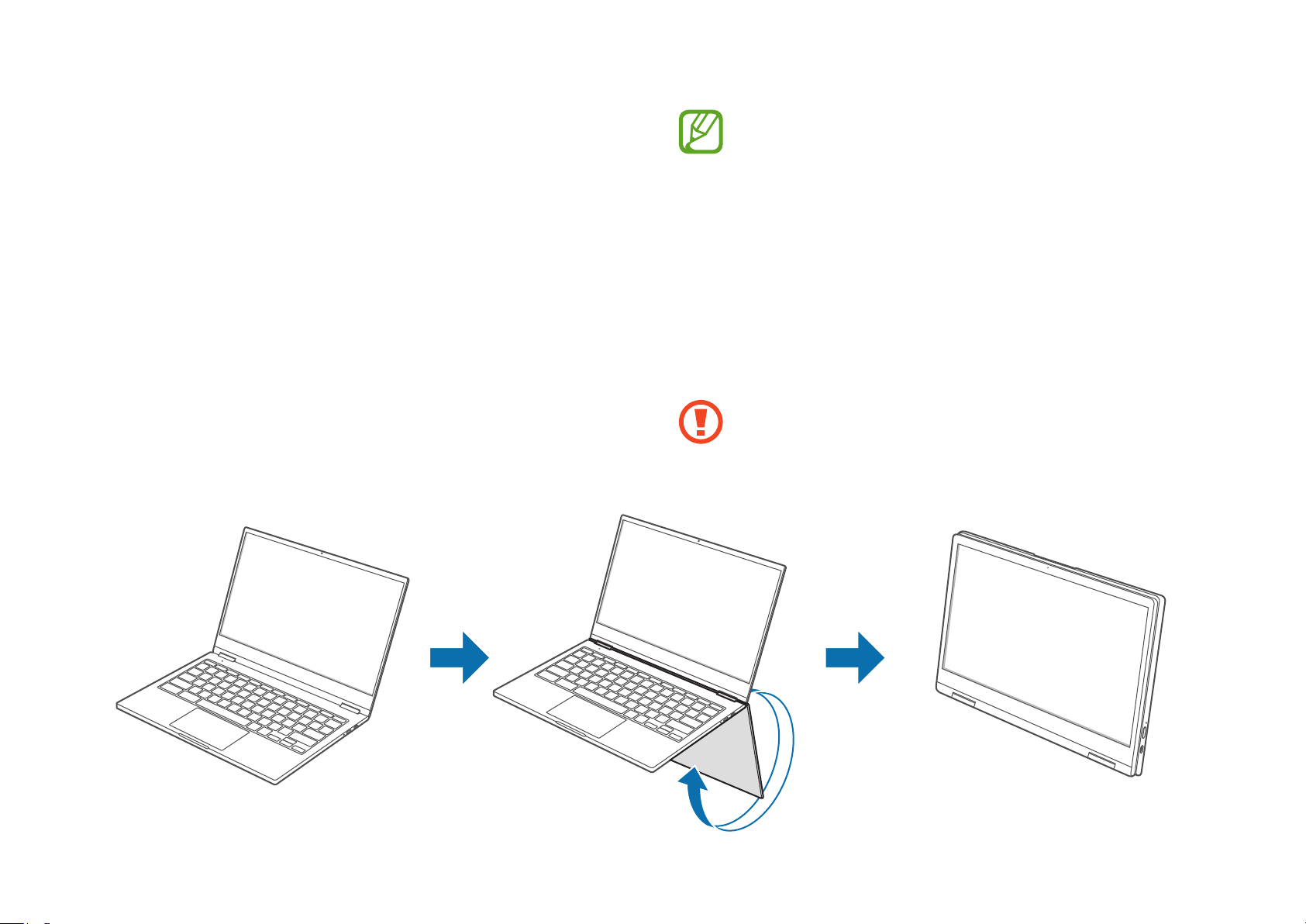

  • Page 14 - English - : When the LCD panel is tilted past the transition point The keyboard and touchpad will automatically be locked and will not function The display will rotate automatically depending on the computers orientation When the screen is turned off or the computer is in power saving mode while using the computer as a tablet press the Power button to turn the screen on and enter the password to unlock the screen When storing the computer in a bag or carrying it close the LCD panel to protect the computer Basics Using the computer as a tablet You can use the computer as a tablet by folding the LCD panel behind the keyboard Open the LCD panel and rotate it away from the keyboard until it touches the bottom side of the computer When using the computer as a tablet drag upwards on the shelf to view the currently running apps
  • Page 15 - English - : Basics Doubletapping To open files or items doubletap the touch screen The perform action may differ depending on the launched applications Tapping and holding rightclicking To use additional options of an item tap and hold it on the touch screen Touch screen Use your fingers on the touch screen to perform actions Touch screen gestures Tapping To select menus options or applications tap the touch screen
  • Page 16 - English - : Basics Dragging To move an item to another location tap and hold it and then drag it on the touch screen to the desired location Scrolling To scroll up down left or right swipe on the touch screen or Spreading and pinching To zoom in spread two fingers apart on an image or text Pinch to zoom out
  • Page 17 - English - : Basics Leaving the touch screen idle for extended periods may result in afterimages screen burnin or ghosting Turn off the touch screen when you are not using the computer Make sure your hands are clean and dry before using the touch screen Remove any moisture from your hands before using the touch screen Do not expose the computer to foreign substances Doing so may cause the touch screen to malfunction Very light touches on the touch screen may not be recognized Precisely tap items on the touch screen for the best results The touch screen sensors are located on the edges of the touch screen Therefore do not cover the edges of the touch screen with protective covers or accessories Touch screen gestures are available for touch screen models running Chrome and work only with some applications Do not subject the touch screen to severe impacts or press it with sharp objects Doing so may damage the touch screen Do not allow the touch screen to come into contact with other electrical devices Electrostatic discharges can cause the touch screen to malfunction Do not expose the touch screen to water The touch screen may malfunction in humid conditions or when exposed to water Do not spray liquid cleansing solutions directly onto the touch screen The solution may enter the touch screen or cause undesired operation To clean the screen dampen a cloth with solution and gently wipe the screen Do not use solutions or cloths that contain abrasive materials as they may damage the touch screen Do not damage the edges of the touch screen Doing so may damage the touch screen
  • Page 18 - English - : Basics Keys Description Enter overview mode which shows all windows Decrease screen brightness Increase screen brightness Mutes the sound In mute mode press the key to unmute the sound Decrease the volume Increase the volume Press and hold this key to lock the computer Keyboard Hot keys and function keys are discussed in the following sections The keyboard image may differ from the actual keyboard The keyboard may differ depending on your country The following mainly describes the hot keys and function keys Hot key functions Here is an overview of the hot keys on the top row of the keyboard Keys Description Go to the previous page in your browser history Go to the next page in your browser history Reload your current page Hide the tabs and switch to fullscreen mode
  • Page 19 - English - : Basics Shift key Hold the shift key down to enter upper case letters Search for keyboard shortcuts Press the following keys at the same time to check the keyboard shortcuts supported in Chrome OS Controlling the keyboards backlight You can control the keyboards backlight with the following keys or Search key The Search key is located where the Caps Lock key is originally placed on a traditional keyboard Press the Search key to launch the Launcher To change the Search key to the Caps Lock key switch its function to caps lock on the Settings window
  • Page 20 - English - : Basics Touchpad Use the touchpad to move the cursor or select an item Use the touchpad only with fingers The touchpad will not recognize actions of other objects Images and the touchpad layout may differ depending on the model Basic touchpad functions Moving To move the cursor move a finger on the touchpad Clicking Tap the touchpad Tap Doubleclicking Doubletap the touchpad Taptap
  • Page 21 - English - : Basics Rightclicking This function enables rightclicking To rightclick place two fingers on the touch area and tap once Tap Dragging To move an icon or an app icon to a desired location press and hold it and then drag it to the target position Press and hold the touchpad Move Adjusting the touchpad settings If the touchpad is too sensitive adjust its reaction speed Select the status area on the shelf Select to open the Settings window Tap Device Touchpad and adjust the Touchpad speed adjustment bar
  • Page 22 - English - : Basics Some memory cards may not be fully compatible with the computer Using an incompatible card may damage the computer or the memory card or corrupt the data stored in it Use caution to insert the memory card in the indicated direction Store the card separately to prevent losing the card when moving the computer The speed may vary depending on the type and specifications of the memory card Memory card slot Use a memory card to transfer data to other devices You can use data stored on your device such as digital cameras smartphones or tablets on your computer or you can take your saved data to another device Memory cards are sold separately This computer supports the following types of memory cards Abbreviation Description micro SD micro Secure Digital micro SDHC micro Secure Digital High Capacity micro SDXC micro Secure Digital eXtended Capacity
  • Page 23 - English - : Basics A new tab opens and the list of files on the card appears Select a file to read the data for the file Removing a memory card Push the card gently until it disengages from the memory card slot Grasp the end of the card and pull it out of the slot Available data formats depend on the current version of the Chrome OS Data on the card can be saved in the Downloads folder under My files The maximum file size will vary depending on Chrome OS Inserting a memory card If a dummy card or a memory card adapter is inserted in the memory card slot remove it Insert a memory card into the memory card slot in the indicated direction until it clicks
  • Page 24 - English - : Basics Select to activate the WiFi network feature The available WiFi list will appear WiFi List Select a network from the list of detected wireless networks Enter a password if necessary and select Connect Once the computer has been connected to a wireless network it will attempt to connect to it automatically when it is available If you require a network password contact the system administrator If the WiFi network is successfully connected the network icon will be displayed on the shelf If the WiFi network is not properly connected the network icon will be displayed on the shelf The white part of the network icon on the shelf represents the signal strength of the WiFi network Wireless LAN Connect the computer to a wireless network to use the Internet The pictures in this manual may differ from the actual product depending on the wireless LAN device model About Access Point AP An Access Point AP is a network device that bridges wired and wireless LANs and corresponds to a wireless hub in a wired network Multiple devices can be connected to an AP Connecting to a WiFi network Select the status area on the shelf
  • Page 25 - English - : Chrome OS Using applications Images and features may differ depending on the model and the application version Some applications may not be supported depending on the model Thirdparty software related services For descriptions about and service requests for thir dparty applications please contact the relevant manufacturer Some troubleshooting actions in response to service requests may not work depending on the application manufacturer All about Chrome OS Your Chromebook runs the Chrome OS thats built and optimized for the Internet Using your Chromebook is as easy as surfing the Internet Quick access to the web Chromebooks boot quickly after startup and resume instantly from power saving mode Your favorite websites load quickly and run smoothly with full support for the latest web standards The best part Chromebooks not only stay fast but are designed to get faster over time as updates are released Same experience everywhere All your applications documents and settings are synced to your account and stored in the cloud To customize the data that gets synced select the status area on the shelf select to open the Settings window and then select People Sync and Google services Always connected Now you can stay online at home outdoors or on your morning commute because your Chromebook makes it easy to get online anywhere anytime via WiFi and if included mobile broadband service
  • Page 26 - English - : Chrome OS You may experience limitations using the product under the following circumstances Please refer to the link When reading from or writing to external storage devices with the filing system h ttpssupportgooglecomchromebookanswer 183093 When playing certain local video or music files httpssupportgooglecomchromebook answer183093 When using a local printer httpssupportgooglecomchromebook answer7225252ampreftopic3399712 For additional inquiries about the Chrome OS or applications visit the Help Center at httpssupportgooglecomchromebook If you have a problem while using the Chromebook hardware please visit wwwsamsungcomsecsupportguaranteedo Builtin security Your Chromebook is much safer than a regular computer Each webpage and application you visit runs in a restricted environment So if you visit an infected page it cant affect the other tabs applications or anything else on your Chromebook Less updating More surfing When you turn your Chromebook on it updates itself automatically All of your applications stay uptodate and you get the latest and greatest version of the operating system without having to think about it For more information visit the Help Center at wwwgooglecomsupportchromeos Usage Precautions Some functions and screenshots are subject to change depending on the Chrome OS version To signin you need a Google Accountthe same account you use for Google services such as Gmail and Drive Your Chromebook uses your account information to automatically sign you into apps and services If you do not have a Google Account you can create one or log in with a guest account Some functions may not be available when signed in as a guest
  • Page 27 - English - : Chrome OS 15 Follow the onscreen instructions to proceed with the initial setup Get started with your Chromebook When your Chromebook starts for the first time updates may be performed for a few minutes during the activation step Desktop When you have completed the login the desktop appears Select the icons on the shelf to launch various apps and use the stylus tools You can also check your notifications and personalize your computer even more by configuring various settings Launcher Stylus toolsShelf Status area Get on the web Setting up your Chromebook To set up your Chromebook you will need a Google Account and access to the internet If you dont have a Google Account create an account The setup process may be different depending on the OS version being used Activating the computer 11 Select a network Detected networks are automatically listed in the Connect to network menu 12 Connect to a network 13 Read and agree to the Google Chrome OS terms and conditions and select Accept and continue 14 Enter your Google ID and password then select Next If you do not have a Google Account you can login as a Guest by selecting Browse as Guest Note that there are some restrictions in place while using Chrome OS as Guest

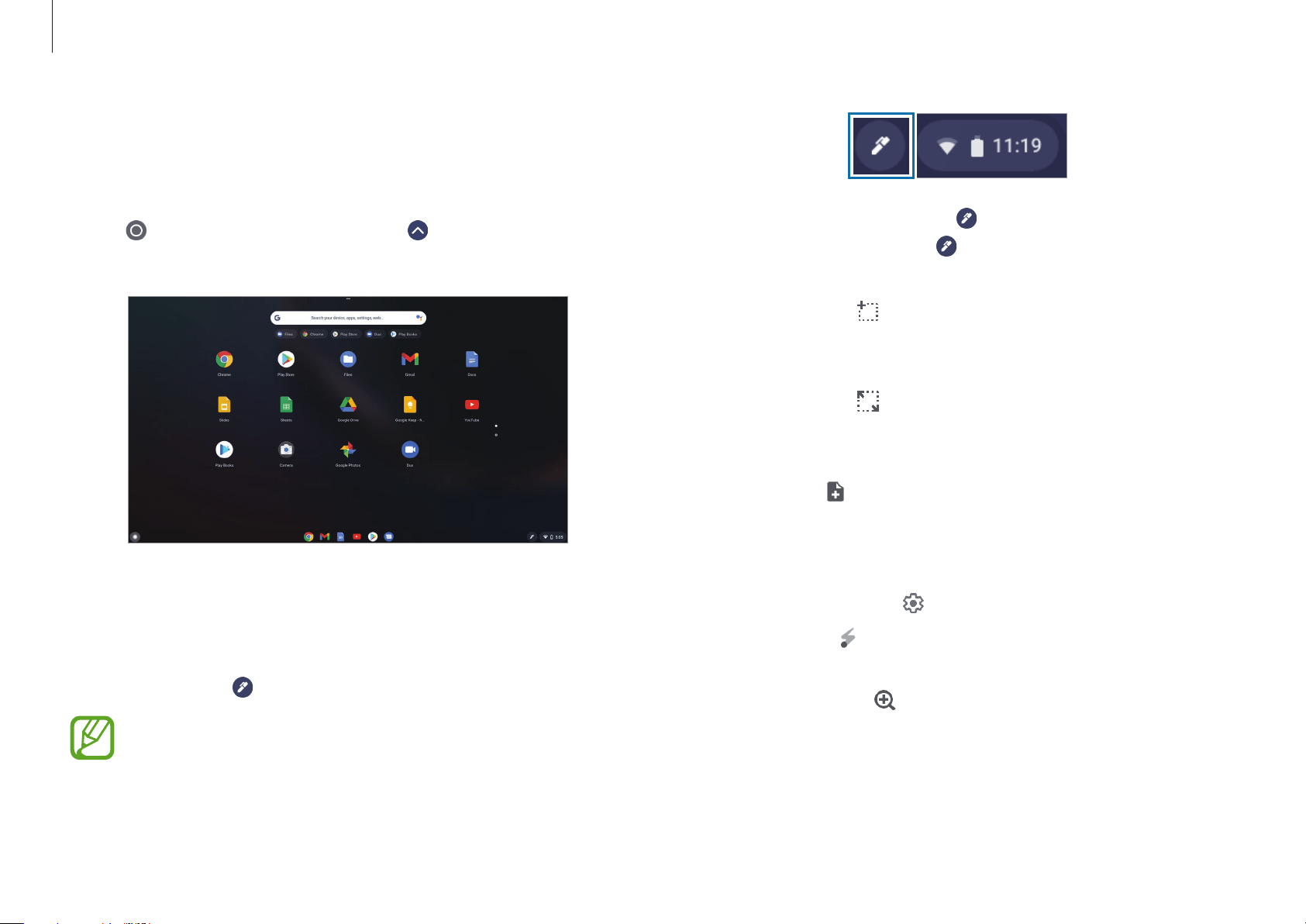

  • Page 28 - English - : Chrome OS To change the stylus tools select and select one of the following The stylus tool icon will be changed to a different icon depending on the tool you select Capture region Select and capture an area of the screen You can view the captured image and use it with other applications such as Google Keep or Docs Capture screen Capture the current screen You can view the full screen captured image and use it with other applications such as Google Keep or Docs Create note Launch the Google Keep application and create a memo You can share the memo with other people and set the date and time to remind you of the contents in the memo For more information launch the Google Keep application and select Help Laser pointer Use the USI Pen as a laser pointer after placing it on the screen Magnifying glass Expand an area of the screen to zoom in on items Launcher You can search for and launch various applications on the Launcher Select to launch the Launcher Select to display icons for all your applications including newly installed apps Stylus tools Use the stylus tools to use additional touch screen functions On the shelf select USI Pens are sold separately
  • Page 29 - English - : Chrome OS NumberName Description Resizing button Minimize or maximize the window New tab button Open the new tab Select to see your favorite applications and most visited sites Navigation buttons Go back forward or reload your page Address bar Search or enter a web address Bookmark Bookmark the current page Setting Use additional menus To learn about using the browser visit the Help Center at httpssupportgooglecomchromebook The browsing interface Once youre signed in youre instantly on the web Heres a quick overview of the interface youll see
  • Page 30 - English - : Chrome OS To use the Web Store you must have the latest version of the Chrome browser installed Some items purchased from the Chrome Web Store may not work depending on your computer specifications The Chrome Web Store items may or may not be free ofcharge Confirm that an item is freeofcharge or not before you select or purchase it You have to install an app or extension that is supported by the Chrome OS to use it Before downloading it check if it is supported by the OS Using the Web Store The Chrome Web Store offers a wide range of applications games extensions and themes that you can use to customize your browser Extension program Custom features and functionality that you can add to the browser theme Changes the skin of the browser to give it a bit more style and flair App Offers powerful functionality that youd expect from desktop programs game Lets you enjoy various games Items you installed are automatically synced to your account so you always have access to your applications and extensions To open the Chrome Web Store launch the Chrome browser select the new tab button and then select Web Store on the frequently used websites list You can also get to the store directly by httpchromegooglecomwebstore
  • Page 31 - English - : Chrome OS Select Install to download free applications To purchase and download applications where charges apply select the price and follow the instructions Some applications may not be compatible with your Chromebook If you want to use applications that you have previously purchased through the Play Store download them again Your Chromebook does not automatically download your applications from the Play Store Find all your downloaded applications by selecting Using the Google Play Store You can purchase and install various Android applications with your Chromebook just as you would with other Android devices Download useful applications from the Google Play Store to use your Chromebook more effectively Installing apps Select and search Play Store to open the Play Store app Browse applications by category or search for apps by keyword Select an application to view information about it
  • Page 32 - English - : Chrome OS Recovery Using the Recovery function you can restore your Chromebook when a problem occurs with your Chromebook You can restore your Chromebook after creating a restore image and using a USB device or memory card For more information refer to httpssupportgooglecomchromebookanswer1080595 If you restore the Chromebook using a restore image all the data saved on the Chromebook will be deleted Restoring with a USB device or memory card Save the restore image onto the memory card or USB device For more information about saving a restore image onto the memory card or USB device refer to httpssupportgooglecomchromebook answer1080595 FAQ Printing on a Chromebook If you are using the standard printer add the printer on the Chromebook Settings screen Select the status area on the shelf Select to open the Settings window and select Advanced Printing Select Printers and select next to Add Printer Enter the printers information and follow the onscreen instructions to proceed with printer set up For more information about the printing service please refer to httpssupportgooglecomchromebook answer7225252ampreftopic3399712
  • Page 33 - English - : Chrome OS Open the LCD panel and press the Power button to turn the power off Insert the memory card or the USB device containing the restore image and press both the Refresh button and the Power button while holding down the esc key When the Chromebook restarts follow the onscreen instructions to complete the recovery process Remove the memory card or the USB device as instructed The Chromebook will be restarted and the recovery is successfully completed
  • Page 34 - English - : Settings amp Upgrade LCD brightness Adjust the LCD brightness to reduce eye strain and save power Controlling brightness using the keyboard Adjust the LCD brightness by pressing the key to decrease brightness or the key to increase brightness Whenever you press the or key the LCD brightness will be adjusted by one level Controlling brightness using the shelf Select the status area on the shelf Drag the adjustment bar to the desired brightness Brightness adjustment bar Instructions for Cleaning the LCD Clean the LCD panel with a soft cloth lightly moistened with computer cleansing detergent moving in one direction Cleaning the LCD panel with excessive force can damage the LCD
  • Page 35 - English - : Settings amp Upgrade Controlling volume using the shelf Select the status area on the shelf Drag the adjustment bar to the desired volume Volume adjustment bar Volume Adjust the system volume or sound volume when playing music or video Controlling volume using the keyboard Adjust the volume by pressing the key to turn down the volume or the key to turn up the volume Whenever you press the or key the volume will be adjusted by one level Mute the sound by pressing the key In mute mode press the key to unmute the sound Controlling volume using the button Press the Volume button on the left side of the computer to adjust the volume
  • Page 36 - English - : Settings amp Upgrade Charging the battery Fully charge the battery using the AC adapter before using the computer for the first time or when the computer is completely discharged Connect the AC adapter to the USBC port of the computer You can use the USBC ports on either side of the computer Plug the AC adapter into an electric socket If the battery is fully discharged the computer will not turn on immediately with the AC adapter A minimum level of battery power will be charged slowly for safety while the Power LED blinks red You can turn on the computer after the Power LED stops blinking Battery Fully charge the battery using the AC adapter before using the computer for the first time Use only Samsungapproved AC adapters batteries and cables If you use unapproved adapters the battery cannot be charged or it may explode or damage the computer Incorrectly connecting the charger may cause serious damage to the computer This computer is equipped with an internal battery The battery is not userserviceable or userreplaceable To safely remove or replace the battery take the device to a Samsung Service Center You will be charged for this service You can use the computer while it is charging but the battery charging time may increase If the battery temperature rises too much the charging may stop as a safety measure To restore the battery power after cutting it connect the AC adapter
  • Page 37 - English - : Settings amp Upgrade Battery status View the current remaining battery power on the shelf Battery usage time Batteries are replaceable items and over time the batterys capacity to hold a charge and its power level is reduced If a battery can only hold its charge for half of the time that it could when new it is recommended to purchase a new replacement battery When the battery is fully charged the power LED turns green Disconnect the AC adapter from the computer Power LED Status Blinks red Precharging Red Charging Green Fully charged Blue Turned on Unplug the AC adapter from the electric socket Do not allow the adapter to make contact with your skin for a long time A lowtemperature burn may result
  • Page 38 - English - : Appendix Product specifications The system specifications may differ depending on the derived model For detailed system specifications refer to the product catalog Item Specification Operating environment Temperature 540 C for storage 1035 C when operating Humidity 590 for storage 2080 when operating A CDC rating Input 100240 VAC 5060 Hz Output 20 VDC 225 A 15 VDC 3 A 9 VDC 3 A 5 VDC 3 A 45 W PDO 20033 VDC 225 A 45 W PPS PC r ating 15 VDC 3 A 9 VDC 3 A 5 VDC 3 A 45 W Optional components may not be provided or different components may be provided depending on the model The system specifications are subject to change without notice Due to this computers design memory cannot be replaced or upgraded Also additional storage space cannot be added

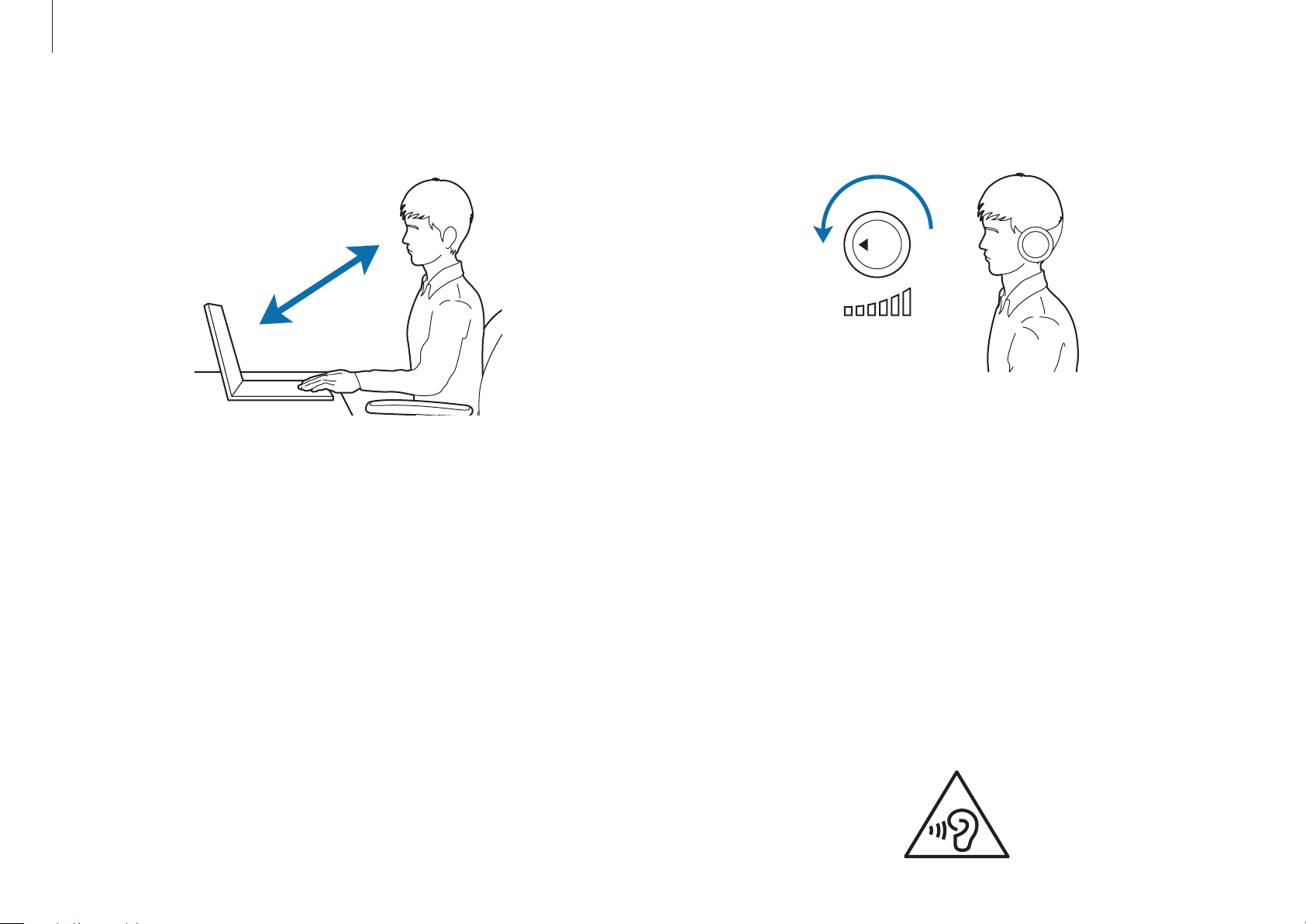

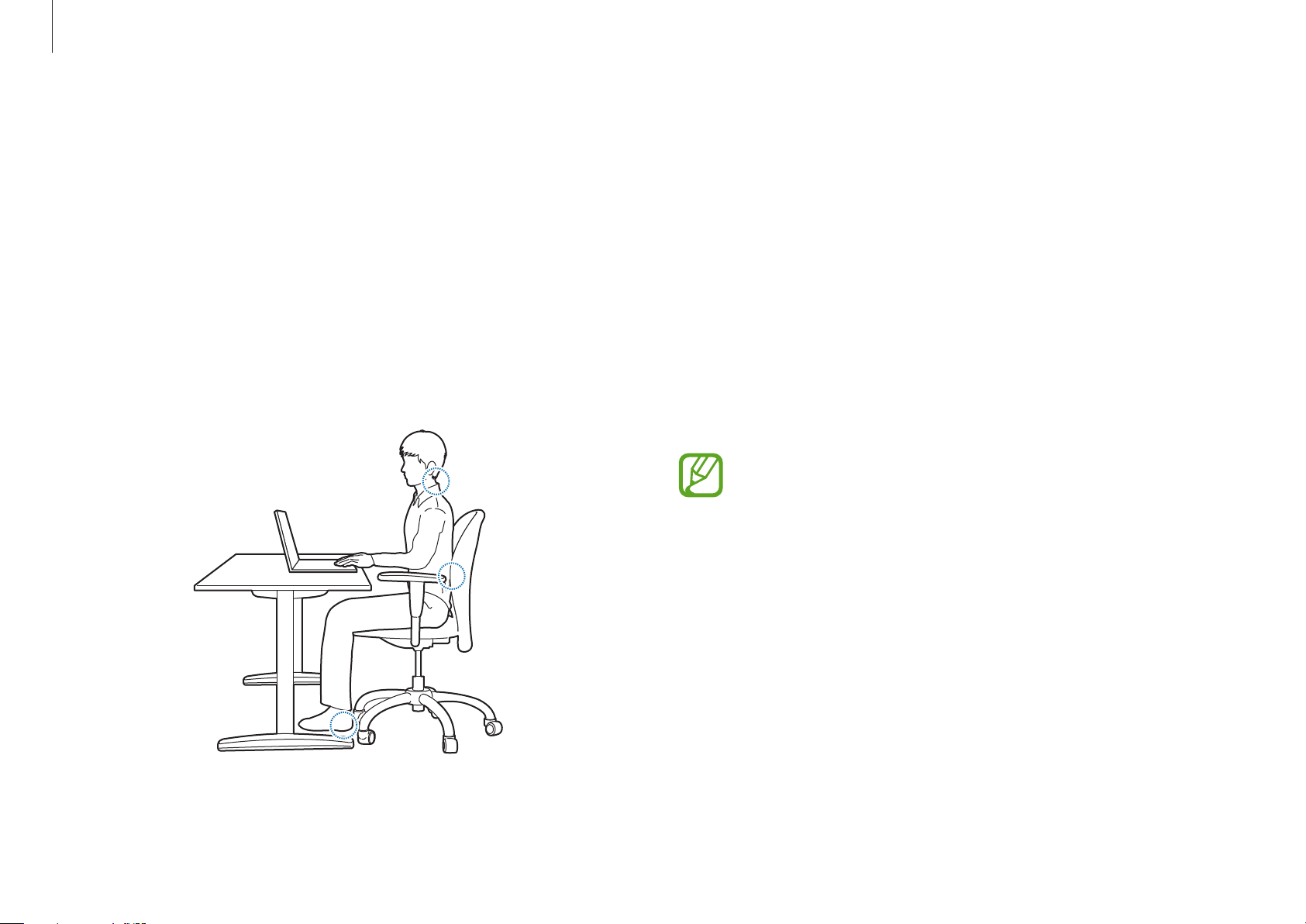

  • Page 39 - English - : Appendix Use an adjustable chair with firm comfortable support Adjust the height of your chair so that thighs are horizontal to the floor and feet are flat on the floor The back of the chair should support the lower back Adjust the backrest to fit your body properly Sit back fully in your chair and straighten the back and neck Avoid leaning forward or craning your neck toward the computer screen Avoid using the computer while lying down or on your lap If the computers temperature increases there is a danger of burn injury The instructions in this manual have been prepared so that they can be applied to the range of needs of general users If the user is not included in the range the recommendations should be applied according to the users needs Images may differ from actual products Ergonomic tips Maintaining proper posture during computer use is very important to prevent physical injury Improper or prolonged keyboard use may result in repetitive strain injury Viewing the monitor screen for extended periods of time may result in eye strain Therefore please follow these guidelines carefully when setting up and using the computer Back and neck
  • Page 40 - English - : Appendix When using the keyboard and touchpad the shoulders should be relaxed The upper arm and forearm should form an angle that is slightly greater than a right angle with the wrist and hand in almost a straight line Use a light touch when typing or using the touchpad and keep the hands and fingers relaxed Avoid rolling the thumbs under your palms or supporting the wrists on the desk while typing Use an external keyboard and mouse when using the computer for long periods When using an external keyboard and mouse position the devices at the same height as the computer and within comfortable reach Arms and hands
  • Page 41 - English - : Appendix Hearing and volume control VOLUME Check your volume Ensure that the volume is not too loud before using a headset or earphones Excessive exposure to loud sounds can cause hearing damage Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music Avoid using earphones for long periods of time Default audio settings can be changed by software and driver updates without your knowledge Always recheck equalizer and volume settings before listening to audio To prevent possible hearing damage do not listen at high volume levels for long periods Eye position and display illumination 50 cm Position the screen at least 50 cm away from your eyes Adjust the height of the screen so that its top edge is equal to or just below the level of your eyes Avoid setting the screens brightness settings excessively high Keep the screen clean If wearing glasses clean them before using the computer When referring to printed content while typing use a static paper holder to hold the paper at about the same height as the monitor
  • Page 42 - English - : Appendix If anyone related to you has experienced seizures or blackouts while using a similar product consult a physician before using the computer If you feel discomfort such as a muscle spasm or disoriented stop using the computer immediately and consult a physician To prevent eye strain take frequent breaks while using the computer Reduce the risk of repetitive motion injuries When you repetitively perform actions such as pressing keys drawing characters on a touch screen with your fingers or playing games you may experience occasional discomfort in your hands neck shoulders or other parts of your body When using your computer for extended periods hold the computer with a relaxed grip press the keys lightly and take frequent breaks If you continue to have discomfort during or after such use stop using the computer and consult a physician Operating conditions Take at least a 10 minute break every hour Avoid using the computer in dark locations Use the computer with as much ambient light as you would when reading a book Indirect illumination is recommended Use a curtain to prevent reflections and glare on the screen While operating a computer and talking on a phone use a headset Using the computer while holding a phone on your shoulder or with your neck may lead to muscle strain or injury Keep frequently used items within reach Only use the computer within the temperature and humidity ranges specified in this manual Use caution when exposed to flashing lights While using your computer leave some lights on in the room and do not hold the screen too close to your eyes Seizures or blackouts can occur when you are exposed to flashing lights while watching videos or playing Flashbased games for extended periods If you feel any discomfort stop using the computer immediately
  • Page 43 - English - : Appendix Power related Handle the power cord with care Do not touch with wet hands Do not use a damaged power cord Do not overload a multioutlet or an extension cord beyond the specified voltagecurrent capacity Firmly insert the power cable into the AC adapter Do not unplug the power cord by pulling on the cable Unplug the wallmount AC adapter integrated plug and power adapter from the wall outlet while holding the body and pulling it in the direction of the arrow Failure to do so may result in electric shock or fire Connect the power cord to the AC adapter firmly An improper connection may result in a fire Use the approved adapter or cable included in the product box If you use the unapproved adapter or cable it cause the damage or malfunction of the computer Safety precautions For your safety and security and to prevent damage carefully read the following safety instructions This Safety precautions relate to computer use Some of the content may not be applicable to your computer Since this is commonly applied to Samsung Computers some pictures may differ from actual products The product mentioned in this guide refers to all items supplied with the computer including the battery the AC adapter and all other Samsungprovided accessories Warning Failure to follow the instructions marked with this symbol may result in physical injury or fatality NP UM Rev 42
  • Page 44 - English - : Appendix Battery usage related Use manufacturerapproved batteries chargers accessories and supplies Using generic batteries or chargers may shorten the life of your product or cause the computer to malfunction They may also cause a fire or cause the battery to explode Use only Samsungapproved battery and charger specifically designed for your device Incompatible battery and charger can cause serious injuries or damage to your device Samsung cannot be responsible for the users safety when using accessories or supplies that are not approved by Samsung Take care to not allow metal objects such as a key or clip to touch the battery terminal metal parts This may cause excessive current and result in fire burns or damage to the battery If the computer or the computer battery leaks emits strange odors or swells immediately stop using the computer and contact a Samsung Service Center Failure to do so may result in an explosion or fire Use only properly earthed electric sockets or extension cords Unearthed electric sockets or extension cords may cause electric shock Any connection to unearthed electric sockets or extension cords may produce an electric field from a current leak If water or other substances enter the product disconnect the power cable and contact a Samsung Service Center For notebook computers that are supplied with an optional removable battery disconnect the battery Failure to do so may result in electric shock or fire due to computer malfunction Do not let dust accumulate on the power cord or the electric socket Regularly wipe the power cord and the electric socket with a dry cloth Failure to do so may result in electric shock or fire Do not bend or damage the power cable or the AC adapter with a heavy or sharpedged object A damaged cable or cord may result in electric shock or fire Keep the battery AC adapter and power cord away from infants children and pets Failure to do so may result in electric shock or damage
  • Page 45 - English - : Appendix Usage related Do not use the computer on heated floors or electric pads or on beds blankets or cushions that block the ventilation of the computer A blocked vent causes the computer to overheat resulting in an explosion fire burns or computer malfunction Do not use the computer in hot or humid locations such as a bathroom sauna or inside a car during summer Failure to do so may result in computer malfunction or electric shock The computer can be used in locations with an ambient temperature of 10 C to 35 C and a relative humidity of 20 to 80 RH To avoid suffocation keep the plastic bag away from infants and children Putting a plastic bag over the head may result in suffocation Never heat the computer or the battery or put the computer or the battery into a fire or microwave Failure to do so may result in an explosion or fire Replace a rundown battery with a new Samsungapproved battery Dispose of wornout batteries properly There is a danger of fire or explosion The battery disposal method may differ depending on your country and region Dispose of the used battery in an appropriate way When removing the real time clock RTC battery keep it away from infants and children If a child swallows the battery the child may suffocate If this happens immediately contact a doctor Do not throw or disassemble the battery and do not put it into water There is a danger of injury fire or explosion Charge the battery according to the instructions in the manual Failure to do so may cause an explosion or fire
  • Page 46 - English - : Appendix Caution Failure to follow instructions marked with this symbol may result in minor physical injury or damage to the computer Installation related Do not block the ports holes vents etc of the product and do not insert objects Damage to a component within the computer may cause electric shock or fire When using the computer on its side ensure the vents are clear and facing upwards Failure to do so may cause the internal temperature of the computer to rise and the computer to malfunction or halt Keep the computers vents at least 15 cm away from walls and other objects Failure to do so may result in physical injury Do not place or use the computer on slanted or vibrating surfaces Failure to do so may result in computer malfunction or damage Before cleaning the computer disconnect all the cables that are connected to the computer For notebook computers that are supplied with an optional removable battery disconnect the battery Failure to do so may result in electric shock or fire Keep the computer away from water or liquid Water or liquid entering the computer may shortcircuit the computer resulting in electric shock or fire If the computer is dropped or broken disconnect the power cord and contact a Samsung Service Center For notebook computers that are supplied with an optional removable battery disconnect the battery Using a broken computer may result in electric shock or fire Do not touch the computers surface or the vents for extended periods while the computer is on Contact with the vent or the surface extended periods may result in lowtemperature burns such as redness on the skin Do not carry your device in your back pockets The device may be damaged explode or result in a fire if too much pressure is applied to it You may be injured if you are bumped or fall
  • Page 47 - English - : Appendix In case of lightning immediately turn the system off then disconnect the power cord from the wall outlet and phone line from modem There is a danger of electric shock or fire Connect only permitted devices to the connectors or ports of the computer Failure to do so may result in an electric shock or fire Close the LCD panel only after checking if the notebook computer is turned off The temperature may rise and it may cause deformation of the product Do not press the eject button while the CDROM drive is in operation You might lose data and the disc might be suddenly ejected and could cause an injury Do not drop or hit the computer against anything Failure to do so may result in physical injury or computer malfunction Do not place heavy objects on the product This may cause a problem with the computer In addition the object may fall and cause injury or damage the computer Properly shut down disconnect and secure the computer cables before moving it Failure to do so may damage the computer or cause someone to trip over a loose cable Usage related Do not use the pen for unintended purposes such as poking the body like eyes or ears and do not put it in your mouth Doing so may result in physical injury Do not place a candle lit cigar etc over or on the product There is a danger of fire Make sure to have the product tested by a safety service engineer after repairing the product Using a repaired product without testing it for safety may cause an electric shock or fire
  • Page 48 - English - : Appendix Use recommended computer cleansing solutions when cleaning the product and only use the computer when it is completely dry Failure to do so may result in electric shock or fire You should not use a paper clip to perform an emergency disc ejection while the disc is in motion Make sure to use the emergency disc eject method only when the Optical Disc Drive has stopped There is a danger of injury Do not place your face close to the Optical Disc Drive tray when it is operating There is a danger of injury due to an abrupt ejection Do not use the product if it is cracked or broken Broken glass or acrylic could cause injury to your hands and face Take the device to a Samsung Service Center to have it repaired When using wireless communication LAN Bluetooth etc always follow applicable instructions For example airlines and hospitals have strict requirements When handling computer parts follow the instructions on the manual supplied with the parts Failure to do so may result in damage to the product If the product emits smoke or there is a burning smell disconnect the power plug from the wall outlet and contact a Samsung Service Center immediately For notebook computers that are supplied with an optional removable battery disconnect the battery There is a danger of fire Do not store your device near or in heaters microwaves hot cooking equipment or high pressure containers The battery may leak Your device may overheat and cause a fire Do not use damaged or illegally modified CDs There is a danger of damaging the product or personal injury Do not insert your fingers into the port holes card slot or vents There is a danger of injury or electric shock
  • Page 49 - English - : Appendix When in a hospital turn off your computer and follow all hospital regulations Radio frequencies emitted from the computer may affect medical equipment Upgrade Related Do not attempt to upgrade the computer unless you are qualified Otherwise contact a Samsung Service Center or an authorized technician When you upgrade permitted devices according to the manual follow the specified instructions in the manual to upgrade them Do not disassemble any other parts by yourself Failure to do so may result in computer malfunction electric shock or fire Take care when touching the product or parts The computer may be damaged or you may be injured Avoid exposing a drive to magnetic fields Security devices with magnetic fields include airport walkthrough devices and security wands The airport security devices that check carryon luggage use Xrays instead of magnetism and will not damage a drive Keep the computer away from magnetic material Magnetic materials may cause computer malfunction or cause the battery to discharge To avoid damaging the computer or magnetic stripe cards such as credit cards keep magnetic stripe cards away from the computer Do not use your computer in a hospital or on an aircraft that can be interfered with by radio frequency Avoid using your computer within a 15 cm range of a pacemaker if possible as your computer can interfere with the pacemaker To minimize possible interference with a pacemaker use your computer only on the side of your body that is opposite the pacemaker If you use medical equipment contact the equipment manufacturer before using your computer to determine whether or not the equipment will be affected by radio frequencies emitted by the computer
  • Page 50 - English - : Appendix Storage and movement related Do not store the computer in an enclosed space such as a computer bag while it is running Failure to do so may result in fire Completely shut down the computer before putting the computer into an enclosed space When carrying the notebook computer with other items such as the adapter mouse books etc take care not to press anything against the notebook computer If a heavy object is pressed against the notebook computer a white spot or stain may appear on the LCD Do not operate or look at the computer while driving a vehicle There is a danger of a traffic accident Please concentrate on driving For long periods of inactivity or storage discharge the battery and separate it from the computer for external or removable battery types Do not disassemble the power supply unit in any circumstances Failure to do so may result in electric shock fire or an explosion Shut down the computer and disconnect all cables before disassembling the computer For notebook computers that are supplied with an optional removable battery disconnect the battery Failure to do so may cause electric shock Make sure to close the computer cover before connecting the power after a reassembly There is a danger of electric shock if your body touches an internal part Never disassemble or repair the product by yourself There is danger of an accident Use authorized Samsung Service Center To connect a device that is not manufactured or authorized by Samsung enquire at a Samsung Service Center before connecting the device There is a danger of damaging the product
  • Page 51 - English - : Appendix Clean the LCD screen with a soft cloth dampened with computer cleansing detergent Do not use excessive force Doing so may damage the LCD screen Cautions on preventing data loss storage device eg HDD SSD eMMC management Take care not to damage the data on a storage device eg HDD SSD eMMC Subjecting the device to physical impacts may result in data loss Data may be lost when the computer is turned off or reset by a power failure while the storage device eg HDD SSD eMMC is operating Data may be lost and irrecoverable due to a computer virus Data may be lost if the power is turned off while running an application Samsung is not liable for any loss of data on a storage device eg HDD SSD eMMC To prevent data loss due to damage to a storage device eg HDD SSD eMMC please back up the data frequently
