OWNER’S MANUAL
COMMERCIAL WASHER
MODEL
GCW1069CS/GCW1069QS/GCW1069LS
GCW1069CD/GCW1069QD/GCW1069LD
www.lg.com
Before beginning installation, read these instructions carefully. This will simplify
installation and ensure that the washer is installed correctly and safely.
Leave these instructions near the washer after installation for future reference.
P/No. : MFL62526841
2
PRODUCT FEATURES
PRODUCT FEATURES
DIRECT DRIVE SYSTEM
The advanced Brushless DC motor directly drives the drum without using a belt and pulley.
TILTED DRUM AND EXTRA LARGE DOOR OPENING
The tilted drum and extra large opening make it possible to load and unload clothing more easily.
ULTRA CAPACITY
The larger drum enables more tumbling action and greater centrifugal force, but also less tangling and wrinkling of the laundry.
Heavier loads, such as king size comforters, blankets, and curtains, can be washed.
SEE-THROUGH DOOR AND BIG DOOR
You can see the laundry throughout the cycle.
MAGNETIC DOOR PLUNGER
Safely and conveniently secure the door slightly ajar with the magnetic door plunger. This will promote air circulation and allow
the interior of the machine to dry. To use this feature, after the load has been removed, do not close the door completely. When
the magnetic door plunger comes into contact with the metal washer cabinet, it will secure the door slightly open allowing the
interior of the washer to dry.
STAINLESS STEEL DRUM
TUB CLEAN
Regular cleaning of the tub on a monthly basis using TUB CLEAN can help keep the tub clean and fresh.
3
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNINg
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, injury to persons, or death.
BASIC SAFETY PRECAUTIONS
WARNINg
To reduce the risk of fire, electric shock, or injury to persons when
using this appliance, follow basic precautions, including the following:
•
Before use, the washer must be properly installed as described
in this manual.
•
Do not wash articles that have been previously cleaned in,
washed in, soaked in, or spotted with gasoline, dry cleaning
solvents, or other flammable or explosive substances,
as they
give off vapors that could ignite or explode.
•
Do not add gasoline, dry cleaning solvents, or other flammable
or explosive substances to the wash water.
These substances
give off vapors that could ignite or explode.
• Under certain conditions, hydrogen gas may be produced in a
hot water system that has not been used for 2 weeks or more.
HYDROGEN GAS IS EXPLOSIVE.
If the hot water system has
not been used for such a period, before using the washer, turn
on all hot water faucets and let the water flow from each for
several minutes.
This will release any accumulated hydrogen
gas. As the gas is flammable,
do not smoke or use an open
flame during this time.
•
Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer is used
near children.
•
Before the washer is removed from service or discarded,
remove the door to prevent children from climbing inside.
•
Do not install or store the washer where it will be exposed to
the weather or freezing temperatures.
•
Do not tamper with controls.
•
Do not repair or replace any part of the washer or attempt any
servicing other than as described in this manual.
We strongly
recommend that any service be performed by a qualified
technician.
•
See Installation Instructions for grounding requirements.
•
ALWAYS follow the fabric care instructions supplied by the
garment manufacturer.
•
Do not place items exposed to cooking oil in your washer.
Items
contaminated with cooking oils may contribute to a chemical
reaction that could cause a load to catch fire.
•
Use fabric softeners or products to eliminate static only as
recommended by the manufacturer.
• This washer is not designed for maritime use or for mobile
installations such as in RVs, aircraft, etc.
•
Turn off the water faucets and unplug the washer if the
machine is to be left for an extended period of time, such as
during vacations.
•
Do not use to dry articles containing foam rubber or similarly
textured rubber-like materials.
• Packaging material can be dangerous for children. There is a risk
of suffocation!
Keep all packaging from children.
•
Always check the inside of the washer for foreign objects
before loading laundry. Keep the door closed when not in use.
•
Do not reach into the appliance if the tub or agitator is moving.
• WARNING :
This product contains chemicals known to the
State of California to cause cancer and birth defects or other
reproductive harm.
Wash hands after handling.
Your Safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER, WARNING or CAUTION.
These words mean:
DANgER
You will be killed or seriously injured if you don’t immediately follow instructions.
WARNINg
You can be killed or seriously injured if you don’t follow instructions.
CAUTION
You may be slightly injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what
can happen if the instructions are not followed.
4
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNINg
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, injury to persons, or death.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding
conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
WARNINg
Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician
or servicer if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the
appliance. If it does not fit the outlet, have a proper outlet installed by a qualified electrician. Failure to follow these warnings can
cause serious injury, fire, electric shock, or death.
5
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, injury to persons, or death.
SAFETY INSTRUCTIONS FOR INSTALLATION
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the
following.
•
Refer to INSTALLATION INSTRUCTIONS for detailed
grounding procedures.
Installation instructions are packed
with the washer for installer’s reference. If the washer is
moved to a new location, have it checked and reinstalled by a
qualified service technician. Failure to follow this warning can
cause serious injury, fire, electric shock, or death.
•
Do not, under any circumstances, cut or remove the third
(ground) prong from the power cord.
Failure to follow this
warning can cause serious injury, fire, electric shock, or
death.
•
For personal safety, this appliance must be properly
grounded.
Failure to follow this warning can cause serious
injury, fire, electric shock, or death.
•
The power cord of this appliance is equipped with a 3-prong
(grounding) plug which mates with a standard 3-prong
(grounding) wall outlet
to minimize the possibility of electric
shock from this appliance.
•
This washer must be plugged into a 120 VAC, 60 Hz
grounded outlet.
Failure to follow this warning can cause
serious injury, fire, electric shock, or death.
•
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
Failure to follow this warning can cause serious injury, fire,
electric shock, or death.
•
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
Failure to follow this warning can cause serious injury, fire,
electric shock, or death.
•
Do not install on carpet. Install washer on a solid floor.
Failure to follow this warning can cause serious leak damage.
•
Do not remove ground prong. Do not use an adapter or
extension cord. Plug into a grounded 3-prong outlet.
Failure
to follow these warnings can cause serious injury, fire,
electric shock, or death.
•
The washer should always be plugged into its own individual
electrical outlet which has a voltage rating that matches the
rating plate.
This provides the best performance and also
prevents overloading house wiring circuits which could cause
a fire hazard from overheated wires.
•
Never unplug your washer by pulling on the power cord.
Always grip plug firmly and pull straight out from the outlet.
Failure to follow this warning can cause serious injury, fire,
electric shock, or death.
•
Repair or immediately replace all power cords that have
become frayed or otherwise damaged. Do not use a cord
that shows cracks or abrasion damage along its length or at
either end.
Failure to follow this warning can cause serious
injury, fire, electric shock, or death.
•
When installing or moving the washer, be careful not to
pinch, crush, or damage the power cord.
Failure to follow
this warning can cause serious injury, fire, electric shock, or
death.
•
The washer must be installed and electrically grounded by
a qualified service person in accordance with local codes
to
prevent shock hazard and assure stability during operation.
•
The washer is heavy. Two or more people may be needed
to install and move the appliance.
Failure to do so can result
in back or other injury.
•
Store and install the washer where it will not be exposed
to temperatures below freezing or exposed to outdoor
weather conditions.
Failure to follow this warning can cause
serious leak damage.
•
Do not install the washer in humid spaces to reduce the risk
of electric shock
. Failure to follow this warning can cause
serious injury, fire, electric shock, or death.
•
To reduce the risk of injury to persons, adhere to all industry
recommended safety procedures including the use of long
sleeved gloves and safety glasses.
Failure to follow all of
the safety warnings in this manual could result in property
damage, injury to persons or death.
6
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, injury to persons, or death.
SAFETY INSTRUCTIONS FOR USE, CARE, CLEANING, AND DISPOSAL
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the
following.
SAVE THESE INSTRUCTIONS
•
Unplug the washer before cleaning
to avoid the risk of
electric shock.
•
Never use harsh chemicals, abrasive cleaners, or solvents
to clean the washer.
They will damage the finish.
•
Do not put oily or greasy rags or clothing on top of the
washer.
These substances give off vapors that could ignite
the materials.
•
Do not wash items that are soiled with vegetable or cooking
oil.
These items may contain some oil after laundering. Due
to the remaining oil, the fabric may smoke or catch fire by
itself.
•
Disconnect this appliance from the power supply before
attempting any user maintenance. Turning the controls to
the OFF position does not disconnect this appliance from
the power supply.
Failure to follow this warning can cause
serious injury, fire, electric shock, or death.
•
Do not combine laundry products for use in one load unless
specified on the label.
•
Do not mix chlorine bleach with ammonia or acids such
as vinegar. Follow package directions when using laundry
products.
Incorrect usage can produce poisonous gas,
resulting in serious injury or death.
•
Do not reach into the washer while parts are moving.
Before loading, unloading, or adding items, press the START/
PAUSE button and allow the drum to coast to a complete
stop before reaching inside.
Failure to follow this warning
can cause serious injury, fire, electric shock, or death.
•
Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer
is used near children. As children grow, teach them the
proper, safe use of all appliances.
Failure to comply with
these warnings could result in serious injury to persons or
death.
•
Destroy the carton, plastic bag, and other packing materials
after the washer is unpacked. Children might use them for
play. Cartons covered with rugs, bedspreads, or plastic
sheets can become airtight chambers.
Failure to comply
with these warnings could result in serious injury to persons
or death.
•
Keep laundry products out of children’s reach. To prevent
injury to persons, observe all warnings on product labels.
Failure to comply with these warnings could result in serious
injury to persons or death..
•
Remove the door to the washing compartment to avoid the
danger of children or small animals getting trapped inside
before your washer is removed from service or discarded.
Failure to do so can result in serious injury to persons or
death.
7
TABLE OF CONTENTS
TABLE OF CONTENTS
2 PRODUCT FEATURES
3 IMPORTANT SAFETY INSTRUCTIONS
3 BASIC SAFETY PRECAUTIONS
4 GROUNDING INSTRUCTIONS
5 SAFETY INSTRUCTIONS FOR INSTALLATION
6 SAFETY INSTRUCTIONS FOR USE, CARE,
CLEANING, AND DISPOSAL
8
PARTS AND ACCESSORIES
8 Parts
8 Accessories
9
CONTROL PANEL FEATURES
9 Coin type
10 Card / OPL type
12
INSTALLATION INSTRUCTIONS
12 Checking and choosing the proper location
13 Unpacking and removing shipping bolts
14 Connecting the water lines
15 Connecting the drain line
16 Leveling the washing machine
17 PREPARATION
17 Precautions for fabric care before wash cycle
18 Fabric Care Labels
18 Sorting laundry
19 Using detergent/fabric softener
19 - Recommended detergent
19 - About the dispenser
20 - Loading the dispenser
21 OPERATING YOUR WAShER
22 PROGRAMMING MODE
23 Card/Coin type
24 OPL type
25 Programming mode - Setup Mode
25 - 1. How to change regular price.
26 - 2. How to change regular cold price.
27 - 3. How to change regular warm price
28 - 4. How to change regular hot price
29 - 5. How to change special price
30 - 6. How to change special cold price
31 - 7. How to change special warm price
32 - 8. How to change special hot price
33 - 9. How to change add super wash price
34 - 10. How to change add super wash type
35 - 11. How to enter the FEA1
36 - 11-1. Special price day setup
37 - 11-2. Add super wash setup
38 - 11-3. Vend type setup - card type or coin type setup
39 - 11-4. Pre-wash set up
40 - 12. How to enter the special price day
41 - 12-1. How to change to Sunday
42 - 13. Special price beginning time setup
43 - 14. Special price ending time setup
44 - 15. Washing time set up
45 - 16. Rinsing times per cycle
46 - 17. Rinsing time setup
47 - 18. Top spin speed – final spin time depends on
RPM
48 - 19. Value of coin 2
49 - 20. Penny increment pricing offset
50 - 21. How to change the water level
51 - 22. Beep volume
52 - 23. Time to keep the coin (Use only for coin type)
53 Programming Mode - Test mode

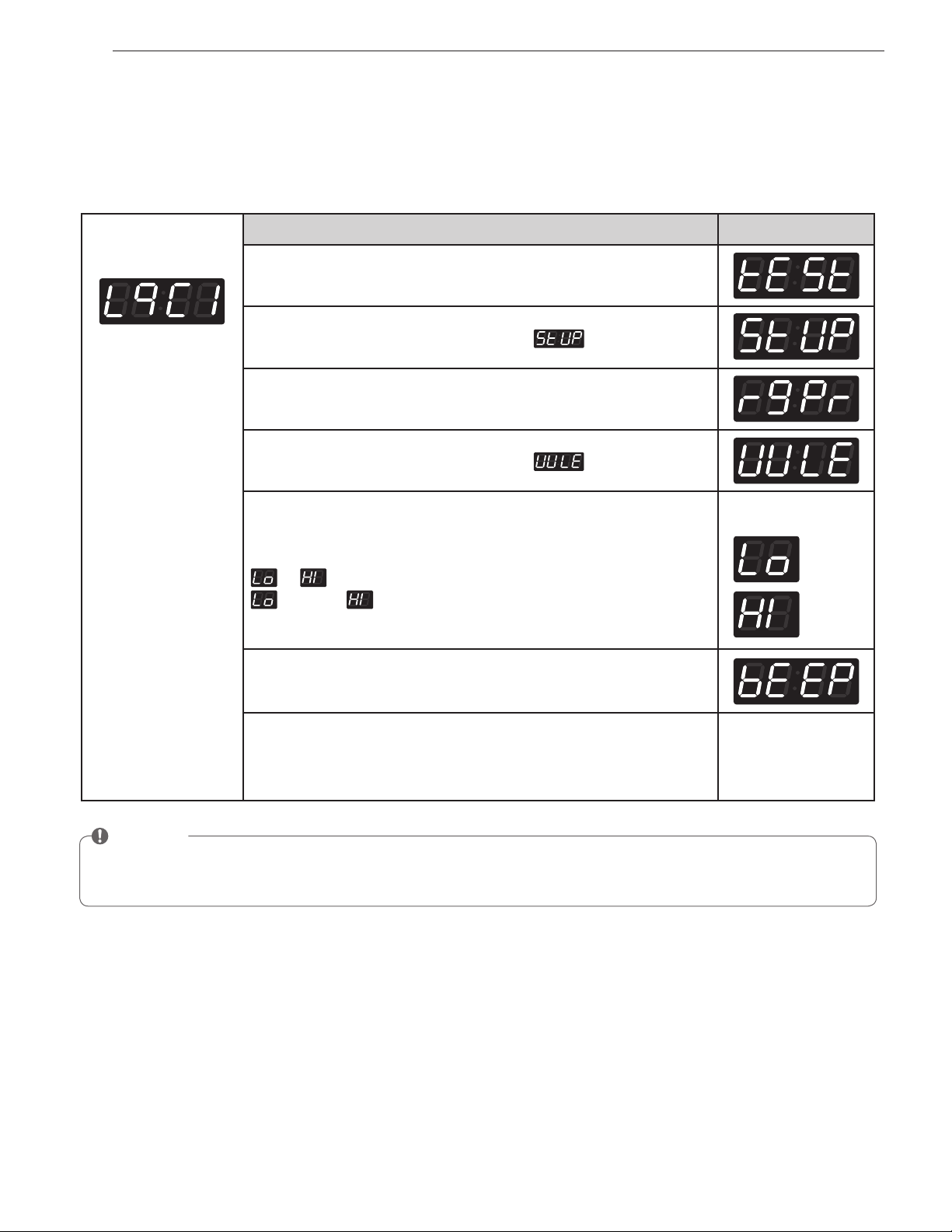

53 - 1. LqC1
54 - 2. Factory reset -EEPt
55 - 3. Time set up
56 - 4. Courtesy cycle
57 - 5. Cycle Kill
58 - 6. Tub clean
59 Programming Mode - Collect mode
60 Collect Mode Data lists
61 MAINTENANCE
61 Care after wash
61 - Storing the Washer
61 - Cleaning the Dispenser
62 - Cleaning the water inlet filters
63 - Cleaning the drain pump filter
64 - Cleaning the door seal
64 - Clean the drum, TUB CLEAN
65 ERROR MODE
66 POWER FAIL RECOvERY
66 DEFAULT WAShER SETTINGS
66 SPECIFICATIONS
8
PARTS AND ACCESSORIES
PARTS AND ACCESSORIES
Parts
Accessories
Detergent
dispenser
drawer
Door
Magnet Door
Plunger
(see page 2)
Control panel
Door
seal
Tub
Leveling
feet
Drain pump filter cover
Drain pump filter
Drain hose
Water inlets
Shipping
bolts
Power cord
Drain hose
Hot and Cold
Water Hoses
Non-skid pads
Caps (4)
(for covering shipping bolt holes)
Wrench
(for removing
shipping bolts and adjusting
leveling feet)
Tie Strap
(for securing drain hose)
Elbow Bracket
(for securing drain hose)
9
CONTROL PANEL FEATURES
4 3
4 3
4 3
4 3
1 25
1 25
1 25
1 25
Optional function button
Optional function button
1. Display LED
2. Cycle button
3. Optional cycle button
4. Start button
5. Status LED
CONTROL PANEL FEATURES
Coin type
- Side by side (GCW1069QS)
Coin type
- Stack (GCW1069QD)
10
CONTROL PANEL FEATURES
1. Display LED
2. Cycle button
3. Optional cycle button
4. Start button
5. Status LED
CONTROL PANEL FEATURES
Card type
- Side by side & Stack (GCW1069CD, GCW1069CS)
4 3
4 3
4 3
4 3
1 25
1 25
1 25
1 25
Optional function button
Optional function button
OPL type
- Side by side & Stack (GCW1069LD, GCW1069LS)
11
CONTROL PANEL FEATURES
Start button
Display LEDStatus LED Cycle button
Display LED
The display shows the vend price and remaining time and
programming options. Error codes are also displayed here.
Optional function button
Wash time or rinse cycle can be added when additional coin
is inserted or a valid cash card is entered.
Start button
The START LED flashes when the full vend price has been
satisfied and the cycle has been chosen.
Status LED
LED Description
LED flashes whenever the washing cycle is in
operation.
LED flashes whenever the Rinsing cycle is in
operation.
LED flashes whenever the Spining cycle is in
operation.
LED flashes whenever the door lock is
activated.
Cycle button
Press the CYCLE button to select the desired cycle based
on laundry types and conditions.
WHITES
Use for hot washing for heavy fabrics, such as white
clothes, table linens, and heavily soiled clothes.
COLORS
Use for warm washing for heavy fabrics, such as jeans,
corduroys, or work clothes.
DELICATES
Use for cold washing for synthetic fabrics, such as washable
knit fabric and no-iron finishes.
PERM. PRESS
Use for warm washing for sturdy fabrics, such as work
casual work.
Optional function button
12
INSTALLATION INSTRUCTIONS
Space requirements
You must allow sufficient space for water lines, the drain
line, and airflow.
Installing on a floor
Install the washing machine on a solid floor that is strong
and rigid enough to support the weight of the washing
machine, even when fully loaded, without flexing or
bouncing. If the floor has too much flex, you may need to
reinforce it to make it more rigid. If the floor is not solid, it
may cause severe vibration and noise.
1
Clean the floor before installation.
- Make sure to select solid and smooth ground.
2
Two or more people are needed for moving and
unpacking the washing machine.
3
Allow for sufficient space between the walls and the
washing machine for installation.
Checking and choosing the proper
location
29
3
/4”
(75.6 cm)
51”
(129.7 cm)
4”
(10 cm)
22
1
/4”
(57 cm)
27”
(68.6 cm)
1”
(2.5 cm)
1”
(2.5 cm)
INSTALLATION INSTRUCTIONS
NOTE
• Be sure to allow for wall, door, or floor moldings that
may increase the required clearances.
NOTE
• The floor must be strong and rigid enough to support
the weight of the washer, when fully loaded, without
flexing or bouncing. If your floor has too much flex,
you may need to reinforce it to make it more rigid.
A floor that is adequate for a top-loading washer may
not be rigid enough for a front loading washer, due to
the difference in the spin speed and direction. If the
floor is not solid, your washer may vibrate and you may
hear and feel the vibration throughout your house.
• Before installing the washer, make sure the floor is
clean, dry and free of dust, dirt, water and oils so the
washer feet can not slide easily. Leveling feet that can
move or slide on the floor can contribute to excess
vibration and noise due to poor contact with the floor.
13
INSTALLATION INSTRUCTIONS
Foam Tub Support Carton Base
NOTE
• Save the bolt assemblies for future use. To prevent
damage to internal components, DO NOT transport the
washer without reinstalling the shipping bolts.
• Failure to remove shipping bolts and retainers may
cause severe vibration and noise, which can lead to
permanent damage to the washer. The cord is secured
to the back of the washer with a shipping bolt to help
prevent operation with shipping bolts in place.
1
Remove the bottom two shipping bolts with the wrench
(included) to fully loosen all four shipping bolts by turning
them counterclockwise and then pulling them out.
2
Locate the four hole caps included in the accessory pack
and install them in the shipping bolt holes.
Unpacking and removing shipping
bolts
When removing the washer from the carton base, be sure
to remove the foam drum support in the middle of the
carton base.
If you must lay the washer down to remove the base
packaging materials, always lay it carefully on its side.
DO NOT lay the washer on its front or back.
Shipping
bolt
Retainer
Cap
14
INSTALLATION INSTRUCTIONS
NOTE
• For your safety, and for extended product life, use only
authorized components. The manufacturer is not re-
sponsible for product malfunction or accidents caused
by the use of separately purchased unauthorized parts.
• Use new hoses when you install the washing machine.
Do not reuse old hoses. Use only the inlet hoses
provided with the washer. LG does not recommend the
use of aftermarket hoses.
• Periodically check the hoses for cracks, leaks and wear,
and replace the hoses every 5 years.
• Do not stretch the water hoses intentionally, and make
sure that they are not crushed by other objects.
• Water supply pressure must be between 14.5 PSI and
116 PSI (100~800 kPa). If the water supply pressure is
more than 116 PSI, a pressure reducing valve must be
installed.
• To provide optimum washing performance the hot wa-
ter temperature should be set at 120-135°F (48-57°C)
and the cold at 60°F (15°C).
Connecting the water lines
1
Check the rubber seals on both sides of the hose.
- Insert a rubber seal into the threaded fittings on each
hose to prevent leaking.
2
Connect the water supply hoses to the HOT and COLD
water faucets tightly by hand and then tighten another
2/3 turn with pliers.
- Connect the blue hose to a cold water faucet and the
red hose to a hot water faucet.
4
Connect the hoses to the water inlets tightly by hand and
then tighten another 2/3 turn with pliers.
- Connect the blue hose to the cold water inlet and the
red hose to the hot water inlet.
5
Check for leaks by turning on the faucets.
- If water leaks, check steps 1 to 4 again.
3
After connecting inlet hose to water faucets, turn on the
water faucets to flush out foreign substances (dirt, sand
or sawdust) in the water lines. Let water drain into a
bucket, and check the water temperature.
Cold
water
inlet
Hot water
inlet
Rubber seal
Water hose
(To water inlet on the
washing machine)
Rubber seal
Water hose
(To faucet)
WARNING
• Do not overtighten. Damage to the coupling can result.
WARNING
• Do not overtighten the hoses.
Overtightening can damage the valves resulting in
leaking and property damage.
15
INSTALLATION INSTRUCTIONS
Connecting the drain line
Secure the drain hose in place to prevent moving and
leaking.
Using a standpipe
1
Clip the end of the hose into the elbow bracket.
- Connect the elbow bracket within 4 inches (10 cm) from
the end of the drain hose. If the drain hose is extended
more than 4 inches (10 cm) beyond the end of the
elbow bracket, mold or microorganisms could spread to
the inside of the washer.
Using a laundry tub
1
Clip the end of the hose into the elbow bracket.
- Connect the elbow bracket within 4 inches (10 cm) from
the end of the drain hose. If the drain hose is extended
more than 4 inches (10 cm) beyond the end of the
elbow bracket, mold, or microorganisms could spread to
the inside of the washer.
2
Hang the end of the drain hose over the side of the
laundry tub.
3
Use a tie strap to secure the drain hose in place.
Drain Hose
Elbow Bracket
Drain Hose
NOTE
• The drain hose should be properly secured. Failure to
properly secure the drain hose can result in flooding
and malfunction.
• Total height of the house end should not exceed 96
inches (244.8 cm) from the bottom of the washer.
• The drain must be installed in accordance with any ap-
plicable local codes and regulations.
• Make sure that the water lines are not stretched,
pinched, crushed, or kinked.
No more than
4 inches (10 cm)
Elbow Bracket
No more than
4 inches (10 cm)
Elbow Bracket
Elbow
Bracket
Tie Strap
Laundry Tub
max. 96”
(2.4 m)
max. 96”
(2.4 m)
2
Insert the end of the drain hose into the standpipe.
3
Use a tie strap to secure the drain hose in place.
16
INSTALLATION INSTRUCTIONS
Leveling the washing machine
The washer tub of your new washing machine spins at very
high speeds. To minimize vibration, noise, and unwanted
movement, the floor must be perfectly level and solid.
1
Check the washing machine’s level.
- Check the precise level by rocking the top edges of
the washing machine or placing a level on the washing
machine. The slope beneath the washing machine must
not exceed 1°, and all four leveling feet must rest firmly
on the floor.
2
Turn the lower leveling feet clockwise to level the washing
machine.
- Turning the lower leveling feet clockwise raises the
washing machine.
3
Turn the locknuts counterclockwise and tighten them
when the washing machine is level.
4
Check the washing machine’s level again.
- Push or rock the top edges of the washing machine
gently to make sure that the washing machine does not
rock.
- If the washing machine rocks, repeat steps 1 to 3.
Using non-skid pads (optional)
If you install the washing machine on a slippery surface, it
may move because of excessive vibration. Incorrect leveling
may cause malfunction through noise and vibration. In the
event of this, lay the non-skid pads under the leveling feet
and adjust the level.
1
Clean the floor to attach the non-skid pads.
- Use a dry rag to remove and clean foreign objects or
moisture. If moisture remains, the non-skid pads may
slip.
2
Adjust the level after placing the washing machine in the
installation area.
3
Place the adhesive side of the non-skid pad on the floor.
- It is most effective to install the non-skid pads under the
front legs. If it is hard to place the pads under the front
legs, place them under the back legs.
4
Check the washing machine’s level again.
- Push or rock the top edges of the washing machine
gently to make sure that the washing machine does not
rock. If the washing machine rocks, level the washing
machine again.
Level
1°
Raise
Tighten all 4 lock
nuts securely using
the wrench.
Remove
backing
This side up
Adhesive
side
WARNING
• Using the washing machine without leveling, it may re-
sult in malfunction caused by the production of excess
vibration and noise.
• Use the leveling feet only when you level the washing
machine. If you raise the leveling feet unnecessarily, it
may cause abnormal vibration of the washing machine.
17
PREPARATION
Check all pockets to make sure that they are empty.
u
-Items such as clips, matches, pens, coins, and keys can
damage both your washer and your clothes.
Close zippers, hooks, and drawstrings to prevent these
u
items from snagging or tangling on other clothes.
Pretreat heavily stained areas before washing.
u
- Doing so will produce clean, stain-free results.
Combine large and small items in a load. Load large items
u
first.
Large items should not be more than half of the total
u
washload.
The washer can be fully loaded, but the drum should not be
u
tightly packed with items.
-The door of the washer should close easily.
Do not wash single items, except for bulky items such as
u
blankets. Make sure to wash laundry in similar types of
loads.
- Washing a single small item may result in the tub
becoming unbalanced, vibrating and making a noise.
Do not wash waterproof clothes.
u
- This may cause abnormal vibration, or may cause the load
to bounce, which could damage the tub.
Check if there are any other foreign objects in the door seal
u
and take extra care that clothes do not get caught there.
- Foreign objects in the door seal may stain clothes, and
water may leak if clothes get caught in the door seal.
Wash underwear or small, light items in a laundry net.
u
- Small, light items may get caught in the door seal, and a
brassiere hook may damage other items or the tub.
Brush heavy soil, dust, or hair off fabrics before washing.
u
- Laundry may not wash clean if there is dirt or sand on
the fabrics, or they may damage due to particles rubbing
against sheer fabrics.
Wash blankets individually.
u
- Washing more than one blanket together may produce
unclean results due to tangling or an unbalanced load.
Always separate fabrics according to their colors and wash
u
them separately to prevent colors from running.
- Fabrics may damage or become stained due to fabric dyes
running, or due to foreign objects transferring from one
fabric to another.
PREPARATION
Precautions for fabric care before wash cycle
Read and observe the following to prevent shrinkage or damage to clothes.
18
PREPARATION
Category Label Directions
Washing
Hand Wash
Machine Wash, Normal Cycle
Use Permanent Press/Wrinkle
Resistant washing machine
setting (which has a cool down or
cold spray before the reduced
spin)
Use Gentle/Delicate washing
machine setting (slow agitation
and/ or reduced wash time).
Do Not Wash
Do Not Wring
Water Temperature
Hot
Warm
Cold/Cool
Bleach symbols
Any Bleach (When Needed)
Only Non-Chlorine Bleach (When
Needed)
Do Not Bleach
Fabric care labels
Most articles of clothing feature fabric care labels that include
instructions for proper care.
Colors Whites / Lights / Darks
Soil Heavy / Normal / Light
Fabric Delicates / Easy Care / Sturdy Cottons
Lint Lint Producers / Lint Collectors
Sorting laundry
It is recommended that you sort laundry into similar loads
that are washable in the same cycle.
Refer to the following chart for sorting clothes
19
PREPARATION
NOTE
• It is normal for a small amount of water to remain in the
dispenser compartments at the end of the cycle.
About the dispenser
The automatic dispenser consists of three compartments
which hold:
• Liquid chlorine bleach.
• Liquid fabric softener.
• Liquid or powdered detergent and color-safe bleach for main
wash.
All laundry products can be added at once in their respective
dispenser compartments. They will be dispensed at the
appropriate time for the most effective cleaning.
After adding the laundry products to the dispenser, close the
dispenser drawer.
To add detergent, bleach, and fabric softener to the automatic
dispenser:
1. Open the dispenser drawer.
2. Load the laundry products into the appropriate
compartments.
3. Slowly close the dispenser drawer to avoid early dispensing
of the laundry products.
NOTE
• Only use HE detergents, since using a regular deter-
gent may produce excessive suds.
• HE detergents produce fewer suds, dissolve more ef-
ficiently to improve washing and rinsing performance,
and help to keep the interior of your washer clean.
• Use less detergent for soft water.
• Wipe up any spills immediately, as liquids could dam-
age the finish and the control panel of the washing
machine.
• Using too much detergent can cause a build-up in the
tub resulting in unsatisfactory performance and ma-
chine malfunction.
• If you use a detergent that does not dissolve easily or a
detergent with high viscosity, it will leave a residue on
the tub, which may not rinse properly.
Using detergent/fabric softener
Recommended detergent
Make sure to use HE (High-Efficiency) detergent for front-
loading washing machines. HE detergents dissolve more
efficiently and produce fewer suds to ensure efficient washing
and rinsing. Use the correct amount of detergent as indicated
on the label of the detergent packaging.
Designed specially to use only
HE (High-Efficiency) detergent
20
PREPARATION
Loading the dispenser
Designed specially to use only
HE (High-Efficiency) detergent
Main Wash Detergent Compartment
This compartment holds laundry detergent for the main
wash cycle, which is added to the load at the beginning of
the cycle. Always use HE (High-Efficiency) detergent with
your washing machine.
Follow the detergent manufacturer's instructions with
respect to the amount of detergent to use, and never use
more than the recommended amount. Using too much
detergent can result in detergent buildup in clothing and the
washer. Either powdered or liquid detergent may be used.
Liquid Bleach Compartment
This compartment holds liquid chlorine bleach, which will be
dispensed automatically at the proper time during the wash
cycle.
Fabric Softener Compartment
This compartment holds liquid fabric softener, which will be
automatically dispensed during the final rinse cycle.
Main Wash Detergent
Compartment
Liquid Chlorine
Bleach Compartment
Liquid Fabric
Softener Compartment
NOTE
• Liquid or powdered color-safe bleach may be added
to the main wash compartment with detergent of the
same type.
NOTE
• Do not add powdered or liquid color-safe bleach to this
compartment.
• Always follow the manufacturer’s recommendations
when adding bleach. Do not exceed the maximum fill
line. Using too much bleach can damage fabrics.
• Never pour undiluted liquid chlorine bleach directly onto
the load or into the drum. Fabric damage can occur.
NOTE
• Always follow the manufacturer’s recommendations
when adding fabric softener. Do not exceed the maxi-
mum fill line. Using too much fabric softener may result
in stained clothes.
• Dilute concentrated fabric softeners with warm water.
Do not exceed the maximum fill line.
• Never pour fabric softener directly onto the load or into
the drum.
21
OPERATING YOUR WASHER
OPERATING YOUR WASHER
NOTE
• When the card balance is not enough, machine dis-
plays the card balance for 5 seconds and then displays
message repetitively
NOTE
• The machine will not start until sufficient coins are
inserted.
❋
Do not work any button and stop the washer
(When the washer is operating) or (when a cycle is in
progress)
1. Ready mode
1) Coin / Card type
– The cycle LEDs flash at the same time, when the
price of cycles are equal.
2) OPL type
– The cycle LEDs is lit at the same time, and displayed
‘PUSH’.
4. Add super wash
Wash time or rinse cycle can be added when additional
coin is inserted or a valid cash card is entered.
5. Change course
You cannot change the course while the machine is
running.
6 . Cycle finish
The machine stops and LED display shows “ ”
with beeper sound.
2. Insert card/coin (not for OPL type)
Insert a cash card that has a sufficient balance.
The card balance should be more than the programmed
vend price for a selected cycle.
3. Select the cycle
Press the desired button and press the start button.
The display LED will show the remaining time and the
selected cycle starts.
• Select cycles designed for different types of fabric and soil
levels.
• Insert a sufficient amount of change that is more than
the programmed vend price for the selected cycle.
CYCLE Fabric type
Wash/Rinse
Temp.
Spin
Speed
WHITES
Cotton, linen, towels,
shirts, sheets
Hot/Cold High
COLORS
Mixed loads,
work clothes,
jeans, shirts
Warm/ Cold High
DELICATES
Dress shirts,
blouses, nylons,
sheer or lacey garments
Cold/ Cold Low
PERM.
PRESS
Dress shirts, pants,
wrinkle-free clothing,
cotton/poly blend
clothing, tablecloths
Warm/ Cold Medium
WARNING
• To reduce the risk of fire, electric shock, or injury to
persons, read the IMPORTANT SAFETY INSTRUC-
TIONS before operating this appliance.
22
PROGRAMMING MODE
Coin Box Key
- coin type -
- card type - - OPL type -
Insert Debit Card
How to enter "Programming mode"
You can enter programming mode only for Idle state and
pause state.
- Card Type
1) Insert service card.
2) Display will show “ ”
- Coin Type
1) Dissemble upper coin box key.
2) Take out the coin drop from the coin box.
3) Turn on/off the toggle switch at the back of the coin box.
4) Display will show “ ”.
- OPL Type
1) Push the WHITES & DELICATES button at the same time.
2) Push the COLORS button 3 times.
3) Push the START button.
4) Display will show “ ”.
How to use button
You can change Washer vend price, cycle time and Cycle
parameters, etc.
: You can check machine information or change setting on “Program setup”, “Collect Information Data”, ”Diagnostic Test”.
There are two methods that you can enter programming mode.
PROGRAMMING MODE
Coin Vault
Openings : close
Press Button Description
WHITES
Move to upper level or
Comes back to Idle State
COLORS Move to the mode in the same level (+)
DELICATES Move to the modes in the same level (-)
START Enter the selected mode
NOTE
• If you turn on the power without connecting meter case for the first time, the machine display “ ”.
• When the machine is came out from the factory, it is set in the coin type. You can change Card/Coin type by button.
(For more information refer to SETUP mode.)
• The machine will display “PUSH” for OPL type
23
PROGRAMMING MODE
NOTE
• Do not use , .
• It is only used in inspecting the machine.
Algorithm flow chart shows how to control programming mode.
Before program set, check the structure of programming mode.
1. Turn on/off toggle switch or Insert service card, for entering set up mode.
2. Press Whites button to move to the upper level.
3. Press COLORS(+) or DELICATES(-) button if you want to be at the same level.
4. Press Start button to enter the details of Set up, Diagnostic Tests.
is to set price value, time value, and vend type etc.
consists of line test, reset, free cycle, and kill cycle.
Is to collect the usage data.
Card / Coin type
Structure of Programming mode
24
PROGRAMMING MODE
OPL type
Algorithm flow chart shows how to control programming mode.
Before program set, check the structure of programming mode.
The method of entering set up mode.
1) Push the WHITES & DELICATES button at the same time.
2) Push the COLORS button 3 times.
3) Push the START button.
4) Display will show “ ”.
is to set price value, time value, and vend type etc.
consists of line test, reset, free cycle, and kill cycle.
Is to collect the usage data.
NOTE
• Do not use , .
• It is only used in inspecting the machine.
Structure of Programming mode
25
PROGRAMMING MODE - SETUP MODE
Setup Mode : (display)
You can change washer vend price, cycle time, and cycle parameters, etc.
Entering set up mode
- Coin type – Turn on/off toggle switch.
- Card type – Insert the service card.
- OPL type – Push “WHITES” + “DELICATES” and the ‘3’.
- Then, the washer displays .
1. How to change regular price.
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
START
button.
Display previous regular price.
Press
COLORS(+)
or
DELICATES(-)
button to set the regular price.
(The vend price can be set from 0 to 9.95 in 5¢ increments.)
Press the
START
button.
The machine sets up the regular price, then advances to the next process
automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
26
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous regular cold price.
Press
COLORS(+)
or
DELICATES(-)
button to set the regular cold price.
(The vend price can be set from 0 to 9.95 in 5¢ increments.)
Press the
START
button.
The machine sets up the regular cold price, then advances to the next process
automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
2. How to change regular cold price.
27
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous regular warm price.
Press
COLORS(+)
or
DELICATES(-)
button to set the regular warm price.
(The vend price can be set from 0 to 9.95 in 5¢ increments.)
Press the
START
button.
The machine sets up the regular warm price, then advances to the next process
automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
3. How to change regular warm price
28
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous regular hot price.
Press
COLORS(+)
or
DELICATES(-)
button to set the regular hot price.
(The vend price can be set from 0 to 9.95 in 5¢ increments.)
Press the
START
button.
The machine sets up the regular hot price, then advances to the next process
automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
4. How to change regular hot price
29
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous special price.
Press
COLORS(+)
or
DELICATES(-)
button to set a special price.
(The vend price can be set from 0 to 9.95 in 5¢ increments.)
Press the
START
button.
The machine sets up the special price, then advances to the next process
automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
5. How to change special price
30
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous special cold price.
Press
COLORS(+)
or
DELICATES(-)
button to set the special cold price.
(The vend price can be set from 0 to 9.95 in 5¢ increments.)
Press the
START
button.
The machine sets up the special cold price, then advances to the next process
automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
6. How to change special cold price
31
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous special warm price.
Press
COLORS(+)
or
DELICATES(-)
button to set the special warm price.
(The vend price can be set from 0 to 9.95 in 5¢ increments.)
Press the
START
button.
The machine sets up the special warm price, then advances to the next process
automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
7. How to change special warm price
32
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous special hot price.
Press
COLORS(+)
or
DELICATES(-)
button to set the special hot price.
(The vend price can be set from 0 to 9.95 in 5¢ increments.)
Press the
START
button.
The machine sets up the special hot price, then advances to the next process
automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
8. How to change special hot price
33
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous add super wash price.
Press
COLORS(+)
or
DELICATES(-)
button to set add super wash price.
(The vend price can be set from 0 to 9.95 in 5¢ increments.)
Press the
START
button.
The machine sets up the add super wash price, then advances to the next process
automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
9. How to change add super wash price
34
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous add super wash type.
Press
COLORS
or
DELICATES
button and then select the add super wash type you
want.
Wash time increase.
Both (Wash time increase and rinsing once more.)
Rinsing once more.
Press the
START
button.
The machine sets up the add super wash type, then advances to the next process
automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
10. How to change add super wash type
35
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
11. How to enter the
• Special price days apply or not
• Disable
• Add super wash apply or not
• Select vend type
• Sense dry apply or not (only for dryer)
• Pre-wash apply or not
• Top off apply or not (only for dryer)
• Disable
• Enable
Structure of Content of
36
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display .
Press the
START
button.
Press
COLORS
or
DELICATES
button and then select
or
.
Disable
Enable
One or the other will
display.
Press the
START
button.
The machine sets up the special price day, then advances to the next process
automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
11-1. Special price day setup
37
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display .
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press
COLORS
or
DELICATES
button and then select
or
.
Disable
Enable
One or the other will
display.
Press the
START
button.
The machine sets up the add super wash application, then advances to the next
process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
11-2. Add super wash setup
38
PROGRAMMING MODE - SETUP MODE
NOTE
• After setting the Value to VEND, vend type is changed directly without power on/off (Sense dry) is not available
in washer
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display .
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press
COLORS
or
DELICATES
button and then select
or
.
Coin type
Card type
One or the other will
display.
Press the
START
button.
The machine sets up the vend type, then advances to the next process
automatically.
1.Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
11-3. Vend type setup - card type or coin type setup
39
PROGRAMMING MODE - SETUP MODE
NOTE
• (top off) is not available in washer (Only for dryer)
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display .
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press
COLORS
or
DELICATES
button and then select
or
.
Disable
Enable
One or the other will
display.
Press the
START
button.
The machine sets up the special price day.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
11-4. Pre-wash set up
40
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display .
12. How to enter the special price day
Structure of
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
41
PROGRAMMING MODE - SETUP MODE
NOTE
• As explained on the previous page, similarly, other days can be set up by the same method.
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display .
Press the
START
button.
Press
COLORS
or
DELICATES
button and then select
or
.
Disable
Enable
One or the other will
display.
Press the
START
button.
The machine sets up the special price day (Sunday), then advances to the next
process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
12-1. How to change to Sunday
42
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous special price beginning time.
Press
COLORS(+)
or
DELICATES(-)
button to select time between
0
and
23
.
Press the
START
button.
The machine sets up the special price beginning time, then advances to the next
process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
13. Special price beginning time setup
43
PROGRAMMING MODE - SETUP MODE
NOTE
• (regular priced dryer cycle time) is not available in washer.
• (special priced dryer cycle time) is not available in washer.
NOTE
• When setting up a special price period, the ending time must be later than the beginning time.
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous Special Price ending time.
Press
COLORS(+)
or
DELICATES(-)
button to select time between
0
and
23
.
Press the
START
button.
The machine sets up the special price ending time, then advances to the next
process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
14. Special price ending time setup
44
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous wash time.
Press
COLORS(+)
or
DELICATES(-)
button to select wash time.
(Maximum 15 minutes, Minimum 5 minutes.)
Press the
START
button.
The machine sets up the wash time, then advances to the next process
automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type – Turn on/off toggle switch.
• Card type – Insert the service card.
• OPL type – Push “WHITES” + “DELICATES” and the ‘3’.
15. Washing time set up
45
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous rinsing times per cycle.
Press
COLORS(+)
or
DELICATES(-)
button to select rinsing times per cycle.
(Max 5, Min 1)
Press the
START
button.
The machine sets up the rinsing times per cycle, then advances to the next process
automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type – Turn on/off toggle switch.
• Card type – Insert the service card.
• OPL type – Push “WHITES” + “DELICATES” and the ‘3’.
16. Rinsing times per cycle
46
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous rinsing time.
Press
COLORS(+)
or
DELICATES(-)
button to select rinse cycle.
(Max 15min, Min 8min)
Press the
START
button.
The machine sets up the rinsing time, then advances to the next process
automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type – Turn on/off toggle switch.
• Card type – Insert the service card.
• OPL type – Push “WHITES” + “DELICATES” and the ‘3’.
17. Rinsing time setup
47
PROGRAMMING MODE - SETUP MODE
NOTE
• Top spin speed
• If you select 800 or below, the final spin time will be reduced by 9minutes
• If you select 1150, 900 rpm, the final spin time is fixed by 13 minutes
0: 1150 rpm
1: 900 rpm
2: 800 rpm
3: 600 rpm
4: 400 rpm
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous top spin speed.
Press
COLORS(+)
or
DELICATES(-)
button to select top spin speed. (0~4)
Press the
START
button.
The machine sets up the top spin speed, then advances to the next process
automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type – Turn on/off toggle switch.
• Card type – Insert the service card.
• OPL type – Push “WHITES” + “DELICATES” and the ‘3’.
18. Top spin speed – final spin time depends on RPM
48
PROGRAMMING MODE - SETUP MODE
NOTE
• Coin 2 is available for E-suds system
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous Coin 2 value.
Press
COLORS(+)
or
DELICATES(-)
button to select value of coin 2.
(The value can be set from 0 to 9.95 in 5¢ increments.)
Press the
START
button.
The machine sets up the value of Coin 2, then advances to the next process
automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
19. Value of coin 2
49
PROGRAMMING MODE - SETUP MODE
NOTE
• Penny Increment Pricing Offset is available only in card type.
(It hasn’t affected on the coin type’s price setting.)
(top off time) is not available in washer.
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous penny increment pricing offset.
Press
COLORS(+)
or
DELICATES(-)
button to select value of PIPo. (0~4)
Press the
START
button.
The machine sets up the value of PIPo, then advances to the next process
automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
20. Penny increment pricing offset
This represents the cent increment price offset used when debit card is setup.
50
Programming mode - setuP mode
note
• This function is only controlled in machine.
(It is not applied in setup card.)
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press
COLORS(+)
or
DELICATES(-)
button and then select
or
23.7 [KHz] 23.0 [KHz]
One or the other will
display.
Press the
START
button.
The machine sets up the value of water level, then advances to the next process
automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type – Turn on/off toggle switch.
• Card type – Insert the service card.
• OPL type – Push “WHITES” + “DELICATES” and the ‘3’.
21. How to change the water level
You can change the water level by selecting two options.
1. LO indicate water level 23.7 [KHz]
2. HI indicate water level 23.0 [KHz]
51
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous value.
Press
COLORS(+)
or
DELICATES(-)
button to select
High or Low or Off.
Press the
START
button.
The machine sets up the beep volume, then advances to the next process
automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type – Turn on/off toggle switch.
• Card type – Insert the service card.
• OPL type – Push “WHITES” + “DELICATES” and the ‘3’.
22. Beep volume
52
PROGRAMMING MODE - SETUP MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
WHITES
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Display previous value.
Press
COLORS(+)
or
DELICATES(-)
button to select button to select time between
1 ~ 180
or ‘
Disable
’.
Press the
START
button.
The machine sets up the time to keep the coin, then advancesto the next process
automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
23. Time to keep the coin (Use only for coin type)
53
PROGRAMMING MODE - TEST MODE
PROGRAMMING MODE -
TEST MODE
Diagnostic tests: (display)
This program has been added for testing the washer and detecting errors.
1.
According to pressing START button, test move to the next step.
Entering the test mode
Data Name
Button Display Description
Entering
the test mode
1. Entering programming mode Insert service card (card type), turn on/off toggle switch (Coin type).
2. WHITES Press the WHITES button. Then appears in the display.
3. START Enter the diagnostic test mode.
Number of times the
START button is pressed
Check Point Display
None
1time
Turns on all lamps and locks the door
Card/Coin Type-Displayed gc XX and US XX alternately (Version)
OPL Type -Displayed ge XX and cA XX alternately (Version)
2 times
Tumble Clockwise. rpm (40~50)
3 times
Low Speed Spin rpm (600)
4 times
High Speed Spin rpm (1000~1150)
5 times
Inlet valve for main water turns on. Water level frequency (261~)
6 times
Inlet valve for hot wash turns on. Water level frequency (261~)
7 times
Inlet valve for softener turns on. Water level frequency (261~)
8 times
Inlet valve for bleach turns on. Water level frequency (261~)
9 times
Tumble counter clockwise. rpm (40~50)
10 times
Drain Pump turns on. Water level frequency (261~)
11 times
Turn on Circulation Pump. Displayed 0XX
12 times
Turns on all lamps.
Card/Coin Type-Displayed gc XX and US XX alternately
OPL Type -Displayed ge XX and cA XX alternately
13 times
Button Checks.
14 times
High Speed Spin rpm(1150)
15 times
PDA Signal Check this function is not applied in this machine
16 times
NOTE
• Make sure the drum is empty when a diagnostic test is performed. Do not use .
54
PROGRAMMING MODE - TEST MODE
NOTE
• Washing time 10 minutes
• Rinse cycle twice
• Top spin speed 1,150 RPM
• Add SUPER WASH 3 minutes extra wash and one extra rinse
Entering set up mode.
You will see LqC1
Button Display
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
button until appears in the display.
Press the
START
button, then factory reset is done.
is displayed.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type – Turn on/off toggle switch.
• Card type – Insert the service card.
• OPL type – Push “WHITES” + “DELICATES” and the ‘3’.
2. Factory reset -
After factory reset, machine information is changed to the default value.
55
PROGRAMMING MODE - TEST MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
The display will cycle through 2000 --> 0101 --> Sat --> 0000 repeatedly.
Press the
START
button.
Press
COLORS(+)
or
DELICATES(-)
button to select year between 2000 and 2099.
Press the
START
button.
The machine sets up the year, then advances to the next process automatically.
Press
COLORS(+)
or
DELICATES(-)
button to select a month between 01 and 12.
Press the
START
button.
The machine sets up the month, then advances to the next process automatically.
Press
COLORS(+)
or
DELICATES(-)
button to select the day between 01 and 31.
Press the
START
button.
The machine sets up the day, then advances to the next process automatically.
Press
COLORS(+)
or
DELICATES(-)
button to select the hour between 00 and 23.
Press the
START
button.
The machine sets up the hour, then advances to the next process automatically.
Press
COLORS(+)
or
DELICATES(-)
button to select minute between 00 and 59.
Press the
START
button.
The machine sets up the minute.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
3. Time set up
56
PROGRAMMING MODE - TEST MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
button until appears in the display.
Press the
START
button.
Display will show
.
Select the cycle you desire.
❋
Default
WHITES
course selected.
Press the
START
button.
Display will show the remaining time and start.
4. Courtesy cycle
A courtesy cycle is like a complimentary cycle given to the customer when the washer goes out of order after the
customer has made the payment to wash clothes.
57
PROGRAMMING MODE - TEST MODE
Entering set up mode.
You will see LqC1
Button Display
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button.
Press the
COLORS
button until appears in the display.
Press the
START
button.
Start drain and display spin time.
Display spin time
Display with beeping.
Go back to ready mode.
Insert cycle kill card.
Description Display
Display spin time. Spin Time
Begin to drain. Spin Time
Display with beeping.
Remove cycle kill card.
Go back to ready mode.
5. Cycle Kill
Coin / OPL type
Card type
58
Programming mode - TesT mode
noTe
• Never load laundry while using TUB CLEAN. The laundry may damage or become contaminated. Make sure to clean the
washer tub when it is empty.
• It is recommended to leave the door open after finishing the laundry to keep the tub clean.
• It is recommended that TUB CLEAN should be repeated monthly.
• Safely and conveniently secure the door slightly ajar with a magnetic door plunger. This will promote air circulation and
allow the interior of the machine to dry.
Entering set up mode.
You will see LqC1
Button Display
Press the
COLORS
or the
DELICATES
button until appears in the display.
Press the
START
button, then tub clean reset is done.
is displayed.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/off toggle switch.
• Card type - Pull the service card.
6. TUB CLEAN -
To clean up the tub, please run the TUB CLEAN cycle.
59
PROGRAMMING MODE - COLLECT MODE
PROGRAMMING MODE -
COLLECT MODE
Collect information data : (display)
The washer collects the usage data so that the owner can check various information like number of various cycles used, how
many times card or coins used, etc.
Entering the collect mode
Data Name
Button Display Description
Entering
the collect
mode
1.
Entering the programming
mode.
Insert service card(card type), turn on/off toggle switch (Coin type).
2.
WHITES
Press the
WHITES
button until appears in the display.
3. COLORS(+), DELICATES(-)
Press the
COLORS(+), DELICATES(-)
button until appears
in the display.
4. START
Enter the Collect information data.
5. COLORS(+), DELICATES(-)
xxxx
Move to each data list that you want to check by pressing with
COLORS (+)
or
DELICATES (-)
button.
6. START
xxxx
Display the value of selected data list
7. WHITES
Move to upper level or Comes back to Idle State
❖
Check the collect information reference to the follow lists. The Lists are displayed by abbreviations.
60
PROGRAMMING MODE - COLLECT MODE
No.
Abbreviation Meaning Description
1
rgPr
Regular Price
0~199 nickels ($.00~$9.95)
2
rgCP
Regular Cold Price
0~199 nickels ($.00~$9.95)
3
rgrP
Regular Warm Price
0~199 nickels ($.00~$9.95)
4
rgHP
Regular Hot Price
0~199 nickels ($.00~$9.95)
5
dELC
Dryer Moisture Sense
0: disable 1: enable
6
ItrC
Interval Regular Cycles
Number of Regular cycles ( 0~65535 )
7
ItCC
Interval Regular Cold Cycles (DELICATES )
Number of Regular Cold cycles ( 0~65535 )
8
ItAC
Interval Regular Warm Cycles (COLORS , PERM. PRESS )
Number of Regular Warm cycles ( 0~65535 )
9
ItHC
Interval Regular Hot Cycles (WHITES)
Number of Regular Hot cycles ( 0~65535 )
10
ItSC
Interval Super Cycles
Number of Super cycles ( 0~65535 ) ( Washer Only)
11
IttF
Interval Topoff Cycles
Number of Topoff cycles ( 0~65535 ) (Dryer Only)
12
ItUC
Interval Service Cycles
Number of Service cycles (0~65535)
13
ItFC
Interval Token Cycles
Number of Token cycles (0~65535)
14
ACrC
Accumulated Regular Cycles
Number of Regular cycles ( 0~65535 )
15
ACCC
Accumulated Regular Cold Cycles (DELICATES )
Number of Regular Cold cycles ( 0~65535 )
16
ACAC
Accumulated Regular Warm Cycles (COLORS , PERM. PRESS )
Number of Regular Warm cycles ( 0~65535 )
17
ACHC
Accumulated Regular Hot Cycles (WHITES)
Number of Regular Hot cycles ( 0~65535 )
18
ACSC
Accumulated Super Cycles
Number of Super cycles ( 0~65535 ) (Washer Only)
19
ACtF
Accumulated Topoff Cycles
Number of Topoff cycles ( 0~65535 ) (Dryer Only)
20
ACUC
Accumulated Service Cycles
Number of Service cycles ( 0~65535 )
21
ACFC
Accumulated Token Cycles
Number of Token cycles (0~65535)
22
ACrt
Accumulated Run Time
Number of Running minutes ( 0~65535 )
23
Itnr
Interval No Runs
Money inserted, but no run
24
Ittb
Interval Trouble Cycles
No money, but ran
25
ItPd
Interval Power Downs
Number of power down
26
Itdd
Interval Unauthorized Service Door Openings
Number of Unauthorized Service Door Openings ( 0~ 255)
27
ItAd
Interval Authorized Service Door Openings
Number of Authorized Service Door Openings ( 0~255)
28
ItUC
Interval Unauthorized Coin Vault Openings
Number of Authorized Service Door Openings ( 0~255)
29
ItAC
Interval Authorized Coin Vault Openings
Number of Authorized Coin Vault Openings (0~255)
30
tLdo
Time of Last Service Door Opening
tLdo is not available in washyer.(It can’t enter.)
31
tLCo
Time of Last Coin Vault Opening
tLCo is not available in washyer.(It can’t enter.)
32
tPdo Time of Previous Service Door Opening tPdo is not available in washyer.(It can’t enter.)
33
tPCo Time of Previous Coin Vault Opening tPCo is not available in washyer.(It can’t enter.)
34
SCPr Super Cycle Price 0~199 nickels ($.00~$9.95)
35
toPr Top Off Price 0~199 nichels ($.00~$9.95)
❊
Interval Cycles('Interval' means 'Since last data collecting')
❊
Accumulated Cycles('Accumulated'means 'Total cycles in washer/dryer's life time not include service cycles or trouble cycles')
❊
Authorized: Service Door Openings with PDA Communication (Open Service door Within 20 seconds After communicating with PDA)
❊
Unauthorized: Service Door Openings without PDA Communication
❊
These items (No.30~33) are not applied this program
Collect Mode Data lists
61
MAINTENANCE
After the cycle is finished, wipe the door and the inside of
the door seal to remove any moisture. Leave the door open
to dry the washer tub interior. Wipe the body of the washing
machine with a dry cloth to remove any moisture
Cleaning the Dispenser
1. The dispenser should be cleaned periodically to remove
buildup from detergent and other laundry products.
2. Remove the inserts from the drawer, and clean them
with warm water and a soft cloth or brush to remove any
residue or buildup.
Wipe out the inside of the drawer opening with a damp
cloth. Reassemble the drawer and reinstall in the drawer
opening.
Storing the Washer
If the washer will not be used for an extended period of
time and is in an area that could be exposed to freezing
temperatures:
1. Turn off water supply tap.
2. Disconnect hoses from water supply and drain water
from hoses.
3. Plug the power cord into a properly grounded electrical
outlet.
4. Add 1 gallon of nontoxic recreational vehicle (RV)
antifreeze to the empty wash drum. Close door.
5. Select the spin cycle and let washer spin for 1 minute to
drain out all the water.
6. Unplug the power cord, dry the drum interior with a soft
cloth, and close the door.
7. Remove the inserts from the dispenser. Drain any water
in compartments and dry the compartments.
8. Store the washer in an upright position.
9. To remove the antifreeze from the washer after storage,
run washer through a complete cycle using detergent.
Do not add laundry!
Care after wash
MAINTENANCE
NOTE
• Not all of the RV antifreeze will be expelled.
• Weekly cleaning of the detergent dispenser will ensure
problem free operation.
NOTE
• Do not use anything other than water to clean the
drawer, inserts, and drawer opening.
WARNING
• Unplug the washer before cleaning to avoid the risk of
electric shock. Failure to follow this warning can cause
serious injury,fire, electrical shock or death.
• Never use harsh chemicals, abrasive cleaners, or sol-
vents to clean the washer. They will damage the finish.
• Do not use volatile substances (benzene, paint thin-
ner, alcohol, acetone, etc.) or detergents with strong
chemical components when cleaning the washing
machine. Doing so may cause discoloration or damage
to the machine, or it may cause a fire.
62
MAINTENANCE
WARNING
• Unplug the power cord and turn off the faucets before
cleaning. Failure to do so may cause electric shock.
• Do not use the washing machine without the inlet fil-
ters. If you use the washing machine without the inlet
filters it will cause leaks and malfunction.
• If you use the washing machine in an area with hard
water, the inlet filter may clog due to lime buildup.
Cleaning the water inlet filters
Clean the water inlet filters periodically to prevent clogging.
Take extra care to clean the water inlet filters for areas using
hard water. Water may not be supplied if there are foreign
objects, such as rust, sand, or stones in the water inlet
filters.
1
Pull out the plug to turn off the washing machine.
2
Turn off the faucets connected with the water inlets.
3
Remove the water inlets.
4
Pull out the water inlet filter.
5
Remove foreign objects from the water filter inlet.
- Soak the water filter inlets in white vinegar or a lime
scale remover or use a toothbrush to remove foreign
objects and rinse thoroughly.
6
Press the water filter inlets back into place.
7
Reattach the water lines to the washing machine.
Inlet Filter
NOTE
• message will blink on the display when the water
pressure in the detergent drawer is weak or an inlet filter
is clogged with dirt. Clean the inlet filter.
63
MAINTENANCE
Cleaning the drain pump filter
The washing machine fails to drain if the drain pump filter is
clogged. Periodically clean the drain filter to prevent clogging
with foreign objects.
1
Pull out the plug to turn off the washing machine.
2
Open the drain pump filter cover.
3
Unclip the drain hose and remove the plug from the drain
hose to drain the remaining water.
4
Twist the pump filter counterclockwise to remove.
5
Clean the pump filter and opening.
6
Recap the plug onto the drain hose and reattach the drain
hose.
7
Insert the drain pump filter.
8
Close the drain pump filter cover.
WARNING
• Make sure to pull out the plug before cleaning. Failure
to do so may cause electric shock.
• Opening the drain filter will result in water overflowing
if there is water in the washer tub. Make sure to check
if the water is completely drained before opening the
drain filter.
• If you use the washing machine with the drain filter
reassembled incorrectly after cleaning it, or if you use
the machine without the filter, it may cause leaks or
malfunction of the washing machine.
NOTE
• message will blink when the drain pump filter is
clogged with dirt. Clean the drain pump filter.
64
MAINTENANCE
CAUTION
• Cleaning the door seal with an undiluted solution may
cause malfunction of the door seal and washing ma-
chine parts.
Clean the door seal
Clean the door seal once a month to prevent build-up of dirt
in the door seal.
1
Wear rubber gloves and protective goggles.
2
Dilute 3/4 cup (177 ml) of liquid chlorine bleach in 1 gallon
(3.8 L) of water.
3
Soak a sponge or a soft cloth in this diluted solution and
wipe down all around the door seal.
4
Wipe any moisture with a dry towel or cloth after cleaning.
5
Leave the door open to allow the door seal to dry
completely.
1 Add tub cleaner or lime scale remover into the detergent
dispenser drawer.
- Do not exceed the maximum detergent limit line when
you add it. Detergent may remain in the washer tub after
cleaning.
- When you use liquid chlorine bleach, load it into the liquid
chlorine bleach compartment.
When you use a powdered cleaner, add it into the main
wash detergent compartment.
- When you use cleaning tablets, place them directly into
the washer tub. (Do not add tablet cleaner to the drawer.)
2 Do operate tub clean (please refer to 58 page about tub
clean)
Clean the drum, TUB CLEAN
Using the washing machine in a humid space for a long
period of time may lead to a buildup of black mold and germs
in the air inside the washer tub and affect your health. If you
clean the washer tub regularly on a monthly basis using TUB
CLEAN it will keep the washer tub clean for hygienic use.
NOTE
• Never load laundry while using TUB CLEAN. The laun-
dry may damage or become contaminated. Make sure
to clean the washer tub when it is empty.
• It is recommended to leave the door open after finish-
ing the laundry to keep the tub clean.
• It is recommended that TUB CLEAN should be re-
peated monthly.
• Safely and conveniently secure the door slightly ajar
with a magnetic door plunger. This will promote air
circulation and allow the interior of the machine to dry.
65
ERROR MODE
ERROR MODE
Meaning of Error Codes that LED displays during occurrence of problem.
Problem Possible Cause Solution
• Water supply is not adequate in area.
• Water supply taps are not completely open.
• Water inlet hose is bent.
• The filter of the inlet hose clogged.
Check another tap in the house.
Fully open tap.
Straighten hose.
Check the filter of the inlet hose.
• Drain hose is bent
or clogged.
• The drain filter is clogged.
Clean and straighten the drain hose.
Clean the drain filter.
• Load is too small.
• Load is out of balance.
• The appliance has an imbalance detection and
correction system. If individual heavy articles
are loaded (bath mat, bath robe, etc.) and the
imbalance is too great, after several attempts to
restart the spin cycle the machine will stop and
the error code will be displayed.
Add 1 or 2 similar items to help
balance the load.
Rearrange load to allow proper spinning.
• Is the door opened or not completely closed? Close the door completely.
✽
If it will not open, call for service.
• The water overfills due to a faulty water valve. Close the water tap.
Unplug the power plug.
Call for service.
• The water level sensor malfunction.
• Overload in motor. Restart the cycle after 30 minutes.
If is not released, call for service.
• Disconnection of card reader wire. Check the card reader wire.
• Too much detergent is used. This is not an error.
Please wait until removed
66
POWER FAIL RECOVERY & DEFAULT WASHER SETTINGS & SPECIFICATIONS
POWER FAIL RECOVERY
In case of power failure, the machine stops running but the time display remains on, showing the time just before power
failure.
DEFAULT WASHER SETTINGS
SPECIFICATIONS
NOTE
• Specifications subject to change by manufacturer.
Default Settings Default
Wash Time (Minutes) 10 Minutes
Rinse Time (Minutes) 16 Minutes
Spin Time (Minutes) 13 Minutes
Rinsing times Twice
Coin #1 Value 25¢
Coin #2 Value (E-suds) 25¢
Vend Price $1.00
Add super wash price 25¢
Top Spin speed 1150 rpm
Model GCW1069**
Name Front-loading Washing Machine
Power supply 120V~ 60Hz
Size
686 mm (W) X 767 mm (D) X 983 mm (H), 129.1 cm (D with door open)
27”(W) X 30
1
/
5
”(D) X 38
11
/
16
”(H), 50
13
/
16
”(D with door open)
Weight 190 lbs. (87 kg)
Wash capacity 3.63 cu.ft (IEC:4.2 cu.ft)
Spin speed 1150 rpm max.
Permissible water pressure 14.5~116 psi (100~800 kPa)
67
MEMO
MEMO
OWNER’S MANUAL
COMMERCIAL WASHER
MODEL
GCW1069CS/GCW1069QS/GCW1069LS
GCW1069CD/GCW1069QD/GCW1069LD
www.lg.com
Before beginning installation, read these instructions carefully. This will simplify
installation and ensure that the washer is installed correctly and safely.
Leave these instructions near the washer after installation for future reference.
P/No. : MFL62526841
