Metal Tiered Waterfall
Fountain
Owner’s Manual
Item # CPS182
V
5
.0
Have Questions or
Issues? Need h
elp with assembly?
Contact us and we will resolve them within
1
2
hours.
Support Hours: M
-
F 7:30
–
5:00
U.S. Pacific Time
)
(
Call:
877
-
460
-
4511
Email:
info@alpine4u.com
NOTES
CONTENTS
Contents ………………………………………..1
What’s Included……………...…………………2
Features…………………………………………3
Specifications…………………………………...3
Assembling & Using Your Product…..……….4
Replacement Parts…………………………….8
Troubleshooting….…………………………….9
Caution………..……………………………….10
Warranty……………………………………….11
Notes…………………………………………...12
12 1
WHAT’S INCLUDED
LIMITED WARRANTY INFORMATION
Fountain Top Fountain Base
1x 1x
Hose Wing Nut Bolt
1x 2X 2x
Fountain Pump
1x
*Pump may be packaged separately in an outer box 2
located in the outer Styrofoam packaging.
Thank you for choosing an Alpine product! We aim to please with our wide range of products including
Fountains, Birdbaths, Statuary, Pond Supplies & More. All of our products are constructed from the highest
quality materials. In the event that we have not achieved our usual standard of excellence, we will repair or
replace, at our discretion, within the warranty period. A valid proof of purchase, with the purchase date clearly
indicated, must be provided. Photos of defective merchandise will also be required to help distinguish the
actual cause of the defect. Please read below for a detailed description of warranty coverage.
• Water Damage
Alpine products are not manufactured to withstand extreme temperatures. Improper storage that
allows water to freeze within a product may cause damage, is considered negligence, and will not be
covered under this warranty. The use of “hard water,” and/or caustic cleaners, can affect the painted
or other finishes. Failure to keep the unit clean, and use of such additives/cleaners, will also void the
warranty. Please note: for fountains, it is normal for some splashing to occur and protecting the
immediate surfaces is not the responsibility of Alpine Corporation.
• Paint & Color (Retention and/or Loss)
The use of water will cause natural erosion to the color. This area can be touched up using
standard paint. The paint is designed to protect the entire finish against breakdown of color. As
with any product, all finishes with time will gradually fade and discolor. The warranty will only cover
against severe or complete fading, within the first year from date of purchase, with the above
exclusion.
• Procedure/Service
Should a warranty/claim be needed, you should contact the retailer from whom you purchased the
product. If that is not an option, you can contact Alpine Corporation at www.alpine4u.com. When
contacting Alpine Corporation, you must be prepared to show proof of purchase, provide
photographs and any other information needed to validate your claim. This may be necessary to
distinguish between a partial or complete replacement of a defective product. The warranty does
not cover any items with multiple parts; the warranty will ONLY cover the individual component of
the unit/item that may be defective. Replacement parts can be made available to a consumer
through the original selling party, or an approved parts retailer. If this is not an option, contact our
customer service department. Item is covered under one year limited warranty from the date of
purchase. When requesting replacement parts due to a warranty claim after 30 days of
purchase, credit card information will be requested for shipping charges.
• Not Covered Under Warranty
The limited warranty will NOT cover cases of damages due to:
1. Damages caused in Transit
2. Inadequate care and/or neglect
3. Environmental and/or natural elements
4. Immersion in water, unless specified
5. Improper Installation/Storage and/or Maintenance
This warranty is void if the product has been damaged by accident, misuse, negligence, improper installation
and/or modifications have occurred. This includes any and/or all defects arising out of freezing water damage,
hard water damage, failure to keep the unit clean and free of harmful additives such as bleach, chlorine, etc….
which affects the paint and/or parts. This warranty also does not cover any additional charges or installation,
removal, disposal and/or shipping costs or consequential damage associated with any warranty claim.
11
REPLACEMENT PART ITEM#
• Replacement Pump ……………....….P180
ALSO AVAILABLE FROM ALPINE
• Fountain Care Formula…………….....PPL102
Foam and scale remover for indoor and outdoor fountains.
• Americana® UV Acrylic Sealer ...……RRR106
Provides protective clear coating for all painted surfaces.
• Touch Up Paint Kit....…………….…....RTD102
Includes primer, thinner, 7 paint colors, applicator and sealer.
8
3. Connect the Tubing to the bottom right leg of the
Fountain Top.
4. Next add the Fountain Top to the Fountain Base.
The threaded studs will fit through the center
holes. The Tubing will slide into the larger hole.
Attach the included Wing Nuts onto the studs from
inside the Fountain Base.
5. From the rear of the Fountain, install the two bolts
through the tabs of the Fountain Top into The
Fountain Base.
5

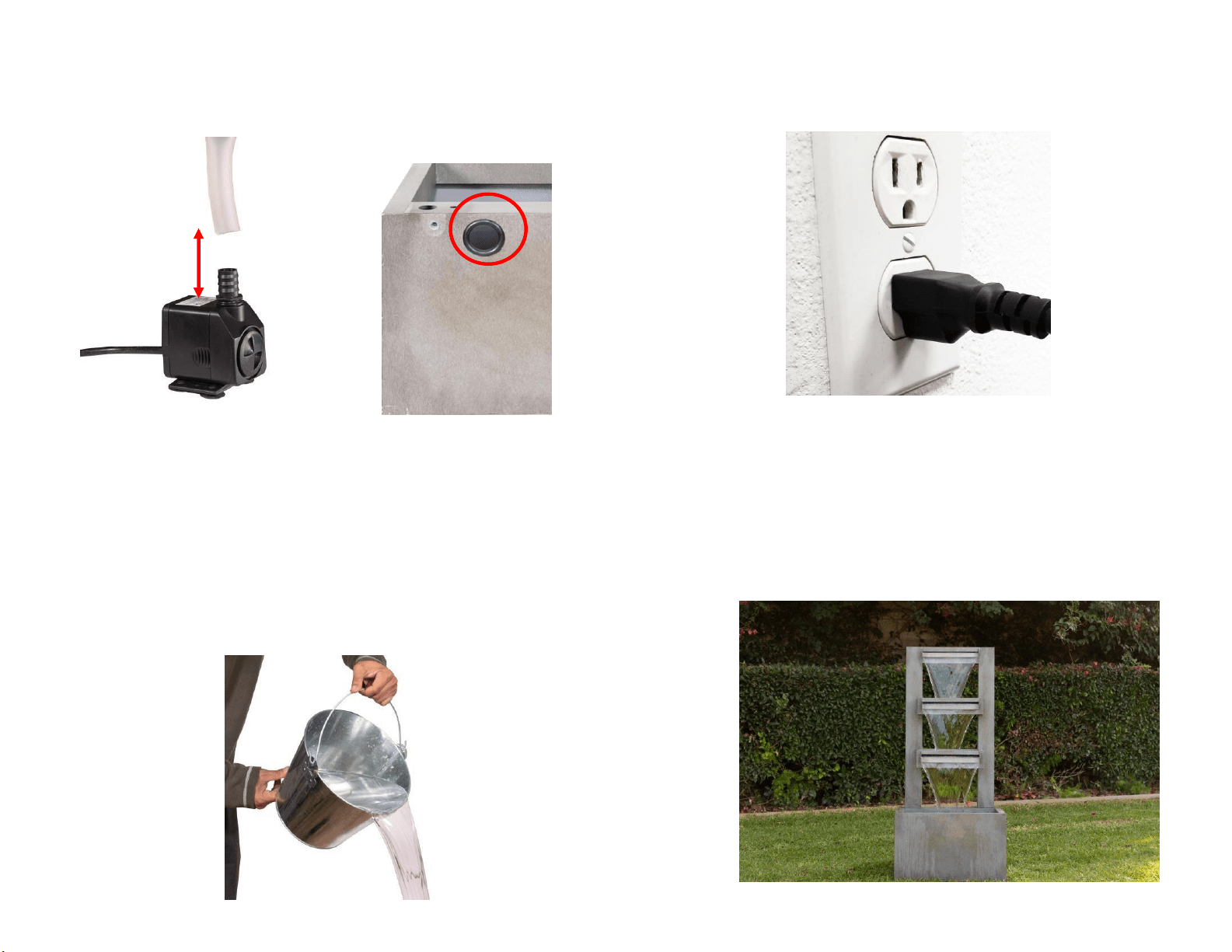

6. Place the Pump into the Fountain Base and
attach to the Hose. Be sure to run the power cord
through the rear cord slot.
7. Gently pour water into the fountain basin, being
careful not to overflow and cause splashing. Make
sure the water completely submerges the pump
and the water runs clear during operation.
NOTE: We recommend that you use distilled water
to prevent scale build-up. The first time you operate the
pump it can take up to 5 minutes for the air to be
completely expelled and water begins to flow properly
6
8. Plug the pump into your local power supply. Make
sure that there is no water around the plug & always
keep the power source in a dry place.
9. You can now adjust the water pump to your flow
preference. (see Quick Tip) Congratulations, your
fountain is now complete. Don’t forget to add water
regularly as water will evaporate over time.
Relax and enjoy your new fountain.
7
ASSEMBLING & USING YOUR PRODUCT
TROUBLESHOOTING
Unpack all components carefully. Please check to If you have any questions and/or problems, please ensure
all parts have been removed from the contact the retail store you purchased this fountain. packaging. *Some
splashing may occur when the • If your pump fails to run
product is in use.
• Check the circuit breaker or try a different
1. Place the Fountain Base on a smooth & level outlet to make sure the pump is receiving surface. Allow enough
space to access the pump. electrical power.
• Check the pump discharge and tubing for any kinks and/or
obstructions
• Any buildup obstructing the water flow can be flushed with a
garden hose
• Check the rotor by removing the front cover & plate to access the
impeller area. Turn the rotor and make sure that the rotor is not jammed
or broken
• If your pump “spews”
2. Remove the pump from its packaging and adjust • Check the water level to make sure the the flow control to
the lowest setting to avoid pump is completely submerged and there is
splashing until the fountain is completely enough water in the basin to operate your
assembled. fountain. Not having enough water will
cause your pump to spew
Alpine Quick Tip
• If your pump is making abnormal loud noises Turn to the Left / Counter- •
Disconnect the pump from the electrical Clockwise to turn down power supply and
remove the front cover & the water flow. Turn the plate
adjuster to the Right / • Carefully grip the impeller and gently pull the Clockwise to
turn up the impeller/rotor assembly out of the pump
water flow. housing
• Rinse the impeller/rotor assembly and clean the cavity with clean water. If
breakage or
damage is found, contact your local retailer
4 for parts. 9
CAUTION
FEATURES
• Always unplug the pump from the
electrical outlet before cleaning &
handling
• Use with clean water only, do not place
the fountain and/or parts in any other
liquid.
• Periodically change water & clean the
pump to keep free from microorganisms
• Disconnect and store the unit in a dry
place if not in use for an extended period
of time, or during freezing weather.
• Do not operate the fountain in
temperatures below 41° F / 5° C.
• Do not operate with water above 90°F /
30°C.
• Do not lift, carry or pull the pump by the
power cord.
• Do not exceed the maximum voltage &
wattage on transformer.
• NEVER LET THE PUMP RUN DRY.
10
• Modern
• Water trickles down to mimic the
sounds of
a real waterfall
SPECIFICATIONS
Power Requirements………Standard Household 120V
Water Capacity…………. 13 ¼ US Gallons / 50 Liters
Tubing Diameter………….......½” I.D.
3
•
Made of,
durable metal
construction
i
ndustrial
d
esign
