OperatesOperates
the water!
the water!
ININ
•PAB1500
•PAB2100
•PAB3100
•PAB4100

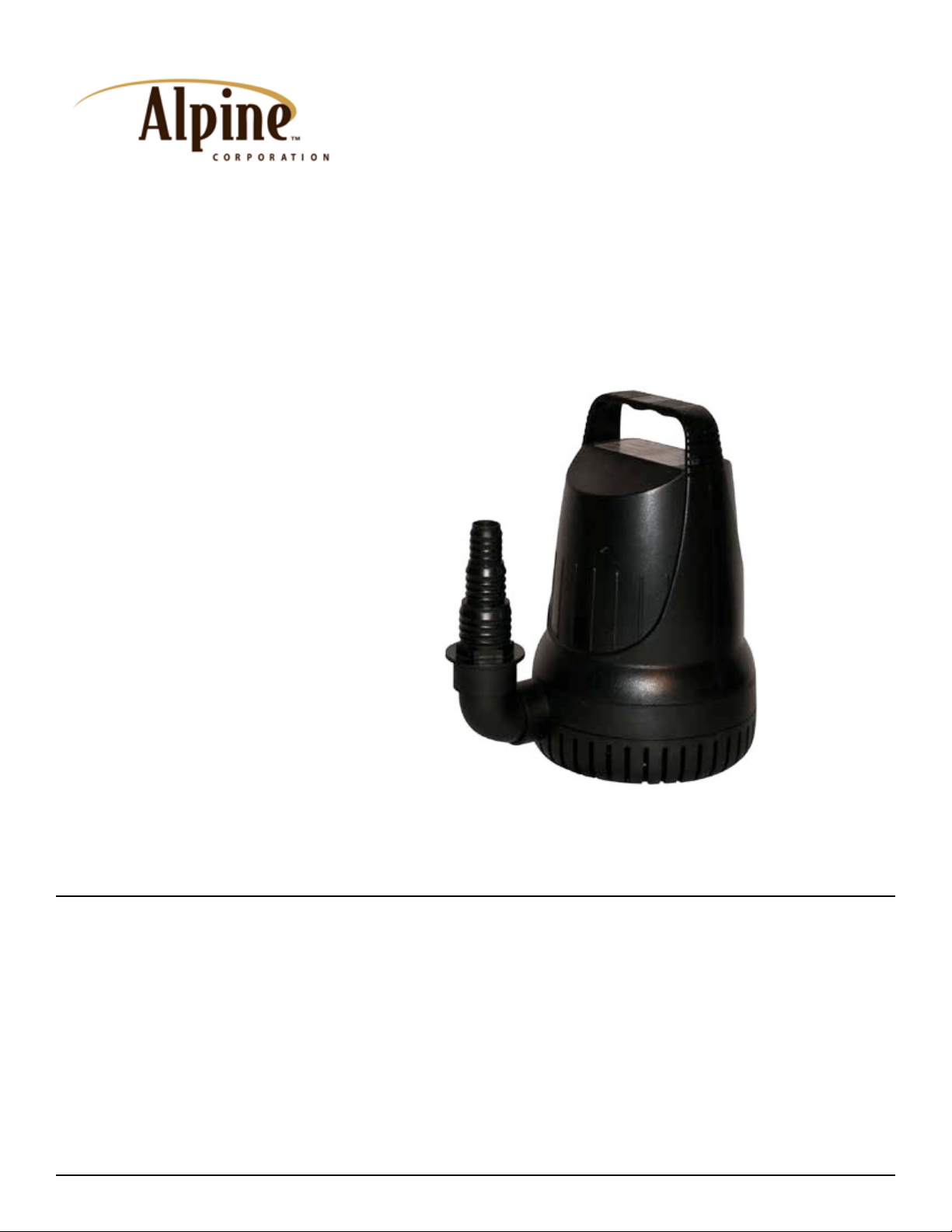

Instruction Manual
HURRICANE POND PUMP™
1
Thank you for purchasing one of
Alpine’s Hurricane pumps.
At Alpine, our goal is to supply our customers with
quality products that provide convenience and
value to your life. We hope you enjoy your purchase
and thank you for choosing Alpine: Your One Stop
Shop for all your Solar, Gift, Garden and Pond Supplies.
Our Hurricane pumps are ideal for heavy
duty waterfall or lter systems, as they have the
needed power to move large quantities of water through
your water feature. They are designed for continuous
operation even in the harshest pond environments.
For more information about our company or products, please visit our website at www.alpine4u.com or call us (USA) 1-877-710-0162
LIMITED 3 YEAR WARRANTY
At their own discretion, Alpine Corporation will repair or replace any pump found to have Manufacturer’s defects as
follows: Pump body, cover, lter and accessories within three years of original purchase. Impeller and internal moving parts
are warranted for one year of original purchase. This warranty does not cover any replaceable ltering material supplied with
the pump or lter as it is considered expendable. Proof of purchase is required. Warranty does not cover damage resulting
from negligent handling, misuse or lack of reasonable maintenance or care. Warranty is valid against defects due to material
and the company’s workmanship only. The sole obligation is at Alpine’s discretion to replace/repair the defective unit with a
suitable replacement part. Units should be checked for proper operation prior to returning as defective. No liability for loss
or damage of any nature or kind, whether arising out of or from the use of the product, whether defective or not defective, is
assumed by Alpine Corporation or its aliates. Damaging, cutting or altering power cord, removing or defacing product labels
voids any warranty consideration. Damages or injuries resulting from negligence or misuse of the product are not covered by
warranty.
TABLE OF CONTENTS
Introduction.........................................................................
2
Safety Information.............................................................
2
Components and Pump Parts........................................
3
Installation............................................................................
4
Operation and Maintenance..........................................
6
Replacing the Impeller.....................................................
7
Winter Pump Care..............................................................
9
Troubleshooting.................................................................
9
Replacement Parts List.....................................................
10
2
INTRODUCTION
The Hurricane pump is ideal for pond owners looking for energy-ecient performance, ow, and ease of
maintenance. The Hurricane pumps come with a high-performance, extremely sturdy, asynchronous motor and 33-foot
cord. This pump must be used vertically, in or out of water. The pump features simple maintenance, with a removable
rotor assembly, water-resistant ceramic bearings for continuous and trouble-free use. Your Alpine Hurricane pump is
oil-free, magnetic-driven and is epoxy protected, with a ceramic shaft for long lasting dependable performance. This
pump is equipped with a pre-lter cage which handles solids up to a quarter inch in size.
For a car to stay in great condition, proper maintenance is required. Therefore, Alpine suggests that once a week,
you verify that the pump is performing satisfactorily. If you detect a drop in pump performance (such as a decrease in
water ow from the pump or to the waterfall), rst clean the pump’s pre-lter cage and the tubing connected to the
pump. If the water ow is still not fully restored to its original performance, simply clean the impeller and internal pump
body.
(See page 6 for maintenance instructions)
For more information about our company or products, please visit our website at www.alpine4u.com or call us (USA) 1-877-710-0162
SAFETY INFORMATION
WARNING: Risk of electric shock – This pump has not been approved for use in swimming pool or marine areas
WARNING: To provide continued protection against risk of electric shock, connect to properly grounded, ground
fault circuit interrupter (GFCI) outlets only, using the following guidelines:
(A) Read and follow all safety instructions and all the important notices on the appliance before using the pump.
Failure to do so may result in loss of sh life and/or damage to this appliance.
(B) Have a qualied electrician install a properly grounded receptacle outlet, acceptable for outdoor use and
protected from snow and rain.
(C) Any wiring of pumps should be performed by a qualied electrician to ensure code compliance and user
safety.
(D) This is a pond pump. This pump has been evaluated for use with water only. Do not use this pump for other
than intended use (i.e.: do not use in swimming pools, aquariums, etc. Not to be used as a sump pump.)
(E) Do not use this pump in swimming pools or other situations where people are immersed
(F) If an extension cord is necessary, ensure connection is watertight and dust proof. A cord with proper rating
should be used. A cord rated for less amps or watts than the appliance rating may overheat. Care should be
taken to arrange the cord so that it will not be tripped over or pulled. The connection should be carried out
by a qualied electrical installer.
(G) Unplug pump at receptacle outlet when not in use or before removal from pond.
(H) To reduce risk of electrical shock, all wiring and junction connections should be made per local codes.
Requirements may vary depending on usage and location.
(I) Inspect the power cable before using. The power cable should be protected at all times to avoid punctures,
cuts, bruises and abrasions. Never cut the cord.
(J) Never handle power cords with wet hands.
(K) To avoid injury, do not touch moving or hot parts.

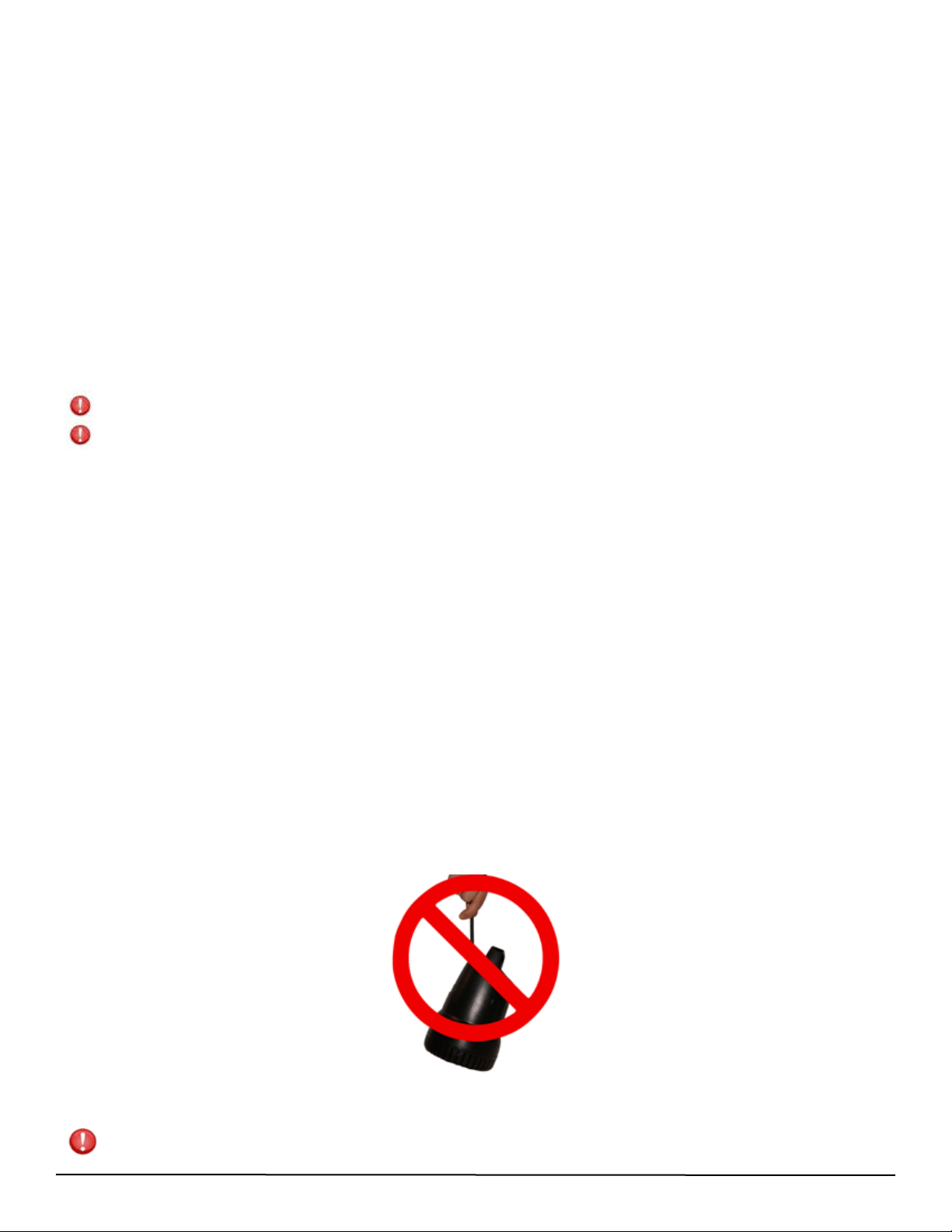

(L) Do not use power cable to lift pump. (Figure 1.1)
IMPORTANT: Alpine Corporation is not responsible for losses, injury, or death resulting from a failure to observe
these safety precautions, misuse or abuse of pumps or equipment.
Figure 1.1
3
For more information about our company or products, please visit our website at www.alpine4u.com or call us (USA) 1-877-710-0162
u
v

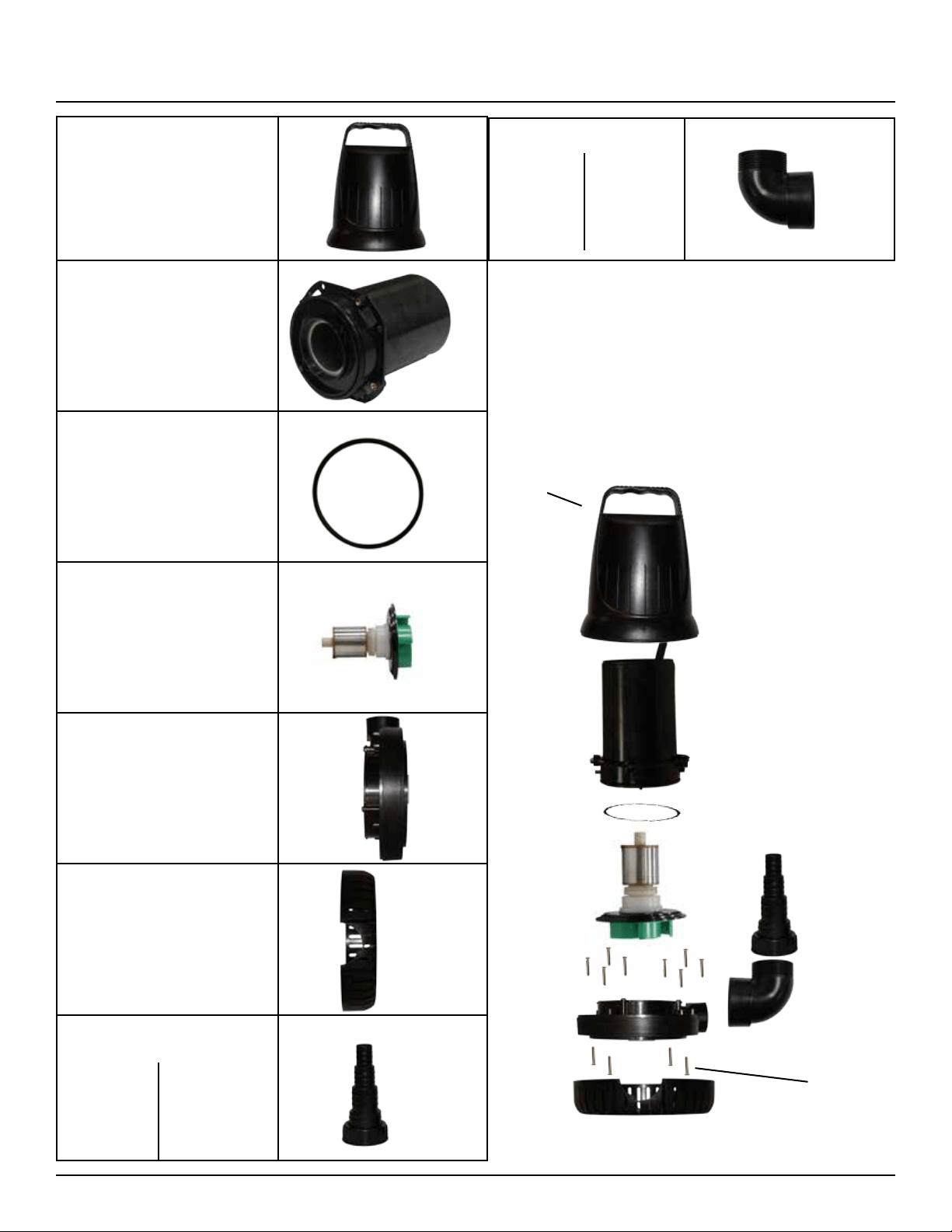

COMPONENTS AND PUMP PARTS
(Chart 1.1)
uPump Body
vImpeller Housing
wO-Ring
xImpeller
yPump Body Cover
zPump Pre-lter Cage
{Multi-Hose Adapter
0.75”-1.25
For Models:
PAB1500
PAB2100
PAB3100
w
x
y
z
{
|
|Elbow Adapter
0.75”-1.25
For Models:
PAB1500
PAB2100
PAB3100
}
0.75”-1.5
For Models:
PAB4100
0.75”-1.5
For Models:
PAB4100
4
INSTALLATION
•Only operate the pump when it has water running through it. Failure to do so will overheat the pump and cause it to
fail, thus voiding the warranty. DO NOT OPERATE DRY! Remember, running a Hurricane pump dry voids the warranty!
•Be sure that the pre-lter cage is fully snapped shut. Failure to operate the pump without the pre-lter cage on will
allow large debris to enter the pump, causing the pump to fail and voiding the warranty. To protect your sh or other
pond wildlife from being sucked into the pump, it is highly recommended to not operate the pump without the
pre-lter cage on.
•Do not wear loose clothing that may become entangled in the impeller or other moving parts during installation.
•Keep clear of suction and discharge openings. DO NOT insert ngers in pump with power connected.
•Do not pump hazardous materials or liquids, such as oil, saltwater or organic solvents.
•Be sure no debris will block or restrict the pre-lter cage from water entering.
For more information about our company or products, please visit our website at www.alpine4u.com or call us (USA) 1-877-710-0162
(Figure 3.1)
(chart 1.2)
PUMP INFORMATION
ALPINE
ITEM #
AMPS
(MIN-MAX)
WAT TS
(MIN-MAX)
MAX
FLOW
MAX
HEIGHT
OUTLET
CONNECTION
CORD
LENGTH
GPH FLOW RATE
1ft 5ft 10ft 11ft 13ft 16ft 20ft
PAB1500 .95 114 1585 11’ 5” 3/4”-1 1/4” 33’ 1500 740 206 82 -- -- --
PAB2100 1.20 144 2115 13’ 1” 3/4”-1 1/4” 33’ 2100 1215 634 444 63 -- --
PAB3100 1.60 192 3117 16’ 4” 3/4”-1 1/4” 33’ 3100 1928 1268 1078 697 127 --
PAB4100 2.95 354 4100 23’ 1 1/2” 33’ 4079 2749 1923 1728 1534 901 271
5

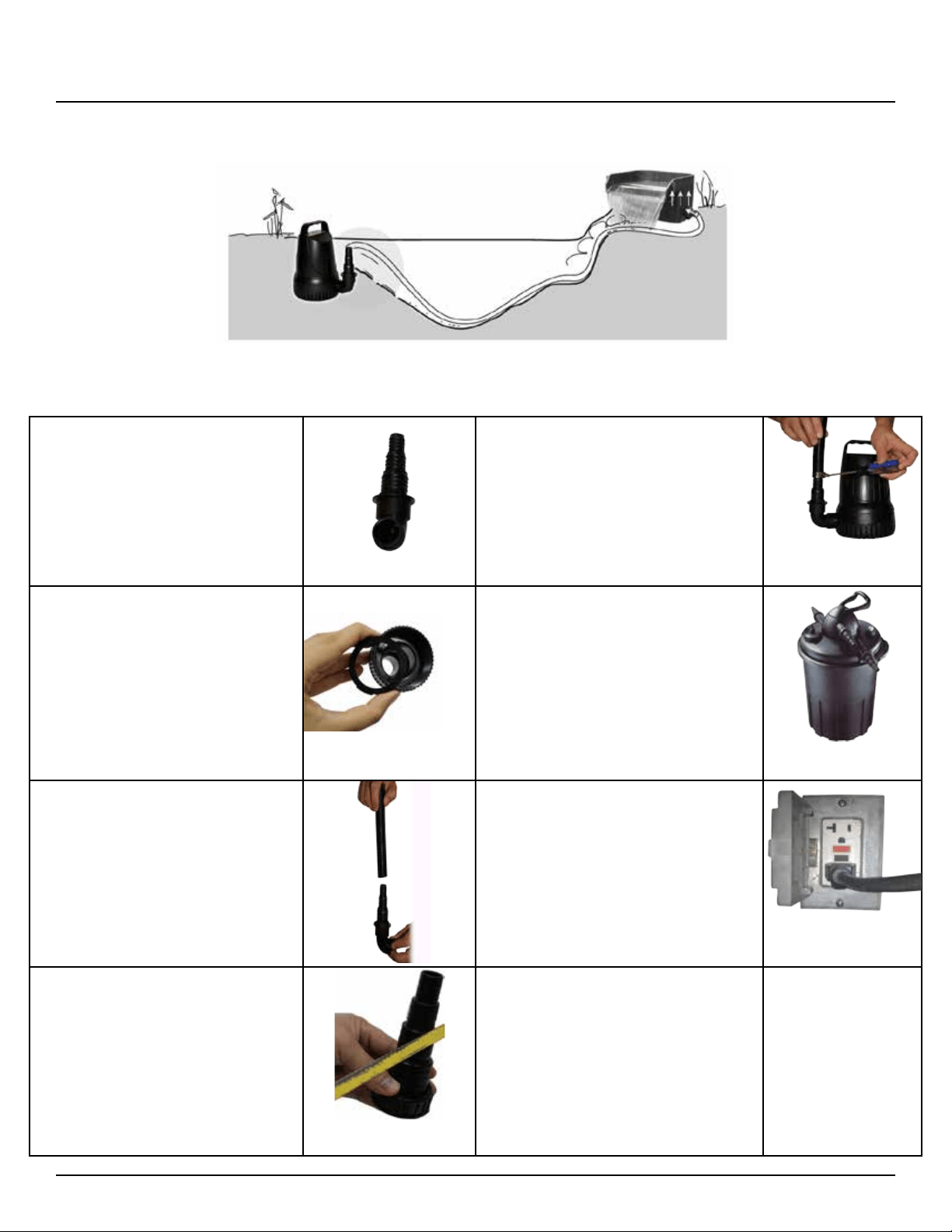

The Hurricane pump is designed to be submerged directly into the pond or water feature. To maximize pond circulation, locate
the pump as far away as possible from the location of the water entering back into the water feature.
TYPICAL INSTALLATION FOR YOUR POND
It is recommended that the pump is NOT positioned in the deepest area of the pond. This will protect the sh from suocating by
preventing the pond from completely draining in case of a leak in the tubing. Bricks or stones can be used, if needed, to raise the
pump up o the bottom of the pond. The pump should be placed a maximum depth of 6.5 feet (2 meters).
For more information about our company or products, please visit our website at www.alpine4u.com or call us (USA) 1-877-710-0162
u
The Hurricane pump includes a tting
for all water features.
y
Attach the tubing to the multi-hose
adapter. If the tubing is loose on the
multi-hose adapter, use a hose clamp
(not included) to secure the tubing to
the tting.
v
The threaded collar on all of the
ttings enables the Hurricane pump
to be installed and removed without
the need for any tools. Do not use
tools to attach the ttings onto the
pump discharge as the tool might
break the tting. Fittings need to be
hand-tightened only.
z
Connect the other end of the pump
tubing to an Alpine pond lter, waterfall,
or water feature.
w
Install the right-sized Multi-Hose
adapter based on the diameter of the
tubing you are using.
{
Place the pump into your water feature.
Be sure it is fully submerged before
plugging into a GFCI (ground fault circuit
interrupter). Once the pump is running
and water is circulating through the
lter(s) or waterfalls, check for any tting
or waterfall leaks where the external
connections are made.
x
If using tubing with a larger diameter
than the smaller ttings of the
Multi-Hose Adapters, cut o the small-
er section to avoid any ow restriction.
This way your pump will perform at
optimal level.
(Figure 3.2)
(Figure 3.3)
(Figure 3.4)
(Figure 3.5)
(Figure 3.6)
(Figure 3.8)
(Figure 3.7)
(Figure 3.9)
(Chart 2.1)
6
For more information about our company or products, please visit our website at www.alpine4u.com or call us (USA) 1-877-710-0162
OPERATION AND MAINTENANCE
WARNING: Always unplug or disconnect all appliances in the pond from the electrical supply before installing,
repairing, maintaining or handling the equipment in the water.
To avoid shortening the life of the pump, follow these simple maintenance procedures:
-Once a week, verify that the pump performance is satisfactory. If you detect a drop in pump performance (such
as a decrease in water ow from the pump or to the waterfall) rst clean the pump’s pre-lter cage and tubing. If
the water ow is still not fully restored to its original performance, clean the impeller and internal pump body.
-The pump impeller includes a high quality ceramic shaft that provides long-lasting, reliable performance when
properly maintained. However, extreme care should be taken when handling the shaft during maintenance.
Avoid dropping or pressing too hard on it to avoid breakage or hairline fractures, which may cause the shaft to
snap while in operation.
-This pump is suitable for use in water temperatures from 32 degrees Fahrenheit (0 degrees Celsius) to 95 degrees
Fahrenheit (35 degrees Celsius).
-To keep the pump in long lasting working conditions, always replace any worn parts.
Pump Pre-Filter Cage
Do not remove the pump’s pre-lter cage while operating the pump. Failure to operate the pump
without the pre-lter cage or operating the pump with a broken cage will allow large debris to enter the pump
causing damage to the pump, thus voiding the warranty.
(gure 4.1)

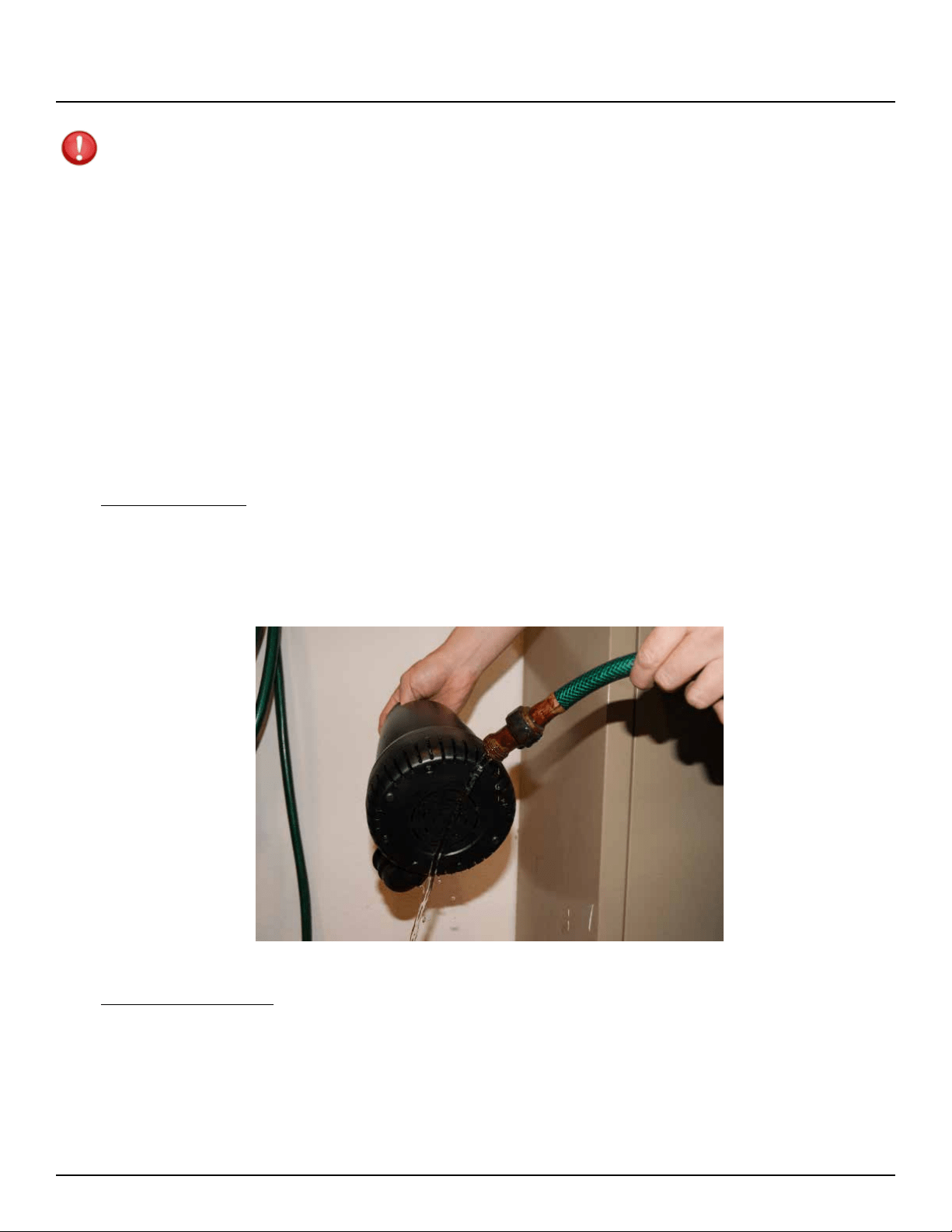

Pump Pre-Filter Cleaning
We recommend inspecting your pump on a regular basis to ensure it is functioning properly. If you notice
the water ow rate diminish, it may be due to the pump’s pre-lter cage being blocked with debris. In many cases,
the clogged lter cage can be cleaned by reaching into the pond and pulling the pump out of the water to remove
the debris from the lter cage.
Important Note: Always disconnect the power before performing maintenance on the pump. Pull o any debris
stuck to the pump pre-lter cage and/or use a garden hose to spray o any debris stuck to the lter cage.
7
REPLACING THE IMPELLER
If you have thoroughly cleaned the pre-lter cage and still have diminished ow rates, then you will need to remove and
inspect the impeller and internal pump body.
For more information about our company or products, please visit our website at www.alpine4u.com or call us (USA) 1-877-710-0162
u Unscrew the four screws and remove the pre-lter from
the pump.
(Figure 5.1)
v To remove the pump body cover, remove all 8 screws.
(Figure 5.2)
w
Pull the pump cover o the impeller housing.
(Figure 5.3)
x
Pull the impeller out of the impeller housing.
(Figure 5.4)
y
If your impeller and impeller housing have excessive
scale build-up, clean with a mild acid, such as white vinegar or
non-abrasive calcium, lime and rust remover product using a
sponge or soft-bristled brush that won’t scratch the stainless
steel. Removing scale build-up will allow your pump to run
like new again.
(Figure 5.5)
(Chart 3.1)
8
For more information about our company or products, please visit our website at www.alpine4u.com or call us (USA) 1-877-710-0162
z
After the impeller and impeller housing are
cleaned, place the impeller back into the impeller
housing. Twist the impeller to either the left or right
until it clicks into place.
(Figure 5.6)
{
There are pins on the impeller housing that
the impeller will click into. The impeller has
openings on the back for the pins to click into.
(Figure 5.7)
|
Place the pump body cover to the pump body by
aligning the screw holes and screw all 8 screws back
in to the pump body.
(Figure 5.8)
}Place the pump pre-lter cage back on to the
pump body cover by aligning the screw holes and the
screw on the 4 screws in to the pump body.
(Figure 5.9)
(Chart 3.2)
9
TROUBLESHOOTING
WINTER PUMP CARE
In cold climates, Alpine highly recommends to store your pump inside during the coldest months of the year. You may still
use your Hurricane pump during the winter time, but the Hurricane pump cannot be used in below freezing temperatures.
This pump is suitable for use in water temperatures from 32 degrees Fahrenheit (0 degrees Celsius) to 95 degrees Fahrenheit
(35 degrees Celsius).
Please follow the steps below:
1. Disconnect the plug cord from the power supply.
2. Disconnect the tubing connected to the tting.
3. Clean the pump and pre-lter with fresh water and store the pump in a frost-free location.
For more information about our company or products, please visit our website at www.alpine4u.com or call us (USA) 1-877-710-0162
Problem Solutions
1. If your pump has reduced
water ow
A. Pump or tubing may be clogged, check area around pump to be sure there is
no debris blocking water from entering into the pump.
B. It may be necessary to clean the pump pre-lter and impeller. For instructions on
how to clean your pump please turn to page 6-8.
C. If none of the above solve your issue, the impeller needs to be replaced.
2. If your pump hums and
doesn’t push water
A. Pump or tubing may be clogged, check area around pump to be sure there is
no debris blocking water from entering into the pump.
B. It may be necessary to clean the pump pre-lter and impeller. For instructions on
how to clean your pump please turn to page 6-8.
C. Make sure the pump is receiving the correct voltage.
D. If none of the above solve your issue, the impeller needs to be replaced.
3. If your pump has completely
shut-o
A. The ground-fault circuit interrupter (GFCI) may have tripped.
B. Check the temperature of the water to ensure it’s within the working
temperatures.
C. It may be necessary to clean the pump pre-lter and impeller. For instructions on
how to clean your pump please turn to page 6-8.
D. If none of the above solve your issue, the impeller needs to be replaced.
4. If your pump turns on and o A. Pump or tubing may be clogged, check area around pump to be sure there is
no debris blocking water from entering into the pump.
B. It may be necessary to clean the pump pre-lter and impeller. For instructions on
how to clean your pump please turn to page 6-8.
C. Check the temperature of the water to ensure it’s within the working
temperatures.
D. If none of the above solve your issue, the impeller needs to be replaced.
(Chart 4 .1)
10
REPLACEMENT PART LIST FOR HURRICANE PUMPS
For more information about our company or products, please visit our website at www.alpine4u.com or call us (USA) 1-877-710-0162
Alpine Pump SKU# Alpine Replacement Parts Description
Impeller
PAB1500 PAB1500-IMP Impeller for PAB1500
PAB2100 PAB2100-IMP Impeller for PAB2100
PAB3100 PAB3100-IMP Impeller for PAB3100
PAB4100 PAB4100-IMP Impeller for PAB4100
Fittings
PAB1500 PAB-FIT Fitting for PAB1500
PAB2100 PAB-FIT Fitting for PAB2100
PAB3100 PAB-FIT Fitting for PAB3100
PAB4100 PAB4100-FIT Fitting for PAB4100
(Chart 5.1)
