Stealthbox
®
INSTALLATION GUIDE
SB-F-SUPRCNSL/10W3V2, JL AUDIO, Inc 2005
Sheet SKU#011149 Revision 8/4/2005 Page 1
for the
SB-F-SUPRCNSL/10W3v2
(‘98-Up Ford SuperDuty
250,350,450,550 & 650
‘00-Up Excursion)
This Stealthbox is a product which
requires professional installation skills and
tools.
Please read this installation guide thor-
oughly before beginning the project. It
will guide you step by step through the
installation.Several of the steps in this
process may require two people to
accomplish.
It is absolutely vital that the enclosure
be properly mounted to the vehicle
according to these instructions. Failure
to mount the enclosure properly pres-
ents two problems: 1) The sub-bass
performance will suffer due to the
movement of the enclosure caused by
the force exerted by the woofer(s) and
2) A loose enclosure presents a serious
safety hazard in the event of a collision
or sudden deceleration.
Please enjoy your JL Audio Stealthbox
responsibly.

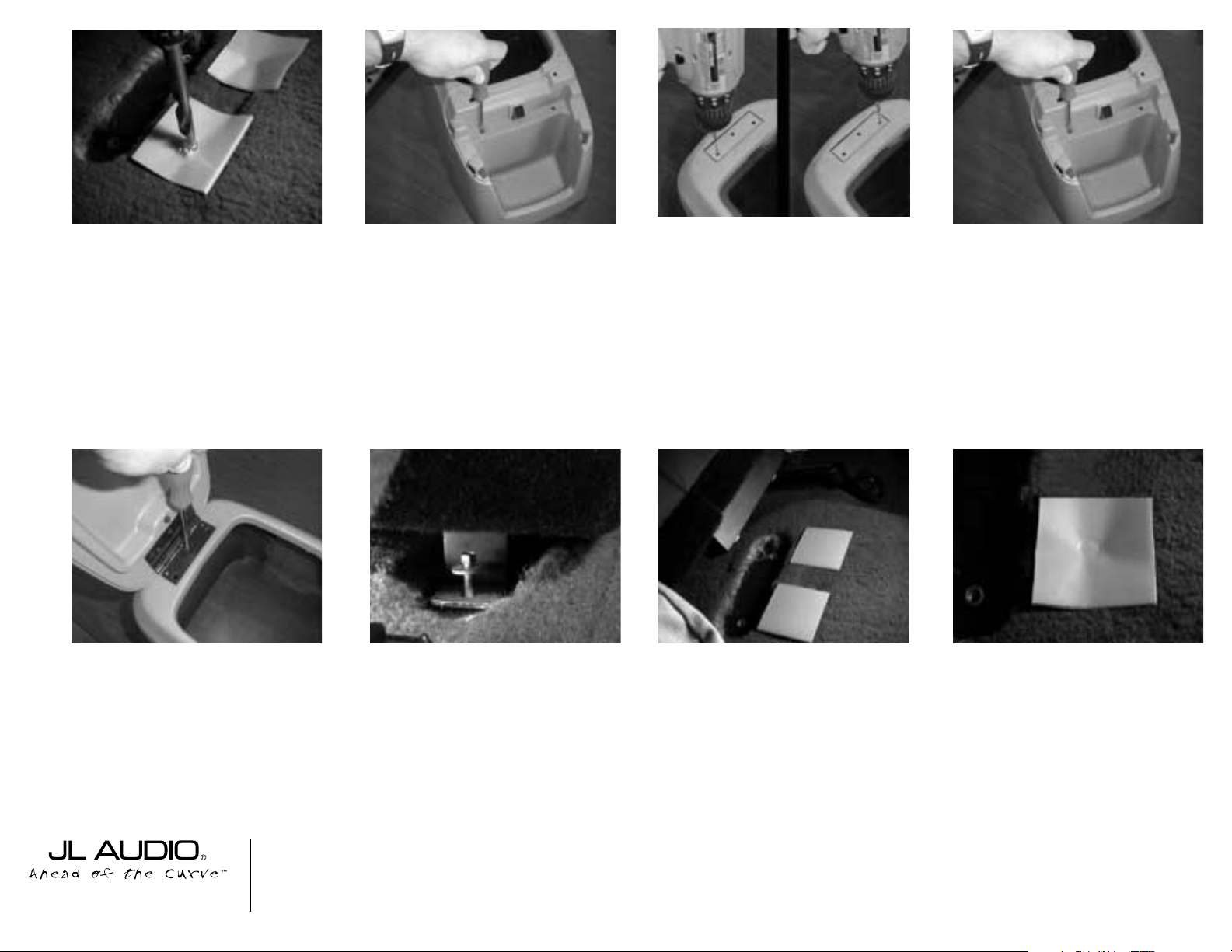

STEP 1:
From inside the factory console,
using a 9/16”socket,remove the four bolts
that secure the console to the vehicle. ( Two
of these bolts will be used later to secure
the Stealthbox).
STEP 2:
Remove the console from the vehi-
cle.
STEP 3:
Remove the inside section of the
console.(This will not be reinstalled).
-Two screws are located under the front tray.
-Three screws attach the hinge.
-Three screws are located on each side of the
consoles shell (six total)
After this section is removed, the console shell
will be in two parts.
STEP 4:
Using a pair of pliers,from the inside
of the console shell.Remove the ridges locat-
ed toward the front of the console.
STEP 5:
Reassemble the front and rear parts
of the console shell using the supplied hard-
ware (4 #8 x 1/2”long screws,4 washer and
4 nuts) as shown in the picture.
STEP 6:
Turn the console shell upside down.
Position the Stealthbox inside the shell,
START
HERE
Continued on Next Page ➔
www.jlaudio.com
➔
➔

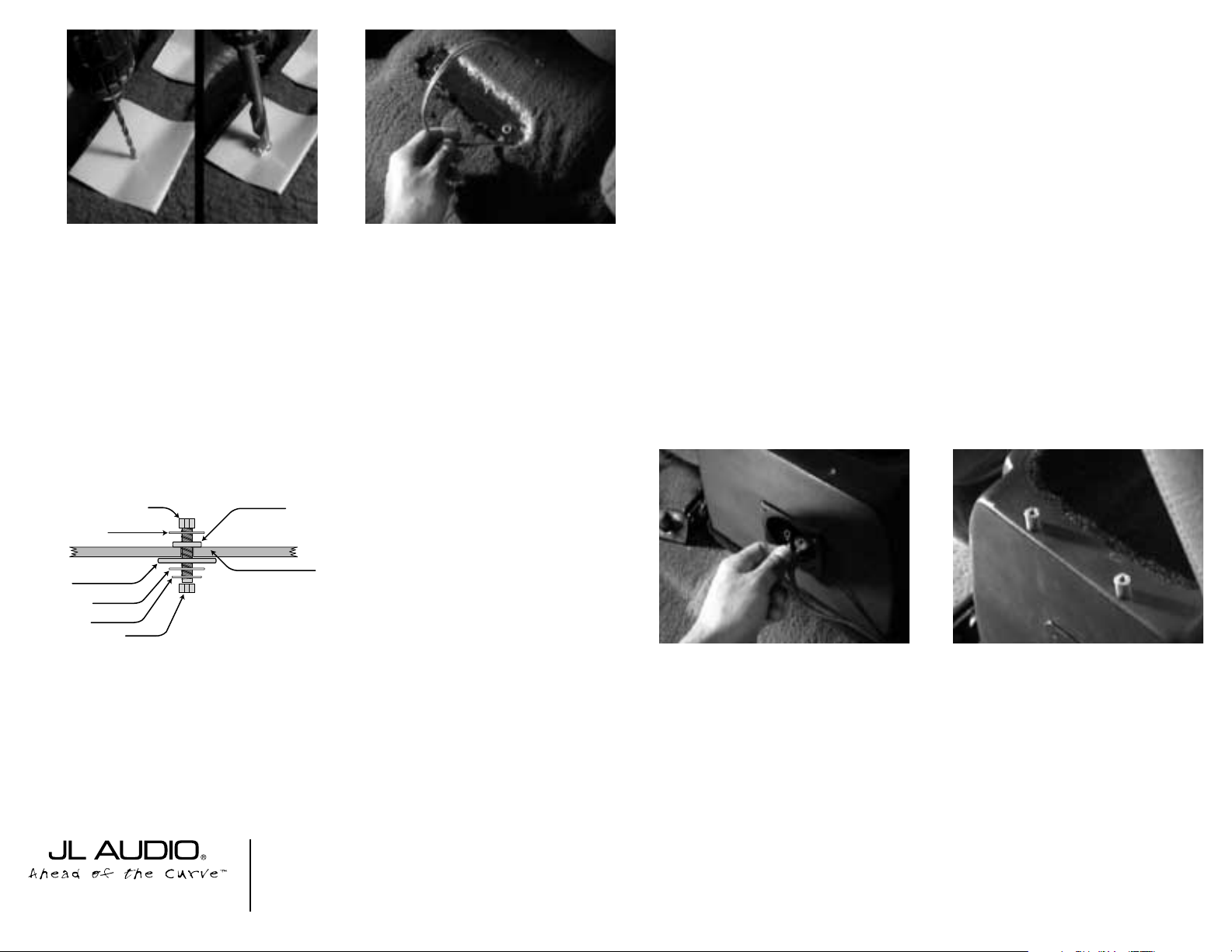

STEP 7: Use the remaining mounting holes as a
drill guide.
Using a 1/8” drill bit and drill, drill a hole through
each of these guide holes, into the Stealthbox.
STEP 8: Install #8x 1/2” black pan-head screws
into the drilled holes.
