TABLE OF CONTENTS
TABLE OF CONTENTS
3 LICENSES
4 ASSEMBLING AND
PREPARING
4 Accessories
5 Optional Accessories
6 Parts and Buttons
7 Connecting the Stand
8 Connecting the Speaker
9 Using the IR Receiver
9 Portrait Layout
10 Mounting on a Wall
12 REMOTE CONTROL

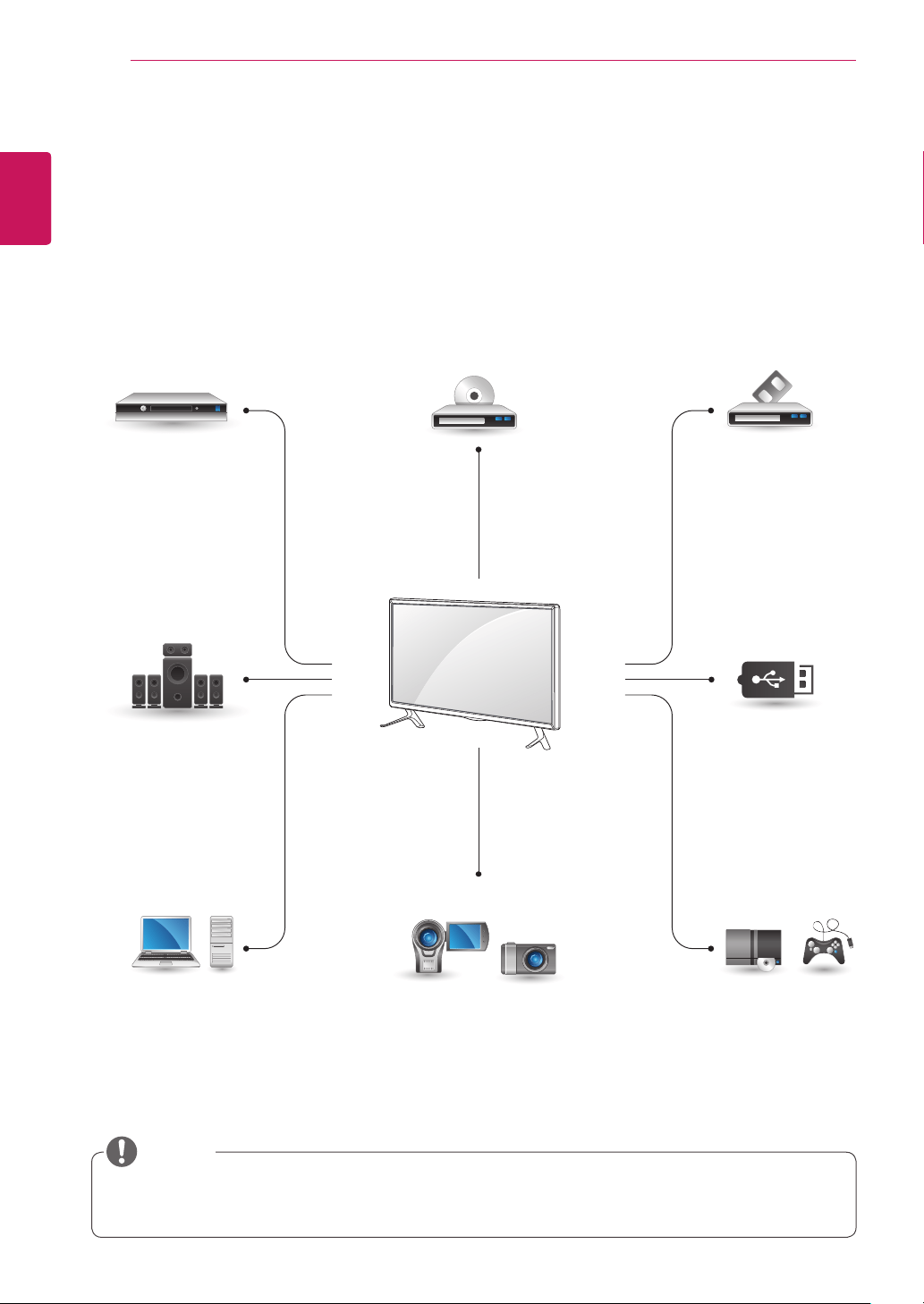

14 MAKING CONNECTIONS
15 RGB Connection

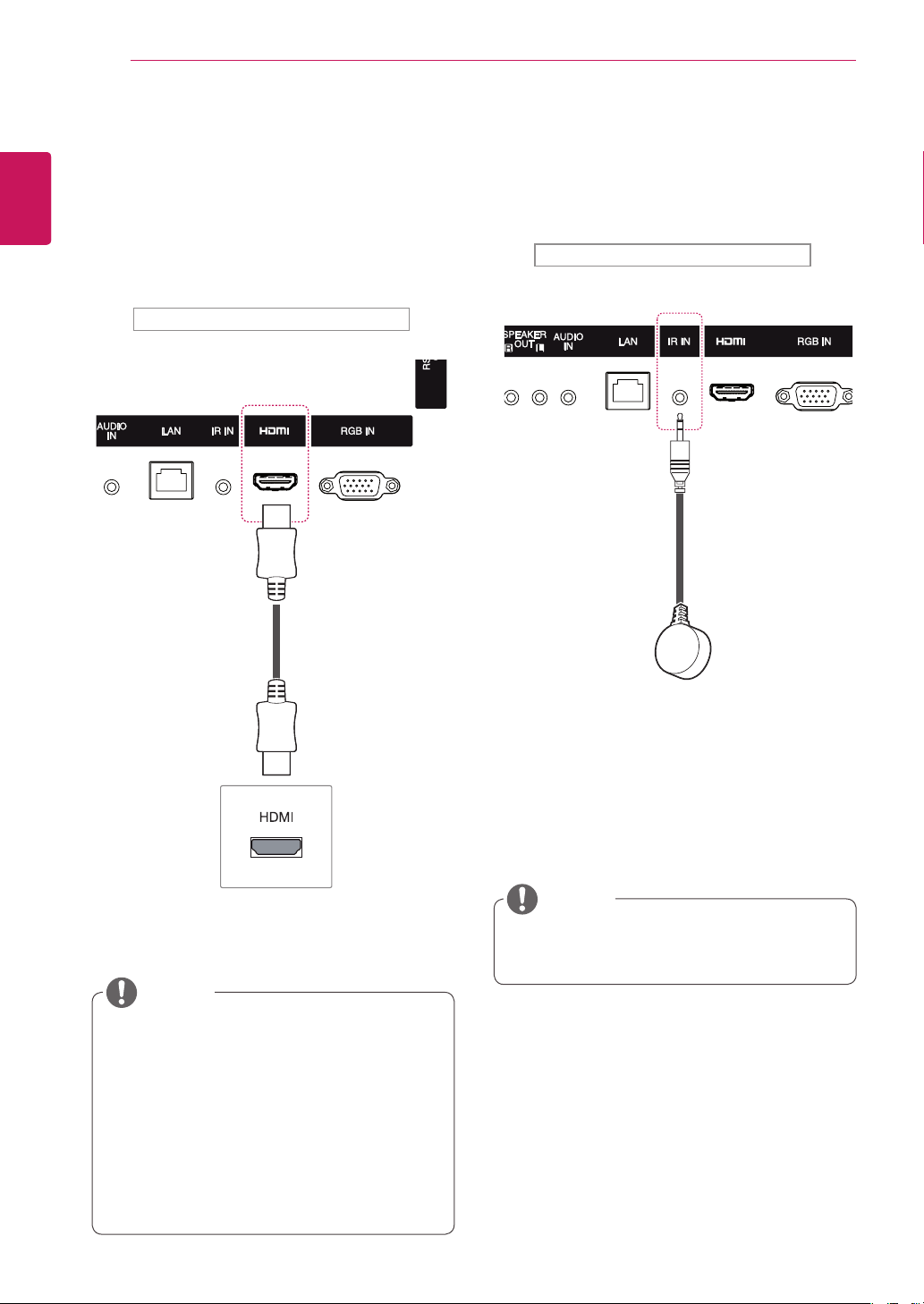

16 HDMI Connection
16 IR Receiver Connection
17 USB Connection
17 LAN Connection
18 USING THE MONITOR
18 Using the Input List

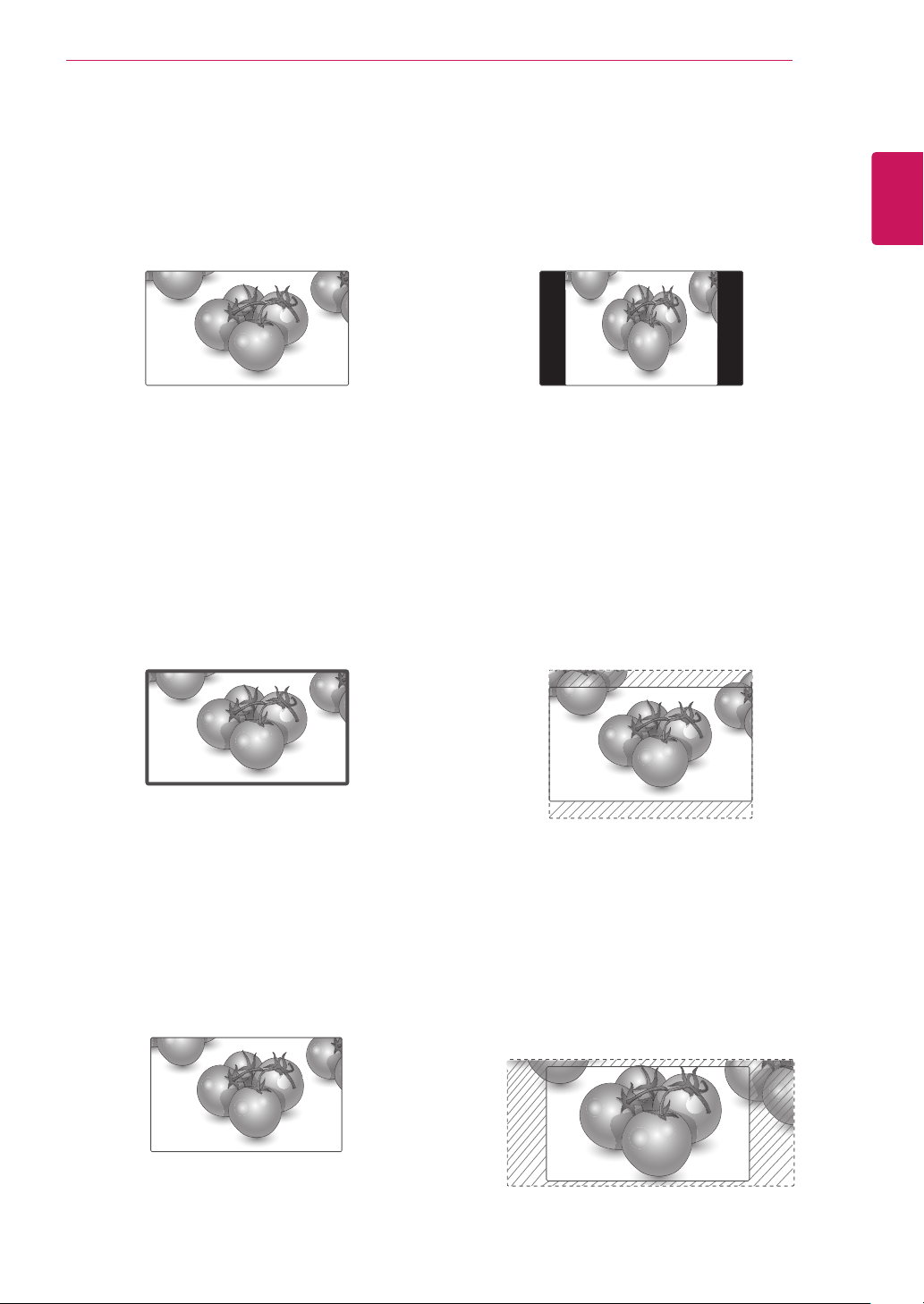

18 Adjusting Aspect Ratio
20 ENTERTAINMENT
20 Using the Network
20 - Connecting to a Wired Network
21 - Network Status
22 Using the My Media
22 - Connecting USB storage devices

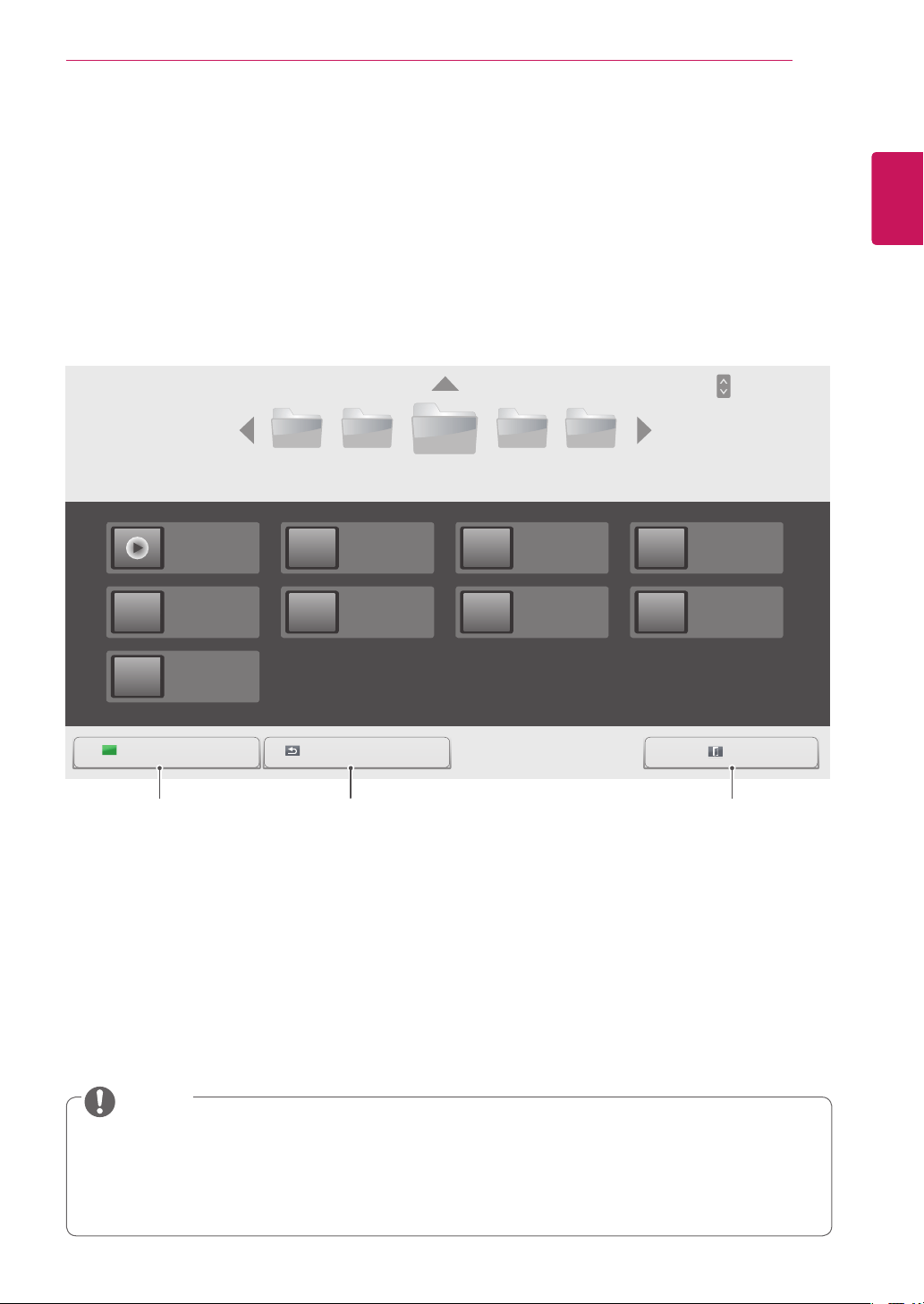

24 - Browsing Files
27 - Viewing Movies
30 - Viewing Photos
32 - Listening to Music
35 - Viewing the Contents List
36 CUSTOMIZING SETTINGS
36 Accessing Main Menus
37 - PICTURE Settings
40 - AUDIO Settings
41 - TIME Settings
42 - OPTION Settings
43 - NETWORK Settings
44 TROUBLESHOOTING

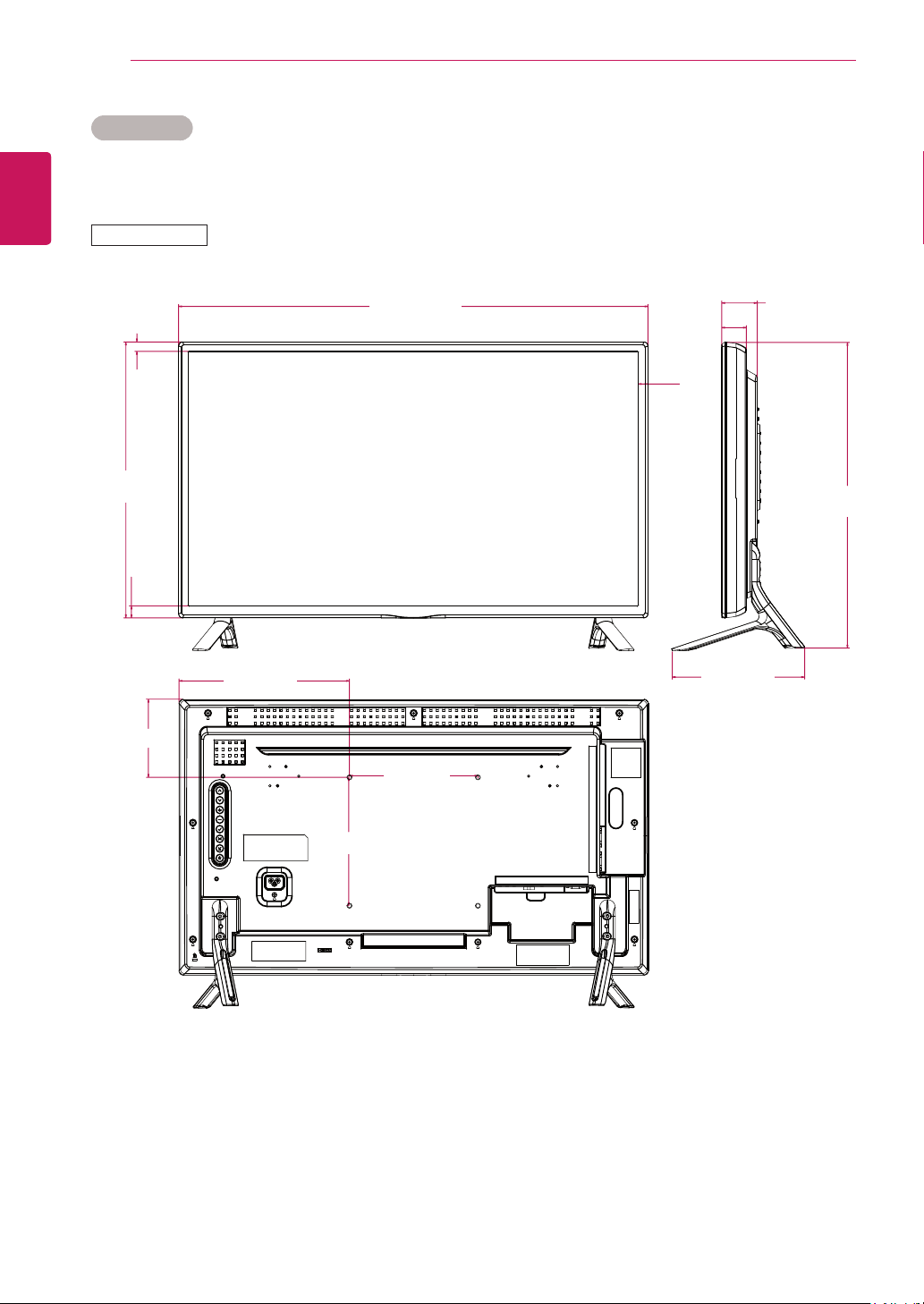

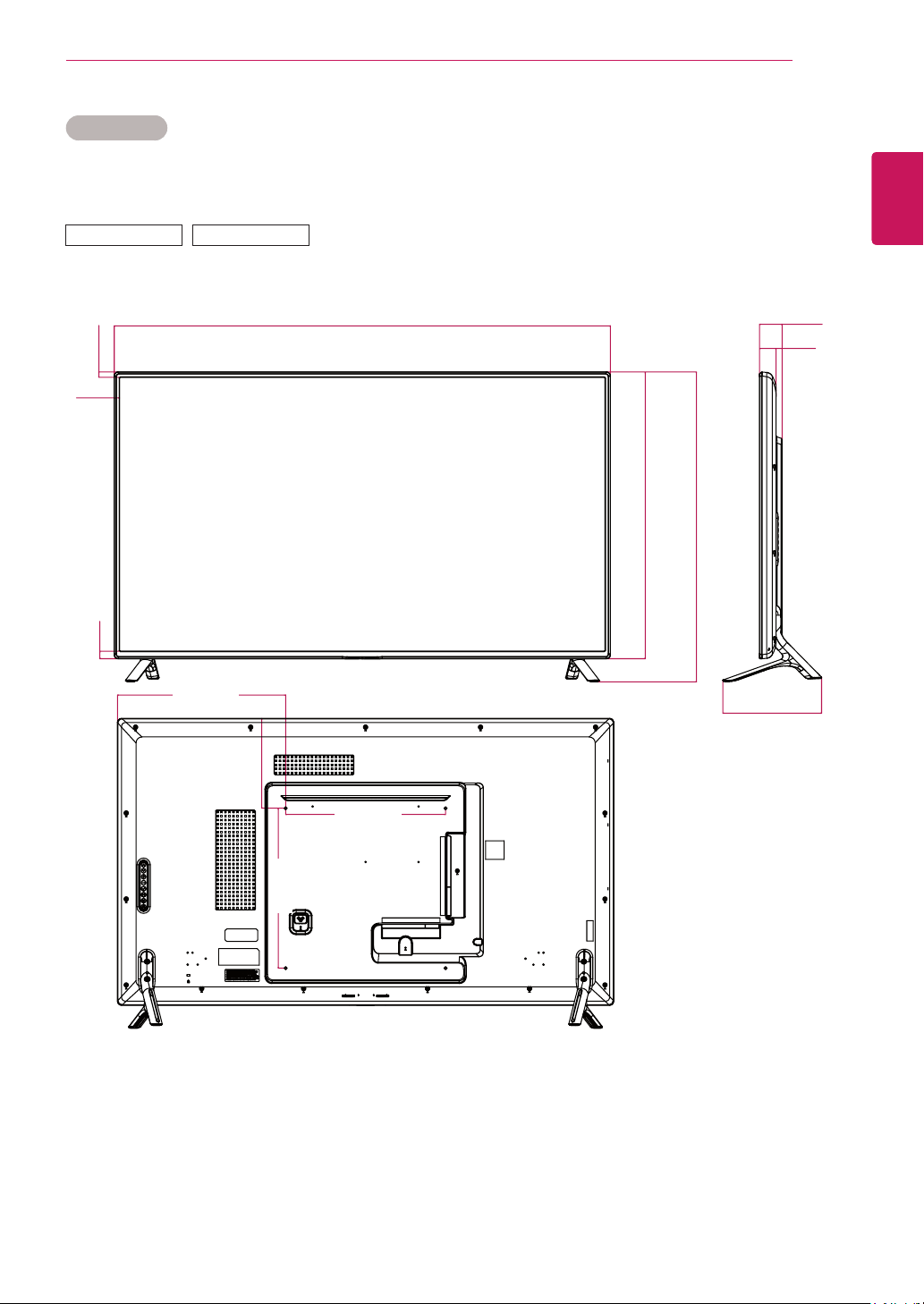

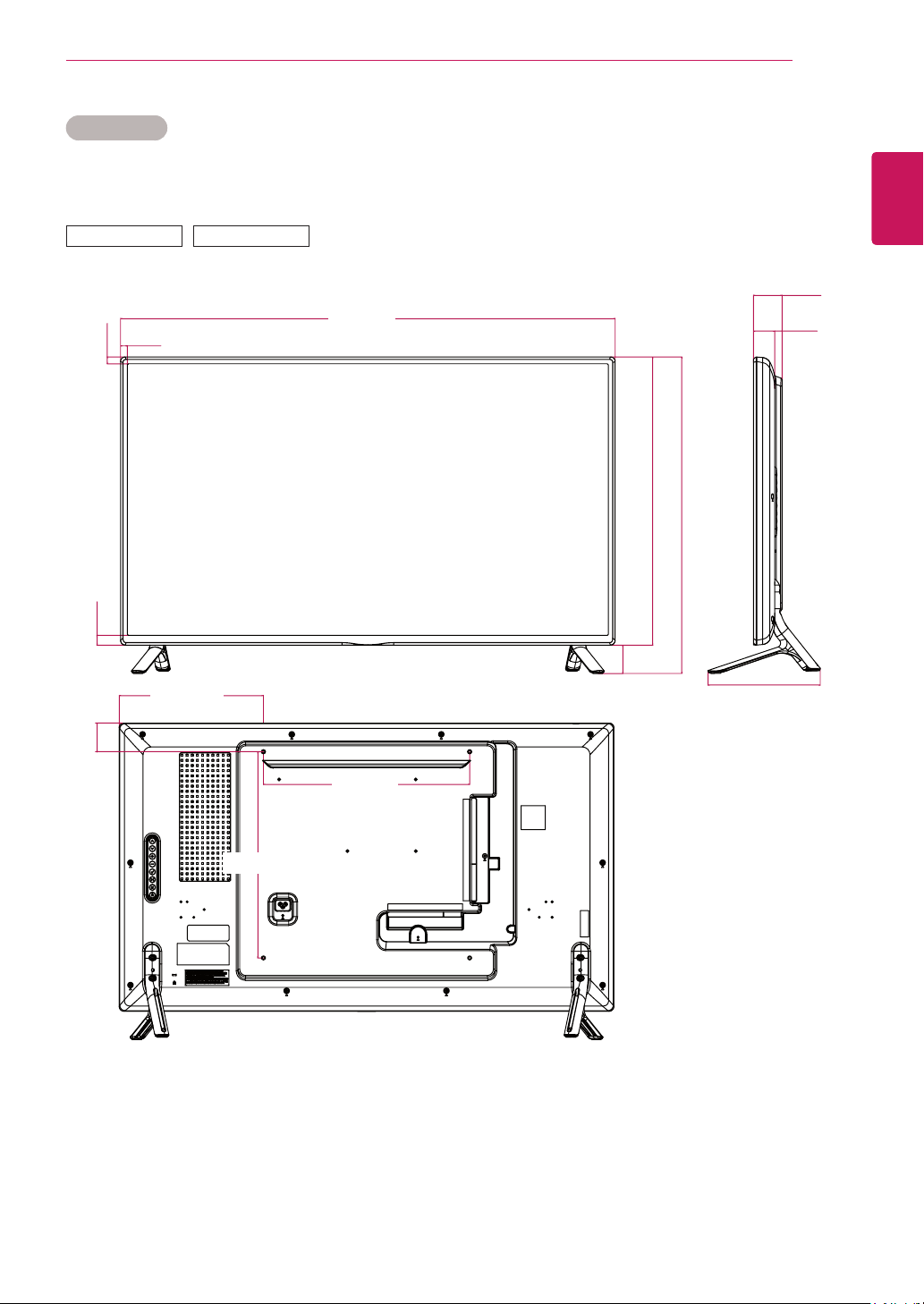

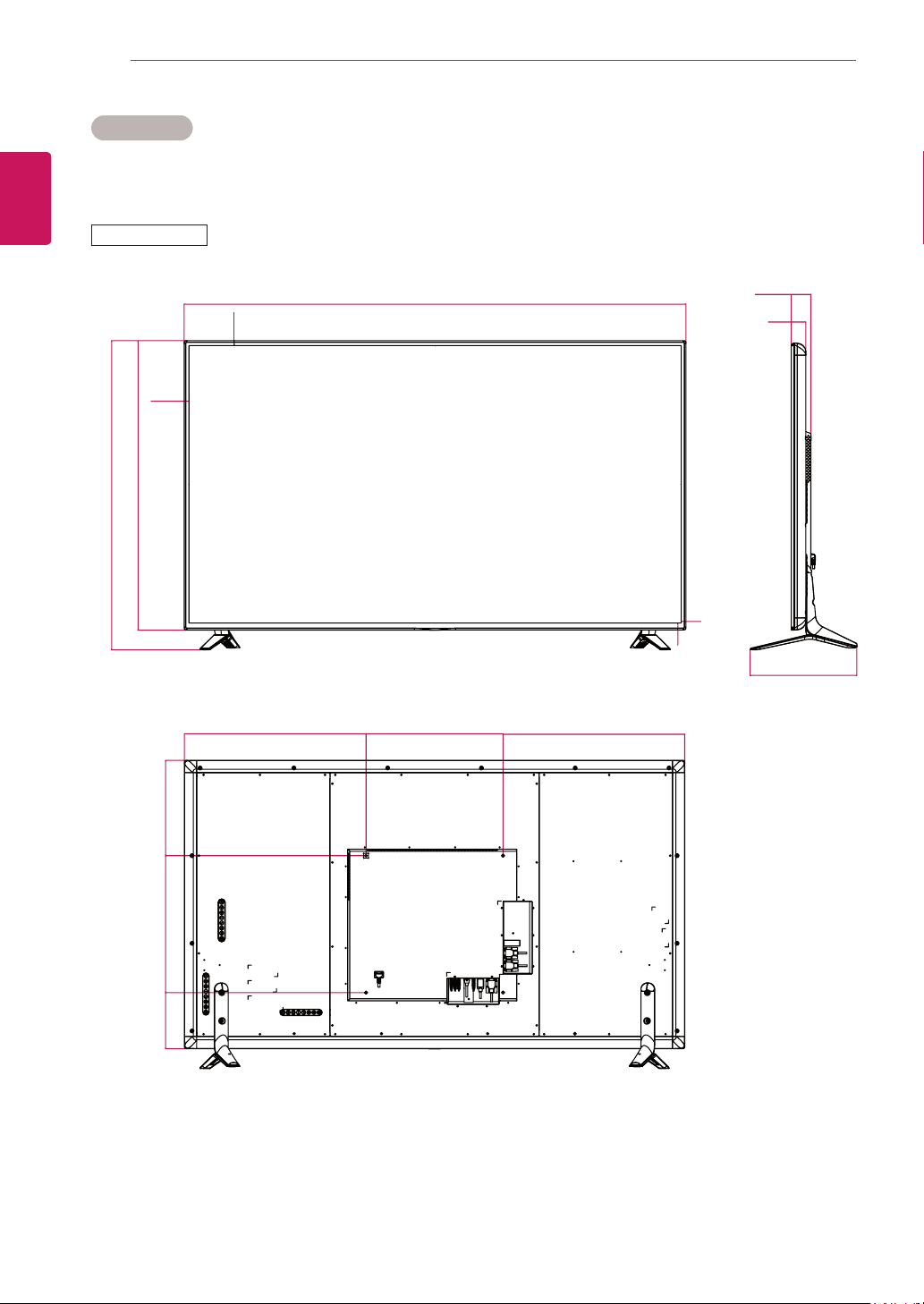

46 SPECIFICATIONS
62 IR CODES
63 CONTROLLING THE MULTIPLE
PRODUCT

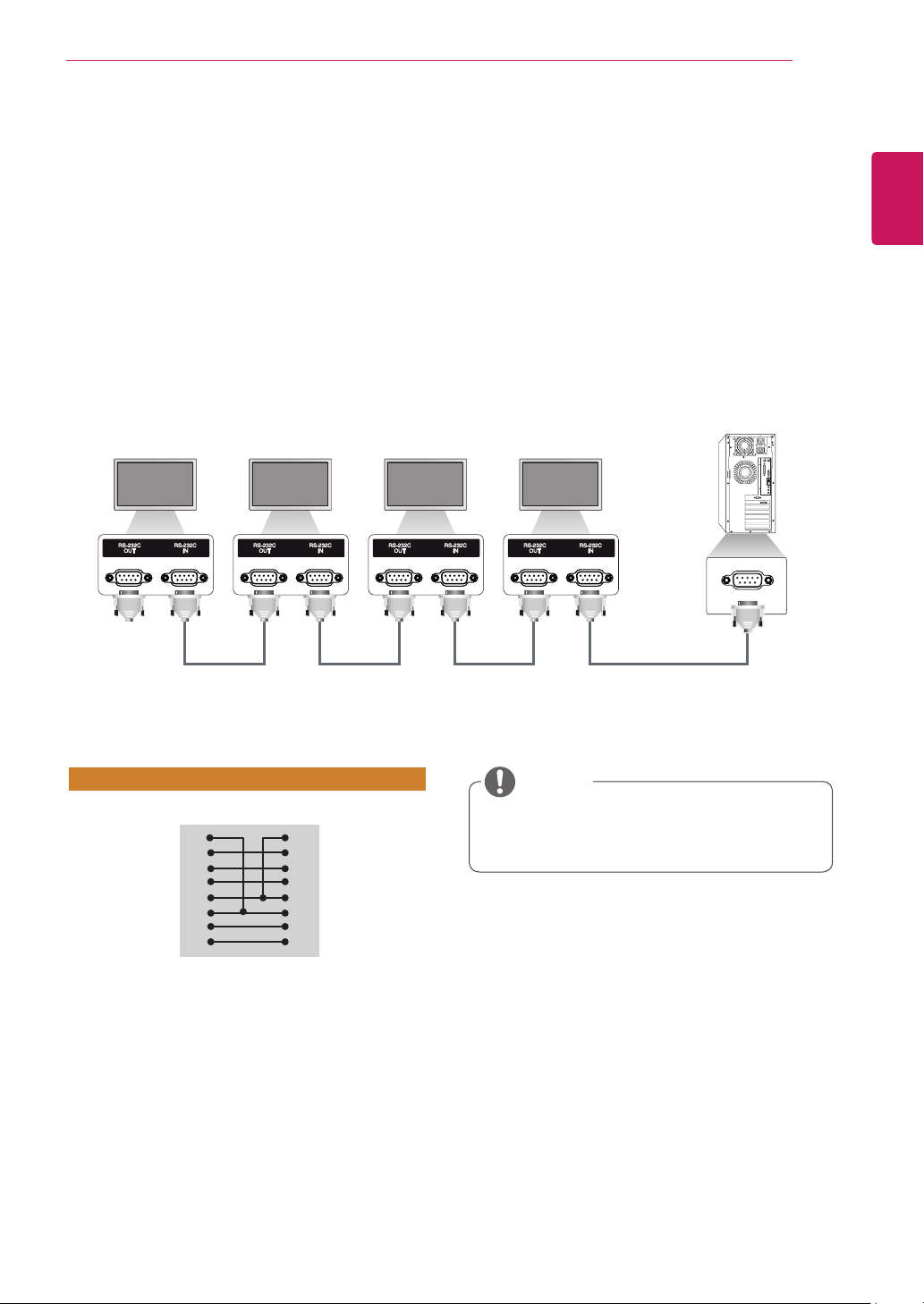

63 Connecting the Cable
63 RS-232C Configurations
63 Communication Parameter
64 Command Reference List
66 Transmission / Receiving Protocol
ENGLISH
3
LICENSES
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are trademarks of Dolby Laboratories.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that
has passed rigorous testing to verify that it plays DivX video. Visit divx.com for
more information and software tools to convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies
To obtain your registration code, locate the DivX VOD section in your device
setup menu.
Go to vod.divx.com for more information on how to complete your registration.
DivX Certified® to play DivX® video up to HD 1080p, including premium
content.
DivX®, DivX Certified® and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668;
7,515,710; 7,519,274
4
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING

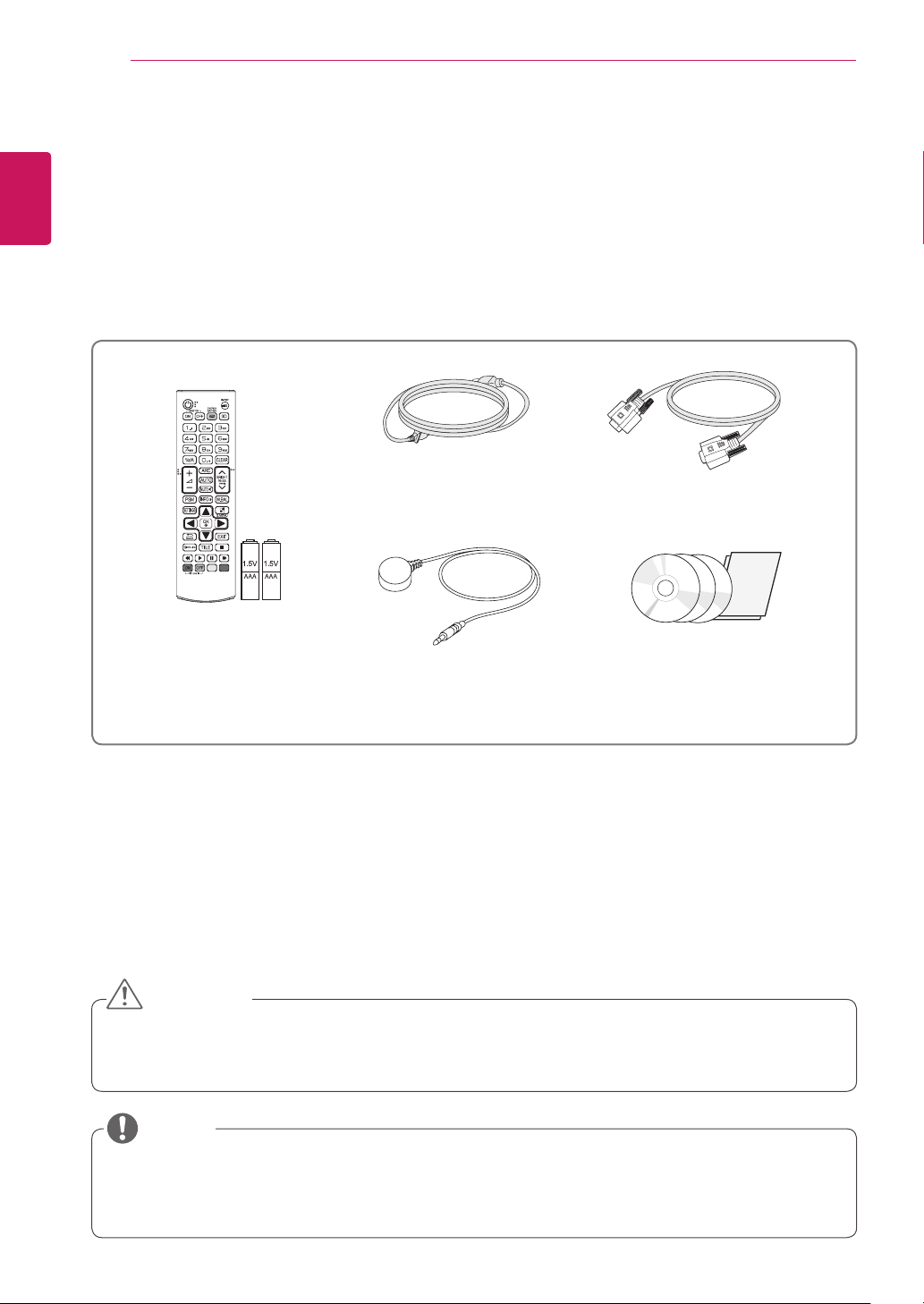

Accessories
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
y
Do not use any pirated items to ensure the safety and product life span.
y
Any damages or injuries by using pirated items are not covered by the warranty.
y
The accessories supplied with your product may vary depending on the model.
y
Product specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
CAUTION
NOTE
Remote Control and
Batteries
Power Cord
CD (Owner's Manual,
SuperSign Program/ Manual)/
Cards
D-sub 15-pin Signal Cable
IR Receiver
5
ENG
ENGLISH
ASSEMBLING AND PREPARING

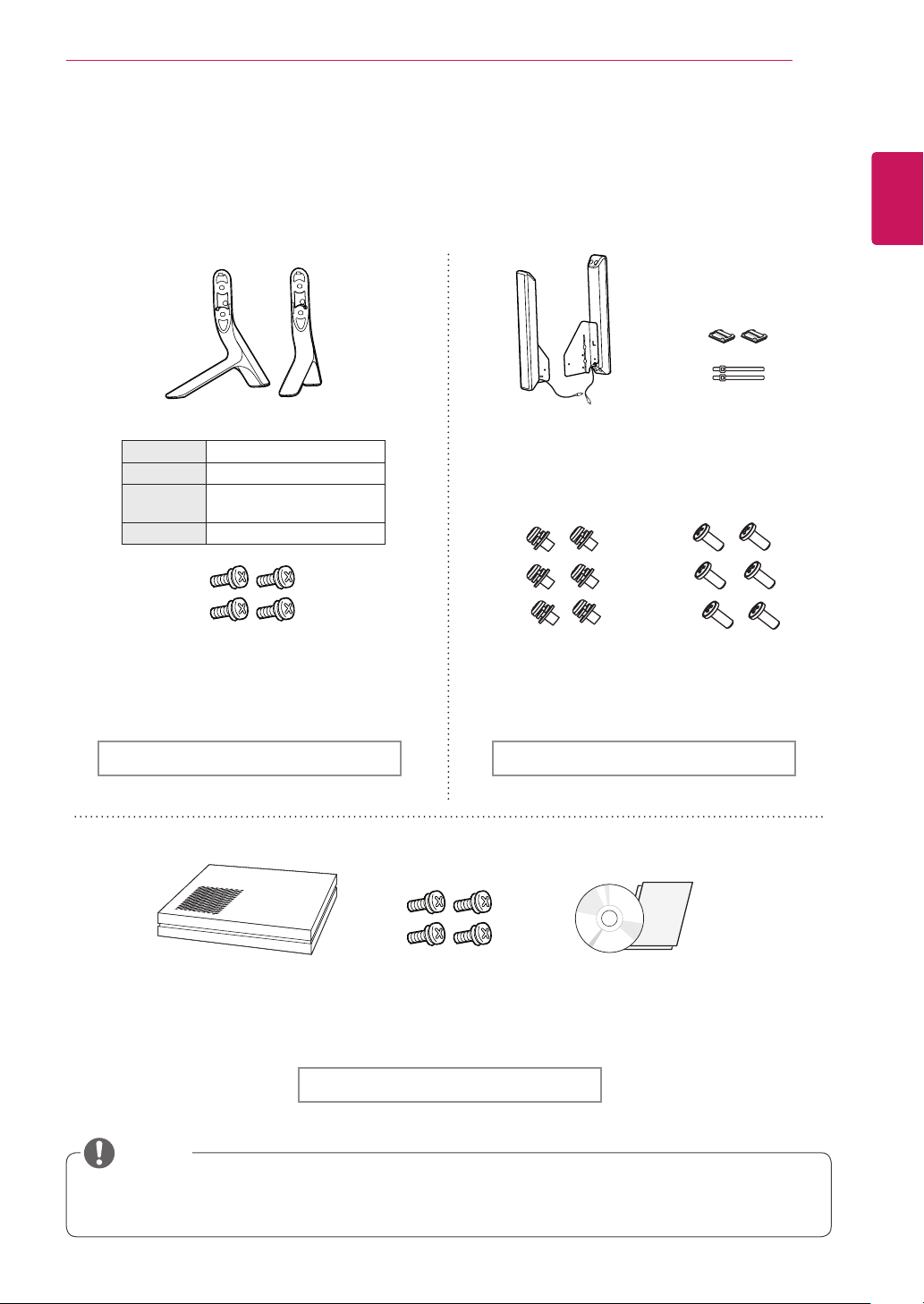

Optional Accessories
Without prior notice, optional accessories are subject to change to improve the performance of the product,
and new accessories may be added. The illustrations in this manual may differ from the actual product and
accessories.
y
Cable holder/cable tie may not be available in some areas or for some models.
y
Optional accessories are not included for all models.
NOTE
Cable holder/
Cable Tie
Screws
Diameter 4.0 mm x Pitch 0.7 mm
x Length 14 mm (Included Spring
Washer)
Speaker
SP-2100
Stand kit Speaker kit
Screws CD(Owner's Manual)/
Cards
Media Player
MP500/ MP700
Media Player kit
Screws
Diameter 4.0 mm x Pitch
0.7 mm x Length 8 mm
(Included Spring Washer)
Screws
Diameter 4.0 mm x
Pitch 1.6 mm x Length
10 mm
Stand
ST-321T 32LS33A
ST-421T 42LS33A/ 42LS35A
ST-471T
47LS33A/ 47LS35A
55LS33A/ 55LS35A
ST-651T 65LS33A
6
ENG
ENGLISH
ASSEMBLING AND PREPARING
Parts and Buttons
Connection Panel
Screen Buttons
No. Description
1
Moves the selection up and down.
2
Adjusts the volume level.
3
Displays the current signal and mode.
Press this button to adjust the screen automatically (available only in RGB mode)
4
Accesses the main menus, or saves your input and exits the menus.
5
Changes the input source.
6
Turns the power on or off.
1
2
6
5
4
3
7
ENG
ENGLISH
ASSEMBLING AND PREPARING
2
Use the screws to secure the stand on the rear
side of the product as shown in the diagram.

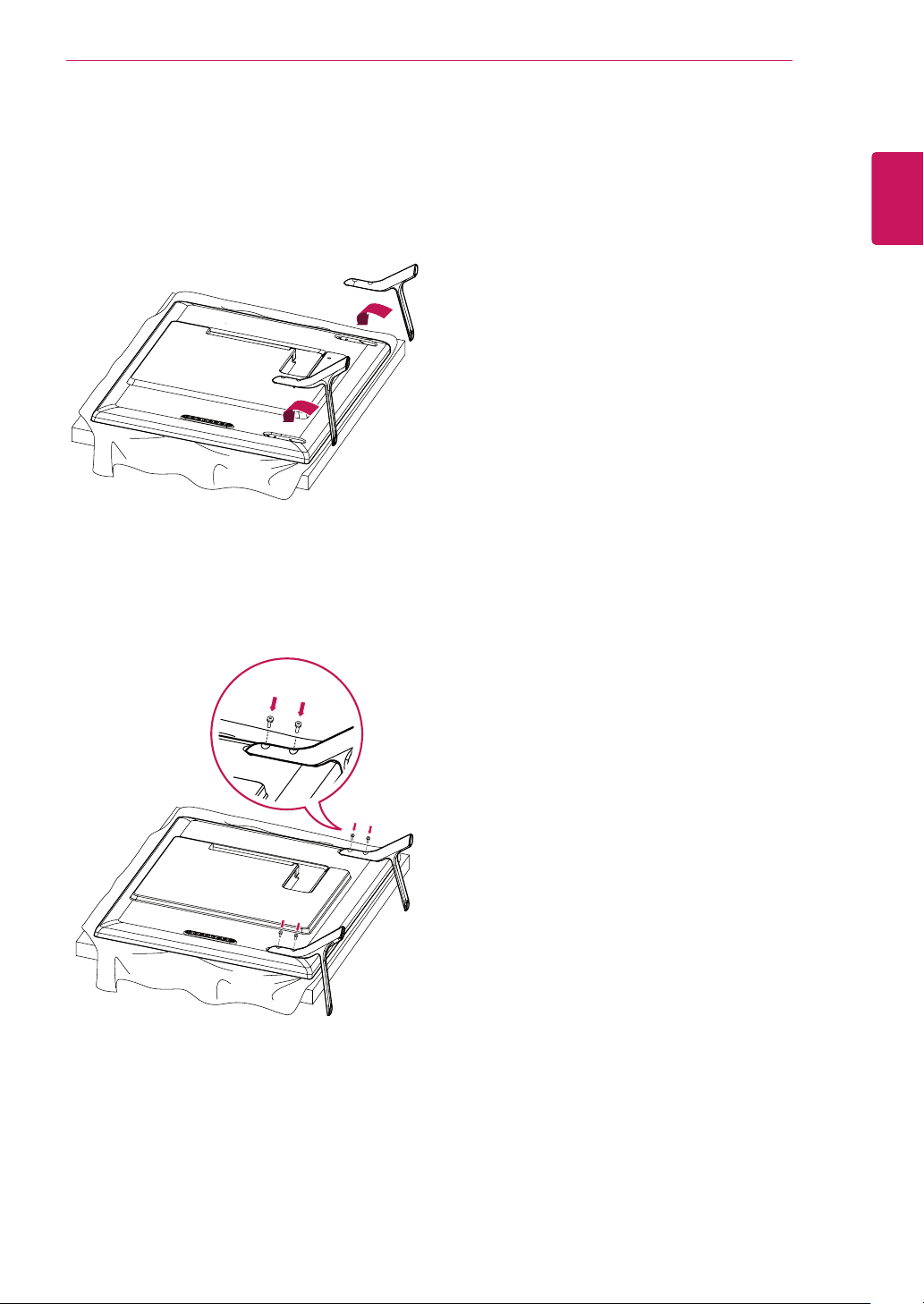

Connecting the Stand
- Only on some models.
1
Place a soft cloth on the table and put the
product with the screen facing downward.
8
ENG
ENGLISH
ASSEMBLING AND PREPARING

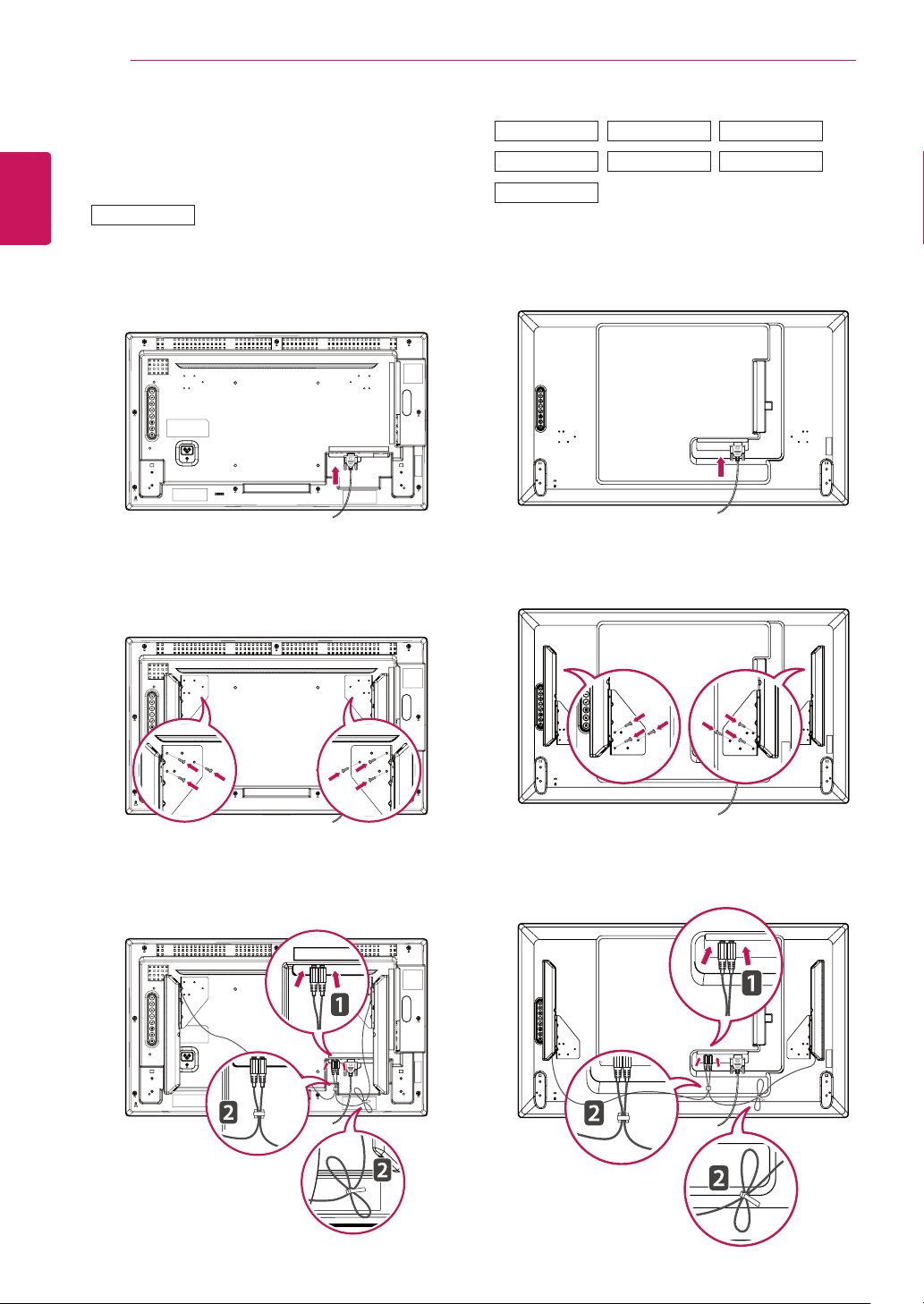

Connecting the Speaker
- Only on some models.
3
Then connect the speaker cable. After installing
your speakers, use holders and cable ties to
organize the speaker cables.
3
Then connect the speaker cable. After installing
your speakers, use holders and cable ties to
organize the speaker cables.
2
Mount the speaker by using a screw as shown
in the following. Make sure the power cable is
disconnected.
2
Mount the speaker by using a screw as shown
in the following. Make sure the power cable is
disconnected.
32LS33A
1
Connect the input signal cable to the monitor
before installing the speakers. Use a cable tie
to organize the cables.
1
Connect the input signal cable to the monitor
before installing the speakers. Use a cable tie
to organize the cables.
42LS33A
42LS35A
47LS33A
47LS35A
55LS33A
55LS35A
65LS33A
9
ENG
ENGLISH
ASSEMBLING AND PREPARING

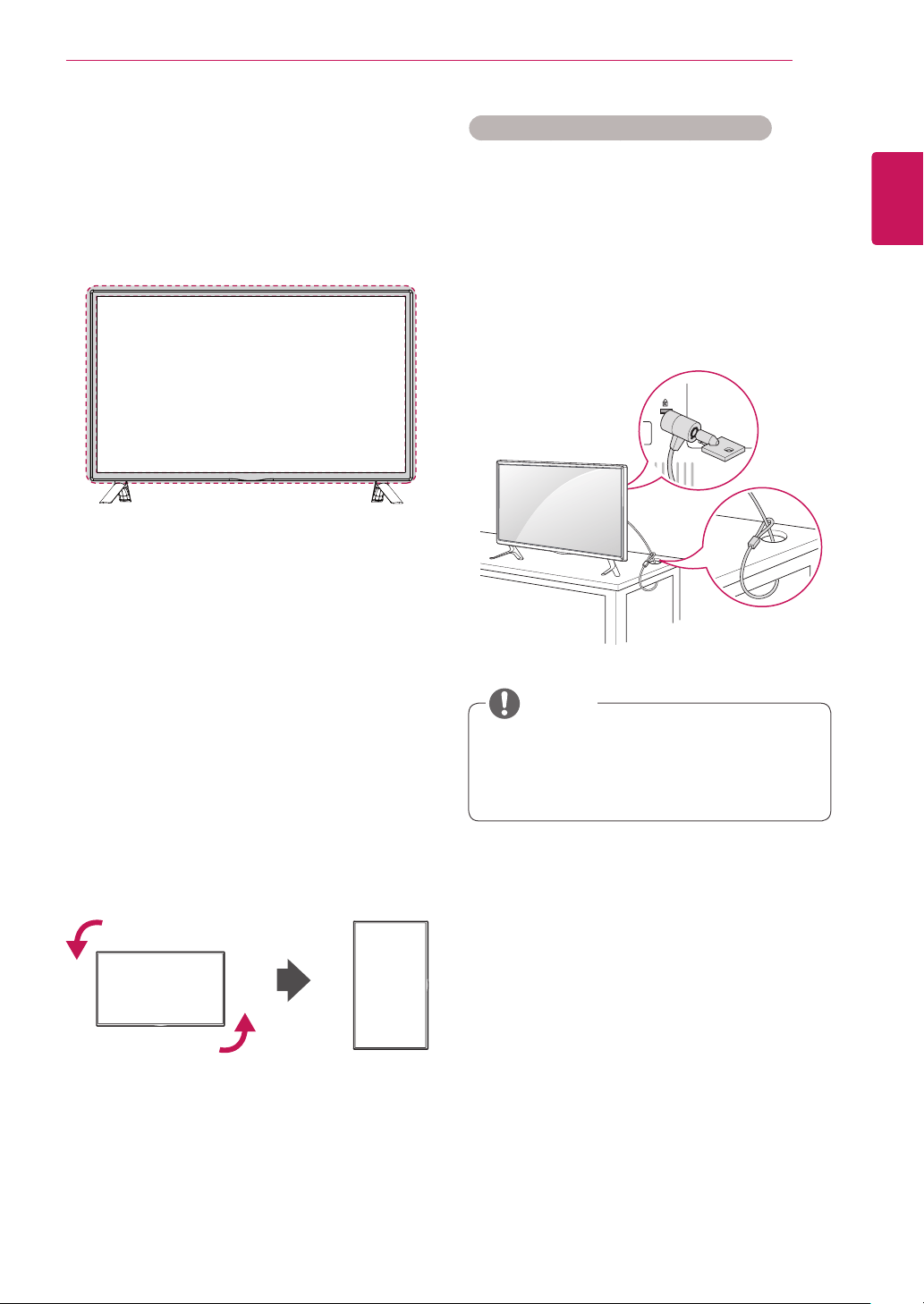

Portrait Layout
To install in portrait mode, rotate the set
counterclockwise 90 degrees when looking at from
the front.
Using the Kensington security system
The Kensington security system connector is
located at the back of the monitor set. For more
information of installation and using, refer to the
manual supplied with the Kensington security
system or visit
http://www.kensington.com
.
Connect the Kensington security system cable
between the monitor set and a table.
y
The Kensington security system is optional.
You can obtain additional accessories from
most electronics stores.
NOTE
Using the IR Receiver
This allows a remote control sensor to be placed
in a custom location. The IR receiver is made with
a magnet. You can attach it to the monitor edge.
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
Mounting on a Wall
For proper ventilation, allow a clearance of 10
cm on each side and from the wall. Detailed
installation instructions are available from your
dealer, see the optional Tilt Wall Mounting Bracket
Installation and Setup Guide.
If you intend to mount the monitor to a wall, attach
a Wall mounting interface (optional parts) to the
back of the set.
When you install the monitor using a wall mounting
interface (optional parts), attach it carefully so it
will not fall.
1
Please, use a wall mount and screws in
accordance with VESA Standards.
2
If you use screws longer than standard, the
monitor might be damaged internally.
3
If you use improper screws, the product might
be damaged and drop from mounted position.
In this case, LG Electronics is not responsible
for damage.
4
Please use VESA standard as below.
y
785 mm or greater
* Fastening screw: Diameter 6.0 mm x Pitch 1.0
mm x Length 12 mm
y
Disconnect the power cord first, and then
move or install the monitor set. Otherwise
electric shock may occur.
y
If you install the monitor set on a ceiling or
slanted wall, it may fall and result in severe
injury.
y
Use an authorized LG wall mount and
contact the local dealer or qualified
personnel.
y
Do not over tighten the screws as this may
cause damage to the monitor set and void
your warranty.
y
Use the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
y
To prevent injury, this apparatus must be
securely attached to the wall in accordance
with the instrallation instructions. (This only
pertains to Australia and New Zealand.)
y
The wall mount kit includes an installation
manual and necessary parts.
y
The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
y
The length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
y
For more information, refer to the instructions
supplied with the wall mount.
y
The warranty will not cover any damages
caused by using the product in an
excessively dusty environment.
CAUTION
NOTE
785 mm
10 cm
10 cm
10 cm
10 cm
10 cm
11
ENG
ENGLISH
ASSEMBLING AND PREPARING

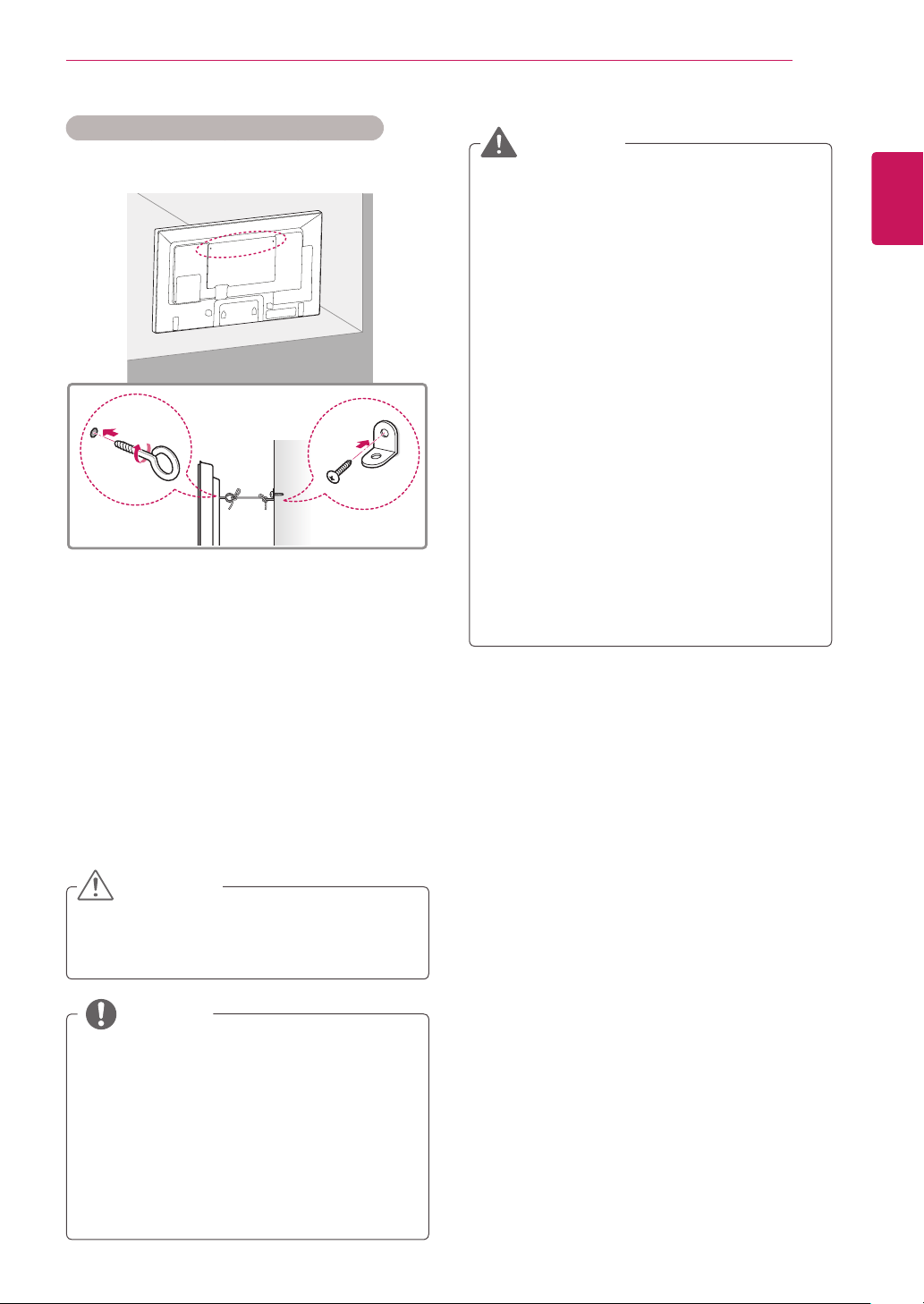

Securing the product to a wall (optional)
(Depending on model)
y
If a product is not positioned in a sufficiently
stable location, it can be potentially
hazardous due to falling. Many injuries,
particularly to children, can be avoided by
taking simple precautions such as:
»
Using cabinets or stands recommended
by the manufacturer of the product.
»
Only using furniture that can safely
support the product.
»
Ensuring the product is not overhanging
the edge of the supporting furniture.
»
Not placing the product on tall furniture
(for example, cupboards or bookcases)
without anchoring both the furniture and
the product to a suitable support.
»
Not standing the product on cloth or other
materials placed between the product
and supporting furniture.
»
Educating children about the dangers of
climbing on furniture to reach the product
or its controls.
WARNING
1
Insert and tighten the eye-bolts, or
p
roduct
brackets and bolts on the back of the
p
roduct.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2
Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the
p
roduct.
3
Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
flat surface.
NOTE
y
Make sure that children do not climb on or
hang on the
p
roduct.
y
Use a platform or cabinet that is strong and
large enough to support the
p
roduct securely.
y
Brackets, bolts and ropes are optional. You
can obtain additional accessories from your
local dealer.
y
The illustration shows a general example of
installation and may look different from the
actual product.
CAUTION
12
ENG
ENGLISH

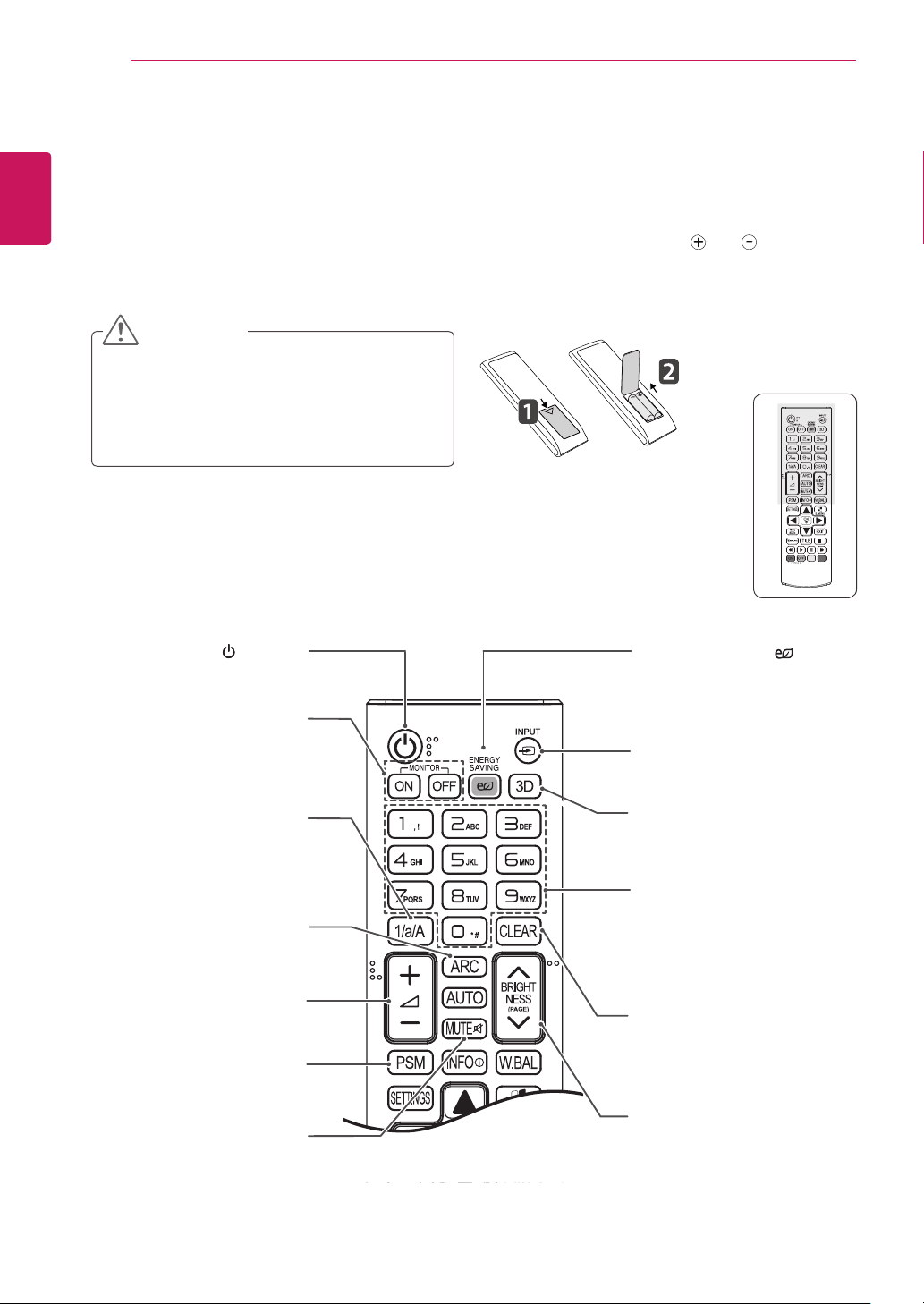

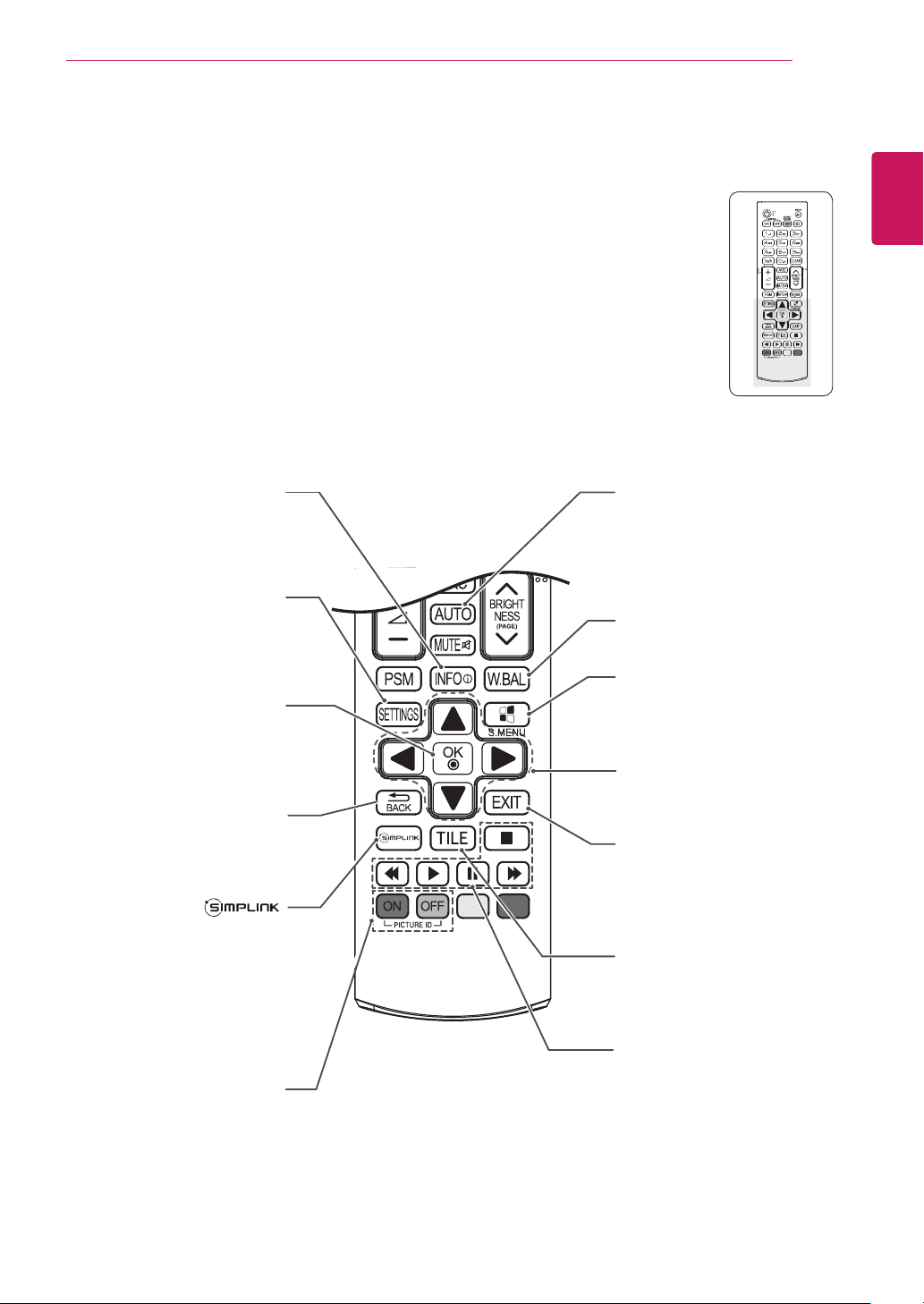

REMOTE CONTROL
REMOTE CONTROL
The descriptions in this manual are based on the buttons of the remote control. Please read this manual
carefully and use the monitor set correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching and ends to the
label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
y
Do not mix old and new batteries, as this
may damage the remote control.
y
Make sure to point the remote control to the
remote control sensor on the monitor set.
CAUTION
ID
BACK
TILE
ON
OFF
EXIT
(POWER)
Turns the monitor set on or off.
1/a/A Button
Toggles between numerical
and alphabetical.
ENERGY SAVING( )
Adjusts the brightness of
the screen to reduce energy
consumption.
INPUT
Selects the input mode.
3D
This button selection is not
applicable.
Number and Alphabet buttons
Enters numerical or alphabetical
characters depending on the
setting.
CLEAR
Deletes the entered numerical
or alphabetical character.
PSM
Selects the Picture Status
Mode.
MUTE
Mutes all sounds.
ARC
Selects the Aspect Ratio
Mode.
Volume Up / Down
Adjusts the volume level.
BRIGHTNESS Key
Adjust the brightness by
pressing the Up and Down
buttons on the remote control.
In USB mode, the OSD menu
has the Page function to move
to the next file list.
MONITOR ON
Turn on the monitor.
MONITOR OFF
Turn off the monitor.
13
ENG
ENGLISH
REMOTE CONTROL
W.BAL
This button selection is not
applicable.
Navigation Buttons
Scrolls through menus or
options.
S.MENU
(SuperSign Menu Key)
This button does not apply to
this model.
EXIT
Clears all on-screen displays
and returns to Monitor set
viewing from any menu.
TILE
This button selection is not
applicable.
INFO
ⓘ
Views the information of the
currently program and the
screen.
SETTINGS
Accesses the main menus
or saves your input and exit
menus.
OK
Selects menus or options and
confirms your input.
BACK
Allows the user to move back
one step in user interaction
function.
Allows you to control various
multimedia devices simply
by using the remote control
through the SimpLink menu.
(It may not be supported
depending on the model.)
USB Menu control buttons
Controls media playback.
ID ON/OFF
When the number of Picture
ID is equal to Set ID you can
control the monitor which
you want in the multi display
condition.
AUTO
Automatically adjusts picture
position and minimizes image
instability.(RGB input only)
14
ENG
ENGLISH
MAKING CONNECTIONS
HDMI
RGB
HDMI
LAN
HDMI
HDMI
HDMI
HDMI
MAKING CONNECTIONS
Connect various external devices to the ports on the monitor set’s back panel.
1
Find an external device you want to connect to your monitor set shown on the following illustration.
2
Check the connection type of the external device.
3
Go to the appropriate illustration and check the connection details.
y
If you connect a gaming device to the monitor set, use the cable supplied with the gaming device.
y
It is recommended you to use the optional speaker provided.
HD Receiver DVD VCR
USB
PC
Camcorder/Camera
Gaming device
Speaker
NOTE
15
ENG
ENGLISH
MAKING CONNECTIONS
Your monitor supports the Plug & Play* feature.
* Plug & Play: A PC will have a built-in driver for
the monitor, no extra software is needed.
NOTE
y
Connect the signal
input cable and tighten
it by turning the screws
clockwise.
y
Use the standard
Macintosh adapter since
an incompatible adapter
is available in the market.
(Different signaling system)
y
Do not press the screen with your finger for
a long time as this may result in temporary
distortion on the screen.
y
Avoid displaying a fixed image on the screen
for a long period of time to prevent image
burn. Use a screensaver if possible.
RGB Connection
Transmits an analog video signal from your PC to
the monitor. Connect the PC and the monitor with
the 15-pin signal cable as shown an following
illustration. Select RGB input. To transmit an audio
signal, connect an optional audio cable.
y
Apple computers may require an adapter to
connect to this monitor. Call or visit their web
site for more information.
y
It is recommended you use an HDMI
connection for the best image quality.
y
Use a shielded signal interface cable, such
as D-sub 15-pin signal cable and DVI/HDMI
cable, with a ferrite core to maintain standard
compliance for the product.
y
If you turn the monitor set on when the set is
cold, the screen may flicker. This is normal.
y
Some red, green, or blue spots may appear
on the screen. This is normal.
y
If you use a cable longer than the D-sub 15-
pin signal cable provided, certain images
may appear blurry.
CAUTION
NOTE
Instructions for connecting to PC
PC/MAC
Macintosh Adapter
(not included)
(not
included)
Back of the product.
16
ENG
ENGLISH
MAKING CONNECTIONS
IR Receiver Connection
Allows the use of a wired remote or IR receiver
extension.
Back of the product.
y
Make sure the power cable is disconnected.
NOTE
HDMI Connection
Transmits digital video and audio signals from
your PC or external device to the monitor. Connect
the PC or the external device and the Monitor
using the HDMI cable as shown in the following
diagrams. Select the HDMI input after connecting.
y
Use a High Speed HDMI™ Cable.
y
Please check the PC environment if you
cannot hear audio in HDMI mode. Some PCs
require you to manually change the default
audio output to HDMI.
y
If you want to use HDMI-PC mode, you must
set the input label to PC mode.
y
When HDMI PC is used, a compatiblity
problem might occur.
NOTE
Back of the product.
(not included)
17
ENG
ENGLISH
MAKING CONNECTIONS
LAN ConnectionUSB Connection
Connect a USB storage device such as s USB
flash memory, external hard drive, MP3 player or
a USB memory card reader to the monitor set and
access the USB menu to use various multimedia
files.
or
Network
A
Using a router (Switch)
Monitor
PC
Switch
Monitor
PC
B
Using the Internet.
18
ENG
ENGLISH
USING THE MONITOR
Using the Input List
1
Press
INPUT
to access the
Input List
.
2
Press the navigation buttons to scroll to one of
the input mode and press
OK
.
Input mode Description
RGB
View a PC display on the screen
HDMI
Watch contents in a PC, DVD
of digital set-top box other high
definition devices
USB
Plays the multimedia file saved in
the USB.
USING THE MONITOR
y
You can also change the image size by
accessing the main menus.
y
The Just Scan mode operates when a video
signal has resolution of 720p or higher.
NOTE
Adjusting Aspect Ratio
Resize the image to view the image at its optimal
size by pressing
ARC
while you are watching
monitor set.
MODE
Aspect Ratio
RGB HDMI
PC DTV PC
16:9
o o o
Just Scan
x o x
Set By Program
x o x
4:3
o o o
Zoom
x o x
Cinema Zoom
x o x
y
If a fixed image displays on the screen for a
long period of time, it will be imprinted and
become a permanent disfigurement on the
screen. This is image burn or burn-in and not
covered by the warranty.
y
If you don't use your monitor, turn the power
off or set a screen saver program from the
PC or the system to prevent image retention.
y
If the aspect ratio is set to 4:3 for a long
period of time, image burn may occur on the
letterboxed area of the screen.
CAUTION
19
ENG
ENGLISH
USING THE MONITOR
-
4:3
: This selection will allow you to view a
picture with an original 4:3 aspect ratio, black
bars will appear on both the left and right of the
screen.
-
Zoom
: This selection will allow you to view the
picture without any alteration, while filling the
entire screen. However, the top and bottom of
the picture will be cropped.
-
Cinema Zoom
: Choose Cinema Zoom when
you want to enlarge the picture in correct
proportion. Note: When enlarging or reducing
the picture, the image may become distorted.
-
16:9
: This selection will allow you to adjust the
picture horizontally, in linear proportion, to fill the
entire screen(useful for viewing 4:3 formatted
DVDs).
-
Just Scan
: This Selection will allow you view
the picture of best quality without loss of original
picture in high resolution image. Note: If there is
noise in original Picture, You can see the noise
at the edge.
-
Set By Program
: Depending on the input
signal, screen aspect ratio changes to 4:3 or
16:9.
Just Scan
Set By Program
20
ENG
ENGLISH
ENTERTAINMENT
ENTERTAINMENT
Using the Network
Connecting to a Wired Network
Connect the display to a local area network (LAN)
via the LAN port as shown in the following illustra-
tion and set up the network settings.
Only supports wired network connection.
After making a physical connection, a small
number of home networks may require the display
network settings to be adjusted. For most home
networks, the display will connect to automatically
without any adjustments.
For detail information, contact your internet pro-
vider or router manual.
y Do not connect a modular phone cable to the
LAN port.
y Since there are various connection meth-
ods, please follow the specifications of your
telecommunication carrier or internet service
provider.
y Network setting menu will not be avail-
able until the display connected to physical
network.
y Since there are various connection meth-
ods, please follow the specifications of your
telecommunication carrier or internet service
provider.
To set up the network settings: (Even if your dis-
play has already connected automatically, running
setup again will not harm anything),
1 Press SETTINGS to access the main menus.
2 Press the navigation buttons to scroll to NET-
WORK and press OK.
3 Press the navigation buttons to select Network
Setting and press OK.
4 If you already set network setting, select
Resetting. The new connection settings resets
the current network settings.
5 Select IP Auto Setting or IP Manual Setting.
- If selecting IP Manual Setting, press the
navigation and Number buttons. IP addresses
will need to be input manually.
- IP Auto Setting: Select this if there is a
DHCP server (Router) on the local area net-
work (LAN) via wired connection, the display
will automatically be allocated an IP address.
If you’re using a broadband router or broad-
band modem that has a DHCP (Dynamic
Host Configuration Protocol) server function.
The IP address will automatically be deter-
mined.
6 When you are finished, press EXIT.
LAN
Router
LAN WAN
Cable modem
ETHERNET
@
Internet
Internet
CAUTION
CAUTION
21
ENG
ENGLISH
ENTERTAINMENT
y If you want to access the Internet directly on
your display, the Internet connection should
always be on.
y If you cannot access the Internet, check
the network conditions from a PC on your
network.
y When you use Network Setting, check the
LAN cable or check if DHCP in the router is
turned on.
y If you do not complete the network settings,
the network may not work properly.
Tips for Network setting
y Use a standard LAN cable with this display.
Cat5 or better with a RJ45 connector.
y Many network connection problems during set
up can often be fixed by re-setting the router
or modem. After connecting the display to the
home network, quickly power off and/or discon-
nect the power cable of the home network
router or cable modem. Then power on and/or
connect the power cable again.
y Depending on the internet service provider
(ISP), the number of devices that can receive
internet service may be limited by the applica-
ble terms of service. For details, contact your
ISP.
y LG is not responsible for any malfunction of the
display and/or the internet connection feature
due to communication errors/malfunctions as-
sociated with your internet connection, or other
connected equipment.
y LG is not responsible for problems within your
internet connection.
y You may experience undesired results if the
network connection speed does not meet the
requirements of the content being accessed.
y Some internet connection operations may not
be possible due to certain restrictions set by
the Internet service provider (ISP) supplying
your Internet connection.
y Any fees charged by an ISP including, without
limitation, connection charges are your respon
sibility.
y A 10 Base-T or 100 Base-TX LAN port is
required when using a wired connection to this
display. If your internet service does not allow
for such a connection, you will not be able to
connect the display.
y A DSL modem is required to use DSL service
and a cable modem is required to use cable
modem service. Depending on the access
method of and subscriber agreement with your
ISP, you may not be able to use the internet
connection feature contained in this display or
you may be limited to the number of devices
you can connect at the same time. (If your ISP
limits sub scription to one device, this display
may not be allowed to connect when a PC is
already connected.)
y The use of a router may not be allowed or its
usage may be limited depending on the poli-
cies and restrictions of your ISP. For details,
contact your ISP directly.
Network Status
1 Press SETTINGS to access the main menus.
2 Press the navigation buttons to scroll to NET-
WORK and press OK.
3 Press the navigation buttons to select Network
Status.
4 Press OK to check the network status.
5 When you are finished, press EXIT.
Option Description
Setting Return to the network setting menu.
Test
Test the current network status after set-
ting the network.
Close Return to the previous menu.
NOTE
22
ENG
ENGLISH
ENTERTAINMENT
Tips for using USB storage devices
y Only a USB storage device is recognizable.
y If the USB storage device is connected
through a USB hub, the device is not recog-
nizable.
y A USB storage device using an automatic
recognition program may not be recognized.
y A USB storage device which uses its own
driver will not be recognized.
y The recognition speed of a USB storage
device may depend on each device.
y Please do not turn off the display or unplug
the USB device when the connected USB
storage device is working. When such a
device is suddenly separated or unplugged,
the stored files or the USB storage device
may be damaged.
y Please do not connect the USB storage
device which was artificially maneuvered on
the PC. The device may cause the product to
malfunction. Only use a USB storage device
which has normal music files, image files
or movie files.
y Please use only a USB storage device which
was formatted as a FAT32 file system, NTFS
file system by with the Windows operating
system. In case of a storage device format-
ted with a different utility programme which
is not supported by Windows, it may not be
recognized.
y Please connect power to a USB storage de-
vice (over 0.5 A) which requires an external
power supply. If not, the device may not be
recognized.
y Please connect a USB storage device with
the cable included by the device maker.
y Some USB storage devices may not be sup-
ported or operate smoothly.
y File alignment method of USB storage devic-
es is similar to Window XP and the monitor
can recognize up to 100 English characters.
y Be sure to back up important files since data
stored on a USB memory device may be
damaged. We will not be responsible for any
data loss.
y Do not turn the display off or remove a USB
storage device while MY MEDIA menu is
activated, as this could result in loss of files
or damage to the USB storage device.
y Back up your files saved on a USB storage
device frequently, as you may lose or dam-
age the files and this may be not covered by
the warranty.
or
CAUTION
Using the My Media
Connecting USB storage devices
Connect USB storage devices such as a USB
flash memory, external hard drive to the display
and use multimedia features.
Connect a USB flash memory or USB memory
card reader to the Display as shown on the follow-
ing illustration. The My Media screen appears.
23
ENG
ENGLISH
ENTERTAINMENT
y If the USB HDD does not have an external
power source, the USB device may not be
detected. So be sure to connect the external
power source.
- Please use a power adaptor for an external
power source.
y If your USB memory device has multiple
partitions, or if you use a USB multi-card
reader, you can use up to 4 partitions or USB
memory devices.
y If a USB memory device is connected to a
USB multi-card reader, its volume data may
not be detected.
y If the USB memory device does not work
properly, disconnect and reconnect it.
y How fast a USB memory device is detected
differs from device to device.
y If the USB is connected in Standby Mode,
that drive will automatically be loaded when
the display is turned on.
y The recommended capacity is 1 TB or less
for a USB external hard disk and 32 GB or
less for USB memory.
y Any device with more than the recommend-
ed capacity may not work properly.
y If a USB external hard disk with a Energy
Saving function does not work, turn the
hard disk off and on again to make it work
properly.
y USB storage devices below USB 2.0 are
supported as well. But they may not work
properly with videos.
y A maximum of 999 folders or files can be
recognized under one folder.
y It is recommended you use a certified USB
storage device and cable. Otherwise, a USB
storage device may not be detected or a
playback error may occur.
y Only a USB memory device can be used
to play back the files distributed and stored
by SuperSign Manager. A USB hard disk or
multi-card reader will not work.
y Only an FAT 32 file formatted storage device
can play back the files distributed and stored
by SuperSign manager.
y A USB 3.0 storage device may not work.
24
ENG
ENGLISH
ENTERTAINMENT

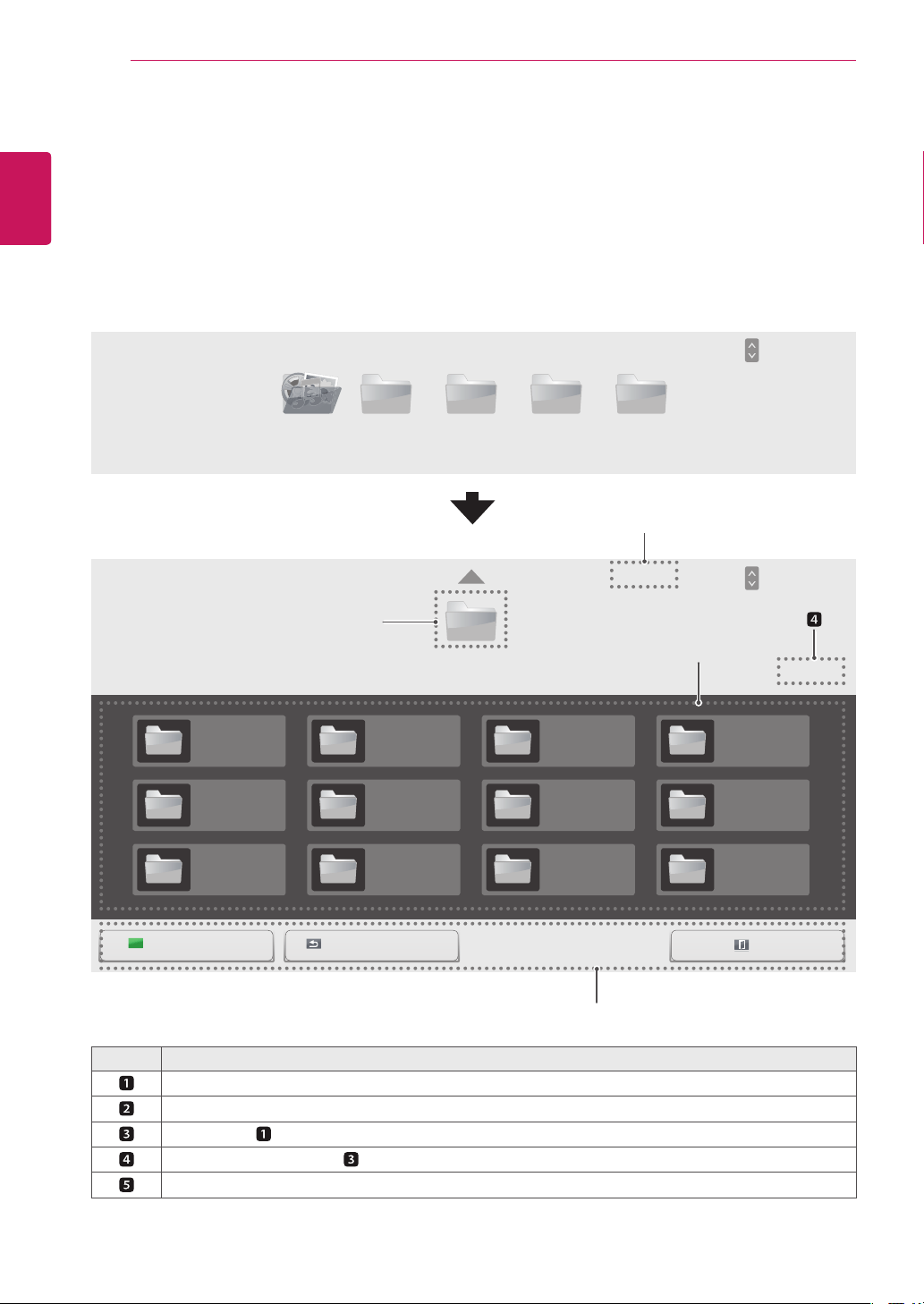

Browsing Files
Browse files saved in a USB storage device.
1
Press
SETTINGS
to access the main menu.
2
Press the search button to scroll to
MY MEDIA
and press
OK
.
3
Press the Search button to go to the
Movie List
,
Photo List
,
Music List
, or
Content List
that you want,
and press
OK
.
No. Description
Returns to the previous level.
Current page/total pages of the folder above
Lower item of
Current page/total pages of
Remote control button
Movie ListAll Media
USB -
USB -
001
005
009
002
006
010
003
007
011
004
008
012
Photo List
Drive1
Music List Contents List
Page 1/1
Page 1/1
All Media
All Media
Page 1/1
Page 1/1
ExitGo to root folder Go to upper folder
Page ChangePAGE
Page ChangePAGE
3
1
2
5
25
ENG
ENGLISH
ENTERTAINMENT
Type Supported file format
Movie Codec Media Container
Profile
Video MPEG1 / MPEG2 DAT, MPG, MPEG,
DVD, TS, TP
1080P @ 30 fps
MPEG4
(DivX 3.11, DivX 4,
DivX 5, DivX 6,
Xvid 1.01, Xvid 1.02,
Xvid 1.03, Xvid 1.10-
beta1/2)
AVI, DIVX, MP4, MKV,
TS, TRP
1080P @ 30 fps
H.264 AVI, MP4, MKV, TS,
TRP, TP
1080P @ 60 fps
Audio MP3 MP3 8 kbps to 320 kbps(Bit rate)
16 kHz to 48 kHz(Sample rate)
AC3 AC3 32 kbps to 640 kbps(Bit rate)
32 kHz, 44.1 kHz, 48 kHz(Sample
rate)
MPEG MP3 32 kbps to 448 kbps(Bit rate)
16 kHz to 48 kHz(Sample rate)
AAC, HEAAC MP4 8 kHz to 48 kHz(Sample rate)
LPCM AIF, WAV 64 kbps to 1.5 Mbps(Bit rate)
8 kHz to 48 kHz(Sample rate)
Bit rate : within 8 kbps to 320 kbps(MP3)
External Subtitle format : *.smi/*.srt/*.sub(MicroDVD, Subviewer1.0/2.0)/*.ass/*.ssa/*.txt(TMPlayer)/*.
psb(PowerDivX)
Internal Subtitle format : only, XSUB (It is the subtitle format used in DivX6 files)
Supported file format
26
ENG
ENGLISH
ENTERTAINMENT
Type Supported file format
JPEG
Baseline : 64 x 64 to 15360 x 8640
Progressive : 64 x 64 to 1920 x 1440
PNG
Interlace : 1200 x 800
BMP
9600 x 6400
y Non-supported files are displayed in the form of predefined icon.
Music
MP3
Bit rate : 8 kbps to 320 kbps
y Sampling rate MPEG1/2 Layer3 : 16 kHz to 48 kHz
Content
(when using
SuperSign Man-
ager)
File Extensions : *.cts/ *.cse
Movie
File Extensions
: *.mpg/*.mpeg/*.dat/*.ts/*.trp/*.tp/*.mp4/*.mkv/*.avi/*. avi(motion JPEG)/*.
mp4(motion JPEG)/*.mkv(motion JPEG)
Video format
: MPEG1, MPEG2, MPEG4,H.264, DivX 3.11, DivX 4, DivX 5, DivX 6,
Xvid 1.00,Xvid 1.01, Xvid 1.02, Xvid 1.03,Xvid 1.10-beta1/2, JPEG
Audio format
: MP3, Dolby Digital, LPCM, AAC, HE-AAC
27
ENG
ENGLISH
ENTERTAINMENT
Viewing Movies
Plays movie files saved in the USB storage device.
1
Press
SETTINGS
to access the main menu.
2
Press the navigation button to scroll to
MY MEDIA
and press
OK
.
3
Press the navigation button to scroll to
Movie List
and press
OK
.
4
Press the navigation buttons to scroll to a folder you want and press
OK
.
5
Press the navigation buttons to scroll to a file you want and press
OK
.
USB -
003002001 004 005
Page 1/3
Movie List
Page 1/1
ExitGo to root folder Go to upper folder
HR1.mp4
01:00:00
HR5.mp4
01:09:00
HR9.mp4
03:05:00
HR2.mp4
01:03:00
HR6.mp4
03:00:00
HR3.mp4
01:05:00
HR7.mp4
03:01:00
HR4.mp4
01:07:00
HR8.mp4
03:03:00
Returns to the home
screen of My Media.
Returns to the previous screen. Exits My Media.
Page ChangePAGE
28
ENG
ENGLISH
ENTERTAINMENT
Tips for using playing video files
y Some user-created subtitles may not work
properly.
y Some special characters are not supported
in subtitles.
y HTML tags are not supported in subtitles.
y Subtitles in languages other than the sup-
ported languages are not available.
y The screen may suffer temporary interrup-
tions (image stoppage, faster playback, etc.)
when the audio language is changed.
y A damaged movie file may not be played
correctly, or some player functions may not
be usable.
y Movie files produced with some encoders
may not be played correctly.
y If the video and audio structure of recorded
file is not interleaved, either video or audio is
outputted.
y HD videos with a maximum of
1920x1080@25/30P or 1280x720@50/60P
are supported, depending on the frame.
Remote
button
Description
Stops the playback.
Plays a video.
Pauses or resumes the playback.
Scans backward in a file.
Scans forward in a file.
Adjusts the screen brightness to save energy.
SETTINGS Show the Option menu.
BACK
Hide the menu on the full-sized screen.
EXIT Returns to Movie List.
or
Skips to specific points in a file during playback. The time of a specific point will appear on the status
bar. In some files, this function may not work properly.
00:42:03 /01:03:00
6 During movie playback, press OK to access the following settings.
Option Hide Exit
Selects the desired point and plays.
y Videos with resolutions higher than
1920X1080@25/30P or 1280x720@50/60P
may not work properly depending on the
frame.
y Movie files other than the specified types and
formats may not work properly.
y Max bitrate of playable movie file is 20 Mbps.
(only, Motion JPEG : 10 Mbps)
y We do not guarantee smooth playback of
profiles encoded level 4.1 or higher in H.264/
AVC.
y DTS Audio codec is not supported.
y A movie file more than 30 GB in file size is
not supported for playback.
y A DivX movie file and its subtitle file must be
located in the same folder.
y A video file name and its subtitle file name
must be identical for it to be displayed.
y Playing a video via a USB connection that
doesn’t support high speed may not work
properly.
y Files encoded with GMC(Global Motion
Compensation) may not be played.
29
ENG
ENGLISH
ENTERTAINMENT
Video options
1 Press SETTINGS to access the Pop-Up
menus.
2 Press the navigation buttons to scroll to Set
Video Play., Set Video. or Set Audio. and
press OK.
y The option values changed in Movie List
do not affect Photo List or Music List.
Therefore, they are not affected by option
values changed in Photo List or Music List.
y The option values changed in Photo List
and Music List do affect each other.
y When replaying the video file after stopping,
you can play from where it stopped previ-
ously.
NOTE
y Only 10,000 of sync blocks can be supported
within the subtitle file.
y When playing a video, you can adjust the
picture size by pressing the ARC button.
y Subtitles in your language are only sup-
ported when the OSD menu is also in this
language.
y The code page options may be disabled de-
pending on the language of the subtitle files.
y Select the appropriate code page for the
subtitle files.
Menu Description
Picture Size Selects your desired picture
format during movie play.
Audio
Language
Changes the Language Group of the
audio during movie play. Files
with a single audio track cannot be
selected.
Subtitle
Language
Turn on/off the subtitle.
Language Activated for SMI subtitle and
can select the language within the
subtitle.
Code Page Can select the font for subtitle.
When set to default, same font as
general menu will be used.
Sync Adjusts the time synchronisation of
the subtitle from -10 secs to +10 secs
by steps of 0.5 secs during movie
play.
Position Changes the position of the
subtitle either up or down during
movie play.
NOTE
Select Set Video Play. to access the following
menus:
Menu Description
Size Selects your desired Subtitle size
during movie play.
Repeat Turn on/off repeat function of
movie playback. When turned on, the
file within the folder will be played
back repeatedly. Even when the
repeated playback is turned off, it can
run the playback if the file name is
similar to the previous file.
For more details about the Set Video. menu, see
the CUSTOMIZE SETTINGS section. See page 37.
For more details about the Set Audio. menu, see
the CUSTOMIZE SETTINGS section. See page 40.
30
ENG
ENGLISH
ENTERTAINMENT
Viewing Photos
View image files saved in the USB storage device.
1
Press
SETTINGS
to access the main menu.
2
Press the navigation button to scroll to
MY MEDIA
and press
OK
.
3
Press the navigation button to scroll to
Photo List
and press
OK
.
4
Press the navigation buttons to scroll to a folder you want and press
OK
.
5
Press the navigation buttons to scroll to a file you want and press
OK
.
USB -
003002001 004 005
Page 1/3
Photo List
Page 1/1
ExitGo to root folder Go to upper folder
01/23/2014
02/21/2014
02/21/2014
01/23/2014
02/21/2014
01/23/2014
02/21/2014
01/23/2014
02/21/2014
Page ChangePAGE
Returns to the home
screen of My Media.
Returns to the previous screen. Exits My Media.
31
ENG
ENGLISH
ENTERTAINMENT
Photo options
1 Press SETTINGS to show the Option menus.
2 Press the navigation buttons to scroll to Set
Photo View., Set Video. or Set Audio. and
press OK.
y The option values changed in Movie List
do not affect Photo List or Music List.
Therefore, they are not affected by option
values changed in Photo List or Music List.
y The option values changed in Photo List
and Music List do affect each other.
NOTE
Menu Description
Slideshow Starts or stops a slideshow with selected photos. If there are no selected photos, all photos saved in
the current folder display during a slideshow. To set a slideshow speed, select Option.
BGM Turns the background music on or off. To set the background music folder, select Option.
You can adjust option by SETTINGS button on the remote control.
Rotates photos clockwise (90°, 180°, 270°, 360°).
Enlarges the photo by 100%, 200% or 400%.
y Photos with a resolution of 100 x 100 or less cannot be enlarged.
NOTE
Adjusts the screen brightness to save energy.
Option To display the options
Hide Hides the option window. To display the options, press OK.
Exit Return to Photo List.
y The supported photo size is limited. You cannot rotate a photo if the resolution of the
rotated width is larger than the supported resolution size.
NOTE
6 While viewing photos, you can access the following settings.
Option
BGMSlideshow
Hide Exit
Select Setting Photo View. to access the follow-
ing menus:
For more details about the Set Video. menu, see
the CUSTOMIZE SETTINGS section. See page 37.
For more details about the Set Audio. menu, see
the CUSTOMIZE SETTINGS section. See page 40.
Menu Description
Slide Speed Select a slideshow speed.
(Options: Fast, Medium or Slow.)
BGM Selects a music folder for the back-
ground music.
32
ENG
ENGLISH
ENTERTAINMENT
Listening to Music
Plays music files saved in the USB storage device.
1
Press
SETTINGS
to access the main menu.
2
Press the navigation button to scroll to
MY MEDIA
and press
OK
.
3
Press the navigation button to scroll to
Music List
and press
OK
.
4
Press the navigation buttons to scroll to a folder you want and press
OK
.
5
Press the navigation buttons to scroll to a file you want and press
OK
.
USB -
003002001 004 005
Page 1/3
Music List
Page 1/1
ExitGo to root folder Open Music PlayerGo to upper folder
HR1.mp3
03:03
HR5.mp3
02:03
HR9.mp3
02:21
HR2.mp3
05:03
HR6.mp3
04:03
HR3.mp3
09:03
HR7.mp3
06:03
HR4.mp3
04:03
HR8.mp3
05:03
Opens the settings
window for music.
This feature is activated
only during playback.
Page ChangePAGE
Returns to the home
screen of My Media.
Returns to the
previous screen.
Exits My Media.
33
ENG
ENGLISH
ENTERTAINMENT
Remote
button
Description
Stops playing back the file and moves back to the Music List.
Plays a music file.
Pauses or resumes playback.
Skips to the previous file.
Skips to the next file.
Adjusts the screen brightness to save energy.
SETTINGS Show the Option menu.
BACK
Hides the option window.
To display the options, press OK.
EXIT Return to Music List.
or
Skips to specific points in a file during playback. The time of a specific point will appear on the status
bar. In some files, this function may not work properly.
01:40 / 03:03
6 During music playback, press OK or the blue button ( ) to access the following settings.
Option Hide Exit
HR1.mp3
Selects the desired point and plays.
34
ENG
ENGLISH
ENTERTAINMENT
Time elapsed/ Duration
002. B02.mp3
00:31 / 04:04
file name
y A damaged or corrupted music does not play
but displays 00:00 in playtime.
y A music downloaded from a paid service with
copyright protection does not start but dis-
plays inappropriate information in playtime.
y If you press OK, buttons, screen saver is
stopped.
y The PLAY( ), Pause( ), , ,
buttons on the remote control are also avail-
able in this mode.
y You can use the button to select the next
music and the button to select the previ-
ous music.
Tips for playing music files
y
This unit cannot support the ID3 Tag
embedded MP3 files.
NOTE
1 Press SETTINGS to access the pop-up menus.
2 Press the navigation buttons to scroll to Set Au-
dio Play. or Set Audio. and press OK.
Music options
y The option values changed in Movie List
do not affect Photo List or Music List.
Therefore, they are not affected by option
values changed in Photo List or Music List.
y The option values changed in Photo List
and Music List do affect each other.
When you select the Set Audio Play,
NOTE
For more details about the Set Audio. menu, see
the CUSTOMIZE SETTINGS section. See page 40.
Menu Description
Repeat Repeats the music playback.
Random
Plays random music tracks.
35
ENG
ENGLISH
ENTERTAINMENT
Viewing the Contents List
Plays back the stored files using the Export option in SuperSign Manager.
1
Press
SETTINGS
to access the main menu.
2
Press the navigation button to scroll to
MY MEDIA
and press
OK
.
3
Press the navigation button to scroll to
Contents List
and press
OK
.
4
Press the navigation buttons to scroll to a folder you want and press
OK
.
5
Press the navigation buttons to scroll to a file you want and press
OK
.
USB -
003002001 004 005
Page 1/3
Contents List
Page 1/1
ExitGo to root folder Go to upper folder
HR1.cts
01/01/2014
HR5.cts
01/01/2014
HR9.cts
01/01/2014
HR2.cts
01/01/2014
HR6.cts
01/01/2014
HR3.cts
01/01/2014
HR7.cts
01/01/2014
HR4.cts
01/01/2014
HR8.cts
01/01/2014
y While playing media files from Contents List, only the BACK, EXIT, or volume button are available.
Selecting the BACK or EXIT button stops playing media files and returns to the Contents List.
y If there is the AutoPlay folder in the USB device and its files are in supported formats, they can be
played back automatically when the USB device is connected to the monitor.
NOTE
Page ChangePAGE
Returns to the home
screen of My Media.
Returns to the previous screen. Exits My Media.
36
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS

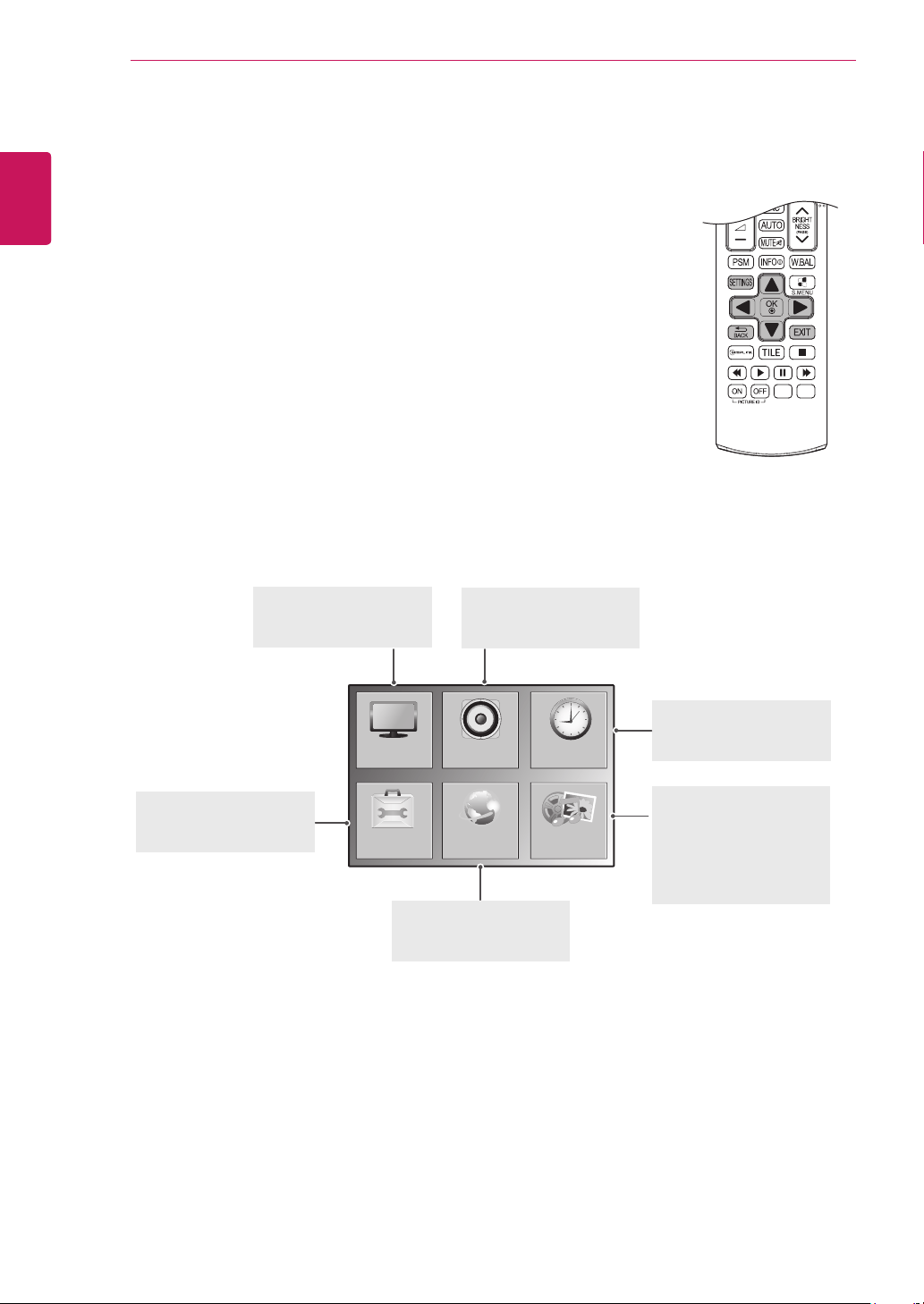

Accessing Main Menus
1
Press
SETTINGS
to access the main menus.
2
Press the navigation buttons to scroll to one of the following menus and
press
OK
.
3
Press the navigation buttons to scroll to the setting or option you want
and press
OK
.
4
When you are finished, press
EXIT
.
When you return to the previous menu, press
BACK
.
OPTION
NETWORK
AUDIO TIME
MY MEDIA
Adjusts the image size,
quality, or effect.
AUDIO
Adjusts the sound quality,
effect, or volume level.
NETWORK
Sets up the network
setting.
OPTION
Customizes the general
settings.
TIME
Sets the time, date, or
Timer feature.
MY MIDIA
Display and play movie,
photo and music contents
stored on your USB or
Signage device (Internal
storage device).
37
ENG
ENGLISH
CUSTOMIZING SETTINGS
PICTURE Settings
1
Press
SETTINGS
to access the main menus.
2
Press the navigation buttons to scroll to
and
press
OK
.
3
Press the navigation buttons to scroll to the setting or
option you want and press
OK
.
- To return to the previous level, press
BACK
.
4
When you are finished, press
EXIT
.
When you return to the previous menu, press
BACK
.
The available picture settings are described in the following:
Setting Description
Energy
Saving
Sets to automatically adjust the screen brightness corresponding to the surroundings.
Option
Off
Disables Energy Saving function.
Minimum/
Medium/
Maximum
Selects the brightness level of the backlight.
Screen Off
The screen turns off in 3 seconds.
Smart Energy
Saving
Adjusts the backlight and contrast depending on the screen brightness.
Option
Off
Disables the Smart Energy Saving function.
On
Enables the Smart Energy Saving function to save power consumption as much
as the value set in the smart energy saving rate.
Picture Mode
Selects the picture mode optimized for the viewing environment or the programme.
Option
Vivid
Heightens contrast, brightness and sharpness to display vivid images.
Standard
Displays images in standard levels of contrast, brightness and sharpness.
APS
The Energy Saver feature changes settings on the monitor to reduce power
consumption.
Cinema
Optimizes the video image for a cinematic look to enjoy movies as if you are in a
movie theater.
Sport
Optimizes the video image for high and dynamic actions by emphasizing primary
Colors such as white, grass, or sky blue.
Game
Optimizes the video image for a fast gaming screen such as PCs or games.
Expert1·2
Menu for adjusting picture quality that allows experts and amateurs to enjoy the
best Monitor viewing. This menu is ISF-certified and provided for picture tuning
experts. (ISF logo can only be used on ISF-certified Monitor units.)
ISFccc: Imaging Science Foundation Certified Calibration Control
Aspect Ratio
Changes the image size to view images at its optimal size.
Move
OK
Energy Saving
Smart Energy Saving
Picture Mode
Aspect Ratio
Screen
: Off (User)
: Off
: Standard
Backlight
Contrast
Brightness
Sharpness
Color
Tint
Color Temp.
Advanced Control /
Expert Control
Picture Option
Picture Reset
: 16:9
70
100
50
50
60
0
0
R G
W C
38
ENG
ENGLISH
CUSTOMIZING SETTINGS
Basic image options
Setting Description
Backlight
Adjusts the brightness of the screen by controlling the LCD backlight. If you decrease the
brightness level, the screen becomes darker and the power consumption will be reduced
without any video signal loss.
Contrast
Increases or decreases the gradient of the video signal. You may use Contrast when the
bright part of the picture is saturated.
Brightness
Adjusts the base level of the signal in the picture. You may use Brightness when the dark part
of the picture is saturated.
Sharpness
Adjusts the level of crispness in the edges between the light and dark areas of the picture.
The lower the level, the softer the image.
Color
Adjusts intensity of all colors.
Tint
Adjusts the balance between red and green levels.
Color Temp.
Set to warm to enhance hotter Colors such as red, or set to cool to make picture bluish.
Advanced Control/
Expert Control
You can adjust the picture for each
Picture Mode
, or adjust the picture settings according to
a specific picture image. First, select a desired
Picture Mode
.
* This option is unavailable if
Picture Mode
is set to
Vivid
.
Picture Option
Sets additional picture option.
Picture Reset
Restores the options to the default setting.
Setting Description
Screen
(In RGB
Mode Only)
Customizes the PC display options in RGB mode.
Option
Resolution
Selects a proper resolution.
Auto Configure
Sets to adjust the screen position, clock, and phase automatically.
The displayed image may be unstable for a few seconds while the configuration is
in progress.
Position/Size/
Phase
Adjusts the options when the picture is not clear, especially when characters are
shaky, after the auto configuration.
Reset
Restores the options to the default setting.
y
When you select a picture mode, related menus are set automatically.
y
When using the Smart Energy Saving function, the screen may look saturated in the white area of a
still image.
y
If Energy Saving is set to Minimum, Medium, or Maximum, the Smart Energy Saving function is
disabled.
NOTE
39
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Dynamic Contrast
Adjusts the contrast to the optimal level according to the brightness of the image.
(Function works in the following mode - HDMI-DTV)
Color Gamut
Selects the range of colours that can be expressed.
Edge Enhancer
Shows clearer and distinctive yet natural edges of the video.
Color Filter
Filters a specific colour spectrum in RGB colours to fine-tune colour saturation and hue
accurately.
Color Temperature
Adjusts the overall tone of the screen as desired. In Expert mode, detailed fine-tuning can be set
via Gamma method, etc.
Color Management
System
This is a system that experts use when they adjust colour with a test pattern. They can select
from six colour areas (Red / Green / Blue / Cyan / Magenta / Yellow) without affecting other
colours. For normal images, adjustments may not result in noticeable colour changes.
Advanced Control - Picture Mode (Standard/ APS/ Sport/ Game)
Expert Control - Picture Mode (Cinema/ Expert1/ Expert2)
Setting Description
Dynamic Contrast
Adjusts the contrast to the optimal level according to the brightness of the image.
Dynamic Color
Adjusts color for more natural-looking colors.
Color Gamut
Selects the range of colours that can be expressed.
Skin Color
Skin Color spectrum can be separately set to implement the skin Color as defined by the user.
Sky Color
Sky color is set separately.
Grass Color
Natural color spectrum (meadows, hills, etc.) can be separately set.
Gamma
Sets the gradation curve according to the output of the picture signal in relation to the input
signal.
Setting Description
Noise Reduction
Reduces screen noise in the video.
MPEG Noise
Reduction
Reduces noise caused by compressing digital video.
Black Level
Adjusts the brightness or darkness of the screen to suit the black level of the picture input using
the degree of darkness (black level) of the screen.
Real Cinema
Optimizes the screen for movie viewing.
Motion Eye Care
Adjusts screen brightness to prevent eye glare. (Depending on model)
TruMotion
(Only for 65LS33A
model)
Corrects images to display smoother motion sequences.
• Off : Turn off the TruMotion.
• Smooth/ Clear : De-Judder / De-Blur can be set Auto.
• User : De-Judder / De-Blur can be set manually.
- De-Judder : This function adjusts juddering of
the screen.
- De-Blur : This function adjusts and eliminates blurring of the screen.
Picture Option - HDMI(DTV) Mode
OK
TruMotion
• De-Judder Auto
• De-Blur Auto
◄
Smooth
►
40
ENG
ENGLISH
CUSTOMIZING SETTINGS
AUDIO Settings
1
Press
SETTINGS
to access the main menus.
2
Press the navigation buttons to scroll to
AUDIO
and press
OK
.
3
Press the navigation buttons to scroll to the setting or
option you want and press
OK
.
- To return to the previous level, press
BACK
.
4
When you are finished, press
EXIT
.
When you return to the previous menu, press
BACK
.
The available audio options are described in the following:
Setting Description
Sound Mode
Allows optimized sound for custom Monitor installation.
Option
Standard
Suitable for all types of video.
News/ Music/
Cinema/ Sport/
Game
Sets audio optimized for a specific genre.
Sound Effect
the user can select various sound effects.
-
Sound Effect
function is available only for
Standard
mode in
Sound Mode
menu.
Option
Clear Voice ll
Boosts voice clarity.
Virtual
Surround
LG’s proprietary audio processing technology allows 5.1ch-like surround sound
from two speakers.
- If
Clear Voice ll
is set to
On
,
Virtual Surround
will not be chosen.
Equalizer
Adjusts the volume to a level of your choice using the Equalizer.
Balance
Adjusts left/right audio balance.
Reset
You can reset the settings under the Sound Effects menu.
AV Sync. Adjust
Synchronizes video and audio directly when they do not match.
If you set AV Sync. to
ON
, you can adjust the sound output to the screen image.
Speaker
: Adjusts the synchronization of the sound from the speakers. The "-" button makes the
sound output faster and the "+" button slower than the default value.
Bypass
: The audio of an external device without audio delay. Audio may be output before video
as it takes time to process video input into the Monitor.
y
Some models may not have built-in speakers. In that case, you need to connect external speakers to
listen to sound.
NOTE
Move
OK
AUDIO
• Sound Mode : Standard
• Sound Effect
• AV Sync. Adjust : Off
41
ENG
ENGLISH
CUSTOMIZING SETTINGS
TIME Settings
1
Press
SETTINGS
to access the main menus.
2
Press the navigation buttons to scroll to
TIME
and press
OK
.
3
Press the navigation buttons to scroll to the setting or option
you want and press
OK
.
- To return to the previous level, press
BACK
.
4
When you are finished, press
EXIT
.
When you return to the previous menu, press
BACK
.
The available time settings are described in the following:
Setting Description
Clock
Sets the time feature.
On/Off Time
Sets the time to turn on or off the monitor set.
Auto Off(15Min.)
If Auto-off is active and there is no input signal, the set switches to off mode automatically after 15
minutes.
Automatic
Standby
If the monitor is left unattended for a set period of time, it automatically goes into standby mode.
y
Off Time/ On Time can be saved for up to seven schedules; the monitor is turned on or off at the preset
time in the schedule list. If multiple preset times are stored in the schedule list, this function works at the
nearest time from the current time.
y
Once the on or off time is set, these functions operate daily at the preset time.
y
When the scheduled power-on and power-off times are the same, the power-off time has priority over the
power-on time if the set is turned on, and vice versa if the set is turned off.
NOTE
Move OK
TIME
• Clock
• Off Time : Off
• On Time : Off
• Auto Off(15Min.) : Off
• Automatic Standby : Off
42
ENG
ENGLISH
CUSTOMIZING SETTINGS
OPTION Settings
1
Press
SETTINGS
to access the main menus.
2
Press the navigation buttons to scroll to
OPTION
and press
OK
.
3
Press the navigation buttons to scroll to the setting or option
you want and press
OK
.
- To return to the previous level, press
BACK
.
4
When you are finished, press
EXIT
.
When you return to the previous menu, press
BACK
.
The available option settings are described in the following:
Setting Description
Language
Selects a language for the display text.
ISM Method
This function removes image sticking which is caused by prolonged display of static images.
Option
Normal
Minimizes image sticking by gradually lowering the brightness when
displaying static images and by increasing the brightness when displaying
moving images.
Color Wash
Removes image sticking by moving every pixel in a certain pattern on the
screen for a specific period of time. Please use this function to remove
temporary image sticking.
DivX(R) VOD
Registers or releases DivX.
Checks DivX Registration Code for playing DivX-protected videos.
Register at http://vod.divx.com.
Uses Registration Code to rent or purchase movies at www.divx.com/vod.
* Rented/purchased DivX files cannot be played if the DivX Registration Code of a different device
is used. Use only the DivX Registration Code granted to this device.
* Converted files not conforming to the DivX Codec Standard may not play or may produce
abnormal images and sound.
Initial Setting
Deletes all optional settings and returns to initial default mode.
Set ID
You can assign a unique Set ID NO (name assignment) to each product when several products
are connected for display. Specify the number (1 to 255) using the button and exit. Use the
assigned Set ID to individually control each product using the Product Control Program.
Move OK
OPTION
• Language
• ISM Method : Normal
• DivX(R) VOD
• Initial Setting
• Set ID : 1
43
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Network Setting
Configure the network settings.
Network Status
Display the network status.
NETWORK Settings
1
Press
SETTINGS
to access the main menus.
2
Press the navigation buttons to scroll to
NETWORK
and
press
OK
.
3
Press the navigation buttons to scroll to the setting or option
you want and press
OK
.
- To return to the previous level, press
BACK
.
4
When you are finished, press
EXIT
.
When you return to the previous menu, press
BACK
.
The available option settings are described in the following:
Move OK
NETWORK
• Network Setting
• Network Status
44
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
No image is displayed
Problem Resolution
Is the product power cord
connected?
y
See if the power cord is properly connected to the outlet.
Does the Out of range message
appear?
y
The signal from the PC (video card) is out of the vertical or horizontal
frequency range of the product. Adjust the frequency range by
referring to the Specifications in this manual.
Does the Check signal cable
message appear?
y
The signal cable between PC and product is not connected. Check
the signal cable.
y
Press the 'INPUT' menu in the remote Control to check the input
signal.
'Unknown Product' message appears when the product is connected.
Problem Resolution
Did you install the driver?
y
See if the plug&play function is supported by referring to the video
card user manual.
The screen image looks abnormal.
Problem Resolution
Is the screen position wrong?
y
D-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select the optimal screen status that fits into the
current mode. If adjustment is not satisfactory, select [PICTURE] -
[Screen] - [Position] in OSD menu.
y
See if the video card resolution and frequency are supported by the
product. If the frequency is out of range, set to the recommended
resolution in the Control Panel "Display" Setting menu.
Do thin lines appear on the
background screen?
y
D-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, select [PICTURE] -
[Screen] - [Size] in OSD menu.
Horizontal noise appears or the
characters look blurred.
y
D-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, select [PICTURE] -
[Screen] - [Phase] in OSD menu.
The screen is displayed
abnormally.
y
The proper input signal is not connected to the signal port. Connect
the signal cable that matches with the source input signal.
45
ENG
ENGLISH
TROUBLESHOOTING
After-image appears on the product.
Problem Resolution
After-image appears when the
product is turned off.
y
If you use a fixed image for a long time, the pixels may be damaged
quickly. Use the screen-saver function.
y
When a dark image is displayed on the screen after an image with
high contrast (black and white or gray), this may cause image sticking.
This is normal for LCD screen.
The audio function does not work.
Problem Resolution
No sound?
y
See if the audio cable is connected properly.
y
Adjust the volume.
y
See if the sound is set properly.
Sound is too dull.
y
Select the appropriate equalize sound.
Sound is too low.
y
Adjust the volume.
Screen color is abnormal.
Problem Resolution
Screen has poor color resolution
(16 colors).
y
Set the number of colors to more than 24 bits (true color) Select
Control Panel - Display - Settings - Color Table menu in Windows.
Screen color is unstable or
mono-colored.
y
Check the connection status of the signal cable. Or, re-insert the PC
video card.
Do black spots appear on the
screen?
y
Several pixels (red, green, white or black color) may appear on the
screen, which can be attributable to the unique characteristics of the
LCD panel. It is not a malfunction of the LCD.
The operation does not work normally.
Problem Resolution
The power suddenly turned off.
y
Is Off Timer set?
y
Check the power control settings. Power interrupted.
46
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
LCD Panel Screen Type 801.31 mm Wide TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel.
Visible diagonal size : 801.31 mm
Pixel Pitch 0.36375 mm (H) x 0.36375 mm (V)
Video Signal Max. Resolution 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Recommended Resolution 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Horizontal Frequency RGB : 30 kHz to 83 kHz
HDMI : 30 kHz to 83 kHz
Vertical Frequency RGB : 50 Hz to 75 Hz
HDMI : 56 Hz to 60 Hz
Synchronization Type Separate Sync, Digital
Input Connector 15-pin D-Sub, HDMI, Audio In, Speaker Out, IR, USB,
RS-232C IN/OUT, LAN
Power Rated Voltage AC 100-240 V~ 50/60 Hz 1.3 A
Power Consumption On Mode : 45 W Typ.
Sleep Mode (RGB) : ≤ 0.5 W
Sleep Mode (HDMI) : ≤ 0.7 W
Off Mode : ≤ 0.5 W
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C
10 % to 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C
5 % to 95 %
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
32LS33A
47
ENG
ENGLISH
SPECIFICATIONS
Dimensions
(Width x Height x
Depth) / Weight
730.9 mm x 430.1 mm x 55.5 mm / 5.6 kg
730.9 mm x 480.2 mm x 207 mm / 5.8 kg
730.9 mm x 430.1 mm x 105.1 mm / 6.4 kg
730.9 mm x 480.2 mm x 207 mm / 6.6 kg
* Applicable only for models that support the speakers
Audio RMS Audio Output 10 W + 10 W (R + L)
Input Sensitivity 0.7 Vrms
Speaker Impedance 8 Ω
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
48
ENG
ENGLISH
SPECIFICATIONS
LCD Panel Screen Type 1064.67 mm Wide TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel.
Visible diagonal size : 1064.67 mm
Pixel Pitch 0.4833 mm (H) x 0.4833 mm (V)
Video Signal Max. Resolution 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Recommended Resolution 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Horizontal Frequency RGB : 30 kHz to 83 kHz
HDMI : 30 kHz to 83 kHz
Vertical Frequency RGB : 50 Hz to 75 Hz
HDMI : 56 Hz to 60 Hz
Synchronization Type Separate Sync, Digital
Input Connector 15-pin D-Sub, HDMI, Audio In, Speaker Out, IR, USB,
RS-232C IN/OUT, LAN
Power
42LS33A Rated Voltage AC 100-240 V~ 50/60 Hz 1.2 A
Power Consumption On Mode : 70 W Typ.
Sleep Mode (RGB) : ≤ 0.5 W
Sleep Mode (HDMI) : ≤ 0.7 W
Off Mode : ≤ 0.5 W
42LS35A Rated Voltage AC 100-240 V~ 50/60 Hz 1.2 A
Power Consumption On Mode : 75 W Typ.
Sleep Mode (RGB) : ≤ 0.5 W
Sleep Mode (HDMI) : ≤ 0.7 W
Off Mode : ≤ 0.5 W
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C
10 % to 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C
5 % to 95 %
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
42LS33A 42LS35A
49
ENG
ENGLISH
SPECIFICATIONS
Dimensions
(Width x Height x
Depth) / Weight
959.5 mm x 559 mm x 55.5 mm / 9.1 kg
959.5 mm x 610.8 mm x 218 mm / 9.3 kg
959.5 mm x 559 mm x 91 mm / 9.9 kg
959.5 mm x 610.8 mm x 218 mm / 10.1 kg
* Applicable only for models that support the speakers
Audio RMS Audio Output 10 W + 10 W (R + L)
Input Sensitivity 0.7 Vrms
Speaker Impedance 8 Ω
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
50
ENG
ENGLISH
SPECIFICATIONS
LCD Panel Screen Type 1192.78 mm Wide TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel.
Visible diagonal size : 1192.78 mm
Pixel Pitch 0.5415 mm (H) x 0.5415 mm (V)
Video Signal Max. Resolution 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Recommended Resolution 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Horizontal Frequency RGB : 30 kHz to 83 kHz
HDMI : 30 kHz to 83 kHz
Vertical Frequency RGB : 50 Hz to 75 Hz
HDMI : 56 Hz to 60 Hz
Synchronization Type Separate Sync, Digital
Input Connector 15-pin D-Sub, HDMI, Audio In, Speaker Out, IR, USB,
RS-232C IN/OUT, LAN
Power
47LS33A Rated Voltage AC 100-240 V~ 50/60 Hz 1.3 A
Power Consumption On Mode : 73 W Typ.
Sleep Mode (RGB) : ≤ 0.5 W
Sleep Mode (HDMI) : ≤ 0.7 W
Off Mode : ≤ 0.5 W
47LS35A Rated Voltage AC 100-240 V~ 50/60 Hz 1.3 A
Power Consumption On Mode : 80 W Typ.
Sleep Mode (RGB) : ≤ 0.5 W
Sleep Mode (HDMI) : ≤ 0.7 W
Off Mode : ≤ 0.5 W
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C
10 % to 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C
5 % to 95 %
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
47LS33A 47LS35A
51
ENG
ENGLISH
SPECIFICATIONS
Dimensions
(Width x Height x
Depth) / Weight
1071 mm x 621.6 mm x 55.8 mm / 12.2 kg
1071 mm x 675.1 mm x 247 mm / 12.5 kg
1071 mm x 621.6 mm x 90.4 mm / 13.0 kg
1071 mm x 675.1 mm x 247 mm / 13.3 kg
* Applicable only for models that support the speakers
Audio RMS Audio Output 10 W + 10 W (R + L)
Input Sensitivity 0.7 Vrms
Speaker Impedance 8 Ω
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
52
ENG
ENGLISH
SPECIFICATIONS
LCD Panel Screen Type 1387.80 mm Wide TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel.
Visible diagonal size : 1387.80 mm
Pixel Pitch 0.630 mm (H) x 0.630 mm (V)
Video Signal Max. Resolution 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Recommended Resolution 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Horizontal Frequency RGB : 30 kHz to 83 kHz
HDMI : 30 kHz to 83 kHz
Vertical Frequency RGB : 50 Hz to 75 Hz
HDMI : 56 Hz to 60 Hz
Synchronization Type Separate Sync, Digital
Input Connector 15-pin D-Sub, HDMI, Audio In, Speaker Out, IR, USB,
RS-232C IN/OUT, LAN
Power
55LS33A Rated Voltage AC 100-240 V~ 50/60 Hz 1.5 A
Power Consumption On Mode : 92 W Typ.
Sleep Mode (RGB) : ≤ 0.5 W
Sleep Mode (HDMI) : ≤ 0.7 W
Off Mode : ≤ 0.5 W
55LS35A Rated Voltage AC 100-240 V~ 50/60 Hz 1.5 A
Power Consumption On Mode : 95 W Typ.
Sleep Mode (RGB) : ≤ 0.5 W
Sleep Mode (HDMI) : ≤ 0.7 W
Off Mode : ≤ 0.5 W
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C
10 % to 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C
5 % to 95 %
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
55LS33A 55LS35A
53
ENG
ENGLISH
SPECIFICATIONS
Dimensions
(Width x Height x
Depth) / Weight
1240.9 mm x 717.2 mm x 56.8 mm / 17.8 kg
1240.9 mm x 770.8 mm x 247 mm / 18.1 kg
1240.9 mm x 717.2 mm x 91.4 mm / 18.6 kg
1240.9 mm x 770.8 mm x 247 mm / 18.9 kg
* Applicable only for models that support the speakers
Audio RMS Audio Output 10 W + 10 W (R + L)
Input Sensitivity 0.7 Vrms
Speaker Impedance 8 Ω
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
54
ENG
ENGLISH
SPECIFICATIONS
LCD Panel Screen Type 1639.06 mm Wide TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel.
Visible diagonal size : 1639.06 mm
Pixel Pitch 0.744 mm (H) x 0.744 mm (V)
Video Signal Max. Resolution 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Recommended Resolution 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Horizontal Frequency RGB : 30 kHz to 83 kHz
HDMI : 30 kHz to 83 kHz
Vertical Frequency RGB : 50 Hz to 75 Hz
HDMI : 56 Hz to 60 Hz
Synchronization Type Separate Sync, Digital
Input Connector
15-pin D-Sub, HDMI, Audio In, Speaker Out, IR, USB,
RS-232C IN/OUT, LAN
Power Rated Voltage AC 100-240 V~ 50/60 Hz 2.0 A
Power Consumption On Mode : 145 W Typ.
Sleep Mode (RGB) : ≤ 0.5 W
Sleep Mode (HDMI) : ≤ 0.7 W
Off Mode : ≤ 0.5 W
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C
10 % to 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C
5 % to 95 %
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
65LS33A
55
ENG
ENGLISH
SPECIFICATIONS
Dimensions
(Width x Height x
Depth) / Weight
1461.6 mm x 843 mm x 57.6 mm / 30.9 kg
1461.6 mm x 900.6 mm x 313 mm / 32.3 kg
1461.6 mm x 843 mm x 92.6 mm / 31.7 kg
1461.6 mm x 900.6 mm x 313 mm / 33.1 kg
* Applicable only for models that support the speakers
Audio RMS Audio Output 10 W + 10 W (R + L)
Input Sensitivity 0.7 Vrms
Speaker Impedance 8 Ω
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
56
ENG
ENGLISH
SPECIFICATIONS
Dimensions
The illustrations in this manual may differ from the actual product and accessories.
Please see the Mounting on a Wall section for sizes of screws.
32LS33A
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
(Unit : mm)
14.6
121.7
15.1
18.6
730.9
430.1
480.2
207
265.4
200
200
55.5
38.5
57
ENG
ENGLISH
SPECIFICATIONS
Dimensions
The illustrations in this manual may differ from the actual product and accessories.
Please see the Mounting on a Wall section for sizes of screws.
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
(Unit : mm)
279.8
400
400
55.8
55.5
41.5
218
959.5
13.3
13.3
559
610.8
18.8
42LS33A 42LS35A
58
ENG
ENGLISH
SPECIFICATIONS
Dimensions
The illustrations in this manual may differ from the actual product and accessories.
Please see the Mounting on a Wall section for sizes of screws.
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
(Unit : mm)
400
129
335.5
400
55.8
40.8
247
1071
13.2
13.2
18.7
19
621.6
675.1
47LS33A 47LS35A
59
ENG
ENGLISH
SPECIFICATIONS
Dimensions
The illustrations in this manual may differ from the actual product and accessories.
Please see the Mounting on a Wall section for sizes of screws.
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
(Unit : mm)
224.6
400
400
420.5
56.8
41.8
247
1240.9
13.2
13.218.7
717.2
770.8
55LS33A 55LS35A
60
ENG
ENGLISH
SPECIFICATIONS
Dimensions
The illustrations in this manual may differ from the actual product and accessories.
Please see the Mounting on a Wall section for sizes of screws.
65LS33A
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
(Unit : mm)
400164 278.5
400 530.8530.8
420.5
57.6
43
313
14
1461.6
14
14
20
900.6
843
61
ENG
ENGLISH
SPECIFICATIONS
y
PC resolutions available as the input label
option in RGB and HDMI input mode : 640
x 480 / 60 Hz, 1280 x 720 / 60 Hz, 1920 x
1080 / 60 Hz and DTV resolutions : 480p,
720p, 1080p.
NOTE
y
Vertical frequency: To enable the user to
watch the product display, screen image
should be changed tens of times every
second like a fluorescent lamp. The vertical
frequency or refresh rate is the times of
image display per second. The unit is Hz.
y
Horizontal frequency: The horizontal interval
is the time to display one vertical line. When
1 is divided by the horizontal interval, the
number of horizontal lines displayed every
second can be tabulated as the horizontal
frequency. The unit is kHz.
NOTE
RGB (PC) supported mode
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
720 x 400
31.468 70.8
640 x 480
31.469 59.94
800 x 600
37.879 60.317
1024 x 768
48.363 60
1280 x 720
44.772 59.855
1280 x 960
60 60
1152 x 864
57.717 59.934
1280 x 1024
63.981 60.02
1920 x 1080
67.5 60
HDMI (PC) supported mode
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
640 x 480
31.469 59.94
800 x 600
37.879 60.317
1024 x 768
48.363 60
1280 x 720
44.772 59.855
1366 x 768
47.7 60
1280 x 1024
63.981 60.02
1680 x 1050
65.290 59.954
1920 x 1080
67.5 60
HDMI (DTV) supported mode
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
480/60P
31.5 60
576/50P
31.25 50
720/50P
37.5 50
720/60P
45 60
1080/50i
28.1 50
1080/60i
33.75 60
1080/50P
56.25 50
1080/60P
67.5 60
62
ENG
ENGLISH
IR CODES
IR CODES
y
All models do not support the HDMI/USB function.
y
Some key codes are not supported depending on the model.
Code (Hexa) Function Note
08
Power
R/C BUTTON
0B INPUT R/C BUTTON
C4 MONITOR ON R/C BUTTON
C5 MONITOR OFF R/C BUTTON
95 ENERGY SAVING ( ) R/C BUTTON
DC 3D R/C BUTTON
10 to 19 Number Key 0 to 9 R/C BUTTON
53 1/a/A R/C BUTTON
2F CLEAR R/C BUTTON
02
Volume
R/C BUTTON
03
Volume
R/C BUTTON
79 ARC R/C BUTTON
99 AUTO R/C BUTTON
09 MUTE R/C BUTTON
E0 BRIGHTNESS (Page UP) R/C BUTTON
E1 BRIGHTNESS (Page Down) R/C BUTTON
4D PSM R/C BUTTON
AA
INFO
R/C BUTTON
5F W.BAL R/C BUTTON
43 SETTINGS R/C BUTTON
40 Up ▲ R/C BUTTON
41 Down ▼ R/C BUTTON
07 Left ◄ R/C BUTTON
06 Right ► R/C BUTTON
3F S.MENU R/C BUTTON
44 OK R/C BUTTON
28 BACK R/C BUTTON
5B EXIT R/C BUTTON
7E R/C BUTTON
7B TILE (Tile Mode) R/C BUTTON
B1 R/C BUTTON
B0 R/C BUTTON
BA R/C BUTTON
8F R/C BUTTON
8E R/C BUTTON
72 Red Key (PICTURE ID ON) R/C BUTTON
71 Green Key (PICTURE ID OFF) R/C BUTTON
63 Yellow Key R/C BUTTON
61 Blue Key R/C BUTTON
63
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
CONTROLLING THE MULTIPLE PRODUCT
y
Use this method to connect several products to a single PC. You can control several products at a
time by connecting them to a single PC.
y
In the Option menu, Set ID must be between 1 and 255 without being duplicated.
Connecting the Cable
Connect the RS-232C cable as shown in the picture.
y
The RS-232C protocol is used for communication between the PC and product. You can turn the
product on/off, select an input source or adjust the OSD menu from your PC.
Communication Parameter
y
Baud Rate : 9600 BPS
y
Data Length : 8 bit
y
Parity Bit : None
y
Stop Bit : 1bit
y
Flow Control : None
y
Communication Code : ASCII code
y
Use a crossed (reverse) cable
RS-232C Configurations
y
When using 3-wire connections (non-
standard), an IR daisy chain cannot be used.
NOTE
8-Wire Configurations (Cross-over RS-232C cable)
PC Set
D-Sub 9 D-Sub 9
(Female) (Female)
DCD
RXD
TXD
GND
DTR
DSR
RTS
CTS
DCD
TXD
RXD
GND
DSR
DTR
CTS
RTS
1
2
3
5
4
6
7
8
1
3
2
5
6
4
8
7
Monitor 1 Monitor 2Monitor 3Monitor 4
PC
RS-232C Cable (not included)
64
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
Command Reference List
COMMAND
DATA
(Hexadecimal)
1 2
01 Power k a 00 to 01
02 Select input x b See [Select input]
03 Aspect ratio k c See [Aspect ratio]
04 Energy saving j q See [Energy saving]
05 Picture mode d x See [Picture mode]
06 Contrast k g 00 to 64
07 Brightness k h 00 to 64
08 Sharpness k k 00 to 64
09 Color k i 00 to 64
10 Tint k j 00 to 64
11 Color temperature x u 00 to 64
12 H position f q 00 to 64
13 V position f r 00 to 64
14 H size f s 00 to 64
15 Auto Config. j u 01
16 Balance k t 00 to 64
17 Sound Mode d y See [Sound mode]
18 Mute k e 00 to 01
19 Volume k f 00 to 64
20 Clock 1 (year/month/day) f a See [Clock 1]
21 Clock 2 (hour/minute/second) f x See [Clock 2]
22 Off time schedule f c 00 to 01
23 On time schedule f b 00 to 01
24 Off timer (repeat mode/time) f e See [Off timer]
25 On timer (repeat mode/time) f d See [On timer]
26 On timer input f u See [On timer input]
27 Automatic Standby m n 00 to 01
28 Auto off f g 00 to 01
29 Language f i See [Language]
30 ISM method j p See [ISM method]
31 Reset f k 00 to 02
32 Current temperature d n FF
33 Key m c See [Key]
34 Time elapsed d l FF
35 Product serial number f y FF
36 Software version f z FF
37 White balance red gain j m 00 to FE
38 White balance green gain j n 00 to FE
39 White balance blue gain j o 00 to FE
40 Backlight m g 00 to 64
41 Screen off k d 00 to 01
65
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
y
During USB operations such as Dvix or EMF, all commands except Power (k a) and Key (m c) are not
executed and treated as NG.
y
Some commands are not supported depending on the model.
y
The ‘f f’ command which shows the status of a certain command does not display the OSD as the
result in order to be compatible with SuperSign program.
NOTE
66
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
* [Command1] Identifies the factory setting and the user setting modes.
* [Command2] Controls monitors.
* [Set ID] Used for selecting a set you want to control. A unique set ID can be assigned to each set
ranging from 1 to 255 (01H to FFH) under Settings in the OSD menu.
Selecting '00H' for set ID allows the simultaneous control of all connected monitors.
* [Data] Transmits command data.
Data count may increase depending on the command.
* [Cr] Carriage Return. Corresponds to '0x0D' in ASCII code.
* [ ] White Space. Corresponds to '0x20' in ASCII code.
Acknowledgement
[Command2][ ][Set ID][ ][OK/NG][Data][x]
* The Product transmits an ACK (acknowledgement) based on this format when receiving normal data. At
this time, if the data is FF, it indicates the present status data. If the data is in data write mode, it returns
the data of the PC computer.
* If a command is sent with Set ID '00' (=0x00), the data is reflected to all monitors and they do not send an
acknowledgement (ACK).
* If the data value 'FF' is sent in control mode via RS-232C, the current setting value of a function can be
checked (only for some functions).
* Some commands may not be supported on some models.
67
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
01. Power (Command: k a)
Controls the power on/off of the set.
Transmission
[k][a][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data][x]
* Only when the monitor is fully powered on, the
acknowledgement signal is returned properly.
* There may be a delay between the transmission
and acknowledgement signals.
02. Select input (Command: x b)
Selects an input signal.
Transmission
[x][b][ ][Set ID][ ][Data][Cr]
Data 60: RGB
90: HDMI (HDMI1) (DTV)
A0: HDMI (HDMI1) (PC)
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
* Some input signals may not be supported on some
models.
03. Aspect ratio (Command: k c)
Adjusts the aspect ratio.
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
Data 01: 4:3
02: 16:9
04: Zoom (HDMI)(DTV)
06: Auto ratio (HDMI)(DTV)
09: Original (≥ 720p) (HDMI) (DTV)
10 to 1F: Cinema zoom 1 to 16 (HDMI) (DTV)
* Available data types differ depending on the input signal.
For more information, see the aspect ratio section of the
owner's manual.
* The aspect ratio may differ depending on the model's
input configuration.
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
04. Energy saving (Command: j q)
Sets the energy saving function.
Transmission
[j][q][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: Minimum
02: Medium
03: Maximum
04: Automatic
05: Screen off
Acknowledgement
[q][ ][Set ID][ ][OK/NG][Data][x]
** This may not be supported on some models.
05. Picture mode (Command: d x)
Selects a picture mode.
Transmission
[d][x][ ][Set ID][ ][Data][Cr]
Data 00: Vivid
01: Standard
02: Cinema
03: Sport
04: Game
05: Expert 1
06: Expert 2
08: Eco
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data][x]
06. Contrast (Command: k g)
Adjusts the screen contrast.
Transmission
[k][g][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Contrast 0 to 100
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
68
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
07. Brightness (Command: k h)
Adjusts the screen brightness.
Transmission
[k][h][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Brightness 0 to 100
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
08. Sharpness (Command: k k)
Adjusts the screen sharpness.
Transmission
[k][k][ ][Set ID][ ][Data][Cr]
Data 00 to 32: Sharpness 0 to 50
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
09. Color (Command: k i)
Adjusts the screen color.
Transmission
[k][i][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Color 0 to 100
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
10. Tint (Command: k j)
Adjusts the screen tint.
Transmission
[k][j][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Tint red 50 to green 50
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
11. Color temperature (Command: x u)
Adjusts the screen color temperature.
Transmission
[x][u][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Warm 50 to cool 50
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
12. H position (Command: f q)
Adjusts the horizontal position of the screen.
This function is only available when the Tile Mode is
set to Off.
* The operational range varies depending on the
RGB input resolution.
(Only available in RGB-PC input mode)
Transmission
[f][q][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Min -50 (left) to max 50 (right)
Acknowledgement
[q][ ][Set ID][ ][OK/NG][Data][x]
69
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
13. V position (Command: f r)
Adjusts the vertical position of the screen.
This function is only available when the Tile Mode is
set to Off.
* The operational range varies depending on the
RGB input resolution.
(Only available in RGB-PC input mode)
Transmission
[f][r][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Min -50 (down) to max 50 (up)
Acknowledgement
[r][ ][Set ID][ ][OK/NG][Data][x]
14. H size (Command: f s)
Adjusts the horizontal size of the screen.
This function is only available when the Tile Mode is
set to Off.
* The operational range varies depending on the
RGB input resolution.
(Only available in RGB-PC input mode)
Transmission
[f][s][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Min -50 (small) to max 50 (large)
Acknowledgement
[s][ ][Set ID][ ][OK/NG][Data][x]
15. Auto Config. (Command: j u)
Automatically corrects position and shaking of the
picture.
(Only available in RGB-PC input mode)
Transmission
[j][u][ ][Set ID][ ][Data][Cr]
Data 01: Execution
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
16. Balance (Command: k t)
Adjusts the sound balance.
Transmission
[k][t][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Left 50 to right 50
Acknowledgement
[t][ ][Set ID][ ][OK/NG][Data][x]
17. Sound mode (Command: d y)
Selects a sound mode.
Transmission
[d][y][ ][Set ID][ ][Data][Cr]
Data 01: Standard
02: Music
03: Cinema
04: Sport
05. Game
07. News
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
18. Mute (Command: k e)
Mutes/unmutes the sound.
Transmission
[k][e][ ][Set ID][ ][Data][Cr]
Data 00: Mute
01: Unmute
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data][x]
70
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
19. Volume (Command: k f)
Adjusts the playback volume.
Transmission
[k][f][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Volume 0 to 100
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
20. Clock 1 (year/month/day) (Command: f a)
Adjusts the Clock 1 (year/month/day) value.
Transmission
[f][a][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1 00 to 14: Year 2010 to 2040
Data2 01 to 0C: January to December
Data3 01 to 1F: 1st to 31st
* Enter "fa [Set ID] ff" to view the Clock 1 (year/
month/day) settings.
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
21. Clock 2 (hour/minute/second) (Command: f x)
Adjusts the Clock 2 (hour/minute/second) value.
Transmission
[f][x][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1 00 to 17: 00 to 23 hours
Data2 00 to 3B: 00 to 59 minutes
Data3 00 to 3B: 00 to 59 seconds
* Enter "fa [Set ID] ff" to view the Clock 2 (hour/min-
ute/second) settings.
** This function is only available when Clock 1 (year/
month/day) is set.
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
22. Off time schedule (Command: f c)
Enables/disables the on time schedule.
Transmission
[f][c][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
23. On time schedule (Command: f b)
Enables/disables the on time schedule.
Transmission
[f][b][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
71
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
24. Off timer (repeat mode/time) (Command: f e)
Configures the off time (repeat mode/time) settings.
Transmission
[f][e][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
1. F1 to F7 (reading data)
F1: Read the 1st off timer data
F2: Read the 2nd off timer data
F3: Read the 3rd off timer data
F4: Read the 4th off timer data
F5: Read the 5th off timer data
F6: Read the 6th off timer data
F7: Read the 7th off timer data
2. E1 to E7 (deleting one index), E0 (deleting all
indexes)
E0: Erase all off timer setting
E1: Erase the 1st off timer setting
E2: Erase the 2nd off timer setting
E3: Erase the 3rd off timer setting
E4: Erase the 4th off timer setting
E5: Erase the 5th off timer setting
E6: Erase the 6th off timer setting
E7: Erase the 7th off timer setting
3. 01 to 0C (setting the day of the week for off timer)
01: Once
02. Daily
03: Mon - Fri
04: Mon - Sat
05: Sat - Sun
06. Every Sunday
07. Every Monday
08. Every Tuesday
09. Every Wednesday
0A. Every Thursday
0B. Every Friday
0C. Every Saturday
Data2 00 to 17: 00 to 23 hours
Data3 00 to 3B: 00 to 59 minutes
* To read or delete the Off Time list, set FFH for
[Data2] and [Data3].
Example 1: fe 01 f1 ff ff - Read the 1st index data
from off timer.
Example 2: fe 01 e1 ff ff - Delete the 1st index data
from off timer.
Example 3: fe 01 04 02 03 - Sets Off Timer to 02:03
for Monday-Saturday.
* This function is only available when Clock 1 (year/
month/day) and Clock 2 (hour/minute/second) are
set.
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
25. On timer (repeat mode/time) (Command: f d)
Configures the on time (repeat mode/time) settings.
Transmission
[f][d][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
1. F1 to F7 (reading data)
F1: Read the 1st on timer data
F2: Read the 2nd on timer data
F3: Read the 3rd on timer data
F4: Read the 4th on timer data
F5: Read the 5th on timer data
F6: Read the 6th on timer data
F7: Read the 7th on timer data
2. E1 to E7 (deleting one index), E0 (deleting all
indexes)
E0: Erase all on timer setting
E1: Erase the 1st on timer setting
E2: Erase the 2nd on timer setting
E3: Erase the 3rd on timer setting
E4: Erase the 4th on timer setting
E5: Erase the 5th on timer setting
E6: Erase the 6th on timer setting
E7: Erase the 7th on timer setting
3. 01 to 0C (setting the day of the week for the on
timer)
01: Once
02. Daily
03: Mon - Fri
04: Mon - Sat
05: Sat - Sun
06. Every Sunday
07. Every Monday
08. Every Tuesday
09. Every Wednesday
0A. Every Thursday
0B. Every Friday
0C. Every Saturday
Data2 00 to 17: 00 to 23 hours
Data3 00 to 3B: 00 to 59 minutes
* To read or delete an on timer list you have set,
[Data2][Data3] must be set to FFH.
Example 1: fd 01 f1 ff ff - Read the 1st index data
from on timer.
Example 2: fd 01 e1 ff ff - Delete the 1st index data
from on timer.
Example 3: fd 01 04 02 03 - Set on timer at 02:03 on
Monday to Saturday.
* This function is only available when Clock 1 (year/
month/day) and Clock 2 (hour/minute/second) are
set.
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
72
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
26. On timer input (Command: f u)
Adds a new schedule entry by selecting input for the
current on timer setting.
Transmission
[f][u][ ][Set ID][ ][Data1][Cr]
[f][u][ ][Set ID][ ][Data1][Data2][Cr]
Data (adding schedule)
60: RGB
90: HDMI (HDMI1)
Data1
1. f1h to f7h (reading data)
F1: Select the 1st schedule input source
F2: Select the 2nd schedule input source
F3: Select the 3rd schedule input source
F4: Select the 4th schedule input source
F5: Select the 5th schedule input source
F6: Select the 6th schedule input source
F7: Select the 7th schedule input source
Data2
1. ffh (reading data)
To read the schedule input, enter FFH for [Data2].
If no schedule is available for [Data1] when attempt-
ing to read or change the schedule data, the text NG
will be displayed and the operation will fail.
(Example 1: fu 01 60 - Move existing schedule
entries down one row each and save RGB as input
source for the 1st schedule entry.)
(Example 2: fu 01 f1 ff - Read the 1st schedule input
data.)
* This function is only supported when 1 (year/month/
date), 2 (hour/minute/second) and On Time (repeat
mode/time) are set.
** Input may not be supported on some models.
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
[u][ ][Set ID][ ][OK/NG][Data1][Data2][x]
27. Automatic standby (Command: m n)
Configures the automatic standby settings.
Transmission
[m][n][ ][Set ID][ ][Data][Cr]
Data 00: Off (Will not turn off after 4/6/8 hours)
01: 4 hours (Off after 4 hours)
02: 6 hours (Off after 6 hours)
03: 8 hours (Off after 8 hours)
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
28. Auto off (Command: f g)
Configures the automatic off settings.
Transmission
[f][g][ ][Set ID][ ][Data][Cr]
Data 00: Off (Will not turn off after 15 minutes)
01: 15 minutes (Off after 15 minutes)
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
29. Language (Command: f i)
Sets the OSD language.
Transmission
[f][i][ ][Set ID][ ][Data][Cr]
Data 00: Czech
01: Danish
02: German
03: English
04: Spanish (Europe)
05: Greek
06: French
07: Italian
08: Dutch
09: Norwegian
0A: Portuguese
0B: Portuguese (Brazil)
0C: Russian
0D: Finnish
0E: Swedish
0F: Korean
10: Chinese (Cantonese)
11: Chinese (Mandarin)
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
30. ISM method (Command: j p)
Selects an ISM Method option.
Transmission
[j][p][ ][Set ID][ ][Data][Cr]
Data 08: Standard
20: Color wash
Acknowledgement
[p][ ][Set ID][ ][OK/NG][Data][x]
73
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
31. Reset (Command: f k)
Resets settings for Picture, Screen and Audio or
restores factory settings.
(Screen reset can only be performed in RGB input
mode.)
Transmission
[f][k][ ][Set ID][ ][Data][Cr]
Data 00: Picture reset
01: Screen reset
02: Initial settings (factory reset)
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
32. Current temperature (Command: d n)
Checks the inside temperature value.
Transmission
[d][n][ ][Set ID][ ][Data][Cr]
Data FF: Check status
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
[n][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
* Temperature is displayed as a hexadecimal value.
33. Key (Command: m c)
Sends a key code for the IR remote control.
Transmission
[m][c][ ][Set ID][ ][Data][Cr]
Data IR_KEY_CODE
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
For key codes, see IR Codes.
* Some key codes may not be supported on some
models.
34. Time elapsed (Command: d l)
Checks the elapsed time.
Transmission
[d][l][ ][Set ID][ ][Data][Cr]
Data FF: Read status
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
* The data received is shown as a hexadecimal
value.
35. Product serial number (Command: f y)
Checks the serial number of the product.
Transmission
[f][y][ ][Set ID][ ][Data][Cr]
Data FF: Check product serial number
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
* Data is in ASCII code.
36. Software version (Command: f z)
Checks the software version of the product.
Transmission
[f][z][ ][Set ID][ ][Data][Cr]
Data FF: Check software version
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data][x]
74
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
37. White balance red gain (Command: j m)
Adjusts the white balance red gain value.
Transmission
[j][m][ ][Set ID][ ][Data][Cr]
Data 00 to FE: Red gain 0 to 254
Acknowledgement
[m][ ][Set ID][ ][OK/NG][Data][x]
38. White balance green gain (Command: j n)
Adjusts the white balance green gain value.
Transmission
[j][n][ ][Set ID][ ][Data][Cr]
Data 00 to FE: Green gain 0 to 254
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
39. White balance blue gain (Command: j o)
Adjusts the white balance blue gain value.
Transmission
[j][o][ ][Set ID][ ][Data][Cr]
Data 00 to FE: Blue gain 0 to 254
Acknowledgement
[o][ ][Set ID][ ][OK/NG][Data][x]
40. Backlight (Command: m g)
Adjusts the back light brightness.
Transmission
[m][g][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Back light brightness 0 to 100
Acknowledgement
[g][][set ID][][OK/NG][Data][x]
** This may not be supported on some models.
41. Screen off (Command: k d)
Turns the screen on or off.
Transmission
[k][d][ ][Set ID][ ][Data][Cr]
Data 00: Turns the screen on
01: Turns the screen off
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data][x]
Make sure to read the Safety Precautions
before using the product.
Keep the Owner's Manual (CD) in an
accessible place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
Temporary noise is normal when powering ON or
OFF this device.
WARNING
-This is a class A product. In a domestic
e n v i r o n m e nt t h i s p r o du c t ma y c a us e r a d i o
interference in which case the user may be required
to take adequate measures.
To obtain the source code under GPL, LGPL,
MPL and other open source licenses, that is
contained in this product, please visit http://
opensource.lge.com.
In addition to the source code, all referred
license terms, warranty disclaimers and
copyright notices are available for download.
LG Electronics will also provide open source
code to you on CD-ROM for a charge covering
the cost of performing such distribution (such
as the cost of media, shipping, and handling)
upon email request to opensource@lge.com.
This offer is valid for three (3) years from the
date on which you purchased the product.
y
ENERGY STAR(EPA) can not be supported
in 65LS33A model.
NOTE
