TABLE OF CONTENTS
TABLE OF CONTENTS
4 LICENSES
5 ASSEMBLING AND
PREPARING
5 Accessories
6 Optional Accessories
7 Parts and Buttons
9 Using the Mounting Cable Tie
9 Connecting the Eye-Bolt Bracket
10 Connecting the Pentray Assy
11 Connecting the Media Player
12 Mounting on a Wall

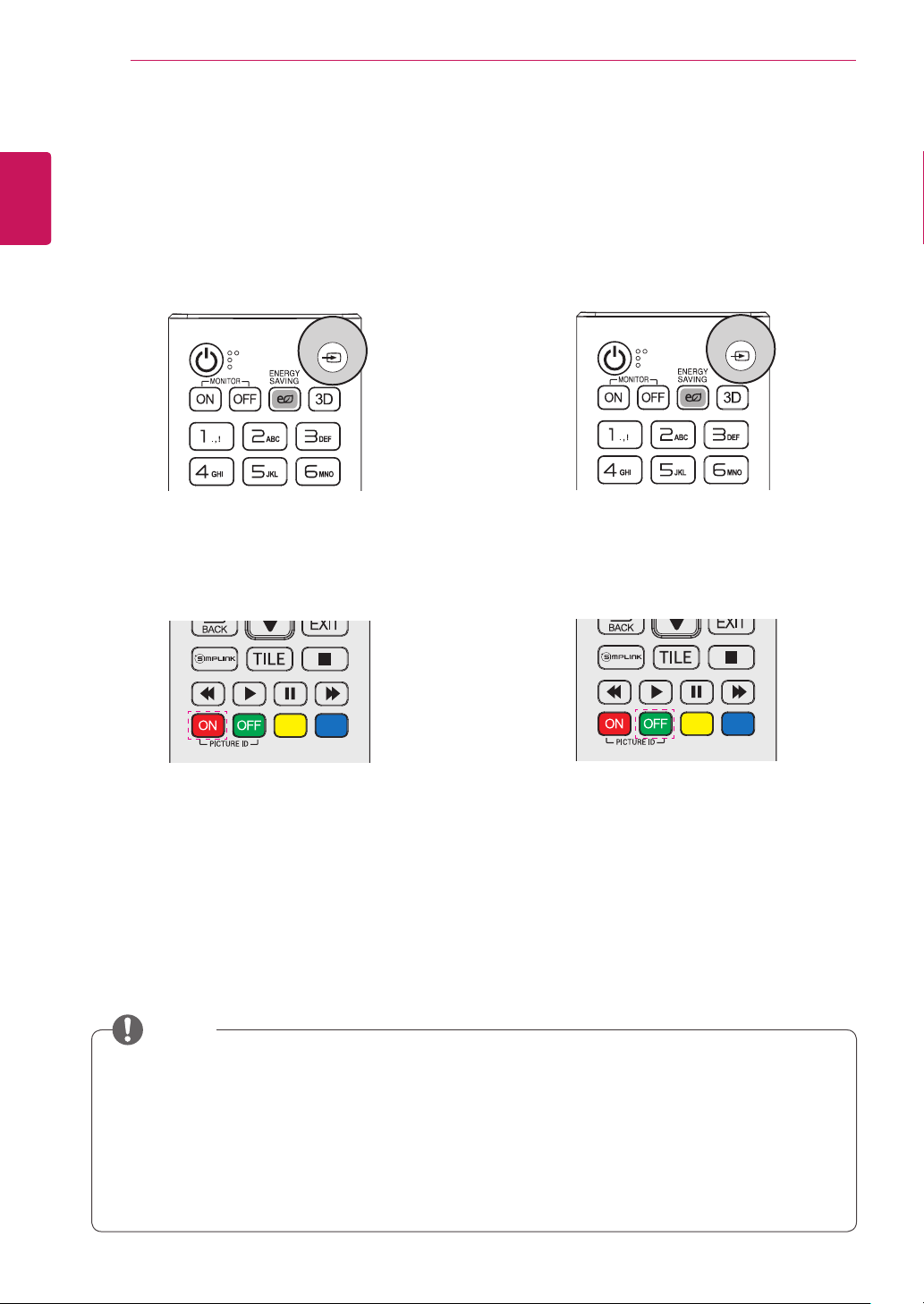

14 REMOTE CONTROL
16 Change Device Name
16 SimpLink Setting
17 USING THE MONITOR
17 Connecting to a PC

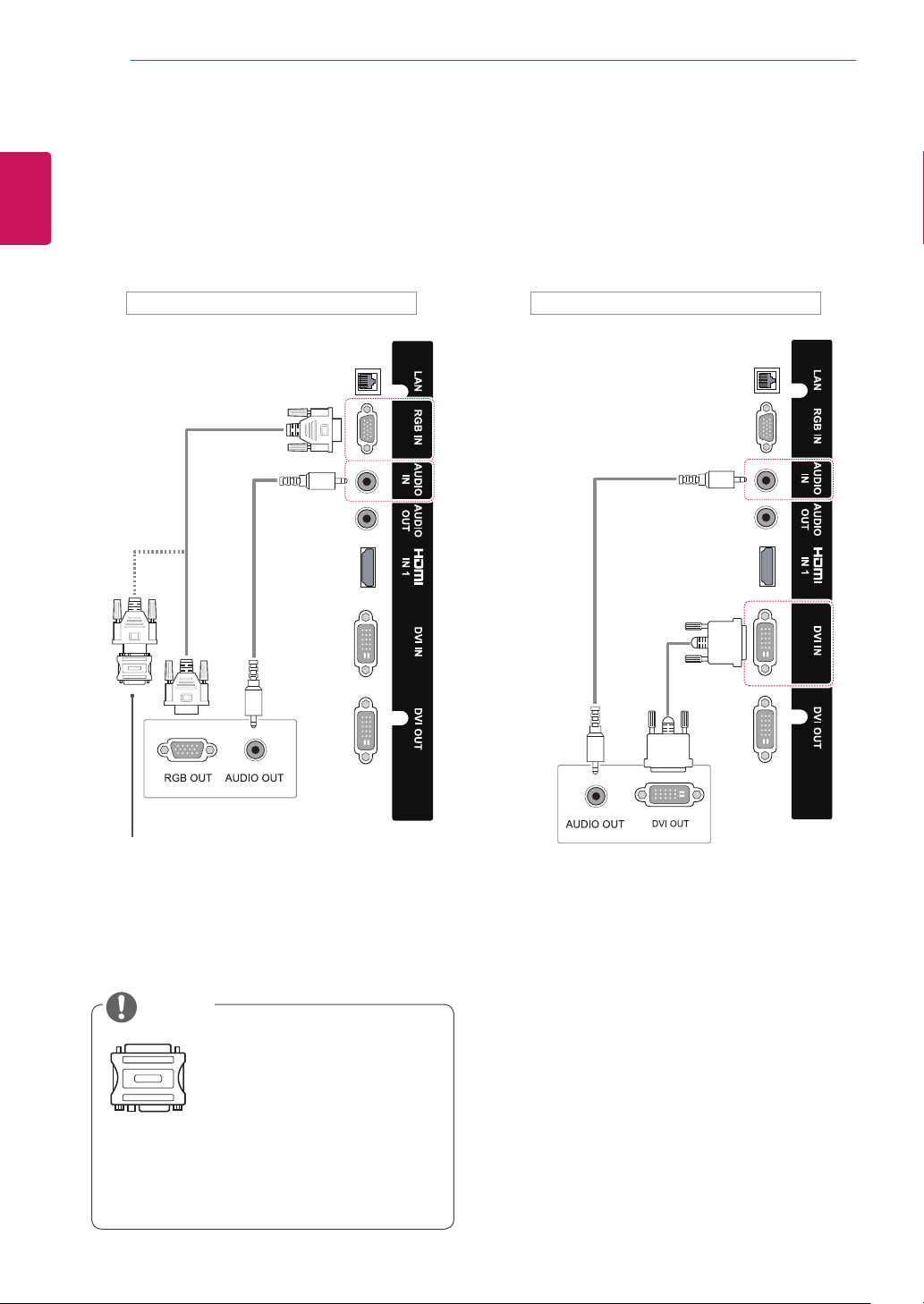

18 - RGB Connection
18 - DVI-D Connection

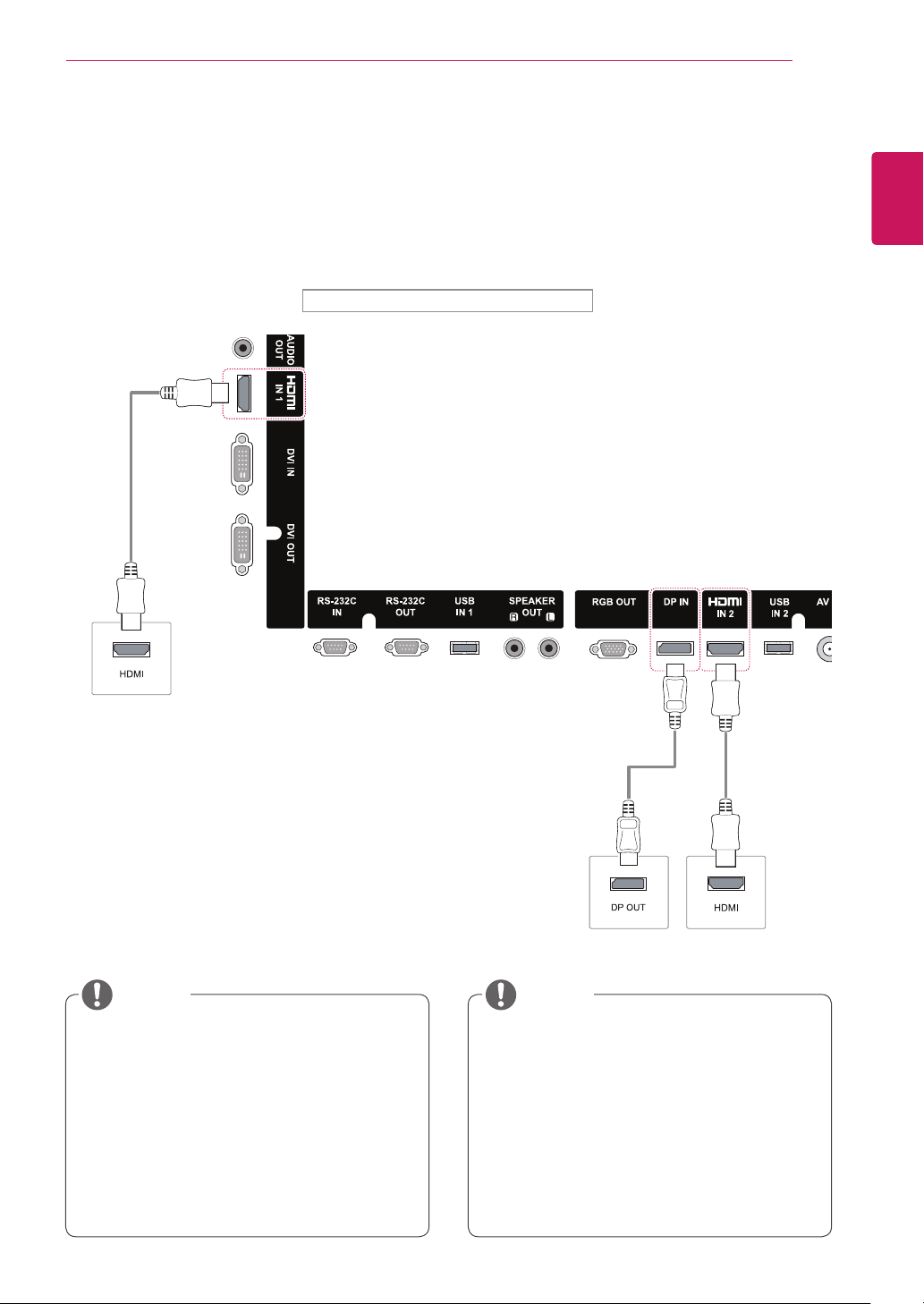

19 - HDMI Connection
19 - Display Port Connection

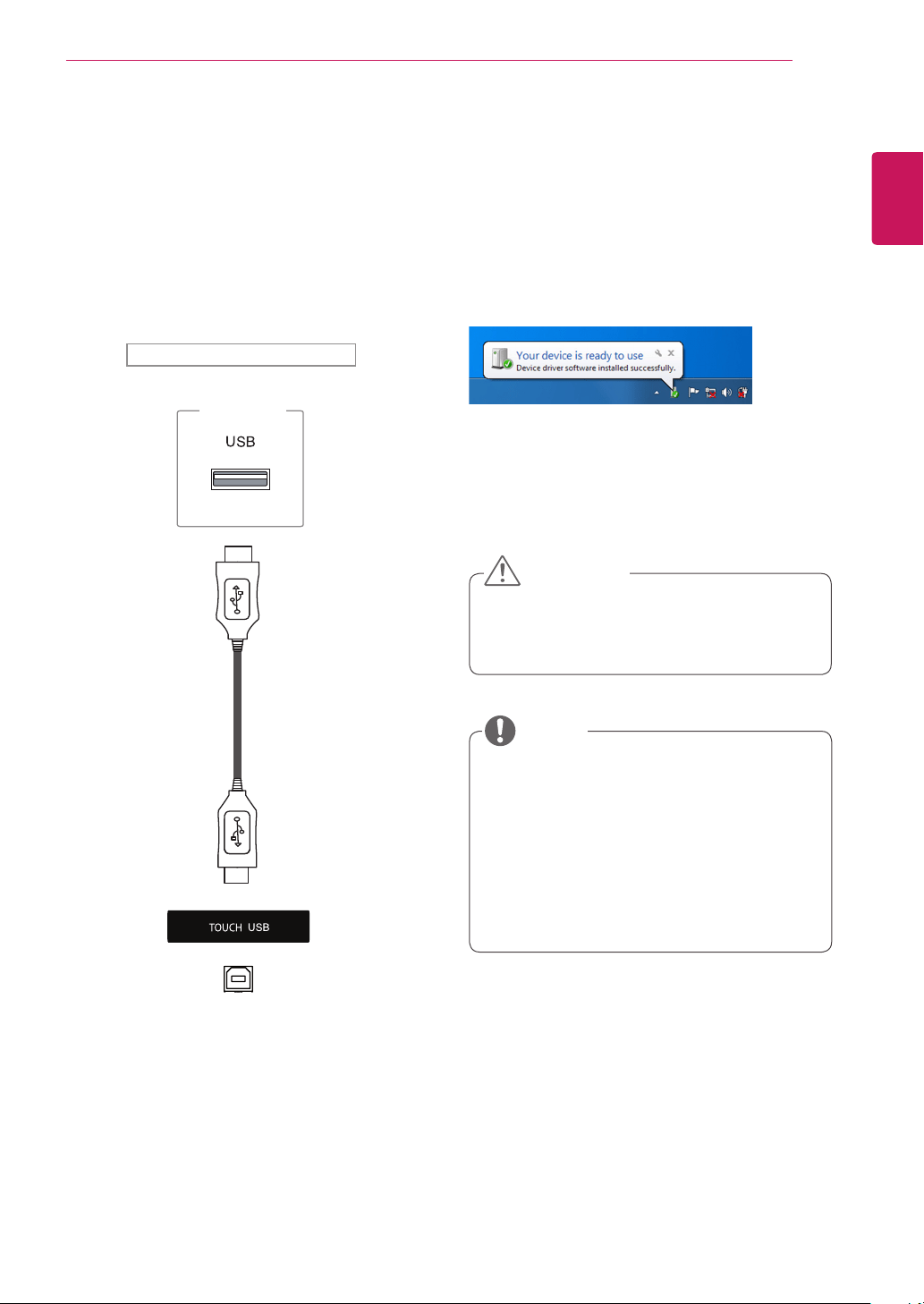

20 - TOUCH USB Cable Connection
21 - Using the Input List
22 ENTERTAINMENT
22 - Connecting to a Wired Network
23 - Network Status
24 - Connecting USB Storage Devices

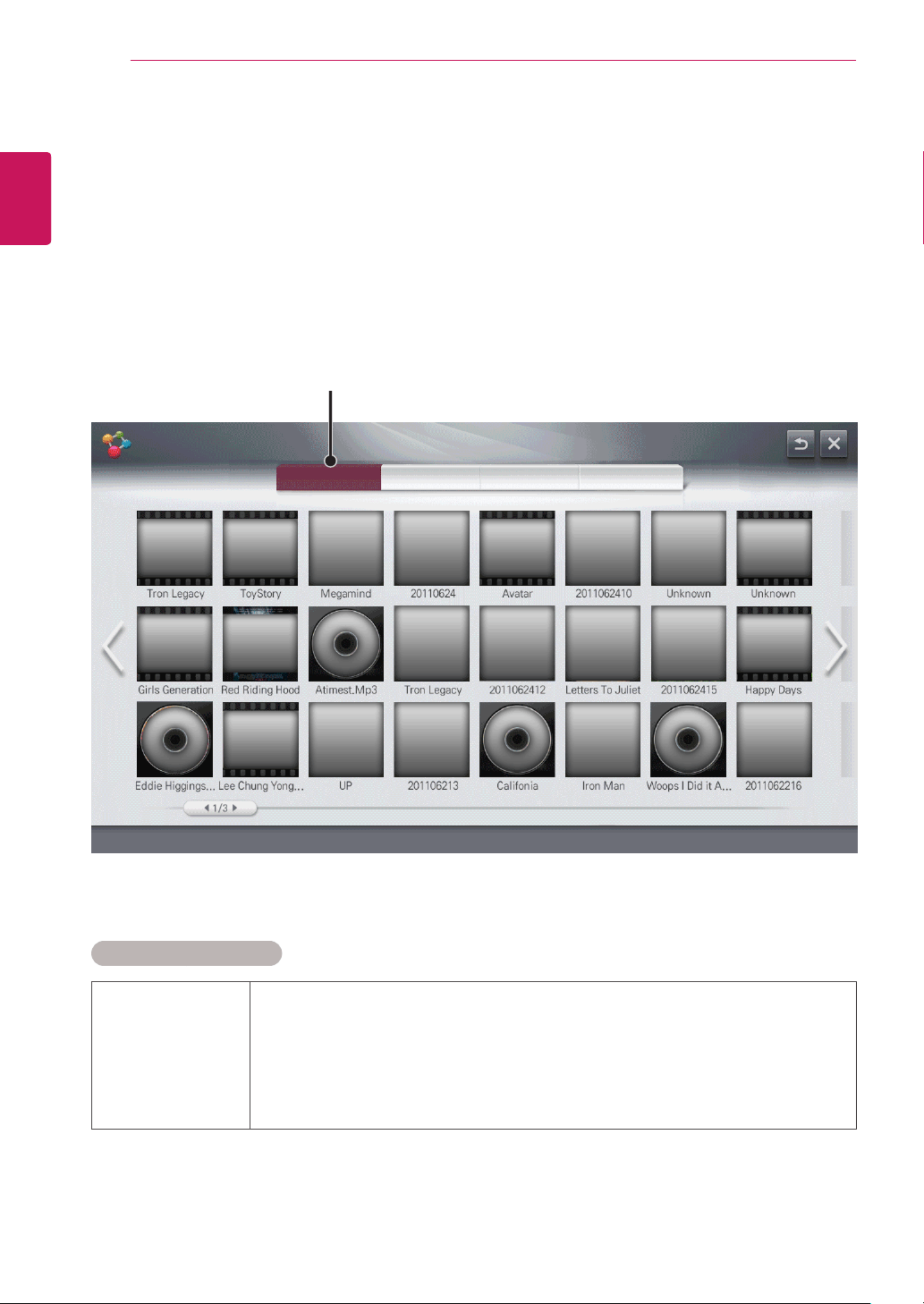

26 - Using My Media

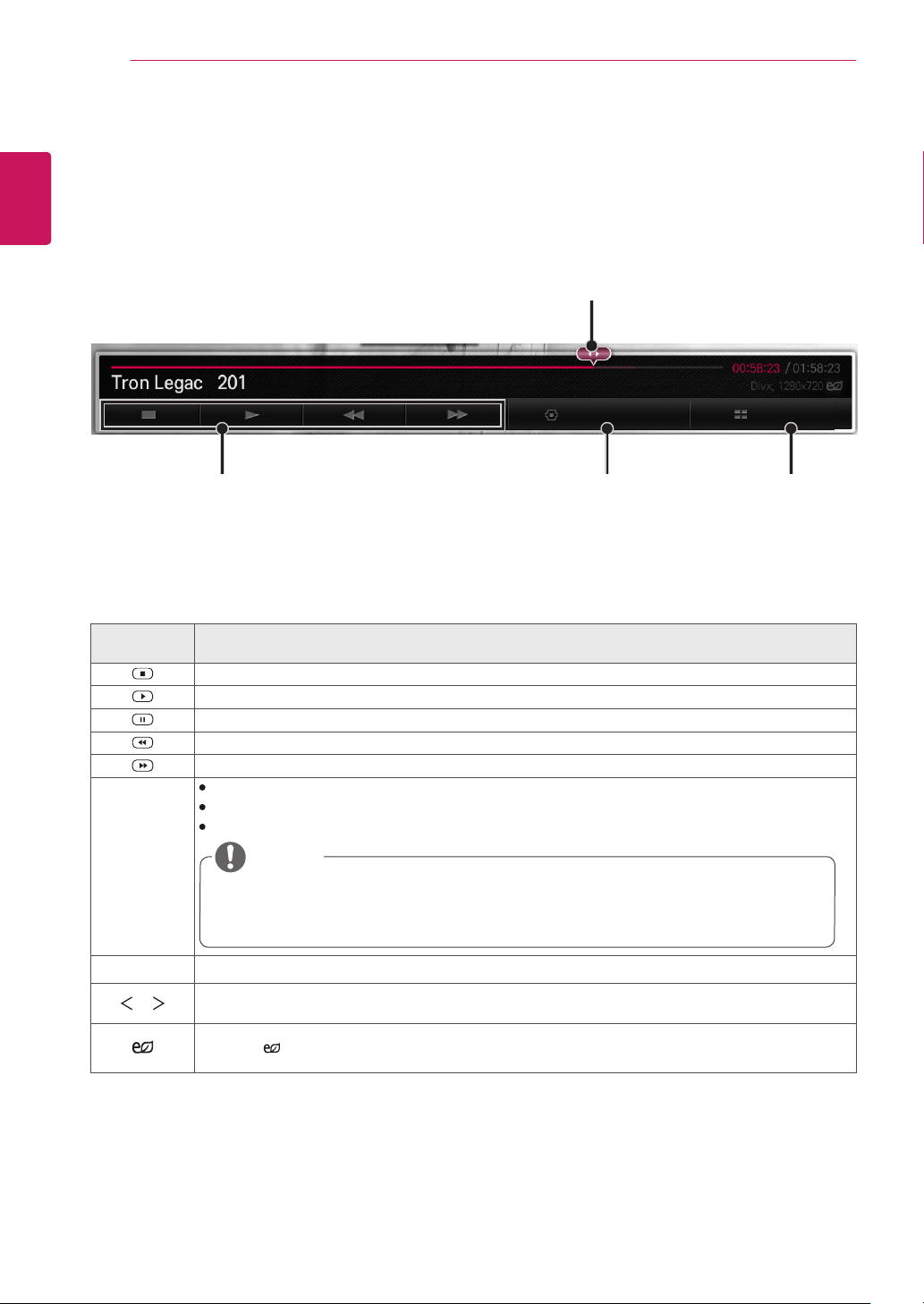

28 - Playing Video

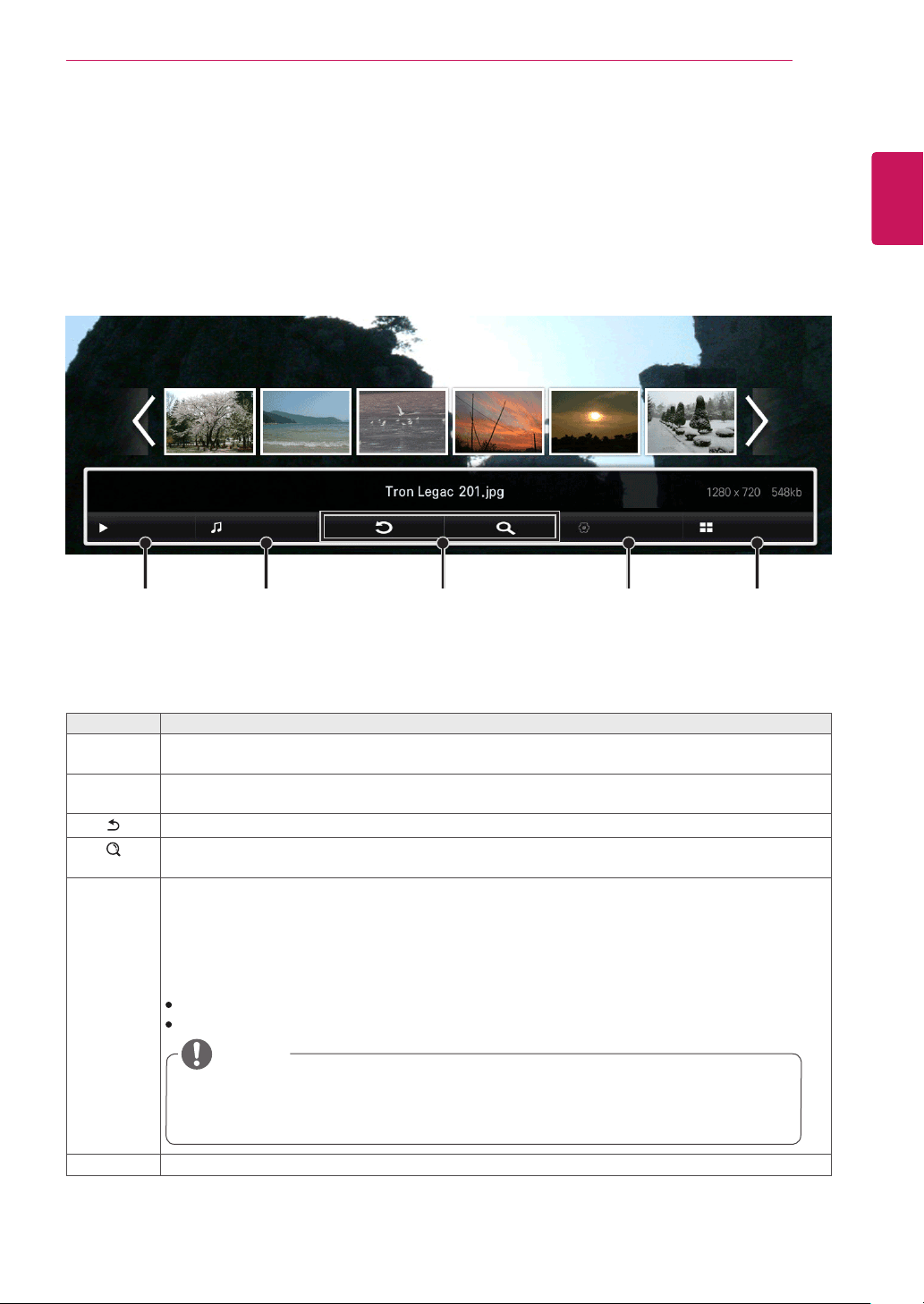

31 - Viewing Photos

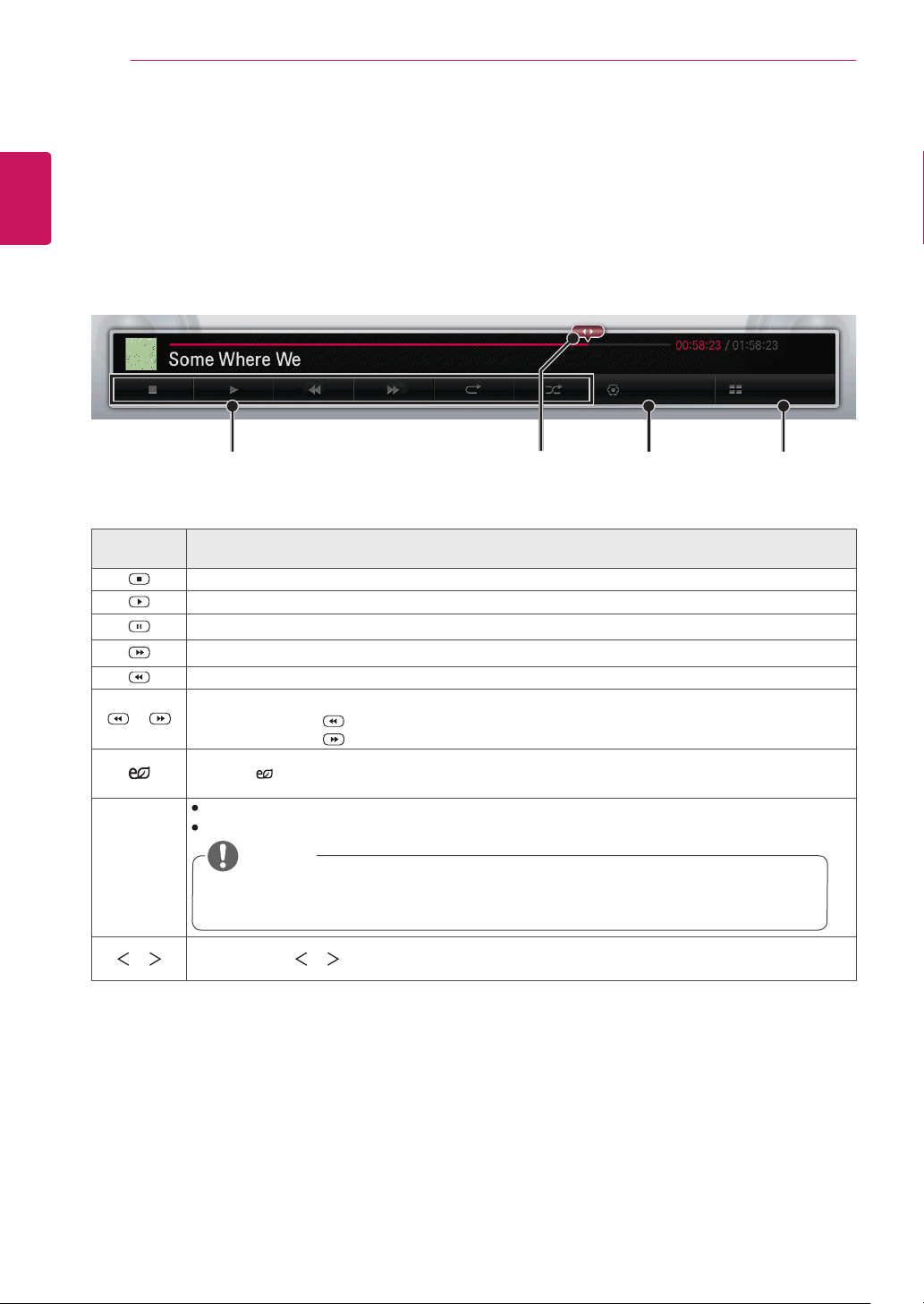

32 - Listening to Music
33 CUSTOMIZING SETTINGS
33 - PICTURE Settings
37 Using the Additional Options

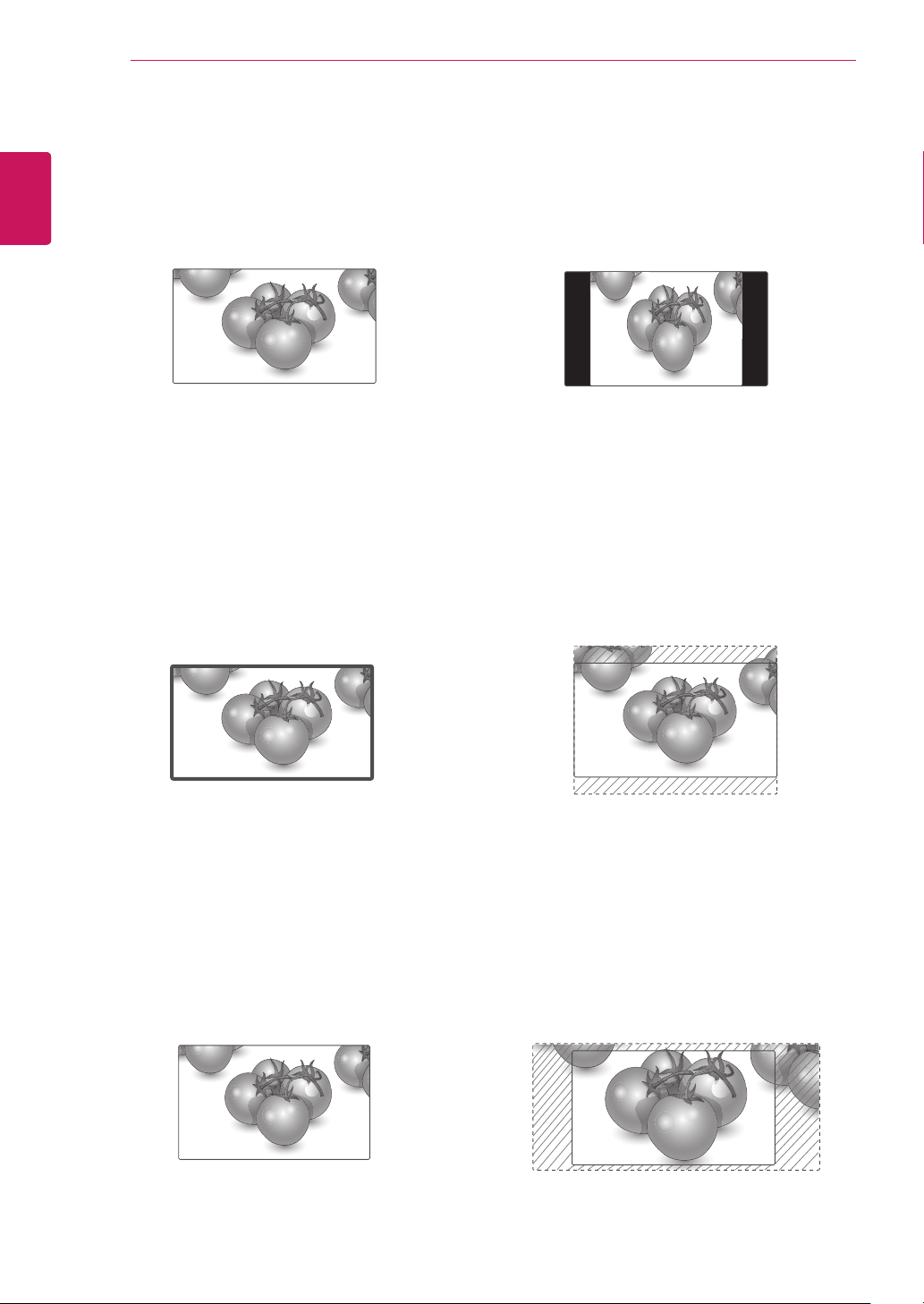

37 - Adjusting Aspect Ratio
39 - SOUND Settings
40 - TIME Settings
41 - OPTION Settings
43 - NETWORK Settings
43 - SUPPORT Settings
44 MAKING CONNECTIONS

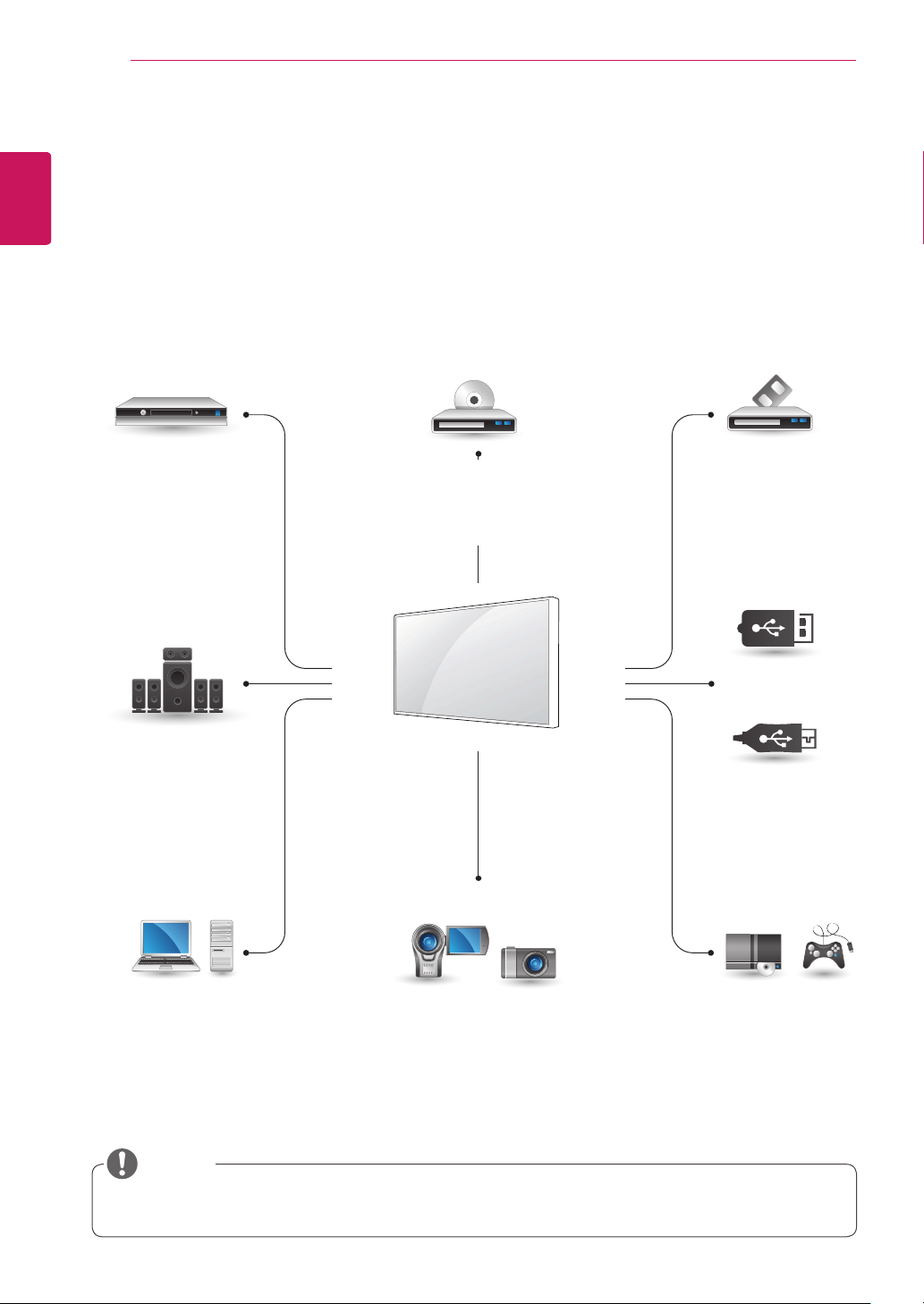

45 External Device Connection

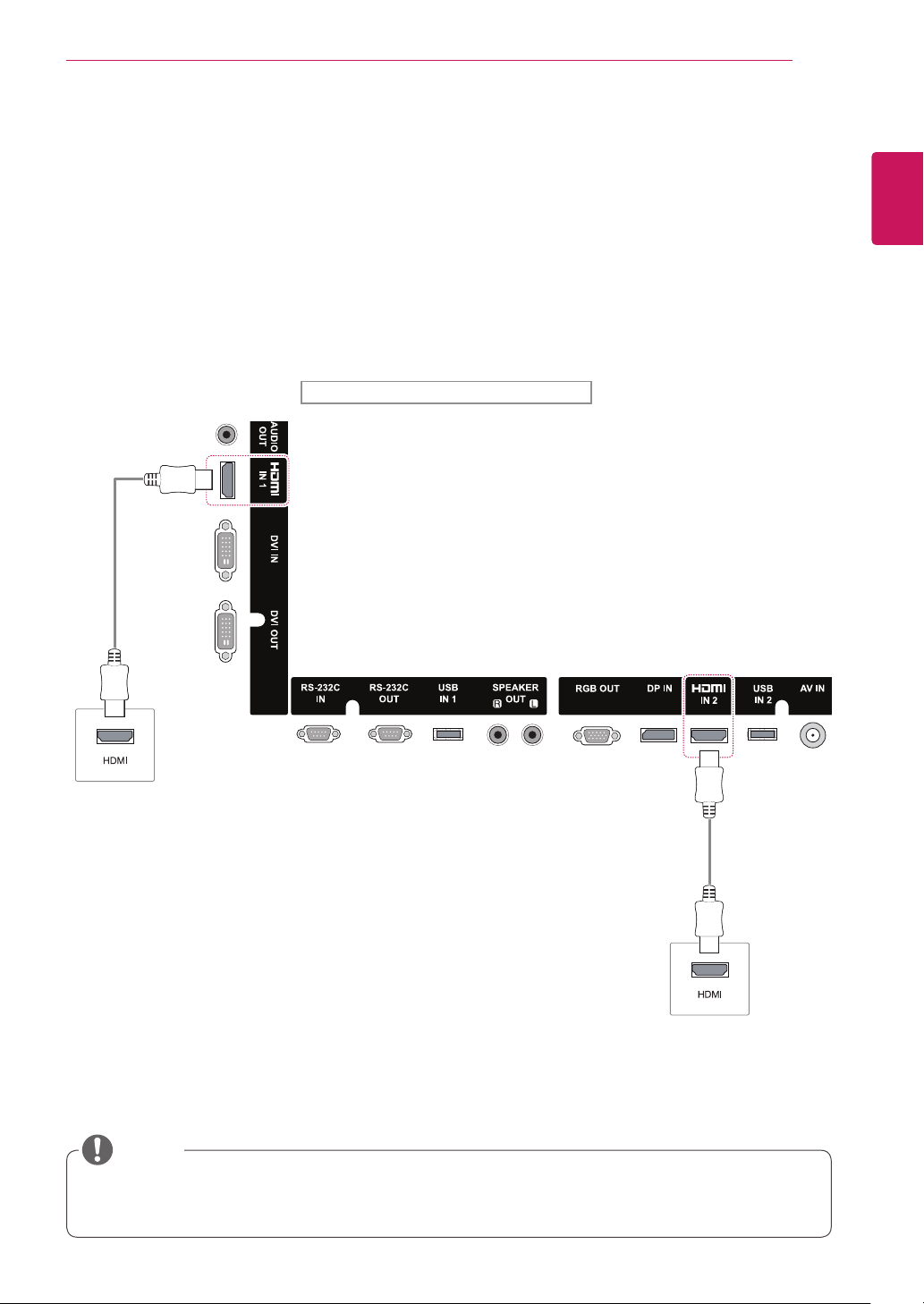

45 - HDMI Connection

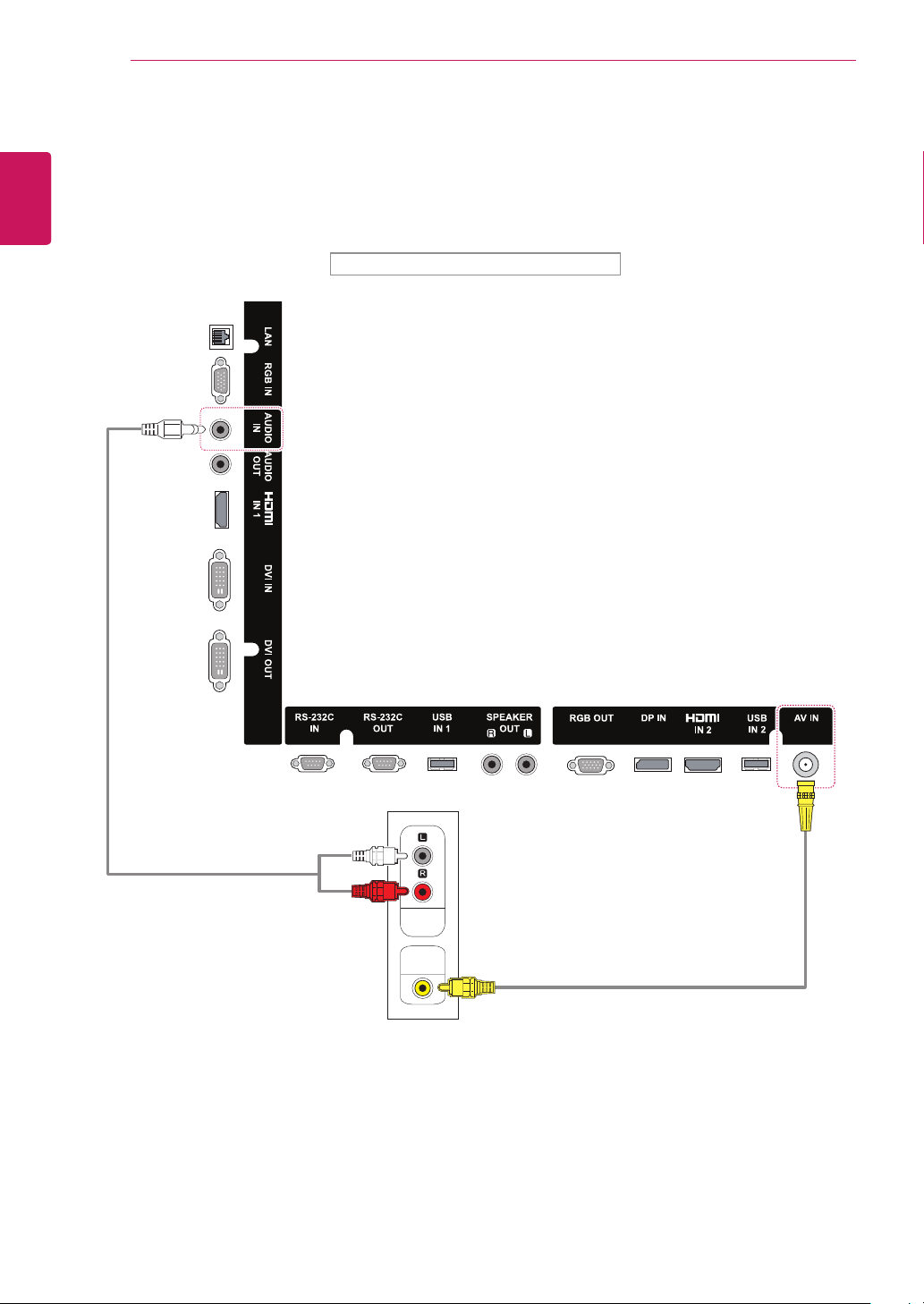

46 - AV (CVBS) Connection

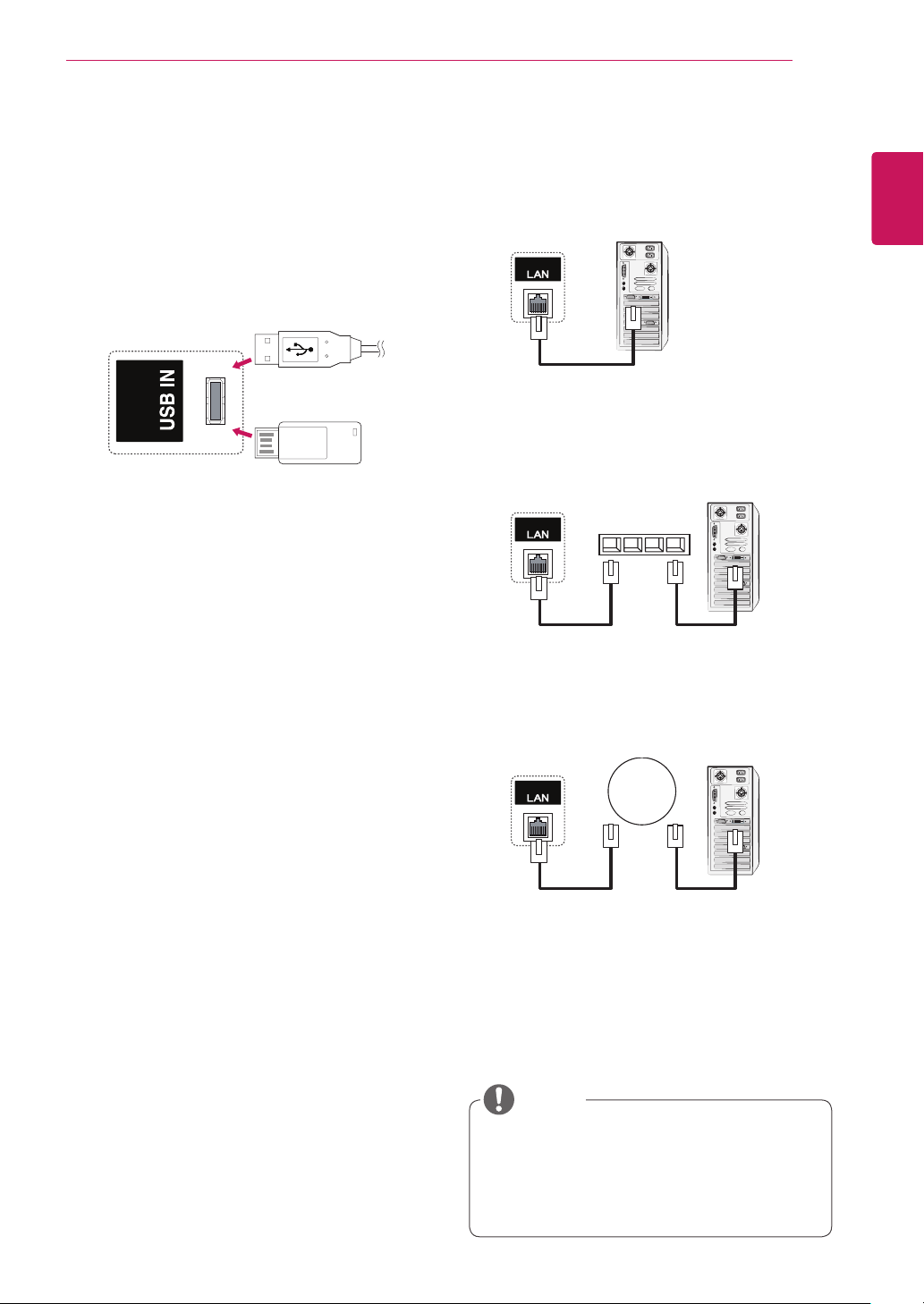

47 Connecting to a USB
47 Connecting to the LAN

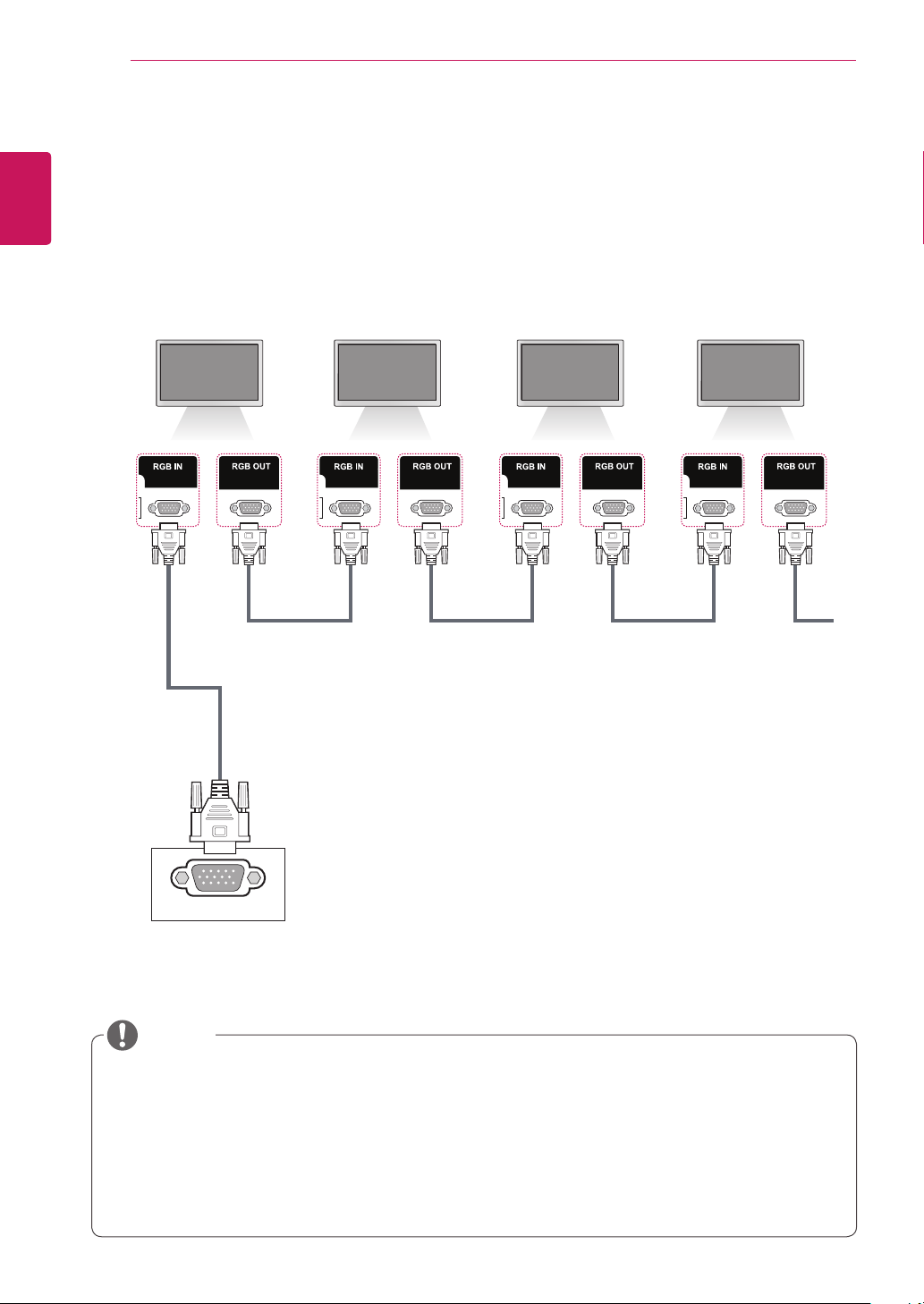

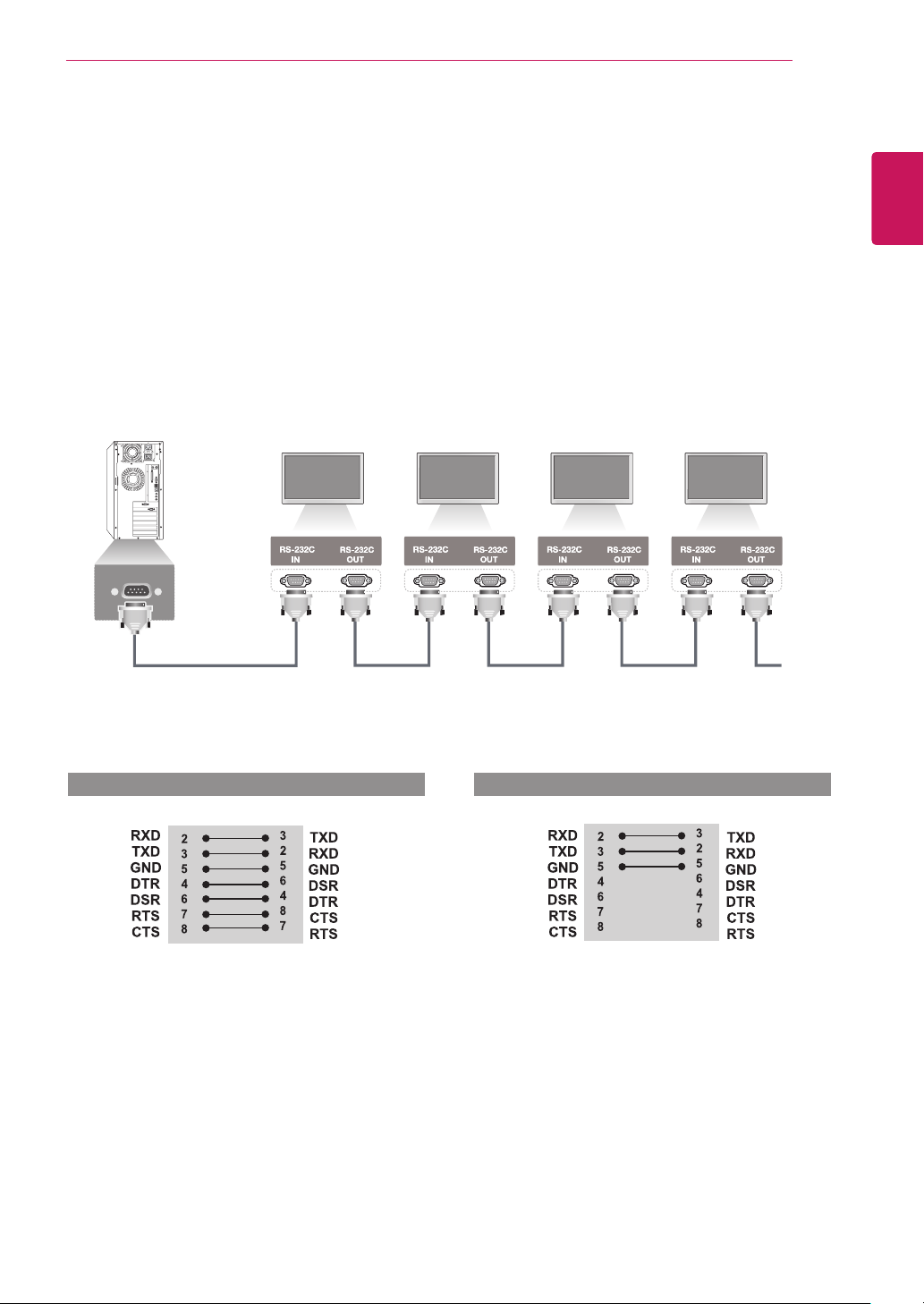

48 Daisy Chain Monitors
49 USING THE TOUCH SCREEN
49 To Use the Touch Screen on Windows 7
49 Gestures and Settings on Windows 7
50 Precaution When Using the Touch Screen
51 LG Touch Screen Software
51 - Specifications
51 - Precaution When Using LG Touch
Screen Software
ENGLISH
4
LICENSES
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
ABOUT DIVX VIDEO: DivX is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified device that
plays DivX video. Visit divx.com for more information and software tools to
convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certified device must be registered in order to play purchased DivX Video-
on-Demand (VOD) movies. To obtain your registration code, locate the
DivX VOD section in your device setup menu. Go to vod.divx.com for more
information on how to complete your registration.
DivX Certified to play DivX video up to HD 1080p, including premium
content.
DivX , DivX Certified and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274
Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are trademarks of Dolby Laboratories.
y
The warranty will not cover any damages caused by using the product in an excessively dusty
environment.
y
Avoid using the product in a high temperature and high humidity area. Moving the monitor from a
environment like this to an air conditioned area may cause moisture formation inside the glass. This
moisture will be dissipate over time, which may vary depending on the operating environment.
NOTE
5
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING

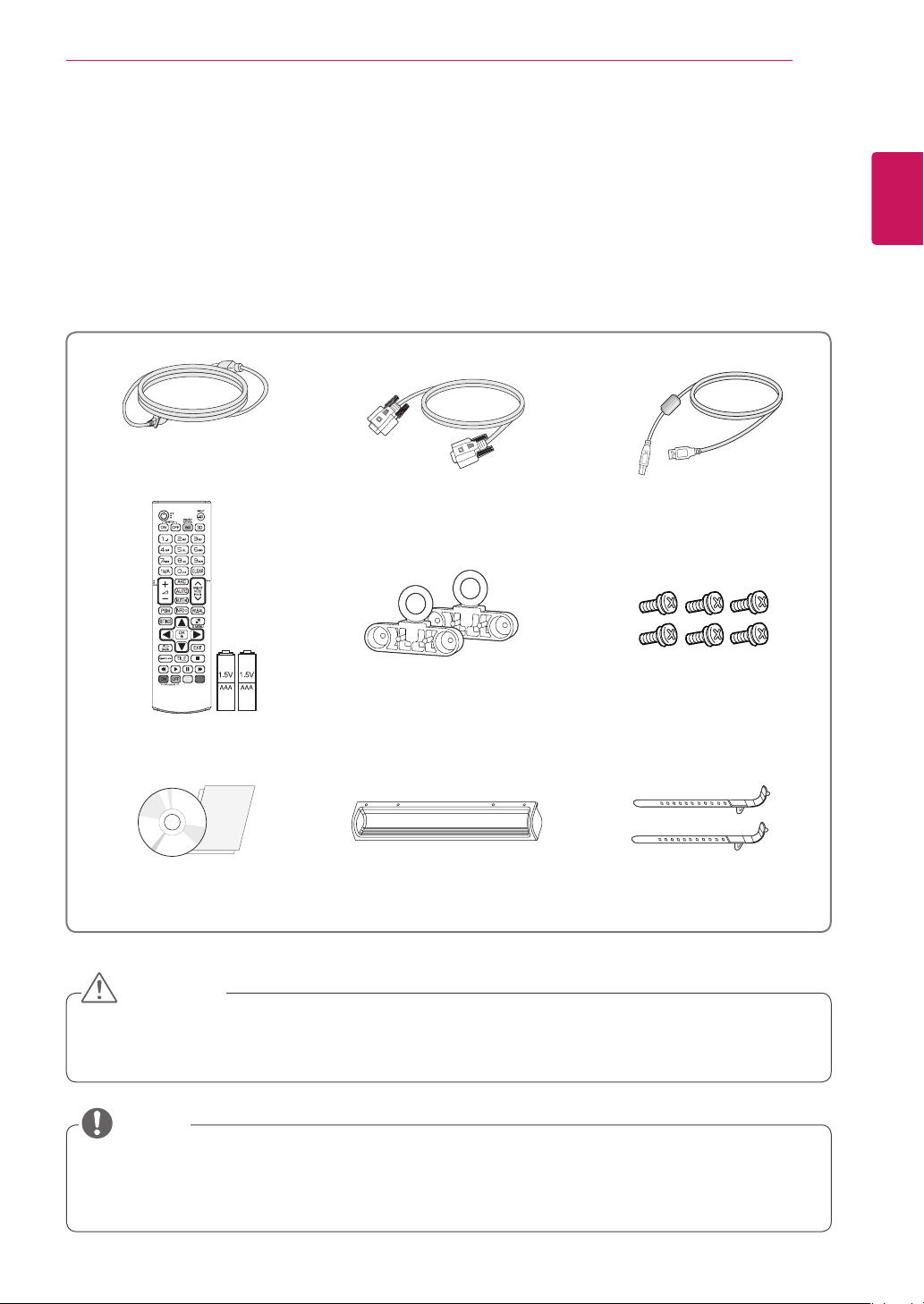

Accessories
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
y
Do not use any pirated items to ensure the safety and product life span.
y
Any damages or injuries by using pirated items are not covered by the warranty.
CAUTION
y
The accessories supplied with your product may vary depending on the model.
y
Product specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
NOTE
D-sub 15 pin signal cable
Power Cord
CD (Owner's Manual/ LG
Touch Screen SW) / Cards
Eye-Bolt Bracket (2 EA)
M4 x L12 Screw (6 EA)
Pen Tray
Mounting Cable Tie (2 EA)
Remote control and
Batteries
USB Cable
6
ENG
ENGLISH
ASSEMBLING AND PREPARING
Media Player Kit
Media Player Screws CD (Owner's Manual) / Card
Optional Accessories
Without prior notice, optional accessories are subject to change to improve the performance of the product,
and new accessories may be added. The illustrations in this manual may differ from the actual product and
accessories.
y
Optional accessories are not included for all models.
NOTE
7
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
You can set the Power indicator to on or off by selecting
OPTION
in the main menu.

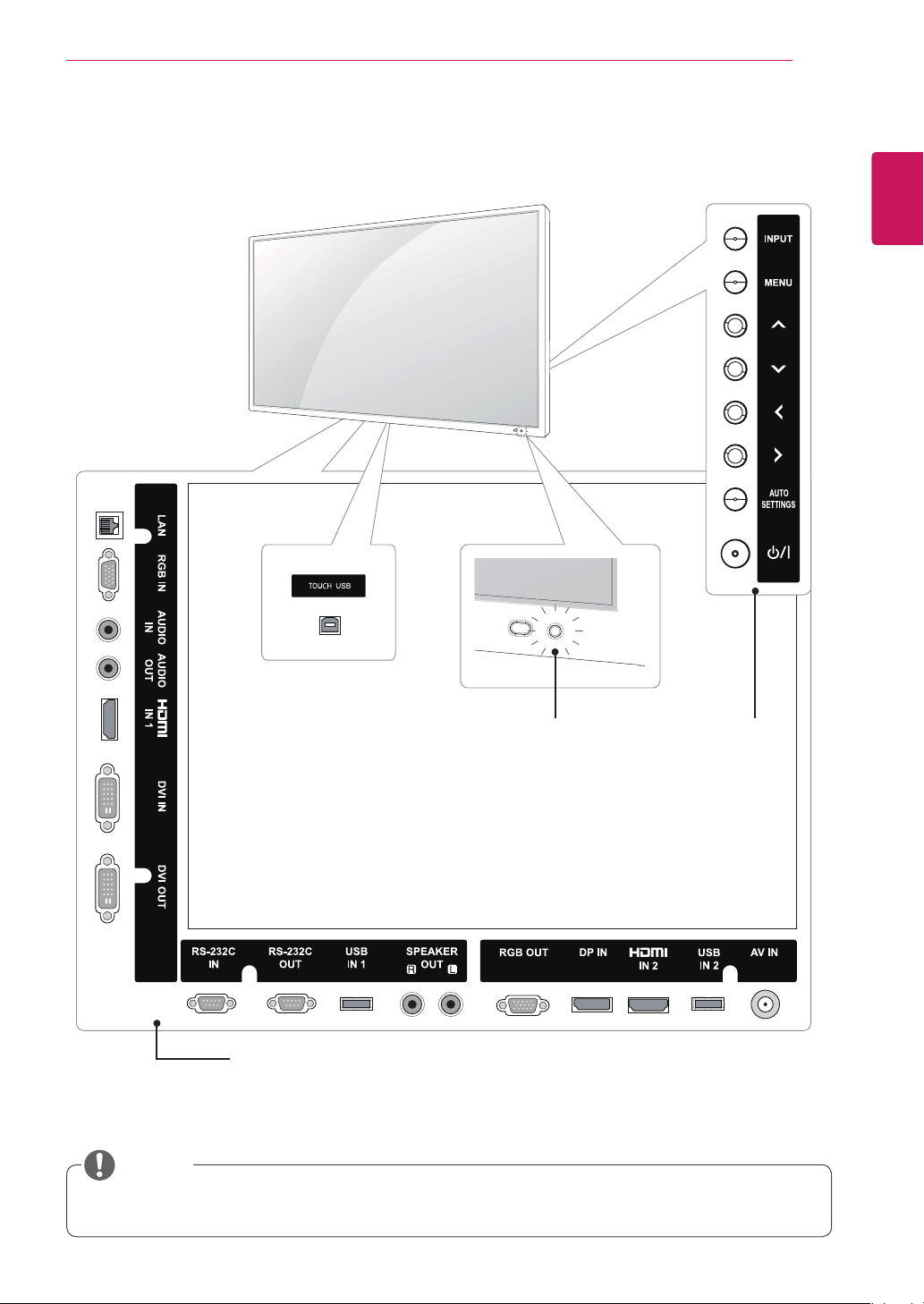

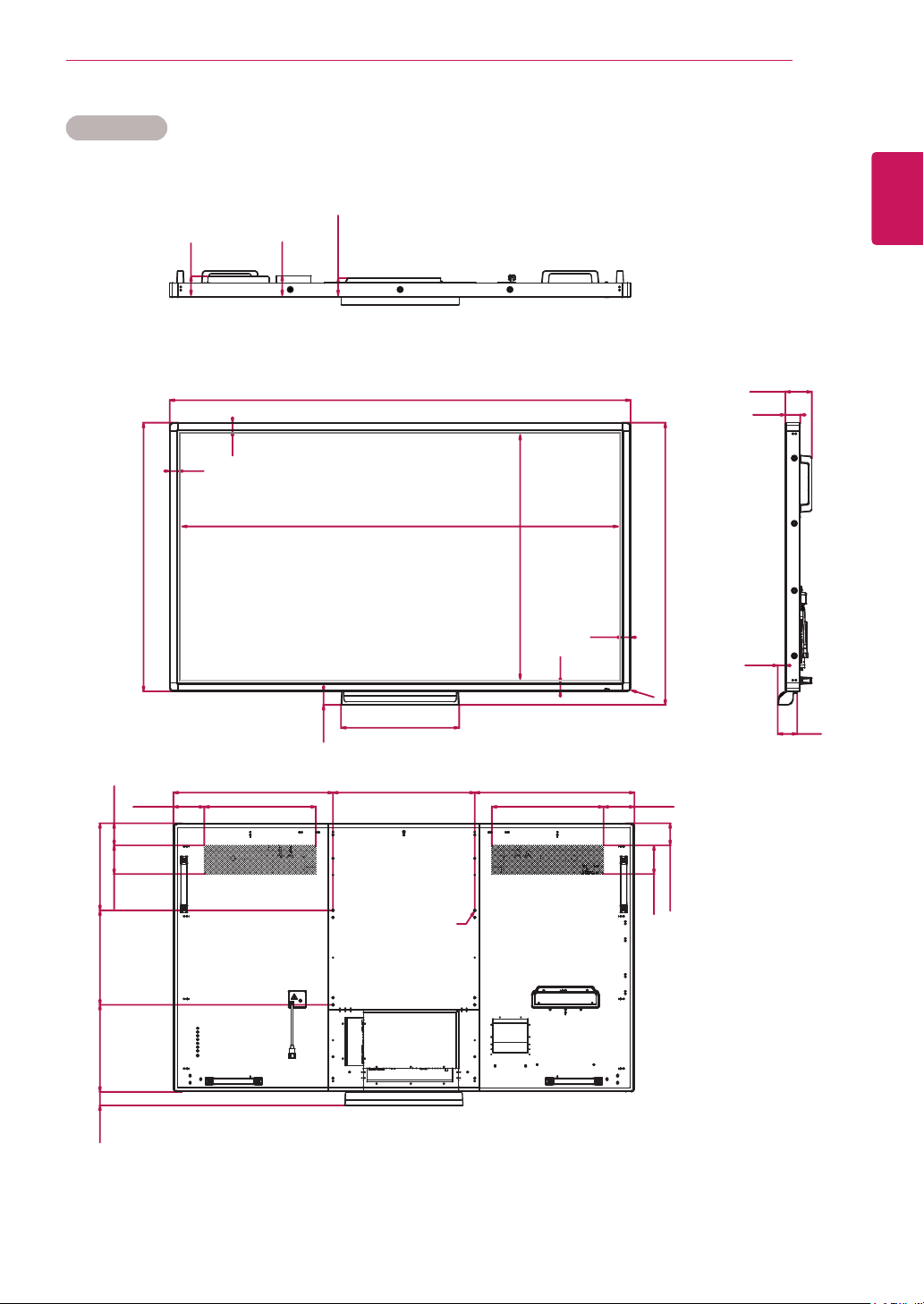

Parts and Buttons
NOTE
Connection panel
IR Receiver/
Power Indicator
y
Lighting On: Turned on
y
Lighting Off: Turned off
Buttons /
Marks
8
ENG
ENGLISH
ASSEMBLING AND PREPARING
Screen Marks Description
INPUT Changes the input source.
MENU Accesses the main menus, or saves your input and exits the menus.
Moves the selection up and down.
Adjusts the volume level.
AUTO/SET Displays the current signal and mode.
Press this button to adjust the screen automatically (available only in RGB mode)
/
I
Turns the power on or off.
IR Receiver This is where the unit receives signals from the remote control.
Power Indicator This Indicator lights up red when the display operates normally (on mode). If the display
In sleep mode (In Power Saving mode), this indicator color changes to amber.
9
ENG
ENGLISH
ASSEMBLING AND PREPARING

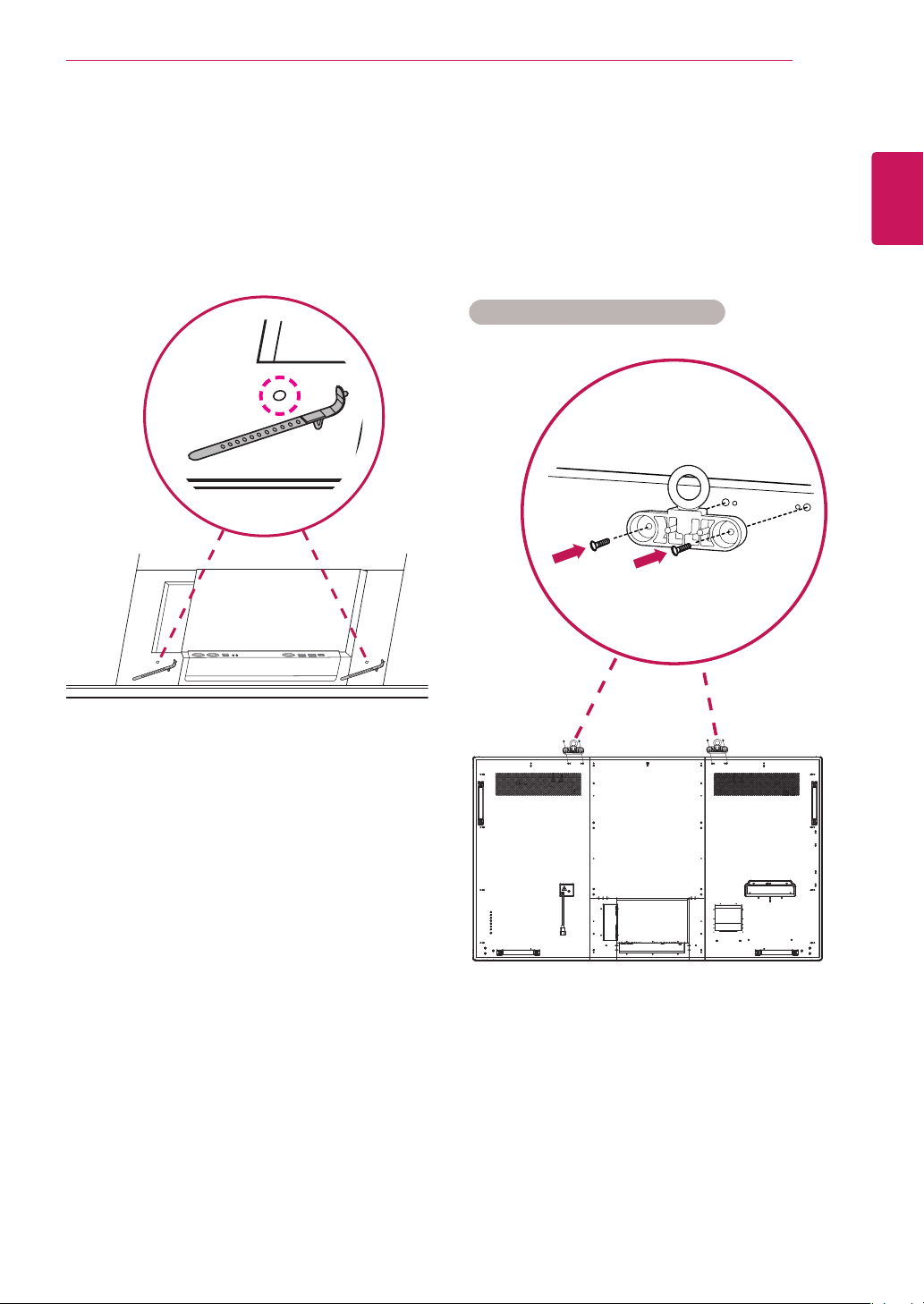

Connecting the Eye-Bolt
Bracket
The eye-bolt bracket is designed to be used to lift
the set up.
Attach the bracket to the product using the two
screws provided.
Using the Mounting Cable
Tie
Insert the two cable ties into the bottom hole on the
back of the set as shown in the figure to organize
cables.
Installing in Landscape Position
10
ENG
ENGLISH
ASSEMBLING AND PREPARING

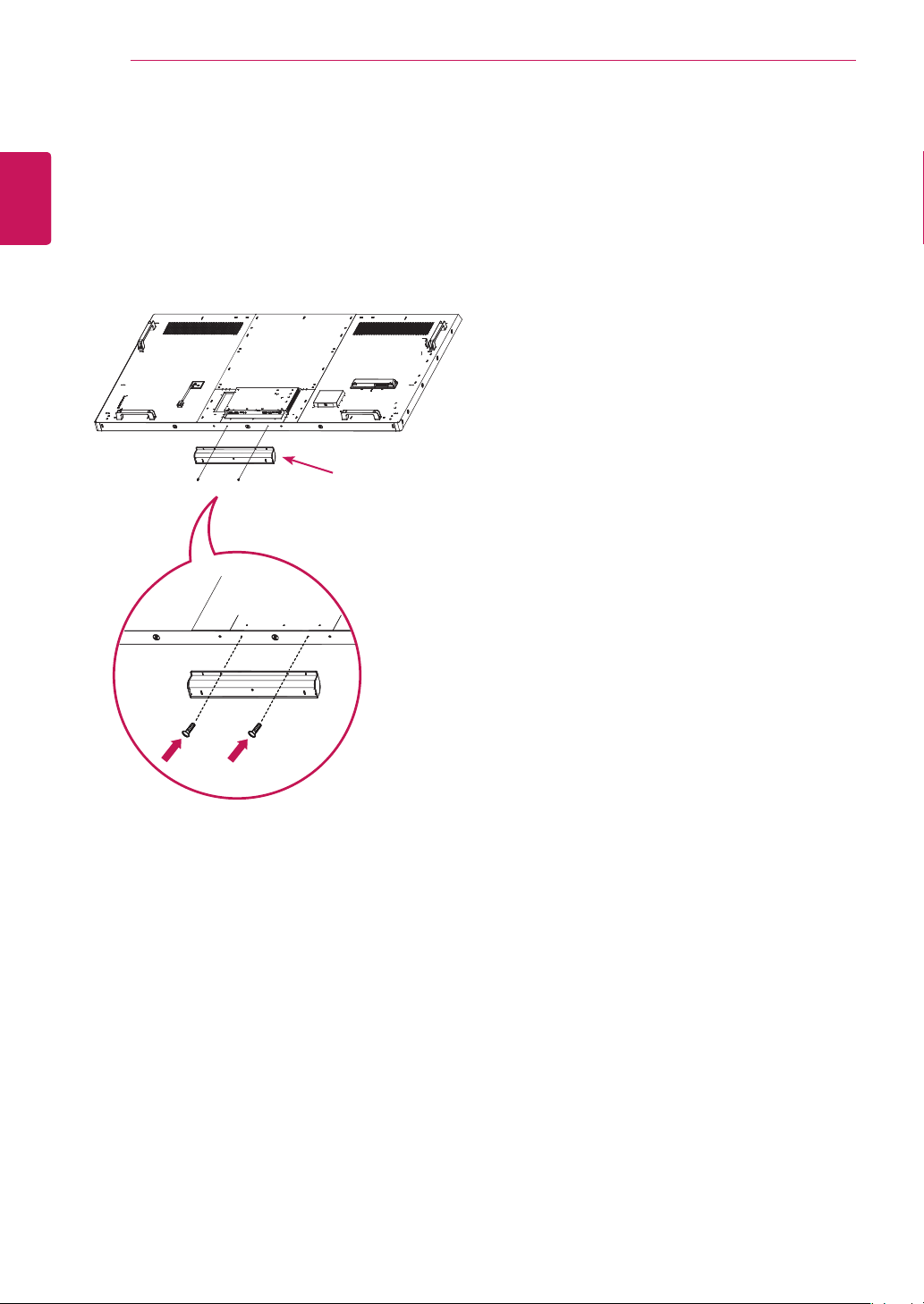

Pentray Assy
Connecting the Pentray
Assy
Use the screws provided to attach the Pentray
Assy.
11
ENG
ENGLISH
ASSEMBLING AND PREPARING
2
To mount the Media Player, push it into the
special compartment located on the back of the
monitor.
3
Attach the Media Player using the four provided
screws.

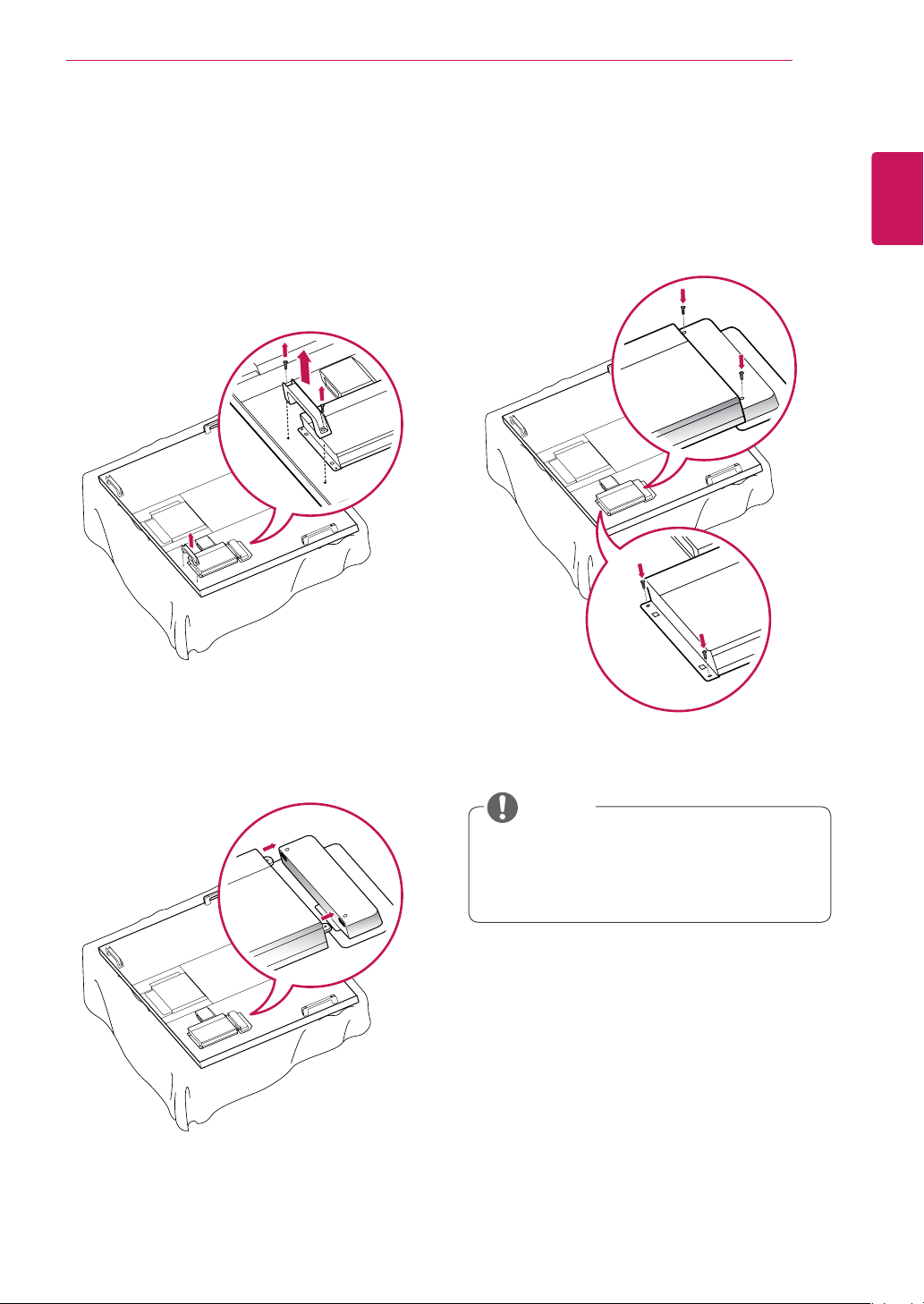

Connecting the Media
Player
1
Place a soft cloth on the table and put the set
with the screen facing downward. Remove the
handle at the bottom of the section where the
Media Player is mounted on the set.
y
Use the screws provided with the product
(diameter 3.0 mm x pitch 0.5 mm x length 6.0
mm).
NOTE
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
Mounting on a Wall
For proper ventilation, allow a clearance of
10 cm on each side and from the wall. Detailed
installation instructions are available from your
dealer, see the optional Tilt Wall Mounting Bracket
Installation and Setup Guide.
10 cm
10 cm
10 cm
10 cm
10 cm
If you intend to mount the monitor to a wall, attach
a Wall mounting interface (optional parts) to the
back of the set.
When you install the monitor using a wall mounting
interface (optional parts), attach it carefully so it
will not fall.
1
Please, use a wall mount and screws in
accordance with VESA Standards.
2
If you use screws longer than standard, the
monitor might be damaged internally.
3
If you use improper screws, the product might
be damaged and drop from mounted position.
In this case, LG Electronics is not responsible
for damage.
4
Please use VESA standard as below.
y
785mm or greater
* Fastening screw: Diameter 8.0 mm x Pitch
1.25 mm x Length 16 mm
y
Disconnect the power before installing or
moving the monitor. Otherwise electric shock
may occur.
y
If you install the monitor on a ceiling or
slanted wall, it may fall and result in severe
injury.
y
Use an authorized LG wall mount and
contact the local dealer or qualified
personnel.
y
Do not over tighten the screws as this may
cause damage to the Monitor and void your
warranty.
y
Use screws and wall mounts that meet the
VESA standard. Any damages or injuries by
misuse or using an improper accessory are
not covered by the warranty.
y
To prevent injury, this apparatus must be
securely attached to the wall in accordance
with the instrallation instructions. (This only
pertains to Australia and New Zealand.)
CAUTION
y
The wall mount kit includes an installation
manual and necessary parts.
y
The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
y
The length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
y
For more information, refer to the instructions
supplied with the wall mount.
NOTE
13
ENG
ENGLISH
ASSEMBLING AND PREPARING

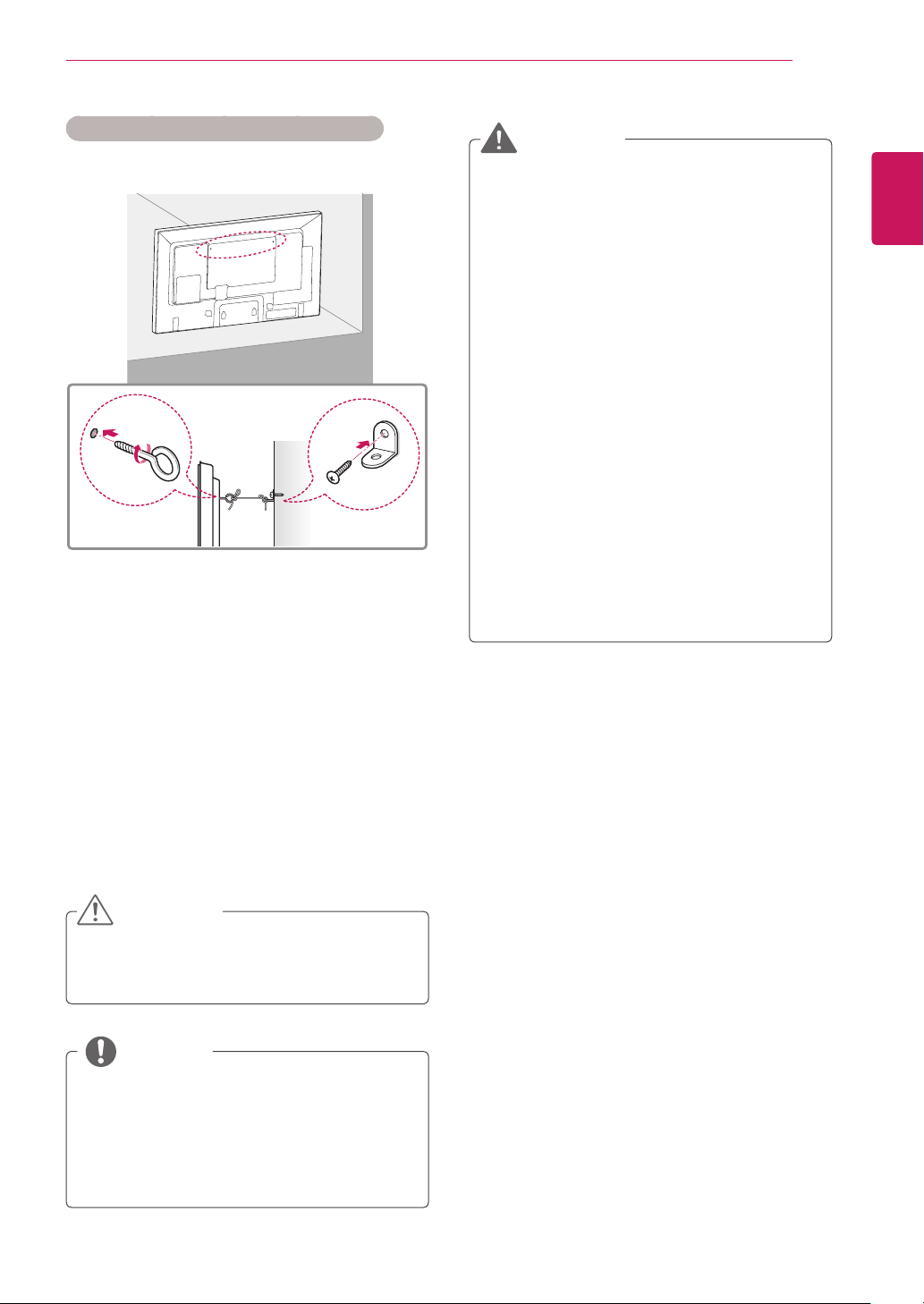

Securing the product to a wall (optional)
(Depending on model)
1
Insert and tighten the eye-bolts, or product
brackets and bolts on the back of the product.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2
Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the product.
3
Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
flat surface.
NOTE
y
Make sure that children do not climb on or
hang on the product.
y
Use a platform or cabinet that is strong and
large enough to support the product securely.
y
Brackets, bolts and ropes are optional. You
can obtain additional accessories from your
local dealer.
CAUTION
y
If a product is not positioned in a sufficiently
stable location, it can be potentially
hazardous due to falling. Many injuries,
particularly to children, can be avoided by
taking simple precautions such as:
»
Using cabinets or stands recommended
by the manufacturer of the product.
»
Only using furniture that can safely
support the product.
»
Ensuring the product is not overhanging
the edge of the supporting furniture.
»
Not placing the product on tall furniture
(for example, cupboards or bookcases)
without anchoring both the furniture and
the product to a suitable support.
»
Not standing the product on cloth or other
materials placed between the product
and supporting furniture.
»
Educating children about the dangers of
climbing on furniture to reach the product
or its controls.
WARNING
14
ENG
ENGLISH

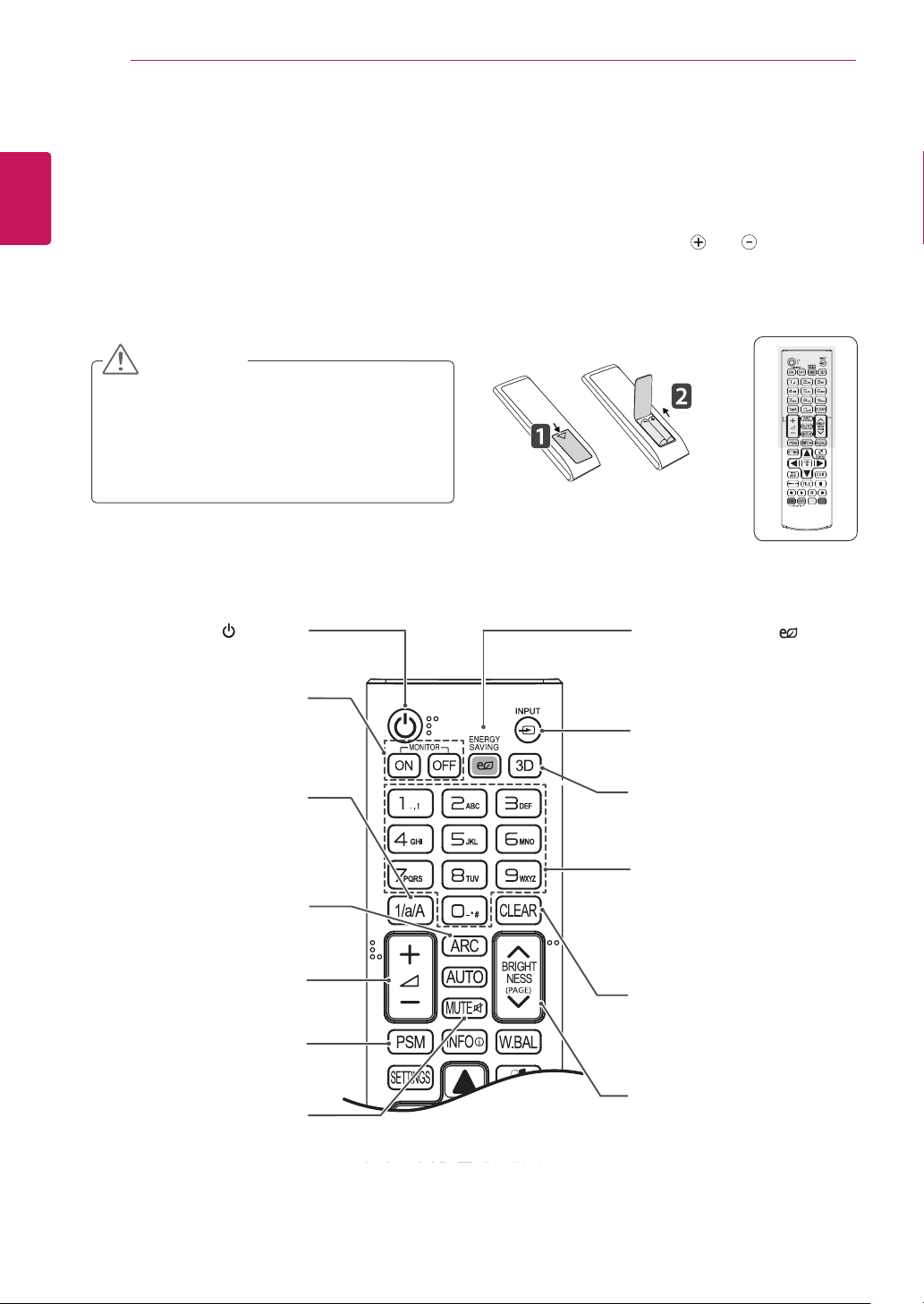

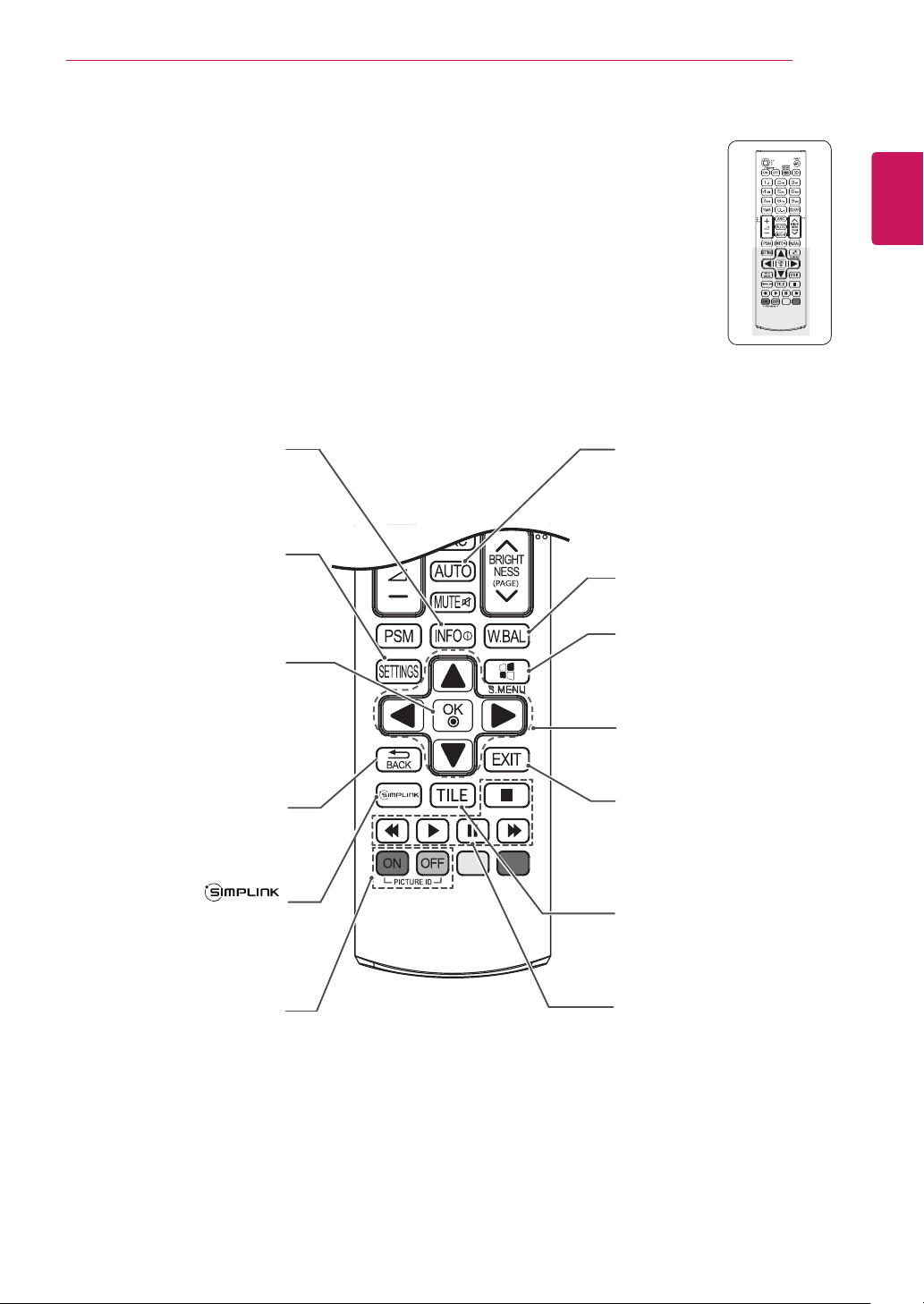

REMOTE CONTROL
REMOTE CONTROL
The descriptions in this manual are based on the buttons of the remote control. Please read this manual
carefully and use the Monitor correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching and ends to the
label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
y
Do not mix old and new batteries, as this
may damage the remote control.
y
Make sure to point the remote control at the
remote control sensor on the Monitor.
CAUTION
ID
BACK
TILE
ON
OFF
EXIT
(POWER)
Turns the monitor set on or off.
MONITOR ON
Turn on the monitor.
MONITOR OFF
Turn off the monitor.
1/a/A Button
Toggles between numerical
and alphabetical.
ENERGY SAVING ( )
Adjusts the brightness of
the screen to reduce energy
consumption.
INPUT
Selects the input mode.
3D
This button does not apply to
this model.
Number and Alphabet Buttons
Enters numerical or alphabetical
characters depending on the
setting.
CLEAR
Deletes the entered numerical
or alphabetical character.
PSM
Selects the Picture Status
Mode.
MUTE
Mutes all sounds.
ARC
Selects the Aspect Ratio
Mode.
Volume Up / Down
Adjusts the volume level.
BRIGHTNESS Key
Adjust the brightness by
pressing the Up and Down
buttons on the remote control.
In USB mode, the OSD menu
has the Page function to move
to the next file list.
15
ENG
ENGLISH
REMOTE CONTROL
W.BAL
Enters the White Balance
menu.
Navigation Buttons
Scrolls through menus or
options.
S.MENU
(SuperSign Menu Key)
Select the SuperSign OSD
menu. (SuperSign input only)
EXIT
Clears all on-screen displays
and returns to Monitor set
viewing from any menu.
TILE
This button does not apply to
this model.
INFO
ⓘ
Displays the input
information.
SETTINGS
Accesses the main menus
or saves your input and exit
menus.
OK
Selects menus or options and
confirms your input.
BACK
Allows the user to move back
one step in user interaction
function.
This button is a feature that
enables you to control and
manage various multimedia
devices conveniently using
the monitor remote control.
USB Menu control buttons
Controls media playback.
ID ON/OFF
This button does not apply to
this model.
AUTO
Automatically adjusts picture
position and minimizes image
instability. (RGB input only)
16
ENG
ENGLISH
REMOTE CONTROL
1 Press INPUT to access Input List. 1 Press INPUT to access Input List.
2 In the Input List screen, press the ID OFF
(green) on the remote control.
2 In the Input List screen, press the ID ON (red)
on the remote control.
Change Device Name
You can edit the name of the external device con-
nected to the input port to display which device is
connected to the port.
SimpLink Setting
SimpLink allows you to control various multimedia
devices to enjoy the multimedia simply by using
the remote control through the SimpLink menu.
3 You can select any option for Input Label
except USB.
y
External inputs supported:
AV, RGB-PC, HDMI1, HDMI2, DVI-D, Display Port
and
SuperSign
y
Input labels available:
Blu-ray, DVD, VCR, Home theater, AV Receiver, Set-top Box, Cable Box,
Satellite, IPTV, TV, Smart Box, Game, PC, Laptop Computer, Smart phone, Camera,
and
Cam-
corder.
y
The set
Input Label
is displayed on the
Input List
, or when switching the input.
y
If DTV/PC compatible signals are output, the screen settings change according to the
Input Label
setting. If Input Label is set to PC, the screen's aspect ratio is automatically set to Just Scan.
NOTE
INPUT
INPUT
17
ENG
ENGLISH
USING THE MONITOR
USING THE MONITOR
Connecting to a PC
Your Monitor supports the Plug & Play* feature.
* Plug & Play: This is the function that allows a PC
to use the monitor without installing a driver.
y
Do not press the screen with your finger for
a long time as this may result in temporary
distortion on the screen.
y
Avoid displaying a fixed image on the screen
for a long period of time to prevent image
burn. Use a screensaver if possible.
y
Connect the
signal input cable
and tighten it by
turning the screws
clockwise.
NOTE
y
It is recommended you use an HDMI
connection for the best image quality.
y
Use a shielded signal interface cable, such
as D-sub 15-pin signal cable and DVI cable,
with a ferrite core to maintain standard
compliance for the product.
y
If you turn the Monitor on when the set is
cold, the screen may flicker. This is normal.
y
Some red, green, or blue spots may appear
on the screen. This is normal.
y
For some graphic cards, the screen may not
display properly when you use dual monitors.
CAUTION
18
ENG
ENGLISH
USING THE MONITOR
DVI-D Connection
Transmits a digital video signal from your PC to
the Monitor. Connect the PC and the Monitor
with a DVI cable as shown the following
illustrations.
Select DVI-D input source on the monitor.
RGB Connection
Transmits an analog video signal from your PC to
the Monitor. Connect the PC and the Monitor
set with the 15 pin signal cable as shown in the
following illustrations.
Select RGB input source on the monitor.
y
Use the standard Macintosh
adapter since an incompatible
adapter is available in the
market. (Different signaling
system)
y
Apple computers may require an adapter to
connect to this monitor. Call or visit their web
site for more information.
NOTE
Macintosh Adapter
(not included)
(not
included)
PC/ MAC
Back of the product.
PC
(not included)
(not included)
Back of the product.
19
ENG
ENGLISH
USING THE MONITOR
HDMI Connection
Transmits the digital video and audio signals
from your PC to the Monitor. Connect the PC and
the Monitor with an HDMI cable as shown in the
following illustration.
Select HDMI input source.
Display Port Connection
Transmits the digital video and audio signals from
your PC to the Monitor. Connect the PC and the
Monitor with a Display Port cable as shown in the
following illustrations.
Select Display Port input source.
y
Use a High Speed HDMI™ Cable.
y
Please check the PC environment if you
cannot hear audio in HDMI mode. Some PCs
require you to manually change the default
audio output to HDMI.
y
If you want to use HDMI PC mode, you must
set PC/DTV to PC mode.
y
When HDMI PC is used, a compatiblity
problem might occur.
NOTE
y
It is recommended to use the following
specifications to play 3840 x 2160 video
seamlessly in HDMI or DP modes.
»
Recommended PC specifications - CPU:
Intel core i7 or higher, graphic card: NVIDIA
GTX TITAN or higher, AMD HD7000 series
or higher.
»
Recommended video - For H.264, 140
Mbps or lower data transmission rate.
NOTE
(not
included)
(not included) (not included)
PC
PC
Back of the product.
20
ENG
ENGLISH
USING THE MONITOR
TOUCH USB Cable Connection
Plug a USB cable into a TOUCH USB port on the
back of the monitor.
Back of the product.
PC
21
ENG
ENGLISH
USING THE MONITOR
Using the Input List
1
Press
INPUT
to access the
INPUT LIST
.
Input source Description
AV
Watch video from a VCR or other external devices.
RGB-PC
View a PC display on the screen.
HDMI1
Watch contents in a PC, DVD of Digital set-top box other high definition devices.
HDMI2
Watch contents in a PC, DVD of Digital set-top box other high definition devices.
Display Port
Watch contents in a PC, DVD of Digital set-top box other high definition devices.
DVI-D
View a PC display on the screen.
SuperSign
Views the Media Player display on the screen.
2
Press the Navigation buttons to scroll to one of the input sources and press
OK
.
INPUT
22
ENG
ENGLISH
ENTERTAINMENT
ENTERTAINMENT
Connecting to a Wired Network
(Depending on model)
Connect the display to a local area network (LAN)
via the LAN port as shown in the following illustra-
tion and set up the network settings.
This monitor only supports a wired network
connection.
After making a physical connection, a small
number of home networks may require the display
network settings to be adjusted. For most home
networks, the display will connect to automatically
without any adjustments.
For detail information, contact your internet pro-
vider or router manual.
LAN
Router
LAN WAN
Cable modem
ETHERNET
@
Internet
Internet
y Network setting menu will not be available
until the display is connected to physical
network.
y Since there are various connection meth-
ods, please follow the specifications of your
telecommunication carrier or internet service
provider.
CAUTION
y Do not connect a modular phone cable to the
LAN port.
y Since there are various connection meth-
ods, please follow the specifications of your
telecommunication carrier or internet service
provider.
CAUTION
Follow the steps below to set up the network set-
tings. (Even if your display is already connected
automatically, running setup again will not harm
anything.)
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to NET-
WORK and press OK.
3 Press the Navigation buttons to scroll to Net-
work Connection and press OK.
4 Select Set Expert.
5 Select Manual Mode or Auto Input.
If you select Manual Mode, press the Naviga-
tion and Number buttons. IP addresses will
need to be input manually.
- Auto Input: Select this if there is a DHCP
server (router) on the Local Area Network
(LAN) via wired connection, the display
will be automatically allocated an IP ad-
dress. If you’re using a broadband router
or broadband modem that has a Dynamic
Host Configuration Protocol (DHCP) server
function, the IP address will be automatically
determined.
6 When you are finished, press EXIT.
23
ENG
ENGLISH
ENTERTAINMENT
y If you want to access the Internet directly on
your display, the internet connection should
always be on.
y If you cannot access the Internet, check
the network conditions from a PC on your
network.
y When you use Network Setting, check the
LAN cable or check if DHCP in the router is
turned on.
y If you do not complete the network settings,
the network may not work properly.
Tips for Network setting
y Use a standard LAN cable with this display. Cat5
or better with a RJ45 connector.
y Many network connection problems during set
up can often be fixed by re-setting the router
or modem. After connecting the display to the
home network, quickly power off and/or discon-
nect the power cable of the home network router
or cable modem. Then power on and/or connect
the power cable again.
y Depending on the internet service provider
(ISP), the number of devices that can receive
internet service may be limited by the applicable
terms of service. For details, contact your ISP.
y LG is not responsible for any malfunction of the
display and/or the internet connection feature
due to communication errors/malfunctions as-
sociated with your internet connection, or other
connected equipment.
y LG is not responsible for problems within your
internet connection.
y You may experience undesired results if the
network connection speed does not meet the
requirements of the content being accessed.
y Some internet connection operations may not
be possible due to certain restrictions set by the
Internet service provider (ISP) supplying your
Internet connection.
y Any fees charged by an ISP including, without
limitation, connection charges are your respon-
sibility.
y A 10 Base-T or 100 Base-TX LAN port is
required when using a wired connection to this
display. If your internet service does not allow for
such a connection, you will not be able to con-
nect the display.
y A DSL modem is required to use DSL service
and a cable modem is required to use cable
modem service. Depending on the access
method of and subscriber agreement with your
ISP, you may not be able to use the internet
connection feature contained in this display or
you may be limited to the number of devices you
can connect at the same time. (If your ISP limits
sub-scription to one device, this display may
not be allowed to connect when a PC is already
connected.)
y The use of a Router may not be allowed or its
usage may be limited depending on the policies
and restrictions of your ISP. For details, contact
your ISP directly.
Network Status
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to
NETWORK and press OK.
3 Press the Navigation buttons to select
Network Status.
4 Press OK to check the network status.
5 When you are finished, press EXIT.
NOTE
24
ENG
ENGLISH
ENTERTAINMENT
Tips for using USB storage devices
y Only a USB storage device is recognizable.
y If the USB storage device is connected
through a USB hub, the device is not recog-
nizable.
y A USB storage device using an automatic
recognition program may not be recognized.
y A USB storage device which uses its own
driver will not be recognized.
y The recognition speed of a USB storage
device may depend on each device.
y Please do not turn off the display or unplug
the USB device when the connected USB
storage device is working. When such a
device is suddenly separated or unplugged,
the stored files or the USB storage device
may be damaged.
y Please do not connect the USB storage
device which was artificially maneuvered on
the PC. The device may cause the product to
malfunction. Only use a USB storage device
which has normal music files, image files or
movie files.
y Please use only a USB storage device which
was formatted as a FAT32 file system or
NTFS file system by the Windows operating
system. In case of a storage device format-
ted with a different utility program which is
not supported by Windows, it may not be
recognized.
y Please connect power to a USB storage
device (over 0.5 A) which requires an exter-
nal power supply. If not, the device may not
be recognized.
y Please connect a USB storage device with
the cable included by the device maker.
y Some USB storage devices may not be sup-
ported or operate smoothly.
y File alignment method of USB storage devic-
es is similar to Window XP and the Monitor
can recognize up to 100 English characters.
y Be sure to back up important files since data
stored on a USB memory device may be
damaged. We will not be responsible for any
data loss.
Connecting USB Storage De-
vices
Connect a USB storage device (external HDD,
USB memory) to the USB port of Monitor to enjoy
the content files stored in the USB device on your
Monitor.
y Back up your files saved on a USB storage
device frequently, as you may lose or dam-
age the files and this may be not covered by
the warranty.
CAUTION
or
25
ENG
ENGLISH
ENTERTAINMENT
y If the USB HDD does not have an external
power source, the USB device may not be
detected. So be sure to connect the external
power source.
- Please use a power adaptor for an external
power source.
y If your USB memory device has multiple
partitions, or if you use a USB multi-card
reader, you can use up to 4 partitions or USB
memory devices.
y If a USB memory device is connected to a
USB multi-card reader, its volume data may
not be detected.
y If the USB memory device does not work
properly, disconnect and reconnect it.
y How fast a USB memory device is detected
differs from device to device.
y If the USB is connected in Standby Mode,
that drive will automatically be loaded when
the display is turned on.
y The recommended capacity is 1 TB or less
for a USB external hard disk and 32 GB or
less for USB memory.
y Any device with more than the recommended
capacity may not work properly.
y If a USB external hard disk with a Energy
Saving function does not work, turn the
hard disk off and on again to make it work
properly.
y USB storage devices below USB 2.0 are
supported as well. But they may not work
properly with videos.
y A maximum of 999 folders or files can be
recognized under one folder.
y It is recommended you use a certified USB
storage device and cable. Otherwise, a USB
storage device may not be detected or a
playback error may occur.
y Only a USB memory stick can be used to
play back the files distributed and stored
by SuperSign Manager. A USB hard disk or
multi-card reader will not work.
y Only an FAT 32 file formatted storage device
can play back the files distributed and stored
by SuperSign manager.
y A USB 3.0 storage device may not work.
26
ENG
ENGLISH
ENTERTAINMENT
Using My Media
Provides video/ photo/ music files on your Monitor by connecting to a USB device
1
Connecting a USB device.
2
Press
INPUT
to access the
INPUT LIST
.
3
Press the Navigation buttons to scroll to USB device and press
OK
.
4
Press the Navigation buttons to scroll to the
VIDEO/ PHOTO/ MUSIC
you want and press
OK
.
Displays video/ photo/ music files on all devices connected to the Monitor.
ALL VIDEOS PHOTOS MUSIC
MY MEDIA
Contents Type
Supported File Formats
Supporting file Maximum data transfer rate :
20 Mbps (megabits per second)
External subtitle formats supported :
*.smi, *.srt, *.sub (MicroDVD, SubViewer 1.0/2.0), *.ass, *.ssa,
*.txt (TMPlayer), *.psb (PowerDivX)
Internal subtitle formats supported :
XSUB (supports internal subtitles generated from DivX6)
27
ENG
ENGLISH
ENTERTAINMENT
Type Supporting file
Video y Maximum: 1920 x 1080 @30p
Extension Codec
.asf
.wmv
Video
VC-1 Advanced Profile, VC-1 Simple and
Main Profile
Audio WMA Standard, WMA 9 Professional
.divx
.avi
Video
DivX3.11, DivX4, DivX5, DivX6,
XViD, H.264/AVC, Motion Jpeg
Audio
MPEG-1 Layer I, II, MPEG-1 Layer III (MP3),
Dolby Digital, Dolby Digital Plus, LPCM,
ADPCM, DTS
.mp4
.m4v
.mov
Video H.264/AVC, MPEG-4 Part 2
Audio AAC
.mkv
Video H.264/AVC
Audio HE-AAC, Dolby Digital
.ts
.trp
.tp
Video H.264/AVC, MPEG-2, VC-1
Audio
MPEG-1 Layer I, II, MPEG-1 Layer III (MP3)
Dolby Digital, Dolby Digital Plus, AAC
.vob
Video MPEG-1, MPEG-2
Audio
Dolby Digital, MPEG-1 Layer I, II,
DVD-LPCM
.mpg
.mpeg
Video MPEG-1
Audio MPEG-1 Layer I, II
Music
File type Item Info
mp3
Bit rate 32 Kbps - 320 Kbps
Sample freq. 16 kHz - 48 kHz
Support MPEG1, MPEG2, Layer2, Layer3
File type Item Profile
jpeg, jpg, jpe
Available
file type
SOF0: baseline
SOF1: Extend Sequential
SOF2: Progressive
Photo size
Minimum: 64 x 64
Maximum:
Normal Type: 15360 (W) x 8640 (H)
Progressive Type: 1920 (W) x 1440 (H)
28
ENG
ENGLISH
ENTERTAINMENT
Plays.
Sets options.
Selects the desired point and plays.
Stops playback
and returns to
the list.
Option List
Remote
Button
Description
Stops the playback.
Plays a video.
Pauses or resumes the playback.
Scans backward in a file.
Scans forward in a file.
SETTINGS
Picture Size: Selects either full screen mode or default mode.
Speaker: Directs sound through the external speakers connected to the Speaker Out port.
Sleep Timer: Sets the specific time to turn the monitor off automatically.
y For a description of each menu option, refer to Set Video in User Settings.
y For a description of each menu option, refer to Set Audio in User Settings.
NOTE
BACK Return to Movie List.
or
Skips to specific points in a file during playback. The time of a specific point will appear on the status
bar. In some files, this function may not work properly.
ENERGY
SAVING
Press the ENERGY SAVING button repeatedly to adjust the screen brightness.
Playing Video
Controls playback and sets options while viewing videos.
1
In the
MY MEDIA
screen, press the Navigation button to scroll to
Video
and press
OK
.
2
Press the Navigation buttons to scroll to the file you want and press
OK
.
29
ENG
ENGLISH
ENTERTAINMENT
Menu Description
Repeat Turn on/off repeat function of movie playback. When turned on, the file within the folder will be played
back repeatedly. Even when the repeated playback is turned off, it can run the playback if the file name
is similar to the previous file.
Audio
Language
Changes the Language Group of the audio during movie play.
Files with a single audio track cannot be selected.
Subtitle
Language
Turn on or off the subtitles.
Language Activated for SMI subtitles and can select the language within the subtitles.
Code Page Can select the font for subtitles. When set to default, same font as general menu will be used.
- Sync: Adjusts the time synchronisation of the subtitles from -10 secs to +10 secs by steps of 0.5 secs
during movie play.
- Position: Changes the position of the subtitles either up or down during movie play.
- Size: Selects your desired Subtitle size during movie play.
- Color: Selects your desired Subtitle color during movie play.
Set Video Play.
30
ENG
ENGLISH
ENTERTAINMENT
y Only 10,000 of sync blocks are supported
within a subtitle file.
y When playing a video, you can adjust the
Picture Size by pressing the ARC button.
y Subtitles in your language are only sup-
ported when the OSD menu is also in this
language.
y The code page options may be disabled de-
pending on the language of the subtitle files.
y Select the appropriate code page for the
subtitle files.
NOTE
y Some subtitles created by users may not
work properly.
y The video and subtitle files should be placed
in the same folder. For subtitles to display
correctly, the video and subtitle files must
have the same name.
y We do not support any stream that contains
GMC (Global Motion Compensation) or Qpel
(Quarterpel Motion Estimation).
y Only H.264 / AVC profile level 4.1 and lower
is supported.
y The file size limit is dependent on the
encoding environment.
y Video files created by some encoders may
not be played back.
y Video files in formats other than the ones
specified here may not be played back.
y Playback of video files stored on the USB
device that do not support High Speed, may
not work properly.
y DTS audio codec is support only with USB
video file playback.
CAUTION
Tips for using playing video files
y Some special characters are not supported
in subtitles.
y HTML tags are not supported in subtitles.
y Subtitles in languages other than the sup-
ported languages are not available.
y The screen may suffer temporary interrup-
tions (image stoppage, faster playback, etc.)
when the audio language is changed.
y A damaged movie file may not be played
correctly, or some player functions may not
be usable.
y If the video and audio structure of recorded
file is not interleaved, either video or audio is
outputted.
y HD videos with a maximum of 1920 X 1080
@ 25/30 P or 1280 X 720 @ 50/60 P are
supported, depending on the frame.
y Videos with resolutions higher than 1920 X
1080 @ 25/30 P or 1280 X 720 @ 50/60 P may
not work properly depending on the frame.
y Max bitrate of playable movie file is 20 Mbps.
(only, Motion JPEG 10 Mbps)
y A movie file more than 30 GB in file size is
not supported for playback.
31
ENG
ENGLISH
ENTERTAINMENT
Displays photos
as a slideshow.
Plays background
music.
Rotates or enlarges
the picture.
Sets options. Stops playback
and returns
to the list.
Slideshow BGM
Option List
Viewing Photos
Controls playback and sets options while viewing pictures in full screen.
1
In the
MY MEDIA
screen, press the navigation button to scroll to
and press
OK
.
2
Press the navigation buttons to scroll to the file you want and press
OK
.
Menu Description
Slideshow Starts or stops a slideshow with selected photos. If there are no selected photos, all photos saved in the
current folder display during a slideshow. To set a slideshow speed, select Option.
BGM Turns the background music on or off. To set the background music folder, select Option.
You can adjust option by SETTINGS button on the remote control.
Rotates photos clockwise or counter-clockwise. (90 °, 180 °, 270 °, 360 °)
Zooms the photos in to 100 %, 120 %, 140 %, 160 %, 180 %, or 200 %.
You can reposition a photo that is 120 % zoomed in or more.
Option Set Photo View.
- Slide Show Speed: Sets the Slide Show speed. (Options: Fast, Medium, or Slow.)
- Slide Show Effect: Sets how photos transition. (Options: Fade in/out, Slide, or Off.)
- BGM: Sets the folder path for background music.
- Repeat: Select to repeat all songs, one song, or to turn this feature off.
- Random: Sets files to play randomly or sequentially.
Speaker: Directs sound through the external speakers connected to the Speaker Out port.
Sleep Timer: Sets the specific time to turn the monitor off automatically.
y For a description of each menu option, refer to Set Video in User Settings.
y For a description of each menu option, refer to Set Audio in User Settings.
NOTE
List Stops the playback and returns to the list.
32
ENG
ENGLISH
ENTERTAINMENT
Remote
Button
Description
Stops playback.
Plays a music file.
Pauses or resumes playback.
Skips to the next file.
Skips to the previous file.
or
When playing,
When you press the button, the previous music file will be played.
When you press the button, the next music file will be played.
ENERGY
SAVING
Press the ENERGY SAVING button repeatedly to increase the brightness of your screen.
SETTINGS
Speaker: Directs sound through the external speakers connected to the Speaker Out port.
Sleep Timer: Sets the specific time to turn the monitor off automatically.
y For a description of each menu option, refer to Set Audio in User Settings.
NOTE
or
When using the or button during playback a cursor indicating the position can be played.
Sets options.Selects the desired point
and plays.
Returns to the
list.
Plays.
Option List
Listening to Music
Controls playback and sets options while playing music.
1
In the
MY MEDIA
screen, press the navigation button to scroll to
MUSIC
and press
OK
.
2
Press the navigation buttons to scroll to the file you want and press
OK
.
33
ENG
ENGLISH
CUSTOMIZING SETTINGS
PICTURE Settings
1
Press the navigation buttons to scroll to
.
2
Press the navigation buttons to scroll to the setting
or option you want and press
OK
.
- To return to the previous level, press
BACK
.
3
When you are finished, press
EXIT
.
When you return to the previous menu, press
BACK
.
The available
settings are described in the following:
Setting Description
Energy Saving
Reduces power consumption by adjusting screen brightness.
Level
Off
Turns off Energy Saving mode.
Minimum/
Medium/
Maximum
Applies the pre-set Energy Saving mode.
Screen off
Screen is turned off after 3 seconds and only sound is played.
Press any button on the remote control to turn the screen back on.
Smart Energy
Saving
Adjusts the backlight and contrast depending on the screen brightness.
Level
Off
Disables the Smart Energy Saving function.
On
Enables the Smart Energy Saving function to save power consumption as much
as the value set in the smart energy saving rate.
CUSTOMIZING SETTINGS
Energy Saving
Smart Energy Saving
Picture Mode
Aspect Ratio
Picture Wizard
Screen
: Off
: Off
: Touch
Backlight
Contrast
Brightness
Sharpness
Color
Tint
Color Temp.
Advanced Control
Picture Option
Picture Reset
: 16:9
100
100
50
10
70
0
0
R G
W C
34
ENG
ENGLISH
CUSTOMIZING SETTINGS
y
When using the
Smart Energy Saving
function, the screen may look saturated in the white area of a
still image.
y
If
Energy Saving
is set to
Minimum/ Medium/ Maximum
the
Smart Energy Saving
function is
disabled.
y
If
Energy Saving
is set to
Maximum/ Screen off
the
Backlight
function is disabled.
y
Depending on the input signal, the available range of picture modes may differ.
y
Expert mode is for picture tuning professionals to control and fine-tune using a specific image.
For normal images, the effects may not be dramatic.
y
If the Picture Mode setting in the Picture menu is set to
Vivid
,
Standard
,
Cinema
, or
Game
, the
subsequent menus will be automatically set.
NOTE
Setting Description
Picture Mode
Selects the picture mode optimized for the viewing environment or the programme.
Mode
Vivid
Heightens contrast, brightness and sharpness to display vivid images.
Standard
Displays images in standard levels of contrast, brightness and sharpness.
Cinema/ Game
Displays images that have been optimized for movies or games.
Expert1, 2
Menu for adjusting picture quality that allows experts and amateurs to enjoy the
best Monitor viewing. This menu is ISF-certified and provided for picture tuning
experts. (ISF logo can only be used on ISF-certified Monitor units.)
ISFccc: Imaging Science Foundation Certified Calibration Control
Touch
Optimizes the video image for touch features.
Aspect Ratio
Changes the image size to view images at its optimal size.
Picture Wizard
Use the remote control and follow the instructions of the Picture Wizard to calibrate and adjust for
optimum picture quality without expensive pattern devices or help from a specialist.
Follow the instructions to obtain the optimum picture quality.
Screen
(In RGB
Mode Only)
Adjusts picture in RGB-PC mode.
Option
Resolution
Selects a proper resolution. See “Customizing PC display options”.
Auto Config.
Adjusts the screen position, clock, and phase automatically.
The displayed image may be unstable for a few seconds while the configuration is
in progress.
Position/ Size/
Phase
Adjusts the options when the picture is not clear, especially when characters are
shaky. Run Auto Config. before adjusting these.
Reset
Restores all options to the default setting.
35
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Dynamic Contrast
Adjusts the contrast to the optimal level according to the brightness of the image.
Dynamic Color
Adjusts color for more natural-looking colors.
Clear White
Enhances whites on screen to make the image brighter and sharper.
Preferred Color
Skin Color: Skin Color spectrum can be separately set to implement the skin Color as defined
by the user.
Grass Color: Natural color spectrum (meadows, hills, etc.) can be separately set.
Sky Color: Sky color is set separately.
Super Resolution
Provides a crystal-clear picture by improving the details in areas where the picture is blurry or
unclear.
Gamma
Sets the gradation curve according to the output of the picture signal in relation to the input
signal.
Color Gamut
Selects the range of colors that can be expressed.
Advanced image options
Picture Mode options
Setting Description
Backlight
Adjusts the display brightness by varying the brightness of the LCD panel.
Contrast
Adjusts the difference between bright and dark regions of the screen.
Brightness
Adjusts the overall screen brightness.
Sharpness
Adjusts the sharpness of the borders between bright and dark.
Color
Adjusts the color on the screen darker or lighter.
Tint
Adjusts the red/green color balance.
Color Temp.
Adjusts the overall tone of color to warm or cool.
Advanced Control
Adjusts the advanced options. Refer to the Advanced image options.
Picture Option
Adjusts detailed setting for images.
Picture Reset
Restores the options to the default setting.
Each picture mode is reset. Select the picture mode you wish to reset.
36
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Noise Reduction
Reduces screen noise in the video.
MPEG Noise
Reduction
Reduces noise caused by compressing digital video.
Black Level
Adjusts the brightness or darkness of the screen to suit the black level of the picture input using
the degree of darkness (black level) of the screen.
Real Cinema
Optimizes the screen for movie viewing.
Eye Care
Adjusts screen brightness to prevent eye glare. (Depending on model)
LED Local Dimming
Brightens bright areas and darkens dark areas of the image for maximum contrast and minimum
blur while reducing power consumption.
Off
: Turns off
LED Local Dimming
.
Low
: Expresses natural black tones. Uses this setting for viewing movies.
Medium
: Deepens black tones compared to
Low
.
High
: Deepens black tones and delivers clearer image than
Medium
. Perfect for viewing in
brightly lit areas.
TruMotion
Corrects images to display smoother motion sequences.
Off
: Turns off LED Local Dimming.
Smooth
:
De-Judder / De-Blur
value is set to 3.
Clear
:
De-Judder / De-Blur
value is set to 7.
Clear
Plus
: The screen appears clearer when
Clear
is selected.
User
:
De-Judder / De-Blur
can be set manually.
-
De-Judder
: This function adjusts juddering of the screen.
-
De-Blur
: This function adjusts and eliminates blurring of the screen.
Picture Option
y
Setting
LED Local Dimming
to
Medium / High
reduces power consumption.
y
If the video signal is 60 Hz,
TruMotion
may not work.
NOTE
37
ENG
ENGLISH
CUSTOMIZING SETTINGS
Using the Additional Options
Adjusting Aspect Ratio
Resize the image to view the image at its optimal size by pressing
ARC
while you are watching content.

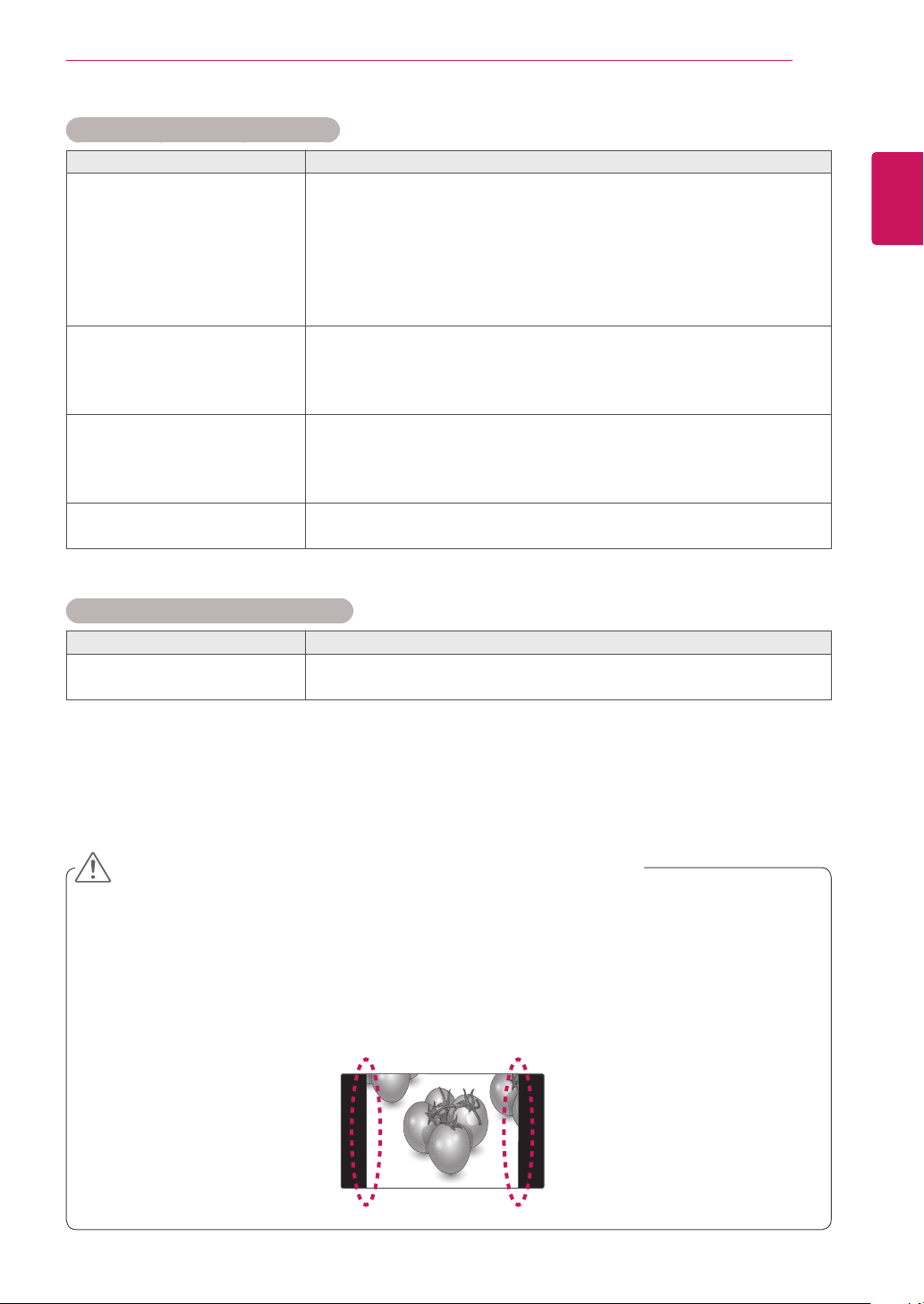

y
If a fixed image displays on the screen for a long period of time, it will be imprinted and become a
permanent disfigurement on the screen. This is image retention or burn-in and not covered by the
warranty.
y
If the aspect ratio is set to 4:3 for a long period of time, image burn may occur on the letterboxed area
of the screen.
y
When using the touch screen monitor, it is recommended to set the screen aspect ratio to Just Scan.
CAUTION
MODE
ARC
AV RGB Display
Port
DVI-D HDMI
PC DTV PC DTV PC DTV PC
16:9
o o o o o o o o
Just Scan
x x o x o x o x
Original
o x o x o x o x
4:3
o o o o o o o o
Zoom
o x o x o x o x
Cinema Zoom 1 - 16
o x o x o x o x
y
DTV:
Blu-ray, DVD, VCR, Home theater, AV Receiver, Set-top Box, Cable Box, Satellite, IPTV, TV,
Smart Box, Game, Smart phone, Camera,
and
Camcorder.
y
PC:
PC, Laptop Computer
NOTE
38
ENG
ENGLISH
CUSTOMIZING SETTINGS
-
4:3
: This selection will allow you to view a
picture with an original 4:3 aspect ratio, black
bars will appear on both the left and right of the
screen. This may cause image retention around
the border of the black bars.
-
Zoom
: This selection will allow you to view the
picture without any alteration, while filling the
entire screen. However, the top and bottom of
the picture will be cropped.
-
Cinema Zoom 1 - 16
: Choose Cinema Zoom
when you want to enlarge the picture in correct
proportion.
Note: When enlarging or reducing the picture,
the image may become distorted.
-
16:9
: This selection will allow you to adjust the
picture horizontally, in linear proportion, to fill the
entire screen (useful for viewing 4:3 formatted
DVDs).
-
Just Scan
: This Selection will allow you view
the picture of best quality without loss of original
picture in high resolution image. Note: If there is
noise in original Picture, You can see the noise
at the edge.
-
Original
: The aspect ratio is not adjusted
from the original. It is set by the program being
watched.
Just Scan
Original
39
ENG
ENGLISH
CUSTOMIZING SETTINGS
SOUND Settings
1
Press the navigation buttons to scroll to
SOUND
.
2
Press the navigation buttons to scroll to the setting
or option you want and press
OK
.
- To return to the previous level, press
BACK
.
3
When you are finished, press
EXIT
.
When you return to the previous menu, press
BACK
.
The available
SOUND
options are described in the following:
Setting Description
Sound Mode
Allows optimized sound for custom monitor installation.
Mode
Standard
Suitable for all types of video.
Music/ Cinema/
Sport/ Game
Sets audio optimized for a specific genre.
Vivid
Delivers distinct voices with rich bass and clear, high-pitched sounds.
User Setting
Adjusts the volume to a level of your choice using the User EQ.
User EQ
:
-
100 Hz/ 300 Hz/ 1 kHz/ 3 kHz/ 10 kHz
: Sets EQ by manual adjustment of
sound bands.
-
Reset
: Resets the equalizer value changed by the user.
Virtual Surround
LG’s proprietary audio processing technology allows 5.1 channel-like surround sound from two
speakers.
* If
Clear Voice ll
is set to
On
,
Virtual Surround
will not be chosen.
Clear Voice ll
Boosts voice clarity.
AV Sync.
Synchronizes video and audio directly when they do not match.
If you set AV Sync. to ON, you can adjust the sound output to the screen image.
Speaker: Adjusts the synchronization of the sound from the speakers. The - button makes the
sound output faster and the + button slower than the default value.
Bypass : The audio of an external device without audio delay. Audio may be output before video
as it takes time to process video input into the Monitor.
Sound Setting
Digital Audio Input
-
HDMI/Display Port:
Outputs the sound of digital signal from HDMI and display ports through the
monitor speaker.
-
Audio In:
Outputs the sound through the monitor speaker by connecting HDMI and display ports
to the Audio In port.
Balance
: Adjusts balance between the left and right speakers according to your room
environment.
Speaker
: *The external speaker is sold separately.
- On: Outputs the sound through the external speaker connected to the speaker out port of the
monitor.
- Off: Does not output the sound through the external speaker connected to the speaker out port
of the monitor. Use this option when using an external sound device.
SOUND
Sound Mode
Virtual Surround
Clear Voice II
AV Sync.
Sound Setting
: Standard
User EQ
: Off
: On 2
: Off
NOTE
y
The remote control does not have hotkey to
Sound Mode
.
40
ENG
ENGLISH
CUSTOMIZING SETTINGS
The available
TIME
settings are described in the following:
Setting Description
Clock
Checks or changes the time.
Off Time/ On Time
Sets the Off/On time.
Sleep Timer
Turns off the Monitor after a preset number of minutes.
Power On Delay
When connecting multiple monitors and turning the power on, the monitors are turned on
individually to prevent overload.
Auto Off
If Auto off is active and there is no input signal, the set switches to off mode automatically after 15
minutes.
Automatic
Standby
If you do not use the monitor for more than 4 hours, it will be in off mode automatically.
NOTE
TIME
Clock
Off Time
OnTime
Sleep Timer
Power On Delay
Auto Off
Automatic Standby
: Off
: Off
: Off
: Off
: Off
: Off
y
To use
Off Time/ On Time
, set the current time correctly.
y
Off Time/ On Time
can be saved for up to seven schedules; the Monitor is turned on or off at the
preset time in the schedule list. If multiple preset times are stored in the schedule list, this function
works at the nearest time from the current time.
y
The scheduled power-off function works properly only when the device time is set correctly.
y
When the scheduled power-on and power-off times are the same, the power-off time has priority over
the power-on time if the set is turned on, and vice versa if the set is turned off.
y
The
Automatic Standby
and
Auto off
functions may not be available in some countries.
y
The remote control does not have hotkey to
Sleep Timer
.
TIME Settings
1
Press the navigation buttons to scroll to
TIME
.
2
Press the navigation buttons to scroll to the setting
or option you want and press
OK
.
- To return to the previous level, press
BACK
.
3
When you are finished, press
EXIT
.
When you return to the previous menu, press
BACK
.
41
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Language
Selects a language for the display text.
Power Indicator
Turns the standby light in the front panel of the monitor on/off.
ISM Method
This function removes image sticking which is caused by prolonged display of static images.
Setting
Normal
Minimizes image sticking by gradually lowering the brightness when
displaying static images and by increasing the brightness when displaying
moving images.
Color Wash
Removes image sticking by moving every pixel in a certain pattern on the
screen for a specific period of time. Please use this function to remove
temporary image sticking.
Key Lock
Key input does not work. This prevents invalid key input.
Fail Over
If there is no input signal, it automatically switches to another input with signal.
Setting
Off
Turns off Fail Over.
Auto
Attempts to find another input source having video signal according to the
defined input order if no video signal comes from the current input source.
Manual
The input source changes according to the specified order.
If there is no video signal from the specified input source, then the current
input source remains.
DPM Select
Turns the energy saving mode on/off.
DivX
®
VOD
Registers or releases DivX.
Checks DivX Registration Code for playing DivX-protected videos.
Register at http://vod.divx.com.
Uses Registration Code to rent or purchase movies at www.divx.com/vod.
* Rented/purchased DivX files cannot be played if the DivX Registration Code of a different device
is used. Use only the DivX Registration Code granted to this device.
* Converted files not conforming to the DivX Codec Standard may not play or may produce
abnormal images and sound.
SimpLink
SimpLink is a feature that enables you to control and manage various multimedia devices
conveniently using the Monitor remote control.
Initial Setting
Deletes all optional settings and returns to initial default mode.
The available
OPTION
settings are described in the following:
OPTION
Language
Power Indicator
ISM Method
Key Lock
Fail Over
DPM Select
DivX
®
VOD
SimpLink
Initial Setting
Set ID
PC Power Control
Interface Select
: Normal
: Off
: Off
: Off
: 1
: Off
: RS232C
OPTION Settings
1
Press the navigation buttons to scroll to
OPTION
.
2
Press the navigation buttons to scroll to the setting
or option you want and press
OK
.
- To return to the previous level, press
BACK
.
3
When you are finished, press
EXIT
.
When you return to the previous menu, press
BACK
.
42
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Set ID
You can assign a unique Set ID NO (name assignment) to each product when several products
are connected for display. Specify the number (1 to 255) using the button and exit. Use the
assigned Set ID to individually control each product using the Product Control Program.
PC Power Control
Controls the power of the monitor with Media Player turned on.
On
: Turns on or off the monitor with Media Player on.
Off
: Turns on or off the whole system.
Interface Select
Sets communication with Media Player and the connected PC.
Option
RS232C
Communicates with the connected PC in serial mode.
SuperSign
Communicates with Media Player.
43
ENG
ENGLISH
CUSTOMIZING SETTINGS
The available
NETWORK
settings are described in the following:
Setting Description
Network
Connection
Configure the network settings.
Network Status
Display the network status.
NETWORK
Network Connection
Network Status
NETWORK Settings
1
Press the navigation buttons to scroll to
NETWORK
.
2
Press the navigation buttons to scroll to the setting
or option you want and press
OK
.
- To return to the previous level, press
BACK
.
3
When you are finished, press
EXIT
.
When you return to the previous menu, press
BACK
.
The available
SUPPORT
settings are described in the following:
Setting Description
Product/Service
Info.
Displays the model name, software version, serial number, used time, MAC address and
homepage information.
SUPPORT
Product/Service Info.
SUPPORT Settings
1
Press the navigation buttons to scroll to
SUPPORT
.
2
Press the navigation buttons to scroll to the setting
or option you want and press
OK
.
- To return to the previous level, press
BACK
.
3
When you are finished, press
EXIT
.
When you return to the previous menu, press
BACK
.
44
ENG
ENGLISH
MAKING CONNECTIONS
MAKING CONNECTIONS
Connect various external devices to the ports on the monitor’s back panel.
1
Find an external device you want to connect to your monitor shown on the following illustration.
2
Check the connection type of the external device.
3
Go to the appropriate illustration and check the connection details.
NOTE
y
If you connect a gaming device to the monitor, use the cable supplied with the gaming device.
AV
HDMI
DVI-D
RGB
HDMI
DVI-D
Display Port
LAN
AV
HDMI
DVI-D
AV
HDMI
DVI-D
AV
HDMI
DVI-D
AV
HDMI
HD Receiver DVD VCR
USB
PC
Camcorder/Camera
Gaming device
Speaker
TOUCH USB
Memory storage
45
ENG
ENGLISH
MAKING CONNECTIONS
External Device Connection
Connect a HD receiver, DVD, or VCR player to the monitor and select an appropriate input mode.
HDMI Connection
Transmits the digital video and audio signals from an external device to the monitor.
Connect the external device and the monitor with the HDMI cable as shown on the following illustration.
y
Use a High Speed HDMI™ Cable.
y
High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
NOTE
(not
included)
(not included)
Back of the product.
46
ENG
ENGLISH
MAKING CONNECTIONS
AV (CVBS) Connection
Transmits the analog video and audio signals from an external device to the monitor.
Connect the external device and the Monitor with the 15-pin signal to RCA cable as shown on the following
illustration.
AUDIO
OUT
VIDEO
OUT
(not included)
(not included)
Back of the product.
47
ENG
ENGLISH
MAKING CONNECTIONS
Connecting to the LAN
A
Connect PC to monitor directly.
B
Using a router (Switch)
PC
Monitor
Network
LAN
Network
Monitor
PC
LAN
Network
Monitor
PC
LAN
Switch
C
Using the Internet.
Connecting to a USB
Connect a USB storage device such as s USB
flash memory, external hard drive, MP3 player or
a USB memory card reader to the Monitor and
access the USB menu to use various multimedia
files.
or
y
Using LAN establishes communication
between your PC and the monitor and
enables you to use the OSD menus on the
PC as well as on the monitor.
NOTE
48
ENG
ENGLISH
MAKING CONNECTIONS
Daisy Chain Monitors
Use this function to share the RGB video signal with other monitors without having to use a separate signal
splitter box.
To use different products connected to each other connect one end of the signal input cable (15-pin D-Sub
Signal Cable) to the RGB OUT connector of product 1 and connect the other end to the RGB IN connector
of other products
RGB OUT (PC)
RGB Mode
15-pin D-Sub Signal Cable
(Max 3 m)
Monitor 1 Monitor 2 Monitor 3 Monitor 4
y
The number of monitors that can be connected to one output may vary depending on signal status
and cable loss. If the signal status is good, and there is no cable loss, it is possible to connect up to
9 monitors. If you want to connect more than this number of monitors, it is recommended to use a
distributor.
y
When multi-connecting in/out cascade format, no loss cables are recommended.
y
When using an HDMI - DVI conversion cable or a gender, it may not be compatible with the product
due to the characteristics of the signal.
NOTE
ENGLISH
49
USING THE TOUCH SCREEN
To Use the Touch Screen on
Windows 7
Plug a USB cable into a TOUCH USB port on the
back of the monitor.
Then, connect the USB cable to your PC so that it
automatically recognizes the touch screen monitor.
Gestures and Settings on
Windows 7
For information about gestures and settings on
Windows 7, refer to the Windows Help.
Go to Control Panel > System and Security >
System. You will see the number of touch-points
supported under Pen and Touch.
y
The monitor can respond to 10 Touch Points
when connected to a Windows 7 computer.
y
When using the touch screen monitor, it is
recommended to set the screen aspect ratio
to Just Scan.
y
For more information about gestures and
settings on Windows 7, refer to Windows
Help.
NOTE
Back of the product
PC
y
Once your PC recognizes the monitor, you
will be able to use the touch screen.
CAUTION
USING THE TOUCH SCREEN
ENGLISH
50
USING THE TOUCH SCREEN
Precaution When Using the Touch Screen
y
The monitor is optimized for indoor use.
y
The touch screen monitor is optimized for Windows 7.
y
Do not remove the USB cable when using the touch screen monitor.
y
If touch does not respond, remove the USB cable and connect it back in ten seconds.
y
Touch responds when the monitor is powered on.
y
Touch accuracy is optimized by using full screen mode.
y
Your action may not work properly on the edge area of the touch screen.
y
If the 10 touch-points are not detected, restart your PC. (Windows 7)
y
The touch operation (e.g. touches count, gesture, etc.) may vary depending on the content.
y
The spot that you try to touch and the one which is actually touched on the screen may differ
depending on the angle you view the monitor screen.
CAUTION
ENGLISH
51
USING THE TOUCH SCREEN
Minimum System Requirements
for Windows PC
CPU Intel Core 2 Duo or higher
RAM
1 GB or more
Recommended System
Requirements for Windows PC
CPU Intel Core i3 or higher
RAM
2 GB or more
Supported OS
Windows 7 professional, Ultimate (32/64 bit)
LG Touch Screen Software
Specifications
y
When running a separate application on LG Touch Screen software, the application screen may
flicker.
y
When using multi-touch feature while running PowerPoint on LG Touch Screen software, the Touch
Screen software may be closed abnormally.
y
To play or record video on the LG Touch Screen software, Windows Media Player 10 or higher and
Microsoft Expression Encoder 4 SP2 are required.
y
LG Touch Screen software supports Microsoft Office 2007 or a later version.
y
If the print area is not aligned to the paper size, select the “Fit to Page” option.
y
When you print to the XPS document writer, the "Save the file as" pop-up window may appear behind
the LG Touch Screen software.
y
To underline the text in the textbox, apply the underline after entering the text.
CAUTION
Precaution When Using LG Touch Screen Software
52
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
No image is displayed
Problem Resolution
Is the product power cord
connected?
y
See if the power cord is properly connected to the outlet.
Is the power indicator light on?
y
See if the power switch is turned on.
y
May need service.
Power is on, power indicator
is red but the screen appears
extremely dark.
y
Adjust brightness and contrast again.
y
Backlight may need repair.
The power indicator amber?
y
If the product is in power saving mode, move the mouse or
press any key.
y
Turn both devices off and then back on.
Does the 'Out of range'
message appear?
y
The signal from the PC (video card) is out of the vertical or horizontal
frequency range of the product. Adjust the frequency range by
referring to the Specifications in this manual.
Does the 'Check signal cable'
message appear?
y
The signal cable between PC and product is not connected. Check
the signal cable.
y
Press the INPUT menu in the remote Control to check the input signal.
'Unknown Product' message appears when the product is connected.
Problem Resolution
Did you install the driver?
y
See if the plug&play function is supported by referring to the video
card user manual.
'Key Lock On' message appears.
Problem Resolution
The Key Lock On message
appears when pressing the
SETTINGS button.
y
The Lock function prevents the OSD settings from being changed
inadvertently. To release the lock, go to Menu and Option and disable
the Key Lock option.
53
ENG
ENGLISH
TROUBLESHOOTING
The screen image looks abnormal.
Problem Resolution
Is the screen position wrong?
y
D-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select the optimal screen status that fits into the
current mode. If adjustment is not satisfactory, select [PICTURE] -
[Screen] - [Position] in OSD menu.
y
See if the video card resolution and frequency are supported by the
product. If the frequency is out of range, set to the recommended
resolution in the Control Panel "Display" Setting menu.
Do thin lines appear on the
background screen?
y
D-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, select [PICTURE] -
[Screen] - [Size] in OSD menu.
Horizontal noise appears or the
characters look blurred.
y
D-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, select [PICTURE] -
[Screen] - [Phase] in OSD menu.
The screen is displayed
abnormally.
y
The proper input signal is not connected to the signal port. Connect
the signal cable that matches with the source input signal.
After-image appears on the product.
Problem Resolution
After-image appears when the
product is turned off.
y
If you use a fixed image for a long time, the pixels may be damaged
quickly. Use the screen-saver function.
y
If a static image is displayed for an extended period of time, the screen may be damaged and the
image retention can last for a long time or could be permanent. Damage resulting from long-term
static images is not covered by the product warranty.
y
Do not display a static image on the screen for more than two hour. Displaying images in a 4:3 aspect
ratio for an extended period of time may cause image retention around the border of the screen.
Most third-party products have the same issue and this will not be accepted as a cause for refund or
exchange.
PRECAUTIONS TO TAKE TO PREVENT IMAGE RETENTION
54
ENG
ENGLISH
TROUBLESHOOTING
Screen color is abnormal.
Problem Resolution
Screen has poor color resolution
(16 colors).
y
Set the number of colors to more than 24 bits (true color) Select
Control Panel - Display - Settings - Color Table menu in Windows.
Screen color is unstable or
mono-colored.
y
Check the connection status of the signal cable. Or, re-insert the PC
video card.
Do black spots appear on the
screen?
y
Several pixels (red, green, white or black color) may appear on the
screen, which can be attributable to the unique characteristics of the
LCD panel. It is not a malfunction of the LCD.
When I set Input Label to PC in
the Input List, some letters are
displayed with a different color
than the original color.
y
For Windows 7, go to Start -> Control Panel -> Appearance and
Personalization -> Font and select Adjust ClearType text.
* If you are using a specific graphic card that supports the UHD
resolution, the problem may not be solved due to compatibility issues.
The operation does not work normally.
Problem Resolution
The power suddenly turned off.
y
Is the sleep timer set?
y
Check the power control settings. Power interrupted
The audio function does not work.
Problem Resolution
No sound?
y
See if the audio cable is connected properly.
y
Adjust the volume.
y
See if the sound is set properly.
Sound is too dull.
y
Adjust the Clear Voice ll, Treble and Bass appropriately.
Sound is too low.
y
Adjust the volume.
55
ENG
ENGLISH
TROUBLESHOOTING
I have a problem with touch response.
Problem Resolution
Touch does not respond.
y
Check the USB cable connection.
- This may occur when the USB cable between PC and monitor is not
connected. Check the USB cable and make it firmly connected.
* Check the connection on Windows 7
Control Panel > System and Security > System
- Check the number of touch-points supported under Pen and Touch.
y
Check the PC power.
- This may occur when the PC is powered off. Make sure that your
PC's power cord is firmly plugged into a power outlet.
y
Restart your PC.
- Touch may not respond when the system is down due to the unstable
network. Reconnect the LAN cable or restart your PC.
y
Check the signal cable connection.
- If your PC and monitor are not connected using a signal cable, touch
does not respond. Check the signal cable connection.
y
Check the monitor power.
- Touch may not respond when the monitor is powered off. Check if
the power indicator turns red and the screen is displayed.
y
Check if the screen is currently on.
The location of a touch does
not correspond to the touch
coordinates.
y
Change your tablet PC settings (Windows 7).
- This may occur when the touch screen is not calibrated properly.
Control Panel > Hardware and Sound > Tablet PC Settings > Display
> Display options > Calibrate or Reset
* For information about gestures and settings on Windows 7, refer to
the Windows Help.
A touch is applied to a monitor
other than the one I intended.
y
Set the monitor as the default monitor.
- This may occur if the monitor is not set as the default monitor when
you are using multiple monitors.
Go to Control Panel > Display > Settings tab > Select the monitor >
Use this device as the primary monitor (U) > Apply (A)
y
Change your tablet PC settings (Windows 7).
- This may occur when the touch screen is not calibrated properly.
Go to Control Panel > Hardware and Sound > Tablet PC Settings >
Display > Display options > Calibrate or Reset
56
ENG
ENGLISH
TROUBLESHOOTING
Problem Resolution
I cannot use 10 touch points in
Windows 7.
y
Make sure that you use a content that supports up to 10 touch points.
- The content played (e.g. Flash Player, Paint, etc.) may not support
10 touch points.
y
Remove the USB cable and connect it again in 10 seconds.
y
Run the content (e.g. Flash Player, Paint, etc.) again.
y
Restart your PC.
y
If the gap between two touch points is 20 mm or less, the touch error
may occur.
y
On the edge of the touch screen, 10 touch points may work unstably.
57
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
LCD Panel Screen Type
2134.62 mm Wide TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel.
Visible diagonal size : 2134.62 mm
Pixel Pitch 0.4845 mm (H) x 0.4845 mm (V)
Video Signal Max. Resolution RGB, DVI-D: 1920 X 1080 @60 Hz
HDMI, Display Port: 3840 X 2160 @30 Hz
- It may not be supported depending on the OS or video card type.
Recommended Resolution RGB, DVI-D: 1920 X 1080 @60 Hz
HDMI, Display Port: 3840 X 2160 @30 Hz
- It may not be supported depending on the OS or video card type.
Horizontal Frequency RGB: 30 kHz to 83 kHz
HDMI,DVI-D, Display Port: 30 kHz to 83 kHz
Vertical Frequency RGB: 56 Hz to 75 Hz
HDMI,DVI-D, Display Port: 56 Hz to 60 Hz
Synchronization Type Separate Sync, Composite Sync, Digital
Input Connector
15-pin D-Sub, HDMI, DVI-D, Composite (AV), Display Port,
RS-232C, LAN, USB, Audio, TOUCH USB
Power
Power Rating AC 100-240 V~ 50/60 Hz 5.7 A
Power Consumption On Mode: 350 W Typ.
Sleep Mode (RGB): ≤ 1.5 W
Sleep Mode (HDMI, DVI-D, Display Port)
: ≤ 1.5 W (Set Only) / ≤ 2 W (With External Device)
Off Mode : ≤ 0.5 W
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C
10 % to 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C
5 % to 95 %
Dimensions
(Width x Height x
Depth) / Weight
1923.4 mm x 1109.4 mm x 101 mm / 102.6 kg
58
ENG
ENGLISH
SPECIFICATIONS
* Touch Screen
OS (Operating
System)
Windows 7 10 Points
Space between touches : at least 20 mm or more
* Applicable only for models that support the speakers
Audio RMS Audio Output 10 W + 10 W (R + L)
Input Sensitivity 0.7 Vrms
Speaker Impedance 8 Ω
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
59
ENG
ENGLISH
SPECIFICATIONS
y
Vertical frequency: To enable the user to
watch the product display, screen image
should be changed tens of times every
second like a fluorescent lamp. The vertical
frequency or refresh rate is the times of
image display per second. The unit is Hz.
y
Horizontal frequency: The horizontal interval
is the time to display one vertical line. When
1 is divided by the horizontal interval, the
number of horizontal lines displayed every
second can be tabulated as the horizontal
frequency. The unit is kHz.
NOTE
RGB (PC) supported mode
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
640 x 350
31.469 70.8
720 x 400
31.468 70.8
640 x 480
31.469 59.94
640 x 480
37.5 75
800 x 600
37.879 60.317
800 x 600
46.875 75
832 x 624
49.725 74.55
1024 x 768
48.363 60
1024 x 768
60.123 75.029
1280 x 768
47.7 60
1280 x 960
74.479 75
1360 x 768
47.72 59.799
1280 x 1024
63.981 60.02
1280 x 1024
79.98 75.02
1920 x 1080
67.5 60
DVI-D (PC) supported mode
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
640 x 480
31.469 59.94
800 x 600
37.879 60.317
1024 x 768
48.363 60
1366 x 768
47.7 60
1152 x 864
53.783 59.959
1280 x 960
60 60
1280 x 1024
63.981 60.02
1920 x 1080
67.5 60
HDMI/Display Port/SuperSign (DTV) supported mode
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
640 x 480
31.469 59.94
800 x 600
37.879 60.317
1024 x 768
48.363 60
1280 x 720
44.772 59.855
1366 x 768
47.7 60
1152 x 864
53.783 59.959
1280 x 960
60 60
1280 x 1024
63.981 60.02
1920 x 1080
67.5 60
3840 x 2160
67.5 30
60
ENG
ENGLISH
SPECIFICATIONS
DTV Mode
Resolution
HDMI/Display Port/
SuperSign (DTV)
480i x
480p o
576i x
576p o
720p o
1080i o
1080p o
2160p o
Power Indicator
Mode Product
On Mode Red
Sleep Mode Amber
Off Mode -
y
When the cable is connected to the HDMI or
the display port, you can select the PC/DTV
mode optionally. It is recommended you to
set to the PC mode when connecting to PC;
the DTV mode when connecting to DTV.
NOTE
61
ENG
ENGLISH
SPECIFICATIONS
Dimensions
The illustrations in this manual may differ from the actual product and accessories.
Please see the Mounting on a wall section for sizes of screws.
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
(Unit: mm)
90.1
91.7
82.1
1194.7
57.2
1137.2
1951.2
1860.48 (A/Area)
499.9
34
34
R12
34
34
111.9
62.9
32.1
82
1046.52 (A/Area)
57.5
368.6
400
368.6
121.5
93.6
130.6
675.6
472.5
600
675.6
472.5
130.6
121.5
93.6
Wall Mount Screw
4-M8, L19.8(Max.)
62
ENG
ENGLISH
IR CODES
IR CODES
y
All models do not support the HDMI/USB function.
y
Some key codes are not supported, depending on the model.
Code (Hexa) Function Note
08
Power
R/C BUTTON
0B INPUT R/C BUTTON
C4 MONITOR ON R/C BUTTON
C5 MONITOR OFF R/C BUTTON
95 ENERGY SAVING R/C BUTTON
DC 3D R/C BUTTON
10 to 19 Number Key 0 to 9 R/C BUTTON
32 1/a/A R/C BUTTON
2F CLEAR R/C BUTTON
02
Volume
R/C BUTTON
03
Volume
R/C BUTTON
79 ARC R/C BUTTON
99 AUTO R/C BUTTON
09 MUTE R/C BUTTON
E0 BRIGHTNESS (Page UP) R/C BUTTON
E1 BRIGHTNESS (Page Down) R/C BUTTON
4D PSM R/C BUTTON
AA
INFO
ⓘ
R/C BUTTON
5F W.BAL R/C BUTTON
43 SETTINGS R/C BUTTON
40 Up ▲ R/C BUTTON
41 Down ▼ R/C BUTTON
07 Left ◄ R/C BUTTON
06 Right ► R/C BUTTON
3F S.MENU R/C BUTTON
44 OK R/C BUTTON
28 BACK R/C BUTTON
5B EXIT R/C BUTTON
7E R/C BUTTON
7B TILE (Tile Mode) R/C BUTTON
B1 R/C BUTTON
B0 R/C BUTTON
BA R/C BUTTON
8F R/C BUTTON
8E R/C BUTTON
72 Red Key (PICTURE ID ON) R/C BUTTON
71 Green Key (PICTURE ID OFF) R/C BUTTON
63 Yellow Key R/C BUTTON
61 Blue Key R/C BUTTON
63
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
CONTROLLING THE MULTIPLE PRODUCT
y
Use this method to connect several products to a single PC. You can control several products at a
time by connecting them to a single PC.
y
In the Option menu, Set ID must be between 1 and 255 without being duplicated.
Connecting the Cable
Connect the RS-232C cable as shown in the picture.
y
The RS-232C protocol is used for communication between the PC and product. You can turn the
product on/off, select an input source or adjust the OSD menu from your PC.
Communication Parameter
RS-232C Configurations
PC Set
D-Sub 9 D-Sub 9
(Female) (Female)
PC Set
D-Sub 9 D-Sub 9
(Female) (Female)
y
Baud Rate : 9600 buad Rate (UART)
y
Data Length : 8 bit
y
Parity Bit : None
y
Stop Bit : 1bit
y
Flow Control : None
y
Communication Code : ASCII code
y
Use a crossed (reverse) cable
7-Wire Configurations (Standard RS-232C cable)
3-Wire Configurations (Not Standard)
Monitor 1 Monitor 2 Monitor 3 Monitor 4
PC
RS-232C Cable (not included)
64
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
Command Reference List
COMMAND
DATA
1 2
01 Power k a 00H to 01H
02 Aspect Ratio k c 01H to 1FH
03 Screen Mute k d 00H to 01H
04 Volume Mute k e 00H to 01H
05 Volume Control k f 00H to 64H
06 Contrast k g 00H to 64H
07 Brightness k h 00H to 64H
08 Color k i 00H to 64H
09 Tint k j 00H to 64H
10 Sharpness k k 00H to 32H
11 OSD Select k l 00H to 01H
12 Remote Lock/ key Lock k m 00H to 01H
13 Audio Balance k t 00H to 64H
14 Abnomal state k z FFH
15 White Balance Red Gain j m 00H to FEH
16 White Balance Green Gain j n 00H to FEH
17
White Balance Blue Gain j o 00H to FEH
18 ISM Method j p 20H, 08H
19 Energy Saving j q 00H to 05H
20 Auto configuration j u 01H
21 Remote Key m c Refer to Remote Key code
22 Backlight m g 00H to 64H
23 Fail Over Select m i 00H to 02H
24 Fail Over Input Select m j Refer ’Fail Over Input Select’
25 Automatic Standby m n 00H to 01H
26 PC Power Control d t 00H to 01H
27 PC Power d s 00H to 01H
28 Picture mode (PSM) d x 00H to 07H, 10H
29 Sound mode d y 01H to 07H
30 Elapsed time return d l FFH
31 Temperature value d n FFH
32 Speaker d v 00H to 01H
33 Sleep Time f f 00H to 08H
34 Auto Sleep f g 00H to 01H
35 Power On Delay f h 00H to 64H
36 Language f i 00H to 12H
37 DPM Select f j 00H to 01H
38 Reset f k 00H to 02H
39 Power Indicator(Standby Light) f o 00H to 01H
40
Power Indicator(Power Light) f p 00H to 01H
41 Serial no. f y FFH
65
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
COMMAND
DATA
1 2
42 S / W Version f z FFH
43 Time 1(Years/ Months/ Days) f a Refer to ‘Time 1’
44 Time 2(Hours/ Minutes/Seconds) f x Refer to ‘Time 2’
45 Off Time Schedule f c 00H to 01H
46 On Time Schedule f b 00H to 01H
47 Off Timer(Repeat mode/ Time) f e Refer to ‘Off Timer’
48 On Timer(Repeat Mode/ Time) f d Refer to ‘On Timer’
49 On Timer Input f u Refer to ‘On Timer Input’
50 H Position f q 00H to 64H
51 V Position f r 00H to 64H
52 H Size f s 00H to 64H
53 Input Select x b 20H to D0H
54 Color Temperature x u 00H to 64H
y
Note: When using the product with a USB DivX player, all commands except for Power (k a), Key (m c),
Abnormal state (k z), Elapsed time return (d l), Temperature value (d n), Serial no.Check (f y) and S/W
Version (f z) are not executed and handled as errors.
66
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
* [Command 1]: First command. (k, j, m, d, f, x)
* [Command 2]: Second command.(a to z)
* [Set ID]: Set up the Set ID number of product.
range : 01H to 63H. by setting '0', server can control all products.
* In case of operating with more than 2 sets using set ID as '0' at the same time, it should not be checked the ack
message. Because all sets will send the ack message, so it's impossible the check the whole ack messages.
* [DATA]: To transmit command data.
Transmit 'FF' data to read status of command.
* [Cr]: Carriage Return (ASCII code '0 x 0 D')
* [ ]: ASCII code Space (0 x 20)
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
* The Product transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,
if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of
the PC computer.
* Note : In this mode, display will send the acknowledgement after power on processing completion.
There might be a time delay between command and acknowledgement.
* No acknowledgement signal will be sent from display, if Set ID in transmission signal is set to ‘00’(=0x00).
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
* If there is error, it returns NG
Transmission/ Receiving protocol
67
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
* Real data mapping
Hexadecimal Num.
(Setting Value)
Decimal Num.
(Real Value)
0 0
A 10
F 15
10 16
20 32
64 100
FE 254
FF 255
01. Power(Command: k, a)
To control Power On/Off of the set.
Transmission
[k][a][ ][Set ID][ ][Data][Cr]
Data
00: Power Off
01: Power On
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data][x]
* The normal acknowledgement signal returns
after the power of the set is turned on completely.
* There might be a time delay between
the transmission and acknowledgement signals.
03. Screen Mute(Command: k, d)
To select screen mute on / off.
Transmission
[k][d][ ][Set ID][ ][Data][Cr]
Data
00: Screen on
01: Screen off
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data][x]
02. Aspect Ratio(Command: k, c)
To adjust the screen format.
You can also adjust the screen format using the
ARC(Aspect Ratio Control) button on remote control
or in the Screen menu.
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
Data
01: Normal Screen(4:3)
02: Wide Scran(16:9)
04: Zoom(AV, Component, HDMI/ Display Port DTV)
06: Original
09: Just Scan(HDMI1/ HDMI2/ DVI/ Display Port
-DTV)
* Available only with 720p or higher.
10 to 1F: Cinema Zoom 1 to 16(AV, HDMI1/HDMI2/
DVI/Display Port -DTV)
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
04. Volume Mute(Command: k, e)
To control On/Off of the Volume Mute.
Transmission
[k][e][ ][Set ID][ ][Data][Cr]
Data
00: Volume Mute On (Volume Off)
01: Volume Mute Off (Volume On)
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data][x]
05. Volume Control(Command: k, f)
To adjust Volume.
Transmission
[k][f][ ][Set ID][ ][Data][Cr]
Data
Min. 00H to Max. 64H : 0~100
* Refer to 'Real data mapping’.
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
68
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
06. Contrast(Command: k, g)
To adjust screen contrast.
You can also adjust the contrast in the Picture menu.
Transmission
[k][g][ ][Set ID][ ][Data][Cr]
Data
Min. 00H to Max. 64H : 0~100
* Refer to 'Real data mapping’.
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
09. Tint(Command: k, j)
To adjust the screen tint.
You can also adjust the tint in the Picture menu.
Transmission
[k][j][ ][Set ID][ ][Data][Cr]
Data
Min. 00H to Max. 64H
00H: Step R50
64H: Step G50
* Refer to 'Real data mapping’.
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
07. Brightness(Command: k, h)
To adjust screen brightness.
You can also adjust the brightness in the Picture
menu.
Transmission
[k][h][ ][Set ID][ ][Data][Cr]
Data
Min. 00H to Max. 64H : 0~100
* Refer to 'Real data mapping’.
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
10. Sharpness(Command: k, k)
To adjust the screen Sharpness.
You can also adjust the sharpness in the Picture
menu.
Transmission
[k][k][ ][Set ID][ ][Data][Cr]
Data
Min. 00H to Max. 32H : 0~50
* Refer to 'Real data mapping’.
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
08. Color(Command: k, i)
To adjust the screen color.
You can also adjust the color in the Picture menu.
Transmission
[k][i][ ][Set ID][ ][Data][Cr]
Data
Min. 00H to Max. 64H : 0~100
* Refer to 'Real data mapping’.
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
11. OSD Select(Command: k, l)
To control OSD on/off to the set.
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Data
00: OSD Off
01: OSD On
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
69
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
12. Remote Lock /Key Lock(Command: k, m)
To control Remote Lock on/off to the set.
This function, when controlling RS-232C, locks the
remote control and the local keys.
Transmission
[k][m][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: On
Acknowledgement
[m][ ][Set ID][ ][OK/NG][Data][x]
13. Balance(Command: k, t)
To adjust the sound balance.
Transmission
[k][t][ ][Set ID][ ][Data][Cr]
Data
Min. 00H to Max. 64H
00H: Step L50
64H: Step R50
* Refer to 'Real data mapping’.
Acknowledgement
[t][ ][Set ID][ ][OK/NG][Data][x]
14. Abnormal state(Command: k, z)
Used to Read the power off status when Stand-by
mode.
Transmission
[k][z][ ][Set ID][ ][Data][Cr]
Data
FF: Check the status
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data][x]
Data
00: Normal (Power on and signal exist)
01: No signal (Power on)
02: Turn the monitor off by Remote Control
03: Turn the monitor off by
Sleep Timer
function
04: Turn the monitor off by
RS-232C
function
08: Turn the monitor off by
Off Time
function
09: Turn the monitor off by
Auto Off
function
16. White Balance Green Gain(Command: j, n)
To adjust white balance green gain.
Transmission
[j][n][ ][Set ID][ ][Data][Cr]
Data
00~FE: Green gain 0~254
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
17. White Balance Blue Gain(Command: j, o)
To adjust white balance blue gain.
Transmission
[j][o][ ][Set ID][ ][Data][Cr]
Data
00~FE: Blue gain 0~254
Acknowledgement
[o][ ][Set ID][ ][OK/NG][Data][x]
15. White Balance Red Gain(Command: j, m)
To adjust white balance red gain.
Transmission
[j][m][ ][Set ID][ ][Data][Cr]
Data
00~FE: Red gain 0~254
Acknowledgement
[m][ ][Set ID][ ][OK/NG][Data][x]
70
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
19. Energy Saving(Command: j, q)
To reduce the power consumption of the Monitor.
Transmission
[j][q][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: Minimum
02: Medium
03: Maximum
05: Screen Off
Acknowledgement
[q][ ][Set ID][ ][OK/NG][Data][x]
20. Auto Config.(Command: j, u)
To adjust picture position and minimize image
shaking. Automatically.
* Only applies to RGB(PC) mode.
Transmission
[j][u][ ][Set ID][ ][Data][Cr]
Data
01: To set
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
18. ISM Method(Command: j, p)
Used to select the afterimage preventing function.
Transmission
[j][p][ ][Set ID][ ][Data][Cr]
Data
20: Color Wash
08: Normal
Acknowledgement
[p][ ][Set ID][ ][OK/NG][Data][x]
23. Fail Over Select(Command: m, i)
To select Fail Over mode.
Transmission
[m][i][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: Auto
02: Manual
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
22. Backlight(Command: m, g)
To adjust light of the Backlight.
Transmission
[m][g][ ][Set ID][ ][Data][Cr]
Data
Min. 00H to Max. 64H : 0~100
* Refer to 'Real data mapping’.
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
* If Energy Saving is set to Auto/ Maximum/ Screen
off the Backlight function is disabled.
21. Remote Key(Command: m, c)
To send IR remote key code.
Transmission
[m][c][ ][Set ID][ ][Data][Cr]
Data: Refer to ‘IR CODES’.
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
71
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
24. Fail Over Input Select(Command: m, j)
To select fail over mode.
* Only available in Fail Over is Manual mode.
Transmission
[m][j][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][ ]
[Data4][ ][Data5][Cr]
Data1~5(Priority 1~5)
60: RGB
70: DVI-D
90: HDMI1
91: HDMI2
C0: Display Port
* Use 0x70 as data for DVI-D input, 0x90 as data for
HDMI1 input, 0x91 as data for HDMI2 input, 0xC0
as data for DisplayPort input, regardless their input
labels.
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data1][Data2]
[Data3][Data4][Data5][x]
26. PC Power Control(Command: d, t)
To control the PC power if the PC and the monitor
are synchronized.
Transmission
[d][t][ ][Set ID][ ][Data][Cr]
Data
00: Synchronized (When the monitor is off, the PC
is also turned off.)
01: Not synchronized (The monitor is off but the PC
is on.)
Acknowledgement
[t][ ][Set ID][ ][OK/NG][Data][x]
27. PC Power(Command: d, s)
To control the PC power when the PC and the
monitor are not synchronized.
Transmission
[d][s][ ][Set ID][ ][Data][Cr]
Data
00: PC it turned off.
01: PC is turned on.
Acknowledgement
[s][ ][Set ID][ ][OK/NG][Data][x]
25. Automatic Standby(Command: m, n)
To set the Automatic Standby function.
Transmission
[m][n][ ][Set ID][ ][Data][Cr]
Data
00: Off (The Automatic Standby function is not
used)
01: 4 hours (The set is turned off after four hours)
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
28. Picture Mode(Command: d, x)
To adjust the picture mode.
Transmission
[d][x][ ][Set ID][ ][Data][Cr]
Data Structure
* If you select Cinema, Expert1, or Expert2,
you cannot adjust Color Temp.
* The touch features only work with the 84WT70
model.
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data][x]
Data (Hex) Mode
00 Vivid
01 Standard
02 Cinema
04 Game
05 Expert1
06 Expert2
10 Touch
72
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
29. Sound Mode(Command: d, y)
To adjust the Sound mode.
Transmission
[d][y][ ][Set ID][ ][Data][Cr]
Data Structure
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
Data(Hex) Mode
01 Standard
02 Music
03 Cinema
04 Sport
05 Game
06 Vivid
07 User Setting
30. Elapsed time return(Command: d, l)
To read the elapsed time.
Transmission
[d][l][ ][Set ID][ ][Data][Cr]
Data
FF: Read the elapsed time
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
31. Temperature value(Command: d, n)
To read the inside temperature value.
Transmission
[d][n][ ][Set ID][ ][Data][Cr]
Data
FF: Check the temperature
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
32. Speaker(Command: d, v)
Turn the speaker on or off.
Transmission
[d][v][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: On
Acknowledgement
[v][ ][Set ID][ ][OK/NG][Data][x]
33. Sleep Timer(Command: f, f)
Set Sleep Timer.
Transmission
[f][f][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: 10 minutes
02: 20 minutes
03: 30 minutes
04: 60 minutes
05: 90 minutes
06: 120 minutes
07: 180 minutes
08: 240 minutes
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
34. Auto Sleep(Command: f, g)
To set Auto Sleep.
Transmission
[f][g][ ][Set ID][ ][Data][Cr]
Data
00: Off (The Auto Off function is not used)
01: 15 min. (If there is no signal for 15 minutes, the
set is turned off)
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
73
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
35. Power On Delay(Command: f, h)
Set the schedule delay when the power is turned on
(Unit: second).
Transmission
[f][h][ ][Set ID][ ][Data][Cr]
Data
Min. 00H to Max. 64H : 0~100 seconds
* Refer to 'Real data mapping’.
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
36. Language(Command: f, i)
Set the OSD language.
Transmission
[f][i][ ][Set ID][ ][Data][Cr]
Data
00: Czech
01: Danish
02: German
03: English
04: Spanish(EU)
05: Greek
06: French
07: Italian
08: Dutch
09: Norwegian
0a: Portuguese(EU)
0b: Portuguese(Brazil)
0c: Russian
0d: Finnish
0e: Swedish
0f Korean
10: Simplified Chinese
11: Japanese
12: Traditional Chinese
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
37. DPM Select(Command: f, j)
Set the DPM (Display Power Management) function.
Transmission
[f][j][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: On
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
38. Reset(Command: f, k)
Execute the Picture, Screen and Factory Reset
functions.
Transmission
[f][k][ ][Set ID][ ][Data][Cr]
Data
00 : Picture Reset
(Reset the values set in the PICTURE menu.)
01 : Screen Reset
(Reset the values set in under the Screen option.)
02 : Factory Reset
(Reset the values set in the OPTION menu.)
03 : Audio Reset
(Reset the values set in the AUDIO menu.)
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
39. Power Indicator(Standby Light)(Command: f,
o)
To set the Standby Light.
Transmission
[f][o][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: On
Acknowledgement
[o][ ][Set ID][ ][OK/NG][Data][x]
40. Power Indicator(Power Light)(Command: f, p)
To set the Power Light.
Transmission
[f][p][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: On
Acknowledgement
[p][ ][Set ID][ ][OK/NG][Data][x]
74
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
41. Serial no.Check(Command: f, y)
Check the Serial no.
Transmission
[f][y][ ][Set ID][ ][Data][Cr]
Data
FF: Check the Serial no.
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data1] to [Data13][x]
43. Time 1(Year/ Month/ Day)(Command: f, a)
To set the Time 1(Year/ Month/ Day) values.
Transmission
[f][a][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
00 to 1E: 2010 to 2040
Data2
01 to 0C: January to December
Data3
01 to 1F: 1st to 31st
* Enter “fa [Set ID] ff” for checking Time 1 values.
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
42. S/W Version(Command: f, z)
Check the software version.
Transmission
[f][z][ ][Set ID][ ][Data][Cr]
Data
FF: Check the software version.
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data][x]
44. Time 2(Hours/Minutes/Seconds)(Command: f, x)
To set Time 2 (Hours/ Minutes/ Seconds).
Transmission
[f][x][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
00 - 17: 00 - 23 hours
Data2
00 - 3B: 00 - 59 minutes
Data3
00 - 3B: 00 - 59 seconds
* To check the settings of the Time 2, enter "fx [Set
ID] ff".
** If the Time 1 is not set, this command does not
work.
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
45. Off Time Schedule(Command: f, c)
To set whether to activate the Off Time schedule.
Transmission
[f][c][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: On
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
46. On Time schedule(Command: f, b)
To set whether to activate the On Time schedule.
Transmission
[f][b][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: On
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
75
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
47. Off Timer(Repeat mode/Time)(Command: f, e)
To set Off Time (Repeat mode/Time).
Transmission
[f][e][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
01: Once
02. Daily
03: Mon. - Fri.
04: Mon. - Sat.
05: Sat. - Sun.
06. Every Sunday
07. Every Monday
08. Every Tuesday
09. Every Wednesday
0A. Every Thursday
0B. Every Friday
0C. Every Saturday
Data2
00 - 17: 00 - 23 hours
Data3
00 - 3B: 00 - 59 minutes
* If Time 1, 2 are not set, this command does not
work.
* Data 1 (07, 08, 09, 0A, 0B, 0C) is displayed as
"Select day" on the OSD.
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
To check Off Time (Repeat mode/Hours/Minutes).
Transmission
[f][e][ ][Set ID][ ][Data][ ][f][f][ ][f][f][Cr]
Data1
f1-f7: The first to the seventh index number of the Off
Time list
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data1][Data2][Data3]
[Data4][x]
Data1
f1-f7: The first to the seventh index number of the Off
Time list
Data2
01: Once
02. Daily
03: Mon. - Fri.
04: Mon. - Sat.
05: Sat. - Sun.
06. Every Sunday
07. Every Monday
08. Every Tuesday
09. Every Wednesday
0A. Every Thursday
0B. Every Friday
0C. Every Saturday
Data3
00 - 17: 00 - 23 hours
Data4
00 - 3B: 00 - 59 minutes
To delete Off Time (Repeat mode/Hours/Minutes).
Transmission
[f][e][ ][Set ID][ ][Data][ ][f][f][ ][f][f][Cr]
Data
e0: Delete all
e1 - e7: Delete from the first to the seventh index of
the Off Time list
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data][ff][ff][x]
Data
e0: Delete all
e1 - e7: Delete from the first to the seventh index of
the Off Time list
76
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
48. On Timer(Repeat mode/Time)(Command: f, d)
To set On Time (Repeat mode/Time).
Transmission
[f][d][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
01: Once
02. Daily
03: Mon. - Fri.
04: Mon. - Sat.
05: Sat. - Sun.
06. Every Sunday
07. Every Monday
08. Every Tuesday
09. Every Wednesday
0A. Every Thursday
0B. Every Friday
0C. Every Saturday
Data2
00 - 17: 00 - 23 hours
Data3
00 - 3B: 00 - 59 minutes
* If Time 1, 2 are not set, this command does not
work.
* Data 1 (07, 08, 09, 0A, 0B, 0C) is displayed as
"Select day" on the OSD.
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
To check On Time (Repeat mode/Hours/Minutes).
Transmission
[f][d][ ][Set ID][ ][Data][ ][f][f][ ][f][f][Cr]
Data1
f1-f7: The first to the seventh index number of the On
Time list
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data1][Data2][Data3]
[Data4][x]
Data1
f1-f7: The first to the seventh index number of the On
Time list
Data2
01: Once
02. Daily
03: Mon. - Fri.
04: Mon. - Sat.
05: Sat. - Sun.
06. Every Sunday
07. Every Monday
08. Every Tuesday
09. Every Wednesday
0A. Every Thursday
0B. Every Friday
0C. Every Saturday
Data3
00 - 17: 00 - 23 hours
Data4
00 - 3B: 00 - 59 minutes
To delete On Time (Repeat mode/Hours/Minutes).
Transmission
[f][d][ ][Set ID][ ][Data][ ][f][f][ ][f][f][Cr]
Data
e0: Delete all
e1 - e7: Delete from the first to the seventh index of
the Off Time list
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data][ff][ff][x]
Data
e0: Delete all
e1 - e7: Delete from the first to the seventh index of
the On Time list
77
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
53. Input Select(Command: x, b)
To select input source for the Set.
Transmission
[x][b][ ][Set ID][ ][Data][Cr]
Data
20: AV
60: RGB-PC
70: DVI-D(PC)
80: DVI-D
90: HDMI1
91: HDMI2
A0: HDMI1(PC)
A1: HDMI2(PC)
B0: SuperSign(PC)
C0: Display Port
D0: Display Port(PC)
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
51. V Position(Command: f, r)
To set the vertical position of the screen.
* This function is only available when there is RGB
input signal.
Transmission
[f][r][ ][Set ID][ ][Data][Cr]
Data
Min. 00H to Max. 64H: Min. -50 (down) - Max. 50 (up)
* Data input range may vary depending on the reso-
lution.
Acknowledgement
[r][ ][Set ID][ ][OK/NG][Data][x]
49. On Timer Input(Command: f, u)
Select the video input when using On Timer.
Transmission
[f][u][ ][Set ID][ ][Data][Cr]
Data
20: AV
60: RGB
70: DVI-D
90: HDMI1
91: HDMI2
C0: Display Port
B0: SuperSign
* If the Time 1, 2, and On Time (Repeat mode/Time)
are not set, this command does not work.
* To set the On Time schedule correctly, the On Timer
(Repeat mode/Time) command must be executed
prior to this command.
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
To check the On Timer Input settings.
Transmission
[f][u][ ][Set ID][ ][Data][ ][f][f][Cr]
Data1
f1-f7: The first to the seventh index number of the On
Time Input list
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data1][Data2]
Data1
The first to the seventh index number of the On Time
Input list
Data2
20: AV
60. RGB
70: DVI
90: HDMI1
91: HDMI2
C0: Display Port
B0: SuperSign
52. H Size(Command: f, s)
To set the horizontal size of the screen.
* This function is only available when there is RGB
input signal.
Transmission
[f][s][ ][Set ID][ ][Data][Cr]
Data
Min. 00H to Max. 64H: Min. -50 (Zoom out) - Max. 50
(Zoom in)
* Data input range may vary depending on the reso-
lution.
Acknowledgement
[s][ ][Set ID][ ][OK/NG][Data][x]
50. H Position(Command: f, q)
To set the horizontal position.
* Only available when Tile Mode is off.
Transmission
[f][q][ ][Set ID][ ][Data][Cr]
Data
Min. 00H to Max. 64H: Min. -50 (Left) - Max. 50 (Right)
* Data input range may vary depending on the reso-
lution.
Acknowledgement
[q][ ][Set ID][ ][OK/NG][Data][x]
78
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
54. Color Temperature(Command: x, u)
To adjust the screen color temperature.
Transmission
[x][u][ ][Set ID][ ][Data][Cr]
Data
00H to 64H: W50 - C50
*W: Warm
*C: Cool
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
Make sure to read the Safety Precautions
before using the product.
Keep the Owner's Manual(CD) in an accessible
place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
Temporary noise is normal when powering ON or
OFF this device.
WARNING
-This is a class A product. In a domestic
e n vi r o n me n t t h is p ro d u c t ma y ca u s e r ad i o
interference in which case the user may be required
to take adequate measures.
To obtain the source code under GPL, LGPL,
MPL and other open source licenses, that is
contained in this product, please visit http://
opensource.lge.com.
In addition to the source code, all referred
license terms, warranty disclaimers and
copyright notices are available for download.
LG Electronics will also provide open source
code to you on CD-ROM for a charge covering
the cost of performing such distribution (such
as the cost of media, shipping and handling)
upon email request to opensource@lge.com.
This offer is valid for three (3) years from the
date on which you purchased the product.
