Back of end cap
Front view
Manual SRM Series
Manual Pull-Down Projection Screen
USER’S GUIDE
Pre-Installation
1. Carefully unpack the screen.

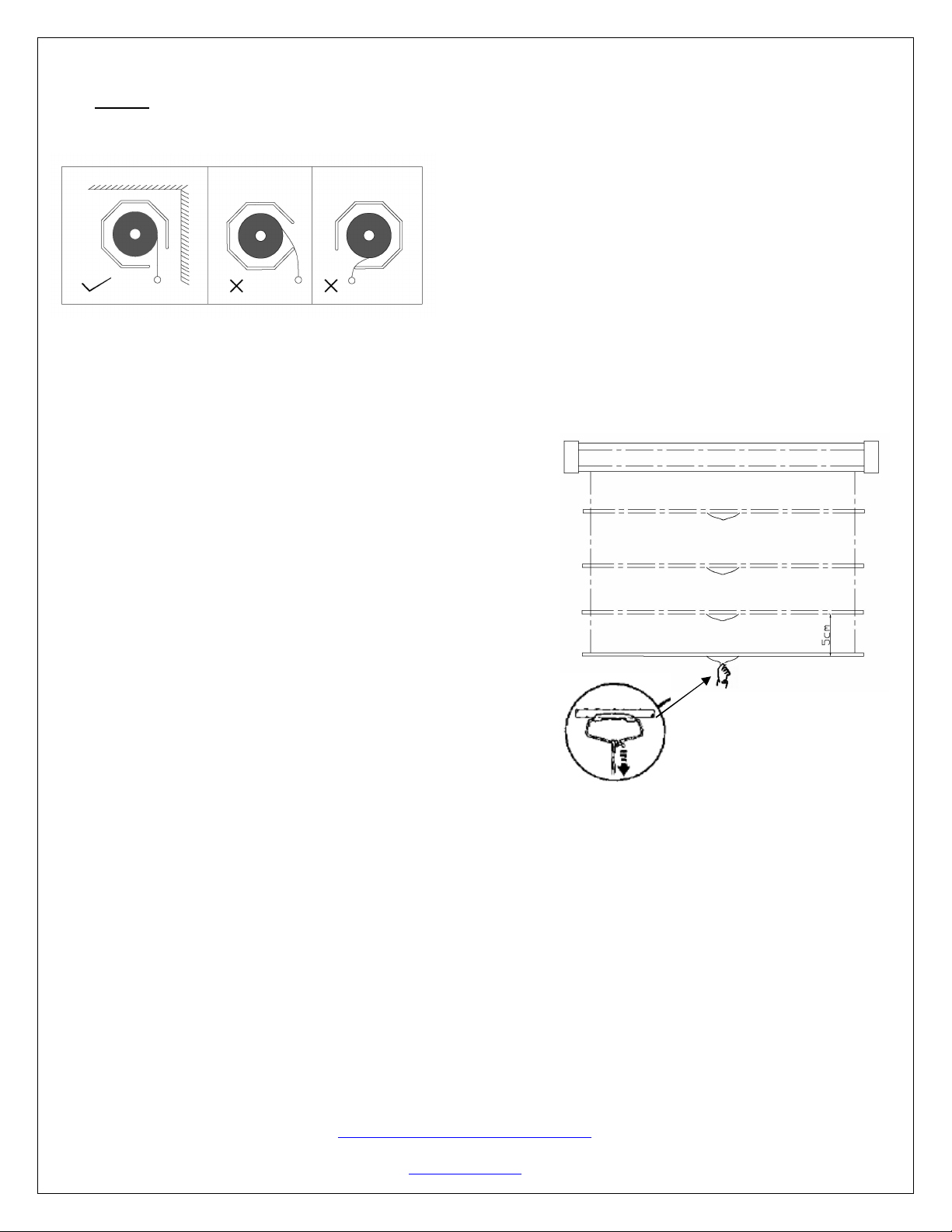

2. Always handle the screen in a leveled position on a clean surface.
NOTE:
Regardless of mounting method, the screen should be securely supported so that vibration or even abusive
pulling on the viewing surface will not cause the case to work loose or fall. The installer must insure that the
fasteners used are of adequate strength and suitable for the mounting surface chosen.
INSTALLATION
Flush Wall Mounting
1. Mark the location of where the screen is to be
installed for the pre-drilled hole.
2. After marking the area and drilling the hole,
insert the proper screw into the drilled hole and leave about
1/8” of an inch from the wall to mount the screen.
3. Mount your screen from the keyhole located on back of
screen’s left and right end cap.
Ceiling Mounting
(additional hardware required)
Optional installation using a chain to hang the screen from the
ceiling.
1. You can also hang the screen on a ceiling by using a
chain (not included) and hang it by the two loops
located on each end of the case.
