FILTER
Compact Air Purier
Before using your FILTER, please read this manual.
For household
Use Only
1-800-898-3002
homelabs.com/help
© 2018 hOmeLabs LLC
37 East 18 Street, 7th Floor
New York, NY 10003
All rights reserved, hOme
™
. Printed in China.
HME020029N
FILTER
Compact Air Purier
Before using your FILTER, please read this manual.
For household
Use Only
1-800-898-3002
help@homelabs.com
homelabs.com/help
© 2018 hOmeLabs LLC
37 East 18 Street, 7th Floor
New York, NY 10003
All rights reserved, hOme
™
. Printed in China.
HME020029N
REPLACING YOUR FILTER
1. Press the “on/off” button to turn OFF your appliance.
2. Make sure to unplug the appliance from the outlet.
3. Rotate the bottom cap anticlockwise to open and detach the
bottom cap (see figure 1)
4. To change the filter, please remove the old HEPA filter from the
appliance and insert the new filter as shown in figure 2 below.
5. Place the bottom cap as shown and twist clockwise till you hear
it click in place. This indicates that the bottom cap is fastened to
the appliance appropriately.
6. To reset, use a thin object like a toothpick to press the “filter
change indicator” for 3 seconds. The indicator will flash and the
buzzer will sound 3 times indicating the filter has been reset
successfully.
(see figure 3)
7. The air purifier can now be operated normally after being
plugged in.
8. If you have any further questions, please contact the
hOme
®
Customer Support hotline at 1-800-898-3002 or
visit homelabs.com to chat with a customer support agent.
WARNING: Always make sure the appliance is
turned off and unplugged before cleaning.
HEPA Filter w/ Active Carbon
Boom Cap
Adapter

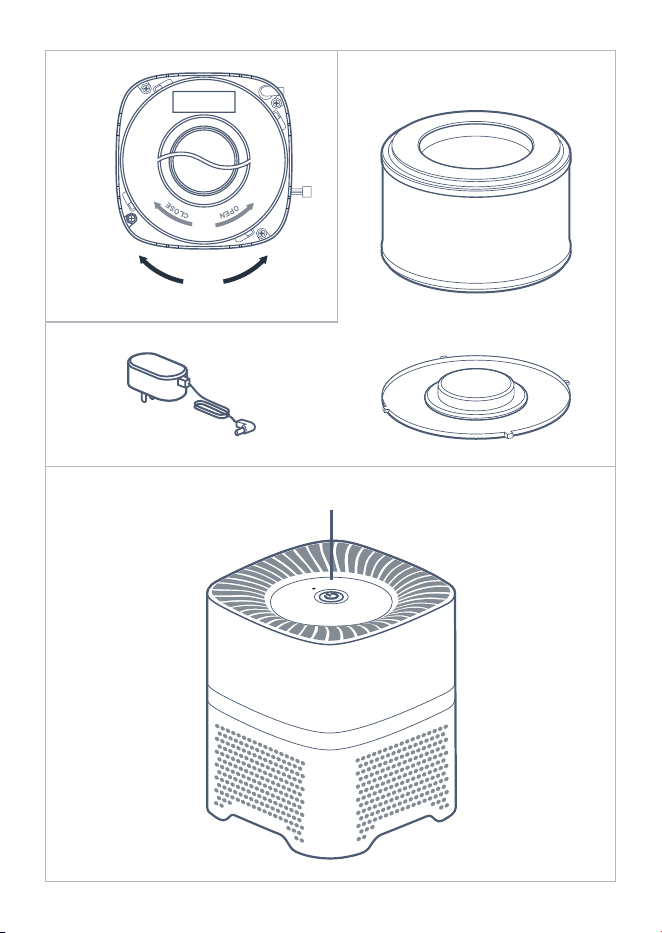

Fig. 1
Press for 3 seconds to reset the “Change Filter” indicator.
Fig. 2
Fig. 3
OPENCLOSE
REPLACING YOUR FILTER
1. Press the “on/off” button to turn OFF your appliance.
2. Make sure to unplug the appliance from the outlet.
3. Rotate the bottom cap anticlockwise to open and detach the
bottom cap (see figure 1)
4. To change the filter, please remove the old HEPA filter from the
appliance and insert the new filter as shown in figure 2 below.
5. Place the bottom cap as shown and twist clockwise till you hear
it click in place. This indicates that the bottom cap is fastened to
the appliance appropriately.
6. To reset, use a thin object like a toothpick to press the “filter
change indicator” for 3 seconds. The indicator will flash and the
buzzer will sound 3 times indicating the filter has been reset
successfully.
(see figure 3)
7. The air purifier can now be operated normally after being
plugged in.
8. If you have any further questions, please contact the
hOme
®
Customer Support hotline at 1-800-898-3002 or
visit homelabs.com to chat with a customer support agent.
WARNING: Always make sure the appliance is
turned off and unplugged before cleaning.
HEPA Filter w/ Active Carbon
Boom Cap
Adapter
Fig. 1
Press for 3 seconds to reset the “Change Filter” indicator.
Fig. 2
Fig. 3
OPENCLOSE
