Contents
1 Important 4
Safety and important notice 4
Trademark notice 5
2 Your Home Theatre System 6
Feature highlights 6
Product overview 6
3 Connect 9
Place the Home Theatre System 9
Connect video cables 9
Connect speakers and subwoofer 10
Connect radio antenna 11
Connect audio cables/other devices 11
Connect power cord 12
4 Get started 13
Insert the remote control batteries 13
Find the correct viewing channel 13
Select menu display language 14
Change speaker settings 14
Select a play source 15
5 Play 16
Play a disc 16
Play video 16
Play music 19
Play photo 20
Play from USB device 21
Play from radio 21
6 Adjust sound 23
Control the volume 23
Select surround sound 23
Select a preset sound 23
7 Adjust settings 24
General setup 24
Audio setup 25
Video setup 26
Preferences 27
Contents
English
EN
1_hts3020-12_en2.indd Sec1:31_hts3020-12_en2.indd Sec1:3 4/2/2009 10:56:29 AM4/2/2009 10:56:29 AM
4
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheeled bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences for the
environment and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.
Please inform yourself about the local rules
on the separate collection of batteries. The
correct disposal of batteries helps prevent
potentially negative consequences for the
environment and human health.
1 Important
Safety and important notice
Warning
Risk of overheating! Never install the Home Theatre •
System in a confi ned space. Always leave a space of
at least 4 inches around the Home Theatre System
for ventilation. Ensure curtains or other objects
never cover the ventilation slots on the Home
Theatre System.
Never place the Home Theatre System, remote
•
control or batteries near naked fl ames or other heat
sources, including direct sunlight.
Only use this Home Theatre System indoors.
•
Keep this Home Theatre System away from water,
moisture and liquid-fi lled objects.
Never place this Home Theatre System on other
•
electrical equipment.
Keep away from this Home Theatre System during
•
lightning storms.
Where the mains plug or an appliance coupler is •
used as the disconnect device, the disconnect device
shall remain readily operable.
Visible and invisible laser radiation when open. Avoid •
exposure to beam.
This product complies with the radio
interference requirements of the European
Community.
This product complies with the requirements
of the following directives and guidelines:
2004/108/EC, 2006/95/EC.
EN
1_hts3020-12_en2.indd Sec1:41_hts3020-12_en2.indd Sec1:4 4/2/2009 10:56:29 AM4/2/2009 10:56:29 AM
5
DivX, DivX Ultra Certifi ed, and associated
logos are trademarks of DivX, Inc. and are
used under license.
Offi cial DivX® Ultra Certifi ed product.
Plays all versions of DivX ® video (including
DivX ® 6) with enhanced playback of DivX®
media fi les and the DivX® Media Format.
Plays DivX® video with menus, subtitles and
audio tracks.
Windows Media and the Windows logo are
trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
The USB-IF Logos are trademarks of Universal
Serial Bus Implementers Forum, inc.
ENERGY STAR and the ENERGY STAR mark
are registered U.S. trademarks.
CLASS 1
LASER PRODUCT
Copyright notice
This product incorporates copyright
protection technology that is protected
by method claims of certain U.S. patents
and other intellectual property rights
owned by Macrovision Corporation and
other rights owners. Use of this copyright
protected technology must be authorised
by Macrovision Corporation, and is intended
for home and other limited viewing uses only
unless otherwise authorised by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
Mains fuse (UK only)
This Home Theatre System is fi tted with an
approved moulded plug. Should it become
necessary to replace the mains fuse, this must
be replaced with a fuse of the same value as
indicated on the plug (example 10A).
1 Remove fuse cover and fuse.
2 The replacement fuse must comply with
BS 1362 and have the ASTA approval
mark. If the fuse is lost, contact your
dealer in order to verify the correct type.
3 Refi t the fuse cover.
In order to maintain conformity to the EMC
directive, the mains plug on this product must
not be detached from the mains cord cable.
Trademark notice
Manufactured under license from Dolby
Laboratories. Dolby, Pro Logic and the
double-D symbol are trademarks of Dolby
Laboratories.
Important
English
EN
1_hts3020-12_en2.indd Sec1:51_hts3020-12_en2.indd Sec1:5 4/2/2009 10:56:29 AM4/2/2009 10:56:29 AM
6
Region codes
You can play discs with the following region
codes.
DVD region code Countries
Europe
Russia
Product overview

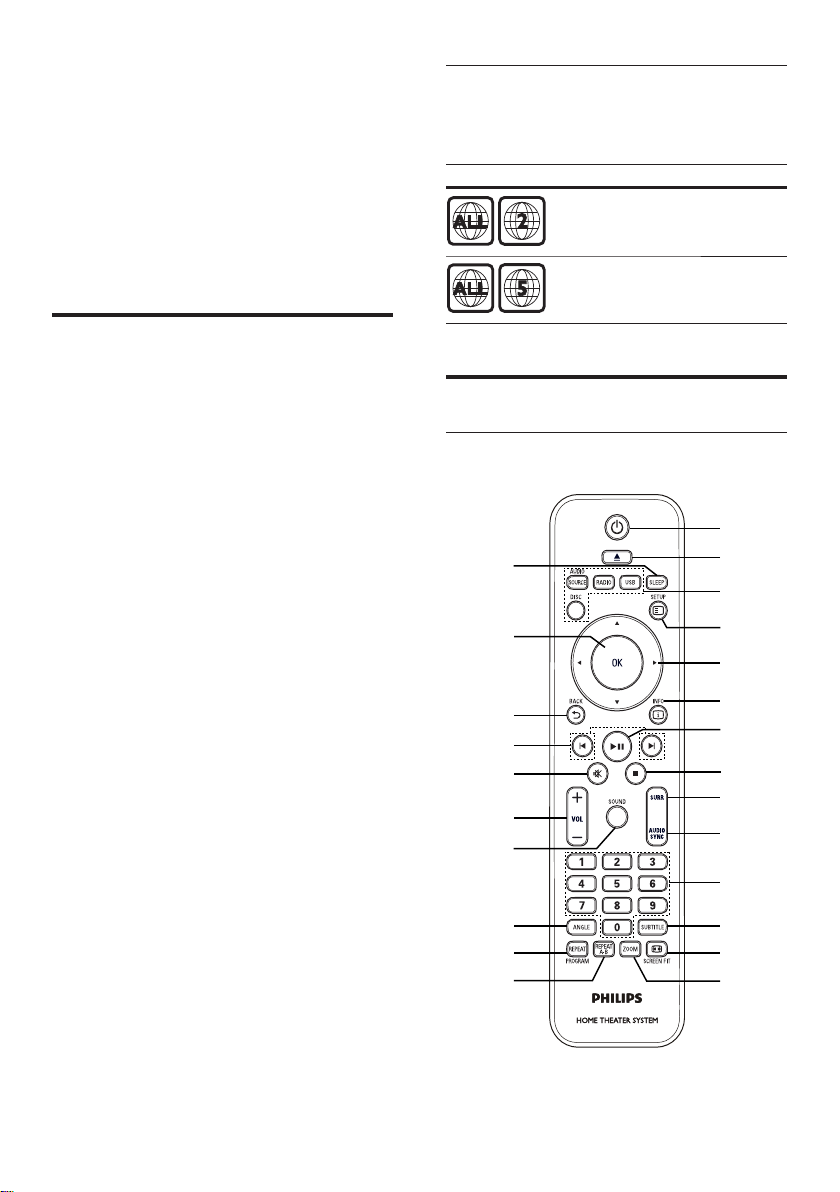

Remote control
n
q
r
s
t
v
w
x
m
a
b
c
d
e
f
g
h
i
j
k
l
p
o
u
2 Your Home
Theatre System
Congratulations on your purchase, and
welcome to Philips! To fully benefi t from the
support that Philips offers, register your product
at www.philips.com/welcome.
Feature highlights
Listen to rich uncompressed multi-channel
surround sound
This Home Theatre System supports 5.1
channels of uncompressed audio that delivers
a real-to-life sound experience as if you are
listening to it live.
USB direct
Simply plug your USB device into the USB
socket to play your MP3/WMA/JPEG/DivX
fi les.
Sync the audio output with the video play
Synchronise audio and video by delaying the
audio output if the video signal sent to the TV
is slower than the audio streams.
Screen Fit
View the movie in full screen display on any
TV. It is only applicable to DVD and JPEG
fi les.
EN
1_hts3020-12_en2.indd Sec1:61_hts3020-12_en2.indd Sec1:6 4/2/2009 10:56:30 AM4/2/2009 10:56:30 AM
7
j AUDIO SYNC
Selects an audio language or channel •
on a disc.
Press and hold to access the setting •
for audio sync, then press VOL +/- to
set the audio delay time.
k Numeric buttons
Selects an item to play.•
l SUBTITLE
Selects the subtitle language on a •
disc.
m SCREEN FIT
Fits the picture format to the TV •
screen (using zoom function: 1.3X
and 1.6X).
n ZOOM
Zooms in or out of the picture.•
o SLEEP
Sets a delay after which the Home •
Theatre System switches to standby.
p OK
Confi rms an entry or selection.•
q
BACK
Returns to a previous screen.•
For DVD, goes to the title menu.•
For VCD version 2.0 or SVCD with •
PBC turned on, returns to the menu
during playback.
r
/ ( Previous/Next )
Skips to the previous or next title, •
chapter or track.
s
( Mute )
Mutes or restores audio output.•
t VOL +/-
Increases or decreases volume.•
u SOUND
Selects a predefi ned sound effect.•
v ANGLE
Displays video from different camera •
angles.
a
( Standby-On )
Turns on the Home Theatre System •
or switches to standby mode.
b
( Open/Close )
Opens or closes the disc •
compartment.
c Source buttons
• AUDIO SOURCE : Selects an audio
input source.
• RADIO : Switches to FM band.
• USB : Switches to the USB source.
• DISC : Switches to the disc source.
d
SETUP
Accesses or exits the setup menu.•
e
( Navigation buttons )
Navigates through the menus.•
Press left and right for fast backward •
or forward search.
In radio mode, press up and down to •
tune the radio frequency.
In radio mode, press left or right to •
start auto search.
f
INFO
For discs, displays information about •
the current status or the disc.
For slideshows, displays a thumbnail •
view of photo fi les.
g
( Play/Pause )
Starts, pauses or resumes disc play.•
In radio mode, automatically tunes •
radio stations during fi rst-time setup.
h
( Stop )
Stops disc play.•
In radio mode, erases the current •
preset radio station.
i SURR ( Surround Sound )
Switches to supported surround •
sound or stereo sound.
Your Home Theatre System
English
EN
1_hts3020-12_en2.indd Sec1:71_hts3020-12_en2.indd Sec1:7 4/2/2009 10:56:30 AM4/2/2009 10:56:30 AM
8
Main unit
a ( Standby-On )
Turns on the Home Theatre System •
or switches to standby mode.
b Disc compartment
c
( Open/Close )
Opens or closes the disc •
compartment.
d
( Play/Pause )
Starts, pauses or resumes disc play.•
In radio mode, automatically tunes •
radio stations during fi rst-time setup.
e
( Stop )
Stops disc play.•
In radio mode, erases the current •
preset radio station.
f SOURCE
Selects a media to play or listen to •
audio from the connected device.
g Display panel
h VOLUME
Increases or decreases volume.•
i
( USB )
Connects a USB supported device.•
a b cdef g hi
w REPEAT / PROGRAM
Selects or turns off repeat or shuffl e •
mode.
In radio mode, resets the list of •
preset stations: press to manually
reset; press and hold to automatically
reset.
x REPEAT A-B
Marks the section for repeat play or •
turns off repeat mode.
EN
1_hts3020-12_en2.indd Sec1:81_hts3020-12_en2.indd Sec1:8 4/2/2009 10:56:30 AM4/2/2009 10:56:30 AM
9

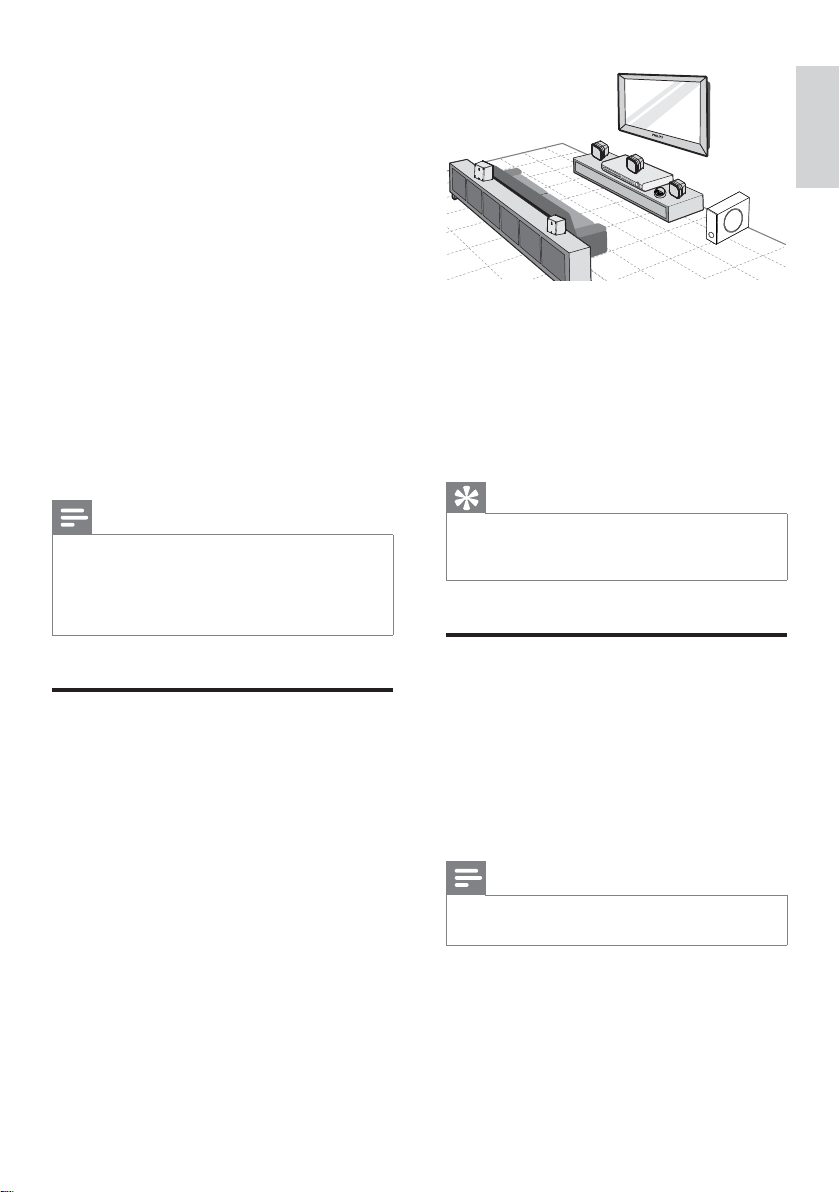

1 Place this Home Theatre System near the
TV.
2 Place the speakers system at normal
listening ear-level and directly parallel to
the listening area.
3 Place the subwoofer in the corner of the
room or at least 3 feet away from the TV.
Tip
To avoid magnetic interference or unwanted noise, •
never place this Home Theatre System too close to
any radiation devices.
Connect video cables
Connect this Home Theatre System to TV to
view disc play. Select the best video connection
that the TV can support.
Option 1: Connect to the SCART socket •
(for a standard TV).
Option 2: Connect to the VIDEO socket •
(for a standard TV).
Note
You must connect this Home Theatre System •
directly to a TV.
FRONT
RIGHT
FRONT
LEFT
CENTER
REAR
RIGHT
REAR
LEFT
SUBWOOFER
3 Connect
Make the following connections to use your
Home Theatre System.
Basic connections:
Video•
Speakers and subwoofer•
Power•
Optional connections:
Radio antenna•
Audio•
Audio from TV•
Audio from digibox/recorder/game •
console
Other devices•
USB device•
Note
Refer to the type plate at the back or bottom of the •
product for identifi cation and supply ratings.
Before you make or change any connections, ensure •
that all the devices are disconnected from the power
outlet.
Place the Home Theatre
System
Place the Home Theatre System where •
it cannot be pushed, pulled over or
knocked down. Do not place it in an
enclosed cabinet.
Make sure that you have full access to the •
power cord for easy disconnection of the
Home Theatre System from the power
supply.
Connect
English
EN
1_hts3020-12_en2.indd Sec1:91_hts3020-12_en2.indd Sec1:9 4/2/2009 10:56:30 AM4/2/2009 10:56:30 AM
10
Note
The video input socket on the TV might be labelled •
as A/V IN, VIDEO IN, COMPOSITE or BASEBAND.
This type of connection provides standard picture
•
quality.
Connect speakers and
subwoofer
1 Connect the speakers and subwoofer
to the matching sockets on the Home
Theatre System.
Note
Ensure that the colours of the plugs and sockets are •
matched.
Option 1: Connect to the SCART
socket
1 Connect a scart cable (not supplied) to
the SCART TO TV socket on this Home
Theatre System and the SCART input
socket on the TV.
Note
Scart connection allows TV’s audio output through •
the speakers. Press AUDIO SOURCE repeatedly
until ‘SCART IN’ is displayed on the display panel.
This type of connection provides good picture •
quality.
Option 2: Connect to the Video
(CVBS) socket
1 Connect a composite video cable to the
VIDEO socket on this Home Theatre
System and the VIDEO input socket on
the TV.
SCART TO TV
SCART
VIDEO
VIDEO IN
EN
1_hts3020-12_en2.indd Sec1:101_hts3020-12_en2.indd Sec1:10 4/2/2009 10:56:30 AM4/2/2009 10:56:30 AM
11
Connect audio cables/other
devices
Route the audio from other devices to this
Home Theatre System to enjoy audio play with
multi-channel surround capabilities.
Connect audio to TV
1 Connect the audio cables (not supplied)
to the AUDIO IN-AUX1 sockets on the
Home Theatre System and the AUDIO
output sockets on the TV.
Note
To listen to the audio output from this connection, •
press AUDIO SOURCE repeatedly until ‘AUX1’ is
displayed on the display panel.
AUDIO OUT
AUX 1
AUDIO IN

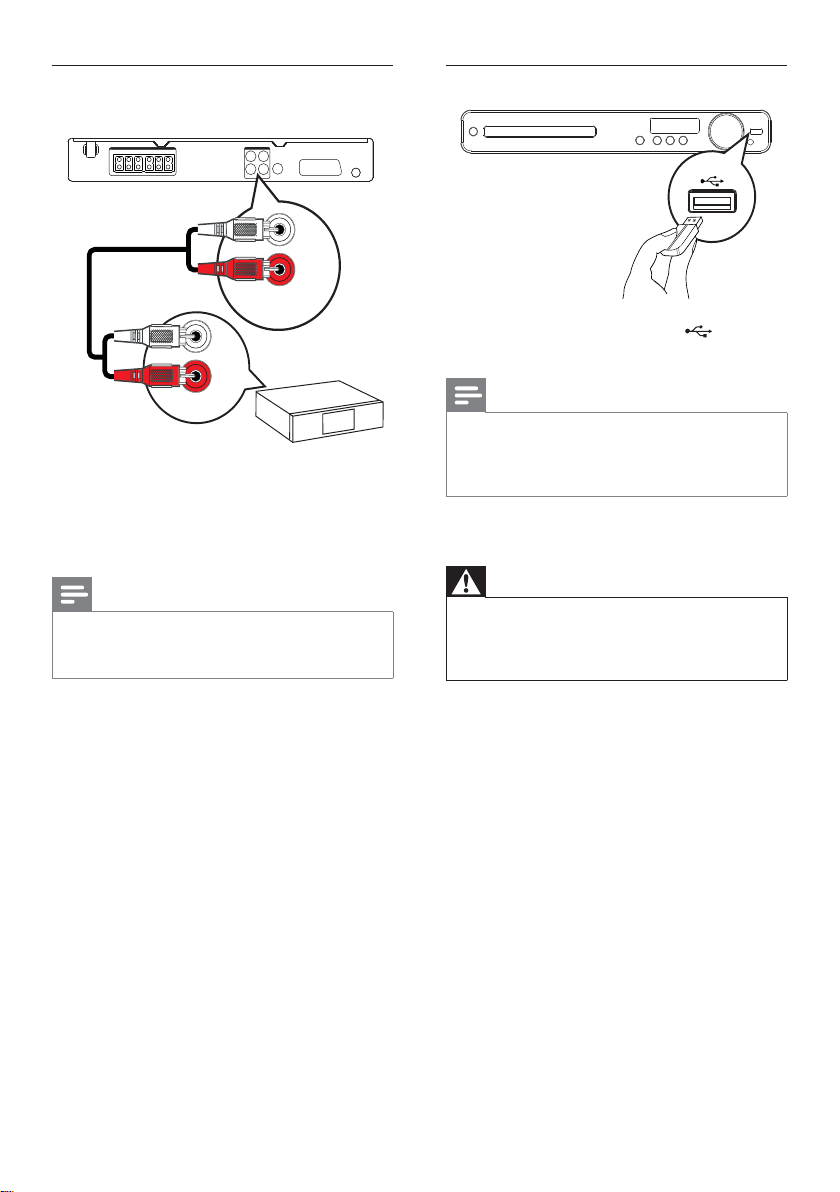

Connect radio antenna
1 Connect the FM antenna to the FM75
socket on this Home Theatre System
(for some models, this cable is already
connected).
2 Extend the FM antenna and fi x its ends to
the wall.
Tip
For better FM stereo reception, connect to an •
external FM antenna.
FM
(75 Ω)
ANTENNA
Connect
English
EN
1_hts3020-12_en2.indd Sec1:111_hts3020-12_en2.indd Sec1:11 4/2/2009 10:56:31 AM4/2/2009 10:56:31 AM
12
Connect USB device
1 Connect the USB device to USB
socket on this Home Theatre System.
Note
This Home Theatre System can only play/view MP3, •
WMA, DivX (Ultra) or JPEG fi les that are stored on
such devices.
Press
• USB to access the content and play the fi les.
Connect power cord
Warning
Risk of product damage! Ensure that the power •
supply voltage corresponds to the voltage printed
on the back or the underside of the Home Theatre
System.
1 Connect the power cord to the socket
when all the required connections are
made.
The Home Theatre System is ready to »
be set up for use.
Connect audio from cable box/
recorder/game console
1 Connect the audio cables (not supplied)
to the AUDIO IN-AUX2 sockets on the
Home Theatre System and the AUDIO
output sockets on the device.
Note
To listen to the audio output from this connection, •
press AUDIO SOURCE repeatedly until ‘AUX2’ is
displayed on the display panel.
AUX 2
AUDIO OUT
AUDIO IN
EN
1_hts3020-12_en2.indd Sec1:121_hts3020-12_en2.indd Sec1:12 4/2/2009 10:56:31 AM4/2/2009 10:56:31 AM
13
Navigate through the menu
1 Point the remote control directly at the
remote sensor on the Home Theatre
System and select the desired function.
2 Press the following buttons on the
remote control to navigate through the
on-screen menus.
Button Action
Move up or down
Move left or right
OK Confi rm a selection
Enter numbers
Find the correct viewing
channel
1 Press to turn on the Home Theatre
System.
2 Press DISC to switch to disc mode.
3 Turn on the TV and switch to the correct
video-in channel in one of the following
ways:
Go to the lowest channel on your •
TV, then press the Channel Down
button until you see the Philips
screen.
Press the •
SOURCE button
repeatedly on the remote control of
your TV.
4 Get started

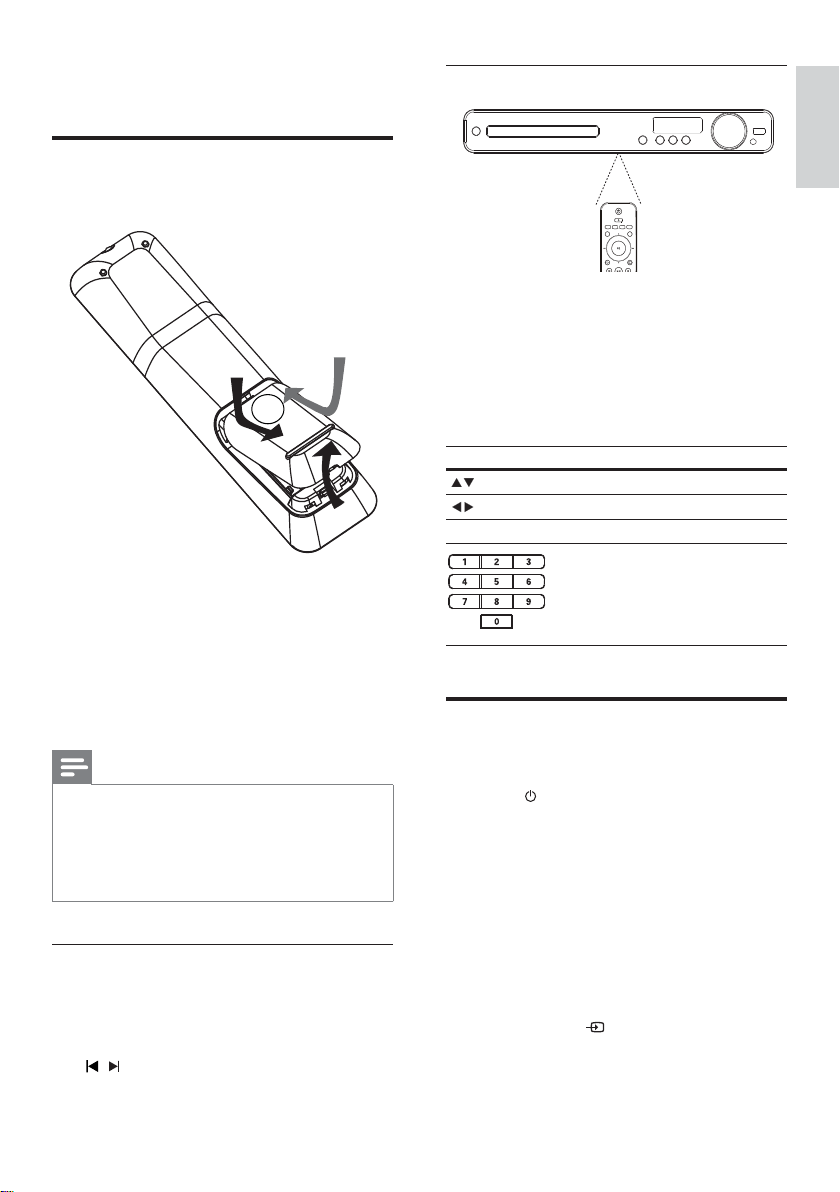

Insert the remote control
batteries
1 On the back of the remote control, slide
the battery cover to remove it.
2 Insert the 2 supplied batteries (AAA). Be
sure the + and - ends of the batteries line
up with the markings inside the case.
3 Slide the cover back into position.
Note
Do not mix batteries (old and new or carbon and •
alkaline, etc.).
Remove batteries if they are exhausted or if the •
remote control is not to be used for a long time.
Batteries contain chemical substances, they should •
be disposed of properly.
Control a play source
1 Press RADIO , USB or DISC button to
select the source you wish to control.
2 Select the desired function (for example
, ).
Get started
English
EN
1_hts3020-12_en2.indd Sec1:131_hts3020-12_en2.indd Sec1:13 4/2/2009 10:56:31 AM4/2/2009 10:56:31 AM
14
Change speaker settings
Ideally, the distance between listening position
and all the speakers should be the same. If not,
change the speaker settings based on their
distance from the listening position to obtain
the best possible surround sound.
1 Press DISC .
2 Press SETUP .
3 Press to select [Audio Setup] in the
menu, then press
.
If the speaker setup option is not •
accessible, press
twice before you
try the above steps again.
To set the speakers level
1 Select [Speakers Volume] in the menu,
then press
.
CD Upsampling
CD Upsampling
Speakers Delay
Speakers Volume
Night Mode
Audio Setup
Speakers Volume Setup
Front Left
Front Right
Center
Subwoofer
Rear Left
Rear Right
0dB
0dB
0dB
0dB
0dB
0dB
Tip
The video-in channel is between the lowest and •
highest channels and may be called FRONT, A/V IN,
VIDEO, HDMI etc. See the TV user manual on how
to select the correct input on the TV.
Select menu display language
1 Press DISC .
2 Press SETUP .
» [General Setup] menu is displayed.
3 Press .
4 Press to select [OSD Language] in
the menu, then press
.
The language options are different •
depending on your country or
region. It may not correspond to the
illustration shown here.
5 Press to select a language, then press
OK .
Tip
You can set the default language for DVD disc menu •
(see ‘Adjust settings’ > ‘Preferences’ > [Disc Menu] ).
English
DivX(R) VOD Code
Sleep Timer
Display Dim
Disc Lock
General Setup
Italiano
Français
Deutsch
Português
Nederlands
Español
Dansk
Screen Saver
OSD Language
EN
1_hts3020-12_en2.indd Sec1:141_hts3020-12_en2.indd Sec1:14 4/2/2009 10:56:31 AM4/2/2009 10:56:31 AM
15
Select a play source
On the main unit
Press the • SOURCE button repeatedly to
select: DISC > USB > FM > AUX 1 >
AUX 2 > SCART IN > DISC ...
On the remote control
Press • AUDIO SOURCE repeatedly to
switch to the connected audio source.
Display Device connected to
SCART IN SCART TO TV socket
AUX 1 AUDIO IN-AUX 1
sockets
AUX 2 AUDIO IN-AUX 2
sockets
Press • RADIO to switch to FM band.
Press • USB to switch to USB mode.
Press • DISC to switch to disc mode.
2 Press to change the volume level,
then press OK .
The test tone is emitted from the »
speaker.
Repeat the above setting for other •
speakers until all the speakers’
output level sounds equally balance.
To exit the menu, press •
SETUP .
To set the output delay time (centre and rear
speakers only)
1 Select [Speakers Delay] in the menu,
then press
.
2 Press to set the delay time, then press
OK .
Repeat the above setting for other •
speakers until the sound output from
different speakers reach the listening
position at the same time.
To exit the menu, press •
SETUP .
Tip
Set a longer delay time if the centre speaker or rear •
speaker is closer to the listening position than the
front speaker.
Allow 1ms setting for every 1 foot distance between •
the speaker and the listening position.
Speakers Distance Setup
Center
Rear Left
Rear Right
0MS
0MS
0MS
Get started
English
EN
1_hts3020-12_en2.indd Sec1:151_hts3020-12_en2.indd Sec1:15 4/2/2009 10:56:31 AM4/2/2009 10:56:31 AM
16
Play video
Note
For video disc, playback always resumes from the •
point where it was last stopped. To start play from
the beginning, press while the message is displayed.
Control video play
1 Play a title.
2 Use the remote control to control the
title.
Button Action
Starts, pauses or resumes disc
play.
Stops disc play.
Skips to the next title or chapter.
Skips to the beginning of the
current title or chapter. Press
twice to jump to the previous
title or chapter.
/ Searches fast-forward (right)
or fast-backward (left). Press
repeatedly to change the search
speed.
In pause mode, slow motion
backward or forward play.
/ Searches slow-forward (down)
or slow-backward (up). Press
repeatedly to change the search
speed.
For VCD, only slow-forward play
is possible.
Change video play
1 Play a title.
2 Use the remote control to change the
video play.
5 Play
Play a disc
Caution
Never place any objects other than discs into the disc •
compartment.
Never touch the disc optical lens inside the disc •
compartment.
1 Press to open the disc compartment.
2 Insert a disc with its label facing up.
For double-sided discs, load the side •
to play face up.
3 Press to close the disc compartment
and start disc play.
To view disc play, turn on the TV to •
the correct viewing channel for this
Home Theatre System.
To stop disc play, press •
.
Note
Check the types of discs supported (see •
‘Specifi cations’ > ‘Playback media’).
If the password entry menu is displayed, enter
•
the password before you can play the locked or
restricted disc.
If you pause or stop a disc for about 15 minutes, the
•
screen saver is activated. To deactivate the screen
saver, press DISC .
After you pause or stop a disc and no buttons are
•
pressed within 30 minutes, this Home Theatre
System automatically switches to standby mode.
EN
1_hts3020-12_en2.indd Sec1:161_hts3020-12_en2.indd Sec1:16 4/2/2009 10:56:32 AM4/2/2009 10:56:32 AM
17
In some menus, press the • Numeric
buttons to input your selection.
To return to the title menu during •
play, press
BACK .

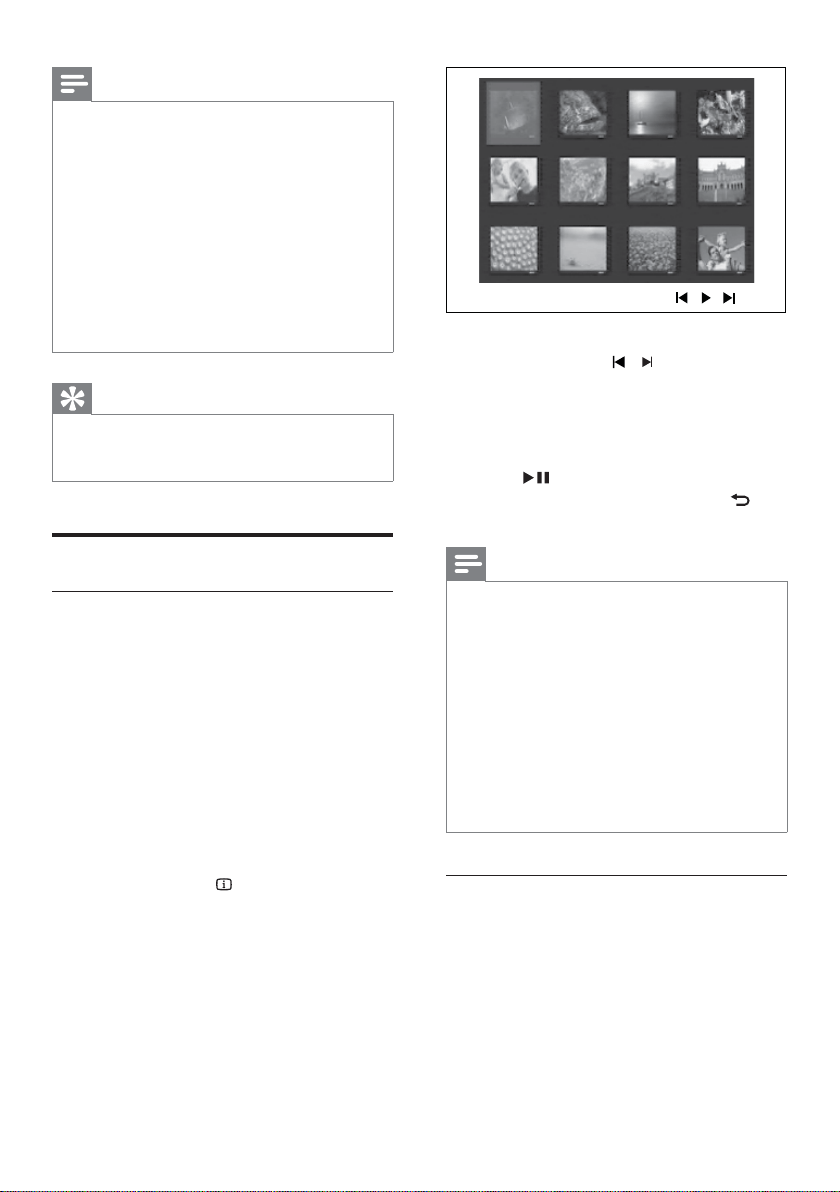

Access VCD menu or preview menu
The PBC (Playback Control) for VCD is
activated by default in the factory. When you
load a VCD, the contents menu is displayed.
1 Press to select a play option, then
press OK to start play.
If PBC is off, it skips the menu and •
starts play from the fi rst title.
To return to the menu during play, •
press
BACK (only possible if the
PBC mode is on).
2 Press DISC to preview the contents of
the disc.
To exit the menu, press • DISC .
3 Select a preview play option, then press
OK
[Track Digest]
Plays the fi rst few seconds of each track in a
disc.
[Disc Interval]
Divides the total disc time by six and play the
fi rst few seconds of these intervals.
[Track Interval]
Divides the current track by six and play the
fi rst few seconds of these intervals.
This option is not available in stop mode.
Select Digest Type:
Track Digest
Disc Interval
Track Interval
Button Action
AUDIO
SYNC
Selects an audio language or
channel on a disc.
SUBTITLE Selects the subtitle language on
a disc.
REPEAT Selects or turns off repeat or
shuffl e mode.
Repeat options vary depending
on the disc type.
For VCDs, repeat play is only
possible if the PBC mode is
turned off.
ZOOM Zooms in or out of the picture.
To pan through the zoomed
image, press the Navigation
buttons .
INFO Displays the current status or
disc information.
You can change the video
play options here without
interrupting disc play.
SCREEN
FIT
Fits the picture format to the
TV screen (using zoom factor
1.3X and 1.6X).
It is only applicable to DVD •
and JPEG fi les, not available
for DivX movie.
Note
Some operations may not work with some discs. See •
the information accompanying the disc for details.
Access DVD menu
1 Press DISC to access disc main menu.
2 Select a play option, then press OK .
Play
English
EN
1_hts3020-12_en2.indd Sec1:171_hts3020-12_en2.indd Sec1:17 4/2/2009 10:56:32 AM4/2/2009 10:56:32 AM
18
View video play from different camera
angles
1 During play, press ANGLE repeatedly to
display the angle options.
Play changes to the selected angle. »
Note
Applicable only to discs containing multi-angle •
scenes.
Quick skip play to a specifi c time
1 During play, press INFO .
The disc status menu is displayed. »
2 Press to view information, then press
OK .
• [TT Time] (title time)
• [Ch Time] (chapter time)
• [Disc Time] (disc time)
• [Track Time] (track time)
3 Press the Numeric buttons to enter the
time where you want to skip to, then
press OK .
Note
The options are different depending on the disc type. •
Tip
You can change the PBC setting (see ‘Adjust settings’ •
> ‘Preferences’ > [PBC] ).
Sync audio output with video play
If the video play is slower than the audio
output (sound does not match with the
pictures), you can delay the audio output to
match the video.
1 Press and hold AUDIO SYNC until
‘AUDIO SYNC XXX’ is displayed. ‘XXX’
denotes the delay time.
2 Within fi ve seconds, press VOL +/- to set
the delay time for audio output.
Note
If the volume control is not used within 5 seconds, it •
resumes normal volume control function.
Repeat play a specifi c section
1 During play, press REPEAT A-B where
you want to set as the starting point.
2 Press REPEAT A-B again to set the
ending point.
Repeat play starts. »
3 To cancel repeat play, press REPEAT A-B
again.
Note
The marked section for repeat play is only possible •
within a track/title.
EN
1_hts3020-12_en2.indd Sec1:181_hts3020-12_en2.indd Sec1:18 4/2/2009 10:56:32 AM4/2/2009 10:56:32 AM
19
Play music
Control audio track play
1 Play a track.
2 Use the remote control to control the
track.
Button Action
Starts, pauses or resumes
disc play.
Stops disc play.
Skips to the next track.
Skips to the beginning of
the current track. Press
twice to jump to the
previous track.
Selects an item to play.
/ Searches fast-forward
(right) or fast-backward
(left). Press repeatedly to
change the search speed.
REPEAT Selects or turns off repeat
or shuffl e mode.
Play MP3/WMA music
MP3/WMA is a type of highly compressed
audio fi le (fi les with .mp3 or .wma extensions).
1 Insert a disc or USB that contains the
MP3/WMA music.
2 Press DISC or USB .
A contents menu is displayed. »
3 Select a folder, then press OK .
4 Select a track to play, then press .
To return to the main menu, press •
BACK or press until ‘Previous’
folder is selected, then press OK .
Play DivX® video
DivX video is a digital media format that
retains high quality despite a high rate of
compression. You can enjoy DivX video on
this DivX® Certifi ed Home Theatre System.
1 Insert a disc or USB device that contains
the DivX videos.
2 Press DISC or USB .
A contents menu is displayed. »
3 Select a title to play, then press .
4 Use the remote control to control the
title.
Button Action
AUDIO
SYNC
Selects an audio language or
channel.
SUBTITLE Select DVD or DivX subtitle
languages.
Stops play.
For DivX Ultra video, press
this button again to display the
contents menu.
INFO Displays DivX Ultra video
information.
Note
You can only play DivX videos that were rented •
or purchased with the DivX registration code of
this Home Theatre System (see ‘Adjust settings’ >
‘General setup’ > [DivX(R) VOD Code] ) .
You can play DivX video fi les of up to 4GB. •
If the subtitle does not appear correctly, change the •
character set (see ‘Adjust settings’ > ‘Preferences’ >
[DivX Subtitle] ).
This Home Theatre System can display up to 45
•
characters in the subtitle.
Play
English
EN
1_hts3020-12_en2.indd Sec1:191_hts3020-12_en2.indd Sec1:19 4/2/2009 10:56:32 AM4/2/2009 10:56:32 AM
20
To go to previous or next screen •
display, press
/ .
To select a photo, press the •
Navigation buttons .
To display the selected photo only, •
press OK .
4 Press to start slideshow play.
To return to the menu, press •
BACK .
Note
You may require longer time to display the disc •
content on the TV due to the large number of songs/
photos compiled onto one disc.
If the JPEG photo is not recorded with an ‘exif’ type •
fi le, the actual thumbnail picture is not shown on the
display. It is replaced by a ‘blue mountain’ thumbnail
picture.
This Home Theatre System can only display digital •
camera pictures according to the JPEG-EXIF format,
typically used by almost all digital cameras. It cannot
display Motion JPEG and pictures in formats other
than JPEG, or sound clips associated with pictures.
Folders/fi les that exceed the supported limit of this •
Home Theatre System are not displayed or played.
Control photo play
1 Play photo slideshow.
2 Use the remote control to control the
photo.
Note
For disc recorded in multiple sessions, only the fi rst •
session is played.
This Home Theatre System does not support
•
MP3PRO audio format.
If any special characters are present in the MP3 track
•
name (ID3) or album name, it might not be displayed
correctly on the screen because these characters are
not supported.
Some WMA fi les are protected by Digital Rights •
Management and cannot be played on this Home
Theatre System.
Folders/fi les that exceed the supported limit of
•
this Home Theatre System will not be displayed or
played.
Tip
You can select the display of data contents, view •
folders or fi les (see ‘Adjust settings’ > ‘Preferences’ >
[MP3/JPEG Display] ).
Play photo
Play photo as slideshow
This Home Theatre System can play JPEG
photos (fi les with .jpeg or .jpg extensions).
1 Insert a disc or USB that contains the
JPEG photos.
2 Press DISC or USB .
Slideshow begins (for Kodak disc) or »
a contents menu (for JPEG disc) is
displayed.
3 Select the folder/album you want to play.
To preview the photos in the folder/•
album, press
INFO .
EN
1_hts3020-12_en2.indd Sec1:201_hts3020-12_en2.indd Sec1:20 4/2/2009 10:56:33 AM4/2/2009 10:56:33 AM
21
1 Connect a USB storage device to the
(USB) socket.
2 Press USB .
A contents menu is displayed. »
3 Select a fi le to play, then press .
Play starts. »
4 To stop play, press or remove the USB
device.
Note
If the device does not fi t into the USB socket, •
connect it through a USB extension cable.
If you connect a multiple USB card/device reader,
•
only one card/device can be accessed.
Digital cameras that need PC software or use PTP
•
protocol are not supported.
Play from radio
Check if the FM antenna has been connected
to this Home Theatre System. If not, connect
the supplied FM antenna to the FM75
socket
and fi x its ends to the wall.
/
FM
(75 Ω)
ANTENNA
Button Action
Skips to the previous photo.
Skips to the next photo.
Rotates the photo clockwise.
Rotates the photo anti-
clockwise.
ZOOM Zooms in or out of the
picture.
Play pause in zoom mode.
Stops play.
Play musical slideshow
Play MP3/WMA music fi les and JPEG
photo fi les simultaneously to create musical
slideshow. The MP3/WMA and JPEG fi les
must be stored on the same disc or USB
device.
1 Play MP3/WMA music.
2 Navigate to the photo folder/album and
press OK to start slideshow play.
Slideshow begins and continues till the »
end of the photo folder or album.
Audio continues to play till the end of »
the disc.
To stop slideshow play, press •
.
To stop music play, press •
again.
Play from USB device
This Home Theatre System plays/views MP3,
WMA, DivX (Ultra) or JPEG fi les on the
following USB devices:
fl ash drive•
memory card reader•
HDD (external power source needed)•
Play
English
EN
1_hts3020-12_en2.indd Sec1:211_hts3020-12_en2.indd Sec1:21 4/2/2009 10:56:33 AM4/2/2009 10:56:33 AM
22
Reinstall all the radio stations
1 Press RADIO .
2 Press and hold PROGRAM for more than
5 seconds.
All previously stored radio stations are »
replaced.
Note
Check the radio antenna connection if no stereo •
signal is detected or less than 5 stations are detected
during radio installation.
Search and store radio stations
individually
1 Press RADIO .
2 Press / .
It starts searching until a radio station »
is detected.
3 Repeat step 2 until you tune to the radio
station you wish to store.
To fi netune the radio frequency, •
press
/ .
4 Press PROGRAM .
The preset station number blinks. »
If no action is carried out within 20 »
seconds after the above step, it exits
the preset mode.
5 Press / (or the Numeric buttons ) to
select a preset number to store.
6 Press PROGRAM to confi rm.
Tip
For better FM stereo reception, connect an external •
FM antenna (not supplied).
Position the antenna as far away as possible from
•
your TV, VCR or other radiation source to prevent
interference.
First time tuning
When you access radio mode for the fi rst
time, follow the instructions to install the radio
stations.
1 Press RADIO .
‘AUTO INSTALL ... PRESS PLAY’ is »
displayed.
2 Press .
All detected radio stations are stored. »
Once complete, it tunes to the fi rst »
preset radio station.
To stop auto tuning, press •
.
Note
This Home Theatre System can store up to a •
maximum of 40 radio stations.
If auto installation is not activated or less than 5 radio •
stations are stored, you will be prompted to install
the radio stations again.
Listen to radio
1 Press RADIO .
2 Use the remote control to control the
radio.
Button Action
Selects a preset radio station.
Tunes the radio frequency up or
down.
Press and hold this button to
erase the current radio station
from the preset list.
The preset number for other
radio stations remain unchanged.
EN
1_hts3020-12_en2.indd Sec1:221_hts3020-12_en2.indd Sec1:22 4/2/2009 10:56:33 AM4/2/2009 10:56:33 AM
23
Select a preset sound
1 Press SOUND repeatedly to select the
sound effect that most suitable for the
video or music you play.
Video/Music Description
ACTION /
ROCK
Enhance low and high range
for great sounding movie
effects and atmosphere.
Great for action movies and
rock/pop music.
CONCERT /
CLASSIC
Flat and pure sound mode.
Ideal for listening to classical
music and watching live
concert disc.
DRAMA /
JAZZ
Clear mid and high range.
Recreates the atmosphere of
a live club with the artist just
in front of you. Good for jazz
music and watching dramas.
SPORTS Moderate mid range and
surround effects for clear
vocals and the atmosphere of
a live sports venue. It is also
ideal for video gaming.
NIGHT Dynamically controlled
sound mode suitable for
watching movies at night or
for nonintrusive background
music.
6 Adjust sound
Control the volume
1 Press VOL +/- to increase or decrease
the volume.
To mute, press •
.
To restore the volume, press •
again
or press VOL + .
Select surround sound
1 Press SURR repeatedly to select the best
surround output that’s available on the
disc.
Option Description
5 CH
STEREO
Enhances the stereo
channel output by
duplicating the sound
output to the centre
and rear speakers.
Ideal for party music.
MULTI-
CHANNEL
/ DPLII
Multi-channel
surround output:
Dolby Digital and
Dolby Pro Logic II.
STEREO Stereo sound
Note
“ Dolby Prologic II” 5-channel mode is the default •
surround mode whenever you turn on this Home
Theatre System or change to other play source.
Adjust sound
English
EN
1_hts3020-12_en2.indd Sec1:231_hts3020-12_en2.indd Sec1:23 4/2/2009 10:56:33 AM4/2/2009 10:56:33 AM
24
3 Select an option, then press OK .
4 Select a setting, then press OK .
To return to the previous menu, •
press
BACK .
To exit the menu, press •
SETUP .
Note
See the explanations of the above options in the •
following pages.
[Disc Lock]
Sets play restriction for specifi c discs.
Before you start, place the disc in the disc
compartment (maximum 40 discs can be
locked).
• [Lock] – Restricts access to the current
disc. Once activated, a password is
needed to unlock and play the disc.
• [Unlock] – Plays all discs.
Tip
You can set or change the password (see ‘Adjust •
settings’ > ‘Preferences’ > [Password] ).
[Display Dim]
Changes the brightness level of the display
panel on this Home Theatre System.
• [100%] – Normal brightness.
• [70%] – Medium brightness.
• [40%] – Dimmest display.
[OSD Language]
Selects the default on-screen menu language.
[Screen Saver]
Turns off or on the screen saver mode. Helps
to protect the TV screen from being damaged
due to over exposure to a static image for too
long.
• [On] – Sets the screen saver to appear
after 15 minutes of inactivity (for
example, in pause or stop mode).
• [Off] – Disables screen saver mode.
7 Adjust settings
You can customise various kinds of settings as
you prefer. Refer to the following instructions to
navigate through the setup menus.
Symbol Options
[General Setup]
[Audio Setup]
[Video Setup]
[Preferences]
Note
If the setup option is greyed out, it means the setting •
cannot be changed in the current state.
General setup
1 Press SETUP .
» [General Setup] menu is displayed.
2 Press .
Screen Saver
DivX(R) VOD Code
Sleep Timer
Display Dim
Disc Lock
OSD Language
General Setup
EN
1_hts3020-12_en2.indd Sec1:241_hts3020-12_en2.indd Sec1:24 4/2/2009 10:56:34 AM4/2/2009 10:56:34 AM
25
Note
See the explanations of the above options in the •
following pages.
[Speakers Volume]
Sets the volume level of each speaker to get
the ideal audio balance.
1) To start, press OK .
2) Select a speaker in the menu, then press
to adjust the volume level.
3) Press OK to confi rm and exit.
Note
The test tone is emitted from the speaker which you •
adjust.
[Speakers Delay]
Sets the delay time for the centre and rear
speakers if they are placed closer to the
listening position, so that the sound output
from all speakers reaches the listening position
at the same time.
1) To start, press OK .
2) Select a speaker in the menu, then press
to set the delay time.
3) Press OK to confi rm and exit.
Note
Allow 1ms setting for every 1 foot distance between •
the speaker and the listening position.
[Night Mode]
Makes loud sound level softer and soft sound
level louder so that you can watch the DVD
movies at a low volume, without disturbing
others.
• [On] – Enjoy quiet viewing at night.
• [Off] – Enjoy surround sound with a full
dynamic range.
[Sleep Timer]
Switches to standby automatically after the
preset time.
• [15 mins] , [30 mins] , [45 mins] , [60 mins]
– Selects the count down time before
the Home Theatre System switches to
standby.
• [Off] – Disables sleep timer mode.
[DivX(R) VOD Code]
Displays the DivX® registration code.
Tip
Enter this Home Theatre System DivX registration •
code when you rent or purchase a video from www.
divx.com/vod. The DivX videos rented or purchased
through the DivX® VOD (Video On Demand)
service can be played only on the device to which it
is registered.
Audio setup
1 Press SETUP .
» [General Setup] menu is displayed.
2 Press to select [Audio Setup] , then
press
.
3 Select an option, then press OK .
4 Select a setting, then press OK .
To return to the previous menu, •
press
BACK .
To exit the menu, press •
SETUP .
CD Upsampling
CD Upsampling
Speakers Delay
Speakers Volume
Night Mode
Audio Setup
Adjust settings
English
EN
1_hts3020-12_en2.indd Sec1:251_hts3020-12_en2.indd Sec1:25 4/2/2009 10:56:34 AM4/2/2009 10:56:34 AM
26
[TV Display]
Selects one of the following display formats:
• [4:3 Pan Scan] – For 4:3 screen TV: full-
height display with the trimmed sides.
• [4:3 Letter Box] – For 4:3 screen TV:
wide-screen display with black bars on
the top and bottom of the screen.
• [16:9 Wide Screen] – For wide-screen
TV: display ratio 16:9.
[Picture Setting]
Selects a predefi ned set of picture colour
settings or customise the personal setting.
• [Standard] – Original colour setting.
• [Bright] – Vibrant colour setting.
• [Soft] – Warm colour setting.
• [Personal] – Customises the colour
setting. Set the level of brightness,
contrast, sharpness/tint and colour
saturation, then press OK .
4:3 Letter Box (LB)
4:3 Pan Scan (PS)
16:9 (Wide Screen)
Note
Applicable only to Dolby Digital encoded discs. •
Video setup
1 Press SETUP .
» [General Setup] menu is displayed.
2 Press to select [Video Setup] , then
press
.
3 Select an option, then press OK
4 Select a setting, then press OK .
To return to the previous menu, •
press
BACK .
To exit the menu, press •
SETUP .
Note
See the explanations of the above options in the •
following pages.
[TV System]
Change this setting if the video does not
appear correctly. By default, this setting
matches the most common setting for TVs in
your country.
• [PAL] – For PAL-system TV.
• [NTSC] – For NTSC-system TV.
• [Multi] – For TV that is compatible with
both PAL and NTSC.
Video Setup
Picture Setting
TV Display
TV System
EN
1_hts3020-12_en2.indd Sec1:261_hts3020-12_en2.indd Sec1:26 4/2/2009 10:56:34 AM4/2/2009 10:56:34 AM
27
Note
If the language you have set is not available on the •
disc, the disc uses its own default language.
For some discs, the subtitle/audio language can only
•
be changed from the disc menu.
To select the languages that are not listed in the
•
menu, select [Others] . Then check the Language
Code list at the back of this user manual and enter
the respective 4-digit language code.
[Parental]
Restricts access to discs that are unsuitable
for children. These types of discs must be
recorded with ratings.
1) Press OK .
2) Select a rating level, then press OK .
3) Press the Numeric buttons to enter the
password.
Note
Rated discs above the level you set in • [Parental]
require a password to be played.
The ratings are country-dependent. To allow all discs •
to play, select ‘ 8 ’.
Some discs have ratings printed on them but are not •
recorded with ratings. This function has no effect on
such discs.
Tip
You can set or change the password (see •
‘Preferences’ > [Password] ).
[PBC]
Turns off or on the content menu of VCDs/
SVCDs with PBC (playback control) feature.
• [On] - Displays index menu when you
load a disc for play.
• [Off] - Skips the menu and start play
from the fi rst title.
Preferences
Note
Stop disc play before you can access to •
[Preferences] .
1 Press SETUP .
» [General Setup] menu is displayed.
2 Press to select [Preferences] , then
press
.
3 Select an option, then press OK .
4 Select a setting, then press OK .
To return to the previous menu, •
press
BACK .
To exit the menu, press •
SETUP .
Note
See the explanations of the above options in the •
following pages.
[Audio]
Selects the default audio language for disc play.
[Subtitle]
Selects the default subtitle language for disc
play.
[Disc Menu]
Selects the language for disc menu.
Parental
MP3/JPEG Display
PBC
Subtitle
Audio
Preferences
Disc Menu
DivX Subtitle
Password
Adjust settings
English
EN
1_hts3020-12_en2.indd Sec1:271_hts3020-12_en2.indd Sec1:27 4/2/2009 10:56:34 AM4/2/2009 10:56:34 AM
28
[DivX Subtitle]
Selects a character set that supports the DivX
subtitle.
[Standard] English, Irish, Danish, Estonian,
Finnish, French, German, Italian,
Portuguese, Luxembourgish,
Norwegian (Bokmål and
Nynorsk), Spanish, Swedish,
Tur kish
[Central
Europe]
Polish, Czech, Slovak, Albanian,
Hungarian, Slovene, Croatian,
Serbian (Latin script), Romanian
[Cyrillic] Belarusian, Bulgarian, Ukrainian,
Macedonian, Russian, Serbian
[Greek] Greek
Note
Ensure that the subtitle fi le has the exact same fi le •
name as the movie fi le. If for example the fi le name
of the movie is ‘Movie.avi’, then you will need to
name the text fi le ‘Movie.sub’ or ‘Movie.srt’.
[Version Info.]
Displays the software version of this Home
Theatre System.
Tip
This information is required when you want to fi nd •
out if a newest software version is available at the
Philips website that you may download and install on
this Home Theatre System.
[Default]
Resets all the settings of this Home Theatre
System to factory default, except for [Disc
Lock] , [Password] and [Parental] settings.
[MP3/JPEG Display]
Selects to display the folders or display all the
fi les.
• [View Folders] – Displays the folders of
MP3/WMA fi les.
• [View Files] – Displays all the fi les.
•
[Password]
Sets or changes the password for locked discs
and play restricted DVDs.
1) Press the Numeric buttons to enter
‘136900’ or the last set password at [Old
Password] fi eld.
2) Enter the new password at [New
Password] fi eld.
3) Enter the new password again at [Confi rm
Password] fi eld.
4) Press OK to exit the menu.
Note
If you forget the password, enter ‘136900’ before you •
set a new password.
Old Password
New Password
Confirm Password
OK
Change Password
EN
1_hts3020-12_en2.indd Sec1:281_hts3020-12_en2.indd Sec1:28 4/2/2009 10:56:34 AM4/2/2009 10:56:34 AM
29
Note
Do not remove the CD-R or USB when software •
updating is in progress.
8 Disconnect the power cord for a few
seconds and connect again to reboot the
system.
Care
Caution
Never use solvents such as benzene, thinner, •
cleaners available commercially or anti-static sprays
intended for discs.
Clean discs
Wipe the disc with a micro fi bre cleaning cloth
from the centre to the edge in a straight line
movement.
Clean main unit screen
Wipe the screen surface with a micro fi bre
cleaning cloth.
8 Additional
Information
Update software
To check for new updates, compare the current
software version of your Home Theatre System
with the latest software version (if available) at
the Philips website.
1 Press SETUP .
2 Select [Preferences] > [Version Info.] ,
then press OK .
3 Write down the version number, then
press
SETUP to exit the menu.
4 Go to www.philips.com/support to check
the latest software version available for
this Home Theatre System.
5 If the latest software version is higher
than the software version of this Home
Theatre System, download it and store
onto a CD-R or USB fl ash drive.
6 Insert the CD-R or USB fl ash drive to this
Home Theatre System.
7 Press DISC or USB , then follow the
instruction on the TV to confi rm update
operation.
Once software update is complete, »
this Home Theatre System turns off to
standby automatically.
MP3/JPEG Display
DivX Subtitle
Password
Parental
Disc Menu
Preferences
PBC
Default
Version Info.
Additional Information
English
EN
1_hts3020-12_en2.indd Sec1:291_hts3020-12_en2.indd Sec1:29 4/2/2009 10:56:35 AM4/2/2009 10:56:35 AM
30
Radio
Tuning range: FM 87.5–108 MHz (50 kHz)•
26 dB quieting sensitivity: FM 22 dBf•
IF rejection ratio: FM 50 dB•
Signal-to-noise ratio: FM 30 dB•
Harmonic distortion: FM 3%•
Frequency response: FM 180 Hz~10 kHz •
/ ±3 dB
Stereo separation: FM 26 dB (1 kHz)•
Stereo Threshold: FM 23.5 dB•
USB
Compatibility: USB 1.1•
Class support: UMS (USB Mass Storage •
Class)
File system: FAT12, FAT16, FAT32•
Main Unit
Power supply: 220~240 V; ~50 Hz•
Power consumption: 50 W •
Standby power consumption: < 1 W •
Dimensions (WxHxD): 360 x 48 x 332 •
(mm)
Weight: 2.64 kg•
Speakers
System: full range satellite•
Speaker impedance: 8 ohm (centre), 4 •
ohm (Front/Rear)
Speaker drivers: 3” full range •
Frequency response: 150 Hz - 20 kHz•
Dimensions (WxHxD):•
Centre: 100 x 100 x 75 (mm)•
Front/Rear: 100 x 100 x 75 (mm)•
Weight: •
Centre: 0.38 kg•
Front/Rear: 0.38 kg/each•
Subwoofer
Impedance: 8 ohm•
Speaker drivers: 165 mm (6.5”) woofer•
Frequency response: 45 Hz ~ 150 Hz•
Dimensions (WxHxD): 122.6 x 309.5 x •
369 (mm)
Weight: 3.54 kg•
9 Specifications
Note
Specifi cation and design are subject to change •
without notice
Playback media
DVD-Video, DVD+R/+RW, DVD-R/-•
RW, DVD+R DL, CD-R/CD-RW, Audio
CD, Video CD/SVCD, Picture CD, MP3-
CD, WMA-CD, DivX-CD, USB fl ash
drive
Amplifi er
Total output power:•
Home Theatre mode: 200 W•
Frequency response: 63 Hz~14 kHz / •
±3 dB
Signal-to-noise ratio: > -60 dB •
(A-weighted)
Input sensitivity:•
AUX: 500 mV•
SCART TO TV: 500 mV•
•
Disc
Laser Type: Semiconductor•
Disc diametre: 12 cm / 8 cm•
Video decording: MPEG1/ MPEG2 / DivX •
/ DivX Ultra
Video DAC: 12 bits, 108 MHz•
Signal system: PAL / NTSC•
Video S/N: 56 dB •
Audio DAC: 24 bits / 96 kHz•
Frequency response: •
4 Hz–20 kHz (44.1 kHz)•
4 Hz–22 kHz (48 kHz)•
4 Hz–44 kHz (96 kHz)•
PCM: IEC 60958•
Dolby Digital: IEC 60958, IEC 61937•
EN
1_hts3020-12_en2.indd Sec1:301_hts3020-12_en2.indd Sec1:30 4/20/2009 2:32:05 PM4/20/2009 2:32:05 PM
31
Laser specifi cation
Type: Semiconductor laser GaAIAs (CD)•
Wave length: 645 - 665 nm (DVD), •
770 - 800 nm (CD)
Output power: 6 mW (DVD), 7 mW •
(VCD/CD)
Beam divergence: 60 degrees.•
Specifi cations
English
EN
1_hts3020-12_en2.indd Sec1:311_hts3020-12_en2.indd Sec1:31 4/2/2009 10:56:35 AM4/2/2009 10:56:35 AM
32
No picture.
See TVs manual for correct video input •
channel selection. Change the TV channel
until you see the DVD screen.
Press •DISC .
If you have changed the •[TV Display]
setting, switch back to default mode: 1)
Press
to open the disc compartment. 2)
Press
. 3) Press SUBTITLE .
Sound
No sound.
Ensure that the audio cables are •
connected and press the correct input
source (for example, AUDIO SOURCE ,
USB ) to select the device you want to
play.
This Home Theatre System does not •
support DTS surround sound. Ensure that
the play source is not DTS audio stream.
No sound from TV program.
Connect an audio cable from the AUDIO •
input on this Home Theatre System to
the AUDIO output on your TV. Then
press AUDIO SOURCE repeatedly to
select the corresponding audio input
source.
No surround sound effect from the speakers.
Press •SURR to select a correct surround
sound setting.
If the Home Theatre System supports •
DTS playback, press AUDIO SYNC to
select other audio track.
Ensure that the source you are playing is •
recorded or broadcast in surround sound
(Dolby Digital etc.).
10 Troubleshooting
Warning
Risk of electric shock. Never remove the casing of •
the Home Theatre System.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using the
Home Theatre System, check the following
points before requesting service. If the problem
remains unsolved, register your Home Theatre
System and get support at www.philips.com/
welcome.
If you contact Philips, you will be asked for the
model and serial number of your Home Theatre
System. The model number and serial number
are on the back or bottom of your Home
Theatre System. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Main unit
The buttons on this Home Theatre System do
not work.
Disconnect this Home Theatre System •
from the power outlet for a few minutes,
then connect again.
EN
1_hts3020-12_en2.indd Sec1:321_hts3020-12_en2.indd Sec1:32 4/2/2009 10:56:35 AM4/2/2009 10:56:35 AM
33
Play
DivX video fi les cannot be played.
Ensure that the DivX fi le is encoded •
according to the ‘Home Theatre Profi le’
with the DivX encoder.
Ensure that the DivX video fi le is •
complete.
The aspect ratio of the screen is not aligned
with the TV display setting.
The aspect ratio is fi xed on the disc.•
DivX subtitle does not display correctly.
Ensure that the subtitle fi le name is the •
same as the movie fi le name.
Select the correct character set: 1) Press •
SETUP . 2) Select [Preferences] , then
press
. 3) Select [DivX Subtitle] , then
press OK . 4) Select the character set that
supports the subtitle.
The contents of the USB fl ash drive cannot
be read.
The USB fl ash drive format is not •
compatible with this Home Theatre
System.
Drive is formatted with different fi le •
system which is not supported by this
unit (e.g. NTFS).
Maximum size of memory supported is •
160GB.
Troubleshooting
English
EN
1_hts3020-12_en2.indd Sec1:331_hts3020-12_en2.indd Sec1:33 4/2/2009 10:56:35 AM4/2/2009 10:56:35 AM
34
J
JPEG
A very common digital still picture format.
A still-picture data compression system
proposed by the Joint Photographic Expert
Group, which features small decrease in image
quality in spite of its high compression ratio.
Files are recognised by their fi le extension
‘.jpg’ or ‘.jpeg.’
M
MP3
A fi le format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3. With the MP3 format, one CD-R or
CD-RW can contain about 10 times more
data than a regular CD.
MPEG
Motion Picture Experts Group. A collection
of compression systems for digital audio and
video.
P
PBC
Playback Control. A system where you navigate
through a Video CD/Super VCD with on-
screen menus that are recorded onto the disc.
You can enjoy interactive playback and search.
PCM
Pulse Code Modulation. A digital audio
encoding system.
W
WMA
Windows Media™ Audio. Refers to an audio
compression technology developed by Microsoft
Corporation. WMA data can be encoded with
Windows Media player version 9 or Windows
Media player for Windows XP. Files are
recognised by their fi le extension ‘.wma.’
11 Glossary
A
Aspect ratio
Aspect ratio refers to the length to height
ratio of TV screens. The ratio of a standard
TV is 4:3, while the ratio of a high-defi nition
or wide TV is 16:9. The letter box allows you
to enjoy a picture with a wider perspective on
a standard 4:3 screen.
D
DivX Video
DivX® is a digital video format created by
DivX, Inc. This is an offi cal DivX Certifi ed
device that plays DivX video. Visit www.divx.
com for more information and software tools
to convert your fi les into DivX video.
DivX Video-On-Demand
This DivX Certifi ed® device must be
registered in order to play DivX Video-on-
demand (VOD) content. To generate the
registration code, locate the DivX VOD
section in your device setup menu. Go to
vod.divx.com with this code to complete the
registration process and learn more about
DivX video.
Dolby Digital Pro Logic II
An advanced, matrix decoding technology that
expands any two channel audio, such as CDs
and stereo encoded videocassettes, video
games and TV broadcasts to a fi ve channel
full bandwidth (range) playback (Left/Centre/
Right/Left Surround/Right Surround), resulting
in a surround sound experience.
EN
1_hts3020-12_en2.indd Sec1:341_hts3020-12_en2.indd Sec1:34 4/2/2009 10:56:35 AM4/2/2009 10:56:35 AM
book1 back page.indd 1book1 back page.indd 1 4/2/2009 9:20:14 AM4/2/2009 9:20:14 AM
Abkhazian 6566
Afar 6565
Afrikaans 6570
Amharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Avestan 6569
Aymara 6589
Azerhaijani 6590
Bahasa Melayu 7783
Bashkir 6665
Belarusian 6669
Bengali 6678
Bihari 6672
Bislama 6673
Bokmål, Norwegian 7866
Bosanski 6683
Brezhoneg 6682
Bulgarian 6671
Burmese 7789
Castellano, Español 6983
Catalán 6765
Chamorro 6772
Chechen 6769
Chewa; Chichewa; Nyanja 7889
9072
Chuang; Zhuang 9065
Church Slavic; Slavonic 6785
Chuvash 6786
Corsican 6779
esky 6783
Dansk 6865
Deutsch 6869
Dzongkha 6890
English 6978
Esperanto 6979
Estonian 6984
Euskara 6985
6976
Faroese 7079
Français 7082
Frysk 7089
Fijian 7074
Gaelic; Scottish Gaelic 7168
Gallegan 7176
Georgian 7565
Gikuyu; Kikuyu 7573
Guarani 7178
Gujarati 7185
Hausa 7265
Herero 7290
Hindi 7273
Hiri Motu 7279
Hrwatski 6779
Ido 7379
Interlingua (International)7365
Interlingue 7365
Inuktitut 7385
Inupiaq 7375
Irish 7165
Íslenska 7383
Italiano 7384
Ivrit 7269
Japanese 7465
Javanese 7486
Kalaallisut 7576
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kernewek 7587
Khmer 7577
Kinyarwanda 8287
Kirghiz 7589
Komi 7586
Korean 7579
Kuanyama; Kwanyama 7574
Kurdish 7585
Lao 7679
Latina 7665
Latvian 7686
Letzeburgesch; 7666
Limburgan; Limburger 7673
Lingala 7678
Lithuanian 7684
Luxembourgish; 7666
Macedonian 7775
Malagasy 7771
Magyar 7285
Malayalam 7776
Maltese 7784
Manx 7186
Maori 7773
Marathi 7782
Marshallese 7772
Moldavian 7779
Mongolian 7778
Nauru 7865
Navaho; Navajo 7886
Ndebele, North 7868
Ndebele, South 7882
Ndonga 7871
Nederlands 7876
Nepali 7869
Norsk 7879
Northern Sami 8369
North Ndebele 7868
Norwegian Nynorsk; 7878
Occitan; Provencal 7967
Old Bulgarian; Old Slavonic 6785
Oriya 7982
Oromo 7977
Ossetian; Ossetic 7983
Pali 8073
Panjabi 8065
Persian 7065
Polski 8076
Português 8084
Pushto 8083
Russian 8285
Quechua 8185
Raeto-Romance 8277
Romanian 8279
Rundi 8278
Samoan 8377
Sango 8371
Sanskrit 8365
Sardinian 8367
Serbian 8382
Shona 8378
Shqip 8381
Sindhi 8368
Sinhalese 8373
Slovensky 8373
Slovenian 8376
Somali 8379
Sotho; Southern 8384
South Ndebele 7882
Sundanese 8385
Suomi 7073
Swahili 8387
Swati 8383
Svenska 8386
Tagalog 8476
Tahitian 8489
Tajik 8471
Tamil 8465
Tatar 8484
Telugu 8469
Thai 8472
Tibetan 6679
Tigrinya 8473
Tonga (Tonga Islands) 8479
Tsonga 8483
Tswana 8478
Türkçe 8482
Turkmen 8475
Twi 8487
Uighur 8571
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapuk 8679
Walloon 8765
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 8973
Yoruba 8979
Zulu 9085
中文
Language Code
book1 back page.indd 2book1 back page.indd 2 4/2/2009 9:20:14 AM4/2/2009 9:20:14 AM
DK
Advarsel: Usynlig laserstråling ved åbning når
sikkerhedsafbrydere er ude af funktion. Undgå
utsættelse for stråling.
Bemærk: Netafbryderen er sekundært
indkoblet og ofbryder ikke strømmen fra
nettet. Den indbyggede netdel er derfor
tilsluttet til lysnettet så længe netstikket sidder i
stikkontakten.
S
Klass 1 laseraparat
Varning! Om apparaten används på annat
sätt än i denna bruksanvisning specifi cerats, kan
användaren utsättas för osynlig laserstrålning,
som överskrider gränsen för laserklass 1.
Observera! Stömbrytaren är sekundärt kopplad
och bryter inte strömmen från nätet. Den
inbyggda nätdelen är därför ansluten till elnätet
så länge stickproppen sitter i vägguttaget.
SF
Luokan 1 laserlaite
Varoitus! Laitteen käyttäminen muulla kuin
tässä käyttöohjeessa mainitulla tavalla saattaa
altistaa käyttäjän turvallisuusluokan 1 ylittävälle
näkymättömälle lasersäteilylle.
Oikeus muutoksiin varataan. Laite ei saa olla
alttiina tippu-ja roiskevedelle.
Huom. Toiminnanvalitsin on kytketty
toisiopuolelle, eikä se kytke laitetta irti
sähköverkosta. Sisäänrakennettu verkko-osa on
kytkettynä sähköverkkoon aina silloin, kun
pistoke on pistorasiassa.
Norge
Typeskilt fi nnes på apparatens underside.
Observer: Nettbryteren er sekundert
innkoplet. Den innebygde netdelen er derfor
ikke frakoplet nettet så lenge apparatet er
tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk
støt, skal apparatet ikke utsettes for regn eller
fuktighet.
Italia
DICHIARAZIONE DI CONFORMITA’
Si dichiara che l’apparecchio HTS3020, Philips
risponde alle prescrizioni dell’art. 2 comma 1 del
D.M. 28 Agosto 1995 n. 548.
Fatto a Eindhoven
Philips Consumer Lifestyle
Philips, Glaslaan 2 5616 JB Eindhoven,
The Netherlands
book1 back page.indd 3book1 back page.indd 3 4/2/2009 9:20:16 AM4/2/2009 9:20:16 AM
© 2009 Koninklijke Philips Electronics N.V.
All rights reserved.
sgpjp_0914/12/v3_bk1
book1 back page.indd 4book1 back page.indd 4 4/2/2009 9:20:16 AM4/2/2009 9:20:16 AM
