EN MULTI-DOOR
FREEZER/REFRIGERATOR
FR MULTI-DOOR
FRANÇAISES/CONGÉLATEUR EN BAS
ES MULTI-DOOR-
DOR INFERIOR DE PUERTA DOBLE
A16504702 May 2020
USE AND CARE GUIDE
GUIDE D’UTILISATION ET D’ENTRETIEN
GUIA DE USO Y CUIDADO
2
Important Safety Information
Please read and save this
guide
Thank you for choosing Electrolux, our
new premium brand in home appliances.
This Use & Care Guide is part of our
commitment to customer satisfaction and
product quality throughout the service life
of your new appliance.
Purchase date
Electrolux model number
Electrolux serial number
Keep a record for quick
reference
Table of contents
Questions?
For toll-free telephone support in the U.S.
and Canada: 1-877-4ELECTROLUX
(1-877-435-3287)
For online support and product information
visit http://www.electroluxappliances.com
Doors
Handles are secure and tight
Door seals completely to cabinet on
all sides
Leveling
Refrigerator is level side-to-side and
slightly elevated in front to assist
with door and drawer closing (front
should be higher than back)
Toe grille is properly attached to
refrigerator
Cabinet is setting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker
House water supply connected to
refrigerator
No water leaks present at all
connections - recheck in 24 hours
Ice maker is turned ON
Ice & water dispenser operates correctly
Final Checks
Shipping material removed
Fresh food and freezer temperatures set
Crisper humidity controls set
Registration card sent in
Installation Checklist
NOTE
Registering your product with Electrolux
enhances our ability to serve you. You can
register online at
www.electroluxappliances.com or by sending
your Product Registration Card in the mail.
Important Safety Information ................... 2
Features ................................................. 6
Installation .............................................. 7
Installing Door Handles ......................... 12
Connecting Water Supply ..................... 13
Controls and Settings ........................... 15
Automatic Ice and Water Dispenser ...... 19
Storage Features .................................. 23
Normal Operating Sounds .................... 29
Changing the Filter(s) ............................ 30
Care & Cleaning .................................... 32
Troubleshooting .................................... 34
Warranty ............................................... 39
3
Important Safety Information
Important safety instructions
Safety Precautions
Do not attempt to install or operate your unit
until you have read the safety precautions
in this manual. Safety items throughout this
manual are labeled with a Danger, Warning,
or Caution based on the risk type.
DANGER
DANGER Risk of fire or explosion.
Flammable refrigerant used. Do not
use mechanical devices to defrost
refrigerator. Do not puncture refrigerant
tubing.
DANGER Risk of fire or explosion.
Flammable refrigerant used. To be
repaired only by trained service
personnel. Do not puncture refrigerant
tubing.
CAUTION
CAUTION Risk of fire or explosion.
Flammable refrigerant used. Consult
repair manual/owner’s guide before
attempting to service this product. All
safety precautions must be followed.
CAUTION Risk of fire or explosion.
Dispose of property in accordance with
federal or local regulations. Flammable
refrigerant used.
CAUTION Risk of fire or explosion
due to puncture of refrigerant tubing.
Follow handling instructions carefully.
Flammable refrigerant used.
IMPORTANT
CFC/HCFC Disposal
Some old refrigerators may have
a cooling system that used CFCs
or HCFCs (chlorofluorocarbons or
hydrochlorofluorocarbons). CFCs
and HCFCs are believed to harm
stratospheric ozone if released to the
atmosphere. Other refrigerants may
also cause harm to the environment if
released to the atmosphere.
If disposing of an old refrigerator,
make sure the refrigerant is removed
for proper disposal by a qualified
technician. Intentionally released
refrigerant may subject one to fines
and imprisonment under provisions of
environmental legislation.
WARNING
WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or serious
injury.
IMPORTANT
Indicates installation, operation, or
maintenance information which is
important but not hazard-related.
CAUTION
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
Definitions
This is the safety alert symbol. It is
used to alert you to potential personal
injury hazards. Obey all safety messages
that follow this symbol to avoid possible
injury or death.
WARNING
WARNING! CALIFORNIA RESIDENTS
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
4
Important Safety Information
Before you recycle or dispose of your
old refrigerator/freezer:
• Remove the doors.
• Leave the shelves and baskets in place
so children may not easily climb inside.
• Have refrigerant and compressor oil
removed by a qualified service technician.
General Safety
• Do not store or use gasoline or other
flammable liquids near this or any
other appliance. Read product labels
for warnings regarding flammability
and other hazards.
• Do not operate the refrigerator in the
presence of explosive fumes.
• Avoid contact with any moving parts
of the automatic ice maker.
• Remove all staples from the carton to
avoid injury. Staples can also damage
finishes if they come in contact with
other appliances or furniture.
Child Safety
Packing Materials:
• Packing cartons covered with rugs,
bedspreads, plastic sheets, or stretch
wrap may become airtight chambers
and can quickly cause suffocation.
• Destroy or recycle the product’s carton,
plastic bags, and any other exterior
wrapping material immediately after
the refrigerator is unpacked. Children
should never play with these items.
Child Entrapment and Suffocation:
• These problems are not limited to the
past. Whether junked, abandoned,
or temporarily stored (even for a few
hours), unattended refrigerators and
freezers are dangerous. Please take
the precautions listed below.
Proper Disposal of Refrigerators/
Freezers
We strongly encourage responsible
appliance recycling/disposal methods.
Check with your utility company or visit
www.energystar.gov/recycle for more
information on recycling your old refrigerator.
WARNING
Please read all safety instructions before
using your new refrigerator.
5
• The refrigerator must be plugged into
its own dedicated 115 Volt, 60 Hz,
AC-only non-GFCI electric outlet.
The power cord of the appliance
is equipped with a three-prong
grounding plug for your protection
against electrical shock hazards.
It must be plugged directly into
a properly grounded three-prong
receptacle. The receptacle must be
installed in accordance with local
codes and ordinances. Consult a
qualified electrician. Do not use an
extension cord or adapter plug.
• If the power cord is damaged,
it should be replaced by the
manufacturer, service technician, or a
qualified person.
• Never unplug the refrigerator by pulling
on the power cord. Always grip the
plug firmly and pull straight out from
the receptacle to prevent damaging
the power cord.
• To avoid electrical shock, unplug the
refrigerator before cleaning and before
replacing a LED light.
• Performance may be affected if
the voltage varies by 10% or more.
Operating the refrigerator with
insufficient power can damage the
compressor. Such damage is not
covered under your warranty.
• Do not plug the unit into an outlet
controlled by a wall switch or pull cord
to prevent the refrigerator from being
turned off accidentally.
Electrical information
Grounding type wall receptacle
Power cord with 3-prong
grounded plug
Do not, under any
circumstances,
cut, remove, or
bypass the
grounding prong.
WARNING
You must follow these guidelines to
ensure that your refrigerator’s safety
mechanisms are operating correctly.
IMPORTANT
To turn off power to your refrigerator,
unplug the power cord from the wall
outlet.
Important Safety Information
6
Features
Understanding features and terms

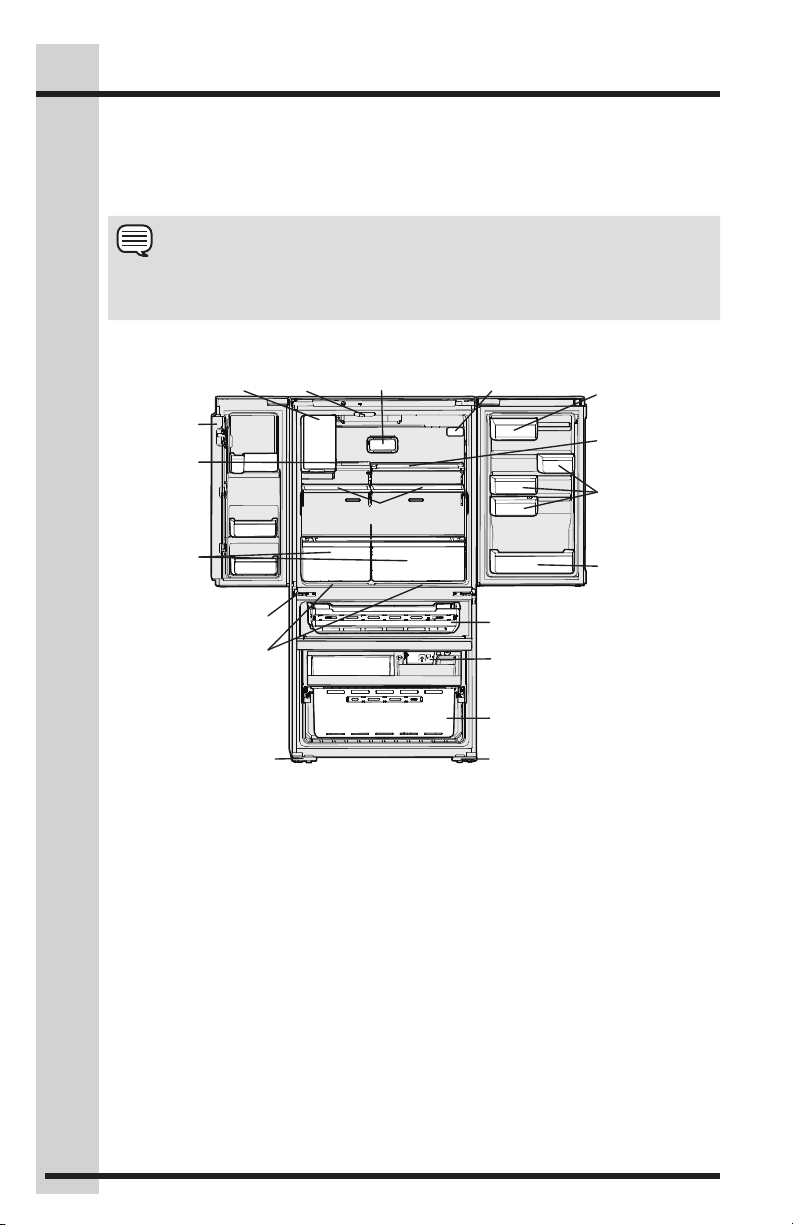

Your Electrolux refrigerator is designed for optimal convenience and storage flexibility.
The illustration below is provided to assist you with familiarizing yourself with product
features and terminology.
NOTE
*Features may vary according to model. Dispenser model shown. Model is shown
without freezer drawer cover.
Flip Shelf
Water Filter
Adjustable Hinges
*Door Bin
Shelves
Flipper
Mullion
*Fresh Food
Ice Maker
TasteLock
TM
Crispers
*Dairy
Compartment
*Slide-Under
Shelf
TempAdapt
TM
Drawer
Freezer Basket
Air Filter
Flipper
Guide
Freezer Ice Maker
SnackZone
TM
Storage
Compartments
(Recessed below
Crispers)
Adjustable
Door Bins
Anti-tip Leg
Anti-tip Leg
7
Installation
This Use & Care Guide provides general
installation and operating instructions
for your model. We recommend using a
service or kitchen contracting professional
to install your refrigerator. Use the
refrigerator only as instructed in this Use &
Care Guide. Before starting the refrigerator,
follow these important first steps.
Location
• Choose a place that is near a
grounded, non-GFCI, electrical outlet.
Do Not use an extension cord or an
adapter plug.
• If possible, place the refrigerator out
of direct sunlight and away from the
range, dishwasher, or other heat
sources.
• The refrigerator must be installed on a
floor that is level and strong enough to
support a fully loaded refrigerator.
• Consider water supply availability for
models equipped with an automatic
ice maker.
Installation
• Allow the following clearances for ease
of installation, proper air circulation,
and plumbing and electrical
connections:
Sides & Top 3/8 inch (9.5 mm)
Back 1 inch (25.4 mm)
Required Tools

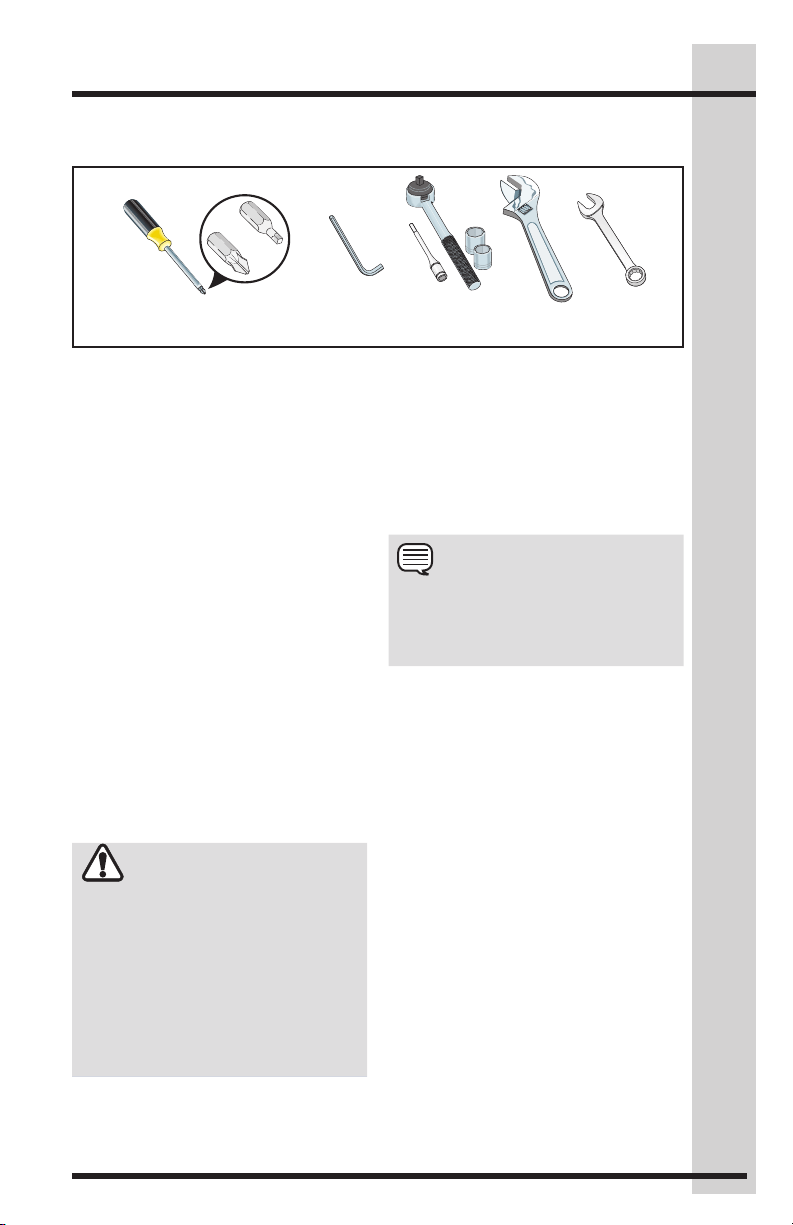

You will need the following tools:
CAUTION
DO NOT install the refrigerator where
the temperature will drop below 55°F
(13°C) or rise above 110°F (43°C).
The compressor will not be able to
maintain proper temperatures inside the
refrigerator.
DO NOT block the toe grille on the lower
front of your refrigerator. Sufficient air
circulation is essential for the proper
operation of your refrigerator.
NOTE
If your refrigerator is placed with the
door hinge against a wall, you may have
to allow additional space so the door
can be opened wider.
Tools Necessary:
Phillips Head
or
Quadrex Head
Screwdriver
(OR)
OR
⅜" and ¼"
Socket
Wrench
Adjustable
Wrench
OR
⅜"
Fixed
Wrench
ANDAND
6mm
Allen Wrench
8
Installation

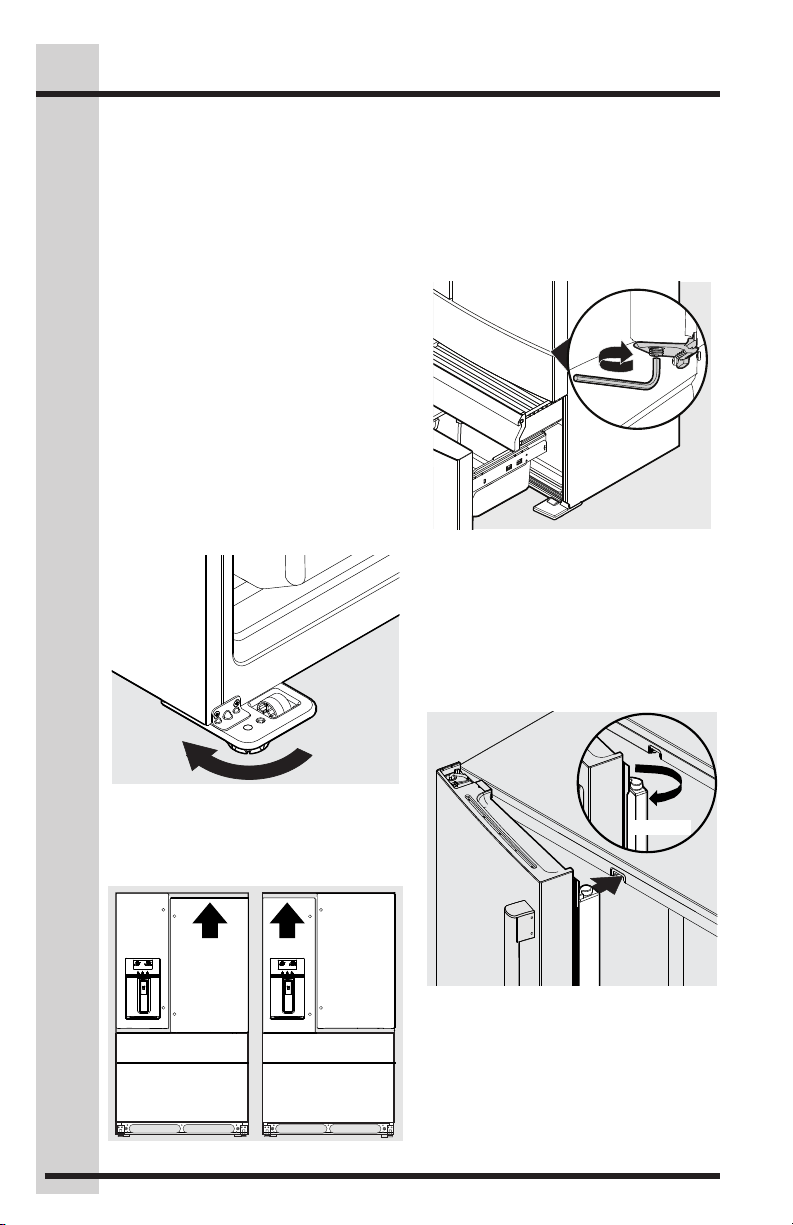

3 Ensure both doors are bind-free with
their seals touching the cabinet on all
four sides and that cabinet is stable.
To make final door height adjustments:
Cabinet Leveling & Refrigerator
Door Alignment (if necessary)
Guidelines for final positioning of
refrigerator:
• All four corners of the cabinet must
rest firmly on the floor.
• The front should be slightly elevated
to ensure that doors close and seal
properly.
• Doors should align with each other
and be level.
Most of these conditions can be met by
raising or lowering the adjustable anti-tip
legs.
To level the cabinet using the anti-tip legs:
1 Slightly open freezer drawer.
2 Lower anti-tip legs until they are both
touching the floor. Use a pair of pliers
to adjust.
To raise unit: turn leg clockwise.
To lower unit: turn leg counterclockwise.
Raise
Flipper Mullion
Adjust Flipper Mullion for proper
connection with the mullion guide by
ensuring the flipper mullion is folded and
perpendicular to the fresh food door. If the
mullion guide is not in the correct position,
it could prevent the door from closing
completely.
WRONG
Anti-Tip
Legs
Door
Door
Door
Door
1. Open TempAdapt drawer to make
lower hinge visible.
2. Insert 6mm Allen
TM
wrench into the
shaft of the lower hinge.
To lower door: turn adjustment screw
clockwise.
To raise door: turn adjustment screw
counterclockwise.
9
Installation
Getting through narrow spaces
If refrigerator will not fit through an
entrance area, doors can be removed.
Check first by measuring the entrance.

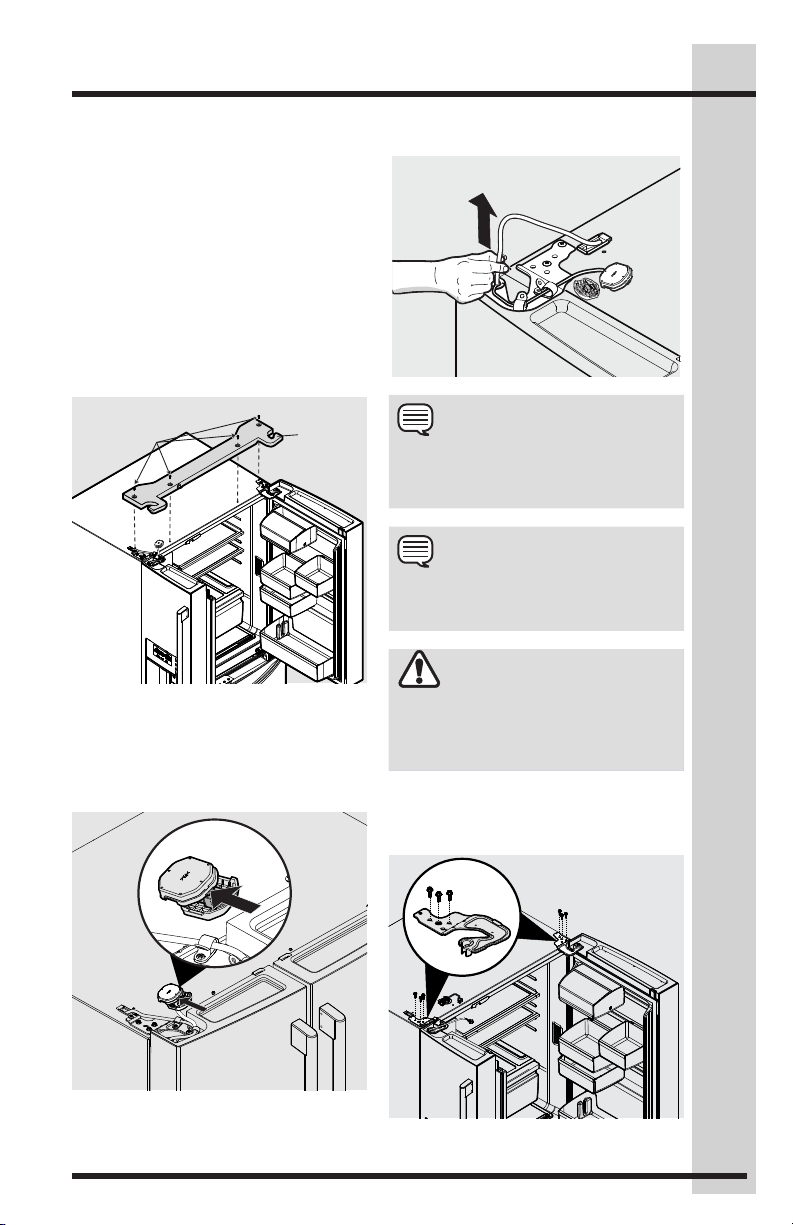

To prepare for removing the doors:
1 Make sure the electrical power cord
is unplugged from the wall outlet.
2 Remove any food from the door
shelves and close the doors.
To remove the refrigerator doors:
1 Open doors to 90°.
2 Remove all five Phillips
TM
screws from
top hinge cover and lift up.
Phillips Screws
Top
Hinge
Cover
5 Pull up on water line gently to remove
from door.
Waterline
3 Trace lightly around the door’s top
hinges with a pencil. This makes
reinstallation easier.
4 Disconnect electrical harness running
from door to hinge cover.
6 Remove three 8mm bolts from both
top hinges. Lift doors up off lower
hinges and carefully set aside.
x2
CAUTION
Be sure doors are set aside in a secure
position where they cannot fall and cause
personal injury, or damage to the doors or
handles.
NOTE
Approximately four feet of water tube will
be pulled from the refrigerator door.
NOTE
Use care while pulling the water tube
from the door to be sure that tube does
not kink.
10
Installation
Lower Hinge Removal
Once both doors are in place, ensure
they are aligned with each other and level
(Reference the Installation section for more
details), and replace the top hinge cover.
8 To reinstall doors, reverse procedure.
7 To gain access to lower hinge,
drawer will need to be extended.
Unscrew the three lower hinge
screws and slide the hinge inwards.

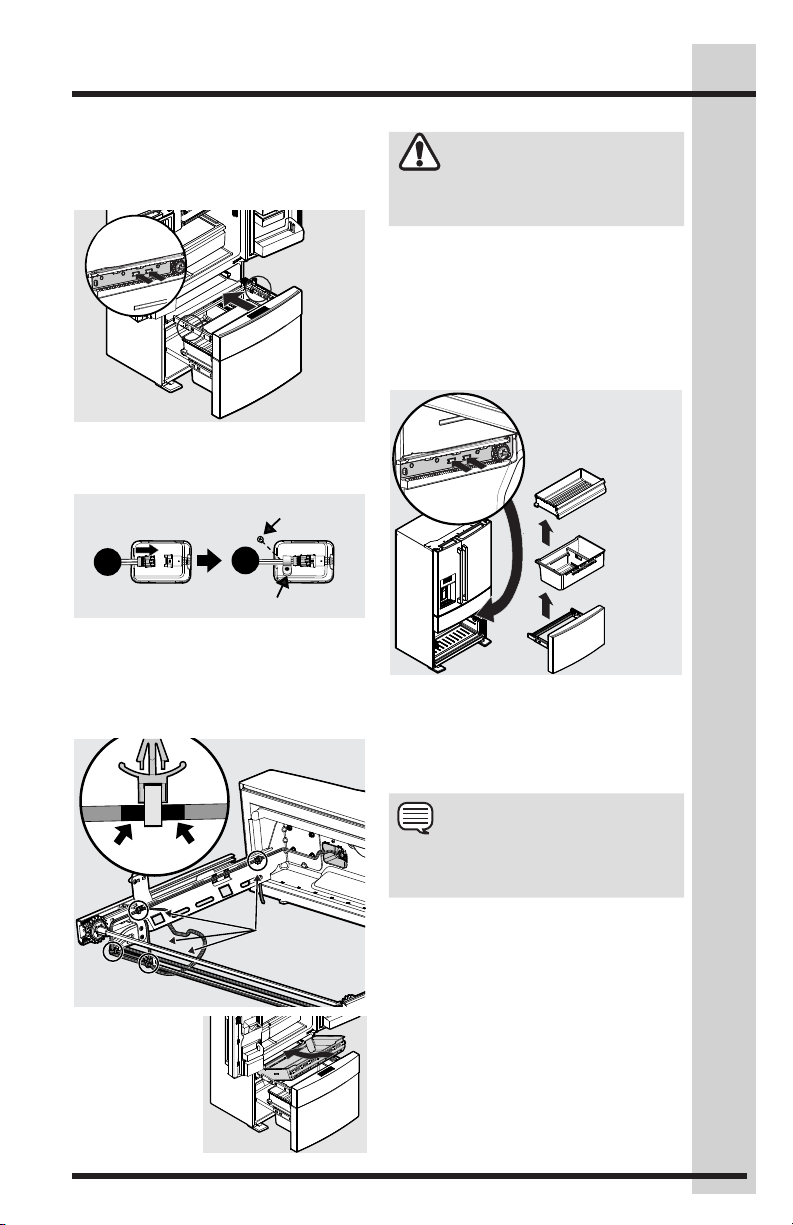

To remove the TempAdapt Drawer
1 Fully open
drawer.
2 Remove
basket
from
drawer.
3 Unsnap
the 4
cable ties by pressing clip sides
together and pushing through
opening.
4 Remove screw and retaining clip and
disconnect the harness.
5 Remove drawer by pressing on the
liner clips and slide rail past clips on
both sides to fully remove drawer
from cabinet.
Press the two
tabs on both
sides to release
the sliders
Cable
Tie
Cable
Clip
NOTE: Do Not Remove or Cut
Cable Ties From Wire Harness
(4) Cable
Ties
Retaining
Clip
Retaining Clip
To Cabinet
Harness
Screw
NOTE
When reinserting the water tube and
replacing the top hinge cover, use care
to be sure the tube does not kink.
IMPORTANT
Make sure water line tubing goes
through hole at top of dispenser pocket.
There is also a metal wrap on the tubing
to prevent damage from the hinge
rubbing against it. This needs to be
fixed back around the tube in the proper
location upon reinstallation (just as long
as the tube is protected from the hinge).
11
Installation
1 Open drawer and fully extend.
2 Remove the freezer drawer.
3 Remove the freezer basket.
4 Inside the cabinet, press the two tabs
on both sides to release the sliders.
5 Remove the drawer with brackets
and sliders.
Removing Freezer Drawer
Freezer
Drawer
Freezer
Basket
Press the two tabs
on both sides to
release the sliders
Reinstalling Freezer Drawer
1 Place drawer with brackets and
sliders inside the cabinet and click
into place.
2 Replace the basket.

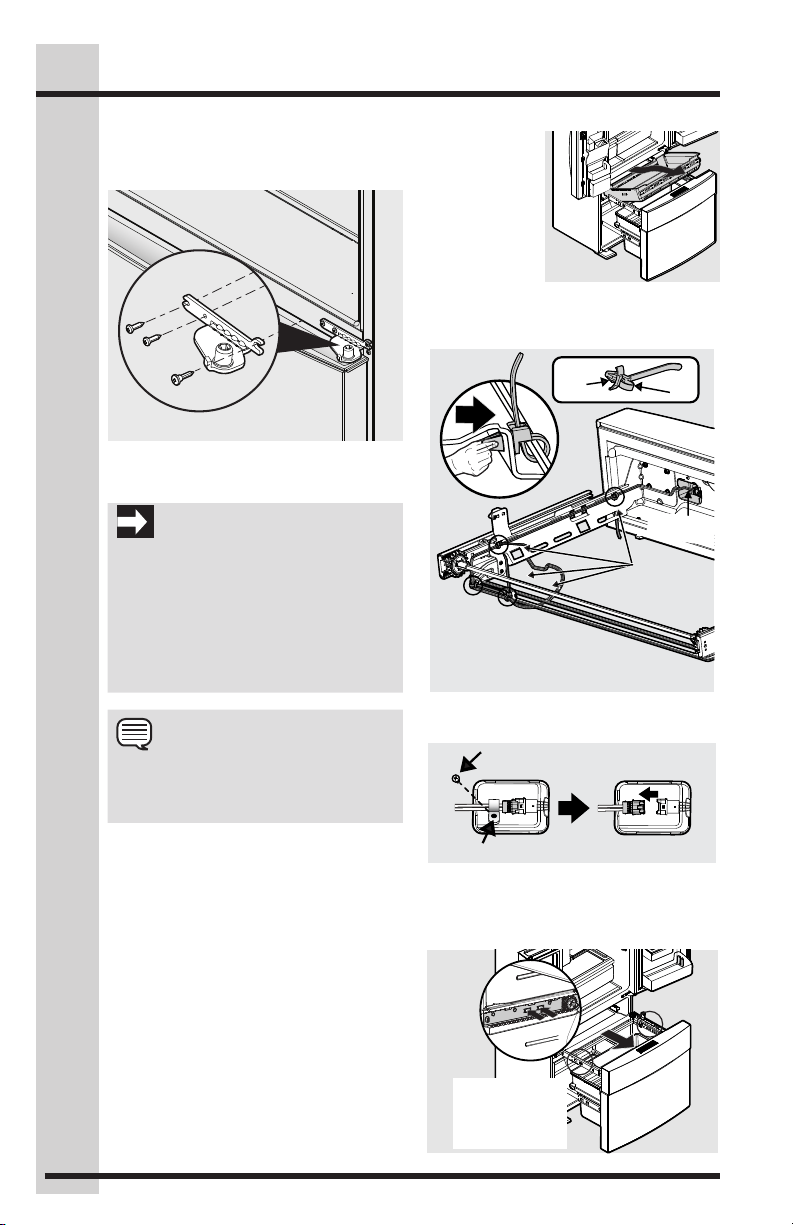

Reinstalling the TempAdapt
Drawer
1 Place drawer with brackets and
sliders inside compartment and click
sliders into place on each side.
2 Reconnect cabinet harness.
3 Replace retaining clip and secure
with screw.
Retaining Clip
Reconnect
Cabinet Harness
Screw
1
2
4 Reattach electrical harness by
positioning the cable clips over
the black markings on the harness
and push the 4 cable clips through
openings in rail to secure harness in
place.
Black
Marking
Position
cable clips
over the black
markings before
attaching.
5 Slide basket
into place.
6 Close
drawer.
Click
Into Place
CAUTION
Drawer is heavy. Use caution when
lifting.
NOTE
For additional instructions, see Storage
Features section.
12

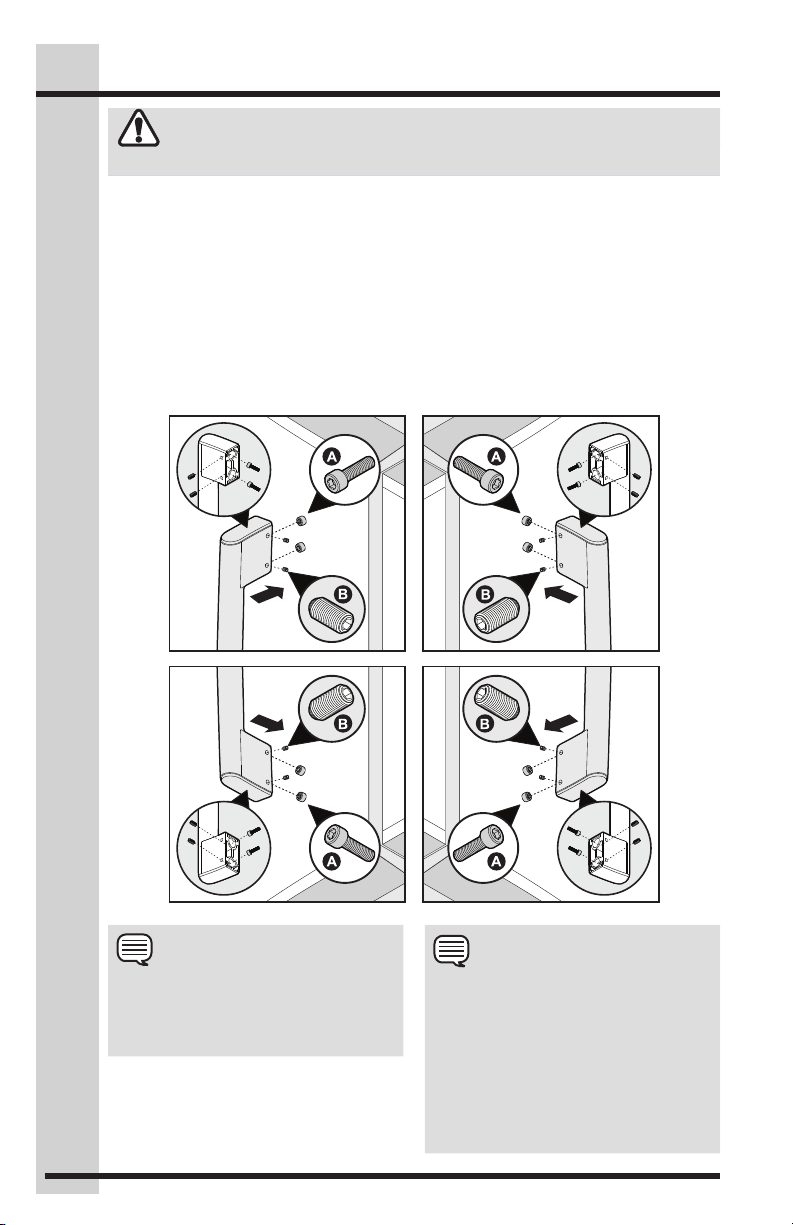

Installing Door Handles
Door Handle Mounting Instructions
1 Remove handles from carton and any other protective packaging.
2 Position fresh food handle end caps over upper and lower pre-installed shoulder
bolts (A) that are fastened into door, ensuring the holes for the set screws are facing
towards the opposite door.
3 While holding handle firmly against door, fasten upper and lower Allen set screws
(B) with supplied Allen wrench.
4 Repeat steps 2 and 3 to install opposite handle. Ensure the holes for the set screws
are facing towards the first door.
Mounting Refrigerator Handles
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
NOTE
When tightening the Allen set screws, it
is imperative that force be applied to the
longer arm of the Allen wrench supplied
in the handle packaging.
NOTE
All set screws should be tightened
so the screw is below the surface of
the handle. The handles should be
drawn tight to doors/drawer with no
gaps. Opening the opposite door
while tightening the Allen screw makes
installation easier.
The door handle may loosen over time or if
it was installed improperly. If this happens,
tighten the set screws on the handles.
13
Connecting Water Supply
WARNING
To avoid electric shock, which can
cause death or severe personal injury,
disconnect the refrigerator from
electrical power before connecting a
water supply line to the refrigerator.
IMPORTANT
Ensure that your water supply line
connections comply with all local
plumbing codes.
CAUTION
To Avoid Property Damage:
• Stainless Steel braided tubing is
recommended for the water supply
line. Water supply tubing made of
¼ inch plastic is not recommended
to be used. Plastic tubing greatly
increases the potential for water
leaks, and the manufacturer will not
be responsible for any damage if
plastic tubing is used for the supply
line.
• DO NOT install water supply tubing
in areas where temperatures fall
below freezing.
• Chemicals from a malfunctioning
softener can damage the ice maker.
If the ice maker is connected to soft
water, ensure that the softener is
maintained and working properly.
NOTE
Check with your local building authority
for recommendations on water lines and
associated materials prior to installing
your new refrigerator. Depending
on your local/state building codes,
Electrolux recommends for homes
with existing valves its Smart Choice®
water line kit 5305513409 with a 6
ft. (1.8 meters) Stainless Steel Water
Line and for homes without an existing
valve, Electrolux recommends its Smart
Choice® water line kit 5305510264 with
a 20 ft. (6 meters) Copper Water Line
with self-tapping saddle valve). Please
refer to www.electroluxappliances.com
for more information.
Before installing the water supply line,
you will need:
1. Basic Tools: adjustable wrench,
flat-blade screwdriver, and Phillips
TM
screwdriver
2. Access to a household cold water
line with water pressure between 30
and 100 psi.
3. A water supply line made of ¼ inch
(6.4 mm) OD copper or braided
stainless steel tubing. To determine
the length of tubing needed, measure
the distance from the ice maker inlet
valve at the back of the refrigerator
to your cold water pipe. Then add
approximately 7 feet (2.1 meters), so
the refrigerator can be moved out for
cleaning.
Water Inlet
Fitting
Remove
plastic cap
from water
inlet fitting
¼ inch
plastic tube
to water
valve
Water Inlet
Fitting
Remove
plastic cap
from water
inlet fitting
¼ inch
plastic tube
to water
valve
NOTE
Expect the first ice harvest within first
24hours of unit operation. To prevent any
issues concerning ice production, please
ensure that all water lines are primed.
See “Priming the water supply system”
in the “AUTOMATIC ICE & WATER
DISPENSER” section.
4. A shutoff valve to connect the water
supply line to your household water
system.
14
Connecting Water Supply
6 ft. (1.8 Meters)
Stainless Steel water
line from household
water supply line
Water
Inlet
Fitting
Plastic
tubing
to
water
valve
Connection to
household
water supply

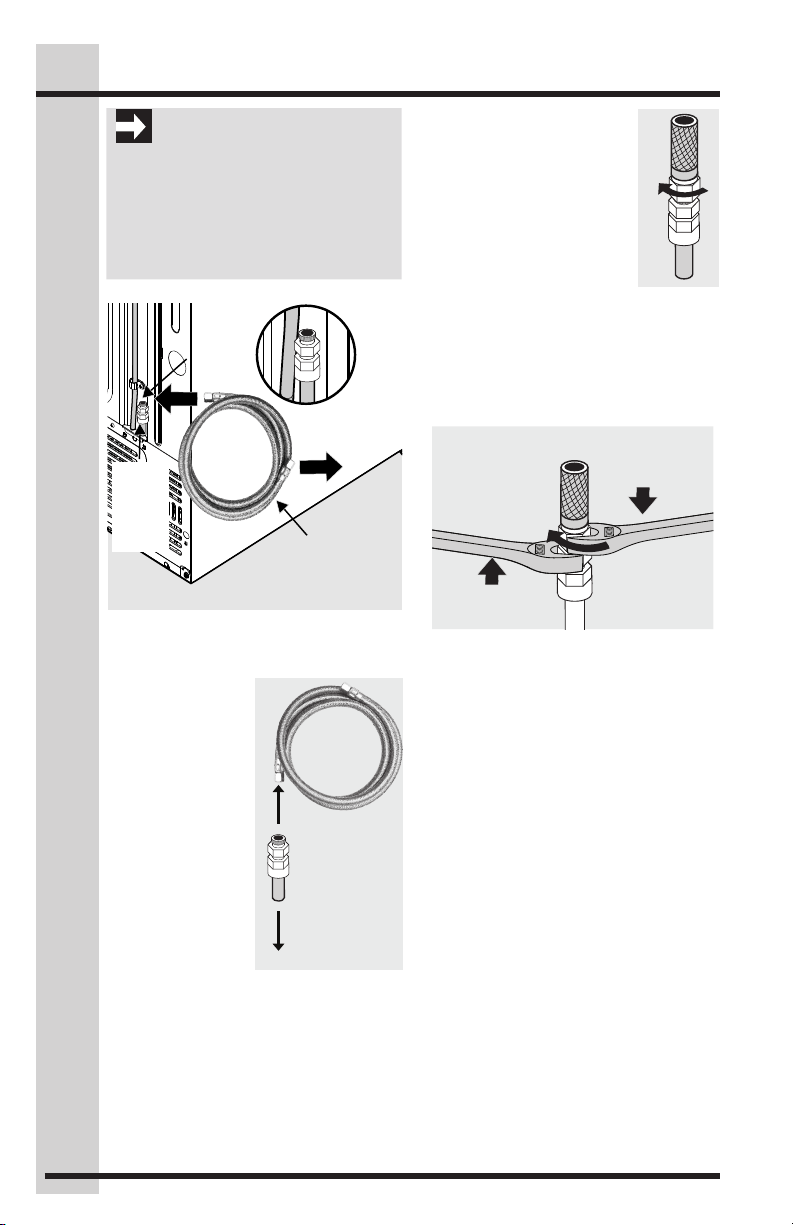

To Connect Water Tube to
Household Water Supply
1 Disconnect
refrigerator
from electrical
power source.
2 Place end of
water supply
line into sink
or bucket.
Turn ON water
supply and
flush supply
line until water
is clear. Turn
OFF water
supply at
shutoff valve.
To
Household
Water
Supply
To
Unit
Water
Valve
Place wrench
here. Do not turn.
Place wrench
here. Turn
clockwise.
6 Turn ON water supply at shutoff valve
and tighten any connections that
leak.
7 Reconnect refrigerator to electrical
power source.
8 Ensure ice maker is turned ON.
9 Purge air from Ice & Water Dispenser
System by operating the water
dispenser for 3-4 minutes. This will
require dispensing several glasses of
water.
IMPORTANT
The refrigerator’s water supply system
includes several tubing lines, a water filter,
and a water valve. To ensure that the water
dispenser works properly, this system
must be completely filled with water when
the refrigerator is first connected to the
household water supply line.
3 Remove plastic cap
from water inlet fitting
and discard cap.
4 If using (recommended)
stainless steel
braided tubing - the
nut and ferrule are
already assembled
on the tubing. Slide
compression nut onto
water inlet fitting and finger tighten.
5 Using two adjustable wrenches (one
to hold the household water line nut
and the other to hold the water inlet
fitting nut), tighten a half turn with
wrench. DO NOT over tighten.
15
Controls and Settings

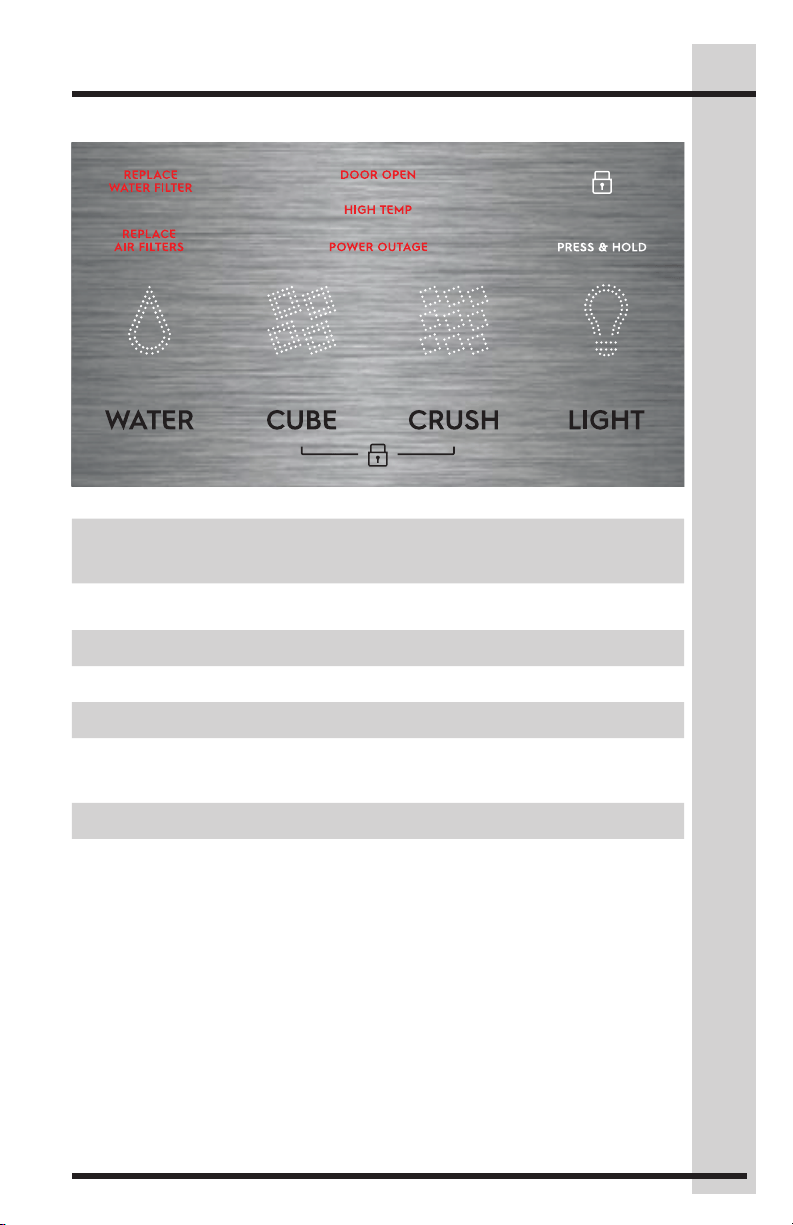

External Ice & Water Dispenser Control
REPLACE
WATER
FILTER
When illuminated, indicates it is time to replace water filter.
REPLACE
AIR FILTER
When illuminated, indicates it is time to replace air filter.
WATER Press the “WATER” key to select water.
CRUSH Press the “CRUSH” key to select crushed ice.
CUBE Press the “CUBE” key to select cubed ice.
LOCK
Press and hold CUBE & CRUSH keys simultaneously for 3 seconds to
LOCK/UNLOCK control panel. When control panel is locked, no water
or ice can be dispensed and lock icon will illuminate on the display.
LIGHT
Press the “LIGHT” key to select light feature.
16
Controls and Settings
Display Mode Views
Your display is equipped with a sleep and lock mode to prevent accidental changes to
the unit settings during opening and closing of the doors. When both doors are closed,
the display will be in sleep mode. When either door is first opened, the display will be in
lock mode where all the current settings are visible but dimmed.
Pressing any button on the display will awake the display and a tone will be played. All
settings will then be fully lit. Touch the display again to change any setting.
If there is no button pressed for 10 seconds while any door is open, the display will
default back to lock mode.
Awake Mode View Lock Mode View Sleep Mode View
17
Controls and Settings
In-Door Control Control
TEMP
SETTINGS
Select compartment for
temperature change (FREEZER OR
REFRIGERATOR). Press either the +
or - to adjust to desired temperature
setting.
Freezer temp - Control
temperatures range from -6°F /
-21°C to +6°F / -15°C.
Refrigerator temp - Control
temperatures range from +34°F /
+1°C to +44°F / +7°C. This unit
is designed to operate at 37°F
Refrigerator/0°F Freezer. Unit should
stabilize temperatures within 24
hours of installation.
CLEAR
ALERTS
Resets any alarms that are active
and illuminated on the display
(DOOR OPEN, HIGH TEMP,
POWER OUTAGE).
FREEZE
BOOST
Activates a faster rate for freezing
food in the freezer. Use this feature
when loading several items into the
freezer at one time. Automatically
deactivates after 12 hours.
TEMP F-C Press to toggle between F & C.
ICE
MAKER
For the Ice Maker inside the
refrigerator, press and hold for 3
seconds to turn ice maker on/off.
When indicator is lit, ice maker is
on. When indicator is not lit, ice
maker is in the OFF state and will
stop making ice. When ice maker
is off and CRUSH or CUBE is
selected, the CRUSH or CUBE
indicator will blink twice. While off,
ice dispensing can continue as
long as there is ice in the bucket.
When ice maker is off and ice is
dispensing, indicator will blink.
DEFAULT
SETTINGS
Press and hold for 3 seconds to
reset to default settings.
WATER
FILTER
Status is shown at right of button.
After replacing filter, press and hold
for 3 seconds to reset. Status will
reset to GOOD.
AIR
FILTER
Status is shown at right of button.
After replacing filter, press and hold
for 3 seconds to reset. Status will
reset to GOOD.
18
Controls and Settings
Alarms
Power Outage In the event of a power failure,
the power outage alert will be
illuminated once power has been
restored and a tone will sound.
The alert will only be illuminated
if the refrigerator or freezer
reached unsafe temperatures
during the outage. Press any
button to silence the tone.
Water Filter When illuminated in red, the
water filter needs to be replaced.
Change the water filter every 6
months or when 125 gallons of
water has been dispensed. To
reset, press and hold button for
3 seconds.
Air Filter When illuminated in red, air filter
needs to be replaced. Change
the air filter every 6 months. To
reset, press and hold button for
3 seconds.
Door If a door has been left open
for five minutes or more, an
alarm will sound and the door
open indicator will illuminate
on the display. The alarm can
be cleared by pressing CLEAR
ALERTS key. Control panel will
return to normal operations after
the door is closed.
Error Tone An alarm will sound if the user
tries to make a selection that is
not available.
High Temperature In the event of a high tempera-
ture condition, alarm will sound.
The high temperature value
will be displayed on the control
panel for the compartment with
the High temperature (either the
LED refrigerator or LED freezer
will be illuminated). Alarm will
sound every 60 seconds, until
acknowledged. Reset alert by
pressing CLEAR ALERTS button.
Sabbath Mode
The Sabbath Mode is a feature that
disables portions of the refrigerator and its
controls in accordance with observance of
the weekly Sabbath and religious holidays
within the Orthodox Jewish community.
Sabbath Mode is turned ON and OFF
by simultaneously pressing and holding
both the “—” and “TEMP F-C” for five
seconds. Other than the High Temp alarm,
no audible sounds will occur until the
user exits the Sabbath mode. The display
shows “Sb” while in Sabbath mode.
In the Sabbath Mode, the High Temp
alarm is active for health reasons. For
example, if the door is left ajar the High
Temp alarm is activated. The refrigerator
will function normally once the door
is closed, without any violation of the
Sabbath/Holidays. The High Temp alarm
is permitted when cabinet temperature
is outside the safe zone for 20 minutes.
The alarm silences itself after 10 minutes
while the High Temp icon stays lit until the
Sabbath mode is exited.
For further assistance, guidelines for
proper usage and a complete
list of models with the Sabbath
feature, please visit the web at
http:\\www.star-k.org.
NOTE
Control features and alarms may vary
by model.
NOTE
While in Sabbath Mode, neither the
lights, dispenser, nor the control
panel will work until Sabbath Mode is
deactivated.
Refrigerator stays in Sabbath Mode
after power failure recovery. It must be
deactivated with the buttons on the
control panel.
NOTE
Although the Sabbath Mode has been
initiated, the ice maker will complete
the cycle it had already started. The
ice cube compartment will remain cold
and new ice cubes can be made with
standard trays.
19
CAUTION
For proper dispenser operation,
recommended water supply pressure
should fall between 30 psi and 100 psi.
Excessive pressure may cause water
filter to malfunction.
NOTE
The water dispenser has a built-in
device that shuts off the water flow after
two minutes of continuous use. To reset
this shutoff device, simply release the
dispenser paddle.
Automatic Ice and Water Dispenser
Priming the water supply system
Ice maker operation & care
After the refrigerator is installed properly
and has cooled for several hours, the ice
maker can start producing ice within 24
hours. The ice maker will fill the ice bin
from the rear. You must dispense some ice
to force the ice forward in the bin. Full bin
should be expected after 48 to 60 hours
with no ice usage. Ice rate is 2.0 to 2.5
pounds per day. The ice bin will hold about
4 pounds of ice.
Turning the fresh food ice maker
on and off
Turn the icemaker On and Off with the ice
maker’s On/Off icon on the control panel.
Press and hold the ice maker button on
the side display for three seconds to turn
the ice maker ON or OFF. The ice maker is
ON when the LED indicator is illuminated.
1 Begin filling the filter by pressing and
holding a drinking glass against the
water dispenser paddle.
2 Keep the glass in this position until
water comes out of the dispenser. It
may take about 1½ minutes.
3 Continue dispensing water for about
three minutes to flush the system
and plumbing connections of any
impurities (stopping to empty the
glass as necessary).
IMPORTANT
Your ice maker is turned on at the
factory so it can work as soon as you
install your refrigerator. If you cannot
connect a water supply, set the ice
maker’s On/Off icon to Off and turn off
the water supply valve; otherwise, the
ice maker’s fill valve may make a loud
chattering noise when it attempts to
operate without water.
Fresh Food Ice Maker
Using the ice maker after
installation
Before making ice for the first time, be
sure to prime the water supply system.
Air in new plumbing lines can result in
two or three empty ice maker cycles.
Furthermore, if the system is not flushed,
the first ice cubes may be discolored or
have an odd flavor.
NOTE
After the initial 26 ounces (750 ml),
water will remain room temperature until
the tank has refilled and been given
enough time to chill the next 26 ounces
(750 ml) of water. May take up to 8
hours to chill.
20
IMPORTANT
Turning off the ice maker stops ice
production only.
NOTE
The ice maker has a built-in signal arm
that automatically stops ice production
when the ice bin is full. This signal arm
should not be used to manually stop the
ice maker.
Using the ice maker after installation
Before making ice for the first time, be
sure to prime the water supply system.
Air in new plumbing lines can result in
two or three empty ice maker cycles.
Furthermore, if the system is not flushed,
the first ice cubes may be discolored or
have an odd flavor.
IMPORTANT
On occasion, unusually small ice cubes
may be noticed in the bucket or in
dispensed ice. This could occur in
normal operation of the ice maker. If
you start seeing these more frequently,
it may be an indication of low water
pressure or the water filter needs to
be replaced. As the water filter nears
the end of its useful life and becomes
clogged with particles, less water is
delivered to the ice maker during each
cycle. Remember, if it’s been six months
or longer since you last changed your
water filter, replace the water filter with a
new one. Poor quality household water
may require the filter to be changed
more frequently.
Ice maker/dispenser tips
• If your refrigerator is not connected to
a water supply or the water supply is
turned off, turn off the ice maker by
holding the On/Off soft-touch icon for
three seconds.
• The following sounds are normal when
the ice maker is operating:
- Motor running
- Ice dropping into ice bin
CAUTION
If the water supply to your refrigerator
is softened, be sure the softener is
properly maintained. Chemicals from
a water softener can damage the ice
maker.
Automatic Ice and Water Dispenser
Cleaning the ice maker
Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or
moving.
1 Turn off the ice maker.
2 To remove the ice bin, (1) lift upward
and (2) pull bin straight out.
(1) Lift
Upward
(2) Pull Bin
Straight Out
3 Empty and carefully clean the ice bin
with mild detergent. Do not use harsh
or abrasive cleaners. Rinse with clear
water.
4 Allow the ice bin to dry completely
before replacing.
5 Replace the ice bin. Turn the ice
maker on.
- Water valve opening or closing
- Running water
• If you need a large quantity of ice
at one time, it is best to get cubes
directly from the ice bin.
• Ice cubes stored too long may
develop an odd flavor. Empty the ice
bin as explained below.
• When dispensing cubed ice, it is
normal to have a small quantity of little
pieces along with the whole cubes.
21
NOTE
The Freezer Ice maker fills in the center
of the ice bin. Occasionally move the
ice to the borders to allow the bin to fill
completely.
Automatic Ice and Water Dispenser
Freezer Ice Maker (select
models)
Ice maker operation & care
After the refrigerator is installed properly,
the ice maker can produce ice within
24hours. When using the ice maker
for the first time, and in order for it to
work properly, it is necessary to clear
air from the water tubing and the filter.
Furthermore, if the system is not flushed,
the first ice cubes may be discolored or
have an odd flavor. Once the ice maker
begins making ice, allow the bin to fill
completely, then discard the first FULL bin
of ice.
Ice Maker and Storage Bin
Capacity
This ice maker should produce between
2 and 2.5 pounds of ice per 24 hours
depending on usage conditions. The ice
bin will hold about 4.5 pounds of ice.
Turning the ice maker on and off
Press power button to turn Ice Maker On
(button should be illuminated).
Remove and empty the ice bin if:
• An extended power failure (one hour
or longer) causes ice cubes in the
ice bin to melt and freeze together,
jamming the dispenser mechanism.
• You do not use the ice dispenser
frequently. Ice cubes will freeze
together in the bin, jamming the
dispenser mechanism.

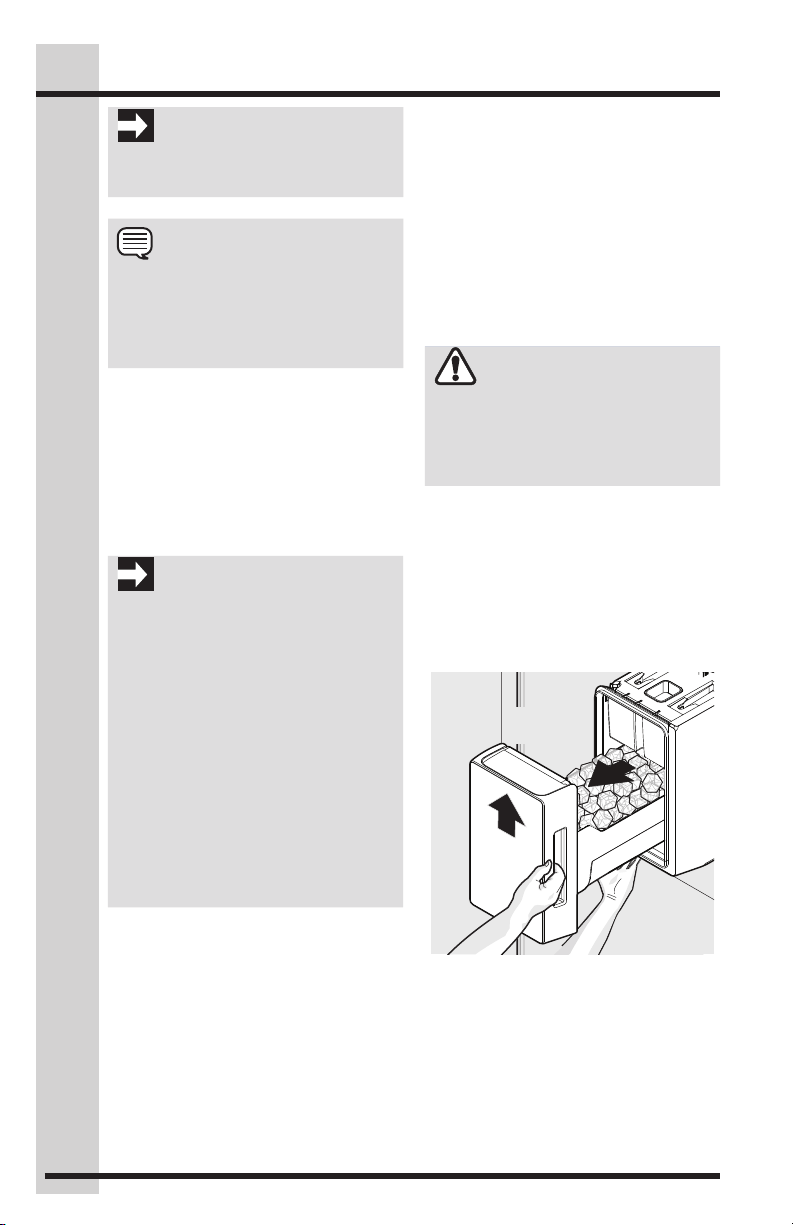

Remove the ice bin and shake to loosen
the cubes or clean as explained above.
CAUTION
NEVER use an ice pick or similar sharp
instrument to break up the ice. This
could damage the ice bin.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure
it is completely dry.
22
IMPORTANT
When removing or replacing the ice bin,
ensure that the ice bin is fully seated
before closing the freezer door. If the
ice bin is not positioned correctly the
refrigerator will not dispense ice. The
freezer door also may not close properly
causing warm air to leak into the freezer
compartment.
Cleaning the ice maker
Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or
moving.
1 Turn off the ice maker.
2 Remove the ice bin.
3 Empty and carefully clean the ice bin
with mild detergent. Do not use harsh
or abrasive cleaners. Rinse with clean
water.
4 Allow the ice bin to dry completely
before replacing in the freezer.
5 Replace the ice bin. Turn the ice
maker on.
Remove and empty the ice bin if an
extended power failure (one hour or longer)
causes ice cubes in the ice bin to melt and
refreeze together after power is restored.
Remove the ice bin and shake to loosen
the cubes or clean as explained above.
Ice maker tips
• The following sounds are normal when
the ice maker is operating:
Motor running
Ice dropping into ice bin
Water valve opening or closing
Running water
• Ice cubes stored too long may develop an
odd flavor. Empty the ice bin as explained
below.
FREEZE BOOST Function
Your refrigerator is equipped with a
FREEZE BOOST Function for freezing food
at a faster rate, but it can also increase
ice production. This function terminates
automatically after 12 hours. This
function affects only the ice maker in
the freezer.
CAUTION
If the water supply to your refrigerator
is softened, be sure the softener is
properly maintained. Chemicals from
a water softener can damage the ice
maker.
CAUTION
NEVER use an ice pick or similar sharp
instrument to break up the ice. This
could damage the ice bin.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure
it is completely dry.
Automatic Ice and Water Dispenser
23
Storage Features
Shelf positions can easily be adjusted in
the fresh food compartments as needed.
The shelves have mounting brackets that
attach to slotted supports at the rear of
each compartment.
Change the Position of a Shelf
1 Remove all food from shelf.
2 Lift the front edge up and pull the
shelf out.
3 Replace by inserting the mounting
bracket hooks into the desired
support slots.
4 Lower the shelf and lock into
position.
To adjust flip shelf:
1 Remove food from shelf.
2 Lift the right side edge of shelf
upwards and push to the left towards
ice maker.
Flip Shelf
To adjust slide-under:
1. Push front half shelf backward
towards rear of cabinet until the rear
half shelf drops down, then gently
continue pushing front half shelf back
and under the rear half shelf.
Slide-Under
NOTE
Features may vary according to model.
CAUTION
To avoid personal injury or property
damage, handle tempered glass shelves
carefully. Shelves may break suddenly
if nicked, scratched, or exposed to
sudden temperature change. Allow
the glass shelves to stabilize to room
temperature before cleaning. Do not
wash in dishwasher.
24
Storage Features

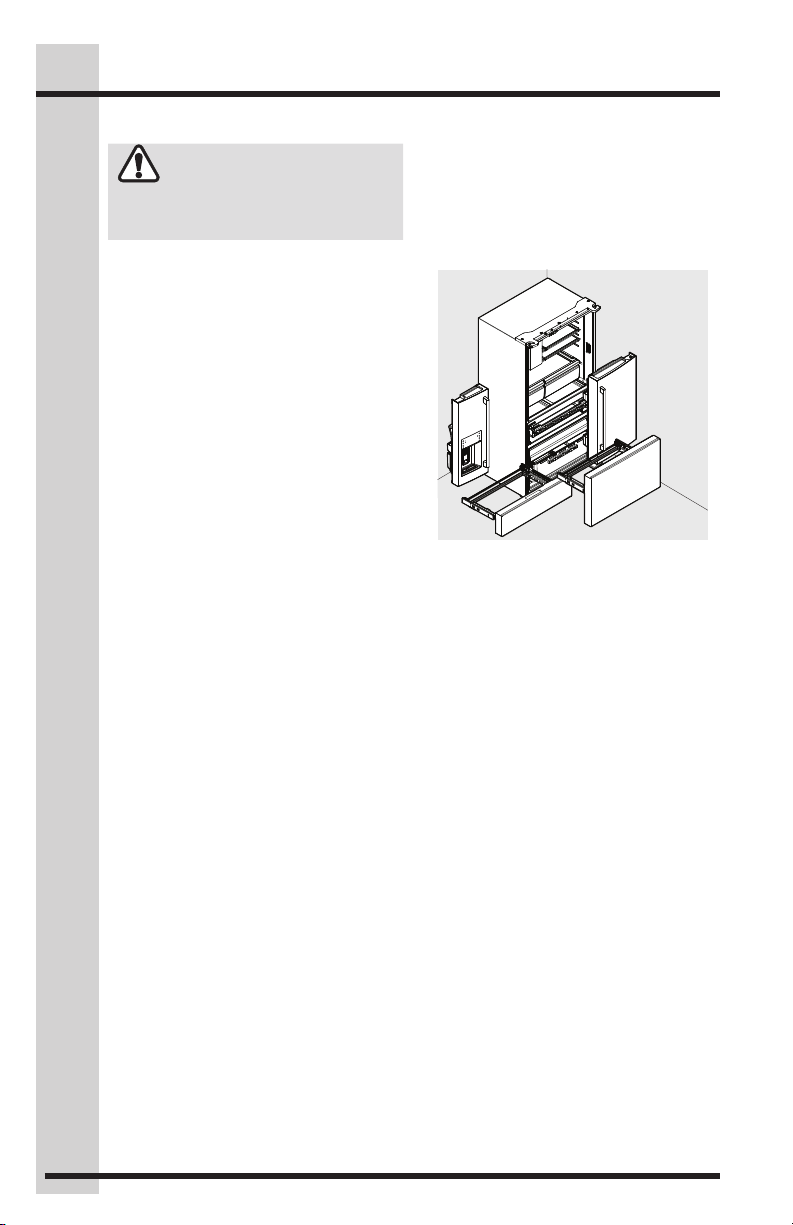

Removing TasteLock™ Crisper
Drawers
The refrigerator includes a variety of
storage drawers.
TasteLock™ Crispers
Crisper drawers are designed for storing
fruits, vegetables, and other fresh produce.
Crispers have an auto humidity control on
the side of each crisper under the humidity
control cover.
To remove the auto humidity control
membrane for cleaning:
1 Reach to back of humidity control
cover.
2 Place fingers between the humidity
control and the back wall, pull up on
cover.
3 Pull cover towards the front of
cabinet and remove.
4 Remove the humidity membrane
from the housing by lifting up sliding
over.
5 Clean humidity membrane with hot
soapy water.
6 Replace membrane in housing and
unit by reversing the steps above.
Opening SnackZone
Recessed Snack Drawers
To remove the TasteLock™ Crisper for
cleaning:
1 Pull the drawer out until it stops.
2 Lift the front slightly and remove the
drawer.
SnackZone - Recessed Snack
Drawers
These drawers are ideal for storage of deli
meats and cheeses.
To open: slide back the cover to allow
access to the drawers.
NOTE
Electrolux does not recommend
replacing the auto-humidity membrane
unless it becomes damaged or ruined.
If the membrane becomes soiled, it can
be washed with soap and water. Ensure
membrane is dry before replacing in
unit.
Removing Auto Humidity
Control Membrane
25
Storage Features

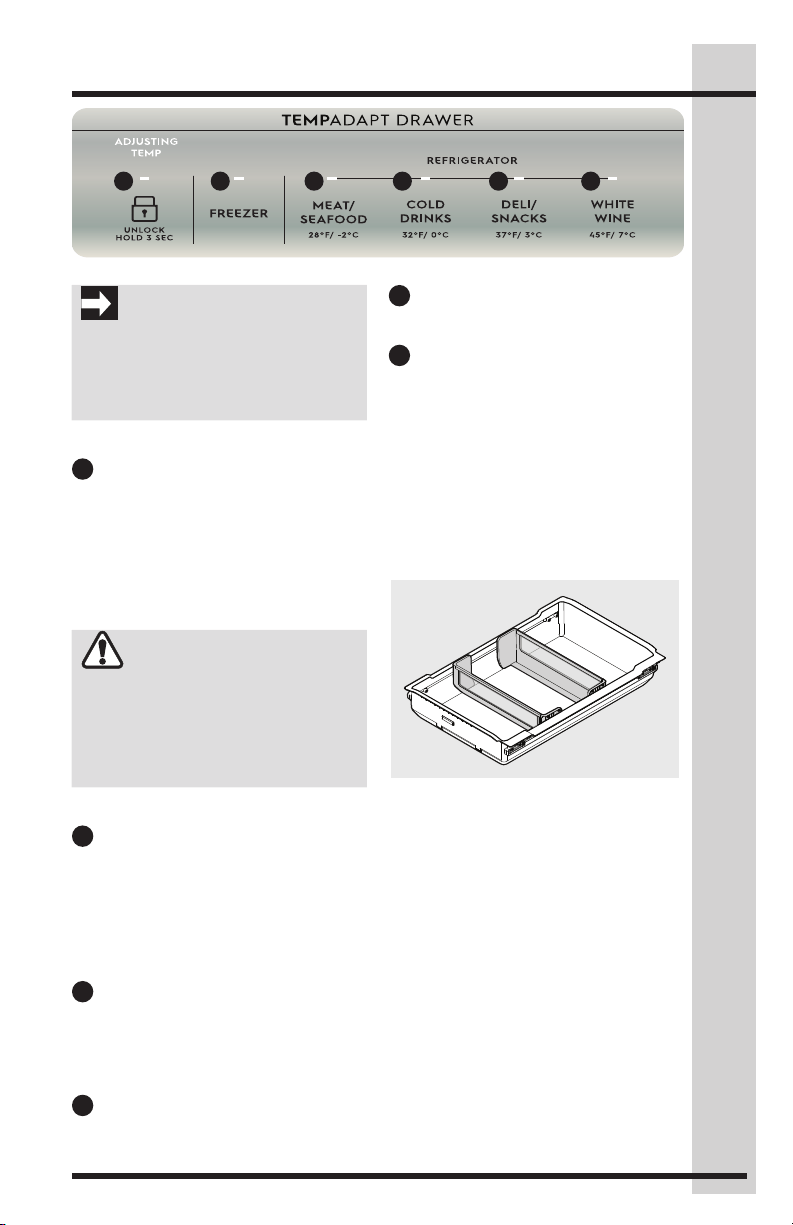

Using Your TempAdapt Drawer Controls
1
The drawer automatically defaults
to a locked state to prevent any
unwanted use. To change the
drawer’s settings, it first needs to be
unlocked. To unlock, press and hold
the UNLOCK icon for 3 seconds.
It will automatically lock after 10
seconds without any interaction.
1 2 3 4 5 6
Freezer:
2
To change the drawer temperature
when in the freezer temp setting,
use the control panel display on
the front door. Changing the temp
on the display will change both the
drawer temp setting AND the freezer
compartment.
Refrigerator:
3
Choosing Meat/Seafood will set
drawer temperature to 28°F (-2°C).
A tone will sound to confirm choice.
Use this setting for short term
storage. Any meat to be kept longer
than two days should be frozen.
4
Choosing Cold Drinks will set
drawer temperature to 32°F (0°C). A
tone will sound to confirm choice.
5
Choosing Deli/Snacks will set
drawer temperature to 37°F (3°C). A
tone will sound to confirm choice.
6
Choosing White Wine will set drawer
temperature to 45°F (7°C). A tone will
sound to confirm choice.
IMPORTANT
Do not use the TempAdapt Drawer
to store fresh produce as these items
may freeze and cause damage to the
fruits and leafy vegetables stored in the
drawer.
CAUTION
Do not store glass bottles in the
TempAdapt Drawer when the
Temperature setting is in Freezer, Meat/
Seafood, or Cold Drink modes. The
glass may break and shatter, causing
physical harm and injury.
TempAdapt Drawer Dividers
To position drawer dividers, slide left or
right. For easier repositioning, dividers
do not lock but instead use the weight of
stored items to keep the dividers in place.
Dividers may shift when opening/closing
drawer when fewer items are stored.
26
Storage Features
Adjustable Door Bins
To move door bin side-to-side:
1. Tilt bin up so the back of the bin
is off the door but the hook is still
engaged.
2. Slide bin along rail to desired
position.
3. Lower bin back into place.
NOTE
It can be difficult to pull out the
collapsible bin. Some force may be
required.
Doors
Storage bins
The doors to the fresh food compartment
use a system of modular storage bins.
All of these bins are removable for easy
cleaning. Bins can be adjusted as needed.
Door bins are ideal for storing jars, bottles,
cans, and large drink containers. They also
enable quick selection of frequently used
items.
Adjustable door bins
Some models have adjustable door bins
that can be moved to suit individual needs.
To adjust the collapsible door bin:
1 Make sure bin is securely seated on rail in
door.
2 Grab one side of bin and place other
hand on adjustable side.
3 Pull on side of bin until the bin is
adjusted to desired width.
To move door bin up or down:
1. Lift bin up disengaging the hook.
2. Move bin to desired rail location.
3. Push bin hook into rail engaging the
hook.
27

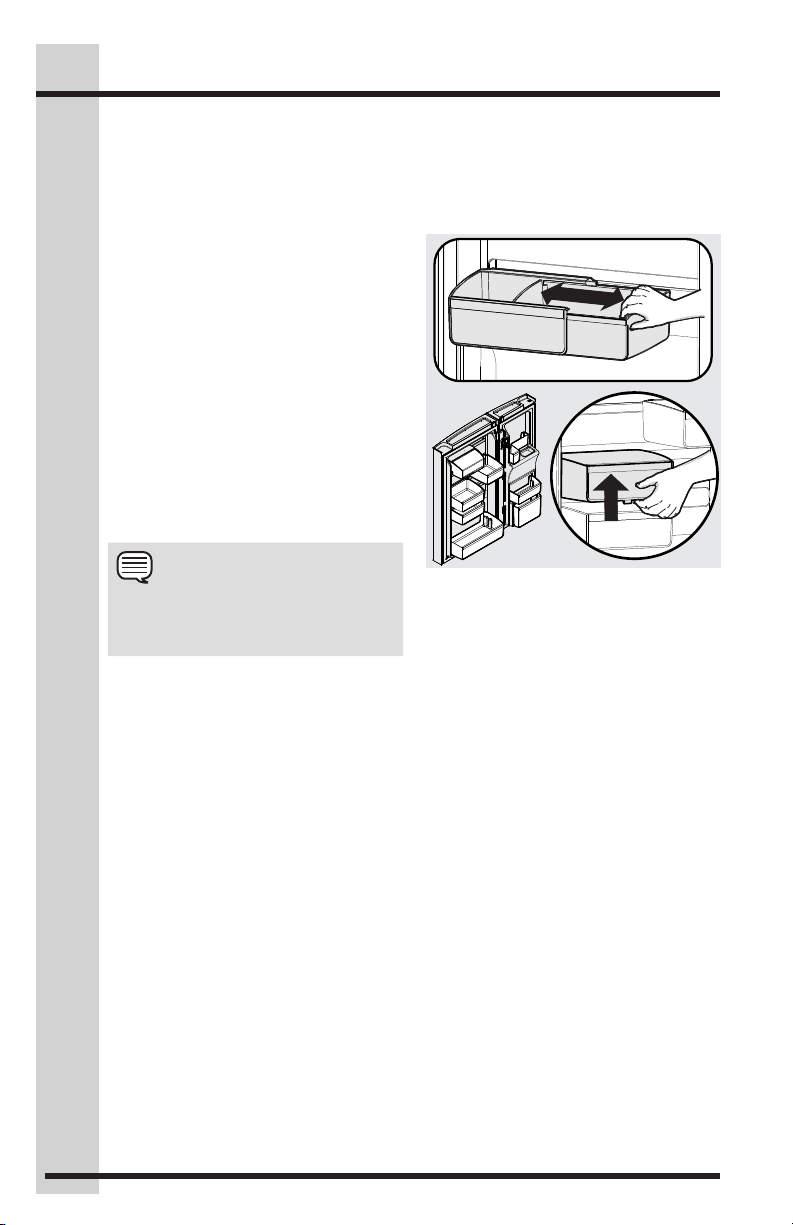

To remove upper freezer drawer:
1 Open freezer compartment
completely.
2 Lift up and out to remove upper
freezer drawer.
Reverse the steps to reinstall drawer.
Freezer Drawer
Freezer Features (varies by model)
IMPORTANT
There are wheels on the bottom of
the drawer. Make sure all wheels are
aligned on their respective tracks for
proper function. If drawer is not aligned
properly, it will cause problems with the
door operation.
NOTE
If basket is not resting on stabilizer bar
retainer clips, the drawer will not close
properly.
Plastic Lower Basket Divider
Lower Basket
Divider
To remove freezer basket:
1 Open freezer compartment
completely.
2 Lift the basket up and remove.
Reverse the steps to reinstall freezer
basket.
Storage Features
Dividers
Grab hand hold on lower divider and pull
up slightly to slide to next position. (The
divider cannot be removed.)
28
Ideas for storing foods
Fresh food storage
• Keep the fresh food compartment
between 37°F and 40°F with an
optimum temperature of 37°F.
• Avoid overcrowding the refrigerator
shelves, which reduces air circulation
and causes uneven cooling.
• Avoid placing food in front of air ports.
(See Controls Section for illustration.)
Fruits and vegetables
• Store fruits and vegetables in crisper
drawers, where trapped moisture
helps preserve food quality for longer
time periods.
• Wash items and remove excess water.
• Wrap any items that have strong
odors or high moisture content.
Meat
• Wrap raw meat and poultry separately
and securely to prevent leaks and
contamination of other foods or
surfaces.
• Use the TempAdapt drawer and set
to meat/poultry setting for short-term
storage. Any meat to be kept longer
than two days should be frozen.
Frozen food storage
• Keep the freezer compartment at 0°F
or lower.
• A freezer operates most efficiently
when it is at least 2/3 full.
Packaging foods for freezing
• To minimize food dehydration and
quality deterioration, use aluminum foil,
freezer wrap, freezer bags, or airtight
containers. Force as much air out of
the packages as possible and seal
them tightly. Trapped air can cause
food to dry out, change color, and
develop an off-flavor (freezer burn).
• Wrap fresh meats and poultry with
suitable freezer wrap prior to freezing.
• Do not refreeze meat that has
completely thawed.
Loading the freezer
• Prior to grocery shopping, activate
FREEZE BOOST so that on your
return you can ensure your newly
purchased food designated for the
Storing Food and Saving Energy
freezer will be preserved as quickly as
possible.
• Activating FREEZE BOOST also will
help your freezer more efficiently
maintain the selected temperature
after placing new purchases with pre-
existing frozen foods.
• Avoid adding too much warm food to
the freezer at one time. This overloads
the freezer, slows the rate of freezing,
and can raise the temperature of
frozen foods.
• Leave a space between packages, so
cold air can circulate freely, allowing
food to freeze as quickly as possible.
Ideas for saving energy
Installation
• Locate the refrigerator in the coolest
part of the room, out of direct sunlight,
and away from heating ducts or
registers.
• Do not place the refrigerator next to
heat-producing appliances such as a
range, oven, or dishwasher. If this is
not possible, a section of cabinetry or
an added layer of insulation between
the two appliances will help the
refrigerator operate more efficiently.
• Level the refrigerator so that the doors
close tightly.
Temperature settings
• Refer to the Controls section for
procedures on temperature settings.
Food storage
• Avoid overcrowding the refrigerator
or blocking cold air vents. Doing so
causes the refrigerator to run longer
using more energy and freezing food.
• Cover foods and wipe containers dry
before placing them in the refrigerator.
This cuts down on moisture build-up
inside the unit.
• Organize the refrigerator to reduce
door openings. Remove as many
items as needed at one time and close
the door as soon as possible.
• Do not place a hot container directly
on a cold shelf. Remember, such an
extreme temperature change may
damage the glass.
29
Normal Operating Sounds
Understanding the
sounds you may hear
Your new, high-efficiency refrigerator
may introduce unfamiliar sounds. These
sounds normally indicate your refrigerator
is operating correctly. Some surfaces on
floors, walls, and kitchen cabinets may
make these sounds more noticeable.
The following is a list of major components
in your refrigerator and the sounds they
can cause:
A Evaporator Refrigerant through the
evaporator may create a boiling or
gurgling sound.
B Evaporator fan You may hear air
being forced through the refrigerator
by the evaporator fan.
C Defrost heater During defrost
cycles, water dripping onto the
defrost heater may cause a hissing
or sizzling sound. After defrosting, a
popping sound may occur.
D Automatic ice maker When ice
has been produced, you will hear
ice cubes falling into the ice bin. Ice
maker fan, water valve activation,
and refrigerant gas fluid may create
sounds from its operation.
E Electronic control & automatic
defrost control These parts can
produce a snapping or clicking sound
when turning the cooling system on
and off.
F Condenser fan You may hear air
being forced through the condenser.
G Compressor Modern, high-efficiency
compressors run much faster than
older models. The compressor may
have a high-pitched hum or pulsating
sound.
H Water valve Makes a buzzing sound
each time it opens to fill the ice
maker.
I Drain pan (not removable) You may
hear water dripping into the drain pan
during the defrost cycle.
J Condenser May create minimal
sounds from forced air.
K Motorized TempAdapt drawer
damper May produce a light
humming during operation.
L Ice dispensing paddle When
dispensing ice, you will hear a
snapping, clicking, or popping sound.
M Freezer ice maker When ice has
been produced, you will hear ice
cubes falling into the ice bin. Ice
maker fan, water valve activation,
and refrigerant gas fluid may create
sounds from its operation.
NOTE
Energy efficient foam in your refrigerator
is not a sound insulator.
NOTE
During automatic defrost cycle, a red
glow in the back wall vents of your
freezer compartment is normal.
Features vary by model
K
M
30

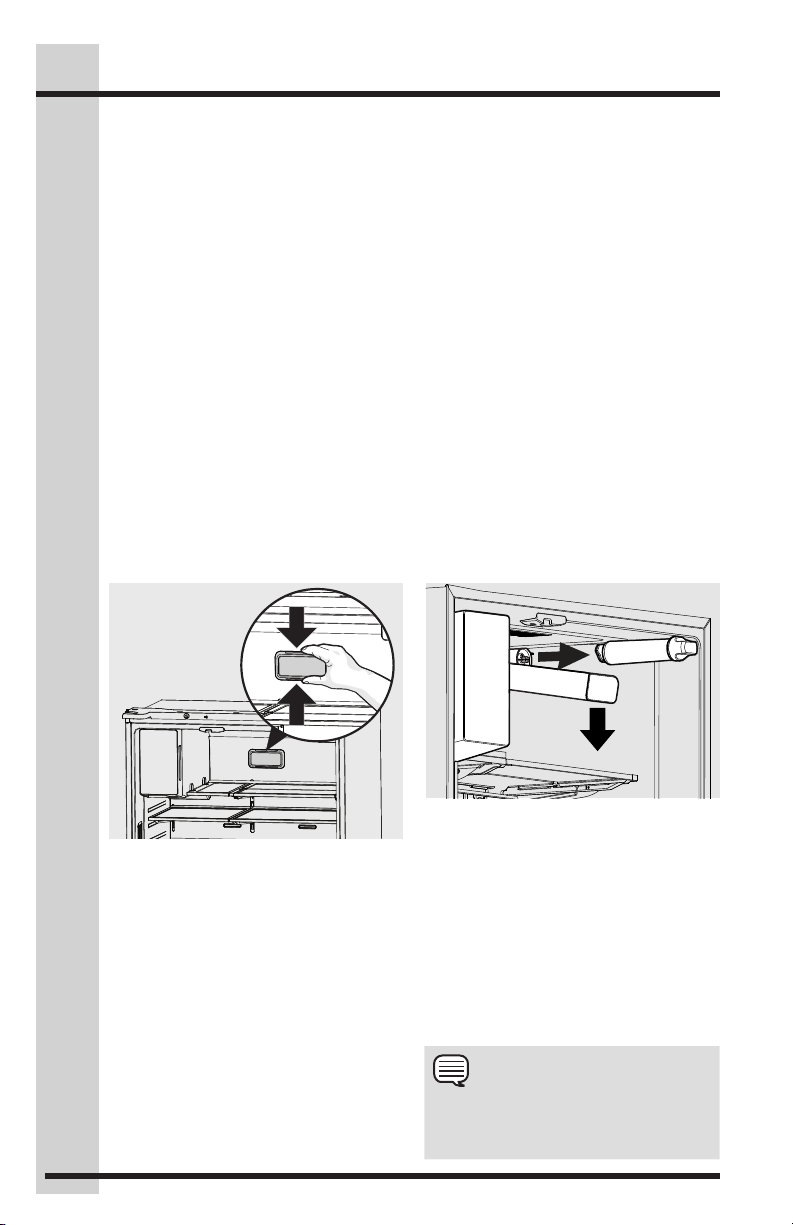

Changing the Filter(s)
Ordering Replacement Air Filters
Order replacement filters online at
www.electroluxappliances.com, by calling
1-877-4ELECTROLUX (1-877-435-3287)
or through the dealer from which the
refrigerator was purchased. Electrolux
recommends replacing filters at least once
every six months.
Here is the product number to request
when ordering:
PureAdvantage Air Filter,
Part #ELPAULTRA2
Air Filter (select models)
The air filter is located in the top center of
the fresh food compartment.
Replacing the Air Filter
To ensure optimal filtering of refrigerator
odors, change the air filter every six months
(Replace Air Filter on the Display indicates
replacing the filter after six months.)
1 Remove the air filter cover by
squeezing the top and bottom of the
cover together and removing from
liner.
2 Remove the old filter and discard it.
3 Unpack the new filter and snap it into
the filter cover. The open face (carbon
media) of the filter should be installed
facing outward in the cover.
4 Replace the air filter cover by
squeezing the sides and snapping it
back into place.
5 Press and hold the Air Filter button
on display for 3 seconds. Status will
then be reset to “GOOD”.
Ordering Replacement Water Filters
Order replacement filters online at
www.electroluxappliances.com, by calling
1-877-4ELECTROLUX (1-877-435-3287)
or through the dealer from which the
refrigerator was purchased. Electrolux
recommends replacing filters at least once
every six months.
Here is the product number to request
when ordering:
PureAdvantage Ultra
Water Filter
Part #EWF02
Water Filter
The refrigerator is equipped with a water
filtering system. The water filtering system
filters all dispensed drinking water, as well
as the water used to produce ice. The water
filter is located at the top right side of the
fresh food compartment.
Accessing Your Water Filter
Change the water filter every six months to
ensure the highest possible water quality.
Replace Water Filter on the display
indicates when to replace the filter after a
standard amount of water (125 gallons/473
liters for PureAdvantage Ultra)
has flowed
through the system.
If the refrigerator has not been used for a
period of time (during moving for example),
change the filter before reinstalling the
refrigerator.
To Remove: Pull cover forwards and cover
will drop down and allow access to filter.
To Reinstall: Push cover up towards liner
and then push towards rear of cabinet.
Filter cover will snap back into place.
NOTE
When ordering replacement filters,
please reorder the same filter type that is
currently in the refrigerator.
31
Changing the Filter(s)
Do not use with water that is
microbiologically unsafe or of unknown
quality without adequate disinfection
before or after the system. Systems
certified for cyst reduction may be used
on disinfected waters that may contain
filterable cysts.
Test & certification results:
• Rated Capacity - 125 gallons/473
liters for PureAdvantage Ultra ice and
water filter
• Rated service flow - .65 gallons per
minute
• Operating Temp: Min. 33°F, Max.
100°F
• Maximum Rated Pressure -
100pounds per square inch
• Recommended Minimum Operating
Pressure: 30pounds per square inch
Replacing your PureAdvantage
Ultra Water Filter:
It is not necessary to turn the water supply
off to change the filter. Be ready to wipe
up any small amounts of water released
during the filter replacement.
1 Turn Off the ice maker power switch.
2 Remove the old filter by rotating it
counter-clockwise (to the left) 90
degrees to release it.
3 Slide the old filter cartridge straight
out of the housing and discard it.
4 Unpackage the new filter cartridge.
Slide it into the filter housing as far as
it will go with the grip end vertical.
5 Push lightly inward on the filter while
rotating it clockwise (to the right). The
filter will then pull itself inward as it is
rotated. Rotate the filter 90 degrees
until it stops and the grip end is
horizontal. You may be able to feel a
very light click as the filter locks into
place.
The PureAdvantage Ultra
TM
ice and water filter system is
tested and certified to NSF/ANSI
Standards 43, 53 and 401 for
the reduction of claims specified
on the performance data sheet.
More about your Advanced Water
Filter
6 Press a drinking glass against the
water dispenser while checking for
any leaks at the filter housing. Any
spurts and sputters that occur as
the system purges air out of the
dispenser system are normal.
7 Continue dispensing water for 3-4
minutes or until 1.5 gallons of water
has flowed through the system. You
will likely need to empty and refill your
glass several times.
8 Turn On the ice maker.
9 Press and hold the Water Filter reset
button on the control panel for three
seconds. When the display changes
from Red to Green, the status has
been reset.
32
IMPORTANT
If you store or move your refrigerator in freezing temperatures, be sure to completely drain
the water supply system. Failure to do so could result in water leaks when the refrigerator
is put back into service. Contact a service representative to perform this operation.
CAUTION
• Pull the refrigerator straight out to move it. Shifting it from side to side may
damage flooring. Be careful not to move the refrigerator beyond the plumbing
connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with
wet or damp hands.
NOTE
Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable
fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing
petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do not
use paper towels, scouring pads, or other abrasive cleaning materials.
Care & Cleaning
Protecting your investment
Keeping your refrigerator clean maintains its appearance and prevents odor build-up.
Wipe up any spills immediately and clean the freezer and fresh food compartments at
least twice a year.
• Remove adhesive labels by hand. Do not use razor blades or other sharp
instruments which can scratch the appliance surface.
• Do not remove the serial plate. Removal of your serial plate voids your warranty.
• Before moving your refrigerator, raise the anti-tip brackets so the rollers will work
correctly. This will prevent the floor from being damaged.
Refer to the guide on the next page for details on caring and cleaning specific areas of
your refrigerator.
• Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline
solutions on any surface.
• Never use CHLORIDE or cleaners with bleach to clean stainless steel.
• Do not wash any removable parts in a dishwasher.
• Always unplug the electrical power cord from the wall outlet before cleaning.
NOTE
If you set your temperature controls to turn off cooling, power to lights and other
electrical components will continue until you unplug the power cord from the wall outlet.
33
Care & Cleaning
Care and cleaning tips
Part Cleaning Agents Tips and Precautions
Interior & Door
Liners
• Soap and water
• Baking soda
and water
• Use two tablespoons of baking soda in
one quart of warm water.
• Be sure to wring excess water out of
sponge or cloth before cleaning around
controls, light bulb or any electrical part.
Door Gaskets • Soap and water • Wipe gaskets with a clean soft cloth.
Drawers & Bins • Soap and water • Use a soft cloth to clean drawer runners
and tracks.
• Do not wash any removable items (bins,
drawers, etc.) in dishwasher.
Glass Shelves • Soap and water
• Glass cleaner
• Mild liquid sprays
• Allow glass to warm to room
temperature before immersing in warm
water.
Exterior &
Handles
(Stainless Steel
Models Only)
• Soap and water
• Stainless steel
cleaners
• Never use CHLORIDE or cleaners with
bleach to clean stainless steel.
• Clean stainless steel front and handles with
non-abrasive soapy water and a dishcloth.
Rinse with clean water and a soft cloth.
• Use a non-abrasive stainless steel cleaner.
These cleaners can be purchased at most
home improvement or major department
stores. Always follow manufacturer’s
instruction. Do not use household
cleaners containing ammonia or bleach.
• NOTE: Always clean, wipe and dry with
grain to prevent scratching.
• Wash the rest of the cabinet with warm
water and mild liquid detergent. Rinse
well and wipe dry with a clean soft cloth.
Occasion Tips
Short
Vacations
• Leave refrigerator operating during vacations of three weeks or less.
• Use all perishable items from refrigerator compartment.
• Turn automatic ice maker off and empty ice bucket, even if you will
only be gone a few days.
Long
Vacations
• Remove all food and ice if you will be gone one month or more.
• Turn the cooling system off (see Controls section for location of On/
Off button) and disconnect power cord.
• Turn water supply valve to closed position.
• Clean interior thoroughly.
• Leave both doors open to prevent odors and mold build-up. Block
doors open if necessary.
Moving • Remove all food and ice.
• If using a handcart, load from the side.
• Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surface.
Vacation and moving tips
34
Troubleshooting
Before you call...
If you experience a problem with your refrigerator or notice a product behavior or
condition that you do not understand, you can usually avoid a call to your service
representative by referring to this section for an answer. Beginning with the following
table, this information includes common concerns, causes, and suggested solutions.
Concern Potential Cause Common Solution
Automatic Ice Maker
Ice maker is
not making
any ice.
• Ice maker is turned off.
• Refrigerator is not
connected to water line or
water valve is not open.
• The water supply line is
kinked.
• The water filter is not
seated properly.
• The water filter may be
clogged with foreign
material.
• Freezer ice maker signal
arm is being prevented
from lowering down to
check the ice level in the
bin at the appropriate
time.
• Turn on ice maker.
Fresh Food Ice Maker - press
and hold the ice maker button
on the side user interface for 3
seconds. The LED indicator will
illuminate to indicate that the ice
maker is ON.
Freezer Ice Maker - press and
release the power button on the
front of the ice maker. The LED
indicator will illuminate to indicate
that the ice maker is ON.
• Connect the unit to the household
water supply and ensure the water
valve is open.
• Ensure that the supply line does
not kink when the refrigerator is
pushed into place against the wall.
• Remove and re-install the water
filter. Be sure to rotate it fully into
the locked position.
• If water dispenses slowly or not at
all, or if the filter is six months old
or older, it should be replaced.
• Remove any item or frozen clump
of cubes that may prevent the
signal arm from lowering down
to check the ice level in the bin.
Additionally, be sure the bin is in its
properly installed position.
35
Troubleshooting
Concern Potential Cause Common Solution
Automatic Ice Maker (Cont’d)
Ice maker is
not making
enough ice.
• Ice maker is producing
less ice than you expect.
• The water filter may be
clogged with foreign
material.
• The water supply line is
kinked.
• Saddle valve on cold
water pipe is clogged
or restricted by foreign
material.
• Heavy traffic, opening
or closing of the doors
excessively.
• Freezer control is set too
warm (freezer ice maker).
• Water pressure is
extremely low. Cut-off and
cut-on pressures are too
low (well systems only).
• Reverse osmosis system
is in regenerative phase.
• The ice maker will produce
approximately 2.0 to 2.5 pounds of
ice every 24 hours depending on
usage conditions.
• If water dispenses slower than
normal, or if the filter is six months
old or older, it should be replaced.
• Ensure that the supply line does
not kink when the refrigerator is
pushed into place against the wall.
• Turn off household water line
valve. Remove valve. Ensure that
valve is not a self-piercing saddle
valve. Clean valve. Replace valve if
necessary.
• Press FREEZE BOOST to
temporarily increase ice production
rate. (Freezer ice maker only.)
• Set freezer control to colder
setting to improve performance of
the ice maker (freezer ice maker).
Allow 24 hours for temperature to
stabilize.
• Have someone turn up the cut-off
and cut-on pressure on the water
pump system (well systems only).
• It is normal for a reverse osmosis
system to be below 20 psi during
the regenerative phase.
Ice cubes
are freezing
together.
• Ice cubes are not being
used frequently enough or
interruption of power for
prolonged time.
• Ice cubes are hollow
(shells of ice with water
inside). The hollow cubes
break open in the bin
and leak their water onto
existing ice, which causes
it to freeze together.
• Remove ice container and discard
ice. The ice maker will produce
fresh supply. Ice should be used
at least twice weekly to keep the
cubes separated.
• This generally occurs when the
ice maker does not get enough
water. This is usually the result of
a clogged water filter or restricted
water supply. Replace the water
filter and if the condition still
occurs check for a Saddle Valve,
water valve not turned on all the
way or kinked water supply line.
36
Troubleshooting
Concern Potential Cause Common Solution
Dispenser (Ice & Water)
Dispenser will
not dispense
ice.
• There is no ice in the bin
to be dispensed.
• The refrigerator doors are
not completely closed.
• Dispenser paddle has
been pressed too long
and the dispenser motor
has overheated.
• See the “Ice maker is not making
any ice” section above.
• Be sure the refrigerator doors are
completely closed.
• The motor overload protector will
reset in about three minutes and
then ice can be dispensed.
Ice dispenser
is jammed.
• Ice has melted and
frozen around auger
due to infrequent use,
temperature fluctuations,
and/or power outages.
• Ice cubes are jammed
between ice maker and
back of ice container.
• Remove ice container, thaw,
and empty the contents. Clean
container, wipe dry, and replace in
proper position. When new ice is
made, dispenser should operate.
• Remove ice cubes that are
jamming the dispenser.
Dispenser will
not dispense
water.
• Water filter not seated
properly.
• Water filter is clogged.
• Household water line valve
is not open.
• Remove and reinstall the water
filter. For PureAdvantage Ultra, be
sure to rotate it to the right until it
stops and the grip end is vertical.
• Replace filter cartridge. Be sure to
rotate it to the right until it stops
and the grip end is vertical.
• Open household water line
valve. See CONCERN column
AUTOMATIC ICE MAKER.
Water not
cold enough.
• All the chilled water was
dispensed earlier and not
enough time has passed
for additional water to be
properly chilled.
• Add ice to cup or container
before dispensing water or allow
additional time for the refrigerator
to chill more water.
Water has
an odd taste
and/or odor.
• Water has not been
dispensed for an
extended period of time.
• Unit not properly
connected to cold water
line.
• Draw and discard 10-12 glasses
of water to freshen the supply.
• Connect unit to cold water line
that supplies water to the kitchen
faucet.
37
Troubleshooting
Concern Potential Cause Common Solution
Opening/Closing Of Doors/Drawers
Door(s) will
not close.
• Door was closed too hard,
causing other door to
open slightly.
• Refrigerator is not level. It
rocks on the floor when
moved slightly.
• Refrigerator is touching a
wall or cabinet.
• Close both doors gently.
• Ensure floor is level and solid,
and can adequately support the
refrigerator. Contact a carpenter to
correct a sagging or sloping floor.
• Ensure floor is level and solid,
and can adequately support the
refrigerator. Contact a carpenter to
correct a sagging or sloping floor.
Drawers are
difficult to
move.
• Food is touching shelf on
top of drawer.
• Track that drawers slide
on is dirty.
• Remove top layer of items in
drawer.
• Ensure drawer is properly installed
on track.
• Clean drawer, rollers, and track.
See Care & Cleaning.
Running of Refrigerator
Compressor
does not run.
• Freezer control is set to
“OF”.
• Refrigerator is in defrost
cycle.
• Plug at electrical outlet is
disconnected.
• House fuse blown or
tripped circuit breaker.
• Power outage.
• Set freezer control.
• This is normal for a fully automatic
defrost refrigerator. The defrost
cycle occurs periodically, lasting
about 30 minutes.
• Ensure plug is tightly pushed into
outlet.
• Check/replace fuse with a 15
amp time-delay fuse. Reset circuit
breaker.
• Check house lights. Call local
electric company.
Refrigerator
seems to run
too much or
too long.
• Your variable speed
compressor is designed
to run 100% of the time
except during the defrost
cycle. At times it will run
faster, such as after a
defrost cycle.
• It is normal for the compressor to
run continuously except during
defrost mode.
Digital Temperature Setting Display
Digital
temperature
displays an
error.
• Electronic control
system has detected a
performance problem.
• Call your Electrolux service
representative at 1-877-435-3287,
who can interpret any messages
or number codes flashing on the
digital displays.
38
Troubleshooting
Concern Potential Cause Common Solution
Water/Moisture/Frost Inside Refrigerator
Moisture
collects on
inside of
refrigerator
walls.
• Weather is hot and humid.
• Flipper mullion
• The rate of frost buildup and
internal sweating increases.
• Adjust flipper mullion. (See “To
adjust the flipper mullion” in the
Installation section.)
Water
collects on
bottom side
of drawer
cover.
• Vegetables contain and
give off moisture.
• It is not unusual to have moisture
on the bottom side of the cover.
• Move humidity control (some
models) to lower setting.
Water collects
in bottom of
drawer.
• Washed vegetables and
fruit drain while in the
drawer.
• Dry items before putting them in
the drawer. Water collecting in
bottom of drawer is normal.
Water/Moisture/Frost Outside Refrigerator
Moisture
collects on
outside of
refrigerator
or between
doors.
• Weather is humid. • This is normal in humid weather.
When humidity is lower, the
moisture should disappear.
Food in Fresh Food Compartment
Food is
freezing.
• Temperature setting is
too low.
• Temperature sensor is
covered by food (right side
of fresh food area).
• Food is covering the air
ports.
• Move the setting to a higher
degree.
• Allow space for air flow to the
sensor.
• Allow space between the air ports
and the food.
39
Warranty
Major Appliance Warranty Information
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase,
Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or
workmanship when such appliance is installed, used, and maintained in accordance with the provided
instructions. In addition, the cabinet liner and sealed refrigeration system (compressor, condenser,
evaporator, dryer or tubing) of your appliance is covered by a two through five year limited warranty. During
the 2nd through 5th years from your original date of purchase, Electrolux will repair or replace any parts in
the cabinet liner and sealed refrigeration system which prove to be defective in materials or workmanship
when such appliance is installed, used, and maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside
the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other
consumables, or knobs, handles, or other cosmetic parts.
11. Pickup and delivery costs; your appliance is designed to be repaired in the home.
12. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
13. Damages to the finish of appliance or home incurred during transportation or installation,
including but not limited to floors, cabinets, walls, etc.
14. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE
YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES
SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF
THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service
under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico,
your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux
Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux
authorizes no person to change or add to any obligations under this warranty. Obligations for service
and parts under this warranty must be performed by Electrolux or an authorized service company.
Product features or specifications as described or illustrated are subject to change without notice.
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario,
Canada L5V 3E4
USA
1-877-435-3287
Electrolux Major Appliances North America
10200 David Taylor Drive
Charlotte, NC 28262
