INTRODUCTION
Please read and save this
manual
Thank you for choosing Electrolux, our premium
brand in home appliances. This
Use & Care
Manual
is part of our commitment to customer
satisfaction and product quality throughout the
service life of your new appliance.
Table of contents
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Keep a record for quick
reference
Serial number
Model number
Purchase date
For toll free telephone support or online
support in the US and Canada contact:
U.S.
1-877-4ELECTROLUX (1-877-435-3287)
www.electroluxappliances.com
Canada
1-800-265-8352
www.electroluxappliances.ca
Questions?
NOTE
Registering your product with Electrolux
enhances our ability to serve you. You can
register online at www.electrolux.com, by
sending your Product Registration Card in
the mail, or PHOTOREGISTER
SM
using a
smart phone. See registration card for details.
Important Safety Information ...........................2
Features ..................................................................... 6
Pre-Installation Requirements .......................... 7
Installation ...............................................................12
Accessories and Replacement Parts ...........19
Controls and Settings ........................................20
Operating Instructions ..................................... 30
Normal Operating Sounds ............................. 36
Stain Removal Guide .........................................37
Care and Cleaning .............................................39
Troubleshooting .................................................. 44
Limited Warranty ................................................. 50
Doors
Handles are secure and tight
Door seals completely to cabinet on
all sides
Leveling
Refrigerator is level side-to-side and
slightly elevated in front to assist with
door and drawer closing (front should
be higher than back)
Cabinet is setting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker
House water supply connected to
refrigerator WARNING: Potable water
supply only.
No water leaks present at all
connections - recheck in 24 hours
Ice maker is turned ON
Ice & water dispenser operates
correctly
Final Checks
Shipping material removed
Fresh food and freezer temperatures set
Registration card sent in
Installation Checklist
Serial Number Location
3
Important safety instructions
IMPORTANT SAFETY INFORMATION
WARNING
WARNING indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injury.
IMPORTANT
IMPORTANT indicates installation,
operation or maintenance information
which is important but not hazard-related.
DANGER
DANGER indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
CAUTION
CAUTION indicates a potentially
hazardous situation which, if not avoided,
may result in minor or moderate injury.
Safety Definitions
This is the safety alert symbol. It is used
to alert of potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
WARNING
Please read all instructions before using
this appliance.
CAUTION
CAUTION Risk of fire or explosion. Dispose
of refrigerator properly in accordance with
the applicable federal or local regulations.
Flammable refrigerant used.
CAUTION Risk of fire or explosion due
to puncture of refrigerant tubing. Follow
handling instructions carefully. Flammable
refrigerant used.
DANGER
DANGER Risk of fire or explosion.
Flammable refrigerant used. Do not use
mechanical devices to defrost refrigera-tor.
Do not puncture refrigerant tubing.
DANGER Risk of fire or explosion.
Flammable refrigerant used. To be re-
paired only by trained service person-nel.
Use only manufacturer-authorized service
parts. Any repair equipment used must be
designed for flammable refrigerants. Follow
all manufacturer repair instructions. Do not
puncture refrigerant tubing.
WARNING
CALIFORNIA RESIDENTS ONLY
WARNING! Cancer and Reproductive Harm
www.P65Warnings.ca.gov
4
IMPORTANT
CFC/HCFC Disposal
Your old refrigerator may have a
cooling system that used CFCs or
HCFCs (chlorofluorocarbons or
hydrochlorofluorocarbons). CFCs and
HCFCs are believed to harm stratospheric
ozone if released to the atmosphere. Other
refrigerants may also cause harm to the
environment if released to the atmosphere.
If you are throwing away your old
refrigerator, make sure the refrigerant is
removed for proper disposal by a qualified
technician. If you intentionally release
refrigerant, you may be subject to fines
and imprisonment under provisions of
environmental legislation.
Proper Disposal of Refrigerators/Freezers
We strongly encourage responsible appliance
recycling/disposal methods. Check with your
utility company or visit www.energystar.gov/
recycle for more information on recycling your
old refrigerator.
Before you throw away your old
refrigerator/freezer:
• Remove doors.
• Leave shelves in place so children may
not easily climb inside.
• Have refrigerant removed by a qualified
service technician.
IMPORTANT SAFETY INFORMATION
Safety Instructions
• DO NOT store or use gasoline, or
other flammable liquids in the vicinity
of this or any other appliance. Read
product labels for warnings regarding
flammability and other hazards.
• DO NOT operate the refrigerator in the
presence of explosive fumes.
• Avoid contact with any moving parts of
automatic ice maker.
• Remove all staples from the carton.
Staples can cause severe cuts, and also
destroy finishes if they come in contact
with other appliances or furniture.
Child Safety
Destroy or recycle the carton, plastic
bags, and any exterior wrapping material
immediately after the refrigerator is
unpacked. Children should NEVER use these
items to play. Cartons covered with rugs,
bedspreads, plastic sheets or stretch wrap
may become airtight chambers, and can
quickly cause suffocation.
WARNING
Do not use electrical appliances inside
the food storage compartments of the
appliance unless they are of the type
recommended by the manufacturer.
Proper Disposal of your Refrigerator
or Freezer
Risk of child entrapment
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
refrigerators or freezers are still dangerous
– even if they will sit for “just a few days”. If
you are getting rid of your old refrigerator or
freezer, please follow the instructions below
to help prevent accidents.
5
Electrical information
• The refrigerator must be plugged into its
own dedicated 115 Volt, 60 Hz., 15 Amp,
AC only electrical outlet. The power
cord of the appliance is equipped with
a three-prong grounding plug for your
protection against electrical shock
hazards. It must be plugged directly
into a properly grounded three-prong
receptacle. The receptacle must be
installed in accordance with local codes
and ordinances. Consult a qualified
electrician. Avoid connecting refrigerator
to a Ground Fault Interrupter (GFI) circuit.
Do not use an extension cord or adapter
plug.
• If the power cord is damaged, it should
be replaced by an authorized service
technician to prevent any risk.
• Never unplug the refrigerator by pulling
on the power cord. Always grip the
plug firmly, and pull straight out from
the receptacle to prevent damaging the
power cord.
• Unplug the refrigerator before cleaning
to avoid electrical shock.
• Performance may be affected if
the voltage varies by 10% or more.
Operating the refrigerator with
insufficient power can damage the
compressor. Such damage is not
covered under your warranty.
• Do not plug the unit into an electrical
outlet controlled by a wall switch or pull
cord to prevent the refrigerator from
being turned off accidentally.
IMPORTANT
To turn off power to your refrigerator you
must unplug the power cord from the
electrical outlet.
Grounding type wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
CAUTION
To avoid personal injury or property
damage, handle tempered glass shelves
carefully. Shelves may break suddenly if
nicked, scratched, or exposed to sudden
temperature change.
IMPORTANT SAFETY INFORMATION
6
IMPORTANT
Features not included with your refrigerator can be purchased at www.
electroluxappliances.com or by calling 1-877-435-3287.

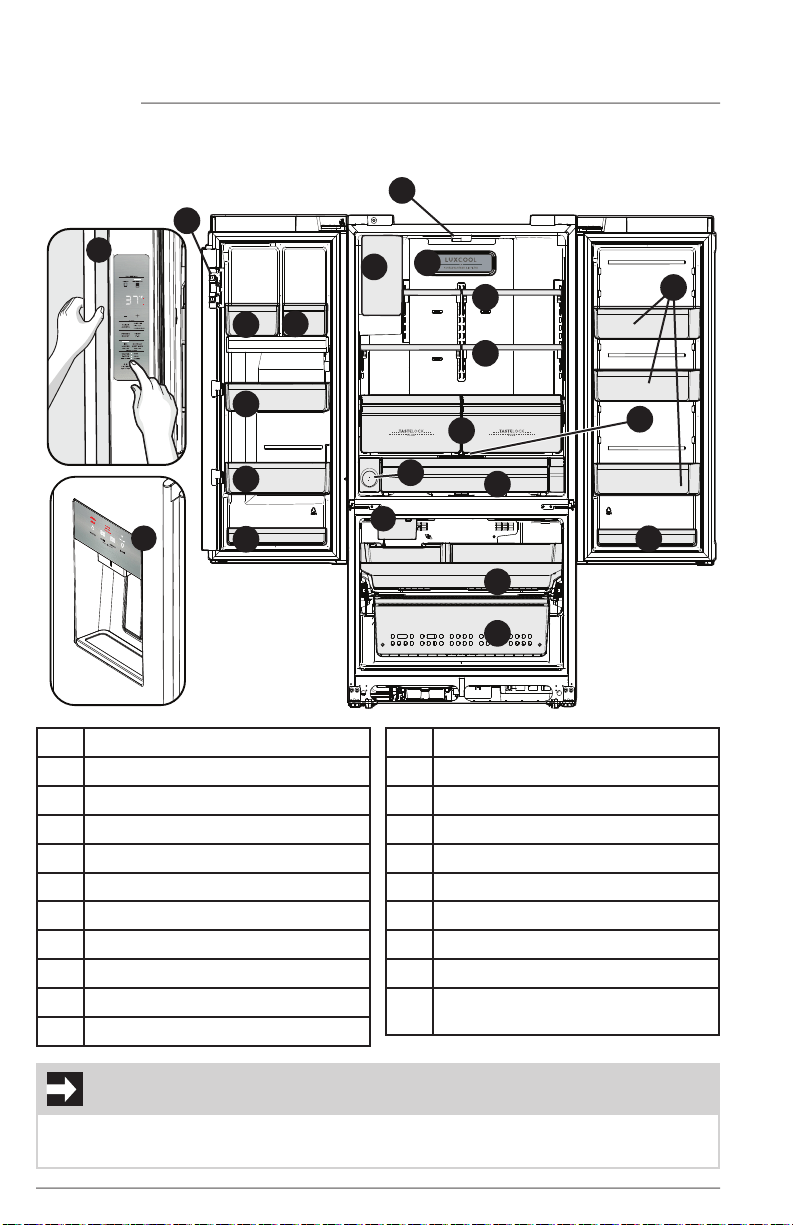

A PureAdvantage™ Water Filter
B Condiment Bin
C L-Shaped Bin
D Dairy Bin
E Flipper Mullion
F Gallon Bin
G Slim Bin
H Fresh Food Ice Maker & Bin
I Flipper Guide
J PureAdvantage™ AF-2 Air Filter
K Slide Under ¼ & ½ width shelves
L Edge-to-edge Glass Shelving
M Standard bins
N TasteLock™ Plus Crisper Drawers
O Adjustable Temp Drawer (ATD)
P
ATD Controls
Q
Upper Freezer Basket
R Lower Freezer Basket
S Freezer Ice Maker
T In-Door control Display(Functions)
U External Control Display
(Ice/Water)
FEATURES
External Water Dispenser Model
A
B
B
C
D
E
F
G
H
I
J
K
M
N
L
O
Q
R
P
S
T
U
7
CAUTION
DO NOT install the refrigerator where the
temperature will drop below 55°F (13°C)
or rise above 110°F (43°C). The compressor
will not be able to maintain proper
temperatures inside the refrigerator.
This Use & Care Manual provides general
installation and operating instructions for
your model. We recommend using a service
or kitchen contracting professional to install
your refrigerator. Use the refrigerator only
as instructed in this Use & Care Manual.
Before starting the refrigerator, follow these
important first steps.
Location
• Choose a place that is near a
grounded, non-GFCI, electrical outlet.
Do Not use an extension cord or an
adapter plug.
• If possible, place the refrigerator
out of direct sunlight and away from
the range, dishwasher, or other heat
sources.
• The refrigerator must be installed on a
floor that is level and strong enough to
support a fully loaded refrigerator.
• Consider water supply availability for
models equipped with an automatic ice
maker.
Top Hinge
Cover Front
Screw
Top Hinge
Cover Rear
Screw
Lower
Hinge
Screw
Top
Hinge
Screw
Components Provided:
Tools Necessary:
Phillips Head
or
Quadrex Head
Screwdriver
(OR)
OR
⅜" and ¼"
Socket
Wrench
Adjustable
Wrench
OR
⅜"
Fixed
Wrench
ANDAND
6mm
Allen Wrench
INSTALLATION
WARNING
Installation
Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
• Sides & Top ³⁄8
inch (9.5 mm)
• Back 1 inch (25.4 mm)
WARNING
This appliance is intended for use in
residential household and similar interior
applications such as:
• Kitchen / Kitchenette
• Pantry Room
• Basement
• Enclosed Garage
• Other interior residential type
environments
8
INSTALLATION
Door opening
Your refrigerator should be positioned
to allow easy access to a counter when
removing food. For best use of the
refrigerator drawers and freezer baskets, the
refrigerator should be in a position where
both can be fully opened.
Cabinet Leveling & Refrigerator
Door Alignment (if necessary)
Guidelines for final positioning of the refrigerator:
• All four corners of the cabinet must rest
firmly on the floor.
• The front should be slightly elevated
to ensure that doors close and seal
properly.
• Doors should align with each other and
be level.
Most of these conditions can be met by raising
or lowering the adjustable front rollers.

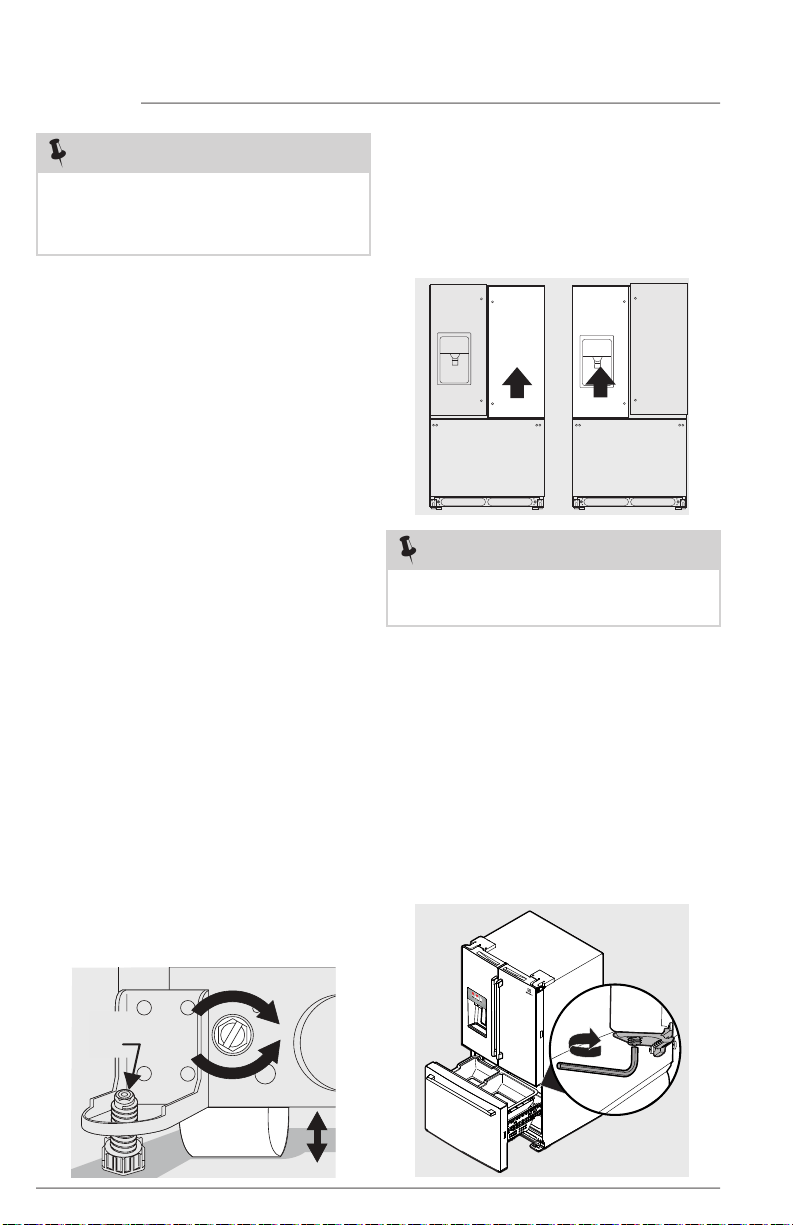

To level the cabinet using the front rollers:
1. Slightly open freezer drawer to reveal
adjustable rollers at bottom of cabinet.
2. Use the front roller height adjusting
screws to make initial cabinet
adjustments. Use a 3/8 inch socket
wrench to turn the adjustment screws
(1 per side).
To raise unit: Turn adjustment
screw clockwise.
To lower unit: Turn adjustment screw
counterclockwise.
.
Door
Door
To make final door height adjustments:
1. Open the freezer drawer to access
hinges for refrigerator doors.
2. Insert the 6mm Allen
TM
wrench into the
shaft of the lower hinge. (Included with
unit).
To lower door: turn adjustment screw
counter-clockwise if looking at the
door from below.
To raise door: turn adjustment screw
clockwise if looking at the door from
below.
NOTE
If your refrigerator is placed with the door
hinge side against a wall, you may have
to allow additional space so the door can
be opened wider.
NOTE
Product is shipped with doors adjusted to
the lowest position on the hinges.
3. Ensure both doors are bind-free with
their seals touching the cabinet on all
four sides and that cabinet is stable.
4. After unit is leveled, lower the anti-tip
leg until it firmly contacts the floor. An
adjustable wrench may be necessary
for adjustment.
Raise
Lower
Anti-tip
Leg
9
INSTALLATION

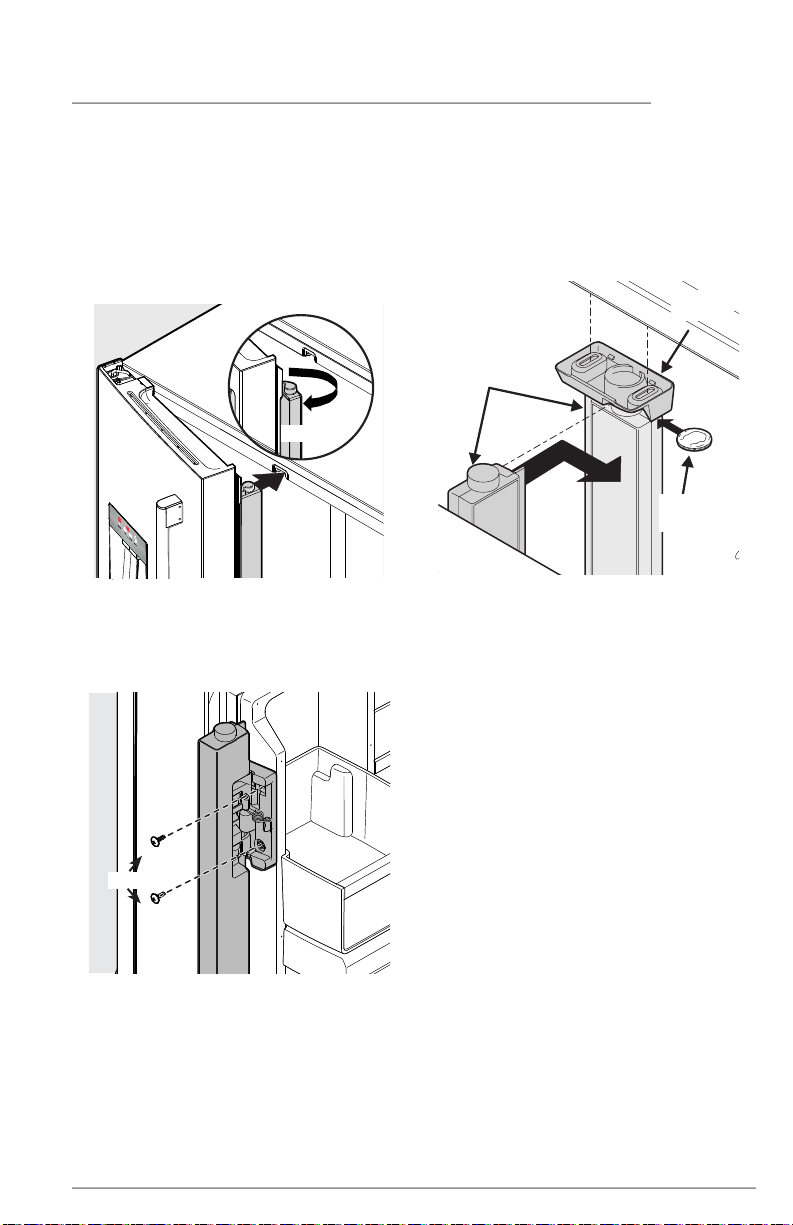

Adjusting Flipper Mullion Screw
2. Adjust flipper mullion height. For proper
connection with the flipper mullion
guide, there should be a separation
about the thickness of a coin (0.060
inches, or 1.5 mm) between the guide
and flipper mullion.
3. Re-tighten screws.
To adjust the flipper mullion:
1. Loosen the two screws located on the
flipper mullion hinge.
Adjusting Flipper Mullion Height
Flipper
Mullion
Screws
Flipper Mullion
Adjust the Flipper Mullion for proper
connection with the mullion guide by
ensuring the flipper mullion is folded and
perpendicular to the refrigerator door. If the
mullion guide is not in the correct position,
it could prevent the door from closing
completely.
WRONG
Flipper
Mullion
Mullion
Guide
Thickness
of a Coin
10
WARNING
Make sure the electrical power cord is
unplugged from the wall outlet.
Getting through narrow spaces
If your refrigerator will not fit through an
entrance area, you can remove the doors.
Check first by measuring the entrance.
To prepare for removing the doors:
1. Make sure the electrical power cord is
unplugged from the wall outlet.
2. Remove any food from the door
shelves and close the doors.
Right Door Dispenser Unit
Left Door Dispenser Unit
DOOR REMOVAL

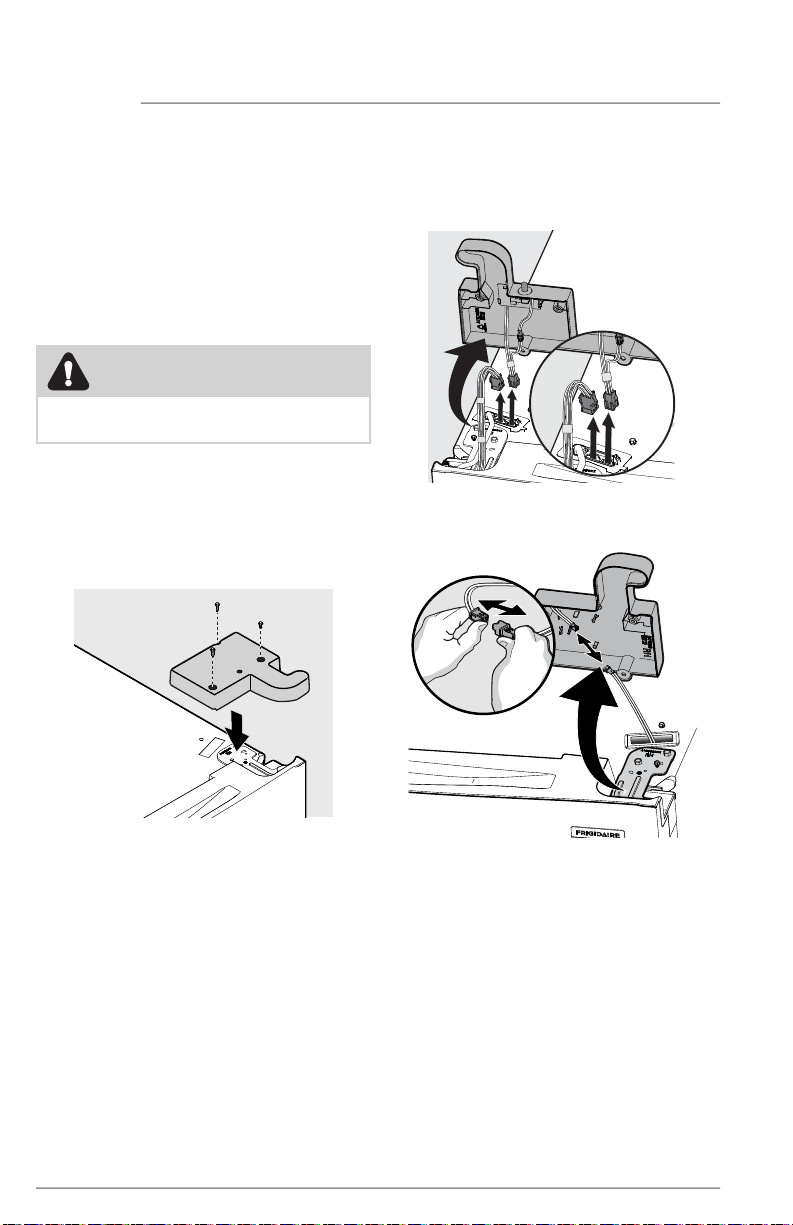

To remove refrigerator doors:
1. Remove the three screws from both
hinge covers on the left and right
top of the cabinet, taking care not
to damage electrical connections or
sensors.
2. After the hinge covers are removed,
disconnect any harnesses between the
cabinet and doors by grasping both
sides of the connector firmly, depress
the latch and pull apart.
11
DOOR REMOVAL
5. Pull the water tube out of the conduit
from the top of the cabinet.
Press
Press
Press
Press
6. Open both doors to a 90 degree
angle.
NOTE
You will be pulling approximately five
feet of water tube from the back of the
refrigerator. Use care while pulling the
water tube from the unit to be sure that
you do not kink the tube.
90˚
CAUTION

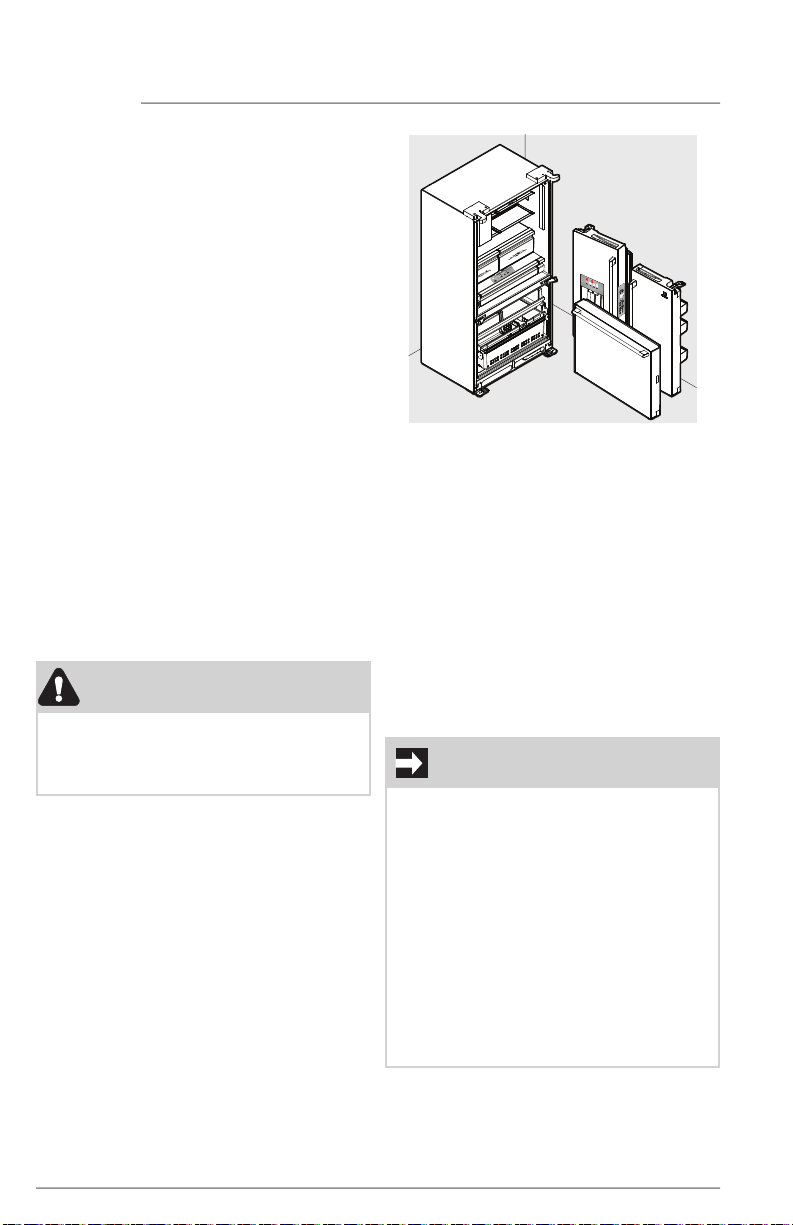

Be sure doors are set aside in a secure
position where they cannot fall and cause
personal injury, or damage to the doors or
handles.
3. Trace lightly around the door’s top
hinges with a pencil. This makes re-
installation easier.
4. Remove bulkhead cover at rear of unit
to access water tubing. Disconnect
the water tube at the push-lock
connection on the rear of the unit
below the bulkhead. The dispenser line
is connected to the yellow water line
coming from the main water valve.
12
DOOR REMOVAL
7. Remove hex screws from top hinge
plate, then remove the top hinge.
8. Lift doors off bottom hinges and set
aside.
9. Unscrew the three bottom hinge screws
and remove the bottom hinges.

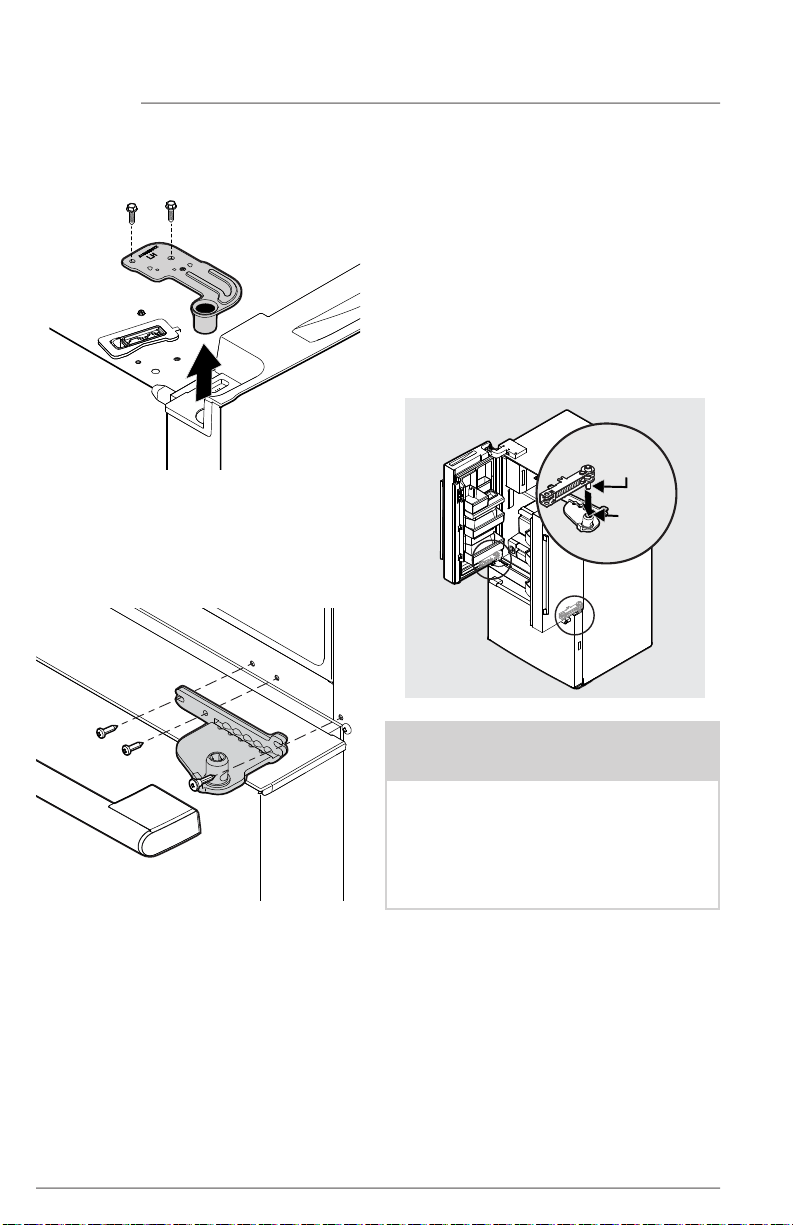

Lower Hinge Removal
Pin
Mechanism
Bottom
Hinge
Opening
To reinstall the refrigerator doors:
1. Replace three bottom hinge screws
and hinges on both sides of the
cabinet. Ensure screws are tightly snug
to hinges on both sides of the cabinet
before re-installing doors
2. Holding the door at a 90 degree
angle, drop the pin down into the
bottom hinge opening. Rotate it slightly
in either direction until the door falls
onto the hinge and is fully seated.
NOTE
When reinserting the water tube and
replacing the top hinge cover, use care
to be sure you do not kink the tube. The
water line may also be difficult to pass
back through the conduit inside the
cabinet
13
DOOR REMOVAL

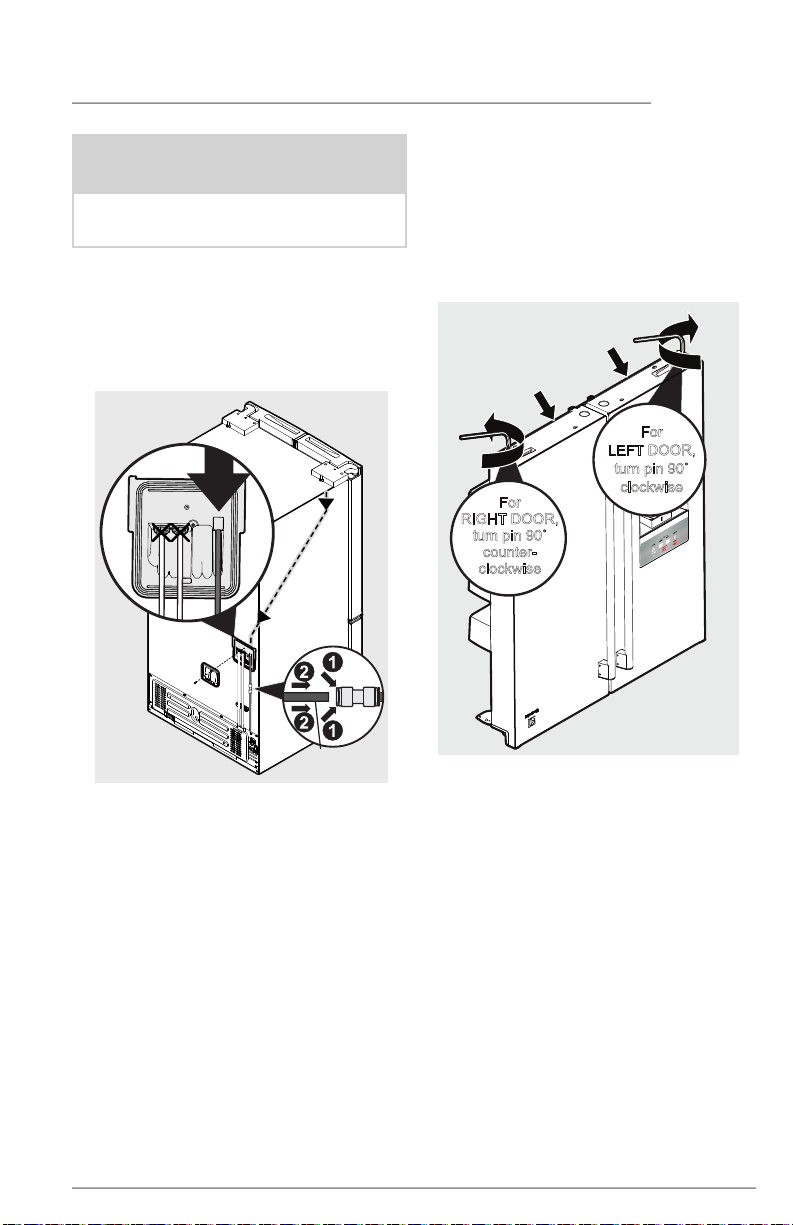

Bottom of the Doors
For
RIGHT DOOR,
turn pin 90˚
counter-
clockwise
For
LEFT DOOR,
turn pin 90˚
clockwise
To reset door pin:
If doors are removed at less than a 40
degree angle, the pin returns to the home
position. It can be reset by turning the door
upside down and using a 5/32” Allen wrench
to rotate the left hand pin 90 degrees
clockwise and the right hand pin 90 degrees
counterclockwise.
Once the door pins are reset, follow the
steps “To reinstall the refrigerator doors”.
3. Reinstall top hinges and screws.
4. Insert and feed water line back into the
conduit at the top left door hinge until
tube re-appears at rear of unit.
Push
Push
5. Reconnect all harnesses.
6. Replace top hinge covers and screws.
7. Reconnect water line to push-lock
connection and reinstall water line
bulkhead cover at rear of unit.
8. Reconnect electrical power cord to the
wall outlet
NOTE
Upon replacement, the tube needs to be
fully inserted up to the marking line.
14
DOOR REMOVAL
CAUTION
Drawer is heavy. Use caution when lifting.
Removing Freezer Drawer
1. Remove 4 hex head drawer screws (2
per side) that secure the drawer to the
slide assemblies.
2. Lift up drawer to remove.
Remove
Hex Head
Drawer
Screw
CAUTION
Do Not loosen or remove the 3 hex screws.
NOTE
To locate the pin, look inside the drawer
and the pin is next to the door liner and
the slides. Not all parts are shown in the
illustration.
Replacing Freezer Drawer
1. Extend the Freezer slides from the unit.
2. Carefully align support pin with hooks
on end of freezer slides and then lower
freezer door onto slides.
3. Replace the 4 hex head screws that
secure the slides to the door (2 on
each side) and tighten.
15
DOOR HANDLE INSTALLATION
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
NOTE
All set screws should be tightened so the screw is below the surface of the handle. The
handles should be drawn tight to freezer and refrigerator doors with no gaps. Opening the
opposite door while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this happens,
tighten the set screws on the handles.

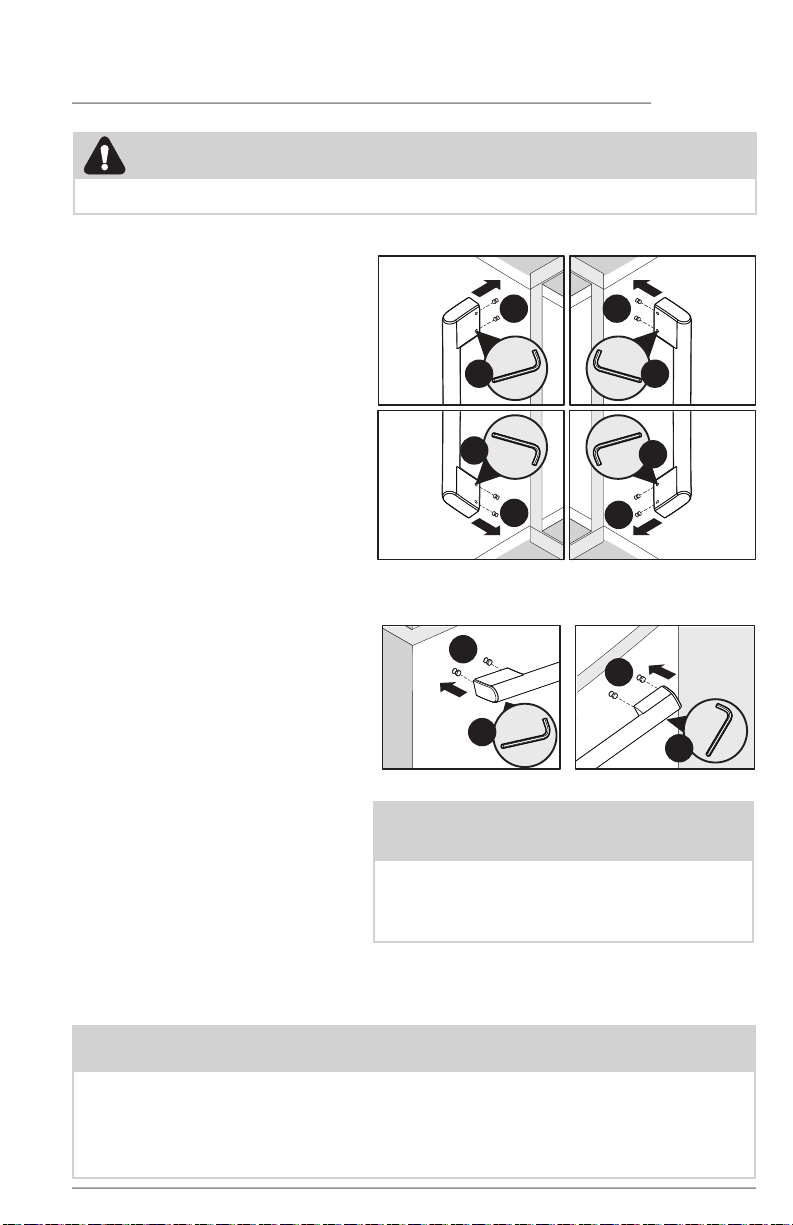

Door Handle Mounting
Instructions
1. Remove handles from carton and
any other protective packaging.
2. Position refrigerator handle end
over upper and lower pre-installed
shoulder bolts (A) that are fastened
into the door, ensuring the holes for
the set screws are facing toward the
opposite door.
3. While holding the handle
firmly against the door,
fasten furthermost upper and
furthermost lower Allen set screws
(B) with supplied Allen wrench.
4. Repeat steps 2 and 3 to install
the opposite handle. Ensure the
holes for the set screws are facing
toward the first door.
5. Firmly tighten the inside Allen set
screws.
6. Position the freezer handle end
over left and right pre-installed
handle shoulder bolts (A) that are
fastened to the door, ensuring the
holes for the set screws are facing
down.
7. While holding the handle firmly
against the door, loosely tighten
the far right Allen set screw (B)
with supplied Allen wrench until
there is no gap between the
handle and door.
8. Still holding the handle firmly to
the door, firmly tighten the far
left Allen set screw (B) with the
supplied Allen wrench.
9. Return to the far right Allen set
screw (B) and firmly tighten with
the supplied Allen wrench.
10. Firmly tighten the inside Allen set
screws.
Mounting Refrigerator Handles
Mounting Freezer Handle
NOTE
When tightening the Allen set screws, it is
important that force be applied to the longer
arm of the Allen wrench supplied in the handle
packaging.
x2
x2
A
A
B
B
x2 x2
x2
x2
A A
A
A
B
B
B
B
16
WARNING
To avoid electric shock, which can
cause death or severe personal injury,
disconnect the refrigerator from electrical
power before connecting a water supply
line to the refrigerator.
NOTE
Check with your local building authority
for recommendations on water lines and
associated materials prior to installing
your new refrigerator. Depending on your
local/state building codes, Electrolux
recommends its Smart Choice
®
water line
kit 5308815072 with a 6 ft. (1.8 meters)
Stainless Steel Water Line for homes with
existing valves. Please refer to
www.electrolux.com for more information.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided
tubing is recommended for the water
supply line. Water supply tubing made
of ¼ inch plastic is not recommended.
Plastic tubing greatly increases the
potential for water leaks, and the
manufacturer will not be responsible for
any damage if plastic tubing is used for
the supply line.
• DO NOT install water supply tubing in
areas where temperatures fall below
freezing.
• Chemicals from a malfunctioning
water softener can damage the ice
maker. If your home has a water
softening system, ensure the softener is
maintained and working properly.
IMPORTANT
Ensure that your water supply line
connections comply with all local
plumbing codes.
Before Installing the Water Supply
Line, You Will Need:
• Basic Tools: adjustable wrench, flat-
blade screwdriver, and a Phillips
TM
screwdriver
• Access to a household cold water line
with water pressure between 30 and
100 psi.
• A water supply line made of ¼ inch
(6.4 mm) OD, copper or stainless steel
tubing. To determine the length of
tubing needed, measure the distance
from the water inlet valve at the back
of the refrigerator to your cold water
pipe. Then add approximately 6 feet
(1.8 meters), so the refrigerator can be
moved out for cleaning (as shown).
• A shutoff valve to connect the water
supply line to your household water
system. DO NOT use a self-piercing
type shutoff valve.
• Do not re-use compression fittings or
use thread seal tape.
• A compression nut and ferrule (sleeve)
for connecting a copper water supply
line to the ice maker inlet valve.
To Connect the Water Supply Line
To Main Water Inlet Valve
1. Disconnect refrigerator from electric
power source.
2. Place the end of water supply line into
a sink or bucket. Turn ON the water
supply and flush the supply line until
water is clear. Turn OFF the water
supply at shutoff valve.
3. Remove the plastic cap from water
valve inlet and discard.
WATER SUPPLY CONNECTION
17
WATER SUPPLY CONNECTION
IMPORTANT
Your refrigerator’s water supply system
includes several tubing lines, a water
filter, and a water valve. To ensure that
your water dispenser works properly,
this system must be completely filled
with water when your refrigerator is first
connected to the household water supply
line.
NOTE
These instructions do not cover after
market ice maker installation. Instructions
in after market ice maker kit should be
used.
4. If you use copper tubing - Slide the
brass compression nut, then ferrule
(sleeve) onto the water supply line.
Push the water supply line into
water valve inlet as far as it will go
(¼ inch/6.4 mm). Slide ferrule (sleeve)
into the valve inlet and finger tighten
the compression nut onto valve.
Tighten another half turn with a
wrench; DO NOT over tighten. See
Figure 1.
• If you use braided flexible stainless
steel tubing - The nut is already
assembled on the tubing. Slide the nut
onto the valve inlet and finger tighten
the nut onto valve. Tighten another
half turn with a wrench; DO NOT over
tighten. See Figure 2.
5. Using the steel clamp and screw,
secure water supply line to rear panel
of refrigerator as shown.
6. Coil excess water supply line (copper
tubing only), about 2½ turns, behind
the refrigerator as shown and arrange
coils so they do not vibrate or wear
against any other surface. Do not kink
tubing.
7. Turn ON the water supply at the shutoff
valve and tighten any connections that
leak.
8. Reconnect refrigerator to electrical
power source.
9. To turn ice maker on, ensure the Ice
Maker is enabled on display (LED
will be lit) or set the ice maker’s On/
off power switch to the “ON” position
(freezer ice maker).

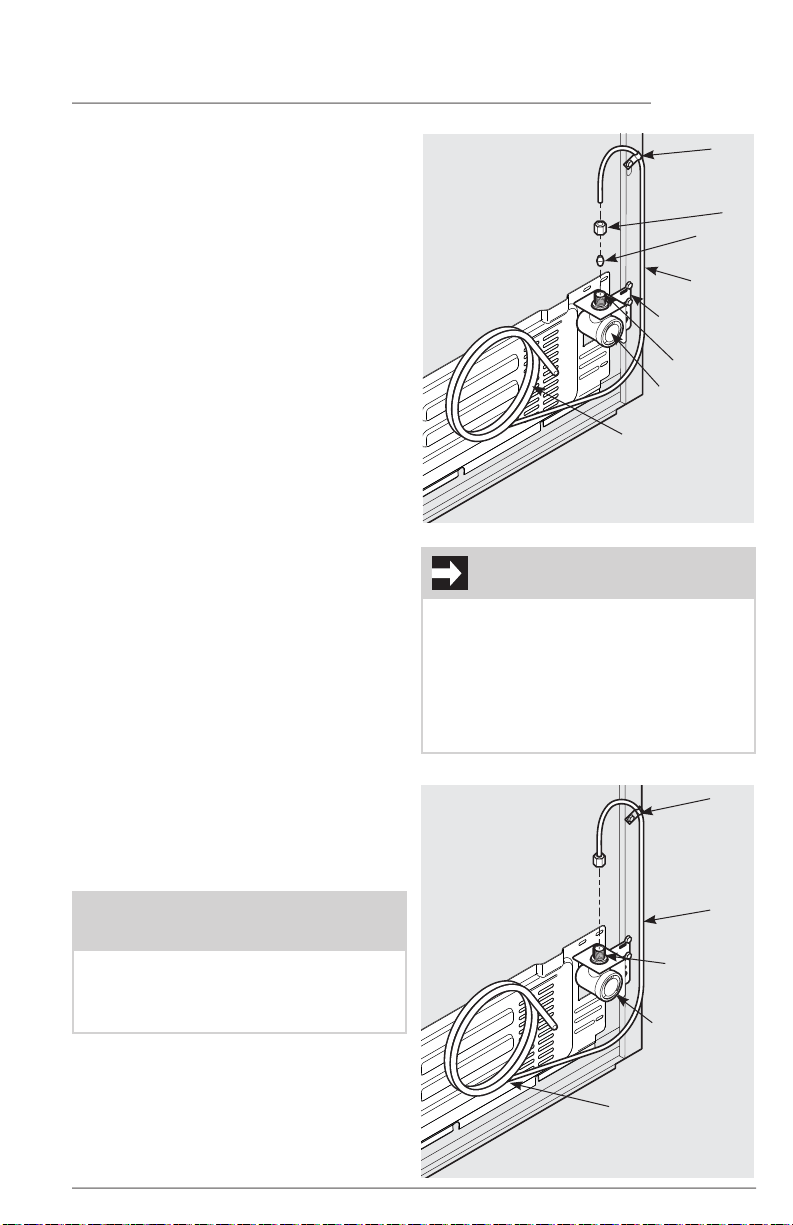

Figure 1
Steel
Clamp
Brass
Compression
Nut
Ferrule
(Sleeve)
Copper
Water line
Water Valve
Bracket
Valve Inlet
Water Valve
Copper waterline
from household
water supply
(Include enough tubing
in loop to allow moving
refrigerator out for cleaning)
Figure 2
Steel
Clamp
Valve Inlet
Water Valve
Braided
Flexible
Stainless
Steel
Water Line
(Include enough
tubing in loop to allow
moving refrigerator out
for cleaning)
6 ft. (1.8 Meters)
Braided flexible
stainless steel water
line from household
water supply.
18
CONTROLS AND SETTINGS
In-Door Control Display Mode Views
Your display is equipped with a sleep and lock mode to prevent accidental changes to
the unit settings during opening and closing of the doors. When both doors are closed, the
display will be in sleep mode. When either door is first opened, the display will be in lock
mode where all the current settings are visible but dimmed.
Pressing any button on the display wakes the display plays a tone. All settings are then fully
lit. Touch the display again to change any setting.
If there is no button pressed for 10 seconds while any door is open, the display defaults
back to lock mode.
Awake Mode View Lock Mode View Sleep Mode View
19
1
Change
Temperature
Select Freezer or Refrigerator icon to change
temperature.
Press +/- buttons to set the temperature
Freezer control
range:
-6˚F/-21˚C –
+6˚F/-15˚C
Refrigerator
control range:
+34˚F/+1˚C –
+44˚F/+7˚C
2
Clear Alerts
Resets any alarms that are active and
illuminated on the display (DOOR OPEN,
HIGH TEMP, POWER OUTAGE).
3
Freeze Boost
Prior to grocery shopping, we recommend
you activate FREEZE BOOST to lower the
temperature and freeze food faster. FREEZE
BOOST will remain active for up to 24 hours
before automatically deactivating or manually
exiting by pressing FREEZE BOOST to turn
the function off. This will reset the freezer to the
previous temperature setting.
4
F/C
Touch to toggle display from Fahrenheit to
Celsius.
5
Ice Maker
Press and hold for 3 seconds to turn ice
maker on/off. When the indicator is lit, the
ice maker is on. When the indicator is not lit,
ice maker is in the OFF state and will stop
making ice. While off, ice dispensing can
continue as long as there is ice in the bucket.
The indicator will blink when the ice maker is
off and ice is dispensing.
6
Default
Settings
Press and hold for 3 seconds to reset to
Factory settings.
7
Water Filter
Press and hold button to reset after filter has
been replaced, status shown at right of button
will reset to GOOD.
8
Air Filters
Press and hold to reset after filter has been
replaced, status shown at right of button will
reset to GOOD.
1
2
3
65
7
8
4
In-Door Water Dispenser Control Display
CONTROLS AND SETTINGS
Clear Alerts
DOOR OPEN
An alarm sounds and the door open indicator
illuminates on the display if the freezer or
refrigerator doors have are left open for five
minutes or more. Press “CLEAR ALERTS” to reset
any system alarms.
HIGH TEMP Alarm
An alarm is played every 60 seconds
and HIGH TEMP illuminates next to the
clear alerts button in the event of a high
temperature condition. Press the “CLEAR
ALERTS” button to acknowledge and
silence the alarm. The highest temp value
will be displayed when the alarm is first
acknowledged.
POWER OUTAGE
The power outage alert illuminates in the
event of a power outage. Press “CLEAR
ALERTS” to acknowledge and silence the
alarm. Other modes may be turned off until
the alarm is acknowledged. The unit will
continue normal operation while a power
outage alert is displayed on the control
panel. The high temp alarm may also stay
illuminated until a safe operating temperature
range is reached.
20
1
Replace Water Filter
Display illuminates every 6 months or
when filter needs replacing. Replace
the filter then press and hold the WATER
FILTER button on the side door control
display for 3 seconds to deactivate the
warning on the external display. See
Replacing the Filter for more information.
2
Door Open
Alert indicates the door has been
open for 5 minutes or more. The DOOR
OPEN LED illuminates and the audible
alert sounds until the door is closed.
The audible alert can be turned off by
pressing DOOR OPEN or closing the
door. The interior light turns off If the
door is open for 5 minutes.
3
Lock Controls
Press and hold for 3 seconds to
enable or disable the display lock.
While in the locked state, no changes
can be made to settings on the
display and dispensing ice and water
are disabled.
4
High Temp Alarm
An alarm sounds in the event of
a high temperature condition. The
alarm sounds every 10 seconds until
acknowledged. Touch any key or open
a door to silence the alarm.
5
Replace Air Filters
Display illuminates every 6 months or
when filter needs replacing. Replace the
filter and then press and hold the AIR
FILTERS button on the side door control
display for 3 seconds to deactivate the
warning on the external display. See
Replacing the Filter for more information.
6
Power Outage
The power outage alert illuminates In
the event of a power outage. A tone
sounds once power is restored. Press
any button to silence the tone.
7

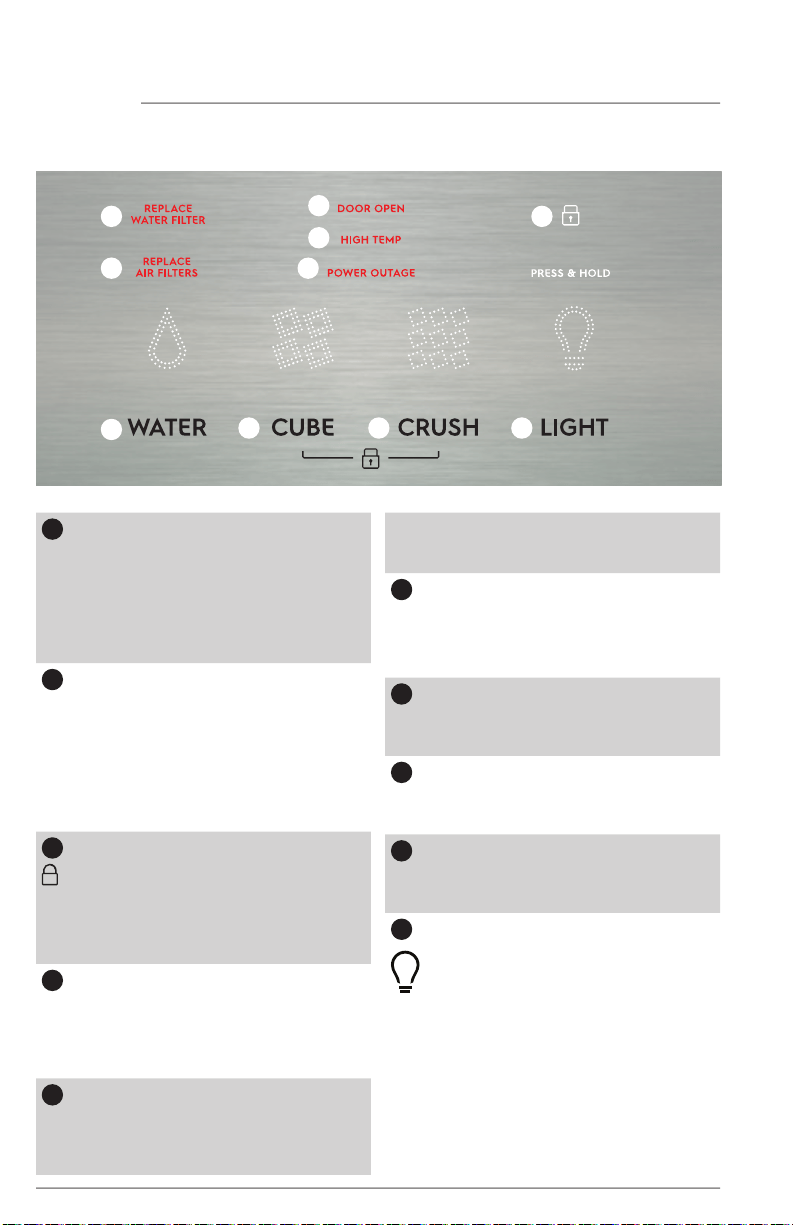

Water
Press the Water key to dispense water.
The indicator light illuminates above
the active feature.
8
Cube
Press the Cube key to dispense cubed
ice. The indicator light illuminates
above the active feature.
9
Crush
Press the Crush key to dispense
crushed ice. The indicator light
illuminates above the active feature.
10
Light
Toggles dispenser light On and Off.
CONTROLS AND SETTINGS
1
2
3
65
7
8 9 10
4
External Water Dispenser Control Display
Clear Alerts
Flapper (Dispenser Models Only)
When “CUBE” or “CRUSH” is selected, if the
flapper (or ice chute door) is being held
open by a jammed ice cube, an alarm will
sound and the current selection will blink on
the dispenser control. The alarm will reset
when the ice cube is removed.
21
CONTROLS AND SETTINGS
NOTE
Food placed within 1 in. in front of air ports
may cause food to freeze.
Sabbath Mode
The Sabbath Mode is a feature that disables
portions of the refrigerator and its controls in
accordance with observance of the weekly
Sabbath and religious holidays within the
Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by
simultaneously pressing and holding both
the“−” and “Temp F-C” for five seconds. The
display shows “Sb” while in Sabbath mode.
In the Sabbath Mode, the High Temp alarm
is active for health reasons. For example,
if the door is left ajar the High Temp alarm
is activated. The refrigerator will function
normally once the door is closed, without
any violation of the Sabbath/Holidays. The
High Temp alarm is permitted when cabinet
temperature is outside the safe zone for 20
minutes. The alarm silences itself after 10
minutes while the High Temp icon stays lit
until the Sabbath mode is exited.
For further assistance, guidelines for proper
usage and a complete list of models with the
Sabbath feature, please visit the web at
http:\\www.star-k.org.
NOTE
While in Sabbath Mode, neither the lights,
dispenser, nor the control panel will work
until Sabbath Mode is deactivated.
Refrigerator stays in Sabbath Mode
after power failure recovery. It must be
deactivated with the buttons on the
control panel.
NOTE
Although you have entered the Sabbath
Mode, the ice maker will complete the last
initiated cycle. The ice cube compartment
will remain cold and new ice cubes can
be made with standard trays.
22
NOTE
The water dispenser has a built-in device
that shuts off the water flow after three
minutes of continuous use. To reset this
shutoff device, simply release the dispenser
paddle.
CAUTION
For proper dispenser operation,
recommended water supply pressure
should fall between 30 psi and 100 psi.
Excessive pressure may cause the system to
malfunction.
Priming the water supply system
1. Begin filling the system by pressing and
holding a drinking glass against the
water dispenser paddle.
2. Keep the glass in this position until
water comes out of the dispenser. It
may take about 1½ minutes.
3. Continue dispensing water for about
four minutes to flush the system and
plumbing connections of any impurities
(stopping to empty the glass as
necessary).
Ice maker operation & care
After the refrigerator is installed properly
and has cooled for several hours, the ice
maker can produce ice within 24 hours. The
ice maker will fill the ice bin from the rear.
You must dispense some ice to force the ice
forward in the bin. This will allow the bin to fill
completely.
Ice Maker and Storage Bin Capacity
The refrigerator ice maker should produce
2.7 to 3.2 pounds of ice per 24 hours.
The refrigerator ice bin will hold around 3.7
pounds of ice.
Using the dispenser after
installation
Before making ice for the first time, be sure
to prime the water supply system. Air in new
plumbing lines can result in two or three
empty ice maker cycles. Furthermore, if the
system is not flushed, the first ice cubes
may have discolored water or have an odd
flavor.
NOTE
Dispensed water is not chilled. For colder
water, add ice to cup or container before
dispensing water.
AUTOMATIC ICE & WATER DISPENSER
Ice/Water Dispenser
Refrigerator Ice Maker
23
Refrigerator Ice Maker
AUTOMATIC ICE & WATER DISPENSER
IMPORTANT
Your ice maker is turned on at the factory
so it can work as soon as you install your
refrigerator. If you cannot connect a water
supply, set the ice maker’s On/Off feature
to Off; otherwise, the ice maker’s fill valve
may make a loud chattering noise when it
attempts to operate without water.
IMPORTANT
On occasion, unusually small ice cubes may
be noticed in the bucket or in dispensed
ice. This could occur in normal operation
of the ice maker. If you start seeing these
more frequently, it may be an indication of
low water pressure or the water filter needs
to be replaced. As the water filter nears the
end of its useful life and becomes clogged
with particles, less water is delivered to the
ice maker during each cycle. Remember, if
it’s been six months or longer since you last
changed your water filter, replace the water
filter with a new one. Poor quality household
water may require the filter to be changed
more frequently.
Ice maker/dispenser tips
• If your refrigerator is not connected
to a water supply or the water supply
is turned off, turn off the ice maker as
described in the previous section.
• The following sounds are normal when
the ice maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
• If you need a large quantity of ice at
one time, it is best to get cubes directly
from the ice bin.
• Ice cubes stored too long may develop
an odd flavor. Empty the ice bin as
explained below.
• When dispensing cubed ice, it is normal
to have a small quantity of little pieces
along with the whole cubes.
• To avoid splashing, dispense ice into
your container before adding liquids.
• It is normal for ice to fill to the top of the
ice bin.
Cleaning the ice maker
CAUTION
If the water supply to your refrigerator is
softened, be sure the softener is properly
maintained. Chemicals from a water
softener can damage the ice maker.
IMPORTANT
Turning off the ice maker simply disables
ice making. You will still be able to
dispense existing ice, and you will still be
able to dispense water.
NOTE
The ice maker also has a built-in plastic
signal arm that automatically stops ice
production when the ice bin is full. This
signal arm should not be used to manually
stop the ice maker.

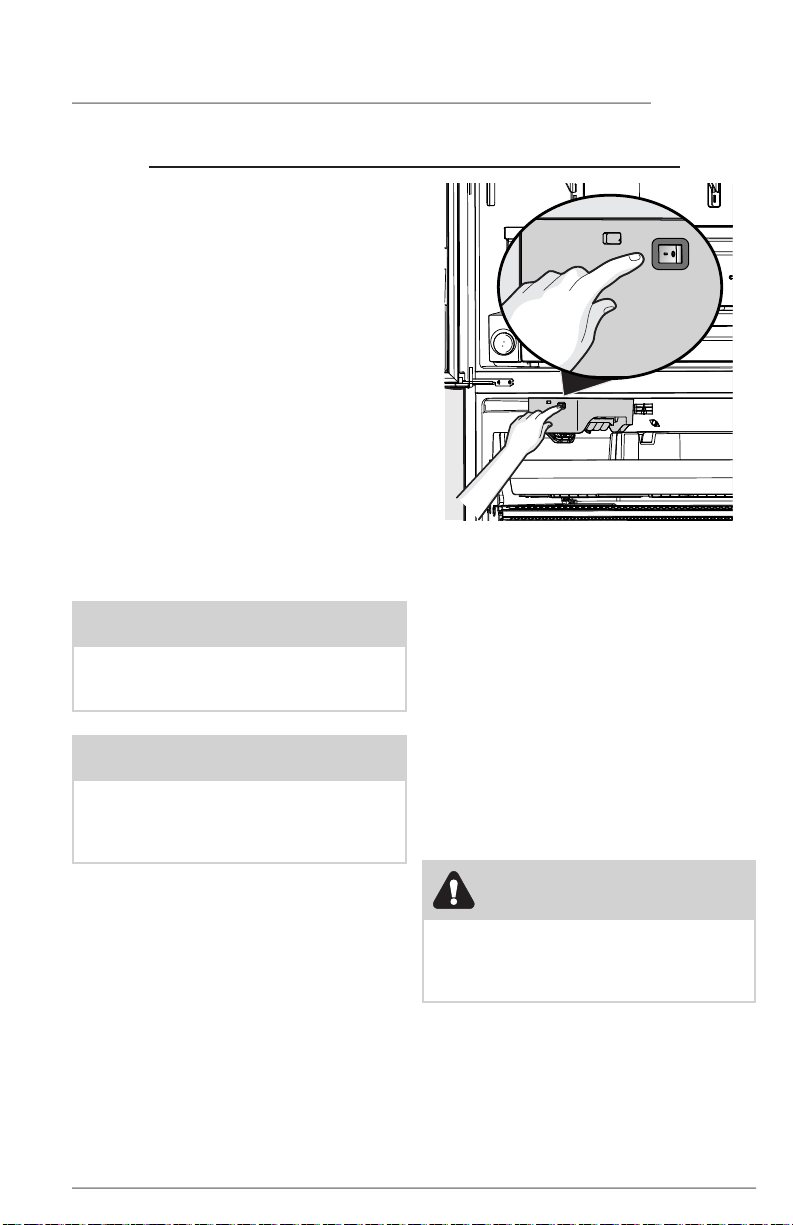

Turning the refrigerator ice maker
on and off
Ice production is controlled by the ice
maker’s On/Off feature on the control panel.
Pressing the On/Off feature turns the ice
maker on & off.
24
Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or
moving.
1. Turn off the ice maker.
CAUTION
NEVER use an ice pick or similar sharp
instrument to break up the ice. This could
damage the ice bin and dispenser
mechanism.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure it
is completely dry.
IMPORTANT
When removing or replacing the ice
bin, avoid rotating the auger in the ice
bin. If the auger is accidentally rotated,
you must realign the auger by turning
it in 45 degree turns (see below) until
the ice bin fits into place with the drive
mechanism. If the auger is not properly
aligned when replacing the ice bin, the
refrigerator will not dispense ice. The
refrigerator door also may not close
properly causing warm air to leak into the
refrigerator compartment.
AUTOMATIC ICE & WATER DISPENSER

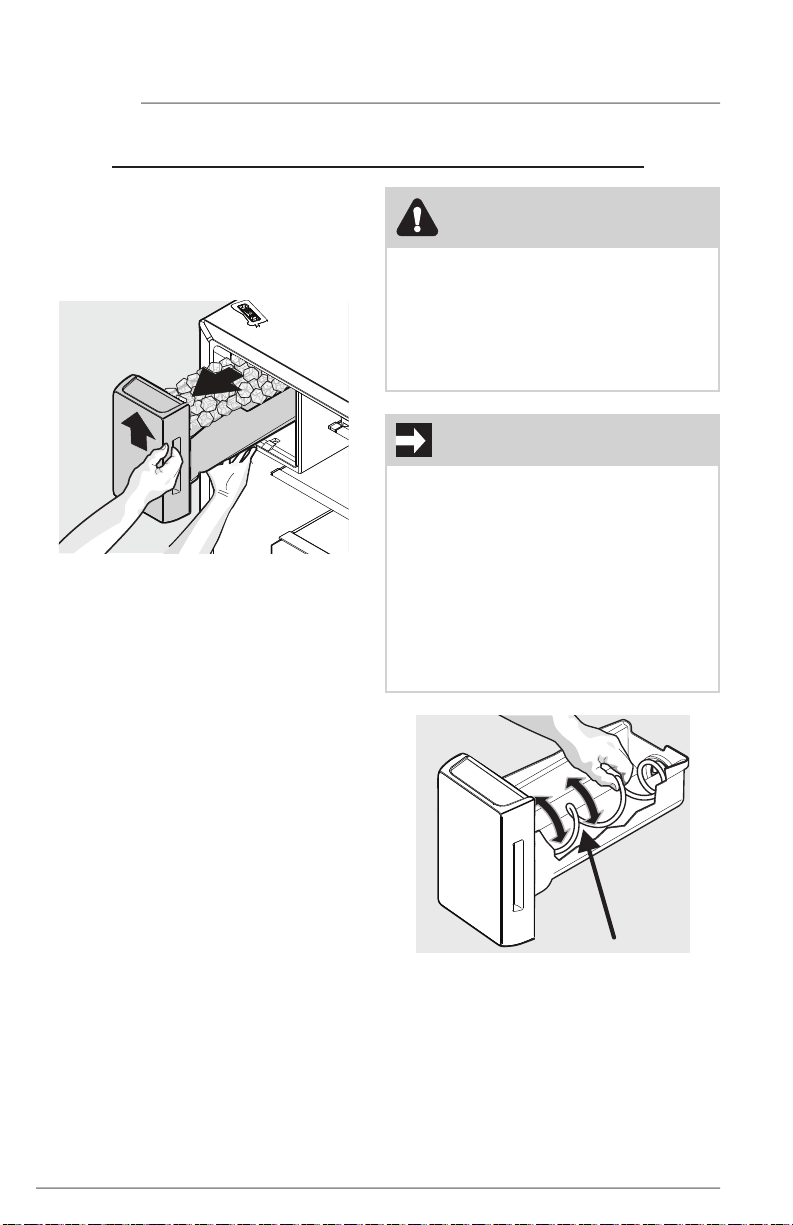

Removing Ice Bin
2. Lift the ice bin upward then pull straight
out to remove.
3. Empty and carefully clean the ice bin
with mild detergent. Do not use harsh
or abrasive cleaners. Rinse with clean
water.
4. Allow the ice bin to dry completely
before replacing in the freezer.
5. Replace the ice bin. Turn the ice maker
on.
Remove and empty the ice bin if:
• An extended power failure (one hour
or longer) causes ice cubes in the ice
bin to melt and refreeze together after
power is restored, jamming the dispenser
mechanism.
• You do not use the ice dispenser
frequently. Ice cubes will freeze
together in the bin, jamming the
dispenser mechanism.
Adjusting Ice Bin Auger
Auger
Refrigerator Ice Maker
25
Ice Maker Operation & Care
After the refrigerator is installed properly, the
ice maker can produce ice within 24 hours.
When using the ice maker for the first time,
and in order for it to work properly, it is
necessary to clear air from the water tubing
and the filter. Furthermore, if the system
is not flushed, the first ice cubes may be
discolored or have an odd flavor. Once the
ice maker begins making ice, allow the bin
to fill completely, then discard the first FULL
bin of ice.
Ice Maker and Storage Bin
Capacity
This ice maker should produce between
2 and 2.5 pounds of ice per 24 hours
depending on usage conditions. The ice bin
should hold around 9 pounds of ice.
Turning the ice maker on and off
Press power button to turn Ice Maker on
(button will not illuminate).
Freezer Ice Maker
NOTE
The ice maker will only produce the
advertised production rate if the product
is set at 0°F.
CAUTION
If the water supply to your refrigerator is
softened, be sure the softener is properly
maintained. Chemicals from a water
softener can damage the ice maker.
Ice maker tips
• The following sounds are normal when
the ice maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
• Ice cubes stored too long may develop an
odd flavor. Empty the ice bin as explained
below.
ICE MAKER
Freezer Ice Maker
NOTE
The Freezer Ice maker fills from the back
left-hand corner of the bin. Moving the ice
to the edges of the bin allows the bin to fill
completely.
on off
26
Freezer Ice Maker
CAUTION
NEVER use an ice pick or similar sharp
instrument to break up the ice. This could
damage the ice bin.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure it
is completely dry.
Cleaning the ice maker bin
Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or
moving.
1. Turn off the ice maker.
2. Remove the ice bin.
3. Empty and carefully clean the ice bin
with mild detergent. Do not use harsh
or abrasive cleaners. Rinse with clean
water.
4. Allow the ice bin to dry completely
before replacing in the freezer.
5. Replace the ice bin. Turn the ice maker
on.
Remove and empty the ice bin if an
extended power failure (one hour or longer)
causes ice cubes in the ice bin to melt and
refreeze together after power is restored.
ICE MAKER
27
CAUTION
To avoid personal injury or property
damage, handle tempered glass shelves
carefully. Shelves may break suddenly if
nicked, scratched, or exposed to sudden
temperature change. Allow the glass
shelves to stabilize to room temperature
before cleaning. Do not wash in
dishwasher.
You can easily adjust shelf positions in the
refrigerator compartments to suit your needs.
The shelves have mounting brackets that
attach to slotted supports at the rear of
each compartment.
STORAGE FEATURES
IMPORTANT
Be aware of the air seal located at the rear
of the shelf. Shelves located on the left side
should have the air seal mounted on the
far left side. Shelves located on the right
side should have the air seal mounted on
the far right side. This is to ensure there is no
interference with the large air tower on the
back wall of the cabinet. This also applies to
the crisper shelves.

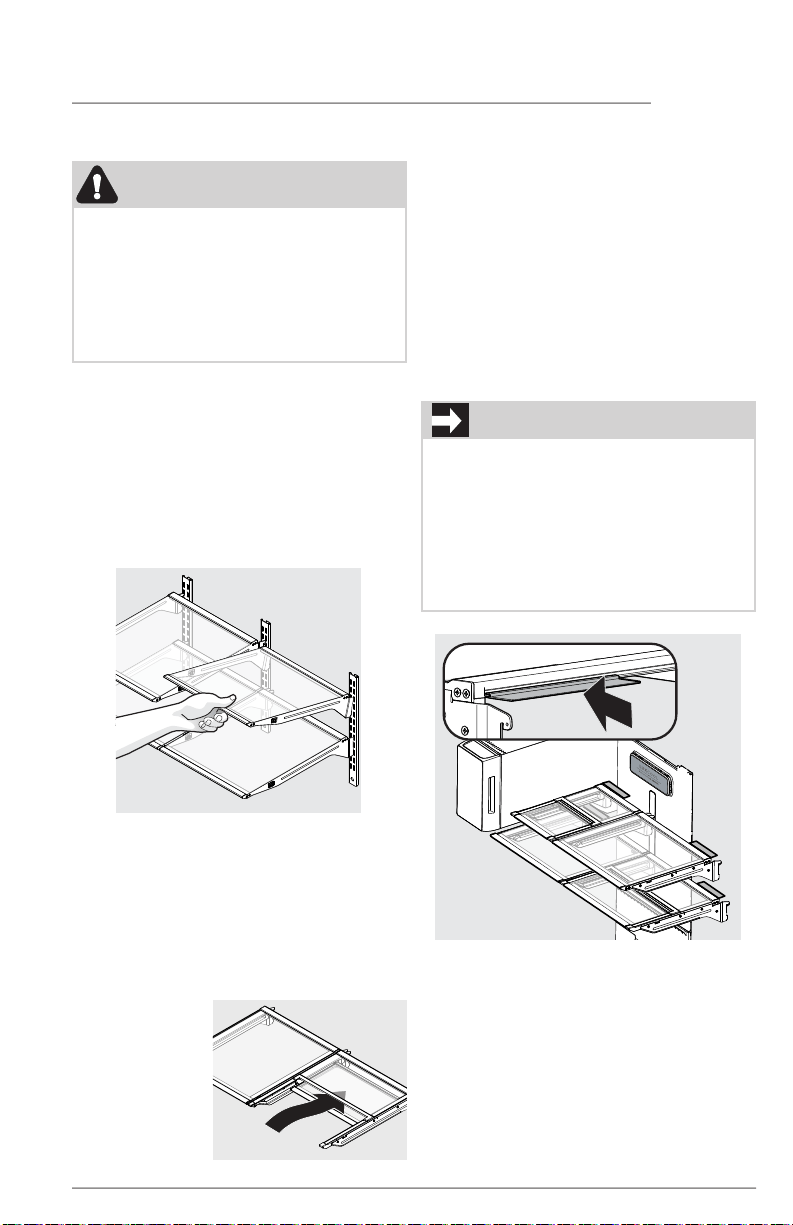

Change the Position of a Shelf
1. Remove all food from shelf.
2. Lift the front edge up and pull the shelf
out.
Reposition the Air Seal
For glass shelves:
1. Remove air seal by pushing seal straight
back.
2. Position the air seal towards the outside
edge of the shelf to avoid the air tower
when shelf is pushed back into place.
3. Install seal by sliding the open channel
end of the seal onto back edge of shelf
until seal sits snug on back of shelf and
flap sits at about a 10 degree angle from
shelf surface.

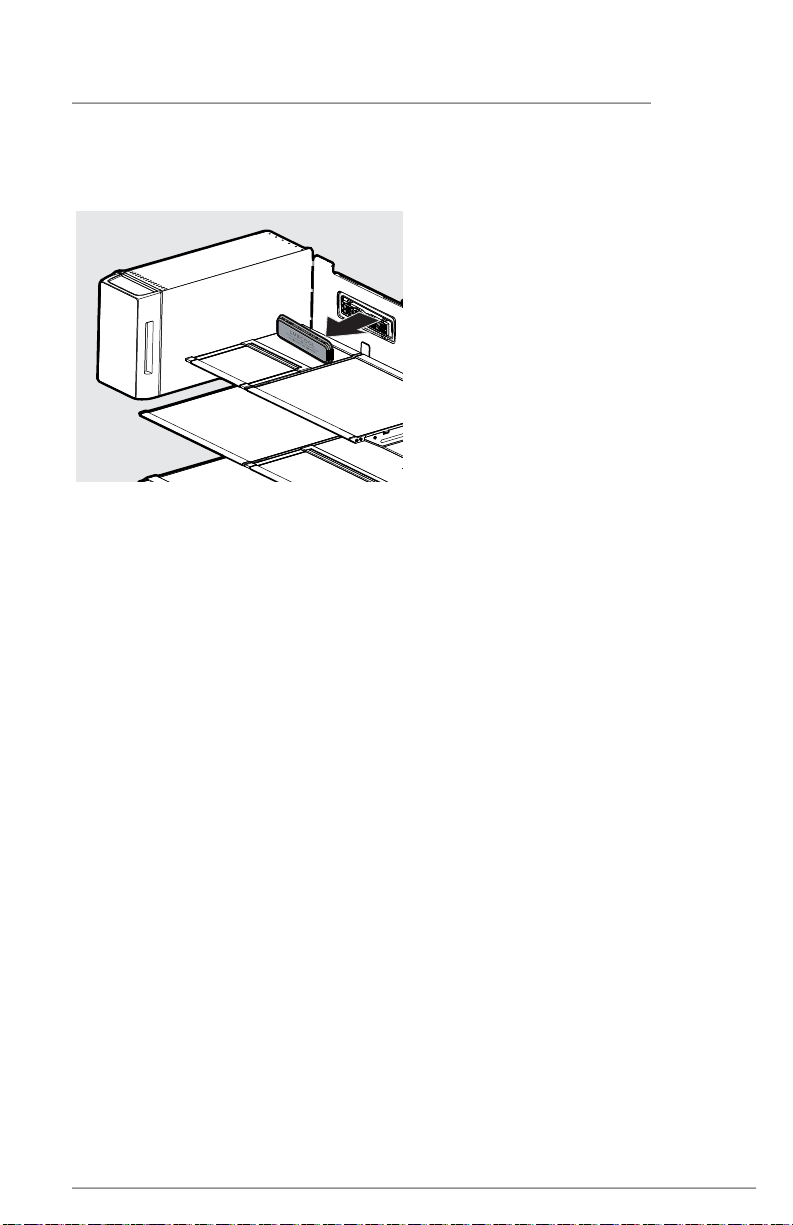

To adjust slide-under shelf
1. Push front half shelf backward towards
rear of cabinet until the rear half shelf
drops
down, then
gently
continue
pushing
front half
shelf back
and under
the rear half
shelf.
Slide-Under Shelf
Shelves
3. Replace by inserting the mounting
bracket hooks into the desired support
slots.
4. Lower the shelf and lock into position.
28
Drawers
Your refrigerator includes a variety of
storage drawers.
Crispers
Crisper drawers are designed for storing
fruits, vegetables, and other fresh produce.

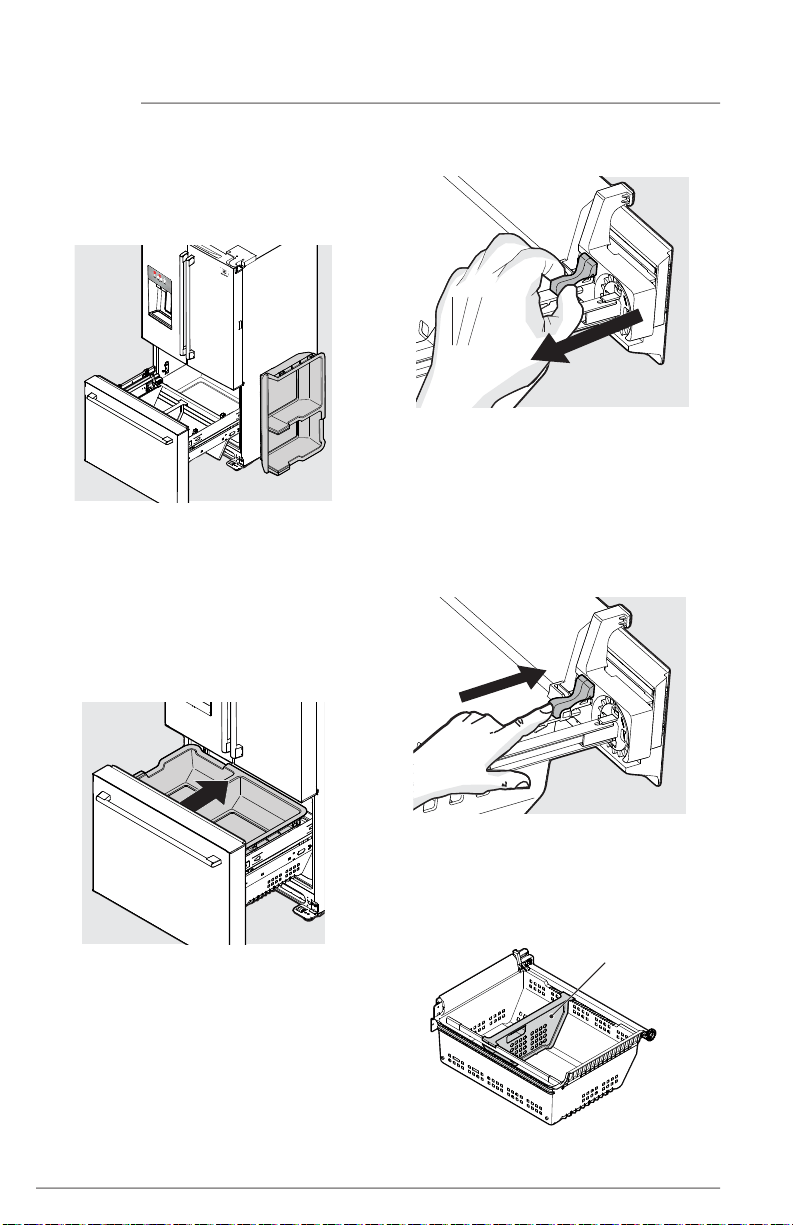

Opening TasteLock™ Plus Crisper Drawer
STORAGE FEATURES

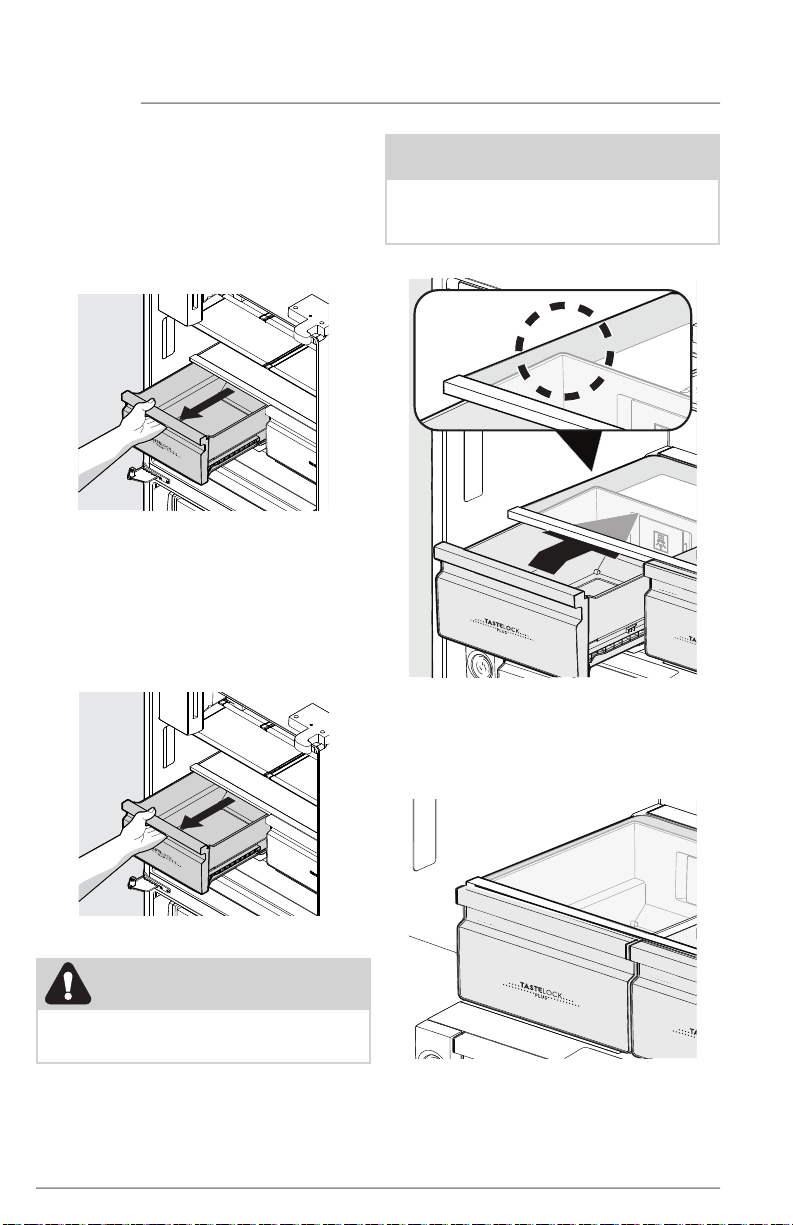

To remove the Crisper Drawer with
PureAdvantage™ Produce Keeper for
cleaning:
1. Pull the drawer out until it stops.
2. Lift the front slightly and remove the
drawer.
Removing TasteLock™ Plus Crisper Drawer
To replace the Crisper Drawers with
PureAdvantage™ Produce Keeper after
cleaning:
1. Place the crisper drawer on top of the
deli cover and tilt upwards slightly.
2. Push the crisper straight once the
bottom rollers clear the front deli
crisper support rollers.
NOTE
Gasket should be on the outside wall of
the crisper after being removed and re-
installed into the unit.
CAUTION
Remove the PureAdvantage™ Produce
Keeper prior to washing the crisper drawer
29
STORAGE FEATURES

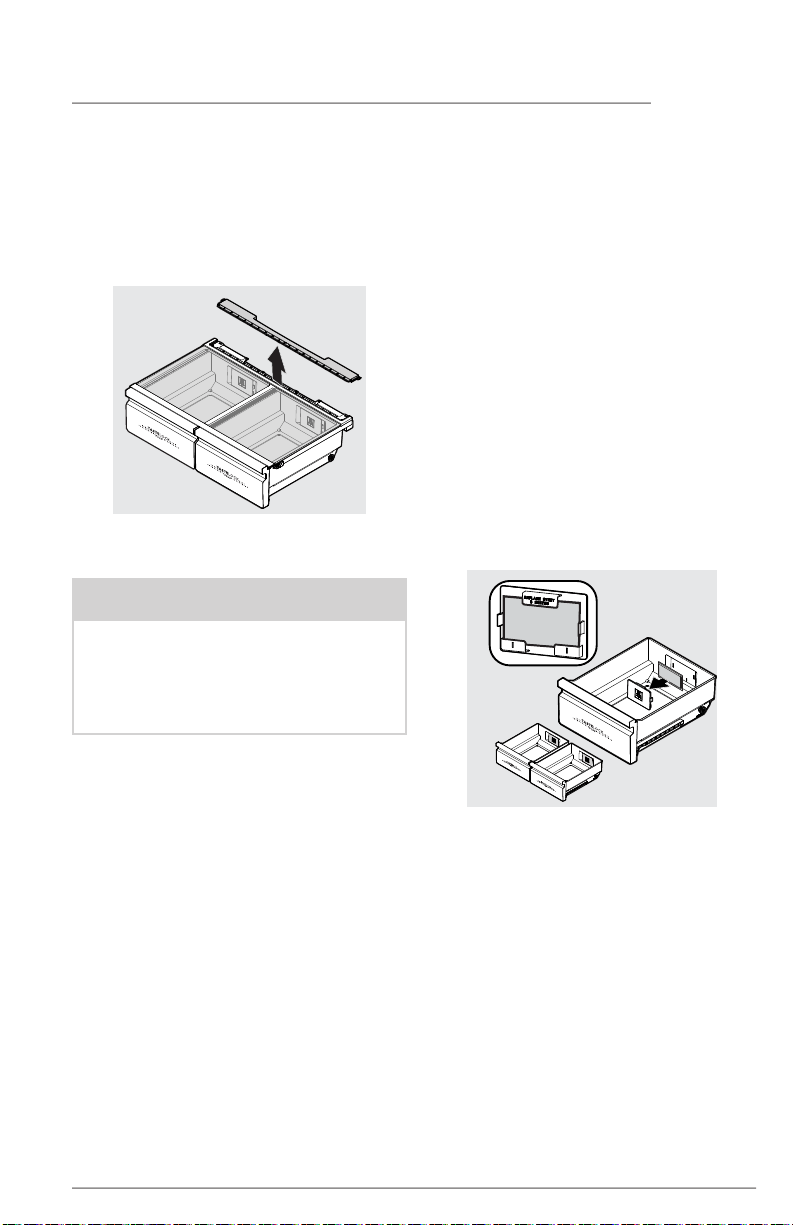

Crisper PureAdvantage™ Produce Keeper
(Ethylene Absorbers)
The crisper drawer ethylene absorbers help
to keep food fresher longer in the crisper
drawers. See Filter Replacement section for
details on how to order replacements.
To remove the auto humidity control
membrane:
1. Remove crispers, crisper cover divider,
and crisper cover from the unit.
2. Remove three screws on the bottom of
the crisper cover to release the auto
humidity cover,
3. Slide out auto humidity cover from the
crisper cover to gain access to the
humidity membrane
4. Clean membrane with hot soapy water.
5. Replace membrane and cover by
reversing the steps above.
NOTE
Electrolux does not recommend replacing
the auto-humidity membrane unless
it becomes damaged or ruined. If the
membrane becomes soiled, it can be
washed with soap and water. Ensure
membrane is dry before replacing in unit.
Crisper Humidity Control
Crisper drawers are designed for storing
fruits, vegetables, and other fresh produce.
Crisper drawers have an auto humidity
control on the back of each crisper under
the humidity control cover.
Removing Auto Humidity Control
Membrane
30
Ideal for storage of deli meats, cheese, and
beverages.
1
2 3 4
1
Lock Control
The drawer automatically defaults to a
locked state to prevent any unwanted
use. To change the drawer’s settings, it
first needs to be unlocked. To unlock,
press and hold the UNLOCK icon for 3
seconds. It will automatically lock after
10 seconds without any interaction..
2
Meat/Seafood Setting
Select Meat/Seafood for short term
storage. Any meat to be kept longer
than two days should be frozen. A
tone will sound to confirm choice.
3
Cold Drinks Settings
Select Cold Drinks when storing
individually packaged beverages such
as soda cans or juice boxes. A tone
will sound to confirm choice.
4
Deli/Snacks Settings
Select Deli/Snacks when storing meat
and cheeses. A tone will sound to
confirm choice.
Using your Adjustable Temp
Drawer
IMPORTANT
Do not use the Adjustable Temp Drawer
to store fresh produce as these items may
freeze and cause damage to the fruits and
leafy vegetables stored in the drawer.
Adjustable Temp Drawer
STORAGE FEATURES
31
Adjustable Door Bins
Doors
Storage bins (varies by model)
The doors to your refrigerator compartment
use a system of modular storage bins. All of
these bins are removable for easy cleaning.
Some of them have fixed positions, while
others can be adjusted to your needs.
Door bins are ideal for storing jars, bottles,
cans, and large drink containers. They also
enable quick selection of frequently used
items.
To change the position of an adjustable
door bin:
1. Remove all food from door bin.
2. Grip the bin firmly with both hands and
lift it upward.
3. Remove the bin.
4. Place the bin just above desired
position.
5. Lower the bin onto supports until
locked in place.
6. Place bin liner into bin.
Remove Upper Freezer Basket
1. Open freezer drawer fully.
2. Extend upper freezer drawer all the
way out from the cabinet.
Freezer Accessories
Your freezer has baskets and dividers that
can be adjusted to your needs.
STORAGE FEATURES
3. Push inward slightly on the basket tabs
to release the upper basket from the
slide assemblies (1 per side, in front).
4. Lift basket up and out of freezer
compartment.
32
STORAGE FEATURES
Lower basket Divider
Grab hand hold on lower divider and pull up
slightly to slide to next position. (The divider
cannot be removed.)
To Remove Lower Freezer Basket:
Push to replace
Upper Freezer Basket Replacement
1. Open Freezer drawer completely.
2. Pull both upper slides out of the freezer
compartment, extending them fully.
3. Take upper basket assembly and snap
basket back into the docks on the slide
assemblies. Perform this on one side at
a time as slides will move freely during
installation.
4. Once basket is fully seated on the
upper slide assemblies, push basket
back into freezer compartment.
5. Close freezer drawer completely.
1. Open freezer compartment completely.
2. Locate basket clips in the rear corners
of the basket and pull them out to
remove.
3. Lift the basket up and remove.
Reverse the steps to reinstall the lower
freezer basket.
Lower Basket
Divider
33
Ideas for storing foods
Refrigerator storage
• Keep the refrigerator compartment
between 34°F and 40°F with an
optimum temperature of 37°F.
• Avoid overcrowding the refrigerator
shelves, which reduces air circulation
and causes uneven cooling.
• Avoid placing food in front of air ports.
(See Controls Section for illustration.)
Fruits and vegetables
• Store fruits and vegetables in crisper
drawers, where trapped moisture helps
preserve food quality for longer time
periods.
• Wash items and remove excess water.
• Wrap any items that have strong odors
or high moisture content.
Meat
• Wrap raw meat and poultry separately
and securely to prevent leaks and
contamination of other foods or
surfaces.
• Use the deli drawer to store meat/
poultry for short-term storage. Any meat
to be kept longer than two days should
be frozen.
Frozen food storage
• Keep the freezer compartment at 0°F
or lower.
• A freezer operates most efficiently when
it is at least ⅔ full.
Packaging foods for freezing
• To minimize food dehydration and
quality deterioration, use aluminum foil,
freezer wrap, freezer bags, or airtight
containers. Force as much air out of the
packages as possible and seal them
tightly. Trapped air can cause food to
dry out, change color, and develop an
off-flavor (freezer burn).
• Wrap fresh meats and poultry with
suitable freezer wrap prior to freezing.
• Do not refreeze meat that has
completely thawed.
Loading the freezer
• Prior to grocery shopping, activate
Freeze Boost so that on your return
you can ensure your newly purchased
food designated for the freezer will be
preserved as quickly as possible.
• Activating Freeze Boost also will help your
freezer more efficiently maintain the selected
temperature after placing new purchases
with pre-existing frozen foods.
• Avoid adding too much warm food to
the freezer at one time. This overloads
the freezer, slows the rate of freezing,
and can raise the temperature of frozen
foods.
• Leave a space between packages, so
cold air can circulate freely, allowing
food to freeze as quickly as possible.
Ideas for saving energy
Installation
• Locate the refrigerator in the coolest
part of the room, out of direct sunlight,
and away from heating ducts or
registers.
• Do not place the refrigerator next to
heat-producing appliances such as a
range, oven, or dishwasher. If this is not
possible, a section of cabinetry or an
added layer of insulation between the
two appliances will help the refrigerator
operate more efficiently.
• Level the refrigerator so that the doors
close tightly.
Temperature settings
• Refer to the “Controls” section for
procedures on temperature settings.
Food storage
• Avoid overcrowding the refrigerator
or blocking cold air vents. Doing so
causes the refrigerator to run longer
and use more energy.
• Cover foods and wipe containers dry
before placing them in the refrigerator.
This cuts down on moisture build-up
inside the unit.
• Organize the refrigerator to reduce
door openings. Remove as many items
as needed at one time and close the
door as soon as possible.
• Do not place a hot container directly
on a cold shelf. Remember, such an
extreme temperature change may
damage the glass.
STORING FOOD AND SAVING ENERGY
34
K
Features vary by model
NORMAL OPERATING SOUNDS
Understanding the sounds you
may hear
Your new, high-efficiency refrigerator may
introduce unfamiliar sounds. These sounds
normally indicate your refrigerator is
operating correctly. Some surfaces on floors,
walls, and kitchen cabinets may make these
sounds more noticeable.

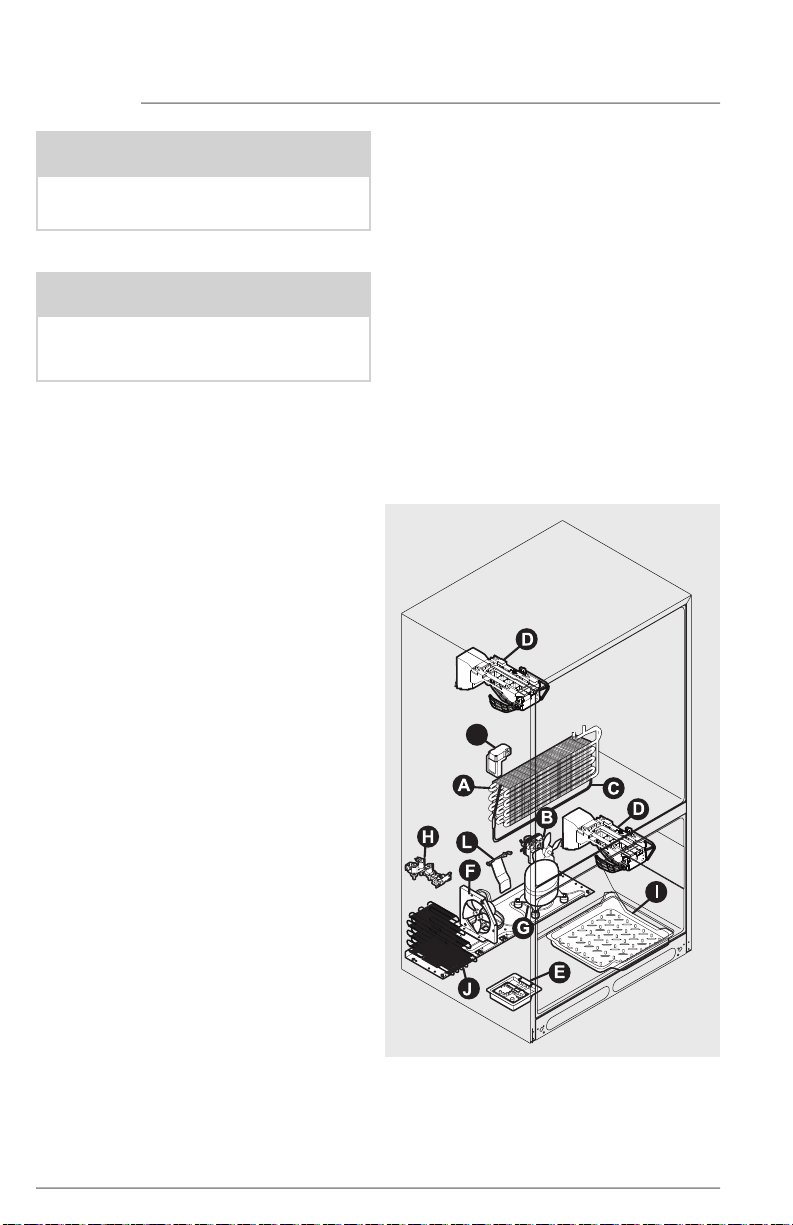

The following is a list of major components
in your refrigerator and the sounds they can
cause:
A. Evaporator Refrigerant through the
evaporator may create a boiling or
gurgling sound.
B. Evaporator fan You may hear air being
forced through the refrigerator by the
evaporator fan.
C. Defrost heater During defrost cycles,
water dripping onto the defrost heater
may cause a hissing or sizzling sound.
After defrosting, a popping sound may
occur.
D. Automatic ice maker When ice has
been produced, you will hear ice
cubes falling into the ice bin. Ice
maker fan, water valve activation, and
refrigerant gas fluid may create sounds
from its operation.
E. Electronic control & automatic defrost
control These parts can produce a
snapping or clicking sound when
turning the cooling system on and off.
F. Condenser fan You may hear air being
forced through the condenser.
NOTE
Energy efficient foam in your refrigerator is
not a sound insulator.
NOTE
During automatic defrost cycle, a red
glow in the back wall vents of your freezer
compartment is normal.
G. Compressor Modern, high-efficiency
compressors run much faster than
older models. The compressor may
have a high-pitched hum or pulsating
sound.
H. Water valve Makes a buzzing sound
each time it opens to fill the ice maker.
I. Drain pan (not removable) You may
hear water dripping into the drain pan
during the defrost cycle.
J. Condenser May create minimal sounds
from forced air.
K. Motorized damper May produce a
light humming during operation.
L. Ice dispensing paddle When dispensing
ice, you will hear a snapping, clicking,
or popping sound.
35
FILTER REPLACEMENT
Air filter
The air filter is located at the top of the air
tower.
Ordering replacement filters
Order new filters by calling 1 (877) 435-3287,
online at www.electrolux.com, or through the
dealer where you bought your refrigerator.
You may want to consider ordering extra
filters when you first install your refrigerator.
Air Filter Replacement cartridge,
part # ELXPAAF2
Locating the Water Filter
Your refrigerator is equipped with water
filtering system. The water filter system filters
all dispensed drinking water, as well as the
water used to produce ice.
The water filter is located at the left side of
the Adjustable Temp Drawer.
Replacing your PureAdvantage™
AF2 Air Filter
To ensure optimal filtering of refrigerator
odors, you should change the air filter every
six months (the filter status light on the main
controls prompts you to replace the filter
after six months).
To remove and replace the air filter:
1. Place fingers on top of air cover and
gently pull towards the front of the unit,
releasing the top snaps on the cover
from the air tower.
2. Lift bottom snaps up and out of the
air tower assembly to disengage and
remove the front cover.
3. Press the air filter into snaps on air filter
cover to replace.
4. Reinstall the front cover by reversing
steps 1 and 2.
5. Press and hold the AIR FILTERS button
to reset the status. See CONTROLS
and SETTINGS section.
PureAdvantage™ Water Filter
Keep safe, great-tasting water flowing with
a PureAdvantage™ water filter. Using a
PureAdvantage™ water filter:
• Makes Safe Water Second Nature
PureAdvantage™ water filters are
certified to reduce contaminates* and
keep great-tasting water flowing for you
and your family.
• Produces Purity You Can Trust
Know for certain your PureAdvantage™
water filter is a protector. Counterfeits
and knockoffs put your refrigerator and
health at risk. Electrolux Genuine Filters
are the smarter, safer choice.
• Every Drop Gives Back
Partnered on sustainability efforts, the
use of a PureAdvantage™ water filter
helps cut back on the cost and use of
plastic used to produce and package
bottled water
*For the complete list, please see Performance
DataSheet on Electrolux.com
36
Do not use with water that is microbiolog-
ically unsafe or of unknown quality without
adequate disinfection before or after the
system. Use systems certified for cyst reduc-
tion on disinfected waters that may contain
filterable cysts.
Test & certification results:
• Rated Capacity - 125 gal/453 L for
PureAdvantage
™
and ice and water
filter
• Rated service flow - .50 gal/min.
• Operating Temp.: Min. 33°F, Max. 100°F
• Maximum Rated Pressure - 100 lbs/in.²
• Recommended Minimum Operating
Pressure: 30 lbs/in²
Replacing your PureAdvantage™
water
filter
It is not necessary to turn the water supply
off to change the filter. Be ready to wipe up
any small amounts of water released during
the filter replacement.
1. Turn Off the ice maker(s).
2. Remove the filter by pushing on the
end/face of the filter.
3. Slide the old water filter cartridge
straight out of the housing and discard
it.
4. Remove the new filter cartridge from
the package. Using the alignment
guide, slide it gently into the filter hous-
ing until it stops against the snap-in
connector at the back of the housing.
Ordering Replacement Filters
To order your replacement filters, please
visit our online store at electrolux.com, by
calling toll-free at 1 (877) 435-3287, or by
visiting the dealer where you purchased your
refrigerator. Electrolux recommends that you
order extra filters when you first install your
refrigerator, and that you replace your filters
at least once every 6 months.
Here are the product numbers to request
when ordering:
PureAdvantage™ Water Filter PWF-1
Part# EPPWFU01™
Replacing the
Water Filter
The water filter
is located at the
bottom left of the
refrigerator com-
partment next to the
Adjustable Temp
Drawer. In general, you should change the
water filter every 6 months to ensure the
highest possible water quality. Water Filter
Status on the user interface prompts you to
replace the filter after a standard amount of
water (125 gal/453 L for PureAdvantage™)
has flowed through the system.
If you have not used your refrigerator for a
period of time (during moving for example),
change the filter before reinstalling the
refrigerator.
More about your Advanced
Water Filter
NOTE
When you order your replacement
filter, please reorder the same filter type
currently in your refrigerator.
The PureAdvantage™
ice and
water filter system is tested and
certified to NSF/ANSI Standards
42, 53, 401 and CSA B483.1 for
the reduction of claims specified
on the performance data sheet.
Visit electrolux.com for more
information.
FILTER REPLACEMENT
37
FILTER REPLACEMENT
PureAdvantage Produce Keeper™
Keep fruits and vegetables fresher longer
with PureAdvantage Produce Keeper™. Our
produce keeper absorbs ethylene gas, the
natural gas that causes produce to ripen
quicker. Reduce food waste, save money
and enjoy fresh-tasting produce with a
longer storage life.
Ordering Replacement Filters
To order your replacement filters, please
visit our online store at electrolux.com, by
calling toll-free at 1 (800) 435-3287, or by
visiting the dealer where you purchased
your refrigerator. Electrolux recommends that
you replace your filters at least once every
6 months.
Here are the product numbers to request
when ordering:
PureAdvantage Produce Keeper™ PK-1
Part # ELPAPKRF™.

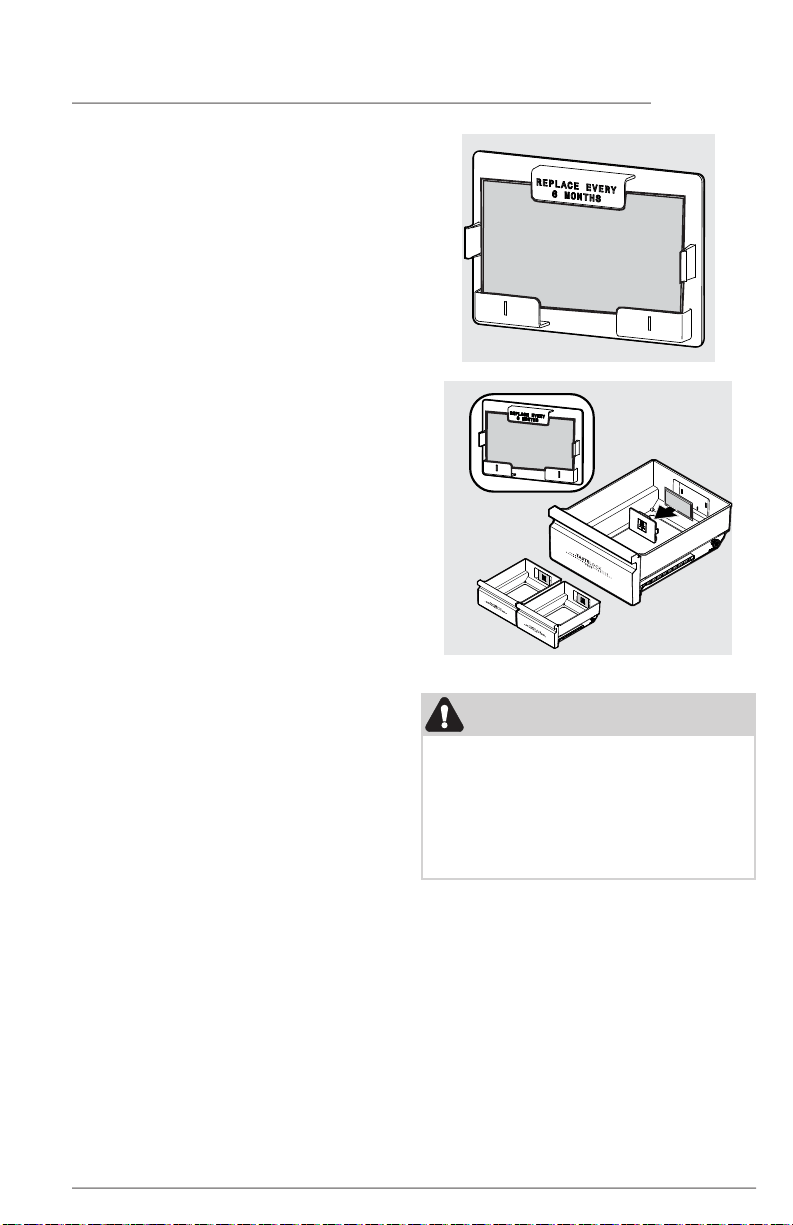

Installing the PureAdvantage Produce
Keeper™:
1. Remove the plastic wrapper. Insert
unopened packet into the holder in the
Crisper Drawer.
2. For optimal results, replace the
refill every 6 months along with your
air filter.
CAUTION
DO NOT OPEN. Contents may irritate eyes or
skin. Keep out of reach of children.
FIRST AID: Contains potassium permanga-
nate. In case of contact with eyes or skin,
rinse immediately with water.
DO NOT EAT: If swallowed, seek medical
treatment immediately.
5. Push firmly until the cartridge
snaps into place (you should hear a
click as the cartridge engages the
snap-in connector).
6. Press a drinking glass against the
water dispenser while checking for any
leaks at the filter housing. Any spurts
and sputters that occur as the system
purges air out of the dispenser system
are normal.
7. After filling one glass of water, con-
tinue flushing the system for about 4
minutes.
8. Turn On the ice maker(s).
9. Press and hold the Water Filter reset
button on the Ice & Water Dispenser
control panel for 3 seconds. When the
display changes from red to green, the
status has been reset.
38
IMPORTANT
If you store or move your refrigerator in freezing temperatures, be sure to completely
drain the water supply system. Failure to do so could result in water leaks when the
refrigerator is put back into service. Contact a service representative to perform this
operation.
CAUTION
• Pull the refrigerator straight out to move it. Shifting it from side to side may damage
flooring. Be careful not to move the refrigerator beyond the plumbing connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet
or damp hands.
NOTE
Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable
fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing
petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do not use
paper towels, scouring pads, or other abrasive cleaning materials.
NOTE
If you set your temperature controls to turn off cooling, power to lights and other
electrical components will continue until you unplug the power cord from the wall outlet.
Protecting your investment
Keeping your refrigerator clean maintains its appearance and prevents odor build-up.
• Do not wash any removable parts in a dishwasher.
• Always unplug the electrical power cord from the wall outlet before cleaning.
• Remove adhesive labels by hand. Do not use razor blades or other sharp instruments
which can scratch the appliance surface.
• Do not remove the serial plate. Removal of your serial plate voids your warranty.
• Before moving your refrigerator, raise the anti-tip brackets so the rollers will work
correctly. This will prevent the floor from being damaged.
Refer to the guide on the next page for details on caring and cleaning specific areas of your
refrigerator.
Wipe up any spills immediately and clean the freezer and refrigerator compartments at
least twice a year.
• Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions on any
surface.
• Never use CHLORIDE or cleaners with bleach to clean stainless steel.
CARE & CLEANING
39
CARE & CLEANING
Vacation and moving tips
Occasion Tips
Short
Vacations
• Leave refrigerator operating during vacations of three weeks or less.
• Use all perishable items from refrigerator compartment.
• Turn automatic ice maker off and empty ice bucket, even if you will only be
gone a few days.
Long
Vacations
• Remove all food and ice if you will be gone one month or more.
• Turn the cooling system off (see “Controls” section for location of On/Off
button) and disconnect power cord.
• Turn water supply valve to closed position.
• Clean interior thoroughly.
• Leave both doors open to prevent odors and mold build-up. Block doors
open if necessary.
Moving • Unplug unit
• Remove all food and ice.
• Recommend use of a handcart, load from the side.
• Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surface.
Care & Cleaning Tips
Part What To Use Tips and Precautions
Interior & Door
Liners
• Soap and water
• Baking soda and
water
Use two tablespoons of baking soda in one
quart of warm water. Be sure to wring excess
water out of sponge or cloth before cleaning
around controls, light bulb or any electrical
part.
Door Gaskets • Soap and water Wipe gaskets with a clean soft cloth.
Drawers & Bins • Soap and water Use a soft cloth to clean drawer runners and
tracks.
Glass Shelves • Soap and water
• Glass cleaner
• Mild liquid sprays
Allow glass to warm to room temperature before
immersing in warm water.
Exterior &
Handles
• Soap and water
• Non Abrasive
Glass Cleaner
Do not use commercial household cleaners
containing ammonia, bleach or alcohol to
clean handles. Use a soft cloth to clean smooth
handles. DO NOT use a dry cloth to clean
smooth doors.
Exterior &
Handles
(Stainless Steel
Models Only)
• Soap and water
• Stainless Steel
Cleaners
Never use CHLORIDE or cleaners with bleach to
clean stainless steel.
Clean stainless steel front and handles with non-
abrasive soapy water and a dishcloth. Rinse with
clean water and a soft cloth. Use a non-abrasive
stainless steel cleaner. These cleaners can be
purchased at most home improvement or major
department stores. Always follow manufacturer’s
instructions. Do not use household cleaners
containing ammonia or bleach.
NOTE: Always clean, wipe and dry with the
grain to prevent scratching. Wash the rest of
the cabinet with warm water and mild liquid
detergent. Rinse well, and wipe dry with a clean
soft cloth.
40
TROUBLESHOOTING
Concern Potential Cause Common Solution
Automatic Ice Maker
Ice maker is
not making
any ice.
• Ice maker is turned off.
• Refrigerator is not
connected to water line or
water valve is not open.
• The water supply line is
kinked.
• The water filter is not
seated properly.
• The water filter may be
clogged with foreign
material.
• Ice maker bail arm is
being held up by an item
not allowing it to go in the
on or down position.
• Turn on ice maker. For the refrigerator
ice maker, press and hold the Ice
Maker On-Off button on your display.
For the freezer ice maker, turn the
ice maker on by pressing the toggle
switch on the (-) side.
• Connect the unit to the household
water supply and ensure the water
valve is open.
• Ensure that the supply line does not
kink when the refrigerator is pushed
into place against the wall.
• Remove and re-install the water filter.
Be sure to seat it fully into the locked
position.
• If water dispenses slowly or not at all,
or if the filter is six months old or older,
it should be replaced.
• Move any item or frozen ice cubes that
may block the bail arm from being in
the on or down position. Additionally,
the ice bin itself may be out of position
so that it prevents the bail arm from
dropping all the way down. Be sure
the bin is pushed all the way to the
rear of the shelf. See Automatic Ice
Maker-Freezer section in manual.
1-800-265-8352 (Canada)
electrolux.ca
1-877-435-3287 (United States)
electrolux.com
Before You Call
If you experience a problem with your refrigerator or notice a product behavior or condition
that you do not understand, you can usually avoid a call to your service representative by
referring to this section for an answer. Beginning with the following table, this information
includes common concerns, causes, and suggested solutions.
41
Concern Potential Cause Common Solution
Automatic Ice Maker (Cont’d)
Ice maker is
not making
enough ice.
• Ice maker is producing
less ice than you expect.
• The water filter may be
clogged with foreign
material.
• The water supply line is
kinked.
• Saddle valve on cold
water pipe is clogged
or restricted by foreign
material.
• Heavy traffic, opening
or closing of the doors
excessively.
• Freezer control is set too
warm (freezer ice maker).
• Water pressure is
extremely low. Cut-off and
cut-on pressures are too
low (well systems only).
• Reverse osmosis system is
in regenerative phase.
• The freezer ice maker will produce
approximately 2.0 to 2.5 LBS and the
refrigerator ice maker will produce 3.0
to 3.2 LBS every 24 hours depending
on usage conditions.
• If water dispenses slower than normal,
or if the filter is six months old or older,
it should be replaced.
• Ensure that the supply line does not
kink when the refrigerator is pushed
into place against the wall.
• Turn off household water line valve.
Remove valve. Clean valve. Replace
valve if necessary.
• Set freezer control to colder setting to
improve performance of the ice maker
(freezer ice maker). Allow 24 hours for
temperature to stabilize.
• Have someone turn up the cut-off and
cut-on pressure on the water pump
system (well systems only).
• It is normal for a reverse osmosis
system to be below 20 psi during the
regenerative phase.
Freezer ice
maker will
not stop
making
ice (select
models).
• Ice maker bail arm is
being held down by a
package in the freezer
that has fallen against ice
maker.
• Move any item or frozen ice cubes that
may block the bail arm from being
in the off or upward position. See
Automatic Ice Maker-Freezer section
in manual.
Ice cubes
are freezing
together.
• Ice cubes are not being
used frequently enough or
interruption of power for
prolonged time.
• Ice cubes are hollow
(shells of ice with water
inside). The hollow cubes
break open in the bin
and leak their water onto
existing ice, which causes
it to freeze together.
• Remove ice container and discard
ice. The ice maker will produce fresh
supply. Ice should be used at least
twice weekly to keep the cubes
separated.
• This generally occurs when the ice
maker does not get enough water.
This is usually the result of a clogged
water filter or restricted water supply.
Replace the water filter and if the
condition still occurs check for a
clogged Saddle Valve, water valve not
turned on all the way or kinked water
supply line.
TROUBLESHOOTING
42
TROUBLESHOOTING
Concern Potential Cause Common Solution
Dispenser (Ice & Water)
Dispenser
will not
dispense ice.
• There is no ice in the bin
to be dispensed.
• The refrigerator doors are
not completely closed.
• Dispenser paddle has
been pressed too long
and the dispenser motor
has overheated.
• See the “Ice maker is not making any
ice” section above.
• Be sure the refrigerator doors are
completely closed.
• The motor overload protector will reset
in about three minutes and then ice
can be dispensed.
Ice
dispenser is
jammed.
• Ice has melted and
frozen around auger
due to infrequent use,
temperature fluctuations,
and/or power outages.
• Ice cubes are jammed
between ice maker and
back of ice container.
• Remove ice container, thaw, and
empty the contents. Clean container,
wipe dry, and replace in proper
position. When new ice is made,
dispenser should operate.
• Remove ice cubes that are jamming
the dispenser.
Dispenser
will not
dispense
water.
• Water filter not seated
properly.
• Water filter is clogged.
• Household water line
valve is not open.
• Remove and reinstall the water filter.
For PureAdvantage, be sure to push
the filter in all the way until it clicks
into place and is secured inside of the
water filter housing.
• Replace filter cartridge. Be sure to
push filter all the way in until it clicks
into place and is secured inside of the
water filter housing.
• Open household water line valve. See
CONCERN column AUTOMATIC ICE
MAKER.
Water
not cold
enough.
• The water dispensing
system is not designed to
chill water.
• Add ice to cup or container before
dispensing water.
Water has
an odd taste
and/or odor.
• Water has not been
dispensed for an
extended period of time.
• Unit not properly
connected to cold water
line.
• Draw and discard 10-12 glasses of
water to freshen the supply.
• Connect unit to cold water line that
supplies water to the kitchen faucet.
43
Concern Potential Cause Common Solution
Opening/Closing Of Doors/Drawers
Door(s) will
not close.
• Door was closed too
hard, causing other door
to open slightly.
• Refrigerator is not level.
It rocks on the floor when
moved slightly.
• Refrigerator is touching a
wall or cabinet.
• Close both doors gently.
• Ensure floor is level and solid, and can
adequately support the refrigerator.
Contact a carpenter to correct a
sagging or sloping floor.
• Ensure floor is level and solid, and can
adequately support the refrigerator.
Contact a carpenter to correct a
sagging or sloping floor.
Drawers are
difficult to
move.
• Food is touching shelf on
top of drawer.
• Track that drawers slide
on is dirty.
• Remove top layer of items in drawer.
• Ensure drawer is properly installed on
track.
• Clean drawer, rollers, and track. See
Care & Cleaning.
Running of Refrigerator
Compressor
does not
run.
• Freezer control is set to
“OF”.
• Refrigerator is in defrost
cycle.
• Plug at electrical outlet is
disconnected.
• House fuse blown or
tripped circuit breaker.
• Power outage.
• Set freezer control.
• This is normal for a fully automatic
defrost refrigerator. The defrost cycle
occurs periodically, lasting about 30
minutes.
• Ensure plug is tightly pushed into
outlet.
• Check/replace fuse with a 15 amp
time-delay fuse. Reset circuit breaker.
• Check house lights. Call local electric
company.
Refrigerator
seems to run
too much or
too long.
• Your variable speed
compressor is designed
to run 100% of the time
except during the defrost
cycle. At times it will run
faster, such as after a
defrost cycle.
• It is normal for the compressor to run
continuously except during defrost
mode.
Digital Temperature Setting Display
Digital
temperature
displays an
error.
• Electronic control
system has detected a
performance problem.
• Call your Electrolux service
representative, who can interpret any
messages or number codes flashing
on the digital displays.
TROUBLESHOOTING
44
TROUBLESHOOTING
Concern Potential Cause Common Solution
Water/Moisture/Frost Inside Refrigerator
Moisture
collects on
inside of
refrigerator
walls.
• Weather is hot and humid.
• Flipper mullion
• The rate of frost buildup and internal
sweating increases.
• Adjust flipper mullion. (See “To adjust
the flipper mullion” in the Installation
section.)
Water
collects on
bottom side
of drawer
cover.
• Vegetables contain and
give off moisture.
• It is not unusual to have moisture on
the bottom side of the cover. Move
humidity control (some models) to
lower setting.
Water
collects in
bottom of
drawer.
• Washed vegetables and
fruit drain while in the
drawer.
• Water collecting in bottom of drawer
is normal. Dry items before putting
them in the drawer or store produce
in tightly sealed bags to help reduce
condensation inside of the drawer.
Water/Moisture/Frost Outside Refrigerator
Moisture
collects on
outside of
refrigerator
or between
doors.
• Weather is humid. • This is normal in humid weather. When
humidity is lower, the moisture should
disappear.
Food in Fresh Food Compartment
Food is
freezing.
• Temperature setting is
too low.
• Temperature sensor is
covered by food (right
side of fresh food area).
• Food is covering the air
ports.
• Move the setting to a higher degree.
• Allow space for air flow to the sensor.
• Allow space between the air ports and
the food.
45
LIMITED WARRANTY
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove
to be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily
determined.
2. Product that has been transferred from its original owner to another party or removed outside the
USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for
appliances not in ordinary household use or used other than in accordance with the provided
instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your
appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables,
or knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls,
ferry trip charges, or mileage expense for service calls to remote areas, including the state of
Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited
to floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other
than genuine Electrolux parts or parts obtained from persons other than authorized service
companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires,
or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE
YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL
NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND
INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY
IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED
WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO
STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty
period should service be required. If service is performed, it is in your best interest to obtain and keep
all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or
phone numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux
Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is
warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations
under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or
an authorized service company. Product features or specifications as described or illustrated are subject to
change without notice.
USA
1-877-435-3287
Electrolux
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
electroluxappliances.com
A17856502 (February 2022)
