EN FRENCH DOOR BOTTOM
FREEZER/REFRIGERATOR
FR RÉFRIGÉRATEUR À PORTES
FRANÇAISES/CONGÉLATEUR EN BAS
ES REFRIGERADOR CON CONGELA-
DOR INFERIOR DE PUERTA DOBLE
807650602 March 2016
USE AND CARE GUIDE
GUIDE D’UTILISATION ET D’ENTRETIEN
GUIA DE USO Y CUIDADO
2
Finding Information
Please read and save this
guide
Thank you for choosing Electrolux, our
new premium brand in home appliances.
This Use & Care Guide is part of our
commitment to customer satisfaction and
product quality throughout the service life
of your new appliance.
Purchase date
Electrolux model number
Electrolux serial number
Keep a record for quick
reference
Finding Information .............................. 2
Safety .................................................... 3
Feature Overview .................................. 5
Installation ............................................ 6
Removing the Doors ........................... 11
Installing Door Handles ...................... 13
Connecting the Water Supply ............ 14

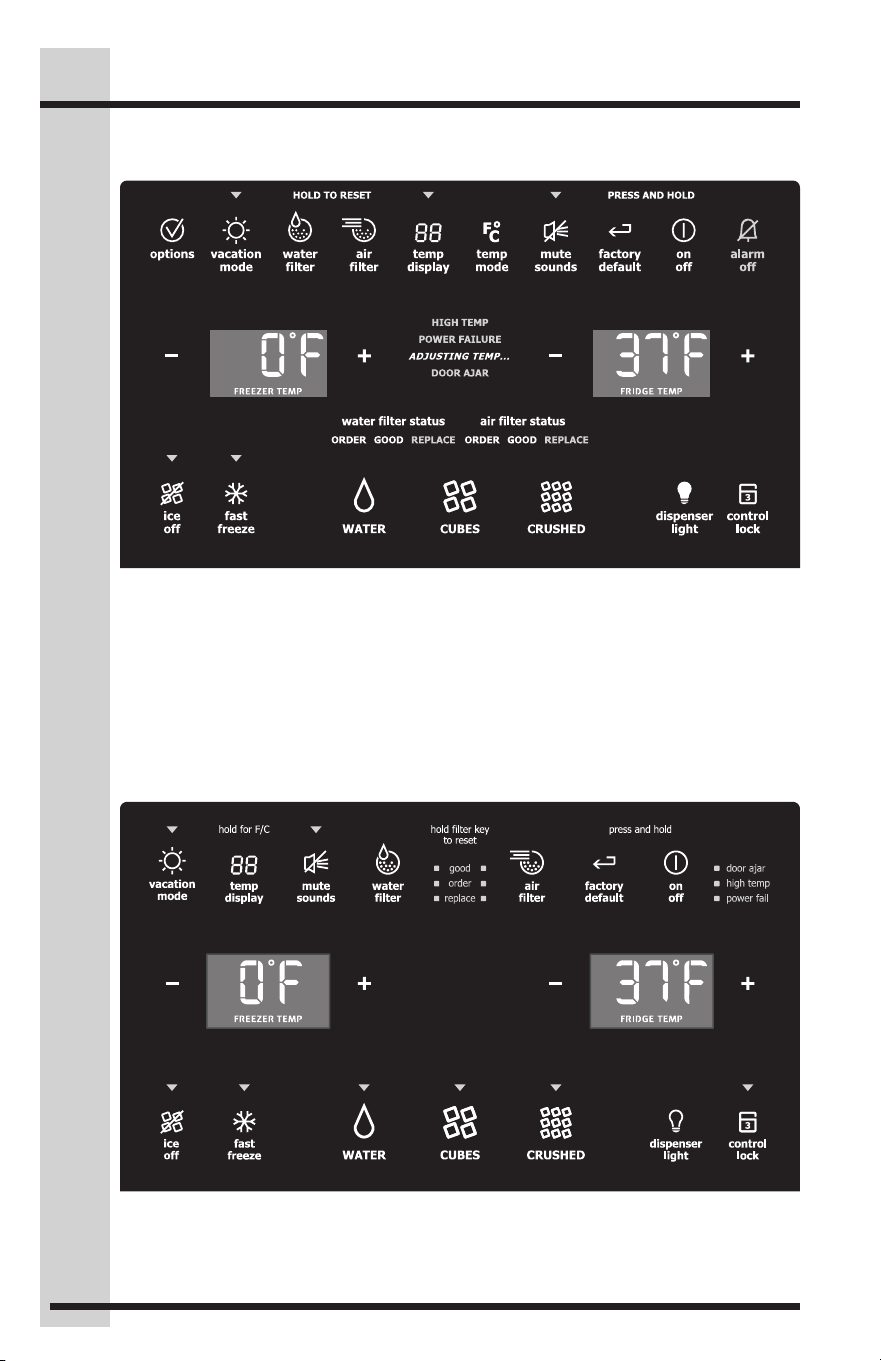

Controls .............................................. 16
Automatic Ice & Water Maker/Dispenser . 21
Automatic Ice Maker - Freezer .......... 23
Storage Features ................................ 24
Storing Food and Saving Energy ....... 29
Normal Operating Sounds ................. 30
Changing the Water and Air Filters .... 31
Care and Cleaning .............................. 33
Solutions to Common Problems ........ 36
Warranty .............................................. 41
Table of contents
Questions?
For toll-free telephone support in the U.S.
and Canada: 1-877-4ELECTROLUX
(1-877-435-3287)
For online support and product information
visit http://www.electroluxappliances.com
Doors
Handles are secure and tight
Door seals completely to cabinet on
all sides
Freezer drawer is level across top
Leveling
Refrigerator is level, side-to-side and
tilted ¼ (6mm) front-to-back
Toe grille is properly attached to
refrigerator
Cabinet is setting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker
House water supply connected to
refrigerator
No water leaks present at all
connections - recheck in 24 hours
Ice maker is turned ON
Ice & water dispenser operates correctly
Front filter must be flush with filter
housing (select models)
Final Checks
Shipping material removed
Fresh food and freezer temperatures set
Crisper humidity controls set
Registration card sent in
Installation Checklist
NOTE
Registering your product with Electrolux
enhances our ability to serve you. You can
register online at
www.electroluxappliances.com or by sending
your Product Registration Card in the mail.
3
Safety
Important safety instructions
General Safety
Safety Precautions
Do not attempt to install or operate your unit
until you have read the safety precautions
in this manual. Safety items throughout this
manual are labeled with a Danger, Warning,
or Caution based on the risk type.
Definitions
This is the safety alert symbol. It is
used to alert you to potential personal
injury hazards. Obey all safety messages
that follow this symbol to avoid possible
injury or death.
• Do not store or use gasoline or other
flammable liquids near this or any
other appliance. Read product labels
for warnings regarding flammability
and other hazards.
• Do not operate the refrigerator in the
presence of explosive fumes.
• Avoid contact with any moving parts
of the automatic ice maker.
• Remove all staples from the carton to
avoid injury. Staples can also damage
finishes if they come in contact with
other appliances or furniture.
Child Safety
Packing Materials:
• Packing cartons covered with rugs,
bedspreads, plastic sheets, or stretch
wrap may become airtight chambers
and can quickly cause suffocation.
• Destroy or recycle the product’s carton,
plastic bags, and any other exterior
wrapping material immediately after
the refrigerator is unpacked. Children
should never play with these items.
Child Entrapment and Suffocation:
• These problems are not limited to the
past. Whether junked, abandoned,
or temporarily stored (even for a few
hours), unattended refrigerators and
freezers are dangerous. Please take
the precautions listed below.
Proper Disposal of Refrigerators/
Freezers
We strongly encourage responsible
appliance recycling/disposal methods.
Check with your utility company or visit
www.energystar.gov/recycle for more
information on recycling your old refrigerator.
Before you recycle or dispose of your
old refrigerator/freezer:
• Remove the doors.
• Leave the shelves and baskets in place
so children may not easily climb inside.
• Have refrigerant and compressor oil
removed by a qualified service technician.
WARNING
WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
IMPORTANT
Indicates installation, operation, or
maintenance information which is
important but not hazard-related.
CAUTION
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
DANGER
DANGER indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
Please read all safety instructions
before using your new refrigerator.
4
• The refrigerator must be plugged into
its own dedicated 115 Volt, 60 Hz,
AC-only non-GFCI electric outlet.
The power cord of the appliance
is equipped with a three-prong
grounding plug for your protection
against electrical shock hazards.
It must be plugged directly into
a properly grounded three-prong
receptacle. The receptacle must be
installed in accordance with local
codes and ordinances. Consult a
qualified electrician. Do not use an
extension cord or adapter plug.
• If the power cord is damaged,
it should be replaced by the
manufacturer, service technician, or a
qualified person.
• Never unplug the refrigerator by pulling
on the power cord. Always grip the
plug firmly and pull straight out from
the receptacle to prevent damaging
the power cord.
• To avoid electrical shock, unplug the
refrigerator before cleaning and before
replacing a light bulb or LED light.
• Performance may be affected if
the voltage varies by 10% or more.
Operating the refrigerator with
insufficient power can damage the
compressor. Such damage is not
covered under your warranty.
• Do not plug the unit into an outlet
controlled by a wall switch or pull cord
to prevent the refrigerator from being
turned off accidentally.
Electrical information
Grounding type wall receptacle
Power cord with 3-prong
grounded plug
Do not, under any
circumstances,
cut, remove, or
bypass the
grounding prong.
Safety
WARNING
You must follow these guidelines to
ensure that your refrigerator’s safety
mechanisms are operating correctly.
IMPORTANT
To turn off power to your refrigerator,
unplug the power cord from the wall
outlet.
5
Feature Overview
Understanding features and terms
Your Electrolux refrigerator is designed for optimal convenience and storage flexibility.
The illustration below is provided to assist you with familiarizing yourself with product
features and terminology.
*Wire Shelf
(inside freezer drawer)
Luxury-Glide
TM
Crisper
Drawer
Luxury-Design
TM
Shelves
*Special
Items Mat
(Inside PTD)
LED Lights
Water Filter
Removable
Ice Bin
Soft-Closing *Perfect Temp
TM
Drawer (PTD) or Deli Drawer
(with humidity slides)
Freezer Baskets
with organizers
*LED Light
*Soft
Freeze
Bin
Toe Grille
*Tilt
Can Bin
Luxury-Design
TM
Shelves
Flipper Mullion
*Air Filter
*LED Light
Flipper GuideIce Maker
Ice Bin
*Freezer Ice Maker
Luxury-Glide
TM
Crisper
Drawer
NOTE
*Features may vary according to model. Model is shown without freezer drawer cover.
IMPORTANT
Features not included with your
refrigerator can be purchased at
www.electroluxappliances.com or by
calling 1-877-435-3287.
6
Installation
This Use & Care Guide provides general
installation and operating instructions
for your model. We recommend using a
service or kitchen contracting professional
to install your refrigerator. Use the
refrigerator only as instructed in this Use &
Care Guide. Before starting the refrigerator,
follow these important first steps.
Location
• Choose a place that is near a
grounded, non-GFCI, electrical outlet.
Do Not use an extension cord or an
adapter plug.
• If possible, place the refrigerator out
of direct sunlight and away from the
range, dishwasher, or other heat
sources.
• The refrigerator must be installed on a
floor that is level and strong enough to
support a fully loaded refrigerator.
• Consider water supply availability for
models equipped with an automatic
ice maker.
Installation
• Allow the following clearances for ease
of installation, proper air circulation,
and plumbing and electrical
connections:
Sides & Top 3/8 inch (9.5 mm)
Back 1 inch (25.4 mm)
Door opening
Your refrigerator should be positioned
to allow easy access to a counter when
removing food. For best use of refrigerator
drawers and freezer baskets, the
refrigerator should be in a position where
both can be fully opened.
Top Hinge
Cover Front
Screw
Top Hinge
Cover Rear
Screw
Lower
Hinge
Screw
Top
Hinge
Screw
Components Provided:
Phillips™
Head or
#2 Square Drive
Head
(OR)
AND OR
Socket
Wrench Set
Adjustable
Wrench
OR
Tools Necessary:
3/8" Fixed
Wrench
Required Tools
You will need the following tools:
CAUTION
DO NOT install the refrigerator where
the temperature will drop below 55°F
(13°C) or rise above 110°F (43°C).
The compressor will not be able to
maintain proper temperatures inside
the refrigerator.
DO NOT block the toe grille on the
lower front of your refrigerator. Sufficient
air circulation is essential for the proper
operation of your refrigerator.
NOTE
If your refrigerator is placed with the
door hinge against a wall, you may have
to allow additional space so the door
can be opened wider.
NOTE
The refrigerator doors are designed to
shut by themselves within a 20 degree
opening.
7
Installation
Toe Grille Must
Fit in Slot on
Anti-tip Bracket
Screw/Washer
Assembly
(3) Retaining Clips
To raise: turn adjustment screw
clockwise.
To lower: turn adjustment screw
counterclockwise.
3 Ensure both doors are bind-free with
their seals touching the cabinet on all
four sides and that cabinet is stable.
4 After unit is leveled, lower anti-tip leg
until it contacts the floor.
Cabinet Leveling & Re-
frigerator Door Alignment
(if necessary)
Guidelines for final positioning of your
refrigerator:
• All four corners of the cabinet must
rest firmly on the floor.
• The sides should tilt ¼ inch (6 mm)
from front to back (to ensure that
doors close and seal properly).
• Doors should align with each other
and be level.
Most of these conditions can be met by
raising or lowering the adjustable front rollers.
To level the cabinet using the front rollers:
1 Slightly open freezer drawer. Lift the
toe grille and gently pull forward (see
illustration).
2 You can raise or lower each door.
Use a 3/8 inch socket wrench to turn
the adjustment screws (1 per side).
Raise
Lower
Anti-tip
Leg
Door
Door
5 Install the toe grille by fitting into
place.
DO NOT
Loosen
or
Remove
These 3
Hex
Screws
CAUTION
Do Not loosen or remove these 3 hex
screws.
8
Installation
To adjust the door stop:
Door stop is adjustable between 85 to 145
degrees.
1 Open door to provide access to
screw.
2 Loosen screw.
3 Adjust door to desired location.
4 Rotate door stop until it makes
contact with the lower hinge.
5 Re-tighten screw.
Open
Door
90
Degrees
Bottom of Door
6 Ensure door stops in desired location
before resuming normal use.
To level the doors using the adjustable
lower hinge (select models):
1 Remove all food items from door bins
on door being adjusted.
2 Open doors to 90 degrees.
Rotate
Door to Desired
Location
Adjusting Door
Rotate Door
Stop
Re-tighten
Screw
Re-tighten Screw
Adjustable Door Stop
Door
Stop
Screw
Lower
Hinge
Min
Open
Max
Open
NOTE
View shown is looking up at the bottom
of the refrigerator door.
NOTE
Adjustable hinge should only be used
after doors have been leveled with
rollers.
9
Installation
Screw
Flipper
Mullion
Hinge
Flipper
Mullion
Adjusting Flipper Mullion Screw
To adjust the flipper mullion:
1 Loosen the screw located on the
flipper mullion hinge.
2 Adjust flipper mullion height. For
proper connection with the flipper
mullion guide, there should be a
separation about the thickness of
a coin (0.060 inches, or 1.5 mm)
between the guide and flipper
mullion.
3 Re-tighten screw.
3 Lift the door while adjusting the
washer. To raise the door, rotate
washer clockwise (when viewed from
the bottom). To lower door, rotate
washer counter-clockwise (when
viewed from the bottom).
Flipper
Mullion
Mullion
Guide
Thickness
of a Coin
Adjusting Flipper Mullion Height
Raising/Lowering Door
Lower
Door
Hinge
Washer
Raise
Door
Door
10
Installation
Installing Shelves
Your refrigerator was shipped with the
shelf hanger and shelf locking clip installed
in their shipping position. Below are the
instructions to install the shelves in your
desired locations.
1 Remove shelf from its locked position
by pulling the slide mechanism
toward you.
2 Lift the hanger directly upwards and
pull toward you to remove it from the
ladder.
3 Place top hooks of the hanger into
the desired slot, and lower straight
down until lower hooks rest on the
ladder.
4 Relock shelf by pushing the slide
mechanism away from you.
6 Gently set the shelf onto the hanger
once the back is secured by the hanger.
5 While holding shelf at a 45-degree angle
with the gray handle facing you, push
the shelf into the back of the hanger.
CAUTION
Shelves must be removed prior to
moving the refrigerator.
11
2 Disconnect the harness by grasping
both sides of the connector firmly,
depress the latch, and pull apart.
Remove the two screws from the top
hinge. Lift the door off of the bottom
hinge and set it aside.
3 Detach the water tube from the
connector located behind the
refrigerator and pull the tube back out
to the front of the unit. The connector
releases when you press inward on
the outer sleeve while pushing the
tube toward the connector then while
continuing to hold in the sleeve, pull
the tube away.
Removing the Doors
Getting through narrow
spaces
If your refrigerator will not fit through an
entrance area, you can remove the doors.
Check first by measuring the entrance.
To prepare for removing the doors:
1 Make sure the electrical power cord
is unplugged from the wall outlet.
2 Open the freezer drawer and remove
the toe grille (see Installation section).
3 Remove any food from the door
shelves and close the doors.
To remove the top hinge covers:
1 Remove the two screws from each
cover over the top door hinges.
2 Lift inside edge of hinge cover and tilt
back.
Rear
Cover
Screw
Ground
Screw
Top
Hinge
Top Hinge
Cover
Hinge
Screws
Multi-wire
Cables
Leave
Hinge
With
Door
Front
Cover Screw
Water
Line
Rear
Cover
Screw
Top
Hinge
Ground
Screw
Front
Cover Screw
Top Hinge
Cover
Hinge
Screws
Two Wire
Cables
Leave
Hinge
With
Door
To remove the refrigerator doors:
1 Trace lightly around the door’s top
hinges with a pencil. This makes
reinstallation easier.
NOTE
DO NOT remove the ground screw from
hinge.
12
Removing the Doors
Once both doors are in place, ensure they
are aligned with each other and level (Please
see the Installation section for more
details), and replace the top hinge cover.
Lower Hinge Removal
To reinstall the right door, reverse the
above steps.
CAUTION
Be sure doors are set aside in a
secure position where they cannot
fall and cause personal injury, or
damage to the doors or handles.
NOTE
You will be pulling approximately five
feet of water tube from the back of the
refrigerator.
NOTE
When reinserting the water tube and
replacing the top hinge cover, use care
to be sure you do not kink the tube.
CAUTION
Drawer is heavy. Use caution when
lifting.
Removing Freezer Drawer
1 Remove 4 hex head drawer screws.
2 Lift up drawer to remove.
Remove
Hex Head
Drawer Screw
DO NOT
Remove
Other
Screws
DO NOT
Loosen
or
Remove
These 3
Hex
Screws
Replacing Freezer Drawer
1 Lower drawer back into place.
2 Replace 4 hex head drawer screws
and tighten.
Approximately
5 Feet
Water
Line
Press
Press
NOTE
Use care while pulling the water tube
from the unit to be sure that you do not
kink the tube.
4 Unscrew the three lower hinge
screws and hinge if necessary.
13
Installing Door Handles
Door Handle
Mounting
Instructions
1 Remove handles from
protective packaging.
2 Position fresh food
handle end caps (A)
over upper and lower
pre-installed shoulder
bolts (B) that are
fastened into door,
ensuring the holes for
the set screws are
facing towards the
opposite door.
3 While holding handle
firmly against door,
fasten upper and
lower Allen set screws
(C) with supplied Allen
wrench.
4 Repeat steps 2 and
3 to install opposite
handle. Ensure the
holes for the set
screws are facing
towards the first door.
5 Position freezer
handle end caps
over left and right
pre-installed shoulder
bolts that are fastened
to the drawer,
ensuring the holes for
the set screws are
facing down.
6 While holding handle
firmly against drawer,
fasten left and right
Allen set screws (C)
with supplied Allen
wrench.
End
Cap
End
Cap
End
Cap
End
Cap
Mounting Refrigerator Handles
End
Cap
End
Cap
Mounting Freezer Handle
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these
handles.
NOTE
To ensure that handles are flush with doors/drawer, make sure that set screws are
completely tightened.
14
Connecting the Water Supply
Before installing the water supply line,
you will need:
1. Basic Tools: adjustable wrench,
flat-blade screwdriver, and Phillips
TM
screwdriver
2. Access to a household cold water
line with water pressure between 30
and 100 psi.
3. A water supply line made of ¼ inch
(6.4 mm) OD, copper or stainless
steel tubing. To determine the length
of tubing needed, measure the
distance from the ice maker inlet
valve at the back of the refrigerator
to your cold water pipe. Then add
approximately 7 feet (2.1 meters), so
the refrigerator can be moved out for
cleaning (as shown).
WARNING
To avoid electric shock, which can
cause death or severe personal injury,
disconnect the refrigerator from
electrical power before connecting a
water supply line to the refrigerator.
IMPORTANT
Ensure that your water supply line
connections comply with all local
plumbing codes.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided
tubing is recommended for the
water supply line. Water supply
tubing made of ¼ inch plastic is
not recommended to be used.
Plastic tubing greatly increases
the potential for water leaks,
and the manufacturer will not
be responsible for any damage
if plastic tubing is used for the
supply line.
• DO NOT install water supply
tubing in areas where
temperatures fall below freezing.
• Chemicals from a malfunctioning
softener can damage the
ice maker. If the ice maker is
connected to soft water, ensure
that the softener is maintained
and working properly.
NOTE
Check with your local building authority
for recommendations on water lines and
associated materials prior to installing
your new refrigerator. Depending
on your local/state building codes,
Electrolux recommends for homes
with existing valves its Smart Choice®
water line kit 5305513409 with a 6
ft. (1.8 meters) Stainless Steel Water
Line and for homes without an existing
valve, Electrolux recommends its Smart
Choice® water line kit 5305510264 with
a 20 ft. (6 meters) Copper Water Line
with self-tapping saddle valve). Please
refer to www.electroluxappliances.com
for more information.
4. A shutoff valve to connect the water
supply line to your household water
system. DO NOT use a self-piercing
type shutoff valve.
5. Do NOT reuse compression fitting or
use thread seal tape.
6. A compression nut and ferrule
(sleeve) for connecting a copper
water supply line to the ice maker
inlet valve.
15
To connect water supply line to ice
maker inlet valve:
1. Disconnect refrigerator from electric
power source.
2. Place end of water supply line into
sink or bucket. Turn ON water supply
and flush supply line until water
is clear. Turn OFF water supply at
shutoff valve.
3. Remove plastic cap from water valve
inlet and discard cap.
4. If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve)
onto water supply line. Push water
supply line into water valve inlet as far
as it will go (¼ inch / 6.4 mm). Slide
ferrule (sleeve) into valve inlet and
finger tighten compression nut onto
valve. Tighten another half turn with
a wrench; DO NOT over tighten. See
Figure 1.
If you use braided flexible stainless
steel tubing - The nut is already
assembled on the tubing. Slide nut
onto valve inlet and finger tighten nut
onto valve. Tighten another half turn
with a wrench; DO NOT over tighten.
See Figure 2.
5. With steel clamp and screw, secure
water supply line (copper tubing only)
to rear panel of refrigerator as shown.
6. Coil excess water supply line (copper
tubing only), about 2½ turns, behind
refrigerator as shown and arrange
coils so they do not vibrate or wear
against any other surface.
7. Turn ON water supply at shutoff valve
and tighten any connections that
leak.
8. Reconnect refrigerator to electrical
power source.
9. To turn ice maker on, lower wire
signal arm (freezer ice maker) or set
the ice maker’s On/Off power switch
to the On position (fresh food ice
maker).
Figure 1
Plastic Water Tubing
to Ice Maker
Fill Tube
Steel
Clamp
Brass
Compression
Nut
Ferrule
(Sleeve)
Copper
water line
Water Valve
Bracket
Valve Inlet
Water Valve
Copper water line
from household
water supply
(Include enough tubing in loop to allow
moving refrigerator out for cleaning)
Figure 2
Plastic water tubing
to ice maker
fill tube
Stainless
steel
water line
Water valve
bracket
Valve inlet
Water valve
6 ft. stainless steel water line
from household water supply
Connecting the Water Supply
16
Controls
Wave-Touch
TM
IQ-Touch
TM
17
Controls
Wave-Touch
TM
(select
models)
Your refrigerator is equipped with a Wave-
Touch
TM
control panel display. It is only
necessary to gently touch the glass. There
are three levels of display.
1st Level: Sleep Mode
Sleep Mode displays only the water, cubes
and crushed options. Touch an icon to
activate the desired dispenser mode. The
active dispenser mode is more brightly
illuminated.
2nd Level: Awakened Display Mode
3rd Level: User Variable Options
Touching the options icon displays the
following options:
vacation mode Conserves energy by increas-
ing the time between automatic
defrost. This feature is automati-
cally activated during long periods
between door openings. Vacation
mode is manually activated when
the indicator is lit.
water filter Touch to display filter condition
status. Press and hold for three
seconds to reset after filter change.
air filter Touch to display filter status. Press
and hold for three seconds to reset
after filter change.
temp display When active, it allows the display of
the freezer and fridge temps during
Sleep Mode. The temperature is
displayed when the indicator is lit.
temp mode Touch to toggle display from
Fahrenheit to Celsius.
The control panel is awakened by touching
anywhere on the glass where there is an
indicator. Black space will not awaken the
display. After 10 seconds of inactivity, the
control panel will return to the Sleep mode.
The following dispenser options are
illuminated:
ice off Press and hold for three seconds
to turn the ice maker ON or OFF.
The ice maker is OFF when the
LED above the Ice Off icon is
illuminated. If there is no indicator,
then the ice maker is ON. Turning
the ice maker OFF disables the ice
dispensing feature. Neither CUBES
nor CRUSHED will operate with the
ice maker OFF.
fast freeze Activates a faster rate for freezing
food and increased ice production.
(Fresh Food
Ice Maker)
dispenser light On / Off
control lock Press and hold for three seconds
to activate and deactivate. This
restricts undesired changes to the
refrigerator’s settings and prevents
use of the ice and water dispenser.
NOTE
Refer to Automatic Ice Maker-Freezer
section for freezer ice maker controls.
IMPORTANT
When the ice maker is turned off, the
ice in the bucket should be transferred
to the freezer or discarded to prevent it
from melting.
18
Controls
Alarms
Door Ajar If the door has been left open for
an extended period of time, an
alarm will sound and the door ajar
indicator will display on the center of
the display. The alarm is turned off
by closing the door. The alarm off
key will blink to prompt the reset of
any pending alarms. Press this key
to reset any system alarms.
High Temp In the event of a high temperature
condition, the temperature display
will blink and display HI. After 20
minutes, the high temp alert will
be displayed and the alarm off
icon will illuminate until pressed,
acknowledging the alarm, at which
time the highest temperature
reached will be displayed and the
refrigerator will resume normal op-
eration. All other modes are turned
off until the alarm is acknowledged.
Power Fail In the event of a power failure, the
power fail alert will be displayed
and the alarm off key will blink
until the alarm off icon is pressed,
acknowledging the alarm. Other
modes may be turned off until the
alarm is acknowledged. When the
power fail alert is turned off, the
refrigerator will resume normal
operation. The high temp alarm
may also be illuminated until a safe
operating range temperature has
been reached.
Setting cooling temperatures
1 Touch
the glass
panel to
illuminate
the 2nd
level of
display.
2 Select the
options
icon.
Plus (+)
and minus (-) indicators will appear
on either side of the displayed
temperatures.
3 Press the + or – indicator to adjust the
temperature to the desired setting.
The temperature display will begin
to blink with the first touch. After five
seconds of inactivity, the display will
beep to accept the new temperature.
After 10 seconds, the display times
out and returns to the basic display.
The Sabbath Mode is a feature that disables
portions of the refrigerator and its controls
for both Wave-Touch
TM
and IQ-Touch
TM
, in
accordance with observance of the weekly
Sabbath and religious holidays within the
Orthodox Jewish community.
Wave-Touch
TM
/ IQ-
Touch
TM
Sabbath Mode
IMPORTANT
Pressing the system on/off icon does not
turn off power to your refrigerator. You must
unplug the power cord from the wall outlet.
mute sounds Tones emitted by each keypress
can be turned off based on user
preference. The sounds are muted
when the indicator is lit. Warning
signals will stay active.
factory default Resets all refrigerator settings
such as temp, temp display, and
alarm tones to their factory default
settings.
on off Press and hold for three seconds
to turn off the cooling system to
clean the refrigerator. It also turns
off the ice maker, all dispenser
functions, and the Perfect Temp
TM
drawer (select models). The
temperature display will read OFF.
19
Sabbath Mode is turned on and off by
simultaneously pressing and holding both
the outermost – and + indicators for five
seconds for both the Wave-Touch
TM
and
IQ-Touch
TM
modes. The display shows Sb
while in Sabbath mode.
In the Sabbath Mode, the High Temp
alarm is active for health reasons. For
example, if the door is left ajar the High
Temp alarm is activated. The refrigerator
will function normally once the door
is closed, without any violation of the
Sabbath/Holidays. The High Temp alarm
is permitted when cabinet temperature
is outside the safe zone for 20 minutes.
The alarm silences itself after 10 minutes
while the High Temp icon stays lit until the
Sabbath mode is exited.
For further assistance, guidelines for
proper usage and a complete list of
models with the Sabbath
feature, please visit the web at
http:\\www.star-k.org.
NOTE
While in Sabbath Mode, the Wave-
Touch
TM
model will only illuminate the –/+
keys used to turn the Sabbath Mode Off.
Controls
Sabbath Mode and the Perfect Temp
TM
Drawer
The Perfect Temp
TM
Drawer should be
turned off for the Sabbath/Holidays.
Before putting the refrigerator into the
Sabbath mode, turn the Perfect Temp
TM
IQ-Touch
TM
(select models)
NOTE
While in Sabbath Mode, neither the
lights, dispenser, nor the control panel will
work until Sabbath Mode is deactivated.
Refrigerator stays in Sabbath Mode
after power failure recovery. It must be
deactivated with the buttons on the
control panel.
NOTE
Although you have entered the Sabbath
Mode, the ice maker will complete the
cycle it had already initiated. The ice
cube compartment will remain cold
and new ice cubes can be made with
standard trays.
NOTE
If the Perfect Temp
TM
Drawer is not turned
off prior to putting the unit into Sabbath
Mode, it will continue to adjust itself to
maintain the set point even if the display
does not illuminate to show that it is still on.
Drawer off by pressing the drawer on/
off button. The display will show OFF
and the drawer will turn off. Then enter
the Sabbath mode function on the main
refrigerator display. (See Wave-Touch/
IQ-Touch Sabbath Mode section.) When
in Sabbath mode, the display will not
illuminate and the drawer will remain
off. The drawer can still be used as a
non-temp controlled drawer in this mode.
When the refrigerator is taken out of
Sabbath mode, the Perfect Temp
TM
Drawer
will have to be turned back on.
Your refrigerator is equipped with a glass
touch control panel. It is only necessary
to gently touch the glass. There are three
dispenser modes:
1 Water
2 Ice Cubes
3 Crushed Ice
An indicator light will be illuminated above
the active feature.
Touch the icon to activate the options
below.
ice off Press and hold for three seconds
to turn the ice maker ON or OFF.
The ice maker is OFF when the LED
above the Ice Off icon is illuminated.
If there is no indicator, then the ice
maker is ON. Turning the ice maker
OFF disables the ice dispensing fea-
ture. Neither CUBES nor CRUSHED
will operate with the ice maker OFF.
fast freeze Activates a faster rate for freezing
food and increased ice production.
(Fresh Food
Ice Maker)
20
Controls
Setting cooling temperatures
1 Touch the control panel to illuminate
plus (+) and minus (–) indicators
on either side of the temperatures
displays.
2 Press the + or – indicator to adjust
the temperature to the desired
setting.
The temperature display will begin to
blink with the first touch. The display
will time out after a minute and
returns to the basic display.
Alarms
dispenser light On / Off
control lock Press and hold for three seconds
to activate and deactivate. This
restricts undesired changes to the
refrigerators settings and prevents
use of the ice and water dispenser.
vacation mode Conserves energy by increasing the
time between automatic defrost.
This feature is automatically activated
during long periods between door
openings. Vacation mode is manually
activated when the indicator is lit.
water filter Touch to display filter condition
status. Press and hold for three
seconds to reset after filter change.
air filter Touch to display filter status. Press
and hold for three seconds to reset
after filter change.
temp display Touch to toggle the freezer and
fridge temp display on and off.
Touch and hold temp display to toggle
display from Fahrenheit to Celsius.
mute sounds Tones emitted by each key press can be
turned off based on user preference. The
sounds are muted when the indicator is
lit. Warning signals will stay active.
factory default Resets all refrigerator settings such
as temp, temp display, and ring
tones to their factory default settings.
on off Press and hold for three seconds to
turn off the cooling system to clean
the refrigerator. It also turns off the ice
maker and all dispenser functions. The
temperature display will read OFF.
Door Ajar If the door has been left open for an
extended period of time, an alarm
will sound and the door ajar indicator
will display on the right side of the
control panel. The alarm is turned off
by closing the door. The mute sounds
key will blink to prompt the reset of
any pending alarms. Press this key to
reset any system alarms.
High Temp In the event of a high temperature
condition, the temperature display
will blink and display HI. After 20
minutes, the high temp alert will
be displayed and the alarm off
icon will illuminate until pressed,
acknowledging the alarm, at which
time the highest temperature
reached will be displayed and the
refrigerator will resume normal op-
eration. All other modes are turned
off until the alarm is acknowledged.
Power Fail In the event of a power failure, the power
fail alert will be displayed and the tem-
perature display will blink until the mute
sounds icon is pressed, acknowledging
the alarm. Other modes may be turned
off until the alarm is acknowledged. The
power fail alert is turned off and the refrig-
erator will resume normal operation. The
high temp alarm may also be illuminated
until a safe operating range temperature
has been reached.
IMPORTANT
Pressing the system on/off icon does not
turn off power to your refrigerator. You must
unplug the power cord from the wall outlet.
IMPORTANT
When the ice maker is turned off, the ice
in the bucket should be transferred to the
freezer or discarded to prevent it from melting.
NOTE
Refer to Automatic Ice Maker-Freezer
section for freezer ice maker controls.
21
CAUTION
For proper dispenser operation,
recommended water supply pressure
should fall between 30 psi and 100
psi. Excessive pressure may cause
water filter to malfunction.
NOTE
The water dispenser has a built-in device that
shuts off the water flow after three minutes of
continuous use. To reset this shutoff device,
simply release the dispenser paddle.
Automatic Ice & Water Maker/Dispenser
Priming the water supply
system
Ice maker operation & care
After the refrigerator is installed properly and
has cooled for several hours, the ice maker
can produce ice within 24 hours. The ice
maker will fill the ice bin from the rear. You must
dispense some ice to force the ice forward in
the bin. This will allow the bin to fill completely.
Turning the fresh food ice maker
on and off
Ice production is controlled by the ice maker’s
On/Off icon on the control panel. Press and
hold the Ice Off icon for three seconds to
turn the ice maker ON or OFF. If there is no
indicator, then the ice maker is ON.
1 Begin filling the tank by pressing and
holding a drinking glass against the
water dispenser paddle.
2 Keep
the glass
in this
position
until
water
comes
out of the
dispenser.
It may
take
about 1½ minutes.
3 Continue dispensing water for about
three minutes to flush the system
and plumbing connections of any
impurities (stopping to empty the
glass as necessary).
Using the ice maker after installation
Before making ice for the first time, be sure
to prime the water supply system. Air in new
plumbing lines can result in two or three
empty ice maker cycles. Furthermore, if the
system is not flushed, the first ice cubes may
be discolored or have an odd flavor.
IMPORTANT
Your ice maker is turned on at the factory
so it can work as soon as you install
your refrigerator. If you cannot connect a
water supply, set the ice maker’s On/Off
icon to Off and turn off the water supply
valve; otherwise, the ice maker’s fill valve
may make a loud chattering noise when
it attempts to operate without water.
IMPORTANT
Turning off the ice maker will result in
existing ice melting in the bin.
IMPORTANT
Turning off the ice maker will disable the
ice dispenser. You will still be able to
dispense water.
NOTE
The ice maker also has a built-in plastic
signal bale arm that automatically stops
ice production when the ice bin is full.
This signal arm should not be used to
manually stop the ice maker.
IMPORTANT
On occasion, unusually small ice cubes may
be noticed in the bucket or in dispensed
ice. This could occur in normal operation
of the ice maker. If you start seeing these
more frequently, it may be an indication of
low water pressure or the water filter needs
to be replaced. As the water filter nears the
end of its useful life and becomes clogged
with particles, less water is delivered to the
ice maker during each cycle. Remember, if
it’s been six months or longer since you last
changed your water filter, replace the water
filter with a new one. Poor quality household
water may require the filter to be changed
more frequently.
22
Automatic Ice & Water Maker/Dispenser
Ice maker/dispenser tips
• If your refrigerator is not connected to a
water supply or the water supply is turned
off, turn off the ice maker by holding the
On/Off soft-touch icon for three seconds.
• The following sounds are normal when
the ice maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
• When dispensing ice, you will hear a
snapping or clicking sound when the
ice chute opens and closes.
• If you need a large quantity of ice
at one time, it is best to get cubes
directly from the ice bin.
• Ice cubes stored too long may
develop an odd flavor. Empty the ice
bin as explained below.
• When dispensing cubed ice, it is
normal to have a small quantity of little
pieces along with the whole cubes.
Removing Ice Bin
Cleaning the ice maker
Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or
moving.
1 Turn off
the ice
maker.
2 Remove
the ice
bin by
pulling
straight
out.
3 Empty
and
carefully
clean the ice bin with mild detergent.
Do not use harsh or abrasive
cleaners. Rinse with clear water.
4 Allow the ice bin to dry completely
before replacing in the freezer.
5 Replace the ice bin. Turn the ice
maker on.
Adjusting Ice Bin Auger
Auger
Remove and empty the ice bin if:
• An extended power failure (one hour
or longer) causes ice cubes in the
ice bin to melt and freeze together,
jamming the dispenser mechanism.
• You do not use the ice dispenser
frequently. Ice cubes will freeze
together in the bin, jamming the
dispenser mechanism.
Remove the ice bin and shake to loosen
the cubes or clean as explained above.
IMPORTANT
When removing or replacing the ice bin,
DO NOT rotate the auger in the ice bin.
If the auger is accidentally rotated, you
must realign the auger by turning it in 45
degree turns (see below) until the ice bin
fits into place with the drive mechanism.
If the auger is not properly aligned when
replacing the ice bin, the refrigerator will
not dispense ice. The fresh food door
also may not close properly causing
warm air to leak into the fresh food
compartment.
CAUTION
If the water supply to your refrigerator is
softened, be sure the softener is properly
maintained. Chemicals from a water
softener can damage the ice maker.
NOTE
Most models allow for an additional
freezer ice maker to be installed. Call
your local dealer for more information.
CAUTION
NEVER use an ice pick or similar
sharp instrument to break up the ice.
This could damage the ice bin.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make
sure it is completely dry.
23
Automatic Ice Maker - Freezer
Ice maker operation &
care (select models)
After the refrigerator is installed properly, the ice
maker can produce ice within 24 hours. It can
completely fill an ice bin in about three days.
When using the ice maker for the first
time and in order for the ice maker to
work properly, it is necessary to clear air
from water filter tubing. Once ice maker
begins making ice, allow the bucket to fill
completely, then discard the first TWO FULL
buckets of ice. It will take at least two days
to completely fill the bucket on regular ice
making mode or 1½ days on fast ice mode.
The ice maker produces approximately
four pounds of ice every 24 hours
depending on usage conditions.
Turning the ice maker on and off
Ice production is controlled by lifting/
lowering the ice maker’s wire signal arm.
To gain access to the ice maker, pull the
freezer drawer out. Lift the wire signal arm
to turn the ice maker OFF and lower the
wire signal arm to turn it ON.
Ice maker tips
• If your refrigerator is not connected to
a water supply or the water supply is
turned off, turn off the ice maker by
lifting wire signal arm.
Cleaning the ice maker
Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or
moving.
1 Turn off the ice maker.
2 Remove the ice bin.
3 Empty and carefully clean the ice bin
with mild detergent. Do not use harsh
or abrasive cleaners. Rinse with clean
water.
4 Allow the ice bin to dry completely
before replacing in the freezer.
5 Replace the ice bin. Turn the ice
maker on.
Remove and empty the ice bin if:
• An extended power failure (one hour
or longer) causes ice cubes in the ice
bin to melt and freeze together.
Remove the ice bin and shake to loosen
the cubes or clean as explained above.
• The following sounds are normal when
the ice maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
• Ice cubes stored too long may
develop an odd flavor. Empty the ice
bin as explained below.
Fast Ice Function
Your refrigerator is equipped with a “Smart”
Fast Ice Function, that will, if activated at
your user interface, allow an increase in ice
production. You do not need to deactivate
it, if not needed, your refrigerator will
operate on normal conditions.
Wire
Signal Arm
OFF
ON
IMPORTANT
Your ice maker is turned on at the
factory so it can work as soon as you
install your refrigerator. If you cannot
connect a water supply, lift the ice
maker’s wire signal arm to turn it off.
Otherwise, the ice maker’s fill valve may
make a loud chattering noise when it
attempts to operate without water.
CAUTION
If the water supply to your refrigerator is
softened, be sure the softener is properly
maintained. Chemicals from a water
softener can damage the ice maker.
CAUTION
NEVER use an ice pick or similar
sharp instrument to break up the ice.
This could damage the ice bin.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make
sure it is completely dry.
24
Storage Features
Shelf features
To change the position of a shelf:
1 Remove shelf from its locked position
by pulling the slide mechanism
toward you.
3 Place top hooks of the hanger into the
desired slot, and lower straight down
until lower hooks rest on the ladder.
4 Relock shelf by pushing the slide
mechanism away from you.
6 Gently set the shelf onto the hanger
once the back is secured by the hanger.
5 While holding shelf at a 45-degree angle
with the gray handle facing you, push
the shelf into the back of the hanger.
2 Lift the hanger directly upwards and pull
toward you to remove it from the ladder.
CAUTION
To avoid personal injury or property
damage, handle tempered glass
shelves carefully. Shelves may break
suddenly if nicked, scratched, or
exposed to sudden temperature
change. Allow the glass shelves to
stabilize to room temperature before
clearing. Do not wash in dishwasher.
NOTE
Features may vary according to model.
CAUTION
Shelves must be removed prior to
moving the refrigerator.
25
Storage Features
Opening Crisper Drawer
Adjusting Crisper Humidity
(varies by model)
Higher
Humidity
Lower
Humidity
Humidity Control
Drawers
Your refrigerator includes a variety of
storage drawers. These drawers are
located in fixed positions at the bottom of
the fresh food compartment.
Luxury-Glide
TM
Crispers
Crisper drawers are designed for storing
fruits, vegetables, and other fresh produce.
They feature a smooth-glide, ball-bearing
system and soft-close functionality so as
not to bruise your fruits and vegetables.
Special item mat (select models)
The innovative design of the special item
mat allows you to store four bottles of wine
or soft drink bottles, or any item that you
want to prevent moving around.
Cool Zone Drawer (select models)
Some models are equipped with a drawer
for short-term storage of bulk items.
This drawer includes sliding controls for
adjusting the humidity inside.
Removing Crisper Drawer
To remove the Crisper Drawer for
cleaning:
1 Pull the drawer out until it stops.
2 Lift the front slightly and remove the
drawer.
Special Item
Mat
Crisper humidity control
Crisper drawers include a sliding control
for adjusting the humidity inside the
crisper. Leafy vegetables keep best when
stored with the Humidity Control set on
Higher Humidity. Fresh fruits keep best
when stored with the Humidity Control set
on Lower Humidity.
NOTE
Any meat to be kept longer than two
days should be frozen. If you store fruits
or vegetables in this drawer, set it to a
higher humidity.
26
Storage Features
The Perfect Temp
TM
Drawer is designed to keep food items at a precise temperature whether
cooler, warmer, or the same as the fresh food section of the refrigerator. This drawer features
a smooth-glide, ball-bearing system and soft-close functionality so as not to bruise your fruits
and vegetables. The thaw setting holds a temperature for thawing frozen foods for 12 hours.
At the end of that time, it then switches to the snacks setting to store the thawed food.
Perfect Temp
TM
Drawer (select models)
To operate:
1 To turn on and off, press the drawer’s
On/Off button. The numeric display will
show a temperature between 28°F
and 42°F when on and OFF when off.
2 Press F/C if you prefer to display
Fahrenheit (F), or Celsius (C).
3 Press either the up
^
or down v scroll
buttons to illuminate the desired item.
4 Once an option is selected, the
drawer will adjust and maintain the
temperature for the setting selected.
5 When turned off, the Perfect Temp
TM
Drawer functions as a standard meat
pan. The Perfect Temp
TM
Drawer is best
used for packaged food products. Leafy
vegetables and unpackaged fruits are
best kept in one of the crisper drawers.
6 The three favorite selections
provide flexibility to set and store
personal temperature selections.
The temperature is adjusted up
by pressing the + or – buttons.
The drawer will store the selected
temperature setting until it is changed.
7 The control buttons can be locked
to prevent accidental changes by
pressing the control lock button
for three seconds. Deactivate by
pressing for three seconds again.
Opening the Drawer
To remove the Perfect Temp
TM
Drawer
for cleaning:
1 Pull the drawer out until it stops.
2 Lift the front slightly and remove the
drawer.
Removing the Drawer
IMPORTANT
DO NOT clean the display area of the Perfect
Temp
TM
Drawer with abrasive or caustic
cleaners. Wipe clean with a moist sponge.
CAUTION
The Perfect Temp
TM
Drawer and cover
can be removed for cleaning but the
control unit, attached to the right side
of the fridge, cannot be removed. Do
not immerse the Perfect Temp
TM
Drawer
cover in water or put it in a dishwasher.
Clean with a damp cloth or sponge.
NOTE
When the refrigerator is turned off by
pressing the main Wave-Touch
TM
or
IQ-Touch
TM
on/off button, the Perfect
Temp
TM
Drawer will also be turned off.
When the refrigerator is turned back on,
the Perfect Temp
TM
Drawer will resume
operations at the temp setting that was
set before the refrigerator was turned off.
27
Storage Features
Doors
Storage bins
The doors to your fresh food compartment
use a system of modular storage bins.
All of these bins are removable for easy
cleaning. Some of them have fixed
positions, while others can be adjusted to
your needs.
Door bins are ideal for storing jars, bottles,
cans, and large drink containers. They also
enable quick selection of frequently used
items.
To change the position of an
adjustable door bin:
1 Remove all
food from
bin.
2 Grip the bin
firmly with
both hands
and lift it
upward.
3 Remove
the bin.
4 Place the
bin just above desired position.
5 Lower the bin onto supports until
locked in place.
Adjustable Door Bin
Accessories (varies by
model)
Tall bottle
retainer
The tall bottle
retainer
keeps tall
containers in
the bin from
falling forward when opening or closing the
refrigerator door. To install, insert the ends
of the retainer into the holes.
Tall
Bottle
Retainer
Tilt can bins
The can
bins allow
you to
efficiently
and
securely
store up
to eight
12-ounce
canned beverages.
Tilt Can Bin
Freezer Features (varies
by model)
To Remove Middle Basket
1 Remove all items from basket.
2 Remove basket by pulling basket out
to its full extension and lift out.
To reinstall middle basket, position basket
onto the retainer clips making sure the
front of the basket rests in the retainer
clips on the stabilizer bar.
Freezer Baskets
Stabilizer Bar
Basket
Retainer
Clips
NOTE
If basket is not resting on stabilizer bar retainer
clips, the drawer will not close properly.
28
Storage Features
Soft Serve Bin
The soft serve bin in the upper right corner
is designed to maintain temperatures a few
degrees above the freezer temperature.
This is perfect for storing items that need a
softer texture in order to easily serve, items
such as ice cream.
Dividers Removal
Lift up on the front of the middle divider
and pull out.
Squeeze handle and lift up in the center
of the divider to move it side-to-side. (The
divider cannot be removed.)
Wire Middle Basket Divider
Middle Basket
Divider
Retainers
Stabilizer
Bar
Plastic Lower Basket Divider
Lower Basket
Divider
Pull to Remove
Push to Replace
Removing Freezer Basket
Instructions
1 Locate the basket clips in the rear
corners of the basket and pull them
out to remove.
2 Lift the basket up and remove.
Replacing Freezer Basket
Instructions
1 Place freezer basket back inside the
freezer drawer.
2 Replace clips by sliding them back
into the slots.
Location of
basket clip.
One each side.
29
Ideas for storing foods
Fresh food storage
• Keep the fresh food compartment
between 34°F and 40°F with an
optimum temperature of 37°F.
• Avoid overcrowding the refrigerator
shelves, which reduces air circulation
and causes uneven cooling.
Fruits and vegetables
• Store fruits and vegetables in crisper
drawers, where trapped moisture
helps preserve food quality for longer
time periods.
• Wash items and remove excess water.
• Wrap any items that have strong
odors or high moisture content.
Meat
• Wrap raw meat and poultry separately
and securely to prevent leaks and
contamination of other foods or
surfaces.
• Use the Cool Zone drawer or Perfect
Temp
TM
drawer and set to meat/
poultry setting for short-term storage.
Any meat to be kept longer than two
days should be frozen.
Frozen food storage
• Keep the freezer compartment at 0°F
or lower.
• A freezer operates most efficiently
when it is at least 2/3 full.
Packaging foods for freezing
• To minimize food dehydration and
quality deterioration, use aluminum foil,
freezer wrap, freezer bags, or airtight
containers. Force as much air out of
the packages as possible and seal
them tightly. Trapped air can cause
food to dry out, change color, and
develop an off-flavor (freezer burn).
• Wrap fresh meats and poultry with
suitable freezer wrap prior to freezing.
• Do not refreeze meat that has
completely thawed.
Loading the freezer
• Prior to grocery shopping, activate
fast freeze so that on your return you
can ensure your newly purchased
food designated for the freezer will be
preserved as quickly as possible.
Storing Food and Saving Energy
• Activating fast freeze also will help
your freezer more efficiently maintain
the selected temperature after placing
new purchases with pre-existing
frozen foods.
• Avoid adding too much warm food to
the freezer at one time. This overloads
the freezer, slows the rate of freezing,
and can raise the temperature of
frozen foods.
• Leave a space between packages, so
cold air can circulate freely, allowing
food to freeze as quickly as possible.
Ideas for saving energy
Installation
• Locate the refrigerator in the coolest
part of the room, out of direct sunlight,
and away from heating ducts or
registers.
• Do not place the refrigerator next to
heat-producing appliances such as a
range, oven, or dishwasher. If this is
not possible, a section of cabinetry or
an added layer of insulation between
the two appliances will help the
refrigerator operate more efficiently.
• Level the refrigerator so that the doors
close tightly.
Temperature settings
• Refer to the Controls section for
procedures on temperature settings.
Food storage
• Avoid overcrowding the refrigerator
or blocking cold air vents. Doing so
causes the refrigerator to run longer
and use more energy.
• Cover foods and wipe containers dry
before placing them in the refrigerator.
This cuts down on moisture build-up
inside the unit.
• Organize the refrigerator to reduce
door openings. Remove as many
items as needed at one time and close
the door as soon as possible.
• Do not place a hot container directly
on a cold shelf. Remember, such an
extreme temperature change may
damage the glass.
30
Normal Operating Sounds
Understanding the
sounds you may hear
Your new, high-efficiency refrigerator
may introduce unfamiliar sounds. These
sounds normally indicate your refrigerator
is operating correctly. Some surfaces on
floors, walls, and kitchen cabinets may
make these sounds more noticeable.
The following is a list of major components
in your refrigerator and the sounds they
can cause:
A Evaporator Refrigerant through the
evaporator may create a boiling or
gurgling sound.
B Evaporator fan You may hear air
being forced through the refrigerator
by the evaporator fan.
C Defrost heater During defrost
cycles, water dripping onto the
defrost heater may cause a hissing
or sizzling sound. After defrosting, a
popping sound may occur.
D Automatic ice maker When ice
has been produced, you will hear
ice cubes falling into the ice bin. Ice
maker fan, water valve activation,
and refrigerant gas fluid may create
sounds from its operation.
E Electronic control & automatic
defrost control These parts can
produce a snapping or clicking sound
when turning the cooling system on
and off.
F Condenser fan You may hear air
being forced through the condenser.
G Compressor Modern, high-efficiency
compressors run much faster than
older models. The compressor may
have a high-pitched hum or pulsating
sound.
H Water valve Makes a buzzing sound
each time it opens to fill the ice
maker.
I Drain pan (not removable) You may
hear water dripping into the drain pan
during the defrost cycle.
J Condenser May create minimal
sounds from forced air.
K Motorized Perfect Temp
TM
drawer
damper May produce a light
humming during operation.
L Ice dispensing paddle When
dispensing ice, you will hear a
snapping, clicking, or popping sound
when the solenoid opens and closes
the ice chute.
M Motorized damper May produce a
light humming during operation.
N Perfect Temp
TM
drawer fan Turns
off when door opens or Perfect
Temp
TM
drawer is turned off.
NOTE
Energy efficient foam in your refrigerator
is not a sound insulator.
NOTE
During automatic defrost cycle, a red
glow in the back wall vents of your
freezer compartment is normal.
31
Changing The Water and Air Filters
Your refrigerator is equipped with separate
water and air filtering systems. The water
filter system filters all dispensed drinking
water, as well as the water used to produce
ice. The air filter removes odors and
impurities from the refrigerator compartment.
Replacement
Water Filter
Remove Two
Protective Caps
Push Water Filter Button
Water Filter
Button
Water Filter
Cartridge
About your advanced water filter
Water filter
The water filter is located at the lower left
side of the fresh food compartment.
Replacing your PureAdvantage
TM
water filter
In general, you should change the water
filter every six months to ensure the
highest possible water quality. The Water
Filter Status light on the Touch Panel
prompts you to replace the filter after a
standard amount of water (400 gallons)
has flowed through the system.
If your refrigerator has not been used for a
period of time (during moving for example),
change the filter before reinstalling the
refrigerator.
It is not necessary to turn the water supply
off to change the filter. Be ready to wipe
up any small amounts of water released
during the filter replacement.
1 Turn Off the ice maker on the control
panel.
2 Push the filter release button above
the cartridge to disconnect it.
3 Slide the old water filter cartridge straight
out of the housing and discard it.
Do not use with water that is
microbiologically unsafe or of unknown
quality without adequate disinfection before
or after the system. Systems certified for
cyst reduction may be used on disinfected
waters that may contain filterable cysts.
• Rated Capacity - 400 gallons for
PureAdvantage
TM
ice and water filter
• Rated service flow - .5 gallons per minute
• Maximum Rated Pressure - 100
pounds per square inch
• Recommended Minimum Operating
Pressure: 30 pounds per square inch
• Operating Temp.: Min. 33°F, Max. 100°F
The PureAdvantage
TM
NGFC
2000 ice and water filter system
is tested and certified by NSF
International to NSF/ANSI
Standards 42 and 53 for the
reduction of claims specified on
the performance data sheet.
4 Unpack the new filter cartridge and
remove the two protective caps
covering the inlet and exit of the filter.
Slide the filter gently into the housing
until it stops against the snap-in
connector at the back of the housing.
NOTE
The control panel includes controls to monitor
the status of your water and air filters. See the
Controls section for more information.
32
Changing The Water and Air Filters
Ordering replacement
filters
Order new filters by calling 877-808-4195,
online at www.electroluxappliances.com,
or through the dealer where you bought
your refrigerator. You may want to consider
ordering extra filters when you first install
your refrigerator.
Water Filter
FC-300 PureAdvantage
TM
Replacement
Cartridge #EWF01
Air Filter
Replacement cartridge, part #EAFCBF
Air filter
The air filter is located under the utility bin
and/or on the inside of the left door above
the ice maker chute.
Replacing your PureAdvantage
TM
air filter
To ensure optimal filtering of refrigerator
odors, you should change the air filter
every six months (the filter status light on
the Touch Panel prompts you to replace
the filter after six months).
1 Open the air filter door.
2 Remove the old filter and discard it.
3 Unpack the new filter and slide it into
the housing.
4 To close the air filter door, push the
top and bottom to lock the door
closed.
Filter located under the utility bin
Reinstall Water Filter
Push-In
Until
Two Clicks
5 Push firmly until the cartridge snaps
into place (you should hear two
clicks). When fully engaged, the front
of the filter cartridge should be flush
with the filter release button.
6 Turn On the ice maker at the control
panel.
7 Press a drinking glass against the
water dispenser while checking
for any leaks at the filter housing.
Spurts and sputters may occur as
the system purges air out of the
dispenser system.
8 Prime the water supply system as
described previously.
9 Press and hold the Filter Status
button on the control panel for three
seconds. When the display changes
from Replace to Good, the status has
been reset.
5 Press and hold the Air Filter Reset
button on the control panel for three
seconds. When the display changes
from Replace to Good, the status has
been reset.
6 The Air Filter Reset will turn itself off
after a few seconds.
33
IMPORTANT
If you store or move your refrigerator in freezing temperatures, be sure to completely drain
the water supply system. Failure to do so could result in water leaks when the refrigerator
is put back into service. Contact a service representative to perform this operation.
CAUTION
• Pull the refrigerator straight out to move it. Shifting it from side to side
may damage flooring. Be careful not to move the refrigerator beyond the
plumbing connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated
surfaces with wet or damp hands.
NOTE
Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable
fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing
petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do not
use paper towels, scouring pads, or other abrasive cleaning materials.
Care and Cleaning
Protecting your investment
Keeping your refrigerator clean maintains its appearance and prevents odor build-up.
Wipe up any spills immediately and clean the freezer and fresh food compartments at
least twice a year.
• Remove adhesive labels by hand. Do not use razor blades or other sharp
instruments which can scratch the appliance surface.
• Do not remove the serial plate. Removal of your serial plate voids your warranty.
• Before moving your refrigerator, raise the anti-tip brackets so the rollers will work
correctly. This will prevent the floor from being damaged.
Refer to the guide on the next page for details on caring and cleaning specific areas of
your refrigerator.
• Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline
solutions on any surface.
• Never use CHLORIDE or cleaners with bleach to clean stainless steel.
• Do not wash any removable parts in a dishwasher.
• Always unplug the electrical power cord from the wall outlet before cleaning.
NOTE
If you set your temperature controls to turn off cooling, power to lights and other
electrical components will continue until you unplug the power cord from the wall outlet.
34
Care and Cleaning
Care and cleaning tips
Part Cleaning Agents Tips and Precautions
Interior & Door
Liners
• Soap and water
• Baking soda
and water
• Use two tablespoons of baking soda in
one quart of warm water.
• Be sure to wring excess water out of
sponge or cloth before cleaning around
controls, light bulb or any electrical part.
Door Gaskets • Soap and water • Wipe gaskets with a clean soft cloth.
Drawers & Bins • Soap and water • Use a soft cloth to clean drawer runners
and tracks.
• Do not wash any removable items (bins,
drawers, etc.) in dishwasher.
Glass Shelves • Soap and water
• Glass cleaner
• Mild liquid sprays
• Allow glass to warm to room
temperature before immersing in warm
water.
Toe Grille • Soap and water
• Mild liquid sprays
• Vacuum
• Remove toe grille (see Installation Instructions).
• Vacuum both sides and wipe with sudsy
cloth or sponge. Rinse and dry.
Exterior &
Handles
• Soap and water
• Non abrasive
glass cleaner
• Do not use commercial household
cleaners containing ammonia, bleach or
alcohol to clean handles.
• Use a soft cloth to clean smooth handles.
• Do not use a dry cloth to clean smooth doors.
Exterior &
Handles
(Stainless Steel
Models Only)
• Soap and water
• Stainless steel
cleaners
• Never use CHLORIDE or cleaners with
bleach to clean stainless steel.
• Clean stainless steel front and handles with
non-abrasive soapy water and a dishcloth.
Rinse with clean water and a soft cloth.
• Use a non-abrasive stainless steel cleaner.
These cleaners can be purchased at most
home improvement or major department
stores. Always follow manufacturer’s
instruction. Do not use household
cleaners containing ammonia or bleach.
• NOTE: Always clean, wipe and dry with
grain to prevent scratching.
• Wash the rest of the cabinet with warm
water and mild liquid detergent. Rinse
well and wipe dry with a clean soft cloth.
Occasion Tips
Short
Vacations
• Leave refrigerator operating during vacations of three weeks or less.
• Use all perishable items from refrigerator compartment.
• Turn automatic ice maker off and empty ice bucket, even if you will
only be gone a few days.
Long
Vacations
• Remove all food and ice if you will be gone one month or more.
• Turn the cooling system off (see Controls section for location of On/
Off button) and disconnect power cord.
• Turn water supply valve to closed position.
• Clean interior thoroughly.
• Leave both doors open to prevent odors and mold build-up. Block
doors open if necessary.
Moving • Remove all food and ice.
• If using a handcart, load from the side.
• Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surface.
Vacation and moving tips
35
Push Upward Until The
Extension Snaps In Place
Pull Down
Press Here
Firmly
Ice Chute
Extension
The ice chute
extension is
designed to better
direct ice flow into
containers.
Removing the Ice Chute Extension
For Cleaning
1 Turn the refrigerator off using the
button on the control panel (refer to
Owner’s Manual).
2 Press inward firmly on the front of the
chute and pull down.
3 Turn your refrigerator back on.
Installing the Ice Chute Extension
1 Turn the refrigerator off using the
button on the control panel (refer to
Owner’s Manual).
2 Align the extension with the ice chute
so that the snap clips are just inside
the front edge of the chute.
3 Push upward until the extension
snaps into place.
4 Turn your refrigerator back on.
NOTE
LED lights are in series so if one is bad or
unplugged, several lights may not light up.
Care and Cleaning
Replacing LED Lights
Both the freezer and fresh food compartments
of your refrigerator include LED lights. Always
use Electrolux parts for replacement.
To replace LED Lights:
1 Unplug your refrigerator’s power cord.
2 Remove light cover by pushing up and out.
3 Hold the LED cover with one hand and
pull the connector with the other hand
while pressing the connector latch.
4 Replace LED light and snap in place
assuring the light is facing in toward
the unit (inside fresh food and freezer).
Ordering Replacement LED Lights
Order new LEDs by calling 877-808-4195,
online at www.electroluxappliances.com, or
through the dealer where you bought the
refrigerator. Here is the product number to
request when ordering:
LED Light, Part #241891102
LED Light Harness Removal
LED Light Removal
36
Solutions to Common Problems
Before you call...
If you experience a problem with your refrigerator or notice a product behavior or
condition that you do not understand, you can usually avoid a call to your service
representative by referring to this section for an answer. Beginning with the following
table, this information includes common concerns, causes, and suggested solutions.
Concern Potential Cause Common Solution
Automatic Ice Maker
Ice maker is
not making
any ice.
• Ice maker is turned off.
• Refrigerator is not
connected to water line or
water valve is not open.
• The water supply line is
kinked.
• The water filter is not
seated properly.
• The water filter may be
clogged with foreign
material.
• Saddle valve on cold
water pipe is clogged
or restricted by foreign
material.
• Turn on ice maker. For the fresh food
ice maker, press and hold the Ice
Off button for four seconds until the
indicator turns off. For the freezer ice
maker, lower the wire signal arm.
• Connect the unit to the household
water supply and ensure the supply
valve is open.
• Ensure that the supply line does not
kink when the refrigerator is pushed
into place against the wall.
• Remove and re-install the water filter.
Be sure to push the filter firmly so that
you hear it lock solidly into position.
• If water dispenses slowly or not at
all, or if the filter is six months old or
older, it should be replaced.
• Turn off household water line valve.
Remove valve. Ensure that valve is
not a self-piercing saddle valve. Clean
valve. Replace valve if necessary.
Ice maker is
not making
enough ice.
• Ice maker is producing
less ice than you expect.
• The water filter may be
clogged with foreign
material.
• The water supply line is
kinked.
• Saddle valve on cold
water pipe is clogged
or restricted by foreign
material.
• The fresh food and freezer ice makers
will each produce approximately
2.5 pounds of ice every 24 hours
depending on usage conditions.
• If water dispenses slower than
normal, or if the filter is six months
old or older, it should be replaced.
• Ensure that the supply line does not
kink when the refrigerator is pushed
into place against the wall.
• Turn off household water line valve.
Remove valve. Ensure that valve is
not a self-piercing saddle valve. Clean
valve. Replace valve if necessary.
Freezer ice
maker will
not stop
making ice.
• Ice maker wire signal
arm is being held down
by some package in the
freezer that has fallen
against the ice maker.
• Move the item and release wire signal
arm. Remove any ice cubes that may
have frozen together over the wire
signal arm.
Ice cubes
are freezing
together.
• Ice cubes are not being
used frequently enough.
• Ice cubes are hollow
(shells of ice with water
inside). The hollow cubes
break open in the bin
and leak their water onto
existing ice, which causes
it to freeze together.
• Remove ice container and discard ice.
The ice maker will produce fresh supply.
Ice should be used at least twice weekly
to keep the cubes separated.
• This generally occurs when the ice
maker does not get enough water.
This is usually the result of a clogged
water filter. Replace the water filter.
37
Solutions to Common Problems
Concern Potential Cause Common Solution
Ice Dispenser
Dispenser
will not
dispense
ice.
• Water supply is not
connected.
• Ice storage bin is empty.
• Household water line valve
is not open.
• Fresh Food door is not
closed.
• Ice dispensing paddle has
been held in for more than
four to five minutes.
• Connect water supply (see Connecting
The Water Supply section).
• Ensure ice maker is turned on. When
the first supply of ice is dropped into
the bin, the dispenser should operate.
• Open household water line valve.
Allow sufficient time for the ice to
be made. When ice is made, the
dispenser should operate.
• Ensure Fresh Food door is closed.
(See Problem Section, Opening/
Closing of Doors/Drawers)
• Motor is overloaded. Motor overload
protector will reset in approximately three
minutes. Ice can then be dispensed.
Ice
dispenser is
jammed.
• Ice has melted and
frozen around auger
due to infrequent use,
temperature fluctuations,
and/or power outages.
• Ice cubes are frozen
together.
• Ice cubes are smaller than
normal.
• Remove ice bin, thaw, and empty
the contents. Clean bin, wipe dry,
and replace in proper position. When
new ice is made, dispenser should
operate.
• Use the dispenser often so that
cubes do not freeze together.
• The ice & water filter cartridge
could be clogged. Replace the
filter cartridge. Dispensing system
operates best at 30-100 psi water
pressure. Well water pressures
should fall within this range.
Light Is Not On
Light is not
on.
• Light bulb is burned out or
LED light is damaged.
• No electric current is
reaching refrigerator.
• Control system has
disabled lights because
one or both doors were
left open too long.
• See Replacing Light Bulbs or LED
lights in Care and Cleaning section.
• See Problem section, Running Your
Refrigerator.
• Close and reopen door(s) to enable
lights.
Odors In Refrigerator
Interior is
dirty.
Odors.
• Interior needs to be cleaned.
• Food with strong odors is
stored in refrigerator.
• See Care & Cleaning Tips.
• Cover food tightly. Turn on air filtration
system. Air filter may need to be changed
more frequently if foods with strong odors
are routinely stored in refrigerator.
Opening/Closing Of Doors/Drawers
Door(s) will
not close.
• Refrigerator is not level. It
rocks on the floor when
moved slightly.
• Ensure floor is level and solid,
and can adequately support the
refrigerator. Contact a carpenter to
correct a sagging or sloping floor.
Drawers are
difficult to
move.
• Food is touching shelf on
top of drawer.
• Drawer is overloaded
• Keep less food in drawer.
• Remove or redistribute food.
38
Solutions to Common Problems
Concern Potential Cause Common Solution
Running Your Refrigerator
Compressor
does not
run.
• Cooling system is turned
Off.
• Refrigerator is in defrost
cycle.
• Plug at wall outlet is
disconnected.
• House fuse is blown or a
tripped circuit breaker.
• Power outage.
• Electronic control system
keeps the refrigerator at a
constant temperature.
• Turn cooling system On. See
Controls Section for location of
cooling system On/Off button.
• This is normal for a fully automatic defrost
refrigerator. The defrost cycle occurs
periodically, lasting about 30 minutes.
• Ensure plug is tightly pushed into
outlet.
• Check/replace fuse with a 15 amp
time-delay fuse. Reset circuit breaker.
• Check house lights. Call local Electric
Company.
• This is normal. Refrigerator goes
on and off to keep temperature
constant.
Refrigerator
runs too
much or too
long.
• Room or outside weather
is hot.
• Refrigerator has recently
been disconnected for a
period of time.
• Automatic ice maker is
operating.
• Doors are opened too
frequently or too long.
• Refrigerator/freezer door
may be slightly open.
• Freezer control is set too
cold (control found in fresh
food section).
• Fresh food/freezer gasket
is dirty, worn, cracked, or
poorly fitted.
• This model is provided with
a high-efficiency, variable-
speed compressor.
• It’s normal for the refrigerator to work
longer under these conditions.
• It takes 8-12 hours for the refrigerator
to cool down completely.
• Ice maker operation causes
refrigerator to run slightly more.
• Warm air entering the refrigerator causes
it to run more. Open doors less often.
• Ensure refrigerator is level. Keep
food and containers from blocking
door. See Problem section, Opening/
Closing of Doors/Drawers.
• Set freezer control to warmer
setting until refrigerator temperature
is satisfactory. Allow 24 hours for
temperature to stabilize.
• Clean or change gasket. Leaks
in door seal will cause refrigerator
to run longer in order to maintain
desired temperatures.
• It is normal for the compressor to run
for long periods of time.
Digital
temperature
displays are
flashing.
• Electronic control
system has detected a
performance problem.
• Call your Electrolux service
representative, who can interpret any
messages or number codes flashing
on the digital displays.
39
Solutions to Common Problems
Concern Potential Cause Common Solution
Temperatures Are Too Cold
Freezer
temperature
too cold.
Refrigerator
temperature
is satisfactory.
• Freezer control is set too
cold.
• Ice maker is on.
• Set freezer control to a warmer
setting. Allow 24 hours for
temperature to stabilize.
• It is normal for the freezer
compartment to over cool while
automatic ice maker is on.
Refrigerator
temperature
too cold.
Freezer
temperature
is satisfactory.
• Refrigerator control is set
too cold.
• Set refrigerator control to a
warmer setting. Allow 24 hours for
temperature to stabilize.
Food stored
in drawers
freezes.
• Refrigerator control is set
too cold.
• See solution above.
Food stored
in Meat
Keeper
freezes
(select
models).
• Meat Keeper temperature
control is set too cold.
• Adjust Meat Keeper temperature
control to a warmer setting. Meat
should be stored at a temperature
just below the freezing point for
maximum fresh storage time. It is
normal for ice crystals to form due to
the moisture content of meat.
Temperatures Are Too Warm
Freezer/
Refrigerator
temperature
is too
warm.
• Doors are opened too
frequently or too long.
• Door is slightly open.
• Warm air enters the refrigerator
whenever the door is opened. Open
the door less often.
• See Problem section, Opening/
Closing of Doors/Drawers.
Freezer
temperature
is too warm.
Refrigerator
temperature
is satisfactory.
• Freezer control is set too
warm.
• Set freezer control to a colder
setting. Allow 24 hours for
temperature to stabilize.
Refrigerator
temperature
is too warm.
Freezer
temperature
is satisfactory.
• Refrigerator control is set
too warm.
• Set refrigerator control to a
colder setting. Allow 24 hours for
temperature to stabilize.
Temperature
in the
Cool Zone
Drawer
TM
or Perfect
Temp
TM
Drawer is too
warm (select
models).
• Temperature control is set
too warm.
• Adjust temperature control to a
colder setting.
40
Solutions to Common Problems
Concern Potential Cause Common Solution
Water Dispenser
Dispenser
will not
dispense
water.
• Water supply is not
connected.
• Household water line valve
is not open.
• Ice & water filter cartridge
is clogged.
• Connect water supply (see Connecting
The Water Supply section).
• Open household water line valve.
See Problem section Ice Maker Is
Not Making Ice.
• Replace filter cartridge being sure to
remove protective caps.
Water has
an odd
taste and/or
odor.
• Water has been in the tank
for a period of time.
• Unit not properly connected
to cold water line.
• Tubing used in the
household water supply
and installation may affect
water taste and odor.
• Water has a high mineral
content.
• Draw and discard 10-12 glasses
of water to freshen the supply and
completely rinse out the tank.
• Connect unit to cold water line that
supplies water to the kitchen faucet.
• For best results, use copper tubing
for water connections.
• Contact water treatment plant for help
in checking water supply source.
Water
pressure is
extremely
low.
• Cut-off and cut-on
pressures are too low (well
systems only).
• Reverse osmosis system
is in regenerative phase.
• Have someone turn up the cut-off
and cut-on pressure on the water
pump system (well systems only).
• It is normal for a reverse osmosis
system to be below 20 psi during the
regenerative phase.
Water/Moisture/Frost Inside Refrigerator
Moisture
collects on
inside of
refrigerator
walls.
• Weather is hot and humid.
• Door is slightly open.
• Door is opened too often
or too long.
• Open containers.
• The rate of frost buildup and internal
sweating increases.
• See Problem section, Opening/
Closing of Doors/Drawers.
• Open door less often to allow internal
temperature to stabilize.
• Keep containers covered.
Water collects
on bottom
side of
drawer cover.
• Vegetables contain and
give off moisture.
• Moisture on the bottom side of the
cover is not unusual.
• Move humidity control (select
models) to lower setting.
Moisture
collects in
bottom of
drawer.
• Washed vegetables and
fruit drain while in the
drawer.
• Fruits and vegetables are
kept past their prime.
• Dry items before putting them in the
drawer. Water collecting in bottom of
drawer is normal.
• Routinely clean out old fruits and
vegetables especially if they begin to
break down.
Moisture
collects on
outside of
refrigerator
or between
doors.
• Weather is humid.
• Door is slightly open,
causing cold air from
inside refrigerator to meet
warm air from outside.
• This is normal in humid weather.
When humidity is lower, the moisture
should disappear.
• See Problem section, Opening/
Closing of Doors/Drawers.
41
Warranty
Major Appliance Warranty Information
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase,
Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or
workmanship when such appliance is installed, used, and maintained in accordance with the provided
instructions. In addition, the cabinet liner and sealed refrigeration system (compressor, condenser,
evaporator, dryer or tubing) of your appliance is covered by a two through five year limited warranty. During
the 2nd through 5th years from your original date of purchase, Electrolux will repair or replace any parts in
the cabinet liner and sealed refrigeration system which prove to be defective in materials or workmanship
when such appliance is installed, used, and maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside
the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other
consumables, or knobs, handles, or other cosmetic parts.
11. Pickup and delivery costs; your appliance is designed to be repaired in the home.
12. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
13. Damages to the finish of appliance or home incurred during transportation or installation,
including but not limited to floors, cabinets, walls, etc.
14. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE
YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES
SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF
THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service
under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico,
your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux
Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux
authorizes no person to change or add to any obligations under this warranty. Obligations for service
and parts under this warranty must be performed by Electrolux or an authorized service company.
Product features or specifications as described or illustrated are subject to change without notice.
USA
1-877-435-3287
Electrolux Major Appliances North America
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario,
Canada L5V 3E4
