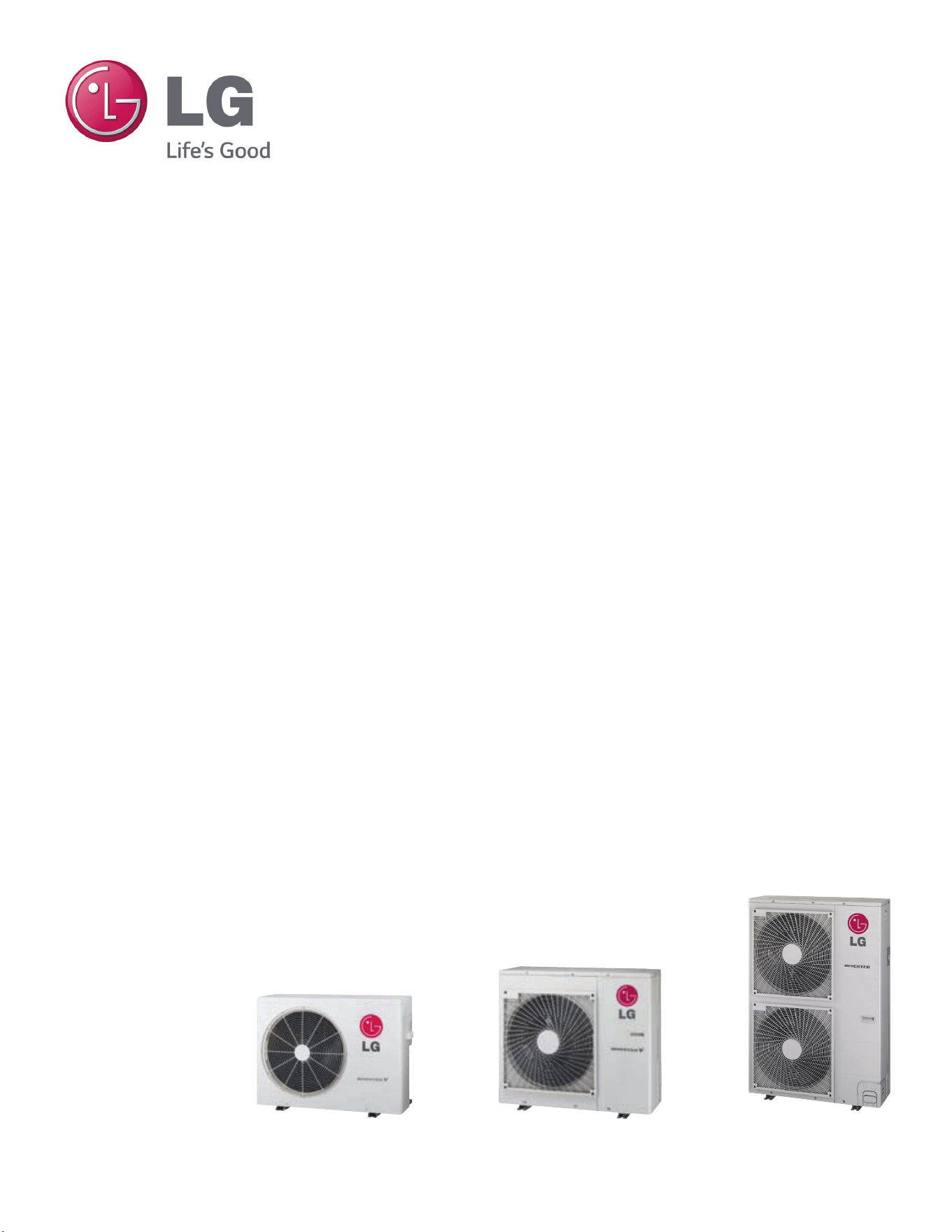

MULTI
F
MAX
MULTI
F
HEAT PUMP SYSTEM
ENGINEERING MANUAL
Multi-Zone Heat Pump Systems
1.5 to 4.5 Tons
Dual and Tri-Zone
Multi F
Quad-Zone
Multi F
Eight-Zone
Multi F MAX
EM-MultiFODU-01-15
For continual product development, LG reserves the right to change specifications without notice.
©LG Electronics Inc.
PROPRIETARY DATA NOTICE
This document, as well as all reports, illustrations, data, information, and
other materials are the property of LG Electronics U.S.A., Inc., and are
disclosed by LG Electronics U.S.A., Inc., only in confidence.
This document is for design purposes only.
This document, as well as all reports, illustrations, data, information, and other materials are the property of LG Electronics U.S.A., Inc.
INTRODUCTION | 3
Introduction
MULTI
F
MAX
MULTI
F
TABLE OF CONTENTS
About LG Electronics, Inc. .................................................................... 4
Multi-Zone Systems ............................................................................... 4
Unit Nomenclature ................................................................................. 6
Outdoor Unit Overview ......................................................................... 7
Indoor Unit Overview ............................................................................ 8
Controls and Options Overview ...................................................... 9-13
Multi F Outdoor Unit Product Data ............................................. 15-286
Product Features and Benets .......................................................... 16
Mechanical Specications ................................................................. 17
General Data ................................................................................ 18-19
Dimensions ................................................................................... 20-22
Rated Cooling Combination Tables .............................................. 23-30
Rated Heating Combination Tables .............................................. 31-38
Cooling Capacity Tables ............................................................. 39-182
Heating Capacity Tables ........................................................... 183-278
Electrical Data ................................................................................. 279
Acoustic Data .................................................................................. 279
Refrigerant Flow Diagrams ....................................................... 280-282

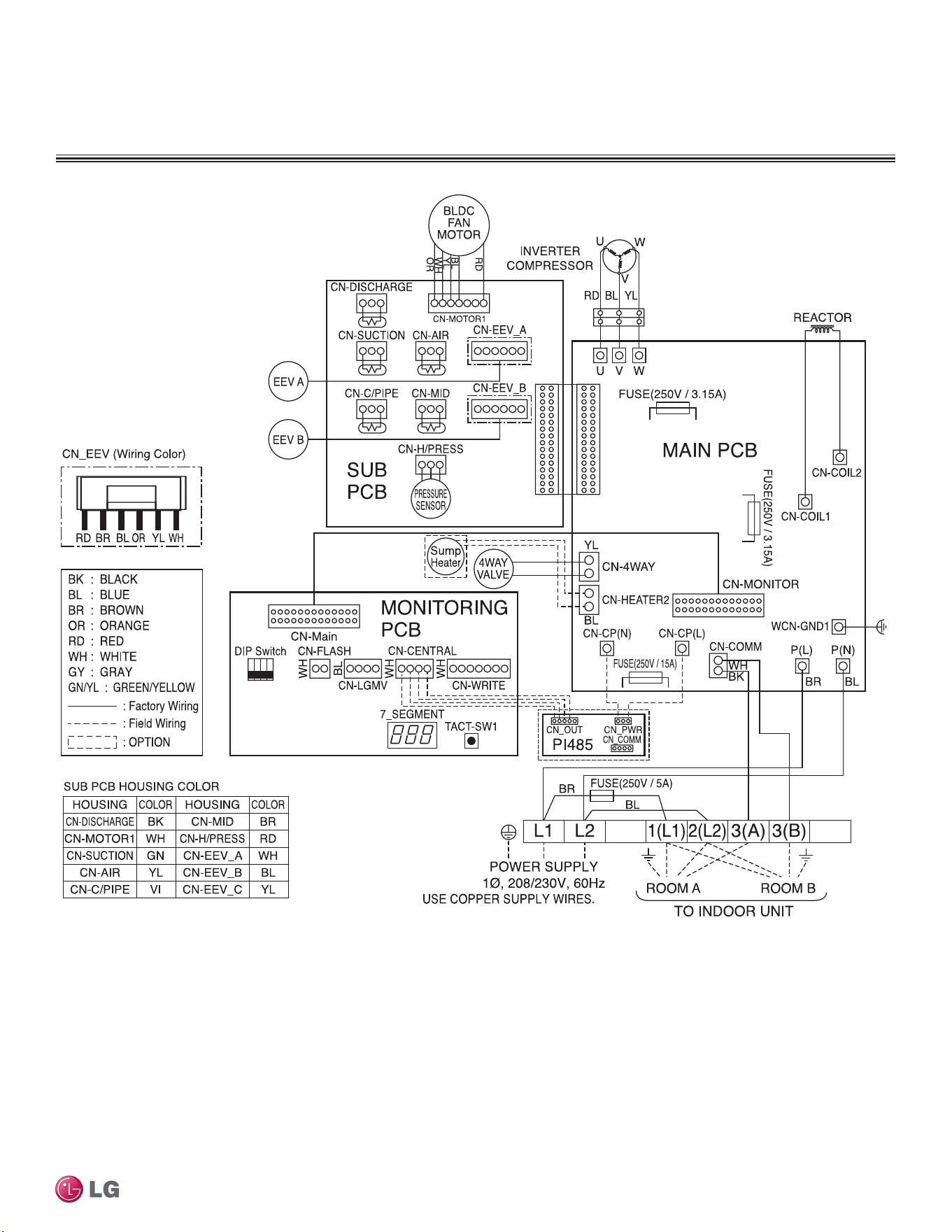

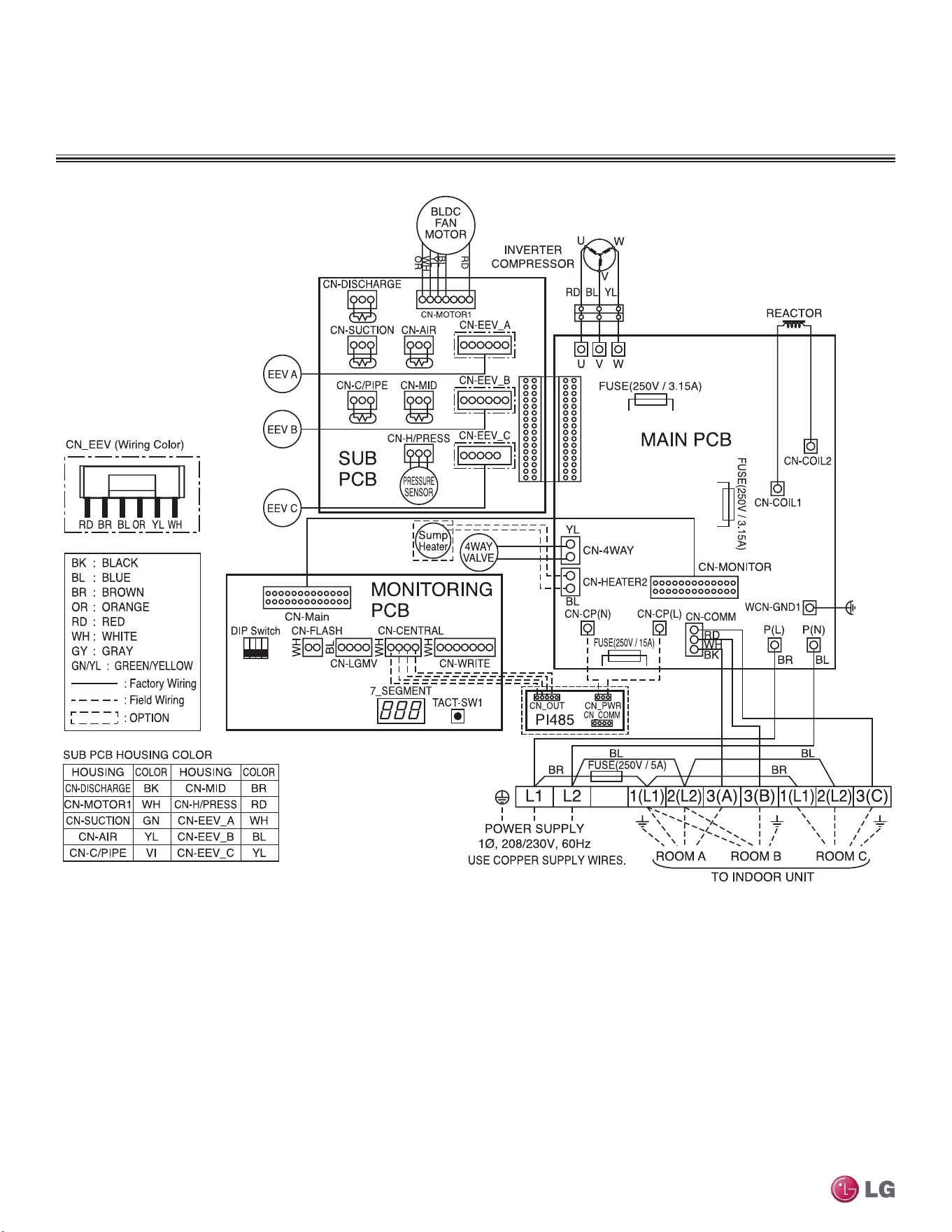

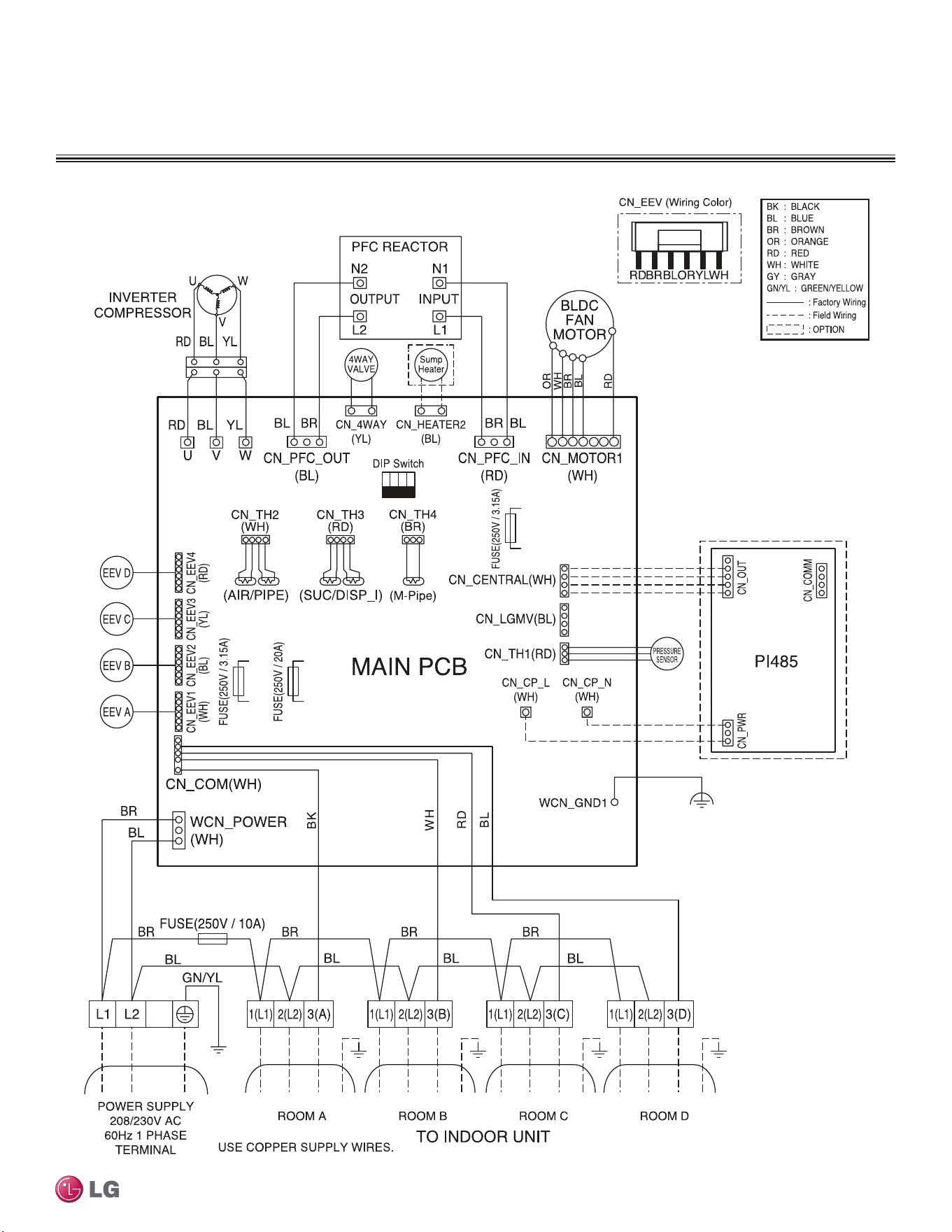

Wiring Diagrams ....................................................................... 283-285
Operation Range ............................................................................. 286
Multi F MAX Outdoor Unit Product Data ..................................287-330
Product Features and Benets ........................................................ 288
Mechanical Specications ............................................................... 289
General Data ............................................................................ 290-291
Dimensions ...................................................................................... 292
Rated Cooling Combination Tables .......................................... 293-295
Rated Heating Combination Tables .......................................... 296-298
Cooling Capacity Tables ........................................................... 299-315
Heating Capacity Tables ........................................................... 316-326
Electrical Data ................................................................................. 327
Acoustic Data .................................................................................. 327
Refrigerant Flow Diagrams .............................................................. 328
Wiring Diagrams .............................................................................. 329
Operation Range ............................................................................. 330
Multi F MAX Branch Distribution Unit Product Data ...............331-340
Features and Benets ..................................................................... 332
Mechanical Specications ............................................................... 333
General Data ................................................................................... 334
Dimensions ...................................................................................... 335
Refrigerant Flow Diagram ................................................................ 336
Wiring Diagram ................................................................................ 337
Y-Branch Accessory ......................................................................... 338
Branch Distribution Unit Orientation ................................................ 339
Application Guidelines ............................................................... 341-358
Equipment Selection Procedure ............................................... 342-347
Building Ventilation Design Guide ............................................ 348-352
Placement Considerations ........................................................ 353-358
Refrigerant Piping Design & Layout Best Practices ............... 359-380
Design Guideline Summary ...................................................... 360-361
Creating a Balanced / Quality Piping System .................................. 362
Manual Layout Procedure ............................................................... 362
LG Engineered Multi F MAX Y-Branch Kits ..................................... 363
Refrigerant Charge ................................................................... 364-365
Selecting Field-Supplied Copper Tubing .................................. 366-367
Refrigerant Piping System Layout ............................................ 368-375
Piping Insulation .............................................................................. 376
Condensate Drain Piping .......................................................... 377-378
Cut Sheet ......................................................................................... 379
Wiring Connections .................................................................... 381-390
General Information .................................................................. 382-384
Power Wiring and Communications Cable Details ................... 385-389
Indoor Unit Group Control ............................................................... 390
Acronyms ........................................................................................... 391
TABLE OF SYMBOLS
DANGER
This symbol indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING
This symbol indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION
This symbol indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
Note:
This symbol Indicates situations that may result in equipment or property damage accidents only.
This symbol indicates an action that should not be performed.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
4 | INTRODUCTION
Multi F and Multi F MAX Indoor Unit Engineering Manual
About LG Electronics, Inc.
LG Electronics, Inc. is a global leader and technology innovator
in consumer electronics, mobile communications, and home
appliances, employing more than 213,000 people in more than 60
countries worldwide. LG Electronics, Inc. comprises five
business units—Home Entertainment, Mobile Communications, Air
Conditioning, Business Solutions, and Home Appliance. LG is one
of the world’s leading producers of flat panel televisions, audio and
video products, mobile handsets, air conditioners, and washing
machines. LG’s commercial air conditioning business unit was estab-
lished in 1968 and has built its lineup of residential and commercial
products to include VRF, Multi F, duct-free split systems, packaged
terminal air conditioners (PTACs), and room air conditioners. In
2011, the air conditioning and energy solutions business unit grew to
include LED lighting and solar products. For more information, visit
www.lg-dfs.com.

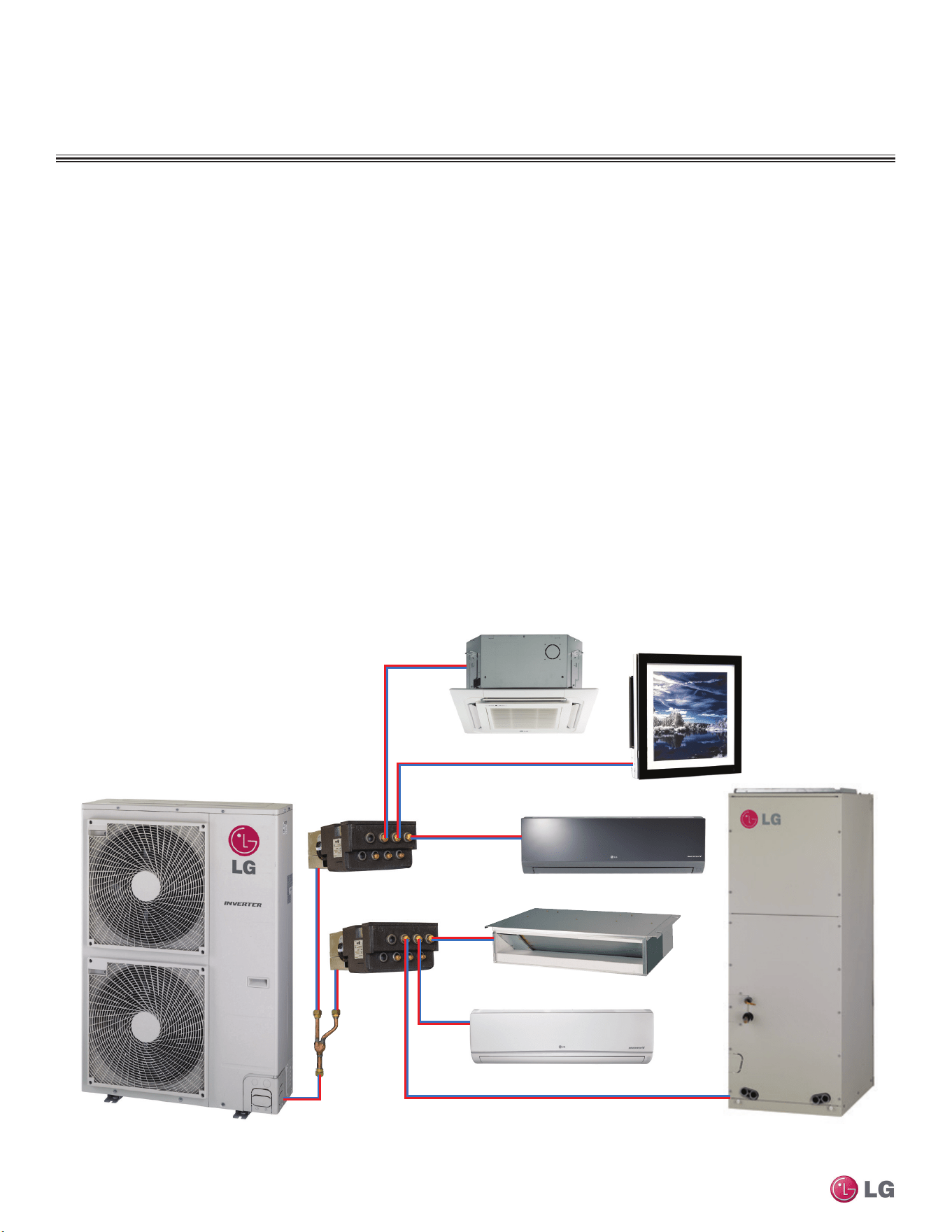

Multi-Zone Systems
LG HVAC systems offer a range of solutions that are cost efficient,
quiet and attractive. Multi-zone systems are “split” into indoor and
outdoor units, and provide a smart alternative to both central HVAC
and window-mounted air conditioners. These inverter heat pump
systems are available in a variety of configurations to suit differ-
ent cooling and heating situations. Installation by a qualified HVAC
contractor is safe and easy – little to no duct work or sheet metal is
required.

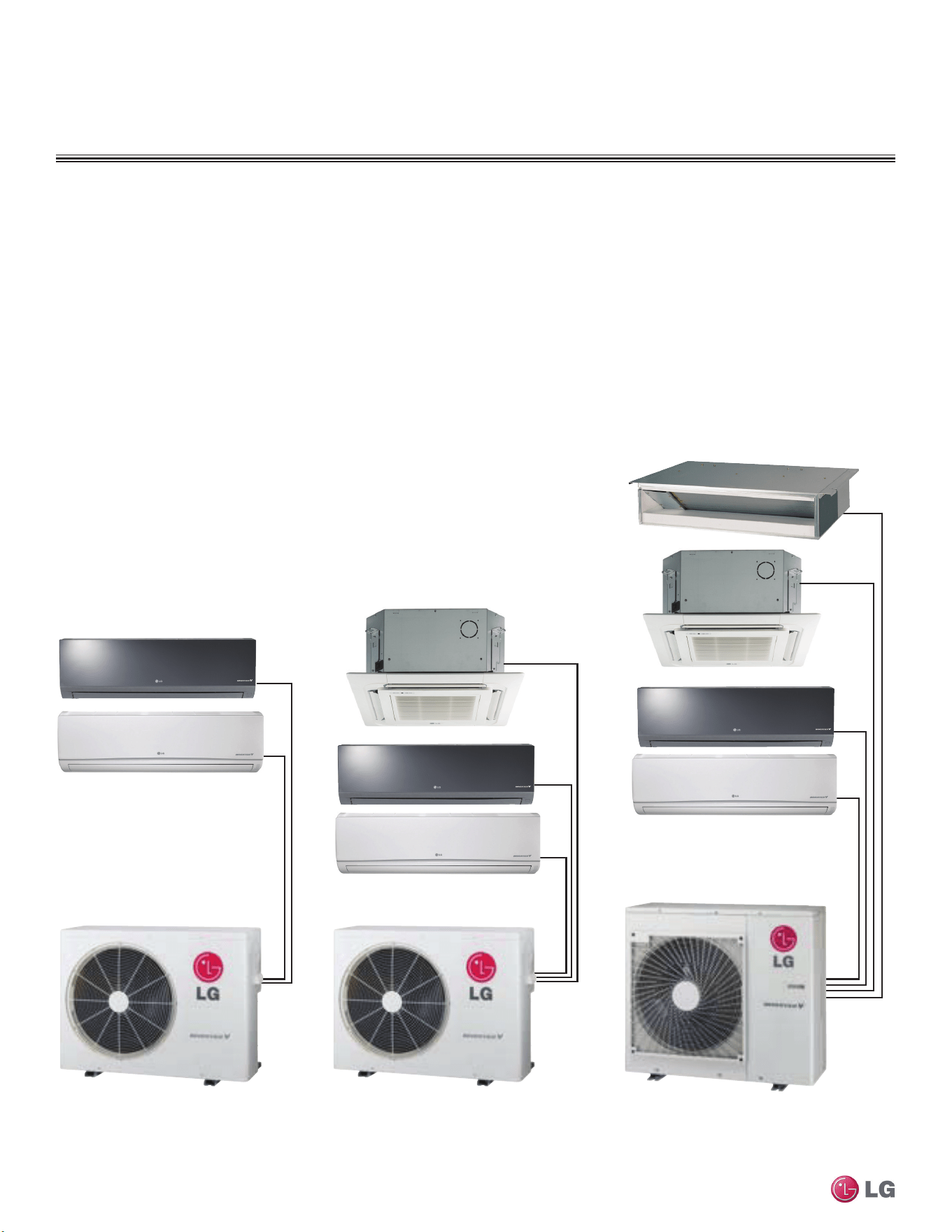

Multi F Systems
LG’s inverter heat pumps can support two, three, or four indoor
units that are typically installed in separate rooms. Each indoor unit
includes its own remote control, allowing the customer to set the
temperature individually. Indoor units are available in several differ-
ent congurations: Art Cool™ Mirror wall-mounted, Art Cool Gallery
wall-mounted, standard wall-mounted, four-way ceiling cassettes,
ceiling-concealed duct (high and low static), and vertical-horizontal air

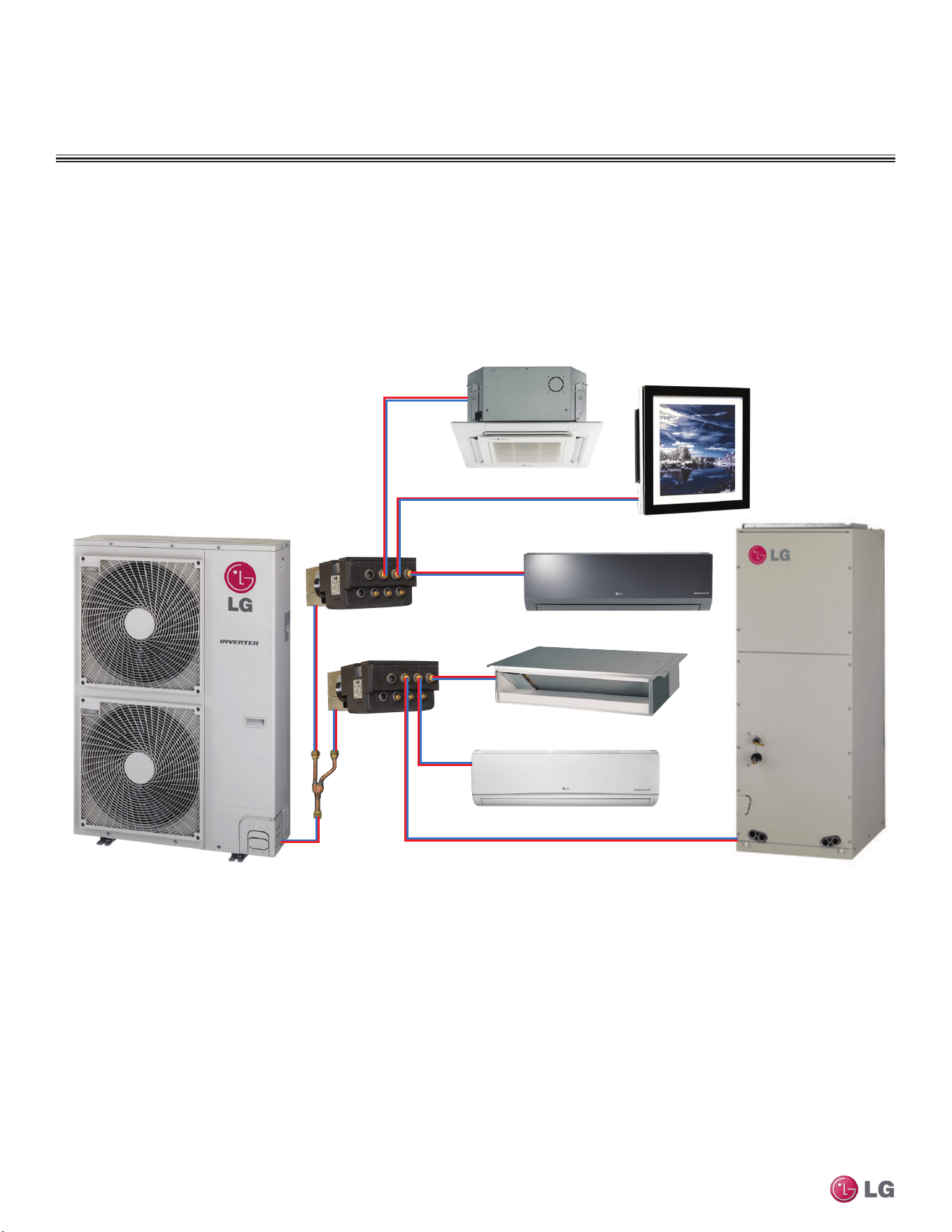

handling models. Multi F MAX systems, released in 2012, can oper-
ate up to eight indoor units through two-, three-, or four-port branch
distribution units.
Adaptable and Flexible
Multi F outdoor units can be adapted to a wide range of building ap-
plications and sizes such as schools, hotels, hospitals, ofces, and
residences. The system components are lightweight and compact so
they can be placed in buildings without expensive cranes, they easily
fit into most service elevators, and they can be set in place with
minimal structural reinforcements requirements.
Multi F technology allows you to pipe farther by reaching areas of the
building that would require the installation of a second system when
using traditional direct-expansion cooling and heating equipment. Multi
F provides the designer with uncompromised pipe system engineering
exibility—long pipe runs and large elevation differences. Whether your
building is a condominium, a hotel, a school, or an ofce complex, Multi
F is best suited to reach the farthest corners and elevations.
Smaller Chases and Plenums
LG Multi F systems use refrigerant piping to move heat, resulting in
smaller space requirements for piping as compared to chilled water
or roof top systems. This helps reduce the overall construction and
material cost of the building, and gives back leasable space. Flexible
and logical placement of system components, reduced back-and-
forth pipe lengths, and fewer joints lowers installation costs and
minimizes potential leaking.
Quality Commitment
LG is committed to the success
of DFS projects. We provide
technical support during instal-
lation and commissioning. LG
offers a variety of classes
designed for installers and on
Multi F installation. Classes
are conducted at LG’s training
centers and in field locations
at various times throughout the
year and upon special request.
Benefits of Multi F Systems
• Individual zone control
• Long refrigerant piping lengths
• High refrigerant piping elevation differences
• Maximum flexibility
• Operating ranges of 14°F to 118°F (DB) in cooling and -4°F to
64°F (WB) in heating
• Quiet and comfortable environment
• Reduced ductwork
CONVERGENCE OF TECHNOLOGY,
INNOVATION, FLEXIBILITY, & STYLE
MULTI
F
PRODUCT
INTRODUCTION
“Unit Nomenclature” on page 6
“Outdoor Unit Overview” on page 7
“Indoor Unit Overview” on page 8
“Controls and Options Overview” on page 9
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
6 | INTRODUCTION
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
UNIT NOMENCLATURE
Multi-Zone Systems — Indoor Units and Outdoor Units
M
AN 12 7 HVT
Generation
Features:
H = Heat Pump
V = Inverter
T = High Wall-Mounted Indoor Unit
P = Art Cool Gallery Indoor Unit
Nominal Capacity
(Nominal cooling capacity in Btu/h):
Component:
AN: Art Cool™ Wall-Mounted Indoor Unit
N: Standard Wall-Mounted Indoor Unit
CN: Four-Way Ceiling-Cassette Indoor Unit
DN: Ceiling-Concealed Duct (Low Static) Indoor Unit
HN: Ceiling-Concealed Duct (High Static) Indoor Unit
VN: Vertical-Horizontal Air Handling Indoor Unit
U: Outdoor Unit
L = LG
07 = 7,000
09 = 9,000
12 = 12,000
15 = 15,000
18 = 18,000
24 = 24,000
36 = 36,000
54 = 54,000
L
Type: M = Multi-Zone
• Voltage for all equipment is 208-230V, 60 Hz, 1-phase.
• All indoor units are compatible with wired controllers
• All outdoor units are LGAP control network compatible with PI-485 V-net Control Integration Board (PMNFP14A1, sold separately).
• Compatible single zone IDU nomenclature is listed in the Single Zone Wall-Mounted IDU Engineering Manual.
Branch Distribution Units
M
BD 36
BD: Branch Distribution Unit
P = Part (Accessory)
P
Type: M = Multi-Zone
Family
Number of Port Connections
(Maximum Number of Connectable Indoor Units): 2, 3, 4
Generation: 0, 1
02
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
INTRODUCTION | 7
Introduction
MULTI
F
MAX
MULTI
F
OUTDOOR UNIT OVERVIEW
1
Model number shows nominal capacity and frame size designator.
2
Nominal capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet bulb (WB) and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
3
Minimum number of connectable indoor units is two (2).
Outdoor Unit Type Model Number
1
Dimensions
(W x H x D)
(inches)
Nominal Cooling
Capacity Btu/h
2
Net
Weight
(lbs.)
No. of
Connectable
Indoor Units
3
Pipe Connections
(inches, O.D.)
(Liquid, Vapor)
Multi F Dual-Zone
LMU18CHV 34-1/4 x 25 25/32 x 12-19/32 18,000 100 2-2
1/4 x 2 Each,
3/8 x 2 Each
Multi F Tri-Zone
LMU24CHV 34-1/4 x 25 25/32 x 12-19/32 24,000 100 2-3
1/4 x 3 Each,
3/8 x 3 Each
Multi F Quad-Zone
LMU36CHV 37-13/32 x 32-27/32 x 13 36,000 137 2-4
1/4 x 4 Each,
3/8 x 4 Each
Multi F MAX Eight-Zone
LMU540HV 37-13/32 x 54-11/32 x 13 54,000 214 2-8
3/8 x 1 Each,
3/4 x 1 Each
Table 1: Summary Data—Multi F / Multi F MAX Outdoor Units
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
8 | INTRODUCTION
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
INDOOR UNIT OVERVIEW
1
Model number shows nominal capacity and frame size designator.
2
Nominal capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet bulb (WB) and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
3
H/M/L = High/Medium/Low.
Indoor Unit Type
Model
Number
1
Dimensions
(W x H x D)
(inches)
Nominal
Cooling
Capacity Btu/h
2
Air Flow Rate
(CFM)
(H/M/L
3
)
Net
Weight
(lbs.)
Pipe
Connections
(inches, O.D.)
(Liquid, Vapor)
Art Cool
TM
Mirror Wall-Mounted
LMAN097HVT
35-1/4 × 11-3/8 × 8-1/16
9,000 247 / 230 / 212
25 1/4, 3/8
LMAN127HVT 12,000 335 / 318 / 300
LMAN187HVT 40-9/16 x 12-25/32 x 9-21/32 18,000 572 / 501 / 434 35 1/4, 1/2
Art Cool
TM
Gallery Wall-Mounted
LMAN097HVP
23-5/8 x 23-5/8 x 5-25/32
9,000 272 / 208 / 155
32 1/4, 3/8
LMAN127HVP 11,200 314 / 258 / 198
Standard Wall-Mounted
LMN077HVT 35-1/4 x 11-3/8 x 8-9/32 7,000 198 / 177 / 162 23 1/4, 3/8
LSN090HSV4 34-7/8 x 11-1/4 x 8-1/4 9,000 247 / 230 / 212 20 1/4, 3/8
LSN120HSV4 34-7/8 x 11-1/4 x 8-1/4 12,000 335 / 318 / 300 20 1/4, 3/8
LMN157HVT 35-1/4 x 11-3/8 x 8-9/32 14,300 371 / 318 / 247 23 1/4, 3/8
LSN180HSV4 40-9/16 x 12-13/16 x 9-13/16 18,000 572 / 501 / 434 31 3/8, 5/8
LMN247HVT 40-9/16 x 12-25/32 x 9-27/32 24,000 720 / 600 / 466 32 1/4, 1/2
Ceiling-Concealed Duct
(Low Static)
LMDN096HV 27-9/16 x 7-15/32 x 27-9/16 9,000 318 / 247 / 194 39
1/4, 3/8
LMDN126HV
35-7/16 x 7-15/32 x 27-9/16
12,000 353 / 300 / 247
51
LMDN186HV 18,000 530 / 441 / 353 1/4, 1/2
Ceiling-Concealed Duct
(High Static)
LMHN240HV
46-17/32 x 11-23/32 x 17-23/32
24,000 688 / 618 / 530 80 1/4, 1/2
LMHN360HV 36,000 1,130 / 953 / 706 91 3/8, 5/8
Four-Way Ceiling-Cassette
LMCN077HV
Body: 22-7/16 x 8-7/16 x 22-7/16
Panel: 27-9/16 x 7/8 x 27-9/16
7,000 265 / 212 / 177
31 (Body),
7 (Panel)
1/4, 3/8LMCN097HV 9,000 300 / 265 / 230
LMCN125HV 12,000 335 / 283 / 247
LMCN185HV
Body: 22-7/16 x 10-3/32 x 22-7/16
Panel: 27-9/16 x 7/8 x 27-9/16
18,000 459 / 424 / 388
34 (Body),
7 (Panel)
1/4, 1/2
Vertical-
Horizontal
Air Handling
LMVN240HV
18 x 48-21/32 x 21-1/4
24,000 710 / 640 / 480 117 1/4, 1/2
LMVN360HV 36,000 990 / 880 / 800 121 3/8, 5/8
Table 2: Summary Data—Multi F Indoor Units.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
INTRODUCTION | 9
Introduction
MULTI
F
MAX
MULTI
F
CONTROLS AND OPTIONS OVERVIEW
Zone Controller Name Model / Part No.
Case
Color
Max. Wire
Length (ft.)
Description
Simple Controller
with Mode
Selection
PQRCVCL0Q Black
164
Allows control of indoor unit ON / OFF, operation mode, fan
speed, and temperature setpoint for up to 16 indoor units.
Included with Ceiling-Concealed Duct (High Static and Low
Static
1
) and Vertical-Horizontal Air Handling
1
indoor units;
optional accessory for all other indoor unit types.
AKB72955816
1
White
Simple Controller
without Mode
Selection
PQRCHCA0 Black
164
Allows control of indoor unit ON / OFF, fan speed, and
temperature setpoint for up to 16 indoor units.
PQRCHCA0QW White
LG 7-Day
Programmable
Thermostat
PREMTB10U White 164
Allows control of indoor unit ON / OFF, operation mode,
occupied / unoccupied temperature setpoints, fan speed, and
airflow direction for up to 16 indoor units. Programmable
schedule with five events per day.
Wireless
Controller
AKB73635606
3
AKB73635607
4
AKB73835312
5
AKB73757604
6
Ivory -
Allows control of indoor unit ON / OFF, operation mode, fan
speed, and temperature setpoint. Also provides subfunction
control. Included with Art Cool Mirror
3
and Gallery
4
Wall-
Mounted, Standard HVT
3
Wall-Mounted, Standard HSV
5
Wall-Mounted, and Four-Way Cassette
6
indoor units; optional
accessory for Duct and Vertical-Horizontal AHU with use of
wired controller.
Wall-Mounted
Remote
Temperature
Sensor
PQRSTA0 Ivory 50
Allows remote temperature measurement for four-way ceiling
cassette, ceiling-concealed duct, and vertical-horizontal air
handling indoor units.
Table 3: Summary Data—Zone Controllers.
1
Simple Mode Controllers for the ceiling-concealed duct (high static and low static) and the vertical-horizontal air handling indoor units are also referenced by Model No. PQRCVCL0QW.
Before specifying or placing an order, refer to the V-Net Network Solutions Engineering Product Data Book, and review the detailed technical data provided to fully understand the capabilities and limitations of
these devices.
For information on controller capatibility, refer to the Controls and Options Table on page 12
Table 4: Summary Data—Controller Accessories.
Controller Accessory Name Model No. Description For
Auxiliary Heater
Relay Kit
PRARH0
Adds coordinated control of
an external heater with normal
heat pump operations. Contact
energizes at 2.7°F below
setpoint. De-energizes at
2.7°F above setpoint.
Ceiling-concealed duct (high static and low static)
and four-way ceiling cassette indoor units.
PRARS0
Standard and Art Cool Mirror wall-mounted indoor
units.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
10 | INTRODUCTION
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
Before specifying or placing an order, refer to the V-Net Network Solutions Engineering Product Data Book, and review the detailed technical data provided to fully understand the capabilities and limitations of
these devices.
For information on controller capabilities, refer to the Controls and Options Table on page 12.
Specialty Application
Device
Name Model No.
Connects
to
Application
Binary Signals
Input / Output
Description
Dry Contact Unit
24 VAC
PQDSB1
Indoor
Unit
ON / OFF, Run Status,
Error Status
1 / 2
Enables the indoor unit to be
controlled and monitored by
third-party controls using
binary inputs and outputs.
Dry Contact Unit
for Setback
PQDSBC
ON / OFF, Mode, Controller
Lock, Power Save, Run
Status, Error Status
2 / 2
Dry Contact Unit
for Thermostat
PQDSBNGCM1
ON / OFF, Thermo ON /
OFF, Mode, Fan Speed,
Run Status, Error Status
—
Enables the indoor unit to be
controlled and monitored by a
third-party thermostat or controller.
PI-485 V-net
Control
Integration
Board
PMNFP14A1
Outdoor
Unit
— —
Control integration to LG V-net
controls (AC Smart Premium, ACP,
BACnet, LonWorks, etc.)
Power
Distribution
Indicator (PDI)
Premium
PQNUD1S41
Comm.
BUS
Energy Consumption
Monitoring
8 / 0
Monitors total outdoor unit power
consumption for up to eight
systems, and distributes per
indoor unit based on weighted
calculation.
Table 5: Summary Data— Zone Controller Communication Cables.
CONTROLS AND OPTIONS OVERVIEW
Table 6: Summary Data—Specialty Application Devices.
Before specifying or placing an order, refer to the V-Net Network Solutions Engineering Product Data Book, and review the detailed technical data provided to fully understand the capabilities and limitations of
these devices.
For information on controller capabilities, refer to the Controls and Options Table on page 12.
Communication Cable Name Model No.
Max. Wire
Length (ft.)
Description
Wired Remote Group Control
Cable Assembly
PZCWRCG3 32
Required when grouping multiple indoor units with a
single zone controller.
Wired Remote / Group Control
Extension Cable
PZCWRC1 32
Increases the distance between a remote controller
and an indoor unit, or between indoor units in a control
group.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
INTRODUCTION | 11
Introduction
MULTI
F
MAX
MULTI
F
Table 7: Summary Data—Central Controllers (Connect to the Outdoor Unit Through the PI-485 Board (accessory, sold separately).
Central Controller Name Model No.
Devices
per
Controller
Systems
per
Comm.
BUS
Devices
per Comm.
BUS
No. of
Comm.
BUS
ports
Binary
Signals
Input /
Output
Power /
Connection
Description
AC Smart
Premium
PQCSW421E0A 128 16 128 1
2 DI /
2 DO
24 VAC
Provides for scheduling,
auto-changeover, setback,
remote controller lock,
setpoint range limit, run
time limit, web access,
email alarm notification,
visual floorplan navigation,
peak/demand control,
software device interlocking,
PDI integration, and AC
Manager Plus integration
advanced functionality in
addition to basic unit control
and monitoring.
AC Ez PQCSZ250S0 32 16 256 1 —
12 VDC /
Outdoor
Unit
Provides for scheduling in
addition to basic indoor unit
control and monitoring.
Advanced Control
Platform (ACP)
Standard
PQCPC22N1 256 16
64 (128
with PDI
Premium)
4
2 / 2 24 VAC
Provides for scheduling,
remote controller lock, setpoint
range limit, web access, peak
/ demand control, PDI
integration, and AC Manager
Plus integration advanced
functionality in addition to
basic unit control and
monitoring.
Advanced Control
Platform (ACP)
Premium
PQCPC22A1 256 16
64 (128
with PDI
Premium)
10 / 4 24 VAC
Before specifying or placing an order, refer to the V-Net Network Solutions Engineering Product Data Book, and review the detailed technical data provided to fully understand the capabilities and limitations of
these devices.
For information on controller capabilities, refer to the Controls and Options Table on page 12.
Table 8: Summary Data—Integration Solutions (Connect to Outdoor Unit Through the PI-485 Board (accessory, sold separately).
Central Controller Name Model No.
Devices
per
Controller
Systems
per
Comm.
BUS
Devices
per Comm.
BUS
No. of
Comm.
BUS
ports
Binary
Signals
Input /
Output
Power /
Connection
Description
BACnet
®
Gateway PQNFB17C1 256 16
64 (128
with PDI
Premium)
4 2 / 2 24 VAC
Allow integration of LG
equipment for control
and monitoring by open
protocol BACnet and
LonWorks building
automation and controls
systems.
LonWorks
®
Gateway PLNWKB100 64 16
64 (128
with PDI
Premium)
1 2 / 2 24 VAC
Before specifying or placing an order, refer to the V-Net Network Solutions Engineering Product Data Book, and review the detailed technical data provided to fully understand the capabilities and limitations of
these devices.
For information on controller capabilities, refer to the Controls and Options Table on page 12.
CONTROLS AND OPTIONS OVERVIEW
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
12 | INTRODUCTION
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
CONTROLS AND OPTIONS OVERVIEW
Table 9: Indoor Units—Functions, Controls and Options.
Indoor Unit Type
ART COOL™
Mirror Wall
Mounted
ART COOL™
Gallery
Standard Wall
Mounted
Ceiling
Concealed
(Low Static)
Ducted
Ceiling
Concealed
(High Static)
Ducted
Four-Way
Ceiling
Cassette
Vertical-
Horizontal Air
Handling Unit
Airow
Air supply outlets
1 3 1 1 2 4 1
Airflow direction (left/right)
Auto Auto Auto
Airflow direction (up/down)
Auto Auto Auto Auto
Auto swing (left/right)
√ √ √
Auto swing (up/down)
√ √ √ √
Airflow steps (fan/cool/heat)
6 / 6 / 5 5 / 5 / 4 6 / 6 / 5 3 / 3 / 3 3 / 3 / 3 4 / 5 / 4 3 / 3 / 3
Chaos wind (random fan speed)
√ √ √ √
Jet-cool
√ √ √ √
Swirl wind
√
Filter
Washable anti-fungal
1
√ √ √ √ √ √
Plasma
2
√ √ o
3
3M HAF
2
√
Ventilation
√
4
Operation
Drain pump
√ √ √
E.S.P. control
√ √ √
Electric heater
o
High ceiling
√
Hot Start
√ √ √ √ √ √ √
Self diagnostics
√ √ √ √ √ √ √
Soft Dry (dehumidification)
√ √ √ √ √ √ √
Auto operation
√ √ √ √ √ √ √
Auto clean (coil dry)
√ √ √
Auto restart
√ √ √ √ √ √ √
Child lock
o o o o o o o
Forced operation
√ √ √ √
Group control – Requires the use
of one Group control Cable Kit
(PZCWRCG3) for every
additional indoor unit
o o o o o o o
Sleep mode
√ √ √ √ √ √ √
Timer (on/off)
√ √ √ √ √ √ √
Weekly schedule
o o o √ √ o √
Two thermistor control
o o o o o o o
Controllers
7-Day programmable controller
o o o o o o o
Simple wired remote controller
o o o √ √ o √
Wireless LCD remote control
√ √ √ o
5
o
5
√ o
5
Dry contact
o o o o o o o
Dry contact (temperature setting)
o o o o o o o
Central control (LGAP)
√ √ √ √ √ √ √
Connector for Water Sensor
√ √ √
1
Primary washable filters.
2
Secondary filter (plasma: HVT wall-mount and cassette; 3M: HSV4)
3
Branch location and static pressure requirements. Requires PTPKQ0
Plasma kit.
4
Requires ventilation kit PTVK430 (Temperature, humidity, and volume
limitations apply).
5
Requires wired zone controller.
√ = Standard feature
o = Unit option
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
INTRODUCTION | 13
Introduction
MULTI
F
MAX
MULTI
F
CONTROLS AND OPTIONS OVERVIEW
Table 11: Indoor Unit Accessories Overview.
Multi F MAX Accessory Name Model No. Description
Two-Port Branch Distribution Unit PMBD3620
Distributes refrigerant from Multi F MAX outdoor unit from
one (1) to two (2) indoor units (maximum 24,000 Btu/h for
each port).
Three-Port Branch Distribution Unit PMBD3630
Distributes refrigerant from Multi F MAX outdoor unit from
one (1) to three (3) indoor units (maximum 24,000 Btu/h for
each port).
Four-Port Branch Distribution Unit
PMBD3640
Distributes refrigerant from Multi F MAX outdoor unit from
one (1) to four (4) indoor units (maximum 24,000 Btu/h for
each port).
PMBD3641
Distributes refrigerant from Multi F MAX outdoor unit from
one (1) to four (4) indoor units (maximum 24,000 Btu/h for
ports A,B,C; maximum 36,000 Btu/h for D port).
Y-branch Kit PMBL5620
Y-branch Kit for Multi F MAX outdoor unit to connect up to
two (2) branch distribution units.
Model No. Description
For Four-Way Ceiling-Cassette Indoor Units
PT-UQC Ceiling Grille
PTPKQ0 Plasma Kit
PTVK430 Ventilation Kit
For Vertical-Horizontal Air Handing Units
ANEH053B1 5 kW Electric Heater
ANEH103B2 10 kW Electric Heater
For Ceiling-Concealed Duct (High Static) Indoor Units
ZFBXBG01A High Efficiency Filter Box
ZFBXD201A Dynamic V8 2VL Low Profile Air Cleaner
ZPLMV201A Dynamic 2VL Air Cleaner Low Profile Return Air Plenum
ZFBXD402A Dynamic V8 4VL Low Profile Air Cleaner
ZPLMV402A Dynamic 4VL Air Cleaner Low Profile Return Air Plenum
ZFLT1301A 4-Pack Dynamic V8 VL Air Cleaner Replacement Filter Pads
ZFLT1302A 24-Pack Dynamic V8 VL Air Cleaner Replacement Filter Pads
ZGRLRA01A Dynamic V8 Air Cleaner Louvered Return Air Grille (one per plenum )
ZGRLRA02A Dynamic V8 Air Cleaner Egg Crate Return Air Grille (one per plenum)
Table 10: Multi F MAX Outdoor Unit Accessories Overview.
Ø3/4 Gas
Ø3/8 Liquid
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
14 | INTRODUCTION
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
“Product Features and Benefits” on page 16
“Mechanical Specifications” on page 17
“General Data” on page 18
“Dimensions” on page 20
“Rated Cooling Combination Tables” on page 23
“Rated Heating Combination Tables” on page 31
“Cooling Capacity Tables” on page 39
“Heating Capacity Tables” on page 183
“Electrical Data” on page 279
“Acoustic Data” on page 279
“Refrigerant Flow Diagrams” on page 280
“Wiring Diagrams” on page 283
“Operation Range” on page 286
MULTI F
OUTDOOR UNIT DATA
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
16 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
The multiple piping of Multi F systems can support two, three or four indoor units that are typically mounted in separate rooms. Compact
refrigerant pipes work in tandem with wiring to link the outdoor unit with all indoor units directly. Most indoor units include its own remote
control, allowing the user to set the temperature individually in different rooms. The indoor units are available in a variety of capacities and
styles, including Art Cool™ Mirror and Gallery Wall Mounts, Standard Wall Mount, Four-Way Ceiling Cassette, Horizontal Ceiling Concealed
Duct, and Vertical-Horizontal Air Handling models.
• Defrost
• Restart delay (three [3] minutes)
• Self diagnosis
• Soft start
• Inverter (Variable speed compressor)
• Low ambient operation to 14ºF (DB,
Cooling mode)
• Optional low ambient baffle kit allows
cooling operation down to -4ºF (DB)
• Heating operation down to -4ºF (WB)
• Auto operation / auto restart operation
• Gold Fin™ anti-corrosion
• Outdoor unit includes sufficient refrigerant
for charging two (2), three (3), or four (4)
indoor units using 24.6 feet of pipe to each
Figure 1: Dual-Zone Multi F Heat Pump
Inverter System — Mix and match for
9,000-24,000 Btu/h.
Figure 3: Quad-Zone Multi F Heat Pump
Inverter System — Mix and match for
18,000-48,000 Btu/h.
Benefits
• Long refrigerant piping lengths allow for extra design flexibility in indoor unit placement
• Easy installation: Little to no ductwork required; most indoor units can mount on any wall
• Indoor unit and outdoor unit dimensions ensure space saving convenience
• All-season use—heat pump models have both cooling and heating capabilities
MULTI F SYSTEMS
Features and Benets
Features
Figure 2: Tri-Zone Multi F Heat Pump
Inverter System — Mix and match for
12,000-33,000 Btu/h.
MULTI F OUTDOOR UNIT | 17
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Mechanical Specications
MULTI F SYSTEMS
Multi F Heat Pump Condensing Units
General
A Multi F multi-zone system is comprised of one heat pump outdoor
unit connected to two, three, or four indoor units using a shared
refrigerant piping circuit between the outdoor unit and each indoor
unit, and includes integrated controls supplied by LG. The outdoor
unit is internally assembled, wired, and piped from the factory; all LG
components are manufactured in a facility registered to ISO 9001 and
ISO 14001, set by the International Organization for Standardization
(ISO). The LG Multi F multi zone heat pump system components
comply with Underwriters Laboratories (UL) 1995 Heating and Cool-
ing Equipment Standard for Safety, and bear the Electrical Testing
Laboratories (ETL) mark. The units are certied to AHRI 210 / 240.
Temperature Ranges
The heat pump outdoor units are capable of operating in cooling
mode from 14°F to +118°F ambient dry bulb (installing an optional
Low Ambient Wind Baffle Kit will allow operation down to -4°F in
cooling mode for all Multi F systems). The heat pump outdoor units
are capable of operating in heating mode from -4°F to +64°F ambi-
ent wet bulb without additional low ambient controls.
Frame
The Multi F condensing unit case is constructed from pre-coated
metal that has been tested in accordance with ASTM B-117 salt
spray procedure for a minimum of 1,000 hours. Case has a remov-
able front panel to allow access to major components and control
devices, and legs to secure the unit during installation.
Refrigerant System
Multi F systems have a shared refrigerant circuit field piped to
multiple (ducted, non-ducted or mixed) indoor units to effectively and
efficiently control the heating or cooling operation of the multi zone
system. All refrigerant lines from the outdoor unit to the indoor units
are field-installed and must be insulated separately.
All Multi F systems use R410A refrigerant. The outdoor units are
equipped with a refrigerant strainer, check valves, oil separator,
accumulator, four-way reversing valve, electronic expansion valve(s)
(EEV), high side and low side refrigerant charging ports, and a
service port. Each outdoor unit also includes sensors for suction
temperature, discharge temperature, high-pressure, low-pressure,
heat exchanger temperature, and outdoor temperature conditions.
Refrigeration Oil Control
The outdoor units have an oil separator to separate oil mixed with
the refrigerant gas during compression and return oil to the com-
pressor. The outdoor units also have an oil injection mechanism to
ensure a consistent film of oil on all moving compressor parts at low
speed.
Compressor
Multi F condensing units are equipped with one hermetically sealed,
digitally controlled, inverter driven twin-rotary compressor that
includes Teflon™ coated bearings. The inverter motor is capable
of providing a modulation range of 20Hz to 100Hz with control in
1Hz increments. The compressor is protected with phase-reversal
protection, uses a factory-charge of Polyvinyl Ether (PVE) oil, and is
mounted to avoid the transmission of vibration.
Fan and Motors
Each outdoor unit includes one direct drive variable speed propeller
fan with Brushless Digitally Controlled (BLDC) motor with a horizon-
tal air discharge. Fan blades are statically and dynamically balanced
propeller fans made of durable Acrylonitrile Butadiene Styrene (ABS)
plastic, and include a raised fan guard to limit contact with moving
parts. The motors have inherent overload protection, permanently
lubricated bearings, and a maximum speed up to 950 rpm. All Multi F
outdoor units have a horizontal discharge airflow.
Outdoor Unit Coil
The outdoor unit coils are factory-built of aluminum fins mechani-
cally bonded on copper tubing. Coils have a minimum of two rows, a
minimum of 14 fins per inch, and have been factory pressure-tested.
Coil fins also have a factory applied corrosion-resistant GoldFin™
material with hydrophilic coating that has been tested in accordance
with ASTM B-117 salt spray test procedure for a minimum of 1,000
hours.
Electrical
All Multi F outdoor units shall have 208/230V, 1 phase, 60Hz electri-
cal power capable of operating within ±10% of the rated voltage.
Controls
Factory installed microprocessor controls in the outdoor unit and
indoor units shall perform functions to efficiently operate the multi-
zone system. System wiring must be installed in a tree configura-
tion from outdoor unit to indoor units through four conductor power/
transmission cable. The system is capable of performing continuous
operation, even when power is turned off to an individual indoor unit.
Figure 4: Multi F LMU18CHV and
LMU24CHV Outdoor Units.
Figure 5: Multi F LMU36CHV
Outdoor Unit.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
18 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
MULTI F OUTDOOR UNIT
General Data
Model Number
LMU18CHV LMU24CHV LMU36CHV
Rated Cooling Capacity (Btu/h)
1
17,000 20,000 32,000
Rated Heating Capacity (Btu/h)
1
22,000 24,000 36,000
Operating Range
Cooling (°F DB)
14
6
- 118 14
6
- 118 14
6
- 118
Heating (°F WB)
-4 - 64 -4 - 64 -4 - 64
Compressor
Inverter Quantity
Twin Rotary x 1 Twin Rotary x 1 Twin Rotary x 1
Oil/Type
FVC68D FVC68D FVC68D
Fan (Side Discharge)
Type
Propeller Propeller Propeller
Motor Output (W) x Qty.
85.4 x 1 85.4 x 1 124.2 x 1
Motor/Drive
Brushless Digitally Controlled / Direct
Maximum Air Volume (CFM)
1,766 1,766 2,119
Unit Data
Refrigerant Type
R410A R410A R410A
Refrigerant Control/Location
EEV/Outdoor Unit EEV/Outdoor Unit EEV/Outdoor Unit
Min. Number Indoor Units/System
2
2 2 2
Max. Number Indoor Units/System
2
2 3 4
Maximum Allowable Total Indoor Unit
Connected Capacity (Btu/h)
24,000 33,000 48,000
Sound Pressure (Cooling / Heating) dB(A)
3
49 / 52 49 / 52 52 / 55
Net Unit Weight (lbs.)
100 100 137
Shipping Weight (lbs.)
108 108 148
Power Wiring
4
(No. x AWG)
3C x 14 3C x 12 3C x 12
Heat Exchanger
Material and Fin Coating
Copper Tube/Aluminum Fin and GoldFin™/Hydrophilic
Rows/Columns/Fins per inch x Qty.
(2 x 28 x 14) x 1 (2 x 28 x 14) x 1 (2 x 38 x 14) x 1
Piping
Liquid Line Connection (in., OD) x Qty.
1/4 x 2 1/4 x 3 1/4 x 4
Vapor Line Connection (in., OD) x Qty.
3/8 x 2 3/8 x 3 3/8 x 4
Factory Charge lbs. of R410A
3.96 3.96 6.18
Piping Lengths
Maximum Total Piping (ft.)
5
164.0 246.1 246.1
Maximum Outdoor Unit to Indoor Unit Piping (ft)
82.0 82.0 82.0
Piping Length (No Additional Refrigerant [ft])
49.2 73.8 98.4
Maximum Elevation between Outdoor Unit and
Indoor Unit (ft.)
49.2 49.2 49.2
Maximum Elevation between Indoor Unit and
Indoor Unit (ft.)
24.6 24.6 24.6
Table 12: Multi F Outdoor Unit Specications.
1
Rated capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with 25 ft.
of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units. All
capacities are net with a combination ratio between 95 – 105%.
Rated cooling capacity obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet
bulb (WB) and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
Rated heating capacity obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 60ºF wet
bulb (WB) and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
2
At least two indoor units should be connected. For allocated capacity information, see the combination
tables on pages 23 to 38.
3
Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745 and are the
same in both cooling and heating mode. These values can increase due to ambient conditions during
operation.
4
All power wiring minimum 3-conductor, stranded, shielded, and must comply with applicable local and
national codes. For detailed electrical information, please refer to electric characteristics on page 279.
5
Piping lengths are equivalent.
6
Installation of an optional Low Ambient Wind Baffle Kit will allow operation down to -4°F in cooling
mode.
MULTI F OUTDOOR UNIT | 19
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
General Data
MULTI F OUTDOOR UNIT
System Combined With
Rated Cooling
Capacity (Btu/h)
EER
(95°F)
SEER
Rated Heating
Capacity (Btu/h)
COP
(47°F)
HSPF
Low Heating
Capacity (Btu/h)
COP
(17°F)
LMU18CHV
Non-Ducted
Indoor Units
17,000 13.0 22.0 22,000 3.2 9.7 13,500 2.4
Ducted Indoor Units 14,000 10.7 17.2 19,800 2.9 9.7 13,000 2.4
Mixed Non-Ducted and
Ducted Indoor Units
15,500 11.8 19.6 20,900 3.0 9.7 13,250 2.4
Table 13: LMU18CHV Efciency Ratings.
1,2
System Combined With
Rated Cooling
Capacity (Btu/h)
EER
(95°F)
SEER
Rated Heating
Capacity (Btu/h)
COP
(47°F)
HSPF
Low Heating
Capacity (Btu/h)
COP
(17°F)
LMU24CHV
Non-Ducted
Indoor Units
20,000 13.5 21.7 24,000 3.9 10.6 14,500 2.7
Ducted Indoor Units 17,800 11.5 17.5 22,500 3.4 9.8 14,000 2.5
Mixed Non-Ducted and
Ducted Indoor Units
18,900 12.5 19.6 23,250 3.7 10.2 14,250 2.6
System Combined With
Rated Cooling
Capacity (Btu/h)
EER
(95°F)
SEER
Rated Heating
Capacity (Btu/h)
COP
(47°F)
HSPF
Low Heating
Capacity (Btu/h)
COP
(17°F)
LMU36CHV
Non-Ducted
Indoor Units
32,000 13.0 22.0 36,000 3.9 10.0 20,000 2.6
Ducted Indoor Units 28,000 11.0 18.2 34,000 3.5 9.7 19,500 2.4
Mixed Non-Ducted and
Ducted Indoor Units
30,000 12.0 20.1 35,000 3.7 9.9 19,750 2.5
Table 14: LMU24CHV Efciency Ratings.
1,2,
Table 15: LMU36CHV Efciency Ratings.
1,2
1
Rated capacity is rated 0 ft. above sea level with 25 ft. of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units.
All capacities are net with a combination ratio between 95 – 105%.
Rated cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet bulb (WB) and outdoor ambient conditions
of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
Rated heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 60ºF wet bulb (WB) and outdoor ambient conditions
of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
2
Rated capacity is certied under AHRI Standard 210 / 240. EER, IEER, COP, and HSPF are subject to change. See www.ahrinet.org for the latest
values.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
20 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
MULTI F OUTDOOR UNIT
Dimensions
Figure 6: LMU18CHV External Dimensions.
1. Unit should be installed in compliance with the installation manual in
the product box.
2. Unit should be grounded in accordance with the local regulations or
applicable national codes.
3. All electrical components and materials to be supplied on the site
must comply with the local regulations or international codes.
4. Electrical characteristics chapter should be considered for electrical
work and design. Especially the capacity of power cable and circuit
breaker for outdoor unit should be more than that of electrical
characteristics chapter.
Note
Gas pipe connection
Part Name
Air discharge grille
Liquid pipe connection
Power & transmission connection
No.
2
4
Main service valve(Gas)
Main service valve(Liquid)
5
6
3
1
[Unit : mm(inch)]
Gravity point
MULTI F OUTDOOR UNIT | 21
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
MULTI F OUTDOOR UNIT
Dimensions
Figure 7: LMU24CHV External Dimensions.
1. Unit should be installed in compliance with the installation manual in
the product box.
2. Unit should be grounded in accordance with the local regulations or
applicable national codes.
3. All electrical components and materials to be supplied on the site
must comply with the local regulations or international codes.
4. Electrical characteristics chapter should be considered for electrical
work and design. Especially the capacity of power cable and circuit
breaker for outdoor unit should be more than that of electrical
characteristics chapter.
Note
Gas pipe connection
Part Name
Air discharge grille
Liquid pipe connection
Power & transmission connection
No.
2
4
3
Main service valve(Gas)
Main service valve(Liquid)
6
5
1
[Unit : mm(inch)]
Gravity point
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
22 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
MULTI F OUTDOOR UNIT
Dimensions
Figure 8: LMU36CHV External Dimensions.
1. Unit should be installed in compliance with the installation manual in
the product box.
2. Unit should be grounded in accordance with the local regulations or
applicable national codes.
3. All electrical components and materials to be supplied on the site
must comply with the local regulations or international codes.
4. Electrical characteristics chapter should be considered for electrical
work and design. Especially the capacity of power cable and circuit
breaker for outdoor unit should be more than that of electrical
characteristics chapter.
Note
Gas pipe connection
Part Name
Air discharge grille
Liquid pipe connection
Main service valve(Gas)
Main service valve(Liquid)
5
No.
2
4
3
1
[Unit : mm(inch)]
Gravity point
MULTI F OUTDOOR UNIT | 23
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 16: LMU18CHV with Non-Ducted, Ducted, and Mixed Indoor Units — Rated Cooling Combination Table.
No. of
Indoor
Units
Indoor Unit Combination
(kBtu/h)
Room Capacity Total Capacity Input (W)
EER SEER
IDU
1
IDU
2
IDU
3
IDU
4
Total
Unit 1
(Btu/h)
Unit 2
(Btu/h)
Unit 3
(Btu/h)
Unit 4
(Btu/h)
Minimum Rated Maximum
Min. Rated Max.
Btu/h kW Btu/h kW Btu/h kW
Non-Ducted Indoor Units
Two
Units
7 7 - - 14 7,000 7,000 - - 8,400 2.46 14,000 4.10 16,800 4.92 826 1,180 1,652 11.9 20.1
7 9 - - 16 7,000 9,000 - - 9,600 2.81 16,000 4.69 19,000 5.57 868 1,240 1,736 12.9 21.9
9 9 - - 18 8,500 8,500 - - 10,200 3.16 17,000 4.98 19,000 5.57 917 1,310 1,834 13.0 22.0
7 12 - - 19 6,263 10,737 - - 10,200 2.99 17,000 4.98 19,000 5.57 917 1,310 1,834 13.0 22.0
9 12 - - 21 7,286 9,714 - - 10,200 3.16 17,000 4.98 19,000 5.57 917 1,310 1,834 13.0 22.0
7 15 - - 22 5,409 11,591 - - 10,200 2.99 17,000 4.98 19,000 5.57 917 1,310 1,834 13.0 22.0
9 15 - - 24 6,375 10,625 - - 10,200 2.99 17,000 4.98 19,000 5.57 917 1,310 1,834 13.0 22.0
12 12 - - 24 8,500 8,500 - - 10,200 3.16 17,000 4.98 19,000 5.57 917 1,310 1,834 13.0 22.0
Ducted Indoor Units
Two
Units
9 9 - - 18 7,000 7,000 - - 8,400 3.16 14,000 4.10 19,000 5.57 916 1,308 1,831 10.7 17.2
9 12 - - 21 6,000 8,000 - - 8,400 3.16 14,000 4.10 19,000 5.57 916 1,308 1,831 10.7 17.2
12 12 - - 24 7,000 7,000 - - 8,400 3.16 14,000 4.10 19,000 5.57 916 1,308 1,831 10.7 17.2
Mixed Indoor Units
Two
Units
7 9 - - 16 6,382 8,206 - - 8,753 2.57 14,588 4.28 19,000 5.57 867 1,239 1,735 11.8 19.5
9 9 - - 18 7,750 7,750 - - 9,300 3.16 15,500 4.54 19,000 5.57 916 1,309 1,833 11.8 19.6
7 12 - - 19 5,711 9,789 - - 9,300 2.73 15,500 4.54 19,000 5.57 916 1,309 1,833 11.8 19.6
9 12 - - 21 6,643 8,857 - - 9,300 3.16 15,500 4.54 19,000 5.57 916 1,309 1,833 11.8 19.6
9 15 - - 24 5,813 9,688 - - 9,300 2.73 15,500 4.54 19,000 5.57 916 1,309 1,833 11.8 19.6
12 12 - - 24 7,750 7,750 - - 9,300 3.16 15,500 4.54 19,000 5.57 916 1,309 1,833 11.8 19.6
Rated Cooling Combination Tables
PERFORMANCE DATA
1
Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
2
Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet
bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
At least two indoor units should be connected.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
24 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 17: LMU24CHV with Non-Ducted and Ducted Indoor Units — Rated Cooling Combination Table.
No. of
Indoor
Units
Indoor Unit Combination
(kBtu/h)
Room Capacity Total Capacity Input (W)
EER SEER
IDU
1
IDU
2
IDU
3
IDU
4
Total
Unit 1
(Btu/h)
Unit 2
(Btu/h)
Unit 3
(Btu/h)
Unit 4
(Btu/h)
Minimum Rated Maximum
Min. Rated Max.
Btu/h kW Btu/h kW Btu/h kW
Non-Ducted Indoor Units
Two
Units
7 7 - - 14 7,000 7,000 - - 8,400 2.46 14,000 4.10 16,800 4.92 798 1,140 1,596 12.3 19.7
7 9 - - 16 7,000 9,000 - - 9,600 2.81 16,000 4.69 19,200 5.63 903 1,290 1,806 12.4 19.9
9 9 - - 18 9,000 9,000 - - 10,800 3.17 18,000 5.28 21,600 6.33 1,008 1,440 2,016 12.5 20.1
7 12 - - 19 7,000 12,000 - - 11,400 3.34 19,000 5.57 22,800 6.68 1,057 1,510 2,114 12.6 20.2
9 12 - - 21 8,571 11,429 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3
7 15 - - 22 6,364 13,636 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3
9 15 - - 24 7,500 12,500 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3
12 12 - - 24 10,000 10,000 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3
7 18 - - 25 5,600 14,400 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3
9 18 - - 27 6,667 13,333 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3
12 15 - - 27 8,889 11,111 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3
12 18 - - 30 8,000 12,000 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3
15 15 - - 30 10,000 10,000 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3
7 24 - - 31 4,516 15,484 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3
9 24 - - 33 5,455 14,545 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3
15 18 - - 33 9,091 10,909 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3
Three
Units
7 7 7 - 21 6,667 6,667 6,667 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7
7 7 9 23 6,087 6,087 7,826 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481
2,073 13.5 21.7
7 9 9 25 5,600 7,200 7,200 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7
7 7 12 26 5,385 5,385 9,231 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7
9 9 9 - 27 6,667 6,667 6,667 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7
7 9 12 28 5,000 6,429 8,571 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7
7 7 15 29 4,828 4,828 10,345 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7
9 9 12 - 30 6,000 6,000 8,000 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7
7 9 15 31 4,516 5,806 9,677 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7
7 12 12 31 4,516 7,742 7,742 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7
7 7 18 32 4,375 4,375 11,250 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7
9 9 15 33 5,455 5,455 9,091 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7
9 12 12 - 33 5,455 7,273 7,273 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7
Ducted Indoor Units
Two
Units
9 9 - - 18 8,010 8,010 - - 9,612 2.82 16,020 4.70 19,224 5.63 1,054 1,505 2,107 10.6 16.2
9 12 - - 21 7,629 10,171 - - 10,680 3.13 17,800 5.22 21,360 6.26 1,156 1,651 2,312 10.8 16.4
12 12 - - 24 8,900 8,900 - - 10,680 3.13 17,800 5.22 21,360 6.26 1,156 1,651 2,312 10.8 16.4
9 18 - - 27 5,933 11,867 - - 10,680 3.13 17,800 5.22 21,360 6.26 1,156 1,651 2,312 10.8 16.4
12 18 - - 30 7,120 10,680 - - 10,680 3.13 17,800 5.22 21,360 6.26 1,156 1,651 2,312 10.8 16.4
Three
Units
9 9 9 - 27 5,933 5,933 5,933 - 10,680 3.13 17,800 5.22 22,250 6.52 1,084 1,548 2,167 11.5 17.5
9 9 12 - 30 5,340 5,340 7,120 - 10,680 3.13 17,800 5.22 22,250 6.52 1,084 1,548 2,167 11.5 17.5
9 12 12 - 33 4,855 6,473 6,473 - 10,680 3.13 17,800 5.22 22,250 6.52 1,084 1,548 2,167 11.5 17.5
1
Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
2
Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet
bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
*
At least two indoor units should be connected.
Rated Cooling Combination Tables
PERFORMANCE DATA
MULTI F OUTDOOR UNIT | 25
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
No. of
Indoor
Units
Indoor Unit Combination
(kBtu/h)
Room Capacity Total Capacity Input (W)
EER SEER
IDU
1
IDU
2
IDU
3
IDU
4
Total
Unit 1
(Btu/h)
Unit 2
(Btu/h)
Unit 3
(Btu/h)
Unit 4
(Btu/h)
Minimum Rated Maximum
Min. Rated Max.
Btu/h kW Btu/h kW Btu/h kW
Mixed Indoor Units
Two
Units
7 9 - - 16 6,615 8,505 - - 9,072 2.66 15,120 4.43 18,144 5.32 923 1,319 1,847 11.5 18.0
9 9 - - 18 8,505 8,505 - - 10,206 2.99 17,010 4.99 20,412 5.98 1,031 1,473 2,062 11.6 18.1
7 12 - - 19 6,615 11,340 - - 10,773 3.16 17,955 5.26 21,546 6.31 1,081 1,544 2,162 11.6 18.3
9 12 - - 21 8,100 10,800 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4
9 15 - - 24 7,088 11,813 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4
12 12 - - 24 9,450 9,450 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4
7 18 - - 25 5,292 13,608 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4
9 18 - - 27 6,300 12,600 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4
12 15 - - 27 8,400 10,500 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4
12 18 - - 30 7,560 11,340 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4
15 18 - - 33 8,591 10,309 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4
9 24* - - 33 5,155 13,745 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4
Three
Units
7 7 9 - 23 5,752 5,752 7,396 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6
7 9 9 - 25 5,292 6,804 6,804 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6
7 7 12 - 26 5,088 5,088 8,723 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6
9 9 9 - 27 6,300 6,300 6,300 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6
7 9 12 - 28 4,725 6,075 8,100 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6
9 9 12 - 30 5,670 5,670 7,560 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060
1,515 2,120 12.5 19.6
7 9 15 - 31 4,268 5,487 9,145 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6
7 12 12 - 31 4,268 7,316 7,316 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6
7 7 18 - 32 4,134 4,134 10,631 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6
9 9 15 - 33 5,155 5,155 8,591 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6
9 12 12 - 33 5,155 6,873 6,873 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6
Table 18: LMU24CHV with Mixed Indoor Units — Rated Cooling Combination Table.
1
Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
2
Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet
bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
At least two indoor units should be connected.
*The indoor unit must be non-ducted type.
Rated Cooling Combination Tables
PERFORMANCE DATA
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
26 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Rated Cooling Combination Tables
PERFORMANCE DATA
Table 19: LMU36CHV with Non-Ducted Indoor Units — Rated Cooling Combination Table.
1
Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
2
Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet
bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
At least two indoor units should be connected.
No. of
Indoor
Units
Indoor Unit Combination
(kBtu/h)
Room Capacity Total Capacity Input (W)
EER SEER
IDU
1
IDU
2
IDU
3
IDU
4
Total
Unit 1
(Btu/h)
Unit 2
(Btu/h)
Unit 3
(Btu/h)
Unit 4
(Btu/h)
Minimum Rated Maximum
Min. Rated Max.
Btu/h kW Btu/h kW Btu/h kW
Non-Ducted Indoor Units
Two
Units
7 7 - - 14 7,000 7,000 - - 8,400 2.46 14,000 4.10 15,540 4.55 952 1,360 1,904 10.3 17.4
7 9 - - 16 7,000 9,000 - - 9,600 2.81 16,000 4.69 17,760 5.21 1,071 1,530 2,142 10.5 17.7
9 9 - - 18 9,000 9,000 - - 10,800 3.17 18,000 5.28 19,980 5.86 1,204 1,720 2,408 10.5 17.7
7 12 - - 19 7,000 12,000 - - 11,400 3.34 19,000 5.57 21,090 6.18 1,260 1,800 2,520 10.6 17.9
9 12 - - 21 9,000 12,000 - - 12,600 3.69 21,000 6.15 23,310 6.83 1,379 1,970 2,758 10.7 18.0
7 15 - - 22 7,000 15,000 - - 13,200 3.87 22,000 6.45 24,420 7.16 1,428 2,040 2,856 10.8 18.2
9 15 - - 24 9,000 15,000 - - 14,400 4.22 24,000 7.03 26,640 7.81 1,526 2,180 3,052 11.0 18.6
12 12 - - 24 12,000 12,000 - - 14,400 4.22 24,000 7.03 26,640 7.81 1,526 2,180 3,052 11.0 18.6
7 18 - - 25 7,000 18,000 - - 15,000 4.40 25,000 7.33 27,750 8.13 1,582 2,260 3,164 11.1 18.7
9 18 - - 27 9,000 18,000 - - 16,200 4.75 27,000 7.91 29,970 8.78 1,694 2,420 3,388 11.2 18.9
12 15 - - 27 12,000 15,000 - - 16,200 4.75 27,000 7.91 29,970 8.78 1,694 2,420 3,388 11.2 18.9
12 18 - - 30 12,000 18,000 - - 18,000 5.28 30,000 8.79 33,300 9.76 1,841 2,630 3,682 11.4 19.3
15 15 - - 30 15,000 15,000 - - 18,000 5.28 30,000 8.79 33,300 9.76 1,841 2,630 3,682 11.4 19.3
7 24 - - 31 7,000 24,000 - - 18,600 5.45 31,000 9.09 34,410 10.08 1,883 2,690 3,766 11.5 19.5
9 24 - - 33 8,727 23,273 - - 19,200 5.63 32,000 9.38 35,520 10.41 1,932 2,760 3,864 11.6 19.6
15 18 - - 33 14,545 17,455 - - 19,200 5.63 32,000 9.38 35,520 10.41 1,932 2,760 3,864 11.6 19.6
18 18 - - 36 16,000 16,000 - - 19,200 5.63 32,000 9.38 35,520 10.41 1,932 2,760 3,864 11.6 19.6
12 24 - - 36 10,667 21,333 - - 19,200 5.63 32,000 9.38 35,520 10.41 1,932 2,760 3,864
11.6 19.6
15 24 - - 39 12,308 19,692 - - 19,200 5.63 32,000 9.38 35,520 10.41 1,932 2,760 3,864 11.6 19.6
18 24 - - 42 13,714 18,286 - - 19,200 5.63 32,000 9.38 35,520 10.41 1,932 2,760 3,864 11.6 19.6
24 24 - - 48 16,000 16,000 - - 19,200 5.63 32,000 9.38 35,520 10.41 1,932 2,760 3,864 11.6 19.6
Three
Units
7 7 7 - 21 7,000 7,000 7,000 - 12,600 3.69 21,000 6.15 24,150 7.08 1,337 1,910 2,674 11.0 18.6
7 7 9 - 23 7,000 7,000 9,000 - 13,800 4.04 23,000 6.74 26,450 7.75 1,442 2,060 2,884 11.2 18.9
7 9 9 - 25 7,000 9,000 9,000 - 15,000 4.40 25,000 7.33 28,750 8.43 1,554 2,220 3,108 11.3 19.1
7 7 12 - 26 7,000 7,000 12,000 - 15,600 4.57 26,000 7.62 29,900 8.76 1,582 2,260 3,164 11.5 19.5
9 9 9 - 27 9,000 9,000 9,000 - 16,200 4.75 27,000 7.91 31,050 9.10 1,610 2,300 3,220 11.7 19.9
7 9 12 - 28 7,000 9,000 12,000 - 16,800 4.92 28,000 8.21 32,200 9.44 1,645 2,350 3,290 11.9 20.2
7 7 15 - 29 7,000 7,000 15,000 - 17,400 5.10 29,000 8.50 33,350 9.77 1,680 2,400 3,360 12.1 20.4
9 9 12 - 30 9,000 9,000 12,000 - 18,000 5.28 30,000 8.79 34,500 10.11 1,722 2,460 3,444 12.2 20.6
7 9 15 - 31 7,000 9,000 15,000 - 18,600 5.45 31,000 9.09 35,650 10.45 1,764 2,520 3,528 12.3 20.8
7 12 12 - 31 7,000 12,000 12,000 - 18,600 5.45 31,000 9.09 35,650 10.45 1,764 2,520 3,528 12.3 20.8
7 7 18 - 32 7,000 7,000 18,000 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
9 9 15 - 33 8,727 8,727 14,545 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
9 12 12 - 33 8,727 11,636 11,636 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
7 9 18 - 34 6,588 8,471 16,941 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
7 12 15 - 34 6,588 11,294 14,118 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
9 9 18 - 36 8,000 8,000 16,000 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
9 12 15 - 36 8,000 10,667 13,333 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806
2,580 3,612 12.4 21.0
12 12 12 - 36 10,667 10,667 10,667 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
7 12 18 - 37 6,054 10,378 15,568 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
7 15 15 - 37 6,054 12,973 12,973 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
7 7 24 - 38 5,895 5,895 20,211 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
9 12 18 - 39 7,385 9,846 14,769 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
9 15 15 - 39 7,385 12,308 12,308 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
12 12 15 - 39 9,846 9,846 12,308 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
7 9 24 - 40 5,600 7,200 19,200 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
7 15 18 - 40 5,600 12,000 14,400 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
9 9 24 - 42 6,857 6,857 18,286 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
9 15 18 - 42 6,857 11,429 13,714 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
MULTI F OUTDOOR UNIT | 27
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 20: LMU36CHV with Non-Ducted Indoor Units — Rated Cooling Combination Table.
No. of
Indoor
Units
Indoor Unit Combination
(kBtu/h)
Room Capacity Total Capacity Input (W)
EER SEER
IDU
1
IDU
2
IDU
3
IDU
4
Total
Unit 1
(Btu/h)
Unit 2
(Btu/h)
Unit 3
(Btu/h)
Unit 4
(Btu/h)
Minimum Rated Maximum
Min. Rated Max.
Btu/h kW Btu/h kW Btu/h kW
Non-Ducted Indoor Units
Three
Units
12 12 18 - 42 9,143 9,143 13,714 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
12 15 15 - 42 9,143 11,429 11,429 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
7 12 24 - 43 5,209 8,930 17,860 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
7 18 18 - 43 5,209 13,395 13,395 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
9 12 24 - 45 6,400 8,533 17,067 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
9 18 18 - 45 6,400 12,800 12,800 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
12 15 18 - 45 8,533 10,667 12,800 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
15 15 15 - 45 10,667 10,667 10,667 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
7 15 24 - 46 4,870 10,435 16,696 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
9 15 24 - 48 6,000 10,000 16,000 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
12 12 24 - 48 8,000 8,000 16,000 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
12 18 18 - 48 8,000 12,000 12,000 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
15 15 18 - 48 10,000 10,000 12,000 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0
Four
Units
7 7 7 7 28 7,000 7,000 7,000 7,000 16,800 4.92 28,000 8.21 33,600 9.85 1,540 2,200 3,080 12.7 21.5
7 7 7 9 30 7,000 7,000 7,000 9,000 18,000 5.28 30,000 8.79 36,000 10.55 1,645 2,350 3,290 12.8 21.6
7 7 9 9 32 7,000 7,000 9,000 9,000 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 7 7 12 33 6,788 6,788 6,788 11,636 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 9 9 9 34 6,588 8,471 8,471 8,471 19,200 5.63 32,000 9.38 38,400 11.25 1,723
2,461 3,445 13.0 22.0
7 7 9 12 35 6,400 6,400 8,229 10,971 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 7 7 15 36 6,222 6,222 6,222 13,333 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
9 9 9 9 36 8,000 8,000 8,000 8,000 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 9 9 12 37 6,054 7,784 7,784 10,378 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 7 9 15 38 5,895 5,895 7,579 12,632 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 7 12 12 38 5,895 5,895 10,105 10,105 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 7 7 18 39 5,744 5,744 5,744 14,769 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
9 9 9 12 39 7,385 7,385 7,385 9,846 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 9 9 15 40 5,600 7,200 7,200 12,000 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 9 12 12 40 5,600 7,200 9,600 9,600 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 7 9 18 41 5,463 5,463 7,024 14,049 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 7 12 15 41 5,463 5,463 9,366 11,707 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
9 9 9 15 42 6,857 6,857 6,857 11,429 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
9 9 12 12 42 6,857 6,857 9,143 9,143 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 9 9 18 43 5,209 6,698 6,698 13,395 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 9 12 15 43 5,209 6,698 8,930 11,163 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 12 12 12 43 5,209 8,930 8,930 8,930 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 7 12 18 44 5,091 5,091 8,727 13,091 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 7 15 15 44 5,091 5,091 10,909 10,909 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 7 7 24 45 4,978 4,978 4,978 17,067 19,200 5.63 32,000 9.38 38,400 11.25 1,723
2,461 3,445 13.0 22.0
9 9 9 18 45 6,400 6,400 6,400 12,800 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
9 9 12 15 45 6,400 6,400 8,533 10,667 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
9 12 12 12 45 6,400 8,533 8,533 8,533 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 9 12 18 46 4,870 6,261 8,348 12,522 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 9 15 15 46 4,870 6,261 10,435 10,435 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 12 12 15 46 4,870 8,348 8,348 10,435 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 7 9 24 47 4,766 4,766 6,128 16,340 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
7 7 15 18 47 4,766 4,766 10,213 12,255 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
9 9 12 18 48 6,000 6,000 8,000 12,000 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
9 9 15 15 48 6,000 6,000 10,000 10,000 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
12 12 12 12 48 8,000 8,000 8,000 8,000 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0
1
Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
2
Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet
bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
At least two indoor units should be connected.
Rated Cooling Combination Tables
PERFORMANCE DATA
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
28 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Rated Cooling Combination Tables
PERFORMANCE DATA
No. of
Indoor
Units
Indoor Unit Combination
(kBtu/h)
Room Capacity Total Capacity Input (W)
EER SEER
IDU
1
IDU
2
IDU
3
IDU
4
Total
Unit 1
(Btu/h)
Unit 2
(Btu/h)
Unit 3
(Btu/h)
Unit 4
(Btu/h)
Minimum Rated Maximum
Min. Rated Max.
Btu/h kW Btu/h kW Btu/h kW
Ducted Indoor Units
Two
Units
9 9 - - 18 7,875 7,875 - - 9,450 2.8 15,750 4.6 17,483 5.1 1,245 1,779 2,491 8.9 14.6
9 12 - - 21 7,875 10,500 - - 11,025 3.2 18,375 5.4 20,396 6.0 1,426 2,038 2,853 9.0 14.9
12 12 - - 24 10,500 10,500 - - 12,600 3.7 21,000 6.2 23,310 6.8 1,578 2,255 3,157 9.3 15.4
9 18 - - 27 7,875 15,750 - - 14,175 4.2 23,625 6.9 26,224 7.7 1,752 2,503 3,504 9.4 15.6
12 18 - - 30 10,500 15,750 - - 15,750 4.6 26,250 7.7 29,138 8.5 1,904 2,720 3,808 9.6 16.0
9 24* - - 33 7,636 20,364 - - 16,800 4.9 28,000 8.2 31,080 9.1 1,998 2,855 3,997 9.8 16.2
18 18 - - 36 14,000 14,000 - - 16,800 4.9 28,000 8.2 31,080 9.1 1,998 2,855 3,997 9.8 16.2
12 24* - - 36 9,333 18,667 - - 16,800 4.9 28,000 8.2 31,080 9.1 1,998 2,855 3,997 9.8 16.2
Three
Units
9 9 9 - 27 7,875 7,875 7,875 - 14,175 4.2 23,625 6.9 27,169 8.0 1,665 2,379 3,331 9.9 16.4
9 9 12 - 30 7,875 7,875 10,500 - 15,750 4.6 26,250 7.7 30,188 8.8 1,781 2,544 3,562 10.3 17.1
9 12 12 - 33 7,636 10,182 10,182 - 16,800 4.9 28,000 8.2 32,200 9.4 1,868 2,669 3,736 10.5 17.4
9 9 18 - 36 7,000 7,000 14,000 - 16,800 4.9 28,000 8.2 32,200 9.4 1,868 2,669 3,736 10.5 17.4
12 12 12 - 36 9,333 9,333 9,333 - 16,800 4.9 28,000 8.2 32,200 9.4 1,868 2,669 3,736 10.5 17.4
9 12 18 - 39 6,462 8,615 12,923 - 16,800 4.9 28,000 8.2 32,200 9.4 1,868 2,669 3,736 10.5 17.4
12 12 18 - 42 8,000 8,000 12,000 - 16,800 4.9 28,000 8.2 32,200 9.4 1,868 2,669 3,736 10.5 17.4
9 18 18 - 45 5,600 11,200 11,200 - 16,800 4.9 28,000 8.2 32,200 9.4 1,868 2,669 3,736 10.5 17.4
12 18 18 - 48 7,000 10,500 10,500 - 16,800 4.9 28,000 8.2 32,200 9.4 1,868 2,669 3,736 10.5 17.4
Four
Units
9 9 9 9 36 7,000 7,000 7,000 7,000 16,800 4.9 28,000 8.2 33,600
9.8 1,782 2,545 3,564 11.0 18.2
9 9 9 12 39 6,462 6,462 6,462 8,615 16,800 4.9 28,000 8.2 33,600 9.8 1,782 2,545 3,564 11.0 18.2
9 9 12 12 42 6,000 6,000 8,000 8,000 16,800 4.9 28,000 8.2 33,600 9.8 1,782 2,545 3,564 11.0 18.2
9 9 9 18 45 5,600 5,600 5,600 11,200 16,800 4.9 28,000 8.2 33,600 9.8 1,782 2,545 3,564 11.0 18.2
9 12 12 12 45 5,600 7,467 7,467 7,467 16,800 4.9 28,000 8.2 33,600 9.8 1,782 2,545 3,564 11.0 18.2
9 9 12 18 48 5,250 5,250 7,000 10,500 16,800 4.9 28,000 8.2 33,600 9.8 1,782 2,545 3,564 11.0 18.2
12 12 12 12 48 7,000 7,000 7,000 7,000 16,800 4.9 28,000 8.2 33,600 9.8 1,782 2,545 3,564 11.0 18.2
Table 21: LMU36CHV with Ducted Indoor Units — Rated Cooling Combination Table.
1
Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
2
Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet
bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
At least two indoor units should be connected.
*A 1.3 multiplier is necessary for the calculation of total combination.
MULTI F OUTDOOR UNIT | 29
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 22: LMU36CHV with Mixed Indoor Units — Rated Cooling Combination Table.
1
Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
2
Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet
bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
At least two indoor units should be connected.
*The indoor unit must be non-ducted type.
No. of
Indoor
Units
Indoor Unit Combination
(kBtu/h)
Room Capacity Total Capacity Input (W)
EER SEER
IDU
1
IDU
2
IDU
3
IDU
4
Total
Unit 1
(Btu/h)
Unit 2
(Btu/h)
Unit 3
(Btu/h)
Unit 4
(Btu/h)
Minimum Rated Maximum
Min. Rated Max.
Btu/h kW Btu/h kW Btu/h kW
Mixed Indoor Units
Two
Units
7 9 - - 16 6,563 8,438 - - 9,000 2.6 15,000 4.4 16,650 4.9 1,089 1,556 2,179 9.6 16.2
9 9 - - 18 8,438 8,438 - - 10,125 3.0 16,875 4.9 18,731 5.5 1,225 1,750 2,449 9.6 16.2
7 12 - - 19 6,563 11,250 - - 10,688 3.1 17,813 5.2 19,772 5.8 1,282 1,831 2,563 9.7 16.3
9 12 - - 21 8,438 11,250 - - 11,813 3.5 19,688 5.8 21,853 6.4 1,403 2,004 2,805 9.8 16.5
9 15 - - 24 8,438 14,063 - - 13,500 4.0 22,500 6.6 24,975 7.3 1,552 2,217 3,104 10.1 17.0
12 12 - - 24 11,250 11,250 - - 13,500 4.0 22,500 6.6 24,975 7.3 1,552 2,217 3,104 10.1 17.0
7 18 - - 25 6,563 16,875 - - 14,063 4.1 23,438 6.9 26,016 7.6 1,609 2,299 3,218 10.2 17.1
9 18 - - 27 8,438 16,875 - - 15,188 4.5 25,313 7.4 28,097 8.2 1,723 2,462 3,446 10.3 17.2
12 15 - - 27 11,250 14,063 - - 15,188 4.5 25,313 7.4 28,097 8.2 1,723 2,462 3,446 10.3 17.2
12 18 - - 30 11,250 16,875 - - 16,875 4.9 28,125 8.2 31,219 9.1 1,873 2,675 3,745 10.5 17.6
7 24 - - 31 6,563 22,500 - - 17,438 5.1 29,063 8.5 32,259 9.5 1,915 2,736 3,831 10.6 17.8
9 24 - - 33 8,182 21,818 - - 18,000 5.3 30,000 8.8 33,300 9.8 1,965 2,807 3,930 10.7 17.9
15 18 - - 33 13,636 16,364 - - 18,000 5.3 30,000 8.8 33,300 9.8 1,965 2,807 3,930 10.7 17.9
18 18 - - 36 15,000 15,000 - - 18,000 5.3 30,000 8.8 33,300 9.8 1,965 2,807 3,930 10.7 17.9
12 24 - - 36 10,000 20,000 - - 18,000 5.3 30,000 8.8 33,300 9.8 1,965 2,807 3,930 10.7 17.9
15 24 - - 39 11,538 18,462 - - 18,000 5.3 30,000 8.8 33,300 9.8 1,965 2,807 3,930 10.7 17.9
18 24* - - 42 12,857 17,143 - - 18,000 5.3 30,000 8.8 33,300 9.8 1,965 2,807 3,930 10.7 17.9
24* 24* - - 48 15,000 15,000 - - 18,000 5.3 30,000 8.8 33,300 9.8 1,965 2,807 3,930
10.7 17.9
Three
Units
7 7 9 - 23 6,563 6,563 8,438 - 12,938 3.8 21,563 6.3 24,797 7.3 1,467 2,095 2,933 10.3 17.3
7 9 9 - 25 6,563 8,438 8,438 - 14,063 4.1 23,438 6.9 26,953 7.9 1,581 2,258 3,161 10.4 17.4
7 7 12 - 26 6,563 6,563 11,250 - 14,625 4.3 24,375 7.1 28,031 8.2 1,609 2,299 3,218 10.6 17.8
9 9 9 - 27 8,438 8,438 8,438 - 15,188 4.5 25,313 7.4 29,109 8.5 1,638 2,339 3,275 10.8 18.1
7 9 12 - 28 6,563 8,438 11,250 - 15,750 4.6 26,250 7.7 30,188 8.8 1,673 2,390 3,346 11.0 18.4
9 9 12 - 30 8,438 8,438 11,250 - 16,875 4.9 28,125 8.2 32,344 9.5 1,752 2,502 3,503 11.2 18.9
7 9 15 - 31 6,563 8,438 14,063 - 17,438 5.1 29,063 8.5 33,422 9.8 1,794 2,563 3,589 11.3 19.0
7 12 12 - 31 6,563 11,250 11,250 - 17,438 5.1 29,063 8.5 33,422 9.8 1,794 2,563 3,589 11.3 19.0
7 7 18 - 32 6,563 6,563 16,875 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
9 9 15 - 33 8,182 8,182 13,636 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
9 12 12 - 33 8,182 10,909 10,909 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
7 9 18 - 34 6,176 7,941 15,882 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
7 12 15 - 34 6,176 10,588 13,235 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
9 9 18 - 36 7,500 7,500 15,000 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
9 12 15 - 36 7,500 10,000 12,500 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
12 12 12 - 36 10,000 10,000 10,000 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
7 12 18 - 37 5,676 9,730 14,595 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
7 7 24 - 38 5,526 5,526 18,947 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
9 12 18 - 39 6,923 9,231 13,846 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
9 15 15 - 39 6,923 11,538 11,538 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837
2,624 3,674 11.4 19.2
12 12 15 - 39 9,231 9,231 11,538 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
7 9 24 - 40 5,250 6,750 18,000 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
7 15 18 - 40 5,250 11,250 13,500 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
9 9 24* - 42 6,429 6,429 17,143 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
9 15 18 - 42 6,429 10,714 12,857 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
12 12 18 - 42 8,571 8,571 12,857 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
12 15 15 - 42 8,571 10,714 10,714 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
7 12 24* - 43 4,884 8,372 16,744 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
7 18 18 - 43 4,884 12,558 12,558 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
9 12 24* - 45 6,000 8,000 16,000 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
9 18 18 - 45 6,000 12,000 12,000 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
Rated Cooling Combination Tables
PERFORMANCE DATA
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
30 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
No. of
Indoor
Units
Indoor Unit Combination
(kBtu/h)
Room Capacity Total Capacity Input (W)
EER SEER
IDU
1
IDU
2
IDU
3
IDU
4
Total
Unit 1
(Btu/h)
Unit 2
(Btu/h)
Unit 3
(Btu/h)
Unit 4
(Btu/h)
Minimum Rated Maximum
Min. Rated Max.
Btu/h kW Btu/h kW Btu/h kW
Mixed Indoor Units
Three
Units
12 15 18 - 45 8,000 10,000 12,000 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
7 15 24* - 46 4,565 9,783 15,652 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
9 15 24* - 48 5,625 9,375 15,000 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
12 12 24* - 48 7,500 7,500 15,000 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
12 18 18 - 48 7,500 11,250 11,250 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
15 15 18 - 48 9,375 9,375 11,250 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2
Four
Units
7 7 7 9 30 6,563 6,563 6,563 8,438 16,875 4.9 28,125 8.2 33,750 9.9 1,673 2,390 3,346 11.8 19.7
7 7 9 9 32 6,563 6,563 8,438 8,438 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 7 7 12 33 6,364 6,364 6,364 10,909 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 9 9 9 34 6,176 7,941 7,941 7,941 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 7 9 12 35 6,000 6,000 7,714 10,286 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
9 9 9 9 36 7,500 7,500 7,500 7,500 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 9 9 12 37 5,676 7,297 7,297 9,730 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 7 9 15 38 5,526 5,526 7,105 11,842 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 7 12 12 38 5,526 5,526 9,474 9,474 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 7 7 18 39 5,385 5,385 5,385 13,846 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
9 9 9 12 39 6,923 6,923 6,923 9,231 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 9 9 15 40 5,250 6,750 6,750 11,250 18,000 5.3 30,000 8.8 36,000 10.6 1,752
2,503 3,505 12.0 20.1
7 9 12 12 40 5,250 6,750 9,000 9,000 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 7 9 18 41 5,122 5,122 6,585 13,171 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 7 12 15 41 5,122 5,122 8,780 10,976 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
9 9 9 15 42 6,429 6,429 6,429 10,714 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
9 9 12 12 42 6,429 6,429 8,571 8,571 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 9 9 18 43 4,884 6,279 6,279 12,558 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 9 12 15 43 4,884 6,279 8,372 10,465 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 12 12 12 43 4,884 8,372 8,372 8,372 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 7 12 18 44 4,773 4,773 8,182 12,273 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 7 7 24* 45 4,667 4,667 4,667 16,000 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
9 9 9 18 45 6,000 6,000 6,000 12,000 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
9 9 12 15 45 6,000 6,000 8,000 10,000 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
9 12 12 12 45 6,000 8,000 8,000 8,000 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 9 12 18 46 4,565 5,870 7,826 11,739 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 9 15 15 46 4,565 5,870 9,783 9,783 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 12 12 15 46 4,565 7,826 7,826 9,783 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 7 9 24* 47 4,468 4,468 5,745 15,319 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
7 7 15 18 47 4,468 4,468 9,574 11,489 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
9 9 12 18 48 5,625 5,625 7,500 11,250 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
9 9 15 15 48 5,625 5,625 9,375 9,375 18,000 5.3 30,000 8.8 36,000 10.6 1,752
2,503 3,505 12.0 20.1
12 12 12 12 48 7,500 7,500 7,500 7,500 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1
Table 23: LMU36CHV with Mixed Indoor Units — Rated Cooling Combination Table.
1
Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
2
Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet
bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
At least two indoor units should be connected.
*The indoor unit must be non-ducted type.
Rated Cooling Combination Tables
PERFORMANCE DATA
MULTI F OUTDOOR UNIT | 31
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Rated Heating Combination Tables
PERFORMANCE DATA
Table 24: LMU18CHV with Non-Ducted, Ducted, and Mixed Indoor Units — Rated Heating Combination Table.
No. of
Indoor
Units
Indoor Unit Combination
(kBtu/h)
Room Capacity Total Capacity Input (W)
COP HSPF
IDU
1
IDU
2
IDU
3
IDU
4
Total
Unit 1
(Btu/h)
Unit 2
(Btu/h)
Unit 3
(Btu/h)
Unit 4
(Btu/h)
Minimum Rated Maximum
Min. Rated Max.
Btu/h kW Btu/h kW Btu/h kW
Non-Ducted Indoor Units
Two
Units
7 7 - - 14 8,540 8,540 - - 10,248 3.00 17,080 5.01 19,642 5.76 1,155 1,650 2,310 3.0 9.3
7 9 - - 16 8,540 10,980 - - 11,712 3.43 19,520 5.72 22,448 6.58 1,309 1,870 2,420 3.1 9.4
9 9 - - 18 11,000 11,000 - - 13,200 3.87 22,000 6.45 24,000 7.03 1,428 2,040 2,420 3.2 9.7
7 12 - - 19 8,105 13,895 - - 13,200 3.87 22,000 6.45 24,000 7.03 1,428 2,040 2,420 3.2 9.7
9 12 - - 21 9,429 12,571 - - 13,200 3.87 22,000 6.45 24,000 7.03 1,428 2,040 2,420 3.2 9.7
7 15 - - 22 7,000 15,000 - - 13,200 3.87 22,000 6.45 24,000 7.03 1,428 2,040 2,420 3.2 9.7
9 15 - - 24 8,250 13,750 - - 13,200 3.87 22,000 6.45 24,000 7.03 1,428 2,040 2,420 3.2 9.7
12 12 - - 24 11,000 11,000 - - 13,200 3.87 22,000 6.45 24,000 7.03 1,428 2,040 2,420 3.2 9.7
Ducted Indoor Units
Two
Units
9 9 - - 18 9,900 9,900 - - 11,880 3.48 19,800 5.80 24,000 7.03 1,386 1,980 2,420 2.9 9.7
9 12 - - 21 8,486 11,314 - - 11,880 3.48 19,800 5.80 24,000 7.03 1,386 1,980 2,420 2.9 9.7
12 12 - - 24 9,900 9,900 - - 11,880 3.48 19,800 5.80 24,000 7.03 1,386 1,980 2,420 2.9 9.7
Mixed Indoor Units
Two
Units
7 9 - - 16 8,113 10,431 - - 11,126 3.26 18,544 5.43 21,326 6.25 1,290 1,843 2,420 2.9 9.4
9 9 - - 18 10,450 10,450 - - 12,540 3.68 20,900 6.13 24,000 7.03 1,407 2,010 2,420 3.0 9.7
7 12 - - 19 7,700 13,200 - - 12,540 3.68 20,900 6.13 24,000 7.03 1,407 2,010 2,420 3.0 9.7
9 12 - - 21 8,957 11,943 - - 12,540 3.68 20,900 6.13 24,000 7.03 1,407 2,010 2,420 3.0 9.7
9 15 - - 24 7,838 13,063 - - 12,540 3.68 20,900 6.13 24,000 7.03 1,407 2,010 2,420 3.0 9.7
12 12 - - 24 10,450 10,450 - - 12,540 3.68 20,900 6.13 24,000 7.03 1,407 2,010 2,420 3.0 9.7
1
Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
2
Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 60ºF wet
bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
At least two indoor units should be connected.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
32 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
No. of
Indoor
Units
Indoor Unit Combination
(kBtu/h)
Room Capacity Total Capacity Input (W)
COP HSPF
IDU
1
IDU
2
IDU
3
IDU
4
Total
Unit 1
(Btu/h)
Unit 2
(Btu/h)
Unit 3
(Btu/h)
Unit 4
(Btu/h)
Minimum Rated Maximum
Min. Rated Max.
Btu/h kW Btu/h kW Btu/h kW
Non-Ducted Indoor Units
Two
Units
7 7 - - 14 7,700 7,700 - - 9,240 2.71 15,400 4.51 17,710 5.19 1,092 1,560 2,184 2.9 7.8
7 9 - - 16 7,700 9,900 - - 10,560 3.09 17,600 5.16 20,240 5.93 1,134 1,620 2,268 3.2 8.6
9 9 - - 18 9,900 9,900 - - 11,880 3.48 19,800 5.80 22,770 6.67 1,197 1,710 2,394 3.4 9.2
7 12 - - 19 7,700 13,200 - - 12,540 3.68 20,900 6.13 24,035 7.04 1,232 1,760 2,464 3.5 9.4
9 12 - - 21 9,900 13,200 - - 13,860 4.06 23,100 6.77 26,565 7.79 1,323 1,890 2,580 3.6 9.7
7 15 - - 22 7,636 16,364 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8
9 15 - - 24 9,000 15,000 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8
12 12 - - 24 12,000 12,000 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8
7 18 - - 25 6,720 17,280 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8
9 18 - - 27 8,000 16,000 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8
12 15 - - 27 10,667 13,333 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8
12 18 - - 30 9,600 14,400 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8
15 15 - - 30 12,000 12,000 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8
7 24 - - 31 5,419 18,581 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8
9 24 - - 33 6,545 17,455 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8
15 18 - - 33 10,909 13,091 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8
Three
Units
7 7 7 - 21 7,700 7,700 7,700 - 13,860 4.06 23,100 6.77 27,720 8.12 1,246 1,780 2,492 3.8 10.3
7 7 9 23 7,304 7,304 9,391 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800
2,520 3.9 10.6
7 9 9 25 6,720 8,640 8,640 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6
7 7 12 26 6,462 6,462 11,077 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6
9 9 9 - 27 8,000 8,000 8,000 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6
7 9 12 28 6,000 7,714 10,286 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6
7 7 15 29 5,793 5,793 12,414 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6
9 9 12 - 30 7,200 7,200 9,600 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6
7 9 15 31 5,419 6,968 11,613 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6
7 12 12 31 5,419 9,290 9,290 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6
7 7 18 32 5,250 5,250 13,500 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6
9 9 15 33 6,545 6,545 10,909 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6
9 12 12 33 6,545 8,727 8,727 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6
Ducted Indoor Units
Two
Units
9 9 - - 18 9,281 9,281 - - 11,138 3.26 18,563 5.44 21,347 6.26 1,275 1,822 2,551 3.0 8.5
9 12 - - 21 9,281 12,375 - - 12,994 3.81 21,656 6.35 24,905 7.30 1,410 2,014 2,580 3.2 9.0
12 12 - - 24 11,250 11,250 - - 13,500 3.96 22,500 6.59 25,875 7.58 1,447 2,067 2,580 3.2 9.1
9 18 - - 27 7,500 15,000 - - 13,500 3.96 22,500 6.59 25,875 7.58 1,447 2,067 2,580 3.2 9.1
12 18 - - 30 9,000 13,500 - - 13,500 3.96 22,500 6.59 25,875 7.58 1,447 2,067 2,580 3.2 9.1
Three
Units
9 9 9 - 27 7,500 7,500 7,500 - 13,500 3.96 22,500 6.59 27,000 7.91 1,343 1,918 2,685 3.4 9.8
9 9 12 - 30 6,750 6,750 9,000 - 13,500 3.96 22,500 6.59 27,000 7.91 1,343 1,918 2,685 3.4 9.8
9 12 12 - 33 6,136 8,182 8,182 - 13,500 3.96 22,500 6.59 27,000 7.91 1,343 1,918 2,685 3.4 9.8
1
Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
2
Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 60ºF wet
bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
At least two indoor units should be connected.
Table 25: LMU24CHV with Non-Ducted and Ducted Indoor Units — Rated Heating Combination Table.
Rated Heating Combination Tables
PERFORMANCE DATA
MULTI F OUTDOOR UNIT | 33
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 26: LMU24CHV with Mixed Indoor Units — Rated Heating Combination Table.
No. of
Indoor
Units
Indoor Unit Combination
(kBtu/h)
Room Capacity Total Capacity Input (W)
COP HSPF
IDU
1
IDU
2
IDU
3
IDU
4
Total
Unit 1
(Btu/h)
Unit 2
(Btu/h)
Unit 3
(Btu/h)
Unit 4
(Btu/h)
Minimum Rated Maximum
Min. Rated Max.
Btu/h kW Btu/h kW Btu/h kW
Mixed Indoor Units
Two
Units
7 9 - - 16 7,459 9,591 - - 10,230 3.00 17,050 5.00 19,608 5.75 1,171 1,673 2,342 3.0 8.3
9 9 - - 18 9,591 9,591 - - 11,509 3.37 19,181 5.62 22,058 6.46 1,236 1,766 2,472 3.2 8.9
7 12 - - 19 7,459 12,788 - - 12,148 3.56 20,247 5.93 23,284 6.82 1,272 1,818 2,545 3.3 9.1
9 12 - - 21 9,591 12,788 - - 13,427 3.94 22,378 6.56 25,735 7.54 1,366 1,952 2,580 3.4 9.4
9 15 - - 24 8,719 14,531 - - 13,950 4.09 23,250 6.81 26,738 7.84 1,403 2,004 2,580 3.4 9.5
12 12 - - 24 11,625 11,625 - - 13,950 4.09 23,250 6.81 26,738 7.84 1,403 2,004 2,580 3.4 9.5
7 18 - - 25 6,510 16,740 - - 13,950 4.09 23,250 6.81 26,738 7.84 1,403 2,004 2,580 3.4 9.5
9 18 - - 27 7,750 15,500 - - 13,950 4.09 23,250 6.81 26,738 7.84 1,403 2,004 2,580 3.4 9.5
12 15 - - 27 10,333 12,917 - - 13,950 4.09 23,250 6.81 26,738 7.84 1,403 2,004 2,580 3.4 9.5
12 18 - - 30 9,300 13,950 - - 13,950 4.09 23,250 6.81 26,738 7.84 1,403 2,004 2,580 3.4 9.5
15 18 - - 33 10,568 12,682 - - 13,950 4.09 23,250 6.81 26,738 7.84 1,403 2,004 2,580 3.4 9.5
9 24* - - 33 6,341 16,909 - - 13,950 4.09 23,250 6.81 26,738 7.84 1,403 2,004 2,580 3.4 9.5
Three
Units
7 7 9 - 23 7,076 7,076 9,098 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2
7 9 9 - 25 6,510 8,370 8,370 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2
7 7 12 - 26 6,260 6,260 10,731 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2
9 9 9 - 27 7,750 7,750 7,750 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2
7 9 12 - 28 5,813 7,473 9,964 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2
9 9 12 - 30 6,975 6,975 9,300 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301
1,859 2,603 3.7 10.2
7 9 15 - 31 5,250 6,750 11,250 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2
7 12 12 - 31 5,250 9,000 9,000 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2
7 7 18 - 32 5,086 5,086 13,078 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2
9 9 15 - 33 6,341 6,341 10,568 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2
9 12 12 - 33 6,341 8,455 8,455 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2
1
Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
2
Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 60ºF wet
bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
At least two indoor units should be connected.
*The indoor unit must be non ducted type.
Rated Heating Combination Tables
PERFORMANCE DATA
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
34 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
No. of
Indoor
Units
Indoor Unit Combination
(kBtu/h)
Room Capacity Total Capacity Input (W)
COP HSPF
IDU
1
IDU
2
IDU
3
IDU
4
Total
Unit 1
(Btu/h)
Unit 2
(Btu/h)
Unit 3
(Btu/h)
Unit 4
(Btu/h)
Minimum Rated Maximum
Min. Rated Max.
Btu/h kW Btu/h kW Btu/h kW
Non-Ducted Indoor Units
Two
Units
7 7 - - 14 7,700 7,700 - - 9,240 2.71 15,400 4.51 16,940 4.96 1,127 1,610 2,254 2.8 7.3
7 9 - - 16 7,700 9,900 - - 10,560 3.09 17,600 5.16 19,360 5.67 1,246 1,780 2,492 2.9 7.5
9 9 - - 18 9,900 9,900 - - 11,880 3.48 19,800 5.80 21,780 6.38 1,379 1,970 2,758 2.9 7.6
7 12 - - 19 7,700 13,200 - - 12,540 3.68 20,900 6.13 22,990 6.74 1,435 2,050 2,870 3.0 7.8
9 12 - - 21 9,900 13,200 - - 13,860 4.06 23,100 6.77 25,410 7.45 1,554 2,220 3,108 3.0 7.9
7 15 - - 22 7,700 16,500 - - 14,520 4.26 24,200 7.09 26,620 7.80 1,603 2,290 3,206 3.1 8.0
9 15 - - 24 9,900 16,500 - - 15,840 4.64 26,400 7.74 29,040 8.51 1,701 2,430 3,402 3.2 8.3
12 12 - - 24 13,200 13,200 - - 15,840 4.64 26,400 7.74 29,040 8.51 1,701 2,430 3,402 3.2 8.3
7 18 - - 25 7,700 19,800 - - 16,500 4.84 27,500 8.06 30,250 8.87 1,757 2,510 3,514 3.2 8.3
9 18 - - 27 9,900 19,800 - - 17,820 5.22 29,700 8.70 32,670 9.58 1,869 2,670 3,738 3.3 8.5
12 15 - - 27 13,200 16,500 - - 17,820 5.22 29,700 8.70 32,670 9.58 1,869 2,670 3,738 3.3 8.5
12 18 - - 30 13,200 19,800 - - 19,800 5.80 33,000 9.67 36,300 10.64 2,016 2,880 4,032 3.4 8.7
15 15 - - 30 16,500 16,500 - - 19,800 5.80 33,000 9.67 36,300 10.64 2,016 2,880 4,032 3.4 8.7
7 24 - - 31 7,700 26,400 - - 20,460 6.00 34,100 9.99 37,510 10.99 2,058 2,940 4,116 3.4 8.8
9 24 - - 33 9,818 26,182 - - 21,600 6.33 36,000 10.55 39,600 11.61 2,107 3,010 4,214 3.5 9.1
15 18 - - 33 16,364 19,636 - - 21,600 6.33 36,000 10.55 39,600 11.61 2,107 3,010 4,214 3.5 9.1
18 18 - - 36 18,000 18,000 - - 21,600 6.33 36,000 10.55 39,600 11.61 2,107 3,010 4,214 3.5 9.1
12 24 - - 36 12,000 24,000 - - 21,600 6.33 36,000 10.55 39,600 11.61 2,107 3,010 4,214
3.5 9.1
15 24 - - 39 13,846 22,154 - - 21,600 6.33 36,000 10.55 39,600 11.61 2,107 3,010 4,214 3.5 9.1
18 24 - - 42 15,429 20,571 - - 21,600 6.33 36,000 10.55 39,600 11.61 2,107 3,010 4,214 3.5 9.1
24 24 - - 48 18,000 18,000 - - 21,600 6.33 36,000 10.55 39,600 11.61 2,107 3,010 4,214 3.5 9.1
Three
Units
7 7 7 - 21 7,700 7,700 7,700 - 13,860 4.06 23,100 6.77 26,565 7.79 1,512 2,160 3,024 3.1 8.1
7 7 9 - 23 7,700 7,700 9,900 - 15,180 4.45 25,300 7.42 29,095 8.53 1,617 2,310 3,234 3.2 8.3
7 9 9 - 25 7,700 9,900 9,900 - 16,500 4.84 27,500 8.06 31,625 9.27 1,729 2,470 3,458 3.3 8.5
7 7 12 - 26 7,700 7,700 13,200 - 17,160 5.03 28,600 8.38 32,890 9.64 1,757 2,510 3,514 3.3 8.7
9 9 9 - 27 9,900 9,900 9,900 - 17,820 5.22 29,700 8.70 34,155 10.01 1,785 2,550 3,570 3.4 8.9
7 9 12 - 28 7,700 9,900 13,200 - 18,480 5.42 30,800 9.03 35,420 10.38 1,820 2,600 3,640 3.5 9.0
7 7 15 - 29 7,700 7,700 16,500 - 19,140 5.61 31,900 9.35 36,685 10.75 1,855 2,650 3,710 3.5 9.2
9 9 12 - 30 9,900 9,900 13,200 - 19,800 5.80 33,000 9.67 37,950 11.12 1,897 2,710 3,794 3.6 9.3
7 9 15 - 31 7,700 9,900 16,500 - 20,460 6.00 34,100 9.99 39,215 11.49 1,939 2,770 3,878 3.6 9.4
7 12 12 - 31 7,700 13,200 13,200 - 20,460 6.00 34,100 9.99 39,215 11.49 1,939 2,770 3,878 3.6 9.4
7 7 18 - 32 7,700 7,700 19,800 - 21,120 6.19 35,200 10.32 40,480 11.86 1,981 2,830 3,962 3.6 9.5
9 9 15 - 33 9,818 9,818 16,364 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
9 12 12 - 33 9,818 13,091 13,091 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
7 9 18 - 34 7,412 9,529 19,059 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
7 12 15 - 34 7,412 12,706 15,882 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
9 9 18 - 36 9,000 9,000 18,000 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
9 12 15 - 36 9,000 12,000 15,000 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981
2,830 3,962 3.7 9.7
12 12 12 - 36 12,000 12,000 12,000 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
7 12 18 - 37 6,811 11,676 17,514 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
7 15 15 - 37 6,811 14,595 14,595 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
7 7 24 - 38 6,632 6,632 22,737 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
9 12 18 - 39 8,308 11,077 16,615 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
9 15 15 - 39 8,308 13,846 13,846 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
12 12 15 - 39 11,077 11,077 13,846 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
7 9 24 - 40 6,300 8,100 21,600 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
7 15 18 - 40 6,300 13,500 16,200 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
9 9 24 - 42 7,714 7,714 20,571 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
9 15 18 - 42 7,714 12,857 15,429 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
Table 27: LMU36CHV with Non-Ducted Indoor Units — Rated Heating Combination Table.
1
Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
2
Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 60ºF wet
bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
At least two indoor units should be connected.
Rated Heating Combination Tables
PERFORMANCE DATA
MULTI F OUTDOOR UNIT | 35
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Rated Heating Combination Tables
PERFORMANCE DATA
No. of
Indoor
Units
Indoor Unit Combination
(kBtu/h)
Room Capacity Total Capacity Input (W)
COP HSPF
IDU
1
IDU
2
IDU
3
IDU
4
Total
Unit 1
(Btu/h)
Unit 2
(Btu/h)
Unit 3
(Btu/h)
Unit 4
(Btu/h)
Minimum Rated Maximum
Min. Rated Max.
Btu/h kW Btu/h kW Btu/h kW
Non-Ducted Indoor Units
Three
Units
12 12 18 - 42 10,286 10,286 15,429 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
12 15 15 - 42 10,286 12,857 12,857 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
7 12 24 - 43 5,860 10,047 20,093 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
7 18 18 - 43 5,860 15,070 15,070 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
9 12 24 - 45 7,200 9,600 19,200 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
9 18 18 - 45 7,200 14,400 14,400 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
12 15 18 - 45 9,600 12,000 14,400 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
15 15 15 - 45 12,000 12,000 12,000 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
7 15 24 - 46 5,478 11,739 18,783 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
9 15 24 - 48 6,750 11,250 18,000 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
12 12 24 - 48 9,000 9,000 18,000 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
12 18 18 - 48 9,000 13,500 13,500 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
15 15 18 - 48 11,250 11,250 13,500 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7
Four
Units
7 7 7 7 28 7,700 7,700 7,700 7,700 18,480 5.42 30,800 9.03 36,960 10.83 1,827 2,610 3,654 3.5 9.0
7 7 7 9 30 7,700 7,700 7,700 9,900 19,800 5.80 33,000 9.67 39,600 11.61 1,883 2,690 3,766 3.6 9.3
7 7 9 9 32 7,700 7,700 9,900 9,900 21,120 6.19 35,200 10.32 41,600 12.19 1,918 2,740 3,836 3.8 9.8
7 7 7 12 33 7,636 7,636 7,636 13,091 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 9 9 9 34 7,412 9,529 9,529 9,529 21,600 6.33 36,000 10.55 41,600 12.19 1,918
2,740 3,836 3.9 10.0
7 7 9 12 35 7,200 7,200 9,257 12,343 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 7 7 15 36 7,000 7,000 7,000 15,000 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
9 9 9 9 36 9,000 9,000 9,000 9,000 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 9 9 12 37 6,811 8,757 8,757 11,676 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 7 9 15 38 6,632 6,632 8,526 14,211 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 7 12 12 38 6,632 6,632 11,368 11,368 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 7 7 18 39 6,462 6,462 6,462 16,615 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
9 9 9 12 39 8,308 8,308 8,308 11,077 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 9 9 15 40 6,300 8,100 8,100 13,500 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 9 12 12 40 6,300 8,100 10,800 10,800 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 7 9 18 41 6,146 6,146 7,902 15,805 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 7 12 15 41 6,146 6,146 10,537 13,171 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
9 9 9 15 42 7,714 7,714 7,714 12,857 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
9 9 12 12 42 7,714 7,714 10,286 10,286 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 9 9 18 43 5,860 7,535 7,535 15,070 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 9 12 15 43 5,860 7,535 10,047 12,558 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 12 12 12 43 5,860 10,047 10,047 10,047 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 7 12 18 44 5,727 5,727 9,818 14,727 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 7 15 15 44 5,727 5,727 12,273 12,273 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 7 7 24 45 5,600 5,600 5,600 19,200 21,600 6.33 36,000 10.55 41,600 12.19 1,918
2,740 3,836 3.9 10.0
9 9 9 18 45 7,200 7,200 7,200 14,400 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
9 9 12 15 45 7,200 7,200 9,600 12,000 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
9 12 12 12 45 7,200 9,600 9,600 9,600 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 9 12 18 46 5,478 7,043 9,391 14,087 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 9 15 15 46 5,478 7,043 11,739 11,739 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 12 12 15 46 5,478 9,391 9,391 11,739 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 7 9 24 47 5,362 5,362 6,894 18,383 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
7 7 15 18 47 5,362 5,362 11,489 13,787 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
9 9 12 18 48 6,750 6,750 9,000 13,500 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
9 9 15 15 48 6,750 6,750 11,250 11,250 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
12 12 12 12 48 9,000 9,000 9,000 9,000 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0
Table 28: LMU36CHV with Non-Ducted Indoor Units — Rated Heating Combination Table.
1
Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
2
Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 60ºF wet
bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
At least two indoor units should be connected.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
36 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Rated Heating Combination Tables
PERFORMANCE DATA
Table 29: LMU36CHV with Ducted Indoor Units — Rated Heating Combination Table.
No. of
Indoor
Units
Indoor Unit Combination
(kBtu/h)
Room Capacity Total Capacity Input (W)
COP HSPF
IDU
1
IDU
2
IDU
3
IDU
4
Total
Unit 1
(Btu/h)
Unit 2
(Btu/h)
Unit 3
(Btu/h)
Unit 4
(Btu/h)
Minimum Rated Maximum
Min. Rated Max.
Btu/h kW Btu/h kW Btu/h kW
Ducted Indoor Units
Two
Units
9 9 - - 18 9,350 9,350 - - 11,220 3.3 18,700 5.5 20,570 6.0 1,426 2,037 2,852 2.7 7.4
9 12 - - 21 9,350 12,467 - - 13,090 3.8 21,817 6.4 23,998 7.0 1,607 2,295 3,213 2.8 7.7
12 12 - - 24 12,467 12,467 - - 14,960 4.4 24,933 7.3 27,427 8.0 1,759 2,512 3,517 2.9 8.0
9 18 - - 27 9,350 18,700 - - 16,830 4.9 28,050 8.2 30,855 9.0 1,932 2,761 3,865 3.0 8.2
12 18 - - 30 12,467 18,700 - - 18,700 5.5 31,167 9.1 34,283 10.0 2,084 2,978 4,169 3.1 8.5
9 24* - - 33 9,273 24,727 - - 20,400 6.0 34,000 10.0 37,400 11.0 2,179 3,112 4,357 3.2 8.8
18 18 - - 36 17,000 17,000 - - 20,400 6.0 34,000 10.0 37,400 11.0 2,179 3,112 4,357 3.2 8.8
12 24* - - 36 11,333 22,667 - - 20,400 6.0 34,000 10.0 37,400 11.0 2,179 3,112 4,357 3.2 8.8
Three
Units
9 9 9 - 27 9,350 9,350 9,350 - 16,830 4.9 28,050 8.2 32,258 9.5 1,846 2,637 3,691 3.1 8.6
9 9 12 - 30 9,350 9,350 12,467 - 18,700 5.5 31,167 9.1 35,842 10.5 1,961 2,802 3,923 3.3 9.0
9 12 12 - 33 9,273 12,364 12,364 - 20,400 6.0 34,000 10.0 39,100 11.5 2,048 2,926 4,096 3.4 9.4
9 9 18 - 36 8,500 8,500 17,000 - 20,400 6.0 34,000 10.0 39,100 11.5 2,048 2,926 4,096 3.4 9.4
12 12 12 - 36 11,333 11,333 11,333 - 20,400 6.0 34,000 10.0 39,100 11.5 2,048 2,926 4,096 3.4 9.4
9 12 18 - 39 7,846 10,462 15,692 - 20,400 6.0 34,000 10.0 39,100 11.5 2,048 2,926 4,096 3.4 9.4
12 12 18 - 42 9,714 9,714 14,571 - 20,400 6.0 34,000 10.0 39,100 11.5 2,048 2,926 4,096 3.4 9.4
9 18 18 - 45 6,800 13,600 13,600 - 20,400 6.0 34,000 10.0 39,100 11.5 2,048 2,926 4,096 3.4 9.4
12 18 18 - 48 8,500 12,750 12,750 - 20,400 6.0 34,000 10.0 39,100 11.5 2,048 2,926 4,096 3.4 9.4
Four
Units
9 9 9 9 36 8,500 8,500 8,500 8,500 20,400 6.0 34,000 10.0 41,600
12.2 1,983 2,833 3,966 3.5 9.7
9 9 9 12 39 7,846 7,846 7,846 10,462 20,400 6.0 34,000 10.0 41,600 12.2 1,983 2,833 3,966 3.5 9.7
9 9 12 12 42 7,286 7,286 9,714 9,714 20,400 6.0 34,000 10.0 41,600 12.2 1,983 2,833 3,966 3.5 9.7
9 9 9 18 45 6,800 6,800 6,800 13,600 20,400 6.0 34,000 10.0 41,600 12.2 1,983 2,833 3,966 3.5 9.7
9 12 12 12 45 6,800 9,067 9,067 9,067 20,400 6.0 34,000 10.0 41,600 12.2 1,983 2,833 3,966 3.5 9.7
9 9 12 18 48 6,375 6,375 8,500 12,750 20,400 6.0 34,000 10.0 41,600 12.2 1,983 2,833 3,966 3.5 9.7
12 12 12 12 48 8,500 8,500 8,500 8,500 20,400 6.0 34,000 10.0 41,600 12.2 1,983 2,833 3,966 3.5 9.7
1
Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
2
Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 60ºF wet
bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
At least two indoor units should be connected.
*A 1.3 multiplier is necessary for the calculation of total combination.
MULTI F OUTDOOR UNIT | 37
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 30: LMU36CHV with Mixed Indoor Units — Rated Heating Combination Table.
No. of
Indoor
Units
Indoor Unit Combination
(kBtu/h)
Room Capacity Total Capacity Input (W)
COP HSPF
IDU
1
IDU
2
IDU
3
IDU
4
Total
Unit 1
(Btu/h)
Unit 2
(Btu/h)
Unit 3
(Btu/h)
Unit 4
(Btu/h)
Minimum Rated Maximum
Min. Rated Max.
Btu/h kW Btu/h kW Btu/h kW
Mixed Indoor Units
Two
Units
7 9 - - 16 7,486 9,625 - - 10,267 3.0 17,111 5.0 18,822 5.5 1,267 1,810 2,534 2.8 7.4
9 9 - - 18 9,625 9,625 - - 11,550 3.4 19,250 5.6 21,175 6.2 1,402 2,003 2,805 2.8 7.5
7 12 - - 19 7,486 12,833 - - 12,192 3.6 20,319 6.0 22,351 6.6 1,459 2,085 2,919 2.9 7.6
9 12 - - 21 9,625 12,833 - - 13,475 3.9 22,458 6.6 24,704 7.2 1,580 2,258 3,161 2.9 7.8
9 15 - - 24 9,625 16,042 - - 15,400 4.5 25,667 7.5 28,233 8.3 1,730 2,471 3,460 3.0 8.1
12 12 - - 24 12,833 12,833 - - 15,400 4.5 25,667 7.5 28,233 8.3 1,730 2,471 3,460 3.0 8.1
7 18 - - 25 7,486 19,250 - - 16,042 4.7 26,736 7.8 29,410 8.6 1,787 2,553 3,574 3.1 8.2
9 18 - - 27 9,625 19,250 - - 17,325 5.1 28,875 8.5 31,763 9.3 1,901 2,715 3,801 3.1 8.3
12 15 - - 27 12,833 16,042 - - 17,325 5.1 28,875 8.5 31,763 9.3 1,901 2,715 3,801 3.1 8.3
12 18 - - 30 12,833 19,250 - - 19,250 5.6 32,083 9.4 35,292 10.3 2,050 2,929 4,100 3.2 8.6
7 24 - - 31 7,486 25,667 - - 19,892 5.8 33,153 9.7 36,468 10.7 2,093 2,990 4,186 3.2 8.7
9 24 - - 33 9,545 25,455 - - 21,000 6.2 35,000 10.3 38,500 11.3 2,143 3,061 4,286 3.4 9.0
15 18 - - 33 15,909 19,091 - - 21,000 6.2 35,000 10.3 38,500 11.3 2,143 3,061 4,286 3.4 9.0
18 18 - - 36 17,500 17,500 - - 21,000 6.2 35,000 10.3 38,500 11.3 2,143 3,061 4,286 3.4 9.0
12 24 - - 36 11,667 23,333 - - 21,000 6.2 35,000 10.3 38,500 11.3 2,143 3,061 4,286 3.4 9.0
15 24 - - 39 13,462 21,538 - - 21,000 6.2 35,000 10.3 38,500 11.3 2,143 3,061 4,286 3.4 9.0
18 24* - - 42 15,000 20,000 - - 21,000 6.2 35,000 10.3 38,500 11.3 2,143 3,061 4,286 3.4 9.0
24 24* - - 48 17,500 17,500 - - 21,000 6.2 35,000 10.3 38,500 11.3 2,143 3,061 4,286
3.4 9.0
Three
Units
7 7 9 - 23 7,486 7,486 9,625 - 14,758 4.3 24,597 7.2 28,287 8.3 1,644 2,349 3,289 3.1 8.2
7 9 9 - 25 7,486 9,625 9,625 - 16,042 4.7 26,736 7.8 30,747 9.0 1,758 2,512 3,517 3.1 8.3
7 7 12 - 26 7,486 7,486 12,833 - 16,683 4.9 27,806 8.1 31,976 9.4 1,787 2,553 3,574 3.2 8.5
9 9 9 - 27 9,625 9,625 9,625 - 17,325 5.1 28,875 8.5 33,206 9.7 1,815 2,593 3,631 3.3 8.7
7 9 12 - 28 7,486 9,625 12,833 - 17,967 5.3 29,944 8.8 34,436 10.1 1,851 2,644 3,702 3.3 8.9
9 9 12 - 30 9,625 9,625 12,833 - 19,250 5.6 32,083 9.4 36,896 10.8 1,929 2,756 3,858 3.4 9.1
7 9 15 - 31 7,486 9,625 16,042 - 19,892 5.8 33,153 9.7 38,126 11.2 1,972 2,817 3,944 3.4 9.2
7 12 12 - 31 7,486 12,833 12,833 - 19,892 5.8 33,153 9.7 38,126 11.2 1,972 2,817 3,944 3.4 9.2
7 7 18 - 32 7,486 7,486 19,250 - 20,533 6.0 34,222 10.0 39,356 11.5 2,015 2,878 4,029 3.5 9.3
9 9 15 - 33 9,545 9,545 15,909 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
9 12 12 - 33 9,545 12,727 12,727 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
7 9 18 - 34 7,206 9,265 18,529 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
7 12 15 - 34 7,206 12,353 15,441 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
9 9 18 - 36 8,750 8,750 17,500 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
9 12 15 - 36 8,750 11,667 14,583 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
12 12 12 - 36 11,667 11,667 11,667 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
7 12 18 - 37 6,622 11,351 17,027 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
7 7 24 - 38 6,447 6,447 22,105 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
9 12 18 - 39 8,077 10,769 16,154 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
9 15 15 - 39 8,077 13,462 13,462 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015
2,878 4,029 3.6 9.5
12 12 15 - 39 10,769 10,769 13,462 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
7 9 24 - 40 6,125 7,875 21,000 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
7 15 18 - 40 6,125 13,125 15,750 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
9 9 24* - 42 7,500 7,500 20,000 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
9 15 18 - 42 7,500 12,500 15,000 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
12 12 18 - 42 10,000 10,000 15,000 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
12 15 15 - 42 10,000 12,500 12,500 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
7 12 24* - 43 5,698 9,767 19,535 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
7 18 18 - 43 5,698 14,651 14,651 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
9 12 24* - 45 7,000 9,333 18,667 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
Rated Heating Combination Tables
PERFORMANCE DATA
1
Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
2
Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 60ºF wet
bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
At least two indoor units should be connected.
*The multiplier (1.3) is necessary for the calculation of total combination.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
38 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
1
Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
2
Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 60ºF wet
bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
At least two indoor units should be connected.
*The indoor unit must be non ducted type.
Table 31: LMU36CHV with Mixed Indoor Units — Rated Heating Combination Table.
No. of
Indoor
Units
Indoor Unit Combination
(kBtu/h)
Room Capacity Total Capacity Input (W)
COP HSPF
IDU
1
IDU
2
IDU
3
IDU
4
Total
Unit 1
(Btu/h)
Unit 2
(Btu/h)
Unit 3
(Btu/h)
Unit 4
(Btu/h)
Minimum Rated Maximum
Min. Rated Max.
Btu/h kW Btu/h kW Btu/h kW
Mixed Indoor Units
Three
Units
9 18 18 - 45 7,000 14,000 14,000 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
12 15 18 - 45 9,333 11,667 14,000 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
7 15 24* - 46 5,326 11,413 18,261 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
9 15 24* - 48 6,563 10,938 17,500 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
12 12 24* - 48 8,750 8,750 17,500 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
12 18 18 - 48 8,750 13,125 13,125 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
15 15 18 - 48 10,938 10,938 13,125 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5
Four
Units
7 7 7 9 30 7,486 7,486 7,486 9,625 19,250 5.6 32,083 9.4 38,500 11.3 1,915 2,736 3,830 3.4 9.2
7 7 9 9 32 7,486 7,486 9,625 9,625 20,533 6.0 34,222 10.0 41,600 12.2 1,951 2,787 3,901 3.6 9.6
7 7 7 12 33 7,424 7,424 7,424 12,727 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 9 9 9 34 7,206 9,265 9,265 9,265 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 7 9 12 35 7,000 7,000 9,000 12,000 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
9 9 9 9 36 8,750 8,750 8,750 8,750 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 9 9 12 37 6,622 8,514 8,514 11,351 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 7 9 15 38 6,447 6,447 8,289 13,816 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 7 12 12 38 6,447 6,447 11,053 11,053 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 7 7 18 39 6,282 6,282 6,282 16,154 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
9 9 9 12 39 8,077 8,077 8,077 10,769 21,000 6.2 35,000 10.3 41,600 12.2 1,951
2,787 3,901 3.7 9.9
7 9 9 15 40 6,125 7,875 7,875 13,125 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 9 12 12 40 6,125 7,875 10,500 10,500 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 7 9 18 41 5,976 5,976 7,683 15,366 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 7 12 15 41 5,976 5,976 10,244 12,805 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
9 9 9 15 42 7,500 7,500 7,500 12,500 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
9 9 12 12 42 7,500 7,500 10,000 10,000 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 9 9 18 43 5,698 7,326 7,326 14,651 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 9 12 15 43 5,698 7,326 9,767 12,209 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 12 12 12 43 5,698 9,767 9,767 9,767 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 7 12 18 44 5,568 5,568 9,545 14,318 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 7 7 24* 45 5,444 5,444 5,444 18,667 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
9 9 9 18 45 7,000 7,000 7,000 14,000 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
9 9 12 15 45 7,000 7,000 9,333 11,667 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
9 12 12 12 45 7,000 9,333 9,333 9,333 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 9 12 18 46 5,326 6,848 9,130 13,696 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 9 15 15 46 5,326 6,848 11,413 11,413 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 12 12 15 46 5,326 9,130 9,130 11,413 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 7 9 24* 47 5,213 5,213 6,702 17,872 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
7 7 15 18 47 5,213 5,213 11,170 13,404 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
9 9 12 18 48 6,563 6,563 8,750 13,125 21,000 6.2 35,000 10.3 41,600 12.2 1,951
2,787 3,901 3.7 9.9
9 9 15 15 48 6,563 6,563 10,938 10,938 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
12 12 12 12 48 8,750 8,750 8,750 8,750 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9
Rated Heating Combination Tables
PERFORMANCE DATA
MULTI F OUTDOOR UNIT | 39
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
7 + 7
14 13.72 0.74 14.58 0.77 15.43 0.79 16.04 0.80 17.13 0.82 17.99 0.83
20 13.71 0.75 14.57 0.78 15.42 0.80 16.03 0.81 17.12 0.83 17.97 0.85
25 13.70 0.76 14.55 0.79 15.41 0.82 16.02 0.83 17.11 0.84 17.96 0.86
30 13.69 0.77 14.54 0.80 15.39 0.83 16.01 0.84 17.09 0.85 17.94 0.87
35 13.68 0.78 14.53 0.81 15.38 0.84 16.00 0.85 17.08 0.86 17.93 0.88
40 13.67 0.79 14.52 0.82 15.37 0.85 15.98 0.86 17.07 0.88 17.92 0.89
45 13.66 0.80 14.51 0.83 15.36 0.86 15.97 0.87 17.06 0.89 17.90 0.91
50 13.65 0.81 14.50 0.84 15.35 0.87 15.96 0.88 17.04 0.90 17.89 0.92
55 13.64 0.82 14.49 0.85 15.33 0.88 15.95 0.89 17.03 0.91 17.88 0.93
60 13.63 0.83 14.48 0.86 15.32 0.90 15.93 0.91 17.02 0.92 17.86 0.94
65 13.62 0.84 14.47 0.88 15.31 0.91 15.92 0.92 17.00 0.93 17.85 0.95
70 13.61 0.86 14.45 0.89 15.30 0.92 15.91 0.93 16.99 0.95 17.83 0.97
75 13.28 0.90 14.12 0.93 14.97 0.97 15.58 0.98 16.65 1.00 17.50 1.02
80 12.95 0.95 13.80 0.98 14.64 1.02 15.24 1.03 16.32 1.05 17.16 1.07
85 12.63 0.99 13.47 1.03 14.31 1.07 14.91 1.08 15.99 1.10 16.82 1.12
90 12.30 1.04 13.14 1.08 13.98 1.12 14.58 1.13 15.65 1.15 16.49 1.17
95 11.95 1.09 12.79 1.13 13.62 1.17 14.00 1.18 15.28 1.20 16.12 1.23
100 11.66 1.13 12.49 1.17 13.33 1.22 13.82 1.23 14.99 1.25 15.82 1.28
105 11.37 1.18 12.20 1.22 13.04 1.27 13.64 1.28 14.70 1.30 15.53 1.33
110 11.08 1.22 11.91 1.27 12.74 1.32 13.35 1.33 14.41 1.36 15.24 1.38
115 10.79 1.27 11.62 1.32 12.45 1.36 13.06 1.38 14.12 1.41 14.95 1.43
118 10.61 1.30 11.45 1.35 12.28 1.39 12.88 1.41 13.94 1.44 14.78 1.47
122 10.56 1.33 11.39 1.38 12.22 1.43 12.82 1.45 13.89 1.48 14.72 1.51
7 + 9
14 15.68 0.78 16.66 0.80 17.63 0.83 18.34 0.84 19.58 0.86 20.56 0.88
20 15.67 0.79 16.65 0.82 17.62 0.85 18.32 0.86 19.57 0.87 20.54 0.89
25 15.66 0.80 16.63 0.83 17.61 0.86 18.31 0.87 19.55 0.88 20.52 0.90
30 15.65 0.81 16.62 0.84 17.59 0.87 18.29 0.88 19.54 0.90 20.51 0.91
35 15.64 0.82 16.61 0.85 17.58 0.88 18.28 0.89 19.52 0.91 20.49 0.93
40 15.62
0.83 16.60 0.86 17.57 0.89 18.27 0.90 19.51 0.92 20.48 0.94
45 15.61 0.84 16.58 0.87 17.55 0.91 18.25 0.92 19.49 0.93 20.46 0.95
50 15.60 0.85 16.57 0.89 17.54 0.92 18.24 0.93 19.48 0.95 20.45 0.96
55 15.59 0.87 16.56 0.90 17.53 0.93 18.22 0.94 19.46 0.96 20.43 0.98
60 15.58 0.88 16.54 0.91 17.51 0.94 18.21 0.95 19.45 0.97 20.41 0.99
65 15.57 0.89 16.53 0.92 17.50 0.95 18.20 0.96 19.43 0.98 20.40 1.00
70 15.55 0.90 16.52 0.93 17.49 0.97 18.18 0.98 19.42 0.99 20.38 1.01
75 15.18 0.95 16.14 0.98 17.11 1.02 17.80 1.03 19.03 1.05 20.00 1.07
80 14.80 1.00 15.77 1.03 16.73 1.07 17.42 1.08 18.65 1.10 19.61 1.12
85 14.43 1.04 15.39 1.08 16.35 1.12 17.04 1.13 18.27 1.16 19.23 1.18
90 14.06 1.09 15.02 1.13 15.98 1.17 16.67 1.19 17.89 1.21 18.84 1.23
95 13.66 1.14 14.61 1.18 15.56 1.23 16.00 1.24 17.47 1.26 18.42 1.29
100 13.33 1.19 14.28 1.23 15.23 1.28 15.79 1.29 17.13 1.32 18.09 1.34
105 12.99 1.24 13.95 1.28 14.90 1.33 15.59 1.35 16.80 1.37 17.75 1.40
110 12.66 1.29 13.61 1.33 14.57 1.38 15.25 1.40 16.47 1.42 17.42 1.45
115 12.33 1.33 13.28 1.38 14.23 1.43 14.92 1.45 16.14 1.48 17.09 1.51
118 12.13 1.36 13.08 1.41 14.03 1.47 14.72 1.48 15.94 1.51 16.89 1.54
122 12.06 1.40 13.02 1.45 13.97 1.51 14.65 1.52 15.87 1.55 16.82 1.58
Table 32: LMU18CHV Cooling Capacity Table — Non-Ducted Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
40 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
9 + 9
14 16.67 0.82 17.70 0.85 18.74 0.88 19.48 0.89 20.80 0.91 21.84 0.93
20 16.65 0.83 17.69 0.86 18.72 0.89 19.47 0.90 20.79 0.92 21.82 0.94
25 16.64 0.84 17.67 0.87 18.71 0.91 19.45 0.92 20.77 0.93 21.81 0.95
30 16.63 0.86 17.66 0.89 18.69 0.92 19.44 0.93 20.76 0.95 21.79 0.97
35 16.61 0.87 17.65 0.90 18.68 0.93 19.42 0.94 20.74 0.96 21.77 0.98
40 16.60 0.88 17.63 0.91 18.66 0.94 19.41 0.95 20.73 0.97 21.76 0.99
45 16.59 0.89 17.62 0.92 18.65 0.96 19.39 0.97 20.71 0.99 21.74 1.01
50 16.58 0.90 17.61 0.94 18.63 0.97 19.38 0.98 20.69 1.00 21.72 1.02
55 16.56 0.91 17.59 0.95 18.62 0.98 19.36 0.99 20.68 1.01 21.71 1.03
60 16.55 0.93 17.58 0.96 18.61 0.99 19.35 1.01 20.66 1.02 21.69 1.05
65 16.54 0.94 17.57 0.97 18.59 1.01 19.33 1.02 20.65 1.04 21.67 1.06
70 16.53 0.95 17.55 0.98 18.58 1.02 19.32 1.03 20.63 1.05 21.66 1.07
75 16.13 1.00 17.15 1.04 18.18 1.07 18.91 1.09 20.22 1.11 21.25 1.13
80 15.73 1.05 16.75 1.09 17.77 1.13 18.51 1.14 19.81 1.16 20.84 1.19
85 15.34 1.10 16.35 1.14 17.37 1.19 18.11 1.20 19.41 1.22 20.43 1.25
90 14.94 1.15 15.96 1.20 16.97 1.24 17.71 1.25 19.01 1.28 20.02 1.30
95 14.51 1.21 15.52 1.25 16.54 1.30 17.00 1.31 18.56 1.33 19.57 1.36
100 14.16 1.26 15.17 1.30 16.18 1.35 16.78 1.37 18.20 1.39 19.22 1.42
105 13.81 1.31 14.82 1.36 15.83 1.41 16.56 1.42 17.85 1.45 18.86 1.48
110 13.45 1.36 14.46 1.41 15.48 1.46 16.21 1.48 17.50 1.50 18.51 1.53
115 13.10 1.41 14.11 1.46 15.12 1.52 15.85 1.53 17.14 1.56 18.16 1.59
118 12.89 1.44 13.90 1.49 14.91 1.55 15.64 1.57 16.93 1.60 17.94 1.63
122 12.82 1.48 13.83 1.54 14.84 1.59 15.57 1.61 16.86 1.64 17.87 1.67
7 + 12
14 16.67 0.82 17.70 0.85 18.74 0.88 19.48 0.89 20.80 0.91 21.84 0.93
20 16.65 0.83 17.69 0.86 18.72 0.89 19.47 0.90 20.79 0.92 21.82 0.94
25 16.64 0.84 17.67 0.87 18.71 0.91 19.45 0.92 20.77 0.93 21.81 0.95
30 16.63 0.86 17.66 0.89 18.69 0.92 19.44 0.93 20.76 0.95 21.79 0.97
35 16.61 0.87 17.65 0.90 18.68 0.93 19.42 0.94 20.74 0.96 21.77 0.98
40 16.60
0.88 17.63 0.91 18.66 0.94 19.41 0.95 20.73 0.97 21.76 0.99
45 16.59 0.89 17.62 0.92 18.65 0.96 19.39 0.97 20.71 0.99 21.74 1.01
50 16.58 0.90 17.61 0.94 18.63 0.97 19.38 0.98 20.69 1.00 21.72 1.02
55 16.56 0.91 17.59 0.95 18.62 0.98 19.36 0.99 20.68 1.01 21.71 1.03
60 16.55 0.93 17.58 0.96 18.61 0.99 19.35 1.01 20.66 1.02 21.69 1.05
65 16.54 0.94 17.57 0.97 18.59 1.01 19.33 1.02 20.65 1.04 21.67 1.06
70 16.53 0.95 17.55 0.98 18.58 1.02 19.32 1.03 20.63 1.05 21.66 1.07
75 16.13 1.00 17.15 1.04 18.18 1.07 18.91 1.09 20.22 1.11 21.25 1.13
80 15.73 1.05 16.75 1.09 17.77 1.13 18.51 1.14 19.81 1.16 20.84 1.19
85 15.34 1.10 16.35 1.14 17.37 1.19 18.11 1.20 19.41 1.22 20.43 1.25
90 14.94 1.15 15.96 1.20 16.97 1.24 17.71 1.25 19.01 1.28 20.02 1.30
95 14.51 1.21 15.52 1.25 16.54 1.30 17.00 1.31 18.56 1.33 19.57 1.36
100 14.16 1.26 15.17 1.30 16.18 1.35 16.78 1.37 18.20 1.39 19.22 1.42
105 13.81 1.31 14.82 1.36 15.83 1.41 16.56 1.42 17.85 1.45 18.86 1.48
110 13.45 1.36 14.46 1.41 15.48 1.46 16.21 1.48 17.50 1.50 18.51 1.53
115 13.10 1.41 14.11 1.46 15.12 1.52 15.85 1.53 17.14 1.56 18.16 1.59
118 12.89 1.44 13.90 1.49 14.91 1.55 15.64 1.57 16.93 1.60 17.94 1.63
122 12.82 1.48 13.83 1.54 14.84 1.59 15.57 1.61 16.86 1.64 17.87 1.67
PERFORMANCE DATA
Cooling Capacity Tables
Table 33: LMU18CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
MULTI F OUTDOOR UNIT | 41
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 34: LMU18CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
9 + 12
14 16.67 0.82 17.70 0.85 18.74 0.88 19.48 0.89 20.80 0.91 21.84 0.93
20 16.65 0.83 17.69 0.86 18.72 0.89 19.47 0.90 20.79 0.92 21.82 0.94
25 16.64 0.84 17.67 0.87 18.71 0.91 19.45 0.92 20.77 0.93 21.81 0.95
30 16.63 0.86 17.66 0.89 18.69 0.92 19.44 0.93 20.76 0.95 21.79 0.97
35 16.61 0.87 17.65 0.90 18.68 0.93 19.42 0.94 20.74 0.96 21.77 0.98
40 16.60 0.88 17.63 0.91 18.66 0.94 19.41 0.95 20.73 0.97 21.76 0.99
45 16.59 0.89 17.62 0.92 18.65 0.96 19.39 0.97 20.71 0.99 21.74 1.01
50 16.58 0.90 17.61 0.94 18.63 0.97 19.38 0.98 20.69 1.00 21.72 1.02
55 16.56 0.91 17.59 0.95 18.62 0.98 19.36 0.99 20.68 1.01 21.71 1.03
60 16.55 0.93 17.58 0.96 18.61 0.99 19.35 1.01 20.66 1.02 21.69 1.05
65 16.54 0.94 17.57 0.97 18.59 1.01 19.33 1.02 20.65 1.04 21.67 1.06
70 16.53 0.95 17.55 0.98 18.58 1.02 19.32 1.03 20.63 1.05 21.66 1.07
75 16.13 1.00 17.15 1.04 18.18 1.07 18.91 1.09 20.22 1.11 21.25 1.13
80 15.73 1.05 16.75 1.09 17.77 1.13 18.51 1.14 19.81 1.16 20.84 1.19
85 15.34 1.10 16.35 1.14 17.37 1.19 18.11 1.20 19.41 1.22 20.43 1.25
90 14.94 1.15 15.96 1.20 16.97 1.24 17.71 1.25 19.01 1.28 20.02 1.30
95 14.51 1.21 15.52 1.25 16.54 1.30 17.00 1.31 18.56 1.33 19.57 1.36
100 14.16 1.26 15.17 1.30 16.18 1.35 16.78 1.37 18.20 1.39 19.22 1.42
105 13.81 1.31 14.82 1.36 15.83 1.41 16.56 1.42 17.85 1.45 18.86 1.48
110 13.45 1.36 14.46 1.41 15.48 1.46 16.21 1.48 17.50 1.50 18.51 1.53
115 13.10 1.41 14.11 1.46 15.12 1.52 15.85 1.53 17.14 1.56 18.16 1.59
118 12.89 1.44 13.90 1.49 14.91 1.55 15.64 1.57 16.93 1.60 17.94 1.63
122 12.82 1.48 13.83 1.54 14.84 1.59 15.57 1.61 16.86 1.64 17.87 1.67
7 + 15
14 16.67 0.82 17.70 0.85 18.74 0.88 19.48 0.89 20.80 0.91 21.84 0.93
20 16.65 0.83 17.69 0.86 18.72 0.89 19.47 0.90 20.79 0.92 21.82 0.94
25 16.64 0.84 17.67 0.87 18.71 0.91 19.45 0.92 20.77 0.93 21.81 0.95
30 16.63 0.86 17.66 0.89 18.69 0.92 19.44 0.93 20.76 0.95 21.79 0.97
35 16.61 0.87 17.65 0.90 18.68 0.93 19.42 0.94 20.74 0.96 21.77 0.98
40 16.60
0.88 17.63 0.91 18.66 0.94 19.41 0.95 20.73 0.97 21.76 0.99
45 16.59 0.89 17.62 0.92 18.65 0.96 19.39 0.97 20.71 0.99 21.74 1.01
50 16.58 0.90 17.61 0.94 18.63 0.97 19.38 0.98 20.69 1.00 21.72 1.02
55 16.56 0.91 17.59 0.95 18.62 0.98 19.36 0.99 20.68 1.01 21.71 1.03
60 16.55 0.93 17.58 0.96 18.61 0.99 19.35 1.01 20.66 1.02 21.69 1.05
65 16.54 0.94 17.57 0.97 18.59 1.01 19.33 1.02 20.65 1.04 21.67 1.06
70 16.53 0.95 17.55 0.98 18.58 1.02 19.32 1.03 20.63 1.05 21.66 1.07
75 16.13 1.00 17.15 1.04 18.18 1.07 18.91 1.09 20.22 1.11 21.25 1.13
80 15.73 1.05 16.75 1.09 17.77 1.13 18.51 1.14 19.81 1.16 20.84 1.19
85 15.34 1.10 16.35 1.14 17.37 1.19 18.11 1.20 19.41 1.22 20.43 1.25
90 14.94 1.15 15.96 1.20 16.97 1.24 17.71 1.25 19.01 1.28 20.02 1.30
95 14.51 1.21 15.52 1.25 16.54 1.30 17.00 1.31 18.56 1.33 19.57 1.36
100 14.16 1.26 15.17 1.30 16.18 1.35 16.78 1.37 18.20 1.39 19.22 1.42
105 13.81 1.31 14.82 1.36 15.83 1.41 16.56 1.42 17.85 1.45 18.86 1.48
110 13.45 1.36 14.46 1.41 15.48 1.46 16.21 1.48 17.50 1.50 18.51 1.53
115 13.10 1.41 14.11 1.46 15.12 1.52 15.85 1.53 17.14 1.56 18.16 1.59
118 12.89 1.44 13.90 1.49 14.91 1.55 15.64 1.57 16.93 1.60 17.94 1.63
122 12.82 1.48 13.83 1.54 14.84 1.59 15.57 1.61 16.86 1.64 17.87 1.67
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
42 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
9 + 15
14 16.67 0.82 17.70 0.85 18.74 0.88 19.48 0.89 20.80 0.91 21.84 0.93
20 16.65 0.83 17.69 0.86 18.72 0.89 19.47 0.90 20.79 0.92 21.82 0.94
25 16.64 0.84 17.67 0.87 18.71 0.91 19.45 0.92 20.77 0.93 21.81 0.95
30 16.63 0.86 17.66 0.89 18.69 0.92 19.44 0.93 20.76 0.95 21.79 0.97
35 16.61 0.87 17.65 0.90 18.68 0.93 19.42 0.94 20.74 0.96 21.77 0.98
40 16.60 0.88 17.63 0.91 18.66 0.94 19.41 0.95 20.73 0.97 21.76 0.99
45 16.59 0.89 17.62 0.92 18.65 0.96 19.39 0.97 20.71 0.99 21.74 1.01
50 16.58 0.90 17.61 0.94 18.63 0.97 19.38 0.98 20.69 1.00 21.72 1.02
55 16.56 0.91 17.59 0.95 18.62 0.98 19.36 0.99 20.68 1.01 21.71 1.03
60 16.55 0.93 17.58 0.96 18.61 0.99 19.35 1.01 20.66 1.02 21.69 1.05
65 16.54 0.94 17.57 0.97 18.59 1.01 19.33 1.02 20.65 1.04 21.67 1.06
70 16.53 0.95 17.55 0.98 18.58 1.02 19.32 1.03 20.63 1.05 21.66 1.07
75 16.13 1.00 17.15 1.04 18.18 1.07 18.91 1.09 20.22 1.11 21.25 1.13
80 15.73 1.05 16.75 1.09 17.77 1.13 18.51 1.14 19.81 1.16 20.84 1.19
85 15.34 1.10 16.35 1.14 17.37 1.19 18.11 1.20 19.41 1.22 20.43 1.25
90 14.94 1.15 15.96 1.20 16.97 1.24 17.71 1.25 19.01 1.28 20.02 1.30
95 14.51 1.21 15.52 1.25 16.54 1.30 17.00 1.31 18.56 1.33 19.57 1.36
100 14.16 1.26 15.17 1.30 16.18 1.35 16.78 1.37 18.20 1.39 19.22 1.42
105 13.81 1.31 14.82 1.36 15.83 1.41 16.56 1.42 17.85 1.45 18.86 1.48
110 13.45 1.36 14.46 1.41 15.48 1.46 16.21 1.48 17.50 1.50 18.51 1.53
115 13.10 1.41 14.11 1.46 15.12 1.52 15.85 1.53 17.14 1.56 18.16 1.59
118 12.89 1.44 13.90 1.49 14.91 1.55 15.64 1.57 16.93 1.60 17.94 1.63
122 12.82 1.48 13.83 1.54 14.84 1.59 15.57 1.61 16.86 1.64 17.87 1.67
12 + 12
14 16.67 0.82 17.70 0.85 18.74 0.88 19.48 0.89 20.80 0.91 21.84 0.93
20 16.65 0.83 17.69 0.86 18.72 0.89 19.47 0.90 20.79 0.92 21.82 0.94
25 16.64 0.84 17.67 0.87 18.71 0.91 19.45 0.92 20.77 0.93 21.81 0.95
30 16.63 0.86 17.66 0.89 18.69 0.92 19.44 0.93 20.76 0.95 21.79 0.97
35 16.61 0.87 17.65 0.90 18.68 0.93 19.42 0.94 20.74 0.96 21.77 0.98
40 16.60
0.88 17.63 0.91 18.66 0.94 19.41 0.95 20.73 0.97 21.76 0.99
45 16.59 0.89 17.62 0.92 18.65 0.96 19.39 0.97 20.71 0.99 21.74 1.01
50 16.58 0.90 17.61 0.94 18.63 0.97 19.38 0.98 20.69 1.00 21.72 1.02
55 16.56 0.91 17.59 0.95 18.62 0.98 19.36 0.99 20.68 1.01 21.71 1.03
60 16.55 0.93 17.58 0.96 18.61 0.99 19.35 1.01 20.66 1.02 21.69 1.05
65 16.54 0.94 17.57 0.97 18.59 1.01 19.33 1.02 20.65 1.04 21.67 1.06
70 16.53 0.95 17.55 0.98 18.58 1.02 19.32 1.03 20.63 1.05 21.66 1.07
75 16.13 1.00 17.15 1.04 18.18 1.07 18.91 1.09 20.22 1.11 21.25 1.13
80 15.73 1.05 16.75 1.09 17.77 1.13 18.51 1.14 19.81 1.16 20.84 1.19
85 15.34 1.10 16.35 1.14 17.37 1.19 18.11 1.20 19.41 1.22 20.43 1.25
90 14.94 1.15 15.96 1.20 16.97 1.24 17.71 1.25 19.01 1.28 20.02 1.30
95 14.51 1.21 15.52 1.25 16.54 1.30 17.00 1.31 18.56 1.33 19.57 1.36
100 14.16 1.26 15.17 1.30 16.18 1.35 16.78 1.37 18.20 1.39 19.22 1.42
105 13.81 1.31 14.82 1.36 15.83 1.41 16.56 1.42 17.85 1.45 18.86 1.48
110 13.45 1.36 14.46 1.41 15.48 1.46 16.21 1.48 17.50 1.50 18.51 1.53
115 13.10 1.41 14.11 1.46 15.12 1.52 15.85 1.53 17.14 1.56 18.16 1.59
118 12.89 1.44 13.90 1.49 14.91 1.55 15.64 1.57 16.93 1.60 17.94 1.63
122 12.82 1.48 13.83 1.54 14.84 1.59 15.57 1.61 16.86 1.64 17.87 1.67
Table 35: LMU18CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 43
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 36: LMU18CHV Cooling Capacity Table — Ducted Indoor Units.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Ducted Indoor
Units
9 + 9
14 13.72 0.82 14.58 0.85 15.43 0.88 16.04 0.89 17.13 0.91 17.99 0.92
20 13.71 0.83 14.57 0.86 15.42 0.89 16.03 0.90 17.12 0.92 17.97 0.94
25 13.70 0.84 14.55 0.87 15.41 0.90 16.02 0.92 17.11 0.93 17.96 0.95
30 13.69 0.85 14.54 0.89 15.39 0.92 16.01 0.93 17.09 0.95 17.94 0.96
35 13.68 0.87 14.53 0.90 15.38 0.93 16.00 0.94 17.08 0.96 17.93 0.98
40 13.67 0.88 14.52 0.91 15.37 0.94 15.98 0.95 17.07 0.97 17.92 0.99
45 13.66 0.89 14.51 0.92 15.36 0.96 15.97 0.97 17.06 0.98 17.90 1.00
50 13.65 0.90 14.50 0.93 15.35 0.97 15.96 0.98 17.04 1.00 17.89 1.02
55 13.64 0.91 14.49 0.95 15.33 0.98 15.95 0.99 17.03 1.01 17.88 1.03
60 13.63 0.92 14.48 0.96 15.32 0.99 15.93 1.00 17.02 1.02 17.86 1.04
65 13.62 0.94 14.47 0.97 15.31 1.01 15.92 1.02 17.00 1.04 17.85 1.06
70 13.61 0.95 14.45 0.98 15.30 1.02 15.91 1.03 16.99 1.05 17.83 1.07
75 13.28 1.00 14.12 1.04 14.97 1.07 15.58 1.09 16.65 1.11 17.50 1.13
80 12.95 1.05 13.80 1.09 14.64 1.13 15.24 1.14 16.32 1.16 17.16 1.19
85 12.63 1.10 13.47 1.14 14.31 1.18 14.91 1.20 15.99 1.22 16.82 1.24
90 12.30 1.15 13.14 1.19 13.98 1.24 14.58 1.25 15.65 1.28 16.49 1.30
95 11.95 1.20 12.79 1.25 13.62 1.29 14.00 1.31 15.28 1.33 16.12 1.36
100 11.66 1.25 12.49 1.30 13.33 1.35 13.82 1.36 14.99 1.39 15.82 1.42
105 11.37 1.31 12.20 1.35 13.04 1.40 13.64 1.42 14.70 1.45 15.53 1.47
110 11.08 1.36 11.91 1.41 12.74 1.46 13.35 1.47 14.41 1.50 15.24 1.53
115 10.79 1.41 11.62 1.46 12.45 1.51 13.06 1.53 14.12 1.56 14.95 1.59
118 10.61 1.44 11.45 1.49 12.28 1.55 12.88 1.56 13.94 1.59 14.78 1.62
122 10.56 1.48 11.39 1.53 12.22 1.59 12.82 1.61 13.89 1.64 14.72 1.67
9 + 12
14 13.72 0.82 14.58 0.85 15.43 0.88 16.04 0.89 17.13 0.91 17.99 0.92
20 13.71 0.83 14.57 0.86 15.42 0.89 16.03 0.90 17.12 0.92 17.97 0.94
25 13.70 0.84 14.55 0.87 15.41 0.90 16.02 0.92 17.11 0.93 17.96 0.95
30 13.69 0.85 14.54 0.89 15.39 0.92 16.01 0.93 17.09 0.95 17.94 0.96
35 13.68 0.87 14.53 0.90 15.38 0.93 16.00 0.94 17.08 0.96 17.93 0.98
40 13.67
0.88 14.52 0.91 15.37 0.94 15.98 0.95 17.07 0.97 17.92 0.99
45 13.66 0.89 14.51 0.92 15.36 0.96 15.97 0.97 17.06 0.98 17.90 1.00
50 13.65 0.90 14.50 0.93 15.35 0.97 15.96 0.98 17.04 1.00 17.89 1.02
55 13.64 0.91 14.49 0.95 15.33 0.98 15.95 0.99 17.03 1.01 17.88 1.03
60 13.63 0.92 14.48 0.96 15.32 0.99 15.93 1.00 17.02 1.02 17.86 1.04
65 13.62 0.94 14.47 0.97 15.31 1.01 15.92 1.02 17.00 1.04 17.85 1.06
70 13.61 0.95 14.45 0.98 15.30 1.02 15.91 1.03 16.99 1.05 17.83 1.07
75 13.28 1.00 14.12 1.04 14.97 1.07 15.58 1.09 16.65 1.11 17.50 1.13
80 12.95 1.05 13.80 1.09 14.64 1.13 15.24 1.14 16.32 1.16 17.16 1.19
85 12.63 1.10 13.47 1.14 14.31 1.18 14.91 1.20 15.99 1.22 16.82 1.24
90 12.30 1.15 13.14 1.19 13.98 1.24 14.58 1.25 15.65 1.28 16.49 1.30
95 11.95 1.20 12.79 1.25 13.62 1.29 14.00 1.31 15.28 1.33 16.12 1.36
100 11.66 1.25 12.49 1.30 13.33 1.35 13.82 1.36 14.99 1.39 15.82 1.42
105 11.37 1.31 12.20 1.35 13.04 1.40 13.64 1.42 14.70 1.45 15.53 1.47
110 11.08 1.36 11.91 1.41 12.74 1.46 13.35 1.47 14.41 1.50 15.24 1.53
115 10.79 1.41 11.62 1.46 12.45 1.51 13.06 1.53 14.12 1.56 14.95 1.59
118 10.61 1.44 11.45 1.49 12.28 1.55 12.88 1.56 13.94 1.59 14.78 1.62
122 10.56 1.48 11.39 1.53 12.22 1.59 12.82 1.61 13.89 1.64 14.72 1.67
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
44 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 37: LMU18CHV Cooling Capacity Table — Ducted (continued) and Mixed Indoor Units.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Ducted Indoor
Units
12 + 12
14 13.72 0.82 14.58 0.85 15.43 0.88 16.04 0.89 17.13 0.91 17.99 0.92
20 13.71 0.83 14.57 0.86 15.42 0.89 16.03 0.90 17.12 0.92 17.97 0.94
25 13.70 0.84 14.55 0.87 15.41 0.90 16.02 0.92 17.11 0.93 17.96 0.95
30 13.69 0.85 14.54 0.89 15.39 0.92 16.01 0.93 17.09 0.95 17.94 0.96
35 13.68 0.87 14.53 0.90 15.38 0.93 16.00 0.94 17.08 0.96 17.93 0.98
40 13.67 0.88 14.52 0.91 15.37 0.94 15.98 0.95 17.07 0.97 17.92 0.99
45 13.66 0.89 14.51 0.92 15.36 0.96 15.97 0.97 17.06 0.98 17.90 1.00
50 13.65 0.90 14.50 0.93 15.35 0.97 15.96 0.98 17.04 1.00 17.89 1.02
55 13.64 0.91 14.49 0.95 15.33 0.98 15.95 0.99 17.03 1.01 17.88 1.03
60 13.63 0.92 14.48 0.96 15.32 0.99 15.93 1.00 17.02 1.02 17.86 1.04
65 13.62 0.94 14.47 0.97 15.31 1.01 15.92 1.02 17.00 1.04 17.85 1.06
70 13.61 0.95 14.45 0.98 15.30 1.02 15.91 1.03 16.99 1.05 17.83 1.07
75 13.28 1.00 14.12 1.04 14.97 1.07 15.58 1.09 16.65 1.11 17.50 1.13
80 12.95 1.05 13.80 1.09 14.64 1.13 15.24 1.14 16.32 1.16 17.16 1.19
85 12.63 1.10 13.47 1.14 14.31 1.18 14.91 1.20 15.99 1.22 16.82 1.24
90 12.30 1.15 13.14 1.19 13.98 1.24 14.58 1.25 15.65 1.28 16.49 1.30
95 11.95 1.20 12.79 1.25 13.62 1.29 14.00 1.31 15.28 1.33 16.12 1.36
100 11.66 1.25 12.49 1.30 13.33 1.35 13.82 1.36 14.99 1.39 15.82 1.42
105 11.37 1.31 12.20 1.35 13.04 1.40 13.64 1.42 14.70 1.45 15.53 1.47
110 11.08 1.36 11.91 1.41 12.74 1.46 13.35 1.47 14.41 1.50 15.24 1.53
115 10.79 1.41 11.62 1.46 12.45 1.51 13.06 1.53 14.12 1.56 14.95 1.59
118 10.61 1.44 11.45 1.49 12.28 1.55 12.88 1.56 13.94 1.59 14.78 1.62
122 10.56 1.48 11.39 1.53 12.22 1.59 12.82 1.61 13.89 1.64 14.72 1.67
Two (2) Mixed
Indoor Units
7 + 9
14 14.30 0.78 15.19 0.80 16.08 0.83 16.72 0.84 17.85 0.86 18.74 0.88
20 14.29 0.79 15.18 0.82 16.06 0.85 16.71 0.85 17.84 0.87 18.73 0.89
25 14.28 0.80 15.17 0.83 16.05 0.86 16.69 0.87 17.83 0.88 18.71 0.90
30 14.27 0.81 15.15 0.84 16.04 0.87 16.68 0.88 17.81 0.90 18.70 0.91
35 14.26 0.82 15.14 0.85 16.03 0.88 16.67 0.89 17.80 0.91 18.68 0.93
40 14.25 0.83 15.13 0.86 16.02 0.89 16.65 0.90 17.79 0.92 18.67 0.94
45 14.24 0.84 15.12 0.87 16.00 0.90 16.64 0.92 17.77 0.93 18.66 0.95
50 14.22 0.85 15.11 0.88 15.99 0.92 16.63 0.93 17.76 0.94 18.64 0.96
55 14.21 0.86 15.10 0.90 15.98 0.93 16.62 0.94 17.74 0.96 18.63 0.98
60 14.20 0.88 15.08 0.91 15.97 0.94 16.60 0.95 17.73 0.97 18.61 0.99
65 14.19 0.89 15.07 0.92 15.95 0.95 16.59 0.96 17.72 0.98 18.60 1.00
70 14.18 0.90 15.06 0.93 15.94 0.96 16.58 0.98 17.70 0.99 18.58 1.01
75 13.84 0.95 14.72 0.98 15.60 1.02 16.23 1.03 17.35 1.05 18.23 1.07
80 13.50 0.99 14.37 1.03 15.25 1.07 15.88 1.08 17.00 1.10 17.88 1.12
85 13.16 1.04 14.03 1.08 14.91 1.12 15.54 1.13 16.66 1.15 17.53 1.18
90 12.82 1.09 13.69 1.13 14.57 1.17 15.20 1.19 16.31 1.21 17.18 1.23
95 12.45 1.14 13.32 1.18 14.19 1.22 14.59 1.24 15.93 1.26 16.79 1.29
100 12.15 1.19 13.02 1.23 13.89 1.28 14.40 1.29 15.62 1.32 16.49 1.34
105 11.85 1.24 12.72 1.28 13.58 1.33 14.21 1.34 15.32 1.37 16.19 1.40
110 11.54 1.29 12.41 1.33 13.28 1.38 13.91 1.40 15.02 1.42 15.88 1.45
115 11.24 1.33 12.11 1.38 12.98 1.43 13.60 1.45 14.71 1.48 15.58 1.51
118 11.06 1.36 11.93 1.41 12.80 1.46 13.42 1.48 14.53 1.51 15.40 1.54
122 11.00 1.40 11.87 1.45 12.73 1.51 13.36 1.52 14.47 1.55 15.34 1.58
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 45
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
9 + 9
14 15.19 0.82 16.14 0.85 17.08 0.88 17.76 0.89 18.97 0.91 19.91 0.93
20 15.18 0.83 16.13 0.86 17.07 0.89 17.75 0.90 18.95 0.92 19.90 0.94
25 15.17 0.84 16.11 0.87 17.06 0.91 17.74 0.92 18.94 0.93 19.88 0.95
30 15.16 0.85 16.10 0.89 17.04 0.92 17.72 0.93 18.93 0.95 19.87 0.97
35 15.15 0.87 16.09 0.90 17.03 0.93 17.71 0.94 18.91 0.96 19.85 0.98
40 15.14 0.88 16.08 0.91 17.02 0.94 17.70 0.95 18.90 0.97 19.84 0.99
45 15.13 0.89 16.06 0.92 17.00 0.96 17.68 0.97 18.88 0.99 19.82 1.00
50 15.11 0.90 16.05 0.93 16.99 0.97 17.67 0.98 18.87 1.00 19.81 1.02
55 15.10 0.91 16.04 0.95 16.98 0.98 17.66 0.99 18.85 1.01 19.79 1.03
60 15.09 0.93 16.03 0.96 16.96 0.99 17.64 1.01 18.84 1.02 19.78 1.04
65 15.08 0.94 16.02 0.97 16.95 1.01 17.63 1.02 18.82 1.04 19.76 1.06
70 15.07 0.95 16.00 0.98 16.94 1.02 17.61 1.03 18.81 1.05 19.75 1.07
75 14.70 1.00 15.64 1.04 16.57 1.07 17.25 1.09 18.44 1.11 19.37 1.13
80 14.34 1.05 15.27 1.09 16.20 1.13 16.88 1.14 18.07 1.16 19.00 1.19
85 13.98 1.10 14.91 1.14 15.84 1.18 16.51 1.20 17.70 1.22 18.63 1.24
90 13.62 1.15 14.55 1.20 15.48 1.24 16.15 1.25 17.33 1.28 18.26 1.30
95 13.23 1.20 14.16 1.25 15.08 1.29 15.50 1.31 16.92 1.33 17.84 1.36
100 12.91 1.26 13.83 1.30 14.75 1.35 15.30 1.36 16.60 1.39 17.52 1.42
105 12.59 1.31 13.51 1.35 14.43 1.40 15.10 1.42 16.28 1.45 17.20 1.48
110 12.27 1.36 13.19 1.41 14.11 1.46 14.78 1.48 15.95 1.50 16.88 1.53
115 11.94 1.41 12.87 1.46 13.79 1.51 14.45 1.53 15.63 1.56 16.55 1.59
118 11.75 1.44 12.67 1.49 13.59 1.55 14.26 1.56 15.44 1.59 16.36 1.63
122 11.69 1.48 12.61 1.53 13.53 1.59 14.20 1.61 15.37 1.64 16.30 1.67
7 + 12
14 15.19 0.82 16.14 0.85 17.08 0.88 17.76 0.89 18.97 0.91 19.91 0.93
20 15.18 0.83 16.13 0.86 17.07 0.89 17.75 0.90 18.95 0.92 19.90 0.94
25 15.17 0.84 16.11 0.87 17.06 0.91 17.74 0.92 18.94 0.93 19.88 0.95
30 15.16 0.85 16.10 0.89 17.04 0.92 17.72 0.93 18.93 0.95 19.87 0.97
35 15.15 0.87 16.09 0.90 17.03 0.93 17.71 0.94 18.91 0.96 19.85 0.98
40 15.14 0.88 16.08 0.91
17.02 0.94 17.70 0.95 18.90 0.97 19.84 0.99
45 15.13 0.89 16.06 0.92 17.00 0.96 17.68 0.97 18.88 0.99 19.82 1.00
50 15.11 0.90 16.05 0.93 16.99 0.97 17.67 0.98 18.87 1.00 19.81 1.02
55 15.10 0.91 16.04 0.95 16.98 0.98 17.66 0.99 18.85 1.01 19.79 1.03
60 15.09 0.93 16.03 0.96 16.96 0.99 17.64 1.01 18.84 1.02 19.78 1.04
65 15.08 0.94 16.02 0.97 16.95 1.01 17.63 1.02 18.82 1.04 19.76 1.06
70 15.07 0.95 16.00 0.98 16.94 1.02 17.61 1.03 18.81 1.05 19.75 1.07
75 14.70 1.00 15.64 1.04 16.57 1.07 17.25 1.09 18.44 1.11 19.37 1.13
80 14.34 1.05 15.27 1.09 16.20 1.13 16.88 1.14 18.07 1.16 19.00 1.19
85 13.98 1.10 14.91 1.14 15.84 1.18 16.51 1.20 17.70 1.22 18.63 1.24
90 13.62 1.15 14.55 1.20 15.48 1.24 16.15 1.25 17.33 1.28 18.26 1.30
95 13.23 1.20 14.16 1.25 15.08 1.29 15.50 1.31 16.92 1.33 17.84 1.36
100 12.91 1.26 13.83 1.30 14.75 1.35 15.30 1.36 16.60 1.39 17.52 1.42
105 12.59 1.31 13.51 1.35 14.43 1.40 15.10 1.42 16.28 1.45 17.20 1.48
110 12.27 1.36 13.19 1.41 14.11 1.46 14.78 1.48 15.95 1.50 16.88 1.53
115 11.94 1.41 12.87 1.46 13.79 1.51 14.45 1.53 15.63 1.56 16.55 1.59
118 11.75 1.44 12.67 1.49 13.59 1.55 14.26 1.56 15.44 1.59 16.36 1.63
122 11.69 1.48 12.61 1.53 13.53 1.59 14.20 1.61 15.37 1.64 16.30 1.67
Table 38: LMU18CHV Cooling Capacity Table — Mixed Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
46 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
9 + 12
14 15.19 0.82 16.14 0.85 17.08 0.88 17.76 0.89 18.97 0.91 19.91 0.93
20 15.18 0.83 16.13 0.86 17.07 0.89 17.75 0.90 18.95 0.92 19.90 0.94
25 15.17 0.84 16.11 0.87 17.06 0.91 17.74 0.92 18.94 0.93 19.88 0.95
30 15.16 0.85 16.10 0.89 17.04 0.92 17.72 0.93 18.93 0.95 19.87 0.97
35 15.15 0.87 16.09 0.90 17.03 0.93 17.71 0.94 18.91 0.96 19.85 0.98
40 15.14 0.88 16.08 0.91 17.02 0.94 17.70 0.95 18.90 0.97 19.84 0.99
45 15.13 0.89 16.06 0.92 17.00 0.96 17.68 0.97 18.88 0.99 19.82 1.00
50 15.11 0.90 16.05 0.93 16.99 0.97 17.67 0.98 18.87 1.00 19.81 1.02
55 15.10 0.91 16.04 0.95 16.98 0.98 17.66 0.99 18.85 1.01 19.79 1.03
60 15.09 0.93 16.03 0.96 16.96 0.99 17.64 1.01 18.84 1.02 19.78 1.04
65 15.08 0.94 16.02 0.97 16.95 1.01 17.63 1.02 18.82 1.04 19.76 1.06
70 15.07 0.95 16.00 0.98 16.94 1.02 17.61 1.03 18.81 1.05 19.75 1.07
75 14.70 1.00 15.64 1.04 16.57 1.07 17.25 1.09 18.44 1.11 19.37 1.13
80 14.34 1.05 15.27 1.09 16.20 1.13 16.88 1.14 18.07 1.16 19.00 1.19
85 13.98 1.10 14.91 1.14 15.84 1.18 16.51 1.20 17.70 1.22 18.63 1.24
90 13.62 1.15 14.55 1.20 15.48 1.24 16.15 1.25 17.33 1.28 18.26 1.30
95 13.23 1.20 14.16 1.25 15.08 1.29 15.50 1.31 16.92 1.33 17.84 1.36
100 12.91 1.26 13.83 1.30 14.75 1.35 15.30 1.36 16.60 1.39 17.52 1.42
105 12.59 1.31 13.51 1.35 14.43 1.40 15.10 1.42 16.28 1.45 17.20 1.48
110 12.27 1.36 13.19 1.41 14.11 1.46 14.78 1.48 15.95 1.50 16.88 1.53
115 11.94 1.41 12.87 1.46 13.79 1.51 14.45 1.53 15.63 1.56 16.55 1.59
118 11.75 1.44 12.67 1.49 13.59 1.55 14.26 1.56 15.44 1.59 16.36 1.63
122 11.69 1.48 12.61 1.53 13.53 1.59 14.20 1.61 15.37 1.64 16.30 1.67
9 + 15
14 15.19 0.82 16.14 0.85 17.08 0.88 17.76 0.89 18.97 0.91 19.91 0.93
20 15.18 0.83 16.13 0.86 17.07 0.89 17.75 0.90 18.95 0.92 19.90 0.94
25 15.17 0.84 16.11 0.87 17.06 0.91 17.74 0.92 18.94 0.93 19.88 0.95
30 15.16 0.85 16.10 0.89 17.04 0.92 17.72 0.93 18.93 0.95 19.87 0.97
35 15.15 0.87 16.09 0.90 17.03 0.93 17.71 0.94 18.91 0.96 19.85 0.98
40 15.14 0.88 16.08 0.91
17.02 0.94 17.70 0.95 18.90 0.97 19.84 0.99
45 15.13 0.89 16.06 0.92 17.00 0.96 17.68 0.97 18.88 0.99 19.82 1.00
50 15.11 0.90 16.05 0.93 16.99 0.97 17.67 0.98 18.87 1.00 19.81 1.02
55 15.10 0.91 16.04 0.95 16.98 0.98 17.66 0.99 18.85 1.01 19.79 1.03
60 15.09 0.93 16.03 0.96 16.96 0.99 17.64 1.01 18.84 1.02 19.78 1.04
65 15.08 0.94 16.02 0.97 16.95 1.01 17.63 1.02 18.82 1.04 19.76 1.06
70 15.07 0.95 16.00 0.98 16.94 1.02 17.61 1.03 18.81 1.05 19.75 1.07
75 14.70 1.00 15.64 1.04 16.57 1.07 17.25 1.09 18.44 1.11 19.37 1.13
80 14.34 1.05 15.27 1.09 16.20 1.13 16.88 1.14 18.07 1.16 19.00 1.19
85 13.98 1.10 14.91 1.14 15.84 1.18 16.51 1.20 17.70 1.22 18.63 1.24
90 13.62 1.15 14.55 1.20 15.48 1.24 16.15 1.25 17.33 1.28 18.26 1.30
95 13.23 1.20 14.16 1.25 15.08 1.29 15.50 1.31 16.92 1.33 17.84 1.36
100 12.91 1.26 13.83 1.30 14.75 1.35 15.30 1.36 16.60 1.39 17.52 1.42
105 12.59 1.31 13.51 1.35 14.43 1.40 15.10 1.42 16.28 1.45 17.20 1.48
110 12.27 1.36 13.19 1.41 14.11 1.46 14.78 1.48 15.95 1.50 16.88 1.53
115 11.94 1.41 12.87 1.46 13.79 1.51 14.45 1.53 15.63 1.56 16.55 1.59
118 11.75 1.44 12.67 1.49 13.59 1.55 14.26 1.56 15.44 1.59 16.36 1.63
122 11.69 1.48 12.61 1.53 13.53 1.59 14.20 1.61 15.37 1.64 16.30 1.67
Table 39: LMU18CHV Cooling Capacity Table — Mixed Indoor Units.
PERFORMANCE DATA
Cooling Capacity Tables
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
MULTI F OUTDOOR UNIT | 47
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
12 + 12
14 15.19 0.82 16.14 0.85 17.08 0.88 17.76 0.89 18.97 0.91 19.91 0.93
20 15.18 0.83 16.13 0.86 17.07 0.89 17.75 0.90 18.95 0.92 19.90 0.94
25 15.17 0.84 16.11 0.87 17.06 0.91 17.74 0.92 18.94 0.93 19.88 0.95
30 15.16 0.85 16.10 0.89 17.04 0.92 17.72 0.93 18.93 0.95 19.87 0.97
35 15.15 0.87 16.09 0.90 17.03 0.93 17.71 0.94 18.91 0.96 19.85 0.98
40 15.14 0.88 16.08 0.91 17.02 0.94 17.70 0.95 18.90 0.97 19.84 0.99
45 15.13 0.89 16.06 0.92 17.00 0.96 17.68 0.97 18.88 0.99 19.82 1.00
50 15.11 0.90 16.05 0.93 16.99 0.97 17.67 0.98 18.87 1.00 19.81 1.02
55 15.10 0.91 16.04 0.95 16.98 0.98 17.66 0.99 18.85 1.01 19.79 1.03
60 15.09 0.93 16.03 0.96 16.96 0.99 17.64 1.01 18.84 1.02 19.78 1.04
65 15.08 0.94 16.02 0.97 16.95 1.01 17.63 1.02 18.82 1.04 19.76 1.06
70 15.07 0.95 16.00 0.98 16.94 1.02 17.61 1.03 18.81 1.05 19.75 1.07
75 14.70 1.00 15.64 1.04 16.57 1.07 17.25 1.09 18.44 1.11 19.37 1.13
80 14.34 1.05 15.27 1.09 16.20 1.13 16.88 1.14 18.07 1.16 19.00 1.19
85 13.98 1.10 14.91 1.14 15.84 1.18 16.51 1.20 17.70 1.22 18.63 1.24
90 13.62 1.15 14.55 1.20 15.48 1.24 16.15 1.25 17.33 1.28 18.26 1.30
95 13.23 1.20 14.16 1.25 15.08 1.29 15.50 1.31 16.92 1.33 17.84 1.36
100 12.91 1.26 13.83 1.30 14.75 1.35 15.30 1.36 16.60 1.39 17.52 1.42
105 12.59 1.31 13.51 1.35 14.43 1.40 15.10 1.42 16.28 1.45 17.20 1.48
110 12.27 1.36 13.19 1.41 14.11 1.46 14.78 1.48 15.95 1.50 16.88 1.53
115 11.94 1.41 12.87 1.46 13.79 1.51 14.45 1.53 15.63 1.56 16.55 1.59
118 11.75 1.44 12.67 1.49 13.59 1.55 14.26 1.56 15.44 1.59 16.36 1.63
122 11.69 1.48 12.61 1.53 13.53 1.59 14.20 1.61 15.37 1.64 16.30 1.67
PERFORMANCE DATA
Cooling Capacity Tables
Table 40: LMU18CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
48 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
7 + 7
14 13.72 0.71 14.58 0.74 15.43 0.77 16.04 0.78 17.13 0.79 17.99 0.81
20 13.71 0.72 14.57 0.75 15.42 0.78 16.03 0.79 17.12 0.80 17.97 0.82
25 13.70 0.73 14.55 0.76 15.41 0.79 16.02 0.80 17.11 0.81 17.96 0.83
30 13.69 0.74 14.54 0.77 15.39 0.80 16.01 0.81 17.09 0.82 17.94 0.84
35 13.68 0.75 14.53 0.78 15.38 0.81 16.00 0.82 17.08 0.84 17.93 0.85
40 13.67 0.76 14.52 0.79 15.37 0.82 15.98 0.83 17.07 0.85 17.92 0.86
45 13.66 0.77 14.51 0.80 15.36 0.83 15.97 0.84 17.06 0.86 17.90 0.88
50 13.65 0.79 14.50 0.81 15.35 0.84 15.96 0.85 17.04 0.87 17.89 0.89
55 13.64 0.80 14.49 0.82 15.33 0.85 15.95 0.86 17.03 0.88 17.88 0.90
60 13.63 0.81 14.48 0.84 15.32 0.87 15.93 0.88 17.02 0.89 17.86 0.91
65 13.62 0.82 14.47 0.85 15.31 0.88 15.92 0.89 17.00 0.90 17.85 0.92
70 13.61 0.83 14.45 0.86 15.30 0.89 15.91 0.90 16.99 0.91 17.83 0.93
75 13.28 0.87 14.12 0.90 14.97 0.94 15.58 0.95 16.65 0.96 17.50 0.98
80 12.95 0.92 13.80 0.95 14.64 0.98 15.24 0.99 16.32 1.01 17.16 1.03
85 12.63 0.96 13.47 0.99 14.31 1.03 14.91 1.04 15.99 1.06 16.82 1.08
90 12.30 1.00 13.14 1.04 13.98 1.08 14.58 1.09 15.65 1.11 16.49 1.13
95 11.95 1.05 12.79 1.09 13.62 1.13 14.00 1.14 15.28 1.16 16.12 1.18
100 11.66 1.09 12.49 1.13 13.33 1.17 13.82 1.19 14.99 1.21 15.82 1.24
105 11.37 1.14 12.20 1.18 13.04 1.22 13.64 1.24 14.70 1.26 15.53 1.29
110 11.08 1.18 11.91 1.23 12.74 1.27 13.35 1.29 14.41 1.31 15.24 1.34
115 10.79 1.23 11.62 1.27 12.45 1.32 13.06 1.33 14.12 1.36 14.95 1.39
118 10.61 1.25 11.45 1.30 12.28 1.35 12.88 1.36 13.94 1.39 14.78 1.42
122 10.56 1.29 11.39 1.34 12.22 1.39 12.82 1.40 13.89 1.43 14.72 1.46
7 + 9
14 15.68 0.81 16.66 0.84 17.63 0.87 18.34 0.88 19.58 0.89 20.56 0.91
20 15.67 0.82 16.65 0.85 17.62 0.88 18.32 0.89 19.57 0.91 20.54 0.92
25 15.66 0.83 16.63 0.86 17.61 0.89 18.31 0.90 19.55 0.92 20.52 0.94
30 15.65 0.84 16.62 0.87 17.59 0.90 18.29 0.92 19.54 0.93 20.51 0.95
35 15.64 0.85 16.61 0.88 17.58 0.92 18.28 0.93 19.52 0.95 20.49 0.96
40 15.62 0.87 16.60 0.90
17.57 0.93 18.27 0.94 19.51 0.96 20.48 0.98
45 15.61 0.88 16.58 0.91 17.55 0.94 18.25 0.95 19.49 0.97 20.46 0.99
50 15.60 0.89 16.57 0.92 17.54 0.95 18.24 0.97 19.48 0.98 20.45 1.00
55 15.59 0.90 16.56 0.93 17.53 0.97 18.22 0.98 19.46 1.00 20.43 1.02
60 15.58 0.91 16.54 0.94 17.51 0.98 18.21 0.99 19.45 1.01 20.41 1.03
65 15.57 0.92 16.53 0.96 17.50 0.99 18.20 1.00 19.43 1.02 20.40 1.04
70 15.55 0.93 16.52 0.97 17.49 1.00 18.18 1.02 19.42 1.03 20.38 1.06
75 15.18 0.99 16.14 1.02 17.11 1.06 17.80 1.07 19.03 1.09 20.00 1.11
80 14.80 1.04 15.77 1.07 16.73 1.11 17.42 1.13 18.65 1.15 19.61 1.17
85 14.43 1.09 15.39 1.13 16.35 1.17 17.04 1.18 18.27 1.20 19.23 1.23
90 14.06 1.14 15.02 1.18 15.98 1.22 16.67 1.24 17.89 1.26 18.84 1.28
95 13.66 1.19 14.61 1.23 15.56 1.28 16.00 1.29 17.47 1.31 18.42 1.34
100 13.33 1.24 14.28 1.28 15.23 1.33 15.79 1.34 17.13 1.37 18.09 1.40
105 12.99 1.29 13.95 1.33 14.90 1.38 15.59 1.40 16.80 1.43 17.75 1.45
110 12.66 1.34 13.61 1.39 14.57 1.44 15.25 1.45 16.47 1.48 17.42 1.51
115 12.33 1.39 13.28 1.44 14.23 1.49 14.92 1.51 16.14 1.54 17.09 1.57
118 12.13 1.42 13.08 1.47 14.03 1.52 14.72 1.54 15.94 1.57 16.89 1.60
122 12.06 1.46 13.02 1.51 13.97 1.57 14.65 1.59 15.87 1.62 16.82 1.65
PERFORMANCE DATA
Cooling Capacity Tables
Table 41: LMU24CHV Cooling Capacity Table — Non-Ducted Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
MULTI F OUTDOOR UNIT | 49
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
9 + 9
14 17.65 0.90 18.74 0.93 19.84 0.97 20.63 0.98 22.03 1.00 23.12 1.02
20 17.63 0.91 18.73 0.95 19.82 0.98 20.61 0.99 22.01 1.01 23.11 1.03
25 17.62 0.93 18.71 0.96 19.81 1.00 20.60 1.01 22.00 1.03 23.09 1.05
30 17.60 0.94 18.70 0.97 19.79 1.01 20.58 1.02 21.98 1.04 23.07 1.06
35 17.59 0.95 18.68 0.99 19.78 1.02 20.57 1.04 21.96 1.05 23.05 1.08
40 17.58 0.97 18.67 1.00 19.76 1.04 20.55 1.05 21.94 1.07 23.04 1.09
45 17.56 0.98 18.66 1.01 19.75 1.05 20.53 1.06 21.93 1.08 23.02 1.11
50 17.55 0.99 18.64 1.03 19.73 1.07 20.52 1.08 21.91 1.10 23.00 1.12
55 17.54 1.00 18.63 1.04 19.72 1.08 20.50 1.09 21.89 1.11 22.98 1.13
60 17.52 1.02 18.61 1.05 19.70 1.09 20.49 1.11 21.88 1.13 22.97 1.15
65 17.51 1.03 18.60 1.07 19.69 1.11 20.47 1.12 21.86 1.14 22.95 1.16
70 17.50 1.04 18.58 1.08 19.67 1.12 20.46 1.13 21.84 1.16 22.93 1.18
75 17.08 1.10 18.16 1.14 19.24 1.18 20.03 1.20 21.41 1.22 22.50 1.24
80 16.66 1.16 17.74 1.20 18.82 1.24 19.60 1.26 20.98 1.28 22.06 1.31
85 16.24 1.21 17.32 1.26 18.40 1.30 19.17 1.32 20.55 1.34 21.63 1.37
90 15.82 1.27 16.90 1.32 17.97 1.36 18.75 1.38 20.12 1.40 21.20 1.43
95 15.37 1.33 16.44 1.37 17.51 1.42 18.00 1.44 19.65 1.47 20.72 1.50
100 14.99 1.38 16.06 1.43 17.13 1.48 17.77 1.50 19.28 1.53 20.35 1.56
105 14.62 1.44 15.69 1.49 16.76 1.54 17.53 1.56 18.90 1.59 19.97 1.62
110 14.24 1.49 15.32 1.55 16.39 1.61 17.16 1.62 18.53 1.65 19.60 1.69
115 13.87 1.55 14.94 1.61 16.01 1.67 16.79 1.68 18.15 1.72 19.22 1.75
118 13.65 1.58 14.72 1.64 15.79 1.70 16.56 1.72 17.93 1.75 19.00 1.79
122 13.57 1.63 14.64 1.69 15.71 1.75 16.49 1.77 17.85 1.80 18.92 1.84
7 + 12
14 18.63 0.94 19.78 0.98 20.94 1.02 21.77 1.03 23.25 1.05 24.41 1.07
20 18.61 0.96 19.77 0.99 20.92 1.03 21.76 1.04 23.23 1.06 24.39 1.08
25 18.60 0.97 19.75 1.01 20.91 1.04 21.74 1.06 23.22 1.08 24.37 1.10
30 18.58 0.99 19.74 1.02 20.89 1.06 21.72 1.07 23.20 1.09 24.35 1.11
35 18.57 1.00 19.72 1.04 20.88 1.07 21.71 1.09 23.18 1.11 24.33 1.13
40 18.55 1.01 19.71 1.05
20.86 1.09 21.69 1.10 23.16 1.12 24.32 1.14
45 18.54 1.03 19.69 1.06 20.84 1.10 21.67 1.12 23.15 1.14 24.30 1.16
50 18.53 1.04 19.68 1.08 20.83 1.12 21.66 1.13 23.13 1.15 24.28 1.17
55 18.51 1.05 19.66 1.09 20.81 1.13 21.64 1.14 23.11 1.17 24.26 1.19
60 18.50 1.07 19.65 1.11 20.80 1.15 21.63 1.16 23.09 1.18 24.24 1.21
65 18.48 1.08 19.63 1.12 20.78 1.16 21.61 1.17 23.08 1.20 24.22 1.22
70 18.47 1.09 19.62 1.13 20.76 1.18 21.59 1.19 23.06 1.21 24.20 1.24
75 18.02 1.15 19.17 1.20 20.31 1.24 21.14 1.25 22.60 1.28 23.75 1.30
80 17.58 1.21 18.72 1.26 19.86 1.30 20.69 1.32 22.15 1.34 23.29 1.37
85 17.14 1.27 18.28 1.32 19.42 1.37 20.24 1.38 21.69 1.41 22.83 1.44
90 16.70 1.33 17.84 1.38 18.97 1.43 19.79 1.45 21.24 1.47 22.38 1.50
95 16.22 1.39 17.35 1.44 18.48 1.49 19.00 1.51 20.74 1.54 21.87 1.57
100 15.83 1.45 16.96 1.50 18.09 1.56 18.75 1.57 20.35 1.60 21.48 1.64
105 15.43 1.51 16.56 1.56 17.69 1.62 18.51 1.64 19.95 1.67 21.08 1.70
110 15.04 1.57 16.17 1.62 17.30 1.68 18.11 1.70 19.56 1.73 20.69 1.77
115 14.64 1.63 15.77 1.68 16.90 1.75 17.72 1.77 19.16 1.80 20.29 1.84
118 14.40 1.66 15.53 1.72 16.66 1.78 17.48 1.81 18.92 1.84 20.05 1.88
122 14.33 1.71 15.46 1.77 16.59 1.84 17.40 1.86 18.85 1.89 19.98 1.93
Table 42: LMU24CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
50 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 43: LMU24CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
9 + 12
14 19.61 0.99 20.82 1.02 22.04 1.06 22.92 1.07 24.48 1.09 25.69 1.12
20 19.59 1.00 20.81 1.04 22.02 1.08 22.90 1.09 24.46 1.11 25.67 1.13
25 19.58 1.02 20.79 1.05 22.01 1.09 22.89 1.11 24.44 1.13 25.65 1.15
30 19.56 1.03 20.78 1.07 21.99 1.11 22.87 1.12 24.42 1.14 25.64 1.16
35 19.55 1.05 20.76 1.08 21.97 1.12 22.85 1.14 24.40 1.16 25.62 1.18
40 19.53 1.06 20.74 1.10 21.96 1.14 22.83 1.15 24.38 1.17 25.60 1.20
45 19.52 1.07 20.73 1.11 21.94 1.15 22.82 1.17 24.36 1.19 25.58 1.21
50 19.50 1.09 20.71 1.13 21.92 1.17 22.80 1.18 24.35 1.20 25.56 1.23
55 19.49 1.10 20.70 1.14 21.91 1.18 22.78 1.20 24.33 1.22 25.54 1.25
60 19.47 1.12 20.68 1.16 21.89 1.20 22.76 1.21 24.31 1.24 25.52 1.26
65 19.46 1.13 20.66 1.17 21.87 1.21 22.75 1.23 24.29 1.25 25.50 1.28
70 19.44 1.15 20.65 1.19 21.86 1.23 22.73 1.24 24.27 1.27 25.48 1.29
75 18.97 1.21 20.18 1.25 21.38 1.30 22.25 1.31 23.79 1.34 25.00 1.36
80 18.51 1.27 19.71 1.31 20.91 1.36 21.78 1.38 23.31 1.40 24.51 1.43
85 18.04 1.33 19.24 1.38 20.44 1.43 21.30 1.45 22.84 1.47 24.03 1.50
90 17.58 1.39 18.77 1.44 19.97 1.50 20.83 1.51 22.36 1.54 23.56 1.57
95 17.08 1.45 18.26 1.51 19.45 1.56 20.00 1.58 21.83 1.61 23.02 1.64
100 16.66 1.52 17.85 1.57 19.04 1.63 19.74 1.65 21.42 1.68 22.61 1.71
105 16.24 1.58 17.43 1.64 18.62 1.69 19.48 1.71 21.00 1.75 22.19 1.78
110 15.83 1.64 17.02 1.70 18.21 1.76 19.07 1.78 20.59 1.81 21.78 1.85
115 15.41 1.70 16.60 1.76 17.79 1.83 18.65 1.85 20.17 1.88 21.36 1.92
118 15.16 1.74 16.35 1.80 17.54 1.87 18.40 1.89 19.92 1.92 21.11 1.96
122 15.08 1.79 16.27 1.85 17.46 1.92 18.32 1.94 19.84 1.98 21.03 2.02
7 + 15
14 19.61 0.99 20.82 1.02 22.04 1.06 22.92 1.07 24.48 1.09 25.69 1.12
20 19.59 1.00 20.81 1.04 22.02 1.08 22.90 1.09 24.46 1.11 25.67 1.13
25 19.58 1.02 20.79 1.05 22.01 1.09 22.89 1.11 24.44 1.13 25.65 1.15
30 19.56 1.03 20.78 1.07 21.99 1.11 22.87 1.12 24.42 1.14 25.64 1.16
35 19.55 1.05 20.76 1.08 21.97 1.12 22.85 1.14 24.40 1.16 25.62 1.18
40 19.53 1.06 20.74 1.10
21.96 1.14 22.83 1.15 24.38 1.17 25.60 1.20
45 19.52 1.07 20.73 1.11 21.94 1.15 22.82 1.17 24.36 1.19 25.58 1.21
50 19.50 1.09 20.71 1.13 21.92 1.17 22.80 1.18 24.35 1.20 25.56 1.23
55 19.49 1.10 20.70 1.14 21.91 1.18 22.78 1.20 24.33 1.22 25.54 1.25
60 19.47 1.12 20.68 1.16 21.89 1.20 22.76 1.21 24.31 1.24 25.52 1.26
65 19.46 1.13 20.66 1.17 21.87 1.21 22.75 1.23 24.29 1.25 25.50 1.28
70 19.44 1.15 20.65 1.19 21.86 1.23 22.73 1.24 24.27 1.27 25.48 1.29
75 18.97 1.21 20.18 1.25 21.38 1.30 22.25 1.31 23.79 1.34 25.00 1.36
80 18.51 1.27 19.71 1.31 20.91 1.36 21.78 1.38 23.31 1.40 24.51 1.43
85 18.04 1.33 19.24 1.38 20.44 1.43 21.30 1.45 22.84 1.47 24.03 1.50
90 17.58 1.39 18.77 1.44 19.97 1.50 20.83 1.51 22.36 1.54 23.56 1.57
95 17.08 1.45 18.26 1.51 19.45 1.56 20.00 1.58 21.83 1.61 23.02 1.64
100 16.66 1.52 17.85 1.57 19.04 1.63 19.74 1.65 21.42 1.68 22.61 1.71
105 16.24 1.58 17.43 1.64 18.62 1.69 19.48 1.71 21.00 1.75 22.19 1.78
110 15.83 1.64 17.02 1.70 18.21 1.76 19.07 1.78 20.59 1.81 21.78 1.85
115 15.41 1.70 16.60 1.76 17.79 1.83 18.65 1.85 20.17 1.88 21.36 1.92
118 15.16 1.74 16.35 1.80 17.54 1.87 18.40 1.89 19.92 1.92 21.11 1.96
122 15.08 1.79 16.27 1.85 17.46 1.92 18.32 1.94 19.84 1.98 21.03 2.02
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
MULTI F OUTDOOR UNIT | 51
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 44: LMU24CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
9 + 15
14 19.61 0.99 20.82 1.02 22.04 1.06 22.92 1.07 24.48 1.09 25.69 1.12
20 19.59 1.00 20.81 1.04 22.02 1.08 22.90 1.09 24.46 1.11 25.67 1.13
25 19.58 1.02 20.79 1.05 22.01 1.09 22.89 1.11 24.44 1.13 25.65 1.15
30 19.56 1.03 20.78 1.07 21.99 1.11 22.87 1.12 24.42 1.14 25.64 1.16
35 19.55 1.05 20.76 1.08 21.97 1.12 22.85 1.14 24.40 1.16 25.62 1.18
40 19.53 1.06 20.74 1.10 21.96 1.14 22.83 1.15 24.38 1.17 25.60 1.20
45 19.52 1.07 20.73 1.11 21.94 1.15 22.82 1.17 24.36 1.19 25.58 1.21
50 19.50 1.09 20.71 1.13 21.92 1.17 22.80 1.18 24.35 1.20 25.56 1.23
55 19.49 1.10 20.70 1.14 21.91 1.18 22.78 1.20 24.33 1.22 25.54 1.25
60 19.47 1.12 20.68 1.16 21.89 1.20 22.76 1.21 24.31 1.24 25.52 1.26
65 19.46 1.13 20.66 1.17 21.87 1.21 22.75 1.23 24.29 1.25 25.50 1.28
70 19.44 1.15 20.65 1.19 21.86 1.23 22.73 1.24 24.27 1.27 25.48 1.29
75 18.97 1.21 20.18 1.25 21.38 1.30 22.25 1.31 23.79 1.34 25.00 1.36
80 18.51 1.27 19.71 1.31 20.91 1.36 21.78 1.38 23.31 1.40 24.51 1.43
85 18.04 1.33 19.24 1.38 20.44 1.43 21.30 1.45 22.84 1.47 24.03 1.50
90 17.58 1.39 18.77 1.44 19.97 1.50 20.83 1.51 22.36 1.54 23.56 1.57
95 17.08 1.45 18.26 1.51 19.45 1.56 20.00 1.58 21.83 1.61 23.02 1.64
100 16.66 1.52 17.85 1.57 19.04 1.63 19.74 1.65 21.42 1.68 22.61 1.71
105 16.24 1.58 17.43 1.64 18.62 1.69 19.48 1.71 21.00 1.75 22.19 1.78
110 15.83 1.64 17.02 1.70 18.21 1.76 19.07 1.78 20.59 1.81 21.78 1.85
115 15.41 1.70 16.60 1.76 17.79 1.83 18.65 1.85 20.17 1.88 21.36 1.92
118 15.16 1.74 16.35 1.80 17.54 1.87 18.40 1.89 19.92 1.92 21.11 1.96
122 15.08 1.79 16.27 1.85 17.46 1.92 18.32 1.94 19.84 1.98 21.03 2.02
12 + 12
14 19.61 0.99 20.82 1.02 22.04 1.06 22.92 1.07 24.48 1.09 25.69 1.12
20 19.59 1.00 20.81 1.04 22.02 1.08 22.90 1.09 24.46 1.11 25.67 1.13
25 19.58 1.02 20.79 1.05 22.01 1.09 22.89 1.11 24.44 1.13 25.65 1.15
30 19.56 1.03 20.78 1.07 21.99 1.11 22.87 1.12 24.42 1.14 25.64 1.16
35 19.55 1.05 20.76 1.08 21.97 1.12 22.85 1.14 24.40 1.16 25.62 1.18
40 19.53 1.06 20.74 1.10
21.96 1.14 22.83 1.15 24.38 1.17 25.60 1.20
45 19.52 1.07 20.73 1.11 21.94 1.15 22.82 1.17 24.36 1.19 25.58 1.21
50 19.50 1.09 20.71 1.13 21.92 1.17 22.80 1.18 24.35 1.20 25.56 1.23
55 19.49 1.10 20.70 1.14 21.91 1.18 22.78 1.20 24.33 1.22 25.54 1.25
60 19.47 1.12 20.68 1.16 21.89 1.20 22.76 1.21 24.31 1.24 25.52 1.26
65 19.46 1.13 20.66 1.17 21.87 1.21 22.75 1.23 24.29 1.25 25.50 1.28
70 19.44 1.15 20.65 1.19 21.86 1.23 22.73 1.24 24.27 1.27 25.48 1.29
75 18.97 1.21 20.18 1.25 21.38 1.30 22.25 1.31 23.79 1.34 25.00 1.36
80 18.51 1.27 19.71 1.31 20.91 1.36 21.78 1.38 23.31 1.40 24.51 1.43
85 18.04 1.33 19.24 1.38 20.44 1.43 21.30 1.45 22.84 1.47 24.03 1.50
90 17.58 1.39 18.77 1.44 19.97 1.50 20.83 1.51 22.36 1.54 23.56 1.57
95 17.08 1.45 18.26 1.51 19.45 1.56 20.00 1.58 21.83 1.61 23.02 1.64
100 16.66 1.52 17.85 1.57 19.04 1.63 19.74 1.65 21.42 1.68 22.61 1.71
105 16.24 1.58 17.43 1.64 18.62 1.69 19.48 1.71 21.00 1.75 22.19 1.78
110 15.83 1.64 17.02 1.70 18.21 1.76 19.07 1.78 20.59 1.81 21.78 1.85
115 15.41 1.70 16.60 1.76 17.79 1.83 18.65 1.85 20.17 1.88 21.36 1.92
118 15.16 1.74 16.35 1.80 17.54 1.87 18.40 1.89 19.92 1.92 21.11 1.96
122 15.08 1.79 16.27 1.85 17.46 1.92 18.32 1.94 19.84 1.98 21.03 2.02
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
52 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 45: LMU24CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
7 + 18
14 19.61 0.99 20.82 1.02 22.04 1.06 22.92 1.07 24.48 1.09 25.69 1.12
20 19.59 1.00 20.81 1.04 22.02 1.08 22.90 1.09 24.46 1.11 25.67 1.13
25 19.58 1.02 20.79 1.05 22.01 1.09 22.89 1.11 24.44 1.13 25.65 1.15
30 19.56 1.03 20.78 1.07 21.99 1.11 22.87 1.12 24.42 1.14 25.64 1.16
35 19.55 1.05 20.76 1.08 21.97 1.12 22.85 1.14 24.40 1.16 25.62 1.18
40 19.53 1.06 20.74 1.10 21.96 1.14 22.83 1.15 24.38 1.17 25.60 1.20
45 19.52 1.07 20.73 1.11 21.94 1.15 22.82 1.17 24.36 1.19 25.58 1.21
50 19.50 1.09 20.71 1.13 21.92 1.17 22.80 1.18 24.35 1.20 25.56 1.23
55 19.49 1.10 20.70 1.14 21.91 1.18 22.78 1.20 24.33 1.22 25.54 1.25
60 19.47 1.12 20.68 1.16 21.89 1.20 22.76 1.21 24.31 1.24 25.52 1.26
65 19.46 1.13 20.66 1.17 21.87 1.21 22.75 1.23 24.29 1.25 25.50 1.28
70 19.44 1.15 20.65 1.19 21.86 1.23 22.73 1.24 24.27 1.27 25.48 1.29
75 18.97 1.21 20.18 1.25 21.38 1.30 22.25 1.31 23.79 1.34 25.00 1.36
80 18.51 1.27 19.71 1.31 20.91 1.36 21.78 1.38 23.31 1.40 24.51 1.43
85 18.04 1.33 19.24 1.38 20.44 1.43 21.30 1.45 22.84 1.47 24.03 1.50
90 17.58 1.39 18.77 1.44 19.97 1.50 20.83 1.51 22.36 1.54 23.56 1.57
95 17.08 1.45 18.26 1.51 19.45 1.56 20.00 1.58 21.83 1.61 23.02 1.64
100 16.66 1.52 17.85 1.57 19.04 1.63 19.74 1.65 21.42 1.68 22.61 1.71
105 16.24 1.58 17.43 1.64 18.62 1.69 19.48 1.71 21.00 1.75 22.19 1.78
110 15.83 1.64 17.02 1.70 18.21 1.76 19.07 1.78 20.59 1.81 21.78 1.85
115 15.41 1.70 16.60 1.76 17.79 1.83 18.65 1.85 20.17 1.88 21.36 1.92
118 15.16 1.74 16.35 1.80 17.54 1.87 18.40 1.89 19.92 1.92 21.11 1.96
122 15.08 1.79 16.27 1.85 17.46 1.92 18.32 1.94 19.84 1.98 21.03 2.02
9 + 18
14 19.61 0.99 20.82 1.02 22.04 1.06 22.92 1.07 24.48 1.09 25.69 1.12
20 19.59 1.00 20.81 1.04 22.02 1.08 22.90 1.09 24.46 1.11 25.67 1.13
25 19.58 1.02 20.79 1.05 22.01 1.09 22.89 1.11 24.44 1.13 25.65 1.15
30 19.56 1.03 20.78 1.07 21.99 1.11 22.87 1.12 24.42 1.14 25.64 1.16
35 19.55 1.05 20.76 1.08 21.97 1.12 22.85 1.14 24.40 1.16 25.62 1.18
40 19.53 1.06 20.74 1.10
21.96 1.14 22.83 1.15 24.38 1.17 25.60 1.20
45 19.52 1.07 20.73 1.11 21.94 1.15 22.82 1.17 24.36 1.19 25.58 1.21
50 19.50 1.09 20.71 1.13 21.92 1.17 22.80 1.18 24.35 1.20 25.56 1.23
55 19.49 1.10 20.70 1.14 21.91 1.18 22.78 1.20 24.33 1.22 25.54 1.25
60 19.47 1.12 20.68 1.16 21.89 1.20 22.76 1.21 24.31 1.24 25.52 1.26
65 19.46 1.13 20.66 1.17 21.87 1.21 22.75 1.23 24.29 1.25 25.50 1.28
70 19.44 1.15 20.65 1.19 21.86 1.23 22.73 1.24 24.27 1.27 25.48 1.29
75 18.97 1.21 20.18 1.25 21.38 1.30 22.25 1.31 23.79 1.34 25.00 1.36
80 18.51 1.27 19.71 1.31 20.91 1.36 21.78 1.38 23.31 1.40 24.51 1.43
85 18.04 1.33 19.24 1.38 20.44 1.43 21.30 1.45 22.84 1.47 24.03 1.50
90 17.58 1.39 18.77 1.44 19.97 1.50 20.83 1.51 22.36 1.54 23.56 1.57
95 17.08 1.45 18.26 1.51 19.45 1.56 20.00 1.58 21.83 1.61 23.02 1.64
100 16.66 1.52 17.85 1.57 19.04 1.63 19.74 1.65 21.42 1.68 22.61 1.71
105 16.24 1.58 17.43 1.64 18.62 1.69 19.48 1.71 21.00 1.75 22.19 1.78
110 15.83 1.64 17.02 1.70 18.21 1.76 19.07 1.78 20.59 1.81 21.78 1.85
115 15.41 1.70 16.60 1.76 17.79 1.83 18.65 1.85 20.17 1.88 21.36 1.92
118 15.16 1.74 16.35 1.80 17.54 1.87 18.40 1.89 19.92 1.92 21.11 1.96
122 15.08 1.79 16.27 1.85 17.46 1.92 18.32 1.94 19.84 1.98 21.03 2.02
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 53
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 46: LMU24CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
12 + 15
14 19.61 0.99 20.82 1.02 22.04 1.06 22.92 1.07 24.48 1.09 25.69 1.12
20 19.59 1.00 20.81 1.04 22.02 1.08 22.90 1.09 24.46 1.11 25.67 1.13
25 19.58 1.02 20.79 1.05 22.01 1.09 22.89 1.11 24.44 1.13 25.65 1.15
30 19.56 1.03 20.78 1.07 21.99 1.11 22.87 1.12 24.42 1.14 25.64 1.16
35 19.55 1.05 20.76 1.08 21.97 1.12 22.85 1.14 24.40 1.16 25.62 1.18
40 19.53 1.06 20.74 1.10 21.96 1.14 22.83 1.15 24.38 1.17 25.60 1.20
45 19.52 1.07 20.73 1.11 21.94 1.15 22.82 1.17 24.36 1.19 25.58 1.21
50 19.50 1.09 20.71 1.13 21.92 1.17 22.80 1.18 24.35 1.20 25.56 1.23
55 19.49 1.10 20.70 1.14 21.91 1.18 22.78 1.20 24.33 1.22 25.54 1.25
60 19.47 1.12 20.68 1.16 21.89 1.20 22.76 1.21 24.31 1.24 25.52 1.26
65 19.46 1.13 20.66 1.17 21.87 1.21 22.75 1.23 24.29 1.25 25.50 1.28
70 19.44 1.15 20.65 1.19 21.86 1.23 22.73 1.24 24.27 1.27 25.48 1.29
75 18.97 1.21 20.18 1.25 21.38 1.30 22.25 1.31 23.79 1.34 25.00 1.36
80 18.51 1.27 19.71 1.31 20.91 1.36 21.78 1.38 23.31 1.40 24.51 1.43
85 18.04 1.33 19.24 1.38 20.44 1.43 21.30 1.45 22.84 1.47 24.03 1.50
90 17.58 1.39 18.77 1.44 19.97 1.50 20.83 1.51 22.36 1.54 23.56 1.57
95 17.08 1.45 18.26 1.51 19.45 1.56 20.00 1.58 21.83 1.61 23.02 1.64
100 16.66 1.52 17.85 1.57 19.04 1.63 19.74 1.65 21.42 1.68 22.61 1.71
105 16.24 1.58 17.43 1.64 18.62 1.69 19.48 1.71 21.00 1.75 22.19 1.78
110 15.83 1.64 17.02 1.70 18.21 1.76 19.07 1.78 20.59 1.81 21.78 1.85
115 15.41 1.70 16.60 1.76 17.79 1.83 18.65 1.85 20.17 1.88 21.36 1.92
118 15.16 1.74 16.35 1.80 17.54 1.87 18.40 1.89 19.92 1.92 21.11 1.96
122 15.08 1.79 16.27 1.85 17.46 1.92 18.32 1.94 19.84 1.98 21.03 2.02
12 + 18
14 19.61 0.99 20.82 1.02 22.04 1.06 22.92 1.07 24.48 1.09 25.69 1.12
20 19.59 1.00 20.81 1.04 22.02 1.08 22.90 1.09 24.46 1.11 25.67 1.13
25 19.58 1.02 20.79 1.05 22.01 1.09 22.89 1.11 24.44 1.13 25.65 1.15
30 19.56 1.03 20.78 1.07 21.99 1.11 22.87 1.12 24.42 1.14 25.64 1.16
35 19.55 1.05 20.76 1.08 21.97 1.12 22.85 1.14 24.40 1.16 25.62 1.18
40 19.53 1.06 20.74 1.10
21.96 1.14 22.83 1.15 24.38 1.17 25.60 1.20
45 19.52 1.07 20.73 1.11 21.94 1.15 22.82 1.17 24.36 1.19 25.58 1.21
50 19.50 1.09 20.71 1.13 21.92 1.17 22.80 1.18 24.35 1.20 25.56 1.23
55 19.49 1.10 20.70 1.14 21.91 1.18 22.78 1.20 24.33 1.22 25.54 1.25
60 19.47 1.12 20.68 1.16 21.89 1.20 22.76 1.21 24.31 1.24 25.52 1.26
65 19.46 1.13 20.66 1.17 21.87 1.21 22.75 1.23 24.29 1.25 25.50 1.28
70 19.44 1.15 20.65 1.19 21.86 1.23 22.73 1.24 24.27 1.27 25.48 1.29
75 18.97 1.21 20.18 1.25 21.38 1.30 22.25 1.31 23.79 1.34 25.00 1.36
80 18.51 1.27 19.71 1.31 20.91 1.36 21.78 1.38 23.31 1.40 24.51 1.43
85 18.04 1.33 19.24 1.38 20.44 1.43 21.30 1.45 22.84 1.47 24.03 1.50
90 17.58 1.39 18.77 1.44 19.97 1.50 20.83 1.51 22.36 1.54 23.56 1.57
95 17.08 1.45 18.26 1.51 19.45 1.56 20.00 1.58 21.83 1.61 23.02 1.64
100 16.66 1.52 17.85 1.57 19.04 1.63 19.74 1.65 21.42 1.68 22.61 1.71
105 16.24 1.58 17.43 1.64 18.62 1.69 19.48 1.71 21.00 1.75 22.19 1.78
110 15.83 1.64 17.02 1.70 18.21 1.76 19.07 1.78 20.59 1.81 21.78 1.85
115 15.41 1.70 16.60 1.76 17.79 1.83 18.65 1.85 20.17 1.88 21.36 1.92
118 15.16 1.74 16.35 1.80 17.54 1.87 18.40 1.89 19.92 1.92 21.11 1.96
122 15.08 1.79 16.27 1.85 17.46 1.92 18.32 1.94 19.84 1.98 21.03 2.02
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
54 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 47: LMU24CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
15 + 15
14 19.61 0.99 20.82 1.02 22.04 1.06 22.92 1.07 24.48 1.09 25.69 1.12
20 19.59 1.00 20.81 1.04 22.02 1.08 22.90 1.09 24.46 1.11 25.67 1.13
25 19.58 1.02 20.79 1.05 22.01 1.09 22.89 1.11 24.44 1.13 25.65 1.15
30 19.56 1.03 20.78 1.07 21.99 1.11 22.87 1.12 24.42 1.14 25.64 1.16
35 19.55 1.05 20.76 1.08 21.97 1.12 22.85 1.14 24.40 1.16 25.62 1.18
40 19.53 1.06 20.74 1.10 21.96 1.14 22.83 1.15 24.38 1.17 25.60 1.20
45 19.52 1.07 20.73 1.11 21.94 1.15 22.82 1.17 24.36 1.19 25.58 1.21
50 19.50 1.09 20.71 1.13 21.92 1.17 22.80 1.18 24.35 1.20 25.56 1.23
55 19.49 1.10 20.70 1.14 21.91 1.18 22.78 1.20 24.33 1.22 25.54 1.25
60 19.47 1.12 20.68 1.16 21.89 1.20 22.76 1.21 24.31 1.24 25.52 1.26
65 19.46 1.13 20.66 1.17 21.87 1.21 22.75 1.23 24.29 1.25 25.50 1.28
70 19.44 1.15 20.65 1.19 21.86 1.23 22.73 1.24 24.27 1.27 25.48 1.29
75 18.97 1.21 20.18 1.25 21.38 1.30 22.25 1.31 23.79 1.34 25.00 1.36
80 18.51 1.27 19.71 1.31 20.91 1.36 21.78 1.38 23.31 1.40 24.51 1.43
85 18.04 1.33 19.24 1.38 20.44 1.43 21.30 1.45 22.84 1.47 24.03 1.50
90 17.58 1.39 18.77 1.44 19.97 1.50 20.83 1.51 22.36 1.54 23.56 1.57
95 17.08 1.45 18.26 1.51 19.45 1.56 20.00 1.58 21.83 1.61 23.02 1.64
100 16.66 1.52 17.85 1.57 19.04 1.63 19.74 1.65 21.42 1.68 22.61 1.71
105 16.24 1.58 17.43 1.64 18.62 1.69 19.48 1.71 21.00 1.75 22.19 1.78
110 15.83 1.64 17.02 1.70 18.21 1.76 19.07 1.78 20.59 1.81 21.78 1.85
115 15.41 1.70 16.60 1.76 17.79 1.83 18.65 1.85 20.17 1.88 21.36 1.92
118 15.16 1.74 16.35 1.80 17.54 1.87 18.40 1.89 19.92 1.92 21.11 1.96
122 15.08 1.79 16.27 1.85 17.46 1.92 18.32 1.94 19.84 1.98 21.03 2.02
7 + 24
14 19.61 0.99 20.82 1.02 22.04 1.06 22.92 1.07 24.48 1.09 25.69 1.12
20 19.59 1.00 20.81 1.04 22.02 1.08 22.90 1.09 24.46 1.11 25.67 1.13
25 19.58 1.02 20.79 1.05 22.01 1.09 22.89 1.11 24.44 1.13 25.65 1.15
30 19.56 1.03 20.78 1.07 21.99 1.11 22.87 1.12 24.42 1.14 25.64 1.16
35 19.55 1.05 20.76 1.08 21.97 1.12 22.85 1.14 24.40 1.16 25.62 1.18
40 19.53 1.06 20.74 1.10
21.96 1.14 22.83 1.15 24.38 1.17 25.60 1.20
45 19.52 1.07 20.73 1.11 21.94 1.15 22.82 1.17 24.36 1.19 25.58 1.21
50 19.50 1.09 20.71 1.13 21.92 1.17 22.80 1.18 24.35 1.20 25.56 1.23
55 19.49 1.10 20.70 1.14 21.91 1.18 22.78 1.20 24.33 1.22 25.54 1.25
60 19.47 1.12 20.68 1.16 21.89 1.20 22.76 1.21 24.31 1.24 25.52 1.26
65 19.46 1.13 20.66 1.17 21.87 1.21 22.75 1.23 24.29 1.25 25.50 1.28
70 19.44 1.15 20.65 1.19 21.86 1.23 22.73 1.24 24.27 1.27 25.48 1.29
75 18.97 1.21 20.18 1.25 21.38 1.30 22.25 1.31 23.79 1.34 25.00 1.36
80 18.51 1.27 19.71 1.31 20.91 1.36 21.78 1.38 23.31 1.40 24.51 1.43
85 18.04 1.33 19.24 1.38 20.44 1.43 21.30 1.45 22.84 1.47 24.03 1.50
90 17.58 1.39 18.77 1.44 19.97 1.50 20.83 1.51 22.36 1.54 23.56 1.57
95 17.08 1.45 18.26 1.51 19.45 1.56 20.00 1.58 21.83 1.61 23.02 1.64
100 16.66 1.52 17.85 1.57 19.04 1.63 19.74 1.65 21.42 1.68 22.61 1.71
105 16.24 1.58 17.43 1.64 18.62 1.69 19.48 1.71 21.00 1.75 22.19 1.78
110 15.83 1.64 17.02 1.70 18.21 1.76 19.07 1.78 20.59 1.81 21.78 1.85
115 15.41 1.70 16.60 1.76 17.79 1.83 18.65 1.85 20.17 1.88 21.36 1.92
118 15.16 1.74 16.35 1.80 17.54 1.87 18.40 1.89 19.92 1.92 21.11 1.96
122 15.08 1.79 16.27 1.85 17.46 1.92 18.32 1.94 19.84 1.98 21.03 2.02
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 55
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 48: LMU24CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
9 + 24
14 19.61 0.99 20.82 1.02 22.04 1.06 22.92 1.07 24.48 1.09 25.69 1.12
20 19.59 1.00 20.81 1.04 22.02 1.08 22.90 1.09 24.46 1.11 25.67 1.13
25 19.58 1.02 20.79 1.05 22.01 1.09 22.89 1.11 24.44 1.13 25.65 1.15
30 19.56 1.03 20.78 1.07 21.99 1.11 22.87 1.12 24.42 1.14 25.64 1.16
35 19.55 1.05 20.76 1.08 21.97 1.12 22.85 1.14 24.40 1.16 25.62 1.18
40 19.53 1.06 20.74 1.10 21.96 1.14 22.83 1.15 24.38 1.17 25.60 1.20
45 19.52 1.07 20.73 1.11 21.94 1.15 22.82 1.17 24.36 1.19 25.58 1.21
50 19.50 1.09 20.71 1.13 21.92 1.17 22.80 1.18 24.35 1.20 25.56 1.23
55 19.49 1.10 20.70 1.14 21.91 1.18 22.78 1.20 24.33 1.22 25.54 1.25
60 19.47 1.12 20.68 1.16 21.89 1.20 22.76 1.21 24.31 1.24 25.52 1.26
65 19.46 1.13 20.66 1.17 21.87 1.21 22.75 1.23 24.29 1.25 25.50 1.28
70 19.44 1.15 20.65 1.19 21.86 1.23 22.73 1.24 24.27 1.27 25.48 1.29
75 18.97 1.21 20.18 1.25 21.38 1.30 22.25 1.31 23.79 1.34 25.00 1.36
80 18.51 1.27 19.71 1.31 20.91 1.36 21.78 1.38 23.31 1.40 24.51 1.43
85 18.04 1.33 19.24 1.38 20.44 1.43 21.30 1.45 22.84 1.47 24.03 1.50
90 17.58 1.39 18.77 1.44 19.97 1.50 20.83 1.51 22.36 1.54 23.56 1.57
95 17.08 1.45 18.26 1.51 19.45 1.56 20.00 1.58 21.83 1.61 23.02 1.64
100 16.66 1.52 17.85 1.57 19.04 1.63 19.74 1.65 21.42 1.68 22.61 1.71
105 16.24 1.58 17.43 1.64 18.62 1.69 19.48 1.71 21.00 1.75 22.19 1.78
110 15.83 1.64 17.02 1.70 18.21 1.76 19.07 1.78 20.59 1.81 21.78 1.85
115 15.41 1.70 16.60 1.76 17.79 1.83 18.65 1.85 20.17 1.88 21.36 1.92
118 15.16 1.74 16.35 1.80 17.54 1.87 18.40 1.89 19.92 1.92 21.11 1.96
122 15.08 1.79 16.27 1.85 17.46 1.92 18.32 1.94 19.84 1.98 21.03 2.02
15 + 18
14 19.61 0.99 20.82 1.02 22.04 1.06 22.92 1.07 24.48 1.09 25.69 1.12
20 19.59 1.00 20.81 1.04 22.02 1.08 22.90 1.09 24.46 1.11 25.67 1.13
25 19.58 1.02 20.79 1.05 22.01 1.09 22.89 1.11 24.44 1.13 25.65 1.15
30 19.56 1.03 20.78 1.07 21.99 1.11 22.87 1.12 24.42 1.14 25.64 1.16
35 19.55 1.05 20.76 1.08 21.97 1.12 22.85 1.14 24.40 1.16 25.62 1.18
40 19.53 1.06 20.74 1.10
21.96 1.14 22.83 1.15 24.38 1.17 25.60 1.20
45 19.52 1.07 20.73 1.11 21.94 1.15 22.82 1.17 24.36 1.19 25.58 1.21
50 19.50 1.09 20.71 1.13 21.92 1.17 22.80 1.18 24.35 1.20 25.56 1.23
55 19.49 1.10 20.70 1.14 21.91 1.18 22.78 1.20 24.33 1.22 25.54 1.25
60 19.47 1.12 20.68 1.16 21.89 1.20 22.76 1.21 24.31 1.24 25.52 1.26
65 19.46 1.13 20.66 1.17 21.87 1.21 22.75 1.23 24.29 1.25 25.50 1.28
70 19.44 1.15 20.65 1.19 21.86 1.23 22.73 1.24 24.27 1.27 25.48 1.29
75 18.97 1.21 20.18 1.25 21.38 1.30 22.25 1.31 23.79 1.34 25.00 1.36
80 18.51 1.27 19.71 1.31 20.91 1.36 21.78 1.38 23.31 1.40 24.51 1.43
85 18.04 1.33 19.24 1.38 20.44 1.43 21.30 1.45 22.84 1.47 24.03 1.50
90 17.58 1.39 18.77 1.44 19.97 1.50 20.83 1.51 22.36 1.54 23.56 1.57
95 17.08 1.45 18.26 1.51 19.45 1.56 20.00 1.58 21.83 1.61 23.02 1.64
100 16.66 1.52 17.85 1.57 19.04 1.63 19.74 1.65 21.42 1.68 22.61 1.71
105 16.24 1.58 17.43 1.64 18.62 1.69 19.48 1.71 21.00 1.75 22.19 1.78
110 15.83 1.64 17.02 1.70 18.21 1.76 19.07 1.78 20.59 1.81 21.78 1.85
115 15.41 1.70 16.60 1.76 17.79 1.83 18.65 1.85 20.17 1.88 21.36 1.92
118 15.16 1.74 16.35 1.80 17.54 1.87 18.40 1.89 19.92 1.92 21.11 1.96
122 15.08 1.79 16.27 1.85 17.46 1.92 18.32 1.94 19.84 1.98 21.03 2.02
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
56 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 7 + 7
14 19.61 0.93 20.82 0.96 22.04 1.00 22.92 1.01 24.48 1.03 25.69 1.05
20 19.59 0.94 20.81 0.97 22.02 1.01 22.90 1.02 24.46 1.04 25.67 1.06
25 19.58 0.95 20.79 0.99 22.01 1.02 22.89 1.04 24.44 1.06 25.65 1.08
30 19.56 0.97 20.78 1.00 21.99 1.04 22.87 1.05 24.42 1.07 25.64 1.09
35 19.55 0.98 20.76 1.02 21.97 1.05 22.85 1.07 24.40 1.09 25.62 1.11
40 19.53 0.99 20.74 1.03 21.96 1.07 22.83 1.08 24.38 1.10 25.60 1.12
45 19.52 1.01 20.73 1.04 21.94 1.08 22.82 1.09 24.36 1.11 25.58 1.14
50 19.50 1.02 20.71 1.06 21.92 1.10 22.80 1.11 24.35 1.13 25.56 1.15
55 19.49 1.03 20.70 1.07 21.91 1.11 22.78 1.12 24.33 1.14 25.54 1.17
60 19.47 1.05 20.68 1.08 21.89 1.12 22.76 1.14 24.31 1.16 25.52 1.18
65 19.46 1.06 20.66 1.10 21.87 1.14 22.75 1.15 24.29 1.17 25.50 1.20
70 19.44 1.07 20.65 1.11 21.86 1.15 22.73 1.17 24.27 1.19 25.48 1.21
75 18.97 1.13 20.18 1.17 21.38 1.22 22.25 1.23 23.79 1.25 25.00 1.28
80 18.51 1.19 19.71 1.23 20.91 1.28 21.78 1.29 23.31 1.32 24.51 1.34
85 18.04 1.25 19.24 1.29 20.44 1.34 21.30 1.36 22.84 1.38 24.03 1.41
90 17.58 1.30 18.77 1.35 19.97 1.40 20.83 1.42 22.36 1.44 23.56 1.47
95 17.08 1.36 18.26 1.41 19.45 1.46 20.00 1.48 21.83 1.51 23.02 1.54
100 16.66 1.42 17.85 1.47 19.04 1.53 19.74 1.54 21.42 1.57 22.61 1.60
105 16.24 1.48 17.43 1.53 18.62 1.59 19.48 1.61 21.00 1.64 22.19 1.67
110 15.83 1.54 17.02 1.59 18.21 1.65 19.07 1.67 20.59 1.70 21.78 1.74
115 15.41 1.59 16.60 1.65 17.79 1.71 18.65 1.73 20.17 1.77 21.36 1.80
118 15.16 1.63 16.35 1.69 17.54 1.75 18.40 1.77 19.92 1.80 21.11 1.84
122 15.08 1.68 16.27 1.74 17.46 1.80 18.32 1.82 19.84 1.85 21.03 1.89
7 + 7 + 9
14 19.61 0.93 20.82 0.96 22.04 1.00 22.92 1.01 24.48 1.03 25.69 1.05
20 19.59 0.94 20.81 0.97 22.02 1.01 22.90 1.02 24.46 1.04 25.67 1.06
25 19.58 0.95 20.79 0.99 22.01 1.02 22.89 1.04 24.44 1.06 25.65 1.08
30 19.56 0.97 20.78 1.00 21.99 1.04 22.87 1.05 24.42 1.07 25.64 1.09
35 19.55 0.98 20.76 1.02 21.97 1.05 22.85 1.07 24.40 1.09 25.62 1.11
40 19.53
0.99 20.74 1.03 21.96 1.07 22.83 1.08 24.38 1.10 25.60 1.12
45 19.52 1.01 20.73 1.04 21.94 1.08 22.82 1.09 24.36 1.11 25.58 1.14
50 19.50 1.02 20.71 1.06 21.92 1.10 22.80 1.11 24.35 1.13 25.56 1.15
55 19.49 1.03 20.70 1.07 21.91 1.11 22.78 1.12 24.33 1.14 25.54 1.17
60 19.47 1.05 20.68 1.08 21.89 1.12 22.76 1.14 24.31 1.16 25.52 1.18
65 19.46 1.06 20.66 1.10 21.87 1.14 22.75 1.15 24.29 1.17 25.50 1.20
70 19.44 1.07 20.65 1.11 21.86 1.15 22.73 1.17 24.27 1.19 25.48 1.21
75 18.97 1.13 20.18 1.17 21.38 1.22 22.25 1.23 23.79 1.25 25.00 1.28
80 18.51 1.19 19.71 1.23 20.91 1.28 21.78 1.29 23.31 1.32 24.51 1.34
85 18.04 1.25 19.24 1.29 20.44 1.34 21.30 1.36 22.84 1.38 24.03 1.41
90 17.58 1.30 18.77 1.35 19.97 1.40 20.83 1.42 22.36 1.44 23.56 1.47
95 17.08 1.36 18.26 1.41 19.45 1.46 20.00 1.48 21.83 1.51 23.02 1.54
100 16.66 1.42 17.85 1.47 19.04 1.53 19.74 1.54 21.42 1.57 22.61 1.60
105 16.24 1.48 17.43 1.53 18.62 1.59 19.48 1.61 21.00 1.64 22.19 1.67
110 15.83 1.54 17.02 1.59 18.21 1.65 19.07 1.67 20.59 1.70 21.78 1.74
115 15.41 1.59 16.60 1.65 17.79 1.71 18.65 1.73 20.17 1.77 21.36 1.80
118 15.16 1.63 16.35 1.69 17.54 1.75 18.40 1.77 19.92 1.80 21.11 1.84
122 15.08 1.68 16.27 1.74 17.46 1.80 18.32 1.82 19.84 1.85 21.03 1.89
PERFORMANCE DATA
Cooling Capacity Tables
Table 49: LMU24CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
MULTI F OUTDOOR UNIT | 57
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 9 + 9
14 19.61 0.93 20.82 0.96 22.04 1.00 22.92 1.01 24.48 1.03 25.69 1.05
20 19.59 0.94 20.81 0.97 22.02 1.01 22.90 1.02 24.46 1.04 25.67 1.06
25 19.58 0.95 20.79 0.99 22.01 1.02 22.89 1.04 24.44 1.06 25.65 1.08
30 19.56 0.97 20.78 1.00 21.99 1.04 22.87 1.05 24.42 1.07 25.64 1.09
35 19.55 0.98 20.76 1.02 21.97 1.05 22.85 1.07 24.40 1.09 25.62 1.11
40 19.53 0.99 20.74 1.03 21.96 1.07 22.83 1.08 24.38 1.10 25.60 1.12
45 19.52 1.01 20.73 1.04 21.94 1.08 22.82 1.09 24.36 1.11 25.58 1.14
50 19.50 1.02 20.71 1.06 21.92 1.10 22.80 1.11 24.35 1.13 25.56 1.15
55 19.49 1.03 20.70 1.07 21.91 1.11 22.78 1.12 24.33 1.14 25.54 1.17
60 19.47 1.05 20.68 1.08 21.89 1.12 22.76 1.14 24.31 1.16 25.52 1.18
65 19.46 1.06 20.66 1.10 21.87 1.14 22.75 1.15 24.29 1.17 25.50 1.20
70 19.44 1.07 20.65 1.11 21.86 1.15 22.73 1.17 24.27 1.19 25.48 1.21
75 18.97 1.13 20.18 1.17 21.38 1.22 22.25 1.23 23.79 1.25 25.00 1.28
80 18.51 1.19 19.71 1.23 20.91 1.28 21.78 1.29 23.31 1.32 24.51 1.34
85 18.04 1.25 19.24 1.29 20.44 1.34 21.30 1.36 22.84 1.38 24.03 1.41
90 17.58 1.30 18.77 1.35 19.97 1.40 20.83 1.42 22.36 1.44 23.56 1.47
95 17.08 1.36 18.26 1.41 19.45 1.46 20.00 1.48 21.83 1.51 23.02 1.54
100 16.66 1.42 17.85 1.47 19.04 1.53 19.74 1.54 21.42 1.57 22.61 1.60
105 16.24 1.48 17.43 1.53 18.62 1.59 19.48 1.61 21.00 1.64 22.19 1.67
110 15.83 1.54 17.02 1.59 18.21 1.65 19.07 1.67 20.59 1.70 21.78 1.74
115 15.41 1.59 16.60 1.65 17.79 1.71 18.65 1.73 20.17 1.77 21.36 1.80
118 15.16 1.63 16.35 1.69 17.54 1.75 18.40 1.77 19.92 1.80 21.11 1.84
122 15.08 1.68 16.27 1.74 17.46 1.80 18.32 1.82 19.84 1.85 21.03 1.89
7 + 7 + 12
14 19.61 0.93 20.82 0.96 22.04 1.00 22.92 1.01 24.48 1.03 25.69 1.05
20 19.59 0.94 20.81 0.97 22.02 1.01 22.90 1.02 24.46 1.04 25.67 1.06
25 19.58 0.95 20.79 0.99 22.01 1.02 22.89 1.04 24.44 1.06 25.65 1.08
30 19.56 0.97 20.78 1.00 21.99 1.04 22.87 1.05 24.42 1.07 25.64 1.09
35 19.55 0.98 20.76 1.02 21.97 1.05 22.85 1.07 24.40 1.09 25.62 1.11
40 19.53
0.99 20.74 1.03 21.96 1.07 22.83 1.08 24.38 1.10 25.60 1.12
45 19.52 1.01 20.73 1.04 21.94 1.08 22.82 1.09 24.36 1.11 25.58 1.14
50 19.50 1.02 20.71 1.06 21.92 1.10 22.80 1.11 24.35 1.13 25.56 1.15
55 19.49 1.03 20.70 1.07 21.91 1.11 22.78 1.12 24.33 1.14 25.54 1.17
60 19.47 1.05 20.68 1.08 21.89 1.12 22.76 1.14 24.31 1.16 25.52 1.18
65 19.46 1.06 20.66 1.10 21.87 1.14 22.75 1.15 24.29 1.17 25.50 1.20
70 19.44 1.07 20.65 1.11 21.86 1.15 22.73 1.17 24.27 1.19 25.48 1.21
75 18.97 1.13 20.18 1.17 21.38 1.22 22.25 1.23 23.79 1.25 25.00 1.28
80 18.51 1.19 19.71 1.23 20.91 1.28 21.78 1.29 23.31 1.32 24.51 1.34
85 18.04 1.25 19.24 1.29 20.44 1.34 21.30 1.36 22.84 1.38 24.03 1.41
90 17.58 1.30 18.77 1.35 19.97 1.40 20.83 1.42 22.36 1.44 23.56 1.47
95 17.08 1.36 18.26 1.41 19.45 1.46 20.00 1.48 21.83 1.51 23.02 1.54
100 16.66 1.42 17.85 1.47 19.04 1.53 19.74 1.54 21.42 1.57 22.61 1.60
105 16.24 1.48 17.43 1.53 18.62 1.59 19.48 1.61 21.00 1.64 22.19 1.67
110 15.83 1.54 17.02 1.59 18.21 1.65 19.07 1.67 20.59 1.70 21.78 1.74
115 15.41 1.59 16.60 1.65 17.79 1.71 18.65 1.73 20.17 1.77 21.36 1.80
118 15.16 1.63 16.35 1.69 17.54 1.75 18.40 1.77 19.92 1.80 21.11 1.84
122 15.08 1.68 16.27 1.74 17.46 1.80 18.32 1.82 19.84 1.85 21.03 1.89
PERFORMANCE DATA
Cooling Capacity Tables
Table 50: LMU24CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
58 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
9 + 9 + 9
14 19.61 0.93 20.82 0.96 22.04 1.00 22.92 1.01 24.48 1.03 25.69 1.05
20 19.59 0.94 20.81 0.97 22.02 1.01 22.90 1.02 24.46 1.04 25.67 1.06
25 19.58 0.95 20.79 0.99 22.01 1.02 22.89 1.04 24.44 1.06 25.65 1.08
30 19.56 0.97 20.78 1.00 21.99 1.04 22.87 1.05 24.42 1.07 25.64 1.09
35 19.55 0.98 20.76 1.02 21.97 1.05 22.85 1.07 24.40 1.09 25.62 1.11
40 19.53 0.99 20.74 1.03 21.96 1.07 22.83 1.08 24.38 1.10 25.60 1.12
45 19.52 1.01 20.73 1.04 21.94 1.08 22.82 1.09 24.36 1.11 25.58 1.14
50 19.50 1.02 20.71 1.06 21.92 1.10 22.80 1.11 24.35 1.13 25.56 1.15
55 19.49 1.03 20.70 1.07 21.91 1.11 22.78 1.12 24.33 1.14 25.54 1.17
60 19.47 1.05 20.68 1.08 21.89 1.12 22.76 1.14 24.31 1.16 25.52 1.18
65 19.46 1.06 20.66 1.10 21.87 1.14 22.75 1.15 24.29 1.17 25.50 1.20
70 19.44 1.07 20.65 1.11 21.86 1.15 22.73 1.17 24.27 1.19 25.48 1.21
75 18.97 1.13 20.18 1.17 21.38 1.22 22.25 1.23 23.79 1.25 25.00 1.28
80 18.51 1.19 19.71 1.23 20.91 1.28 21.78 1.29 23.31 1.32 24.51 1.34
85 18.04 1.25 19.24 1.29 20.44 1.34 21.30 1.36 22.84 1.38 24.03 1.41
90 17.58 1.30 18.77 1.35 19.97 1.40 20.83 1.42 22.36 1.44 23.56 1.47
95 17.08 1.36 18.26 1.41 19.45 1.46 20.00 1.48 21.83 1.51 23.02 1.54
100 16.66 1.42 17.85 1.47 19.04 1.53 19.74 1.54 21.42 1.57 22.61 1.60
105 16.24 1.48 17.43 1.53 18.62 1.59 19.48 1.61 21.00 1.64 22.19 1.67
110 15.83 1.54 17.02 1.59 18.21 1.65 19.07 1.67 20.59 1.70 21.78 1.74
115 15.41 1.59 16.60 1.65 17.79 1.71 18.65 1.73 20.17 1.77 21.36 1.80
118 15.16 1.63 16.35 1.69 17.54 1.75 18.40 1.77 19.92 1.80 21.11 1.84
122 15.08 1.68 16.27 1.74 17.46 1.80 18.32 1.82 19.84 1.85 21.03 1.89
7 + 9 + 12
14 19.61 0.93 20.82 0.96 22.04 1.00 22.92 1.01 24.48 1.03 25.69 1.05
20 19.59 0.94 20.81 0.97 22.02 1.01 22.90 1.02 24.46 1.04 25.67 1.06
25 19.58 0.95 20.79 0.99 22.01 1.02 22.89 1.04 24.44 1.06 25.65 1.08
30 19.56 0.97 20.78 1.00 21.99 1.04 22.87 1.05 24.42 1.07 25.64 1.09
35 19.55 0.98 20.76 1.02 21.97 1.05 22.85 1.07 24.40 1.09 25.62 1.11
40 19.53
0.99 20.74 1.03 21.96 1.07 22.83 1.08 24.38 1.10 25.60 1.12
45 19.52 1.01 20.73 1.04 21.94 1.08 22.82 1.09 24.36 1.11 25.58 1.14
50 19.50 1.02 20.71 1.06 21.92 1.10 22.80 1.11 24.35 1.13 25.56 1.15
55 19.49 1.03 20.70 1.07 21.91 1.11 22.78 1.12 24.33 1.14 25.54 1.17
60 19.47 1.05 20.68 1.08 21.89 1.12 22.76 1.14 24.31 1.16 25.52 1.18
65 19.46 1.06 20.66 1.10 21.87 1.14 22.75 1.15 24.29 1.17 25.50 1.20
70 19.44 1.07 20.65 1.11 21.86 1.15 22.73 1.17 24.27 1.19 25.48 1.21
75 18.97 1.13 20.18 1.17 21.38 1.22 22.25 1.23 23.79 1.25 25.00 1.28
80 18.51 1.19 19.71 1.23 20.91 1.28 21.78 1.29 23.31 1.32 24.51 1.34
85 18.04 1.25 19.24 1.29 20.44 1.34 21.30 1.36 22.84 1.38 24.03 1.41
90 17.58 1.30 18.77 1.35 19.97 1.40 20.83 1.42 22.36 1.44 23.56 1.47
95 17.08 1.36 18.26 1.41 19.45 1.46 20.00 1.48 21.83 1.51 23.02 1.54
100 16.66 1.42 17.85 1.47 19.04 1.53 19.74 1.54 21.42 1.57 22.61 1.60
105 16.24 1.48 17.43 1.53 18.62 1.59 19.48 1.61 21.00 1.64 22.19 1.67
110 15.83 1.54 17.02 1.59 18.21 1.65 19.07 1.67 20.59 1.70 21.78 1.74
115 15.41 1.59 16.60 1.65 17.79 1.71 18.65 1.73 20.17 1.77 21.36 1.80
118 15.16 1.63 16.35 1.69 17.54 1.75 18.40 1.77 19.92 1.80 21.11 1.84
122 15.08 1.68 16.27 1.74 17.46 1.80 18.32 1.82 19.84 1.85 21.03 1.89
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Table 51: LMU24CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 59
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 7 + 15
14 19.61 0.93 20.82 0.96 22.04 1.00 22.92 1.01 24.48 1.03 25.69 1.05
20 19.59 0.94 20.81 0.97 22.02 1.01 22.90 1.02 24.46 1.04 25.67 1.06
25 19.58 0.95 20.79 0.99 22.01 1.02 22.89 1.04 24.44 1.06 25.65 1.08
30 19.56 0.97 20.78 1.00 21.99 1.04 22.87 1.05 24.42 1.07 25.64 1.09
35 19.55 0.98 20.76 1.02 21.97 1.05 22.85 1.07 24.40 1.09 25.62 1.11
40 19.53 0.99 20.74 1.03 21.96 1.07 22.83 1.08 24.38 1.10 25.60 1.12
45 19.52 1.01 20.73 1.04 21.94 1.08 22.82 1.09 24.36 1.11 25.58 1.14
50 19.50 1.02 20.71 1.06 21.92 1.10 22.80 1.11 24.35 1.13 25.56 1.15
55 19.49 1.03 20.70 1.07 21.91 1.11 22.78 1.12 24.33 1.14 25.54 1.17
60 19.47 1.05 20.68 1.08 21.89 1.12 22.76 1.14 24.31 1.16 25.52 1.18
65 19.46 1.06 20.66 1.10 21.87 1.14 22.75 1.15 24.29 1.17 25.50 1.20
70 19.44 1.07 20.65 1.11 21.86 1.15 22.73 1.17 24.27 1.19 25.48 1.21
75 18.97 1.13 20.18 1.17 21.38 1.22 22.25 1.23 23.79 1.25 25.00 1.28
80 18.51 1.19 19.71 1.23 20.91 1.28 21.78 1.29 23.31 1.32 24.51 1.34
85 18.04 1.25 19.24 1.29 20.44 1.34 21.30 1.36 22.84 1.38 24.03 1.41
90 17.58 1.30 18.77 1.35 19.97 1.40 20.83 1.42 22.36 1.44 23.56 1.47
95 17.08 1.36 18.26 1.41 19.45 1.46 20.00 1.48 21.83 1.51 23.02 1.54
100 16.66 1.42 17.85 1.47 19.04 1.53 19.74 1.54 21.42 1.57 22.61 1.60
105 16.24 1.48 17.43 1.53 18.62 1.59 19.48 1.61 21.00 1.64 22.19 1.67
110 15.83 1.54 17.02 1.59 18.21 1.65 19.07 1.67 20.59 1.70 21.78 1.74
115 15.41 1.59 16.60 1.65 17.79 1.71 18.65 1.73 20.17 1.77 21.36 1.80
118 15.16 1.63 16.35 1.69 17.54 1.75 18.40 1.77 19.92 1.80 21.11 1.84
122 15.08 1.68 16.27 1.74 17.46 1.80 18.32 1.82 19.84 1.85 21.03 1.89
9 + 9 + 12
14 19.61 0.93 20.82 0.96 22.04 1.00 22.92 1.01 24.48 1.03 25.69 1.05
20 19.59 0.94 20.81 0.97 22.02 1.01 22.90 1.02 24.46 1.04 25.67 1.06
25 19.58 0.95 20.79 0.99 22.01 1.02 22.89 1.04 24.44 1.06 25.65 1.08
30 19.56 0.97 20.78 1.00 21.99 1.04 22.87 1.05 24.42 1.07 25.64 1.09
35 19.55 0.98 20.76 1.02 21.97 1.05 22.85 1.07 24.40 1.09 25.62 1.11
40 19.53
0.99 20.74 1.03 21.96 1.07 22.83 1.08 24.38 1.10 25.60 1.12
45 19.52 1.01 20.73 1.04 21.94 1.08 22.82 1.09 24.36 1.11 25.58 1.14
50 19.50 1.02 20.71 1.06 21.92 1.10 22.80 1.11 24.35 1.13 25.56 1.15
55 19.49 1.03 20.70 1.07 21.91 1.11 22.78 1.12 24.33 1.14 25.54 1.17
60 19.47 1.05 20.68 1.08 21.89 1.12 22.76 1.14 24.31 1.16 25.52 1.18
65 19.46 1.06 20.66 1.10 21.87 1.14 22.75 1.15 24.29 1.17 25.50 1.20
70 19.44 1.07 20.65 1.11 21.86 1.15 22.73 1.17 24.27 1.19 25.48 1.21
75 18.97 1.13 20.18 1.17 21.38 1.22 22.25 1.23 23.79 1.25 25.00 1.28
80 18.51 1.19 19.71 1.23 20.91 1.28 21.78 1.29 23.31 1.32 24.51 1.34
85 18.04 1.25 19.24 1.29 20.44 1.34 21.30 1.36 22.84 1.38 24.03 1.41
90 17.58 1.30 18.77 1.35 19.97 1.40 20.83 1.42 22.36 1.44 23.56 1.47
95 17.08 1.36 18.26 1.41 19.45 1.46 20.00 1.48 21.83 1.51 23.02 1.54
100 16.66 1.42 17.85 1.47 19.04 1.53 19.74 1.54 21.42 1.57 22.61 1.60
105 16.24 1.48 17.43 1.53 18.62 1.59 19.48 1.61 21.00 1.64 22.19 1.67
110 15.83 1.54 17.02 1.59 18.21 1.65 19.07 1.67 20.59 1.70 21.78 1.74
115 15.41 1.59 16.60 1.65 17.79 1.71 18.65 1.73 20.17 1.77 21.36 1.80
118 15.16 1.63 16.35 1.69 17.54 1.75 18.40 1.77 19.92 1.80 21.11 1.84
122 15.08 1.68 16.27 1.74 17.46 1.80 18.32 1.82 19.84 1.85 21.03 1.89
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Table 52: LMU24CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
60 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 9 + 15
14 19.61 0.93 20.82 0.96 22.04 1.00 22.92 1.01 24.48 1.03 25.69 1.05
20 19.59 0.94 20.81 0.97 22.02 1.01 22.90 1.02 24.46 1.04 25.67 1.06
25 19.58 0.95 20.79 0.99 22.01 1.02 22.89 1.04 24.44 1.06 25.65 1.08
30 19.56 0.97 20.78 1.00 21.99 1.04 22.87 1.05 24.42 1.07 25.64 1.09
35 19.55 0.98 20.76 1.02 21.97 1.05 22.85 1.07 24.40 1.09 25.62 1.11
40 19.53 0.99 20.74 1.03 21.96 1.07 22.83 1.08 24.38 1.10 25.60 1.12
45 19.52 1.01 20.73 1.04 21.94 1.08 22.82 1.09 24.36 1.11 25.58 1.14
50 19.50 1.02 20.71 1.06 21.92 1.10 22.80 1.11 24.35 1.13 25.56 1.15
55 19.49 1.03 20.70 1.07 21.91 1.11 22.78 1.12 24.33 1.14 25.54 1.17
60 19.47 1.05 20.68 1.08 21.89 1.12 22.76 1.14 24.31 1.16 25.52 1.18
65 19.46 1.06 20.66 1.10 21.87 1.14 22.75 1.15 24.29 1.17 25.50 1.20
70 19.44 1.07 20.65 1.11 21.86 1.15 22.73 1.17 24.27 1.19 25.48 1.21
75 18.97 1.13 20.18 1.17 21.38 1.22 22.25 1.23 23.79 1.25 25.00 1.28
80 18.51 1.19 19.71 1.23 20.91 1.28 21.78 1.29 23.31 1.32 24.51 1.34
85 18.04 1.25 19.24 1.29 20.44 1.34 21.30 1.36 22.84 1.38 24.03 1.41
90 17.58 1.30 18.77 1.35 19.97 1.40 20.83 1.42 22.36 1.44 23.56 1.47
95 17.08 1.36 18.26 1.41 19.45 1.46 20.00 1.48 21.83 1.51 23.02 1.54
100 16.66 1.42 17.85 1.47 19.04 1.53 19.74 1.54 21.42 1.57 22.61 1.60
105 16.24 1.48 17.43 1.53 18.62 1.59 19.48 1.61 21.00 1.64 22.19 1.67
110 15.83 1.54 17.02 1.59 18.21 1.65 19.07 1.67 20.59 1.70 21.78 1.74
115 15.41 1.59 16.60 1.65 17.79 1.71 18.65 1.73 20.17 1.77 21.36 1.80
118 15.16 1.63 16.35 1.69 17.54 1.75 18.40 1.77 19.92 1.80 21.11 1.84
122 15.08 1.68 16.27 1.74 17.46 1.80 18.32 1.82 19.84 1.85 21.03 1.89
7 + 12 + 12
14 19.61 0.93 20.82 0.96 22.04 1.00 22.92 1.01 24.48 1.03 25.69 1.05
20 19.59 0.94 20.81 0.97 22.02 1.01 22.90 1.02 24.46 1.04 25.67 1.06
25 19.58 0.95 20.79 0.99 22.01 1.02 22.89 1.04 24.44 1.06 25.65 1.08
30 19.56 0.97 20.78 1.00 21.99 1.04 22.87 1.05 24.42 1.07 25.64 1.09
35 19.55 0.98 20.76 1.02 21.97 1.05 22.85 1.07 24.40 1.09 25.62 1.11
40 19.53
0.99 20.74 1.03 21.96 1.07 22.83 1.08 24.38 1.10 25.60 1.12
45 19.52 1.01 20.73 1.04 21.94 1.08 22.82 1.09 24.36 1.11 25.58 1.14
50 19.50 1.02 20.71 1.06 21.92 1.10 22.80 1.11 24.35 1.13 25.56 1.15
55 19.49 1.03 20.70 1.07 21.91 1.11 22.78 1.12 24.33 1.14 25.54 1.17
60 19.47 1.05 20.68 1.08 21.89 1.12 22.76 1.14 24.31 1.16 25.52 1.18
65 19.46 1.06 20.66 1.10 21.87 1.14 22.75 1.15 24.29 1.17 25.50 1.20
70 19.44 1.07 20.65 1.11 21.86 1.15 22.73 1.17 24.27 1.19 25.48 1.21
75 18.97 1.13 20.18 1.17 21.38 1.22 22.25 1.23 23.79 1.25 25.00 1.28
80 18.51 1.19 19.71 1.23 20.91 1.28 21.78 1.29 23.31 1.32 24.51 1.34
85 18.04 1.25 19.24 1.29 20.44 1.34 21.30 1.36 22.84 1.38 24.03 1.41
90 17.58 1.30 18.77 1.35 19.97 1.40 20.83 1.42 22.36 1.44 23.56 1.47
95 17.08 1.36 18.26 1.41 19.45 1.46 20.00 1.48 21.83 1.51 23.02 1.54
100 16.66 1.42 17.85 1.47 19.04 1.53 19.74 1.54 21.42 1.57 22.61 1.60
105 16.24 1.48 17.43 1.53 18.62 1.59 19.48 1.61 21.00 1.64 22.19 1.67
110 15.83 1.54 17.02 1.59 18.21 1.65 19.07 1.67 20.59 1.70 21.78 1.74
115 15.41 1.59 16.60 1.65 17.79 1.71 18.65 1.73 20.17 1.77 21.36 1.80
118 15.16 1.63 16.35 1.69 17.54 1.75 18.40 1.77 19.92 1.80 21.11 1.84
122 15.08 1.68 16.27 1.74 17.46 1.80 18.32 1.82 19.84 1.85 21.03 1.89
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Table 53: LMU24CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 61
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 7 + 18
14 19.61 0.93 20.82 0.96 22.04 1.00 22.92 1.01 24.48 1.03 25.69 1.05
20 19.59 0.94 20.81 0.97 22.02 1.01 22.90 1.02 24.46 1.04 25.67 1.06
25 19.58 0.95 20.79 0.99 22.01 1.02 22.89 1.04 24.44 1.06 25.65 1.08
30 19.56 0.97 20.78 1.00 21.99 1.04 22.87 1.05 24.42 1.07 25.64 1.09
35 19.55 0.98 20.76 1.02 21.97 1.05 22.85 1.07 24.40 1.09 25.62 1.11
40 19.53 0.99 20.74 1.03 21.96 1.07 22.83 1.08 24.38 1.10 25.60 1.12
45 19.52 1.01 20.73 1.04 21.94 1.08 22.82 1.09 24.36 1.11 25.58 1.14
50 19.50 1.02 20.71 1.06 21.92 1.10 22.80 1.11 24.35 1.13 25.56 1.15
55 19.49 1.03 20.70 1.07 21.91 1.11 22.78 1.12 24.33 1.14 25.54 1.17
60 19.47 1.05 20.68 1.08 21.89 1.12 22.76 1.14 24.31 1.16 25.52 1.18
65 19.46 1.06 20.66 1.10 21.87 1.14 22.75 1.15 24.29 1.17 25.50 1.20
70 19.44 1.07 20.65 1.11 21.86 1.15 22.73 1.17 24.27 1.19 25.48 1.21
75 18.97 1.13 20.18 1.17 21.38 1.22 22.25 1.23 23.79 1.25 25.00 1.28
80 18.51 1.19 19.71 1.23 20.91 1.28 21.78 1.29 23.31 1.32 24.51 1.34
85 18.04 1.25 19.24 1.29 20.44 1.34 21.30 1.36 22.84 1.38 24.03 1.41
90 17.58 1.30 18.77 1.35 19.97 1.40 20.83 1.42 22.36 1.44 23.56 1.47
95 17.08 1.36 18.26 1.41 19.45 1.46 20.00 1.48 21.83 1.51 23.02 1.54
100 16.66 1.42 17.85 1.47 19.04 1.53 19.74 1.54 21.42 1.57 22.61 1.60
105 16.24 1.48 17.43 1.53 18.62 1.59 19.48 1.61 21.00 1.64 22.19 1.67
110 15.83 1.54 17.02 1.59 18.21 1.65 19.07 1.67 20.59 1.70 21.78 1.74
115 15.41 1.59 16.60 1.65 17.79 1.71 18.65 1.73 20.17 1.77 21.36 1.80
118 15.16 1.63 16.35 1.69 17.54 1.75 18.40 1.77 19.92 1.80 21.11 1.84
122 15.08 1.68 16.27 1.74 17.46 1.80 18.32 1.82 19.84 1.85 21.03 1.89
9 + 9 + 15
14 19.61 0.93 20.82 0.96 22.04 1.00 22.92 1.01 24.48 1.03 25.69 1.05
20 19.59 0.94 20.81 0.97 22.02 1.01 22.90 1.02 24.46 1.04 25.67 1.06
25 19.58 0.95 20.79 0.99 22.01 1.02 22.89 1.04 24.44 1.06 25.65 1.08
30 19.56 0.97 20.78 1.00 21.99 1.04 22.87 1.05 24.42 1.07 25.64 1.09
35 19.55 0.98 20.76 1.02 21.97 1.05 22.85 1.07 24.40 1.09 25.62 1.11
40 19.53
0.99 20.74 1.03 21.96 1.07 22.83 1.08 24.38 1.10 25.60 1.12
45 19.52 1.01 20.73 1.04 21.94 1.08 22.82 1.09 24.36 1.11 25.58 1.14
50 19.50 1.02 20.71 1.06 21.92 1.10 22.80 1.11 24.35 1.13 25.56 1.15
55 19.49 1.03 20.70 1.07 21.91 1.11 22.78 1.12 24.33 1.14 25.54 1.17
60 19.47 1.05 20.68 1.08 21.89 1.12 22.76 1.14 24.31 1.16 25.52 1.18
65 19.46 1.06 20.66 1.10 21.87 1.14 22.75 1.15 24.29 1.17 25.50 1.20
70 19.44 1.07 20.65 1.11 21.86 1.15 22.73 1.17 24.27 1.19 25.48 1.21
75 18.97 1.13 20.18 1.17 21.38 1.22 22.25 1.23 23.79 1.25 25.00 1.28
80 18.51 1.19 19.71 1.23 20.91 1.28 21.78 1.29 23.31 1.32 24.51 1.34
85 18.04 1.25 19.24 1.29 20.44 1.34 21.30 1.36 22.84 1.38 24.03 1.41
90 17.58 1.30 18.77 1.35 19.97 1.40 20.83 1.42 22.36 1.44 23.56 1.47
95 17.08 1.36 18.26 1.41 19.45 1.46 20.00 1.48 21.83 1.51 23.02 1.54
100 16.66 1.42 17.85 1.47 19.04 1.53 19.74 1.54 21.42 1.57 22.61 1.60
105 16.24 1.48 17.43 1.53 18.62 1.59 19.48 1.61 21.00 1.64 22.19 1.67
110 15.83 1.54 17.02 1.59 18.21 1.65 19.07 1.67 20.59 1.70 21.78 1.74
115 15.41 1.59 16.60 1.65 17.79 1.71 18.65 1.73 20.17 1.77 21.36 1.80
118 15.16 1.63 16.35 1.69 17.54 1.75 18.40 1.77 19.92 1.80 21.11 1.84
122 15.08 1.68 16.27 1.74 17.46 1.80 18.32 1.82 19.84 1.85 21.03 1.89
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Table 54: LMU24CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
62 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
9 + 12 + 12
14 19.61 0.93 20.82 0.96 22.04 1.00 22.92 1.01 24.48 1.03 25.69 1.05
20 19.59 0.94 20.81 0.97 22.02 1.01 22.90 1.02 24.46 1.04 25.67 1.06
25 19.58 0.95 20.79 0.99 22.01 1.02 22.89 1.04 24.44 1.06 25.65 1.08
30 19.56 0.97 20.78 1.00 21.99 1.04 22.87 1.05 24.42 1.07 25.64 1.09
35 19.55 0.98 20.76 1.02 21.97 1.05 22.85 1.07 24.40 1.09 25.62 1.11
40 19.53 0.99 20.74 1.03 21.96 1.07 22.83 1.08 24.38 1.10 25.60 1.12
45 19.52 1.01 20.73 1.04 21.94 1.08 22.82 1.09 24.36 1.11 25.58 1.14
50 19.50 1.02 20.71 1.06 21.92 1.10 22.80 1.11 24.35 1.13 25.56 1.15
55 19.49 1.03 20.70 1.07 21.91 1.11 22.78 1.12 24.33 1.14 25.54 1.17
60 19.47 1.05 20.68 1.08 21.89 1.12 22.76 1.14 24.31 1.16 25.52 1.18
65 19.46 1.06 20.66 1.10 21.87 1.14 22.75 1.15 24.29 1.17 25.50 1.20
70 19.44 1.07 20.65 1.11 21.86 1.15 22.73 1.17 24.27 1.19 25.48 1.21
75 18.97 1.13 20.18 1.17 21.38 1.22 22.25 1.23 23.79 1.25 25.00 1.28
80 18.51 1.19 19.71 1.23 20.91 1.28 21.78 1.29 23.31 1.32 24.51 1.34
85 18.04 1.25 19.24 1.29 20.44 1.34 21.30 1.36 22.84 1.38 24.03 1.41
90 17.58 1.30 18.77 1.35 19.97 1.40 20.83 1.42 22.36 1.44 23.56 1.47
95 17.08 1.36 18.26 1.41 19.45 1.46 20.00 1.48 21.83 1.51 23.02 1.54
100 16.66 1.42 17.85 1.47 19.04 1.53 19.74 1.54 21.42 1.57 22.61 1.60
105 16.24 1.48 17.43 1.53 18.62 1.59 19.48 1.61 21.00 1.64 22.19 1.67
110 15.83 1.54 17.02 1.59 18.21 1.65 19.07 1.67 20.59 1.70 21.78 1.74
115 15.41 1.59 16.60 1.65 17.79 1.71 18.65 1.73 20.17 1.77 21.36 1.80
118 15.16 1.63 16.35 1.69 17.54 1.75 18.40 1.77 19.92 1.80 21.11 1.84
122 15.08 1.68 16.27 1.74 17.46 1.80 18.32 1.82 19.84 1.85 21.03 1.89
Two (2) Ducted
Indoor Units
9 + 9
14 15.70 0.94 16.68 0.98 17.65 1.01 18.36 1.02 19.61 1.04 20.58 1.06
20 15.69 0.96 16.67 0.99 17.64 1.03 18.35 1.04 19.59 1.06 20.57 1.08
25 15.68 0.97 16.65 1.00 17.63 1.04 18.33 1.05 19.58 1.07 20.55 1.09
30 15.67 0.98 16.64 1.02 17.61 1.06 18.32 1.07 19.56 1.09 20.53 1.11
35 15.66 1.00 16.63 1.03 17.60 1.07 18.30 1.08 19.55 1.10 20.52
1.12
40 15.64 1.01 16.62 1.05 17.59 1.08 18.29 1.10 19.53 1.12 20.50 1.14
45 15.63 1.02 16.60 1.06 17.57 1.10 18.28 1.11 19.52 1.13 20.49 1.16
50 15.62 1.04 16.59 1.07 17.56 1.11 18.26 1.13 19.50 1.15 20.47 1.17
55 15.61 1.05 16.58 1.09 17.55 1.13 18.25 1.14 19.49 1.16 20.46 1.19
60 15.60 1.06 16.57 1.10 17.53 1.14 18.23 1.16 19.47 1.18 20.44 1.20
65 15.58 1.08 16.55 1.12 17.52 1.16 18.22 1.17 19.46 1.19 20.42 1.22
70 15.57 1.09 16.54 1.13 17.51 1.17 18.21 1.19 19.44 1.21 20.41 1.23
75 15.20 1.15 16.16 1.19 17.13 1.24 17.82 1.25 19.06 1.27 20.02 1.30
80 14.82 1.21 15.79 1.25 16.75 1.30 17.44 1.31 18.67 1.34 19.63 1.36
85 14.45 1.27 15.41 1.31 16.37 1.36 17.06 1.38 18.29 1.40 19.25 1.43
90 14.08 1.33 15.04 1.37 16.00 1.42 16.69 1.44 17.91 1.47 18.87 1.50
95 13.68 1.39 14.63 1.44 15.58 1.49 16.02 1.51 17.49 1.53 18.44 1.56
100 13.34 1.44 14.30 1.50 15.25 1.55 15.81 1.57 17.16 1.60 18.11 1.63
105 13.01 1.50 13.96 1.56 14.92 1.61 15.60 1.63 16.82 1.66 17.78 1.70
110 12.68 1.56 13.63 1.62 14.58 1.68 15.27 1.70 16.49 1.73 17.44 1.76
115 12.34 1.62 13.30 1.68 14.25 1.74 14.94 1.76 16.16 1.79 17.11 1.83
118 12.15 1.66 13.10 1.72 14.05 1.78 14.74 1.80 15.96 1.83 16.91 1.87
122 12.08 1.70 13.03 1.76 13.98 1.83 14.67 1.85 15.89 1.89 16.84 1.92
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Table 55: LMU24CHV Cooling Capacity Table — Non-Ducted (continued) and Ducted Indoor Units.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 63
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Ducted
Indoor Units
9 + 12
14 17.45 1.03 18.53 1.07 19.62 1.11 20.40 1.12 21.78 1.14 22.87 1.17
20 17.44 1.05 18.52 1.09 19.60 1.13 20.38 1.14 21.77 1.16 22.85 1.18
25 17.42 1.06 18.50 1.10 19.59 1.14 20.37 1.16 21.75 1.18 22.83 1.20
30 17.41 1.08 18.49 1.12 19.57 1.16 20.35 1.17 21.73 1.19 22.82 1.22
35 17.40 1.09 18.48 1.13 19.56 1.17 20.34 1.19 21.72 1.21 22.80 1.23
40 17.38 1.11 18.46 1.15 19.54 1.19 20.32 1.20 21.70 1.23 22.78 1.25
45 17.37 1.12 18.45 1.16 19.53 1.21 20.31 1.22 21.68 1.24 22.76 1.27
50 17.36 1.14 18.43 1.18 19.51 1.22 20.29 1.24 21.67 1.26 22.75 1.28
55 17.34 1.15 18.42 1.19 19.50 1.24 20.27 1.25 21.65 1.28 22.73 1.30
60 17.33 1.17 18.41 1.21 19.48 1.25 20.26 1.27 21.63 1.29 22.71 1.32
65 17.32 1.18 18.39 1.23 19.47 1.27 20.24 1.28 21.62 1.31 22.69 1.33
70 17.30 1.20 18.38 1.24 19.45 1.29 20.23 1.30 21.60 1.32 22.68 1.35
75 16.89 1.26 17.96 1.31 19.03 1.36 19.80 1.37 21.17 1.40 22.25 1.42
80 16.47 1.33 17.54 1.37 18.61 1.42 19.38 1.44 20.75 1.47 21.82 1.50
85 16.06 1.39 17.12 1.44 18.19 1.49 18.96 1.51 20.32 1.54 21.39 1.57
90 15.64 1.46 16.71 1.51 17.77 1.56 18.54 1.58 19.90 1.61 20.96 1.64
95 15.20 1.52 16.26 1.58 17.31 1.63 17.80 1.65 19.43 1.68 20.49 1.72
100 14.83 1.58 15.89 1.64 16.94 1.70 17.57 1.72 19.06 1.75 20.12 1.79
105 14.46 1.65 15.52 1.71 16.57 1.77 17.34 1.79 18.69 1.83 19.75 1.86
110 14.09 1.71 15.15 1.78 16.20 1.84 16.97 1.86 18.32 1.90 19.38 1.94
115 13.72 1.78 14.78 1.84 15.83 1.91 16.60 1.93 17.95 1.97 19.01 2.01
118 13.49 1.82 14.55 1.88 15.61 1.95 16.38 1.97 17.73 2.01 18.79 2.05
122 13.42 1.87 14.48 1.94 15.54 2.01 16.30 2.03 17.66 2.07 18.71 2.11
12 + 12
14 17.45 1.03 18.53 1.07 19.62 1.11 20.40 1.12 21.78 1.14 22.87 1.17
20 17.44 1.05 18.52 1.09 19.60 1.13 20.38 1.14 21.77 1.16 22.85 1.18
25 17.42 1.06 18.50 1.10 19.59 1.14 20.37 1.16 21.75 1.18 22.83 1.20
30 17.41 1.08 18.49 1.12 19.57 1.16 20.35 1.17 21.73 1.19 22.82 1.22
35 17.40 1.09 18.48 1.13 19.56 1.17 20.34 1.19 21.72 1.21 22.80 1.23
40 17.38 1.11 18.46 1.15
19.54 1.19 20.32 1.20 21.70 1.23 22.78 1.25
45 17.37 1.12 18.45 1.16 19.53 1.21 20.31 1.22 21.68 1.24 22.76 1.27
50 17.36 1.14 18.43 1.18 19.51 1.22 20.29 1.24 21.67 1.26 22.75 1.28
55 17.34 1.15 18.42 1.19 19.50 1.24 20.27 1.25 21.65 1.28 22.73 1.30
60 17.33 1.17 18.41 1.21 19.48 1.25 20.26 1.27 21.63 1.29 22.71 1.32
65 17.32 1.18 18.39 1.23 19.47 1.27 20.24 1.28 21.62 1.31 22.69 1.33
70 17.30 1.20 18.38 1.24 19.45 1.29 20.23 1.30 21.60 1.32 22.68 1.35
75 16.89 1.26 17.96 1.31 19.03 1.36 19.80 1.37 21.17 1.40 22.25 1.42
80 16.47 1.33 17.54 1.37 18.61 1.42 19.38 1.44 20.75 1.47 21.82 1.50
85 16.06 1.39 17.12 1.44 18.19 1.49 18.96 1.51 20.32 1.54 21.39 1.57
90 15.64 1.46 16.71 1.51 17.77 1.56 18.54 1.58 19.90 1.61 20.96 1.64
95 15.20 1.52 16.26 1.58 17.31 1.63 17.80 1.65 19.43 1.68 20.49 1.72
100 14.83 1.58 15.89 1.64 16.94 1.70 17.57 1.72 19.06 1.75 20.12 1.79
105 14.46 1.65 15.52 1.71 16.57 1.77 17.34 1.79 18.69 1.83 19.75 1.86
110 14.09 1.71 15.15 1.78 16.20 1.84 16.97 1.86 18.32 1.90 19.38 1.94
115 13.72 1.78 14.78 1.84 15.83 1.91 16.60 1.93 17.95 1.97 19.01 2.01
118 13.49 1.82 14.55 1.88 15.61 1.95 16.38 1.97 17.73 2.01 18.79 2.05
122 13.42 1.87 14.48 1.94 15.54 2.01 16.30 2.03 17.66 2.07 18.71 2.11
Table 56: LMU24CHV Cooling Capacity Table — Ducted Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
64 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Ducted
Indoor Units
9 + 18
14 17.45 1.03 18.53 1.07 19.62 1.11 20.40 1.12 21.78 1.14 22.87 1.17
20 17.44 1.05 18.52 1.09 19.60 1.13 20.38 1.14 21.77 1.16 22.85 1.18
25 17.42 1.06 18.50 1.10 19.59 1.14 20.37 1.16 21.75 1.18 22.83 1.20
30 17.41 1.08 18.49 1.12 19.57 1.16 20.35 1.17 21.73 1.19 22.82 1.22
35 17.40 1.09 18.48 1.13 19.56 1.17 20.34 1.19 21.72 1.21 22.80 1.23
40 17.38 1.11 18.46 1.15 19.54 1.19 20.32 1.20 21.70 1.23 22.78 1.25
45 17.37 1.12 18.45 1.16 19.53 1.21 20.31 1.22 21.68 1.24 22.76 1.27
50 17.36 1.14 18.43 1.18 19.51 1.22 20.29 1.24 21.67 1.26 22.75 1.28
55 17.34 1.15 18.42 1.19 19.50 1.24 20.27 1.25 21.65 1.28 22.73 1.30
60 17.33 1.17 18.41 1.21 19.48 1.25 20.26 1.27 21.63 1.29 22.71 1.32
65 17.32 1.18 18.39 1.23 19.47 1.27 20.24 1.28 21.62 1.31 22.69 1.33
70 17.30 1.20 18.38 1.24 19.45 1.29 20.23 1.30 21.60 1.32 22.68 1.35
75 16.89 1.26 17.96 1.31 19.03 1.36 19.80 1.37 21.17 1.40 22.25 1.42
80 16.47 1.33 17.54 1.37 18.61 1.42 19.38 1.44 20.75 1.47 21.82 1.50
85 16.06 1.39 17.12 1.44 18.19 1.49 18.96 1.51 20.32 1.54 21.39 1.57
90 15.64 1.46 16.71 1.51 17.77 1.56 18.54 1.58 19.90 1.61 20.96 1.64
95 15.20 1.52 16.26 1.58 17.31 1.63 17.80 1.65 19.43 1.68 20.49 1.72
100 14.83 1.58 15.89 1.64 16.94 1.70 17.57 1.72 19.06 1.75 20.12 1.79
105 14.46 1.65 15.52 1.71 16.57 1.77 17.34 1.79 18.69 1.83 19.75 1.86
110 14.09 1.71 15.15 1.78 16.20 1.84 16.97 1.86 18.32 1.90 19.38 1.94
115 13.72 1.78 14.78 1.84 15.83 1.91 16.60 1.93 17.95 1.97 19.01 2.01
118 13.49 1.82 14.55 1.88 15.61 1.95 16.38 1.97 17.73 2.01 18.79 2.05
122 13.42 1.87 14.48 1.94 15.54 2.01 16.30 2.03 17.66 2.07 18.71 2.11
12 + 18
14 17.45 1.03 18.53 1.07 19.62 1.11 20.40 1.12 21.78 1.14 22.87 1.17
20 17.44 1.05 18.52 1.09 19.60 1.13 20.38 1.14 21.77 1.16 22.85 1.18
25 17.42 1.06 18.50 1.10 19.59 1.14 20.37 1.16 21.75 1.18 22.83 1.20
30 17.41 1.08 18.49 1.12 19.57 1.16 20.35 1.17 21.73 1.19 22.82 1.22
35 17.40 1.09 18.48 1.13 19.56 1.17 20.34 1.19 21.72 1.21 22.80 1.23
40 17.38 1.11 18.46 1.15
19.54 1.19 20.32 1.20 21.70 1.23 22.78 1.25
45 17.37 1.12 18.45 1.16 19.53 1.21 20.31 1.22 21.68 1.24 22.76 1.27
50 17.36 1.14 18.43 1.18 19.51 1.22 20.29 1.24 21.67 1.26 22.75 1.28
55 17.34 1.15 18.42 1.19 19.50 1.24 20.27 1.25 21.65 1.28 22.73 1.30
60 17.33 1.17 18.41 1.21 19.48 1.25 20.26 1.27 21.63 1.29 22.71 1.32
65 17.32 1.18 18.39 1.23 19.47 1.27 20.24 1.28 21.62 1.31 22.69 1.33
70 17.30 1.20 18.38 1.24 19.45 1.29 20.23 1.30 21.60 1.32 22.68 1.35
75 16.89 1.26 17.96 1.31 19.03 1.36 19.80 1.37 21.17 1.40 22.25 1.42
80 16.47 1.33 17.54 1.37 18.61 1.42 19.38 1.44 20.75 1.47 21.82 1.50
85 16.06 1.39 17.12 1.44 18.19 1.49 18.96 1.51 20.32 1.54 21.39 1.57
90 15.64 1.46 16.71 1.51 17.77 1.56 18.54 1.58 19.90 1.61 20.96 1.64
95 15.20 1.52 16.26 1.58 17.31 1.63 17.80 1.65 19.43 1.68 20.49 1.72
100 14.83 1.58 15.89 1.64 16.94 1.70 17.57 1.72 19.06 1.75 20.12 1.79
105 14.46 1.65 15.52 1.71 16.57 1.77 17.34 1.79 18.69 1.83 19.75 1.86
110 14.09 1.71 15.15 1.78 16.20 1.84 16.97 1.86 18.32 1.90 19.38 1.94
115 13.72 1.78 14.78 1.84 15.83 1.91 16.60 1.93 17.95 1.97 19.01 2.01
118 13.49 1.82 14.55 1.88 15.61 1.95 16.38 1.97 17.73 2.01 18.79 2.05
122 13.42 1.87 14.48 1.94 15.54 2.01 16.30 2.03 17.66 2.07 18.71 2.11
Table 57: LMU24CHV Cooling Capacity Table — Ducted Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 65
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 58: LMU24CHV Cooling Capacity Table — Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Ducted
Indoor Units
9 + 9 + 9
14 17.45 0.97 18.53 1.00 19.62 1.04 20.40 1.05 21.78 1.07 22.87 1.09
20 17.44 0.98 18.52 1.02 19.60 1.06 20.38 1.07 21.77 1.09 22.85 1.11
25 17.42 1.00 18.50 1.03 19.59 1.07 20.37 1.08 21.75 1.10 22.83 1.13
30 17.41 1.01 18.49 1.05 19.57 1.09 20.35 1.10 21.73 1.12 22.82 1.14
35 17.40 1.02 18.48 1.06 19.56 1.10 20.34 1.11 21.72 1.13 22.80 1.16
40 17.38 1.04 18.46 1.08 19.54 1.12 20.32 1.13 21.70 1.15 22.78 1.17
45 17.37 1.05 18.45 1.09 19.53 1.13 20.31 1.14 21.68 1.16 22.76 1.19
50 17.36 1.07 18.43 1.11 19.51 1.15 20.29 1.16 21.67 1.18 22.75 1.20
55 17.34 1.08 18.42 1.12 19.50 1.16 20.27 1.17 21.65 1.20 22.73 1.22
60 17.33 1.09 18.41 1.13 19.48 1.18 20.26 1.19 21.63 1.21 22.71 1.24
65 17.32 1.11 18.39 1.15 19.47 1.19 20.24 1.20 21.62 1.23 22.69 1.25
70 17.30 1.12 18.38 1.16 19.45 1.21 20.23 1.22 21.60 1.24 22.68 1.27
75 16.89 1.18 17.96 1.23 19.03 1.27 19.80 1.28 21.17 1.31 22.25 1.34
80 16.47 1.24 17.54 1.29 18.61 1.34 19.38 1.35 20.75 1.38 21.82 1.40
85 16.06 1.30 17.12 1.35 18.19 1.40 18.96 1.42 20.32 1.44 21.39 1.47
90 15.64 1.36 16.71 1.41 17.77 1.47 18.54 1.48 19.90 1.51 20.96 1.54
95 15.20 1.42 16.26 1.48 17.31 1.53 17.80 1.55 19.43 1.58 20.49 1.61
100 14.83 1.48 15.89 1.54 16.94 1.60 17.57 1.61 19.06 1.64 20.12 1.68
105 14.46 1.55 15.52 1.60 16.57 1.66 17.34 1.68 18.69 1.71 19.75 1.75
110 14.09 1.61 15.15 1.66 16.20 1.73 16.97 1.75 18.32 1.78 19.38 1.81
115 13.72 1.67 14.78 1.73 15.83 1.79 16.60 1.81 17.95 1.85 19.01 1.88
118 13.49 1.70 14.55 1.77 15.61 1.83 16.38 1.85 17.73 1.89 18.79 1.92
122 13.42 1.75 14.48 1.82 15.54 1.88 16.30 1.90 17.66 1.94 18.71 1.98
9 + 9 + 12
14 17.45 0.97 18.53 1.00 19.62 1.04 20.40 1.05 21.78 1.07 22.87 1.09
20 17.44 0.98 18.52 1.02 19.60 1.06 20.38 1.07 21.77 1.09 22.85 1.11
25 17.42 1.00 18.50 1.03 19.59 1.07 20.37 1.08 21.75 1.10 22.83 1.13
30 17.41 1.01 18.49 1.05 19.57 1.09 20.35 1.10 21.73 1.12 22.82 1.14
35 17.40 1.02 18.48 1.06 19.56 1.10 20.34 1.11 21.72 1.13 22.80 1.16
40 17.38 1.04 18.46 1.08
19.54 1.12 20.32 1.13 21.70 1.15 22.78 1.17
45 17.37 1.05 18.45 1.09 19.53 1.13 20.31 1.14 21.68 1.16 22.76 1.19
50 17.36 1.07 18.43 1.11 19.51 1.15 20.29 1.16 21.67 1.18 22.75 1.20
55 17.34 1.08 18.42 1.12 19.50 1.16 20.27 1.17 21.65 1.20 22.73 1.22
60 17.33 1.09 18.41 1.13 19.48 1.18 20.26 1.19 21.63 1.21 22.71 1.24
65 17.32 1.11 18.39 1.15 19.47 1.19 20.24 1.20 21.62 1.23 22.69 1.25
70 17.30 1.12 18.38 1.16 19.45 1.21 20.23 1.22 21.60 1.24 22.68 1.27
75 16.89 1.18 17.96 1.23 19.03 1.27 19.80 1.28 21.17 1.31 22.25 1.34
80 16.47 1.24 17.54 1.29 18.61 1.34 19.38 1.35 20.75 1.38 21.82 1.40
85 16.06 1.30 17.12 1.35 18.19 1.40 18.96 1.42 20.32 1.44 21.39 1.47
90 15.64 1.36 16.71 1.41 17.77 1.47 18.54 1.48 19.90 1.51 20.96 1.54
95 15.20 1.42 16.26 1.48 17.31 1.53 17.80 1.55 19.43 1.58 20.49 1.61
100 14.83 1.48 15.89 1.54 16.94 1.60 17.57 1.61 19.06 1.64 20.12 1.68
105 14.46 1.55 15.52 1.60 16.57 1.66 17.34 1.68 18.69 1.71 19.75 1.75
110 14.09 1.61 15.15 1.66 16.20 1.73 16.97 1.75 18.32 1.78 19.38 1.81
115 13.72 1.67 14.78 1.73 15.83 1.79 16.60 1.81 17.95 1.85 19.01 1.88
118 13.49 1.70 14.55 1.77 15.61 1.83 16.38 1.85 17.73 1.89 18.79 1.92
122 13.42 1.75 14.48 1.82 15.54 1.88 16.30 1.90 17.66 1.94 18.71 1.98
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
66 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 59: LMU24CHV Cooling Capacity Table — Ducted (continued) and Mixed Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Ducted
Indoor Units
9 + 12 + 12
14 17.45 0.97 18.53 1.00 19.62 1.04 20.40 1.05 21.78 1.07 22.87 1.09
20 17.44 0.98 18.52 1.02 19.60 1.06 20.38 1.07 21.77 1.09 22.85 1.11
25 17.42 1.00 18.50 1.03 19.59 1.07 20.37 1.08 21.75 1.10 22.83 1.13
30 17.41 1.01 18.49 1.05 19.57 1.09 20.35 1.10 21.73 1.12 22.82 1.14
35 17.40 1.02 18.48 1.06 19.56 1.10 20.34 1.11 21.72 1.13 22.80 1.16
40 17.38 1.04 18.46 1.08 19.54 1.12 20.32 1.13 21.70 1.15 22.78 1.17
45 17.37 1.05 18.45 1.09 19.53 1.13 20.31 1.14 21.68 1.16 22.76 1.19
50 17.36 1.07 18.43 1.11 19.51 1.15 20.29 1.16 21.67 1.18 22.75 1.20
55 17.34 1.08 18.42 1.12 19.50 1.16 20.27 1.17 21.65 1.20 22.73 1.22
60 17.33 1.09 18.41 1.13 19.48 1.18 20.26 1.19 21.63 1.21 22.71 1.24
65 17.32 1.11 18.39 1.15 19.47 1.19 20.24 1.20 21.62 1.23 22.69 1.25
70 17.30 1.12 18.38 1.16 19.45 1.21 20.23 1.22 21.60 1.24 22.68 1.27
75 16.89 1.18 17.96 1.23 19.03 1.27 19.80 1.28 21.17 1.31 22.25 1.34
80 16.47 1.24 17.54 1.29 18.61 1.34 19.38 1.35 20.75 1.38 21.82 1.40
85 16.06 1.30 17.12 1.35 18.19 1.40 18.96 1.42 20.32 1.44 21.39 1.47
90 15.64 1.36 16.71 1.41 17.77 1.47 18.54 1.48 19.90 1.51 20.96 1.54
95 15.20 1.42 16.26 1.48 17.31 1.53 17.80 1.55 19.43 1.58 20.49 1.61
100 14.83 1.48 15.89 1.54 16.94 1.60 17.57 1.61 19.06 1.64 20.12 1.68
105 14.46 1.55 15.52 1.60 16.57 1.66 17.34 1.68 18.69 1.71 19.75 1.75
110 14.09 1.61 15.15 1.66 16.20 1.73 16.97 1.75 18.32 1.78 19.38 1.81
115 13.72 1.67 14.78 1.73 15.83 1.79 16.60 1.81 17.95 1.85 19.01 1.88
118 13.49 1.70 14.55 1.77 15.61 1.83 16.38 1.85 17.73 1.89 18.79 1.92
122 13.42 1.75 14.48 1.82 15.54 1.88 16.30 1.90 17.66 1.94 18.71 1.98
Two (2) Mixed
Indoor Units
7 + 9
14 14.82 0.83 15.74 0.86 16.66 0.89 17.33 0.90 18.50 0.91 19.42 0.93
20 14.81 0.84 15.73 0.87 16.65 0.90 17.31 0.91 18.49 0.93 19.41 0.95
25 14.80 0.85 15.72 0.88 16.64 0.91 17.30 0.92 18.48 0.94 19.40 0.96
30 14.79 0.86 15.71 0.89 16.63 0.93 17.29 0.94 18.46 0.95 19.38 0.97
35 14.78 0.87 15.69 0.90 16.61 0.94 17.28 0.95 18.45 0.97 19.37 0.99
40 14.77 0.88
15.68 0.92 16.60 0.95 17.26 0.96 18.43 0.98 19.35 1.00
45 14.75 0.90 15.67 0.93 16.59 0.96 17.25 0.97 18.42 0.99 19.34 1.01
50 14.74 0.91 15.66 0.94 16.57 0.98 17.24 0.99 18.41 1.01 19.32 1.03
55 14.73 0.92 15.65 0.95 16.56 0.99 17.22 1.00 18.39 1.02 19.31 1.04
60 14.72 0.93 15.63 0.97 16.55 1.00 17.21 1.01 18.38 1.03 19.29 1.05
65 14.71 0.94 15.62 0.98 16.54 1.01 17.20 1.03 18.36 1.05 19.28 1.07
70 14.70 0.96 15.61 0.99 16.52 1.03 17.18 1.04 18.35 1.06 19.26 1.08
75 14.34 1.01 15.25 1.04 16.17 1.08 16.82 1.09 17.99 1.12 18.90 1.14
80 13.99 1.06 14.90 1.10 15.81 1.14 16.46 1.15 17.62 1.17 18.53 1.20
85 13.64 1.11 14.55 1.15 15.45 1.19 16.11 1.21 17.26 1.23 18.17 1.25
90 13.29 1.16 14.19 1.20 15.10 1.25 15.75 1.26 16.90 1.29 17.81 1.31
95 12.91 1.21 13.81 1.26 14.71 1.30 15.12 1.32 16.51 1.34 17.41 1.37
100 12.59 1.27 13.49 1.31 14.39 1.36 14.92 1.38 16.19 1.40 17.09 1.43
105 12.28 1.32 13.18 1.37 14.08 1.41 14.73 1.43 15.88 1.46 16.78 1.49
110 11.97 1.37 12.87 1.42 13.76 1.47 14.41 1.49 15.56 1.52 16.46 1.55
115 11.65 1.42 12.55 1.47 13.45 1.53 14.10 1.54 15.25 1.57 16.15 1.60
118 11.46 1.45 12.36 1.50 13.26 1.56 13.91 1.58 15.06 1.61 15.96 1.64
122 11.40 1.49 12.30 1.55 13.20 1.60 13.85 1.62 15.00 1.65 15.90 1.69
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 67
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Table 60: LMU24CHV Cooling Capacity Table — Mixed Indoor Units.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
9 + 9
14 16.67 0.92 17.71 0.96 18.75 0.99 19.49 1.00 20.82 1.02 21.85 1.04
20 16.66 0.93 17.70 0.97 18.73 1.00 19.48 1.02 20.80 1.03 21.84 1.06
25 16.65 0.95 17.68 0.98 18.72 1.02 19.46 1.03 20.79 1.05 21.82 1.07
30 16.64 0.96 17.67 1.00 18.70 1.03 19.45 1.04 20.77 1.06 21.80 1.09
35 16.62 0.97 17.66 1.01 18.69 1.05 19.43 1.06 20.75 1.08 21.79 1.10
40 16.61 0.99 17.64 1.02 18.67 1.06 19.42 1.07 20.74 1.09 21.77 1.12
45 16.60 1.00 17.63 1.04 18.66 1.08 19.40 1.09 20.72 1.11 21.75 1.13
50 16.59 1.01 17.62 1.05 18.65 1.09 19.39 1.10 20.71 1.12 21.74 1.15
55 16.57 1.03 17.60 1.06 18.63 1.10 19.37 1.12 20.69 1.14 21.72 1.16
60 16.56 1.04 17.59 1.08 18.62 1.12 19.36 1.13 20.67 1.15 21.70 1.18
65 16.55 1.05 17.58 1.09 18.60 1.13 19.35 1.15 20.66 1.17 21.69 1.19
70 16.53 1.07 17.56 1.11 18.59 1.15 19.33 1.16 20.64 1.18 21.67 1.21
75 16.14 1.12 17.16 1.17 18.19 1.21 18.93 1.22 20.23 1.25 21.26 1.27
80 15.74 1.18 16.76 1.23 17.78 1.27 18.52 1.28 19.83 1.31 20.85 1.34
85 15.34 1.24 16.36 1.29 17.38 1.33 18.12 1.35 19.42 1.37 20.44 1.40
90 14.95 1.30 15.97 1.34 16.98 1.39 17.72 1.41 19.02 1.44 20.03 1.47
95 14.52 1.36 15.53 1.40 16.55 1.46 17.01 1.47 18.57 1.50 19.58 1.53
100 14.17 1.41 15.18 1.46 16.19 1.52 16.79 1.54 18.22 1.56 19.23 1.60
105 13.82 1.47 14.83 1.52 15.84 1.58 16.57 1.60 17.86 1.63 18.87 1.66
110 13.46 1.53 14.47 1.58 15.48 1.64 16.22 1.66 17.51 1.69 18.52 1.73
115 13.11 1.59 14.12 1.64 15.13 1.70 15.86 1.72 17.15 1.76 18.17 1.79
118 12.90 1.62 13.91 1.68 14.92 1.74 15.65 1.76 16.94 1.79 17.95 1.83
122 12.82 1.67 13.84 1.73 14.85 1.79 15.58 1.81 16.87 1.84 17.88 1.88
7 + 12
14 17.60 0.97 18.69 1.00 19.79 1.04 20.58 1.05 21.97 1.07 23.07 1.09
20 17.59 0.98 18.68 1.02 19.77 1.05 20.56 1.07 21.96 1.09 23.05 1.11
25 17.57 0.99 18.67 1.03 19.76 1.07 20.55 1.08 21.94 1.10 23.03 1.12
30 17.56 1.01 18.65 1.04 19.74 1.08 20.53 1.10 21.92 1.12 23.01 1.14
35 17.55 1.02 18.64 1.06 19.73 1.10 20.51 1.11 21.91 1.13 23.00 1.15
40 17.53 1.04 18.62 1.07
19.71 1.11 20.50 1.13 21.89 1.15 22.98 1.17
45 17.52 1.05 18.61 1.09 19.70 1.13 20.48 1.14 21.87 1.16 22.96 1.19
50 17.51 1.06 18.59 1.10 19.68 1.14 20.47 1.16 21.86 1.18 22.94 1.20
55 17.49 1.08 18.58 1.12 19.67 1.16 20.45 1.17 21.84 1.19 22.93 1.22
60 17.48 1.09 18.57 1.13 19.65 1.17 20.44 1.19 21.82 1.21 22.91 1.23
65 17.47 1.11 18.55 1.15 19.64 1.19 20.42 1.20 21.81 1.22 22.89 1.25
70 17.45 1.12 18.54 1.16 19.62 1.20 20.40 1.22 21.79 1.24 22.87 1.26
75 17.03 1.18 18.11 1.22 19.20 1.27 19.98 1.28 21.36 1.31 22.44 1.33
80 16.61 1.24 17.69 1.29 18.77 1.33 19.55 1.35 20.93 1.37 22.01 1.40
85 16.20 1.30 17.27 1.35 18.35 1.40 19.13 1.41 20.50 1.44 21.58 1.47
90 15.78 1.36 16.85 1.41 17.93 1.46 18.70 1.48 20.07 1.51 21.15 1.54
95 15.33 1.42 16.40 1.47 17.47 1.53 17.96 1.54 19.60 1.57 20.67 1.60
100 14.96 1.48 16.02 1.54 17.09 1.59 17.72 1.61 19.23 1.64 20.30 1.67
105 14.58 1.54 15.65 1.60 16.72 1.66 17.49 1.68 18.85 1.71 19.92 1.74
110 14.21 1.60 15.28 1.66 16.35 1.72 17.12 1.74 18.48 1.77 19.55 1.81
115 13.84 1.66 14.90 1.72 15.97 1.79 16.74 1.81 18.11 1.84 19.18 1.88
118 13.61 1.70 14.68 1.76 15.75 1.82 16.52 1.85 17.88 1.88 18.95 1.92
122 13.54 1.75 14.61 1.81 15.67 1.88 16.44 1.90 17.81 1.93 18.88 1.97
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
68 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
9 + 12
14 18.53 1.01 19.68 1.05 20.83 1.09 21.66 1.10 23.13 1.12 24.28 1.14
20 18.51 1.03 19.66 1.06 20.81 1.10 21.64 1.11 23.11 1.14 24.26 1.16
25 18.50 1.04 19.65 1.08 20.80 1.12 21.63 1.13 23.09 1.15 24.24 1.17
30 18.49 1.05 19.63 1.09 20.78 1.13 21.61 1.15 23.08 1.17 24.23 1.19
35 18.47 1.07 19.62 1.11 20.77 1.15 21.59 1.16 23.06 1.18 24.21 1.21
40 18.46 1.08 19.60 1.12 20.75 1.16 21.58 1.18 23.04 1.20 24.19 1.22
45 18.44 1.10 19.59 1.14 20.73 1.18 21.56 1.19 23.02 1.22 24.17 1.24
50 18.43 1.11 19.57 1.15 20.72 1.20 21.54 1.21 23.01 1.23 24.15 1.26
55 18.41 1.13 19.56 1.17 20.70 1.21 21.53 1.23 22.99 1.25 24.13 1.27
60 18.40 1.14 19.54 1.18 20.69 1.23 21.51 1.24 22.97 1.26 24.11 1.29
65 18.39 1.16 19.53 1.20 20.67 1.24 21.49 1.26 22.95 1.28 24.10 1.31
70 18.37 1.17 19.51 1.21 20.65 1.26 21.48 1.27 22.94 1.30 24.08 1.32
75 17.93 1.23 19.07 1.28 20.21 1.33 21.03 1.34 22.48 1.37 23.62 1.39
80 17.49 1.30 18.62 1.34 19.76 1.39 20.58 1.41 22.03 1.44 23.16 1.47
85 17.05 1.36 18.18 1.41 19.31 1.46 20.13 1.48 21.58 1.51 22.71 1.54
90 16.61 1.42 17.74 1.48 18.87 1.53 19.69 1.55 21.13 1.58 22.26 1.61
95 16.14 1.49 17.26 1.54 18.38 1.60 18.90 1.62 20.63 1.65 21.76 1.68
100 15.74 1.55 16.87 1.61 17.99 1.67 18.66 1.68 20.24 1.72 21.36 1.75
105 15.35 1.61 16.47 1.67 17.60 1.73 18.41 1.75 19.85 1.79 20.97 1.82
110 14.96 1.68 16.08 1.74 17.21 1.80 18.02 1.82 19.45 1.86 20.58 1.89
115 14.56 1.74 15.69 1.80 16.81 1.87 17.62 1.89 19.06 1.93 20.18 1.96
118 14.33 1.78 15.45 1.84 16.58 1.91 17.39 1.93 18.83 1.97 19.95 2.01
122 14.25 1.83 15.37 1.89 16.50 1.96 17.31 1.99 18.75 2.02 19.87 2.06
9 + 15
14 18.53 1.01 19.68 1.05 20.83 1.09 21.66 1.10 23.13 1.12 24.28 1.14
20 18.51 1.03 19.66 1.06 20.81 1.10 21.64 1.11 23.11 1.14 24.26 1.16
25 18.50 1.04 19.65 1.08 20.80 1.12 21.63 1.13 23.09 1.15 24.24 1.17
30 18.49 1.05 19.63 1.09 20.78 1.13 21.61 1.15 23.08 1.17 24.23 1.19
35 18.47 1.07 19.62 1.11 20.77 1.15 21.59 1.16 23.06 1.18 24.21 1.21
40 18.46 1.08 19.60 1.12
20.75 1.16 21.58 1.18 23.04 1.20 24.19 1.22
45 18.44 1.10 19.59 1.14 20.73 1.18 21.56 1.19 23.02 1.22 24.17 1.24
50 18.43 1.11 19.57 1.15 20.72 1.20 21.54 1.21 23.01 1.23 24.15 1.26
55 18.41 1.13 19.56 1.17 20.70 1.21 21.53 1.23 22.99 1.25 24.13 1.27
60 18.40 1.14 19.54 1.18 20.69 1.23 21.51 1.24 22.97 1.26 24.11 1.29
65 18.39 1.16 19.53 1.20 20.67 1.24 21.49 1.26 22.95 1.28 24.10 1.31
70 18.37 1.17 19.51 1.21 20.65 1.26 21.48 1.27 22.94 1.30 24.08 1.32
75 17.93 1.23 19.07 1.28 20.21 1.33 21.03 1.34 22.48 1.37 23.62 1.39
80 17.49 1.30 18.62 1.34 19.76 1.39 20.58 1.41 22.03 1.44 23.16 1.47
85 17.05 1.36 18.18 1.41 19.31 1.46 20.13 1.48 21.58 1.51 22.71 1.54
90 16.61 1.42 17.74 1.48 18.87 1.53 19.69 1.55 21.13 1.58 22.26 1.61
95 16.14 1.49 17.26 1.54 18.38 1.60 18.90 1.62 20.63 1.65 21.76 1.68
100 15.74 1.55 16.87 1.61 17.99 1.67 18.66 1.68 20.24 1.72 21.36 1.75
105 15.35 1.61 16.47 1.67 17.60 1.73 18.41 1.75 19.85 1.79 20.97 1.82
110 14.96 1.68 16.08 1.74 17.21 1.80 18.02 1.82 19.45 1.86 20.58 1.89
115 14.56 1.74 15.69 1.80 16.81 1.87 17.62 1.89 19.06 1.93 20.18 1.96
118 14.33 1.78 15.45 1.84 16.58 1.91 17.39 1.93 18.83 1.97 19.95 2.01
122 14.25 1.83 15.37 1.89 16.50 1.96 17.31 1.99 18.75 2.02 19.87 2.06
Table 61: LMU24CHV Cooling Capacity Table — Mixed Indoor Units.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 69
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
12 + 12
14 18.53 1.01 19.68 1.05 20.83 1.09 21.66 1.10 23.13 1.12 24.28 1.14
20 18.51 1.03 19.66 1.06 20.81 1.10 21.64 1.11 23.11 1.14 24.26 1.16
25 18.50 1.04 19.65 1.08 20.80 1.12 21.63 1.13 23.09 1.15 24.24 1.17
30 18.49 1.05 19.63 1.09 20.78 1.13 21.61 1.15 23.08 1.17 24.23 1.19
35 18.47 1.07 19.62 1.11 20.77 1.15 21.59 1.16 23.06 1.18 24.21 1.21
40 18.46 1.08 19.60 1.12 20.75 1.16 21.58 1.18 23.04 1.20 24.19 1.22
45 18.44 1.10 19.59 1.14 20.73 1.18 21.56 1.19 23.02 1.22 24.17 1.24
50 18.43 1.11 19.57 1.15 20.72 1.20 21.54 1.21 23.01 1.23 24.15 1.26
55 18.41 1.13 19.56 1.17 20.70 1.21 21.53 1.23 22.99 1.25 24.13 1.27
60 18.40 1.14 19.54 1.18 20.69 1.23 21.51 1.24 22.97 1.26 24.11 1.29
65 18.39 1.16 19.53 1.20 20.67 1.24 21.49 1.26 22.95 1.28 24.10 1.31
70 18.37 1.17 19.51 1.21 20.65 1.26 21.48 1.27 22.94 1.30 24.08 1.32
75 17.93 1.23 19.07 1.28 20.21 1.33 21.03 1.34 22.48 1.37 23.62 1.39
80 17.49 1.30 18.62 1.34 19.76 1.39 20.58 1.41 22.03 1.44 23.16 1.47
85 17.05 1.36 18.18 1.41 19.31 1.46 20.13 1.48 21.58 1.51 22.71 1.54
90 16.61 1.42 17.74 1.48 18.87 1.53 19.69 1.55 21.13 1.58 22.26 1.61
95 16.14 1.49 17.26 1.54 18.38 1.60 18.90 1.62 20.63 1.65 21.76 1.68
100 15.74 1.55 16.87 1.61 17.99 1.67 18.66 1.68 20.24 1.72 21.36 1.75
105 15.35 1.61 16.47 1.67 17.60 1.73 18.41 1.75 19.85 1.79 20.97 1.82
110 14.96 1.68 16.08 1.74 17.21 1.80 18.02 1.82 19.45 1.86 20.58 1.89
115 14.56 1.74 15.69 1.80 16.81 1.87 17.62 1.89 19.06 1.93 20.18 1.96
118 14.33 1.78 15.45 1.84 16.58 1.91 17.39 1.93 18.83 1.97 19.95 2.01
122 14.25 1.83 15.37 1.89 16.50 1.96 17.31 1.99 18.75 2.02 19.87 2.06
7 + 18
14 18.53 1.01 19.68 1.05 20.83 1.09 21.66 1.10 23.13 1.12 24.28 1.14
20 18.51 1.03 19.66 1.06 20.81 1.10 21.64 1.11 23.11 1.14 24.26 1.16
25 18.50 1.04 19.65 1.08 20.80 1.12 21.63 1.13 23.09 1.15 24.24 1.17
30 18.49 1.05 19.63 1.09 20.78 1.13 21.61 1.15 23.08 1.17 24.23 1.19
35 18.47 1.07 19.62 1.11 20.77 1.15 21.59 1.16 23.06 1.18 24.21 1.21
40 18.46 1.08 19.60 1.12
20.75 1.16 21.58 1.18 23.04 1.20 24.19 1.22
45 18.44 1.10 19.59 1.14 20.73 1.18 21.56 1.19 23.02 1.22 24.17 1.24
50 18.43 1.11 19.57 1.15 20.72 1.20 21.54 1.21 23.01 1.23 24.15 1.26
55 18.41 1.13 19.56 1.17 20.70 1.21 21.53 1.23 22.99 1.25 24.13 1.27
60 18.40 1.14 19.54 1.18 20.69 1.23 21.51 1.24 22.97 1.26 24.11 1.29
65 18.39 1.16 19.53 1.20 20.67 1.24 21.49 1.26 22.95 1.28 24.10 1.31
70 18.37 1.17 19.51 1.21 20.65 1.26 21.48 1.27 22.94 1.30 24.08 1.32
75 17.93 1.23 19.07 1.28 20.21 1.33 21.03 1.34 22.48 1.37 23.62 1.39
80 17.49 1.30 18.62 1.34 19.76 1.39 20.58 1.41 22.03 1.44 23.16 1.47
85 17.05 1.36 18.18 1.41 19.31 1.46 20.13 1.48 21.58 1.51 22.71 1.54
90 16.61 1.42 17.74 1.48 18.87 1.53 19.69 1.55 21.13 1.58 22.26 1.61
95 16.14 1.49 17.26 1.54 18.38 1.60 18.90 1.62 20.63 1.65 21.76 1.68
100 15.74 1.55 16.87 1.61 17.99 1.67 18.66 1.68 20.24 1.72 21.36 1.75
105 15.35 1.61 16.47 1.67 17.60 1.73 18.41 1.75 19.85 1.79 20.97 1.82
110 14.96 1.68 16.08 1.74 17.21 1.80 18.02 1.82 19.45 1.86 20.58 1.89
115 14.56 1.74 15.69 1.80 16.81 1.87 17.62 1.89 19.06 1.93 20.18 1.96
118 14.33 1.78 15.45 1.84 16.58 1.91 17.39 1.93 18.83 1.97 19.95 2.01
122 14.25 1.83 15.37 1.89 16.50 1.96 17.31 1.99 18.75 2.02 19.87 2.06
Table 62: LMU24CHV Cooling Capacity Table — Mixed Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded rows indicate reference data. When operating at this temperature, these values can be
different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
70 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
9 + 18
14 18.53 1.01 19.68 1.05 20.83 1.09 21.66 1.10 23.13 1.12 24.28 1.14
20 18.51 1.03 19.66 1.06 20.81 1.10 21.64 1.11 23.11 1.14 24.26 1.16
25 18.50 1.04 19.65 1.08 20.80 1.12 21.63 1.13 23.09 1.15 24.24 1.17
30 18.49 1.05 19.63 1.09 20.78 1.13 21.61 1.15 23.08 1.17 24.23 1.19
35 18.47 1.07 19.62 1.11 20.77 1.15 21.59 1.16 23.06 1.18 24.21 1.21
40 18.46 1.08 19.60 1.12 20.75 1.16 21.58 1.18 23.04 1.20 24.19 1.22
45 18.44 1.10 19.59 1.14 20.73 1.18 21.56 1.19 23.02 1.22 24.17 1.24
50 18.43 1.11 19.57 1.15 20.72 1.20 21.54 1.21 23.01 1.23 24.15 1.26
55 18.41 1.13 19.56 1.17 20.70 1.21 21.53 1.23 22.99 1.25 24.13 1.27
60 18.40 1.14 19.54 1.18 20.69 1.23 21.51 1.24 22.97 1.26 24.11 1.29
65 18.39 1.16 19.53 1.20 20.67 1.24 21.49 1.26 22.95 1.28 24.10 1.31
70 18.37 1.17 19.51 1.21 20.65 1.26 21.48 1.27 22.94 1.30 24.08 1.32
75 17.93 1.23 19.07 1.28 20.21 1.33 21.03 1.34 22.48 1.37 23.62 1.39
80 17.49 1.30 18.62 1.34 19.76 1.39 20.58 1.41 22.03 1.44 23.16 1.47
85 17.05 1.36 18.18 1.41 19.31 1.46 20.13 1.48 21.58 1.51 22.71 1.54
90 16.61 1.42 17.74 1.48 18.87 1.53 19.69 1.55 21.13 1.58 22.26 1.61
95 16.14 1.49 17.26 1.54 18.38 1.60 18.90 1.62 20.63 1.65 21.76 1.68
100 15.74 1.55 16.87 1.61 17.99 1.67 18.66 1.68 20.24 1.72 21.36 1.75
105 15.35 1.61 16.47 1.67 17.60 1.73 18.41 1.75 19.85 1.79 20.97 1.82
110 14.96 1.68 16.08 1.74 17.21 1.80 18.02 1.82 19.45 1.86 20.58 1.89
115 14.56 1.74 15.69 1.80 16.81 1.87 17.62 1.89 19.06 1.93 20.18 1.96
118 14.33 1.78 15.45 1.84 16.58 1.91 17.39 1.93 18.83 1.97 19.95 2.01
122 14.25 1.83 15.37 1.89 16.50 1.96 17.31 1.99 18.75 2.02 19.87 2.06
12 + 15
14 18.53 1.01 19.68 1.05 20.83 1.09 21.66 1.10 23.13 1.12 24.28 1.14
20 18.51 1.03 19.66 1.06 20.81 1.10 21.64 1.11 23.11 1.14 24.26 1.16
25 18.50 1.04 19.65 1.08 20.80 1.12 21.63 1.13 23.09 1.15 24.24 1.17
30 18.49 1.05 19.63 1.09 20.78 1.13 21.61 1.15 23.08 1.17 24.23 1.19
35 18.47 1.07 19.62 1.11 20.77 1.15 21.59 1.16 23.06 1.18 24.21 1.21
40 18.46 1.08 19.60 1.12
20.75 1.16 21.58 1.18 23.04 1.20 24.19 1.22
45 18.44 1.10 19.59 1.14 20.73 1.18 21.56 1.19 23.02 1.22 24.17 1.24
50 18.43 1.11 19.57 1.15 20.72 1.20 21.54 1.21 23.01 1.23 24.15 1.26
55 18.41 1.13 19.56 1.17 20.70 1.21 21.53 1.23 22.99 1.25 24.13 1.27
60 18.40 1.14 19.54 1.18 20.69 1.23 21.51 1.24 22.97 1.26 24.11 1.29
65 18.39 1.16 19.53 1.20 20.67 1.24 21.49 1.26 22.95 1.28 24.10 1.31
70 18.37 1.17 19.51 1.21 20.65 1.26 21.48 1.27 22.94 1.30 24.08 1.32
75 17.93 1.23 19.07 1.28 20.21 1.33 21.03 1.34 22.48 1.37 23.62 1.39
80 17.49 1.30 18.62 1.34 19.76 1.39 20.58 1.41 22.03 1.44 23.16 1.47
85 17.05 1.36 18.18 1.41 19.31 1.46 20.13 1.48 21.58 1.51 22.71 1.54
90 16.61 1.42 17.74 1.48 18.87 1.53 19.69 1.55 21.13 1.58 22.26 1.61
95 16.14 1.49 17.26 1.54 18.38 1.60 18.90 1.62 20.63 1.65 21.76 1.68
100 15.74 1.55 16.87 1.61 17.99 1.67 18.66 1.68 20.24 1.72 21.36 1.75
105 15.35 1.61 16.47 1.67 17.60 1.73 18.41 1.75 19.85 1.79 20.97 1.82
110 14.96 1.68 16.08 1.74 17.21 1.80 18.02 1.82 19.45 1.86 20.58 1.89
115 14.56 1.74 15.69 1.80 16.81 1.87 17.62 1.89 19.06 1.93 20.18 1.96
118 14.33 1.78 15.45 1.84 16.58 1.91 17.39 1.93 18.83 1.97 19.95 2.01
122 14.25 1.83 15.37 1.89 16.50 1.96 17.31 1.99 18.75 2.02 19.87 2.06
Table 63: LMU24CHV Cooling Capacity Table — Mixed Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded rows indicate reference data. When operating at this temperature, these values can be
different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 71
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 64: LMU24CHV Cooling Capacity Table — Mixed Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
12 + 18
14 18.53 1.01 19.68 1.05 20.83 1.09 21.66 1.10 23.13 1.12 24.28 1.14
20 18.51 1.03 19.66 1.06 20.81 1.10 21.64 1.11 23.11 1.14 24.26 1.16
25 18.50 1.04 19.65 1.08 20.80 1.12 21.63 1.13 23.09 1.15 24.24 1.17
30 18.49 1.05 19.63 1.09 20.78 1.13 21.61 1.15 23.08 1.17 24.23 1.19
35 18.47 1.07 19.62 1.11 20.77 1.15 21.59 1.16 23.06 1.18 24.21 1.21
40 18.46 1.08 19.60 1.12 20.75 1.16 21.58 1.18 23.04 1.20 24.19 1.22
45 18.44 1.10 19.59 1.14 20.73 1.18 21.56 1.19 23.02 1.22 24.17 1.24
50 18.43 1.11 19.57 1.15 20.72 1.20 21.54 1.21 23.01 1.23 24.15 1.26
55 18.41 1.13 19.56 1.17 20.70 1.21 21.53 1.23 22.99 1.25 24.13 1.27
60 18.40 1.14 19.54 1.18 20.69 1.23 21.51 1.24 22.97 1.26 24.11 1.29
65 18.39 1.16 19.53 1.20 20.67 1.24 21.49 1.26 22.95 1.28 24.10 1.31
70 18.37 1.17 19.51 1.21 20.65 1.26 21.48 1.27 22.94 1.30 24.08 1.32
75 17.93 1.23 19.07 1.28 20.21 1.33 21.03 1.34 22.48 1.37 23.62 1.39
80 17.49 1.30 18.62 1.34 19.76 1.39 20.58 1.41 22.03 1.44 23.16 1.47
85 17.05 1.36 18.18 1.41 19.31 1.46 20.13 1.48 21.58 1.51 22.71 1.54
90 16.61 1.42 17.74 1.48 18.87 1.53 19.69 1.55 21.13 1.58 22.26 1.61
95 16.14 1.49 17.26 1.54 18.38 1.60 18.90 1.62 20.63 1.65 21.76 1.68
100 15.74 1.55 16.87 1.61 17.99 1.67 18.66 1.68 20.24 1.72 21.36 1.75
105 15.35 1.61 16.47 1.67 17.60 1.73 18.41 1.75 19.85 1.79 20.97 1.82
110 14.96 1.68 16.08 1.74 17.21 1.80 18.02 1.82 19.45 1.86 20.58 1.89
115 14.56 1.74 15.69 1.80 16.81 1.87 17.62 1.89 19.06 1.93 20.18 1.96
118 14.33 1.78 15.45 1.84 16.58 1.91 17.39 1.93 18.83 1.97 19.95 2.01
122 14.25 1.83 15.37 1.89 16.50 1.96 17.31 1.99 18.75 2.02 19.87 2.06
15 + 18
14 18.53 1.01 19.68 1.05 20.83 1.09 21.66 1.10 23.13 1.12 24.28 1.14
20 18.51 1.03 19.66 1.06 20.81 1.10 21.64 1.11 23.11 1.14 24.26 1.16
25 18.50 1.04 19.65 1.08 20.80 1.12 21.63 1.13 23.09 1.15 24.24 1.17
30 18.49 1.05 19.63 1.09 20.78 1.13 21.61 1.15 23.08 1.17 24.23 1.19
35 18.47 1.07 19.62 1.11 20.77 1.15 21.59 1.16 23.06 1.18 24.21 1.21
40 18.46 1.08 19.60 1.12
20.75 1.16 21.58 1.18 23.04 1.20 24.19 1.22
45 18.44 1.10 19.59 1.14 20.73 1.18 21.56 1.19 23.02 1.22 24.17 1.24
50 18.43 1.11 19.57 1.15 20.72 1.20 21.54 1.21 23.01 1.23 24.15 1.26
55 18.41 1.13 19.56 1.17 20.70 1.21 21.53 1.23 22.99 1.25 24.13 1.27
60 18.40 1.14 19.54 1.18 20.69 1.23 21.51 1.24 22.97 1.26 24.11 1.29
65 18.39 1.16 19.53 1.20 20.67 1.24 21.49 1.26 22.95 1.28 24.10 1.31
70 18.37 1.17 19.51 1.21 20.65 1.26 21.48 1.27 22.94 1.30 24.08 1.32
75 17.93 1.23 19.07 1.28 20.21 1.33 21.03 1.34 22.48 1.37 23.62 1.39
80 17.49 1.30 18.62 1.34 19.76 1.39 20.58 1.41 22.03 1.44 23.16 1.47
85 17.05 1.36 18.18 1.41 19.31 1.46 20.13 1.48 21.58 1.51 22.71 1.54
90 16.61 1.42 17.74 1.48 18.87 1.53 19.69 1.55 21.13 1.58 22.26 1.61
95 16.14 1.49 17.26 1.54 18.38 1.60 18.90 1.62 20.63 1.65 21.76 1.68
100 15.74 1.55 16.87 1.61 17.99 1.67 18.66 1.68 20.24 1.72 21.36 1.75
105 15.35 1.61 16.47 1.67 17.60 1.73 18.41 1.75 19.85 1.79 20.97 1.82
110 14.96 1.68 16.08 1.74 17.21 1.80 18.02 1.82 19.45 1.86 20.58 1.89
115 14.56 1.74 15.69 1.80 16.81 1.87 17.62 1.89 19.06 1.93 20.18 1.96
118 14.33 1.78 15.45 1.84 16.58 1.91 17.39 1.93 18.83 1.97 19.95 2.01
122 14.25 1.83 15.37 1.89 16.50 1.96 17.31 1.99 18.75 2.02 19.87 2.06
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
72 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 65: LMU24CHV Cooling Capacity Table — Mixed Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
*The indoor unit must be non-ducted type.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
9 + 24*
14 18.53 1.01 19.68 1.05 20.83 1.09 21.66 1.10 23.13 1.12 24.28 1.14
20 18.51 1.03 19.66 1.06 20.81 1.10 21.64 1.11 23.11 1.14 24.26 1.16
25 18.50 1.04 19.65 1.08 20.80 1.12 21.63 1.13 23.09 1.15 24.24 1.17
30 18.49 1.05 19.63 1.09 20.78 1.13 21.61 1.15 23.08 1.17 24.23 1.19
35 18.47 1.07 19.62 1.11 20.77 1.15 21.59 1.16 23.06 1.18 24.21 1.21
40 18.46 1.08 19.60 1.12 20.75 1.16 21.58 1.18 23.04 1.20 24.19 1.22
45 18.44 1.10 19.59 1.14 20.73 1.18 21.56 1.19 23.02 1.22 24.17 1.24
50 18.43 1.11 19.57 1.15 20.72 1.20 21.54 1.21 23.01 1.23 24.15 1.26
55 18.41 1.13 19.56 1.17 20.70 1.21 21.53 1.23 22.99 1.25 24.13 1.27
60 18.40 1.14 19.54 1.18 20.69 1.23 21.51 1.24 22.97 1.26 24.11 1.29
65 18.39 1.16 19.53 1.20 20.67 1.24 21.49 1.26 22.95 1.28 24.10 1.31
70 18.37 1.17 19.51 1.21 20.65 1.26 21.48 1.27 22.94 1.30 24.08 1.32
75 17.93 1.23 19.07 1.28 20.21 1.33 21.03 1.34 22.48 1.37 23.62 1.39
80 17.49 1.30 18.62 1.34 19.76 1.39 20.58 1.41 22.03 1.44 23.16 1.47
85 17.05 1.36 18.18 1.41 19.31 1.46 20.13 1.48 21.58 1.51 22.71 1.54
90 16.61 1.42 17.74 1.48 18.87 1.53 19.69 1.55 21.13 1.58 22.26 1.61
95 16.14 1.49 17.26 1.54 18.38 1.60 18.90 1.62 20.63 1.65 21.76 1.68
100 15.74 1.55 16.87 1.61 17.99 1.67 18.66 1.68 20.24 1.72 21.36 1.75
105 15.35 1.61 16.47 1.67 17.60 1.73 18.41 1.75 19.85 1.79 20.97 1.82
110 14.96 1.68 16.08 1.74 17.21 1.80 18.02 1.82 19.45 1.86 20.58 1.89
115 14.56 1.74 15.69 1.80 16.81 1.87 17.62 1.89 19.06 1.93 20.18 1.96
118 14.33 1.78 15.45 1.84 16.58 1.91 17.39 1.93 18.83 1.97 19.95 2.01
122 14.25 1.83 15.37 1.89 16.50 1.96 17.31 1.99 18.75 2.02 19.87 2.06
Three (3) Mixed
Indoor Units
7 + 7 + 9
14 18.53 0.95 19.68 0.98 20.83 1.02 21.66 1.03 23.13 1.05 24.28 1.07
20 18.51 0.96 19.66 1.00 20.81 1.03 21.64 1.04 23.11 1.06 24.26 1.09
25 18.50 0.98 19.65 1.01 20.80 1.05 21.63 1.06 23.09 1.08 24.24 1.10
30 18.49 0.99 19.63 1.02 20.78 1.06 21.61 1.07 23.08 1.09 24.23 1.12
35 18.47 1.00 19.62 1.04 20.77 1.08 21.59 1.09 23.06 1.11 24.21 1.13
40 18.46 1.02
19.60 1.05 20.75 1.09 21.58 1.10 23.04 1.12 24.19 1.15
45 18.44 1.03 19.59 1.07 20.73 1.11 21.56 1.12 23.02 1.14 24.17 1.16
50 18.43 1.04 19.57 1.08 20.72 1.12 21.54 1.13 23.01 1.15 24.15 1.18
55 18.41 1.06 19.56 1.10 20.70 1.14 21.53 1.15 22.99 1.17 24.13 1.19
60 18.40 1.07 19.54 1.11 20.69 1.15 21.51 1.16 22.97 1.18 24.11 1.21
65 18.39 1.08 19.53 1.12 20.67 1.16 21.49 1.18 22.95 1.20 24.10 1.22
70 18.37 1.10 19.51 1.14 20.65 1.18 21.48 1.19 22.94 1.22 24.08 1.24
75 17.93 1.16 19.07 1.20 20.21 1.24 21.03 1.26 22.48 1.28 23.62 1.31
80 17.49 1.22 18.62 1.26 19.76 1.31 20.58 1.32 22.03 1.35 23.16 1.37
85 17.05 1.28 18.18 1.32 19.31 1.37 20.13 1.39 21.58 1.41 22.71 1.44
90 16.61 1.33 17.74 1.38 18.87 1.43 19.69 1.45 21.13 1.48 22.26 1.51
95 16.14 1.39 17.26 1.44 18.38 1.50 18.90 1.51 20.63 1.54 21.76 1.57
100 15.74 1.45 16.87 1.51 17.99 1.56 18.66 1.58 20.24 1.61 21.36 1.64
105 15.35 1.51 16.47 1.57 17.60 1.62 18.41 1.64 19.85 1.67 20.97 1.71
110 14.96 1.57 16.08 1.63 17.21 1.69 18.02 1.71 19.45 1.74 20.58 1.77
115 14.56 1.63 15.69 1.69 16.81 1.75 17.62 1.77 19.06 1.81 20.18 1.84
118 14.33 1.67 15.45 1.73 16.58 1.79 17.39 1.81 18.83 1.84 19.95 1.88
122 14.25 1.71 15.37 1.78 16.50 1.84 17.31 1.86 18.75 1.90 19.87 1.94
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 73
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 9 + 9
14 18.53 0.95 19.68 0.98 20.83 1.02 21.66 1.03 23.13 1.05 24.28 1.07
20 18.51 0.96 19.66 1.00 20.81 1.03 21.64 1.04 23.11 1.06 24.26 1.09
25 18.50 0.98 19.65 1.01 20.80 1.05 21.63 1.06 23.09 1.08 24.24 1.10
30 18.49 0.99 19.63 1.02 20.78 1.06 21.61 1.07 23.08 1.09 24.23 1.12
35 18.47 1.00 19.62 1.04 20.77 1.08 21.59 1.09 23.06 1.11 24.21 1.13
40 18.46 1.02 19.60 1.05 20.75 1.09 21.58 1.10 23.04 1.12 24.19 1.15
45 18.44 1.03 19.59 1.07 20.73 1.11 21.56 1.12 23.02 1.14 24.17 1.16
50 18.43 1.04 19.57 1.08 20.72 1.12 21.54 1.13 23.01 1.15 24.15 1.18
55 18.41 1.06 19.56 1.10 20.70 1.14 21.53 1.15 22.99 1.17 24.13 1.19
60 18.40 1.07 19.54 1.11 20.69 1.15 21.51 1.16 22.97 1.18 24.11 1.21
65 18.39 1.08 19.53 1.12 20.67 1.16 21.49 1.18 22.95 1.20 24.10 1.22
70 18.37 1.10 19.51 1.14 20.65 1.18 21.48 1.19 22.94 1.22 24.08 1.24
75 17.93 1.16 19.07 1.20 20.21 1.24 21.03 1.26 22.48 1.28 23.62 1.31
80 17.49 1.22 18.62 1.26 19.76 1.31 20.58 1.32 22.03 1.35 23.16 1.37
85 17.05 1.28 18.18 1.32 19.31 1.37 20.13 1.39 21.58 1.41 22.71 1.44
90 16.61 1.33 17.74 1.38 18.87 1.43 19.69 1.45 21.13 1.48 22.26 1.51
95 16.14 1.39 17.26 1.44 18.38 1.50 18.90 1.51 20.63 1.54 21.76 1.57
100 15.74 1.45 16.87 1.51 17.99 1.56 18.66 1.58 20.24 1.61 21.36 1.64
105 15.35 1.51 16.47 1.57 17.60 1.62 18.41 1.64 19.85 1.67 20.97 1.71
110 14.96 1.57 16.08 1.63 17.21 1.69 18.02 1.71 19.45 1.74 20.58 1.77
115 14.56 1.63 15.69 1.69 16.81 1.75 17.62 1.77 19.06 1.81 20.18 1.84
118 14.33 1.67 15.45 1.73 16.58 1.79 17.39 1.81 18.83 1.84 19.95 1.88
122 14.25 1.71 15.37 1.78 16.50 1.84 17.31 1.86 18.75 1.90 19.87 1.94
7 + 7 + 12
14 18.53 0.95 19.68 0.98 20.83 1.02 21.66 1.03 23.13 1.05 24.28 1.07
20 18.51 0.96 19.66 1.00 20.81 1.03 21.64 1.04 23.11 1.06 24.26 1.09
25 18.50 0.98 19.65 1.01 20.80 1.05 21.63 1.06 23.09 1.08 24.24 1.10
30 18.49 0.99 19.63 1.02 20.78 1.06 21.61 1.07 23.08 1.09 24.23 1.12
35 18.47 1.00 19.62 1.04 20.77 1.08 21.59 1.09 23.06 1.11 24.21 1.13
40 18.46 1.02 19.60 1.05
20.75 1.09 21.58 1.10 23.04 1.12 24.19 1.15
45 18.44 1.03 19.59 1.07 20.73 1.11 21.56 1.12 23.02 1.14 24.17 1.16
50 18.43 1.04 19.57 1.08 20.72 1.12 21.54 1.13 23.01 1.15 24.15 1.18
55 18.41 1.06 19.56 1.10 20.70 1.14 21.53 1.15 22.99 1.17 24.13 1.19
60 18.40 1.07 19.54 1.11 20.69 1.15 21.51 1.16 22.97 1.18 24.11 1.21
65 18.39 1.08 19.53 1.12 20.67 1.16 21.49 1.18 22.95 1.20 24.10 1.22
70 18.37 1.10 19.51 1.14 20.65 1.18 21.48 1.19 22.94 1.22 24.08 1.24
75 17.93 1.16 19.07 1.20 20.21 1.24 21.03 1.26 22.48 1.28 23.62 1.31
80 17.49 1.22 18.62 1.26 19.76 1.31 20.58 1.32 22.03 1.35 23.16 1.37
85 17.05 1.28 18.18 1.32 19.31 1.37 20.13 1.39 21.58 1.41 22.71 1.44
90 16.61 1.33 17.74 1.38 18.87 1.43 19.69 1.45 21.13 1.48 22.26 1.51
95 16.14 1.39 17.26 1.44 18.38 1.50 18.90 1.51 20.63 1.54 21.76 1.57
100 15.74 1.45 16.87 1.51 17.99 1.56 18.66 1.58 20.24 1.61 21.36 1.64
105 15.35 1.51 16.47 1.57 17.60 1.62 18.41 1.64 19.85 1.67 20.97 1.71
110 14.96 1.57 16.08 1.63 17.21 1.69 18.02 1.71 19.45 1.74 20.58 1.77
115 14.56 1.63 15.69 1.69 16.81 1.75 17.62 1.77 19.06 1.81 20.18 1.84
118 14.33 1.67 15.45 1.73 16.58 1.79 17.39 1.81 18.83 1.84 19.95 1.88
122 14.25 1.71 15.37 1.78 16.50 1.84 17.31 1.86 18.75 1.90 19.87 1.94
Table 66: LMU24CHV Cooling Capacity Table — Mixed Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
74 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
9 + 9 + 9
14 18.53 0.95 19.68 0.98 20.83 1.02 21.66 1.03 23.13 1.05 24.28 1.07
20 18.51 0.96 19.66 1.00 20.81 1.03 21.64 1.04 23.11 1.06 24.26 1.09
25 18.50 0.98 19.65 1.01 20.80 1.05 21.63 1.06 23.09 1.08 24.24 1.10
30 18.49 0.99 19.63 1.02 20.78 1.06 21.61 1.07 23.08 1.09 24.23 1.12
35 18.47 1.00 19.62 1.04 20.77 1.08 21.59 1.09 23.06 1.11 24.21 1.13
40 18.46 1.02 19.60 1.05 20.75 1.09 21.58 1.10 23.04 1.12 24.19 1.15
45 18.44 1.03 19.59 1.07 20.73 1.11 21.56 1.12 23.02 1.14 24.17 1.16
50 18.43 1.04 19.57 1.08 20.72 1.12 21.54 1.13 23.01 1.15 24.15 1.18
55 18.41 1.06 19.56 1.10 20.70 1.14 21.53 1.15 22.99 1.17 24.13 1.19
60 18.40 1.07 19.54 1.11 20.69 1.15 21.51 1.16 22.97 1.18 24.11 1.21
65 18.39 1.08 19.53 1.12 20.67 1.16 21.49 1.18 22.95 1.20 24.10 1.22
70 18.37 1.10 19.51 1.14 20.65 1.18 21.48 1.19 22.94 1.22 24.08 1.24
75 17.93 1.16 19.07 1.20 20.21 1.24 21.03 1.26 22.48 1.28 23.62 1.31
80 17.49 1.22 18.62 1.26 19.76 1.31 20.58 1.32 22.03 1.35 23.16 1.37
85 17.05 1.28 18.18 1.32 19.31 1.37 20.13 1.39 21.58 1.41 22.71 1.44
90 16.61 1.33 17.74 1.38 18.87 1.43 19.69 1.45 21.13 1.48 22.26 1.51
95 16.14 1.39 17.26 1.44 18.38 1.50 18.90 1.51 20.63 1.54 21.76 1.57
100 15.74 1.45 16.87 1.51 17.99 1.56 18.66 1.58 20.24 1.61 21.36 1.64
105 15.35 1.51 16.47 1.57 17.60 1.62 18.41 1.64 19.85 1.67 20.97 1.71
110 14.96 1.57 16.08 1.63 17.21 1.69 18.02 1.71 19.45 1.74 20.58 1.77
115 14.56 1.63 15.69 1.69 16.81 1.75 17.62 1.77 19.06 1.81 20.18 1.84
118 14.33 1.67 15.45 1.73 16.58 1.79 17.39 1.81 18.83 1.84 19.95 1.88
122 14.25 1.71 15.37 1.78 16.50 1.84 17.31 1.86 18.75 1.90 19.87 1.94
7 + 9 + 12
14 18.53 0.95 19.68 0.98 20.83 1.02 21.66 1.03 23.13 1.05 24.28 1.07
20 18.51 0.96 19.66 1.00 20.81 1.03 21.64 1.04 23.11 1.06 24.26 1.09
25 18.50 0.98 19.65 1.01 20.80 1.05 21.63 1.06 23.09 1.08 24.24 1.10
30 18.49 0.99 19.63 1.02 20.78 1.06 21.61 1.07 23.08 1.09 24.23 1.12
35 18.47 1.00 19.62 1.04 20.77 1.08 21.59 1.09 23.06 1.11 24.21 1.13
40 18.46 1.02 19.60 1.05
20.75 1.09 21.58 1.10 23.04 1.12 24.19 1.15
45 18.44 1.03 19.59 1.07 20.73 1.11 21.56 1.12 23.02 1.14 24.17 1.16
50 18.43 1.04 19.57 1.08 20.72 1.12 21.54 1.13 23.01 1.15 24.15 1.18
55 18.41 1.06 19.56 1.10 20.70 1.14 21.53 1.15 22.99 1.17 24.13 1.19
60 18.40 1.07 19.54 1.11 20.69 1.15 21.51 1.16 22.97 1.18 24.11 1.21
65 18.39 1.08 19.53 1.12 20.67 1.16 21.49 1.18 22.95 1.20 24.10 1.22
70 18.37 1.10 19.51 1.14 20.65 1.18 21.48 1.19 22.94 1.22 24.08 1.24
75 17.93 1.16 19.07 1.20 20.21 1.24 21.03 1.26 22.48 1.28 23.62 1.31
80 17.49 1.22 18.62 1.26 19.76 1.31 20.58 1.32 22.03 1.35 23.16 1.37
85 17.05 1.28 18.18 1.32 19.31 1.37 20.13 1.39 21.58 1.41 22.71 1.44
90 16.61 1.33 17.74 1.38 18.87 1.43 19.69 1.45 21.13 1.48 22.26 1.51
95 16.14 1.39 17.26 1.44 18.38 1.50 18.90 1.51 20.63 1.54 21.76 1.57
100 15.74 1.45 16.87 1.51 17.99 1.56 18.66 1.58 20.24 1.61 21.36 1.64
105 15.35 1.51 16.47 1.57 17.60 1.62 18.41 1.64 19.85 1.67 20.97 1.71
110 14.96 1.57 16.08 1.63 17.21 1.69 18.02 1.71 19.45 1.74 20.58 1.77
115 14.56 1.63 15.69 1.69 16.81 1.75 17.62 1.77 19.06 1.81 20.18 1.84
118 14.33 1.67 15.45 1.73 16.58 1.79 17.39 1.81 18.83 1.84 19.95 1.88
122 14.25 1.71 15.37 1.78 16.50 1.84 17.31 1.86 18.75 1.90 19.87 1.94
Table 67: LMU24CHV Cooling Capacity Table — Mixed Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 75
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
9 + 9 + 12
14 18.53 0.95 19.68 0.98 20.83 1.02 21.66 1.03 23.13 1.05 24.28 1.07
20 18.51 0.96 19.66 1.00 20.81 1.03 21.64 1.04 23.11 1.06 24.26 1.09
25 18.50 0.98 19.65 1.01 20.80 1.05 21.63 1.06 23.09 1.08 24.24 1.10
30 18.49 0.99 19.63 1.02 20.78 1.06 21.61 1.07 23.08 1.09 24.23 1.12
35 18.47 1.00 19.62 1.04 20.77 1.08 21.59 1.09 23.06 1.11 24.21 1.13
40 18.46 1.02 19.60 1.05 20.75 1.09 21.58 1.10 23.04 1.12 24.19 1.15
45 18.44 1.03 19.59 1.07 20.73 1.11 21.56 1.12 23.02 1.14 24.17 1.16
50 18.43 1.04 19.57 1.08 20.72 1.12 21.54 1.13 23.01 1.15 24.15 1.18
55 18.41 1.06 19.56 1.10 20.70 1.14 21.53 1.15 22.99 1.17 24.13 1.19
60 18.40 1.07 19.54 1.11 20.69 1.15 21.51 1.16 22.97 1.18 24.11 1.21
65 18.39 1.08 19.53 1.12 20.67 1.16 21.49 1.18 22.95 1.20 24.10 1.22
70 18.37 1.10 19.51 1.14 20.65 1.18 21.48 1.19 22.94 1.22 24.08 1.24
75 17.93 1.16 19.07 1.20 20.21 1.24 21.03 1.26 22.48 1.28 23.62 1.31
80 17.49 1.22 18.62 1.26 19.76 1.31 20.58 1.32 22.03 1.35 23.16 1.37
85 17.05 1.28 18.18 1.32 19.31 1.37 20.13 1.39 21.58 1.41 22.71 1.44
90 16.61 1.33 17.74 1.38 18.87 1.43 19.69 1.45 21.13 1.48 22.26 1.51
95 16.14 1.39 17.26 1.44 18.38 1.50 18.90 1.51 20.63 1.54 21.76 1.57
100 15.74 1.45 16.87 1.51 17.99 1.56 18.66 1.58 20.24 1.61 21.36 1.64
105 15.35 1.51 16.47 1.57 17.60 1.62 18.41 1.64 19.85 1.67 20.97 1.71
110 14.96 1.57 16.08 1.63 17.21 1.69 18.02 1.71 19.45 1.74 20.58 1.77
115 14.56 1.63 15.69 1.69 16.81 1.75 17.62 1.77 19.06 1.81 20.18 1.84
118 14.33 1.67 15.45 1.73 16.58 1.79 17.39 1.81 18.83 1.84 19.95 1.88
122 14.25 1.71 15.37 1.78 16.50 1.84 17.31 1.86 18.75 1.90 19.87 1.94
7 + 9 + 15
14 18.53 0.95 19.68 0.98 20.83 1.02 21.66 1.03 23.13 1.05 24.28 1.07
20 18.51 0.96 19.66 1.00 20.81 1.03 21.64 1.04 23.11 1.06 24.26 1.09
25 18.50 0.98 19.65 1.01 20.80 1.05 21.63 1.06 23.09 1.08 24.24 1.10
30 18.49 0.99 19.63 1.02 20.78 1.06 21.61 1.07 23.08 1.09 24.23 1.12
35 18.47 1.00 19.62 1.04 20.77 1.08 21.59 1.09 23.06 1.11 24.21 1.13
40 18.46 1.02 19.60 1.05
20.75 1.09 21.58 1.10 23.04 1.12 24.19 1.15
45 18.44 1.03 19.59 1.07 20.73 1.11 21.56 1.12 23.02 1.14 24.17 1.16
50 18.43 1.04 19.57 1.08 20.72 1.12 21.54 1.13 23.01 1.15 24.15 1.18
55 18.41 1.06 19.56 1.10 20.70 1.14 21.53 1.15 22.99 1.17 24.13 1.19
60 18.40 1.07 19.54 1.11 20.69 1.15 21.51 1.16 22.97 1.18 24.11 1.21
65 18.39 1.08 19.53 1.12 20.67 1.16 21.49 1.18 22.95 1.20 24.10 1.22
70 18.37 1.10 19.51 1.14 20.65 1.18 21.48 1.19 22.94 1.22 24.08 1.24
75 17.93 1.16 19.07 1.20 20.21 1.24 21.03 1.26 22.48 1.28 23.62 1.31
80 17.49 1.22 18.62 1.26 19.76 1.31 20.58 1.32 22.03 1.35 23.16 1.37
85 17.05 1.28 18.18 1.32 19.31 1.37 20.13 1.39 21.58 1.41 22.71 1.44
90 16.61 1.33 17.74 1.38 18.87 1.43 19.69 1.45 21.13 1.48 22.26 1.51
95 16.14 1.39 17.26 1.44 18.38 1.50 18.90 1.51 20.63 1.54 21.76 1.57
100 15.74 1.45 16.87 1.51 17.99 1.56 18.66 1.58 20.24 1.61 21.36 1.64
105 15.35 1.51 16.47 1.57 17.60 1.62 18.41 1.64 19.85 1.67 20.97 1.71
110 14.96 1.57 16.08 1.63 17.21 1.69 18.02 1.71 19.45 1.74 20.58 1.77
115 14.56 1.63 15.69 1.69 16.81 1.75 17.62 1.77 19.06 1.81 20.18 1.84
118 14.33 1.67 15.45 1.73 16.58 1.79 17.39 1.81 18.83 1.84 19.95 1.88
122 14.25 1.71 15.37 1.78 16.50 1.84 17.31 1.86 18.75 1.90 19.87 1.94
Table 68: LMU24CHV Cooling Capacity Table — Mixed Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
76 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 12 + 12
14 18.53 0.95 19.68 0.98 20.83 1.02 21.66 1.03 23.13 1.05 24.28 1.07
20 18.51 0.96 19.66 1.00 20.81 1.03 21.64 1.04 23.11 1.06 24.26 1.09
25 18.50 0.98 19.65 1.01 20.80 1.05 21.63 1.06 23.09 1.08 24.24 1.10
30 18.49 0.99 19.63 1.02 20.78 1.06 21.61 1.07 23.08 1.09 24.23 1.12
35 18.47 1.00 19.62 1.04 20.77 1.08 21.59 1.09 23.06 1.11 24.21 1.13
40 18.46 1.02 19.60 1.05 20.75 1.09 21.58 1.10 23.04 1.12 24.19 1.15
45 18.44 1.03 19.59 1.07 20.73 1.11 21.56 1.12 23.02 1.14 24.17 1.16
50 18.43 1.04 19.57 1.08 20.72 1.12 21.54 1.13 23.01 1.15 24.15 1.18
55 18.41 1.06 19.56 1.10 20.70 1.14 21.53 1.15 22.99 1.17 24.13 1.19
60 18.40 1.07 19.54 1.11 20.69 1.15 21.51 1.16 22.97 1.18 24.11 1.21
65 18.39 1.08 19.53 1.12 20.67 1.16 21.49 1.18 22.95 1.20 24.10 1.22
70 18.37 1.10 19.51 1.14 20.65 1.18 21.48 1.19 22.94 1.22 24.08 1.24
75 17.93 1.16 19.07 1.20 20.21 1.24 21.03 1.26 22.48 1.28 23.62 1.31
80 17.49 1.22 18.62 1.26 19.76 1.31 20.58 1.32 22.03 1.35 23.16 1.37
85 17.05 1.28 18.18 1.32 19.31 1.37 20.13 1.39 21.58 1.41 22.71 1.44
90 16.61 1.33 17.74 1.38 18.87 1.43 19.69 1.45 21.13 1.48 22.26 1.51
95 16.14 1.39 17.26 1.44 18.38 1.50 18.90 1.51 20.63 1.54 21.76 1.57
100 15.74 1.45 16.87 1.51 17.99 1.56 18.66 1.58 20.24 1.61 21.36 1.64
105 15.35 1.51 16.47 1.57 17.60 1.62 18.41 1.64 19.85 1.67 20.97 1.71
110 14.96 1.57 16.08 1.63 17.21 1.69 18.02 1.71 19.45 1.74 20.58 1.77
115 14.56 1.63 15.69 1.69 16.81 1.75 17.62 1.77 19.06 1.81 20.18 1.84
118 14.33 1.67 15.45 1.73 16.58 1.79 17.39 1.81 18.83 1.84 19.95 1.88
122 14.25 1.71 15.37 1.78 16.50 1.84 17.31 1.86 18.75 1.90 19.87 1.94
7 + 7 + 18
14 18.53 0.95 19.68 0.98 20.83 1.02 21.66 1.03 23.13 1.05 24.28 1.07
20 18.51 0.96 19.66 1.00 20.81 1.03 21.64 1.04 23.11 1.06 24.26 1.09
25 18.50 0.98 19.65 1.01 20.80 1.05 21.63 1.06 23.09 1.08 24.24 1.10
30 18.49 0.99 19.63 1.02 20.78 1.06 21.61 1.07 23.08 1.09 24.23 1.12
35 18.47 1.00 19.62 1.04 20.77 1.08 21.59 1.09 23.06 1.11 24.21 1.13
40 18.46 1.02 19.60 1.05
20.75 1.09 21.58 1.10 23.04 1.12 24.19 1.15
45 18.44 1.03 19.59 1.07 20.73 1.11 21.56 1.12 23.02 1.14 24.17 1.16
50 18.43 1.04 19.57 1.08 20.72 1.12 21.54 1.13 23.01 1.15 24.15 1.18
55 18.41 1.06 19.56 1.10 20.70 1.14 21.53 1.15 22.99 1.17 24.13 1.19
60 18.40 1.07 19.54 1.11 20.69 1.15 21.51 1.16 22.97 1.18 24.11 1.21
65 18.39 1.08 19.53 1.12 20.67 1.16 21.49 1.18 22.95 1.20 24.10 1.22
70 18.37 1.10 19.51 1.14 20.65 1.18 21.48 1.19 22.94 1.22 24.08 1.24
75 17.93 1.16 19.07 1.20 20.21 1.24 21.03 1.26 22.48 1.28 23.62 1.31
80 17.49 1.22 18.62 1.26 19.76 1.31 20.58 1.32 22.03 1.35 23.16 1.37
85 17.05 1.28 18.18 1.32 19.31 1.37 20.13 1.39 21.58 1.41 22.71 1.44
90 16.61 1.33 17.74 1.38 18.87 1.43 19.69 1.45 21.13 1.48 22.26 1.51
95 16.14 1.39 17.26 1.44 18.38 1.50 18.90 1.51 20.63 1.54 21.76 1.57
100 15.74 1.45 16.87 1.51 17.99 1.56 18.66 1.58 20.24 1.61 21.36 1.64
105 15.35 1.51 16.47 1.57 17.60 1.62 18.41 1.64 19.85 1.67 20.97 1.71
110 14.96 1.57 16.08 1.63 17.21 1.69 18.02 1.71 19.45 1.74 20.58 1.77
115 14.56 1.63 15.69 1.69 16.81 1.75 17.62 1.77 19.06 1.81 20.18 1.84
118 14.33 1.67 15.45 1.73 16.58 1.79 17.39 1.81 18.83 1.84 19.95 1.88
122 14.25 1.71 15.37 1.78 16.50 1.84 17.31 1.86 18.75 1.90 19.87 1.94
Table 69: LMU24CHV Cooling Capacity Table — Mixed Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 77
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
9 + 9 + 15
14 18.53 0.95 19.68 0.98 20.83 1.02 21.66 1.03 23.13 1.05 24.28 1.07
20 18.51 0.96 19.66 1.00 20.81 1.03 21.64 1.04 23.11 1.06 24.26 1.09
25 18.50 0.98 19.65 1.01 20.80 1.05 21.63 1.06 23.09 1.08 24.24 1.10
30 18.49 0.99 19.63 1.02 20.78 1.06 21.61 1.07 23.08 1.09 24.23 1.12
35 18.47 1.00 19.62 1.04 20.77 1.08 21.59 1.09 23.06 1.11 24.21 1.13
40 18.46 1.02 19.60 1.05 20.75 1.09 21.58 1.10 23.04 1.12 24.19 1.15
45 18.44 1.03 19.59 1.07 20.73 1.11 21.56 1.12 23.02 1.14 24.17 1.16
50 18.43 1.04 19.57 1.08 20.72 1.12 21.54 1.13 23.01 1.15 24.15 1.18
55 18.41 1.06 19.56 1.10 20.70 1.14 21.53 1.15 22.99 1.17 24.13 1.19
60 18.40 1.07 19.54 1.11 20.69 1.15 21.51 1.16 22.97 1.18 24.11 1.21
65 18.39 1.08 19.53 1.12 20.67 1.16 21.49 1.18 22.95 1.20 24.10 1.22
70 18.37 1.10 19.51 1.14 20.65 1.18 21.48 1.19 22.94 1.22 24.08 1.24
75 17.93 1.16 19.07 1.20 20.21 1.24 21.03 1.26 22.48 1.28 23.62 1.31
80 17.49 1.22 18.62 1.26 19.76 1.31 20.58 1.32 22.03 1.35 23.16 1.37
85 17.05 1.28 18.18 1.32 19.31 1.37 20.13 1.39 21.58 1.41 22.71 1.44
90 16.61 1.33 17.74 1.38 18.87 1.43 19.69 1.45 21.13 1.48 22.26 1.51
95 16.14 1.39 17.26 1.44 18.38 1.50 18.90 1.51 20.63 1.54 21.76 1.57
100 15.74 1.45 16.87 1.51 17.99 1.56 18.66 1.58 20.24 1.61 21.36 1.64
105 15.35 1.51 16.47 1.57 17.60 1.62 18.41 1.64 19.85 1.67 20.97 1.71
110 14.96 1.57 16.08 1.63 17.21 1.69 18.02 1.71 19.45 1.74 20.58 1.77
115 14.56 1.63 15.69 1.69 16.81 1.75 17.62 1.77 19.06 1.81 20.18 1.84
118 14.33 1.67 15.45 1.73 16.58 1.79 17.39 1.81 18.83 1.84 19.95 1.88
122 14.25 1.71 15.37 1.78 16.50 1.84 17.31 1.86 18.75 1.90 19.87 1.94
9 + 12 + 12
14 18.53 0.95 19.68 0.98 20.83 1.02 21.66 1.03 23.13 1.05 24.28 1.07
20 18.51 0.96 19.66 1.00 20.81 1.03 21.64 1.04 23.11 1.06 24.26 1.09
25 18.50 0.98 19.65 1.01 20.80 1.05 21.63 1.06 23.09 1.08 24.24 1.10
30 18.49 0.99 19.63 1.02 20.78 1.06 21.61 1.07 23.08 1.09 24.23 1.12
35 18.47 1.00 19.62 1.04 20.77 1.08 21.59 1.09 23.06 1.11 24.21 1.13
40 18.46 1.02 19.60 1.05
20.75 1.09 21.58 1.10 23.04 1.12 24.19 1.15
45 18.44 1.03 19.59 1.07 20.73 1.11 21.56 1.12 23.02 1.14 24.17 1.16
50 18.43 1.04 19.57 1.08 20.72 1.12 21.54 1.13 23.01 1.15 24.15 1.18
55 18.41 1.06 19.56 1.10 20.70 1.14 21.53 1.15 22.99 1.17 24.13 1.19
60 18.40 1.07 19.54 1.11 20.69 1.15 21.51 1.16 22.97 1.18 24.11 1.21
65 18.39 1.08 19.53 1.12 20.67 1.16 21.49 1.18 22.95 1.20 24.10 1.22
70 18.37 1.10 19.51 1.14 20.65 1.18 21.48 1.19 22.94 1.22 24.08 1.24
75 17.93 1.16 19.07 1.20 20.21 1.24 21.03 1.26 22.48 1.28 23.62 1.31
80 17.49 1.22 18.62 1.26 19.76 1.31 20.58 1.32 22.03 1.35 23.16 1.37
85 17.05 1.28 18.18 1.32 19.31 1.37 20.13 1.39 21.58 1.41 22.71 1.44
90 16.61 1.33 17.74 1.38 18.87 1.43 19.69 1.45 21.13 1.48 22.26 1.51
95 16.14 1.39 17.26 1.44 18.38 1.50 18.90 1.51 20.63 1.54 21.76 1.57
100 15.74 1.45 16.87 1.51 17.99 1.56 18.66 1.58 20.24 1.61 21.36 1.64
105 15.35 1.51 16.47 1.57 17.60 1.62 18.41 1.64 19.85 1.67 20.97 1.71
110 14.96 1.57 16.08 1.63 17.21 1.69 18.02 1.71 19.45 1.74 20.58 1.77
115 14.56 1.63 15.69 1.69 16.81 1.75 17.62 1.77 19.06 1.81 20.18 1.84
118 14.33 1.67 15.45 1.73 16.58 1.79 17.39 1.81 18.83 1.84 19.95 1.88
122 14.25 1.71 15.37 1.78 16.50 1.84 17.31 1.86 18.75 1.90 19.87 1.94
Table 70: LMU24CHV Cooling Capacity Table — Mixed Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
78 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
7 + 7
14 13.72 0.85 14.58 0.88 15.43 0.91 16.04 0.92 17.13 0.94 17.99 0.96
20 13.71 0.86 14.57 0.89 15.42 0.93 16.03 0.94 17.12 0.96 17.97 0.97
25 13.70 0.88 14.55 0.91 15.41 0.94 16.02 0.95 17.11 0.97 17.96 0.99
30 13.69 0.89 14.54 0.92 15.39 0.95 16.01 0.96 17.09 0.98 17.94 1.00
35 13.68 0.90 14.53 0.93 15.38 0.97 16.00 0.98 17.08 1.00 17.93 1.02
40 13.67 0.91 14.52 0.95 15.37 0.98 15.98 0.99 17.07 1.01 17.92 1.03
45 13.66 0.92 14.51 0.96 15.36 0.99 15.97 1.00 17.06 1.02 17.90 1.04
50 13.65 0.94 14.50 0.97 15.35 1.01 15.96 1.02 17.04 1.04 17.89 1.06
55 13.64 0.95 14.49 0.98 15.33 1.02 15.95 1.03 17.03 1.05 17.88 1.07
60 13.63 0.96 14.48 1.00 15.32 1.03 15.93 1.04 17.02 1.06 17.86 1.09
65 13.62 0.97 14.47 1.01 15.31 1.05 15.92 1.06 17.00 1.08 17.85 1.10
70 13.61 0.99 14.45 1.02 15.30 1.06 15.91 1.07 16.99 1.09 17.83 1.11
75 13.28 1.04 14.12 1.08 14.97 1.12 15.58 1.13 16.65 1.15 17.50 1.17
80 12.95 1.09 13.80 1.13 14.64 1.17 15.24 1.19 16.32 1.21 17.16 1.23
85 12.63 1.15 13.47 1.19 14.31 1.23 14.91 1.24 15.99 1.27 16.82 1.29
90 12.30 1.20 13.14 1.24 13.98 1.29 14.58 1.30 15.65 1.33 16.49 1.35
95 11.95 1.25 12.79 1.30 13.62 1.34 14.00 1.36 15.28 1.39 16.12 1.41
100 11.66 1.30 12.49 1.35 13.33 1.40 13.82 1.42 14.99 1.44 15.82 1.47
105 11.37 1.36 12.20 1.41 13.04 1.46 13.64 1.48 14.70 1.50 15.53 1.53
110 11.08 1.41 11.91 1.46 12.74 1.52 13.35 1.53 14.41 1.56 15.24 1.59
115 10.79 1.46 11.62 1.52 12.45 1.57 13.06 1.59 14.12 1.62 14.95 1.65
118 10.61 1.50 11.45 1.55 12.28 1.61 12.88 1.63 13.94 1.66 14.78 1.69
122 10.56 1.54 11.39 1.59 12.22 1.65 12.82 1.67 13.89 1.70 14.72 1.74
7 + 9
14 15.68 0.96 16.66 0.99 17.63 1.03 18.34 1.04 19.58 1.06 20.56 1.08
20 15.67 0.97 16.65 1.01 17.62 1.04 18.32 1.06 19.57 1.08 20.54 1.10
25 15.66 0.98 16.63 1.02 17.61 1.06 18.31 1.07 19.55 1.09 20.52 1.11
30 15.65 1.00 16.62 1.04 17.59 1.07 18.29 1.09 19.54 1.11 20.51 1.13
35 15.64 1.01 16.61 1.05 17.58 1.09 18.28 1.10 19.52 1.12 20.49 1.14
40 15.62 1.03 16.60 1.06
17.57 1.10 18.27 1.12 19.51 1.14 20.48 1.16
45 15.61 1.04 16.58 1.08 17.55 1.12 18.25 1.13 19.49 1.15 20.46 1.17
50 15.60 1.05 16.57 1.09 17.54 1.13 18.24 1.15 19.48 1.17 20.45 1.19
55 15.59 1.07 16.56 1.11 17.53 1.15 18.22 1.16 19.46 1.18 20.43 1.21
60 15.58 1.08 16.54 1.12 17.51 1.16 18.21 1.18 19.45 1.20 20.41 1.22
65 15.57 1.10 16.53 1.14 17.50 1.18 18.20 1.19 19.43 1.21 20.40 1.24
70 15.55 1.11 16.52 1.15 17.49 1.19 18.18 1.20 19.42 1.23 20.38 1.25
75 15.18 1.17 16.14 1.21 17.11 1.26 17.80 1.27 19.03 1.29 20.00 1.32
80 14.80 1.23 15.77 1.27 16.73 1.32 17.42 1.33 18.65 1.36 19.61 1.39
85 14.43 1.29 15.39 1.34 16.35 1.38 17.04 1.40 18.27 1.43 19.23 1.45
90 14.06 1.35 15.02 1.40 15.98 1.45 16.67 1.46 17.89 1.49 18.84 1.52
95 13.66 1.41 14.61 1.46 15.56 1.51 16.00 1.53 17.47 1.56 18.42 1.59
100 13.33 1.47 14.28 1.52 15.23 1.58 15.79 1.60 17.13 1.62 18.09 1.66
105 12.99 1.53 13.95 1.58 14.90 1.64 15.59 1.66 16.80 1.69 17.75 1.73
110 12.66 1.59 13.61 1.65 14.57 1.71 15.25 1.73 16.47 1.76 17.42 1.79
115 12.33 1.65 13.28 1.71 14.23 1.77 14.92 1.79 16.14 1.82 17.09 1.86
118 12.13 1.68 13.08 1.74 14.03 1.81 14.72 1.83 15.94 1.86 16.89 1.90
122 12.06 1.73 13.02 1.79 13.97 1.86 14.65 1.88 15.87 1.92 16.82 1.95
PERFORMANCE DATA
Cooling Capacity Tables
Table 71: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
MULTI F OUTDOOR UNIT | 79
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
9 + 9
14 17.65 1.08 18.74 1.12 19.84 1.16 20.63 1.17 22.03 1.19 23.12 1.22
20 17.63 1.09 18.73 1.13 19.82 1.17 20.61 1.19 22.01 1.21 23.11 1.23
25 17.62 1.11 18.71 1.15 19.81 1.19 20.60 1.20 22.00 1.23 23.09 1.25
30 17.60 1.12 18.70 1.16 19.79 1.21 20.58 1.22 21.98 1.24 23.07 1.27
35 17.59 1.14 18.68 1.18 19.78 1.22 20.57 1.24 21.96 1.26 23.05 1.29
40 17.58 1.15 18.67 1.20 19.76 1.24 20.55 1.25 21.94 1.28 23.04 1.30
45 17.56 1.17 18.66 1.21 19.75 1.26 20.53 1.27 21.93 1.29 23.02 1.32
50 17.55 1.18 18.64 1.23 19.73 1.27 20.52 1.29 21.91 1.31 23.00 1.34
55 17.54 1.20 18.63 1.24 19.72 1.29 20.50 1.30 21.89 1.33 22.98 1.36
60 17.52 1.22 18.61 1.26 19.70 1.31 20.49 1.32 21.88 1.35 22.97 1.37
65 17.51 1.23 18.60 1.28 19.69 1.32 20.47 1.34 21.86 1.36 22.95 1.39
70 17.50 1.25 18.58 1.29 19.67 1.34 20.46 1.35 21.84 1.38 22.93 1.41
75 17.08 1.31 18.16 1.36 19.24 1.41 20.03 1.43 21.41 1.45 22.50 1.48
80 16.66 1.38 17.74 1.43 18.82 1.48 19.60 1.50 20.98 1.53 22.06 1.56
85 16.24 1.45 17.32 1.50 18.40 1.56 19.17 1.57 20.55 1.60 21.63 1.64
90 15.82 1.52 16.90 1.57 17.97 1.63 18.75 1.65 20.12 1.68 21.20 1.71
95 15.37 1.58 16.44 1.64 17.51 1.70 18.00 1.72 19.65 1.75 20.72 1.79
100 14.99 1.65 16.06 1.71 17.13 1.77 17.77 1.79 19.28 1.83 20.35 1.86
105 14.62 1.72 15.69 1.78 16.76 1.84 17.53 1.87 18.90 1.90 19.97 1.94
110 14.24 1.78 15.32 1.85 16.39 1.92 17.16 1.94 18.53 1.98 19.60 2.02
115 13.87 1.85 14.94 1.92 16.01 1.99 16.79 2.01 18.15 2.05 19.22 2.09
118 13.65 1.89 14.72 1.96 15.79 2.03 16.56 2.06 17.93 2.09 19.00 2.14
122 13.57 1.95 14.64 2.02 15.71 2.09 16.49 2.11 17.85 2.15 18.92 2.20
7 + 12
14 18.63 1.13 19.78 1.17 20.94 1.21 21.77 1.22 23.25 1.25 24.41 1.27
20 18.61 1.14 19.77 1.18 20.92 1.23 21.76 1.24 23.23 1.26 24.39 1.29
25 18.60 1.16 19.75 1.20 20.91 1.24 21.74 1.26 23.22 1.28 24.37 1.31
30 18.58 1.17 19.74 1.22 20.89 1.26 21.72 1.28 23.20 1.30 24.35 1.33
35 18.57 1.19 19.72 1.23 20.88 1.28 21.71 1.29 23.18 1.32 24.33 1.35
40 18.55 1.21 19.71 1.25
20.86 1.30 21.69 1.31 23.16 1.34 24.32 1.36
45 18.54 1.22 19.69 1.27 20.84 1.31 21.67 1.33 23.15 1.35 24.30 1.38
50 18.53 1.24 19.68 1.28 20.83 1.33 21.66 1.35 23.13 1.37 24.28 1.40
55 18.51 1.26 19.66 1.30 20.81 1.35 21.64 1.36 23.11 1.39 24.26 1.42
60 18.50 1.27 19.65 1.32 20.80 1.37 21.63 1.38 23.09 1.41 24.24 1.44
65 18.48 1.29 19.63 1.34 20.78 1.38 21.61 1.40 23.08 1.43 24.22 1.45
70 18.47 1.30 19.62 1.35 20.76 1.40 21.59 1.42 23.06 1.44 24.20 1.47
75 18.02 1.37 19.17 1.43 20.31 1.48 21.14 1.49 22.60 1.52 23.75 1.55
80 17.58 1.45 18.72 1.50 19.86 1.55 20.69 1.57 22.15 1.60 23.29 1.63
85 17.14 1.52 18.28 1.57 19.42 1.63 20.24 1.65 21.69 1.68 22.83 1.71
90 16.70 1.59 17.84 1.64 18.97 1.70 19.79 1.72 21.24 1.76 22.38 1.79
95 16.22 1.66 17.35 1.72 18.48 1.78 19.00 1.80 20.74 1.83 21.87 1.87
100 15.83 1.73 16.96 1.79 18.09 1.86 18.75 1.88 20.35 1.91 21.48 1.95
105 15.43 1.80 16.56 1.86 17.69 1.93 18.51 1.95 19.95 1.99 21.08 2.03
110 15.04 1.87 16.17 1.94 17.30 2.01 18.11 2.03 19.56 2.07 20.69 2.11
115 14.64 1.94 15.77 2.01 16.90 2.08 17.72 2.11 19.16 2.15 20.29 2.19
118 14.40 1.98 15.53 2.05 16.66 2.13 17.48 2.15 18.92 2.19 20.05 2.24
122 14.33 2.04 15.46 2.11 16.59 2.19 17.40 2.21 18.85 2.25 19.98 2.30
PERFORMANCE DATA
Cooling Capacity Tables
Table 72: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
80 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
9 + 12
14 20.59 1.23 21.86 1.28 23.14 1.32 24.07 1.34 25.70 1.36 26.98 1.39
20 20.57 1.25 21.85 1.30 23.13 1.34 24.05 1.36 25.68 1.38 26.96 1.41
25 20.55 1.27 21.83 1.31 23.11 1.36 24.03 1.38 25.66 1.40 26.94 1.43
30 20.54 1.29 21.81 1.33 23.09 1.38 24.01 1.40 25.64 1.42 26.92 1.45
35 20.52 1.30 21.80 1.35 23.07 1.40 23.99 1.42 25.62 1.44 26.90 1.47
40 20.51 1.32 21.78 1.37 23.05 1.42 23.97 1.44 25.60 1.46 26.88 1.49
45 20.49 1.34 21.76 1.39 23.04 1.44 23.96 1.46 25.58 1.48 26.86 1.51
50 20.48 1.36 21.75 1.41 23.02 1.46 23.94 1.47 25.56 1.50 26.83 1.53
55 20.46 1.37 21.73 1.42 23.00 1.48 23.92 1.49 25.54 1.52 26.81 1.55
60 20.44 1.39 21.71 1.44 22.98 1.50 23.90 1.51 25.52 1.54 26.79 1.57
65 20.43 1.41 21.70 1.46 22.97 1.51 23.88 1.53 25.50 1.56 26.77 1.59
70 20.41 1.43 21.68 1.48 22.95 1.53 23.86 1.55 25.48 1.58 26.75 1.61
75 19.92 1.50 21.19 1.56 22.45 1.62 23.36 1.64 24.98 1.67 26.25 1.70
80 19.43 1.58 20.69 1.64 21.95 1.70 22.87 1.72 24.48 1.75 25.74 1.79
85 18.94 1.66 20.20 1.72 21.46 1.78 22.37 1.80 23.98 1.84 25.24 1.87
90 18.46 1.74 19.71 1.80 20.97 1.86 21.87 1.89 23.48 1.92 24.73 1.96
95 17.93 1.81 19.18 1.88 20.43 1.95 21.00 1.97 22.93 2.01 24.17 2.05
100 17.49 1.89 18.74 1.96 19.99 2.03 20.73 2.05 22.49 2.09 23.74 2.13
105 17.06 1.97 18.30 2.04 19.55 2.11 20.46 2.14 22.05 2.18 23.30 2.22
110 16.62 2.04 17.87 2.12 19.12 2.20 20.02 2.22 21.62 2.26 22.86 2.31
115 16.18 2.12 17.43 2.20 18.68 2.28 19.58 2.30 21.18 2.35 22.43 2.40
118 15.92 2.17 17.17 2.25 18.42 2.33 19.32 2.36 20.92 2.40 22.17 2.45
122 15.83 2.23 17.08 2.31 18.33 2.39 19.23 2.42 20.83 2.47 22.08 2.52
7 + 15
14 21.57 1.28 22.91 1.32 24.25 1.37 25.21 1.39 26.92 1.41 28.26 1.44
20 21.55 1.29 22.89 1.34 24.23 1.39 25.19 1.41 26.90 1.43 28.24 1.46
25 21.53 1.31 22.87 1.36 24.21 1.41 25.17 1.43 26.88 1.45 28.22 1.48
30 21.52 1.33 22.85 1.38 24.19 1.43 25.15 1.45 26.86 1.47 28.20 1.50
35 21.50 1.35 22.84 1.40 24.17 1.45 25.14 1.47 26.84 1.49 28.18 1.52
40 21.48 1.37 22.82 1.42
24.15 1.47 25.12 1.49 26.82 1.51 28.16 1.55
45 21.47 1.39 22.80 1.44 24.13 1.49 25.10 1.51 26.80 1.54 28.13 1.57
50 21.45 1.41 22.78 1.46 24.12 1.51 25.08 1.53 26.78 1.56 28.11 1.59
55 21.43 1.42 22.77 1.48 24.10 1.53 25.06 1.55 26.76 1.58 28.09 1.61
60 21.42 1.44 22.75 1.49 24.08 1.55 25.04 1.57 26.74 1.60 28.07 1.63
65 21.40 1.46 22.73 1.51 24.06 1.57 25.02 1.59 26.72 1.62 28.05 1.65
70 21.39 1.48 22.71 1.53 24.04 1.59 25.00 1.61 26.70 1.64 28.03 1.67
75 20.87 1.56 22.20 1.62 23.52 1.67 24.48 1.69 26.17 1.73 27.50 1.76
80 20.36 1.64 21.68 1.70 23.00 1.76 23.95 1.78 25.64 1.81 26.96 1.85
85 19.85 1.72 21.16 1.78 22.48 1.85 23.44 1.87 25.12 1.90 26.44 1.94
90 19.34 1.80 20.65 1.86 21.97 1.93 22.92 1.95 24.60 1.99 25.91 2.03
95 18.78 1.88 20.09 1.95 21.40 2.02 22.00 2.04 24.02 2.08 25.33 2.12
100 18.33 1.96 19.63 2.03 20.94 2.10 21.71 2.13 23.56 2.17 24.87 2.21
105 17.87 2.04 19.18 2.11 20.48 2.19 21.43 2.21 23.10 2.25 24.41 2.30
110 17.41 2.12 18.72 2.19 20.03 2.27 20.97 2.30 22.64 2.34 23.95 2.39
115 16.95 2.20 18.26 2.28 19.57 2.36 20.52 2.39 22.19 2.43 23.50 2.48
118 16.68 2.24 17.99 2.33 19.30 2.41 20.24 2.44 21.91 2.48 23.22 2.53
122 16.59 2.31 17.90 2.39 19.20 2.48 20.15 2.51 21.82 2.56 23.13 2.61
Table 73: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 81
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 74: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
9 + 15
14 23.53 1.36 24.99 1.41 26.45 1.47 27.50 1.48 29.37 1.51 30.83 1.54
20 23.51 1.38 24.97 1.43 26.43 1.49 27.48 1.50 29.35 1.53 30.81 1.56
25 23.49 1.40 24.95 1.45 26.41 1.51 27.46 1.53 29.33 1.55 30.79 1.58
30 23.47 1.42 24.93 1.48 26.39 1.53 27.44 1.55 29.30 1.58 30.76 1.61
35 23.46 1.44 24.91 1.50 26.37 1.55 27.42 1.57 29.28 1.60 30.74 1.63
40 23.44 1.46 24.89 1.52 26.35 1.57 27.40 1.59 29.26 1.62 30.72 1.65
45 23.42 1.48 24.87 1.54 26.33 1.59 27.38 1.61 29.24 1.64 30.69 1.67
50 23.40 1.50 24.85 1.56 26.31 1.61 27.36 1.63 29.21 1.66 30.67 1.70
55 23.38 1.52 24.84 1.58 26.29 1.63 27.34 1.65 29.19 1.68 30.64 1.72
60 23.37 1.54 24.82 1.60 26.27 1.66 27.32 1.67 29.17 1.71 30.62 1.74
65 23.35 1.56 24.80 1.62 26.25 1.68 27.29 1.70 29.15 1.73 30.60 1.76
70 23.33 1.58 24.78 1.64 26.23 1.70 27.27 1.72 29.13 1.75 30.57 1.78
75 22.77 1.67 24.21 1.73 25.66 1.79 26.70 1.81 28.55 1.84 29.99 1.88
80 22.21 1.75 23.65 1.81 25.09 1.88 26.13 1.90 27.97 1.94 29.42 1.98
85 21.65 1.84 23.09 1.90 24.53 1.97 25.57 1.99 27.40 2.03 28.84 2.07
90 21.09 1.92 22.53 1.99 23.96 2.06 25.00 2.09 26.83 2.13 28.27 2.17
95 20.49 2.01 21.92 2.08 23.35 2.16 24.00 2.18 26.20 2.22 27.63 2.27
100 19.99 2.09 21.42 2.17 22.85 2.25 23.69 2.27 25.70 2.32 27.13 2.36
105 19.49 2.18 20.92 2.26 22.35 2.34 23.38 2.37 25.20 2.41 26.63 2.46
110 18.99 2.26 20.42 2.34 21.85 2.43 22.88 2.46 24.70 2.50 26.13 2.55
115 18.49 2.35 19.92 2.43 21.35 2.52 22.38 2.55 24.20 2.60 25.63 2.65
118 18.19 2.40 19.62 2.49 21.05 2.58 22.08 2.61 23.90 2.65 25.33 2.71
122 18.10 2.47 19.52 2.56 20.95 2.65 21.98 2.68 23.81 2.73 25.23 2.79
12 + 12
14 23.53 1.36 24.99 1.41 26.45 1.47 27.50 1.48 29.37 1.51 30.83 1.54
20 23.51 1.38 24.97 1.43 26.43 1.49 27.48 1.50 29.35 1.53 30.81 1.56
25 23.49 1.40 24.95 1.45 26.41 1.51 27.46 1.53 29.33 1.55 30.79 1.58
30 23.47 1.42 24.93 1.48 26.39 1.53 27.44 1.55 29.30 1.58 30.76 1.61
35 23.46 1.44 24.91 1.50 26.37 1.55 27.42 1.57 29.28 1.60 30.74 1.63
40 23.44 1.46 24.89 1.52
26.35 1.57 27.40 1.59 29.26 1.62 30.72 1.65
45 23.42 1.48 24.87 1.54 26.33 1.59 27.38 1.61 29.24 1.64 30.69 1.67
50 23.40 1.50 24.85 1.56 26.31 1.61 27.36 1.63 29.21 1.66 30.67 1.70
55 23.38 1.52 24.84 1.58 26.29 1.63 27.34 1.65 29.19 1.68 30.64 1.72
60 23.37 1.54 24.82 1.60 26.27 1.66 27.32 1.67 29.17 1.71 30.62 1.74
65 23.35 1.56 24.80 1.62 26.25 1.68 27.29 1.70 29.15 1.73 30.60 1.76
70 23.33 1.58 24.78 1.64 26.23 1.70 27.27 1.72 29.13 1.75 30.57 1.78
75 22.77 1.67 24.21 1.73 25.66 1.79 26.70 1.81 28.55 1.84 29.99 1.88
80 22.21 1.75 23.65 1.81 25.09 1.88 26.13 1.90 27.97 1.94 29.42 1.98
85 21.65 1.84 23.09 1.90 24.53 1.97 25.57 1.99 27.40 2.03 28.84 2.07
90 21.09 1.92 22.53 1.99 23.96 2.06 25.00 2.09 26.83 2.13 28.27 2.17
95 20.49 2.01 21.92 2.08 23.35 2.16 24.00 2.18 26.20 2.22 27.63 2.27
100 19.99 2.09 21.42 2.17 22.85 2.25 23.69 2.27 25.70 2.32 27.13 2.36
105 19.49 2.18 20.92 2.26 22.35 2.34 23.38 2.37 25.20 2.41 26.63 2.46
110 18.99 2.26 20.42 2.34 21.85 2.43 22.88 2.46 24.70 2.50 26.13 2.55
115 18.49 2.35 19.92 2.43 21.35 2.52 22.38 2.55 24.20 2.60 25.63 2.65
118 18.19 2.40 19.62 2.49 21.05 2.58 22.08 2.61 23.90 2.65 25.33 2.71
122 18.10 2.47 19.52 2.56 20.95 2.65 21.98 2.68 23.81 2.73 25.23 2.79
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
82 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 75: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
7 + 18
14 24.51 1.41 26.03 1.47 27.55 1.52 28.65 1.54 30.60 1.57 32.12 1.60
20 24.49 1.43 26.01 1.49 27.53 1.54 28.63 1.56 30.57 1.59 32.09 1.62
25 24.47 1.45 25.99 1.51 27.51 1.56 28.61 1.58 30.55 1.61 32.07 1.64
30 24.45 1.48 25.97 1.53 27.49 1.58 28.59 1.60 30.53 1.63 32.04 1.67
35 24.43 1.50 25.95 1.55 27.47 1.61 28.56 1.63 30.50 1.66 32.02 1.69
40 24.41 1.52 25.93 1.57 27.45 1.63 28.54 1.65 30.48 1.68 32.00 1.71
45 24.40 1.54 25.91 1.59 27.43 1.65 28.52 1.67 30.46 1.70 31.97 1.73
50 24.38 1.56 25.89 1.61 27.40 1.67 28.50 1.69 30.43 1.72 31.95 1.76
55 24.36 1.58 25.87 1.63 27.38 1.69 28.48 1.71 30.41 1.75 31.92 1.78
60 24.34 1.60 25.85 1.66 27.36 1.72 28.45 1.74 30.39 1.77 31.90 1.80
65 24.32 1.62 25.83 1.68 27.34 1.74 28.43 1.76 30.36 1.79 31.87 1.83
70 24.30 1.64 25.81 1.70 27.32 1.76 28.41 1.78 30.34 1.81 31.85 1.85
75 23.72 1.73 25.22 1.79 26.73 1.85 27.82 1.88 29.74 1.91 31.24 1.95
80 23.13 1.81 24.63 1.88 26.14 1.95 27.22 1.97 29.14 2.01 30.64 2.05
85 22.55 1.90 24.05 1.97 25.55 2.04 26.63 2.07 28.54 2.11 30.04 2.15
90 21.97 1.99 23.47 2.06 24.96 2.14 26.04 2.16 27.95 2.20 29.44 2.25
95 21.34 2.08 22.83 2.16 24.32 2.23 25.00 2.26 27.29 2.30 28.78 2.35
100 20.82 2.17 22.31 2.25 23.80 2.33 24.68 2.36 26.77 2.40 28.26 2.45
105 20.30 2.26 21.79 2.34 23.28 2.42 24.35 2.45 26.25 2.50 27.74 2.55
110 19.78 2.34 21.27 2.43 22.76 2.52 23.83 2.55 25.73 2.60 27.22 2.65
115 19.26 2.43 20.75 2.52 22.24 2.61 23.31 2.64 25.21 2.69 26.70 2.75
118 18.95 2.49 20.44 2.58 21.93 2.67 23.00 2.70 24.90 2.75 26.39 2.81
122 18.85 2.56 20.34 2.65 21.82 2.75 22.90 2.78 24.80 2.83 26.28 2.89
9 + 18
14 26.47 1.51 28.11 1.57 29.76 1.63 30.94 1.65 33.04 1.68 34.69 1.71
20 26.45 1.54 28.09 1.59 29.73 1.65 30.92 1.67 33.02 1.70 34.66 1.73
25 26.43 1.56 28.07 1.61 29.71 1.67 30.90 1.69 32.99 1.72 34.63 1.76
30 26.41 1.58 28.05 1.64 29.69 1.70 30.87 1.72 32.97 1.75 34.61 1.78
35 26.39 1.60 28.03 1.66 29.66 1.72 30.85 1.74 32.94 1.77 34.58 1.81
40 26.37 1.62 28.00 1.68
29.64 1.74 30.82 1.76 32.92 1.80 34.55 1.83
45 26.35 1.64 27.98 1.71 29.62 1.77 30.80 1.79 32.89 1.82 34.53 1.86
50 26.33 1.67 27.96 1.73 29.60 1.79 30.78 1.81 32.87 1.85 34.50 1.88
55 26.31 1.69 27.94 1.75 29.57 1.81 30.75 1.83 32.84 1.87 34.48 1.91
60 26.29 1.71 27.92 1.77 29.55 1.84 30.73 1.86 32.82 1.89 34.45 1.93
65 26.27 1.73 27.90 1.80 29.53 1.86 30.71 1.88 32.79 1.92 34.42 1.96
70 26.25 1.75 27.88 1.82 29.51 1.88 30.68 1.91 32.77 1.94 34.40 1.98
75 25.61 1.85 27.24 1.92 28.87 1.99 30.04 2.01 32.12 2.05 33.74 2.09
80 24.98 1.94 26.60 2.01 28.23 2.09 29.40 2.11 31.47 2.15 33.09 2.19
85 24.36 2.04 25.97 2.11 27.59 2.19 28.76 2.21 30.83 2.26 32.45 2.30
90 23.73 2.13 25.34 2.21 26.96 2.29 28.12 2.32 30.19 2.36 31.80 2.41
95 23.05 2.23 24.66 2.31 26.26 2.39 27.00 2.42 29.48 2.47 31.08 2.51
100 22.49 2.32 24.10 2.41 25.70 2.49 26.65 2.52 28.91 2.57 30.52 2.62
105 21.93 2.42 23.53 2.50 25.14 2.60 26.30 2.63 28.35 2.67 29.96 2.73
110 21.37 2.51 22.97 2.60 24.58 2.70 25.74 2.73 27.79 2.78 29.40 2.84
115 20.81 2.61 22.41 2.70 24.02 2.80 25.18 2.83 27.23 2.88 28.84 2.94
118 20.47 2.66 22.08 2.76 23.68 2.86 24.84 2.89 26.89 2.95 28.50 3.01
122 20.36 2.74 21.96 2.84 23.57 2.94 24.73 2.98 26.78 3.03 28.39 3.09
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 83
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 76: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
12 + 15
14 26.47 1.51 28.11 1.57 29.76 1.63 30.94 1.65 33.04 1.68 34.69 1.71
20 26.45 1.54 28.09 1.59 29.73 1.65 30.92 1.67 33.02 1.70 34.66 1.73
25 26.43 1.56 28.07 1.61 29.71 1.67 30.90 1.69 32.99 1.72 34.63 1.76
30 26.41 1.58 28.05 1.64 29.69 1.70 30.87 1.72 32.97 1.75 34.61 1.78
35 26.39 1.60 28.03 1.66 29.66 1.72 30.85 1.74 32.94 1.77 34.58 1.81
40 26.37 1.62 28.00 1.68 29.64 1.74 30.82 1.76 32.92 1.80 34.55 1.83
45 26.35 1.64 27.98 1.71 29.62 1.77 30.80 1.79 32.89 1.82 34.53 1.86
50 26.33 1.67 27.96 1.73 29.60 1.79 30.78 1.81 32.87 1.85 34.50 1.88
55 26.31 1.69 27.94 1.75 29.57 1.81 30.75 1.83 32.84 1.87 34.48 1.91
60 26.29 1.71 27.92 1.77 29.55 1.84 30.73 1.86 32.82 1.89 34.45 1.93
65 26.27 1.73 27.90 1.80 29.53 1.86 30.71 1.88 32.79 1.92 34.42 1.96
70 26.25 1.75 27.88 1.82 29.51 1.88 30.68 1.91 32.77 1.94 34.40 1.98
75 25.61 1.85 27.24 1.92 28.87 1.99 30.04 2.01 32.12 2.05 33.74 2.09
80 24.98 1.94 26.60 2.01 28.23 2.09 29.40 2.11 31.47 2.15 33.09 2.19
85 24.36 2.04 25.97 2.11 27.59 2.19 28.76 2.21 30.83 2.26 32.45 2.30
90 23.73 2.13 25.34 2.21 26.96 2.29 28.12 2.32 30.19 2.36 31.80 2.41
95 23.05 2.23 24.66 2.31 26.26 2.39 27.00 2.42 29.48 2.47 31.08 2.51
100 22.49 2.32 24.10 2.41 25.70 2.49 26.65 2.52 28.91 2.57 30.52 2.62
105 21.93 2.42 23.53 2.50 25.14 2.60 26.30 2.63 28.35 2.67 29.96 2.73
110 21.37 2.51 22.97 2.60 24.58 2.70 25.74 2.73 27.79 2.78 29.40 2.84
115 20.81 2.61 22.41 2.70 24.02 2.80 25.18 2.83 27.23 2.88 28.84 2.94
118 20.47 2.66 22.08 2.76 23.68 2.86 24.84 2.89 26.89 2.95 28.50 3.01
122 20.36 2.74 21.96 2.84 23.57 2.94 24.73 2.98 26.78 3.03 28.39 3.09
12 + 18
14 29.41 1.65 31.24 1.71 33.06 1.77 34.38 1.79 36.71 1.82 38.54 1.86
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.85 38.51 1.89
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.72 31.16 1.78 32.99 1.84 34.30 1.87 36.63 1.90 38.45 1.94
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.93 38.42 1.97
40 29.30 1.76 31.12 1.83
32.94 1.90 34.25 1.92 36.57 1.95 38.39 1.99
45 29.27 1.79 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.98 38.36 2.02
50 29.25 1.81 31.07 1.88 32.89 1.95 34.20 1.97 36.52 2.01 38.34 2.05
55 29.23 1.84 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.86 31.02 1.93 32.83 2.00 34.14 2.02 36.46 2.06 38.28 2.10
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.05 36.43 2.08 38.25 2.13
70 29.16 1.91 30.97 1.98 32.78 2.05 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.01 30.27 2.08 32.07 2.16 33.38 2.18 35.69 2.22 37.49 2.27
80 27.76 2.11 29.56 2.19 31.36 2.27 32.66 2.29 34.97 2.34 36.77 2.38
85 27.06 2.21 28.86 2.30 30.66 2.38 31.96 2.41 34.25 2.45 36.05 2.50
90 26.37 2.32 28.16 2.40 29.95 2.49 31.25 2.52 33.54 2.57 35.33 2.62
95 25.61 2.42 27.40 2.51 29.18 2.60 30.00 2.63 32.75 2.68 34.53 2.73
100 24.99 2.52 26.77 2.62 28.56 2.71 29.61 2.74 32.13 2.79 33.91 2.85
105 24.37 2.63 26.15 2.72 27.93 2.82 29.22 2.85 31.50 2.91 33.29 2.97
110 23.74 2.73 25.53 2.83 27.31 2.93 28.60 2.97 30.88 3.02 32.66 3.08
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.08 30.26 3.13 32.04 3.20
118 22.74 2.89 24.53 3.00 26.31 3.11 27.60 3.14 29.88 3.20 31.67 3.27
122 22.62 2.98 24.40 3.08 26.19 3.20 27.48 3.23 29.76 3.29 31.54 3.36
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
84 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 77: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
15 + 15
14 29.41 1.65 31.24 1.71 33.06 1.77 34.38 1.79 36.71 1.82 38.54 1.86
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.85 38.51 1.89
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.72 31.16 1.78 32.99 1.84 34.30 1.87 36.63 1.90 38.45 1.94
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.93 38.42 1.97
40 29.30 1.76 31.12 1.83 32.94 1.90 34.25 1.92 36.57 1.95 38.39 1.99
45 29.27 1.79 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.98 38.36 2.02
50 29.25 1.81 31.07 1.88 32.89 1.95 34.20 1.97 36.52 2.01 38.34 2.05
55 29.23 1.84 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.86 31.02 1.93 32.83 2.00 34.14 2.02 36.46 2.06 38.28 2.10
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.05 36.43 2.08 38.25 2.13
70 29.16 1.91 30.97 1.98 32.78 2.05 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.01 30.27 2.08 32.07 2.16 33.38 2.18 35.69 2.22 37.49 2.27
80 27.76 2.11 29.56 2.19 31.36 2.27 32.66 2.29 34.97 2.34 36.77 2.38
85 27.06 2.21 28.86 2.30 30.66 2.38 31.96 2.41 34.25 2.45 36.05 2.50
90 26.37 2.32 28.16 2.40 29.95 2.49 31.25 2.52 33.54 2.57 35.33 2.62
95 25.61 2.42 27.40 2.51 29.18 2.60 30.00 2.63 32.75 2.68 34.53 2.73
100 24.99 2.52 26.77 2.62 28.56 2.71 29.61 2.74 32.13 2.79 33.91 2.85
105 24.37 2.63 26.15 2.72 27.93 2.82 29.22 2.85 31.50 2.91 33.29 2.97
110 23.74 2.73 25.53 2.83 27.31 2.93 28.60 2.97 30.88 3.02 32.66 3.08
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.08 30.26 3.13 32.04 3.20
118 22.74 2.89 24.53 3.00 26.31 3.11 27.60 3.14 29.88 3.20 31.67 3.27
122 22.62 2.98 24.40 3.08 26.19 3.20 27.48 3.23 29.76 3.29 31.54 3.36
7 + 24
14 30.39 1.68 32.28 1.74 34.16 1.81 35.53 1.83 37.94 1.86 39.83 1.90
20 30.37 1.71 32.25 1.77 34.14 1.83 35.50 1.86 37.91 1.89 39.80 1.93
25 30.34 1.73 32.23 1.80 34.11 1.86 35.47 1.88 37.88 1.92 39.77 1.96
30 30.32 1.76 32.20 1.82 34.09 1.89 35.45 1.91 37.85 1.94 39.73 1.98
35 30.30 1.78 32.18 1.85 34.06 1.91 35.42 1.93 37.82 1.97 39.70 2.01
40 30.27 1.80 32.15 1.87
34.03 1.94 35.39 1.96 37.79 2.00 39.67 2.04
45 30.25 1.83 32.13 1.90 34.01 1.96 35.36 1.99 37.76 2.02 39.64 2.07
50 30.23 1.85 32.10 1.92 33.98 1.99 35.34 2.01 37.74 2.05 39.61 2.09
55 30.20 1.88 32.08 1.95 33.96 2.02 35.31 2.04 37.71 2.08 39.58 2.12
60 30.18 1.90 32.05 1.97 33.93 2.04 35.28 2.07 37.68 2.10 39.55 2.15
65 30.16 1.93 32.03 2.00 33.90 2.07 35.26 2.09 37.65 2.13 39.52 2.17
70 30.13 1.95 32.01 2.02 33.88 2.09 35.23 2.12 37.62 2.16 39.49 2.20
75 29.41 2.05 31.28 2.13 33.14 2.21 34.49 2.23 36.88 2.27 38.74 2.32
80 28.68 2.16 30.55 2.24 32.41 2.32 33.75 2.35 36.13 2.39 38.00 2.44
85 27.97 2.26 29.82 2.35 31.68 2.43 33.02 2.46 35.40 2.51 37.25 2.56
90 27.25 2.37 29.10 2.46 30.95 2.55 32.29 2.58 34.66 2.62 36.51 2.68
95 26.47 2.48 28.31 2.57 30.15 2.66 31.00 2.69 33.84 2.74 35.69 2.80
100 25.82 2.58 27.67 2.67 29.51 2.77 30.60 2.80 33.20 2.86 35.04 2.91
105 25.18 2.69 27.02 2.78 28.87 2.89 30.20 2.92 32.55 2.97 34.40 3.03
110 24.53 2.79 26.38 2.89 28.22 3.00 29.55 3.03 31.91 3.09 33.75 3.15
115 23.89 2.90 25.73 3.00 27.58 3.11 28.91 3.15 31.26 3.21 33.11 3.27
118 23.50 2.96 25.35 3.07 27.19 3.18 28.52 3.22 30.88 3.28 32.72 3.34
122 23.37 3.04 25.22 3.15 27.06 3.27 28.39 3.31 30.75 3.37 32.59 3.44
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 85
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 78: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
9 + 24
14 31.37 1.73 33.32 1.79 35.27 1.86 36.67 1.88 39.16 1.91 41.11 1.95
20 31.35 1.75 33.29 1.82 35.24 1.88 36.64 1.90 39.13 1.94 41.08 1.98
25 31.32 1.78 33.27 1.84 35.21 1.91 36.62 1.93 39.10 1.97 41.05 2.01
30 31.30 1.80 33.24 1.87 35.19 1.94 36.59 1.96 39.07 1.99 41.02 2.03
35 31.27 1.83 33.22 1.89 35.16 1.96 36.56 1.98 39.04 2.02 40.99 2.06
40 31.25 1.85 33.19 1.92 35.13 1.99 36.53 2.01 39.01 2.05 40.95 2.09
45 31.23 1.88 33.17 1.94 35.10 2.02 36.51 2.04 38.98 2.08 40.92 2.12
50 31.20 1.90 33.14 1.97 35.08 2.04 36.48 2.07 38.95 2.10 40.89 2.15
55 31.18 1.93 33.11 2.00 35.05 2.07 36.45 2.09 38.92 2.13 40.86 2.17
60 31.15 1.95 33.09 2.02 35.02 2.10 36.42 2.12 38.89 2.16 40.83 2.20
65 31.13 1.98 33.06 2.05 35.00 2.12 36.39 2.15 38.86 2.19 40.80 2.23
70 31.11 2.00 33.04 2.07 34.97 2.15 36.37 2.17 38.83 2.21 40.77 2.26
75 30.36 2.11 32.28 2.19 34.21 2.26 35.60 2.29 38.07 2.33 39.99 2.38
80 29.61 2.22 31.53 2.30 33.45 2.38 34.84 2.41 37.30 2.45 39.22 2.50
85 28.87 2.32 30.78 2.41 32.70 2.50 34.09 2.53 36.54 2.57 38.46 2.62
90 28.13 2.43 30.04 2.52 31.95 2.61 33.33 2.64 35.78 2.69 37.69 2.75
95 27.32 2.54 29.22 2.63 31.13 2.73 32.00 2.76 34.93 2.81 36.84 2.87
100 26.65 2.65 28.56 2.74 30.46 2.84 31.59 2.88 34.27 2.93 36.17 2.99
105 25.99 2.76 27.89 2.86 29.80 2.96 31.17 2.99 33.60 3.05 35.51 3.11
110 25.32 2.86 27.23 2.97 29.13 3.08 30.51 3.11 32.94 3.17 34.84 3.23
115 24.66 2.97 26.56 3.08 28.47 3.19 29.84 3.23 32.27 3.29 34.18 3.36
118 24.26 3.04 26.16 3.15 28.07 3.26 29.44 3.30 31.87 3.36 33.78 3.43
122 24.13 3.12 26.03 3.24 27.93 3.35 29.31 3.39 31.74 3.46 33.64 3.53
15 + 18
14 31.37 1.73 33.32 1.79 35.27 1.86 36.67 1.88 39.16 1.91 41.11 1.95
20 31.35 1.75 33.29 1.82 35.24 1.88 36.64 1.90 39.13 1.94 41.08 1.98
25 31.32 1.78 33.27 1.84 35.21 1.91 36.62 1.93 39.10 1.97 41.05 2.01
30 31.30 1.80 33.24 1.87 35.19 1.94 36.59 1.96 39.07 1.99 41.02 2.03
35 31.27 1.83 33.22 1.89 35.16 1.96 36.56 1.98 39.04 2.02 40.99 2.06
40 31.25 1.85 33.19 1.92
35.13 1.99 36.53 2.01 39.01 2.05 40.95 2.09
45 31.23 1.88 33.17 1.94 35.10 2.02 36.51 2.04 38.98 2.08 40.92 2.12
50 31.20 1.90 33.14 1.97 35.08 2.04 36.48 2.07 38.95 2.10 40.89 2.15
55 31.18 1.93 33.11 2.00 35.05 2.07 36.45 2.09 38.92 2.13 40.86 2.17
60 31.15 1.95 33.09 2.02 35.02 2.10 36.42 2.12 38.89 2.16 40.83 2.20
65 31.13 1.98 33.06 2.05 35.00 2.12 36.39 2.15 38.86 2.19 40.80 2.23
70 31.11 2.00 33.04 2.07 34.97 2.15 36.37 2.17 38.83 2.21 40.77 2.26
75 30.36 2.11 32.28 2.19 34.21 2.26 35.60 2.29 38.07 2.33 39.99 2.38
80 29.61 2.22 31.53 2.30 33.45 2.38 34.84 2.41 37.30 2.45 39.22 2.50
85 28.87 2.32 30.78 2.41 32.70 2.50 34.09 2.53 36.54 2.57 38.46 2.62
90 28.13 2.43 30.04 2.52 31.95 2.61 33.33 2.64 35.78 2.69 37.69 2.75
95 27.32 2.54 29.22 2.63 31.13 2.73 32.00 2.76 34.93 2.81 36.84 2.87
100 26.65 2.65 28.56 2.74 30.46 2.84 31.59 2.88 34.27 2.93 36.17 2.99
105 25.99 2.76 27.89 2.86 29.80 2.96 31.17 2.99 33.60 3.05 35.51 3.11
110 25.32 2.86 27.23 2.97 29.13 3.08 30.51 3.11 32.94 3.17 34.84 3.23
115 24.66 2.97 26.56 3.08 28.47 3.19 29.84 3.23 32.27 3.29 34.18 3.36
118 24.26 3.04 26.16 3.15 28.07 3.26 29.44 3.30 31.87 3.36 33.78 3.43
122 24.13 3.12 26.03 3.24 27.93 3.35 29.31 3.39 31.74 3.46 33.64 3.53
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
86 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 79: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
18 + 18
14 31.37 1.73 33.32 1.79 35.27 1.86 36.67 1.88 39.16 1.91 41.11 1.95
20 31.35 1.75 33.29 1.82 35.24 1.88 36.64 1.90 39.13 1.94 41.08 1.98
25 31.32 1.78 33.27 1.84 35.21 1.91 36.62 1.93 39.10 1.97 41.05 2.01
30 31.30 1.80 33.24 1.87 35.19 1.94 36.59 1.96 39.07 1.99 41.02 2.03
35 31.27 1.83 33.22 1.89 35.16 1.96 36.56 1.98 39.04 2.02 40.99 2.06
40 31.25 1.85 33.19 1.92 35.13 1.99 36.53 2.01 39.01 2.05 40.95 2.09
45 31.23 1.88 33.17 1.94 35.10 2.02 36.51 2.04 38.98 2.08 40.92 2.12
50 31.20 1.90 33.14 1.97 35.08 2.04 36.48 2.07 38.95 2.10 40.89 2.15
55 31.18 1.93 33.11 2.00 35.05 2.07 36.45 2.09 38.92 2.13 40.86 2.17
60 31.15 1.95 33.09 2.02 35.02 2.10 36.42 2.12 38.89 2.16 40.83 2.20
65 31.13 1.98 33.06 2.05 35.00 2.12 36.39 2.15 38.86 2.19 40.80 2.23
70 31.11 2.00 33.04 2.07 34.97 2.15 36.37 2.17 38.83 2.21 40.77 2.26
75 30.36 2.11 32.28 2.19 34.21 2.26 35.60 2.29 38.07 2.33 39.99 2.38
80 29.61 2.22 31.53 2.30 33.45 2.38 34.84 2.41 37.30 2.45 39.22 2.50
85 28.87 2.32 30.78 2.41 32.70 2.50 34.09 2.53 36.54 2.57 38.46 2.62
90 28.13 2.43 30.04 2.52 31.95 2.61 33.33 2.64 35.78 2.69 37.69 2.75
95 27.32 2.54 29.22 2.63 31.13 2.73 32.00 2.76 34.93 2.81 36.84 2.87
100 26.65 2.65 28.56 2.74 30.46 2.84 31.59 2.88 34.27 2.93 36.17 2.99
105 25.99 2.76 27.89 2.86 29.80 2.96 31.17 2.99 33.60 3.05 35.51 3.11
110 25.32 2.86 27.23 2.97 29.13 3.08 30.51 3.11 32.94 3.17 34.84 3.23
115 24.66 2.97 26.56 3.08 28.47 3.19 29.84 3.23 32.27 3.29 34.18 3.36
118 24.26 3.04 26.16 3.15 28.07 3.26 29.44 3.30 31.87 3.36 33.78 3.43
122 24.13 3.12 26.03 3.24 27.93 3.35 29.31 3.39 31.74 3.46 33.64 3.53
12 + 24
14 31.37 1.73 33.32 1.79 35.27 1.86 36.67 1.88 39.16 1.91 41.11 1.95
20 31.35 1.75 33.29 1.82 35.24 1.88 36.64 1.90 39.13 1.94 41.08 1.98
25 31.32 1.78 33.27 1.84 35.21 1.91 36.62 1.93 39.10 1.97 41.05 2.01
30 31.30 1.80 33.24 1.87 35.19 1.94 36.59 1.96 39.07 1.99 41.02 2.03
35 31.27 1.83 33.22 1.89 35.16 1.96 36.56 1.98 39.04 2.02 40.99 2.06
40 31.25 1.85 33.19 1.92
35.13 1.99 36.53 2.01 39.01 2.05 40.95 2.09
45 31.23 1.88 33.17 1.94 35.10 2.02 36.51 2.04 38.98 2.08 40.92 2.12
50 31.20 1.90 33.14 1.97 35.08 2.04 36.48 2.07 38.95 2.10 40.89 2.15
55 31.18 1.93 33.11 2.00 35.05 2.07 36.45 2.09 38.92 2.13 40.86 2.17
60 31.15 1.95 33.09 2.02 35.02 2.10 36.42 2.12 38.89 2.16 40.83 2.20
65 31.13 1.98 33.06 2.05 35.00 2.12 36.39 2.15 38.86 2.19 40.80 2.23
70 31.11 2.00 33.04 2.07 34.97 2.15 36.37 2.17 38.83 2.21 40.77 2.26
75 30.36 2.11 32.28 2.19 34.21 2.26 35.60 2.29 38.07 2.33 39.99 2.38
80 29.61 2.22 31.53 2.30 33.45 2.38 34.84 2.41 37.30 2.45 39.22 2.50
85 28.87 2.32 30.78 2.41 32.70 2.50 34.09 2.53 36.54 2.57 38.46 2.62
90 28.13 2.43 30.04 2.52 31.95 2.61 33.33 2.64 35.78 2.69 37.69 2.75
95 27.32 2.54 29.22 2.63 31.13 2.73 32.00 2.76 34.93 2.81 36.84 2.87
100 26.65 2.65 28.56 2.74 30.46 2.84 31.59 2.88 34.27 2.93 36.17 2.99
105 25.99 2.76 27.89 2.86 29.80 2.96 31.17 2.99 33.60 3.05 35.51 3.11
110 25.32 2.86 27.23 2.97 29.13 3.08 30.51 3.11 32.94 3.17 34.84 3.23
115 24.66 2.97 26.56 3.08 28.47 3.19 29.84 3.23 32.27 3.29 34.18 3.36
118 24.26 3.04 26.16 3.15 28.07 3.26 29.44 3.30 31.87 3.36 33.78 3.43
122 24.13 3.12 26.03 3.24 27.93 3.35 29.31 3.39 31.74 3.46 33.64 3.53
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 87
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 80: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
15 + 24
14 31.37 1.73 33.32 1.79 35.27 1.86 36.67 1.88 39.16 1.91 41.11 1.95
20 31.35 1.75 33.29 1.82 35.24 1.88 36.64 1.90 39.13 1.94 41.08 1.98
25 31.32 1.78 33.27 1.84 35.21 1.91 36.62 1.93 39.10 1.97 41.05 2.01
30 31.30 1.80 33.24 1.87 35.19 1.94 36.59 1.96 39.07 1.99 41.02 2.03
35 31.27 1.83 33.22 1.89 35.16 1.96 36.56 1.98 39.04 2.02 40.99 2.06
40 31.25 1.85 33.19 1.92 35.13 1.99 36.53 2.01 39.01 2.05 40.95 2.09
45 31.23 1.88 33.17 1.94 35.10 2.02 36.51 2.04 38.98 2.08 40.92 2.12
50 31.20 1.90 33.14 1.97 35.08 2.04 36.48 2.07 38.95 2.10 40.89 2.15
55 31.18 1.93 33.11 2.00 35.05 2.07 36.45 2.09 38.92 2.13 40.86 2.17
60 31.15 1.95 33.09 2.02 35.02 2.10 36.42 2.12 38.89 2.16 40.83 2.20
65 31.13 1.98 33.06 2.05 35.00 2.12 36.39 2.15 38.86 2.19 40.80 2.23
70 31.11 2.00 33.04 2.07 34.97 2.15 36.37 2.17 38.83 2.21 40.77 2.26
75 30.36 2.11 32.28 2.19 34.21 2.26 35.60 2.29 38.07 2.33 39.99 2.38
80 29.61 2.22 31.53 2.30 33.45 2.38 34.84 2.41 37.30 2.45 39.22 2.50
85 28.87 2.32 30.78 2.41 32.70 2.50 34.09 2.53 36.54 2.57 38.46 2.62
90 28.13 2.43 30.04 2.52 31.95 2.61 33.33 2.64 35.78 2.69 37.69 2.75
95 27.32 2.54 29.22 2.63 31.13 2.73 32.00 2.76 34.93 2.81 36.84 2.87
100 26.65 2.65 28.56 2.74 30.46 2.84 31.59 2.88 34.27 2.93 36.17 2.99
105 25.99 2.76 27.89 2.86 29.80 2.96 31.17 2.99 33.60 3.05 35.51 3.11
110 25.32 2.86 27.23 2.97 29.13 3.08 30.51 3.11 32.94 3.17 34.84 3.23
115 24.66 2.97 26.56 3.08 28.47 3.19 29.84 3.23 32.27 3.29 34.18 3.36
118 24.26 3.04 26.16 3.15 28.07 3.26 29.44 3.30 31.87 3.36 33.78 3.43
122 24.13 3.12 26.03 3.24 27.93 3.35 29.31 3.39 31.74 3.46 33.64 3.53
18 + 24
14 31.37 1.73 33.32 1.79 35.27 1.86 36.67 1.88 39.16 1.91 41.11 1.95
20 31.35 1.75 33.29 1.82 35.24 1.88 36.64 1.90 39.13 1.94 41.08 1.98
25 31.32 1.78 33.27 1.84 35.21 1.91 36.62 1.93 39.10 1.97 41.05 2.01
30 31.30 1.80 33.24 1.87 35.19 1.94 36.59 1.96 39.07 1.99 41.02 2.03
35 31.27 1.83 33.22 1.89 35.16 1.96 36.56 1.98 39.04 2.02 40.99 2.06
40 31.25 1.85 33.19 1.92
35.13 1.99 36.53 2.01 39.01 2.05 40.95 2.09
45 31.23 1.88 33.17 1.94 35.10 2.02 36.51 2.04 38.98 2.08 40.92 2.12
50 31.20 1.90 33.14 1.97 35.08 2.04 36.48 2.07 38.95 2.10 40.89 2.15
55 31.18 1.93 33.11 2.00 35.05 2.07 36.45 2.09 38.92 2.13 40.86 2.17
60 31.15 1.95 33.09 2.02 35.02 2.10 36.42 2.12 38.89 2.16 40.83 2.20
65 31.13 1.98 33.06 2.05 35.00 2.12 36.39 2.15 38.86 2.19 40.80 2.23
70 31.11 2.00 33.04 2.07 34.97 2.15 36.37 2.17 38.83 2.21 40.77 2.26
75 30.36 2.11 32.28 2.19 34.21 2.26 35.60 2.29 38.07 2.33 39.99 2.38
80 29.61 2.22 31.53 2.30 33.45 2.38 34.84 2.41 37.30 2.45 39.22 2.50
85 28.87 2.32 30.78 2.41 32.70 2.50 34.09 2.53 36.54 2.57 38.46 2.62
90 28.13 2.43 30.04 2.52 31.95 2.61 33.33 2.64 35.78 2.69 37.69 2.75
95 27.32 2.54 29.22 2.63 31.13 2.73 32.00 2.76 34.93 2.81 36.84 2.87
100 26.65 2.65 28.56 2.74 30.46 2.84 31.59 2.88 34.27 2.93 36.17 2.99
105 25.99 2.76 27.89 2.86 29.80 2.96 31.17 2.99 33.60 3.05 35.51 3.11
110 25.32 2.86 27.23 2.97 29.13 3.08 30.51 3.11 32.94 3.17 34.84 3.23
115 24.66 2.97 26.56 3.08 28.47 3.19 29.84 3.23 32.27 3.29 34.18 3.36
118 24.26 3.04 26.16 3.15 28.07 3.26 29.44 3.30 31.87 3.36 33.78 3.43
122 24.13 3.12 26.03 3.24 27.93 3.35 29.31 3.39 31.74 3.46 33.64 3.53
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
88 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 81: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Non-Ducted
Indoor Units
24 + 24
14 31.37 1.73 33.32 1.79 35.27 1.86 36.67 1.88 39.16 1.91 41.11 1.95
20 31.35 1.75 33.29 1.82 35.24 1.88 36.64 1.90 39.13 1.94 41.08 1.98
25 31.32 1.78 33.27 1.84 35.21 1.91 36.62 1.93 39.10 1.97 41.05 2.01
30 31.30 1.80 33.24 1.87 35.19 1.94 36.59 1.96 39.07 1.99 41.02 2.03
35 31.27 1.83 33.22 1.89 35.16 1.96 36.56 1.98 39.04 2.02 40.99 2.06
40 31.25 1.85 33.19 1.92 35.13 1.99 36.53 2.01 39.01 2.05 40.95 2.09
45 31.23 1.88 33.17 1.94 35.10 2.02 36.51 2.04 38.98 2.08 40.92 2.12
50 31.20 1.90 33.14 1.97 35.08 2.04 36.48 2.07 38.95 2.10 40.89 2.15
55 31.18 1.93 33.11 2.00 35.05 2.07 36.45 2.09 38.92 2.13 40.86 2.17
60 31.15 1.95 33.09 2.02 35.02 2.10 36.42 2.12 38.89 2.16 40.83 2.20
65 31.13 1.98 33.06 2.05 35.00 2.12 36.39 2.15 38.86 2.19 40.80 2.23
70 31.11 2.00 33.04 2.07 34.97 2.15 36.37 2.17 38.83 2.21 40.77 2.26
75 30.36 2.11 32.28 2.19 34.21 2.26 35.60 2.29 38.07 2.33 39.99 2.38
80 29.61 2.22 31.53 2.30 33.45 2.38 34.84 2.41 37.30 2.45 39.22 2.50
85 28.87 2.32 30.78 2.41 32.70 2.50 34.09 2.53 36.54 2.57 38.46 2.62
90 28.13 2.43 30.04 2.52 31.95 2.61 33.33 2.64 35.78 2.69 37.69 2.75
95 27.32 2.54 29.22 2.63 31.13 2.73 32.00 2.76 34.93 2.81 36.84 2.87
100 26.65 2.65 28.56 2.74 30.46 2.84 31.59 2.88 34.27 2.93 36.17 2.99
105 25.99 2.76 27.89 2.86 29.80 2.96 31.17 2.99 33.60 3.05 35.51 3.11
110 25.32 2.86 27.23 2.97 29.13 3.08 30.51 3.11 32.94 3.17 34.84 3.23
115 24.66 2.97 26.56 3.08 28.47 3.19 29.84 3.23 32.27 3.29 34.18 3.36
118 24.26 3.04 26.16 3.15 28.07 3.26 29.44 3.30 31.87 3.36 33.78 3.43
122 24.13 3.12 26.03 3.24 27.93 3.35 29.31 3.39 31.74 3.46 33.64 3.53
Three (3)
Non-Ducted
Indoor Units
7 + 7 + 7
14 20.59 1.20 21.86 1.24 23.14 1.28 24.07 1.30 25.70 1.32 26.98 1.35
20 20.57 1.21 21.85 1.26 23.13 1.30 24.05 1.32 25.68 1.34 26.96 1.37
25 20.55 1.23 21.83 1.27 23.11 1.32 24.03 1.34 25.66 1.36 26.94 1.39
30 20.54 1.25 21.81 1.29 23.09 1.34 24.01 1.35 25.64 1.38 26.92 1.41
35 20.52 1.26 21.80 1.31 23.07 1.36 23.99 1.37 25.62 1.40 26.90 1.43
40 20.51 1.28 21.78 1.33 23.05 1.38 23.97 1.39 25.60 1.42 26.88 1.45
45 20.49 1.30 21.76 1.35 23.04 1.39 23.96 1.41 25.58 1.44 26.86 1.47
50 20.48 1.32 21.75 1.36 23.02 1.41 23.94 1.43 25.56 1.46 26.83 1.49
55 20.46 1.33 21.73 1.38 23.00 1.43 23.92 1.45 25.54 1.48 26.81 1.51
60 20.44 1.35 21.71 1.40 22.98 1.45 23.90 1.47 25.52 1.49 26.79 1.52
65 20.43 1.37 21.70 1.42 22.97 1.47 23.88 1.49 25.50 1.51 26.77 1.54
70 20.41 1.38 21.68 1.43 22.95 1.49 23.86 1.50 25.48 1.53 26.75 1.56
75 19.92 1.46 21.19 1.51 22.45 1.57 23.36 1.59 24.98 1.62 26.25 1.65
80 19.43 1.53 20.69 1.59 21.95 1.65 22.87 1.67 24.48 1.70 25.74 1.73
85 18.94 1.61 20.20 1.67 21.46 1.73 22.37 1.75 23.98 1.78 25.24 1.82
90 18.46 1.68 19.71 1.74 20.97 1.81 21.87 1.83 23.48 1.86 24.73 1.90
95 17.93 1.76 19.18 1.82 20.43 1.89 21.00 1.91 22.93 1.95 24.17 1.98
100 17.49 1.83 18.74 1.90 19.99 1.97 20.73 1.99 22.49 2.03 23.74 2.07
105 17.06 1.91 18.30 1.98 19.55 2.05 20.46 2.07 22.05 2.11 23.30 2.15
110 16.62 1.98 17.87 2.05 19.12 2.13 20.02 2.15 21.62 2.19 22.86 2.24
115 16.18 2.06 17.43 2.13 18.68 2.21 19.58 2.23 21.18 2.28 22.43 2.32
118 15.92 2.10 17.17 2.18 18.42 2.26 19.32 2.28 20.92 2.33 22.17 2.37
122 15.83 2.16 17.08 2.24 18.33 2.32 19.23 2.35 20.83 2.39 22.08 2.44
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 89
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 7 + 9
14 22.55 1.29 23.95 1.34 25.35 1.38 26.36 1.40 28.15 1.43 29.55 1.46
20 22.53 1.31 23.93 1.36 25.33 1.40 26.34 1.42 28.13 1.45 29.53 1.48
25 22.51 1.33 23.91 1.37 25.31 1.42 26.32 1.44 28.10 1.47 29.50 1.50
30 22.50 1.34 23.89 1.39 25.29 1.44 26.30 1.46 28.08 1.49 29.48 1.52
35 22.48 1.36 23.87 1.41 25.27 1.46 26.28 1.48 28.06 1.51 29.46 1.54
40 22.46 1.38 23.86 1.43 25.25 1.48 26.26 1.50 28.04 1.53 29.44 1.56
45 22.44 1.40 23.84 1.45 25.23 1.50 26.24 1.52 28.02 1.55 29.41 1.58
50 22.43 1.42 23.82 1.47 25.21 1.52 26.22 1.54 28.00 1.57 29.39 1.60
55 22.41 1.44 23.80 1.49 25.19 1.54 26.20 1.56 27.98 1.59 29.37 1.62
60 22.39 1.46 23.78 1.51 25.17 1.56 26.18 1.58 27.95 1.61 29.35 1.64
65 22.37 1.47 23.76 1.53 25.15 1.58 26.16 1.60 27.93 1.63 29.32 1.67
70 22.36 1.49 23.75 1.55 25.13 1.60 26.14 1.62 27.91 1.65 29.30 1.69
75 21.82 1.57 23.20 1.63 24.59 1.69 25.59 1.71 27.36 1.74 28.75 1.78
80 21.28 1.65 22.66 1.71 24.04 1.78 25.04 1.80 26.81 1.83 28.19 1.87
85 20.75 1.73 22.13 1.80 23.50 1.86 24.50 1.88 26.26 1.92 27.64 1.96
90 20.22 1.82 21.59 1.88 22.96 1.95 23.96 1.97 25.71 2.01 27.09 2.05
95 19.64 1.90 21.00 1.96 22.37 2.04 23.00 2.06 25.11 2.10 26.48 2.14
100 19.16 1.98 20.53 2.05 21.89 2.12 22.70 2.15 24.63 2.19 26.00 2.23
105 18.68 2.06 20.05 2.13 21.42 2.21 22.40 2.24 24.15 2.28 25.52 2.32
110 18.20 2.14 19.57 2.22 20.94 2.30 21.93 2.32 23.67 2.37 25.04 2.41
115 17.72 2.22 19.09 2.30 20.46 2.38 21.45 2.41 23.20 2.46 24.56 2.50
118 17.44 2.27 18.80 2.35 20.17 2.43 21.16 2.46 22.91 2.51 24.28 2.56
122 17.34 2.33 18.71 2.42 20.08 2.50 21.07 2.53 22.81 2.58 24.18 2.63
7 + 9 + 9
14 24.51 1.39 26.03 1.44 27.55 1.49 28.65 1.51 30.60 1.54 32.12 1.57
20 24.49 1.41 26.01 1.46 27.53 1.51 28.63 1.53 30.57 1.56 32.09 1.59
25 24.47 1.43 25.99 1.48 27.51 1.54 28.61 1.55 30.55 1.58 32.07 1.61
30 24.45 1.45 25.97 1.50 27.49 1.56 28.59 1.57 30.53 1.60 32.04 1.64
35 24.43 1.47 25.95 1.52 27.47 1.58 28.56 1.60 30.50 1.63 32.02 1.66
40 24.41
1.49 25.93 1.54 27.45 1.60 28.54 1.62 30.48 1.65 32.00 1.68
45 24.40 1.51 25.91 1.56 27.43 1.62 28.52 1.64 30.46 1.67 31.97 1.70
50 24.38 1.53 25.89 1.58 27.40 1.64 28.50 1.66 30.43 1.69 31.95 1.73
55 24.36 1.55 25.87 1.61 27.38 1.66 28.48 1.68 30.41 1.71 31.92 1.75
60 24.34 1.57 25.85 1.63 27.36 1.69 28.45 1.70 30.39 1.74 31.90 1.77
65 24.32 1.59 25.83 1.65 27.34 1.71 28.43 1.73 30.36 1.76 31.87 1.79
70 24.30 1.61 25.81 1.67 27.32 1.73 28.41 1.75 30.34 1.78 31.85 1.82
75 23.72 1.70 25.22 1.76 26.73 1.82 27.82 1.84 29.74 1.88 31.24 1.91
80 23.13 1.78 24.63 1.85 26.14 1.91 27.22 1.94 29.14 1.97 30.64 2.01
85 22.55 1.87 24.05 1.94 25.55 2.01 26.63 2.03 28.54 2.07 30.04 2.11
90 21.97 1.96 23.47 2.03 24.96 2.10 26.04 2.13 27.95 2.17 29.44 2.21
95 21.34 2.04 22.83 2.12 24.32 2.19 25.00 2.22 27.29 2.26 28.78 2.31
100 20.82 2.13 22.31 2.21 23.80 2.29 24.68 2.31 26.77 2.36 28.26 2.41
105 20.30 2.22 21.79 2.30 23.28 2.38 24.35 2.41 26.25 2.45 27.74 2.50
110 19.78 2.30 21.27 2.39 22.76 2.47 23.83 2.50 25.73 2.55 27.22 2.60
115 19.26 2.39 20.75 2.48 22.24 2.57 23.31 2.60 25.21 2.65 26.70 2.70
118 18.95 2.44 20.44 2.53 21.93 2.62 23.00 2.65 24.90 2.70 26.39 2.76
122 18.85 2.51 20.34 2.60 21.82 2.70 22.90 2.73 24.80 2.78 26.28 2.84
Table 82: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
90 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 7 + 12
14 25.49 1.41 27.07 1.47 28.65 1.52 29.80 1.54 31.82 1.57 33.40 1.60
20 25.47 1.43 27.05 1.49 28.63 1.54 29.77 1.56 31.80 1.59 33.38 1.62
25 25.45 1.45 27.03 1.51 28.61 1.56 29.75 1.58 31.77 1.61 33.35 1.64
30 25.43 1.48 27.01 1.53 28.59 1.58 29.73 1.60 31.75 1.63 33.33 1.67
35 25.41 1.50 26.99 1.55 28.57 1.61 29.71 1.63 31.72 1.66 33.30 1.69
40 25.39 1.52 26.97 1.57 28.54 1.63 29.68 1.65 31.70 1.68 33.27 1.71
45 25.37 1.54 26.95 1.59 28.52 1.65 29.66 1.67 31.67 1.70 33.25 1.73
50 25.35 1.56 26.93 1.61 28.50 1.67 29.64 1.69 31.65 1.72 33.22 1.76
55 25.33 1.58 26.91 1.63 28.48 1.69 29.61 1.71 31.63 1.75 33.20 1.78
60 25.31 1.60 26.88 1.66 28.46 1.72 29.59 1.74 31.60 1.77 33.17 1.80
65 25.29 1.62 26.86 1.68 28.43 1.74 29.57 1.76 31.58 1.79 33.15 1.83
70 25.27 1.64 26.84 1.70 28.41 1.76 29.55 1.78 31.55 1.81 33.12 1.85
75 24.67 1.73 26.23 1.79 27.80 1.85 28.93 1.88 30.93 1.91 32.49 1.95
80 24.06 1.81 25.62 1.88 27.18 1.95 28.31 1.97 30.31 2.01 31.87 2.05
85 23.45 1.90 25.01 1.97 26.57 2.04 27.70 2.07 29.69 2.11 31.24 2.15
90 22.85 1.99 24.41 2.06 25.96 2.14 27.08 2.16 29.07 2.20 30.62 2.25
95 22.20 2.08 23.74 2.16 25.29 2.23 26.00 2.26 28.38 2.30 29.93 2.35
100 21.66 2.17 23.20 2.25 24.75 2.33 25.66 2.36 27.84 2.40 29.39 2.45
105 21.12 2.26 22.66 2.34 24.21 2.42 25.33 2.45 27.30 2.50 28.85 2.55
110 20.58 2.34 22.12 2.43 23.67 2.52 24.79 2.55 26.76 2.60 28.31 2.65
115 20.04 2.43 21.58 2.52 23.13 2.61 24.25 2.64 26.22 2.69 27.77 2.75
118 19.71 2.49 21.26 2.58 22.80 2.67 23.92 2.70 25.90 2.75 27.44 2.81
122 19.60 2.56 21.15 2.65 22.70 2.75 23.81 2.78 25.79 2.83 27.34 2.89
9 + 9 + 9
14 26.47 1.44 28.11 1.49 29.76 1.55 30.94 1.56 33.04 1.59 34.69 1.63
20 26.45 1.46 28.09 1.51 29.73 1.57 30.92 1.59 33.02 1.62 34.66 1.65
25 26.43 1.48 28.07 1.53 29.71 1.59 30.90 1.61 32.99 1.64 34.63 1.67
30 26.41 1.50 28.05 1.56 29.69 1.61 30.87 1.63 32.97 1.66 34.61 1.70
35 26.39 1.52 28.03 1.58 29.66 1.64 30.85 1.65 32.94 1.69 34.58 1.72
40 26.37
1.54 28.00 1.60 29.64 1.66 30.82 1.68 32.92 1.71 34.55 1.74
45 26.35 1.56 27.98 1.62 29.62 1.68 30.80 1.70 32.89 1.73 34.53 1.77
50 26.33 1.58 27.96 1.64 29.60 1.70 30.78 1.72 32.87 1.75 34.50 1.79
55 26.31 1.60 27.94 1.66 29.57 1.72 30.75 1.74 32.84 1.78 34.48 1.81
60 26.29 1.63 27.92 1.68 29.55 1.75 30.73 1.77 32.82 1.80 34.45 1.84
65 26.27 1.65 27.90 1.71 29.53 1.77 30.71 1.79 32.79 1.82 34.42 1.86
70 26.25 1.67 27.88 1.73 29.51 1.79 30.68 1.81 32.77 1.85 34.40 1.88
75 25.61 1.76 27.24 1.82 28.87 1.89 30.04 1.91 32.12 1.94 33.74 1.98
80 24.98 1.85 26.60 1.91 28.23 1.98 29.40 2.01 31.47 2.04 33.09 2.09
85 24.36 1.94 25.97 2.01 27.59 2.08 28.76 2.10 30.83 2.14 32.45 2.19
90 23.73 2.03 25.34 2.10 26.96 2.18 28.12 2.20 30.19 2.24 31.80 2.29
95 23.05 2.12 24.66 2.19 26.26 2.27 27.00 2.30 29.48 2.34 31.08 2.39
100 22.49 2.21 24.10 2.29 25.70 2.37 26.65 2.40 28.91 2.44 30.52 2.49
105 21.93 2.30 23.53 2.38 25.14 2.47 26.30 2.50 28.35 2.54 29.96 2.59
110 21.37 2.39 22.97 2.47 24.58 2.56 25.74 2.59 27.79 2.64 29.40 2.69
115 20.81 2.48 22.41 2.57 24.02 2.66 25.18 2.69 27.23 2.74 28.84 2.80
118 20.47 2.53 22.08 2.62 23.68 2.72 24.84 2.75 26.89 2.80 28.50 2.86
122 20.36 2.60 21.96 2.70 23.57 2.80 24.73 2.83 26.78 2.88 28.39 2.94
Table 83: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 91
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 9 + 12
14 27.45 1.47 29.15 1.52 30.86 1.58 32.09 1.60 34.27 1.63 35.97 1.66
20 27.43 1.49 29.13 1.55 30.83 1.60 32.06 1.62 34.24 1.65 35.94 1.68
25 27.41 1.51 29.11 1.57 30.81 1.63 32.04 1.64 34.21 1.67 35.92 1.71
30 27.39 1.53 29.09 1.59 30.79 1.65 32.02 1.67 34.19 1.70 35.89 1.73
35 27.36 1.56 29.06 1.61 30.76 1.67 31.99 1.69 34.16 1.72 35.86 1.76
40 27.34 1.58 29.04 1.63 30.74 1.69 31.97 1.71 34.14 1.75 35.83 1.78
45 27.32 1.60 29.02 1.66 30.72 1.72 31.94 1.74 34.11 1.77 35.81 1.80
50 27.30 1.62 29.00 1.68 30.69 1.74 31.92 1.76 34.08 1.79 35.78 1.83
55 27.28 1.64 28.98 1.70 30.67 1.76 31.89 1.78 34.06 1.82 35.75 1.85
60 27.26 1.66 28.95 1.72 30.65 1.78 31.87 1.80 34.03 1.84 35.72 1.88
65 27.24 1.68 28.93 1.74 30.62 1.81 31.84 1.83 34.01 1.86 35.70 1.90
70 27.22 1.70 28.91 1.77 30.60 1.83 31.82 1.85 33.98 1.89 35.67 1.92
75 26.56 1.79 28.25 1.86 29.94 1.93 31.15 1.95 33.31 1.99 34.99 2.03
80 25.91 1.89 27.59 1.96 29.27 2.03 30.49 2.05 32.64 2.09 34.32 2.13
85 25.26 1.98 26.94 2.05 28.61 2.13 29.83 2.15 31.97 2.19 33.65 2.23
90 24.61 2.07 26.28 2.15 27.96 2.22 29.17 2.25 31.30 2.29 32.98 2.34
95 23.91 2.16 25.57 2.24 27.24 2.32 28.00 2.35 30.57 2.39 32.23 2.44
100 23.32 2.25 24.99 2.34 26.65 2.42 27.64 2.45 29.98 2.50 31.65 2.55
105 22.74 2.35 24.41 2.43 26.07 2.52 27.27 2.55 29.40 2.60 31.07 2.65
110 22.16 2.44 23.82 2.53 25.49 2.62 26.69 2.65 28.82 2.70 30.49 2.75
115 21.58 2.53 23.24 2.62 24.91 2.72 26.11 2.75 28.24 2.80 29.90 2.86
118 21.23 2.59 22.89 2.68 24.56 2.78 25.76 2.81 27.89 2.86 29.55 2.92
122 21.11 2.66 22.78 2.76 24.44 2.86 25.64 2.89 27.77 2.94 29.44 3.00
7 + 7 + 15
14 28.43 1.50 30.19 1.56 31.96 1.61 33.23 1.63 35.49 1.66 37.26 1.70
20 28.41 1.52 30.17 1.58 31.94 1.64 33.21 1.66 35.46 1.69 37.23 1.72
25 28.39 1.55 30.15 1.60 31.91 1.66 33.18 1.68 35.44 1.71 37.20 1.74
30 28.36 1.57 30.13 1.62 31.89 1.68 33.16 1.70 35.41 1.73 37.17 1.77
35 28.34 1.59 30.10 1.65 31.86 1.71 33.13 1.73 35.38 1.76 37.14 1.79
40 28.32
1.61 30.08 1.67 31.84 1.73 33.11 1.75 35.36 1.78 37.11 1.82
45 28.30 1.63 30.06 1.69 31.81 1.75 33.08 1.77 35.33 1.81 37.09 1.84
50 28.28 1.65 30.03 1.71 31.79 1.78 33.06 1.80 35.30 1.83 37.06 1.87
55 28.26 1.67 30.01 1.74 31.76 1.80 33.03 1.82 35.27 1.85 37.03 1.89
60 28.23 1.70 29.99 1.76 31.74 1.82 33.01 1.84 35.25 1.88 37.00 1.92
65 28.21 1.72 29.96 1.78 31.72 1.85 32.98 1.87 35.22 1.90 36.97 1.94
70 28.19 1.74 29.94 1.80 31.69 1.87 32.96 1.89 35.19 1.93 36.94 1.96
75 27.51 1.83 29.26 1.90 31.00 1.97 32.27 1.99 34.50 2.03 36.24 2.07
80 26.83 1.93 28.58 2.00 30.32 2.07 31.58 2.09 33.80 2.13 35.54 2.18
85 26.16 2.02 27.90 2.09 29.64 2.17 30.89 2.20 33.11 2.24 34.85 2.28
90 25.49 2.11 27.22 2.19 28.96 2.27 30.21 2.30 32.42 2.34 34.16 2.39
95 24.76 2.21 26.48 2.29 28.21 2.37 29.00 2.40 31.66 2.44 33.38 2.49
100 24.16 2.30 25.88 2.39 27.61 2.47 28.62 2.50 31.06 2.55 32.78 2.60
105 23.55 2.40 25.28 2.48 27.00 2.57 28.25 2.60 30.45 2.65 32.18 2.71
110 22.95 2.49 24.68 2.58 26.40 2.68 27.65 2.71 29.85 2.76 31.57 2.81
115 22.35 2.58 24.07 2.68 25.80 2.78 27.04 2.81 29.25 2.86 30.97 2.92
118 21.99 2.64 23.71 2.74 25.44 2.84 26.68 2.87 28.88 2.92 30.61 2.98
122 21.86 2.72 23.59 2.81 25.31 2.92 26.56 2.95 28.76 3.01 30.49 3.07
Table 84: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
92 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
9 + 9 + 12
14 29.41 1.54 31.24 1.60 33.06 1.65 34.38 1.67 36.71 1.70 38.54 1.74
20 29.39 1.56 31.21 1.62 33.04 1.68 34.35 1.70 36.69 1.73 38.51 1.76
25 29.36 1.58 31.19 1.64 33.01 1.70 34.33 1.72 36.66 1.75 38.48 1.79
30 29.34 1.61 31.16 1.66 32.99 1.73 34.30 1.75 36.63 1.78 38.45 1.81
35 29.32 1.63 31.14 1.69 32.96 1.75 34.28 1.77 36.60 1.80 38.42 1.84
40 29.30 1.65 31.12 1.71 32.94 1.77 34.25 1.79 36.57 1.83 38.39 1.86
45 29.27 1.67 31.09 1.73 32.91 1.80 34.22 1.82 36.55 1.85 38.36 1.89
50 29.25 1.69 31.07 1.76 32.89 1.82 34.20 1.84 36.52 1.88 38.34 1.91
55 29.23 1.72 31.04 1.78 32.86 1.84 34.17 1.87 36.49 1.90 38.31 1.94
60 29.21 1.74 31.02 1.80 32.83 1.87 34.14 1.89 36.46 1.92 38.28 1.96
65 29.18 1.76 31.00 1.82 32.81 1.89 34.12 1.91 36.43 1.95 38.25 1.99
70 29.16 1.78 30.97 1.85 32.78 1.92 34.09 1.94 36.41 1.97 38.22 2.01
75 28.46 1.88 30.27 1.95 32.07 2.02 33.38 2.04 35.69 2.08 37.49 2.12
80 27.76 1.98 29.56 2.05 31.36 2.12 32.66 2.15 34.97 2.19 36.77 2.23
85 27.06 2.07 28.86 2.15 30.66 2.23 31.96 2.25 34.25 2.29 36.05 2.34
90 26.37 2.17 28.16 2.25 29.95 2.33 31.25 2.36 33.54 2.40 35.33 2.45
95 25.61 2.26 27.40 2.35 29.18 2.43 30.00 2.46 32.75 2.51 34.53 2.56
100 24.99 2.36 26.77 2.45 28.56 2.54 29.61 2.56 32.13 2.61 33.91 2.67
105 24.37 2.46 26.15 2.55 27.93 2.64 29.22 2.67 31.50 2.72 33.29 2.77
110 23.74 2.55 25.53 2.65 27.31 2.74 28.60 2.77 30.88 2.83 32.66 2.88
115 23.12 2.65 24.90 2.75 26.69 2.85 27.98 2.88 30.26 2.93 32.04 2.99
118 22.74 2.71 24.53 2.80 26.31 2.91 27.60 2.94 29.88 3.00 31.67 3.06
122 22.62 2.78 24.40 2.88 26.19 2.99 27.48 3.02 29.76 3.08 31.54 3.14
7 + 9 + 15
14 30.39 1.58 32.28 1.63 34.16 1.69 35.53 1.71 37.94 1.75 39.83 1.78
20 30.37 1.60 32.25 1.66 34.14 1.72 35.50 1.74 37.91 1.77 39.80 1.81
25 30.34 1.62 32.23 1.68 34.11 1.74 35.47 1.76 37.88 1.80 39.77 1.83
30 30.32 1.64 32.20 1.71 34.09 1.77 35.45 1.79 37.85 1.82 39.73 1.86
35 30.30 1.67 32.18 1.73 34.06 1.79 35.42 1.81 37.82 1.85 39.70 1.88
40 30.27
1.69 32.15 1.75 34.03 1.82 35.39 1.84 37.79 1.87 39.67 1.91
45 30.25 1.71 32.13 1.78 34.01 1.84 35.36 1.86 37.76 1.90 39.64 1.93
50 30.23 1.74 32.10 1.80 33.98 1.86 35.34 1.89 37.74 1.92 39.61 1.96
55 30.20 1.76 32.08 1.82 33.96 1.89 35.31 1.91 37.71 1.95 39.58 1.99
60 30.18 1.78 32.05 1.85 33.93 1.91 35.28 1.94 37.68 1.97 39.55 2.01
65 30.16 1.80 32.03 1.87 33.90 1.94 35.26 1.96 37.65 2.00 39.52 2.04
70 30.13 1.83 32.01 1.89 33.88 1.96 35.23 1.98 37.62 2.02 39.49 2.06
75 29.41 1.92 31.28 2.00 33.14 2.07 34.49 2.09 36.88 2.13 38.74 2.17
80 28.68 2.02 30.55 2.10 32.41 2.17 33.75 2.20 36.13 2.24 38.00 2.29
85 27.97 2.12 29.82 2.20 31.68 2.28 33.02 2.31 35.40 2.35 37.25 2.40
90 27.25 2.22 29.10 2.30 30.95 2.39 32.29 2.41 34.66 2.46 36.51 2.51
95 26.47 2.32 28.31 2.40 30.15 2.49 31.00 2.52 33.84 2.57 35.69 2.62
100 25.82 2.42 27.67 2.51 29.51 2.60 30.60 2.63 33.20 2.68 35.04 2.73
105 25.18 2.52 27.02 2.61 28.87 2.70 30.20 2.73 32.55 2.79 34.40 2.84
110 24.53 2.61 26.38 2.71 28.22 2.81 29.55 2.84 31.91 2.89 33.75 2.95
115 23.89 2.71 25.73 2.81 27.58 2.91 28.91 2.95 31.26 3.00 33.11 3.06
118 23.50 2.77 25.35 2.87 27.19 2.98 28.52 3.01 30.88 3.07 32.72 3.13
122 23.37 2.85 25.22 2.96 27.06 3.06 28.39 3.10 30.75 3.16 32.59 3.22
Table 85: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 93
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 12 + 12
14 30.39 1.58 32.28 1.63 34.16 1.69 35.53 1.71 37.94 1.75 39.83 1.78
20 30.37 1.60 32.25 1.66 34.14 1.72 35.50 1.74 37.91 1.77 39.80 1.81
25 30.34 1.62 32.23 1.68 34.11 1.74 35.47 1.76 37.88 1.80 39.77 1.83
30 30.32 1.64 32.20 1.71 34.09 1.77 35.45 1.79 37.85 1.82 39.73 1.86
35 30.30 1.67 32.18 1.73 34.06 1.79 35.42 1.81 37.82 1.85 39.70 1.88
40 30.27 1.69 32.15 1.75 34.03 1.82 35.39 1.84 37.79 1.87 39.67 1.91
45 30.25 1.71 32.13 1.78 34.01 1.84 35.36 1.86 37.76 1.90 39.64 1.93
50 30.23 1.74 32.10 1.80 33.98 1.86 35.34 1.89 37.74 1.92 39.61 1.96
55 30.20 1.76 32.08 1.82 33.96 1.89 35.31 1.91 37.71 1.95 39.58 1.99
60 30.18 1.78 32.05 1.85 33.93 1.91 35.28 1.94 37.68 1.97 39.55 2.01
65 30.16 1.80 32.03 1.87 33.90 1.94 35.26 1.96 37.65 2.00 39.52 2.04
70 30.13 1.83 32.01 1.89 33.88 1.96 35.23 1.98 37.62 2.02 39.49 2.06
75 29.41 1.92 31.28 2.00 33.14 2.07 34.49 2.09 36.88 2.13 38.74 2.17
80 28.68 2.02 30.55 2.10 32.41 2.17 33.75 2.20 36.13 2.24 38.00 2.29
85 27.97 2.12 29.82 2.20 31.68 2.28 33.02 2.31 35.40 2.35 37.25 2.40
90 27.25 2.22 29.10 2.30 30.95 2.39 32.29 2.41 34.66 2.46 36.51 2.51
95 26.47 2.32 28.31 2.40 30.15 2.49 31.00 2.52 33.84 2.57 35.69 2.62
100 25.82 2.42 27.67 2.51 29.51 2.60 30.60 2.63 33.20 2.68 35.04 2.73
105 25.18 2.52 27.02 2.61 28.87 2.70 30.20 2.73 32.55 2.79 34.40 2.84
110 24.53 2.61 26.38 2.71 28.22 2.81 29.55 2.84 31.91 2.89 33.75 2.95
115 23.89 2.71 25.73 2.81 27.58 2.91 28.91 2.95 31.26 3.00 33.11 3.06
118 23.50 2.77 25.35 2.87 27.19 2.98 28.52 3.01 30.88 3.07 32.72 3.13
122 23.37 2.85 25.22 2.96 27.06 3.06 28.39 3.10 30.75 3.16 32.59 3.22
7 + 7 + 18
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25
1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
Table 86: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
94 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
9 + 9 + 15
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25 1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
9 + 12 + 12
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25
1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
Table 87: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 95
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 9 + 18
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25 1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
7 + 12 + 15
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25
1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
Table 88: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
96 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 89: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
9 + 9 + 18
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25 1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
9 + 12 + 15
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25
1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 97
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Cooling Capacity Tables
PERFORMANCE DATA
Table 90: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
12 + 12 + 12
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25 1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
7 + 12 + 18
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25
1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
98 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 91: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 15 + 15
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25 1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
7 + 7 + 24
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25
1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 99
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Cooling Capacity Tables
PERFORMANCE DATA
Table 92: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
9 + 12 + 18
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25 1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
9 + 15 + 15
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25
1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
100 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 93: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
12 + 12 + 15
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25 1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
7 + 9 + 24
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25
1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 101
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Cooling Capacity Tables
PERFORMANCE DATA
Table 94: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 15 + 18
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25 1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
9 + 9 + 24
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25
1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
102 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 95: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
9 + 15 + 18
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25 1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
12 + 12 + 18
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25
1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 103
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Cooling Capacity Tables
PERFORMANCE DATA
Table 96: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
12 + 15 + 15
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25 1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
7 + 12 + 24
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25
1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
104 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 97: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 18 + 18
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25 1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
9 + 12 + 24
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25
1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 105
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 98: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
9 + 18 + 18
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25 1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
12 + 15 + 18
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25
1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
Cooling Capacity Tables
PERFORMANCE DATA
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
106 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 99: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
15 + 15 + 15
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25 1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
7 + 15 + 24
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25
1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 107
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 100: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
9 + 15 + 24
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25 1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
12 + 12 + 24
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25
1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
Cooling Capacity Tables
PERFORMANCE DATA
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
108 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 101: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
12 + 18 + 18
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25 1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
15 + 15 + 18
14 31.37 1.61 33.32 1.67 35.27 1.73 36.67 1.75 39.16 1.79 41.11 1.82
20 31.35 1.64 33.29 1.70 35.24 1.76 36.64 1.78 39.13 1.81 41.08 1.85
25 31.32 1.66 33.27 1.72 35.21 1.78 36.62 1.81 39.10 1.84 41.05 1.88
30 31.30 1.68 33.24 1.75 35.19 1.81 36.59 1.83 39.07 1.86 41.02 1.90
35 31.27 1.71 33.22 1.77 35.16 1.83 36.56 1.86 39.04 1.89 40.99 1.93
40 31.25
1.73 33.19 1.79 35.13 1.86 36.53 1.88 39.01 1.92 40.95 1.95
45 31.23 1.75 33.17 1.82 35.10 1.88 36.51 1.91 38.98 1.94 40.92 1.98
50 31.20 1.78 33.14 1.84 35.08 1.91 36.48 1.93 38.95 1.97 40.89 2.01
55 31.18 1.80 33.11 1.87 35.05 1.93 36.45 1.96 38.92 1.99 40.86 2.03
60 31.15 1.82 33.09 1.89 35.02 1.96 36.42 1.98 38.89 2.02 40.83 2.06
65 31.13 1.85 33.06 1.91 35.00 1.98 36.39 2.01 38.86 2.04 40.80 2.09
70 31.11 1.87 33.04 1.94 34.97 2.01 36.37 2.03 38.83 2.07 40.77 2.11
75 30.36 1.97 32.28 2.04 34.21 2.12 35.60 2.14 38.07 2.18 39.99 2.23
80 29.61 2.07 31.53 2.15 33.45 2.23 34.84 2.25 37.30 2.29 39.22 2.34
85 28.87 2.17 30.78 2.25 32.70 2.33 34.09 2.36 36.54 2.40 38.46 2.45
90 28.13 2.27 30.04 2.36 31.95 2.44 33.33 2.47 35.78 2.52 37.69 2.57
95 27.32 2.37 29.22 2.46 31.13 2.55 32.00 2.58 34.93 2.63 36.84 2.68
100 26.65 2.47 28.56 2.57 30.46 2.66 31.59 2.69 34.27 2.74 36.17 2.80
105 25.99 2.58 27.89 2.67 29.80 2.77 31.17 2.80 33.60 2.85 35.51 2.91
110 25.32 2.68 27.23 2.77 29.13 2.88 30.51 2.91 32.94 2.96 34.84 3.02
115 24.66 2.78 26.56 2.88 28.47 2.98 29.84 3.02 32.27 3.08 34.18 3.14
118 24.26 2.84 26.16 2.94 28.07 3.05 29.44 3.08 31.87 3.14 33.78 3.21
122 24.13 2.92 26.03 3.03 27.93 3.14 29.31 3.17 31.74 3.23 33.64 3.30
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 109
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 7 + 7
+ 7
14 27.45 1.38 29.15 1.43 30.86 1.48 32.09 1.50 34.27 1.52 35.97 1.55
20 27.43 1.40 29.13 1.45 30.83 1.50 32.06 1.52 34.24 1.55 35.94 1.58
25 27.41 1.42 29.11 1.47 30.81 1.52 32.04 1.54 34.21 1.57 35.92 1.60
30 27.39 1.44 29.09 1.49 30.79 1.54 32.02 1.56 34.19 1.59 35.89 1.62
35 27.36 1.46 29.06 1.51 30.76 1.56 31.99 1.58 34.16 1.61 35.86 1.64
40 27.34 1.48 29.04 1.53 30.74 1.59 31.97 1.60 34.14 1.63 35.83 1.67
45 27.32 1.50 29.02 1.55 30.72 1.61 31.94 1.63 34.11 1.66 35.81 1.69
50 27.30 1.52 29.00 1.57 30.69 1.63 31.92 1.65 34.08 1.68 35.78 1.71
55 27.28 1.54 28.98 1.59 30.67 1.65 31.89 1.67 34.06 1.70 35.75 1.73
60 27.26 1.55 28.95 1.61 30.65 1.67 31.87 1.69 34.03 1.72 35.72 1.76
65 27.24 1.57 28.93 1.63 30.62 1.69 31.84 1.71 34.01 1.74 35.70 1.78
70 27.22 1.59 28.91 1.65 30.60 1.71 31.82 1.73 33.98 1.77 35.67 1.80
75 26.56 1.68 28.25 1.74 29.94 1.81 31.15 1.83 33.31 1.86 34.99 1.90
80 25.91 1.77 27.59 1.83 29.27 1.90 30.49 1.92 32.64 1.96 34.32 1.99
85 25.26 1.85 26.94 1.92 28.61 1.99 29.83 2.01 31.97 2.05 33.65 2.09
90 24.61 1.94 26.28 2.01 27.96 2.08 29.17 2.11 31.30 2.15 32.98 2.19
95 23.91 2.02 25.57 2.10 27.24 2.17 28.00 2.20 30.57 2.24 32.23 2.29
100 23.32 2.11 24.99 2.19 26.65 2.27 27.64 2.29 29.98 2.34 31.65 2.38
105 22.74 2.20 24.41 2.28 26.07 2.36 27.27 2.39 29.40 2.43 31.07 2.48
110 22.16 2.28 23.82 2.37 25.49 2.45 26.69 2.48 28.82 2.53 30.49 2.58
115 21.58 2.37 23.24 2.45 24.91 2.54 26.11 2.57 28.24 2.62 29.90 2.67
118 21.23 2.42 22.89 2.51 24.56 2.60 25.76 2.63 27.89 2.68 29.55 2.73
122 21.11 2.49 22.78 2.58 24.44 2.67 25.64 2.70 27.77 2.76 29.44 2.81
7 + 7 + 7
+ 9
14 29.41 1.47 31.24 1.52 33.06 1.58 34.38 1.60 36.71 1.63 38.54 1.66
20 29.39 1.49 31.21 1.55 33.04 1.60 34.35 1.62 36.69 1.65 38.51 1.68
25 29.36 1.51 31.19 1.57 33.01 1.63 34.33 1.64 36.66 1.67 38.48 1.71
30 29.34 1.53 31.16 1.59 32.99 1.65 34.30 1.67 36.63 1.70 38.45 1.73
35 29.32 1.56 31.14 1.61 32.96 1.67 34.28 1.69 36.60 1.72 38.42 1.76
40 29.30 1.58 31.12 1.63 32.94 1.69 34.25 1.71 36.57 1.75 38.39 1.78
45 29.27 1.60 31.09 1.66 32.91 1.72 34.22 1.74 36.55 1.77 38.36 1.80
50 29.25 1.62 31.07 1.68 32.89 1.74 34.20 1.76 36.52 1.79 38.34 1.83
55 29.23 1.64 31.04 1.70 32.86 1.76 34.17 1.78 36.49 1.82 38.31 1.85
60 29.21 1.66 31.02 1.72 32.83 1.78 34.14 1.80 36.46 1.84 38.28 1.88
65 29.18 1.68 31.00 1.74 32.81 1.81 34.12 1.83 36.43 1.86 38.25 1.90
70 29.16 1.70 30.97 1.77 32.78 1.83 34.09 1.85 36.41 1.89 38.22 1.92
75 28.46 1.79 30.27 1.86 32.07 1.93 33.38 1.95 35.69 1.99 37.49 2.03
80 27.76 1.89 29.56 1.96 31.36 2.03 32.66 2.05 34.97 2.09 36.77 2.13
85 27.06 1.98 28.86 2.05 30.66 2.13 31.96 2.15 34.25 2.19 36.05 2.23
90 26.37 2.07 28.16 2.15 29.95 2.22 31.25 2.25 33.54 2.29 35.33 2.34
95 25.61 2.16 27.40 2.24 29.18 2.32 30.00 2.35 32.75 2.39 34.53 2.44
100 24.99 2.25 26.77 2.34 28.56 2.42 29.61 2.45 32.13 2.50 33.91 2.55
105 24.37 2.35 26.15 2.43 27.93 2.52 29.22 2.55 31.50 2.60 33.29 2.65
110 23.74 2.44 25.53 2.53 27.31 2.62 28.60 2.65 30.88 2.70 32.66 2.75
115 23.12 2.53 24.90 2.62 26.69 2.72 27.98 2.75 30.26 2.80 32.04 2.86
118 22.74 2.59 24.53 2.68 26.31 2.78 27.60 2.81 29.88 2.86 31.67 2.92
122 22.62 2.66 24.40 2.76 26.19 2.86 27.48 2.89 29.76 2.94 31.54 3.00
Table 102: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
PERFORMANCE DATA
Cooling Capacity Tables
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
110 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 7 + 9
+ 9
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
7 + 7 + 7
+ 12
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
PERFORMANCE DATA
Cooling Capacity Tables
Table 103: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
MULTI F OUTDOOR UNIT | 111
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 9 + 9
+ 9
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
7 + 7 + 9
+ 12
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
Table 104: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
112 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 7 + 7
+ 15
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
9 + 9 + 9
+ 9
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
Table 105: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 113
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 9 + 9
+ 12
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
7 + 7 + 9
+ 15
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
Table 106: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
114 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 7 + 12
+ 12
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
7 + 7 + 7
+ 18
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
Table 107: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 115
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
9 + 9 + 9
+ 12
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
7 + 9 + 9
+ 15
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
Table 108: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
116 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 9 + 12
+ 12
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
7 + 7 + 9
+ 18
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
Table 109: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 117
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 7 + 12
+ 15
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
9 + 9 + 9
+ 15
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
Table 110: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
118 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
9 + 9 + 12
+ 12
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
7 + 9 + 9
+ 18
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
Table 111: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 119
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 9 + 12
+ 15
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
7 + 12 + 12
+ 12
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
Table 112: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
120 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 7 + 12
+ 18
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
7 + 7 + 15
+ 15
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
Table 113: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 121
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 7 + 7
+ 24
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
9 + 9 + 9
+ 18
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
Table 114: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
122 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
9 + 9 + 12
+ 15
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
9 + 12 + 12
+ 12
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
Table 115: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 123
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 9 + 12
+ 18
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
7 + 9 + 15
+ 15
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
Table 116: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
124 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 12 + 12
+ 15
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
7 + 7 + 9
+ 24
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
Table 117: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 125
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 7 + 15
+ 18
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
9 + 9 + 12
+ 18
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
Table 118: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
126 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
9 + 9 + 15
+ 15
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
12 + 12 + 12
+ 12
14 31.37 1.54 33.32 1.60 35.27 1.65 36.67 1.67 39.16 1.71 41.11 1.74
20 31.35 1.56 33.29 1.62 35.24 1.68 36.64 1.70 39.13 1.73 41.08 1.76
25 31.32 1.58 33.27 1.64 35.21 1.70 36.62 1.72 39.10 1.75 41.05 1.79
30 31.30 1.61 33.24 1.67 35.19 1.73 36.59 1.75 39.07 1.78 41.02 1.81
35 31.27 1.63 33.22 1.69 35.16 1.75 36.56 1.77 39.04 1.80 40.99 1.84
40 31.25 1.65 33.19 1.71 35.13 1.77 36.53 1.79 39.01 1.83 40.95 1.86
45 31.23 1.67 33.17 1.73 35.10 1.80 36.51 1.82 38.98 1.85 40.92 1.89
50 31.20 1.69 33.14 1.76 35.08 1.82 36.48 1.84 38.95 1.88 40.89 1.91
55 31.18 1.72 33.11 1.78 35.05 1.84 36.45 1.87 38.92 1.90 40.86 1.94
60 31.15 1.74 33.09 1.80 35.02 1.87 36.42 1.89 38.89 1.93 40.83 1.96
65 31.13 1.76 33.06 1.83 35.00 1.89 36.39 1.91 38.86 1.95 40.80 1.99
70 31.11 1.78 33.04 1.85 34.97 1.92 36.37 1.94 38.83 1.97 40.77 2.01
75 30.36 1.88 32.28 1.95 34.21 2.02 35.60 2.04 38.07 2.08 39.99 2.12
80 29.61 1.98 31.53 2.05 33.45 2.12 34.84 2.15 37.30 2.19 39.22 2.23
85 28.87 2.07 30.78 2.15 32.70 2.23 34.09 2.25 36.54 2.29 38.46 2.34
90 28.13 2.17 30.04 2.25 31.95 2.33 33.33 2.36 35.78 2.40 37.69 2.45
95 27.32 2.26 29.22 2.35 31.13 2.43 32.00 2.46 34.93 2.51 36.84 2.56
100 26.65 2.36 28.56 2.45 30.46 2.54 31.59 2.57 34.27 2.61 36.17 2.67
105 25.99 2.46 27.89 2.55 29.80 2.64 31.17 2.67 33.60 2.72 35.51 2.77
110 25.32 2.55 27.23 2.65 29.13 2.74 30.51 2.77 32.94 2.83 34.84 2.88
115 24.66 2.65 26.56 2.75 28.47 2.85 29.84 2.88 32.27 2.93 34.18 2.99
118 24.26 2.71 26.16 2.81 28.07 2.91 29.44 2.94 31.87 3.00 33.78 3.06
122 24.13 2.78 26.03 2.89 27.93 2.99 29.31 3.03 31.74 3.08 33.64 3.14
Table 119: LMU36CHV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 127
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Ducted
Indoor Units
9 + 9
14 15.44 1.11 16.40 1.15 17.36 1.20 18.05 1.21 19.28 1.23 20.23 1.26
20 15.43 1.13 16.39 1.17 17.34 1.21 18.04 1.23 19.26 1.25 20.22 1.28
25 15.42 1.15 16.37 1.19 17.33 1.23 18.02 1.24 19.25 1.27 20.20 1.29
30 15.40 1.16 16.36 1.20 17.32 1.25 18.01 1.26 19.23 1.29 20.19 1.31
35 15.39 1.18 16.35 1.22 17.30 1.26 17.99 1.28 19.22 1.30 20.17 1.33
40 15.38 1.19 16.34 1.24 17.29 1.28 17.98 1.30 19.20 1.32 20.16 1.35
45 15.37 1.21 16.32 1.25 17.28 1.30 17.97 1.31 19.19 1.34 20.14 1.37
50 15.36 1.23 16.31 1.27 17.26 1.32 17.95 1.33 19.17 1.36 20.13 1.38
55 15.35 1.24 16.30 1.29 17.25 1.33 17.94 1.35 19.16 1.37 20.11 1.40
60 15.33 1.26 16.29 1.30 17.24 1.35 17.93 1.37 19.14 1.39 20.10 1.42
65 15.32 1.27 16.27 1.32 17.23 1.37 17.91 1.38 19.13 1.41 20.08 1.44
70 15.31 1.29 16.26 1.34 17.21 1.39 17.90 1.40 19.11 1.43 20.06 1.46
75 14.94 1.36 15.89 1.41 16.84 1.46 17.52 1.48 18.74 1.50 19.68 1.53
80 14.57 1.43 15.52 1.48 16.47 1.53 17.15 1.55 18.36 1.58 19.30 1.61
85 14.21 1.50 15.15 1.55 16.10 1.61 16.78 1.63 17.98 1.66 18.93 1.69
90 13.84 1.57 14.78 1.62 15.73 1.68 16.41 1.70 17.61 1.74 18.55 1.77
95 13.45 1.64 14.38 1.70 15.32 1.76 15.75 1.78 17.19 1.81 18.13 1.85
100 13.12 1.71 14.06 1.77 14.99 1.83 15.55 1.85 16.87 1.89 17.80 1.93
105 12.79 1.78 13.73 1.84 14.67 1.91 15.34 1.93 16.54 1.97 17.48 2.01
110 12.46 1.85 13.40 1.91 14.34 1.98 15.01 2.01 16.21 2.04 17.15 2.08
115 12.14 1.92 13.07 1.99 14.01 2.06 14.69 2.08 15.88 2.12 16.82 2.16
118 11.94 1.96 12.88 2.03 13.81 2.10 14.49 2.13 15.69 2.17 16.62 2.21
122 11.87 2.01 12.81 2.09 13.75 2.16 14.43 2.19 15.62 2.23 16.56 2.27
9 + 12
14 18.01 1.28 19.13 1.32 20.25 1.37 21.06 1.39 22.49 1.41 23.61 1.44
20 18.00 1.29 19.12 1.34 20.23 1.39 21.04 1.41 22.47 1.43 23.59 1.46
25 17.99 1.31 19.10 1.36 20.22 1.41 21.03 1.43 22.45 1.45 23.57 1.48
30 17.97 1.33 19.09 1.38 20.20 1.43 21.01 1.45 22.44 1.47 23.55 1.50
35 17.96 1.35 19.07 1.40 20.19 1.45 20.99 1.47 22.42 1.49 23.53 1.52
40 17.94 1.37 19.06
1.42 20.17 1.47 20.98 1.49 22.40 1.51 23.52 1.54
45 17.93 1.39 19.04 1.44 20.16 1.49 20.96 1.51 22.38 1.53 23.50 1.56
50 17.92 1.40 19.03 1.45 20.14 1.51 20.95 1.53 22.37 1.55 23.48 1.58
55 17.90 1.42 19.01 1.47 20.13 1.53 20.93 1.55 22.35 1.57 23.46 1.61
60 17.89 1.44 19.00 1.49 20.11 1.55 20.91 1.56 22.33 1.59 23.44 1.63
65 17.88 1.46 18.99 1.51 20.10 1.57 20.90 1.58 22.32 1.61 23.43 1.65
70 17.86 1.48 18.97 1.53 20.08 1.59 20.88 1.60 22.30 1.63 23.41 1.67
75 17.43 1.56 18.54 1.61 19.65 1.67 20.44 1.69 21.86 1.72 22.96 1.76
80 17.00 1.64 18.11 1.70 19.21 1.76 20.01 1.78 21.42 1.81 22.52 1.85
85 16.58 1.72 17.68 1.78 18.78 1.84 19.57 1.86 20.98 1.90 22.08 1.94
90 16.15 1.80 17.25 1.86 18.35 1.93 19.14 1.95 20.54 1.99 21.64 2.03
95 15.69 1.87 16.78 1.94 17.87 2.01 18.38 2.04 20.06 2.08 21.15 2.12
100 15.31 1.95 16.40 2.03 17.49 2.10 18.14 2.12 19.68 2.16 20.77 2.21
105 14.92 2.03 16.02 2.11 17.11 2.19 17.90 2.21 19.30 2.25 20.39 2.30
110 14.54 2.11 15.63 2.19 16.73 2.27 17.52 2.30 18.91 2.34 20.01 2.39
115 14.16 2.19 15.25 2.27 16.35 2.36 17.13 2.38 18.53 2.43 19.62 2.48
118 13.93 2.24 15.02 2.32 16.12 2.41 16.91 2.44 18.30 2.48 19.40 2.53
122 13.85 2.31 14.95 2.39 16.04 2.48 16.83 2.51 18.23 2.55 19.32 2.60
Table 120: LMU36CHV Cooling Capacity Table — Ducted Indoor Units
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
128 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Ducted
Indoor Units
12 + 12
14 20.59 1.41 21.86 1.46 23.14 1.52 24.07 1.53 25.70 1.56 26.98 1.59
20 20.57 1.43 21.85 1.48 23.13 1.54 24.05 1.56 25.68 1.58 26.96 1.62
25 20.55 1.45 21.83 1.50 23.11 1.56 24.03 1.58 25.66 1.61 26.94 1.64
30 20.54 1.47 21.81 1.53 23.09 1.58 24.01 1.60 25.64 1.63 26.92 1.66
35 20.52 1.49 21.80 1.55 23.07 1.60 23.99 1.62 25.62 1.65 26.90 1.69
40 20.51 1.51 21.78 1.57 23.05 1.62 23.97 1.64 25.60 1.67 26.88 1.71
45 20.49 1.53 21.76 1.59 23.04 1.65 23.96 1.67 25.58 1.70 26.86 1.73
50 20.48 1.55 21.75 1.61 23.02 1.67 23.94 1.69 25.56 1.72 26.83 1.75
55 20.46 1.57 21.73 1.63 23.00 1.69 23.92 1.71 25.54 1.74 26.81 1.78
60 20.44 1.59 21.71 1.65 22.98 1.71 23.90 1.73 25.52 1.76 26.79 1.80
65 20.43 1.61 21.70 1.67 22.97 1.73 23.88 1.75 25.50 1.79 26.77 1.82
70 20.41 1.63 21.68 1.69 22.95 1.76 23.86 1.78 25.48 1.81 26.75 1.85
75 19.92 1.72 21.19 1.79 22.45 1.85 23.36 1.87 24.98 1.91 26.25 1.95
80 19.43 1.81 20.69 1.88 21.95 1.94 22.87 1.97 24.48 2.00 25.74 2.04
85 18.94 1.90 20.20 1.97 21.46 2.04 22.37 2.06 23.98 2.10 25.24 2.14
90 18.46 1.99 19.71 2.06 20.97 2.13 21.87 2.16 23.48 2.20 24.73 2.24
95 17.93 2.07 19.18 2.15 20.43 2.23 21.00 2.25 22.93 2.30 24.17 2.34
100 17.49 2.16 18.74 2.24 19.99 2.32 20.73 2.35 22.49 2.39 23.74 2.44
105 17.06 2.25 18.30 2.33 19.55 2.42 20.46 2.45 22.05 2.49 23.30 2.54
110 16.62 2.34 17.87 2.42 19.12 2.51 20.02 2.54 21.62 2.59 22.86 2.64
115 16.18 2.43 17.43 2.52 18.68 2.61 19.58 2.64 21.18 2.69 22.43 2.74
118 15.92 2.48 17.17 2.57 18.42 2.66 19.32 2.70 20.92 2.75 22.17 2.80
122 15.83 2.55 17.08 2.64 18.33 2.74 19.23 2.77 20.83 2.82 22.08 2.88
9 + 18
14 23.16 1.57 24.60 1.62 26.04 1.68 27.07 1.70 28.91 1.73 30.35 1.77
20 23.14 1.59 24.58 1.65 26.02 1.71 27.05 1.73 28.89 1.76 30.33 1.79
25 23.12 1.61 24.56 1.67 26.00 1.73 27.03 1.75 28.87 1.78 30.30 1.82
30 23.11 1.63 24.54 1.69 25.98 1.76 27.01 1.78 28.85 1.81 30.28 1.85
35 23.09 1.66 24.52 1.72 25.96 1.78 26.99 1.80 28.82 1.83 30.26 1.87
40 23.07 1.68 24.50
1.74 25.94 1.80 26.97 1.82 28.80 1.86 30.24 1.90
45 23.05 1.70 24.49 1.76 25.92 1.83 26.95 1.85 28.78 1.88 30.21 1.92
50 23.04 1.72 24.47 1.79 25.90 1.85 26.93 1.87 28.76 1.91 30.19 1.95
55 23.02 1.75 24.45 1.81 25.88 1.88 26.91 1.90 28.74 1.93 30.17 1.97
60 23.00 1.77 24.43 1.83 25.86 1.90 26.89 1.92 28.71 1.96 30.14 2.00
65 22.98 1.79 24.41 1.86 25.84 1.92 26.87 1.95 28.69 1.98 30.12 2.02
70 22.97 1.81 24.39 1.88 25.82 1.95 26.85 1.97 28.67 2.01 30.10 2.05
75 22.41 1.91 23.84 1.98 25.26 2.05 26.29 2.08 28.10 2.12 29.53 2.16
80 21.86 2.01 23.28 2.08 24.70 2.16 25.72 2.18 27.54 2.22 28.96 2.27
85 21.31 2.11 22.73 2.18 24.14 2.26 25.17 2.29 26.98 2.33 28.39 2.38
90 20.76 2.21 22.18 2.29 23.59 2.37 24.61 2.40 26.41 2.44 27.83 2.49
95 20.17 2.30 21.58 2.39 22.98 2.47 23.63 2.50 25.79 2.55 27.20 2.60
100 19.68 2.40 21.08 2.49 22.49 2.58 23.32 2.61 25.30 2.66 26.70 2.71
105 19.19 2.50 20.59 2.59 22.00 2.68 23.01 2.72 24.81 2.77 26.21 2.82
110 18.70 2.60 20.10 2.69 21.51 2.79 22.52 2.82 24.32 2.87 25.72 2.93
115 18.21 2.69 19.61 2.79 21.02 2.90 22.03 2.93 23.83 2.98 25.23 3.04
118 17.91 2.75 19.32 2.85 20.72 2.96 21.74 2.99 23.53 3.05 24.94 3.11
122 17.81 2.83 19.22 2.94 20.62 3.04 21.64 3.08 23.43 3.13 24.84 3.20
PERFORMANCE DATA
Cooling Capacity Tables
Table 121: LMU36CHV Cooling Capacity Table — Ducted Indoor Units (continued)
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
MULTI F OUTDOOR UNIT | 129
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Ducted
Indoor Units
12 + 18
14 25.73 1.70 27.33 1.76 28.93 1.83 30.08 1.85 32.13 1.88 33.72 1.92
20 25.71 1.73 27.31 1.79 28.91 1.86 30.06 1.88 32.10 1.91 33.70 1.95
25 25.69 1.75 27.29 1.82 28.88 1.88 30.04 1.90 32.08 1.94 33.67 1.98
30 25.67 1.78 27.27 1.84 28.86 1.91 30.01 1.93 32.05 1.97 33.65 2.01
35 25.65 1.80 27.25 1.87 28.84 1.93 29.99 1.96 32.03 1.99 33.62 2.03
40 25.63 1.82 27.23 1.89 28.82 1.96 29.97 1.98 32.00 2.02 33.59 2.06
45 25.62 1.85 27.21 1.92 28.80 1.99 29.95 2.01 31.98 2.05 33.57 2.09
50 25.60 1.87 27.19 1.94 28.77 2.01 29.92 2.04 31.95 2.07 33.54 2.12
55 25.58 1.90 27.16 1.97 28.75 2.04 29.90 2.06 31.93 2.10 33.52 2.14
60 25.56 1.92 27.14 1.99 28.73 2.07 29.88 2.09 31.90 2.13 33.49 2.17
65 25.54 1.95 27.12 2.02 28.71 2.09 29.85 2.12 31.88 2.16 33.47 2.20
70 25.52 1.97 27.10 2.04 28.69 2.12 29.83 2.14 31.86 2.18 33.44 2.23
75 24.90 2.08 26.48 2.15 28.06 2.23 29.21 2.26 31.23 2.30 32.81 2.35
80 24.29 2.18 25.87 2.26 27.44 2.35 28.58 2.37 30.60 2.42 32.17 2.47
85 23.68 2.29 25.25 2.37 26.83 2.46 27.96 2.49 29.97 2.54 31.55 2.59
90 23.07 2.40 24.64 2.48 26.21 2.58 27.34 2.60 29.35 2.65 30.92 2.71
95 22.41 2.50 23.97 2.59 25.53 2.69 26.25 2.72 28.66 2.77 30.22 2.83
100 21.87 2.61 23.43 2.70 24.99 2.80 25.91 2.84 28.11 2.89 29.67 2.95
105 21.32 2.72 22.88 2.82 24.44 2.92 25.57 2.95 27.56 3.01 29.13 3.07
110 20.77 2.82 22.34 2.93 23.90 3.03 25.02 3.07 27.02 3.12 28.58 3.19
115 20.23 2.93 21.79 3.04 23.35 3.15 24.48 3.18 26.47 3.24 28.03 3.31
118 19.90 2.99 21.46 3.10 23.02 3.21 24.15 3.25 26.15 3.31 27.71 3.38
122 19.79 3.08 21.35 3.19 22.91 3.31 24.04 3.34 26.04 3.41 27.60 3.48
9 + 24
14 27.45 1.79 29.15 1.85 30.86 1.92 32.09 1.94 34.27 1.98 35.97 2.02
20 27.43 1.81 29.13 1.88 30.83 1.95 32.06 1.97 34.24 2.01 35.94 2.05
25 27.41 1.84 29.11 1.90 30.81 1.97 32.04 2.00 34.21 2.03 35.92 2.08
30 27.39 1.86 29.09 1.93 30.79 2.00 32.02 2.03 34.19 2.06 35.89 2.10
35 27.36 1.89 29.06 1.96 30.76 2.03 31.99 2.05 34.16 2.09 35.86 2.13
40 27.34 1.91 29.04
1.98 30.74 2.06 31.97 2.08 34.14 2.12 35.83 2.16
45 27.32 1.94 29.02 2.01 30.72 2.08 31.94 2.11 34.11 2.15 35.81 2.19
50 27.30 1.97 29.00 2.04 30.69 2.11 31.92 2.14 34.08 2.18 35.78 2.22
55 27.28 1.99 28.98 2.06 30.67 2.14 31.89 2.16 34.06 2.21 35.75 2.25
60 27.26 2.02 28.95 2.09 30.65 2.17 31.87 2.19 34.03 2.23 35.72 2.28
65 27.24 2.04 28.93 2.12 30.62 2.20 31.84 2.22 34.01 2.26 35.70 2.31
70 27.22 2.07 28.91 2.14 30.60 2.22 31.82 2.25 33.98 2.29 35.67 2.34
75 26.56 2.18 28.25 2.26 29.94 2.34 31.15 2.37 33.31 2.41 34.99 2.46
80 25.91 2.29 27.59 2.38 29.27 2.46 30.49 2.49 32.64 2.54 34.32 2.59
85 25.26 2.40 26.94 2.49 28.61 2.58 29.83 2.61 31.97 2.66 33.65 2.71
90 24.61 2.52 26.28 2.61 27.96 2.70 29.17 2.73 31.30 2.78 32.98 2.84
95 23.91 2.63 25.57 2.72 27.24 2.82 28.00 2.85 30.57 2.91 32.23 2.97
100 23.32 2.74 24.99 2.84 26.65 2.94 27.64 2.98 29.98 3.03 31.65 3.09
105 22.74 2.85 24.41 2.95 26.07 3.06 27.27 3.10 29.40 3.16 31.07 3.22
110 22.16 2.96 23.82 3.07 25.49 3.18 26.69 3.22 28.82 3.28 30.49 3.34
115 21.58 3.07 23.24 3.19 24.91 3.30 26.11 3.34 28.24 3.40 29.90 3.47
118 21.23 3.14 22.89 3.25 24.56 3.37 25.76 3.41 27.89 3.48 29.55 3.55
122 21.11 3.23 22.78 3.35 24.44 3.47 25.64 3.51 27.77 3.58 29.44 3.65
PERFORMANCE DATA
Cooling Capacity Tables
Table 122: LMU36CHV Cooling Capacity Table — Ducted Indoor Units (continued)
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
130 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 123: LMU36CHV Cooling Capacity Table — Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Ducted
Indoor Units
18 + 18
14 27.45 1.79 29.15 1.85 30.86 1.92 32.09 1.94 34.27 1.98 35.97 2.02
20 27.43 1.81 29.13 1.88 30.83 1.95 32.06 1.97 34.24 2.01 35.94 2.05
25 27.41 1.84 29.11 1.90 30.81 1.97 32.04 2.00 34.21 2.03 35.92 2.08
30 27.39 1.86 29.09 1.93 30.79 2.00 32.02 2.03 34.19 2.06 35.89 2.10
35 27.36 1.89 29.06 1.96 30.76 2.03 31.99 2.05 34.16 2.09 35.86 2.13
40 27.34 1.91 29.04 1.98 30.74 2.06 31.97 2.08 34.14 2.12 35.83 2.16
45 27.32 1.94 29.02 2.01 30.72 2.08 31.94 2.11 34.11 2.15 35.81 2.19
50 27.30 1.97 29.00 2.04 30.69 2.11 31.92 2.14 34.08 2.18 35.78 2.22
55 27.28 1.99 28.98 2.06 30.67 2.14 31.89 2.16 34.06 2.21 35.75 2.25
60 27.26 2.02 28.95 2.09 30.65 2.17 31.87 2.19 34.03 2.23 35.72 2.28
65 27.24 2.04 28.93 2.12 30.62 2.20 31.84 2.22 34.01 2.26 35.70 2.31
70 27.22 2.07 28.91 2.14 30.60 2.22 31.82 2.25 33.98 2.29 35.67 2.34
75 26.56 2.18 28.25 2.26 29.94 2.34 31.15 2.37 33.31 2.41 34.99 2.46
80 25.91 2.29 27.59 2.38 29.27 2.46 30.49 2.49 32.64 2.54 34.32 2.59
85 25.26 2.40 26.94 2.49 28.61 2.58 29.83 2.61 31.97 2.66 33.65 2.71
90 24.61 2.52 26.28 2.61 27.96 2.70 29.17 2.73 31.30 2.78 32.98 2.84
95 23.91 2.63 25.57 2.72 27.24 2.82 28.00 2.85 30.57 2.91 32.23 2.97
100 23.32 2.74 24.99 2.84 26.65 2.94 27.64 2.98 29.98 3.03 31.65 3.09
105 22.74 2.85 24.41 2.95 26.07 3.06 27.27 3.10 29.40 3.16 31.07 3.22
110 22.16 2.96 23.82 3.07 25.49 3.18 26.69 3.22 28.82 3.28 30.49 3.34
115 21.58 3.07 23.24 3.19 24.91 3.30 26.11 3.34 28.24 3.40 29.90 3.47
118 21.23 3.14 22.89 3.25 24.56 3.37 25.76 3.41 27.89 3.48 29.55 3.55
122 21.11 3.23 22.78 3.35 24.44 3.47 25.64 3.51 27.77 3.58 29.44 3.65
12 + 24
14 27.45 1.79 29.15 1.85 30.86 1.92 32.09 1.94 34.27 1.98 35.97 2.02
20 27.43 1.81 29.13 1.88 30.83 1.95 32.06 1.97 34.24 2.01 35.94 2.05
25 27.41 1.84 29.11 1.90 30.81 1.97 32.04 2.00 34.21 2.03 35.92 2.08
30 27.39 1.86 29.09 1.93 30.79 2.00 32.02 2.03 34.19 2.06 35.89 2.10
35 27.36 1.89 29.06 1.96 30.76 2.03 31.99 2.05 34.16 2.09 35.86 2.13
40 27.34 1.91 29.04
1.98 30.74 2.06 31.97 2.08 34.14 2.12 35.83 2.16
45 27.32 1.94 29.02 2.01 30.72 2.08 31.94 2.11 34.11 2.15 35.81 2.19
50 27.30 1.97 29.00 2.04 30.69 2.11 31.92 2.14 34.08 2.18 35.78 2.22
55 27.28 1.99 28.98 2.06 30.67 2.14 31.89 2.16 34.06 2.21 35.75 2.25
60 27.26 2.02 28.95 2.09 30.65 2.17 31.87 2.19 34.03 2.23 35.72 2.28
65 27.24 2.04 28.93 2.12 30.62 2.20 31.84 2.22 34.01 2.26 35.70 2.31
70 27.22 2.07 28.91 2.14 30.60 2.22 31.82 2.25 33.98 2.29 35.67 2.34
75 26.56 2.18 28.25 2.26 29.94 2.34 31.15 2.37 33.31 2.41 34.99 2.46
80 25.91 2.29 27.59 2.38 29.27 2.46 30.49 2.49 32.64 2.54 34.32 2.59
85 25.26 2.40 26.94 2.49 28.61 2.58 29.83 2.61 31.97 2.66 33.65 2.71
90 24.61 2.52 26.28 2.61 27.96 2.70 29.17 2.73 31.30 2.78 32.98 2.84
95 23.91 2.63 25.57 2.72 27.24 2.82 28.00 2.85 30.57 2.91 32.23 2.97
100 23.32 2.74 24.99 2.84 26.65 2.94 27.64 2.98 29.98 3.03 31.65 3.09
105 22.74 2.85 24.41 2.95 26.07 3.06 27.27 3.10 29.40 3.16 31.07 3.22
110 22.16 2.96 23.82 3.07 25.49 3.18 26.69 3.22 28.82 3.28 30.49 3.34
115 21.58 3.07 23.24 3.19 24.91 3.30 26.11 3.34 28.24 3.40 29.90 3.47
118 21.23 3.14 22.89 3.25 24.56 3.37 25.76 3.41 27.89 3.48 29.55 3.55
122 21.11 3.23 22.78 3.35 24.44 3.47 25.64 3.51 27.77 3.58 29.44 3.65
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
MULTI F OUTDOOR UNIT | 131
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 124: LMU36CHV Cooling Capacity Table — Ducted Indoor Units (continued).
PERFORMANCE DATA
Cooling Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Ducted
Indoor Units
9 + 9 + 9
14 23.16 1.49 24.60 1.54 26.04 1.60 27.07 1.62 28.91 1.65 30.35 1.68
20 23.14 1.51 24.58 1.57 26.02 1.62 27.05 1.64 28.89 1.67 30.33 1.71
25 23.12 1.53 24.56 1.59 26.00 1.65 27.03 1.66 28.87 1.70 30.30 1.73
30 23.11 1.55 24.54 1.61 25.98 1.67 27.01 1.69 28.85 1.72 30.28 1.75
35 23.09 1.57 24.52 1.63 25.96 1.69 26.99 1.71 28.82 1.74 30.26 1.78
40 23.07 1.60 24.50 1.65 25.94 1.71 26.97 1.73 28.80 1.77 30.24 1.80
45 23.05 1.62 24.49 1.68 25.92 1.74 26.95 1.76 28.78 1.79 30.21 1.83
50 23.04 1.64 24.47 1.70 25.90 1.76 26.93 1.78 28.76 1.81 30.19 1.85
55 23.02 1.66 24.45 1.72 25.88 1.78 26.91 1.80 28.74 1.84 30.17 1.87
60 23.00 1.68 24.43 1.74 25.86 1.81 26.89 1.83 28.71 1.86 30.14 1.90
65 22.98 1.70 24.41 1.76 25.84 1.83 26.87 1.85 28.69 1.88 30.12 1.92
70 22.97 1.72 24.39 1.79 25.82 1.85 26.85 1.87 28.67 1.91 30.10 1.95
75 22.41 1.82 23.84 1.88 25.26 1.95 26.29 1.97 28.10 2.01 29.53 2.05
80 21.86 1.91 23.28 1.98 24.70 2.05 25.72 2.08 27.54 2.11 28.96 2.16
85 21.31 2.00 22.73 2.08 24.14 2.15 25.17 2.18 26.98 2.22 28.39 2.26
90 20.76 2.10 22.18 2.17 23.59 2.25 24.61 2.28 26.41 2.32 27.83 2.37
95 20.17 2.19 21.58 2.27 22.98 2.35 23.63 2.38 25.79 2.42 27.20 2.47
100 19.68 2.28 21.08 2.37 22.49 2.45 23.32 2.48 25.30 2.53 26.70 2.58
105 19.19 2.38 20.59 2.46 22.00 2.55 23.01 2.58 24.81 2.63 26.21 2.68
110 18.70 2.47 20.10 2.56 21.51 2.65 22.52 2.68 24.32 2.73 25.72 2.79
115 18.21 2.56 19.61 2.65 21.02 2.75 22.03 2.78 23.83 2.84 25.23 2.89
118 17.91 2.62 19.32 2.71 20.72 2.81 21.74 2.84 23.53 2.90 24.94 2.96
122 17.81 2.69 19.22 2.79 20.62 2.89 21.64 2.92 23.43 2.98 24.84 3.04
9 + 9 + 12
14 25.73 1.59 27.33 1.65 28.93 1.71 30.08 1.73 32.13 1.76 33.72 1.80
20 25.71 1.62 27.31 1.67 28.91 1.74 30.06 1.76 32.10 1.79 33.70 1.82
25 25.69 1.64 27.29 1.70 28.88 1.76 30.04 1.78 32.08 1.81 33.67 1.85
30 25.67 1.66 27.27 1.72 28.86 1.78 30.01 1.80 32.05 1.84 33.65 1.88
35 25.65 1.68 27.25 1.75 28.84 1.81 29.99 1.83 32.03 1.86 33.62 1.90
40 25.63 1.71 27.23
1.77 28.82 1.83 29.97 1.85 32.00 1.89 33.59 1.93
45 25.62 1.73 27.21 1.79 28.80 1.86 29.95 1.88 31.98 1.91 33.57 1.95
50 25.60 1.75 27.19 1.82 28.77 1.88 29.92 1.90 31.95 1.94 33.54 1.98
55 25.58 1.78 27.16 1.84 28.75 1.91 29.90 1.93 31.93 1.97 33.52 2.00
60 25.56 1.80 27.14 1.86 28.73 1.93 29.88 1.95 31.90 1.99 33.49 2.03
65 25.54 1.82 27.12 1.89 28.71 1.96 29.85 1.98 31.88 2.02 33.47 2.06
70 25.52 1.84 27.10 1.91 28.69 1.98 29.83 2.00 31.86 2.04 33.44 2.08
75 24.90 1.94 26.48 2.01 28.06 2.09 29.21 2.11 31.23 2.15 32.81 2.19
80 24.29 2.04 25.87 2.12 27.44 2.19 28.58 2.22 30.60 2.26 32.17 2.31
85 23.68 2.14 25.25 2.22 26.83 2.30 27.96 2.33 29.97 2.37 31.55 2.42
90 23.07 2.24 24.64 2.32 26.21 2.41 27.34 2.44 29.35 2.48 30.92 2.53
95 22.41 2.34 23.97 2.43 25.53 2.52 26.25 2.54 28.66 2.59 30.22 2.64
100 21.87 2.44 23.43 2.53 24.99 2.62 25.91 2.65 28.11 2.70 29.67 2.76
105 21.32 2.54 22.88 2.63 24.44 2.73 25.57 2.76 27.56 2.81 29.13 2.87
110 20.77 2.64 22.34 2.74 23.90 2.84 25.02 2.87 27.02 2.92 28.58 2.98
115 20.23 2.74 21.79 2.84 23.35 2.94 24.48 2.98 26.47 3.03 28.03 3.09
118 19.90 2.80 21.46 2.90 23.02 3.01 24.15 3.04 26.15 3.10 27.71 3.16
122 19.79 2.88 21.35 2.98 22.91 3.09 24.04 3.13 26.04 3.19 27.60 3.25
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
132 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Ducted
Indoor Units
9 + 12 + 12
14 27.45 1.67 29.15 1.73 30.86 1.79 32.09 1.81 34.27 1.85 35.97 1.89
20 27.43 1.69 29.13 1.76 30.83 1.82 32.06 1.84 34.24 1.88 35.94 1.91
25 27.41 1.72 29.11 1.78 30.81 1.85 32.04 1.87 34.21 1.90 35.92 1.94
30 27.39 1.74 29.09 1.81 30.79 1.87 32.02 1.89 34.19 1.93 35.89 1.97
35 27.36 1.77 29.06 1.83 30.76 1.90 31.99 1.92 34.16 1.96 35.86 1.99
40 27.34 1.79 29.04 1.86 30.74 1.92 31.97 1.95 34.14 1.98 35.83 2.02
45 27.32 1.81 29.02 1.88 30.72 1.95 31.94 1.97 34.11 2.01 35.81 2.05
50 27.30 1.84 29.00 1.91 30.69 1.97 31.92 2.00 34.08 2.03 35.78 2.08
55 27.28 1.86 28.98 1.93 30.67 2.00 31.89 2.02 34.06 2.06 35.75 2.10
60 27.26 1.89 28.95 1.95 30.65 2.03 31.87 2.05 34.03 2.09 35.72 2.13
65 27.24 1.91 28.93 1.98 30.62 2.05 31.84 2.08 34.01 2.11 35.70 2.16
70 27.22 1.93 28.91 2.00 30.60 2.08 31.82 2.10 33.98 2.14 35.67 2.18
75 26.56 2.04 28.25 2.11 29.94 2.19 31.15 2.22 33.31 2.26 34.99 2.30
80 25.91 2.14 27.59 2.22 29.27 2.30 30.49 2.33 32.64 2.37 34.32 2.42
85 25.26 2.25 26.94 2.33 28.61 2.41 29.83 2.44 31.97 2.49 33.65 2.54
90 24.61 2.35 26.28 2.44 27.96 2.53 29.17 2.56 31.30 2.60 32.98 2.66
95 23.91 2.46 25.57 2.55 27.24 2.64 28.00 2.67 30.57 2.72 32.23 2.77
100 23.32 2.56 24.99 2.65 26.65 2.75 27.64 2.78 29.98 2.83 31.65 2.89
105 22.74 2.66 24.41 2.76 26.07 2.86 27.27 2.90 29.40 2.95 31.07 3.01
110 22.16 2.77 23.82 2.87 25.49 2.97 26.69 3.01 28.82 3.07 30.49 3.13
115 21.58 2.87 23.24 2.98 24.91 3.09 26.11 3.12 28.24 3.18 29.90 3.24
118 21.23 2.94 22.89 3.04 24.56 3.15 25.76 3.19 27.89 3.25 29.55 3.32
122 21.11 3.02 22.78 3.13 24.44 3.24 25.64 3.28 27.77 3.34 29.44 3.41
9 + 9 + 18
14 27.45 1.67 29.15 1.73 30.86 1.79 32.09 1.81 34.27 1.85 35.97 1.89
20 27.43 1.69 29.13 1.76 30.83 1.82 32.06 1.84 34.24 1.88 35.94 1.91
25 27.41 1.72 29.11 1.78 30.81 1.85 32.04 1.87 34.21 1.90 35.92 1.94
30 27.39 1.74 29.09 1.81 30.79 1.87 32.02 1.89 34.19 1.93 35.89 1.97
35 27.36 1.77 29.06 1.83 30.76 1.90 31.99 1.92 34.16 1.96 35.86 1.99
40 27.34 1.79 29.04
1.86 30.74 1.92 31.97 1.95 34.14 1.98 35.83 2.02
45 27.32 1.81 29.02 1.88 30.72 1.95 31.94 1.97 34.11 2.01 35.81 2.05
50 27.30 1.84 29.00 1.91 30.69 1.97 31.92 2.00 34.08 2.03 35.78 2.08
55 27.28 1.86 28.98 1.93 30.67 2.00 31.89 2.02 34.06 2.06 35.75 2.10
60 27.26 1.89 28.95 1.95 30.65 2.03 31.87 2.05 34.03 2.09 35.72 2.13
65 27.24 1.91 28.93 1.98 30.62 2.05 31.84 2.08 34.01 2.11 35.70 2.16
70 27.22 1.93 28.91 2.00 30.60 2.08 31.82 2.10 33.98 2.14 35.67 2.18
75 26.56 2.04 28.25 2.11 29.94 2.19 31.15 2.22 33.31 2.26 34.99 2.30
80 25.91 2.14 27.59 2.22 29.27 2.30 30.49 2.33 32.64 2.37 34.32 2.42
85 25.26 2.25 26.94 2.33 28.61 2.41 29.83 2.44 31.97 2.49 33.65 2.54
90 24.61 2.35 26.28 2.44 27.96 2.53 29.17 2.56 31.30 2.60 32.98 2.66
95 23.91 2.46 25.57 2.55 27.24 2.64 28.00 2.67 30.57 2.72 32.23 2.77
100 23.32 2.56 24.99 2.65 26.65 2.75 27.64 2.78 29.98 2.83 31.65 2.89
105 22.74 2.66 24.41 2.76 26.07 2.86 27.27 2.90 29.40 2.95 31.07 3.01
110 22.16 2.77 23.82 2.87 25.49 2.97 26.69 3.01 28.82 3.07 30.49 3.13
115 21.58 2.87 23.24 2.98 24.91 3.09 26.11 3.12 28.24 3.18 29.90 3.24
118 21.23 2.94 22.89 3.04 24.56 3.15 25.76 3.19 27.89 3.25 29.55 3.32
122 21.11 3.02 22.78 3.13 24.44 3.24 25.64 3.28 27.77 3.34 29.44 3.41
Table 125: LMU36CHV Cooling Capacity Table — Ducted Indoor Units (continued).
PERFORMANCE DATA
Cooling Capacity Tables
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
MULTI F OUTDOOR UNIT | 133
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 126: LMU36CHV Cooling Capacity Table — Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Ducted
Indoor Units
12 + 12 + 12
14 27.45 1.67 29.15 1.73 30.86 1.79 32.09 1.81 34.27 1.85 35.97 1.89
20 27.43 1.69 29.13 1.76 30.83 1.82 32.06 1.84 34.24 1.88 35.94 1.91
25 27.41 1.72 29.11 1.78 30.81 1.85 32.04 1.87 34.21 1.90 35.92 1.94
30 27.39 1.74 29.09 1.81 30.79 1.87 32.02 1.89 34.19 1.93 35.89 1.97
35 27.36 1.77 29.06 1.83 30.76 1.90 31.99 1.92 34.16 1.96 35.86 1.99
40 27.34 1.79 29.04 1.86 30.74 1.92 31.97 1.95 34.14 1.98 35.83 2.02
45 27.32 1.81 29.02 1.88 30.72 1.95 31.94 1.97 34.11 2.01 35.81 2.05
50 27.30 1.84 29.00 1.91 30.69 1.97 31.92 2.00 34.08 2.03 35.78 2.08
55 27.28 1.86 28.98 1.93 30.67 2.00 31.89 2.02 34.06 2.06 35.75 2.10
60 27.26 1.89 28.95 1.95 30.65 2.03 31.87 2.05 34.03 2.09 35.72 2.13
65 27.24 1.91 28.93 1.98 30.62 2.05 31.84 2.08 34.01 2.11 35.70 2.16
70 27.22 1.93 28.91 2.00 30.60 2.08 31.82 2.10 33.98 2.14 35.67 2.18
75 26.56 2.04 28.25 2.11 29.94 2.19 31.15 2.22 33.31 2.26 34.99 2.30
80 25.91 2.14 27.59 2.22 29.27 2.30 30.49 2.33 32.64 2.37 34.32 2.42
85 25.26 2.25 26.94 2.33 28.61 2.41 29.83 2.44 31.97 2.49 33.65 2.54
90 24.61 2.35 26.28 2.44 27.96 2.53 29.17 2.56 31.30 2.60 32.98 2.66
95 23.91 2.46 25.57 2.55 27.24 2.64 28.00 2.67 30.57 2.72 32.23 2.77
100 23.32 2.56 24.99 2.65 26.65 2.75 27.64 2.78 29.98 2.83 31.65 2.89
105 22.74 2.66 24.41 2.76 26.07 2.86 27.27 2.90 29.40 2.95 31.07 3.01
110 22.16 2.77 23.82 2.87 25.49 2.97 26.69 3.01 28.82 3.07 30.49 3.13
115 21.58 2.87 23.24 2.98 24.91 3.09 26.11 3.12 28.24 3.18 29.90 3.24
118 21.23 2.94 22.89 3.04 24.56 3.15 25.76 3.19 27.89 3.25 29.55 3.32
122 21.11 3.02 22.78 3.13 24.44 3.24 25.64 3.28 27.77 3.34 29.44 3.41
9 + 12 + 18
14 27.45 1.67 29.15 1.73 30.86 1.79 32.09 1.81 34.27 1.85 35.97 1.89
20 27.43 1.69 29.13 1.76 30.83 1.82 32.06 1.84 34.24 1.88 35.94 1.91
25 27.41 1.72 29.11 1.78 30.81 1.85 32.04 1.87 34.21 1.90 35.92 1.94
30 27.39 1.74 29.09 1.81 30.79 1.87 32.02 1.89 34.19 1.93 35.89 1.97
35 27.36 1.77 29.06 1.83 30.76 1.90 31.99 1.92 34.16 1.96 35.86 1.99
40 27.34 1.79 29.04
1.86 30.74 1.92 31.97 1.95 34.14 1.98 35.83 2.02
45 27.32 1.81 29.02 1.88 30.72 1.95 31.94 1.97 34.11 2.01 35.81 2.05
50 27.30 1.84 29.00 1.91 30.69 1.97 31.92 2.00 34.08 2.03 35.78 2.08
55 27.28 1.86 28.98 1.93 30.67 2.00 31.89 2.02 34.06 2.06 35.75 2.10
60 27.26 1.89 28.95 1.95 30.65 2.03 31.87 2.05 34.03 2.09 35.72 2.13
65 27.24 1.91 28.93 1.98 30.62 2.05 31.84 2.08 34.01 2.11 35.70 2.16
70 27.22 1.93 28.91 2.00 30.60 2.08 31.82 2.10 33.98 2.14 35.67 2.18
75 26.56 2.04 28.25 2.11 29.94 2.19 31.15 2.22 33.31 2.26 34.99 2.30
80 25.91 2.14 27.59 2.22 29.27 2.30 30.49 2.33 32.64 2.37 34.32 2.42
85 25.26 2.25 26.94 2.33 28.61 2.41 29.83 2.44 31.97 2.49 33.65 2.54
90 24.61 2.35 26.28 2.44 27.96 2.53 29.17 2.56 31.30 2.60 32.98 2.66
95 23.91 2.46 25.57 2.55 27.24 2.64 28.00 2.67 30.57 2.72 32.23 2.77
100 23.32 2.56 24.99 2.65 26.65 2.75 27.64 2.78 29.98 2.83 31.65 2.89
105 22.74 2.66 24.41 2.76 26.07 2.86 27.27 2.90 29.40 2.95 31.07 3.01
110 22.16 2.77 23.82 2.87 25.49 2.97 26.69 3.01 28.82 3.07 30.49 3.13
115 21.58 2.87 23.24 2.98 24.91 3.09 26.11 3.12 28.24 3.18 29.90 3.24
118 21.23 2.94 22.89 3.04 24.56 3.15 25.76 3.19 27.89 3.25 29.55 3.32
122 21.11 3.02 22.78 3.13 24.44 3.24 25.64 3.28 27.77 3.34 29.44 3.41
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
134 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Ducted
Indoor Units
12 + 12 + 18
14 27.45 1.67 29.15 1.73 30.86 1.79 32.09 1.81 34.27 1.85 35.97 1.89
20 27.43 1.69 29.13 1.76 30.83 1.82 32.06 1.84 34.24 1.88 35.94 1.91
25 27.41 1.72 29.11 1.78 30.81 1.85 32.04 1.87 34.21 1.90 35.92 1.94
30 27.39 1.74 29.09 1.81 30.79 1.87 32.02 1.89 34.19 1.93 35.89 1.97
35 27.36 1.77 29.06 1.83 30.76 1.90 31.99 1.92 34.16 1.96 35.86 1.99
40 27.34 1.79 29.04 1.86 30.74 1.92 31.97 1.95 34.14 1.98 35.83 2.02
45 27.32 1.81 29.02 1.88 30.72 1.95 31.94 1.97 34.11 2.01 35.81 2.05
50 27.30 1.84 29.00 1.91 30.69 1.97 31.92 2.00 34.08 2.03 35.78 2.08
55 27.28 1.86 28.98 1.93 30.67 2.00 31.89 2.02 34.06 2.06 35.75 2.10
60 27.26 1.89 28.95 1.95 30.65 2.03 31.87 2.05 34.03 2.09 35.72 2.13
65 27.24 1.91 28.93 1.98 30.62 2.05 31.84 2.08 34.01 2.11 35.70 2.16
70 27.22 1.93 28.91 2.00 30.60 2.08 31.82 2.10 33.98 2.14 35.67 2.18
75 26.56 2.04 28.25 2.11 29.94 2.19 31.15 2.22 33.31 2.26 34.99 2.30
80 25.91 2.14 27.59 2.22 29.27 2.30 30.49 2.33 32.64 2.37 34.32 2.42
85 25.26 2.25 26.94 2.33 28.61 2.41 29.83 2.44 31.97 2.49 33.65 2.54
90 24.61 2.35 26.28 2.44 27.96 2.53 29.17 2.56 31.30 2.60 32.98 2.66
95 23.91 2.46 25.57 2.55 27.24 2.64 28.00 2.67 30.57 2.72 32.23 2.77
100 23.32 2.56 24.99 2.65 26.65 2.75 27.64 2.78 29.98 2.83 31.65 2.89
105 22.74 2.66 24.41 2.76 26.07 2.86 27.27 2.90 29.40 2.95 31.07 3.01
110 22.16 2.77 23.82 2.87 25.49 2.97 26.69 3.01 28.82 3.07 30.49 3.13
115 21.58 2.87 23.24 2.98 24.91 3.09 26.11 3.12 28.24 3.18 29.90 3.24
118 21.23 2.94 22.89 3.04 24.56 3.15 25.76 3.19 27.89 3.25 29.55 3.32
122 21.11 3.02 22.78 3.13 24.44 3.24 25.64 3.28 27.77 3.34 29.44 3.41
9 + 18 + 18
14 27.45 1.67 29.15 1.73 30.86 1.79 32.09 1.81 34.27 1.85 35.97 1.89
20 27.43 1.69 29.13 1.76 30.83 1.82 32.06 1.84 34.24 1.88 35.94 1.91
25 27.41 1.72 29.11 1.78 30.81 1.85 32.04 1.87 34.21 1.90 35.92 1.94
30 27.39 1.74 29.09 1.81 30.79 1.87 32.02 1.89 34.19 1.93 35.89 1.97
35 27.36 1.77 29.06 1.83 30.76 1.90 31.99 1.92 34.16 1.96 35.86 1.99
40 27.34 1.79 29.04
1.86 30.74 1.92 31.97 1.95 34.14 1.98 35.83 2.02
45 27.32 1.81 29.02 1.88 30.72 1.95 31.94 1.97 34.11 2.01 35.81 2.05
50 27.30 1.84 29.00 1.91 30.69 1.97 31.92 2.00 34.08 2.03 35.78 2.08
55 27.28 1.86 28.98 1.93 30.67 2.00 31.89 2.02 34.06 2.06 35.75 2.10
60 27.26 1.89 28.95 1.95 30.65 2.03 31.87 2.05 34.03 2.09 35.72 2.13
65 27.24 1.91 28.93 1.98 30.62 2.05 31.84 2.08 34.01 2.11 35.70 2.16
70 27.22 1.93 28.91 2.00 30.60 2.08 31.82 2.10 33.98 2.14 35.67 2.18
75 26.56 2.04 28.25 2.11 29.94 2.19 31.15 2.22 33.31 2.26 34.99 2.30
80 25.91 2.14 27.59 2.22 29.27 2.30 30.49 2.33 32.64 2.37 34.32 2.42
85 25.26 2.25 26.94 2.33 28.61 2.41 29.83 2.44 31.97 2.49 33.65 2.54
90 24.61 2.35 26.28 2.44 27.96 2.53 29.17 2.56 31.30 2.60 32.98 2.66
95 23.91 2.46 25.57 2.55 27.24 2.64 28.00 2.67 30.57 2.72 32.23 2.77
100 23.32 2.56 24.99 2.65 26.65 2.75 27.64 2.78 29.98 2.83 31.65 2.89
105 22.74 2.66 24.41 2.76 26.07 2.86 27.27 2.90 29.40 2.95 31.07 3.01
110 22.16 2.77 23.82 2.87 25.49 2.97 26.69 3.01 28.82 3.07 30.49 3.13
115 21.58 2.87 23.24 2.98 24.91 3.09 26.11 3.12 28.24 3.18 29.90 3.24
118 21.23 2.94 22.89 3.04 24.56 3.15 25.76 3.19 27.89 3.25 29.55 3.32
122 21.11 3.02 22.78 3.13 24.44 3.24 25.64 3.28 27.77 3.34 29.44 3.41
PERFORMANCE DATA
Cooling Capacity Tables
Table 127: LMU36CHV Cooling Capacity Table — Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
MULTI F OUTDOOR UNIT | 135
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Ducted
Indoor Units
12 + 18 + 18
14 27.45 1.67 29.15 1.73 30.86 1.79 32.09 1.81 34.27 1.85 35.97 1.89
20 27.43 1.69 29.13 1.76 30.83 1.82 32.06 1.84 34.24 1.88 35.94 1.91
25 27.41 1.72 29.11 1.78 30.81 1.85 32.04 1.87 34.21 1.90 35.92 1.94
30 27.39 1.74 29.09 1.81 30.79 1.87 32.02 1.89 34.19 1.93 35.89 1.97
35 27.36 1.77 29.06 1.83 30.76 1.90 31.99 1.92 34.16 1.96 35.86 1.99
40 27.34 1.79 29.04 1.86 30.74 1.92 31.97 1.95 34.14 1.98 35.83 2.02
45 27.32 1.81 29.02 1.88 30.72 1.95 31.94 1.97 34.11 2.01 35.81 2.05
50 27.30 1.84 29.00 1.91 30.69 1.97 31.92 2.00 34.08 2.03 35.78 2.08
55 27.28 1.86 28.98 1.93 30.67 2.00 31.89 2.02 34.06 2.06 35.75 2.10
60 27.26 1.89 28.95 1.95 30.65 2.03 31.87 2.05 34.03 2.09 35.72 2.13
65 27.24 1.91 28.93 1.98 30.62 2.05 31.84 2.08 34.01 2.11 35.70 2.16
70 27.22 1.93 28.91 2.00 30.60 2.08 31.82 2.10 33.98 2.14 35.67 2.18
75 26.56 2.04 28.25 2.11 29.94 2.19 31.15 2.22 33.31 2.26 34.99 2.30
80 25.91 2.14 27.59 2.22 29.27 2.30 30.49 2.33 32.64 2.37 34.32 2.42
85 25.26 2.25 26.94 2.33 28.61 2.41 29.83 2.44 31.97 2.49 33.65 2.54
90 24.61 2.35 26.28 2.44 27.96 2.53 29.17 2.56 31.30 2.60 32.98 2.66
95 23.91 2.46 25.57 2.55 27.24 2.64 28.00 2.67 30.57 2.72 32.23 2.77
100 23.32 2.56 24.99 2.65 26.65 2.75 27.64 2.78 29.98 2.83 31.65 2.89
105 22.74 2.66 24.41 2.76 26.07 2.86 27.27 2.90 29.40 2.95 31.07 3.01
110 22.16 2.77 23.82 2.87 25.49 2.97 26.69 3.01 28.82 3.07 30.49 3.13
115 21.58 2.87 23.24 2.98 24.91 3.09 26.11 3.12 28.24 3.18 29.90 3.24
118 21.23 2.94 22.89 3.04 24.56 3.15 25.76 3.19 27.89 3.25 29.55 3.32
122 21.11 3.02 22.78 3.13 24.44 3.24 25.64 3.28 27.77 3.34 29.44 3.41
Four (4) Ducted
Indoor Units
9 + 9 + 9+ 9
14 27.45 1.59 29.15 1.65 30.86 1.71 32.09 1.73 34.27 1.76 35.97 1.80
20 27.43 1.62 29.13 1.67 30.83 1.74 32.06 1.76 34.24 1.79 35.94 1.82
25 27.41 1.64 29.11 1.70 30.81 1.76 32.04 1.78 34.21 1.81 35.92 1.85
30 27.39 1.66 29.09 1.72 30.79 1.79 32.02 1.81 34.19 1.84 35.89 1.88
35 27.36 1.68 29.06 1.75 30.76 1.81 31.99 1.83 34.16 1.86 35.86 1.90
40
27.34 1.71 29.04 1.77 30.74 1.83 31.97 1.86 34.14 1.89 35.83 1.93
45 27.32 1.73 29.02 1.79 30.72 1.86 31.94 1.88 34.11 1.92 35.81 1.95
50 27.30 1.75 29.00 1.82 30.69 1.88 31.92 1.91 34.08 1.94 35.78 1.98
55 27.28 1.78 28.98 1.84 30.67 1.91 31.89 1.93 34.06 1.97 35.75 2.01
60 27.26 1.80 28.95 1.86 30.65 1.93 31.87 1.95 34.03 1.99 35.72 2.03
65 27.24 1.82 28.93 1.89 30.62 1.96 31.84 1.98 34.01 2.02 35.70 2.06
70 27.22 1.84 28.91 1.91 30.60 1.98 31.82 2.00 33.98 2.04 35.67 2.08
75 26.56 1.94 28.25 2.02 29.94 2.09 31.15 2.11 33.31 2.15 34.99 2.20
80 25.91 2.04 27.59 2.12 29.27 2.20 30.49 2.22 32.64 2.26 34.32 2.31
85 25.26 2.14 26.94 2.22 28.61 2.30 29.83 2.33 31.97 2.37 33.65 2.42
90 24.61 2.24 26.28 2.32 27.96 2.41 29.17 2.44 31.30 2.48 32.98 2.53
95 23.91 2.34 25.57 2.43 27.24 2.52 28.00 2.55 30.57 2.59 32.23 2.65
100 23.32 2.44 24.99 2.53 26.65 2.62 27.64 2.65 29.98 2.70 31.65 2.76
105 22.74 2.54 24.41 2.63 26.07 2.73 27.27 2.76 29.40 2.81 31.07 2.87
110 22.16 2.64 23.82 2.74 25.49 2.84 26.69 2.87 28.82 2.92 30.49 2.98
115 21.58 2.74 23.24 2.84 24.91 2.94 26.11 2.98 28.24 3.03 29.90 3.09
118 21.23 2.80 22.89 2.90 24.56 3.01 25.76 3.04 27.89 3.10 29.55 3.16
122 21.11 2.88 22.78 2.98 24.44 3.09 25.64 3.13 27.77 3.19 29.44 3.25
Table 128: LMU36CHV Cooling Capacity Table — Ducted Indoor Units (continued).
PERFORMANCE DATA
Cooling Capacity Tables
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
136 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 129: LMU36CHV Cooling Capacity Table — Ducted Indoor Units (continued).
PERFORMANCE DATA
Cooling Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Ducted
Indoor Units
9 + 9 + 9
+ 12
14 27.45 1.59 29.15 1.65 30.86 1.71 32.09 1.73 34.27 1.76 35.97 1.80
20 27.43 1.62 29.13 1.67 30.83 1.74 32.06 1.76 34.24 1.79 35.94 1.82
25 27.41 1.64 29.11 1.70 30.81 1.76 32.04 1.78 34.21 1.81 35.92 1.85
30 27.39 1.66 29.09 1.72 30.79 1.79 32.02 1.81 34.19 1.84 35.89 1.88
35 27.36 1.68 29.06 1.75 30.76 1.81 31.99 1.83 34.16 1.86 35.86 1.90
40 27.34 1.71 29.04 1.77 30.74 1.83 31.97 1.86 34.14 1.89 35.83 1.93
45 27.32 1.73 29.02 1.79 30.72 1.86 31.94 1.88 34.11 1.92 35.81 1.95
50 27.30 1.75 29.00 1.82 30.69 1.88 31.92 1.91 34.08 1.94 35.78 1.98
55 27.28 1.78 28.98 1.84 30.67 1.91 31.89 1.93 34.06 1.97 35.75 2.01
60 27.26 1.80 28.95 1.86 30.65 1.93 31.87 1.95 34.03 1.99 35.72 2.03
65 27.24 1.82 28.93 1.89 30.62 1.96 31.84 1.98 34.01 2.02 35.70 2.06
70 27.22 1.84 28.91 1.91 30.60 1.98 31.82 2.00 33.98 2.04 35.67 2.08
75 26.56 1.94 28.25 2.02 29.94 2.09 31.15 2.11 33.31 2.15 34.99 2.20
80 25.91 2.04 27.59 2.12 29.27 2.20 30.49 2.22 32.64 2.26 34.32 2.31
85 25.26 2.14 26.94 2.22 28.61 2.30 29.83 2.33 31.97 2.37 33.65 2.42
90 24.61 2.24 26.28 2.32 27.96 2.41 29.17 2.44 31.30 2.48 32.98 2.53
95 23.91 2.34 25.57 2.43 27.24 2.52 28.00 2.55 30.57 2.59 32.23 2.65
100 23.32 2.44 24.99 2.53 26.65 2.62 27.64 2.65 29.98 2.70 31.65 2.76
105 22.74 2.54 24.41 2.63 26.07 2.73 27.27 2.76 29.40 2.81 31.07 2.87
110 22.16 2.64 23.82 2.74 25.49 2.84 26.69 2.87 28.82 2.92 30.49 2.98
115 21.58 2.74 23.24 2.84 24.91 2.94 26.11 2.98 28.24 3.03 29.90 3.09
118 21.23 2.80 22.89 2.90 24.56 3.01 25.76 3.04 27.89 3.10 29.55 3.16
122 21.11 2.88 22.78 2.98 24.44 3.09 25.64 3.13 27.77 3.19 29.44 3.25
9 + 9 + 12
+ 12
14 27.45 1.59 29.15 1.65 30.86 1.71 32.09 1.73 34.27 1.76 35.97 1.80
20 27.43 1.62 29.13 1.67 30.83 1.74 32.06 1.76 34.24 1.79 35.94 1.82
25 27.41 1.64 29.11 1.70 30.81 1.76 32.04 1.78 34.21 1.81 35.92 1.85
30 27.39 1.66 29.09 1.72 30.79 1.79 32.02 1.81 34.19 1.84 35.89 1.88
35 27.36 1.68 29.06 1.75 30.76 1.81 31.99 1.83 34.16 1.86 35.86 1.90
40 27.34
1.71 29.04 1.77 30.74 1.83 31.97 1.86 34.14 1.89 35.83 1.93
45 27.32 1.73 29.02 1.79 30.72 1.86 31.94 1.88 34.11 1.92 35.81 1.95
50 27.30 1.75 29.00 1.82 30.69 1.88 31.92 1.91 34.08 1.94 35.78 1.98
55 27.28 1.78 28.98 1.84 30.67 1.91 31.89 1.93 34.06 1.97 35.75 2.01
60 27.26 1.80 28.95 1.86 30.65 1.93 31.87 1.95 34.03 1.99 35.72 2.03
65 27.24 1.82 28.93 1.89 30.62 1.96 31.84 1.98 34.01 2.02 35.70 2.06
70 27.22 1.84 28.91 1.91 30.60 1.98 31.82 2.00 33.98 2.04 35.67 2.08
75 26.56 1.94 28.25 2.02 29.94 2.09 31.15 2.11 33.31 2.15 34.99 2.20
80 25.91 2.04 27.59 2.12 29.27 2.20 30.49 2.22 32.64 2.26 34.32 2.31
85 25.26 2.14 26.94 2.22 28.61 2.30 29.83 2.33 31.97 2.37 33.65 2.42
90 24.61 2.24 26.28 2.32 27.96 2.41 29.17 2.44 31.30 2.48 32.98 2.53
95 23.91 2.34 25.57 2.43 27.24 2.52 28.00 2.55 30.57 2.59 32.23 2.65
100 23.32 2.44 24.99 2.53 26.65 2.62 27.64 2.65 29.98 2.70 31.65 2.76
105 22.74 2.54 24.41 2.63 26.07 2.73 27.27 2.76 29.40 2.81 31.07 2.87
110 22.16 2.64 23.82 2.74 25.49 2.84 26.69 2.87 28.82 2.92 30.49 2.98
115 21.58 2.74 23.24 2.84 24.91 2.94 26.11 2.98 28.24 3.03 29.90 3.09
118 21.23 2.80 22.89 2.90 24.56 3.01 25.76 3.04 27.89 3.10 29.55 3.16
122 21.11 2.88 22.78 2.98 24.44 3.09 25.64 3.13 27.77 3.19 29.44 3.25
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
MULTI F OUTDOOR UNIT | 137
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Ducted
Indoor Units
9 + 9 + 9
+ 18
14 27.45 1.59 29.15 1.65 30.86 1.71 32.09 1.73 34.27 1.76 35.97 1.80
20 27.43 1.62 29.13 1.67 30.83 1.74 32.06 1.76 34.24 1.79 35.94 1.82
25 27.41 1.64 29.11 1.70 30.81 1.76 32.04 1.78 34.21 1.81 35.92 1.85
30 27.39 1.66 29.09 1.72 30.79 1.79 32.02 1.81 34.19 1.84 35.89 1.88
35 27.36 1.68 29.06 1.75 30.76 1.81 31.99 1.83 34.16 1.86 35.86 1.90
40 27.34 1.71 29.04 1.77 30.74 1.83 31.97 1.86 34.14 1.89 35.83 1.93
45 27.32 1.73 29.02 1.79 30.72 1.86 31.94 1.88 34.11 1.92 35.81 1.95
50 27.30 1.75 29.00 1.82 30.69 1.88 31.92 1.91 34.08 1.94 35.78 1.98
55 27.28 1.78 28.98 1.84 30.67 1.91 31.89 1.93 34.06 1.97 35.75 2.01
60 27.26 1.80 28.95 1.86 30.65 1.93 31.87 1.95 34.03 1.99 35.72 2.03
65 27.24 1.82 28.93 1.89 30.62 1.96 31.84 1.98 34.01 2.02 35.70 2.06
70 27.22 1.84 28.91 1.91 30.60 1.98 31.82 2.00 33.98 2.04 35.67 2.08
75 26.56 1.94 28.25 2.02 29.94 2.09 31.15 2.11 33.31 2.15 34.99 2.20
80 25.91 2.04 27.59 2.12 29.27 2.20 30.49 2.22 32.64 2.26 34.32 2.31
85 25.26 2.14 26.94 2.22 28.61 2.30 29.83 2.33 31.97 2.37 33.65 2.42
90 24.61 2.24 26.28 2.32 27.96 2.41 29.17 2.44 31.30 2.48 32.98 2.53
95 23.91 2.34 25.57 2.43 27.24 2.52 28.00 2.55 30.57 2.59 32.23 2.65
100 23.32 2.44 24.99 2.53 26.65 2.62 27.64 2.65 29.98 2.70 31.65 2.76
105 22.74 2.54 24.41 2.63 26.07 2.73 27.27 2.76 29.40 2.81 31.07 2.87
110 22.16 2.64 23.82 2.74 25.49 2.84 26.69 2.87 28.82 2.92 30.49 2.98
115 21.58 2.74 23.24 2.84 24.91 2.94 26.11 2.98 28.24 3.03 29.90 3.09
118 21.23 2.80 22.89 2.90 24.56 3.01 25.76 3.04 27.89 3.10 29.55 3.16
122 21.11 2.88 22.78 2.98 24.44 3.09 25.64 3.13 27.77 3.19 29.44 3.25
9 + 12 + 12
+ 12
14 27.45 1.59 29.15 1.65 30.86 1.71 32.09 1.73 34.27 1.76 35.97 1.80
20 27.43 1.62 29.13 1.67 30.83 1.74 32.06 1.76 34.24 1.79 35.94 1.82
25 27.41 1.64 29.11 1.70 30.81 1.76 32.04 1.78 34.21 1.81 35.92 1.85
30 27.39 1.66 29.09 1.72 30.79 1.79 32.02 1.81 34.19 1.84 35.89 1.88
35 27.36 1.68 29.06 1.75 30.76 1.81 31.99 1.83 34.16 1.86 35.86 1.90
40 27.34
1.71 29.04 1.77 30.74 1.83 31.97 1.86 34.14 1.89 35.83 1.93
45 27.32 1.73 29.02 1.79 30.72 1.86 31.94 1.88 34.11 1.92 35.81 1.95
50 27.30 1.75 29.00 1.82 30.69 1.88 31.92 1.91 34.08 1.94 35.78 1.98
55 27.28 1.78 28.98 1.84 30.67 1.91 31.89 1.93 34.06 1.97 35.75 2.01
60 27.26 1.80 28.95 1.86 30.65 1.93 31.87 1.95 34.03 1.99 35.72 2.03
65 27.24 1.82 28.93 1.89 30.62 1.96 31.84 1.98 34.01 2.02 35.70 2.06
70 27.22 1.84 28.91 1.91 30.60 1.98 31.82 2.00 33.98 2.04 35.67 2.08
75 26.56 1.94 28.25 2.02 29.94 2.09 31.15 2.11 33.31 2.15 34.99 2.20
80 25.91 2.04 27.59 2.12 29.27 2.20 30.49 2.22 32.64 2.26 34.32 2.31
85 25.26 2.14 26.94 2.22 28.61 2.30 29.83 2.33 31.97 2.37 33.65 2.42
90 24.61 2.24 26.28 2.32 27.96 2.41 29.17 2.44 31.30 2.48 32.98 2.53
95 23.91 2.34 25.57 2.43 27.24 2.52 28.00 2.55 30.57 2.59 32.23 2.65
100 23.32 2.44 24.99 2.53 26.65 2.62 27.64 2.65 29.98 2.70 31.65 2.76
105 22.74 2.54 24.41 2.63 26.07 2.73 27.27 2.76 29.40 2.81 31.07 2.87
110 22.16 2.64 23.82 2.74 25.49 2.84 26.69 2.87 28.82 2.92 30.49 2.98
115 21.58 2.74 23.24 2.84 24.91 2.94 26.11 2.98 28.24 3.03 29.90 3.09
118 21.23 2.80 22.89 2.90 24.56 3.01 25.76 3.04 27.89 3.10 29.55 3.16
122 21.11 2.88 22.78 2.98 24.44 3.09 25.64 3.13 27.77 3.19 29.44 3.25
Table 130: LMU36CHV Cooling Capacity Table — Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
138 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Ducted
Indoor Units
9 + 9 + 12
+ 18
14 27.45 1.59 29.15 1.65 30.86 1.71 32.09 1.73 34.27 1.76 35.97 1.80
20 27.43 1.62 29.13 1.67 30.83 1.74 32.06 1.76 34.24 1.79 35.94 1.82
25 27.41 1.64 29.11 1.70 30.81 1.76 32.04 1.78 34.21 1.81 35.92 1.85
30 27.39 1.66 29.09 1.72 30.79 1.79 32.02 1.81 34.19 1.84 35.89 1.88
35 27.36 1.68 29.06 1.75 30.76 1.81 31.99 1.83 34.16 1.86 35.86 1.90
40 27.34 1.71 29.04 1.77 30.74 1.83 31.97 1.86 34.14 1.89 35.83 1.93
45 27.32 1.73 29.02 1.79 30.72 1.86 31.94 1.88 34.11 1.92 35.81 1.95
50 27.30 1.75 29.00 1.82 30.69 1.88 31.92 1.91 34.08 1.94 35.78 1.98
55 27.28 1.78 28.98 1.84 30.67 1.91 31.89 1.93 34.06 1.97 35.75 2.01
60 27.26 1.80 28.95 1.86 30.65 1.93 31.87 1.95 34.03 1.99 35.72 2.03
65 27.24 1.82 28.93 1.89 30.62 1.96 31.84 1.98 34.01 2.02 35.70 2.06
70 27.22 1.84 28.91 1.91 30.60 1.98 31.82 2.00 33.98 2.04 35.67 2.08
75 26.56 1.94 28.25 2.02 29.94 2.09 31.15 2.11 33.31 2.15 34.99 2.20
80 25.91 2.04 27.59 2.12 29.27 2.20 30.49 2.22 32.64 2.26 34.32 2.31
85 25.26 2.14 26.94 2.22 28.61 2.30 29.83 2.33 31.97 2.37 33.65 2.42
90 24.61 2.24 26.28 2.32 27.96 2.41 29.17 2.44 31.30 2.48 32.98 2.53
95 23.91 2.34 25.57 2.43 27.24 2.52 28.00 2.55 30.57 2.59 32.23 2.65
100 23.32 2.44 24.99 2.53 26.65 2.62 27.64 2.65 29.98 2.70 31.65 2.76
105 22.74 2.54 24.41 2.63 26.07 2.73 27.27 2.76 29.40 2.81 31.07 2.87
110 22.16 2.64 23.82 2.74 25.49 2.84 26.69 2.87 28.82 2.92 30.49 2.98
115 21.58 2.74 23.24 2.84 24.91 2.94 26.11 2.98 28.24 3.03 29.90 3.09
118 21.23 2.80 22.89 2.90 24.56 3.01 25.76 3.04 27.89 3.10 29.55 3.16
122 21.11 2.88 22.78 2.98 24.44 3.09 25.64 3.13 27.77 3.19 29.44 3.25
12 + 12 + 12
+ 12
14 27.45 1.59 29.15 1.65 30.86 1.71 32.09 1.73 34.27 1.76 35.97 1.80
20 27.43 1.62 29.13 1.67 30.83 1.74 32.06 1.76 34.24 1.79 35.94 1.82
25 27.41 1.64 29.11 1.70 30.81 1.76 32.04 1.78 34.21 1.81 35.92 1.85
30 27.39 1.66 29.09 1.72 30.79 1.79 32.02 1.81 34.19 1.84 35.89 1.88
35 27.36 1.68 29.06 1.75 30.76 1.81 31.99 1.83 34.16 1.86 35.86 1.90
40 27.34
1.71 29.04 1.77 30.74 1.83 31.97 1.86 34.14 1.89 35.83 1.93
45 27.32 1.73 29.02 1.79 30.72 1.86 31.94 1.88 34.11 1.92 35.81 1.95
50 27.30 1.75 29.00 1.82 30.69 1.88 31.92 1.91 34.08 1.94 35.78 1.98
55 27.28 1.78 28.98 1.84 30.67 1.91 31.89 1.93 34.06 1.97 35.75 2.01
60 27.26 1.80 28.95 1.86 30.65 1.93 31.87 1.95 34.03 1.99 35.72 2.03
65 27.24 1.82 28.93 1.89 30.62 1.96 31.84 1.98 34.01 2.02 35.70 2.06
70 27.22 1.84 28.91 1.91 30.60 1.98 31.82 2.00 33.98 2.04 35.67 2.08
75 26.56 1.94 28.25 2.02 29.94 2.09 31.15 2.11 33.31 2.15 34.99 2.20
80 25.91 2.04 27.59 2.12 29.27 2.20 30.49 2.22 32.64 2.26 34.32 2.31
85 25.26 2.14 26.94 2.22 28.61 2.30 29.83 2.33 31.97 2.37 33.65 2.42
90 24.61 2.24 26.28 2.32 27.96 2.41 29.17 2.44 31.30 2.48 32.98 2.53
95 23.91 2.34 25.57 2.43 27.24 2.52 28.00 2.55 30.57 2.59 32.23 2.65
100 23.32 2.44 24.99 2.53 26.65 2.62 27.64 2.65 29.98 2.70 31.65 2.76
105 22.74 2.54 24.41 2.63 26.07 2.73 27.27 2.76 29.40 2.81 31.07 2.87
110 22.16 2.64 23.82 2.74 25.49 2.84 26.69 2.87 28.82 2.92 30.49 2.98
115 21.58 2.74 23.24 2.84 24.91 2.94 26.11 2.98 28.24 3.03 29.90 3.09
118 21.23 2.80 22.89 2.90 24.56 3.01 25.76 3.04 27.89 3.10 29.55 3.16
122 21.11 2.88 22.78 2.98 24.44 3.09 25.64 3.13 27.77 3.19 29.44 3.25
PERFORMANCE DATA
Cooling Capacity Tables
Table 131: LMU36CHV Cooling Capacity Table — Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
MULTI F OUTDOOR UNIT | 139
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 132: LMU36CHV Cooling Capacity Table — Mixed Indoor Units
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
7 + 9
14 14.70 0.97 15.62 1.01 16.53 1.05 17.19 1.06 18.36 1.08 19.27 1.10
20 14.69 0.99 15.61 1.02 16.52 1.06 17.18 1.07 18.34 1.09 19.26 1.12
25 14.68 1.00 15.59 1.04 16.51 1.08 17.16 1.09 18.33 1.11 19.24 1.13
30 14.67 1.02 15.58 1.05 16.49 1.09 17.15 1.10 18.32 1.12 19.23 1.15
35 14.66 1.03 15.57 1.07 16.48 1.11 17.14 1.12 18.30 1.14 19.21 1.16
40 14.65 1.04 15.56 1.08 16.47 1.12 17.12 1.13 18.29 1.16 19.20 1.18
45 14.64 1.06 15.55 1.10 16.46 1.14 17.11 1.15 18.27 1.17 19.18 1.19
50 14.63 1.07 15.53 1.11 16.44 1.15 17.10 1.16 18.26 1.19 19.17 1.21
55 14.61 1.09 15.52 1.13 16.43 1.17 17.09 1.18 18.25 1.20 19.15 1.23
60 14.60 1.10 15.51 1.14 16.42 1.18 17.07 1.20 18.23 1.22 19.14 1.24
65 14.59 1.11 15.50 1.15 16.40 1.20 17.06 1.21 18.22 1.23 19.12 1.26
70 14.58 1.13 15.49 1.17 16.39 1.21 17.05 1.23 18.20 1.25 19.11 1.27
75 14.23 1.19 15.13 1.23 16.04 1.28 16.69 1.29 17.84 1.32 18.75 1.34
80 13.88 1.25 14.78 1.30 15.68 1.34 16.33 1.36 17.48 1.38 18.38 1.41
85 13.53 1.31 14.43 1.36 15.33 1.41 15.98 1.42 17.13 1.45 18.03 1.48
90 13.18 1.37 14.08 1.42 14.98 1.47 15.62 1.49 16.77 1.52 17.67 1.55
95 12.81 1.43 13.70 1.48 14.59 1.54 15.00 1.56 16.38 1.59 17.27 1.62
100 12.49 1.49 13.39 1.55 14.28 1.60 14.81 1.62 16.06 1.65 16.96 1.69
105 12.18 1.55 13.07 1.61 13.97 1.67 14.61 1.69 15.75 1.72 16.64 1.75
110 11.87 1.61 12.76 1.67 13.66 1.73 14.30 1.75 15.44 1.79 16.33 1.82
115 11.56 1.68 12.45 1.74 13.34 1.80 13.99 1.82 15.13 1.85 16.02 1.89
118 11.37 1.71 12.26 1.77 13.16 1.84 13.80 1.86 14.94 1.90 15.83 1.93
122 11.31 1.76 12.20 1.82 13.09 1.89 13.74 1.91 14.88 1.95 15.77 1.99
9 + 9
14 16.54 1.09 17.57 1.13 18.60 1.18 19.34 1.19 20.65 1.21 21.68 1.24
20 16.53 1.11 17.56 1.15 18.58 1.19 19.32 1.21 20.64 1.23 21.66 1.25
25 16.52 1.13 17.54 1.17 18.57 1.21 19.31 1.22 20.62 1.25 21.65 1.27
30 16.50 1.14 17.53 1.18 18.55 1.23 19.29 1.24 20.60 1.26 21.63 1.29
35 16.49 1.16 17.52 1.20 18.54 1.24 19.28 1.26 20.59 1.28 21.61 1.31
40 16.48 1.17 17.50 1.22
18.53 1.26 19.27 1.28 20.57 1.30 21.60 1.33
45 16.47 1.19 17.49 1.23 18.51 1.28 19.25 1.29 20.56 1.32 21.58 1.34
50 16.45 1.20 17.48 1.25 18.50 1.29 19.24 1.31 20.54 1.33 21.56 1.36
55 16.44 1.22 17.46 1.27 18.48 1.31 19.22 1.33 20.53 1.35 21.55 1.38
60 16.43 1.24 17.45 1.28 18.47 1.33 19.21 1.34 20.51 1.37 21.53 1.40
65 16.42 1.25 17.44 1.30 18.46 1.35 19.19 1.36 20.49 1.39 21.51 1.41
70 16.40 1.27 17.42 1.31 18.44 1.36 19.18 1.38 20.48 1.40 21.50 1.43
75 16.01 1.34 17.03 1.39 18.04 1.44 18.78 1.45 20.07 1.48 21.09 1.51
80 15.61 1.40 16.63 1.46 17.64 1.51 18.37 1.53 19.67 1.56 20.68 1.59
85 15.22 1.47 16.23 1.53 17.25 1.58 17.98 1.60 19.27 1.63 20.28 1.66
90 14.83 1.54 15.84 1.60 16.85 1.66 17.58 1.68 18.87 1.71 19.88 1.74
95 14.41 1.61 15.41 1.67 16.41 1.73 16.88 1.75 18.42 1.78 19.43 1.82
100 14.06 1.68 15.06 1.74 16.06 1.80 16.66 1.82 18.07 1.86 19.07 1.90
105 13.71 1.75 14.71 1.81 15.71 1.88 16.44 1.90 17.72 1.93 18.72 1.97
110 13.35 1.82 14.36 1.88 15.36 1.95 16.09 1.97 17.37 2.01 18.37 2.05
115 13.00 1.88 14.01 1.95 15.01 2.02 15.74 2.05 17.02 2.09 18.02 2.13
118 12.79 1.92 13.80 1.99 14.80 2.07 15.53 2.09 16.81 2.13 17.81 2.17
122 12.72 1.98 13.73 2.05 14.73 2.13 15.46 2.15 16.74 2.19 17.74 2.24
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
140 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
7 + 12
14 17.46 1.15 18.55 1.19 19.63 1.23 20.41 1.25 21.80 1.27 22.88 1.29
20 17.45 1.16 18.53 1.20 19.62 1.25 20.40 1.26 21.78 1.29 22.87 1.31
25 17.43 1.18 18.52 1.22 19.60 1.27 20.38 1.28 21.77 1.30 22.85 1.33
30 17.42 1.20 18.50 1.24 19.59 1.28 20.37 1.30 21.75 1.32 22.83 1.35
35 17.41 1.21 18.49 1.26 19.57 1.30 20.35 1.32 21.73 1.34 22.81 1.37
40 17.39 1.23 18.48 1.27 19.56 1.32 20.34 1.33 21.72 1.36 22.80 1.39
45 17.38 1.24 18.46 1.29 19.54 1.34 20.32 1.35 21.70 1.38 22.78 1.41
50 17.37 1.26 18.45 1.31 19.53 1.35 20.30 1.37 21.68 1.40 22.76 1.42
55 17.35 1.28 18.43 1.32 19.51 1.37 20.29 1.39 21.67 1.41 22.74 1.44
60 17.34 1.29 18.42 1.34 19.50 1.39 20.27 1.41 21.65 1.43 22.73 1.46
65 17.33 1.31 18.40 1.36 19.48 1.41 20.26 1.42 21.63 1.45 22.71 1.48
70 17.32 1.33 18.39 1.38 19.47 1.43 20.24 1.44 21.62 1.47 22.69 1.50
75 16.90 1.40 17.97 1.45 19.04 1.50 19.82 1.52 21.19 1.55 22.26 1.58
80 16.48 1.47 17.55 1.52 18.62 1.58 19.39 1.60 20.76 1.63 21.83 1.66
85 16.07 1.54 17.14 1.60 18.20 1.66 18.97 1.68 20.34 1.71 21.41 1.74
90 15.66 1.61 16.72 1.67 17.79 1.73 18.55 1.75 19.91 1.79 20.98 1.82
95 15.21 1.68 16.27 1.75 17.33 1.81 17.81 1.83 19.45 1.87 20.50 1.90
100 14.84 1.76 15.90 1.82 16.96 1.89 17.58 1.91 19.08 1.94 20.13 1.98
105 14.47 1.83 15.53 1.89 16.59 1.96 17.35 1.99 18.70 2.02 19.76 2.06
110 14.10 1.90 15.16 1.97 16.22 2.04 16.98 2.06 18.33 2.10 19.39 2.15
115 13.73 1.97 14.79 2.04 15.85 2.12 16.61 2.14 17.96 2.18 19.02 2.23
118 13.50 2.01 14.56 2.09 15.62 2.16 16.39 2.19 17.74 2.23 18.80 2.27
122 13.43 2.07 14.49 2.15 15.55 2.23 16.31 2.25 17.67 2.29 18.73 2.34
9 + 12
14 19.30 1.25 20.50 1.30 21.70 1.35 22.56 1.36 24.09 1.39 25.29 1.42
20 19.28 1.27 20.48 1.32 21.68 1.37 22.55 1.38 24.08 1.41 25.27 1.44
25 19.27 1.29 20.47 1.34 21.66 1.39 22.53 1.40 24.06 1.43 25.25 1.46
30 19.26 1.31 20.45 1.36 21.65 1.41 22.51 1.42 24.04 1.45 25.23 1.48
35 19.24 1.33 20.44 1.37 21.63 1.42 22.49 1.44 24.02 1.47 25.22 1.50
40 19.23 1.34 20.42 1.39
21.61 1.44 22.48 1.46 24.00 1.49 25.20 1.52
45 19.21 1.36 20.40 1.41 21.60 1.46 22.46 1.48 23.98 1.51 25.18 1.54
50 19.20 1.38 20.39 1.43 21.58 1.48 22.44 1.50 23.97 1.53 25.16 1.56
55 19.18 1.40 20.37 1.45 21.56 1.50 22.42 1.52 23.95 1.55 25.14 1.58
60 19.17 1.42 20.36 1.47 21.55 1.52 22.41 1.54 23.93 1.57 25.12 1.60
65 19.15 1.43 20.34 1.49 21.53 1.54 22.39 1.56 23.91 1.59 25.10 1.62
70 19.14 1.45 20.33 1.51 21.51 1.56 22.37 1.58 23.89 1.61 25.08 1.64
75 18.68 1.53 19.86 1.59 21.05 1.64 21.90 1.66 23.42 1.69 24.61 1.73
80 18.22 1.61 19.40 1.67 20.58 1.73 21.44 1.75 22.95 1.78 24.13 1.82
85 17.76 1.69 18.94 1.75 20.12 1.81 20.97 1.83 22.48 1.87 23.66 1.91
90 17.30 1.77 18.48 1.83 19.66 1.90 20.51 1.92 22.01 1.95 23.19 1.99
95 16.81 1.84 17.98 1.91 19.15 1.98 19.69 2.00 21.49 2.04 22.66 2.08
100 16.40 1.92 17.57 1.99 18.74 2.07 19.43 2.09 21.08 2.13 22.25 2.17
105 15.99 2.00 17.16 2.07 18.33 2.15 19.18 2.17 20.67 2.21 21.84 2.26
110 15.58 2.08 16.75 2.15 17.92 2.23 18.77 2.26 20.26 2.30 21.44 2.35
115 15.17 2.16 16.34 2.24 17.51 2.32 18.36 2.34 19.85 2.39 21.03 2.44
118 14.93 2.20 16.10 2.28 17.27 2.37 18.11 2.40 19.61 2.44 20.78 2.49
122 14.84 2.27 16.01 2.35 17.19 2.44 18.03 2.46 19.53 2.51 20.70 2.56
Table 133: LMU36CHV Cooling Capacity Table — Mixed Indoor Units
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 141
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 134: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
9 + 15
14 22.06 1.39 23.43 1.44 24.80 1.49 25.79 1.51 27.54 1.54 28.91 1.57
20 22.04 1.41 23.41 1.46 24.78 1.51 25.77 1.53 27.51 1.56 28.88 1.59
25 22.02 1.43 23.39 1.48 24.76 1.53 25.75 1.55 27.49 1.58 28.86 1.61
30 22.01 1.45 23.37 1.50 24.74 1.56 25.73 1.57 27.47 1.60 28.84 1.63
35 21.99 1.47 23.36 1.52 24.72 1.58 25.71 1.59 27.45 1.62 28.82 1.66
40 21.97 1.49 23.34 1.54 24.70 1.60 25.69 1.62 27.43 1.65 28.80 1.68
45 21.96 1.51 23.32 1.56 24.68 1.62 25.67 1.64 27.41 1.67 28.77 1.70
50 21.94 1.53 23.30 1.58 24.66 1.64 25.65 1.66 27.39 1.69 28.75 1.72
55 21.92 1.55 23.28 1.60 24.65 1.66 25.63 1.68 27.37 1.71 28.73 1.75
60 21.91 1.57 23.27 1.62 24.63 1.68 25.61 1.70 27.35 1.73 28.71 1.77
65 21.89 1.59 23.25 1.64 24.61 1.71 25.59 1.72 27.33 1.76 28.69 1.79
70 21.87 1.61 23.23 1.67 24.59 1.73 25.57 1.75 27.30 1.78 28.66 1.81
75 21.35 1.69 22.70 1.76 24.06 1.82 25.03 1.84 26.77 1.88 28.12 1.91
80 20.82 1.78 22.17 1.85 23.52 1.91 24.50 1.93 26.23 1.97 27.58 2.01
85 20.30 1.87 21.65 1.94 22.99 2.01 23.97 2.03 25.69 2.07 27.04 2.11
90 19.78 1.95 21.12 2.03 22.47 2.10 23.44 2.12 25.16 2.16 26.50 2.21
95 19.21 2.04 20.55 2.11 21.89 2.19 22.50 2.22 24.56 2.26 25.90 2.30
100 18.74 2.13 20.08 2.20 21.42 2.29 22.21 2.31 24.09 2.35 25.43 2.40
105 18.27 2.21 19.61 2.29 20.95 2.38 21.92 2.41 23.63 2.45 24.97 2.50
110 17.81 2.30 19.14 2.38 20.48 2.47 21.45 2.50 23.16 2.55 24.50 2.60
115 17.34 2.39 18.68 2.47 20.01 2.56 20.98 2.59 22.69 2.64 24.03 2.70
118 17.06 2.44 18.40 2.53 19.73 2.62 20.70 2.65 22.41 2.70 23.75 2.75
122 16.96 2.51 18.30 2.60 19.64 2.70 20.61 2.73 22.32 2.78 23.66 2.83
12 + 12
14 22.06 1.39 23.43 1.44 24.80 1.49 25.79 1.51 27.54 1.54 28.91 1.57
20 22.04 1.41 23.41 1.46 24.78 1.51 25.77 1.53 27.51 1.56 28.88 1.59
25 22.02 1.43 23.39 1.48 24.76 1.53 25.75 1.55 27.49 1.58 28.86 1.61
30 22.01 1.45 23.37 1.50 24.74 1.56 25.73 1.57 27.47 1.60 28.84 1.63
35 21.99 1.47 23.36 1.52 24.72 1.58 25.71 1.59 27.45 1.62 28.82 1.66
40 21.97 1.49 23.34 1.54
24.70 1.60 25.69 1.62 27.43 1.65 28.80 1.68
45 21.96 1.51 23.32 1.56 24.68 1.62 25.67 1.64 27.41 1.67 28.77 1.70
50 21.94 1.53 23.30 1.58 24.66 1.64 25.65 1.66 27.39 1.69 28.75 1.72
55 21.92 1.55 23.28 1.60 24.65 1.66 25.63 1.68 27.37 1.71 28.73 1.75
60 21.91 1.57 23.27 1.62 24.63 1.68 25.61 1.70 27.35 1.73 28.71 1.77
65 21.89 1.59 23.25 1.64 24.61 1.71 25.59 1.72 27.33 1.76 28.69 1.79
70 21.87 1.61 23.23 1.67 24.59 1.73 25.57 1.75 27.30 1.78 28.66 1.81
75 21.35 1.69 22.70 1.76 24.06 1.82 25.03 1.84 26.77 1.88 28.12 1.91
80 20.82 1.78 22.17 1.85 23.52 1.91 24.50 1.93 26.23 1.97 27.58 2.01
85 20.30 1.87 21.65 1.94 22.99 2.01 23.97 2.03 25.69 2.07 27.04 2.11
90 19.78 1.95 21.12 2.03 22.47 2.10 23.44 2.12 25.16 2.16 26.50 2.21
95 19.21 2.04 20.55 2.11 21.89 2.19 22.50 2.22 24.56 2.26 25.90 2.30
100 18.74 2.13 20.08 2.20 21.42 2.29 22.21 2.31 24.09 2.35 25.43 2.40
105 18.27 2.21 19.61 2.29 20.95 2.38 21.92 2.41 23.63 2.45 24.97 2.50
110 17.81 2.30 19.14 2.38 20.48 2.47 21.45 2.50 23.16 2.55 24.50 2.60
115 17.34 2.39 18.68 2.47 20.01 2.56 20.98 2.59 22.69 2.64 24.03 2.70
118 17.06 2.44 18.40 2.53 19.73 2.62 20.70 2.65 22.41 2.70 23.75 2.75
122 16.96 2.51 18.30 2.60 19.64 2.70 20.61 2.73 22.32 2.78 23.66 2.83
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
142 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
7 + 18
14 22.98 1.44 24.40 1.49 25.83 1.55 26.86 1.56 28.68 1.59 30.11 1.62
20 22.96 1.46 24.38 1.51 25.81 1.57 26.84 1.59 28.66 1.62 30.09 1.65
25 22.94 1.48 24.37 1.53 25.79 1.59 26.82 1.61 28.64 1.64 30.06 1.67
30 22.92 1.50 24.35 1.56 25.77 1.61 26.80 1.63 28.62 1.66 30.04 1.69
35 22.91 1.52 24.33 1.58 25.75 1.63 26.78 1.65 28.60 1.68 30.02 1.72
40 22.89 1.54 24.31 1.60 25.73 1.66 26.76 1.68 28.57 1.71 30.00 1.74
45 22.87 1.56 24.29 1.62 25.71 1.68 26.74 1.70 28.55 1.73 29.97 1.76
50 22.85 1.58 24.27 1.64 25.69 1.70 26.72 1.72 28.53 1.75 29.95 1.79
55 22.84 1.60 24.25 1.66 25.67 1.72 26.70 1.74 28.51 1.78 29.93 1.81
60 22.82 1.62 24.24 1.68 25.65 1.75 26.68 1.77 28.49 1.80 29.90 1.83
65 22.80 1.65 24.22 1.71 25.63 1.77 26.66 1.79 28.46 1.82 29.88 1.86
70 22.78 1.67 24.20 1.73 25.61 1.79 26.63 1.81 28.44 1.84 29.86 1.88
75 22.23 1.76 23.65 1.82 25.06 1.89 26.08 1.91 27.88 1.94 29.29 1.98
80 21.69 1.85 23.09 1.91 24.50 1.98 25.52 2.01 27.32 2.04 28.73 2.08
85 21.14 1.94 22.55 2.01 23.95 2.08 24.97 2.10 26.76 2.14 28.17 2.19
90 20.60 2.03 22.00 2.10 23.40 2.18 24.41 2.20 26.20 2.24 27.60 2.29
95 20.01 2.12 21.40 2.19 22.80 2.27 23.44 2.30 25.59 2.34 26.98 2.39
100 19.52 2.21 20.92 2.29 22.31 2.37 23.13 2.40 25.10 2.44 26.49 2.49
105 19.04 2.30 20.43 2.38 21.82 2.47 22.83 2.49 24.61 2.54 26.01 2.59
110 18.55 2.38 19.94 2.47 21.34 2.56 22.34 2.59 24.12 2.64 25.52 2.69
115 18.06 2.47 19.45 2.57 20.85 2.66 21.86 2.69 23.64 2.74 25.03 2.79
118 17.77 2.53 19.16 2.62 20.56 2.72 21.56 2.75 23.34 2.80 24.74 2.86
122 17.67 2.60 19.07 2.70 20.46 2.79 21.47 2.83 23.25 2.88 24.64 2.94
9 + 18
14 24.81 1.54 26.35 1.60 27.90 1.65 29.01 1.67 30.98 1.71 32.52 1.74
20 24.79 1.56 26.33 1.62 27.87 1.68 28.99 1.70 30.95 1.73 32.49 1.76
25 24.78 1.58 26.31 1.64 27.85 1.70 28.96 1.72 30.93 1.75 32.47 1.79
30 24.76 1.61 26.29 1.67 27.83 1.73 28.94 1.75 30.91 1.78 32.44 1.81
35 24.74 1.63 26.27 1.69 27.81 1.75 28.92 1.77 30.88 1.80 32.42 1.84
40 24.72 1.65 26.25 1.71
27.79 1.77 28.90 1.79 30.86 1.83 32.40 1.86
45 24.70 1.67 26.23 1.73 27.77 1.80 28.88 1.82 30.84 1.85 32.37 1.89
50 24.68 1.70 26.21 1.76 27.75 1.82 28.85 1.84 30.81 1.88 32.35 1.91
55 24.66 1.72 26.19 1.78 27.73 1.85 28.83 1.87 30.79 1.90 32.32 1.94
60 24.64 1.74 26.17 1.80 27.70 1.87 28.81 1.89 30.77 1.93 32.30 1.96
65 24.62 1.76 26.15 1.83 27.68 1.89 28.79 1.91 30.74 1.95 32.27 1.99
70 24.61 1.78 26.13 1.85 27.66 1.92 28.77 1.94 30.72 1.97 32.25 2.01
75 24.01 1.88 25.54 1.95 27.06 2.02 28.16 2.04 30.11 2.08 31.64 2.12
80 23.42 1.98 24.94 2.05 26.46 2.12 27.56 2.15 29.50 2.19 31.02 2.23
85 22.83 2.07 24.35 2.15 25.87 2.23 26.96 2.25 28.90 2.29 30.42 2.34
90 22.25 2.17 23.76 2.25 25.27 2.33 26.37 2.36 28.30 2.40 29.81 2.45
95 21.61 2.27 23.12 2.35 24.62 2.43 25.31 2.46 27.63 2.51 29.14 2.56
100 21.08 2.36 22.59 2.45 24.10 2.54 24.98 2.57 27.11 2.61 28.61 2.67
105 20.56 2.46 22.06 2.55 23.57 2.64 24.66 2.67 26.58 2.72 28.09 2.78
110 20.03 2.55 21.54 2.65 23.04 2.74 24.13 2.78 26.05 2.83 27.56 2.88
115 19.51 2.65 21.01 2.75 22.52 2.85 23.60 2.88 25.53 2.93 27.03 2.99
118 19.19 2.71 20.70 2.81 22.20 2.91 23.29 2.94 25.21 3.00 26.72 3.06
122 19.08 2.78 20.59 2.89 22.10 2.99 23.18 3.03 25.11 3.08 26.61 3.14
Table 135: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 143
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 136: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
12 + 15
14 24.81 1.54 26.35 1.60 27.90 1.65 29.01 1.67 30.98 1.71 32.52 1.74
20 24.79 1.56 26.33 1.62 27.87 1.68 28.99 1.70 30.95 1.73 32.49 1.76
25 24.78 1.58 26.31 1.64 27.85 1.70 28.96 1.72 30.93 1.75 32.47 1.79
30 24.76 1.61 26.29 1.67 27.83 1.73 28.94 1.75 30.91 1.78 32.44 1.81
35 24.74 1.63 26.27 1.69 27.81 1.75 28.92 1.77 30.88 1.80 32.42 1.84
40 24.72 1.65 26.25 1.71 27.79 1.77 28.90 1.79 30.86 1.83 32.40 1.86
45 24.70 1.67 26.23 1.73 27.77 1.80 28.88 1.82 30.84 1.85 32.37 1.89
50 24.68 1.70 26.21 1.76 27.75 1.82 28.85 1.84 30.81 1.88 32.35 1.91
55 24.66 1.72 26.19 1.78 27.73 1.85 28.83 1.87 30.79 1.90 32.32 1.94
60 24.64 1.74 26.17 1.80 27.70 1.87 28.81 1.89 30.77 1.93 32.30 1.96
65 24.62 1.76 26.15 1.83 27.68 1.89 28.79 1.91 30.74 1.95 32.27 1.99
70 24.61 1.78 26.13 1.85 27.66 1.92 28.77 1.94 30.72 1.97 32.25 2.01
75 24.01 1.88 25.54 1.95 27.06 2.02 28.16 2.04 30.11 2.08 31.64 2.12
80 23.42 1.98 24.94 2.05 26.46 2.12 27.56 2.15 29.50 2.19 31.02 2.23
85 22.83 2.07 24.35 2.15 25.87 2.23 26.96 2.25 28.90 2.29 30.42 2.34
90 22.25 2.17 23.76 2.25 25.27 2.33 26.37 2.36 28.30 2.40 29.81 2.45
95 21.61 2.27 23.12 2.35 24.62 2.43 25.31 2.46 27.63 2.51 29.14 2.56
100 21.08 2.36 22.59 2.45 24.10 2.54 24.98 2.57 27.11 2.61 28.61 2.67
105 20.56 2.46 22.06 2.55 23.57 2.64 24.66 2.67 26.58 2.72 28.09 2.78
110 20.03 2.55 21.54 2.65 23.04 2.74 24.13 2.78 26.05 2.83 27.56 2.88
115 19.51 2.65 21.01 2.75 22.52 2.85 23.60 2.88 25.53 2.93 27.03 2.99
118 19.19 2.71 20.70 2.81 22.20 2.91 23.29 2.94 25.21 3.00 26.72 3.06
122 19.08 2.78 20.59 2.89 22.10 2.99 23.18 3.03 25.11 3.08 26.61 3.14
12 + 18
14 27.57 1.67 29.28 1.74 31.00 1.80 32.23 1.82 34.42 1.85 36.13 1.89
20 27.55 1.70 29.26 1.76 30.97 1.82 32.21 1.85 34.39 1.88 36.10 1.92
25 27.53 1.72 29.24 1.79 30.95 1.85 32.18 1.87 34.37 1.91 36.08 1.94
30 27.51 1.75 29.22 1.81 30.92 1.88 32.16 1.90 34.34 1.93 36.05 1.97
35 27.49 1.77 29.19 1.83 30.90 1.90 32.13 1.92 34.31 1.96 36.02 2.00
40 27.47 1.79 29.17 1.86
30.88 1.93 32.11 1.95 34.29 1.99 35.99 2.03
45 27.44 1.82 29.15 1.88 30.85 1.95 32.08 1.98 34.26 2.01 35.97 2.05
50 27.42 1.84 29.13 1.91 30.83 1.98 32.06 2.00 34.24 2.04 35.94 2.08
55 27.40 1.87 29.10 1.93 30.81 2.01 32.04 2.03 34.21 2.07 35.91 2.11
60 27.38 1.89 29.08 1.96 30.78 2.03 32.01 2.05 34.18 2.09 35.88 2.14
65 27.36 1.91 29.06 1.98 30.76 2.06 31.99 2.08 34.16 2.12 35.86 2.16
70 27.34 1.94 29.04 2.01 30.74 2.08 31.96 2.11 34.13 2.15 35.83 2.19
75 26.68 2.04 28.38 2.12 30.07 2.20 31.29 2.22 33.46 2.26 35.15 2.31
80 26.02 2.15 27.71 2.23 29.40 2.31 30.62 2.33 32.78 2.38 34.47 2.43
85 25.37 2.25 27.06 2.33 28.74 2.42 29.96 2.45 32.11 2.49 33.80 2.54
90 24.72 2.36 26.40 2.44 28.08 2.53 29.30 2.56 31.44 2.61 33.13 2.66
95 24.01 2.46 25.68 2.55 27.36 2.64 28.13 2.68 30.70 2.73 32.38 2.78
100 23.43 2.57 25.10 2.66 26.77 2.76 27.76 2.79 30.12 2.84 31.79 2.90
105 22.84 2.67 24.52 2.77 26.19 2.87 27.40 2.90 29.53 2.96 31.21 3.02
110 22.26 2.78 23.93 2.88 25.60 2.98 26.81 3.02 28.95 3.07 30.62 3.13
115 21.67 2.88 23.35 2.99 25.02 3.09 26.23 3.13 28.36 3.19 30.04 3.25
118 21.32 2.94 22.99 3.05 24.67 3.16 25.88 3.20 28.01 3.26 29.69 3.32
122 21.21 3.03 22.88 3.14 24.55 3.25 25.76 3.29 27.90 3.35 29.57 3.42
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
144 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
7 + 24
14 28.49 1.71 30.26 1.77 32.03 1.84 33.31 1.86 35.57 1.90 37.34 1.93
20 28.47 1.74 30.24 1.80 32.00 1.87 33.28 1.89 35.54 1.92 37.31 1.96
25 28.45 1.76 30.21 1.83 31.98 1.89 33.26 1.91 35.51 1.95 37.28 1.99
30 28.42 1.79 30.19 1.85 31.96 1.92 33.23 1.94 35.49 1.98 37.25 2.02
35 28.40 1.81 30.17 1.88 31.93 1.95 33.20 1.97 35.46 2.00 37.22 2.04
40 28.38 1.84 30.14 1.90 31.91 1.97 33.18 1.99 35.43 2.03 37.19 2.07
45 28.36 1.86 30.12 1.93 31.88 2.00 33.15 2.02 35.40 2.06 37.17 2.10
50 28.34 1.88 30.10 1.95 31.86 2.02 33.13 2.05 35.38 2.09 37.14 2.13
55 28.32 1.91 30.07 1.98 31.83 2.05 33.10 2.07 35.35 2.11 37.11 2.16
60 28.29 1.93 30.05 2.00 31.81 2.08 33.08 2.10 35.32 2.14 37.08 2.18
65 28.27 1.96 30.03 2.03 31.78 2.10 33.05 2.13 35.30 2.17 37.05 2.21
70 28.25 1.98 30.01 2.06 31.76 2.13 33.03 2.15 35.27 2.20 37.02 2.24
75 27.57 2.09 29.32 2.17 31.07 2.25 32.34 2.27 34.57 2.31 36.32 2.36
80 26.89 2.20 28.64 2.28 30.38 2.36 31.64 2.39 33.87 2.43 35.62 2.48
85 26.22 2.30 27.96 2.39 29.70 2.48 30.96 2.50 33.18 2.55 34.93 2.60
90 25.54 2.41 27.28 2.50 29.02 2.59 30.27 2.62 32.49 2.67 34.23 2.72
95 24.81 2.52 26.54 2.61 28.27 2.70 29.06 2.74 31.73 2.79 33.46 2.84
100 24.21 2.62 25.94 2.72 27.67 2.82 28.69 2.85 31.12 2.91 32.85 2.96
105 23.60 2.73 25.33 2.83 27.06 2.93 28.31 2.97 30.52 3.02 32.25 3.09
110 23.00 2.84 24.73 2.94 26.46 3.05 27.71 3.08 29.91 3.14 31.64 3.21
115 22.40 2.95 24.12 3.05 25.85 3.16 27.10 3.20 29.31 3.26 31.04 3.33
118 22.03 3.01 23.76 3.12 25.49 3.23 26.74 3.27 28.95 3.33 30.68 3.40
122 21.91 3.10 23.64 3.21 25.37 3.33 26.62 3.36 28.83 3.43 30.55 3.50
9 + 24
14 29.41 1.76 31.24 1.82 33.06 1.89 34.38 1.91 36.71 1.94 38.54 1.98
20 29.39 1.78 31.21 1.85 33.04 1.91 34.35 1.94 36.69 1.97 38.51 2.01
25 29.36 1.81 31.19 1.87 33.01 1.94 34.33 1.96 36.66 2.00 38.48 2.04
30 29.34 1.83 31.16 1.90 32.99 1.97 34.30 1.99 36.63 2.03 38.45 2.07
35 29.32 1.86 31.14 1.93 32.96 2.00 34.28 2.02 36.60 2.06 38.42 2.10
40 29.30 1.88 31.12 1.95
32.94 2.02 34.25 2.05 36.57 2.08 38.39 2.13
45 29.27 1.91 31.09 1.98 32.91 2.05 34.22 2.07 36.55 2.11 38.36 2.16
50 29.25 1.93 31.07 2.00 32.89 2.08 34.20 2.10 36.52 2.14 38.34 2.18
55 29.23 1.96 31.04 2.03 32.86 2.10 34.17 2.13 36.49 2.17 38.31 2.21
60 29.21 1.98 31.02 2.06 32.83 2.13 34.14 2.16 36.46 2.20 38.28 2.24
65 29.18 2.01 31.00 2.08 32.81 2.16 34.12 2.18 36.43 2.22 38.25 2.27
70 29.16 2.03 30.97 2.11 32.78 2.19 34.09 2.21 36.41 2.25 38.22 2.30
75 28.46 2.14 30.27 2.22 32.07 2.30 33.38 2.33 35.69 2.37 37.49 2.42
80 27.76 2.25 29.56 2.34 31.36 2.42 32.66 2.45 34.97 2.50 36.77 2.55
85 27.06 2.36 28.86 2.45 30.66 2.54 31.96 2.57 34.25 2.62 36.05 2.67
90 26.37 2.47 28.16 2.56 29.95 2.66 31.25 2.69 33.54 2.74 35.33 2.79
95 25.61 2.58 27.40 2.68 29.18 2.78 30.00 2.81 32.75 2.86 34.53 2.92
100 24.99 2.69 26.77 2.79 28.56 2.89 29.61 2.93 32.13 2.98 33.91 3.04
105 24.37 2.80 26.15 2.91 27.93 3.01 29.22 3.05 31.50 3.10 33.29 3.17
110 23.74 2.91 25.53 3.02 27.31 3.13 28.60 3.17 30.88 3.22 32.66 3.29
115 23.12 3.02 24.90 3.13 26.69 3.25 27.98 3.28 30.26 3.35 32.04 3.41
118 22.74 3.09 24.53 3.20 26.31 3.32 27.60 3.36 29.88 3.42 31.67 3.49
122 22.62 3.18 24.40 3.29 26.19 3.41 27.48 3.45 29.76 3.52 31.54 3.59
PERFORMANCE DATA
Cooling Capacity Tables
Table 137: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
MULTI F OUTDOOR UNIT | 145
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 138: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
15 + 18
14 29.41 1.76 31.24 1.82 33.06 1.89 34.38 1.91 36.71 1.94 38.54 1.98
20 29.39 1.78 31.21 1.85 33.04 1.91 34.35 1.94 36.69 1.97 38.51 2.01
25 29.36 1.81 31.19 1.87 33.01 1.94 34.33 1.96 36.66 2.00 38.48 2.04
30 29.34 1.83 31.16 1.90 32.99 1.97 34.30 1.99 36.63 2.03 38.45 2.07
35 29.32 1.86 31.14 1.93 32.96 2.00 34.28 2.02 36.60 2.06 38.42 2.10
40 29.30 1.88 31.12 1.95 32.94 2.02 34.25 2.05 36.57 2.08 38.39 2.13
45 29.27 1.91 31.09 1.98 32.91 2.05 34.22 2.07 36.55 2.11 38.36 2.16
50 29.25 1.93 31.07 2.00 32.89 2.08 34.20 2.10 36.52 2.14 38.34 2.18
55 29.23 1.96 31.04 2.03 32.86 2.10 34.17 2.13 36.49 2.17 38.31 2.21
60 29.21 1.98 31.02 2.06 32.83 2.13 34.14 2.16 36.46 2.20 38.28 2.24
65 29.18 2.01 31.00 2.08 32.81 2.16 34.12 2.18 36.43 2.22 38.25 2.27
70 29.16 2.03 30.97 2.11 32.78 2.19 34.09 2.21 36.41 2.25 38.22 2.30
75 28.46 2.14 30.27 2.22 32.07 2.30 33.38 2.33 35.69 2.37 37.49 2.42
80 27.76 2.25 29.56 2.34 31.36 2.42 32.66 2.45 34.97 2.50 36.77 2.55
85 27.06 2.36 28.86 2.45 30.66 2.54 31.96 2.57 34.25 2.62 36.05 2.67
90 26.37 2.47 28.16 2.56 29.95 2.66 31.25 2.69 33.54 2.74 35.33 2.79
95 25.61 2.58 27.40 2.68 29.18 2.78 30.00 2.81 32.75 2.86 34.53 2.92
100 24.99 2.69 26.77 2.79 28.56 2.89 29.61 2.93 32.13 2.98 33.91 3.04
105 24.37 2.80 26.15 2.91 27.93 3.01 29.22 3.05 31.50 3.10 33.29 3.17
110 23.74 2.91 25.53 3.02 27.31 3.13 28.60 3.17 30.88 3.22 32.66 3.29
115 23.12 3.02 24.90 3.13 26.69 3.25 27.98 3.28 30.26 3.35 32.04 3.41
118 22.74 3.09 24.53 3.20 26.31 3.32 27.60 3.36 29.88 3.42 31.67 3.49
122 22.62 3.18 24.40 3.29 26.19 3.41 27.48 3.45 29.76 3.52 31.54 3.59
18 + 18
14 29.41 1.76 31.24 1.82 33.06 1.89 34.38 1.91 36.71 1.94 38.54 1.98
20 29.39 1.78 31.21 1.85 33.04 1.91 34.35 1.94 36.69 1.97 38.51 2.01
25 29.36 1.81 31.19 1.87 33.01 1.94 34.33 1.96 36.66 2.00 38.48 2.04
30 29.34 1.83 31.16 1.90 32.99 1.97 34.30 1.99 36.63 2.03 38.45 2.07
35 29.32 1.86 31.14 1.93 32.96 2.00 34.28 2.02 36.60 2.06 38.42 2.10
40 29.30 1.88 31.12 1.95
32.94 2.02 34.25 2.05 36.57 2.08 38.39 2.13
45 29.27 1.91 31.09 1.98 32.91 2.05 34.22 2.07 36.55 2.11 38.36 2.16
50 29.25 1.93 31.07 2.00 32.89 2.08 34.20 2.10 36.52 2.14 38.34 2.18
55 29.23 1.96 31.04 2.03 32.86 2.10 34.17 2.13 36.49 2.17 38.31 2.21
60 29.21 1.98 31.02 2.06 32.83 2.13 34.14 2.16 36.46 2.20 38.28 2.24
65 29.18 2.01 31.00 2.08 32.81 2.16 34.12 2.18 36.43 2.22 38.25 2.27
70 29.16 2.03 30.97 2.11 32.78 2.19 34.09 2.21 36.41 2.25 38.22 2.30
75 28.46 2.14 30.27 2.22 32.07 2.30 33.38 2.33 35.69 2.37 37.49 2.42
80 27.76 2.25 29.56 2.34 31.36 2.42 32.66 2.45 34.97 2.50 36.77 2.55
85 27.06 2.36 28.86 2.45 30.66 2.54 31.96 2.57 34.25 2.62 36.05 2.67
90 26.37 2.47 28.16 2.56 29.95 2.66 31.25 2.69 33.54 2.74 35.33 2.79
95 25.61 2.58 27.40 2.68 29.18 2.78 30.00 2.81 32.75 2.86 34.53 2.92
100 24.99 2.69 26.77 2.79 28.56 2.89 29.61 2.93 32.13 2.98 33.91 3.04
105 24.37 2.80 26.15 2.91 27.93 3.01 29.22 3.05 31.50 3.10 33.29 3.17
110 23.74 2.91 25.53 3.02 27.31 3.13 28.60 3.17 30.88 3.22 32.66 3.29
115 23.12 3.02 24.90 3.13 26.69 3.25 27.98 3.28 30.26 3.35 32.04 3.41
118 22.74 3.09 24.53 3.20 26.31 3.32 27.60 3.36 29.88 3.42 31.67 3.49
122 22.62 3.18 24.40 3.29 26.19 3.41 27.48 3.45 29.76 3.52 31.54 3.59
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
146 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 139: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
12 + 24
14 29.41 1.76 31.24 1.82 33.06 1.89 34.38 1.91 36.71 1.94 38.54 1.98
20 29.39 1.78 31.21 1.85 33.04 1.91 34.35 1.94 36.69 1.97 38.51 2.01
25 29.36 1.81 31.19 1.87 33.01 1.94 34.33 1.96 36.66 2.00 38.48 2.04
30 29.34 1.83 31.16 1.90 32.99 1.97 34.30 1.99 36.63 2.03 38.45 2.07
35 29.32 1.86 31.14 1.93 32.96 2.00 34.28 2.02 36.60 2.06 38.42 2.10
40 29.30 1.88 31.12 1.95 32.94 2.02 34.25 2.05 36.57 2.08 38.39 2.13
45 29.27 1.91 31.09 1.98 32.91 2.05 34.22 2.07 36.55 2.11 38.36 2.16
50 29.25 1.93 31.07 2.00 32.89 2.08 34.20 2.10 36.52 2.14 38.34 2.18
55 29.23 1.96 31.04 2.03 32.86 2.10 34.17 2.13 36.49 2.17 38.31 2.21
60 29.21 1.98 31.02 2.06 32.83 2.13 34.14 2.16 36.46 2.20 38.28 2.24
65 29.18 2.01 31.00 2.08 32.81 2.16 34.12 2.18 36.43 2.22 38.25 2.27
70 29.16 2.03 30.97 2.11 32.78 2.19 34.09 2.21 36.41 2.25 38.22 2.30
75 28.46 2.14 30.27 2.22 32.07 2.30 33.38 2.33 35.69 2.37 37.49 2.42
80 27.76 2.25 29.56 2.34 31.36 2.42 32.66 2.45 34.97 2.50 36.77 2.55
85 27.06 2.36 28.86 2.45 30.66 2.54 31.96 2.57 34.25 2.62 36.05 2.67
90 26.37 2.47 28.16 2.56 29.95 2.66 31.25 2.69 33.54 2.74 35.33 2.79
95 25.61 2.58 27.40 2.68 29.18 2.78 30.00 2.81 32.75 2.86 34.53 2.92
100 24.99 2.69 26.77 2.79 28.56 2.89 29.61 2.93 32.13 2.98 33.91 3.04
105 24.37 2.80 26.15 2.91 27.93 3.01 29.22 3.05 31.50 3.10 33.29 3.17
110 23.74 2.91 25.53 3.02 27.31 3.13 28.60 3.17 30.88 3.22 32.66 3.29
115 23.12 3.02 24.90 3.13 26.69 3.25 27.98 3.28 30.26 3.35 32.04 3.41
118 22.74 3.09 24.53 3.20 26.31 3.32 27.60 3.36 29.88 3.42 31.67 3.49
122 22.62 3.18 24.40 3.29 26.19 3.41 27.48 3.45 29.76 3.52 31.54 3.59
15 + 24
14 29.41 1.76 31.24 1.82 33.06 1.89 34.38 1.91 36.71 1.94 38.54 1.98
20 29.39 1.78 31.21 1.85 33.04 1.91 34.35 1.94 36.69 1.97 38.51 2.01
25 29.36 1.81 31.19 1.87 33.01 1.94 34.33 1.96 36.66 2.00 38.48 2.04
30 29.34 1.83 31.16 1.90 32.99 1.97 34.30 1.99 36.63 2.03 38.45 2.07
35 29.32 1.86 31.14 1.93 32.96 2.00 34.28 2.02 36.60 2.06 38.42 2.10
40 29.30 1.88 31.12 1.95
32.94 2.02 34.25 2.05 36.57 2.08 38.39 2.13
45 29.27 1.91 31.09 1.98 32.91 2.05 34.22 2.07 36.55 2.11 38.36 2.16
50 29.25 1.93 31.07 2.00 32.89 2.08 34.20 2.10 36.52 2.14 38.34 2.18
55 29.23 1.96 31.04 2.03 32.86 2.10 34.17 2.13 36.49 2.17 38.31 2.21
60 29.21 1.98 31.02 2.06 32.83 2.13 34.14 2.16 36.46 2.20 38.28 2.24
65 29.18 2.01 31.00 2.08 32.81 2.16 34.12 2.18 36.43 2.22 38.25 2.27
70 29.16 2.03 30.97 2.11 32.78 2.19 34.09 2.21 36.41 2.25 38.22 2.30
75 28.46 2.14 30.27 2.22 32.07 2.30 33.38 2.33 35.69 2.37 37.49 2.42
80 27.76 2.25 29.56 2.34 31.36 2.42 32.66 2.45 34.97 2.50 36.77 2.55
85 27.06 2.36 28.86 2.45 30.66 2.54 31.96 2.57 34.25 2.62 36.05 2.67
90 26.37 2.47 28.16 2.56 29.95 2.66 31.25 2.69 33.54 2.74 35.33 2.79
95 25.61 2.58 27.40 2.68 29.18 2.78 30.00 2.81 32.75 2.86 34.53 2.92
100 24.99 2.69 26.77 2.79 28.56 2.89 29.61 2.93 32.13 2.98 33.91 3.04
105 24.37 2.80 26.15 2.91 27.93 3.01 29.22 3.05 31.50 3.10 33.29 3.17
110 23.74 2.91 25.53 3.02 27.31 3.13 28.60 3.17 30.88 3.22 32.66 3.29
115 23.12 3.02 24.90 3.13 26.69 3.25 27.98 3.28 30.26 3.35 32.04 3.41
118 22.74 3.09 24.53 3.20 26.31 3.32 27.60 3.36 29.88 3.42 31.67 3.49
122 22.62 3.18 24.40 3.29 26.19 3.41 27.48 3.45 29.76 3.52 31.54 3.59
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 147
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 140: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
18 + 24*
14 29.41 1.76 31.24 1.82 33.06 1.89 34.38 1.91 36.71 1.94 38.54 1.98
20 29.39 1.78 31.21 1.85 33.04 1.91 34.35 1.94 36.69 1.97 38.51 2.01
25 29.36 1.81 31.19 1.87 33.01 1.94 34.33 1.96 36.66 2.00 38.48 2.04
30 29.34 1.83 31.16 1.90 32.99 1.97 34.30 1.99 36.63 2.03 38.45 2.07
35 29.32 1.86 31.14 1.93 32.96 2.00 34.28 2.02 36.60 2.06 38.42 2.10
40 29.30 1.88 31.12 1.95 32.94 2.02 34.25 2.05 36.57 2.08 38.39 2.13
45 29.27 1.91 31.09 1.98 32.91 2.05 34.22 2.07 36.55 2.11 38.36 2.16
50 29.25 1.93 31.07 2.00 32.89 2.08 34.20 2.10 36.52 2.14 38.34 2.18
55 29.23 1.96 31.04 2.03 32.86 2.10 34.17 2.13 36.49 2.17 38.31 2.21
60 29.21 1.98 31.02 2.06 32.83 2.13 34.14 2.16 36.46 2.20 38.28 2.24
65 29.18 2.01 31.00 2.08 32.81 2.16 34.12 2.18 36.43 2.22 38.25 2.27
70 29.16 2.03 30.97 2.11 32.78 2.19 34.09 2.21 36.41 2.25 38.22 2.30
75 28.46 2.14 30.27 2.22 32.07 2.30 33.38 2.33 35.69 2.37 37.49 2.42
80 27.76 2.25 29.56 2.34 31.36 2.42 32.66 2.45 34.97 2.50 36.77 2.55
85 27.06 2.36 28.86 2.45 30.66 2.54 31.96 2.57 34.25 2.62 36.05 2.67
90 26.37 2.47 28.16 2.56 29.95 2.66 31.25 2.69 33.54 2.74 35.33 2.79
95 25.61 2.58 27.40 2.68 29.18 2.78 30.00 2.81 32.75 2.86 34.53 2.92
100 24.99 2.69 26.77 2.79 28.56 2.89 29.61 2.93 32.13 2.98 33.91 3.04
105 24.37 2.80 26.15 2.91 27.93 3.01 29.22 3.05 31.50 3.10 33.29 3.17
110 23.74 2.91 25.53 3.02 27.31 3.13 28.60 3.17 30.88 3.22 32.66 3.29
115 23.12 3.02 24.90 3.13 26.69 3.25 27.98 3.28 30.26 3.35 32.04 3.41
118 22.74 3.09 24.53 3.20 26.31 3.32 27.60 3.36 29.88 3.42 31.67 3.49
122 22.62 3.18 24.40 3.29 26.19 3.41 27.48 3.45 29.76 3.52 31.54 3.59
24* + 24*
14 29.41 1.76 31.24 1.82 33.06 1.89 34.38 1.91 36.71 1.94 38.54 1.98
20 29.39 1.78 31.21 1.85 33.04 1.91 34.35 1.94 36.69 1.97 38.51 2.01
25 29.36 1.81 31.19 1.87 33.01 1.94 34.33 1.96 36.66 2.00 38.48 2.04
30 29.34 1.83 31.16 1.90 32.99 1.97 34.30 1.99 36.63 2.03 38.45 2.07
35 29.32 1.86 31.14 1.93 32.96 2.00 34.28 2.02 36.60 2.06 38.42 2.10
40 29.30 1.88 31.12 1.95
32.94 2.02 34.25 2.05 36.57 2.08 38.39 2.13
45 29.27 1.91 31.09 1.98 32.91 2.05 34.22 2.07 36.55 2.11 38.36 2.16
50 29.25 1.93 31.07 2.00 32.89 2.08 34.20 2.10 36.52 2.14 38.34 2.18
55 29.23 1.96 31.04 2.03 32.86 2.10 34.17 2.13 36.49 2.17 38.31 2.21
60 29.21 1.98 31.02 2.06 32.83 2.13 34.14 2.16 36.46 2.20 38.28 2.24
65 29.18 2.01 31.00 2.08 32.81 2.16 34.12 2.18 36.43 2.22 38.25 2.27
70 29.16 2.03 30.97 2.11 32.78 2.19 34.09 2.21 36.41 2.25 38.22 2.30
75 28.46 2.14 30.27 2.22 32.07 2.30 33.38 2.33 35.69 2.37 37.49 2.42
80 27.76 2.25 29.56 2.34 31.36 2.42 32.66 2.45 34.97 2.50 36.77 2.55
85 27.06 2.36 28.86 2.45 30.66 2.54 31.96 2.57 34.25 2.62 36.05 2.67
90 26.37 2.47 28.16 2.56 29.95 2.66 31.25 2.69 33.54 2.74 35.33 2.79
95 25.61 2.58 27.40 2.68 29.18 2.78 30.00 2.81 32.75 2.86 34.53 2.92
100 24.99 2.69 26.77 2.79 28.56 2.89 29.61 2.93 32.13 2.98 33.91 3.04
105 24.37 2.80 26.15 2.91 27.93 3.01 29.22 3.05 31.50 3.10 33.29 3.17
110 23.74 2.91 25.53 3.02 27.31 3.13 28.60 3.17 30.88 3.22 32.66 3.29
115 23.12 3.02 24.90 3.13 26.69 3.25 27.98 3.28 30.26 3.35 32.04 3.41
118 22.74 3.09 24.53 3.20 26.31 3.32 27.60 3.36 29.88 3.42 31.67 3.49
122 22.62 3.18 24.40 3.29 26.19 3.41 27.48 3.45 29.76 3.52 31.54 3.59
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
*The indoor unit must be non-ducted type.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
148 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 7 + 9
14 21.14 1.31 22.45 1.36 23.76 1.41 24.71 1.42 26.39 1.45 27.70 1.48
20 21.12 1.33 22.43 1.38 23.75 1.43 24.69 1.45 26.37 1.47 27.68 1.50
25 21.11 1.35 22.42 1.40 23.73 1.45 24.67 1.47 26.35 1.49 27.66 1.52
30 21.09 1.37 22.40 1.42 23.71 1.47 24.65 1.49 26.33 1.51 27.64 1.54
35 21.07 1.39 22.38 1.44 23.69 1.49 24.64 1.51 26.31 1.54 27.62 1.57
40 21.06 1.41 22.36 1.46 23.67 1.51 24.62 1.53 26.29 1.56 27.60 1.59
45 21.04 1.42 22.35 1.48 23.65 1.53 24.60 1.55 26.27 1.58 27.57 1.61
50 21.02 1.44 22.33 1.50 23.64 1.55 24.58 1.57 26.25 1.60 27.55 1.63
55 21.01 1.46 22.31 1.52 23.62 1.57 24.56 1.59 26.23 1.62 27.53 1.65
60 20.99 1.48 22.30 1.53 23.60 1.59 24.54 1.61 26.21 1.64 27.51 1.67
65 20.98 1.50 22.28 1.55 23.58 1.61 24.52 1.63 26.19 1.66 27.49 1.69
70 20.96 1.52 22.26 1.57 23.56 1.63 24.50 1.65 26.17 1.68 27.47 1.71
75 20.46 1.60 21.75 1.66 23.05 1.72 23.99 1.74 25.65 1.77 26.95 1.81
80 19.95 1.68 21.25 1.74 22.54 1.81 23.48 1.83 25.13 1.86 26.43 1.90
85 19.45 1.76 20.74 1.83 22.04 1.90 22.97 1.92 24.62 1.95 25.91 1.99
90 18.95 1.85 20.24 1.91 21.53 1.98 22.46 2.01 24.11 2.04 25.40 2.09
95 18.41 1.93 19.69 2.00 20.97 2.07 21.56 2.10 23.54 2.13 24.82 2.18
100 17.96 2.01 19.24 2.08 20.53 2.16 21.28 2.18 23.09 2.23 24.37 2.27
105 17.51 2.09 18.80 2.17 20.08 2.25 21.00 2.27 22.64 2.32 23.93 2.36
110 17.06 2.17 18.35 2.25 19.63 2.34 20.56 2.36 22.19 2.41 23.48 2.46
115 16.62 2.26 17.90 2.34 19.18 2.42 20.11 2.45 21.75 2.50 23.03 2.55
118 16.35 2.30 17.63 2.39 18.91 2.48 19.84 2.50 21.48 2.55 22.76 2.60
122 16.26 2.37 17.54 2.46 18.82 2.55 19.75 2.58 21.39 2.62 22.67 2.68
7 + 9 + 9
14 22.98 1.41 24.40 1.46 25.83 1.52 26.86 1.54 28.68 1.56 30.11 1.60
20 22.96 1.43 24.38 1.49 25.81 1.54 26.84 1.56 28.66 1.59 30.09 1.62
25 22.94 1.45 24.37 1.51 25.79 1.56 26.82 1.58 28.64 1.61 30.06 1.64
30 22.92 1.47 24.35 1.53 25.77 1.58 26.80 1.60 28.62 1.63 30.04 1.66
35 22.91 1.49 24.33 1.55 25.75 1.61 26.78 1.62 28.60 1.65 30.02 1.69
40 22.89 1.51 24.31 1.57
25.73 1.63 26.76 1.65 28.57 1.68 30.00 1.71
45 22.87 1.53 24.29 1.59 25.71 1.65 26.74 1.67 28.55 1.70 29.97 1.73
50 22.85 1.56 24.27 1.61 25.69 1.67 26.72 1.69 28.53 1.72 29.95 1.76
55 22.84 1.58 24.25 1.63 25.67 1.69 26.70 1.71 28.51 1.74 29.93 1.78
60 22.82 1.60 24.24 1.65 25.65 1.71 26.68 1.73 28.49 1.77 29.90 1.80
65 22.80 1.62 24.22 1.68 25.63 1.74 26.66 1.76 28.46 1.79 29.88 1.83
70 22.78 1.64 24.20 1.70 25.61 1.76 26.63 1.78 28.44 1.81 29.86 1.85
75 22.23 1.72 23.65 1.79 25.06 1.85 26.08 1.87 27.88 1.91 29.29 1.95
80 21.69 1.81 23.09 1.88 24.50 1.95 25.52 1.97 27.32 2.01 28.73 2.05
85 21.14 1.90 22.55 1.97 23.95 2.04 24.97 2.07 26.76 2.10 28.17 2.15
90 20.60 1.99 22.00 2.06 23.40 2.14 24.41 2.16 26.20 2.20 27.60 2.25
95 20.01 2.08 21.40 2.15 22.80 2.23 23.44 2.26 25.59 2.30 26.98 2.35
100 19.52 2.17 20.92 2.25 22.31 2.33 23.13 2.35 25.10 2.40 26.49 2.45
105 19.04 2.25 20.43 2.34 21.82 2.42 22.83 2.45 24.61 2.50 26.01 2.55
110 18.55 2.34 19.94 2.43 21.34 2.52 22.34 2.55 24.12 2.59 25.52 2.65
115 18.06 2.43 19.45 2.52 20.85 2.61 21.86 2.64 23.64 2.69 25.03 2.75
118 17.77 2.48 19.16 2.57 20.56 2.67 21.56 2.70 23.34 2.75 24.74 2.81
122 17.67 2.55 19.07 2.65 20.46 2.74 21.47 2.78 23.25 2.83 24.64 2.89
Table 141: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 149
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 142: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 7 + 12
14 23.89 1.44 25.38 1.49 26.86 1.55 27.93 1.56 29.83 1.59 31.31 1.62
20 23.88 1.46 25.36 1.51 26.84 1.57 27.91 1.59 29.81 1.62 31.29 1.65
25 23.86 1.48 25.34 1.53 26.82 1.59 27.89 1.61 29.79 1.64 31.27 1.67
30 23.84 1.50 25.32 1.56 26.80 1.61 27.87 1.63 29.76 1.66 31.24 1.69
35 23.82 1.52 25.30 1.58 26.78 1.63 27.85 1.65 29.74 1.68 31.22 1.72
40 23.80 1.54 25.28 1.60 26.76 1.66 27.83 1.68 29.72 1.71 31.20 1.74
45 23.79 1.56 25.26 1.62 26.74 1.68 27.81 1.70 29.69 1.73 31.17 1.76
50 23.77 1.58 25.24 1.64 26.72 1.70 27.79 1.72 29.67 1.75 31.15 1.79
55 23.75 1.60 25.22 1.66 26.70 1.72 27.76 1.74 29.65 1.78 31.12 1.81
60 23.73 1.62 25.20 1.68 26.68 1.75 27.74 1.77 29.63 1.80 31.10 1.83
65 23.71 1.65 25.19 1.71 26.66 1.77 27.72 1.79 29.60 1.82 31.08 1.86
70 23.69 1.67 25.17 1.73 26.64 1.79 27.70 1.81 29.58 1.84 31.05 1.88
75 23.12 1.76 24.59 1.82 26.06 1.89 27.12 1.91 29.00 1.94 30.46 1.98
80 22.55 1.85 24.02 1.91 25.48 1.98 26.54 2.01 28.41 2.04 29.88 2.08
85 21.99 1.94 23.45 2.01 24.91 2.08 25.96 2.10 27.83 2.14 29.29 2.19
90 21.42 2.03 22.88 2.10 24.34 2.18 25.39 2.20 27.25 2.24 28.71 2.29
95 20.81 2.12 22.26 2.19 23.71 2.27 24.38 2.30 26.61 2.34 28.06 2.39
100 20.30 2.21 21.75 2.29 23.20 2.37 24.06 2.40 26.10 2.44 27.55 2.49
105 19.80 2.30 21.25 2.38 22.70 2.47 23.74 2.49 25.60 2.54 27.05 2.59
110 19.29 2.38 20.74 2.47 22.19 2.56 23.24 2.59 25.09 2.64 26.54 2.69
115 18.78 2.47 20.23 2.57 21.68 2.66 22.73 2.69 24.58 2.74 26.03 2.79
118 18.48 2.53 19.93 2.62 21.38 2.72 22.43 2.75 24.28 2.80 25.73 2.86
122 18.38 2.60 19.83 2.70 21.28 2.79 22.32 2.83 24.18 2.88 25.63 2.94
9 + 9 + 9
14 24.81 1.46 26.35 1.52 27.90 1.57 29.01 1.59 30.98 1.62 32.52 1.65
20 24.79 1.49 26.33 1.54 27.87 1.60 28.99 1.61 30.95 1.64 32.49 1.68
25 24.78 1.51 26.31 1.56 27.85 1.62 28.96 1.64 30.93 1.67 32.47 1.70
30 24.76 1.53 26.29 1.58 27.83 1.64 28.94 1.66 30.91 1.69 32.44 1.72
35 24.74 1.55 26.27 1.60 27.81 1.66 28.92 1.68 30.88 1.71 32.42 1.75
40 24.72 1.57 26.25 1.63
27.79 1.69 28.90 1.71 30.86 1.74 32.40 1.77
45 24.70 1.59 26.23 1.65 27.77 1.71 28.88 1.73 30.84 1.76 32.37 1.80
50 24.68 1.61 26.21 1.67 27.75 1.73 28.85 1.75 30.81 1.78 32.35 1.82
55 24.66 1.63 26.19 1.69 27.73 1.75 28.83 1.77 30.79 1.81 32.32 1.84
60 24.64 1.65 26.17 1.71 27.70 1.78 28.81 1.80 30.77 1.83 32.30 1.87
65 24.62 1.67 26.15 1.74 27.68 1.80 28.79 1.82 30.74 1.85 32.27 1.89
70 24.61 1.70 26.13 1.76 27.66 1.82 28.77 1.84 30.72 1.88 32.25 1.91
75 24.01 1.79 25.54 1.85 27.06 1.92 28.16 1.94 30.11 1.98 31.64 2.02
80 23.42 1.88 24.94 1.95 26.46 2.02 27.56 2.04 29.50 2.08 31.02 2.12
85 22.83 1.97 24.35 2.04 25.87 2.12 26.96 2.14 28.90 2.18 30.42 2.22
90 22.25 2.06 23.76 2.14 25.27 2.21 26.37 2.24 28.30 2.28 29.81 2.33
95 21.61 2.15 23.12 2.23 24.62 2.31 25.31 2.34 27.63 2.38 29.14 2.43
100 21.08 2.24 22.59 2.33 24.10 2.41 24.98 2.44 27.11 2.48 28.61 2.53
105 20.56 2.34 22.06 2.42 23.57 2.51 24.66 2.54 26.58 2.59 28.09 2.64
110 20.03 2.43 21.54 2.52 23.04 2.61 24.13 2.64 26.05 2.69 27.56 2.74
115 19.51 2.52 21.01 2.61 22.52 2.71 23.60 2.74 25.53 2.79 27.03 2.84
118 19.19 2.57 20.70 2.67 22.20 2.76 23.29 2.80 25.21 2.85 26.72 2.91
122 19.08 2.65 20.59 2.74 22.10 2.84 23.18 2.88 25.11 2.93 26.61 2.99
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
150 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 9 + 12
14 25.73 1.50 27.33 1.55 28.93 1.61 30.08 1.63 32.13 1.66 33.72 1.69
20 25.71 1.52 27.31 1.57 28.91 1.63 30.06 1.65 32.10 1.68 33.70 1.71
25 25.69 1.54 27.29 1.60 28.88 1.65 30.04 1.67 32.08 1.70 33.67 1.74
30 25.67 1.56 27.27 1.62 28.86 1.68 30.01 1.70 32.05 1.73 33.65 1.76
35 25.65 1.58 27.25 1.64 28.84 1.70 29.99 1.72 32.03 1.75 33.62 1.79
40 25.63 1.60 27.23 1.66 28.82 1.72 29.97 1.74 32.00 1.78 33.59 1.81
45 25.62 1.62 27.21 1.68 28.80 1.75 29.95 1.77 31.98 1.80 33.57 1.83
50 25.60 1.65 27.19 1.71 28.77 1.77 29.92 1.79 31.95 1.82 33.54 1.86
55 25.58 1.67 27.16 1.73 28.75 1.79 29.90 1.81 31.93 1.85 33.52 1.88
60 25.56 1.69 27.14 1.75 28.73 1.81 29.88 1.84 31.90 1.87 33.49 1.91
65 25.54 1.71 27.12 1.77 28.71 1.84 29.85 1.86 31.88 1.89 33.47 1.93
70 25.52 1.73 27.10 1.80 28.69 1.86 29.83 1.88 31.86 1.92 33.44 1.96
75 24.90 1.83 26.48 1.89 28.06 1.96 29.21 1.98 31.23 2.02 32.81 2.06
80 24.29 1.92 25.87 1.99 27.44 2.06 28.58 2.09 30.60 2.12 32.17 2.17
85 23.68 2.01 25.25 2.09 26.83 2.16 27.96 2.19 29.97 2.23 31.55 2.27
90 23.07 2.11 24.64 2.18 26.21 2.26 27.34 2.29 29.35 2.33 30.92 2.38
95 22.41 2.20 23.97 2.28 25.53 2.36 26.25 2.39 28.66 2.44 30.22 2.48
100 21.87 2.29 23.43 2.38 24.99 2.46 25.91 2.49 28.11 2.54 29.67 2.59
105 21.32 2.39 22.88 2.47 24.44 2.56 25.57 2.59 27.56 2.64 29.13 2.70
110 20.77 2.48 22.34 2.57 23.90 2.66 25.02 2.70 27.02 2.75 28.58 2.80
115 20.23 2.57 21.79 2.67 23.35 2.76 24.48 2.80 26.47 2.85 28.03 2.91
118 19.90 2.63 21.46 2.73 23.02 2.82 24.15 2.86 26.15 2.91 27.71 2.97
122 19.79 2.70 21.35 2.80 22.91 2.91 24.04 2.94 26.04 2.99 27.60 3.05
9 + 9 + 12
14 27.57 1.57 29.28 1.62 31.00 1.68 32.23 1.70 34.42 1.73 36.13 1.77
20 27.55 1.59 29.26 1.65 30.97 1.71 32.21 1.73 34.39 1.76 36.10 1.79
25 27.53 1.61 29.24 1.67 30.95 1.73 32.18 1.75 34.37 1.78 36.08 1.82
30 27.51 1.63 29.22 1.69 30.92 1.75 32.16 1.78 34.34 1.81 36.05 1.84
35 27.49 1.66 29.19 1.72 30.90 1.78 32.13 1.80 34.31 1.83 36.02 1.87
40 27.47 1.68 29.17 1.74
30.88 1.80 32.11 1.82 34.29 1.86 35.99 1.90
45 27.44 1.70 29.15 1.76 30.85 1.83 32.08 1.85 34.26 1.88 35.97 1.92
50 27.42 1.72 29.13 1.79 30.83 1.85 32.06 1.87 34.24 1.91 35.94 1.95
55 27.40 1.75 29.10 1.81 30.81 1.88 32.04 1.90 34.21 1.93 35.91 1.97
60 27.38 1.77 29.08 1.83 30.78 1.90 32.01 1.92 34.18 1.96 35.88 2.00
65 27.36 1.79 29.06 1.86 30.76 1.92 31.99 1.95 34.16 1.98 35.86 2.02
70 27.34 1.81 29.04 1.88 30.74 1.95 31.96 1.97 34.13 2.01 35.83 2.05
75 26.68 1.91 28.38 1.98 30.07 2.05 31.29 2.08 33.46 2.12 35.15 2.16
80 26.02 2.01 27.71 2.08 29.40 2.16 30.62 2.18 32.78 2.22 34.47 2.27
85 25.37 2.11 27.06 2.18 28.74 2.26 29.96 2.29 32.11 2.33 33.80 2.38
90 24.72 2.20 26.40 2.29 28.08 2.37 29.30 2.40 31.44 2.44 33.13 2.49
95 24.01 2.30 25.68 2.39 27.36 2.47 28.13 2.50 30.70 2.55 32.38 2.60
100 23.43 2.40 25.10 2.49 26.77 2.58 27.76 2.61 30.12 2.66 31.79 2.71
105 22.84 2.50 24.52 2.59 26.19 2.68 27.40 2.71 29.53 2.77 31.21 2.82
110 22.26 2.60 23.93 2.69 25.60 2.79 26.81 2.82 28.95 2.87 30.62 2.93
115 21.67 2.69 23.35 2.79 25.02 2.89 26.23 2.93 28.36 2.98 30.04 3.04
118 21.32 2.75 22.99 2.85 24.67 2.96 25.88 2.99 28.01 3.05 29.69 3.11
122 21.21 2.83 22.88 2.93 24.55 3.04 25.76 3.08 27.90 3.13 29.57 3.20
Table 143: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table rows indicate reference data. When operating at this temperature, these values can
be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 151
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 144: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 9 + 15
14 28.49 1.60 30.26 1.66 32.03 1.72 33.31 1.74 35.57 1.78 37.34 1.81
20 28.47 1.63 30.24 1.69 32.00 1.75 33.28 1.77 35.54 1.80 37.31 1.84
25 28.45 1.65 30.21 1.71 31.98 1.77 33.26 1.79 35.51 1.83 37.28 1.86
30 28.42 1.67 30.19 1.73 31.96 1.80 33.23 1.82 35.49 1.85 37.25 1.89
35 28.40 1.70 30.17 1.76 31.93 1.82 33.20 1.84 35.46 1.88 37.22 1.92
40 28.38 1.72 30.14 1.78 31.91 1.85 33.18 1.87 35.43 1.90 37.19 1.94
45 28.36 1.74 30.12 1.81 31.88 1.87 33.15 1.89 35.40 1.93 37.17 1.97
50 28.34 1.77 30.10 1.83 31.86 1.90 33.13 1.92 35.38 1.95 37.14 1.99
55 28.32 1.79 30.07 1.85 31.83 1.92 33.10 1.94 35.35 1.98 37.11 2.02
60 28.29 1.81 30.05 1.88 31.81 1.95 33.08 1.97 35.32 2.01 37.08 2.05
65 28.27 1.83 30.03 1.90 31.78 1.97 33.05 1.99 35.30 2.03 37.05 2.07
70 28.25 1.86 30.01 1.93 31.76 2.00 33.03 2.02 35.27 2.06 37.02 2.10
75 27.57 1.96 29.32 2.03 31.07 2.10 32.34 2.13 34.57 2.17 36.32 2.21
80 26.89 2.06 28.64 2.13 30.38 2.21 31.64 2.24 33.87 2.28 35.62 2.32
85 26.22 2.16 27.96 2.24 29.70 2.32 30.96 2.35 33.18 2.39 34.93 2.44
90 25.54 2.26 27.28 2.34 29.02 2.43 30.27 2.45 32.49 2.50 34.23 2.55
95 24.81 2.36 26.54 2.44 28.27 2.53 29.06 2.56 31.73 2.61 33.46 2.66
100 24.21 2.46 25.94 2.55 27.67 2.64 28.69 2.67 31.12 2.72 32.85 2.78
105 23.60 2.56 25.33 2.65 27.06 2.75 28.31 2.78 30.52 2.83 32.25 2.89
110 23.00 2.66 24.73 2.76 26.46 2.86 27.71 2.89 29.91 2.94 31.64 3.00
115 22.40 2.76 24.12 2.86 25.85 2.96 27.10 3.00 29.31 3.06 31.04 3.12
118 22.03 2.82 23.76 2.92 25.49 3.03 26.74 3.06 28.95 3.12 30.68 3.18
122 21.91 2.90 23.64 3.01 25.37 3.12 26.62 3.15 28.83 3.21 30.55 3.27
7 + 12 + 12
14 28.49 1.60 30.26 1.66 32.03 1.72 33.31 1.74 35.57 1.78 37.34 1.81
20 28.47 1.63 30.24 1.69 32.00 1.75 33.28 1.77 35.54 1.80 37.31 1.84
25 28.45 1.65 30.21 1.71 31.98 1.77 33.26 1.79 35.51 1.83 37.28 1.86
30 28.42 1.67 30.19 1.73 31.96 1.80 33.23 1.82 35.49 1.85 37.25 1.89
35 28.40 1.70 30.17 1.76 31.93 1.82 33.20 1.84 35.46 1.88 37.22 1.92
40 28.38 1.72 30.14 1.78
31.91 1.85 33.18 1.87 35.43 1.90 37.19 1.94
45 28.36 1.74 30.12 1.81 31.88 1.87 33.15 1.89 35.40 1.93 37.17 1.97
50 28.34 1.77 30.10 1.83 31.86 1.90 33.13 1.92 35.38 1.95 37.14 1.99
55 28.32 1.79 30.07 1.85 31.83 1.92 33.10 1.94 35.35 1.98 37.11 2.02
60 28.29 1.81 30.05 1.88 31.81 1.95 33.08 1.97 35.32 2.01 37.08 2.05
65 28.27 1.83 30.03 1.90 31.78 1.97 33.05 1.99 35.30 2.03 37.05 2.07
70 28.25 1.86 30.01 1.93 31.76 2.00 33.03 2.02 35.27 2.06 37.02 2.10
75 27.57 1.96 29.32 2.03 31.07 2.10 32.34 2.13 34.57 2.17 36.32 2.21
80 26.89 2.06 28.64 2.13 30.38 2.21 31.64 2.24 33.87 2.28 35.62 2.32
85 26.22 2.16 27.96 2.24 29.70 2.32 30.96 2.35 33.18 2.39 34.93 2.44
90 25.54 2.26 27.28 2.34 29.02 2.43 30.27 2.45 32.49 2.50 34.23 2.55
95 24.81 2.36 26.54 2.44 28.27 2.53 29.06 2.56 31.73 2.61 33.46 2.66
100 24.21 2.46 25.94 2.55 27.67 2.64 28.69 2.67 31.12 2.72 32.85 2.78
105 23.60 2.56 25.33 2.65 27.06 2.75 28.31 2.78 30.52 2.83 32.25 2.89
110 23.00 2.66 24.73 2.76 26.46 2.86 27.71 2.89 29.91 2.94 31.64 3.00
115 22.40 2.76 24.12 2.86 25.85 2.96 27.10 3.00 29.31 3.06 31.04 3.12
118 22.03 2.82 23.76 2.92 25.49 3.03 26.74 3.06 28.95 3.12 30.68 3.18
122 21.91 2.90 23.64 3.01 25.37 3.12 26.62 3.15 28.83 3.21 30.55 3.27
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
152 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 7 + 18
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82 32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
9 + 9 + 15
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82
32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
Table 145: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 153
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 146: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
9 + 12 + 12
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82 32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
7 + 9 + 18
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82
32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
154 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 147: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 12 + 15
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82 32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
9 + 9 + 18
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82
32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 155
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 148: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
9 + 12 + 15
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82 32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
12 + 12 + 12
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82
32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
156 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 149: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 12 + 18
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82 32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
7 + 7 + 24
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82
32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 157
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 150: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
9 + 12 + 18
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82 32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
9 + 15 + 15
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82
32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
158 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 151: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
12 + 12 + 15
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82 32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
7 + 9 + 24
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82
32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 159
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 152: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
*The indoor unit must be non-ducted type.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 15 + 18
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82 32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
9 + 9 + 24*
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82
32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
160 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 153: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
9 + 15 + 18
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82 32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
12 + 12 + 18
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82
32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 161
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 154: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
*The indoor unit must be non-ducted type.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
12 + 15 + 15
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82 32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
7 + 12 + 24*
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82
32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
162 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 155: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
*The indoor unit must be non-ducted type.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 18 + 18
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82 32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
9 + 12 + 24*
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82
32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 163
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 156: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
9 + 18 + 18
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82 32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
12 + 15 + 18
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82
32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
164 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 157: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
*The indoor unit must be non-ducted type.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 15 + 24*
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82 32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
9 + 15 + 24*
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82
32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 165
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 158: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
*The indoor unit must be non-ducted type.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
12 + 12 +
24*
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82 32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
12 + 18 + 18
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12
1.82 32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
166 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 159: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
15 + 15 + 18
14 29.41 1.64 31.24 1.70 33.06 1.76 34.38 1.78 36.71 1.82 38.54 1.85
20 29.39 1.67 31.21 1.73 33.04 1.79 34.35 1.81 36.69 1.84 38.51 1.88
25 29.36 1.69 31.19 1.75 33.01 1.82 34.33 1.84 36.66 1.87 38.48 1.91
30 29.34 1.71 31.16 1.78 32.99 1.84 34.30 1.86 36.63 1.90 38.45 1.93
35 29.32 1.74 31.14 1.80 32.96 1.87 34.28 1.89 36.60 1.92 38.42 1.96
40 29.30 1.76 31.12 1.82 32.94 1.89 34.25 1.91 36.57 1.95 38.39 1.99
45 29.27 1.78 31.09 1.85 32.91 1.92 34.22 1.94 36.55 1.97 38.36 2.01
50 29.25 1.81 31.07 1.87 32.89 1.94 34.20 1.96 36.52 2.00 38.34 2.04
55 29.23 1.83 31.04 1.90 32.86 1.97 34.17 1.99 36.49 2.03 38.31 2.07
60 29.21 1.85 31.02 1.92 32.83 1.99 34.14 2.02 36.46 2.05 38.28 2.09
65 29.18 1.88 31.00 1.95 32.81 2.02 34.12 2.04 36.43 2.08 38.25 2.12
70 29.16 1.90 30.97 1.97 32.78 2.04 34.09 2.07 36.41 2.11 38.22 2.15
75 28.46 2.00 30.27 2.08 32.07 2.15 33.38 2.18 35.69 2.22 37.49 2.26
80 27.76 2.11 29.56 2.18 31.36 2.26 32.66 2.29 34.97 2.33 36.77 2.38
85 27.06 2.21 28.86 2.29 30.66 2.37 31.96 2.40 34.25 2.45 36.05 2.50
90 26.37 2.31 28.16 2.40 29.95 2.48 31.25 2.51 33.54 2.56 35.33 2.61
95 25.61 2.41 27.40 2.50 29.18 2.59 30.00 2.62 32.75 2.67 34.53 2.73
100 24.99 2.52 26.77 2.61 28.56 2.70 29.61 2.74 32.13 2.79 33.91 2.84
105 24.37 2.62 26.15 2.72 27.93 2.81 29.22 2.85 31.50 2.90 33.29 2.96
110 23.74 2.72 25.53 2.82 27.31 2.93 28.60 2.96 30.88 3.01 32.66 3.07
115 23.12 2.83 24.90 2.93 26.69 3.04 27.98 3.07 30.26 3.13 32.04 3.19
118 22.74 2.89 24.53 2.99 26.31 3.10 27.60 3.14 29.88 3.20 31.67 3.26
122 22.62 2.97 24.40 3.08 26.19 3.19 27.48 3.23 29.76 3.29 31.54 3.35
Four (4) Mixed
Indoor Units
7 + 7 + 7
+ 9
14 27.57 1.50 29.28 1.55 31.00 1.61 32.23 1.63 34.42 1.66 36.13 1.69
20 27.55 1.52 29.26 1.57 30.97 1.63 32.21 1.65 34.39 1.68 36.10 1.71
25 27.53 1.54 29.24 1.60 30.95 1.65 32.18 1.67 34.37 1.70 36.08 1.74
30 27.51 1.56 29.22 1.62 30.92 1.68 32.16 1.70 34.34 1.73 36.05 1.76
35 27.49 1.58 29.19 1.64 30.90 1.70 32.13 1.72 34.31 1.75 36.02 1.79
40 27.47
1.60 29.17 1.66 30.88 1.72 32.11 1.74 34.29 1.78 35.99 1.81
45 27.44 1.62 29.15 1.68 30.85 1.75 32.08 1.77 34.26 1.80 35.97 1.83
50 27.42 1.65 29.13 1.71 30.83 1.77 32.06 1.79 34.24 1.82 35.94 1.86
55 27.40 1.67 29.10 1.73 30.81 1.79 32.04 1.81 34.21 1.85 35.91 1.88
60 27.38 1.69 29.08 1.75 30.78 1.81 32.01 1.84 34.18 1.87 35.88 1.91
65 27.36 1.71 29.06 1.77 30.76 1.84 31.99 1.86 34.16 1.89 35.86 1.93
70 27.34 1.73 29.04 1.80 30.74 1.86 31.96 1.88 34.13 1.92 35.83 1.96
75 26.68 1.83 28.38 1.89 30.07 1.96 31.29 1.98 33.46 2.02 35.15 2.06
80 26.02 1.92 27.71 1.99 29.40 2.06 30.62 2.09 32.78 2.12 34.47 2.17
85 25.37 2.01 27.06 2.09 28.74 2.16 29.96 2.19 32.11 2.23 33.80 2.27
90 24.72 2.11 26.40 2.18 28.08 2.26 29.30 2.29 31.44 2.33 33.13 2.38
95 24.01 2.20 25.68 2.28 27.36 2.36 28.13 2.39 30.70 2.44 32.38 2.48
100 23.43 2.29 25.10 2.38 26.77 2.46 27.76 2.49 30.12 2.54 31.79 2.59
105 22.84 2.39 24.52 2.47 26.19 2.56 27.40 2.59 29.53 2.64 31.21 2.70
110 22.26 2.48 23.93 2.57 25.60 2.66 26.81 2.70 28.95 2.75 30.62 2.80
115 21.67 2.57 23.35 2.67 25.02 2.76 26.23 2.80 28.36 2.85 30.04 2.91
118 21.32 2.63 22.99 2.73 24.67 2.82 25.88 2.86 28.01 2.91 29.69 2.97
122 21.21 2.70 22.88 2.80 24.55 2.91 25.76 2.94 27.90 2.99 29.57 3.05
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 167
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 160: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 7 + 9
+ 9
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68 31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
7 + 7 + 7
+ 12
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68
31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
168 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 9 + 9
+ 9
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68 31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
7 + 7 + 9
+ 12
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68
31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
Table 161: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 169
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Table 162: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
9 + 9 + 9
+ 9
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68 31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
7 + 9 + 9
+ 12
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68
31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
170 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 163: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 7 + 9
+ 15
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68 31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
7 + 7 + 12
+ 12
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68
31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 171
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 164: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 7 + 7
+ 18
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68 31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
9 + 9 + 9
+ 12
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68
31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
172 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 165: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 9 + 9
+ 15
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68 31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
7 + 9 + 12
+ 12
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68
31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 173
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 166: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 7 + 9
+ 18
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68 31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
7 + 7 + 12
+ 15
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68
31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
174 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 167: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
9 + 9 + 9
+ 15
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68 31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
9 + 9 + 12
+ 12
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68
31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 175
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 168: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 9 + 9
+ 18
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68 31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
7 + 9 + 12
+ 15
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68
31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
176 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 169: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 12 + 12
+ 12
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68 31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
7 + 7 + 12
+ 18
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68
31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 177
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 170: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 7 + 7 +
24*
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68 31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
9 + 9 + 9
+ 18
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68
31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry
bulb (DB) and 67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet
bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
*The indoor unit must be non-ducted type.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
178 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 171: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
9 + 9 + 12
+ 15
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68 31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
9 + 12 + 12
+ 12
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68
31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 179
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 172: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 9 + 12
+ 18
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68 31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
7 + 9 + 15
+ 15
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68
31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
180 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 173: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 12 + 12
+ 15
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68 31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
7 + 7 + 9 +
24*
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68
31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
*The indoor unit must be non-ducted type.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 181
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 174: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 7 + 15
+ 18
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68 31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
9 + 9 + 12
+ 18
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68
31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
182 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 175: LMU36CHV Cooling Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp. (°F
DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
9 + 9 + 15
+ 15
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68 31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
12 + 12 + 12
+ 12
14 29.41 1.57 31.24 1.62 33.06 1.68 34.38 1.70 36.71 1.73 38.54 1.77
20 29.39 1.59 31.21 1.65 33.04 1.71 34.35 1.73 36.69 1.76 38.51 1.79
25 29.36 1.61 31.19 1.67 33.01 1.73 34.33 1.75 36.66 1.78 38.48 1.82
30 29.34 1.63 31.16 1.69 32.99 1.76 34.30 1.78 36.63 1.81 38.45 1.85
35 29.32 1.66 31.14 1.72 32.96 1.78 34.28 1.80 36.60 1.83 38.42 1.87
40 29.30 1.68
31.12 1.74 32.94 1.80 34.25 1.82 36.57 1.86 38.39 1.90
45 29.27 1.70 31.09 1.76 32.91 1.83 34.22 1.85 36.55 1.88 38.36 1.92
50 29.25 1.72 31.07 1.79 32.89 1.85 34.20 1.87 36.52 1.91 38.34 1.95
55 29.23 1.75 31.04 1.81 32.86 1.88 34.17 1.90 36.49 1.93 38.31 1.97
60 29.21 1.77 31.02 1.83 32.83 1.90 34.14 1.92 36.46 1.96 38.28 2.00
65 29.18 1.79 31.00 1.86 32.81 1.92 34.12 1.95 36.43 1.98 38.25 2.02
70 29.16 1.81 30.97 1.88 32.78 1.95 34.09 1.97 36.41 2.01 38.22 2.05
75 28.46 1.91 30.27 1.98 32.07 2.05 33.38 2.08 35.69 2.12 37.49 2.16
80 27.76 2.01 29.56 2.08 31.36 2.16 32.66 2.18 34.97 2.23 36.77 2.27
85 27.06 2.11 28.86 2.18 30.66 2.26 31.96 2.29 34.25 2.33 36.05 2.38
90 26.37 2.21 28.16 2.29 29.95 2.37 31.25 2.40 33.54 2.44 35.33 2.49
95 25.61 2.30 27.40 2.39 29.18 2.47 30.00 2.50 32.75 2.55 34.53 2.60
100 24.99 2.40 26.77 2.49 28.56 2.58 29.61 2.61 32.13 2.66 33.91 2.71
105 24.37 2.50 26.15 2.59 27.93 2.69 29.22 2.72 31.50 2.77 33.29 2.82
110 23.74 2.60 25.53 2.69 27.31 2.79 28.60 2.82 30.88 2.88 32.66 2.93
115 23.12 2.69 24.90 2.79 26.69 2.90 27.98 2.93 30.26 2.98 32.04 3.04
118 22.74 2.75 24.53 2.85 26.31 2.96 27.60 2.99 29.88 3.05 31.67 3.11
122 22.62 2.83 24.40 2.94 26.19 3.04 27.48 3.08 29.76 3.14 31.54 3.20
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F OUTDOOR UNIT | 183
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
7 + 7
-4 -4.4 5.87 1.08 5.40 1.13 5.39 1.14 5.33 1.15 5.29 1.15 5.05 1.20
0 -0.4 7.30 1.11 6.86 1.15 6.76 1.17 6.67 1.18 6.59 1.19 6.31 1.23
5 4.5 9.01 1.15 8.59 1.19 8.39 1.21 8.25 1.23 8.14 1.24 7.81 1.28
10 9 10.16 1.18 9.75 1.22 9.48 1.25 9.31 1.27 9.18 1.28 8.82 1.32
17 15 11.42 1.22 11.02 1.26 10.67 1.30 10.48 1.32 10.33 1.34 9.93 1.37
20 19 12.18 1.25 11.79 1.28 11.40 1.33 11.19 1.35 11.02 1.37 10.60 1.41
25 23 13.46 1.30 13.06 1.33 12.61 1.39 12.37 1.41 12.18 1.44 11.72 1.47
30 28 14.75 1.35 14.29 1.40 13.80 1.44 13.55 1.47 13.34 1.50 12.85 1.54
35 32 16.04 1.41 15.53 1.46 15.00 1.50 14.73 1.53 14.51 1.56 13.99 1.60
40 36 16.85 1.45 16.38 1.50 15.86 1.54 15.58 1.57 15.36 1.60 14.81 1.64
45 41 17.87 1.50 17.45 1.55 16.93 1.60 16.65 1.63 16.43 1.65 15.83 1.70
47 43 18.28 1.52 17.87 1.57 17.36 1.62 17.08 1.65 16.85 1.67 16.24 1.72
50 46 18.34 1.51 17.97 1.56 17.52 1.60 17.27 1.63 17.07 1.65 16.49 1.69
55 51 18.43 1.50 18.12 1.53 17.79 1.57 17.58 1.59 17.42 1.60 16.90 1.64
60 56 18.52 1.48 18.27 1.51 18.05 1.54 17.90 1.55 17.77 1.56 17.32 1.58
63 59 18.57 1.47 18.37 1.49 18.21 1.52 18.08 1.52 17.98 1.53 17.57 1.55
68 64 18.62 1.46 18.46 1.48 18.37 1.50 18.27 1.50 18.20 1.50 17.82 1.52
7 + 9
-4 -4.4 6.70 1.23 6.17 1.28 6.16 1.29 6.09 1.30 6.04 1.31 5.77 1.35
0 -0.4 8.35 1.26 7.84 1.31 7.73 1.33 7.62 1.34 7.53 1.35 7.21 1.40
5 4.5 10.30 1.30 9.82 1.35 9.58 1.37 9.43 1.39 9.31 1.40 8.93 1.45
10 9 11.61 1.33 11.14 1.38 10.83 1.41 10.64 1.43 10.50 1.45 10.08 1.50
17 15 13.05 1.38 12.60 1.43 12.20 1.47 11.98 1.49 11.80 1.51 11.35 1.56
20 19 13.92 1.41 13.48 1.46 13.03 1.51 12.79 1.53 12.59 1.56 12.12 1.60
25 23 15.38 1.47 14.93 1.51 14.41 1.57 14.13 1.60 13.92 1.63 13.39 1.67
30 28 16.86 1.53 16.33 1.58 15.77 1.63 15.48 1.67 15.25 1.70 14.69 1.74
35 32 18.33 1.60 17.74 1.65 17.14 1.70 16.83 1.74 16.58 1.77 15.99
1.81
40 36 19.26 1.64 18.72 1.70 18.12 1.75 17.81 1.78 17.56 1.81 16.92 1.86
45 41 20.43 1.70 19.94 1.76 19.35 1.81 19.03 1.85 18.77 1.87 18.09 1.93
47 43 20.89 1.72 20.43 1.78 19.84 1.84 19.52 1.87 19.26 1.90 18.56 1.95
50 46 20.96 1.71 20.53 1.76 20.03 1.82 19.74 1.84 19.50 1.87 18.84 1.92
55 51 21.06 1.70 20.71 1.74 20.33 1.78 20.09 1.80 19.91 1.81 19.32 1.85
60 56 21.16 1.68 20.89 1.71 20.63 1.74 20.45 1.75 20.31 1.76 19.79 1.79
63 59 21.22 1.67 20.99 1.69 20.81 1.72 20.67 1.73 20.55 1.73 20.08 1.76
68 64 21.28 1.66 21.10 1.68 20.99 1.70 20.88 1.70 20.80 1.70 20.36 1.72
9 + 9
-4 -4.4 7.56 1.34 6.96 1.39 6.94 1.41 6.87 1.42 6.81 1.42 6.50 1.48
0 -0.4 9.41 1.37 8.83 1.43 8.71 1.45 8.59 1.46 8.49 1.47 8.13 1.52
5 4.5 11.61 1.42 11.06 1.47 10.80 1.50 10.63 1.51 10.49 1.53 10.07 1.58
10 9 13.09 1.46 12.55 1.51 12.21 1.54 12.00 1.56 11.83 1.58 11.36 1.63
17 15 14.71 1.51 14.20 1.56 13.75 1.60 13.50 1.63 13.30 1.65 12.79 1.70
20 19 15.69 1.54 15.19 1.59 14.68 1.64 14.41 1.67 14.19 1.70 13.65 1.75
25 23 17.34 1.60 16.82 1.65 16.24 1.71 15.93 1.75 15.69 1.77 15.09 1.82
30 28 19.00 1.67 18.41 1.73 17.78 1.78 17.45 1.82 17.19 1.85 16.56 1.90
35 32 20.66 1.74 20.00 1.80 19.32 1.85 18.97 1.89 18.69 1.93 18.02 1.97
40 36 21.71 1.79 21.10 1.85 20.43 1.91 20.07 1.95 19.79 1.98 19.07 2.03
45 41 23.02 1.86 22.47 1.92 21.81 1.98 21.45 2.01 21.16 2.04 20.39 2.10
47 43 23.55 1.88 23.02 1.94 22.37 2.01 22.00 2.04 21.71 2.07 20.92 2.13
50 46 23.62 1.87 23.14 1.93 22.57 1.98 22.24 2.01 21.98 2.03 21.24 2.09
55 51 23.73 1.85 23.34 1.90 22.91 1.94 22.65 1.96 22.44 1.98 21.77 2.02
60 56 23.85 1.83 23.54 1.87 23.25 1.90 23.05 1.91 22.89 1.92 22.31 1.95
63 59 23.92 1.82 23.66 1.85 23.45 1.87 23.29 1.88 23.16 1.89 22.63 1.91
68 64 23.99 1.81 23.78 1.83 23.66 1.85 23.54 1.86 23.44 1.86 22.95 1.88
Table 176: LMU18CHV Heating Capacity Table — Non-Ducted Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
184 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
7 + 12
-4 -4.4 7.56 1.34 6.96 1.39 6.94 1.41 6.87 1.42 6.81 1.42 6.50 1.48
0 -0.4 9.41 1.37 8.83 1.43 8.71 1.45 8.59 1.46 8.49 1.47 8.13 1.52
5 4.5 11.61 1.42 11.06 1.47 10.80 1.50 10.63 1.51 10.49 1.53 10.07 1.58
10 9 13.09 1.46 12.55 1.51 12.21 1.54 12.00 1.56 11.83 1.58 11.36 1.63
17 15 14.71 1.51 14.20 1.56 13.75 1.60 13.50 1.63 13.30 1.65 12.79 1.70
20 19 15.69 1.54 15.19 1.59 14.68 1.64 14.41 1.67 14.19 1.70 13.65 1.75
25 23 17.34 1.60 16.82 1.65 16.24 1.71 15.93 1.75 15.69 1.77 15.09 1.82
30 28 19.00 1.67 18.41 1.73 17.78 1.78 17.45 1.82 17.19 1.85 16.56 1.90
35 32 20.66 1.74 20.00 1.80 19.32 1.85 18.97 1.89 18.69 1.93 18.02 1.97
40 36 21.71 1.79 21.10 1.85 20.43 1.91 20.07 1.95 19.79 1.98 19.07 2.03
45 41 23.02 1.86 22.47 1.92 21.81 1.98 21.45 2.01 21.16 2.04 20.39 2.10
47 43 23.55 1.88 23.02 1.94 22.37 2.01 22.00 2.04 21.71 2.07 20.92 2.13
50 46 23.62 1.87 23.14 1.93 22.57 1.98 22.24 2.01 21.98 2.03 21.24 2.09
55 51 23.73 1.85 23.34 1.90 22.91 1.94 22.65 1.96 22.44 1.98 21.77 2.02
60 56 23.85 1.83 23.54 1.87 23.25 1.90 23.05 1.91 22.89 1.92 22.31 1.95
63 59 23.92 1.82 23.66 1.85 23.45 1.87 23.29 1.88 23.16 1.89 22.63 1.91
68 64 23.99 1.81 23.78 1.83 23.66 1.85 23.54 1.86 23.44 1.86 22.95 1.88
9 + 12
-4 -4.4 7.56 1.34 6.96 1.39 6.94 1.41 6.87 1.42 6.81 1.42 6.50 1.48
0 -0.4 9.41 1.37 8.83 1.43 8.71 1.45 8.59 1.46 8.49 1.47 8.13 1.52
5 4.5 11.61 1.42 11.06 1.47 10.80 1.50 10.63 1.51 10.49 1.53 10.07 1.58
10 9 13.09 1.46 12.55 1.51 12.21 1.54 12.00 1.56 11.83 1.58 11.36 1.63
17 15 14.71 1.51 14.20 1.56 13.75 1.60 13.50 1.63 13.30 1.65 12.79 1.70
20 19 15.69 1.54 15.19 1.59 14.68 1.64 14.41 1.67 14.19 1.70 13.65 1.75
25 23 17.34 1.60 16.82 1.65 16.24 1.71 15.93 1.75 15.69 1.77 15.09 1.82
30 28 19.00 1.67 18.41 1.73 17.78 1.78 17.45 1.82 17.19 1.85 16.56 1.90
35 32 20.66 1.74 20.00 1.80 19.32 1.85 18.97 1.89 18.69 1.93 18.02
1.97
40 36 21.71 1.79 21.10 1.85 20.43 1.91 20.07 1.95 19.79 1.98 19.07 2.03
45 41 23.02 1.86 22.47 1.92 21.81 1.98 21.45 2.01 21.16 2.04 20.39 2.10
47 43 23.55 1.88 23.02 1.94 22.37 2.01 22.00 2.04 21.71 2.07 20.92 2.13
50 46 23.62 1.87 23.14 1.93 22.57 1.98 22.24 2.01 21.98 2.03 21.24 2.09
55 51 23.73 1.85 23.34 1.90 22.91 1.94 22.65 1.96 22.44 1.98 21.77 2.02
60 56 23.85 1.83 23.54 1.87 23.25 1.90 23.05 1.91 22.89 1.92 22.31 1.95
63 59 23.92 1.82 23.66 1.85 23.45 1.87 23.29 1.88 23.16 1.89 22.63 1.91
68 64 23.99 1.81 23.78 1.83 23.66 1.85 23.54 1.86 23.44 1.86 22.95 1.88
7 + 15
-4 -4.4 7.56 1.34 6.96 1.39 6.94 1.41 6.87 1.42 6.81 1.42 6.50 1.48
0 -0.4 9.41 1.37 8.83 1.43 8.71 1.45 8.59 1.46 8.49 1.47 8.13 1.52
5 4.5 11.61 1.42 11.06 1.47 10.80 1.50 10.63 1.51 10.49 1.53 10.07 1.58
10 9 13.09 1.46 12.55 1.51 12.21 1.54 12.00 1.56 11.83 1.58 11.36 1.63
17 15 14.71 1.51 14.20 1.56 13.75 1.60 13.50 1.63 13.30 1.65 12.79 1.70
20 19 15.69 1.54 15.19 1.59 14.68 1.64 14.41 1.67 14.19 1.70 13.65 1.75
25 23 17.34 1.60 16.82 1.65 16.24 1.71 15.93 1.75 15.69 1.77 15.09 1.82
30 28 19.00 1.67 18.41 1.73 17.78 1.78 17.45 1.82 17.19 1.85 16.56 1.90
35 32 20.66 1.74 20.00 1.80 19.32 1.85 18.97 1.89 18.69 1.93 18.02 1.97
40 36 21.71 1.79 21.10 1.85 20.43 1.91 20.07 1.95 19.79 1.98 19.07 2.03
45 41 23.02 1.86 22.47 1.92 21.81 1.98 21.45 2.01 21.16 2.04 20.39 2.10
47 43 23.55 1.88 23.02 1.94 22.37 2.01 22.00 2.04 21.71 2.07 20.92 2.13
50 46 23.62 1.87 23.14 1.93 22.57 1.98 22.24 2.01 21.98 2.03 21.24 2.09
55 51 23.73 1.85 23.34 1.90 22.91 1.94 22.65 1.96 22.44 1.98 21.77 2.02
60 56 23.85 1.83 23.54 1.87 23.25 1.90 23.05 1.91 22.89 1.92 22.31 1.95
63 59 23.92 1.82 23.66 1.85 23.45 1.87 23.29 1.88 23.16 1.89 22.63 1.91
68 64 23.99 1.81 23.78 1.83 23.66 1.85 23.54 1.86 23.44 1.86 22.95 1.88
Table 177: LMU18CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 185
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 178: LMU18CHV Heating Capacity Table — Non-Ducted (continued) and Ducted Indoor Units.
PERFORMANCE DATA
Heating Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
9 + 15
-4 -4.4 7.56 1.34 6.96 1.39 6.94 1.41 6.87 1.42 6.81 1.42 6.50 1.48
0 -0.4 9.41 1.37 8.83 1.43 8.71 1.45 8.59 1.46 8.49 1.47 8.13 1.52
5 4.5 11.61 1.42 11.06 1.47 10.80 1.50 10.63 1.51 10.49 1.53 10.07 1.58
10 9 13.09 1.46 12.55 1.51 12.21 1.54 12.00 1.56 11.83 1.58 11.36 1.63
17 15 14.71 1.51 14.20 1.56 13.75 1.60 13.50 1.63 13.30 1.65 12.79 1.70
20 19 15.69 1.54 15.19 1.59 14.68 1.64 14.41 1.67 14.19 1.70 13.65 1.75
25 23 17.34 1.60 16.82 1.65 16.24 1.71 15.93 1.75 15.69 1.77 15.09 1.82
30 28 19.00 1.67 18.41 1.73 17.78 1.78 17.45 1.82 17.19 1.85 16.56 1.90
35 32 20.66 1.74 20.00 1.80 19.32 1.85 18.97 1.89 18.69 1.93 18.02 1.97
40 36 21.71 1.79 21.10 1.85 20.43 1.91 20.07 1.95 19.79 1.98 19.07 2.03
45 41 23.02 1.86 22.47 1.92 21.81 1.98 21.45 2.01 21.16 2.04 20.39 2.10
47 43 23.55 1.88 23.02 1.94 22.37 2.01 22.00 2.04 21.71 2.07 20.92 2.13
50 46 23.62 1.87 23.14 1.93 22.57 1.98 22.24 2.01 21.98 2.03 21.24 2.09
55 51 23.73 1.85 23.34 1.90 22.91 1.94 22.65 1.96 22.44 1.98 21.77 2.02
60 56 23.85 1.83 23.54 1.87 23.25 1.90 23.05 1.91 22.89 1.92 22.31 1.95
63 59 23.92 1.82 23.66 1.85 23.45 1.87 23.29 1.88 23.16 1.89 22.63 1.91
68 64 23.99 1.81 23.78 1.83 23.66 1.85 23.54 1.86 23.44 1.86 22.95 1.88
12 + 12
-4 -4.4 7.56 1.34 6.96 1.39 6.94 1.41 6.87 1.42 6.81 1.42 6.50 1.48
0 -0.4 9.41 1.37 8.83 1.43 8.71 1.45 8.59 1.46 8.49 1.47 8.13 1.52
5 4.5 11.61 1.42 11.06 1.47 10.80 1.50 10.63 1.51 10.49 1.53 10.07 1.58
10 9 13.09 1.46 12.55 1.51 12.21 1.54 12.00 1.56 11.83 1.58 11.36 1.63
17 15 14.71 1.51 14.20 1.56 13.75 1.60 13.50 1.63 13.30 1.65 12.79 1.70
20 19 15.69 1.54 15.19 1.59 14.68 1.64 14.41 1.67 14.19 1.70 13.65 1.75
25 23 17.34 1.60 16.82 1.65 16.24 1.71 15.93 1.75 15.69 1.77 15.09 1.82
30 28 19.00 1.67 18.41 1.73 17.78 1.78 17.45 1.82 17.19 1.85 16.56 1.90
35 32 20.66 1.74 20.00 1.80 19.32 1.85 18.97 1.89 18.69 1.93 18.02
1.97
40 36 21.71 1.79 21.10 1.85 20.43 1.91 20.07 1.95 19.79 1.98 19.07 2.03
45 41 23.02 1.86 22.47 1.92 21.81 1.98 21.45 2.01 21.16 2.04 20.39 2.10
47 43 23.55 1.88 23.02 1.94 22.37 2.01 22.00 2.04 21.71 2.07 20.92 2.13
50 46 23.62 1.87 23.14 1.93 22.57 1.98 22.24 2.01 21.98 2.03 21.24 2.09
55 51 23.73 1.85 23.34 1.90 22.91 1.94 22.65 1.96 22.44 1.98 21.77 2.02
60 56 23.85 1.83 23.54 1.87 23.25 1.90 23.05 1.91 22.89 1.92 22.31 1.95
63 59 23.92 1.82 23.66 1.85 23.45 1.87 23.29 1.88 23.16 1.89 22.63 1.91
68 64 23.99 1.81 23.78 1.83 23.66 1.85 23.54 1.86 23.44 1.86 22.95 1.88
Two (2) Ducted
Indoor Units
9 + 9
-4 -4.4 8.85 1.31 8.23 1.37 8.16 1.38 8.06 1.39 7.98 1.40 7.63 1.45
0 -0.4 10.23 1.35 9.64 1.40 9.48 1.42 9.34 1.43 9.23 1.44 8.84 1.49
5 4.5 11.86 1.39 11.31 1.44 11.04 1.47 10.86 1.48 10.72 1.49 10.29 1.54
10 9 12.96 1.42 12.44 1.47 12.09 1.51 11.88 1.53 11.71 1.54 11.25 1.59
17 15 14.16 1.47 13.67 1.52 13.24 1.56 13.00 1.59 12.81 1.61 12.32 1.66
20 19 14.89 1.50 14.42 1.55 13.94 1.60 13.68 1.63 13.47 1.66 12.96 1.70
25 23 16.12 1.56 15.64 1.61 15.10 1.67 14.81 1.70 14.58 1.73 14.03 1.77
30 28 17.35 1.63 16.82 1.68 16.24 1.73 15.94 1.77 15.70 1.80 15.13 1.84
35 32 18.59 1.69 18.00 1.75 17.38 1.80 17.07 1.84 16.82 1.87 16.21 1.92
40 36 19.54 1.74 18.99 1.80 18.38 1.85 18.06 1.89 17.81 1.92 17.16 1.97
45 41 20.72 1.80 20.23 1.86 19.63 1.92 19.30 1.95 19.04 1.98 18.35 2.04
47 43 21.19 1.83 20.72 1.89 20.13 1.95 19.80 1.98 19.54 2.01 18.83 2.07
50 46 21.26 1.81 20.83 1.87 20.31 1.92 20.02 1.95 19.78 1.97 19.11 2.03
55 51 21.36 1.80 21.01 1.84 20.62 1.88 20.38 1.90 20.19 1.92 19.59 1.96
60 56 21.46 1.78 21.18 1.81 20.92 1.84 20.75 1.86 20.60 1.87 20.08 1.90
63 59 21.53 1.76 21.29 1.79 21.11 1.82 20.96 1.83 20.85 1.84 20.36 1.86
68 64 21.59 1.75 21.40 1.78 21.29 1.80 21.18 1.80 21.10 1.80 20.66 1.82
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
186 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Table 179: LMU18CHV Heating Capacity Table — Ducted (continued) and Mixed ndoor Units.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Ducted
Indoor Units
9 + 12
-4 -4.4 8.85 1.31 8.23 1.37 8.16 1.38 8.06 1.39 7.98 1.40 7.63 1.45
0 -0.4 10.23 1.35 9.64 1.40 9.48 1.42 9.34 1.43 9.23 1.44 8.84 1.49
5 4.5 11.86 1.39 11.31 1.44 11.04 1.47 10.86 1.48 10.72 1.49 10.29 1.54
10 9 12.96 1.42 12.44 1.47 12.09 1.51 11.88 1.53 11.71 1.54 11.25 1.59
17 15 14.16 1.47 13.67 1.52 13.24 1.56 13.00 1.59 12.81 1.61 12.32 1.66
20 19 14.89 1.50 14.42 1.55 13.94 1.60 13.68 1.63 13.47 1.66 12.96 1.70
25 23 16.12 1.56 15.64 1.61 15.10 1.67 14.81 1.70 14.58 1.73 14.03 1.77
30 28 17.35 1.63 16.82 1.68 16.24 1.73 15.94 1.77 15.70 1.80 15.13 1.84
35 32 18.59 1.69 18.00 1.75 17.38 1.80 17.07 1.84 16.82 1.87 16.21 1.92
40 36 19.54 1.74 18.99 1.80 18.38 1.85 18.06 1.89 17.81 1.92 17.16 1.97
45 41 20.72 1.80 20.23 1.86 19.63 1.92 19.30 1.95 19.04 1.98 18.35 2.04
47 43 21.19 1.83 20.72 1.89 20.13 1.95 19.80 1.98 19.54 2.01 18.83 2.07
50 46 21.26 1.81 20.83 1.87 20.31 1.92 20.02 1.95 19.78 1.97 19.11 2.03
55 51 21.36 1.80 21.01 1.84 20.62 1.88 20.38 1.90 20.19 1.92 19.59 1.96
60 56 21.46 1.78 21.18 1.81 20.92 1.84 20.75 1.86 20.60 1.87 20.08 1.90
63 59 21.53 1.76 21.29 1.79 21.11 1.82 20.96 1.83 20.85 1.84 20.36 1.86
68 64 21.59 1.75 21.40 1.78 21.29 1.80 21.18 1.80 21.10 1.80 20.66 1.82
12 + 12
-4 -4.4 8.85 1.31 8.23 1.37 8.16 1.38 8.06 1.39 7.98 1.40 7.63 1.45
0 -0.4 10.23 1.35 9.64 1.40 9.48 1.42 9.34 1.43 9.23 1.44 8.84 1.49
5 4.5 11.86 1.39 11.31 1.44 11.04 1.47 10.86 1.48 10.72 1.49 10.29 1.54
10 9 12.96 1.42 12.44 1.47 12.09 1.51 11.88 1.53 11.71 1.54 11.25 1.59
17 15 14.16 1.47 13.67 1.52 13.24 1.56 13.00 1.59 12.81 1.61 12.32 1.66
20 19 14.89 1.50 14.42 1.55 13.94 1.60 13.68 1.63 13.47 1.66 12.96 1.70
25 23 16.12 1.56 15.64 1.61 15.10 1.67 14.81 1.70 14.58 1.73 14.03 1.77
30 28 17.35 1.63 16.82 1.68 16.24 1.73 15.94 1.77 15.70 1.80 15.13 1.84
35 32 18.59 1.69 18.00 1.75 17.38 1.80 17.07 1.84 16.82 1.87 16.21 1.92
40
36 19.54 1.74 18.99 1.80 18.38 1.85 18.06 1.89 17.81 1.92 17.16 1.97
45 41 20.72 1.80 20.23 1.86 19.63 1.92 19.30 1.95 19.04 1.98 18.35 2.04
47 43 21.19 1.83 20.72 1.89 20.13 1.95 19.80 1.98 19.54 2.01 18.83 2.07
50 46 21.26 1.81 20.83 1.87 20.31 1.92 20.02 1.95 19.78 1.97 19.11 2.03
55 51 21.36 1.80 21.01 1.84 20.62 1.88 20.38 1.90 20.19 1.92 19.59 1.96
60 56 21.46 1.78 21.18 1.81 20.92 1.84 20.75 1.86 20.60 1.87 20.08 1.90
63 59 21.53 1.76 21.29 1.79 21.11 1.82 20.96 1.83 20.85 1.84 20.36 1.86
68 64 21.59 1.75 21.40 1.78 21.29 1.80 21.18 1.80 21.10 1.80 20.66 1.82
Two (2) Mixed
Indoor Units
7 + 9
-4 -4.4 7.28 1.21 6.74 1.26 6.70 1.28 6.62 1.28 6.56 1.29 6.27 1.34
0 -0.4 8.71 1.25 8.19 1.29 8.07 1.31 7.95 1.32 7.86 1.33 7.53 1.38
5 4.5 10.41 1.28 9.92 1.33 9.69 1.36 9.53 1.37 9.41 1.38 9.03 1.43
10 9 11.55 1.32 11.08 1.36 10.78 1.40 10.59 1.42 10.44 1.43 10.03 1.48
17 15 12.81 1.36 12.36 1.41 11.97 1.45 11.75 1.47 11.58 1.49 11.14 1.54
20 19 13.57 1.39 13.13 1.44 12.69 1.49 12.46 1.51 12.27 1.53 11.80 1.58
25 23 14.84 1.45 14.40 1.49 13.90 1.55 13.63 1.58 13.42 1.60 12.92 1.64
30 28 16.12 1.51 15.62 1.56 15.09 1.61 14.81 1.64 14.59 1.67 14.05 1.71
35 32 17.41 1.57 16.85 1.63 16.28 1.67 15.99 1.71 15.75 1.74 15.18 1.78
40 36 18.29 1.62 17.78 1.67 17.21 1.72 16.91 1.76 16.68 1.78 16.07 1.83
45 41 19.40 1.67 18.94 1.73 18.38 1.78 18.08 1.82 17.83 1.84 17.18 1.90
47 43 19.85 1.70 19.40 1.75 18.85 1.81 18.54 1.84 18.29 1.86 17.63 1.92
50 46 19.90 1.69 19.50 1.74 19.02 1.79 18.74 1.81 18.52 1.84 17.90 1.88
55 51 20.00 1.67 19.67 1.71 19.31 1.75 19.08 1.77 18.91 1.79 18.35 1.82
60 56 20.10 1.65 19.84 1.68 19.59 1.71 19.43 1.73 19.29 1.74 18.80 1.76
63 59 20.16 1.64 19.94 1.67 19.76 1.69 19.63 1.70 19.52 1.71 19.07 1.73
68 64 20.22 1.63 20.04 1.65 19.94 1.67 19.84 1.67 19.75 1.68 19.34 1.69
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
MULTI F OUTDOOR UNIT | 187
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 180: LMU18CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
9 + 9
-4 -4.4 8.20 1.33 7.59 1.38 7.55 1.40 7.47 1.40 7.40 1.41 7.06 1.46
0 -0.4 9.82 1.36 9.24 1.41 9.09 1.43 8.96 1.45 8.86 1.46 8.49 1.51
5 4.5 11.74 1.40 11.19 1.45 10.92 1.48 10.75 1.50 10.60 1.51 10.18 1.56
10 9 13.02 1.44 12.50 1.49 12.15 1.53 11.94 1.55 11.77 1.56 11.31 1.61
17 15 14.44 1.49 13.93 1.54 13.49 1.58 13.25 1.61 13.05 1.63 12.55 1.68
20 19 15.29 1.52 14.80 1.57 14.31 1.62 14.05 1.65 13.83 1.68 13.31 1.72
25 23 16.73 1.58 16.23 1.63 15.67 1.69 15.37 1.72 15.13 1.75 14.56 1.80
30 28 18.18 1.65 17.61 1.70 17.01 1.76 16.70 1.79 16.45 1.83 15.84 1.87
35 32 19.62 1.72 19.00 1.78 18.35 1.82 18.02 1.87 17.76 1.90 17.12 1.95
40 36 20.62 1.77 20.04 1.83 19.40 1.88 19.07 1.92 18.80 1.95 18.12 2.00
45 41 21.87 1.83 21.35 1.89 20.72 1.95 20.38 1.98 20.10 2.01 19.37 2.07
47 43 22.37 1.85 21.87 1.91 21.25 1.98 20.90 2.01 20.62 2.04 19.87 2.10
50 46 22.44 1.84 21.99 1.90 21.44 1.95 21.13 1.98 20.88 2.00 20.18 2.06
55 51 22.55 1.82 22.17 1.87 21.76 1.91 21.51 1.93 21.31 1.95 20.68 1.99
60 56 22.66 1.80 22.36 1.84 22.09 1.87 21.90 1.89 21.75 1.90 21.19 1.93
63 59 22.72 1.79 22.47 1.82 22.28 1.85 22.13 1.86 22.01 1.86 21.49 1.89
68 64 22.79 1.78 22.59 1.80 22.48 1.82 22.36 1.83 22.27 1.83 21.80 1.85
7 + 12
-4 -4.4 8.20 1.33 7.59 1.38 7.55 1.40 7.47 1.40 7.40 1.41 7.06 1.46
0 -0.4 9.82 1.36 9.24 1.41 9.09 1.43 8.96 1.45 8.86 1.46 8.49 1.51
5 4.5 11.74 1.40 11.19 1.45 10.92 1.48 10.75 1.50 10.60 1.51 10.18 1.56
10 9 13.02 1.44 12.50 1.49 12.15 1.53 11.94 1.55 11.77 1.56 11.31 1.61
17 15 14.44 1.49 13.93 1.54 13.49 1.58 13.25 1.61 13.05 1.63 12.55 1.68
20 19 15.29 1.52 14.80 1.57 14.31 1.62 14.05 1.65 13.83 1.68 13.31 1.72
25 23 16.73 1.58 16.23 1.63 15.67 1.69 15.37 1.72 15.13 1.75 14.56 1.80
30 28 18.18 1.65 17.61 1.70 17.01 1.76 16.70 1.79 16.45 1.83 15.84 1.87
35 32 19.62 1.72 19.00 1.78 18.35 1.82 18.02 1.87 17.76 1.90 17.12 1.95
40
36 20.62 1.77 20.04 1.83 19.40 1.88 19.07 1.92 18.80 1.95 18.12 2.00
45 41 21.87 1.83 21.35 1.89 20.72 1.95 20.38 1.98 20.10 2.01 19.37 2.07
47 43 22.37 1.85 21.87 1.91 21.25 1.98 20.90 2.01 20.62 2.04 19.87 2.10
50 46 22.44 1.84 21.99 1.90 21.44 1.95 21.13 1.98 20.88 2.00 20.18 2.06
55 51 22.55 1.82 22.17 1.87 21.76 1.91 21.51 1.93 21.31 1.95 20.68 1.99
60 56 22.66 1.80 22.36 1.84 22.09 1.87 21.90 1.89 21.75 1.90 21.19 1.93
63 59 22.72 1.79 22.47 1.82 22.28 1.85 22.13 1.86 22.01 1.86 21.49 1.89
68 64 22.79 1.78 22.59 1.80 22.48 1.82 22.36 1.83 22.27 1.83 21.80 1.85
9 + 12
-4 -4.4 8.20 1.33 7.59 1.38 7.55 1.40 7.47 1.40 7.40 1.41 7.06 1.46
0 -0.4 9.82 1.36 9.24 1.41 9.09 1.43 8.96 1.45 8.86 1.46 8.49 1.51
5 4.5 11.74 1.40 11.19 1.45 10.92 1.48 10.75 1.50 10.60 1.51 10.18 1.56
10 9 13.02 1.44 12.50 1.49 12.15 1.53 11.94 1.55 11.77 1.56 11.31 1.61
17 15 14.44 1.49 13.93 1.54 13.49 1.58 13.25 1.61 13.05 1.63 12.55 1.68
20 19 15.29 1.52 14.80 1.57 14.31 1.62 14.05 1.65 13.83 1.68 13.31 1.72
25 23 16.73 1.58 16.23 1.63 15.67 1.69 15.37 1.72 15.13 1.75 14.56 1.80
30 28 18.18 1.65 17.61 1.70 17.01 1.76 16.70 1.79 16.45 1.83 15.84 1.87
35 32 19.62 1.72 19.00 1.78 18.35 1.82 18.02 1.87 17.76 1.90 17.12 1.95
40 36 20.62 1.77 20.04 1.83 19.40 1.88 19.07 1.92 18.80 1.95 18.12 2.00
45 41 21.87 1.83 21.35 1.89 20.72 1.95 20.38 1.98 20.10 2.01 19.37 2.07
47 43 22.37 1.85 21.87 1.91 21.25 1.98 20.90 2.01 20.62 2.04 19.87 2.10
50 46 22.44 1.84 21.99 1.90 21.44 1.95 21.13 1.98 20.88 2.00 20.18 2.06
55 51 22.55 1.82 22.17 1.87 21.76 1.91 21.51 1.93 21.31 1.95 20.68 1.99
60 56 22.66 1.80 22.36 1.84 22.09 1.87 21.90 1.89 21.75 1.90 21.19 1.93
63 59 22.72 1.79 22.47 1.82 22.28 1.85 22.13 1.86 22.01 1.86 21.49 1.89
68 64 22.79 1.78 22.59 1.80 22.48 1.82 22.36 1.83 22.27 1.83 21.80 1.85
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
188 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 181: LMU18CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
9 + 15
-4 -4.4 8.20 1.33 7.59 1.38 7.55 1.40 7.47 1.40 7.40 1.41 7.06 1.46
0 -0.4 9.82 1.36 9.24 1.41 9.09 1.43 8.96 1.45 8.86 1.46 8.49 1.51
5 4.5 11.74 1.40 11.19 1.45 10.92 1.48 10.75 1.50 10.60 1.51 10.18 1.56
10 9 13.02 1.44 12.50 1.49 12.15 1.53 11.94 1.55 11.77 1.56 11.31 1.61
17 15 14.44 1.49 13.93 1.54 13.49 1.58 13.25 1.61 13.05 1.63 12.55 1.68
20 19 15.29 1.52 14.80 1.57 14.31 1.62 14.05 1.65 13.83 1.68 13.31 1.72
25 23 16.73 1.58 16.23 1.63 15.67 1.69 15.37 1.72 15.13 1.75 14.56 1.80
30 28 18.18 1.65 17.61 1.70 17.01 1.76 16.70 1.79 16.45 1.83 15.84 1.87
35 32 19.62 1.72 19.00 1.78 18.35 1.82 18.02 1.87 17.76 1.90 17.12 1.95
40 36 20.62 1.77 20.04 1.83 19.40 1.88 19.07 1.92 18.80 1.95 18.12 2.00
45 41 21.87 1.83 21.35 1.89 20.72 1.95 20.38 1.98 20.10 2.01 19.37 2.07
47 43 22.37 1.85 21.87 1.91 21.25 1.98 20.90 2.01 20.62 2.04 19.87 2.10
50 46 22.44 1.84 21.99 1.90 21.44 1.95 21.13 1.98 20.88 2.00 20.18 2.06
55 51 22.55 1.82 22.17 1.87 21.76 1.91 21.51 1.93 21.31 1.95 20.68 1.99
60 56 22.66 1.80 22.36 1.84 22.09 1.87 21.90 1.89 21.75 1.90 21.19 1.93
63 59 22.72 1.79 22.47 1.82 22.28 1.85 22.13 1.86 22.01 1.86 21.49 1.89
68 64 22.79 1.78 22.59 1.80 22.48 1.82 22.36 1.83 22.27 1.83 21.80 1.85
12 + 12
-4 -4.4 8.20 1.33 7.59 1.38 7.55 1.40 7.47 1.40 7.40 1.41 7.06 1.46
0 -0.4 9.82 1.36 9.24 1.41 9.09 1.43 8.96 1.45 8.86 1.46 8.49 1.51
5 4.5 11.74 1.40 11.19 1.45 10.92 1.48 10.75 1.50 10.60 1.51 10.18 1.56
10 9 13.02 1.44 12.50 1.49 12.15 1.53 11.94 1.55 11.77 1.56 11.31 1.61
17 15 14.44 1.49 13.93 1.54 13.49 1.58 13.25 1.61 13.05 1.63 12.55 1.68
20 19 15.29 1.52 14.80 1.57 14.31 1.62 14.05 1.65 13.83 1.68 13.31 1.72
25 23 16.73 1.58 16.23 1.63 15.67 1.69 15.37 1.72 15.13 1.75 14.56 1.80
30 28 18.18 1.65 17.61 1.70 17.01 1.76 16.70 1.79 16.45 1.83 15.84 1.87
35 32 19.62 1.72 19.00 1.78 18.35 1.82 18.02 1.87 17.76 1.90 17.12 1.95
40
36 20.62 1.77 20.04 1.83 19.40 1.88 19.07 1.92 18.80 1.95 18.12 2.00
45 41 21.87 1.83 21.35 1.89 20.72 1.95 20.38 1.98 20.10 2.01 19.37 2.07
47 43 22.37 1.85 21.87 1.91 21.25 1.98 20.90 2.01 20.62 2.04 19.87 2.10
50 46 22.44 1.84 21.99 1.90 21.44 1.95 21.13 1.98 20.88 2.00 20.18 2.06
55 51 22.55 1.82 22.17 1.87 21.76 1.91 21.51 1.93 21.31 1.95 20.68 1.99
60 56 22.66 1.80 22.36 1.84 22.09 1.87 21.90 1.89 21.75 1.90 21.19 1.93
63 59 22.72 1.79 22.47 1.82 22.28 1.85 22.13 1.86 22.01 1.86 21.49 1.89
68 64 22.79 1.78 22.59 1.80 22.48 1.82 22.36 1.83 22.27 1.83 21.80 1.85
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 189
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
7 + 7
-4 -4.4 4.94 1.20 4.53 1.25 4.53 1.27 4.49 1.27 4.45 1.28 4.24 1.33
0 -0.4 6.28 1.21 5.89 1.26 5.81 1.28 5.73 1.29 5.67 1.30 5.43 1.35
5 4.5 7.89 1.22 7.51 1.27 7.34 1.30 7.22 1.31 7.12 1.32 6.84 1.37
10 9 8.96 1.24 8.59 1.28 8.35 1.31 8.21 1.33 8.10 1.34 7.78 1.38
17 15 10.14 1.25 9.78 1.29 9.48 1.33 9.30 1.35 9.17 1.37 8.81 1.41
20 19 10.85 1.26 10.51 1.30 10.16 1.34 9.97 1.37 9.82 1.39 9.44 1.43
25 23 12.05 1.28 11.69 1.32 11.28 1.37 11.07 1.39 10.90 1.42 10.49 1.45
30 28 13.25 1.31 12.84 1.35 12.40 1.39 12.17 1.42 11.99 1.45 11.55 1.48
35 32 14.46 1.33 14.00 1.38 13.52 1.41 13.28 1.45 13.08 1.47 12.61 1.51
40 36 15.20 1.37 14.77 1.42 14.30 1.46 14.05 1.49 13.85 1.51 13.35 1.55
45 41 16.12 1.42 15.73 1.47 15.27 1.51 15.01 1.54 14.81 1.56 14.27 1.61
47 43 16.48 1.44 16.12 1.49 15.66 1.53 15.40 1.56 15.20 1.58 14.64 1.63
50 46 16.53 1.43 16.20 1.47 15.80 1.51 15.57 1.54 15.39 1.56 14.87 1.60
55 51 16.61 1.41 16.34 1.45 16.04 1.48 15.85 1.50 15.71 1.51 15.24 1.55
60 56 16.69 1.40 16.48 1.43 16.27 1.45 16.14 1.46 16.02 1.47 15.61 1.49
63 59 16.74 1.39 16.56 1.41 16.42 1.43 16.30 1.44 16.22 1.45 15.84 1.46
68 64 16.79 1.38 16.64 1.40 16.56 1.42 16.48 1.42 16.41 1.42 16.07 1.43
7 + 9
-4 -4.4 5.64 1.25 5.18 1.30 5.18 1.31 5.13 1.32 5.08 1.33 4.85 1.38
0 -0.4 7.18 1.26 6.74 1.31 6.64 1.33 6.55 1.34 6.48 1.35 6.20 1.40
5 4.5 9.01 1.27 8.58 1.32 8.38 1.34 8.25 1.36 8.14 1.37 7.81 1.42
10 9 10.24 1.28 9.82 1.33 9.55 1.36 9.38 1.38 9.25 1.39 8.89 1.44
17 15 11.58 1.30 11.18 1.34 10.83 1.38 10.63 1.40 10.48 1.42 10.07 1.46
20 19 12.40 1.31 12.01 1.35 11.61 1.39 11.39 1.42 11.22 1.44 10.79 1.48
25 23 13.77 1.33 13.36 1.37 12.90 1.42 12.65 1.45 12.46 1.47 11.99 1.51
30 28 15.15 1.36 14.68 1.40 14.17 1.44 13.91 1.48 13.71 1.50 13.20 1.54
35 32 16.52 1.38 16.00 1.43 15.45 1.47 15.18 1.50 14.95 1.53 14.41
1.57
40 36 17.37 1.42 16.88 1.47 16.34 1.51 16.06 1.55 15.83 1.57 15.26 1.61
45 41 18.42 1.47 17.98 1.52 17.45 1.57 17.16 1.60 16.93 1.62 16.31 1.67
47 43 18.84 1.49 18.42 1.54 17.89 1.59 17.60 1.62 17.37 1.64 16.73 1.69
50 46 18.89 1.48 18.51 1.53 18.06 1.57 17.79 1.60 17.58 1.62 16.99 1.66
55 51 18.99 1.47 18.67 1.50 18.33 1.54 18.12 1.56 17.95 1.57 17.42 1.61
60 56 19.08 1.45 18.83 1.48 18.60 1.51 18.44 1.52 18.31 1.53 17.84 1.55
63 59 19.13 1.44 18.93 1.47 18.76 1.49 18.63 1.50 18.53 1.50 18.10 1.52
68 64 19.19 1.43 19.02 1.45 18.93 1.47 18.83 1.47 18.75 1.48 18.36 1.49
9 + 9
-4 -4.4 6.35 1.32 5.83 1.37 5.83 1.39 5.77 1.40 5.72 1.40 5.46 1.46
0 -0.4 8.08 1.33 7.58 1.38 7.47 1.40 7.37 1.41 7.29 1.42 6.98 1.48
5 4.5 10.14 1.34 9.66 1.39 9.43 1.42 9.28 1.44 9.16 1.45 8.79 1.50
10 9 11.52 1.35 11.05 1.40 10.74 1.44 10.56 1.46 10.41 1.47 10.00 1.52
17 15 13.03 1.37 12.58 1.41 12.18 1.46 11.96 1.48 11.79 1.50 11.33 1.55
20 19 13.95 1.38 13.51 1.42 13.06 1.47 12.81 1.50 12.62 1.52 12.14 1.56
25 23 15.49 1.40 15.03 1.44 14.51 1.50 14.23 1.53 14.01 1.55 13.49 1.59
30 28 17.04 1.43 16.51 1.48 15.95 1.52 15.65 1.56 15.42 1.58 14.85 1.62
35 32 18.59 1.46 18.00 1.51 17.38 1.55 17.07 1.59 16.82 1.62 16.21 1.65
40 36 19.54 1.50 18.99 1.55 18.38 1.60 18.06 1.63 17.81 1.66 17.16 1.70
45 41 20.72 1.56 20.23 1.61 19.63 1.66 19.30 1.69 19.04 1.71 18.35 1.76
47 43 21.19 1.58 20.72 1.63 20.13 1.68 19.80 1.71 19.54 1.73 18.83 1.79
50 46 21.26 1.57 20.83 1.61 20.31 1.66 20.02 1.69 19.78 1.71 19.11 1.75
55 51 21.36 1.55 21.01 1.59 20.62 1.63 20.38 1.64 20.19 1.66 19.59 1.70
60 56 21.46 1.53 21.18 1.56 20.92 1.59 20.75 1.60 20.60 1.61 20.08 1.64
63 59 21.53 1.52 21.29 1.55 21.11 1.57 20.96 1.58 20.85 1.59 20.36 1.60
68 64 21.59 1.51 21.40 1.53 21.29 1.55 21.18 1.56 21.10 1.56 20.66 1.57
Table 182: LMU24CHV Heating Capacity Table — Non-Ducted Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
190 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 183: LMU24CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
7 + 12
-4 -4.4 6.70 1.36 6.15 1.41 6.15 1.43 6.09 1.44 6.04 1.45 5.76 1.50
0 -0.4 8.53 1.37 8.00 1.42 7.89 1.44 7.78 1.46 7.70 1.47 7.37 1.52
5 4.5 10.70 1.38 10.19 1.43 9.95 1.46 9.80 1.48 9.67 1.49 9.28 1.54
10 9 12.16 1.39 11.66 1.44 11.34 1.48 11.14 1.50 10.99 1.51 10.56 1.56
17 15 13.76 1.41 13.28 1.46 12.86 1.50 12.63 1.53 12.44 1.55 11.96 1.59
20 19 14.73 1.42 14.26 1.46 13.78 1.52 13.53 1.54 13.32 1.57 12.82 1.61
25 23 16.35 1.44 15.87 1.49 15.31 1.54 15.02 1.57 14.79 1.60 14.24 1.64
30 28 17.99 1.47 17.43 1.52 16.83 1.57 16.52 1.60 16.28 1.63 15.68 1.67
35 32 19.62 1.50 19.00 1.56 18.35 1.60 18.02 1.63 17.76 1.66 17.12 1.70
40 36 20.62 1.55 20.04 1.60 19.40 1.64 19.07 1.68 18.80 1.71 18.12 1.75
45 41 21.87 1.60 21.35 1.65 20.72 1.71 20.38 1.74 20.10 1.76 19.37 1.81
47 43 22.37 1.62 21.87 1.68 21.25 1.73 20.90 1.76 20.62 1.78 19.87 1.84
50 46 22.44 1.61 21.99 1.66 21.44 1.71 21.13 1.73 20.88 1.76 20.18 1.80
55 51 22.55 1.60 22.17 1.64 21.76 1.67 21.51 1.69 21.31 1.71 20.68 1.74
60 56 22.66 1.58 22.36 1.61 22.09 1.64 21.90 1.65 21.75 1.66 21.19 1.69
63 59 22.72 1.57 22.47 1.59 22.28 1.62 22.13 1.63 22.01 1.63 21.49 1.65
68 64 22.79 1.56 22.59 1.58 22.48 1.60 22.36 1.60 22.27 1.60 21.80 1.62
9 + 12
-4 -4.4 7.40 1.46 6.80 1.51 6.80 1.53 6.73 1.54 6.67 1.55 6.36 1.61
0 -0.4 9.43 1.47 8.84 1.52 8.72 1.55 8.60 1.56 8.51 1.57 8.14 1.63
5 4.5 11.83 1.48 11.27 1.54 11.00 1.57 10.83 1.59 10.69 1.60 10.25 1.66
10 9 13.44 1.50 12.89 1.55 12.53 1.59 12.32 1.61 12.14 1.63 11.67 1.68
17 15 15.20 1.51 14.68 1.56 14.21 1.61 13.96 1.64 13.75 1.66 13.22 1.71
20 19 16.28 1.53 15.76 1.57 15.23 1.63 14.95 1.66 14.72 1.68 14.16 1.73
25 23 18.07 1.55 17.54 1.60 16.93 1.66 16.61 1.69 16.35 1.72 15.73 1.76
30 28 19.88 1.58 19.26 1.63 18.60 1.68 18.26 1.72 17.99 1.75 17.33 1.80
35 32 21.69 1.61 21.00 1.67 20.28 1.71 19.92 1.75 19.63 1.79 18.92
1.83
40 36 22.79 1.66 22.15 1.72 21.45 1.77 21.07 1.80 20.78 1.83 20.02 1.88
45 41 24.17 1.72 23.60 1.78 22.90 1.83 22.52 1.87 22.22 1.89 21.41 1.95
47 43 24.73 1.74 24.17 1.80 23.48 1.86 23.10 1.89 22.79 1.92 21.96 1.97
50 46 24.80 1.73 24.30 1.78 23.70 1.84 23.35 1.86 23.08 1.89 22.30 1.94
55 51 24.92 1.71 24.51 1.76 24.05 1.80 23.78 1.82 23.56 1.83 22.86 1.87
60 56 25.04 1.70 24.72 1.73 24.41 1.76 24.20 1.77 24.04 1.78 23.42 1.81
63 59 25.11 1.68 24.84 1.71 24.63 1.74 24.46 1.75 24.32 1.75 23.76 1.77
68 64 25.19 1.67 24.97 1.69 24.84 1.71 24.71 1.72 24.61 1.72 24.10 1.74
7 + 15
-4 -4.4 7.69 1.50 7.07 1.55 7.06 1.57 6.99 1.59 6.93 1.59 6.61 1.65
0 -0.4 9.79 1.51 9.19 1.56 9.06 1.59 8.94 1.60 8.84 1.62 8.46 1.67
5 4.5 12.29 1.52 11.71 1.58 11.43 1.61 11.25 1.63 11.10 1.64 10.65 1.70
10 9 13.96 1.54 13.39 1.59 13.02 1.63 12.80 1.65 12.62 1.67 12.12 1.72
17 15 15.80 1.55 15.25 1.60 14.77 1.65 14.50 1.68 14.29 1.70 13.74 1.75
20 19 16.91 1.57 16.37 1.61 15.83 1.67 15.53 1.70 15.30 1.73 14.72 1.77
25 23 18.78 1.59 18.22 1.64 17.59 1.70 17.25 1.73 16.99 1.76 16.35 1.81
30 28 20.65 1.62 20.02 1.68 19.33 1.73 18.97 1.77 18.69 1.80 18.00 1.84
35 32 22.53 1.66 21.82 1.71 21.07 1.76 20.69 1.80 20.39 1.83 19.65 1.88
40 36 23.68 1.70 23.02 1.76 22.28 1.81 21.90 1.85 21.59 1.88 20.81 1.93
45 41 25.12 1.76 24.52 1.82 23.79 1.88 23.40 1.91 23.08 1.94 22.24 2.00
47 43 25.69 1.79 25.12 1.85 24.40 1.91 24.00 1.94 23.68 1.97 22.82 2.03
50 46 25.77 1.78 25.25 1.83 24.62 1.88 24.26 1.91 23.98 1.93 23.17 1.99
55 51 25.89 1.76 25.46 1.80 24.99 1.85 24.71 1.87 24.48 1.88 23.75 1.92
60 56 26.02 1.74 25.68 1.77 25.36 1.81 25.15 1.82 24.97 1.83 24.33 1.86
63 59 26.09 1.73 25.81 1.76 25.59 1.78 25.41 1.79 25.27 1.80 24.68 1.82
68 64 26.17 1.72 25.94 1.74 25.81 1.76 25.68 1.76 25.57 1.77 25.04 1.78
MULTI F OUTDOOR UNIT | 191
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 184: LMU24CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
9 + 15
-4 -4.4 7.69 1.50 7.07 1.55 7.06 1.57 6.99 1.59 6.93 1.59 6.61 1.65
0 -0.4 9.79 1.51 9.19 1.56 9.06 1.59 8.94 1.60 8.84 1.62 8.46 1.67
5 4.5 12.29 1.52 11.71 1.58 11.43 1.61 11.25 1.63 11.10 1.64 10.65 1.70
10 9 13.96 1.54 13.39 1.59 13.02 1.63 12.80 1.65 12.62 1.67 12.12 1.72
17 15 15.80 1.55 15.25 1.60 14.77 1.65 14.50 1.68 14.29 1.70 13.74 1.75
20 19 16.91 1.57 16.37 1.61 15.83 1.67 15.53 1.70 15.30 1.73 14.72 1.77
25 23 18.78 1.59 18.22 1.64 17.59 1.70 17.25 1.73 16.99 1.76 16.35 1.81
30 28 20.65 1.62 20.02 1.68 19.33 1.73 18.97 1.77 18.69 1.80 18.00 1.84
35 32 22.53 1.66 21.82 1.71 21.07 1.76 20.69 1.80 20.39 1.83 19.65 1.88
40 36 23.68 1.70 23.02 1.76 22.28 1.81 21.90 1.85 21.59 1.88 20.81 1.93
45 41 25.12 1.76 24.52 1.82 23.79 1.88 23.40 1.91 23.08 1.94 22.24 2.00
47 43 25.69 1.79 25.12 1.85 24.40 1.91 24.00 1.94 23.68 1.97 22.82 2.03
50 46 25.77 1.78 25.25 1.83 24.62 1.88 24.26 1.91 23.98 1.93 23.17 1.99
55 51 25.89 1.76 25.46 1.80 24.99 1.85 24.71 1.87 24.48 1.88 23.75 1.92
60 56 26.02 1.74 25.68 1.77 25.36 1.81 25.15 1.82 24.97 1.83 24.33 1.86
63 59 26.09 1.73 25.81 1.76 25.59 1.78 25.41 1.79 25.27 1.80 24.68 1.82
68 64 26.17 1.72 25.94 1.74 25.81 1.76 25.68 1.76 25.57 1.77 25.04 1.78
12 + 12
-4 -4.4 7.69 1.50 7.07 1.55 7.06 1.57 6.99 1.59 6.93 1.59 6.61 1.65
0 -0.4 9.79 1.51 9.19 1.56 9.06 1.59 8.94 1.60 8.84 1.62 8.46 1.67
5 4.5 12.29 1.52 11.71 1.58 11.43 1.61 11.25 1.63 11.10 1.64 10.65 1.70
10 9 13.96 1.54 13.39 1.59 13.02 1.63 12.80 1.65 12.62 1.67 12.12 1.72
17 15 15.80 1.55 15.25 1.60 14.77 1.65 14.50 1.68 14.29 1.70 13.74 1.75
20 19 16.91 1.57 16.37 1.61 15.83 1.67 15.53 1.70 15.30 1.73 14.72 1.77
25 23 18.78 1.59 18.22 1.64 17.59 1.70 17.25 1.73 16.99 1.76 16.35 1.81
30 28 20.65 1.62 20.02 1.68 19.33 1.73 18.97 1.77 18.69 1.80 18.00 1.84
35 32 22.53 1.66 21.82 1.71 21.07 1.76 20.69 1.80 20.39 1.83 19.65
1.88
40 36 23.68 1.70 23.02 1.76 22.28 1.81 21.90 1.85 21.59 1.88 20.81 1.93
45 41 25.12 1.76 24.52 1.82 23.79 1.88 23.40 1.91 23.08 1.94 22.24 2.00
47 43 25.69 1.79 25.12 1.85 24.40 1.91 24.00 1.94 23.68 1.97 22.82 2.03
50 46 25.77 1.78 25.25 1.83 24.62 1.88 24.26 1.91 23.98 1.93 23.17 1.99
55 51 25.89 1.76 25.46 1.80 24.99 1.85 24.71 1.87 24.48 1.88 23.75 1.92
60 56 26.02 1.74 25.68 1.77 25.36 1.81 25.15 1.82 24.97 1.83 24.33 1.86
63 59 26.09 1.73 25.81 1.76 25.59 1.78 25.41 1.79 25.27 1.80 24.68 1.82
68 64 26.17 1.72 25.94 1.74 25.81 1.76 25.68 1.76 25.57 1.77 25.04 1.78
7 + 18
-4 -4.4 7.69 1.50 7.07 1.55 7.06 1.57 6.99 1.59 6.93 1.59 6.61 1.65
0 -0.4 9.79 1.51 9.19 1.56 9.06 1.59 8.94 1.60 8.84 1.62 8.46 1.67
5 4.5 12.29 1.52 11.71 1.58 11.43 1.61 11.25 1.63 11.10 1.64 10.65 1.70
10 9 13.96 1.54 13.39 1.59 13.02 1.63 12.80 1.65 12.62 1.67 12.12 1.72
17 15 15.80 1.55 15.25 1.60 14.77 1.65 14.50 1.68 14.29 1.70 13.74 1.75
20 19 16.91 1.57 16.37 1.61 15.83 1.67 15.53 1.70 15.30 1.73 14.72 1.77
25 23 18.78 1.59 18.22 1.64 17.59 1.70 17.25 1.73 16.99 1.76 16.35 1.81
30 28 20.65 1.62 20.02 1.68 19.33 1.73 18.97 1.77 18.69 1.80 18.00 1.84
35 32 22.53 1.66 21.82 1.71 21.07 1.76 20.69 1.80 20.39 1.83 19.65 1.88
40 36 23.68 1.70 23.02 1.76 22.28 1.81 21.90 1.85 21.59 1.88 20.81 1.93
45 41 25.12 1.76 24.52 1.82 23.79 1.88 23.40 1.91 23.08 1.94 22.24 2.00
47 43 25.69 1.79 25.12 1.85 24.40 1.91 24.00 1.94 23.68 1.97 22.82 2.03
50 46 25.77 1.78 25.25 1.83 24.62 1.88 24.26 1.91 23.98 1.93 23.17 1.99
55 51 25.89 1.76 25.46 1.80 24.99 1.85 24.71 1.87 24.48 1.88 23.75 1.92
60 56 26.02 1.74 25.68 1.77 25.36 1.81 25.15 1.82 24.97 1.83 24.33 1.86
63 59 26.09 1.73 25.81 1.76 25.59 1.78 25.41 1.79 25.27 1.80 24.68 1.82
68 64 26.17 1.72 25.94 1.74 25.81 1.76 25.68 1.76 25.57 1.77 25.04 1.78
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
192 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 185: LMU24CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
9 + 18
-4 -4.4 7.69 1.50 7.07 1.55 7.06 1.57 6.99 1.59 6.93 1.59 6.61 1.65
0 -0.4 9.79 1.51 9.19 1.56 9.06 1.59 8.94 1.60 8.84 1.62 8.46 1.67
5 4.5 12.29 1.52 11.71 1.58 11.43 1.61 11.25 1.63 11.10 1.64 10.65 1.70
10 9 13.96 1.54 13.39 1.59 13.02 1.63 12.80 1.65 12.62 1.67 12.12 1.72
17 15 15.80 1.55 15.25 1.60 14.77 1.65 14.50 1.68 14.29 1.70 13.74 1.75
20 19 16.91 1.57 16.37 1.61 15.83 1.67 15.53 1.70 15.30 1.73 14.72 1.77
25 23 18.78 1.59 18.22 1.64 17.59 1.70 17.25 1.73 16.99 1.76 16.35 1.81
30 28 20.65 1.62 20.02 1.68 19.33 1.73 18.97 1.77 18.69 1.80 18.00 1.84
35 32 22.53 1.66 21.82 1.71 21.07 1.76 20.69 1.80 20.39 1.83 19.65 1.88
40 36 23.68 1.70 23.02 1.76 22.28 1.81 21.90 1.85 21.59 1.88 20.81 1.93
45 41 25.12 1.76 24.52 1.82 23.79 1.88 23.40 1.91 23.08 1.94 22.24 2.00
47 43 25.69 1.79 25.12 1.85 24.40 1.91 24.00 1.94 23.68 1.97 22.82 2.03
50 46 25.77 1.78 25.25 1.83 24.62 1.88 24.26 1.91 23.98 1.93 23.17 1.99
55 51 25.89 1.76 25.46 1.80 24.99 1.85 24.71 1.87 24.48 1.88 23.75 1.92
60 56 26.02 1.74 25.68 1.77 25.36 1.81 25.15 1.82 24.97 1.83 24.33 1.86
63 59 26.09 1.73 25.81 1.76 25.59 1.78 25.41 1.79 25.27 1.80 24.68 1.82
68 64 26.17 1.72 25.94 1.74 25.81 1.76 25.68 1.76 25.57 1.77 25.04 1.78
12 + 15
-4 -4.4 7.69 1.50 7.07 1.55 7.06 1.57 6.99 1.59 6.93 1.59 6.61 1.65
0 -0.4 9.79 1.51 9.19 1.56 9.06 1.59 8.94 1.60 8.84 1.62 8.46 1.67
5 4.5 12.29 1.52 11.71 1.58 11.43 1.61 11.25 1.63 11.10 1.64 10.65 1.70
10 9 13.96 1.54 13.39 1.59 13.02 1.63 12.80 1.65 12.62 1.67 12.12 1.72
17 15 15.80 1.55 15.25 1.60 14.77 1.65 14.50 1.68 14.29 1.70 13.74 1.75
20 19 16.91 1.57 16.37 1.61 15.83 1.67 15.53 1.70 15.30 1.73 14.72 1.77
25 23 18.78 1.59 18.22 1.64 17.59 1.70 17.25 1.73 16.99 1.76 16.35 1.81
30 28 20.65 1.62 20.02 1.68 19.33 1.73 18.97 1.77 18.69 1.80 18.00 1.84
35 32 22.53 1.66 21.82 1.71 21.07 1.76 20.69 1.80 20.39 1.83 19.65
1.88
40 36 23.68 1.70 23.02 1.76 22.28 1.81 21.90 1.85 21.59 1.88 20.81 1.93
45 41 25.12 1.76 24.52 1.82 23.79 1.88 23.40 1.91 23.08 1.94 22.24 2.00
47 43 25.69 1.79 25.12 1.85 24.40 1.91 24.00 1.94 23.68 1.97 22.82 2.03
50 46 25.77 1.78 25.25 1.83 24.62 1.88 24.26 1.91 23.98 1.93 23.17 1.99
55 51 25.89 1.76 25.46 1.80 24.99 1.85 24.71 1.87 24.48 1.88 23.75 1.92
60 56 26.02 1.74 25.68 1.77 25.36 1.81 25.15 1.82 24.97 1.83 24.33 1.86
63 59 26.09 1.73 25.81 1.76 25.59 1.78 25.41 1.79 25.27 1.80 24.68 1.82
68 64 26.17 1.72 25.94 1.74 25.81 1.76 25.68 1.76 25.57 1.77 25.04 1.78
12 + 18
-4 -4.4 7.69 1.50 7.07 1.55 7.06 1.57 6.99 1.59 6.93 1.59 6.61 1.65
0 -0.4 9.79 1.51 9.19 1.56 9.06 1.59 8.94 1.60 8.84 1.62 8.46 1.67
5 4.5 12.29 1.52 11.71 1.58 11.43 1.61 11.25 1.63 11.10 1.64 10.65 1.70
10 9 13.96 1.54 13.39 1.59 13.02 1.63 12.80 1.65 12.62 1.67 12.12 1.72
17 15 15.80 1.55 15.25 1.60 14.77 1.65 14.50 1.68 14.29 1.70 13.74 1.75
20 19 16.91 1.57 16.37 1.61 15.83 1.67 15.53 1.70 15.30 1.73 14.72 1.77
25 23 18.78 1.59 18.22 1.64 17.59 1.70 17.25 1.73 16.99 1.76 16.35 1.81
30 28 20.65 1.62 20.02 1.68 19.33 1.73 18.97 1.77 18.69 1.80 18.00 1.84
35 32 22.53 1.66 21.82 1.71 21.07 1.76 20.69 1.80 20.39 1.83 19.65 1.88
40 36 23.68 1.70 23.02 1.76 22.28 1.81 21.90 1.85 21.59 1.88 20.81 1.93
45 41 25.12 1.76 24.52 1.82 23.79 1.88 23.40 1.91 23.08 1.94 22.24 2.00
47 43 25.69 1.79 25.12 1.85 24.40 1.91 24.00 1.94 23.68 1.97 22.82 2.03
50 46 25.77 1.78 25.25 1.83 24.62 1.88 24.26 1.91 23.98 1.93 23.17 1.99
55 51 25.89 1.76 25.46 1.80 24.99 1.85 24.71 1.87 24.48 1.88 23.75 1.92
60 56 26.02 1.74 25.68 1.77 25.36 1.81 25.15 1.82 24.97 1.83 24.33 1.86
63 59 26.09 1.73 25.81 1.76 25.59 1.78 25.41 1.79 25.27 1.80 24.68 1.82
68 64 26.17 1.72 25.94 1.74 25.81 1.76 25.68 1.76 25.57 1.77 25.04 1.78
MULTI F OUTDOOR UNIT | 193
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Table 186: LMU24CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
15 + 15
-4 -4.4 7.69 1.50 7.07 1.55 7.06 1.57 6.99 1.59 6.93 1.59 6.61 1.65
0 -0.4 9.79 1.51 9.19 1.56 9.06 1.59 8.94 1.60 8.84 1.62 8.46 1.67
5 4.5 12.29 1.52 11.71 1.58 11.43 1.61 11.25 1.63 11.10 1.64 10.65 1.70
10 9 13.96 1.54 13.39 1.59 13.02 1.63 12.80 1.65 12.62 1.67 12.12 1.72
17 15 15.80 1.55 15.25 1.60 14.77 1.65 14.50 1.68 14.29 1.70 13.74 1.75
20 19 16.91 1.57 16.37 1.61 15.83 1.67 15.53 1.70 15.30 1.73 14.72 1.77
25 23 18.78 1.59 18.22 1.64 17.59 1.70 17.25 1.73 16.99 1.76 16.35 1.81
30 28 20.65 1.62 20.02 1.68 19.33 1.73 18.97 1.77 18.69 1.80 18.00 1.84
35 32 22.53 1.66 21.82 1.71 21.07 1.76 20.69 1.80 20.39 1.83 19.65 1.88
40 36 23.68 1.70 23.02 1.76 22.28 1.81 21.90 1.85 21.59 1.88 20.81 1.93
45 41 25.12 1.76 24.52 1.82 23.79 1.88 23.40 1.91 23.08 1.94 22.24 2.00
47 43 25.69 1.79 25.12 1.85 24.40 1.91 24.00 1.94 23.68 1.97 22.82 2.03
50 46 25.77 1.78 25.25 1.83 24.62 1.88 24.26 1.91 23.98 1.93 23.17 1.99
55 51 25.89 1.76 25.46 1.80 24.99 1.85 24.71 1.87 24.48 1.88 23.75 1.92
60 56 26.02 1.74 25.68 1.77 25.36 1.81 25.15 1.82 24.97 1.83 24.33 1.86
63 59 26.09 1.73 25.81 1.76 25.59 1.78 25.41 1.79 25.27 1.80 24.68 1.82
68 64 26.17 1.72 25.94 1.74 25.81 1.76 25.68 1.76 25.57 1.77 25.04 1.78
7 + 24
-4 -4.4 7.69 1.50 7.07 1.55 7.06 1.57 6.99 1.59 6.93 1.59 6.61 1.65
0 -0.4 9.79 1.51 9.19 1.56 9.06 1.59 8.94 1.60 8.84 1.62 8.46 1.67
5 4.5 12.29 1.52 11.71 1.58 11.43 1.61 11.25 1.63 11.10 1.64 10.65 1.70
10 9 13.96 1.54 13.39 1.59 13.02 1.63 12.80 1.65 12.62 1.67 12.12 1.72
17 15 15.80 1.55 15.25 1.60 14.77 1.65 14.50 1.68 14.29 1.70 13.74 1.75
20 19 16.91 1.57 16.37 1.61 15.83 1.67 15.53 1.70 15.30 1.73 14.72 1.77
25 23 18.78 1.59 18.22 1.64 17.59 1.70 17.25 1.73 16.99 1.76 16.35 1.81
30 28 20.65 1.62 20.02 1.68 19.33 1.73 18.97 1.77 18.69 1.80 18.00 1.84
35 32 22.53 1.66 21.82 1.71 21.07 1.76 20.69 1.80 20.39 1.83 19.65
1.88
40 36 23.68 1.70 23.02 1.76 22.28 1.81 21.90 1.85 21.59 1.88 20.81 1.93
45 41 25.12 1.76 24.52 1.82 23.79 1.88 23.40 1.91 23.08 1.94 22.24 2.00
47 43 25.69 1.79 25.12 1.85 24.40 1.91 24.00 1.94 23.68 1.97 22.82 2.03
50 46 25.77 1.78 25.25 1.83 24.62 1.88 24.26 1.91 23.98 1.93 23.17 1.99
55 51 25.89 1.76 25.46 1.80 24.99 1.85 24.71 1.87 24.48 1.88 23.75 1.92
60 56 26.02 1.74 25.68 1.77 25.36 1.81 25.15 1.82 24.97 1.83 24.33 1.86
63 59 26.09 1.73 25.81 1.76 25.59 1.78 25.41 1.79 25.27 1.80 24.68 1.82
68 64 26.17 1.72 25.94 1.74 25.81 1.76 25.68 1.76 25.57 1.77 25.04 1.78
9 + 24
-4 -4.4 7.69 1.50 7.07 1.55 7.06 1.57 6.99 1.59 6.93 1.59 6.61 1.65
0 -0.4 9.79 1.51 9.19 1.56 9.06 1.59 8.94 1.60 8.84 1.62 8.46 1.67
5 4.5 12.29 1.52 11.71 1.58 11.43 1.61 11.25 1.63 11.10 1.64 10.65 1.70
10 9 13.96 1.54 13.39 1.59 13.02 1.63 12.80 1.65 12.62 1.67 12.12 1.72
17 15 15.80 1.55 15.25 1.60 14.77 1.65 14.50 1.68 14.29 1.70 13.74 1.75
20 19 16.91 1.57 16.37 1.61 15.83 1.67 15.53 1.70 15.30 1.73 14.72 1.77
25 23 18.78 1.59 18.22 1.64 17.59 1.70 17.25 1.73 16.99 1.76 16.35 1.81
30 28 20.65 1.62 20.02 1.68 19.33 1.73 18.97 1.77 18.69 1.80 18.00 1.84
35 32 22.53 1.66 21.82 1.71 21.07 1.76 20.69 1.80 20.39 1.83 19.65 1.88
40 36 23.68 1.70 23.02 1.76 22.28 1.81 21.90 1.85 21.59 1.88 20.81 1.93
45 41 25.12 1.76 24.52 1.82 23.79 1.88 23.40 1.91 23.08 1.94 22.24 2.00
47 43 25.69 1.79 25.12 1.85 24.40 1.91 24.00 1.94 23.68 1.97 22.82 2.03
50 46 25.77 1.78 25.25 1.83 24.62 1.88 24.26 1.91 23.98 1.93 23.17 1.99
55 51 25.89 1.76 25.46 1.80 24.99 1.85 24.71 1.87 24.48 1.88 23.75 1.92
60 56 26.02 1.74 25.68 1.77 25.36 1.81 25.15 1.82 24.97 1.83 24.33 1.86
63 59 26.09 1.73 25.81 1.76 25.59 1.78 25.41 1.79 25.27 1.80 24.68 1.82
68 64 26.17 1.72 25.94 1.74 25.81 1.76 25.68 1.76 25.57 1.77 25.04 1.78
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
194 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 187: LMU24CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
15 + 18
-4 -4.4 7.69 1.50 7.07 1.55 7.06 1.57 6.99 1.59 6.93 1.59 6.61 1.65
0 -0.4 9.79 1.51 9.19 1.56 9.06 1.59 8.94 1.60 8.84 1.62 8.46 1.67
5 4.5 12.29 1.52 11.71 1.58 11.43 1.61 11.25 1.63 11.10 1.64 10.65 1.70
10 9 13.96 1.54 13.39 1.59 13.02 1.63 12.80 1.65 12.62 1.67 12.12 1.72
17 15 15.80 1.55 15.25 1.60 14.77 1.65 14.50 1.68 14.29 1.70 13.74 1.75
20 19 16.91 1.57 16.37 1.61 15.83 1.67 15.53 1.70 15.30 1.73 14.72 1.77
25 23 18.78 1.59 18.22 1.64 17.59 1.70 17.25 1.73 16.99 1.76 16.35 1.81
30 28 20.65 1.62 20.02 1.68 19.33 1.73 18.97 1.77 18.69 1.80 18.00 1.84
35 32 22.53 1.66 21.82 1.71 21.07 1.76 20.69 1.80 20.39 1.83 19.65 1.88
40 36 23.68 1.70 23.02 1.76 22.28 1.81 21.90 1.85 21.59 1.88 20.81 1.93
45 41 25.12 1.76 24.52 1.82 23.79 1.88 23.40 1.91 23.08 1.94 22.24 2.00
47 43 25.69 1.79 25.12 1.85 24.40 1.91 24.00 1.94 23.68 1.97 22.82 2.03
50 46 25.77 1.78 25.25 1.83 24.62 1.88 24.26 1.91 23.98 1.93 23.17 1.99
55 51 25.89 1.76 25.46 1.80 24.99 1.85 24.71 1.87 24.48 1.88 23.75 1.92
60 56 26.02 1.74 25.68 1.77 25.36 1.81 25.15 1.82 24.97 1.83 24.33 1.86
63 59 26.09 1.73 25.81 1.76 25.59 1.78 25.41 1.79 25.27 1.80 24.68 1.82
68 64 26.17 1.72 25.94 1.74 25.81 1.76 25.68 1.76 25.57 1.77 25.04 1.78
Three (3)
Non-Ducted
Indoor Units
7 + 7 + 7
-4 -4.4 7.40 1.37 6.80 1.43 6.80 1.44 6.73 1.45 6.67 1.46 6.36 1.52
0 -0.4 9.43 1.38 8.84 1.44 8.72 1.46 8.60 1.47 8.51 1.48 8.14 1.54
5 4.5 11.83 1.40 11.27 1.45 11.00 1.48 10.83 1.49 10.69 1.51 10.25 1.56
10 9 13.44 1.41 12.89 1.46 12.53 1.49 12.32 1.52 12.14 1.53 11.67 1.58
17 15 15.20 1.43 14.68 1.47 14.21 1.52 13.96 1.54 13.75 1.56 13.22 1.61
20 19 16.28 1.44 15.76 1.48 15.23 1.53 14.95 1.56 14.72 1.58 14.16 1.63
25 23 18.07 1.46 17.54 1.50 16.93 1.56 16.61 1.59 16.35 1.62 15.73 1.66
30 28 19.88 1.49 19.26 1.54 18.60 1.59 18.26 1.62 17.99 1.65 17.33 1.69
35 32 21.69 1.52 21.00 1.57 20.28 1.61
19.92 1.65 19.63 1.68 18.92 1.72
40 36 22.79 1.56 22.15 1.62 21.45 1.66 21.07 1.70 20.78 1.73 20.02 1.77
45 41 24.17 1.62 23.60 1.67 22.90 1.73 22.52 1.76 22.22 1.78 21.41 1.83
47 43 24.73 1.64 24.17 1.70 23.48 1.75 23.10 1.78 22.79 1.80 21.96 1.86
50 46 24.80 1.63 24.30 1.68 23.70 1.73 23.35 1.75 23.08 1.78 22.30 1.82
55 51 24.92 1.61 24.51 1.65 24.05 1.69 23.78 1.71 23.56 1.73 22.86 1.76
60 56 25.04 1.60 24.72 1.63 24.41 1.66 24.20 1.67 24.04 1.68 23.42 1.71
63 59 25.11 1.59 24.84 1.61 24.63 1.64 24.46 1.64 24.32 1.65 23.76 1.67
68 64 25.19 1.58 24.97 1.60 24.84 1.61 24.71 1.62 24.61 1.62 24.10 1.64
7 + 7 + 9
-4 -4.4 7.69 1.39 7.07 1.44 7.06 1.46 6.99 1.47 6.93 1.48 6.61 1.53
0 -0.4 9.79 1.40 9.19 1.45 9.06 1.48 8.94 1.49 8.84 1.50 8.46 1.55
5 4.5 12.29 1.41 11.71 1.46 11.43 1.49 11.25 1.51 11.10 1.53 10.65 1.58
10 9 13.96 1.43 13.39 1.47 13.02 1.51 12.80 1.53 12.62 1.55 12.12 1.60
17 15 15.80 1.44 15.25 1.49 14.77 1.53 14.50 1.56 14.29 1.58 13.74 1.63
20 19 16.91 1.45 16.37 1.50 15.83 1.55 15.53 1.58 15.30 1.60 14.72 1.65
25 23 18.78 1.48 18.22 1.52 17.59 1.58 17.25 1.61 16.99 1.63 16.35 1.68
30 28 20.65 1.51 20.02 1.56 19.33 1.60 18.97 1.64 18.69 1.67 18.00 1.71
35 32 22.53 1.54 21.82 1.59 21.07 1.63 20.69 1.67 20.39 1.70 19.65 1.74
40 36 23.68 1.58 23.02 1.64 22.28 1.68 21.90 1.72 21.59 1.75 20.81 1.79
45 41 25.12 1.64 24.52 1.69 23.79 1.74 23.40 1.78 23.08 1.80 22.24 1.85
47 43 25.69 1.66 25.12 1.71 24.40 1.77 24.00 1.80 23.68 1.82 22.82 1.88
50 46 25.77 1.65 25.25 1.70 24.62 1.75 24.26 1.77 23.98 1.80 23.17 1.84
55 51 25.89 1.63 25.46 1.67 24.99 1.71 24.71 1.73 24.48 1.75 23.75 1.78
60 56 26.02 1.61 25.68 1.65 25.36 1.68 25.15 1.69 24.97 1.70 24.33 1.72
63 59 26.09 1.60 25.81 1.63 25.59 1.65 25.41 1.66 25.27 1.67 24.68 1.69
68 64 26.17 1.59 25.94 1.61 25.81 1.63 25.68 1.64 25.57 1.64 25.04 1.65
MULTI F OUTDOOR UNIT | 195
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Table 188: LMU24CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 9 + 9
-4 -4.4 7.69 1.39 7.07 1.44 7.06 1.46 6.99 1.47 6.93 1.48 6.61 1.53
0 -0.4 9.79 1.40 9.19 1.45 9.06 1.48 8.94 1.49 8.84 1.50 8.46 1.55
5 4.5 12.29 1.41 11.71 1.46 11.43 1.49 11.25 1.51 11.10 1.53 10.65 1.58
10 9 13.96 1.43 13.39 1.47 13.02 1.51 12.80 1.53 12.62 1.55 12.12 1.60
17 15 15.80 1.44 15.25 1.49 14.77 1.53 14.50 1.56 14.29 1.58 13.74 1.63
20 19 16.91 1.45 16.37 1.50 15.83 1.55 15.53 1.58 15.30 1.60 14.72 1.65
25 23 18.78 1.48 18.22 1.52 17.59 1.58 17.25 1.61 16.99 1.63 16.35 1.68
30 28 20.65 1.51 20.02 1.56 19.33 1.60 18.97 1.64 18.69 1.67 18.00 1.71
35 32 22.53 1.54 21.82 1.59 21.07 1.63 20.69 1.67 20.39 1.70 19.65 1.74
40 36 23.68 1.58 23.02 1.64 22.28 1.68 21.90 1.72 21.59 1.75 20.81 1.79
45 41 25.12 1.64 24.52 1.69 23.79 1.74 23.40 1.78 23.08 1.80 22.24 1.85
47 43 25.69 1.66 25.12 1.71 24.40 1.77 24.00 1.80 23.68 1.82 22.82 1.88
50 46 25.77 1.65 25.25 1.70 24.62 1.75 24.26 1.77 23.98 1.80 23.17 1.84
55 51 25.89 1.63 25.46 1.67 24.99 1.71 24.71 1.73 24.48 1.75 23.75 1.78
60 56 26.02 1.61 25.68 1.65 25.36 1.68 25.15 1.69 24.97 1.70 24.33 1.72
63 59 26.09 1.60 25.81 1.63 25.59 1.65 25.41 1.66 25.27 1.67 24.68 1.69
68 64 26.17 1.59 25.94 1.61 25.81 1.63 25.68 1.64 25.57 1.64 25.04 1.65
7 + 7 + 12
-4 -4.4 7.69 1.39 7.07 1.44 7.06 1.46 6.99 1.47 6.93 1.48 6.61 1.53
0 -0.4 9.79 1.40 9.19 1.45 9.06 1.48 8.94 1.49 8.84 1.50 8.46 1.55
5 4.5 12.29 1.41 11.71 1.46 11.43 1.49 11.25 1.51 11.10 1.53 10.65 1.58
10 9 13.96 1.43 13.39 1.47 13.02 1.51 12.80 1.53 12.62 1.55 12.12 1.60
17 15 15.80 1.44 15.25 1.49 14.77 1.53 14.50 1.56 14.29 1.58 13.74 1.63
20 19 16.91 1.45 16.37 1.50 15.83 1.55 15.53 1.58 15.30 1.60 14.72 1.65
25 23 18.78 1.48 18.22 1.52 17.59 1.58 17.25 1.61 16.99 1.63 16.35 1.68
30 28 20.65 1.51 20.02 1.56 19.33 1.60 18.97 1.64 18.69 1.67 18.00 1.71
35 32 22.53 1.54 21.82 1.59 21.07 1.63 20.69 1.67 20.39 1.70 19.65
1.74
40 36 23.68 1.58 23.02 1.64 22.28 1.68 21.90 1.72 21.59 1.75 20.81 1.79
45 41 25.12 1.64 24.52 1.69 23.79 1.74 23.40 1.78 23.08 1.80 22.24 1.85
47 43 25.69 1.66 25.12 1.71 24.40 1.77 24.00 1.80 23.68 1.82 22.82 1.88
50 46 25.77 1.65 25.25 1.70 24.62 1.75 24.26 1.77 23.98 1.80 23.17 1.84
55 51 25.89 1.63 25.46 1.67 24.99 1.71 24.71 1.73 24.48 1.75 23.75 1.78
60 56 26.02 1.61 25.68 1.65 25.36 1.68 25.15 1.69 24.97 1.70 24.33 1.72
63 59 26.09 1.60 25.81 1.63 25.59 1.65 25.41 1.66 25.27 1.67 24.68 1.69
68 64 26.17 1.59 25.94 1.61 25.81 1.63 25.68 1.64 25.57 1.64 25.04 1.65
9 + 9 + 9
-4 -4.4 7.69 1.39 7.07 1.44 7.06 1.46 6.99 1.47 6.93 1.48 6.61 1.53
0 -0.4 9.79 1.40 9.19 1.45 9.06 1.48 8.94 1.49 8.84 1.50 8.46 1.55
5 4.5 12.29 1.41 11.71 1.46 11.43 1.49 11.25 1.51 11.10 1.53 10.65 1.58
10 9 13.96 1.43 13.39 1.47 13.02 1.51 12.80 1.53 12.62 1.55 12.12 1.60
17 15 15.80 1.44 15.25 1.49 14.77 1.53 14.50 1.56 14.29 1.58 13.74 1.63
20 19 16.91 1.45 16.37 1.50 15.83 1.55 15.53 1.58 15.30 1.60 14.72 1.65
25 23 18.78 1.48 18.22 1.52 17.59 1.58 17.25 1.61 16.99 1.63 16.35 1.68
30 28 20.65 1.51 20.02 1.56 19.33 1.60 18.97 1.64 18.69 1.67 18.00 1.71
35 32 22.53 1.54 21.82 1.59 21.07 1.63 20.69 1.67 20.39 1.70 19.65 1.74
40 36 23.68 1.58 23.02 1.64 22.28 1.68 21.90 1.72 21.59 1.75 20.81 1.79
45 41 25.12 1.64 24.52 1.69 23.79 1.74 23.40 1.78 23.08 1.80 22.24 1.85
47 43 25.69 1.66 25.12 1.71 24.40 1.77 24.00 1.80 23.68 1.82 22.82 1.88
50 46 25.77 1.65 25.25 1.70 24.62 1.75 24.26 1.77 23.98 1.80 23.17 1.84
55 51 25.89 1.63 25.46 1.67 24.99 1.71 24.71 1.73 24.48 1.75 23.75 1.78
60 56 26.02 1.61 25.68 1.65 25.36 1.68 25.15 1.69 24.97 1.70 24.33 1.72
63 59 26.09 1.60 25.81 1.63 25.59 1.65 25.41 1.66 25.27 1.67 24.68 1.69
68 64 26.17 1.59 25.94 1.61 25.81 1.63 25.68 1.64 25.57 1.64 25.04 1.65
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
196 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 189: LMU24CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 9 + 12
-4 -4.4 7.69 1.39 7.07 1.44 7.06 1.46 6.99 1.47 6.93 1.48 6.61 1.53
0 -0.4 9.79 1.40 9.19 1.45 9.06 1.48 8.94 1.49 8.84 1.50 8.46 1.55
5 4.5 12.29 1.41 11.71 1.46 11.43 1.49 11.25 1.51 11.10 1.53 10.65 1.58
10 9 13.96 1.43 13.39 1.47 13.02 1.51 12.80 1.53 12.62 1.55 12.12 1.60
17 15 15.80 1.44 15.25 1.49 14.77 1.53 14.50 1.56 14.29 1.58 13.74 1.63
20 19 16.91 1.45 16.37 1.50 15.83 1.55 15.53 1.58 15.30 1.60 14.72 1.65
25 23 18.78 1.48 18.22 1.52 17.59 1.58 17.25 1.61 16.99 1.63 16.35 1.68
30 28 20.65 1.51 20.02 1.56 19.33 1.60 18.97 1.64 18.69 1.67 18.00 1.71
35 32 22.53 1.54 21.82 1.59 21.07 1.63 20.69 1.67 20.39 1.70 19.65 1.74
40 36 23.68 1.58 23.02 1.64 22.28 1.68 21.90 1.72 21.59 1.75 20.81 1.79
45 41 25.12 1.64 24.52 1.69 23.79 1.74 23.40 1.78 23.08 1.80 22.24 1.85
47 43 25.69 1.66 25.12 1.71 24.40 1.77 24.00 1.80 23.68 1.82 22.82 1.88
50 46 25.77 1.65 25.25 1.70 24.62 1.75 24.26 1.77 23.98 1.80 23.17 1.84
55 51 25.89 1.63 25.46 1.67 24.99 1.71 24.71 1.73 24.48 1.75 23.75 1.78
60 56 26.02 1.61 25.68 1.65 25.36 1.68 25.15 1.69 24.97 1.70 24.33 1.72
63 59 26.09 1.60 25.81 1.63 25.59 1.65 25.41 1.66 25.27 1.67 24.68 1.69
68 64 26.17 1.59 25.94 1.61 25.81 1.63 25.68 1.64 25.57 1.64 25.04 1.65
7 + 7 + 15
-4 -4.4 7.69 1.39 7.07 1.44 7.06 1.46 6.99 1.47 6.93 1.48 6.61 1.53
0 -0.4 9.79 1.40 9.19 1.45 9.06 1.48 8.94 1.49 8.84 1.50 8.46 1.55
5 4.5 12.29 1.41 11.71 1.46 11.43 1.49 11.25 1.51 11.10 1.53 10.65 1.58
10 9 13.96 1.43 13.39 1.47 13.02 1.51 12.80 1.53 12.62 1.55 12.12 1.60
17 15 15.80 1.44 15.25 1.49 14.77 1.53 14.50 1.56 14.29 1.58 13.74 1.63
20 19 16.91 1.45 16.37 1.50 15.83 1.55 15.53 1.58 15.30 1.60 14.72 1.65
25 23 18.78 1.48 18.22 1.52 17.59 1.58 17.25 1.61 16.99 1.63 16.35 1.68
30 28 20.65 1.51 20.02 1.56 19.33 1.60 18.97 1.64 18.69 1.67 18.00 1.71
35 32 22.53 1.54 21.82 1.59 21.07 1.63 20.69 1.67 20.39 1.70 19.65
1.74
40 36 23.68 1.58 23.02 1.64 22.28 1.68 21.90 1.72 21.59 1.75 20.81 1.79
45 41 25.12 1.64 24.52 1.69 23.79 1.74 23.40 1.78 23.08 1.80 22.24 1.85
47 43 25.69 1.66 25.12 1.71 24.40 1.77 24.00 1.80 23.68 1.82 22.82 1.88
50 46 25.77 1.65 25.25 1.70 24.62 1.75 24.26 1.77 23.98 1.80 23.17 1.84
55 51 25.89 1.63 25.46 1.67 24.99 1.71 24.71 1.73 24.48 1.75 23.75 1.78
60 56 26.02 1.61 25.68 1.65 25.36 1.68 25.15 1.69 24.97 1.70 24.33 1.72
63 59 26.09 1.60 25.81 1.63 25.59 1.65 25.41 1.66 25.27 1.67 24.68 1.69
68 64 26.17 1.59 25.94 1.61 25.81 1.63 25.68 1.64 25.57 1.64 25.04 1.65
9 + 9 + 12
-4 -4.4 7.69 1.39 7.07 1.44 7.06 1.46 6.99 1.47 6.93 1.48 6.61 1.53
0 -0.4 9.79 1.40 9.19 1.45 9.06 1.48 8.94 1.49 8.84 1.50 8.46 1.55
5 4.5 12.29 1.41 11.71 1.46 11.43 1.49 11.25 1.51 11.10 1.53 10.65 1.58
10 9 13.96 1.43 13.39 1.47 13.02 1.51 12.80 1.53 12.62 1.55 12.12 1.60
17 15 15.80 1.44 15.25 1.49 14.77 1.53 14.50 1.56 14.29 1.58 13.74 1.63
20 19 16.91 1.45 16.37 1.50 15.83 1.55 15.53 1.58 15.30 1.60 14.72 1.65
25 23 18.78 1.48 18.22 1.52 17.59 1.58 17.25 1.61 16.99 1.63 16.35 1.68
30 28 20.65 1.51 20.02 1.56 19.33 1.60 18.97 1.64 18.69 1.67 18.00 1.71
35 32 22.53 1.54 21.82 1.59 21.07 1.63 20.69 1.67 20.39 1.70 19.65 1.74
40 36 23.68 1.58 23.02 1.64 22.28 1.68 21.90 1.72 21.59 1.75 20.81 1.79
45 41 25.12 1.64 24.52 1.69 23.79 1.74 23.40 1.78 23.08 1.80 22.24 1.85
47 43 25.69 1.66 25.12 1.71 24.40 1.77 24.00 1.80 23.68 1.82 22.82 1.88
50 46 25.77 1.65 25.25 1.70 24.62 1.75 24.26 1.77 23.98 1.80 23.17 1.84
55 51 25.89 1.63 25.46 1.67 24.99 1.71 24.71 1.73 24.48 1.75 23.75 1.78
60 56 26.02 1.61 25.68 1.65 25.36 1.68 25.15 1.69 24.97 1.70 24.33 1.72
63 59 26.09 1.60 25.81 1.63 25.59 1.65 25.41 1.66 25.27 1.67 24.68 1.69
68 64 26.17 1.59 25.94 1.61 25.81 1.63 25.68 1.64 25.57 1.64 25.04 1.65
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 197
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 190: LMU24CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 9 + 15
-4 -4.4 7.69 1.39 7.07 1.44 7.06 1.46 6.99 1.47 6.93 1.48 6.61 1.53
0 -0.4 9.79 1.40 9.19 1.45 9.06 1.48 8.94 1.49 8.84 1.50 8.46 1.55
5 4.5 12.29 1.41 11.71 1.46 11.43 1.49 11.25 1.51 11.10 1.53 10.65 1.58
10 9 13.96 1.43 13.39 1.47 13.02 1.51 12.80 1.53 12.62 1.55 12.12 1.60
17 15 15.80 1.44 15.25 1.49 14.77 1.53 14.50 1.56 14.29 1.58 13.74 1.63
20 19 16.91 1.45 16.37 1.50 15.83 1.55 15.53 1.58 15.30 1.60 14.72 1.65
25 23 18.78 1.48 18.22 1.52 17.59 1.58 17.25 1.61 16.99 1.63 16.35 1.68
30 28 20.65 1.51 20.02 1.56 19.33 1.60 18.97 1.64 18.69 1.67 18.00 1.71
35 32 22.53 1.54 21.82 1.59 21.07 1.63 20.69 1.67 20.39 1.70 19.65 1.74
40 36 23.68 1.58 23.02 1.64 22.28 1.68 21.90 1.72 21.59 1.75 20.81 1.79
45 41 25.12 1.64 24.52 1.69 23.79 1.74 23.40 1.78 23.08 1.80 22.24 1.85
47 43 25.69 1.66 25.12 1.71 24.40 1.77 24.00 1.80 23.68 1.82 22.82 1.88
50 46 25.77 1.65 25.25 1.70 24.62 1.75 24.26 1.77 23.98 1.80 23.17 1.84
55 51 25.89 1.63 25.46 1.67 24.99 1.71 24.71 1.73 24.48 1.75 23.75 1.78
60 56 26.02 1.61 25.68 1.65 25.36 1.68 25.15 1.69 24.97 1.70 24.33 1.72
63 59 26.09 1.60 25.81 1.63 25.59 1.65 25.41 1.66 25.27 1.67 24.68 1.69
68 64 26.17 1.59 25.94 1.61 25.81 1.63 25.68 1.64 25.57 1.64 25.04 1.65
7 + 12 + 12
-4 -4.4 7.69 1.39 7.07 1.44 7.06 1.46 6.99 1.47 6.93 1.48 6.61 1.53
0 -0.4 9.79 1.40 9.19 1.45 9.06 1.48 8.94 1.49 8.84 1.50 8.46 1.55
5 4.5 12.29 1.41 11.71 1.46 11.43 1.49 11.25 1.51 11.10 1.53 10.65 1.58
10 9 13.96 1.43 13.39 1.47 13.02 1.51 12.80 1.53 12.62 1.55 12.12 1.60
17 15 15.80 1.44 15.25 1.49 14.77 1.53 14.50 1.56 14.29 1.58 13.74 1.63
20 19 16.91 1.45 16.37 1.50 15.83 1.55 15.53 1.58 15.30 1.60 14.72 1.65
25 23 18.78 1.48 18.22 1.52 17.59 1.58 17.25 1.61 16.99 1.63 16.35 1.68
30 28 20.65 1.51 20.02 1.56 19.33 1.60 18.97 1.64 18.69 1.67 18.00 1.71
35 32 22.53 1.54 21.82 1.59 21.07 1.63 20.69 1.67 20.39 1.70 19.65
1.74
40 36 23.68 1.58 23.02 1.64 22.28 1.68 21.90 1.72 21.59 1.75 20.81 1.79
45 41 25.12 1.64 24.52 1.69 23.79 1.74 23.40 1.78 23.08 1.80 22.24 1.85
47 43 25.69 1.66 25.12 1.71 24.40 1.77 24.00 1.80 23.68 1.82 22.82 1.88
50 46 25.77 1.65 25.25 1.70 24.62 1.75 24.26 1.77 23.98 1.80 23.17 1.84
55 51 25.89 1.63 25.46 1.67 24.99 1.71 24.71 1.73 24.48 1.75 23.75 1.78
60 56 26.02 1.61 25.68 1.65 25.36 1.68 25.15 1.69 24.97 1.70 24.33 1.72
63 59 26.09 1.60 25.81 1.63 25.59 1.65 25.41 1.66 25.27 1.67 24.68 1.69
68 64 26.17 1.59 25.94 1.61 25.81 1.63 25.68 1.64 25.57 1.64 25.04 1.65
7 + 7 + 18
-4 -4.4 7.69 1.39 7.07 1.44 7.06 1.46 6.99 1.47 6.93 1.48 6.61 1.53
0 -0.4 9.79 1.40 9.19 1.45 9.06 1.48 8.94 1.49 8.84 1.50 8.46 1.55
5 4.5 12.29 1.41 11.71 1.46 11.43 1.49 11.25 1.51 11.10 1.53 10.65 1.58
10 9 13.96 1.43 13.39 1.47 13.02 1.51 12.80 1.53 12.62 1.55 12.12 1.60
17 15 15.80 1.44 15.25 1.49 14.77 1.53 14.50 1.56 14.29 1.58 13.74 1.63
20 19 16.91 1.45 16.37 1.50 15.83 1.55 15.53 1.58 15.30 1.60 14.72 1.65
25 23 18.78 1.48 18.22 1.52 17.59 1.58 17.25 1.61 16.99 1.63 16.35 1.68
30 28 20.65 1.51 20.02 1.56 19.33 1.60 18.97 1.64 18.69 1.67 18.00 1.71
35 32 22.53 1.54 21.82 1.59 21.07 1.63 20.69 1.67 20.39 1.70 19.65 1.74
40 36 23.68 1.58 23.02 1.64 22.28 1.68 21.90 1.72 21.59 1.75 20.81 1.79
45 41 25.12 1.64 24.52 1.69 23.79 1.74 23.40 1.78 23.08 1.80 22.24 1.85
47 43 25.69 1.66 25.12 1.71 24.40 1.77 24.00 1.80 23.68 1.82 22.82 1.88
50 46 25.77 1.65 25.25 1.70 24.62 1.75 24.26 1.77 23.98 1.80 23.17 1.84
55 51 25.89 1.63 25.46 1.67 24.99 1.71 24.71 1.73 24.48 1.75 23.75 1.78
60 56 26.02 1.61 25.68 1.65 25.36 1.68 25.15 1.69 24.97 1.70 24.33 1.72
63 59 26.09 1.60 25.81 1.63 25.59 1.65 25.41 1.66 25.27 1.67 24.68 1.69
68 64 26.17 1.59 25.94 1.61 25.81 1.63 25.68 1.64 25.57 1.64 25.04 1.65
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
198 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 191: LMU24CHV Heating Capacity Table — Non-Ducted (continued) and Ducted Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
9 + 9 + 15
-4 -4.4 7.69 1.39 7.07 1.44 7.06 1.46 6.99 1.47 6.93 1.48 6.61 1.53
0 -0.4 9.79 1.40 9.19 1.45 9.06 1.48 8.94 1.49 8.84 1.50 8.46 1.55
5 4.5 12.29 1.41 11.71 1.46 11.43 1.49 11.25 1.51 11.10 1.53 10.65 1.58
10 9 13.96 1.43 13.39 1.47 13.02 1.51 12.80 1.53 12.62 1.55 12.12 1.60
17 15 15.80 1.44 15.25 1.49 14.77 1.53 14.50 1.56 14.29 1.58 13.74 1.63
20 19 16.91 1.45 16.37 1.50 15.83 1.55 15.53 1.58 15.30 1.60 14.72 1.65
25 23 18.78 1.48 18.22 1.52 17.59 1.58 17.25 1.61 16.99 1.63 16.35 1.68
30 28 20.65 1.51 20.02 1.56 19.33 1.60 18.97 1.64 18.69 1.67 18.00 1.71
35 32 22.53 1.54 21.82 1.59 21.07 1.63 20.69 1.67 20.39 1.70 19.65 1.74
40 36 23.68 1.58 23.02 1.64 22.28 1.68 21.90 1.72 21.59 1.75 20.81 1.79
45 41 25.12 1.64 24.52 1.69 23.79 1.74 23.40 1.78 23.08 1.80 22.24 1.85
47 43 25.69 1.66 25.12 1.71 24.40 1.77 24.00 1.80 23.68 1.82 22.82 1.88
50 46 25.77 1.65 25.25 1.70 24.62 1.75 24.26 1.77 23.98 1.80 23.17 1.84
55 51 25.89 1.63 25.46 1.67 24.99 1.71 24.71 1.73 24.48 1.75 23.75 1.78
60 56 26.02 1.61 25.68 1.65 25.36 1.68 25.15 1.69 24.97 1.70 24.33 1.72
63 59 26.09 1.60 25.81 1.63 25.59 1.65 25.41 1.66 25.27 1.67 24.68 1.69
68 64 26.17 1.59 25.94 1.61 25.81 1.63 25.68 1.64 25.57 1.64 25.04 1.65
9 + 12 + 12
-4 -4.4 7.69 1.39 7.07 1.44 7.06 1.46 6.99 1.47 6.93 1.48 6.61 1.53
0 -0.4 9.79 1.40 9.19 1.45 9.06 1.48 8.94 1.49 8.84 1.50 8.46 1.55
5 4.5 12.29 1.41 11.71 1.46 11.43 1.49 11.25 1.51 11.10 1.53 10.65 1.58
10 9 13.96 1.43 13.39 1.47 13.02 1.51 12.80 1.53 12.62 1.55 12.12 1.60
17 15 15.80 1.44 15.25 1.49 14.77 1.53 14.50 1.56 14.29 1.58 13.74 1.63
20 19 16.91 1.45 16.37 1.50 15.83 1.55 15.53 1.58 15.30 1.60 14.72 1.65
25 23 18.78 1.48 18.22 1.52 17.59 1.58 17.25 1.61 16.99 1.63 16.35 1.68
30 28 20.65 1.51 20.02 1.56 19.33 1.60 18.97 1.64 18.69 1.67 18.00 1.71
35 32 22.53 1.54 21.82 1.59 21.07 1.63 20.69 1.67 20.39 1.70 19.65
1.74
40 36 23.68 1.58 23.02 1.64 22.28 1.68 21.90 1.72 21.59 1.75 20.81 1.79
45 41 25.12 1.64 24.52 1.69 23.79 1.74 23.40 1.78 23.08 1.80 22.24 1.85
47 43 25.69 1.66 25.12 1.71 24.40 1.77 24.00 1.80 23.68 1.82 22.82 1.88
50 46 25.77 1.65 25.25 1.70 24.62 1.75 24.26 1.77 23.98 1.80 23.17 1.84
55 51 25.89 1.63 25.46 1.67 24.99 1.71 24.71 1.73 24.48 1.75 23.75 1.78
60 56 26.02 1.61 25.68 1.65 25.36 1.68 25.15 1.69 24.97 1.70 24.33 1.72
63 59 26.09 1.60 25.81 1.63 25.59 1.65 25.41 1.66 25.27 1.67 24.68 1.69
68 64 26.17 1.59 25.94 1.61 25.81 1.63 25.68 1.64 25.57 1.64 25.04 1.65
Two (2) Ducted
Indoor Units
9 + 9
-4 -4.4 6.76 1.38 6.24 1.44 6.22 1.46 6.15 1.47 6.09 1.47 5.82 1.53
0 -0.4 8.27 1.40 7.77 1.45 7.65 1.47 7.55 1.49 7.46 1.50 7.14 1.55
5 4.5 10.06 1.41 9.59 1.46 9.36 1.49 9.21 1.51 9.09 1.53 8.72 1.58
10 9 11.26 1.43 10.80 1.48 10.50 1.51 10.32 1.53 10.18 1.55 9.78 1.60
17 15 12.58 1.45 12.14 1.49 11.76 1.54 11.55 1.57 11.38 1.59 10.94 1.63
20 19 13.38 1.46 12.96 1.51 12.52 1.56 12.29 1.59 12.10 1.61 11.65 1.65
25 23 14.72 1.49 14.29 1.53 13.79 1.59 13.53 1.62 13.32 1.65 12.82 1.69
30 28 16.07 1.52 15.58 1.57 15.04 1.62 14.77 1.65 14.54 1.68 14.01 1.73
35 32 17.43 1.55 16.87 1.61 16.30 1.65 16.00 1.69 15.77 1.72 15.20 1.76
40 36 18.31 1.60 17.80 1.65 17.23 1.70 16.93 1.74 16.69 1.77 16.09 1.81
45 41 19.42 1.66 18.96 1.71 18.40 1.76 18.10 1.80 17.85 1.82 17.20 1.87
47 43 19.87 1.68 19.42 1.73 18.87 1.79 18.56 1.82 18.31 1.84 17.65 1.90
50 46 19.93 1.67 19.52 1.72 19.04 1.77 18.76 1.79 18.54 1.82 17.92 1.86
55 51 20.02 1.65 19.69 1.69 19.33 1.73 19.11 1.75 18.93 1.77 18.37 1.80
60 56 20.12 1.63 19.86 1.66 19.61 1.69 19.45 1.71 19.31 1.72 18.82 1.74
63 59 20.18 1.62 19.96 1.65 19.79 1.67 19.65 1.68 19.54 1.69 19.09 1.71
68 64 20.24 1.61 20.06 1.63 19.96 1.65 19.86 1.66 19.78 1.66 19.36 1.67
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 199
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 192: LMU24CHV Heating Capacity Table — Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Ducted
Indoor Units
9 + 12
-4 -4.4 7.89 1.53 7.28 1.59 7.25 1.61 7.17 1.62 7.11 1.63 6.79 1.69
0 -0.4 9.65 1.54 9.07 1.60 8.93 1.63 8.81 1.64 8.71 1.65 8.34 1.71
5 4.5 11.74 1.56 11.19 1.62 10.92 1.65 10.75 1.67 10.61 1.68 10.18 1.74
10 9 13.14 1.58 12.61 1.63 12.26 1.67 12.05 1.70 11.88 1.71 11.41 1.77
17 15 14.68 1.60 14.17 1.65 13.73 1.70 13.48 1.73 13.28 1.75 12.77 1.80
20 19 15.62 1.61 15.12 1.66 14.62 1.72 14.34 1.75 14.13 1.78 13.59 1.83
25 23 17.18 1.64 16.67 1.69 16.09 1.75 15.79 1.79 15.54 1.82 14.96 1.87
30 28 18.76 1.68 18.18 1.73 17.55 1.79 17.23 1.83 16.97 1.86 16.35 1.91
35 32 20.34 1.72 19.69 1.78 19.02 1.82 18.68 1.87 18.40 1.90 17.74 1.95
40 36 21.37 1.77 20.77 1.83 20.11 1.88 19.76 1.92 19.48 1.95 18.78 2.00
45 41 22.67 1.83 22.13 1.89 21.47 1.95 21.12 1.98 20.83 2.01 20.08 2.07
47 43 23.19 1.85 22.67 1.91 22.02 1.98 21.66 2.01 21.37 2.04 20.59 2.10
50 46 23.25 1.84 22.78 1.90 22.22 1.95 21.90 1.98 21.64 2.00 20.91 2.06
55 51 23.37 1.82 22.98 1.87 22.56 1.91 22.30 1.93 22.09 1.95 21.44 1.99
60 56 23.48 1.80 23.17 1.84 22.89 1.87 22.69 1.89 22.54 1.90 21.96 1.93
63 59 23.55 1.79 23.29 1.82 23.09 1.85 22.93 1.86 22.81 1.86 22.28 1.89
68 64 23.62 1.78 23.41 1.80 23.29 1.82 23.17 1.83 23.08 1.83 22.60 1.85
12 + 12
-4 -4.4 8.19 1.57 7.56 1.64 7.54 1.66 7.45 1.67 7.38 1.68 7.05 1.74
0 -0.4 10.02 1.59 9.42 1.65 9.28 1.68 9.15 1.69 9.05 1.70 8.66 1.76
5 4.5 12.20 1.61 11.62 1.66 11.35 1.70 11.16 1.72 11.02 1.74 10.57 1.79
10 9 13.65 1.62 13.10 1.68 12.73 1.72 12.51 1.75 12.34 1.76 11.85 1.82
17 15 15.25 1.65 14.72 1.70 14.26 1.75 14.00 1.78 13.79 1.80 13.26 1.86
20 19 16.22 1.66 15.71 1.71 15.18 1.77 14.90 1.80 14.67 1.83 14.12 1.88
25 23 17.85 1.69 17.32 1.74 16.72 1.81 16.40 1.84 16.15 1.87 15.54 1.92
30 28 19.49 1.73 18.88 1.79 18.23 1.84 17.90 1.88 17.63 1.91 16.98 1.96
35 32 21.12 1.77 20.45 1.83 19.76 1.88 19.40 1.92 19.12 1.96 18.43 2.00
40
36 22.20 1.82 21.58 1.88 20.89 1.93 20.53 1.98 20.24 2.01 19.50 2.06
45 41 23.55 1.88 22.98 1.95 22.31 2.01 21.94 2.04 21.64 2.07 20.85 2.13
47 43 24.08 1.91 23.55 1.97 22.87 2.03 22.50 2.07 22.20 2.10 21.39 2.16
50 46 24.16 1.90 23.67 1.95 23.08 2.01 22.75 2.04 22.48 2.06 21.72 2.12
55 51 24.27 1.88 23.87 1.92 23.43 1.97 23.16 1.99 22.95 2.01 22.27 2.05
60 56 24.39 1.86 24.07 1.89 23.78 1.93 23.57 1.94 23.41 1.95 22.81 1.98
63 59 24.46 1.84 24.20 1.87 23.99 1.90 23.82 1.91 23.69 1.92 23.14 1.94
68 64 24.53 1.83 24.32 1.86 24.20 1.88 24.07 1.88 23.97 1.89 23.47 1.90
9 + 18
-4 -4.4 8.19 1.57 7.56 1.64 7.54 1.66 7.45 1.67 7.38 1.68 7.05 1.74
0 -0.4 10.02 1.59 9.42 1.65 9.28 1.68 9.15 1.69 9.05 1.70 8.66 1.76
5 4.5 12.20 1.61 11.62 1.66 11.35 1.70 11.16 1.72 11.02 1.74 10.57 1.79
10 9 13.65 1.62 13.10 1.68 12.73 1.72 12.51 1.75 12.34 1.76 11.85 1.82
17 15 15.25 1.65 14.72 1.70 14.26 1.75 14.00 1.78 13.79 1.80 13.26 1.86
20 19 16.22 1.66 15.71 1.71 15.18 1.77 14.90 1.80 14.67 1.83 14.12 1.88
25 23 17.85 1.69 17.32 1.74 16.72 1.81 16.40 1.84 16.15 1.87 15.54 1.92
30 28 19.49 1.73 18.88 1.79 18.23 1.84 17.90 1.88 17.63 1.91 16.98 1.96
35 32 21.12 1.77 20.45 1.83 19.76 1.88 19.40 1.92 19.12 1.96 18.43 2.00
40 36 22.20 1.82 21.58 1.88 20.89 1.93 20.53 1.98 20.24 2.01 19.50 2.06
45 41 23.55 1.88 22.98 1.95 22.31 2.01 21.94 2.04 21.64 2.07 20.85 2.13
47 43 24.08 1.91 23.55 1.97 22.87 2.03 22.50 2.07 22.20 2.10 21.39 2.16
50 46 24.16 1.90 23.67 1.95 23.08 2.01 22.75 2.04 22.48 2.06 21.72 2.12
55 51 24.27 1.88 23.87 1.92 23.43 1.97 23.16 1.99 22.95 2.01 22.27 2.05
60 56 24.39 1.86 24.07 1.89 23.78 1.93 23.57 1.94 23.41 1.95 22.81 1.98
63 59 24.46 1.84 24.20 1.87 23.99 1.90 23.82 1.91 23.69 1.92 23.14 1.94
68 64 24.53 1.83 24.32 1.86 24.20 1.88 24.07 1.88 23.97 1.89 23.47 1.90
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
200 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 193: LMU24CHV Heating Capacity Table — Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Ducted
Indoor Units
12 + 18
-4 -4.4 8.19 1.57 7.56 1.64 7.54 1.66 7.45 1.67 7.38 1.68 7.05 1.74
0 -0.4 10.02 1.59 9.42 1.65 9.28 1.68 9.15 1.69 9.05 1.70 8.66 1.76
5 4.5 12.20 1.61 11.62 1.66 11.35 1.70 11.16 1.72 11.02 1.74 10.57 1.79
10 9 13.65 1.62 13.10 1.68 12.73 1.72 12.51 1.75 12.34 1.76 11.85 1.82
17 15 15.25 1.65 14.72 1.70 14.26 1.75 14.00 1.78 13.79 1.80 13.26 1.86
20 19 16.22 1.66 15.71 1.71 15.18 1.77 14.90 1.80 14.67 1.83 14.12 1.88
25 23 17.85 1.69 17.32 1.74 16.72 1.81 16.40 1.84 16.15 1.87 15.54 1.92
30 28 19.49 1.73 18.88 1.79 18.23 1.84 17.90 1.88 17.63 1.91 16.98 1.96
35 32 21.12 1.77 20.45 1.83 19.76 1.88 19.40 1.92 19.12 1.96 18.43 2.00
40 36 22.20 1.82 21.58 1.88 20.89 1.93 20.53 1.98 20.24 2.01 19.50 2.06
45 41 23.55 1.88 22.98 1.95 22.31 2.01 21.94 2.04 21.64 2.07 20.85 2.13
47 43 24.08 1.91 23.55 1.97 22.87 2.03 22.50 2.07 22.20 2.10 21.39 2.16
50 46 24.16 1.90 23.67 1.95 23.08 2.01 22.75 2.04 22.48 2.06 21.72 2.12
55 51 24.27 1.88 23.87 1.92 23.43 1.97 23.16 1.99 22.95 2.01 22.27 2.05
60 56 24.39 1.86 24.07 1.89 23.78 1.93 23.57 1.94 23.41 1.95 22.81 1.98
63 59 24.46 1.84 24.20 1.87 23.99 1.90 23.82 1.91 23.69 1.92 23.14 1.94
68 64 24.53 1.83 24.32 1.86 24.20 1.88 24.07 1.88 23.97 1.89 23.47 1.90
Three (3) Ducted
Indoor Units
9 + 9 + 9
-4 -4.4 8.19 1.46 7.56 1.52 7.54 1.54 7.45 1.55 7.38 1.56 7.05 1.61
0 -0.4 10.02 1.47 9.42 1.53 9.28 1.55 9.15 1.57 9.05 1.58 8.66 1.64
5 4.5 12.20 1.49 11.62 1.54 11.35 1.58 11.16 1.59 11.02 1.61 10.57 1.66
10 9 13.65 1.51 13.10 1.56 12.73 1.60 12.51 1.62 12.34 1.64 11.85 1.69
17 15 15.25 1.53 14.72 1.58 14.26 1.62 14.00 1.65 13.79 1.67 13.26 1.72
20 19 16.22 1.54 15.71 1.59 15.18 1.64 14.90 1.67 14.67 1.70 14.12 1.74
25 23 17.85 1.57 17.32 1.61 16.72 1.68 16.40 1.71 16.15 1.74 15.54 1.78
30 28 19.49 1.60 18.88 1.66 18.23 1.71 17.90 1.75 17.63 1.78 16.98 1.82
35 32 21.12 1.64 20.45 1.70 19.76 1.74 19.40 1.78 19.12 1.81
18.43 1.86
40 36 22.20 1.69 21.58 1.75 20.89 1.79 20.53 1.83 20.24 1.86 19.50 1.91
45 41 23.55 1.75 22.98 1.81 22.31 1.86 21.94 1.89 21.64 1.92 20.85 1.98
47 43 24.08 1.77 23.55 1.83 22.87 1.89 22.50 1.92 22.20 1.95 21.39 2.00
50 46 24.16 1.76 23.67 1.81 23.08 1.86 22.75 1.89 22.48 1.92 21.72 1.97
55 51 24.27 1.74 23.87 1.78 23.43 1.83 23.16 1.85 22.95 1.86 22.27 1.90
60 56 24.39 1.72 24.07 1.76 23.78 1.79 23.57 1.80 23.41 1.81 22.81 1.84
63 59 24.46 1.71 24.20 1.74 23.99 1.76 23.82 1.77 23.69 1.78 23.14 1.80
68 64 24.53 1.70 24.32 1.72 24.20 1.74 24.07 1.75 23.97 1.75 23.47 1.76
9 + 9 + 12
-4 -4.4 8.19 1.46 7.56 1.52 7.54 1.54 7.45 1.55 7.38 1.56 7.05 1.61
0 -0.4 10.02 1.47 9.42 1.53 9.28 1.55 9.15 1.57 9.05 1.58 8.66 1.64
5 4.5 12.20 1.49 11.62 1.54 11.35 1.58 11.16 1.59 11.02 1.61 10.57 1.66
10 9 13.65 1.51 13.10 1.56 12.73 1.60 12.51 1.62 12.34 1.64 11.85 1.69
17 15 15.25 1.53 14.72 1.58 14.26 1.62 14.00 1.65 13.79 1.67 13.26 1.72
20 19 16.22 1.54 15.71 1.59 15.18 1.64 14.90 1.67 14.67 1.70 14.12 1.74
25 23 17.85 1.57 17.32 1.61 16.72 1.68 16.40 1.71 16.15 1.74 15.54 1.78
30 28 19.49 1.60 18.88 1.66 18.23 1.71 17.90 1.75 17.63 1.78 16.98 1.82
35 32 21.12 1.64 20.45 1.70 19.76 1.74 19.40 1.78 19.12 1.81 18.43 1.86
40 36 22.20 1.69 21.58 1.75 20.89 1.79 20.53 1.83 20.24 1.86 19.50 1.91
45 41 23.55 1.75 22.98 1.81 22.31 1.86 21.94 1.89 21.64 1.92 20.85 1.98
47 43 24.08 1.77 23.55 1.83 22.87 1.89 22.50 1.92 22.20 1.95 21.39 2.00
50 46 24.16 1.76 23.67 1.81 23.08 1.86 22.75 1.89 22.48 1.92 21.72 1.97
55 51 24.27 1.74 23.87 1.78 23.43 1.83 23.16 1.85 22.95 1.86 22.27 1.90
60 56 24.39 1.72 24.07 1.76 23.78 1.79 23.57 1.80 23.41 1.81 22.81 1.84
63 59 24.46 1.71 24.20 1.74 23.99 1.76 23.82 1.77 23.69 1.78 23.14 1.80
68 64 24.53 1.70 24.32 1.72 24.20 1.74 24.07 1.75 23.97 1.75 23.47 1.76
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 201
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 194: LMU24CHV Heating Capacity Table — Ducted (continued) and Mixed Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Ducted
Indoor Units
9 + 12 + 12
-4 -4.4 8.19 1.46 7.56 1.52 7.54 1.54 7.45 1.55 7.38 1.56 7.05 1.61
0 -0.4 10.02 1.47 9.42 1.53 9.28 1.55 9.15 1.57 9.05 1.58 8.66 1.64
5 4.5 12.20 1.49 11.62 1.54 11.35 1.58 11.16 1.59 11.02 1.61 10.57 1.66
10 9 13.65 1.51 13.10 1.56 12.73 1.60 12.51 1.62 12.34 1.64 11.85 1.69
17 15 15.25 1.53 14.72 1.58 14.26 1.62 14.00 1.65 13.79 1.67 13.26 1.72
20 19 16.22 1.54 15.71 1.59 15.18 1.64 14.90 1.67 14.67 1.70 14.12 1.74
25 23 17.85 1.57 17.32 1.61 16.72 1.68 16.40 1.71 16.15 1.74 15.54 1.78
30 28 19.49 1.60 18.88 1.66 18.23 1.71 17.90 1.75 17.63 1.78 16.98 1.82
35 32 21.12 1.64 20.45 1.70 19.76 1.74 19.40 1.78 19.12 1.81 18.43 1.86
40 36 22.20 1.69 21.58 1.75 20.89 1.79 20.53 1.83 20.24 1.86 19.50 1.91
45 41 23.55 1.75 22.98 1.81 22.31 1.86 21.94 1.89 21.64 1.92 20.85 1.98
47 43 24.08 1.77 23.55 1.83 22.87 1.89 22.50 1.92 22.20 1.95 21.39 2.00
50 46 24.16 1.76 23.67 1.81 23.08 1.86 22.75 1.89 22.48 1.92 21.72 1.97
55 51 24.27 1.74 23.87 1.78 23.43 1.83 23.16 1.85 22.95 1.86 22.27 1.90
60 56 24.39 1.72 24.07 1.76 23.78 1.79 23.57 1.80 23.41 1.81 22.81 1.84
63 59 24.46 1.71 24.20 1.74 23.99 1.76 23.82 1.77 23.69 1.78 23.14 1.80
68 64 24.53 1.70 24.32 1.72 24.20 1.74 24.07 1.75 23.97 1.75 23.47 1.76
Two (2) Mixed
Indoor Units
7 + 9
-4 -4.4 5.83 1.28 5.36 1.33 5.35 1.35 5.30 1.35 5.25 1.36 5.01 1.41
0 -0.4 7.27 1.29 6.82 1.34 6.72 1.36 6.63 1.37 6.56 1.38 6.28 1.43
5 4.5 8.98 1.30 8.55 1.35 8.35 1.38 8.22 1.39 8.11 1.41 7.78 1.45
10 9 10.12 1.32 9.71 1.36 9.44 1.40 9.28 1.41 9.15 1.43 8.79 1.48
17 15 11.39 1.33 10.99 1.38 10.64 1.42 10.45 1.44 10.30 1.46 9.90 1.50
20 19 12.15 1.34 11.76 1.39 11.37 1.43 11.16 1.46 10.99 1.48 10.57 1.52
25 23 13.43 1.37 13.03 1.41 12.58 1.46 12.34 1.49 12.15 1.51 11.69 1.55
30 28 14.72 1.40 14.26 1.44 13.77 1.49 13.52 1.52 13.32 1.55 12.83 1.58
35 32 16.01 1.43 15.50 1.48 14.97 1.51 14.70 1.55 14.49 1.58
13.96 1.62
40 36 16.82 1.47 16.35 1.52 15.83 1.56 15.56 1.59 15.34 1.62 14.78 1.66
45 41 17.84 1.52 17.42 1.57 16.90 1.62 16.62 1.65 16.40 1.67 15.80 1.72
47 43 18.25 1.54 17.84 1.59 17.33 1.64 17.05 1.67 16.82 1.69 16.21 1.74
50 46 18.30 1.53 17.94 1.58 17.49 1.62 17.24 1.65 17.04 1.67 16.46 1.71
55 51 18.39 1.51 18.09 1.55 17.75 1.59 17.55 1.61 17.39 1.62 16.87 1.66
60 56 18.48 1.50 18.24 1.53 18.02 1.55 17.86 1.57 17.74 1.58 17.29 1.60
63 59 18.54 1.49 18.33 1.51 18.18 1.53 18.05 1.54 17.95 1.55 17.54 1.57
68 64 18.59 1.48 18.43 1.50 18.34 1.52 18.24 1.52 18.17 1.52 17.79 1.53
9 + 9
-4 -4.4 6.55 1.35 6.03 1.41 6.02 1.43 5.96 1.44 5.90 1.44 5.64 1.50
0 -0.4 8.17 1.37 7.67 1.42 7.56 1.44 7.46 1.45 7.38 1.47 7.06 1.52
5 4.5 10.10 1.38 9.62 1.43 9.40 1.46 9.24 1.48 9.12 1.49 8.75 1.54
10 9 11.39 1.39 10.93 1.44 10.62 1.48 10.44 1.50 10.29 1.52 9.89 1.56
17 15 12.81 1.41 12.36 1.46 11.97 1.50 11.76 1.53 11.58 1.55 11.14 1.59
20 19 13.67 1.42 13.23 1.47 12.79 1.52 12.55 1.55 12.36 1.57 11.89 1.61
25 23 15.11 1.45 14.66 1.49 14.15 1.55 13.88 1.58 13.67 1.60 13.15 1.65
30 28 16.56 1.48 16.04 1.53 15.49 1.58 15.21 1.61 14.98 1.64 14.43 1.68
35 32 18.01 1.51 17.43 1.56 16.84 1.61 16.54 1.64 16.30 1.67 15.71 1.71
40 36 18.93 1.55 18.39 1.61 17.81 1.65 17.50 1.69 17.25 1.72 16.63 1.76
45 41 20.07 1.61 19.59 1.66 19.02 1.72 18.70 1.75 18.45 1.77 17.78 1.82
47 43 20.53 1.63 20.07 1.69 19.50 1.74 19.18 1.77 18.93 1.79 18.24 1.85
50 46 20.59 1.62 20.18 1.67 19.68 1.72 19.39 1.74 19.16 1.77 18.52 1.81
55 51 20.69 1.60 20.35 1.64 19.97 1.68 19.74 1.70 19.56 1.72 18.98 1.75
60 56 20.79 1.59 20.52 1.62 20.27 1.65 20.10 1.66 19.96 1.67 19.45 1.70
63 59 20.85 1.58 20.63 1.60 20.45 1.63 20.31 1.63 20.20 1.64 19.73 1.66
68 64 20.91 1.57 20.73 1.59 20.63 1.61 20.52 1.61 20.44 1.61 20.01 1.63
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
202 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 195: LMU24CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
7 + 12
-4 -4.4 6.92 1.39 6.37 1.45 6.36 1.47 6.29 1.48 6.23 1.48 5.95 1.54
0 -0.4 8.63 1.41 8.10 1.46 7.99 1.48 7.88 1.50 7.79 1.51 7.46 1.56
5 4.5 10.66 1.42 10.16 1.47 9.92 1.50 9.76 1.52 9.63 1.53 9.24 1.58
10 9 12.02 1.43 11.54 1.48 11.22 1.52 11.02 1.54 10.87 1.56 10.44 1.61
17 15 13.52 1.45 13.05 1.50 12.64 1.55 12.41 1.57 12.23 1.59 11.76 1.64
20 19 14.43 1.47 13.97 1.51 13.50 1.56 13.25 1.59 13.05 1.61 12.56 1.66
25 23 15.95 1.49 15.48 1.53 14.94 1.59 14.66 1.62 14.43 1.65 13.89 1.69
30 28 17.48 1.52 16.94 1.57 16.36 1.62 16.06 1.66 15.82 1.68 15.24 1.73
35 32 19.01 1.55 18.41 1.61 17.78 1.65 17.46 1.69 17.20 1.72 16.58 1.76
40 36 19.98 1.60 19.42 1.65 18.80 1.70 18.47 1.74 18.21 1.77 17.55 1.81
45 41 21.19 1.66 20.69 1.71 20.08 1.76 19.74 1.80 19.48 1.82 18.77 1.87
47 43 21.68 1.68 21.19 1.73 20.59 1.79 20.25 1.82 19.98 1.84 19.25 1.90
50 46 21.74 1.67 21.30 1.72 20.77 1.77 20.47 1.79 20.23 1.82 19.55 1.86
55 51 21.85 1.65 21.48 1.69 21.09 1.73 20.84 1.75 20.65 1.77 20.04 1.80
60 56 21.95 1.63 21.67 1.66 21.40 1.69 21.22 1.71 21.07 1.72 20.53 1.74
63 59 22.02 1.62 21.78 1.65 21.59 1.67 21.44 1.68 21.32 1.69 20.83 1.71
68 64 22.08 1.61 21.89 1.63 21.78 1.65 21.67 1.66 21.58 1.66 21.13 1.67
9 + 12
-4 -4.4 7.65 1.49 7.04 1.55 7.03 1.57 6.95 1.58 6.89 1.59 6.58 1.65
0 -0.4 9.54 1.51 8.95 1.56 8.83 1.59 8.70 1.60 8.61 1.61 8.24 1.67
5 4.5 11.78 1.52 11.23 1.58 10.96 1.61 10.79 1.63 10.65 1.64 10.22 1.70
10 9 13.29 1.54 12.75 1.59 12.39 1.63 12.18 1.65 12.01 1.67 11.54 1.72
17 15 14.94 1.56 14.42 1.61 13.97 1.66 13.72 1.68 13.51 1.71 12.99 1.76
20 19 15.95 1.57 15.44 1.62 14.92 1.67 14.65 1.70 14.43 1.73 13.88 1.78
25 23 17.63 1.60 17.10 1.64 16.51 1.71 16.20 1.74 15.95 1.77 15.35 1.81
30 28 19.32 1.63 18.72 1.68 18.08 1.74 17.75 1.77 17.48 1.81 16.84 1.85
35 32 21.01 1.66 20.34 1.72 19.65 1.77 19.30 1.81 19.01 1.84 18.33 1.89
40
36 22.08 1.71 21.46 1.77 20.78 1.82 20.42 1.86 20.13 1.89 19.40 1.94
45 41 23.42 1.77 22.86 1.83 22.19 1.89 21.82 1.92 21.52 1.95 20.74 2.01
47 43 23.96 1.80 23.42 1.86 22.75 1.92 22.38 1.95 22.08 1.98 21.28 2.04
50 46 24.03 1.79 23.54 1.84 22.96 1.89 22.63 1.92 22.36 1.94 21.61 2.00
55 51 24.14 1.77 23.74 1.81 23.31 1.85 23.04 1.88 22.82 1.89 22.15 1.93
60 56 24.26 1.75 23.95 1.78 23.65 1.82 23.45 1.83 23.29 1.84 22.69 1.87
63 59 24.33 1.74 24.07 1.77 23.86 1.79 23.70 1.80 23.56 1.81 23.02 1.83
68 64 24.40 1.73 24.19 1.75 24.07 1.77 23.94 1.77 23.85 1.78 23.35 1.79
9 + 15
-4 -4.4 7.94 1.53 7.32 1.59 7.30 1.61 7.22 1.62 7.16 1.63 6.83 1.69
0 -0.4 9.91 1.54 9.30 1.60 9.17 1.63 9.04 1.64 8.94 1.66 8.56 1.71
5 4.5 12.24 1.56 11.66 1.62 11.39 1.65 11.21 1.67 11.06 1.69 10.61 1.74
10 9 13.81 1.58 13.25 1.63 12.88 1.67 12.66 1.69 12.48 1.71 11.99 1.77
17 15 15.53 1.60 14.99 1.65 14.51 1.70 14.25 1.73 14.04 1.75 13.50 1.80
20 19 16.57 1.61 16.04 1.66 15.50 1.72 15.22 1.75 14.99 1.77 14.42 1.82
25 23 18.31 1.64 17.77 1.69 17.15 1.75 16.83 1.78 16.57 1.81 15.94 1.86
30 28 20.07 1.67 19.45 1.73 18.78 1.78 18.44 1.82 18.16 1.85 17.49 1.90
35 32 21.83 1.71 21.13 1.77 20.41 1.81 20.05 1.86 19.75 1.89 19.04 1.94
40 36 22.94 1.76 22.30 1.82 21.59 1.87 21.21 1.91 20.91 1.94 20.15 1.99
45 41 24.33 1.82 23.75 1.88 23.05 1.94 22.67 1.97 22.36 2.00 21.55 2.06
47 43 24.89 1.84 24.33 1.91 23.64 1.97 23.25 2.00 22.94 2.03 22.11 2.09
50 46 24.96 1.83 24.46 1.89 23.85 1.94 23.51 1.97 23.23 1.99 22.45 2.05
55 51 25.08 1.81 24.67 1.86 24.21 1.90 23.93 1.92 23.71 1.94 23.01 1.98
60 56 25.20 1.79 24.88 1.83 24.57 1.86 24.36 1.88 24.19 1.89 23.57 1.92
63 59 25.28 1.78 25.00 1.81 24.79 1.84 24.62 1.85 24.48 1.85 23.91 1.88
68 64 25.35 1.77 25.13 1.79 25.00 1.81 24.88 1.82 24.77 1.82 24.25 1.84
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 203
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 196: LMU24CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
12 + 12
-4 -4.4 7.94 1.53 7.32 1.59 7.30 1.61 7.22 1.62 7.16 1.63 6.83 1.69
0 -0.4 9.91 1.54 9.30 1.60 9.17 1.63 9.04 1.64 8.94 1.66 8.56 1.71
5 4.5 12.24 1.56 11.66 1.62 11.39 1.65 11.21 1.67 11.06 1.69 10.61 1.74
10 9 13.81 1.58 13.25 1.63 12.88 1.67 12.66 1.69 12.48 1.71 11.99 1.77
17 15 15.53 1.60 14.99 1.65 14.51 1.70 14.25 1.73 14.04 1.75 13.50 1.80
20 19 16.57 1.61 16.04 1.66 15.50 1.72 15.22 1.75 14.99 1.77 14.42 1.82
25 23 18.31 1.64 17.77 1.69 17.15 1.75 16.83 1.78 16.57 1.81 15.94 1.86
30 28 20.07 1.67 19.45 1.73 18.78 1.78 18.44 1.82 18.16 1.85 17.49 1.90
35 32 21.83 1.71 21.13 1.77 20.41 1.81 20.05 1.86 19.75 1.89 19.04 1.94
40 36 22.94 1.76 22.30 1.82 21.59 1.87 21.21 1.91 20.91 1.94 20.15 1.99
45 41 24.33 1.82 23.75 1.88 23.05 1.94 22.67 1.97 22.36 2.00 21.55 2.06
47 43 24.89 1.84 24.33 1.91 23.64 1.97 23.25 2.00 22.94 2.03 22.11 2.09
50 46 24.96 1.83 24.46 1.89 23.85 1.94 23.51 1.97 23.23 1.99 22.45 2.05
55 51 25.08 1.81 24.67 1.86 24.21 1.90 23.93 1.92 23.71 1.94 23.01 1.98
60 56 25.20 1.79 24.88 1.83 24.57 1.86 24.36 1.88 24.19 1.89 23.57 1.92
63 59 25.28 1.78 25.00 1.81 24.79 1.84 24.62 1.85 24.48 1.85 23.91 1.88
68 64 25.35 1.77 25.13 1.79 25.00 1.81 24.88 1.82 24.77 1.82 24.25 1.84
7 + 18
-4 -4.4 7.94 1.53 7.32 1.59 7.30 1.61 7.22 1.62 7.16 1.63 6.83 1.69
0 -0.4 9.91 1.54 9.30 1.60 9.17 1.63 9.04 1.64 8.94 1.66 8.56 1.71
5 4.5 12.24 1.56 11.66 1.62 11.39 1.65 11.21 1.67 11.06 1.69 10.61 1.74
10 9 13.81 1.58 13.25 1.63 12.88 1.67 12.66 1.69 12.48 1.71 11.99 1.77
17 15 15.53 1.60 14.99 1.65 14.51 1.70 14.25 1.73 14.04 1.75 13.50 1.80
20 19 16.57 1.61 16.04 1.66 15.50 1.72 15.22 1.75 14.99 1.77 14.42 1.82
25 23 18.31 1.64 17.77 1.69 17.15 1.75 16.83 1.78 16.57 1.81 15.94 1.86
30 28 20.07 1.67 19.45 1.73 18.78 1.78 18.44 1.82 18.16 1.85 17.49 1.90
35 32 21.83 1.71 21.13 1.77 20.41 1.81 20.05 1.86 19.75 1.89 19.04 1.94
40
36 22.94 1.76 22.30 1.82 21.59 1.87 21.21 1.91 20.91 1.94 20.15 1.99
45 41 24.33 1.82 23.75 1.88 23.05 1.94 22.67 1.97 22.36 2.00 21.55 2.06
47 43 24.89 1.84 24.33 1.91 23.64 1.97 23.25 2.00 22.94 2.03 22.11 2.09
50 46 24.96 1.83 24.46 1.89 23.85 1.94 23.51 1.97 23.23 1.99 22.45 2.05
55 51 25.08 1.81 24.67 1.86 24.21 1.90 23.93 1.92 23.71 1.94 23.01 1.98
60 56 25.20 1.79 24.88 1.83 24.57 1.86 24.36 1.88 24.19 1.89 23.57 1.92
63 59 25.28 1.78 25.00 1.81 24.79 1.84 24.62 1.85 24.48 1.85 23.91 1.88
68 64 25.35 1.77 25.13 1.79 25.00 1.81 24.88 1.82 24.77 1.82 24.25 1.84
9 + 18
-4 -4.4 7.94 1.53 7.32 1.59 7.30 1.61 7.22 1.62 7.16 1.63 6.83 1.69
0 -0.4 9.91 1.54 9.30 1.60 9.17 1.63 9.04 1.64 8.94 1.66 8.56 1.71
5 4.5 12.24 1.56 11.66 1.62 11.39 1.65 11.21 1.67 11.06 1.69 10.61 1.74
10 9 13.81 1.58 13.25 1.63 12.88 1.67 12.66 1.69 12.48 1.71 11.99 1.77
17 15 15.53 1.60 14.99 1.65 14.51 1.70 14.25 1.73 14.04 1.75 13.50 1.80
20 19 16.57 1.61 16.04 1.66 15.50 1.72 15.22 1.75 14.99 1.77 14.42 1.82
25 23 18.31 1.64 17.77 1.69 17.15 1.75 16.83 1.78 16.57 1.81 15.94 1.86
30 28 20.07 1.67 19.45 1.73 18.78 1.78 18.44 1.82 18.16 1.85 17.49 1.90
35 32 21.83 1.71 21.13 1.77 20.41 1.81 20.05 1.86 19.75 1.89 19.04 1.94
40 36 22.94 1.76 22.30 1.82 21.59 1.87 21.21 1.91 20.91 1.94 20.15 1.99
45 41 24.33 1.82 23.75 1.88 23.05 1.94 22.67 1.97 22.36 2.00 21.55 2.06
47 43 24.89 1.84 24.33 1.91 23.64 1.97 23.25 2.00 22.94 2.03 22.11 2.09
50 46 24.96 1.83 24.46 1.89 23.85 1.94 23.51 1.97 23.23 1.99 22.45 2.05
55 51 25.08 1.81 24.67 1.86 24.21 1.90 23.93 1.92 23.71 1.94 23.01 1.98
60 56 25.20 1.79 24.88 1.83 24.57 1.86 24.36 1.88 24.19 1.89 23.57 1.92
63 59 25.28 1.78 25.00 1.81 24.79 1.84 24.62 1.85 24.48 1.85 23.91 1.88
68 64 25.35 1.77 25.13 1.79 25.00 1.81 24.88 1.82 24.77 1.82 24.25 1.84
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
204 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 197: LMU24CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
12 + 15
-4 -4.4 7.94 1.53 7.32 1.59 7.30 1.61 7.22 1.62 7.16 1.63 6.83 1.69
0 -0.4 9.91 1.54 9.30 1.60 9.17 1.63 9.04 1.64 8.94 1.66 8.56 1.71
5 4.5 12.24 1.56 11.66 1.62 11.39 1.65 11.21 1.67 11.06 1.69 10.61 1.74
10 9 13.81 1.58 13.25 1.63 12.88 1.67 12.66 1.69 12.48 1.71 11.99 1.77
17 15 15.53 1.60 14.99 1.65 14.51 1.70 14.25 1.73 14.04 1.75 13.50 1.80
20 19 16.57 1.61 16.04 1.66 15.50 1.72 15.22 1.75 14.99 1.77 14.42 1.82
25 23 18.31 1.64 17.77 1.69 17.15 1.75 16.83 1.78 16.57 1.81 15.94 1.86
30 28 20.07 1.67 19.45 1.73 18.78 1.78 18.44 1.82 18.16 1.85 17.49 1.90
35 32 21.83 1.71 21.13 1.77 20.41 1.81 20.05 1.86 19.75 1.89 19.04 1.94
40 36 22.94 1.76 22.30 1.82 21.59 1.87 21.21 1.91 20.91 1.94 20.15 1.99
45 41 24.33 1.82 23.75 1.88 23.05 1.94 22.67 1.97 22.36 2.00 21.55 2.06
47 43 24.89 1.84 24.33 1.91 23.64 1.97 23.25 2.00 22.94 2.03 22.11 2.09
50 46 24.96 1.83 24.46 1.89 23.85 1.94 23.51 1.97 23.23 1.99 22.45 2.05
55 51 25.08 1.81 24.67 1.86 24.21 1.90 23.93 1.92 23.71 1.94 23.01 1.98
60 56 25.20 1.79 24.88 1.83 24.57 1.86 24.36 1.88 24.19 1.89 23.57 1.92
63 59 25.28 1.78 25.00 1.81 24.79 1.84 24.62 1.85 24.48 1.85 23.91 1.88
68 64 25.35 1.77 25.13 1.79 25.00 1.81 24.88 1.82 24.77 1.82 24.25 1.84
12 + 18
-4 -4.4 7.94 1.53 7.32 1.59 7.30 1.61 7.22 1.62 7.16 1.63 6.83 1.69
0 -0.4 9.91 1.54 9.30 1.60 9.17 1.63 9.04 1.64 8.94 1.66 8.56 1.71
5 4.5 12.24 1.56 11.66 1.62 11.39 1.65 11.21 1.67 11.06 1.69 10.61 1.74
10 9 13.81 1.58 13.25 1.63 12.88 1.67 12.66 1.69 12.48 1.71 11.99 1.77
17 15 15.53 1.60 14.99 1.65 14.51 1.70 14.25 1.73 14.04 1.75 13.50 1.80
20 19 16.57 1.61 16.04 1.66 15.50 1.72 15.22 1.75 14.99 1.77 14.42 1.82
25 23 18.31 1.64 17.77 1.69 17.15 1.75 16.83 1.78 16.57 1.81 15.94 1.86
30 28 20.07 1.67 19.45 1.73 18.78 1.78 18.44 1.82 18.16 1.85 17.49 1.90
35 32 21.83 1.71 21.13 1.77 20.41 1.81 20.05 1.86 19.75 1.89 19.04 1.94
40
36 22.94 1.76 22.30 1.82 21.59 1.87 21.21 1.91 20.91 1.94 20.15 1.99
45 41 24.33 1.82 23.75 1.88 23.05 1.94 22.67 1.97 22.36 2.00 21.55 2.06
47 43 24.89 1.84 24.33 1.91 23.64 1.97 23.25 2.00 22.94 2.03 22.11 2.09
50 46 24.96 1.83 24.46 1.89 23.85 1.94 23.51 1.97 23.23 1.99 22.45 2.05
55 51 25.08 1.81 24.67 1.86 24.21 1.90 23.93 1.92 23.71 1.94 23.01 1.98
60 56 25.20 1.79 24.88 1.83 24.57 1.86 24.36 1.88 24.19 1.89 23.57 1.92
63 59 25.28 1.78 25.00 1.81 24.79 1.84 24.62 1.85 24.48 1.85 23.91 1.88
68 64 25.35 1.77 25.13 1.79 25.00 1.81 24.88 1.82 24.77 1.82 24.25 1.84
15 + 18
-4 -4.4 7.94 1.53 7.32 1.59 7.30 1.61 7.22 1.62 7.16 1.63 6.83 1.69
0 -0.4 9.91 1.54 9.30 1.60 9.17 1.63 9.04 1.64 8.94 1.66 8.56 1.71
5 4.5 12.24 1.56 11.66 1.62 11.39 1.65 11.21 1.67 11.06 1.69 10.61 1.74
10 9 13.81 1.58 13.25 1.63 12.88 1.67 12.66 1.69 12.48 1.71 11.99 1.77
17 15 15.53 1.60 14.99 1.65 14.51 1.70 14.25 1.73 14.04 1.75 13.50 1.80
20 19 16.57 1.61 16.04 1.66 15.50 1.72 15.22 1.75 14.99 1.77 14.42 1.82
25 23 18.31 1.64 17.77 1.69 17.15 1.75 16.83 1.78 16.57 1.81 15.94 1.86
30 28 20.07 1.67 19.45 1.73 18.78 1.78 18.44 1.82 18.16 1.85 17.49 1.90
35 32 21.83 1.71 21.13 1.77 20.41 1.81 20.05 1.86 19.75 1.89 19.04 1.94
40 36 22.94 1.76 22.30 1.82 21.59 1.87 21.21 1.91 20.91 1.94 20.15 1.99
45 41 24.33 1.82 23.75 1.88 23.05 1.94 22.67 1.97 22.36 2.00 21.55 2.06
47 43 24.89 1.84 24.33 1.91 23.64 1.97 23.25 2.00 22.94 2.03 22.11 2.09
50 46 24.96 1.83 24.46 1.89 23.85 1.94 23.51 1.97 23.23 1.99 22.45 2.05
55 51 25.08 1.81 24.67 1.86 24.21 1.90 23.93 1.92 23.71 1.94 23.01 1.98
60 56 25.20 1.79 24.88 1.83 24.57 1.86 24.36 1.88 24.19 1.89 23.57 1.92
63 59 25.28 1.78 25.00 1.81 24.79 1.84 24.62 1.85 24.48 1.85 23.91 1.88
68 64 25.35 1.77 25.13 1.79 25.00 1.81 24.88 1.82 24.77 1.82 24.25 1.84
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 205
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 198: LMU24CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
*The indoor unit must be non-ducted type.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
9 + 24*
-4 -4.4 7.94 1.53 7.32 1.59 7.30 1.61 7.22 1.62 7.16 1.63 6.83 1.69
0 -0.4 9.91 1.54 9.30 1.60 9.17 1.63 9.04 1.64 8.94 1.66 8.56 1.71
5 4.5 12.24 1.56 11.66 1.62 11.39 1.65 11.21 1.67 11.06 1.69 10.61 1.74
10 9 13.81 1.58 13.25 1.63 12.88 1.67 12.66 1.69 12.48 1.71 11.99 1.77
17 15 15.53 1.60 14.99 1.65 14.51 1.70 14.25 1.73 14.04 1.75 13.50 1.80
20 19 16.57 1.61 16.04 1.66 15.50 1.72 15.22 1.75 14.99 1.77 14.42 1.82
25 23 18.31 1.64 17.77 1.69 17.15 1.75 16.83 1.78 16.57 1.81 15.94 1.86
30 28 20.07 1.67 19.45 1.73 18.78 1.78 18.44 1.82 18.16 1.85 17.49 1.90
35 32 21.83 1.71 21.13 1.77 20.41 1.81 20.05 1.86 19.75 1.89 19.04 1.94
40 36 22.94 1.76 22.30 1.82 21.59 1.87 21.21 1.91 20.91 1.94 20.15 1.99
45 41 24.33 1.82 23.75 1.88 23.05 1.94 22.67 1.97 22.36 2.00 21.55 2.06
47 43 24.89 1.84 24.33 1.91 23.64 1.97 23.25 2.00 22.94 2.03 22.11 2.09
50 46 24.96 1.83 24.46 1.89 23.85 1.94 23.51 1.97 23.23 1.99 22.45 2.05
55 51 25.08 1.81 24.67 1.86 24.21 1.90 23.93 1.92 23.71 1.94 23.01 1.98
60 56 25.20 1.79 24.88 1.83 24.57 1.86 24.36 1.88 24.19 1.89 23.57 1.92
63 59 25.28 1.78 25.00 1.81 24.79 1.84 24.62 1.85 24.48 1.85 23.91 1.88
68 64 25.35 1.77 25.13 1.79 25.00 1.81 24.88 1.82 24.77 1.82 24.25 1.84
Three (3) Mixed
Indoor Units
7 + 7 + 9
-4 -4.4 7.94 1.42 7.32 1.48 7.30 1.50 7.22 1.51 7.16 1.52 6.83 1.57
0 -0.4 9.91 1.44 9.30 1.49 9.17 1.51 9.04 1.53 8.94 1.54 8.56 1.59
5 4.5 12.24 1.45 11.66 1.50 11.39 1.54 11.21 1.55 11.06 1.57 10.61 1.62
10 9 13.81 1.47 13.25 1.52 12.88 1.55 12.66 1.58 12.48 1.59 11.99 1.64
17 15 15.53 1.48 14.99 1.53 14.51 1.58 14.25 1.61 14.04 1.63 13.50 1.67
20 19 16.57 1.50 16.04 1.54 15.50 1.60 15.22 1.63 14.99 1.65 14.42 1.70
25 23 18.31 1.52 17.77 1.57 17.15 1.63 16.83 1.66 16.57 1.69 15.94 1.73
30 28 20.07 1.56 19.45 1.61 18.78 1.66 18.44 1.69 18.16 1.72 17.49 1.77
35 32 21.83 1.59 21.13 1.64 20.41 1.69 20.05 1.73 19.75 1.76
19.04 1.80
40 36 22.94 1.63 22.30 1.69 21.59 1.74 21.21 1.77 20.91 1.80 20.15 1.85
45 41 24.33 1.69 23.75 1.75 23.05 1.80 22.67 1.84 22.36 1.86 21.55 1.92
47 43 24.89 1.72 24.33 1.77 23.64 1.83 23.25 1.86 22.94 1.89 22.11 1.94
50 46 24.96 1.70 24.46 1.76 23.85 1.81 23.51 1.83 23.23 1.86 22.45 1.91
55 51 25.08 1.69 24.67 1.73 24.21 1.77 23.93 1.79 23.71 1.81 23.01 1.84
60 56 25.20 1.67 24.88 1.70 24.57 1.73 24.36 1.74 24.19 1.76 23.57 1.78
63 59 25.28 1.66 25.00 1.68 24.79 1.71 24.62 1.72 24.48 1.73 23.91 1.75
68 64 25.35 1.65 25.13 1.67 25.00 1.69 24.88 1.69 24.77 1.70 24.25 1.71
7 + 9 + 9
-4 -4.4 7.94 1.42 7.32 1.48 7.30 1.50 7.22 1.51 7.16 1.52 6.83 1.57
0 -0.4 9.91 1.44 9.30 1.49 9.17 1.51 9.04 1.53 8.94 1.54 8.56 1.59
5 4.5 12.24 1.45 11.66 1.50 11.39 1.54 11.21 1.55 11.06 1.57 10.61 1.62
10 9 13.81 1.47 13.25 1.52 12.88 1.55 12.66 1.58 12.48 1.59 11.99 1.64
17 15 15.53 1.48 14.99 1.53 14.51 1.58 14.25 1.61 14.04 1.63 13.50 1.67
20 19 16.57 1.50 16.04 1.54 15.50 1.60 15.22 1.63 14.99 1.65 14.42 1.70
25 23 18.31 1.52 17.77 1.57 17.15 1.63 16.83 1.66 16.57 1.69 15.94 1.73
30 28 20.07 1.56 19.45 1.61 18.78 1.66 18.44 1.69 18.16 1.72 17.49 1.77
35 32 21.83 1.59 21.13 1.64 20.41 1.69 20.05 1.73 19.75 1.76 19.04 1.80
40 36 22.94 1.63 22.30 1.69 21.59 1.74 21.21 1.77 20.91 1.80 20.15 1.85
45 41 24.33 1.69 23.75 1.75 23.05 1.80 22.67 1.84 22.36 1.86 21.55 1.92
47 43 24.89 1.72 24.33 1.77 23.64 1.83 23.25 1.86 22.94 1.89 22.11 1.94
50 46 24.96 1.70 24.46 1.76 23.85 1.81 23.51 1.83 23.23 1.86 22.45 1.91
55 51 25.08 1.69 24.67 1.73 24.21 1.77 23.93 1.79 23.71 1.81 23.01 1.84
60 56 25.20 1.67 24.88 1.70 24.57 1.73 24.36 1.74 24.19 1.76 23.57 1.78
63 59 25.28 1.66 25.00 1.68 24.79 1.71 24.62 1.72 24.48 1.73 23.91 1.75
68 64 25.35 1.65 25.13 1.67 25.00 1.69 24.88 1.69 24.77 1.70 24.25 1.71
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
206 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 199: LMU24CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 7 + 12
-4 -4.4 7.94 1.42 7.32 1.48 7.30 1.50 7.22 1.51 7.16 1.52 6.83 1.57
0 -0.4 9.91 1.44 9.30 1.49 9.17 1.51 9.04 1.53 8.94 1.54 8.56 1.59
5 4.5 12.24 1.45 11.66 1.50 11.39 1.54 11.21 1.55 11.06 1.57 10.61 1.62
10 9 13.81 1.47 13.25 1.52 12.88 1.55 12.66 1.58 12.48 1.59 11.99 1.64
17 15 15.53 1.48 14.99 1.53 14.51 1.58 14.25 1.61 14.04 1.63 13.50 1.67
20 19 16.57 1.50 16.04 1.54 15.50 1.60 15.22 1.63 14.99 1.65 14.42 1.70
25 23 18.31 1.52 17.77 1.57 17.15 1.63 16.83 1.66 16.57 1.69 15.94 1.73
30 28 20.07 1.56 19.45 1.61 18.78 1.66 18.44 1.69 18.16 1.72 17.49 1.77
35 32 21.83 1.59 21.13 1.64 20.41 1.69 20.05 1.73 19.75 1.76 19.04 1.80
40 36 22.94 1.63 22.30 1.69 21.59 1.74 21.21 1.77 20.91 1.80 20.15 1.85
45 41 24.33 1.69 23.75 1.75 23.05 1.80 22.67 1.84 22.36 1.86 21.55 1.92
47 43 24.89 1.72 24.33 1.77 23.64 1.83 23.25 1.86 22.94 1.89 22.11 1.94
50 46 24.96 1.70 24.46 1.76 23.85 1.81 23.51 1.83 23.23 1.86 22.45 1.91
55 51 25.08 1.69 24.67 1.73 24.21 1.77 23.93 1.79 23.71 1.81 23.01 1.84
60 56 25.20 1.67 24.88 1.70 24.57 1.73 24.36 1.74 24.19 1.76 23.57 1.78
63 59 25.28 1.66 25.00 1.68 24.79 1.71 24.62 1.72 24.48 1.73 23.91 1.75
68 64 25.35 1.65 25.13 1.67 25.00 1.69 24.88 1.69 24.77 1.70 24.25 1.71
9 + 9 + 9
-4 -4.4 7.94 1.42 7.32 1.48 7.30 1.50 7.22 1.51 7.16 1.52 6.83 1.57
0 -0.4 9.91 1.44 9.30 1.49 9.17 1.51 9.04 1.53 8.94 1.54 8.56 1.59
5 4.5 12.24 1.45 11.66 1.50 11.39 1.54 11.21 1.55 11.06 1.57 10.61 1.62
10 9 13.81 1.47 13.25 1.52 12.88 1.55 12.66 1.58 12.48 1.59 11.99 1.64
17 15 15.53 1.48 14.99 1.53 14.51 1.58 14.25 1.61 14.04 1.63 13.50 1.67
20 19 16.57 1.50 16.04 1.54 15.50 1.60 15.22 1.63 14.99 1.65 14.42 1.70
25 23 18.31 1.52 17.77 1.57 17.15 1.63 16.83 1.66 16.57 1.69 15.94 1.73
30 28 20.07 1.56 19.45 1.61 18.78 1.66 18.44 1.69 18.16 1.72 17.49 1.77
35 32 21.83 1.59 21.13 1.64 20.41 1.69 20.05 1.73 19.75 1.76 19.04 1.80
40
36 22.94 1.63 22.30 1.69 21.59 1.74 21.21 1.77 20.91 1.80 20.15 1.85
45 41 24.33 1.69 23.75 1.75 23.05 1.80 22.67 1.84 22.36 1.86 21.55 1.92
47 43 24.89 1.72 24.33 1.77 23.64 1.83 23.25 1.86 22.94 1.89 22.11 1.94
50 46 24.96 1.70 24.46 1.76 23.85 1.81 23.51 1.83 23.23 1.86 22.45 1.91
55 51 25.08 1.69 24.67 1.73 24.21 1.77 23.93 1.79 23.71 1.81 23.01 1.84
60 56 25.20 1.67 24.88 1.70 24.57 1.73 24.36 1.74 24.19 1.76 23.57 1.78
63 59 25.28 1.66 25.00 1.68 24.79 1.71 24.62 1.72 24.48 1.73 23.91 1.75
68 64 25.35 1.65 25.13 1.67 25.00 1.69 24.88 1.69 24.77 1.70 24.25 1.71
7 + 9 + 12
-4 -4.4 7.94 1.42 7.32 1.48 7.30 1.50 7.22 1.51 7.16 1.52 6.83 1.57
0 -0.4 9.91 1.44 9.30 1.49 9.17 1.51 9.04 1.53 8.94 1.54 8.56 1.59
5 4.5 12.24 1.45 11.66 1.50 11.39 1.54 11.21 1.55 11.06 1.57 10.61 1.62
10 9 13.81 1.47 13.25 1.52 12.88 1.55 12.66 1.58 12.48 1.59 11.99 1.64
17 15 15.53 1.48 14.99 1.53 14.51 1.58 14.25 1.61 14.04 1.63 13.50 1.67
20 19 16.57 1.50 16.04 1.54 15.50 1.60 15.22 1.63 14.99 1.65 14.42 1.70
25 23 18.31 1.52 17.77 1.57 17.15 1.63 16.83 1.66 16.57 1.69 15.94 1.73
30 28 20.07 1.56 19.45 1.61 18.78 1.66 18.44 1.69 18.16 1.72 17.49 1.77
35 32 21.83 1.59 21.13 1.64 20.41 1.69 20.05 1.73 19.75 1.76 19.04 1.80
40 36 22.94 1.63 22.30 1.69 21.59 1.74 21.21 1.77 20.91 1.80 20.15 1.85
45 41 24.33 1.69 23.75 1.75 23.05 1.80 22.67 1.84 22.36 1.86 21.55 1.92
47 43 24.89 1.72 24.33 1.77 23.64 1.83 23.25 1.86 22.94 1.89 22.11 1.94
50 46 24.96 1.70 24.46 1.76 23.85 1.81 23.51 1.83 23.23 1.86 22.45 1.91
55 51 25.08 1.69 24.67 1.73 24.21 1.77 23.93 1.79 23.71 1.81 23.01 1.84
60 56 25.20 1.67 24.88 1.70 24.57 1.73 24.36 1.74 24.19 1.76 23.57 1.78
63 59 25.28 1.66 25.00 1.68 24.79 1.71 24.62 1.72 24.48 1.73 23.91 1.75
68 64 25.35 1.65 25.13 1.67 25.00 1.69 24.88 1.69 24.77 1.70 24.25 1.71
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 207
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 200: LMU24CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
9 + 9 + 12
-4 -4.4 7.94 1.42 7.32 1.48 7.30 1.50 7.22 1.51 7.16 1.52 6.83 1.57
0 -0.4 9.91 1.44 9.30 1.49 9.17 1.51 9.04 1.53 8.94 1.54 8.56 1.59
5 4.5 12.24 1.45 11.66 1.50 11.39 1.54 11.21 1.55 11.06 1.57 10.61 1.62
10 9 13.81 1.47 13.25 1.52 12.88 1.55 12.66 1.58 12.48 1.59 11.99 1.64
17 15 15.53 1.48 14.99 1.53 14.51 1.58 14.25 1.61 14.04 1.63 13.50 1.67
20 19 16.57 1.50 16.04 1.54 15.50 1.60 15.22 1.63 14.99 1.65 14.42 1.70
25 23 18.31 1.52 17.77 1.57 17.15 1.63 16.83 1.66 16.57 1.69 15.94 1.73
30 28 20.07 1.56 19.45 1.61 18.78 1.66 18.44 1.69 18.16 1.72 17.49 1.77
35 32 21.83 1.59 21.13 1.64 20.41 1.69 20.05 1.73 19.75 1.76 19.04 1.80
40 36 22.94 1.63 22.30 1.69 21.59 1.74 21.21 1.77 20.91 1.80 20.15 1.85
45 41 24.33 1.69 23.75 1.75 23.05 1.80 22.67 1.84 22.36 1.86 21.55 1.92
47 43 24.89 1.72 24.33 1.77 23.64 1.83 23.25 1.86 22.94 1.89 22.11 1.94
50 46 24.96 1.70 24.46 1.76 23.85 1.81 23.51 1.83 23.23 1.86 22.45 1.91
55 51 25.08 1.69 24.67 1.73 24.21 1.77 23.93 1.79 23.71 1.81 23.01 1.84
60 56 25.20 1.67 24.88 1.70 24.57 1.73 24.36 1.74 24.19 1.76 23.57 1.78
63 59 25.28 1.66 25.00 1.68 24.79 1.71 24.62 1.72 24.48 1.73 23.91 1.75
68 64 25.35 1.65 25.13 1.67 25.00 1.69 24.88 1.69 24.77 1.70 24.25 1.71
7 + 9 + 15
-4 -4.4 7.94 1.42 7.32 1.48 7.30 1.50 7.22 1.51 7.16 1.52 6.83 1.57
0 -0.4 9.91 1.44 9.30 1.49 9.17 1.51 9.04 1.53 8.94 1.54 8.56 1.59
5 4.5 12.24 1.45 11.66 1.50 11.39 1.54 11.21 1.55 11.06 1.57 10.61 1.62
10 9 13.81 1.47 13.25 1.52 12.88 1.55 12.66 1.58 12.48 1.59 11.99 1.64
17 15 15.53 1.48 14.99 1.53 14.51 1.58 14.25 1.61 14.04 1.63 13.50 1.67
20 19 16.57 1.50 16.04 1.54 15.50 1.60 15.22 1.63 14.99 1.65 14.42 1.70
25 23 18.31 1.52 17.77 1.57 17.15 1.63 16.83 1.66 16.57 1.69 15.94 1.73
30 28 20.07 1.56 19.45 1.61 18.78 1.66 18.44 1.69 18.16 1.72 17.49 1.77
35 32 21.83 1.59 21.13 1.64 20.41 1.69 20.05 1.73 19.75 1.76 19.04 1.80
40
36 22.94 1.63 22.30 1.69 21.59 1.74 21.21 1.77 20.91 1.80 20.15 1.85
45 41 24.33 1.69 23.75 1.75 23.05 1.80 22.67 1.84 22.36 1.86 21.55 1.92
47 43 24.89 1.72 24.33 1.77 23.64 1.83 23.25 1.86 22.94 1.89 22.11 1.94
50 46 24.96 1.70 24.46 1.76 23.85 1.81 23.51 1.83 23.23 1.86 22.45 1.91
55 51 25.08 1.69 24.67 1.73 24.21 1.77 23.93 1.79 23.71 1.81 23.01 1.84
60 56 25.20 1.67 24.88 1.70 24.57 1.73 24.36 1.74 24.19 1.76 23.57 1.78
63 59 25.28 1.66 25.00 1.68 24.79 1.71 24.62 1.72 24.48 1.73 23.91 1.75
68 64 25.35 1.65 25.13 1.67 25.00 1.69 24.88 1.69 24.77 1.70 24.25 1.71
7 + 12 + 12
-4 -4.4 7.94 1.42 7.32 1.48 7.30 1.50 7.22 1.51 7.16 1.52 6.83 1.57
0 -0.4 9.91 1.44 9.30 1.49 9.17 1.51 9.04 1.53 8.94 1.54 8.56 1.59
5 4.5 12.24 1.45 11.66 1.50 11.39 1.54 11.21 1.55 11.06 1.57 10.61 1.62
10 9 13.81 1.47 13.25 1.52 12.88 1.55 12.66 1.58 12.48 1.59 11.99 1.64
17 15 15.53 1.48 14.99 1.53 14.51 1.58 14.25 1.61 14.04 1.63 13.50 1.67
20 19 16.57 1.50 16.04 1.54 15.50 1.60 15.22 1.63 14.99 1.65 14.42 1.70
25 23 18.31 1.52 17.77 1.57 17.15 1.63 16.83 1.66 16.57 1.69 15.94 1.73
30 28 20.07 1.56 19.45 1.61 18.78 1.66 18.44 1.69 18.16 1.72 17.49 1.77
35 32 21.83 1.59 21.13 1.64 20.41 1.69 20.05 1.73 19.75 1.76 19.04 1.80
40 36 22.94 1.63 22.30 1.69 21.59 1.74 21.21 1.77 20.91 1.80 20.15 1.85
45 41 24.33 1.69 23.75 1.75 23.05 1.80 22.67 1.84 22.36 1.86 21.55 1.92
47 43 24.89 1.72 24.33 1.77 23.64 1.83 23.25 1.86 22.94 1.89 22.11 1.94
50 46 24.96 1.70 24.46 1.76 23.85 1.81 23.51 1.83 23.23 1.86 22.45 1.91
55 51 25.08 1.69 24.67 1.73 24.21 1.77 23.93 1.79 23.71 1.81 23.01 1.84
60 56 25.20 1.67 24.88 1.70 24.57 1.73 24.36 1.74 24.19 1.76 23.57 1.78
63 59 25.28 1.66 25.00 1.68 24.79 1.71 24.62 1.72 24.48 1.73 23.91 1.75
68 64 25.35 1.65 25.13 1.67 25.00 1.69 24.88 1.69 24.77 1.70 24.25 1.71
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
208 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 201: LMU24CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 7 + 18
-4 -4.4 7.94 1.42 7.32 1.48 7.30 1.50 7.22 1.51 7.16 1.52 6.83 1.57
0 -0.4 9.91 1.44 9.30 1.49 9.17 1.51 9.04 1.53 8.94 1.54 8.56 1.59
5 4.5 12.24 1.45 11.66 1.50 11.39 1.54 11.21 1.55 11.06 1.57 10.61 1.62
10 9 13.81 1.47 13.25 1.52 12.88 1.55 12.66 1.58 12.48 1.59 11.99 1.64
17 15 15.53 1.48 14.99 1.53 14.51 1.58 14.25 1.61 14.04 1.63 13.50 1.67
20 19 16.57 1.50 16.04 1.54 15.50 1.60 15.22 1.63 14.99 1.65 14.42 1.70
25 23 18.31 1.52 17.77 1.57 17.15 1.63 16.83 1.66 16.57 1.69 15.94 1.73
30 28 20.07 1.56 19.45 1.61 18.78 1.66 18.44 1.69 18.16 1.72 17.49 1.77
35 32 21.83 1.59 21.13 1.64 20.41 1.69 20.05 1.73 19.75 1.76 19.04 1.80
40 36 22.94 1.63 22.30 1.69 21.59 1.74 21.21 1.77 20.91 1.80 20.15 1.85
45 41 24.33 1.69 23.75 1.75 23.05 1.80 22.67 1.84 22.36 1.86 21.55 1.92
47 43 24.89 1.72 24.33 1.77 23.64 1.83 23.25 1.86 22.94 1.89 22.11 1.94
50 46 24.96 1.70 24.46 1.76 23.85 1.81 23.51 1.83 23.23 1.86 22.45 1.91
55 51 25.08 1.69 24.67 1.73 24.21 1.77 23.93 1.79 23.71 1.81 23.01 1.84
60 56 25.20 1.67 24.88 1.70 24.57 1.73 24.36 1.74 24.19 1.76 23.57 1.78
63 59 25.28 1.66 25.00 1.68 24.79 1.71 24.62 1.72 24.48 1.73 23.91 1.75
68 64 25.35 1.65 25.13 1.67 25.00 1.69 24.88 1.69 24.77 1.70 24.25 1.71
9 + 9 + 15
-4 -4.4 7.94 1.42 7.32 1.48 7.30 1.50 7.22 1.51 7.16 1.52 6.83 1.57
0 -0.4 9.91 1.44 9.30 1.49 9.17 1.51 9.04 1.53 8.94 1.54 8.56 1.59
5 4.5 12.24 1.45 11.66 1.50 11.39 1.54 11.21 1.55 11.06 1.57 10.61 1.62
10 9 13.81 1.47 13.25 1.52 12.88 1.55 12.66 1.58 12.48 1.59 11.99 1.64
17 15 15.53 1.48 14.99 1.53 14.51 1.58 14.25 1.61 14.04 1.63 13.50 1.67
20 19 16.57 1.50 16.04 1.54 15.50 1.60 15.22 1.63 14.99 1.65 14.42 1.70
25 23 18.31 1.52 17.77 1.57 17.15 1.63 16.83 1.66 16.57 1.69 15.94 1.73
30 28 20.07 1.56 19.45 1.61 18.78 1.66 18.44 1.69 18.16 1.72 17.49 1.77
35 32 21.83 1.59 21.13 1.64 20.41 1.69 20.05 1.73 19.75 1.76 19.04 1.80
40
36 22.94 1.63 22.30 1.69 21.59 1.74 21.21 1.77 20.91 1.80 20.15 1.85
45 41 24.33 1.69 23.75 1.75 23.05 1.80 22.67 1.84 22.36 1.86 21.55 1.92
47 43 24.89 1.72 24.33 1.77 23.64 1.83 23.25 1.86 22.94 1.89 22.11 1.94
50 46 24.96 1.70 24.46 1.76 23.85 1.81 23.51 1.83 23.23 1.86 22.45 1.91
55 51 25.08 1.69 24.67 1.73 24.21 1.77 23.93 1.79 23.71 1.81 23.01 1.84
60 56 25.20 1.67 24.88 1.70 24.57 1.73 24.36 1.74 24.19 1.76 23.57 1.78
63 59 25.28 1.66 25.00 1.68 24.79 1.71 24.62 1.72 24.48 1.73 23.91 1.75
68 64 25.35 1.65 25.13 1.67 25.00 1.69 24.88 1.69 24.77 1.70 24.25 1.71
9 + 12 + 12
-4 -4.4 7.94 1.42 7.32 1.48 7.30 1.50 7.22 1.51 7.16 1.52 6.83 1.57
0 -0.4 9.91 1.44 9.30 1.49 9.17 1.51 9.04 1.53 8.94 1.54 8.56 1.59
5 4.5 12.24 1.45 11.66 1.50 11.39 1.54 11.21 1.55 11.06 1.57 10.61 1.62
10 9 13.81 1.47 13.25 1.52 12.88 1.55 12.66 1.58 12.48 1.59 11.99 1.64
17 15 15.53 1.48 14.99 1.53 14.51 1.58 14.25 1.61 14.04 1.63 13.50 1.67
20 19 16.57 1.50 16.04 1.54 15.50 1.60 15.22 1.63 14.99 1.65 14.42 1.70
25 23 18.31 1.52 17.77 1.57 17.15 1.63 16.83 1.66 16.57 1.69 15.94 1.73
30 28 20.07 1.56 19.45 1.61 18.78 1.66 18.44 1.69 18.16 1.72 17.49 1.77
35 32 21.83 1.59 21.13 1.64 20.41 1.69 20.05 1.73 19.75 1.76 19.04 1.80
40 36 22.94 1.63 22.30 1.69 21.59 1.74 21.21 1.77 20.91 1.80 20.15 1.85
45 41 24.33 1.69 23.75 1.75 23.05 1.80 22.67 1.84 22.36 1.86 21.55 1.92
47 43 24.89 1.72 24.33 1.77 23.64 1.83 23.25 1.86 22.94 1.89 22.11 1.94
50 46 24.96 1.70 24.46 1.76 23.85 1.81 23.51 1.83 23.23 1.86 22.45 1.91
55 51 25.08 1.69 24.67 1.73 24.21 1.77 23.93 1.79 23.71 1.81 23.01 1.84
60 56 25.20 1.67 24.88 1.70 24.57 1.73 24.36 1.74 24.19 1.76 23.57 1.78
63 59 25.28 1.66 25.00 1.68 24.79 1.71 24.62 1.72 24.48 1.73 23.91 1.75
68 64 25.35 1.65 25.13 1.67 25.00 1.69 24.88 1.69 24.77 1.70 24.25 1.71
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 209
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 202: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
7 + 7
-4 -4.4 3.13 1.11 2.99 1.15 2.85 1.17 2.83 1.17 2.81 1.18 2.67 1.22
0 -0.4 4.73 1.13 4.41 1.17 4.37 1.19 4.31 1.20 4.27 1.21 4.08 1.25
5 4.5 6.64 1.16 6.32 1.20 6.17 1.22 6.08 1.24 6.00 1.25 5.75 1.29
10 9 7.92 1.18 7.59 1.22 7.38 1.25 7.26 1.27 7.16 1.29 6.87 1.33
17 15 9.32 1.22 9.00 1.26 8.71 1.29 8.56 1.32 8.43 1.33 8.11 1.37
20 19 10.17 1.24 9.85 1.28 9.52 1.32 9.34 1.35 9.20 1.37 8.85 1.40
25 23 11.60 1.28 11.25 1.32 10.86 1.37 10.65 1.40 10.49 1.42 10.10 1.45
30 28 13.03 1.33 12.62 1.37 12.19 1.41 11.97 1.44 11.79 1.47 11.35 1.51
35 32 14.46 1.37 14.00 1.42 13.52 1.46 13.28 1.49 13.08 1.52 12.61 1.56
40 36 15.20 1.41 14.77 1.46 14.30 1.50 14.05 1.54 13.85 1.56 13.35 1.60
45 41 16.12 1.46 15.73 1.51 15.27 1.56 15.01 1.59 14.81 1.61 14.27 1.66
47 43 16.48 1.48 16.12 1.53 15.66 1.58 15.40 1.61 15.20 1.63 14.64 1.68
50 46 16.53 1.48 16.20 1.52 15.80 1.56 15.57 1.59 15.39 1.61 14.87 1.65
55 51 16.61 1.46 16.34 1.50 16.04 1.53 15.85 1.55 15.71 1.56 15.24 1.60
60 56 16.69 1.44 16.48 1.47 16.27 1.50 16.14 1.51 16.02 1.52 15.61 1.54
63 59 16.74 1.43 16.56 1.46 16.42 1.48 16.30 1.49 16.22 1.49 15.84 1.51
68 64 16.79 1.43 16.64 1.44 16.56 1.46 16.48 1.46 16.41 1.47 16.07 1.48
7 + 9
-4 -4.4 3.58 1.22 3.42 1.27 3.25 1.29 3.23 1.30 3.22 1.30 3.06 1.35
0 -0.4 5.41 1.25 5.04 1.30 4.99 1.32 4.93 1.33 4.88 1.34 4.66 1.39
5 4.5 7.59 1.28 7.22 1.33 7.06 1.35 6.94 1.37 6.85 1.38 6.58 1.43
10 9 9.05 1.31 8.68 1.35 8.44 1.39 8.29 1.41 8.18 1.42 7.86 1.47
17 15 10.65 1.35 10.28 1.39 9.96 1.43 9.78 1.46 9.63 1.47 9.26 1.52
20 19 11.63 1.37 11.25 1.41 10.88 1.46 10.68 1.49 10.52 1.51 10.12 1.55
25 23 13.25 1.42 12.86 1.46 12.41 1.51 12.18 1.54 11.99 1.57 11.54 1.61
30 28 14.89 1.47 14.43 1.52 13.93 1.56 13.68 1.60 13.47 1.62 12.98 1.67
35 32 16.52 1.52 16.00 1.57 15.45 1.61 15.18 1.65 14.95 1.68 14.41
1.72
40 36 17.37 1.56 16.88 1.62 16.34 1.66 16.06 1.70 15.83 1.73 15.26 1.77
45 41 18.42 1.62 17.98 1.67 17.45 1.73 17.16 1.76 16.93 1.78 16.31 1.83
47 43 18.84 1.64 18.42 1.70 17.89 1.75 17.60 1.78 17.37 1.80 16.73 1.86
50 46 18.89 1.63 18.51 1.68 18.06 1.73 17.79 1.75 17.58 1.78 16.99 1.82
55 51 18.99 1.61 18.67 1.65 18.33 1.69 18.12 1.71 17.95 1.73 17.42 1.76
60 56 19.08 1.60 18.83 1.63 18.60 1.66 18.44 1.67 18.31 1.68 17.84 1.71
63 59 19.13 1.59 18.93 1.61 18.76 1.64 18.63 1.64 18.53 1.65 18.10 1.67
68 64 19.19 1.58 19.02 1.60 18.93 1.61 18.83 1.62 18.75 1.62 18.36 1.64
9 + 9
-4 -4.4 4.02 1.36 3.84 1.41 3.66 1.43 3.64 1.43 3.62 1.44 3.44 1.50
0 -0.4 6.09 1.38 5.67 1.44 5.62 1.46 5.55 1.47 5.49 1.48 5.25 1.53
5 4.5 8.54 1.42 8.12 1.47 7.94 1.50 7.81 1.52 7.71 1.53 7.40 1.58
10 9 10.18 1.45 9.76 1.50 9.49 1.54 9.33 1.56 9.20 1.57 8.84 1.62
17 15 11.98 1.49 11.57 1.54 11.20 1.58 11.00 1.61 10.84 1.63 10.42 1.68
20 19 13.08 1.52 12.66 1.56 12.24 1.62 12.01 1.65 11.83 1.67 11.38 1.72
25 23 14.91 1.57 14.47 1.61 13.96 1.67 13.70 1.71 13.49 1.73 12.98 1.78
30 28 16.75 1.62 16.23 1.68 15.67 1.73 15.39 1.77 15.16 1.80 14.60 1.84
35 32 18.59 1.68 18.00 1.74 17.38 1.79 17.07 1.83 16.82 1.86 16.21 1.91
40 36 19.54 1.73 18.99 1.79 18.38 1.84 18.06 1.88 17.81 1.91 17.16 1.96
45 41 20.72 1.79 20.23 1.85 19.63 1.91 19.30 1.94 19.04 1.97 18.35 2.03
47 43 21.19 1.82 20.72 1.88 20.13 1.94 19.80 1.97 19.54 2.00 18.83 2.06
50 46 21.26 1.81 20.83 1.86 20.31 1.91 20.02 1.94 19.78 1.96 19.11 2.02
55 51 21.36 1.79 21.01 1.83 20.62 1.87 20.38 1.89 20.19 1.91 19.59 1.95
60 56 21.46 1.77 21.18 1.80 20.92 1.83 20.75 1.85 20.60 1.86 20.08 1.89
63 59 21.53 1.76 21.29 1.78 21.11 1.81 20.96 1.82 20.85 1.83 20.36 1.85
68 64 21.59 1.74 21.40 1.77 21.29 1.79 21.18 1.79 21.10 1.80 20.66 1.81
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
210 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 203: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
7 + 12
-4 -4.4 4.25 1.41 4.06 1.47 3.86 1.48 3.84 1.49 3.82 1.50 3.63 1.56
0 -0.4 6.42 1.44 5.98 1.49 5.93 1.52 5.85 1.53 5.79 1.54 5.54 1.60
5 4.5 9.01 1.47 8.57 1.53 8.38 1.56 8.25 1.58 8.14 1.59 7.81 1.64
10 9 10.74 1.51 10.30 1.56 10.02 1.60 9.85 1.62 9.71 1.64 9.33 1.69
17 15 12.65 1.55 12.21 1.60 11.83 1.65 11.61 1.68 11.44 1.70 11.00 1.75
20 19 13.81 1.58 13.37 1.63 12.92 1.68 12.68 1.71 12.49 1.74 12.01 1.79
25 23 15.74 1.63 15.27 1.68 14.74 1.74 14.46 1.78 14.24 1.80 13.70 1.85
30 28 17.68 1.69 17.13 1.75 16.54 1.80 16.24 1.84 16.00 1.87 15.41 1.92
35 32 19.62 1.75 19.00 1.81 18.35 1.86 18.02 1.90 17.76 1.94 17.12 1.98
40 36 20.62 1.80 20.04 1.86 19.40 1.92 19.07 1.96 18.80 1.99 18.12 2.04
45 41 21.87 1.86 21.35 1.93 20.72 1.99 20.38 2.02 20.10 2.05 19.37 2.11
47 43 22.37 1.89 21.87 1.95 21.25 2.02 20.90 2.05 20.62 2.08 19.87 2.14
50 46 22.44 1.88 21.99 1.93 21.44 1.99 21.13 2.02 20.88 2.04 20.18 2.10
55 51 22.55 1.86 22.17 1.90 21.76 1.95 21.51 1.97 21.31 1.99 20.68 2.03
60 56 22.66 1.84 22.36 1.87 22.09 1.91 21.90 1.92 21.75 1.93 21.19 1.96
63 59 22.72 1.83 22.47 1.86 22.28 1.88 22.13 1.89 22.01 1.90 21.49 1.92
68 64 22.79 1.81 22.59 1.84 22.48 1.86 22.36 1.86 22.27 1.87 21.80 1.88
9 + 12
-4 -4.4 4.69 1.53 4.48 1.59 4.27 1.61 4.24 1.62 4.22 1.62 4.01 1.69
0 -0.4 7.10 1.56 6.61 1.62 6.55 1.64 6.47 1.66 6.40 1.67 6.12 1.73
5 4.5 9.96 1.60 9.47 1.65 9.26 1.69 9.11 1.71 9.00 1.72 8.63 1.78
10 9 11.87 1.63 11.39 1.69 11.07 1.73 10.89 1.75 10.73 1.77 10.31 1.83
17 15 13.98 1.68 13.50 1.73 13.07 1.79 12.83 1.81 12.64 1.84 12.16 1.89
20 19 15.26 1.71 14.77 1.76 14.28 1.82 14.01 1.86 13.80 1.88 13.28 1.93
25 23 17.39 1.77 16.88 1.82 16.29 1.89 15.98 1.92 15.74 1.95 15.14 2.01
30 28 19.54 1.83 18.94 1.89 18.29 1.95 17.95 1.99 17.68 2.03 17.03 2.08
35 32 21.69 1.89 21.00 1.96 20.28 2.01 19.92 2.06 19.63 2.10 18.92
2.15
40 36 22.79 1.95 22.15 2.02 21.45 2.07 21.07 2.12 20.78 2.15 20.02 2.21
45 41 24.17 2.02 23.60 2.09 22.90 2.15 22.52 2.19 22.22 2.22 21.41 2.29
47 43 24.73 2.05 24.17 2.11 23.48 2.18 23.10 2.22 22.79 2.25 21.96 2.32
50 46 24.80 2.03 24.30 2.10 23.70 2.16 23.35 2.19 23.08 2.21 22.30 2.27
55 51 24.92 2.01 24.51 2.06 24.05 2.11 23.78 2.14 23.56 2.15 22.86 2.20
60 56 25.04 1.99 24.72 2.03 24.41 2.07 24.20 2.08 24.04 2.09 23.42 2.13
63 59 25.11 1.98 24.84 2.01 24.63 2.04 24.46 2.05 24.32 2.06 23.76 2.08
68 64 25.19 1.97 24.97 1.99 24.84 2.01 24.71 2.02 24.61 2.02 24.10 2.04
7 + 15
-4 -4.4 4.92 1.58 4.70 1.64 4.48 1.66 4.45 1.67 4.42 1.68 4.20 1.74
0 -0.4 7.44 1.61 6.93 1.67 6.86 1.70 6.78 1.71 6.71 1.72 6.41 1.78
5 4.5 10.43 1.65 9.92 1.71 9.70 1.74 9.55 1.76 9.43 1.78 9.04 1.84
10 9 12.44 1.68 11.93 1.74 11.60 1.78 11.40 1.81 11.24 1.83 10.80 1.89
17 15 14.65 1.73 14.14 1.79 13.69 1.84 13.44 1.87 13.25 1.90 12.74 1.95
20 19 15.98 1.76 15.48 1.82 14.96 1.88 14.68 1.91 14.46 1.94 13.91 2.00
25 23 18.22 1.82 17.68 1.87 17.07 1.95 16.74 1.98 16.48 2.02 15.86 2.07
30 28 20.47 1.89 19.84 1.95 19.16 2.01 18.80 2.05 18.52 2.09 17.84 2.14
35 32 22.72 1.95 22.00 2.02 21.25 2.08 20.87 2.13 20.56 2.16 19.82 2.22
40 36 23.88 2.01 23.21 2.08 22.47 2.14 22.08 2.19 21.77 2.22 20.98 2.28
45 41 25.33 2.08 24.72 2.15 23.99 2.22 23.59 2.26 23.28 2.29 22.43 2.36
47 43 25.90 2.11 25.33 2.18 24.60 2.25 24.20 2.29 23.88 2.32 23.01 2.39
50 46 25.98 2.10 25.46 2.16 24.83 2.22 24.47 2.26 24.18 2.28 23.36 2.35
55 51 26.11 2.08 25.67 2.13 25.20 2.18 24.91 2.20 24.68 2.22 23.95 2.27
60 56 26.23 2.05 25.89 2.09 25.57 2.13 25.36 2.15 25.18 2.16 24.54 2.19
63 59 26.31 2.04 26.02 2.07 25.80 2.10 25.62 2.12 25.48 2.12 24.89 2.15
68 64 26.39 2.03 26.15 2.05 26.02 2.08 25.89 2.08 25.78 2.09 25.25 2.10
MULTI F OUTDOOR UNIT | 211
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 204: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
9 + 15
-4 -4.4 5.36 1.67 5.12 1.74 4.88 1.76 4.85 1.77 4.82 1.78 4.58 1.85
0 -0.4 8.11 1.71 7.56 1.77 7.49 1.80 7.39 1.81 7.32 1.83 7.00 1.89
5 4.5 11.38 1.75 10.83 1.81 10.58 1.85 10.42 1.87 10.28 1.89 9.86 1.95
10 9 13.57 1.79 13.02 1.85 12.66 1.89 12.44 1.92 12.27 1.94 11.78 2.00
17 15 15.98 1.84 15.42 1.90 14.94 1.95 14.67 1.99 14.45 2.01 13.89 2.07
20 19 17.44 1.87 16.88 1.93 16.32 1.99 16.02 2.03 15.77 2.06 15.17 2.12
25 23 19.88 1.93 19.29 1.99 18.62 2.06 18.27 2.11 17.98 2.14 17.31 2.20
30 28 22.33 2.00 21.64 2.07 20.90 2.13 20.51 2.18 20.21 2.22 19.46 2.27
35 32 24.79 2.07 24.00 2.15 23.18 2.20 22.76 2.26 22.43 2.30 21.62 2.35
40 36 26.05 2.13 25.32 2.21 24.51 2.27 24.09 2.32 23.75 2.36 22.89 2.42
45 41 27.63 2.21 26.97 2.28 26.17 2.36 25.74 2.40 25.39 2.43 24.47 2.50
47 43 28.26 2.24 27.63 2.31 26.84 2.39 26.40 2.43 26.05 2.46 25.10 2.54
50 46 28.34 2.23 27.77 2.29 27.08 2.36 26.69 2.40 26.38 2.42 25.49 2.49
55 51 28.48 2.20 28.01 2.26 27.49 2.31 27.18 2.34 26.92 2.36 26.13 2.41
60 56 28.62 2.18 28.25 2.22 27.90 2.26 27.66 2.28 27.47 2.29 26.77 2.33
63 59 28.70 2.17 28.39 2.20 28.14 2.23 27.95 2.24 27.80 2.25 27.15 2.28
68 64 28.79 2.15 28.53 2.18 28.39 2.20 28.25 2.21 28.13 2.22 27.54 2.23
12 + 12
-4 -4.4 5.36 1.67 5.12 1.74 4.88 1.76 4.85 1.77 4.82 1.78 4.58 1.85
0 -0.4 8.11 1.71 7.56 1.77 7.49 1.80 7.39 1.81 7.32 1.83 7.00 1.89
5 4.5 11.38 1.75 10.83 1.81 10.58 1.85 10.42 1.87 10.28 1.89 9.86 1.95
10 9 13.57 1.79 13.02 1.85 12.66 1.89 12.44 1.92 12.27 1.94 11.78 2.00
17 15 15.98 1.84 15.42 1.90 14.94 1.95 14.67 1.99 14.45 2.01 13.89 2.07
20 19 17.44 1.87 16.88 1.93 16.32 1.99 16.02 2.03 15.77 2.06 15.17 2.12
25 23 19.88 1.93 19.29 1.99 18.62 2.06 18.27 2.11 17.98 2.14 17.31 2.20
30 28 22.33 2.00 21.64 2.07 20.90 2.13 20.51 2.18 20.21 2.22 19.46 2.27
35 32 24.79 2.07 24.00 2.15 23.18 2.20 22.76 2.26 22.43 2.30 21.62
2.35
40 36 26.05 2.13 25.32 2.21 24.51 2.27 24.09 2.32 23.75 2.36 22.89 2.42
45 41 27.63 2.21 26.97 2.28 26.17 2.36 25.74 2.40 25.39 2.43 24.47 2.50
47 43 28.26 2.24 27.63 2.31 26.84 2.39 26.40 2.43 26.05 2.46 25.10 2.54
50 46 28.34 2.23 27.77 2.29 27.08 2.36 26.69 2.40 26.38 2.42 25.49 2.49
55 51 28.48 2.20 28.01 2.26 27.49 2.31 27.18 2.34 26.92 2.36 26.13 2.41
60 56 28.62 2.18 28.25 2.22 27.90 2.26 27.66 2.28 27.47 2.29 26.77 2.33
63 59 28.70 2.17 28.39 2.20 28.14 2.23 27.95 2.24 27.80 2.25 27.15 2.28
68 64 28.79 2.15 28.53 2.18 28.39 2.20 28.25 2.21 28.13 2.22 27.54 2.23
7 + 18
-4 -4.4 5.59 1.73 5.34 1.80 5.09 1.82 5.05 1.83 5.02 1.84 4.78 1.91
0 -0.4 8.45 1.76 7.87 1.83 7.80 1.86 7.70 1.87 7.62 1.89 7.29 1.95
5 4.5 11.86 1.80 11.28 1.87 11.02 1.91 10.85 1.93 10.71 1.95 10.27 2.01
10 9 14.14 1.84 13.56 1.91 13.18 1.96 12.96 1.98 12.78 2.00 12.27 2.07
17 15 16.64 1.90 16.07 1.96 15.56 2.02 15.28 2.05 15.05 2.08 14.47 2.14
20 19 18.16 1.93 17.59 1.99 17.00 2.06 16.68 2.10 16.43 2.13 15.81 2.19
25 23 20.71 2.00 20.09 2.05 19.39 2.13 19.03 2.18 18.73 2.21 18.03 2.27
30 28 23.26 2.07 22.54 2.14 21.77 2.20 21.37 2.25 21.05 2.29 20.28 2.35
35 32 25.82 2.14 25.00 2.22 24.15 2.28 23.71 2.33 23.36 2.37 22.52 2.43
40 36 27.13 2.20 26.37 2.28 25.53 2.35 25.09 2.40 24.74 2.43 23.84 2.50
45 41 28.78 2.28 28.09 2.36 27.26 2.43 26.81 2.48 26.45 2.51 25.49 2.59
47 43 29.44 2.31 28.78 2.39 27.96 2.47 27.50 2.51 27.13 2.54 26.15 2.62
50 46 29.52 2.30 28.93 2.37 28.21 2.44 27.80 2.47 27.48 2.50 26.55 2.57
55 51 29.67 2.28 29.18 2.33 28.64 2.39 28.31 2.41 28.04 2.44 27.22 2.49
60 56 29.81 2.25 29.42 2.29 29.06 2.34 28.81 2.35 28.61 2.37 27.88 2.41
63 59 29.90 2.24 29.57 2.27 29.32 2.31 29.12 2.32 28.96 2.33 28.28 2.36
68 64 29.98 2.22 29.72 2.25 29.57 2.28 29.42 2.28 29.30 2.29 28.69 2.31
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
212 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 205: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
9 + 18
-4 -4.4 6.03 1.84 5.76 1.91 5.49 1.93 5.46 1.94 5.43 1.95 5.16 2.03
0 -0.4 9.13 1.87 8.50 1.95 8.42 1.98 8.32 1.99 8.23 2.01 7.87 2.08
5 4.5 12.81 1.92 12.18 1.99 11.91 2.03 11.72 2.05 11.57 2.07 11.10 2.14
10 9 15.27 1.96 14.64 2.03 14.24 2.08 14.00 2.11 13.80 2.13 13.26 2.20
17 15 17.98 2.02 17.35 2.08 16.80 2.15 16.50 2.18 16.26 2.21 15.63 2.28
20 19 19.62 2.06 18.99 2.12 18.36 2.19 18.02 2.23 17.75 2.26 17.07 2.33
25 23 22.36 2.12 21.70 2.19 20.94 2.27 20.55 2.31 20.23 2.35 19.47 2.41
30 28 25.12 2.20 24.35 2.27 23.51 2.34 23.08 2.40 22.73 2.44 21.90 2.50
35 32 27.88 2.28 27.00 2.36 26.08 2.42 25.61 2.48 25.23 2.52 24.32 2.58
40 36 29.31 2.35 28.48 2.43 27.57 2.50 27.10 2.55 26.71 2.59 25.75 2.66
45 41 31.08 2.43 30.34 2.51 29.44 2.59 28.96 2.64 28.57 2.67 27.53 2.75
47 43 31.79 2.46 31.08 2.54 30.19 2.62 29.70 2.67 29.31 2.71 28.24 2.79
50 46 31.89 2.45 31.24 2.52 30.47 2.59 30.03 2.63 29.67 2.66 28.67 2.73
55 51 32.04 2.42 31.51 2.48 30.93 2.54 30.57 2.57 30.29 2.59 29.39 2.65
60 56 32.20 2.39 31.78 2.44 31.39 2.49 31.12 2.50 30.90 2.52 30.11 2.56
63 59 32.29 2.38 31.94 2.42 31.66 2.45 31.45 2.47 31.27 2.48 30.55 2.51
68 64 32.38 2.36 32.10 2.39 31.94 2.42 31.78 2.43 31.64 2.43 30.98 2.45
12 + 15
-4 -4.4 6.03 1.84 5.76 1.91 5.49 1.93 5.46 1.94 5.43 1.95 5.16 2.03
0 -0.4 9.13 1.87 8.50 1.95 8.42 1.98 8.32 1.99 8.23 2.01 7.87 2.08
5 4.5 12.81 1.92 12.18 1.99 11.91 2.03 11.72 2.05 11.57 2.07 11.10 2.14
10 9 15.27 1.96 14.64 2.03 14.24 2.08 14.00 2.11 13.80 2.13 13.26 2.20
17 15 17.98 2.02 17.35 2.08 16.80 2.15 16.50 2.18 16.26 2.21 15.63 2.28
20 19 19.62 2.06 18.99 2.12 18.36 2.19 18.02 2.23 17.75 2.26 17.07 2.33
25 23 22.36 2.12 21.70 2.19 20.94 2.27 20.55 2.31 20.23 2.35 19.47 2.41
30 28 25.12 2.20 24.35 2.27 23.51 2.34 23.08 2.40 22.73 2.44 21.90 2.50
35 32 27.88 2.28 27.00 2.36 26.08 2.42 25.61 2.48 25.23 2.52 24.32
2.58
40 36 29.31 2.35 28.48 2.43 27.57 2.50 27.10 2.55 26.71 2.59 25.75 2.66
45 41 31.08 2.43 30.34 2.51 29.44 2.59 28.96 2.64 28.57 2.67 27.53 2.75
47 43 31.79 2.46 31.08 2.54 30.19 2.62 29.70 2.67 29.31 2.71 28.24 2.79
50 46 31.89 2.45 31.24 2.52 30.47 2.59 30.03 2.63 29.67 2.66 28.67 2.73
55 51 32.04 2.42 31.51 2.48 30.93 2.54 30.57 2.57 30.29 2.59 29.39 2.65
60 56 32.20 2.39 31.78 2.44 31.39 2.49 31.12 2.50 30.90 2.52 30.11 2.56
63 59 32.29 2.38 31.94 2.42 31.66 2.45 31.45 2.47 31.27 2.48 30.55 2.51
68 64 32.38 2.36 32.10 2.39 31.94 2.42 31.78 2.43 31.64 2.43 30.98 2.45
12 + 18
-4 -4.4 6.70 1.98 6.40 2.06 6.10 2.08 6.06 2.10 6.03 2.11 5.73 2.19
0 -0.4 10.14 2.02 9.45 2.10 9.36 2.13 9.24 2.15 9.15 2.16 8.75 2.24
5 4.5 14.23 2.07 13.53 2.15 13.23 2.19 13.02 2.22 12.85 2.24 12.33 2.31
10 9 16.96 2.12 16.27 2.19 15.82 2.24 15.55 2.27 15.33 2.30 14.73 2.37
17 15 19.97 2.18 19.28 2.25 18.67 2.32 18.33 2.35 18.06 2.39 17.37 2.45
20 19 21.80 2.22 21.10 2.28 20.40 2.36 20.02 2.41 19.72 2.44 18.97 2.51
25 23 24.85 2.29 24.11 2.36 23.27 2.45 22.83 2.50 22.48 2.54 21.63 2.60
30 28 27.92 2.37 27.05 2.45 26.12 2.53 25.64 2.58 25.26 2.63 24.33 2.69
35 32 30.98 2.46 30.00 2.55 28.97 2.61 28.45 2.67 28.04 2.72 27.02 2.79
40 36 32.56 2.53 31.65 2.62 30.64 2.69 30.11 2.75 29.68 2.79 28.61 2.87
45 41 34.53 2.62 33.71 2.71 32.72 2.79 32.17 2.84 31.74 2.88 30.59 2.97
47 43 35.32 2.66 34.53 2.74 33.55 2.83 33.00 2.88 32.56 2.92 31.38 3.01
50 46 35.43 2.64 34.71 2.72 33.85 2.80 33.36 2.84 32.97 2.87 31.86 2.95
55 51 35.60 2.61 35.01 2.68 34.36 2.74 33.97 2.77 33.65 2.80 32.66 2.85
60 56 35.77 2.58 35.31 2.63 34.87 2.68 34.58 2.70 34.34 2.72 33.46 2.76
63 59 35.88 2.57 35.49 2.61 35.18 2.65 34.94 2.66 34.75 2.67 33.94 2.70
68 64 35.98 2.55 35.67 2.58 35.49 2.61 35.31 2.62 35.16 2.63 34.43 2.65
MULTI F OUTDOOR UNIT | 213
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Table 206: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
15 + 15
-4 -4.4 6.70 1.98 6.40 2.06 6.10 2.08 6.06 2.10 6.03 2.11 5.73 2.19
0 -0.4 10.14 2.02 9.45 2.10 9.36 2.13 9.24 2.15 9.15 2.16 8.75 2.24
5 4.5 14.23 2.07 13.53 2.15 13.23 2.19 13.02 2.22 12.85 2.24 12.33 2.31
10 9 16.96 2.12 16.27 2.19 15.82 2.24 15.55 2.27 15.33 2.30 14.73 2.37
17 15 19.97 2.18 19.28 2.25 18.67 2.32 18.33 2.35 18.06 2.39 17.37 2.45
20 19 21.80 2.22 21.10 2.28 20.40 2.36 20.02 2.41 19.72 2.44 18.97 2.51
25 23 24.85 2.29 24.11 2.36 23.27 2.45 22.83 2.50 22.48 2.54 21.63 2.60
30 28 27.92 2.37 27.05 2.45 26.12 2.53 25.64 2.58 25.26 2.63 24.33 2.69
35 32 30.98 2.46 30.00 2.55 28.97 2.61 28.45 2.67 28.04 2.72 27.02 2.79
40 36 32.56 2.53 31.65 2.62 30.64 2.69 30.11 2.75 29.68 2.79 28.61 2.87
45 41 34.53 2.62 33.71 2.71 32.72 2.79 32.17 2.84 31.74 2.88 30.59 2.97
47 43 35.32 2.66 34.53 2.74 33.55 2.83 33.00 2.88 32.56 2.92 31.38 3.01
50 46 35.43 2.64 34.71 2.72 33.85 2.80 33.36 2.84 32.97 2.87 31.86 2.95
55 51 35.60 2.61 35.01 2.68 34.36 2.74 33.97 2.77 33.65 2.80 32.66 2.85
60 56 35.77 2.58 35.31 2.63 34.87 2.68 34.58 2.70 34.34 2.72 33.46 2.76
63 59 35.88 2.57 35.49 2.61 35.18 2.65 34.94 2.66 34.75 2.67 33.94 2.70
68 64 35.98 2.55 35.67 2.58 35.49 2.61 35.31 2.62 35.16 2.63 34.43 2.65
7 + 24
-4 -4.4 6.93 2.02 6.62 2.10 6.31 2.13 6.26 2.14 6.23 2.15 5.92 2.23
0 -0.4 10.48 2.06 9.76 2.14 9.67 2.18 9.55 2.20 9.45 2.21 9.04 2.29
5 4.5 14.70 2.11 13.98 2.19 13.67 2.24 13.45 2.26 13.28 2.28 12.74 2.36
10 9 17.53 2.16 16.81 2.23 16.35 2.29 16.07 2.32 15.85 2.35 15.22 2.42
17 15 20.64 2.22 19.92 2.29 19.29 2.36 18.94 2.40 18.67 2.44 17.95 2.51
20 19 22.52 2.26 21.81 2.33 21.08 2.41 20.69 2.46 20.37 2.49 19.60 2.56
25 23 25.67 2.34 24.91 2.41 24.05 2.50 23.59 2.55 23.23 2.59 22.35 2.66
30 28 28.85 2.42 27.95 2.50 26.99 2.58 26.50 2.64 26.10 2.68 25.14 2.75
35 32 32.02 2.51 31.00 2.60 29.94 2.67 29.40 2.73 28.97 2.78 27.92
2.85
40 36 33.65 2.58 32.70 2.67 31.66 2.75 31.11 2.81 30.67 2.85 29.56 2.93
45 41 35.69 2.67 34.83 2.76 33.81 2.85 33.25 2.90 32.80 2.94 31.61 3.03
47 43 36.50 2.71 35.69 2.80 34.67 2.89 34.10 2.94 33.65 2.98 32.42 3.07
50 46 36.61 2.69 35.87 2.77 34.98 2.85 34.48 2.90 34.07 2.93 32.92 3.01
55 51 36.79 2.67 36.18 2.73 35.51 2.80 35.10 2.83 34.78 2.85 33.75 2.91
60 56 36.97 2.64 36.49 2.69 36.04 2.74 35.73 2.76 35.48 2.77 34.57 2.82
63 59 37.07 2.62 36.67 2.66 36.35 2.70 36.10 2.72 35.90 2.73 35.07 2.76
68 64 37.18 2.60 36.85 2.64 36.67 2.67 36.48 2.67 36.33 2.68 35.57 2.70
9 + 24
-4 -4.4 7.31 2.07 6.99 2.15 6.66 2.18 6.61 2.19 6.58 2.20 6.25 2.29
0 -0.4 11.06 2.11 10.31 2.19 10.21 2.23 10.08 2.25 9.98 2.26 9.54 2.34
5 4.5 15.52 2.16 14.76 2.24 14.43 2.29 14.20 2.32 14.02 2.34 13.45 2.41
10 9 18.51 2.21 17.75 2.29 17.26 2.35 16.96 2.38 16.73 2.40 16.07 2.48
17 15 21.79 2.28 21.03 2.35 20.37 2.42 20.00 2.46 19.71 2.49 18.95 2.57
20 19 23.78 2.32 23.02 2.39 22.25 2.47 21.84 2.52 21.51 2.55 20.69 2.62
25 23 27.11 2.39 26.30 2.46 25.39 2.56 24.91 2.61 24.52 2.65 23.60 2.72
30 28 30.45 2.48 29.51 2.56 28.50 2.64 27.97 2.70 27.56 2.75 26.54 2.82
35 32 33.80 2.57 32.72 2.66 31.61 2.73 31.04 2.79 30.59 2.84 29.48 2.91
40 36 35.52 2.64 34.52 2.74 33.42 2.81 32.84 2.87 32.38 2.92 31.21 3.00
45 41 37.67 2.74 36.77 2.83 35.69 2.92 35.10 2.97 34.62 3.01 33.37 3.10
47 43 38.54 2.78 37.67 2.87 36.60 2.96 36.00 3.01 35.52 3.05 34.23 3.14
50 46 38.65 2.76 37.87 2.84 36.93 2.92 36.40 2.97 35.97 3.00 34.75 3.08
55 51 38.84 2.73 38.19 2.80 37.49 2.86 37.06 2.90 36.71 2.92 35.63 2.98
60 56 39.03 2.70 38.52 2.75 38.04 2.80 37.72 2.82 37.46 2.84 36.50 2.88
63 59 39.14 2.68 38.71 2.73 38.38 2.77 38.12 2.78 37.91 2.79 37.02 2.82
68 64 39.25 2.66 38.91 2.70 38.71 2.73 38.52 2.74 38.36 2.74 37.56 2.77
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
214 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 207: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
15 + 18
-4 -4.4 7.31 2.07 6.99 2.15 6.66 2.18 6.61 2.19 6.58 2.20 6.25 2.29
0 -0.4 11.06 2.11 10.31 2.19 10.21 2.23 10.08 2.25 9.98 2.26 9.54 2.34
5 4.5 15.52 2.16 14.76 2.24 14.43 2.29 14.20 2.32 14.02 2.34 13.45 2.41
10 9 18.51 2.21 17.75 2.29 17.26 2.35 16.96 2.38 16.73 2.40 16.07 2.48
17 15 21.79 2.28 21.03 2.35 20.37 2.42 20.00 2.46 19.71 2.49 18.95 2.57
20 19 23.78 2.32 23.02 2.39 22.25 2.47 21.84 2.52 21.51 2.55 20.69 2.62
25 23 27.11 2.39 26.30 2.46 25.39 2.56 24.91 2.61 24.52 2.65 23.60 2.72
30 28 30.45 2.48 29.51 2.56 28.50 2.64 27.97 2.70 27.56 2.75 26.54 2.82
35 32 33.80 2.57 32.72 2.66 31.61 2.73 31.04 2.79 30.59 2.84 29.48 2.91
40 36 35.52 2.64 34.52 2.74 33.42 2.81 32.84 2.87 32.38 2.92 31.21 3.00
45 41 37.67 2.74 36.77 2.83 35.69 2.92 35.10 2.97 34.62 3.01 33.37 3.10
47 43 38.54 2.78 37.67 2.87 36.60 2.96 36.00 3.01 35.52 3.05 34.23 3.14
50 46 38.65 2.76 37.87 2.84 36.93 2.92 36.40 2.97 35.97 3.00 34.75 3.08
55 51 38.84 2.73 38.19 2.80 37.49 2.86 37.06 2.90 36.71 2.92 35.63 2.98
60 56 39.03 2.70 38.52 2.75 38.04 2.80 37.72 2.82 37.46 2.84 36.50 2.88
63 59 39.14 2.68 38.71 2.73 38.38 2.77 38.12 2.78 37.91 2.79 37.02 2.82
68 64 39.25 2.66 38.91 2.70 38.71 2.73 38.52 2.74 38.36 2.74 37.56 2.77
18 + 18
-4 -4.4 7.31 2.07 6.99 2.15 6.66 2.18 6.61 2.19 6.58 2.20 6.25 2.29
0 -0.4 11.06 2.11 10.31 2.19 10.21 2.23 10.08 2.25 9.98 2.26 9.54 2.34
5 4.5 15.52 2.16 14.76 2.24 14.43 2.29 14.20 2.32 14.02 2.34 13.45 2.41
10 9 18.51 2.21 17.75 2.29 17.26 2.35 16.96 2.38 16.73 2.40 16.07 2.48
17 15 21.79 2.28 21.03 2.35 20.37 2.42 20.00 2.46 19.71 2.49 18.95 2.57
20 19 23.78 2.32 23.02 2.39 22.25 2.47 21.84 2.52 21.51 2.55 20.69 2.62
25 23 27.11 2.39 26.30 2.46 25.39 2.56 24.91 2.61 24.52 2.65 23.60 2.72
30 28 30.45 2.48 29.51 2.56 28.50 2.64 27.97 2.70 27.56 2.75 26.54 2.82
35 32 33.80 2.57 32.72 2.66 31.61 2.73 31.04 2.79 30.59 2.84 29.48
2.91
40 36 35.52 2.64 34.52 2.74 33.42 2.81 32.84 2.87 32.38 2.92 31.21 3.00
45 41 37.67 2.74 36.77 2.83 35.69 2.92 35.10 2.97 34.62 3.01 33.37 3.10
47 43 38.54 2.78 37.67 2.87 36.60 2.96 36.00 3.01 35.52 3.05 34.23 3.14
50 46 38.65 2.76 37.87 2.84 36.93 2.92 36.40 2.97 35.97 3.00 34.75 3.08
55 51 38.84 2.73 38.19 2.80 37.49 2.86 37.06 2.90 36.71 2.92 35.63 2.98
60 56 39.03 2.70 38.52 2.75 38.04 2.80 37.72 2.82 37.46 2.84 36.50 2.88
63 59 39.14 2.68 38.71 2.73 38.38 2.77 38.12 2.78 37.91 2.79 37.02 2.82
68 64 39.25 2.66 38.91 2.70 38.71 2.73 38.52 2.74 38.36 2.74 37.56 2.77
12 + 24
-4 -4.4 7.31 2.07 6.99 2.15 6.66 2.18 6.61 2.19 6.58 2.20 6.25 2.29
0 -0.4 11.06 2.11 10.31 2.19 10.21 2.23 10.08 2.25 9.98 2.26 9.54 2.34
5 4.5 15.52 2.16 14.76 2.24 14.43 2.29 14.20 2.32 14.02 2.34 13.45 2.41
10 9 18.51 2.21 17.75 2.29 17.26 2.35 16.96 2.38 16.73 2.40 16.07 2.48
17 15 21.79 2.28 21.03 2.35 20.37 2.42 20.00 2.46 19.71 2.49 18.95 2.57
20 19 23.78 2.32 23.02 2.39 22.25 2.47 21.84 2.52 21.51 2.55 20.69 2.62
25 23 27.11 2.39 26.30 2.46 25.39 2.56 24.91 2.61 24.52 2.65 23.60 2.72
30 28 30.45 2.48 29.51 2.56 28.50 2.64 27.97 2.70 27.56 2.75 26.54 2.82
35 32 33.80 2.57 32.72 2.66 31.61 2.73 31.04 2.79 30.59 2.84 29.48 2.91
40 36 35.52 2.64 34.52 2.74 33.42 2.81 32.84 2.87 32.38 2.92 31.21 3.00
45 41 37.67 2.74 36.77 2.83 35.69 2.92 35.10 2.97 34.62 3.01 33.37 3.10
47 43 38.54 2.78 37.67 2.87 36.60 2.96 36.00 3.01 35.52 3.05 34.23 3.14
50 46 38.65 2.76 37.87 2.84 36.93 2.92 36.40 2.97 35.97 3.00 34.75 3.08
55 51 38.84 2.73 38.19 2.80 37.49 2.86 37.06 2.90 36.71 2.92 35.63 2.98
60 56 39.03 2.70 38.52 2.75 38.04 2.80 37.72 2.82 37.46 2.84 36.50 2.88
63 59 39.14 2.68 38.71 2.73 38.38 2.77 38.12 2.78 37.91 2.79 37.02 2.82
68 64 39.25 2.66 38.91 2.70 38.71 2.73 38.52 2.74 38.36 2.74 37.56 2.77
MULTI F OUTDOOR UNIT | 215
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 208: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2)
Non-Ducted
Indoor Units
15 + 24
-4 -4.4 7.31 2.07 6.99 2.15 6.66 2.18 6.61 2.19 6.58 2.20 6.25 2.29
0 -0.4 11.06 2.11 10.31 2.19 10.21 2.23 10.08 2.25 9.98 2.26 9.54 2.34
5 4.5 15.52 2.16 14.76 2.24 14.43 2.29 14.20 2.32 14.02 2.34 13.45 2.41
10 9 18.51 2.21 17.75 2.29 17.26 2.35 16.96 2.38 16.73 2.40 16.07 2.48
17 15 21.79 2.28 21.03 2.35 20.37 2.42 20.00 2.46 19.71 2.49 18.95 2.57
20 19 23.78 2.32 23.02 2.39 22.25 2.47 21.84 2.52 21.51 2.55 20.69 2.62
25 23 27.11 2.39 26.30 2.46 25.39 2.56 24.91 2.61 24.52 2.65 23.60 2.72
30 28 30.45 2.48 29.51 2.56 28.50 2.64 27.97 2.70 27.56 2.75 26.54 2.82
35 32 33.80 2.57 32.72 2.66 31.61 2.73 31.04 2.79 30.59 2.84 29.48 2.91
40 36 35.52 2.64 34.52 2.74 33.42 2.81 32.84 2.87 32.38 2.92 31.21 3.00
45 41 37.67 2.74 36.77 2.83 35.69 2.92 35.10 2.97 34.62 3.01 33.37 3.10
47 43 38.54 2.78 37.67 2.87 36.60 2.96 36.00 3.01 35.52 3.05 34.23 3.14
50 46 38.65 2.76 37.87 2.84 36.93 2.92 36.40 2.97 35.97 3.00 34.75 3.08
55 51 38.84 2.73 38.19 2.80 37.49 2.86 37.06 2.90 36.71 2.92 35.63 2.98
60 56 39.03 2.70 38.52 2.75 38.04 2.80 37.72 2.82 37.46 2.84 36.50 2.88
63 59 39.14 2.68 38.71 2.73 38.38 2.77 38.12 2.78 37.91 2.79 37.02 2.82
68 64 39.25 2.66 38.91 2.70 38.71 2.73 38.52 2.74 38.36 2.74 37.56 2.77
18 + 24
-4 -4.4 7.31 2.07 6.99 2.15 6.66 2.18 6.61 2.19 6.58 2.20 6.25 2.29
0 -0.4 11.06 2.11 10.31 2.19 10.21 2.23 10.08 2.25 9.98 2.26 9.54 2.34
5 4.5 15.52 2.16 14.76 2.24 14.43 2.29 14.20 2.32 14.02 2.34 13.45 2.41
10 9 18.51 2.21 17.75 2.29 17.26 2.35 16.96 2.38 16.73 2.40 16.07 2.48
17 15 21.79 2.28 21.03 2.35 20.37 2.42 20.00 2.46 19.71 2.49 18.95 2.57
20 19 23.78 2.32 23.02 2.39 22.25 2.47 21.84 2.52 21.51 2.55 20.69 2.62
25 23 27.11 2.39 26.30 2.46 25.39 2.56 24.91 2.61 24.52 2.65 23.60 2.72
30 28 30.45 2.48 29.51 2.56 28.50 2.64 27.97 2.70 27.56 2.75 26.54 2.82
35 32 33.80 2.57 32.72 2.66 31.61 2.73 31.04 2.79 30.59 2.84 29.48
2.91
40 36 35.52 2.64 34.52 2.74 33.42 2.81 32.84 2.87 32.38 2.92 31.21 3.00
45 41 37.67 2.74 36.77 2.83 35.69 2.92 35.10 2.97 34.62 3.01 33.37 3.10
47 43 38.54 2.78 37.67 2.87 36.60 2.96 36.00 3.01 35.52 3.05 34.23 3.14
50 46 38.65 2.76 37.87 2.84 36.93 2.92 36.40 2.97 35.97 3.00 34.75 3.08
55 51 38.84 2.73 38.19 2.80 37.49 2.86 37.06 2.90 36.71 2.92 35.63 2.98
60 56 39.03 2.70 38.52 2.75 38.04 2.80 37.72 2.82 37.46 2.84 36.50 2.88
63 59 39.14 2.68 38.71 2.73 38.38 2.77 38.12 2.78 37.91 2.79 37.02 2.82
68 64 39.25 2.66 38.91 2.70 38.71 2.73 38.52 2.74 38.36 2.74 37.56 2.77
24 + 24
-4 -4.4 7.31 2.07 6.99 2.15 6.66 2.18 6.61 2.19 6.58 2.20 6.25 2.29
0 -0.4 11.06 2.11 10.31 2.19 10.21 2.23 10.08 2.25 9.98 2.26 9.54 2.34
5 4.5 15.52 2.16 14.76 2.24 14.43 2.29 14.20 2.32 14.02 2.34 13.45 2.41
10 9 18.51 2.21 17.75 2.29 17.26 2.35 16.96 2.38 16.73 2.40 16.07 2.48
17 15 21.79 2.28 21.03 2.35 20.37 2.42 20.00 2.46 19.71 2.49 18.95 2.57
20 19 23.78 2.32 23.02 2.39 22.25 2.47 21.84 2.52 21.51 2.55 20.69 2.62
25 23 27.11 2.39 26.30 2.46 25.39 2.56 24.91 2.61 24.52 2.65 23.60 2.72
30 28 30.45 2.48 29.51 2.56 28.50 2.64 27.97 2.70 27.56 2.75 26.54 2.82
35 32 33.80 2.57 32.72 2.66 31.61 2.73 31.04 2.79 30.59 2.84 29.48 2.91
40 36 35.52 2.64 34.52 2.74 33.42 2.81 32.84 2.87 32.38 2.92 31.21 3.00
45 41 37.67 2.74 36.77 2.83 35.69 2.92 35.10 2.97 34.62 3.01 33.37 3.10
47 43 38.54 2.78 37.67 2.87 36.60 2.96 36.00 3.01 35.52 3.05 34.23 3.14
50 46 38.65 2.76 37.87 2.84 36.93 2.92 36.40 2.97 35.97 3.00 34.75 3.08
55 51 38.84 2.73 38.19 2.80 37.49 2.86 37.06 2.90 36.71 2.92 35.63 2.98
60 56 39.03 2.70 38.52 2.75 38.04 2.80 37.72 2.82 37.46 2.84 36.50 2.88
63 59 39.14 2.68 38.71 2.73 38.38 2.77 38.12 2.78 37.91 2.79 37.02 2.82
68 64 39.25 2.66 38.91 2.70 38.71 2.73 38.52 2.74 38.36 2.74 37.56 2.77
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
216 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 209: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Unit (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 7 + 7
-4 -4.4 4.69 1.49 4.48 1.55 4.27 1.56 4.24 1.57 4.22 1.58 4.01 1.64
0 -0.4 7.10 1.52 6.61 1.57 6.55 1.60 6.47 1.61 6.40 1.62 6.12 1.68
5 4.5 9.96 1.55 9.47 1.61 9.26 1.64 9.11 1.66 9.00 1.68 8.63 1.73
10 9 11.87 1.59 11.39 1.64 11.07 1.68 10.89 1.71 10.73 1.72 10.31 1.78
17 15 13.98 1.63 13.50 1.68 13.07 1.74 12.83 1.77 12.64 1.79 12.16 1.84
20 19 15.26 1.66 14.77 1.71 14.28 1.77 14.01 1.81 13.80 1.83 13.28 1.88
25 23 17.39 1.72 16.88 1.77 16.29 1.83 15.98 1.87 15.74 1.90 15.14 1.95
30 28 19.54 1.78 18.94 1.84 18.29 1.90 17.95 1.94 17.68 1.97 17.03 2.02
35 32 21.69 1.84 21.00 1.91 20.28 1.96 19.92 2.00 19.63 2.04 18.92 2.09
40 36 22.79 1.90 22.15 1.96 21.45 2.02 21.07 2.06 20.78 2.09 20.02 2.15
45 41 24.17 1.96 23.60 2.03 22.90 2.09 22.52 2.13 22.22 2.16 21.41 2.23
47 43 24.73 1.99 24.17 2.06 23.48 2.12 23.10 2.16 22.79 2.19 21.96 2.26
50 46 24.80 1.98 24.30 2.04 23.70 2.10 23.35 2.13 23.08 2.15 22.30 2.21
55 51 24.92 1.96 24.51 2.01 24.05 2.05 23.78 2.08 23.56 2.10 22.86 2.14
60 56 25.04 1.94 24.72 1.97 24.41 2.01 24.20 2.03 24.04 2.04 23.42 2.07
63 59 25.11 1.92 24.84 1.96 24.63 1.99 24.46 2.00 24.32 2.00 23.76 2.03
68 64 25.19 1.91 24.97 1.94 24.84 1.96 24.71 1.96 24.61 1.97 24.10 1.99
7 + 7 + 9
-4 -4.4 5.14 1.59 4.91 1.65 4.68 1.67 4.65 1.68 4.62 1.69 4.39 1.75
0 -0.4 7.78 1.62 7.24 1.68 7.18 1.71 7.09 1.72 7.01 1.74 6.71 1.80
5 4.5 10.91 1.66 10.38 1.72 10.14 1.76 9.98 1.78 9.85 1.79 9.45 1.85
10 9 13.01 1.70 12.47 1.76 12.13 1.80 11.92 1.82 11.76 1.84 11.29 1.90
17 15 15.31 1.75 14.78 1.80 14.31 1.86 14.06 1.89 13.85 1.91 13.32 1.97
20 19 16.71 1.78 16.18 1.83 15.64 1.90 15.35 1.93 15.12 1.96 14.54 2.01
25 23 19.05 1.84 18.48 1.89 17.84 1.96 17.50 2.00 17.23 2.03 16.59 2.09
30 28 21.40 1.90 20.74 1.97 20.03 2.03 19.66 2.07 19.37 2.11 18.65 2.16
35 32 23.75 1.97 23.00 2.04 22.21 2.09 21.81 2.14 21.50 2.18 20.72
2.24
40 36 24.96 2.03 24.26 2.10 23.49 2.16 23.08 2.20 22.76 2.24 21.93 2.30
45 41 26.48 2.10 25.84 2.17 25.08 2.24 24.67 2.28 24.33 2.31 23.45 2.38
47 43 27.08 2.13 26.48 2.20 25.72 2.27 25.30 2.31 24.96 2.34 24.06 2.41
50 46 27.16 2.12 26.61 2.18 25.95 2.24 25.58 2.28 25.28 2.30 24.42 2.37
55 51 27.29 2.09 26.84 2.15 26.35 2.20 26.04 2.22 25.80 2.24 25.04 2.29
60 56 27.43 2.07 27.07 2.11 26.74 2.15 26.51 2.17 26.32 2.18 25.65 2.21
63 59 27.51 2.06 27.21 2.09 26.97 2.12 26.79 2.13 26.64 2.14 26.02 2.17
68 64 27.59 2.05 27.34 2.07 27.21 2.10 27.07 2.10 26.96 2.11 26.39 2.12
7 + 9 + 9
-4 -4.4 5.59 1.70 5.34 1.77 5.09 1.79 5.05 1.80 5.02 1.81 4.78 1.88
0 -0.4 8.45 1.73 7.87 1.80 7.80 1.83 7.70 1.84 7.62 1.86 7.29 1.92
5 4.5 11.86 1.78 11.28 1.84 11.02 1.88 10.85 1.90 10.71 1.92 10.27 1.98
10 9 14.14 1.82 13.56 1.88 13.18 1.92 12.96 1.95 12.78 1.97 12.27 2.03
17 15 16.64 1.87 16.07 1.93 15.56 1.99 15.28 2.02 15.05 2.05 14.47 2.11
20 19 18.16 1.90 17.59 1.96 17.00 2.03 16.68 2.06 16.43 2.09 15.81 2.15
25 23 20.71 1.96 20.09 2.02 19.39 2.10 19.03 2.14 18.73 2.17 18.03 2.23
30 28 23.26 2.04 22.54 2.10 21.77 2.17 21.37 2.22 21.05 2.25 20.28 2.31
35 32 25.82 2.11 25.00 2.18 24.15 2.24 23.71 2.29 23.36 2.33 22.52 2.39
40 36 27.13 2.17 26.37 2.25 25.53 2.31 25.09 2.36 24.74 2.40 23.84 2.46
45 41 28.78 2.25 28.09 2.32 27.26 2.39 26.81 2.44 26.45 2.47 25.49 2.54
47 43 29.44 2.28 28.78 2.35 27.96 2.43 27.50 2.47 27.13 2.50 26.15 2.58
50 46 29.52 2.26 28.93 2.33 28.21 2.40 27.80 2.43 27.48 2.46 26.55 2.53
55 51 29.67 2.24 29.18 2.29 28.64 2.35 28.31 2.38 28.04 2.40 27.22 2.45
60 56 29.81 2.22 29.42 2.26 29.06 2.30 28.81 2.32 28.61 2.33 27.88 2.37
63 59 29.90 2.20 29.57 2.24 29.32 2.27 29.12 2.28 28.96 2.29 28.28 2.32
68 64 29.98 2.19 29.72 2.21 29.57 2.24 29.42 2.25 29.30 2.25 28.69 2.27
MULTI F OUTDOOR UNIT | 217
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Table 210: LMU36CHV Heating Capacity Table —Non-Ducted Indoor Unit (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 7 + 12
-4 -4.4 5.81 1.73 5.55 1.80 5.29 1.82 5.25 1.83 5.23 1.84 4.97 1.91
0 -0.4 8.79 1.76 8.19 1.83 8.11 1.86 8.01 1.87 7.93 1.89 7.58 1.95
5 4.5 12.33 1.80 11.73 1.87 11.47 1.91 11.28 1.93 11.14 1.95 10.69 2.01
10 9 14.70 1.84 14.10 1.91 13.71 1.96 13.48 1.98 13.29 2.00 12.77 2.07
17 15 17.31 1.90 16.71 1.96 16.18 2.02 15.89 2.05 15.65 2.08 15.05 2.14
20 19 18.89 1.93 18.29 1.99 17.68 2.06 17.35 2.10 17.09 2.13 16.44 2.19
25 23 21.53 2.00 20.90 2.05 20.17 2.13 19.79 2.18 19.48 2.21 18.75 2.27
30 28 24.19 2.07 23.44 2.14 22.64 2.20 22.22 2.25 21.89 2.29 21.09 2.35
35 32 26.85 2.14 26.00 2.22 25.11 2.28 24.66 2.33 24.30 2.37 23.42 2.43
40 36 28.22 2.20 27.43 2.28 26.55 2.35 26.09 2.40 25.72 2.43 24.79 2.50
45 41 29.93 2.28 29.22 2.36 28.35 2.43 27.88 2.48 27.51 2.51 26.51 2.59
47 43 30.61 2.31 29.93 2.39 29.08 2.47 28.60 2.51 28.22 2.54 27.19 2.62
50 46 30.70 2.30 30.08 2.37 29.34 2.44 28.92 2.47 28.58 2.50 27.61 2.57
55 51 30.85 2.28 30.34 2.33 29.78 2.39 29.44 2.41 29.17 2.44 28.30 2.49
60 56 31.00 2.25 30.60 2.29 30.22 2.34 29.97 2.35 29.76 2.37 29.00 2.41
63 59 31.09 2.24 30.75 2.27 30.49 2.31 30.28 2.32 30.11 2.33 29.41 2.36
68 64 31.18 2.22 30.91 2.25 30.76 2.28 30.60 2.28 30.47 2.29 29.84 2.31
9 + 9 + 9
-4 -4.4 6.03 1.75 5.76 1.82 5.49 1.85 5.46 1.86 5.43 1.87 5.16 1.94
0 -0.4 9.13 1.79 8.50 1.86 8.42 1.89 8.32 1.90 8.23 1.92 7.87 1.99
5 4.5 12.81 1.83 12.18 1.90 11.91 1.94 11.72 1.96 11.57 1.98 11.10 2.05
10 9 15.27 1.87 14.64 1.94 14.24 1.99 14.00 2.01 13.80 2.04 13.26 2.10
17 15 17.98 1.93 17.35 1.99 16.80 2.05 16.50 2.08 16.26 2.11 15.63 2.17
20 19 19.62 1.96 18.99 2.02 18.36 2.09 18.02 2.13 17.75 2.16 17.07 2.22
25 23 22.36 2.03 21.70 2.09 20.94 2.17 20.55 2.21 20.23 2.24 19.47 2.30
30 28 25.12 2.10 24.35 2.17 23.51 2.24 23.08 2.29 22.73 2.33 21.90 2.39
35 32 27.88 2.18 27.00 2.25 26.08 2.31 25.61 2.37 25.23 2.41 24.32
2.47
40 36 29.31 2.24 28.48 2.32 27.57 2.38 27.10 2.43 26.71 2.47 25.75 2.54
45 41 31.08 2.32 30.34 2.40 29.44 2.47 28.96 2.52 28.57 2.55 27.53 2.63
47 43 31.79 2.35 31.08 2.43 30.19 2.51 29.70 2.55 29.31 2.58 28.24 2.66
50 46 31.89 2.34 31.24 2.41 30.47 2.48 30.03 2.51 29.67 2.54 28.67 2.61
55 51 32.04 2.31 31.51 2.37 30.93 2.43 30.57 2.45 30.29 2.47 29.39 2.53
60 56 32.20 2.29 31.78 2.33 31.39 2.37 31.12 2.39 30.90 2.41 30.11 2.44
63 59 32.29 2.27 31.94 2.31 31.66 2.34 31.45 2.36 31.27 2.36 30.55 2.39
68 64 32.38 2.26 32.10 2.29 31.94 2.31 31.78 2.32 31.64 2.32 30.98 2.34
7 + 9 + 12
-4 -4.4 6.26 1.79 5.98 1.86 5.70 1.88 5.66 1.89 5.63 1.90 5.35 1.97
0 -0.4 9.47 1.82 8.82 1.89 8.74 1.92 8.63 1.94 8.54 1.95 8.16 2.02
5 4.5 13.28 1.87 12.63 1.94 12.35 1.98 12.15 2.00 12.00 2.02 11.51 2.09
10 9 15.83 1.91 15.18 1.98 14.77 2.03 14.51 2.05 14.31 2.08 13.75 2.14
17 15 18.64 1.97 17.99 2.03 17.43 2.09 17.11 2.13 16.86 2.15 16.21 2.22
20 19 20.34 2.00 19.70 2.06 19.04 2.13 18.69 2.17 18.40 2.21 17.70 2.27
25 23 23.19 2.07 22.50 2.13 21.72 2.21 21.31 2.25 20.98 2.29 20.19 2.35
30 28 26.05 2.14 25.25 2.21 24.38 2.28 23.93 2.33 23.58 2.37 22.71 2.43
35 32 28.92 2.22 28.00 2.30 27.04 2.36 26.56 2.41 26.17 2.46 25.22 2.52
40 36 30.39 2.28 29.54 2.36 28.60 2.43 28.10 2.48 27.70 2.52 26.70 2.59
45 41 32.23 2.37 31.46 2.44 30.54 2.52 30.03 2.57 29.62 2.60 28.55 2.68
47 43 32.97 2.40 32.23 2.48 31.31 2.56 30.80 2.60 30.39 2.64 29.29 2.71
50 46 33.07 2.38 32.40 2.45 31.60 2.52 31.14 2.56 30.77 2.59 29.73 2.66
55 51 33.23 2.36 32.68 2.42 32.07 2.47 31.70 2.50 31.41 2.52 30.48 2.58
60 56 33.39 2.33 32.95 2.38 32.55 2.42 32.27 2.44 32.05 2.45 31.23 2.49
63 59 33.49 2.32 33.12 2.35 32.83 2.39 32.61 2.40 32.43 2.41 31.68 2.44
68 64 33.58 2.30 33.29 2.33 33.12 2.36 32.95 2.36 32.82 2.37 32.13 2.39
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
218 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 211: LMU36CHV Heating Capacity Table —Non-Ducted Indoor Unit (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 7 + 15
-4 -4.4 6.48 1.82 6.19 1.90 5.90 1.92 5.86 1.93 5.83 1.94 5.54 2.01
0 -0.4 9.80 1.86 9.13 1.93 9.05 1.96 8.93 1.98 8.84 1.99 8.45 2.06
5 4.5 13.75 1.91 13.08 1.97 12.79 2.02 12.59 2.04 12.42 2.06 11.92 2.13
10 9 16.40 1.95 15.73 2.01 15.29 2.06 15.03 2.09 14.82 2.12 14.24 2.18
17 15 19.31 2.00 18.64 2.07 18.05 2.13 17.72 2.17 17.46 2.19 16.79 2.26
20 19 21.07 2.04 20.40 2.10 19.72 2.17 19.35 2.22 19.06 2.25 18.34 2.31
25 23 24.02 2.11 23.31 2.17 22.50 2.25 22.07 2.30 21.73 2.33 20.91 2.39
30 28 26.98 2.19 26.15 2.26 25.25 2.33 24.79 2.38 24.42 2.42 23.52 2.48
35 32 29.95 2.26 29.00 2.34 28.01 2.40 27.51 2.46 27.10 2.50 26.12 2.56
40 36 31.48 2.33 30.59 2.41 29.62 2.48 29.10 2.53 28.69 2.57 27.65 2.64
45 41 33.38 2.41 32.59 2.49 31.63 2.57 31.10 2.62 30.68 2.65 29.57 2.73
47 43 34.15 2.44 33.38 2.52 32.43 2.61 31.90 2.65 31.48 2.69 30.33 2.77
50 46 34.25 2.43 33.56 2.50 32.73 2.57 32.25 2.61 31.87 2.64 30.80 2.71
55 51 34.41 2.40 33.84 2.46 33.22 2.52 32.84 2.55 32.53 2.57 31.57 2.63
60 56 34.58 2.38 34.13 2.42 33.71 2.47 33.42 2.49 33.19 2.50 32.34 2.54
63 59 34.68 2.36 34.30 2.40 34.01 2.44 33.77 2.45 33.59 2.46 32.81 2.49
68 64 34.78 2.35 34.48 2.38 34.31 2.40 34.13 2.41 33.99 2.42 33.28 2.44
9 + 9 + 12
-4 -4.4 6.70 1.86 6.40 1.94 6.10 1.96 6.06 1.97 6.03 1.98 5.73 2.06
0 -0.4 10.14 1.90 9.45 1.97 9.36 2.01 9.24 2.02 9.15 2.04 8.75 2.11
5 4.5 14.23 1.95 13.53 2.02 13.23 2.06 13.02 2.08 12.85 2.10 12.33 2.17
10 9 16.96 1.99 16.27 2.06 15.82 2.11 15.55 2.14 15.33 2.16 14.73 2.23
17 15 19.97 2.05 19.28 2.11 18.67 2.18 18.33 2.22 18.06 2.24 17.37 2.31
20 19 21.80 2.09 21.10 2.15 20.40 2.22 20.02 2.27 19.72 2.30 18.97 2.36
25 23 24.85 2.16 24.11 2.22 23.27 2.30 22.83 2.35 22.48 2.39 21.63 2.45
30 28 27.92 2.23 27.05 2.31 26.12 2.38 25.64 2.43 25.26 2.47 24.33 2.54
35 32 30.98 2.31 30.00 2.40 28.97 2.46 28.45 2.51 28.04 2.56 27.02
2.62
40 36 32.56 2.38 31.65 2.46 30.64 2.53 30.11 2.59 29.68 2.63 28.61 2.70
45 41 34.53 2.47 33.71 2.55 32.72 2.63 32.17 2.67 31.74 2.71 30.59 2.79
47 43 35.32 2.50 34.53 2.58 33.55 2.66 33.00 2.71 32.56 2.75 31.38 2.83
50 46 35.43 2.48 34.71 2.56 33.85 2.63 33.36 2.67 32.97 2.70 31.86 2.78
55 51 35.60 2.46 35.01 2.52 34.36 2.58 33.97 2.61 33.65 2.63 32.66 2.69
60 56 35.77 2.43 35.31 2.48 34.87 2.52 34.58 2.54 34.34 2.56 33.46 2.60
63 59 35.88 2.41 35.49 2.45 35.18 2.49 34.94 2.50 34.75 2.51 33.94 2.54
68 64 35.98 2.40 35.67 2.43 35.49 2.46 35.31 2.47 35.16 2.47 34.43 2.49
7 + 9 + 15
-4 -4.4 6.93 1.91 6.62 1.98 6.31 2.00 6.26 2.02 6.23 2.03 5.92 2.10
0 -0.4 10.48 1.94 9.76 2.02 9.67 2.05 9.55 2.07 9.45 2.08 9.04 2.16
5 4.5 14.70 1.99 13.98 2.06 13.67 2.11 13.45 2.13 13.28 2.15 12.74 2.22
10 9 17.53 2.04 16.81 2.11 16.35 2.16 16.07 2.19 15.85 2.21 15.22 2.28
17 15 20.64 2.09 19.92 2.16 19.29 2.23 18.94 2.26 18.67 2.29 17.95 2.36
20 19 22.52 2.13 21.81 2.20 21.08 2.27 20.69 2.32 20.37 2.35 19.60 2.41
25 23 25.67 2.20 24.91 2.27 24.05 2.35 23.59 2.40 23.23 2.44 22.35 2.50
30 28 28.85 2.28 27.95 2.36 26.99 2.43 26.50 2.49 26.10 2.53 25.14 2.59
35 32 32.02 2.36 31.00 2.45 29.94 2.51 29.40 2.57 28.97 2.62 27.92 2.68
40 36 33.65 2.43 32.70 2.52 31.66 2.59 31.11 2.64 30.67 2.69 29.56 2.76
45 41 35.69 2.52 34.83 2.60 33.81 2.68 33.25 2.73 32.80 2.77 31.61 2.85
47 43 36.50 2.55 35.69 2.64 34.67 2.72 34.10 2.77 33.65 2.81 32.42 2.89
50 46 36.61 2.54 35.87 2.61 34.98 2.69 34.48 2.73 34.07 2.76 32.92 2.84
55 51 36.79 2.51 36.18 2.57 35.51 2.63 35.10 2.66 34.78 2.69 33.75 2.75
60 56 36.97 2.48 36.49 2.53 36.04 2.58 35.73 2.60 35.48 2.61 34.57 2.65
63 59 37.07 2.47 36.67 2.51 36.35 2.55 36.10 2.56 35.90 2.57 35.07 2.60
68 64 37.18 2.45 36.85 2.48 36.67 2.51 36.48 2.52 36.33 2.53 35.57 2.55
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 219
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 212: LMU36CHV Heating Capacity Table —Non-Ducted Indoor Unit (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 12 + 12
-4 -4.4 6.93 1.91 6.62 1.98 6.31 2.00 6.26 2.02 6.23 2.03 5.92 2.10
0 -0.4 10.48 1.94 9.76 2.02 9.67 2.05 9.55 2.07 9.45 2.08 9.04 2.16
5 4.5 14.70 1.99 13.98 2.06 13.67 2.11 13.45 2.13 13.28 2.15 12.74 2.22
10 9 17.53 2.04 16.81 2.11 16.35 2.16 16.07 2.19 15.85 2.21 15.22 2.28
17 15 20.64 2.09 19.92 2.16 19.29 2.23 18.94 2.26 18.67 2.29 17.95 2.36
20 19 22.52 2.13 21.81 2.20 21.08 2.27 20.69 2.32 20.37 2.35 19.60 2.41
25 23 25.67 2.20 24.91 2.27 24.05 2.35 23.59 2.40 23.23 2.44 22.35 2.50
30 28 28.85 2.28 27.95 2.36 26.99 2.43 26.50 2.49 26.10 2.53 25.14 2.59
35 32 32.02 2.36 31.00 2.45 29.94 2.51 29.40 2.57 28.97 2.62 27.92 2.68
40 36 33.65 2.43 32.70 2.52 31.66 2.59 31.11 2.64 30.67 2.69 29.56 2.76
45 41 35.69 2.52 34.83 2.60 33.81 2.68 33.25 2.73 32.80 2.77 31.61 2.85
47 43 36.50 2.55 35.69 2.64 34.67 2.72 34.10 2.77 33.65 2.81 32.42 2.89
50 46 36.61 2.54 35.87 2.61 34.98 2.69 34.48 2.73 34.07 2.76 32.92 2.84
55 51 36.79 2.51 36.18 2.57 35.51 2.63 35.10 2.66 34.78 2.69 33.75 2.75
60 56 36.97 2.48 36.49 2.53 36.04 2.58 35.73 2.60 35.48 2.61 34.57 2.65
63 59 37.07 2.47 36.67 2.51 36.35 2.55 36.10 2.56 35.90 2.57 35.07 2.60
68 64 37.18 2.45 36.85 2.48 36.67 2.51 36.48 2.52 36.33 2.53 35.57 2.55
7 + 7 + 18
-4 -4.4 7.15 1.95 6.83 2.02 6.51 2.05 6.47 2.06 6.43 2.07 6.11 2.15
0 -0.4 10.82 1.99 10.08 2.06 9.98 2.09 9.86 2.11 9.76 2.13 9.33 2.20
5 4.5 15.18 2.03 14.44 2.11 14.11 2.15 13.89 2.18 13.71 2.20 13.15 2.27
10 9 18.10 2.08 17.35 2.15 16.88 2.21 16.59 2.24 16.36 2.26 15.71 2.33
17 15 21.31 2.14 20.56 2.21 19.92 2.28 19.56 2.31 19.27 2.34 18.53 2.41
20 19 23.25 2.18 22.51 2.25 21.76 2.32 21.35 2.37 21.03 2.40 20.23 2.47
25 23 26.50 2.25 25.72 2.32 24.82 2.40 24.35 2.45 23.98 2.49 23.08 2.56
30 28 29.78 2.33 28.85 2.41 27.86 2.48 27.35 2.54 26.94 2.58 25.95 2.65
35 32 33.05 2.42 32.00 2.50 30.91 2.57 30.35 2.63 29.91 2.67 28.83
2.74
40 36 34.73 2.49 33.76 2.57 32.68 2.64 32.11 2.70 31.66 2.74 30.51 2.82
45 41 36.84 2.57 35.96 2.66 34.90 2.74 34.32 2.79 33.85 2.83 32.62 2.92
47 43 37.68 2.61 36.84 2.70 35.78 2.78 35.20 2.83 34.73 2.87 33.47 2.95
50 46 37.79 2.59 37.03 2.67 36.11 2.75 35.59 2.79 35.17 2.82 33.98 2.90
55 51 37.97 2.57 37.34 2.63 36.66 2.69 36.23 2.72 35.90 2.75 34.84 2.81
60 56 38.16 2.54 37.66 2.59 37.20 2.63 36.88 2.65 36.63 2.67 35.69 2.71
63 59 38.27 2.52 37.85 2.56 37.53 2.60 37.27 2.61 37.06 2.62 36.20 2.66
68 64 38.38 2.51 38.04 2.54 37.85 2.57 37.66 2.57 37.51 2.58 36.72 2.60
9 + 9 + 15
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
220 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 213: LMU36CHV Heating Capacity Table —Non-Ducted Indoor Unit (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
9 + 12 + 12
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
7 + 9 + 18
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48
2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
7 + 12 + 15
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 221
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
9 + 9 + 18
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
9 + 12 + 15
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48
2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
12 + 12 + 12
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
Table 214: LMU36CHV Heating Capacity Table —Non-Ducted Indoor Unit (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
222 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 12 + 18
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
7 + 15 + 15
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48
2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
7 + 7 + 24
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
Table 215: LMU36CHV Heating Capacity Table —Non-Ducted Indoor Unit (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 223
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
9 + 12 + 18
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
9 + 15 + 15
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48
2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
12 + 12 + 15
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
Table 216: LMU36CHV Heating Capacity Table —Non-Ducted Indoor Unit (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
224 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 9 + 24
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
7 + 15 + 18
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48
2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
9 + 9 + 24
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
Table 217: LMU36CHV Heating Capacity Table —Non-Ducted Indoor Unit (continued).
MULTI F OUTDOOR UNIT | 225
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Table 218: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
9 + 15 + 18
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
12 + 12 + 18
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48
2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
12 + 15 + 15
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
226 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Table 219: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 12 + 24
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
7 + 18 + 18
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48
2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
9 + 12 + 24
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
MULTI F OUTDOOR UNIT | 227
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Table 220: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
9 + 18 + 18
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
12 + 15 + 18
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48
2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
15 + 15 + 15
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
228 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Table 221: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
7 + 15 + 24
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
9 + 15 + 24
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48
2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
12 + 12 + 24
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
MULTI F OUTDOOR UNIT | 229
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Table 222: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3)
Non-Ducted
Indoor Units
12 + 18 + 18
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48 2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
15 + 15 + 18
-4 -4.4 7.31 1.95 6.99 2.02 6.66 2.05 6.61 2.06 6.58 2.07 6.25 2.15
0 -0.4 11.06 1.99 10.31 2.06 10.21 2.09 10.08 2.11 9.98 2.13 9.54 2.20
5 4.5 15.52 2.03 14.76 2.11 14.43 2.15 14.20 2.18 14.02 2.20 13.45 2.27
10 9 18.51 2.08 17.75 2.15 17.26 2.21 16.96 2.24 16.73 2.26 16.07 2.33
17 15 21.79 2.14 21.03 2.21 20.37 2.28 20.00 2.31 19.71 2.34 18.95 2.41
20 19 23.78 2.18 23.02 2.25 22.25 2.32 21.84 2.37 21.51 2.40 20.69 2.47
25 23 27.11 2.25 26.30 2.32 25.39 2.40 24.91 2.45 24.52 2.49 23.60 2.56
30 28 30.45 2.33 29.51 2.41 28.50 2.48 27.97 2.54 27.56 2.58 26.54 2.65
35 32 33.80 2.42 32.72 2.50 31.61 2.57 31.04 2.63 30.59 2.67 29.48
2.74
40 36 35.52 2.49 34.52 2.57 33.42 2.64 32.84 2.70 32.38 2.74 31.21 2.82
45 41 37.67 2.57 36.77 2.66 35.69 2.74 35.10 2.79 34.62 2.83 33.37 2.92
47 43 38.54 2.61 37.67 2.70 36.60 2.78 36.00 2.83 35.52 2.87 34.23 2.95
50 46 38.65 2.59 37.87 2.67 36.93 2.75 36.40 2.79 35.97 2.82 34.75 2.90
55 51 38.84 2.57 38.19 2.63 37.49 2.69 37.06 2.72 36.71 2.75 35.63 2.81
60 56 39.03 2.54 38.52 2.59 38.04 2.63 37.72 2.65 37.46 2.67 36.50 2.71
63 59 39.14 2.52 38.71 2.56 38.38 2.60 38.12 2.61 37.91 2.62 37.02 2.66
68 64 39.25 2.51 38.91 2.54 38.71 2.57 38.52 2.57 38.36 2.58 37.56 2.60
Four (4)
Non-Ducted
Indoor Units
7 + 7 + 7
+ 7
-4 -4.4 6.26 1.80 5.98 1.87 5.70 1.89 5.66 1.90 5.63 1.91 5.35 1.98
0 -0.4 9.47 1.83 8.82 1.90 8.74 1.93 8.63 1.95 8.54 1.96 8.16 2.03
5 4.5 13.28 1.88 12.63 1.94 12.35 1.99 12.15 2.01 12.00 2.03 11.51 2.09
10 9 15.83 1.92 15.18 1.98 14.77 2.03 14.51 2.06 14.31 2.08 13.75 2.15
17 15 18.64 1.97 17.99 2.04 17.43 2.10 17.11 2.13 16.86 2.16 16.21 2.22
20 19 20.34 2.01 19.70 2.07 19.04 2.14 18.69 2.18 18.40 2.21 17.70 2.27
25 23 23.19 2.08 22.50 2.14 21.72 2.22 21.31 2.26 20.98 2.30 20.19 2.36
30 28 26.05 2.15 25.25 2.22 24.38 2.29 23.93 2.34 23.58 2.38 22.71 2.44
35 32 28.92 2.23 28.00 2.31 27.04 2.37 26.56 2.42 26.17 2.47 25.22 2.53
40 36 30.39 2.29 29.54 2.37 28.60 2.44 28.10 2.49 27.70 2.53 26.70 2.60
45 41 32.23 2.37 31.46 2.45 30.54 2.53 30.03 2.58 29.62 2.61 28.55 2.69
47 43 32.97 2.41 32.23 2.49 31.31 2.57 30.80 2.61 30.39 2.65 29.29 2.72
50 46 33.07 2.39 32.40 2.46 31.60 2.53 31.14 2.57 30.77 2.60 29.73 2.67
55 51 33.23 2.37 32.68 2.42 32.07 2.48 31.70 2.51 31.41 2.53 30.48 2.59
60 56 33.39 2.34 32.95 2.39 32.55 2.43 32.27 2.45 32.05 2.46 31.23 2.50
63 59 33.49 2.33 33.12 2.36 32.83 2.40 32.61 2.41 32.43 2.42 31.68 2.45
68 64 33.58 2.31 33.29 2.34 33.12 2.37 32.95 2.37 32.82 2.38 32.13 2.40
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
230 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
Table 223: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 7 + 7
+ 9
-4 -4.4 6.70 1.85 6.40 1.92 6.10 1.95 6.06 1.96 6.03 1.97 5.73 2.04
0 -0.4 10.14 1.89 9.45 1.96 9.36 1.99 9.24 2.01 9.15 2.02 8.75 2.09
5 4.5 14.23 1.93 13.53 2.00 13.23 2.05 13.02 2.07 12.85 2.09 12.33 2.16
10 9 16.96 1.98 16.27 2.04 15.82 2.10 15.55 2.12 15.33 2.15 14.73 2.22
17 15 19.97 2.03 19.28 2.10 18.67 2.16 18.33 2.20 18.06 2.23 17.37 2.29
20 19 21.80 2.07 21.10 2.13 20.40 2.21 20.02 2.25 19.72 2.28 18.97 2.34
25 23 24.85 2.14 24.11 2.20 23.27 2.29 22.83 2.33 22.48 2.37 21.63 2.43
30 28 27.92 2.22 27.05 2.29 26.12 2.36 25.64 2.41 25.26 2.46 24.33 2.52
35 32 30.98 2.30 30.00 2.38 28.97 2.44 28.45 2.50 28.04 2.54 27.02 2.60
40 36 32.56 2.36 31.65 2.45 30.64 2.51 30.11 2.57 29.68 2.61 28.61 2.68
45 41 34.53 2.45 33.71 2.53 32.72 2.61 32.17 2.65 31.74 2.69 30.59 2.77
47 43 35.32 2.48 34.53 2.56 33.55 2.64 33.00 2.69 32.56 2.73 31.38 2.81
50 46 35.43 2.46 34.71 2.54 33.85 2.61 33.36 2.65 32.97 2.68 31.86 2.76
55 51 35.60 2.44 35.01 2.50 34.36 2.56 33.97 2.59 33.65 2.61 32.66 2.67
60 56 35.77 2.41 35.31 2.46 34.87 2.50 34.58 2.52 34.34 2.54 33.46 2.58
63 59 35.88 2.40 35.49 2.44 35.18 2.47 34.94 2.48 34.75 2.49 33.94 2.52
68 64 35.98 2.38 35.67 2.41 35.49 2.44 35.31 2.45 35.16 2.45 34.43 2.47
7 + 7 + 9
+ 9
-4 -4.4 7.15 1.88 6.83 1.96 6.51 1.98 6.47 2.00 6.43 2.01 6.11 2.08
0 -0.4 10.82 1.92 10.08 2.00 9.98 2.03 9.86 2.05 9.76 2.06 9.33 2.13
5 4.5 15.18 1.97 14.44 2.04 14.11 2.08 13.89 2.11 13.71 2.13 13.15 2.20
10 9 18.10 2.01 17.35 2.08 16.88 2.14 16.59 2.16 16.36 2.19 15.71 2.26
17 15 21.31 2.07 20.56 2.14 19.92 2.20 19.56 2.24 19.27 2.27 18.53 2.34
20 19 23.25 2.11 22.51 2.17 21.76 2.25 21.35 2.29 21.03 2.32 20.23 2.39
25 23 26.50 2.18 25.72 2.24 24.82 2.33 24.35 2.37 23.98 2.41 23.08 2.48
30 28 29.78 2.26 28.85 2.33 27.86 2.41 27.35 2.46 26.94 2.50 25.95 2.56
35 32 33.05 2.34 32.00 2.42 30.91 2.48 30.35 2.54 29.91
2.59 28.83 2.65
40 36 34.73 2.41 33.76 2.49 32.68 2.56 32.11 2.61 31.66 2.66 30.51 2.73
45 41 36.84 2.49 35.96 2.58 34.90 2.66 34.32 2.70 33.85 2.74 32.62 2.82
47 43 37.68 2.53 36.84 2.61 35.78 2.69 35.20 2.74 34.73 2.78 33.47 2.86
50 46 37.79 2.51 37.03 2.59 36.11 2.66 35.59 2.70 35.17 2.73 33.98 2.81
55 51 37.97 2.48 37.34 2.55 36.66 2.61 36.23 2.64 35.90 2.66 34.84 2.72
60 56 38.16 2.46 37.66 2.51 37.20 2.55 36.88 2.57 36.63 2.59 35.69 2.63
63 59 38.27 2.44 37.85 2.48 37.53 2.52 37.27 2.53 37.06 2.54 36.20 2.57
68 64 38.38 2.43 38.04 2.46 37.85 2.49 37.66 2.49 37.51 2.50 36.72 2.52
7 + 7 + 7
+ 12
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
MULTI F OUTDOOR UNIT | 231
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 224: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 9 + 9
+ 9
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
7 + 7 + 9
+ 12
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59
2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
7 + 7 + 7
+ 15
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
232 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 225: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
9 + 9 + 9
+ 9
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
7 + 9 + 9
+ 12
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59
2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
7 + 7 + 9
+ 15
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 233
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 226: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 7 + 12
+ 12
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
7 + 7 + 7
+ 18
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59
2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
9 + 9 + 9
+ 12
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
234 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 227: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 9 + 9
+ 15
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
7 + 9 + 12
+ 12
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59
2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
7 + 7 + 9
+ 18
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 235
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 228: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 7 + 12
+ 15
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
9 + 9 + 9
+ 15
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59
2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
9 + 9 + 12
+ 12
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
236 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 229: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 9 + 9
+ 18
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
7 + 9 + 12
+ 15
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59
2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
7 + 12 + 12
+ 12
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 237
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 230: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 7 + 12
+ 18
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
7 + 7 + 15
+ 15
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59
2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
7 + 7 + 7
+ 24
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
238 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 231: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
9 + 9 + 9
+ 18
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
9 + 9 + 12
+ 15
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59
2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
9 + 12 + 12
+ 12
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 239
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 232: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 9 + 12
+ 18
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
7 + 9 + 15
+ 15
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59
2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
7 + 12 + 12
+ 15
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
240 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 233: LMU36CHV Heating Capacity Table — Non-Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
7 + 7 + 9
+ 24
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
7 + 7 + 15
+ 18
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59
2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
9 + 9 + 12
+ 18
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 241
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 234: LMU36CHV Heating Capacity Table — Non-Ducted (continued) and Ducted Indoor Units.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4)
Non-Ducted
Indoor Units
9 + 9 + 15
+ 15
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59 2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
12 + 12 + 12
+ 12
-4 -4.4 7.31 1.88 6.99 1.96 6.66 1.98 6.61 2.00 6.58 2.01 6.25 2.08
0 -0.4 11.06 1.92 10.31 2.00 10.21 2.03 10.08 2.05 9.98 2.06 9.54 2.13
5 4.5 15.52 1.97 14.76 2.04 14.43 2.08 14.20 2.11 14.02 2.13 13.45 2.20
10 9 18.51 2.01 17.75 2.08 17.26 2.14 16.96 2.16 16.73 2.19 16.07 2.26
17 15 21.79 2.07 21.03 2.14 20.37 2.20 20.00 2.24 19.71 2.27 18.95 2.34
20 19 23.78 2.11 23.02 2.17 22.25 2.25 21.84 2.29 21.51 2.32 20.69 2.39
25 23 27.11 2.18 26.30 2.24 25.39 2.33 24.91 2.37 24.52 2.41 23.60 2.48
30 28 30.45 2.26 29.51 2.33 28.50 2.41 27.97 2.46 27.56 2.50 26.54 2.56
35 32 33.80 2.34 32.72 2.42 31.61 2.48 31.04 2.54 30.59
2.59 29.48 2.65
40 36 35.52 2.41 34.52 2.49 33.42 2.56 32.84 2.61 32.38 2.66 31.21 2.73
45 41 37.67 2.49 36.77 2.58 35.69 2.66 35.10 2.70 34.62 2.74 33.37 2.82
47 43 38.54 2.53 37.67 2.61 36.60 2.69 36.00 2.74 35.52 2.78 34.23 2.86
50 46 38.65 2.51 37.87 2.59 36.93 2.66 36.40 2.70 35.97 2.73 34.75 2.81
55 51 38.84 2.48 38.19 2.55 37.49 2.61 37.06 2.64 36.71 2.66 35.63 2.72
60 56 39.03 2.46 38.52 2.51 38.04 2.55 37.72 2.57 37.46 2.59 36.50 2.63
63 59 39.14 2.44 38.71 2.48 38.38 2.52 38.12 2.53 37.91 2.54 37.02 2.57
68 64 39.25 2.43 38.91 2.46 38.71 2.49 38.52 2.49 38.36 2.50 37.56 2.52
Two (2) Ducted
Indoor Units
9 + 9
-4 -4.4 4.61 1.48 4.41 1.54 4.21 1.56 4.18 1.57 4.15 1.58 3.95 1.64
0 -0.4 6.44 1.50 6.02 1.56 5.95 1.58 5.88 1.60 5.81 1.61 5.56 1.67
5 4.5 8.62 1.53 8.21 1.58 8.02 1.62 7.89 1.64 7.79 1.65 7.47 1.71
10 9 10.08 1.55 9.67 1.61 9.40 1.65 9.24 1.67 9.11 1.69 8.75 1.74
17 15 11.68 1.58 11.28 1.64 10.92 1.69 10.73 1.71 10.57 1.74 10.16 1.79
20 19 12.66 1.61 12.25 1.65 11.84 1.71 11.62 1.74 11.45 1.77 11.01 1.82
25 23 14.28 1.65 13.86 1.69 13.38 1.76 13.12 1.79 12.92 1.82 12.44 1.87
30 28 15.92 1.69 15.43 1.75 14.90 1.80 14.62 1.84 14.41 1.88 13.88 1.92
35 32 17.56 1.74 17.00 1.80 16.42 1.85 16.12 1.89 15.89 1.93 15.31 1.97
40 36 18.45 1.79 17.93 1.85 17.36 1.91 17.06 1.95 16.82 1.98 16.21 2.03
45 41 19.57 1.86 19.10 1.92 18.54 1.98 18.23 2.01 17.99 2.04 17.33 2.10
47 43 20.02 1.88 19.57 1.94 19.01 2.01 18.70 2.04 18.45 2.07 17.78 2.13
50 46 20.08 1.87 19.67 1.93 19.18 1.98 18.91 2.01 18.68 2.03 18.05 2.09
55 51 20.17 1.85 19.84 1.90 19.47 1.94 19.25 1.96 19.07 1.98 18.51 2.02
60 56 20.27 1.83 20.01 1.87 19.76 1.90 19.59 1.91 19.46 1.92 18.96 1.95
63 59 20.33 1.82 20.11 1.85 19.94 1.87 19.80 1.88 19.69 1.89 19.23 1.91
68 64 20.39 1.81 20.21 1.83 20.11 1.85 20.01 1.86 19.92 1.86 19.51 1.88
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
242 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 235: LMU36CHV Heating Capacity Table — Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Ducted
Indoor Units
9 + 12
-4 -4.4 5.38 1.67 5.15 1.74 4.92 1.76 4.88 1.77 4.84 1.78 4.61 1.84
0 -0.4 7.52 1.69 7.03 1.76 6.95 1.79 6.86 1.80 6.78 1.82 6.49 1.88
5 4.5 10.06 1.72 9.57 1.79 9.36 1.82 9.21 1.84 9.09 1.86 8.72 1.92
10 9 11.76 1.75 11.28 1.81 10.97 1.86 10.78 1.88 10.63 1.90 10.21 1.96
17 15 13.63 1.79 13.16 1.84 12.74 1.90 12.51 1.93 12.33 1.96 11.86 2.01
20 19 14.77 1.81 14.30 1.87 13.82 1.93 13.56 1.97 13.36 1.99 12.85 2.05
25 23 16.67 1.86 16.17 1.91 15.61 1.98 15.31 2.02 15.08 2.05 14.51 2.11
30 28 18.58 1.91 18.00 1.97 17.38 2.03 17.06 2.08 16.81 2.11 16.19 2.17
35 32 20.49 1.96 19.83 2.03 19.16 2.09 18.81 2.13 18.54 2.17 17.87 2.23
40 36 21.53 2.02 20.93 2.09 20.26 2.15 19.91 2.19 19.63 2.23 18.92 2.29
45 41 22.83 2.09 22.29 2.16 21.63 2.23 21.27 2.27 20.99 2.30 20.22 2.37
47 43 23.36 2.12 22.83 2.19 22.18 2.26 21.82 2.30 21.53 2.33 20.75 2.40
50 46 23.43 2.11 22.95 2.17 22.38 2.23 22.06 2.27 21.80 2.29 21.06 2.36
55 51 23.54 2.09 23.15 2.14 22.72 2.19 22.46 2.21 22.25 2.23 21.59 2.28
60 56 23.65 2.06 23.35 2.10 23.06 2.14 22.86 2.16 22.70 2.17 22.12 2.20
63 59 23.72 2.05 23.46 2.08 23.26 2.11 23.10 2.12 22.97 2.13 22.44 2.16
68 64 23.79 2.04 23.58 2.06 23.47 2.09 23.35 2.09 23.25 2.10 22.76 2.11
12 + 12
-4 -4.4 6.15 1.82 5.88 1.89 5.62 1.92 5.57 1.93 5.53 1.94 5.27 2.01
0 -0.4 8.59 1.85 8.03 1.92 7.94 1.95 7.83 1.97 7.75 1.98 7.41 2.05
5 4.5 11.49 1.88 10.94 1.95 10.69 1.99 10.52 2.01 10.38 2.03 9.96 2.10
10 9 13.44 1.91 12.89 1.98 12.53 2.03 12.32 2.05 12.15 2.08 11.67 2.14
17 15 15.58 1.95 15.04 2.01 14.56 2.07 14.30 2.11 14.09 2.14 13.55 2.20
20 19 16.87 1.98 16.34 2.04 15.79 2.11 15.50 2.15 15.26 2.18 14.68 2.24
25 23 19.04 2.03 18.48 2.08 17.83 2.16 17.50 2.21 17.23 2.24 16.58 2.30
30 28 21.22 2.08 20.57 2.15 19.86 2.22 19.50 2.27 19.20 2.31 18.50 2.37
35 32 23.41 2.14 22.66 2.22 21.89 2.28 21.50 2.33 21.18 2.37 20.42 2.43
40
36 24.60 2.20 23.91 2.28 23.15 2.35 22.74 2.40 22.42 2.43 21.61 2.50
45 41 26.09 2.28 25.47 2.36 24.72 2.43 24.31 2.48 23.98 2.51 23.11 2.59
47 43 26.69 2.31 26.09 2.39 25.34 2.47 24.93 2.51 24.60 2.54 23.70 2.62
50 46 26.76 2.30 26.22 2.37 25.58 2.44 25.20 2.47 24.91 2.50 24.07 2.57
55 51 26.89 2.28 26.45 2.33 25.96 2.39 25.66 2.41 25.42 2.44 24.67 2.49
60 56 27.03 2.25 26.67 2.29 26.35 2.34 26.12 2.35 25.94 2.37 25.28 2.41
63 59 27.10 2.24 26.81 2.27 26.58 2.31 26.39 2.32 26.25 2.33 25.64 2.36
68 64 27.18 2.22 26.94 2.25 26.81 2.28 26.67 2.28 26.56 2.29 26.01 2.31
9 + 18
-4 -4.4 6.92 2.00 6.62 2.08 6.32 2.11 6.27 2.12 6.23 2.13 5.93 2.21
0 -0.4 9.67 2.03 9.03 2.11 8.93 2.14 8.81 2.16 8.72 2.18 8.34 2.26
5 4.5 12.93 2.07 12.31 2.14 12.03 2.19 11.84 2.21 11.68 2.23 11.21 2.31
10 9 15.12 2.10 14.50 2.17 14.10 2.23 13.86 2.26 13.67 2.28 13.13 2.35
17 15 17.53 2.14 16.92 2.21 16.38 2.28 16.09 2.32 15.85 2.35 15.24 2.42
20 19 18.99 2.17 18.38 2.24 17.77 2.32 17.44 2.36 17.17 2.39 16.52 2.46
25 23 21.42 2.23 20.79 2.29 20.07 2.38 19.69 2.43 19.38 2.46 18.65 2.53
30 28 23.88 2.29 23.14 2.37 22.35 2.44 21.94 2.49 21.61 2.54 20.81 2.60
35 32 26.34 2.36 25.50 2.44 24.63 2.50 24.19 2.56 23.83 2.61 22.97 2.67
40 36 27.68 2.42 26.90 2.51 26.04 2.58 25.59 2.63 25.23 2.68 24.32 2.75
45 41 29.35 2.51 28.65 2.59 27.81 2.68 27.35 2.72 26.98 2.76 26.00 2.84
47 43 30.03 2.54 29.35 2.63 28.52 2.71 28.05 2.76 27.68 2.80 26.67 2.88
50 46 30.11 2.53 29.51 2.60 28.78 2.68 28.36 2.72 28.03 2.75 27.08 2.83
55 51 30.26 2.50 29.76 2.56 29.21 2.62 28.87 2.65 28.61 2.68 27.76 2.74
60 56 30.41 2.48 30.01 2.52 29.64 2.57 29.39 2.59 29.19 2.60 28.44 2.64
63 59 30.50 2.46 30.16 2.50 29.90 2.54 29.70 2.55 29.53 2.56 28.85 2.59
68 64 30.58 2.44 30.32 2.47 30.17 2.50 30.01 2.51 29.89 2.52 29.26 2.54
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 243
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 236: LMU369HV Heating Capacity Table — Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Ducted
Indoor Units
12 + 18
-4 -4.4 7.69 2.16 7.36 2.25 7.02 2.28 6.97 2.29 6.92 2.30 6.59 2.39
0 -0.4 10.74 2.19 10.04 2.28 9.92 2.31 9.79 2.34 9.69 2.35 9.27 2.44
5 4.5 14.37 2.23 13.68 2.31 13.36 2.36 13.15 2.39 12.98 2.41 12.46 2.49
10 9 16.80 2.27 16.12 2.35 15.67 2.40 15.40 2.44 15.19 2.46 14.59 2.54
17 15 19.48 2.31 18.80 2.39 18.21 2.46 17.88 2.50 17.61 2.54 16.94 2.61
20 19 21.10 2.35 20.42 2.42 19.74 2.50 19.38 2.55 19.08 2.58 18.36 2.66
25 23 23.81 2.40 23.10 2.47 22.30 2.57 21.88 2.62 21.54 2.66 20.73 2.73
30 28 26.54 2.47 25.72 2.56 24.83 2.63 24.38 2.69 24.01 2.74 23.13 2.81
35 32 29.26 2.54 28.33 2.63 27.37 2.70 26.88 2.77 26.48 2.82 25.53 2.88
40 36 30.76 2.62 29.89 2.71 28.94 2.79 28.44 2.84 28.04 2.89 27.02 2.97
45 41 32.62 2.71 31.84 2.80 30.90 2.89 30.39 2.94 29.98 2.98 28.89 3.07
47 43 33.37 2.75 32.62 2.84 31.69 2.93 31.17 2.98 30.76 3.02 29.64 3.11
50 46 33.46 2.73 32.79 2.81 31.98 2.89 31.51 2.94 31.14 2.97 30.09 3.05
55 51 33.63 2.70 33.07 2.77 32.46 2.83 32.09 2.87 31.79 2.89 30.85 2.95
60 56 33.79 2.67 33.35 2.72 32.94 2.77 32.66 2.80 32.43 2.81 31.60 2.86
63 59 33.89 2.66 33.52 2.70 33.23 2.74 33.00 2.75 32.82 2.76 32.06 2.80
68 64 33.99 2.64 33.69 2.67 33.52 2.70 33.35 2.71 33.21 2.72 32.52 2.74
9 + 24
-4 -4.4 8.38 2.26 8.02 2.35 7.66 2.38 7.60 2.39 7.55 2.40 7.19 2.49
0 -0.4 11.72 2.29 10.95 2.38 10.82 2.42 10.68 2.44 10.57 2.45 10.11 2.54
5 4.5 15.68 2.33 14.92 2.41 14.58 2.46 14.35 2.49 14.16 2.52 13.59 2.60
10 9 18.33 2.37 17.58 2.45 17.09 2.51 16.80 2.54 16.57 2.57 15.91 2.65
17 15 21.24 2.42 20.51 2.49 19.86 2.57 19.50 2.61 19.21 2.65 18.47 2.72
20 19 23.01 2.45 22.28 2.52 21.54 2.61 21.14 2.66 20.82 2.70 20.03 2.77
25 23 25.97 2.51 25.20 2.58 24.32 2.68 23.86 2.73 23.49 2.78 22.61 2.85
30 28 28.95 2.58 28.05 2.67 27.09 2.75 26.59 2.81 26.19 2.86 25.23 2.93
35 32 31.92 2.65 30.90 2.75 29.85 2.82 29.32 2.89 28.89 2.94 27.84 3.01
40
36 33.55 2.73 32.61 2.83 31.57 2.91 31.02 2.97 30.58 3.02 29.47 3.10
45 41 35.58 2.83 34.73 2.92 33.71 3.01 33.15 3.07 32.70 3.11 31.51 3.20
47 43 36.39 2.87 35.58 2.96 34.56 3.06 34.00 3.11 33.55 3.15 32.33 3.25
50 46 36.50 2.85 35.77 2.94 34.88 3.02 34.37 3.07 33.97 3.10 32.82 3.19
55 51 36.68 2.82 36.07 2.89 35.41 2.96 35.00 2.99 34.67 3.02 33.65 3.08
60 56 36.86 2.79 36.38 2.84 35.93 2.90 35.62 2.92 35.38 2.93 34.47 2.98
63 59 36.96 2.77 36.56 2.82 36.25 2.86 36.00 2.87 35.80 2.88 34.97 2.92
68 64 37.07 2.75 36.75 2.79 36.56 2.82 36.38 2.83 36.23 2.83 35.47 2.86
18 + 18
-4 -4.4 8.38 2.26 8.02 2.35 7.66 2.38 7.60 2.39 7.55 2.40 7.19 2.49
0 -0.4 11.72 2.29 10.95 2.38 10.82 2.42 10.68 2.44 10.57 2.45 10.11 2.54
5 4.5 15.68 2.33 14.92 2.41 14.58 2.46 14.35 2.49 14.16 2.52 13.59 2.60
10 9 18.33 2.37 17.58 2.45 17.09 2.51 16.80 2.54 16.57 2.57 15.91 2.65
17 15 21.24 2.42 20.51 2.49 19.86 2.57 19.50 2.61 19.21 2.65 18.47 2.72
20 19 23.01 2.45 22.28 2.52 21.54 2.61 21.14 2.66 20.82 2.70 20.03 2.77
25 23 25.97 2.51 25.20 2.58 24.32 2.68 23.86 2.73 23.49 2.78 22.61 2.85
30 28 28.95 2.58 28.05 2.67 27.09 2.75 26.59 2.81 26.19 2.86 25.23 2.93
35 32 31.92 2.65 30.90 2.75 29.85 2.82 29.32 2.89 28.89 2.94 27.84 3.01
40 36 33.55 2.73 32.61 2.83 31.57 2.91 31.02 2.97 30.58 3.02 29.47 3.10
45 41 35.58 2.83 34.73 2.92 33.71 3.01 33.15 3.07 32.70 3.11 31.51 3.20
47 43 36.39 2.87 35.58 2.96 34.56 3.06 34.00 3.11 33.55 3.15 32.33 3.25
50 46 36.50 2.85 35.77 2.94 34.88 3.02 34.37 3.07 33.97 3.10 32.82 3.19
55 51 36.68 2.82 36.07 2.89 35.41 2.96 35.00 2.99 34.67 3.02 33.65 3.08
60 56 36.86 2.79 36.38 2.84 35.93 2.90 35.62 2.92 35.38 2.93 34.47 2.98
63 59 36.96 2.77 36.56 2.82 36.25 2.86 36.00 2.87 35.80 2.88 34.97 2.92
68 64 37.07 2.75 36.75 2.79 36.56 2.82 36.38 2.83 36.23 2.83 35.47 2.86
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
244 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 237: LMU36CHV Heating Capacity Table — Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Ducted
Indoor Units
12 + 24
-4 -4.4 8.38 2.26 8.02 2.35 7.66 2.38 7.60 2.39 7.55 2.40 7.19 2.49
0 -0.4 11.72 2.29 10.95 2.38 10.82 2.42 10.68 2.44 10.57 2.45 10.11 2.54
5 4.5 15.68 2.33 14.92 2.41 14.58 2.46 14.35 2.49 14.16 2.52 13.59 2.60
10 9 18.33 2.37 17.58 2.45 17.09 2.51 16.80 2.54 16.57 2.57 15.91 2.65
17 15 21.24 2.42 20.51 2.49 19.86 2.57 19.50 2.61 19.21 2.65 18.47 2.72
20 19 23.01 2.45 22.28 2.52 21.54 2.61 21.14 2.66 20.82 2.70 20.03 2.77
25 23 25.97 2.51 25.20 2.58 24.32 2.68 23.86 2.73 23.49 2.78 22.61 2.85
30 28 28.95 2.58 28.05 2.67 27.09 2.75 26.59 2.81 26.19 2.86 25.23 2.93
35 32 31.92 2.65 30.90 2.75 29.85 2.82 29.32 2.89 28.89 2.94 27.84 3.01
40 36 33.55 2.73 32.61 2.83 31.57 2.91 31.02 2.97 30.58 3.02 29.47 3.10
45 41 35.58 2.83 34.73 2.92 33.71 3.01 33.15 3.07 32.70 3.11 31.51 3.20
47 43 36.39 2.87 35.58 2.96 34.56 3.06 34.00 3.11 33.55 3.15 32.33 3.25
50 46 36.50 2.85 35.77 2.94 34.88 3.02 34.37 3.07 33.97 3.10 32.82 3.19
55 51 36.68 2.82 36.07 2.89 35.41 2.96 35.00 2.99 34.67 3.02 33.65 3.08
60 56 36.86 2.79 36.38 2.84 35.93 2.90 35.62 2.92 35.38 2.93 34.47 2.98
63 59 36.96 2.77 36.56 2.82 36.25 2.86 36.00 2.87 35.80 2.88 34.97 2.92
68 64 37.07 2.75 36.75 2.79 36.56 2.82 36.38 2.83 36.23 2.83 35.47 2.86
Three (3) Ducted
Indoor Units
9 + 9 + 9
-4 -4.4 6.92 1.92 6.62 1.99 6.32 2.02 6.27 2.03 6.23 2.04 5.93 2.12
0 -0.4 9.67 1.94 9.03 2.02 8.93 2.05 8.81 2.07 8.72 2.08 8.34 2.16
5 4.5 12.93 1.98 12.31 2.05 12.03 2.09 11.84 2.12 11.68 2.14 11.21 2.21
10 9 15.12 2.01 14.50 2.08 14.10 2.13 13.86 2.16 13.67 2.18 13.13 2.25
17 15 17.53 2.05 16.92 2.12 16.38 2.18 16.09 2.22 15.85 2.25 15.24 2.31
20 19 18.99 2.08 18.38 2.14 17.77 2.22 17.44 2.26 17.17 2.29 16.52 2.35
25 23 21.42 2.13 20.79 2.19 20.07 2.28 19.69 2.32 19.38 2.36 18.65 2.42
30 28 23.88 2.19 23.14 2.26 22.35 2.33 21.94 2.39 21.61 2.43 20.81 2.49
35 32 26.34 2.25 25.50 2.33 24.63 2.39 24.19 2.45 23.83 2.49
22.97 2.56
40 36 27.68 2.32 26.90 2.40 26.04 2.47 25.59 2.52 25.23 2.56 24.32 2.63
45 41 29.35 2.40 28.65 2.48 27.81 2.56 27.35 2.61 26.98 2.64 26.00 2.72
47 43 30.03 2.43 29.35 2.51 28.52 2.60 28.05 2.64 27.68 2.68 26.67 2.76
50 46 30.11 2.42 29.51 2.49 28.78 2.56 28.36 2.60 28.03 2.63 27.08 2.70
55 51 30.26 2.39 29.76 2.45 29.21 2.51 28.87 2.54 28.61 2.56 27.76 2.62
60 56 30.41 2.37 30.01 2.41 29.64 2.46 29.39 2.48 29.19 2.49 28.44 2.53
63 59 30.50 2.35 30.16 2.39 29.90 2.43 29.70 2.44 29.53 2.45 28.85 2.48
68 64 30.58 2.34 30.32 2.37 30.17 2.39 30.01 2.40 29.89 2.41 29.26 2.43
9 + 9 + 12
-4 -4.4 7.69 2.03 7.36 2.11 7.02 2.14 6.97 2.15 6.92 2.16 6.59 2.25
0 -0.4 10.74 2.06 10.04 2.14 9.92 2.18 9.79 2.19 9.69 2.21 9.27 2.29
5 4.5 14.37 2.10 13.68 2.17 13.36 2.22 13.15 2.24 12.98 2.26 12.46 2.34
10 9 16.80 2.13 16.12 2.20 15.67 2.26 15.40 2.29 15.19 2.32 14.59 2.39
17 15 19.48 2.17 18.80 2.24 18.21 2.31 17.88 2.35 17.61 2.38 16.94 2.45
20 19 21.10 2.20 20.42 2.27 19.74 2.35 19.38 2.39 19.08 2.43 18.36 2.50
25 23 23.81 2.26 23.10 2.33 22.30 2.41 21.88 2.46 21.54 2.50 20.73 2.57
30 28 26.54 2.32 25.72 2.40 24.83 2.48 24.38 2.53 24.01 2.57 23.13 2.64
35 32 29.26 2.39 28.33 2.48 27.37 2.54 26.88 2.60 26.48 2.65 25.53 2.71
40 36 30.76 2.46 29.89 2.55 28.94 2.62 28.44 2.67 28.04 2.72 27.02 2.79
45 41 32.62 2.55 31.84 2.63 30.90 2.71 30.39 2.76 29.98 2.80 28.89 2.88
47 43 33.37 2.58 32.62 2.67 31.69 2.75 31.17 2.80 30.76 2.84 29.64 2.92
50 46 33.46 2.57 32.79 2.64 31.98 2.72 31.51 2.76 31.14 2.79 30.09 2.87
55 51 33.63 2.54 33.07 2.60 32.46 2.66 32.09 2.69 31.79 2.72 30.85 2.78
60 56 33.79 2.51 33.35 2.56 32.94 2.61 32.66 2.63 32.43 2.64 31.60 2.68
63 59 33.89 2.50 33.52 2.54 33.23 2.57 33.00 2.59 32.82 2.60 32.06 2.63
68 64 33.99 2.48 33.69 2.51 33.52 2.54 33.35 2.55 33.21 2.55 32.52 2.57
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 245
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 238: LMU36CHV Heating Capacity Table — Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Ducted
Indoor Units
9 + 12 + 12
-4 -4.4 8.38 2.13 8.02 2.21 7.66 2.24 7.60 2.25 7.55 2.27 7.19 2.35
0 -0.4 11.72 2.16 10.95 2.24 10.82 2.28 10.68 2.30 10.57 2.31 10.11 2.39
5 4.5 15.68 2.20 14.92 2.27 14.58 2.32 14.35 2.35 14.16 2.37 13.59 2.45
10 9 18.33 2.23 17.58 2.31 17.09 2.36 16.80 2.40 16.57 2.42 15.91 2.50
17 15 21.24 2.28 20.51 2.35 19.86 2.42 19.50 2.46 19.21 2.49 18.47 2.57
20 19 23.01 2.31 22.28 2.38 21.54 2.46 21.14 2.50 20.82 2.54 20.03 2.61
25 23 25.97 2.36 25.20 2.43 24.32 2.52 23.86 2.58 23.49 2.62 22.61 2.69
30 28 28.95 2.43 28.05 2.51 27.09 2.59 26.59 2.65 26.19 2.69 25.23 2.76
35 32 31.92 2.50 30.90 2.59 29.85 2.66 29.32 2.72 28.89 2.77 27.84 2.84
40 36 33.55 2.57 32.61 2.66 31.57 2.74 31.02 2.80 30.58 2.84 29.47 2.92
45 41 35.58 2.67 34.73 2.75 33.71 2.84 33.15 2.89 32.70 2.93 31.51 3.02
47 43 36.39 2.70 35.58 2.79 34.56 2.88 34.00 2.93 33.55 2.97 32.33 3.06
50 46 36.50 2.68 35.77 2.77 34.88 2.85 34.37 2.89 33.97 2.92 32.82 3.00
55 51 36.68 2.66 36.07 2.72 35.41 2.79 35.00 2.82 34.67 2.84 33.65 2.90
60 56 36.86 2.63 36.38 2.68 35.93 2.73 35.62 2.75 35.38 2.76 34.47 2.81
63 59 36.96 2.61 36.56 2.65 36.25 2.69 36.00 2.71 35.80 2.72 34.97 2.75
68 64 37.07 2.59 36.75 2.63 36.56 2.66 36.38 2.67 36.23 2.67 35.47 2.69
9 + 9 + 18
-4 -4.4 8.38 2.13 8.02 2.21 7.66 2.24 7.60 2.25 7.55 2.27 7.19 2.35
0 -0.4 11.72 2.16 10.95 2.24 10.82 2.28 10.68 2.30 10.57 2.31 10.11 2.39
5 4.5 15.68 2.20 14.92 2.27 14.58 2.32 14.35 2.35 14.16 2.37 13.59 2.45
10 9 18.33 2.23 17.58 2.31 17.09 2.36 16.80 2.40 16.57 2.42 15.91 2.50
17 15 21.24 2.28 20.51 2.35 19.86 2.42 19.50 2.46 19.21 2.49 18.47 2.57
20 19 23.01 2.31 22.28 2.38 21.54 2.46 21.14 2.50 20.82 2.54 20.03 2.61
25 23 25.97 2.36 25.20 2.43 24.32 2.52 23.86 2.58 23.49 2.62 22.61 2.69
30 28 28.95 2.43 28.05 2.51 27.09 2.59 26.59 2.65 26.19 2.69 25.23 2.76
35 32 31.92 2.50 30.90 2.59 29.85 2.66 29.32 2.72 28.89 2.77 27.84 2.84
40
36 33.55 2.57 32.61 2.66 31.57 2.74 31.02 2.80 30.58 2.84 29.47 2.92
45 41 35.58 2.67 34.73 2.75 33.71 2.84 33.15 2.89 32.70 2.93 31.51 3.02
47 43 36.39 2.70 35.58 2.79 34.56 2.88 34.00 2.93 33.55 2.97 32.33 3.06
50 46 36.50 2.68 35.77 2.77 34.88 2.85 34.37 2.89 33.97 2.92 32.82 3.00
55 51 36.68 2.66 36.07 2.72 35.41 2.79 35.00 2.82 34.67 2.84 33.65 2.90
60 56 36.86 2.63 36.38 2.68 35.93 2.73 35.62 2.75 35.38 2.76 34.47 2.81
63 59 36.96 2.61 36.56 2.65 36.25 2.69 36.00 2.71 35.80 2.72 34.97 2.75
68 64 37.07 2.59 36.75 2.63 36.56 2.66 36.38 2.67 36.23 2.67 35.47 2.69
12 + 12 + 12
-4 -4.4 8.38 2.13 8.02 2.21 7.66 2.24 7.60 2.25 7.55 2.27 7.19 2.35
0 -0.4 11.72 2.16 10.95 2.24 10.82 2.28 10.68 2.30 10.57 2.31 10.11 2.39
5 4.5 15.68 2.20 14.92 2.27 14.58 2.32 14.35 2.35 14.16 2.37 13.59 2.45
10 9 18.33 2.23 17.58 2.31 17.09 2.36 16.80 2.40 16.57 2.42 15.91 2.50
17 15 21.24 2.28 20.51 2.35 19.86 2.42 19.50 2.46 19.21 2.49 18.47 2.57
20 19 23.01 2.31 22.28 2.38 21.54 2.46 21.14 2.50 20.82 2.54 20.03 2.61
25 23 25.97 2.36 25.20 2.43 24.32 2.52 23.86 2.58 23.49 2.62 22.61 2.69
30 28 28.95 2.43 28.05 2.51 27.09 2.59 26.59 2.65 26.19 2.69 25.23 2.76
35 32 31.92 2.50 30.90 2.59 29.85 2.66 29.32 2.72 28.89 2.77 27.84 2.84
40 36 33.55 2.57 32.61 2.66 31.57 2.74 31.02 2.80 30.58 2.84 29.47 2.92
45 41 35.58 2.67 34.73 2.75 33.71 2.84 33.15 2.89 32.70 2.93 31.51 3.02
47 43 36.39 2.70 35.58 2.79 34.56 2.88 34.00 2.93 33.55 2.97 32.33 3.06
50 46 36.50 2.68 35.77 2.77 34.88 2.85 34.37 2.89 33.97 2.92 32.82 3.00
55 51 36.68 2.66 36.07 2.72 35.41 2.79 35.00 2.82 34.67 2.84 33.65 2.90
60 56 36.86 2.63 36.38 2.68 35.93 2.73 35.62 2.75 35.38 2.76 34.47 2.81
63 59 36.96 2.61 36.56 2.65 36.25 2.69 36.00 2.71 35.80 2.72 34.97 2.75
68 64 37.07 2.59 36.75 2.63 36.56 2.66 36.38 2.67 36.23 2.67 35.47 2.69
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
246 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 239: LMU36CHV Heating Capacity Table — Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Ducted
Indoor Units
9 + 12 + 18
-4 -4.4 8.38 2.13 8.02 2.21 7.66 2.24 7.60 2.25 7.55 2.27 7.19 2.35
0 -0.4 11.72 2.16 10.95 2.24 10.82 2.28 10.68 2.30 10.57 2.31 10.11 2.39
5 4.5 15.68 2.20 14.92 2.27 14.58 2.32 14.35 2.35 14.16 2.37 13.59 2.45
10 9 18.33 2.23 17.58 2.31 17.09 2.36 16.80 2.40 16.57 2.42 15.91 2.50
17 15 21.24 2.28 20.51 2.35 19.86 2.42 19.50 2.46 19.21 2.49 18.47 2.57
20 19 23.01 2.31 22.28 2.38 21.54 2.46 21.14 2.50 20.82 2.54 20.03 2.61
25 23 25.97 2.36 25.20 2.43 24.32 2.52 23.86 2.58 23.49 2.62 22.61 2.69
30 28 28.95 2.43 28.05 2.51 27.09 2.59 26.59 2.65 26.19 2.69 25.23 2.76
35 32 31.92 2.50 30.90 2.59 29.85 2.66 29.32 2.72 28.89 2.77 27.84 2.84
40 36 33.55 2.57 32.61 2.66 31.57 2.74 31.02 2.80 30.58 2.84 29.47 2.92
45 41 35.58 2.67 34.73 2.75 33.71 2.84 33.15 2.89 32.70 2.93 31.51 3.02
47 43 36.39 2.70 35.58 2.79 34.56 2.88 34.00 2.93 33.55 2.97 32.33 3.06
50 46 36.50 2.68 35.77 2.77 34.88 2.85 34.37 2.89 33.97 2.92 32.82 3.00
55 51 36.68 2.66 36.07 2.72 35.41 2.79 35.00 2.82 34.67 2.84 33.65 2.90
60 56 36.86 2.63 36.38 2.68 35.93 2.73 35.62 2.75 35.38 2.76 34.47 2.81
63 59 36.96 2.61 36.56 2.65 36.25 2.69 36.00 2.71 35.80 2.72 34.97 2.75
68 64 37.07 2.59 36.75 2.63 36.56 2.66 36.38 2.67 36.23 2.67 35.47 2.69
12 + 12 + 18
-4 -4.4 8.38 2.13 8.02 2.21 7.66 2.24 7.60 2.25 7.55 2.27 7.19 2.35
0 -0.4 11.72 2.16 10.95 2.24 10.82 2.28 10.68 2.30 10.57 2.31 10.11 2.39
5 4.5 15.68 2.20 14.92 2.27 14.58 2.32 14.35 2.35 14.16 2.37 13.59 2.45
10 9 18.33 2.23 17.58 2.31 17.09 2.36 16.80 2.40 16.57 2.42 15.91 2.50
17 15 21.24 2.28 20.51 2.35 19.86 2.42 19.50 2.46 19.21 2.49 18.47 2.57
20 19 23.01 2.31 22.28 2.38 21.54 2.46 21.14 2.50 20.82 2.54 20.03 2.61
25 23 25.97 2.36 25.20 2.43 24.32 2.52 23.86 2.58 23.49 2.62 22.61 2.69
30 28 28.95 2.43 28.05 2.51 27.09 2.59 26.59 2.65 26.19 2.69 25.23 2.76
35 32 31.92 2.50 30.90 2.59 29.85 2.66 29.32 2.72 28.89 2.77 27.84 2.84
40
36 33.55 2.57 32.61 2.66 31.57 2.74 31.02 2.80 30.58 2.84 29.47 2.92
45 41 35.58 2.67 34.73 2.75 33.71 2.84 33.15 2.89 32.70 2.93 31.51 3.02
47 43 36.39 2.70 35.58 2.79 34.56 2.88 34.00 2.93 33.55 2.97 32.33 3.06
50 46 36.50 2.68 35.77 2.77 34.88 2.85 34.37 2.89 33.97 2.92 32.82 3.00
55 51 36.68 2.66 36.07 2.72 35.41 2.79 35.00 2.82 34.67 2.84 33.65 2.90
60 56 36.86 2.63 36.38 2.68 35.93 2.73 35.62 2.75 35.38 2.76 34.47 2.81
63 59 36.96 2.61 36.56 2.65 36.25 2.69 36.00 2.71 35.80 2.72 34.97 2.75
68 64 37.07 2.59 36.75 2.63 36.56 2.66 36.38 2.67 36.23 2.67 35.47 2.69
9 + 18 + 18
-4 -4.4 8.38 2.13 8.02 2.21 7.66 2.24 7.60 2.25 7.55 2.27 7.19 2.35
0 -0.4 11.72 2.16 10.95 2.24 10.82 2.28 10.68 2.30 10.57 2.31 10.11 2.39
5 4.5 15.68 2.20 14.92 2.27 14.58 2.32 14.35 2.35 14.16 2.37 13.59 2.45
10 9 18.33 2.23 17.58 2.31 17.09 2.36 16.80 2.40 16.57 2.42 15.91 2.50
17 15 21.24 2.28 20.51 2.35 19.86 2.42 19.50 2.46 19.21 2.49 18.47 2.57
20 19 23.01 2.31 22.28 2.38 21.54 2.46 21.14 2.50 20.82 2.54 20.03 2.61
25 23 25.97 2.36 25.20 2.43 24.32 2.52 23.86 2.58 23.49 2.62 22.61 2.69
30 28 28.95 2.43 28.05 2.51 27.09 2.59 26.59 2.65 26.19 2.69 25.23 2.76
35 32 31.92 2.50 30.90 2.59 29.85 2.66 29.32 2.72 28.89 2.77 27.84 2.84
40 36 33.55 2.57 32.61 2.66 31.57 2.74 31.02 2.80 30.58 2.84 29.47 2.92
45 41 35.58 2.67 34.73 2.75 33.71 2.84 33.15 2.89 32.70 2.93 31.51 3.02
47 43 36.39 2.70 35.58 2.79 34.56 2.88 34.00 2.93 33.55 2.97 32.33 3.06
50 46 36.50 2.68 35.77 2.77 34.88 2.85 34.37 2.89 33.97 2.92 32.82 3.00
55 51 36.68 2.66 36.07 2.72 35.41 2.79 35.00 2.82 34.67 2.84 33.65 2.90
60 56 36.86 2.63 36.38 2.68 35.93 2.73 35.62 2.75 35.38 2.76 34.47 2.81
63 59 36.96 2.61 36.56 2.65 36.25 2.69 36.00 2.71 35.80 2.72 34.97 2.75
68 64 37.07 2.59 36.75 2.63 36.56 2.66 36.38 2.67 36.23 2.67 35.47 2.69
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 247
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 240: LMU36CHV Heating Capacity Table — Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Ducted
Indoor Units
12 + 18 + 18
-4 -4.4 8.38 2.13 8.02 2.21 7.66 2.24 7.60 2.25 7.55 2.27 7.19 2.35
0 -0.4 11.72 2.16 10.95 2.24 10.82 2.28 10.68 2.30 10.57 2.31 10.11 2.39
5 4.5 15.68 2.20 14.92 2.27 14.58 2.32 14.35 2.35 14.16 2.37 13.59 2.45
10 9 18.33 2.23 17.58 2.31 17.09 2.36 16.80 2.40 16.57 2.42 15.91 2.50
17 15 21.24 2.28 20.51 2.35 19.86 2.42 19.50 2.46 19.21 2.49 18.47 2.57
20 19 23.01 2.31 22.28 2.38 21.54 2.46 21.14 2.50 20.82 2.54 20.03 2.61
25 23 25.97 2.36 25.20 2.43 24.32 2.52 23.86 2.58 23.49 2.62 22.61 2.69
30 28 28.95 2.43 28.05 2.51 27.09 2.59 26.59 2.65 26.19 2.69 25.23 2.76
35 32 31.92 2.50 30.90 2.59 29.85 2.66 29.32 2.72 28.89 2.77 27.84 2.84
40 36 33.55 2.57 32.61 2.66 31.57 2.74 31.02 2.80 30.58 2.84 29.47 2.92
45 41 35.58 2.67 34.73 2.75 33.71 2.84 33.15 2.89 32.70 2.93 31.51 3.02
47 43 36.39 2.70 35.58 2.79 34.56 2.88 34.00 2.93 33.55 2.97 32.33 3.06
50 46 36.50 2.68 35.77 2.77 34.88 2.85 34.37 2.89 33.97 2.92 32.82 3.00
55 51 36.68 2.66 36.07 2.72 35.41 2.79 35.00 2.82 34.67 2.84 33.65 2.90
60 56 36.86 2.63 36.38 2.68 35.93 2.73 35.62 2.75 35.38 2.76 34.47 2.81
63 59 36.96 2.61 36.56 2.65 36.25 2.69 36.00 2.71 35.80 2.72 34.97 2.75
68 64 37.07 2.59 36.75 2.63 36.56 2.66 36.38 2.67 36.23 2.67 35.47 2.69
Four (4) Ducted
Indoor Units
9 + 9 + 9
+ 9
-4 -4.4 8.38 2.05 8.02 2.14 7.66 2.16 7.60 2.18 7.55 2.19 7.19 2.27
0 -0.4 11.72 2.08 10.95 2.16 10.82 2.20 10.68 2.22 10.57 2.23 10.11 2.31
5 4.5 15.68 2.12 14.92 2.20 14.58 2.24 14.35 2.27 14.16 2.29 13.59 2.37
10 9 18.33 2.15 17.58 2.23 17.09 2.28 16.80 2.32 16.57 2.34 15.91 2.41
17 15 21.24 2.20 20.51 2.27 19.86 2.34 19.50 2.38 19.21 2.41 18.47 2.48
20 19 23.01 2.23 22.28 2.30 21.54 2.37 21.14 2.42 20.82 2.45 20.03 2.52
25 23 25.97 2.28 25.20 2.35 24.32 2.44 23.86 2.49 23.49 2.53 22.61 2.59
30 28 28.95 2.35 28.05 2.43 27.09 2.50 26.59 2.56 26.19 2.60 25.23 2.67
35 32 31.92 2.42 30.90 2.50 29.85 2.57 29.32 2.63 28.89
2.67 27.84 2.74
40 36 33.55 2.49 32.61 2.57 31.57 2.64 31.02 2.70 30.58 2.74 29.47 2.82
45 41 35.58 2.57 34.73 2.66 33.71 2.74 33.15 2.79 32.70 2.83 31.51 2.92
47 43 36.39 2.61 35.58 2.70 34.56 2.78 34.00 2.83 33.55 2.87 32.33 2.95
50 46 36.50 2.59 35.77 2.67 34.88 2.75 34.37 2.79 33.97 2.82 32.82 2.90
55 51 36.68 2.57 36.07 2.63 35.41 2.69 35.00 2.72 34.67 2.75 33.65 2.81
60 56 36.86 2.54 36.38 2.59 35.93 2.63 35.62 2.65 35.38 2.67 34.47 2.71
63 59 36.96 2.52 36.56 2.56 36.25 2.60 36.00 2.61 35.80 2.62 34.97 2.66
68 64 37.07 2.51 36.75 2.54 36.56 2.57 36.38 2.57 36.23 2.58 35.47 2.60
9 + 9 + 9
+ 12
-4 -4.4 8.38 2.05 8.02 2.14 7.66 2.16 7.60 2.18 7.55 2.19 7.19 2.27
0 -0.4 11.72 2.08 10.95 2.16 10.82 2.20 10.68 2.22 10.57 2.23 10.11 2.31
5 4.5 15.68 2.12 14.92 2.20 14.58 2.24 14.35 2.27 14.16 2.29 13.59 2.37
10 9 18.33 2.15 17.58 2.23 17.09 2.28 16.80 2.32 16.57 2.34 15.91 2.41
17 15 21.24 2.20 20.51 2.27 19.86 2.34 19.50 2.38 19.21 2.41 18.47 2.48
20 19 23.01 2.23 22.28 2.30 21.54 2.37 21.14 2.42 20.82 2.45 20.03 2.52
25 23 25.97 2.28 25.20 2.35 24.32 2.44 23.86 2.49 23.49 2.53 22.61 2.59
30 28 28.95 2.35 28.05 2.43 27.09 2.50 26.59 2.56 26.19 2.60 25.23 2.67
35 32 31.92 2.42 30.90 2.50 29.85 2.57 29.32 2.63 28.89 2.67 27.84 2.74
40 36 33.55 2.49 32.61 2.57 31.57 2.64 31.02 2.70 30.58 2.74 29.47 2.82
45 41 35.58 2.57 34.73 2.66 33.71 2.74 33.15 2.79 32.70 2.83 31.51 2.92
47 43 36.39 2.61 35.58 2.70 34.56 2.78 34.00 2.83 33.55 2.87 32.33 2.95
50 46 36.50 2.59 35.77 2.67 34.88 2.75 34.37 2.79 33.97 2.82 32.82 2.90
55 51 36.68 2.57 36.07 2.63 35.41 2.69 35.00 2.72 34.67 2.75 33.65 2.81
60 56 36.86 2.54 36.38 2.59 35.93 2.63 35.62 2.65 35.38 2.67 34.47 2.71
63 59 36.96 2.52 36.56 2.56 36.25 2.60 36.00 2.61 35.80 2.62 34.97 2.66
68 64 37.07 2.51 36.75 2.54 36.56 2.57 36.38 2.57 36.23 2.58 35.47 2.60
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
248 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 241: LMU36CHV Heating Capacity Table — Ducted Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Ducted
Indoor Units
9 + 9 + 12
+ 12
-4 -4.4 8.38 2.05 8.02 2.14 7.66 2.16 7.60 2.18 7.55 2.19 7.19 2.27
0 -0.4 11.72 2.08 10.95 2.16 10.82 2.20 10.68 2.22 10.57 2.23 10.11 2.31
5 4.5 15.68 2.12 14.92 2.20 14.58 2.24 14.35 2.27 14.16 2.29 13.59 2.37
10 9 18.33 2.15 17.58 2.23 17.09 2.28 16.80 2.32 16.57 2.34 15.91 2.41
17 15 21.24 2.20 20.51 2.27 19.86 2.34 19.50 2.38 19.21 2.41 18.47 2.48
20 19 23.01 2.23 22.28 2.30 21.54 2.37 21.14 2.42 20.82 2.45 20.03 2.52
25 23 25.97 2.28 25.20 2.35 24.32 2.44 23.86 2.49 23.49 2.53 22.61 2.59
30 28 28.95 2.35 28.05 2.43 27.09 2.50 26.59 2.56 26.19 2.60 25.23 2.67
35 32 31.92 2.42 30.90 2.50 29.85 2.57 29.32 2.63 28.89 2.67 27.84 2.74
40 36 33.55 2.49 32.61 2.57 31.57 2.64 31.02 2.70 30.58 2.74 29.47 2.82
45 41 35.58 2.57 34.73 2.66 33.71 2.74 33.15 2.79 32.70 2.83 31.51 2.92
47 43 36.39 2.61 35.58 2.70 34.56 2.78 34.00 2.83 33.55 2.87 32.33 2.95
50 46 36.50 2.59 35.77 2.67 34.88 2.75 34.37 2.79 33.97 2.82 32.82 2.90
55 51 36.68 2.57 36.07 2.63 35.41 2.69 35.00 2.72 34.67 2.75 33.65 2.81
60 56 36.86 2.54 36.38 2.59 35.93 2.63 35.62 2.65 35.38 2.67 34.47 2.71
63 59 36.96 2.52 36.56 2.56 36.25 2.60 36.00 2.61 35.80 2.62 34.97 2.66
68 64 37.07 2.51 36.75 2.54 36.56 2.57 36.38 2.57 36.23 2.58 35.47 2.60
9 + 9 + 9
+ 18
-4 -4.4 8.38 2.05 8.02 2.14 7.66 2.16 7.60 2.18 7.55 2.19 7.19 2.27
0 -0.4 11.72 2.08 10.95 2.16 10.82 2.20 10.68 2.22 10.57 2.23 10.11 2.31
5 4.5 15.68 2.12 14.92 2.20 14.58 2.24 14.35 2.27 14.16 2.29 13.59 2.37
10 9 18.33 2.15 17.58 2.23 17.09 2.28 16.80 2.32 16.57 2.34 15.91 2.41
17 15 21.24 2.20 20.51 2.27 19.86 2.34 19.50 2.38 19.21 2.41 18.47 2.48
20 19 23.01 2.23 22.28 2.30 21.54 2.37 21.14 2.42 20.82 2.45 20.03 2.52
25 23 25.97 2.28 25.20 2.35 24.32 2.44 23.86 2.49 23.49 2.53 22.61 2.59
30 28 28.95 2.35 28.05 2.43 27.09 2.50 26.59 2.56 26.19 2.60 25.23 2.67
35 32 31.92 2.42 30.90 2.50 29.85 2.57 29.32 2.63 28.89 2.67 27.84
2.74
40 36 33.55 2.49 32.61 2.57 31.57 2.64 31.02 2.70 30.58 2.74 29.47 2.82
45 41 35.58 2.57 34.73 2.66 33.71 2.74 33.15 2.79 32.70 2.83 31.51 2.92
47 43 36.39 2.61 35.58 2.70 34.56 2.78 34.00 2.83 33.55 2.87 32.33 2.95
50 46 36.50 2.59 35.77 2.67 34.88 2.75 34.37 2.79 33.97 2.82 32.82 2.90
55 51 36.68 2.57 36.07 2.63 35.41 2.69 35.00 2.72 34.67 2.75 33.65 2.81
60 56 36.86 2.54 36.38 2.59 35.93 2.63 35.62 2.65 35.38 2.67 34.47 2.71
63 59 36.96 2.52 36.56 2.56 36.25 2.60 36.00 2.61 35.80 2.62 34.97 2.66
68 64 37.07 2.51 36.75 2.54 36.56 2.57 36.38 2.57 36.23 2.58 35.47 2.60
9 + 12 + 12
+ 12
-4 -4.4 8.38 2.05 8.02 2.14 7.66 2.16 7.60 2.18 7.55 2.19 7.19 2.27
0 -0.4 11.72 2.08 10.95 2.16 10.82 2.20 10.68 2.22 10.57 2.23 10.11 2.31
5 4.5 15.68 2.12 14.92 2.20 14.58 2.24 14.35 2.27 14.16 2.29 13.59 2.37
10 9 18.33 2.15 17.58 2.23 17.09 2.28 16.80 2.32 16.57 2.34 15.91 2.41
17 15 21.24 2.20 20.51 2.27 19.86 2.34 19.50 2.38 19.21 2.41 18.47 2.48
20 19 23.01 2.23 22.28 2.30 21.54 2.37 21.14 2.42 20.82 2.45 20.03 2.52
25 23 25.97 2.28 25.20 2.35 24.32 2.44 23.86 2.49 23.49 2.53 22.61 2.59
30 28 28.95 2.35 28.05 2.43 27.09 2.50 26.59 2.56 26.19 2.60 25.23 2.67
35 32 31.92 2.42 30.90 2.50 29.85 2.57 29.32 2.63 28.89 2.67 27.84 2.74
40 36 33.55 2.49 32.61 2.57 31.57 2.64 31.02 2.70 30.58 2.74 29.47 2.82
45 41 35.58 2.57 34.73 2.66 33.71 2.74 33.15 2.79 32.70 2.83 31.51 2.92
47 43 36.39 2.61 35.58 2.70 34.56 2.78 34.00 2.83 33.55 2.87 32.33 2.95
50 46 36.50 2.59 35.77 2.67 34.88 2.75 34.37 2.79 33.97 2.82 32.82 2.90
55 51 36.68 2.57 36.07 2.63 35.41 2.69 35.00 2.72 34.67 2.75 33.65 2.81
60 56 36.86 2.54 36.38 2.59 35.93 2.63 35.62 2.65 35.38 2.67 34.47 2.71
63 59 36.96 2.52 36.56 2.56 36.25 2.60 36.00 2.61 35.80 2.62 34.97 2.66
68 64 37.07 2.51 36.75 2.54 36.56 2.57 36.38 2.57 36.23 2.58 35.47 2.60
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 249
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 242: LMU36CHV Heating Capacity Table — Ducted (continued) and Mixed Indoor Units.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Ducted
Indoor Units
9 + 9 + 12
+ 18
-4 -4.4 8.38 2.05 8.02 2.14 7.66 2.16 7.60 2.18 7.55 2.19 7.19 2.27
0 -0.4 11.72 2.08 10.95 2.16 10.82 2.20 10.68 2.22 10.57 2.23 10.11 2.31
5 4.5 15.68 2.12 14.92 2.20 14.58 2.24 14.35 2.27 14.16 2.29 13.59 2.37
10 9 18.33 2.15 17.58 2.23 17.09 2.28 16.80 2.32 16.57 2.34 15.91 2.41
17 15 21.24 2.20 20.51 2.27 19.86 2.34 19.50 2.38 19.21 2.41 18.47 2.48
20 19 23.01 2.23 22.28 2.30 21.54 2.37 21.14 2.42 20.82 2.45 20.03 2.52
25 23 25.97 2.28 25.20 2.35 24.32 2.44 23.86 2.49 23.49 2.53 22.61 2.59
30 28 28.95 2.35 28.05 2.43 27.09 2.50 26.59 2.56 26.19 2.60 25.23 2.67
35 32 31.92 2.42 30.90 2.50 29.85 2.57 29.32 2.63 28.89 2.67 27.84 2.74
40 36 33.55 2.49 32.61 2.57 31.57 2.64 31.02 2.70 30.58 2.74 29.47 2.82
45 41 35.58 2.57 34.73 2.66 33.71 2.74 33.15 2.79 32.70 2.83 31.51 2.92
47 43 36.39 2.61 35.58 2.70 34.56 2.78 34.00 2.83 33.55 2.87 32.33 2.95
50 46 36.50 2.59 35.77 2.67 34.88 2.75 34.37 2.79 33.97 2.82 32.82 2.90
55 51 36.68 2.57 36.07 2.63 35.41 2.69 35.00 2.72 34.67 2.75 33.65 2.81
60 56 36.86 2.54 36.38 2.59 35.93 2.63 35.62 2.65 35.38 2.67 34.47 2.71
63 59 36.96 2.52 36.56 2.56 36.25 2.60 36.00 2.61 35.80 2.62 34.97 2.66
68 64 37.07 2.51 36.75 2.54 36.56 2.57 36.38 2.57 36.23 2.58 35.47 2.60
12 + 12 + 12
+ 12
-4 -4.4 8.38 2.05 8.02 2.14 7.66 2.16 7.60 2.18 7.55 2.19 7.19 2.27
0 -0.4 11.72 2.08 10.95 2.16 10.82 2.20 10.68 2.22 10.57 2.23 10.11 2.31
5 4.5 15.68 2.12 14.92 2.20 14.58 2.24 14.35 2.27 14.16 2.29 13.59 2.37
10 9 18.33 2.15 17.58 2.23 17.09 2.28 16.80 2.32 16.57 2.34 15.91 2.41
17 15 21.24 2.20 20.51 2.27 19.86 2.34 19.50 2.38 19.21 2.41 18.47 2.48
20 19 23.01 2.23 22.28 2.30 21.54 2.37 21.14 2.42 20.82 2.45 20.03 2.52
25 23 25.97 2.28 25.20 2.35 24.32 2.44 23.86 2.49 23.49 2.53 22.61 2.59
30 28 28.95 2.35 28.05 2.43 27.09 2.50 26.59 2.56 26.19 2.60 25.23 2.67
35 32 31.92 2.42 30.90 2.50 29.85 2.57 29.32 2.63 28.89 2.67 27.84
2.74
40 36 33.55 2.49 32.61 2.57 31.57 2.64 31.02 2.70 30.58 2.74 29.47 2.82
45 41 35.58 2.57 34.73 2.66 33.71 2.74 33.15 2.79 32.70 2.83 31.51 2.92
47 43 36.39 2.61 35.58 2.70 34.56 2.78 34.00 2.83 33.55 2.87 32.33 2.95
50 46 36.50 2.59 35.77 2.67 34.88 2.75 34.37 2.79 33.97 2.82 32.82 2.90
55 51 36.68 2.57 36.07 2.63 35.41 2.69 35.00 2.72 34.67 2.75 33.65 2.81
60 56 36.86 2.54 36.38 2.59 35.93 2.63 35.62 2.65 35.38 2.67 34.47 2.71
63 59 36.96 2.52 36.56 2.56 36.25 2.60 36.00 2.61 35.80 2.62 34.97 2.66
68 64 37.07 2.51 36.75 2.54 36.56 2.57 36.38 2.57 36.23 2.58 35.47 2.60
Two (2) Mixed
Indoor Units
7 + 9
-4 -4.4 3.84 1.28 3.67 1.33 3.50 1.35 3.47 1.36 3.45 1.36 3.28 1.41
0 -0.4 5.57 1.30 5.19 1.35 5.14 1.37 5.08 1.39 5.02 1.40 4.80 1.44
5 4.5 7.63 1.33 7.26 1.38 7.09 1.41 6.98 1.42 6.89 1.43 6.61 1.48
10 9 9.00 1.35 8.64 1.40 8.40 1.44 8.25 1.46 8.14 1.47 7.82 1.52
17 15 10.52 1.39 10.15 1.43 9.83 1.48 9.65 1.50 9.51 1.52 9.15 1.56
20 19 11.44 1.41 11.07 1.45 10.70 1.50 10.50 1.53 10.35 1.55 9.95 1.60
25 23 12.97 1.45 12.59 1.49 12.15 1.55 11.92 1.58 11.74 1.61 11.30 1.65
30 28 14.52 1.50 14.07 1.55 13.59 1.59 13.34 1.63 13.14 1.66 12.65 1.70
35 32 16.06 1.54 15.55 1.60 15.02 1.64 14.75 1.68 14.54 1.71 14.01 1.75
40 36 16.88 1.59 16.41 1.65 15.89 1.69 15.61 1.73 15.39 1.76 14.83 1.80
45 41 17.91 1.65 17.48 1.70 16.96 1.75 16.68 1.79 16.46 1.81 15.86 1.86
47 43 18.32 1.67 17.91 1.72 17.39 1.78 17.11 1.81 16.88 1.83 16.27 1.89
50 46 18.37 1.66 18.00 1.71 17.55 1.76 17.30 1.78 17.10 1.81 16.52 1.85
55 51 18.46 1.64 18.15 1.68 17.82 1.72 17.61 1.74 17.45 1.76 16.93 1.79
60 56 18.55 1.62 18.31 1.65 18.08 1.69 17.93 1.70 17.80 1.71 17.35 1.73
63 59 18.60 1.61 18.40 1.64 18.24 1.66 18.12 1.67 18.02 1.68 17.60 1.70
68 64 18.66 1.60 18.49 1.62 18.40 1.64 18.31 1.65 18.23 1.65 17.85 1.66
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
250 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 243: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
9 + 9
-4 -4.4 4.32 1.41 4.13 1.47 3.94 1.49 3.91 1.50 3.88 1.51 3.70 1.56
0 -0.4 6.26 1.44 5.84 1.49 5.78 1.52 5.71 1.53 5.65 1.54 5.40 1.60
5 4.5 8.58 1.47 8.16 1.52 7.98 1.55 7.85 1.57 7.75 1.59 7.43 1.64
10 9 10.13 1.50 9.72 1.55 9.45 1.59 9.29 1.61 9.16 1.63 8.79 1.68
17 15 11.83 1.53 11.42 1.58 11.06 1.63 10.86 1.66 10.70 1.68 10.29 1.73
20 19 12.87 1.56 12.46 1.60 12.04 1.66 11.82 1.69 11.64 1.72 11.20 1.76
25 23 14.60 1.60 14.16 1.65 13.67 1.71 13.41 1.75 13.20 1.77 12.71 1.82
30 28 16.33 1.66 15.83 1.71 15.29 1.76 15.00 1.80 14.78 1.83 14.24 1.88
35 32 18.07 1.71 17.50 1.77 16.90 1.81 16.60 1.86 16.36 1.89 15.76 1.94
40 36 18.99 1.76 18.46 1.82 17.87 1.87 17.56 1.91 17.31 1.94 16.69 1.99
45 41 20.15 1.82 19.66 1.88 19.08 1.94 18.77 1.97 18.51 2.00 17.84 2.06
47 43 20.61 1.84 20.15 1.91 19.57 1.97 19.25 2.00 18.99 2.03 18.30 2.09
50 46 20.67 1.83 20.25 1.89 19.75 1.94 19.46 1.97 19.23 1.99 18.58 2.05
55 51 20.77 1.81 20.42 1.86 20.05 1.90 19.82 1.92 19.63 1.94 19.05 1.98
60 56 20.87 1.79 20.60 1.83 20.34 1.86 20.17 1.88 20.03 1.89 19.52 1.92
63 59 20.93 1.78 20.70 1.81 20.52 1.84 20.38 1.85 20.27 1.85 19.80 1.88
68 64 20.99 1.77 20.81 1.79 20.70 1.81 20.60 1.82 20.51 1.82 20.08 1.84
7 + 12
-4 -4.4 4.56 1.48 4.36 1.54 4.16 1.56 4.13 1.57 4.10 1.57 3.90 1.63
0 -0.4 6.61 1.50 6.17 1.56 6.11 1.59 6.03 1.60 5.96 1.61 5.70 1.67
5 4.5 9.06 1.53 8.62 1.59 8.42 1.62 8.29 1.64 8.18 1.66 7.85 1.71
10 9 10.69 1.56 10.26 1.62 9.97 1.66 9.80 1.68 9.66 1.70 9.28 1.75
17 15 12.49 1.60 12.06 1.65 11.68 1.70 11.47 1.73 11.30 1.76 10.86 1.81
20 19 13.58 1.63 13.15 1.68 12.71 1.73 12.48 1.77 12.29 1.79 11.82 1.84
25 23 15.41 1.67 14.95 1.72 14.43 1.79 14.16 1.82 13.94 1.85 13.41 1.90
30 28 17.24 1.73 16.71 1.79 16.14 1.84 15.84 1.88 15.60 1.91 15.03 1.96
35 32 19.08 1.78 18.47 1.85 17.84 1.90 17.52 1.94 17.26 1.97 16.64 2.02
40
36 20.05 1.84 19.49 1.90 18.87 1.95 18.54 1.99 18.28 2.03 17.61 2.08
45 41 21.27 1.90 20.76 1.96 20.15 2.03 19.81 2.06 19.54 2.09 18.83 2.15
47 43 21.75 1.93 21.27 1.99 20.66 2.05 20.32 2.09 20.05 2.12 19.32 2.18
50 46 21.82 1.92 21.37 1.97 20.85 2.03 20.54 2.06 20.30 2.08 19.62 2.14
55 51 21.92 1.89 21.56 1.94 21.16 1.99 20.92 2.01 20.72 2.03 20.11 2.07
60 56 22.03 1.87 21.74 1.91 21.47 1.95 21.29 1.96 21.14 1.97 20.60 2.00
63 59 22.09 1.86 21.85 1.89 21.66 1.92 21.51 1.93 21.40 1.94 20.90 1.96
68 64 22.16 1.85 21.96 1.87 21.85 1.90 21.74 1.90 21.65 1.91 21.20 1.92
9 + 12
-4 -4.4 5.04 1.60 4.82 1.66 4.59 1.68 4.56 1.69 4.53 1.70 4.31 1.77
0 -0.4 7.31 1.63 6.82 1.69 6.75 1.71 6.66 1.73 6.59 1.74 6.31 1.80
5 4.5 10.01 1.66 9.52 1.72 9.31 1.76 9.16 1.78 9.04 1.79 8.67 1.85
10 9 11.82 1.69 11.34 1.75 11.02 1.79 10.83 1.82 10.68 1.84 10.26 1.90
17 15 13.81 1.73 13.33 1.79 12.91 1.84 12.67 1.87 12.49 1.90 12.01 1.95
20 19 15.01 1.76 14.54 1.81 14.05 1.88 13.79 1.91 13.58 1.94 13.06 1.99
25 23 17.03 1.81 16.52 1.86 15.95 1.93 15.65 1.97 15.41 2.00 14.83 2.06
30 28 19.06 1.87 18.47 1.93 17.83 1.99 17.51 2.04 17.25 2.07 16.61 2.12
35 32 21.09 1.93 20.42 2.00 19.72 2.05 19.37 2.10 19.08 2.14 18.39 2.19
40 36 22.16 1.99 21.54 2.05 20.85 2.11 20.49 2.16 20.20 2.19 19.47 2.25
45 41 23.50 2.06 22.94 2.12 22.27 2.19 21.90 2.23 21.60 2.26 20.82 2.33
47 43 24.04 2.08 23.50 2.15 22.83 2.22 22.46 2.26 22.16 2.29 21.36 2.36
50 46 24.11 2.07 23.63 2.13 23.04 2.19 22.71 2.23 22.44 2.25 21.68 2.31
55 51 24.23 2.05 23.83 2.10 23.39 2.15 23.12 2.17 22.91 2.19 22.23 2.24
60 56 24.35 2.03 24.03 2.07 23.74 2.10 23.53 2.12 23.37 2.13 22.77 2.17
63 59 24.42 2.01 24.15 2.05 23.94 2.08 23.78 2.09 23.65 2.10 23.10 2.12
68 64 24.49 2.00 24.27 2.03 24.15 2.05 24.03 2.06 23.93 2.06 23.43 2.08
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 251
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 244: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
9 + 15
-4 -4.4 5.76 1.75 5.50 1.82 5.25 1.84 5.21 1.85 5.18 1.86 4.93 1.93
0 -0.4 8.35 1.78 7.79 1.84 7.71 1.87 7.61 1.89 7.54 1.90 7.21 1.97
5 4.5 11.44 1.81 10.88 1.88 10.64 1.92 10.47 1.94 10.33 1.96 9.91 2.02
10 9 13.51 1.85 12.96 1.91 12.60 1.96 12.38 1.99 12.21 2.01 11.73 2.07
17 15 15.78 1.89 15.23 1.95 14.75 2.01 14.49 2.05 14.27 2.07 13.72 2.13
20 19 17.16 1.92 16.61 1.98 16.06 2.05 15.76 2.09 15.52 2.12 14.93 2.18
25 23 19.46 1.98 18.89 2.04 18.23 2.11 17.88 2.16 17.61 2.19 16.95 2.25
30 28 21.78 2.04 21.11 2.11 20.38 2.18 20.01 2.22 19.71 2.26 18.99 2.32
35 32 24.10 2.11 23.33 2.18 22.54 2.24 22.13 2.29 21.81 2.33 21.02 2.39
40 36 25.33 2.17 24.62 2.25 23.83 2.31 23.42 2.36 23.09 2.40 22.25 2.46
45 41 26.86 2.25 26.22 2.32 25.45 2.39 25.03 2.44 24.69 2.47 23.79 2.54
47 43 27.48 2.28 26.86 2.35 26.10 2.43 25.67 2.47 25.33 2.50 24.41 2.58
50 46 27.56 2.26 27.00 2.33 26.33 2.40 25.95 2.43 25.65 2.46 24.78 2.53
55 51 27.69 2.24 27.23 2.29 26.73 2.35 26.42 2.38 26.18 2.40 25.40 2.45
60 56 27.83 2.22 27.47 2.26 27.13 2.30 26.90 2.32 26.71 2.33 26.03 2.37
63 59 27.91 2.20 27.60 2.24 27.37 2.27 27.18 2.28 27.03 2.29 26.40 2.32
68 64 27.99 2.19 27.74 2.21 27.61 2.24 27.46 2.25 27.35 2.25 26.78 2.27
12 + 12
-4 -4.4 5.76 1.75 5.50 1.82 5.25 1.84 5.21 1.85 5.18 1.86 4.93 1.93
0 -0.4 8.35 1.78 7.79 1.84 7.71 1.87 7.61 1.89 7.54 1.90 7.21 1.97
5 4.5 11.44 1.81 10.88 1.88 10.64 1.92 10.47 1.94 10.33 1.96 9.91 2.02
10 9 13.51 1.85 12.96 1.91 12.60 1.96 12.38 1.99 12.21 2.01 11.73 2.07
17 15 15.78 1.89 15.23 1.95 14.75 2.01 14.49 2.05 14.27 2.07 13.72 2.13
20 19 17.16 1.92 16.61 1.98 16.06 2.05 15.76 2.09 15.52 2.12 14.93 2.18
25 23 19.46 1.98 18.89 2.04 18.23 2.11 17.88 2.16 17.61 2.19 16.95 2.25
30 28 21.78 2.04 21.11 2.11 20.38 2.18 20.01 2.22 19.71 2.26 18.99 2.32
35 32 24.10 2.11 23.33 2.18 22.54 2.24 22.13 2.29 21.81 2.33 21.02 2.39
40
36 25.33 2.17 24.62 2.25 23.83 2.31 23.42 2.36 23.09 2.40 22.25 2.46
45 41 26.86 2.25 26.22 2.32 25.45 2.39 25.03 2.44 24.69 2.47 23.79 2.54
47 43 27.48 2.28 26.86 2.35 26.10 2.43 25.67 2.47 25.33 2.50 24.41 2.58
50 46 27.56 2.26 27.00 2.33 26.33 2.40 25.95 2.43 25.65 2.46 24.78 2.53
55 51 27.69 2.24 27.23 2.29 26.73 2.35 26.42 2.38 26.18 2.40 25.40 2.45
60 56 27.83 2.22 27.47 2.26 27.13 2.30 26.90 2.32 26.71 2.33 26.03 2.37
63 59 27.91 2.20 27.60 2.24 27.37 2.27 27.18 2.28 27.03 2.29 26.40 2.32
68 64 27.99 2.19 27.74 2.21 27.61 2.24 27.46 2.25 27.35 2.25 26.78 2.27
7 + 18
-4 -4.4 6.00 1.80 5.73 1.88 5.47 1.90 5.43 1.91 5.40 1.92 5.13 1.99
0 -0.4 8.70 1.83 8.12 1.90 8.03 1.93 7.93 1.95 7.85 1.97 7.51 2.04
5 4.5 11.92 1.87 11.34 1.94 11.08 1.98 10.91 2.00 10.77 2.02 10.33 2.09
10 9 14.07 1.91 13.50 1.97 13.12 2.02 12.90 2.05 12.72 2.07 12.22 2.14
17 15 16.44 1.95 15.87 2.02 15.37 2.08 15.09 2.11 14.87 2.14 14.29 2.20
20 19 17.87 1.99 17.30 2.05 16.73 2.12 16.42 2.16 16.17 2.19 15.55 2.25
25 23 20.27 2.04 19.67 2.10 18.99 2.18 18.63 2.23 18.34 2.26 17.65 2.32
30 28 22.69 2.11 21.99 2.18 21.23 2.25 20.84 2.30 20.53 2.34 19.78 2.39
35 32 25.11 2.18 24.31 2.25 23.48 2.31 23.06 2.37 22.72 2.41 21.90 2.47
40 36 26.38 2.24 25.64 2.32 24.83 2.38 24.40 2.43 24.05 2.47 23.18 2.54
45 41 27.98 2.32 27.32 2.40 26.51 2.47 26.07 2.52 25.72 2.55 24.78 2.63
47 43 28.62 2.35 27.98 2.43 27.18 2.51 26.74 2.55 26.38 2.58 25.43 2.66
50 46 28.71 2.34 28.13 2.41 27.43 2.48 27.03 2.51 26.72 2.54 25.81 2.61
55 51 28.85 2.31 28.37 2.37 27.85 2.43 27.53 2.45 27.27 2.47 26.46 2.53
60 56 28.99 2.29 28.61 2.33 28.26 2.37 28.02 2.39 27.82 2.41 27.11 2.44
63 59 29.07 2.27 28.75 2.31 28.51 2.34 28.31 2.36 28.16 2.36 27.50 2.39
68 64 29.16 2.26 28.90 2.29 28.76 2.31 28.61 2.32 28.49 2.32 27.90 2.34
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
252 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 245: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
9 + 18
-4 -4.4 6.48 1.92 6.19 2.00 5.91 2.02 5.86 2.04 5.83 2.05 5.54 2.12
0 -0.4 9.40 1.96 8.77 2.03 8.68 2.06 8.57 2.08 8.48 2.10 8.11 2.17
5 4.5 12.87 2.00 12.25 2.07 11.97 2.11 11.78 2.14 11.63 2.16 11.15 2.23
10 9 15.20 2.04 14.58 2.10 14.17 2.16 13.93 2.19 13.74 2.21 13.19 2.28
17 15 17.75 2.08 17.14 2.15 16.60 2.22 16.30 2.25 16.06 2.28 15.44 2.35
20 19 19.30 2.12 18.69 2.18 18.07 2.26 17.73 2.30 17.46 2.33 16.80 2.40
25 23 21.90 2.18 21.25 2.24 20.51 2.33 20.12 2.37 19.81 2.41 19.06 2.48
30 28 24.51 2.25 23.75 2.32 22.93 2.40 22.51 2.45 22.17 2.49 21.36 2.55
35 32 27.11 2.32 26.25 2.40 25.36 2.47 24.90 2.52 24.54 2.57 23.65 2.63
40 36 28.50 2.39 27.70 2.47 26.81 2.54 26.35 2.60 25.98 2.64 25.04 2.71
45 41 30.22 2.47 29.50 2.56 28.63 2.64 28.16 2.68 27.78 2.72 26.77 2.80
47 43 30.91 2.51 30.22 2.59 29.36 2.67 28.88 2.72 28.50 2.76 27.46 2.84
50 46 31.00 2.49 30.38 2.57 29.63 2.64 29.20 2.68 28.85 2.71 27.88 2.79
55 51 31.16 2.47 30.64 2.53 30.07 2.59 29.73 2.62 29.45 2.64 28.58 2.70
60 56 31.31 2.44 30.90 2.49 30.52 2.53 30.26 2.55 30.05 2.57 29.28 2.61
63 59 31.40 2.42 31.06 2.46 30.79 2.50 30.58 2.51 30.41 2.52 29.70 2.55
68 64 31.49 2.41 31.21 2.44 31.06 2.47 30.90 2.47 30.77 2.48 30.13 2.50
12 + 15
-4 -4.4 6.48 1.92 6.19 2.00 5.91 2.02 5.86 2.04 5.83 2.05 5.54 2.12
0 -0.4 9.40 1.96 8.77 2.03 8.68 2.06 8.57 2.08 8.48 2.10 8.11 2.17
5 4.5 12.87 2.00 12.25 2.07 11.97 2.11 11.78 2.14 11.63 2.16 11.15 2.23
10 9 15.20 2.04 14.58 2.10 14.17 2.16 13.93 2.19 13.74 2.21 13.19 2.28
17 15 17.75 2.08 17.14 2.15 16.60 2.22 16.30 2.25 16.06 2.28 15.44 2.35
20 19 19.30 2.12 18.69 2.18 18.07 2.26 17.73 2.30 17.46 2.33 16.80 2.40
25 23 21.90 2.18 21.25 2.24 20.51 2.33 20.12 2.37 19.81 2.41 19.06 2.48
30 28 24.51 2.25 23.75 2.32 22.93 2.40 22.51 2.45 22.17 2.49 21.36 2.55
35 32 27.11 2.32 26.25 2.40 25.36 2.47 24.90 2.52 24.54 2.57 23.65 2.63
40
36 28.50 2.39 27.70 2.47 26.81 2.54 26.35 2.60 25.98 2.64 25.04 2.71
45 41 30.22 2.47 29.50 2.56 28.63 2.64 28.16 2.68 27.78 2.72 26.77 2.80
47 43 30.91 2.51 30.22 2.59 29.36 2.67 28.88 2.72 28.50 2.76 27.46 2.84
50 46 31.00 2.49 30.38 2.57 29.63 2.64 29.20 2.68 28.85 2.71 27.88 2.79
55 51 31.16 2.47 30.64 2.53 30.07 2.59 29.73 2.62 29.45 2.64 28.58 2.70
60 56 31.31 2.44 30.90 2.49 30.52 2.53 30.26 2.55 30.05 2.57 29.28 2.61
63 59 31.40 2.42 31.06 2.46 30.79 2.50 30.58 2.51 30.41 2.52 29.70 2.55
68 64 31.49 2.41 31.21 2.44 31.06 2.47 30.90 2.47 30.77 2.48 30.13 2.50
12 + 18
-4 -4.4 7.19 2.07 6.88 2.15 6.56 2.18 6.51 2.19 6.47 2.21 6.16 2.29
0 -0.4 10.44 2.11 9.74 2.19 9.64 2.22 9.52 2.24 9.42 2.26 9.01 2.34
5 4.5 14.30 2.15 13.60 2.23 13.29 2.28 13.08 2.30 12.92 2.32 12.39 2.40
10 9 16.88 2.19 16.19 2.27 15.74 2.32 15.47 2.36 15.26 2.38 14.66 2.46
17 15 19.72 2.25 19.04 2.32 18.44 2.39 18.10 2.43 17.84 2.46 17.15 2.53
20 19 21.44 2.28 20.76 2.35 20.07 2.43 19.70 2.48 19.40 2.51 18.66 2.58
25 23 24.32 2.35 23.60 2.42 22.78 2.51 22.35 2.56 22.01 2.60 21.18 2.67
30 28 27.22 2.42 26.38 2.50 25.47 2.58 25.01 2.64 24.63 2.68 23.73 2.75
35 32 30.12 2.50 29.16 2.59 28.17 2.66 27.66 2.72 27.26 2.77 26.27 2.84
40 36 31.65 2.57 30.76 2.66 29.78 2.74 29.27 2.80 28.85 2.84 27.81 2.92
45 41 33.57 2.67 32.77 2.75 31.80 2.84 31.28 2.89 30.85 2.93 29.73 3.02
47 43 34.34 2.70 33.57 2.79 32.61 2.88 32.08 2.93 31.65 2.97 30.50 3.06
50 46 34.44 2.68 33.75 2.77 32.91 2.85 32.43 2.89 32.05 2.92 30.97 3.00
55 51 34.61 2.66 34.03 2.72 33.41 2.79 33.02 2.82 32.72 2.84 31.75 2.90
60 56 34.78 2.63 34.32 2.68 33.90 2.73 33.61 2.75 33.38 2.76 32.53 2.81
63 59 34.88 2.61 34.50 2.65 34.20 2.69 33.97 2.71 33.78 2.72 32.99 2.75
68 64 34.98 2.59 34.67 2.63 34.50 2.66 34.32 2.67 34.18 2.67 33.47 2.69
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 253
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 246: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
7 + 24
-4 -4.4 7.43 2.11 7.11 2.20 6.78 2.22 6.73 2.24 6.69 2.25 6.36 2.34
0 -0.4 10.79 2.15 10.06 2.23 9.96 2.27 9.83 2.29 9.73 2.30 9.31 2.39
5 4.5 14.77 2.20 14.06 2.28 13.74 2.32 13.52 2.35 13.35 2.37 12.80 2.45
10 9 17.44 2.24 16.73 2.31 16.27 2.37 15.99 2.40 15.77 2.43 15.15 2.51
17 15 20.38 2.29 19.67 2.36 19.05 2.44 18.71 2.48 18.43 2.51 17.72 2.58
20 19 22.16 2.33 21.45 2.40 20.74 2.48 20.35 2.53 20.04 2.56 19.28 2.64
25 23 25.13 2.40 24.39 2.47 23.54 2.56 23.10 2.61 22.74 2.65 21.88 2.72
30 28 28.13 2.47 27.26 2.56 26.32 2.63 25.84 2.69 25.45 2.74 24.52 2.81
35 32 31.12 2.55 30.13 2.64 29.11 2.71 28.58 2.77 28.16 2.83 27.15 2.89
40 36 32.71 2.63 31.79 2.72 30.78 2.79 30.24 2.85 29.82 2.90 28.74 2.98
45 41 34.69 2.72 33.86 2.81 32.87 2.90 32.32 2.95 31.88 2.99 30.72 3.08
47 43 35.48 2.76 34.69 2.85 33.70 2.94 33.15 2.99 32.71 3.03 31.52 3.12
50 46 35.59 2.74 34.87 2.82 34.01 2.90 33.52 2.95 33.12 2.98 32.00 3.06
55 51 35.76 2.71 35.17 2.78 34.52 2.84 34.12 2.88 33.81 2.90 32.81 2.96
60 56 35.94 2.68 35.47 2.73 35.03 2.78 34.73 2.80 34.49 2.82 33.61 2.87
63 59 36.04 2.66 35.65 2.71 35.34 2.75 35.10 2.76 34.90 2.77 34.09 2.81
68 64 36.15 2.65 35.83 2.68 35.65 2.71 35.47 2.72 35.32 2.73 34.58 2.75
9 + 24
-4 -4.4 7.85 2.16 7.50 2.25 7.16 2.28 7.11 2.29 7.06 2.30 6.72 2.39
0 -0.4 11.39 2.20 10.63 2.29 10.52 2.32 10.38 2.34 10.27 2.36 9.83 2.44
5 4.5 15.60 2.25 14.84 2.33 14.50 2.38 14.28 2.40 14.09 2.43 13.52 2.51
10 9 18.42 2.29 17.66 2.37 17.18 2.43 16.88 2.46 16.65 2.49 15.99 2.57
17 15 21.52 2.35 20.77 2.42 20.11 2.50 19.75 2.54 19.46 2.57 18.71 2.64
20 19 23.40 2.38 22.65 2.46 21.89 2.54 21.49 2.59 21.16 2.62 20.36 2.70
25 23 26.54 2.45 25.75 2.52 24.86 2.62 24.38 2.67 24.01 2.71 23.11 2.79
30 28 29.70 2.53 28.78 2.62 27.79 2.70 27.28 2.76 26.87 2.80 25.89 2.87
35 32 32.86 2.61 31.81 2.71 30.73 2.77 30.18 2.84 29.74 2.89 28.66 2.96
40
36 34.53 2.69 33.56 2.78 32.49 2.86 31.93 2.92 31.48 2.97 30.34 3.05
45 41 36.63 2.78 35.75 2.88 34.70 2.97 34.12 3.02 33.66 3.06 32.44 3.15
47 43 37.47 2.82 36.63 2.91 35.58 3.01 35.00 3.06 34.53 3.10 33.28 3.19
50 46 37.58 2.80 36.82 2.89 35.91 2.97 35.39 3.02 34.97 3.05 33.79 3.13
55 51 37.76 2.77 37.13 2.84 36.45 2.91 36.03 2.94 35.69 2.97 34.64 3.03
60 56 37.94 2.74 37.45 2.80 36.99 2.85 36.67 2.87 36.42 2.89 35.49 2.93
63 59 38.05 2.73 37.64 2.77 37.31 2.81 37.06 2.83 36.85 2.84 36.00 2.87
68 64 38.16 2.71 37.83 2.74 37.64 2.78 37.45 2.78 37.29 2.79 36.51 2.81
15 + 18
-4 -4.4 7.85 2.16 7.50 2.25 7.16 2.28 7.11 2.29 7.06 2.30 6.72 2.39
0 -0.4 11.39 2.20 10.63 2.29 10.52 2.32 10.38 2.34 10.27 2.36 9.83 2.44
5 4.5 15.60 2.25 14.84 2.33 14.50 2.38 14.28 2.40 14.09 2.43 13.52 2.51
10 9 18.42 2.29 17.66 2.37 17.18 2.43 16.88 2.46 16.65 2.49 15.99 2.57
17 15 21.52 2.35 20.77 2.42 20.11 2.50 19.75 2.54 19.46 2.57 18.71 2.64
20 19 23.40 2.38 22.65 2.46 21.89 2.54 21.49 2.59 21.16 2.62 20.36 2.70
25 23 26.54 2.45 25.75 2.52 24.86 2.62 24.38 2.67 24.01 2.71 23.11 2.79
30 28 29.70 2.53 28.78 2.62 27.79 2.70 27.28 2.76 26.87 2.80 25.89 2.87
35 32 32.86 2.61 31.81 2.71 30.73 2.77 30.18 2.84 29.74 2.89 28.66 2.96
40 36 34.53 2.69 33.56 2.78 32.49 2.86 31.93 2.92 31.48 2.97 30.34 3.05
45 41 36.63 2.78 35.75 2.88 34.70 2.97 34.12 3.02 33.66 3.06 32.44 3.15
47 43 37.47 2.82 36.63 2.91 35.58 3.01 35.00 3.06 34.53 3.10 33.28 3.19
50 46 37.58 2.80 36.82 2.89 35.91 2.97 35.39 3.02 34.97 3.05 33.79 3.13
55 51 37.76 2.77 37.13 2.84 36.45 2.91 36.03 2.94 35.69 2.97 34.64 3.03
60 56 37.94 2.74 37.45 2.80 36.99 2.85 36.67 2.87 36.42 2.89 35.49 2.93
63 59 38.05 2.73 37.64 2.77 37.31 2.81 37.06 2.83 36.85 2.84 36.00 2.87
68 64 38.16 2.71 37.83 2.74 37.64 2.78 37.45 2.78 37.29 2.79 36.51 2.81
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
254 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Table 247: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
18 + 18
-4 -4.4 7.85 2.16 7.50 2.25 7.16 2.28 7.11 2.29 7.06 2.30 6.72 2.39
0 -0.4 11.39 2.20 10.63 2.29 10.52 2.32 10.38 2.34 10.27 2.36 9.83 2.44
5 4.5 15.60 2.25 14.84 2.33 14.50 2.38 14.28 2.40 14.09 2.43 13.52 2.51
10 9 18.42 2.29 17.66 2.37 17.18 2.43 16.88 2.46 16.65 2.49 15.99 2.57
17 15 21.52 2.35 20.77 2.42 20.11 2.50 19.75 2.54 19.46 2.57 18.71 2.64
20 19 23.40 2.38 22.65 2.46 21.89 2.54 21.49 2.59 21.16 2.62 20.36 2.70
25 23 26.54 2.45 25.75 2.52 24.86 2.62 24.38 2.67 24.01 2.71 23.11 2.79
30 28 29.70 2.53 28.78 2.62 27.79 2.70 27.28 2.76 26.87 2.80 25.89 2.87
35 32 32.86 2.61 31.81 2.71 30.73 2.77 30.18 2.84 29.74 2.89 28.66 2.96
40 36 34.53 2.69 33.56 2.78 32.49 2.86 31.93 2.92 31.48 2.97 30.34 3.05
45 41 36.63 2.78 35.75 2.88 34.70 2.97 34.12 3.02 33.66 3.06 32.44 3.15
47 43 37.47 2.82 36.63 2.91 35.58 3.01 35.00 3.06 34.53 3.10 33.28 3.19
50 46 37.58 2.80 36.82 2.89 35.91 2.97 35.39 3.02 34.97 3.05 33.79 3.13
55 51 37.76 2.77 37.13 2.84 36.45 2.91 36.03 2.94 35.69 2.97 34.64 3.03
60 56 37.94 2.74 37.45 2.80 36.99 2.85 36.67 2.87 36.42 2.89 35.49 2.93
63 59 38.05 2.73 37.64 2.77 37.31 2.81 37.06 2.83 36.85 2.84 36.00 2.87
68 64 38.16 2.71 37.83 2.74 37.64 2.78 37.45 2.78 37.29 2.79 36.51 2.81
12 + 24
-4 -4.4 7.85 2.16 7.50 2.25 7.16 2.28 7.11 2.29 7.06 2.30 6.72 2.39
0 -0.4 11.39 2.20 10.63 2.29 10.52 2.32 10.38 2.34 10.27 2.36 9.83 2.44
5 4.5 15.60 2.25 14.84 2.33 14.50 2.38 14.28 2.40 14.09 2.43 13.52 2.51
10 9 18.42 2.29 17.66 2.37 17.18 2.43 16.88 2.46 16.65 2.49 15.99 2.57
17 15 21.52 2.35 20.77 2.42 20.11 2.50 19.75 2.54 19.46 2.57 18.71 2.64
20 19 23.40 2.38 22.65 2.46 21.89 2.54 21.49 2.59 21.16 2.62 20.36 2.70
25 23 26.54 2.45 25.75 2.52 24.86 2.62 24.38 2.67 24.01 2.71 23.11 2.79
30 28 29.70 2.53 28.78 2.62 27.79 2.70 27.28 2.76 26.87 2.80 25.89 2.87
35 32 32.86 2.61 31.81 2.71 30.73 2.77 30.18 2.84 29.74 2.89 28.66 2.96
40
36 34.53 2.69 33.56 2.78 32.49 2.86 31.93 2.92 31.48 2.97 30.34 3.05
45 41 36.63 2.78 35.75 2.88 34.70 2.97 34.12 3.02 33.66 3.06 32.44 3.15
47 43 37.47 2.82 36.63 2.91 35.58 3.01 35.00 3.06 34.53 3.10 33.28 3.19
50 46 37.58 2.80 36.82 2.89 35.91 2.97 35.39 3.02 34.97 3.05 33.79 3.13
55 51 37.76 2.77 37.13 2.84 36.45 2.91 36.03 2.94 35.69 2.97 34.64 3.03
60 56 37.94 2.74 37.45 2.80 36.99 2.85 36.67 2.87 36.42 2.89 35.49 2.93
63 59 38.05 2.73 37.64 2.77 37.31 2.81 37.06 2.83 36.85 2.84 36.00 2.87
68 64 38.16 2.71 37.83 2.74 37.64 2.78 37.45 2.78 37.29 2.79 36.51 2.81
15 + 24
-4 -4.4 7.85 2.16 7.50 2.25 7.16 2.28 7.11 2.29 7.06 2.30 6.72 2.39
0 -0.4 11.39 2.20 10.63 2.29 10.52 2.32 10.38 2.34 10.27 2.36 9.83 2.44
5 4.5 15.60 2.25 14.84 2.33 14.50 2.38 14.28 2.40 14.09 2.43 13.52 2.51
10 9 18.42 2.29 17.66 2.37 17.18 2.43 16.88 2.46 16.65 2.49 15.99 2.57
17 15 21.52 2.35 20.77 2.42 20.11 2.50 19.75 2.54 19.46 2.57 18.71 2.64
20 19 23.40 2.38 22.65 2.46 21.89 2.54 21.49 2.59 21.16 2.62 20.36 2.70
25 23 26.54 2.45 25.75 2.52 24.86 2.62 24.38 2.67 24.01 2.71 23.11 2.79
30 28 29.70 2.53 28.78 2.62 27.79 2.70 27.28 2.76 26.87 2.80 25.89 2.87
35 32 32.86 2.61 31.81 2.71 30.73 2.77 30.18 2.84 29.74 2.89 28.66 2.96
40 36 34.53 2.69 33.56 2.78 32.49 2.86 31.93 2.92 31.48 2.97 30.34 3.05
45 41 36.63 2.78 35.75 2.88 34.70 2.97 34.12 3.02 33.66 3.06 32.44 3.15
47 43 37.47 2.82 36.63 2.91 35.58 3.01 35.00 3.06 34.53 3.10 33.28 3.19
50 46 37.58 2.80 36.82 2.89 35.91 2.97 35.39 3.02 34.97 3.05 33.79 3.13
55 51 37.76 2.77 37.13 2.84 36.45 2.91 36.03 2.94 35.69 2.97 34.64 3.03
60 56 37.94 2.74 37.45 2.80 36.99 2.85 36.67 2.87 36.42 2.89 35.49 2.93
63 59 38.05 2.73 37.64 2.77 37.31 2.81 37.06 2.83 36.85 2.84 36.00 2.87
68 64 38.16 2.71 37.83 2.74 37.64 2.78 37.45 2.78 37.29 2.79 36.51 2.81
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 255
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Table 248: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
*The indoor unit must be non-ducted type.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Two (2) Mixed
Indoor Units
18 + 24*
-4 -4.4 7.85 2.16 7.50 2.25 7.16 2.28 7.11 2.29 7.06 2.30 6.72 2.39
0 -0.4 11.39 2.20 10.63 2.29 10.52 2.32 10.38 2.34 10.27 2.36 9.83 2.44
5 4.5 15.60 2.25 14.84 2.33 14.50 2.38 14.28 2.40 14.09 2.43 13.52 2.51
10 9 18.42 2.29 17.66 2.37 17.18 2.43 16.88 2.46 16.65 2.49 15.99 2.57
17 15 21.52 2.35 20.77 2.42 20.11 2.50 19.75 2.54 19.46 2.57 18.71 2.64
20 19 23.40 2.38 22.65 2.46 21.89 2.54 21.49 2.59 21.16 2.62 20.36 2.70
25 23 26.54 2.45 25.75 2.52 24.86 2.62 24.38 2.67 24.01 2.71 23.11 2.79
30 28 29.70 2.53 28.78 2.62 27.79 2.70 27.28 2.76 26.87 2.80 25.89 2.87
35 32 32.86 2.61 31.81 2.71 30.73 2.77 30.18 2.84 29.74 2.89 28.66 2.96
40 36 34.53 2.69 33.56 2.78 32.49 2.86 31.93 2.92 31.48 2.97 30.34 3.05
45 41 36.63 2.78 35.75 2.88 34.70 2.97 34.12 3.02 33.66 3.06 32.44 3.15
47 43 37.47 2.82 36.63 2.91 35.58 3.01 35.00 3.06 34.53 3.10 33.28 3.19
50 46 37.58 2.80 36.82 2.89 35.91 2.97 35.39 3.02 34.97 3.05 33.79 3.13
55 51 37.76 2.77 37.13 2.84 36.45 2.91 36.03 2.94 35.69 2.97 34.64 3.03
60 56 37.94 2.74 37.45 2.80 36.99 2.85 36.67 2.87 36.42 2.89 35.49 2.93
63 59 38.05 2.73 37.64 2.77 37.31 2.81 37.06 2.83 36.85 2.84 36.00 2.87
68 64 38.16 2.71 37.83 2.74 37.64 2.78 37.45 2.78 37.29 2.79 36.51 2.81
24 + 24*
-4 -4.4 7.85 2.16 7.50 2.25 7.16 2.28 7.11 2.29 7.06 2.30 6.72 2.39
0 -0.4 11.39 2.20 10.63 2.29 10.52 2.32 10.38 2.34 10.27 2.36 9.83 2.44
5 4.5 15.60 2.25 14.84 2.33 14.50 2.38 14.28 2.40 14.09 2.43 13.52 2.51
10 9 18.42 2.29 17.66 2.37 17.18 2.43 16.88 2.46 16.65 2.49 15.99 2.57
17 15 21.52 2.35 20.77 2.42 20.11 2.50 19.75 2.54 19.46 2.57 18.71 2.64
20 19 23.40 2.38 22.65 2.46 21.89 2.54 21.49 2.59 21.16 2.62 20.36 2.70
25 23 26.54 2.45 25.75 2.52 24.86 2.62 24.38 2.67 24.01 2.71 23.11 2.79
30 28 29.70 2.53 28.78 2.62 27.79 2.70 27.28 2.76 26.87 2.80 25.89 2.87
35 32 32.86 2.61 31.81 2.71 30.73 2.77 30.18 2.84 29.74 2.89 28.66 2.96
40
36 34.53 2.69 33.56 2.78 32.49 2.86 31.93 2.92 31.48 2.97 30.34 3.05
45 41 36.63 2.78 35.75 2.88 34.70 2.97 34.12 3.02 33.66 3.06 32.44 3.15
47 43 37.47 2.82 36.63 2.91 35.58 3.01 35.00 3.06 34.53 3.10 33.28 3.19
50 46 37.58 2.80 36.82 2.89 35.91 2.97 35.39 3.02 34.97 3.05 33.79 3.13
55 51 37.76 2.77 37.13 2.84 36.45 2.91 36.03 2.94 35.69 2.97 34.64 3.03
60 56 37.94 2.74 37.45 2.80 36.99 2.85 36.67 2.87 36.42 2.89 35.49 2.93
63 59 38.05 2.73 37.64 2.77 37.31 2.81 37.06 2.83 36.85 2.84 36.00 2.87
68 64 38.16 2.71 37.83 2.74 37.64 2.78 37.45 2.78 37.29 2.79 36.51 2.81
Three (3) Mixed
Indoor Units
7 + 7 + 9
-4 -4.4 5.52 1.66 5.27 1.73 5.03 1.75 4.99 1.76 4.96 1.77 4.72 1.84
0 -0.4 8.01 1.69 7.47 1.76 7.39 1.78 7.30 1.80 7.22 1.81 6.91 1.88
5 4.5 10.96 1.73 10.43 1.79 10.19 1.83 10.03 1.85 9.90 1.86 9.50 1.93
10 9 12.94 1.76 12.42 1.82 12.07 1.86 11.87 1.89 11.70 1.91 11.24 1.97
17 15 15.12 1.80 14.60 1.86 14.14 1.92 13.88 1.95 13.68 1.97 13.15 2.03
20 19 16.44 1.83 15.92 1.89 15.39 1.95 15.10 1.99 14.87 2.02 14.31 2.07
25 23 18.65 1.88 18.10 1.94 17.47 2.01 17.14 2.05 16.87 2.08 16.24 2.14
30 28 20.87 1.94 20.23 2.01 19.53 2.07 19.18 2.12 18.89 2.15 18.19 2.21
35 32 23.10 2.01 22.36 2.08 21.60 2.13 21.21 2.18 20.90 2.22 20.15 2.27
40 36 24.27 2.06 23.59 2.14 22.84 2.20 22.44 2.24 22.13 2.28 21.33 2.34
45 41 25.74 2.14 25.13 2.21 24.39 2.28 23.98 2.32 23.66 2.35 22.80 2.42
47 43 26.33 2.17 25.74 2.24 25.01 2.31 24.60 2.35 24.27 2.38 23.39 2.45
50 46 26.41 2.15 25.88 2.22 25.24 2.28 24.87 2.32 24.58 2.34 23.75 2.41
55 51 26.54 2.13 26.10 2.18 25.62 2.23 25.32 2.26 25.09 2.28 24.35 2.33
60 56 26.67 2.11 26.32 2.15 26.00 2.19 25.77 2.20 25.60 2.22 24.94 2.25
63 59 26.75 2.09 26.45 2.13 26.23 2.16 26.05 2.17 25.90 2.18 25.30 2.21
68 64 26.82 2.08 26.59 2.11 26.46 2.13 26.32 2.14 26.21 2.14 25.66 2.16
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
256 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 249: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 9 + 9
-4 -4.4 6.00 1.78 5.73 1.85 5.47 1.87 5.43 1.88 5.40 1.89 5.13 1.96
0 -0.4 8.70 1.81 8.12 1.87 8.03 1.90 7.93 1.92 7.85 1.93 7.51 2.00
5 4.5 11.92 1.84 11.34 1.91 11.08 1.95 10.91 1.97 10.77 1.99 10.33 2.06
10 9 14.07 1.88 13.50 1.94 13.12 1.99 12.90 2.02 12.72 2.04 12.22 2.10
17 15 16.44 1.92 15.87 1.99 15.37 2.05 15.09 2.08 14.87 2.11 14.29 2.17
20 19 17.87 1.95 17.30 2.01 16.73 2.08 16.42 2.12 16.17 2.15 15.55 2.21
25 23 20.27 2.01 19.67 2.07 18.99 2.15 18.63 2.19 18.34 2.23 17.65 2.28
30 28 22.69 2.08 21.99 2.15 21.23 2.21 20.84 2.26 20.53 2.30 19.78 2.36
35 32 25.11 2.14 24.31 2.22 23.48 2.28 23.06 2.33 22.72 2.37 21.90 2.43
40 36 26.38 2.20 25.64 2.28 24.83 2.35 24.40 2.40 24.05 2.43 23.18 2.50
45 41 27.98 2.28 27.32 2.36 26.51 2.43 26.07 2.48 25.72 2.51 24.78 2.59
47 43 28.62 2.31 27.98 2.39 27.18 2.47 26.74 2.51 26.38 2.54 25.43 2.62
50 46 28.71 2.30 28.13 2.37 27.43 2.44 27.03 2.47 26.72 2.50 25.81 2.57
55 51 28.85 2.28 28.37 2.33 27.85 2.39 27.53 2.41 27.27 2.44 26.46 2.49
60 56 28.99 2.25 28.61 2.29 28.26 2.34 28.02 2.35 27.82 2.37 27.11 2.41
63 59 29.07 2.24 28.75 2.27 28.51 2.31 28.31 2.32 28.16 2.33 27.50 2.36
68 64 29.16 2.22 28.90 2.25 28.76 2.28 28.61 2.28 28.49 2.29 27.90 2.31
7 + 7 + 12
-4 -4.4 6.24 1.80 5.96 1.88 5.69 1.90 5.65 1.91 5.61 1.92 5.34 1.99
0 -0.4 9.05 1.83 8.44 1.90 8.36 1.93 8.25 1.95 8.16 1.97 7.81 2.04
5 4.5 12.39 1.87 11.79 1.94 11.53 1.98 11.34 2.00 11.20 2.02 10.74 2.09
10 9 14.63 1.91 14.04 1.97 13.65 2.02 13.41 2.05 13.23 2.07 12.71 2.14
17 15 17.10 1.95 16.50 2.02 15.98 2.08 15.69 2.11 15.46 2.14 14.87 2.20
20 19 18.59 1.99 18.00 2.05 17.40 2.12 17.07 2.16 16.82 2.19 16.18 2.25
25 23 21.09 2.04 20.46 2.10 19.75 2.18 19.38 2.23 19.08 2.26 18.36 2.32
30 28 23.60 2.11 22.87 2.18 22.08 2.25 21.68 2.30 21.35 2.34 20.57 2.39
35 32 26.11 2.18 25.28 2.25 24.42 2.31 23.98 2.37 23.63 2.41 22.77 2.47
40
36 27.44 2.24 26.67 2.32 25.82 2.38 25.37 2.43 25.01 2.47 24.11 2.54
45 41 29.10 2.32 28.41 2.40 27.57 2.47 27.11 2.52 26.75 2.55 25.78 2.63
47 43 29.77 2.35 29.10 2.43 28.27 2.51 27.81 2.55 27.44 2.58 26.44 2.66
50 46 29.86 2.34 29.25 2.41 28.53 2.48 28.12 2.51 27.79 2.54 26.85 2.61
55 51 30.00 2.31 29.50 2.37 28.96 2.43 28.63 2.45 28.36 2.47 27.52 2.53
60 56 30.15 2.29 29.76 2.33 29.39 2.37 29.14 2.39 28.94 2.41 28.20 2.44
63 59 30.24 2.27 29.91 2.31 29.65 2.34 29.44 2.36 29.28 2.36 28.60 2.39
68 64 30.32 2.26 30.06 2.29 29.91 2.31 29.75 2.32 29.63 2.32 29.01 2.34
9 + 9 + 9
-4 -4.4 6.48 1.83 6.19 1.90 5.91 1.93 5.86 1.94 5.83 1.95 5.54 2.02
0 -0.4 9.40 1.86 8.77 1.93 8.68 1.97 8.57 1.98 8.48 2.00 8.11 2.07
5 4.5 12.87 1.90 12.25 1.97 11.97 2.01 11.78 2.03 11.63 2.05 11.15 2.12
10 9 15.20 1.94 14.58 2.00 14.17 2.05 13.93 2.08 13.74 2.11 13.19 2.17
17 15 17.75 1.99 17.14 2.05 16.60 2.11 16.30 2.15 16.06 2.18 15.44 2.24
20 19 19.30 2.02 18.69 2.08 18.07 2.15 17.73 2.19 17.46 2.22 16.80 2.28
25 23 21.90 2.08 21.25 2.14 20.51 2.22 20.12 2.26 19.81 2.30 19.06 2.36
30 28 24.51 2.14 23.75 2.21 22.93 2.28 22.51 2.33 22.17 2.37 21.36 2.43
35 32 27.11 2.21 26.25 2.29 25.36 2.35 24.90 2.40 24.54 2.45 23.65 2.51
40 36 28.50 2.28 27.70 2.35 26.81 2.42 26.35 2.47 25.98 2.51 25.04 2.58
45 41 30.22 2.36 29.50 2.43 28.63 2.51 28.16 2.56 27.78 2.59 26.77 2.67
47 43 30.91 2.39 30.22 2.47 29.36 2.55 28.88 2.59 28.50 2.63 27.46 2.70
50 46 31.00 2.37 30.38 2.44 29.63 2.52 29.20 2.55 28.85 2.58 27.88 2.65
55 51 31.16 2.35 30.64 2.41 30.07 2.46 29.73 2.49 29.45 2.51 28.58 2.57
60 56 31.31 2.32 30.90 2.37 30.52 2.41 30.26 2.43 30.05 2.44 29.28 2.48
63 59 31.40 2.31 31.06 2.35 30.79 2.38 30.58 2.39 30.41 2.40 29.70 2.43
68 64 31.49 2.29 31.21 2.32 31.06 2.35 30.90 2.36 30.77 2.36 30.13 2.38
MULTI F OUTDOOR UNIT | 257
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Table 250: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 9 + 12
-4 -4.4 6.71 1.87 6.42 1.94 6.12 1.96 6.08 1.98 6.04 1.99 5.75 2.06
0 -0.4 9.74 1.90 9.09 1.97 9.00 2.00 8.88 2.02 8.79 2.03 8.41 2.11
5 4.5 13.34 1.94 12.70 2.01 12.41 2.05 12.21 2.07 12.05 2.09 11.56 2.16
10 9 15.75 1.98 15.11 2.04 14.69 2.09 14.44 2.12 14.24 2.15 13.68 2.21
17 15 18.41 2.02 17.77 2.09 17.21 2.15 16.89 2.19 16.65 2.22 16.01 2.28
20 19 20.01 2.06 19.38 2.12 18.73 2.19 18.38 2.23 18.10 2.26 17.42 2.33
25 23 22.70 2.12 22.03 2.18 21.26 2.26 20.86 2.30 20.54 2.34 19.76 2.40
30 28 25.41 2.18 24.62 2.26 23.77 2.33 23.34 2.38 22.99 2.42 22.14 2.48
35 32 28.11 2.25 27.21 2.33 26.29 2.39 25.82 2.45 25.44 2.49 24.52 2.56
40 36 29.54 2.32 28.71 2.40 27.80 2.47 27.32 2.52 26.93 2.56 25.95 2.63
45 41 31.33 2.40 30.58 2.48 29.68 2.56 29.19 2.61 28.80 2.64 27.75 2.72
47 43 32.05 2.43 31.33 2.51 30.44 2.60 29.94 2.64 29.54 2.68 28.47 2.76
50 46 32.14 2.42 31.49 2.49 30.71 2.56 30.27 2.60 29.91 2.63 28.90 2.70
55 51 32.30 2.39 31.76 2.45 31.18 2.51 30.82 2.54 30.53 2.56 29.63 2.62
60 56 32.46 2.37 32.03 2.41 31.64 2.46 31.37 2.48 31.15 2.49 30.36 2.53
63 59 32.55 2.35 32.20 2.39 31.92 2.43 31.70 2.44 31.52 2.45 30.79 2.48
68 64 32.65 2.34 32.36 2.37 32.20 2.39 32.03 2.40 31.90 2.41 31.23 2.43
9 + 9 + 12
-4 -4.4 7.19 1.95 6.88 2.03 6.56 2.05 6.51 2.07 6.47 2.08 6.16 2.16
0 -0.4 10.44 1.99 9.74 2.06 9.64 2.09 9.52 2.11 9.42 2.13 9.01 2.20
5 4.5 14.30 2.03 13.60 2.10 13.29 2.14 13.08 2.17 12.92 2.19 12.39 2.26
10 9 16.88 2.06 16.19 2.14 15.74 2.19 15.47 2.22 15.26 2.24 14.66 2.31
17 15 19.72 2.12 19.04 2.18 18.44 2.25 18.10 2.29 17.84 2.32 17.15 2.39
20 19 21.44 2.15 20.76 2.21 20.07 2.29 19.70 2.33 19.40 2.37 18.66 2.43
25 23 24.32 2.21 23.60 2.28 22.78 2.36 22.35 2.41 22.01 2.45 21.18 2.51
30 28 27.22 2.28 26.38 2.36 25.47 2.43 25.01 2.49 24.63 2.53 23.73 2.59
35 32 30.12 2.36 29.16 2.44 28.17 2.50 27.66 2.56 27.26 2.61 26.27 2.67
40
36 31.65 2.42 30.76 2.51 29.78 2.58 29.27 2.63 28.85 2.68 27.81 2.75
45 41 33.57 2.51 32.77 2.59 31.80 2.68 31.28 2.72 30.85 2.76 29.73 2.84
47 43 34.34 2.54 33.57 2.63 32.61 2.71 32.08 2.76 31.65 2.80 30.50 2.88
50 46 34.44 2.53 33.75 2.60 32.91 2.68 32.43 2.72 32.05 2.75 30.97 2.83
55 51 34.61 2.50 34.03 2.56 33.41 2.62 33.02 2.65 32.72 2.68 31.75 2.74
60 56 34.78 2.48 34.32 2.52 33.90 2.57 33.61 2.59 33.38 2.60 32.53 2.64
63 59 34.88 2.46 34.50 2.50 34.20 2.54 33.97 2.55 33.78 2.56 32.99 2.59
68 64 34.98 2.44 34.67 2.47 34.50 2.50 34.32 2.51 34.18 2.52 33.47 2.54
7 + 9 + 15
-4 -4.4 7.43 1.99 7.11 2.07 6.78 2.10 6.73 2.11 6.69 2.12 6.36 2.20
0 -0.4 10.79 2.03 10.06 2.11 9.96 2.14 9.83 2.16 9.73 2.17 9.31 2.25
5 4.5 14.77 2.07 14.06 2.15 13.74 2.19 13.52 2.22 13.35 2.24 12.80 2.31
10 9 17.44 2.11 16.73 2.18 16.27 2.24 15.99 2.27 15.77 2.29 15.15 2.36
17 15 20.38 2.16 19.67 2.23 19.05 2.30 18.71 2.34 18.43 2.37 17.72 2.44
20 19 22.16 2.20 21.45 2.26 20.74 2.34 20.35 2.38 20.04 2.42 19.28 2.49
25 23 25.13 2.26 24.39 2.33 23.54 2.41 23.10 2.46 22.74 2.50 21.88 2.57
30 28 28.13 2.33 27.26 2.41 26.32 2.48 25.84 2.54 25.45 2.58 24.52 2.65
35 32 31.12 2.41 30.13 2.49 29.11 2.56 28.58 2.62 28.16 2.66 27.15 2.73
40 36 32.71 2.48 31.79 2.56 30.78 2.64 30.24 2.69 29.82 2.74 28.74 2.81
45 41 34.69 2.57 33.86 2.65 32.87 2.73 32.32 2.78 31.88 2.82 30.72 2.91
47 43 35.48 2.60 34.69 2.69 33.70 2.77 33.15 2.82 32.71 2.86 31.52 2.94
50 46 35.59 2.58 34.87 2.66 34.01 2.74 33.52 2.78 33.12 2.81 32.00 2.89
55 51 35.76 2.56 35.17 2.62 34.52 2.68 34.12 2.71 33.81 2.74 32.81 2.80
60 56 35.94 2.53 35.47 2.58 35.03 2.63 34.73 2.65 34.49 2.66 33.61 2.70
63 59 36.04 2.51 35.65 2.55 35.34 2.59 35.10 2.60 34.90 2.62 34.09 2.65
68 64 36.15 2.50 35.83 2.53 35.65 2.56 35.47 2.57 35.32 2.57 34.58 2.59
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
258 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 251: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 12 + 12
-4 -4.4 7.43 1.99 7.11 2.07 6.78 2.10 6.73 2.11 6.69 2.12 6.36 2.20
0 -0.4 10.79 2.03 10.06 2.11 9.96 2.14 9.83 2.16 9.73 2.17 9.31 2.25
5 4.5 14.77 2.07 14.06 2.15 13.74 2.19 13.52 2.22 13.35 2.24 12.80 2.31
10 9 17.44 2.11 16.73 2.18 16.27 2.24 15.99 2.27 15.77 2.29 15.15 2.36
17 15 20.38 2.16 19.67 2.23 19.05 2.30 18.71 2.34 18.43 2.37 17.72 2.44
20 19 22.16 2.20 21.45 2.26 20.74 2.34 20.35 2.38 20.04 2.42 19.28 2.49
25 23 25.13 2.26 24.39 2.33 23.54 2.41 23.10 2.46 22.74 2.50 21.88 2.57
30 28 28.13 2.33 27.26 2.41 26.32 2.48 25.84 2.54 25.45 2.58 24.52 2.65
35 32 31.12 2.41 30.13 2.49 29.11 2.56 28.58 2.62 28.16 2.66 27.15 2.73
40 36 32.71 2.48 31.79 2.56 30.78 2.64 30.24 2.69 29.82 2.74 28.74 2.81
45 41 34.69 2.57 33.86 2.65 32.87 2.73 32.32 2.78 31.88 2.82 30.72 2.91
47 43 35.48 2.60 34.69 2.69 33.70 2.77 33.15 2.82 32.71 2.86 31.52 2.94
50 46 35.59 2.58 34.87 2.66 34.01 2.74 33.52 2.78 33.12 2.81 32.00 2.89
55 51 35.76 2.56 35.17 2.62 34.52 2.68 34.12 2.71 33.81 2.74 32.81 2.80
60 56 35.94 2.53 35.47 2.58 35.03 2.63 34.73 2.65 34.49 2.66 33.61 2.70
63 59 36.04 2.51 35.65 2.55 35.34 2.59 35.10 2.60 34.90 2.62 34.09 2.65
68 64 36.15 2.50 35.83 2.53 35.65 2.56 35.47 2.57 35.32 2.57 34.58 2.59
7 + 7 + 18
-4 -4.4 7.67 2.04 7.34 2.12 7.00 2.14 6.95 2.16 6.90 2.17 6.57 2.25
0 -0.4 11.14 2.07 10.39 2.15 10.28 2.19 10.15 2.20 10.05 2.22 9.61 2.30
5 4.5 15.25 2.12 14.51 2.19 14.18 2.24 13.96 2.26 13.78 2.28 13.22 2.36
10 9 18.01 2.15 17.27 2.23 16.79 2.28 16.51 2.32 16.28 2.34 15.63 2.42
17 15 21.04 2.21 20.31 2.28 19.67 2.35 19.31 2.39 19.03 2.42 18.29 2.49
20 19 22.87 2.24 22.15 2.31 21.41 2.39 21.01 2.44 20.69 2.47 19.91 2.54
25 23 25.95 2.31 25.18 2.37 24.30 2.46 23.84 2.51 23.47 2.55 22.59 2.62
30 28 29.04 2.38 28.14 2.46 27.17 2.54 26.67 2.59 26.27 2.64 25.31 2.70
35 32 32.13 2.46 31.10 2.55 30.05 2.61 29.51 2.67 29.07 2.72 28.02 2.79
40
36 33.77 2.53 32.82 2.62 31.77 2.69 31.22 2.75 30.78 2.79 29.66 2.87
45 41 35.81 2.62 34.96 2.71 33.93 2.79 33.36 2.84 32.91 2.88 31.72 2.97
47 43 36.63 2.66 35.81 2.74 34.79 2.83 34.22 2.88 33.77 2.92 32.54 3.01
50 46 36.74 2.64 36.00 2.72 35.11 2.80 34.60 2.84 34.19 2.87 33.04 2.95
55 51 36.92 2.61 36.31 2.68 35.63 2.74 35.23 2.77 34.90 2.80 33.87 2.85
60 56 37.10 2.58 36.61 2.63 36.16 2.68 35.85 2.70 35.61 2.72 34.70 2.76
63 59 37.20 2.57 36.80 2.61 36.48 2.65 36.23 2.66 36.03 2.67 35.19 2.70
68 64 37.31 2.55 36.98 2.58 36.80 2.61 36.61 2.62 36.46 2.63 35.70 2.65
9 + 9 + 15
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
MULTI F OUTDOOR UNIT | 259
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Table 252: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
9 + 12 + 12
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
7 + 9 + 18
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40
36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
7 + 12 + 15
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
260 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 253: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
PERFORMANCE DATA
Heating Capacity Tables
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
9 + 9 + 18
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
9 + 12 + 15
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40
36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
12 + 12 + 12
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
MULTI F OUTDOOR UNIT | 261
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 254: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 12 + 18
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
7 + 7 + 24
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40
36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
9 + 12 + 18
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
262 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 255: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
9 + 15 + 15
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
12 + 12 + 15
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40
36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
7 + 9 + 24
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 263
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 256: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
*The indoor unit must be non-ducted type.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 15 + 18
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
9 + 9 + 24*
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40
36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
9 + 15 + 18
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
264 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 257: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
*The indoor unit must be non-ducted type.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
12 + 12 + 18
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
12 + 15 + 15
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40
36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
7 + 12 + 24*
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 265
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 258: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
*The indoor unit must be non-ducted type.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
7 + 18 + 18
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
9 + 12 + 24*
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40
36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
9 + 18 + 18
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
266 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 259: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
*The indoor unit must be non-ducted type.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
12 + 15 + 18
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
7 + 15 + 24*
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40
36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
9 + 15 + 24*
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 267
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 260: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
*The indoor unit must be non-ducted type.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Three (3) Mixed
Indoor Units
12 + 12 +
24*
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
12 + 18 + 18
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
15 + 15 + 18
-4 -4.4 7.85 2.04 7.50 2.12 7.16 2.14 7.11 2.16 7.06 2.17 6.72 2.25
0 -0.4 11.39 2.07 10.63 2.15 10.52 2.19 10.38 2.20 10.27 2.22 9.83 2.30
5 4.5 15.60 2.12 14.84 2.19 14.50 2.24 14.28 2.26 14.09 2.28 13.52 2.36
10 9 18.42 2.15 17.66 2.23 17.18 2.28 16.88 2.32 16.65 2.34 15.99 2.42
17 15 21.52 2.21 20.77 2.28 20.11 2.35 19.75 2.39 19.46 2.42 18.71 2.49
20 19 23.40 2.24 22.65 2.31 21.89 2.39 21.49 2.44 21.16 2.47 20.36 2.54
25 23 26.54 2.31 25.75 2.37 24.86 2.46 24.38 2.51 24.01 2.55 23.11 2.62
30 28 29.70 2.38 28.78 2.46 27.79 2.54 27.28 2.59 26.87 2.64 25.89 2.70
35 32 32.86 2.46 31.81 2.55 30.73 2.61 30.18 2.67 29.74 2.72 28.66 2.79
40 36 34.53 2.53 33.56 2.62 32.49 2.69 31.93 2.75 31.48 2.79 30.34 2.87
45 41 36.63 2.62 35.75 2.71 34.70 2.79 34.12 2.84 33.66 2.88 32.44 2.97
47 43 37.47 2.66 36.63 2.74 35.58 2.83 35.00 2.88 34.53 2.92 33.28 3.01
50 46 37.58 2.64 36.82 2.72 35.91 2.80 35.39 2.84 34.97 2.87 33.79 2.95
55 51 37.76 2.61 37.13 2.68 36.45 2.74 36.03 2.77 35.69 2.80 34.64 2.85
60 56 37.94 2.58 37.45 2.63 36.99 2.68 36.67 2.70 36.42 2.72 35.49 2.76
63 59 38.05 2.57 37.64 2.61 37.31 2.65 37.06 2.66 36.85 2.67 36.00 2.70
68 64 38.16 2.55 37.83 2.58 37.64 2.61 37.45 2.62 37.29 2.63 36.51 2.65
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
268 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 261: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 7 + 7
+ 9
-4 -4.4 7.19 1.94 6.88 2.02 6.56 2.04 6.51 2.05 6.47 2.06 6.16 2.14
0 -0.4 10.44 1.97 9.74 2.05 9.64 2.08 9.52 2.10 9.42 2.11 9.01 2.19
5 4.5 14.30 2.01 13.60 2.08 13.29 2.13 13.08 2.15 12.92 2.17 12.39 2.24
10 9 16.88 2.05 16.19 2.12 15.74 2.17 15.47 2.20 15.26 2.23 14.66 2.30
17 15 19.72 2.10 19.04 2.17 18.44 2.23 18.10 2.27 17.84 2.30 17.15 2.37
20 19 21.44 2.13 20.76 2.20 20.07 2.27 19.70 2.32 19.40 2.35 18.66 2.42
25 23 24.32 2.20 23.60 2.26 22.78 2.34 22.35 2.39 22.01 2.43 21.18 2.49
30 28 27.22 2.27 26.38 2.34 25.47 2.41 25.01 2.47 24.63 2.51 23.73 2.57
35 32 30.12 2.34 29.16 2.42 28.17 2.48 27.66 2.54 27.26 2.59 26.27 2.65
40 36 31.65 2.41 30.76 2.49 29.78 2.56 29.27 2.61 28.85 2.66 27.81 2.73
45 41 33.57 2.49 32.77 2.58 31.80 2.66 31.28 2.70 30.85 2.74 29.73 2.82
47 43 34.34 2.53 33.57 2.61 32.61 2.69 32.08 2.74 31.65 2.78 30.50 2.86
50 46 34.44 2.51 33.75 2.59 32.91 2.66 32.43 2.70 32.05 2.73 30.97 2.81
55 51 34.61 2.48 34.03 2.55 33.41 2.61 33.02 2.64 32.72 2.66 31.75 2.72
60 56 34.78 2.46 34.32 2.51 33.90 2.55 33.61 2.57 33.38 2.59 32.53 2.63
63 59 34.88 2.44 34.50 2.48 34.20 2.52 33.97 2.53 33.78 2.54 32.99 2.57
68 64 34.98 2.43 34.67 2.46 34.50 2.49 34.32 2.49 34.18 2.50 33.47 2.52
7 + 7 + 9
+ 9
-4 -4.4 7.67 1.97 7.34 2.05 7.00 2.08 6.95 2.09 6.90 2.10 6.57 2.18
0 -0.4 11.14 2.01 10.39 2.08 10.28 2.12 10.15 2.14 10.05 2.15 9.61 2.23
5 4.5 15.25 2.05 14.51 2.12 14.18 2.17 13.96 2.19 13.78 2.21 13.22 2.29
10 9 18.01 2.09 17.27 2.16 16.79 2.21 16.51 2.24 16.28 2.27 15.63 2.34
17 15 21.04 2.14 20.31 2.21 19.67 2.27 19.31 2.31 19.03 2.34 18.29 2.41
20 19 22.87 2.17 22.15 2.24 21.41 2.32 21.01 2.36 20.69 2.39 19.91 2.46
25 23 25.95 2.24 25.18 2.30 24.30 2.39 23.84 2.44 23.47 2.47 22.59 2.54
30 28 29.04 2.31 28.14 2.38 27.17 2.46 26.67 2.51 26.27 2.56 25.31 2.62
35 32 32.13 2.38 31.10 2.47 30.05 2.53 29.51 2.59 29.07 2.64 28.02
2.70
40 36 33.77 2.45 32.82 2.54 31.77 2.61 31.22 2.66 30.78 2.71 29.66 2.78
45 41 35.81 2.54 34.96 2.62 33.93 2.70 33.36 2.75 32.91 2.79 31.72 2.87
47 43 36.63 2.57 35.81 2.66 34.79 2.74 34.22 2.79 33.77 2.83 32.54 2.91
50 46 36.74 2.56 36.00 2.63 35.11 2.71 34.60 2.75 34.19 2.78 33.04 2.86
55 51 36.92 2.53 36.31 2.59 35.63 2.65 35.23 2.68 34.90 2.71 33.87 2.77
60 56 37.10 2.50 36.61 2.55 36.16 2.60 35.85 2.62 35.61 2.63 34.70 2.67
63 59 37.20 2.49 36.80 2.53 36.48 2.56 36.23 2.58 36.03 2.59 35.19 2.62
68 64 37.31 2.47 36.98 2.50 36.80 2.53 36.61 2.54 36.46 2.54 35.70 2.56
7 + 7 + 7
+ 12
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 269
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 262: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 9 + 9
+ 9
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
7 + 7 + 9
+ 12
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66
2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
9 + 9 + 9
+ 9
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
270 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 263: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 9 + 9
+ 12
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
7 + 7 + 9
+ 15
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66
2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
7 + 7 + 12
+ 12
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 271
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 264: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 7 + 7
+ 18
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
9 + 9 + 9
+ 12
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66
2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
7 + 9 + 9
+ 15
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
272 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 265: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 9 + 12
+ 12
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
7 + 7 + 9
+ 18
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66
2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
7 + 7 + 12
+ 15
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 273
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 266: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
9 + 9 + 9
+ 15
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
9 + 9 + 12
+ 12
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66
2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
7 + 9 + 9
+ 18
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
274 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 267: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 9 + 12
+ 15
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
7 + 12 + 12
+ 12
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66
2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
7 + 7 + 12
+ 18
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 275
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 268: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
*The indoor unit must be non-ducted type.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 7 + 7 +
24*
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
9 + 9 + 9
+ 18
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66
2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
9 + 9 + 12
+ 15
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
276 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 269: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
9 + 12 + 12
+ 12
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
7 + 9 + 12
+ 18
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66
2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
7 + 9 + 15
+ 15
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
PERFORMANCE DATA
Heating Capacity Tables
MULTI F OUTDOOR UNIT | 277
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 270: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
*The indoor unit must be non-ducted type.
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
7 + 12 + 12
+ 15
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
7 + 7 + 9 +
24*
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66
2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
7 + 7 + 15
+ 18
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
PERFORMANCE DATA
Heating Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
278 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Table 271: LMU36CHV Heating Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Connected Indoor
Units
Combination
Capacity
Index
Outdoor Air
Temp.
Indoor Air Temp. °F DB
°F
DB
°F
WB
61 64 68 70 72 75
TC PI TC PI TC PI TC PI TC PI TC PI
Four (4) Mixed
Indoor Units
9 + 9 + 12
+ 18
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
9 + 9 + 15
+ 15
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66
2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
12 + 12 + 12
+ 12
-4 -4.4 7.85 1.97 7.50 2.05 7.16 2.08 7.11 2.09 7.06 2.10 6.72 2.18
0 -0.4 11.39 2.01 10.63 2.08 10.52 2.12 10.38 2.14 10.27 2.15 9.83 2.23
5 4.5 15.60 2.05 14.84 2.12 14.50 2.17 14.28 2.19 14.09 2.21 13.52 2.29
10 9 18.42 2.09 17.66 2.16 17.18 2.21 16.88 2.24 16.65 2.27 15.99 2.34
17 15 21.52 2.14 20.77 2.21 20.11 2.27 19.75 2.31 19.46 2.34 18.71 2.41
20 19 23.40 2.17 22.65 2.24 21.89 2.32 21.49 2.36 21.16 2.39 20.36 2.46
25 23 26.54 2.24 25.75 2.30 24.86 2.39 24.38 2.44 24.01 2.47 23.11 2.54
30 28 29.70 2.31 28.78 2.38 27.79 2.46 27.28 2.51 26.87 2.56 25.89 2.62
35 32 32.86 2.38 31.81 2.47 30.73 2.53 30.18 2.59 29.74 2.64 28.66 2.70
40 36 34.53 2.45 33.56 2.54 32.49 2.61 31.93 2.66 31.48 2.71 30.34 2.78
45 41 36.63 2.54 35.75 2.62 34.70 2.70 34.12 2.75 33.66 2.79 32.44 2.87
47 43 37.47 2.57 36.63 2.66 35.58 2.74 35.00 2.79 34.53 2.83 33.28 2.91
50 46 37.58 2.56 36.82 2.63 35.91 2.71 35.39 2.75 34.97 2.78 33.79 2.86
55 51 37.76 2.53 37.13 2.59 36.45 2.65 36.03 2.68 35.69 2.71 34.64 2.77
60 56 37.94 2.50 37.45 2.55 36.99 2.60 36.67 2.62 36.42 2.63 35.49 2.67
63 59 38.05 2.49 37.64 2.53 37.31 2.56 37.06 2.58 36.85 2.59 36.00 2.62
68 64 38.16 2.47 37.83 2.50 37.64 2.53 37.45 2.54 37.29 2.54 36.51 2.56
MULTI F OUTDOOR UNIT | 279
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Electrical and Acoustic Data
MULTI F OUTDOOR UNIT
Nominal
Tons
Unit Model No. Hertz Voltage
Voltage
Range
(Min. to Max.)
MCA MOP
Compressor
Quantity
Compressor
Motor RLA
Outdoor Fan Motor
Indoor
Fan Motor
kW FLA FLA
1.5 LMU18CHV
60 208 - 230 187 - 253
13.3 20 1 8.9 0.09 0.59 1.60
2 LMU24CHV 14.3 20 1 9.4 0.09 0.59 2.00
3 LMU36CHV 17.9 25 1 11.2 0.12 0.73 3.20
Voltage tolerance is ±10%.
Maximum allowable voltage unbalance is 2%.
RLA = Rated Load Amps.
MCA = Minimum Circuit Ampacity.
Maximum Overcurrent Protection (MOP) is calculated as follows:
(Largest motor FLA x 2.25) + (Sum of other motor FLA) rounded
down to the nearest standard fuse size.
Indoor Fan Motor (FLA) is based on the maximum combination of
indoor units.
The max combination for each outdoor unit is:
- 18,000 ODU (LMU18CHV): 12,000 IDU x 2
- 24,000 ODU (LMU24CHV): 12,000 IDU x 2 + 9,000 IDU x 1
- 36,000 ODU (LMU36CHV): 12,000 IDU x 4
Table 272: Electrical Data.
• Measurement taken 4.9′ above finished floor, and at a distance of
3.3′ from face of unit.
• Measurements taken with no attenuation and units operating at full
load normal operating condition.
• Sound level will vary depending on a range of factors such as
construction (acoustic absorption coefficient) of particular area in
which the equipment is installed.
• Sound level may be increased in static pressure mode or if air
guide is used.
• Sound pressure levels are measured in dB(A)±3.
• Tested in anechoic chamber per ISO Standard 3745.
Model No. Sound Pressure Level (dB[A])
Cooling Heating
LMU18CHV 49 52
LMU24CHV 49 52
LMU36CHV 52 55
Electrical Data
Acoustic Data
4.9 feet
3.3 feet
Microphone
Figure 9: Acoustic Measurement Location.
Figure 10: Sound Pressure Level Diagrams.
Table 273: Sound Pressure Levels (dB[A]).
Octave Band Center Frequency (Hz)
Octave Band Sound Pressure Level (0dB = 20μPa)
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
Octave Band Center Frequency (Hz)
Octave Band Sound Pressure Level (0dB = 20μPa)
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
Octave Band Center Frequency (Hz)
Octave Band Sound Pressure Level (0dB = 20μPa)
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
LMU18CHV LMU24CHV LMU36CHV
▲Cooling
Heating
▲Cooling
Heating
▲Cooling
Heating
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
280 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Figure 11: LMU18CHV Refrigerant Flow Diagram.
Description PCB Connector
Condenser Outlet Temperature Thermistor CN_C/PIPE
Condensing Temperature Thermistor CN_MID
Inlet Air Temperature Thermistor CN_AIR
Discharge Temperature Thermistor CN_DISCHARGE
Suction Temperature Thermistor CN_SUCTION
Pressure Sensor CN_H/PRESS
Table 274: LMU18CHV Thermistor Details.
M
Discharge
Temperature
Thermistor
Suction
Temperature
Thermistor
Inverter
Compressor
Electronic
Expansion
Valve
Condenser Outlet
Strainer
Temperature
Thermistor
Inlet Air
Temperature
Thermistor
Outdoor Unit
Flare Connection
Flare Connection
Condensing
Temperature
Thermistor
ROOM A
ROOM A
ROOM B
: Cooling
: Heating
ROOM B
Main SVC V/V
Main SVC V/V
Pressure
Sensor
MULTI F OUTDOOR UNIT
Refrigerant Flow Diagram
MULTI F OUTDOOR UNIT | 281
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
MULTI F OUTDOOR UNIT
Refrigerant Flow Diagram
Table 275: LMU24CHV Thermistor Details.
Figure 12: LMU24CHV Refrigerant Flow Diagram.
M
Discharge
Temperature
Thermistor
Suction
Temperature
Thermistor
Inverter
Compressor
Electronic
Expansion
Valve
Condenser Outlet
Strainer
Temperature
Thermistor
Inlet Air
Temperature
Thermistor
Outdoor Unit
Flare Connection
Flare Connection
Condensing
Temperature
Thermistor
ROOM A
ROOM A
ROOM B
: Cooling
: Heating
ROOM B
ROOM C
Main SVC V/V
ROOM C
Main SVC V/V
Pressure
Sensor
Description PCB Connector
Condenser Outlet Temperature Thermistor CN_C/PIPE
Condensing Temperature Thermistor CN_MID
Inlet Air Temperature Thermistor CN_AIR
Discharge Temperature Thermistor CN_DISCHARGE
Suction Temperature Thermistor CN_SUCTION
Pressure Sensor CN_H/PRESS
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
282 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Figure 13: LMU36CHV Refrigerant Flow Diagram.
Table 276: LMU36CHV Thermistor Details.
MULTI F OUTDOOR UNIT
Refrigerant Flow Diagram
Description PCB Connector
Condensing Temperature Thermistor CN_TH4
Condenser Outlet Temperature Thermistor
CN_TH2
Inlet Air Temperature Thermistor
Discharge Temperature Thermistor
CN_TH3
Suction Temperature Thermistor
Pressure Sensor CN_TH1
M
Discharge
Temperature
Thermistor
Suction
Temperature
Thermistor
Inverter
Accumulator
Compressor
Electronic
Expansion
Valve
Strainer
Condenser Out
Temperature
Thermistor
Inlet Air
Temperature
Thermistor
Outdoor Unit
Flare Connection
Flare Connection
Condensing
Temperature
Thermistor
ROOM A
ROOM A
ROOM B
: Cooling
: Heating
ROOM B
ROOM C
ROOM D
Main SVC V/V
ROOM C
ROOM D
Main SVC V/V
Pressure
Sensor
MULTI F OUTDOOR UNIT | 283
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Figure 14: LMU18CHV Wiring Diagram.
MULTI F OUTDOOR UNIT
Wiring Diagram
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
284 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Figure 15: LMU24CHV Wiring Diagram.
MULTI F OUTDOOR UNIT
Wiring Diagram
MULTI F OUTDOOR UNIT | 285
Multi F Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
MULTI F OUTDOOR UNIT
Wiring Diagram
Figure 16: LMU36CHV Wiring Diagram.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
286 | MULTI F OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
MULTI F OUTDOOR UNIT
Cooling
Heating
Indoor Temperature (°F DB)
Outdoor Temperature (°F WB)
Continuous
Operation
Warming up
Operation
50 59 68 77 86 91.3
77
-4
0
5
14
23
32
41
50
59
64
68
-13
Indoor Temperature (°F WB)
41 50 57 59 68 77 82.4
Outdoor Temperature (°F DB)
-4
5
14
23
32
41
50
59
68
77
86
95
104
113
118
122
Continuous
Operation
81
Figure 17: Cooling and Heating Operation Ranges.
Operation Range
Cooling operation range can extend down to -4 °F outdoor temperature if Low Ambient Kit is installed (sold separately).
“Product Features and Benefits” on page 288
“Mechanical Specifications” on page 289
“General Data” on page 290
“Dimensions” on page 292
“Rated Cooling Combination Tables” on page 293
“Rated Heating Combination Tables” on page 296
“Cooling Capacity Tables ” on page 299
“Heating Capacity Tables” on page 316
“Electrical Data” on page 327
“Acoustic Data” on page 327
“Refrigerant Flow Diagrams” on page 328
“Wiring Diagrams” on page 329
“Operation Range” on page 330
MULTI F MAX
OUTDOOR UNIT DATA
MULTI F MAX OUTDOOR UNIT
Features and Benets
• Advanced climate control for up to eight (8)
zones
• Inverter (Variable speed compressor)
• DC inverter technology – load matches to
reduce power consumption
• Low ambient operation to 14ºF (DB, Cooling)
• Optional low ambient baffle kit allows
cooling operation down to -4ºF (DB)
• Heating operation down to -4ºF (WB)
• Defrost
• Restart delay (three [3] minutes)
• Self diagnosis
• Soft start
• Auto operation / auto restart operation
• Gold Fin™ anti-corrosion
Multi F MAX inverter-driven heat pump systems can operate up to eight indoor units, providing cooling or heating for an entire home and
zoning capabilities. Compact refrigerant pipes work in tandem with wiring to link the outdoor unit with all indoor units through a single or pair
of branch distribution (BD) unit(s). Most indoor units include its own remote control, allowing the user to set the temperature individually in
different rooms. The indoor units are available in a variety of capacities and styles, including Art Cool™ Mirror and Gallery Wall Mount,
Standard Wall Mount, Four-Way Ceiling Cassette, Horizontal Ceiling Concealed Duct, and Vertical-Horizontal Air Handling models.
Benefits
• Refrigerant piping lengths allow for extra design flexibility in indoor unit installation
• Easy installation: Little to no ductwork required; most indoor units can mount on any wall
• Indoor unit and outdoor unit dimensions ensure space saving convenience
• All-season use—heat pump models have both cooling and heating capabilities
Features
Figure 18: Multi F MAX Heat Pump Inverter System — Mix and match for 24,000-73,000 Btu/h.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
288 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Multi F MAX Heat Pump Condensing
Units
General
A Multi F MAX multi-zone system is comprised of one heat pump
outdoor unit connected up to eight indoor units through a branch
distribution unit (BD) using a single refrigerant piping circuit, and
includes integrated controls supplied by LG. Factory-designed and
supplied Y-branches may be used as well.
The outdoor unit is internally assembled, wired, and piped from the
factory; all LG components are manufactured in a facility registered
to ISO 9001 and ISO 14001, set by the International Organization for
Standardization (ISO). The LG Multi F MAX multi-zone heat pump
system components comply with Underwriters Laboratories (UL)
1995 Heating and Cooling Equipment Standard for Safety, and bear
the Electrical Testing Laboratories (ETL) mark. The units are certi-
fied to AHRI 210 / 240.
Temperature Ranges
The heat pump outdoor units are capable of operating in cooling
mode from 14°F to 118°F ambient dry bulb (installing an optional
Low Ambient Wind Baffle Kit will allow operation down to -4°F in
cooling mode for all Multi F systems). The heat pump outdoor units
are capable of operating in heating mode from -4°F to +64°F ambi-
ent wet bulb without additional low ambient controls.
Frame
Multi F MAX condensing unit case is constructed from pre-coated
metal that has been tested in accordance with ASTM B-117 salt
spray procedure for a minimum of 1,000 hours. Case has a remov-
able front panel to allow access to major components and control
devices, and legs to secure the unit during installation.
Refrigerant System
Multi F MAX systems have a single refrigerant circuit field piped with
a manufacturer-supplied BD unit(s) and Y-branches (if applicable) to
multiple (ducted, non-ducted or mixed) indoor units to effectively and
efficiently control the heating or cooling operation of the multi zone
system. All refrigerant lines from the outdoor unit to the BD unit(s)
and from the BD unit(s) to indoor units are field-installed and must
be insulated separately.
Multi F MAX systems use R410A refrigerant. The outdoor units are
equipped with a refrigerant strainer, check valves, oil separator,
accumulator, four-way reversing valve, electronic expansion valve(s)
(EEV), high side and low side refrigerant charging ports, and a
service port. The outdoor unit also includes sensors for suction tem-
perature, discharge temperature, high-pressure, low-pressure, heat
exchanger temperature, and outdoor temperature conditions.
Refrigeration Oil Control
The outdoor unit has an oil separator to separate oil mixed with the
refrigerant gas during compression and return oil to the compressor.
The outdoor unit also has an oil injection mechanism to ensure a
consistent film of oil on all moving compressor parts at low speed.
Compressor
Multi F condensing units are equipped with one hermetically sealed,
digitally controlled, inverter driven twin-rotary compressor that
includes Teflon™ coated bearings. The inverter motor is capable
of providing a modulation range of 20Hz to 100Hz with control in
1Hz increments. The compressor is protected with phase-reversal
protection, uses a factory-charge of Polyvinyl Ether (PVE) oil, and is
mounted to avoid the transmission of vibration. Compressor in the
Multi F MAX outdoor unit is equipped with a hot gas bypass valve.
Fan and Motors
The Multi F MAX outdoor unit includes two direct drive variable
speed propeller fans with Brushless Digitally Controlled (BLDC)
motor with a horizontal air discharge.
Fan blades are statically and dynamically balanced propeller fans
made of durable Acrylonitrile Butadiene Styrene (ABS) plastic, and
include a raised fan guard to limit contact with moving parts. The
motors have inherent overload protection, permanently lubricated
bearings, and a maximum speed up to 950 rpm. Multi F MAX out-
door unit has a horizontal discharge airflow.
Outdoor Unit Coil
The outdoor unit coils are factory-built of aluminum ns mechanically
bonded on copper tubing. Coils have a minimum of two rows, a mini-
mum of 14 ns per inch, and have been factory pressure-tested.
Coil ns also have a factory applied corrosion-resistant GoldFin™ ma-
terial with hydrophilic coating that has been tested in accordance with
ASTM B-117 salt spray test procedure for a minimum of 1,000 hours.
Electrical
Multi F MAX outdoor unit shall be 208/230V, 1 phase, 60Hz electrical
power capable of operating within ±10% of the rated voltage.
Controls
Factory installed microprocessor controls in the outdoor unit, BD
unit(s), and indoor units shall perform functions to efficiently operate
the multi zone system. System wiring must be installed in a tree
configuration from outdoor unit to BD unit(s) to indoor units through
four conductor power/transmission cable. The system is capable of
performing continuous operation, even when power is turned off to
an individual indoor unit.
Mechanical Specications
MULTI F MAX SYSTEMS
Figure 19: Multi F MAX LMU540HV
Outdoor Unit.
MULTI F MAX OUTDOOR UNIT | 289
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
MULTI F MAX OUTDOOR UNIT
General Data
Table 277: Multi F MAX Outdoor Unit General Data.
Model Number
LMU540HV
Rated Cooling Capacity (Btu/h)
1
52,500
Rated Heating Capacity (Btu/h)
1
58,000
Operating Range
Cooling (°F DB)
14
6
- 118
Heating (°F WB)
-4 - 64
Compressor
Inverter Quantity
Twin Rotary x 1
Oil/Type
FVC68D
Fan (Side Discharge)
Type
Propeller
Motor Output (W) x Qty.
124.2 x 2
Motor/Drive
Brushless Digitally Controlled/Direct
Maximum Air Volume (CFM)
2,119 x 2
Unit Data
Refrigerant Type
R410A
Refrigerant Control/Location
EEV / Outdoor Unit, Branch Distribution Unit
Min. Number Indoor Units/System
2
2
Max. Number Indoor Units/System
2
8
Maximum Allowable Total Indoor Unit Connected Capacity (Btu/h)
73,000
Sound Pressure ±3 dB(A)
3
(Cooling / Heating)
54 / 56
Net Unit Weight (lbs.)
214
Shipping Weight (lbs.)
236
Power Wiring / Communication Cables
4
(No. x AWG)
4 x 16
Heat Exchanger
Material and Fin Coating
Copper Tube / Aluminum Fin and GoldFin™/Hydrophilic
Rows/Columns/Fins per inch x Qty.
(2 x 32 x 14) x 2
Piping
Liquid Line Connection (in., OD) x Qty.
3/8 x 1
Vapor Line Connection (in., OD) x Qty.
3/4 x 1
Factory Charge lbs. of R410A
9.7
Piping Lengths
Maximum Total System Piping (ft.)
5
475.7
Maximum Main Pipe Length (Outdoor Unit to Branch Distribution Unit [ft.])
180.4
Total Branch Piping (Branch Distribution Units to all Indoor Units [ft.])
295.3
Maximum Branch Pipe Length (Length between each BDU and IDU [ft.])
49.2
Maximum Outdoor Unit to Indoor Unit Pipe Length (ft.)
229.6
Piping Length (No Additional Refrigerant [ft.]; approx. 16 ft. of Main Piping + 131 ft. of
Branch Piping)
147.6
Maximum Elevation between Outdoor Unit and Indoor Unit (ft.)
98.4
Maximum Elevation between Indoor Unit and Indoor Unit (ft.)
49.2
Maximum Elevation between Branch Distribution Unit and Indoor Unit (ft.)
32.8
Maximum Elevation between Branch Distribution Unit and Branch Distribution Unit (ft.)
49.2
1
Rated capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with a 0 ft. level differ-
ence between outdoor and indoor units. All capacities are net with a combination ratio between 95 – 105%.
Rated cooling capacity obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet
bulb (WB) and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
Rated heating capacity obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 60ºF wet
bulb (WB) and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
2
At least one Branch Distribution Unit is required for system operation; a maximum of two can be
installed per outdoor unit with use of Y-branch accessory (PMBL5620). At least two indoor units should
be connected. For allocated capacity information, see the combination tables on pages 131 to 136.
3
Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745. These values can
increase due to ambient conditions during operation.
4
All power wiring / communication cable to be minimum 16 AWG from the outdoor unit to the BD unit,
and 18 AWG from the BD unit to the indoor unit, stranded, shielded, and must comply with applicable
local and national codes. For detailed electrical information, please refer to electric characteristics on
page 165.
5
Piping lengths are equivalent.
6
Installation of an optional Low Ambient Wind Baffle Kit will allow operation down to -4°F in cooling mode.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
290 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
System Combined With
Rated Cooling
Capacity (Btu/h)
EER
(95°F)
SEER
Rated Heating
Capacity (Btu/h)
COP
(47°F)
HSPF
Low Heating
Capacity (Btu/h)
COP
(17°F)
Energy
Star
LMU540HV
Non-Ducted
Indoor Units
52,500 10.3 18.4 58,000 3.1 8.7 36,600 2.6 Yes
Ducted Indoor Units 51,000 10.0 15.8 58,000 3.0 8.3 38,500 2.6 No
Mixed Non-Ducted and
Ducted Indoor Units
51,750 10.15 17.1 58,000 3.1 8.5 37,550 2.6 No
1
Rated capacity is rated 0 ft. above sea level with Piping Length as Main pipe (16.4 ft.) + Branch pipe (98.4 ft.) = 115 ft., and a 0 ft. level difference
between outdoor and indoor units. All capacities are net with a combination ratio between 95 – 105%.
Rated cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet bulb (WB) and outdoor ambient conditions
of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
Rated heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 60ºF wet bulb (WB) and outdoor ambient conditions
of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
2
Rated capacity is certied under AHRI Standard 210 / 240. EER, IEER, COP, and HSPF are subject to change. See www.ahrinet.org for the latest
values.
Table 278: LMU540HV Efciency Ratings.
1,2
General Data
MULTI F MAX OUTDOOR UNIT
MULTI F MAX OUTDOOR UNIT | 291
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
MULTI F MAX OUTDOOR UNIT
Dimensions
Supporter
4-holes for anchor bolts
No.
1
2
3
4
Part Name
Air discharge grille
Gas pipe connection
Liquid pipe connection
Power & transmission connection
4
19-9/32
21-1/20
53-3/8
54-11/32
15-3/4
6-1/2 6-1/2
24-13/32
14-3/16
13
6-5/8
14-1/20
37-13/32
Unit: inch
Center of Gravity
Figure 20: LMU540HV External Dimensions.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
292 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Total Indoor Unit Capacity
(kBtu/h)
Cooling Capacity Input (W)
EER SEERMinimum Rated Maximum
Minimum Rated Maximum
Btu/h kW Btu/h kW Btu/h kW
24 14,000 4.10 23,333 6.84 25,813 7.57 1,000 1,550 2,336 15.10 19.6
25 14,583 4.27 24,306 7.12 26,889 7.88 1,168 1,668 2,433 14.60 19.5
26 15,167 4.45 25,278 7.41 27,964 8.20 1,251 1,786 2,530 14.10 19.5
27 15,750 4.62 26,250 7.69 29,040 8.51 1,333 1,905 2,628 13.80 19.4
28 16,333 4.79 27,222 7.98 30,116 8.83 1,517 2,023 2,725 13.50 19.4
29 16,917 4.96 28,194 8.26 31,191 9.14 1,606 2,141 2,822 13.20 19.4
30 17,500 5.13 29,167 8.55 32,267 9.46 1,695 2,259 2,919 12.90 19.3
31 18,083 5.30 30,139 8.83 33,342 9.77 1,855 2,378 3,017 12.70 19.3
32 18,667 5.47 31,111 9.12 34,418 10.09 1,947 2,496 3,114 12.50 19.3
33 19,250 5.64 32,083 9.40 35,493 10.40 2,039 2,614 3,211 12.30 19.2
34 19,833 5.81 33,056 9.69 36,569 10.72 2,131 2,732 3,309 12.10 19.2
35 20,417 5.98 34,028 9.97 37,644 11.03 2,280 2,851 3,406 11.90 19.1
36 21,000 6.15 35,000 10.26 38,720 11.35 2,375 2,969 3,503 11.80 19.1
37 21,583 6.33 35,972 10.54 39,796 11.66 2,470 3,087 3,601 11.70 19.1
38 22,167 6.50 36,944 10.83 40,871 11.98 2,564 3,205 3,698 11.50 19.0
39 22,750 6.67 37,917 11.11 41,947 12.29 2,659 3,324 3,795 11.40 19.0
40 23,333 6.84 38,889 11.40 43,022 12.61 2,753 3,442 3,893 11.30 18.9
41 23,917 7.01 39,861 11.68 44,098 12.92 2,848 3,560 3,990 11.20 18.9
42 24,500 7.18 40,833 11.97 45,173 13.24 2,943 3,678 4,087 11.10 18.9
43 25,083 7.35 41,806 12.25 46,249 13.55 3,037 3,796 4,185 11.00 18.8
44 25,667 7.52 42,778 12.54 47,324 13.87 3,132 3,915 4,282 10.90 18.8
45 26,250 7.69 43,750 12.82 48,400 14.19 3,226 4,033 4,379 10.80 18.7
46 26,833 7.86 44,722 13.11 49,476 14.50 3,321 4,151 4,476 10.80 18.7
47 27,417 8.04 45,694 13.39 50,551 14.82 3,415 4,269 4,574 10.70 18.7
48 28,000 8.21 46,667 13.68 51,627 15.13 3,510 4,388 4,671 10.60 18.6
49 28,583 8.38 47,639 13.96 52,702 15.45 3,605 4,506 4,768 10.60 18.6
50 29,167 8.55 48,611 14.25 53,778 15.76 3,699 4,624 4,866 10.50 18.6
51 29,750 8.72 49,583 14.53 54,853 16.08 3,794 4,742 4,963 10.50 18.5
52 30,333 8.89 50,556 14.82 55,929 16.39 3,888 4,861 5,060 10.40 18.5
53 30,917 9.06 51,528 15.10 57,004 16.71 3,983 4,979 5,158 10.30 18.4
54 31,500 9.23 52,500 15.39 58,080 17.02 4,078 5,097 5,255 10.30 18.4
55 31,892 9.35 52,666 15.44 58,349 17.10 4,102 5,128 5,287
10.30 18.3
56 32,285 9.46 52,832 15.48 58,619 17.18 4,127 5,159 5,319 10.20 18.2
57 32,677 9.58 52,997 15.53 58,888 17.26 4,152 5,190 5,351 10.20 18.1
58 33,069 9.69 53,163 15.58 59,158 17.34 4,176 5,221 5,382 10.20 18.0
59 33,462 9.81 53,329 15.63 59,427 17.42 4,201 5,252 5,414 10.20 17.9
60 33,854 9.92 53,495 15.68 59,697 17.50 4,226 5,282 5,446 10.10 17.8
61 34,247 10.04 53,661 15.73 59,966 17.58 4,251 5,313 5,478 10.10 17.7
62 34,639 10.15 53,826 15.78 60,236 17.65 4,275 5,344 5,510 10.10 17.6
63 35,031 10.27 53,992 15.82 60,505 17.73 4,300 5,375 5,542 10.00 17.5
64 35,424 10.38 54,158 15.87 60,775 17.81 4,325 5,406 5,573 10.00 17.4
65 35,816 10.50 54,324 15.92 61,044 17.89 4,350 5,437 5,605 10.00 17.3
66 36,208 10.61 54,489 15.97 61,314 17.97 4,374 5,468 5,637 10.00 17.2
67 36,601 10.73 54,655 16.02 61,583 18.05 4,399 5,499 5,669 9.90 17.1
68 36,993 10.84 54,821 16.07 61,853 18.13 4,424 5,530 5,701 9.90 17.0
69 37,386 10.96 54,987 16.12 62,122 18.21 4,448 5,561 5,733 9.90 16.9
70 37,778 11.07 55,153 16.16 62,392 18.29 4,473 5,591 5,764 9.90 16.9
71 38,170 11.19 55,318 16.21 62,661 18.36 4,498 5,622 5,796 9.80 16.8
72 38,563 11.30 55,484 16.26 62,931 18.44 4,523 5,653 5,828 9.80 16.7
73 38,955 11.42 55,650 16.31 63,200 18.52 4,547 5,684 5,860 9.80 16.6
Table 279: LMU540HV with Non-Ducted Indoor Units — Rated Cooling Combination Table.
PERFORMANCE DATA
Rated Cooling Combination Tables
The individual indoor unit capacity can be calculated based on the outdoor unit Rated capacity as follows.
1
Individual Indoor Unit Rated Capacity (Qidu [Rated])
Total Connected Indoor Unit Rated Capacity (∑Qidu [Rated])
Individual Indoor Unit Combination
Capacity (Qidu [Combi]) =
Outdoor Unit Rated
Capacity (Qodu [Rated]) x
1
Capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch pipe
(98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
2
Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet
bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
Sum of connected indoor units capacity is 24~73 kBtu/h.
6
At least two indoor units should be connected.
1
To calculate the individual IDU capacity based on ODU Corrected capacity, replace (Qodu [Rated]) with (Qodu [Corrected]) where (Qodu [Corrected])
is obtained from the capacity tables referencing design conditions.
MULTI F MAX OUTDOOR UNIT | 293
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Rated Cooling Combination Tables
Table 280: LMU540HV with Ducted Indoor Units — Rated Cooling Combination Table.
Total Indoor Unit Capacity
(kBtu/h)
Cooling Capacity Input (W)
EER SEERMinimum Rated Maximum
Minimum Rated Maximum
Btu/h kW Btu/h kW Btu/h kW
24 13,600 3.99 22,667 6.64 25,076 7.35 1,000 1,550 2,337 14.60 18.3
25 14,167 4.15 23,611 6.92 26,121 7.66 1,168 1,668 2,434 14.20 18.1
26 14,733 4.32 24,556 7.20 27,165 7.96 1,251 1,787 2,532 13.70 18.1
27 15,300 4.48 25,500 7.47 28,210 8.27 1,334 1,905 2,629 13.40 18.0
28 15,867 4.65 26,444 7.75 29,255 8.57 1,518 2,023 2,726 13.10 17.9
29 16,433 4.82 27,389 8.03 30,300 8.88 1,606 2,142 2,824 12.80 17.8
30 17,000 4.98 28,333 8.30 31,345 9.19 1,695 2,260 2,921 12.50 17.7
31 17,567 5.15 29,278 8.58 32,390 9.49 1,855 2,378 3,019 12.30 17.7
32 18,133 5.31 30,222 8.86 33,434 9.80 1,947 2,497 3,116 12.10 17.6
33 18,700 5.48 31,167 9.13 34,479 10.11 2,040 2,615 3,213 11.90 17.5
34 19,267 5.65 32,111 9.41 35,524 10.41 2,132 2,733 3,311 11.70 17.4
35 19,833 5.81 33,056 9.69 36,569 10.72 2,281 2,852 3,408 11.60 17.3
36 20,400 5.98 34,000 9.96 37,614 11.02 2,376 2,970 3,505 11.40 17.3
37 20,967 6.14 34,944 10.24 38,659 11.33 2,471 3,088 3,603 11.30 17.2
38 21,533 6.31 35,889 10.52 39,703 11.64 2,565 3,207 3,700 11.20 17.1
39 22,100 6.48 36,833 10.80 40,748 11.94 2,660 3,325 3,798 11.10 17.0
40 22,667 6.64 37,778 11.07 41,793 12.25 2,755 3,443 3,895 11.00 16.9
41 23,233 6.81 38,722 11.35 42,838 12.56 2,849 3,562 3,992 10.90 16.8
42 23,800 6.98 39,667 11.63 43,883 12.86 2,944 3,680 4,090 10.80 16.8
43 24,367 7.14 40,611 11.90 44,927 13.17 3,039 3,798 4,187 10.70 16.7
44 24,933 7.31 41,556 12.18 45,972 13.47 3,133 3,917 4,284 10.60 16.6
45 25,500 7.47 42,500 12.46 47,017 13.78 3,228 4,035 4,382 10.50 16.5
46 26,067 7.64 43,444 12.73 48,062 14.09 3,323 4,153 4,479 10.50 16.4
47 26,633 7.81 44,389 13.01 49,107 14.39 3,417 4,272 4,576 10.40 16.4
48 27,200 7.97 45,333 13.29 50,152 14.70 3,512 4,390 4,674 10.30 16.3
49 27,767 8.14 46,278 13.56 51,196 15.00 3,607 4,508 4,771 10.30 16.2
50 28,333 8.30 47,222 13.84 52,241 15.31 3,701 4,627 4,869 10.20 16.1
51 28,900 8.47 48,167 14.12 53,286 15.62 3,796 4,745 4,966 10.20 16.0
52 29,467 8.64 49,111 14.39 54,331 15.92 3,891 4,863 5,063 10.10 16.0
53 30,033 8.80 50,056 14.67 55,376 16.23 3,985 4,982 5,161 10.00 15.9
54 30,600 8.97 51,000 14.95 56,421 16.54 4,080 5,100 5,258 10.00 15.8
55 30,981 9.08 51,161 14.99 56,777 16.64 4,105 5,131 5,290
10.00 15.8
56 31,362 9.19 51,322 15.04 57,134 16.75 4,129 5,161 5,321 9.90 15.8
57 31,743 9.30 51,483 15.09 57,491 16.85 4,154 5,192 5,353 9.90 15.8
58 32,125 9.42 51,644 15.14 57,848 16.95 4,178 5,223 5,385 9.90 15.8
59 32,506 9.53 51,805 15.18 58,205 17.06 4,203 5,254 5,416 9.90 15.8
60 32,887 9.64 51,966 15.23 58,561 17.16 4,228 5,284 5,448 9.80 15.8
61 33,268 9.75 52,127 15.28 58,918 17.27 4,252 5,315 5,480 9.80 15.8
62 33,649 9.86 52,288 15.32 59,275 17.37 4,277 5,346 5,512 9.80 15.8
63 34,030 9.97 52,449 15.37 59,632 17.48 4,301 5,377 5,543 9.80 15.8
64 34,412 10.09 52,611 15.42 59,989 17.58 4,326 5,407 5,575 9.70 15.8
65 34,793 10.20 52,772 15.47 60,346 17.69 4,351 5,438 5,607 9.70 15.8
66 35,174 10.31 52,933 15.51 60,702 17.79 4,375 5,469 5,638 9.70 15.8
67 35,555 10.42 53,094 15.56 61,059 17.90 4,400 5,500 5,670 9.70 15.8
68 35,936 10.53 53,255 15.61 61,416 18.00 4,424 5,530 5,702 9.60 15.8
69 36,317 10.64 53,416 15.66 61,773 18.10 4,449 5,561 5,733 9.60 15.8
70 36,699 10.76 53,577 15.70 62,130 18.21 4,474 5,592 5,765 9.60 15.8
71 37,080 10.87 53,738 15.75 62,486 18.31 4,498 5,623 5,797 9.60 15.8
72 37,461 10.98 53,899 15.80 62,843 18.42 4,523 5,653 5,828 9.50 15.8
73 37,842 11.09 54,060 15.84 63,200 18.52 4,547 5,684 5,860 9.50 15.8
1
Capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch pipe
(98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
2
Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet
bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
Sum of connected indoor units capacity is 24~73 kBtu/h.
6
At least two indoor units should be connected.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
294 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Rated Cooling Combination Tables
Table 281: LMU540HV with Mixed Indoor Units — Rated Cooling Combination Table.
Total Indoor Unit Capacity
(kBtu/h)
Cooling Capacity Input (W)
EER SEERMinimum Rated Maximum
Minimum Rated Maximum
Btu/h kW Btu/h kW Btu/h kW
24 13,800 4.04 23,000 6.74 25,445 7.46 1,000 1,550 2,336 14.85 19.0
25 14,375 4.21 23,958 7.02 26,505 7.77 1,168 1,668 2,434 14.40 18.8
26 14,950 4.38 24,917 7.30 27,565 8.08 1,251 1,787 2,531 13.90 18.8
27 15,525 4.55 25,875 7.58 28,625 8.39 1,333 1,905 2,628 13.60 18.7
28 16,100 4.72 26,833 7.86 29,685 8.70 1,517 2,023 2,726 13.30 18.7
29 16,675 4.89 27,792 8.15 30,746 9.01 1,606 2,141 2,823 13.00 18.6
30 17,250 5.06 28,750 8.43 31,806 9.32 1,695 2,260 2,920 12.70 18.5
31 17,825 5.22 29,708 8.71 32,866 9.63 1,855 2,378 3,018 12.50 18.5
32 18,400 5.39 30,667 8.99 33,926 9.94 1,947 2,496 3,115 12.30 18.4
33 18,975 5.56 31,625 9.27 34,986 10.25 2,039 2,615 3,212 12.10 18.4
34 19,550 5.73 32,583 9.55 36,046 10.56 2,132 2,733 3,310 11.90 18.3
35 20,125 5.90 33,542 9.83 37,107 10.88 2,281 2,851 3,407 11.75 18.2
36 20,700 6.07 34,500 10.11 38,167 11.19 2,376 2,969 3,504 11.60 18.2
37 21,275 6.24 35,458 10.39 39,227 11.50 2,470 3,088 3,602 11.50 18.1
38 21,850 6.40 36,417 10.67 40,287 11.81 2,565 3,206 3,699 11.35 18.1
39 22,425 6.57 37,375 10.95 41,347 12.12 2,659 3,324 3,796 11.25 18.0
40 23,000 6.74 38,333 11.23 42,408 12.43 2,754 3,443 3,894 11.15 17.9
41 23,575 6.91 39,292 11.52 43,468 12.74 2,849 3,561 3,991 11.05 17.9
42 24,150 7.08 40,250 11.80 44,528 13.05 2,943 3,679 4,088 10.95 17.8
43 24,725 7.25 41,208 12.08 45,588 13.36 3,038 3,797 4,186 10.85 17.8
44 25,300 7.42 42,167 12.36 46,648 13.67 3,133 3,916 4,283 10.75 17.7
45 25,875 7.58 43,125 12.64 47,709 13.98 3,227 4,034 4,380 10.65 17.6
46 26,450 7.75 44,083 12.92 48,769 14.29 3,322 4,152 4,478 10.65 17.6
47 27,025 7.92 45,042 13.20 49,829 14.60 3,416 4,271 4,575 10.55 17.5
48 27,600 8.09 46,000 13.48 50,889 14.91 3,511 4,389 4,672 10.45 17.5
49 28,175 8.26 46,958 13.76 51,949 15.23 3,606 4,507 4,770 10.45 17.4
50 28,750 8.43 47,917 14.04 53,010 15.54 3,700 4,625 4,867 10.35 17.3
51 29,325 8.59 48,875 14.32 54,070 15.85 3,795 4,744 4,965 10.35 17.3
52 29,900 8.76 49,833 14.61 55,130 16.16 3,890 4,862 5,062 10.25 17.2
53 30,475 8.93 50,792 14.89 56,190 16.47 3,984 4,980 5,159 10.15 17.2
54 31,050 9.10 51,750 15.17 57,250 16.78 4,079 5,099 5,257 10.15 17.1
55 31,437 9.21 51,913 15.21 57,563 16.87 4,103 5,129 5,288
10.15 17.1
56 31,824 9.33 52,077 15.26 57,877 16.96 4,128 5,160 5,320 10.05 17.0
57 32,210 9.44 52,240 15.31 58,190 17.05 4,153 5,191 5,352 10.05 17.0
58 32,597 9.55 52,404 15.36 58,503 17.15 4,177 5,222 5,384 10.05 16.9
59 32,984 9.67 52,567 15.41 58,816 17.24 4,202 5,253 5,415 10.05 16.9
60 33,371 9.78 52,731 15.45 59,129 17.33 4,227 5,283 5,447 9.95 16.8
61 33,757 9.89 52,894 15.50 59,442 17.42 4,251 5,314 5,479 9.95 16.8
62 34,144 10.01 53,057 15.55 59,755 17.51 4,276 5,345 5,511 9.95 16.7
63 34,531 10.12 53,221 15.60 60,069 17.61 4,301 5,376 5,542 9.90 16.7
64 34,918 10.23 53,384 15.65 60,382 17.70 4,325 5,407 5,574 9.85 16.6
65 35,304 10.35 53,548 15.69 60,695 17.79 4,350 5,438 5,606 9.85 16.6
66 35,691 10.46 53,711 15.74 61,008 17.88 4,375 5,468 5,638 9.85 16.5
67 36,078 10.57 53,874 15.79 61,321 17.97 4,399 5,499 5,669 9.80 16.5
68 36,465 10.69 54,038 15.84 61,634 18.06 4,424 5,530 5,701 9.75 16.4
69 36,851 10.80 54,201 15.89 61,947 18.16 4,449 5,561 5,733 9.75 16.4
70 37,238 10.91 54,365 15.93 62,261 18.25 4,473 5,592 5,765 9.75 16.3
71 37,625 11.03 54,528 15.98 62,574 18.34 4,498 5,623 5,796 9.70 16.3
72 38,012 11.14 54,692 16.03 62,887 18.43 4,523 5,653 5,828 9.65 16.2
73 38,399 11.25 54,855 16.08 63,200 18.52 4,547 5,684 5,860 9.65 16.2
1
Capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch pipe
(98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
2
Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet
bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
Sum of connected indoor units capacity is 24~73 kBtu/h.
6
At least two indoor units should be connected.
MULTI F MAX OUTDOOR UNIT | 295
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Total Indoor Unit Capacity
(kBtu/h)
Heating Capacity Input (W)
COP HSPFMinimum Rated Maximum
Minimum Rated Maximum
Btu/h kW Btu/h kW Btu/h kW
24 15,467 4.53 25,778 7.56 27,067 7.93 1,490 2,161 2,474 3.50 10.3
25 16,111 4.72 26,852 7.87 28,194 8.26 1,588 2,268 2,578 3.50 10.2
26 16,756 4.91 27,926 8.18 29,322 8.59 1,664 2,376 2,681 3.40 10.1
27 17,400 5.10 29,000 8.50 30,450 8.92 1,739 2,484 2,784 3.40 10.1
28 18,044 5.29 30,074 8.81 31,578 9.25 1,944 2,592 2,887 3.40 10.0
29 18,689 5.48 31,148 9.13 32,706 9.59 2,025 2,700 2,990 3.40 10.0
30 19,333 5.67 32,222 9.44 33,833 9.92 2,106 2,808 3,093 3.40 9.9
31 19,978 5.86 33,296 9.76 34,961 10.25 2,275 2,916 3,196 3.30 9.9
32 20,622 6.04 34,370 10.07 36,089 10.58 2,359 3,024 3,299 3.30 9.8
33 21,267 6.23 35,444 10.39 37,217 10.91 2,443 3,132 3,402 3.30 9.8
34 21,911 6.42 36,519 10.70 38,344 11.24 2,527 3,240 3,505 3.30 9.7
35 22,556 6.61 37,593 11.02 39,472 11.57 2,679 3,348 3,609 3.30 9.7
36 23,200 6.80 38,667 11.33 40,600 11.90 2,765 3,456 3,712 3.30 9.6
37 23,844 6.99 39,741 11.65 41,728 12.23 2,851 3,564 3,815 3.30 9.6
38 24,489 7.18 40,815 11.96 42,856 12.56 2,938 3,672 3,918 3.30 9.5
39 25,133 7.37 41,889 12.28 43,983 12.89 3,024 3,780 4,021 3.20 9.5
40 25,778 7.56 42,963 12.59 45,111 13.22 3,111 3,888 4,124 3.20 9.4
41 26,422 7.74 44,037 12.91 46,239 13.55 3,197 3,996 4,227 3.20 9.4
42 27,067 7.93 45,111 13.22 47,367 13.88 3,283 4,104 4,330 3.20 9.3
43 27,711 8.12 46,185 13.54 48,494 14.21 3,370 4,212 4,433 3.20 9.3
44 28,356 8.31 47,259 13.85 49,622 14.54 3,456 4,320 4,536 3.20 9.2
45 29,000 8.50 48,333 14.17 50,750 14.87 3,543 4,428 4,640 3.20 9.2
46 29,644 8.69 49,407 14.48 51,878 15.20 3,629 4,536 4,743 3.20 9.1
47 30,289 8.88 50,481 14.80 53,006 15.54 3,715 4,644 4,846 3.20 9.1
48 30,933 9.07 51,556 15.11 54,133 15.87 3,802 4,752 4,949 3.20 9.0
49 31,578 9.25 52,630 15.42 55,261 16.20 3,888 4,860 5,052 3.20 9.0
50 32,222 9.44 53,704 15.74 56,389 16.53 3,974 4,968 5,155 3.20 8.9
51 32,867 9.63 54,778 16.05 57,517 16.86 4,061 5,076 5,258 3.20 8.9
52 33,511 9.82 55,852 16.37 58,644 17.19 4,147 5,184 5,361 3.20 8.8
53 34,156 10.01 56,926 16.68 59,772 17.52 4,234 5,292 5,464 3.20 8.8
54 34,800 10.20 58,000 17.00 60,900 17.85 4,320 5,400 5,567 3.10 8.7
55 35,233 10.33 58,183 17.05 61,063 17.90 4,345 5,432 5,600
3.10 8.7
56 35,667 10.45 58,366 17.11 61,226 17.94 4,371 5,464 5,633 3.10 8.7
57 36,100 10.58 58,549 17.16 61,389 17.99 4,396 5,495 5,666 3.10 8.7
58 36,534 10.71 58,733 17.21 61,553 18.04 4,422 5,527 5,698 3.10 8.7
59 36,967 10.83 58,916 17.27 61,716 18.09 4,447 5,559 5,731 3.10 8.7
60 37,401 10.96 59,099 17.32 61,879 18.14 4,473 5,591 5,764 3.10 8.7
61 37,834 11.09 59,282 17.37 62,042 18.18 4,498 5,623 5,797 3.10 8.7
62 38,268 11.22 59,465 17.43 62,205 18.23 4,524 5,654 5,830 3.10 8.7
63 38,701 11.34 59,648 17.48 62,368 18.28 4,549 5,686 5,862 3.10 8.7
64 39,135 11.47 59,832 17.54 62,532 18.33 4,574 5,718 5,895 3.10 8.7
65 39,568 11.60 60,015 17.59 62,695 18.37 4,600 5,750 5,928 3.10 8.7
66 40,002 11.72 60,198 17.64 62,858 18.42 4,625 5,782 5,961 3.10 8.7
67 40,435 11.85 60,381 17.70 63,021 18.47 4,651 5,813 5,993 3.00 8.7
68 40,869 11.98 60,564 17.75 63,184 18.52 4,676 5,845 6,026 3.00 8.7
69 41,302 12.10 60,747 17.80 63,347 18.57 4,702 5,877 6,059 3.00 8.7
70 41,736 12.23 60,931 17.86 63,511 18.61 4,727 5,909 6,092 3.00 8.7
71 42,169 12.36 61,114 17.91 63,674 18.66 4,753 5,941 6,124 3.00 8.7
72 42,603 12.49 61,297 17.97 63,837 18.71 4,778 5,972 6,157 3.00 8.7
73 43,036 12.61 61,480 18.02 64,000 18.76 4,803 6,004 6,190 3.00 8.7
Table 282: LMU540HV with Non-Ducted Indoor Units — Rated Heating Combination Table.
PERFORMANCE DATA
Rated Heating Combination Tables
1
Capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch pipe
(98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
2
Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 60ºF wet
bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
Sum of connected indoor units capacity is 24~73 kBtu/h.
6
At least two indoor units should be connected.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
296 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Total Indoor Unit Capacity
(kBtu/h)
Heating Capacity Input (W)
COP HSPFMinimum Rated Maximum
Minimum Rated Maximum
Btu/h kW Btu/h kW Btu/h kW
24 15,467 4.53 25,778 7.56 27,067 7.93 1,490 2,310 2,557 3.30 9.8
25 16,111 4.72 26,852 7.87 28,194 8.26 1,645 2,419 2,663 3.30 9.7
26 16,756 4.91 27,926 8.18 29,322 8.59 1,719 2,528 2,770 3.20 9.6
27 17,400 5.10 29,000 8.50 30,450 8.92 1,793 2,637 2,876 3.20 9.6
28 18,044 5.29 30,074 8.81 31,578 9.25 1,977 2,746 2,983 3.20 9.5
29 18,689 5.48 31,148 9.13 32,706 9.59 2,055 2,855 3,090 3.20 9.5
30 19,333 5.67 32,222 9.44 33,833 9.92 2,134 2,964 3,196 3.20 9.4
31 19,978 5.86 33,296 9.76 34,961 10.25 2,304 3,073 3,303 3.20 9.3
32 20,622 6.04 34,370 10.07 36,089 10.58 2,386 3,182 3,409 3.20 9.3
33 21,267 6.23 35,444 10.39 37,217 10.91 2,468 3,291 3,516 3.20 9.2
34 21,911 6.42 36,519 10.70 38,344 11.24 2,550 3,400 3,622 3.10 9.2
35 22,556 6.61 37,593 11.02 39,472 11.57 2,737 3,509 3,729 3.10 9.1
36 23,200 6.80 38,667 11.33 40,600 11.90 2,822 3,618 3,835 3.10 9.0
37 23,844 6.99 39,741 11.65 41,728 12.23 2,907 3,727 3,942 3.10 9.0
38 24,489 7.18 40,815 11.96 42,856 12.56 2,992 3,836 4,048 3.10 8.9
39 25,133 7.37 41,889 12.28 43,983 12.89 3,156 3,945 4,155 3.10 8.9
40 25,778 7.56 42,963 12.59 45,111 13.22 3,243 4,054 4,261 3.10 8.8
41 26,422 7.74 44,037 12.91 46,239 13.55 3,330 4,163 4,368 3.10 8.8
42 27,067 7.93 45,111 13.22 47,367 13.88 3,417 4,272 4,475 3.10 8.7
43 27,711 8.12 46,185 13.54 48,494 14.21 3,505 4,381 4,581 3.10 8.6
44 28,356 8.31 47,259 13.85 49,622 14.54 3,592 4,490 4,688 3.10 8.6
45 29,000 8.50 48,333 14.17 50,750 14.87 3,679 4,599 4,794 3.10 8.5
46 29,644 8.69 49,407 14.48 51,878 15.20 3,766 4,708 4,901 3.10 8.5
47 30,289 8.88 50,481 14.80 53,006 15.54 3,854 4,817 5,007 3.10 8.4
48 30,933 9.07 51,556 15.11 54,133 15.87 3,941 4,926 5,114 3.10 8.3
49 31,578 9.25 52,630 15.42 55,261 16.20 4,028 5,035 5,220 3.10 8.3
50 32,222 9.44 53,704 15.74 56,389 16.53 4,115 5,144 5,327 3.10 8.2
51 32,867 9.63 54,778 16.05 57,517 16.86 4,202 5,253 5,433 3.10 8.2
52 33,511 9.82 55,852 16.37 58,644 17.19 4,290 5,362 5,540 3.10 8.1
53 34,156 10.01 56,926 16.68 59,772 17.52 4,377 5,471 5,646 3.00 8.1
54 34,800 10.20 58,000 17.00 60,900 17.85 4,464 5,580 5,753 3.00 8.0
55 35,233 10.33 58,183 17.05 61,021 17.88 4,482 5,602 5,776
3.00 8.0
56 35,667 10.45 58,366 17.11 61,142 17.92 4,500 5,625 5,799 3.00 8.0
57 36,100 10.58 58,549 17.16 61,263 17.96 4,518 5,647 5,822 3.00 8.0
58 36,534 10.71 58,733 17.21 61,384 17.99 4,535 5,669 5,845 3.00 8.0
59 36,967 10.83 58,916 17.27 61,505 18.03 4,553 5,692 5,868 3.00 8.0
60 37,401 10.96 59,099 17.32 61,626 18.06 4,571 5,714 5,891 3.00 8.0
61 37,834 11.09 59,282 17.37 61,747 18.10 4,589 5,736 5,914 3.00 8.0
62 38,268 11.22 59,465 17.43 61,868 18.13 4,607 5,759 5,937 3.00 8.0
63 38,701 11.34 59,648 17.48 61,989 18.17 4,625 5,781 5,960 3.00 8.0
64 39,135 11.47 59,832 17.54 62,111 18.20 4,643 5,803 5,983 3.00 8.0
65 39,568 11.60 60,015 17.59 62,232 18.24 4,661 5,826 6,006 3.00 8.0
66 40,002 11.72 60,198 17.64 62,353 18.27 4,678 5,848 6,029 3.00 8.0
67 40,435 11.85 60,381 17.70 62,474 18.31 4,696 5,870 6,052 3.00 8.0
68 40,869 11.98 60,564 17.75 62,595 18.35 4,714 5,893 6,075 3.00 8.0
69 41,302 12.10 60,747 17.80 62,716 18.38 4,732 5,915 6,098 3.00 8.0
70 41,736 12.23 60,931 17.86 62,837 18.42 4,750 5,937 6,121 3.00 8.0
71 42,169 12.36 61,114 17.91 62,958 18.45 4,768 5,960 6,144 3.00 8.0
72 42,603 12.49 61,297 17.97 63,079 18.49 4,786 5,982 6,167 3.00 8.0
73 43,036 12.61 61,480 18.02 63,200 18.52 4,803 6,004 6,190 3.00 8.0
Table 283: LMU540HV with Ducted Indoor Units — Rated Heating Combination Table.
PERFORMANCE DATA
Rated Heating Combination Tables
1
Capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch pipe
(98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
2
Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 60ºF wet
bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
Sum of connected indoor units capacity is 24~73 kBtu/h.
6
At least two indoor units should be connected.
MULTI F MAX OUTDOOR UNIT | 297
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Total Indoor Unit Capacity
(kBtu/h)
Heating Capacity Input (W)
COP HSPFMinimum Rated Maximum
Minimum Rated Maximum
Btu/h kW Btu/h kW Btu/h kW
24 15,467 4.53 25,778 7.56 27,067 7.93 1,490 2,235 2,516 3.40 10.1
25 16,111 4.72 26,852 7.87 28,194 8.26 1,616 2,344 2,620 3.40 9.9
26 16,756 4.91 27,926 8.18 29,322 8.59 1,691 2,452 2,725 3.30 9.9
27 17,400 5.10 29,000 8.50 30,450 8.92 1,766 2,561 2,830 3.30 9.8
28 18,044 5.29 30,074 8.81 31,578 9.25 1,961 2,669 2,935 3.30 9.8
29 18,689 5.48 31,148 9.13 32,706 9.59 2,040 2,778 3,040 3.30 9.7
30 19,333 5.67 32,222 9.44 33,833 9.92 2,120 2,886 3,145 3.30 9.7
31 19,978 5.86 33,296 9.76 34,961 10.25 2,290 2,995 3,249 3.25 9.6
32 20,622 6.04 34,370 10.07 36,089 10.58 2,373 3,103 3,354 3.25 9.6
33 21,267 6.23 35,444 10.39 37,217 10.91 2,456 3,212 3,459 3.25 9.5
34 21,911 6.42 36,519 10.70 38,344 11.24 2,539 3,320 3,564 3.20 9.4
35 22,556 6.61 37,593 11.02 39,472 11.57 2,708 3,429 3,669 3.20 9.4
36 23,200 6.80 38,667 11.33 40,600 11.90 2,793 3,537 3,773 3.20 9.3
37 23,844 6.99 39,741 11.65 41,728 12.23 2,879 3,646 3,878 3.20 9.3
38 24,489 7.18 40,815 11.96 42,856 12.56 2,965 3,754 3,983 3.20 9.2
39 25,133 7.37 41,889 12.28 43,983 12.89 3,090 3,863 4,088 3.15 9.2
40 25,778 7.56 42,963 12.59 45,111 13.22 3,177 3,971 4,193 3.15 9.1
41 26,422 7.74 44,037 12.91 46,239 13.55 3,264 4,080 4,298 3.15 9.1
42 27,067 7.93 45,111 13.22 47,367 13.88 3,350 4,188 4,402 3.15 9.0
43 27,711 8.12 46,185 13.54 48,494 14.21 3,437 4,297 4,507 3.15 9.0
44 28,356 8.31 47,259 13.85 49,622 14.54 3,524 4,405 4,612 3.15 8.9
45 29,000 8.50 48,333 14.17 50,750 14.87 3,611 4,514 4,717 3.15 8.8
46 29,644 8.69 49,407 14.48 51,878 15.20 3,698 4,622 4,822 3.15 8.8
47 30,289 8.88 50,481 14.80 53,006 15.54 3,784 4,731 4,926 3.15 8.7
48 30,933 9.07 51,556 15.11 54,133 15.87 3,871 4,839 5,031 3.15 8.7
49 31,578 9.25 52,630 15.42 55,261 16.20 3,958 4,948 5,136 3.15 8.6
50 32,222 9.44 53,704 15.74 56,389 16.53 4,045 5,056 5,241 3.15 8.6
51 32,867 9.63 54,778 16.05 57,517 16.86 4,132 5,165 5,346 3.15 8.5
52 33,511 9.82 55,852 16.37 58,644 17.19 4,218 5,273 5,451 3.15 8.5
53 34,156 10.01 56,926 16.68 59,772 17.52 4,305 5,382 5,555 3.10 8.4
54 34,800 10.20 58,000 17.00 60,900 17.85 4,392 5,490 5,660 3.05 8.4
55 35,233 10.33 58,183 17.05 61,042 17.89 4,414 5,517 5,688
3.05 8.4
56 35,667 10.45 58,366 17.11 61,184 17.93 4,435 5,544 5,716 3.05 8.4
57 36,100 10.58 58,549 17.16 61,326 17.97 4,457 5,571 5,744 3.05 8.4
58 36,534 10.71 58,733 17.21 61,468 18.02 4,479 5,598 5,772 3.05 8.4
59 36,967 10.83 58,916 17.27 61,611 18.06 4,500 5,625 5,800 3.05 8.4
60 37,401 10.96 59,099 17.32 61,753 18.10 4,522 5,652 5,827 3.05 8.4
61 37,834 11.09 59,282 17.37 61,895 18.14 4,544 5,679 5,855 3.05 8.4
62 38,268 11.22 59,465 17.43 62,037 18.18 4,565 5,707 5,883 3.05 8.4
63 38,701 11.34 59,648 17.48 62,179 18.22 4,587 5,734 5,911 3.05 8.4
64 39,135 11.47 59,832 17.54 62,321 18.27 4,609 5,761 5,939 3.05 8.4
65 39,568 11.60 60,015 17.59 62,463 18.31 4,630 5,788 5,967 3.05 8.4
66 40,002 11.72 60,198 17.64 62,605 18.35 4,652 5,815 5,995 3.05 8.4
67 40,435 11.85 60,381 17.70 62,747 18.39 4,674 5,842 6,023 3.00 8.4
68 40,869 11.98 60,564 17.75 62,889 18.43 4,695 5,869 6,051 3.00 8.4
69 41,302 12.10 60,747 17.80 63,032 18.47 4,717 5,896 6,078 3.00 8.4
70 41,736 12.23 60,931 17.86 63,174 18.52 4,738 5,923 6,106 3.00 8.4
71 42,169 12.36 61,114 17.91 63,316 18.56 4,760 5,950 6,134 3.00 8.4
72 42,603 12.49 61,297 17.97 63,458 18.60 4,782 5,977 6,162 3.00 8.4
73 43,036 12.61 61,480 18.02 63,600 18.64 4,803 6,004 6,190 3.00 8.4
Table 284: LMU540HV with Mixed Indoor Units — Rated Heating Combination Table.
PERFORMANCE DATA
Rated Heating Combination Tables
1
Capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch pipe
(98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
2
Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 60ºF wet
bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
3
Wiring cable size must comply with the applicable local and national codes.
4
The specification may be subject to change without prior notice for purpose of improvement.
5
Sum of connected indoor units capacity is 24~73 kBtu/h.
6
At least two indoor units should be connected.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
298 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Non-Ducted
Indoor Units
73 (135%)
14 54.55 3.55 57.94 3.68 61.33 3.82 63.78 3.86 68.11 3.94 71.49 4.01
20 54.51 3.61 57.90 3.74 61.28 3.87 63.73 3.92 68.05 3.99 71.44 4.07
25 54.47 3.66 57.85 3.79 61.24 3.93 63.68 3.97 68.00 4.05 71.38 4.13
30 54.43 3.71 57.81 3.84 61.19 3.98 63.63 4.03 67.95 4.10 71.33 4.19
35 54.39 3.76 57.76 3.90 61.14 4.04 63.58 4.08 67.90 4.16 71.28 4.25
40 54.35 3.81 57.72 3.95 61.10 4.09 63.53 4.14 67.85 4.22 71.22 4.30
45 54.30 3.86 57.68 4.00 61.05 4.15 63.48 4.20 67.79 4.27 71.17 4.36
50 54.26 3.91 57.63 4.05 61.00 4.20 63.44 4.25 67.74 4.33 71.11 4.42
55 54.22 3.96 57.59 4.11 60.96 4.26 63.39 4.31 67.69 4.39 71.06 4.48
60 54.18 4.01 57.54 4.16 60.91 4.31 63.34 4.36 67.64 4.44 71.00 4.53
65 54.14 4.07 57.50 4.21 60.86 4.37 63.29 4.42 67.59 4.50 70.95 4.59
70 54.10 4.12 57.46 4.27 60.82 4.42 63.24 4.47 67.53 4.56 70.89 4.65
75 52.79 4.34 56.15 4.50 59.50 4.66 61.92 4.71 66.20 4.80 69.55 4.90
80 51.49 4.56 54.84 4.73 58.18 4.90 60.59 4.96 64.86 5.05 68.21 5.15
85 50.20 4.78 53.54 4.96 56.87 5.14 59.28 5.20 63.54 5.29 66.88 5.40
90 48.91 5.00 52.24 5.19 55.56 5.38 57.97 5.44 62.22 5.54 65.54 5.65
95 47.51 5.23 50.82 5.42 54.13 5.62 55.65 5.68 60.75 5.79 64.06 5.90
100 46.35 5.45 49.66 5.65 52.97 5.85 54.93 5.92 59.59 6.03 62.90 6.15
105 45.20 5.67 48.51 5.88 51.82 6.09 54.21 6.16 58.44 6.28 61.75 6.40
110 44.04 5.89 47.35 6.11 50.66 6.33 53.05 6.40 57.28 6.52 60.59 6.66
115 42.88 6.11 46.19 6.34 49.50 6.57 51.89 6.65 56.12 6.77 59.43 6.91
118 42.19 6.25 45.50 6.48 48.81 6.71 51.20 6.79 55.43 6.92 58.74 7.06
122 41.96 6.43 45.27 6.66 48.58 6.90 50.97 6.98 55.20 7.11 58.51 7.26
Non-Ducted
Indoor Units
70 (130%)
14 54.06 3.50 57.42 3.63 60.78 3.76 63.20 3.80 67.49 3.87 70.85 3.95
20 54.02 3.55 57.38 3.68 60.73 3.81 63.16 3.86 67.44 3.93 70.80 4.01
25 53.98 3.60 57.33 3.73 60.69 3.87 63.11 3.91 67.39 3.98 70.74 4.06
30 53.94 3.65 57.29 3.78 60.64 3.92 63.06 3.97 67.34 4.04 70.69 4.12
35 53.90 3.70 57.25 3.83 60.59 3.97 63.01 4.02 67.29 4.10 70.64 4.18
40 53.86 3.75 57.20
3.89 60.55 4.03 62.96 4.07 67.24 4.15 70.58 4.23
45 53.82 3.80 57.16 3.94 60.50 4.08 62.91 4.13 67.18 4.21 70.53 4.29
50 53.77 3.85 57.11 3.99 60.45 4.14 62.87 4.18 67.13 4.26 70.47 4.35
55 53.73 3.90 57.07 4.04 60.41 4.19 62.82 4.24 67.08 4.32 70.42 4.40
60 53.69 3.95 57.03 4.09 60.36 4.24 62.77 4.29 67.03 4.37 70.36 4.46
65 53.65 4.00 56.98 4.15 60.31 4.30 62.72 4.35 66.98 4.43 70.31 4.52
70 53.61 4.05 56.94 4.20 60.27 4.35 62.67 4.40 66.93 4.48 70.26 4.58
75 52.32 4.27 55.64 4.43 58.96 4.59 61.36 4.64 65.60 4.73 68.93 4.82
80 51.03 4.49 54.34 4.65 57.66 4.82 60.05 4.88 64.28 4.97 67.59 5.07
85 49.75 4.71 53.06 4.88 56.36 5.06 58.75 5.11 62.97 5.21 66.28 5.32
90 48.47 4.93 51.77 5.11 55.07 5.29 57.45 5.35 61.66 5.45 64.96 5.56
95 47.08 5.14 50.36 5.33 53.65 5.53 55.15 5.59 60.21 5.69 63.49 5.81
100 45.94 5.36 49.22 5.56 52.50 5.76 54.44 5.83 59.06 5.94 62.34 6.06
105 44.79 5.58 48.07 5.78 51.35 6.00 53.72 6.07 57.91 6.18 61.19 6.30
110 43.64 5.80 46.93 6.01 50.21 6.23 52.57 6.30 56.77 6.42 60.05 6.55
115 42.50 6.02 45.78 6.24 49.06 6.47 51.43 6.54 55.62 6.66 58.90 6.80
118 41.81 6.15 45.09 6.37 48.37 6.61 50.74 6.68 54.93 6.81 58.21 6.94
122 41.58 6.32 44.86 6.55 48.14 6.79 50.51 6.87 54.70 7.00 57.98 7.14
Table 285: LMU540HV Cooling Capacity Table — Non-Ducted Indoor Units.
PERFORMANCE DATA
Cooling Capacity Tables
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
MULTI F MAX OUTDOOR UNIT | 299
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Non-Ducted
Indoor Units
65 (120%)
14 53.25 3.40 56.56 3.53 59.86 3.66 62.25 3.70 66.48 3.77 69.79 3.84
20 53.21 3.45 56.51 3.58 59.82 3.71 62.20 3.75 66.43 3.82 69.73 3.90
25 53.17 3.50 56.47 3.63 59.77 3.76 62.16 3.81 66.38 3.88 69.68 3.96
30 53.13 3.55 56.43 3.68 59.73 3.82 62.11 3.86 66.33 3.93 69.63 4.01
35 53.09 3.60 56.38 3.73 59.68 3.87 62.06 3.91 66.28 3.99 69.57 4.07
40 53.05 3.65 56.34 3.78 59.64 3.92 62.01 3.97 66.22 4.04 69.52 4.12
45 53.01 3.70 56.30 3.83 59.59 3.97 61.97 4.02 66.17 4.09 69.47 4.18
50 52.97 3.75 56.25 3.88 59.54 4.03 61.92 4.07 66.12 4.15 69.41 4.23
55 52.92 3.80 56.21 3.93 59.50 4.08 61.87 4.12 66.07 4.20 69.36 4.29
60 52.88 3.84 56.17 3.98 59.45 4.13 61.82 4.18 66.02 4.26 69.31 4.34
65 52.84 3.89 56.13 4.04 59.41 4.18 61.78 4.23 65.97 4.31 69.25 4.40
70 52.80 3.94 56.08 4.09 59.36 4.24 61.73 4.28 65.92 4.36 69.20 4.45
75 51.53 4.16 54.80 4.31 58.07 4.46 60.44 4.52 64.62 4.60 67.89 4.69
80 50.26 4.37 53.52 4.53 56.79 4.69 59.14 4.75 63.31 4.84 66.58 4.93
85 49.00 4.58 52.26 4.75 55.51 4.92 57.86 4.98 62.02 5.07 65.28 5.17
90 47.74 4.79 50.99 4.97 54.24 5.15 56.58 5.21 60.73 5.31 63.98 5.41
95 46.38 5.01 49.61 5.19 52.84 5.38 54.32 5.44 59.30 5.54 62.53 5.65
100 45.25 5.22 48.48 5.41 51.71 5.61 53.62 5.67 58.17 5.78 61.40 5.89
105 44.12 5.43 47.35 5.63 50.58 5.84 52.91 5.90 57.04 6.01 60.27 6.13
110 42.99 5.64 46.22 5.85 49.45 6.06 51.78 6.13 55.91 6.25 59.14 6.37
115 41.86 5.86 45.09 6.07 48.32 6.29 50.65 6.36 54.78 6.48 58.01 6.61
118 41.18 5.98 44.41 6.20 47.64 6.43 49.98 6.50 54.10 6.63 57.34 6.76
122 40.96 6.15 44.19 6.38 47.42 6.61 49.75 6.69 53.88 6.81 57.11 6.95
Non-Ducted
Indoor Units
59 (110%)
14 52.28 3.29 55.53 3.41 58.77 3.53 61.12 3.57 65.27 3.64 68.51 3.71
20 52.24 3.33 55.48 3.45 58.73 3.58 61.07 3.62 65.22 3.69 68.46 3.76
25 52.20 3.38 55.44 3.50 58.68 3.63 61.02 3.67 65.17 3.74 68.41 3.82
30 52.16 3.43 55.40 3.55 58.64 3.68 60.98 3.72 65.12 3.79 68.36 3.87
35 52.12 3.47 55.36 3.60 58.59 3.73 60.93 3.78 65.07 3.85 68.30 3.92
40 52.08 3.52 55.31
3.65 58.55 3.78 60.88 3.83 65.02 3.90 68.25 3.98
45 52.04 3.57 55.27 3.70 58.50 3.83 60.84 3.88 64.97 3.95 68.20 4.03
50 52.00 3.62 55.23 3.75 58.46 3.88 60.79 3.93 64.92 4.00 68.15 4.08
55 51.96 3.66 55.19 3.80 58.41 3.94 60.74 3.98 64.87 4.06 68.10 4.14
60 51.92 3.71 55.14 3.85 58.37 3.99 60.70 4.03 64.82 4.11 68.04 4.19
65 51.88 3.76 55.10 3.89 58.32 4.04 60.65 4.08 64.77 4.16 67.99 4.24
70 51.84 3.80 55.06 3.94 58.28 4.09 60.60 4.13 64.72 4.21 67.94 4.30
75 50.59 4.01 53.80 4.16 57.02 4.31 59.34 4.36 63.44 4.44 66.65 4.53
80 49.35 4.22 52.55 4.37 55.75 4.53 58.07 4.58 62.16 4.67 65.36 4.76
85 48.11 4.42 51.30 4.58 54.50 4.75 56.81 4.80 60.89 4.89 64.09 4.99
90 46.87 4.63 50.06 4.79 53.25 4.97 55.55 5.03 59.62 5.12 62.81 5.22
95 45.53 4.83 48.70 5.01 51.87 5.19 53.33 5.25 58.22 5.35 61.39 5.46
100 44.42 5.04 47.59 5.22 50.77 5.41 52.64 5.47 57.11 5.58 60.28 5.69
105 43.31 5.24 46.49 5.43 49.66 5.63 51.95 5.70 56.00 5.80 59.17 5.92
110 42.20 5.45 45.38 5.65 48.55 5.85 50.84 5.92 54.89 6.03 58.06 6.15
115 41.10 5.65 44.27 5.86 47.44 6.07 49.73 6.14 53.78 6.26 56.96 6.38
118 40.43 5.78 43.60 5.99 46.77 6.20 49.07 6.28 53.12 6.39 56.29 6.52
122 40.21 5.94 43.38 6.16 46.55 6.38 48.84 6.45 52.90 6.58 56.07 6.71
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Table 286: LMU540HV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
300 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Non-Ducted
Indoor Units
54 (100%)
14 51.47 3.19 54.66 3.31 57.86 3.43 60.17 3.47 64.25 3.53 67.45 3.60
20 51.43 3.24 54.62 3.36 57.81 3.48 60.12 3.52 64.20 3.58 67.40 3.66
25 51.39 3.28 54.58 3.40 57.77 3.53 60.07 3.57 64.15 3.63 67.34 3.71
30 51.35 3.33 54.54 3.45 57.73 3.58 60.03 3.62 64.10 3.69 67.29 3.76
35 51.31 3.38 54.50 3.50 57.68 3.63 59.98 3.67 64.05 3.74 67.24 3.81
40 51.27 3.42 54.45 3.55 57.64 3.68 59.94 3.72 64.01 3.79 67.19 3.86
45 51.23 3.47 54.41 3.59 57.59 3.72 59.89 3.77 63.96 3.84 67.14 3.92
50 51.19 3.51 54.37 3.64 57.55 3.77 59.85 3.82 63.91 3.89 67.09 3.97
55 51.15 3.56 54.33 3.69 57.51 3.82 59.80 3.87 63.86 3.94 67.04 4.02
60 51.11 3.60 54.29 3.74 57.46 3.87 59.75 3.92 63.81 3.99 66.98 4.07
65 51.07 3.65 54.24 3.78 57.42 3.92 59.71 3.97 63.76 4.04 66.93 4.12
70 51.03 3.70 54.20 3.83 57.37 3.97 59.66 4.02 63.71 4.09 66.88 4.17
75 49.81 3.90 52.97 4.04 56.13 4.19 58.41 4.23 62.45 4.31 65.61 4.40
80 48.58 4.09 51.73 4.24 54.89 4.40 57.16 4.45 61.19 4.53 64.35 4.62
85 47.36 4.29 50.51 4.45 53.65 4.61 55.92 4.67 59.94 4.75 63.09 4.85
90 46.14 4.49 49.28 4.66 52.42 4.83 54.69 4.88 58.70 4.97 61.83 5.07
95 44.82 4.69 47.94 4.86 51.07 5.04 52.50 5.10 57.31 5.20 60.44 5.30
100 43.73 4.89 46.85 5.07 49.98 5.26 51.82 5.32 56.22 5.42 59.34 5.53
105 42.64 5.09 45.76 5.28 48.88 5.47 51.14 5.53 55.13 5.64 58.25 5.75
110 41.55 5.29 44.67 5.48 47.79 5.68 50.05 5.75 54.04 5.86 57.16 5.98
115 40.46 5.49 43.58 5.69 46.70 5.90 48.96 5.97 52.95 6.08 56.07 6.20
118 39.80 5.61 42.92 5.82 46.05 6.03 48.30 6.10 52.29 6.21 55.41 6.34
122 39.58 5.77 42.71 5.98 45.83 6.20 48.08 6.27 52.07 6.39 55.20 6.52
Non-Ducted
Indoor Units
49 (90%)
14 46.70 2.82 49.60 2.93 52.50 3.03 54.60 3.07 58.30 3.12 61.20 3.19
20 46.67 2.86 49.56 2.97 52.46 3.08 54.56 3.11 58.26 3.17 61.16 3.23
25 46.63 2.90 49.53 3.01 52.42 3.12 54.51 3.16 58.21 3.21 61.11 3.28
30 46.59 2.94 49.49 3.05 52.38 3.16 54.47 3.20 58.17 3.26 61.06 3.32
35 46.56 2.98 49.45 3.09 52.34 3.21 54.43 3.24 58.12 3.30 61.02 3.37
40 46.52 3.03 49.41
3.14 52.30 3.25 54.39 3.29 58.08 3.35 60.97 3.42
45 46.49 3.07 49.37 3.18 52.26 3.29 54.35 3.33 58.04 3.39 60.92 3.46
50 46.45 3.11 49.34 3.22 52.22 3.34 54.31 3.38 57.99 3.44 60.88 3.51
55 46.42 3.15 49.30 3.26 52.18 3.38 54.26 3.42 57.95 3.48 60.83 3.55
60 46.38 3.19 49.26 3.30 52.14 3.42 54.22 3.46 57.90 3.53 60.78 3.60
65 46.35 3.23 49.22 3.35 52.10 3.47 54.18 3.51 57.86 3.57 60.74 3.65
70 46.31 3.27 49.19 3.39 52.06 3.51 54.14 3.55 57.81 3.62 60.69 3.69
75 45.20 3.44 48.06 3.57 50.93 3.70 53.01 3.74 56.67 3.81 59.54 3.89
80 44.08 3.62 46.94 3.75 49.80 3.89 51.87 3.94 55.53 4.01 58.39 4.09
85 42.98 3.80 45.83 3.94 48.69 4.08 50.75 4.13 54.40 4.20 57.25 4.29
90 41.87 3.97 44.72 4.12 47.57 4.27 49.62 4.32 53.26 4.40 56.11 4.49
95 40.67 4.15 43.51 4.30 46.34 4.46 47.64 4.51 52.01 4.59 54.84 4.69
100 39.68 4.33 42.52 4.48 45.35 4.65 47.02 4.70 51.02 4.79 53.85 4.89
105 38.69 4.50 41.53 4.67 44.36 4.84 46.41 4.89 50.03 4.98 52.86 5.09
110 37.70 4.68 40.54 4.85 43.37 5.03 45.42 5.08 49.04 5.18 51.87 5.28
115 36.71 4.86 39.54 5.03 42.38 5.22 44.42 5.28 48.05 5.38 50.88 5.48
118 36.12 4.96 38.95 5.14 41.78 5.33 43.83 5.39 47.45 5.49 50.28 5.60
122 35.92 5.10 38.75 5.29 41.59 5.48 43.63 5.54 47.25 5.65 50.09 5.76
Table 287: LMU540HV Cooling Capacity Table — Non-Ducted Indoor Units.
PERFORMANCE DATA
Cooling Capacity Tables
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
MULTI F MAX OUTDOOR UNIT | 301
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 288: LMU540HV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
PERFORMANCE DATA
Cooling Capacity Tables
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Non-Ducted
Indoor Units
43 (80%)
14 40.99 2.38 43.53 2.46 46.08 2.55 47.92 2.58 51.17 2.63 53.71 2.69
20 40.95 2.41 43.50 2.50 46.04 2.59 47.88 2.62 51.13 2.67 53.67 2.72
25 40.92 2.45 43.47 2.54 46.01 2.63 47.84 2.66 51.09 2.71 53.63 2.76
30 40.89 2.48 43.43 2.57 45.97 2.66 47.81 2.70 51.05 2.75 53.59 2.80
35 40.86 2.51 43.40 2.61 45.94 2.70 47.77 2.73 51.01 2.78 53.55 2.84
40 40.83 2.55 43.37 2.64 45.90 2.74 47.73 2.77 50.97 2.82 53.51 2.88
45 40.80 2.58 43.33 2.68 45.87 2.78 47.70 2.81 50.93 2.86 53.47 2.92
50 40.77 2.62 43.30 2.71 45.83 2.81 47.66 2.84 50.89 2.90 53.43 2.96
55 40.74 2.65 43.27 2.75 45.80 2.85 47.62 2.88 50.86 2.94 53.39 2.99
60 40.70 2.69 43.23 2.78 45.76 2.89 47.59 2.92 50.82 2.97 53.34 3.03
65 40.67 2.72 43.20 2.82 45.73 2.92 47.55 2.96 50.78 3.01 53.30 3.07
70 40.64 2.75 43.17 2.85 45.69 2.96 47.51 2.99 50.74 3.05 53.26 3.11
75 39.66 2.90 42.18 3.01 44.70 3.12 46.52 3.15 49.74 3.21 52.25 3.28
80 38.69 3.05 41.20 3.16 43.71 3.28 45.52 3.32 48.73 3.38 51.24 3.45
85 37.72 3.20 40.22 3.32 42.73 3.44 44.54 3.48 47.74 3.54 50.24 3.61
90 36.75 3.35 39.25 3.47 41.75 3.60 43.55 3.64 46.74 3.71 49.24 3.78
95 35.70 3.50 38.18 3.62 40.67 3.76 41.81 3.80 45.64 3.87 48.13 3.95
100 34.83 3.65 37.31 3.78 39.80 3.92 41.27 3.96 44.77 4.04 47.26 4.12
105 33.96 3.79 36.44 3.93 38.93 4.08 40.73 4.12 43.90 4.20 46.39 4.28
110 33.09 3.94 35.57 4.09 38.06 4.24 39.86 4.28 43.03 4.36 45.52 4.45
115 32.22 4.09 34.71 4.24 37.19 4.40 38.99 4.45 42.17 4.53 44.65 4.62
118 31.70 4.18 34.18 4.33 36.67 4.49 38.47 4.54 41.64 4.63 44.13 4.72
122 31.52 4.30 34.01 4.46 36.50 4.62 38.29 4.67 41.47 4.76 43.96 4.86
Non-Ducted
Indoor Units
38 (70%)
14 36.21 2.01 38.46 2.08 40.71 2.16 42.33 2.18 45.21 2.22 47.46 2.27
20 36.18 2.04 38.43 2.11 40.68 2.19 42.30 2.21 45.17 2.26 47.42 2.30
25 36.16 2.07 38.40 2.14 40.65 2.22 42.27 2.25 45.14 2.29 47.38 2.33
30 36.13 2.10 38.37 2.17 40.62 2.25 42.24 2.28 45.10 2.32 47.35 2.37
35 36.10 2.12 38.34 2.20 40.59 2.28 42.21 2.31 45.07 2.35 47.31 2.40
40 36.07 2.15 38.31
2.23 40.55 2.31 42.17 2.34 45.04 2.38 47.28 2.43
45 36.05 2.18 38.29 2.26 40.52 2.34 42.14 2.37 45.00 2.42 47.24 2.46
50 36.02 2.21 38.26 2.29 40.49 2.38 42.11 2.40 44.97 2.45 47.20 2.50
55 35.99 2.24 38.23 2.32 40.46 2.41 42.08 2.43 44.93 2.48 47.17 2.53
60 35.96 2.27 38.20 2.35 40.43 2.44 42.04 2.47 44.90 2.51 47.13 2.56
65 35.94 2.30 38.17 2.38 40.40 2.47 42.01 2.50 44.86 2.54 47.09 2.59
70 35.91 2.33 38.14 2.41 40.37 2.50 41.98 2.53 44.83 2.58 47.06 2.63
75 35.04 2.45 37.27 2.54 39.49 2.63 41.10 2.66 43.94 2.71 46.17 2.77
80 34.18 2.58 36.40 2.67 38.62 2.77 40.22 2.80 43.06 2.85 45.28 2.91
85 33.32 2.70 35.54 2.80 37.75 2.90 39.35 2.94 42.18 2.99 44.39 3.05
90 32.47 2.83 34.68 2.93 36.88 3.04 38.48 3.07 41.30 3.13 43.51 3.19
95 31.54 2.95 33.73 3.06 35.93 3.17 36.94 3.21 40.33 3.27 42.52 3.34
100 30.77 3.08 32.97 3.19 35.16 3.31 36.46 3.35 39.56 3.41 41.76 3.48
105 30.00 3.20 32.20 3.32 34.40 3.44 35.98 3.48 38.79 3.55 40.99 3.62
110 29.23 3.33 31.43 3.45 33.63 3.58 35.21 3.62 38.02 3.69 40.22 3.76
115 28.47 3.46 30.66 3.58 32.86 3.71 34.45 3.76 37.25 3.83 39.45 3.90
118 28.01 3.53 30.20 3.66 32.40 3.79 33.99 3.84 36.79 3.91 38.99 3.99
122 27.85 3.63 30.05 3.76 32.25 3.90 33.83 3.95 36.64 4.02 38.84 4.10
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
302 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Non-Ducted
Indoor Units
32 (60%)
14 30.50 1.56 32.39 1.62 34.29 1.68 35.65 1.70 38.07 1.73 39.97 1.77
20 30.47 1.59 32.37 1.64 34.26 1.70 35.63 1.72 38.04 1.76 39.94 1.79
25 30.45 1.61 32.34 1.67 34.23 1.73 35.60 1.75 38.01 1.78 39.91 1.82
30 30.43 1.63 32.32 1.69 34.21 1.75 35.57 1.77 37.99 1.81 39.88 1.84
35 30.40 1.65 32.29 1.71 34.18 1.78 35.54 1.80 37.96 1.83 39.85 1.87
40 30.38 1.68 32.27 1.74 34.15 1.80 35.52 1.82 37.93 1.86 39.81 1.89
45 30.36 1.70 32.24 1.76 34.13 1.83 35.49 1.85 37.90 1.88 39.78 1.92
50 30.33 1.72 32.22 1.78 34.10 1.85 35.46 1.87 37.87 1.91 39.75 1.94
55 30.31 1.74 32.19 1.81 34.08 1.87 35.44 1.90 37.84 1.93 39.72 1.97
60 30.29 1.77 32.17 1.83 34.05 1.90 35.41 1.92 37.81 1.96 39.69 2.00
65 30.26 1.79 32.14 1.85 34.02 1.92 35.38 1.94 37.78 1.98 39.66 2.02
70 30.24 1.81 32.12 1.88 34.00 1.95 35.35 1.97 37.75 2.01 39.63 2.05
75 29.51 1.91 31.39 1.98 33.26 2.05 34.61 2.08 37.01 2.11 38.88 2.16
80 28.79 2.01 30.65 2.08 32.52 2.16 33.87 2.18 36.26 2.22 38.13 2.27
85 28.06 2.10 29.93 2.18 31.79 2.26 33.14 2.29 35.52 2.33 37.39 2.38
90 27.34 2.20 29.20 2.28 31.06 2.37 32.41 2.39 34.78 2.44 36.64 2.49
95 26.56 2.30 28.41 2.38 30.26 2.47 31.11 2.50 33.96 2.55 35.81 2.60
100 25.91 2.40 27.76 2.49 29.61 2.58 30.71 2.61 33.32 2.66 35.17 2.71
105 25.27 2.50 27.12 2.59 28.97 2.68 30.30 2.71 32.67 2.76 34.52 2.82
110 24.62 2.59 26.47 2.69 28.32 2.79 29.66 2.82 32.02 2.87 33.87 2.93
115 23.97 2.69 25.82 2.79 27.67 2.89 29.01 2.92 31.37 2.98 33.23 3.04
118 23.59 2.75 25.44 2.85 27.29 2.95 28.62 2.99 30.99 3.04 32.84 3.11
122 23.46 2.83 25.31 2.93 27.16 3.04 28.49 3.07 30.86 3.13 32.71 3.19
Non-Ducted
Indoor Units
27 (50%)
14 25.73 1.20 27.33 1.24 28.93 1.28 30.08 1.30 32.13 1.32 33.72 1.35
20 25.71 1.21 27.31 1.26 28.91 1.30 30.06 1.32 32.10 1.34 33.70 1.37
25 25.69 1.23 27.29 1.27 28.88 1.32 30.04 1.34 32.08 1.36 33.67 1.39
30 25.67 1.25 27.27 1.29 28.86 1.34 30.01 1.35 32.05 1.38 33.65 1.41
35 25.65 1.26 27.25 1.31 28.84 1.36 29.99 1.37 32.03 1.40 33.62 1.43
40 25.63 1.28 27.23
1.33 28.82 1.38 29.97 1.39 32.00 1.42 33.59 1.45
45 25.62 1.30 27.21 1.35 28.80 1.39 29.95 1.41 31.98 1.44 33.57 1.47
50 25.60 1.32 27.19 1.36 28.77 1.41 29.92 1.43 31.95 1.46 33.54 1.49
55 25.58 1.33 27.16 1.38 28.75 1.43 29.90 1.45 31.93 1.48 33.52 1.51
60 25.56 1.35 27.14 1.40 28.73 1.45 29.88 1.47 31.90 1.49 33.49 1.52
65 25.54 1.37 27.12 1.42 28.71 1.47 29.85 1.49 31.88 1.51 33.47 1.54
70 25.52 1.38 27.10 1.43 28.69 1.49 29.83 1.50 31.86 1.53 33.44 1.56
75 24.90 1.46 26.48 1.51 28.06 1.57 29.21 1.59 31.23 1.62 32.81 1.65
80 24.29 1.53 25.87 1.59 27.44 1.65 28.58 1.67 30.60 1.70 32.17 1.73
85 23.68 1.61 25.25 1.67 26.83 1.73 27.96 1.75 29.97 1.78 31.55 1.82
90 23.07 1.68 24.64 1.74 26.21 1.81 27.34 1.83 29.35 1.86 30.92 1.90
95 22.41 1.76 23.97 1.82 25.53 1.89 26.25 1.91 28.66 1.95 30.22 1.98
100 21.87 1.83 23.43 1.90 24.99 1.97 25.91 1.99 28.11 2.03 29.67 2.07
105 21.32 1.91 22.88 1.98 24.44 2.05 25.57 2.07 27.56 2.11 29.13 2.15
110 20.77 1.98 22.34 2.05 23.90 2.13 25.02 2.15 27.02 2.19 28.58 2.24
115 20.23 2.06 21.79 2.13 23.35 2.21 24.48 2.23 26.47 2.28 28.03 2.32
118 19.90 2.10 21.46 2.18 23.02 2.26 24.15 2.28 26.15 2.33 27.71 2.37
122 19.79 2.16 21.35 2.24 22.91 2.32 24.04 2.35 26.04 2.39 27.60 2.44
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Table 289: LMU540HV Cooling Capacity Table — Non-Ducted Indoor Units (continued).
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F MAX OUTDOOR UNIT | 303
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 290: LMU540HV Cooling Capacity Table — Non-Ducted (continued) / Ducted Indoor Units.
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Non-Ducted
Indoor Units
24 (40%)
14 22.87 0.97 24.29 1.01 25.71 1.04 26.74 1.05 28.55 1.07 29.97 1.10
20 22.85 0.98 24.27 1.02 25.69 1.06 26.72 1.07 28.53 1.09 29.95 1.11
25 22.84 1.00 24.25 1.03 25.67 1.07 26.70 1.08 28.51 1.10 29.93 1.13
30 22.82 1.01 24.24 1.05 25.65 1.09 26.68 1.10 28.49 1.12 29.90 1.14
35 22.80 1.03 24.22 1.06 25.63 1.10 26.66 1.11 28.46 1.14 29.88 1.16
40 22.78 1.04 24.20 1.08 25.61 1.12 26.63 1.13 28.44 1.15 29.86 1.17
45 22.77 1.05 24.18 1.09 25.59 1.13 26.61 1.14 28.42 1.17 29.83 1.19
50 22.75 1.07 24.16 1.11 25.57 1.15 26.59 1.16 28.40 1.18 29.81 1.21
55 22.73 1.08 24.14 1.12 25.55 1.16 26.57 1.18 28.38 1.20 29.79 1.22
60 22.71 1.10 24.12 1.14 25.53 1.18 26.55 1.19 28.36 1.21 29.77 1.24
65 22.70 1.11 24.11 1.15 25.51 1.19 26.53 1.21 28.33 1.23 29.74 1.25
70 22.68 1.12 24.09 1.16 25.50 1.21 26.51 1.22 28.31 1.24 29.72 1.27
75 22.13 1.18 23.54 1.23 24.94 1.27 25.96 1.29 27.75 1.31 29.16 1.34
80 21.59 1.24 22.99 1.29 24.39 1.34 25.40 1.35 27.19 1.38 28.59 1.41
85 21.05 1.31 22.44 1.35 23.84 1.40 24.85 1.42 26.64 1.44 28.04 1.47
90 20.51 1.37 21.90 1.42 23.29 1.47 24.30 1.48 26.08 1.51 27.48 1.54
95 19.92 1.43 21.31 1.48 22.69 1.53 23.33 1.55 25.47 1.58 26.86 1.61
100 19.43 1.49 20.82 1.54 22.21 1.60 23.03 1.62 24.98 1.65 26.37 1.68
105 18.95 1.55 20.34 1.60 21.72 1.66 22.73 1.68 24.50 1.71 25.89 1.75
110 18.46 1.61 19.85 1.67 21.24 1.73 22.24 1.75 24.01 1.78 25.40 1.82
115 17.98 1.67 19.37 1.73 20.75 1.79 21.76 1.81 23.53 1.85 24.92 1.88
118 17.69 1.71 19.07 1.77 20.46 1.83 21.46 1.85 23.24 1.89 24.63 1.93
122 17.59 1.75 18.98 1.82 20.37 1.88 21.37 1.91 23.14 1.94 24.53 1.98
Ducted Indoor
Units
73 (135%)
14 52.99 3.55 56.29 3.68 59.58 3.82 61.95 3.86 66.16 3.94 69.45 4.01
20 52.95 3.61 56.24 3.74 59.53 3.87 61.91 3.92 66.11 3.99 69.40 4.07
25 52.91 3.66 56.20 3.79 59.49 3.93 61.86 3.97 66.06 4.05 69.35 4.13
30 52.87 3.71 56.16 3.84 59.44 3.98 61.81 4.03 66.01 4.10 69.29 4.19
35 52.83 3.76 56.11 3.90 59.40 4.04 61.77 4.08 65.96 4.16 69.24 4.25
40 52.79 3.81 56.07
3.95 59.35 4.09 61.72 4.14 65.91 4.22 69.19 4.30
45 52.75 3.86 56.03 4.00 59.30 4.15 61.67 4.20 65.86 4.27 69.13 4.36
50 52.71 3.91 55.99 4.05 59.26 4.20 61.62 4.25 65.81 4.33 69.08 4.42
55 52.67 3.96 55.94 4.11 59.21 4.26 61.58 4.31 65.76 4.39 69.03 4.48
60 52.63 4.01 55.90 4.16 59.17 4.31 61.53 4.36 65.71 4.44 68.97 4.53
65 52.59 4.07 55.86 4.21 59.12 4.37 61.48 4.42 65.66 4.50 68.92 4.59
70 52.55 4.12 55.81 4.27 59.08 4.42 61.43 4.47 65.60 4.56 68.87 4.65
75 51.29 4.34 54.54 4.50 57.80 4.66 60.15 4.71 64.31 4.80 67.56 4.90
80 50.02 4.56 53.27 4.73 56.52 4.90 58.86 4.96 63.01 5.05 66.26 5.15
85 48.77 4.78 52.01 4.96 55.25 5.14 57.59 5.20 61.73 5.29 64.97 5.40
90 47.51 5.00 50.75 5.19 53.98 5.38 56.31 5.44 60.44 5.54 63.67 5.65
95 46.15 5.23 49.37 5.42 52.58 5.62 54.06 5.68 59.02 5.79 62.23 5.90
100 45.03 5.45 48.25 5.65 51.46 5.85 53.36 5.92 57.89 6.03 61.11 6.15
105 43.91 5.67 47.12 5.88 50.34 6.09 52.66 6.16 56.77 6.28 59.98 6.40
110 42.78 5.89 46.00 6.11 49.21 6.33 51.54 6.40 55.64 6.52 58.86 6.66
115 41.66 6.11 44.87 6.34 48.09 6.57 50.41 6.65 54.52 6.77 57.74 6.91
118 40.98 6.25 44.20 6.48 47.41 6.71 49.74 6.79 53.85 6.92 57.06 7.06
122 40.76 6.43 43.97 6.66 47.19 6.90 49.51 6.98 53.62 7.11 56.84 7.26
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
304 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Ducted Indoor
Units
70 (130%)
14 52.52 3.50 55.79 3.63 59.05 3.76 61.40 3.80 65.57 3.87 68.83 3.95
20 52.48 3.55 55.74 3.68 59.00 3.81 61.36 3.86 65.52 3.93 68.78 4.01
25 52.44 3.60 55.70 3.73 58.96 3.87 61.31 3.91 65.47 3.98 68.73 4.06
30 52.40 3.65 55.66 3.78 58.91 3.92 61.26 3.97 65.42 4.04 68.68 4.12
35 52.36 3.70 55.62 3.83 58.87 3.97 61.22 4.02 65.37 4.10 68.62 4.18
40 52.32 3.75 55.57 3.89 58.82 4.03 61.17 4.07 65.32 4.15 68.57 4.23
45 52.28 3.80 55.53 3.94 58.78 4.08 61.12 4.13 65.27 4.21 68.52 4.29
50 52.24 3.85 55.49 3.99 58.73 4.14 61.08 4.18 65.22 4.26 68.47 4.35
55 52.20 3.90 55.45 4.04 58.69 4.19 61.03 4.24 65.17 4.32 68.41 4.40
60 52.16 3.95 55.40 4.09 58.64 4.24 60.98 4.29 65.12 4.37 68.36 4.46
65 52.12 4.00 55.36 4.15 58.60 4.30 60.94 4.35 65.07 4.43 68.31 4.52
70 52.08 4.05 55.32 4.20 58.55 4.35 60.89 4.40 65.02 4.48 68.26 4.58
75 50.83 4.27 54.06 4.43 57.28 4.59 59.61 4.64 63.74 4.73 66.96 4.82
80 49.58 4.49 52.80 4.65 56.01 4.82 58.34 4.88 62.45 4.97 65.67 5.07
85 48.33 4.71 51.55 4.88 54.76 5.06 57.08 5.11 61.18 5.21 64.39 5.32
90 47.09 4.93 50.30 5.11 53.50 5.29 55.81 5.35 59.90 5.45 63.11 5.56
95 45.74 5.14 48.93 5.33 52.12 5.53 53.58 5.59 58.49 5.69 61.68 5.81
100 44.63 5.36 47.82 5.56 51.00 5.76 52.89 5.83 57.38 5.94 60.56 6.06
105 43.52 5.58 46.70 5.78 49.89 6.00 52.19 6.07 56.26 6.18 59.45 6.30
110 42.40 5.80 45.59 6.01 48.78 6.23 51.08 6.30 55.15 6.42 58.34 6.55
115 41.29 6.02 44.48 6.24 47.66 6.47 49.96 6.54 54.04 6.66 57.22 6.80
118 40.62 6.15 43.81 6.37 46.99 6.61 49.30 6.68 53.37 6.81 56.55 6.94
122 40.40 6.32 43.58 6.55 46.77 6.79 49.07 6.87 53.14 7.00 56.33 7.14
Ducted Indoor
Units
65 (120%)
14 51.73 3.40 54.94 3.53 58.16 3.66 60.48 3.70 64.58 3.77 67.79 3.84
20 51.69 3.45 54.90 3.58 58.11 3.71 60.43 3.75 64.53 3.82 67.74 3.90
25 51.65 3.50 54.86 3.63 58.07 3.76 60.38 3.81 64.48 3.88 67.69 3.96
30 51.61 3.55 54.82 3.68 58.02 3.82 60.34 3.86 64.43 3.93 67.64 4.01
35 51.57 3.60 54.78 3.73 57.98 3.87 60.29 3.91 64.38 3.99 67.59 4.07
40 51.53 3.65 54.73
3.78 57.93 3.92 60.25 3.97 64.33 4.04 67.54 4.12
45 51.49 3.70 54.69 3.83 57.89 3.97 60.20 4.02 64.29 4.09 67.48 4.18
50 51.45 3.75 54.65 3.88 57.85 4.03 60.15 4.07 64.24 4.15 67.43 4.23
55 51.41 3.80 54.61 3.93 57.80 4.08 60.11 4.12 64.19 4.20 67.38 4.29
60 51.38 3.84 54.57 3.98 57.76 4.13 60.06 4.18 64.14 4.26 67.33 4.34
65 51.34 3.89 54.52 4.04 57.71 4.18 60.01 4.23 64.09 4.31 67.28 4.40
70 51.30 3.94 54.48 4.09 57.67 4.24 59.97 4.28 64.04 4.36 67.22 4.45
75 50.06 4.16 53.24 4.31 56.42 4.46 58.71 4.52 62.77 4.60 65.95 4.69
80 48.83 4.37 52.00 4.53 55.17 4.69 57.46 4.75 61.51 4.84 64.68 4.93
85 47.60 4.58 50.77 4.75 53.93 4.92 56.21 4.98 60.25 5.07 63.41 5.17
90 46.38 4.79 49.53 4.97 52.69 5.15 54.97 5.21 59.00 5.31 62.15 5.41
95 45.05 5.01 48.19 5.19 51.33 5.38 52.77 5.44 57.61 5.54 60.75 5.65
100 43.96 5.22 47.09 5.41 50.23 5.61 52.09 5.67 56.51 5.78 59.65 5.89
105 42.86 5.43 46.00 5.63 49.14 5.84 51.40 5.90 55.41 6.01 58.55 6.13
110 41.76 5.64 44.90 5.85 48.04 6.06 50.31 6.13 54.32 6.25 57.45 6.37
115 40.66 5.86 43.80 6.07 46.94 6.29 49.21 6.36 53.22 6.48 56.36 6.61
118 40.01 5.98 43.14 6.20 46.28 6.43 48.55 6.50 52.56 6.63 55.70 6.76
122 39.79 6.15 42.93 6.38 46.06 6.61 48.33 6.69 52.34 6.81 55.48 6.95
Table 291: LMU540HV Cooling Capacity Table — Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
MULTI F MAX OUTDOOR UNIT | 305
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Ducted Indoor
Units
59 (110%)
14 50.79 3.29 53.94 3.41 57.10 3.53 59.38 3.57 63.41 3.64 66.56 3.71
20 50.75 3.33 53.90 3.45 57.05 3.58 59.33 3.62 63.36 3.69 66.51 3.76
25 50.71 3.38 53.86 3.50 57.01 3.63 59.29 3.67 63.31 3.74 66.46 3.82
30 50.67 3.43 53.82 3.55 56.97 3.68 59.24 3.72 63.26 3.79 66.41 3.87
35 50.63 3.47 53.78 3.60 56.92 3.73 59.19 3.78 63.21 3.85 66.36 3.92
40 50.60 3.52 53.74 3.65 56.88 3.78 59.15 3.83 63.16 3.90 66.31 3.98
45 50.56 3.57 53.70 3.70 56.84 3.83 59.10 3.88 63.12 3.95 66.26 4.03
50 50.52 3.62 53.66 3.75 56.79 3.88 59.06 3.93 63.07 4.00 66.21 4.08
55 50.48 3.66 53.61 3.80 56.75 3.94 59.01 3.98 63.02 4.06 66.15 4.14
60 50.44 3.71 53.57 3.85 56.71 3.99 58.97 4.03 62.97 4.11 66.10 4.19
65 50.40 3.76 53.53 3.89 56.66 4.04 58.92 4.08 62.92 4.16 66.05 4.24
70 50.36 3.80 53.49 3.94 56.62 4.09 58.88 4.13 62.87 4.21 66.00 4.30
75 49.15 4.01 52.27 4.16 55.39 4.31 57.64 4.36 61.63 4.44 64.75 4.53
80 47.94 4.22 51.05 4.37 54.16 4.53 56.41 4.58 60.39 4.67 63.50 4.76
85 46.74 4.42 49.84 4.58 52.95 4.75 55.19 4.80 59.16 4.89 62.26 4.99
90 45.54 4.63 48.63 4.79 51.73 4.97 53.97 5.03 57.92 5.12 61.02 5.22
95 44.23 4.83 47.31 5.01 50.40 5.19 51.81 5.25 56.56 5.35 59.64 5.46
100 43.16 5.04 46.24 5.22 49.32 5.41 51.14 5.47 55.48 5.58 58.56 5.69
105 42.08 5.24 45.16 5.43 48.24 5.63 50.47 5.70 54.41 5.80 57.49 5.92
110 41.00 5.45 44.08 5.65 47.16 5.85 49.39 5.92 53.33 6.03 56.41 6.15
115 39.92 5.65 43.01 5.86 46.09 6.07 48.31 6.14 52.25 6.26 55.33 6.38
118 39.28 5.78 42.36 5.99 45.44 6.20 47.67 6.28 51.60 6.39 54.69 6.52
122 39.06 5.94 42.14 6.16 45.23 6.38 47.45 6.45 51.39 6.58 54.47 6.71
Ducted Indoor
Units
54 (100%)
14 50.00 3.19 53.10 3.31 56.21 3.43 58.45 3.47 62.41 3.53 65.52 3.60
20 49.96 3.24 53.06 3.36 56.16 3.48 58.40 3.52 62.37 3.58 65.47 3.66
25 49.92 3.28 53.02 3.40 56.12 3.53 58.36 3.57 62.32 3.63 65.42 3.71
30 49.88 3.33 52.98 3.45 56.08 3.58 58.31 3.62 62.27 3.69 65.37 3.76
35 49.84 3.38 52.94 3.50 56.03 3.63 58.27 3.67 62.22 3.74 65.32 3.81
40 49.80 3.42 52.90
3.55 55.99 3.68 58.22 3.72 62.18 3.79 65.27 3.86
45 49.77 3.47 52.86 3.59 55.95 3.72 58.18 3.77 62.13 3.84 65.22 3.92
50 49.73 3.51 52.82 3.64 55.90 3.77 58.14 3.82 62.08 3.89 65.17 3.97
55 49.69 3.56 52.78 3.69 55.86 3.82 58.09 3.87 62.03 3.94 65.12 4.02
60 49.65 3.60 52.74 3.74 55.82 3.87 58.05 3.92 61.99 3.99 65.07 4.07
65 49.61 3.65 52.70 3.78 55.78 3.92 58.00 3.97 61.94 4.04 65.02 4.12
70 49.58 3.70 52.65 3.83 55.73 3.97 57.96 4.02 61.89 4.09 64.97 4.17
75 48.38 3.90 51.45 4.04 54.53 4.19 56.74 4.23 60.67 4.31 63.74 4.40
80 47.19 4.09 50.25 4.24 53.32 4.40 55.53 4.45 59.44 4.53 62.51 4.62
85 46.01 4.29 49.06 4.45 52.12 4.61 54.33 4.67 58.23 4.75 61.29 4.85
90 44.82 4.49 47.87 4.66 50.92 4.83 53.12 4.88 57.02 4.97 60.07 5.07
95 43.54 4.69 46.57 4.86 49.61 5.04 51.00 5.10 55.68 5.20 58.71 5.30
100 42.48 4.89 45.51 5.07 48.55 5.26 50.34 5.32 54.61 5.42 57.65 5.53
105 41.42 5.09 44.45 5.28 47.49 5.47 49.68 5.53 53.55 5.64 56.59 5.75
110 40.36 5.29 43.39 5.48 46.43 5.68 48.62 5.75 52.49 5.86 55.53 5.98
115 39.30 5.49 42.33 5.69 45.37 5.90 47.56 5.97 51.43 6.08 54.47 6.20
118 38.66 5.61 41.70 5.82 44.73 6.03 46.92 6.10 50.80 6.21 53.83 6.34
122 38.45 5.77 41.49 5.98 44.52 6.20 46.71 6.27 50.59 6.39 53.62 6.52
PERFORMANCE DATA
Cooling Capacity Tables
Table 292: LMU540HV Cooling Capacity Table — Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
306 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Ducted Indoor
Units
49 (90%)
14 45.37 2.82 48.19 2.93 51.00 3.03 53.04 3.07 56.64 3.12 59.46 3.19
20 45.33 2.86 48.15 2.97 50.96 3.08 53.00 3.11 56.60 3.17 59.41 3.23
25 45.30 2.90 48.11 3.01 50.93 3.12 52.96 3.16 56.55 3.21 59.37 3.28
30 45.26 2.94 48.08 3.05 50.89 3.16 52.92 3.20 56.51 3.26 59.32 3.32
35 45.23 2.98 48.04 3.09 50.85 3.21 52.88 3.24 56.47 3.30 59.27 3.37
40 45.20 3.03 48.00 3.14 50.81 3.25 52.84 3.29 56.42 3.35 59.23 3.42
45 45.16 3.07 47.97 3.18 50.77 3.29 52.80 3.33 56.38 3.39 59.18 3.46
50 45.13 3.11 47.93 3.22 50.73 3.34 52.76 3.38 56.34 3.44 59.14 3.51
55 45.09 3.15 47.89 3.26 50.69 3.38 52.71 3.42 56.29 3.48 59.09 3.55
60 45.06 3.19 47.85 3.30 50.65 3.42 52.67 3.46 56.25 3.53 59.05 3.60
65 45.02 3.23 47.82 3.35 50.61 3.47 52.63 3.51 56.21 3.57 59.00 3.65
70 44.99 3.27 47.78 3.39 50.58 3.51 52.59 3.55 56.16 3.62 58.96 3.69
75 43.90 3.44 46.69 3.57 49.48 3.70 51.49 3.74 55.05 3.81 57.84 3.89
80 42.82 3.62 45.60 3.75 48.38 3.89 50.39 3.94 53.94 4.01 56.72 4.09
85 41.75 3.80 44.52 3.94 47.30 4.08 49.30 4.13 52.84 4.20 55.62 4.29
90 40.68 3.97 43.44 4.12 46.21 4.27 48.21 4.32 51.74 4.40 54.51 4.49
95 39.51 4.15 42.26 4.30 45.02 4.46 46.28 4.51 50.52 4.59 53.28 4.69
100 38.55 4.33 41.30 4.48 44.05 4.65 45.68 4.70 49.56 4.79 52.31 4.89
105 37.59 4.50 40.34 4.67 43.09 4.84 45.08 4.89 48.60 4.98 51.35 5.09
110 36.63 4.68 39.38 4.85 42.13 5.03 44.12 5.08 47.64 5.18 50.39 5.28
115 35.66 4.86 38.42 5.03 41.17 5.22 43.16 5.28 46.67 5.38 49.43 5.48
118 35.09 4.96 37.84 5.14 40.59 5.33 42.58 5.39 46.10 5.49 48.85 5.60
122 34.89 5.10 37.65 5.29 40.40 5.48 42.39 5.54 45.90 5.65 48.66 5.76
Ducted Indoor
Units
43 (80%)
14 39.81 2.38 42.28 2.46 44.75 2.55 46.54 2.58 49.70 2.63 52.17 2.69
20 39.78 2.41 42.25 2.50 44.72 2.59 46.50 2.62 49.66 2.67 52.13 2.72
25 39.75 2.45 42.22 2.54 44.69 2.63 46.47 2.66 49.62 2.71 52.09 2.76
30 39.72 2.48 42.19 2.57 44.65 2.66 46.43 2.70 49.59 2.75 52.05 2.80
35 39.69 2.51 42.15 2.61 44.62 2.70 46.40 2.73 49.55 2.78 52.01 2.84
40 39.66 2.55 42.12
2.64 44.58 2.74 46.36 2.77 49.51 2.82 51.97 2.88
45 39.63 2.58 42.09 2.68 44.55 2.78 46.33 2.81 49.47 2.86 51.93 2.92
50 39.60 2.62 42.06 2.71 44.52 2.81 46.29 2.84 49.43 2.90 51.89 2.96
55 39.57 2.65 42.02 2.75 44.48 2.85 46.26 2.88 49.40 2.94 51.85 2.99
60 39.54 2.69 41.99 2.78 44.45 2.89 46.22 2.92 49.36 2.97 51.81 3.03
65 39.51 2.72 41.96 2.82 44.41 2.92 46.19 2.96 49.32 3.01 51.77 3.07
70 39.48 2.75 41.93 2.85 44.38 2.96 46.15 2.99 49.28 3.05 51.73 3.11
75 38.53 2.90 40.97 3.01 43.42 3.12 45.18 3.15 48.31 3.21 50.75 3.28
80 37.58 3.05 40.02 3.16 42.46 3.28 44.22 3.32 47.33 3.38 49.77 3.45
85 36.63 3.20 39.07 3.32 41.50 3.44 43.26 3.48 46.37 3.54 48.80 3.61
90 35.69 3.35 38.12 3.47 40.55 3.60 42.30 3.64 45.40 3.71 47.83 3.78
95 34.67 3.50 37.09 3.62 39.50 3.76 40.61 3.80 44.33 3.87 46.75 3.95
100 33.83 3.65 36.24 3.78 38.66 3.92 40.08 3.96 43.49 4.04 45.90 4.12
105 32.98 3.79 35.40 3.93 37.81 4.08 39.56 4.12 42.64 4.20 45.06 4.28
110 32.14 3.94 34.55 4.09 36.97 4.24 38.71 4.28 41.80 4.36 44.22 4.45
115 31.29 4.09 33.71 4.24 36.12 4.40 37.87 4.45 40.96 4.53 43.37 4.62
118 30.79 4.18 33.20 4.33 35.62 4.49 37.36 4.54 40.45 4.63 42.86 4.72
122 30.62 4.30 33.03 4.46 35.45 4.62 37.19 4.67 40.28 4.76 42.70 4.86
Table 293: LMU540HV Cooling Capacity Table — Ducted Indoor Units (continued).
PERFORMANCE DATA
Cooling Capacity Tables
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
MULTI F MAX OUTDOOR UNIT | 307
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 294: LMU540HV Cooling Capacity Table — Ducted Indoor Units (continued).
PERFORMANCE DATA
Cooling Capacity Tables
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Ducted Indoor
Units
38 (70%)
14 35.18 2.01 37.37 2.08 39.55 2.16 41.13 2.18 43.92 2.22 46.11 2.27
20 35.16 2.04 37.34 2.11 39.52 2.19 41.10 2.21 43.89 2.26 46.07 2.30
25 35.13 2.07 37.31 2.14 39.49 2.22 41.07 2.25 43.86 2.29 46.04 2.33
30 35.10 2.10 37.28 2.17 39.46 2.25 41.04 2.28 43.82 2.32 46.00 2.37
35 35.08 2.12 37.25 2.20 39.43 2.28 41.01 2.31 43.79 2.35 45.97 2.40
40 35.05 2.15 37.23 2.23 39.40 2.31 40.97 2.34 43.76 2.38 45.93 2.43
45 35.02 2.18 37.20 2.26 39.37 2.34 40.94 2.37 43.72 2.42 45.90 2.46
50 35.00 2.21 37.17 2.29 39.34 2.38 40.91 2.40 43.69 2.45 45.86 2.50
55 34.97 2.24 37.14 2.32 39.31 2.41 40.88 2.43 43.65 2.48 45.83 2.53
60 34.94 2.27 37.11 2.35 39.28 2.44 40.85 2.47 43.62 2.51 45.79 2.56
65 34.91 2.30 37.08 2.38 39.25 2.47 40.82 2.50 43.59 2.54 45.76 2.59
70 34.89 2.33 37.05 2.41 39.22 2.50 40.79 2.53 43.55 2.58 45.72 2.63
75 34.05 2.45 36.21 2.54 38.37 2.63 39.93 2.66 42.69 2.71 44.85 2.77
80 33.21 2.58 35.36 2.67 37.52 2.77 39.08 2.80 41.83 2.85 43.99 2.91
85 32.38 2.70 34.53 2.80 36.68 2.90 38.23 2.94 40.98 2.99 43.13 3.05
90 31.54 2.83 33.69 2.93 35.84 3.04 37.38 3.07 40.13 3.13 42.27 3.19
95 30.64 2.95 32.78 3.06 34.91 3.17 35.89 3.21 39.18 3.27 41.31 3.34
100 29.90 3.08 32.03 3.19 34.16 3.31 35.43 3.35 38.43 3.41 40.57 3.48
105 29.15 3.20 31.28 3.32 33.42 3.44 34.96 3.48 37.69 3.55 39.82 3.62
110 28.40 3.33 30.54 3.45 32.67 3.58 34.21 3.62 36.94 3.69 39.08 3.76
115 27.66 3.46 29.79 3.58 31.93 3.71 33.47 3.76 36.20 3.83 38.33 3.90
118 27.21 3.53 29.34 3.66 31.48 3.79 33.02 3.84 35.75 3.91 37.88 3.99
122 27.06 3.63 29.19 3.76 31.33 3.90 32.87 3.95 35.60 4.02 37.73 4.10
Ducted Indoor
Units
32 (60%)
14 29.62 1.56 31.46 1.62 33.30 1.68 34.63 1.70 36.98 1.73 38.82 1.77
20 29.60 1.59 31.44 1.64 33.28 1.70 34.61 1.72 36.96 1.76 38.79 1.79
25 29.58 1.61 31.42 1.67 33.25 1.73 34.58 1.75 36.93 1.78 38.76 1.82
30 29.56 1.63 31.39 1.69 33.23 1.75 34.55 1.77 36.90 1.81 38.73 1.84
35 29.53 1.65 31.37 1.71 33.20 1.78 34.53 1.80 36.87 1.83 38.71 1.87
40 29.51 1.68 31.34
1.74 33.18 1.80 34.50 1.82 36.84 1.86 38.68 1.89
45 29.49 1.70 31.32 1.76 33.15 1.83 34.47 1.85 36.81 1.88 38.65 1.92
50 29.47 1.72 31.30 1.78 33.13 1.85 34.45 1.87 36.79 1.91 38.62 1.94
55 29.44 1.74 31.27 1.81 33.10 1.87 34.42 1.90 36.76 1.93 38.59 1.97
60 29.42 1.77 31.25 1.83 33.08 1.90 34.40 1.92 36.73 1.96 38.56 2.00
65 29.40 1.79 31.22 1.85 33.05 1.92 34.37 1.94 36.70 1.98 38.53 2.02
70 29.38 1.81 31.20 1.88 33.02 1.95 34.34 1.97 36.67 2.01 38.50 2.05
75 28.67 1.91 30.49 1.98 32.31 2.05 33.62 2.08 35.95 2.11 37.77 2.16
80 27.96 2.01 29.78 2.08 31.59 2.16 32.90 2.18 35.22 2.22 37.04 2.27
85 27.26 2.10 29.07 2.18 30.88 2.26 32.19 2.29 34.51 2.33 36.32 2.38
90 26.56 2.20 28.37 2.28 30.17 2.37 31.48 2.39 33.79 2.44 35.59 2.49
95 25.80 2.30 27.60 2.38 29.40 2.47 30.22 2.50 32.99 2.55 34.79 2.60
100 25.17 2.40 26.97 2.49 28.77 2.58 29.83 2.61 32.36 2.66 34.16 2.71
105 24.54 2.50 26.34 2.59 28.14 2.68 29.44 2.71 31.73 2.76 33.53 2.82
110 23.92 2.59 25.71 2.69 27.51 2.79 28.81 2.82 31.11 2.87 32.90 2.93
115 23.29 2.69 25.08 2.79 26.88 2.89 28.18 2.92 30.48 2.98 32.27 3.04
118 22.91 2.75 24.71 2.85 26.51 2.95 27.80 2.99 30.10 3.04 31.90 3.11
122 22.78 2.83 24.58 2.93 26.38 3.04 27.68 3.07 29.97 3.13 31.77 3.19
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
308 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Ducted Indoor
Units
27 (50%)
14 25.00 1.20 26.55 1.24 28.10 1.28 29.22 1.30 31.21 1.32 32.76 1.35
20 24.98 1.21 26.53 1.26 28.08 1.30 29.20 1.32 31.18 1.34 32.73 1.37
25 24.96 1.23 26.51 1.27 28.06 1.32 29.18 1.34 31.16 1.36 32.71 1.39
30 24.94 1.25 26.49 1.29 28.04 1.34 29.16 1.35 31.14 1.38 32.68 1.41
35 24.92 1.26 26.47 1.31 28.02 1.36 29.13 1.37 31.11 1.40 32.66 1.43
40 24.90 1.28 26.45 1.33 28.00 1.38 29.11 1.39 31.09 1.42 32.63 1.45
45 24.88 1.30 26.43 1.35 27.97 1.39 29.09 1.41 31.06 1.44 32.61 1.47
50 24.86 1.32 26.41 1.36 27.95 1.41 29.07 1.43 31.04 1.46 32.58 1.49
55 24.85 1.33 26.39 1.38 27.93 1.43 29.05 1.45 31.02 1.48 32.56 1.51
60 24.83 1.35 26.37 1.40 27.91 1.45 29.02 1.47 30.99 1.49 32.54 1.52
65 24.81 1.37 26.35 1.42 27.89 1.47 29.00 1.49 30.97 1.51 32.51 1.54
70 24.79 1.38 26.33 1.43 27.87 1.49 28.98 1.50 30.95 1.53 32.49 1.56
75 24.19 1.46 25.73 1.51 27.26 1.57 28.37 1.59 30.33 1.62 31.87 1.65
80 23.59 1.53 25.13 1.59 26.66 1.65 27.76 1.67 29.72 1.70 31.25 1.73
85 23.00 1.61 24.53 1.67 26.06 1.73 27.16 1.75 29.12 1.78 30.64 1.82
90 22.41 1.68 23.94 1.74 25.46 1.81 26.56 1.83 28.51 1.86 30.03 1.90
95 21.77 1.76 23.29 1.82 24.80 1.89 25.50 1.91 27.84 1.95 29.35 1.98
100 21.24 1.83 22.76 1.90 24.27 1.97 25.17 1.99 27.31 2.03 28.82 2.07
105 20.71 1.91 22.23 1.98 23.74 2.05 24.84 2.07 26.78 2.11 28.29 2.15
110 20.18 1.98 21.70 2.05 23.21 2.13 24.31 2.15 26.25 2.19 27.76 2.24
115 19.65 2.06 21.17 2.13 22.68 2.21 23.78 2.23 25.72 2.28 27.23 2.32
118 19.33 2.10 20.85 2.18 22.37 2.26 23.46 2.28 25.40 2.33 26.92 2.37
122 19.23 2.16 20.74 2.24 22.26 2.32 23.35 2.35 25.29 2.39 26.81 2.44
Ducted Indoor
Units
24 (40%)
14 22.22 0.97 23.60 1.01 24.98 1.04 25.98 1.05 27.74 1.07 29.12 1.10
20 22.21 0.98 23.59 1.02 24.96 1.06 25.96 1.07 27.72 1.09 29.10 1.11
25 22.19 1.00 23.57 1.03 24.95 1.07 25.94 1.08 27.70 1.10 29.08 1.13
30 22.17 1.01 23.55 1.05 24.93 1.09 25.92 1.10 27.68 1.12 29.06 1.14
35 22.16 1.03 23.53 1.06 24.91 1.10 25.90 1.11 27.66 1.14 29.04 1.16
40 22.14 1.04 23.51
1.08 24.89 1.12 25.88 1.13 27.64 1.15 29.01 1.17
45 22.12 1.05 23.50 1.09 24.87 1.13 25.86 1.14 27.62 1.17 28.99 1.19
50 22.10 1.07 23.48 1.11 24.85 1.15 25.84 1.16 27.60 1.18 28.97 1.21
55 22.09 1.08 23.46 1.12 24.83 1.16 25.82 1.18 27.57 1.20 28.95 1.22
60 22.07 1.10 23.44 1.14 24.81 1.18 25.80 1.19 27.55 1.21 28.92 1.24
65 22.05 1.11 23.42 1.15 24.79 1.19 25.78 1.21 27.53 1.23 28.90 1.25
70 22.04 1.12 23.41 1.16 24.77 1.21 25.76 1.22 27.51 1.24 28.88 1.27
75 21.51 1.18 22.87 1.23 24.24 1.27 25.22 1.29 26.97 1.31 28.33 1.34
80 20.98 1.24 22.34 1.29 23.70 1.34 24.68 1.35 26.42 1.38 27.79 1.41
85 20.45 1.31 21.81 1.35 23.17 1.40 24.15 1.42 25.88 1.44 27.24 1.47
90 19.93 1.37 21.28 1.42 22.64 1.47 23.61 1.48 25.35 1.51 26.70 1.54
95 19.35 1.43 20.70 1.48 22.05 1.53 22.67 1.55 24.75 1.58 26.10 1.61
100 18.88 1.49 20.23 1.54 21.58 1.60 22.38 1.62 24.28 1.65 25.63 1.68
105 18.41 1.55 19.76 1.60 21.11 1.66 22.08 1.68 23.81 1.71 25.15 1.75
110 17.94 1.61 19.29 1.67 20.64 1.73 21.61 1.75 23.33 1.78 24.68 1.82
115 17.47 1.67 18.82 1.73 20.17 1.79 21.14 1.81 22.86 1.85 24.21 1.88
118 17.19 1.71 18.53 1.77 19.88 1.83 20.86 1.85 22.58 1.89 23.93 1.93
122 17.09 1.75 18.44 1.82 19.79 1.88 20.76 1.91 22.49 1.94 23.83 1.98
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Table 295: LMU540HV Cooling Capacity Table — Ducted Indoor Units (continued).
PERFORMANCE DATA
Cooling Capacity Tables
MULTI F MAX OUTDOOR UNIT | 309
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 296: LMU540HV Cooling Capacity Table — Mixed Indoor Units.
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Mixed Indoor
Units
73 (135%)
14 53.78 3.55 57.12 3.68 60.46 3.82 62.87 3.86 67.14 3.94 70.48 4.01
20 53.74 3.61 57.08 3.74 60.41 3.87 62.82 3.92 67.09 3.99 70.43 4.07
25 53.70 3.66 57.03 3.79 60.37 3.93 62.78 3.97 67.04 4.05 70.37 4.13
30 53.66 3.71 56.99 3.84 60.32 3.98 62.73 4.03 66.99 4.10 70.32 4.19
35 53.62 3.76 56.94 3.90 60.27 4.04 62.68 4.08 66.93 4.16 70.26 4.25
40 53.57 3.81 56.90 3.95 60.23 4.09 62.63 4.14 66.88 4.22 70.21 4.30
45 53.53 3.86 56.86 4.00 60.18 4.15 62.58 4.20 66.83 4.27 70.16 4.36
50 53.49 3.91 56.81 4.05 60.14 4.20 62.54 4.25 66.78 4.33 70.10 4.42
55 53.45 3.96 56.77 4.11 60.09 4.26 62.49 4.31 66.73 4.39 70.05 4.48
60 53.41 4.01 56.73 4.16 60.04 4.31 62.44 4.36 66.68 4.44 69.99 4.53
65 53.37 4.07 56.68 4.21 60.00 4.37 62.39 4.42 66.63 4.50 69.94 4.59
70 53.33 4.12 56.64 4.27 59.95 4.42 62.34 4.47 66.58 4.56 69.89 4.65
75 52.04 4.34 55.35 4.50 58.65 4.66 61.04 4.71 65.26 4.80 68.56 4.90
80 50.76 4.56 54.06 4.73 57.35 4.90 59.73 4.96 63.94 5.05 67.24 5.15
85 49.49 4.78 52.78 4.96 56.06 5.14 58.44 5.20 62.64 5.29 65.93 5.40
90 48.22 5.00 51.50 5.19 54.78 5.38 57.14 5.44 61.33 5.54 64.61 5.65
95 46.84 5.23 50.10 5.42 53.36 5.62 54.86 5.68 59.89 5.79 63.15 5.90
100 45.70 5.45 48.96 5.65 52.22 5.85 54.15 5.92 58.75 6.03 62.01 6.15
105 44.56 5.67 47.82 5.88 51.08 6.09 53.44 6.16 57.61 6.28 60.87 6.40
110 43.42 5.89 46.68 6.11 49.94 6.33 52.30 6.40 56.47 6.52 59.73 6.66
115 42.27 6.11 45.54 6.34 48.80 6.57 51.16 6.65 55.33 6.77 58.59 6.91
118 41.59 6.25 44.85 6.48 48.12 6.71 50.47 6.79 54.64 6.92 57.91 7.06
122 41.36 6.43 44.63 6.66 47.89 6.90 50.24 6.98 54.41 7.11 57.68 7.26
Mixed Indoor
Units
70 (130%)
14 53.30 3.50 56.61 3.63 59.92 3.76 62.31 3.80 66.54 3.87 69.85 3.95
20 53.26 3.55 56.57 3.68 59.87 3.81 62.26 3.86 66.49 3.93 69.80 4.01
25 53.22 3.60 56.52 3.73 59.83 3.87 62.21 3.91 66.44 3.98 69.74 4.06
30 53.18 3.65 56.48 3.78 59.78 3.92 62.17 3.97 66.39 4.04 69.69 4.12
35 53.14 3.70 56.44 3.83 59.74 3.97 62.12 4.02 66.34 4.10 69.64 4.18
40 53.10 3.75 56.39
3.89 59.69 4.03 62.07 4.07 66.29 4.15 69.58 4.23
45 53.05 3.80 56.35 3.94 59.64 4.08 62.02 4.13 66.23 4.21 69.53 4.29
50 53.01 3.85 56.31 3.99 59.60 4.14 61.98 4.18 66.18 4.26 69.48 4.35
55 52.97 3.90 56.26 4.04 59.55 4.19 61.93 4.24 66.13 4.32 69.42 4.40
60 52.93 3.95 56.22 4.09 59.51 4.24 61.88 4.29 66.08 4.37 69.37 4.46
65 52.89 4.00 56.18 4.15 59.46 4.30 61.83 4.35 66.03 4.43 69.32 4.52
70 52.85 4.05 56.13 4.20 59.42 4.35 61.79 4.40 65.98 4.48 69.26 4.58
75 51.58 4.27 54.85 4.43 58.13 4.59 60.49 4.64 64.68 4.73 67.95 4.82
80 50.31 4.49 53.57 4.65 56.84 4.82 59.20 4.88 63.37 4.97 66.64 5.07
85 49.05 4.71 52.31 4.88 55.56 5.06 57.92 5.11 62.08 5.21 65.34 5.32
90 47.79 4.93 51.04 5.11 54.29 5.29 56.63 5.35 60.79 5.45 64.04 5.56
95 46.42 5.14 49.65 5.33 52.89 5.53 54.37 5.59 59.35 5.69 62.59 5.81
100 45.29 5.36 48.52 5.56 51.76 5.76 53.67 5.83 58.22 5.94 61.46 6.06
105 44.16 5.58 47.39 5.78 50.63 6.00 52.96 6.07 57.09 6.18 60.33 6.30
110 43.03 5.80 46.26 6.01 49.50 6.23 51.83 6.30 55.96 6.42 59.20 6.55
115 41.90 6.02 45.13 6.24 48.36 6.47 50.70 6.54 54.83 6.66 58.07 6.80
118 41.22 6.15 44.45 6.37 47.69 6.61 50.02 6.68 54.15 6.81 57.39 6.94
122 40.99 6.32 44.23 6.55 47.46 6.79 49.80 6.87 53.93 7.00 57.16 7.14
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
PERFORMANCE DATA
Cooling Capacity Tables
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
310 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Cooling Capacity Tables
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Mixed Indoor
Units
65 (120%)
14 52.49 3.40 55.76 3.53 59.02 3.66 61.37 3.70 65.54 3.77 68.80 3.84
20 52.45 3.45 55.71 3.58 58.97 3.71 61.32 3.75 65.49 3.82 68.74 3.90
25 52.41 3.50 55.67 3.63 58.93 3.76 61.28 3.81 65.44 3.88 68.69 3.96
30 52.37 3.55 55.63 3.68 58.88 3.82 61.23 3.86 65.39 3.93 68.64 4.01
35 52.33 3.60 55.58 3.73 58.84 3.87 61.18 3.91 65.34 3.99 68.59 4.07
40 52.29 3.65 55.54 3.78 58.79 3.92 61.14 3.97 65.29 4.04 68.53 4.12
45 52.25 3.70 55.50 3.83 58.75 3.97 61.09 4.02 65.24 4.09 68.48 4.18
50 52.21 3.75 55.46 3.88 58.70 4.03 61.04 4.07 65.19 4.15 68.43 4.23
55 52.17 3.80 55.41 3.93 58.66 4.08 61.00 4.12 65.14 4.20 68.38 4.29
60 52.13 3.84 55.37 3.98 58.61 4.13 60.95 4.18 65.09 4.26 68.32 4.34
65 52.09 3.89 55.33 4.04 58.57 4.18 60.90 4.23 65.04 4.31 68.27 4.40
70 52.05 3.94 55.29 4.09 58.52 4.24 60.85 4.28 64.99 4.36 68.22 4.45
75 50.80 4.16 54.03 4.31 57.25 4.46 59.58 4.52 63.70 4.60 66.93 4.69
80 49.55 4.37 52.77 4.53 55.98 4.69 58.31 4.75 62.42 4.84 65.63 4.93
85 48.31 4.58 51.52 4.75 54.73 4.92 57.04 4.98 61.14 5.07 64.35 5.17
90 47.07 4.79 50.27 4.97 53.47 5.15 55.78 5.21 59.87 5.31 63.07 5.41
95 45.72 5.01 48.90 5.19 52.09 5.38 53.55 5.44 58.46 5.54 61.64 5.65
100 44.61 5.22 47.79 5.41 50.98 5.61 52.86 5.67 57.35 5.78 60.53 5.89
105 43.49 5.43 46.68 5.63 49.86 5.84 52.16 5.90 56.23 6.01 59.42 6.13
110 42.38 5.64 45.56 5.85 48.75 6.06 51.05 6.13 55.12 6.25 58.30 6.37
115 41.27 5.86 44.45 6.07 47.64 6.29 49.94 6.36 54.01 6.48 57.19 6.61
118 40.60 5.98 43.78 6.20 46.97 6.43 49.27 6.50 53.34 6.63 56.52 6.76
122 40.37 6.15 43.56 6.38 46.74 6.61 49.05 6.69 53.11 6.81 56.30 6.95
Mixed Indoor
Units
59 (110%)
14 51.53 3.29 54.73 3.41 57.94 3.53 60.25 3.57 64.34 3.64 67.54 3.71
20 51.49 3.33 54.69 3.45 57.89 3.58 60.20 3.62 64.29 3.69 67.49 3.76
25 51.46 3.38 54.65 3.50 57.85 3.63 60.15 3.67 64.24 3.74 67.43 3.82
30 51.42 3.43 54.61 3.55 57.80 3.68 60.11 3.72 64.19 3.79 67.38 3.87
35 51.38 3.47 54.57 3.60 57.76 3.73 60.06 3.78 64.14 3.85 67.33 3.92
40 51.34 3.52 54.53
3.65 57.71 3.78 60.02 3.83 64.09 3.90 67.28 3.98
45 51.30 3.57 54.48 3.70 57.67 3.83 59.97 3.88 64.04 3.95 67.23 4.03
50 51.26 3.62 54.44 3.75 57.63 3.88 59.93 3.93 63.99 4.00 67.18 4.08
55 51.22 3.66 54.40 3.80 57.58 3.94 59.88 3.98 63.94 4.06 67.12 4.14
60 51.18 3.71 54.36 3.85 57.54 3.99 59.83 4.03 63.89 4.11 67.07 4.19
65 51.14 3.76 54.32 3.89 57.49 4.04 59.79 4.08 63.85 4.16 67.02 4.24
70 51.10 3.80 54.28 3.94 57.45 4.09 59.74 4.13 63.80 4.21 66.97 4.30
75 49.87 4.01 53.04 4.16 56.20 4.31 58.49 4.36 62.54 4.44 65.70 4.53
80 48.64 4.22 51.80 4.37 54.96 4.53 57.24 4.58 61.27 4.67 64.43 4.76
85 47.42 4.42 50.57 4.58 53.72 4.75 56.00 4.80 60.02 4.89 63.17 4.99
90 46.20 4.63 49.35 4.79 52.49 4.97 54.76 5.03 58.77 5.12 61.92 5.22
95 44.88 4.83 48.01 5.01 51.14 5.19 52.57 5.25 57.39 5.35 60.52 5.46
100 43.79 5.04 46.92 5.22 50.04 5.41 51.89 5.47 56.30 5.58 59.42 5.69
105 42.70 5.24 45.82 5.43 48.95 5.63 51.21 5.70 55.20 5.80 58.33 5.92
110 41.60 5.45 44.73 5.65 47.86 5.85 50.11 5.92 54.11 6.03 57.24 6.15
115 40.51 5.65 43.64 5.86 46.76 6.07 49.02 6.14 53.02 6.26 56.14 6.38
118 39.85 5.78 42.98 5.99 46.11 6.20 48.37 6.28 52.36 6.39 55.49 6.52
122 39.64 5.94 42.76 6.16 45.89 6.38 48.15 6.45 52.14 6.58 55.27 6.71
Table 297: LMU540HV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
MULTI F MAX OUTDOOR UNIT | 311
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Table 298: LMU540HV Cooling Capacity Table — Mixed Indoor Units (continued).
PERFORMANCE DATA
Cooling Capacity Tables
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Mixed Indoor
Units
54 (100%)
14 50.73 3.19 53.88 3.31 57.03 3.43 59.31 3.47 63.33 3.53 66.48 3.60
20 50.69 3.24 53.84 3.36 56.99 3.48 59.26 3.52 63.28 3.58 66.43 3.66
25 50.65 3.28 53.80 3.40 56.94 3.53 59.22 3.57 63.24 3.63 66.38 3.71
30 50.61 3.33 53.76 3.45 56.90 3.58 59.17 3.62 63.19 3.69 66.33 3.76
35 50.58 3.38 53.72 3.50 56.86 3.63 59.13 3.67 63.14 3.74 66.28 3.81
40 50.54 3.42 53.68 3.55 56.81 3.68 59.08 3.72 63.09 3.79 66.23 3.86
45 50.50 3.47 53.63 3.59 56.77 3.72 59.04 3.77 63.04 3.84 66.18 3.92
50 50.46 3.51 53.59 3.64 56.73 3.77 58.99 3.82 62.99 3.89 66.13 3.97
55 50.42 3.56 53.55 3.69 56.68 3.82 58.95 3.87 62.95 3.94 66.08 4.02
60 50.38 3.60 53.51 3.74 56.64 3.87 58.90 3.92 62.90 3.99 66.03 4.07
65 50.34 3.65 53.47 3.78 56.60 3.92 58.85 3.97 62.85 4.04 65.98 4.12
70 50.30 3.70 53.43 3.83 56.55 3.97 58.81 4.02 62.80 4.09 65.93 4.17
75 49.09 3.90 52.21 4.04 55.33 4.19 57.58 4.23 61.56 4.31 64.68 4.40
80 47.88 4.09 50.99 4.24 54.10 4.40 56.35 4.45 60.32 4.53 63.43 4.62
85 46.68 4.29 49.78 4.45 52.89 4.61 55.13 4.67 59.09 4.75 62.19 4.85
90 45.48 4.49 48.58 4.66 51.67 4.83 53.90 4.88 57.86 4.97 60.95 5.07
95 44.18 4.69 47.26 4.86 50.34 5.04 51.75 5.10 56.49 5.20 59.57 5.30
100 43.11 4.89 46.18 5.07 49.26 5.26 51.08 5.32 55.42 5.42 58.50 5.53
105 42.03 5.09 45.11 5.28 48.19 5.47 50.41 5.53 54.34 5.64 57.42 5.75
110 40.95 5.29 44.03 5.48 47.11 5.68 49.33 5.75 53.27 5.86 56.34 5.98
115 39.88 5.49 42.96 5.69 46.03 5.90 48.26 5.97 52.19 6.08 55.27 6.20
118 39.23 5.61 42.31 5.82 45.39 6.03 47.61 6.10 51.54 6.21 54.62 6.34
122 39.02 5.77 42.10 5.98 45.17 6.20 47.40 6.27 51.33 6.39 54.41 6.52
Mixed Indoor
Units
49 (90%)
14 46.03 2.82 48.89 2.93 51.75 3.03 53.82 3.07 57.47 3.12 60.33 3.19
20 46.00 2.86 48.86 2.97 51.71 3.08 53.78 3.11 57.43 3.17 60.28 3.23
25 45.96 2.90 48.82 3.01 51.67 3.12 53.74 3.16 57.38 3.21 60.24 3.28
30 45.93 2.94 48.78 3.05 51.63 3.16 53.69 3.20 57.34 3.26 60.19 3.32
35 45.89 2.98 48.74 3.09 51.59 3.21 53.65 3.24 57.30 3.30 60.15 3.37
40 45.86 3.03 48.71
3.14 51.56 3.25 53.61 3.29 57.25 3.35 60.10 3.42
45 45.82 3.07 48.67 3.18 51.52 3.29 53.57 3.33 57.21 3.39 60.05 3.46
50 45.79 3.11 48.63 3.22 51.48 3.34 53.53 3.38 57.16 3.44 60.01 3.51
55 45.75 3.15 48.60 3.26 51.44 3.38 53.49 3.42 57.12 3.48 59.96 3.55
60 45.72 3.19 48.56 3.30 51.40 3.42 53.45 3.46 57.08 3.53 59.92 3.60
65 45.68 3.23 48.52 3.35 51.36 3.47 53.41 3.51 57.03 3.57 59.87 3.65
70 45.65 3.27 48.48 3.39 51.32 3.51 53.37 3.55 56.99 3.62 59.82 3.69
75 44.55 3.44 47.38 3.57 50.21 3.70 52.25 3.74 55.86 3.81 58.69 3.89
80 43.45 3.62 46.27 3.75 49.09 3.89 51.13 3.94 54.74 4.01 57.56 4.09
85 42.36 3.80 45.18 3.94 47.99 4.08 50.02 4.13 53.62 4.20 56.43 4.29
90 41.27 3.97 44.08 4.12 46.89 4.27 48.92 4.32 52.50 4.40 55.31 4.49
95 40.09 4.15 42.89 4.30 45.68 4.46 46.96 4.51 51.26 4.59 54.06 4.69
100 39.12 4.33 41.91 4.48 44.70 4.65 46.35 4.70 50.29 4.79 53.08 4.89
105 38.14 4.50 40.93 4.67 43.73 4.84 45.74 4.89 49.31 4.98 52.11 5.09
110 37.16 4.68 39.96 4.85 42.75 5.03 44.77 5.08 48.34 5.18 51.13 5.28
115 36.19 4.86 38.98 5.03 41.77 5.22 43.79 5.28 47.36 5.38 50.15 5.48
118 35.60 4.96 38.39 5.14 41.19 5.33 43.20 5.39 46.77 5.49 49.57 5.60
122 35.41 5.10 38.20 5.29 40.99 5.48 43.01 5.54 46.58 5.65 49.37 5.76
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
312 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Mixed Indoor
Units
43 (80%)
14 40.40 2.38 42.91 2.46 45.42 2.55 47.23 2.58 50.43 2.63 52.94 2.69
20 40.37 2.41 42.87 2.50 45.38 2.59 47.19 2.62 50.40 2.67 52.90 2.72
25 40.34 2.45 42.84 2.54 45.35 2.63 47.16 2.66 50.36 2.71 52.86 2.76
30 40.31 2.48 42.81 2.57 45.31 2.66 47.12 2.70 50.32 2.75 52.82 2.80
35 40.27 2.51 42.78 2.61 45.28 2.70 47.08 2.73 50.28 2.78 52.78 2.84
40 40.24 2.55 42.74 2.64 45.24 2.74 47.05 2.77 50.24 2.82 52.74 2.88
45 40.21 2.58 42.71 2.68 45.21 2.78 47.01 2.81 50.20 2.86 52.70 2.92
50 40.18 2.62 42.68 2.71 45.17 2.81 46.98 2.84 50.16 2.90 52.66 2.96
55 40.15 2.65 42.65 2.75 45.14 2.85 46.94 2.88 50.13 2.94 52.62 2.99
60 40.12 2.69 42.61 2.78 45.10 2.89 46.90 2.92 50.09 2.97 52.58 3.03
65 40.09 2.72 42.58 2.82 45.07 2.92 46.87 2.96 50.05 3.01 52.54 3.07
70 40.06 2.75 42.55 2.85 45.03 2.96 46.83 2.99 50.01 3.05 52.50 3.11
75 39.10 2.90 41.58 3.01 44.06 3.12 45.85 3.15 49.02 3.21 51.50 3.28
80 38.13 3.05 40.61 3.16 43.08 3.28 44.87 3.32 48.03 3.38 50.51 3.45
85 37.18 3.20 39.65 3.32 42.11 3.44 43.90 3.48 47.05 3.54 49.52 3.61
90 36.22 3.35 38.68 3.47 41.15 3.60 42.93 3.64 46.07 3.71 48.54 3.78
95 35.18 3.50 37.63 3.62 40.09 3.76 41.21 3.80 44.99 3.87 47.44 3.95
100 34.33 3.65 36.78 3.78 39.23 3.92 40.68 3.96 44.13 4.04 46.58 4.12
105 33.47 3.79 35.92 3.93 38.37 4.08 40.14 4.12 43.27 4.20 45.73 4.28
110 32.61 3.94 35.06 4.09 37.52 4.24 39.29 4.28 42.42 4.36 44.87 4.45
115 31.76 4.09 34.21 4.24 36.66 4.40 38.43 4.45 41.56 4.53 44.01 4.62
118 31.24 4.18 33.69 4.33 36.14 4.49 37.91 4.54 41.05 4.63 43.50 4.72
122 31.07 4.30 33.52 4.46 35.97 4.62 37.74 4.67 40.88 4.76 43.33 4.86
Mixed Indoor
Units
38 (70%)
14 35.70 2.01 37.92 2.08 40.14 2.16 41.74 2.18 44.57 2.22 46.79 2.27
20 35.68 2.04 37.89 2.11 40.11 2.19 41.71 2.21 44.54 2.26 46.75 2.30
25 35.65 2.07 37.86 2.14 40.08 2.22 41.67 2.25 44.50 2.29 46.72 2.33
30 35.62 2.10 37.83 2.17 40.05 2.25 41.64 2.28 44.47 2.32 46.68 2.37
35 35.59 2.12 37.80 2.20 40.01 2.28 41.61 2.31 44.44 2.35 46.65 2.40
40 35.57 2.15 37.78
2.23 39.98 2.31 41.58 2.34 44.40 2.38 46.61 2.43
45 35.54 2.18 37.75 2.26 39.95 2.34 41.55 2.37 44.37 2.42 46.57 2.46
50 35.51 2.21 37.72 2.29 39.92 2.38 41.52 2.40 44.33 2.45 46.54 2.50
55 35.48 2.24 37.69 2.32 39.89 2.41 41.48 2.43 44.30 2.48 46.50 2.53
60 35.46 2.27 37.66 2.35 39.86 2.44 41.45 2.47 44.27 2.51 46.47 2.56
65 35.43 2.30 37.63 2.38 39.83 2.47 41.42 2.50 44.23 2.54 46.43 2.59
70 35.40 2.33 37.60 2.41 39.80 2.50 41.39 2.53 44.20 2.58 46.40 2.63
75 34.55 2.45 36.74 2.54 38.94 2.63 40.52 2.66 43.32 2.71 45.52 2.77
80 33.70 2.58 35.89 2.67 38.07 2.77 39.65 2.80 42.45 2.85 44.64 2.91
85 32.85 2.70 35.04 2.80 37.22 2.90 38.80 2.94 41.58 2.99 43.77 3.05
90 32.01 2.83 34.19 2.93 36.36 3.04 37.94 3.07 40.72 3.13 42.90 3.19
95 31.09 2.95 33.26 3.06 35.43 3.17 36.42 3.21 39.76 3.27 41.92 3.34
100 30.34 3.08 32.50 3.19 34.67 3.31 35.95 3.35 39.00 3.41 41.17 3.48
105 29.58 3.20 31.75 3.32 33.91 3.44 35.48 3.48 38.24 3.55 40.41 3.62
110 28.82 3.33 30.99 3.45 33.15 3.58 34.72 3.62 37.49 3.69 39.65 3.76
115 28.07 3.46 30.23 3.58 32.40 3.71 33.96 3.76 36.73 3.83 38.90 3.90
118 27.61 3.53 29.78 3.66 31.94 3.79 33.51 3.84 36.28 3.91 38.44 3.99
122 27.46 3.63 29.63 3.76 31.79 3.90 33.36 3.95 36.12 4.02 38.29 4.10
PERFORMANCE DATA
Cooling Capacity Tables
Table 299: LMU540HV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
MULTI F MAX OUTDOOR UNIT | 313
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Mixed Indoor
Units
32 (60%)
14 30.07 1.56 31.93 1.62 33.80 1.68 35.15 1.70 37.53 1.73 39.40 1.77
20 30.04 1.59 31.91 1.64 33.77 1.70 35.12 1.72 37.51 1.76 39.37 1.79
25 30.02 1.61 31.88 1.67 33.75 1.73 35.10 1.75 37.48 1.78 39.34 1.82
30 30.00 1.63 31.86 1.69 33.72 1.75 35.07 1.77 37.45 1.81 39.31 1.84
35 29.97 1.65 31.84 1.71 33.70 1.78 35.04 1.80 37.42 1.83 39.28 1.87
40 29.95 1.68 31.81 1.74 33.67 1.80 35.01 1.82 37.39 1.86 39.25 1.89
45 29.93 1.70 31.79 1.76 33.65 1.83 34.99 1.85 37.36 1.88 39.22 1.92
50 29.91 1.72 31.76 1.78 33.62 1.85 34.96 1.87 37.33 1.91 39.19 1.94
55 29.88 1.74 31.74 1.81 33.59 1.87 34.93 1.90 37.31 1.93 39.16 1.97
60 29.86 1.77 31.71 1.83 33.57 1.90 34.91 1.92 37.28 1.96 39.13 2.00
65 29.84 1.79 31.69 1.85 33.54 1.92 34.88 1.94 37.25 1.98 39.10 2.02
70 29.81 1.81 31.67 1.88 33.52 1.95 34.85 1.97 37.22 2.01 39.07 2.05
75 29.10 1.91 30.94 1.98 32.79 2.05 34.12 2.08 36.48 2.11 38.33 2.16
80 28.38 2.01 30.22 2.08 32.06 2.16 33.39 2.18 35.75 2.22 37.59 2.27
85 27.67 2.10 29.51 2.18 31.34 2.26 32.67 2.29 35.02 2.33 36.86 2.38
90 26.96 2.20 28.79 2.28 30.62 2.37 31.95 2.39 34.29 2.44 36.12 2.49
95 26.18 2.30 28.01 2.38 29.83 2.47 30.67 2.50 33.48 2.55 35.31 2.60
100 25.55 2.40 27.37 2.49 29.20 2.58 30.27 2.61 32.84 2.66 34.67 2.71
105 24.91 2.50 26.73 2.59 28.56 2.68 29.88 2.71 32.21 2.76 34.03 2.82
110 24.27 2.59 26.10 2.69 27.92 2.79 29.24 2.82 31.57 2.87 33.39 2.93
115 23.63 2.69 25.46 2.79 27.28 2.89 28.60 2.92 30.93 2.98 32.76 3.04
118 23.25 2.75 25.08 2.85 26.90 2.95 28.22 2.99 30.55 3.04 32.37 3.11
122 23.12 2.83 24.95 2.93 26.77 3.04 28.09 3.07 30.42 3.13 32.24 3.19
Mixed Indoor
Units
27 (50%)
14 25.37 1.20 26.95 1.24 28.52 1.28 29.66 1.30 31.67 1.32 33.25 1.35
20 25.35 1.21 26.93 1.26 28.50 1.30 29.64 1.32 31.65 1.34 33.22 1.37
25 25.33 1.23 26.90 1.27 28.48 1.32 29.61 1.34 31.62 1.36 33.20 1.39
30 25.31 1.25 26.88 1.29 28.46 1.34 29.59 1.35 31.60 1.38 33.17 1.41
35 25.29 1.26 26.86 1.31 28.43 1.36 29.57 1.37 31.58 1.40 33.15 1.43
40 25.27 1.28 26.84
1.33 28.41 1.38 29.55 1.39 31.55 1.42 33.12 1.45
45 25.25 1.30 26.82 1.35 28.39 1.39 29.52 1.41 31.53 1.44 33.10 1.47
50 25.23 1.32 26.80 1.36 28.37 1.41 29.50 1.43 31.50 1.46 33.07 1.49
55 25.22 1.33 26.78 1.38 28.35 1.43 29.48 1.45 31.48 1.48 33.05 1.51
60 25.20 1.35 26.76 1.40 28.33 1.45 29.46 1.47 31.46 1.49 33.02 1.52
65 25.18 1.37 26.74 1.42 28.30 1.47 29.43 1.49 31.43 1.51 32.99 1.54
70 25.16 1.38 26.72 1.43 28.28 1.49 29.41 1.50 31.41 1.53 32.97 1.56
75 24.55 1.46 26.11 1.51 27.67 1.57 28.79 1.59 30.79 1.62 32.34 1.65
80 23.95 1.53 25.50 1.59 27.06 1.65 28.18 1.67 30.17 1.70 31.72 1.73
85 23.35 1.61 24.90 1.67 26.45 1.73 27.57 1.75 29.55 1.78 31.10 1.82
90 22.75 1.68 24.29 1.74 25.84 1.81 26.96 1.83 28.93 1.86 30.48 1.90
95 22.10 1.76 23.63 1.82 25.17 1.89 25.88 1.91 28.25 1.95 29.79 1.98
100 21.56 1.83 23.10 1.90 24.64 1.97 25.54 1.99 27.71 2.03 29.25 2.07
105 21.02 1.91 22.56 1.98 24.10 2.05 25.21 2.07 27.18 2.11 28.72 2.15
110 20.48 1.98 22.02 2.05 23.56 2.13 24.67 2.15 26.64 2.19 28.18 2.24
115 19.94 2.06 21.48 2.13 23.02 2.21 24.13 2.23 26.10 2.28 27.64 2.32
118 19.62 2.10 21.16 2.18 22.70 2.26 23.81 2.28 25.78 2.33 27.32 2.37
122 19.51 2.16 21.05 2.24 22.59 2.32 23.70 2.35 25.67 2.39 27.21 2.44
PERFORMANCE DATA
Cooling Capacity Tables
Table 300: LMU540HV Cooling Capacity Table — Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
314 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Table 301: LMU540HV Cooling Capacity Table — Mixed Indoor Units (continued).
PERFORMANCE DATA
Cooling Capacity Tables
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC PI TC PI TC PI TC PI TC PI TC PI
Mixed Indoor
Units
24 (40%)
14 22.55 0.97 23.95 1.01 25.35 1.04 26.36 1.05 28.15 1.07 29.55 1.10
20 22.53 0.98 23.93 1.02 25.33 1.06 26.34 1.07 28.13 1.09 29.53 1.11
25 22.51 1.00 23.91 1.03 25.31 1.07 26.32 1.08 28.10 1.10 29.50 1.13
30 22.50 1.01 23.89 1.05 25.29 1.09 26.30 1.10 28.08 1.12 29.48 1.14
35 22.48 1.03 23.87 1.06 25.27 1.10 26.28 1.11 28.06 1.14 29.46 1.16
40 22.46 1.04 23.86 1.08 25.25 1.12 26.26 1.13 28.04 1.15 29.44 1.17
45 22.44 1.05 23.84 1.09 25.23 1.13 26.24 1.14 28.02 1.17 29.41 1.19
50 22.43 1.07 23.82 1.11 25.21 1.15 26.22 1.16 28.00 1.18 29.39 1.21
55 22.41 1.08 23.80 1.12 25.19 1.16 26.20 1.18 27.98 1.20 29.37 1.22
60 22.39 1.10 23.78 1.14 25.17 1.18 26.18 1.19 27.95 1.21 29.35 1.24
65 22.37 1.11 23.76 1.15 25.15 1.19 26.16 1.21 27.93 1.23 29.32 1.25
70 22.36 1.12 23.75 1.16 25.13 1.21 26.14 1.22 27.91 1.24 29.30 1.27
75 21.82 1.18 23.20 1.23 24.59 1.27 25.59 1.29 27.36 1.31 28.75 1.34
80 21.28 1.24 22.66 1.29 24.04 1.34 25.04 1.35 26.81 1.38 28.19 1.41
85 20.75 1.31 22.13 1.35 23.50 1.40 24.50 1.42 26.26 1.44 27.64 1.47
90 20.22 1.37 21.59 1.42 22.96 1.47 23.96 1.48 25.71 1.51 27.09 1.54
95 19.64 1.43 21.00 1.48 22.37 1.53 23.00 1.55 25.11 1.58 26.48 1.61
100 19.16 1.49 20.53 1.54 21.89 1.60 22.70 1.62 24.63 1.65 26.00 1.68
105 18.68 1.55 20.05 1.60 21.42 1.66 22.40 1.68 24.15 1.71 25.52 1.75
110 18.20 1.61 19.57 1.67 20.94 1.73 21.93 1.75 23.67 1.78 25.04 1.82
115 17.72 1.67 19.09 1.73 20.46 1.79 21.45 1.81 23.20 1.85 24.56 1.88
118 17.44 1.71 18.80 1.77 20.17 1.83 21.16 1.85 22.91 1.89 24.28 1.93
122 17.34 1.75 18.71 1.82 20.08 1.88 21.07 1.91 22.81 1.94 24.18 1.98
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and
67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
The shaded table columns and rows indicate reference data. When operating at this temperature, these
values can be different if the system is not running consistently.
MULTI F MAX OUTDOOR UNIT | 315
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
Indoor Air Temp. °F DB
61 64 68 70 72 75
°F DB °F WB TC PI TC PI TC PI TC PI TC PI TC PI
Non-Ducted
Indoor Units
73 (135%)
-4 -4.4 23.71 3.57 21.93 3.72 21.82 3.76 21.57 3.78 21.37 3.79 20.41 3.94
0 -0.4 28.52 3.71 26.82 3.85 26.41 3.91 26.03 3.94 25.74 3.97 24.65 4.11
5 4.5 34.23 3.88 32.63 4.02 31.85 4.10 31.34 4.14 30.93 4.18 29.68 4.32
10 9 38.06 4.03 36.52 4.17 35.50 4.27 34.89 4.33 34.40 4.38 33.05 4.51
17 15 42.27 4.23 40.80 4.37 39.51 4.50 38.80 4.58 38.23 4.64 36.76 4.77
20 19 44.82 4.37 43.40 4.50 41.95 4.66 41.17 4.74 40.55 4.81 39.01 4.94
25 23 49.10 4.61 47.64 4.74 45.99 4.92 45.12 5.02 44.42 5.10 42.75 5.23
30 28 53.41 4.86 51.76 5.02 49.98 5.18 49.06 5.29 48.33 5.38 46.55 5.52
35 32 57.72 5.12 55.88 5.30 53.98 5.44 53.01 5.57 52.23 5.67 50.35 5.81
40 36 60.66 5.27 58.96 5.45 57.08 5.61 56.09 5.73 55.30 5.82 53.30 5.97
45 41 64.34 5.46 62.80 5.64 60.95 5.82 59.94 5.92 59.13 6.01 56.98 6.18
47 43 65.81 5.53 64.34 5.72 62.50 5.90 61.48 6.00 60.66 6.08 58.46 6.26
50 46 66.00 5.50 64.67 5.66 63.07 5.83 62.16 5.91 61.43 5.98 59.35 6.15
55 51 66.33 5.44 65.23 5.57 64.02 5.71 63.29 5.77 62.70 5.82 60.84 5.95
60 56 66.65 5.38 65.78 5.49 64.97 5.59 64.42 5.63 63.97 5.66 62.33 5.75
63 59 66.84 5.35 66.11 5.43 65.54 5.51 65.09 5.54 64.73 5.56 63.23 5.63
68 64 67.04 5.31 66.45 5.38 66.12 5.44 65.78 5.46 65.51 5.47 64.14 5.51
Non-Ducted
Indoor Units
70 (130%)
-4 -4.4 23.49 3.52 21.73 3.66 21.63 3.70 21.38 3.72 21.18 3.73 20.23 3.88
0 -0.4 28.26 3.65 26.58 3.80 26.17 3.85 25.80 3.88 25.51 3.91 24.43 4.05
5 4.5 33.93 3.82 32.34 3.96 31.57 4.04 31.06 4.08 30.65 4.12 29.41 4.26
10 9 37.72 3.97 36.19 4.10 35.18 4.21 34.58 4.26 34.10 4.31 32.75 4.45
17 15 41.89 4.17 40.44 4.30 39.16 4.43 38.45 4.51 37.89 4.57 36.43 4.70
20 19 44.42 4.30 43.01 4.43 41.57 4.59 40.80 4.67 40.18 4.74 38.66 4.87
25 23 48.66 4.54 47.22 4.67 45.57 4.84 44.71 4.94 44.02 5.02 42.37 5.15
30 28 52.93 4.79 51.30 4.95 49.53 5.10 48.62 5.21 47.90 5.30 46.14 5.44
35 32 57.21 5.04 55.38 5.22 53.50 5.36 52.54 5.48 51.77 5.58 49.90 5.72
40 36 60.12 5.19
58.43 5.37 56.57 5.52 55.59 5.64 54.80 5.73 52.82 5.88
45 41 63.76 5.38 62.24 5.56 60.41 5.73 59.40 5.83 58.60 5.92 56.47 6.09
47 43 65.22 5.45 63.76 5.63 61.94 5.81 60.93 5.91 60.12 5.99 57.93 6.17
50 46 65.41 5.42 64.09 5.58 62.51 5.74 61.60 5.83 60.88 5.89 58.82 6.05
55 51 65.73 5.36 64.64 5.49 63.45 5.62 62.72 5.68 62.14 5.74 60.30 5.86
60 56 66.05 5.30 65.19 5.40 64.39 5.50 63.84 5.54 63.40 5.58 61.78 5.66
63 59 66.24 5.27 65.52 5.35 64.96 5.43 64.51 5.46 64.15 5.48 62.66 5.55
68 64 66.44 5.23 65.85 5.30 65.52 5.36 65.19 5.38 64.92 5.39 63.56 5.43
Non-Ducted
Indoor Units
65 (120%)
-4 -4.4 23.14 3.42 21.41 3.56 21.30 3.60 21.06 3.62 20.86 3.63 19.92 3.77
0 -0.4 27.84 3.55 26.18 3.69 25.78 3.75 25.42 3.78 25.13 3.80 24.06 3.94
5 4.5 33.42 3.71 31.86 3.85 31.10 3.93 30.60 3.97 30.19 4.01 28.97 4.14
10 9 37.16 3.86 35.65 3.99 34.66 4.09 34.06 4.15 33.59 4.19 32.27 4.33
17 15 41.27 4.06 39.83 4.18 38.58 4.31 37.88 4.39 37.32 4.44 35.88 4.57
20 19 43.76 4.19 42.36 4.31 40.95 4.46 40.19 4.54 39.58 4.61 38.08 4.74
25 23 47.93 4.41 46.51 4.54 44.89 4.71 44.04 4.81 43.36 4.88 41.73 5.01
30 28 52.14 4.66 50.53 4.81 48.79 4.96 47.90 5.07 47.18 5.16 45.45 5.29
35 32 56.35 4.91 54.56 5.08 52.70 5.21 51.75 5.34 50.99 5.43 49.15 5.56
40 36 59.22 5.05 57.56 5.23 55.72 5.37 54.76 5.49 53.99 5.58 52.03 5.72
45 41 62.81 5.23 61.31 5.41 59.50 5.57 58.52 5.67 57.73 5.76 55.63 5.92
47 43 64.25 5.30 62.81 5.48 61.02 5.65 60.02 5.75 59.22 5.83 57.07 6.00
50 46 64.44 5.27 63.14 5.43 61.57 5.58 60.68 5.67 59.97 5.74 57.94 5.89
55 51 64.75 5.21 63.68 5.34 62.50 5.47 61.78 5.53 61.21 5.58 59.40 5.70
60 56 65.07 5.16 64.22 5.26 63.43 5.35 62.89 5.39 62.45 5.43 60.85 5.51
63 59 65.25 5.12 64.54 5.21 63.98 5.28 63.55 5.31 63.20 5.33 61.73 5.40
68 64 65.44 5.09 64.87 5.16 64.55 5.22 64.22 5.23 63.95 5.24 62.61 5.28
Table 302: LMU540HV Heating Capacity Table — Non-Ducted Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal Capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
316 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
Indoor Air Temp. °F DB
61 64 68 70 72 75
°F DB °F WB TC PI TC PI TC PI TC PI TC PI TC PI
Non-Ducted
Indoor Units
59 (110%)
-4 -4.4 22.72 3.31 21.02 3.45 20.91 3.48 20.67 3.50 20.48 3.51 19.56 3.65
0 -0.4 27.33 3.44 25.70 3.57 25.31 3.62 24.95 3.65 24.67 3.68 23.62 3.81
5 4.5 32.81 3.59 31.27 3.72 30.53 3.80 30.03 3.84 29.64 3.87 28.44 4.00
10 9 36.48 3.73 35.00 3.86 34.02 3.96 33.44 4.01 32.97 4.05 31.67 4.18
17 15 40.51 3.92 39.10 4.05 37.87 4.17 37.18 4.24 36.64 4.30 35.23 4.42
20 19 42.96 4.05 41.59 4.17 40.20 4.31 39.45 4.39 38.86 4.46 37.38 4.58
25 23 47.05 4.27 45.66 4.39 44.07 4.56 43.24 4.65 42.57 4.72 40.97 4.85
30 28 51.19 4.51 49.60 4.66 47.90 4.80 47.02 4.90 46.32 4.99 44.61 5.11
35 32 55.32 4.75 53.56 4.92 51.73 5.04 50.80 5.16 50.06 5.25 48.25 5.38
40 36 58.14 4.88 56.50 5.05 54.70 5.20 53.75 5.31 53.00 5.39 51.08 5.54
45 41 61.66 5.06 60.19 5.23 58.41 5.39 57.44 5.49 56.67 5.57 54.61 5.73
47 43 63.07 5.13 61.66 5.30 59.90 5.47 58.92 5.56 58.14 5.64 56.02 5.80
50 46 63.26 5.09 61.98 5.25 60.45 5.40 59.57 5.48 58.87 5.55 56.88 5.69
55 51 63.56 5.04 62.51 5.17 61.36 5.29 60.65 5.35 60.09 5.40 58.31 5.51
60 56 63.87 4.99 63.04 5.08 62.27 5.18 61.73 5.22 61.31 5.25 59.74 5.33
63 59 64.06 4.95 63.36 5.03 62.81 5.11 62.38 5.14 62.04 5.16 60.60 5.22
68 64 64.24 4.92 63.68 4.99 63.36 5.04 63.04 5.06 62.78 5.07 61.47 5.11
Non-Ducted
Indoor Units
54 (100%)
-4 -4.4 22.36 3.22 20.69 3.35 20.59 3.38 20.35 3.40 20.16 3.41 19.25 3.54
0 -0.4 26.90 3.34 25.30 3.47 24.91 3.52 24.56 3.55 24.28 3.57 23.25 3.70
5 4.5 32.29 3.49 30.78 3.61 30.05 3.69 29.57 3.73 29.18 3.76 28.00 3.89
10 9 35.91 3.63 34.45 3.75 33.49 3.84 32.92 3.90 32.46 3.94 31.18 4.06
17 15 39.88 3.81 38.49 3.93 37.28 4.05 36.60 4.12 36.06 4.17 34.68 4.29
20 19 42.29 3.93 40.94 4.05 39.57 4.19 38.84 4.27 38.25 4.33 36.80 4.45
25 23 46.32 4.14 44.95 4.27 43.38 4.43 42.56 4.52 41.91 4.59 40.33 4.71
30 28 50.39 4.38 48.83 4.52 47.15 4.66 46.29 4.76 45.59 4.85 43.92 4.97
35 32 54.45 4.61 52.72 4.77 50.93 4.90 50.01 5.01 49.28 5.10 47.50 5.23
40 36 57.23 4.74
55.62 4.91 53.85 5.05 52.92 5.15 52.17 5.24 50.28 5.38
45 41 60.70 4.91 59.25 5.08 57.50 5.23 56.55 5.33 55.78 5.41 53.76 5.56
47 43 62.09 4.98 60.70 5.14 58.96 5.31 58.00 5.40 57.23 5.47 55.15 5.64
50 46 62.27 4.95 61.01 5.10 59.50 5.24 58.64 5.32 57.95 5.39 55.99 5.53
55 51 62.57 4.90 61.53 5.02 60.40 5.14 59.70 5.19 59.15 5.24 57.40 5.35
60 56 62.88 4.84 62.06 4.94 61.29 5.03 60.77 5.07 60.35 5.10 58.81 5.17
63 59 63.06 4.81 62.37 4.89 61.83 4.96 61.41 4.99 61.07 5.01 59.65 5.07
68 64 63.24 4.78 62.69 4.84 62.37 4.90 62.05 4.91 61.80 4.92 60.51 4.96
Non-Ducted
Indoor Units
49 (90%)
-4 -4.4 20.29 2.89 18.77 3.01 18.68 3.04 18.46 3.06 18.29 3.07 17.47 3.19
0 -0.4 24.41 3.00 22.96 3.12 22.60 3.17 22.29 3.19 22.03 3.21 21.10 3.33
5 4.5 29.30 3.14 27.93 3.25 27.27 3.32 26.83 3.36 26.48 3.39 25.41 3.50
10 9 32.58 3.26 31.26 3.37 30.39 3.46 29.87 3.51 29.45 3.54 28.29 3.66
17 15 36.19 3.43 34.93 3.54 33.83 3.65 33.21 3.71 32.73 3.76 31.47 3.87
20 19 38.37 3.54 37.15 3.65 35.91 3.77 35.24 3.84 34.71 3.90 33.39 4.00
25 23 42.03 3.73 40.78 3.84 39.37 3.98 38.62 4.06 38.03 4.13 36.59 4.24
30 28 45.72 3.94 44.31 4.07 42.79 4.19 42.00 4.29 41.37 4.36 39.85 4.47
35 32 49.41 4.15 47.84 4.30 46.21 4.41 45.38 4.51 44.72 4.59 43.10 4.70
40 36 51.93 4.27 50.47 4.42 48.86 4.54 48.02 4.64 47.34 4.71 45.62 4.84
45 41 55.08 4.42 53.76 4.57 52.18 4.71 51.31 4.80 50.62 4.87 48.78 5.01
47 43 56.34 4.48 55.08 4.63 53.50 4.78 52.63 4.86 51.93 4.93 50.04 5.07
50 46 56.50 4.45 55.36 4.59 53.99 4.72 53.21 4.79 52.58 4.85 50.81 4.98
55 51 56.78 4.41 55.84 4.51 54.81 4.62 54.18 4.67 53.67 4.72 52.08 4.82
60 56 57.05 4.36 56.31 4.44 55.62 4.52 55.14 4.56 54.76 4.59 53.36 4.66
63 59 57.22 4.33 56.60 4.40 56.11 4.47 55.72 4.49 55.42 4.51 54.13 4.56
68 64 57.39 4.30 56.88 4.36 56.60 4.41 56.31 4.42 56.08 4.43 54.90 4.47
PERFORMANCE DATA
Heating Capacity Tables
Table 303: LMU540HV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal Capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
MULTI F MAX OUTDOOR UNIT | 317
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
Indoor Air Temp. °F DB
61 64 68 70 72 75
°F DB °F WB TC PI TC PI TC PI TC PI TC PI TC PI
Non-Ducted
Indoor Units
43 (80%)
-4 -4.4 17.81 2.51 16.48 2.61 16.39 2.64 16.21 2.65 16.05 2.66 15.33 2.76
0 -0.4 21.42 2.60 20.15 2.70 19.84 2.74 19.56 2.77 19.34 2.78 18.52 2.88
5 4.5 25.72 2.72 24.51 2.82 23.93 2.88 23.55 2.91 23.24 2.93 22.30 3.03
10 9 28.60 2.83 27.44 2.92 26.67 3.00 26.21 3.04 25.85 3.07 24.83 3.17
17 15 31.76 2.97 30.65 3.06 29.69 3.16 29.15 3.21 28.72 3.25 27.62 3.35
20 19 33.68 3.06 32.60 3.16 31.51 3.27 30.93 3.33 30.46 3.38 29.30 3.47
25 23 36.89 3.23 35.79 3.33 34.55 3.45 33.90 3.52 33.37 3.58 32.12 3.67
30 28 40.13 3.41 38.89 3.53 37.55 3.63 36.86 3.71 36.31 3.78 34.98 3.87
35 32 43.37 3.59 41.99 3.72 40.56 3.82 39.83 3.91 39.24 3.98 37.83 4.07
40 36 45.58 3.70 44.30 3.83 42.88 3.93 42.14 4.02 41.55 4.08 40.04 4.19
45 41 48.34 3.83 47.18 3.96 45.79 4.08 45.03 4.15 44.42 4.21 42.81 4.34
47 43 49.44 3.88 48.34 4.01 46.96 4.14 46.19 4.21 45.58 4.27 43.92 4.40
50 46 49.59 3.86 48.59 3.97 47.39 4.09 46.70 4.15 46.15 4.20 44.59 4.31
55 51 49.83 3.82 49.00 3.91 48.10 4.00 47.55 4.05 47.11 4.09 45.71 4.17
60 56 50.07 3.78 49.42 3.85 48.81 3.92 48.40 3.95 48.06 3.97 46.83 4.03
63 59 50.22 3.75 49.67 3.81 49.24 3.87 48.90 3.89 48.63 3.90 47.50 3.95
68 64 50.36 3.73 49.92 3.77 49.67 3.82 49.42 3.83 49.21 3.84 48.19 3.87
Non-Ducted
Indoor Units
38 (70%)
-4 -4.4 15.74 2.19 14.56 2.27 14.49 2.30 14.32 2.31 14.19 2.32 13.55 2.41
0 -0.4 18.93 2.27 17.81 2.36 17.53 2.39 17.29 2.41 17.09 2.43 16.36 2.51
5 4.5 22.73 2.37 21.66 2.46 21.15 2.51 20.81 2.53 20.54 2.56 19.71 2.64
10 9 25.27 2.46 24.25 2.55 23.57 2.61 23.17 2.65 22.84 2.68 21.94 2.76
17 15 28.07 2.59 27.09 2.67 26.24 2.75 25.76 2.80 25.38 2.84 24.41 2.92
20 19 29.76 2.67 28.81 2.75 27.85 2.85 27.33 2.90 26.92 2.94 25.90 3.02
25 23 32.60 2.82 31.63 2.90 30.53 3.01 29.95 3.07 29.49 3.12 28.38 3.20
30 28 35.46 2.97 34.37 3.07 33.18 3.17 32.58 3.24 32.09 3.29 30.91 3.38
35 32 38.32 3.13 37.10 3.24 35.84 3.33 35.20 3.41 34.68 3.47 33.43 3.55
40 36 40.28 3.22
39.15 3.34 37.90 3.43 37.24 3.50 36.72 3.56 35.39 3.65
45 41 42.72 3.34 41.70 3.45 40.47 3.56 39.80 3.62 39.26 3.67 37.83 3.78
47 43 43.70 3.38 42.72 3.50 41.50 3.61 40.82 3.67 40.28 3.72 38.81 3.83
50 46 43.82 3.36 42.94 3.46 41.88 3.56 41.27 3.62 40.78 3.66 39.41 3.76
55 51 44.04 3.33 43.31 3.41 42.51 3.49 42.02 3.53 41.63 3.56 40.40 3.64
60 56 44.25 3.29 43.68 3.36 43.14 3.42 42.77 3.44 42.47 3.46 41.39 3.52
63 59 44.38 3.27 43.90 3.32 43.52 3.37 43.22 3.39 42.98 3.40 41.98 3.44
68 64 44.51 3.25 44.12 3.29 43.90 3.33 43.67 3.34 43.49 3.35 42.58 3.37
Non-Ducted
Indoor Units
32 (60%)
-4 -4.4 13.25 1.80 12.26 1.87 12.20 1.89 12.06 1.90 11.95 1.91 11.41 1.98
0 -0.4 15.94 1.87 14.99 1.94 14.76 1.97 14.55 1.98 14.39 2.00 13.78 2.07
5 4.5 19.14 1.95 18.24 2.02 17.81 2.06 17.52 2.09 17.29 2.10 16.59 2.17
10 9 21.28 2.03 20.42 2.10 19.85 2.15 19.51 2.18 19.23 2.20 18.48 2.27
17 15 23.63 2.13 22.81 2.20 22.09 2.27 21.69 2.30 21.37 2.33 20.55 2.40
20 19 25.06 2.20 24.26 2.27 23.45 2.34 23.01 2.39 22.67 2.42 21.81 2.49
25 23 27.45 2.32 26.63 2.39 25.71 2.48 25.22 2.53 24.83 2.57 23.90 2.63
30 28 29.86 2.45 28.94 2.53 27.94 2.61 27.43 2.66 27.02 2.71 26.03 2.78
35 32 32.27 2.58 31.24 2.67 30.18 2.74 29.64 2.80 29.20 2.85 28.15 2.92
40 36 33.91 2.65 32.96 2.74 31.91 2.82 31.36 2.88 30.91 2.93 29.79 3.01
45 41 35.97 2.75 35.11 2.84 34.07 2.93 33.51 2.98 33.06 3.02 31.86 3.11
47 43 36.79 2.78 35.97 2.88 34.94 2.97 34.37 3.02 33.91 3.06 32.68 3.15
50 46 36.90 2.77 36.15 2.85 35.26 2.93 34.75 2.98 34.34 3.01 33.18 3.09
55 51 37.08 2.74 36.46 2.81 35.79 2.87 35.38 2.90 35.05 2.93 34.01 2.99
60 56 37.26 2.71 36.77 2.76 36.32 2.81 36.01 2.83 35.76 2.85 34.85 2.89
63 59 37.37 2.69 36.96 2.73 36.64 2.78 36.39 2.79 36.19 2.80 35.35 2.83
68 64 37.48 2.67 37.15 2.71 36.96 2.74 36.77 2.75 36.62 2.75 35.86 2.78
Table 304: LMU540HV Heating Capacity Table — Non-Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal Capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
318 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
Indoor Air Temp. °F DB
61 64 68 70 72 75
°F DB °F WB TC PI TC PI TC PI TC PI TC PI TC PI
Non-Ducted
Indoor Units
27 (50%)
-4 -4.4 11.18 1.48 10.34 1.54 10.29 1.55 10.17 1.56 10.08 1.57 9.63 1.63
0 -0.4 13.45 1.53 12.65 1.59 12.46 1.62 12.28 1.63 12.14 1.64 11.63 1.70
5 4.5 16.15 1.60 15.39 1.66 15.03 1.69 14.78 1.71 14.59 1.73 14.00 1.79
10 9 17.95 1.67 17.23 1.72 16.75 1.77 16.46 1.79 16.23 1.81 15.59 1.87
17 15 19.94 1.75 19.25 1.80 18.64 1.86 18.30 1.89 18.03 1.92 17.34 1.97
20 19 21.14 1.81 20.47 1.86 19.79 1.92 19.42 1.96 19.13 1.99 18.40 2.04
25 23 23.16 1.90 22.47 1.96 21.69 2.03 21.28 2.07 20.95 2.11 20.16 2.16
30 28 25.19 2.01 24.41 2.08 23.58 2.14 23.14 2.19 22.80 2.23 21.96 2.28
35 32 27.23 2.12 26.36 2.19 25.46 2.25 25.00 2.30 24.64 2.34 23.75 2.40
40 36 28.61 2.18 27.81 2.25 26.92 2.32 26.46 2.37 26.08 2.41 25.14 2.47
45 41 30.35 2.26 29.62 2.33 28.75 2.40 28.27 2.45 27.89 2.48 26.88 2.55
47 43 31.04 2.29 30.35 2.36 29.48 2.44 29.00 2.48 28.61 2.51 27.57 2.59
50 46 31.13 2.27 30.51 2.34 29.75 2.41 29.32 2.44 28.97 2.47 28.00 2.54
55 51 31.29 2.25 30.77 2.30 30.20 2.36 29.85 2.39 29.57 2.41 28.70 2.46
60 56 31.44 2.22 31.03 2.27 30.65 2.31 30.38 2.33 30.17 2.34 29.40 2.38
63 59 31.53 2.21 31.19 2.25 30.92 2.28 30.70 2.29 30.53 2.30 29.83 2.33
68 64 31.62 2.20 31.34 2.22 31.19 2.25 31.03 2.26 30.90 2.26 30.25 2.28
Non-Ducted
Indoor Units
24 (40%)
-4 -4.4 9.94 1.29 9.20 1.34 9.15 1.35 9.04 1.36 8.96 1.37 8.56 1.42
0 -0.4 11.96 1.34 11.25 1.39 11.07 1.41 10.92 1.42 10.79 1.43 10.33 1.48
5 4.5 14.35 1.40 13.68 1.45 13.36 1.48 13.14 1.49 12.97 1.50 12.45 1.56
10 9 15.96 1.45 15.31 1.50 14.89 1.54 14.63 1.56 14.43 1.58 13.86 1.62
17 15 17.73 1.52 17.11 1.57 16.57 1.62 16.27 1.65 16.03 1.67 15.41 1.72
20 19 18.80 1.57 18.20 1.62 17.59 1.68 17.26 1.71 17.00 1.73 16.36 1.78
25 23 20.59 1.66 19.98 1.71 19.28 1.77 18.92 1.81 18.63 1.83 17.93 1.88
30 28 22.40 1.75 21.70 1.81 20.96 1.86 20.57 1.91 20.27 1.94 19.52 1.99
35 32 24.20 1.84 23.43 1.91 22.64 1.96 22.23 2.00 21.90 2.04 21.11 2.09
40 36 25.44 1.90
24.72 1.96 23.93 2.02 23.52 2.06 23.19 2.09 22.35 2.15
45 41 26.98 1.96 26.33 2.03 25.56 2.09 25.13 2.13 24.79 2.16 23.89 2.23
47 43 27.60 1.99 26.98 2.06 26.21 2.12 25.78 2.16 25.44 2.19 24.51 2.26
50 46 27.68 1.98 27.12 2.04 26.45 2.10 26.06 2.13 25.76 2.15 24.89 2.21
55 51 27.81 1.96 27.35 2.01 26.85 2.05 26.54 2.08 26.29 2.10 25.51 2.14
60 56 27.95 1.94 27.58 1.97 27.24 2.01 27.01 2.03 26.82 2.04 26.14 2.07
63 59 28.03 1.92 27.72 1.96 27.48 1.99 27.29 2.00 27.14 2.00 26.51 2.03
68 64 28.11 1.91 27.86 1.94 27.72 1.96 27.58 1.96 27.47 1.97 26.89 1.99
Ducted Indoor
Units
73 (135%)
-4 -4.4 28.56 3.71 26.58 3.86 26.34 3.90 26.02 3.92 25.76 3.94 24.62 4.09
0 -0.4 32.68 3.83 30.81 3.98 30.29 4.04 29.85 4.07 29.50 4.10 28.26 4.25
5 4.5 37.58 3.98 35.84 4.13 34.97 4.21 34.40 4.26 33.95 4.30 32.58 4.44
10 9 40.85 4.12 39.21 4.26 38.11 4.37 37.45 4.43 36.93 4.48 35.48 4.62
17 15 44.46 4.31 42.91 4.44 41.56 4.58 40.81 4.66 40.21 4.72 38.66 4.86
20 19 46.65 4.43 45.16 4.56 43.65 4.72 42.84 4.81 42.20 4.88 40.59 5.01
25 23 50.31 4.65 48.82 4.78 47.12 4.96 46.23 5.06 45.52 5.14 43.81 5.28
30 28 54.02 4.88 52.35 5.05 50.55 5.20 49.62 5.32 48.88 5.41 47.08 5.54
35 32 57.72 5.12 55.88 5.30 53.98 5.44 53.01 5.57 52.23 5.67 50.35 5.81
40 36 60.66 5.27 58.96 5.45 57.08 5.61 56.09 5.73 55.30 5.82 53.30 5.97
45 41 64.34 5.46 62.80 5.64 60.95 5.82 59.94 5.92 59.13 6.01 56.98 6.18
47 43 65.81 5.53 64.34 5.72 62.50 5.90 61.48 6.00 60.66 6.08 58.46 6.26
50 46 66.00 5.50 64.67 5.66 63.07 5.83 62.16 5.91 61.43 5.98 59.35 6.15
55 51 66.33 5.44 65.23 5.57 64.02 5.71 63.29 5.77 62.70 5.82 60.84 5.95
60 56 66.65 5.38 65.78 5.49 64.97 5.59 64.42 5.63 63.97 5.66 62.33 5.75
63 59 66.84 5.35 66.11 5.43 65.54 5.51 65.09 5.54 64.73 5.56 63.23 5.63
68 64 67.04 5.31 66.45 5.38 66.12 5.44 65.78 5.46 65.51 5.47 64.14 5.51
Table 305: LMU540HV Heating Capacity Table — Non-Ducted (continued) / Ducted Indoor Units.
PERFORMANCE DATA
Heating Capacity Tables
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal Capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
MULTI F MAX OUTDOOR UNIT | 319
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
Indoor Air Temp. °F DB
61 64 68 70 72 75
°F DB °F WB TC PI TC PI TC PI TC PI TC PI TC PI
Ducted Indoor
Units
70 (130%)
-4 -4.4 28.30 3.67 26.34 3.82 26.11 3.86 25.78 3.88 25.53 3.90 24.40 4.05
0 -0.4 32.39 3.79 30.53 3.94 30.02 4.00 29.58 4.03 29.24 4.06 28.01 4.20
5 4.5 37.24 3.94 35.52 4.09 34.66 4.17 34.10 4.22 33.65 4.25 32.29 4.40
10 9 40.49 4.08 38.86 4.22 37.77 4.33 37.12 4.38 36.60 4.43 35.16 4.57
17 15 44.06 4.26 42.53 4.40 41.19 4.53 40.44 4.61 39.85 4.67 38.32 4.81
20 19 46.23 4.38 44.76 4.52 43.26 4.67 42.46 4.76 41.82 4.83 40.23 4.96
25 23 49.86 4.60 48.39 4.73 46.70 4.91 45.82 5.01 45.11 5.09 43.41 5.22
30 28 53.54 4.84 51.88 4.99 50.10 5.15 49.18 5.26 48.44 5.35 46.66 5.49
35 32 57.21 5.07 55.38 5.25 53.50 5.39 52.54 5.51 51.77 5.61 49.90 5.75
40 36 60.12 5.22 58.43 5.40 56.57 5.55 55.59 5.67 54.80 5.76 52.82 5.91
45 41 63.76 5.40 62.24 5.58 60.41 5.76 59.40 5.86 58.60 5.95 56.47 6.12
47 43 65.22 5.48 63.76 5.66 61.94 5.84 60.93 5.94 60.12 6.02 57.93 6.20
50 46 65.41 5.44 64.09 5.61 62.51 5.77 61.60 5.86 60.88 5.92 58.82 6.08
55 51 65.73 5.39 64.64 5.52 63.45 5.65 62.72 5.71 62.14 5.76 60.30 5.89
60 56 66.05 5.33 65.19 5.43 64.39 5.53 63.84 5.57 63.40 5.60 61.78 5.69
63 59 66.24 5.29 65.52 5.38 64.96 5.46 64.51 5.49 64.15 5.51 62.66 5.57
68 64 66.44 5.26 65.85 5.33 65.52 5.39 65.19 5.40 64.92 5.41 63.56 5.46
Ducted Indoor
Units
65 (120%)
-4 -4.4 27.88 3.60 25.94 3.75 25.72 3.79 25.40 3.81 25.14 3.83 24.04 3.97
0 -0.4 31.90 3.72 30.08 3.87 29.57 3.92 29.14 3.96 28.80 3.98 27.59 4.13
5 4.5 36.68 3.87 34.99 4.01 34.14 4.09 33.59 4.14 33.14 4.17 31.81 4.31
10 9 39.88 4.00 38.28 4.14 37.21 4.25 36.57 4.30 36.05 4.35 34.64 4.49
17 15 43.41 4.18 41.90 4.32 40.57 4.45 39.84 4.52 39.25 4.58 37.74 4.72
20 19 45.54 4.30 44.09 4.43 42.62 4.59 41.83 4.67 41.19 4.74 39.63 4.87
25 23 49.12 4.51 47.66 4.65 46.00 4.82 45.13 4.92 44.44 5.00 42.77 5.13
30 28 52.74 4.75 51.10 4.90 49.35 5.05 48.44 5.16 47.72 5.25 45.96 5.39
35 32 56.35 4.98 54.56 5.15 52.70 5.29 51.75 5.41 50.99 5.51 49.15 5.64
40 36 59.22 5.12
57.56 5.30 55.72 5.45 54.76 5.56 53.99 5.65 52.03 5.80
45 41 62.81 5.30 61.31 5.48 59.50 5.65 58.52 5.75 57.73 5.84 55.63 6.01
47 43 64.25 5.38 62.81 5.55 61.02 5.73 60.02 5.83 59.22 5.91 57.07 6.09
50 46 64.44 5.34 63.14 5.50 61.57 5.66 60.68 5.75 59.97 5.81 57.94 5.97
55 51 64.75 5.29 63.68 5.42 62.50 5.54 61.78 5.61 61.21 5.66 59.40 5.78
60 56 65.07 5.23 64.22 5.33 63.43 5.43 62.89 5.47 62.45 5.50 60.85 5.59
63 59 65.25 5.20 64.54 5.28 63.98 5.36 63.55 5.39 63.20 5.41 61.73 5.47
68 64 65.44 5.16 64.87 5.23 64.55 5.29 64.22 5.30 63.95 5.31 62.61 5.36
Ducted Indoor
Units
59 (110%)
-4 -4.4 27.37 3.52 25.47 3.66 25.25 3.70 24.93 3.72 24.68 3.73 23.60 3.88
0 -0.4 31.32 3.63 29.53 3.77 29.03 3.83 28.61 3.86 28.27 3.89 27.08 4.03
5 4.5 36.01 3.78 34.35 3.91 33.52 3.99 32.97 4.04 32.54 4.07 31.23 4.21
10 9 39.15 3.91 37.58 4.04 36.52 4.14 35.90 4.20 35.39 4.25 34.00 4.38
17 15 42.61 4.08 41.13 4.21 39.83 4.34 39.11 4.42 38.53 4.47 37.05 4.60
20 19 44.70 4.20 43.28 4.33 41.84 4.48 41.06 4.56 40.44 4.63 38.90 4.75
25 23 48.22 4.41 46.79 4.53 45.16 4.71 44.31 4.80 43.62 4.88 41.98 5.00
30 28 51.77 4.63 50.17 4.78 48.44 4.93 47.56 5.04 46.84 5.13 45.12 5.26
35 32 55.32 4.86 53.56 5.03 51.73 5.16 50.80 5.28 50.06 5.38 48.25 5.51
40 36 58.14 5.00 56.50 5.17 54.70 5.32 53.75 5.43 53.00 5.52 51.08 5.66
45 41 61.66 5.18 60.19 5.35 58.41 5.51 57.44 5.62 56.67 5.70 54.61 5.86
47 43 63.07 5.25 61.66 5.42 59.90 5.59 58.92 5.69 58.14 5.77 56.02 5.94
50 46 63.26 5.21 61.98 5.37 60.45 5.53 59.57 5.61 58.87 5.68 56.88 5.83
55 51 63.56 5.16 62.51 5.29 61.36 5.41 60.65 5.47 60.09 5.52 58.31 5.64
60 56 63.87 5.10 63.04 5.20 62.27 5.30 61.73 5.34 61.31 5.37 59.74 5.45
63 59 64.06 5.07 63.36 5.15 62.81 5.23 62.38 5.26 62.04 5.28 60.60 5.34
68 64 64.24 5.04 63.68 5.10 63.36 5.16 63.04 5.18 62.78 5.19 61.47 5.23
Table 306: LMU540HV Heating Capacity Table — Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal Capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
320 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
Indoor Air Temp. °F DB
61 64 68 70 72 75
°F DB °F WB TC PI TC PI TC PI TC PI TC PI TC PI
Ducted Indoor
Units
54 (100%)
-4 -4.4 26.94 3.45 25.07 3.59 24.85 3.63 24.54 3.65 24.30 3.66 23.23 3.80
0 -0.4 30.83 3.56 29.07 3.70 28.57 3.76 28.16 3.79 27.83 3.81 26.66 3.95
5 4.5 35.45 3.70 33.81 3.84 32.99 3.92 32.46 3.96 32.03 4.00 30.74 4.13
10 9 38.54 3.83 36.99 3.96 35.95 4.06 35.33 4.12 34.84 4.16 33.47 4.29
17 15 41.94 4.00 40.49 4.13 39.21 4.26 38.50 4.33 37.93 4.39 36.47 4.52
20 19 44.01 4.12 42.60 4.24 41.18 4.39 40.42 4.47 39.81 4.54 38.29 4.66
25 23 47.47 4.32 46.06 4.45 44.46 4.61 43.62 4.71 42.94 4.78 41.33 4.91
30 28 50.96 4.54 49.38 4.69 47.69 4.84 46.81 4.94 46.11 5.03 44.42 5.15
35 32 54.45 4.76 52.72 4.93 50.93 5.06 50.01 5.18 49.28 5.27 47.50 5.40
40 36 57.23 4.90 55.62 5.07 53.85 5.21 52.92 5.32 52.17 5.41 50.28 5.56
45 41 60.70 5.08 59.25 5.25 57.50 5.41 56.55 5.51 55.78 5.59 53.76 5.75
47 43 62.09 5.15 60.70 5.32 58.96 5.49 58.00 5.58 57.23 5.66 55.15 5.83
50 46 62.27 5.11 61.01 5.27 59.50 5.42 58.64 5.50 57.95 5.57 55.99 5.72
55 51 62.57 5.06 61.53 5.18 60.40 5.31 59.70 5.37 59.15 5.42 57.40 5.53
60 56 62.88 5.00 62.06 5.10 61.29 5.20 60.77 5.23 60.35 5.27 58.81 5.35
63 59 63.06 4.97 62.37 5.05 61.83 5.13 61.41 5.15 61.07 5.18 59.65 5.24
68 64 63.24 4.94 62.69 5.00 62.37 5.06 62.05 5.08 61.80 5.09 60.51 5.13
Ducted Indoor
Units
49 (90%)
-4 -4.4 24.45 3.12 22.75 3.24 22.55 3.27 22.27 3.29 22.05 3.31 21.08 3.43
0 -0.4 27.98 3.22 26.37 3.34 25.93 3.39 25.55 3.42 25.25 3.44 24.19 3.57
5 4.5 32.17 3.35 30.68 3.47 29.94 3.54 29.45 3.58 29.06 3.61 27.89 3.73
10 9 34.97 3.46 33.56 3.58 32.62 3.67 32.06 3.72 31.61 3.76 30.37 3.88
17 15 38.06 3.62 36.74 3.73 35.58 3.85 34.94 3.91 34.42 3.96 33.10 4.08
20 19 39.93 3.72 38.66 3.83 37.37 3.97 36.68 4.04 36.12 4.10 34.75 4.21
25 23 43.07 3.90 41.79 4.02 40.34 4.17 39.58 4.25 38.97 4.32 37.50 4.43
30 28 46.24 4.10 44.81 4.24 43.27 4.37 42.48 4.46 41.84 4.54 40.31 4.66
35 32 49.41 4.30 47.84 4.46 46.21 4.57 45.38 4.68 44.72 4.76 43.10 4.88
40 36 51.93 4.43
50.47 4.58 48.86 4.71 48.02 4.81 47.34 4.89 45.62 5.02
45 41 55.08 4.58 53.76 4.74 52.18 4.88 51.31 4.97 50.62 5.05 48.78 5.19
47 43 56.34 4.65 55.08 4.80 53.50 4.95 52.63 5.04 51.93 5.11 50.04 5.26
50 46 56.50 4.62 55.36 4.76 53.99 4.89 53.21 4.97 52.58 5.03 50.81 5.16
55 51 56.78 4.57 55.84 4.68 54.81 4.79 54.18 4.85 53.67 4.89 52.08 5.00
60 56 57.05 4.52 56.31 4.61 55.62 4.69 55.14 4.73 54.76 4.76 53.36 4.83
63 59 57.22 4.49 56.60 4.56 56.11 4.63 55.72 4.66 55.42 4.67 54.13 4.73
68 64 57.39 4.46 56.88 4.52 56.60 4.57 56.31 4.58 56.08 4.59 54.90 4.63
Ducted Indoor
Units
43 (80%)
-4 -4.4 21.46 2.71 19.97 2.82 19.79 2.85 19.55 2.86 19.35 2.87 18.50 2.98
0 -0.4 24.55 2.80 23.15 2.90 22.75 2.95 22.43 2.97 22.16 2.99 21.23 3.10
5 4.5 28.23 2.91 26.93 3.01 26.27 3.07 25.85 3.11 25.51 3.14 24.48 3.24
10 9 30.69 3.01 29.46 3.11 28.63 3.19 28.14 3.23 27.75 3.27 26.65 3.37
17 15 33.40 3.14 32.24 3.24 31.23 3.34 30.66 3.40 30.21 3.44 29.05 3.54
20 19 35.05 3.23 33.93 3.33 32.80 3.45 32.19 3.51 31.70 3.56 30.50 3.66
25 23 37.80 3.39 36.68 3.49 35.40 3.62 34.73 3.70 34.20 3.75 32.91 3.85
30 28 40.58 3.57 39.33 3.68 37.98 3.80 37.28 3.88 36.72 3.95 35.37 4.05
35 32 43.37 3.74 41.99 3.87 40.56 3.97 39.83 4.06 39.24 4.14 37.83 4.24
40 36 45.58 3.85 44.30 3.98 42.88 4.09 42.14 4.18 41.55 4.25 40.04 4.36
45 41 48.34 3.98 47.18 4.12 45.79 4.25 45.03 4.32 44.42 4.38 42.81 4.51
47 43 49.44 4.04 48.34 4.17 46.96 4.31 46.19 4.38 45.58 4.44 43.92 4.57
50 46 49.59 4.01 48.59 4.13 47.39 4.25 46.70 4.32 46.15 4.37 44.59 4.49
55 51 49.83 3.97 49.00 4.07 48.10 4.17 47.55 4.21 47.11 4.25 45.71 4.34
60 56 50.07 3.93 49.42 4.00 48.81 4.08 48.40 4.11 48.06 4.13 46.83 4.20
63 59 50.22 3.90 49.67 3.97 49.24 4.03 48.90 4.05 48.63 4.06 47.50 4.11
68 64 50.36 3.88 49.92 3.93 49.67 3.97 49.42 3.98 49.21 3.99 48.19 4.03
Table 307: LMU540HV Heating Capacity Table — Ducted Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal Capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
MULTI F MAX OUTDOOR UNIT | 321
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
Indoor Air Temp. °F DB
61 64 68 70 72 75
°F DB °F WB TC PI TC PI TC PI TC PI TC PI TC PI
Ducted Indoor
Units
38 (70%)
-4 -4.4 18.96 2.37 17.64 2.47 17.49 2.49 17.27 2.51 17.10 2.52 16.35 2.62
0 -0.4 21.70 2.45 20.46 2.55 20.11 2.58 19.82 2.61 19.59 2.62 18.76 2.72
5 4.5 24.95 2.55 23.80 2.64 23.22 2.70 22.84 2.73 22.54 2.75 21.63 2.84
10 9 27.13 2.64 26.03 2.73 25.30 2.80 24.87 2.83 24.52 2.87 23.56 2.96
17 15 29.52 2.76 28.49 2.84 27.60 2.93 27.10 2.98 26.70 3.02 25.67 3.11
20 19 30.97 2.83 29.98 2.92 28.98 3.02 28.45 3.08 28.02 3.12 26.95 3.21
25 23 33.41 2.97 32.42 3.06 31.29 3.18 30.70 3.24 30.22 3.29 29.09 3.38
30 28 35.87 3.13 34.76 3.23 33.56 3.33 32.95 3.40 32.45 3.46 31.26 3.55
35 32 38.32 3.28 37.10 3.39 35.84 3.48 35.20 3.56 34.68 3.63 33.43 3.72
40 36 40.28 3.37 39.15 3.49 37.90 3.59 37.24 3.66 36.72 3.72 35.39 3.82
45 41 42.72 3.49 41.70 3.61 40.47 3.72 39.80 3.79 39.26 3.84 37.83 3.96
47 43 43.70 3.54 42.72 3.66 41.50 3.77 40.82 3.84 40.28 3.89 38.81 4.01
50 46 43.82 3.52 42.94 3.62 41.88 3.73 41.27 3.79 40.78 3.83 39.41 3.93
55 51 44.04 3.48 43.31 3.57 42.51 3.65 42.02 3.69 41.63 3.73 40.40 3.81
60 56 44.25 3.44 43.68 3.51 43.14 3.58 42.77 3.60 42.47 3.62 41.39 3.68
63 59 44.38 3.42 43.90 3.48 43.52 3.53 43.22 3.55 42.98 3.56 41.98 3.60
68 64 44.51 3.40 44.12 3.44 43.90 3.48 43.67 3.49 43.49 3.50 42.58 3.53
Ducted Indoor
Units
32 (60%)
-4 -4.4 15.97 1.97 14.86 2.05 14.73 2.07 14.54 2.08 14.40 2.09 13.76 2.17
0 -0.4 18.27 2.03 17.22 2.11 16.93 2.14 16.69 2.16 16.49 2.17 15.80 2.25
5 4.5 21.01 2.11 20.04 2.19 19.55 2.23 19.23 2.26 18.98 2.28 18.22 2.35
10 9 22.84 2.18 21.92 2.26 21.31 2.32 20.94 2.35 20.65 2.37 19.83 2.45
17 15 24.86 2.28 23.99 2.35 23.23 2.43 22.81 2.47 22.48 2.50 21.61 2.57
20 19 26.08 2.35 25.25 2.42 24.40 2.50 23.95 2.55 23.59 2.59 22.69 2.66
25 23 28.13 2.46 27.29 2.53 26.34 2.63 25.85 2.68 25.45 2.73 24.49 2.80
30 28 30.20 2.59 29.26 2.67 28.26 2.76 27.74 2.82 27.33 2.87 26.32 2.94
35 32 32.27 2.71 31.24 2.81 30.18 2.88 29.64 2.95 29.20 3.00 28.15 3.08
40 36 33.91 2.79
32.96 2.89 31.91 2.97 31.36 3.03 30.91 3.08 29.79 3.17
45 41 35.97 2.89 35.11 2.99 34.07 3.08 33.51 3.14 33.06 3.18 31.86 3.28
47 43 36.79 2.93 35.97 3.03 34.94 3.13 34.37 3.18 33.91 3.22 32.68 3.32
50 46 36.90 2.91 36.15 3.00 35.26 3.09 34.75 3.13 34.34 3.17 33.18 3.26
55 51 37.08 2.88 36.46 2.95 35.79 3.02 35.38 3.06 35.05 3.09 34.01 3.15
60 56 37.26 2.85 36.77 2.91 36.32 2.96 36.01 2.98 35.76 3.00 34.85 3.05
63 59 37.37 2.83 36.96 2.88 36.64 2.92 36.39 2.94 36.19 2.95 35.35 2.98
68 64 37.48 2.82 37.15 2.85 36.96 2.88 36.77 2.89 36.62 2.90 35.86 2.92
Ducted Indoor
Units
27 (50%)
-4 -4.4 13.47 1.63 12.54 1.70 12.43 1.72 12.27 1.72 12.15 1.73 11.61 1.80
0 -0.4 15.41 1.69 14.53 1.75 14.29 1.78 14.08 1.79 13.92 1.80 13.33 1.87
5 4.5 17.72 1.75 16.91 1.82 16.50 1.85 16.23 1.87 16.01 1.89 15.37 1.95
10 9 19.27 1.81 18.49 1.88 17.98 1.92 17.67 1.95 17.42 1.97 16.73 2.03
17 15 20.97 1.89 20.24 1.95 19.60 2.02 19.25 2.05 18.97 2.08 18.24 2.14
20 19 22.00 1.95 21.30 2.01 20.59 2.08 20.21 2.12 19.90 2.15 19.15 2.21
25 23 23.73 2.04 23.03 2.10 22.23 2.18 21.81 2.23 21.47 2.26 20.66 2.32
30 28 25.48 2.15 24.69 2.22 23.84 2.29 23.41 2.34 23.06 2.38 22.21 2.44
35 32 27.23 2.25 26.36 2.33 25.46 2.39 25.00 2.45 24.64 2.49 23.75 2.56
40 36 28.61 2.32 27.81 2.40 26.92 2.47 26.46 2.52 26.08 2.56 25.14 2.63
45 41 30.35 2.40 29.62 2.48 28.75 2.56 28.27 2.61 27.89 2.64 26.88 2.72
47 43 31.04 2.43 30.35 2.51 29.48 2.60 29.00 2.64 28.61 2.68 27.57 2.76
50 46 31.13 2.42 30.51 2.49 29.75 2.56 29.32 2.60 28.97 2.63 28.00 2.70
55 51 31.29 2.39 30.77 2.45 30.20 2.51 29.85 2.54 29.57 2.56 28.70 2.62
60 56 31.44 2.37 31.03 2.41 30.65 2.46 30.38 2.48 30.17 2.49 29.40 2.53
63 59 31.53 2.35 31.19 2.39 30.92 2.43 30.70 2.44 30.53 2.45 29.83 2.48
68 64 31.62 2.34 31.34 2.37 31.19 2.39 31.03 2.40 30.90 2.41 30.25 2.43
Table 308: LMU540HV Heating Capacity Table — Ducted Indoor Units (continued).
PERFORMANCE DATA
Heating Capacity Tables
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal Capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
322 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
Indoor Air Temp. °F DB
61 64 68 70 72 75
°F DB °F WB TC PI TC PI TC PI TC PI TC PI TC PI
Ducted Indoor
Units
24 (40%)
-4 -4.4 11.98 1.43 11.14 1.49 11.05 1.50 10.91 1.51 10.80 1.52 10.32 1.57
0 -0.4 13.70 1.48 12.92 1.53 12.70 1.56 12.52 1.57 12.37 1.58 11.85 1.63
5 4.5 15.76 1.53 15.03 1.59 14.66 1.62 14.43 1.64 14.24 1.65 13.66 1.71
10 9 17.13 1.59 16.44 1.64 15.98 1.68 15.71 1.71 15.49 1.72 14.88 1.78
17 15 18.64 1.66 18.00 1.71 17.43 1.76 17.11 1.79 16.86 1.82 16.21 1.87
20 19 19.56 1.71 18.94 1.76 18.30 1.82 17.97 1.85 17.69 1.88 17.02 1.93
25 23 21.10 1.79 20.47 1.84 19.76 1.91 19.39 1.95 19.09 1.98 18.37 2.03
30 28 22.65 1.88 21.95 1.94 21.20 2.00 20.81 2.05 20.50 2.08 19.74 2.13
35 32 24.20 1.97 23.43 2.04 22.64 2.09 22.23 2.14 21.90 2.18 21.11 2.24
40 36 25.44 2.03 24.72 2.10 23.93 2.16 23.52 2.20 23.19 2.24 22.35 2.30
45 41 26.98 2.10 26.33 2.17 25.56 2.24 25.13 2.28 24.79 2.31 23.89 2.38
47 43 27.60 2.13 26.98 2.20 26.21 2.27 25.78 2.31 25.44 2.34 24.51 2.41
50 46 27.68 2.12 27.12 2.18 26.45 2.24 26.06 2.28 25.76 2.30 24.89 2.37
55 51 27.81 2.09 27.35 2.15 26.85 2.20 26.54 2.22 26.29 2.24 25.51 2.29
60 56 27.95 2.07 27.58 2.11 27.24 2.15 27.01 2.17 26.82 2.18 26.14 2.21
63 59 28.03 2.06 27.72 2.09 27.48 2.12 27.29 2.13 27.14 2.14 26.51 2.17
68 64 28.11 2.05 27.86 2.07 27.72 2.10 27.58 2.10 27.47 2.11 26.89 2.12
Mixed Indoor
Units
73 (135%)
-4 -4.4 26.12 3.64 24.24 3.79 24.07 3.83 23.78 3.85 23.55 3.86 22.51 4.01
0 -0.4 30.59 3.77 28.80 3.92 28.34 3.97 27.93 4.01 27.61 4.03 26.44 4.18
5 4.5 35.90 3.93 34.23 4.07 33.41 4.15 32.86 4.20 32.43 4.24 31.12 4.38
10 9 39.45 4.07 37.86 4.21 36.80 4.32 36.17 4.38 35.66 4.43 34.26 4.57
17 15 43.36 4.27 41.85 4.40 40.53 4.54 39.80 4.62 39.21 4.68 37.71 4.81
20 19 45.73 4.40 44.27 4.53 42.80 4.69 42.00 4.78 41.37 4.85 39.79 4.98
25 23 49.70 4.63 48.23 4.76 46.55 4.94 45.67 5.04 44.97 5.12 43.27 5.25
30 28 53.71 4.87 52.05 5.03 50.26 5.19 49.34 5.30 48.60 5.40 46.82 5.53
35 32 57.72 5.12 55.88 5.30 53.98 5.44 53.01 5.57 52.23 5.67 50.35 5.81
40 36 60.66 5.27
58.96 5.45 57.08 5.61 56.09 5.73 55.30 5.82 53.30 5.97
45 41 64.34 5.46 62.80 5.64 60.95 5.82 59.94 5.92 59.13 6.01 56.98 6.18
47 43 65.81 5.53 64.34 5.72 62.50 5.90 61.48 6.00 60.66 6.08 58.46 6.26
50 46 66.00 5.50 64.67 5.66 63.07 5.83 62.16 5.91 61.43 5.98 59.35 6.15
55 51 66.33 5.44 65.23 5.57 64.02 5.71 63.29 5.77 62.70 5.82 60.84 5.95
60 56 66.65 5.38 65.78 5.49 64.97 5.59 64.42 5.63 63.97 5.66 62.33 5.75
63 59 66.84 5.35 66.11 5.43 65.54 5.51 65.09 5.54 64.73 5.56 63.23 5.63
68 64 67.04 5.31 66.45 5.38 66.12 5.44 65.78 5.46 65.51 5.47 64.14 5.51
Mixed Indoor
Units
70 (130%)
-4 -4.4 25.89 3.59 24.02 3.74 23.86 3.78 23.57 3.80 23.34 3.81 22.30 3.96
0 -0.4 30.31 3.72 28.55 3.86 28.08 3.92 27.68 3.95 27.36 3.98 26.21 4.12
5 4.5 35.57 3.88 33.92 4.02 33.11 4.10 32.57 4.14 32.14 4.18 30.85 4.32
10 9 39.10 4.02 37.52 4.16 36.47 4.26 35.84 4.32 35.34 4.37 33.95 4.51
17 15 42.97 4.21 41.48 4.35 40.17 4.48 39.44 4.56 38.86 4.62 37.37 4.75
20 19 45.32 4.34 43.88 4.47 42.41 4.63 41.63 4.71 41.00 4.78 39.44 4.91
25 23 49.26 4.56 47.80 4.70 46.14 4.87 45.26 4.97 44.56 5.05 42.89 5.18
30 28 53.23 4.81 51.59 4.97 49.81 5.12 48.90 5.23 48.17 5.32 46.40 5.46
35 32 57.21 5.05 55.38 5.23 53.50 5.37 52.54 5.49 51.77 5.59 49.90 5.73
40 36 60.12 5.20 58.43 5.38 56.57 5.53 55.59 5.65 54.80 5.74 52.82 5.89
45 41 63.76 5.39 62.24 5.57 60.41 5.74 59.40 5.84 58.60 5.93 56.47 6.10
47 43 65.22 5.46 63.76 5.64 61.94 5.82 60.93 5.92 60.12 6.00 57.93 6.18
50 46 65.41 5.42 64.09 5.59 62.51 5.75 61.60 5.84 60.88 5.90 58.82 6.06
55 51 65.73 5.37 64.64 5.50 63.45 5.63 62.72 5.69 62.14 5.75 60.30 5.87
60 56 66.05 5.31 65.19 5.41 64.39 5.51 63.84 5.55 63.40 5.59 61.78 5.67
63 59 66.24 5.28 65.52 5.36 64.96 5.44 64.51 5.47 64.15 5.49 62.66 5.56
68 64 66.44 5.24 65.85 5.31 65.52 5.37 65.19 5.38 64.92 5.40 63.56 5.44
Table 309: LMU540HV Heating Capacity Table — Ducted (continued) / Mixed Indoor Units.
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal Capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
MULTI F MAX OUTDOOR UNIT | 323
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
Indoor Air Temp. °F DB
61 64 68 70 72 75
°F DB °F WB TC PI TC PI TC PI TC PI TC PI TC PI
Mixed Indoor
Units
65 (120%)
-4 -4.4 25.50 3.51 23.67 3.66 23.50 3.69 23.22 3.71 22.99 3.73 21.97 3.87
0 -0.4 29.86 3.64 28.12 3.78 27.66 3.84 27.27 3.87 26.95 3.89 25.82 4.03
5 4.5 35.04 3.79 33.41 3.93 32.61 4.01 32.08 4.05 31.66 4.09 30.38 4.23
10 9 38.51 3.93 36.96 4.07 35.93 4.17 35.31 4.23 34.81 4.27 33.44 4.41
17 15 42.33 4.12 40.86 4.25 39.57 4.38 38.85 4.46 38.28 4.51 36.81 4.65
20 19 44.64 4.24 43.22 4.37 41.78 4.52 41.00 4.61 40.38 4.68 38.85 4.80
25 23 48.52 4.46 47.08 4.59 45.45 4.77 44.59 4.86 43.90 4.94 42.25 5.07
30 28 52.44 4.70 50.82 4.86 49.07 5.01 48.17 5.12 47.45 5.21 45.70 5.34
35 32 56.35 4.94 54.56 5.12 52.70 5.25 51.75 5.37 50.99 5.47 49.15 5.60
40 36 59.22 5.09 57.56 5.26 55.72 5.41 54.76 5.52 53.99 5.62 52.03 5.76
45 41 62.81 5.27 61.31 5.44 59.50 5.61 58.52 5.71 57.73 5.80 55.63 5.96
47 43 64.25 5.34 62.81 5.52 61.02 5.69 60.02 5.79 59.22 5.87 57.07 6.04
50 46 64.44 5.31 63.14 5.46 61.57 5.62 60.68 5.71 59.97 5.77 57.94 5.93
55 51 64.75 5.25 63.68 5.38 62.50 5.51 61.78 5.57 61.21 5.62 59.40 5.74
60 56 65.07 5.19 64.22 5.29 63.43 5.39 62.89 5.43 62.45 5.46 60.85 5.55
63 59 65.25 5.16 64.54 5.24 63.98 5.32 63.55 5.35 63.20 5.37 61.73 5.43
68 64 65.44 5.13 64.87 5.19 64.55 5.25 64.22 5.27 63.95 5.28 62.61 5.32
Mixed Indoor
Units
59 (110%)
-4 -4.4 25.03 3.42 23.23 3.56 23.07 3.59 22.79 3.61 22.57 3.63 21.57 3.77
0 -0.4 29.31 3.54 27.60 3.67 27.16 3.73 26.77 3.76 26.46 3.78 25.34 3.92
5 4.5 34.40 3.69 32.80 3.82 32.01 3.90 31.50 3.94 31.08 3.98 29.83 4.11
10 9 37.81 3.82 36.28 3.95 35.27 4.05 34.66 4.11 34.18 4.15 32.83 4.28
17 15 41.56 4.01 40.11 4.13 38.85 4.26 38.14 4.33 37.58 4.39 36.14 4.52
20 19 43.83 4.13 42.43 4.25 41.01 4.40 40.25 4.48 39.64 4.55 38.14 4.67
25 23 47.63 4.34 46.22 4.47 44.61 4.64 43.77 4.73 43.09 4.80 41.47 4.93
30 28 51.48 4.57 49.88 4.72 48.17 4.87 47.29 4.98 46.58 5.06 44.87 5.19
35 32 55.32 4.81 53.56 4.98 51.73 5.11 50.80 5.22 50.06 5.32 48.25 5.45
40 36 58.14 4.95
56.50 5.12 54.70 5.26 53.75 5.37 53.00 5.46 51.08 5.60
45 41 61.66 5.12 60.19 5.29 58.41 5.46 57.44 5.56 56.67 5.64 54.61 5.80
47 43 63.07 5.19 61.66 5.36 59.90 5.53 58.92 5.63 58.14 5.71 56.02 5.88
50 46 63.26 5.16 61.98 5.31 60.45 5.47 59.57 5.55 58.87 5.62 56.88 5.77
55 51 63.56 5.10 62.51 5.23 61.36 5.35 60.65 5.42 60.09 5.46 58.31 5.58
60 56 63.87 5.05 63.04 5.15 62.27 5.24 61.73 5.28 61.31 5.31 59.74 5.40
63 59 64.06 5.02 63.36 5.10 62.81 5.17 62.38 5.20 62.04 5.22 60.60 5.28
68 64 64.24 4.98 63.68 5.05 63.36 5.11 63.04 5.12 62.78 5.13 61.47 5.17
Mixed Indoor
Units
54 (100%)
-4 -4.4 24.64 3.33 22.87 3.47 22.71 3.50 22.44 3.52 22.22 3.54 21.23 3.67
0 -0.4 28.86 3.45 27.17 3.58 26.73 3.64 26.35 3.67 26.05 3.69 24.95 3.82
5 4.5 33.86 3.60 32.29 3.73 31.51 3.80 31.00 3.84 30.60 3.88 29.36 4.01
10 9 37.22 3.73 35.72 3.86 34.72 3.95 34.12 4.01 33.64 4.05 32.32 4.18
17 15 40.91 3.91 39.48 4.03 38.24 4.16 37.55 4.22 36.99 4.28 35.57 4.40
20 19 43.14 4.02 41.77 4.15 40.37 4.29 39.62 4.37 39.02 4.43 37.54 4.56
25 23 46.89 4.23 45.50 4.36 43.92 4.52 43.09 4.61 42.42 4.68 40.82 4.81
30 28 50.67 4.46 49.11 4.61 47.42 4.75 46.55 4.85 45.85 4.94 44.17 5.06
35 32 54.45 4.69 52.72 4.85 50.93 4.98 50.01 5.09 49.28 5.19 47.50 5.31
40 36 57.23 4.82 55.62 4.99 53.85 5.13 52.92 5.24 52.17 5.32 50.28 5.47
45 41 60.70 4.99 59.25 5.16 57.50 5.32 56.55 5.42 55.78 5.50 53.76 5.66
47 43 62.09 5.06 60.70 5.23 58.96 5.40 58.00 5.49 57.23 5.56 55.15 5.73
50 46 62.27 5.03 61.01 5.18 59.50 5.33 58.64 5.41 57.95 5.48 55.99 5.62
55 51 62.57 4.98 61.53 5.10 60.40 5.22 59.70 5.28 59.15 5.33 57.40 5.44
60 56 62.88 4.92 62.06 5.02 61.29 5.11 60.77 5.15 60.35 5.18 58.81 5.26
63 59 63.06 4.89 62.37 4.97 61.83 5.05 61.41 5.07 61.07 5.09 59.65 5.15
68 64 63.24 4.86 62.69 4.92 62.37 4.98 62.05 4.99 61.80 5.00 60.51 5.05
Table 310: LMU540HV Heating Capacity Table —Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal Capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
324 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
Indoor Air Temp. °F DB
61 64 68 70 72 75
°F DB °F WB TC PI TC PI TC PI TC PI TC PI TC PI
Mixed Indoor
Units
49 (90%)
-4 -4.4 22.36 3.00 20.75 3.13 20.61 3.16 20.36 3.17 20.16 3.19 19.27 3.31
0 -0.4 26.18 3.11 24.66 3.23 24.26 3.28 23.91 3.31 23.64 3.33 22.64 3.45
5 4.5 30.73 3.24 29.30 3.36 28.60 3.43 28.13 3.47 27.76 3.50 26.64 3.61
10 9 33.77 3.36 32.41 3.48 31.50 3.56 30.96 3.61 30.53 3.65 29.33 3.77
17 15 37.12 3.52 35.83 3.63 34.70 3.75 34.07 3.81 33.57 3.86 32.28 3.97
20 19 39.15 3.63 37.90 3.74 36.64 3.87 35.96 3.94 35.41 4.00 34.07 4.11
25 23 42.55 3.82 41.29 3.93 39.85 4.08 39.10 4.16 38.49 4.22 37.04 4.33
30 28 45.98 4.02 44.56 4.15 43.03 4.28 42.24 4.38 41.61 4.45 40.08 4.56
35 32 49.41 4.22 47.84 4.38 46.21 4.49 45.38 4.59 44.72 4.68 43.10 4.79
40 36 51.93 4.35 50.47 4.50 48.86 4.63 48.02 4.72 47.34 4.80 45.62 4.93
45 41 55.08 4.50 53.76 4.65 52.18 4.80 51.31 4.89 50.62 4.96 48.78 5.10
47 43 56.34 4.56 55.08 4.72 53.50 4.87 52.63 4.95 51.93 5.02 50.04 5.17
50 46 56.50 4.54 55.36 4.67 53.99 4.81 53.21 4.88 52.58 4.94 50.81 5.07
55 51 56.78 4.49 55.84 4.60 54.81 4.71 54.18 4.76 53.67 4.80 52.08 4.91
60 56 57.05 4.44 56.31 4.53 55.62 4.61 55.14 4.64 54.76 4.67 53.36 4.74
63 59 57.22 4.41 56.60 4.48 56.11 4.55 55.72 4.57 55.42 4.59 54.13 4.65
68 64 57.39 4.38 56.88 4.44 56.60 4.49 56.31 4.50 56.08 4.51 54.90 4.55
Mixed Indoor
Units
43 (80%)
-4 -4.4 19.62 2.61 18.21 2.72 18.08 2.74 17.87 2.76 17.69 2.77 16.91 2.88
0 -0.4 22.98 2.70 21.64 2.81 21.29 2.85 20.99 2.87 20.74 2.89 19.87 2.99
5 4.5 26.97 2.82 25.71 2.92 25.10 2.98 24.69 3.01 24.37 3.04 23.38 3.14
10 9 29.64 2.92 28.44 3.02 27.65 3.10 27.17 3.14 26.79 3.17 25.74 3.27
17 15 32.58 3.06 31.44 3.16 30.45 3.25 29.90 3.31 29.46 3.35 28.33 3.45
20 19 34.36 3.15 33.26 3.25 32.15 3.36 31.56 3.42 31.08 3.47 29.90 3.57
25 23 37.34 3.31 36.23 3.41 34.97 3.54 34.31 3.61 33.78 3.67 32.51 3.77
30 28 40.36 3.49 39.11 3.61 37.76 3.72 37.07 3.80 36.52 3.87 35.17 3.96
35 32 43.37 3.67 41.99 3.80 40.56 3.90 39.83 3.99 39.24 4.06 37.83 4.16
40 36 45.58 3.78
44.30 3.91 42.88 4.02 42.14 4.10 41.55 4.17 40.04 4.28
45 41 48.34 3.91 47.18 4.04 45.79 4.17 45.03 4.24 44.42 4.30 42.81 4.43
47 43 49.44 3.97 48.34 4.10 46.96 4.23 46.19 4.30 45.58 4.36 43.92 4.49
50 46 49.59 3.94 48.59 4.06 47.39 4.18 46.70 4.24 46.15 4.29 44.59 4.40
55 51 49.83 3.90 49.00 3.99 48.10 4.09 47.55 4.14 47.11 4.17 45.71 4.26
60 56 50.07 3.86 49.42 3.93 48.81 4.00 48.40 4.03 48.06 4.06 46.83 4.12
63 59 50.22 3.83 49.67 3.89 49.24 3.95 48.90 3.97 48.63 3.99 47.50 4.04
68 64 50.36 3.81 49.92 3.86 49.67 3.90 49.42 3.91 49.21 3.92 48.19 3.95
Mixed Indoor
Units
38 (70%)
-4 -4.4 17.34 2.28 16.09 2.37 15.98 2.39 15.79 2.41 15.64 2.42 14.94 2.51
0 -0.4 20.31 2.36 19.12 2.45 18.81 2.48 18.55 2.50 18.33 2.52 17.56 2.61
5 4.5 23.83 2.46 22.73 2.54 22.18 2.60 21.82 2.63 21.53 2.65 20.66 2.74
10 9 26.19 2.55 25.14 2.63 24.43 2.70 24.01 2.74 23.68 2.77 22.75 2.85
17 15 28.79 2.67 27.79 2.75 26.91 2.84 26.43 2.89 26.04 2.92 25.03 3.01
20 19 30.36 2.75 29.40 2.83 28.41 2.93 27.89 2.98 27.47 3.03 26.42 3.11
25 23 33.00 2.89 32.02 2.98 30.91 3.09 30.32 3.15 29.86 3.20 28.73 3.28
30 28 35.66 3.05 34.56 3.15 33.37 3.24 32.76 3.31 32.27 3.37 31.08 3.46
35 32 38.32 3.20 37.10 3.31 35.84 3.40 35.20 3.48 34.68 3.54 33.43 3.63
40 36 40.28 3.29 39.15 3.41 37.90 3.50 37.24 3.58 36.72 3.64 35.39 3.73
45 41 42.72 3.41 41.70 3.53 40.47 3.63 39.80 3.70 39.26 3.75 37.83 3.86
47 43 43.70 3.46 42.72 3.57 41.50 3.69 40.82 3.75 40.28 3.80 38.81 3.92
50 46 43.82 3.44 42.94 3.54 41.88 3.64 41.27 3.70 40.78 3.74 39.41 3.84
55 51 44.04 3.40 43.31 3.48 42.51 3.57 42.02 3.61 41.63 3.64 40.40 3.72
60 56 44.25 3.36 43.68 3.43 43.14 3.49 42.77 3.52 42.47 3.54 41.39 3.59
63 59 44.38 3.34 43.90 3.40 43.52 3.45 43.22 3.46 42.98 3.48 41.98 3.52
68 64 44.51 3.32 44.12 3.36 43.90 3.40 43.67 3.41 43.49 3.42 42.58 3.45
Table 311: LMU540HV Heating Capacity Table —Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal Capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
MULTI F MAX OUTDOOR UNIT | 325
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
PERFORMANCE DATA
Heating Capacity Tables
Combination
Capacity Index
(kBtu/h[%])
Outdoor Air
Temp.
Indoor Air Temp. °F DB
61 64 68 70 72 75
°F DB °F WB TC PI TC PI TC PI TC PI TC PI TC PI
Mixed Indoor
Units
32 (60%)
-4 -4.4 14.60 1.88 13.55 1.96 13.46 1.98 13.30 1.99 13.17 2.00 12.58 2.07
0 -0.4 17.10 1.95 16.10 2.02 15.84 2.05 15.62 2.07 15.43 2.08 14.78 2.16
5 4.5 20.07 2.03 19.13 2.10 18.67 2.15 18.37 2.17 18.13 2.19 17.40 2.26
10 9 22.05 2.11 21.16 2.18 20.57 2.23 20.22 2.26 19.94 2.29 19.15 2.36
17 15 24.24 2.21 23.40 2.28 22.66 2.35 22.25 2.39 21.92 2.42 21.08 2.49
20 19 25.57 2.27 24.75 2.34 23.92 2.42 23.48 2.47 23.13 2.50 22.25 2.57
25 23 27.79 2.39 26.96 2.46 26.02 2.55 25.53 2.60 25.14 2.65 24.19 2.71
30 28 30.03 2.52 29.10 2.60 28.10 2.68 27.58 2.74 27.17 2.79 26.17 2.86
35 32 32.27 2.65 31.24 2.74 30.18 2.81 29.64 2.88 29.20 2.93 28.15 3.00
40 36 33.91 2.72 32.96 2.82 31.91 2.90 31.36 2.96 30.91 3.01 29.79 3.09
45 41 35.97 2.82 35.11 2.91 34.07 3.00 33.51 3.06 33.06 3.10 31.86 3.19
47 43 36.79 2.86 35.97 2.95 34.94 3.05 34.37 3.10 33.91 3.14 32.68 3.24
50 46 36.90 2.84 36.15 2.93 35.26 3.01 34.75 3.06 34.34 3.09 33.18 3.18
55 51 37.08 2.81 36.46 2.88 35.79 2.95 35.38 2.98 35.05 3.01 34.01 3.07
60 56 37.26 2.78 36.77 2.83 36.32 2.89 36.01 2.91 35.76 2.93 34.85 2.97
63 59 37.37 2.76 36.96 2.81 36.64 2.85 36.39 2.86 36.19 2.88 35.35 2.91
68 64 37.48 2.74 37.15 2.78 36.96 2.81 36.77 2.82 36.62 2.83 35.86 2.85
Mixed Indoor
Units
27 (50%)
-4 -4.4 12.32 1.55 11.43 1.62 11.35 1.63 11.22 1.64 11.11 1.65 10.62 1.71
0 -0.4 14.43 1.61 13.59 1.67 13.37 1.70 13.18 1.71 13.02 1.72 12.47 1.78
5 4.5 16.93 1.68 16.14 1.74 15.76 1.77 15.50 1.79 15.30 1.81 14.68 1.87
10 9 18.61 1.74 17.86 1.80 17.36 1.84 17.06 1.87 16.82 1.89 16.16 1.95
17 15 20.45 1.82 19.74 1.88 19.12 1.94 18.77 1.97 18.50 2.00 17.79 2.05
20 19 21.57 1.88 20.88 1.93 20.19 2.00 19.81 2.04 19.51 2.07 18.77 2.12
25 23 23.44 1.97 22.75 2.03 21.96 2.11 21.54 2.15 21.21 2.18 20.41 2.24
30 28 25.34 2.08 24.55 2.15 23.71 2.21 23.27 2.26 22.93 2.30 22.08 2.36
35 32 27.23 2.18 26.36 2.26 25.46 2.32 25.00 2.38 24.64 2.42 23.75 2.48
40 36 28.61 2.25
27.81 2.33 26.92 2.39 26.46 2.44 26.08 2.48 25.14 2.55
45 41 30.35 2.33 29.62 2.41 28.75 2.48 28.27 2.53 27.89 2.56 26.88 2.64
47 43 31.04 2.36 30.35 2.44 29.48 2.52 29.00 2.56 28.61 2.59 27.57 2.67
50 46 31.13 2.35 30.51 2.42 29.75 2.49 29.32 2.52 28.97 2.55 28.00 2.62
55 51 31.29 2.32 30.77 2.38 30.20 2.43 29.85 2.46 29.57 2.48 28.70 2.54
60 56 31.44 2.30 31.03 2.34 30.65 2.38 30.38 2.40 30.17 2.42 29.40 2.45
63 59 31.53 2.28 31.19 2.32 30.92 2.35 30.70 2.36 30.53 2.37 29.83 2.40
68 64 31.62 2.27 31.34 2.30 31.19 2.32 31.03 2.33 30.90 2.33 30.25 2.35
Mixed Indoor
Units
24 (40%)
-4 -4.4 10.95 1.36 10.16 1.41 10.09 1.43 9.97 1.44 9.88 1.44 9.44 1.50
0 -0.4 12.83 1.41 12.08 1.46 11.88 1.48 11.71 1.50 11.58 1.51 11.09 1.56
5 4.5 15.05 1.47 14.35 1.52 14.01 1.55 13.78 1.57 13.60 1.58 13.05 1.64
10 9 16.54 1.52 15.87 1.57 15.43 1.61 15.17 1.63 14.95 1.65 14.37 1.70
17 15 18.18 1.59 17.55 1.64 17.00 1.70 16.69 1.72 16.44 1.75 15.81 1.80
20 19 19.18 1.64 18.57 1.69 17.95 1.75 17.61 1.78 17.35 1.81 16.69 1.86
25 23 20.84 1.73 20.22 1.78 19.52 1.84 19.15 1.88 18.86 1.91 18.15 1.96
30 28 22.52 1.82 21.83 1.88 21.08 1.94 20.69 1.98 20.38 2.01 19.63 2.06
35 32 24.20 1.91 23.43 1.98 22.64 2.03 22.23 2.08 21.90 2.12 21.11 2.17
40 36 25.44 1.97 24.72 2.04 23.93 2.09 23.52 2.14 23.19 2.17 22.35 2.23
45 41 26.98 2.04 26.33 2.11 25.56 2.17 25.13 2.21 24.79 2.24 23.89 2.31
47 43 27.60 2.07 26.98 2.13 26.21 2.20 25.78 2.24 25.44 2.27 24.51 2.34
50 46 27.68 2.05 27.12 2.11 26.45 2.18 26.06 2.21 25.76 2.23 24.89 2.29
55 51 27.81 2.03 27.35 2.08 26.85 2.13 26.54 2.15 26.29 2.17 25.51 2.22
60 56 27.95 2.01 27.58 2.05 27.24 2.09 27.01 2.10 26.82 2.11 26.14 2.15
63 59 28.03 2.00 27.72 2.03 27.48 2.06 27.29 2.07 27.14 2.08 26.51 2.10
68 64 28.11 1.98 27.86 2.01 27.72 2.03 27.58 2.04 27.47 2.04 26.89 2.06
Table 312: LMU540HV Heating Capacity Table —Mixed Indoor Units (continued).
TC = Total Capacity (kBtu/h).
PI = Power Input (kW).
Nominal Capacity as rated: 0 ft. above sea level with Piping Length as Main Pipe (16.4 ft.) + Branch
pipe (98.4 ft.) = 115 ft.
0 ft. level difference between outdoor and indoor units.
Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and
60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
326 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
Nominal
Tons
Unit Model No. Hertz Voltage
Voltage
Range
(Min. to Max.)
MCA MOP
Compressor
Quantity
Compressor
Motor RLA
Condenser Fan Motor(s)
Condenser Fan
Quantity x kW
Condenser Fan
Motor FLA
4.5 LMU540HV 60 208 - 230 187 - 253 26.4 40 1 18.5 2 x 0.12 1.25 x 2
Voltage tolerance is ±10%.
Maximum allowable voltage unbalance is 2%.
RLA = Rated Load Amps.
MCA = Minimum Circuit Ampacity.
Maximum Overcurrent Protection (MOP) is calculated as follows: (Largest motor FLA x 2.25) + (Sum of
other motor FLA) rounded down to the nearest standard fuse size.
Table 313: LMU540HV Electrical Data.
Electrical Data
Electrical and Acoustic Data
MULTI F MAX OUTDOOR UNIT
Acoustic Data
Model No.
Sound Pressure Levels (dB[A])
Cooling Heating
LMU540HV 54 56
Figure 21: Sound Pressure Level Measurement Location.
• Measurement taken 4.92′ above finished floor, and at a distance of
3.3′ from face of unit.
• Measurements taken with no attenuation and units operating at full
load normal operating condition.
• Sound level will vary depending on a range of factors such as
construction (acoustic absorption coefficient) of particular area in
which the equipment is installed.
• Sound pressure levels are measured in dB(A) ±3.
• Tested in anechoic chamber per ISO Standard 3745.
3.3'
4.92'
Side View
Figure 22: Sound Pressure Diagram.
Table 314: Sound Pressure Levels (dB[A]).
LMU540HV
Octave Band Center Frequency (Hz)
Octave Band Sound Pressure Level (0dB = 20μPa )
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
Cooling
Heating
▲
MULTI F MAX OUTDOOR UNIT | 327
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Refrigerant Flow Diagram
MULTI F MAX OUTDOOR UNIT
Figure 23: LMU540HV Refrigerant Flow Diagram.
M M
Discharge Pipe
Temperature
Thermistor
Suction Pipe
Temperature
Thermistor
Inverter
Accumulator
Fusible Plug
Compressor
Heat Exchanger Outlet
Temperature
Thermistor
Inlet Air
Temperature
Thermistor
Outdoor Unit
Ø 3/8 Flare Connection
Heat
Exchanger Inlet
Temperature
Thermistor
: Cooling
: Heating
Pressure
Sensor
Electronic
Expansion
Valve
Ø 3/4 Flare Connection
S
Unit: Inch
Hot Gas
Bypass
Valve
Description PCB Connector
Heat Exchanger Inlet Temperature Thermistor CN-TH3
Heat Exchanger Outlet Temperature Thermistor
CN-TH1
Inlet Air Temperature Thermistor
Discharge Pipe Temperature Thermistor
CN-TH2
Suction Pipe Temperature Thermistor
Pressure Sensor CN-P/SENSOR(H)
Table 315: LMU540HV Thermistor Details.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
328 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
MULTI F OUTDOOR UNIT
Wiring Diagram
Figure 24: LMU540HV Wiring Diagram.
MULTI F MAX OUTDOOR UNIT | 329
Multi F MAX Outdoor Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Operation Ranges
MULTI F MAX OUTDOOR UNIT
Figure 25: LMU540HV Cooling and Heating Operation Ranges.
Cooling
Heating
Indoor Temperature (°F DB)
Outdoor Temperature (°F WB)
Continuous
Operation
Warming up
Operation
50 59 68 77 81 91.
3
77
-4
0
5
14
23
32
41
50
59
64
68
-13
Indoor Temperature (°F WB)
41 50 57 59 68 73 77 82.4
Outdoor Temperature (°F DB)
-4
5
14
23
32
41
50
59
68
77
86
95
104
113
118
122
Continuous
86
Cooling operation range can extend down to -4 °F outdoor temperature if Low Ambient Kit is installed (sold separately).
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
330 | MULTI F MAX OUTDOOR UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
“Features and Benefits” on page 332
“Mechanical Specifications” on page 333
“General Data” on page 334
“Dimensions” on page 335
“Refrigerant Flow Diagram” on page 336
“Wiring Diagram” on page 337
“Y-Branch Accessory” on page 338
“Branch Distribution Unit Orientation” on page 339
MULTI F MAX
BD UNIT DATA
MULTI F MAX BD UNIT
The Branch Distribution (BD) unit is a required accessory of Multi F MAX inverter-driven heat pump systems. Choose from two (2) port, three
(3) port, or four (4) port BD units.
Two (2) refrigerant pipes-one (1) liquid line and one (1) vapor line-run from the outdoor unit to the BD unit that is installed inside of a building.
Two (2), three (3), or four (4) sets of refrigerant lines will run from the BD unit to the indoor units, depending on type of BD unit selected. A
Multi F MAX system can include up to two BD units (installed with the use of the Y-branch accessory PMBL5620) that support a total of eight
(8) indoor units (up to four [4] indoor units per BD unit).
Figure 26:Example of Multi F MAX Heat Pump Inverter System with two BD Units
Features and Benets
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
332 | BD UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
MULTI F MAX BD UNIT
Mechanical Specications
Branch Distribution Unit
General
Branch distribution units are designed for use with LG Multi F MAX (LMU540HV)
outdoor units, and are internally piped, wired, assembled and run-tested at the
factory. The branch distribution unit is used as an intermediate refrigerant control
device between the outdoor unit and the indoor units to effectively and efficiently
control the heating or cooling operation of the system through the use of electronic
expansion valves.
Refrigerant System
System is designed for use with R410A refrigerant. All refrigerant lines from the
outdoor unit to the branch distribution unit, and from the branch distribution unit to
the indoor units, must be field insulated. The units may be connected to optional
field-supplied and field-installed isolation valves for servicing without evacuating
the entire system.
Piping Capabilities
Maximum piping length from the branch distribution unit to the indoor unit is 49.2
equivalent feet. Maximum elevation difference between branch distribution unit and
indoor unit is 32.8 feet. Maximum elevation difference between two parallel branch
distribution units is 49.2 feet.
Electrical
Each branch distribution unit is designed to operate using 208–230/60/1 power
with voltage variances of ±10%.
Casing
The casing is designed to mount fully concealed above a finished ceiling, is manufactured of galvanized steel plate, and is internally
insulated. Branch distribution units do not require a condensate drain.
Port Assembly
Branch distribution units have a two-pipe system consisting of one vapor pipe and one liquid pipe. Units are available in a choice of two
(PMBD3620), three (PMBD3630) or four ports (PMBD3640 and PMBD3641); branch distribution units include two, two-positioned solenoid
valves per port. Each port for PMBD3620, PMBD3630, and PMBD3640 units connect to one indoor unit for a maximum nominal capacity of
24,000 Btu/h. For PMBD3641 units, ports A, B, C each connect to one indoor unit for a maximum nominal capacity of 24,000 Btu/h; port D
connect to one indoor unit for a nominal capacity of 36,000 Btu/h. Maximum nominal capacity per branch distribution unit is 73,000 Btu/h.
Two branch distribution units can be piped in parallel using accessory Y-branch kit PMBL5620.
Controls
The unit is provided with factory-installed control boards and an integral microprocessor to communicate with the main control board in the
outdoor unit. Communication between the branch distribution unit, the outdoor unit, and the indoor units is accomplished through a 18 AWG,
four-core, stranded and shielded power / communication cable.

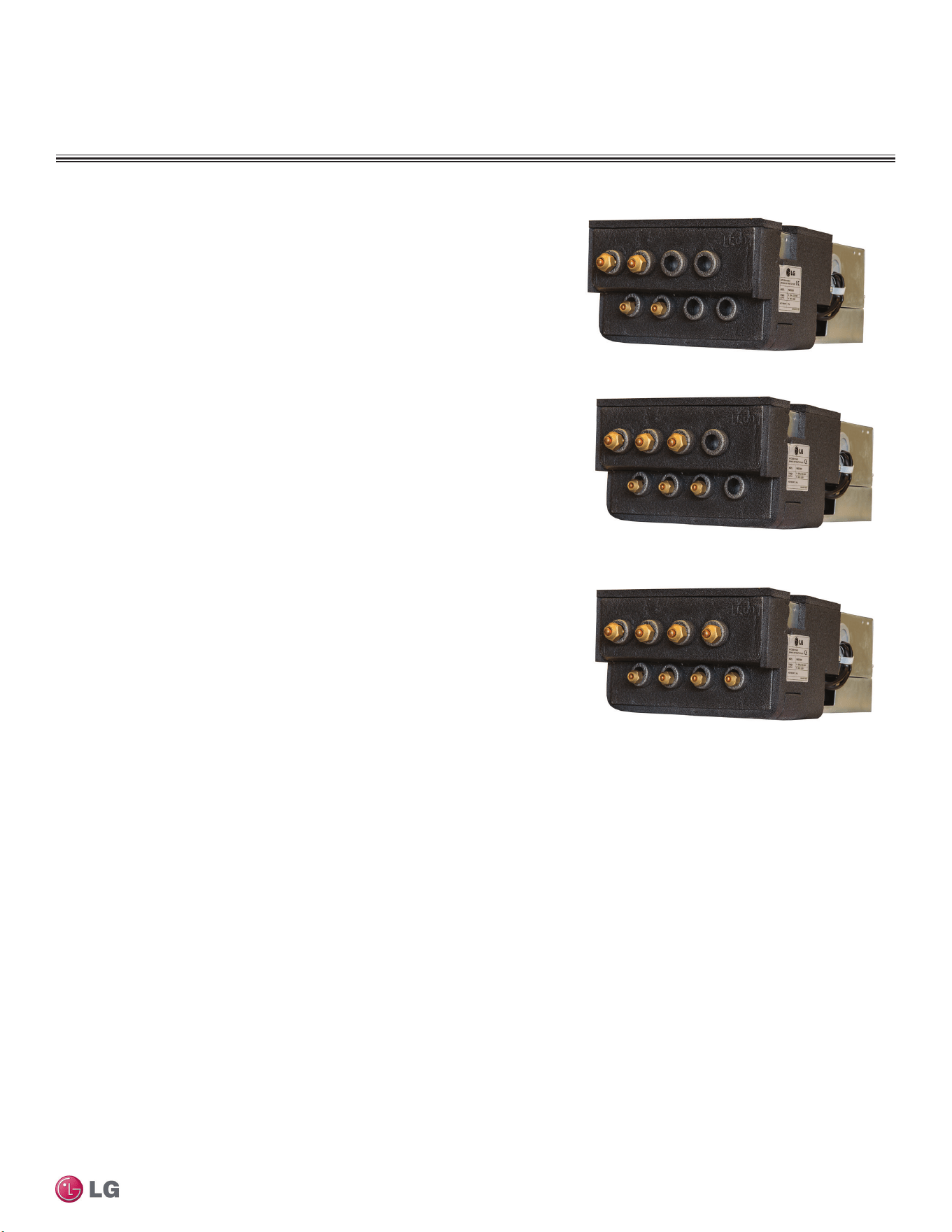

Figure 27:PMBD3620 Two-Port Branch Distribution Unit.
Figure 28:PMBD3630 Three-Port Branch Distribution Unit.
Figure 29:PMBD3640 and PMBD3641 Four-Port Branch
Distribution Unit.
BD UNIT | 333
Branch Distribution (BD) Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
MULTI F MAX BD UNIT
General Data
Table 316: Multi F MAX BD Unit General Data.
Model Number PMBD3620 PMBD3630 PMBD3640 PMBD3641
No. of Connectable Indoor Units
1
1-2 1-3 1-4 1-4
Max. Nominal Capacity / Port (Btu/h)
2
24,000 24,000 24,000
24,000 for A,B,C Ports;
36,000 for D Port
Max. Nominal Capacity / BD Unit (Btu/h)
48,000 72,000 73,000 73,000
Operation Temperature Range (°F DB)
0 ~ 122 0 ~ 122 0 ~ 122 0 ~ 122
Unit Data
Refrigerant Type
R410A R410A R410A R410A
Power Supply V, Ø, Hz
208-230, 1, 60 208-230, 1, 60 208-230, 1, 60 208-230, 1, 60
Power Input (W)
16 24 32 32
Rated Amps (A)
0.08 0.12 0.16 0.16
Dimensions W x H x D (in.)
17-3/32 x 6-13/32
x 10-23/32
17-3/32 x 6-13/32
x 10-23/32
17-3/32 x 6-13/32
x 10-23/32
17-3/32 x 6-13/32
x 10-23/32
Net Unit Weight (lbs.)
13 14.3 15.7 15.7
Shipping Weight (lbs.)
15 17 18 18
Power Wiring / Communication Cables
3
From Outdoor Unit to BD Unit (Qty. x AWG)
3
4 x 16 4 x 16 4 x 16 4 x 16
From BD Unit to Indoor Unit (Qty. x AWG)
3
4 x 18 4 x 18 4 x 18 4 x 18
Piping Connections
Outdoor Unit to
BD Unit
Liquid (in., OD)
Ø3/8 Ø3/8 Ø3/8 Ø3/8
Vapor (in., OD)
Ø3/4 Ø3/4 Ø3/4 Ø3/4
BD Unit to
Indoor Units
Liquid (in., OD) x Qty.
Ø1/4 x 2 Ø1/4 x 3 Ø1/4 x 4
Ø1/4 x 3
Ø3/8 x 1
Vapor (in., OD) x Qty.
Ø3/8 x 2 Ø3/8 x 3 Ø3/8 x 4
Ø3/8 x 3
Ø5/8 x 1
Piping Lengths
Maximum Total System Piping (ft.)
4
475.7 475.7 475.7 475.7
Maximum Main Pipe Length (Outdoor Unit
to BD Units [ft.])
180.4 180.4 180.4 180.4
Total Branch Piping (BD Units to Indoor
Units [ft.])
295.3 295.3 295.3 295.3
Maximum Branch Pipe Length Between
BD Unit and Each Indoor Unit [ft.])
49.2 49.2 49.2 49.2
Maximum Outdoor Unit to Indoor Unit
Pipe Length (ft.)
229.6 229.6 229.6 229.6
Piping Length (No Additional Refrigerant [ft.];
approx. 16 ft. of Main Piping + 131 ft. of
Branch Piping)
147.6 147.6 147.6 147.6
Maximum Elevation between BD Unit and
Indoor Unit (ft.)
32.8 32.8 32.8 32.8
Maximum Elevation between BD Unit and
BD Unit (ft.)
49.2 49.2 49.2 49.2
1
At least one Branch Distribution Unit is required for system operation; a maximum of two can be installed per outdoor unit with use of Y-branch accessory (PMBL5620) To connect only one (1) indoor unit to a
branch distribution unit, the system must include another branch distribution unit with at least one (1) connected indoor unit.
2
Branch Distribution Unit can accommodate from one (1) indoor unit up to four (4) indoor units depending on the ports available on the Branch Distribution Unit.
3
All power wiring / communication cables to be four-conductor, stranded, shielded, and must comply with applicable local and national codes.
4
Piping lengths are equivalent.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
334 | BD UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
MULTI F MAX BD UNIT
Dimensions
Figure 30:PMBD3620, PMBD3630, PMBD3640, and PMBD3641 External Dimensions.
1-31/32
1-3/16
4-3/8
Min 1-3/16
Min 15-3/4
Min 15-3/4
(Servicing space)
(Side view)
(Bottom view)
Unit: inch
1-31/32
1-31/32
1-31/32
1-31/32
1-23/32
1-31/32
1-31/32
1-31/32
2-7/32
1-1/2
Main Pipe
Cover ControlBranch Pipe
2-3/8
11 -7/8
17
2-27/32
5-5/8 + 13/32* x 2
Inspection opening
23-5/8
9-27/32 or more
23-5/8
(EEV service)
(Controller service)
AB CD
Ø3/4
Ø3/8
Suspension bolt pitch.
*PMBD3641: D connections
- Ø3/8, Ø5/8
Liquid Pipe: Ø1/4
Gas Pipe: Ø3/8
9-7/16
13-9/32
ABCD
298(1 1-23/32)11-23/32
252(9-29/32) + (10(13/32)* x 2)9-29/32 + 13/32* x 2
Notes
1. PMBD3620 unit supplied with "A, B"
2. PMBD3630 unit supplied with "A, B, C"
3.PMBD3640, PMBD3641 unit supplied with "A, B, C, D"
4. * Thickness of insulation
BD UNIT | 335
Branch Distribution (BD) Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Figure 31:PMBD3620, PMBD3630, PMBD3640, PMBD3641 Refrigerant Flow Diagram.
MULTI F MAX BD UNIT
Refrigerant Flow Diagram
1. Flare connections for field piping installation.
2. Match the BD ports to the indoor unit and outdoor unit piping sizes. Use an adapter if the piping size does not match the piping size
of the connecting indoor unit.
3. EEV: Electronic Expansion Valve
4. PMBD3620 BD Unit supplied with "A, B".
PMBD3630 BD Unit supplied with "A, B, C".
PMBD3640 and PMBD3641 BD Units supplied with "A, B, C, D".
Main gas
piping
(
Ø
3/4)
Refrigerant flow
D Liquid (Ø1/4)
C Liquid (Ø1/4)
B Liquid (Ø1/4)
A Liquid (Ø1/4)
D Gas (Ø3/8)
*PMBD3641
D Gas: Ø5/8
*PMBD3641
D Liquid: Ø3/8
C Gas (Ø3/8)
Cooling
Heating
Main liquid
piping
(
Ø
3/8)
To
Outdoo
r
Unit
To
Indoor
Units
EEV-C
EEV-B
EEV-A
EEV-D
B Gas (Ø3/8)
A Gas (Ø3/8)
Unit: inch
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
336 | BD UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
PMBD3620 BD Unit supplied with "A, B".
PMBD3630 BD Unit supplied with "A, B, C".
PMBD3640 and PMBD3641 BD Units supplied with "A, B, C, D".
MULTI F MAX BD UNIT
Wiring Diagram

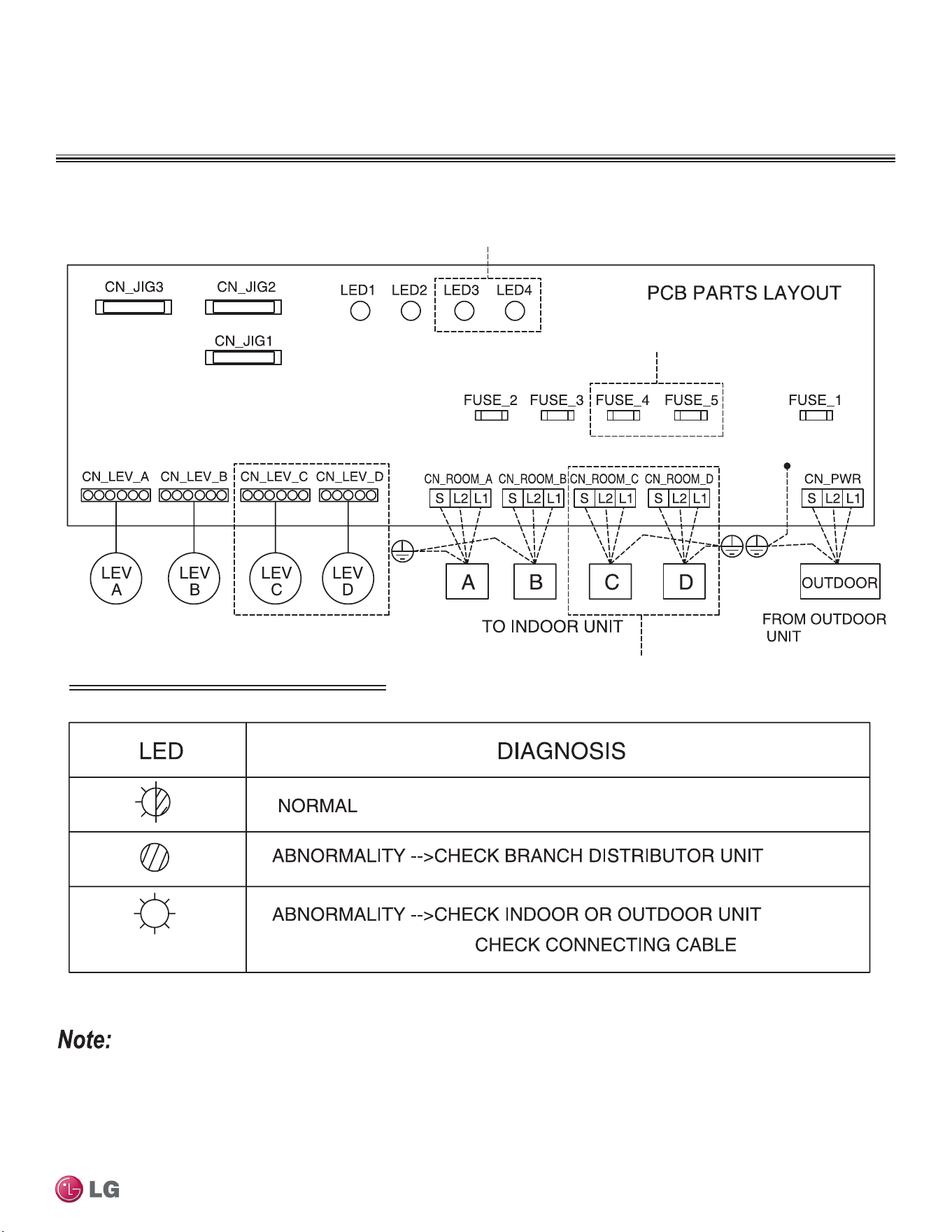

Figure 32:PMBD3620, PMBD3630, PMBD3640, PMBD3641 Wiring Diagram.
Troubleshooting
Model Dependant
Model Dependant
Model Dependant
Model Dependant
BD UNIT | 337
Branch Distribution (BD) Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Y-Branch accessory PMBL5620 is required when installing two branch distribution units in parallel on one Multi F MAX system.
MULTI F MAX BD UNIT
Multi F MAX Y-Branch Accessory
Table 317: Multi F MAX Y-Branch Specications.
Model Y-Branch Type
Port Identier (inch)
1 2 3
PMBL5620
Liquid Ø3/8 Ø3/8 Ø3/8
Vapor Ø3/4 Ø3/4 Ø3/4
Y-Branch Type
Dimensions (inch)
X Y
Liquid 13.80 3.24
Vapor 12.48 3.02
A
B
X
Y
1
2
3
A = To Outdoor Unit
B = To Branch Distribution Unit
1
2
3
Figure 33:Y-Branch Port Identier Diagram. Figure 34:Y-Branch Dimensions Diagram.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
338 | BD UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
MULTI F MAX BD UNIT
Branch Distribution Unit Orientation
Multi F MAX Branch Distribution (BD) Units can be installed in a multitude of
options to fit various building configurations and job or application requirements.
Multi F MAX BD Units include electronic expansion valves that properly seat only if
the BD Unit is installed in an acceptable orientation. Installations with improper BD
Unit orientation risk incomplete valve seating and system performance degradation
from potential refrigerant leakage through the electronic expansion valve.
This material is for informational or educational pur-
poses only. It is not intended to be a substitute for
professional advice. Consult with your engineer or
design professionals for specic applications to your
system
Left Side View,
Port End Facing Left
Ceiling Mounting Options
Port End View
Right Side View,
Port End Facing Right
Ceiling Ceiling
Ceiling
Top of Unit
Refrigerant Piping End View
Ceiling
Top of Unit
Top of Unit
Top of Unit
Top of Unit
Into the Ceiling
Into the Unit
Into the Ceiling
Into the Unit
Into the Unit
Into the Ceiling
Isometric View
Bottom of Unit
Wall
Bottom View, Port End Facing Up
PCB
Bott
Wall Mounting Options
Wall
Bottom View, Port End Down
PCB
PCB
Wall
Bottom
of Unit
PCB
Wall
Bottom View, Port End Facing Right
Bottom
of Unit
Bottom of Unit
Into the
Wall
Into the Unit
Into the Unit
Into the Wall
Into the Wall
Bottom of Unit
Isometric View
Bottom View, Port End Facing Left
Wall
Left Side View, Port End Facing Left
Wall
Top of Unit
Top of Unit
Right Side View, Port End Facing Right
Figure 35:Acceptable BD Unit Ceiling Mount Orientations.
Figure 36:Acceptable BD Unit Wall Mount Orientations.
Figure 37:Unacceptable BD Unit Orientation.
BD UNIT | 339
Branch Distribution (BD) Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
340 | BD UNIT
Multi F and Multi F MAX Heat Pump System Engineering Manual
MULTI
F
MAX
MULTI
F
“Equipment Selection Procedure” on page 342
“Building Ventilation Design Guide” on page 348
“Placement Considerations” on page 353
APPLICATION
GUIDELINES
EQUIPMENT SELECTION PROCEDURE
To choose the multi-zone system that is the most appropriate for the space, as with traditional air-conditioning systems, follow similar
protocols outlined in Manual J from the Air Conditioning Contractors of America (ACCA; see www.acca.org).
1. Obtain the design conditions, and calculate the maximum cool and heat loads for the structure.
2. Select the equipment (choosing the appropriate indoor units and outdoor unit):
• Determine number of zones.
• Determine total number of indoor units (refer to zone load calculations when choosing indoor units).
• Determine number of indoor units allocated to each outdoor unit, considering allowable indoor unit connections, both indoor unit and
outdoor unit capacities, and system piping capabilities.
3. Determine the corrected capacity for the indoor units and outdoor unit using LATS Multi F software (preferred method) or:
• System Combination Tables.
• Capacity Tables (it may be necessary to interpolate).
• Capacity Coefficient Factors (such as refrigerant line length derates, design condition derates, defrost operation derate [heating mode],
altitude derate [if applicable]).
4. Compare corrected capacities to load calculations.
5. Reselect equipment if necessary.
Obtain Design Conditions, Calculate Maximum Cool / Heat Loads
Obtain the winter outdoor/indoor temperature and summer and winter outdoor / indoor temperature design parameters for the location in
which the system is installed. Determine if summer or winter design gains, relative humidity, and building features like skylights, orientation,
number of occupants, etc., would change the total heat loss / gain and sensible / latent heat gain, and then calculate the maximum cool and
heat loads for the space (using Manual J or energy modeling programs).
Select the Equipment
Determine the Number of Zones
Multi F heat pump systems can cool or heat, but not simultaneously. When designing larger-capacity Multi F heat pump systems or a Multi
F MAX system, the designer may be able to combine spaces with similar load profiles located near or adjacent to each other into “thermal
zones.” After combining like spaces into zones that will be served by a single (or grouped) indoor unit(s), calculate the peak cooling and
heating loads for each zone.
Choosing the Appropriate Indoor Units
Determine the appropriate indoor unit capacity that satisfies the given zone load calculations, choose how many (and which styles of) indoor
units will be required. See Table 96 for allowable indoor unit to outdoor unit connections, and the maximum number of connectable indoor
units on each Multi F and Multi F MAX outdoor unit. When choosing, also consider the cooling and heating CFM, featured airflow specifica-
tions, and static pressure (if applicable) for each indoor unit.
Avoid oversizing indoor units in an attempt to increase the air exchange rate in the space. Multi F and Multi F MAX systems are designed for
minimum airflow over the coil to maximize latent capacity while cooling, maintain a comfortable, consistent discharge air temperature while
heating, and minimize fan motor power consumption. In extreme cases, oversizing the indoor units may affect outdoor unit size selection and
compromise the outdoor unit’s ability to effectively match the space load(s).
For proper system operation:
1. At least two indoor units must be connected to the outdoor unit.
2. Total connected indoor unit nominal capacity should be a minimum 40% and a maximum of 133% of outdoor unit nominal capacity.
3. To calculate the connected total indoor unit nominal capacity, simply sum up the nominal capacities of all indoor units.
• For 24,000 and 36,000 Btu/h high static duct and vertical-horizontal air handling indoor units, a 1.3 multiplier must first be applied before
adding to the sum of other smaller indoor units.
• When two 24,000 Btu/h or one 24,000 Btu/h and one 36,000 Btu/h high static duct and / or vertical-horizontal air handling indoor units
are the only connected indoor units, the multiplier is 1.2.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
342 | APPLICATION GUIDELINES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
EQUIPMENT SELECTION PROCEDURE
Indoor units Outdoor units
Model Type
Indoor Unit Nominal
Capacity (Btu/h)
LMU18CHV LMU24CHV LMU36CHV LMU540HV
Maximum No. of Connectable Indoor Units
2 3 4 8
ART COOL Mirror
9,000 O O O O
12,000 O O O O
18,000 - O O O
ART COOL Gallery
9,000 O O O O
12,000 O O O O
Wall Mounted
7,000 O O O O
9,000 O O O O
12,000 O O O O
15,000 O O O O
18,000 - O O O
24,000 - O O O
Ceiling Concealed Duct-Low Static
9,000 O O O O
12,000 O O O O
18,000 - O O O
Ceiling Concealed Duct-High Static
24,000 - - O O
36,000 - - - O
Four-Way Ceiling Cassette
7,000 O O O O
9,000 O O O O
12,000 O O O O
18,000 - O O O
Vertical-Horizontal Air Handler
24,000 - - O O
36,000 - - - O
Table 318: Allowable Indoor Unit to Outdoor Unit Connections.
Choosing the Appropriate Outdoor Unit
After all indoor units are properly sized to offset the applicable loads in each zone, select the outdoor unit by choosing a size that meets
both the load-cooling requirement, and offsets the sum of the heating load. Then, the system’s combination ratio should be evaluated and
confirmed it is within the allowable range (the combination ratio compares the nominal capacity of all connected indoor units to the nominal
capacity of the outdoor unit serving them). The total nominal capacity of all indoor units should be smaller than the total nominal capacity of
the outdoor unit. If the combination ratio is more than 100%, the designer is undersizing the outdoor unit relative to the combined nominal
capacity of the connected indoor units. In some designs, oversized indoor units may be unavoidable in the case where the smallest size
indoor unit available from LG is larger than what is necessary to satisfy the zone load. This scenario may also occur when an indoor unit
selection one size down from the selected unit is slightly short of fulfilling the design load requirements, and the designer must choose the
next largest size unit. Sometimes it is recommended to choose a larger capacity outdoor unit if the installation space is big enough. Also,
it may be prudent to oversize the outdoor unit to address those times when the weather conditions may exceed the design conditions, to
minimize the possibility of ventilation systems that causes the space temperature to drift outside design parameters, or when the indoor unit’s
entering air temperature falls outside the approved design temperature range.
Branch Distribution Unit (PMBD3620)
+
24 x 1.2 24 x 1.2 + Total Capacity Index = = 57.6 < 73
Branch Distribution Unit (PMBD3641)
First Indoor Unit:
LMCN125HV
+ + Outdoor Unit: LMU540HV
12 9 36 x 1.3 + + Total Capacity Index = = 67.8 < 73
Acceptable
Combination
Second Indoor Unit:
LSN090HSV4
Third Indoor Unit:
LMVN360HV
Outdoor Unit: LMU540HV
First Indoor Unit:
LMVN240HV
Second Indoor Unit:
LMVN240HV
Acceptable
Combination
Example 1
Example 2
Multiplier Examples
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
APPLICATION GUIDELINES | 343
Application Guidelines
MULTI
F
MAX
MULTI
F
Determine the Corrected Capacity
The corrected cooling / heating capacity is different from the rated cooling / heating capacity. The corrected capacity includes changes in
unit performance after considering design temperatures, available capacity that can be allocated from the outdoor unit, pressure drop due
to refrigerant line length, defrost operation in heating mode, and (if applicable) altitude. Depending on the location of the building, additional
capacity correction factors may need to be applied.
Using the Outdoor Unit Cooling and Heating Capacity Tables
Rated cooling capacity ratings are obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet bulb (WB), and outdoor ambi-
ent conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB). Rated heating capacity ratings are obtained with air entering the indoor unit at
70ºF dry bulb (DB) and 60ºF wet bulb (WB) and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
To evaluate the total outdoor unit capacity at design conditions, using LATS Multi F software (preferred method) or reference the Perfor-
mance Data Capacity Tables found in the Multi F outdoor unit section in this manual. All design temperatures are not explicitly shown in the
charts, therefore, interpolation may be necessary to calculate the capacity for specific design conditions. Based on the premise that capacity
follows a linear curve, the following formula can be applied:
(y - y1) / (y2 - y1) = (x - x1) / (x2 - x1)
Where
y = Missing Capacity (Capacity at the Design Temperature).
1
y1 = Capacity at Lower Temperature (Smaller value of the two nearest published TC datapoints).
y2 = Capacity at Higher Temperature (Higher value of the two nearest published TC datapoints).
x = Design Temperature (Temperature not shown in published capacity tables).
2
x1 = (Smaller value of the two nearest published temperature datapoints).
x2 = (Larger value of the two nearest published temperature datapoints).
1
Median between two published Total Capacity [TC] Btu/h datapoints in the capacity table.
2
Median between two nearest published temperature datapoints.
EQUIPMENT SELECTION PROCEDURE
Using the Indoor Unit Cooling and Heating Capacity Tables
The datapoints shown in the indoor unit cooling and heating capacity charts are based on (and convey) an indoor unit operating with maxi-
mum possible refrigerant flow from the outdoor unit and before any derates are applied. In other words, the capacities displayed reflect what
the indoor unit would produce if it was the only indoor unit that required capacity, and the outdoor unit did not have to allocate any capacity to
another indoor unit.
System operation with a combination of indoor units is not conveyed in these charts, however, the information can be used to calculate
indoor unit allocated capacity (without using the system combination tables). Simply calculate by using the formula:
Where
Qidu(combi) = Qodu(rated) x Qidu(rated)
ΣQidu(rated)
• The formula can be used to find individual indoor unit capacity for Multi F MAX systems.
• A more accurate method to determine expected capacity would be to apply the outdoor unit’s corrected capacity instead of rated
capacity.
Qidu(combi) = Individual Indoor Unit Combination Capacity.
Qodu(rated) = Outdoor Unit Rated Capacity.
Qidu(rated) = Individual Indoor Unit Rated Capacity.
ΣQidu(rated) = Total Connected Indoor Unit Rated Capacity.
Outdoor Units
LMU18CHV LMU24CHV LMU36CHV LMU540HV
Rated Capacity (Btu/h)
Cooling 17,000 20,000 32,000 52,500
Heating 22,000 24,000 36,000 58,000
Connectable Indoor
Units
Minimum No. of Connectable Indoor Units 2 2 2 2
Maximum No. of Connectable Indoor Units 2 3 4 8
Maximum Capacity Index 24,000 33,000 48,000 73,000
Table 319: Rated Outdoor Unit Capacity.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
344 | APPLICATION GUIDELINES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
Qidu(combi) = Qodu(rated) x Qidu(rated)
ΣQidu(rated)
EQUIPMENT SELECTION PROCEDURE
Using the System Combination Tables
Multi F system combination tables illustrate how each indoor unit receives a percentage of total outdoor unit rated capacity. Allocation is
based on:
• Combinations of Non-Ducted Indoor Units
• Combinations of Ducted Indoor Units
• Combinations of Mixed Non-Ducted and Ducted Indoor Units
Multi F MAX system combination tables only show the total connected indoor unit capacity, but individual indoor unit capacity can be
calculated using the formula:
A more accurate method to determine expected capacity would be to apply the outdoor unit’s corrected capacity instead of rated capacity.
Table 320: Multi F Outdoor Unit (Multiple Piping) to Indoor Unit Refrigerant Line Length Derates.
Piping Length (feet) Cooling Capacity (%) Heating Capacity (%)
7,000 Btu/h Indoor Unit Models
25.0 100.0 100.0
32.8 98.4 99.2
49.2 95.8 97.8
65.6 93.2 96.4
82.0 90.6 95.0
9,000 Btu/h Indoor Unit Models
25.0 100.0 100.0
32.8 98.0 99.0
49.2 94.8 97.4
65.6 91.6 95.8
82.0 88.4 94.2
12,000 Btu/h Indoor Unit Models
25.0 100.0 100.0
32.8 97.6 98.6
49.2 93.8 96.4
65.6 89.9 94.1
82.0 86.1 91.9
15,000 Btu/h Indoor Unit Models
25.0 100.0 100.0
32.8 97.2 98.2
49.2 93.0 95.4
65.6 88.8 92.6
82.0 84.6 89.8
18,000 Btu/h Indoor Unit Models
25.0 100.0 100.0
32.8 98.6 99.6
49.2 96.4 99.0
65.6 94.1 98.3
82.0 91.9 97.7
24,000 Btu/h Indoor Unit Models
25.0 100.0 100.0
32.8 98.2 99.2
49.2 95.4 98.0
65.6 92.4 96.6
82.0 89.6 95.4
Capacity Coefficient Factors
Refrigerant Line Length Derates
For air-cooled systems, a capacity correction factor may have to be applied to account for the length of the system’s refrigerant pipe. Rate of
change in capacity due to increased piping lengths is shown in Tables 320 to 322.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
APPLICATION GUIDELINES | 345
Application Guidelines
MULTI
F
MAX
MULTI
F
EQUIPMENT SELECTION PROCEDURE
Table 321: Multi F MAX Outdoor Unit to Branch Distribution Unit Refrigerant Line Length Derates.
Main Piping Length (feet) 16.4 32.8 49.2 65.6 82.0 98.4 114.8 131.2 147.6 164.0 180.4
Cooling Capacity (%)
100.0 98.8 97.3 95.8 94.3 92.8 91.3 89.8 88.3 86.8 85.3
Heating Capacity (%)
100.0 99.6 99.2 98.7 98.3 97.8 97.4 96.9 96.5 96.0 95.6
0 32.8 65.6 98.4 131.2 164.0 180.4
Main piping length (ft.)
70.0
75.0
80.0
85.0
90.0
95.0
100.0
Capacity (%)
Heating
capacity
Cooling
capacity
Figure 38: Multi F MAX Outdoor Unit to Branch Distribution Unit Refrigerant Line Length Derate Chart.
Table 322: Multi F MAX Branch Distribution Unit to Indoor Unit Refrigerant Line Length Derates.
Piping Length (feet) Cooling Capacity (%) Heating Capacity (%)
7,000 Btu/h Indoor Unit Models
16.4 100.0 100.0
32.8 98.0 99.5
49.2 96.0 98.9
9,000 Btu/h Indoor Unit Models
16.4 100.0 100.0
32.8 97.5 98.8
49.2 95.0 97.5
12,000 Btu/h Indoor Unit Models
16.4 100.0 100.0
32.8 97.0 98.3
49.2 94.0 96.5
15,000 Btu/h Indoor Unit Models
16.4 100.0 100.0
32.8 97.2 98.2
49.2 93.0 95.4
18,000 Btu/h Indoor Unit Models
16.4 100.0 100.0
32.8 98.3 99.5
49.2 96.5 99.0
24,000 Btu/h Indoor Unit Models
16.4 100.0 100.0
32.8 97.8 99.2
49.2 95.5 98.4
36,000 Btu/h Indoor Unit Models
16.4 100.0 100.0
32.8 97.9 98.8
49.2 95.7 97.6
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
346 | APPLICATION GUIDELINES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
EQUIPMENT SELECTION PROCEDURE
Altitude Correction Factor
The impact of air density must be considered on systems installed at a significant altitude above sea level, therefore, locally accepted
altitude correction factors must be applied.
Table 323: Outdoor Unit Frost Accumulation Factor (Heating)
1
.
There will be temporary reduction in capacity when frost / ice accumulates on the outside surface of the outdoor unit heat exchanger. The level
of capacity reduction depends on a number of factors, for example, outdoor temperature (°F DB), relative humidity (RH), and the amount of frost
present.
Entering DB (ºF)
19.4 23.0 26.6 32.0 37.4 41.0 44.6
Derate factor
0.98 0.95 0.93 0.86 0.93 0.96 1.0
1
At 85% outdoor air relative humidity.
The frost accumulation factor does not account for effects of snow accumulation restricting airflow
through the outdoor unit coil.
Defrost Correction Factor for Heating Operation
The outdoor unit heating capacity may need to be adjusted for frost accumulation on air-cooled systems. If design day conditions are below
the dewpoint of the surrounding air, frost may not be a problem and no correction factor is needed. In certain weather conditions, however,
frost may form and accumulate on the air-cooled outdoor unit coil and impact the coils ability to transfer heat. If significant frost accumulates
on the outdoor unit coil, a defrost algorithm will start automatically. The timing between defrost periods is determined by the system’s ability
to achieve a target head pressure value.
Capacity and AHRI ratings tables do not factor in capacity reduction when frost has accumulated on the condenser coil, nor during defrost
operation.
Integrated heating capacity values can be obtained using the formula:
A = B x C
Where:
A = Integrated Heating Capacity.
B = Value found in the Capacity Table.
C = Correction Factor for Frost Accumulation Factor (from Table 101).
Check the Indoor and Outdoor Unit Selection(s)
Compare the corrected cooling and heating capacities to the load calculations. Is each capacity sufficient for the zone it serves?
For each indoor unit, the corrected capacity must be at least equal to the total of the cooling design load (plus ventilation load, if applicable)
for the space(s) served by the indoor unit. For each indoor unit, the corrected capacity also must be at least equal to the total of the heating
design load (plus ventilation load, if applicable) for the space(s) and / or thermal zones served by the indoor unit.
The outdoor unit selected should be large enough to offset the total cooling load for all spaces it serves (account for ventilation air cooling
load if the ventilation air has not been pretreated to room neutral conditions). The outdoor unit should also be large enough to offset the total
heating load for all spaces it serves.
If the corrected heating capacity ratio exceeds 100%, reselect the equipment, or change the system design by moving some of the load to
another system.
• Understand the design safety factors.
• Reference load calculations for actual cooling and heating capaci-
ties (applies in 99% of applications – consider total load when
latent load is greater than 30%).
• Verify that the sensible load of the zone is satisfied.
• Use caution when sizing to meet listed capacity specifications for
the scheduled manufacturer’s equipment.
If further system design assistance is needed, or you have a unique
application you would like to discuss, contact your LG sales rep.
1. Outdoor Unit Rated Capacity.
Q
odu(rated)
(From capacity tables).
2. Outdoor Unit Capacity at Ti, To Temperature.
Q
odu(Ti, To)
(From capacity tables).
3. Outdoor Unit Capacity Coefficient Factor.
F
(Ti, To)
= Q
odu(Ti, To)
/ Q
odu(rated)
4. Piping Correction Factor (From Capacity Coefficient
Factor Tables).
F
(length)
for each piping length
5. Individual Indoor Unit Combination Capacity.
Q
idu (combi)
= Q
odu(rated)
x Q
idu(rated)
/ Q
idu(rated-total)
6. Individual Indoor Unit Actual Capacity.
Q
idu (actual)
= Q
odu(combi)
x F
(Ti, To)
x F
(length, altitude)
System Sizing Check Formulas
Conclusions and Recommendations
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
APPLICATION GUIDELINES | 347
Application Guidelines
MULTI
F
MAX
MULTI
F
ASHRAE Standards 62.1 and 62.2 (depending on if the building is residential or commercial), and local codes specify the minimum volume
of airflow that must be provided to an occupied space. Outdoor air is required to minimize adverse health effects, and it provides acceptable
indoor air quality for building occupants. Indoor units located within the zone typically require less airflow to condition the space. During the
design phase, refer to the airflow capabilities listed in the specification tables for each product. Choose the best method for the application
out of the five (5) ventilation options available.
Disclaimer
Although we believe that these building ventilation methods have been portrayed accurately, none of the methods have been tested, veried, or
evaluated by LG Electronics, U.S.A., Inc., In all cases, the designer, installer, and contractor should understand if the suggested method is used,
it is used at their own risk. LG Electronics U.S.A., Inc., takes no responsibility and offers no warranty, expressed or implied, of merchantability
or tness of purpose if this method fails to perform as stated or intended.
• For a complete copy of ASHRAE Standard 62.1 and 62.2, refer to the American Standard of Heating and Air Conditioning Engineers
(ASHRAE) website at www.ashrae.org.
Method 1: Natural Ventilation (Non-Ducted, Unconditioned Outdoor Air)
Natural ventilation devices, such as operable windows or louvers may be used to ventilate the building when local code permits.
Advantages
• Occupants control the volume of the ventilation air manually.
• Useful for historic buildings that have no ceiling space available for
outdoor air ductwork.
• May be used with the full lineup of Multi F indoor units.
Disadvantages
• In some locations, it may be difficult to control humidity levels when
windows are open.
• Thermal comfort levels may be substandard when windows are
open.
• Indoor units may have to be oversized to account for the added
heating and cooling loads when windows are open.
• Provides outdoor air to perimeter spaces only. Additional mechani-
cal ventilation system may be required to satisfy requirements for
interior spaces.
• Outdoor air loads may be difficult to calculate since the quantity of
outdoor air is not regulated.
• May affect indoor unit proper operation when open.
Figure 39: Natural Ventilation (Non-Ducted, Unconditioned Outdoor Air).
BUILDING VENTILATION DESIGN GUIDE
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
348 | APPLICATION GUIDELINES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
BUILDING VENTILATION DESIGN GUIDE
OA Wall
Louver
Damper
Roof Fan
Method 2: Unconditioned Outdoor Air (Non-Ducted, Fan Assisted Ventilation)
When approved by local codes, the fan assisted ventilation method uses exhaust fans to remove air from the building, and outdoor air is
drawn into occupied spaces through a wall louver or gravity roof intake hood. Supply fans can also be used to push the outdoor air into the
space and building positive pressure will vent the exhaust air through louvers or roof-mounted exhaust hoods. Outdoor air is neither cooled
nor heated before entering the building.
Advantages
• Outdoor air may be manually controlled by the occupant or auto-
matic controls may be installed to open/close outdoor air dampers
or to turn on/off ventilation fans.
• Useful for large open spaces like warehouses, garages, and
workshops.
• Outdoor air volume is a known quantity. Air loads may be easier to
calculate since fans will regulate the amount of outdoor air.
• May be used with the full lineup of Multi F indoor units.
This may result in loss of building pressurization control, increasing inltration loads with adverse effects.
Disadvantages
• In some locations of the country, it may be difficult to control
humidity levels.
• Indoor units may have to be oversized to account for the added
heating/cooling loads when louvers/hoods are open.
• Hot, cold, and/or humid areas may be present if the outdoor air is
not evenly distributed to the different spaces.
Figure 40: Unconditioned Outdoor Air (Non-Ducted, Fan Assisted Ventilation).
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
APPLICATION GUIDELINES | 349
Application Guidelines
MULTI
F
MAX
MULTI
F
Method 3: Unconditioned Outdoor Air Ducted to Indoor Units
Untreated outdoor air is channeled through a duct system that is piped to the return air duct on Multi F ducted indoor units or to the frame of
Multi F four-way cassettes.
Advantages
• May require less ductwork if indoor units are
placed near outdoor walls or a roof deck.
• Controls must be interlocked to shut off the
outdoor air supply fan when the space is
unoccupied.
• Third-party demand-control ventilation
controls may be installed to regulate outdoor
intake based on the CO
2
levels of the
occupied space.
Disadvantages
• Fan(s) will be required to push outdoor air to the indoor unit to overcome the additional
static pressure.
• Filter required to be added to the outdoor air duct.
• Ducted and four-way cassette models are the only indoor units that accept the connection
of an outdoor air duct to the unit case.
• In most cases, in lieu of using the factory mounted return-air thermistor on indoor units, a
remote wall temperature sensor or zone controller will be needed to provide an accurate
reading of the conditioned area temperature.
• Unconditioned outdoor air may affect indoor unit performance, which may necessitate
oversizing the indoor unit.
Outside air may ow backward through the return air-lter grille when the indoor unit fan speed slows or stops in response to changes in the
space load. This may result in captured particulate on the lter media being blown back into the conditioned space.
OA Wall Cap
Damper
Inline Fan
with Filter
Figure 41: Unconditioned Outdoor Air Ducted to Indoor Units.
BUILDING VENTILATION DESIGN GUIDE
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
350 | APPLICATION GUIDELINES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
BUILDING VENTILATION DESIGN GUIDE
Method 4: Coupled Dedicated Outdoor Air (CDOA)
A separate, dedicated outdoor air system delivers air directly to a Multi F indoor unit or to the return air duct system. After mixing with the
return air stream, ventilation air passes through the indoor unit and into the conditioned space. The pretreatment system is capable of
filtering, conditioning, and dehumidifying outdoor air to room neutral conditions.
Advantages
• Indoor unit capacity may not need to be
increased because of outdoor air.
• Fan and filter system is centralized to the
main outdoor air unit.
Disadvantages
• Ducted and four-way cassette indoor units are the only models designed for direct
connection of an outside air duct.
• Ceiling space is required for ductwork.
• Failure of outdoor air may impact indoor unit operation.
• In lieu of using the factory mounted return-air thermistor, a remote wall temperature
sensor or zone controller may be required to provide an accurate conditioned space
temperature reading.
Outside air may ow backward through the return air-lter grille when the indoor unit fan speed is reduced or stops when the space load is
satised. This may result in captured particulate on the lter media being blown back into the conditioned space.
Outdoor
Air Unit
Figure 42: Coupled Dedicated Outdoor Air (CDOA).
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
APPLICATION GUIDELINES | 351
Application Guidelines
MULTI
F
MAX
MULTI
F
BUILDING VENTILATION DESIGN GUIDE
Method 5: Decoupled Dedicated Outdoor Air System (DDOAS)
Provide a separate, dedicated outdoor-air system designed to filter, condition, and dehumidify ventilation air and deliver it directly to the
conditioned space through a separate register or grille. This approach requires a separate independent ventilation duct system not
associated with the Multi F system.
Advantages
• Does not add additional heating or cooling loads to indoor units.
• May be used with the full lineup of Multi F indoor units.
• Failure of outdoor unit does not impact operation of indoor unit, the
resulting untreated air will be readily noticed by the occupants.
• The outdoor air unit may supply “neutral” air to the occupant space
even when the Multi F indoor unit fan changes speed or cycles on
and off. DDOAS controls do not have to be interlocked with the
Multi V F system.
• In lieu of installing localized smaller outside air treatment
equipment throughout the building, this method centralizes the
ventilation air source making service and filter changes easier and
less disruptive for the building occupants.
• Third-party demand control ventilation controls are more readily
accommodated.
• Indoor unit operation and performance will not be affected by the
condition of outdoor air.
Disadvantages
• Ceiling space is required to accommodate ductwork between the
outdoor air unit and ceiling diffusers.
LG recommends using the DDOAS method in all installations.
Outdoor
Air Unit
Indoor Unit s
Ceiling Diffuser
Indoor Unit
Figure 43: Decoupled Dedicated Outdoor Air System (DDOAS).
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
352 | APPLICATION GUIDELINES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
PLACEMENT CONSIDERATIONS
Selecting the Best Location for the Outdoor Unit
Select a location for installing the outdoor unit that will meet the following general conditions:
• A location strong enough to bear the weight of the outdoor unit.
• A location that allows for optimum air flow and is easily accessible for inspection, maintenance, and service.
• Where piping between the outdoor unit, indoor unit(s), and BD units (Multi F MAX systems only) are within allowable limits.
• Where it will not be subjected to direct thermal radiation from other heat sources, nor an area that would not expose the outdoor unit to heat
or steam like discharge from boiler stacks, chimneys, steam relief ports, other air conditioning units, kitchen vents, plumbing vents, and
other sources of extreme temperatures.
• Where operating sound from the unit will not disturb inhabitants of surrounding buildings.
• Where the unit will not be exposed to direct, strong winds.
• Where high-frequency electrical noise / electromagnetic waves will not affect operation.
• Include space for drainage to ensure condensate flows properly out of the unit when it is in heating mode. Avoid placing the outdoor unit in
a low-lying area where water could accumulate.
• To avoid the possibility of fire, do not install the unit in an area where combustible gas may generate, flow, stagnate, or leak.
• Don’t install the unit in a location where oil, acidic solutions, sprays, or dust (sulfur, carbon, other corrosive materials) are present / often used.
Selecting the Best Location for the Indoor Units
Select a location for installing the indoor units that will meet the following conditions:
• Within allowable parameters for proper connection to the outdoor unit (or Branch Distribution unit, if a Multi F MAX system).
• No obstacles to air circulation around the unit; keep proper distances from ceilings, doorways, floor, walls, etc.
• So that condensation drainage can be conveniently routed away.
• Include enough space around the indoor unit so that it is accessible for maintenance and service purposes.
• Where electrical noise / electromagnetic waves will not affect indoor unit operation. Maintain proper distances between the indoor units and
electric wires, audio and visual appliances, breaker / circuit panels, etc. If the frequency signal of the appliance is unstable, then install the
indoor unit a minimum of ten (10) feet away, and run the power and transmission cables through a conduit.
• An area that is level and with enough strength to bear the weight of the indoor unit(s).
• An area where operation sound won’t disturb occupants.
• An area that does not expose the indoor unit(s) to heat, water, steam, oil splattering or spray.
Selecting the Best Location for the Branch Distribution (BD) Unit
Branch Distribution (BD) units are used only with Multi F MAX systems to distribute the refrigerant from the outdoor unit to up to eight indoor
units. Select location indoors that will meet the following conditions:
• Within allowable parameters for proper connection to the Multi F MAX outdoor unit and indoor unit(s); refrigerant piping and wire lengths
must not exceed amounts specified by LG Electronics, U.S.A., Inc.
• No obstacles to air circulation around the unit; keep proper distances from ceilings, doorways, floor, walls, etc.
• Condensate drain piping is not required.
• Ensure there is enough space in the installation area for service purposes; install the refrigerant piping and electrical wiring system in an
easily accessible location.
• Do not install the BD unit in a location where it would be subjected to strong radiation heat from heat sources.
• Avoid an installation environment where the BD unit would be exposed to heat, water, steam, oil splattering or spray.
• Where high-frequency electrical noise / electromagnetic waves will not affect operation. Maintain proper distances between the BD unit(s)
and electric wires, audio and visual appliances, breaker / circuit panels, etc.
• Level where there is enough strength to bear the weight of the BD unit.
• Install the unit in a location where any sound it generates will not disturb occupants in the surrounding rooms.
When deciding on a location to place the outdoor unit, be sure to choose an area where run-off from defrost mode will not
accumulate and freeze on sidewalks or driveways.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
APPLICATION GUIDELINES | 353
Application Guidelines
MULTI
F
MAX
MULTI
F
Rooftop Installations
If the outdoor unit is installed on a roof structure, be sure to level the unit. Ensure the roof structure and anchoring method are adequate for
the unit location. Consult local codes regarding rooftop mounting.
Ocean winds
Ocean winds
Ocean winds
Windbreaker
Planning for Snow and Ice
In climates that experience snow buildup, place the unit on a raised platform to ensure proper condenser airflow. The raised support platform
must be high enough to allow the unit to remain above possible snow drifts. Mount the unit on a field-provided snow stand at a minimum
height that is equal to the average annual snowfall, plus 20 inches. Design the mounting base to prevent snow accumulation on the platform
in front or back of the unit case. If necessary, provide a field fabricated hood to keep snow and ice and/or drifting snow from accumulating on
the coil surfaces. Use inlet and discharge duct or hoods to prevent snow or rain from accumulating on the fan inlet and outlet guards. Best
practice prevents snow from accumulating on top of the unit. Consider tie-down requirements in case of high winds or where required by
local codes.
Oceanside Installation Precautions
• Avoid installing the outdoor unit where it
would be directly exposed to ocean winds.
• Install the outdoor unit on the side of the
building opposite from direct ocean winds.
• Select a location with good drainage.
• Periodically clean dust or salt particles off of
the heat exchanger with water.
Additional anti-corrosion treatment may need
to be applied to the outdoor unit at oceanside
locations.
If the outdoor unit must be placed in a
location where it would be subjected to
direct ocean winds, install a concrete
windbreaker strong enough to block
any winds. Windbreaker height and
width should be more than 150% of the
outdoor unit, and be installed at least
27-1/2 inches away from the outdoor unit
to allow for airflow.
Ocean winds may cause corrosion, particularly on the condenser and evaporator ns, which,
in turn could cause product malfunction or inefcient performance.
PLACEMENT CONSIDERATIONS
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
354 | APPLICATION GUIDELINES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
PLACEMENT CONSIDERATIONS
M10
Anchor Bolt
2-3/4~4 23/32
13/16
Unit: Inch
Bolt
Refrigerant Pipe
Connection Location
Top of Outdoor Unit
(Looking Down)
Bolt
Bolt
Bolt
Bolting the Outdoor Unit to the Platform
1. Ensure that the concrete platform will not degrade easily, and has enough
strength to bear the weight of the unit.
2. Include an H-beam support. Firmly attach the corners, otherwise the support
will bend.
3. Use a hexagon nut.
4. Use anti-vibration material.
5. Include enough space around the concrete foundation for condensate
drainage.
6. Seal all wiring and piping access holes to prevent bugs from entering the
unit.
Figure 44: Outdoor Unit Foundation Requirements.
Concrete Platform Specifications
• Concrete foundations should be made of one part cement, two
parts sand, and four parts gravel.
• The surface of the foundation should be finished with mortar with
rounded edges, and weatherproofed.
Figure 45: Bolting the Outdoor Unit to the Platform.
Minimum
7-7/8
7-7/8
15-3/4
Minimum 24-13/32
Unit: Inch
Outdoor Unit Type Bolt Type Concrete Height Bolt Depth
LMU18CHV, LMU24CHV,
LMU36CHV
M10-J Minimum 3-15/16 inches Minimum 2-3/4 inches
LMU540HV M10-J Minimum 7-7/8 inches Minimum 2-3/4 inches
Table 324: Outdoor Unit Foundation Specications.
LMU540HV Outdoor Units
Minimum
3-15/16
21-1/2
Minimum 14-9/16
Unit: Inch
Outdoor Unit Platform Requirements
LMU18CHV and LMU24CHV Outdoor Units
LMU36CHV Outdoor Units
Figure 46: Close up of Bolt Attachment.
Minimum
3-15/16)
21-1/2
Minimum 14-9/16
Unit: Inch
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
APPLICATION GUIDELINES | 355
Application Guidelines
MULTI
F
MAX
MULTI
F
Tie-Downs and Lightening Protection
Tie-Downs
• The strength of the roof must be checked before installing the
outdoor units.
• If the installation site is prone to high winds or earthquakes, when
installing on the wall or roof, securely anchor the mounting base
using a field-provided tie-down configuration approved by a local
professional engineer.
• The overall tie-down configuration must be approved by a local
professional engineer. Always refer to local code when using a
wind restraint system.
Lightening Protection
• To protect the outdoor unit from lightning, it should be placed within
the specified lightning safety zone.
• Power cable and communication cable should be installed five (5)
feet away from lightning rod.
• A high-resistance ground system should be included to protect
against induced lightning or indirect strike.
Ground
Safe zone
Lightning rod
Protection Angle (25˚~55˚)
1.5m
5 feet
Lightning rod
Figure 47: Lightening Protection Diagram.
Table 325: Safety Zone Specications.
Building Height (feet)
66 98 148 197
Protection Angle (˚)
55 45 35 25
If the building does not include lightning protection, the outdoor unit
may be damaged from a lightening strike. Inform the customer of
this possibility in advance.
Minimum 11-13/16
Air inlet grille
Blown
air
Strong
wind
Strong
wind
Minimum 11-13/16
Minimum 23-5/8
Sunroof
Fence or
obstacles
Minimum 11-13/16
Air inlet grille
Blown
air
Strong
wind
Strong
wind
Minimum 19-1/16
Fence or
obstacles
Unit: Inch
Minimum 11-13/16
Ensure that the space at the back of the outdoor unit is a minimum of 11-13/16 inches, and
include a minimum of 23-5/8 inches at the right side of the unit for service.
If the outdoor unit discharge side faces a wall, include a minimum of 19-11/16 inches
between the outdoor unit and the wall. Install the outdoor unit so that the discharge port is
set at a right angle to the wind direction.
Outdoor Unit Service Access and Allowable Clearances
Appropriate airflow through the outdoor unit coil is critical for proper unit operation.
• Include enough space for airflow and for service access. If installing multiple outdoor units, avoid placing the units where the discharge of
one unit will blow into the inlet side of an adjacent unit.
• No obstacles to air circulation around the unit; keep proper distances from ceilings, fences, floor, walls, etc. (Install a fence to prevent pests
from damaging the unit or unauthorized individuals from accessing it.)
• If an awning is built over the unit to prevent direct sunlight or rain exposure, make sure that the discharge air of the outdoor unit isn’t restricted.
When installing the outdoor unit, consider service, inlet, and outlet, and minimum allowable space requirements as illustrated in the following
diagrams.
PLACEMENT CONSIDERATIONS
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
356 | APPLICATION GUIDELINES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
PLACEMENT CONSIDERATIONS
Clearance Requirements when Different Obstacles are Present (Unit: Inch).
Minimum 11-13/16"
Minimum 19-11/16"
Minimum 39-3/8"
Minimum 11-13/16"
Maximum 19-11/16"
Minimum 11-13/16"
Minimum 39-3/8"
Minimum 23-19/32"
Obstacles above and on the air intake side. Obstacles above, on the air intake side,
and on both left and right sides
Minimum 11-13/16"
Minimum 11-13/16"
Minimum 11-13/16"
Minimum 23-19/32"
Obstacle on the suction side only.
Obstacles on the suction side and
on both left and right sides.
Minimum 19-11/16"
Minimum 19-11/16"
Minimum 19-11/16"
Minimum 39-3/8"
Obstacle just on the
air discharge side.
Obstacles above and on the
air discharge side.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
APPLICATION GUIDELINES | 357
Application Guidelines
MULTI
F
MAX
MULTI
F
Where there are obstacles on both suction
and discharge sides (discharge side obstacle
is higher than the outdoor unit).
Where there are obstacles above, and on both
suction and discharge sides (discharge side obstacle
is higher than the outdoor unit).
Maximum 19-11/16"
Minimum 11-13/16"
Minimum 39-3/8"
L
H
A
Minimum 19-11/16"
Minimum 11-13/16"
Table 326: Ratio among H, A, and L.
Clearance Requirements when Different Obstacles are Present, continued. (Unit: Inch)
If a stand is necessary, it should be contained (not open
frame) to prevent the discharge air from short cycling.
L A
L
≤ H
0 < L ≤ 1/2 H 29-1/32 inches
1/2 H < L 39-3/8 inches
H < L
Set Stand as: L ≤ H
Where there are obstacles on both suction
and discharge sides (discharge side obstacle
is higher than the outdoor unit).
Where there are obstacles above, and on both
suction and discharge sides (discharge side obstacle
is higher than the outdoor unit).
Maximum 19-11/16"
Minimum 11-13/16"
Minimum 39-3/8"
L
H
A
Minimum 19-11/16"
Minimum 11-13/16"
L
Minimum 39-3/8"
Minimum 39-3/8
"
Maximum 19-11/16"
Minimum 11-13/16"
Where there are obstacles on both suction
and discharge sides (discharge side obstacle
is lower than the outdoor unit).
Where there are obstacles above, and on both
suction and discharge sides (discharge side obstacle
is lower than the outdoor unit).
Minimum 19-11/16"
Minimum 11-13/16"
H
Minimum 11-13/16"
Minimum 78-3/4"
Minimum 23-19/32"
Minimum 39-3/8"
Series installation
“L” should be lower than “H”. If
a stand is necessary, it should
be contained (not open frame)
to prevent the discharge air from
short cycling.
PLACEMENT CONSIDERATIONS
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
358 | APPLICATION GUIDELINES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
“Design Guideline Summary” on page 360
“Creating a Balanced / Quality Piping System” on page 362
“Manual Layout Procedure” on page 362
“LG Engineered Multi F MAX Y-Branch Kits” on page 363
“Refrigerant Charge” on page 364
“Selecting Field-Supplied Copper Tubing” on page 366
“Refrigerant Piping System Layout” on page 368
“Piping Insulation” on page 376
“Condensate Drain Piping” on page 377
“Cut Sheet” on page 379
REFRIGERANT PIPING
DESIGN & LAYOUT
BEST PRACTICES
Device Connection Limitations
• The minimum number of connected and operating indoor units to Multi F / Multi F MAX systems is two, taking into consideration the
minimum combination ratio.
• The maximum number of indoor units for each Multi F / Multi F MAX heat pump systems is:
LMU18CHV = 2 LMU24CHV = 3 LMU36CHV = 4 LMU540HV = 8
REFRIGERANT PIPING DESIGN
Design Guideline Summary
One of the most critical elements of multi-zone systems is the refrigerant piping. The following pages list pipe length limits that must be
followed in the design of Multi F and Multi F MAX refrigerant pipe systems:
Table 327:Equivalent Piping Length for Elbows, Y-branches, and Branch
Distribution Units.
Max. 49.2 feet
Max. 24.6 feet
A
B
C
D
Multi F System
Example: LMU36CHV outdoor unit with four (4)
indoor units connected.
ODU: Outdoor Unit.
IDU: Indoor Unit.
A, B, C, D: Pipes from Outdoor Unit to Indoor Unit.
Outdoor Unit
Minimum Length for Each
Pipe (ft.)
Maximum Piping Length to Each Indoor Unit (ft.)
Maximum Total Piping Length for Each
System (ft.)
A B C D
LMU18CHV 10 82 82 - - 164
LMU24CHV 10 82 82 82 - 246.1
LMU36CHV 10 82 82 82 82 246.1
1
Kit contains two Y-branches: one for liquid and one for vapor.
Table 328:Multi F Outdoor Unit Refrigerant Piping System Limitations.
Component
Size (Inches)
1/4 3/8 1/2 5/8 3/4
Elbow (ft.)
0.5 0.6 0.7 0.8 1.2
Y-Branch Kit (ft., Multi F MAX systems
only)
1
1.6
Branch Distribution Unit (ft., Multi F
MAX systems only)
8.2
Field-supplied elbows are allowed as long as they are designed for
use with R410A refrigerant. The designer, however, should be cau-
tious with the quantity and size of fittings used, and must account for
the additional pressure losses in equivalent pipe length calculation
for each branch. The equivalent pipe length of each elbow must be
added to each pipe segment.
Using Refrigerant Components
The following are examples of manual pipe size calculations. Designers are highly encouraged to use LATS for Multi F systems.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
360 | DESIGN & PRACTICES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
Design Guideline Summary
Example: LMU540HV outdoor unit with
seven (7) indoor units, and two (2)
branch distribution units connected.
ODU: Outdoor Unit.
IDU: Indoor Unit.
BD: Branch Distribution Unit(s).
ΣA: Main Pipe.
ΣB: Branch Pipe (Branch Distribution Unit[s] to
Indoor Unit[s]).
B
A
h2 ≤ 49.2 feet
A
h3 ≤ 32.8 feet
h4 ≤ 49.2 feet
h1 ≤ 98.4 feet
BDU Y-Branch
BDU
IDU
A
ODU
IDU
IDU
IDU
IDU
IDU
IDU
B
B
B
B
B
B
Table 329: Multi F MAX Outdoor Unit Refrigerant Piping System Limitations.
Pipe Length
(ELF = Equivalent
Length of pipe in Feet)
Total piping length (ΣA + ΣB)
≤475.7 feet
Main pipe (Outdoor Unit to
Branch Distribution Units: ΣA)
Minimum
10 feet
Maximum
≤180.4 feet
Total branch piping length (ΣB)
≤295.3 feet
Branch pipe (Branch Distribu-
tion Units to Indoor Units: B)
Minimum
10 feet
Maximum
≤49.2 feet
Elevation Differential
(All Elevation
Limitations are
Measured in Actual
Feet)
If outdoor unit is above or below indoor unit (h1)
≤98.4 feet
Between the farthest two indoor units (h2)
≤42.9 feet
Between branch distribution unit and farthest
connected indoor unit(s) (h3)
≤32.8 feet
Between branch distribution units (h4)
≤42.9 feet
Table 330: Multi F MAX Piping Sizes.
Piping
Main Pipe A
(inch)
Branch Pipe B
Liquid Ø3/8
Depends on the size
of the indoor unit piping
Gas Ø3/4
Example: LMU540HV outdoor unit with
four (4) indoor units, and one (1) branch
distribution unit connected.
ODU: Outdoor Unit.
IDU: Indoor Unit.
BDU: Branch Distribution Unit.
A: Main Pipe.
B: Branch Pipe (Branch Distribution Unit to
Indoor Unit[s]).
A
h2 ≤ 49.2 feet
h3 ≤ 32.8 feet
h1 ≤ 98.4 feet
BDU
ODU
IDU
IDU
IDU
IDU
B
B
B
B
Multi F MAX System with One Branch Distribution Unit
Multi F MAX System with Two Branch Distribution Units
The following are examples of manual pipe size calculations. Designers are highly encouraged to use LATS for Multi F systems.
REFRIGERANT PIPING DESIGN
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
DESIGN & PRACTICES | 361
Refrigerant Piping Design and Best Practices
MULTI
F
MAX
MULTI
F
Creating a Balanced / Quality Piping System
Unlike designing duct-work or chilled and hot water pipe systems where balancing dampers, ball valves, orifices, circuit setters, or other
flow control devices can be installed to modify or balance the flow of cooling medium, these cannot be used in a Multi F system. Therefore,
variable refrigerant flow systems have to be designed to be “self balanced.” Balanced liquid refrigerant distribution is solely dependent on
the designer using the correct pipe size for each segment. Pipe sizing considerations include pipe length, pipe segment pressure drop
relative to other pipe segments in the system, type and quantity of elbows, bends present, fitting installation orientation, and end use device
elevation differences.
Any eld changes, such as re-routing, shortening or lengthening a pipe segment, adding or eliminating elbows and/or ttings, re-sizing, adding,
or eliminating indoor units, changing the mounting height or moving the location of a device or tting during installation should be done with cau-
tion and ALWAYS VERIFIED in LATS MULTI F SOFTWARE before supplies are purchased or installed. Doing so ensures protable installation,
eliminates rework, and ensures easier system commissioning.
The designer should avoid creating excessive pressure drop. When liquid refrigerant is subjected to excessive pressure drop, liquid refrig-
erant will change state and “ash” to vapor. Vapor present in a stream of liquid refrigerant before reaching the indoor unit coil (or branch
distribution unit for Multi F MAX systems) results in a loss of system control and causes damage to the components. The pipe system must
be designed in a manner that avoids the creation of unwanted vapor.
Refrigerant Piping System Verification
To ensure that the refrigerant piping design is suitable for the system, a LATS refrigerant piping design software report must be provided with
every Multi F order. Following the installation, if any changes or variations to the design were necessary, an “as-built” LATS piping design
software report must be provided to LG prior to system commissioning. User should always check the LATS report actual pipe layout versus
pipe limits.
REFRIGERANT PIPING DESIGN
Manual Layout Procedure
1. Choose the location of the indoor units on the building drawing.
2. Choose the location of all Y-branch and branch distribution units (if a Multi F MAX system) and note them on the building drawing. Verify
that all fittings are positioned per the guideline limitations set forth in “Y-branch Kits” on page 363.
3. Plan the route for interconnecting piping. Draw a one-line depiction of the pipe route chosen on the building drawing.
4. Calculate the actual length of each pipe segment and note it on the building drawing.
5. Using the data obtained while selecting the system components, list the corrected cooling capacity next to each indoor unit on the
drawing.
6. Starting at the indoor unit located farthest from the outdoor unit, sum the corrected cooling capacity of all indoor units served by the pipe
segment for each branch and runout pipe (indoor units and branch distribution units [Multi F MAX systems only]). Record these values
next to each segment.
7. Verify the size of the liquid and vapor lines.
8. If a Multi F MAX system, refer to Cut-Sheets “Y-branch Kits” on page 379 and branch distribution units on page 373 to verify the part
number of each Y-branch and branch distribution unit based on the connected downstream nominal capacity served.
9. Calculate the equivalent pipe length in feet of each pipe segment. If a Multi F MAX system, Y-branch equivalent lengths should be totaled
with the upstream segment only. Use equivalent pipe length data when it is provided with field-purchased fittings. If not available, use
the data provided on page 360 to estimate the equivalent length of field-provided pipe and fittings for each segment. Equivalent lengths
should be totaled with the upstream segment only.
10. Verify if the equivalent pipe length complies with the limitations in the “Multi F and Multi F MAX Refrigerant Piping System Limitations”
tables on pages 360 and 361. If the limitations are exceeded, either reroute the pipe or change the location of the indoor unit, Y-branch
fittings and branch distribution units (if Multi F MAX systems), so the design conforms with all limitations.
11. If adjusted as per Step 10 above, verify again if the length of the design complies with the limitations set in “Multi F and Multi F MAX
Refrigerant Piping System Limitations” tables on pages 360 and 361.
12. Verify that the manually sized pipe design is acceptable using LATS Multi F. When entering the length of pipe segments in LATS Multi F
software, enter the equivalent pipe length. Account for the additional pressure drop created by elbows, valves, and other fittings present in
each segment by adding their respective equivalent pipe length to the actual pipe length.
Creating a Balanced System / Manual Layout Procedure
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
362 | DESIGN & PRACTICES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
• Design pressure is 551 psig.
• All dimensions in inches. Tolerance ±1/4 inch.
• Images are not to scale.
REFRIGERANT PIPING DESIGN
LG Engineered Multi F MAX Y-Branch Kit
The LG supplied Y-Branch Kit PMBL5620 MUST be used when two
branch distribution units are connected on one Multi F MAX system.
Field-supplied fittings are not permitted. Each Y-Branch kit comes
with two (2) Y-branches (one for the liquid line and one for the vapor
line) and insulation covers.
Y-branches may be installed in horizontal or vertical configurations.
When installed vertically, position the Y-branch so the straight-
through leg is ±3° of plumb. When installed horizontally, position the
Y-branch so the take-off leg is level and shares the same horizontal
plane as the straight-through leg ±10° rotation.
Y-branches must be properly installed following instructions in the
applicable LG manual. Y-branches should always be installed with
the single port facing the outdoor unit and the two-port end facing
the branch distribution units. Do not install Y-branches backwards
as refrigerant flow cannot make U-turns. The Y-branch kit must be
located at least three (3) feet from the outdoor unit. Provide
a minimum of 20 inches between a Y-branch and the branch
distribution unit.
It is recommended that when a Y-branch is located in a pipe chase
or other concealed space, access doors should be provided for
inspection access.
The equivalent pipe length of each Y-branch (1.6′) must be added to
the main pipe segment entered into LATS piping design software.
Figure 48:Y-Branch Connections.
Figure 49:Y-Branch Dimensions Diagram.
Figure 50:Horizontal Conguration End View.
Multi F MAX Y-Branch Kit PMBL5620
Table 331:Y-Branch Connection Diameters.
Model
Y-Branch
Type
Port Identier (inch) Dimensions
1 2 3 X Y
PMBL5620
Liquid 3/8 3/8 3/8 13.80 3.24
Vapor 3/4 3/4 3/4 12.48 3.02
To Branch Distribution Unit Ø3/4
Ø3/4
To Outdoor Unit
Ø3/4
Ø3/8
Ø3/8
To Outdoor Unit
To Branch Distribution Unit Ø3/8
Y-Branch Kit Insulation
Each Y-branch kit comes with clam-shell type peel-and-stick insula-
tion jackets molded to fit the Y-branch fittings—one for the liquid
line, one for the vapor line.
• Check the fit of the Y-branch clam-shell insulation jacket after the
Y-branch is installed.
• Mark the pipe where the insulation jacket ends.
• Remove the jacket.
• Install field-provided insulation on the pipes first.
• Peel the adhesive glue protector slip and install the clam-shell
jacket over the fitting
Figure 51:Y-branch Installation Alignment Specication.
Viewed from A in direction of arrow
Horizontal
plane
Within 10°
A
Vertical Up
Configuration
Within ± 3°Within ± 3°
Vertical Down
Configuration
Liquid and Gas
Pipe Joints
Y-Branch Kit Insulation
Insulation for
Field-Installed Piping
Field-Supplied Insulation Tape
A
B
X
Y
1
2
3
A = To Outdoor Unit
B = To Branch
Distribution Unit
Figure 52:Y-branch Insulation Detail.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
DESIGN & PRACTICES | 363
Refrigerant Piping Design and Best Practices
MULTI
F
MAX
MULTI
F
REFRIGERANT PIPING DESIGN
Refrigerant Charge
LG Multi F and Multi F MAX outdoor units ship from the factory with a charge of
R410A refrigerant. A trim charge may need to be added to take into account
additional piping length.
To determine the additional refrigerant that is needed, apply the formulas below,
and record the results. If the total additional refrigerant charge value is a negative
number, then an additional trim charge does not need to be added to the system.
Additional charge (lbs.) = (Installed Length of Branch [A] – Chargeless Pipe Length [L]) x a
+ (Installed Length of Branch [B] – Chargeless Pipe Length [L]) x a
+ (Installed Length of Branch [C] – Chargeless Pipe Length [L]) x a
+ (Installed Length of Branch [D] – Chargeless Pipe Length [L]) x a
- CF (Correction Factor) x 5.29
Outdoor Unit Model
Min. to Max. Piping Length
for One Branch (ft.)
Max. Total System Piping
Length (ft.)
Chargeless Pipe Length
per Branch (L) (ft.)
Additional Charge Needed
(a) (oz./ft.)
LMU18CHV 10 to 82 164 24.6 0.22
LMU24CHV 10 to 82 246.1 24.6 0.22
LMU36CHV 10 to 82 246.1 24.6 0.22
Outdoor Unit
Factory Charge
lbs. of R410A
LMU18CHV 3.96
LMU24CHV 3.96
LMU36CHV 6.18
LMU540HV 9.7
Table 332:Outdoor Unit Factory Charge.
Multi F Systems
• Number of installed length of branches depends on the specifications of the outdoor unit model.
• CF = Maximum number of connectable indoor units – Total number of connected indoor units.
Table 333:Multi F Outdoor Unit Piping Specications.
Figure 53:Multi F Additional Refrigerant Charge Example.
Each branch pipe
A = 82 ft.
B = 16 ft.
C = 49 ft.
Additional Charge
A
B
C
9,000
9,000
9,000
Example: LMU36CHV
= (82 - 24.6) x 0.22
+ (16 - 24.6) x 0.22
+ (49 - 24.6) x 0.22
- (4 - 3) x 5.29
= 10.82 oz.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
364 | DESIGN & PRACTICES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
REFRIGERANT PIPING DESIGN
Refrigerant Charge
Multi F MAX Systems
Outdoor Unit Model
Main Piping Length Branch Piping Length
Chargeless Pipe Length of
Main Pipe (L) (ft.)
Additional Charge Needed
(a) (oz./ft.)
Chargeless Pipe Length
per Branch Pipe (B) (ft.)
Additional Charge Needed
(b) (oz./ft.)
LMU540HV 16.4 0.54 16.4 0.22
Table 334:Multi F MAX Outdoor Unit Piping Specications.
Additional charge (lbs.) = (Total Main Piping Length [A] - Chargeless Pipe Length of Main Pipe [L]) x a
+ (Installed Length of Branch [B1] – Chargeless Pipe Length [B]) x b
+ (Installed Length of Branch [B2] – Chargeless Pipe Length [B]) x b
+ (Installed Length of Branch [B3] – Chargeless Pipe Length [B]) x b ...
- CF (Correction Factor) x 3.53
• Number of installed length of branches depends on system specifications.
• CF = Maximum number of connectable indoor units – Total number of connected indoor units
Figure 54:Multi F MAX Additional Refrigerant Charge Example.
B3
18,000 9,000 9,000
LMU540HV
•Total main pipe (A) = 60 ft.
•Each branch pipe
B1 =
B2 =
B3 =
B4 =
B5 =
Additional Charge
= (60 - 16.4) x 0.54
+ (49 - 16.4) x 0.22
+ (17 - 16.4) x 0.22
+ (17 - 16.4) x 0.22
+ (10 - 16.4) x 0.22
+ (23 - 16.4) x 0.22
– (8 - 5) x 3.53
= 20.43 oz.
A
49 ft.
17 ft.
17 ft.
10 ft.
23 ft.
BD Unit
BD Unit
9,000 18,000
A
A
B1 B2
B4 B5
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
DESIGN & PRACTICES | 365
Refrigerant Piping Design and Best Practices
MULTI
F
MAX
MULTI
F
Type ACR copper is the only approved refrigerant pipe material for
use with LG Multi F air conditioning products. ACR rated tubing is the
only type that ships with yellow caps. Approved tubing for use with
Multi V products will be marked “R410 RATED” along the length of
the tube.
• Drawn temper (rigid) ACR copper tubing is available in sizes 3/8
through 2-1/8 inches (ASTM B 280, clean, dry, and capped).
• Annealed temper (soft) ACR copper tubing is available in sizes 1/4
through 2-1/8 inches (ASTM B 280, clean, dry, and capped).
Tube wall thickness should meet local code requirements and be
approved for a maximum operating pressure of 551 psi. When bend-
ing tubing, use the largest radii possible to reduce the equivalent
length of installed pipe; also, bending radii greater than ten (10) pipe
diameters can minimize pressure drop. Be sure no traps or sags are
present when rolling out soft copper tubing coils.
OD (in)
1/4 3/8 1/2 5/8 3/4
Material
Rigid or Soft ACR Acceptable
Rigid or Solid ACR Rated
for R410A
Min. Bend
Radius (in)
.563 .9375 1.5 2.25 3.0
Min. Wall
Thickness (in)
.031 .031 .031 .039 .039
Table 335: ACR Rated Copper Tubing Material.
Type
Seamless Phosphorous Deoxidized
Class
UNS C12200 DHP
Straight Lengths
H58 Temper
Coils
O60 Temper
Table 336: ACR Rated Piping Tube Thicknesses.
Under normal operating conditions, the vapor pipe temperature of a
Multi F system can vary as much as 180°F. With this large
variance in pipe temperature, the designer must consider pipe
expansion and contraction to avoid pipe and fitting fatigue failures.
Refrigerant pipe, along with the insulation jacket, form a cohesive
unit that expands and contracts together. During system operation,
thermal heat transfer occurs between the pipe and the surrounding
insulation.
If the pipe is mounted in free air space, no natural restriction to
movement is present if mounting clamps are properly spaced and
installed. When the refrigerant pipe is mounted underground in a
utility duct stacked among other pipes, natural restriction to linear
movement is present. In extreme cases, the restrictive force of
surface friction between insulating jackets could become so great
that natural expansion ceases and the pipe is “fixed” in place. In this
situation, opposing force caused by change in refrigerant fluid/vapor
temperature can lead to pipe/fitting stress failure.
The refrigerant pipe support system must be engineered to allow
free expansion to occur. When a segment of pipe is mounted
between two fixed points, provisions must be provided to allow pipe
expansion to naturally occur. The most common method is the
inclusion of expansion Loop or U-bends mounted in the horizontal
plane. When expansion loops are placed in a vertical riser, the loop
is to be formed in a horizontal fashion resulting in a torsional move-
ment during expansion and contraction. Each segment of pipe has
a natural fixed point where no movement occurs. This fixed point is
located at the center point of the segment assuming the entire pipe
is insulated in a similar fashion. The natural fixed point of the pipe
segment is typically where the expansion Loop or U-bend should be.
Linear pipe expansion can be calculated using the following formula:
1. From Table 337, find the row corresponding with the actual length
of the straight pipe segment.
2. Estimate the minimum and maximum temperature of the pipe.
Typical pipe temperature change range: High Pressure Vapor:
ambient temperature to 215°F; Low Pressure Vapor: ambient to
35°F; Liquid pipe: ambient, 80°F, 110°F. Choose the two most
extreme. In the column showing the minimum pipe temperature,
look up the anticipated expansion distance. Do the same for the
maximum pipe temperature.
3. Calculate the difference in the two expansion distance values.
The result will be the anticipated change in pipe length.
Example:
A Multi F MAX system is installed and the design shows that there
is a 100 foot straight segment of tubing between a Y-branch and
a branch distribution unit. The system operates 24 hours per day.
In heating, this pipe transports hot gas vapor to the indoor units at
120°F. In cooling, the same tube is a suction line returning refriger-
ant vapor to the outdoor unit at 40°F. Look up the copper tubing
expansion at each temperature and calculate the difference.
Vapor Line
Transporting Hot Vapor: 100 ft. pipe at 120°F = 1.40 in.
Transporting Suction Vapor: 100 ft. pipe at 40°F = 0.40 in.
Anticipated Change in Length: 1.40 in. – 0.40 in. = 1.00 in.
Liquid Line
The liquid temperature remains the same temperature; only the
direction of flow will reverse. Therefore, no significant change in
length of the liquid line is anticipated.
When creating an expansion joint, the joint depth should be a
minimum of two times the joint width. Although different types of
expansion arrangements are available, the data for correctly sizing
an expansion loop is provided in Table 338. Use soft copper with
long radius bends on longer runs or long radius elbows for shorter
pipe segments. Using the anticipated linear expansion (LE) distance
calculated, look up the Expansion Loop or U-bend minimum design
dimensions. If other types of expansion joints are chosen, design
per ASTM B-88 Standards.
LE = C x L x (T
r
– T
a
) x 12
LE = Anticipated linear tubing expansion (in.)
C = Constant (For copper = 9.2 x 10
-6
in./in.°F)
L = Length of pipe (ft.)
T
R
= Refrigerant pipe temperature (°F)
T
a
= Ambient air temperature (°F)
12 = Inches to feet conversion (12 in./ft.)
Selecting Field-Supplied Copper Tubing
Copper Expansion and Contraction
REFRIGERANT PIPING DESIGN
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
366 | DESIGN & PRACTICES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
Pipe
Length
1
Fluid Temperature °F
35° 40° 45° 50° 55° 60° 65° 70° 75° 80° 85° 90° 95° 100° 105° 110° 115° 120° 125° 130°
10
0.04 0.04 0.05 0.06 0.06 0.07 0.08 0.08 0.09 0.09 0.10 0.10 0.11 0.11 0.11 0.12 0.13 0.14 0.15 0.15
20
0.08 0.08 0.10 0.12 0.13 0.14 0.15 0.16 0.17 0.18 0.19 0.20 0.21 0.22 0.22 0.23 0.26 0.28 0.29 0.30
30
0.12 0.12 0.15 0.18 0.20 0.21 0.23 0.24 0.26 0.27 0.29 0.30 0.32 0.33 0.32 0.35 0.39 0.42 0.44 0.45
40
0.16 0.16 0.20 0.24 0.26 0.28 0.30 0.32 0.34 0.36 0.38 0.40 0.42 0.44 0.43 0.46 0.52 0.56 0.58 0.60
50
0.20 0.20 0.25 0.30 0.33 0.35 0.38 0.40 0.43 0.45 0.48 0.50 0.53 0.55 0.54 0.58 0.65 0.70 0.73 0.75
60
0.24 0.24 0.30 0.36 0.39 0.42 0.45 0.48 0.51 0.54 0.57 0.60 0.63 0.66 0.65 0.69 0.78 0.84 0.87 0.90
70
0.28 0.28 0.35 0.42 0.46 0.49 0.53 0.56 0.60 0.63 0.67 0.70 0.74 0.77 0.76 0.81 0.91 0.98 1.02 1.05
80
0.32 0.32 0.40 0.48 0.52 0.56 0.60 0.64 0.68 0.72 0.76 0.80 0.84 0.88 0.86 0.92 1.04 1.12 1.16 1.20
90
0.36 0.36 0.45 0.54 0.59 0.63 0.68 0.72 0.77 0.81 0.86 0.90 0.95 0.99 0.97 1.04 1.17 1.26 1.31 1.35
100
0.40 0.40 0.50 0.60 0.65 0.70 0.75 0.80 0.85 0.90 0.95 1.00 1.05 1.10 1.08 1.15 1.30 1.40 1.45 1.50
120
0.48 0.48 0.60 0.72 0.78 0.84 0.90 0.96 1.02 1.08 1.14 1.20 1.26 1.32 1.30 1.38 1.56 1.68 1.74 1.80
140
0.56 0.56 0.70 0.84 0.91 0.98 1.05 1.12 1.19 1.26 1.33 1.40 1.47 1.54 1.51 1.61 1.82 1.96 2.03 2.10
160
0.64 0.64 0.80 0.96 1.04 1.12 1.20 1.28 1.36 1.44 1.52 1.60 1.68 1.76 1.73 1.84 2.08 2.24 2.32 2.40
180
0.72 0.72 0.90 1.08 1.17 1.26 1.35 1.44 1.53 1.62 1.71 1.80 1.89 1.98 1.94 2.07 2.34 2.52 2.61 2.70
1
Pipe length baseline temperature = 0°F. "Expansion of Carbon, Copper and Stainless Steel Pipe," The Engineers' Toolbox, www.engineeringtoolbox.com.
Table 337: Linear Thermal Expansion of Copper Tubing in Inches.
Selecting Field-Supplied Copper Tubing
INSTALLATION & LAYOUT BEST PRACTICES
Large Tubing U-bend (>3/4 in.)
Loop
Small Tubing U-bend (<3/4 in.)
Figure 55:Coiled Expansion Loops and Offsets (Plan View shown).
R
L
L
R
L
Table 338:Radii of Coiled Expansion Loops and Developed Lengths of Expansion Offsets.
R
L
L
R
L
R
L
L
R
L
Anticipated Linear Expansion (LE) (inches)
Nominal Tube Size (OD) inches
1/4 3/8 1/2 3/4
1/2
R
1
6 7 8 9
L
2
38 44 50 59
1
R
1
9 10 11 13
L
2
54 63 70 83
1-1/2
R
1
11 12 14 16
L
2
66 77 86 101
2
R
1
12 14 16 19
L
2
77 89 99 117
2-1/2
R
1
14 16 18 21
L
2
86 99 111 131
3
R
1
15 17 19 23
L
2
94 109 122 143
3-1/2
R
1
16 19 21 25
L
2
102 117 131 155
4
R
1
17 20 22 26
L
2
109 126 140 166
1
R = Centerline Length of Pipe.
2
L = Centerline Minimum Radius (inches).
All expansion Loops and Offsets should be installed in the horizontal plane to prevent the possibility of trapping oil. Loops and Offsets in verti-
cal risers should also be installed in a horizontal plane.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
DESIGN & PRACTICES | 367
Refrigerant Piping Design and Best Practices
MULTI
F
MAX
MULTI
F
Field-Provided Isolation Ball Valves
LG recommends installing field-supplied ball valves with Schrader ports at each indoor unit. Full-port isolation ball valves with Schrader ports
(positioned between valve and indoor unit) rated for use with R410A refrigerant should be used on both the liquid and vapor lines.
If valves are not installed and a single indoor unit needs to be removed or repaired, the entire system must be shut down and evacuated. If
isolation ball valves are installed, and an indoor unit needs to be repaired, the unaffected indoor units can remain operational with the proper
combination ratio. Reclamation of refrigerant, then, can be restricted to a single indoor unit.
For Multi F MAX systems, position valves with a minimum distance of three (3) to six (6) inches of pipe on either side of the valve, and placed
between six (6) and twelve (12) inches from the first upstream Y-branch or branch distribution unit. If ball valves are installed away from the
first Y-branch and / or branch distribution unit and closer to the indoor unit, oil may accumulate where it cannot be returned to the outdoor
unit and may cause a shortage of oil in the compressor.
Valves shall be easily accessible for service. If necessary, install drywall access doors or removable ceiling panels, and position the valves
to face the access door or ceiling panel opening. Mount valves with adequate space between them to allow for placement of adequate pipe
insulation around the valves. Recommended best practice is to clearly label and document locations of all service valves, Y-branches, and
branch distribution units. The equivalent pipe length of each ball valve must be added to each pipe segment entered into the LATS program.
Figure 56:Installing Piping Above and Below an Obstacle.
Above an obstacle.
3X
Minimum
Below an obstacle.
Obstacles
When an obstacle, such as an I-beam or concrete T, is in the path
of the planned refrigerant pipe run, it is best practice to route the
pipe over the obstacle. If adequate space is not available to route
the insulated pipe over the obstacle, then route the pipe under the
obstacle. In either case, it is imperative the horizontal section of pipe
above or below the obstacle be a minimum of three (3) times greater
than the longest vertical rise (or fall) distance.
Refrigerant Piping System Layout
INSTALLATION & LAYOUT BEST PRACTICES
Pipe Slope
The horizontal pipe slope cannot exceed 10° up or down.
In-line Refrigeration Components
Components such as oil traps, solenoid valves, filter-dryers, sight glasses, tee fittings, and other after-market accessories are not permitted
on the refrigerant piping system between the outdoor units and the indoor / branch distribution units. Multi F and Multi F MAX systems are
provided with redundant systems that assure oil is properly returned to the compressor. Sight-glasses and solenoid valves may cause vapor
to form in the liquid stream. Over time, dryers may deteriorate and introduce debris into the system. The designer and installer should verify
the refrigerant piping system is free of traps, sagging pipes, sight glasses, filter dryers, etc.
No Pipe Size Substitutions
Use only the pipe size selected by the LATS Multi pipe system design software or as conveyed in the product installation instructions. Using
a different size is prohibited and may result in a system malfunction or failure to work at all.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
368 | DESIGN & PRACTICES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
Pipe Supports
Figure 57:Installing an Insert Into
a Concrete Beam.
INSTALLATION & LAYOUT BEST PRACTICES
Refrigerant Piping System Layout
Inserts and Pipe Supports
Inserts
An insert can be installed into a floor or beam before the concrete sets so that fittings such as ducts,
pipes, or suspension bolts can be added at a later time. Decide where the inserts should be placed
before support installation.
Concrete Beam
Insert
Suspension Bolt
Anti-vibration Material
Nail
Figure 58:Pipe Hanger Details.
A
B
A + B ~ 12" – 19"
Max. 12" Max. 12"
Max. 12"
Figure 59: Typical Pipe Support Location—Change
in Pipe Direction.
Max. 12"
~ 12" – 19"
Pipe supports should never touch the pipe wall; supports shall be installed outside
(around) the primary pipe insulation jacket. Insulate the pipe first because pipe supports
shall be installed outside (around) the primary pipe insulation jacket. Clevis hangers
should be used with shields between the hangers and insulation.
Field provided pipe supports should be designed to meet local codes. If allowed by
code, use fiber straps or split-ring hangers suspended from the ceiling on all-thread rods
(fiber straps or split ring hangers can be used as long as they do not compress the pipe
insulation). Place a second layer of insulation over the pipe insulation jacket to prevent
chafing and compression of the primary insulation within the confines of the support pipe
clamp.
A properly installed pipe system will have sufficient supports to avoid pipes from sag-
ging during the life of the system. As necessary, place supports closer for segments
where potential sagging could occur. Maximum spacing of pipe supports shall meet
local codes. If local codes do not specify pipe support spacing, pipe shall be supported
a maximum of 5 feet on center for straight segments of pipe up to 3/4” outside diameter
size.
Wherever the pipe changes direction, place a hanger within twelve (12) inches on one
side and within twelve to nineteen (12 to 19) inches of the bend on the other side. Sup-
port piping at indoor units as shown. Support Y-Branch fittings as shown.
A properly installed pipe system should be adequately supported to avoid pipe sagging. Sagging pipes
become oil traps that lead to equipment malfunction.
Figure 60:Pipe Support at Indoor Unit.
Figure 61:Pipe Support at Y-branch Fitting.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
DESIGN & PRACTICES | 369
Refrigerant Piping Design and Best Practices
MULTI
F
MAX
MULTI
F
INSTALLATION & LAYOUT BEST PRACTICES
Refrigerant Piping System Layout
Examples of Supports
Bolt
1.5t
Plate
Insulation
Bolt
PVC
PVC
Figure 62:U-Bolt Support with Insulation. Figure 63:O-Ring Support with Insulation.
To prevent
insulation from
pressing and
lagging, use a cover.
Sheathing
Sheathing
O-Ring
Band
Lags
Do not compress the insulation with the saddle-type support. If the insulation is compressed, it may tear open and allow condensation to
generate during product operation.
Welding
Refrigerant Pipe
Insulated
Support Band
Insulated
Support Band
Down
Stop
Welding
Plate Nut
Hexagonal Nut
O-ring Band
Support at Intervals Between 5 and 6-3/4 Feet
Figure 64:Saddle-Type Support.
Figure 65:U-Bolt Support with an Insulated Pipe. Figure 66:O-Ring Band Support with an Insulated Pipe.
Figure 67:One-Point Down-Stop Support (>441 lbs.).
Figure 68:Two-Point Down-Stop Support.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
370 | DESIGN & PRACTICES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
40 in40 in
A
B
D
F
G
B
G
D
B
H
I
J
A
E
B
I
A
B
D
C
Inside wall (concealed)
Floor (fire-resistance)
Area between fire-resistant
insulation and boundary wall
Roof pipe shaft
Outside wall
Outside wall (exposed)
Sleeve
Insulation
Lagging
Caulk
Band
Water-resistant layer
Sleeve with edge
Lagging
Mortar or other fire-resistant caulk
Fire-resistant insulation
When filling an access hole with mortar, cover the
area with steel plate so that the insulation will not
fall through. For this area, use fire-resistant
materials for both the insulation and cover. (Vinyl
cover should not be used.)
Pipe Sleeves at Penetrations
LG requires that all pipe penetrations through walls, floors, and
pipes buried underground be routed through a properly insulated
sleeve that is sufficiently sized to provide free movement of the pipe
and does not compress the insulation. Underground refrigerant pipe
shall be routed inside a protective sleeve to prevent insulation dete-
rioration. Also follow federal, state, and local regulations and codes
when choosing a sleeve type.
Figure 69:Pipe Sleeve Options.
For example:
Diameter of Gas Piping: 1/2"
Diameter of Liquid Piping: 1/4"
Thickness of Gas Piping Insulation: 0.4" x 2
Thickness of Liquid Piping Insulation: 0.4" x 2
Surplus: 0.8"
Sleeve diameter (total): 3.1" minimum
Diameter of penetrations shall be determined by pipe diameter
plus the thickness of the insulation.
Underground Refrigerant Piping
Refrigerant pipe installed underground should be routed inside a
vapor tight protective sleeve to prevent insulation deterioration and
water infiltration. Refrigerant pipe installed inside underground
casing must be continuous without any joints. Underground refriger-
ant pipe must be located at a level below the frost line.
Figure 70:Typical Arrangement of Refrigerant Pipe and Cable(s) in a
Utility Conduit.
Table 339: Utility Conduit Sizes.
1
OD pipe diameter in inches; Values in parenthesis () indicate OD of pipe with insulation jacket.
2
Diameter of pipe with insulation. Thickness of pipe insulation is typical. Actual required thickness may
vary based on surrounding ambient conditions and should be calculated and specified by the design
engineer.
3
Insulation thickness (value in parenthesis) = 3/8 inch.
4
Insulation thickness (value in parenthesis) = 1 inch.
5
Insulation thickness (value in parenthesis) = 3/4 inch.
Figure 71:Underground Refrigerant Piping.
Liquid Pipe
1
Vapor Pipe
1
1/2 (2.0
2,5
) 5/8 (2-1/8
2,5
) 3/4 (2-1/4
2,5
)
1/4 (1.0)
3
4 4 4
3/8 (1-1/8)
3
4 4 5
1/2 (1-1/2)
4
5 5 5
5/8 (1-5/8)
4
5 5 5
3/4 (1-3/4)
4
5 5 5
INSTALLATION & LAYOUT BEST PRACTICES
Refrigerant Piping System Layout
Vapor Line
Liquid Line
Min. 18 Gauge
Cable
Power/Communication
Pi
p
e Sleeve
Insulation Material
Insulation
Material
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
DESIGN & PRACTICES | 371
Refrigerant Piping Design and Best Practices
MULTI
F
MAX
MULTI
F
Table 340:Outdoor Unit Piping Connections.
Figure 72:Multi F Refrigerant Pipe Connections
(LMU36CHV shown as example).
Avoid Pipe Damage
• When routing field-provided piping, avoid damaging the outdoor unit from
excessive vibration.
• Correctly route the piping so it does not make contact with mounting bolts.
Allow room for field installation.
• Properly insulate the liquid and gas lines separately up to the point of con-
nection at the unit frame.
• See table below for Multi F outdoor unit connection types.
Main gas
valve
Main liquid
valve
Gas Piping Connections
Liquid
Piping
Connections
A-UNIT
B-UNIT
C-UNIT
D-UNIT
Connection sockets (included as a factory-supplied accessory with
the indoor units) may need to be used when piping the indoor units
to the outdoor unit.
Indoor Unit
Capacity
Vapor (in., OD) Liquid (in., OD)
A B A B
18,000 Btu/h Ø3/8 → Ø1/2, Ø1/2 → Ø5/8 Ø1/4 → Ø5/8
24,000 Btu/h Ø3/8 → Ø1/2 N/A
A
B
Flare
to
Indoor
Unit
Flare
to
Outdoor
Unit
1. Align the center of the piping sections and tighten the flare nut by
hand.
2. Tighten the flare nut with a torque wrench, using the arrows on
the wrench as a guide, until a click is heard.
INSTALLATION & LAYOUT BEST PRACTICES
Refrigerant Piping System Layout
Multi F Outdoor Unit to Indoor Unit Piping Connections
Outdoor Unit Piping Connections LMU18CHV LMU24CHV LMU36CHV
Liquid Line Connection (in., OD) x Qty. 1/4 x 2 1/4 x 3 1/4 x 4
Vapor Line Connection (in., OD) x Qty. 3/8 x 2 3/8 x 3 3/8 x 4
Table 341:Indoor Unit Pipe Sizes.
Table 342:Connection Socket Dimensions.
Figure 73:Connection Socket Diagram.
Using the Connection Socket
Connection Socket
(Factory-supplied with
the indoor unit)
Figure 74:Performing Connections.
Indoor Unit Capacity
Vapor Line
Connection (in., OD)
Liquid Line
Connection (in., OD)
7,000 Btu/h
Ø3/8
Ø1/4
9,000 Btu/h
12,000 Btu/h
15,000 Btu/h
18,000 Btu/h
Ø1/2
24,000 Btu/h
Table 343:Indoor Unit Piping Connections.
Indoor Unit Capacity
Vapor Line
Connection (in., OD)
Liquid Line
Connection (in., OD)
7,000 Btu/h
Ø3/8 Ø1/4
9,000 Btu/h
12,000 Btu/h
15,000 Btu/h
18,000 Btu/h Ø5/8 Ø3/8
24,000 Btu/h Ø1/2 Ø1/4
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
372 | DESIGN & PRACTICES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
INSTALLATION & LAYOUT BEST PRACTICES
Refrigerant Piping System Layout
Multi F MAX Outdoor Unit System Piping Connections
Branch Distribution to Indoor Unit Piping Connections
• Install indoor unit liquid and vapor refrigerant pipes (and connection wiring) to the appropriate branch distribution ports.
• Clearly note on the indoor unit’s refrigerant piping (liquid, vapor) which branch distribution port it is connected to (A, B, C, D).
Outdoor Unit Piping Connections LMU540HV
Liquid Line Connection (in., OD) x Qty. 3/8 x 1
Vapor Line Connection (in., OD) x Qty. 3/4 x 1
Avoid Pipe Damage
• When routing field-provided piping, avoid damaging the outdoor unit from excessive vibration.
• Correctly route the piping so it does not make contact with mounting bolts. Allow room for field installation.
• Properly insulate the liquid and gas lines separately up to the point of connection at the unit frame.
• See table below for Multi F MAX outdoor unit connection types.
Table 344:Outdoor Unit Piping Connections.
Table 345:Branch Distribution Unit Piping Connections.
Table 346:Indoor Unit Piping Connections.
Branch Distribution Unit PMBD3620 PMBD3630 PMBD3640 PMBD3641
Piping Connections to Outdoor Unit
Liquid (in., OD) x Qty. Ø3/8 x 1
Vapor (in., OD) x Qty. Ø3/4 x 1
Piping Connections to Indoor Units
Liquid (in., OD) x Qty. Ø1/4 x 2 Ø1/4 x 3 Ø1/4 x 4 Ø1/4 x 3, Ø3/8 x 1
Vapor (in., OD) x Qty. Ø3/8 x 2 Ø3/8 x 3 Ø3/8 x 4 Ø3/8 x 3, Ø5/8 x 1
Table 347:Connection Socket Dimensions.
Connection sockets (included as a factory-supplied accessory with the indoor units) may need to be used when piping the indoor units to the
branch distribution unit.
Indoor Unit Capacity
Vapor (in., OD) Liquid (in., OD)
A B A B
18,000 Btu/h Ø3/8 → Ø1/2, Ø1/2 → Ø5/8 Ø1/4 → Ø3/8
24,000 Btu/h Ø3/8 → Ø1/2 N/A
36,000 Btu/h Ø1/2 → Ø5/8 Ø1/4 → Ø3/8
Connection Socket
A
B
Figure 75:Branch Distribution Ports to Indoor Units.
ABC D
Figure 76:Connection Socket Diagram.
Indoor Unit Capacity
Vapor Line
Connection (in., OD)
Liquid Line
Connection (in., OD)
7,000 Btu/h
Ø3/8
Ø1/4
9,000 Btu/h
12,000 Btu/h
15,000 Btu/h
18,000 Btu/h
Ø1/2
24,000 Btu/h
36,000 Btu/h Ø5/8 Ø3/8
Indoor Unit Capacity
Vapor Line
Connection (in., OD)
Liquid Line
Connection (in., OD)
7,000 Btu/h
Ø3/8 Ø1/4
9,000 Btu/h
12,000 Btu/h
15,000 Btu/h
18,000 Btu/h Ø5/8 Ø3/8
24,000 Btu/h Ø1/2 Ø1/4
36,000 Btu/h Ø5/8 Ø3/8
Table 348:Indoor Unit Pipe Sizes.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
DESIGN & PRACTICES | 373
Refrigerant Piping Design and Best Practices
MULTI
F
MAX
MULTI
F
Flare nut
Piping
1. 3/8 in. to 3/8 in. Connection
2. 3/8 in. to 1/2 in.
Connection
Flare side to
branch distribution unit or ODU
Flare side to indoor unit
Ø3/8 in.
Flare side to indoor unit or
pipe to indoor unit
Ø1/2 in.
Connection socket
Flare nut
Piping
Ø3/8 in.
Ø3/8 in.
Spanner
Field Piping
Flare nut
Torque
wrench
3. 1/2 in. to 5/8 in.
Connection
Ø5/8 in.
Connection socket
Flare nut
Piping
Ø1/2 in.
4. 1/4 in. to 3/8
Connection
Flare side to indoor unit
Ø3/8 in.
Connection socket
Flare nut
Piping
Ø1/4 in.
Flare
side to
branch distribution unit or ODU
Flare side to indoor unit
Flare
side pipe
from branch distribution unit or ODU
Flare
side to
branch distribution unit or ODU
Multi F MAX Outdoor Unit System Piping Connections, continued.
Figure 77:Possible Outdoor Unit or Branch Distribution Unit to Indoor Unit Connections.
1. Align the center of the piping sections and tighten the flare nut by hand.
2. Tighten the flare nut with a torque wrench, using the arrows on the wrench as a guide, until a click is heard.
3. Wrap insulation around the connection.
INSTALLATION & LAYOUT BEST PRACTICES
Refrigerant Piping System Layout
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
374 | DESIGN & PRACTICES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
Brazing Practices
1. All joints are brazed in the field. Multi F refrigeration system components
contain very small capillary tubes, small orifices, electronic expansion valves,
oil separators, and heat exchangers that can easily become blocked.
• Store pipe stock in a dry place; keep stored pipe capped and clean.
• Blow clean all pipe sections with dry nitrogen before assembly.
2. Proper system operation depends on the installer using best practices and
utmost care while assembling the piping system.
• Use adapters to assemble different sizes of pipe.
• Do not use flux, soft solder, or anti-oxidant agents.
• Use a tubing cutter; do not use a saw to cut pipe. De-burr and clean all cuts before assembly.
3. Brazing Joints:
• Use a dry nitrogen purge operating at a minimum pressure of three (3) psig and maintain a steady flow.
• Use a 15% silver phosphorous copper brazing alloy to avoid overheating and produce good flow.
• Protect isolation valves, electronic expansion valves, and other heat-sensitive control components from excessive heat with a wet rag or a
heat barrier spray product
Pressure-reducing
Valve
Packless
Valve
Tape
Nitrogen
Pipe to
be brazed
Refrigerant
Piping
Figure 78:Refrigerant Pipe Brazing.
Keep the piping system free of contaminants and debris such copper burrs, slag, or carbon dust during installation.
INSTALLATION & LAYOUT BEST PRACTICES
Refrigerant Piping System Layout
Flare Connection Practices
1. Place a couple of drops of refrigerant oil on the opening rim
of the flare before assembling. Take care not to add any
contaminants.
2. Align the center of the refrigerant pipe and corresponding
connection and tighten the flare nut by hand.
3. Following the guidelines as outlined in Table 347 for the amount
of torque to use, tighten the flare nut with a torque wrench until
the wrench clicks.
4. When flare is sufficiently tightened and the system has been
tested for refrigerant leaks, wrap insulation around the
connection.
Indoor Unit
Piping
Field-Supplied
Piping
Flare Nut
Improperly installed are connections can lead to refrigerant leaks.
Piping O.D. (in.) Torque (lbs. / ft.)
1/4 13-18
3/8 24.6-30.4
1/2 39.8-47.7
5/8 45.6-59.3
3/4 71.6-87.5
Indoor Unit Piping
Flare Nut
Field-Supplied
Piping
Figure 79:Flare Connection, Isometric View.
Figure 80:Flare Connection, Side View.
Wrench
Indoor Unit Piping
Open-End Wrench
Field-Supplied
Piping
Flare Nut
Table 349:Torque Wrench Tightening.
When tightening the are unit with a torque wrench, ensure the
direction for tightening follows the arrow on the wrench.
Figure 81:Using the Torque Wrench.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
DESIGN & PRACTICES | 375
Refrigerant Piping Design and Best Practices
MULTI
F
MAX
MULTI
F
Refrigerant Piping System Insulation
All refrigerant piping including Y-branch connections, field-provided isolation ball valves, service valves, and elbows shall be completely
insulated using closed cell pipe insulation.
To prevent heat loss/heat gain through the refrigerant piping, all refrigerant piping including liquid lines and vapor lines shall be insulated
separately. Insulation shall be a minimum 1/2″ thick, and thickness may need to be increased based on ambient conditions and local codes.
All insulation joints shall be glued with no air gaps. Insulation material shall fit snugly against the refrigeration pipe with no air space between
it and the pipe. Insulation passing through pipe hangers, inside conduit, and/or sleeves must not be compressed. Protect insulation inside
hangers and supports with a second layer. All pipe insulation exposed to the sun and outdoor elements shall be properly protected with PVC,
aluminum vapor barrier, or alternatively placed in a weather-resistant enclosure such as a pipe rack with a top cover; and meet local codes.
Pay special attention to insulating the pipes installed in the ceiling plenum.
LG-provided Y-branches are shipped from the factory with pre-formed peel-and-stick foam insulation jackets, with a 1.84 lb./ft.
3
density, 1/2″
thickness, and meet UL94 MF-1 flammability.
The design engineer should perform calculations to determine if the factory-supplied insulation jackets are sufficient to meet local codes and
avoid sweating. Maximum refrigerant piping temperature is +227°F; minimum refrigerant piping temperature is -4°F. Add additional insulation
if necessary. Check the fit of the insulation jacket after the header fitting and all run-out pipes are installed. Mark all pipes at the point where
the insulation jacket ends. Remove the jacket. Install field provided insulation on the run-out and main trunk pipes first. Install the LG-pro-
vided insulation plugs on the ends of all unused header ports. Peel the adhesive glue protector slip from the insulation jacket and install the
clam-shell jacket over the fitting.
Minimum Refrigerant Pipe Ethylene Propylene Diene Methylene (EPDM) Insulation Wall Thickness Requirements
Follow locals codes when selecting EPDM insulation wall thickness.
Table 350:Insulation Guidelines for Typical and Special Circumstances.
Classication
Air-conditioned location Non-air conditioned location
1. Typical location 2. Special location 3. Typical location 4. Special location
Liquid pipe
ø1/4 inches
1/2 inches 1/2 inches 1/2 inches 1/2 inches
ø3/8 inches
≥ø1/2 inches 1/2 inches 1/2 inches 1/2 inches 1/2 inches
Vapor pipe
ø3/8 inches
1/2 inches 3/4 inches 3/4 inches 1 inch
ø1/2 inches
ø5/8 inches
ø3/4 inches
2. Air-conditioned, Special location
1. When the location is air conditioned, but there is severe temperature/humidity difference due to high ceilings
• Church, auditorium, theater, lobby, etc.
2. When the location is air conditioned, but internal temperature/humidity are high
• Bathroom, swimming pool, locker room, etc.
1. Air-conditioned, Typical location: When the piping passes through an indoor area where the indoor unit operates.
• Apartment, classroom, office, mall, hospital, etc.
INSTALLATION & LAYOUT BEST PRACTICES
Piping Insulation
3. Non-air conditioned, Typical location: When the piping passes through an indoor area where the indoor unit does not
operate.
• Hallway or a dormitory or school, etc.
4. Non-air conditioned, Special location: If conditions 1 and 2 below are present.
1. When the piping passes through an indoor area where the indoor unit does not operate.
2. When the humidity is high and there is no air flow in the location where the piping is installed.
• The thickness of the above insulation material is based on heat conductivity of 0.61 Btu/in/h/ft
2
/°F.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
376 | DESIGN & PRACTICES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
INSTALLATION & LAYOUT BEST PRACTICES
Condensate Drain Piping
Outdoor Units
Outdoor unit requires condensate drain piping. Condensate drain pipe is constructed with materials approved by local code. See pages 353
to 358 for information in reference to outdoor unit placement and condensate drainage.
Condensate Drain Piping
Indoor Units
All indoor units generate water during cooling operation, therefore, how to properly handle this condensation must be considered. Some
indoor units include factory-installed drain pumps; others apply the gravity drain method.
Depending on the location of the indoor unit, condensation can be drained directly to the outside of the building, or a common indoor unit
drainage piping system can be installed, both incorporating PVC piping.
Indoor Unit Drain Type Drain Pipe Diameter (OD / ID, in.)
Drain Amount
(gal. / min. at 0.033 ft. height)
Art Cool Wall-Mounted Gravity 13/16 / 5/8 —
Art Cool Gallery Gravity 13/16 / 5/8 —
Standard Wall-Mounted Gravity 13/16 / 5/8 —
Ceiling-Concealed Ducted
(Low Static and High Static)
27-1/2 in. Lift Drain Pump,
Factory Installed
Ø1-1/4 / Ø1 0.105
Four-Way Ceiling Cassette
27-1/2 in. Lift Drain Pump,
Factory Installed
Ø1-1/4 / Ø1 0.105
Vertical-Horizontal Air Handling Unit Gravity Ø3/4 / — —
Table 351:Indoor Unit Drain Piping Specications.
Ensure the indoor unit, refrigerant piping, power wiring / communication cables, and drain piping is properly supported with anchor bolts and
clamp hangers positioned at 3.3 to 4.9 foot intervals.
Flexible hose
Drain pump
PVC elbow
PVC
PVC
1/50~1/100 slope
≤Max. 27-1/2 in.
≤11-13/16 in.
Metal clamp
Drain pan
Insulation
Flexible drain hose
Insulation
Figure 82:Diagram of an Indoor Unit with a Gravity Drain. Figure 83:Diagram of an Indoor Unit with a Drain Pump.
Drainage Gradient
The gradient for drain piping should be at least 1/50 to 1/100.
Ensure any holes through ceilings, walls, etc., are large enough to
accommodate both the drain piping and any insulation.
Indoor unit
Gradient of at least 1/50~1/100
Figure 84:Flexible Drain Hose
Connection.
Clamp the Flexible Drain Hose Connection
Flexible Drain Hose
Some indoor units include a
factory-provided flexible drain
pipe for installation.
• Install the flexible drain pipe
as straight as possible; sharp
angles may cause the pipe
to deteriorate and may crack
over time.
• Connect the flexible drain pipe
with a round clamp. If the flex-
ible drain pipe is not installed
properly, water will leak from
the connection.
• Do not include a reverse slope
in the drain connection.
Figure 85:Drain Piping Gradient Recommendation.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
DESIGN & PRACTICES | 377
Refrigerant Piping Design and Best Practices
MULTI
F
MAX
MULTI
F
Common Indoor Unit Drainage System
It is usual work practice to connect individual indoor unit drain pipes to one common indoor unit drainage system. The diameter of the com-
mon vertical drain pipe should be as large as necessary. (For systems with <80,000 Btu/h total capacity of all connected indoor units, the
standard size for the common vertical drain pipe is 0.98 ID, in. and 1.26 OD, in.) The diameter of the horizontal pipe should be the same
or larger than the vertical drain pipe. To avoid property damage in the event of the primary drain becoming clogged, and to optimize drain
system performance, it may be prudent to install a secondary drain line. Design the drain system to plan for winter operation (condensate line
may freeze up if condensate does not properly drain away). Drain all generated condensate from the external condensate pan to an appropri-
ate area. Install a trap in the condensate lines as near to the indoor unit coil as possible; to prevent overflow the outlet of each trap should be
positioned below its connection to the condensate pan. All traps should be primed, insulated, and leak tested if located above an inhabited
space.
Common horizontal drain pipe
1/50 to 1/100 Slope
≤27-1/2 in.
Include trap
at the end.
45° to 60° Angle
Position the vent
down to prevent
debris from entering
the system
45° to 60° Angle
45° to 60° Angle
45° to 60° angle for protection against overflow
Common
vertical
drain pipe
• It is recommended that a dedicated drain pipe be installed for the air conditioning sys-
tem. If the indoor unit drainage system is shared with a rainwater drain, waste water,
or any other type of building drain system, back flow, leaks, ice may form, or noxious
odors may be present.
• Install a trap if the drain access to the outside faces an undesirable location (i.e., sew-
er), otherwise, noxious odors may infiltrate the air conditioning system.
Figure 86:Example of a Common Indoor Unit Drainage System.
Drain Leak Test
A leak test should be performed 24 hours after the drainage system
has been installed. Only use water for the test; other liquids are
unacceptable.
Drain Pipe Insulation
To prevent condensate from forming on the drain piping, install field-
supplied 0.4 inch thick polyethylene. The insulation should be securely
fastened with all connected joints and ends properly covered.
Condensate Drain Piping
INSTALLATION & LAYOUT BEST PRACTICES
Insulation
Requir ed
Insulation
Not Required
Properly Fitting Insulation
Figure 87:Properly Insulating the Drainage Piping.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
378 | DESIGN & PRACTICES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
Material
Polyolefin Foam
UL94 Flame Classication
HF-1
Density
1.84 lbs./ft.
3
Thermal Conductivity
.0208 Btu/h/ft. ºR
Thickness
1/2 inch
Table 352:Fitting Properties.
Liquid and Gas
Pipe Joints
Y-Branch Kit Insulation
Insulation for
Field-Installed Piping
Field-Supplied Insulation Tape
CUT SHEET
Y-Branch Kit
Model Y-Branch Type
Port Identier (inch)
1 2 3
PMBL5620
Liquid Ø3/8 Ø3/8 Ø3/8
Vapor Ø3/4 Ø3/4 Ø3/4
Y-Branch Type
Dimensions (inch)
X Y
Liquid 13.80 3.24
Vapor 12.48 3.02
• LG Y-Branch Kit PMBL5620 is required when installing two branch
distribution units in parallel on one LG Multi F MAX system.
• The kit must be properly installed following instructions in the appli-
cable LG manual. Field-supplied branch fittings are not permitted.
• Kit components must be kept free of debris and be dry before
installation.
• All Y-Branch Kits include a clam shell, peel-and-stick insulation
jacket.
Table 353: Multi F MAX Y-Branch Connection Diameters.
Material
Copper
Design Pressure
551 psig
Table 354: Insulation Jacket Properties.
A
B
X
Y
1
2
3
A = To Outdoor Unit
B = To Branch Distribution Unit
1
2
3
Figure 88:Y-Branch Port Identier Diagram.
Figure 89:Y-Branch Dimensions Diagram.
Figure 90:Y-Branch Insulation Jacket Diagram.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
DESIGN & PRACTICES | 379
Refrigerant Piping Design and Best Practices
MULTI
F
MAX
MULTI
F
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
380 | DESIGN & PRACTICES
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
“General Information” on page 382
“Power Wiring (208-230V) and Communications Cable
Details” on page 365
“Indoor Unit Group Control” on page 390
WIRING
CONNECTIONS
• Only qualified technicians—in accordance with federal, state, and local codes, and manufacturer product diagrams and requirements—
should install the power wiring and communication cables.
• Use only copper wiring that is stranded, shielded with the wires separately insulated.
• Do not use a multi-conductor cable with more than five (5) wires in one (1) core.
• Power wiring and communications cable sizes must comply with applicable federal UL / ETL, state, and local codes.
• Verify that the branch switch and circuit breaker are set to OFF before installing the wiring system.
• Do not operate the air conditioning system until the refrigerant piping installation is complete. Operating the system before refrigerant
piping is finalized may damage the compressor.
• Install a ground wire for the outdoor units, indoor units, and branch distribution units.
• Install a main shutoff switch or circuit breaker that interrupts all power sources simultaneously (circuit breaker should be resistant to
electromagnetic currents).
• To avoid the possibility of explosion, fire, etc., do not connect the ground wiring to gas or sewage pipes, lightening rods, and telephone
wires. Use clamps to prevent the wires from touching the piping.
• Use ring terminals to attach the wiring. Verify that all power wiring and communications cable terminals are securely attached; ensure
enough slack is included in the wiring and cables to avoid damaging the connections.
• Use a conduit to protect the power wiring.
• Do not install a phase-advancing capacitor; the outdoor unit may overheat.
General Information
WIRING CONNECTIONS
Power Wiring and Communications Cable Installation
For both Multi F and Multi F MAX systems, power is wired to the outdoor unit only. The outdoor unit will supply power to the branch distribu-
tion units (Multi F MAX systems only) and the indoor units through the power wiring / communications cable.
Figure 91:Power Wiring to Multi F and
Multi F MAX ODU.
Electrical Specifications
1. Multi F and Multi F MAX Outdoor Units: 1Ø, 208-230V, 60Hz
2. Indoor units / Branch Distribution Units (Multi F MAX systems only): 1Ø, 208-230V, 60Hz from
the outdoor unit (Indoor units draw minimal power.)
3. Power supply wire type and size should be selected based on NEC and local codes. Maximum
allowable voltage fluctuation ±10% of the nameplate rated value.
4. Properly ground the outdoor unit per NEC and / or local code.
5. Use only copper wiring that is stranded and shielded with the wires separately insulated.
Power Wiring / Communications Cable Specifications
• From Multi F Outdoor Units to Indoor Units = 4 x 18AWG
• From Multi F MAX Outdoor Units to Branch Distribution Units = 4 x 16AWG
• From Multi F MAX Branch Distribution Units to Indoor Units = 4 x 18AWG
• Maximum Allowable Temperature for Wiring: 194°F
• Multi F System Maximum Cable Length: 82 ft.
• Multi F MAX System Maximum Cable Length:
- Outdoor Unit to Branch Distribution Unit(s): 180.4 ft.
- Branch Distribution Unit(s) to Indoor Unit(s): 49.2 ft.
• Indoor Unit(s) to Wired Controller: Three-core cable
Line voltage
(208/230V)
GN/YL
13/16 inch
GN/YL
13/16 inch
Figure 92:Power Wiring and Communica-
tions Cable from the Multi F ODU to the
IDUs, or from the Multi F MAX ODU to the
BDUs and from the BD Unit to the IDUs.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
382 | WIRING CONNECTIONS
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
:Copper Wire
Terminate multiple power wires of
the same gauge to both sides.
Do not terminate two wires on
one side.
Do not terminate different gauge
wires to a terminal block.
Connecting the Power Wiring / Communications Cable
Best practice dictates using ring or spade terminals to terminate power wiring at the power terminal block. If ring terminals or spade clips are
not available, then:
• Do not terminate different gauge wires to the power terminal block. (Slack in the wiring may generate heat.)
• When terminating wires of the same thickness, follow the instructions demonstrated in the figures below.
Ring Terminal
Power Wiring
Figure 93:Close up of a Typical Ring Terminal.
Figure 94:Close up of the Indoor Unit Terminal
Block.
• Firmly attach the wire; secure in a way to prevent external forces from being imparted on
the terminal block.
• Use an appropriately sized screwdriver for tightening the terminals.
• Do not overtighten the connections; overtightening may damage the terminals.
Figure 95:Proper and Improper Power Wiring Connections.
General Information
WIRING CONNECTIONS
• There is a risk of fire, electric shock, physical harm or injury, or death if the power wires are not properly terminated and / or firmly
attached.
• Never apply line voltage power to the communications cable terminal block. If contact is made, the PCBs may be damaged.
Always include some allowance in the wiring length when terminating. Provide some slack to facilitate removing the electrical panels while
servicing.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
WIRING CONNECTIONS | 383
Wiring Connections
MULTI
F
MAX
MULTI
F
• Secure the separate wires in the control box panel using zip ties.
• Secure wiring with accessory clamps so that it does not touch piping.
• Use a conduit for the cable
• Outside the unit, make sure the communications cable and the power wiring are separately shielded, otherwise, the outdoor unit
operation may be affected by electrical noise and will malfunction or fail.
Power Supply
Circuit Breaker
Indoor Unit
BD Unit
BD Unit
Ground Wiring
Outdoor Unit
Outdoor Unit
Indoor Units
Power Supply
Circuit Breaker
Ground Wiring
Figure 96:Multi F System General Power / Communications System
Schematic.
Figure 97:Multi F MAX System General Power / Communications System Schematic.
General Information
WIRING CONNECTIONS
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
384 | WIRING CONNECTIONS
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
Terminal
block
Side panel
Cord clamp
Conduit hole
Power supply cable
(1Ø, 208-230V)
Connecting cable
(1Ø, 208/230V)
Taping
(for sealing)
Lock nut
(field supply)
Conduit
(field supply)
Conduit panel
Indoor unit A
Indoor unit B
Indoor unit C
Indoor unit D
Screw
Control Access
Panel
WIRING CONNECTIONS
Power Wiring (208-230V) and Communications Cable Details
Figure 98:Example of Power Wiring and Communications Cable Terminations.• Find the outdoor unit terminal block by unscrewing the
control access panel.
• Side panel of the outdoor unit has knockout holes for
the conduits. After install is complete, seal up any gaps
between the panel and the conduits.
• Clamp is included near the terminal block to help protect
the connections from strain on the cables.
• Always have a trained technician properly ground
the outdoor unit. If the outdoor unit is not properly
grounded, there is a risk of electric shock.
• Use a conduit for the power wiring.
• The communications cable should be separated and
isolated from the outdoor unit power wiring, comput-
ers, radio and television broadcasting facilities, as
well as medical imaging equipment.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
WIRING CONNECTIONS | 385
Wiring Connections
MULTI
F
MAX
MULTI
F
WIRING CONNECTIONS
Figure 99: Multi F LMU18CHV System Power Wiring and Communications Cable.
Outdoor Unit
L1 L2 1(L1) 2(L2) 3(A) 3(B)
Outdoor Unit Terminal Block
L1
L1
L2
L2
G
Power Supply
Main Switch
Circuit Breaker
Fuse
Three-wire Power Wiring
(Including Ground)
COMMUNICATION CABLE
POWER WIRING
1(L1) 2(L2)
Indoor Unit Terminal Block
Unit A Unit B
3
1(L1) 2(L2) 3
Indoor Unit Terminal Block
G
1(L1) 2(L2)
• All field-supplied wiring, components, and materials should follow national, state, and local codes and requirements.
• Use only stranded, shielded copper conductor.
• Ground wiring is required to prevent accidental electrical shock during current leakage, communication problems from electrical
noise, and motor current leakage. Do not connect the ground line to the pipes.
• Install a main shutoff switch or circuit breaker that interrupts all power sources simultaneously.
• Wiring cable size must comply with applicable national, state, and local codes.
Power Wiring (208-230V) and Communications Cable Details
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
386 | WIRING CONNECTIONS
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
• All field-supplied wiring, components, and materials should follow national, state, and local codes and requirements.
• Use only stranded, shielded copper conductor.
• Ground wiring is required to prevent accidental electrical shock during current leakage, communication problems from electrical
noise, and motor current leakage. Do not connect the ground line to the pipes.
• Install a main shutoff switch or circuit breaker that interrupts all power sources simultaneously.
• Wiring cable size must comply with applicable national, state, and local codes.
WIRING CONNECTIONS
Power Wiring (208-230V) and Communications Cable Details
Figure 100:Multi F LMU24CHV System Power Wiring and Communications Cable.
Outdoor Unit
L1 L2 1(L1) 2(L2) 2(L2)3(A) 3(C)3(B) 1(L1)
Outdoor Unit Terminal Block
L1
L1
L2
L2
G
Power Supply
Main Switch
Circuit Breaker
Fuse
Three-wire Power Wiring
(Including Ground)
COMMUNICATIONS CABLE
POWER WIRING
1(L1) 2(L2)
Indoor Unit Terminal Block
Unit A Unit BUnit C
3
1(L1) 2(L2) 3 1(L1) 2(L2) 3
Indoor Unit Terminal Block Indoor Unit Terminal Block
G
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
WIRING CONNECTIONS | 387
Wiring Connections
MULTI
F
MAX
MULTI
F
Outdoor Unit
L1 L2 1(L1) 2(L2) 3(A)
3(C)
3(D)
3(B)
Outdoor Unit Terminal Block
L1
L1
L2
L2
G
Power Supply
Main Switch
Circuit Breaker
Fuse
Three-wire Power Wiring
(Including Ground)
COMMUNICATIONS CABLE
POWER WIRING
1(L1) 2(L2)
Indoor Unit Terminal Block
Unit AUnit BUnit
CU
nit D
3
1(L1) 2(L2) 3 1(L1) 2(L2) 3 1(L1) 2(L2) 3
Indoor Unit Terminal Block Indoor Unit Terminal Block
Indoor Unit Terminal Block
G
1(L1) 2(L2)
2(L2)
1(L1)
2(L2)
1(L1)
Figure 101:Multi F LMU36CHV System Power Wiring and Communications Cable.
• All field-supplied wiring, components, and materials should follow national, state, and local codes and requirements.
• Use only stranded, shielded copper conductor.
• Ground wiring is required to prevent accidental electrical shock during current leakage, communication problems from electrical
noise, and motor current leakage. Do not connect the ground line to the pipes.
• Install a main shutoff switch or circuit breaker that interrupts all power sources simultaneously.
• Wiring cable size must comply with applicable national, state, and local codes.
WIRING CONNECTIONS
Power Wiring (208-230V) and Communications Cable Details
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
388 | WIRING CONNECTIONS
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
Power Wiring (208-230V) and Communications Cable Details
WIRING CONNECTIONS
1(L1) 2(L2)
1(L1) 2(L2) 1(L1) 2(L2) 1(L1) 2(L2) 1(L1) 2(L2)
1(L1) 2(L2)
S
S S S S
1(L1) 2(L2) 1(L1)2(L2) 1(L1)2(L2) 1(L1)2(L2)
Indoor Unit Terminal Block
3 3
Outdoor Unit Terminal Block
L
L
N
N
G
Power Supply
Outdoor unit
Main Switch
Circuit Breaker
Three-wire Power Wiring
(Including Ground)
Fuse
* Same Wiring as Branch Distribution Unit (A)
S
Branch Distribution Unit (B)
3 3
COMMUNICATIONS CABLE
POWER WIRING
L1 L2
1(
L1
)2(
L2
)3(A ) 1(
L1
)2(
L2
)3(B)
Branch Distribution Unit (A)
Indoor Unit Terminal BlockIndoor Unit Terminal BlockIndoor Unit Terminal Block
Figure 102: Multi F MAX LMU540HV System Power Wiring and Communications Cable.
• All field-supplied wiring, components, and materials should follow national, state, and local codes and requirements.
• Use only stranded, shielded copper conductor.
• Ground wiring is required to prevent accidental electrical shock during current leakage, communication problems from electrical
noise, and motor current leakage. Do not connect the ground line to the pipes.
• Install a main shutoff switch or circuit breaker that interrupts all power sources simultaneously.
• Wiring cable size must comply with applicable national, state, and local codes.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
WIRING CONNECTIONS | 389
Wiring Connections
MULTI
F
MAX
MULTI
F
WIRING CONNECTIONS
General Specifications
• Wired remote controllers can be connected to all indoor unit types.
• Wireless controllers can be used in conjunction with wired remote
controllers.
• A dry contact unit can be connected with a central controller
simultaneously.
- The master indoor unit is recognized by the dry contact unit and
the central controller.
- Group Control only available for indoor units manufactured after
February 2009.
- The central controller can control indoor units after setting the
address of the master indoor unit only.
- Slave indoor unit cannot be individually controlled by central
controller.
- Slave indoor unit will operate like master indoor unit.
• If an error occurs with the indoor unit, the error will be displayed on
the wired remote controller.
• The following functions are available with group control:
• Selection of operation options (operation/mode/set temperature)
• Control of air flow rate (High/Medium/Low)
Communication Cables Between Multiple Indoor Units Operating as a Group
(Group Control)
1. If any indoor units were specified to operate in unison, use
one (or multiple) three-core Group Control Kit (sold separately)
containing extension and Y-splitter cables. One (1) group control
cable kit for each indoor unit in the group except for the last
indoor unit.
2. Always use an LG provided group control communications cable
(Group Control Kit; sold separately) between the indoor unit and
the wall-mounted zone controller.
3. NEVER splice, cut, or extend cable length with field provided
cable.
4. A maximum of 16 indoor units can be connected to a wired
remote controller (maximum wire length: 164 feet). Before
running cable, decide which indoor unit will be the “Master;” set
the remaining as “Slave.” The zone controller will be connected
to the “Master.”
5. Identify each indoor unit operating as a group as “Master” or
“Slave”. Adjust the pertinent DIP switch at each indoor unit. On
wall mounted indoor unit models, set the assignment using the
wireless remote controller.
6. Use a daisy chain configuration and connect all of the group’s
indoor units together starting at the “Master” unit.
CN-REMO
On All Indoor Unit Styles
CN-REMO
On All Indoor Unit Styles
CN-REMO
On All Indoor Unit Styles
LG
Supplied
LG Supplied Group Control Kit (PZCWRCG3)
Cable connected to Zone Controller is the factory default connection.
Figure 103:Indoor Unit Group to Zone Controller Connections.
Accessory Model Number Image
Wired Remote Group Control
Cable Assembly - Required
for connecting multiple indoor
units to a control group
PZCWRCG3
Wired Remote/Wired Remote
Extension Cable - Required
for extending the distance
between indoor units or
remote controllers in a control
group
PZCWRC1
Table 355:Accessories Required for Group Control.
Indoor Unit Group Control
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
390 | WIRING CONNECTIONS
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
ACRONYMS
ABS
Acrylonitrile Butadiene Styrene
IAQ
Indoor Air Quality
AC
Air Conditioner
IDU
Indoor Unit
ACP
Advanced Control Platform
IUCF
Indoor Unit Correction Factor
ARI
Air Conditioning and Refrigeration Institute
KTL
Korea Testing Laboratories
ASHRAE
American Society of Heating, Refrigeration, and
Air Conditioning
LATS
LG Air Conditioning Technical Solution
AWG
American Wire Gauge
LGAP
LG Air Conditioner Protocol
BDU
Branch Distribution (Unit)
MAT
Mixed Air Temperature
Btu/h
British Thermal Units per hour
MBh
Thousands BTUs per hour
CCR
Corrected Capacity Ratio
MCA
Maximum Circuit Ampacity
CDOA
Coupled Dedicated Outdoor Air
MFS
Maximum Fuse Size
CFM
Cubic Feet per Minute
NEC
National Electrical Code
CR
Combination Ratio
OAT
Outdoor Air Temperature
DB
Dry Bulb
ODU
Outdoor Unit
dB(A)
Decibels with “A” frequency weighting
OUCF
Outdoor Unit Correction Factor
DDOAS
Decoupled Dedicated Outdoor Air
PDI
Power Distribution Indicator
DFS
Duct-Free Split
PI
Power Input
DI
Digital Input
PTAC
Packaged Terminal Air Conditioner
DO
Digital Output
PVE
Polyvinyl Ether
EEV
Electronic Expansion Valve
RAT
Return Air Temperature
ELF
Equivalent Length in Feet
RCL
Refrigerant Concentration Limit
EPDM
Ethylene Propylene Diene M-Class Rubber
SC
Sensible Capacity
ESP
External Static Pressure
TC
Total Capacity
ETL
Electronic Testing Laboratories
VAV
Variable Air Volume
HACR
Heating, Air Conditioning, and Refrigeration
VRF
Variable Refrigerant Flow
H/M/L
High / Medium / Low
VRP
Ventilation Rate Procedure
Table 356:Table of Acronyms.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
WIRING CONNECTIONS | 391
Wiring Connections
MULTI
F
MAX
MULTI
F
