Contents
Contents
.......................................................................................ATV Safety .
...............................................................Basic Operation & Riding .
....................................................................................Before Riding .
......................................................................Indicators & Controls .
1
9
25
39
These pages give an overview of the contents of your owner’s manual.
The first page of each section lists the topics covered in that section.
Important safety information you should know, plus a look at the
safety related labels on your ATV.
The location and function of indicators and controls on your ATV
and operating instructions for various controls and features.
The importance of wearing a helmet and other protective gear, how to
make sure you and your ATV are ready to ride, and important
information about loading.
How to start and stop the engine, shift gears, and brake. Also, riding
precautions.
１１／０５／２５ １１：２０：５８ ３１ＨＰ１６６０ ０００７
Contents
Contents
.....................................................................Servicing Your Honda .
....................................................................................................Tips .
......................................................Taking Care of the Unexpected .
.....................................................................Technical Information .
....................................................................Consumer Information .
..................................................................................................Index .
Quick Reference
69
165
175
193
209
216
Why your ATV needs regular maintenance, what you need to know
before servicing your Honda, an owner maintenance schedule, and
instructions for specific maintenance and adjustment items.
How to store and transport your ATV and how to be an
environmentally responsible rider.
What to do if you have a flat tire, your engine won’t start, etc.
ID numbers, technical specifications, and other technical facts.
Information on warranties, emission controls, how to get Honda
service manuals.
Handy facts about fuel, engine oil, tire sizes, and air pressures.
１１／０５／２７ １１：４７：２８ ３１ＨＰ１６６０ ０００８
2012
Honda TRX450ER (electric starter)
SPORTRAX 450R
OWNER’S MANUAL
FOR OFF-ROAD USE ONLY
This vehicle is designed and manufactured for off-road use only.
USA only:
It conforms to US EPA Noise Emission regulations, but does not
conform to Federal Motor Vehicle Safety Standards or US EPA On
Highway Exhaust Emission regulations, and operation on public streets,
roads, or highways is illegal. The vehicle is equipped with a USDA
qualified spark arrester. Obey local laws and regulations.
It conforms to US EPA, California, and Environment Canada emission
regulations for ATVs.
１１／０５／２５ １１：２０：２８ ３１ＨＰ１６６０ ０００２
−
Introduction
Introduction
Congratulations on choosing your Honda ATV.
When you own a Honda, you’re part of a worldwide family of satisfied
customers people who appreciate Honda’s reputation for building
quality into every product.
Your Honda was designed as a recreational ATV for off-road use by
one rider only.
Before riding, take time to get acquainted with your ATV and how it
works. To protect your investment, we urge you to take responsibility
for keeping your ATV well maintained. Scheduled service is a must, of
course. But it’s just as important to observe the break-in guidelines, and
perform all pre-ride and other periodic checks detailed in this manual.
We also recommend that you read this owner’s manual before you ride.
It’s full of facts, instructions, safety information, and helpful tips. To
make it easy to use, the manual contains a detailed list of topics at the
beginning of each section and an index at the back of the book.
As you read this manual, you will find information that is preceded by a
symbol. This information is intended to help you avoid damage
to your Honda, other property, or the environment.
Read the Warranties Booklet (page ) thoroughly so you understand
the coverages that protect your new Honda and are aware of your rights
and responsibilities.
Whenever you ride, tread lightly. By staying on established trails and
riding only in approved areas, you help protect the environment and
keep off-road riding areas open for the future.
213
１１／０５／２５ １１：２０：３５ ３１ＨＰ１６６０ ０００３
Introduction
Introduction
WARNING:
If you have any questions, or if you ever need special service or repairs,
remember that your dealer knows your ATV best and is dedicated to
your complete satisfaction.
Please report any change of address or ownership to your dealer so we
will be able to contact you concerning important product information.
You may also want to visit our website at
USA: www.powersports.honda.com.
Canada: www.honda.ca.
Happy riding!
California Proposition 65 Warning
This product contains or emits chemicals known to the
State of California to cause cancer and birth defects or other
reproductive harm.
１１／０５／２５ １１：２０：４０ ３１ＨＰ１６６０ ０００４
A Few Words About Safety
Safety Labels
Safety Messages
DANGER, WARNING, CAUTION
A Few Words About Safety
–– on the ATV.
–– preceded by a safety alert symbol and one of
three signal words: or .
Your safety, and the safety of others, is very important. And operating
this ATV safely is an important responsibility.
To help you make informed decisions about safety, we have provided
operating procedures and other information on labels and in this manual.
This information alerts you to potential hazards that could hurt you or
others.
Of course, it is not practical or possible to warn you about all hazards
associated with operating or maintaining an ATV. You must use your
own good judgment.
You will find important safety information in a variety of forms,
including:
１１／０５／２５ １１：２０：４５ ３１ＨＰ１６６０ ０００５
YouWILLbeKILLEDor
SERIOUSLY HURT if you don’t
follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow
instructions.
You CAN be HURT if you don’t
follow instructions.
A Few Words About Safety
A Few Words About Safety
Safety Headings
Safety Section
Instructions
These signal words mean:
–– such as Important Safety Reminders or Important
Safety Precautions.
–– such as ATV Safety.
–– how to use this ATV correctly and safely.
This entire manual is filled with important safety information –– please
read it carefully.
１１／０５／２５ １１：２０：５０ ３１ＨＰ１６６０ ０００６
1
ATV Safety
ATV Safety
This section presents some of the most important information and
recommendations to help you ride your ATV safely. Please take a few
moments to read these pages. This section also includes information
about the location of safety labels on your ATV.
...............................................................Important Safety Information .
.........................................................................................Safety Labels .
2
5
１１／０５／２５ １１：２１：１５ ３１ＨＰ１６６０ ００１０
2
Important Safety Information
Follow the Age Recommendation
Never Carry a Passenger
Always Wear a Helmet
ATV Safety
Your ATV can provide many years of service and pleasure if you take
responsibility for your own safety and understand the challenges you
can meet while riding.
There is much that you can do to protect yourself when you ride. You’ll
find many helpful recommendations throughout this manual. The
following are a few that we consider to be most important.
The minimum recommended age for this ATV model is 16. Children
under age 16 should never operate this vehicle. Refer to the age
warnings provided in this manual and on the ATV.
Your ATV is designed for one person only. There are no handholds,
footrests, or seat for a second person, so never carry a passenger. A
passenger could interfere with your ability to move around to maintain
your balance and control of the ATV.
It’s a proven fact: helmets significantly reduce the number and severity
of head injuries. So always wear an approved motorcycle helmet. We
also recommend that you wear eye protection, sturdy boots, gloves, and
other protective gear (page ).26
１１／０５／２５ １１：２１：２２ ３１ＨＰ１６６０ ００１１
3
Important Safety Information
ATV Safety
Ride Off-road Only
Take Time to Learn & Practice
Be Alert for Off-road Hazards
Your ATV is designed and manufactured for off-road use only. The
tires are not made for pavement, and the ATV does not have turn signals
and other features required for use on public roads. If you need to cross
a paved or public road, get off and walk your ATV across.
The terrain can present a variety of challenges when you ride off-road.
Continually ‘‘read’’ the terrain for unexpected turns, drop-offs, rocks,
ruts, and other hazards. Always keep your speed low enough to allow
time to see and react to hazards.
Even if you have ridden other ATVs, take time to become familiar with
how this ATV works and handles. Practice in a safe area until you build
your skills and get accustomed to the ATV’s size and weight.
Because many crashes involve inexperienced or untrained riders, we
urge all riders to take a ATV operator course approved by the ATV
Safety Institute (ASI). See page .
Contact an authorized ATV dealer or call 1-800-887-2887 (USA only)
to find out about the training courses nearest you.
28
１１／０５／２５ １１：２１：２８ ３１ＨＰ１６６０ ００１２
4
Important Safety Information
ATV Safety
Ride within Your Limits
Keep Your Honda in Safe Condition
Don’t Drink and Ride
Pushing limits is another major cause of ATV crashes. Never ride
beyond your personal abilities or faster than conditions warrant.
Remember that alcohol, drugs, fatigue, and inattention can significantly
reduce your ability to make good judgments and ride safely.
Alcohol and riding don’t mix. Even one drink can reduce your ability to
respond to changing conditions, and your reaction time gets worse with
every additional drink. So don’t drink and ride, and don’t let your
friends drink and ride either.
It’s important to keep your ATV properly maintained and in safe riding
condition. Having a breakdown can be difficult, especially if you are
stranded off-road far from your base. To help avoid problems, inspect
your ATV before every ride and perform all recommended maintenance.
１１／０５／２５ １１：２１：３４ ３１ＨＰ１６６０ ００１３
5
ATV Safety

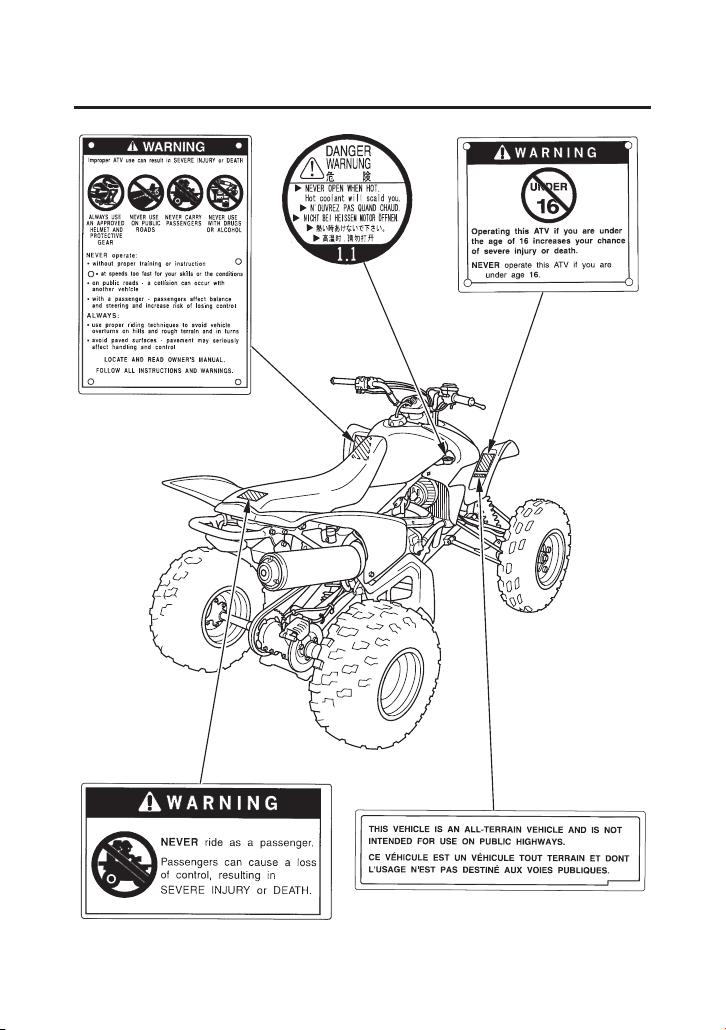

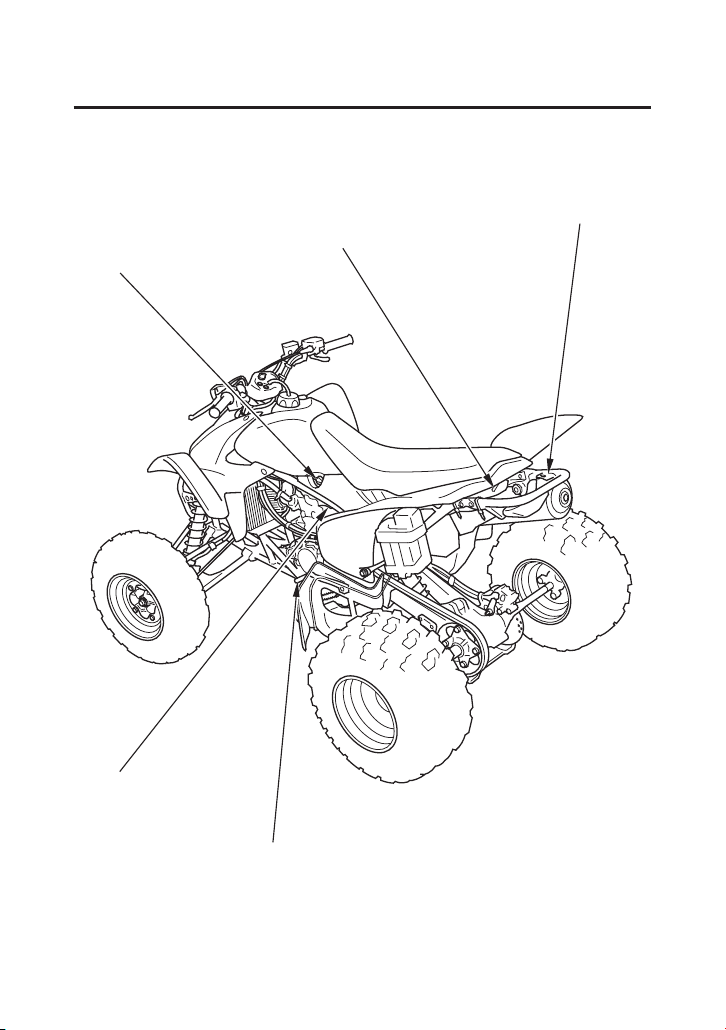

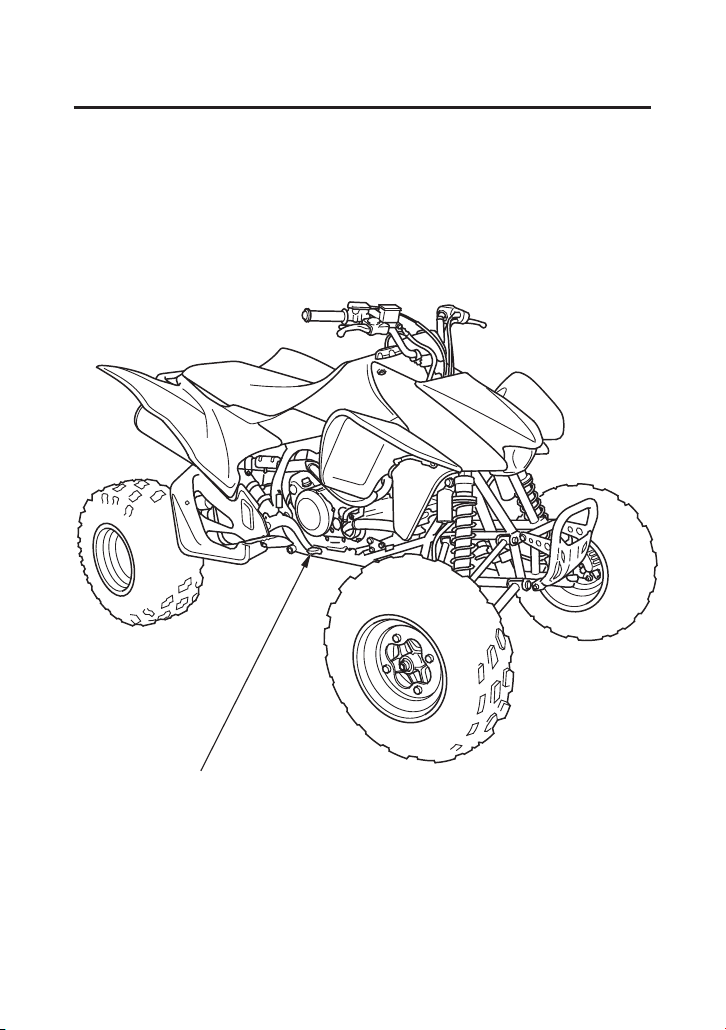

Safety Labels
The labels should be considered permanent parts of the vehicle. If a
label comes off or becomes hard to read, contact your dealer for
replacements.
Your ATV comes with a hang tag and several labels containing
important safety information. Anyone who rides the vehicle should read
and understand this information before riding.
１１／０５／２５ １１：２１：３８ ３１ＨＰ１６６０ ００１４
6
Safety Labels
ATV Safety
１１／０５／２５ １１：２１：４７ ３１ＨＰ１６６０ ００１５
7
Safety Labels
ATV Safety
１１／０５／２５ １１：２１：５３ ３１ＨＰ１６６０ ００１６
(For Canada)
8
Safety Labels
ATV Safety
１１／０５／２５ １１：２２：０５ ３１ＨＰ１６６０ ００１７
9
Indicators & Controls
Indicators & Controls
This section shows the location of all indicators and controls you would
normally use before or while riding your ATV.
The items listed on this page are described in this section. Instructions
for other components are presented in other sections of this manual
where they will be most useful.
...............................................................................................Indicators .
..........................................................Operation Component Locations .
..............................................................................Controls & Features .
......................................................................................Choke Knob .
.........................................................................................Fuel Valve .
................................................High Coolant Temperature Indicator .
...............................................................................Neutral Indicator .
..................................................................................Ignition Switch .
.......................................................................................Start Button .
...........................................................................Engine Stop Switch .
...............................................................................Headlight Switch .
.................................................................Headlight Dimmer Switch .
...................................................................................Throttle Lever .
...................................................Clutch Lever/Parking Brake Lever .
.............................................................................Front Brake Lever .
...............................................................................Rear Brake Pedal .
....................................................................................Parking Brake .
..............................................................................Flag Pole Bracket .
10
13
13
14
15
15
16
17
18
19
20
20
21
21
22
22
23
24
１１／０５／２５ １１：２２：１８ ３１ＨＰ１６６０ ００１８

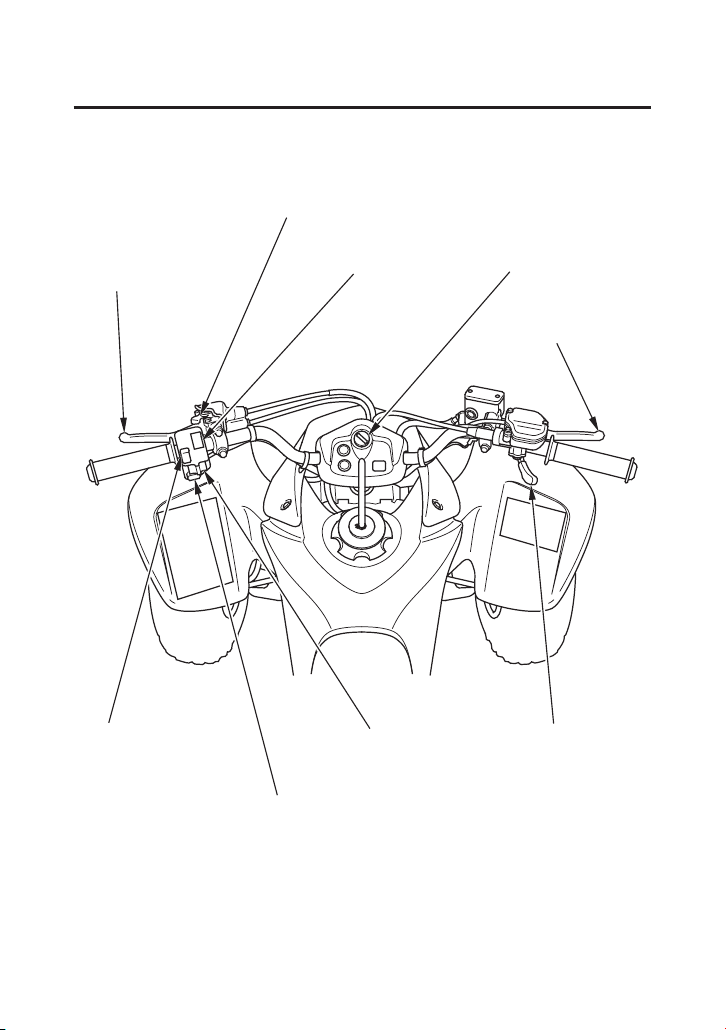

throttle lever
parking brake lock lever
engine stop
switch
parking brake pin
headlight dimmer
switch
start button
clutch lever/
parking brake lever
ignition switchheadlight switch
front brake lever
10
Indicators & Controls
Operation Component Locations
１１／０５／２５ １１：２２：２３ ３１ＨＰ１６６０ ００１９

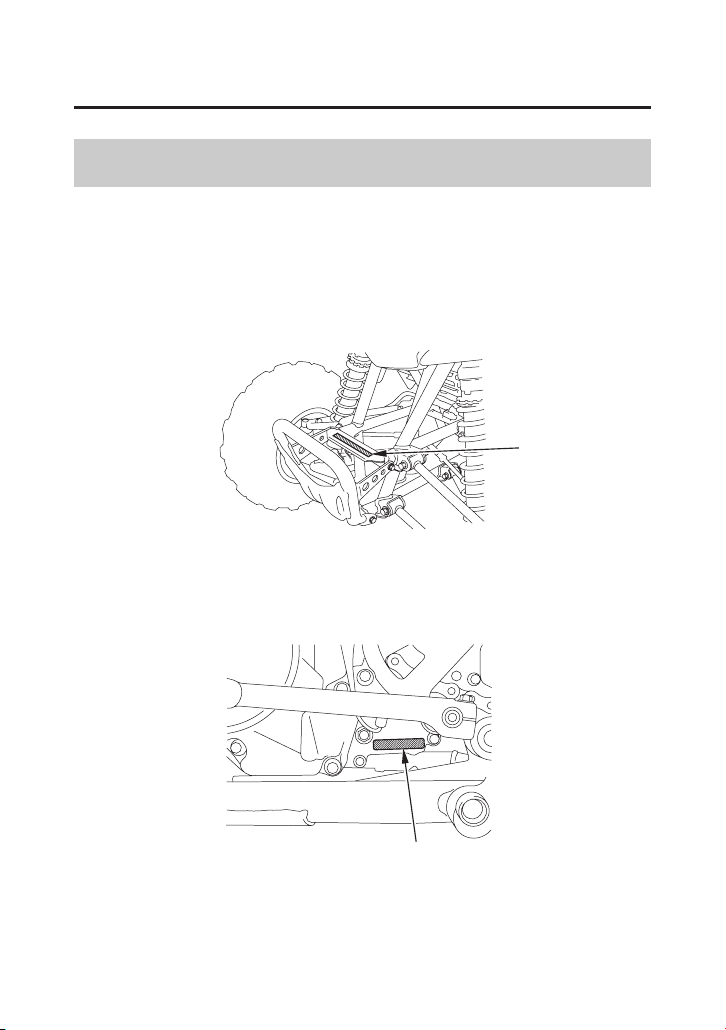

rear brake pedal
11
Operation Component Locations
Indicators & Controls
１１／０５／２５ １１：２２：２７ ３１ＨＰ１６６０ ００２０
fuel valve
seat lock lever
choke knob
flag pole bracket
shift lever
12
Indicators & Controls
Operation Component Locations
１１／０５／２５ １１：２２：３１ ３１ＨＰ１６６０ ００２１
(1)
CENTER OF HANDLEBAR
(1) high coolant temperature indicator
13
High Coolant Temperature Indicator
Indicators
Indicators & Controls
Lamp Check
Lights when the engine coolant temperature is high enough to adversely
affect the service life of the engine.
If the high coolant temperature indicator ( ) comes on while you are
riding, immediately bring the vehicle to a stop, turn the engine off and
let it cool. See page .
The high coolant temperature indicator comes on for a few seconds and
then goes off when you turn the ignition switch to ON ( ).
If the indicator does not come on when it should, have your dealer check
for a burned-out bulb or other problems.
1
185
１１／０５／２５ １１：２２：３７ ３１ＨＰ１６６０ ００２２
(1)
CENTER OF HANDLEBAR

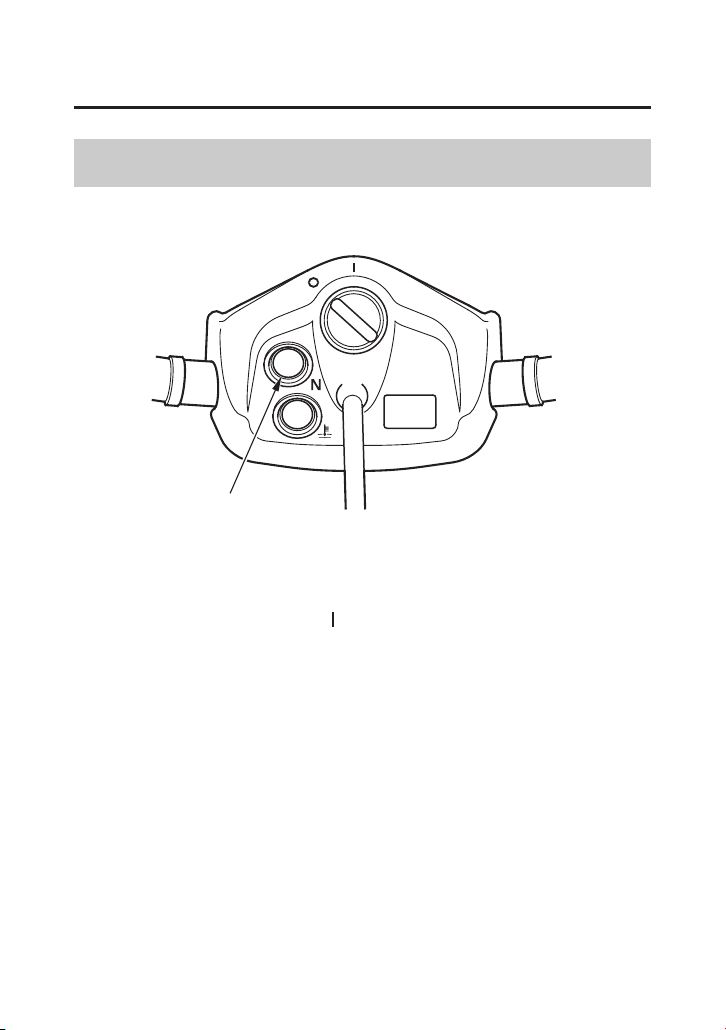

(1) neutral indicator
14
Neutral Indicator
Indicators
Indicators & Controls
The neutral indicator ( ) will light when the transmission is in neutral
and the ignition switch is ON ( ).
If the indicator does not come on when it should, have your dealer check
for a burned-out bulb or other problems.
1
１１／０５／２５ １１：２２：４３ ３１ＨＰ１６６０ ００２３
−
−
−
OFF
ON
RES
LEFT SIDE
(1)

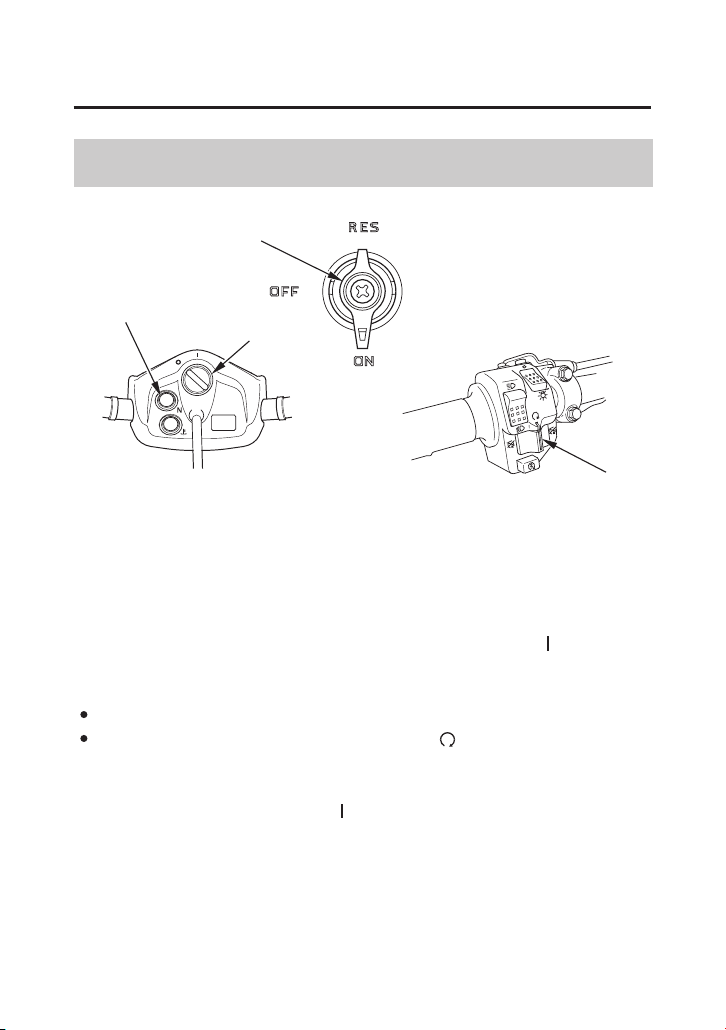

(1) fuel valve
15
Fuel Valve
Controls & Features
Indicators & Controls
ON normal position for riding.
OFF for parking, storing, or transportation.
RES for extra fuel to get to a gas supply for refueling.
Reserve Fuel
Remember to check that the fuel valve is in the ON position each time
you refuel. If the fuel valve is left in the RES position, you may run out
of fuel with no reserve.
For complete information about fueling your ATV, see page .
The three-way fuel valve is used to control the flow of fuel from the
fuel tank to the carburetor.
The manual fuel valve ( ) is located on the left side under the fuel tank.1
85
１１／０５／２５ １１：２２：５１ ３１ＨＰ１６６０ ００２４
((AA))
((BB))
(1)
LEFT SIDE
(A) fully O
N
(B) fully OFF
(1) choke knob
16
Choke Knob
Controls & Features
Indicators & Controls
The choke knob ( ) may be used when starting the engine.
See page .
1
47
１１／０５／２５ １１：２２：５６ ３１ＨＰ１６６０ ００２５
OFF ( )
ON ( )
No electrical circuits function.
Electrical circuits on.
CENTER OF HANDLEBAR
(1)
ON
OFF

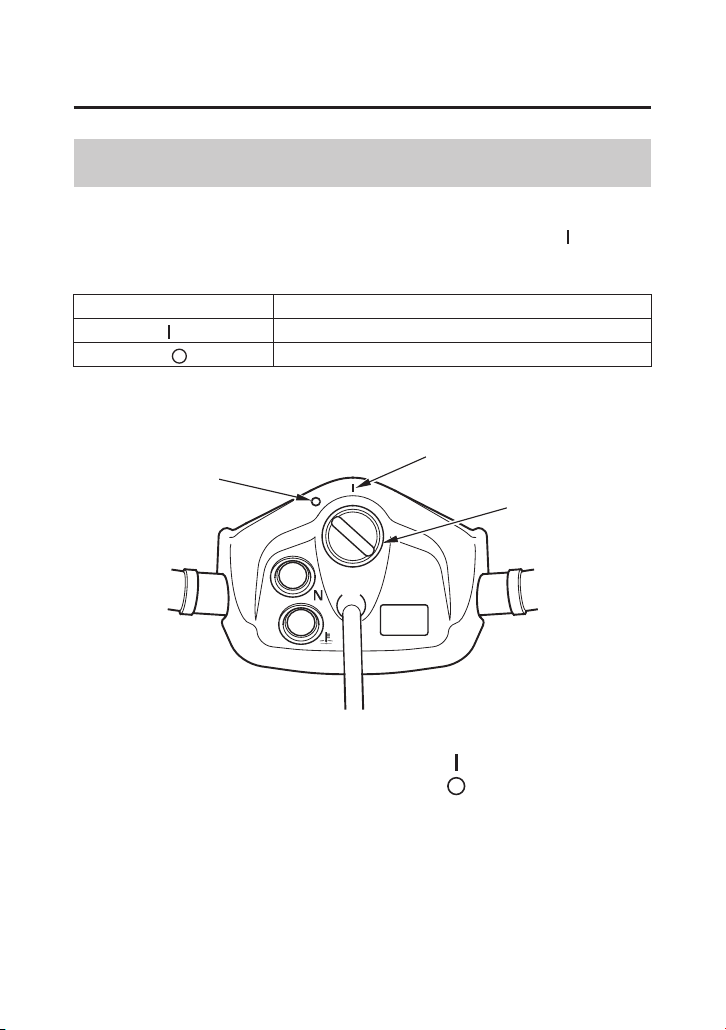

(1) ignition switch
OFF
ON
Key Position Function
17
Ignition Switch
Controls & Features
Indicators & Controls
The ignition switch ( ) is used for starting and stopping the engine
(page ). Insert the key and turn it to the right for the ON ( )
position.
1
45
１１／０５／２５ １１：２３：０５ ３１ＨＰ１６６０ ００２６
(1)
LEFT HANDLEBAR
(1) start button START
18
Start Button
Controls & Features
Indicators & Controls
Starting Procedure,
The start button ( ) is used for starting the engine. Pushing the button in
starts the engine. See page .
When the start button is pushed, the starter motor will crank the engine.
The starter motor will operate even if the engine stop switch is in the
OFF ( ) position when the start button is pushed.
1
47
１１／０５／２５ １１：２３：１１ ３１ＨＰ１６６０ ００２７
LEFT HANDLEBAR
(1)

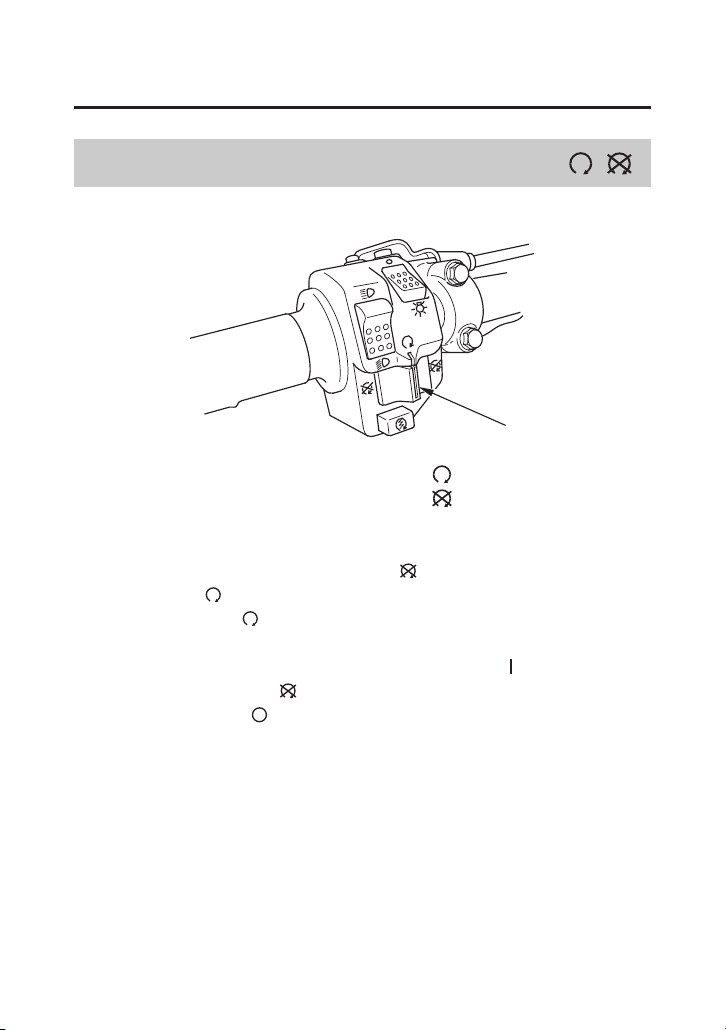

(1) engine stop switch RUN
OFF
19
Engine Stop Switch
Controls & Features
Indicators & Controls
The engine stop switch ( ) is used to stop the engine in an emergency.
To operate, slide the switch to the OFF ( ) position. The switch must
be in the RUN ( ) position to start the engine, and it should normally
remain in the RUN ( ) position even when the engine is OFF.
If your ATV is stopped with the ignition switch ON ( ) and the
engine stop switch OFF ( ), the battery will discharge. Turn the
ignition switch OFF ( ) to prevent battery discharge.
1
１１／０５／２５ １１：２３：１６ ３１ＨＰ１６６０ ００２８
(1)
(2)
LEFT HANDLEBAR

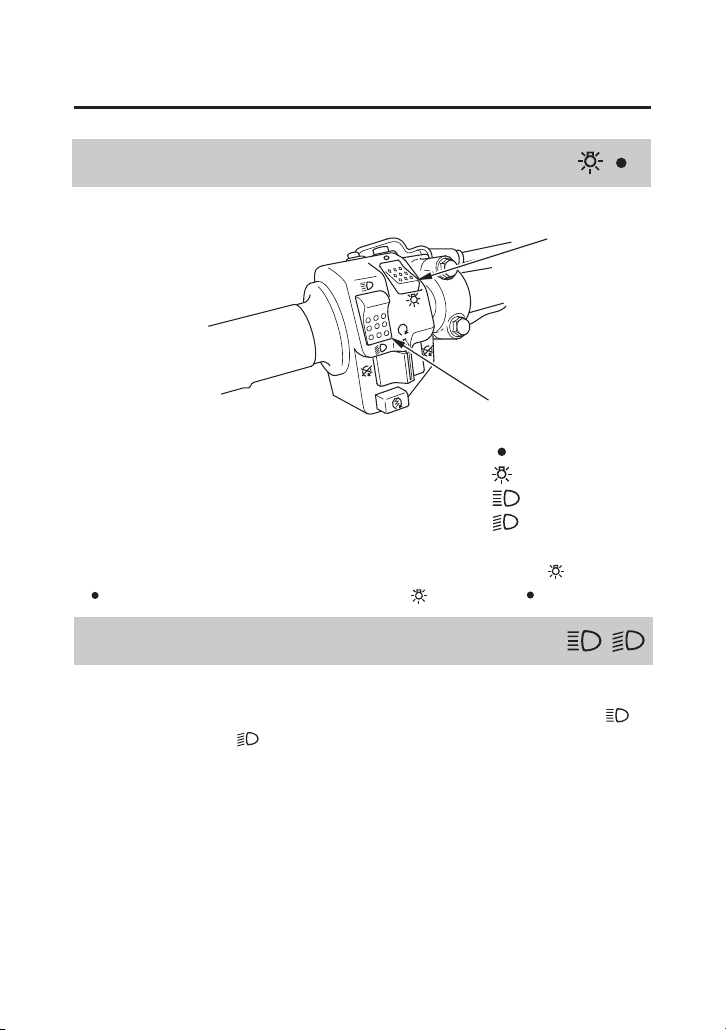

(1) headlight switch
(2) headlight dimmer switch
OFF
ON
HI
LO
20
Headlight Switch
Headlight Dimmer Switch
Controls & Features
Indicators & Controls
The headlight switch ( ) is used to turn the headlight ON ( ) or OFF
( ).Tooperate,turntheswitchtoON( )orOFF( ).
The headlight dimmer switch ( ) is used to change between the high
and low beams of the headlight. To operate, turn the switch to HI ( )
for high beam, LO ( ) for low beam.
1
2
１１／０５／２５ １１：２３：２３ ３１ＨＰ１６６０ ００２９
(1)
RIGHT HANDLEBAR
(1) throttle lever (A) to open the throttle
(A)
21
Throttle Lever
Clutch Lever/Parking Brake Lever
Controls & Features
Indicators & Controls
Clutch System,
The throttle controls engine rpm (speed). To increase engine rpm, press
the throttle lever ( ) with your thumb. To reduce engine rpm, release
pressure on the throttle lever. The throttle will automatically return to the
closed position (engine idle) when you remove your thumb.
The clutch lever/parking brake lever is used to disengage the clutch
whenever you shift gears. To operate, pull the clutch lever/parking brake
lever in all the way before shifting, then slowly release it after shifting.
See page .
1
112
１１／０５／２５ １１：２３：２８ ３１ＨＰ１６６０ ００３０
22
Front Brake Lever
Rear Brake Pedal
Controls & Features
Indicators & Controls
The front brake lever is used to slow or stop your ATV. To operate, pull
the lever. For information on braking techniques, see page .
The rear brake pedal is used to slow or stop your ATV. To operate,
depress the pedal. For information on braking techniques, see page .
54
54
１１／０５／２５ １１：２３：３３ ３１ＨＰ１６６０ ００３１
LEFT HANDLEBAR
(A) to lock
(2)
(1)
(3)
(1) lock lever
(2) parking brake pin
((AA))
(3) clutch l
ever/parking brake lever
23
Parking Brake
Controls & Features
Indicators & Controls
Parking
To release the parking brake, squeeze the clutch lever/parking brake
lever.
The lock lever ( ) and parking brake pin ( ) on the clutch lever/parking
brake lever ( ) allows it to be used as a parking brake. To operate, push
down and hold the parking brake pin, squeeze the clutch lever/parking
brake lever and then lock it with the lock lever. See page .
12
3
68
１１／０５／２５ １１：２３：４０ ３１ＨＰ１６６０ ００３２
(1)
(1) flag pole bracket
RIGHT REAR
24
Flag Pole Bracket
Controls & Features
Indicators & Controls
Flag poles are optional equipment available from your dealer. To mount
a pole in the bracket ( ), follow the instructions that come with the flag
pole kit.
Flag poles are required in some riding areas. Check local regulations
before riding.
1
１１／０５／２５ １１：２３：４５ ３１ＨＰ１６６０ ００３３
25
Before Riding
Before Riding
Before each ride, you need to make sure you and your Honda are both
ready to ride. To help get you prepared, this section discusses how to
evaluate your riding readiness, what items you should check on your
ATV, and adjustments to make for your comfort, convenience, or safety.
This section also includes important information about loading.
.......................................................................Are You Ready to Ride? .
.............................................................................Protective Apparel .
...................................................................................Rider Training .
.......................................................................Age Recommendation .
...................................................................................No Passengers .
.........................................................................No Alcohol or Drugs .
................................................................Is Your ATV Ready to Ride? .
............................................................................Pre-ride Inspection .
.....................................................................Load Limits & Guidelines .
.............................................................................................Loading .
.......................................................................................Load Limits .
...........................................................................Loading Guidelines .
................................................................Accessories & Modifications .
........................................................................................Accessories .
....................................................................................Modifications .
26
26
28
29
29
30
31
31
34
34
35
36
37
37
38
１１／０５／２５ １１：２３：５７ ３１ＨＰ１６６０ ００３４
26
Protective Apparel
Are You Ready to Ride?
Before Riding
Before you ride your ATV for the first time, we urge you to:
Read this owner’s manual and the labels on your ATV carefully.
Make sure you understand all the safety messages.
Know how to operate all the controls.
Before each ride, be sure:
You feel well and are in good physical and mental condition.
You don’t have any alcohol or drugs in your system.
For your safety, we strongly recommend that you always wear an
approved motorcycle helmet, eye protection, boots, gloves, long pants,
and a long-sleeved shirt or jacket whenever you ride.
Although complete protection is not possible, wearing proper gear can
reduce the chance of injury when you ride.
Following are suggestions to help you choose the proper gear.
Helmet and Eye Protection
Your helmet is your most important piece of riding gear because it
offers the best protection against head injuries. A helmet should fit your
head comfortably and securely.
You are wearing an approved motorcycle helmet (with chin strap
tightened securely), eye protection, and other protective clothing.
１１／０５／２５ １１：２４：０６ ３１ＨＰ１６６０ ００３５
Operating this ATV without wearing an
approved motorcycle helmet, eye protection,
and protective clothing could increase your
chances of severe injury or death in the event of
an accident.
Always wear an approved motorcycle helmet
that fits properly and wear eye protection
(goggles or face shield), gloves, boots,
long-sleeved shirt or jacket and long pants.
27
Are You Ready to Ride?
Before Riding
An open-face helmet offers some protection, but a full-face helmet
offers more. Regardless of the style, look for a DOT (Department of
Transportation) sticker on any helmet you buy (USA only). Always
wear a face shield or goggles to protect your eyes and help your vision.
Riding pants with knee and hip pads, a riding jersey with padded
elbows, and a chest/shoulder protector.
Off-road motorcycle gloves to help protect your hands.
Sturdy off-road motorcycle boots to help protect your feet, ankles,
and lower legs.
In addition to a helmet and eye protection, we also recommend:
Additional Riding Gear
１１／０５／２５ １１：２４：１３ ３１ＨＰ１６６０ ００３６
Operating this ATV without proper instruction
could increase your risk of an accident which
could lead to serious injury or death.
Beginning and inexperienced operators should
complete the certified training course offered by
Honda. They should then regularly practice the
skills learned in the course and the operating
techniques described in the owner’s manual.
28
Rider Training
Are You Ready to Ride?
Before Riding
Tips & Practice Guide for the ATV
Rider
Developing your riding skills is an on-going process. Even if you have
ridden other ATVs, take time to become familiar with how this ATV
works and handles. Practice riding the ATV in a safe area to build your
skills. Do not ride in rough terrain until you get accustomed to the
ATV’s controls, and feel comfortable with its size and weight.
We urge all riders to take a ATV operator course approved by the ATV
Safety Institute (ASI). For information about the ASI training course
nearest you, call the national toll-free number; (800) 887-2887 (USA
only).
Other riding tips can be found in the
booklet that came with your ATV (USA only).
１１／０５／２５ １１：２４：１９ ３１ＨＰ１６６０ ００３７
A child using an ATV that is not recommended
for their age could lose vehicle control while
riding, resulting in severe injury or death.
A child under 16 should never operate an ATV
with engine size greater than 90cc.
Carrying a passenger on this ATV greatly
reduces your ability to balance and control this
ATV and could cause a crash and you or your
passenger could be injured or killed.
Never carry a passenger on this ATV.
29
Age Recommendation
No Passengers
Are You Ready to Ride?
Before Riding
The minimum recommended age for this ATV model is 16. For safety,
never let children under 16 years old operate this vehicle.
This ATV is designed as an operator-only vehicle. The long seat is
designed to allow the rider to change body position, not for carrying a
passenger. Never let a passenger ride on the seat.
１１／０５／２５ １１：２４：２５ ３１ＨＰ１６６０ ００３８
−
−
Operating this ATV after consuming alcohol or
drugs can seriously affect your judgement,
cause you to react more slowly, affect your
balance and perception, and result in serious
injury or death.
Never consume alcohol or drugs before or while
operating this ATV.
30
No Alcohol or Drugs
Are You Ready to Ride?
Before Riding
Alcohol, drugs and ATVs don’t mix. Even a small amount of alcohol
can impair your ability to operate an ATV safely. Likewise, drugs
even if prescribed by a physician can be dangerous while operating an
ATV. Consult your doctor to be sure it is safe to operate a vehicle after
taking medication.
１１／０５／２５ １１：２４：２９ ３１ＨＰ１６６０ ００３９
Improperly maintaining this ATV or failing to
correct a problem before riding can cause a
crash in which you can be seriously hurt or
killed.
Always perform a pre-ride inspection before
every ride and correct any problems.
31
Pre-ride Inspection
Is Your ATV Ready to Ride?
Before Riding
Engine Oil
Transmission
Oil
Radiator
Coolant
Before each ride, it’s important to inspect your ATV and make sure any
problem you find is corrected. A pre-ride inspection is a must, not only
for safety, but because having a breakdown, or even a flat tire, can be a
major inconvenience.
If your ATV has overturned or been involved in a collision, do not ride
the vehicle until it has been inspected by your dealer. There may be
damage or other problems you cannot see.
Check the following items before you get on the ATV:
Check the level and add oil if needed (page ).
Check for leaks.
Check the level and add oil if needed (page ).
Check for leaks.
Check the coolant level and add coolant if needed
(page ).
Check for leaks.
91
101
97
１１／０５／２５ １１：２４：３８ ３１ＨＰ１６６０ ００４０
32
Is Your ATV Ready to Ride?
Before Riding
Drive Chain
Tires
Fuel
Cable
Leaks, Loose Parts
Nuts & Bolts
Underbody &
Exhaust System
Guards
Check the level and add fuel (page ) if
needed. Also make sure the fuel fill cap is
securely fastened.
Check for leaks.
Use a gauge to check the air pressure. Adjust if
needed. Also look for signs of damage or
excessive wear (page ).
Check the condition and slack. Adjust and
lubricate if needed. Also check the chain slider
and chain roller for wear and replace if needed
(page ).
Check the cable housings for wear. Check the
fittings for looseness. Replace or tighten as
needed.
Walk around your ATV and look for anything
that appears unusual, such as a leak or loose
cable.
Check for, and remove, any dirt, vegetation or
other debris that could be a fire hazard or
interfere with the proper operation of the
vehicle.
Check the wheels to see that the axle nuts are
tightened. Use a wrench to make sure all
accessible nuts, bolts, and fasteners are tight.
Check for damage or looseness (page ).
147
139
86
146
１１／０５／２５ １１：２４：５０ ３１ＨＰ１６６０ ００４１
33
Is Your ATV Ready to Ride?
Before Riding
Steering
Engine Stop Switch
Headlight and
Headlight Dimmer
Switch
Clutch Lever/
Parking Brake
Lever
Brakes
Throttle
Lights
Remember, be sure to take care of any problem you find, or have your
dealer correct it before you ride.
Check that the wheels turn properly as you
steer the handlebar. Move the handlebar right
and left and check that there is no excessive
backlash.
Check for proper function (page ).
Check for proper function (page ).
Check for smooth operation and adjust if
needed (page ).
Squeeze the front brake lever and step on the
rear brake pedal to check that the controls
operate normally. Make sure there is no brake
fluid leakage (page ).
Check the freeplay and adjust if needed. Press
the throttle to make sure it moves smoothly
without sticking, and snaps shut automatically
when it is released, in all steering positions
(page ).
Check these items after you get on the ATV:
Make sure the headlight, brake light and
taillight are working properly.
110
130
112
20
19
１１／０５／２５ １１：２５：０２ ３１ＨＰ１６６０ ００４２
Overloading, improper loading, or carrying a
passenger can cause a crash and you can be
seriously hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
34
Loading
Before Riding
Load Limits & Guidelines
In addition, exceeding the weight limits or carrying an unbalanced load
can seriously affect your ATV’s handling, braking and stability. Adding
accessories or making modifications that change this ATV’s design and
performance can also make it unsafe. Also, the weight of any
accessories will reduce the maximum load the ATV can carry.
More specific information on load limits, accessories, and modifications
follows.
How much weight you put on your ATV, and how you load it, are
important to your safety. If you decide to carry cargo, you should be
aware of the following information.
Your Honda was designed as a rider-only ATV. It was not designed to
carry a passenger or cargo. A passenger or cargo could interfere with
your ability to move around to maintain your balance and control of the
ATV.
１１／０５／２５ １１：２５：０８ ３１ＨＰ１６６０ ００４３
maximum weight capacity 243 lb (110 kg)
35
Load Limits
Load Limits & Guidelines
Before Riding
The weight of added accessories will reduce the maximum cargo weight
you can carry.
(includes the weight of the rider, all cargo, and accessories.)
The following load limit applies to standard equipment only. Modifying
your ATV, using non-standard equipment, or riding on terrain that is not
flat and smooth could further reduce these limits.
Following are the load limits for your ATV:
There is a limit to how much weight can be carried on your ATV.
１１／０５／２５ １１：２５：１４ ３１ＨＰ１６６０ ００４４
36
Loading Guidelines
Load Limits & Guidelines
Before Riding
Never cross a slope when towing a trailer.
Avoid riding on steep slopes when carrying cargo or pulling a trailer.
Allow extra room for starting, stopping and turning whenever you
carry cargo or pull a trailer.
Never exceed the maximum weight limit.
Make sure all cargo is secured before riding.
Do not tow another vehicle.
Never ride with a passenger. The ATV is not designed to carry a
passenger.
Check that the tires are properly inflated.
Be sure to observe the weight limit and follow these guidelines:
Carrying cargo or pulling a trailer will affect how your ATV handles
and greatly reduce its ability in accelerating, braking and making turns
and other maneuvers.
As discussed on page , we recommend that you do not carry any
cargo on this ATV. However, if you decide to carry cargo, ride at
reduced speeds and follow these common-sense guidelines.
34
１１／０５／２５ １１：２５：２３ ３１ＨＰ１６６０ ００４５
Improper accessories or modifications can
cause a crash in which you can be seriously
hurt or killed.
Follow all instructions in this owner’s manual
regarding accessories and modifications.
37
Accessories
Accessories & Modifications
Before Riding
Modifying your ATV or using non-Honda accessories can make your
ATV unsafe.
Before you consider making any modifications or adding an accessory,
be sure to read the following information.
We strongly recommend that you use only Honda Genuine Accessories
that have been specifically designed and tested for your ATV. Because
Honda cannot test all other accessories, you must be personally
responsible for proper selection, installation, and use of non-Honda
accessories.
Check with your dealer for assistance and always follow these
guidelines:
Make sure the accessory does not interfere with your ability to shift
body position on the seat or operate hand and foot controls.
Make sure the accessory does not obscure any lights, reduce ground
clearance, limit suspension travel or steering travel, or interfere with
operating any controls.
Do not add any electrical equipment that will exceed the vehicle’s
electrical system capacity (page ). A blown fuse can cause a loss
of lights or engine power (page ).
200
187
１１／０５／２５ １１：２５：３１ ３１ＨＰ１６６０ ００４６
38
Modifications
Accessories & Modifications
Before Riding
We strongly advise you not to remove any original equipment or modify
your ATV in any way that would change its design or operation. Such
changes could seriously impair your ATV’s handling, stability, and
braking, making it unsafe to ride.
We also advise you not to make any modifications or remove any
equipment (such as the USDA qualified spark arrester or emission
control system components) that would make your ATV illegal in your
area.
Removing or modifying your lights, exhaust system, emission control
system, or other equipment can also make your ATV illegal.
１１／０５／２５ １１：２５：３６ ３１ＨＰ１６６０ ００４７
39
Basic Operation & Riding
Basic Operation & Riding
To protect your new engine and enjoy optimum performance and
service life, refer to Break-in Guidelines (page ).
This section gives basic riding instructions, including how to start and
stop your engine, how to use the throttle and brakes, and what to do
when you’re through riding.
For information about carburetor adjustment for riding at high altitude,
see page .
........................................................................Safe Riding Precautions .
............................................................................Off-road Use Only .
.....................................................Keep Hands and Feet on Controls .
....................................................................................Control Speed .
........................................Use Care on Unfamiliar or Rough Terrain .
......................................................................Do Not Perform Stunts .
............................................................Starting & Stopping the Engine .
........................................................................................Preparation .
.............................................................................Starting Procedure .
.................................................................................Flooded Engine .
....................................................................How to Stop the Engine .
.......................................................................................Shifting Gears .
..................................................................................................Braking .
.................................................................................Riding Your ATV .
....................................................................................Making Turns .
...........................................................................Skidding or Sliding .
.................................................................................Riding Up Hills .
............................................................................Riding Down Hills .
.............................................Crossing or Turning on Hills or Slopes .
......................................................................Riding Over Obstacles .
......................................................................Riding Through Water .
..................................................................................................Parking .
201
202
40
40
41
42
43
44
45
46
47
50
51
52
54
56
56
58
59
63
64
66
67
68
１１／０５／２５ １１：２５：５２ ３１ＨＰ１６６０ ００４８
Operating this ATV on paved surfaces may
seriously affect handling and control of the ATV,
and may cause the vehicle to go out of control.
Never operate the ATV on any paved surfaces,
including sidewalks, driveways, parking lots and
streets.
40
Off-road Use Only
Safe Riding Precautions
Basic Operation & Riding
ATV Safety
Before Riding
Before riding your ATV for the first time, please review the
section beginning on page 1, and the section beginning
on page .
Even if you have ridden other ATVs, take time to become familiar with
how this ATV works and handles. Practice in a safe area until you build
your skills and get accustomed to the ATV’s size and weight.
Your ATV and its tires are designed and manufactured for off-road use
only, not for pavement. Riding on pavement can affect handling and
control. You should not ride your ATV on pavement.
When riding off-road, also remember to always obey local off-road
riding laws and regulations. Obtain permission to ride on private
property. Avoid posted areas and obey ‘‘no trespassing’’ signs.
25
１１／０５／２５ １１：２５：５９ ３１ＨＰ１６６０ ００４９
Operating this ATV on public streets, roads or
highways could cause you to collide with
another vehicle.
Never operate this ATV on any public street,
road or highway, even a dirt or gravel one.
Removing hands from handlebars or feet from
footpegs during operation can reduce your
ability to control the ATV or could cause you to
lose your balance and fall off of the ATV.
Always keep both hands on the handlebars and
both feet on the footpegs of your ATV during
operation.
41
Keep Hands and Feet on Controls
Safe Riding Precautions
Basic Operation & Riding
You should never ride your ATV on public streets, roads or highways,
even if they are not paved. Drivers of street vehicles may have difficulty
seeing and avoiding you, which could lead to a collision. In many states
it is illegal to operate ATVs on public streets, roads and highways.
Always keep both hands on the handlebars and both feet on the footpegs
when riding your ATV. This is important to maintain your balance and
to control the vehicle. Removing even one hand from the handlebars or
one foot from the footpegs can reduce your ability to control the ATV
or could cause you to lose your balance and fall off the ATV.
１１／０５／２５ １１：２６：０４ ３１ＨＰ１６６０ ００５０
Operating this ATV at excessive speeds
increases your chances of losing control of the
ATV, which can result in an accident.
Always go at a speed that is proper for your
vehicle, the terrain, visibility and other operating
conditions, and your experience.
42
Control Speed
Safe Riding Precautions
Basic Operation & Riding
Riding at excessive speed increases the chance of a crash. In choosing a
proper speed, you need to consider the capability of your vehicle, the
terrain, visibility and other operating conditions, plus your own skills
and experience.
１１／０５／２５ １１：２６：０９ ３１ＨＰ１６６０ ００５１
Failure to use extra care when operating this
ATV on unfamiliar terrain could result in the ATV
overturning or going out of control.
Go slowly and be extra careful when operating
on unfamiliar terrain. Always be alert to
changing terrain conditions when operating the
ATV.
43
Use Care on Unfamiliar or Rough Terrain
Safe Riding Precautions
Basic Operation & Riding
Before riding in a new area, always check the terrain thoroughly. Don’t
ride fast on unfamiliar terrain or when visibility is limited. (It’s
sometimes difficult to see obstructions like hidden rocks, bumps, or
holes in time to react.)
１１／０５／２５ １１：２６：１３ ３１ＨＰ１６６０ ００５２
Failure to use extra care when operating on
excessively rough, slippery or loose terrain
could cause loss of traction or vehicle control,
which could result in an accident, including an
overturn.
Do not operate on excessively rough, slippery
or loose terrain until you have learned and
practiced the skills necessary to control the ATV
on such terrain. Always be especially cautious
on these kinds of terrain.
Attempting wheelies, jumps, and other stunts
increases the chance of an accident, including
an overturn.
Never attempt stunts, such as wheelies or
jumps. Don’t try to show off.
44
Do Not Perform Stunts
Safe Riding Precautions
Basic Operation & Riding
You should always operate your ATV in a safe and reasonable manner.
When riding, always keep all four wheels on the ground.
Never ride past the limit of visibility. Maintain a safe distance between
your ATV and other off-road vehicles. Always exercise caution, and use
extra care on rough, slippery and loose terrain.
１１／０５／２５ １１：２６：１８ ３１ＨＰ１６６０ ００５３
−
45
Basic Operation & Riding
Starting & Stopping the Engine
Always follow the proper starting procedure described below.
For your safety, avoid starting or operating the engine in an enclosed
area such as a garage. Your ATV’s exhaust contains poisonous carbon
monoxide gas which can collect rapidly in an enclosed area and cause
illness or death.
Your ATV is equipped with a gear position starter cut-off system. The
engine cannot be started if the transmission is in gear unless the clutch
lever is pulled in.
１１／０５／２５ １１：２６：２３ ３１ＨＰ１６６０ ００５４
(1)
(1) fuel valve
(2) ignition switch
(2)
(3)
(4)
(3) neutral indicator
(4) engine stop switch
46
Preparation
Starting & Stopping the Engine
Basic Operation & Riding
Before starting, select a level surface and lock the parking brake
(page ).
Turn the fuel valve ( ) and ignition switch ( ) to ON ( ).
Confirm the following:
The engine stop switch ( ) is set to RUN ( ).
The transmission is in neutral, and the neutral indicator ( ) is ON.
The high coolant temperature indicator should go off a few seconds
after the ignition switch to ON ( ).
1.
2. 2
4
1
3
23
１１／０５／２５ １１：２６：３２ ３１ＨＰ１６６０ ００５５
−−
(1)
LEFT SIDE
((BB))
(A) fully ON
(B)
fully OFF
(2)
(1) choke knob
(2) start button
((AA))
LEFT HANDLEBAR
47
Starting Procedure
Starting & Stopping the Engine
Basic Operation & Riding
‘‘High Air
Temperature.’’
Opening the throttle, even slightly, while starting the engine, may cause
engine kick-back and engine damage.
The carburetor is equipped with an accelerator pump. Do not open the
throttle when starting the engine. This will flood the engine with excess
fuel, resulting in hard starting.
To restart a warm engine, follow the procedure for
The starter motor will operate when the transmission is in neutral or pull
in the clutch lever.
Normal Air Temperature 10° 35°C (50° 95°F)
Pull the choke knob ( ) left all the way to fully ON ( ) position, if
the engine is cold.
1. 1 A
１１／０５／２５ １１：２６：４１ ３１ＨＰ１６６０ ００５６
48
Starting & Stopping the Engine
Basic Operation & Riding
About a half minute after the engine starts, push the choke knob right
allthewaytofullyOFF( ).
Immediately after the engine starts, operate the choke knob to keep
fast idle.
With the throttle closed, press the start button ( ).
Pressing the electric start button for more than 5 seconds at a time
may cause the starter to overheat and damage the starter. Release the
start button for approximately 10 seconds before pressing it again.
If idling is unstable, hold open the throttle slightly, do not blip the
throttle.
3.
4.
5.
2. 2
B
１１／０５／２５ １１：２６：４７ ３１ＨＰ１６６０ ００５７
−
−
49
Starting & Stopping the Engine
Basic Operation & Riding
‘‘Normal Air Temperature.’’
Extended use of the choke may impair piston and cylinder wall
lubrication and shorten the life of the engine.
High Air Temperature 35°C (95°F) or above
Low Air Temperature 10°C (50°F) or below
Do not use the choke.
With the throttle closed, press the start button.
Follow steps under
When engine speed begins to pick up, operate the choke knob to keep
fast idle.
Continue warming up the engine until it runs smoothly and responds
to the throttle when the choke knob is fully OFF.
When air temperature is below 15°C (5°F), push the throttle lever
eight times to discharge fuel from the accelerator pump into the intake
port.
Snapping the throttle or fast idling for more than 5 minutes may cause
exhaust pipe and muffler discolorations.
1.
2.
1.
2.
3.
12
１１／０５／２５ １１：２６：５６ ３１ＨＰ１６６０ ００５８
50
Flooded Engine
Starting & Stopping the Engine
Basic Operation & Riding
‘‘Normal Air Temperature’’
If the engine fails to start after repeated attempts, it may be flooded with
excess fuel. To clear a flooded engine:
Move the engine stop switch to OFF ( ).
Push the choke knob right all the way to fully OFF.
Open the throttle fully.
Press the start button for 5 seconds.
Wait 10 seconds, then turn the engine stop switch to RUN ( ).
Repeat the starting procedure, but don’t
use the choke.
1.
2.
3.
4.
5.
6.
１１／０５／２５ １１：２７：０３ ３１ＨＰ１６６０ ００５９
51
How to Stop the Engine
Starting & Stopping the Engine
Basic Operation & Riding
Normal Engine Stop
To stop the engine, make sure the transmission is in neutral by checking
that the neutral indicator light is on, then turn the ignition switch OFF
().
If your ATV is stopped with the engine stop switch OFF ( ) and the
ignition switch ON ( ), the battery will discharge.
The engine stop switch should normally remain in the RUN ( )
position even when the engine is OFF.
Emergency Engine Stop
To stop the engine in an emergency, use the engine stop switch. To
operate, slide the switch to the OFF ( ) position.
１１／０５／２５ １１：２７：１０ ３１ＨＰ１６６０ ００６０
GEAR SHIFTING SEQUENCE
52
Shifting Gears
Basic Operation & Riding
The shift lever is located near the left footpeg. One full stroke of the
shift lever shifts the transmission to the next higher or lower gear in the
shifting sequence. The shift lever automatically returns to the horizontal
position when released.
Your ATV has five forward gears (1, 2, 3, 4 and 5). To shift the
transmission, pull in the clutch lever, then operate the shift lever as
follows.
To upshift to a higher gear, put the toe of your boot under the shift lever
and raise it one full stroke. To downshift, step on the shift lever and
depress it one full stroke.
After starting the engine and letting it warm up, follow these
procedures:
With the transmission in neutral, depress and hold down the rear
brake pedal. Release the parking brake (page ).
1.
23
１１／０５／２５ １１：２７：１６ ３１ＨＰ１６６０ ００６１
53
Shifting Gears
Basic Operation & Riding
With the throttle closed while the engine is idling, pull in the clutch
lever and depress the shift lever to shift into 1st gear.
Release the rear brake pedal, gradually release the clutch lever, and
increase engine speed by gradually opening the throttle.
When the speed increases, close the throttle, pull in the clutch lever,
shift to 2nd gear by raising the shift lever, and gradually release the
clutch lever while gradually opening the throttle.
Repeat this sequence to progressively upshift to 3rd, 4th and 5th (top)
gear.
To downshift, reverse this sequence. Remember to close the throttle
each time you shift to the next lower gear.
Learning when to shift gears comes with experience. Keep the following
tips in mind:
As a general rule, shift while moving in a straight line.
Close the throttle and pull the clutch lever in completely before
shifting. Improper shifting may damage the engine, transmission, and
drive train.
Upshift to a higher gear or reduce throttle before engine rpm (speed)
gets too high. Learn the relationship between engine sound and the
normal shifting points.
Downshift to a lower gear before you feel the engine laboring
(lugging) at low rpm.
Avoid downshifting to help slow your ATV when engine rpm is high.
Downshifting when engine speed is near its allowable maximum may
over-rev the engine and possibly cause damage.
To prevent transmission damage, do not coast or tow the ATV for
long distances with the engine off.
Ride in the highest gear that lets the engine run and accelerate smoothly.
This will give you good fuel economy and effective emissions control.
Recommended Shift Points
4.
5.
6.
3.
2.
１１／０５／２５ １１：２７：２６ ３１ＨＰ１６６０ ００６２
54
Braking
Basic Operation & Riding
As a general rule, the front braking system provides about 70 percent of
total stopping power.
For full braking effectiveness, use both the pedal and lever
simultaneously. Using both braking systems will stop your ATV faster
with greater stability.
To slow or stop, apply the brake lever and brake pedal smoothly, while
downshifting to match your speed.
Gradually increase braking as you feel the brakes slowing your speed.
The increase in engine compression from downshifting will help slow
your ATV.
For maximum braking, close the throttle and firmly apply the brake
lever and pedal controls.
Applying the brakes too hard may cause the wheels to lock and slide,
reducing control of your ATV. If this happens, release the brake
controls, steer straight ahead until you regain control, then reapply the
brakes more gently.
When possible, reduce your speed or complete braking before entering a
turn. Avoid braking or closing the throttle quickly while turning. Either
action may cause one or more wheels to slip and reduce your control of
your ATV.
Your ATV is equipped with disc braking systems which are
hydraulically activated. Depressing the brake pedal applies the rear disc
brake. Operating the brake lever applies the two front disc brakes.
１１／０５／２５ １１：２７：３４ ３１ＨＰ１６６０ ００６３
55
Braking
Basic Operation & Riding
Riding Your ATV
Your ability to brake in a turn and to brake hard in an emergency
situation are important riding skills.
When descending a long, steep grade, use engine compression braking
by downshifting, with intermittent use of both brakes. Continuous brake
application can overheat the brakes and reduce their effectiveness.
To prevent stalling the engine, pull the clutch lever/parking brake lever
in before coming to a complete stop.
For information on how to apply the brakes in various riding situations,
see the following section, .
Riding with your foot resting on the brake pedal or your hand on the
brake lever may overheat the brakes, reducing effectiveness.
１１／０５／２５ １１：２７：４０ ３１ＨＰ１６６０ ００６４
Turning improperly can make the ATV go out of
control, causing a collision or overturn.
Always follow proper procedures for turning
as described in this owner’s manual.
Practice turning at low speeds before
attempting to turn at faster speeds.
Do not turn at excessive speeds.
56
Making Turns
Riding Your ATV
Basic Operation & Riding
Learn how to turn your ATV properly. Practice the techniques outlined
in this section on level ground and at low speeds until you are confident
in making turns.
１１／０５／２５ １１：２７：４５ ３１ＨＰ１６６０ ００６５
Lean your body to the inside of a turn and forward.
57
Riding Your ATV
Basic Operation & Riding
To make a turn from a full stop: Apply the throttle gradually when you
turn and start up at the same time. Remember to shift your body forward
to make sharp low-speed turns and whenever you turn while
accelerating from a full stop.
To make a sharp turn at low speed: It helps to shift your body slightly
forward on the seat, and lean inside, as you steer the handlebar. Shifting
weight forward allows the rear wheels to turn easier, and it also
improves front-wheel steering.
To make a turn on level ground: Steer the handlebar and lean your body
toward the inside of the turn. Leaning helps balance the vehicle, and it
feels more comfortable. Leaning into a turn is an important technique to
master in riding an ATV.
１１／０５／２５ １１：２７：５１ ３１ＨＰ１６６０ ００６６
Skidding or sliding improperly may cause you to
lose control of this ATV. You may also regain
traction unexpectedly, which may cause the
ATV to overturn.
Learn to safely control skidding by practicing at
low speeds and on level, smooth terrain.
58
Skidding or Sliding
Riding Your ATV
Basic Operation & Riding
The terrain surface can be a major factor affecting turns. Skidding
during a turn is more likely to occur on slippery surfaces, such as snow,
ice, mud and loose gravel. If you skid on ice, you may lose all
directional control. To avoid skidding on slippery terrain, keep your
speed low and ride with caution.
If your ATV skids sideways during a turn, steer in the direction of the
skid. Avoid hard braking or accelerating until you have regained
directional control.
１１／０５／２５ １１：２７：５６ ３１ＨＰ１６６０ ００６７
Operating on excessively steep hills can cause
the vehicle to overturn more easily than
operating on level surfaces or small hills.
Never operate the ATV on hills too steep for the
ATV or for your abilities.
Climbing hills improperly could cause loss of
control or cause the ATV to overturn.
Always follow proper procedures for climbing
hills as described in this owner’s manual.
59
Riding Up Hills
Riding Your ATV
Basic Operation & Riding
The ATV’s ability to safely climb hills largely depends on the rider’s
skill and judgment. Begin by practicing on smooth, gentle slopes. As
you gain experience, you’ll learn the hazards and your own limitations.
You may then proceed to ride on more difficult terrain. However, you
must be able to decide which hills or hazards might cause the ATV to
overturn. Avoid excessively steep hills.
When climbing hills, you must shift weight toward the front wheels to
help keep them on the ground. To do this, shift your body slightly
forward on the seat and lean forward. For greater weight shift, move
your body farther forward and lean forward.
１１／０５／２５ １１：２８：０２ ３１ＨＰ１６６０ ００６８
Shift weight forward when climbing hills.
60
Riding Your ATV
Basic Operation & Riding
Never climb hills with excessively slippery or loose surfaces.
Always check the terrain carefully before you start up any hill.
To climb a hill, take a running start in an appropriate gear and speed
for the conditions. Maintain a steady speed as you ascend the hill.
Never open the throttle suddenly or make sudden gear changes. The
ATV could flip over backward.
Never go over the top of any hill at high speed. An obstacle, a sharp
drop, or another vehicle or person could be on the other side of the
hill.
１１／０５／２５ １１：２８：０９ ３１ＨＰ１６６０ ００６９
Stalling, rolling backwards or improperly
dismounting while climbing a hill could result in
the ATV overturning.
Always follow proper procedures for climbing a
hill as described in this owner’s manual.
61
Stalling the ATV and/or Rolling Backwards:
Riding Your ATV
Basic Operation & Riding
What to do if the ATV stalls or rolls backwards when climbing a hill:
If you are about to lose all forward speed:
Using the front and rear brakes together, bring the ATV to a stop
with the vehicle pointed straight uphill.
Get off the ATV while you continue holding the brakes.
Shift into neutral, set the parking brake and turn the engine off.
Then assess the situation.
If the ATV starts rolling backwards before you begin braking:
Keep your weight uphill.
Carefully apply the front brakes first, then carefully apply the
rear brake. Do not apply either brake abruptly if you are rolling
backwards, or the vehicle may overturn.
If the ATV continues sliding backwards:
After you’ve applied the brakes, get off and away from the vehicle.
If you incorrectly estimate climbing capability or terrain conditions, the
ATV may not have enough power or traction to continue uphill. If this
happens, the ATV can stall and/or roll backwards.
1.
2.
1.
2.
3.
4.
１１／０５／２５ １１：２８：１７ ３１ＨＰ１６６０ ００７０
Be sure your legs are
clear of the wheels.
Body position for
backing down a hill.
62
Riding Your ATV
Basic Operation & Riding
If the hill is too steep or too slippery, or if you have any doubt whether
you can safely walk the ATV back down the hill, leave the vehicle
where it is and get help. If possible, block the wheels so the vehicle
doesn’t roll backwards.
If the hill is not too steep and you have good footing, you may be able
to walk the ATV back down the hill. Make sure your intended path is
clear in case you lose control of the ATV.
What to do after the ATV has stalled or rolled backwards:
Stand with your body facing downhill, beside the vehicle so you can
reach the front brake lever with your left hand.
Be sure your legs are clear of the wheels.
Check your footing.
Slowly and carefully back the ATV down the hill using the front
brake lever to control speed.
If you lose control of the ATV, for your safety, get away from the
vehicle.
1.
2.
3.
4.
１１／０５／２５ １１：２８：２５ ３１ＨＰ１６６０ ００７１
On downhills, shift your weight back.
Going down a hill improperly could cause loss
of control or cause the ATV to overturn.
Always follow proper procedures for going down
hills as described in this owner’s manual.
63
Riding Down Hills
Riding Your ATV
Basic Operation & Riding
It’s usually advisable to descend hills with the ATV pointed straight
downhill. Avoid angles that would cause the vehicle to lean sharply to
one side.
As you approach a downhill, stop and survey the terrain below. Never
ride past the limit of your visibility. Never go down a hill at high speed.
１１／０５／２５ １１：２８：３１ ３１ＨＰ１６６０ ００７２
Improperly crossing hills or turning on hills could
cause loss of control or cause the ATV to
overturn.
Always follow proper procedures for crossing or
turning on slopes as described in this owner’s
manual. Avoid crossing steep hills if possible.
64
Crossing or Turning on Hills or Slopes
Riding Your ATV
Basic Operation & Riding
When you’ve selected a safe downhill path, shift into a lower gear, shift
your weight back with your arms extended and braced against the
handlebar, then go down slowly with the throttle closed.
Use mainly the rear brake to control speed. Avoid using either the front
brake or rear brake hard or abruptly when riding down hills.
Remember, braking effectiveness is reduced on any hill with a loose
surface.
Riding on hills or slopes is different from riding on level terrain. Be
careful when riding on any hill. Make sure that you practice on gentle,
smooth slopes before attempting to ride on steeper or more difficult
terrain.
１１／０５／２５ １１：２８：３７ ３１ＨＰ１６６０ ００７３
Shift weight uphill when crossing slopes.
65
Riding Your ATV
Basic Operation & Riding
Crossing Hills or Slopes
To maintain balance and stability when riding across a slope, you
need to shift weight toward the uphill side of the vehicle. To do this,
move your body off the center of the seat and lean toward the uphill
side.
On a slippery or loose surface, you may also need to steer slightly
uphill to maintain a straight course across the slope.
Avoid crossing hills that are excessively steep, slippery or rough.
Do not make turns on any slopes until you have first mastered the
techniques for making turns on level terrain.
Compared to riding on level ground, you may need to shift more
weight and lean more when making turns on slopes.
Making Turns on Slopes
１１／０５／２５ １１：２８：４５ ３１ＨＰ１６６０ ００７４
Improperly operating over obstacles could
cause loss of control or a collision and could
cause the ATV to overturn.
When you go over obstacles, always follow
proper procedures as described in this owner’s
manual.
66

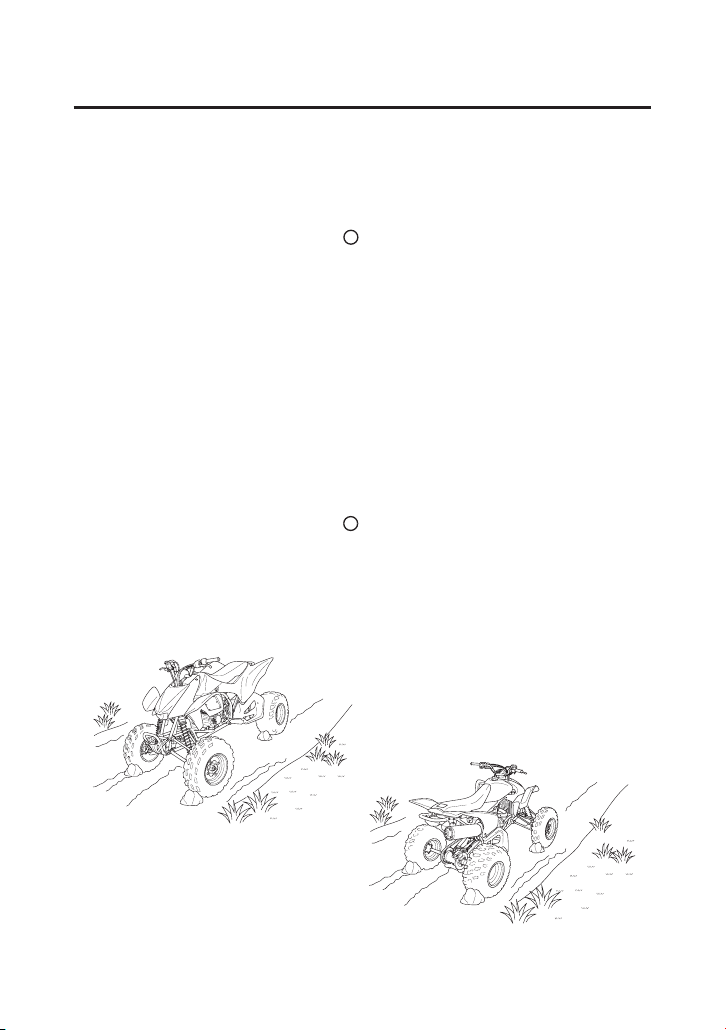

Riding Over Obstacles
Riding Your ATV
Basic Operation & Riding
Before operating in a new area, check for obstacles. Watch out for
bumps, rain ruts, potholes and other obstacles in the terrain. When you
approach any obstacle, reduce your speed and be prepared to stop.
Never try to ride over large obstacles, such as large rocks or fallen logs.
１１／０５／２５ １１：２８：５０ ３１ＨＰ１６６０ ００７５
The ATV tires have some ability to float.
Operating this ATV through deep or fast-flowing
water may cause a loss of traction and loss of
control, which could lead to an accident.
Never operate this ATV in fast-flowing water or
in water deeper than that specified in this owner’s
manual.
67
Riding Through Water
Riding Your ATV
Basic Operation & Riding
If necessary, apply the brakes repeatedly until they dry out and
operate normally.
Riding through water can make the brakes less effective than
normal, and may reduce stopping ability.
After leaving the water, always test both the front and rear brakes.
Avoid getting the spark plug or air cleaner wet, as this would cause
the engine to stop.
Watch out for submerged obstacles and slippery rocks.
Proceed through the water at a slow, steady speed.
Choose a path where both banks have gradual slopes.
Your ATV is designed to travel through water up to approximately
10 inches (254 mm) deep. Before crossing a stream, make sure the water
is not too deep or flowing too fast.
1.
2.
3.
4.
5.
１１／０５／２５ １１：２８：５８ ３１ＨＰ１６６０ ００７６
68
Parking on a Steep Incline or a Loose or Slippery Surface
Parking
Basic Operation & Riding
Look for level parking area. Make sure the ground surface is firm.
After bringing your ATV to a stop, hold the brakes while you shift
into neutral.
Set the parking brake.
Turn the ignition switch OFF ( ).
If you’re finished riding for the day, turn the fuel valve OFF.
If it is necessary to start the engine when your ATV in gear and is
stopped on a grade, rock the vehicle back and forth to allow shifting the
transmission into neutral.
If you must park your ATV on a steep incline or loose or slippery
surface, use the following procedure:
While holding the brakes, set the parking brake.
Turn the ignition switch OFF ( ) and release the brakes.
If the ATV begins to move, either while sitting on it or after you
dismount, find a better parking location.
If rocks or other objects are available, you can block the wheels as
shown for additional security.
1.
2.
3.
4.
5.
1.
2.
3.
4.
１１／０５／２５ １１：２９：１０ ３１ＨＰ１６６０ ００７７
69
Servicing Your Honda
Servicing Your Honda
Maintenance, replacement or repair of the emission control devices
and systems may be performed by any ATV repair establishment or
individual using parts that are ‘‘certified’’ to EPA standards.
Before You Service Your Honda
Service Preparations
(cont’d)
To help keep your ATV in good shape, this section includes a
Maintenance Schedule for required service and step-by-step instructions
for specific maintenance tasks. You’ll also find important safety
precautions, information on fuels and oils, and tips for keeping your
Honda looking good.
For information about replacing the fuse, see page .
For information about the exhaust emission and noise requirements of
the U.S. Environmental Protection Agency (EPA), the California Air
Resources Board (CARB), and Environment Canada (EC),
see page .
USA Only
...........................................................The Importance of Maintenance .
...............................................................................Maintenance Safety .
............................................................Important Safety Precautions .
..........................................................................Maintenance Schedule .
..............................................................................Maintenance Record .

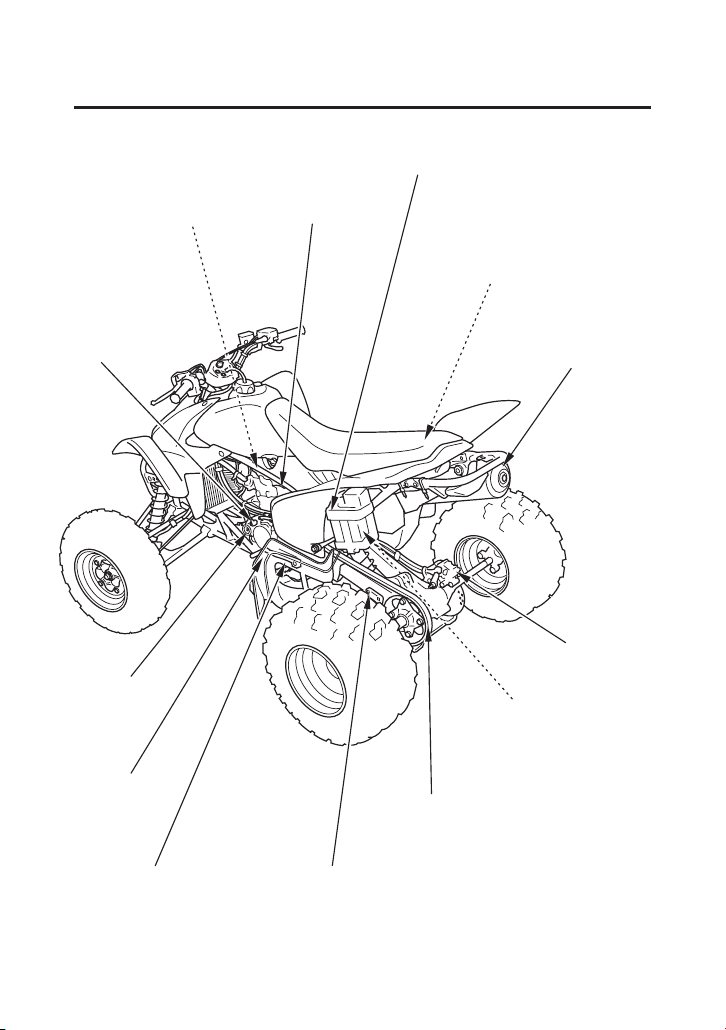

......................................................Maintenance Component Locations .

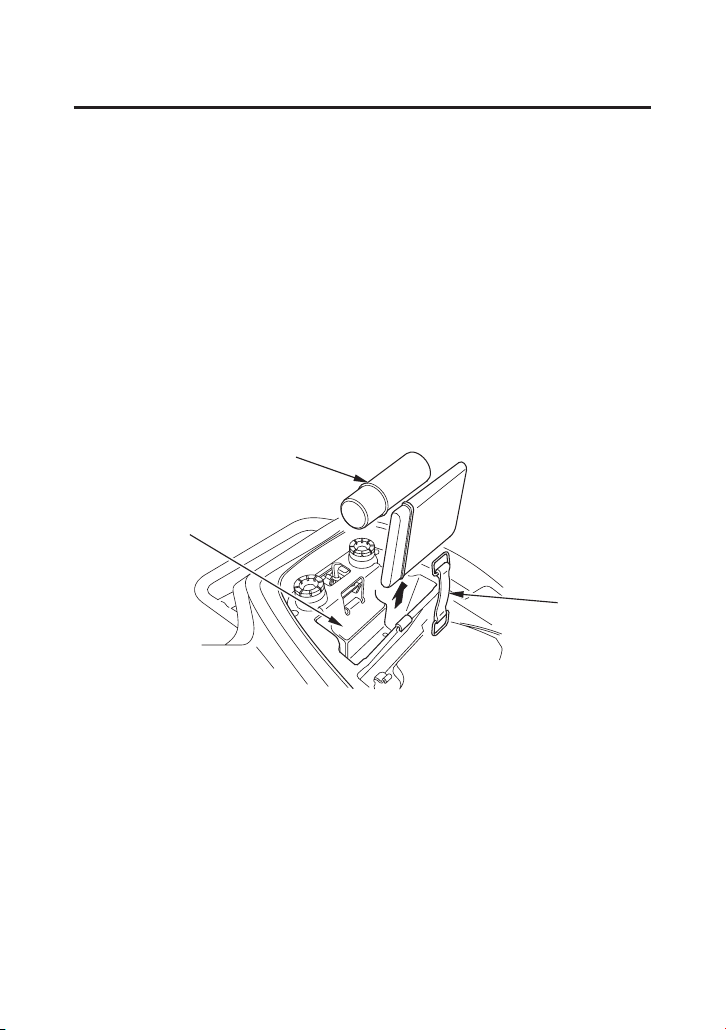

.................................................................................................Tool Kit .
.......................................................................Owner’s Manual Storage .
........................................................................................Seat Removal .
71
72
73
74
78
79
82
83
84
187
203
１１／０５／２５ １１：２９：２１ ３１ＨＰ１６６０ ００７８
70
Servicing Your Honda
Servicing Your Honda
Service Procedures
Fluids & Filters
Engine
Chassis
Electrical
.......................................................................................................Fuel .
................................................................................Engine Oil & Filter .
...................................................................................Transmission Oil .
..............................................................................................Coolant .

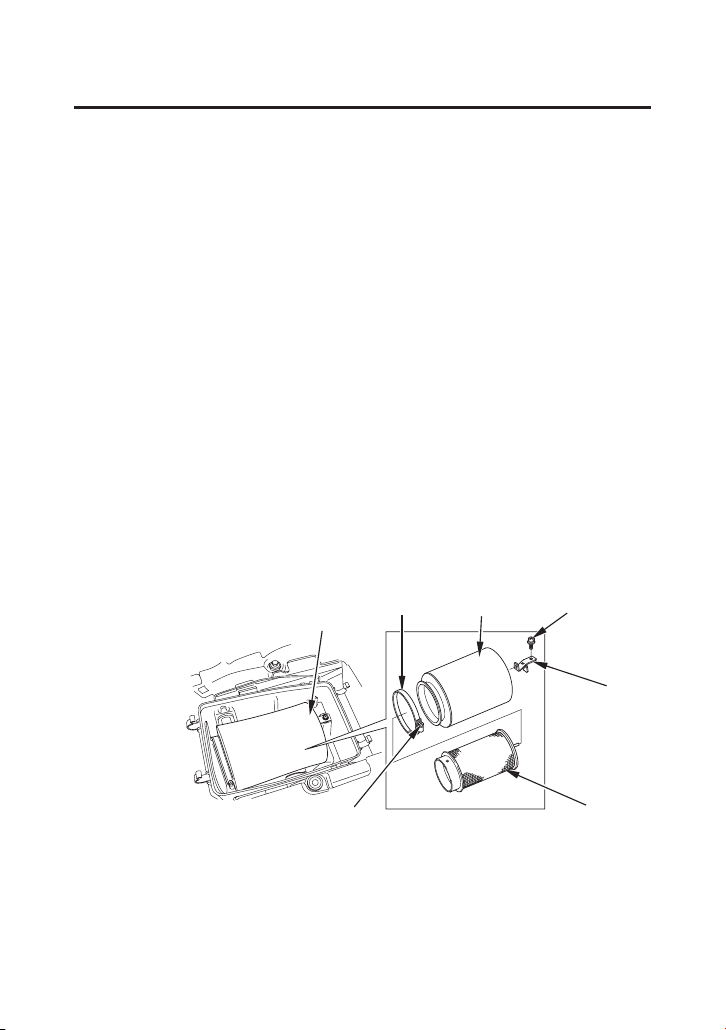

........................................................................................Air Cleaner .
..............................................................................................Throttle .
...................................................................................Clutch System .
.............................................................................Engine Idle Speed .
.........................................................................................Spark Plug .
................................................................................................Valves .

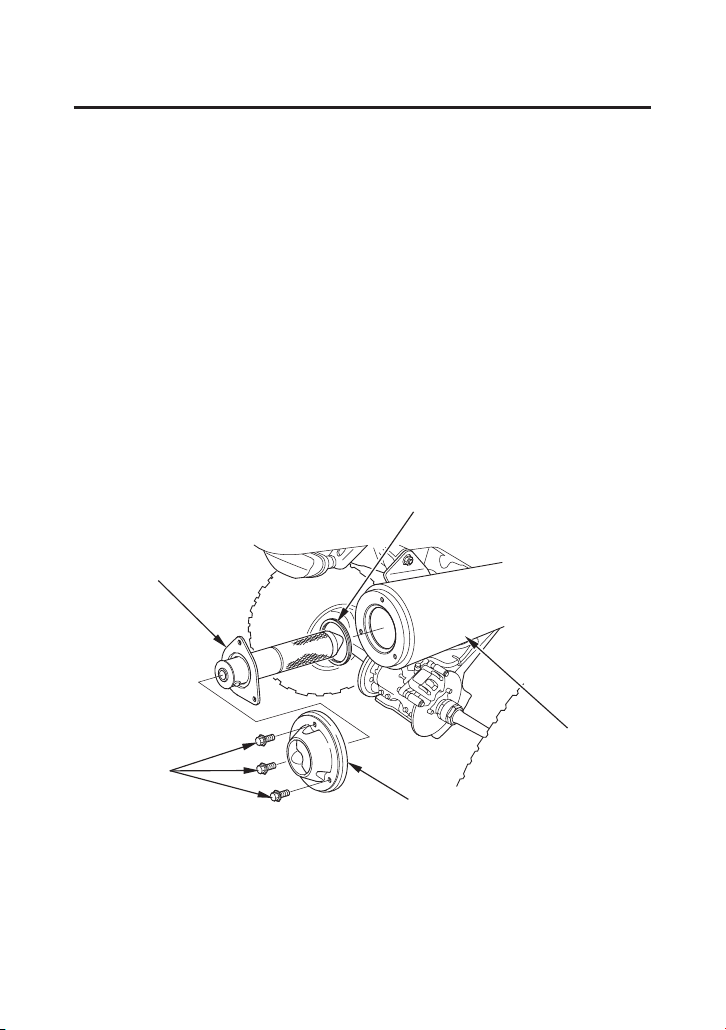

...................................................................................Spark Arrester .

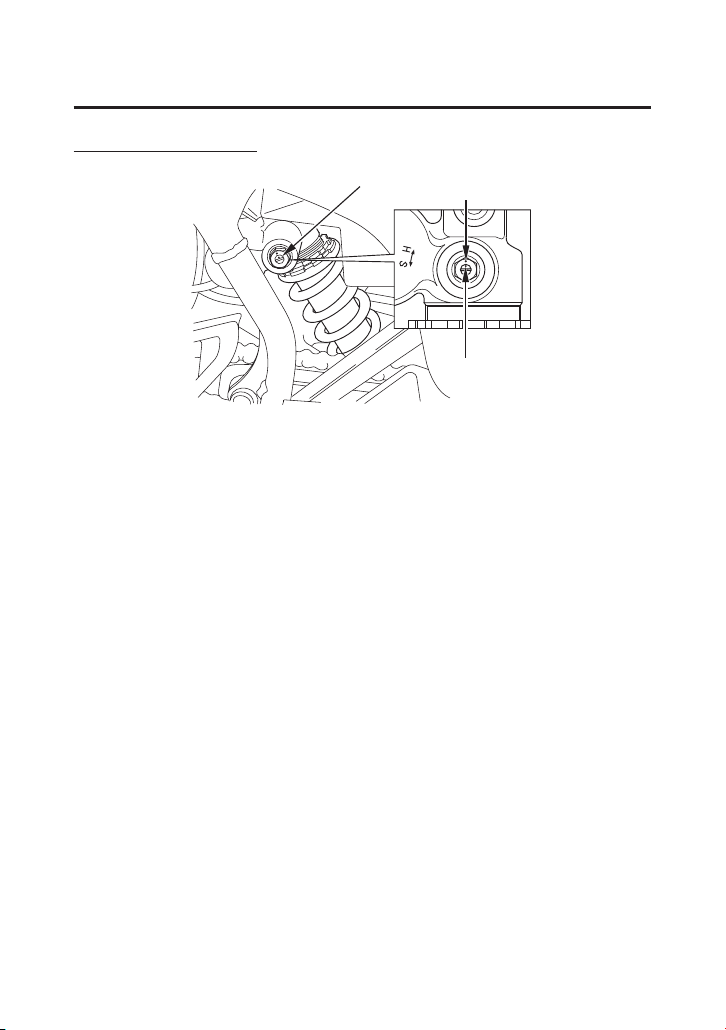

........................................................................................Suspension .
................................................................................................Brakes .

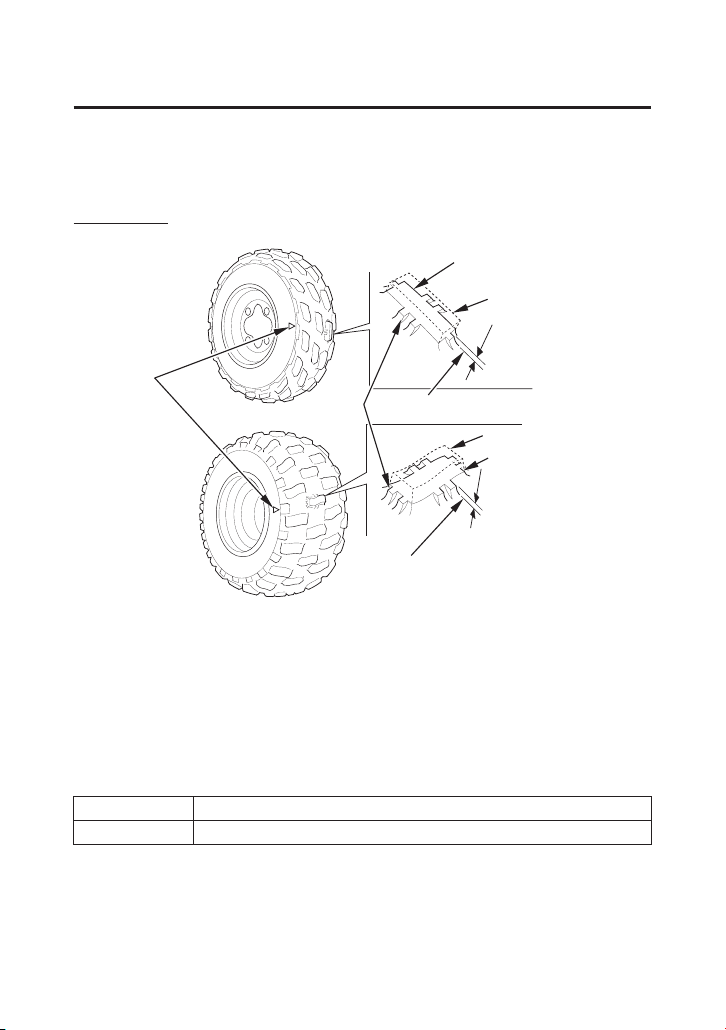

..................................................................................................Tires .
.......................................................................................Drive Chain .
...............................................................................Appearance Care .
...............................................................................................Battery .
...............................................................................................Guards .
85
88
95
100
106
110
112
116
117
120
121
123
129
139
146
147
154
159
１１／０５／２７ １１：４７：４３ ３１ＨＰ１６６０ ００７９
