Digital Camera
Operating Manual
To ensure the best performance from
your camera, please read the Operating
Manual before using the camera.
• Printed on recycled paper
• Specifications and external dimensions are subject to change without notice.
57474 Copyright © PENTAX Corporation 2005
02-200502 Printed in Japan
PENTAX Corporation
2-36-9, Maeno-cho, Itabashi-ku, Tokyo 174-8639, JAPAN
(http://www.pentax.co.jp)
PENTAX Europe GmbH
(European Headquarters)
Julius-Vosseler-Strasse, 104, 22527 Hamburg, GERMANY
(HQ - http://www.pentaxeurope.com)
(Germany - http://www.pentax.de)
PENTAX U.K. Limited PENTAX House, Heron Drive, Langley, Slough, Berks
SL3 8PN, U.K.
(http://www.pentax.co.uk)
PENTAX France S.A.S.
12/14, rue Jean Poulmarch, 95106 Argenteuil Cedex, FRANCE
PENTAX Benelux B.V. (for Netherlands)
Spinveld 25, 4815 HR Breda, NETHERLANDS
(http://www.pentax.nl)
(for Belgium & Luxembourg)
Weiveldlaan 3-5, 1930 Zaventem, BELGIUM
(http://www.pentax.be)
PENTAX (Schweiz) AG Widenholzstrasse 1 Postfach 367 8305 Dietlikon,
SWITZERLAND
(http://www.pentax.ch)
PENTAX Scandinavia AB P.O. Box 650, 75127 Uppsala, SWEDEN
(http://www.pentax.se)
PENTAX Imaging Company
A Division of PENTAX of America, Inc.
(Headquarters)
600 12th Street, Suite 300 Golden, Colorado 80401, U.S.A.
(Distribution & Service Center)
16163 West 45th Drive, Unit H Golden, Colorado
80403, U.S.A. (http://www.pentaximaging.com)
PENTAX Canada Inc.
1770 Argentia Road Mississauga, Ontario L5N 3S7, CANADA
(http://www.pentaxcanada.ca)
http://www.digital.pentax.co.jp
Thank you for buying the PENTAX OptioWP Digital Camera.
Please read this manual before using the camera in order to get the most
out of all the features and functions. Keep this manual safe, as it can be
a valuable tool in helping you to understand all the camera’s capabilities.
Regarding copyrights
Images taken using the OptioWP that are for anything other than personal
enjoyment cannot be used without permission according to the rights as specified
in the Copyright Act. Please take care, as there are even cases where limitations
are placed on taking pictures even for personal enjoyment during demonstrations,
industrial enterprise or as items for display. Images taken with the purpose of
obtaining copyrights also cannot be used outside the scope of use of the copyright
as laid out in the Copyright Act, and care should be taken here also.
Regarding trademarks
• PENTAX and Optio are trademarks of PENTAX Corporation.
• The SD logo is a trademark.
• All other brands or product names are trademarks or registered trademarks of
their respective owners.
To users of this camera
• There is a possibility that recorded data may be erased or that the camera may
not function correctly when used in surroundings such as installations
generating strong electromagnetic radiation or magnetic fields.
• The liquid crystal panel used in the LCD display is manufactured using
extremely high precision technology. Although the level of functioning pixels is
99.99% or better, you should be aware that 0.01% or fewer of the pixels may
not illuminate or may illuminate when they should not. However, this has no
effect on the recorded image.
This product supports PRINT Image Matching III, PRINT Image Matching
enabled digital still cameras, printers and software help photographers to produce
images more faithful to their intentions. Some functions are not available on
printers that are not PRINT Image Matching III compliant.
Regarding PictBridge
PictBridge allows the user to connect the printer and digital camera directly, using
the unified standard for the direct printout of images. You can print images directly
from the camera through a few simple operations.
• There is a possibility that the illustrations and the display screen of the LCD
monitor in this manual are different form the actual product.
1
Sufficient attention has been paid to the safety of this product but please
pay particular attention to the warnings indicated by the following
symbols during use.
Warning
• Do not attempt to take the camera apart or remodel the camera. High
voltages are present within the camera, and there is therefore a danger of
electric shocks if the camera is taken apart.
• If the inside of the camera should become exposed as a result of, for
example, the camera being dropped, please do not under any
circumstances touch such exposed portions, as there is a danger of
receiving an electric shock.
• To avoid the risk of it being swallowed by mistake, keep the SD Memory
Card out of the reach of small children. Seek medical attention immediately
if a card is accidentally swallowed.
• Wrapping the strap of the camera around your neck is also dangerous.
Please take care that small children do not hang the strap around their
necks.
• Use an AC adapter that is of the power and voltage specified for exclusive
use with this product. The use of an AC adapter other than that specified
exclusively for use with this product may cause fire or electric shocks.
• If the camera emits smoke or a strange smell, or in the event of any other
irregularity, stop using the camera immediately, remove the battery and
contact your nearest PENTAX Service Center. Continued use of the
camera may result in fire or electric shock.
FOR SAFE USE OF YOUR CAMERA
Warning
These symbols indicate that it is possible that the user
may experience serious difficulties if the warnings are
not heeded.
Caution
These symbols indicate that it is possible that the user
may experience minor or middling difficulties or
physical difficulties if the warnings are not heeded.
About the Camera
2
Caution
• Never try to disassemble or short the battery. Also, do not dispose of the
battery in fire, as it may explode.
• Do not charge any batteries other than rechargeable lithium-ion battery
D-LI8. The battery could explode or catch fire.
• Do not place your finger on the flash when it is discharging as there is a
risk of burns.
• Do not discharge the flash while it is touching your clothing as there is a
risk of discoloring.
• If any of the battery leakage should come in contact with your eyes, do not
rub them. Flush your eyes with clean water and get medical attention
immediately.
• If any of the battery leakage should come in contact with skin or clothes,
wash the affected areas thoroughly with water.
• Remove the battery from the camera immediately if it becomes hot or
begins to smoke. Be careful not to burn yourself during removal.
• Some portions of the camera heat up during use, so please take care, as
there is a risk of low temperature burns if such portions are held for long
periods of time.
• Should the LCD be damaged, be careful of glass fragments. Also, be
careful not to allow the liquid crystal to get on your skin or in your eyes or
in your mouth.
Warning
• Do not use the product at a voltage other than the specified voltage. Use
with a power source or voltage other than that designed can cause a fire
or electrical shock. The specified voltage is 100-240V AC.
• Do not disassemble or modify the product. This can cause a fire or
electrical shock.
• If the generation of smoke or strange odor from the product or other
abnormality occurs, immediately discontinue using and consult a PENTAX
Service Center. Continuing to use the product can cause a fire or electrical
shock.
• If water should happen to get inside the product, consult a PENTAX
Service Center. Continuing to use the product can cause a fire or electrical
shock.
About the Battery Charger and the AC Adapter
3
• If lightning should be present during use of the battery charger or AC
adapter, unplug the power cord and discontinue use. Continuing to use the
product can cause damage to the equipment, fire or electrical shock.
• Wipe off the plug of the power cord if it should become covered with dust.
This can cause a fire.
Caution
• Do not place heavy objects on the AC plug cord, allow heavy objects to
drop onto it or allow the AC plug cord to become damaged due to
excessive bending. If the AC plug cord becomes damaged, consult a
PENTAX Service Center.
• Do not short or touch the output terminals of the product while it is still
plugged in.
• Do not plug in the AC plug cord with wet hands. This can cause an
electrical shock.
• Do not subject the product to strong impacts or allow it to drop onto a hard
surface. This can cause a malfunction.
• Do not use the battery charger to charge batteries other than rechargeable
lithium-ion battery D-LI8. This can cause overheating or malfunctions.
• Take the Worldwide Service Network that is included in the package. This
will be useful if you experience problems abroad.
• When the camera has not been used for a long time, confirm that it is still
working properly, particularly prior to taking important pictures (such as at
a wedding or during traveling). Contents of the recording cannot be
guaranteed if recording, playback or transferring your data to a computer,
etc. is not possible due to a malfunction of your camera or recording media
(SD Memory Card), etc.
• The lens on this camera is not exchangeable. The lens is not removable.
• Do not clean the product with organic solvents such as thinner, alcohol or
benzene.
• Places of high temperature and humidity should be avoided. Particular
care should be taken regarding vehicles, which can become very hot
inside.
• Storing the camera where pesticides and chemicals are handled should be
avoided. Remove from case and store in a well-ventilated place to prevent
the camera from becoming moldy during storage.
Care to be Taken During Handling
4
• Ensure that the camera is not subjected to substantial vibrations, shocks
or pressure. Place the camera on a cushion for protection when the
camera is subjected to the vibrations of a motorbike, car, or ship, etc.
• The temperature range in which the camera can be used is 0°C to 40°C
(32°F to 104°F).
• The liquid crystal display will become black at a high temperature but will
return to normal when normal temperatures are returned to.
• The response speed of the liquid crystal display becomes slow at low
temperatures. This is due to the properties of the liquid crystal and is not
a fault.
• Periodic checks are recommended every 1 to 2 years in order to maintain
high performance.
• If the camera is subjected to rapid temperature changes, condensation
may form on the inside and outside of the camera.
Therefore put the camera in a bag or plastic bag, and take the camera out
when the difference in temperature has subsided.
• Avoid contact with garbage, dirt, sand, dust, water, toxic gases, salt, etc.
as this may cause damage to the camera. If rain or drops of water get onto
the camera, please wipe dry.
• Refer to “Precautions When Using an SD Memory Card” (p.30) regarding
the SD Memory Card.
• Please do not press forcefully on the LCD monitor. This could cause
breakage or malfunction.
• Be careful not to sit down with the camera in your back pocket as this may
damage the exterior of the camera or the LCD monitor.
• When using a tripod with the camera, be careful not to overtighten
the screw in the tripod socket on the camera.
• The AC plug cord supplied with the camera is for exclusive use with the
battery charger D-BC8. Do not use it with any other equipment.
5
• This camera has a waterproof capability equivalent to JIS Class 8
protection (IPX8).
• To enhance the waterproof performance of the camera, the front of the lens
is protected by glass. As any dirt or water on the glass will affect the quality
of pictures taken, the glass should be kept clean at all times.
• Do not place the camera directly on the sand at the beach or similar places.
• The camera will sink if dropped in water, so be sure to attach the strap and
slip the strap over your wrist when using the camera in or near water.
• Be sure to check that the battery/card cover is securely locked before using
the camera in an environment where it is likely to get wet or dirty, such as
underwater or at the beach. Water, sand or dirt inside the camera may
cause failure of the camera. Wipe off any water or dirt with a dry cloth as
soon as possible after using the camera.
• Avoid opening the battery/card cover at the beach or by the sea. Wait until
the camera is completely dry before changing the battery or the SD
Memory Card. Avoid changing the battery or card where the camera is
likely to get wet or dirty, and make sure that your hands are dry.
• If the camera is very dirty or after it has been used in the sea, make sure
that it is turned off and the battery/card cover is firmly closed before rinsing
it under running tap water or leaving it in a bowl of clean water for a short
time (2 or 3 minutes).
• Wipe off any dirt or sand on the waterproof packing or the packing contact
surface. The camera's waterproof function may be compromised by loose
packing, or cracks or dents in the packing or packing contact surface. If
there is any such damage, contact your nearest PENTAX Service Center.
• To maintain the waterproof performance of the camera, you are
recommended to change the waterproof packing once a year. Contact your
nearest PENTAX Service Center regarding changing the packing. (A
charge will be made.)
• Avoid getting sunscreen or sun oil on the camera as it may cause
discoloration of the surface. If any oil gets on the camera, wash it off
immediately with warm water.
• The waterproof function does not apply to the camera’s accessories.
Waterproof Function
6
FOR SAFE USE OF YOUR CAMERA .............................................1
Care to be Taken During Handling ...................................................3
Contents ...........................................................................................6
Composition of the Operating Manual ............................................11
Camera Features.................................................................................12
Checking the Contents of the Package ..........................................16
Names of Parts...............................................................................17
Names of Operating Parts ..............................................................18

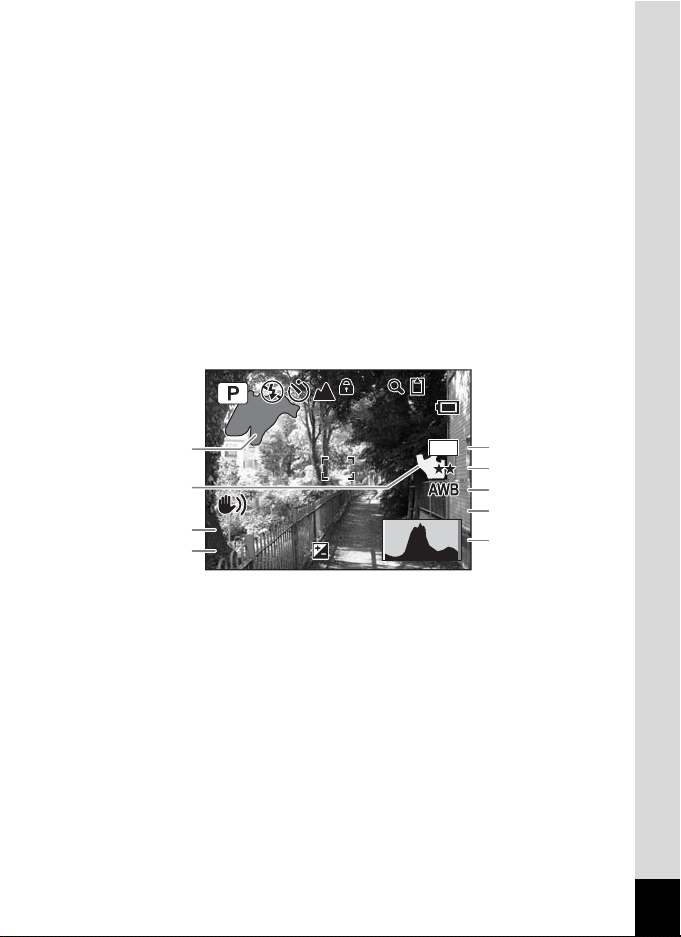

Monitor Indications .........................................................................18
Getting Started 21
Attaching the Strap.............................................................................21
Powering the Camera .........................................................................22
Charging the Battery.......................................................................22
Installing the Battery.......................................................................23
Charging the Battery Abroad ..........................................................25

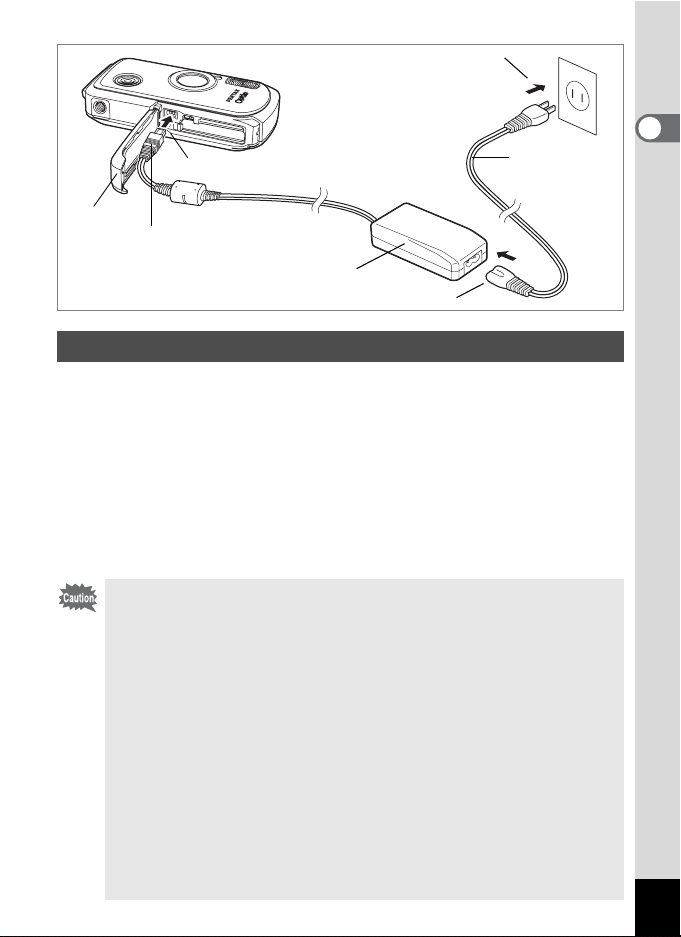

Using the AC Adapter.....................................................................27

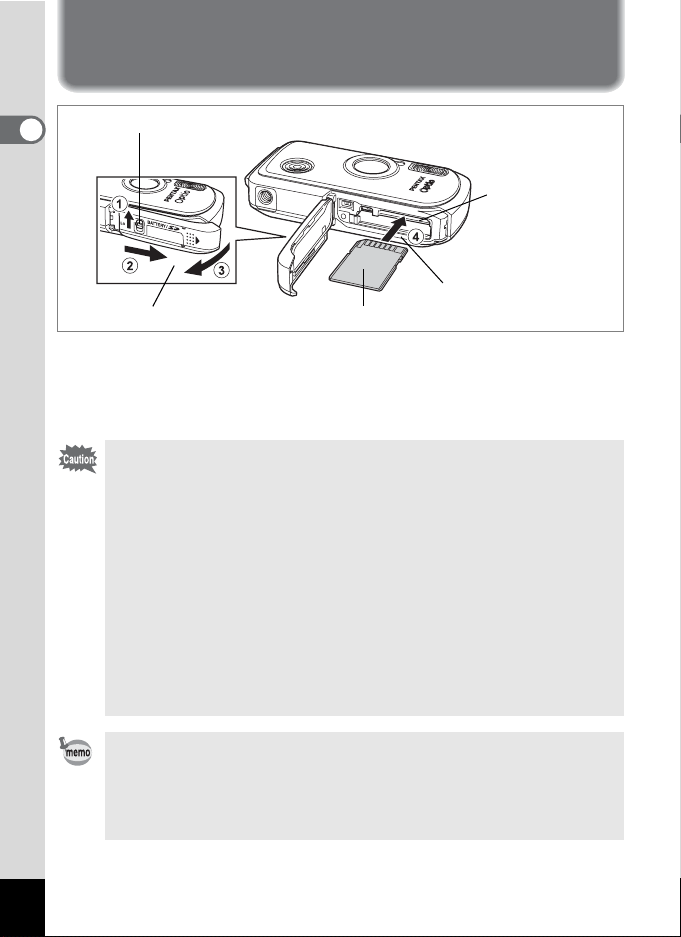

Installing the SD Memory Card..........................................................28
Recorded Pixels and Quality Level of Still Pictures........................31
Recorded Pixels and Frame Rate of Movies ..................................33
Turning the Camera On and Off ........................................................34
Playback Only Mode.......................................................................35
Initial Settings .....................................................................................36
Setting the Display Language.........................................................37
Setting the Date and Time..............................................................38
Quick Start 40
Taking Still Pictures............................................................................40
Playing Back Still Pictures.................................................................42
Playing Back Images ......................................................................42
Playing Back the Previous or Next Image ......................................42
Rotating the Displayed Image ........................................................43
Common Operations 44
Understanding the Button Functions ...............................................44
A mode .........................................................................................44
Q mode ........................................................................................46
Contents
7
Setting the Camera Functions ...........................................................48
Setting with the Menus ...................................................................48
Menu List ........................................................................................51

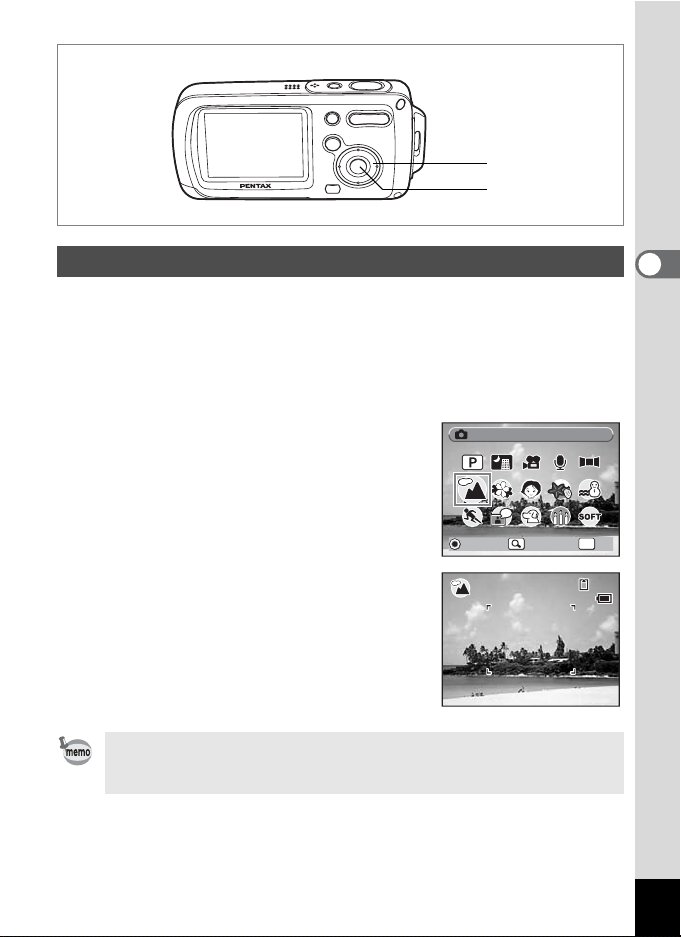

Setting the Shooting Mode .............................................................53
Changing the Shooting Mode Icons ...............................................57
Calling Up a Specific Menu ............................................................58
Setting the Playback Mode.............................................................60
Taking Pictures 63
Taking Pictures ...................................................................................63
Letting the Camera Choose the Optimal Settings

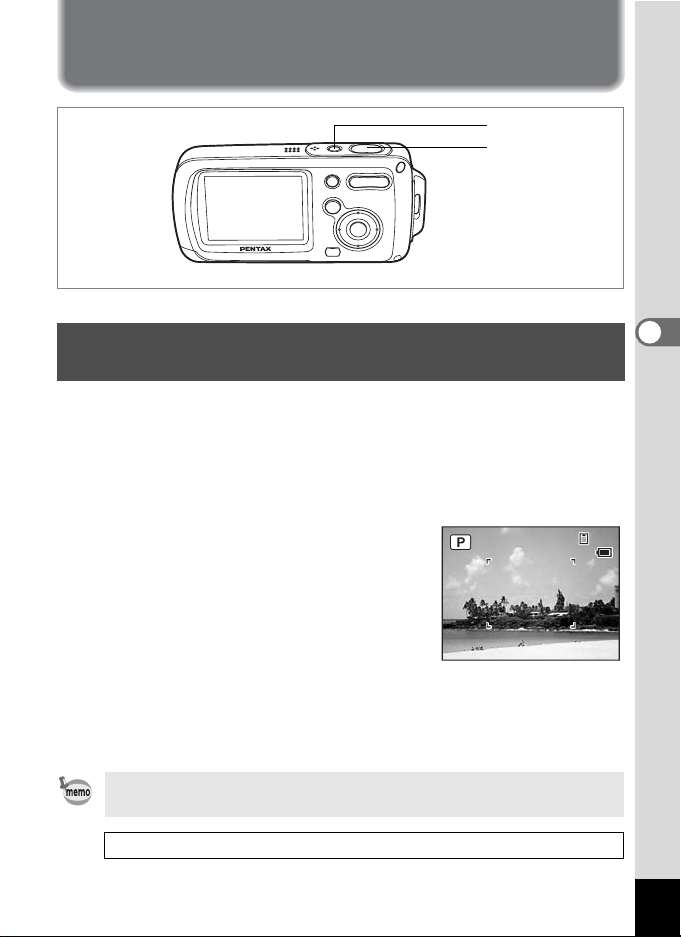

(Program Mode) .............................................................................63

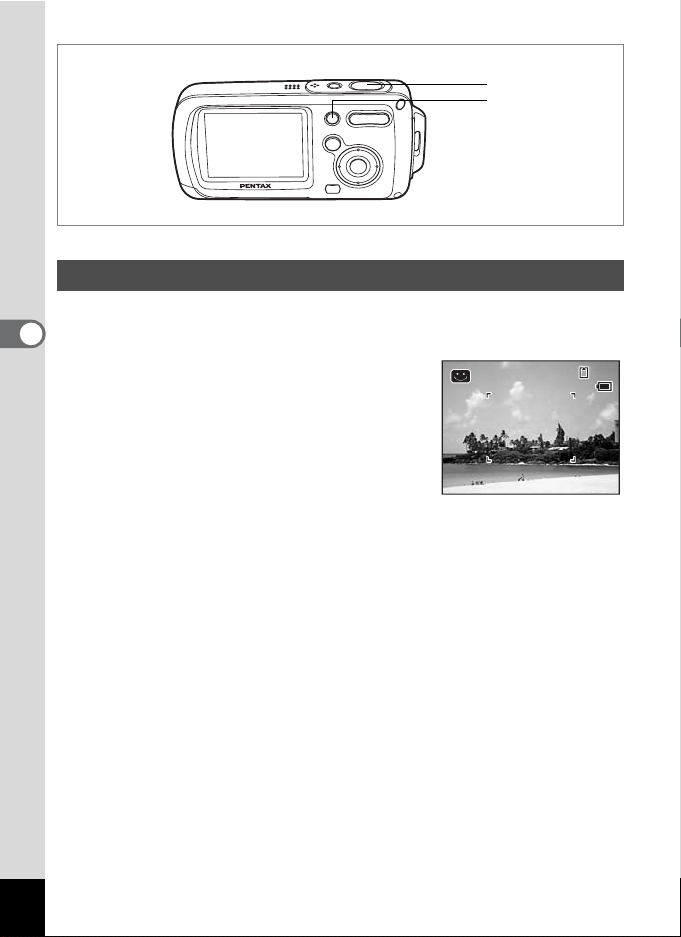

Taking Pictures in the Basic Mode (Green Mode) ..........................64
Taking Pictures of Dark Scenes
(Night Scene/Candlelight/Fireworks Mode) ....................................66
Taking Pictures of Your Pet (Pet Mode) .........................................67
Taking Panorama Pictures (Panorama Assist mode).....................68
Taking Underwater Pictures (Underwater Mode) ...........................70
Taking Still Pictures with Sound (Synchro Sound Record).............71
Framing Your Pictures....................................................................72
Using the Zoom ..............................................................................74
Setting the Exposure (EV Compensation)......................................76
Using the Self-timer ........................................................................77

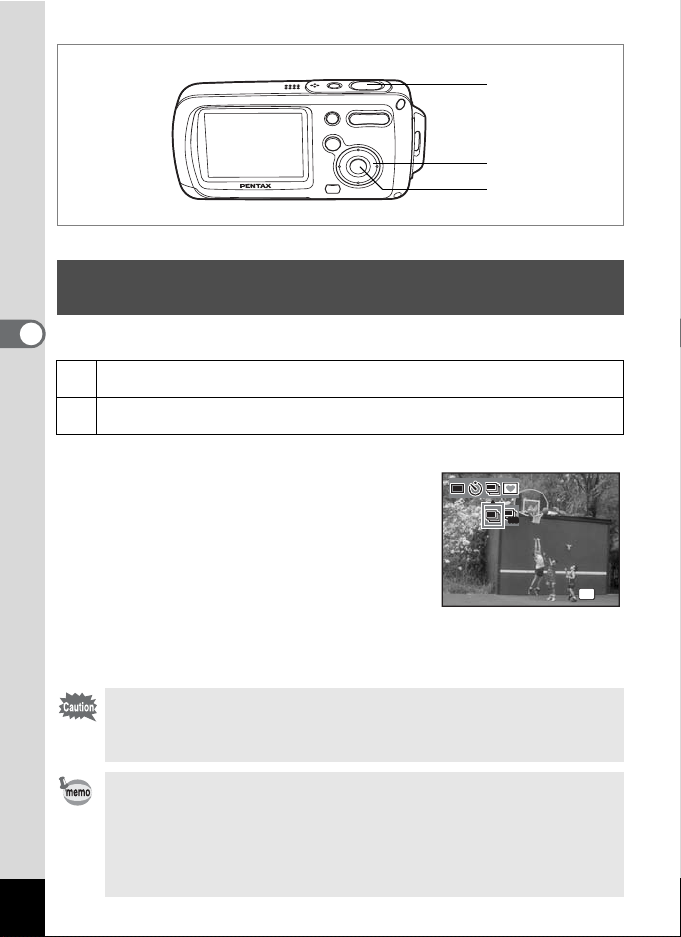

Taking a Series of Pictures (Continuous Shooting Mode/High
Speed Continuous Shooting Mode)................................................78
Displaying Shooting Information in Capture Mode .........................79
Setting the Shooting Functions.........................................................81
Selecting the Focus Mode ..............................................................81
Selecting the Flash Mode...............................................................83
Selecting the Recorded Pixels........................................................85
Selecting the Quality Level.............................................................87
Adjusting the White Balance...........................................................88
Setting the Autofocus Conditions ...................................................90
Setting the Sensitivity .....................................................................92
Setting the Instant Review Time (Instant Review)..........................93
Setting the Image Sharpness (Sharpness).....................................94
Setting the Color Saturation (Saturation)........................................95
Setting the Image Contrast (Contrast)............................................96
Saving the Settings (Memory) ...........................................................97
8
Recording Movies ...............................................................................99
Recording a Movie..........................................................................99
Selecting the Recorded Pixels for Movies ....................................101
Selecting the Frame Rate.............................................................102
Recording Movies in Black and White or Sepia Tones
(Color Mode).................................................................................103
Playing Back and Deleting Images 104
Playing Back Images ........................................................................104
To Switch Between A Mode and Q Mode ................................104
Playing Back Still Pictures ............................................................104
Nine-Image Display and Folder Display .......................................105
Zoom Playback.............................................................................107

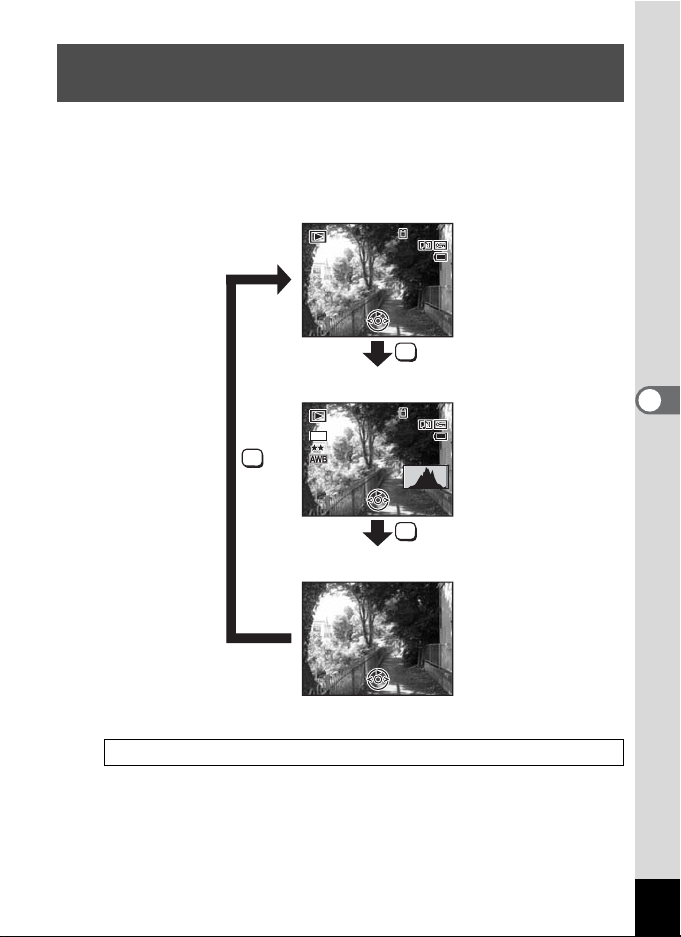

Displaying Shooting Information in Playback Mode .....................109
Slideshow .....................................................................................110
Playing Back Movies ........................................................................112
Playing Back a Movie ...................................................................112
Connecting the Camera to AV Equipment......................................113
Deleting Images ................................................................................114
Deleting a Single Images/Sound Files..........................................114
Deleting Selected Images and Sound Files
(from Nine-Image Display)............................................................116
Deleting All Images.......................................................................118
Recovering Deleted Images .........................................................119
Protecting Images and Sound Files from Deletion (Protect) ........ 120
Editing and Printing Images 122
Editing Images ..................................................................................122
Changing the Image Size and Quality (Resize)............................122
Trimming Images..........................................................................124
Copying Images and Sound Files.................................................125
Using the Digital Filters.................................................................127
Using the Brightness Filter ...........................................................128

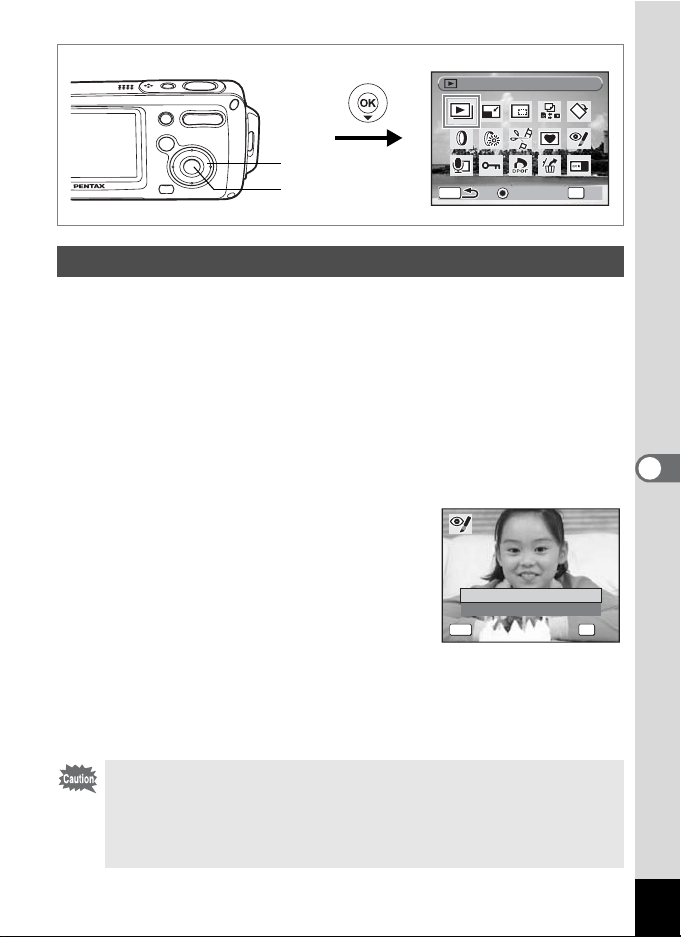

Red-eye Compensation................................................................129
Adding a Frame (Frame Composite) ............................................130
Editing Movies ..............................................................................132

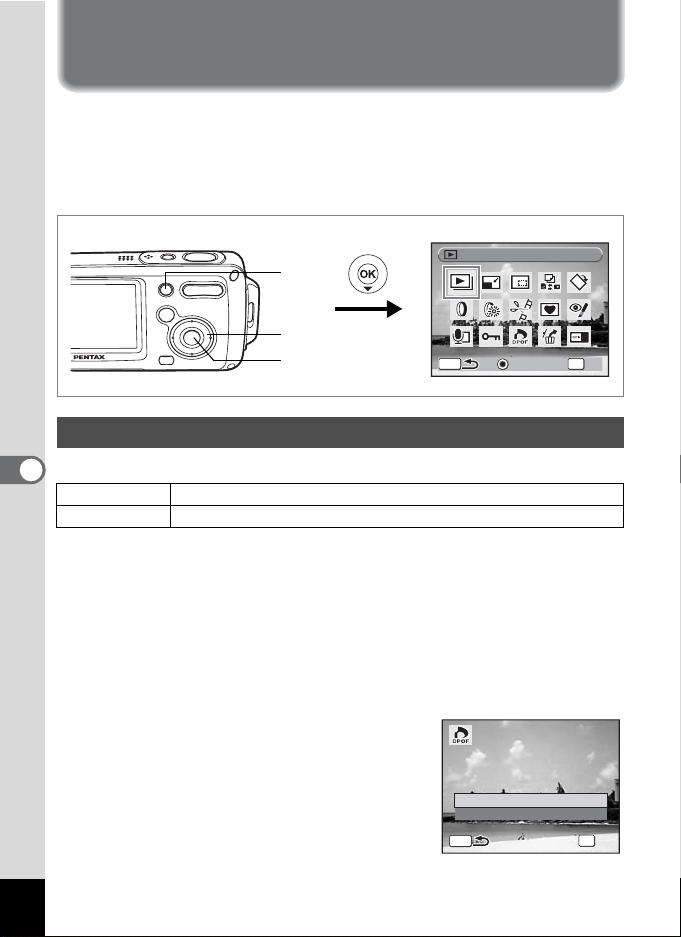

Setting the Printing Service (DPOF)................................................136
Printing Single Images..................................................................136
Printing All Images........................................................................138
9
Printing Using PictBridge ................................................................139
Connecting the Camera to the Printer ..........................................139
Printing Single Images..................................................................140
Printing All Images........................................................................142
Printing Using the DPOF Settings ................................................143
Disconnecting the Cable from the Printer.....................................143
Recording and Playing Back Sound 144
Recording Sound (Voice Recording Mode)....................................144
Playing Back Sound .........................................................................146
Adding a Voice Memo to Images.....................................................147
Recording a Voice Memo .............................................................147
Playing Back a Voice Memo.........................................................148
Settings 149
Camera Settings................................................................................149
Formatting an SD Memory Card or the Built-in Memory ..............149
Changing the Date and Time........................................................150
Changing the Sound Settings.......................................................151
Setting the Alarm ..........................................................................153
Setting the World Time.................................................................155
Changing the Display Language ..................................................157
Changing the Image Folder Name ...............................................158
Changing the USB Connection Mode...........................................159
Changing the Video Output Format..............................................160
Adjusting the Brightness of the LCD Monitor................................161
Using the Power Saving Function ................................................162
Setting Auto Power Off.................................................................163
Changing the Start-up Screen ......................................................164
Resetting to Default Settings (Reset) ...........................................165
Displaying the Clock Mode ..............................................................166
Appendix 167
List of World Time Cities..................................................................167
Default Settings.................................................................................168
Optional Accessories .......................................................................171
Messages...........................................................................................172
Troubleshooting................................................................................174
Main Specifications ..........................................................................176
WARRANTY POLICY.........................................................................180
10
The meanings of the symbols used in this operating manual are
explained below.
1
indicates the reference page number for an explanation of the
related operation.
indicates information that is useful to know.
indicates precautions to be taken when operating the camera.
A mode
This is the mode for capturing still pictures and recording movies
and sound files. In this manual, the mode for taking still pictures
is referred to as the “Still Picture Capture mode”, the mode for
recording movies is referred to as the “C mode” and the mode for
recording sound files is referred to as the “O mode”.
Q mode
This is the mode for viewing still pictures and playing back movies
and sound files.
A, R, A, C,
O, F, q, <,
I, B, i, \, C,
E, x, X, y,
>, z, D, J
The icons above the title show the shooting modes that can
activate the function.
Ex.
R F C
Setting the Image Sharpness (Sharpness)
11
This operating manual contains the following chapters.
Composition of the Operating Manual
1 Getting Started –––––––––––––––––––––––––––––––––––––––––
This chapter explains what you need to do after purchasing the camera
before you start taking pictures. Be sure to read it and follow the
instructions.
2 Quick Start ––––––––––––––––––––––––––––––––––––––––––––
This chapter explains the simplest way to take pictures and play back
images. Use it if you want to start taking pictures or playing back images
straightaway.
3 Common Operations ––––––––––––––––––––––––––––––––––––
This chapter explains common operations such as the functions of the
buttons and how to use the menus. For more details, refer to the respective
chapters below.
4 Taking Pictures ––––––––––––––––––––––––––––––––––––––––
This chapter explains the various ways of capturing images and how to set
the relevant functions.
5 Playing Back and Deleting Images–––––––––––––––––––––––––
This chapter explains how to view still pictures and movies on the camera
or on a TV and how to delete images from the camera.
6 Editing and Printing Images ––––––––––––––––––––––––––––––
This chapter explains the various ways of printing still pictures and how to
edit images with the camera. Refer to the ACDSee for PENTAX User Guide
for instructions on how to print or edit images using a computer.
7 Recording and Playing Back Sound –––––––––––––––––––––––
This chapter explains how to record sound files or add sound (a voice
memo) to an image, and how to play back sound files.
8 Settings –––––––––––––––––––––––––––––––––––––––––––––––
This chapter explains how to set the camera-related functions.
9 Appendix––––––––––––––––––––––––––––––––––––––––––––––
This section deals with troubleshooting and lists the optional accessories.
1
3
2
4
5
6
7
8
9
12
Camera Features
In addition to basic picture-taking, the OptioWP has a variety of shooting
modes to suit different situations. This section describes how to make
the most of the key features of your camera. Together with the
explanations of camera operations, it will enable you to enjoy your
camera to the full.
The OptioWP is the only camera of its class that lets you take pictures
continuously 1.5 m underwater for 30 minutes. The lock mechanism of
the battery/card cover is designed for underwater picture-taking. (
1
p.70)
Forget Your Worries About Water Getting in the
Camera!
For taking pictures while snorkeling.
For taking pictures at the pool or while playing in a river
or lake.
For taking pictures while enjoying various outdoor
activities without worrying about your camera getting a
bit dirty. A quick wipe with a wet cloth is all it needs!
13
With the OptioWP, not only can you add a voice memo to a still picture,
but by switching to Synchro Sound Record mode, the surrounding
sounds are automatically captured until you press the shutter release
button to take the picture. A total of 20 seconds of sound, 10 seconds
before and 10 seconds after the shutter release button is pressed, are
saved. (1p.71)
The OptioWP lets you choose a
frame and display it on the screen
before you take the picture, so you
can be sure that the frame
complements your subject perfectly.
(1p.72) Of course, you can still use
the editing functions to add a frame
afterwards. (1p.130)
Record Sound Before and After Taking Pictures!
Choose a Frame Before Taking the Picture!
For recording yourself saying “Say cheese!” or “Look at
the camera”.
For including the cheers of the crowd at exciting
moments of a sporting event.
For decorating your pictures
with a frame.
14
The user-friendly design of the OptioWP enables easy operation with the
minimum number of buttons on the camera body. Simply by choosing the
appropriate icon, you can select Capture mode (
1
p.53) and choose the
optimal settings for the situation, or Playback mode (
1
p.104, p.122) and
enjoy the various playback and editing functions. Pressing the Green
button displays a guide on the LCD monitor to let you check the functions
available in each mode and how to use them. (
1
p.62)
With its compact, stylish design,
the OptioWP is just right to slip into
a pocket of your bag or hang
round your neck, so you always
have it with you, like your cell
phone. It has a useful clock
function, “Clock Mode”, for telling
the time too. (1p.166)
Easy-to-Navigate Capture and Playback
Functions!
Perfect Size for Carrying Around With You!
Press the Green button while the Mode Palette is
displayed to display the guide. (1p.62)
Use the Green mode to take pictures easily using
standard settings. (1p.64)
15
The OptioWP lets you play back and edit images without having to
connect the camera to your computer and transfer the images first. The
camera is all you need to take and edit still pictures and movies.
(1p.122) And no more worries about accidentally deleting images,
because now, with the OptioWP, you can recover them again. (1p.119)
Enjoy Playback and Editing Functions Without a
Computer!
The wide range of editing functions includes resizing
(1p.122), trimming (1p.124), changing the color
(1p.127) and adjusting the brightness (1p.128).
If your subject’s eyes appear red in the picture, you can
correct them while the image is displayed in Playback
mode. (1p.129)
You can divide a movie into two, stitch two movies
together or select a frame from a movie to save as a still
picture. (1p.132)
16
Items marked with an asterisk (∗) are also available as optional accessories.
For other optional accessories, refer to “Optional Accessories” (p.171).
Type of AC plug cord
D-CO2A Australia / D-CO24E Europe / D-CO2H Hong Kong, United Kingdom
/ D-CO24J Japan / D-CO2K Korea / D-CO24U North America, Canada
Checking the Contents of the Package
Camera
OptioWP
Strap
O-ST20 (∗)
Software (CD-ROM)
S-SW30
USB cable
I-USB7 (∗)
AV cable
I-AVC7 (∗)
Rechargeable lithium-ion
battery D-LI8 (∗)
Battery charger
D-BC8 (∗)
AC plug cord (∗) PC Connection Manual
Quick Guide
Operating Manual
(this manual)
ACDSee for PENTAX
User Guide
17
Front
Back
Names of Parts
Shutter release button
Power switch,
power indicator (green)
Microphone
Self-timer lamp (red)
Flash
Speaker
Lens
Strap lug
LCD monitor
Battery/card cover
Battery cover lock lever
Tripod socket
DC input terminal
PC/AV terminal
Battery lock lever
18
Normal Display in Still Picture Capture Mode
The display shows information such as the shooting conditions.
Names of Operating Parts
Refer to Understanding the Button Functions (p.44 - p.47) for an
explanation of the function of each button.
Monitor Indications
Shutter release button
Power switch
4/W button
3 button
Four-way controller
Q button
Zoom/w/x/f/y button
Green/i button
03/25/2005
03/25/2005
03/25/2005
14:25
14:25
14:25+1.0
+1.0
+1.0
38
38
38
1
2
3
4
5
1
3
1
4
6
8
9
11
1
2
7
1
0
19
Full Display in Still Picture Capture Mode
About the Bright and Dark Portions
When there is an area in the frame that is so bright it appears white, the
indicated area blinks red as a warning. Similarly, when there is an area
that is so dark it appears black, the indicated area blinks yellow as a
warning.
1
Shooting mode (p.53)
8
Remaining image storage
capacity
2
Flash mode (p.83)
3
Drive mode (p.72, p.77, p.78)
9
Battery indicator (p.24)
4
Focus mode (p.81)
10
Key lock icon (p.64)
5
Camera shake icon (p.79)
11
Focus frame (p.40)
6
Digital zoom icon (p.74)
12
EV compensation (p.76)
7
Memory status (p.34)
13
Date and time (p.38)
+ : Built-in memory
(without card)
14
World time setting (p.155)
a : SD Memory Card
r : Card is write-protected
1
Bright portion (blinks red)
6
Quality (p.87)
2
Dark portion (blinks yellow)
7
White balance (p.88)
3
Shutter speed
8
Sensitivity (p.92)
4
Aperture
9
Histogram (p.80)
5
Recorded pixels (p.85)
F5.6
F5.6
1/250
1/250
F5.6
1/250
+1.0
+1.0
+1.0
38
38
38
5
M
200
200
ISO
ISO
200
ISO
1
5
2
3
4
6
7
8
9
20
Full Display in Still Picture Playback Mode
The display shows information such as the shooting conditions. B1 to B9
only appear when [Histogram + Info] is selected. (1p.109)
Guide Indications
A guide to available button operations appears on the LCD monitor
during operation.
The buttons are indicated as shown below.
A1
Folder number (p.158)
A10
Four-way controller guide
A2
File number
B1
Bright portion (blinks red)
(p.19)
A3
Protect icon (p.120)
A4
Voice memo icon (p.148)
B2
Recorded pixels (p.85)
A5
Battery indicator (p.24)
B3
Quality (p.87)
A6
Volume icon (p.148)
B4
White balance (p.88)
A7
Memory status (p.34)
B5
Sensitivity (p.92)
+ :
Built-in memory
(without card)
B6
Dark portion (blinks yellow)
(p.19)
a : SD Memory Card
B7
Shutter speed
r : Card is write-protected
B8
Aperture
A8
Key lock icon (p.65)
B9
Histogram (p.80)
A9
Captured date and time (p.38)
Four-way controller (2) 2 Zoom button
Four-way controller (3) 3
4 button
Four-way controller (4) 4 Shutter release button
Four-way controller (5) 5
Green/i button |, i
3 button
F5.6
F5.6
1/250
1/250
F5.6
1/250
03/25/2005
03/25/2005
03/25/2005
100
100
-
0038
0038
100
-
0038
14:25
14:25
14:25
200
200
ISO
ISO
200
ISO
5
M
B1
A3
A4
A5
A7
B9
A9
A10
A1
A2
B2
B3
B4
B5
B6
B7
B8
A6
A
8
OK
SHUTTER
MENU
21
1
Getting Started
Getting Started
Attaching the Strap
Attach the strap (O-ST20) supplied with the camera.
1 Pass the narrow end of the strap through the strap lug.
2 Pass the other end of the strap through the loop and
pull tight.
2
1
22
1
Getting Started
Powering the Camera
Use the battery charger to charge the battery before using it in the
camera for the first time or after a long period of non-use, or when the
[Battery depleted] message appears.
1 Connect the AC plug cord to the battery charger D-BC8.
2 Plug the AC plug cord into the power outlet.
3 Place the battery in the charger so that the PENTAX
logo is visible.
The charging indicator lights red while the battery is charging
and changes to green when charging is finished.
4 Remove the battery from the battery charger when
charging is finished.
Charging the Battery
•
The time required to fully charge the battery is about 100 minutes
(max.). The appropriate ambient temperature for charging the
battery is 0°C to 40°C (32°F to 104°F). (The charging time may vary
depending on the ambient temperature and charging conditions.)
• The battery has reached the end of its service life when it starts to
run down soon after being charged. Replace with a new battery.
• Do not use the battery charger to charge batteries other than the
rechargeable lithium-ion battery D-LI8, as the charger may
overheat or be damaged.
• If the battery is inserted correctly but the charging indicator fails to
light, the battery may be faulty. Replace with a new battery.
Battery charger
Charging indicator
3
Battery
To power outlet
AC plug cord
1
2
While charging:
Lights red
Charging finished:
Lights green
23
1
Getting Started
Use the battery that is provided with the camera. Charge the battery
before using it in the camera for the first time.
1 Open the battery/card cover.
Press the battery cover lock lever in the direction of 1, slide the
battery/card cover in the direction of 2 and flip the cover open in the
direction of 3.
2 Using the side of the battery to press the battery lock
lever in the direction of 4, insert the battery with the 2
symbol pointing toward the lens.
Push the battery in until it is locked in place.
3 Close the battery/card cover.
Press the battery cover lock lever in the opposite direction to 1.
1 Open the battery/card cover.
2 Release the battery by using your finger to press the
battery lock lever in the direction of 4.
The battery will be ejected. Pull the battery out of the camera.
Installing the Battery
Removing the Battery
Do not apply excessive pressure to the front or back of the camera
when opening and closing the battery/card cover as this may dislodge
the waterproof packing. If the packing is not in the correct position, the
waterproof performance of the camera will be compromised.
Battery cover lock lever Battery lock lever
1
2
24
1
Getting Started
• Image Storage Capacity and Playback Time
(at 23°C with the LCD monitor on, the flash used for 50% of shots and the
battery fully charged)
• The still picture storage capacity is based on measuring conditions in
accordance with CIPA standards. The playback time is based on
PENTAX measuring conditions. Some deviation from the above figures
may occur in actual use depending on shooting mode and shooting
conditions.
• Battery Level Indicator
You can check the battery level by the w indicator on the LCD monitor.
• This camera uses a rechargeable lithium-ion battery D-LI8. Use of
any other type of battery may damage the camera and cause
malfunction.
• Insert the battery correctly. If the battery is incorrectly oriented,
malfunction may result.
• Do not remove the battery while the camera is turned on.
• If you do not intend to use the camera for a long time, remove the
battery.
• The date and time may be returned to the default setting if the
camera is left without the battery for a long time.
• Allow the camera to dry completely before changing the battery.
Avoid changing the battery where the camera is likely to get wet or
dirty, and make sure that your hands are dry.
Image Storage Capacity Playback Time
Approx. 180 pictures Approx. 230 min.
• In general, battery performance may temporarily deteriorate as
the temperature decreases.
• Be sure to take a spare battery with you when traveling abroad or
to a cold region, or if you intend to take a lot of pictures.
Screen Display Battery Status
w
(green) Adequate power remains.
x
(green) Battery is running low.
y
(yellow) Battery is running very low.
z
(red) Battery is exhausted.
[Battery depleted] The camera will turn off after this message appears.
25
1
Getting Started
Recycling Batteries
This symbol indicates that the battery is recyclable.
Cover the terminals with insulating tape and take the
battery to a store displaying this symbol.
The battery charger supplied with the camera is designed to switch
automatically to the voltage (100-240V) and frequency (50Hz, 60Hz) of
the electricity supply in the country or region where used.
However, electrical socket shapes differ from country to country. Before
traveling abroad, you are advised to check the socket shape in the
country of your destination (see “Main Socket Types in the Major
Countries and Regions of the World” (p.26)) and take an appropriately
shaped adapter plug with you.
The socket shape does not affect the charging method.
Charging the Battery Abroad
• Use of an off-the-shelf transformer may lead to defective
operation.
• Unplug the adapter plug from the power outlet when the battery
charger is not in use.
Type
A B BF C S
Shape
Adapter
plug
—
Adapter plug
26
1
Getting Started
Main Socket Types in the Major Countries and Regions of the
World
A B BF C S
North America U.S.A., Canada
9
Europe,
Former Soviet
Union
Iceland, Ireland, Italy, Ukraine, Austria,
Netherlands, Kazakhstan, Greece, Sweden,
Denmark, Germany, Norway, Hungary, Finland,
France, Belarus, Belgium, Rumania, Russia
9
U.K. 99
Spain 99
Switzerland, Poland, Portugal 99
Asia Taiwan, Japan 9
Sri Lanka, Maldives 9
Nepal, Bangladesh, Mongolia 9
Vietnam 99
India, Indonesia, Pakistan, Macau 99
Thailand 999
Korea 99 9
Philippines 999
Singapore, Hong Kong 99
China 99999
Malaysia 999
Oceania Australia, Tonga, New Zealand, Fiji 9
Guam 9
Tahiti 9
Central and
South
America
Colombia, Jamaica, Haiti, Panama, Bahamas,
Puerto Rico, Venezuela, Mexico
9
Brazil, Peru 99
Chile 99
Argentina 999
Middle East Israel, Iran 9
Kuwait 99
Jordan 99
Africa Canary Islands, Guinea, Mozambique, Morocco 9
Kenya, South Africa 99
Algeria 999
Egypt 999
Zambia, Tanzania 99
27
1
Getting Started
Use of the AC adapter D-AC8 (optional) is recommended if you intend to
use the camera for a long time or connect it to a PC.
1 Make sure that the camera is turned off and open the
battery/card cover.
2 Connect the DC terminal of the AC adapter to the DC
input terminal of the camera with the 2 symbol pointed
toward the LCD monitor.
3 Connect the AC plug cord to the AC adapter.
4 Plug the AC plug cord into the power outlet.
Using the AC Adapter
• Make sure that the camera is turned off before connecting or
disconnecting the AC adapter.
• Make sure that the AC plug cord and the power cord connecting
the AC adapter to the camera are inserted securely. The data may
be lost if either becomes disconnected while data being recorded
on the SD Memory Card or the built-in memory.
• Use the AC adapter with due care to avoid fire or electric shock.
Be sure to read “FOR SAFE USE OF YOUR CAMERA” (p.1)
before using the AC adapter.
• Be sure to read the operation manual accompanying the AC
adapter before using the adapter.
• The battery inside the camera is not charged by connecting the AC
adapter to the camera.
•
Do not apply excessive pressure to the front or back of the camera
when opening and closing the battery/card cover as this may dislodge
the waterproof packing. If the packing is not in the correct position, the
waterproof performance of the camera will be compromised.
4
1
AC adapter
AC plug cord
DC terminal
2
3
28
1
Getting Started
Installing the SD Memory Card
This camera uses an SD Memory Card. Captured images and sound
files are saved on the SD Memory Card if a card is inserted in the
camera. They are saved in the built-in memory if a card is not inserted.
(1p.34)
• Make sure that the camera is turned off before inserting or
removing the SD Memory Card.
• Be sure to format an SD Memory Card that is unused or has been
used on another camera. Refer to “Formatting an SD Memory
Card or the Built-in Memory” (p.149) for instructions on formatting.
• Allow the camera to dry completely before changing the SD
Memory Card. Avoid changing the card where the camera is likely
to get wet or dirty, and make sure that your hands are dry.
• Do not apply excessive pressure to the front or back of the camera
when opening and closing the battery/card cover as this may
dislodge the waterproof packing. If the packing is not in the correct
position, the waterproof performance of the camera will be
compromised.
• The still picture storage capacity varies depending on the capacity
of the SD Memory Card and the selected number of recorded
pixels and quality level. (1p.31)
•
The power indicator blinks while the SD Memory Card is being
accessed (data is being recorded or read).
SD Memory Card
Battery cover lock lever
SD Memory Card
socket
1
2
29
1
Getting Started
1 Open the battery/card cover.
Press the battery cover lock lever in the direction of 1, slide the
battery/card cover in the direction of 2 and flip the cover open in the
direction of 3.
2 Insert the SD Memory Card into the SD Memory Card
socket so that the label is facing toward the LCD
monitor.
Push the card in until it clicks. Images and sound may not be recorded
correctly if the card is not inserted all the way.
3 Close the battery/card cover.
Press the battery cover lock lever in the opposite direction to 1.
1 Open the battery/card cover.
2 Push the card into the SD Memory Card socket to eject
it.
Pull the card out.
Removing the SD Memory Card
30
1
Getting Started
Precautions When Using an SD Memory Card
• The SD Memory Card is equipped with a
write-protect switch. Setting the switch to
LOCK protects the existing data by
prohibiting recording of new data,
deletion of existing data or formatting of
the card.
r appears on the LCD monitor when the
card is write-protected.
• Care should be taken when removing the SD Memory Card immediately after
using the camera, as the card may be hot.
• Do not remove the SD Memory Card or turn the camera off while data is being
saved to the card, images or sound files are being played back, or the camera
is connected to a computer with the USB cable, as this may cause the data to
be lost or the card to be damaged.
• Do not bend the SD Memory Card or subject it to violent impact. Keep it away
from water and store away from high temperature.
• Do not remove the SD Memory Card during formatting as this may damage
the card and render it unusable.
• The data on the SD Memory Card may be deleted in the following
circumstances. PENTAX does not accept any liability for data that is deleted
(1) when the SD Memory Card is mishandled by the user.
(2) when the SD Memory Card is exposed to static electricity or electrical
interference.
(3) when the card has not been used for a long time.
(4) when the card is ejected or the battery is removed while the data on the
card is being recorded or accessed.
• The SD Memory Card has a limited service life. If it is not used for a long time,
the data on the card may become unreadable. Be sure to make a backup of
important data on a computer.
• Avoid using or storing the card where it may be exposed to static electricity or
electrical interference.
• Avoid using or storing the card in direct sunlight or where it may be exposed
to rapid changes in temperature or to condensation.
• When using an SD Memory Card with a slow recording speed, recording may
stop while you are taking movies even when there is adequate space in the
memory, or shooting and playback may take a long time.
• For information on compatible SD Memory Cards, visit the PENTAX website
or contact your nearest PENTAX Service Center.
Write-protect switch
31
1
Getting Started
Choose the number of pixels (size) and quality level (data compression
rate) of still pictures according to how you intend to use the pictures you
have taken.
Higher quality levels and numbers of pixels produce clearer images for
printing, but the resulting increase in data volume reduces the total
number of pictures that can be stored in the camera’s built-in memory or
on the SD Memory Card.
The quality of the captured photo or printed picture also depends on the
quality level, exposure compensation, resolution of the printer and a
variety of other factors, so you do not need to select more than the
required number of pixels. As a rough guide, i (1600×1200) is
adequate for making postcard-size prints. Refer to the table below for the
appropriate settings according to use.
Appropriate Number of Recorded Pixels According to Use
The default setting is f (2560×1920).
Appropriate Quality Level According to Use
The default setting is D (Better).
Choose the appropriate number of recorded pixels and quality level for
still pictures on the [A Rec. Mode] menu.
Recorded Pixels and Quality Level of Still Pictures
Recorded Pixels Use
f 2560×1920
For printing high quality photos or A4-size pictures, or
editing images on a PC.
For making postcard-size prints.
For posting on a website or attaching to e-mail.
g 2304×1728
h 2048×1536
i 1600×1200
l 1024× 768
m 640× 480
C
Best Lowest compression rate. Suitable for photo prints.
D
Better
Standard compression rate. Suitable for viewing the image
on a computer screen.
E
Good
Highest compression rate. Suitable for posting on a website
or attaching to e-mail.
Selecting the Recorded Pixels 1p.85
Selecting the Quality Level 1p.87
Clearer
32
1
Getting Started
Recorded Pixels, Quality Level and Image Storage Capacity
(Approximate numbers of pictures)
• The above figures may vary depending on the subject, shooting conditions,
shooting mode and SD Memory Card, etc.
C (Best) D (Better) E (Good)
Built-in
Memory
64MB
Built-in
Memory
64MB
Built-in
Memory
64MB
f 2560×1920
3 18 6 35 10 60
g 2304×1728
4 24 8 46 11 66
h 2048×1536
5 30 9 55 14 80
i 1600×1200
8 50158620117
l 1024× 768
18 107 33 193 42 242
m 640× 480
39 227 61 352 75 430
33
1
Getting Started
Choose the recorded pixels and frame rate according to how you intend
to use the movies you have taken.
The number of recorded pixels indicates the resolution of the image. The
higher the number of recorded pixels, the clearer the image, but the
bigger the file size.
The frame rate indicates the number of frames per second. The more
frames per second, the better the quality of the movie, but the bigger the
file size.
Choose the appropriate number of recorded pixels and frame rate in
[Movie] on the [A Rec. Mode] menu.
Appropriate Number of Recorded Pixels According to Use
The default setting is D (320×240).
Appropriate Frame Rate According to Use
The default setting is 30 fps (frames per second).
Recorded Pixels, Frame Rate and Recording Time
(Approximate recording time)
• The above figures are based on PENTAX standard shooting conditions and
may vary depending on the subject, shooting conditions and type of SD
Memory Card used.
Recorded Pixels and Frame Rate of Movies
Selecting the Recorded Pixels for Movies 1p.101
Selecting the Frame Rate 1p.102
D
(320×240)
Suitable for viewing the movie on a computer.
E
(160×120)
File size is smaller, but total recording time is increased. Suitable for
posting on a website or attaching to e-mail.
30fps
Produces high quality movies, but reduces the total recording time.
15fps
Increases the total recording time because the file size is smaller.
30fps 15fps Sound
Built-in
Memory
64MB
Built-in
Memory
64MB
Built-in
Memory
64MB
D 320×240 16 sec.
1 min.
32 sec.
30 sec.
2 min.
56 sec.
23 min.
2 sec.
132 min.
13 sec.
E 160×120
1 min.
1 sec.
5 min.
52 sec.
1 min.
52 sec.
10 min.
45 sec.
34
1
Getting Started

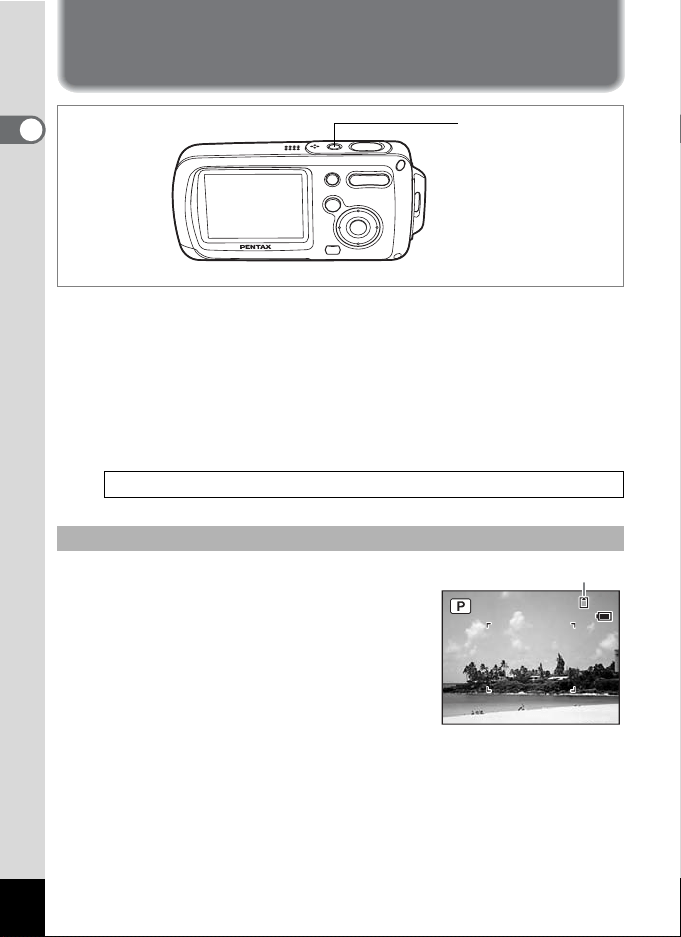

Turning the Camera On and Off
1
Press the power switch.
The camera turns on.
If the Initial Setting screen or Date Adjust screen appears when you
turn the camera on, follow the procedure on p.36 to set the display
language and/or current date and time.
2 Press the power switch again.
The camera turns off and the power indicator turns off.
The memory card is checked automatically
when the camera turns on. + appears on the
LCD monitor when there is no SD Memory
Card inserted in the camera. In this case,
images and sound files will be saved in the
built-in memory.
r appears instead of a when the write-protect
switch on the SD Memory Card is in the locked
position. Images and sound cannot be
recorded when the write-protect switch is locked.
Taking Pictures 1p.63
Checking the Memory Card
Power switch
38
38
38
03/25/2005
03/25/2005
14:25
14:25
03/25/2005
14:25
Memory status
35
1
Getting Started
Use this mode when you want to play back an image or sound file
straightaway without taking any more pictures.
Pressing the shutter release button does not change the mode to A
mode.
1 Press the power switch while holding down the Q
button.
The camera turns on in Playback Only Mode.
Playback Only Mode
To switch from Playback Only mode to A mode, turn the camera off
and then turn it on again.
Playing Back Still Pictures 1p.42
Power switch
Q button
36
1
Getting Started
Initial Settings
If the Initial Setting screen or Date Adjust screen appears when you turn
the camera on, follow the procedure below to set the display language
and/or current date and time.
If the Initial Setting screen appears
1p.37 “Setting the Display Language”
1p.38 “Setting the Date and Time”
If the Date Adjust screen appears
1p.38 “Setting the Date and Time”
If neither screen appears, setting is not required.
Four-way controller
4 button
Initial Setting
MENU
Cancel
English
OK
OK
New York
Hometown
DST
OFF
OFF
OFF
Date Adjust
MENU
Cancel
Date Style mmdd yy
Date 01/01/2005
Time
0:00
OK
OK
//
24h
37
1
Getting Started
You can choose the language in which the menus, error messages, etc.
are displayed.
1 Press the four-way controller (5).
The Language/ screen appears.
2 Use the four-way controller
(2345) to choose the display
language.
3 Press the 4 button.
The screen for setting the city and daylight
saving time appears.
4 Press the four-way controller (3).
The frame moves to [Hometown].
5 Press the four-way controller (5).
The Hometown screen appears.
6 Use the four-way controller (45)
to choose the city.
7 Press the four-way controller (3).
The frame moves to [DST] (Daylight Saving Time).
8 Use the four-way controller (45) to select O (On) or P
(Off).
9 Press the 4 button twice.
The Date Adjust screen appears.
Setting the Display Language
You can change the display language. (1p.157)
The video output format is set to the format of the country or region selected in
[Language/ ] on the Initial Setting screen. You can change the setting.
(1p.160)
English
Nederlands
Francais
Deutsch
Español
Italiano
Svenska
MENU
Cancel
OK
OK
Initial Setting
MENU
Cancel
English
OK
OK
New York
Hometown
DST
OFF
OFF
OFF
Daylight saving time
38
1
Getting Started
Set the current date and time and the display style.
1 Press the four-way controller (5).
The frame moves to [mm/dd/yy].
2 Use the four-way controller (23)
to choose the date and time
display style.
3 Press the four-way controller (5).
The frame moves to [24h].
4 Use the four-way controller (23)
to select [24h] (24-hour display) or
[12h] (12-hour display).
5 Press the four-way controller (5).
The frame returns to [Date Style].
6 Press the four-way controller (3).
The frame moves to [Date].
7 Press the four-way controller (5).
The frame moves to the month.
8 Use the four-way controller (23)
to change the month.
Change the day and year in the same
manner.
Next, change the time.
If you selected [12h] in Step 4, the setting switches between am and
pm corresponding to the time.
Setting the Date and Time
Date Adjust
MENU
Cancel
Date Style mmdd yy
Date 01/01/2005
Time
0:00
OK
OK
//
24h
Date Adjust
MENU
Cancel
Date Style mmdd yy
Date 01/01/2005
Time
0:00
OK
OK
//
24h
Date Adjust
MENU
Cancel
Date Style mmdd yy
Date 01/01/2005
Time
0:00
OK
OK
//
24h
Date Adjust
MENU
Cancel
Date Style mmdd yy
Date 01/01/2005
Time
0:00
OK
OK
//
24h
39
1
Getting Started
9 Press the 4 button.
The camera is ready to take pictures. If you set the date and time from
the [u Setting] menu, the screen will return to the menu. Press the 4
button again.
When the Initial Setting or Date Adjust screen is displayed, you can
cancel the setting operation and switch to Capture mode by pressing
the 3 button. In this case, the Initial Setting screen will appear
next time you turn the camera on.
• When you finish the settings and press the 4 button, the camera
clock is reset to 00 seconds. To set the exact time, press the 4
button when the time signal (on the TV, radio, etc.) reaches 00
seconds.
• You can change the language and date and time settings with the
menu operations. (1p.150, p.157)
40
2
Quick Start
Quick Start
Taking Still Pictures
The standard procedure for taking still pictures is described below. The
flash fires automatically depending on the light conditions.
1 Press the power switch.
The camera turns on and is ready to take
still pictures. This is called Still Picture
Capture mode.
2 Confirm the subject and shooting
information on the LCD monitor.
The focus frame in the middle of the LCD
monitor indicates the zone of automatic
focusing.
You can change the captured area by pressing the Zoom/w/x button
to the left or right.
x : enlarges the subject
w : enlarges the area captured by the camera
3 Press the shutter release button halfway.
The focus frame turns green if the subject is in focus.
4 Press the shutter release button fully.
The picture is taken.
The image appears on the LCD monitor for one second (Instant Review)
and is saved to the SD Memory Card or built-in memory. (
1
p.41)
Press the Green button to switch to the Green mode and let the
camera set all the shooting functions automatically. Selecting the
Green mode is the easiest way to ensure that pictures come out
well. (1p.64)
Power switch
Shutter release button
Zoom/w/x button
14:25
14:25
03/25/2005
03/25/2005
03/25/2005
14:25
38
38
38
Focus frame
41
2
Quick Start
The shutter release button works in a two-step action as follows.
Press halfway
The focus and exposure are locked when the shutter release button is
pressed halfway. The green focus frame lights on the LCD monitor when
the shutter release button is pressed halfway and the subject is in focus.
If the subject is out of focus, the frame will light red.
Press fully
Press the shutter release button all the way down to take the picture.
The image appears on the LCD monitor for one second (Instant Review)
immediately after it is captured. You can change the Instant Review time.
(1p.93)
You can delete the image during Instant Review by pressing the
i button.
Using the Shutter Release Button
Instant Review
[Poor focusing conditions]
The camera may not be able to focus under the following conditions.
In this case, lock the focus on an object the same distance away as
the subject (by pressing the shutter release button halfway), then aim
the camera at your subject and press the shutter release button fully.
• Objects that lack contrast such as a blue sky or white wall
• Dark places or objects, or conditions that prevent light being reflected
back
• Horizontal lines or intricate patterns
• Fast moving objects
• When there is an object in the foreground and an object in the background
in the same picture
• Strongly reflected light or strong backlighting (bright background)
42
2
Quick Start
Quick Start
Playing Back Still Pictures
1
Press the Q button after taking a
picture.
The image appears on the LCD monitor. In
this manual, this is called Q mode
(Playback mode). Displaying one image in
full in Q mode (Q mode default setting) is
called single-image display.
Press the Q button again in Q mode or
press the shutter release button halfway to
return to A mode.
1 Press the Q button after taking a picture.
The image appears on the LCD monitor.
2 Press the four-way controller (45).
The previous or next image appears.
Playing Back Images
Playing Back the Previous or Next Image
Four-way controller
Q button
Shutter release button
03/25/2005
03/25/2005
03/25/2005
14:25
14:25
14:25
100
100
-
0038
0038
100
-
0038
File number
43
2
Quick Start
1 Press the Q button after taking a picture.
The image appears on the LCD monitor.
2 Press the four-way controller (3).
The Playback Mode Palette appears.
3 Use the four-way controller
(2345) to select s (Image
Rotation).
4 Press the 4 button.
The image is rotated 90 degrees clockwise
each time the button is pressed.
5 Press the Q button.
The rotated image appears.
Press the i button while the image is
displayed to display the Delete screen. Use the
four-way controller (2) to select [Deletion] and
press the 4 button. (1p.114)

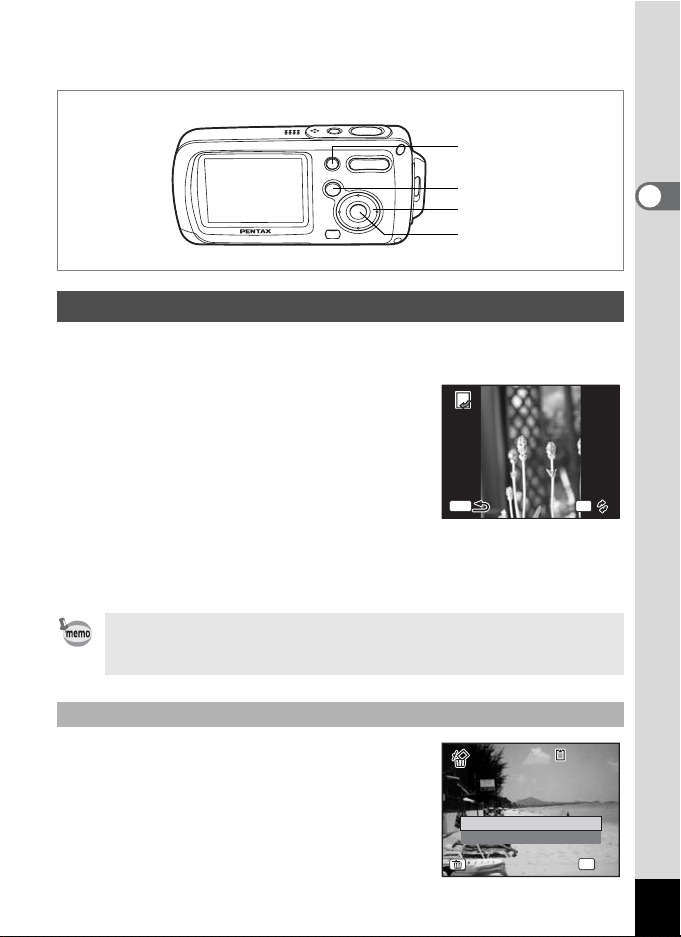

Rotating the Displayed Image
• Movies cannot be rotated.
• Protected images can be rotated, but they cannot be saved in a
rotated state.
Deleting the Displayed Image
Four-way controller
4 button
Q button
i button
MENU OK
OK
OK
OK
OK
Deletion
Cancel
100
100
-
0017
0017
100
-
0017
All Images/Sounds
All Images/Sounds
All Images/SoundsAll Images/Sounds
All Images/Sounds
All Images/Sounds
44
3
Common Operations
Common Operations
Understanding the Button Functions
1 Power switch
Turns the camera off. (1p.34)
2 Shutter release button
Focuses the camera on the subject when pressed halfway. (Except in
s, 3 and \ modes) (1p.40)
Takes the still picture when pressed down fully. (1p.40)
Starts and stops movie recording in C mode. (1p.99)
Starts and stops sound file recording in O mode. (1p.144)
3 Green button
Switches to the Green mode. (1p.64)
Calls up the assigned menu. (1p.58)
Displays an explanation of the function selected on the Mode Palette.
(1p.62)
4 Zoom/w/x/f/y button
Changes the captured area. (1p.74)
Removes/adds a shooting mode on the Capture Mode Palette.
(1p.57)
A mode
1
2
3
4
5
6
7
8
45
3
Common Operations
5 Q button
Switches to the Q mode. (1p.104)
6 Four-way controller
(2) : Changes the drive mode. (1p.72, p.77, p.78)
(3) : Displays the Capture Mode Palette. (1p.53)
(4) : Changes the flash mode. (1p.83)
(5) : Changes the focus mode. (1p.81)
(23) : Adjusts \ in \ mode. (1p.82)
7 4/W button
Changes the information displayed on the LCD monitor. (1p.79)
8 3 button
Displays the [A Rec. Mode] menu. (1p.48)
46
3
Common Operations
1 Power switch
Turns the camera off. (1p.34)
2 Shutter release button
Switches to A mode when pressed down halfway or fully. (1p.104)
3 Green/i button
Switches from single-image display to the Delete screen. (1p.114)
Switches from nine-image display to the Select & Delete screen.
(1p.116)
Displays a guide of the function selected on the Playback Mode
Palette. (1p.62)
4 Zoom/f/y button
Switches from single-image display to nine-image display when f is
pressed and to folder display when f is pressed again. Returns to the
previous display when y is pressed. (1p.105)
Enlarges the image when y is pressed during single-image display.
Returns to the previous display when f is pressed. (1p.107)
Can be used to adjust the volume during movie or sound file playback.
(1p.112, p.146)
5 Q button
Switches to A mode. (1p.104)
Q mode
1
2
3
4
5
6
7
8
47
3
Common Operations
6 Four-way controller
(2) : Plays back and pauses a movie or sound file. (1p.112,
p.146)
(3) : Displays the Playback Mode Palette. (1p.61)
Stops a movie or sound file during playback. (1p.112,
p.146)
(45) : Displays the previous or next image and sound file
during single-image display. (1p.42)
Frame forwards, frame reverses and reverses a movie
during playback. (1p.112)
Fast forwards, reverses, and moves to the index in
sound file playback. (1p.146)
(2345) : Moves the display area during zoom display. (1p.107)
Selects an image in nine-image display and a folder in
folder display. (1p.105)
7 4/W button
Changes the information displayed on the LCD monitor. (1p.109)
Returns zoom display or nine-image display to single-image display.
(1p.105, p.107)
Changes to nine-image display of the selected folder during folder
display. (1p.106)
8 3 button
Displays the [A Rec. Mode] menu during single-image display.
(1p.48)
Returns to single-image display during Playback Mode Palette display.
(1p.60)
Returns zoom display or nine-image display to single-image display.
(1p.105, p.107)
Changes to nine-image display of the selected folder during folder
display. (1p.106)
48
3
Common Operations
Setting the Camera Functions
To change the camera settings, press the
3
button to display the [
A
Rec. Mode] menu or [
u
Setting] menu. Menus for playing back and editing
images and sound files are displayed from the Playback Mode Palette.
Pressing the 3 button displays the [A Rec. Mode] menu.
Setting with the Menus
MENU
OK
SHUTTER
MENU
Rec. Mode
1/3
38
38
38
03/25/2005
03/25/2005
14:25
14:25
03/25/2005
14:25
03/25/2005
03/25/2005
03/25/2005
14:25
14:25
14:25
100
100
-
0038
0038
100
-
0038
38
38
38
03/25/2005
03/25/2005
14:25
14:25
03/25/2005
14:25
03/25/2005
03/25/2005
03/25/2005
14:25
14:25
14:25
100
100
-
0038
0038
100
-
0038
MENU
Exit
Exit
Exit
5
M
AWB
AF
ISO
AUTO
Rec. Mode
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
MENU
Exit
Exit
Exit
1/3
5
M
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
AWB
AF
ISO
AUTO
5
M
Setting
Sound
Date Adjust
Alarm
World Time
MENU
Exit
Exit
Exit
1/3
Setting
Format
Sound
01/01/2005Date Adjust
Alarm
World Time
MENU
Exit
Exit
Exit
1/3
Format
Change the
setting and go
to R mode
Press halfway
During recording During playback
Change the
setting and go
to Q mode
or
49
3
Common Operations
Ex.) To set the [Quality Level] on the [A Rec. Mode] menu
1 Press the 3 button in A
mode.
The [A Rec. Mode] menu appears.
2 Press the four-way controller (3).
The frame moves to [Recorded Pixels].
3 Press the four-way controller (3).
The frame moves to [Quality Level].
4 Press the four-way controller (5).
A pull-down menu appears with the items
that can be selected.
The pull-down menu displays only those
items that can be selected with the current
camera settings.
5 Use the four-way controller (23)
to change the setting.
The quality level changes each time the four-way controller (23) is
pressed.
A guide to available button operations appears on the LCD monitor
during menu operation.
Rec. Mode
MENU
Exit
Exit
Exit
1/3
5
M
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
AWB
AF
ISO
AUTO
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
MENU
1/3
5
M
AWB
AF
ISO
AUTO
Rec. Mode
Exit
Exit
Exit
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
Rec. Mode
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
1/3
5
M
AWB
AF
ISO
AUTO
50
3
Common Operations
6 Press the shutter release button halfway.
The setting is saved and the camera returns to capture status.
When the shutter release button is pressed fully, the picture is taken.
6 Press the Q button.
The setting is saved and the camera returns to playback status.
6 Press the 4 button or the four-way controller (4).
The setting is saved and the screen returns to Step 3.
6 Press the 3 button.
The changes are canceled and the screen returns to Step 3.
The 3 button function differs depending on the screen. Refer to
the guide indications.
Exit : Saves the current setting, exits the menu and returns
to the original screen.
: Saves the current setting and returns to Step 3.
Cancel : Cancels the current selection, exits the menu and
returns to Step 3.
To Save the Setting and Start Taking Pictures
To Save the Setting and Begin Playback of Images
To Save the Setting and Continue with Menu Operations
To Cancel the Changes and Continue with Menu Operations
MENU
MENU
MENU
51
3
Common Operations
This displays the items that can be set with the menus and provides
descriptions of each item. See the list of default settings in the Appendix
(1p.168) to decide whether you want the settings saved when the
camera is turned off and whether you want the settings returned to the
defaults when the camera is reset.
[A Rec. Mode] Menu
This menu shows the functions related to taking still pictures and
recording movies.
Menu List
Item Description Page
Recorded Pixels
For choosing the number of recorded pixels of still
pictures
p.85
Quality Level For choosing the quality level of still pictures p.87
White Balance
For adjusting the color balance according to the light
conditions
p.88
AF
Setting
Focusing
Area
For changing the area of the autofocus p.90
Focus
Limiter
For limiting the lens movement area according to the
conditions
p.90
Sensitivity For setting the sensitivity p.92
EV Compensation For adjusting the overall brightness of the picture p.76
Movie
Recorded
Pixels
For choosing the number of recorded pixels of movies p.101
Frame Rate
For setting the frame rate (number of frames per
second)
p.102
Color Mode For choosing a color mode for movies p.103
Digital Zoom For choosing whether to use the digital zoom function p.75
Instant Review For setting the Instant Review time p.93
Memory
For choosing whether to save the set values of the
shooting function or return to the defaults when the
camera is turned off
p.97
Sharpness For choosing sharp or soft outlines p.94
Saturation For setting the color saturation p.95
Contrast For setting the image contrast level p.96
52
3
Common Operations
[u Setting] Menu
• Use the Green mode to enjoy easy picture-taking using standard
settings, regardless of the settings in the [A Rec. Mode] menu.
(1p.64)
• Assigning frequently used functions to the Green button enables
you to go straight to the menu. (1p.58)
Item Description Page
Format For formatting the SD Memory Card or built-in memory p.149
Sound
For adjusting the playback volume and setting the
start-up sound, shutter sound, key operation sound
and self-timer sound
p.151
Date Adjust For adjusting the date, time, and date and time styles p.150
Alarm For setting the alarm p.153
World Time For setting the world time p.155
Language/
For setting the language in which menus and
messages appear
p.157
Folder Name
For choosing how names are assigned to folders for
storing images and sound files
p.158
USB Connection For setting the USB cable connection (to PC or printer) p.159
Video Out For setting the output format to the AV equipment p.160
Brightness Level For changing the brightness of the LCD monitor p.161
Power Saving
For setting the time until the camera enters power-
saving mode
p.162
Quick Zoom
For displaying an image at maximum magnification by
pressing y on the Zoom/f/y button.
p.108
Auto Power Off
For setting the time until the camera turns off
automatically
p.163
Green Button For assigning a function to the Green button p.58
Reset
For returning settings other than the date and time,
language, world time, video out and the shooting
modes assigned to the Capture Mode Palette and the
order in which they appear to their defaults
p.165
53
3
Common Operations
The OptioWP has a variety of shooting modes that let you take pictures
or record movies and sound in different situations simply by choosing the
right mode for the particular situation from the Capture Mode Palette.
1 Press the four-way controller (3) in A mode.
The Capture Mode Palette appears.
2 Use the four-way controller
(2345) to choose a shooting
mode.
Choose a shooting mode and press the
Green button to display a guide of the
shooting mode. (1p.62)
3 Press the 4 button.
The shooting mode is selected and the
camera returns to capture status.
Setting the Shooting Mode
In shooting modes other than R, C, O and F, the flash, focus,
saturation, contrast, sharpness, white balance etc. are automatically
set to the optimal settings for each mode.
1, 2
3
Change
Change
Guide
Guide
Guide
Change
Landscape
Landscape
Landscape
OK
OK
OK
OK
38
38
38
14:25
14:25
03/25/2005
03/25/2005
03/25/2005
14:25
54
3
Common Operations

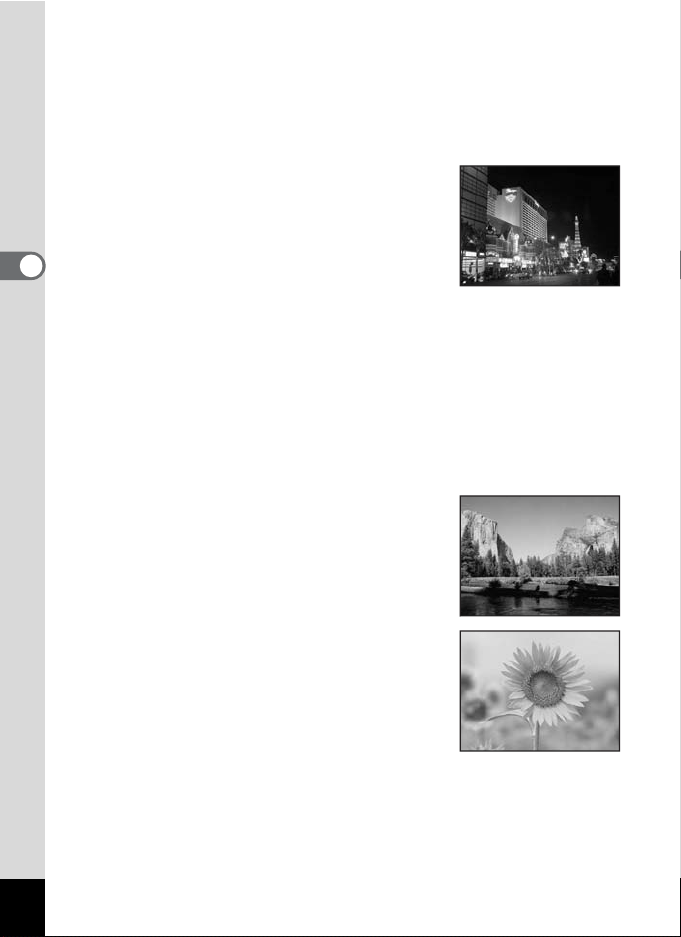

There are 20 available shooting modes.
1 R Program
The basic picture-taking mode. You can let the camera set the
functions or choose various functions yourself.
2 A Night Scene
Ideal for taking night views. It is best to use a
tripod in this mode. Use the flash if including
people in your picture.
3 C Movie
Use this mode for taking movies. Sound is recorded at the same time.
4 O Voice Recording
Use this mode to record sound files. Be careful not to cover the
microphone on the top of the camera with your hand.
5 F Panorama Assist
For capturing images to make a panoramic image. Use the supplied
software to join images easily.
6 q Landscape
Use this mode for taking landscape views. The
focus encompasses a wide area.
7 < Flower
Use this mode for taking bright, colorful
pictures of flowers with soft outlines.
55
3
Common Operations
8 I Portrait
Use this mode for taking pictures of people.
Gives your subject a bright, healthy look.
9 B Underwater
Use this mode for taking pictures underwater.
Captures the blueness of the sea.
0 i Surf & Snow
For capturing images with dazzling
backgrounds, such as beaches or snowy
mountains.
a \ Sport
Ideal for taking fast-moving action shots. The
camera keeps the moving subject in focus
until the shutter release button is pressed.
b C Synchro Sound Record
Automatically records the sound 10 sec. before and after the shutter is
released.
c E Pet
Ideal for taking pictures of pets. The camera
keeps the moving pet in focus until the shutter
release button is pressed. You can select
settings according to the color of your pet’s
coat.
56
3
Common Operations
d x Candlelight
Ideal for capturing a candlelit atmosphere. The
number of recorded pixels is set at 1280×960.
e X Soft
For taking pictures with soft, blurred outlines.
f y Fireworks
Use this mode to take spectacular pictures of
fireworks. It is best to use a tripod as the
shutter speed is fixed at 4 sec.
g S Self-portrait
Use this mode to take pictures of yourself or
include yourself in pictures. The camera
adjusts the focus and color.
h z Natural Skin Tone
Adjusts the color and brightness to reproduce
skin tone more beautifully than Portrait mode.
i D Food
Use this mode for taking pictures of food. The
increased saturation gives pictures a bright,
vivid finish.
57
3
Common Operations
j J Museum
For taking pictures in museums and art
galleries where flash photography is not
permitted. Take care to avoid camera shake.
In addition to the Green mode, this camera has 20 shooting modes, of
which 15 are assigned to the Capture Mode Palette.
You can change the modes that appear on the Palette.
1 Press the four-way controller (3)
in A mode.
The Capture Mode Palette appears.
2 Use the four-way controller
(2345) to choose the shooting
mode you want to remove.
3 Press y on the Zoom/f/y
button.
The shooting mode selection screen
appears.
4 Use the four-way controller (45)
to choose the mode icon you want
to add and press the 4 button.
The selected mode icon is added to the Mode Palette.
Use the Capture mode to assign shooting modes to the Capture Mode
Palette. In default status, the 15 shooting modes from
1
to
e
are
assigned to the palette. You can change the modes on the palette.
Changing the Shooting Mode Icons
• Choose a shooting mode and press the Green button to display a
guide of the shooting mode. (1p.62)
• The shooting modes assigned to the Capture Mode Palette and
the order in which they appear are not returned to their defaults by
selecting [Reset] on the [u Setting] menu.
OK
Change
Change
OK
OK
Guide
Guide
Guide
Change
Program
Program
Program
OK
Cancel
Cancel
OK
OK
Guide
Guide
Guide
Cancel
Program
Program
Program
OK
OK
Night Scene
Night Scene
Night Scene
MENU
58
3
Common Operations
When you assign functions to the Green button, pressing the Green
button displays the menus one after another. This is useful for going
straight to the setting screens of frequently used functions such as EV
Compensation, Sensitivity and White Balance.
1 Select [Green Button] on the [u Setting] menu.
2 Press the four-way controller (5).
The Green Button screen appears.
3 Use the four-way controller (23)
to choose a number.
4 Press the four-way controller (5).
A pull-down menu appears.
5 Choose a function and press the
4 button.
6 Repeat Steps 3 to 5 to register the
necessary functions.
7 Press the shutter release button halfway.
The setting is saved and the camera returns to capture status.
Calling Up a Specific Menu
• The following functions can be assigned to the Green button:
Green Mode, Recorded Pixels, Quality Level, White Balance,
Focusing Area, Focus Limiter, Sensitivity, EV Compensation,
Sharpness, Saturation and Contrast.
• The default setting is Green mode in [1] and no function in [2], [3]
or [4].
• The setting is returned to the default setting by selecting [Reset]
on the [u Setting] menu.
•
The functions assigned to the Green button can be used in the usual
manner on the original menus ([
A
Rec. Mode] and [
u
Setting]).
• You cannot save different settings for the same function on the
Green button and on the original menu.
Assigning a Function to the Green Button
Green Button
1
Green Mode
2 Off
3 Off
4
Off
MENU
Green Button
Green Mode
1
MENU
Cancel
OK
OK
2 Recorded Pixels
3 Quality Level
4 White Balance
Focusing Area
Focus Limiter
59
3
Common Operations
1 Press the Green button in A mode.
The function assigned to [1] in [Green
Button] on the [u Setting] menu is called up.
2 Press the Green button again.
The function assigned to [2] is called up.
While the screen at right is displayed, use
the Green button to recall functions
allocated to [3] and [4].
3 Change the settings and press the
4 button.
The camera returns to capture status.
Using the Green Button
• If the Green mode has been assigned to the Green button, the
camera enters the Green mode one second after the Green button
is pressed (1p.64).
• If a function other than the Green mode has been assigned to the
Green button, the camera returns to the original screen if no
operation is performed for five seconds after the Green button is
pressed.
Green Mode
Green Mode
Green Mode
EV Compensation
EV Compensation
EV Compensation
Next function assigned
to Green button
EV Compensation
EV Compensation
Recorded Pixels
Recorded Pixels
EV Compensation
0.0
0.0
0.0
Recorded Pixels
60
3
Common Operations

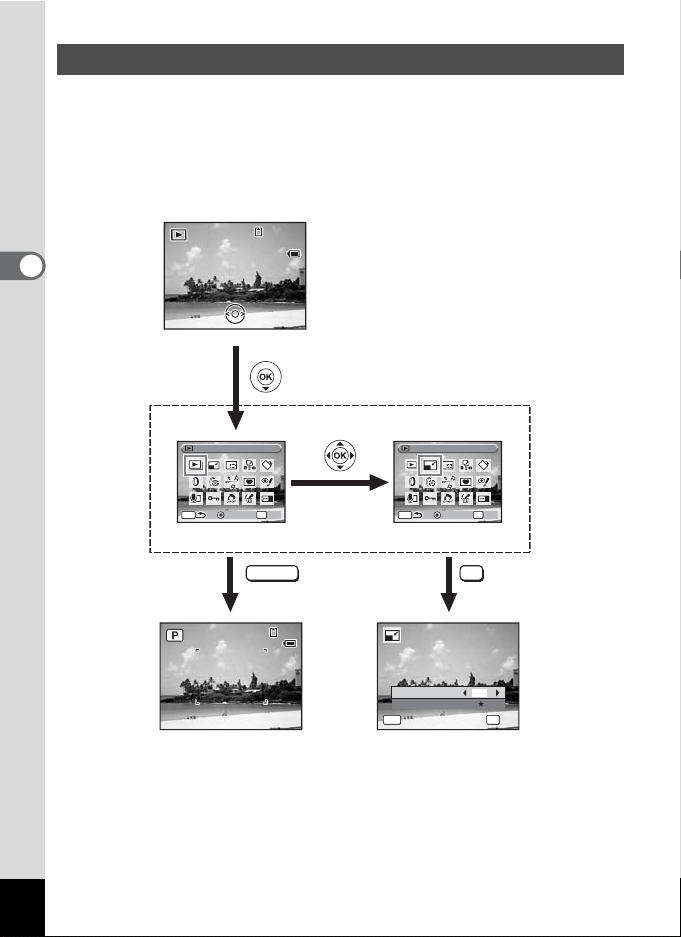

Press the four-way controller (3) in Playback mode to display the
Playback Mode Palette.
You can display the playback function you want to use simply by using
the four-way controller (2345) to choose an icon and pressing the
4 button.
Setting the Playback Mode
SHUTTER OK
03/25/2005
03/25/2005
03/25/2005
14:25
14:25
14:25
100
100
-
0038
0038
100
-
0038
OK
OK
OK
Slideshow
Slideshow
Slideshow
OK
OK
OK
OK
Resize
Resize
Resize
OK
38
38
38
03/25/2005
03/25/2005
14:25
14:25
03/25/2005
14:25
OK
OK
OK
OK
Quality Level
MENU
Recorded Pixels
5
M
Guide
Guide
Guide
MENU
Guide
Guide
Guide
Cancel
Cancel
Cancel
MENU
Go to screen for selected
playback function.
Close the Playback Mode
Palette and go to A mode.
61
3
Common Operations
Playback Mode Palette
Item Description Page
u
Slideshow
For playing back recorded images one after
another
p.110
n
Resize
For changing the recorded pixels and quality of
images
p.122
o
Trimming For deleting the unneeded part of a picture p.124
p
Image/Sound Copy
For copying images and sound files from the
built-in memory to the SD Memory Card and
vice versa
p.125
s
Image Rotation For rotating still pictures p.43
D
Digital Filter For changing the color of still pictures p.127
q
Brightness Filter For changing the brightness of still pictures p.128
[
Movie Edit
Save as Still
For saving one frame from a movie as a still
p.133
Divide Movies For dividing a movie into two p.134
Stitch Movies For joining two movies together p.135
Y
Frame Composite For adding a decorative frame to a still picture p.130
Z
Red-eye
Compensation
For correcting still pictures where the flash has
caused the subject to appear with red eyes
p.129
\
Voice Memo For adding a voice memo to still pictures p.147
Z
Protect
For protecting images and sound files from
accidental deletion
p.120
r
DPOF
For setting the DPOF print order data for still
pictures
p.136
]
Image Recovery For recovering deleted images p.119
^
Start-up Screen For setting the start-up screen p.164
62
3
Common Operations
Selecting a mode on the Capture Mode Palette or Playback Mode
Palette and pressing the Green button displays an explanation of the
selected item.
1 Press the four-way controller (3) in A mode.
The Capture Mode Palette appears.
Press the four-way controller (3 ) in Q mode to display the Playback
Mode Palette.
2 Use the four-way controller
(2345) to choose a shooting
mode.
3 Press the Green button.
A guide of the selected shooting mode
appears.
4 Press the 4 button.
The camera returns to capture status with
the selected shooting mode.
Viewing a Guide of the Shooting and Playback Modes
Press the Green button while the guide is displayed to return to the
Capture Mode Palette or Playback Mode Palette.
Change
Change
Guide
Guide
Guide
Change
Landscape
Landscape
Landscape
OK
OK
OK
OK
OK
OK
OK
OK
Landscape
Landscape
Landscape
For capturing
landscape views.
The camera
focuses on a
wide range.
63
4
Taking Pictures
Taking Pictures
Taking Pictures
R
In R (Program) mode, the camera automatically sets the shutter speed
and aperture for taking still pictures. However, you can select other
functions such as the flash mode and recorded pixels.
1 Press the power switch.
The camera turns on and is ready to take still pictures.
2 Set the functions you want to use.
Refer to “Setting the Shooting Functions”
(p.81 - p.96) for details of how to set the
functions.
3 Press the shutter release button
halfway.
The focus frame on the LCD monitor turns
green if the subject is in focus.
4 Press the shutter release button fully.
The picture is taken.
Letting the Camera Choose the Optimal Settings
(Program Mode)
If a shooting mode other than R mode has been selected, select
R mode from the Capture Mode Palette. (1p.53)
Taking Still Pictures 1p.40
1
3, 4
38
38
38
14:25
14:25
03/25/2005
03/25/2005
03/25/2005
14:25
64
4
Taking Pictures
A
In the Green mode, you can enjoy easy picture-taking using standard
settings
∗
, regardless of the settings in the [A Rec. Mode] menu.
1 Press the Green button in A
mode.
The camera switches to the Green mode.
Press the Green button again to return to
the status before the Green mode was
selected.
2 Press the shutter release button
halfway.
The focus frame turns green if the subject is in focus.
3 Press the shutter release button fully.
The picture is taken.
Taking Pictures in the Basic Mode (Green Mode)
2, 3
1
38
38
38
14:25
14:25
03/25/2005
03/25/2005
03/25/2005
14:25
65
4
Taking Pictures
∗
The Green mode settings are as shown below.
• If any other functions have been assigned to the Green button, the
menus appear in sequence each time the button is pressed.
(1p.59)
• In Green mode, you cannot change the information displayed on
the LCD monitor by pressing the 4 button.
• You cannot use the [A Rec. Mode] menu or Capture Mode
Palette in Green mode. If you try to display the [A Rec. Mode]
menu or Capture Mode Palette, - (key lock icon) appears.
• If you switched to Q mode from Green mode, you cannot display
the [A Rec. Mode] menu by pressing the 3 button. If you try
to display the [A Rec. Mode] menu, - (key lock icon) appears.
• When the camera is turned off in the Green mode, it turns on in the
Green mode next time the power switch is pressed.
Flash Mode , (Auto)
Drive Mode 9 (Standard)
Focus Mode = (Autofocus)
Information Display Standard
Recorded Pixels f (h for Frame Composite function)
Quality Level D (Better)
White Balance F (Auto)
Focusing Area J (Multiple)
Focus Limiter O (On)
Sensitivity Auto
EV Compensation ±0.0
Digital Zoom O (On)
Instant Review 1sec
Sharpness G (Standard)
Saturation G (Standard)
Contrast G (Standard)
66
4
Taking Pictures
A x y
You can choose settings appropriate for taking pictures of dark scenes,
such as nightscapes.
1 Press the four-way controller (3) in A mode.
The Capture Mode Palette appears.
2 Use the four-way controller (2345) to select A
(Night Scene), x (Candlelight) or y (Fireworks).
3 Press the 4 button.
The shooting mode is selected and the camera returns to capture status.
4 Press the shutter release button halfway.
The focus frame turns green if the subject is in focus.
5 Press the shutter release button fully.
The picture is taken.
Taking Pictures of Dark Scenes
(Night Scene/Candlelight/Fireworks Mode)
A
Use this mode when taking pictures of night views.
x
This mode is ideal for capturing a candlelit atmosphere.
y
Use this mode to take spectacular pictures of fireworks.
• The shutter speed is slower when taking pictures of dark scenes.
• To prevent camera shake, use a tripod and the self-timer function.
(1p.77)
• The number of recorded pixels is set at 1280×960 in x mode.
• You can assign the y mode to the Capture Mode Palette if it does
not appear there already. (1p.57)
• The sensitivity is set at 50 in y mode.
4, 5
1, 2
3
67
4
Taking Pictures
E F F (H G G)
Use this mode to keep your moving pet in focus while you take the
picture and capture the color of your pet’s coat. Choose the appropriate
icon depending on what color your pet is (closer to black or white or in
between).
1 Press the four-way controller (3) in A mode.
The Capture Mode Palette appears.
2 Use the four-way controller (2345) to select E (Pet).
3 Press the 4 button.
The Pet mode selection screen appears.
4 Use the four-way controller (23)
to select E, F, F, H, G or G.
There are two icons of a cat and a dog.
(Choosing either the cat or dog icon does
not affect the resulting picture. Choose
whichever you prefer.)
5 Press the 4 button.
The Pet mode is selected and the camera
returns to capture status.
6 Press the shutter release button
halfway.
The focus frame turns green if the subject is
in focus.
7 Press the shutter release button fully.
The picture is taken.
Taking Pictures of Your Pet (Pet Mode)
6, 7
1, 2, 4
3, 5
OK
OK
OK
OK
38
38
38
14:25
14:25
03/25/2005
03/25/2005
03/25/2005
14:25
68
4
Taking Pictures
F
You can take a number of images and join them together to form a
panorama picture. The panorama software (ACDSee for PENTAX, ACD
photostitcher) on the CD-ROM (S-SW30) supplied with the camera and
a computer are necessary for joining the images. The Panorama Assist
mode enables you to overlap the edges of the images so that they are
easier to join together later into a panorama picture.
1 Press the four-way controller (3) in A mode.
The Capture Mode Palette appears.
2 Use the four-way controller (2345) to select F
(Panorama Assist).
3 Press the 4 button.
4 Use the four-way controller to
choose the direction in which the
images will be joined.
4 : Joins the images at the left.
5 : Joins the images at the right.
2 : Joins the images at the top.
3 : Joins the images at the bottom.
The example shows the images when 5 is selected.

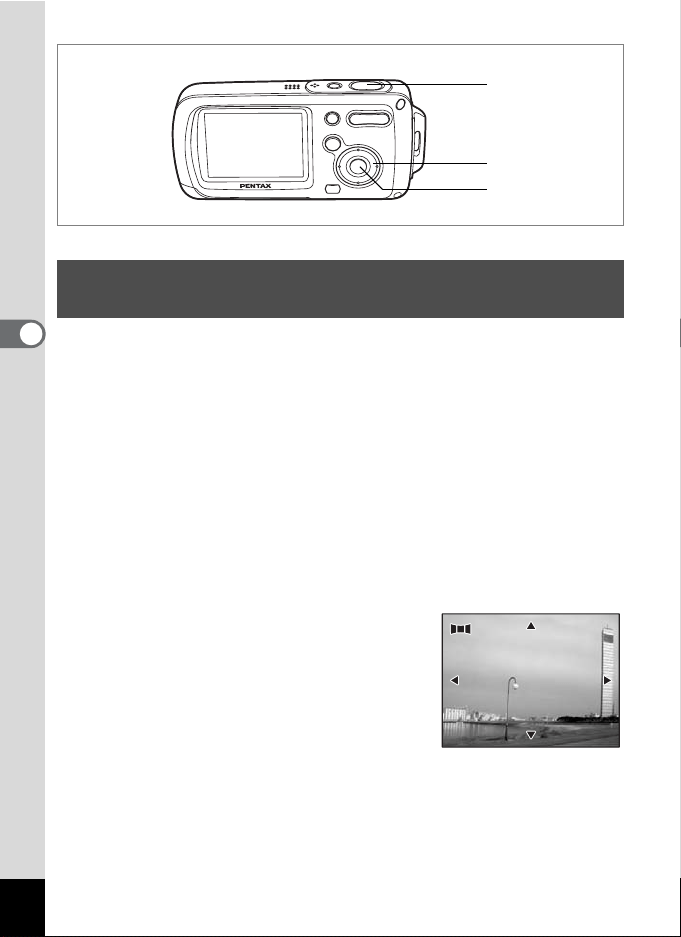

Taking Panorama Pictures
(Panorama Assist mode)
5, 6
1, 2, 4, 6
3
Set shift direction
Set shift direction
Set shift direction
69
4
Taking Pictures
5 Take the first image.
Press the shutter release button fully to take
the first image. The right edge of the image
appears in semi-transparent form on the left
of the LCD monitor.
6 Move the camera to the right and
take the second image.
Move the camera until the semi-transparent
image and the actual view overlap and
press the shutter release button. Repeat
Steps 5 and 6 to take the third and
subsequent images.
The camera cannot join the images. Use the panorama software
supplied with the camera (ACDSee for PENTAX, ACD
photostitcher). Refer to the ACDSee for PENTAX User Guide for
instructions on stitching images.
38
38
38
14
14
:25
:25
14:25
03/25/2005
03/25/2005
03/25/2005
37
37
37
14
14
:25
:25
14:25
03/25/2005
03/25/2005
03/25/2005
70
4
Taking Pictures
B
This camera has a waterproof capability equivalent to JIS Class 8
protection (IPX8) and can be used to take pictures at a depth of 1.5 m
continuously for 30 minutes.
Use the Underwater mode to take underwater pictures that capture the
blueness of the sea.
1 Press the four-way controller (3) in A mode.
The Capture Mode Palette appears.
2 Use the four-way controller (2345) to select B
(Underwater).
3 Press the 4 button.
The Underwater mode is selected and the camera returns to capture
status.
4 Press the shutter release button halfway.
The focus frame turns green if the subject is in focus.
5 Press the shutter release button fully.
The picture is taken.
Taking Underwater Pictures (Underwater Mode)
• Before taking pictures underwater, make sure that there is no dirt
or sand on the waterproof packing of the battery/card cover and
check that the cover is securely locked. (1p.23)
• Before opening the battery/card cover after using the camera
underwater, make sure that there is no water, dirt or sand on the
battery/card cover or anywhere on the camera. Wipe the camera
before opening the cover.
Waterproof Function 1p.5
4, 5
1, 2
3
71
4
Taking Pictures
C
This mode lets you record a total of 20 seconds of sound with a still
picture, 10 seconds before and 10 seconds after you press the shutter
release button.
1 Press the four-way controller (3) in A mode.
The Capture Mode Palette appears.
2 Use the four-way controller (2345) to select C
(Synchro Sound Record).
3 Press the 4 button.
The Synchro Sound Record mode is selected and the camera returns
to capture status.
4 Press the shutter release button halfway.
The focus frame turns green if the subject is in focus.
5 Press the shutter release button
fully.
The picture is taken.
A countdown of the recording time appears
on the Instant Review screen.

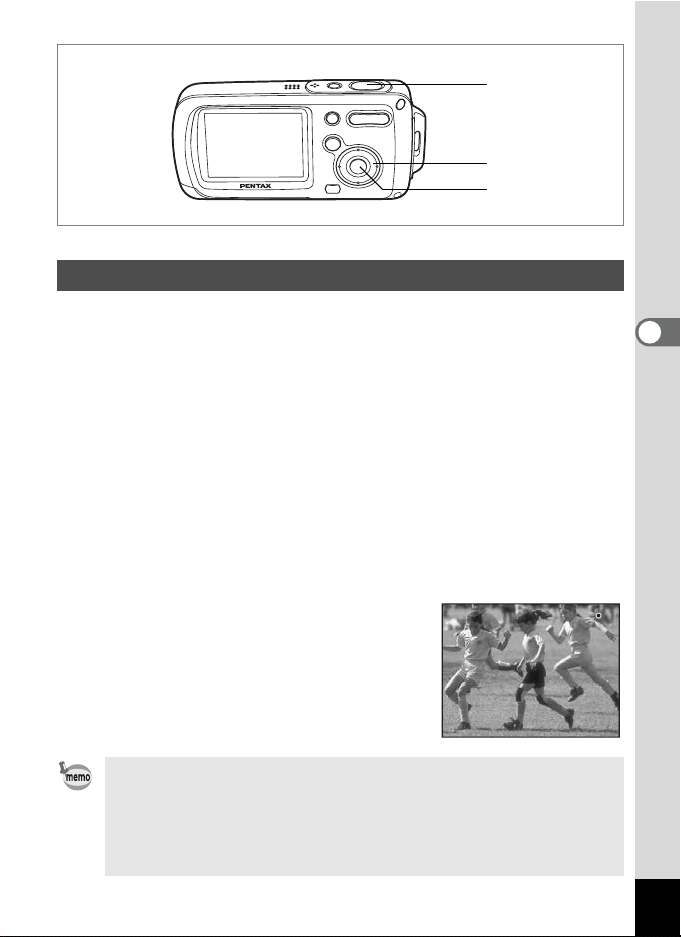

Taking Still Pictures with Sound (Synchro Sound Record)
• You can play back sound recorded in Synchro Sound Record
mode in the same way as playing a voice memo. (1p.148)
• If you press the shutter release button fully while the camera is
recording sound after taking the picture, the camera immediately
switches to capture status, so the time that sound is recorded may
be reduced.
4, 5
1, 2
3
Recording
Recording
Recording
33
72
4
Taking Pictures
A R A q < I B i \ C E x X y > z D J
In this mode you can take pictures using the frames stored in the
camera. There are three frames already stored in the camera.
1 Press the four-way controller (2) in A mode.
The drive mode selection screen appears.
2 Use the four-way controller (45)
to select Y (Frame Composite)
and press the 4 button.
The frame selection screen appears.
3 Use the four-way controller (45)
to choose the frame you want to
use and press the 4 button.
The frame appears on the screen.
Framing Your Pictures
4, 5
1, 2, 3
2, 3
Drive Mode
Drive Mode
Frame Composite
Frame Composite
Drive Mode
Frame Composite
OK
OK
OK
OK
OK
OK
OK
Change
Change
OK
Select the frame
Select the frame
for composite
for composite
Select the frame
for composite
Change
38
38
38
03/25/2005
03/25/2005
14:25
14:25
03/25/2005
14:25
73
4
Taking Pictures
4 Press the shutter release button halfway.
The focus frame turns green if the subject is in focus.
5 Press the shutter release button fully.
The picture is taken.
• The frame function is not available in C, F or O mode.
• Press the 3 button in the frame selection screen to display
the [A Rec. Mode] menu.
• The frames used in this function are stored in the camera’s built-
in memory. They can be replaced with frames from the SD
Memory Card by pressing the Green button in the frame selection
screen. (1p.131)
• The number of recorded pixels is fixed at h when taking pictures
using the frame function.
74
4
Taking Pictures
A R A C F q < I B i \ C E x X y > z D J
You can use the zoom to change the captured area.
1 Press the Zoom/w/x button in A
mode.
x Tele : enlarges the subject
w Wide : enlarges the area captured by
the camera
The zoom bar indicates the current level of
magnification.
When the digital zoom function is set to P
(Off), you can take pictures at up to three
times magnification using the optical zoom.
When the digital zoom function is set to O
(On), you can combine it with the optical
zoom to enlarge the subject to a maximum
magnification equivalent to 12 times.
Using the Zoom
• You are recommended to use a tripod to prevent camera shake
when taking pictures at a high magnification rate.
• Pictures taken in the digital zoom range appear grainier than
pictures taken in the optical zoom range.
1
38
38
38
38
38
38
Press x
Optical zoom
range
Digital zoom
range
Zoom bar
75
4
Taking Pictures
The digital zoom is set to O (On) in the default settings. To take pictures
using only the optical zoom, set the digital zoom to P (Off).
1 Press the 3 button in A mode.
The [A Rec. Mode] menu appears.
2 Use the four-way controller (23) to select [Digital
Zoom].
3 Use the four-way controller (45)
to select O (On) or P (Off).
4 Press the shutter release button
halfway.
The digital zoom function setting is saved
and the camera returns to capture status.
Setting the Digital Zoom
Saving the Digital Zoom Function Setting 1p.97
EV Compensation
Movie
Digital Zoom
Instant Review
Memory
MENU
Rec. Mode
Exit
Exit
Exit
2/3
0.0
QUICK
76
4
Taking Pictures
R A C F q < I B i \ C E x X > z D J
You can adjust the overall brightness of the picture.
Use this function to take pictures that are intentionally overexposed or
underexposed.
1
Press the
3
button in
A
mode.
The [A Rec. Mode] menu appears.
2 Use the four-way controller (23)
to select [EV Compensation].
3 Press the four-way controller
(45).
You can change the EV setting.
To brighten, select a positive (+) value. To darken, select a negative
(–) value.
You can choose the EV setting in the range of –2.0 EV to +2.0 EV in
1/3 EV steps.
4 Press the 4 button.
The EV compensation value is saved and the camera returns to
capture status.
Setting the Exposure (EV Compensation)
• If you use the EV compensation function frequently, you can save
time by assigning it to the Green button. (1p.58)
• When the histogram is displayed, bright portions and dark portions
are indicated on the LCD monitor, enabling you to check the
exposure. (1p.79)
Saving the EV Compensation Value 1p.97
Rec. Mode
MENU
Exit
Exit
Exit
1/3
5
M
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
AWB
AF
ISO
AUTO
2, 3
1
MENU
4
EV Compensation
Movie
Rec. Mode
Exit
Exit
Exit
0.0
MENU
2/3
0.0
Digital Zoom
Instant Review
Memory
QUICK
77
4
Taking Pictures
A R A C F q < I B i \ C E x X y > z D J
In Self-timer mode, the picture is taken ten seconds or two seconds after
the shutter release button is pressed.
1 Press the four-way controller (2) in A mode.
2 Use the four-way controller
(453) to select g or r and press
the 4 button.
The camera is ready to take the picture
using the self-timer.
3 Press the shutter release button
halfway.
The focus frame turns green if the subject is in focus.
4 Press the shutter release button fully.
The picture is taken ten seconds or two seconds later.
Using the Self-timer
g
Use this mode when you want to be included in a group picture.
The picture is taken approximately ten seconds after the shutter release
button is pressed.
Z
Use this mode to avoid camera shake when the shutter release button is pressed.
The picture is taken approximately two seconds after the shutter release button
is pressed.
Focusing may be compromised if you move the camera while the
self-timer lamp is blinking when taking still pictures.
•In C mode, recording will start after ten seconds (or two seconds).
• Press the shutter release button halfway while the self-timer is
engaged to stop the countdown and press fully to restart the
countdown.
3, 4
1, 2
2
Drive Mode
Drive Mode
Self-timer
Self-timer
Drive Mode
Self-timer
OK
OK
OK
OK
78
4
Taking Pictures
R q < I B i \ C E > z D J
In this mode, pictures are taken continuously for as long as the shutter
release button is pressed.
1 Press the four-way controller (2) in A mode.
2
Use the four-way controller (
453
)
to select
1
(Continuous Shooting) or
c
(HS Cont. Shooting) and press the
4
button.
The camera is ready to take a series of pictures.
3
Press the shutter release button halfway.
The focus frame turns green if the subject is
in focus.
4
Press the shutter release button fully.
Pictures are taken continuously for as long as you keep the shutter
release button pressed.
Taking a Series of Pictures (Continuous Shooting
Mode/High Speed Continuous Shooting Mode)
1
Each time a picture is taken, the image is saved in the memory before the next
image is taken. The higher the image quality, the longer the interval between shots.
c
Pictures are taken continuously at a speed of 3 frames per second until the
buffer memory is full.
• The flash will not discharge in Continuous Shooting and High Speed
Continuous Shooting mode.
• The continuous shooting function is not available in A, C, F, x,
X or y mode.
• You can continue shooting until the memory capacity of the SD
Memory Card or built-in memory is full.
• The interval of continuous shooting will vary according to the
Recorded Pixels and Quality Level settings.
• The number of recorded pixels is fixed at 1280×960 in high speed
continuous shooting mode.
• The focus, exposure and white balance are locked with the first image.
3, 4
1, 2
2
Drive Mode
Drive Mode
Continuous Shooting
Continuous Shooting
Drive Mode
Continuous Shooting
OK
OK
OK
OK
HS
79
4
Taking Pictures
Displaying Shooting Information in
Capture Mode
The LCD monitor display changes in the following sequence each time
you press the 4 button: Normal Display, Histogram + Info, No Icons,
Backlight Off.
For details of each display mode, refer to “Monitor Indications” (p.18).
• All the camera buttons function as normal even when the backlight
is off. Press the shutter release button to take pictures as normal.
• e appears when camera shake is likely to occur. To prevent
camera shake, use a tripod and the self-timer function. (1p.77)
OK
OK
OK
OK
03/25/2005
03/25/2005
03/25/2005
14:25
14:25
14:25+1.0
+1.0
+1.0
38
38
38
F5.6
F5.6
1/250
1/250
F5.6
1/250
+1.0
+1.0
+1.0
38
38
38
5
M
200
200
ISO
ISO
200
ISO
Histogram + Info
No Icons
Normal Display
Backlight Off
80
4
Taking Pictures
A histogram is a graph showing the brightness distribution of the image,
with the brightness on the horizontal axis (darkest at the left and
brightest at the right) and the number of pixels on the vertical axis.
The shape of the histogram tells you whether the exposure of the image
is correct or not. If the exposure is correct, the graph peaks in the middle.
If the image is too dark, the peak is on the left side, and if it is too bright,
the peak is on the right side.
With the OptioWP, you can check the brightness distribution of the
image by displaying it on the LCD monitor as well as by referring to the
histogram. Bright portions (where the image is so bright that it is totally
white) blink red on the LCD monitor and dark portions (where the image
is so dark that it is totally black) blink yellow. (1p.19)
Using the Histogram
81
4
Taking Pictures
Setting the Shooting Functions
A R A C F q < I B i \ C E x X > z D J
Focus Mode
1 Press the four-way controller (5)
in A mode.
The focus mode changes each time the
button is pressed. You can also change the
setting using the four-way controller (23).
2 Press the 4 button.
The focus mode setting is saved and the
camera returns to capture status.
Selecting the Focus Mode
=
Autofocus
Use this mode when the distance to the subject is 40cm
(16 in.) or more. The camera is focused on the subject in
the autofocus area when the shutter release button is
pressed halfway.
q
Macro mode
This mode is used when the distance to the subject is
approx. 1 cm to 60 cm (0.4 in. to 24 in.). The camera is
focused on the subject in the autofocus area when the
shutter release button is pressed halfway.
s
Infinity-landscape
mode
This mode is used for taking distant objects. The flash is
set to a (flash off).
3
Pan focus
This mode is used when you ask someone to take
pictures for you, or when taking pictures of the scenery
through the window of a car or train. The entire picture,
from the front to the back, is focused sharply.
\
Manual
Focus
This mode lets you adjust the focus manually.
1
2
Focus Mode
Focus Mode
Focus Mode
Standard
Standard
Standard
OK
OK
OK
OK
82
4
Taking Pictures
The procedure for setting the focus manually (\) is described below.
1 Press the four-way controller (5)
in A mode.
2 Use the four-way controller (5) to
select \ and press the 4
button.
The central portion of the screen is
magnified to twice its size when focusing.
3 Press the four-way controller
(23).
The MF indicator appears on the LCD
monitor to indicate the approximate
distance to the subject. Use the four-way
controller (23) to adjust the focus using
the indicator as a guide.
2 : for distant focus
3 : for closer focus
4 Press the 4 button.
The focus is fixed and the camera returns to capture status.
The focus position is fixed five seconds after you remove your finger
from the four-way controller (5).
•In y mode, the focus mode is set to s.
•In A mode, you can only select = and q.
•In C mode, you can only select s, 3 or \.
Saving the Focus Mode 1p.97
Manual Focus
Focus Mode
Focus Mode
Focus Mode
Manual Focus
Manual Focus
Manual Focus
OK
OK
OK
OK
2
1m
1m
2
1m
38
38
38
MF indicator
83
4
Taking Pictures
A R A F q < I B i \ C E x X > z D J
Flash Modes
Selecting the Flash Mode
,
Auto
The flash discharges automatically depending on the
light conditions.
a
Flash Off
The flash will not discharge, regardless of the
brightness. Use this mode to take pictures where flash
photography is prohibited.
b
Flash On The flash discharges regardless of the brightness.
c
Auto + Red-eye
This mode reduces the phenomenon of red eyes
caused by the light from the flash being reflected in the
subject’s eyes. The flash discharges automatically.
d
Flash On + Red-eye
This mode reduces the phenomenon of red eyes
caused by the light from the flash being reflected in the
subject’s eyes. The flash will discharge regardless of
the light conditions.
b
Soft Flash
This mode reduces the intensity of the flash so that the
flash is not too bright even when fired at close range.
The flash will discharge regardless of the light
conditions.
• The flash will not discharge (Flash Off) in C mode or y mode, or
when the drive mode is set to 1 or c, or the focus mode is set to
s.
• A pre-flash discharges when using the red-eye reduction function.
•In A mode, you can only select , or a.
1
2
84
4
Taking Pictures

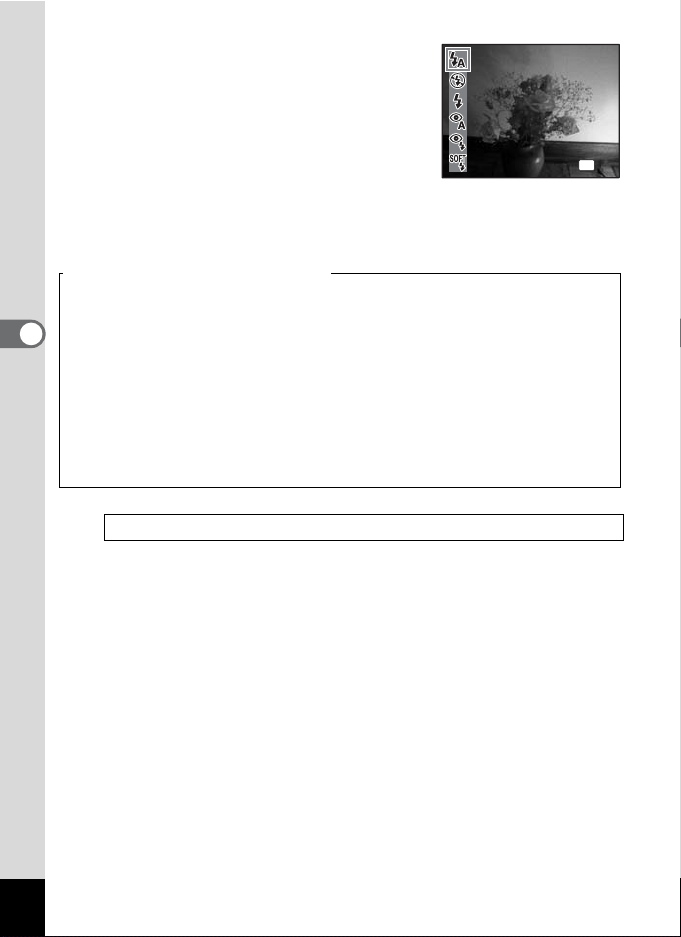

1 Press the four-way controller (4)
in A mode.
The flash mode changes each time the
button is pressed. You can also change the
setting using the four-way controller (23).
2 Press the 4 button.
The camera is ready to take pictures in the
selected flash mode.
Saving the Flash Mode 1p.97
Auto
Auto
Auto
Flash Mode
Flash Mode
Flash Mode
OK
OK
OK
OK
[About the red-eye phenomenon]
Taking pictures using the flash may cause the subject's eyes to
appear red in the resulting picture. This phenomenon occurs when
the light from the flash is reflected in the subject's eyes. It can be
reduced by illuminating the area around the subject or moving closer
to the subject and zooming out. Setting the flash mode to c (Auto +
Red-eye) or d (Flash On + Red-eye) is also an effective way of
preventing red eyes.
If the subject's eyes appear red despite such precautions, they can
be corrected by the red-eye compensation function (1p.129).
85
4
Taking Pictures
R A F q < I B i \ C E X y > z D J
You can choose from six recorded pixels settings for still pictures.
The larger your recorded pixels, the clearer the details will appear when
you print your picture. As the quality of the printed picture also depends
on the image quality, exposure control, resolution of the printer and other
factors, you do not need to select more than the required number of
recorded pixels. i (1600×1200) is adequate for making postcard-size
prints. The more pixels there are, the larger the picture and the bigger
the file size. The data volume also varies depending on the quality level
setting (1p.87).
Recorded Pixels
1 Press the 3 button in A mode.
The [A Rec. Mode] menu appears.
2 Use the four-way controller (23) to select [Recorded
Pixels].
Selecting the Recorded Pixels
Recorded Pixels Use
f 2560×1920
For printing high quality photos or A4-size pictures, or
editing images on a PC.
For making postcard-size prints.
For posting on a website or attaching to e-mail.
g 2304×1728
h 2048×1536
i 1600×1200
l 1024× 768
m 640× 480
Rec. Mode
MENU
Exit
Exit
Exit
1/3
5
M
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
AWB
AF
ISO
AUTO
5
2, 3, 4
1
MENU
Clearer
86
4
Taking Pictures
3 Press the four-way controller (5).
A pull-down menu appears.
4 Use the four-way controller (23)
to change the number of recorded
pixels.
5 Press the shutter release button
halfway.
The Recorded Pixels setting is saved and the camera returns to
capture status.
If you use the [Recorded Pixels] function frequently, you can save
time by assigning it to the Green button. (1p.58)
Recorded Pixels and Quality Level of Still Pictures 1p.31
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
Rec. Mode
Cancel
Cancel
Cancel
MENU
1/3
5
M
AWB
AF
ISO
AUTO
5
M
4
M
3
M
2
M
1024
640
OK
OK
OK
OK
87
4
Taking Pictures
R A F q < I B i \ C E x X y > z D J
You can select the quality (compression rate) of still pictures.
The more stars, the lower the compression rate and the clearer the
picture, but the file size becomes larger. The recorded pixels setting also
affects the file size (1p.85).
Quality Level
1 Press the 3 button in A mode.
The [A Rec. Mode] menu appears.
2
Use the four-way controller (
23
) to select [Quality Level].
3 Press the four-way controller (5).
A pull-down menu appears.
4 Use the four-way controller (23)
to change the quality level.
5 Press the shutter release button
halfway.
The Quality Level setting is saved and the
camera returns to capture status.
Selecting the Quality Level
C
Best Lowest compression rate. Suitable for photo prints.
D
Better
Standard compression rate. Suitable for viewing the image on
a computer screen.
E
Good
Highest compression rate. Suitable for posting on a website or
attaching to e-mail.
If you use the [Quality Level] function frequently, you can save time
by assigning it to the Green button. (1p.58)
Recorded Pixels and Quality Level of Still Pictures 1p.31
Rec. Mode
MENU
Exit
Exit
Exit
1/3
5
M
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
AWB
AF
ISO
AUTO
5
2, 3, 4
1
MENU
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
Rec. Mode
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
1/3
5
M
AWB
AF
ISO
AUTO
88
4
Taking Pictures
R F C
You can take pictures in natural colors by adjusting the white balance
according to the light conditions at the time of shooting.
White Balance
1 Press the 3 button in A mode.
The [A Rec. Mode] menu appears.
2 Use the four-way controller (23) to select [White
Balance].
3 Press the four-way controller (5).
The White Balance screen appears.
4 Use the four-way controller (23)
to change the setting.
Adjusting the White Balance
F
Auto The camera adjusts the white balance automatically.
G
Daylight Use this mode when taking pictures outside in sunlight.
H
Shade Use this mode when taking pictures outside in the shade.
I
Tungsten Light
Use this mode when taking pictures under electric or other
tungsten light.
J
Fluores. Light
Use this mode when taking pictures under fluorescent
light.
K
Manual Use this mode when adjusting the white balance manually.
Rec. Mode
MENU
Exit
Exit
Exit
1/3
5
M
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
AWB
AF
ISO
AUTO
5
2, 3, 4
1
MENU
White Balance
Auto
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
89
4
Taking Pictures
5 Press the shutter release button halfway.
The White Balance setting is saved and the camera returns to capture
status.
Refer to “Manual Setting” below for instructions on adjusting the white
balance manually.
Have a blank sheet of white paper or similar material ready.
1 Select K (manual) on the [White Balance] screen and
press the 4 button.
2 Point the camera at the blank
sheet of paper or other material so
that it fills the screen of the LCD
monitor.
3 Press the shutter release button
fully.
The white balance is automatically adjusted.
4 Press the 4 button.
The setting is saved and the screen returns to the [A Rec. Mode]
menu.
5 Press the 3 button.
The camera is ready to take pictures.
If you use the [White Balance] function frequently, you can save time
by assigning it to the Green button. (1p.58)
Saving the White Balance 1p.97
Manual Setting
White Balance
Cancel
Cancel
Cancel
MENU
Adjust
SHUTTER
90
4
Taking Pictures
R A C F q < I B i \ C E x X y > z D J
You can set various conditions for autofocus.
You can change the autofocus area (Focusing Area).
Focusing Area
You can limit the lens movement area according to the conditions.
Set the [Focus Limiter] to O to limit the focus to far distances from
normal range during normal shooting and to close distances during
macro shooting. This enables quicker focusing.
1 Press the 3 button in A mode.
The [A Rec. Mode] menu appears.
2 Use the four-way controller (23) to select [AF Setting].
3 Press the four-way controller (5).
The AF Setting screen appears.
4 Use the four-way controller (23)
to select [Focusing Area].
Setting the Autofocus Conditions
Changing the Focusing Area
J
Multiple Normal range
K
Spot The autofocus range becomes smaller.
Setting the Focus Limiter
Rec. Mode
MENU
Exit
Exit
Exit
1/3
5
M
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
AWB
AF
ISO
AUTO
9
2, 3, 4, 5,
6, 7, 8
1
MENU
AF Setting
Focusing Area
Focus Limiter
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
91
4
Taking Pictures
5 Press the four-way controller (5).
A pull-down menu appears.
6 Use the four-way controller (23) to change the setting.
7 Use the four-way controller (4) and then the four-way
controller (3) to select [Focus Limiter].
8 Use the four-way controller (45) to select O or P.
9 Press the shutter release button halfway.
The AF setting is saved and the camera returns to capture status.
If you use the [Focusing Area] and [Focus Limiter] functions
frequently, you can save time by assigning them to the Green
button. (1p.58)
92
4
Taking Pictures
R A C F q < I B i \ C E x X y > z D J
You can select the sensitivity to suit the brightness of the surroundings.
The default setting is Auto.
Sensitivity
1 Press the 3 button in A mode.
The [A Rec. Mode] menu appears.
2 Use the four-way controller (23) to select [Sensitivity].
3 Press the four-way controller (5).
A pull-down menu appears.
4 Use the four-way controller (23)
to change the sensitivity.
5 Press the shutter release button
halfway.
The Sensitivity setting is saved and the camera returns to capture
status.
Setting the Sensitivity
Auto The camera sets the sensitivity automatically.
50 • The lower the sensitivity, the less noise that affects the image. The
shutter speed will be slower in low light conditions.
• Higher sensitivity settings use faster shutter speeds in low light
conditions to reduce camera shake, but the image may be affected by
noise.
100
200
400
If you use the [Sensitivity] function frequently, you can save time by
assigning it to the Green button. (1p.58)
Saving the Sensitivity 1p.97
Rec. Mode
MENU
Exit
Exit
Exit
1/3
5
M
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
AWB
AF
ISO
AUTO
5
2, 3, 4
1
MENU
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
OK
OK
OK
OK
Rec. Mode
Cancel
Cancel
Cancel
Auto
200
100
50
400
MENU
1/3
5
M
AWB
AF
ISO
AUTO
93
4
Taking Pictures
R A F q < I B i \ C E x X y > z D J
You can choose the Instant Review time (the length of time the image is
displayed immediately after capture) from 0.5sec, 1sec, 2sec, 3sec,
5sec and Off (no display). The default setting is 1sec.
1 Press the 3 button in A mode.
The [A Rec. Mode] menu appears.
2 Use the four-way controller (23) to select [Instant
Review].
3 Press the four-way controller (5).
A pull-down menu appears.
4 Use the four-way controller (23)
to change the display time.
5 Press the shutter release button
halfway.
The Instant Review setting is saved and the camera returns to capture
status.
Setting the Instant Review Time (Instant Review)
Instant Review 1p.41
Rec. Mode
MENU
Exit
Exit
Exit
1/3
5
M
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
AWB
AF
ISO
AUTO
5
2, 3, 4
1
MENU
EV Compensation
Movie
Rec. Mode
Cancel
Cancel
Cancel
MENU
2/3
0.0
Digital Zoom
5sec
1sec
2sec
3sec
0.5sec
Off
Instant Review
Memory
QUICK
94
4
Taking Pictures
R F C
You can give the image sharp or soft outlines.
1 Press the 3 button in A mode.
The [A Rec. Mode] menu appears.
2 Use the four-way controller (23) to select [Sharpness].
3 Use the four-way controller (45)
to change the setting from
G [Normal] to H [Hard
(+)] or F [Soft (–)].
To soften the contours, choose (–) and to
sharpen the contours, choose (+).
4 Press the shutter release button
halfway.
The Sharpness setting is saved and the camera returns to capture
status.
Setting the Image Sharpness (Sharpness)
If you use the [Sharpness] function frequently, you can save time by
assigning it to the Green button. (1p.58)
Rec. Mode
MENU
Exit
Exit
Exit
1/3
5
M
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
AWB
AF
ISO
AUTO
4
2, 3
1
MENU
Rec. Mode
Exit
Exit
Exit
Sharpness
Saturation
Contrast
MENU
3/3
S
95
4
Taking Pictures
R F C
You can set the color saturation.
1 Press the 3 button in A mode.
The [A Rec. Mode] menu appears.
2 Use the four-way controller (23) to select [Saturation].
3 Use the four-way controller (45)
to change the setting from
G [Normal] to H [High
(+)] or F [Low (–)].
To reduce the saturation, choose (–) and to
increase the saturation, choose (+).
4 Press the shutter release button
halfway.
The Saturation setting is saved and the camera returns to capture
status.
Setting the Color Saturation (Saturation)
If you use the [Saturation] function frequently, you can save time by
assigning it to the Green button. (1p.58)
Rec. Mode
MENU
Exit
Exit
Exit
1/3
5
M
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
AWB
AF
ISO
AUTO
4
2, 3
1
MENU
Rec. Mode
Exit
Exit
Exit
Sharpness
Saturation
Contrast
MENU
3/3
S
96
4
Taking Pictures
R F C
You can set the image contrast level.
1 Press the 3 button in A mode.
The [A Rec. Mode] menu appears.
2 Use the four-way controller (23) to select [Contrast].
3 Use the four-way controller (45)
to change the setting from
G [Normal] to H [High
(+)] or F [Low (–)].
To reduce the contrast, choose (–) and to
increase the contrast, choose (+).
4 Press the shutter release button
halfway.
The Contrast setting is saved and the camera returns to capture
status.
Setting the Image Contrast (Contrast)
If you use the [Contrast] function frequently, you can save time by
assigning it to the Green button. (1p.58)
Rec. Mode
MENU
Exit
Exit
Exit
1/3
5
M
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
AWB
AF
ISO
AUTO
4
2, 3
1
MENU
Rec. Mode
Exit
Exit
Exit
Sharpness
Saturation
Contrast
MENU
3/3
S
97
4
Taking Pictures
Saving the Settings (Memory)
The Memory function is for saving the current camera settings when the
camera is turned off.
For some camera settings, the Memory function is always set to
O
(On)
(the settings are saved when the camera is turned off), while for others
you can choose On or Off (whether the settings are saved or not when
the camera is turned off). The items which can be set to On or Off in the
Memory function are shown in the table below. (Items not listed here will
be saved in the selected settings when the camera is turned off.) If you
select
O
(On), the settings will be saved in the status they were in
immediately before the camera was turned off. If you select
P
(Off), the
settings will be reset to the defaults when the camera is turned off. The
table below also shows whether the Memory default setting for each item
is On or Off.
Item Description
Default
Setting
Flash Mode The flash mode set with the four-way controller (4) (1p.83) O
Drive Mode
The drive mode set with the four-way controller (2) (1p.72,
p.77, p.78)
P
Focus Mode
The focus mode set with the four-way controller (5)
(1p.81)
P
Zoom Position The zoom position set with the Zoom/w/x button (1p.74) P
MF Position
The manual focus position set with the four-way controller
(5) (1p.82)
P
White Balance
The [White Balance] setting on the [A Rec. Mode] menu
(1p.88)
P
Sensitivity
The [Sensitivity] setting on the [A Rec. Mode] menu
(1p.92)
P
EV
Compensation
The [EV Compensation] setting on the [A Rec. Mode]
menu (1p.76)
P
Digital Zoom
The [Digital Zoom] setting on the [A Rec. Mode] menu
(1p.75)
O
DISPLAY
The LCD monitor information display mode set with the 4
button (1p.79, p.109)
P
File #
If a new SD Memory Card is inserted when On has been
selected, file numbers are assigned sequentially.
O
98
4
Taking Pictures
1 Press the 3 button in A mode.
The [A Rec. Mode] menu appears.
2 Press the four-way controller (23) to select [Memory].
3 Press the four-way controller (5).
The Memory screen appears.
4 Use the four-way controller (23)
to choose an item.
5 Use the four-way controller (45)
to select O (On) or P (Off).
6 Press the shutter release button
halfway.
The Memory setting is saved and the camera returns to capture status.
Rec. Mode
MENU
Exit
Exit
Exit
1/3
5
M
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
AWB
AF
ISO
AUTO
6
2, 3, 4, 5
1
MENU
Memory
MENU
Cancel
Flash Mode
Drive Mode
Focus Mode
Zoom Position
MF Position
White Balance
OK
OK
1/2
99
4
Taking Pictures
Recording Movies
C
This mode enables you to record movies. Sound is recorded at the same
time.
1 Press the four-way controller (3) in A mode.
The Capture Mode Palette appears.
2 Use the four-way controller
(2345) to select C (Movie).
3 Press the 4 button.
C mode is selected and the camera returns
to capture status.
The following information appears on the
LCD monitor.
1 Movie mode icon
2 Recording indicator (blinks during
recording)
3 Recording time
You can change the captured area by
pressing the Zoom/w/x button to the left or right.
x : enlarges the subject
w : enlarges the area captured by the camera
Recording a Movie
4, 5
1, 2
3
Movie
Movie
Movie
OK
Change
Change
OK
OK
Change
OK
MENU
Guide
Guide
Guide
07:34
07:34
132
100
4
Taking Pictures
4 Press the shutter release button fully.
Recording starts.
5 Press the shutter release button fully.
Recording stops.
If you keep the shutter release button pressed for more than one second,
recording will continue for as long as you keep the button pressed.
Shooting stops when you take your finger off the shutter release button.
• The flash will not discharge in C mode.
• The only focus modes that can be used in C mode are 3 , s and
\.
• You can use the optical zoom and digital zoom before starting to
record, and the digital zoom while recording.
• Changing the LCD monitor display mode by pressing the 4
button while recording a movie will not display the histogram.
Playing Back Movies 1p.112
Keeping the Shutter Release Button Pressed
101
4
Taking Pictures
C
You can choose from two recorded pixels settings for movies:
[D (320×240)] and [E (160×120)].
The more pixels there are, the bigger the file size. The data volume also
varies depending on the frame rate setting. (1p.33)
Recorded Pixels for Movies
1 Press the 3 button in A mode.
The [A Rec. Mode] menu appears.
2 Use the four-way controller (23) to select [Movie].
3 Press the four-way controller (5).
The Movie screen appears.
4
Use the four-way controller (
23
) to select [Recorded Pixels].
5 Press the four-way controller (5).
A pull-down menu appears.
6 Use the four-way controller (23)
to change the number of recorded
pixels.
7 Press the shutter release button
halfway.
The recorded pixels setting is saved and the camera returns to capture
status.
Selecting the Recorded Pixels for Movies
D
(320×240)
Suitable for viewing the movie on a computer.
E
(160×120)
The file size is smaller, but the total recording time is increased.
Suitable for posting on a website or e-mail.
Recorded Pixels and Frame Rate of Movies 1p.33
Rec. Mode
MENU
Exit
Exit
Exit
1/3
5
M
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
AWB
AF
ISO
AUTO
2, 3, 4, 5, 6
1
MENU
7
Movie
Recorded Pixels
Color Mode
Frame Rate
320
160
30fps
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
102
4
Taking Pictures
C
You can choose the frame rate (number of frames per second). The
more frames per second, the better the quality of the movie, but the file
size becomes larger. You can choose 30fps (frames per second) or 15
fps (frames per second).
1 Press the 3 button in A mode.
The [A Rec. Mode] menu appears.
2 Use the four-way controller (23) to select [Movie].
3 Press the four-way controller (5).
The Movie screen appears.
4 Use the four-way controller (23) to select [Frame
Rate].
5 Press the four-way controller (5).
A pull-down menu appears.
6 Use the four-way controller (23)
to select [30fps] or [15fps].
7 Press the shutter release button
halfway.
The frame rate setting is saved and the camera returns to capture
status.
Selecting the Frame Rate
Recorded Pixels and Frame Rate of Movies 1p.33
Rec. Mode
MENU
Exit
Exit
Exit
1/3
5
M
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
AWB
AF
ISO
AUTO
2, 3, 4, 5, 6
1
MENU
7
Movie
Recorded Pixels
Color Mode
Frame Rate
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
320
Full Color
30fps
15fps
103
4
Taking Pictures
C
You can set the color mode to black and white or sepia, as well as full
color, when recording a movie.
1 Press the 3 button in A mode.
The [A Rec. Mode] menu appears.
2 Use the four-way controller (23) to select [Movie].
3 Press the four-way controller (5).
The Movie screen appears.
4 Use the four-way controller (23) to select
[Color Mode].
5 Press the four-way controller (5).
A pull-down menu appears.
6 Use the four-way controller (23)
to choose a color.
7 Press the shutter release button
halfway.
The color mode setting is saved and the camera returns to capture
status.
Recording Movies in Black and White or Sepia
Tones (Color Mode)
Rec. Mode
MENU
Exit
Exit
Exit
1/3
5
M
Recorded Pixels
Quality Level
White Balance
AF Setting
Sensitivity
AWB
AF
ISO
AUTO
2, 3, 4, 5, 6
1
MENU
7
Movie
Recorded Pixels
Color Mode
Frame Rate
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
Full Color
320
B & W
Sepia
104
5
Playing Back and Deleting Images
Playing Back and Deleting Images
Playing Back Images
In this manual, the capture mode, such as for taking still pictures, is
referred to as [A mode]. The playback mode, such as for displaying
captured images on the LCD monitor, is referred to as [Q mode]. In Q
mode, you can perform simple editing operations on the images that are
played back.
Follow the procedure below to switch between A mode and Q mode.
1 Press the Q button.
The camera switches to Q mode.
1 Press the Q button or shutter release button halfway
or fully.
The camera switches to A mode.
Refer to “Playing Back Images” (p.42) for instructions.
To Switch Between A Mode and Q Mode
To Switch From A Mode to Q Mode
To Switch From Q Mode to A Mode
Playing Back Still Pictures
105
5
Playing Back and Deleting Images
You can display nine thumbnails of captured images at a time.
1 In Q mode, press f on the Zoom/
f/y button.
A page consisting of nine thumbnail images
appears. The displayed images change
nine at a time page by page.
Use the four-way controller (2345) to
move the frame. When 10 or more images
have been saved, if you choose image 1
and press the four-way controller (24), the previous page appears.
Similarly, if you choose image 2 and press the four-way controller
(35), the next page appears.
The icons that appear on the images indicate the following:
No icon : Still picture without sound
O (with image) : Still picture with sound
C : Movie (first frame appears)
O (without image) : Sound file only
Press the 4 button, 3 button or y on the Zoom/f/y button
to switch to single-image display of the selected image.
Press the Q button to switch to A mode.
Nine-Image Display and Folder Display
Nine-Image Display
Zoom/f/y button
Four-way controller
4 button
Q button
3 button
Select & Delete 100-0010
1
2
Frame
106
5
Playing Back and Deleting Images
If images and sound files are stored in several folders, follow the
procedure below to find the folder that you are looking for.
1 In Q mode, press f on the Zoom/f/y button.
The screen changes to nine-image display.
2 Press f on the Zoom/f/y
button.
The list of folders appears.
3 Use the four-way controller
(2345) to choose a folder.
Press the 4 button, 3 button or y
on the Zoom/f/y button to display
thumbnails of the images inside the folder.
Next, press the 4 button, 3 button or y on the Zoom/f/y
button to switch to single-image display of a selected image.
Folder Display
Changing the Image Folder Name 1p.158
100PENTX
100 101
103 104
102
107
5
Playing Back and Deleting Images
You can magnify an image up to eight times. A guide showing the center
of the magnified portion of the image appears on the LCD monitor during
zoom playback.
1 Enter the Q mode and use the four-way controller
(45) to choose the image you want to magnify.
2 Press y on the Zoom/f/y
button.
The image is magnified (×1 to ×8). Holding
down y on the Zoom/f/y button
changes the magnification continuously.
You can use the guide at the bottom left of
the screen to check which portion of the
image is magnified.
The following operations can be performed while the magnified
image is displayed.
Four-way controller (2345) Moves the position to be magnified
Zoom/f/y button (y) Makes the image bigger (max. ×8)
Zoom/f/y button (f ) Makes the image smaller (min. ×1)
3 Press the 4 button.
The image returns to single-image display.
Zoom Playback
• Movies cannot be magnified.
• The guide does not appear if the LCD monitor display mode is set
to [No Icons].
2
1, 2
3
2.0
2.0
×2.0×
Guide
108
5
Playing Back and Deleting Images
When the Quick Zoom function is enabled, you can display an image at
maximum magnification (×8) simply by pressing y on the Zoom/f/y
button once.
1 Press the 3 button in Q mode.
The [A Rec. Mode] menu appears.
2 Press the four-way controller (5).
The [u Setting] menu appears.
3 Use the four-way controller (23) to select [Quick
Zoom].
4 Use the four-way controller (45)
to select O (On) or P (Off).
O : Jumps to ×8 magnification
P : Pressing y on the Zoom/f/y button
once magnifies the image in stages
from ×1.0 to ×8.0
5 Press the Q button.
The camera is ready to play back images.
Setting the Quick Zoom Function
Format
Sound
03/25/2005
Date Adjust
Alarm
World Time
Setting
MENU
Exit
Exit
Exit
1/3
5
2, 3, 4
1
MENU
Setting
Power Saving
Quick Zoom
3min
5sec
Auto Power Off
Green Button
Reset
MENU
Exit
Exit
Exit
3/3
109
5
Playing Back and Deleting Images
Shooting information can be displayed on the LCD monitor in Q mode.
Pressing the 4 button changes the display mode.
Refer to p.20 for details of each display mode.
Displaying Shooting Information in Playback
Mode
Displaying Shooting Information in Capture Mode 1p.79
OK
OK
OK
03/25/2005
03/25/2005
03/25/2005
14:25
14:25
14:25
100
100
-
0026
0026
100
-
0026
F5.6
F5.6
1/250
1/250
F5.6
1/250
03/25/2005
03/25/2005
03/25/2005
14:25
14:25
14:25
200
200
ISO
ISO
200
ISO
5
M
100
100
-
0026
0026
100
-
0026
Normal Display
Histogram + Info
No Icons
110
5
Playing Back and Deleting Images
You can play back recorded images one after another.
1 Enter the Q mode and use the four-way controller
(45) to choose an image to start the slideshow with.
2 Press the four-way controller (3).
The Playback Mode Palette appears.
3 Use the four-way controller (2345) to select u
(Slideshow).
4 Press the 4 button twice.
The slideshow starts.
Pressing the 4 button during the slideshow pauses the slideshow.
To resume the slideshow, press the 4 button while the slideshow is
paused.
5 Press any button.
The slideshow stops.
You can set the playback interval and also a screen effect and sound
effect for when one image changes to the next.
1 Press the four-way controller (3) in Q mode.
The Playback Mode Palette appears.
2 Use the four-way controller (2345) to select u.
Slideshow
Setting the Slideshow Conditions
OK
Guide
Guide
OK
OK
Guide OK
MENU
Slideshow
Slideshow
Slideshow
1, 2, 3
4
111
5

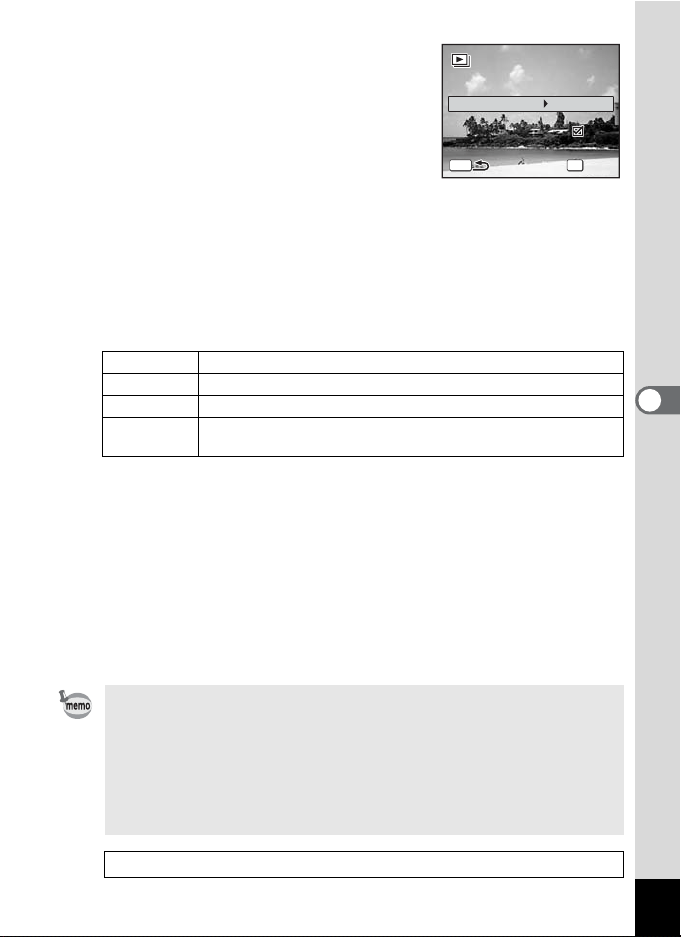

Playing Back and Deleting Images
3 Press the 4 button.
The screen for setting the slideshow
conditions appears.
4 Use the four-way controller (23)
to select [Interval].
5 Press the four-way controller (5).
A pull-down menu appears.
6 Use the four-way controller (23) to change the interval
and press the 4 button.
You can choose from 3sec, 5sec, 10sec, 20sec, and 30sec.
7 Repeat Steps 4 to 6 to select [Screen Effect].
You can choose from Off, Wipe, Checker, and Fade.
8 Use the four-way controller (23) to select [Sound
Effect].
9 Use the four-way controller (45) to select O (On) or P
(Off).
Except when the screen effect is set to Off, you can choose
O
(On) or
P
(Off) for the sound that is played when one image changes to the next.
10 Press the 4 button.
The slideshow starts using the selected interval and effect.
Off No effect
Wipe The next image slides over the previous one from left to right
Checker The next image appears in small square mosaic blocks
Fade
The current image gradually fades out and the next image fades
in.
• The slideshow will continue until you press one of the buttons.
•
Movies or pictures with sound will be played through to the end
before the next picture is played back, regardless of the set interval.
• Pressing the four-way controller (5) while playing back a movie
displays the next image.
• Sound files made in Voice Recording mode are not played back in
the slideshow.
Connecting the Camera to AV Equipment 1p.113
MENU OK
Start
3sec
Interval
Screen Effect
Screen Effect
Wipe
Wipe
Sound Effect
Sound Effect
Screen Effect Wipe
Sound Effect
112
5

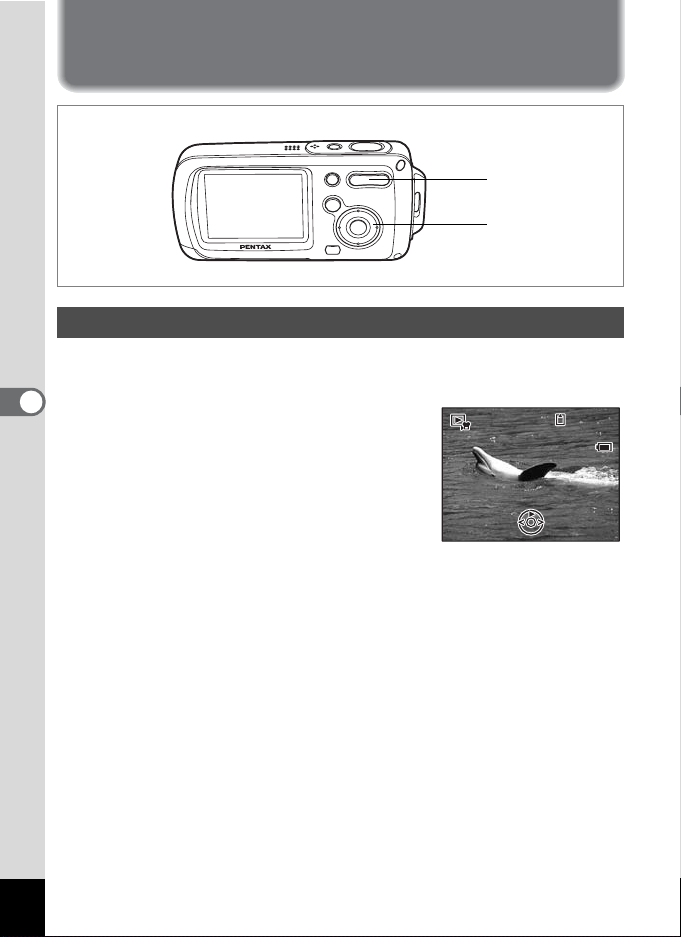

Playing Back and Deleting Images
Playing Back Movies
You can play back the movies you have taken. Sound is played back at
the same time.
1 Enter the Q mode and use the
four-way controller (45) to
choose the movie you want to play
back.
2 Press the four-way controller (2).
Playback starts.
The following operations can be performed during playback.
Four-way controller (4) Reverse playback
Four-way controller (2)Pause
Zoom/w/x (x) Increases the volume
Zoom/w/x (w) Reduces the volume
The following operations can be performed while playback is
paused.
Four-way controller (4) Frame reverse
Four-way controller (5) Frame forward
Four-way controller (2) Releases the Pause function (Play)
3 Press the four-way controller (3).
Playback stops and the screen returns to single-image display.
Playing Back a Movie
2
1, 2, 3
00:30
00:30
14:25
14:25
100
100
-
0017
0017
100
-
0017
03/25/2005
03/25/2005
03/25/2005
113
5
Playing Back and Deleting Images
Connecting the Camera to AV
Equipment
By using the AV cable, you can capture and play back images on
equipment with a video IN jack, such as a TV. Make sure the camera is
turned off before connecting it to the TV.
1 Open the battery/card cover and connect the AV cable
to the PC/AV terminal.
2 Connect the other ends of the AV cable (image: yellow,
sound: white) to the TV’s image input terminal and
sound input terminal.
When using stereo sound equipment, insert the sound terminal into the
L (white) terminal.
3 Turn the TV and camera on.
• You are recommended to use the AC adapter D-AC8 (optional) if
you intend to use the camera for a long time.
• Depending on the country or region, images and sound files may
fail to be played back if the video output format is set different from
the one in use there. If this happens, change the video output
format setting.
Changing the Video Output Format 1p.160
VIDEO
AUDIO
(L) (R)
Battery/card cover
PC/AV terminal
yellow white
114
5
Playing Back and Deleting Images

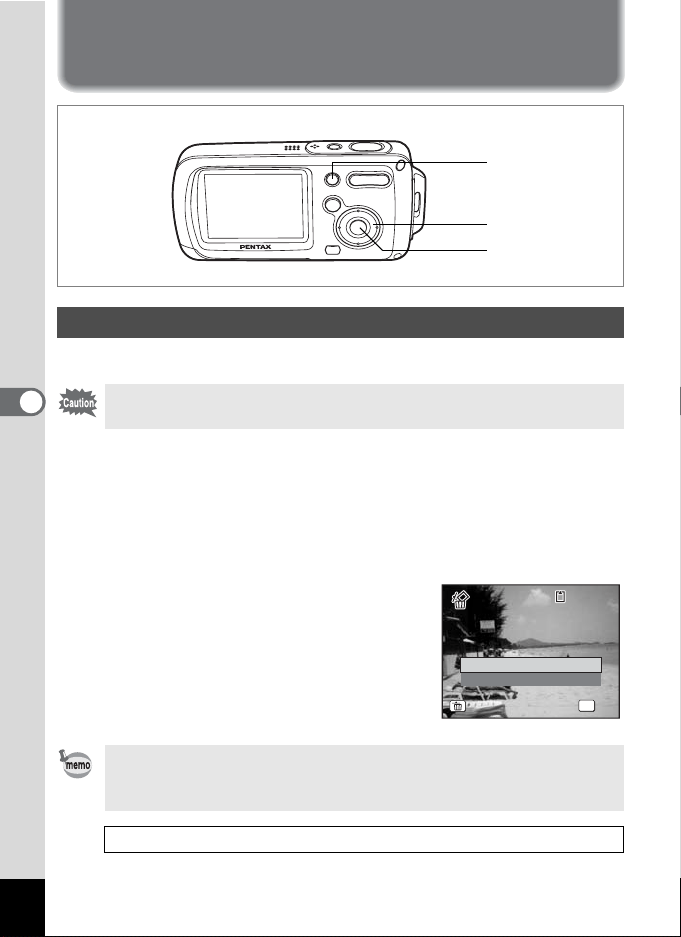

Deleting Images
You can delete single images and sound files one at a time.
1 Enter the Q mode and use the four-way controller
(45) to choose the image/sound file you want to
delete.
2 Press the i button.
The confirmation screen appears.
3 Use the four-way controller (2) to
select [Deletion].
4 Press the 4 button.
The image or sound file is deleted.
Deleting a Single Images/Sound Files
Protected images and sound files cannot be deleted. (1p.120)
If you press the i button during Instant Review, the screen in Step
2 appears, enabling you to delete the image you have just taken.
(1p.43)
Recovering Deleted Images 1p.119
2
1, 3
4
Deletion
Cancel
100
100
-
0017
0017
100
-
0017
OK
OK
OK
All Images/Sounds
All Images/Sounds
OK
All Images/Sounds
115
5
Playing Back and Deleting Images
If sound has been recorded with an image (1p.147), you can delete the
sound without deleting the image.
1 Enter the Q mode and use the four-way controller
(45) to choose an image with sound.
2 Press the i button.
The confirmation screen appears.
3 Use the four-way controller (23)
to select [Sound Deletion]
4 Press the 4 button.
The sound file is deleted.
Deleting a Sound File
Select [Deletion] in Step 3 above to delete both the image and sound
file.
Deletion
Sound Deletion
Cancel
100
100
-
0017
0017
100
-
0017
OK
OK
OK
OK
All Images/Sounds
All Images/Sounds
All Images/SoundsAll Images/Sounds
All Images/Sounds
All Images/Sounds
116
5
Playing Back and Deleting Images
You can delete several images/sound files selected from the nine-image
display at once.
1 In Q mode, press f on the Zoom/
f/y button.
Nine thumbnail images appear.
2 Press the i button.
P appears on the images and sound files.
3 Use the four-way controller
(2345) to choose the images
and sound files that you want to
delete and press the 4 button.
O appears on the selected images and
sound files.
If you select an image and press
y
on the
Zoom/
f
/
y
button, the selected image appears in single-image display
for as long as the button is pressed, enabling you to check whether you
really want to delete it or not. (The display returns to the nine-image
display when you release the button.) However, protected images
cannot be displayed in single-image display.
Deleting Selected Images and Sound Files
(from Nine-Image Display)
Protected images and sound files cannot be deleted.
2, 4
3, 5
3, 6
1
Select & Delete 100-0010
OKMENU
Cancel
Deletion
117
5
Playing Back and Deleting Images
4 Press the i button.
A confirmation dialog appears.
5 Use the four-way controller (23)
to select [Select & Delete].
6 Press the 4 button.
The selected images and sound files are
deleted.
Select & Delete
Cancel
OK
OK
OK
OK
MENU
Delete all selected
Delete all selected
images/sounds
images/sounds
Delete all selected
images/sounds
118
5
Playing Back and Deleting Images
You can delete all the images and sound files at once.
1 Press the i button in Q mode.
A confirmation dialog appears.
2 Press the i button.
A confirmation dialog appears.
3 Use the four-way controller (2) to
select [Delete All].
4 Press the 4 button.
All the images and sound files are deleted.
Deleting All Images
Protected images and sound files cannot be deleted. (1p.120)
Recovering Deleted Images 1p.119
1, 2
3
4
Delete all images/sounds
Delete all images/sounds
Delete all images/sounds
Delete All
Cancel
OK
OK
OK
OK
MENU
119
5

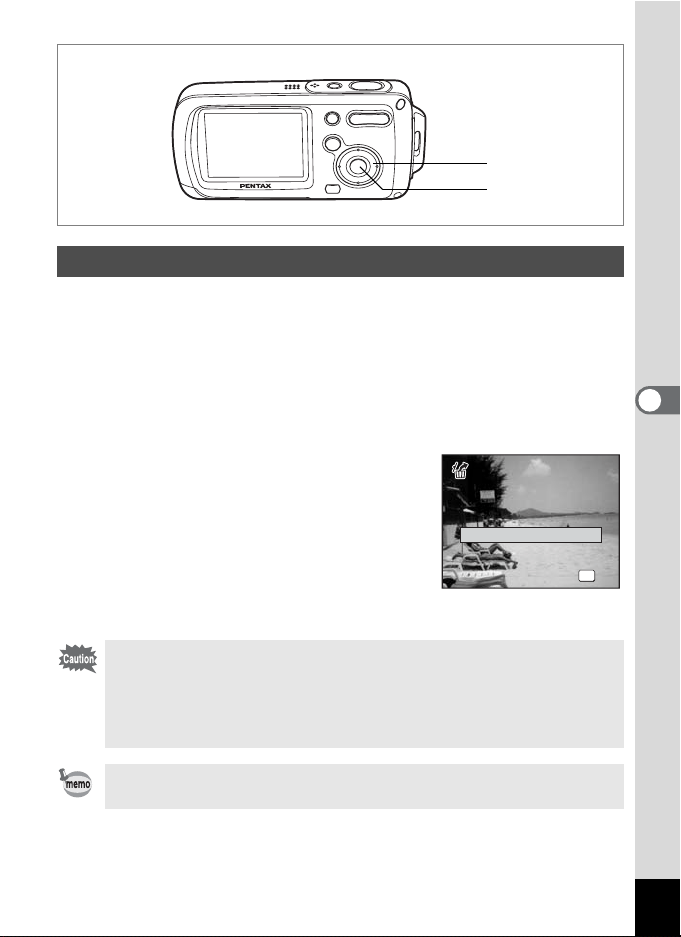

Playing Back and Deleting Images
You can recover images or sound files that were taken with this camera
and then deleted.
1 After deleting a file, press the four-way controller (3).
The Playback Mode Palette appears.
2 Use the four-way controller (2345) to select ]
(Image Recovery).
3 Press the 4 button.
The number of recoverable images
appears.
4 Use the four-way controller (23)
to select [Recover].
5 Press the 4 button.
Deletion of the images is cancelled and the files are recovered.
Recovering Deleted Images
If you take pictures or edit data between deleting and recovering the
image, by setting DPOF print order data, protecting, resizing or
trimming images that were not deleted, the message “No image to
be processed” appears in Step 3 and the deleted image cannot be
recovered.
Recovered images and sound files have the same file name as
before they were deleted.
1, 2, 4
3, 5
OK
OK
OK
OK
5 images
5 images
Want to recover?
Want to recover?
5 images
Want to recover?
Recover
Cancel
Cancel
Cancel
120
5
Playing Back and Deleting Images
You can protect stored images and sound files from being accidentally
deleted.
1 Press the four-way controller (3) in Q mode.
The Playback Mode Palette appears.
2 Use the four-way controller (2345) to select Z
(Protect).
3 Press the 4 button.
The protect screen appears.
4 Use the four-way controller (23)
to select [Select image/sound].
5 Press the 4 button.
The screen for choosing an image or sound
file to protect appears.
6 Use the four-way controller (45)
to choose the image or sound file
you want to protect.
7 Use the four-way controller (2) to
select [Protect].
8 Press the 4 button.
The selected image or sound file is protected.
Protecting Images and Sound Files from Deletion
(Protect)
• To cancel the Protect setting, select [Unprotect] in Step 7.
• Y appears below the file number on protected images and sound
files during playback.
OK
Guide
Guide
OK
OK
Guide OK
MENU
Slideshow
Slideshow
Slideshow
1, 2, 4, 6, 7
3, 5, 8
All Images/Sounds
Select image/sound
MENU
OK
OK
OK
OK
Protect
Protect this image/sound
Protect this image/sound
Protect this image/sound
Unprotect
100
100
-
0017
0017
100
-
0017
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
121
5

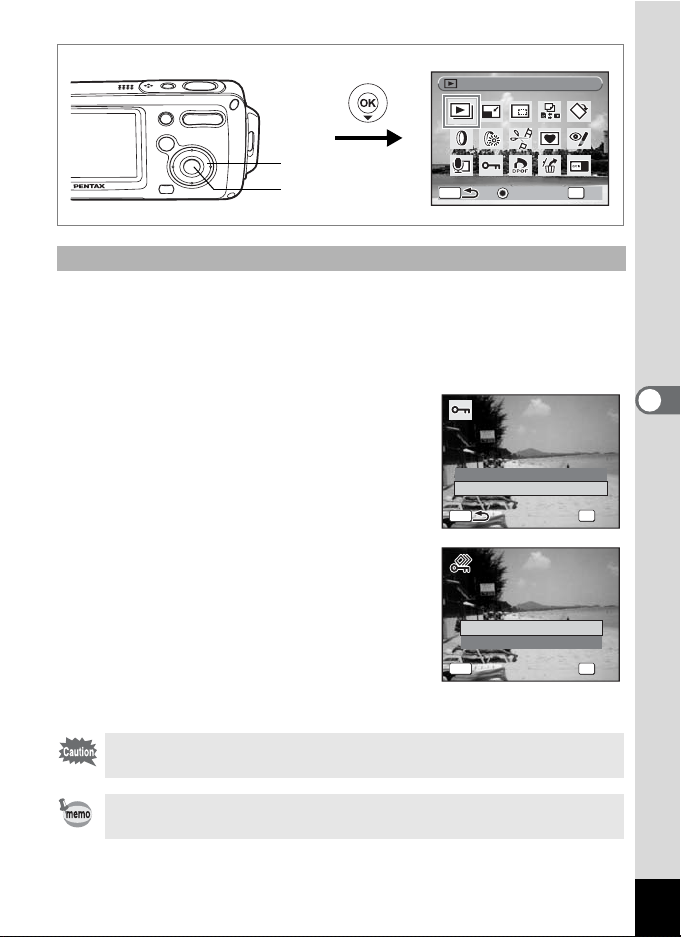

Playing Back and Deleting Images
1 Press the four-way controller (3) in Q mode.
The Playback Mode Palette appears.
2 Use the four-way controller (2345) to select Z
(Protect).
3 Press the 4 button.
The protect screen appears.
4 Use the four-way controller (23)
to select [All Images/Sounds].
5 Press the 4 button.
A confirmation dialog appears.
6 Use the four-way controller (2) to
select [Protect].
7 Press the 4 button.
All the images and sound files are
protected.
Protecting All Images and Sound Files
Protected images and sound files will be deleted when the SD
Memory Card or built-in memory is formatted.
To cancel the Protect setting on all your images and sound files,
select [Unprotect] in Step 6.
OK
Guide
Guide
OK
OK
Guide OK
MENU
Slideshow
Slideshow
Slideshow
1, 2, 4, 6
3, 5, 7
All Images/Sounds
Select image/sound
MENU
OK
OK
OK
OK
Protect all images/sounds
Protect all images/sounds
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
Protect
Unprotect
122
6
Editing and Printing Images
Editing and Printing Images
Editing Images
By changing the size and quality of a selected image, you can make the
file size smaller than the original. You can use this function to continue
taking pictures when the SD Memory Card or built-in memory is full, by
making the images smaller and overwriting the original images to make
more space available.
1 Enter the Q mode and use the four-way controller
(45) to choose the image you want to resize.
2 Press the four-way controller (3).
The Playback Mode Palette appears.
3 Use the four-way controller (2345) to select n
(Resize).
4 Press the 4 button.
The screen for choosing the size and quality
appears.
Changing the Image Size and Quality (Resize)
• Movies cannot be resized.
• You cannot select a larger resolution or higher quality than that of
the original image.
OK
Guide
Guide
OK
OK
Guide OK
MENU
Slideshow
Slideshow
Slideshow
1, 2, 3, 5, 7
4, 6, 8
OK
OK
OK
OK
Recorded Pixels
Quality Level
Cancel
Cancel
Cancel
MENU
5
M
123
6
Editing and Printing Images
5 Select [Recorded Pixels] and [Quality Level].
Use the four-way controller (45) to choose the size and quality.
Use the four-way controller (23) to switch between [Recorded Pixels]
and [Quality Level].
6 Press the 4 button.
A confirmation dialog for overwriting the image appears.
[Save as] is the only available option for protected images.
7 Use the four-way controller (23)
to select [Overwrite] or [Save as].
8 Press the 4 button.
The resized image is saved.
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
Overwrite
Save as
100
100
-
0018
0018
100
-
0018
Overwrite
original image?
Overwrite
original image?
Overwrite
original image?
124
6
Editing and Printing Images
You can delete the unwanted part of a picture and save the trimmed
image as a separate image.
1 Enter the Q mode and use the four-way controller
(45) to choose the image you want to trim.
2 Press the four-way controller (3).
The Playback Mode Palette appears.
3 Use the four-way controller (2345) to select o
(Trimming).
4 Press the 4 button.
The Trimming screen appears.
5 Choose the trimming conditions.
Zoom/f/y button
Changes the size of the
trimmed section
Four-way controller (2345)
Moves the trimming position up, down, left and right
Green button Rotates the trimming frame
6 Press the 4button.
The trimmed image is saved with a new file name.
The trimmed image is saved in the same quality as the original image.
The number of recorded pixels is selected automatically according to
the size of the trimmed section.
Trimming Images
Movies cannot be trimmed.
OK
Guide
Guide
OK
OK
Guide OK
MENU
Slideshow
Slideshow
Slideshow
5
1, 2, 3, 5
4, 6
5
OKMENU
Cancel
Cancel
Cancel
OK
OK
OK
125
6
Editing and Printing Images
You can copy images and sound files from the built-in memory to the SD
Memory Card and vice versa. This function can only be selected when
an SD Memory Card has been inserted in the camera.
1 Press the four-way controller (3) in Q mode.
The Playback Mode Palette appears.
2 Use the four-way controller (2345) to select p
(Image/Sound Copy).
3 Press the 4 button.
The copying method selection screen appears.
All the images and sound files in the built-in memory are copied to the
SD Memory Card at once. Before copying the images, make sure that
there is enough space in the SD Memory Card.
4 Use the four-way controller (23)
to select [2}{]
5 Press the 4 button.
All the images and sound files are copied.
Copying Images and Sound Files
Make sure that the camera is turned off before inserting or removing
the SD Memory Card.
To Copy Files from the Built-in Memory to the SD Memory Card
OK
Guide
Guide
OK
OK
Guide OK
MENU
Slideshow
Slideshow
Slideshow
1, 2, 4, 6
3, 5, 7
OK
OK
OK
OK
Cancel
SD
SD
126
6
Editing and Printing Images
Selected images and sound files from the SD Memory Card are copied
to the built-in memory one at a time.
4 Use the four-way controller (23)
to select [{}2]
5 Press the 4 button.
6 Use the four-way controller (45)
to select the file you want to copy.
7 Press the 4 button.
The selected image/sound file is copied.
To Copy Files from the SD Memory Card to the Built-in Memory
• If sound has been recorded with the image, the sound file is copied
with the image.
• When a file is copied from the SD Memory Card to the built-in
memory, it is assigned a new file name.
OK
OK
OK
OKCancel
Cancel
Cancel
MENU
Copy this image/sound
Copy this image/sound
Copy this image/sound
127
6

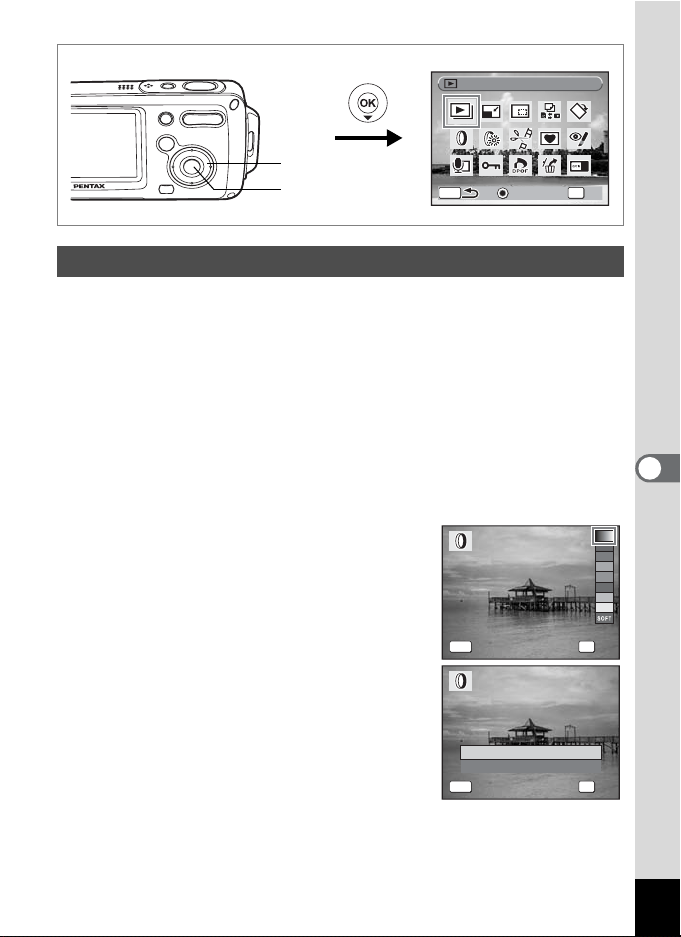

Editing and Printing Images
This function lets you edit selected images with digital filters to change
the color, etc.
You can choose from nine filters: B&W, sepia, red, pink, purple, blue,
green, yellow and soft.
1 Enter the Q mode and use the four-way controller
(45) to choose the image you want to edit.
2 Press the four-way controller (3).
The Playback Mode Palette appears.
3 Use the four-way controller (2345) to select D
(Digital Filter).
4 Press the 4 button.
The digital filter selection screen appears.
5 Use the four-way controller (23)
to choose a digital filter.
You can preview the results of the filter
effect.
6 Press the 4 button.
A confirmation dialog for overwriting the
image appears.
7 Use the four-way controller (23)
to select [Overwrite] or [Save as].
[Save as] is the only available option for
protected images.
8 Press the 4 button.
The edited image is saved with the same number of recorded pixels
and quality level as the original.
Using the Digital Filters
OK
Guide
Guide
OK
OK
Guide OK
MENU
Slideshow
Slideshow
Slideshow
1, 2, 3, 5, 7
4, 6, 8
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
100
100
-
0016
0016
100
-
0016
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
Overwrite
Save as
Overwrite
Overwrite
original image?
original image?
Overwrite
original image?
128
6

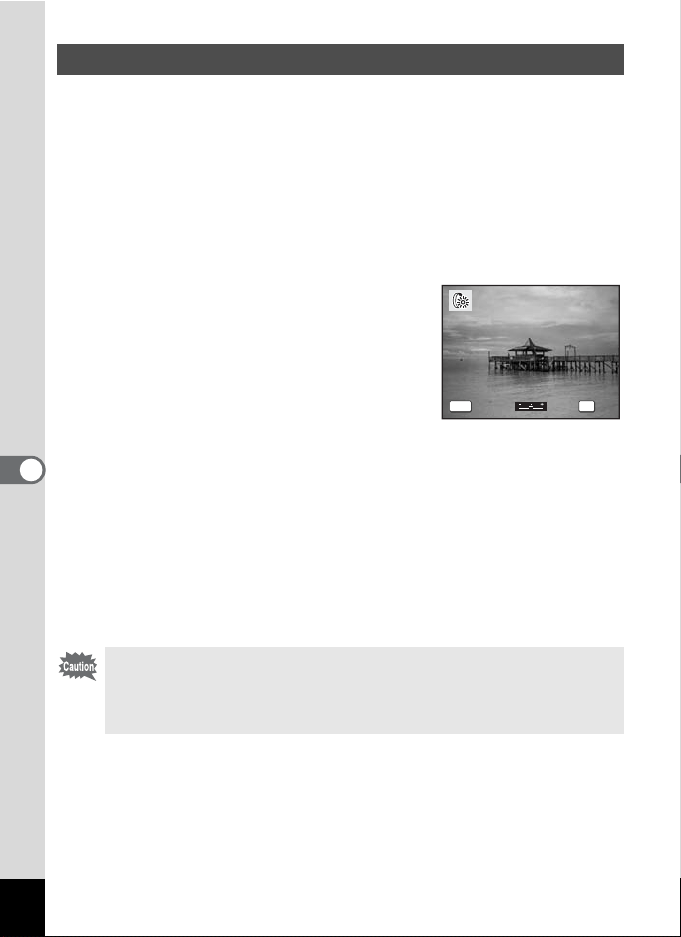

Editing and Printing Images
This function lets you adjust the brightness of the selected image.
1 Enter the Q mode and use the four-way controller
(45) to choose the image you want to edit.
2 Press the four-way controller (3).
The Playback Mode Palette appears.
3 Use the four-way controller (2345) to select q
(Brightness Filter).
4 Press the 4 button.
The brightness adjustment screen appears.
5 Use the four-way controller (45)
to adjust the brightness.
You can preview the results of the
brightness adjustment.
6 Press the 4 button.
A confirmation dialog for overwriting the image appears.
7 Use the four-way controller (23) to select [Overwrite]
or [Save as].
[Save as] is the only available option for protected images.
8 Press the 4 button.
The edited image is saved with the same number of recorded pixels
and quality level as the original.
Using the Brightness Filter
Movies or images taken with another camera cannot be edited using
the digital filters or brightness filter. An error message appears if you
choose this function from the Playback Mode Palette and press the
4 button.
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
129
6
Editing and Printing Images
You can correct images where the flash has caused the subject to
appear with red eyes.
1 Enter the Q mode and use the four-way controller
(45) to choose the image you want to correct.
2 Press the four-way controller (3).
The Playback Mode Palette appears.
3 Use the four-way controller (2345) to select Z (Red-
eye Compensation).
4 Press the 4 button.
A confirmation dialog for overwriting the
image appears.
5 Use the four-way controller (23)
to select [Overwrite] or [Save as].
[Save as] is the only available option for
protected images.
6 Press the 4 button.
The edited image is saved with the same number of recorded pixels
and quality level as the original.
Red-eye Compensation
• The red-eye compensation function cannot be used on movies or
on images where red eyes cannot be detected on the camera. An
error message appears in Step 4.
• The red-eye compensation function can only be used with still
pictures taken with this camera.
OK
Guide
Guide
OK
OK
Guide OK
MENU
Slideshow
Slideshow
Slideshow
1, 2, 3, 5
4, 6
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
100
100
-
0016
0016
100
-
0016
Overwrite
Save as
Overwrite
Overwrite
original image?
original image?
Overwrite
original image?
130
6
Editing and Printing Images
This function lets you add a decorative frame to still pictures. There are
three frames already stored in the camera.
1 Enter the Q mode and use the four-way controller
(45) to choose the image to which you want to add a
frame.
2 Press the four-way controller (3).
The Playback Mode Palette appears.
3 Use the four-way controller (2345) to select Y
(Frame Composite).
4 Press the 4 button.
The frame selection screen appears.
5 Use the four-way controller (45)
to choose a frame.
6 Press the 4 button.
A confirmation dialog for overwriting the
image appears.
7 Use the four-way controller (23)
to select [Overwrite] or [Save as].
[Save as] is the only available option for
protected images.
Adding a Frame (Frame Composite)
OK
Guide
Guide
OK
OK
Guide OK
MENU
Slideshow
Slideshow
Slideshow
1, 2, 3, 5, 7
4, 6, 8
OK
OK
OK
Change
Change
OK
Select the frame
Select the frame
for composite
for composite
Select the frame
for composite
Change
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
100
100
-
0019
0019
100
-
0019
Overwrite
Save as
Overwrite
Overwrite
original image?
original image?
Overwrite
original image?
131
6
Editing and Printing Images
8 Press the 4 button.
The edited image is saved with the recorded pixels of h.
To switch to the screen for registering a frame, press the Green button
in Step 5. You can register frames which you have downloaded from the
internet, etc. When you register a new frame, it replaces one of the
existing frames in the built-in memory. Before you can register a new
frame, copy it first to the SD Memory Card.
1 In the frame selection screen, choose the frame you
want to remove and press the Green button.
A message appears and the frames on the SD Memory Card that you
can register in the built-in memory appear.
2 Use the four-way controller (45) to choose the frame
you want to register and press the 4 button.
The frame is registered in the built-in memory instead of the frame
selected in Step 1.
The frame composite function cannot be used on movies or images
of size i and smaller. An error message appears in Step 4.
To Register a New Frame
When a new frame on the SD Memory Card is registered in the built-
in memory, it replaces one of the existing frames in the built-in
memory. The replaced frame is deleted from the built-in memory.
132
6
Editing and Printing Images
You can select a frame from a recorded movie to save as a still picture,
divide a movie into two or stitch two movies together.
1 Enter the Q mode and use the four-way controller
(45) to choose the movie you want to edit.
To stitch two movies together (1p.135), choose the first movie (first
half).
2 Press the four-way controller (3).
The Playback Mode Palette appears.
3 Use the four-way controller (2345) to select [
(Movie Edit).
4 Press the 4 button.
The editing method selection screen appears.
Go to the following pages.
“Saving a Frame from a Movie as a Still Picture” 1p.133
“Dividing a Movie” 1p.134
“Stitching Movies” 1p.135
Editing Movies
Protected movies cannot be divided or stitched.
How to display the Movie Edit menu
OK
Guide
Guide
OK
OK
Guide OK
MENU
Slideshow
Slideshow
Slideshow
Four-way controller
4 button
133
6
Editing and Printing Images
5 Use the four-way controller (23) to select [Save as Still
Image].
6 Press the 4 button.
The screen appears for selecting a frame to
be saved as a still picture.
7 Use the four-way controller (45)
to choose the frame you want to
save.
8 Press the 4 button.
The selected frame is saved as a still picture.
Saving a Frame from a Movie as a Still Picture
OK
OK
OK
OK
Save as Still Image
Divide Movies
Stitch Movies
MENU
OK
OK
OK
Guide
Guide
Guide OK
MENU
Movie Edit
Movie Edit
Movie Edit
OK
Select image to save
Select image to save
Select image to save
100
100
-
0042
0042
100
-
0042
00:06
00:06
00:06
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
112
112
112
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
134
6
Editing and Printing Images
5 Select [Divide Movies] on the Movie Edit menu.
6 Press the 4 button.
The screen for choosing the dividing
position appears.
7 Use the four-way controller
(2345) to determine the
dividing position.
2 : Plays or pauses the movie
3 : Stops the movie
4 : Reverses the movie frame by frame
5 : Advances the movie frame by frame
8 Press the 4 button.
A confirmation dialog appears.
9 Use the four-way controller (23)
to select [Divide].
10 Press the 4 button.
The movie is divided at the specified
position and the two portions are saved as new files.
Dividing a Movie
How to display the Movie Edit menu
OK
Guide
Guide
OK
OK
Guide OK
MENU
Slideshow
Slideshow
Slideshow
Four-way controller
4 button
Select image for
Select image for
dividing position
dividing position
Select image for
dividing position
100
100
-
0042
0042
100
-
0042
00:09
00:09
168
168
00:09
168
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
Divide
Cancel
Divide at this position?
Divide at this position?
Divide at this position?
OK
OK
OK
OK
135
6
Editing and Printing Images
5 Select [Stitch Movies] on the Movie Edit menu.
6 Press the 4 button.
The movie selection screen appears.
7 Use the four-way controller (45)
to choose the second movie (latter
half).
8 Press the 4 button.
A confirmation dialog appears.
9 Use the four-way controller (23)
to select [Stitch].
10 Press the 4 button.
The two selected movies are stitched
together and saved in the first movie file. (The
movie that was selected as the first half is overwritten by the stitched
movie and the movie that was selected as the second half is deleted.)
Stitching Movies
• When a stitched movie is played back, it may appear to stop for
about one second at the point where the two movies were joined.
This is because, in Movie Edit mode, the movie data is edited in
units of one second, so if the last frame of the first movie lasts less
than one second, it is drawn out to one second when it is joined to
the second movie.
• When two movies are joined together, the second movie file is
deleted.
OK
OK
OK
OK
Save as Still Image
Divide Movies
Stitch Movies
MENU
OK
OK
OK
Guide
Guide
Guide OK
MENU
Movie Edit
Movie Edit
Movie Edit
OK
Select movies of
Select movies of
the latter half
the latter half
Select movies of
the latter half
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
100
100
-
0042
0042
100
-
0042
Stitch
Cancel
Stitch two movies?
Stitch two movies?
Stitch two movies?
OK
OK
OK
OK
136
6
Editing and Printing Images
Setting the Printing Service (DPOF)
DPOF (Digital Print Order Format) is the format for storing print order
data on still pictures captured with a digital camera. Once the print order
data has been stored, the pictures can be printed according to the DPOF
settings using a DPOF-compatible printer or photo processing lab.
You cannot store print order data for movies or sound-only files.
Set the following items for each image.
1 In Q mode, use the four-way controller (45) to
choose the image you want to print.
2 Press the four-way controller (3).
The Playback Mode Palette appears.
3 Use the four-way controller (2345) to select r
(DPOF).
4 Press the 4 button.
The DPOF screen appears.
5 Use the four-way controller (23)
to select [Select image].
Printing Single Images
Copies Choose the number of copies up to 99.
Date Specify whether you want the date inserted on the print or not.
OK
Guide
Guide
OK
OK
Guide OK
MENU
Slideshow
Slideshow
Slideshow
8
1, 2, 3, 5, 7
4, 6, 9
OK
OK
OK
OK
All Images
Select image
MENU
137
6
Editing and Printing Images
6 Press the 4 button.
The screen for setting the DPOF print order
data for the selected image appears.
If DPOF settings have already been made
for an image, the previous number of copies
and date setting (O or P) will be displayed.
7 Use the four-way controller (23)
to choose the number of copies.
8 Use the Green button to choose
whether to insert the date or not.
O (On) : The date will be imprinted.
P (Off) : The date will not be imprinted.
To continue setting DPOF print order data,
use the four-way controller (45) to choose
another image and repeat Steps 7 and 8.
9 Press the 4 button.
The DPOF settings are saved and the screen returns to the DPOF
menu.
To cancel DPOF settings, set the number of copies to [00] in Step 7
and press the 4 button.
Depending on the printer or printing equipment at the photo
processing lab., the date may not be imprinted on the pictures even
if O (On) was selected in the DPOF settings.
Copies
DPOF setting for this image
DPOF setting for this image
DPOF setting for this image
Date
Date
Date
00
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
100
100
-
0017
0017
100
-
0017
MENU
Copies
DPOF setting for this image
DPOF setting for this image
DPOF setting for this image
Date
Date
Date
Cancel
Cancel
Cancel
OK
OK
OK
OK
100
100
-
0017
0017
100
-
0017
01
138
6
Editing and Printing Images
When you choose the number of copies and whether or not to insert the
date, the settings are applied to all the images stored in the camera.
1 Display the screen for DPOF settings in Q mode.
Refer to Steps 2 to 4 on p.136.
2 Use the four-way controller (23) to select [All Images].
3 Press the 4 button.
The screen for DPOF settings appears.
4 Choose the number of copies and
whether to insert the date or not.
Refer to Steps 7 and 8 in “Printing Single
Images” (p.137) for details of how to make
the settings.
5 Press the 4 button.
The DPOF settings for all the images are saved and the camera
returns to the DPOF setting screen.
Printing All Images
The number of copies specified in the DPOF settings applies to all
the images. Before printing, check that the number is correct.
Settings for single images are canceled when settings are made for
all images.
OK
Guide
Guide
OK
OK
Guide OK
MENU
Slideshow
Slideshow
Slideshow
4
1, 2, 4
1, 3, 5
Copies
DPOF setting for
DPOF setting for
all images
all images
DPOF setting for
all images
Date
Date
Date
Cancel
Cancel
Cancel
OK
OK
OK
OK
MENU
01
139
6
Editing and Printing Images
Printing Using PictBridge
By connecting the camera to a printer that supports PictBridge using the
USB cable (I-USB7) provided, you can print images directly from the
camera without using a PC. Connect the camera to the printer and select
the images you want to print and the number of copies on the camera.
1 Select [PictBridge] for the [USB Connection] mode on
the [u Setting] menu.
Refer to “Changing the USB Connection Mode” (p.159).
2 Turn off the camera.
3 Connect the camera to the printer using the USB cable
provided.
4 Turn the printer on.
5 When the printer is ready to print,
turn the camera on.
The printing mode selection screen
appears.
• You are recommended to use the AC adapter D-AC8 when the
camera is connected to the printer. The printer may not work
properly or the image data may be lost if the battery runs out of
power while the camera is connected to the printer.
• Do not disconnect the USB cable during data transfer.
• Depending on the type of printer, not all the settings made on the
camera (such as print settings and DPOF settings) may be valid.
• A printing error may occur if the selected number of copies
exceeds 500.
•
You cannot use the camera to select multiple images for printing on
a single sheet. Make the settings on the printer. For details, refer to
the operating manual for your printer.
Connecting the Camera to the Printer
All Images
Select printing mode
Select printing mode
Select image
DPOF
setting
OK
OK
OK
OK
140
6
Editing and Printing Images

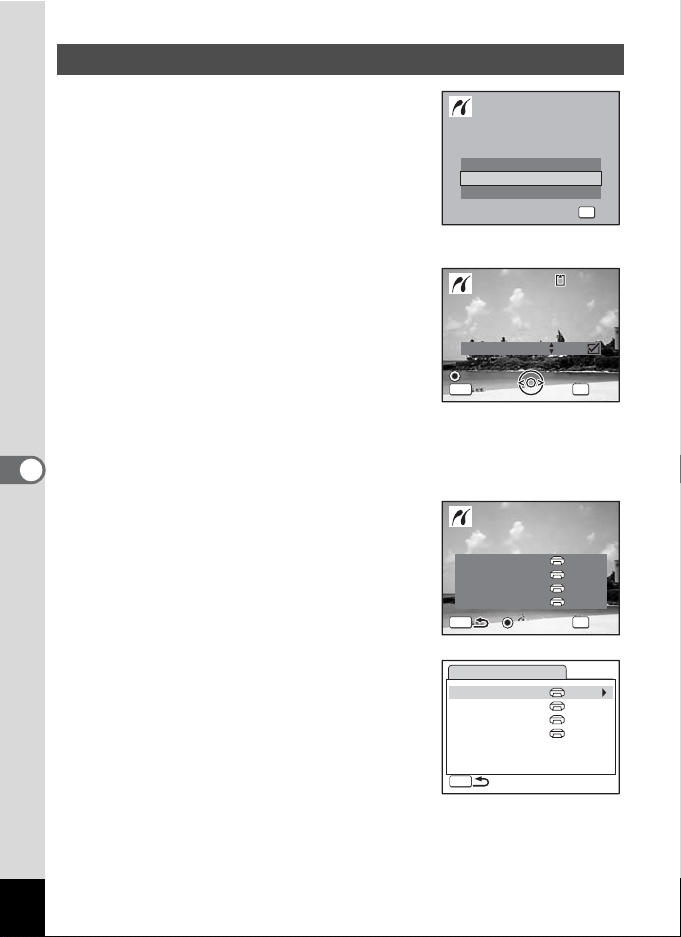

1 In the printing mode selection
screen, use the four-way
controller (23) to select [Select
image].
2 Press the 4 button.
The setting screen appears.
3 Use the four-way controller (45)
to choose an image to print.
4 Use the four-way controller (23)
to choose the number of copies.
You can print up to 99 copies.
5 Use the Green button to choose
whether to insert the date or not.
O (On) : The date will be imprinted.
P (Off) : The date will not be imprinted.
6 Press the 4 button.
A confirmation dialog appears.
To print the pictures according to the print
settings on the printer, press the 4
button.
To change the print settings, go to Step 7.
7 Press the Green button.
The screen for changing the print settings
appears.
8 Select [Paper Size] and press the
four-way controller (5).
The Paper Size screen appears.
Printing Single Images
All Images
Select printing mode
Select printing mode
Select image
DPOF
setting
OK
OK
OK
OK
Copies
Print this image
Print this image
OK
Print
Print
Date
01
MENU
Date
Date
100
100
-
0017
0017
100
-
0017
Cancel
Cancel
Cancel
Print with this setting?
Print with this setting?
Print with this setting?
OK
Print
Print
MENU
Change
Change
Change
Paper Size Setting
Paper Type
Border Status
Quality
Setting
Setting
Setting
PictBridge
MENU
Paper Size
Paper Type
Border Status
Quality
Setting
Setting
Setting
Setting
141
6
Editing and Printing Images
9 Use the four-way controller
(2345) to choose the paper
size.
You can only choose a size that is
supported by your printer.
10 Press the 4 button.
11 Repeat Steps 8 to 10 to set [Paper Type], [Quality] and
[Border Status].
If you select [_ Setting], images are printed according to the settings
made on the printer.
Paper Type with more E supports higher quality paper.
Quality with more E indicates higher print quality.
A confirmation dialog appears after each item has been set.
12 Press the 4 button twice.
The image is printed according to the settings.
Press the 3 button to cancel printing.
• The power indicator lights while the camera is communicating with
the printer, and blinks while the card is being accessed and during
printing. Do not disconnect the USB cable while the power
indicator is blinking.
• The [Paper Size], [Paper Type], [Quality] and [Border Status]
settings are reset to the defaults when the camera is turned off.
Disconnecting the Cable from the Printer 1p.143
Cancel
Cancel
Cancel
MENU OK
OK
OK
OK
2L
L
100×150
A4
A3
4”×6”
8”×10”
11”×17”
Paper Size
Card
Postcard
Letter
Setting
142
6
Editing and Printing Images
1 In the printing mode selection
screen, use the four-way
controller (23) to select [All
images].
2 Press the 4 button.
The setting screen appears.
3 Choose the number of copies and
whether to insert the date or not
and confirm the settings.
The number of copies and date setting that
you choose apply to all the images.
Refer to Steps 4 to 11 in “Printing Single Images” (p.140 - p.141) for
details of how to make the settings.
4 Press the 4 button on the print settings confirmation
screen.
All the images are printed according to the settings.
Press the 3 button to cancel printing.
Printing All Images
All Images
Select printing mode
Select printing mode
Select image
DPOF
setting
OK
OK
OK
OK
Copies
Total
Print
Print
Date
Date
Date
01
Print all images
Print all images
OK
28
MENU
100
100
-
0017
0017
100
-
0017
Cancel
Cancel
Cancel
143
6
Editing and Printing Images
1 In the printing mode selection screen, use the four-way
controller
(
23
) to select [DPOF setting].
2 Press the 4 button.
The DPOF settings you have made appear.
Use the four-way controller (45) to check
the settings for each image. Refer to p.136
for instructions on how to make the DPOF
settings.
3 Press the 4 button.
A confirmation dialog appears.
4 Press the 4 button.
The images are printed according to the settings.
Press the 3 button to cancel printing.
Disconnect the USB cable from the camera and printer when you have
finished printing.
1 Turn off the camera.
2 Disconnect the USB cable from the camera and printer.
Printing Using the DPOF Settings
Disconnecting the Cable from the Printer
Copies
Total
Print
Print
Date
01
Print with
DPOF
setting
Print with
DPOF
setting
OK
10
MENU
100
100
-
0017
0017
100
-
0017
Cancel
Cancel
Cancel
144
7
Recording and Playing Back Sound
Recording and Playing Back Sound
Recording Sound (Voice Recording Mode)
You can record sound with the camera. The microphone is located on
the top of the camera. When recording sound, aim the camera to obtain
the best conditions.
1 Press the four-way controller (3) in A mode.
The Capture Mode Palette appears.
2 Use the four-way controller (2345) to select O
(Voice Recording).
3 Press the 4 button.
The remaining recordable time and the
recording time of the current file appear on
the LCD monitor.
1 Recording time
2 Remaining recordable time
4 Press the shutter release button
fully.
Recording starts. The self-timer lamp blinks
during recording.
When the Green button is pressed during
recording, an index can be added to the
current sound file.
5 Press the shutter release button fully.
Recording stops.
OK
Change
Change
OK
OK
Guide
Guide
Guide
Change
Program
Program
Program
OK
1, 2
3
Speaker
Microphone
4, 5
01:31:44
01:31:44
Start
Start
00:00:00
00:00:00
00:00:00
SHUTTER
REC
12
00:01:22
00:01:22
01:30:22
01:30:22
00:01:22
Stop
Stop
Index
Index
Index
SHUTTER
REC
145
7
Recording and Playing Back Sound
• If you press and hold down the shutter release button in Step 4,
recording continues until you take your finger off the button. This
is useful for making short sound recordings, such as for the user
sound in the [Sound] menu.
• Sound is saved in WAVE monaural files.
•Pressing the 4 button clears the voice recording screen from
the LCD monitor. Press the 4 button again to display the voice
recording screen.
146
7
Recording and Playing Back Sound
Playing Back Sound
You can play back the sound files you made in O mode.
1 Press the Q button.
2 Use the four-way controller (45)
to choose a sound file to play
back.
3 Press the four-way controller (2).
The sound file is played back.
1 Total file recording time
2 Playback time
The following operations can be performed during playback.
Four-way controller (2) Pauses playback
Zoom/w/x (x) Increases the volume
Zoom/w/x (w) Reduces the volume
If there are no recorded indexes:
Four-way controller (4) Reverses playback
Four-way controller (5) Fast forwards playback
If there are recorded indexes:
Four-way controller (4)
Plays back starting from the previous index
Four-way controller (5) Plays back starting from the next index
The following operations can be performed while playback is paused.
Four-way controller (2) Resumes playback
Four-way controller (4) Rewinds approx. 5 seconds
Four-way controller (5) Advances approx. 5 seconds
4 Press the four-way controller (3).
Playback stops.
3
1
2, 3, 4
03/25/2005
03/25/2005
14
14
:25
:25
03/25/2005
14:25
00:00:00
00:00:00
00:01:30
00:01:30
00:00:00
00:01:30
100
100
-
0025
0025
100
-
0025
12
147
7
Recording and Playing Back Sound

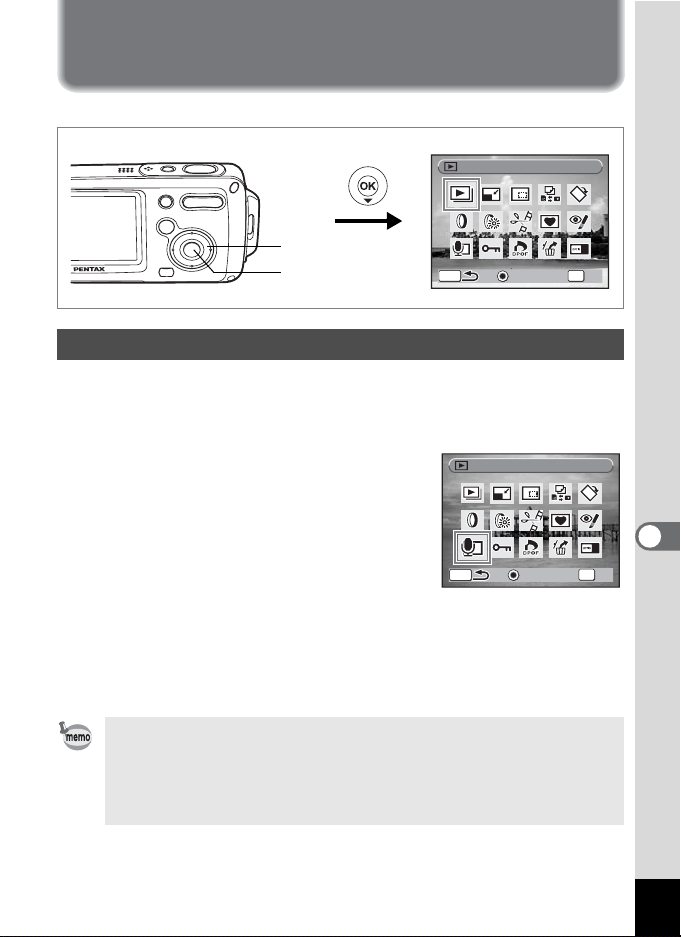

Adding a Voice Memo to Images
You can add a voice memo to your still pictures.
1 Enter Q mode and use the four-way controller (45) to
choose the still picture to which you want to add a voice
memo.
2 Press the four-way controller (3).
The Playback Mode Palette appears.
3 Use the four-way controller
(2345) to select \ (Voice
Memo).
4 Press the 4 button.
Recording starts. You can record until the SD Memory Card or built-in
memory is full.
5 Press the 4 button.
Recording stops.
Recording a Voice Memo
• A voice memo cannot be added to an image that already has a
voice memo or that was taken in Synchro Sound Record mode.
Delete the old voice memo and record a new one. (1p.115)
• A voice memo cannot be added to protected (Z) images
(1p.120).
OK
Guide
Guide
OK
OK
Guide OK
MENU
Slideshow
Slideshow
Slideshow
1, 2, 3
4, 5
OK
OK
OK
Guide
Guide
Guide
MENU
OK
Voice Memo
Voice Memo
Voice Memo
148
7
Recording and Playing Back Sound
1 Enter the Playback mode and use
the four-way controller (45) to
choose the still picture with the
voice memo that you want to play
back.
U appears on images with voice memos in
single-image display.
2 Press the four-way controller (2).
Playback starts.
The following operations can be performed during playback.
Zoom/w/x (x) Increases the volume
Zoom/w/x (w) Reduces the volume
3 Press the four-way controller (3).
Playback stops.
Playing Back a Voice Memo
Sound files for images taken in Synchro Sound Record mode can be
played back in the same manner.
Deleting a Sound File 1p.115
2
1, 2, 3
03/25/2005
03/25/2005
03/25/2005
14:25
14:25
14:25
100
100
-
0038
0038
100
-
0038
149
8
Settings
Settings
Camera Settings
Formatting will delete all the data on the SD Memory Card.
All the data in the built-in memory will be deleted if no SD Memory Card
has been inserted in the camera.
1 Select [Format] on the [u Setting] menu.
2 Press the four-way controller (5).
The Format screen appears.
3 Use the four-way controller (23)
to select [Format].
4 Press the 4 button.
Formatting starts. When formatting is
completed, the camera is ready to take
pictures.
Formatting an SD Memory Card or the Built-in
Memory
• Do not remove the SD Memory Card during formatting as this may
damage the card and render it unusable.
• Formatting will delete protected images and any data recorded on
the card with a camera other than this camera.
•
SD Memory Cards formatted on a PC or device other than the
camera cannot be used. Be sure to format the card with the camera.
Format
Sound
03/25/2005
Date Adjust
Alarm
World Time
Setting
MENU
Exit
Exit
Exit
1/3
Four-way controller
3 button
MENU
How to display the [u Setting] menu
4 button
Format
All data deleted
Format
Cancel
OK
OK
OK
OK
150
8
Settings
You can change the initial date and time settings. You can also set the
style in which the date appears on the camera. Choose [mm/dd/yy],
[dd/mm/yy] or [yy/mm/dd].
1 Select [Date Adjust] on the [u Setting] menu.
2 Press the four-way controller (5).
The Date Adjust screen appears.
Refer to “Setting the Date and Time” (1p.38) for the setting procedure.
Changing the Date and Time
Format
Sound
03/25/2005
Date Adjust
Alarm
World Time
Setting
MENU
Exit
Exit
Exit
1/3
Four-way controller
3 button
MENU
How to display the [u Setting] menu
151
8
Settings
You can adjust the volume of operation sounds and change the type of
sound.
1 Select [Sound] on the [u Setting] menu.
2 Press the four-way controller (5).
The Sound screen appears.
3 Use the four-way controller (23) to select [Volume].
4 Use the four-way controller (45) to adjust the volume.
Set the volume to 0 to mute operation sounds.
5 Use the four-way controller (23) to select [Start-up
Sound].
6 Press the four-way controller (5).
A pull-down menu appears.
7 Use the four-way controller (23) to select [1], [2], [3],
[Off] or [USER] and press the four-way controller (4).
Changing the Sound Settings
Changing the Operation Volume
Changing the Sound Type
Format
Sound
03/25/2005
Date Adjust
Alarm
World Time
Setting
MENU
Exit
Exit
Exit
1/3
Four-way controller
3 button
MENU
How to display the [u Setting] menu
4 button
Sound
Volume
1
1
On
Start-up Sound
Shutter Sound
Operation Sound
Self-timer Sound
1
MENU
OK
OK
OK
OK
152
8
Settings
8 Repeat Steps 5 to 7 to set [Shutter Sound], [Operation
Sound] and [Self-timer Sound].
Select [On], [Off] or [USER] for the self-timer sound.
9 Press the 4 button.
The setting is saved.
You can set the first two seconds of your favorite recorded sound as the
user sound and then use this as the start-up sound or shutter sound. The
sound to be used is recorded with the camera. (1p.144)
1 Select [USER] in Steps 7 and 8 above.
2 Press the 4 button.
The Playback screen appears if a sound
that can be used as the user sound has
been saved in the camera. USER appears
for the sound set as the user sound.
3 Use the four-way controller (45)
to choose a sound file.
Four-way controller (2) Plays back the first two seconds of the
sound file
Four-way controller (3) Stops playback
4 Press the 4 button.
The selected sound is set as the user sound for the start-up sound or
shutter sound.
Setting the User Sound
MENU
Cancel
Cancel
OK
OK
Cancel
OK
OK
100
100
-
0025
0025
100
-
0025
153
8
Settings
You can set the alarm to ring at a specified time.
You can choose whether the alarm will ring at the same time every day
or only once at the set time.
1 Select [Alarm] on the [u Setting] menu.
2 Press the four-way controller (5).
The Alarm screen appears.
3 Press the four-way controller (5).
A pull-down menu appears.
4 Use the four-way controller (23)
to select [Off], [Once] or
[Everyday] and press the four-way controller (4).
5 Press the four-way controller (3).
Next, set the time.
6 Press the four-way controller (5).
The frame moves to the hour field.
7 Use the four-way controller (23) to change the hour,
then press (5).
The frame moves to the minute field.
Change the minutes in the same manner.
Setting the Alarm
Setting the Alarm
Format
Sound
03/25/2005
Date Adjust
Alarm
World Time
Setting
MENU
Exit
Exit
Exit
1/3
Four-way controller
3 button
MENU
How to display the [u Setting] menu
4 button
Alarm
14:25
MENU
Cancel
OK
OK
Alarm Off
Time
0:00
154
8
Settings
8 Press the 4 button.
The screen returns to the [u Setting] menu.
Check that [Alarm] is set to O (On).
9 Press the 4 button.
[Alarm is set] appears and the camera turns
off.
1 Select [Alarm] on the [u Setting] menu.
Check that [Alarm] is set to O (On).
2 Press the four-way controller (5).
The Alarm screen appears.
Check the alarm frequency and time.
3 Press the 3 button twice.
The camera is ready to take pictures.
The Clock mode screen appears and the alarm
rings for one minute when the set time is
reached while the camera is turned off.
You can stop the alarm by pressing any button
on the camera, except the shutter release
button, while the alarm is ringing.
Checking the Alarm
Turning the Alarm Off
The alarm will not ring when the set time is reached if the camera
has been turned on.
Format
Sound
Date Adjust
Alarm
World Time
Setting
MENU
Exit
Exit
Exit
03/25/2005
1/3
Alarm
14:25
MENU
Cancel
OK
OK
Alarm Once
Time 17:30
155
8
Settings
The date and time selected in “Setting the Date and Time” (p.38) serve
as the W (Hometown) date and time.
By using the world time function, you can display the time in a city other
than the Hometown (XDestination). This is useful when taking pictures
in a different time zone.
The procedure for setting the Destination date and time is described
below.
1 Select [World Time] on the [u Setting] menu.
2 Press the four-way controller (5).
The World Time screen appears.
3 Use the four-way controller (23)
to select X (Destination) or W
(Hometown).
X : Displays the time in the city selected
as the Destination city
W : Displays the time in the city selected as the Hometown city
4 Press the four-way controller (5).
The Destination screen appears. The city
that is currently selected blinks on the map.
5 Use the four-way controller (45)
to change the Destination city.
The current time, location and time
difference of the selected city appear.
6 Use the four-way controller (3) to select [DST].
Setting the World Time
Format
Sound
03/25/2005
Date Adjust
Alarm
World Time
Setting
MENU
Exit
Exit
Exit
1/3
Four-way controller
3 button
MENU
How to display the [u Setting] menu
4 button
World Time
MENU
Cancel
OK
OK
Destination
New York
Hometown
New York
14:25
14:25
OFF
DST
OFF
OFF
OFF
Destination
City
London
DST TimeDif.
+05:00
MENU
Cancel
OK
OK
19:25
156
8
Settings
7 Use the four-way controller (45) to select O (On) or P
(Off).
Select O (On) if the Destination city uses daylight saving time.
8 Press the 4 button twice.
The World Time setting is saved.
Select W in Step 3 to set the city and DST setting for the Hometown
city.
157
8
Settings
You can change the language in which the menus, error messages, etc.
are displayed.
You can choose from English, French, German, Spanish, Italian,
Swedish, Dutch, Russian, Korean, Chinese (traditional and simplified)
and Japanese.
1 Select [Language/ ] on the [u Setting] menu.
2 Press the four-way controller (5).
The Language/ screen appears.
Refer to “Setting the Display Language”
(p.37) for the setting procedure.
Changing the Display Language
Format
Sound
03/25/2005
Date Adjust
Alarm
World Time
Setting
MENU
Exit
Exit
Exit
1/3
Four-way controller
3 button
MENU
How to display the [u Setting] menu
English
Nederlands
Francais
Deutsch
Español
Italiano
Svenska
MENU
Cancel
OK
OK
158
8
Settings
You can change the image folder name from the standard name to the
date that pictures were taken. When the name is changed to the date,
pictures are saved in separate folders by the date they were taken.
Folder Name
1 Select [Folder Name] on the [u Setting] menu.
2 Press the four-way controller (5).
A pull-down menu appears.
3 Use the four-way controller (23) to select [Standard]
or [Date].
4 Press the 4 button.
The Folder Name setting is saved.
Changing the Image Folder Name
Standard XXXPENTX (where XXX is the 3-digit folder number)
Date XXX_mmdd (3-digit folder number_month day)
Format
Sound
03/25/2005
Date Adjust
Alarm
World Time
Setting
MENU
Exit
Exit
Exit
1/3
Four-way controller
3 button
MENU
How to display the [u Setting] menu
4 button
DCIM
100PENTX
101_0325
102_0401
DCIM
100PENTX
101_0325
DCIM
100PENTX
100 100
101
100
101
102
Picture taken with
standard folder name
(Example: March 25)
Folder name changed to
date setting
(Example: March 25)
Next time a picture
is taken
(Example: April 1)
159
8
Settings
Choose the appropriate USB connection mode depending on whether
you are going to connect the USB cable to a PC or a PictBridge-
compatible printer.
1 Select [USB Connection] on the [u Setting] menu.
2 Press the four-way controller (5).
A pull-down menu appears.
3 Use the four-way controller (23)
to select [PC] or [PictBridge].
[PC] : Select this option when
transferring image data to a
computer
[PictBridge] : Select this option when
connecting the camera to a
PictBridge-compatible printer
4 Press the 4 button.
The USB Connection setting is saved.
Changing the USB Connection Mode
Refer to the PC Connection Manual for instructions on connecting
the camera to a computer.
Do not connect the camera to your PC while [PictBridge] is selected
for the USB Connection mode. And do not connect the camera to
your printer while [PC] is selected.
Format
Sound
03/25/2005
Date Adjust
Alarm
World Time
Setting
MENU
Exit
Exit
Exit
1/3
Four-way controller
3 button
MENU
How to display the [u Setting] menu
4 button
Setting
Folder Name
USB Connection
Video Out
Brightness Level
English
Standard
PC
PictBridge
2/3
MENU
Cancel
Cancel
OK
OK
Cancel
OK
OK
160
8
Settings
When you connect the camera to AV equipment, choose the appropriate
video output format (NTSC or PAL) for taking and playing back images.
1 Select [Video Out] on the [u Setting] menu.
2 Press the four-way controller (5).
A pull-down menu appears.
3 Use the four-way controller (23)
to select [NTSC] or [PAL].
Choose the video output format to match
the output format of the AV equipment.
4 Press the 4 button.
The Video Out setting is saved.
Changing the Video Output Format
Depending on the country or region, images and sound files may fail
to be played back if the video output format is set different from the
one in use there. If this happens, change the video output format
setting.
Connecting the Camera to AV Equipment 1p.113
Format
Sound
03/25/2005
Date Adjust
Alarm
World Time
Setting
MENU
Exit
Exit
Exit
1/3
Four-way controller
3 button
MENU
How to display the [u Setting] menu
4 button
Setting
Folder Name
USB Connection
Video Out
Brightness Level
English
Standard
MENU
Cancel
Cancel
OK
OK
Cancel
OK
OK
PC
NTSC
PAL
2/3
161
8
Settings
You can adjust the brightness of the LCD monitor.
1 Use the four-way controller (23 ) to select [Brightness
Level].
2 Use the four-way controller (45)
to adjust the brightness.
The monitor gets darker as the bar slider
moves to the left (toward [–]) and brighter as
it moves to the right (toward [+]).
3 Press the 3 button.
The Brightness Level setting is saved.
Adjusting the Brightness of the LCD Monitor
Format
Sound
03/25/2005
Date Adjust
Alarm
World Time
Setting
MENU
Exit
Exit
Exit
1/3
Four-way controller
3 button
MENU
How to display the [u Setting] menu
Setting
Folder Name
USB Connection
Video Out
Brightness Level
English
Standard
MENU
Exit
Exit
Exit
PC
NTSC
2/3
162
8
Settings
You can save battery power by setting the LCD monitor to turn off
automatically when no operation is performed for a fixed time. After the
power saving function has been activated, you can turn the LCD monitor
on again by pressing any of the buttons.
1 Select [Power Saving] on the [u Setting] menu.
2 Press the four-way controller (5).
A pull-down menu appears.
3 Use the four-way controller (23)
to select [2min], [1min], [30sec],
[15sec], [5sec] or [Off].
4 Press the 4 button.
The Power Saving setting is saved.
Using the Power Saving Function
Power Saving does not function in the following situations:
• in Playback mode
• while the camera is connected to a PC or printer
• when using the AC adapter
• while recording a movie
Format
Sound
03/25/2005
Date Adjust
Alarm
World Time
Setting
MENU
Exit
Exit
Exit
1/3
Four-way controller
3 button
MENU
How to display the [u Setting] menu
4 button
Setting
Power Saving
Quick Zoom
Auto Power Off
Green Button
Reset
2min
Off
5sec
15sec
30sec
1min
3/3
MENU
Cancel
Cancel
OK
OK
Cancel
OK
OK
163
8
Settings
You can set the camera to turn off automatically when no operation is
performed for a fixed time.
1 Select [Auto Power Off] on the
[u Setting] menu.
2 Press the four-way controller (5).
A pull-down menu appears.
3 Use the four-way controller (23)
to select [5min], [3min] or [Off].
4 Press the 4 button.
The Auto Power Off setting is saved.
Setting Auto Power Off
Auto Power Off does not function in the following situations:
• during a slideshow or movie playback
• while the camera is connected to a PC or printer
Format
Sound
03/25/2005
Date Adjust
Alarm
World Time
Setting
MENU
Exit
Exit
Exit
1/3
Four-way controller
3 button
MENU
How to display the [u Setting] menu
4 button
Setting
Quick Zoom
Auto Power Off
Green Button
Reset
MENU
Cancel
Cancel
OK
OK
Cancel
OK
OK
Power Saving
5sec
Off
3min
5min
3/3
164
8
Settings
You can choose an image to be displayed as the start-up screen when
the camera is turned on.
1 Press the Q button.
The camera enters Q mode.
2 Press the four-way controller (3).
The Playback Mode Palette appears.
3 Use the four-way controller (2345) to select ^.
4 Press the 4 button.
The image selection screen appears.
5 Use the four-way controller (45)
to choose an image for the start-
up screen.
6 Press the 4 button.
The Start-up Screen setting is saved.
Changing the Start-up Screen
• Once the start-up screen has been set, it will not be deleted even
if the original image is deleted or the SD Memory Card or built-in
memory is formatted.
• Select [Off] to hide the start-up screen.
OK
Guide
Guide
OK
OK
Guide OK
MENU
Slideshow
Slideshow
Slideshow
1
2, 3, 5
How to display the Playback Mode Palette
4, 6
100
100
-
0017
0017
100
-
0017
MENU
Cancel
Cancel
OK
OK
Cancel
OK
OK
165
8
Settings
You can reset the camera settings to their defaults. Refer to “Default
Settings” (p.168) for the reset settings.
1 Select [Reset] on the [u Setting] menu.
2 Press the four-way controller (5).
The Reset screen appears.
3 Use the four-way controller (2) to
select [Reset].
4 Press the 4 button.
The settings return to the defaults.
Resetting to Default Settings (Reset)
The following settings are not affected by resetting:
Date Adjust, Language/ , World Time, Video Out and Mode
Palette setting.
Format
Sound
03/25/2005
Date Adjust
Alarm
World Time
Setting
MENU
Exit
Exit
Exit
1/3
Four-way controller
3 button
MENU
How to display the [u Setting] menu
4 button
Reset
Reset to initial setting?
Reset
Cancel
OK
OK
166
8
Settings
Displaying the Clock Mode
You can use the camera as a clock. With the camera turned off, press
and hold down the 4 button to display the clock on the LCD monitor.
1 Press and hold down the 4
button.
The camera turns on and the clock appears
on the screen.
The camera turns off automatically after
approximately 10 seconds.
Pressing the power switch turns the camera
off immediately.
4 button
167
9
Appendix
Appendix
List of World Time Cities
Refer to the following list of cities when setting the World Time.
Region City
Region
City
North America Honolulu Africa/
West Asia
Jerusalem
Anchorage Nairobi
Vancouver Jeddah
San Francisco Tehran
Los Angeles Dubai
Calgary Karachi
Denver Kabul
Chicago Male
Miami Delhi
Toronto Colombo
New York Kathmandu
Halifax Dacca
Central and
South America
Mexico City East Asia Yangon
Lima Bangkok
Santiago Kuala Lumpur
Caracas Vientiane
Buenos Aires Singapore
Sao Paulo Phnom Penh
Rio de Janeiro Ho Chi Minh
Europe Madrid Jakarta
London Hong Kong
Paris Beijing
Amsterdam Shanghai
Milan Manila
Rome Taipei
Berlin Seoul
Stockholm Tokyo
Athens Guam
Helsinki Oceania Perth
Moscow Adelaide
Africa/
West Asia
Dakar Sydney
Algiers Noumea
Johannesburg Wellington
Istanbul Auckland
Cairo Pago Pago
168
9
Appendix
Default Settings
The table below lists the factory default settings.
The meaning of the indications for menu items with a default setting is
explained below.
Last Memory Setting
Yes : The current setting (last memory) is saved when the camera
is turned off.
No : The setting returns to the default setting when the camera is
turned off.
∗ : The setting depends on the Memory setting (1p.97).
Reset Setting
Yes : The setting returns to the default setting with the Reset
function (1p.165).
No : The setting is saved even after reset.
[A Rec. Mode] Menu Items
Item Default Setting
Last
Memory
Setting
Reset
Setting
Page
Recorded Pixels f (2560×1920) Yes Yes p.85
Quality Level D (Better) Yes Yes p.87
White Balance F (Auto) ∗ Yes p.88
AF Setting
Focusing Area J (Multiple) Yes Yes p.90
Focus Limiter On Yes Yes p.90
Sensitivity Auto ∗ Yes p.92
EV Compensation
±0.0
∗ Yes p.76
Movie
Recorded Pixels D (320×240) Yes Yes p.101
Color Mode Full Color Yes Yes p.103
Frame Rate
30fps
Yes Yes p.102
Digital Zoom On ∗ Yes p.75
Instant Review 1 sec Yes Yes p.93
Memory
Flash Mode On — Yes p.83
Drive Mode Off — Yes
p.72,
p.77,
p.78
Focus Mode Off — Yes p.81
Zoom Position Off — Yes p.74
169
9
Appendix
[u Setting] Menu
Memory
MF Position Off — Yes p.82
White Balance Off — Yes p.88
Sensitivity Off — Yes p.92
EV Compensation Off — Yes p.76
Digital Zoom On — Yes p.75
DISPLAY Off — Yes
p.79,
p.109
File # On — Yes —
Sharpness Normal Yes Yes p.94
Saturation Normal Yes Yes p.95
Contrast Normal Yes Yes p.96
Item Default Setting
Last
Memory
Setting
Reset
Setting
Page
Sound
Volume
3
Yes Yes
p.151
Start-up Sound 1 Yes Yes
Shutter Sound
1
Yes Yes
Operation Sound
1
Yes Yes
Self-timer Sound On Yes Yes
Date
Adjust
Date Style (date)
According to
initial setting
Yes No
p.38
Date Style (time)
According to
initial setting
Yes No
Date
According to
initial setting
Yes No
Time
According to
initial setting
Yes No
Alarm
Alarm Setting Off Yes Yes
p.153
Time
0:00
Yes Yes
World
Time
World Time Setting Off Yes Yes
p.155
Destination (City)
Same as
Hometown
Yes No
Destination (DST)
Same as
Hometown
Yes No
Hometown (City)
According to
initial setting
Yes No
Hometown (DST)
According to
initial setting
Yes No
170
9
Appendix
Playback Mode Palette Items
Key Operation
Language/
According to
initial setting
Yes No p.37
Folder Name Standard Yes Yes p.158
USB Connection
PC
Yes Yes p.159
Video Out
According to
initial setting
Yes No p.160
Brightness Level Normal Yes Yes p.161
Power Saving 5 sec Yes Yes p.162
Quick Zoom Off Yes Yes p.108
Auto Power Off 3 min Yes Yes p.163
Green Button Green Mode Yes Yes p.58
Item Default Setting
Last
Memory
Setting
Reset
Setting
Page
Slideshow
Interval 3 sec Yes Yes
p.110Screen Effect Wipe Yes Yes
Sound Effect On Yes Yes
Digital Filter B&W No — p.127
Brightness Filter Standard No — p.128
Start-up Screen Optio Logo screen Yes Yes p.164
Item Function Default Setting
Last
Memory
Setting
Reset
Setting
Page
Q button Operation Mode Q mode — — —
Zoom/w/x
button
Zoom Position Wide ∗ Yes p.74
Four-way
controller
2 Drive Mode 9 (Normal) ∗ Yes
p.72,
p.77,
p.78
3 Shooting Mode R (Program) Yes Yes p.53
4 Flash Mode
,
(Auto) ∗ Yes p.83
5 Focus Mode
=
(Autofocus) ∗ Yes p.81
3 button Menu Display
[A Rec. Mode]
menu
— — p.48
4/W
button
Information
Display
Normal ∗ Yes
p.79,
p.109
171
9
Appendix
Optional Accessories
A number of dedicated accessories are available for this camera.
AC adapter D-AC8
Rechargeable lithium-ion battery D-LI8 (∗)
Battery charger D-BC8 (∗)
AC plug cord (∗)
D-CO2A Australia
D-CO24E Europe
D-CO2H Hong Kong, United Kingdom
D-CO24J Japan
D-CO2K Korea
D-CO24U North America, Canada
USB cable I-USB7 (∗)
AV cable I-AVC7 (∗)
Strap O-ST20 (∗)/O-ST24/O-ST8/O-ST30
Camera case O-CC24/O-CC30
Products marked with an asterisk (∗) are the same as those supplied
with the camera.
172
9
Appendix
Messages
Messages such as the following may appear on the LCD monitor during
camera operation.
Battery depleted
The battery is exhausted. Charge the battery using the
battery charger. (p.22)
Memory card full
The SD Memory Card is full and no more images can be
saved.
Insert a new SD Memory Card or delete unwanted images.
(p.28, p.114)
Change the quality level or recorded pixels of recorded
images and try again. (p.122)
Memory card error
Shooting and playback are impossible due to a problem
with the SD Memory Card. You may be able to display or
copy the images on the card using a PC.
Card not formatted
The SD Memory Card you have inserted is unformatted or
has been formatted on a computer or other device and is
not compatible with this camera. (p.149)
Card locked The SD Memory Card is write-protected. (p.30)
Compression error
This message appears when you have exceeded the
capacity limit of the SD Memory Card while taking pictures.
No image/sound There are no image/sound files on the SD Memory Card.
Movie recording stopped
This message appears when the internal temperature of the
camera has exceeded normal operating limits while
recording a movie.
Deleting
This message appears when deleting an image or sound
file.
Camera cannot display
this image
You are trying to play back an image in a format not
supported by this camera. You may be able to play it back
on another brand of camera or your computer.
Image folder cannot be
created
The largest file number (9999) has been assigned to an
image in the largest folder number (999) and no more
images can be saved. Insert a new SD Memory Card or
format the card. (p.149)
Protected The image or sound file you are trying to delete is protected.
173
9
Appendix
Messages such as the following may appear on the LCD monitor when
using the PictBridge function.
Data being recorded
This message appears when you try to switch to Q mode
while an image is still being recorded, or when the protect
setting or DPOF setting is being changed. It disappears
after the image is recorded or the setting is changed.
Data being processed
This message appears when the camera takes more than
five seconds to display an image due to image processing,
or when the SD Memory Card or built-in memory is being
formatted.
Alarm is set
This message appears when the alarm is set and before the
camera automatically turns off.
No paper in the printer There is no paper in the printer.
No ink in the printer There is no ink in the printer.
Printer error An error message has been sent from the printer.
Data error A data error message has been sent from the printer.
Paper stuck in the
printer
The paper is stuck in the printer.
174
9
Appendix
Troubleshooting
Problem Cause Remedy
Camera will not
turn on
Battery is not installed
Check if battery is installed. If not, install
battery.
Battery is installed
incorrectly
Check orientation of battery. Reinsert
battery according to +- symbols. (p.23)
Battery power is low Charge the battery.
No image on LCD
monitor
Camera is connected
to a PC
LCD monitor is off when camera is
connected to a computer.
Camera is connected
to a TV
LCD monitor is off when camera is
connected to a TV.
LCD monitor is set to
OFF
Press the 4 button to turn LCD monitor
on. (p.79)
Image is displayed but
is hard to see
Image on LCD monitor may be hard to
see when taking pictures outside in
sunlight. Increase brightness of LCD
monitor. (p.161)
Shutter will not
release
Flash is charging
Pictures cannot be taken while the flash
is charging. Wait until charging is
finished.
No available space on
SD Memory Card or in
the built-in memory
Insert SD Memory Card with available
space or delete unwanted images. (p.28,
114)
Recording Wait until recording is finished.
Picture is dark
Subject is too far away
in a dark environment,
such as a night scene
Picture becomes dark if subject is too far
away. Take picture within range of flash.
175
9
Appendix
Subject is not in
focus
Subject is difficult to
focus on with
autofocus
Lock focus on another object located at
same distance (press shutter release
button halfway), then aim at target and
press shutter release button fully (p.41),
or use Manual Focus mode. (p.82)
Subject is not in
focusing area
Position subject in focus frame in middle
of LCD monitor. If the subject is outside
the focusing area, aim the camera at the
subject and lock the focus (press shutter
release button halfway), then compose
picture and press the shutter release
button fully.
Subject is too close Set focus mode to q. (p.81)
Focus mode is set to q
Normal pictures will be out of focus if
taken with focus mode set to q.
Flash does not
discharge
Flash mode is set to a
(flash off)
Set to Auto or b (Flash On). (p.83)
Drive mode is set to 1
or c
Focus mode is set to
s
Shooting mode is set
to C or y
Flash will not discharge in these modes.
USB connection
with computer
does not work
properly
USB connection mode
is set to [PictBridge]
Change the USB connection mode to
[PC]. (p.159)
USB connection
with printer does
not work properly
USB connection mode
is set to [PC]
Change the USB connection mode to
[Pictbridge]. (p.139)
Problem Cause Remedy
176
9
Appendix
Main Specifications
Approximate Image Storage Capacity and Recording Time
Still Picture (Approximate numbers of pictures)
Type Fully automatic compact digital still camera with built-in zoom lens
Effective Pixels 5.0 megapixels
Sensor 5.19 megapixels (total pixels)
1/2.5 inch interline transfer CCD with a primary color filter
Recorded Pixels Still Picture f (2560×1920 pixels), g (2304×1728 pixels)
h (2048×1536 pixels), i (1600×1200 pixels)
l (1024×768 pixels), m (640×480 pixels)
Movie D (320×240 pixels), E (160×120 pixels)
Sensitivity Auto, manual (50/100/200/400: Standard Output Sensitivity)
File Format Still Picture JPEG (Exif 2.2), DCF, DPOF, PictBridge,
PRINT Image Matching III
Movie MOV (QuickTime Motion JPEG), streaming video,
approx. 30fps/15fps, PCM system, monaural sound,
full color/sepia/B&W
Sound Voice memo, voice recording: WAVE (PCM) system,
monaural, Synchro sound record
Quality Level Still Picture C “Best”, D “Better”, E “Good”
Storage Medium Built-in memory (approx. 10.5MB), SD Memory Card
C (Best) D (Better) E (Good)
Built-in
Memory
64MB
Built-in
Memory
64MB
Built-in
Memory
64MB
f 2560×1920
3 18 6 35 10 60
g 2304×1728
4 24 8 46 11 66
h 2048×1536
5 30 9 55 14 80
i 1600×1200
8 50158620117
l 1024× 768
18 107 33 193 42 242
m 640× 480
39 227 61 352 75 430
177
9
Appendix
Movie (Approximate recording time)
30fps 15fps Sound
Built-in
Memory
64MB
Built-in
Memory
64MB
Built-in
Memory
64MB
D 320×240 16 sec.
1 min.
32 sec.
30 sec.
2 min.
56 sec.
23 min.
2 sec.
132 min.
13 sec.
E 160×120
1 min.
1 sec.
5 min.
52 sec.
1 min.
52 sec.
10 min.
45 sec.
White Balance Auto, Daylight, Shade, Tungsten Light, Fluores. Light, Manual
Lens Focal Length 6.3 mm - 18.9 mm
(equivalent to 38 mm - 114 mm in 35 mm
format)
Aperture f/3.3 - f/4
Lens Composition 11 elements in 9 groups
(three aspherical elements)
Zoom Type Electrically driven
Picture Range Approx. 16.5 mm × 12.3 mm
(screen is filled) (Macro mode)
Digital Zoom Capture Mode Max. 4× (combines with 3× optical zoom to give
zoom magnification equivalent to 12×)
LCD Monitor 2-inch low-reflection TFT color LCD monitor (with backlight) with
brightness adjustment, approx. 85 kilopixels
Playback
Functions
Single-frame, 9-frame index, enlargement (max. 8×, scroll), folder
display, rotating, sound playback, slideshow, movie playback and
editing (saving as still image, dividing, stitching), histogram display,
bright/dark portion display, image/sound copying, digital filter,
brightness filter, trimming, resizing, framing, red-eye
compensation, image recovery
Focus Modes Autofocus, Macro, Infinity, Pan Focus, Manual Focus
Autofocus Type TTL contrast detection system by sensor
9-point autofocus (multiple/spot changeable)
Still Picture
(from lens front)
Normal : Approx. 0.4 m -
∞
(full zoom range. Tele only:
approx. 0.5 m -
∞)
Macro : Approx. 0.01 m - 0.6 m (Wide)
Pan Focus
Landscape :
∞ (full zoom range)
Manual focus: Approx. 0.01 m -
∞ (Wide)
Approx. 0.5 m -
∞ (Tele)
178
9
Appendix
Autofocus
Movie
(from lens front)
Pan Focus
Landscape :
∞ (full zoom range)
Manual focus: Approx. 0.01 m -
∞ (Wide)
Approx. 0.5 m -
∞ (Tele)
∗ Continuous AF and automatic tracking AF are
possible only when Sport or Pet mode is
selected for shooting mode
FocusLock By half-pressing shutter release button
Exposure
Mechanism
AE metering TTL metering by sensor (multi-segment)
EV
Compensation
±2 EV (can be set in 1/3 EV steps)
Shooting Modes Green, Program, Night Scene, Movie, Voice Recording, Panorama
Assist, Landscape, Flower, Portrait, Underwater, Surf & Snow,
Sport, Synchro Sound Record, Pet, Candlelight, Soft, Fireworks,
Self-portrait, Natural Skin Tone, Food, Museum
Digital Filters B&W, Sepia, Red, Pink, Purple, Blue, Green, Yellow, Soft,
Brightness
Movie Continuous
Recording Time
Approx. 1 second - until built-in memory or SD
Memory Card is full
Shutter Type Electronic/mechanical shutter
Speed Approx. 1/2000 sec. - 4 sec.
Flash Type Auto flash with red-eye reduction function
Flash Modes Auto (at low illumination), Flash Off, Flash On,
Auto + Red-eye, Flash On + Red-eye, Soft
Flash (Slow synchronization is possible only in
Night Scene mode)
Working Range Wide: Approx. 0.13 m - 2.5 m
(Standard Output Sensitivity: in Auto condition)
Tele: Approx. 0.5 m - 2.0 m
(Standard Output Sensitivity: in Auto condition)
Drive Modes Single-frame, Self-timer (approx. 10 sec., approx. 2 sec.),
Continuous (Normal, High Speed), Frame Composite
Self-timer Electronic control type, control time: approx. 10 sec., 2 sec.
Time Function World Time
70 cities (28 time zones)
Clock Mode
Clock display by holding down 4 button while
camera is turned off (approx. 10 sec.)
Alarm
Alarm with simultaneous display of the Clock
mode at specified time
Power Supply Rechargeable lithium-ion battery D-LI8, AC adapter (optional)
179
9
Appendix
Battery Life Number of
Recordable
Images
Approx. 180
(at 23°C with flash used for 50% of shots and
using a rechargeable lithium-ion battery D-LI8,
in accordance with CIPA measuring conditions)
Playback Time
Approx. 230 min.
At 23°C with the battery fully charged, in
accordance with PENTAX conditions (The time
shown is approximate. It may be shorter in low
temperature conditions.)
Max. Charging
Time
Approx. 100 min.
In/Out Port PC/AV terminal, DC input terminal
Video Output
Format
NTSC/PAL (monaural)
PictBridge Printer PictBridge-compatible printer
Print Modes Print One, Print All, DPOF AUTOPRINT
Paper Size Card, L, 2L, Postcard, 100 mm×150 mm, 4"×6",
8"×10", Letter, 11"×17", A4, A3, printer setting
Paper Type C , D, E, printer setting
Quality C, D, E, printer setting
Border Status With/without, printer setting
Waterproof
Equivalent to JIS Class 8 protection (IPX8)
Continuous underwater picture-taking possible for 30 min. at depth
of 1.5 m.
Size 102 (W) × 51 (H) × 22 (D) mm (excluding operating members)
Weight 120 g (excluding battery and SD Memory Card)
Weight When
Shooting
135 g (including battery and SD Memory Card)
Accessories Rechargeable lithium-ion battery, battery charger, AC plug cord,
USB cable, AV cable, software (CD-ROM), strap, operating
manual
180
9
Appendix
WARRANTY POLICY
All PENTAX cameras purchased through authorized bona fide photographic
distribution channels are guaranteed against defects of material or workmanship
for a period of twelve months from date of purchase. Service will be rendered, and
defective parts will be replaced without cost to you within that period, provided the
equipment does not show evidence of impact, sand or liquid damage,
mishandling, tampering, battery or chemical corrosion, operation contrary to
operating instructions, or modification by an unauthorized repair shop. The
manufacturer or its authorized representatives shall not be liable for any repair or
alterations except those made with its written consent and shall not be liable for
damages from delay or loss of use or from other indirect or consequential
damages of any kind, whether caused by defective material or workmanship or
otherwise; and it is expressly agreed that the liability of the manufacturer or its
representatives under all guarantees or warranties, whether expressed or
implied, is strictly limited to the replacement of parts as hereinbefore provided. No
refunds will be made on repairs by non-authorized PENTAX service facilities.
Procedure During 12-month Warranty Period
Any PENTAX which proves defective during the 12-month warranty period should
be returned to the dealer from whom you purchased the equipment or to the
manufacturer. If there is no representative of the manufacturer in your country,
send the equipment to the manufacturer, with postage prepaid. In this case, it will
take a considerable length of time before the equipment can be returned to you
owing to the complicated customs procedures required. If the equipment is
covered by warranty, repairs will be made and parts replaced free of charge, and
the equipment will be returned to you upon completion of servicing. If the
equipment is not covered by warranty, regular charges of the manufacturer or of
its representatives will apply. Shipping charges are to be borne by the owner. If
your PENTAX was purchased outside of the country where you wish to have it
serviced during the warranty period, regular handling and servicing fees may be
charged by the manufacturer’s representatives in that country. Notwithstanding
this, your PENTAX returned to the manufacturer will be serviced free of charge
according to this procedure and warranty policy. In any case, however, shipping
charges and customs clearance fees to be borne by the sender. To prove the date
of your purchase when required, please keep the receipt or bills covering the
purchase of your equipment for at least a year. Before sending your equipment
for servicing, please make sure that you are sending it to the manufacturer’s
authorized representatives or their approved repair shops, unless you are
sending it directly to the manufacturer. Always obtain a quotation for the service
charge, and only after you accept the quoted service charge, instruct the service
station to proceed with the servicing.
181
9
Appendix
• This warranty policy does not affect the customer’s statutory rights.
• The local warranty policies available from PENTAX distributors in some
countries can supersede this warranty policy. Therefore, we recommend
that you review the warranty card supplied with your product at the time
of purchase, or contact the PENTAX distributor in your country for more
information and to receive a copy of the warranty policy.
The CE Mark is a Directive conformity mark of the European
Community.
182
9
Appendix
For customers in USA
STATEMENT OF FCC COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
For customers in Canada
This Class B digital apparatus meets all requirements of the Canadian
Interference - Causing Equipment Regulations.
Pour les utilisateurs au Canada
Cet apareil numérique de la classe B respecte toutes les exigences du
Règlement sur le matériel brouilleur du Canada.
Memo
Memo
Declaration of Conformity
According to 47CFR, Parts 2 and 15 for
Class B Personal Computers and Peripherals
We: PENTAX Imaging Company
A Division of PENTAX of America, Inc.
Located at: 600 12 Street, Suite 300
Golden, Colorado 80401 U.S.A.
Phone: 303-799-8000 FAX: 303-790-1131
Declare under sole responsibility that the product identified herein
complies with 47CFR Parts 2 and 15 of the FCC rules as a Class B digital
device. Each product marketed is identical to the representative unit
tested and found to be compliant with the standards. Records
maintained continue to reflect the equipment being produced can be
expected to be within the variation accepted, due to quantity production
and testing on the statistical basis as required by 47CFR §2.909.
Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired
operation. The above named party is responsible for ensuring that the
equipment complies with the standards of 47CFR §15.101 to §15.109.
Product Name: PENTAX Digital Still Camera
Model Number: OptioWP
Contact person: Customer Service Manager
Date and Place: January, 2005, Colorado
th
Digital Camera
Operating Manual
To ensure the best performance from
your camera, please read the Operating
Manual before using the camera.
• Printed on recycled paper
• Specifications and external dimensions are subject to change without notice.
57474 Copyright © PENTAX Corporation 2005
02-200502 Printed in Japan
PENTAX Corporation
2-36-9, Maeno-cho, Itabashi-ku, Tokyo 174-8639, JAPAN
(http://www.pentax.co.jp)
PENTAX Europe GmbH
(European Headquarters)
Julius-Vosseler-Strasse, 104, 22527 Hamburg, GERMANY
(HQ - http://www.pentaxeurope.com)
(Germany - http://www.pentax.de)
PENTAX U.K. Limited PENTAX House, Heron Drive, Langley, Slough, Berks
SL3 8PN, U.K.
(http://www.pentax.co.uk)
PENTAX France S.A.S.
12/14, rue Jean Poulmarch, 95106 Argenteuil Cedex, FRANCE
PENTAX Benelux B.V. (for Netherlands)
Spinveld 25, 4815 HR Breda, NETHERLANDS
(http://www.pentax.nl)
(for Belgium & Luxembourg)
Weiveldlaan 3-5, 1930 Zaventem, BELGIUM
(http://www.pentax.be)
PENTAX (Schweiz) AG Widenholzstrasse 1 Postfach 367 8305 Dietlikon,
SWITZERLAND
(http://www.pentax.ch)
PENTAX Scandinavia AB P.O. Box 650, 75127 Uppsala, SWEDEN
(http://www.pentax.se)
PENTAX Imaging Company
A Division of PENTAX of America, Inc.
(Headquarters)
600 12th Street, Suite 300 Golden, Colorado 80401, U.S.A.
(Distribution & Service Center)
16163 West 45th Drive, Unit H Golden, Colorado
80403, U.S.A. (http://www.pentaximaging.com)
PENTAX Canada Inc.
1770 Argentia Road Mississauga, Ontario L5N 3S7, CANADA
(http://www.pentaxcanada.ca)
http://www.digital.pentax.co.jp
