Washing Machine
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
WD856UHSA**
WD856UHSAGD-03223J-02_EN.indd 1 2016/3/14 14:14:50
English - 2
contents
SETTING UP YOUR WASHING
MACHINE
15

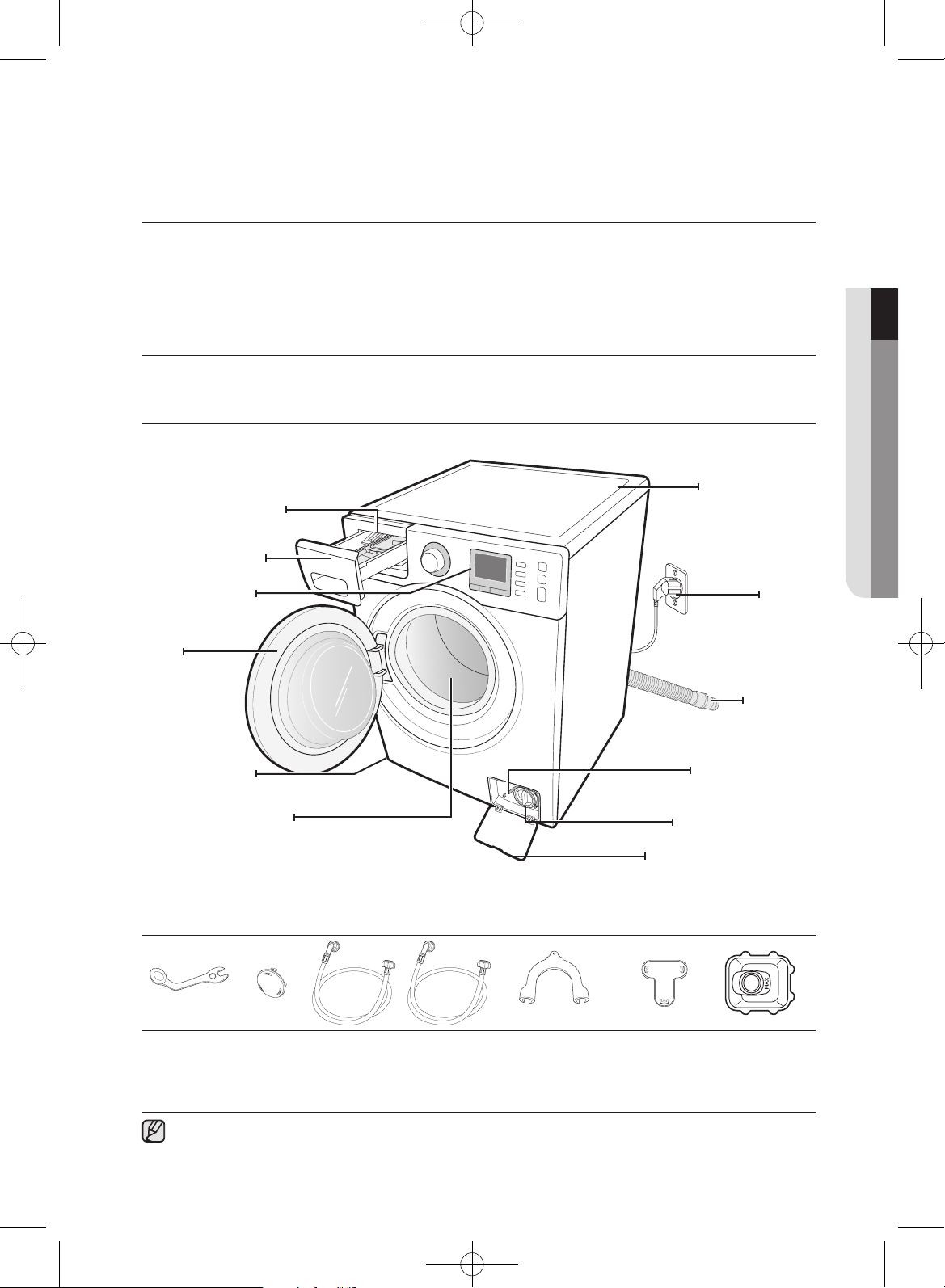

15 Checking the parts
16 Meeting installation requirements
16 Electrical supply and grounding

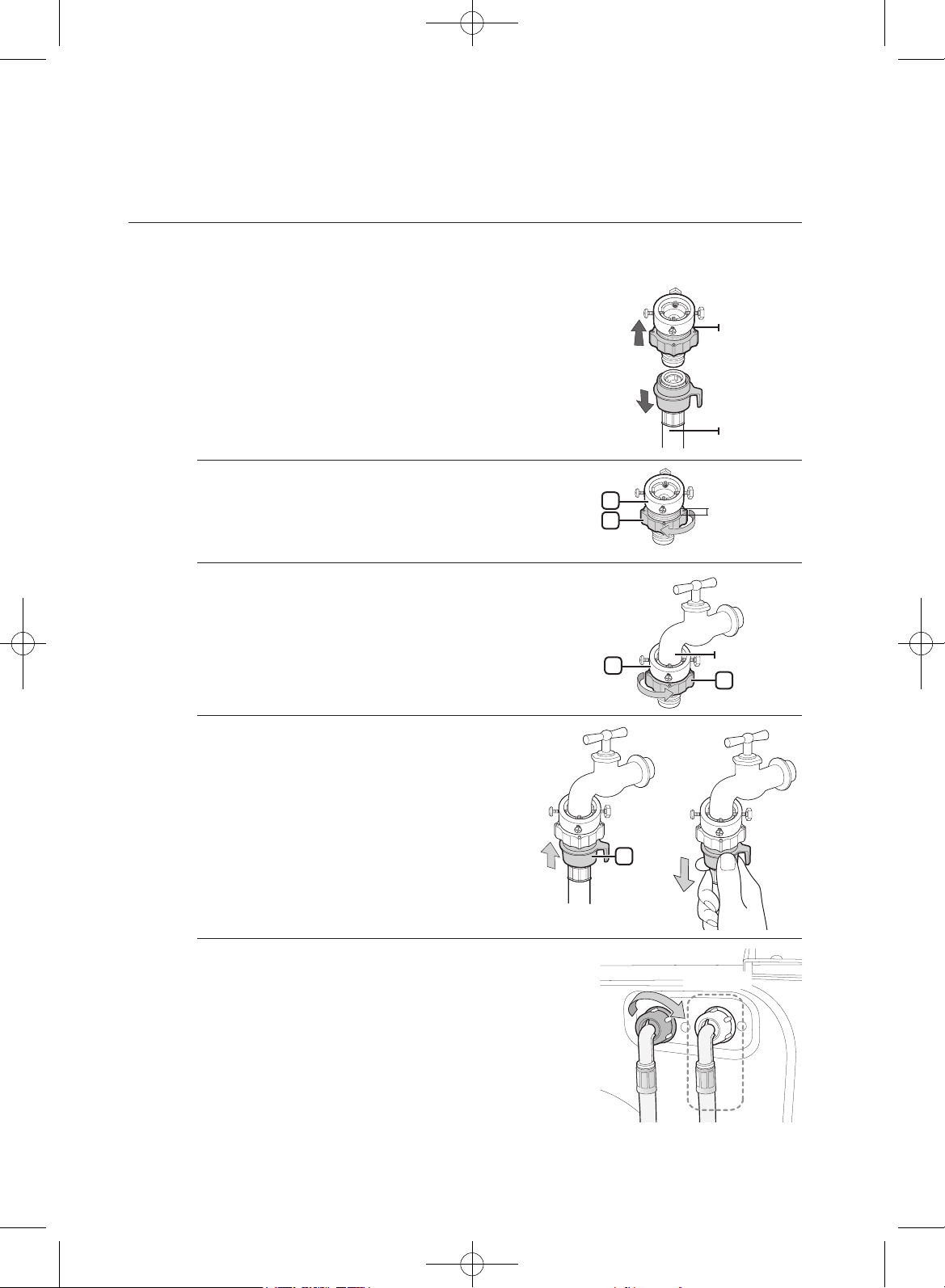

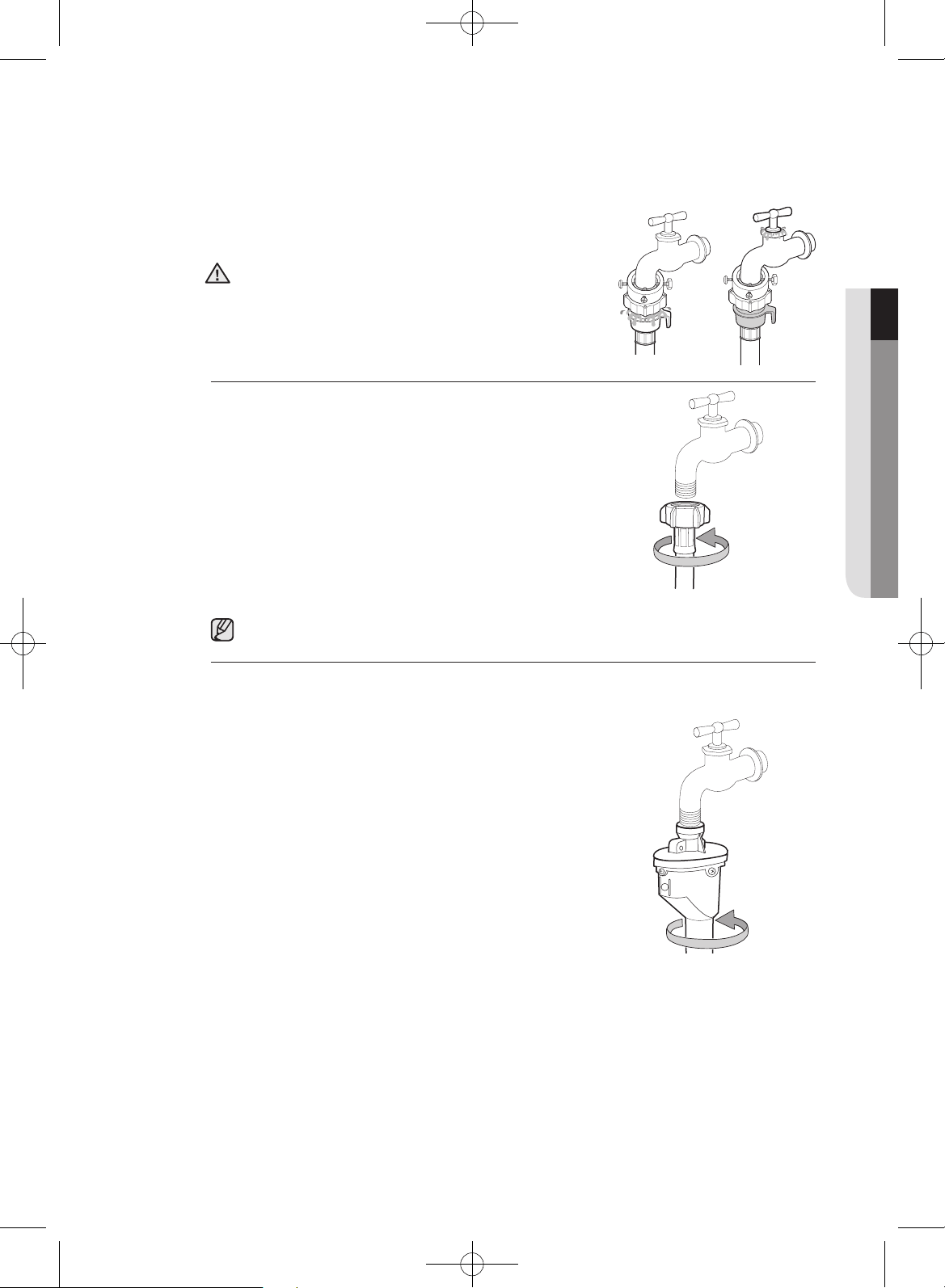

16 Water Supply

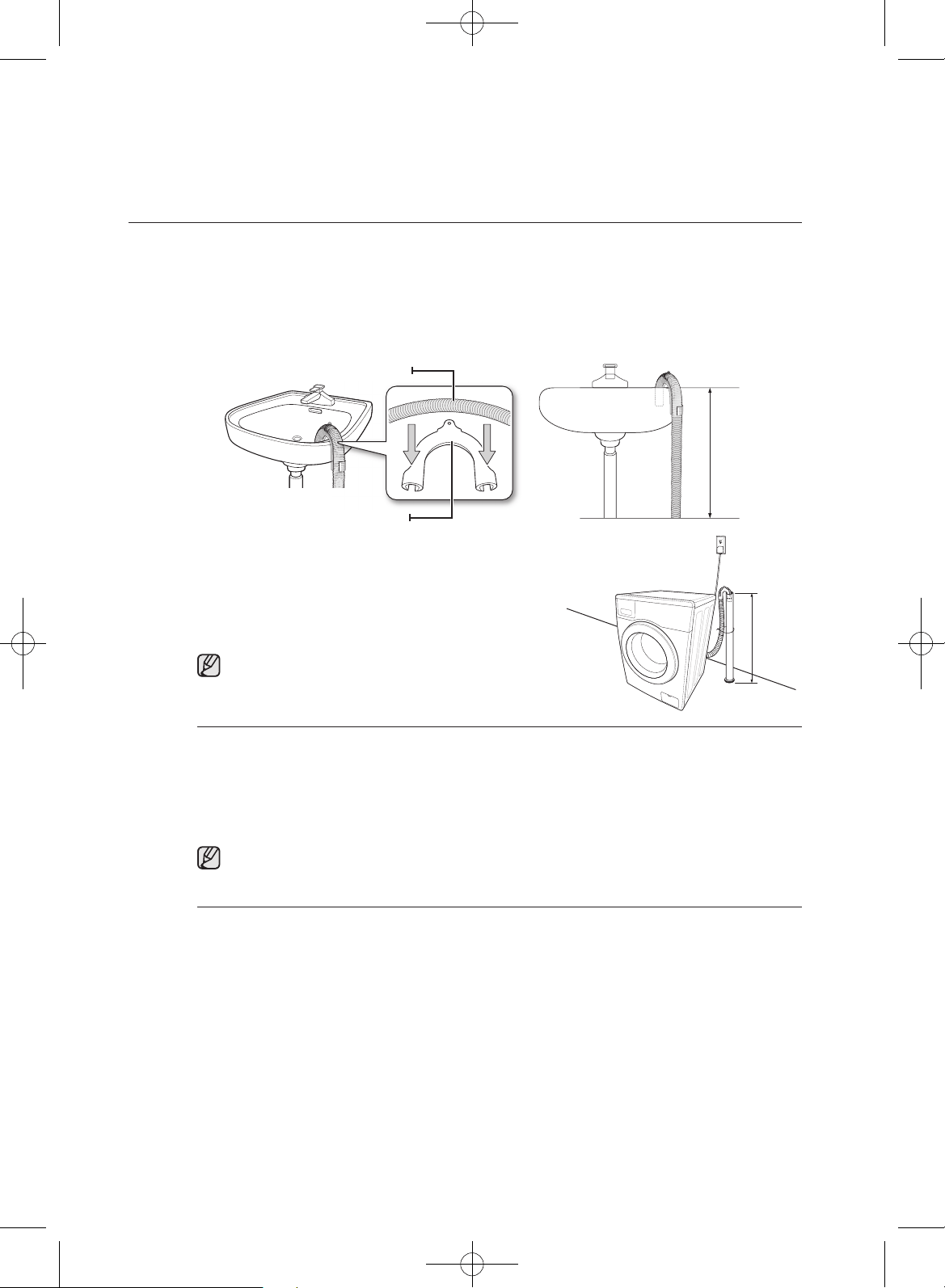

17 Drain
17 Flooring
17 Surrounding temperature
17 Alcove or closet installation
17 Installing your washing machine
WASHING A LOAD OF LAUNDRY
23
23 Washing for the first time
23 Basic instructions

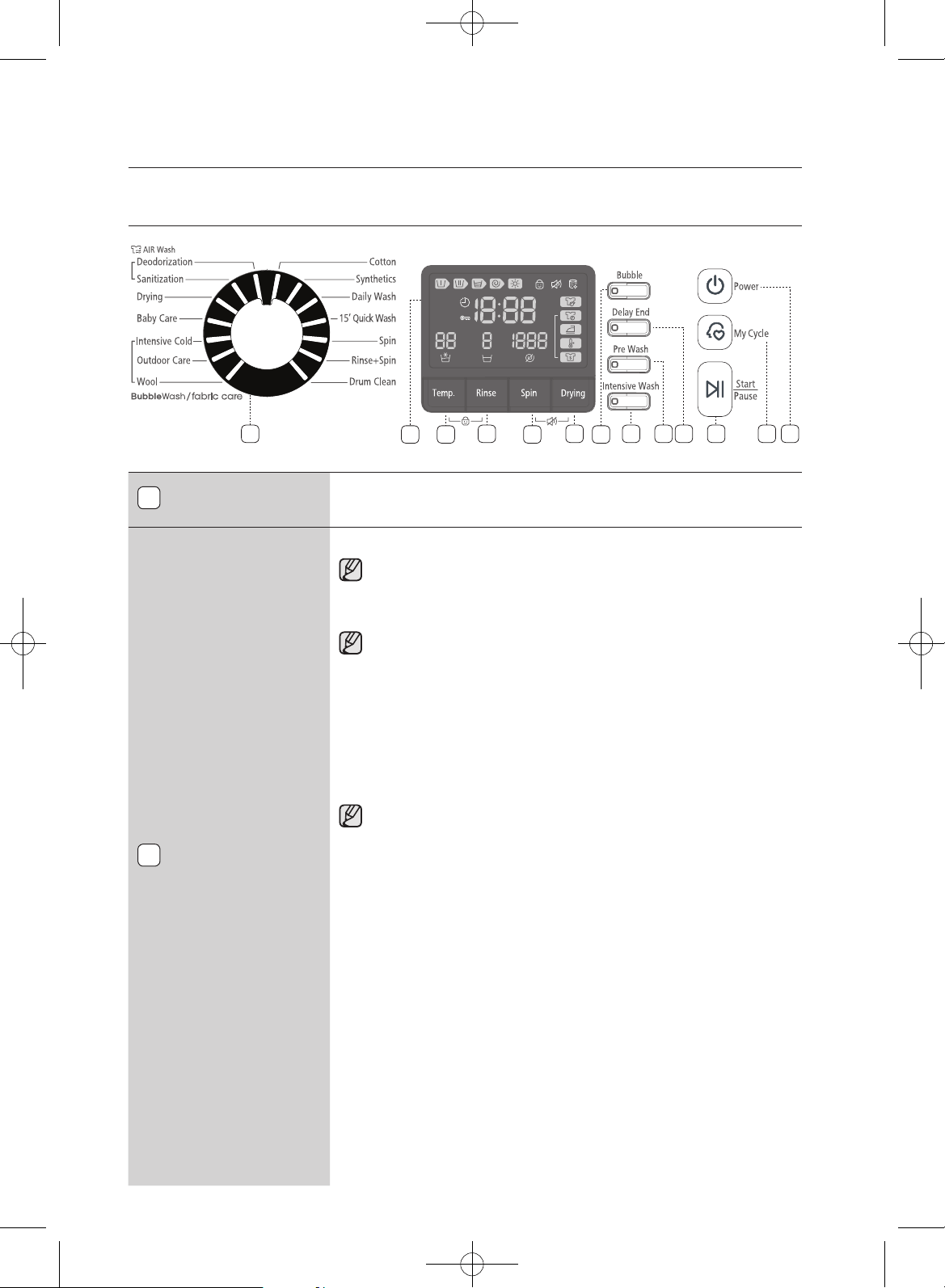

24 Using the control panel

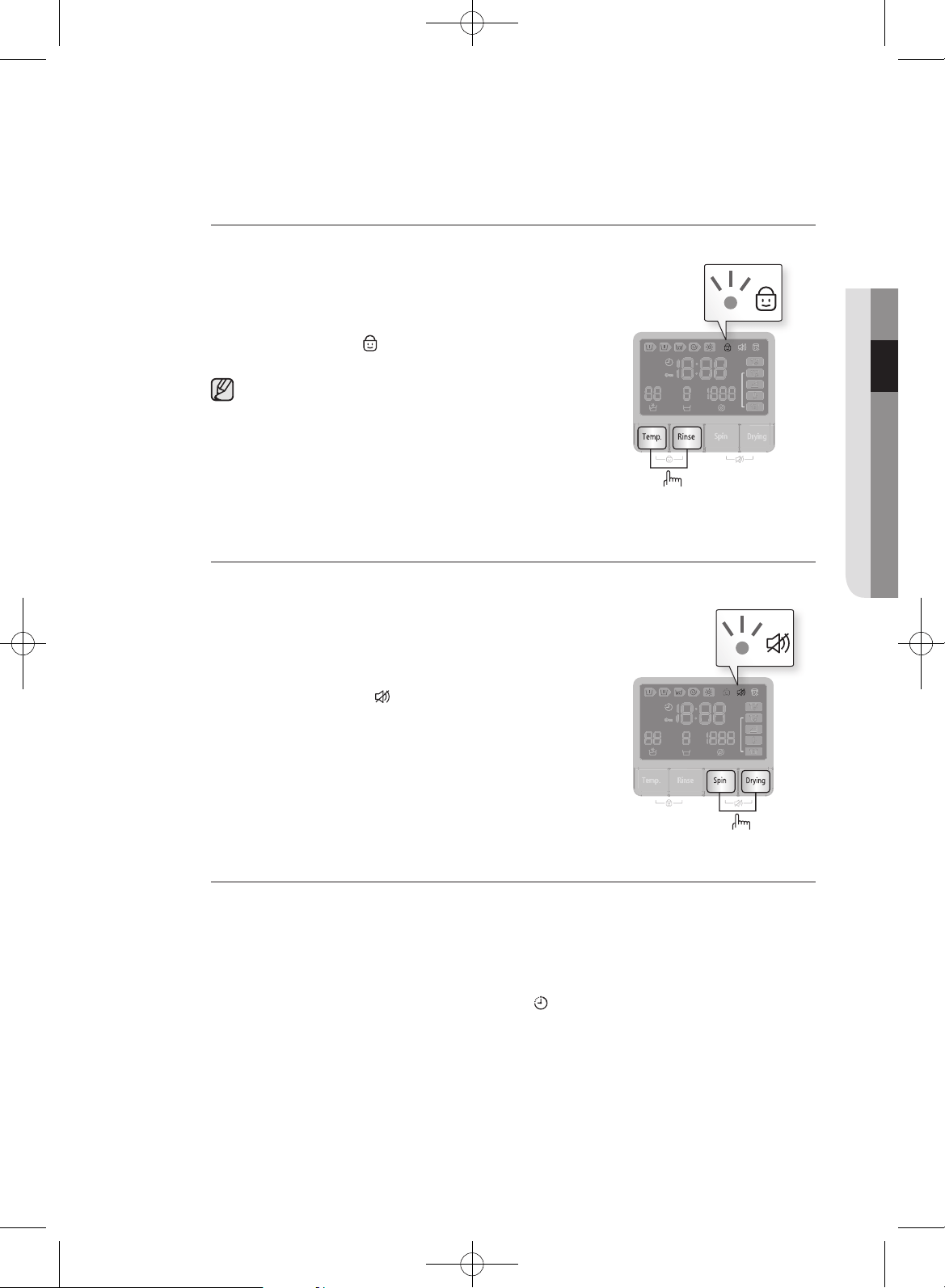

27 Child lock
27 Sound off
27 Delay end
28 Drain Only Function
28 My cycle
29 Bubble
30 AIR Wash
31 Using dry course
32 Washing clothes using the cycle selector
33 Washing clothes manually

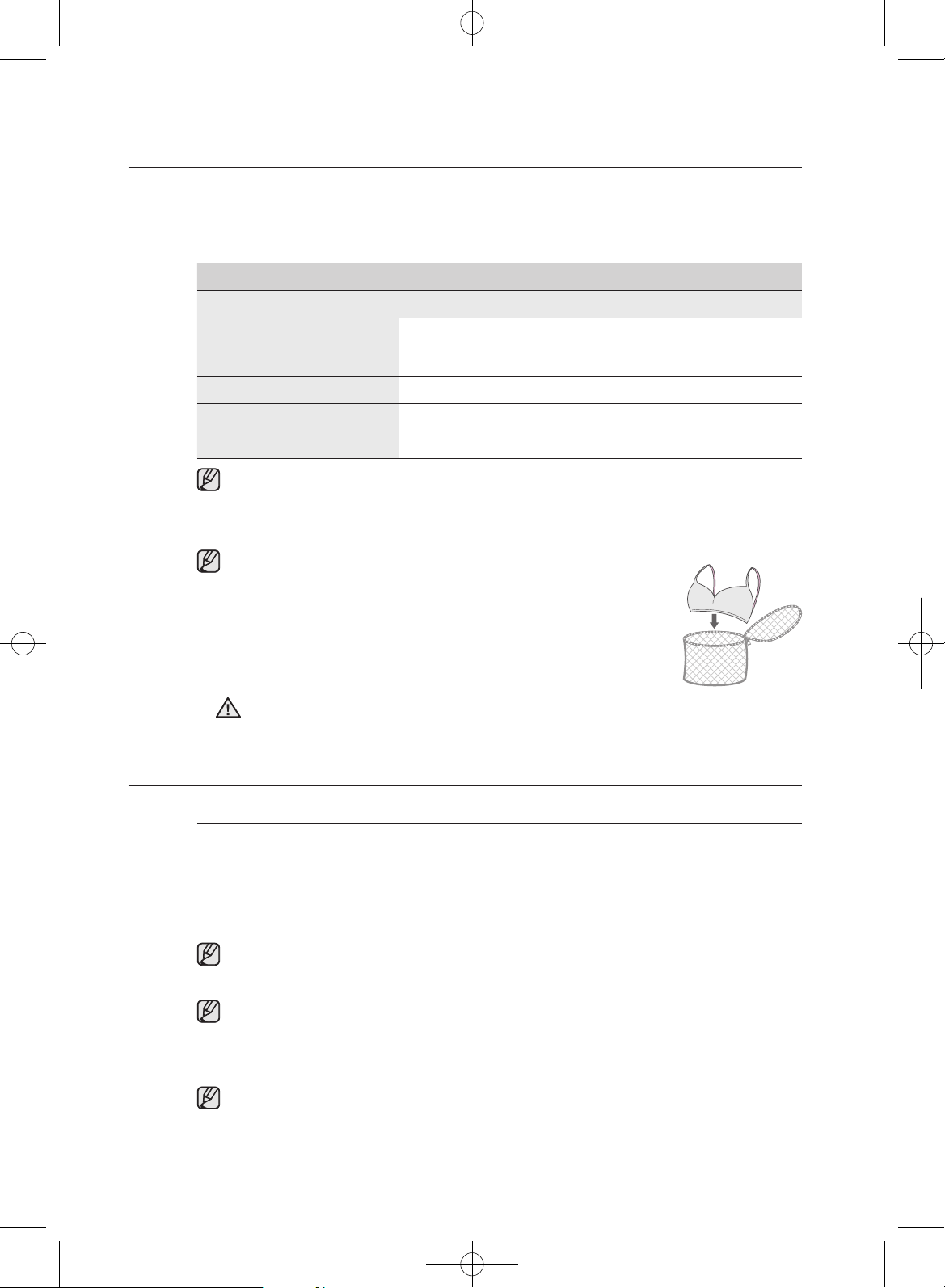

33 Laundry guidelines
34 Detergent and additives information
34 Which detergent to use

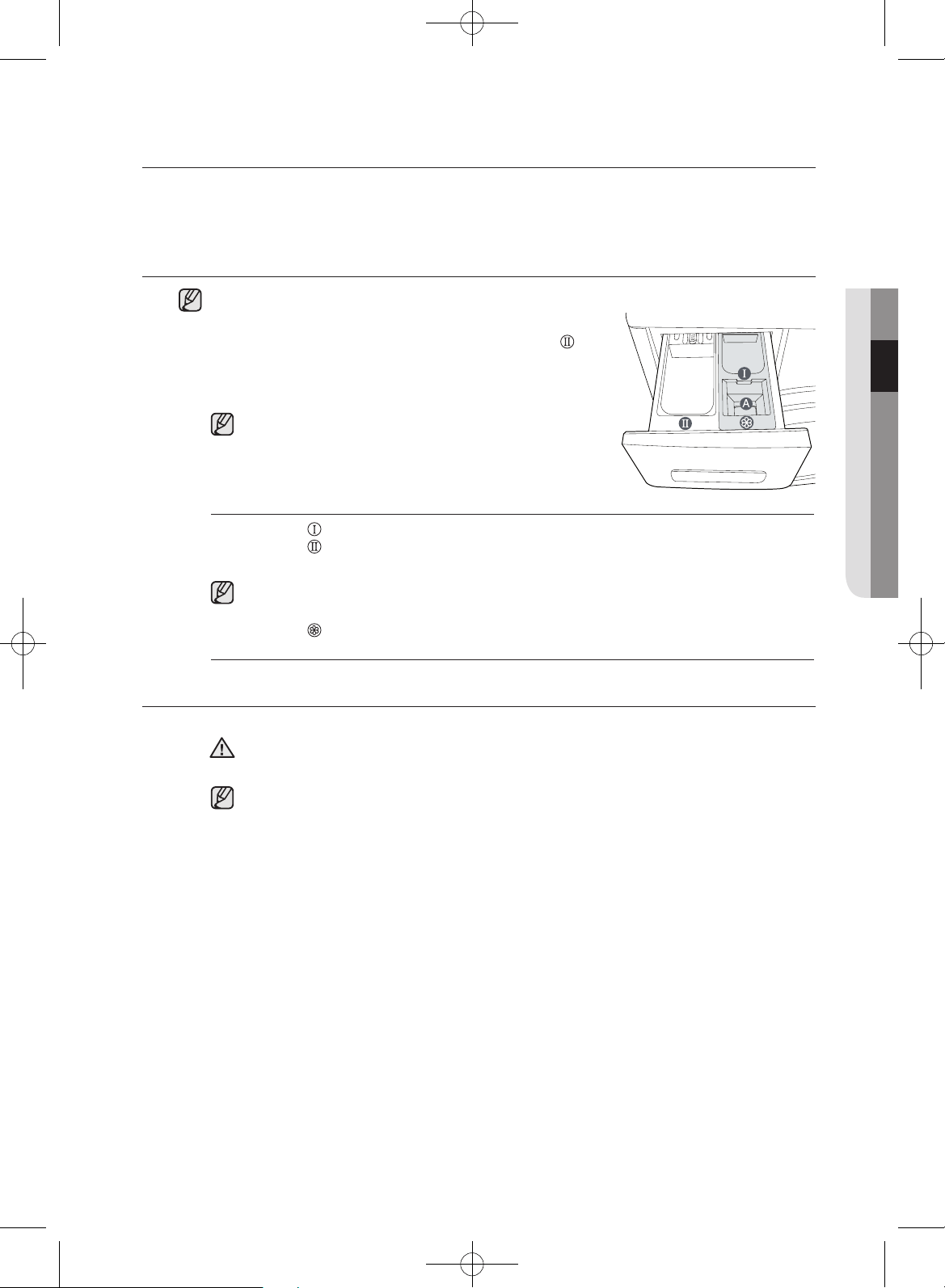

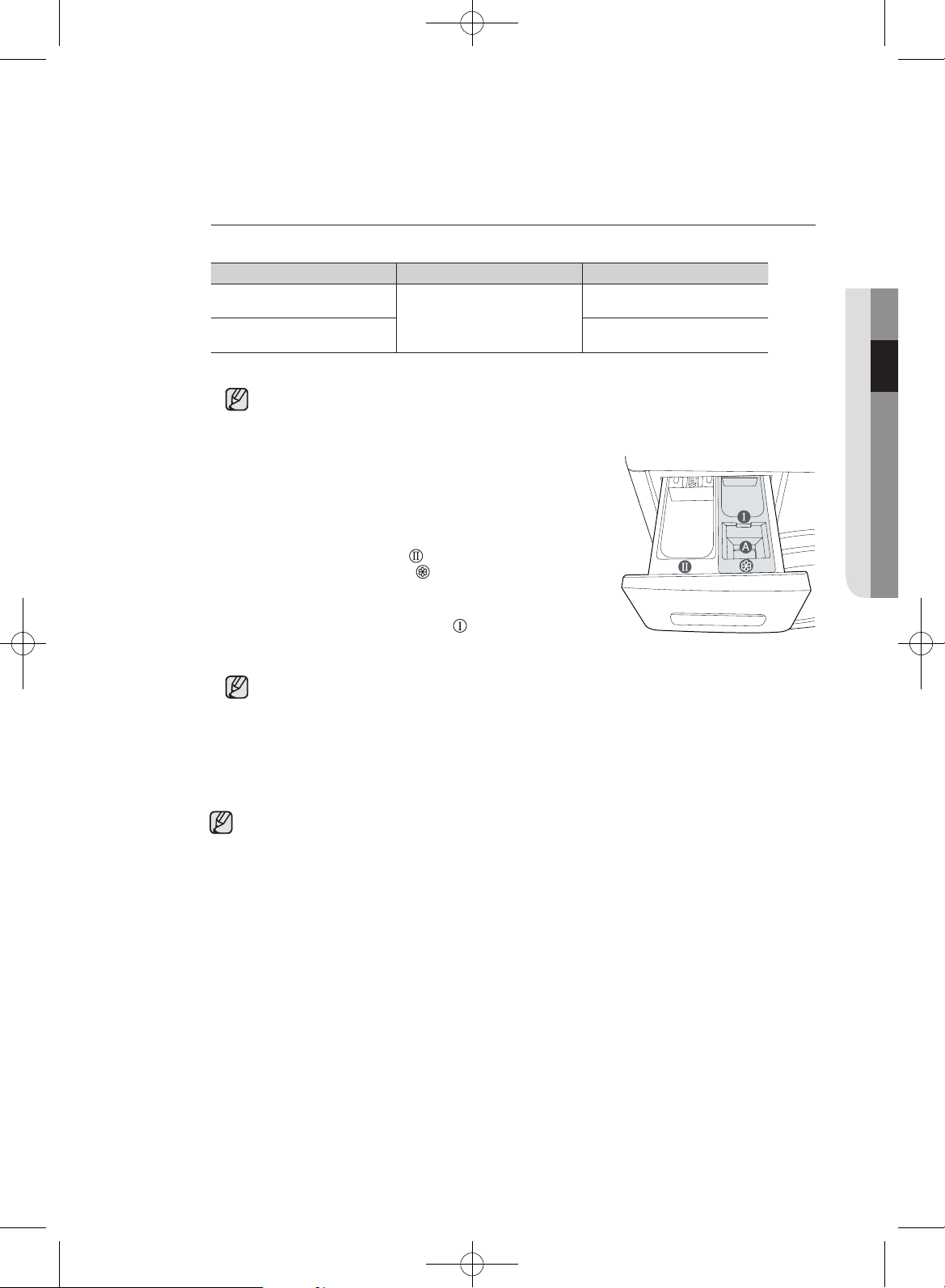

35 Detergent drawer
35 Liquid Detergent (Selected models)
CLEANING AND MAINTAINING YOUR
WASHING MACHINE
36

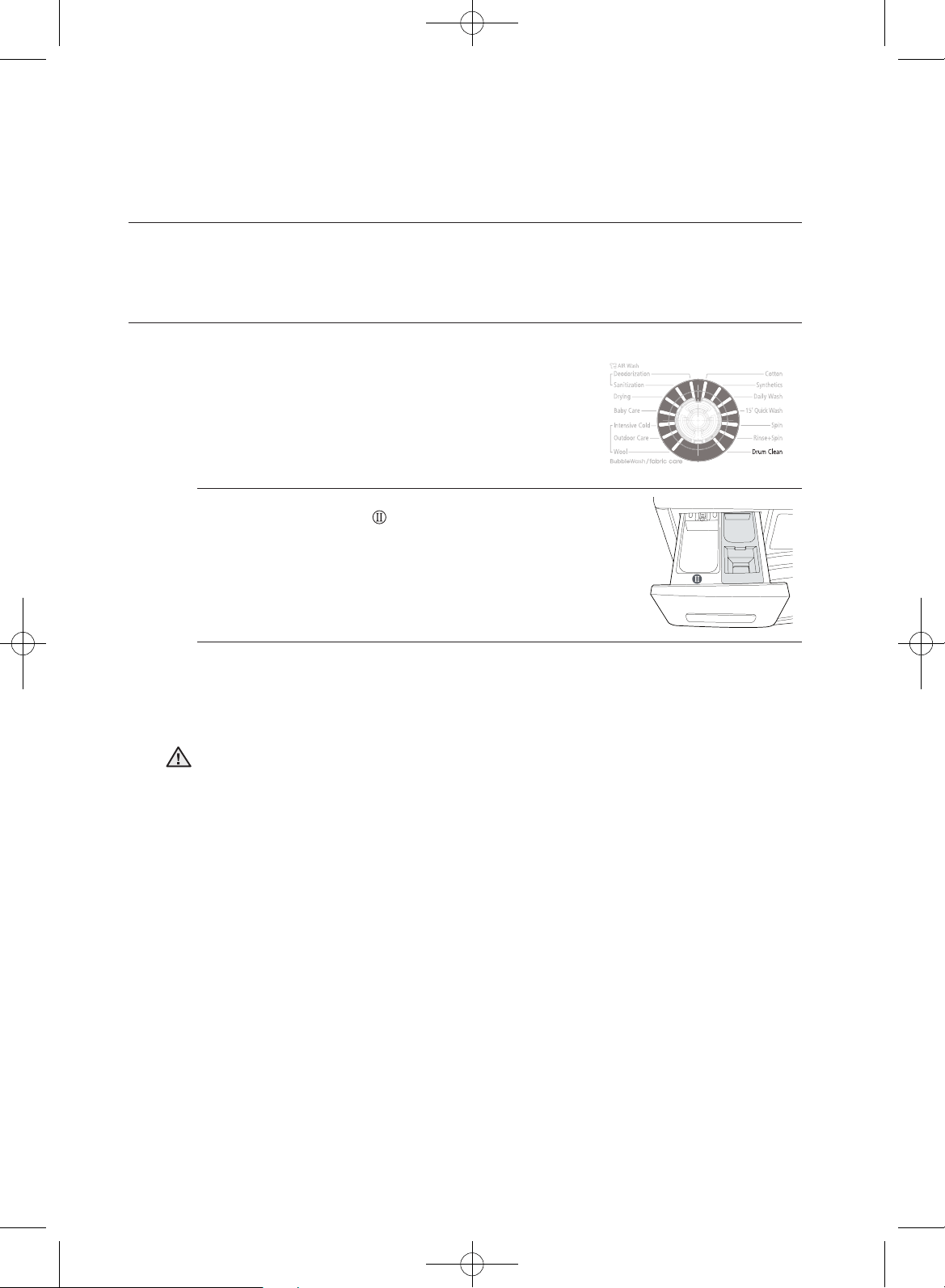

36 Drum Clean

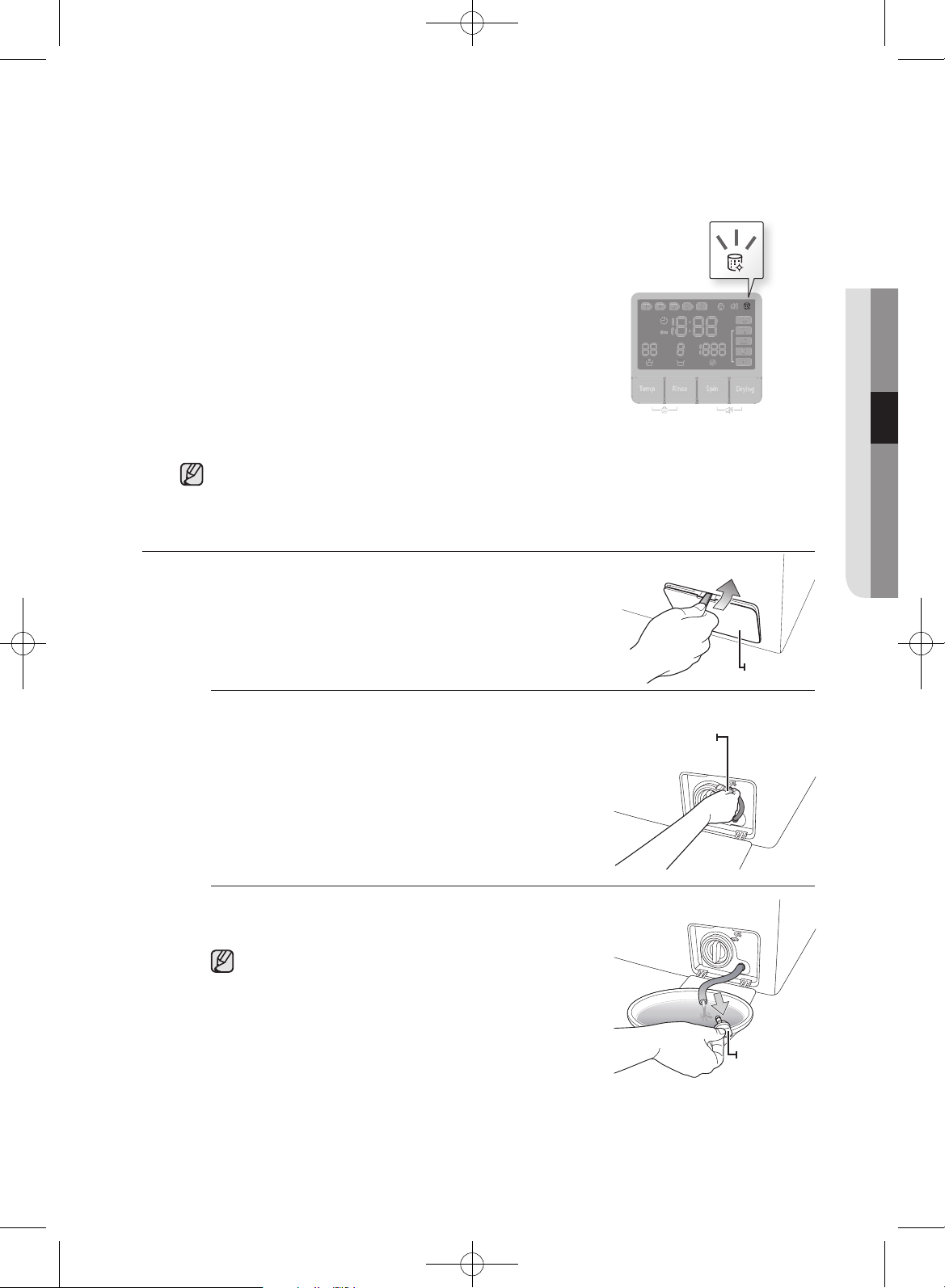

37 Draining the washing machine in an emergency

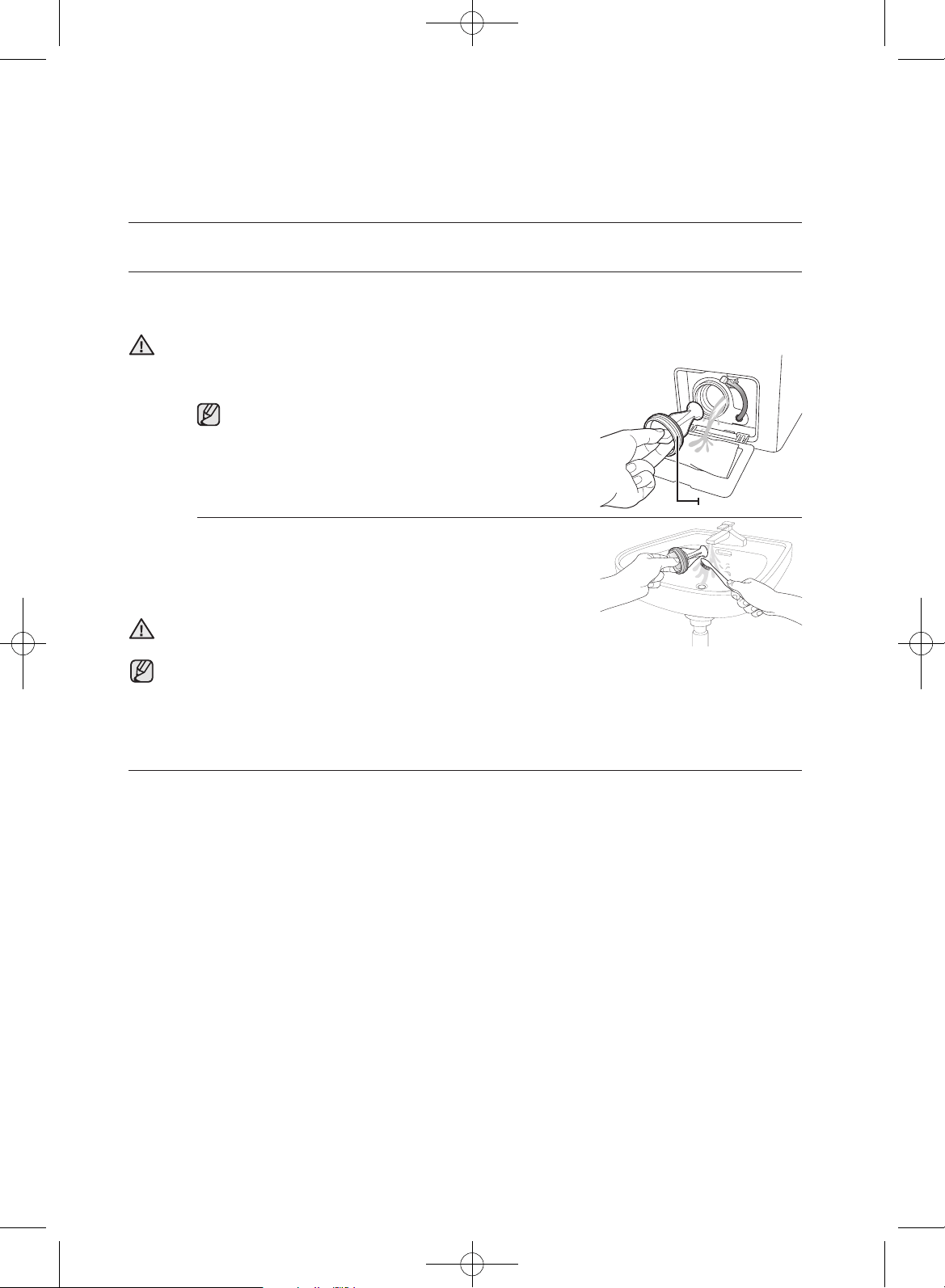

38 Cleaning the debris filter
38 Cleaning the exterior

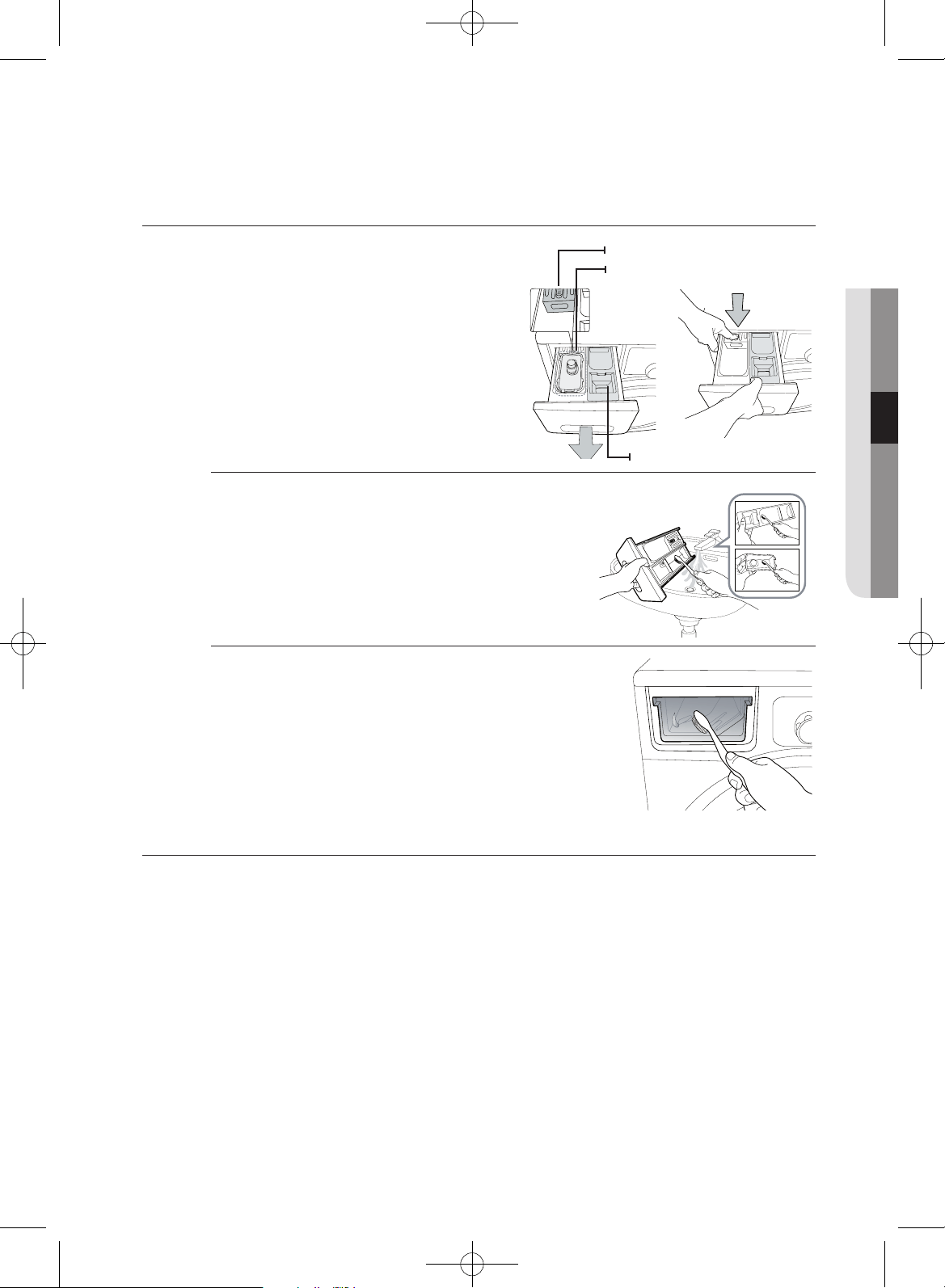

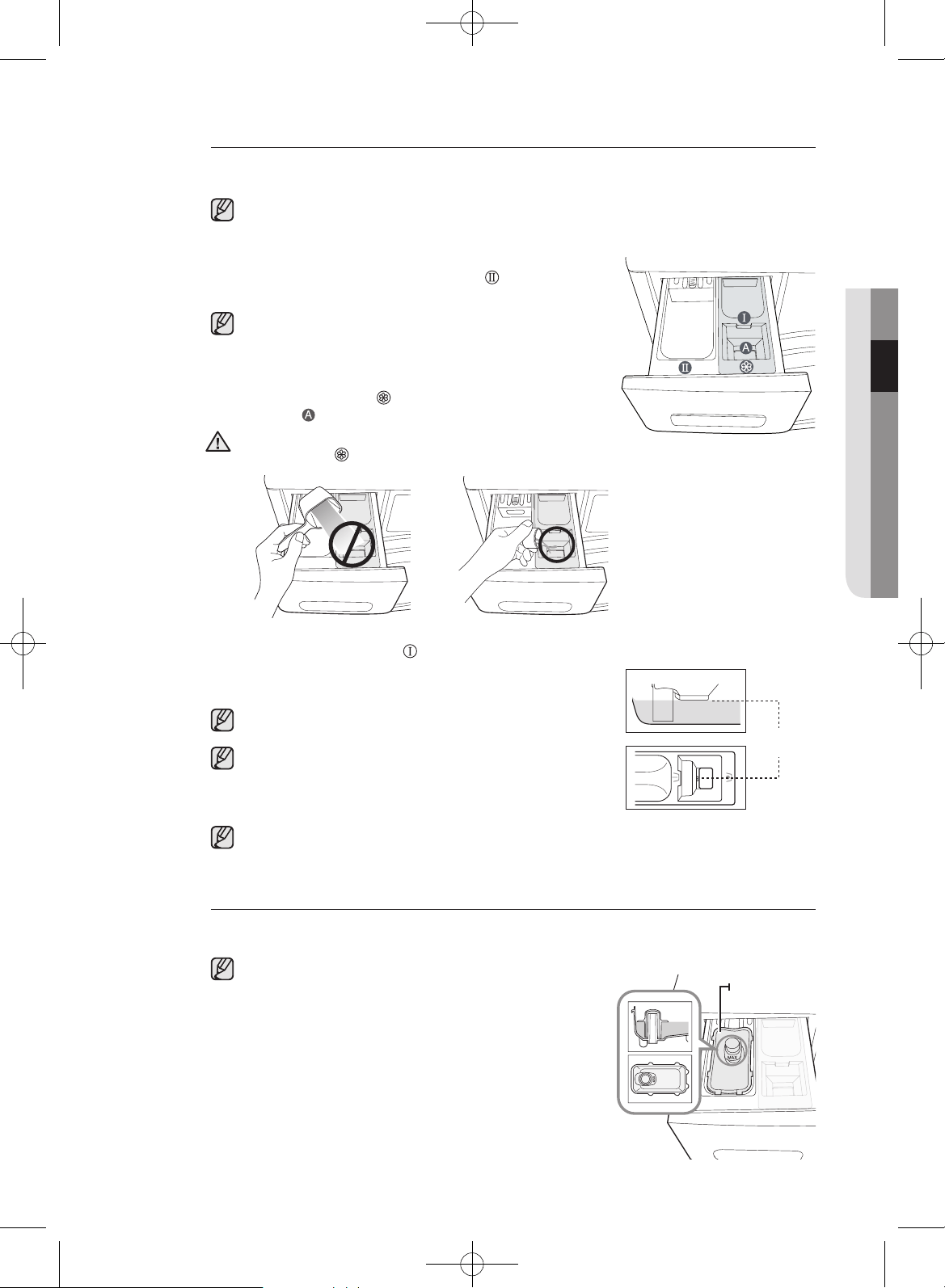

39 Cleaning the detergent drawer and drawer
recess
39 Cleaning the water hose mesh filter
40 Repairing a frozen washing machine
40 Storing your washing machine
TROUBLESHOOTING AND
INFORMATION CODES
41
41 Check these points if your washing machine...
42 Information codes
CYCLE CHART
43
43 Cycle chart
APPENDIX
44

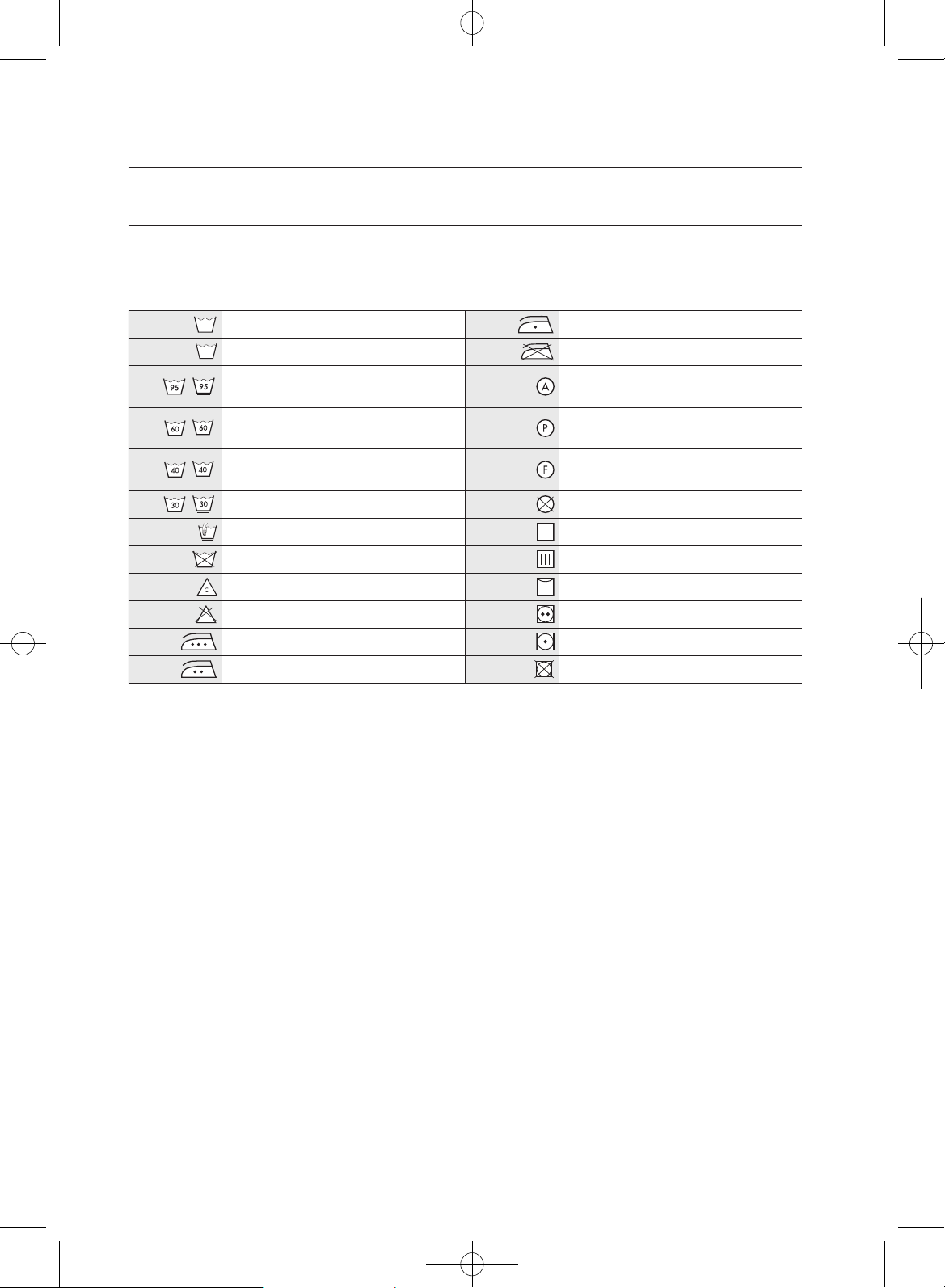

44 Fabric care chart
44 Protecting the environment
45 Specifications
WD856UHSAGD-03223J-02_EN.indd 2 2016/3/14 14:14:50
English - 3
safety information
The appliance is designed for home use only.
Congratulations on your new Samsung washer. This manual contains important
information on the installation, use and care of your appliance. Please take time to
read this manual to take full advantage of your washer’s many benefits and features.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
Please read this manual thoroughly to ensure that you know how to safely and efficiently operate the
extensive features and functions of your new appliance and retain it at a safe place near the appliance
for your future reference. Use this appliance only for its intended purpose as described in this instruction
manual.
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when installing,
maintaining, and operating your washer.
Because these following operating instructions cover various models, the characteristics of your washer
may differ slightly from those described in this manual and not all warning signs may be applicable. If you
have any questions or concerns, contact your nearest service center or find help and information online at
www.samsung.com.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury,
death and/or property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or
property damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury
when using your washer, follow these basic safety precautions:
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service centre for help.
Note
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment using electricity and moving parts, potential hazards exist. To safely
operate this appliance, become familiar with its operation and exercise care when using it.
WD856UHSAGD-03223J-02_EN.indd 3 2016/3/14 14:14:50
English - 4
safety information
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using
your appliance, follow basic precautions, including the following:
Do not let children (or pets) play in or on your product. The product
door does not open easily from the inside and children may be
seriously injured if trapped inside.
This appliance is not to be used by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with
the appliance.
For use in Europe: This appliance can be used by children aged
from 8 years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
This appliance should be positioned so that the power plug, the
water supply taps, and the drain pipes are accessible.
For appliances with ventilation openings in the base, that a carpet
must not obstruct the openings.
The new hose-sets supplied with the appliance are to be used and
that old hose-sets should not be reused.
WARNING
WD856UHSAGD-03223J-02_EN.indd 4 2016/3/14 14:14:50
English - 5
CAUTION: In order to avoid a hazard due to inadvertent resetting of
the thermal cut-out, this appliance must not be supplied through an
external switching device, such as a timer, or connected to a circuit
that is regularly switched on and off by the utility.
The tumble dryer is not to be used if industrial chemicals have been
used for cleaning.
The lint trap has to be cleaned frequently, if applicable.
Lint must not to be allowed to accumulate around the tumble dryer.
(not applicable for appliances intended to be vented to the exterior of
the building)
Adequate ventilation has to be provided to avoid the back flow of
gases into the room from appliances burning other fuels, including
open fires.
Do not dry unwashed items in the tumble dryer.
Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes
and wax removers should be washed in hot water with an extra
amount of detergent before being dried in the tumble dryer.
Items such as foam rubber (latex foam), shower caps, waterproof
textiles, rubber backed articles and clothes or pillows fitted with foam
rubber pads should not be dried in the tumble dryer.
Fabric softeners, or similar products, should be used as specified by
the fabric softener instructions.
The final part of a tumble dryer cycle occurs without heat (cool down
cycle) to ensure that the items are left at a temperature that ensures
that the items will not be damaged.
Remove all objects from pockets such as lighters and matches.
WD856UHSAGD-03223J-02_EN.indd 5 2016/3/14 14:14:51
English - 6
safety information
WARNING: Never stop a tumble dryer before the end of the drying
cycle unless all items are quickly removed and spread out so that the
heat is dissipated.
Exhaust air must not be discharged into a flue which is used for
exhausting fumes from appliances burning gas or other fuels.
The appliance must not be installed behind a lockable door, a sliding
door or a door with a hinge on the opposite side to that of the tumble
dryer, in such a way that a full opening of the tumble dryer door is
restricted.
For use in Europe: Children of less than 3 years should be kept
away unless continuously supervised.
WD856UHSAGD-03223J-02_EN.indd 6 2016/3/14 14:14:51
English - 7
To minimize the risk of fi re in a tumble dryer, the following should be observed:
Items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and
should not be placed in a tumble dryer. Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble dryer. The items become warm, causing an
oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can
become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat
from escaping and so create a fire hazard. If it is unavoidable that fabrics that contain vegetable
or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they
should first be washed in hot water with extra detergent – this will reduce, but not eliminate, the
hazard. The ‘cool down’ cycle of tumble dryers should be used to reduce the temperature of the
items. They should not be removed from the tumble dryer or piled or stacked while hot.
Items that have been previously cleaned in, washed in, soaked in or spotted with petrol/gasoline,
dry-cleaning solvents or other flammable or explosive substances should not be placed in a
tumble dryer. Highly flammable substances commonly used in domestic environments include
acetone, denatured alcohol, petrol/gasoline, kerosene, spot removers(some brands), turpentine,
waxes and wax removers.
Items containing foam rubber(also known as latex foam) or similarly textured rubber. Like
materials should not be dried in a tumble dryer on a heat setting. Foam rubber materials can,
when heated, produce fire by spontaneous combustion.
Fabric softeners or similar products should not be used in a tumble dryer to eliminate the effects
of static electricity unless this practice is specifi cally recommended by the manufacturer of the
fabric softener or product.
Undergarments that contain metal reinforcements should not be placed in a tumble dryer.
Damage to the tumble dryer can result if metal reinforcements come loose during drying. When
available a drying rack could be used for such items.
Plastic articles such as shower caps or babies’ waterproof napkin covers should not be placed
in a tumble dryer.
Rubber-backed articles, clothes fitted with foam rubber pads, pillows, galoshes and
rubbercoated tennis shoes should not be placed in a tumble dryer.
CAUTION
WD856UHSAGD-03223J-02_EN.indd 7 2016/3/14 14:14:51
English - 8
safety information
Do not dry unwashed items in the tumble dryer(or washing machine drying mode,etc).
Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol,
Kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water
with an extra amount of detergent before being dried in the tumble dryer.
Items such as foam rubber(latex foam), shower caps, waterproof textiles, rubber backed articles
and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
Fabric softeners, or similar products, should be used as specified by the fabric softener
instructions.
The final part of a tumble dryer cycle occurs without heat(cool down cycle) to ensure that the
items are left at a temperature that ensures that the items will not be damaged.
Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as
in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation
creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling,
stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.
If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated
by hair care products be placed in a tumble dryer they should first be washed in hot water with
extra detergent - this will reduce, but not eliminate, the hazard.
Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed
and spread out so that the heat is dissipated.
WARNING
CAUTION
WD856UHSAGD-03223J-02_EN.indd 8 2016/3/14 14:14:51
English - 9
SEVERE WARNING SIGNS FOR INSTALLATION
The installation of this appliance must be performed by a qualified technician or service
company.
- Failure to do so may result in electric shock, fire, an explosion, problems with the
product, or injury.
The appliance is heavy, take care upon lifting it
Plug the power cord into an AC 220-240V / 50Hz wall socket or higher and use the socket
for this appliance only. In addition, do not use an extension cord.
- Sharing a wall socket with other appliances using a power strip or extending the power
cord may result in electric shock or fire.
- Ensure that the power voltage, frequency and current are the same as those of the
product specifications. Failure to do so may result in electric shock or fire. Plug the
power plug into the wall socket firmly.
Remove all foreign substances such as dust or water from the power plug terminals and
contact points using a dry cloth on a regular basis.
- Unplug the power plug and clean it with a dry cloth.
- Failure to do so may result in electric shock or fire.
Plug the power plug into the wall socket in the right direction so that the cord runs towards
the floor.
- If you plug the power plug into the socket in the opposite direction, the electric wires
within the cable may be damaged and this may result in electric shock or fire.
Keep all packaging materials well out of the reach of children, as packaging materials can
be dangerous to children.
- If a child places a bag over its head, it may result in suffocation.
When the appliance or power plug or power cord is damaged, contact your nearest service
centre.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
- This may result in electric shock, fire, an explosion, or problems with the product
- Never plug the power cord into a socket that is not grounded correctly and make sure
that it is in accordance with local and national codes.
Do not install this appliance near a heater, inflammable material.
Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct
sunlight and water (rain drops).
Do not install this appliance in a location of low temperature
- Frost may cause tubes to burst
Do not install this appliance in a location where gas may leak.
- This may result in electric shock or fire.
Do not use an electric transformer.
- It may result in electric shock or fire.
Do not use a damaged power plug, damaged power cord or loose wall socket.
- This may result in electric shock or fire.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
WARNING
WD856UHSAGD-03223J-02_EN.indd 9 2016/3/14 14:14:51
English - 10
safety information
Do not hook the power cord over a metal object, place a heavy object on the power cord,
insert the power cord between objects, or push the power cord into the space behind the
appliance.
- This may result in electric shock or fire.
Do not pull the power cord, when unplugging the power plug.
- Unplug the power plug by holding the plug.
- Failure to do so may result in electric shock or fire.
Do not lay the power cord and tubes where you may fall over them.
CAUTION SIGNS FOR INSTALLATION
This appliance should be positioned in such a way that it is accessible to the power plug.
- Failure to do so may result in electric shock or fire due to electric leakage.
Install your appliance on a level and hard floor that can support its weight.
- Failure to do so may result in abnormal vibrations, moves, noise, or problems with the
product.
SEVERE WARNING SIGNS FOR USING
If the appliance is flooded, Turn off the water & power supply immediately and contact your
nearest service centre.
- Do not Touch the power plug with wet hands
- Failure to do so may cause electric shock
If the appliance generates a strange noise, a burning smell or smoke, unplug the power
plug immediately and contact your nearest service centre.
- Failure to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without
touching the power plug. Do not touch the appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in an explosion or fire.
Do not let children play in or on the washer. In addition, when disposing of the appliance,
remove the washer door lever.
- If trapped inside, the child may become trapped and suffocate to death.
Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the
washer before using it.
WARNING
CAUTION
WD856UHSAGD-03223J-02_EN.indd 10 2016/3/14 14:14:51
English - 11
Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or
other flammable or explosive substances.
- This may result in electric shock, fire or an explosion.
Do not open the washer door by force while it is operating (high-temperature washing/
drying/spinning).
- Water flowing out of the washer may result in burns or cause the floor to be slippery.
This may result in injury.
- Opening the door by force may result in damage to the product or injury.
Do not insert your hand under the washer.
- This may result in injury.
Do not touch the power plug with wet hands.
- This may result in electric shock.
Do not turn the appliance off by unplugging the power plug while an operation is in
progress.
- Plugging the power plug into the wall socket again may cause a spark and result in
electric shock or fire.
Do not let children or infirm persons use this washer unsupervised. Do not let children climb
in the appliance
- Failure to do so may result in electric shock, burns or injury.
Do not insert your hand or a metal object under the washer while it is operating.
- This may result in injury.
Do not unplug the appliance by pulling at the power cord, always grip plug firmly and pull
straight out from the outlet.
- Damage to the cord may cause short-circuit, fire and/or electric shock
Do not attempt to repair, disassemble, or modify the appliance yourself.
- Do not use any fuse (such as cooper, steel wire, etc.) other than the standard fuse.
- When repairing or reinstalling the appliance is required, contact your nearest service
centre.
- Failure to do so may result in electric shock, fire, problems with the product, or injury.
If the water supply hose comes loose from the Water tap and floods the appliance, unplug
the power plug.
- Failure to do so may result in electric shock or fire.
Unplug the power plug when the appliance is not being used for long periods of time or
during a thunder/lightning storm.
- Failure to do so may result in electric shock or fire.
WD856UHSAGD-03223J-02_EN.indd 11 2016/3/14 14:14:51
English - 12
safety information
CAUTION SIGNS FOR USING
When the washer is contaminated by a foreign substance such as detergent, dirt, food
waste, etc., unplug the power plug and clean the washer using a damp and soft cloth.
- Failure to do so may result in discolouration, deformation, damage or rust.
The front glass may be broken by a strong impact. Take care when using the washer.
- When the glass is broken, it may result in injury.
After a water supply failure or when reconnecting the water supply hose, open the Water
Tap slowly.
Open the Water Tap slowly after a long period of non-use.
- The air pressure in the water supply hose or the water pipe may result in damage to a
part or in water leakage.
If a drain error occurs during an operation, check if there is a draining problem.
- If the washer is used when it is flooded because of a draining problem, it may result in
electric shock or fire due to electric leakage.
Insert the laundry into the washer completely so that laundry does not get caught in the
door.
- If laundry gets caught in the door, it may result in damage to the laundry or the washer,
or result in water leakage.
Ensure that the Water Tap is turned off when the washer is not being used.
- Ensure that the screw on the water supply hose connector is properly tightened.
- Failure to do so may result in property damage or injury.
Check if the rubber seal is not contaminated by foreign substances (waste, thread, etc).
- If the door is not closed completely, it may result in water leakage.
Open the Water Tap and check if the water supply hose connector is firmly tightened and
that there is no water leaking before using the product.
- If the screws or the water supply hose connector are loose, it may result in water
leakage.
To reduce the risk of fire or explosion:
- Under certain conditions, hydrogen gas may be produced in a hot water system such
as your hot water heater that has not been used for two weeks or more. HYDROGEN
GAS IS EXPLOSIVE. If your hot water system has not been used for two weeks or
more, turn on all hot water taps in your home, and let the water flow for several minutes
before using your washing machine. This will release any hydrogen gas build–up. Since
hydrogen gas is flammable, do not smoke or light an open flame during this time.
Ventilate immediately without touching the power plug if there is a gas leak.
The product you have purchased is designed for domestic use only.
The use for business purposes qualifies as product misuse.
In this case, the product will not be covered by the standard warranty provided by
Samsung and no responsibility can be attributed to Samsung for malfunctions or damages
resulting from such misuse.
CAUTION
WD856UHSAGD-03223J-02_EN.indd 12 2016/3/14 14:14:51
English - 13
Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
- This may result in electric shock, fire, problems with the product, or injury.
Do not spray volatile material such as insecticide onto the surface of the appliance.
- As well as being harmful to humans, it may also result in electric shock, fire or problems
with the product.
Do not place an object that generates a electromagnetic field near the washer.
- This may result in injury due to a malfunction.
Since the water drained during a high-temperature wash or drying cycle is hot, do not
touch the water.
- This may result in burns or injury.
Do not wash, spin or dry water-proof seats, mats or clothing (*) unless your appliance has a
special program for washing these items.
- Do not wash thick, hard mats even if the washer mark is on the care label.
- This may result in injury or damage to the washer, walls, floor or clothing due to
abnormal vibrations.
* Woollen bedding, rain covers, fishing vests, ski pants, sleeping bags, diaper covers,
sweat suits, and bicycle, motor cycle, car covers, etc.
Do not operate the washer when the detergent box is removed.
- This may result in electric shock or injury due to water leakage.
Do not touch the inside of the tub during or just after drying as it is hot.
- This may result in burns.
Do not insert your hand into the detergent box after opening it.
- This may result in injury as your hand may be caught by the detergent input device. Do
not place any objects (such as shoes, food waste, animals) other than laundry into the
washer.
- This may result in damage to the washer, or injury and death in the case of pets due to
the abnormal vibrations.
Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.
- This may result in electric shock or injury.
Do not wash laundry contaminated by oils, creams or lotions usually found in skincare
shops or massage clinics.
- This may result in the rubber seal becoming deformed and water leakage.
Do not leave metal objects such as a safety pin or hair pin, or bleach in the tub for long
periods of time.
- This may cause the tub to rust.
- If rust starts appearing on the surface of the tub, apply a cleansing agent (neutral) to the
surface and use a sponge to clean it. Never use a metal brush.
Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry
contaminated by dry cleaning detergent.
- This may result in spontaneous combustion or ignition due to the heat of the oxidation of
the oil.
Do not use hot water from water cooling/heating devices.
- This may result in problems with the washer.
WD856UHSAGD-03223J-02_EN.indd 13 2016/3/14 14:14:51
English - 14
Do not use natural hand-washing soap for the washer.
- If it hardens and accumulates inside the washer, it may result in problems with the
product, discolouration, rust or bad odors.
Do not wash large laundry items such as bedding in the washing net.
- Place socks and brassieres into the washing net and wash them with the other laundry.
- Failure to do so may result in injury due to abnormal vibrations.
Do not use hardened detergent.
- If it accumulates inside the washer, it may result in water leakage.
For washing machines with ventilation openings in the base, ensure that the opening is not
obstructed by carpet or any other obstacles.
Make sure that the pockets of all clothing to be washed are empty.
- Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause
extensive damage to the appliance.
Do not wash clothing with large buckles, buttons, or other heavy metal.
SEVERE WARNING SIGNS FOR CLEANING
Do not clean the appliance by spraying water directly onto it.
Do not use the strong acid cleaning agent.
Do not use benzene, thinner or alcohol to clean the appliance.
- This may result in discolouration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failure to do so may result in electric shock or fire.
WARNING
safety information
WD856UHSAGD-03223J-02_EN.indd 14 2016/3/14 14:14:51
English - 15
01 setting up
setting up your washing
machine
Be sure to have your installer follow these instructions closely so that your new
washing machine works properly and so that you’re not at risk of injury when doing
laundry.
CHECKING THE PARTS
Carefully unpack your washing machine, and make sure you’ve received all of the parts shown below.
If your washing machine was damaged during shipping, or if you do not have all of the parts, contact
Samsung Customer Service or your Samsung dealer.
Spanner
Bolt hole
covers
Cold
Hot
(Selected
model)
Hose guide
Cap fixer
(Selected
model)
Liquid
detergent
box(Selected
model)
Water supply hose
* Bolt hole covers : The number of bolt hole covers depends on the model (3~5 covers).
Detergent drawer
Control panel
Door
Levelling feet
Work top
Plug
Drain hose
Debris filter
Emergency drain tube
Filter Cover
Tub
Release lever
WD856UHSAGD-03223J-02_EN.indd 15 2016/3/14 14:14:52
English - 16
MEETING INSTALLATION REQUIREMENTS
Electrical supply and grounding
Never use an extension cord.
Use only the power cord that comes with your washing machine.
When preparing for installation, ensure that your power supply offers:
• AC 220-240V / 50Hz fuse or circuit breaker
• Individual branch circuit serving only your washing machine
Your washing machine must be grounded. If your washing machine malfunctions or breaks
down, grounding will reduce the risk of electric shock by providing a path of least resistance for
the electric current.
Your washing machine comes with a power cord having a three-prong grounding plug for use in
a properly installed and grounded outlet.
Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
Improperly connecting the equipment-grounding conductor can result in electric shock.
Check with a qualified electrician or serviceman if you are unsure if the washing machine is
properly grounded. Do not modify the plug provided with the washing machine. If it does not fit
the outlet, have a proper outlet installed by a qualified electrician.
Water Supply
Your washing machine will fill properly when your water pressure is 50 kPa ~ 800 kPa. Water
pressure less than 50 kPa may cause water valve failure, not allowing the water valve to shut
off completely. Or, it may take the washing machine longer to fill than what the controls allow,
resulting in your washing machine turning off. (A fill-time limit, designed to prevent overflows/
flooding if an internal hose becomes loose, is built into the controls.)
The water taps must be within 120cm of the back of your washing machine for the provided inlet
hoses provided to reach your washing machine.
Most plumbing supply stores sell inlet hoses of various lengths up to 305 cm long.
You can reduce the risk of leaks and water damage by:
• Makingwatertapseasilyaccessible.
• Turningofftapswhenthewashingmachineisnotinuse.
• Periodicallycheckingforleaksatwaterinlethosettings.
Before using your washing machine for the first time, check all connections at the water
valve and taps for leaks.
setting up your washing
machine
WARNING
WARNING
WD856UHSAGD-03223J-02_EN.indd 16 2016/3/14 14:14:52
English - 17
01 setting up
Drain
Samsung recommends a standpipe height of 65cm. The drain hose must be routed through
the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside
diameter of the drain hose. The drain hose is attached at the factory.
Flooring
For best performance, your washing machine must be installed on a solidly constructed floor.
Wood floors may need to be reinforced to minimize vibration and/or unbalanced loads. Carpeting
and soft tile surfaces are contributing factors to vibrations and the tendency for your washing
machine to move slightly during the spin cycle.
Never install your washing machine on a platform or poorly supported structure.
Surrounding temperature
Do not install your washing machine in areas where water may freeze, since your washing
machine always retains some water in its water valve, pump, and hose areas. Frozen water in
the lines can cause damage to belts, the pump, and other components.
Alcove or closet installation
To operate safely and properly, your new washing machine requires minimum clearances of:
Sides – 25 mm Rear – 50 mm
Top – 25 mm Front – 465 mm
If both the washing machine and a dryer are installed together, the front of the alcove or closet
must have at least 465 mm unobstructed air opening. Your washing machine alone does not
require a specific air opening.
INSTALLING YOUR WASHING MACHINE
STEP 1
Selecting a location
Before you install the washing machine, make sure the location:
• Hasahard,levelsurfacewithoutcarpetingorooringthatmayobstructventilation
• Isawayfromdirectsunlight
• Hasadequateventilation
• Willnotbefreezing(below0˚C)
• Isawayfromheatsourcessuchasoilorgas
• Hasenoughspacesothatthewashingmachinedoesn’tstandonitspowercord
WD856UHSAGD-03223J-02_EN.indd 17 2016/3/14 14:14:52
English - 18
setting up your washing
machine
STEP 2

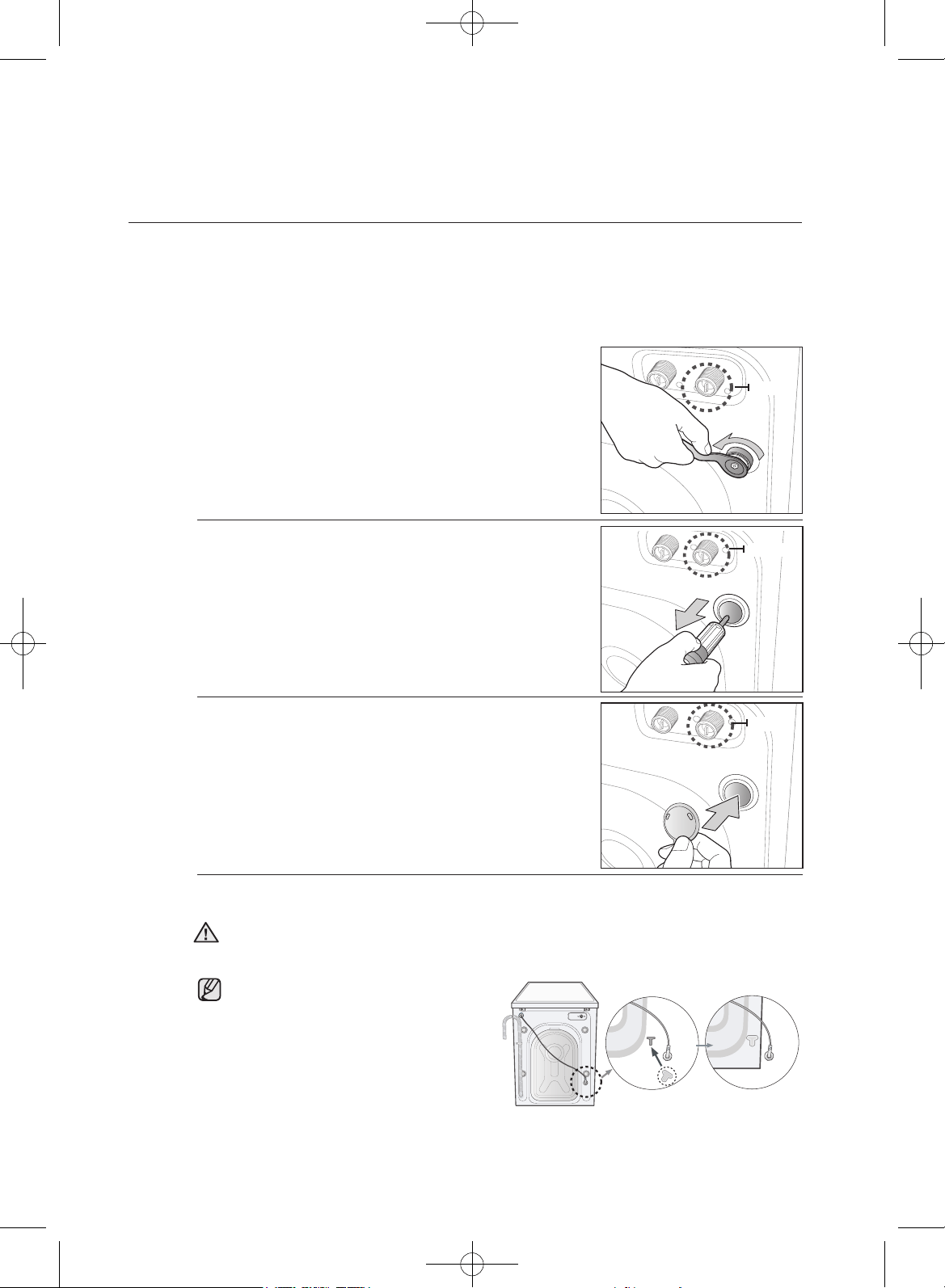

Removing the shipping bolts
Before installing the washing machine, you must remove all shipping bolts from the back of the
unit.
1. Loosen all the bolts with the supplied wrench.
2. Hold the bolt with the spanner and pull it through the wide
section of the hole. Repeat for each bolt.
3. Fill the holes with the supplied plastic covers.
4. Store the shipping bolts away safely in case you have to move the washing machine in the
future.
Packaging materials can be dangerous to children; keep all packaging material (plastic
bags, polystyrene, etc.) well out of the reach of children.
Insert the cap fixer, (one of the accessories
in the vinyl pack), into the hole from which
you removed the power cord at the back
of the product.
WARNING
Option
Option
Option
WD856UHSAGD-03223J-02_EN.indd 18 2016/3/14 14:14:52
English - 19
01 setting up
STEP 3
Adjusting the Levelling feet
When installing your washing machine, ensure that the power plug, the water supply and
the drain are easily accessible.
1. Slide the washing machine into position.
2. Level your washing
machine by turning the
levelling feet in and out as
necessary by hand.
3. When your washing machine is level, tighten the nuts using
the wrench supplied with your washing machine.
STEP 4
Connecting the water and drain
Connecting the water supply hose
1. Take the L-shaped arm fitting for the cold water
supply hose and connect it to the cold water
supply intake on the back of the machine.
Tighten by hand.
The water supply hose must be connected to
the washing machine at one end and to the
water tap at the other. Do not stretch the water
supply hose. If the hose is too short, replace
the hose with a longer, high pressure hose.
2. Connect the other end of the cold water supply
hose to your sink’s cold water tap and tighten
it by hand. If necessary, you can reposition the
water supply hose at the washing machine end
by loosening the fitting, rotating the hose, and
retightening the fitting.
For selected models with an additional hot water intake:
1. Take the red L-shaped arm fitting for the hot water supply hose and connect it to the hot
water supply intake on the back of the machine. Tighten by hand.
2. Connect the other end of the hot water supply hose to your sink’s hot water tap and tighten
it by hand.
3. Use a Y-piece if you only want to use cold water.
Option
WD856UHSAGD-03223J-02_EN.indd 19 2016/3/14 14:14:53
English - 20
setting up your washing
machine
Connecting the water supply hose
1. Remove the adaptor from the water supply hose.
2. First, using a ‘+’ type screwdriver, loosen the four screws
on the adaptor. Next, take the adaptor and turn part (2)
following the arrow until there is a 5 mm gap.
3. Connect the adaptor to the water tap by tightening the
screws firmly while lifting the adaptor upwards.
Turn part (2) following the arrow and connect (1) and (2).
4. Connect the water supply hose to the adaptor.
When you release part (3), the hose automatically
connects to the adaptor making a ‘click’ sound.
After you have connected the water supply
hose to the adaptor, ensure that it is connected
correctly by pulling the water supply hose
downwards.
5. Connect the other end of the water supply hose to the inlet
water valve at the rear of the washing machine. Screw the
hose clockwise all the way in.
Adaptor
Water supply
hose
1
2
5 mm
1
2
Water tap
Option
3
WD856UHSAGD-03223J-02_EN.indd 20 2016/3/14 14:14:53
English - 21
01 setting up
6. Turn on the water supply and ensure that no water leaks
from the water valve, tap or adaptor. If there is a water
leaks, repeat the previous steps.
Do not use your washing machine if there is a water leak.
This may cause electric shock or injury.
• If the water tap has a screw type tap, connect the water
supply hose to the tap as shown.
Use the most conventional type of tap for the water supply. In case the tap is square or too
big, remove the spacing ring before inserting the tap into the adaptor.
Connecting the Aqua Hose (Selected models)
The Aqua Hose was invented for perfect leakage protection.
It is attached to the water supply hose and automatically cuts
off the water flow if the hose is damaged. It also displays a
warning indicator.
• Connect the water supply hose to the tap as shown.
✗
✗
WARNING
WD856UHSAGD-03223J-02_EN.indd 21 2016/3/14 14:14:53
English - 22
setting up your washing
machine
Connecting the drain hose
The end of the drain hose can not be sinked under water and be positioned in three ways:
1. Over the edge of a wash basin: The drain hose must be placed at a height of between 60
and 90 cm. To keep the drain hose spout bent, use the supplied plastic hose guide. Secure
the guide to the wall with a hook or to the tap with a piece of string to prevent the drain hose
from moving.
2. ln a sink drain pipe branch: The drain pipe branch
must be above the sink siphon so that the end of the
hose is at least 60 cm above the ground.
3. ln a drain pipe: We recommend using a 65 cm high
vertical pipe; it must be no shorter than 60 cm and no
longer than 90 cm.
The standpipe drain requires;
• minimumdiameter5cm.
• minimumcarry-awaycapacity60literperminute.
STEP 5
Powering your washing machine
Plug the power cord into a wall sockets, an AC 220-240V / 50Hz approved electrical outlet
protected by a fuse or circuit breaker. (For more information on electrical and grounding
requirements, see page 16.)
Test run
Make sure that you install your washing machine correctly by running the Rinse+Spin cycle
after the installation is complete.
STEP 6
Calibration mode
Samsung washing machine detects the laundry weight automatically. For more accurate
weight detection, please run Calibration Mode after the installation. Calibration mode is done by
following the steps below.
1. Remove laundry or any contents in the machine and turn off the machine.
2. Press the Temp. button and Delay End button simultaneously, and press the Power button
in addition. Then the machine turns on and enter “Calibration mode”. The “CLB” message
appears.
3. Press the Start/Pause button to activate “Calibration Mode”.
4. The drum rotates clockwise and counterclockwise approximately for 3 minutes.
5. When “Calibration Mode” is finished, “END/0(En)” appears on the display, and the machine
automatically turns off. The washing machine is now ready for use.
Drain hose
Hose guide
60 ~ 90 cm
60 ~ 90 cm
WD856UHSAGD-03223J-02_EN.indd 22 2016/3/14 14:14:54
English - 23
02 Washing a load of laundry
washing a load of laundry
With your new Samsung washing machine, the hardest part of doing laundry will be
deciding which load to wash first.
WASHING FOR THE FIRST TIME
Before washing laundry for the first time, you must run a complete empty cycle (i.e. no laundry).
1. Press the Power button.
2. Add a little detergent to the detergent compartment
in
the detergent drawer.
3. Turn on the water supply to the washing machine.
4. Press the Start/Pause button.
This will remove any water that might be left over in the
machine from the manufacturer’s test run.
Compartment : Detergent for prewash, or starch.
Compartment : Detergent for the main wash, water softener, pre-soaking agent, bleach and
stain removal product.
To use liquid detergent, use the liquid detergent box (refer to page 35 of the manual for the
corresponding model). Do not add powdered detergent into the liquid detergent box.
Compartment
: Additives, e.g. fabric softener or former (fill no higher than lower edge (MAX)
of “A”)
BASIC INSTRUCTIONS
1. Load your laundry into the washing machine.
Do not overload the washing machine. To determine the load capacity for each type of
laundry, refer to the chart on page 33-34.
• Makesurethatlaundryisnotcaughtinthedoor,asthismaycauseawaterleak.
• Washingdetergentmayremaininthefrontrubberpartofthewasherafterawashcycle.
Remove any remaining detergent, as they may cause a water leak.
• Donottouchthedoorglasswhileyourwashingmachineisrunningoritmaybehot.
• Donotopenthedetergentdrawerorthedebrislterwhileyourwashingmachineis
running or you might be exposed to hot water or steam.
• Donotwashwater-proofeditemsinnormalcycleexceptoutdoorcareprogram.
2. Close the door until it latches.
3. Turn the power on.
4. Add detergent and additives to the dispenser drawer.
5. Select the appropriate cycle and options for the load.
The Wash Indicator light will illuminate and the estimated cycle time will appear in the display.
6. Press the Start/Pause button.
WARNING
WD856UHSAGD-03223J-02_EN.indd 23 2016/3/14 14:14:54
English - 24
USING THE CONTROL PANEL
DIGITAL GRAPHIC
DISPLAY
Displays the remaining wash cycle time, all cycle information, and error
messages.
CYCLE SELECTOR
Select the tumble pattern and spin speed for the cycle.
For detailed information, refer to “Washing clothes using the cycle
selector”. (see page 32)
Cotton - For average or lightly soiled cottons, bed linen, table linen,
underwear, towels, shirts, etc.
Cotton40˚C,2rinses,1400rpmspin,Intensivewash,Bubbleis
recommended for a normally soiled cotton load.
Energy and water labelling test programme in accordance with AS/
NZS 2040.
Synthetics - For averagely or lightly soiled blouses, shirts, etc., made
of polyester (diolen, trevira), polyamide (perlon, nylon) or other similar
blends.
Daily Wash - Use for everyday items such as underwear and shirts.
15’ Quick Wash - For lightly soiled garments and less than 2kg laundry
that you require quickly.
• Thevalues(15’minutes)canvaryfromtheindicatedvalues
depending on water pressure, water hardness, water inlet
temperature, room temperature, type and amount of washing
and degree of soiling, utilized detergent, fluctuation in the
electricity supply and extra options selected.
•
Add only a small amount of detergent for a small amount of laundry
(less than 2kg) for the 15’ Quick Wash course, because if you add
too much detergent, detergent may remain after the wash.
Spin - Performs an additional spin cycle to remove more water.
Rinse + Spin - Use for a load that needs rinsing only or to add rinse-
added fabric softener to a load.
Drum Clean - Use for drum cleaning. It cleanses dirt and bacteria
of drum. Regular use (after every 40 washes) is recommended. No
detergent or bleach needed.
AIR Wash - This course is useful for removing bad odors. Turning the
Cycle Selector cycles through the following operating modes.
(
Deodorization Sanitization
)
• Deodorization - Reduces bad smells from the laundry
• Sanitization - Deodorize and sanitize the laundry by stronger AIR
Wash action with higher temp.
Drying - Select to dry laundry automatically by detecting the amount and
weight of the laundry.
washing a load of laundry
7
10 96
5
4
31
128 112 13
1
2
WD856UHSAGD-03223J-02_EN.indd 24 2016/3/14 14:14:55
English - 25
02 Washing a load of laundry
Baby Care - High temperature wash and extra rinses ensure that no
washing powder remains to mark your thin clothes.
Intensive Cold - Low temperature Bubble wash.
Outdoor Care - Use for outdoor wear such as mountain clothes,
skiwear, and sports wear. Fabrics include functional technology finishes
and fibers such as spandex, stretch, and micro-fiber.
Wool -
Only for machine-washable wool. A load should be less than 2.0 kg.
• Thewoolcoursewashesthelaundryusinggentlecradling
actions.During the wash, the gentle cradling and soaking
actions are continued to protect the wool fibers from shrinkage
/ distortion and for a super gentle clean. This stop operation is
not a problem.
• Neutraldetergentisrecommendedforwoolcourse,for
improved washing results and for improved care of the wool
fibers.
Drain Only
- Turn the Cycle Selector to the Spin position, press the Spin
button repeatedly until “No spin(
)” light comes on, and then press the
Start/Pause button to drain the water.
TEMPERATURE
SELECTION BUTTON
Press this button repeatedly to cycle through the available water
temperature options: (
(Cold Water: all lamp turn off),20˚C,30˚C,
40˚C,60˚Cand95˚C).
RINSE SELECTION
BUTTON
Press this button to add additional rinse cycles. The maximum number
of rinse cycles is five.
SPIN SELECTION
BUTTON
Press the button repeatedly to cycle through the available speeds for the
spin cycle.
WD856UH
All Lamp Turn Off
,
, 400, 800, 1200, 1400 rpm
“No spin
” - The laundry remains in the drum and no spin cycle is
performed after the final drain.
“Rinse hold (All Lamp Turn Off)” -The laundry remains soaking in the
final rinse water. Before the laundry can be unloaded, either a Drain or
Spin cycle must be performed.
DRYING BUTTON
Pressing the button cycles through the following options.
Cup Board
Low Temp
Iron
Time Dry
(30min.
1:00 h
1:30
h
2:00 h
2:30 h
3:00 h
3:30 h
4:00 h
4:30 h)
Cup Board
Cup Board - Use this cycle to dry loads such as cotton, underwear,
and linen.
Low Temp - This cycle protects heat-sensitive items at a low drying
temperature.
Iron - Finishes the dry cycle in a moist state appropriate for Ironing.
Time Dry -Dry the laundry for the specified period of time.
• Youmustavoidwashinglaundrythatcan’tsafelybedriedasit
may be deformed even at low temperatures.
• TheCupBoard,LowTemp,IronandTimeDryoptionsdetectthe
weight of the laundry in order to display an accurate drying time
and dry them more completely.
• Thedryingconditionsmaydifferdependingonthetypeandthe
amount of laundry.
• DryingisnotavailableforDrumClean,AIRWashandWool
courses.
3
4
5
6
WD856UHSAGD-03223J-02_EN.indd 25 2016/3/14 14:14:56
English - 26
washing a load of laundry
BUBBLE SELECTION
BUTTON
Bubble selection is turned on as a default. Press the Bubble option
button once to deselect and the Bubble Generator OFF (shown on the
panel), press it again to turn the function back ON.
• Some wash cycles must have Bubble option ON (will show on the
panel, and the Generator will turn on automatically).
• Other wash cycles do not need this option and automatically turn the
Generator OFF.
• On many cycles, you can manually adjust this option, which will
visibly affect wash time on the panel to achieve results (please see
page 29 for more information).
DELAY END
SELECTION BUTTON
Press this button repeatedly to cycle through the available Delay End
options (from 3 hours to 19 hours in one hour increments).
The hour displayed indicates the time when the wash cycle will be finished.
PREWASH
SELECTION BUTTON
Press this button to select pre-wash. Pre-wash is only available with:
Cotton, Synthetics, Daily Wash, Baby Care, Intensive Cold.
INTENSIVE WASH
SELECTION BUTTON
Press this button when the laundry is heavily soiled and needs to be washed
intensively. The cycle time will be increased if the intensive wash is on.
MY CYCLE
SELECTION BUTTON
Choose your favorite cycle including temperature, spin, soil level, option, etc.
START/PAUSE
SELECTION BUTTON
Press to pause and restart a cycle.
POWER BUTTON
Press it once to turn your washing machine on, press it again to turn
your washing machine off.
If the washing machine is left on for more than 10 minutes without any
buttons being touched, the power automatically turns off.
9
8
10
11
12
13
7
WD856UHSAGD-03223J-02_EN.indd 26 2016/3/14 14:14:56
English - 27
02 Washing a load of laundry
Child lock
The Child Lock function allows you to lock the buttons so that the wash cycle you’ve chosen
can’t be changed.
Activating/Deactivating
If you want to activate or deactivate the Child Lock function,
press the Temp. and Rinse buttons at the same time for
3 seconds. “Child Lock
” will be lit when this feature is
activated.
When the Child Lock function is activated, only the
Power button works. The Child Lock function remains
on even after the power is turned on and off or after the
disconnecting and reconnecting the power cord.
Sound off
The Sound Off function can be selected during all courses. When this function is selected, sound
is turned off for all courses. Even if the power is turned on and off repeatedly, the setting is
retained.
Activating/Deactivating
If you want to activate or deactivate the Sound Off function,
press the Spin and Drying buttons at the same time for 3
seconds. The “Sound Off ” will be lit when this feature is
activated.
Delay end
You can set the washing machine to finish your wash automatically at a later time, choosing a
delay of between 3 to 19 hours (in 1 hour increments). The hour displayed indicates the time at
which the wash will be finished.
1. Manually or automatically set your washing machine according to the type of laundry you are
washing.
2. Press the Delay End button repeatedly until the delay time is set.
3. Press the Start/Pause button. The “Delay End ” indicator will be lit, and the clock will
begin counting down until it reaches the set time.
4. To cancel a Delay End function, press the Power button and then turn the washing machine
on again.
3 SEC.
3 SEC.
WD856UHSAGD-03223J-02_EN.indd 27 2016/3/14 14:15:01
English - 28
Drain Only Function
When you want just drain water from washing machine, follow directions below.
1. Press the Power button.
2. Turn the Cycle Selector to the Spin position.
3. Press the Spin button repeatedly until “No spin( )” light comes on.
4. Press the Start/Pause button.
My cycle
Allows you to activate your custom wash (temperature, spin, soil level, etc.) with one button
convenience.
By pushing the My Cycle button, press the My Cycle button to load and use the saved My
Cycle options. The chosen course and option lights will flicker.
You can set all options as follows in the My Cycle mode.
1. Turn the water supply on.
2. Press the Power button.
3. Select cycle using the Cycle Selector.
4. After cycle selection, set each option.
See the “Cycle Chart” on page 43 for available option settings with each cycle.
5. You can then store the selected cycle and options by pressing and holding the My Cycle
button for longer than 3 seconds in My Cycle mode. The cycle and options you select will be
displayed the next time you choose the My Cycle function.
You can change the My Cycle settings by repeating the same process above.
The last used setting will be displayed the next time you choose the My Cycle function.
If you press My Cycle and release it within 3 seconds, the previously saved course and
options appear. If you press and hold My Cycle for 3 second or longer, the currently set
course and options are saved and the LED blinks for 3 seconds.
washing a load of laundry
WD856UHSAGD-03223J-02_EN.indd 28 2016/3/14 14:15:01
English - 29
02 Washing a load of laundry
Bubble
Bubble allows detergent to distribute evenly and penetrate fabrics faster and deeper.
Course Bubble function Canceling the Bubble function
Cotton, Synthetics, Daily Wash ,
15’ Quick Wash
Available
Available
Intensive Cold, Outdoor Care, Baby
Care, Wool
Not available
• AdifferentBubblefunctionmaybeapplieddependingthecourse.
Bubble selection is default. Press it once to deselect Bubble option, press it again to
select Bubble option.
1. Open the door, place the laundry inside the wash tub and close the door.
2. Press the Power button.
3. Select a function.
4. Place the appropriate amount of detergent and fabric
softener into the corresponding compartments depending
on the amount of laundry and close the detergent drawer.
• Add the appropriate amount of detergent into the
detergent compartment
, and add the fabric softener
to softener compartment just under the fiber softener
base line (MAX) of “A”)
• When the Prewash course is selected, add detergent
into the prewash compartment
as well.
• To use liquid detergent, leave the liquid detergent box
in the drawer(refer to “Liquid Detergent” section on page 35).
Do not add powdered detergent into the liquid detergent box.
5. Press the Start/Pause button.
• Press the Start/Pause button to start the wash.
• The amount of the laundry is automatically detected and the laundry is washed.
• Once a washing machine operation begins, you cannot add or select the Bubble
function.
• Enoughbubblesaregeneratedwiththespeciedamountofdetergent.
• PleasecleantheDebrislterfrequently.Periodiccleaninghelpsgeneratesufcient
bubbles.
• Dependingonthedetergentandthelaundry,thebubblesmaybeabsorbedandseem
like a small quantity.
• Althoughbubblesaregeneratedoncethewashbegins,itmaytakeseveralminutesfor
users to see them.
WD856UHSAGD-03223J-02_EN.indd 29 2016/3/14 14:15:01
English - 30
washing a load of laundry
AIR Wash
AIR Wash can refresh laundry without using water owing to its powerful airing system. Clothing
that can be refreshed includes woolen coats, cotton jumpers, sweaters and suits. [Two items or
less (less than 1 kg)]
1. Open the door, place the laundry into the washing machine and close the door.
2. Press the Power button.
3. Select AIR Wash by turning the Cycle Selector.
MODE CYCLE TIME
Deodorization 29 min
Sanitization 59 min
• When one of these options has been selected, no other button can be selected and you
can only select the delay end time from between 3:00 – 19:00.
4. Close the door and press the Start/Pause button.
• Whenthereiswaterinthetub,AIR Wash cannot be worked. Drain the water and select
AIR Wash.
• PresstheStart/Pause or Power button to remove the laundry.
• FragranceordryersheetscanbeusedwithAIRWashprogramstoaddfragranceto
your refreshed laundry (one sheet per one or two items).
Avoid AIR Wash the following clothes:
• Sensitiveclothesmadeofleather,mink,fur,silk,etc.
• Underweartrimmedwithlace,‘glued’dollcushions,anddresssuitsmayhavetheir
decorations loosened.
• Clothestrimmedwithbuttonscancausethemtobreak.
• Starchyclothescanbecomedeformed.
• Hardbeddingsuchasawoodenpillows(neck-rest)
- Pillows or blankets filled with plastic or starch rather than cotton
- Electric blankets
• Furryblankets
• Bulkyblankets
• Latexpillow
WD856UHSAGD-03223J-02_EN.indd 30 2016/3/14 14:15:01
English - 31
02 Washing a load of laundry
USING DRY COURSE
Refer to the label of drying capacity and be sure to put in the clothes to the lower level than the marked line
for the dried clothes of 6.0kg.
1. Open the door, put in the clothes and close the door again.
2. Press the Power button and then press the Drying button.
: The standard course will be selected automatically.
Drying is not available for Drum Clean, AIR Wash and Wool courses.
3. Select Drying button as follows.
Drying Programs
• Everypressofthisbuttonwillselectdryingtyperepeatedlyinthefollowingorder:
Cup Board
Low Temp
Iron
Time Dry (30 min.
1:00 h
1:30 h
2:00 h
2:30 h
3:00 h
3:30 h
4:00 h
4:30 h)
Cup Board
Drying Type Information Max Load
Time
(Max Load)
Auto
Drying
Cupboard(
)
Standard: Dries the laundry. 5.0kg 240min.
Low Temp.(
)
Dries the laundry at a low
temperature to protect the texture
of the laundry.
2.0 kg 200min.
Iron(
)
For leaving items partially damp so
that it can be easily ironed
2.0 kg 140min.
Time Drying(
)
You can select the appropriate
drying time depending on the
texture, quantity, and moisture.
6.0 kg 270min.
• ForAutoDryingprograms,thismachineautomaticallydisplaysDryingTimebysensing
the weight of clothes before drying, and adjusting appropriately.
• Foranyloadsoflaundry,youcanusetheAutoDryfunction.Ifyoundthatthe
laundry is not completely dried, use the Time Dry function additionally.
• Ifboththespinanddryingcyclesareselected,thespinspeedisautomaticallyselected
to enhance the drying efficiency.
• Whenusingthedryingcycle,checkifthewatersupplyvalveisopened.
4. Put suitable amount of detergent and fiber softener in the detergent tray and close it again.
5. Press Start/Pause button.
: It automatically performs an optimal function from washing to drying.
• Theselectedcoursecan’tbealteredafterthestartofdrying.
• Ifcoldwaterisnotsupplied,dryingwillnotbeperformed.
• Incaseyouwishtodryafterhandwashing,selectbothSpinandDryatthesametime.
WD856UHSAGD-03223J-02_EN.indd 31 2016/3/14 14:15:01
English - 32
Washing clothes using the cycle selector
Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Control”
automatic control system. When you select a wash program, the machine will set the correct
temperature, washing time, and washing speed.
1. Turn on your sink’s water tap.
2. Press the Power button.
3. Open the door.
4. Load the articles one at a time loosely into the drum, without overfilling it.
5. Close the door.
6. Add detergent, softener, and pre-wash detergent (if necessary) into the appropriate
compartments.
Pre-wash is only available when selecting the Cotton, Synthetics, Daily Wash, Baby care,
Intensive Cold
cycles. It is only necessary if your clothing is heavily soiled.
7.
Use the Cycle Selector to select the appropriate cycle according to the type of material:
Cotton, Synthetics, Daily Wash, 15’ Quick Wash, Baby Care, Intensive Cold, Outdoor Care,
Wool. The relevant indicators will illuminate on the control panel.
8. At this time, you can control the wash temperature, the amount of rinses, the spinning
speed, and the delay time by pressing the appropriate option button.
9. Press the Start/Pause button and the wash will begin. The process indicator will light up
and the remaining time for the cycle will appear in the display.
Pause Option
Within 5 minutes of starting a wash, it is possible to add/remove laundry items.
1. Press the Start/Pause button to unlock the door.
The door cannot be opened when the water is too HOT or the water level is too HIGH.
2. After closing the door, press the Start/Pause button to restart the wash.
When the cycle is finished:
After the total cycle has finished, the power will turn off automatically.
1. Open the door.
2. Remove laundry.
washing a load of laundry
WD856UHSAGD-03223J-02_EN.indd 32 2016/3/14 14:15:01
English - 33
02 Washing a load of laundry
Washing clothes manually
You can wash clothes manually without using the Cycle Selector.
1. Turn the water supply on.
2. Press the Power button on the washing machine.
3. Open the door.
4. Load the articles loosely into the drum one at a time, without overfilling it.
5. Close the door.
6. Add detergent and, if necessary, softener or prewash detergent, into the appropriate
compartments.
7. Press the Temp. button to select the temperature.
(ColdWater:alllampturnoff,20˚C,30˚C,40˚C,60˚C,95˚C)
8. Press the Rinse button to select the required number of rinse cycles.
The maximum number of rinse cycles is five.
The wash duration is increased accordingly.
9. Press the Spin button to select the spin speed.
(
: No Spin, Rinse hold: All Lamp Turn Off )
10. Press the Delay End button repeatedly to cycle through the available Delay End options
(from 3 hour to 19 hours in one hour increments). The hour displayed indicates the time at
which the wash will be finished.
11. Press the Start/Pause button and the machine will begin the cycle.
LAUNDRY GUIDELINES
Follow these simple guidelines for the cleanest laundry and the most efficient wash.
Always check the Care label on clothing before washing.
Sort and wash your laundry according to the following criteria:
• Care Label: Sort laundry into cottons, mixed fibres, synthetics, silks, wools and rayons.
• Colour: Divide whites and colours. Wash new colour items separately.
• Size: Placing items of different sizes in the same load will improve the wash action.
• Sensitivity: Wash delicate items separately, using the Delicate wash cycle for pure, new
woollen items, curtains and silk articles. Check the labels on the items you are washing or
refer to the fabric care chart in the appendix.
Emptying pockets
Before each wash, empty all the pockets of your laundry. Small, irregularly shaped hard objects,
such as coins, knives, pins, and paperclips could damage your washing machine. Do not wash
clothing with large buckles, buttons, or other heavy metal objects.
Metal on clothing may damage your clothing as well as the tub. Turn clothing with buttons
and embroidered clothes inside out before washing them. If zips of pants and jackets are
open while washing, the spin basket may be damaged. Zips should be closed and fixed
with a string before washing.
Clothing with long strings may become entangled with other clothes damaging them. Be sure to
fix the strings before starting the wash.
Prewashing cotton
Your new washing machine, combined with modern detergents, will give perfect washing results,
thus saving energy, time, water and detergent. However, if your cotton is particularly dirty,
prewash with a protein-based detergent.
WD856UHSAGD-03223J-02_EN.indd 33 2016/3/14 14:15:01
English - 34
Determining the load capacity
Do not overload the washing machine or your laundry may not wash properly. Use the chart
below to determine the load capacity for the type of laundry you are washing.
Fabric Type Load Capacity
Model WD856
Cotton
- average/lightly soiled
- heavily soiled
8.5 kg
Synthetics 3.5 kg
Outdoor Care 2.0 kg
Wool 2.0 kg
• Whenthelaundryisunbalanced(“UE” lights up on the display), redistribute the load.
If the laundry is unbalanced, the spin efficiency may be degraded.
• WhenwashingBeddingorDuvetcover,thewashtimemaybelengthenedorthespin
efficiency may be degraded.
Make sure to insert brassieres (water washable) into a laundry net (to be
purchased additionally).
• Themetalpartsofthebrassieresmaybreakthroughthematerial
and damage the laundry. Therefore make sure to place them inside
a fine laundry net.
• Small,lightclothingsuchassocks,gloves,stockingsand
handkerchiefs may become caught around the door. Place them
inside a fine laundry net.
Do not wash the laundry net by itself without other laundry. This may cause abnormal
vibrations that could move the washing machine and cause an accident resulting in
injury.
DETERGENT AND ADDITIVES INFORMATION
Which detergent to use
The type of detergent you should use is based on the type of fabric (cotton, synthetic, delicate
items, wool), colour, wash temperature, and degree of soiling. Always use “low suds” laundry
detergent, which is designed for automatic washing machines.
Follow the detergent manufacturer’s recommendations based on the weight of the laundry, the
degree of soiling, and the hardness of the water in your area. If you do not know how hard your
water is, enquire at your local water authority.
Do not use detergent that has hardended or solidified as the detergent may remain in
the rinse cycle. It may cause your washing machine to not rinse properly or result in the
overflow becoming blocked.
Please note the following when using the Wool course.
• Useaneutralliquiddetergentforwoolonly.
• Whenusingapowderdetergent,itmayremainonthelaundryandcausedamagetothe
material (wool).
Powdered detergent should be thoroughly dissolved in a small amount of warm water
before adding to the machine.
washing a load of laundry
CAUTION
WD856UHSAGD-03223J-02_EN.indd 34 2016/3/14 14:15:02
English - 35
02 Washing a load of laundry
Detergent drawer
Your washing machine has separate compartments for dispensing detergent and fabric softener.
Add all laundry additives to the correct compartment before starting your washing machine.
Do not open the detergent drawer while your washing machine is running or you might be
exposed to hot water or steam.
1. Pull out the detergent drawer on the left side of the control panel.
2. Add the recommended amount of laundry detergent
directly into the detergent compartment
before starting
your washing machine.
To use liquid detergent, use the liquid detergent box (refer
to “Liquid Detergent” for the corresponding model).
•
Do not add powdered detergent into the liquid detergent box.
3. Add the recommended amount of fabric softener into the
softener compartment if required. DO NOT exceed the
MAX FILL (
) line.
Do NOT add any powder/liquid detergent to the softener
compartment (
).
4. When using the Prewash option, add the recommended amount of laundry detergent into
the prewash compartment
.
When washing large items do NOT use the following
detergetnt types.
• Tabletandcapsuletypedetergents
• Detergentsusingaballandnet
Concentrated or thick fabric softener and conditioner
must be diluted with a little water before being poured
into the dispenser (prevents the overflow from becoming
blocked).
Be careful that the fabric softener does not overflow,
when you close the detergent drawer after adding fabric softener into the rinse detergent
compartment.
Liquid Detergent (Selected models)
To use liquid detergent, place the liquid detergent box into the main wash section of the
detergent drawer and pour liquid detergent into the liquid detergent box.
• DO NOT fill above the MAX line.
• Whenusingpowdereddetergent,removetheliquid
detergent box from the detergent drawer. Powdered
detergent will not dispense with liquid detergent box.
• Afterawash,someliquidmayremaininthedetergent
drawer.
MAX
MAX
Liquid
detergent box
CAUTION
WD856UHSAGD-03223J-02_EN.indd 35 2016/3/14 14:15:02
English - 36
cleaning and maintaining your
washing machine
Keeping your washing machine clean improves its performance, wards off
unnecessary repairs, and lengthens its life.
DRUM CLEAN
This course is a self-cleaning course that removes mold that may occur inside the washing machine.
1. Press the Power button.
2. Turn the Cycle Selector to the Drum Clean course.
• You can only use the Delay End function.
• The water temperature during the Drum Clean is set to
70˚C.
• Itwillautosetcotton30˚Cmiddlewaterlevelprogram
when cloth is put in.
3. Place the appropriate amount of cleansing agent into the
detergent compartment
and close the detergent drawer
(when cleaning the drum using a cleansing agent).
• Be sure to use the recommended cleansing agent for
cleaning the drum.
• There are powder-type and liquid-type drum cleansing
agents. The liquid-type cleaning agent is only available
with liquid detergent box (option).
4. Press the Start/Pause button.
• If you press the Start/Pause button, the Drum Clean course begins.
• Using the Drum Clean course, you can clean the drum without using a cleansing agent.
• Never use the Drum Clean course when laundry is in the washing machine. This may result in
damage to the texture or a problem with the washing machine.
• IntheDrumCleancourse,neverusenormaldetergent.
• Useonly1/10oftheamountofthedrumcleansingagentrecommendedbythe
cleansing agent manufacturer.
• Since using a chlorine bleaching agent may discolour the product, be sure to use only
oxygen bleaching agents.
• Powder-type cleansing agent: Use a [powder-type bleaching agent] or a [cleansing agent for
drum cleaning only].
• Liquid-type cleansing agent: Use a [liquid-type oxygen bleaching agent] or a [cleansing agent
for drum cleaning only].
CAUTION
WD856UHSAGD-03223J-02_EN.indd 36 2016/3/14 14:15:05
English - 37
03 cleaning and maintaining
The Drum Clean Auto Alarm Function
• If the “Drum Clean” indicator on the display and the lamp on
the Cycle Selector are lit after a wash, it indicates that tub
(drum) cleaning is required. In this case, remove the laundry
from the washing machine, turn the power on, and clean the
drum by performing the Drum Clean course.
• If you do not perform the Drum Clean course, the “Drum
Clean” indicator on the display and the lamp on the Cycle
Selector are turned off. However, the “Drum Clean” indicator
on the display and the lamp on the Cycle Selector are turned
on again after two washes are performed. However, this will
not result in a problem with the washing machine.
• Although generally, the Drum Clean Auto Alarm appears
once a month or so, the frequency may differ depending on the number of times the washing
machine is used.
• Incaseofthealarm,pleasealsocleanthedebrislter(referto“Cleaningthedebris
filter” section on page 38). Otherwise the performance of the Bubble function may
lower down.
DRAINING THE WASHING MACHINE IN AN EMERGENCY
1. Unplug the washing machine from the power supply.
2. Open the filter cover using a coin or a key.
3. Pull forward the emergency drain tube to separate it from
the guide hook.
4. Hold the cap on the end of the emergency drain tube and
slowly pull it out about 15 cm.
5. Allow all the water to flow into a bowl.
Remain water maybe more than you expected. Prepare
larger bowl.
6. Reinsert the emergency drain cap and the drain tube.
7. Replace the filter-cover.
Filter cover
Emergency
drain tube
Emergency
drain cap
WD856UHSAGD-03223J-02_EN.indd 37 2016/3/14 14:15:06
English - 38
CLEANING THE DEBRIS FILTER
We recommend cleaning the debris filter 5 or 6 times a year, or when the error message of “5E” is
displayed. (Refer to “Draining the washing machine in an emergency” in the previous section.)
If foreign substances accumulate debris filter, the performance of the Bubble function will be degraded.
Before cleaning the debris filter, make sure to unplug the power cord.
1. Remove the remaining water first (refer to “Draining the
washing machine in an emergency” on page 37.)
If you separate the filter without draining the remaining
water, the remaining water may trickle out.
2. Open the filter cover by using a key or coin.
3. Unscrew the emergency drain cap by turning it to the left
and drain off all the water.
4. Unscrew the debris filter cap.
5. Wash any dirt or other material from the debris filter. Make
sure the drain pump propeller behind the debris filter is not
blocked.
6. Replace the debris filter cap.
7. Replace the filter cover.
Do not open the debris filter cap while the machine is running or hot
water may flow out.
• Makesuretoreplacetheltercapaftertheltercleaning.Ifthelterisoutofthemachine,your
washing machine may malfunction or leak water.
• Theltershouldbefullyassembledaftertheltercleaning.
CLEANING THE EXTERIOR
1. Wipe the washing machine surfaces, including the control panel, with a soft cloth using a
nonabrasive household detergent.
2. Use a soft cloth to dry the surfaces.
3. Do not pour water onto the washing machine.
cleaning and maintaining your
washing machine
CAUTION
CAUTION
Debris filter cap
WD856UHSAGD-03223J-02_EN.indd 38 2016/3/14 14:15:07
English - 39
03 cleaning and maintaining
CLEANING THE DETERGENT DRAWER AND DRAWER RECESS
1. Press the release lever on the inside of the
detergent drawer and pull the drawer out.
2. Remove the softener divider and the liquid
detergent box(option) from the detergent
drawer.
3. Wash all parts under running water.
4. Clean the drawer recess with an old toothbrush.
5. Replace the softener divider and the liquid detergent box
(option) by pushing it firmly into the drawer.
6. Push the drawer back into place.
7. To remove any remaining detergent, perform a rinse cycle
without any laundry in the drum.
CLEANING THE WATER HOSE MESH FILTER
You should clean the water hose mesh filter at least once a year, or when the error message of “4E” is
displayed:
1. Turn off the water supply to the washing machine.
2. Unscrew the hose from the back of the washing machine. To prevent water from gushing out
due to the air pressure in the hose, cover the hose with a cloth.
3. Gently pull out the mesh filter from the end of the hose using a pair of pliers and rinse it under
water until clean. Also clean inside and outside the threaded connector.
4. Push the filter back into place.
5. Screw the hose back onto the washing machine.
6. Make sure the connections are watertight and turn on the tap.
Release lever
softener divider
liquid detergent box (Option)
WD856UHSAGD-03223J-02_EN.indd 39 2016/3/14 14:15:07
English - 40
cleaning and maintaining your
washing machine
REPAIRING A FROZEN WASHING MACHINE
If the temperature drops below freezing and your washing machine is frozen:
1. Unplug the washing machine.
2. Pour warm water over the tap to loosen the water supply hose.
3. Remove the water supply hose and soak it in warm water.
4. Pour warm water into the washing machine drum and let it sit for 10 minutes.
5. Reconnect the water supply hose to the water tap and check if the water supply and drain
are operating normal.
STORING YOUR WASHING MACHINE
If you need to store your washing machine for an extended time, it’s better to drain and disconnect it.
Washing machines can be damaged if water is left in the hoses and internal components before storage.
1. Select the Cotton cycle and add bleach to the bleach compartment. Then, push the Quick
Wash button and run your washing machine through the cycle without a load.
2. Turn the water taps off and disconnect the inlet hoses.
3. Unplug your washing machine from the electrical outlet, and leave your washing machine
door open to allow air to circulate inside the tumbler.
If your washing machine has been stored in below-freezing temperatures, allow time for any
leftover water in your washing machine to thaw out before using it.
WD856UHSAGD-03223J-02_EN.indd 40 2016/3/14 14:15:07
English - 41
04 troubleshooting
troubleshooting and
information codes
CHECK THESE POINTS IF YOUR WASHING MACHINE...
PROBLEM SOLUTION
Will not start • Make sure your washing machine is plugged in.
• Make sure the door is firmly closed.
• Make sure the water source tap(s) are turned on.
• Make sure to press the Start/Pause button.
Has no water or not enough
water
• Turn the water tap on fully.
• Make sure the water source hose is not frozen.
• Straighten the water intake hoses.
• Clean the filter on the water intake hose.
Has detergent remaining in
the detergent drawer after
the wash cycle is complete
• Make sure your washing machine is running with sufficient water
pressure.
• Make sure the detergent is added to the center of the detergent
drawer.
Vibrates or is too noisy • Make sure your washing machine is on a level surface. If the surface
is not level, adjust the washing machine feet to level the appliance.
• Make sure that the shipping bolts are removed.
• Make sure your washing machine is not touching any other object.
• Make sure the laundry load is balanced.
The washing machine does
not drain and/or spin
• Straighten the drain hose. Eliminate kinked hoses.
• Make sure the debris filter is not clogged.
Door is locked shut or will
not open.
• The door will not open until 3 minutes after the machine stops or the
power turns off.
If the problem persists, contact your local Samsung Customer Service.
WD856UHSAGD-03223J-02_EN.indd 41 2016/3/14 14:15:07
English - 42
INFORMATION CODES
If your washing machine malfunctions, you may see an information code on the display. If this happens,
please check the table below and try the suggested solution before calling Customer Service.
CODE SYMBOL SOLUTION
dE
• Make sure the door is firmly closed.
• Make sure that laundry is not caught in the door.
4E
• Make sure the source water tap is turned on.
• Check the water pressure.
• Clean the mesh filters of water hose.
When the washer displays the “4E” code, the washer do draining for
3 minutes. During this time, the Power button is inoperative.
5E
• Clean the debris filter.
• Make sure the drainage hose is installed correctly.
• Clean the water hose mesh filter.
UE
• The laundry load is unbalanced. Redistribute the load. If only one item
of clothing needs washing, such as a bathrobe or pair of jeans, the
final spin result might be unsatisfactory and an “UE” error message
will be shown in the display window.
cE/3E
• Call the after-sales service.
Sud/Sd
• This occurs when too much foaming is detected. It is also displayed
while foaming is removed. When the removal is finished, the normal
cycle proceeds.(This is one of the normal operations. It is an error for
preventing non-sensing faults.)
Uc
• If the voltage of the supplied power is instable, the washing machine
will be paused to protect its electric devices.
• If the correct voltage is supplied, the cycle will resume automatically.
For any codes not listed above, or if the suggested solution doesn’t fix the problem, call your Samsung
Service Centre or local Samsung dealer.
troubleshooting and
information codes
WD856UHSAGD-03223J-02_EN.indd 42 2016/3/14 14:15:07
English - 43
05 CyCle Chart
cycle chart
CYCLE CHART
( user option)
PROGRAM
Max load(kg) DETERGENT
Max Temp
(
˚C
)
Spin Speed(MAX) rpm
WD856 Pre-wash wash Softener WD856UH
Cotton 8.5
yes
95 1400
Synthetics 3.5
yes
60 1200
Daily Wash 4.0
yes
60 1400
15’ Quick Wash
2.0 - yes
40 800
Drum Clean - - - - 70 400
Baby Care 4.0
yes
95 1400
Intensive Cold 4.0
yes
40 1200
Outdoor Care 2.0 - yes
40 1200
Wool 2.0 - yes
40 800
PROGRAM Bubble Intensive Delay end Drying
Cotton
Synthetics
Daily Wash
15’ Quick Wash
-
Drum Clean - -
-
Baby Care
Intensive Cold
Outdoor Care
-
Wool
-
-
1. A cycle with a prewash takes approx. 18 minutes longer.
2. The cycle duration data has been measured under the conditions specified in Standard IEC 60456 / EN 60456.
3. EU energy label washing performance tests according to EN 50229should be carried out using a 8.5 kg load
andthefollowingprogram:Cotton40˚C/cold+2rinses+Intensivewash+Bubble+1400rpm.
4. For EU energy label drying performance tests according to EN 50229, the 8.5 kg washingbase load should
be divided into three parts of approximately 2.35kg, 2.35kg, and 2.3kg and each part should be dried
separatelyusing theCupboardDryprogram.
5. Daily Wash : Short program for test institutes.
6. Course time in individual homes may differ from the values given in the table due to variations in the
pressure and temperature of the water supply, the load and the type of laundry.
7. When the Intensive Wash function is selected, the cycle time is increased for each cycle.
WD856UHSAGD-03223J-02_EN.indd 43 2016/3/14 14:15:08
English - 44
appendix
FABRIC CARE CHART
The following symbols provide garment care directions. The care labels include four symbols in this order:
washing, bleaching, drying and ironing (and dry cleaning when necessary). The use of symbols ensures
consistency among garment manufacturers of domestic and imported items. Follow the care label
directions to maximize garment life and reduce laundery problems.
Resistant material Canbeironedat100˚Cmax
Delicate fabric Do not iron
Itemmaybewashedat95˚C
Can be dry cleaned using any
solvent
Itemmaybewashedat60˚C
Dry clean with perchloride, lighter
fuel, pure alcohol or R113 only
Itemmaybewashedat40˚C
Dry clean with aviation fuel, pure
alcohol or R113 only
Itemmaybewashedat30˚C
Do not dry clean
Item may be hand washed
Dry flat
Dry clean only Can be hung to dry
Can be bleached in cold water Dry on clothes hanger
Do not bleach Tumble dry, normal heat
Canbeironedat200˚Cmax Tumble dry, reduced heat
Canbeironedat150˚Cmax Do not tumble dry
PROTECTING THE ENVIRONMENT
• This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance,
please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be
connected to a power source. Remove the door so that animals and small children cannot get trapped
inside the appliance.
• Do not exceed the detergent quantities recommended in the detergent manufactures’ instructions.
• Use stain removal products and bleaches before the wash cycle only when strictly necessary.
• Save water and electricity by only washing full loads (the exact amount depends upon the program
used).
WD856UHSAGD-03223J-02_EN.indd 44 2016/3/14 14:15:09
English - 45
06 Appendix
SPECIFICATIONS
TYPE FRONT LOADING WASHING MACHINE
DIMENSIONS
WD856UHSA**
W600mm X D650mm X H850mm
WATER PRESSURE
50 kPa ~ 800 kPa
WATER VOLUME
75 ℓ
NET WEIGHT
WD856UHSA**
69 kg
WASH AND SPIN CAPACITY
8.5 kg [DRY LAUNDRY]
DRY CAPACITY
6.0 kg
POWER
CONSUMPTION
MODEL
WD856UHSA**
WASHING
220 V 150 W
240 V 150 W
WASH AND
HEATING
220 V 2200 W
240 V 2400 W
DRYING
230 V 1600W
SPIN
MODEL
WD856UHSA**
230V
350 W
PUMPING
34 W
SPIN
REVOLUTIONS
MODEL
WD856UHSA**
rpm
1400
The appearance and specifications of the product are subject to change without prior notice for purposes
of product enhancement.
