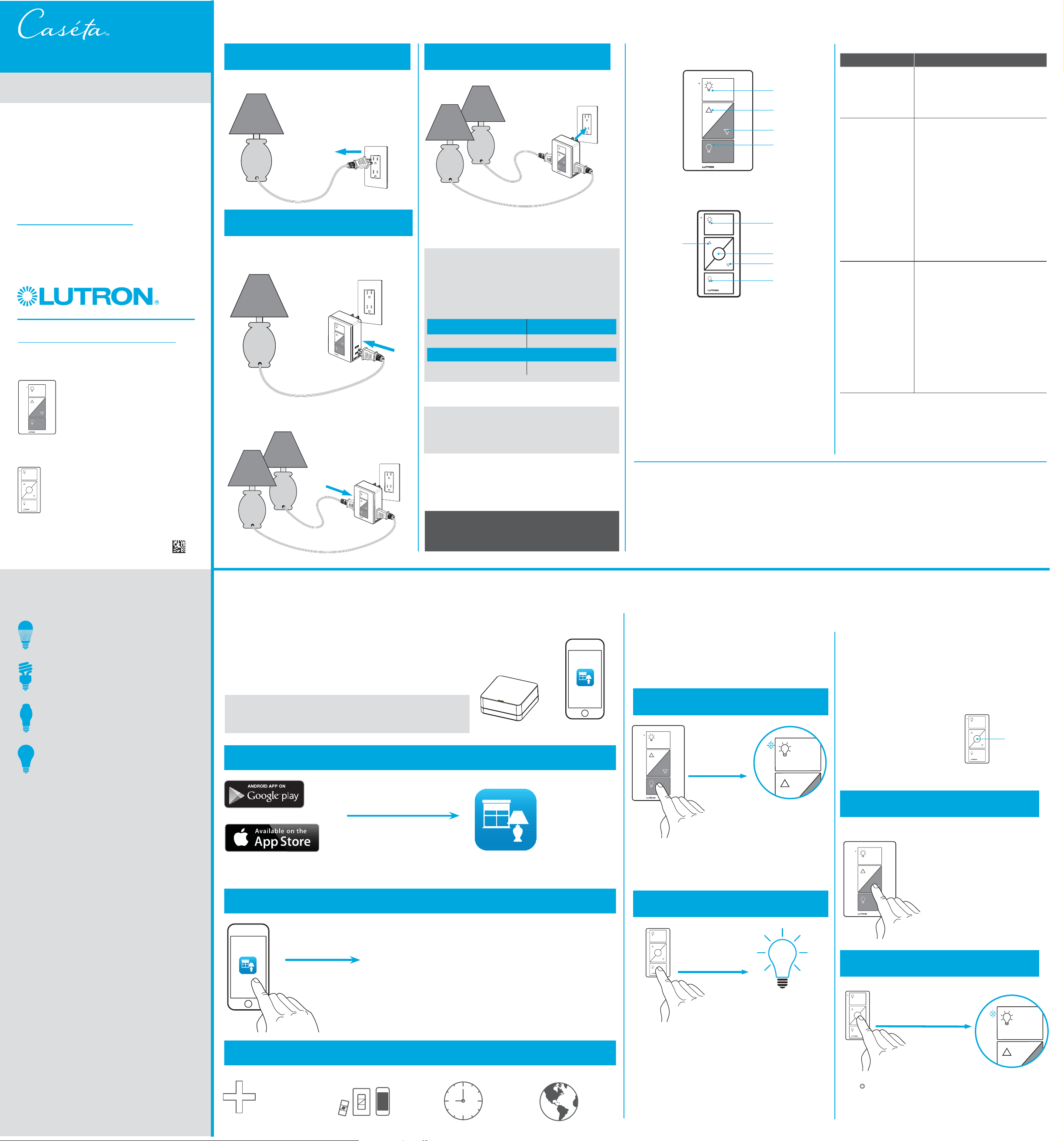

Pico® remote control &
plug-in lamp dimmer
Welcome—and thank you for purchasing a CasétaT
Wireless dimming kit.
Before you install the plug-in lamp dimmer,
please watch the installation video at
www.casetawireless.com/support
We hope you enjoy the convenience of CasétaT
Wireless!
Contents supplied
Double your warranty
Plug-in lamp dimmer
(PD-3PCL)
Works with energy efficient
dimmable light bulbs:
PicoR remote control
(PJ2-3BRL)
Installing your lamp dimmer
1
Turn on the lamp
Love CasétaT Wireless dimmers? Have ideas
for making them better? Tell us what you think
and we’ll extend your warranty by 1 year.
www.casetawireless.com/register
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299, U.S.A.
Turn on the lamp you want to control and unplug it.
Lutron, , and Pico are registered trademarks and Caséta and Smart Bridge
are trademarks of Lutron Electronics Co., Inc. Google and the Google logo are
registered trademarks of Google Inc., used with permission.
© 2014 Lutron Electronics Co., Inc.
P/N 0301725 REV B
Warranty
For warranty information, please visit
www.casetawireless.com/warranty
Go to
www.casetawireless.com/support for
additional troubleshooting suggestions.
Symptoms Probable cause and action
Lamp does
not turn on or
lamp dimmer LED
does not light up.
• Light bulb(s) burned out.
• Lamp is turned off.
• Lamp is not plugged in.
• Outlet is switched off.
Light does
not respond
to PicoR remote
control.
• The dimmer failed to pair
with PicoR remote control;
see Pairing the lamp dimmer
and PicoR remote control.
• The dimmer is already at the
light level the PicoR remote
control is sending.
• The PicoR remote control
is outside the 30 ft (9 m)
operating range.
• The PicoR remote control
battery is low.
• The PicoR remote control
battery is installed incorrectly.
• Bulbs turn off
while being
dimmed.
• Bulbs turn on at
high light level
but do not turn
on at a low
light level.
• Bulbs flicker
or flash when
dimmed to a low
light level.
Verify bulbs are marked
dimmable and visit
www.casetawireless.com/
lowend
for information on adjusting
the dimmer for best
bulb performance.
Troubleshooting
For advanced features, tips for using CasétaT Wireless
dimmers with CFLs and LEDs, the complete CasétaT
Wireless product line, and more, please visit
www.casetawireless.com/features
Using your CasétaT Wireless kit
2
Connect the lamp(s)
Plug the lamp cord into either side of the CasétaT
Wireless plug-in lamp dimmer.
NOTE: You can mix and match dimmable LED
and CFLs as well as halogen and incandescent
light bulbs with CasétaT Wireless dimmers.
Dimmable LED and CFL light bulbs vary in
their dimming performance. If you’re using these
bulbs and they flicker or turn off, please visit
www.casetawireless.com/lowend
for information on adjusting the dimmer for
best bulb performance.
For a complete list of compatible dimmable CFLs
and LEDs, please visit
www.casetawireless.com/bulblist
Compatible light bulbs include:
Cree
®
BA19-08027OMF-12DE26-1U100
Feit
®
A19/OM800/LED
Philips
®
9290002268
9290002267
Sylvania
®
LED8A/DIM/F/827
3
Plug in the lamp dimmer
3
Set desired light level on dimmer
1
Press and hold “off” button on dimmer
Pairing the lamp dimmer and
PicoR remote control
2
Press and hold “off” button on remote
x3
Changing the favorite light level
on the PicoR remote control
(optional)
You can use the round “favorite”
button on the PicoR remote
control to recall a favorite light
level. We’ve set it to 50%, but you
can change it to any level you like.
Favorite
Hold for 6 seconds
until LED
starts blinking.
Hold for 6 seconds until
lights flash 3 times.
Repeat steps to pair other PicoR remote
controls.
Device Ratings
Plug-in lamp dimmer PicoR remote control
PD-3PCL PJ2-3BRL
120 V~ 50/60 Hz 3 V- 10 mA
(1) CR2032 battery (included)
Important notes:
1. For indoor use only.
2. Operate between 32 ˚F (0 ˚C) and 104 ˚F (40 ˚C).
If you want to control a second lamp turn it on
and plug it into the other side.
Important note:
Use only with dimmable LED, dimmable CFL,
halogen, or incandescent lamps.
Do not exceed the total maximum wattage shown below:
Bulb Maximum Wattage
LED & CFL 100 W
or
Incandescent & Halogen 300 W
Wireless
Using your controls
On
Off
Darker
Brighter
Plug-in lamp dimmer
quick-start guide
CAUTION
To avoid overheating and possible damage to other
equipment, do not use to control motor-driven appliances,
or transformer-supplied appliances.
Codes
Install in accordance with all national and local electrical codes.
The Lutron® app will walk you through
setting up your devices.
www.casetawireless.com/LutronApp
With a smartphone or tablet (Bridge required, sold separately)
Lutron
The CasétaT Wireless plug-in lamp dimmer can be controlled from a smartphone
when used with the LutronR Smart BridgeT.
If you are using the dimmer and remote control with the LutronR Smart BridgeT
follow the instructions below.
Search for “Lutron Caseta”
Lutron
LutronR Smart BridgeT
Note: If you are using the dimmer and remote control with another
manufacturer’s bridge, please refer to that manufacturer’s instructions
for set-up.
Lutron
LutronR App
Add devices
• PicoR remotes
• Dimmers
• Shades
Control
three ways
Schedule
your lights
Connect
while away
Apple is a trademark of Apple Inc., registered in the U.S. and other countries. AppStore is a service mark of Apple Inc.
P/N 0301725 REV B
4
Press and hold “favorite” button on remote
Hold for 6 seconds until the
plug-in lamp dimmer LED
blinks twice. New favorite
level is now saved.
x2
Without a smartphone or tablet (Bridge not required)
Pico® remote control
On
Off
Darker
Favorite
Brighter
This device complies with part 15 of the FCC Rules and Industry Canada license-
exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) this device must accept
any interference, including interference that may cause undesired operation.
Modifications not expressly approved by Lutron Electronics Co., Inc. could void the
user’s authority to operate this equipment.
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC/IC Information
3
Use the Lutron® app to complete ALL remaining steps
2
Launch® the Lutron® app
1
Download the Lutron® app
LED—up to 100 W
CFL—up to 100 W
Incandescent—up to 300 W
Halogen—up to 300 W
