Getting Started Connections Setup Playback Remote Control Information Troubleshooting
UNIVERSAL AUDIO / VIDEO PLAYER
DVD-A1UDCI
GraphicalUserInterface
English
Use this manual in combination with the operating
guide displayed on the GUI screen.
GUI Menu Operation (vpage 24)
Français
Utilisez ce manuel en même temps que le guide
d’utilisation afché sur l’écran GUI (Interface
graphique).
Fonctionnement du menu de l’interface graphique GUI
(vpage 24)
Owner’s Manual
Manuel de l’Utilisateur
Button illustrations used in this manual for operation explanation are for the
Remote Control Unit.
You can operate the unit using the button of the same name on the front panel
of the unit.
Les illustrations des boutons présentes dans ce manuel servent à expliquer le
fonctionnement de la télécommande.
Vous pouvez contrôler l’appareil à l’aide du bouton portant le même nom sur la
façade de l’appareil.
b
b
I
n
SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
ENGLISH FRANCAIS
$-"44
-"4&3
130%6$5
CAUTION:
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
THIS PRODUCT SHOULD NOT BE ADJUSTED OR REPAIRED BY
ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL.
n
Laser Class (IEC 60825-1:2001)
IMPOTANT SAFETY
INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15. Batteries shall not be exposed to excessive heat such as sunshine, fire or
the like.
CAUTION:
• The ventilation should not be impeded by covering the ventilation
openings with items, such as newspapers, tablecloths, curtains,
etc.
• No naked flame sources, such as lighted candles, should be
placed on the unit.
• Observe and follow local regulations regarding battery disposal.
• Do not expose the unit to dripping or splashing fluids.
• Do not place objects filled with liquids, such as vases, on the
unit.
ATTENTION:
• La ventilation ne doit pas être gênée en recouvrant les ouvertures
de la ventilation avec des objets tels que journaux, rideaux, tissus,
etc.
• Aucune flamme nue, par exemple une bougie, ne doit être placée
sur l’appareil.
• Veillez à respecter les lois en vigueur lorsque vous jetez les piles
usagées.
• L’appareil ne doit pas être exposé à l’eau ou à l’humidité.
• Ne pas poser d’objet contenant du liquide, par exemple un vase,
sur l’appareil.
PRECAUCIÓN:
• La ventilación no debe quedar obstruida por haberse cubierto las
aperturas con objetos como periódicos, manteles, cortinas, etc.
• No debe colocarse sobre el aparato ninguna fuente inflamable sin
protección, como velas encendidas.
• A la hora de deshacerse de las pilas, respete la normativa para el
cuidado del medio ambiente.
• No exponer el aparato al goteo o salpicaduras cuando se utilice.
• No colocar sobre el aparato objetos llenos de líquido, como
jarros.
CAUTION:
To completely disconnect this product from the mains, disconnect
the plug from the wall socket outlet.
The mains plug is used to completely interrupt the power supply to
the unit and must be within easy access by the user.
PRECAUTION:
Pour déconnecter complètement ce produit du courant secteur,
débranchez la prise de la prise murale.
La prise secteur est utilisée pour couper complètement
l’alimentation de l’appareil et l’utilisateur doit pouvoir y accéder
facilement.
PRECAUCIÓN:
Para desconectar completamente este producto de la alimentación
eléctrica, desconecte el enchufe del enchufe de la pared.
El enchufe de la alimentación eléctrica se utiliza para interrumpir por
completo el suministro de alimentación eléctrica a la unidad y debe
de encontrarse en un lugar al que el usuario tenga fácil acceso.
The serial number of this product may be found on the back of the unit. No
others have the same serial number as yours. You should record the number and
other vital information here and retain this book as a permanent record of your
purchase to aid identification in case of theft.
Date of Purchase
Dealer Purchase from
Dealer Address
Dealer Phone No.
Model No.
Serial No.
II
ENGLISHFRANCAIS

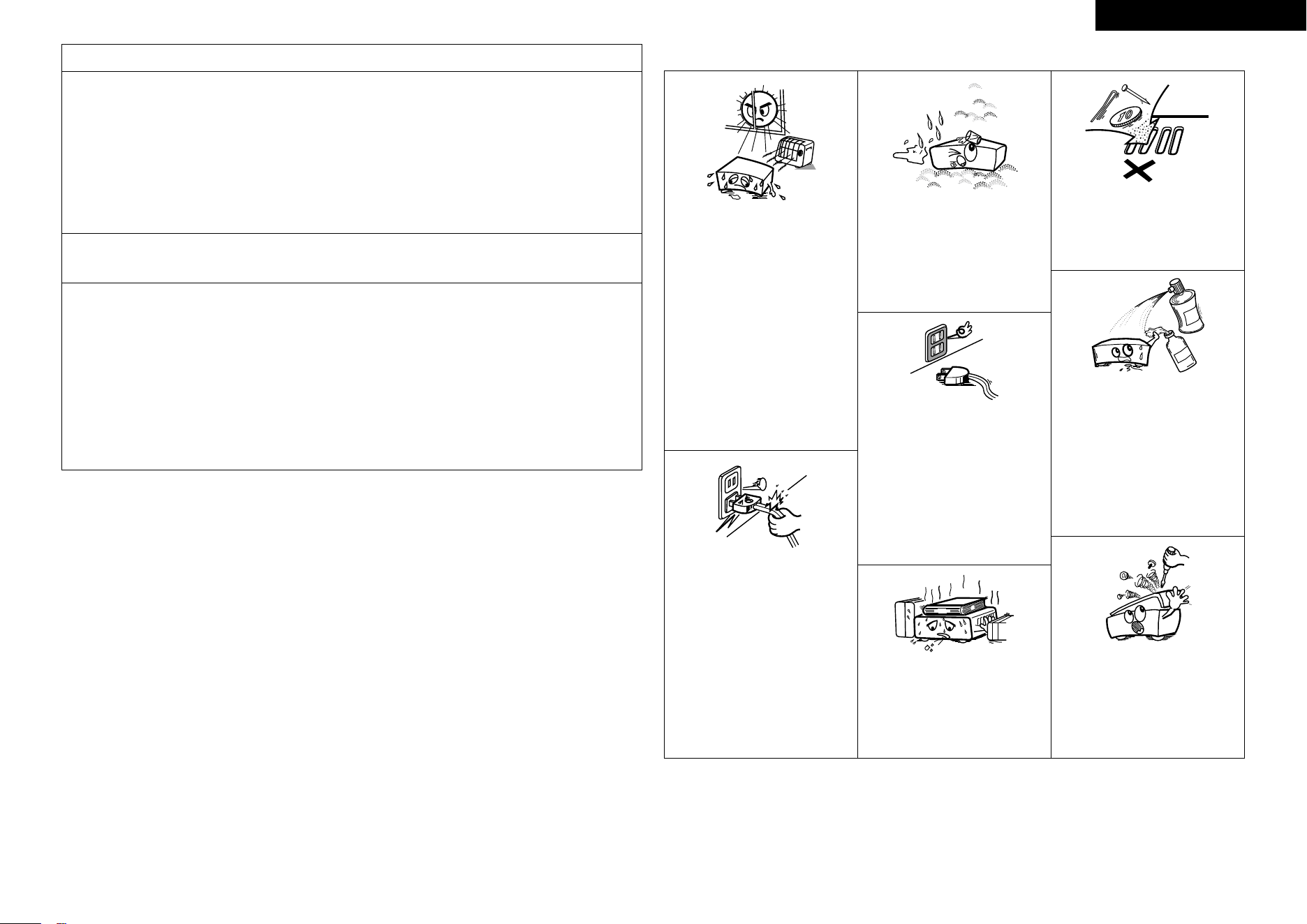

• Avoid high temperatures.
Allow for sufficient heat dispersion when
installed in a rack.
• Eviter des températures élevées.
Tenir compte d’une dispersion de chaleur
suffisante lors de l’installation sur une
étagère.
• Handle the power cord carefully.
Hold the plug when unplugging the cord.
• Manipuler le cordon d’alimentation avec
précaution.
Tenir la prise lors du débranchement du
cordon.
• Keep the unit free from moisture, water,
and dust.
• Protéger l’appareil contre l’humidité, l’eau
et la poussière.
• Unplug the power cord when not using the
unit for long periods of time.
• Débrancher le cordon d’alimentation
lorsque l’appareil n’est pas utilisé pendant
de longues périodes.
* (For apparatuses with ventilation holes)
• Do not obstruct the ventilation holes.
• Ne pas obstruer les trous d’aération.
• Do not let foreign objects into the unit.
• Ne pas laisser des objets étrangers dans
l’appareil.
• Do not let insecticides, benzene, and
thinner come in contact with the unit.
• Ne pas mettre en contact des insecticides,
du benzène et un diluant avec l’appareil.
• Never disassemble or modify the unit in
any way.
• Ne jamais démonter ou modifier l’appareil
d’une manière ou d’une autre.
n
NOTE ON USE / OBSERVATIONS RELATIVES A L’UTILISATION
FCC INFORMATION (For US customers)
1. COMPLIANCE INFORMATION
Product Name: Universal Audio / Video Player
Model Number: DVD-A1UDCI
This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
product may not cause harmful interference, and (2) this product must accept any interference received, including
interference that may cause undesired operation.
Denon Electronics (USA), LLC
(a D & M Holdings Company)
100 Corporate Drive
Mahwah, NJ 07430-2041
Tel. (800) 497-8921
2. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT
This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements.
Modification not expressly approved by DENON may void your authority, granted by the FCC, to use the product.
3. NOTE
This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this product does cause harmful interference to radio or
television reception, which can be determined by turning the product OFF and ON, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the product into an outlet on a circuit different from that to which the receiver is connected.
• Consult the local retailer authorized to distribute this type of product or an experienced radio/TV technician for
help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
n
Copyrights / Droits d’auteur
• It is prohibited by law to reproduce, broadcast, rent or play discs in public without the consent of the
copyright holder.
• La reproduction, la diffusion, la location, le prêt ou la lecture publique de ces disques sont interdits sans
le consentement du détenteur des droits d’auteur.
ENGLISH
Contents
Features··························································································· 2
Getting Started

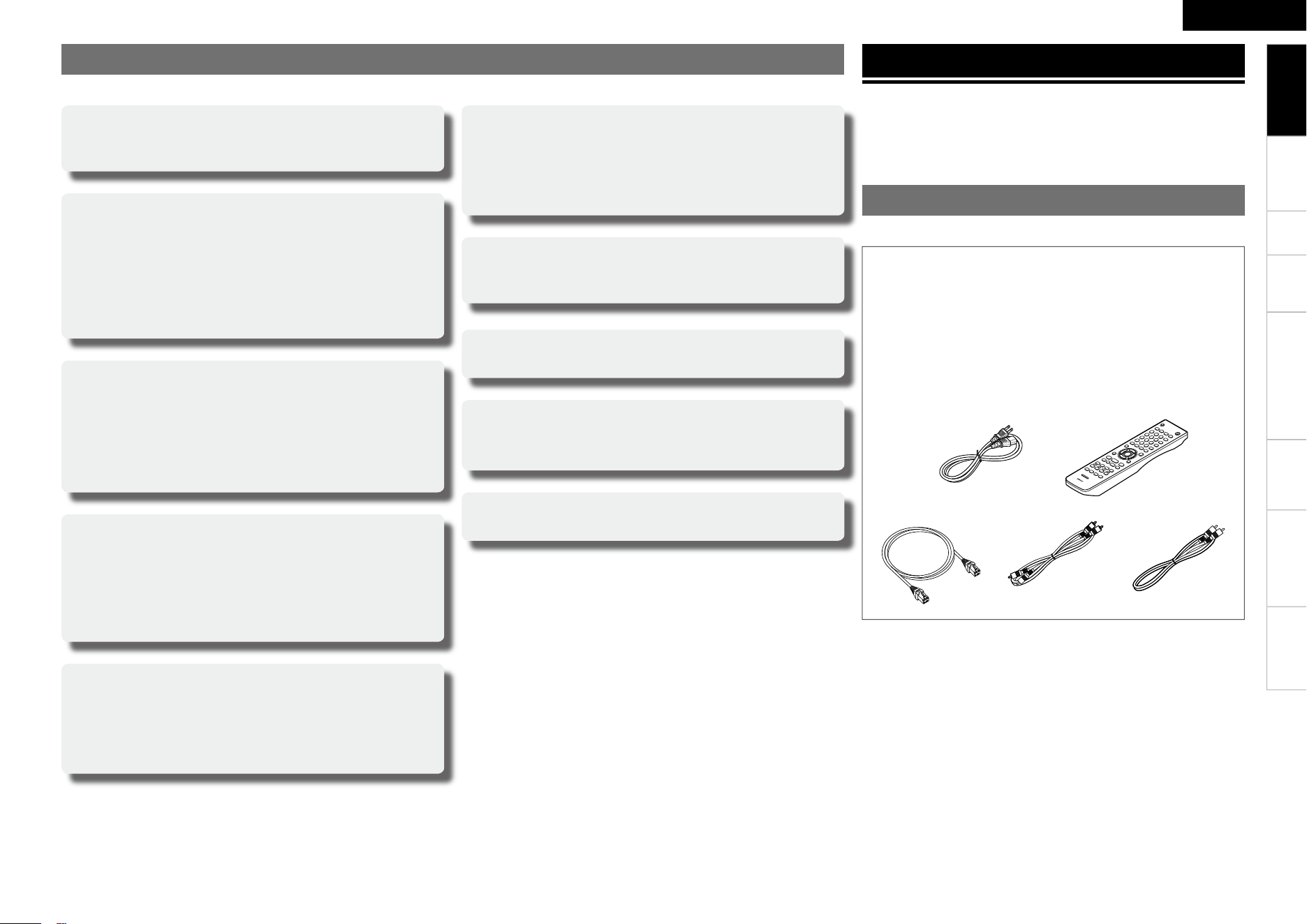

Accessories····················································································· 2
Cautions on Handling····································································· 3

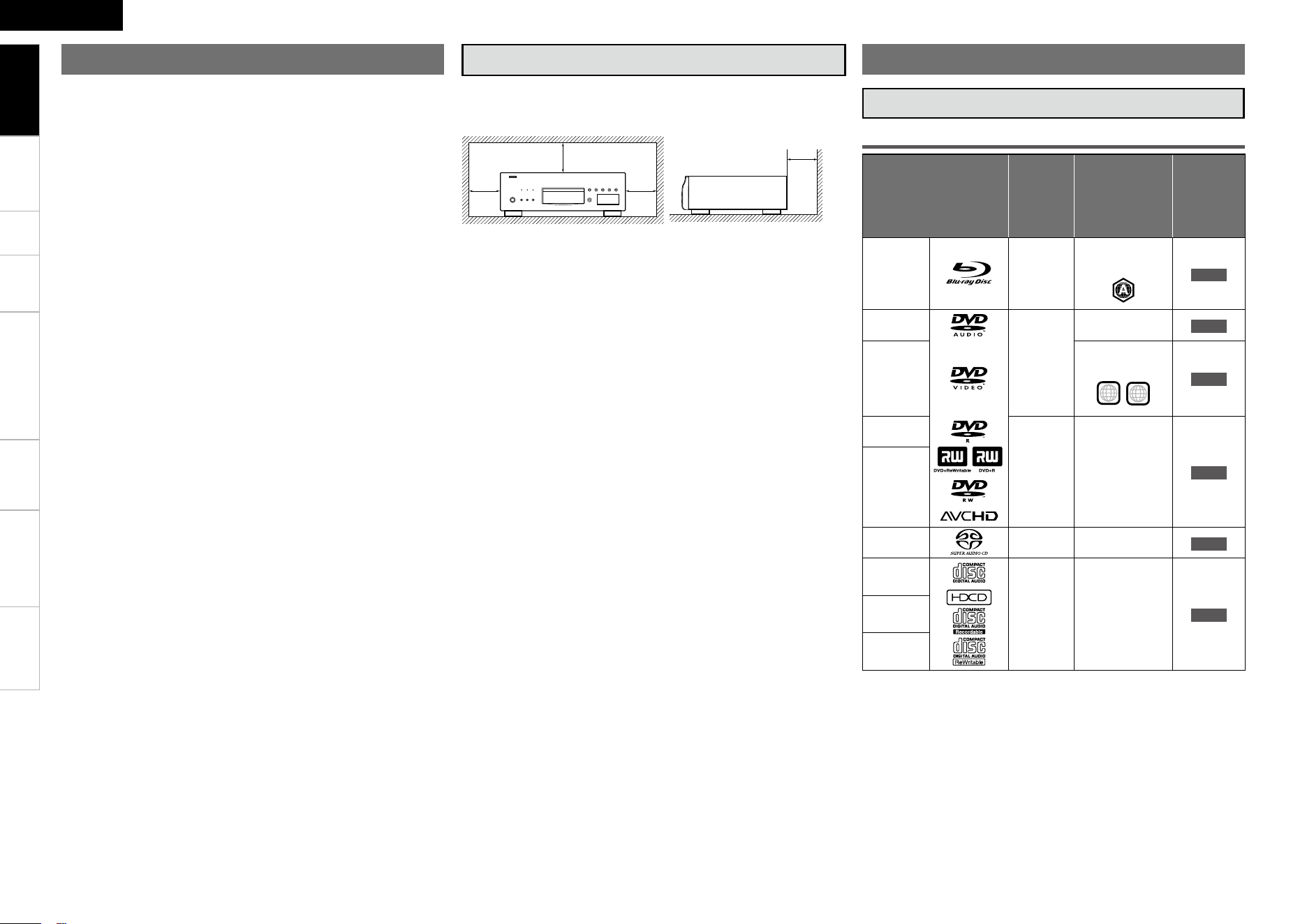

Cautions·on·Installation································································· 3

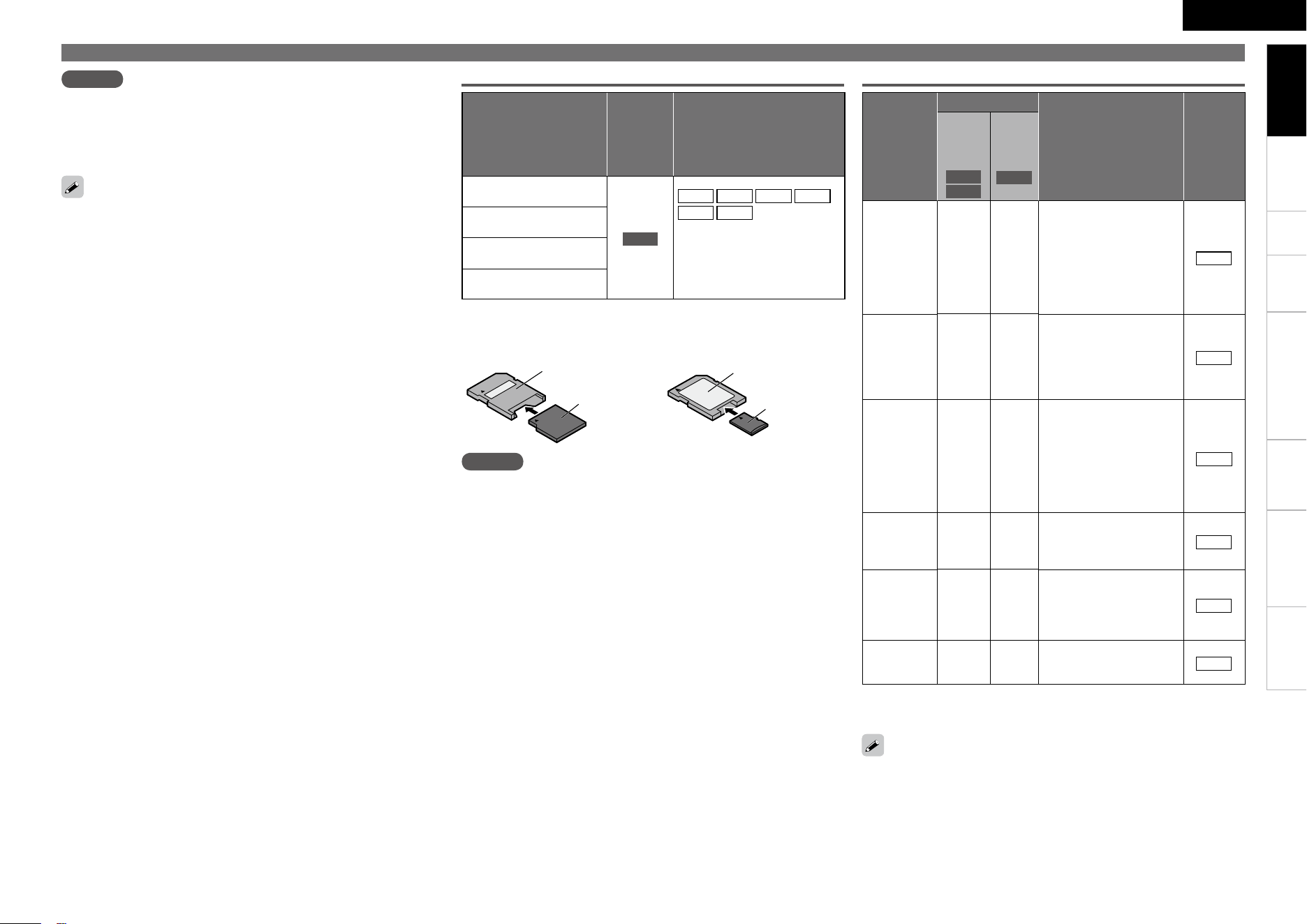

About Media··················································································· 3
Playable·Media·············································································· 3

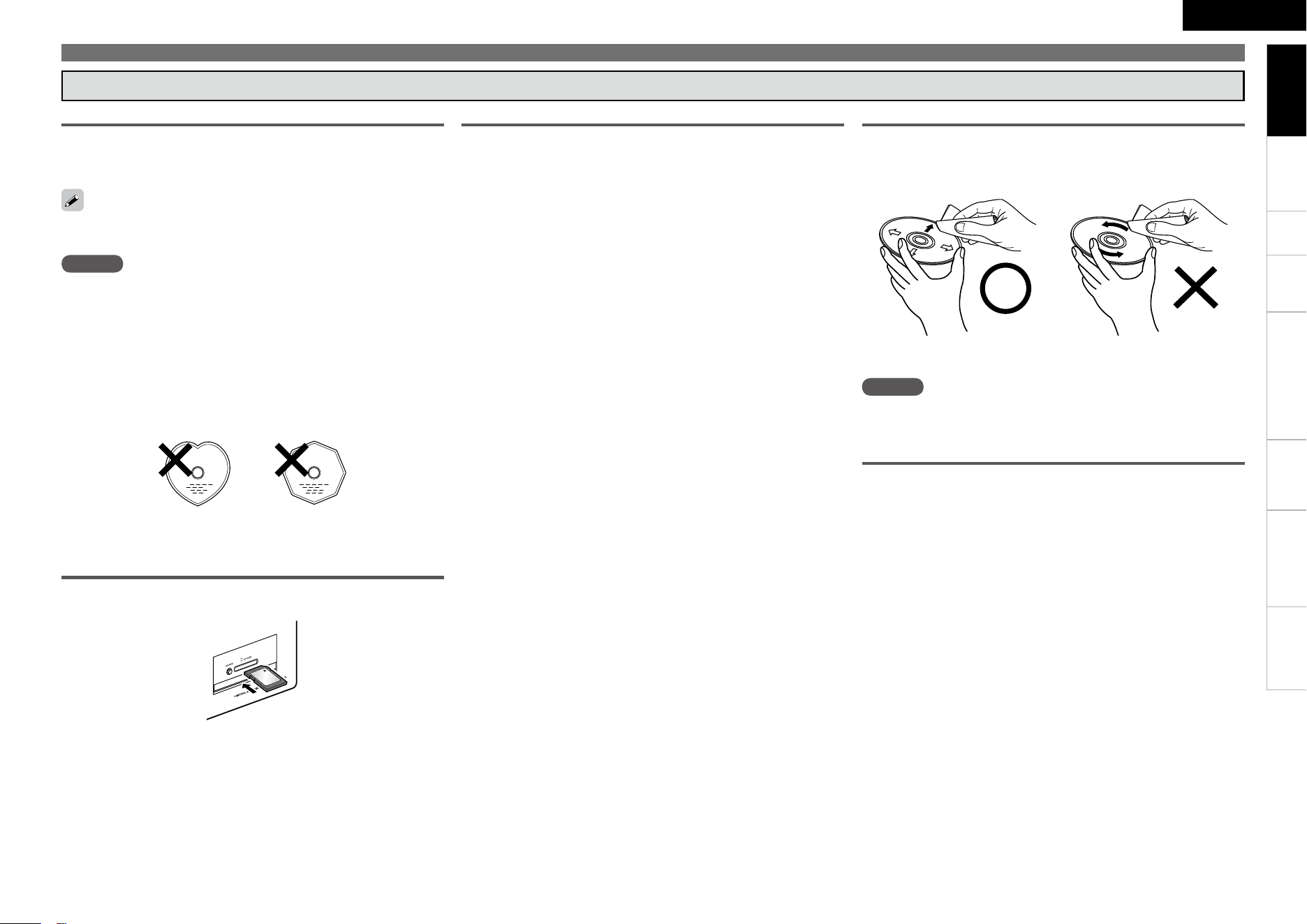

Cautions·on·Using·Media······························································ 6
About the Remote Control Unit···················································· 7

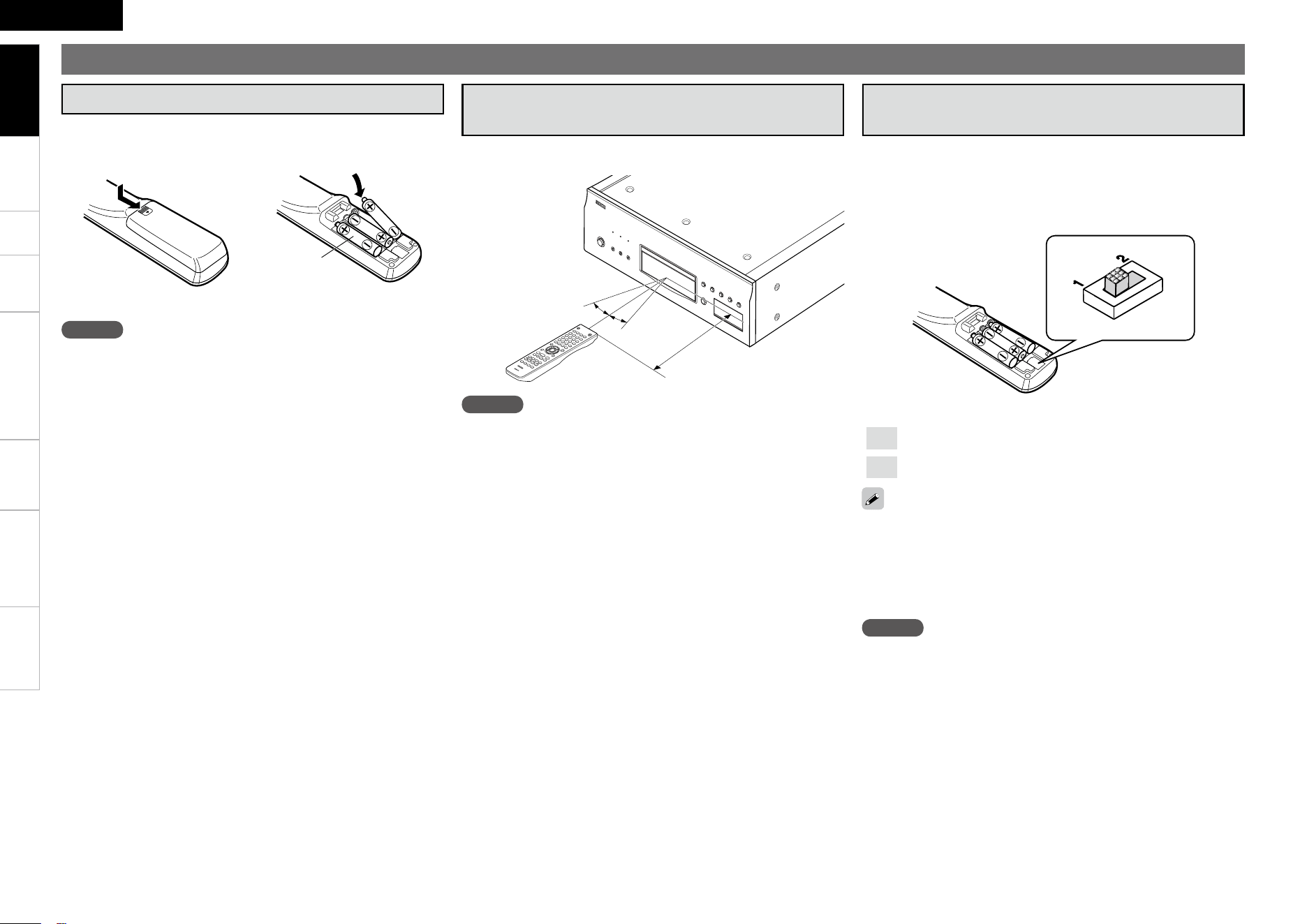

Inserting·the·Batteries··································································· 7
Operating·Range·of·the·Remote·Control·Unit······························ 7
Remote·Control·Settings·(Remote·Control·Side)·························· 7
Part Names and Functions····························································· 8

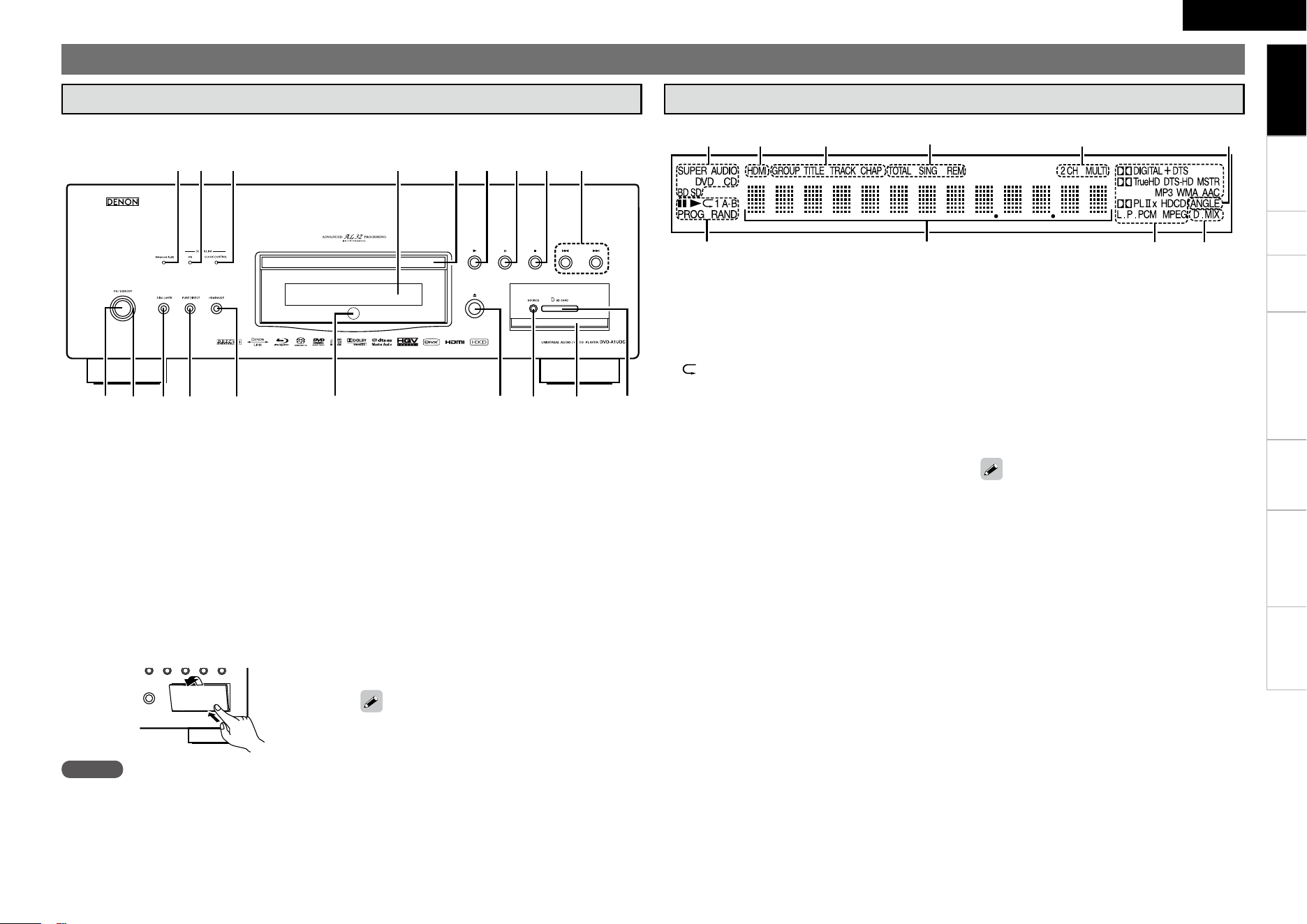

Front·Panel····················································································· 8
Display··························································································· 8

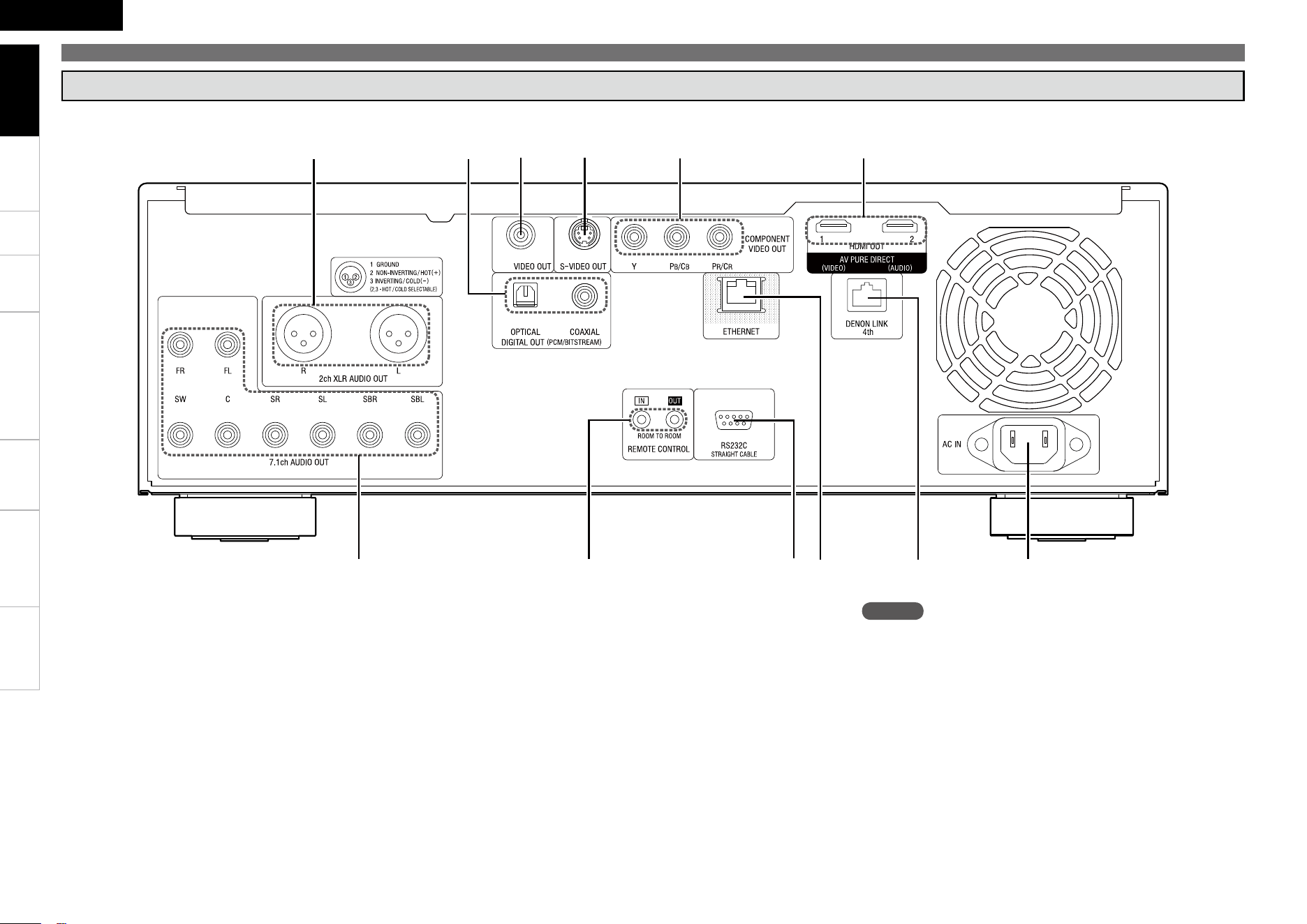

Rear·Panel······················································································ 9
Remote·Control·Unit··································································· 10
Connections
Preparation··················································································· 12

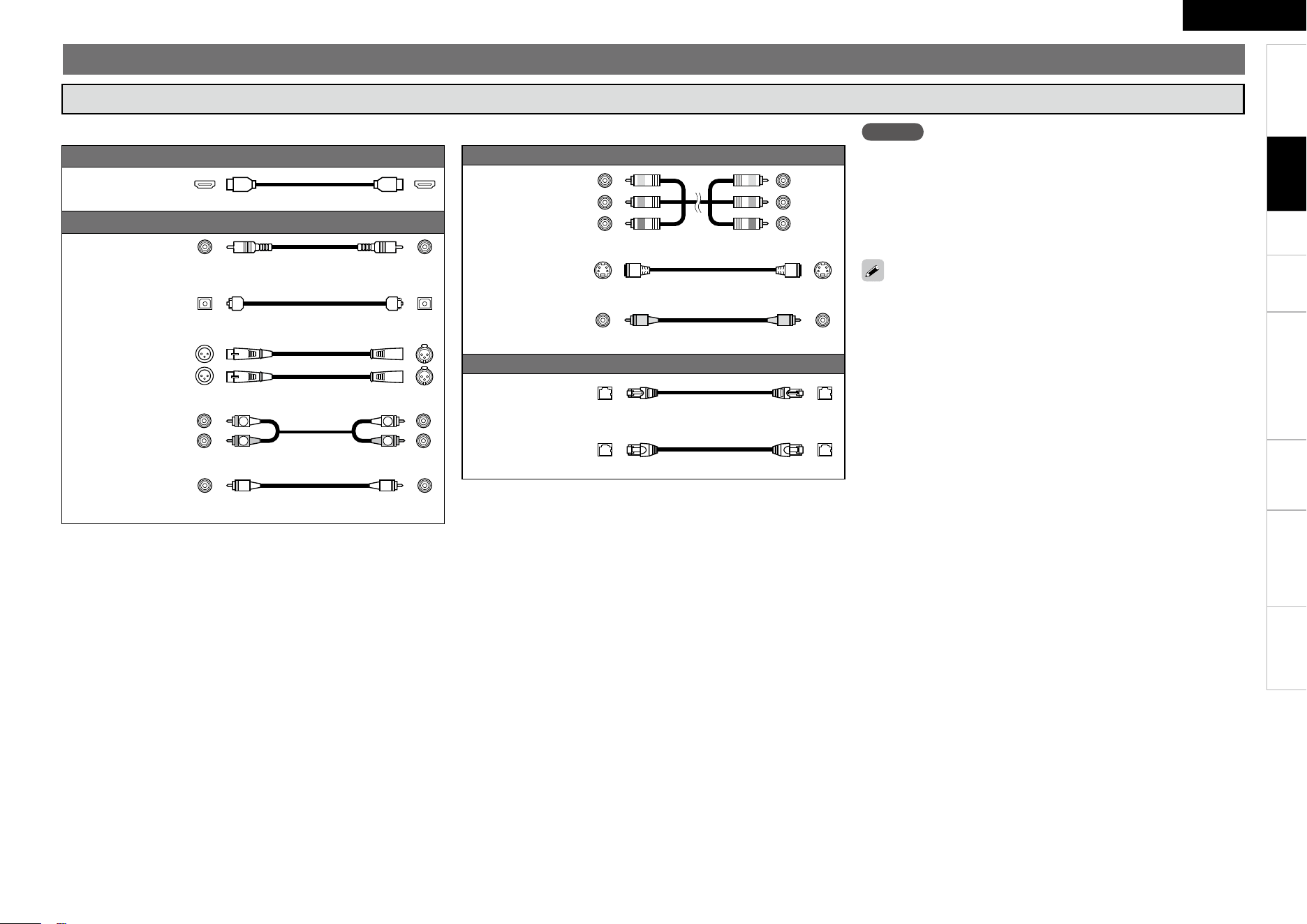

Cables·Used·for·Connections····················································· 12
1. Home Theater Playback – Playing Back Using Multi-channel
System –························································································ 13
Using·an·HDMI·Cable·to·Connect·to·an·AV·Amp·or·Television·· 13
Required·Settings·for·HDMI·Connection···································· 15
Connection·to·an·AV·Amp·with·No·HDMI·Audio·Input··············· 17
Connecting·to·a·Device·with·an·Analog·Multi-channel··
Audio·Input·Terminal··································································· 18
DENON·LINK·Connection·q·Making·a·Jitter-free·Connection··· 18
DENON·LINK·Connection·w·Making·a·Normal·Connection······· 19
Connection·to·an·AV·Amp·with·No·HDMI·Video·Input··············· 19
2. Playing Back with a Direct Connection to a TV····················· 19
3. Playing Back 2-Channel Audio················································ 20
Connecting·to·a·Device·with·Analog·2-channel·Audio·Input·
Terminal·with·Balanced·Cable····················································· 20
Connecting·to·a·Device·with·Analog·2-channel·Audio·Input·
Terminal·with·Stereo·Pin·Plug·Cable··········································· 20
4. Recording a CD········································································· 20
Connecting·to·a·Digital·Recording·Device·································· 20
5. Using BD-LIVE function or updating the software version of
DVD-A1UDCI················································································· 21

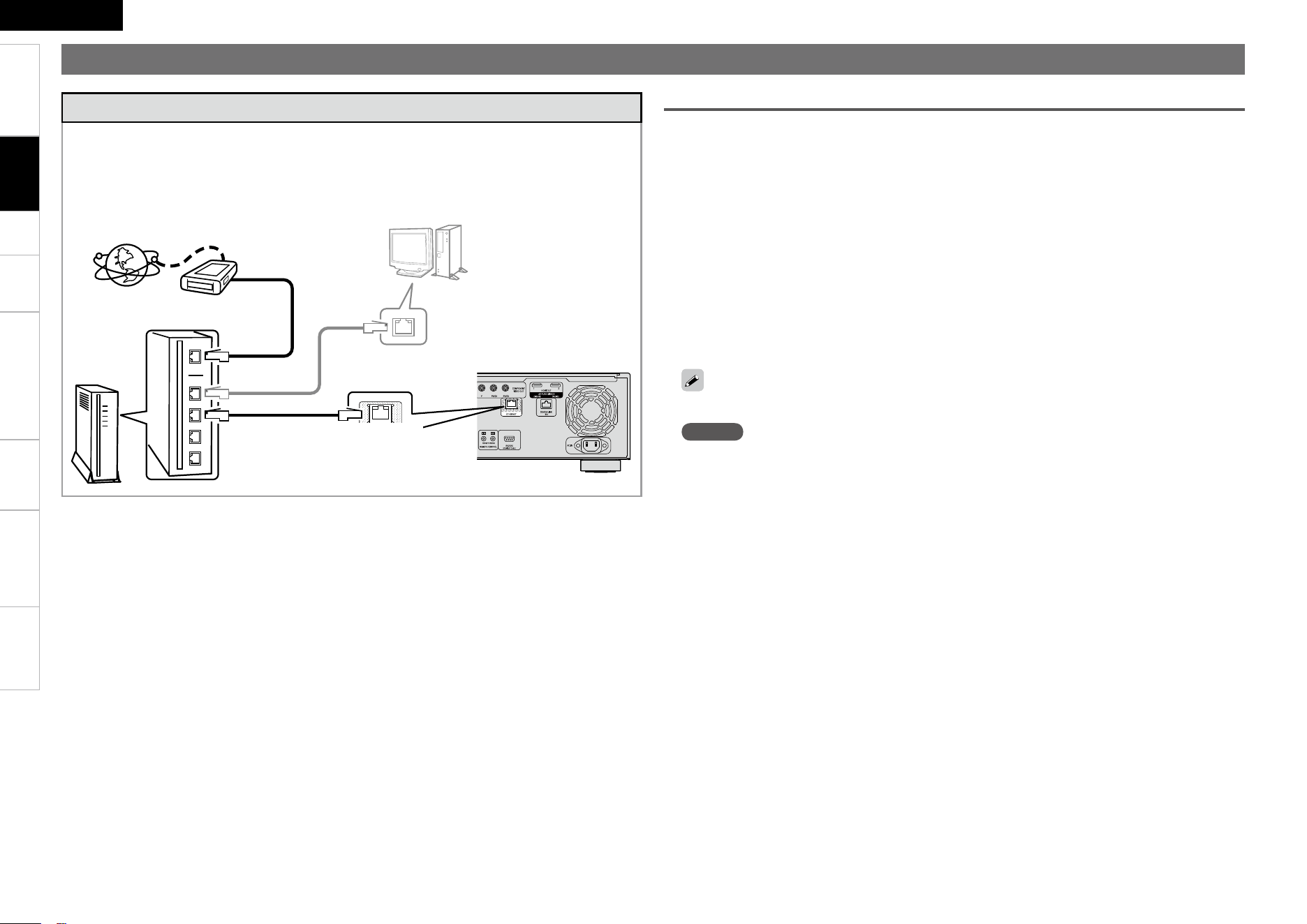

Connecting·to·the·Network························································· 21

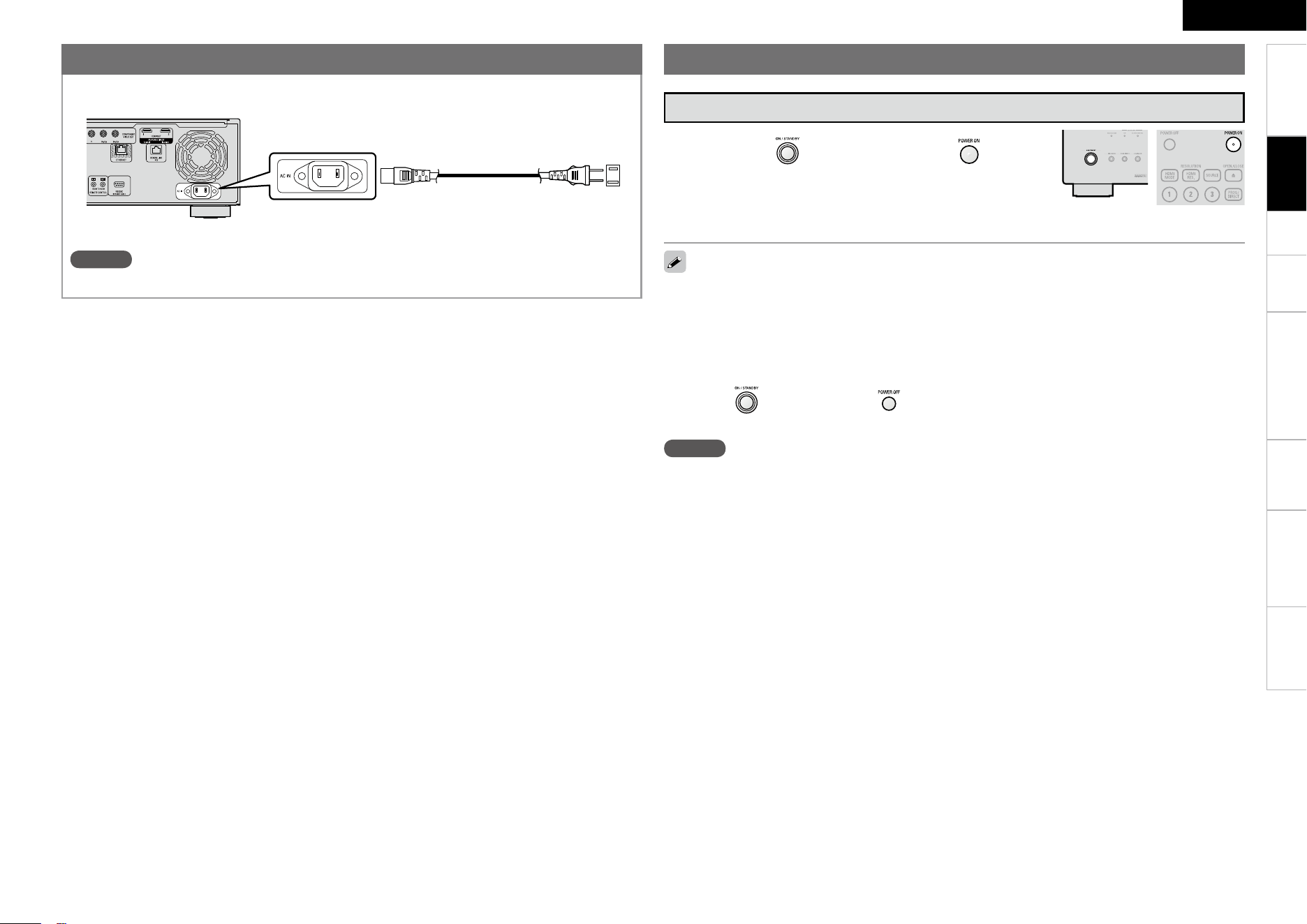

Connecting the Power Cord························································ 22
Once Connections are Completed·············································· 22
Turning·the·Power·On·································································· 22
GUI Menu Setup
Menu Map····················································································· 23

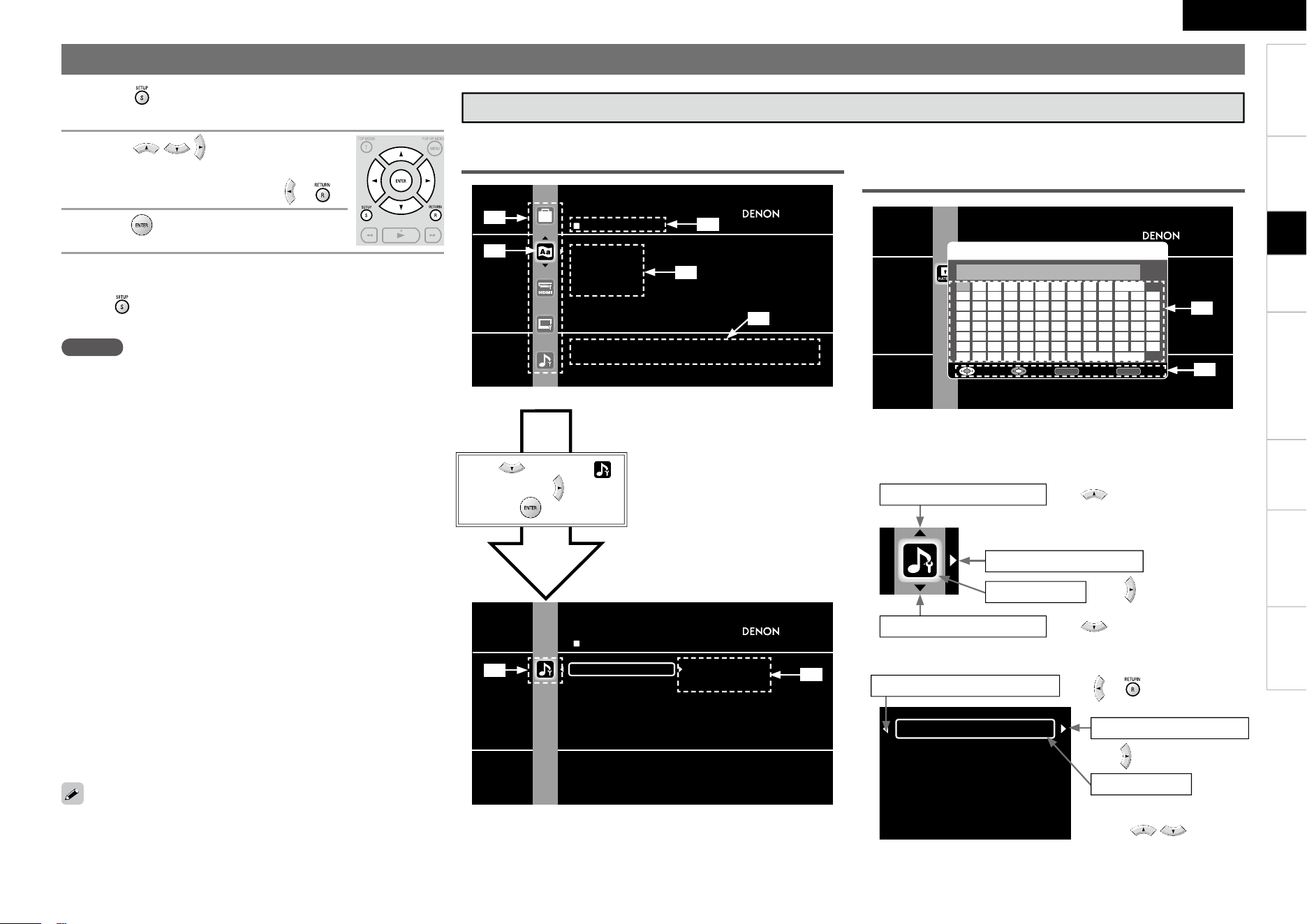

GUI Menu Operation···································································· 24
Examples·of·GUI·Menu·Screen·Displays···································· 24
Language Setup············································································ 25
HDMI Setup··················································································· 25
Video Setup·················································································· 26
Audio Setup·················································································· 27
DENON LINK Setup······································································ 30
Pure Direct Setup········································································· 30

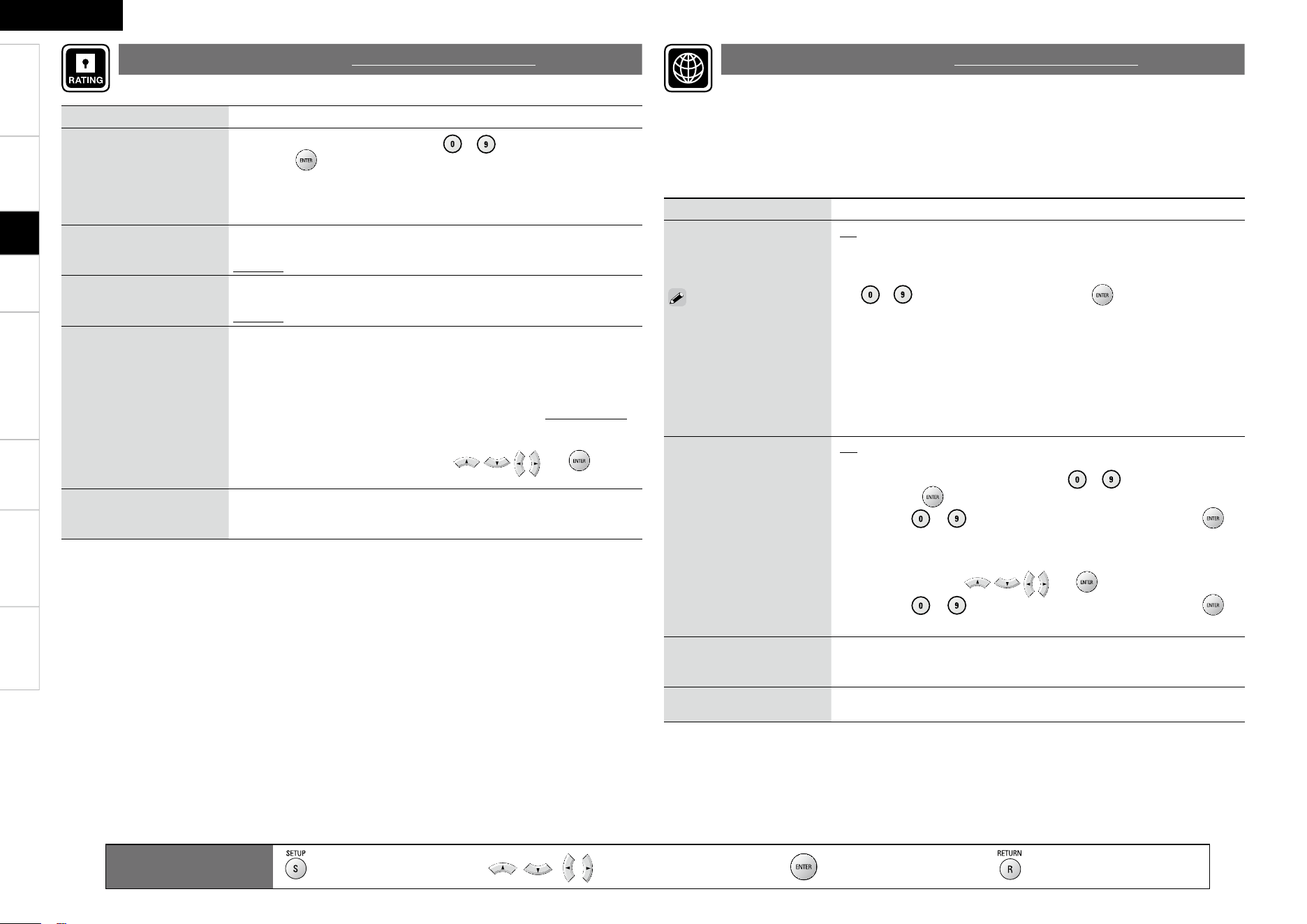

Ratings·························································································· 31
Network Setup············································································· 31
Display Setup················································································ 32
Other Setup·················································································· 32
Various Settings
Setting the Audio Mode······························································· 33
Changing the Playback File Display············································ 34
Making Other Settings································································· 34
Adjusting the Picture Quality (Picture Control)························· 35
Playback
Introduction·················································································· 36
Before·Playing·a·Disc·································································· 36
Before·Playing·a·SD·Memory·Card············································· 36
About Playback Information························································ 36
Information·Bar·Display······························································· 36
Media·Player·Display··································································· 37
Playing BD and DVD-Video························································· 37
Playing Back Super Audio CD····················································· 39
CD Playback·················································································· 39
DVD-Audio Playback···································································· 39
Playing Back High-Quality Audio (Pure Direct Function)·········· 40
File Playback················································································· 40
File·Playback················································································ 41
About·Screen·Display·During·Playback······································· 42
Operation·During·Playback························································· 42
Operations Enabled During Playback········································· 43
Pause·Playback············································································ 43
Stop·Playback·(Resume·Function)·············································· 43
Skipping·to·the·Chapter/Track/File·You·Want·to·Playback·········· 43
Looking for Specic Sections Using the Search Modes············ 44
Memorizing·Locations·You·Want·to·Replay··
(Marker·Function)········································································ 45
Fast·Forward/Fast·Reverse·························································· 45
Step-by-Step·Playback································································ 45
Slow·Forward/Slow·Reverse·Playback········································ 45
Playback·in·Any·Order·(Random·Playback)································· 46
Playing·Back·Repeatedly·(Repeat·Playback)······························· 46
Repeat Playback Between Specied Points (A-B Repeat)·········· 46
Playing·Back·in·Your·Preferred·Order·(Program·Playback)·········· 47
Switching·Audio·········································································· 47
Changing·the·Subtitles·and·Subtitle·Style·································· 48
Switching·the·Angle···································································· 49
Changing the Brightness of the Display (Dimmer Control)······ 49
HDMI Control Function················································49
About DENON LINK····································································· 50
About Advanced AL32 Processing·············································· 50
About Copyright Protection Technology··································· 50
Trademark Information································································ 50
Language Code List······································································ 51
Country Code List········································································ 52
Explanation of Terms··································································· 53
Index······························································································ 54
Troubleshooting································································55
Specications·····································································57
Other Information
ENGLISH
2
TroubleshootingInformationHDMI Control FunctionPlaybackSetupConnections Speci cations
Features
Universal Blu-ray Disc player that plays Super
Audio CD and DVD-Audio formats
vpage 3, 4 “Playable Media”
Jitter-free transmission owing to a fusion of
DENON LINK 4th and HDMI transmission
technology
In·addition·to·multi-channel·digital·balance·transmission·of·Super·
Audio·CD·that·was·achieved·in··3rd·,·DENON·LINK·4th·provides·
the·jitter·control·functionality·during·digital·signal·transmission.
vpage 18 “DENON LINK Connection q Making a Jitter-free
Connection”
The decoder handles Dolby TrueHD and DTS-HD
Master Audio, of course, as well as Dolby Pro
Logic gx and DTS Neo:6 decoding
Compatible· with· Linear· PCM· 192· kHz· (one· of· the· BD· audio·
formats)·and·multi-channel·output·(6-ch).·
vpage 18 “Connecting to a Device with an Analog Multi-
channel Audio Input Terminal”
2-channel analog fully balanced transmission
circuit installed
By· combining· with· the· AVP-A1HDCI/POA-A1HDCI,· balanced·
transmission· is· enabled· from· the· player’s· D/A· converter· up· to·
power amp ampli cation level.
vpage 20 “Connecting to a Device with Analog 2-channel
Audio Input Terminal with Balanced Cable”
“Advanced AL32 Processing” installed on all
channels to enhance HD audio performance
Detailed· picture· rendering· with· minimal· distortion;· accurate·
sound·localization·and·rich·bass.
Achieves· playback· more· faithful· to· the· original· sound· on· all·
channels.
AV Pure Direct playback eliminates mutual
interference of audio and video
Separate· audio· and· video· output· from· two· HDMI· terminals.·
Performs· clear· signal· transmission· with· minimal· interference·
between·signals.·
vpage 14 “e “AV Pure Direct” Connection”
GUI installed with excellent operability and
visibility
vpage 24 “GUI Menu Operation”
HDMI control ready
vpage 49 “HDMI Control Function”
Newly developed “Advanced S. V. H. Mechanism”
with low center of gravity, vibration damping,
quietness and high accuracy
7-block construction chassis thoroughly prevents
mutual electrical and magnetic interference
Check·that·the·following·parts·are·supplied·with·the·product.
q·Owner’s·manual·...................................................................... 1
w·Service·station·list·................................................................... 1
e·Power·cord·(Cord·length:·Approx.·6.5ft/2m)·.......................... 1
r·Remote·control·(RC-1111)·...................................................... 1
t·R6/AA·batteries·....................................................................... 3
y·DENON·LINK·cable·(Cord·length:·Approx.·4.9ft/1.5·m)·.......... 1
u·Audio·cable·(Cord·length:·Approx.·4.9ft/1.5m)·....................... 1
i·Video·cable·(Cord·length:·Approx.·4.9ft/1.5m)·....................... 1
o·Warranty·(for·North·America·model·only)·............................... 1
e r
uy i
Thank· you· for· purchasing· this· DENON· product.· To· ensure· proper·
operation,·please·read·these·owner’s·manual·carefully·before·using·
the·product.·
After·reading·them,·be·sure·to·keep·them·for·future·reference.
Accessories
Getting Started
Getting Started
ENGLISH
TroubleshootingInformationHDMI Control FunctionPlaybackSetupConnections Specications
efore turning the power switch on
Check·once·again·that·all·connections·are·correct·and·that·there·are·
no·problems·with·the·connection·cables.·
Power·is· supplied·to·some·of· the· circuitry·even·when·the· unit·is·
set·to·the·standby·mode.·When·traveling·or·leaving·home·for·long·
periods·of·time,·be·sure·to·unplug·the·power·cord·from·the·power·
outlet.
Image persistence (image burn-in)
Do·not·leave·the·still·images·of·the·disc·menu,·DVD-A1UDCI·menu,·
etc.,·displayed·on·the·TV·screen·for·long·periods.·This·can·result·in·
image·persistence·(image·burn-in)·on·the·screen.
About Condensation
If· the· DVD-A1UDCI· unit· is· moved· from· a· cold· place· to· a· warm·
place,·or·installed·in·a·room·subject·to·rapid·temperature·rise·from·
a·heater,·etc.,·condensation·(dew)·may·form·on·the·internal·parts·of·
the·unit·(operating·parts·and·lenses).·
If·used·in·this·condition,·the·DVD-A1UDCI·will·not·operate·correctly·
and·damage·may·result.·If·condensation·is·formed·on·the·unit,·leave·
the·DVD-A1UDCI·unit·for1·to·2·hours·with·the·power·OFF·before·
use.
Cautions on using mobile phones
Using·a·mobile·phone·near·this·unit·may·result·in·noise.·If·so,·move·
the·mobile·phone·away·from·this·unit·when·it·is·in·use.
Moving the unit
Be·sure·to·remove·a·disc,·turn·off·the·power·and·unplug·the·power·
cord·from·the·power·outlet.·Next,·disconnect·the·connection·cables·
to·other·system·equipment·before·moving·the·unit.
About Care
Wipe·the·cabinet·and·control·panel·clean·with·a·soft·cloth.
Follow·the·instructions·when·using·a·chemical·cleaner.
Benzene,· paint· thinner· or· other· organic· solvents· as· well· as·
insecticide·may·cause·material·changes·and·discoloration·if·brought·
into·contact·with·the·unit,·and·should,·therefore,·not·be·used.·
Sufciently ventilate the place of installation
If·the·unit·is·left·in·a·room·full·of·the·smoke·from·cigarettes,·etc.,·
for·long·periods·of·time,·the·surface·of·the·optical·pickup·could·get·
dirty,·in·which·case·it·will·not·be·able·to·read·the·signals·properly.
Note·that·the·illustrations·in·these·instructions·may·differ·from·the·
actual·unit·for·explanation·purposes.
•
•
•
•
•
•
•
•
•
•
•
•
Cautions on Handling
Cautions on Installation
Noteb
b
Wall
b
b
About Media
Playable Media
Playable Media
Playable
formats/
modes
Playable
region codes
Symbols
Used
in this
Owner’s
Manual
BD-Video·
z1,z2
–
Include·region·
BD
DVD-Audio·
z1
–
–
DVD-A
DVD-Video·
z1,z2
Include·region·
ALL
·
1
DVD-V
DVD-R,·
DVD+R
Video·
mode,·
AVCHD·
format
–
DVD
DVD-RW,·
DVD+RW
Super·Audio·
CD
– –
SA-CD
CD
– –
CD
CD-R
CD-RW
Discs
z1·:
BD-Video/DVD-Audio/DVD-Video· discs· may· not· operate· as·
described·in·this·manual·due·to·menu·structure.·
z2·:
The·BD·player·and·BD-Video·disc,·and·DVD·player·and·DVD-
Video· disc· each· have· their· region· codes· (code· assigned· for·
each· region).· Playback· is· not· possible· if· the· codes· do· not·
match.·
Note:
For proper heat dispersal, do not install this unit in a conned
space, such as a bookcase or similar enclosure.
Do·not·place·the·DVD-A1UDCI·on·an·amp·or·other·piece·of·equipment·
that·generates·heat.
Getting Started
ENGLISH
TroubleshootingInformationHDMI Control FunctionPlaybackSetupConnections Specications
NOTE
A·disc·may·not·be·accessible·or·play·back·incorrectly·due·to·audio·
and·video·interruptions,·etc.,·depending·on·the·recording·conditions·
when·recorded·with·a·BD·recorder·or·DVD·recorder.·
Unnalised DVD-R/-RW/+R/+RW, and CD-R/-RW discs may not play
back.·Finalise·discs·before·playing.·
•
•
The·following·discs·will·not·play·back·on·this·unit.
SD Memory Cards
Playable cards
Symbols
Used
in this
Owner’s
Manual
Playable les
(Symbols Used in this
Owner’s Manual)
SD·Memory·Card··
(8·MB·~·2·GB)
SD
MP3
·
WMA
·
AAC
·
LPCM
·
JPEG
·
DivX
Data· recorded· for· BD· BONUS·
VIEW·use
See· “Files”· in· “Playable·
Media”· (
vpage· 4)· for· more·
information on les.
·
·
SDHC·Memory·Card·
z1·
(4·GB)
miniSD·Card·
z2··
(8·MB·~·2·GB)
microSD·Card·
z2··
(8·MB·~·2·GB)
z1·:
This unit supports SD Memory Card with FAT16 le system,
and SDHC Memory Card with FAT32 le system.
z2·:
For·miniSD·Card·and·microSD·Card·adapter·is·necessary.
miniSD·Card·
Adapter
miniSD·Card
microSD·Card·
Adapter
microSD·Card
NOTE
This·unit·does· not·support·mini· SDHC·and·micro· SDHC·Memory·
Card.
Insert·or·remove·a·SD·Memory·Card·while·the·power·is·in·standby.·
If· you· insert· a· SD· Memory· Card· while· the· power· is· ON,·the· SD·
Memory·Card·may·not·be·read.
The·SD·card·used·for·the·Bonus·View·function·must·have·a·capacity·
of·1GB·or·greater.·Also·the·SD·card·must·be·initialized·on·the·DVD-
A1UDCI·(vpage·32).
•
•
•
Files
Playable
les
(Extension)
Playable Media
File specication
Symbols
Used
in this
Owner’s
Manual
DVD-R/
-RW/
+R/+RW
CD-R/-RW
DVD
CD
SD
Memory
Cards
SD
MP3
(.mp3)
S S
Sampling·frequency:
44.1·kHz,·48·kHz
Bit·rate:
64·kbps·~·320·kbps
(144·kbps·
non-compatible)
Audio·type:
MPEG·1·Audio·Layer·3
•
•
•
MP3
WMA·z
(.wma)
S S
Sampling·frequency:
44.1·kHz,·48·kHz
Bit·rate:
48·kbps·~·192·kbps
Audio·type:
WMA·Version·9
•
•
•
WMA
AAC·z
(.m4a)
S S
Sampling·frequency:
44.1·kHz,·48·kHz
Bit·rate:
64·kbps·~·192·kbps
(Variable· Bit· Rate· non·
compatible)
Audio·type:
AAC
•
•
•
AAC
LPCM
(.wav)
S S
Sampling·frequency:
44.1·kHz,·48·kHz
Bit·length:
16·bit
Number·of·channels:·2·ch
•
•
•
LPCM
JPEG
(.jpg/.jpeg)
S S
Maximum·resolution:
4,096·x·4,096·pixels
Minimum·resolution:·
32·×·32·pixels
Maximum le size: 12 MB
•
•
•
JPEG
DivX
®
(.avi/.divx)
S S
Compatible·versions:
Up·to·DivX
®
·6·
Maximum·size:·2·GB
•
•
DivX
z·:
This unit cannot play back les recorded under DRM (Digital
Rights·Management)·other·than·DivX
®
les.
The abovementioned le type may also fail to play back depending
on·conditions·at·the·time·of·recording.·
If·characters·not·supported·on·the·menu·screen·are·included·in·a·
le name, title, artist name or album title, those are not displayed
correctly.
JPEG·format·images·stored·in·progressive·format·cannot·be·played·
back.·
•
•
•
BD-RE·Ver1.0
(BD·disc·with·cartridge)
BD-ROM/BD-R/BD-RE·discs·containing·recorded·movie,·still·image,·
audio, etc., les
BD-R/BD-RE·in·which·BDMV/BDAV·is·recorded
HD·DVD
DVD-RAM
CDV·(Only·the·audio·part·can·be·played)
CD-G·(Only·the·audio·signals·can·be·output)
Non-standard·CD·
(CD·with·copy·protection,·etc.)
Unauthorised·disc·
(Pirated·disc)
Disc·with·recording·area·less·than·55·mm·in·diameter
Video· Single· Disc· (VSD)· /· CVD/· Video· CD· /· Super· Video· CD· /·
CompactDisc-Interactive·(CD-I)·/·Photo·CDs
•
•
•
•
•
•
•
•
•
•
•
About Media
Getting Started
ENGLISH
TroubleshootingInformationHDMI Control FunctionPlaybackSetupConnections Specications
About Media
About DivX
®
Video-on-Demand (VOD)
When· you· purchase· or· rent· a· DivX
®
le through the ofcial site
of· DivX
®
· Video-On-Demand· (VOD)· services,· a· DVD-A1UDCI·
registration·code·is·required.·For·details,·see·“DivX
®
·Registration”·
(vpage·31).
A· DivX
®
VOD le recorded with
a· different· code· from· the· DVD-
A1UDCI·registration·code·cannot·be·
played·back.·
Some·DivX
®
VOD les are restricted
with· limited· playable· times.· If· your·
DivX
®
VOD le has such a limit,
the· number· of· playable· times· is·
displayed·on·the·DivX
®
·VOD·display·
screen.·
Use· · ·to·select·“Yes”·if·you·want·
to play back the le, or to select
“No”· if· you· do· not· want· to· play· it·
back.·The·press· to conrm the
selection.·
•
•
•

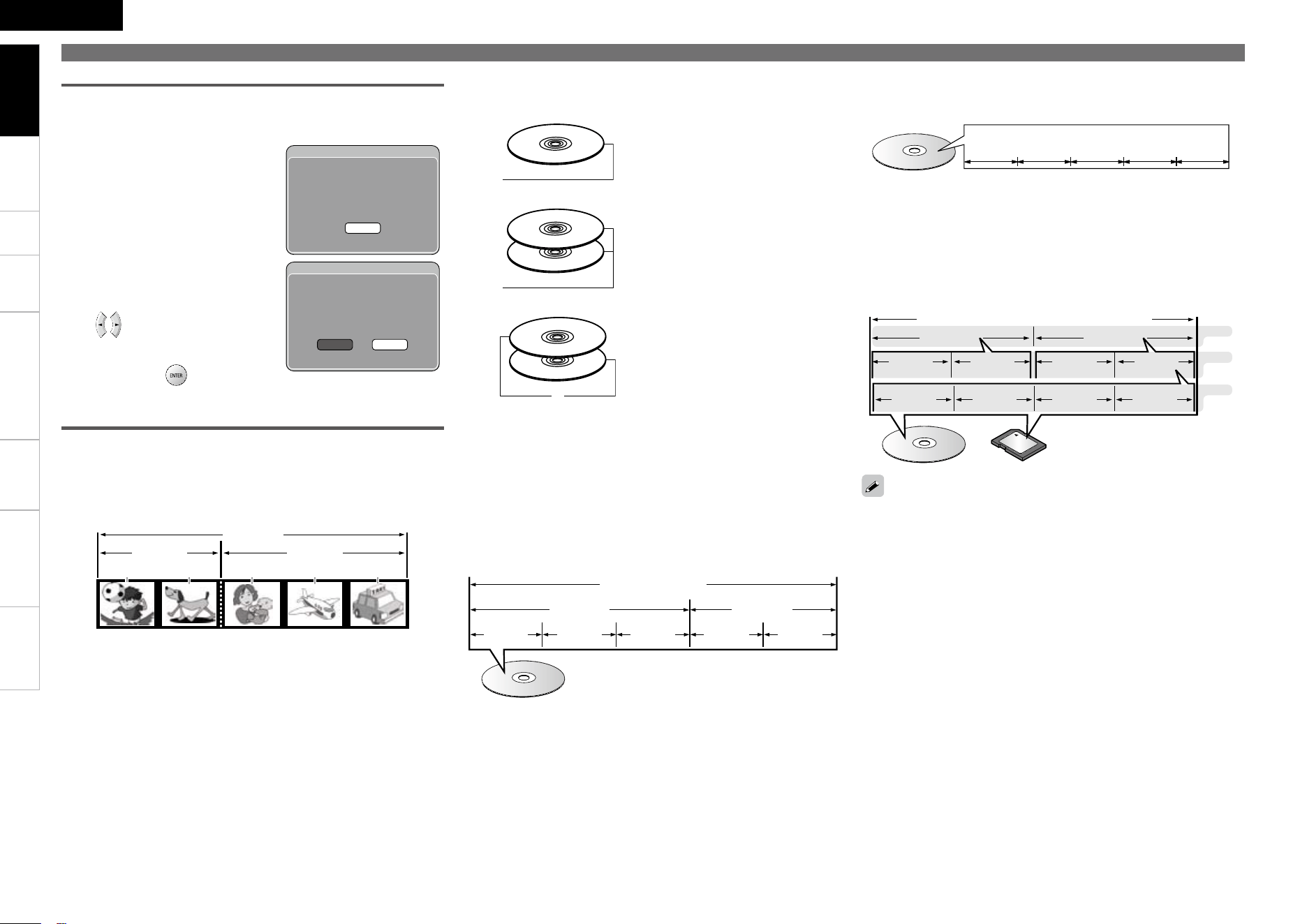

About Discs and Files
BD-Video, DVD-Video
BD/DVD-Video·discs·are·divided·into·several·large·sections·(titles)·
and· small· sections· (chapter).· These· sections· are· all· allotted·
numbers,·called·the·title·numbers·and·chapter·numbers.
GExampleH
BD、DVD
タイトル1
チャプター1 チャプター2 チャプター1 チャプター2 チャプター3
タイトル2
n
Super Audio CD
GType of Super Audio CDH
Single layer disc•
Single·layer·Super·Audio·CD·with·
only·an·HD·layer·
z
.
Dual layer disc•
Super·Audio·CD·with·a·double·HD·
layer·
z
,·offering·extended·playing·
time·and·high·sound·quality.
Hybrid disc•
Two-layer·Super·Audio·CD·with·an·
HD·layer·
z
·and·a·CD·layer.
The·signals· on·the· CD·layer· can·
be·played·on·a·regular·CD·player.
n
CD·layer
HD·layer
HD·layer
HD·layer
z
:
All·Super·Audio·CDs·contain·an·HD·(High·Density)·layer·with·high·
density·Super·Audio·CD·signals.·This·layer·can·contain·a·stereo·
channel·area,·a·multi-channel·area,·or·both·a·stereo·channel·and·
multi-channel·area.
CD
CDs·are·divided·into·several·sections·(tracks).·These·sections·are·
all·allotted·numbers,·called·the·track·numbers.
File
MP3/WMA/AAC/LPCM/JPEG/DivX
®
les recorded on DVD-R/-RW/
+R/+RW,·CD-R/-RW·and·SD· Memory· Card·are· divided· into·large·
segments (folders) and small segments (les). Files are stored in
folders,·and·folders·can·be·placed·for·storage·in·a·hierarchy.·The·
DVD-A1UDCI·can·recognize·up·to·8·hierarchies·of·folder.
SD
Memory Card
DVD-R/-RW、CD-R/-RWまたはSDカード
File1 File2 File3 Folder3
1st level
2nd level
3rd level
File4 File5
File6 File7
Folder1 Folder2
n
n
Track1 Track2 Track3 Track4 Track5
Title1 Title2
Chapter·3
BD, DVD
Chapter·2Chapter·1Chapter·2Chapter·1
DVD-R/-RW/+R/+RW, CD-R/-RW
or SD Memory Card
OK
DivX Authorization Error
Authorization Error.
This player is not authorized
to play this video.
Yes No
DivX Rental
View DivX(R) VOD Rental
This rental has 3 views left.
Do you want to use
one of your 3 views now?
When·writing·MP3/WMA/AAC/JPEG/DivX
®
les on a CD-R/-RW disc,
set the writing software’s format to “ISO9660”. The les may not play
properly·if·they·are·recorded·in·other·formats.·For·details,·refer·to·the·
instructions·of·your·writing·software.
DVD-Audio
DVD-Audio·discs·are·divided·into·several·large·sections·(groups)·
and·small·sections·(tracks).·These·sections·are·all·allotted·numbers,·
called·the·group·numbers·and·track·numbers.
♪ ♪ ♪ ♪
DVDオーディオ
Track1 Track2 Track1Track3
グループ1 グループ2
♪
Track2
n
DVD-Audio
Group1 Group2
Getting Started
ENGLISH
TroubleshootingInformationHDMI Control FunctionPlaybackSetupConnections Specications
About Media
Cautions on Using Media
Inserting a Disc
Set·the·disc·with·the·labeled·side·facing·up.
Make·sure·the·disc·tray·is·fully·open·when·inserting·the·disc.
Place·the·disc·horizontally·in·the·tray,·aligned·with·the·tray·guide.·
•
•
•
NOTE
Only·load·one·disc·at·a·time.·Loading·two·or·more·discs·can·damage·
the·unit·or·scratch·the·discs.
Do·not·use·cracked·or·warped·discs·or·discs·that·have·been·repaired·
with·adhesive,·etc.
Do·not· use· discs·on· which· the·sticky· part· of·cellophane· tape· or·
labels·is·exposed·or·on·which·there·are·traces·of·where·labels·have·
been· removed.· Such· discs· can· get· caught· inside· the· player· and·
damage·it.
Do·not·use·discs·with·special·shapes,·as·they·could·damage·the·
player.
Do·not·push·the·disc·tray·in·by·hand·when·the·power·is·turned·off.
Doing·so·could·damage·the·set.
•
•
•
•
•
If·a· disc·that·cannot· be·played· is· loaded·or· the·disc·is· loaded·up-
sidedown,·“NO·DISC”·is·displayed·on·the·player’s·display.
Inserting an SD Memory Card
Insert·an·SD·Memory·Card·in·the·direction·of·the·arrow·into·the·SD·
CARD·slot·with·the·label·facing·up.
SD
Memory Card
SD
Memory Card
Insert·the·card·straight·into·SD·CARD·slot·until·it·clicks.·
To·remove·the·card,·push·it·in·the·direction·of·insertion,·and·then·
release·to·eject.
•
•
•
About Handling of Media
Do not get ngerprints, oil or dirt on discs.
Take·special·care·not·to·scratch·discs·when·removing·them·from·
their·cases.
Do·not·bend·or·heat·discs.
Do·not·enlarge·the·hole·at·the·center.
Do·not·write·on·the·labeled·(printed)·surface·with·ball-point·pens,·
pencils,·etc.,·or·stick·new·labels·on·discs.
Water·droplets·may·form·on·discs·if·they·are·moved·suddenly·from·
a·cold·place·(outdoors·for·example)·to·a·warm·place,·but·do·not·try·
to·dry·them·off·using·a·hairdryer,·etc.
Do· not· eject· an· SD· Memory· Card· or· turn·off· the· DVD-A1UDCI’s·
power· while· the· card· content· is· in· playback.· This· may· result· in·
malfunction·or·loss·of·the·card’s·data.·
Do·not·attempt·to·open·or·modify·SD·Memory·Cards.·
SD Memory Cards and les can be damaged by static electricity.
Do·not·touch·the·metal·contacts·of·an·SD·Memory·Card·with·your·
ngers.
Do·not·use·warped·SD·Memory·Cards.
After·use,·be·sure·to·remove·any·disc·or·SD·Memory·Card,·and·store·
it·in·its·proper·card·case,·to·avoid·dust,·scratches·and·deformation.
Do·not·store·discs·in·the·following·places:
1.Places·exposed·to·direct·sunlight·for·long·periods·of·time
2.Dusty·or·humid·places
3.Places·exposed·to·heat·from·heating·appliances,·etc.
•
•
•
•
•
•
•
•
•
•
•
•
Cleaning Discs
If there are ngerprints or dirt on discs, wipe them off before using
the·disc.
Use·a· commercially· available· disc·cleaning· set· or·a· soft· cloth·to·
clean·discs.
•
•
Gently·wipe·the·disc·from·the·
inside·towards·the·outside.
Do·not·wipe·with·a·circular·
motion.
NOTE
Do· not· use· record· spray,· antistatic· agents,· or· benzene,· thinner· or·
other·solvents.
About Copyright
Unauthorised· copying,· broadcasting,· public· performance· and·
lending·of·discs·are·prohibited.·
This·product·incorporates· copyright·protection·technology·that· is·
protected·by·U.S.·patents·and·other·intellectual·property·rights.·
Use·of·this·copyright·protection·technology·must·be·authorized·by·
Macrovision,·and·is·intended· for·home·and·other· limited· viewing·
uses·only·unless·otherwise·authorized·by·Macrovision.·
Reverse·engineering·or·disassembly·is·prohibited.·
Portions· of· this· product· are· protected· under· copyright· law· and·
provided·under·license·by·ARIS/SOLANA/4C.·
•
•
•
•
Getting Started
ENGLISH
TroubleshootingInformationHDMI Control FunctionPlaybackSetupConnections Specications
Inserting the Batteries
About the Remote Control Unit
e·Put·the·rear·cover·back·on.
q·Remove· the· remote· control·
unit’s·rear·cover.
w·Set· three· R6/AA· batteries· in·
the·battery·compartment·in·the·
indicated·direction.
Batteries
NOTE
Use·R6/AA·batteries·in·this·remote·control.·
Replace·the·batteries· with·new·ones· if·the· set·does· not·operate·
even·when·the· remote·control·unit· is·operated·close· to·the·unit.·
(The·supplied·batteries·are·only·for·verifying·operation.)
When·inserting·the·batteries,·be·sure·to·do·so·in·the·proper·direction,·
following·the·“q”·and·“w”·marks·in·the·battery·compartment.
To prevent damage or leakage of battery uid:
Do·not·use·a·new·battery·together·with·an·old·one.
Do·not·use·two·different·types·of·batteries.
Do·not·attempt·to·charge·dry·batteries.
Do·not·short-circuit,·disassemble,·heat·or·dispose·of·batteries·in·
ames.
If the battery uid should leak, carefully wipe the uid off the inside
of·the·battery·compartment·and·insert·new·batteries.
Remove·the·batteries·from·the·remote·control·unit·if·it·will·not·be·in·
use·for·long·periods.
Used·batteries·should·be·disposed·of·in·accordance·with·the·local·
regulations·regarding·battery·disposal.·
•
•
•
•
•
•
•
Operating Range of the Remote Control
Unit
Point·the·remote·control·unit·at·the·remote·sensor·when·operating·
it.
30°
30°
Approx.23feet/7m
NOTE
The·set·may·function·improperly·or·the·remote·control·unit·may·not·
operate·if·the· remote·control·sensor· is· exposed·to·direct· sunlight,·
strong articial light from an inverter type uorescent lamp or infrared
light.
Remote Control Settings (Remote
Control Side)
Switches when the DVD-A1UDCI’s remote control operates
another DENON BD players in the vicinity.
Set·the·remote·control·code·simultaneously·on·the·main·unit,·too.·
For· how· to· set· codes,· see· GUI· menu:· “Other· Setup”· –· “Remote·
Control·Setting”·–·“Remote·ID”·(vpage·32).
GRemote control code settingH
1
:·Set·the·remote·control·code·to·“1”.
2
:·Set·the·remote·control·code·to·“2”.
If·the·signal·code·of·the·remote·control·does·not·match·the·signal·
code·of·the·unit,·the·remote·control·code·set·on·the·unit·is·shown·
on·the·display.·
GExampleH
If·the·code·setting·on·the·unit·is·“DENON·1”,·and·the·setting·on·the·
remote·control·is·“2”,·“PLAYER·1”·is·shown·on·the·display.·
NOTE
Match·the·signal·code·of·the·remote·control·with·the·signal·code·of·
the·unit.·If·the·remote·control·code·is·different,·you·cannot·operate·
the·DVD-A1UDCI·with·the·remote·control.·
Even·if·you·change·the·remote·control·code,·set·GUI·menu·“Other·
Setup”· –· “Remote· Control· setting”· –· “Receive· Legacy· Remocon”·
(vpage· 32)· to· “Off”· when· operating· the· DVD-A1UDCI· with· a·
remote·control·other·than·DENON’s.
•
•
•
Getting Started
TroubleshootingInformationHDMI Control FunctionPlaybackSetupConnections Specications
ENGLISH
Front Panel
Part Names and Functions
For·buttons·not·explained·here,·see·the·page·indicated·in·parentheses·(·).
q ew r t
y
u i Q0
Q1Q2Q3Q4Q5Q6Q7Q8Q9
o
q·Power operation button
(ON/STANDBY)············································ (22)
w·Power indicator··········································· (22)
e·DISC LAYER button····································· (39)
r·PURE DIRECT button··································· (40)
t·HDMI MODE button···································· (13)
y·Remote control sensor·································· (7)
u·Disc tray open/close button (5)················· (36)
i·SOURCE button··········································· (36)
o·SD door
Lightly·push·the·lower·side·of·the·door·to·open·
the·door.
Q0 SD CARD slot················································· (6)
Q1·Revers-skip/Forward-skip buttons
(8, 9)··················································· (43)
Q2·Stop button (2)············································ (43)
Q3·Pause/Still button (3)··························· (43,·45)
Q4·Play button (1)············································ (39)
Q5·Disc tray························································· (6)
Q6·Display···························································· (8)
Q7·CLOCK CONTROL indicator················· (18,·30)
Lights·when·playing·BD·with·DENON·LINK·4th·
(jitter·free)·connections.
Q8·DENON LINK indicator································ (50)
Q9·ADVANCED AL32 indicator························ (50)
When·power·is·in·standby·mode,·press·u·and·Q4·
to·turn·the·power·on.
NOTE
Be careful not to catch your nger in the door.
Display
wq e r
tyuioQ0
q·Playback mode indicators
1·:·During·Playback
3·:·During·pause·and·step-by-step·playback
PROG·:·During·program·playback
RAND :·During·random·playback
1 A-B :·During·repeat·playback
w·Information display
Displays· various· information· or· playback·
elapsed·time·and·so·on·of·the·disc.
e·Playback format indicators
r·Downmix indicator
Displayed· when· playing· back· downmix·
permitted·audio.·
t·Angle information indicator
Displayed·when·a·scene·on·the·currently·playing·
disc·has·been·shot·at·various·angles.·
y·Audio channel indicators
Displays·the· number·of· audio·signal· channels·
during·playback.·
2CH·:·2-channel·playback
MULTI·:·Multi-channel·playback
u·Time mode indicators
TOTAL·:·Total·time·of·Super·Audio·CD·and·CD
SING : Elapsed time of title/chapter/track/le
being·played·back
REM : Remaining time of title/chapter/track/le
being·played·back
i·Group/Title/Track/Chapter indicators
o·HDMI output indicator
Display·when·HDMI·video·or·audio·signals·are·
being·output.·
Does· not· display· when· the· HDMI· cable· is·
not· correctly· connected· and· when· the· HDMI·
connection is not veried.
Q0·Media indicators
BD·:·BD
DVD :·DVD-Video,·DVD-R/+R/-RW/+RW
DVD AUDIO :·DVD-Audio
SUPER AUDIO CD·:·Super·Audio·CD
CD :·CD
SD :·SD·Memory·Card
Displays·the·inserted·media.
Getting Started
ENGLISH
TroubleshootingInformationHDMI Control FunctionPlaybackSetupConnections Specications
Part Names and Functions
Rear Panel
For·buttons·not·explained·here,·see·the·page·indicated·in·parentheses·(·).
q
Q2 Q1 oQ0 i u
w e r t y
q·7.1ch AUDIO OUT connectors··················································(18)
w·ROOM TO ROOM IN/OUT jacks
Extension·jack·for·future·use.
e·RS-232C connector
Extension·connector·for·future·use.
r·ETHERNET connector································································(21)
t·DENON LINK 4th connector···············································(18,·19)
y·AC inlet (AC IN)··········································································(22)
u·HDMI OUT connectors························································(13,·14)
Signals·output·from·each·terminal·change·depending·on·the·HDMI·
mode·setting.
i·COMPONENT VIDEO OUT connectors····································(19)
o·S-VIDEO OUT connector···························································(19)
Q0·VIDEO OUT connector······························································(19)
Q1·DIGITAL OUT OPTICAL/COAXIAL connectors························(17)
Q2·2ch XLR AUDIO OUT connectors·············································(20)
For·software·recorded·in·multi-channel,·analog·signals·that·have·
been·down-mixed·into·2·channels·are·output.
NOTE
Do·not·touch·the·inner·pins·of·the·connectors·on·the·rear·panel.·
Electrostatic·discharge·may·cause·permanent·damage·to·the·unit.
Do not put your nger or foreign object in the fan opening. Doing so
could·cause·injury·or·unit·failure.
•
•
Getting Started
ENGLISH
0
TroubleshootingInformationHDMI Control FunctionPlaybackSetupConnections Specications
Part Names and Functions

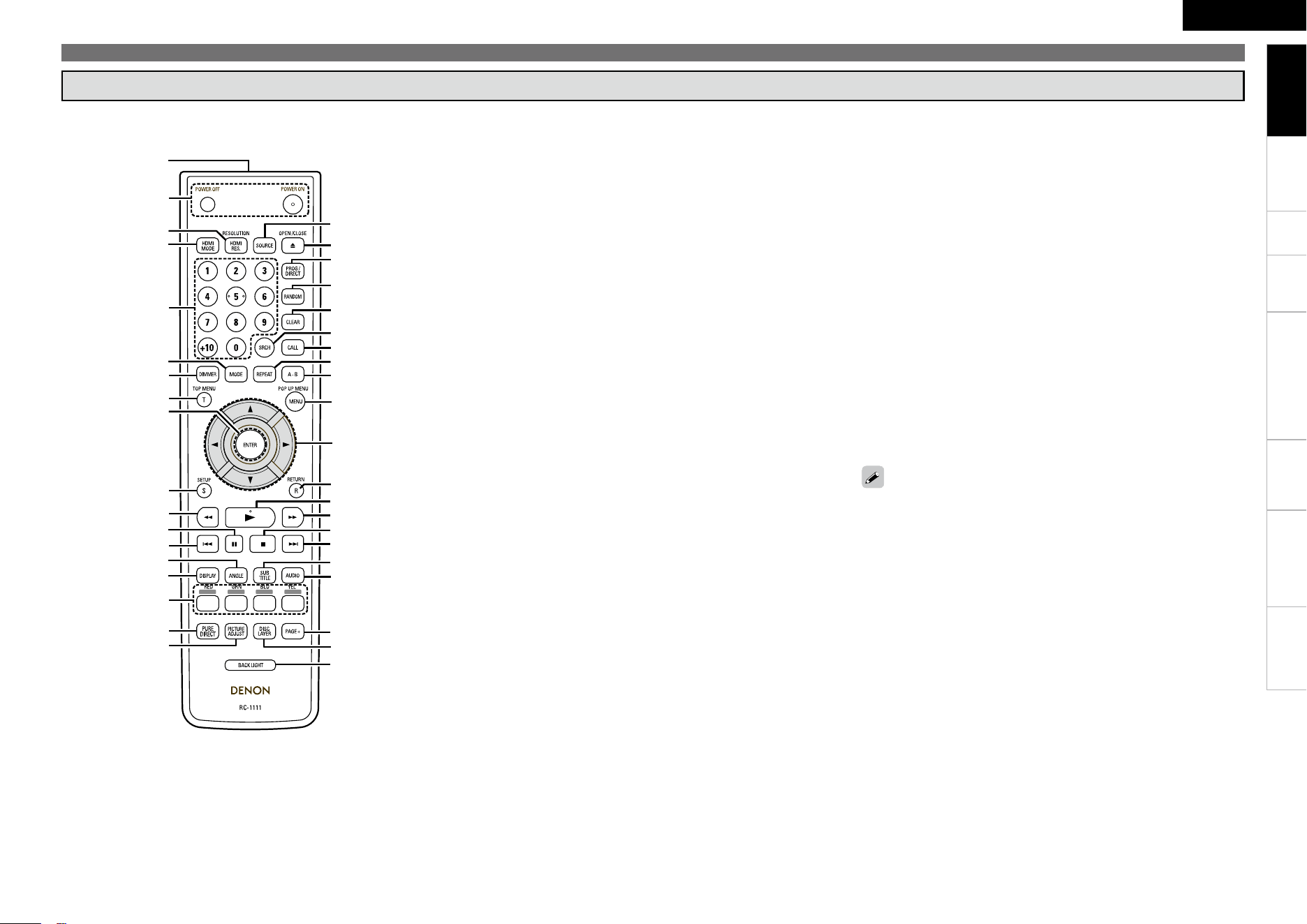

Remote Control Unit
For·buttons·not·explained·here,·see·the·page·indicated·in·parentheses·(·).
q
w
Q9
W0
W1
W2
W3
W4
W5
W6
W7
W8
W9
E0
E3
E4
E2
E1
E5
E6
E7
E8
E9
e
r
t
y
u
i
o
Q0
Q1
Q3
Q4
Q2
Q5
Q6
Q7
Q8
When·power·is·in·standby,·press·W0·and·E1·to·turn·the·power·on.
You·can·use·Q6·when·operating·the·BD·popup·menu·screen,·etc.·
•
•
q·Remote control signal transmitter·············································(7)
w·POWER buttons (POWER OFF, POWER ON)···························(22)
e·HDMI RESOLUTION button (HDMI RES.)································(15)
r·HDMI MODE button··································································(13)
t·Number buttons (0 ~ 9, +10)·····················································(37)
y·MODE button·············································································(33)
u·DIMMER button·········································································(49)
i·TOP MENU button (T)·······························································(37)
o·ENTER button············································································(24)
Q0·SETUP button (S)·······································································(23)
Q1·Fast-reversing button (6)······················································(45)
Q2·Pause/Still button (3)·························································(43,·45)
Q3·Revers-skip button (8)··························································(43)
Q4·ANGLE button············································································(49)
Q5·DISPLAY button·········································································(36)
Q6·RED/GRN/BLU/YEL buttons
Q7·PURE DIRECT button·································································(40)
Q8·PICTURE ADJUST button·························································(35)
Q9·SOURCE button·········································································(36)
W0·Disc tray OPEN/CLOSE button (5)··········································(36)
W1·PROGRAM/DIRECT button (PROG/DIRECT)···························(47)
W2·RANDOM button·······································································(46)
W3·CLEAR button············································································(35)
W4·SEARCH button (SRCH)····························································(39)
W5·CALL button···············································································(47)
W6·REPEAT button ·········································································(46)
W7·A-B button··················································································(46)
W8·MENU/POP UP MENU button··················································(37)
W9·Cursor buttons (uiop)··························································(24)
E0·RETURN button (R)····································································(24)
E1·Play button (1)··········································································(39)
E2·Fast-forwarding button (7)···················································(45)
E3·Stop button (2)··········································································(43)
E4·Forward-skip button (9)·······················································(43)
E5·SUBTITLE button·······································································(48)
E6·AUDIO button············································································(47)
E7·PAGE + button···········································································(40)
E8·DISC LAYER button···································································(39)
E9·BACK LIGHT button
When· pressing· a· button,· backlight· is· turned· ON· for· about· 8·
seconds·except·the·button·E9.
Press·once·again·to·turn·off.
Getting Started
ENGLISH
TroubleshootingInformationHDMI Control FunctionPlaybackSetupGetting Started Specications

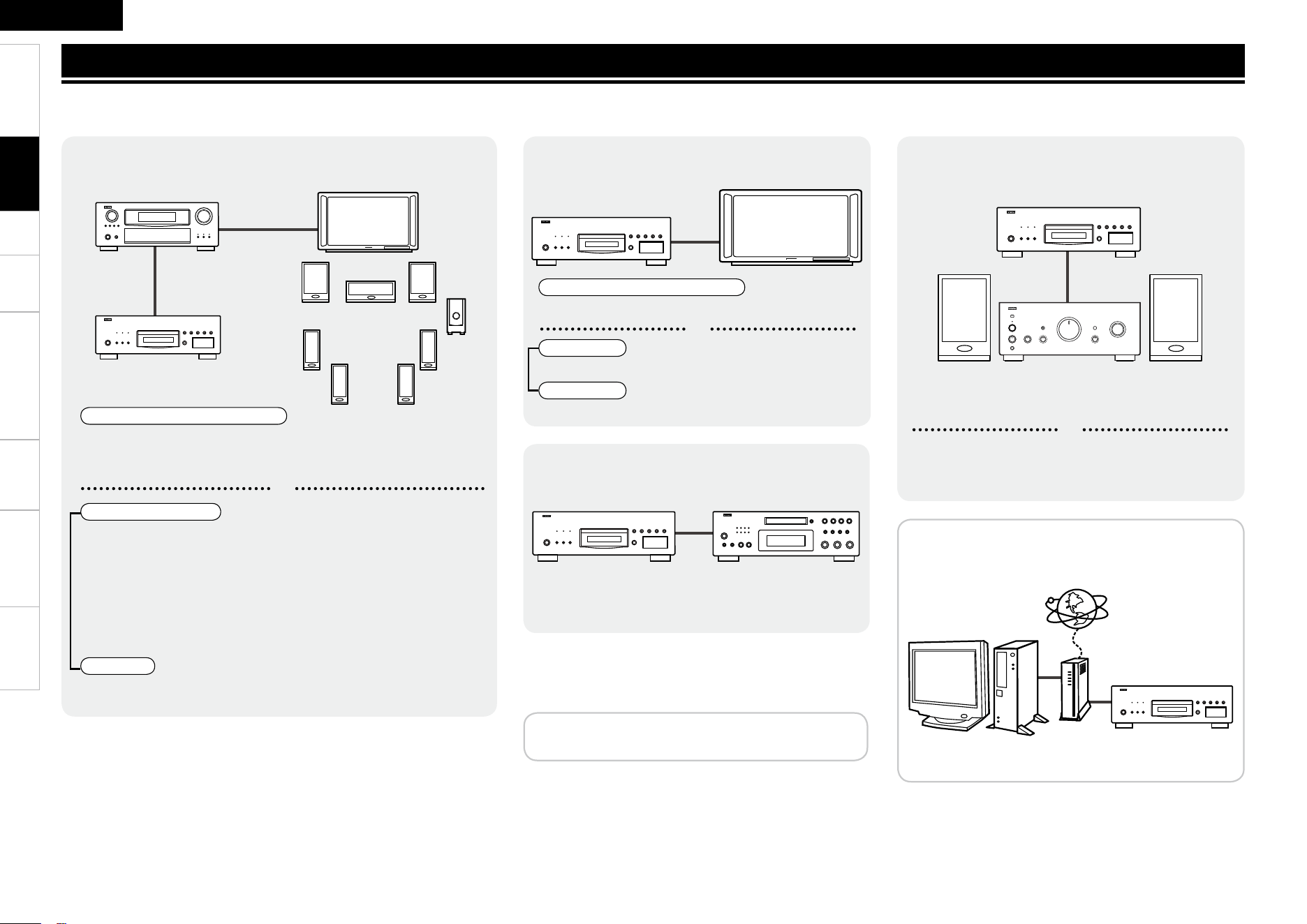

Connections
Connect the DVD-A1UDCI as follows before using. Make connections according to the equipment you are connecting.
Some DVD-A1UDCI settings may be necessary depending on the connection method. Check each connection item for more information.
1
Home Theater Playback
vpage 13
– Playing Back Using Multi-Channel System –
Multi-channel Audio + Video
HDMI connection
“Using·an·HDMI·Cable·to·Connect·to·an·AV·Amp·or·Television”·(vpage·
13)
•
··or··
Multi-channel Audio
DENON LINK connection
“Making·a·Jitter-free·Connection”·(vpage·18)
“Making·a·Normal·Connection”·(vpage·19)
Digital audio connection
“Connection·to·an·AV·Amp·with·No·HDMI·Audio·Input”·(vpage·17)
Analog 7.1ch connection
“Connecting· to· a· Device· with· an· Analog· Multi-channel· Audio· Input·
Terminal”·(vpage·18)
•
•
•
Video
Analog video connection
“Connection·to·an·AV·Amp·with·No·HDMI·Video·Input”·(vpage·19)
•
2
Playing Back with a Direct
Connection to a TV
vpage 19
Audio + Video
HDMI connection (vpage·14)•
··or··
Audio
Analog audio connection (vpage·19)•
Video
Analog video connection (vpage·19)•
4
Recording a CD
vpage 20
Digital output
“Connecting· to· a· Digital· Recording· Device”· (vpage·
20)
•
DVD-A1UDCI
DVD-A1UDCI
DVD-A1UDCI
3
Playing Back 2-Channel
Audio
vpage 20
2ch balanced connection
“Connecting· to· a· Device· with· Analog· 2-channel· Audio·
Input·Terminal·with·Balanced·Cable”·(vpage·20)
•
··or··
2ch stereo pin plug cable (unbalanced) connection
“Connecting· to· a· Device· with· Analog· 2-channel· Audio·
Input·Terminal·with·Stereo·Pin·Plug·Cable”·(vpage·20)
•
5
Using BD-LIVE function
or updating the software
version of DVD-A1UDCI
vpage 21
LAN connection
“Connecting·to·the·Network”·(vpage·21)
•
DVD-A1UDCI
DVD-A1UDCI
Connecting the Power Cord
Once Connections are Completed
•
•
vpage 22
Connections
ENGLISH
2
TroubleshootingInformationHDMI Control FunctionPlaybackSetupGetting Started Specications
Video cables
Component video
connections
(Sold·separately)
Component video (75 Ω/ohms) cable
S-Video
connections
(Sold·separately)
S-Video·cable
Video connections
(Included)
75 Ω/ohms pin-plug video cable
Other cables
DENON LINK
connections
(Included)
DENON·LINK·cable
Network
connections
(Sold·separately)
Ethernet·cable
Preparation
Cables Used for Connections
Prepare the cables to match the devices you are to use.
Audio and video cables
HDMI connections
(Sold·separately)
19-pin·HDMI·cable
Audio cables
Coaxial digital
connections
(Sold·separately)
Coaxial digital (75 Ω/ohms pin-plug) cable
Optical digital
connections
(Sold·separately)
Optical·cable
Analog connections
(balanced)
(Sold·separately)
Balanced·cable
Analog connections
(stereo, surround)
(1·included)
R
L
R
L
Stereo·pin·plug·cable
Analog connections
(center, subwoofer)
(Sold·separately)
Pin-plug·cable
(Y)
(PB/CB)
(PR/CR)
NOTE
Do·not·plug·the·power·cord·into·the·power·outlet·until·all·connections·
are·completed.·
Be·sure·to·read·the·owner’s·manuals·for·the·connected·devices.·
First·check·the·connection·channels,·and·then·correctly·connect·the·
input·and·output·channels.·
Do·not·bundle·the·power·cord·together·with·the·connection·cables.·
This·can·result·in·noise.·
•
•
•
•
Use only HDMI (High Denition Multimedia Interface) cable that
bears·the·HDMI·logo·(genuine·HDMI·product).·Using·cable·without·
the·HDMI·logo·(non-genuine·HDMI·product)·may·result·in·abnormal·
playback.·
When·outputting·deep·colour·or·1080p,·etc.,·we·recommend·you·
use·High·Speed·HDMI·cable·for·enhanced·high-quality·playback.
•
•
Connections
TroubleshootingInformationHDMI Control FunctionPlaybackSetupGetting Started Specications
ENGLISH
1. Home Theater Playback – Playing Back Using Multi-channel System –
There are 5 ways to connect (q – t) using HDMI cable (sold separately). Congure appropriate
connection for HDMI mode rst and then set HDMI mode using .
When connecting with HDMI cable, perform the settings in “Required Settings for HDMI
Connection” (vpage 15).
DVD-A1UDCI automatically detects audio/video signal supported by the connected HDMI device
and outputs the signal. To change the setting, see “HDMI Setup” on the GUI menu (vpage 25,
26).
HDMI mode
Output signal from each terminal
HDMI OUT 1 HDMI OUT 2
q·HDMI Auto (Dual)
(HDMI Dual)
Used· for· multi-channel·
playback·using·2·devices.
Video·+·Audio Video·+·Audio
w·HDMI Auto (Independent)
(HDMI Inde.)
Used· for· multi-channel·
playback·using·one·device·
and· 2-channel· playback·
using·the·other·unit.·(
z1)
Video·+·Audio Video·+·Audio
e·AV Pure Direct
(AV P.Direct)
Used· for· the· highest·
quality· playback· using·
different· HDMI· cables· to·
connect· video· and· audio·
separately.
Video Audio
r·HDMI1
Used·for·connecting· only·
1·device.
Video·+·Audio Does·not·output
t·HDMI2
Does·not·output Video·+·Audio
y·HDMI Off
Used· when· HDMI·
connection·is·not·used.
Does·not·output Does·not·output
z1·:··If·the·number·of·channels·supported·by·2·devices·is·the·same,·multi-channel·audio·is·output·
to·both·devices.
NOTE
To·disable·video·or·audio·output·from·the·HDMI·terminal,·set·“Video·Out”·of·“Pure·Direct·Setup”,·which·
outputs·high·quality·analog·audio·to·“Off”.·To·enable·the·HDMI·signal·output,·set·the·Pure·Direct·mode·
to·one·of·the·following·setting:
Pure·Direct·mode· “Off”·or·“User·Preset·1”·or·“User·Preset·2”·(b)
(“Playing·Back·High-Quality·Audio·(Pure·Direct·Function)·”·vpage·40)
Do·this·after·setting·“Pure·Direct·Setup”·–·“User·Preset·1”·or·“User·Preset·2”·– “Video·Out”·on·GUI·
menu·to·“On”·(vpage·30).
•
•
•
•
b
Using an HDMI Cable to Connect to an AV Amp or Television
Default settings are underlined.
Video and Audio Output Signal when Outputting to 2 HDMI Devices
(HDMI Auto(Dual) Mode and HDMI Auto (Independent) Mode)
About Video Signal
When· “About· HDMI· Video· Resolution· Setting”· (vpage· 15)· is· set· to· “Auto”,· of· the· resolution·
supported·by· both· of·the· 2· connected·devices,· the· DVD-A1UDCI·outputs· the· highest·resolution·
video·signal·to·both·devices.
About Audio Signal
(1) Check audio signals that can be input by the device to be connected.
Audio format·∙·∙·∙·∙·∙·∙·∙·∙·∙·∙·∙·∙·∙·∙Bit stream (Dolby Digital, DTS etc.), Linear PCM, etc.
Number of channels
(2) About number of output channels of multi-channel audio
When·outputting·bitstream·signals·to·two·HDMI·devices,·the·signals·are·output·to·both·HDMI·devices·
if·they·both·support·bitstream·signals.·Of·only·one·device·support·bit·stream,·LPCM·is·output·to·the·
device,·which·does·not·support·bit·stream.·
When·outputting·LPCM·signals·to·two·HDMI·devices,·it·is·not·possible·to·output·multi-channel·audio·
signals·with·different·numbers·of·channels·to·the·two·HDMI·devices.
When·the·number·of·channels·of·multi-channel·audio·supported·by·the·connected·2·HDMI·devices·
are·different,·the·audio·signal·output·to··each·mode·becomes·as·follows:
HDMI Auto (Dual) :
Outputs·multi-channel·audio·of·less·number·of·channels·to·both·devices.·
If·the·supported·number·of·channels·is·7.1·channel·and·5.1·channel,·respectively,·5.1·channel·audio·
is·output.·If·the·supported·number·of·channels·is·multi-channel·and·2-channel·(or·2.1-channel),·multi-
channel·and·2-channel·are·output.
HDMI Auto (Independent) :
Multi-channel·audio·is·output·as·is·to·the·device,·which·supports·more·number·of·channels.·
LPCM·audio·of·2-channel·is·output·to·the·other·device.·
We·recommend·you·use·this·mode·when·outputting·to·both·an·AV·Amp·and·TV.
About Audio Format to be Output
Audio·format·supported·by·2·connected·HDMI·devices·is·output.
When·multi-channel·audio·is·output,·the·output·channel·is·as·described·above·(2).
n
n
•
•
•
•
n
Connections
TroubleshootingInformationHDMI Control FunctionPlaybackSetupGetting Started Specications
ENGLISH

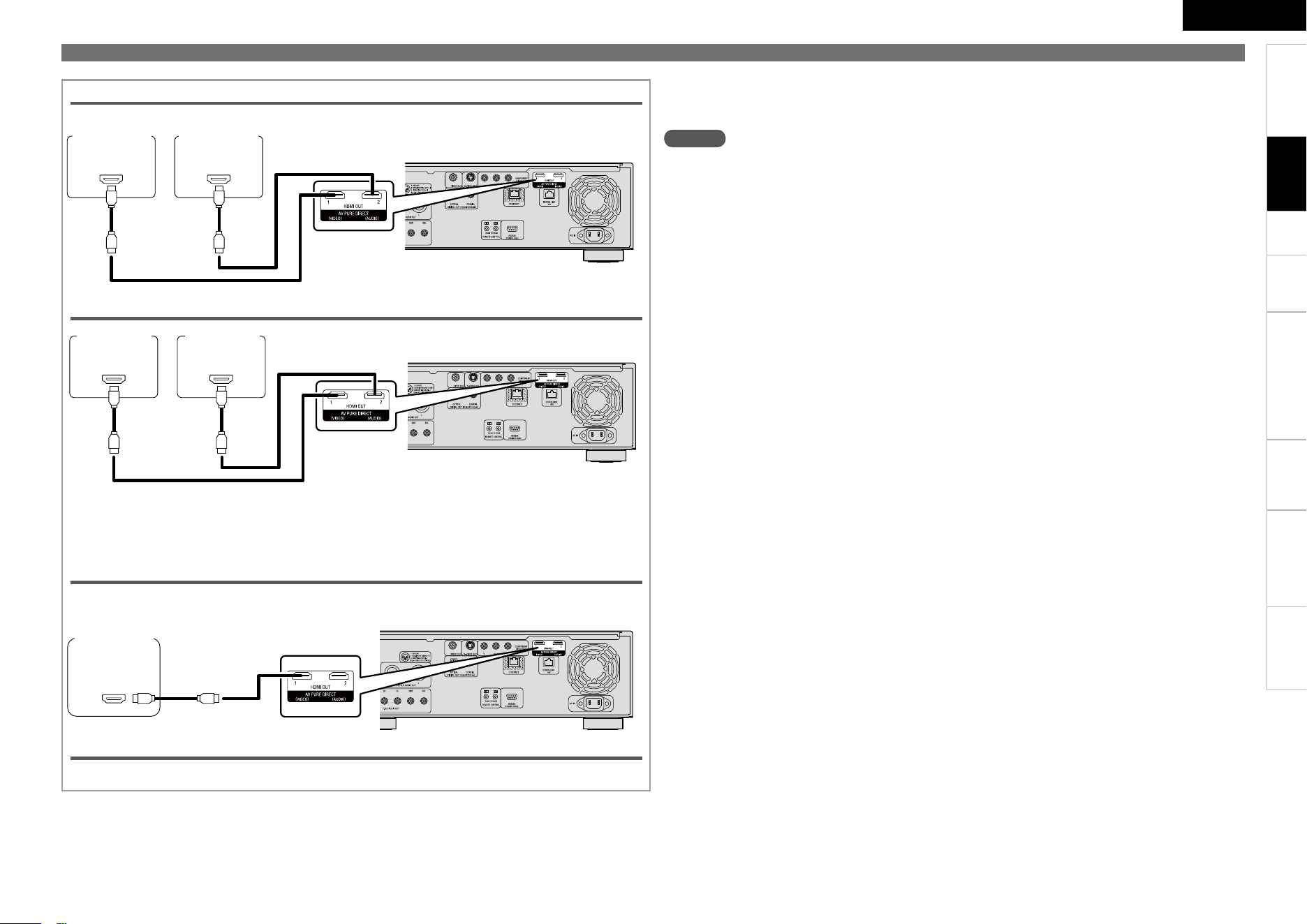

e “AV Pure Direct” connection
*/
)%.*
*/
)%.*
TV AV Amp
r “HDMI 1”, t “HDMI 2” Connection
GExampleH·“HDMI·1”·connection
*/
)%.*
AV Amp or
TV
y During “HDMI Off”
Audio/video·is·not·output·from·the·HDMI·terminal.
Connection to a device with a DVI-D terminal
If·you·use·a·HDMI/DVI-D·conversion·cable·(sold·separately),·HDMI·video·signals·are·converted·to·DVI-
D·signals,·enabling·connection·to·a·device·with·a·DVI-D·terminal.·
n
NOTE
In·this·case,·the·audio·signal·is·not·output.·Make·the·appropriate·audio·connections·for·your·devices.·
(vpage·15·~·21).
The·video·signal·will·be·in·RGB·format.·
You· cannot· output· to· a· DVI-D· device· that· does· not· support· HDCP· (high-bandwidth· digital· content·
copyright·protection·system).·
Video·may·not·be·output·depending·on·the·combination·of·devices.·
•
•
•
•
1. Home Theater Playback – Playing Back Using Multi-channel System –
About Video Signal
When· “About· HDMI· Video· Resolution· Setting”· (vpage· 15)· is· set· to· “Auto”,· of· the· resolution·
supported·by·both·connected·devices,·the·video·signal·of·the·highest·resolution·is·output·to·both·
devices.·(From·the·HDMI·2·terminal,·audio·signal·and·black·video·signal·are·output.)
n
*/
)%.*
*/
)%.*
AV Amp 1 or
TV 1
AV Amp 2 or
TV 2
q “HDMI Auto (Dual)”, w “HDMI Auto (Independent)” connection
Connections
TroubleshootingInformationHDMI Control FunctionPlaybackSetupGetting Started Specications
ENGLISH
1. Home Theater Playback – Playing Back Using Multi-channel System –
Setting HDMI video output
Make HDMI Output Signal and HDMI Control Function Settings
“HDMI·Setup”·(vpage·25,·26)
Make the Video Output Signal Setting for the Connected Television
“Video·Setup”·(vpage·26)
About HDMI Video Resolution Setting
Change·the· HDMI· video· resolution· by·pressing· .·Switch· the· output· mode· as·follows.· Default·
settings·are·underlined.
Auto
480/576i
1080P24
1080P
1080i
480/576P
720P
Source Direct
If·the·HDMI·resolution·is·not·set·to·“Auto”,·set·it·to·correspond·with·the·resolution·of·your·television.··
Images·will·not·be·projected·normally·if·the·television·resolution·and·DVD-A1UDCI’s·output·resolution·
do·not·match.·
Audio·and·video·will·be·temporarily·interrupted·if·the·power·of·the·connected·device·currently·playing·
back·is·turned·off,·or·input·is·switched.
When·you·change·the·HDMI·video·resolution·of·the·DVD-A1UDCI,·it·takes·from·a·few·seconds·up·to·
about·10·seconds·for·validation·between·the·DVD-A1UDCI·and·the·connected·device.·Audio/video·is·
not·output·during·this·period.
When· outputting·deep· colour· or· 1080p,·etc.,· we· recommend· you·use· High· Speed· HDMI·cable· for·
enhanced·high-quality·playback.·
n
n
n
•
•
•
•
•
Required Settings for HDMI Connection
(480/576·interlaced) (480/576·progressive)
(720·progressive)(1080·interlaced)(1080·progressive)(1080·progressive,·24-frame)
(Source·direct)
(Auto)
Setting HDMI Audio Output
When·you·press· ·and·set·“HDMI·Setup”·–·“Audio·Setup”·to·“Auto”·(vpage·25)·on·the··GUI·menu,·
audio·mode·is·set·according·to·the·connected·device.
When·you·want·to·set·the·HDMI·audio·output·separately,·change·according·to·the·following·table.·
Refer to the owner’s manual of the connected device regarding HDMI audio input specications
compatible·with·the·connected·device.·
•
•
•
Device to be connected Setting items About output signal and speaker settings
Device· with· the· following·
built-in·decoder
Dolby·TrueHD
Dolby·Digital·Plus
Dolby·Digital
DTS-HD
DTS
·
·
·
·
·
Auto
DVD-A1UDCI·outputs·a·bitstream·signal·that·is·decoded·by·
the·connected·device.·
In·this·case,·you·cannot·make·a·speaker·setting·for·HDMI·
audio·with·the·DVD-A1UDCI.·
Make·the·setting·with·the·connected·device.·
When· outputting· the· Dolby· TrueHD· or· DTS-HD· audio,·
press· · and· set· “BD· Audio· Mode”· to· “HD· Audio·
Output”·(vpage·33).
b
b
Device· compatible· with·
multi-channel· HDMI· audio·
input,· but· not· capable· of·
speaker· setting· for· each·
channel
Multi LPCM
BM On
Outputs· multi-channel· Linear· PCM· audio· signals· with·
speaker·setting·by·the·DVD-A1UDCI.
For· speaker· setting,· on· the· GUI· menu,· “Audio· Setup”·
–· “7.1ch· Audio· Out”–· “Multi· Channel”· –· “Speaker·
Conguration” (vpage·27).
BM·:·Bass·Management·(means·multi-channel·speaker·
setting)
b
b
Device· compatible· with·
multi-channel· HDMI· audio·
input,· and· capable· of·
speaker· setting· for· each·
channel
Multi LPCM
BM Off
Output·of·multi-channel·Linear·PCM·audio·signals·from·the·
DVD-A1UDCI.·
Perform·the·speaker·setting·with·the·connected·device.·
BM·:·Bass·Management·(means·multi-channel·speaker·
setting)
b
Device·compatible·with·2-
channel·HDMI·audio·input
2ch
Downmixed·2-channel·Linear·PCM·audio·signals·are·output·
from·the·DVD-A1UDCI.··
Perform·the·speaker·setting·with·the·connected·device.·
Device·not·compatible·with·
HDMI·audio·signal·input
Mute
Audio·signal·are·not·output·from·the·DVD-A1UDCI’s·HDMI·
terminal.·
Only·video·signals·are·output·from·the·HDMI·terminal.·
Make·the·audio·connection.b
NOTE
When·the· HDMI·video·resolution· is·set·to· “1080P24”,·HDMI· video·signals·are· output·from· the·DVD-
A1UDCI·with·a·resolution·of·1080P·and·a·frame·rate·of·24·frames·per·second,·regardless·of·the·video·
signals·on·the·disc·being·played.·Because·of·this,·when·playing·discs·containing·video·signals·recorded·
with·a·frame·rate·of·something·other·than·24·frames·per·second,·the·movement·of·the·picture·may·be·
unnatural.·If·this·happens,·set·the·HDMI·video·resolution·to·something·other·than·“1080P24”.
Connections
TroubleshootingInformationHDMI Control FunctionPlaybackSetupGetting Started Specications
ENGLISH
Audio signal from the HDMI output terminal
You can change the audio format and playback number of channels according to the specications
of·the·device·to·which·the·DVD-A1UDCI’s·HDMI·audio·output·signals·are·input.·Make·settings·while·
checking the specications of the audio device to be connected as well as the audio format/number
of channels stored in media and les for playback.
n
Media/Files Audio format
Setting “HDMI Setup” – “Audio Setup” (vpage 25) on
the GUI menu
Auto
Multi·LPCM·
BM·On/Off
2ch
BD
Dolby·Digital
Dolby·Digital
z1
Multi·LPCM
2· ch· Downmix·
LPCM
Dolby·Digital·Plus
Dolby·Digital·Plus
z1
Dolby·TrueHD
Dolby·TrueHD
z
1
DTS
DTSz1
DTS-HD
DTS-HDz1
LPCM Multi·LPCM
AVCHD
Dolby·Digital Dolby·Digital
Multi·LPCM
2· ch· Downmix·
LPCM
LPCM Multi·LPCM
DVD-Video
Dolby·Digital Dolby·Digital
DTS DTS
LPCM 2·ch·LPCM
DVD-Audio LPCM,·PPCM
Multi·LPCM
2· ch· Downmix·
LPCM
Super·audio·CD
z2
Multi·area
Stereo·area
2·ch·LPCM
CD·layer
DivX
®
Dolby·Digital Dolby·Digital Multi·LPCM
2· ch· Downmix·
LPCM
MP3,·MP2
2·ch·LPCM
CD,·MP3,·WMA,·AAC,·LPCM
DTS-CD DTS Multi·LPCM
2· ch· Downmix·
LPCM
z1·:
Multi·LPCM·signals·are·output·when·“BD·Audio·Mode”·is·set·to·“Mix·Audio·Output·”·(
vpage·33).·
Multi·LPCM·signals·are·output·when·outputting·HDMI·video·signals·with·resolutions·of·480i/576i·or·
480p/576p.
z2·:
Super·Audio·CD·audio·signals·are·output·at·44.1·kHz·16-bit.·
Even·if·“HDMI·Setup”·–·“Audio·Setup”·on·the·GUI·menu·is·set·to·“Auto”·(vpage·25),·multilinear·PCM·
or·downmixed·2-channel·linear·PCM·signals·are·output·if·a·device·that·does·not·support·bitstreams·is·
connected.
Copyright protection system
In·order·to·play·back·digital·video·and·audio·such·as·BD-Video·or·DVD-Video·via·HDMI·connection,·
both·the·player·and·TV·or·the·AV·Amp·need·to·support·the·copyright·protection·system·known·as··
HDCP（High-bandwidth·Digital·Content·Protection·System).·HDCP·is·copyright·protection·technology·
comprised· of· data· encryption· and· authentication· of· the· connected· AV· device.· · The· DVD-A1UDCI·
supports·HDCP.·
NOTE
If·a·device·that·does·not·support·HDCP·is·connected,·video·and·audio·are·not·output·correctly.·Read·the·
owner’s·manual·of·your·television·or·AV·Amp·for·more·information.
The·audio·signal·from·the·HDMI·output·terminal·(sampling·frequency,·number·of·channels,·etc.)·may·
be limited by the HDMI audio specications of the connected device regarding permissible inputs. For
example, if the HDMI audio specication of the connected device is 5.1 channels, 5.1-channel audio will
be·automatically·output·even·when·playing·back·7.1·channels·by·the·DVD-A1UDCI.··In·this·case,·analog·
audio·output·will·also·be·5.1-channel.
Audio·signal·input·may·not·be·supported·depending·on·the·HDMI·compatible·monitor·(projector,·etc.)·
being·used.·
When·the·DVD-A1UDCI·is·connected·to·this·kind·of·device,·audio·signals·are·not·output·from·the·HDMI·
terminal.·
•
•
•
1. Home Theater Playback – Playing Back Using Multi-channel System –
Connections
TroubleshootingInformationHDMI Control FunctionPlaybackSetupGetting Started Specications
ENGLISH

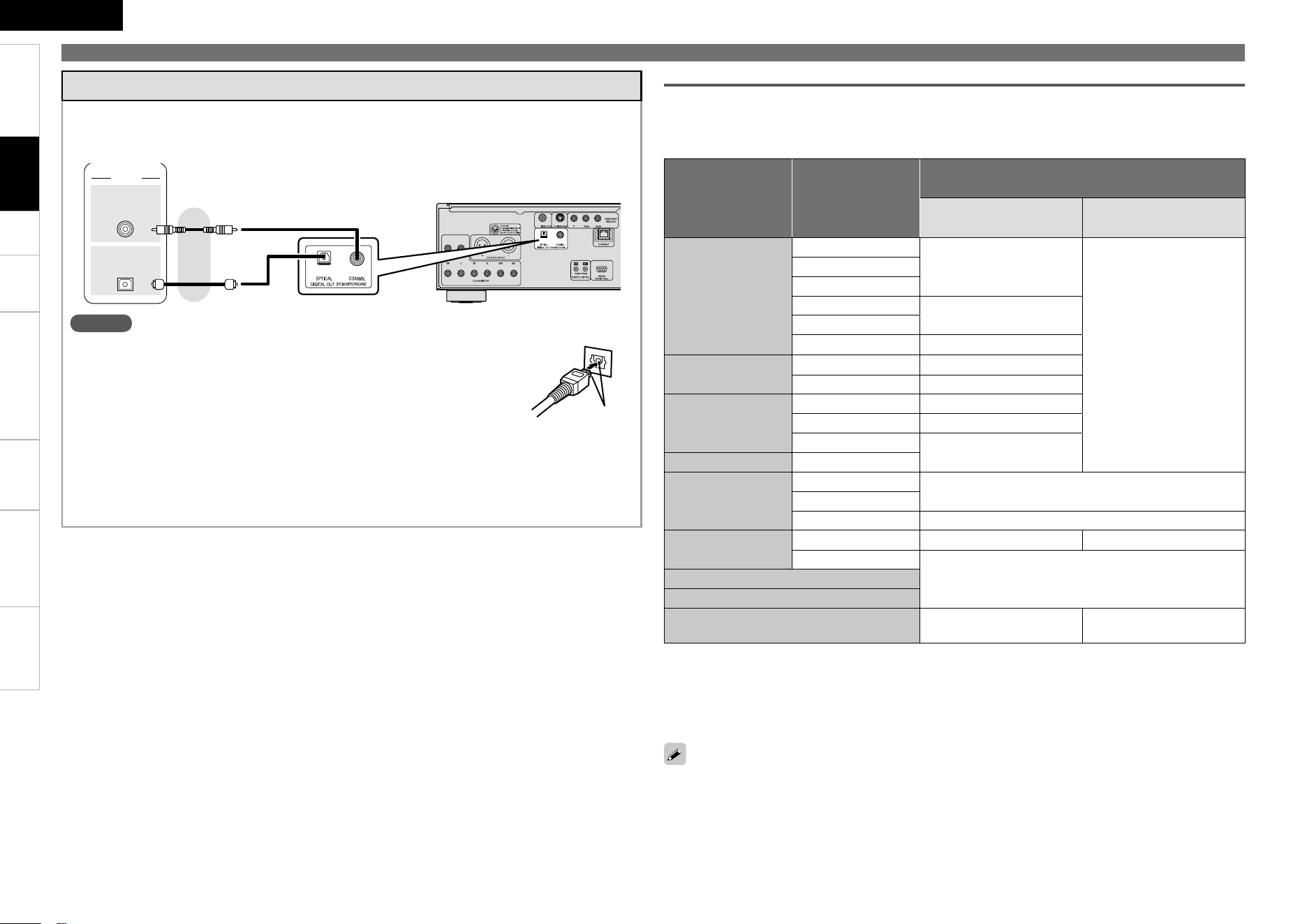

Connection to an AV Amp with No HDMI Audio Input
When·playing·back·Dolby·Digital·Plus/Dolby·TrueHD/DTS-HD·audio·recorded·on·a·BD·disc,·the·DVD-
A1UDCI·outputs·Dolby·Digital·or·DTS·bitstream·from·its·digital·audio·output·terminal.·
"6%*0
$0"9*"-
*/
*/
015*$"-
AV Amp
NOTE
Dolby·TrueHD/Dolby·Digital·Plus/DTS-HD·audio·signals·are·not·output·with·
this·connection.·
When·outputting·Dolby·TrueHD/Dolby·Digital·Plus/DTS-HD·audio·signals,·do·
so·with·an·HDMI·connection·(vpage·13,·“Using·an·HDMI·Cable·to·Connect·
to·an·AV·Amp·or·Television”).
Super· Audio· CD’s· DSD· signal· cannot· be· output.· Also,· during· CD· layer·
playback,·44.1·kHz/16-bit·Linear·PCM·is·output.·
•
•
Do·not·output·DTS·audio·signals·to·an·AV·Amp·that·does·not·support·DTS.·Playing·back·a·BD/DVD·
disc·with·recorded·DTS·content·can·generate·noise·and·even·damage·your·speakers.·
When·connecting·with·an·optical·transmission·cable·(sold·separately),·make·sure·the·plug·shape·
aligns·with·the·socket,·and·insert·fully.·
•
•
Match·the·
shapes
1. Home Theater Playback – Playing Back Using Multi-channel System –
Audio Signal from the Digital Audio Output (Optical/Coaxial) Terminal
The·DVD-A1UDCI·can·convert·and·output·digital·audio·signal·format·recorded·on·media.·
Convert the digital audio signal in accordance with the specications of the device that is to input digital
audio·output·signals·from·the·DVD-A1UDCI.·
Media/Files Audio format
Setting “Audio Setup” – “Digital Out” (vpage 29) on
the GUI menu
Bitstream PCM/PCM·Down·Sampling
BD
Dolby·Digital
Dolby·Digital
z1
2·ch·Downmix·LPCM
Dolby·Digital·Plus
Dolby·TrueHD
DTS
DTSz1
DTS-HD
LPCM
2·ch·Downmix·LPCM
z1
AVCHD
Dolby·Digital Dolby·Digital
LPCM 2·ch·Downmix·LPCM
DVD-Video
Dolby·Digital Dolby·Digital
DTS DTS
LPCM
2·ch·Downmix·LPCM
DVD-Audio LPCM,·PPCM
Super·Audio·CD
Multi·area
Audio·is·not·output
Stereo·area
CD·layer 2·ch·LPCM
DivX
®
Dolby·Digital Dolby·Digital 2·ch·Downmix·LPCM
MP3,·MP2
2·ch·LPCM
CD
MP3,·WMA,·AAC,·LPCM
DTS-CD DTS
2·ch·Downmix·LPCM
(DTSz2)
z1·:
Bitstream·signals·are·output·in·accordance·with·the·BD·re-encode·setting·when·“BD·Audio·Mode”·
is·set·to·“Mix·Audio·Output”·(
vpage·33).
z2·:
When·“HDMI·Setup”·–·”Audio·Setup”·is·set·to·“Auto”·on·the·GUI·menu·and·bit·stream·is·output·from·
HDMI·,·the·DTS·bit·stream·is·output·from·the·digital·audio·output·(optical/coaxial)·as·well.
For·content·with·copyright·protection,·audio·signal·is·down·sampled·to·48kHz·16bit·and·is·output.
Connections
TroubleshootingInformationHDMI Control FunctionPlaybackSetupGetting Started Specications
ENGLISH
1. Home Theater Playback – Playing Back Using Multi-channel System –
NOTE
The·jitter-free·function·does·not·work·except·during·BD·playback.·In·this·case,·the·video·signal·is·
output·from·the·HDMI·OUT·terminal,·and·the·audio·signal·from·the·DENON·LINK·terminal.

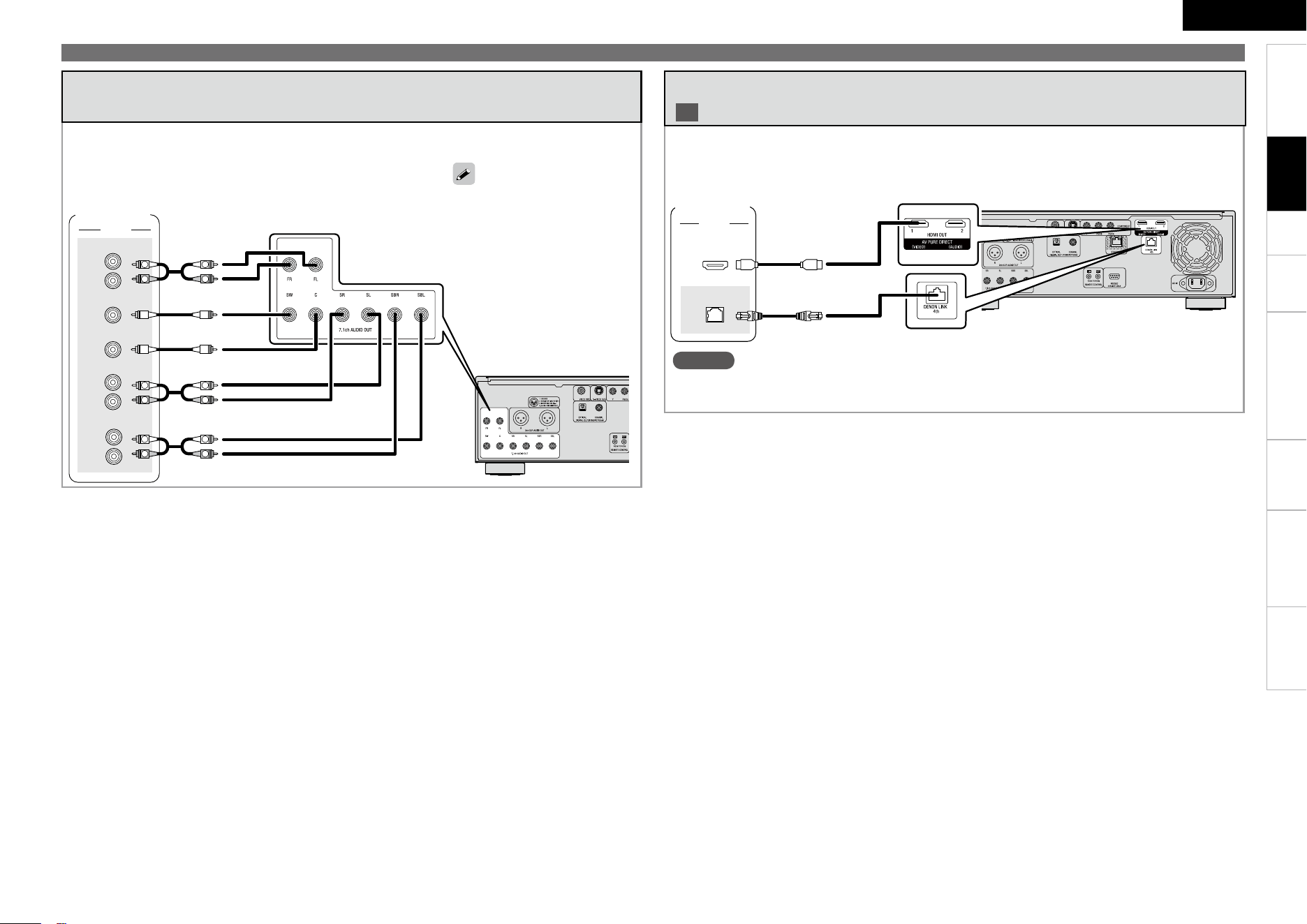

Connecting to a Device with an Analog Multi-channel Audio
Input Terminal
Outputs·multi-channel·audio·decoded·by·the·DVD-A1UDCI.
If·your·audio·system·has·an·analog·multi-channel·audio·input·terminal,·connect·using·audio·cable·(sold·
separately).
When·you·connect·the·DVD-A1UDCI·to·a·DENON·LINK·4th·compatible·AV·Amp·using·DENON·LINK·
cable·and·HDMI·cable,·during·BD·playback·the· DVD-A1UDCI’s·circuit·operates· with· the·AV·Amp’s·
master·clock·signal.·(The·clock·control·indicator·of·the·DVD-A1UDCI·lights.)·This·enables·transmission·
of·high-quality·digital·audio·with·minimal·jitter.·
%&/0/-*/,
"6%*0
*/
)%.*
AV Amp
DENON LINK Connection q Making a Jitter-free Connection
BD
'30/5
46#800'&3
3
-
3
-
3
-
463306/%
463306/%#"$,
$&/5&3
"6%*0
R R
L L
R R
L L
R R
L L
AV Amp
In· the· case· of· a· 5.1-channel·
connection,· you· need· not·
connect·the·SBR/SBL·terminals.·
In· this·case,· on· the· GUI· menu,·
select· “Audio· Setup”· –· “7.1ch·
Audio·Out”·–· “Multi· Channel”·–·
“Speaker Conguration” – “Surr.
Back”,·and·set·“Size”·to·“None”·
(vpage·27).
Connections
TroubleshootingInformationHDMI Control FunctionPlaybackSetupGetting Started Specications
ENGLISH
1. Home Theater Playback – Playing Back Using Multi-channel System –
Connection to an AV Amp with No HDMI Video Input
Check·the·video·terminals·and·make·the·connection·to·one·of·them.·
7*%&0
7*%&0*/
47*%&0*/
:
1#
13
$0.10/&/5
7*%&0*/
AV Amp

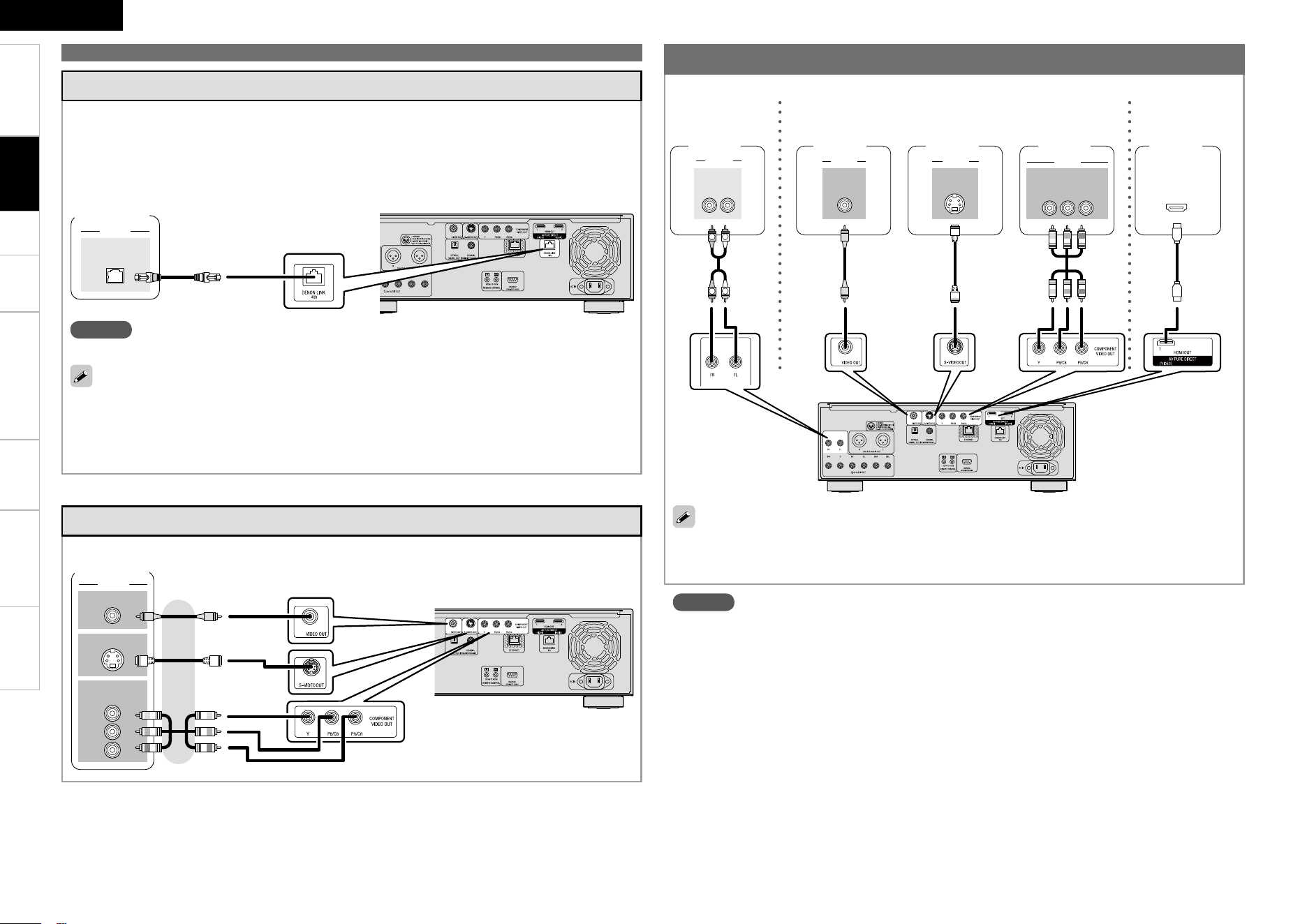

2. Playing Back with a Direct Connection to a TV
Check·the·television’s·audio·and·video·terminals·and·make·the·connection·to·one·of·them.·
"6%*0
"6%*0
*/
-3
7*%&0
*/
7*%&0
7*%&0
*/
47*%&0
7*%&0
$0.10/&/57*%&0
: 1#
13
*/
*/
)%.*
R
L
R
L
TV
Audio terminals Video terminal S video input
terminal
Component video
input terminal
HDMI input
terminal
TV TV TV TV
(Sold·
separately)
When· outputting· the· DVD-A1UDCI’s· analog· 2-channel· audio· to· the· television’s· 2-channel· (stereo)·
audio·input·terminal,·on·the·GUI·menu,·select·“Audio·Setup”·–·“7.1ch·Audio·Out”,·and·set·it·to·“2·
Channel”·(vpage·27).
NOTE
Do·not·connect·the·DVD-A1UDCI’s·video·output·via·a·VCR·(Video·Cassette·Recorder).·Some·media·
contain·copy·prohibit·signals,·which·will·disturb·the·screen·image.
When·playing·NTSC·disc,·DVD-A1UDCI’s·video·output·becomes·NTSC·signal·format.
When·playing·PAL·disc,·DVD-A1UDCI’s·video·output·becomes·PAL·signal·format.
(supplied)
(supplied)
(Sold·
separately)
(Sold·
separately)
NOTE
DENON·LINK·does·not·support·BD·audio·transmission.·
When·connecting·to·a·DENON·LINK-compatible·AV·Amp,·the·multi-channel·signals·of·DVD-Audio·
discs,·Super·Audio·CDs,·etc.,·can·be·transferred·as·such·in·digital·format.
DENON·LINK· connection·requires·that· the·version· of·AV·Amp· to·be· connected·match·the· DVD-
A1UDCI·version.·Check·the·version·of·the·AV·Amp,·and·then·on·the·GUI·Menu,·set·“DENON·LINK·
Setup”·–·“DENON·LINK·Mode”·(
vpage·30).
If·the·DVD-A1UDCI·and·AV·Amp·versions·do·not·match,·audio·cannot·be·output·correctly.
•
•
%&/0/-*/,
"6%*0
AV Amp
DENON·LINK·supports·digital·transmission·up·to·24·bit/2·ch·at·192/176.4·kHz,·and·up·to·24·bit/6·ch·
at·96·kHz·or·less.
When· you· have· made· a· DENON· LINK· connection,· the· DVD-A1UDCI’s· speaker·setting· becomes·
invalid.·(Make·the·speaker·setting·on·the·connected·AV·Amp)
DENON·LINK·2nd·cannot·transmit·multi/stereo·area·audio·of·Super·Audio·CD.·
•
•
•
DENON LINK Connection w Making a Normal Connection
Connections
TroubleshootingInformationHDMI Control FunctionPlaybackSetupGetting Started Specications
ENGLISH
20
2. Playing Back with a Direct Connection to a TV
When connected to the television’s component video input terminal
The·DVD-A1UDCI’s·component·video·output·supports·480i/576i/480p/576p/720p/1080i·output.·Match·
the·output·to·the·corresponding·resolution·of·the·connected·television·by·setting,·on·the·GUI·menu:·
“Video·Setup”·–·“Component·Resolution”·(vpage·26).·Images·will·not·be·projected·normally·if·the·
television·resolution·and·DVD-A1UDCI’s·output·resolution·do·not·match.·Copyright·protected·DVD·is·
output·in·480i/576i·or·480p/576p.
When connected to the HDMI input terminal
Outputting·both·digital·video·and·digital·audio·signals.·
See·“Required·Settings·for·HDMI·Connection”·(vpage·15)·for·HDMI·video·output·and·audio·output·
settings.
n
•
n

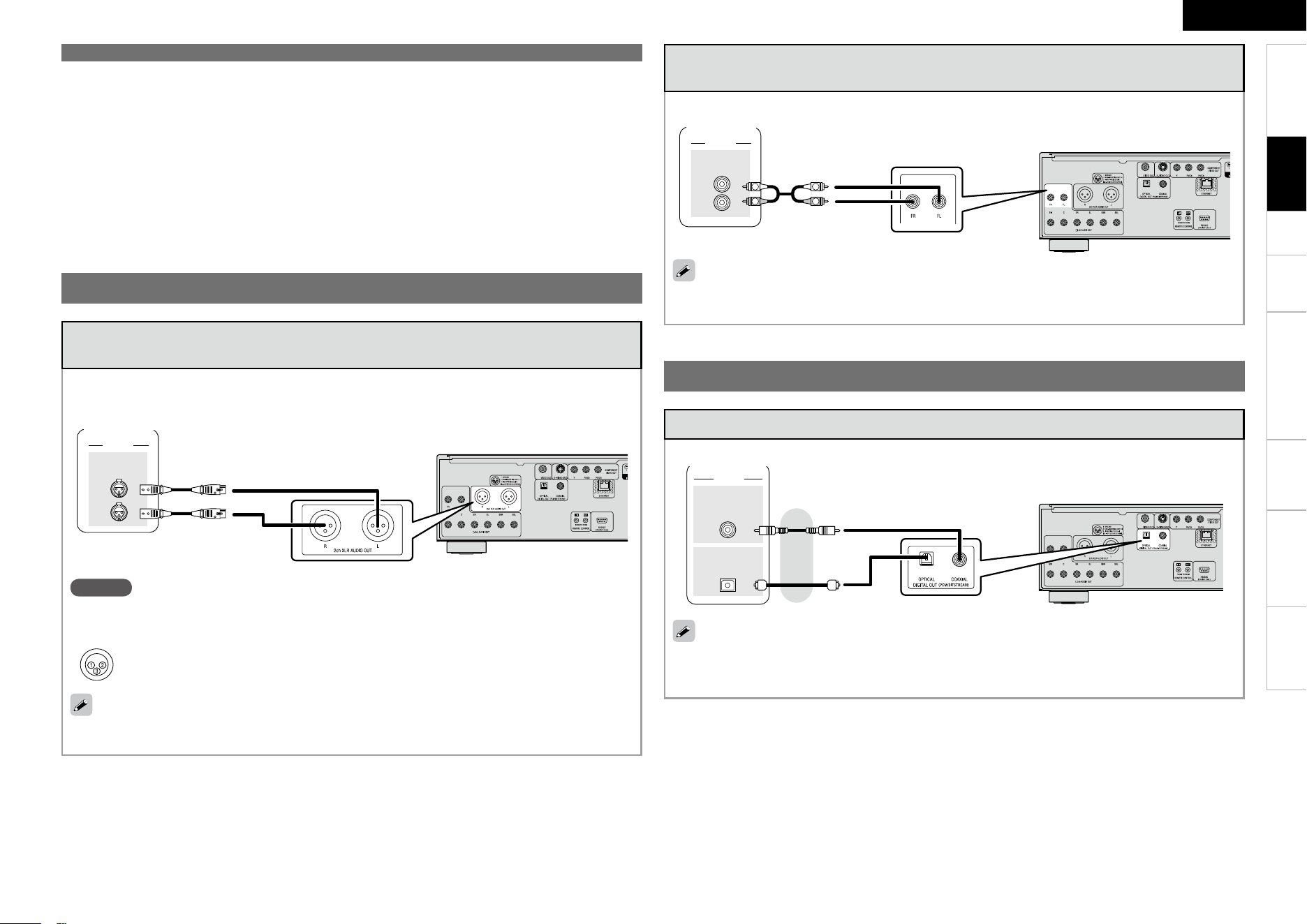

3. Playing Back 2-Channel Audio
Connecting to a Device with Analog 2-channel Audio Input
Terminal with Balanced Cable
Select·“Audio·Setup”·–·“XLR”·(vpage·30)·from·the·GUI·menu·beforehand·to·match·the·device·to·be·
connected.
"6%*0
"6%*0
*/
-
3
Stereo
NOTE
Do·not·short·circuit·between·each·terminals.·When·making·connections,·check·the·input·terminal·
layout·of·the·device·to·be·connected·with·the·owner's·manual.·
The·default·DVD-A1UDCI·balance·model·XLR·input·connectors·pin·alignment·is·as·shown.
··q·GROUND···w·HOT···e·COLD·
For·software·recorded·in·multi-channel,·analog·signals·that·have·been·down-mixed·into·2·channels·
are·output.
•
•
Connecting to a Device with Analog 2-channel Audio Input
Terminal with Stereo Pin Plug Cable
On·the·GUI·menu,·select·“Audio·Setup”·–·“7.1ch·Audio·Out”,·and·set·it·to·“2·channel”·(vpage·27).
"6%*0
"6%*0
*/
-
3
R
L
R
L
Stereo
For·software·recorded·in·multi-channel,·analog·signals·that·have·been·down-mixed·into·2·channels·
are·output.
Connecting to a Digital Recording Device
"6%*0
$0"9*"-
*/
*/
015*$"-
MD Recorder
When·converting·multi-channel·audio·to·2-channel·for·output,·on·the·GUI·menu,·select·“Audio·Setup”·
–·“Digital·Out”,·and·set·it·to·“PCM·Down·Sampling”·(vpage·29).·If·you·play·back·DVD·or·other·media·
with incorrect conguration, deafening noise occurs that may damage the speaker.
4. Recording a CD
Connections
TroubleshootingInformationHDMI Control FunctionPlaybackSetupGetting Started Specications
ENGLISH
2
Connecting to the Network
5. Using BD-LIVE function or updating the software version of DVD-A1UDCI
You·can·use·a·disc·which·offers·BD-LIVE·function·by·connecting·the·unit·to·the·Internet·(vpage·
38).
You can update by downloading the latest rmware from the Internet.
For·more·information,·on·the·GUI·menu,·select·“Other·Setup”·–·“Firmware·Update”·(vpage·33).·
See·“Network·Setup”·(vpage·31)·on·the·GUI·menu·for·more·information·on·network·setting.·
•
•
•
Internet
Modem
Router
Computer
LAN port/
Ethernet
connector
To WAN port
To LAN port
To LAN port
ETHERNET
connector
System Requirement
Internet Connection by Broadband Circuit
Modem
Device·that·connects·to·the·broadband·circuit·and·conducts·communications·on·the·Internet.·
A·type·that·is·integrated·with·a·router·is·also·available.
Router
When·using·the·DVD-A1UDCI,·we·recommend·a·router·with·the·following·features.··
Built-in DHCP (Dynamic Host Conguration Protocol) server.
Function·that·automatically·assigns·an·IP·address·on·the·LAN.·
Built-in·100BASE-TX·switch·(built-in·switching·hub·compatible·with·speeds·upwards·of·100·Mbps)
Ethernet cable (CAT-5 or greater recommended)
An·Ethernet·cable·is·not·included·with·the·DVD-A1UDCI.
For·Ethernet·cable,·we·recommend·you·use·shielded·straight·cable·(normal·type).·
If you use the at type or a non-shielded cable, the noise may adversely affect other devices.
For·Internet·connection,·use·an·ISP·(Internet·Service·Provider).·Ask·your·local·dealer·for·details.·
NOTE
•··It· is·necessary· to·subscribe· to·an· ISP·in· order·to· connect· to· the· Internet.·If· you·already· have·a·
broadband·connection,·there·is·no·need·to·subscribe·anew.
•·The·router·you·can·use·varies·with·the·ISP.·For·more·information,·contact·your·ISP·or·PC·dealer.·
•··DENON·assumes·no·responsibility·whatsoever·for·any·communication·errors·or·troubles·resulting·
from·customer's·network·environment·or·connected·devices.
Others
The·DVD-A1UDCI·can·use·the·DHCP·function·to·automatically·set·the·network.
With·the·type·of·circuit·in·which·network·setting·is·performed·manually,·when·subscribed·to·a·provider,·
conduct·the·setting·in·accordance·with·“Network·Setup”·on·the·GUI·menu·(vpage·31).·
If·you·connect·the·DVD-A1UDCI·to·a·network·without·a·DHCP·function,·conduct·IP·address·and·other·
settings·according·to·“Network·Setup”·on·the·GUI·menu·(vpage·31).
The·DVD-A1UDCI·does·not·support·PPPoE.·If·you·subscribe·to·a·circuit·that·is·set·with·PPPoE,·a·PPPoE-
compatible·router·is·required.·
When·setting·manually,·check·the·setting·contents·with·the·network·administrator.
n
n
n
•
•
n
•
•
n
•
•
•
•
•
Connections
TroubleshootingInformationHDMI Control FunctionPlaybackSetupGetting Started Specications
ENGLISH
22
Connecting the Power Cord
Connect·the·included·power·cord·to·the·DVD-A1UDCI,·and·plug·it·into·an·AC·outlet.·
Power·cord
(included)
To·household·power·
outlet·(AC·120·V,·60·Hz)
NOTE
Be sure to insert the power plug rmly. Incomplete connection results in noise generation. •
Once Connections are Completed
On·the·GUI·menu,·when·“Other·Setup”·–·“Auto·Power·Mode”·–·“On”·(vpage·32),·the·following·states·are·
maintained·for·about·30·minutes,·and·then·the·power·is·turned·automatically·to·standby.
Turning the Power On
When power is switched to standby
Either·press· ·on·the·unit,·or·press· ·on·the·remote·control.·
The·power·indicator·lights·red.·
n
NOTE
During·power·standby,·a·slight·amount·of·power·is·consumed.·To·totally·cut·off·the·power,·remove·the·
power·cord·from·the·power·outlet.·
Press the unit’s or the remote control’s .
The·power·is·turned·on,·and·the·power·indicator·lights·green.
“LOADING”·appears·on·the·display,·and·disc·information·is·read.·
The·“NO·DISC”·message·is·displayed·when·a·disc·is·not·loaded.·b
(DVD-A1UDCI)
(Remote·control·
unit)
Disc·not·loaded
Playback·has·stopped
Stopped·due·to·resume·function
•
•
•
Connections
ENGLISH
2
TroubleshootingInformationHDMI Control FunctionPlaybackConnectionsGetting Started Speci cations
Pressing displays the GUI menu. From this menu, you can move to various setting screens.
GUI Menu Setup
HDMI Setup (vpage 25, 26)
Auto Format
Color Space
Deep Color
n
n
n
Audio Setup (vpage 27 ~ 30)
7.1ch Audio Out
Multi Channel
2 Channel
Subwoofer Mode
Source Direct
Compression
n
•
•
n
n
n
Network Setup (vpage 31)
DHCP
Proxy
n
n
Language Setup (vpage 25)
Dialog
Subtitle
n
n
Video Setup (vpage 26)
TV Aspect (Aspect ratio)
Component Resolution
n
n
DENON LINK Setup (vpage 30)
DENON LINK Moden
Pure Direct Setup (vpage 30)
User Preset 1
User Preset 2
n
n
Ratings (vpage 31)
Password
BD Rating Level
DVD Rating Level
n
n
n
Display Setup (vpage 32)
Screen Saver
Wallpaper
Still Mode
n
n
n
Other Setup (vpage 32)
Auto Power Mode
Power Saving
Remote Control Setting
BD Data Utility
n
n
n
n
AFDM
BD Effect Sound
BD Re-Encoder
Digital Out
Downmix
XLR
n
n
n
n
n
n
Menu Map
Slide Show Time
Temporary Display
Captions
n
n
n
Rating Country Code
DivX Registration
n
n
Progressive Mode
TV Active Area
n
n
Disc Menus
GUI Language
n
n
Initialize
Firmware Update
Information
n
n
n
Audio Setup
SA-CD Audio Out
HDMI Control
n
n
n
IP Address
MAC Address
n
n
Setup
ENGLISH
2
TroubleshootingInformationHDMI Control FunctionPlaybackConnectionsGetting Started Speci cations
GUI Menu Operation
Typical·examples·are·described·below.
Examples of GUI Menu Screen Displays
Exiting the GUI Menu
Press· ·while·the·GUI·menu·is·displayed.
The·GUI·menu·display·disappears.
n
•
NOTE
You·must·use·the·GUI·menu·to·make·settings·or·operate·while·a·disc·
or·SD·Memory·Card·is· not· inserted.·In·cases·in·which·the· resume·
function·is·activated,·you·may·not·make·correct·settings.
Text·colors·of·selected·items·of·the·GUI·menu·are·as·follows:
White·:·These·items·can·be·selected.
Gray·:·These·items·cannot·be·selected.
•
•
(Use to switch.)
7.1ch Audio Out
Subwoofer Mode
AFDM
Compression
Source Direct
BD Effect Sound
Switch to the next item
Selected item
Switch the selected item
Switch to the next item
Switch the selected item
using .
b
Iconn
Listn
GExample 1H Menu selection screen (Top menu)
AUDIO SETUP
7.1ch Audio Out Multi Channel
Subwoofer Mode 2 Channel
AFDM
Compression
Source Direct
BD Effect Sound
Set to output analog 7.1ch audio.
RATINGS
視聴制限国コード アルゼンチン
オーストラリア
BD視聴制限レベル ベルギー
ブラジル
カナダ
オーストリア
国コードを入力してください
Enter the country code.
1
a
n
A
N
!
.
_
2 3 4 5 6 7 8 9 0 Space
b c d e f g h i j k l m
o p q r s t u v w x y z
B C D E F G H I J K L M
O P Q R S T U V W X Y Z
“ # $ % & ’ ( ) * + , −
/ : ; < = > ? @ [ ¥ ] ^
｛ ｜ ｝ ` ˜ ← → Delete Finish
RETURN0-9
CURSOR Enter 0〜9
Return
■
LANGUAGE SETUP
Dialog
Subtitle
GUI Language
Disc Menus
Set the language used for playback dialogs, subtitles, and
menus.
GExample 2H Rating Country Code input screen (with
virtual keyboard)
z3
z4
z5
z2
z1
z1·:·List·GUI·menu·setup·icons
z2·:·Currently·selected·setup·icon
z3·:·Currently·selected·setup·item
z4·:·List·of·currently·selected·setup·items
z5·:· Guide·text·for·the·currently·selected·
setup·item
Press to select “ ”
and then press .
(Or press .)
z6
z7
z8
z9
z6·:·Selected·setup·icon
z7·:·Options·of·the·selected·setup·item
z8·:·Virtual·keyboard
z9·:·Operation·button·guide
Selected item
(Use to switch.)
Switch the selected item
(Use to switch.)
(Use to switch.)
Returns to the previous item
(Use or to switch.)
1
Press .
The·GUI·menu·is·displayed·on·the·TV·screen.
2
Press to select the menu to
be set or operated.
To·return·to·the·previous·item,·press· ·or· .·b
3
Press to enter the setting.
Setup
TroubleshootingInformationHDMI Control FunctionPlaybackConnectionsGetting Started Speci cations
ENGLISH
2
Setting items
Setting contents
Dialog
Set· the· dialog·used· to· play·
BDs·or·DVDs.
Original· :· Plays· the· dialog· selected· at· the· top· in· the· language· menu·
stored·in·the·disc.
English/French/Spanish/German/Japanese/Italian/Swedish/Dutch/
Russian/Chinese/Korean/Danish/Finnish/Norwegian/Icelandic/
Hungarian/Romanian/Turkish/Greek/Irish/Portuguese/Polish/Czech/
Slovak/Bulgarian
Others·:·Enter·the·language·code.
Subtitle
Set· the· subtitle· language·
used·to·play·BDs·or·DVDs.
Off :·Do·not·display·subtitles.
English/French/Spanish/German/Japanese/Italian/Swedish/Dutch/
Russian/Chinese/Korean/Danish/Finnish/Norwegian/Icelandic/
Hungarian/Romanian/Turkish/Greek/Irish/Portuguese/Polish/Czech/
Slovak/Bulgarian
Others :·Enter·the·language·code.
Disc Menus
Set· the· language· used· for·
BD·or·DVD·menus.
English/French/Spanish/German/Japanese/Italian/Swedish/Dutch/
Russian/Chinese/Korean/Danish/Finnish/Norwegian/Icelandic/
Hungarian/Romanian/Turkish/Greek/Irish/Portuguese/Polish/Czech/
Slovak/Bulgarian
Others :·Enter·the·language·code.
GUI Language
Set·the·GUI·language.
English/Français/Español/Deutsch/Italiano/Svenska/Nederlands/
NOTE
·
The·setting·may·not·be·active·depending·on·the·disc.
If·“Other”·is·selected·for·“Dialog”,·“Subtitle”·or·“Disc·Menus”,·refer·to·“Language·Code·List”·(vpage·
51),·use·number·buttons· ·~· ·to·input·the·language·code,·then·press· ·to·set.
Setting items
Setting contents
Auto Format
Set· the· content· of· HDMI·
video·output·resolution·item·
“Auto”· (vpage· 15)· with·
.
·
Max Res.· :· Output· data· using· the· maximum· resolution· that· can· be·
handled·by·the·connected·TV.·When·a·TV·is·connected·to·both·HDMI·1·
and·2,·maximum·resolution·corresponding·with·both·is·output.·
Panel Res.·:·Output·data·using·the·maximum·resolution·of·the·panel·of·the·
connected·TV.·When·a·TV·is·connected·to·both·HDMI·1·and·2,·resolution·
corresponding·with·both·and·that·of·the·larger·panel·is·output.·
Color Space
Set·the·video·signal·system·
to·be·output·from·HDMI.
GHDMI 1H·or·GHDMI 2H·:·Set·the·video·signal·system·to·be·output·from·
HDMI1·or·HDMI2.
YCbCr·:·Output·by·YCbCr·video·format.
RGB Normal :·Output·using·the·RGB·video·system·(16·(black)·to·235·
(white)).
RGB Enhanced :·Output·using·the·RGB·video·system·(0·(black)·to·255·
(white)).
•
•
•
Deep Color
Expands· the· color· depth·
(number· of· used· colors)·
of· the· HDMI· video· signal,·
enabling·playback·with·more·
natural· colors· and· free· of·
streaking.·
GHDMI 1H or·GHDMI 2H·:·Set·the·HDMI1·or·HDMI2·terminal·to·output·Deep·
Color.
·Auto·:·Deep·Color·is·automatically·output·when·the·connected·HDMI·
device·supports·Deep·Color.
Off :·Do·not·output·Deep·Color.
•
•
Audio Setup
Set·the·audio·signal·system·
to·be·output·from·HDMI.
GAutoH :·Automatically·selects·and·outputs·signals·that·can·be·input·to·
the·connected·HDMI·device.·The·bitstream·signal·takes·priority.·
GMulti LPCM BM OnH :· Decoded· Linear· PCM· multi-channel· signal· is·
output· by· the· DVD-A1UDCI.· Speaker· setting· is· enabled.· (BM:· Bass·
Management)
For·setting,·on·the·GUI·menu,·refer·to,·“Audio·Setup”·–·“7.1ch·Audio·Out”·
(vpage·27,·28).·
Speaker Con guration : Set the speaker con guration used for
playback.·Automatically·sets·channel·components·and·characteristics·
according·to·setting.
Channel Level : Set·the·volume·of·the·test·tone·to·be·the·same·when·it·
is·output·from·each·speaker.
Distance :·Set· the·distance·between· the·listening·position· and·each·
speaker.
GMulti LPCM BM OffH :· Decoded· Linear· PCM· multi-channel· signal· is·
output·by·the·DVD-A1UDCI.·This·setting·is·not·made·in·speaker·setting.·
(BM:·Bass·Management)
G2chH·:·Output·the·downmixsed·2-channel·LPCM·signal.
GMuteH·:·Do·not·output·audio·from·HDMI.
•
•
•
Set the language used for playback dialogs, subtitles, and menus. Set the HDMI output signal or HDMI control function.
Language Setup
Default settings are underlined.
HDMI Setup
Default settings are underlined.
Remote control operation
buttons
:
Displaying·the·menu
·Cancel·the·menu
:
Moves·the·cursor·
·(Up/Down/Left/Right)
:Decision·the·setting :Return·to·previous·menu
Setup
TroubleshootingInformationHDMI Control FunctionPlaybackConnectionsGetting Started Speci cations
ENGLISH
2
HDMI Setup
Setting items
Setting contents
SA-CD Audio Out
Set· to· output· stereo/multi·
area· audio· of· · Super· Audio·
CD·to·the·HDMI··terminal.
On :·Super·Audio·CD·audio·is·output.
Off :·Super·Audio·CD·audio·is·not·output.·
The·Super·Audio·CD·audio·signal·is·a·44.1·kHz/16-bit·Linear·PCM·output.·
HDMI Control
Can· operate· the· unit· in·
conjunction· with· an· HDMI·
control·support·device.
GControlH
Off :·Disable·the·HDMI·control·function.
HDMI1 On :·Link·with·the·device·connected·to·HDMI1.
HDMI2 On :·Link·with·the·device·connected·to·HDMI2.
GPower Off ControlH
On :··Turns·the·DVD-A1UDCI’s·power·to·standby·through·linkage·to·the·
TV.
Off :··Does·not·turn·the·DVD-A1UDCI's·power·to·standby·through·linkage·
to·the·TV.
For·the·HDMI·control·function·to·operate,·it·is·necessary·for·the·DVD-
A1UDCI·or·HDMI-compatible·TV·connected·to·the·DVD-A1UDCI··to·have·
an·HDMI·connection.
Refer·to· “HDMI· Control·Function”·(vpage· 49)·for·more·information·
about·the·HDMI·control·function.
The·HDMI·control·function·from·the·connected·device·becomes·valid·
when,·on·the·GUI·menu,·“DENON·LINK·Setup”·–·“DENON·LINK·Mode”·
is·set·to·“4th”·(vpage·30).
After·the·“HDMI·Control”·setting·has·been·changed,·always·turn·off·the·
power·to·the·connected·equipment·and·then·turn·it·back·on.·
•
•
•
•
•
•
•
•
•
NOTE
·
If·you·set·“DENON·LINK·Setup”·–·“DENON·LINK·Mode”·on·the·GUI·menu·to·“4th”,·you·will·no·longer·
be·able·to·change·the·“HDMI·Control”·–·”Control”·setting.·To·change·the·setting,·switch·“DENON·LINK·
Mode” to a setting other than “4th” rst and then change the setting.
Setting items
Setting contents
TV Aspect (Aspect ratio)
Set· the· screen· type· and·
display·mode·of·the·TV.
16:9 Squeeze Auto :·Output·to·a·wide·screen·TV.·For·4:3·video,·display·in·
the·center·of·the·screen·without·changing·the·aspect·ratio.
WIDE (16:9) :·Output·to·a·wide·screen·TV.
4:3 PS :·Output·to·a·4:3·TV.·For·wide·video,·trim·the·left·and·right·side·of·
the·image·and·display·in·4:3·aspect·ratio.·z1
4:3 LB :·Output·to·a·4:3·TV.·Display·all·of·the·wide·video.·z2
Component Resolution
Set· the· component· output·
resolution.
480/576i,·480/576P,·720P,·1080i,·
Source Direct :· Output· video· using·its· source· resolution.· Convert·the·
1080p·video·source·to·1080i.
Progressive Mode
Set· an· appropriate·
progressive· conversion·
mode· for· the· source· video·
material.
Auto :· Detect·the· type· of·video· material·and· automatically·switch· the·
mode.·Normally,·this·setting·is·used.
Video1 :·Suitable·for·playing·video·material·discs.
Video2 : Suitable for playing video material discs or 30-frame lm material
discs.
TV Active Area
Sets· the· horizontal· display·
range· when· the· analog·
video· output· resolution· is·
480i/576i.
Full :·Set·when·a·home-use·monitor·is·connected.
Normal :·This·setting·is·used·when·video·synchronization·is·disturbed·on·
a·professional-use·monitor.
·This·is·not·available·for·HDMI·output.
z1·:
Depending·on·the·video·content,·even·though·you·set·the·4:3·PS·(Pan·Scan),·the·content·may·be·
output·in·4:3·LB·(Letter·Box).
z2·:
Only·valid·for·content·recorded·in·480i/576i.
Set the video output signal according to the connected TV.
Video Setup
Default settings are underlined.
Remote control operation
buttons
:
Displaying·the·menu
·Cancel·the·menu
:
Moves·the·cursor·
·(Up/Down/Left/Right)
:Decision·the·setting :Return·to·previous·menu
Setup
TroubleshootingInformationHDMI Control FunctionPlaybackConnectionsGetting Started Speci cations
ENGLISH
2
Setting items
Setting contents
7.1ch Audio Out
GSurroundH :·Set·the·presence·and·size·of·the·Surround·speakers.
Large :· Use· of· a· large· speaker· that· can· adequately· play· back· low·
frequencies.
Small :·Use·of·a·small·speaker·that·has·inadequate·playback·capacity·
for·low·frequencies.
None :·Select·when·the·surround·speakers·are·not·connected.
GSurr. BackH· :· Set· the· presence,· size· and· number· of· surround· back·
speakers.
Size·:·Set·the·surround·back·speaker·size.
Large· :· Use· of· a· large· speaker· that· can· adequately· play· back· low·
frequencies.
Small·:·Use·of·a·small·speaker·that·has·inadequate·playback·capacity·
for·low·frequencies.
None·:·Select·when·the·surround·back·speakers·are·not·connected.
Number·:·Set·the·number·of·surround·back·speakers.
1 spkr :·Use·only·one·surround·back·speaker.·Surround·back·audio·is·
output·from·the·surround·back·L·terminal.
2 spkrs·:·Use·two·surround·back·speakers.
•
•
•
•
•
Setting items
Setting contents
7.1ch Audio Out
Makes·the·audio·setting·for·
output·of·analog·7.1-channel·
audio· to· a· multi-channel·
ampli er.
To· set· “7.1ch· Audio· Out”,·
set· “HDMI· Setup”· –· “Audio·
Setup”·on·the· GUI·menu·to·
“2ch”· or· “Mute”· (vpage·
25).
NOTE
You· cannot· select· “None”·
or· “NO”· for· “HDMI· Setup”·
–· Audio· Setup”· –· “Multi·
LPCM· BM· On”· –· “Speaker·
Con guration” (vpage·25)·
on·the·GUI·menu.
Multi Channel
Set the speaker con guration, channel level and distance for multi-
channel·playback.
NOTE
When·outputting·multi-channel·audio·set·to·surround·sound·by·the·DVD-
A1UDCI,·to·the·analog·input·of·an·AV·Amp,·set·so·that·the·AV·Amp·outputs·
audio without modi cation. If the AV Amp conducts further surround
processing,·the·appropriate·audio·will·not·be·output.·
2 Channel
Outputs·multi-channel·downmixed·audio·from·the·front·speaker·output·
terminals·(FL/FR)· of· the· 7.1-channel· audio· output·terminals.· Make·this·
setting when outputting to a TV and 2-channel ampli er.
NOTE
The· 7.1-channel· audio· output· terminals· output· only· FL/FR· when· you·
make·this·setting.
n·Speaker Con guration : Set the speaker con guration.
GFrontH·:·Set·the·front·speaker·size.
Large :· Use· of· a· large· speaker· that· can· adequately· play· back· low·
frequencies.
Small :·Use·of·a·small·speaker·that·has·inadequate·playback·capacity·
for·low·frequencies.
GCenterH :·Set·the·presence·and·size·of·the·center·speaker.·
Large :· Use· of· a· large· speaker· that· can· adequately· play· back· low·
frequencies.
Small :·Use·of·a·small·speaker·that·has·inadequate·playback·capacity·
for·low·frequencies.
None :·Select·when·a·center·speaker·is·not·connected.
GSubwooferH :·Set·the·presence·of·a·subwoofer.
Yes :·Use·a·subwoofer.
No :·Select·when·a·subwooofer·is·not·connected.
•
•
•
•
•
•
•
Set the speaker or audio to be output.
Setting related to each channel setting and other audio in the case of outputting analog
audio signals decoded by the DVD-A1UDCI.
Audio Setup
Default settings are underlined.
Remote control operation
buttons
:
Displaying·the·menu
·Cancel·the·menu
:
Moves·the·cursor·
·(Up/Down/Left/Right)
:Decision·the·setting :Return·to·previous·menu
Setup
TroubleshootingInformationHDMI Control FunctionPlaybackConnectionsGetting Started Specications
ENGLISH
2
Setting items
Setting contents
7.1ch Audio Out
GCrossover Freq.H·:· Set·the·upper· limit·of·the· low·frequency·signals·
output·from·the·subwoofer.
·40Hz/60Hz/80Hz/90Hz/100Hz/110Hz/120Hz/150Hz/200Hz/250Hz
:· Outputs· at· below· set· frequency,· each· speaker’s· bass· signal·
output·from·the·subwoofer.·Set·this·according·to·the·low·frequency·
reproduction·capabilities·of·the·speakers·you·are·using.
·Advanced· :· Set· the· low· frequency· signals· to· be· output· from· the·
signals·of·the·respective·speakers·to·the·subwoofer.
Front, Center, Surround, Surr. Back
40Hz/60Hz/80Hz/90Hz/100Hz/110Hz/120Hz/150Hz/200Hz/250Hz
LFE / LFE+Main
80Hz/90Hz/100Hz/110Hz/120Hz/150Hz/200Hz/250Hz
When,·on·the·GUI·menu,·“Audio·Setup”·–·“7.1ch·Audio·Out”–·“Multi·
Channel” – “Speaker Conguration” – “Subwoofer” is set to “Yes”
(vpage·27),·you·can·select·“LFE”·or·“LFE+Main”.·
NOTE
Select·“Large”· or· “Small”· not·according· to· the· physical· size·of· the·
speaker·but·according·to·the·low·frequency·reproduction·capabilities·
based·on·the·frequency·set·at·“Crossover·Freq.”.
On·the·GUI·menu,·if·the·“Audio·Setup”·–·“7.1ch·Audio·Out”–·“Multi·
Channel” – “Speaker Conguration” item setting is changed, other
settings·are·automatically·changed·as·well.
GExampleH
If·you·set·“Front”·to·“Small”,·“Subwoofer”·is·set·to·“Yes”·and·“Large”·
cannot·be·selected·for·“Center”,·“Surround”·and·“Surr.·Back”.
Audio· signal· (sampling· frequency,· number· of· channels)· from· the·
HDMI output terminal may be restricted by the specication of the
HDMI··audio·that·can·be·input·by·the·device·at·the·other·side.
GExampleH
If the HDMI audio specication of the device at the other side is the
5.1·channel,·even·when·DVD-A1UDCI·plays·back·by·the·7.1·channel,·
the·5.1·channel·audio·is·automatically·output.·In·that·case,·the·analog·
audio·output·becomes·the·5.1·channel·output·as·well.
•
•
•
•
•
Audio Setup
Setting items
Setting contents
7.1ch Audio Out
n·Channel Level :·Set·the·volume·of·the·test·tone·to·be·the·same·when·
it·is·output·from·each·speaker.·
GModeH :·Select·a·test·tone·output·method.
Auto :·Automatically·switch·the·test·tone·output·speaker.
Manual :·Manually·switch·the·test·tone·output·speaker.
GStartH :·Begin·outputting·the·test·tone.
Front L / Center / Front R / Surround R /
Surr. Back R / Surr. Back L / Surround L / Subwoofer
When·the·test·tone·output·stops,·press· .·
GSW +10dBH :·Increase·the·subwoofer·output·level·by·10·dB.·
z
Off :·Do·not·change·the·subwoofer·output·level.
On :·Increase·the·subwoofer·output·level·by·+10·dB.
GDefaultH :·Reset·all·channel·level·settings·to·factory·default.
No :·Do·not·Reset.
Yes :·Reset.
•
•
b
•
•
•
•
n·Distance :·Set·the·distance·between·the·listening·position·and·each·
speaker.
GFeetH or·GMetersH :·Set·the·unit·of·distance.
GStepH :·Set·the·minimum·variable·width·of·the·distance.
1ft, 0.1ft, 0.1m, 0.01m
GDefaultH :·Reset·all·distance·settings·to·factory·default.
Front L / Front R / Center / Subwoofer / Surround L / Surround R /
Surr. Back L / Surr. Back R :· Select·the· speaker· you· want· to· set,·
and· set· the· distance.· Set·the· value· that· is·closest· to· the· measured·
distance.
0 ~ 60ft or 0 ~ 18m
Default·settings·:
Front/Center/Subwoofer·:·12·feet·(3.6·meters)
Surround/Surr.·Back·:·10·feet·(3.0·meters)
Set·the·difference·in·the·distance·betweem·the·speakers·to·less·than·
20·feet·(6.0·meters).
•
•
Subwoofer Mode
Set·the·type·of·low·frequency·
signal·to·be·output·from·the·
subwoofer.
LFE :·Add·the·low·frequency·signal·of·the·channel·for·which·the·speaker·
size·is·set·to·“small”·to·the·subwoofer·signal·and·output·it.
LFE+Main :·Add·the·low·frequency·signal·of·all·channels·to·the·subwoofer·
signal·and·output·it.
z :
“SW·+10dB”·cannot·be·set·for·“HDMI·Setup”·–·“Audio·Setup”·–·“Multi·LPCM·BM·On”·–·“Channel·
Level”·on·the·GUI·menu.
Remote control operation
buttons
:
Displaying·the·menu
·Cancel·the·menu
:
Moves·the·cursor·
·(Up/Down/Left/Right)
:Decision·the·setting :Return·to·previous·menu
Setup
TroubleshootingInformationHDMI Control FunctionPlaybackConnectionsGetting Started Specications
ENGLISH
2
Setting items
Setting contents
Source Direct
Disable· the· speaker· and·
subwoofer· settings· and·
output·the·disc·audio·as·is.
NOTE
Set· to· within· the· playback·
frequency· band· of· the·
amplier you are to use:
“On”· at· “50· kHz”· or· “100·
kHz”.· Setting· outside· the·
frequency· band· can· result·
in damage to your amplier
and even re.
Off :·Enable·the·speaker·and·subwoofer·settings.
On : 50kHz :·Output·the·disc·contents·as·is.·When·playing·Super·Audio·
CD,·output·up·to·50·kHz·audio·signals.
On : 100kHz :·Output·the·disc·contents·as·is.·When·playing·Super·Audio·
CD,·output·up·to·100·kHz·audio·signals.
·Setting·“On:·50·kHz”·or·“On:·100·kHz”·enables·full-range·playback·on·
all·channels· recommended·for·DTS.·(Note· that·this·results· in·a· 5· dB·
increase·in·subwoofer·volume,·and·a·15·dB·increase·with·Super·Audio·
CD).·This·also·allows·you·to· play· back·the·6-channel·source· of·DVD-
Audio·recorded· on·all· channels·with· the·full· frequency·range.· In·this·
case,·make·an·analog·connection·according·to·disc·operating·manual.
When·set·to·“On:·50·kHz”·or·“On:·100·kHz”,·all·speaker·sizes·are·set·to·
“Large”·and·“Yes”·is·set·for·the·subwoofer.
Even·when·set·to·“On:·50·kHz”·or·“On:·100·kHz”,·“Channel·Level”·and·
“Distance”·settings·are·available.·
•
•
•
Compression
Compresses· the· dynamic·
range· of· Dolby· TrueHD/
Dolby· Digital/Dolby· Digital·
Plus·audio.··At·night·or·other·
times·when·you·cannot·play·
back· at· high· volume,· this·
compensates· by· reducing·
high· level· sounds· and·
increasing·low·level·sounds.·
Auto :·Automatically·compress·Dolby·TrueHD·audio·dynamic·range.·The·
sound·is·not·compressed·when·playing·signals·other·than·Dolby·TrueHD·
signals.
Off :·Dynamic·Range·compression·is·not·applied.
Low :·Set·minimum·dynamic·range·compression.
Middle : Set·middle·dynamic·range·compression.
High : Set·maximum·dynamic·range·compression.
AFDM
Automatically· set· the·
surround·mode·by·detecting·
the· surround· mode·
identication signal recorded
in·the·disc.·
On :·Automatically·set·surround·mode·when·the·ID·signal·is·included.
Off : Do·not·set·surround·mode·even·when·the·ID·signal·is·included.
MTRX :·Create·a·surround·audio·signal·by·matrix·processing,·regardless·
of·the·presence·of·an·ID·signal.
An EX ag may not be included for Dolby Digital EX sources. Even with
“AFDM”·set·to·“On”,·set·to·“MTRX”·in·case·the·playback·mode·does·not·
automatically·switch.·
NOTE
This·setting·is·valid·when·“Audio·Setup”·–·“7.1ch·Audio·Out”·on·the·GUI·
menu·is·set·to·“Multi-Channel”·and·when·“HDMI·Setup”·–·“Audio·Setup”·
on·the·GUI·menu·is·set·to·“Multi·LPCM·BM·On”·(
vpage·25).
This·setting·is·invalid·when·“Audio·Setup”·–·“Source·Direct”·on·the·GUI·
menu·is·set·to·“On”·(vpage·29),·and·when·“DENON·LINK·Setup”·–·
“DENON·LINK·Mode”·is·set·to·anything·other·than·“Off”·(vpage·30).
This·function·is·invalid·for·the·DTS-CD·source.
•
•
•
Audio Setup
Setting items
Setting contents
BD Effect Sound
Sets· for· a· click· sound· and·
other· outputs· during· BD·
popup·menu·operations.
On :·Outputs·BD·effect·sound.·
Off :·Does·not·output·BD·effect·sound.
BD Re-Encoder
Sets· the· format· during·
output·of·the·BD’s·Mix·Audio·
signal·from·the·digital·output·
terminal.·
Auto :·Outputs· primary· audio· (main· audio)·in· the· same· type· of· audio·
format.· Dolby· Digital/Dolby· Digital· Plus/Dolby· TrueHD· are· output· as·
Dolby·Digital,·DTS/DTS-HD·are·output·as·DTS·and·Linear·PCM·is·output·
as·Linear·PCM.·
Dolby Digital：Outputs· to· the· digital· audio· output· terminal· (optical/
coaxial)·with·Dolby·Digital.
DTS :·Outputs·to·the·digital·audio·output·terminal·(optical/coaxial)·with·
DTS.
Valid· when· “BD· Audio· Mode”· is· set· to· “Mix· Audio· Output”· (vpage·
33).
Digital Out
Set·the·audio·signal·of·digital·
audio·output.·
For·more·information·on·each·
audio·signal,·refer·to·“Audio·
Signal·from·the·Digital·Audio·
Output· (Optical/Coaxial)·
Terminal”·(vpage·17).
Bitstream :·Outputs·a·bitstream·signal.·Converts·Dolby·TrueHD,·Dolby·
Digital·Plus·to·Dolby·Digital,·and·DTS-HD·to·DTS·for·output.·
PCM :·Output·the·downmixed·audio·signal·to·2ch·LPCM.
PCM Down Sampling :·Convert·sampling·frequency·audio·greater·than·
48·kHz·to·a·48·kHz·2ch·LPCM·audio·output·signal.
When·outputting·CD,·etc.·to·a·digital·recording·device·such·as·the·CD·
recorder,·convert·to·PCM·or·PCM·down·sampling.
When·a·disc·with·recorded·Linear·PCM·or·PPCM·(Packed·PCM)·is·played·
back,·this·outputs·Linear·PCM·irrespective·of·the·setting.·
•
•
Downmix
Set· the· method· used· to·
convert· a· multi-channel·
audio· signal· to· a· 2-channel·
signal.
Lt/Rt·:·Signals·are·converted· to· Dolby·Surround·compatible·2-channel·
audio· signals· for· output.· This· setting· is· valid· for· DTS-HD,· DTS· Digital·
Surround,· Dolby· Digital· Plus· and· Dolby· Digital· audio· signals.· (If· the·
connected·AV·Amp·is·Dolby·Pro·Logic·compatible,·AV·Amp·plays·back·
using·surround·audio.)
Stereo :·Outputs·by·converting·to·the·2ch·(stereo)·audio.
NOTE
In· order· to· enable· the· “Lt/Rt”· setting· when· playing· back·BD,· set· “BD·
Audio·Mode”·to·“HD·Audio·Output”·(vpage·33).
Remote control operation
buttons
:
Displaying·the·menu
·Cancel·the·menu
:
Moves·the·cursor·
·(Up/Down/Left/Right)
:Decision·the·setting :Return·to·previous·menu
Setup
TroubleshootingInformationHDMI Control FunctionPlaybackConnectionsGetting Started Speci cations
ENGLISH
0
Setting items
Setting contents

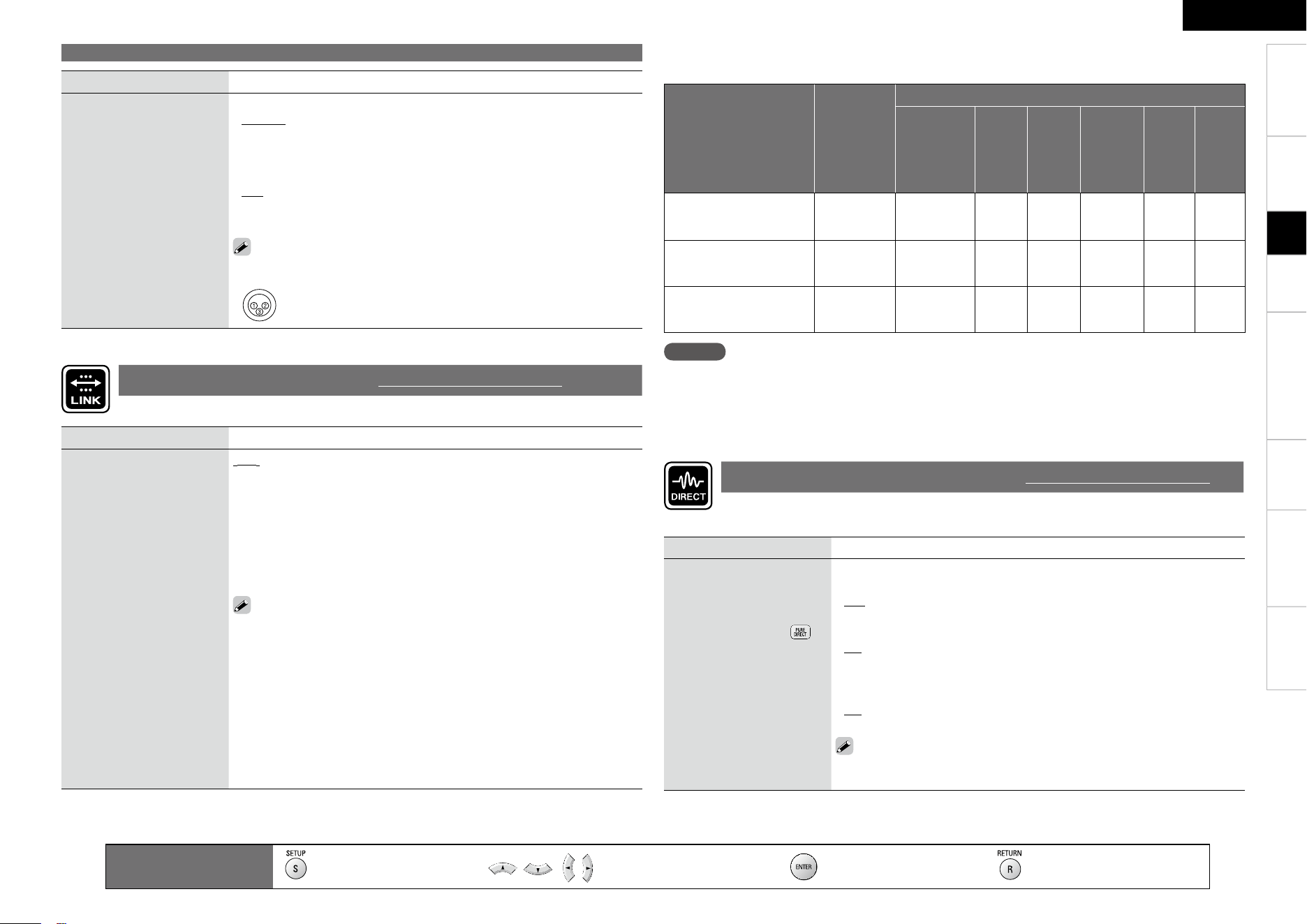

DENON LINK Mode
Set· the· audio· output· of·
DENON·LINK.
GOffH :·Do·not·use·DENON·LINK.
G
2nd
H :·Output·digital·audio·using·DENON·LINK·2nd·Edition.
G3rdH :·Output·digital·audio·using·DENON·LINK·3rd·Edition.
G4thH :·Output·digital·audio·using·DENON·LINK·4th·Edition.
Compatible· with· jitter-free· connection.· For· more· information,· refer· to·
“DENON·LINK·Connection·q·Making·a·Jitter-free·Connection”·(vpage·
18).·
HDMI 1 :·Improve·HDMI1·digital·signal·jitter.
HDMI 2 :·Improve·HDMI2·digital·signal·jitter.
When·set·to·“4th”,·the·HDMI·control·function·becomes·available·from·
the·connected·device.
When·“4th”·is·set·and·jitter-free·connection· is·set·up,·audio·affected·
by· the· jitter-free· function· is· output· from· the· HDMI· terminal· during·
BD·playback.· When·playing·back· media·other·than· that,·video· signal·
is·output·from·the·HDMI·terminal·and·audio·signal·is·output·from·the·
DENON·LINK·terminal,·respectively.
To· play· DENON· LINK· 4th· signals,· connect· to· a· DENON· LINK· 4th-
compatible·AV·Amp·using·an·HDMI·and·a·DENON·LINK·cable.
About·the·4th·setting·of·the·AV·Amp,·see·the·owner's·manual·of·the·
AV·Amp.
•
•
•
•
•
•
Set the audio signal to be output from the DENON LINK terminal.
Audio Setup
DENON LINK Setup
Default settings are underlined.
Setting items
Setting contents
XLR
Set· the· signal· to· be· output·
from·the·XLR·terminal.
GTerminal PolarityH :·Set·the·polarity·of·the·XLR·terminal.
Normal :·Normal·polarity
Inversion :·Reverse·the·polarity.
GGain UpH :· Can· increase· output· gain· when· the· input· sensitivity· of· a·
device·connected·via·XLR·is·low.
Off :·Outputs·at·standard·gain·from·the·XLR·terminal.·
On :·Increase·the·output·gain·of·the·XLR·terminal.·Set·when·the·input·
sensitity·of·the·connected·device·is·low.
The· default· DVD-A1UDCI· balance· model· XLR· audio· connectors· pin·
alignment·is·as·shown.
··q·GROUND···w·HOT···e·COLD·
·
•
•
•
•
Setting items
Setting contents
User Preset 1/
User Preset 2
This·sets·the·operating·mode·
for·“User·Preset·1”·or·“User·
Preset·2”·selected·by· .·
Setting·each·of·these·items·
to· “Off”· enables· output· of·
high· quality· analog· signals·
free·of·interference·from·the·
associated·circuits.·
GDigital OutH :·Set·whether·to·output·signals·to·the·digital·audio·output·
terminal.
On :·Enable·digital·audio·output.
Off :·Disable·digital·audio·output.
GVideo OutH :·Set·option·of·video·output.
On :·Enable·video·output.
Off :·Disable·video·output.·This·setting·also·disables·audio·output·from·
the·HDMI·terminal.
GDisplayH :·Set·option·for·front·panel·display.
On :·Turn·on·display.
Off :·Turn·off·display.
For·more·information,·see·“Playing·Back·High-quality·Audio·(Pure·Direct·
Function)”·(vpage·40).
•
•
•
•
•
•
Makes settings regarding digital audio and video output modes during Pure Direct mode,
as well as display messages. Two types of setting can be registered.
Pure Direct Setup
Default settings are underlined.
Signals Compatible with DENON LINK Setting and Transmission
The·DENON·LINK·setting·for·the·DENON·LINK··version·of·the·connected·AV·Amp·is·as·follows:
DENON LINK version of
AV Amp
The DENON
LINK setting
of the DVD-
A1UDCI
Media
BD
(During
jitter-free
connection)
DVD-
Video
DVD-
Audio
Super
audio
CD
CD SD
2nd·Edition
(“S.E.”·displayed·near·
terminal)
“2nd”
A S S A S S
3rd·Edition
(“3rd”·displayed·near·
terminal)
“3rd”
A S S S S S
4th·Edition
(“4th”·displayed·near·
terminal)
“4th”
S S S S S S
n
NOTE
With·DENON· LINK· connections,·no· audio·signals· other· than·those· of·BD· are· output· from· the·HDMI·
terminal.
(When·“DENON·LINK·Mode”·is·set·to·“2nd”·and·“HDMI·Setup”·–·“SA-CD·Audio·Out”·(vpage·26)·is·set·
to·“On”,·the·audio·signals·of·Super·Audio·CD·are·output·from·the·HDMI·terminal.)
Remote control operation
buttons
:
Displaying·the·menu
·Cancel·the·menu
:
Moves·the·cursor·
·(Up/Down/Left/Right)
:Decision·the·setting :Return·to·previous·menu
Setup
TroubleshootingInformationHDMI Control FunctionPlaybackConnectionsGetting Started Speci cations
ENGLISH
Setting items
Setting contents
Password
Sets· the· password· for·
changing· the· parental·
control· level· and· parental·
control· country·code· of· BD·
and·DVD.
Change :·Change·the·password.Use· ·~· ·to·enter·a·password·and·
then·press· to nalize it.
The·default·setting·is“0000”.
BD Rating Level
Set· the· parental· level· for·
playing·BD.
Level 0 ~ 254 :·Set·the·age·allowed·to·play·back·media.·Restricts·playback·
of·discs·with·relevant·parental·control.·
No Limit :·Do·not·restrict·playing·of·BDs.
DVD Rating Level
Set· the· parental· level· for·
playing·DVD.
Level1 ~ 8 :·Set·the·parental·level·for·playing·DVD.
Lock All :·Restrict·playing·of·all·DVDs.
No Limit :·Do·not·restrict·playing·of·DVDs.
Rating Country Code
Sets· the· standard· country·
parental·control.
Apply· the· parental· level· of·
the·set·country.
Argentina / Australia / Austria/ Belgium / Brazil / Canada / Chile /
China/ Denmark / Finland / France / Germany / Hong Kong / India
/ Indonesia / Italy / Japan / Korea, Republic of / Malaysia / Mexico
/ Netherlands /New Zealand / Norway / Pakistan / Philippines /
Portugal / Russian Federation / Singapore / Spain / Switzerland
/ Sweden / Taiwan / Thailand / United Kingdom / United States /
Colombia / Greece / Ireland / Luxembourg / Poland
Others :·Inputs·the·country·code.·Refer·to·“Country·Code·List”·(vpage·
52)·and,·with·the·virtual·keyboard,·use· · · · ·and· ·to·input·
the·country·code.
DivX Registration
Display·the·DivX
®
·registration·
code.
Show Code :·Display·the·DivX
®
·registration·code
Set BD or DVD parental lock or display DivX
®
registration codes.
Ratings
Default settings are underlined.
Setting items
Setting contents
DHCP
Set·how·to·perform·network·
con guration, automatically
or·manually.
Since· the· factory· default·
setting· is· “On”,· you· do· not·
need· to· set· items· such· as·
the· IP·address· if· the· DHCP·
server· of· the· broadband·
router·is·set·to·“Enable”.·
Con gure a proxy server if
necessary.·
GOnH : Automatically con gure the network by the DHCP function.
GOffH :·When·connecting·to·a·network,·which·does·not·have·the·DHCP·
function, manually con gure the following network settings. For the
details of the settings, con rm with the provider or network administrator.
Use· ·~· ·to·enter·a·value·and·then·press· to nalize it.
IP Address·:·Manually·set·the·IP·address·of·the·DVD-A1UDCI.
Subnet Mask· :· If· the· xDSL· modem· or· terminal· adaptor· is· directly·
connected to the DVD-A1UDCI, enter the subnet mask noti ed by the
provider·usually·in·a·document.·Usually,·“255.255.255.0”·is·set.
·Default Gateway· :·If· the· device· is· connected· to· a·gateway· (router),·
enter·its·IP·address.
Primary DNS·:·Enter·the·primary·DNS.
Secondary DNS·:·Enter·the·secondary·DNS.
•
•
•
•
•
Proxy
Set·to·connect·to·the·Internet·
via·a·proxy·server.
GOffH Do·not·use·a·proxy·server.
GOn (Address)H Set·to·connect·to·the·Internet·via·a·proxy·server.·Use·the·
address·to·specify·the·proxy·server.·Use· ·~· ·to·enter·the·address·
and·then·press· to nalize it.
Port :· Use· ·~· ·to· enter·a· port· number·and· then· press· ·to·
nalize it.
GOn (Name)H Set·to·connect·to·the·Internet·via·a·proxy·server.·Specify·the·
proxy·server·using·the·domain·name.·Input·the·domain·name·with·the·
virtual·keyboard,·using· · · · ·and· .
Port :· Use· ·~· ·to· enter·a· port· number·and· then· press· ·to·
nalize it.
•
•
IP Address DVD-A1UDCI’s· IP· address· is· displayed.· If· the· IP· address· cannot· be·
obtained· or· is· not· set,· “···”· is· displayed.· In· that· case,· check· that· the·
connection and network con guration is correct.
MAC Address Displays·the·MAC·address·of·the·DVD-A1UDCI.
Set to connect to the Internet.
You can use a disc which offers BD-LIVE function by connecting the unit to the Internet
(vpage 38).
To obtain update support for your DVD-A1UDCI, you can download the latest rmware
from our website.
Make a network connect beforehand according to “Connecting to the Network” (vpage
21).
Network Setup
Default settings are underlined.
Remote control operation
buttons
:
Displaying·the·menu
·Cancel·the·menu
:
Moves·the·cursor·
·(Up/Down/Left/Right)
:Decision·the·setting :Return·to·previous·menu
Setup
TroubleshootingInformationHDMI Control FunctionPlaybackConnectionsGetting Started Speci cations
ENGLISH
2
Setting items
Setting contents
Screen Saver
Set·the·screensaver.
Off : Do·not·use·the·screensaver.
On : The· screensaver· function· activates· when· stop· or· pause· status·
continues·for·about·three·minutes.
Wallpaper
Set·to·display·the·background·
while·playback·is·stopping.
Picture : Displays·the·DENON·logo.
Black : Set·the·background·to·black.
Gray : Set·the·background·to·gray.
Blue : Set·the·background·to·blue.
Still Mode
Set· image· quality· during·
pause.
Automatic : Display·automatically·using·“Field”·or·“Frame”·per·the·still·
image·information.
Field : Set·when·there·is·a·blurred·image·when·“Automatic”·image·display·
is·set.·
Frame : Set·to·display·non·moving·images·in·high·resolution.
Slide Show Time
Sets· the· display· time· of·
JPEG les.
3 ~ 5 ~ 100sec : This sets the display time per frame of a JPEG le during
slideshow·playback.·
Temporary Display
When· the· display· is· set· to·
“Off”·by·the·Dimmer·Control·
(vpage·49)·or·Pure·Direct·
Function· (vpage· 40),· this·
sets·it·to·temporarily·display·
operations·received.
Off : Do·not·temporarily·display·operations.
On : Temporarily·display·operations.
Captions
This·setting·output·a·subtitles·
signal· to· a· closed· caption·
decoder·(sold·separately).
Off : Do·not·output·the·closed·caption·(subtitle)·signal.
On : Output·the·closed·caption·(subtitle)·signal.
Set display-related items.
Display Setup
Default settings are underlined.
Setting items
Setting contents
Auto Power Mode
This· setting· automatically·
sets·the·power·to·standby.
Off :·Do·not·use·auto·power·mode.
On :·This·setting·automatically·sets·the·power·to·standby·if·any·of·the·
following·states·continues·for·approximately·30·minutes.·
Disc·not·loaded
Playback·has·stopped
Stopped·due·to·resume·function
•
•
•
Power Saving
Set· power· saving· mode·
during·standby.
Power Saving Standby :·This·is·the·lowest·power·consumption·mode.·
During·standby,· operations·are· not·accepted·via· HDMI·· control·or·RS-
232C.
Normal Standby :· This· is· the· low· power· consumption· mode.·During·
standby,·operations·are·accepted·via·RS-232C·but·not·accepted·by·HDMI··
control.
HDMI Control Mode :·Setting·for·turning·the·power·on·using·an·external·
device’s· HDMI· control· function· or· by· operation· via· RS-232C.· Slightly·
higher·power·consumption.
Quick Start Mode :·Start·up·time·is·faster·but·power·consumption·during·
standby·is·higher.
Remote Control Setting
(Main unit side)
Set·the·remote·control.
GRemote IDH
Switches·the·DVD-A1UDCI’s·remote·control·ID·code·when·other·DENON·
BD·Players·are·in·the·vicinity.
·DENON 1 :·Set·the·switch·in·the·remote·control·battery·compartment·to·
“1”·as·well·(“Remote·Control·Settings·(Remote·Control·Side)”·vpage·
7).
·DENON 2 :·Set·the·switch·in·the·remote·control·battery·compartment·to·
“2”·as·well·(“Remote·Control·Settings·(Remote·Control·Side)”·vpage·
7).
GReceive Legacy RemoconH
Set·whether·or·not·to·accept·remote·control·signals·of·a·DENON·DVD·
player·or·other·device.
On :·Accept
Off :·Do·not·accept
•
•
•
•
BD Data Utility
Erases·data·on·SD·Memory·
Card,·and·initializes·cards.·
BD Data Erase :· Erases· both· internal· memory· and· SD· Memory· Card·
storage.·
Initialize SD Card :·Initializes·the·SD·card·to·be·used·for·the·Bonus·View·
function.
NOTE
Insert·or·remove·a·SD·Memory·Card·while·the·power·is·in·standby.··
If·you·insert·a·SD·Memory·Card·while·the·power·is·ON,·the·SD·Memory·
Card·may·not·be·read.
The·SD·card·used·for·the·Bonus·View·function·must·have·a·capacity·
of· 1GB·or· greater.· Also·the· SD· card· must·be· initialized· on· the· DVD-
A1UDCI.
This·operation· will·delete·all· the·data.· Do·not·perform· this·operation·
when·an·SD·card·containing·MP3·or·JPEG·data·is·inserted.
•
•
•
Set other items.
Other Setup
Default settings are underlined.
Remote control operation
buttons
:
Displaying·the·menu
·Cancel·the·menu
:
Moves·the·cursor·
·(Up/Down/Left/Right)
:Decision·the·setting :Return·to·previous·menu
Setup
TroubleshootingInformationHDMI Control FunctionPlaybackConnectionsGetting Started Specications
ENGLISH

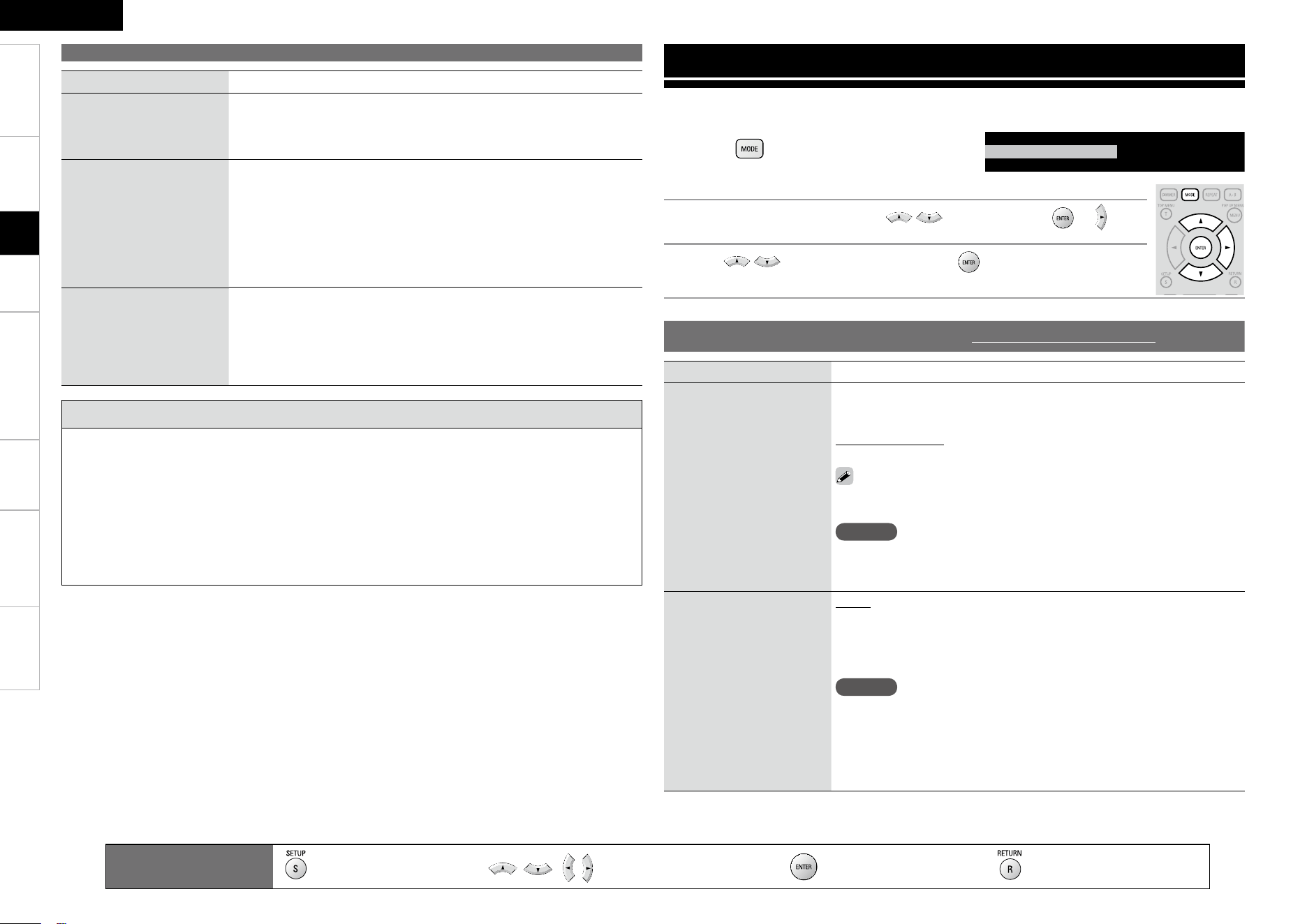

Setting items
Setting contents
Initialize
All· settings· including· audio·
mode·and·picture·quality·are·
default·settings.
Cancel :·Do·not·initialize.
OK :·Execute·initialization.
Firmware Update
Update the rmware of the
unit·via·the·Internet.
Check for Update : Check if the latest rmware exists. You can also
check·approximately·how·long·it·will·take·to·complete·an·update.
Start : Starts rmware update.
When·updating·starts,·the·power·indicator·lights·red·and·the·GUI·screen·
is·shut·down.
During·update,·a·rough·remaining·time·is·indicated·on·the·display.
When·updating·is·complete·the·power·indicator·lights·green·and·normal·
status·is·resumed.
Information
Displays· the· license· for·
the· IPA· font· used· by· this·
product.·
GFont LicenseH
Japanese (Original) :·Displays·in·Japanese.·
The· font· used· in· this· product’s· GUI· menu· screen· conforms· to· IPA·
font specications. See the following URL for the IPA font license
agreement.·
http://ipafont.ipa.go.jp/enduser_license.html
Cautions on “Firmware Update”
In·order·to·use·these·functions,·you·must·have·the·correct·system·requirements·and·settings·for·a·
broadband·Internet·connection·(
vpage·21,·31).
Do·not·turn·off·the·power·until·updating·is·completed.
Information·regarding·the·“Firmware·Update”·function·will·be·announced·on·the·DENON·web·site·
each time related plans are dened.
Even·with·a·broadband·connection·to·the·Internet,·approximately·1·hour·is·required·for·the·updating·
procedure·to·be·completed.
Once·updating· starts,·normal· operations·on· the·DVD-A1UDCI·cannot· be·performed· until·updating·
is·completed.· Also,·setting·items· of·the·GUI· menu·of· DVD-A1UDCI·or·setting· items·of·the· image·
adjustment·may·be·initialized.
•
•
•
•
Other Setup
Remote control operation
buttons
:
Displaying·the·menu
·Cancel·the·menu
:
Moves·the·cursor·
·(Up/Down/Left/Right)
:Decision·the·setting :Return·to·previous·menu
You can set the audio mode and change playback les.
You can set various modes during playback. The setting menu is displayed at the top of the screen.
Various Settings
Setting items
Setting contents
BD Audio Mode
Switch· BD· audio· playback·
mode.
HD Audio Output :·Can·view·by·outputting·high·quality·signals·such·as·
Dolby·TrueHD,·Dolby·Digital· Plus,·or·DTS-HD·as·its·high· sound·quality·
bitstream.·Cannot·listen·to·interactive·or·secondary·audio.
Mix Audio Output :·Outputs· a·mix·of· primary·audio/interactive·audio/
secondary·audio.
In· the· case· of· Dolby· TrueHD,· Dolby· Digital· Plus· and· DTS-HD· audio·
playback,·set·to·“HD·Audio·Output”.·
NOTE
When·“Mix·Audio·Output”·is·set·and·DTS-HD·audio·signals·are·played,·
only· the· DTS· digital· surround· stream· of· the· DTS-HD· audio· stream· is·
decoded·and·output.

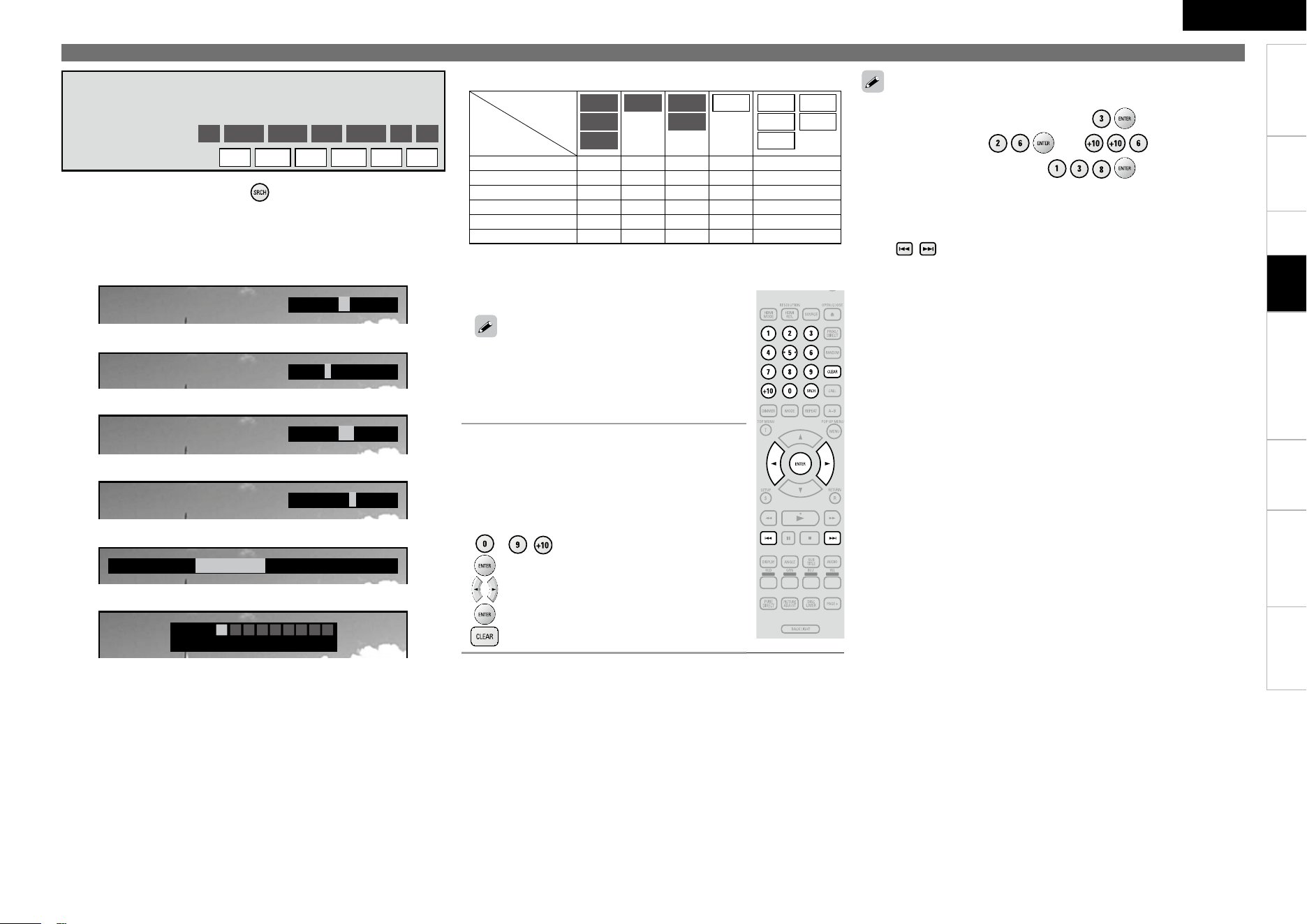

Surround Mode
Converts·a·2-channel·source,·
etc.·to·output·multi-channel·
surround·audio.··
Direct :·Do·not·apply·surround·processing·and·output·audio·as·is.
DOLBY PLgx (or PLg) :·Apply·DOLBY·PLgx·(or·PLg)·surround·processing·
and·output·the·signal.
DTS NEO:6 :· Apply· DTS· NEO:6· surround· processing· and· output· the·
signal.
NOTE
This·setting·is·valid·when·“Audio·Setup”·–·“7.1ch·Audio·Out”·on·the·GUI·
menu·is·set·to·“Multi·Channel”·and·when·“HDMI·Setup”·–·“Audio·Setup”·
on·the·GUI·menu·is·set·to·“Multi·LPCM·BM·On”·(vpage·25).
This·setting·is·invalid·when·“Audio·Setup”·–·“Source·Direct”·on·the·GUI·
menu·is·set·to·“On”·(vpage·29),·and·when·“DENON·LINK·Setup”·–·
“DENON·LINK·Mode”·is·set·to·anything·other·than·“Off”·(vpage·30).
•
•
1
Press .
Displays·the·currently·settable·menu.·
The·display·content·changes·depending·on·the·media·being·played·back.·
b
2
Select the setting item using , and then press or .
3
Use to select a setting and use to change the setting.
Vertical Stretch
All
Off
BD Audio Mode
Mix Audio Output
File filter
Setting the Audio Mode
Default settings are underlined.
Setup
TroubleshootingInformationHDMI Control FunctionPlaybackConnectionsGetting Started Specications
ENGLISH
Setting items
Setting contents
Surround Parameters
Sets· the· parameters· of·
surround·mode.·
The· parameters· which· can·
be· adjusted· vary· with· each·
surround·mode.·
GPLgx ModeH :·Sets·to·Dolby·Pro·Logic·gx·mode.·
GPLg ModeH :·Sets·to·Dolby·Pro·Logic·g·mode.·
Cinema :·Appropriate·setting·for·movie·sources.
Music :·Appropriate·setting·for·music·sources.
Dimension (Setting·value·:·0 ~ 3 ~ 6) :·Shift·the·center·of·the·acoustic·
eld forwards or backwards to adjust the playback balance.
Center Width (Setting·value·:·0·~·3·~·7) :·Shift·the·center·channel·audio·
left or right to widen the forward acoustic eld image.
Panorama (Setting·:·Off/On) : Expand the acoustic eld of the front left
and·right·channel·to·the·surround·channel·to·widen·the·forward·acaustic·
eld image.
Game :·Appropriate·mode·for·gaming.
Pro Logic：Pro·Logic·playback·mode.
GDTS NEO:6 ModeH :·Sets·to·DTS·NEO:·6·mode.
Cinema :·Appropriate·setting·for·movie·sources.
Music：Appropriate·setting·for·music·sources.
Center Image (Setting·value·:·0·~·0.3·~·1.0) :·Shift·the·center·channel·
audio left or right to widen the forward acoustic eld image.
•
•
•
•
•
•
Restorer
Compensates· for· the·
heaviness· of· bass· and·
treble· in· compressed· audio·
sources,·to·produce·a·sound·
that· is· closer· to· the· state·
before·compression.·
Off :·The·“Restorer”·is·not·used.
Mode1 (Restorer64) :·Corrects·the·treble·for·compressed·audio·sources·
with·extreme·lack·of·treble.
Mode2 (Restorer96) :·Optimally·corrects·treble·and·bass·for·compressed·
audio·sources.
Mode3 (RestorerHQ) :·Corrects·the·bass·for·compressed·audio·sources·
with sufcient treble.
NOTE
Effective· for· compressed· audio· source· of· MP3,· WMA,· AAC,· Dolby·
Digital,·DTS,·and·MPEG.
This·setting·is·invalid·when·“Audio·Setup”·–·“Source·Direct”·on·the·GUI·
menu·is·set·to·“On”·(vpage·29),·and·when·“DENON·LINK·Setup”·–·
“DENON·LINK·Mode”·is·set·to·anything·other·than·“Off”·(vpage·30).
•
•
Setting the Audio Mode
Setting items
Setting contents
File lter
Selects the le format you
want· to· play· back· from·
among the les mixed on a
disc.·
All :·Plays·back·MP3/WMA/AAC/LPCM/JPEG/DivX
®
les.
Audio : Plays back MP3/WMA/AAC/LPCM les.
Picture : Plays back JPEG les.
Video :·Plays·back·DivX
®
les.
Audio & Picture : Plays back MP3/WMA/AAC/LPCM/JPEG les.
This·operation·is·effective·only·when·playback·is·stopped.·
Setting items
Setting contents
Secondary Video (PIP) Off : Does·not·display·Secondary·Video(Picture-In-picture).
1/Xz : Displays the rst Secondary Video.
2/Xz :·Displays·the·second·Secondary·Video.
X/Xz :·Displays·the·X·th·Secondary·Video.
z：·“X”· is· the· number· of· Secondary· Videos· recorded· and· differs·
depending·on·the·disc·(“Playing·Bonus·View”·vpage·38)
Audio/Video Sync
·Correct· displaced· video-
audio·playback·timing.
HDMI :·Synchronizes·audio·output·to·HDMI·output·video.·
·Analog Video Out :·Synchronizes·audio·output·to·analog·video·output.·
Audio Delay Adjust
While· viewing· video,·
manually·adjust· the·time· to·
delay·audio·output.
0 ~ 200msec :·Use·this·to·adjust·the·audio·output·delay·time·manually.
Vertical Stretch
Extends· cinemascope·
size· video· in· the· vertical·
direction.·
Off : Displays the source video signal without modication. This should
normally·be·set·to·“Off”.
On :·Set·when·viewing·cinemascope·size·video·with·a·combination·of·
projector·and·anamorphic·lens.·Extends·the·image·in·the·vertical·direction·
so·that·the·top·and·bottom·black·portions·disappear.··
Changing the Playback File Display
Default settings are
underlined.
Making Other Settings
Default settings are underlined.
Setup
ENGLISH
TroubleshootingInformationHDMI Control FunctionPlaybackConnectionsGetting Started Specications
Setting items
Setting
contents
Default
DNR
Reduce· noise· in· the· entire·
picture.
0 ~ +3 0
Contrast
Adjust·picture·contrast.
–6 ~ +6
0
Brightness
Adjust·picture·brightness.
0 ~ +12 0
Enhancer
Strengthens·the·contours·of·
the·picture.
0 ~ +11 0
Gamma Correction
Adjust· video· brightness· in·
detail.
G0 ~ 9
G0 = 24 / G1 = 32
G2 = 48 / G3 = 64
G4 = 80 / G5 = 96
G6 = 128 / G7 = 160
G8 = 192 / G9 = 224
Sharpness (medium range)
z
1
Adjust· picture· sharpness·
for· the· medium· frequency·
range.
–6 ~ +6
0
Sharpness (high range)
Adjust·picture·sharpness·for·
the·higher·frequency·range.
–6 ~ +6 0
Hue (color tone)
Adjust· the· green· and· red·
color·balance.
–6 ~ +6 0
White Level
Adjust·the·white·level.
–5 ~ +5 0
Black Level
Adjust·the·black·level.
–5 ~ +5 0
Chroma Level
Adjust·the·color·density.
–6 ~ +6 0
Setup Level
z
2
Adjust·the·black·areas·of·the·
image.
0 IRE
7.5 IRE
7.5 IRE
H.Position
Adjust·the·left/right·position.
–7 ~ +7 0
V.Position
Adjust· the· top/bottom·
position.
–7 ~ +7 0
z1：This·is·not·available·for·HDMI·output.·
z2：·Effective·only·for·the·480i·video·signal·from·the·video·output·terminal,·S·
video·output·terminal,·and·component·video·output·terminal.
You can adjust the picture quality to your liking.
You can store up to a maximum of 5 values in memory.
When Finishing Picture Adjustment
Press· ·during·picture·adjustment.·
When Outputting Standard Picture Quality without
Using Picture Adjustment
Press· ·and· · ·to·select·“Standard”·and·then·press· .·
n
n

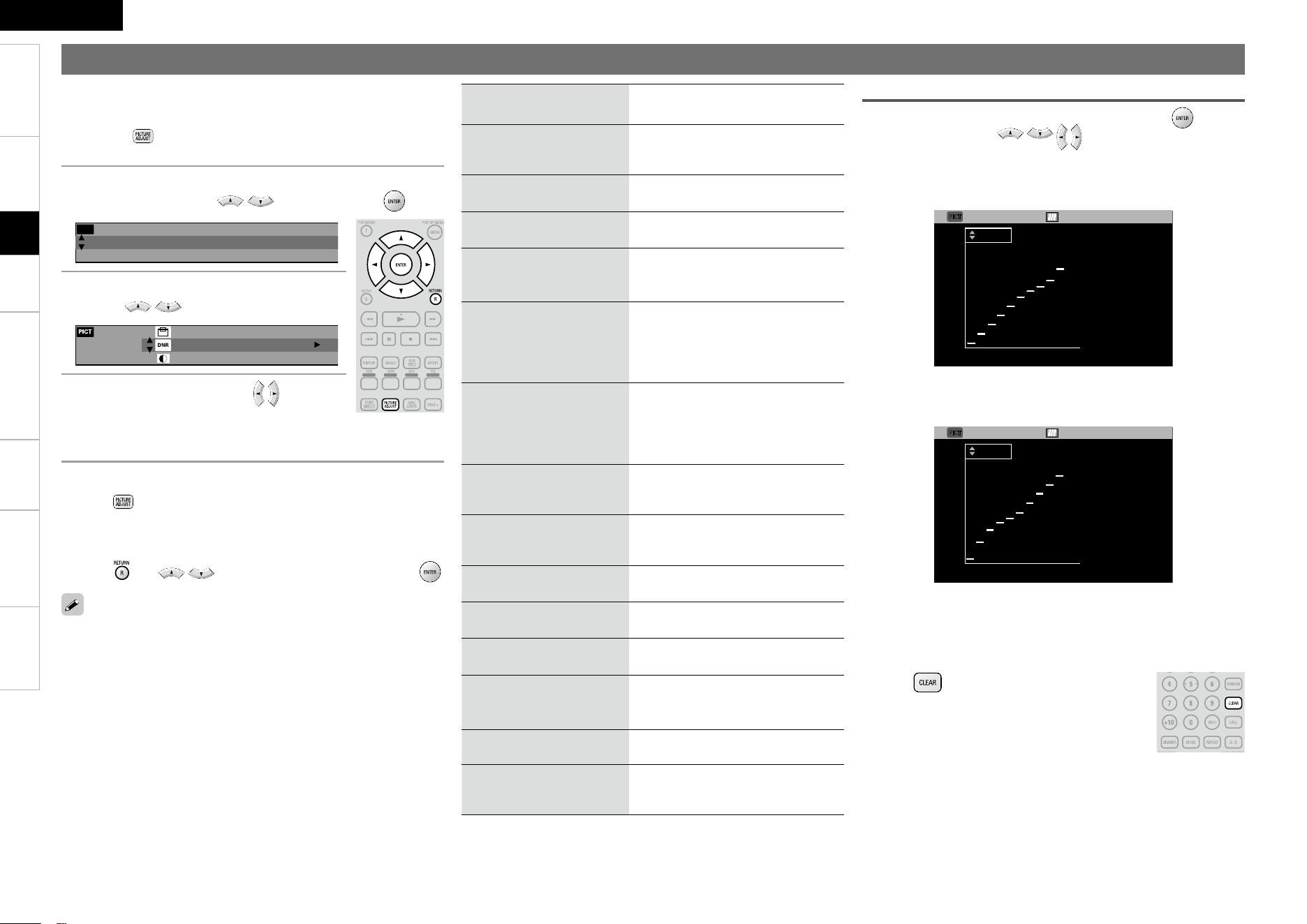

About Gamma Correction
When·you·select·“Gamma·Correction”,·and·then·press· ,·you·can·
change·the·setting·with· · · · .
In· the· example· of· the· graph· below,· the· horizontal· axis· shows· the·
brightness·level·of·the·pictured·recorded·on·the·disc.·The·vertical·axis·
shows·the·brightness·of·the·picture·output·by·the·DVD-A1UDCI.·
PICT
Gamma CorrectionMemory 5
0
0
255
255
G0:024
On·adjusting·the·brightness·on·the·output·side·of·bright·parts·on·
the·disc·side,·the·normally·hard·to·see·bright·parts·become·clearly·
discernible·images.·
PICT
Gamma CorrectionMemory 5
0
0
255
255
G0:024
On· adjusting· the· brightness· on· the· output· side· of· dark· parts· on·
the·disc·side,·the·normally·hard·to·see·dark·parts·become·clearly·
discernible·images.·
Resuming Initial Values after Gamma Correction
Press· ·while·a·graph·is·displayed.
•
•
n
The·picture·adjustment·set·values·are·retained·in·memory·even·after·
the·power·is·turned·off.·
Adjusting the Picture Quality (Picture Control)
1
Press .
The·currently·set·status·is·displayed.·
2
Select the memory number you want (“Memory 1” ~
“Memory 5”) with , and then press .
Standard
Memory 1
Memory 5
PICT
3
Select the item you want to change
with .
Memory 1
DNR
Contrast
V.Position
0
0
0
4
Change the setting with .
·Refer·to·the·table·on·the·right·regarding·contents·of·items·which·
can·be·set.·
b
Setup
ENGLISH
TroubleshootingInformationHDMI Control FunctionConnectionsGetting Started Speci cations
Playback
Introduction

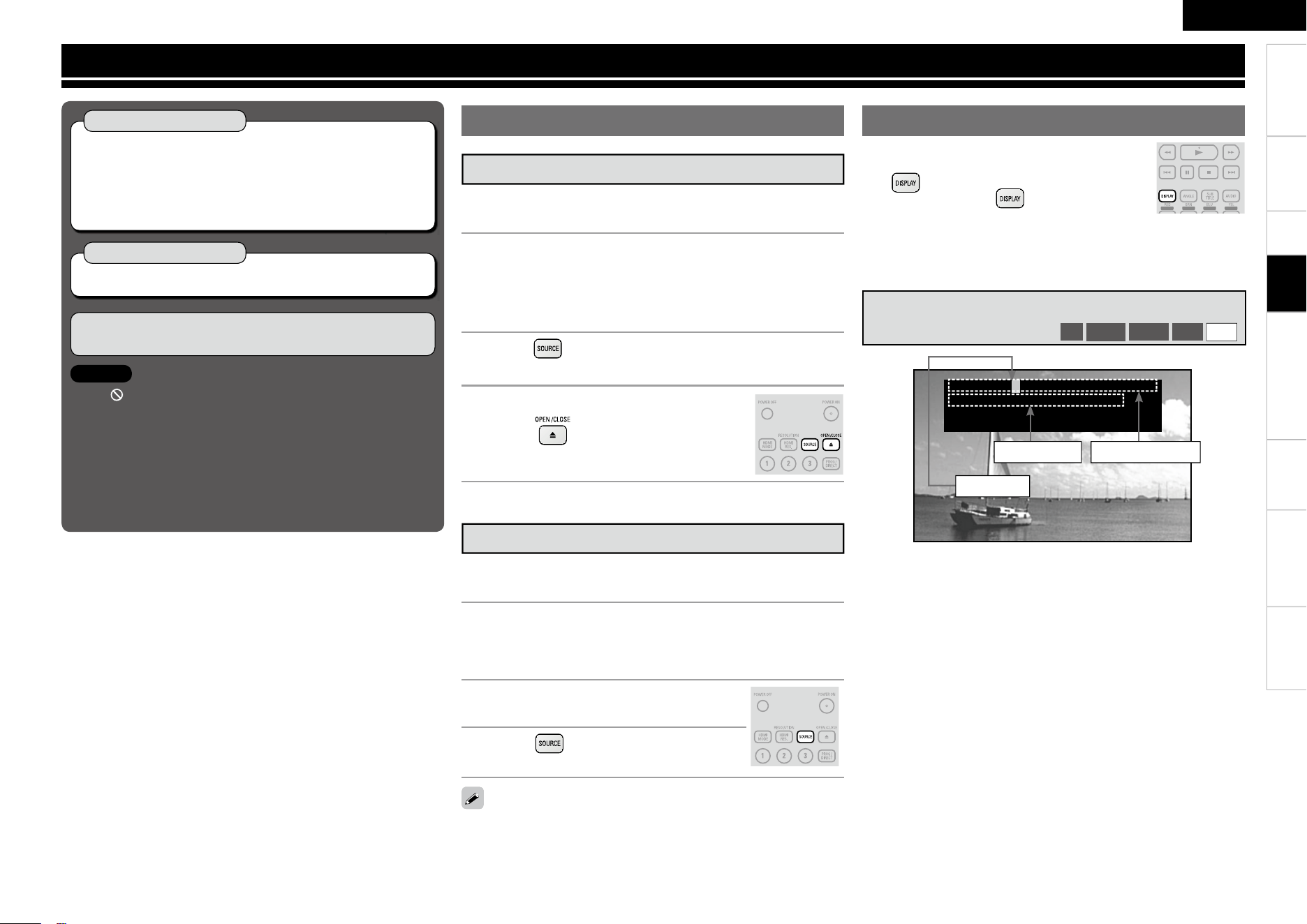

Before Playing a Disc
The·playback·media·mode·setting·remains·in·the·memory,·even·when·
the·power·is·set·to·standby.
NOTE
The·“ ”·(prohibited·mark)·may·appear·on·the·top·right·of·the·TV·
screen·during·an·operation.·This·means·that·the·operation·being·
conducted·is·prohibited.
Depending· on· the· disc,· certain· operations· may· not· be· as·
described·in·this·manual.·Check·each·disc·owner’s·manual·for·
more·information.·
During· playback· of· a· 2-layered· disc,· pictures· may· stop·
momentarily.·This·happens·when·the·1st·layer·switches·to·the·
2nd·layer.·This·is·not·a·malfunction.·
•
•
•
Disc playback
Playing BD and DVD-Video (vpage 37, 38)
Playing Back Super Audio CD (vpage 39)
CD Playback (vpage 39)
DVD-Audio Playback (vpage 39, 40)
Playing Back High-Quality Audio (vpage 40)
n
n
n
n
n
File playback
File Playback (vpage 40 ~ 42)n
Operations Enabled During Playback
(vpage 43)
1
Turn on the power of the ampli er and TV.
Set the TV and ampli er function to DVD-A1UDCI input.
2
Turn the DVD-A1UDCI power on.
When·playing·back·a·bonus·view,·before·turning·on·the·power·of·
the·DVD-A1UDCI,·insert·a·SD·Memory·Card·that·has·at·least·1GB·
and·has·been·initialized·by·DVD-A1UDCI.
b
3
Press to set the playback media mode to “DISC
MODE”.
4
Insert a disc.
Press· ·to·open/close·the·disc·tray.·
Insert·the·disc·with·the·side·you·want·to·play·
facing·down.
•
•
Before Playing a SD Memory Card
1
Turn on the power of the ampli er and TV.
Set the TV and ampli er function to DVD-A1UDCI input.
2
Insert a SD Memory Card.
Open·the·door·at·the·right·side·of·the·unit·and·insert·the·SD·
Memory·Card·in·the·direction·indicated·by·the·arrow·with·the·
label·side·up·(vpage·6,·8).
3
Turn the DVD-A1UDCI power on.
4
Press to set the playback media
mode to “SD CARD MODE”.
Displayed playback information changes between
the information bar and media player screen each
time is pressed.
To erase display, press until it goes away.
Title
Title Elapsed
Chapter
00:05:52
1/61/1
Disc·informationTime·display
Cursor
Displayed· content· differs· depending· on·the· media· being· played·
back.
Also,·the·information·displayed·during·playback·and·stop·differs.
b
Displayed·inside·the·frame·at·the·top·of·the·screen.
(See·the·next·page.)
b
About Playback Information
Information Bar Display
BD
·
DVD-A
·
DVD-V
·
DVD
·
DivX
Setup Playback
ENGLISH
TroubleshootingInformationHDMI Control FunctionSetupConnectionsGetting Started Specications
DATA DISC
Single Elapsed
00:25
Song
Artist
Album
Now PlayingTrack 2
Disc Information Display
Title• Title·being·played/total·number·of·titles
Chapter• Chapter· being· played/total· number· of·
chapters
Group• Group· being· played/total· number· of·
groups
Track• Track·being·played/total·number·of·tracks
Time Display
Title Elapsed•
Title Remain•
Chapter Elapsed•
Chapter Remain•
Group Elapsed•
Group Remain•
Track Elapsed•
Track Remain•
HDMI Output Signal Display
HDMI1/HDMI2
Video Info• Video·output·signal·format/resolution
Audio Info• Audio·format·being·output
Max Channel• Number· of· audio· channels· that· the·
connected·device·can·receive
n
n
n
1
Use to move the cursor to the item that
you wish to search.
2
Use ~ and to enter a value.
3
Press .
Search·is·executed·and·playback·begins.
If· the· input· number· information· is· not· on· the·
disc,·the·current·playback·display·reappears.
b
· · · ·········································· Select
························································ Decision
·
~
·
,
· ································ Number·entry
Disc Information Display
SA-CD
MP3
WMA
AAC
··Title
· ··Artist·name
· ··Album·title
n
•
•
•
About· the· time· display· and· HDMI· output· signal· display,· see·
“Information·Bar·Display”·(vpage·36).
Media
Track·being·played
Playback·mode
Time·Display

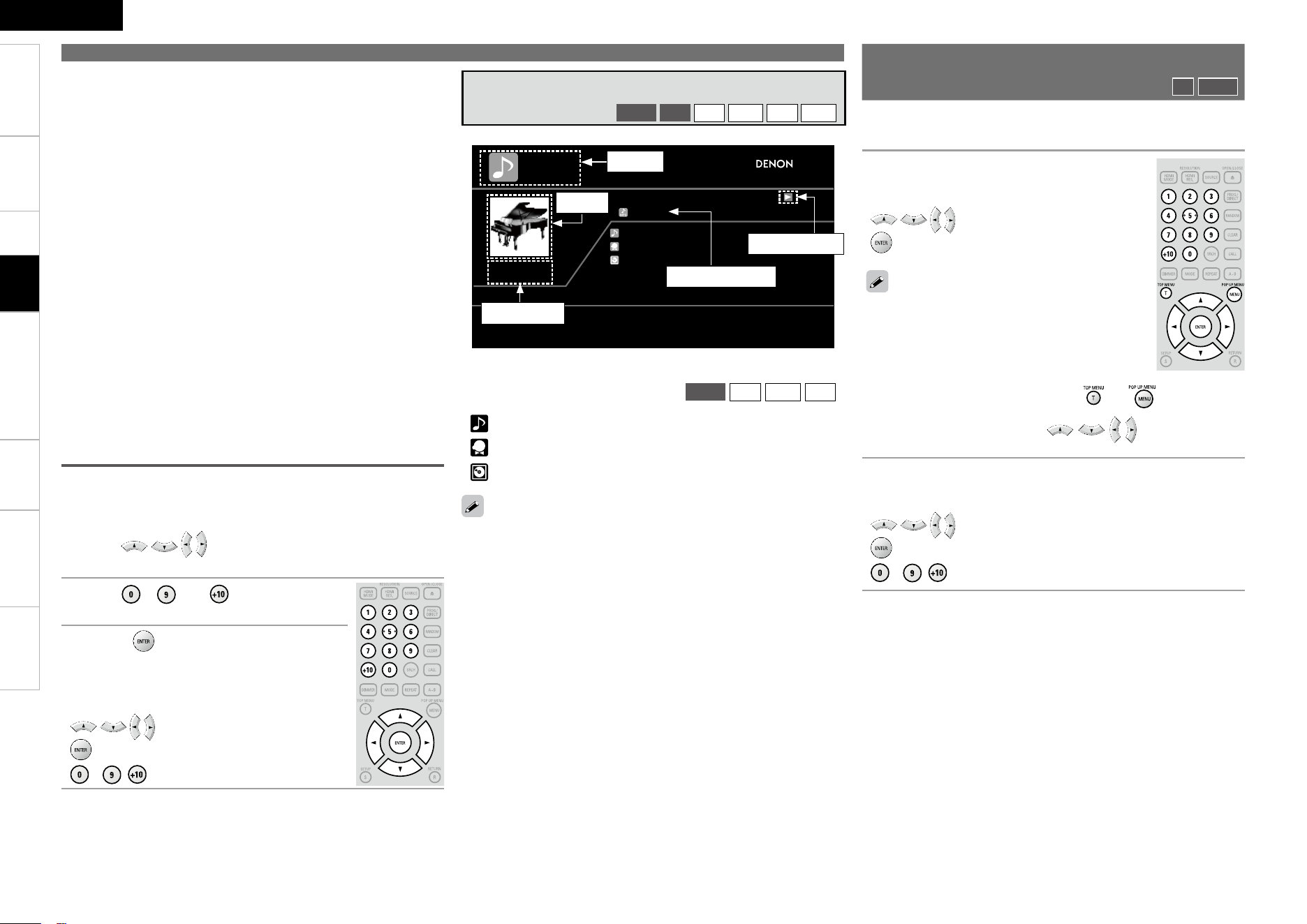

About Playback Information
Search Using Information Bar
In·the·orange·color·cursor·area,·when·you·enter·the·number·that·you·
wish·to·search,·that·location·is·searched.·There·are·4·search·modes,·
“Title·search”,·“Chapter·search”,·“Group·search”·and·“Track·search”.
1
Playback preparation (“Before Playing a Disc”
vpage 36).
2
Make the various settings for playback
on the disc menu.
· · · ·········································· Select
························································ Playback
You·can·make·the·following·settings·on·the·disc·
menu.· (Settable· items· vary· depending· on· the·
disc.)
•
Subtitle·language
Audio·language
Audio·format·etc.
·
·
·
During· DVD-Video· playback,· press·
· or· · to· display· the·
menu.·
If·the· menu·continues,·press· · · · · to·get· to· the·next·
part.·
•
3
Select the playback title or chapter from the top
menu for playback.
· · · ·········································· Select
························································ Playback
·
~
·
,
· ········································ Playback
Playing BD and DVD-Video
BD
DVD-V

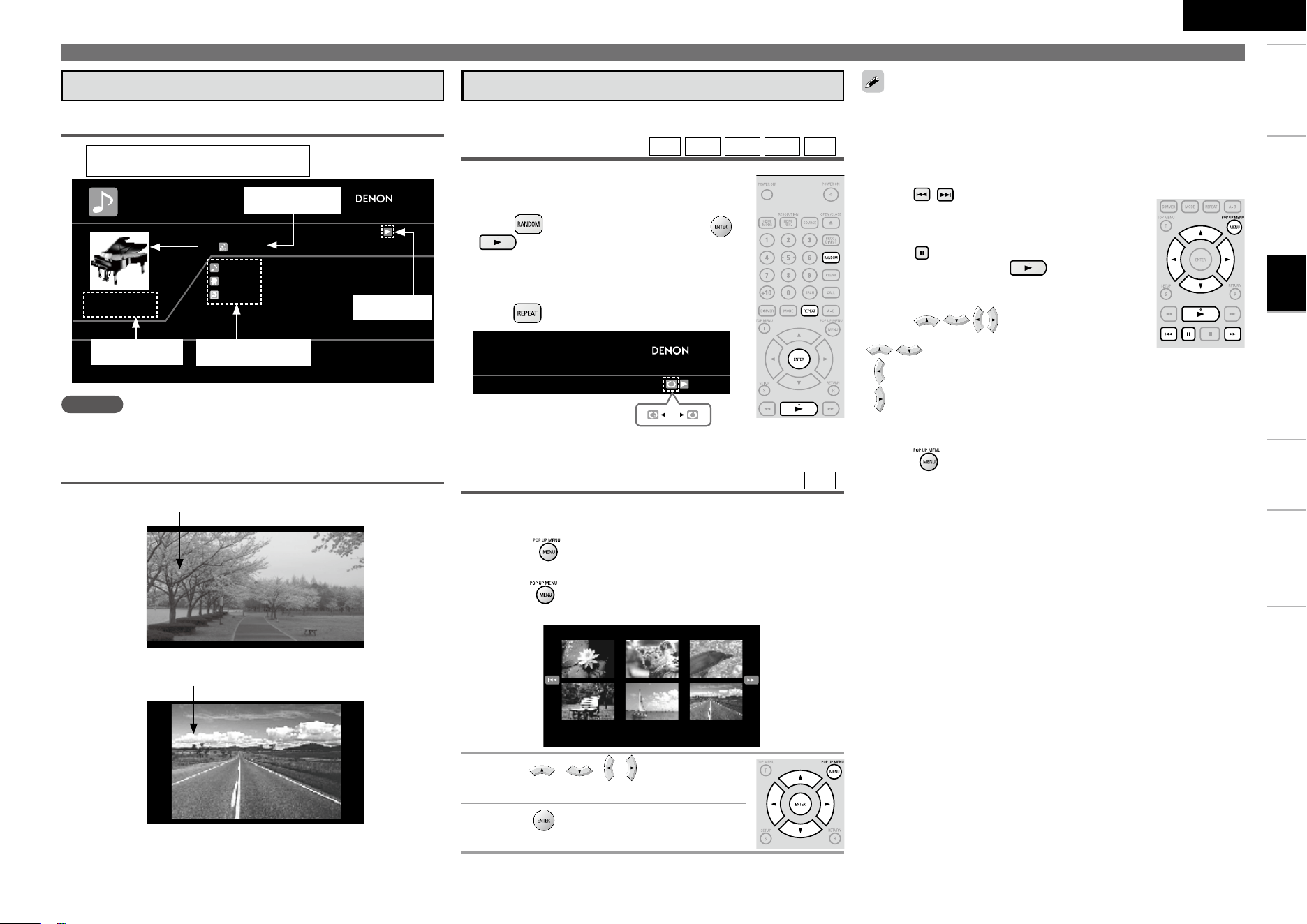

Media Player Display
SA-CD
·
CD
·
MP3
·
WMA
·
AAC
·
LPCM
Playback
ENGLISH
TroubleshootingInformationHDMI Control FunctionSetupConnectionsGetting Started Speci cations
Title1 Topmenu
Chapter3
Chapter4
Chapter5
Chapter6
【例】トップメニュー
DiscMenus
AudioSetup
Angle
SubStory
TopMenu
【例】ディスクメニュー
Subtitle
【例】ポップアップメニュー
Chapter2
Popupmenu
Title1 Title2 Bonustitle
Ifyouhaveso
methingtosa
y,seethispict
urebeforeyou
GExampleH·Top·menuGExampleH·Disc·menu
GExampleH·Popup·menu
With·BD,·depending·on·the·disc,·
you· can· select· title· and· chapter·
from·the·popup·menu.

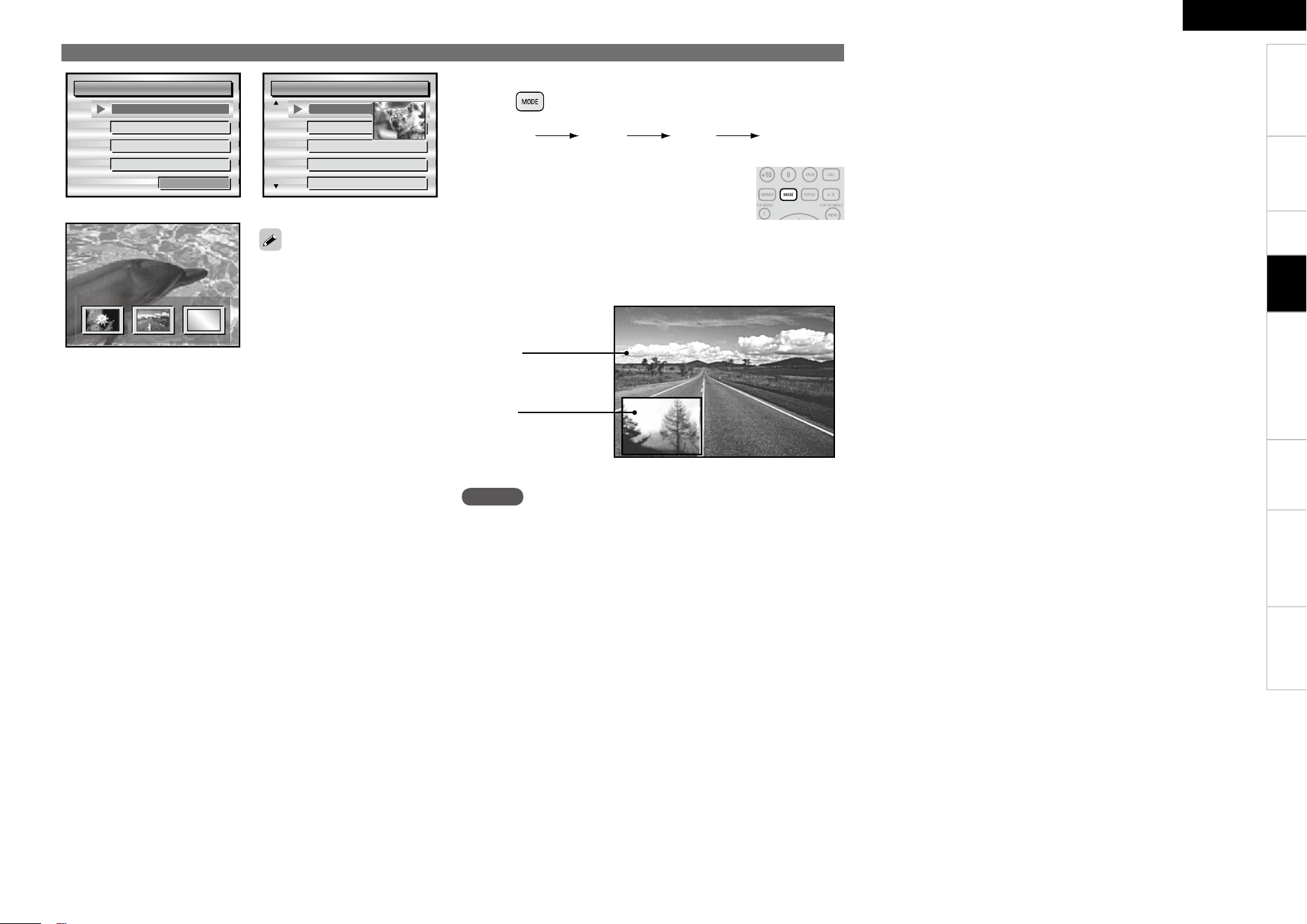

Playing BD-Video Compatible with Bonus View
With·a·disc·that·is·compatible·with·bonus·view·(picture-in-picture),·
besides·the·main·video·(primary·video)·stored·on·the·disc,·you·can·
play· back· the· video· director’s· commentary· and· simultaneously·
ongoing·sub-story,·as·well·as·sub-video·such·as·alternative·camera·
angle·(secondary·video).·
Some·BD·discs·use·SD·cards·as·the·recording·memory·for·Bonus·
View·playback.·While·the·DVD-A1UDCI·is·in·standby,·mount·the·SD·
Memory·Card·beforehand.
The·playback·method,·etc.,·is·determined·by·the·disc,·and·varies·
depending·on·the·disc.·Refer·to·the·operation·guide·of·the·relevant·
disc.
n
•
•
•
Playing Bonus View
Press· · to· select· the· secondary· video· display· you· wish· to·
playback.
Off
1/X 2/X X/X
GSelectable itemH
Off
:·Does·not·display·Secondary·Video.
1/X
z
: Displays the rst Secondary Video .
2/X
z
:·Displays·the·second·Secondary·Video.
X/X
z
:·Displays·the·X·th·Secondary·Video.
z:
“X”· is· the· number· of· Secondary· Videos· recorded· and· differs·
depending·on·the·disc.
n
Main·video·
(primary·video)
Sub·video·
(secondary·video)·
GExampleH·Bonus·view
Playing BD and DVD-Video
Playback
Enjoying BD-LIVE features
The· functions· that· can· be·used· with· BD-LIVE·differ· from·disc· to·
disc.·For·details·on·the·functions·and·how·to·operate·them,·see·the·
individual·disc’s·on-screen·displays·and·explanations.
An·SD·card· must·be·loaded·in· the·DVD-A1UDCI·in·order· to· save·
downloaded·contents· to·use· BD-LIVE·functions.· Use·an· SD·card·
with· a· capacity· of· 1· GB· or· greater.· Also,· the· SD· card· must· be·
formatted·on·the·DVD-A1UDCI.
Do·not·remove·the·SD·card·from·the·DVD-A1UDCI·while·playing·a·
BD-LIVE·compatible·disc.
n
•
•
•
NOTE
Insert·or·remove·a·SD·Memory·Card·while·the·power·is·in·standby.···
If· you· insert· a· SD· Memory· Card· while· the· power· is· ON,·the· SD·
Memory·Card·may·not·be·read.
The· SD· card· used· for· the· BD-LIVE· and· Bonus· View· Functions·
must·have·a·capacity·of·1GB·or·greater.·Also·the·SD·card·must·be·
initialized·on·the·DVD-A1UDCI·(vpage·32).
To·use·BD-LIVE·functions,·connect·the·DVD-A1UDCI·to·the·Internet·
and·make·the·settings·described·below,·as·necessary:
· Connections·················“Connecting·to·the·Network”·(vpage·21)
· Settings························“Network·Setup”·(vpage·31)
Depending·on·your·network·environment,·in·some·cases·time·may·
be·required·to·connect·to·the·network·or·connection·may·not·be·
possible.
Remove·the·write·protection·of·a·SD·Memory·card.
•
•
•
•
•
ENGLISH
TroubleshootingInformationHDMI Control FunctionSetupConnectionsGetting Started Specications
When· playing· back· disc· whose· selected· area· or· layer· does· not·
exist,·select·the·playback·area·or·layer·in·the·order·“Multi”,·“Stereo”,··
“CD”.·
The·area/layer·selected·at· ·remains·in·the·memory·even·when·
the·power·is·turned·off.
•
•
When You View the Text or Playback Time
Display
See·“Media·Player·Display”·(vpage·37).
n

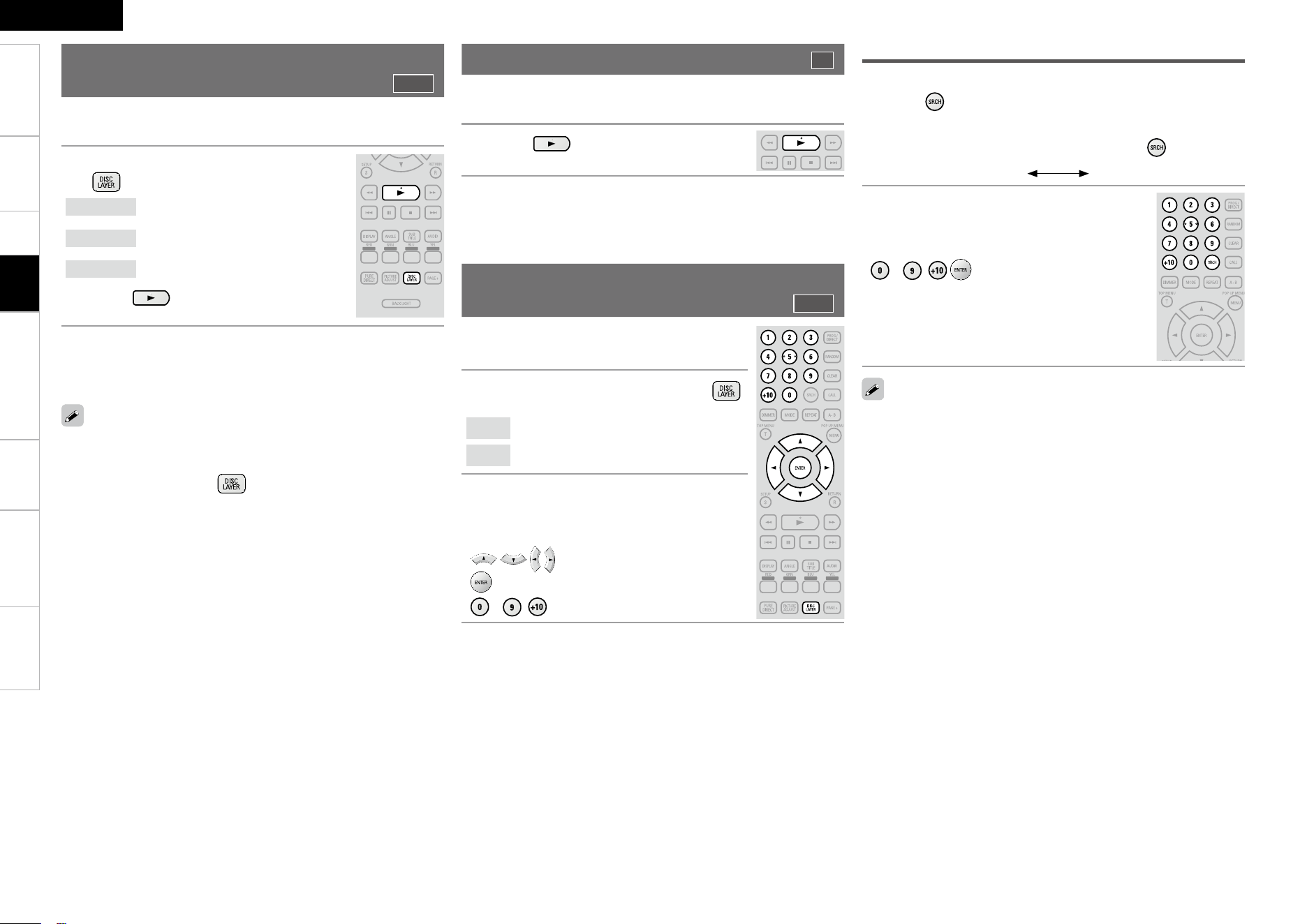

Playing Back Super Audio CD
SA-CD
1
Playback preparation (“Before Playing a Disc”
vpage 36).
2
Select the playback area and layer with
.
Multi
·:·Plays·back·the·multi-channel·area·of·
the·HD·layer.
Stereo
·:·Plays·back·the·2-channel·area·of·the·
HD·layer.
CD
·:·Plays·back·the·CD·layer.·
Pressing·
· plays· back· the· selected· area/
layer.·
b
When You Look at the Playback Time Display
See·“Media·Player·Display”·(vpage·37).
n
CD Playback
CD
1
Playback preparation (“Before Playing a Disc”
vpage 36).
2
Press .
Playback·begins.
1
Playback preparation (“Before Playing
a Disc” vpage 36).
2
Select the part for playback with .
Audio
·:··Plays·back·the·audio·part.
Video
·:··Plays·back·the·video·part.
3
If a top menu is available, select the
playback group and track from the top
menu, and then play back.
· · · ·········································· Select
·····································Decision·or·playback
·
~
·
,
· ········································ Playback
When You View the Text or Playback Time
Display
See·“Information·Bar·Display”·(vpage·36).
n
DVD-Audio Playback
DVD-A
Change Group/Track
The·search·mode·selected·with·this·operation·is·memorized·until·the·
standby·or·the·disc·tray·is·opened.
1
During stop or during playback, select search mode
with .
Search·mode·is·displayed·in·the·top·right·of·the·screen.
The·search·mode·changes·each·time·you·press·
.·
Group·search·mode· ·Track·search·mode
b
2
Select the playback group and track
from the top menu, and then play
back.
·
~
·
,
· ·
Plays· back· the· group· or· track· of· the· pressed·
number
See “Looking for Specic Sections Using the
Search·Modes”·(vpage·44)·for·instructions·on·
inputting·numbers.
b
Playback
ENGLISH
0
TroubleshootingInformationHDMI Control FunctionSetupConnectionsGetting Started Specications
When you enter the wrong
password
Press· ·to·erase·the·input·number·and·then·
enter·the·correct·number.
n

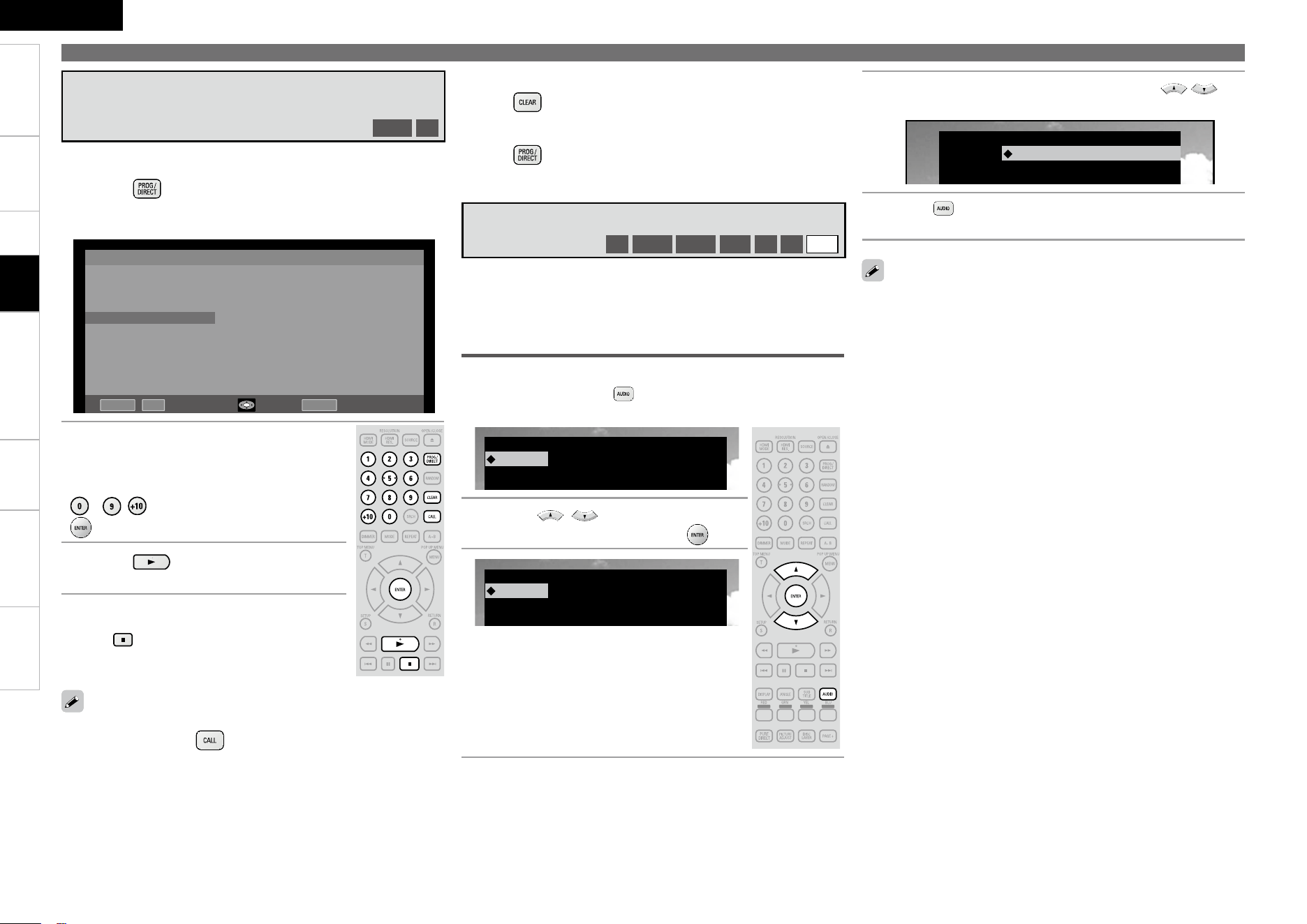

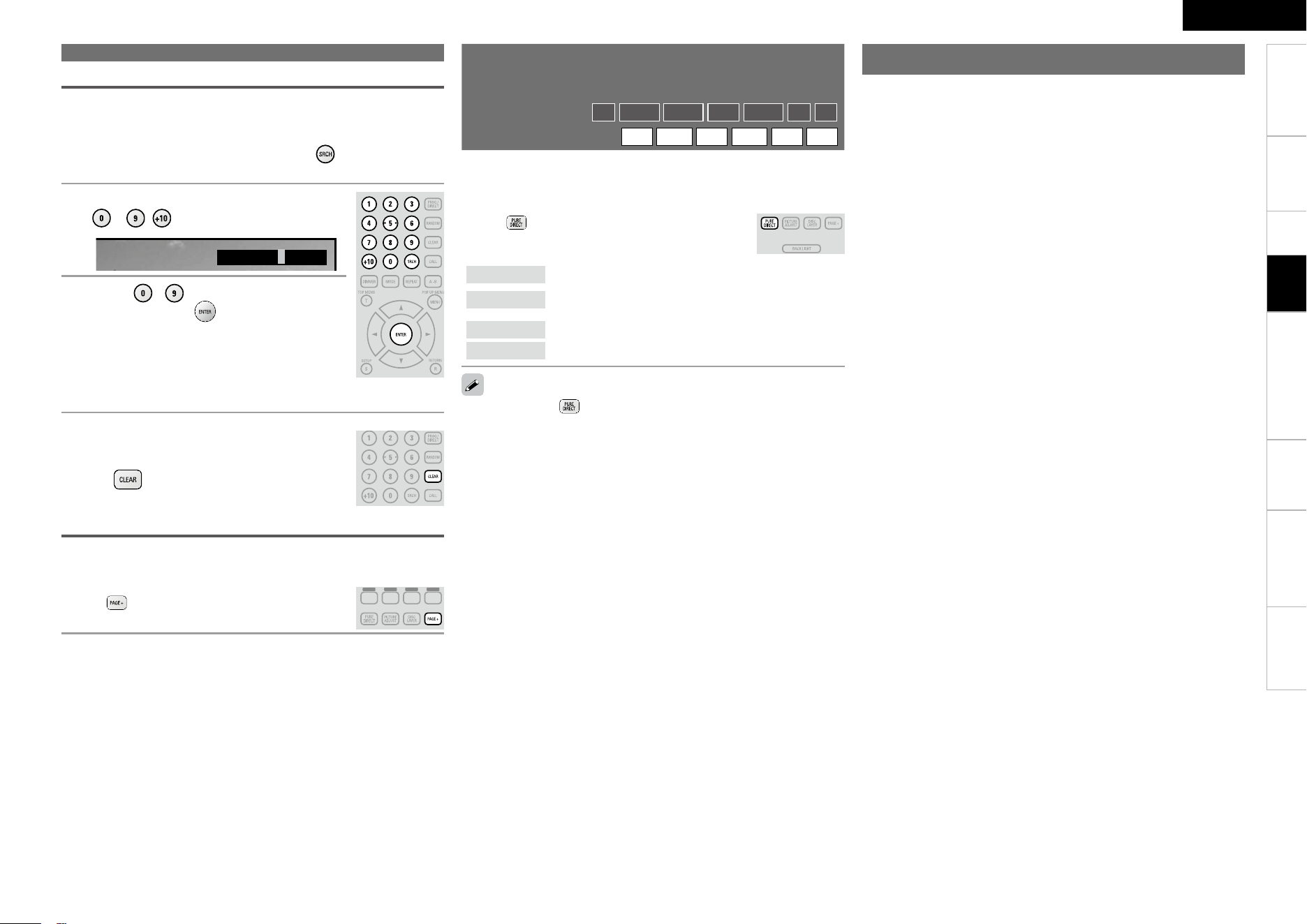

Bonus Group playback
DVD-Audio·may·have·a·bonus·group·that·can·be·played·back·on·entry·
of·a·password.·
Select Still Images
With·DVD-Audio·with·still·images,·you·can·select·images·displayed·
during·playback.·
1
During stop, select “Group” with .
2
Enter the bonus group number with
~ , .
Group –/5
3
Using ~ enter a 4-digit password,
and then press .
Playback·will·begin·from·the·1st·track·of·the·
selected·group.·
The· password· may· also· be· entered· on· the·
menu·screen,·so·follow·the·instructions·on·the·
screen.·
b
Press during playback.
The·next·still·image·is·displayed.
DVD-Audio Playback
File Playback
About the File Display
The limits on the number of folders and les that can be displayed
by·the·DVD-A1UDCI·are·as·follows.
(The·limited·number·includes·the·root·folder.)
Number·of·folder·directory·levels···················8·levels
Number·of·folders················································· 999
Number of les··················································· 9999
Number·of·text·display·characters
··File·name,·Folder·name·········································32
··Artist·name,·title,·etc.··········································· 60
Text·more·than·one·line·is·scroll·displayed.
If·characters·not·supported·on·the·menu·screen·are·included·in·a·
le name, title, artist name or album title, those are not displayed
correctly.
n
•
•
•
•
b
b
This enables you to play back high quality audio by stopping the
video signal, etc., output, and outputting the analog audio signal
only.
You·cannot·use· ·while·the·GUI·menu·is·displayed.·
With·“On”·and·the·main·unit·display·set·to·off,·indicators·other·than·
power·are·turned·off.·
The·pure·direct·setting·returns·to·“Off”·when·the·DVD-A1UDCI·is·
put·in·standby·mode.·
•
•
•
Press during stop, and then select pure
direct mode.
Off
·:
On
·:
User Preset 1
·:
User Preset 2
This·turns·off·the·pure·direct·function.
This·turns·off·the·digital·signal·output,·video·signal·
output·and·display·on·the·display·screen.·
Operates· with· the· registered· pure· direct· setting.·
(“Pure·Direct·Setup”·
vpage·30)
Playing Back High-Quality Audio
(Pure Direct Function)
BD
DVD-A
DVD-V
DVD
SA-CD
CD
SD
MP3
WMA
AAC
LPCM
DivX
JPEG
Playback
ENGLISH
TroubleshootingInformationHDMI Control FunctionSetupConnectionsGetting Started Specications
DATA DISC
Root/
Folder A
Folder B
File A
File B
File C
File D
File E
DivX File 1
JPEG File 1
Folder C
Folder D
Folder E
Folder F
Folder G
[1/18]
DATA DISC
Folder A
File A
File B
File C
File D
File E
DivX File 1
JPEG File 1
[1/12]

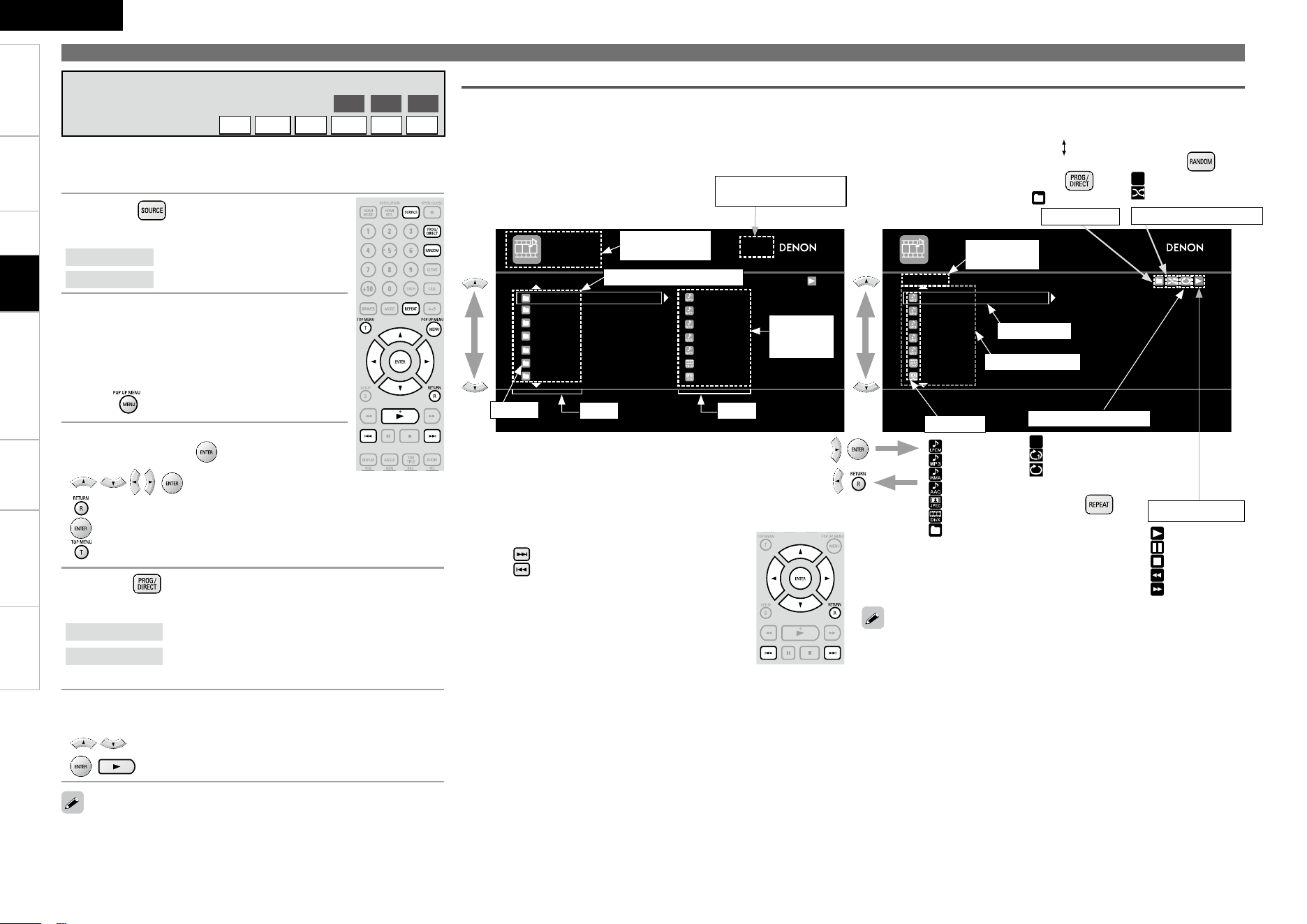

GFile browser screenH GItem selected screenH
About folder and le displays
File Browser Screenn
Media·currently·
playing·back
Current level folder/le list
Folder
Selected le
File·for·playback
File·types
Random·playback·mode
For playable media and les, see “Playable Media” (vpage·3,·4).
,·
,·
LPCM le
MP3 le
WMA le
AAC le
JPEG le
DivX
®
le
Folder
Random·playback·off
Random·playback·on
Repeat·Off
Track·Repeat
All·Repeat
Playback
Pause
Stop
Fast·reverse
Fast·forward
Operation during playback differs depending on the le being played
back.·See·“Operation·During·Playback”·(vpage 42).
File Playback
DVD
CD
SD
MP3
WMA
AAC
LPCM
DivX
JPEG
1
Turn the DVD-A1UDCI power on.
2
Press , and select the playback
media mode.
DISC MODE
·:·Playing·disc
SD CARD MODE
·:·Playing·SD·memory·card
3
Load media.
The le browser screen will appear.
See· “Inserting· a· Disc”· and· “Inserting· an· SD·
Memory· Card”· (
vpage· 6)· for· how· to· load·
media
When le browser screen does not appear,
press· .
b
b
4
Select a folder of the data to be played
back and press .
· · · ,· ····· Display·screen·selection
············································· To·next·level·up
········································ To·next·level·down
··············································To·the·top·level·
5
Press to select a playback mode.
All Track Mode
: Plays back all les in the media.
Folder Mode
: Plays back les in the selected folder. The folder
icon·is·displayed·in·the·playback·mode·indicator.
6
Selecting and playing back les.
· ·················································· Select
,· ························Decision·or·playback
Files·inside·
selected·
folder
Selected·folder·number/
Total·number·of·folders
b
·
q
b
w
Repeat·playback·mode
Playback·mode
To Switch the Page Displayed
Press· ·to·display·the·next·page.
Press· ·to·display·the·previous·page.
n
Current·level·
folder·name
Press· .
Press·
.
Folder·Mode
Press· .
Folder Mode
All Track Mode
Folder·mode
File Playback
Playback
ENGLISH
2
TroubleshootingInformationHDMI Control FunctionSetupConnectionsGetting Started Specications
DATA DISC
Single Elapsed
00:25
Song
Artist
Album
Now PlayingTrack 2
File Playback
About Screen Display During Playback
Display during Playback of Audio Files
Track·number·
during·playback
Display of DivX
®
Files and JPEG Files
Displays·video·being·played.
Displays·still·image·being·played
Operation During Playback
Audio le and DivX
®
le operation
MP3
WMA
AAC
LPCM
DivX
Playback in Any Order (Random
Playback)
Press· ·during·stop,·and·then·press· ·or·
.·
Playing Back Repeatedly (Repeat
Playback)
Press· ·to·select·the·repeat·playback·mode.
DATA DISC
Now PlayingTrack 2
n
n
Set·the·image·display·time·on·the·GUI·menu·with:·“Display·Setup”·
–·“Slide·Show·Time”·(vpage·32).·
With a large image le, the display time may be longer than the set
time.·
•
•
Playback·mode·
display
File·name/Artist·name/
Album·Title
Changing the Still Image being Played Back
Press· ,· .
Before·playback,·or·display·of·next·image.
Pausing the Display
Press· .
To·cancel·pause,·press· .
Changing the Still Image Orientation
Press· · · · .
· ········································180°·rotation
················································Rotate·90°·left
············································· Rotate·90°·right
n
•
n
•
n
Returning to Thumbnail Display Screen
Press· .
n
1
Press while the le browser screen is displayed.
The·thumbnail·screen·will·appear.·
Pressing·
·while·the·thumbnail·screen·is·displayed·returns·you·
to the le browser screen.
b
1/25
2
Use to select still
images.
3
Press .
Display·selected·image·on·full·screen.·
Elapsed·time·and·
remaining·time
NOTE
The display of JPEG image data for cover art, etc., recorded on the le
being played is valid when playing MP3 and AAC audio les.
Displays·the·JPEG·image·data·for·cover·art,·
etc., recorded on the le being played.
Playing Back JPEG File (Still Image)
JPEG
Slide show playback of JPEG format still image les stored on CD-R/-
RW,·DVD-R/-RW/+R/+RW·disc·and·SD·Memory·Card.··
Playback
ENGLISH
TroubleshootingInformationHDMI Control FunctionSetupConnectionsGetting Started Speci cations

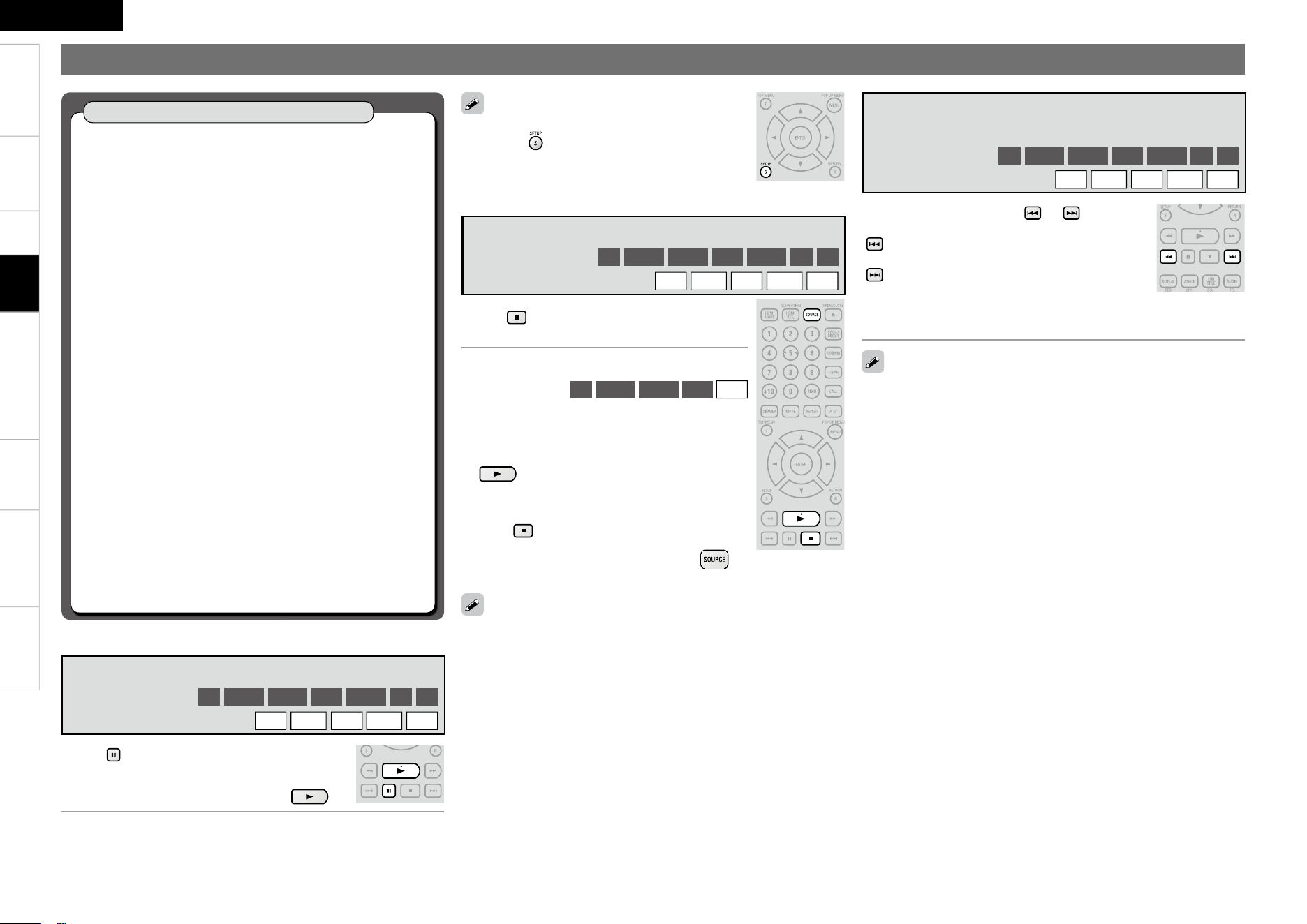

Operations Enabled During Playback
If·the·video·is·blurred·during·pause,·stop·playback·
and· press· ,· then,· on· the· GUI· menu,· change·
“Display·Setup”·–· “Still·Mode”· –·“Field”·(vpage·
32).
About Resume Function
BD
·
DVD-A
·
DVD-V
·
DVD
·
DivX
When·playback·is· stopped,·the·stop· position·is·
memorized.
·The· “1” indicator ashes on the display. When
playing·back·data·from·the·stop·position,·press·
·while·stop·by·the·resume·function.·
To Cancel the Resume Function
Perform·one·of·the·following·operations.
Press· ·during·stop.··
Open·the·disc·tray.·
Change·the·playback·media·mode·with· .·
Remove·the·SD·Memory·Card.·
n
•
n
•
•
•
•
Skipping·to·the·start·of·a·title·or·group·may·be·prohibited·depending·
on·the·disc.
The·resume·function·does·not·work·with·menu·playback·or·BD-J·
(Blu-ray·Disc·Java)·compatible·disc.·
The·resume·function·remains·valid·even·when·the·standby·mode·is·
set.·For·DivX
®
les, however, the resume function is cancelled even
when·the·standby·mode·is·set.
The·resume·function·is·cancelled·when·the·power·is·turned·off·by·
unplugging·the·power·cord.
•
•
•
Pause Playback
BD
DVD-A
DVD-V
DVD
SA-CD
CD
SD
MP3
WMA
AAC
LPCM
DivX
Stop Playback (Resume Function)
BD
DVD-A
DVD-V
DVD
SA-CD
CD
SD
MP3
WMA
AAC
LPCM
DivX
Skipping to the Chapter/Track/File You
Want to Playback
BD
DVD-A
DVD-V
DVD
SA-CD
CD
SD
MP3
WMA
AAC
LPCM
DivX
Press during playback.
The·“3”·indicator·will·light·on·the·display.
Resume·normal·playback·by·pressing· .·b
Press during playback.
Playback·stops.
During playback, press or .
·
·
Playback·begins·from·the·start·of·the·chapter/
track/ le being played.
Playback· begins· from· the· start· of· the· next·
chapter/track/ le.
Continue pressing and skip to the chapter/track/ le with just the
number·of·times·pressed.
b
Operations Enabled During Playback
Pause Playback (vpage 43)
Stop Playback (Resume Function) (vpage 43)
Skipping to the Chapter/Track/File You Want to
Playback (vpage 43)
Looking for Speci c Sections Using the Search
Modes (vpage 44)
Memorizing Locations You Want to Replay (Marker
Function) (vpage 45)
Fast Forward/Fast Reverse (vpage 45)
Step-by-Step Playback (vpage 45)
Slow Forward/Slow Reverse Playback (vpage
45)
Playback in Any Order (Random Playback)
(vpage 46)
Playing Back Repeatedly (Repeat Playback)
(vpage 46)
Repeat Playback between Speci ed Points (A-B
Repeat) (vpage 46)
Playing back in your preferred order (Program
Playback) (vpage 47)
Switching Audio (vpage 47, 48)
Changing the Subtitles and Subtitle Style (vpage
48)
Switching the Angle (vpage 49)
Changing the Brightness of the Display (Dimmer
Control) (vpage 49)
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
Playback
ENGLISH
TroubleshootingInformationHDMI Control FunctionSetupConnectionsGetting Started Specications
Looking for Specic Sections Using the
Search Modes
BD
DVD-A
DVD-V
DVD
SA-CD
CD
SD
MP3
WMA
AAC
LPCM
DivX
JPEG
1
During playback, press , and then search mode.
The· search· mode· setting· bar· is· displayed· at· the· top· of· the·
screen.
The·search·mode·changes·each·time·the·button·is·pressed.•
Chapter search
Chapter – –/21
Title search
Title –/5
Track search
Track – –/15
Group search
Group –/5
Time search
Total Time 10 : 15 11Time Search – – – : – – : – –
Marker search
Marker
Time – – : – – : – –
1 2 3 4 5 6 7 8
AC
n
n
n
n
n
n
GSearch mode-compatible media and lesH
Media / le
Search·mode
BD
DVD-V
DVD
DVD-A SA-CD
CD
DivX MP3
WMA
LPCM
JPEG
AAC
Chapter search
S
Title search
S
Time search
S S S S
Marker search b S S S
Track search
S S S S
Group search
S
Operations Enabled During Playback
Entering·numbers
Entering·3··············································· · z
Entering·26··············· · · z·or· · ·
Entering·138······························· · · · z
z:
Depending·on·number·of·recorded·songs·or·chapters,·you·don’t·
need·to·use·“ENTER”·button.
Search·mode·does·not·operate·during·program·or·random·playback.·
Use·
,· ·to·cue.
Time·search·corresponds·with·title·and·track·playback·time.·It·is·not·
compatible·chapter·playback·time.·
Search·mode·may·not·operate·depending·on·the·disc.
•
•
•
•
About Marker Search
Plays·back·from·your·selected·marker·number.·
When· the· entry· mode· for· chapter/title/track/
group·search·continues·for·about·5·seconds·with·
no·operation,·it·is·cancelled.·
When·the·power·is·set·to·standby·or·the·disc·is·
removed,·the·set·marker·is·deleted.
b
•
•
2
Conducting search condition entry
or setting on the search mode setting
bar.
Search specied location on completion of
entry.·
·~· ,· ······························ Number·entry
········································· Finalizes·number
· ····························Marker·number·selection
·Finalizes·the·marker·number·or·plays·back
································ Marker·number·cancel
Playback
ENGLISH
TroubleshootingInformationHDMI Control FunctionSetupConnectionsGetting Started Specications

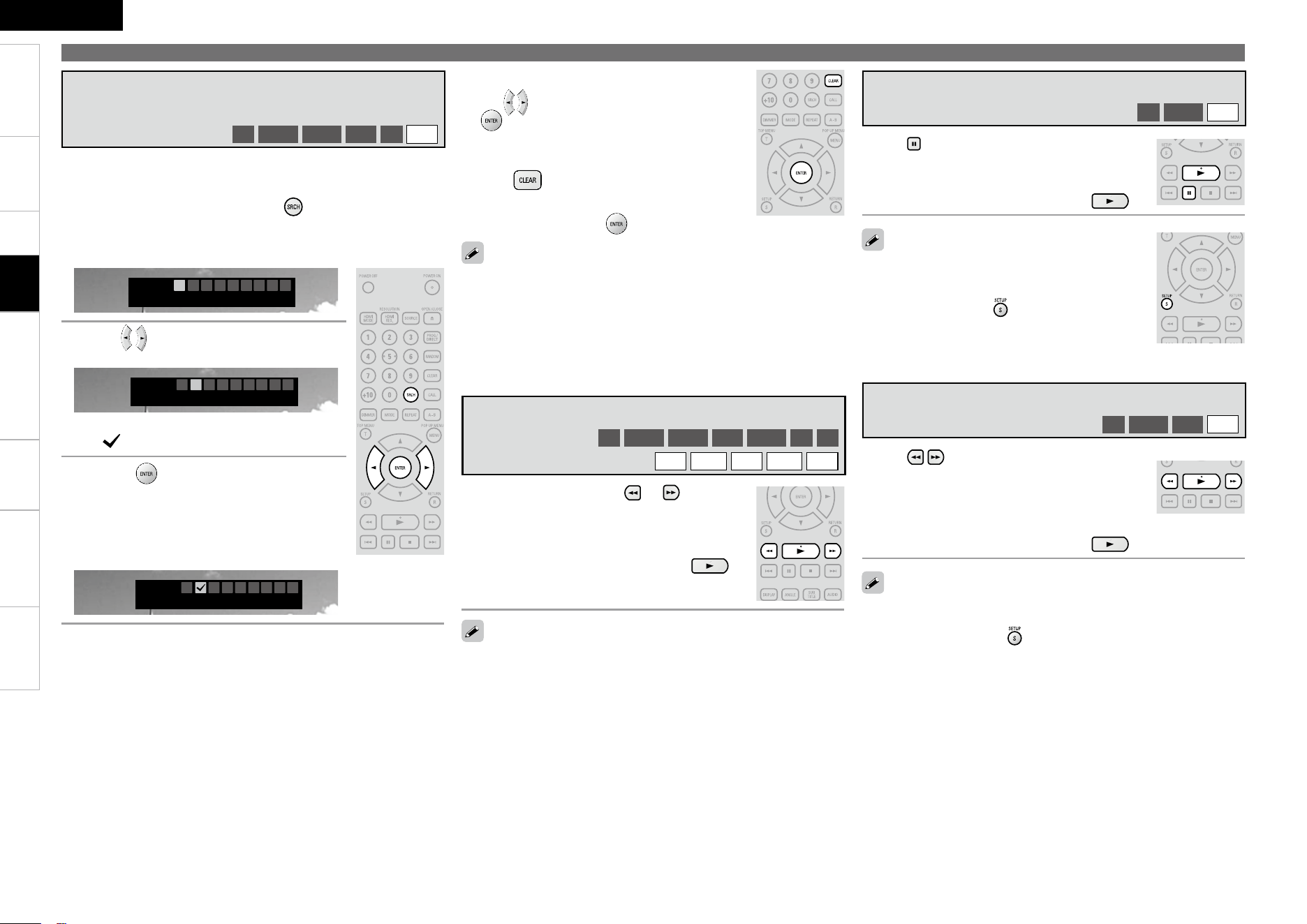

Operations Enabled During Playback
You cannot fast forward/fast reverse across les or tracks during
program·or·random·playback.
Fast·forward/fast·reverse·may·be·disabled·with·some·DivX
®
les.
Audio· is· not· output· during· fast· forward/fast· reverse· of· a· BD· or·
DVD.
•
•
•
Step-by-step·reverse·playback·is·not·available·with·
the·DVD-A1UDCI.·
If·the·video·is·shaky·during·step-by-step·playback,·
stop·playback,·press· ,·then·on·the·GUI·
menu,·
change· “Display· Setup”· –· “Still· Mode”· –· “Field”·
(vpage·32).
•
•
Fast Forward/Fast Reverse
BD
DVD-A
DVD-V
DVD
SA-CD
CD
SD
MP3
WMA
AAC
LPCM
DivX
During playback, press or .
The· fast· forward/fast· reverse· speed· changes·
each·time·the·button·is·pressed.·
Speed varies with the disc and le.
Resume·normal·playback·by·pressing· .·
•
•
b
Press during pause.
The·disc·advances·frame·by·frame·each·time·the·
button·is·pressed.·
Resume·normal·playback·by·pressing· .·b
Step-by-Step Playback
BD
DVD-V
DivX
Subtitles· may· not· appear· depending· on· the· locations· you· have·
memorized.
The·markers·you·have·set·will·be·erased·if·you·turn·the·power·to·
standby·or·eject·the·disc.
The·marker·function·does·not·operate·across·titles·and·groups.
Marker·search·can·only·be·performed·during·playback.·
•
•
•
•
You can attach a marker to a location you want to view or hear
again, so that playback begins at that location.
To Play Back Memorized Locations
Use· · ·to·select·the·marker·number,·then·press··
.
To erase markers
Select·the·number·you·want·to·erase,·and·then·
press· .
To erase all markers
Select·“AC”·and·press· .
n
n
n
1
During playback, press , and then select
“Marker”.
The· search· mode· setting· bar· is· displayed· at· the· top· of· the·
screen.·
Marker
Time – – : – – : – –
1 2 3 4 5 6 7 8
AC
2
Use to select the number.
Marker
Time – – : – – : – –
1 2 3 4 5 6 7 8
AC
Numbers·you·have·already·set·will·be·displayed·
as·“ ”.·
b
3
Press at the location you want to
memorize.
The· location· is· registered· for· the· selected·
marker·number.
The·elapsed·playing·time·at·the·set·location·is·
displayed.
b
Marker
Time 1 : 23 : 45
1 3 4 5 6 7 8
AC
Memorizing Locations You Want to
Replay (Marker Function)
BD
DVD-V
DVD-A
DVD
SD
DivX
Audio·is·not·output·during·slow·forward/slow·reverse·playback.·
If·the·video·is·blurred·during·slow·forward/slow·reverse·playback,·
stop·playback·and·press· ,·then·on·the·GUI·menu,·change·“Display·
Setup”·–·“Still·Mode”·–·“Field”·(vpage·32).·
•
•
Slow Forward/Slow Reverse Playback
BD
DVD-V
DVD
DivX
Press during pause.
The· speed· changes· each· time· the· button· is·
pressed.
The·speed·of·the·slow· reverse·playback·is·not·
switched.
Resume·normal·playback·by·pressing· .·
b
b
Playback
ENGLISH
TroubleshootingInformationHDMI Control FunctionConnectionsGetting Started Specications

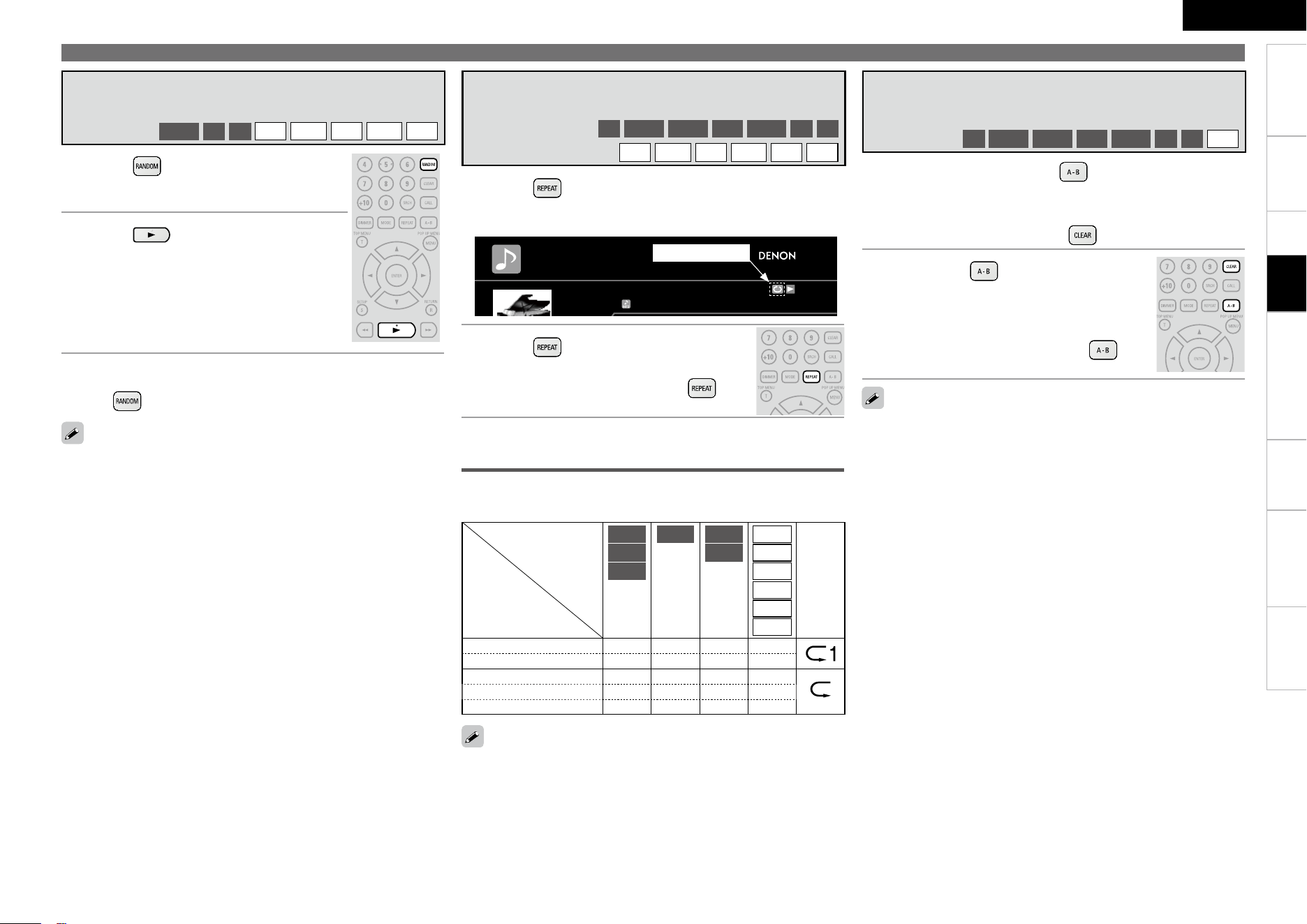

Operations Enabled During Playback
Some·repeat·modes·may·not·be·accessible·depending·on·the·disc.·
Depending·on·the·disc,·even·when·set·to·repeat·playback,·the·disc·
may·not·return·to·the·start·of·title·or·chapter,·and·may·advance·to·
the·next·scene.·
Repeat·playback·is·not·available·during·A-B·repeat·playback.·
•
•
•
You cannot skip title/le with A-B repeat.
If·you·perform·a·search·operation·during·A-B·repeat·playback,·A-B·
repeat·playback·is·cancelled.·
A-B·repeat·playback·may·not·be·enabled·depending·on·the·scene.
A-B repeat playback of MP3/WMA/AAC/JPEG/LPCM les is not
available.·
A-B·repeat·playback·is·not·available·during·repeat·playback.·
A-B·repeat·playback·may·not·be·enabled·depending·on·the·DivX
®
·
le.
•
•
•
•
•
•
About Repeat Mode
Settable repeat modes vary depending on the disc or le you are
playing·back.·
····························Media/File
Mode
BD
DVD-V
DVD
DVD-A SA-CD
CD
MP3
WMA
AAC
LPCM
DivX
JPEG
Display
Chapter repeat
S
Track repeat
S S S
Title repeat
S
Group repeat
S
All repeat
S S
Playing Back Repeatedly
(Repeat Playback)
BD
DVD-A
DVD-V
DVD
SA-CD
CD
SD
MP3
WMA
AAC
LPCM
DivX
JPEG
Repeat Playback Between Specied
Points (A-B Repeat)
BD
DVD-A
DVD-V
DVD
SA-CD
CD
SD
DivX
1
Press during playback.
The·repeat·mode·icon·is·displayed·at·the·top·of·the·screen.
The·repeat·mode·changes·each·time·the·button·is·pressed.•
DATA DISC
Single Elapsed
00:35
Song
Artist
Album
Now PlayingTrack 2
2
Press to select the repeat mode.
To· resume· normal· playback,· press· ,· and·
select·“Repeat·Off”.·
b
1
During playback, press at the desired starting
point (A).
The·“A–”·indicator·will·light·on·the·display.·
To·cancel·starting·point·(A),·press·
.·b
2
Press the again at the desired
ending point (B).
The·“B”·indicator·will·light·on·the·display,·and·
A-B·repeat·playback·will·commence.·
To· resume· normal· playback,· press· ,· and·
select·“Repeat·Off”.
b
Random·playback·may·not·be·enabled·depending·on·the·disc.
Resuming Normal Playback
Press· ·during·stop.
n
Playback in Any Order
(Random Playback)
SA-CD
CD
SD
MP3
WMA
AAC
LPCM
DivX
1
Press during stop.
The·“RAND”·lights·on·the·display·and·“Random·
Mode”·is·displayed·on·the·screen.
2
Press to play back.
Repeat·mode
Setup Playback
ENGLISH
TroubleshootingInformationHDMI Control FunctionSetupConnectionsGetting Started Specications
Switching a BD’s Primary Audio/Secondary Audio
With discs and les that have multiple audio track recording, you
can change the audio during playback.
With BD, you can set sub-track audio such as interactive audio and
commentary audio, etc., with “Secondary”.
Operations Enabled During Playback
You·can·program·up·to·a·maximum·of·20·tracks.
Checking the Program Contents
Press· ·setting·playback.·
The·program·setting·screen·will·appear.
n
Playing Back in Your Preferred Order
(Program Playback)
SA-CD
CD
Switching Audio
BD
DVD-A
DVD-V
DVD
CD
SD
DivX
1
Press during stop.
The· “PROG”· indicator· lights· on· the· display,· and· the· program·
setting·screen·appears.
PROGRAM
Enter CLEAR
Track 1 - 16 Total Time 3 : 32
No.
1
2
3
4
5
6
7
8
9
10
Track
5
2
3
- -
No.
11
12
13
14
15
16
17
18
19
20
Track
0-9 CLEAR+10
2
Enter the track numbers you want
to program on the program setting
screen.
·
~
·
,
· ·············································· Entry
··············································· Decision·entry
3
Press .
Playback·begins·in·the·programmed·order.
1
During playback of an Primary Audio/Secondary
Audio title, press .
The·audio·number·currently·being·played·is·displayed.·
Audio
Primary
1/5 : Dolby Digital 3/2.1 English
Secondary
–/1 : Off
2
Press , select “Primary” or
“Secondary”, and then press .
Audio
Primary
1/5 : Dolby Digital 3/2.1 English
Secondary
–/1 : Off
If·multiple·audio·items·are·recorded,·“the·current·
audio·number/number·of·recorded·audio·items”·
is·displayed.
When· “BD· Audio· Mode”· is· set· to· “HD· Audio·
Output”·(vpage·33),·“Secondary”·audio·is·not·
output.·
b
b
Erasing Programmed Tracks One by One
Press· ·during·stop.·
Erasing All Programmed Contents
Press· .
n
n
You·can·also·check·the·contents·of·the·program,·which·appears·on·
the·unit’s·display.·Press· ·during·stop.
Depending· on· the· disc,· audio· switching· may· be· restricted· to·
operation·of·the·disc·menu.·In·this·case,·switch·the·audio·on·the·
disc·menu.·
Be·sure·to·set·“BD·Audio·Mode”·to·“Mix·Audio·Output”·(vpage·
33)·for·playing·back·secondary·audio.·
Depending·on·the·BD,·even·if·picture-in-picture·playback·is·set·to·
“Off”,·Secondary·Audio·only·may·be·output.·
•
•
•
3
Select your desired audio language with .
Audio
Primary
2/5 : Dolby Digital 3/2.1 Japanese
Secondary
–/1 : Off
4
Press .
The·setup·screen·disappears.
Playback
ENGLISH
TroubleshootingInformationHDMI Control FunctionSetupConnectionsGetting Started Specications

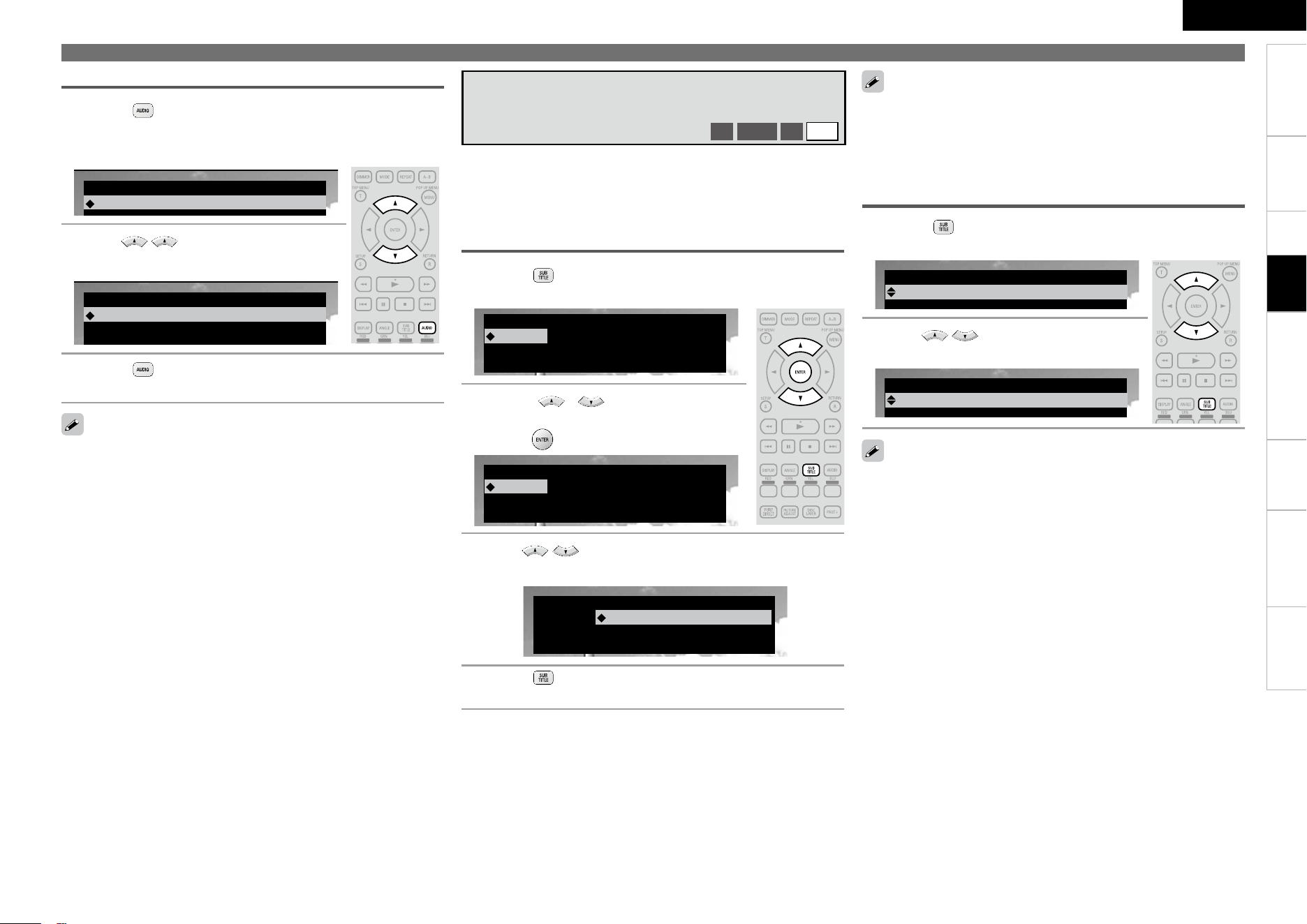

Switching a BD’s Primary Subtitle/Secondary Subtitle
and Subtitle Style
If·a·disc·does·not·include·subtitles·and·subtitle·style,·“Not·Available”·
is·displayed.
Depending· on· the· disc,· subtitle· switching· may· be· restricted· to·
operation·of· the·disc· menu.·In· this·case,· switch· the· subtitles· on·
the·disc·menu.·
•
•
During playback of a disc or le with recorded subtitles, you can
switch subtitle on/off as well as subtitle language.
With BD, you can change the style of displayed subtitles.
Operations Enabled During Playback
Changing the Subtitles and Subtitle
Style
BD
DVD-V
SD
DivX
1
Press during playback.
The·subtitle·number·currently·being·played·is·displayed.·
Subtitle
Primary
1/5 : English
Off
Secondary
Style
–/1 :
1 :
2
With , select “Primary”,
“Secondary” and “Style”, and then
press .
Subtitle
Primary
1/5 : English
Off
Secondary
Style
–/1 :
1 :
3
Use to select your desired subtitle language
and subtitle style.
Subtitle
Primary
Off
Secondary
Style
–/1 :
1 :
1/5 : English
4
Press .
The·setup·screen·disappears.
Selecting DVD-Video and DivX
®
le Subtitle
With·a·DivX
®
le, the currently playing subtitle number and number
of· recorded· subtitles· are· displayed,· the· language· option· is· not·
displayed.·
1
Press during playback.
The·subtitle·number·currently·being·played·is·displayed.·
Subtitle
–/5
: OFF
2
Use to select subtitle.
Subtitle
1/5
: English
With· DVD-R/-RW· with· bilingual· soundtrack· recording,· you· can·
switch·between·“Main”·(main·audio)·and·“Sub”·(secondary·audio)·or·
“Main/Sub”·(main·audio·+·secondary·audio).
In·CD·audio·mode,·you·can·switch·“Stereo”,·“L-ch”·(left·channel)·or·
“R-ch”·(right·channel).·
With·a·DivX
®
le, “MP3” or “Dolby Digital” audio formats and the
number·of·recorded·audio·modes·are·displayed.·“–·–·–“·appears·for·
audio·other·than·these.·
With·DTS-CD·(5.1·music·disc),·you·cannot·switch·audio·modes.·
•
•
•
•
Audio Switching (Media Other than BD)
1
Press during playback.
The·audio·number·currently·being·played·is·displayed.·
GExampleH·DVD
Audio
: Dolby Digital1/5 3/2.1 English
2
Use to select audio
GExampleH·DVD-Video
Audio
: Dolby Digital2/5 3/2.1 Japanese
3
Press .
The·setup·screen·disappears.
Playback
ENGLISH
TroubleshootingInformationSetupConnectionsGetting Started Specications

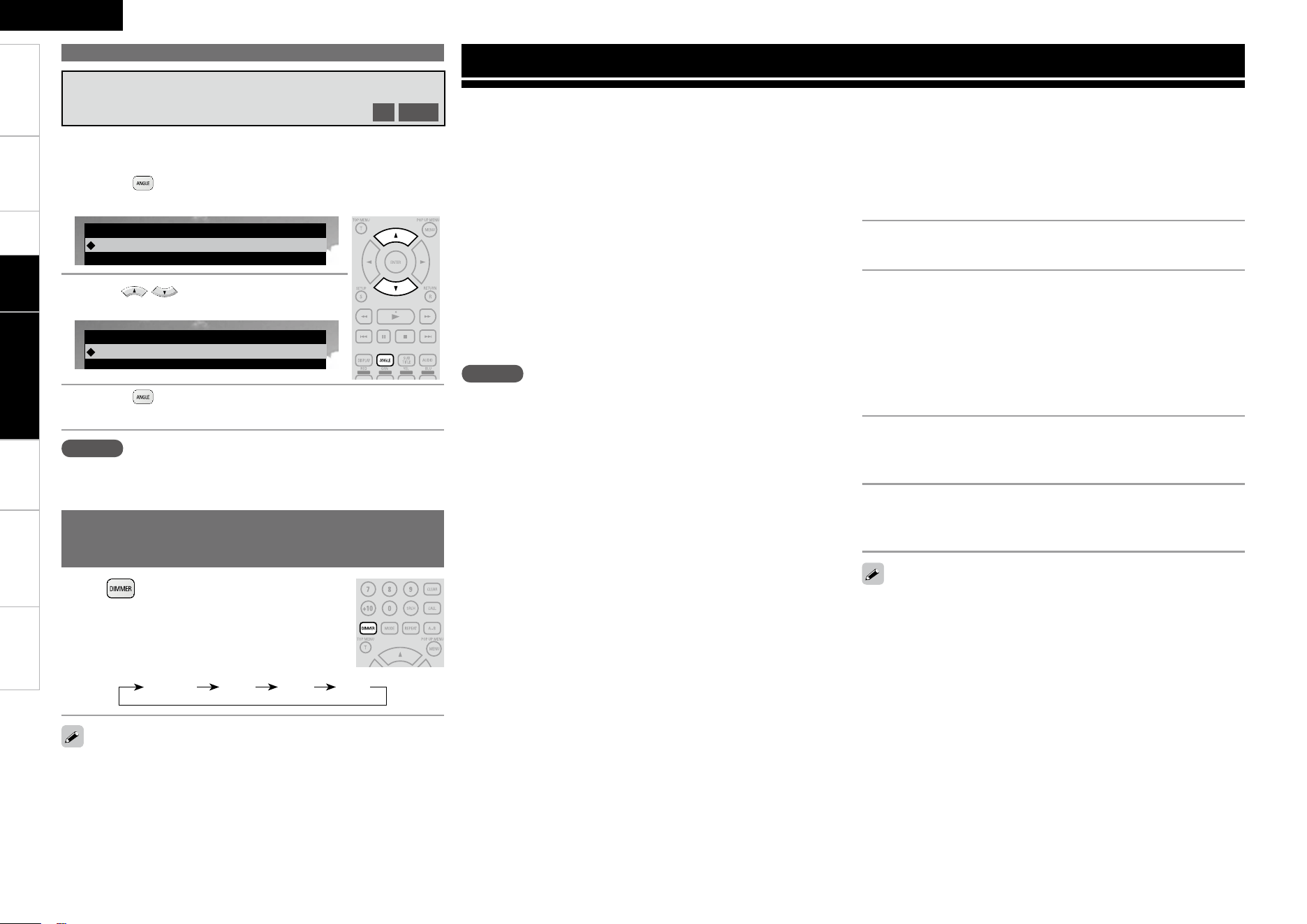

Operations Enabled During Playback
During playback of a BD or DVD-Video recorded with several
camera angles, you can change the angle.
Switching the Angle
BD
DVD-V
NOTE
Angle·changing·may·be·restricted,·depending·on·the·disc.·
1
Press during playback.
The·angle·number·currently·being·played·is·displayed.
Angle
1/3
2
Use to select angle.
Angle
2/3
3
Press .
The·setup·screen·disappears.
Press .
The· display· brightness· each· time· the· button· is·
pressed.
Normal·· ··Dim·· ··Dark· ··Off
Changing the Brightness of the
Display (Dimmer Control)
Even· when· “Off”· is· selected,· the· status· of· operations· that· are·
performed· appears· momentarily· on· the· display· if· “Display· Setup”·
–·“Temporary·Display”·on·the·GUI·menu·is·set·to·“On”·(vpage·32).
When·you·make·an·HDMI·connection·with·a·TV·or·AV·Amp·compatible·
with·DVD-A1UDCI·and·HDMI·control·functions,·you·can·perform·the·
following·operations· by· setting·the· HDMI·control· function· of·each·
device.·
TV or AV Amp power is turned on by operating
the DVD-A1UDCI, and functions change with DVD-
A1UDCI input.
Turning off the TV’s power turns the DVD-A1UDCI’s
power to standby.
Operating the DVD-A1UDCI via the TV’s remote
control.
(When the TV’s remote control has player operation buttons)
n
n
n
If·the· HDMI· control·function· does· not·operate· properly,· check·the·
following·points.·
Is·the·TV·or·AV·Amp·compatible·with·the·HDMI·control·function?
Is·the·setting·of·the·DVD-A1UDCI’s·HDMI·output·terminal·correct?·
(Step·1)
Are·the·HDMI· control·function·settings· of·all·equipment· correct?·
(Step·3)
After· setting,· did· you· add· another· HDMI· device· connection· or·
make·any·changes·in·the·connections?·In·this·case,·perform·setting·
again.·
•
•
•
•
HDMI Control Function
NOTE
The· HDMI· control· function· controls· operations· of· a· TV· that· is·
compatible·with·the·HDMI·control·function.··Make·sure·that·the·TV·
and·HDMI·are·connected·when·you·perform·HDMI·control.·
Some·functions·may·not·operate·depending·on·the·connected·TV·
or·AV·Amp.·Check·the·owner’s·manual·of·each·device·for·details·
beforehand.
When· “Other· Setup”· –· “Power· Saving”· on· the· GUI· menu· is· set·
to· “Power· Saving· Standby”· or· “Normal· Standby”· (vpage· 32),·
the· player’s· power· cannot· be· turned· on· using· the· HDMI· control·
function.
When·“HDMI·Setup”·–·“HDMI·Control”·–·“Power·Off·Control”·on·the·
GUI·menu·is·set·to·“Off”·(
vpage·26),·the·DVD-A1UDCI·is·not·set·
to·standby·even·if·the·connected·device·is·in·the·standby·mode.
When· “DENON· LINK· Setup”· –· “DENON· LINK· Mode”· on· the· GUI·
menu·is·set·to·“4th”,·the·HDMI·control·function·is·enabled·for·the·
connected·devices.
•
•
•
•
•
1
Set the HDMI output terminal corresponding with
the HDMI control function.
On·the·GUI·menu,·set·“HDMI·Setup”·–·“HDMI·Control”·(vpage·
26).
The·HDMI·control·function·will·work·only·on·one·of·the·2·HDMI·
output·terminals·on·the·DVD-A1UDCI.
b
2
Turn the power on for all the equipment connected by
HDMI cable.
3
Set the HDMI control function for all equipment
connected by HDMI cable.
On· the· GUI· menu,· set· the· DVD-A1UDCI· with· “HDMI· Setup”·
–·“HDMI·Control”·(vpage·26).·
Please·refer·to·the·owner’s·manual·as·regards·setting·of·connected·
devices.
Carry· out· Steps· 2· and· 3· should· any· of· the· equipment· be·
unplugged.
b
b
4
To ensure that the DVD-A1UDCI’s HDMI video
output is projected on the TV screen, change the
input function of the TV and AV Amp.
5
When you turn the TV’s power to standby, check that
the power of the DVD-A1UDCI and AV Amp also goes
on standby.
Playback HDMI Control Function
ENGLISH
0
TroubleshootingHDMI Control FunctionPlaybackSetupConnectionsGetting Started Specications
Blu-ray· Disc· and· “ ”· are·
trademarks.
·is·a·trademark·of·the·DVD·Format·/·
Logo·licensing·Corporation.
HDMI, the HDMI logo and High- Denition
Multimedia· Interface· are· trademarks· or·
registered· trademarks· of· HDMI· Licensing·
LLC.
Java· and· all· other· trademarks· and· logos·
are·trademarks·or·registered·trademarks·of·
Sun·Microsystems,·Inc.·in·the·United·States·
and/or·other·countries.
Manufactured· under· license· from· Dolby·
Laboratories.· Dolby,· Pro· Logic· and· the·
double-D· symbol· ( )· are· trademarks· of·
Dolby·Laboratories.
Manufactured· under· license· under·
U.S.· Patent· #’s:· 5,451,942;· 5,956,674;·
5,974,380;·5,978,762;·6,226,616;·6,487,535;·
7,212,872;·7,333,929;·7,392,195;·7,272,567·
&·other·U.S.·and·worldwide·patents·issued·
&· pending.·DTS· is· a· registered· trademark·
and· the· DTS· logos,· Symbol,· DTS-HD· and·
DTS-HD· Master· Audio· are· trademarks· of·
DTS,·Inc.©· 1996-2008·DTS,·Inc.·All· Rights·
Reserved.
Windows· Media· and· the· Windows· logo·
are·trademarks·or·registered·trademarks·of·
Microsoft·Corporation·in·the·United·States·
and/or·other·countries.
DivX, DivX Certied, and associated logos
are·trademarks· of·DivX,·Inc.· and·are· used·
under·license.
DENON· LINK· is· a· unique· digital,· balanced· transfer· type· interface·
developed·by·DENON.·It·offers·high·speed,·high·quality·transfer·of·
digital·audio·data·with·low·signal·loss.·It·can·be·used·together·with·
DENON· AV·Amp· equipped· with· a· special· DENON· LINK· connector·
using·a· single·cable·to· enable·playback· with·high·sound· quality.·It·
allows·digital·transfer·of·the·192·kHz/24·bit·2-channel·digital·signals·
of·DVD-Audio·discs,·PCM·multi-channel·signals,·etc.·Full-spec·digital·
transfer· of· the· audio· contents· of· Super· Audio· CD· is· possible· by·
connecting·a·player·equipped·for·DENON·LINK·3rd·Edition.
During·processing·of·DENON·LINK,·the·DENON·LINK·indicator·of·the·
display·lights.
DENON·LINK·4th·uses·the·clock·of·the·AV·Amp·connected·by·DENON·
LINK·to·achieve· HDMI· signal·transfer·with·little· jitter·when·playing·
BD.
“Advanced· AL32· Processing”· installed· in· the· analog· output·
dramatically·improves·the·information·volume·on·the·time·axis·with·
independent·speed·signal·detection·and·processing·technology·for·
the·PCM·signal·(CD/External·input)·playback·system.·In·addition·to·
data·expansion·to·32·bit,·it·conducts·natural·interpolation·processing·
with·no·loss· of·original·data· by·digital·upsampling.·The·“Advanced·
AL32”· indicator· lights· on· the· front· panel· when· Advanced· AL32·
Processing·is·in·operation.·
This· product· incorporates· copyright· protection· technology· that· is·
protected·by·U.S.·patents·and·other·intellectual·property·rights.
Use·of·this·copyright·protection·technology·must·be·authorised·by·
Macrovision,· and· is· intended· for· home· and· other· limited· viewing·
uses· only· unless· otherwise· authorised· by· Macrovision.· Reverse·
engineering·or·disassembly·is·prohibited.
Other Information
About Advanced AL32
Processing
Trademark Information
About Copyright Protection
Technology
About DENON LINK
®
,· HDCD
®
, High Denition
Compatible· Digital
®
· and· Microsoft
®
· are·
either·registered·trademarks·or·trademarks·
of·Microsoft·Corporation,·Inc.·in·the·United·
States·and/or·other·countries.·HDCD·system·
manufactured·under·license·from·Microsoft·
Corporation,·Inc.·This·product·is·covered·by·
one·or·more·of·the·following:·In·the·USA:·
5,479,168,·5,638,074,·5,640,161,·5,808,574,·
5,838,274,·5,854,600,·5,864,311,·5,872,531,·
and· in· Australia:· 669114.· Other· patents·
pending.
“AVCHD”· and· “AVCHD”· logo· is· the·
trademark· of· Panasonic· Corporation· and·
Sony·Corporation.
“BONUSVIEW”·is·the·trademark·of·Blu-ray·
Disc·Association.
“BD-LIVE”·logo·is·trademark·of·Blu-ray·Disc·
Association.
This·product·uses·the·following·technologies:
Information
ENGLISH
TroubleshootingHDMI Control FunctionPlaybackSetupConnectionsGetting Started Specications
Language Code List
Language Code
A
Abkhazian
4748
Afar
4747
Afrikaans
4752
Albanian
6563
Amharic
4759
Arabic
4764
Armenian
5471
Assamese
4765
Aymara
4771
Azerbaijani
4772
B
Bashkir
4847
Basque
5167
Bengali;Bangla
4860
Bhutani
5072
Bihari
4854
Bislama
4855
Breton
4864
Bulgarian
4853
Burmese
5971
Byelorussian
4851
C
Cambodian
5759
Catalan
4947
Chinese
7254
Corsican
4961
Croatian
5464
Czech
4965
D
Danish
5047
Dutch
6058
E
English
5160
Esperanto
5161
Estonian
5166
F
Faroese
5261
Fiji
5256
Finnish
5255
French
5264
Frisian
5271
G
Galician
5358
Georgian
5747
German
5051
Greek
5158
Greenlandic
5758
Guarani
5360
Gujarati
5367
H
Hausa
5447
Hebrew
5569
Hindi
5455
Hungarian
5467
Language Code
I
Icelandic
5565
Indonesian
5560
Interlingua
5547
Interlingue
5551
Inupiak
5557
Irish
5347
Italian
5566
J
Japanese
5647
Javanese
5669
K
Kannada
5760
Kashmiri
5765
Kazakh
5757
Kinyarwanda
6469
Kirghiz
5771
Kirundi
6460
Korean
5761
Kurdish
5767
L
Laothian
5861
Latin
5847
Latvian;·Lettish
5868
Lingala
5860
Lithuanian
5866
M
Macedonian
5957
Malagasy
5953
Malay
5965
Malayalam
5958
Maltese
5966
Maori
5955
Marathi
5964
Moldavian
5961
Mongolian
5960
N
Nauru
6047
Nepali
6051
Norwegian
6061
O
Occitan
6149
Oriya
6164
Oromo·(Afan)
6159
P
Panjabi
6247
Pashto;·Pushto
6265
Persian
5247
Polish
6258
Portuguese
6266
Q
Quechua
6367
R
Rhaeto-Romance
6459
Romanian
6461
Russian
6467
Language Code
S
Samoan
6559
Sangho
6553
Sanskrit
6547
Scots·Gaelic
5350
Serbian
6564
Serbo-Croatian
6554
Sesotho
6566
Setswana
6660
Shona
6560
Sindhi
6550
Singhalese
6555
Siswat
6565
Slovak
6557
Slovenian
6558
Somali
6561
Spanish
5165
Sundanese
6567
Swahili
6569
Swedish
6568
T
Tagalog
6658
Tajik
6653
Tamil
6647
Tatar
6666
Telugu
6651
Thai
6654
Tibetan
4861
Tigrinya
6655
Tonga
6661
Tsonga
6665
Turkish
6664
Turkmen
6657
Twi
6669
U
Ukrainian
6757
Urdu
6764
Uzbek
6772
V
Vietnamese
6855
Volapuk
6861
W
Welsh
4971
Wolof
6961
X
Xhosa
7054
Y
Yiddish
5655
Yoruba
7161
Z
Zulu
7267
Information
ENGLISH
2
TroubleshootingHDMI Control FunctionPlaybackSetupConnectionsGetting Started Specications
Country Code
A
AFGHANISTAN
AF
ÅLAND·ISLANDS·
AX
ALBANIA·
AL
ALGERIA
DZ
AMERICAN·SAMOA·
AS
ANDORRA·
AD
ANGOLA
AO
ANGUILLA
AI
ANTARCTICA
AQ
ANTIGUA·AND·BARBUDA·
AG
ARMENIA·
AM
ARUBA
AW
AZERBAIJAN·
AZ
B
BAHAMAS
BS
BAHRAIN·
BH
BANGLADESH·
BD
BARBADOS
BB
BELARUS·
BY
BELIZE
BZ
BENIN·
BJ
BERMUDA
BM
BHUTAN·
BT
BOLIVIA·
BO
BOSNIA·AND·HERZEGOVINA·
BA
BOTSWANA·
BW
BOUVET·ISLAND·
BV
BRITISH·INDIAN·OCEAN·
TERRITORY·
IO
BRUNEI·DARUSSALAM·
BN
BULGARIA·
BG
BURKINA·FASO
BF
BURUNDI·
BI
C
CAMBODIA·
KH
CAMEROON
CM
CAPE·VERDE·
CV
CAYMAN·ISLANDS·
KY
CENTRAL·AFRICAN·
REPUBLIC·
CF
CHAD
TD
CHRISTMAS·ISLAND·
CX
COCOS·(KEELING)·ISLANDS·
CC
COMOROS
KM
CONGO
CG
CONGO,·THE·DEMOCRATIC·
REPUBLIC·OF·THE
CD
COOK·ISLANDS·
CK
COSTA·RICA·
CR
CÔTE·D’IVOIRE·
CI
CROATIA·
HR
Country Code
CUBA·
CU
CYPRUS
CY
CZECH·REPUBLIC
CZ
D
DJIBOUTI
DJ
DOMINICA
DM
DOMINICAN·REPUBLIC·
DO
E
ECUADOR·
EC
EGYPT·
EG
EL·SALVADOR·
SV
EQUATORIAL·GUINEA·
GQ
ERITREA
ER
ESTONIA
EE
ETHIOPIA·
ET
F
FALKLAND·ISLANDS·
(MALVINAS)·
FK
FAROE·ISLANDS·
FO
FIJI·
FJ
FRENCH·GUIANA·
GF
FRENCH·POLYNESIA·
PF
FRENCH·SOUTHERN·
TERRITORIES·
TF
G
GABON·
GA
GAMBIA
GM
GEORGIA·
GE
GHANA
GH
GIBRALTAR
GI
GREENLAND
GL
GRENADA
GD
GUADELOUPE
GP
GUAM
GU
GUATEMALA
GT
GUERNSEY
GG
GUINEA·
GN
GUINEA-BISSAU·
GW
GUYANA·
GY
H
HAITI·
HT
HEARD·ISLAND·AND·
MCDONALD·ISLANDS·
HM
HOLY·SEE·(VATICAN·CITY·
STATE)·
VA
HONDURAS
HN
HUNGARY·
HU
I
ICELAND·
IS
IRAN,·ISLAMIC·REPUBLIC·
OF·
IR
IRAQ·
IQ
ISLE·OF·MAN·
IM
ISRAEL·
IL
J
JAMAICA·
JM
JERSEY·
JE
Country Code
JORDAN·
JO
K
KAZAKHSTAN·
KZ
KENYA·
KE
KIRIBATI·
KI
KOREA,·DEMOCRATIC·
PEOPLE’S·REPUBLIC·OF·
KP
KUWAIT·
KW
KYRGYZSTAN
KG
L
LAO·PEOPLE’S·
DEMOCRATIC·REPUBLIC
LA
LATVIA·
LV
LEBANON·
LB
LESOTHO
LS
LIBERIA·
LR
LIBYAN·ARAB·JAMAHIRIYA·
LY
LIECHTENSTEIN·
LI
LITHUANIA·
LT
M
MACAO
MO
MACEDONIA,·THE·FORMER·
YUGOSLAV·REPUBLIC·OF·
MK
MADAGASCAR·
MG
MALAWI·
MW
MALDIVES·
MV
MALI·
ML
MALTA·
MT
MARSHALL·ISLANDS·
MH
MARTINIQUE·
MQ
MAURITANIA·
MR
MAURITIUS·
MU
MAYOTTE·
YT
MICRONESIA,·FEDERATED·
STATES·OF·
FM
MOLDOVA·
MD
MONACO·
MC
MONGOLIA·
MN
MONTENEGRO
ME
MONTSERRAT
MS
MOROCCO·
MA
MOZAMBIQUE·
MZ
MYANMAR·
MM
N
NAMIBIA·
NA
NAURU·
NR
NEPAL
NP
NETHERLANDS·ANTILLES·
AN
NEW·CALEDONIA·
NC
NICARAGUA·
NI
NIGER·
NE
NIGERIA·
NG
NIUE·
NU
Country Code
NORFOLK·ISLAND·
NF
NORTHERN·MARIANA·
ISLANDS·
MP
O
OMAN·
OM
P
PALAU
PW
PALESTINIAN·TERRITORY,·
OCCUPIED·
PS
PANAMA·
PA
PAPUA·NEW·GUINEA·
PG
PARAGUAY·
PY
PERU·
PE
PITCAIRN·
PN
PUERTO·RICO·
PR
Q
QATAR
QA
R
RÉUNION·
RE
ROMANIA·
RO
RWANDA·
RW
S
SAINT·BARTHÉLEMY·
BL
SAINT·HELENA
SH
SAINT·KITTS·AND·NEVIS·
KN
SAINT·LUCIA·
LC
SAINT·MARTIN·
MF
SAINT·PIERRE·AND·
MIQUELON·
PM
SAINT·VINCENT·AND·THE·
GRENADINES·
VC
SAMOA·
WS
SAN·MARINO·
SM
SAO·TOME·AND·PRINCIPE·
ST
SAUDI·ARABIA·
SA
SENEGAL
SN
SERBIA
RS
SEYCHELLES·
SC
SIERRA·LEONE·
SL
SLOVAKIA·
SK
SLOVENIA·
SI
SOLOMON·ISLANDS
SB
SOMALIA·
SO
SOUTH·AFRICA
ZA
SOUTH·GEORGIA·AND·
THE·SOUTH·SANDWICH·
ISLANDS·
GS
SRI·LANKA·
LK
SUDAN·
SD
SURINAME·
SR
SVALBARD·AND·JAN·
MAYEN
SJ
SWAZILAND·
SZ
SYRIAN·ARAB·REPUBLIC·
SY
Country Code
T
TAJIKISTAN·
TJ
TANZANIA,·UNITED·
REPUBLIC·OF·
TZ
TIMOR-LESTE·
TL
TOGO·
TG
TOKELAU·
TK
TONGA·
TO
TRINIDAD·AND·TOBAGO·
TT
TUNISIA·
TN
TURKEY·
TR
TURKMENISTAN·
TM
TURKS·AND·CAICOS·
ISLANDS·
TC
TUVALU·
TV
U
UGANDA·
UG
UKRAINE·
UA
UNITED·ARAB·EMIRATES·
AE
UNITED·STATES·MINOR·
OUTLYING·ISLANDS·
UM
URUGUAY·
UY
UZBEKISTAN·
UZ
V
VANUATU·
VU
VATICAN·CITY·STATE·
VA·
VENEZUELA·
VE
VIET·NAM·
VN
VIRGIN·ISLANDS,·BRITISH
VG
VIRGIN·ISLANDS,·U.S.·
VI
W
WALLIS·AND·FUTUNA·
WF
WESTERN·SAHARA·
EH
Y
YEMEN·
YE
Z
ZAMBIA·
ZM
ZIMBABWE·
ZW
Country Code List
Information
ENGLISH
TroubleshootingHDMI Control FunctionPlaybackSetupConnectionsGetting Started Specications
Numerics
4:3 letterbox
When·a·wide·(16·:·9)·disc·is·played·back·by·connecting·a·4·:·3·TV·and·
the·DVD-A1UDCI,·this·function·plays·back·the·image·with·black·area·
at·the·top·and·bottom.·
4:3 pan-and-scan
When·a·wide·(16·:·9)·disc·is·played·back·by·connecting·a·4·:·3·TV·and·
the·DVD-A1UDCI,·this·function·cuts·left·and·right·of·the·played·back·
image·to·the·4·:·3·size·according·to·the·disc's·control·information.·
A
Anamorphic lens
This·lens·enlarges·the·16·:·9·image·to·2.35·:·1·image·when·projecting·
the·image·using·a·projector.
Aspect ratio
This·is·the·length·and·width·ratio·of·the·TV·screen.·The·conventional·TV's·
screen·ratio·is·4·:·3·and·the·wide·screen·TV's·screen·ratio·is·16·:·9.
B
BD-J (Java)
With· BD-Videos,· there· are· fun· software· with· more· interactive·
functions·(games)·using·Java·applications.
BD-LIVE
The·DVD-A1UDCI·can·be·connected·to·the·Internet·to·enjoy·a·number·
of·features,·including·additional·contents·such·as·special·videos·or·
subtitles,·network·games,·etc.
Bit rate
This·expresses· the·read· amount·per· 1·second· of·video/audio· data·
recorded·in·a·disc.·
Blu-ray disc
This·is· one-side· 1·layer·disc· having·25GB·capacity· and·can·record·
high·vision·video·movie·and·games.
Bonus View
Special· images· for· BD-Videos.· It· includes· comment· of· the· movie·
director,· simultaneously· developing· sub-story,· and· images· from·
different·angles.
C
Chapter
This·is·a·break·intended·by·a·producer·who·organizes·the·title·of·BD·
or·DVD-Video.·The·chapter·search·function·searches·the·beginning·
of·this·break.
D
Deep Color
This·technology·allows·expression·of·more·number·of·colors·than·the·
conventional·8·bits·and·can·reproduce·colors·close·to·natural·ones·
without·color·streak.
DHCP (Dynamic Host Conguration Protocol)
This mechanism automatically perform network conguration such
as·IP·address·for·network·devices·including·DVD-A1UDCI,·PC,·and·
broadband·router.
Dolby Digital (5.1ch Surround)
This·is·a·stereophonic·effect·developed·by·Dolby·Laboratories.·This·is·
maximum·5.1·channels·of·independent·multi-channel·audio·system.
Dolby Digital Plus
This· is· an· extension· version· of· Dolby· Digital· and· is· a· high· sound·
quality·digital·audio·technology·adopted·as·an·optional·audio·for·Blu-
ray·disc.
Dolby TrueHD
This·lossless·coding·technology·is·adopted·as·optional·audio·for·Blu-
ray·disc·and·supports·7.1·channels.
Downmix
This·function·converts·the·number·of·channels·of·surround·audio·to·
less·number·of·channels·and·plays·back.
DTS
This·is·an·abbreviation·of·Digital·Theater·System,·which·is·a·digital·
audio· system· developed· by· DTS.· When· playing· back· audio· by·
connecting this system with a device such as DTS amplier, accurate
sound eld position and realistic sound effect as if you are in a movie
theater·can·be·obtained.
DTS-HD
This·audio·technology·provides·higher·sound·quality·and·enhanced·
functionality·than·the·conventional·DTS·and·is·adopted·as·an·optional·
audio·for·Blu-ray·disc.·This·technology·supports·multi-channel,·high·
data· transfer· speed,· high· sampling· frequency,· and· lossless· audio·
playback.·Maximum·7.1·channels·are·supported·in·Blu-ray·disc.
Dynamic range
The·difference·between·the·maximum·undistorted·sound·level·and·
the·minimum·sound·level·that·is·discernible·above·the·noise·emitted·
by·the·device.
F
Finalise
This·is·processing·that·enables·playing·back·of·disc·of·BD/DVD/CD,·
which·was·recorded·using·a·recorder,·by·other·players.
H
HDCP
When· transmitting· digital· signals· between· devices,· this· copyright·
protection·technology·encrypts·the·signals·to·prevent·content·from·
being·copied·without·authorization.
HDMI
This is an abbreviation of High-Denition Multimedia Interface, which
is an AV digital interface that can be connected to a TV or amplier.
Video·signal·and·audio·signal·can·be·connected·using·1·cable.
I
Interlacing (interlaced scanning)
This·conventional·method·used·to·project·images·on·a·TV·displays·1·
frame of image in half and half, respectively as 2 elds.
Interactive audio
Audio·such·as·click·sound·that·is·generated·during·operation·and·is·
recorded·in·the·title·of·BD-Videos.
L
LFE
This·is·an·abbreviation·of·Low·Frequency·Effect,·which·is·an·output·
channel· that· emphasizes· low· frequency· effect· sound.· · Surround·
audio is intensied by outputting 20Hz to 120Hz deep bass.
Linear PCM
This·signal· is·uncompressed· PCM· (Pulse·Code· Modulation)·signal.·
This·is·the·same·system·as·the·CD·audio·but·this·uses·192kHz,·96kHz,·
and·48kHz·sampling·frequencies·in·BD·or·DVD·and·provides·higher·
sound·quality·than·CD.
M
MPEG
This· is· an· abbreviation· of· Moving· Picture· Experts· Group,· which· is·
an·international·standard·of·the·moving·picture·audio·compression·
method.·Images·of·BD·and·DVD·are·recorded·using·this·method.
P
Picture-in-picture
This·BD-Video·function·allows· you·to· view·making· or·commentary·
scenes·in·the·secondary·video·while·viewing·the·main·story·in·the·
primary·video.
Popup menu
This· menu· recorded· in· BD· software.· While· playing· back· a· BD,·
this·menu·can·be·displayed·on·the·front·of·the·screen·and·can·be·
operated.
Primary audio
This·audio·signal·is·recorded·in·the·main·story·in·BD-Video.
Progressive (sequential scanning)
This·is· a·scanning·system· of·video·signal· that·displays· 1·frame·of·
video·as·one·image.·Compared·to·the·interlace·system,·this·system·
provides images with less ickering and bleeding.
R
Rating
Depending·on·the·age·of·the·viewer,·this·function·restricts·playing·
back·of·BD-Video·or·DVD-Video.·DVD-A1UDCI·can·be·set·to·restrict·
viewing· in· 0· to· 254· level· for· BD-Video,· and· 1· to· 8· level· for· DVD-
Video.
Region code
This·code·indicates·country·or·region·where·the·BD·or·DVD-Video·can·
be·played·back.
S
Secondary audio
This·is·audio·signals·of·comment·of·movie·director·and·other·data·
recorded·in·the·bonus·view·of·BD-Video.
T
Title
This·is·the·unit·of· content·that·consists·of·chapters·of· BD·or·DVD·
-Video.·Some·BD·or·DVD-Video·may·include·multiple·titles.
Explanation of Terms
Information
ENGLISH
TroubleshootingHDMI Control FunctionPlaybackSetupConnectionsGetting Started Specications
Index
vNumerics page
2ch·Balanced·Connection································································20
vA page
Adjusting·the·Picture·Quality···························································35
Advanced·AL32·Processing·····························································50
Analog·7.1ch·Connection································································18
Analog·Audio·Connection································································20
Audio·Format·············································································16,·17
Audio·Mode·····················································································33
Audio·Setup·····················································································27
Auto·Power·Mode············································································32
vB page
BD································································································3,·53
BD-Video························································································3,·5
BD-LIVE······················································································38,·53
Bonus·View················································································38,·53
Brightness·of·the·Display································································49
vC page
Cables·Used·for·Connections··························································12
CD··································································································3,·5
CD-R/-RW·······················································································3,·5
Channel·Level············································································25,·28
Chapter························································································5,·53
Component·Resolution····································································26
Component·Video·Output································································20
Country·Code···················································································52
vD page
Deep·Color·················································································25,·53
DENON·LINK········································································19,·24,·50
Digital·Audio·Connection·································································17
Digital·Audio·Output········································································29
DivX®·······························································································4,5
Dolby·Digital·········································································16,·17,·53
Dolby·Digital·Plus·································································16,·17,·53
Dolby·TrueHD······································································16,·17,·53
Downmix····················································································29,·53
DTS······················································································16,·17,·53
DTS-HD················································································16,·17,·53
DVD-Audio·····················································································3,·5
DVD-R/-RW/+R/+RW······································································3,·5
DVD-Video······················································································3,·5
DVI-D·Terminal·················································································14
Dynamic·Range··········································································29,·53
vF page
File··································································································4,·5
File·Browser·Screen·········································································41
Finalise·························································································4,·53
Firmware·Update·············································································33
Folder·································································································5
vG page
Group·································································································5
vH page
HDCP·························································································16,·53
HD·Layer····························································································5
HDMI····················································································12,·13,·53
HDMI·Connection············································································13
HDMI·Control·Function····································································49
HDMI·Setup·····················································································25
Home·Theater·Playback···································································11
vI page
Information·Bar·Display···································································36
Interlacing························································································53
vJ page
Jitter-free·Connection······································································18
JPEG··································································································4
vL page
Language·Code················································································51
Language·Setup···············································································25
Letter·Box··················································································26,·53
LFE·····························································································28,·53
Linear·PCM(LPCM)······························································16,·17,·53
LPCM···················································································16,·17,·53
vM page
Marker·Function···············································································45
Menu·Map·······················································································23
MP3························································································4,·16,·17
Multi·linear·PCM··············································································16
vN page
Network·····················································································21,·31
vP page
Pan·Scan····················································································26,·53
Picture-in-Picture········································································38,·53
Playback(BD)····················································································37
Playback(DVD)··················································································37
Playback(Super·Audio·CD)·······························································39
Playback(CD)····················································································39
Playback(DVD-Audio)·······································································39
Playback(JPEG)················································································42
Power·Saving···················································································32
Primary·Audio··················································································53
Progressive················································································26,·53
Pure·Direct·················································································30,·40
vR page
Rating·························································································31,·53
Region·Code················································································3,·53
Remote·Control·Setting···································································32
Remote·Control·Unit··········································································7
Repeat·Mode···················································································46
Restorer···························································································34
Resume·Function·············································································43
vS page
Screen·Saver····················································································32
SD·Memory·Card···········································································4,·5
Search·Mode···················································································44
Secondary·Audio··············································································53
Setting·HDMI·Audio·Output····························································15
Setting·HDMI·Video·Output·····························································15
Source·Direct···················································································29
Speaker Conguration·······························································25,·27
Subtitle·····························································································48
Super·Audio·CD·············································································3,·5
vT page
Time·Display····················································································37
Title······························································································5,·53
Track··································································································5
TV·Aspect···················································································26,·53
vV page
Vertical·Stretch·················································································34
Video·Setup······················································································26
vW page
WMA··································································································4
vX page
XLR·····························································································20,·30
Information
InformationHDMI Control FunctionPlaybackSetupConnectionsGetting Started Specications
ENGLISH
If a problem should arise, rst check the following:
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other components operating properly?
If·this· unit·does· not·operate· properly,·check· the·items· listed·in· the·table· below.· Should·the· problem·
persist,·there·may·be·a·malfunction.
In·this·case,·disconnect·the·power·immediately·and·contact·your·store·of·purchase.
Troubleshooting
Symptom Cause / Countermeasure Page
Power·does· not·turn·
on.
Check·if·the·power·cord·is·properly·connected.
Plug·the·power·supply·cord·into·the·power·outlet.
The·safety·protection·device·may·be·activated.·Unplug·the·power·
cord·once,·and·wait·for·5-10·seconds·and·then·plug·it·in·again.
DVD-A1UDCI·enters·the·standby·status·by·safety·function·when·
the·fan·stops.·Check·the·back·of·the·set·if·something·is·disturbing·
the·fan·rotation.
•
•
•
•
22
–
–
3,·9
Unable· to· play· back·
bonus·view.
Does·the·SD·Memory·Card·has·more·than·1GB·of·available·space?
Has·the·SD·Memory·Card·been·initialized·by·the·DVD-A1UDCI?
Was·the·SD·Memory·Card·inserted·while·the·power·of·the·unit·is·
on.·(Insert·the·SD·Memory·Card·while·the·DVD-A1UDCI·is·in·the·
standby·status.)
•
•
•
4,·38
32
4,·38
Picture· does· not·
appear.
Switch·the·TV's·input·setting·to·the·external·input·connected·to·
the·player.
Is·the·Pure·Direct·function·set·to·“On”?·Set·to·“Off”.
Also,·is·“Pure·Direct·Setup”·–·“Video·Out”·on·the·GUI·menu·set·
to·“Off”·at·the·“User·Preset·1”·or·“User·Preset·2”·setting?·Set·it·
to·“On”.
Check·the·connection·of·the·video/S-Video/component·video·cable.
Does·the·“Video·Setup”·–·“Component·Resolution”·setting·on·the·
GUI·menu·match·the·connected·device's·resolution?·Set·it·so·that·
it·matches.
•
•
•
•
–
30,·40
19
26
Video· and· audio· are·
not·output·with·HDMI·
connection.
Check·the·connection·of·the·HDMI·cable.
Is· the· “HDMI”· indicator· of· the· display· of· the· DVD-A1UDCI·
lighting?
Is·the·Pure·Direct·function·set·to·“On”?·Set·to·“Off”.
Also,·is·“Pure·Direct·Setup”·–·“Video·Out”·on·the·GUI·menu·set·
to·“Off”·at·the·“User·Preset·1”·or·“User·Preset·2”·setting?·Set·it·
to·“On”.
Check· whether· the· connected· display· device· or· other· device·
supports·HDCP.·This·unit·will·not·output·a·video·signal·unless·the·
other·device·supports·HDCP.·See·the·owner’s·manual·of·your·TV,·
AV·Amp,·etc.
Check·that·the·setting·of·the·HDMI·video·resolution·supports·the·
resolution· of·the· connected· device.· When· set· to· “Auto”,· DVD-
A1UDCI·makes·the·setting·automatically.
Check· that· the· HDMI· mode· setting· matches· the· connected·
content.·The·connection·method·of·each·HDMI·mode·is·different.
•
•
•
•
•
•
13,·14
8
30,·40
16
15
13,·14
Symptom Cause / Countermeasure Page
HD· audio· is· not·
output.
Set·“BD·Audio·Mode”·to·“HD·Audio·Output”.• 33
Picture· is· not·
displayed· or· is·
disturbed.
Picture·of·a·BD-Video·
or·DVD-Video· disc·is·
in·black·and·white.
The·picture·may·be·slightly·disturbed·directly·after·fast-forwarding·
or·reversing.·This·is·not·a·malfunction.
Connect· the· DVD-A1UDCI’s· video/S-Video/component· video·
output·either·directly·to·the·TV·or·to·the·TV·via·the·AV·Amp.·Do·
not· connect· via· a· VCR· (video· cassette· recorder).· Some· discs·
include·copy· prohibit·signals,· and· when· such· discs·are· played·
via·a·VCR,·the·copy·guard·system·may·cause·the·picture·to·be·
disturbed.
Is· a· disc· that· is· not· compatible· with· the· player· or· a· disc· with·
a·different·region·number·loaded?·(This·player·supports· region·
code·“A”·for·BD-Video·discs,·“1”·or·“ALL”·for·DVD-Video·discs.)
•
•
•
–
19
3
No·sound·is·heard·or·
the·sound· is· hard·to·
hear.
Check·the· devices· whose· audio· is·connected· and·the· speaker·
connections.
Is·the·power·of·devices·whose·audio·is·connected·turned·on?
Is·the·input·selection·set·to·the·input·to·which·the·DVD-A1UDCI·
is·connected?
Is·the·audio·output·properly·selected?
•
•
•
11·~·22
–
13·~·21
Picture· freezes·
momentarily· during·
playback.
When the disc is scratched or contaminated with ngerprints, the
disc·may·not·be·played·back·correctly.··Clean·the·disc·or·replace·
with·a·non-scratched·disc.
There·may·be·a·problem·with·the·data·recorded·on·the·disc.
•
•
6
–
Playback· does· not·
start·even·when·
1·is·
pressed,·or·starts·but·
stops·immediately.
Is·there·condensation·inside·the·player·or·on·the·disc?·(Let·set·for·
1·to·2·hours·with·the·power·off.)
When the disc is scratched or contaminated with ngerprints, the
disc·may·not·be·played·back·correctly.··Clean·the·disc·or·replace·
with·a·non-scratched·disc.
Is·the·disc·loaded·upside-down?·Load·the·disc·properly,·with·the·
side·containing·the·signals·to·be·played·facing·down.
Is·an·unplayable·disc·loaded?·
•
•
•
•
3
6
6
3,·4
Subtitles· are· not·
displayed.
Subtitles·cannot·be·displayed·for·BD-Video,·DVD-Video·or·DivX
®
·
les that do not contain subtitles.
Is·the·subtitle·setting·“Off”?·Use·a·disc·menu·or··to·set·the· ·
displayed·subtitle.
•
•
48
25
SD· Memory· Card·
cannot·be·read.
The·format·of·the·card·does·not·match·to·this·unit·or·the·card·is·
not·compatible.·
Is·the·playback·media·mode·set·to·“SD·CARD·MODE”?
Select·“SD·CARD·MODE”·at·
.
•
•
32
36
Troubleshooting
InformationHDMI Control FunctionPlaybackSetupConnectionsGetting Started Specications
ENGLISH
Some·function·may·not·be·used·in·some·operation·status·and·this·is·not·failure·of·the·unit.·Read·the·
description·in·this·Owner’s·Manual·for·details·on·correct·operations.
The·volume·may·differ·from·disc·to·disc.·This·is·due·to·the·differences·in·how·the·signals·are·recorded·
on·the·disc,·and·is·not·a·malfunction.
During·programmed·playback,·it·is·not·possible·to·perform·random·playback·or·to·start·playback·from·
the desired track or le.
Some·functions·are·prohibited·on·some·discs.
•
•
•
•
Symptom Cause / Countermeasure Page
No·return· to·start-up·
screen· when· disc· is·
removed.
There·may·be·an·internal·error.·Set·the·power·to· standby,·wait·
awhile,·then·turn·the·power·back·on.
• –
The· set· cannot· be·
operated· with· the·
remote·control·unit.
Aim·the·remote·control·directly·at·infrared·sensor·window·on·the·
front·of·the·unit.
Operate·within·a·distance·of·7·meters·from·the·remote·control·
sensor.
Remove·the·obstacle.
Replace·the·batteries·with·new·ones.
Insert·the·batteries·in·the·proper·direction,·checking·the·q·and·
w·marks.
Make·the·signal·code·of·the·remote·control·match·to·the·signal·
code·of·the·unit.
•
•
•
•
•
•
7
7
–
7
7
7
The· unit· is· operated·
by·the·remote·control·
of· other· DENON·
products.
The· unit· is· operated· by· the· remote· control· of· other· DENON·
products.
To·avoid·the·unit·being·operated·with·the·remote·control·of·other·
devices,·set·“Other·Setup”·–·“Remote·Control·Setting”·–·“Receive·
Legacy·Remocon”·to·“Off”·on·the·GUI·menu.
•
•
7,·32
32
Buttons·do·not·work·
or· the· unit· stops·
responding.
Operations·may·not·be·permitted·by·the·disc.
The·safety·protection·device·may·be·activated.·Unplug·the·power·
cord·once,·and·wait·for·5-10·seconds·and·then·plug·it·in·again.
Refer·to·the·instructions·of·the·disc.
•
•
•
–
–
–
Playable· disc· is· not·
read.
The· pickup· lens· may· be· dirty.· Before· requesting· servicing,· try·
cleaning· the· laser· pickup· with· a· commercially· available· lens·
cleaner.·(Do·not·use·a·cleaner·with·brush·because·it·may·damage·
the·lens.)
• –
Angle· does· not·
switch.
If· a· BD-Video· or· DVD-Video· does· not· record· multiple· angles,·
angle·cannot·be·switched.·Also,·multiple·angles·may·be·recorded·
for specic scenes.
• 49
Playback· does· not·
start·when·the·title·is·
selected.
Playback· may· be· prohibited· by· the· viewing· restriction· setting.·
Check·the·“Ratings”·setting·on·the·GUI·menu.
• 31
The· password· for·
rating·level·has·been·
forgotten.
On· the· GUI· menu,· perform· the· “Other· Setup”· –· “Initialize”·
procedure.
• 33
Troubleshooting
TroubleshootingInformationHDMI Control FunctionPlaybackSetupConnectionsGetting Started
ENGLISH
Specications
Audio performancen
Signal format : NTSC
Applicable discs /memory cards : (1)·BD-Video·discs·:
12·cm·1·side·1·layer,·12·cm·1·side·2·layers
(2)·DVD-Video·/·DVD-Audio·discs·:
12·cm·1·side·1·layer,·12·cm·1·side·2·layers·/·
12·cm·2·sides·2·layers·(1·side·1·layer)
8·cm·1·side·1·layer,·8·cm·1·side·2·layers·/·
8·cm·2·sides·2·layers·(1·side·1·layer)
(3)·Super·Audio·CDs·:
12·cm·1·layer·/·12·cm·2·layer·/·12·cm·Hybrid
(4)·Compact·Discs·(CD-DA)·:
12·cm·/·8·cm·discs
(5)·Memory·cards·:
SD·Memory·Card·/·SDHC·Memory·Card·/·miniSD·Card·/
microSD·Card
S-Video output : Y output level : 1Vp-p (75 Ω/ohms)
C·output·level·:·0.286·Vp-p
Output·terminal·:·S-Video,·1·set
Video output : Output level : 1Vp-p (75 Ω/ohms)
Output·terminal·:·Pin-jack,·1·set
Component video output : Y output level : 1Vp-p (75 Ω/ohms)
Pb/Cb output level / Pr/Cr output level : 0.648 Vp-p (75 Ω/ohms)
Output·terminal·:·Pin-jack,·1·set
HDMI output : Output·terminal·:·19-pin·HDMI·terminals,·2·set
HDMI·ver.·1.3a·
(Deep·Colour,·Dolby·Digital·Plus,·Dolby·TrueHD,·DTS-HD)
Analog audio output : Output level : 2 Vrms (10 kΩ/kohms)
2·channels·output·terminal·:·XLR·terminal,·1·set
7.1·channels·output·terminal·:·Pin-jack,·1·set
Audio output characteristics : (1)·Frequency·response
q·BD·(Multi·linear·PCM)
w·DVD·(Multi·linear·PCM)
e·Super·Audio·CD
r·CD
:·2Hz·~·22kHz·(48kHz·sampling)
:·2Hz·~·44kHz·(96kHz·sampling)
:·2Hz·~·88kHz·(192kHz·sampling)
:·2Hz·~·22kHz·(48kHz·sampling)
:·2Hz·~·44kHz·(96kHz·sampling)
:·2Hz·~·88kHz·(192kHz·sampling)
:·2Hz·~·100kHz
:·2Hz·~·20kHz
(2)·S/N·ratio·:·125dB
(3)·Total·harmonic·distortion·:·1kHz·0.0008%
(4)·Dynamic·range·:·110dB
Digital audio output :
Optical·digital·output:·Optical·connector,·1·set
Coaxial·digital·output:·Pin·jack,·1·set
Generaln
Power supply : AC·120·V,·60·Hz
Power consumption :
(vpage·32·“Power·Saving”)
88·W
When·in·Power·Saving·Standby·:·0.2·W
When·in·Normal·Standby·:·0.8·W
When·in·HDMI·Control·Mode·:
4·~·15·W·(Changes·according·to·connection·status,·etc.)
When·in·Quick·Start·Mode·:
15·~·30·W·(Changes·according·to·connection·status,·etc.)
•
•
•
•
Maximum external dimensions : 434·(W)·x·151·(H)·x·410·(D)·mm·(17-5/64”·x·5-15/16”·x·16-9/64”)
Weight : 18.9·kg·(41·lbs·10.7·oz)
Remote control unit (RC-1111)n
Remote control type : Infrared·pulse
Batteries : R6/AA·Type·(three·batteries)
Maximum external dimensions : 58·(W)·x·230·(H)·x·37·(D)·mm·(2-9/32”·x·9-3/64”·x·1-29/64”)
Weight : 227·g·(Approx.·8·oz)·(included·batteries)
z
For purposes of improvement, specications and design are subject to change without notice.
Specications
LICENSE
This section describes software license used for DVD-A1UDCI. To maintain the correct content, the original
(English) is used.
Cette section concerne la licence du logiciel utilisé avec le lecteur DVD-A1UDCI. Le Français original est utilisé an
d’assurer l’exactitude du contenu.
n
Exhibit-A
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991
Free Software Foundation, Inc. 59 Temple Place, Suite
330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim
copies of this license document, but changing it is not
allowed.
Preamble
The licenses for most software are designed to take away
your freedom to share and change it. By contrast, the
GNU General Public
License is intended to guarantee your freedom to share
and change free software--to make sure the software is
free for all its users. This General Public License applies
to most of the Free Software Foundations software and
to any other program whose authors commit to using it.
(Some other Free Software Foundation software is covered
by the GNU Library General Public License instead.) You
can apply it to your programs, too.
When we speak of free software, we are referring to
freedom, not price. Our General Public Licenses are
designed to make sure that you have the freedom to
distribute copies of free software (and charge for this
service if you wish), that you receive source code or can
get it if you want it, that you can change the software or
use pieces of it in new free programs; and that you know
you can do these things.
To protect your rights, we need to make restrictions that
forbid anyone to deny you these rights or to ask you to
surrender the rights. These restrictions translate to certain
responsibilities for you if you distribute copies of the
software, or if you modify it.
For example, if you distribute copies of such a program,
whether gratis or for a fee, you must give the recipients all
the rights that you have. You must make sure that they,
too, receive or can get the source code. And you must
show them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the
software, and (2) offer you this license which gives you
legal permission to copy, distribute and/or modify the
software.
Also, for each author’s protection and ours, we want to
make certain that everyone understands that there is no
warranty for this free software. If the software is modied
by someone else and passed on, we want its recipients
to know that what they have is not the original, so that
any problems introduced by others will not reect on the
original authors’ reputations.
Finally, any free program is threatened constantly by
software patents. We wish to avoid the danger that
redistributors of a free program will individually obtain
patent licenses, in effect making the program proprietary.
To prevent this, we have made it clear that any patent must
be licensed for everyone’s free use or not licensed at all.
The precise terms and conditions for copying, distribution
and modication follow.
TERMS AND CONDITIONS FOR COPYING,
DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work
which contains a notice placed by the copyright holder
saying it may be distributed under the terms of this
General Public License. The “Program”, below, refers
to any such program or work, and a “work based
on the Program” means either the Program or any
derivative work under copyright law: that is to say, a
work containing the Program or a portion of it, either
verbatim or with modications and/or translated into
another language. (Hereinafter, translation is included
without limitation in the term “modication”.) Each
licensee is addressed as “you”.
Activities other than copying, distribution and
modication are not covered by this License; they
are outside its scope. The act of running the Program
is not restricted, and the output from the Program is
covered only if its contents constitute a work based
on the Program (independent of having been made by
running the Program). Whether that is true depends on
what the Program does.
1. You may copy and distribute verbatim copies of the
Program’s source code as you receive it, in any medium,
provided that you conspicuously and appropriately
publish on each copy an appropriate copyright notice
and disclaimer of warranty; keep intact all the notices
that refer to this License and to the absence of any
warranty; and give any other recipients of the Program
a copy of this License along with the Program.
You may charge a fee for the physical act of transferring
a copy, and you may at your option offer warranty
protection in exchange for a fee.
2. You may modify your copy or copies of the Program
or any portion of it, thus forming a work based on the
Program, and copy and distribute such modications
or work under the terms of Section 1 above, provided
that you also meet all of these conditions:
a) You must cause the modied les to carry prominent
notices stating that you changed the les and the
date of any change.
b) You must cause any work that you distribute
or publish, that in whole or in part contains or is
derived from the Program or any part thereof, to be
licensed as a whole at no charge to all third parties
under the terms of this License.
c) If the modied program normally reads commands
interactively when run, you must cause it, when
started running for such interactive use in the most
ordinary way, to print or display an announcement
including an appropriate copyright notice and a
notice that there is no warranty (or else, saying
that you provide a warranty) and that users may
redistribute the program under these conditions,
and telling the user how to view a copy of this
License.
(Exception: if the Program itself is interactive but
does not normally print such an announcement,
your work based on the Program is not required to
print an announcement.)
These requirements apply to the modied work as
a whole. If identiable sections of that work are not
derived from the Program, and can be reasonably
considered independent and separate works in
themselves, then this License, and its terms, do not
apply to those sections when you distribute them as
separate works. But when you distribute the same
sections as part of a whole which is a work based on
the Program, the distribution of the whole must be on
the terms of this License, whose permissions for other
licensees extend to the entire whole, and thus to each
and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights
or contest your rights to work written entirely by you;
rather, the intent is to exercise the right to control the
distribution of derivative or collective works based on
the Program.
In addition, mere aggregation of another work not
based on the Program with the Program (or with a
work based on the Program) on a volume of a storage
or distribution medium does not bring the other work
under the scope of this License.
3. You may copy and distribute the Program (or a
work based on it, under Section 2) in object code or
executable form under the terms of Sections 1 and 2
above provided that you also do one of the following:
a) Accompany it with the complete corresponding
machine-readable source code, which must be
distributed under the terms of Sections 1 and 2
above on a medium customarily used for software
interchange; or,
b) Accompany it with a written offer, valid for at least
three years, to give any third party, for a charge no
more than your cost of physically performing source
distribution, a complete machine-readable copy of
the corresponding source code, to be distributed
under the terms of Sections 1 and 2 above on a
medium customarily used for software interchange;
or,
c) Accompany it with the information you received as
to the offer to distribute corresponding source code.
(This alternative is allowed only for noncommercial
distribution and only if you received the program in
object code or executable form with such an offer,
in accord with Subsection b above.)
The source code for a work means the preferred
form of the work for making modications to it. For
an executable work, complete source code means all
the source code for all modules it contains, plus any
associated interface denition les, plus the scripts
used to control compilation and installation of the
executable.
However, as a special exception, the source code
distributed need not include anything that is normally
distributed (in either source or binary form) with the
major components (compiler, kernel, and so on) of the
operating system on which the executable runs, unless
that component itself accompanies the executable.
If distribution of executable or object code is made by
offering access to copy from a designated place, then
offering equivalent access to copy the source code from
the same place counts as distribution of the source
code, even though third parties are not compelled to
copy the source along with the object code.
License
4. You may not copy, modify, sublicense, or distribute
the Program except as expressly provided under this
License. Any attempt otherwise to copy, modify,
sublicense or distribute the Program is void, and will
automatically terminate your rights under this License.
However, parties who have received copies, or rights,
from you under this License will not have their licenses
terminated so long as such parties remain in full
compliance.
5. You are not required to accept this License, since you
have not signed it. However, nothing else grants you
permission to modify or distribute the Program or its
derivative works. These actions are prohibited by
law if you do not accept this License. Therefore, by
modifying or distributing the Program (or any work
based on the Program), you indicate your acceptance
of this License to do so, and all its terms and conditions
for copying, distributing or modifying the Program or
works based on it.
6. Each time you redistribute the Program (or any work
based on the Program), the recipient automatically
receives a license from the original licensor to copy,
distribute or modify the Program subject to these
terms and conditions. You may not impose any further
restrictions on the recipients’ exercise of the rights
granted herein.
You are not responsible for enforcing compliance by
third parties to this License.
7. If, as a consequence of a court judgment or allegation
of patent infringement or for any other reason (not
limited to patent issues), conditions are imposed on
you (whether by court order, agreement or otherwise)
that contradict the conditions of this License, they do
not excuse you from the conditions of this License. If
you cannot distribute so as to satisfy simultaneously
your obligations under this License and any other
pertinent obligations, then as a consequence you
may not distribute the Program at all. For example,
if a patent license would not permit royalty-free
redistribution of the Program by all those who receive
copies directly or indirectly through you, then the only
way you could satisfy both it and this License would
be to refrain entirely from distribution of the Program.
If any portion of this section is held invalid or
unenforceable under any particular circumstance,
the balance of the section is intended to apply and
the section as a whole is intended to apply in other
circumstances.
It is not the purpose of this section to induce you to
infringe any patents or other property right claims or
to contest validity of any such claims; this section has
the sole purpose of protecting the integrity of the free
software distribution system, which is implemented
by public license practices. Many people have
made generous contributions to the wide range of
software distributed through that system in reliance
on consistent application of that system; it is up to
the author/donor to decide if he or she is willing to
distribute software through any other system and a
licensee cannot impose that choice.
This section is intended to make thoroughly clear what
is believed to be a consequence of the rest of this
License.
LICENSE
8. If the distribution and/or use of the Program is restricted
in certain countries either by patents or by copyrighted
interfaces, the original copyright holder who places
the Program under this License may add an explicit
geographical distribution limitation excluding those
countries, so that distribution is permitted only in or
among countries not thus excluded. In such case, this
License incorporates the limitation as if written in the
body of this License.
9. The Free Software Foundation may publish revised
and/or new versions of the General Public License
from time to time. Such new versions will be similar in
spirit to the present version, but may differ in detail to
address new problems or concerns.
Each version is given a distinguishing version number.
If the Program species a version number of this
License which applies to it and “any later version”, you
have the option of following the terms and conditions
either of that version or of any later version published
by the Free Software Foundation. If the Program does
not specify a version number of this License, you
may choose any version ever published by the Free
Software Foundation.
10. If you wish to incorporate parts of the Program into
other free programs whose distribution conditions are
different, write to the author to ask for permission. For
software which is copyrighted by the Free Software
Foundation, write to the Free Software Foundation; we
sometimes make exceptions for this. Our decision will
be guided by the two goals of preserving the free status
of all derivatives of our free software and of promoting
the sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE
OF CHARGE, THERE IS NO WARRANTY FOR
THE PROGRAM, TO THE EXTENT PERMITTED BY
APPLICABLE LAW. EXCEPT WHEN OTHERWISE
STATED IN WRITING THE COPYRIGHT HOLDERS
AND/OR OTHER PARTIES PROVIDE THE PROGRAM
“AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THE ENTIRE RISK AS TO THE QUALITY
AND PERFORMANCE OF THE PROGRAM IS WITH
YOU. SHOULD THE PROGRAM PROVE DEFECTIVE,
YOU ASSUME THE COST OF ALL NECESSARY
SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE
LAW OR AGREED TO IN WRITING WILL ANY
COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO
MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM
AS PERMITTED ABOVE, BE LIABLE TO YOU FOR
DAMAGES, INCLUDING ANY GENERAL, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OR INABILITY TO USE THE
PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS
OF DATA OR DATA BEING RENDERED INACCURATE
OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES
OR A FAILURE OF THE PROGRAM TO OPERATE WITH
ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER
OR OTHER PARTY HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Programs
If you develop a new program, and you want it to be of
the greatest possible use to the public, the best way to
achieve this is to make it free software which everyone
can redistribute and change under these terms.
To do so, attach the following notices to the program. It
is safest to attach them to the start of each source le
to most effectively convey the exclusion of warranty; and
each le should have at least the “copyright” line and a
pointer to where the full notice is found.
<one line to give the program’s name and a brief idea
of what it does.>
Copyright (C) <year> <name of author>
This program is free software; you can redistribute it
and/or modify it under the terms of the GNU General
Public License as published by the Free Software
Foundation; either version 2 of the License, or (at your
option) any later version.
This program is distributed in the hope that it will
be useful, but WITHOUT ANY WARRANTY; without
even the implied warranty of MERCHANTABILITY or
FITNESS FOR A PARTICULAR PURPOSE. See the
GNU General Public License for more details.
You should have received a copy of the GNU General
Public License along with this program; if not, write to
the Free Software Foundation, Inc., 59 Temple Place,
Suite 330, Boston, MA 02111-1307 USA
Also add information on how to contact you by electronic
and paper mail.
If the program is interactive, make it output a short notice
like this when it starts in an interactive mode:
Gnomovision version 69, Copyright (C) year name of
author
Gnomovision comes with ABSOLUTELY NO
WARRANTY; for details type ‘show w’. This is free
software, and you are welcome to redistribute it under
certain conditions; type ‘show c’ for details.
The hypothetical commands ‘show w’ and ‘show c’
should show the appropriate parts of the General Public
License. Of course, the commands you use may be called
something other than ‘show w’ and ‘show c’; they could
even be mouse-clicks or menu items--whatever suits your
program.
You should also get your employer (if you work as a
programmer) or your school, if any, to sign a “copyright
disclaimer” for the program, if necessary. Here is a
sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest
in the program ‘Gnomovision’ (which makes passes at
compilers) written by James Hacker.
<signature of Ty Coon>, 1 April 1989
Ty Coon, President of Vice
This General Public License does not permit incorporating
your program into proprietary programs. If your program
is a subroutine library, you may consider it more useful to
permit linking proprietary applications with the library. If
this is what you want to do, use the GNU Library General
Public License instead of this License.
n
Exhibit-B
GNU LESSER GENERAL PUBLIC LICENSE
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307
USA
Everyone is permitted to copy and distribute verbatim
copies of this license document, but changing it is not
allowed.
[This is the rst released version of the Lesser GPL. It
also counts as the successor of the GNU Library Public
License, version 2, hence the version number 2.1.]
Preamble
The licenses for most software are designed to take away
your freedom to share and change it. By contrast, the
GNU General Public Licenses are intended to guarantee
your freedom to share and change free software--to make
sure the software is free for all its users.
This license, the Lesser General Public License, applies
to some specially designated software packages--
typically libraries--of the Free Software Foundation and
other authors who decide to use it. You can use it too,
but we suggest you rst think carefully about whether
this license or the ordinary General Public License is the
better strategy to use in any particular case, based on the
explanations below.
When we speak of free software, we are referring to
freedom of use, not price. Our General Public Licenses
are designed to make sure that you have the freedom
to distribute copies of free software (and charge for this
service if you wish); that you receive source code or can
get it if you want it; that you can change the software and
use pieces of it in new free programs; and that you are
informed that you can do these things.
To protect your rights, we need to make restrictions that
forbid distributors to deny you these rights or to ask you
to surrender these rights. These restrictions translate to
certain responsibilities for you if you distribute copies of
the library or if you modify it.
For example, if you distribute copies of the library,
whether gratis or for a fee, you must give the recipients
all the rights that we gave you. You must make sure that
they, too, receive or can get the source code. If you link
other code with the library, you must provide complete
object les to the recipients, so that they can relink them
with the library after making changes to the library and
recompiling it. And you must show them these terms so
they know their rights. We protect your rights with a two-
step method: (1) we copyright the library, and (2) we offer
you this license, which gives you legal permission to copy,
distribute and/or modify the library.
To protect each distributor, we want to make it very clear
that there is no warranty for the free library. Also, if the
library is modied by someone else and passed on, the
recipients should know that what they have is not the
original version, so that the original author’s reputation
will not be affected by problems that might be introduced
by others.
Finally, software patents pose a constant threat to the
existence of any free program. We wish to make sure
that a company cannot effectively restrict the users of
a free program by obtaining a restrictive license from a
patent holder. Therefore, we insist that any patent license
obtained for a version of the library must be consistent
with the full freedom of use specied in this license.
Most GNU software, including some libraries, is covered
by the ordinary GNU General Public License. This license,
the GNU Lesser General Public License, applies to certain
designated libraries, and is quite different from the
ordinary General Public License. We use this license for
certain libraries in order to permit linking those libraries
into non-free programs.
When a program is linked with a library, whether statically or
using a shared library, the combination of the two is legally
speaking a combined work, a derivative of the original
library. The ordinary General Public License therefore
permits such linking only if the entire combination ts its
criteria of freedom. The Lesser General Public License
permits more lax criteria for linking other code with the
library.
We call this license the “Lesser” General Public License
because it does Less to protect the user’s freedom than
the ordinary General Public License. It also provides
other free software developers Less of an advantage over
competing non-free programs. These disadvantages are
the reason we use the ordinary General Public License
for many libraries. However, the Lesser license provides
advantages in certain special circumstances.
For example, on rare occasions, there may be a special
need to encourage the widest possible use of a certain
library, so that it becomes a de-facto standard. To achieve
this, non-free programs must be allowed to use the library.
A more frequent case is that a free library does the same
job as widely used non-free libraries. In this case, there
is little to gain by limiting the free library to free software
only, so we use the Lesser General Public License.
In other cases, permission to use a particular library in non-
free programs enables a greater number of people to use
a large body of free software. For example, permission to
use the GNU C Library in non-free programs enables many
more people to use the whole GNU operating system, as
well as its variant, the GNU/Linux operating system.
Although the Lesser General Public License is Less
protective of the users’ freedom, it does ensure that the
user of a program that is linked with the Library has the
freedom and the wherewithal to run that program using a
modied version of the Library.
The precise terms and conditions for copying, distribution
and modication follow. Pay close attention to the
difference between a “work based on the library” and a
“work that uses the library”.
The former contains code derived from the library,
whereas the latter must be combined with the library in
order to run.
LICENSE
TERMS AND CONDITIONS FOR COPYING,
DISTRIBUTION AND MODIFICATION
0. This License Agreement applies to any software library
or other program which contains a notice placed by
the copyright holder or other authorized party saying
it may be distributed under the terms of this Lesser
General Public License (also called “this License”).
Each licensee is addressed as “you”.
A “library” means a collection of software functions
and/or data prepared so as to be conveniently linked
with application programs (which use some of those
functions and data) to form executables.
The “Library”, below, refers to any such software
library or work which has been distributed under these
terms. A “work based on the Library” means either
the Library or any derivative work under copyright
law: that is to say, a work containing the Library or a
portion of it, either verbatim or with modications and/
or translated straightforwardly into another language.
(Hereinafter, translation is included without limitation
in the term “modication”.)
“Source code” for a work means the preferred form of
the work for making modications to it. For a library,
complete source code means all the source code for
all modules it contains, plus any associated interface
denition les, plus the scripts used to control
compilation and installation of the library.
Activities other than copying, distribution and
modication are not covered by this License; they are
outside its scope. The act of running a program using
the Library is not restricted, and output from such a
program is covered only if its contents constitute a
work based on the Library (independent of the use
of the Library in a tool for writing it). Whether that is
true depends on what the Library does and what the
program that uses the Library does.
1. You may copy and distribute verbatim copies of the
Library’s complete source code as you receive it, in
any medium, provided that you conspicuously and
appropriately publish on each copy an appropriate
copyright notice and disclaimer of warranty; keep
intact all the notices that refer to this License and to
the absence of any warranty; and distribute a copy of
this License along with the Library.
You may charge a fee for the physical act of transferring
a copy, and you may at your option offer warranty
protection in exchange for a fee.
2. You may modify your copy or copies of the Library or
any portion of it, thus forming a work based on the
Library, and copy and distribute such modications
or work under the terms of Section 1 above, provided
that you also meet all of these conditions:
a) The modied work must itself be a software library.
b) You must cause the les modied to carry prominent
notices stating that you changed the les and the
date of any change.
c) You must cause the whole of the work to be licensed
at no charge to all third parties under the terms of
this License.
d) If a facility in the modied Library refers to a function
or a table of data to be supplied by an application
program that uses the facility, other than as an
argument passed when the facility is invoked, then
you must make a good faith effort to ensure that, in the
event an application does not supply such function or
(For example, a function in a library to compute
square roots has a purpose that is entirely well-
dened independent of the application. Therefore,
Subsection 2d requires that any application-supplied
function or table used by this function must be
optional: if the application does not supply it, the
square root function must still compute square
roots.)
These requirements apply to the modied work
as a whole. If identiable sections of that work are
not derived from the Library, and can be reasonably
considered independent and separate works in
themselves, then this License, and its terms, do not
apply to those sections when you distribute them as
separate works. But when you distribute the same
sections as part of a whole which is a work based on
the Library, the distribution of the whole must be on
the terms of this License, whose permissions for other
licensees extend to the entire whole, and thus to each
and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights
or contest your rights to work written entirely by you;
rather, the intent is to exercise the right to control the
distribution of derivative or collective works based on
the Library.
In addition, mere aggregation of another work not
based on the Library with the Library (or with a work
based on the Library) on a volume of a storage or
distribution medium does not bring the other work
under the scope of this License.
3. You may opt to apply the terms of the ordinary GNU
General Public License instead of this License to a
given copy of the Library. To do this, you must alter all
the notices that refer to this License, so that they refer
to the ordinary GNU General Public License, version
2, instead of to this License. (If a newer version than
version 2 of the ordinary GNU General Public License
has appeared, then you can specify that version
instead if you wish.) Do not make any other change in
these notices.
Once this change is made in a given copy, it is
irreversible for that copy, so the ordinary GNU General
Public License applies to all subsequent copies and
derivative works made from that copy.
This option is useful when you wish to copy part of the
code of the Library into a program that is not a library.
4. You may copy and distribute the Library (or a portion
or derivative of it, under Section 2) in object code or
executable form under the terms of Sections 1 and
2 above provided that you accompany it with the
complete corresponding machine-readable source
code, which must be distributed under the terms of
Sections 1 and 2 above on a medium customarily used
for software interchange.
If distribution of object code is made by offering
access to copy from a designated place, then offering
equivalent access to copy the source code from the
same place satises the requirement to distribute
the source code, even though third parties are not
compelled to copy the source along with the object
code.
5. A program that contains no derivative of any portion
of the Library, but is designed to work with the Library
by being compiled or linked with it, is called a “work
that uses the Library”. Such a work, in isolation, is
not a derivative work of the Library, and therefore falls
outside the scope of this License.
However, linking a “work that uses the Library” with
the Library creates an executable that is a derivative
of the Library (because it contains portions of the
Library), rather than a “work that uses the library”. The
executable is therefore covered by this License.
Section 6 states terms for distribution of such
executables.
When a “work that uses the Library” uses material
from a header le that is part of the Library, the object
code for the work may be a derivative work of the
Library even though the source code is not.
Whether this is true is especially signicant if the work
can be linked without the Library, or if the work is
itself a library. The threshold for this to be true is not
precisely dened by law.
If such an object le uses only numerical parameters,
data structure layouts and accessors, and small
macros and small inline functions (ten lines or less in
length), then the use of the object le is unrestricted,
regardless of whether it is legally a derivative work.
(Executables containing this object code plus portions
of the Library will still fall under Section 6.)
Otherwise, if the work is a derivative of the Library, you
may distribute the object code for the work under the
terms of Section 6. Any executables containing that
work also fall under Section 6, whether or not they are
linked directly with the Library itself.
6. As an exception to the Sections above, you may also
combine or link a “work that uses the Library” with the
Library to produce a work containing portions of the
Library, and distribute that work under terms of your
choice, provided that the terms permit modication
of the work for the customer’s own use and reverse
engineering for debugging such modications.
You must give prominent notice with each copy of
the work that the Library is used in it and that the
Library and its use are covered by this License. You
must supply a copy of this License. If the work during
execution displays copyright notices, you must include
the copyright notice for the Library among them, as
well as a reference directing the user to the copy of
this License. Also, you must do one of these things:
a) Accompany the work with the complete
corresponding machine-readable source code
for the Library including whatever changes were
used in the work (which must be distributed under
Sections 1 and 2 above); and, if the work is an
executable linked with the Library, with the complete
machine-readable “work that uses the Library”, as
object code and/or source code, so that the user
can modify the Library and then relink to produce
a modied executable containing the modied
Library. (It is understood that the user who changes
the contents of denitions les in the Library will not
necessarily be able to recompile the application to
use the modied denitions.)
b) Use a suitable shared library mechanism for linking
with the Library. A suitable mechanism is one that
(1) uses at run time a copy of the library already
present on the user’s computer system, rather than
copying library functions into the executable, and
(2) will operate properly with a modied version of
the library, if the user installs one, as long as the
modied version is interface-compatible with the
version that the work was made with.
c) Accompany the work with a written offer, valid
for at least three years, to give the same user the
materials specied in Subsection 6a, above, for a
charge no more than the cost of performing this
distribution.
d) If distribution of the work is made by offering access
to copy from a designated place, offer equivalent
access to copy the above specied materials from
the same place.
e) Verify that the user has already received a copy of
these materials or that you have already sent this
user a copy.
For an executable, the required form of the “work that
uses the Library” must include any data and utility
programs needed for reproducing the executable from
it. However, as a special exception, the materials to be
distributed need not include anything that is normally
distributed (in either source or binary form) with the
major components (compiler, kernel, and so on) of the
operating system on which the executable runs, unless
that component itself accompanies the executable.
It may happen that this requirement contradicts the
license restrictions of other proprietary libraries that
do not normally accompany the operating system.
Such a contradiction means you cannot use both them
and the Library together in an executable that you
distribute.
7. You may place library facilities that are a work based on
the Library side-by-side in a single library together with
other library facilities not covered by this License, and
distribute such a combined library, provided that the
separate distribution of the work based on the Library
and of the other library facilities is otherwise permitted,
and provided that you do these two things:
a) Accompany the combined library with a copy of the
same work based on the Library, uncombined with
any other library facilities. This must be distributed
under the terms of the Sections above.
b) Give prominent notice with the combined library of
the fact that part of it is a work based on the Library,
and explaining where to nd the accompanying
uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or
distribute the Library except as expressly provided
under this License. Any attempt otherwise to copy,
modify, sublicense, link with, or distribute the Library is
void, and will automatically terminate your rights under
this License. However, parties who have received
copies, or rights, from you under this License will not
have their licenses terminated so long as such parties
remain in full compliance.
table, the facility still operates, and performs whatever
part of its purpose remains meaningful.
LICENSE
9. You are not required to accept this License, since
you have not signed it. However, nothing else grants
you permission to modify or distribute the Library or
its derivative works. These actions are prohibited
by law if you do not accept this License. Therefore,
by modifying or distributing the Library (or any work
based on the Library), you indicate your acceptance of
this License to do so, and all its terms and conditions
for copying, distributing or modifying the Library or
works based on it.
10. Each time you redistribute the Library (or any work
based on the Library), the recipient automatically
receives a license from the original licensor to copy,
distribute, link with or modify the Library subject to
these terms and conditions. You may not impose
any further restrictions on the recipients’ exercise
of the rights granted herein. You are not responsible
for enforcing compliance by third parties with this
License.
11. If, as a consequence of a court judgment or allegation
of patent infringement or for any other reason (not
limited to patent issues), conditions are imposed on
you (whether by court order, agreement or otherwise)
that contradict the conditions of this License, they do
not excuse you from the conditions of this License. If
you cannot distribute so as to satisfy simultaneously
your obligations under this License and any other
pertinent obligations, then as a consequence you may
not distribute the Library at all. For example, if a patent
license would not permit royalty-free redistribution of
the Library by all those who receive copies directly or
indirectly through you, then the only way you could
satisfy both it and this License would be to refrain
entirely from distribution of the Library. If any portion
of this section is held invalid or unenforceable under
any particular circumstance, the balance of the section
is intended to apply, and the section as a whole is
intended to apply in other circumstances.
It is not the purpose of this section to induce you to
infringe any patents or other property right claims or
to contest validity of any such claims; this section has
the sole purpose of protecting the integrity of the free
software distribution system which is implemented
by public license practices. Many people have
made generous contributions to the wide range of
software distributed through that system in reliance
on consistent application of that system; it is up to
the author/donor to decide if he or she is willing to
distribute software through any other system and a
licensee cannot impose that choice.
This section is intended to make thoroughly clear what
is believed to be a consequence of the rest of this
License.
12. If the distribution and/or use of the Library is restricted
in certain countries either by patents or by copyrighted
interfaces, the original copyright holder who places
the Library under this License may add an explicit
geographical distribution limitation excluding those
countries, so that distribution is permitted only in or
among countries not thus excluded. In such case, this
License incorporates the limitation as if written in the
body of this License.
13. The Free Software Foundation may publish revised
and/or new versions of the Lesser General Public
License from time to time. Such new versions will be
similar in spirit to the present version, but may differ in
detail to address new problems or concerns.
Each version is given a distinguishing version number.
If the Library species a version number of this
License which applies to it and “any later version”, you
have the option of following the terms and conditions
either of that version or of any later version published
by the Free Software Foundation. If the Library does
not specify a license version number, you may choose
any version ever published by the Free Software
Foundation.
14. If you wish to incorporate parts of the Library into
other free programs whose distribution conditions are
incompatible with these, write to the author to ask for
permission. For software which is copyrighted by the
Free Software Foundation, write to the Free Software
Foundation; we sometimes make exceptions for
this. Our decision will be guided by the two goals of
preserving the free status of all derivatives of our free
software and of promoting the sharing and reuse of
software generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED FREE OF
CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY,
TO THE EXTENT PERMITTED BY APPLICABLE LAW.
EXCEPT WHEN OTHERWISE STATED IN WRITING
THE COPYRIGHT HOLDERS AND/OR OTHER
PARTIES PROVIDE THE LIBRARY “AS IS” WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESSED OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE
RISK AS TO THE QUALITY AND PERFORMANCE OF
THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY
PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL
NECESSARY SERVICING, REPAIR OR CORRECTION.
16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE
LAW OR AGREED TO IN WRITING WILL ANY
COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO
MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY
AS PERMITTED ABOVE, BE LIABLE TO YOU FOR
DAMAGES, INCLUDING ANY GENERAL, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OR INABILITY TO USE THE
LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS
OF DATA OR DATA BEING RENDERED INACCURATE
OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES
OR A FAILURE OF THE LIBRARY TO OPERATE WITH
ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER
OR OTHER PARTY HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Libraries
If you develop a new library, and you want it to be of
the greatest possible use to the public, we recommend
making it free software that everyone can redistribute
and change. You can do so by permitting redistribution
under these terms (or, alternatively, under the terms of the
ordinary General Public License).
To apply these terms, attach the following notices to the
library. It is safest to attach them to the start of each source
le to most effectively convey the exclusion of warranty;
and each le should have at least the “copyright” line and
a pointer to where the full notice is found.
<one line to give the library’s name and a brief idea of
what it does.>
Copyright (C) <year> <name of author>
This library is free software; you can redistribute it and/or
modify it under the terms of the GNU Lesser General Public
License as published by the Free Software Foundation;
either version 2.1 of the License, or (at your option) any
later version.
This library is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied
warranty of MERCHANTABILITY or FITNESS FOR A
PARTICULAR PURPOSE. See the GNU Lesser General
Public License for more details.
You should have received a copy of the GNU Lesser
General Public License along with this library; if not, write
to the Free Software Foundation, Inc., 59 Temple Place,
Suite 330, Boston, MA 02111-1307 USA
Also add information on how to contact you by electronic
and paper mail.
You should also get your employer (if you work as a
programmer) or your school, if any, to sign a “copyright
disclaimer” for the library, if necessary. Here is a sample;
alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest
in the library ‘Frob’ (a library for tweaking knobs) written
by James Random Hacker.
<signature of Ty Coon>, 1 April 1990
Ty Coon, President of Vice
That’s all there is to it!
n
Exhibit-C
Copyright notice:
(C) 1995-2004 Jean-loup Gailly and Mark Adler
This software is provided ‘as-is’, without any express or
implied warranty. In no event will the authors be held liable
for any damages arising from the use of this software.
Permission is granted to anyone to use this software for
any purpose, including commercial applications, and to
alter it and redistribute it freely, subject to the following
restrictions:
1. The origin of this software must not be misrepresented;
you must not claim that you wrote the original
software. If you use this software in a product, an
acknowledgment in the product documentation would
be appreciated but is not required.
2. Altered source versions must be plainly marked as
such, and must not be misrepresented as being the
original software.
3. This notice may not be removed or altered from any
source distribution.
Jean-loup Gailly Mark Adler
jloup@gzip.org madler@alumni.caltech.edu
If you use the zlib library in a product, we would appreciate
*not* receiving lengthy legal documents to sign. The
sources are provided for free but without warranty of
any kind. The library has been entirely written by Jean-
loup Gailly and Mark Adler; it does not include third-party
code.
If you redistribute modied sources, we would appreciate
that you include in the le ChangeLog history information
documenting your changes. Please read the FAQ for
more information on the distribution of modied source
versions.
n
Exhibit-D
Copyright (c) 1998, 1999, 2000 Thai Open Source Software
Center Ltd and Clark Cooper
Copyright (c) 2001, 2002 Expat maintainers.
Permission is hereby granted, free of charge, to any
person obtaining a copy of this software and associated
documentation les (the “Software”), to deal in the
Software without restriction, including without limitation
the rights to use, copy, modify, merge, publish, distribute,
sublicense, and/or sell copies of the Software, and to
permit persons to whom the Software is furnished to do
so, subject to the following conditions:
The above copyright notice and this permission notice
shall be included in all copies or substantial portions of
the Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NONINFRINGEMENT.
IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT
HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES
OR OTHER LIABILITY, WHETHER IN AN ACTION OF
CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT
OF OR IN CONNECTION WITH THE SOFTWARE OR THE
USE OR OTHER DEALINGS IN THE SOFTWARE.
n
Exhibit-E
The Independent JPEG Group’s JPEG software
README for release 6b of 27-Mar-1998
This distribution contains the sixth public release of the
Independent JPEG Group’s free JPEG software. You are
welcome to redistribute this software and to use it for any
purpose, subject to the conditions under LEGAL ISSUES,
below.
Serious users of this software (particularly those
incorporating it into larger programs) should contact IJG at
jpeg-info@uunet.uu.net to be added to our electronic mailing
list. Mailing list members are notied of updates and have a
chance to participate in technical discussions, etc.
This software is the work of Tom Lane, Philip Gladstone,
Jim Boucher, Lee Crocker, Julian Minguillon, Luis Ortiz,
George Phillips, Davide Rossi, Guido Vollbeding, Ge’
Weijers, and other members of the Independent JPEG
Group.
IJG is not afliated with the ofcial ISO JPEG standards
committee.
DOCUMENTATION ROADMAP
This le contains the following sections:
OVERVIEW General description of JPEG and
the IJG software.
LEGAL ISSUES Copyright, lack of warranty,
terms of distribution.
REFERENCES Where to learn more about
JPEG.
ARCHIVE LOCATIONS Where to nd newer versions of
this software.
RELATED SOFTWARE Other stuff you should get.
FILE FORMAT WARS Software *not* to get.
TO DO Plans for future IJG releases.
Other documentation les in the distribution are:
User documentation:
LICENSE
install.doc How to congure and install the
IJG software.
usage.doc Usage instructions for cjpeg,
djpeg, jpegtran, rdjpgcom, and
wrjpgcom.
*.1 Unix-style man pages for
programs (same info as usage.
doc).
wizard.doc Advanced usage instructions for
JPEG wizards only.
change.log Version-to-version change
highlights.
Programmer and internal documentation:
libjpeg.doc How to use the JPEG library in
your own programs.
example.c Sample code for calling the
JPEG library.
structure.doc Overview of the JPEG library’s
internal structure.
lelist.doc Road map of IJG les.
coderules.doc Coding style rules --- please read
if you contribute code.
Please read at least the les install.doc and usage.doc.
Useful information can also be found in the JPEG FAQ
(Frequently Asked Questions) article. See ARCHIVE
LOCATIONS below to nd out where to obtain the FAQ
article.
If you want to understand how the JPEG code works, we
suggest reading one or more of the REFERENCES, then
looking at the documentation les (in roughly the order
listed) before diving into the code.
OVERVIEW
This package contains C software to implement JPEG image
compression and decompression. JPEG (pronounced “jay-
peg”) is a standardized compression method for full-color
and gray-scale images. JPEG is intended for compressing
“real-world” scenes; line drawings, cartoons and other
non-realistic images are not its strong suit. JPEG is lossy,
meaning that the output image is not exactly identical to
the input image. Hence you must not use JPEG if you
have to have identical output bits. However, on typical
photographic images, very good compression levels can
be obtained with no visible change, and remarkably high
compression levels are possible if you can tolerate a low-
quality image. For more details, see the references, or just
experiment with various compression settings.
This software implements JPEG baseline, extended-
sequential, and progressive
compression processes. Provision is made for supporting
all variants of these
processes, although some uncommon parameter settings
aren’t implemented yet.
For legal reasons, we are not distributing code for the
arithmetic-coding
variants of JPEG; see LEGAL ISSUES. We have made no
provision for supporting
the hierarchical or lossless processes dened in the
standard.
We provide a set of library routines for reading and writing
JPEG image les, plus two sample applications “cjpeg”
and “djpeg”, which use the library to perform conversion
between JPEG and some other popular image le
formats.
The library is intended to be reused in other applications.
In order to support le conversion and viewing software,
we have included considerable functionality beyond the
bare JPEG coding/decoding capability; for example, the
color quantization modules are not strictly part of JPEG
decoding, but they are essential for output to colormapped
le formats or colormapped displays. These extra functions
can be compiled out of the library if not required for a
particular application. We have also included “jpegtran”,
a utility for lossless transcoding between different JPEG
processes, and “rdjpgcom” and “wrjpgcom”, two simple
applications for inserting and extracting textual comments
in JFIF les.
The emphasis in designing this software has been on
achieving portability and exibility, while also making it
fast enough to be useful. In particular, the software is
not intended to be read as a tutorial on JPEG. (See the
REFERENCES section for introductory material.) Rather,
it is intended to be reliable, portable, industrial-strength
code. We do not claim to have achieved that goal in every
aspect of the software, but we strive for it.
We welcome the use of this software as a component of
commercial products.
No royalty is required, but we do ask for an
acknowledgement in product documentation, as described
under LEGAL ISSUES.
LEGAL ISSUES
In plain English:
1. We don’t promise that this software works. (But if you
nd any bugs, please let us know!)
2. You can use this software for whatever you want. You
don’t have to pay us.
3. You may not pretend that you wrote this software.
If you use it in a program, you must acknowledge
somewhere in your documentation that you’ve used
the IJG code.
In legalese:
The authors make NO WARRANTY or representation,
either express or implied, with respect to this software, its
quality, accuracy, merchantability, or tness for a particular
purpose. This software is provided “AS IS”, and you, its
user, assume the entire risk as to its quality and accuracy.
This software is copyright (C) 1991-1998, Thomas G.
Lane.
All Rights Reserved except as specied below.
Permission is hereby granted to use, copy, modify, and
distribute this software (or portions thereof) for any
purpose, without fee, subject to these conditions:
(1) If any part of the source code for this software is
distributed, then this README le must be included,
with this copyright and no-warranty notice unaltered;
and any additions, deletions, or changes to the original
les must be clearly indicated in accompanying
documentation.
(2) If only executable code is distributed, then the
accompanying documentation must state that
“this software is based in part on the work of the
Independent JPEG Group”.
(3) Permission for use of this software is granted only if
the user accepts full responsibility for any undesirable
consequences; the authors accept NO LIABILITY for
damages of any kind.
These conditions apply to any software derived from or
based on the IJG code, not just to the unmodied library.
If you use our work, you ought to acknowledge us.
Permission is NOT granted for the use of any IJG author’s
name or company name in advertising or publicity relating
to this software or products derived from it. This software
may be referred to only as “the Independent JPEG Group’s
software”.
We specically permit and encourage the use of this
software as the basis of commercial products, provided
that all warranty or liability claims are assumed by the
product vendor.
ansi2knr.c is included in this distribution by permission of
L. Peter Deutsch, sole proprietor of its copyright holder,
Aladdin Enterprises of Menlo Park, CA.
ansi2knr.c is NOT covered by the above copyright and
conditions, but instead by the usual distribution terms of
the Free Software Foundation; principally, that you must
include source code if you redistribute it. (See the le
ansi2knr.c for full details.) However, since ansi2knr.c is
not needed as part of any program generated from the
IJG code, this does not limit you more than the foregoing
paragraphs do.
The Unix conguration script “congure” was produced
with GNU Autoconf.
It is copyright by the Free Software Foundation but is
freely distributable.
The same holds for its supporting scripts (cong.
guess, cong.sub, ltcong, ltmain.sh). Another support
script, install-sh, is copyright by M.I.T. but is also freely
distributable.
It appears that the arithmetic coding option of the JPEG
spec is covered by patents owned by IBM, AT&T, and
Mitsubishi. Hence arithmetic coding cannot legally be
used without obtaining one or more licenses. For this
reason, support for arithmetic coding has been removed
from the free JPEG software.
(Since arithmetic coding provides only a marginal gain
over the unpatented Huffman mode, it is unlikely that very
many implementations will support it.)
So far as we are aware, there are no patent restrictions on
the remaining code.
The IJG distribution formerly included code to read and
write GIF les.
To avoid entanglement with the Unisys LZW patent, GIF
reading support has been removed altogether, and the
GIF writer has been simplied to produce “uncompressed
GIFs”. This technique does not use the LZW algorithm; the
resulting GIF les are larger than usual, but are readable by
all standard GIF decoders.
We are required to state that
“The Graphics Interchange Format(c) is the Copyright
property of CompuServe Incorporated. GIF(sm) is a
Service Mark property of CompuServe Incorporated.”
REFERENCES
We highly recommend reading one or more of these
references before trying to understand the innards of the
JPEG software.
The best short technical introduction to the JPEG
compression algorithm is
Wallace, Gregory K. “The JPEG Still Picture
Compression Standard”, Communications of the ACM,
April 1991 (vol. 34 no. 4), pp. 30-44.
(Adjacent articles in that issue discuss MPEG motion
picture compression, applications of JPEG, and related
topics.) If you don’t have the CACM issue handy, a
PostScript le containing a revised version of Wallace’s
article is available at ftp://ftp.uu.net/graphics/jpeg/
wallace.ps.gz. The le (actually a preprint for an article
that appeared in IEEE Trans. Consumer Electronics) omits
the sample images that appeared in CACM, but it includes
corrections and some added material. Note: the Wallace
article is copyright ACM and IEEE, and it may not be used
for commercial purposes.
A somewhat less technical, more leisurely introduction
to JPEG can be found in “The Data Compression Book”
by Mark Nelson and Jean-loup Gailly, published by M&T
Books (New York), 2nd ed. 1996, ISBN 1-55851-434-1. This
book provides good explanations and example C code for
a multitude of compression methods including JPEG. It
is an excellent source if you are comfortable reading C
code but don’t know much about data compression
in general. The book’s JPEG sample code is far from
industrial-strength, but when you are ready to look at a full
implementation, you’ve got one here...
The best full description of JPEG is the textbook “JPEG
Still Image Data Compression Standard” by William
B. Pennebaker and Joan L. Mitchell, published by Van
Nostrand Reinhold, 1993, ISBN 0-442-01272-1. Price
US$59.95, 638 pp.
The book includes the complete text of the ISO JPEG
standards (DIS 10918-1 and draft DIS 10918-2).
This is by far the most complete exposition of JPEG in
existence, and we highly recommend it.
The JPEG standard itself is not available electronically;
you must order a paper copy through ISO or ITU. (Unless
you feel a need to own a certied ofcial copy, we
recommend buying the Pennebaker and Mitchell book
instead; it’s much cheaper and includes a great deal of
useful explanatory material.)
In the USA, copies of the standard may be ordered from
ANSI Sales at (212) 642-4900, or from Global Engineering
Documents at (800) 854-7179. (ANSI doesn’t take credit
card orders, but Global does.) It’s not cheap: as of 1992,
ANSI was charging $95 for Part 1 and $47 for Part 2, plus
7% shipping/handling. The standard is divided into two
parts, Part 1 being the actual specication, while Part 2
covers compliance testing methods. Part 1 is titled “Digital
Compression and Coding of Continuous-tone Still Images,
Part 1: Requirements and guidelines” and has document
numbers ISO/IEC IS 10918-1, ITU-T T.81. Part 2 is titled
“Digital Compression and Coding of Continuous-tone Still
Images, Part 2: Compliance testing” and has document
numbers ISO/IEC IS 10918-2, ITU-T T.83.
Some extensions to the original JPEG standard are dened
in JPEG Part 3, a newer ISO standard numbered ISO/IEC
IS 10918-3 and ITU-T T.84. IJG currently does not support
any Part 3 extensions.
The JPEG standard does not specify all details of an
interchangeable le format. For the omitted details we
follow the “JFIF” conventions, revision 1.02. A copy of the
JFIF spec is available from:
Literature Department
C-Cube Microsystems, Inc.
1778 McCarthy Blvd.
Milpitas, CA 95035
phone (408) 944-6300, fax (408) 944-6314
LICENSE
A PostScript version of this document is available by FTP
at ftp://ftp.uu.net/graphics/jpeg/jf.ps.gz. There is also a
plain text version at ftp://ftp.uu.net/graphics/jpeg/jf.txt.
gz, but it is missing the gures.
The TIFF 6.0 le format specication can be obtained by
FTP from ftp://ftp.sgi.com/graphics/tiff/TIFF6.ps.gz. The
JPEG incorporation scheme found in the TIFF 6.0 spec of
3-June-92 has a number of serious problems.
IJG does not recommend use of the TIFF 6.0 design (TIFF
Compression tag 6).
Instead, we recommend the JPEG design proposed by
TIFF Technical Note #2 (Compression tag 7). Copies of
this Note can be obtained from ftp.sgi.com or from ftp://
ftp.uu.net/graphics/jpeg/. It is expected that the next
revision of the TIFF spec will replace the 6.0 JPEG design
with the Note’s design.
Although IJG’s own code does not support TIFF/JPEG,
the free libtiff library uses our library to implement TIFF/
JPEG per the Note. libtiff is available from ftp://ftp.sgi.
com/graphics/tiff/.
ARCHIVE LOCATIONS
The “ofcial” archive site for this software is ftp.uu.net
(Internet address 192.48.96.9). The most recent released
version can always be found there in directory graphics/
jpeg. This particular version will be archived as ftp://ftp.
uu.net/graphics/jpeg/jpegsrc.v6b.tar.gz.
If you don’t have direct Internet access, UUNET’s archives
are also available via UUCP; contact help@uunet.uu.net
for information on retrieving les that way.
Numerous Internet sites maintain copies of the UUNET
les. However, only ftp.uu.net is guaranteed to have the
latest ofcial version.
You can also obtain this software in DOS-compatible “zip”
archive format from the SimTel archives (ftp://ftp.simtel.
net/pub/simtelnet/msdos/graphics/), or on CompuServe in
the Graphics Support forum (GO CIS:GRAPHSUP), library
12 “JPEG Tools”. Again, these versions may sometimes
lag behind the ftp.uu.net release.
The JPEG FAQ (Frequently Asked Questions) article is a
useful source of general information about JPEG. It is
updated constantly and therefore is not included in this
distribution. The FAQ is posted every two weeks to
Usenet newsgroups comp.graphics.misc, news.answers,
and other groups.
It is available on the World Wide Web at http://www.faqs.
org/faqs/jpeg-faq/ and other news.answers archive sites,
including the ofcial news.answers archive at rtfm.mit.
edu: ftp://rtfm.mit.edu/pub/usenet/news.answers/jpeg-
faq/.
If you don’t have Web or FTP access, send e-mail to mail-
server@rtfm.mit.edu with body
send usenet/news.answers/jpeg-faq/part1
send usenet/news.answers/jpeg-faq/part2
RELATED SOFTWARE
Numerous viewing and image manipulation programs
now support JPEG. (Quite a few of them use this library
to do so.) The JPEG FAQ described above lists some of
the more popular free and shareware viewers, and tells
where to obtain them on Internet.
If you are on a Unix machine, we highly recommend Jef
Poskanzer’s free PBMPLUS software, which provides
many useful operations on PPM-format image les. In
particular, it can convert PPM images to and from a
wide range of other formats, thus making cjpeg/djpeg
considerably more useful. The latest version is distributed
by the NetPBM group, and is available from numerous
sites, notably ftp://wuarchive.wustl.edu/graphics/graphics/
packages/NetPBM/.
Unfortunately PBMPLUS/NETPBM is not nearly as portable
as the IJG software is; you are likely to have difculty
making it work on any non-Unix machine.
A different free JPEG implementation, written by the
PVRG group at Stanford,
is available from ftp://havefun.stanford.edu/pub/jpeg/.
This program is designed for research and experimentation
rather than production use; it is slower, harder to use, and
less portable than the IJG code, but it is easier to read
and modify. Also, the PVRG code supports lossless
JPEG, which we do not. (On the other hand, it doesn’t do
progressive JPEG.)
FILE FORMAT WARS
Some JPEG programs produce les that are not compatible
with our library.
The root of the problem is that the ISO JPEG committee
failed to specify a concrete le format. Some vendors
“lled in the blanks” on their own, creating proprietary
formats that no one else could read. (For example, none
of the early commercial JPEG implementations for the
Macintosh were able to exchange compressed les.)
The le format we have adopted is called JFIF (see
REFERENCES). This format has been agreed to by a
number of major commercial JPEG vendors, and it has
become the de facto standard. JFIF is a minimal or “low
end” representation.
We recommend the use of TIFF/JPEG (TIFF revision 6.0
as modied by TIFF Technical Note #2) for “high end”
applications that need to record a lot of additional data
about an image. TIFF/JPEG is fairly new and not yet
widely supported, unfortunately.
The upcoming JPEG Part 3 standard denes a le format
called SPIFF.
SPIFF is interoperable with JFIF, in the sense that most
JFIF decoders should be able to read the most common
variant of SPIFF. SPIFF has some technical advantages
over JFIF, but its major claim to fame is simply that it is an
ofcial standard rather than an informal one. At this point
it is unclear whether SPIFF will supersede JFIF or whether
JFIF will remain the de-facto standard. IJG intends to
support SPIFF once the standard is frozen, but we have
not decided whether it should become our default output
format or not.
(In any case, our decoder will remain capable of reading
JFIF indenitely.)
Various proprietary le formats incorporating JPEG
compression also exist.
We have little or no sympathy for the existence of these
formats. Indeed, one of the original reasons for developing
this free software was to help force convergence on
common, open format standards for JPEG les. Don’t use
a proprietary le format!
TO DO
The major thrust for v7 will probably be improvement of
visual quality.
The current method for scaling the quantization tables
is known not to be very good at low Q values. We
also intend to investigate block boundary smoothing,
“poor man’s variable quantization”, and other means
of improving quality-vs-le-size performance without
sacricing compatibility.
In future versions, we are considering supporting some
of the upcoming JPEG Part 3 extensions --- principally,
variable quantization and the SPIFF le format.
As always, speeding things up is of great interest.
Please send bug reports, offers of help, etc. to jpeg-info@
uunet.uu.net.
n
Exhibit-F
COPYRIGHT NOTICE, DISCLAIMER, and LICENSE:
If you modify libpng you may insert additional notices
immediately following this sentence.
libpng version 1.2.6, August 15, 2004, is Copyright (c)
2004 Glenn Randers-Pehrson, and is distributed according
to the same disclaimer and license as libpng-1.2.5 with
the following individual added to the list of Contributing
Authors
Cosmin Truta
libpng versions 1.0.7, July 1, 2000, through 1.2.5 - October
3, 2002, are Copyright (c) 2000-2002 Glenn Randers-
Pehrson, and are distributed according to the same
disclaimer and license as libpng-1.0.6 with the following
individuals added to the list of Contributing Authors
Simon-Pierre Cadieux
Eric S. Raymond
Gilles Vollant
and with the following additions to the disclaimer:
There is no warranty against interference with your
enjoyment of the library or against infringement.
There is no warranty that our efforts or the library will
fulll any of your particular purposes or needs. This
library is provided with all faults, and the entire risk of
satisfactory quality, performance, accuracy, and effort
is with the user.
libpng versions 0.97, January 1998, through 1.0.6, March
20, 2000, are Copyright (c) 1998, 1999 Glenn Randers-
Pehrson, and are distributed according to the same
disclaimer and license as libpng-0.96, with the following
individuals added to the list of Contributing Authors:
Tom Lane
Glenn Randers-Pehrson
Willem van Schaik
libpng versions 0.89, June 1996, through 0.96, May 1997,
are Copyright (c) 1996, 1997 Andreas Dilger Distributed
according to the same disclaimer and license as libpng-
0.88, with the following individuals added to the list of
Contributing Authors:
John Bowler
Kevin Bracey
Sam Bushell
Magnus Holmgren
Greg Roelofs
Tom Tanner
libpng versions 0.5, May 1995, through 0.88, January
1996, are Copyright (c) 1995, 1996 Guy Eric Schalnat,
Group 42, Inc.
For the purposes of this copyright and license,“Contributing
Authors” is dened as the following set of individuals:
Andreas Dilger
Dave Martindale
Guy Eric Schalnat
Paul Schmidt
Tim Wegner
The PNG Reference Library is supplied “AS IS”. The
Contributing Authors and Group 42, Inc. disclaim all
warranties, expressed or implied, including, without
limitation, the warranties of merchantability and of tness
for any purpose. The Contributing Authors and Group
42, Inc. assume no liability for direct, indirect, incidental,
special, exemplary, or consequential damages, which may
result from the use of the PNG Reference Library, even if
advised of the possibility of such damage.
Permission is hereby granted to use, copy, modify,
and distribute this source code, or portions hereof,
for any purpose, without fee, subject to the following
restrictions:
1. The origin of this source code must not be
misrepresented.
2. Altered versions must be plainly marked as such and
must not be misrepresented as being the original
source.
3. This Copyright notice may not be removed or altered
from any source or altered source distribution.
The Contributing Authors and Group 42, Inc. specically
permit, without fee, and encourage the use of this source
code as a component to supporting the PNG le format
in commercial products. If you use this source code in
a product, acknowledgment is not required but would be
appreciated.
A “png_get_copyright” function is available, for convenient
use in “about” boxes and the like: printf(“%s”,png_get_
copyright(NULL)); Also, the PNG logo (in PNG format, of
course) is supplied in the les “pngbar.png” and “pngbar.
jpg (88x31) and “pngnow.png” (98x31).
Libpng is OSI Certied Open Source Software. OSI
Certied Open Source is a certication mark of the Open
Source Initiative.
Glenn Randers-Pehrson
glennrp@users.sourceforge.net
August 15, 2004
n
Exhibit-G
Copyright (c) 2001,2003 Keith Packard
Permission to use, copy, modify, distribute, and sell this
software and its documentation for any purpose is hereby
granted without fee, provided that the above copyright
notice appear in all copies and that both that copyright
notice and this permission notice appear in supporting
documentation, and that the name of Keith Packard not be
used in advertising or publicity pertaining to distribution
of the software without specic, written prior permission.
Keith Packard makes no representations about the
suitability of this software for any purpose. It is provided
“as is” without express or implied warranty.
KEITH PACKARD DISCLAIMS ALL WARRANTIES WITH
REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS, IN
NO EVENT SHALL KEITH PACKARD BE LIABLE FOR ANY
SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR
ANY DAMAGES WHATSOEVER RESULTING FROM LOSS
OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF
CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION,
ARISING OUT OF OR IN CONNECTION WITH THE USE OR
PERFORMANCE OF THIS SOFTWARE.
LICENSE
n
Exhibit-H
The FreeType Project LICENSE
2002-Apr-11 Copyright 1996-2002 by David Turner, Robert
Wilhelm, and Werner Lemberg
Introduction
The FreeType Project is distributed in several archive
packages; some of them may contain, in addition to the
FreeType font engine, various tools and contributions
which rely on, or relate to, the FreeType Project.
This license applies to all les found in such packages,
and which do not fall under their own explicit license.
The license affects thus the FreeType font engine, the
test programs, documentation and makeles, at the very
least.
This license was inspired by the BSD, Artistic, and IJG
(Independent JPEG Group) licenses, which all encourage
inclusion and use of free software in commercial and
freeware products alike. As a consequence, its main
points are that:
We don’t promise that this software works. However,
we will be interested in any kind of bug reports. (‘as is’
distribution)
You can use this software for whatever you want, in
parts or full form, without having to pay us. (‘royalty-
free’usage)
You may not pretend that you wrote this software. If
you use it, or only parts of it, in a program, you must
acknowledge somewhere in your documentation that
you have used the FreeType code. (‘credits’)
We specically permit and encourage the inclusion of this
software, with or without modications, in commercial
products.
We disclaim all warranties covering The FreeType Project
and assume no liability related to The FreeType Project.
Finally, many people asked us for a preferred form for a
credit/disclaimer to use in compliance with this license.
We thus encourage you to use the following text:
Portions of this software are copyright © 1996-2002
The FreeType Project (www.freetype.org). All rights
reserved.
Legal Terms
0. Denitions
Throughout this license, the terms ‘package’,
‘FreeType Project’, and ‘FreeType archive’ refer to the
set of les originally distributed by the authors (David
Turner, Robert Wilhelm, and Werner Lemberg) as the
‘FreeType Project’, be they named as alpha, beta or
nal release.
‘You’ refers to the licensee, or person using the project,
where ‘using’ is a generic term including compiling the
project’s source code as well as linking it to form a
‘program’ or ‘executable’.
This program is referred to as ‘a program using the
FreeType engine’.
This license applies to all les distributed in the original
FreeType Project, including all source code, binaries
and documentation, unless otherwise stated inthe
le in its original, unmodied form a distributed in the
original archive.
If you are unsure whether or not a particular le is
covered by this license, you must contact us to verify
this.
The FreeType Project is copyright (C) 1996-2000 by
David Turner,
Robert Wilhelm, and Werner Lemberg. All rights
reserved except as specied below.
•
•
•
1. No Warranty
THE FREETYPE PROJECT IS PROVIDED ‘AS IS’
WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. IN NO
EVENT WILL ANY OF THE AUTHORS OR COPYRIGHT
HOLDERS BE LIABLE FOR ANY DAMAGES CAUSED
BY THE USE OR THE INABILITY TO USE, OF THE
FREETYPE PROJECT.
2. Redistribution
This license grants a worldwide, royalty-free, perpetual
and irrevocable right and license to use, execute,
perform, compile, display, copy, create derivative
works of, distribute and sublicense the FreeType Project
(in both source and object code forms) and derivative
works thereof for any purpose; and to authorize others
to exercise some or all of the rights granted herein,
subject to the following conditions:
Redistribution of source code must retain this license
le (‘FTL.TXT’) unaltered; any additions, deletions or
changes to the original les must be clearly indicated in
accompanying documentation. The copyright notices
of the unaltered, original les must be preserved in all
copies of source les.
Redistribution in binary form must provide a disclaimer
that states that the software is based in part of the
work of the FreeType Team, in the distribution
documentation. We also encourage you to put an
URL to the FreeType web page in your documentation,
though this isn’t mandatory.
These conditions apply to any software derived from or
based on the FreeType Project, not just the unmodied
les. If you use our work, you must acknowledge us.
However, no fee need be paid to us.
3. Advertising
Neither the FreeType authors and contributors nor
you shall use the name of the other for commercial,
advertising, or promotional purposes without specic
prior written permission.
We suggest, but do not require, that you use one or
more of the following phrases to refer to this software
in your documentation or advertising materials:
‘FreeType Project’, ‘FreeType Engine’, ‘FreeType library’,
or ‘FreeType Distribution’.
As you have not signed this license, you are not
required to accept it. However, as the FreeType
Project is copyrighted material, only this license, or
another one contracted with the authors, grants you
the right to use, distribute, and modify it.
Therefore, by using, distributing, or modifying the
FreeType Project, you indicate that you understand and
accept all the terms of this license.
4. Contacts
There are two mailing lists related to FreeType:
freetype@freetype.org
Discusses general use and applications of FreeType,
as well as future and wanted additions to the library
and distribution.
If you are looking for support, start in this list if
you haven’t found anything to help you in the
documentation.
devel@freetype.org
Discusses bugs, as well as engine internals, design
issues, specic licenses, porting, etc.
•
•
•
•
http://www.freetype.org
Holds the current FreeType web page, which will allow
you to download our latest development version and
read online documentation.
You can also contact us individually at:
David Turner <david.turner@freetype.org>
Robert Wilhelm <robert.wilhelm@freetype.org>
Werner Lemberg <werner.lemberg@freetype.org>
n
Exhibit-I
z This document is freely plagiarised from the ‘Artistic
Licence’, distributed as part of the Perl v4.0 kit by Larry
Wall, which is available from most major archive sites
This documents purpose is to state the conditions under
which these Packages (See denition below) viz: “Crack”,
the Unix Password Cracker, and “CrackLib”, the Unix
Password Checking library, which are held in copyright
by Alec David Edward Muffett, may be copied, such that
the copyright holder maintains some semblance of artistic
control over the development of the packages, while giving
the users of the package the right to use and distribute
the Package in a more-or-less customary fashion, plus the
right to make reasonable modications.
So there.
Denitions:
A “Package” refers to the collection of les distributed by
the Copyright Holder, and derivatives of that collection of
les created through textual modication, or segments
thereof.
“Standard Version” refers to such a Package if it has not
been modied, or has been modied in accordance with
the wishes of the Copyright Holder.
“Copyright Holder” is whoever is named in the copyright
or copyrights for the package.
“You” is you, if you’re thinking about copying or distributing
this Package.
“Reasonable copying fee” is whatever you can justify
on the basis of media cost, duplication charges, time of
people involved, and so on. (You will not be required to
justify it to the Copyright Holder, but only to the computing
community at large as a market that must bear the fee.)
“Freely Available” means that no fee is charged for the
item itself, though there may be fees involved in handling
the item. It also means that recipients of the item may
redistribute it under the same conditions they received it.
1. You may make and give away verbatim copies of the
source form of the Standard Version of this Package
without restriction, provided that you duplicate all
of the original copyright notices and associated
disclaimers.
2. You may apply bug xes, portability xes and other
modications derived from the Public Domain or from
the Copyright Holder. A Package modied in such a
way shall still be considered the Standard Version.
3. You may otherwise modify your copy of this Package
in any way, provided that you insert a prominent notice
in each changed le stating how and when AND WHY
you changed that le, and provided that you do at least
ONE of the following:
a) place your modications in the Public Domain or
otherwise make them Freely Available, such as by
posting said modications to Usenet or an equivalent
medium, or placing the modications on a major
archive site such as uunet.uu.net, or by allowing the
Copyright Holder to include your modications in
the Standard Version of the Package.
• b) use the modied Package only within your
corporation or organization.
c) rename any non-standard executables so the
names do not conict with standard executables,
which must also be provided, and provide separate
documentation for each non-standard executable
that clearly documents how it differs from the
Standard Version.
d) make other distribution arrangements with the
Copyright Holder.
4. You may distribute the programs of this Package in
object code or executable form, provided that you do
at least ONE of the following:
a) distribute a Standard Version of the executables
and library les, together with instructions (in the
manual page or equivalent) on where to get the
Standard Version.
b) accompany the distribution with the machine-
readable source of the Package with your
modications.
c) accompany any non-standard executables with their
corresponding Standard Version executables, giving
the non-standard executables non-standard names,
and clearly documenting the differences in manual
pages (or equivalent), together with instructions on
where to get the Standard Version.
d) make other distribution arrangements with the
Copyright Holder.
5. You may charge a reasonable copying fee for any
distribution of this Package. You may charge any fee
you choose for support of this Package.
YOU MAY NOT CHARGE A FEE FOR THIS PACKAGE
ITSELF. However, you may distribute this Package in
aggregate with other (possibly commercial) programs
as part of a larger (possibly commercial) software
distribution provided that YOU DO NOT ADVERTISE
this package as a product of your own.
6. The name of the Copyright Holder may not be used
to endorse or promote products derived from this
software without specic prior written permission.
7. THIS PACKAGE IS PROVIDED “AS IS” AND WITHOUT
ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED
WARRANTIES OF MERCHANTIBILITY AND FITNESS
FOR A PARTICULAR PURPOSE.
n
Exhibit-J
Unless otherwise “explicitly” stated, the following text
describes the licensed conditions under which the contents
of this libcap release may be used and distributed:
Redistribution and use in source and binary forms of libcap,
with or without modication, are permitted provided that
the following conditions are met:
1. Redistributions of source code must retain any existing
copyright notice, and this entire permission notice in
its entirety, including the disclaimer of warranties.
2. Redistributions in binary form must reproduce all prior
and current copyright notices, this list of conditions,
and the following disclaimer in the documentation
and/or other materials provided with the distribution.
3. The name of any author may not be used to endorse or
promote products derived from this software without
their specic prior written permission.
LICENSE
ALTERNATIVELY, this product may be distributed under
the terms of the GNU General Public License, in which
case the provisions of the GNU GPL are required INSTEAD
OF the above restrictions. (This clause is necessary due
to a potential conict between the GNU GPL and the
restrictions contained in a BSD-style copyright.)
THIS SOFTWARE IS PROVIDED “AS IS” AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE AUTHOR(S) BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
n
Exhibit-K
Copyright 1995 by Wietse Venema. All rights reserved.
Some individual les may be covered by other copyrights.
This material was originally written and compiled by
Wietse Venema at Eindhoven University of Technology,
The Netherlands, in 1990, 1991, 1992, 1993, 1994 and
1995.
Redistribution and use in source and binary forms are
permitted provided that this entire copyright notice is
duplicated in all such copies.
This software is provided “as is” and without any expressed
or implied warranties, including, without limitation, the
implied warranties of merchantibility and tness for any
particular purpose.
n
Exhibit-L
Copyright (c) 1989 The Regents of the University of
California.
All rights reserved.
Redistribution and use in source and binary forms, with
or without modication, are permitted provided that the
following conditions are met:
1. Redistributions of source code must retain the
above copyright notice, this list of conditions and the
following disclaimer.
2. Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other
materials provided with the distribution.
3. All advertising materials mentioning features or
use of this software must display the following
acknowledgement:
This product includes software developed by the
University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of
its contributors may be used to endorse or promote
products derived from this software without specic
prior written permission.
THIS SOFTWARE IS PROVIDED BY THE REGENTS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT
OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN
IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
n
Exhibit-M
Copyright (c) 1998 Red Hat Software
Permission is hereby granted, free of charge, to any
person obtaining a copy of this software and associated
documentation les (the “Software”), to deal in the
Software without restriction, including without limitation
the rights to use, copy, modify, merge, publish, distribute,
sublicense, and/or sell copies of the Software, and to
permit persons to whom the Software is furnished to do
so, subject to the following conditions:
The above copyright notice and this permission notice
shall be included in all copies or substantial portions of
the Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NONINFRINGEMENT. IN NO EVENT
SHALL THE X CONSORTIUM BE LIABLE FOR ANY
CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER
IN AN ACTION OF CONTRACT, TORT OR OTHERWISE,
ARISING FROM, OUT OF OR IN CONNECTION WITH THE
SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.
Except as contained in this notice, the name of the X
Consortium shall not be used in advertising or otherwise
to promote the sale, use or other dealings in this
Software without prior written authorization from the X
Consortium.
n
Exhibit-N
Copyright (c) 2004-2005 by Internet Systems Consortium,
Inc. (“ISC”)
Copyright (c) 1995-2003 by Internet Software Consortium
Permission to use, copy, modify, and distribute this
software for any purpose with or without fee is hereby
granted, provided that the above copyright notice and this
permission notice appear in all copies.
THE SOFTWARE IS PROVIDED “AS IS” AND ISC
DISCLAIMS ALL WARRANTIES WITH REGARD TO THIS
SOFTWARE INCLUDING ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS.
IN NO EVENT SHALL ISC BE LIABLE FOR ANY SPECIAL,
DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES OR
ANY DAMAGES WHATSOEVER RESULTING FROM LOSS
OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF
CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION,
ARISING OUT OF OR IN CONNECTION WITH THE USE OR
PERFORMANCE OF THIS SOFTWARE.
Internet Systems Consortium, Inc.
950 Charter Street Redwood City, CA 94063
<info@isc.org> http://www.isc.org/
n
Exhibit-O
OpenBSD: telnet.c,v 1.6 1998/07/27 15:29:29 millert Exp
NetBSD: telnet.c,v 1.7 1996/02/28 21:04:15 thorpej Exp
Copyright (c) 1988, 1990, 1993
The Regents of the University of California. All rights
reserved.
Redistribution and use in source and binary forms, with
or without modication, are permitted provided that the
following conditions are met:
1. Redistributions of source code must retain the
above copyright notice, this list of conditions and the
following disclaimer.
2. Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other
materials provided with the distribution.
3. All advertising materials mentioning features or
use of this software must display the following
acknowledgement:
This product includes software developed by the
University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of
its contributors may be used to endorse or promote
products derived from this software without specic
prior written permission.
THIS SOFTWARE IS PROVIDED BY THE REGENTS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,
OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED
OF THE POSSIBILITY OF SUCH DAMAGE.
n
Exhibit-P
ORIGINAL LICENSE:
This software is
(c) Copyright 1992 by Panagiotis Tsirigotis
The author (Panagiotis Tsirigotis) grants permission to use,
copy, and distribute this software and its documentation
for any purpose and without fee, provided that the
above copyright notice extant in les in this distribution
is not removed from les included in any redistribution
and that this copyright notice is also included in any
redistribution.
Modications to this software may be distributed, either
by distributing the modied software or by distributing
patches to the original software, under the following
additional terms:
1. The version number will be modied as follows:
a. The rst 3 components of the version number
(i.e <number>.<number>.<number>) will remain
unchanged.
b. A new component will be appended to the version
number to indicate the modication level. The
form of this component is up to the author of the
modications.
2. The author of the modications will include his/her
name by appending it along with the new version
number to this le and will be responsible for any
wrong behavior of the modied software.
The author makes no representations about the suitability
of this software for any purpose. It is provided “as is”
without any express or implied warranty.
Modications:
Version: 2.1.8.7-current
Copyright 1998-2001 by Rob Braun
Sensor Addition
Version: 2.1.8.9pre14a
Copyright 2001 by Steve Grubb
This is an exerpt from an email I recieved from the original
author, allowing xinetd as maintained by me, to use the
higher version numbers:
I appreciate your maintaining the version string guidelines
as specied in the copyright. But I did not mean them to
last as long as they did.
So, if you want, you may use any 2.N.* (N >= 3) version
string for future xinetd versions that you release. Note that
I am excluding the 2.2.* line; using that would only create
confusion. Naming the next release 2.3.0 would put to
rest the confusion about 2.2.1 and 2.1.8.*.
n
Exhibit-Q
Except where otherwise noted in the source code (e.g.
the les hash.c, list.c and the trio les, which are covered
by a similar licence but with different Copyright notices)
all the les are:
Copyright (C) 1998-2003 Daniel Veillard. All Rights
Reserved.
Permission is hereby granted, free of charge, to any
person obtaining a copy of this software and associated
documentation les (the “Software”), to deal in the
Software without restriction, including without limitation
the rights to use, copy, modify, merge, publish, distribute,
sublicense, and/or sell copies of the Software, and to
permit persons to whom the Software is furnished to do
so, subject to the following conditions:
The above copyright notice and this permission notice
shall be included in all copies or substantial portions of
the Software.
LICENSE
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NONINFRINGEMENT. IN NO EVENT
SHALL THE DANIEL VEILLARD BE LIABLE FOR ANY
CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER
IN AN ACTION OF CONTRACT, TORT OR OTHERWISE,
ARISING FROM, OUT OF OR IN CONNECTION WITH THE
SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.
Except as contained in this notice, the name of Daniel
Veillard shall not be used in advertising or otherwise to
promote the sale, use or other dealings in this Software
without prior written authorization from him.
n
Exhibit-R
LICENSE ISSUES
The OpenSSL toolkit stays under a dual license, i.e. both
the conditions of the OpenSSL License and the original
SSLeay license apply to the toolkit.
See below for the actual license texts. Actually both
licenses are BSD-style Open Source licenses. In case of
any license issues related to OpenSSL please contact
openssl-core@openssl.org.
OpenSSL License
Copyright (c) 1998-2004 The OpenSSL Project. All rights
reserved.
Redistribution and use in source and binary forms, with
or without modication, are permitted provided that the
following conditions are met:
1. Redistributions of source code must retain the
above copyright notice, this list of conditions and the
following disclaimer.
2. Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other
materials provided with the distribution.
3. All advertising materials mentioning features or
use of this software must display the following
acknowledgment:
“This product includes software developed by the
OpenSSL Project for use in the OpenSSL Toolkit.
(http://www.openssl.org/)”
4. The names “OpenSSL Toolkit” and “OpenSSL Project”
must not be used to endorse or promote products
derived from this software without prior written
permission. For written permission, please contact
openssl-core@openssl.org.
5. Products derived from this software may not be called
“OpenSSL” nor may “OpenSSL” appear in their names
without prior written permission of the OpenSSL
Project.
6. Redistributions of any form whatsoever must retain
the following acknowledgment:
“This product includes software developed by the
OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/)”
THIS SOFTWARE IS PROVIDED BY THE OpenSSL
PROJECT “AS IS” AND ANY EXPRESSED OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED.
IN NO EVENT SHALL THE OpenSSL PROJECT OR
ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software written by
Eric Young (eay@cryptsoft.com). This product includes
software written by Tim Hudson (tjh@cryptsoft.com).
Original SSLeay License
Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com)
All rights reserved.
This package is an SSL implementation written by Eric
Young (eay@cryptsoft.com).
The implementation was written so as to conform with
Netscapes SSL.
This library is free for commercial and non-commercial
use as long as the following conditions are aheared to.
The following conditions apply to all code found in this
distribution, be it the RC4, RSA, lhash, DES, etc., code; not
just the SSL code. The SSL documentation included with
this distribution is covered by the same copyright terms
except that the holder is Tim Hudson (tjh@cryptsoft.com).
Copyright remains Eric Youngs, and as such any Copyright
notices in the code are not to be removed.
If this package is used in a product, Eric Young should be
given attribution as the author of the parts of the library
used.
This can be in the form of a textual message at program
startup or in documentation (online or textual) provided
with the package.
Redistribution and use in source and binary forms, with
or without modication, are permitted provided that the
following conditions are met:
1. Redistributions of source code must retain the
copyright notice, this list of conditions and the
following disclaimer.
2. Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other
materials provided with the distribution.
3. All advertising materials mentioning features or
use of this software must display the following
acknowledgement:
“This product includes cryptographic software written
by Eric Young (eay@cryptsoft.com)”
The word ‘cryptographic’ can be left out if the rouines
from the library being used are not cryptographic
related :-).
4. If you include any Windows specic code (or a
derivative thereof) from the apps directory (application
code) you must include an acknowledgement:
“This product includes software written by Tim Hudson
(tjh@cryptsoft.com)”
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS
IS” AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,
OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED
OF THE POSSIBILITY OF SUCH DAMAGE.
The licence and distribution terms for any publically
available version or derivative of this code cannot be
changed. i.e. this code cannot simply be copied and put
under another distribution licence [including the GNU
Public Licence.]
n
Exhibit-S
Copyright (c) 1998-2001,2002 Free Software Foundation,
Inc.
Permission is hereby granted, free of charge, to any
person obtaining a copy of this software and associated
documentation les (the “Software”), to deal in the Software
without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, distribute
with modications, sublicense, and/or sell copies of the
Software, and to permit persons to whom the Software
is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice
shall be included in all copies or substantial portions of
the Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NONINFRINGEMENT.
IN NO EVENT SHALL THE ABOVE COPYRIGHT HOLDERS
BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT,
TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN
CONNECTION WITH THE SOFTWARE OR THE USE OR
OTHER DEALINGS IN THE SOFTWARE.
Except as contained in this notice, the name(s) of the
above copyright holders shall not be used in advertising
or otherwise to promote the sale, use or other dealings in
this Software without prior written authorization.
n
Exhibit-T
Copyright (c) 1990 The Regents of the University of
California.
All rights reserved.
Redistribution and use in source and binary forms, with
or without modication, are permitted provided that the
following conditions are met:
1. Redistributions of source code must retain the
above copyright notice, this list of conditions and the
following disclaimer.
2. Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other
materials provided with the distribution.
3. All advertising materials mentioning features or
use of this software must display the following
acknowledgement:
This product includes software developed by the
University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of
its contributors may be used to endorse or promote
products derived from this software without specic
prior written permission.
THIS SOFTWARE IS PROVIDED BY THE REGENTS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,
OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED
OF THE POSSIBILITY OF SUCH DAMAGE.
Copyright (C) 1985-2005 by the Massachusetts Institute
of Technology.
All rights reserved.
Export of this software from the United States of America
may require a specic license from the United States
Government. It is the responsibility of any person or
organization contemplating export to obtain such a license
before exporting.
WITHIN THAT CONSTRAINT, permission to use, copy,
modify, and distribute this software and its documentation
for any purpose and without fee is hereby granted, provided
that the above copyright notice appear in all copies and
that both that copyright notice and this permission notice
appear in supporting documentation, and that the name of
M.I.T. not be used in advertising or publicity pertaining to
distribution of the software without specic, written prior
permission. Furthermore if you modify this software you
must label your software as modied software and not
distribute it in such a fashion that it might be confused
with the original MIT software.
M.I.T. makes no representations about the suitability
of this software for any purpose. It is provided “as is”
without express or implied warranty.
THIS SOFTWARE IS PROVIDED “AS IS” AND WITHOUT
ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF
MERCHANTIBILITY AND FITNESS FOR A PARTICULAR
PURPOSE.
LICENSE
0
Individual source code les are copyright MIT, Cygnus
Support, OpenVision, Oracle, Sun Soft, FundsXpress, and
others.
Project Athena, Athena, Athena MUSE, Discuss,
Hesiod, Kerberos, Moira, and Zephyr are trademarks of
the Massachusetts Institute of Technology (MIT). No
commercial use of these trademarks may be made
without prior written permission of MIT.
“Commercial use” means use of a name in a product or
other for-prot manner. It does NOT prevent a commercial
rm from referring to the MIT trademarks in order to
convey information (although in doing so, recognition of
their trademark status should be given).
The following copyright and permission notice applies to
the OpenVision Kerberos Administration system located
in kadmin/create, kadmin/dbutil, kadmin/passwd, kadmin/
server, lib/kadm5, and portions of lib/rpc:
Copyright, OpenVision Technologies, Inc., 1996, All
Rights Reserved
WARNING: Retrieving the OpenVision Kerberos
Administration system source code, as described below,
indicates your acceptance of the following terms. If you
do not agree to the following terms, do not retrieve the
OpenVision Kerberos administration system.
You may freely use and distribute the Source Code
and Object Code compiled from it, with or without
modication, but this Source Code is provided to you
“AS IS” EXCLUSIVE OF ANY WARRANTY, INCLUDING,
WITHOUT LIMITATION, ANY WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, OR ANY OTHER WARRANTY, WHETHER
EXPRESS OR IMPLIED. IN NO EVENT WILL OPENVISION
HAVE ANY LIABILITY FOR ANY LOST PROFITS, LOSS OF
DATA OR COSTS OF PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES, OR FOR ANY SPECIAL,
INDIRECT, OR CONSEQUENTIAL DAMAGES ARISING
OUT OF THIS AGREEMENT, INCLUDING, WITHOUT
LIMITATION, THOSE RESULTING FROM THE USE OF
THE SOURCE CODE, OR THE FAILURE OF THE SOURCE
CODE TO PERFORM, OR FOR ANY OTHER REASON.
OpenVision retains all copyrights in the donated Source
Code. OpenVision also retains copyright to derivative
works of the Source Code, whether created by
OpenVision or by a third party. The OpenVision copyright
notice must be preserved if derivative works are made
based on the donated Source Code.
OpenVision Technologies, Inc. has donated this
Kerberos Administration system to MIT for inclusion
in the standard Kerberos 5 distribution. This donation
underscores our commitment to continuing Kerberos
technology development and our gratitude for the
valuable work which has been performed by MIT and
the Kerberos community.
Portions contributed by Matt Crawford <crawdad@fnal.
gov> were work performed at Fermi National Accelerator
Laboratory, which is operated by Universities Research
Association, Inc., under contract DE-AC02-76CHO3000
with the U.S. Department of Energy.
The implementation of the Yarrow pseudo-random number
generator in src/lib/crypto/yarrow has the following
copyright:
Copyright 2000 by Zero-Knowledge Systems, Inc.
Permission to use, copy, modify, distribute, and sell this
software and its documentation for any purpose is hereby
granted without fee, provided that the above copyright
notice appear in all copies and that both that copyright
notice and this permission notice appear in supporting
documentation, and that the name of Zero-Knowledge
Systems, Inc. not be used in advertising or publicity
pertaining to distribution of the software without specic,
written prior permission. Zero-Knowledge Systems, Inc.
makes no representations about the suitability of this
software for any purpose. It is provided “as is” without
express or implied warranty.
ZERO-KNOWLEDGE SYSTEMS, INC. DISCLAIMS ALL
WARRANTIES WITH REGARD TO THIS SOFTWARE,
INCLUDING ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS, IN NO EVENT SHALL
ZERO-KNOWLEDGE SYSTEMS, INC. BE LIABLE FOR ANY
SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR
ANY DAMAGES WHATSOEVER RESULTING FROM LOSS
OF USE, DATA OR PROFITS, WHETHER IN AN ACTION
OF CONTRACT, NEGLIGENCE OR OTHER TORTUOUS
ACTION, ARISING OUT OF OR IN CONNECTION WITH
THE USE OR PERFORMANCE OF THIS SOFTWARE.
The implementation of the AES encryption algorithm in
src/lib/crypto/aes has the following copyright:
Copyright (c) 2001, Dr Brian Gladman <brg@gladman.
uk.net>, Worcester, UK.
All rights reserved.
LICENSE TERMS
The free distribution and use of this software in both
source and binary form is allowed (with or without
changes) provided that:
1. distributions of this source code include the above
copyright notice, this list of conditions and the
following disclaimer;
2. distributions in binary form include the above
copyright notice, this list of conditions and the
following disclaimer in the documentation and/or
other associated materials;
3. the copyright holder’s name is not used to endorse
products built using this software without specic
written permission.
DISCLAIMER
This software is provided “as is” with no explcit or implied
warranties in respect of any properties, including, but not
limited to, correctness and tness for purpose.
The implementation of the RPCSEC_GSS authentication
avor in src/lib/rpc has the following copyright:
Copyright (c) 2000 The Regents of the University of
Michigan.
All rights reserved.
Copyright (c) 2000 Dug Song <dugsong@UMICH.EDU>.
All rights reserved, all wrongs reversed.
Redistribution and use in source and binary forms, with
or without modication, are permitted provided that the
following conditions are met:
1. Redistributions of source code must retain the
above copyright notice, this list of conditions and the
following disclaimer.
2. Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other
materials provided with the distribution.
3. Neither the name of the University nor the names of
its contributors may be used to endorse or promote
products derived from this software without specic
prior written permission.
THIS SOFTWARE IS PROVIDED “AS IS” AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
Acknowledgments
Appreciation Time!!!! There are far too many people to
try to thank them all; many people have contributed to
the development of Kerberos V5. This is only a partial
listing....
Thanks to Kevin Coffman and the CITI group at the
University of Michigan for providing patches for
implementing RPCSEC_GSS authentication in the RPC
library.
Thanks to Derrick Schommer for reporting multiple
memory leaks.
Thanks to Quanah Gibson-Mount of Stanford University
for helping exercise the thread support code.
Thanks to Michael Tautschnig for reporting the heap buffer
overow inthe password history mechanism. [MITKRB5-
SA-2004-004]
Thanks to Wyllys Ingersoll for nding a buffer-size problem
in theRPCSEC_GSS implementation.
Thanks to the members of the Kerberos V5 development
team at MIT, both past and present: Danilo Almeida, Jeffrey
Altman, Jay Berkenbilt, Richard Basch, Mitch Berger, John
Carr, Don Davis, Alexandra Ellwood, Nancy Gilman, Matt
Hancher, Sam Hartman, Paul Hill, Marc Horowitz, Eva
Jacobus, Miroslav Jurisic, Barry Jaspan, Geoffrey King,
John Kohl, Peter Litwack, Scott McGuire, Kevin Mitchell,
Cliff Neuman, Paul Park, Ezra Peisach, Chris Provenzano,
Ken Raeburn, Jon Rochlis, Jeff Schiller, Jen Selby, Brad
Thompson, Harry Tsai, Ted Ts’o, Marshall Vale, Tom Yu.
Very special thanks go to Marshall Vale, our departing
team leader.
Over the past few years, Marshall has been extremely
valuable to us as mentor, advisor, manager, and friend.
Marshall’s devotion as a champion of Kerberos has helped
our team immensely through many trials and hardships.
We will miss him tremendously, and we wish him the best
in his future endeavors.
n
Exhibit-U
Copyright (c) 1989 The Regents of the University of
California.
All rights reserved.
This code is derived from software contributed to Berkeley
by Mike Muuss.
Redistribution and use in source and binary forms, with
or without modication, are permitted provided that the
following conditions are met:
1. Redistributions of source code must retain the
above copyright notice, this list of conditions and the
following disclaimer.
2. Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other
materials provided with the distribution.
3. All advertising materials mentioning features or
use of this software must display the following
acknowledgement:
This product includes software developed by the
University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of
its contributors may be used to endorse or promote
products derived from this software without specic
prior written permission.
THIS SOFTWARE IS PROVIDED BY THE REGENTS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,
OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED
OF THE POSSIBILITY OF SUCH DAMAGE.
License Information for the Software
Used in the Unit
About GPL (GNU-General Public
License), LGPL (GNU Lesser General
Public License) License
This product uses GPL/LGPL software and software
made by other companies.
After you purchase this product, you may procure,
modify or distribute the source code of the GPL/
LGPL software that is used in the product.
DENON provides the source code based on the
GPL and LPGL licenses at the actual cost upon your
request to our customer service center. However,
note that we make no guarantees concerning the
source code. Please also understand that we do
not offer support for the contents of the source
code.
D&M Holdings Inc.
Printed in China 5411 10186 203D
www.denon.com
