INSTALLATION INSTRUCTION
Model: VT-8058
LED BULKHEAD WITH SOFT LIGHT-OUTDOOR
WEEE Number: 80133970
INTRODUCTION
Thank you for selecng and buying V-TAC LED Bulkhead with so light-outdoor.
V-TAC will serve you the best. Please read these instrucons carefully before
starng the installaon and keep this manual handy for future reference. If you
have any other query, please contact our dealer or local vendor from whom you
have purchased the product. They are trained and ready to serve you at the best.
TECHNICAL PARAMETERS
LED
parameter
Performace
parameter
Lamp
warm white
460 lm
3000K 4000K
≥80
≥30000Hrs
500Vac/1min
100LM/W
60PCS
12C8B
47 -50V
240mA
0.9
240mA, 30-80V
PC
calss I
IP65
230 x 110 x 76mm
-30°C ~ 85°C, 0% - 95% R.H.
-25°C ~ 50°C, 10% - 90% R.H.
/
100~240Vac, 50/60Hz
less than 3% within 1000 working hours
COB LED
12W
92°
6400K
480 lm
500 lm
cool white
natural white
Lumens (lm)
Color temperature (K)
CRI
Type of LED
Decay rate (%)
Total power (W)
Lifespan (Hrs)
High voltage testing
Lighting efficiency
Series-parallel way
Voltage
Current
Input parameter
Power factor
Output paremeter
Material
Dimension
Cut - out
Protection class
IP
Application
hotel, home-lighting, recreation place, supermarket
office building
Operating temperature
Storage temperature
Qty / Ctn
N.W
G.W
carton size
Chip quantity
Beam angle
Packing
specification
Environment
parameter
Structure
parameter
Driver
specification

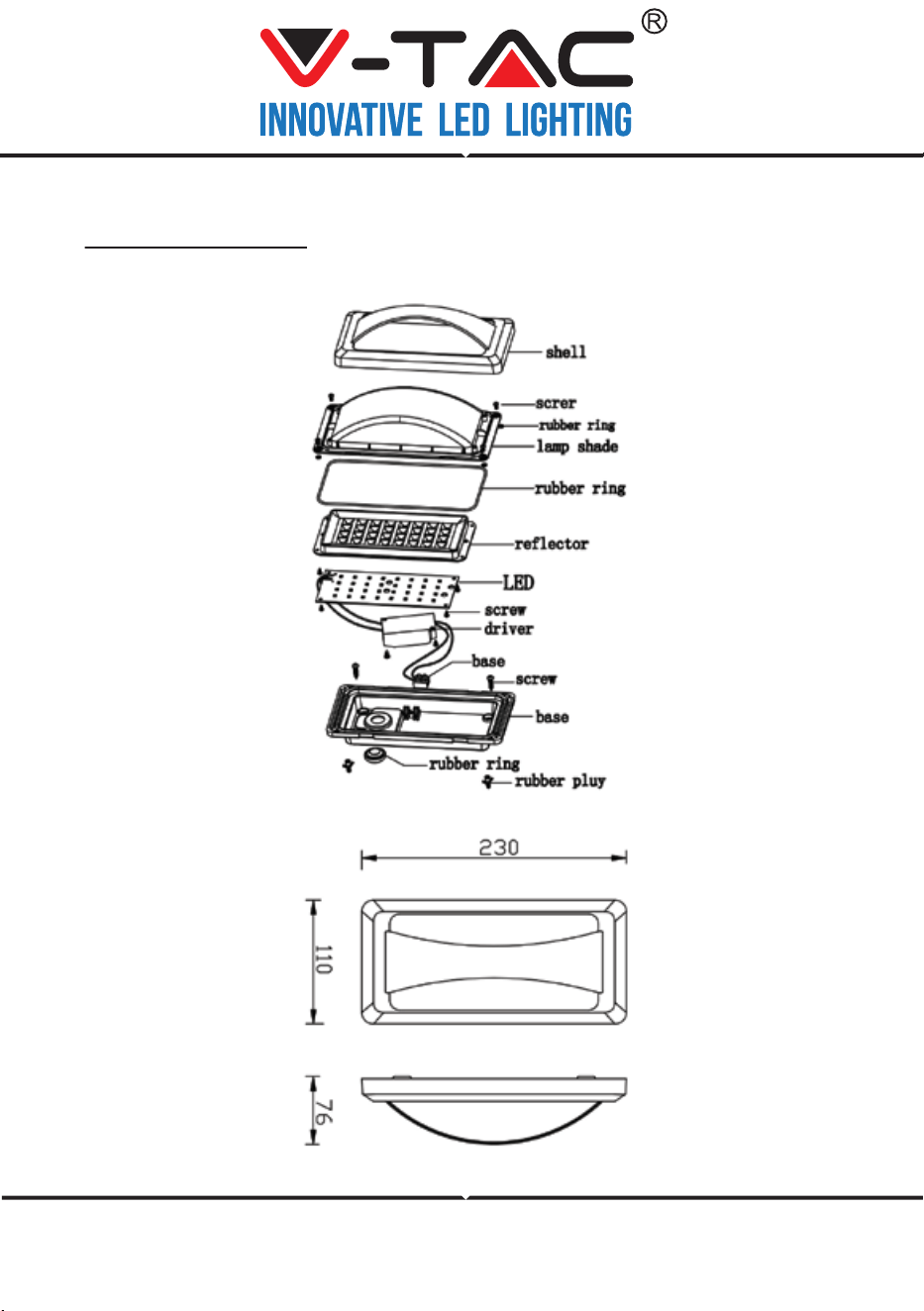

STRUCTURE & SIZE
INSTALLATION INSTRUCTION
In case of any query /issue with the product please reach out to us at [email protected]
1. Switch off the power.
2. To drill the appropriate holes on the wall. (picture 1)
3. Enter the parcles and install the lamp base on the wall. (picture 2)
4. Connect the light into the mains (100-240V), install the lampshade
and cover the shell. (picture 3)
5. Switch on the power if above steps are done properly without any mistakes.
