ProductOverview
Features
TRENDnet’s Indoor/Outdoor 5MP H.265WDRPoEEXIRNetworkCamera,
model TV‐IP313PI, provides day and night surveillance with a night vision
range of up to 80 meters (262 ft.). EXIR uses powerful energy efficient
infrared LEDs to produce a balanced night vision illumination field and
reducescloseobjectoverexposure.Thisnetworkcameradeliversyear‐round
surveillance with an IP67 weather rated housing to withstand outdoor
environments.Recordupto5MPHDvideoat20fpsinaspacesavingH.265
compressionformat.Viewlivevideowithincludedcomplimentarysoftware
andmobileapps.
Specifications
5Megapixel
Recordupto5MPHDvideo(2560x1920)at20fpsinthespacesavingH.265
compressionformat.
EXIRNightVision
AdvancedEXIRLEDsprovidelong‐rangenightvisionupto80m(262ft.)and
significantly reduce close object overexposure—common with standard
infraredLEDs.
PoE
SaveinstallationcostswithPoweroverEthernet(PoE)
OutdoorReady
OutdoorIP67weatherratedhousing
AdjustableMountingBase
Fullyadjustableintegratedmountingbaseprovidesinstallationflexibility
Storage
RecordvideotoanetworkstoragedeviceortoaMicroSDcard(upto128GB
notincluded).
AdvancedPlayback
Advancedin‐cameraarchivedvideoplaybackfunctionality
MotionDetection
Create custom motion detection zonestorecordvideoandsendemail
notificationswhenazoneistriggered.
TamperDetection
Createcustomtamperdetectionzonestosendanemailnotificationwhen
thecameraviewhasbeenobstructed.
WideDynamicRange(WDR)
Adjustable 120dB WDR setting improves image quality and focus when a
cameraisexposedtohighcontrastlightingenvironmentsbyenhancingthe
darkareasoftheimagetomakethemmorevisible.
RecordingFlexibility
Definecustomschedulesusingcontinuous(24/7)andeventbasedrecording
modes.
ONVIF/PSIA
ONVIFProfileS,ProfileGandPSIAcompliant
ComplimentarySoftware
Complimentarypro‐gradesoftwaretomanageTRENDnetcameras
ComplimentaryApps
LivevideotoamobiledevicewithfreeiOS
®
andAndroid
™
apps
TV‐IP313PIpackageincludes:
TV‐IP313PI
Weatherseal
Quickinstallationguide
Cameramountinghardware
Ifanypackagecontentismissingordamaged,pleasecontacttheretailstore,online
retailer,orreseller/distributorfromwhichtheproductwaspurchased.
DrillingTemplate MountingScrews
NetworkCable
WaterproofAccessories
Interface
No. Description No. Description
1 Lens 5 MemoryCardSlotCover
2 SunShield 6 MemoryCardSlot
3 Powerport 7 ResetButton
4 Networkport(PoE)
Warnings
Seriousinjuryordeathmaybecausedifanyofthesewarningsareneglected.
Followthesesafetyguardstopreventseriousinjuryordeath.
• If using the power adapter, please choose the power adapter that
meetsthesafetyextralowvoltage(SELV)standardorIEC60950‐1and
LimitedPowerSourcestandard.
• Iftheproductdoesnotworkproperly,pleasecontactyourdealeror
thenearestservicecenter.Neverattempttodisassemblethecamera
yourself. Disassembling theproductwillvoid the warranty and may
causeharmorinjury.
• Toreducetheriskoffireorelectricalshock,donotexposethisproduct
torainorwater.
• The installation should be done by a qualified service person and
shouldconformtoallconstructionandelectricregulationsandother
localcodes.
Cautions
Injury or equipment damage may be caused if any of these cautions are
neglected.Followtheseprecautionstopreventpotentialinjuryormaterial
damage.
• MakesurethepowersupplyvoltageiscorrectbeforeusingtheCamera.
• Donotdropthecameraorsubjecttophysicalshock.
• Donottouchsensormoduleswithfingers.Ifcleaningisnecessary,use
acleanclothwithabitofethanolandwipeitgently.Ifthecamerawill
notbe used for an extended period oftime, putonthe lens capto
protectthesensorfromdirt.
• DonotaimthecameralensatthestronglightsuchastheSunoran
incandescentlamp.Stronglightcandamagethecamerasensor.
• Thesensormaybeburnedoutbyalaserbeam,sowhenanylaser
equipmentisbeingused,makesurethatthesurfaceofthesensorwill
notbeexposedtothelaserbeam.
• Donotplacethecamerainextremelyhot,coldtemperatures(the
operating temperature should be between ‐10°C to 60°C), dusty or
damp environment, and do not expose it to high electromagnetic
radiation.
• Toavoidheataccumulation,goodventilationisrequiredforaproper
operatingenvironment.
• Keepoutofwaterandanyliquid.
• Whileshipping,thecamerashouldbepackedinitsoriginalpacking.
Planforinstallationlocation
ViewingAngle
TheTV‐IP313PIisabulletcamerawithafocusedviewinganglethatprovides
non‐distorted and detailed images. Choose the location where has good
angletoshoottheimageyouexpecttosee.Themotiondetectionareashould
alsobeconsideredwheninstallingthecamera.
WeatherConditions
TheTV‐IP313PIisasmallbulletcamera,whichfitsmostinstallationsindoor
andoutdoor. Thecameracanworkunderawiderangeofweatherconditions.
For severe weather conditions, a camera housing with temperature and
moisture control is recommended. Using the camera in milder weather
conditionswillhelpextendthecamera’sproductlifeandpreservethequality
ofthevideoimage.
• Moisture:Avoiddampormoistenvironmentswheneveryoucan.The
TV‐IP313PIis an IP67 grade waterproof camera, and it will work in
moist environments. However, rain may affect the picture quality,
especiallyatnight,watermayreflectthelightfromtheinfra‐red
illuminationanddegradepicturequality.
• Temperature:TV‐IP313PIworkswithinaspecifiedtemperaturerange.
Areaswithseveretemperaturesshouldbeavoidedwheninstallingthe
camera.It’srecommendedthatyouuseanenclosurewithaheaterand
blower if you plan on using this camera outside of the specified
temperaturerange.
• Sunlight:Avoiddirectsunlightexposure.Directsunlightwilldamage
theimagesensor.Ifsunlightisnecessaryforyourviewingpurposes,
provideprotectionfortheimagesensor.
• Lighting:Considerinstallingyourcamerafacesthesamedirectionof
thelightsources.Shootingimageswithtop‐downpositionoutdooror
nexttotheexistinglightsourcearegoodchoices.Avoidthelightsource
ifitcreatesashadethatdarkenstheviewingarea.
HardwareInstallation
Cabling
It’s recommended that the wiring the cable in your home or office by a
professional.Ifyoualreadyhavethecabledeployed,makesurethecableand
theconnectorsmeetthecategory5Ethernetcablestandards.Atleast2pairs
oftwistedlinesarerequiredforpoweranddata.Poorcablequalitymaycause
unexpectedproblems.Testingyourcableorrunninganewcableissuggested
fornewcamerainstallation.
Waterproofcap
TheTV‐IP313PI itselfisIP67gradewateranddust proof.Thereisasetof
networkcablewaterproofcapsthatcomeswiththepackageaswell.Run
yourcablegoingthroughtheaccessories,andthencrimpthecablewithan
RJ45module.Pluginthenetworkcableandthentightenthewaterproofcap
topreventwaterrunningintocamerathroughthecable.
Mountyourcamera

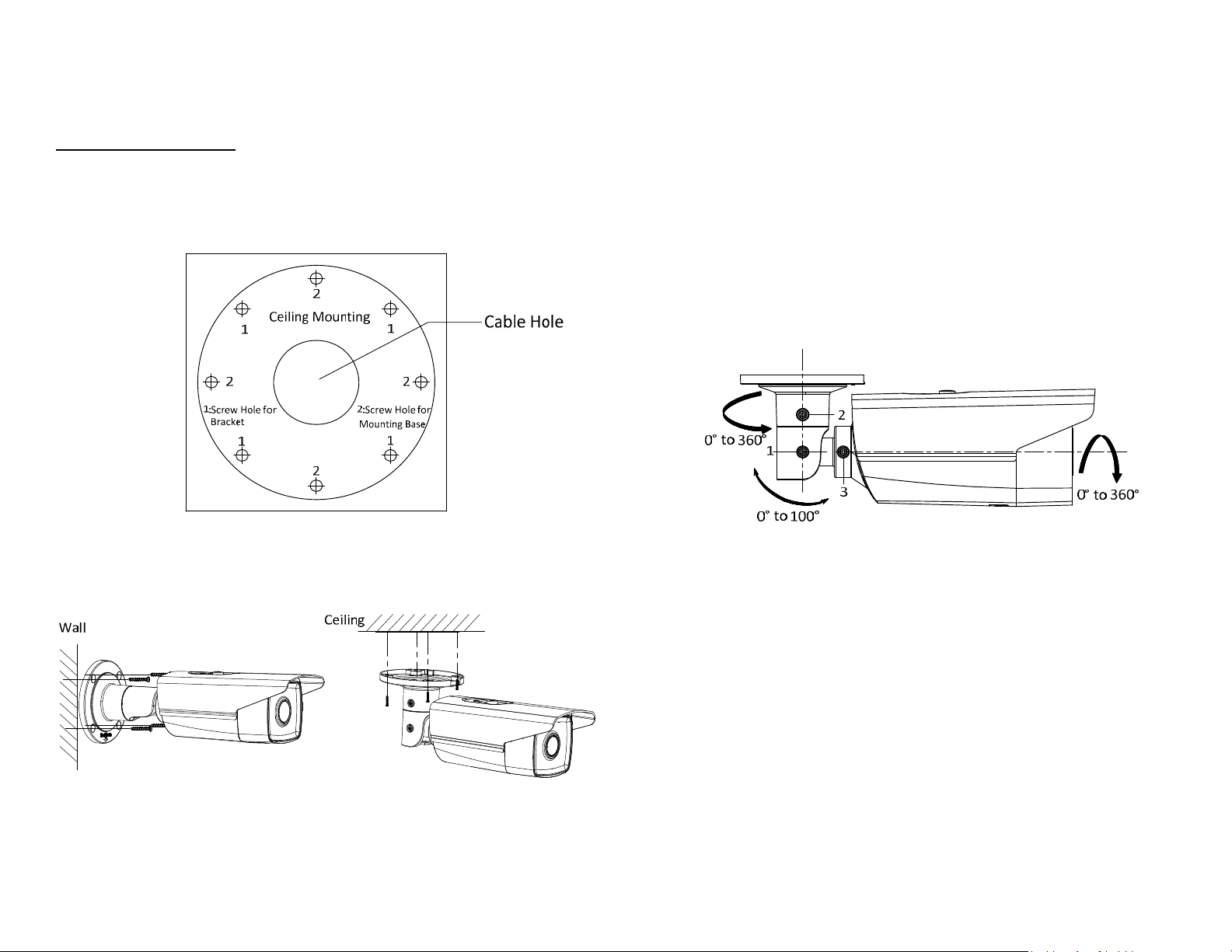

Drillthescrewholesandthecableholeifnecessarywiththedrilltemplate
comeswiththepackage.
Fixthemountingbaseontheceilingorthewallwiththescrewsthatcome
withthepackage.Routethecablestothecablehole.
Loosenthelockringandthenadjustthecameraposition.Tightenthelock
ringwhenyousetupthecameraposition.
LoosenNo.1lockscrewtoadjustthetiltangle[0°to100°].
LoosenNo.2lockscrewtoadjustthepanangle[0°to360°].
LoosenNo.3lockscrewtorotatethecamera[0°to360°].
Tightenthelockscrews.
MemoryCardInstallation
1. Unscrewthecovertoexposethememorycardslot.
2. Exposememorycardslotandinsertthememorycard.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 11
SetupYourCamerawithCameraUtility
1. Pleasedownloadtheutilityat
http://www.trendnet.com/camerautility
2. Extractthedownloadedfileanddoubleclickonthecamerautilityfile
toinstall
3. Last,clickNexttofinishtheinstallation.
4. ThiswillalsorequireyoutoInstallWinPcapprogramifyoudon’thave
this installed before, please follow the on screen Instructionsto
InstallIt.
5. RestartthecomputeraftertheInstallation.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 12
6. Afterthecomputerhasrestarted,doubleclickontheCameraUtilityicon
tolaunchtheprogram.
7. Findthecamerayouwouldliketoaccessandconfigurethendoubleclick
ontheIPaddress.
8. ContinuetothenextsectionAccessyourCamerawiththeWeb
Browserfordetailconfigurationsofthecamera.
AccessyourCamerawiththeWebBrowser
Logging‐intotheCamerafortheFirstTime(Windows)
1. FindthecamerafromtheUtilityanddoubleclickontheIPaddressto
openthebrowser.
2. ActivatetheadminUserAccountbyenteringyourdesiredpassword,and
thenclickOK.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 13
3. ForChromeandFirefox,thecamerawillgotoLivestreamdirectlybutfor
IEandSafari,plugininstallisrequired.
4. Downloadtheplug‐intoyourcomputerandthenandcloseyourbrowser.
Launchtheplug‐ininstallationtoinstalltheplug‐in.(ForInternetExplorer)
5. Permission request may show up depends on the Internet security
settingsonyourcomputer.ClickYestoinstalltheplug‐in.
6. ClickNexttoinstalltheplug‐in.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 14
7. ClickFinishtofinishtheinstallation.
8. Openthebrowserandloginagain,entertheusernameadminandnew
passwordagaintostartsecuredsession.
9. Refresh the browser and the Live View page will show up and begin
streamingvideo.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 15
Logging‐intotheCamerafortheFirstTime(OSX)
1. Openthewebbrowseronyourcomputer.Intheaddressbar,enterthe
default IP address of the camera 192.168.10.30. If the camera is
connectedtoarouter/network,pleaseusetheWindowsCameraUtility
tofindtheexactIPaddress.
2. ActivatetheadminUserAccountbyenteringyourdesiredpassword,and
thenclickOK.
3. The cameramanagement page will detect if you installed the camera
webcomponentplug‐inornot.Clickthelinktodownloadtheplug‐infrom
thecamera.
Note:Internetconnectionisrequiredtodownloadtheplug‐in.Ifyoudonothave
Internetaccess,youcanfindtheplug‐inontheCDcomeswiththepackageunder
/Macfolder.
4. Quityourbrowser completely by command‐Click on thebrowsericon
andthenclickQuitbeforeinstallingtheplug‐in.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 16
5. GototheFinderandnavigatetotheDownloadfolder.Command‐Click
theWebComponents.pkgandthenclickOpen.(Ifyouareinstalltheplug‐
infromtheCDwhenyoudon’thaveinternetconnection,justbrowseto
/MacfolderanddoubleclicktheWebComponents.pkgfile.)
6. ClickOpenwithInstallertostartinstallation.
7. ClickContinuetoinstalltheplug‐in.
8. Selectadestinationtoinstalltheplug‐in.ThenclickContinue.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 17
9. UsethedefaultlocationandclickInstall.
10. EnteryourpasswordandclickInstallSoftware
11. Installationwillprocessautomatically.
12. ClickClosetoexittheinstallation.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 18
13. OpenthebrowserandloginagainwiththedefaultIP192.168.10.30or
theIPthatwasdynamicallyassignedbyyourrouter.Entertheusername,
admin,andthedefaultpassword,admin,andthenclickOK.
14. TheLiveViewpageshowsupandthevideostartstostream.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 19
LiveView
Snapshot
Clickthisicontotakeavideosnapshot.
Afteryoulog‐inintothecameramanagementpage,you’llseetheLiveViewpage.
Zoom
Clickoncetoenablezoom.When
enabled,clickanddragtheareaonthe
picture to zoom in. Right click to
resume 100% zoom. Click the icon
again to disable zoom. The zoom
functionworks
infullscreenmodeas
well.
Recording
Click once to start recording. Click it
againtostoprecording.Thestatusbar
willindicateifitisinrecordingstateor
not.
VideoStream
TV‐IP316PI has two video streams:
H.264andMJPEG.Switchtoviewthe
differentvideostreamsbyclickingthis
icon.
FullScreenMode
Clickthepicturetoviewinfullscreen
mode. Double click again or press
escapekeyonyourkeyboardtoexit
fullscreenmode.
StatusBar
Thestatusbarshowsthestatusyou
are at, including enabled the zoom,
recording video, and successfully
takingasnapshot.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 20
Playback
Youcanplaybackthevideorecordingonthenetworkstorageanddownload
thevideoclipandsnapshotstoyourlocalcomputer.
Searchforvideorecordings
Clickthedateselection,andthenchooseadateasthedaterangeofsearching.
ClickSearchtostartsearching.
TimeLine
Thereisaplaybackheadinthecenterofthetimelinerepresentedinayellow
verticalline.Tolook for a specificvideo recording, movethe time line by
clickingand dragging it. If the recording is short, zoom inby clicking
button.Click
tozoomoutthetimescale.Ifyouknowtheexacttimeof
thedayyouarelookingfor,click
thenenterthetimeyouwanttoplayback.
Different types of recordings are identified differently. The scheduled
recordingsaremarkedinblue,andtherecordingstriggeredbymotion
detectionaremarkedinred.
Clickanddragthetimelinetomoveyourtimemanually.
Clickthisbuttontozoominthescale
Clickthisbuttontozoomoutofthescale
Clickthisbuttontospecifyaspecifictimeoftheday.
thenclick toconfirmselectionandthenclickXtoclose
thisdialogbox.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 21
Playback
Useplaybackcontrolstoplaybackthevideorecording.
Clickthisbuttontoplaythevideo.
Clickthisbuttontopausevideoplayback.
Clickthisbuttontostopplayback.
Clickthisbuttonincreaseplaybackspeed*.
Clickthisbuttondecreaseplaybackspeed*.
Clicktoplaybackvideoframebyframe.Clickagainfor
thenext
fr
ame
�
*Note:Thereare5stepsofplaybackspeedyoucanchoosefrom:1/4,1/2,1,2,and
4timesoforiginalspeed.
Sliceimagesfromvideoplayback
Youcantakesnapshotsfromplaybackvideoormakenewvideoclipsfrom
thevideoyouareplayingback.
Clickthisbuttontoenablezoom.Thenclickanddragon
thevideotodefinetheareayouwanttozoomin.Click
againtogetbackto100%zoom.
Doubleclicktoshowvideoinfullscreenandpress
ES
C
onkeyboardtoexitfullscreenmode.
Clickthisbuttontodisablezoom.
Clickthisbuttontotakeasnapshotofcurrentplayback.
Clickthisbuttontostartclippingavideofromplayback.
Clickthisbuttontostopclippingavideofromplayback.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 22
Downloadsectionsofvideo
Tosavecompletevideosectionsorsnapshots,youcandownloadthefiles
directly.
Click buttontodownloadvideosections.
Checkthetimeoftherecording,selectthevideosyouwanttodownload,and
thenclickDownload.
Downloadsnapshots
Click buttontolistsnapshotstodownload
Select the type of event that triggered the snapshots.
ChoosetheStartTimeandEndTime.Then,clickSearch
tofindthesnapshotlist.Checkthetimeofthesnapshot,
and then select the snapshots you want to download,
thenclickDownload.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 23
Log
The log of the TV‐IP313PI will be saved on the network storage.Youcan
searchtherelevantrecordsandsavetoyourlocalcomputer.(SeeNetwork
Storageonpage49tosetupthestorage.)
Searchforlogs
ClickthetypeoflogandthentheStartTimeandEndTime.ClickSearchto
startsearching.
ClickFirstPage,PrevPage,NextPage,andLastPagetoshowthelogs.Click
SaveLogtosavethelogstoyourcomputer.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 24
SystemInformation
SystemInformationpageshowsthecamera’sbasicinformation.
BasicInformation
DeviceName: Humanreadabledevicenameforeasy
identification.
FirmwareVersion: Firmwareversion
MACAddress: TheMACaddressofEthernetInterface
SystemTime: Thesystemtimesetupinthecamera.Keepingthis
timecorrectisimportantforrecording,scheduled
controlandloggingaccurately.
DeviceName: Humanreadabledevicenameforeasy
identification.
NetworkInformation
IPAddress: IPaddressoftheTV‐IP313PI
SubnetMask: NetworkrangeofIPaddress
DefaultGateway: ThedefaultroutegoingfromtheTV‐IP313PI
subnet.
PrimaryDNS: PrimaryDNSserveraddress
SecondaryDNS: SecondaryDNSserveraddress
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 25
SystemConfiguration
DeviceSettings
Setupyourcameranameandlocationforeasyidentification.This camera
namewillalsoberecognizedbyothernetworkcamerasoftwareasthename
ofthiscamera.OSD,OnScreenDisplay,cameranameisreferring to this
settingaswell.
Names
CameraName:
Nameofthecamera. Thecameranamesetup
herecanbediscoveredbyothernetworkcamera
softwareandOSD,OnScreenDisplay.Thedefault
cameranameisthemodelnumber:TV‐IP313PI
Location: Labelwhereyouinstalledthiscameraforreference
Authentication
RTSP: TV‐IP313PI’svideostreamcanbeaccessedwith
RTSP,RealTimeStreamingProtocol.Onlythe
administratoranduserscanviewthisvideostream
Un‐checkingthisboxwillalloweveryoneaccesstothisvideo
streamwithoutauthentication.Default:Checked.
Service
Enable
Telnet:
TV‐IP313PIembeddedTelnetserviceformultiplecamera
controlforsystemdeveloper.Default:disabled.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 26
UserAccounts
Youcansetupupto16useraccountstoaccessthecamera’svideostream
withawebbrowserorrealtimevideostream(RTSP).Onlyoneadministrator
accountcanbesetuptoconfiguretheTV‐IP313PIandcannotbedeleted.
UserAccounts
Add: ClickAddbuttontoaddoneuseraccount
Modify: Tochangeauser’snameandpassword,highlighttheuserby
clickingonit.Then,clickModifybutton.Youcanchangethe
user’snameandpassword.Youcanalsochangethe
administrator’spasswordhere.But,theadministrator’sname
isfixed,youcannotchangethat.
ClickOKtosavethechanges.
TimeSettings
Theaccuracyofthesystemclockisimportantforschedulingandaccurate
logging. You can synchronize the system time with your computer, or
automaticallycheckthetimeaccuracywithanetworktimeserver (NTP
server).
AutomaticUpdate
NTP
Server:
Specifyatimeserver(NTPserver)tosynchronizewith.
(e.g.pool.ntp.org)
Interval: ThetimeintervalthattheTV‐IP313PIwillsynchronizethetime
withNTPserver.Default:1440minutes(24hours)
ManualTimeSync
DeviceTime: Thesystemtimeofthiscamera.
SetTime: Click the calendar icon and manually select the date.
Check the Sync. with computer timetocopythetime
fromyourcomputer.
ClickSavetosavethechanges
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 27
DaylightSavings
Setupdaylightsavings.
AutomaticUpdate
EnableDST: Checkthisboxifyourtimezonehasdaylightsavings.
StartTime: Enterthedatethatdaylightsavingsstarts
EndTime: Enterthedatethatdaylightsavingsends
DSTBias Enter how much time the daylight saving adjusted by
daylightsavings.
ClickSavetosavethechanges
LiveViewSettings
Setuptheliveviewvideoquality,filesizeandfilesavingdirectories.
LiveViewParameters
LiveView
Buffer:
Configurethebuffersizeforliveviewvideostream.With
low buffer size setting, you can get real‐time video
stream,butthevideomaybestopandgoifthenetwork
iscongested.Withhighbuffersetting,youcanhave
smoothvideo streaming,butthevideoisdelayed from
the time happening. Medium size can have moderate
videostreamsmoothnessandtimedelay.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 28
RecordFileSettings
Recordfilesize: Thissizeofliveviewvideorecording.Youcanchoose
256MB,512MB,or1GBafile.Smallerfilesizeisgood
formanyshortrecordings.
Saverecord
filesto:
ClickBrowseandthenchooseanewdestinationifyou
wanttosavethefilesomewhereelse.
Save
downloaded
filesto:
ClickBrowseandthenchooseanewdestinationifyou
wanttosavethefilesomewhereelse.
PictureandClipSettings
Savesnapshots
in
liveviewto:
ClickBrowseandthenchooseanewdestinationifyou
wanttosavethefilesomewhereelse.
Savesnapshots
whenplayback
to:
ClickBrowseandthenchooseanewdestinationifyou
wanttosavethefilesomewhereelse.
Saveclipsto: ClickBrowseandthenchooseanewdestinationifyou
wanttosavethefilesomewhereelse.
ClickSavetosavethechanges
Maintenance
Youcanrestart,loadcamerasettingsandupgradethecamerafirmwareon
thispage.
Reboot
Reboot: Clickthisbuttontorebootthiscamera.
Reset
Reset: Resetallcamera parameters,excepttheIPparameters
anduserinformation.
Default: Loadcompletefactorydefaulttothecamera.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 29
InportConfig.File
ConfigFile: Toloadpreviouslysavedsettings,clickBrowsetofindthe
configurationfileandthenclickImport.
Status: Showsthestatusinloadingconfigurationfile.
ExportConfig.File
Export: ClickExporttodownloadconfigurationfile.Thefilewill
bedownloadedtotheDownloadfolderbydefault.
RemoteUpgrade
Firmware: Click Browse to find the latest firmware and then click
Upgrade.
Status: Showsthestatusinfirmwareupgrade.
TRENDnet may periodically release firmware upgrades that might add
featuresorfixproblemsassociatedwithyourcamera.Tofindoutifthereisa
firmware upgrade available for your device, please check your TRENDnet
modelandversionusingthelink.
http://www.trendnet.com/downloads/
1. Ifafirmwareupgradeisavailable,downloadthefirmwaretoyour
computer.
2. Unzipthefiletoafolderonyourcomputer.
3. Readthefirmwareupgradeinstructionforspecificversionupdate
information.
4. LogintotheTV‐IP313PI.
5. GettingtothisMaintenancepagetoupgradefirmware.
NetworkSettings
TCP/IP
SetupyourbasicIPv4andIPv6networksettingsonthispage.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 30
NetworkInterface
MACAddress: Clickthisbuttontorebootthiscamera.
Duplexand
Speed:
Choose one of the Ethernet duplex and speed to
matchyournetwork.Default:auto.
MTU:
Maximumtransmissionunit.Themaximumfieldsize
intheEthernetpacket.
PrimaryDNS: EnteryourfirstIPv4orIPv6DNSserveraddress
SecondaryDNS: EnteryoursecondIPv4orIPv6DNSserveraddress
IPv4
DHCP: CheckthisboxiftheIPaddressisassignedbyDHCP
server.
IPv4Address: TheIPv4dynamicorstaticaddress
SubnetMask: Networkrangeofthesubnet
DefaultGateway: ThedefaultroutegoingfurtherfromTV‐IP313PIIPv4
subnet
IPv6
IPv6Mode: ChooseManual,DHCP,orRouteAdvertisement.Click
View Route Advertisement to find a route
advertisement.
IPv6Address: IPv6addressofTV‐IP313PI
PrefixLength: Lengthofnetworkprefix
Default
Gateway:
ThedefaultroutegoingfurtherfromTV‐IP313PIIPv6
subnet
Port
YoucanchangetheserviceportnumbersofTV‐IP313PIandenable/disable
RTSPorHTTPSservices.
PortNumbers
HTTPPort: Thedefaultwebaccessport.Youcanchangetheport
number. However, you cannot disable the web
service.Thedefaultportnumberis80.
RTSPPort: The Real‐Time Streaming Protocol port for video
streaming. You can change the port number or
disabletheservicebyuncheckthebox.Thedefault
portnumberis554.
HTTPSPort: Thesecuredweb service port. You can changethe
port number, or you can disable the service by
uncheckthebox.Thedefaultportnumberis443.
ClickSavetosavethechanges
*Note:Toviewthecameraremotely,pleasemakesuretheHTTPandRTSP
portsareopened(portforwarded)onyournetwork/router.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 31
DDNS
DynamicDomainNameService,DDNS,allowsyoutofindyourcamerafrom
theInternetwithaneasytorememberdomainname.
DDNS
EnableDDNS: CheckthisboxtoenableDDNSService.
DDNSType:
SelectaDDNSserviceprovider.
ServerAddress:
EntertheDDNSserveraddress.
Domain: Enteryourregistereddomain/hostnameonselected
DDNSservice.
UserName:
Entertheaccountname.
Password: Enterthepassword.
Confirm: Enterthepasswordagain.
ClickSavetosavethechanges
PPPoE
Setup PPPoE (ADSL) connection to connect your camera with your ISP,
InternetServiceProvider.
PPPoE(ADSL)
EnablePPPoE: CheckthisboxtoenablePPPoEconnection.
DynamicIP: TheIPaddressassignedbyISP
UserName:
Entertheaccountname.
Password:
Enterthepassword.
Confirm:
Enterthepasswordagain.
ClickSavetosavethechanges
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 32
SNMP
SNMPSettingsallowsyoutoassignthecontactdetails,location,community
nameandtrapsettingsofSNMP.Thisisanetworkingmanagementprotocol
usedtomonitor network‐attacheddevices. SNMPallowsmessages(called
protocoldataunits)tobesenttovariouspartsofanetwork.Uponreceiving
thesemessages,SNMPcompatibledevices(calledagents)returndatastored
intheirManagementInformationBases.
SNMPV1/V2
EnableSNMPv1: CheckthisboxtoenableSNMPv1management.
EnableSNMPv2c: CheckthisboxtoenableSNMPv2cmanagement.
ReadSNMP
Community:
SpecifythepasswordtoaccesstheSNMP
communityforreadonlyaccess.
WriteSNMP
Community:
SpecifythepasswordforaccesstotheSNMP
communitywithread/writeaccess.
TrapAddress: SpecifytheIPaddressfortheSNMPtrap
community.
TrapPort: SpecifytheportnumberfortheSNMPtrap
community.
TrapCommunity: SpecifythenameofSNMPtrapcommunity.
SNMPV3
EnableSNMPv3: CheckthisboxtoenableSNMPv3management.
ReadUserName: SNMPv3memberusername.
SecurityLevel: Chooseoneofthesecuritylevels.
Authentication
Algorithm:
Choosetheauthenticationmethodtoverifythe
sourceofinformation:MD5orSHA.
Authentication
Password:
Specifytheauthenticationpasswordbetween8to
32letters.
Private‐key
Algorithm:
ChoosetheprivacykeytoencryptSNMPmessages:
DESorAES.
Private‐key
Password:
Specifytheprivacykeybetween8to32letters.
WriteUser
Name:
SNMPv3managerusername.
SecurityLevel: Chooseoneofthesecuritylevels.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 33
Authentication
Algorithm:
Choose the authentication method to verify the
sourceofinformation:MD5orSHA.
Authentication
Password:
Specifytheauthenticationpasswordbetween8to32
letters.
Private‐key
Algorithm:
ChoosetheprivacykeytoencryptSNMPmessages:
DESorAES.
Private‐key
Password:
Specifytheprivacykeybetween8to32letters.
SNMPOtherSettings
SNMPPort: SNMPserviceportnumber.
ClickSavetosavethechanges
802.1X
Setup802.1Xforremoteauthenticationservice.
802.1XAuthentication
EnableIEEE
802.1X:
Check this box to enable 802.1X authentication
service.
EAPOLversion: Extensible Authentication Protocol (EAP) over LAN
(EAPoL).Chooseversion1or2.Thisversionnumber
hastomatchtoyour802.1XserviceEAPOLversion.
UserName:
Entertheaccountname.
Password:
Enterthepassword.
Confirm:
Enterthepasswordagain.
ClickSavetosavethechanges
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 34
IPAddressFilter
Setupalistofclientsallowonlytheclientsonthelisttoaccessthiscamera
ortorejectclientsonthelistfromaccessthiscamera.
IPAddressFilter
EnableIP
AddressFilter:
CheckthisboxtoenableIPaddressfilteringservice.
IPAddressFilter
Type:
ChooseForbiddentobanthelistedIPaddressesor
Allowedtoallowlistedhosttoaccessthiscamera.
Add: ClickAddtoaddauseraccount
Modify: Tomodifyanentryonthelist,highlighttheentryby
clickingonit.Then,clicktheModifybutton.
EntertheIPaddressthenclickOK
Delete: Todeleteanentryonthelist,highlighttheentryby
clickingonit.Then,clickDelete
Clear: Toclearallentries,clickClear
ClickSavetosavethechanges
QualityofService(QoS)
Setup traffic prioritization tags the video packets to go through network
switchesandrouterswithassignedpriority.YoucansettheDifferentiated
ServicesCodePoint(DSCP)bitsonoutgoingdatastreams.TheQoScapable
networkdevicewillforwarddifferentdataindifferentpriorities.Themeaning
ofthevalueisdifferentindifferentDiffServdomains.Consultyournetwork
managerforthesetupdetails.
IPAddressFilter
Video/Audio
DSCP:
EnterVideo/AudioDSCP.Default:0.
Event/Alarm
DSCP:
EnterEvent/AlarmDSCP.Default:0.
Management
DSCP:
EnterManagementDSCP.Default:0.
ClickSavetosavethechanges
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 35
UPnP
Universal Plug‐and‐Play is a device discovery protocol set. It allows your
cameratoeasilybefound,forexample,onaWindowsoperationsystem.
UPnP
EnableUPnP: CheckthisboxtoenableUPnPconnection.
FriendlyName: Thenamethatwillbeappearedwhensearched.
PortMapping
EnablePort
Mapping:
CheckthisboxtoenableUPnPconnection.
PortMapping
Mode:
ChooseManualorAutoportmapping.
ExternalPort:
Choosetheportnumberformapping.
ClickSavetosavethechanges
VideoSettings
VideoFormat
VideoEncoding: Choosethevideostreamyouwanttomodify.
H.264andH.265videosarealwaysstreamingand
canbeconfiguredseparately.
H.264+/H.265+ Highercompressionoption
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 36
Resolution: H.264/H.265
MJPEG
BitrateType: Choosebetweenvariablebitrateorconstantbit
rateforvideocompression.Thedefaultisvariable
rate.
VideoQuality: Choosethevideoquality.Thedefaultismedium
quality.
FrameRate: Choosethecapturingframerate.Thedefaultvalue
is30framespersecond.Reducetheframerateto
reducethecapturefilesize.
Max.Bitrate: Choosethemaximumvideosamplingbitrate.
Default:2048
IFrameInterval AnIFrameisaframethatrecordsacomplete
picture.FramesbetweenIframes,(PframeorB
frame)onlyrecordstheimagedifferencesbetween
twoframes.ChoosetheIFrameIntervalhere.The
defaultis60.
ClickSavetosavethechanges
Substreamcanbeusedforlowerresolutionneededapplication,forexample
mobileappstreamingorNVRstreaming.
ThirdstreamisusedforLiveviewonly,ithasresolutionlimitationonChrome,
FirefoxandSafari.MaxresolutioncanbesupportedunderInternetExplorer.
Note:WhenH.264+/H.265+isenabled,LiveviewonChromeorFirefoxwill
be disabled due to browser limitation, you can continue to use Internet
Explorer or Safari to view the camera otherwise disable the H.264+ and
H.265+option.
DisplaySettings
Adjustvideoimagequality,lightness,andcolorsettingshere.
(Auto‐SwitchMode)
Brightness: Usethesliderorenteranumber(0‐100)toadjustthe
imagebrightness.Default:50
Contrast: Usethesliderorenteranumber(0‐100)toadjustthe
imagecontrast.Default:50
Saturation: Usethesliderorenteranumber(0‐100)toadjustthe
colorsaturation.Thegreaternumbermeansthecolor
willbemoresaturated.Default:50
Sharpness: Usethesliderorenteranumber(0‐100)toadjustthe
imagesharpness.Default:50
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 37
Lightsensitivities
IrisMode: Thiscamerausesfixedlens,thereforetheIrisfunction
isnotconfigurable.
ExposureTime: Adjustthisvalueforexposuretimefor
eachpicture.Youcanchooseavalue
between1/3secondto1/100,000
second.Thedefaultvalueis1/30second
exposuretimeforeachpicture.
Gain Thisvaluebemanuallyconfiguredfrom0to100.The
biggerthevalueis,thebrighterwouldtheimagebe,
andthenoisewouldalsobeamplifiedtoalarger
extent.
Day/Night
Switch:
Choosewhetheryouwantthe
cameratobesettothedaymode
(colorvideo)ornightmode(IR
enhancedblack/whitevideo).You
canmanuallysetittodaymodeor
nightmode,adjustbylighting
(Auto),orpre‐defineschedule.
Auto:
Sensitivity:Thelightsensorsensitivity.
SwitchTime:Thetimedelayedtoswitchbetween
modes.Longerswitchtimecanpreventunnecessary
modeflippingifanobjectisblockingthelightsource
temporarily.Range:5‐120seconds,default:5
seconds.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 38
Schedule:
Usequickselectionorenterthetimedownbelow.
ClickOKtoconfirmthetimeyouwanttoset.
StartTime:Thestarttimefordaymode.
StopTime:Thestarttimefordaymode.
Smart
Supplement
Light
SetthesupplementlightasON,andAutoandManual
areselectableforlightmode.
SelectAuto,andthesupplementlightchanges
accordingtotheactualluminance.
Mode Adjusttheimagesettingsmanuallyorautomatically.
Ifsettomanual,thedistancecanbeadjusted
BLCArea
Ifyoufocusonanobjectagainststrongbacklight,the
object will be too dark to be seen clearly. BLC
compensateslighttotheobjectinthefronttomakeit
clear.OFF,Up,Down,Left,Right,Center,Auto,and
Customareselectable.
WDR WideDynamicRangecanbeusedwhentheobjectis
infrontofadirectlight.
WhiteBalance:
Chooseacolortemperatureasthewhitecolorand
compensatethecoloronthewholeimage.
DigitalNoise
Reduction:
Choosethemodeofnoisereduction.
NormalMode
Noise Reduction Level: Adjust the effect of digital
noisereduction.Range:0‐100%,default:100%
ExpertMode
Space DNR Level: Adjust the special digital noise
reductionwithadjacentpixels.Changetherange (0‐
100%)tochangetheadjacencyeffect,default:50%
TimeDNRLevel:Adjustthe3Ddigitalnoisereduction.
Compare and reduce noise between video frames.
Range:0‐100%,default:100%
Noise
ReductionLevel
Adjustthevalueofthenoisereduction
Mirror Adjusttheimagetochangefromlefttorightorupand
down.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 39
Rotate Tomakeacompleteuseofthe16:9aspectratio,you
can enable the rotate function when you use the
camerainanarrowviewscene.
Wheninstalling,turnthecameratothe90degreesor
rotatethe3‐axislensto90degrees,andsettherotate
modeason,youwillgetanormalviewofthescene
with9:16aspectratiotoignoretheneedless
information such as the wall, and get more
meaningfulinformationofthescene.
SceneMode Choose thesceneas indoororoutdooraccordingto
therealenvironment.
Video
Standard
50Hzand60Hzareselectable.Chooseaccordingto
thedifferentvideostandards;normally50HzforPAL
standardand60HzforNTSCstandard.
(Scheduled‐Switchmode)
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 40
Toconfigurethissection
1. Clickthecalendaricontoselectthestarttimeandtheendtime.
• Thestarttimeandendtimerefertothevalidtimefordaymode.
• Thetimeperiodcanstartandendontwodaysinarow.Forexample,
ifyousetstarttimeas10:00andendtimeas1:00,thedaymodewill
beactivatedat10o'clockinthemorningandstoppedat1o'clock
earlyinthenextmorning.
2. ClickWorkingmodetoconfigurecommonparametersapplicabletothe
daymodeandnightmode.
3. ClickDaytabtoconfiguretheparametersapplicablefordaymode.
4. ClickNighttabtoconfiguretheparametersapplicablefornightmode.
Note:Thesettingsaresavedautomaticallywhenparametersarechanged.
OnScreenDisplaySettings
Displaythecameranameandthetimethevideoisshootingonthescreen
Display
Name:
Checkthisboxtodisplaytheproductnamethatwas
setupinthedevicesettings
DisplayDate: Checkthisboxtodisplaysystemtime.
DisplayWeek: Checkthisboxtodisplaytimeoftheweek.
TimeFormat: Select12or24‐hourtimeformat.
DateFormat: Selectthedateformat
DisplayMode: Choosehowthetextwillshowonthescreen.
OSDSize: Select the text size from 16 to 64 or adjusted by
screensizeautomatically.
Movetheredboxtopositionthetext.ClickSavetosavethechanges.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 41
TextOverlay
Displayextrainformationonthescreenovertheimage.
CheckBox: Checkthisboxtoenabletextoverlay.
TextField: Enterthetextyouwanttodisplay.Youcanenteryour
local language if you want. The text field allows
maximum 44 English letters or 20 non‐English
characters.
Movetheredboxtopositionthetext.
ClickSavetosavethechanges
PrivacyMask
Createamaskingareatokeepyourprivacy.Youcancreateuptofour
independentmaskingareasbyclickinganddraggingonthescreen.
EnablePrivacyMask: Checkthisboxtoenableprivacymasking.
StopDrawing: Clickthisbuttontostopdrawing.
ClearAll: Clickthisbuttontoclearallthemaskingareas.
ClickSavetosavethechanges
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 42
VideoRecording
Pre‐record: Recordingtimebeforetriggerevent.
Post‐record: Recordingtimeaftertriggerevent.
Overwrite: SelectYestoallowolderrecordingstobe
overwritten.
EnableRecord
Schedule:
CheckthisboxandthenclickSavetoenablevideo
recording.
ClickSavetosavethechanges
Edit: ClickEdittoedittherecordingschedule.TheEdit
Schedulewindowwillpopup.
1. Selectdayoftheweekyouwanttoedit.
2. SelectAllDayorCustomizedscheduleof
theday.
3. Setthetimeperiodandtheeventyou
wanttotriggerthevideorecording
continuous(alwaysrecording)ormotion
detection.
4. ClickSelectAllortheweekdayyouwant
tohavethesamescheduleondifferent
day.
5. Clickanotherdayoftheweekbyclicking
onitstabtosetthenextschedule.Click
OKwhenyouhavefinishedyoursettings.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 43
Events
MotionDetection
Setuphowthemotiondetectioneventwillbetriggeredandwhatactionswill
betriggered.
Enable
Motion
Detection:
Checkthisboxtoenablemotiondetection.ClickSave
tosavethechoice.
Enable
Motion
Tracking:
Checkthisboxtoenablemotiontracking.Motion
trackingisa dynamic display thatshows the current
status of motion detection. The motion tracking is
displayedwithgridsingreen.Thegridarearepresents
thecameramotionishappening.ClickSavetosavethe
choices.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 44
DrawArea: Click Draw Areabuttontostartdrawing.Clickand
dragontheareayouwanttosetupthemotion
detection.Youcandrawupto8differentareas.Click
Stop Drawing to stop drawing motion detection
areas.
Theredgridsrepresentthemotiondetectionarea.
Sensitivity: Movetheslidertoadjustdetectionsensitivity.
ClearAll: Clickthisbuttontoclearallthesetupareas.
ArmingSchedule
Edit: Click Edittoedittherecordingschedule.TheEdit
Schedulewindowwillpopup.
1. Selectdayoftheweekyouwanttoedit.
2. SelectAllDayorCustomizedscheduleofthe
day.
3. Setthetimeperiodandtheeventyouwant
totriggerthevideorecordingcontinuous
(alwaysrecording)ormotiondetection.
4. ClickSelectAllortheweekdayyouwantto
havethesamescheduleondifferentday.
5. Clickanotherdayoftheweekbyclickingon
itstabtosetthenextschedule.ClickOK
whenyouhavefinishedyoursettings.
Notification
SendEmail: Checkthisboxtosendane‐mailnotificationwhen
motionisdetected.
Network
Storage:
Checkthisboxtorecordvideotonetworkstorage
whenmotionisdetected.
UploadtoFTP: CheckthisboxtosendsnapshotstoanFTPserver
whenmotionisdetected.
ClickSavetosavethechanges
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 45
VideoTampering
Thisistodetectifthecamerahasbeentamperedwithandsurveillanceis
compromised.Youcansetuptamperproofnotificationstoalertthesystem
managertocheckthecamera.
Enable
Tamper
Detection:
Checkthisboxtoenabletamperdetection.ClickSave
tosavethesettings.
DrawArea: ClickDrawAreabuttontostartdrawing.Clickanddrag
ontheareayouwanttosetupthetamperdetection.
You can setup only one area for tamper detection.
ClickStopDrawingtostopdrawingmotiondetection
areas.Thegrayblockrepresentsthedetectionarea.
Sensitivity: Movetheslidertoadjustdetectionsensitivity.
ClearAll: Clickthisbuttontoclearallthesetupareas.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 46
ArmingSchedule
Edit: Click Edittoedittherecordingschedule.TheEdit
Schedulewindowwillpopup.
1. Selectdayoftheweekyouwanttoedit.
2. SelectAllDayorCustomizedscheduleofthe
day.
3. Setthetimeperiodandtheeventyouwant
totriggerthevideorecordingcontinuous
(alwaysrecording)ormotiondetection.
4. ClickSelectAllortheweekdayyouwantto
havethesamescheduleondifferentday.
5. Clickanotherdayoftheweekbyclickingon
itstabtosetthenextschedule.ClickOK
whenyouhavefinishedyoursettings.
Notification
SendEmail: Checkthisboxtosendane‐mailnotificationwhen
motionisdetected.
ClickSavetosavethechanges
Notification
Providenotificationsforothersystemevents,setupyournotificationshere.
Notification
Notification
Type:
First,choosetheexceptiontype,andthenchoose
thecorrespondingaction.
SendEmail: Checkthisboxtosendane‐mailnotificationwhen
motionisdetected.
ClickSavetosavethechanges
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 47
Snapshot
You can set up your camera to continuously taking snapshots or taking
snapshotsonlywheneventshappening.
Continuous
Enable: Checkthisboxtotakesnapshotscontinuously.
Format: SavesnapshotsinJPEGformat
Resolution: UsesthesameresolutionsetinVideoFormatforthe
snapshotresolution.
Quality: Chooseacompressionqualityforsnapshots.
Interval: Statethetimeintervalbetweensnapshots.Thedefault
intervalis10seconds.
Eventtriggered
Enable: Checkthisboxtotakesnapshotswhenaneventis
occurred.
Format: SavesnapshotsinJPEGformat
Resolution: UsesthesameresolutionsetinVideoFormatforthe
snapshotresolution.
Quality: Chooseacompressionqualityforsnapshot.
Interval: State the time interval between this series of
snapshots.Thedefaultintervalis1second.
Capture
Number:
Statehowmanysnapshotsyouwanttotakeinasingle
triggeredevent.Default:3pictures.
ClickSavetosavethechanges
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 48
Email
Setupemailaccountsfornotifications.
Sender
Sender: Enterthenametobeappearedastheemailsender.
Sender’s
Address:
Entersender’semailaddress.
SMTPServer: SimpleMailTransportationProtocolServeraddress,
theoutgoingemailserveraddress.Itmaybehas
addressasyourincomingemailserver,maybenot.
Pleaseaskyouremailserviceproviderfordetail.
SMTPPort: Serviceportnumberforoutgoingemail.*
EnableSSL: CheckthisboxifyourserviceproviderrequiresaSSL
securedconnection.
Attach
Image/Interval:
CheckAttachImageifyouwanttosendasnapshot
image with the email notification and select the
intervalofsnapshotsinseconds.
Authentication: Checkthisboxifyourserverrequiresapasswordin
order to send email. Most email servers require
authenticationwhensendinganemail.
Username: Entertheusernameofoutgoingemailaccount
Password: Enterthepassword
Confirm: Enter the password again to confirm that the
passwordwasenteredcorrectly.
ClickSavetosavethechanges
Receiver
Receiver1: Thefirstreceiver’sname.
Receiver1’s
Address:
Thefirstreceiver’semailaddress.
Receiver2: Thesecondreceiver’sname.
Receiver2’s
Address:
Thesecondreceiver’semailaddress.
Receiver3: Thethirdreceiver’sname.
Receiver3’s
Address:
Thethirdreceiver’semailaddress.
ClickSavetosavethechanges
*Note:ManyISPsdoesnotallowserviceport25goingthroughtheirnetwork.Other
popularportsare587and465.PleaseconsultyouremailserviceproviderandISPfor
detail.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 49
NetworkStorage
NetworkStorage
NetworkStoragemustbesetupbeforeitcanbemanaged. For storage
management,pleaserefertothenextsection.
TheTV‐IP313PIsupportstwoformatsofnetworkstoragefilesystems:NFS
andCIFS.NFS,NetworkFileSystem,isnativelysupportedbyLinuxcomputers
and most NAS, Network Attached Storage. CIFS, Common Internet File
System, isnatively supported by Windows® systems and now isgenerally
supported by Linux. (OS X® file sharing is not standard SMB andnot
compatibleasanetworkstoragediskhere.)
Youcanaddupto8networkstoragesforyourcamera.Therecordingswill
subsequentlybestoredinthesespaces.Savevideofromthefirststorageand
thenthenextwhenthefirstoneisfull.Clickontheentryto change the
settingsandclickSavetosavethesettings.
No: Thesequentialnumberofthenetworkstorage.
Type: Thetypeofstorage.
Server
Address:
EntertheIPaddressofyournetworkstorage.
FilePath: Enterthesharedfolderasfilepathfornetworkstorage.You
cancreateafolderunder thesharedfolderandmake ita
networkvolumehere.Justcreatethefolderandenterthe
correctpathnamehere.
Capacity: Enterthesizeofthediskspaceyouwanttoassignforthis
storage.Theminimumdiskspacerequirementis8GB.Ifyou
donotwanttolimitthesizeandusethefullphysicaldisk
space,putnumber0inthisfield.
FileSystem: ChoosebetweenNFSorCIFSforfilesystem.Ifyouassignthe
networkstorageonaWindows®computer,setittoCIFS.
UserName: Enter the user name if the networkstorage requires user
name and password. Enter any non‐blank letters if no
authenticationisrequired.
Password: Enterthepasswordtoaccessthenetworkstorage.Enterany
non‐blanklettersifnoauthenticationisrequired.
ClickSavetosavethechanges.Thecameramayreboottomakethe
networkstorageavailable.Gotothenextsectiontoformatandmanage
yournetworkstorage.
Tip:TocreateanetworkstorageonyourWindows®basedsystem,createa
sharedfolderandthentestyoursetupwithanother
computer.EntertheIPaddressofthecomputerhere
and enter the shared folder name with a leading
forwardslash.Forexample,ifyouhaveasharedfolder
named“SMB”,enter“/SMB”intheFilePath.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 50
StorageManagement
NetworkStoragemustbesetupbeforeitcanbemanaged.Tosetupstorage,
pleaserefertotheprevioussection.
Format: SelectanetworkstoragevolumeandthenclickFormatto
format your network storage.Thisactionwillformatthe
networkvolume(sharedfolder)forvideorecording.
Placeholderfiles(formattingfiles)willbecreatedtomake
surediskallocationisappropriateandthefilesearchingis
optimized.
The volume format is a proprietary user space storage
format.Meaningthatyouvisitthesharedfolderandsee
some structured files. Please do not modify these files
manually. Modifying these files may cause recording and
playbackproblems.Accessyourrecordingandsystemlogvia
the web management user interface to download the
recordingandsnapshots.
Capacity: Thetotalcapacitythisnetworkstoragecanuse.
FreeSpace: Thefreespaceleftforvideorecording,snapshotandlog.
Status: Theconnectionstatustothenetworkstorage.
Property: Thisnetworkstorageisreadonlyorcanbereadandwrite.
Progress: Theprogressofongoingtask.
Note:Theformattingprogressdependsonthesizeofthestorage
andthenetworkbandwidth.Ittakesawhileifyouareformatting
abigvolumeorthenetworkconnectionisnotstable.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 51
FTPServer
EnableSnapshot
toFTP:
Checkthisboxifyouwanttostoresnapshotsonthe
FTP.
ServerAddress: EntertheFTPserverIPaddress.
Port: EntertheserviceportnumberoftheFTPserver.
User
Name/Anonymous
:
CheckAnonymousiftheFTPserverdoesnotrequire
authentication.EntertheUserNameiftheFTP
serverrequiresauthentication.
Password: EnterthepasswordoftheFTPaccount.
Confirm: Enterthepasswordagaintomakesurethepassword
wasenteredcorrectly.
Directory
Structure:
WhensavingsnapshotsonanFTPserver,theycan
besavedinasingleplaceororganizedwith
meaningfuldirectorynames.
Saveinrootdirectory:Youcanchoosetostore
allfilesinthesamefolderofFTPlogin.
Saveindirectory:Structureyourfolderswith
cameranameorIPaddress.
Directory:
UseCameraName:Usethecameranameto
organizethesavedfiles.
UseCameraIP:UsethecameraIPaddressto
organizethesavedfiles.
ClickSavetosavethechanges
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 52
Regulations
FederalCommunicationCommissionInterferenceStatement
Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora
ClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsare
designedtoprovidereasonableprotectionagainstharmfulinterferenceina
residentialinstallation.Thisequipmentgeneratesusesandcanradiateradio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However,thereisnoguaranteethatinterferencewillnotoccurinaparticular
installation.Ifthisequipmentdoes cause harmfulinterferencetoradioor
televisionreception,whichcanbedeterminedbyturningtheequipmentoff
andon,theuserisencouragedtotrytocorrecttheinterferencebyoneof
thefollowingmeasures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdifferentfrom
thattowhichthereceiverisconnected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
FCCCaution:Anychanges or modifications notexpressly approved by the
partyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperate
thisequipment.
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe
followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,
and (2) this device must accept any interference received, including
interferencethatmaycauseundesiredoperation.
IMPORTANTNOTE:
FCCRadiationExposureStatement:
ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan
uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperated
withminimumdistance20cmbetweentheradiator&yourbody.
Thistransmittermustnotbeco‐locatedoroperatinginconjunctionwithany
otherantennaortransmitter.
The availability of some specific channels and/or operational frequency
bandsarecountrydependentandarefirmwareprogrammedatthefactory
tomatchtheintendeddestination.Thefirmwaresettingisnotaccessibleby
theenduser.
RoHS
ThisproductisRoHScompliant.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 53
Europe–EUDeclarationofConformity
This device complies with the essential requirements of the Directive
2004/108/ECand2006/95/EC.Thefollowingtestmethodshavebeenapplied
inordertoprovepresumptionofconformitywiththeessentialrequirements
oftheDirective2004/108/ECand2006/95/ECandotherrelevantprovisions
underoursoleresponsibility.
Safety/EMC
EN60950‐1:2006+A11:2010+A12:2011+A2:2013
EN55024:2010+A1:2015
EN55032:2015
EMCDirective2014/30/EC/RoHSDirective2011/65/EU
WEEEDirective2012/19/EU/REACHRegulation(EC)No.1907/2006
LowVoltageDirective2014/35/EC
Česky[Czech] TRENDnettímtoprohlašuje,žetentoTV‐IP313PIjeveshoděse
základnímipožadavkyadalšímipříslušnýmiustanoveními
směrnice2004/108/ESa2006/95/ES.
Dansk[Danish] UndertegnedeTRENDneterklærerherved,atfølgendeudstyr
TV‐IP313PIoverholderdevæsentligekravogøvrigerelevante
kravidirektiv2004/108/EFog2006/95/EF.
Deutsch[German] HiermiterklärtTRENDnet,dasssichdasGerätTV‐IP313PIin
ÜbereinstimmungmitdengrundlegendenAnforderungenund
denübrigeneinschlägigenBestimmungenderRichtlinie
2004/108/EGund2006/95/EGbefindet.
Eesti[Estonian] KäesolevagakinnitabTRENDnetseadmeTV‐IP313PIvastavust
direktiivi2004/108/EÜja2006/95/EÜpõhinõueteleja
nimetatuddirektiivisttulenevateleteisteleasjakohastele
sätetele.
English Hereby,TRENDnet,declaresthatthisTV‐IP313PIisin
compliancewiththeessentialrequirementsandotherrelevant
provisionsofDirective2004/108/ECand2006/95/EC.
Español[Spanish] PormediodelapresenteTRENDnetdeclaraqueelTV‐IP313PI
cumpleconlosrequisitosesencialesycualesquieraotras
disposicionesaplicablesoexigiblesdelaDirectiva2004/108/CE
y2006/95/CE.
Ελληνική[Greek] ΜΕΤΗΝΠΑΡΟΥΣΑTRENDnetΔΗΛΩΝΕΙΟΤΙTV‐IP313PI
ΣΥΜΜΟΡΦΩΝΕΤΑΙΠΡΟΣΤΙΣΟΥΣΙΩΔΕΙΣΑΠΑΙΤΗΣΕΙΣΚΑΙΤΙΣ
ΛΟΙΠΕΣΣΧΕΤΙΚΕΣΔΙΑΤΑΞΕΙΣΤΗΣΟΔΗΓΙΑΣ2004/108/EK,
2006/95/ΕΚκαι.
Français[French] ParlaprésenteTRENDnetdéclarequel'appareilTV‐IP313PIest
conformeauxexigencesessentiellesetauxautresdispositions
pertinentesdeladirective2004/108/CE,2006/95/CEet.
Italiano[Italian] ConlapresenteTRENDnetdichiarachequestoTV‐IP313PIè
conformeairequisitiessenzialiedallealtredisposizioni
pertinentistabilitedalladirettiva2004/108/CEe2006/95/CE.
Latviski[Latvian] AršoTRENDnetdeklarē,kaTV‐IP313PIatbilstDirektīvas
2004/108/EKun2006/95/EKbūtiskajāmprasībāmuncitiemar
tosaistītajiemnoteikumiem.
Lietuvių
[Lithuanian]
ŠiuoTRENDnetdeklaruoja,kadšisTV‐IP313PIatitinkaesminius
reikalavimusirkitas2004/108/EBir2006/95/EBDirektyvos
nuostatas.
Nederlands
[Dutch]
HierbijverklaartTRENDnetdathettoestelTV‐IP313PIin
overeenstemmingismetdeessentiëleeisenendeandere
relevantebepalingenvanrichtlijn2004/108/EGen2006/95/EG.
Malti[Maltese] Hawnhekk,TRENDnet,jiddikjaralidanTV‐IP313PIjikkonforma
mal‐ħtiġijietessenzjaliumaprovvedimentioħrajnrelevantili
hemmfid‐Dirrettiva2004/108/KEu2006/95/KE.
Magyar
[Hungarian]
Alulírott,TRENDnetnyilatkozom,hogyaTV‐IP313PImegfelela
vonatkozóalapvetõkövetelményeknekésaz2004/108/EKésa
2006/95/EKirányelvegyébelõírásainak.
Polski[Polish] NiniejszymTRENDnetoświadcza,żeTV‐IP313PIjestzgodnyz
zasadniczymiwymogamiorazpozostałymistosownymi
postanowieniamiDyrektywy2004/108/WEi2006/95/.
Português
[Portuguese]
TRENDnetdeclaraqueesteTV‐IP313PIestáconformecomos
requisitosessenciaiseoutrasdisposiçõesda
Directiva2004/108/CEe2006/95/CE.
Slovensko
[Slovenian]
TRENDnetizjavlja,dajetaTV‐IP313PIvskladuzbistvenimi
zahtevamiinostalimirelevantnimidoločili
direktive2004/108/ESin2006/95/ES.
Slovensky[Slovak] TRENDnettýmtovyhlasuje,žeTV‐IP313PI
spĺňazákladnépožiadavkya
všetkypríslušnéustanoveniaSmernice2004/108/ESa
2006/95/ES.
Suomi[Finnish] TRENDnetvakuuttaatätenettäTV‐IP313PItyyppinenlaiteon
direktiivin2004/108/EYja2006/95/EYoleellistenvaatimustenja
sitäkoskeviendirektiivinmuidenehtojenmukainen.
Svenska[Swedish] HärmedintygarTRENDnetattdennaTV‐IP313PIstårI
överensstämmelsemeddeväsentligaegenskapskravochövriga
relevantabestämmelsersomframgåravdirektiv2004/108/EG
och2006/95/EG.
TRENDnetUser’sGuide TV‐IP313PI
©Copyright2017TRENDnet.AllRightsReserved. 54
LimitedWarranty
TRENDnetwarrantsitsproductsagainstdefectsinmaterialandworkmanship,under
normaluseandservice,forthefollowinglengthsoftimefromthedateofpurchase.
TV‐IP313PI–3YearsWarranty
Ifaproductdoesnotoperateaswarrantedduringtheapplicablewarrantyperiod,
TRENDnetshallreservetheright,atitsexpense,torepairorreplacethedefective
product or part and deliver an equivalent product or part to the customer. The
repair/replacementunit’swarrantycontinuesfromtheoriginaldateofpurchase.All
productsthatarereplacedbecomethepropertyofTRENDnet.Replacementproducts
maybe neworreconditioned.TRENDnetdoes notissue refundsorcredit.Please
contactthepoint‐ofpurchasefortheirreturnpolicies.
TRENDnetshallnotberesponsibleforanysoftware,firmware,information, or
memorydataofcustomercontainedin,storedon,orintegratedwithanyproducts
returnedtoTRENDnetpursuanttoanywarranty.
Therearenouserserviceablepartsinsidetheproduct.Donotremoveorattemptto
servicetheproductbyanyunauthorizedservicecenter.Thiswarrantyisvoidedif(i)
theproducthasbeenmodifiedorrepairedbyanyunauthorizedservicecenter,(ii)
theproductwassubjecttoaccident,abuse,orimproperuse(iii)theproductwas
subjecttoconditionsmoreseverethanthosespecifiedinthemanual.
Warranty servicemay be obtained by contactingTRENDnet within the applicable
warranty period and providing a copy of the dated proof of the purchase. Upon
propersubmissionofrequireddocumentationaReturnMaterialAuthorization(RMA)
number will be issued. An RMA number is required in order to initiate warranty
servicesupportforallTRENDnetproducts.ProductsthataresenttoTRENDnetfor
RMAservicemusthavetheRMAnumbermarkedontheoutsideofreturnpackages
andsenttoTRENDnetprepaid,insuredandpackagedappropriatelyforsafeshipment.
CustomersshippingfromoutsideoftheUSAandCanadaareresponsibleforreturn
shippingfees.CustomersshippingfromoutsideoftheUSAareresponsible for
customcharges,includingbutnotlimitedto,duty,tax,andotherfees.
WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS
WARRANTEDABOVE, THE CUSTOMER’SSOLE REMEDYSHALL BE, AT TRENDNET’S
OPTION, REPAIR ORREPLACE.THE FOREGOINGWARRANTIES AND REMEDIES ARE
EXCLUSIVEANDAREINLIEUOFALLOTHERWARRANTIES,EXPRESSEDORIMPLIED,
EITHERINFACTORBYOPERATIONOFLAW,STATUTORYOROTHERWISE,INCLUDING
WARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSE.
TRENDNETNEITHERASSUMESNORAUTHORIZESANYOTHERPERSONTOASSUME
FOR IT ANY OTHER LIABILITY IN CONNECTIONWITHTHESALE,INSTALLATION
MAINTENANCEORUSEOFTRENDNET’SPRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTINGAND
EXAMINATIONDISCLOSETHATTHEALLEGEDDEFECTINTHEPRODUCTDOESNOT
EXISTORWASCAUSEDBYCUSTOMER’SORANYTHIRDPERSON’SMISUSE,NEGLECT,
IMPROPERINSTALLATIONOR TESTING, UNAUTHORIZEDATTEMPTS TOREPAIROR
MODIFY,ORANYOTHERCAUSEBEYONDTHERANGEOFTHEINTENDEDUSE,ORBY
ACCIDENT,FIRE,LIGHTNING,OROTHERHAZARD.
LIMITATIONOFLIABILITY:TOTHEFULLEXTENTALLOWEDBYLAWTRENDNETALSO
EXCLUDESFORITSELFANDITSSUPPLIERSANYLIABILITY,WHETHERBASED IN
CONTRACTORTORT(INCLUDINGNEGLIGENCE),FORINCIDENTAL,CONSEQUENTIAL,
INDIRECT,SPECIAL,ORPUNITIVEDAMAGESOFANYKIND,ORFORLOSSOFREVENUE
OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER
FINANCIALLOSSARISINGOUTOFORINCONNECTIONWITHTHESALE,I
NSTALLATION,
MAI
NTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE
POSSIBILITYOFSUCHDAMAGES,ANDLIMITSITSLIABILITYTOREPAIR,REPLACEMENT,
ORREFUNDOFTHEPURCHASEPRICEPAID,ATTRENDNET’SOPTION.THIS
DISCLAIMEROFLIABILITYFORDAMAGESWILLNOTBEAFFECTEDIFANYREMEDY
PROVIDEDHEREINSHALLFAILOFITSESSENTIALPURPOSE.
GoverningLaw:ThisLimitedWarrantyshallbegovernedbythelawsofthestateof
California.
SomeTRENDnetproductsincludesoftwarecodewrittenbythirdpartydevelopers.
ThesecodesaresubjecttotheGNUGeneralPublicLicense(“GPL”)orGNULesser
GeneralPublicLicense(“LGPL”).
Gotohttp://www.trendnet.com/gplorhttp://www.trendnet.comDownloadsection
andlookforthedesiredTRENDnetproducttoaccesstotheGPLCodeorLGPLCode.
ThesecodesaredistributedWITHOUTWARRANTYandaresubjecttothecopyrights
ofthe developers.TRENDnetdoesnotprovide technicalsupportfor these codes.
Pleasegotohttp://www.gnu.org/licenses/gpl.txtorhttp://www.gnu.org/licenses/
lgpl.txtforspecifictermsofeachlicense.
9.27.17 TV‐IP313PI1.0
