Dishwasher Installations

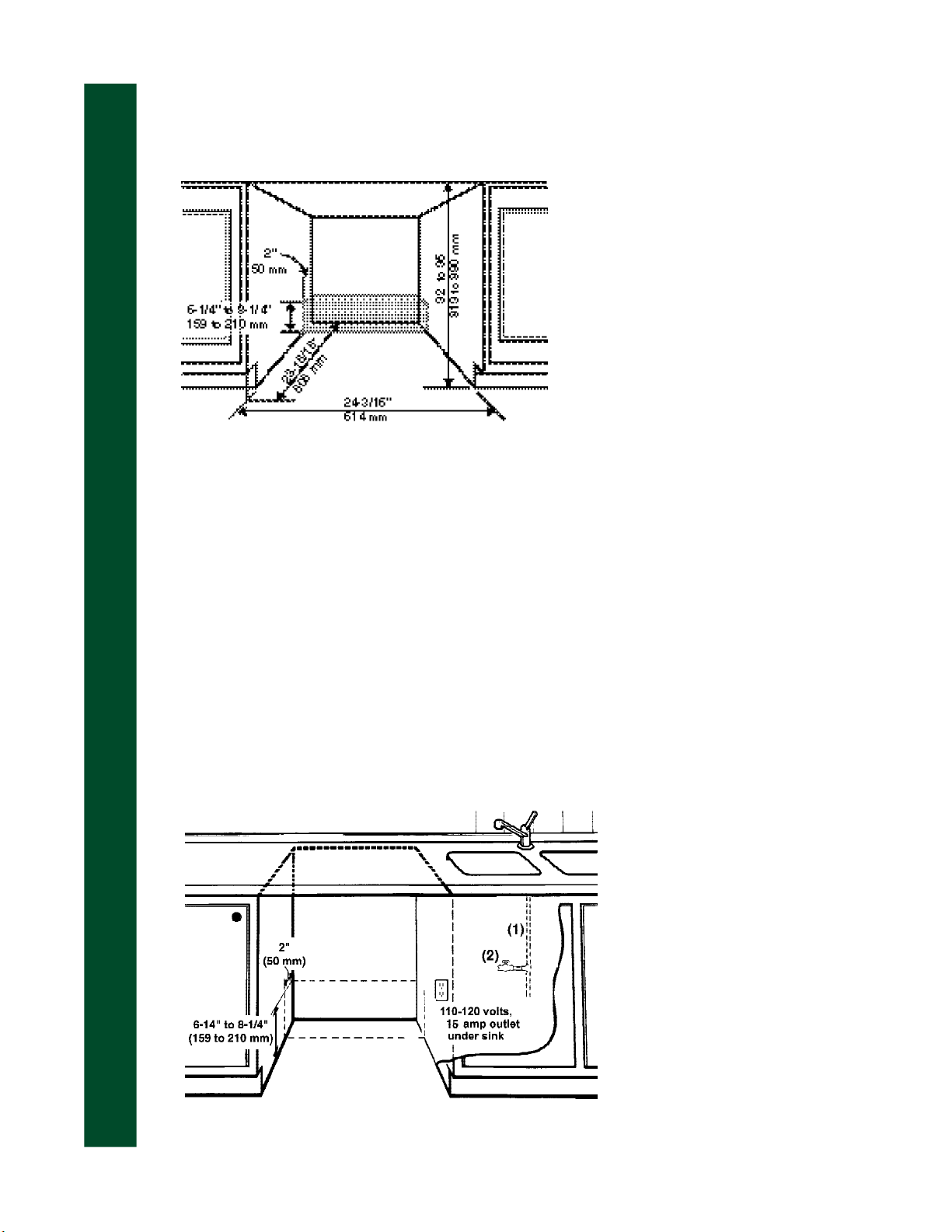

DISHWASHER DIMENSIONS
EDW242C, EDW254E, AND EDW274E
Technical Data
Supply voltage: Single phase 110–120 V, 60 Hz
Fuse/Breaker: 15 amp
Inlet supply hose: 5.5 feet PEX hose with 3/8” compression fitting
Supply pressure: 18-176 PSI
Outlet hose: 5.5 feet (1.7 m) polypropylene hose, 3/4” ID
WARNING!
This appliance must be properly grounded. Refer to the owner’s manual for instructions.
Make sure the electrical cords and hoses behind the unit are not cramped.
Installation should be carried out by a qualified person who is familiar with all local codes and ordinances
for electrical and plumbing connections. Incorrect installation may cause damage and/or injury.
Maintain a 1/8” (3 mm) minimum clearance behind the unit for the high loop drain hose.
Do not use fittings anywhere in the drain line that are less than 5/8” (17 mm) ID.

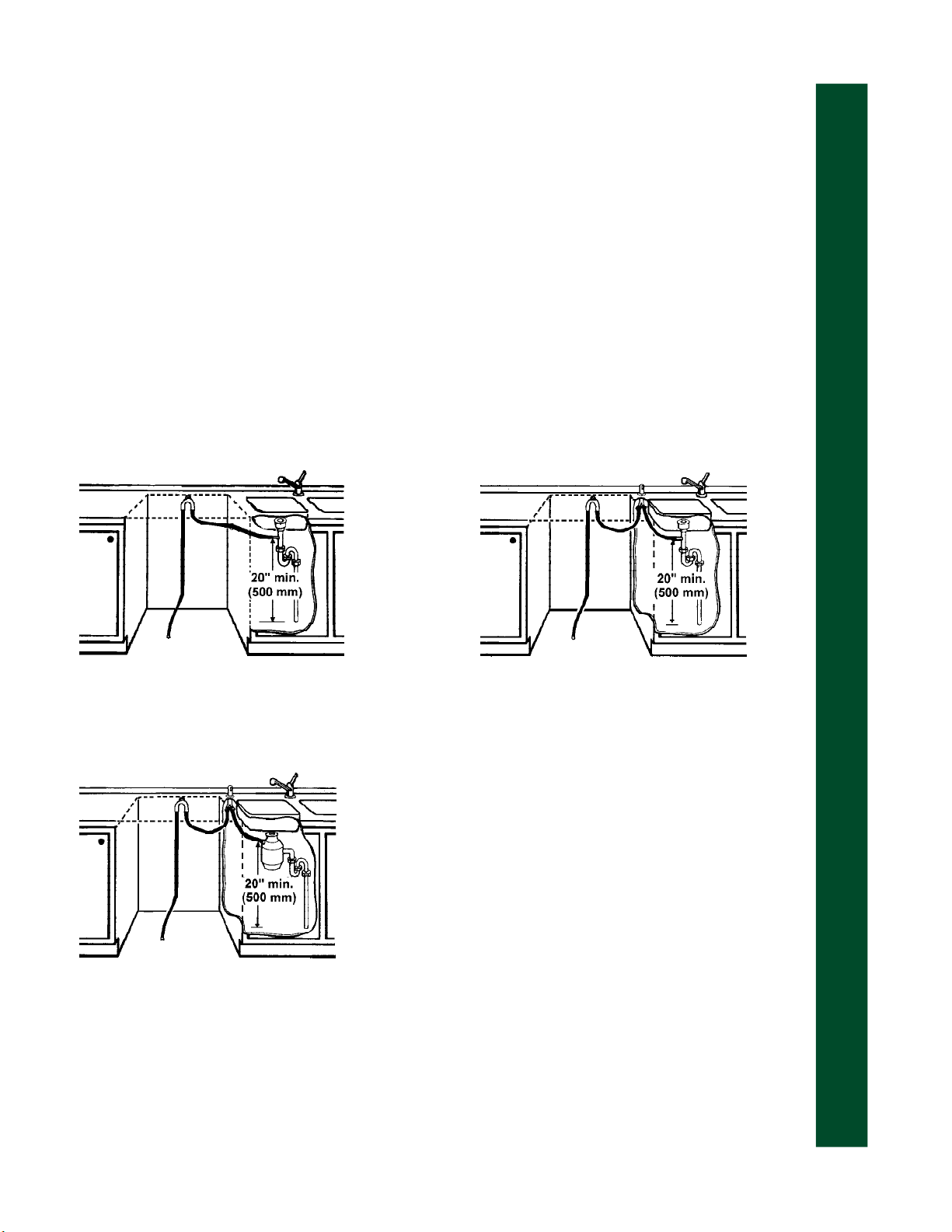

See page 30 for cutout dimensions for under-cabinet installations. See pages 30 and 31 for information
regarding water supply and drain line connections.
