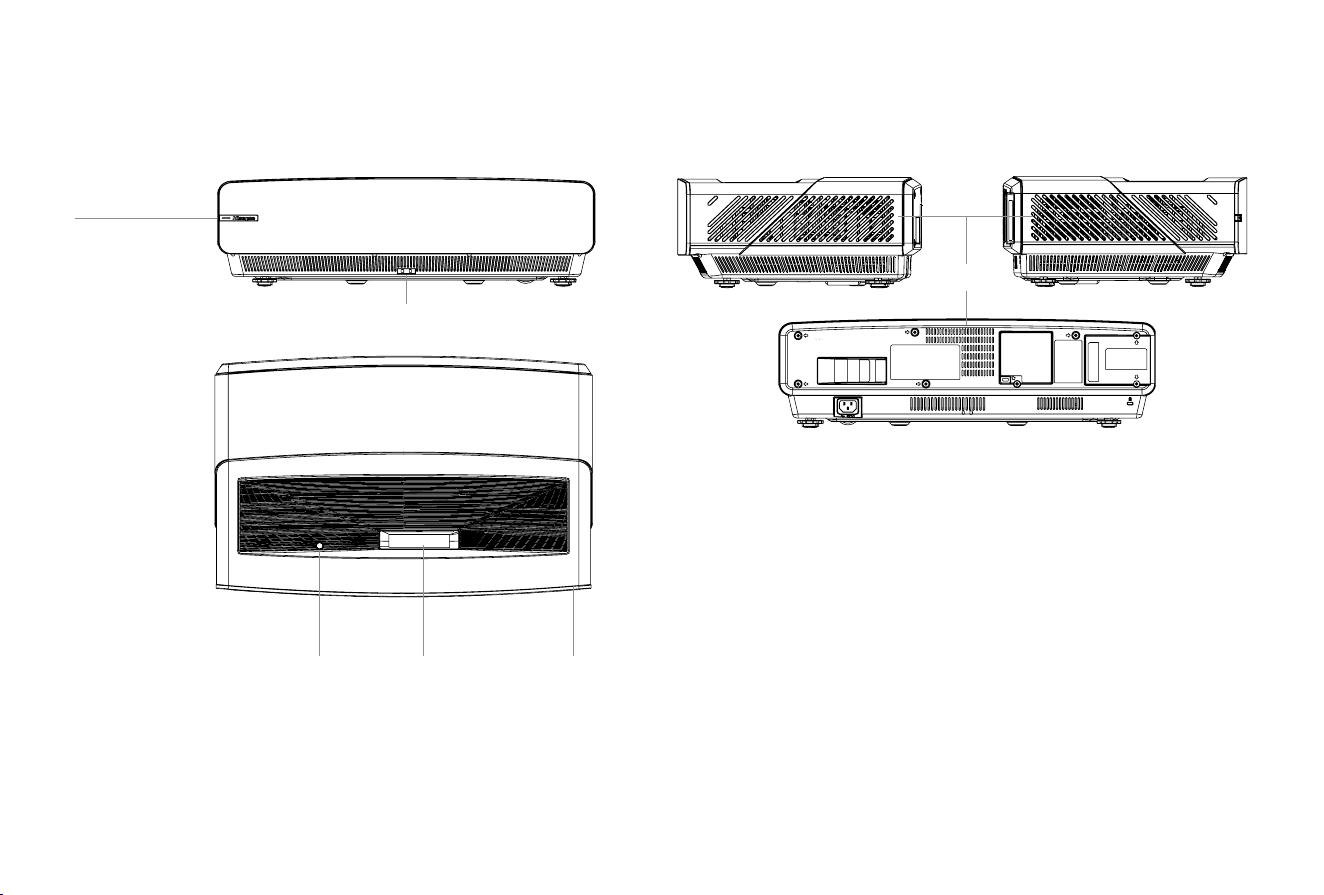

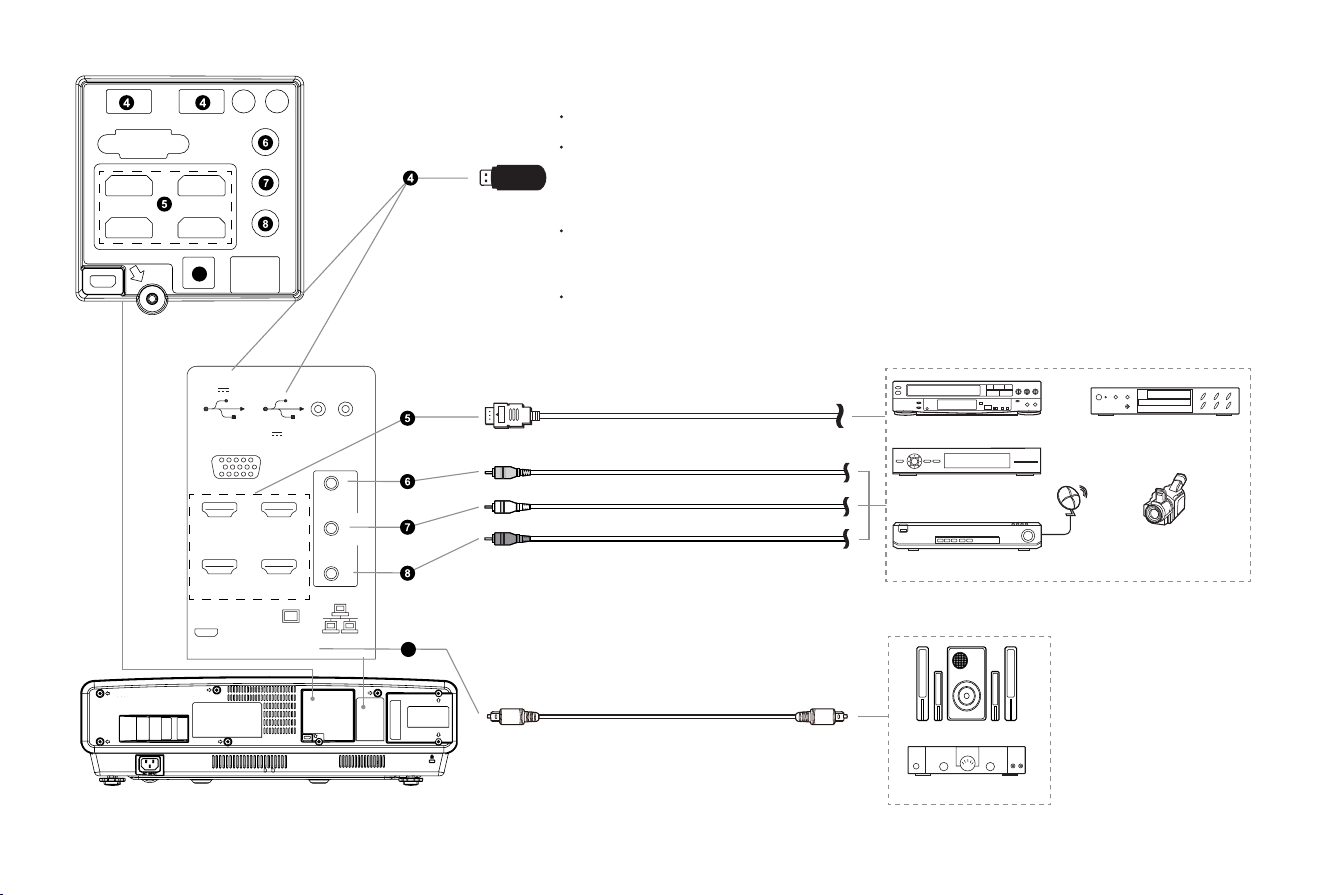

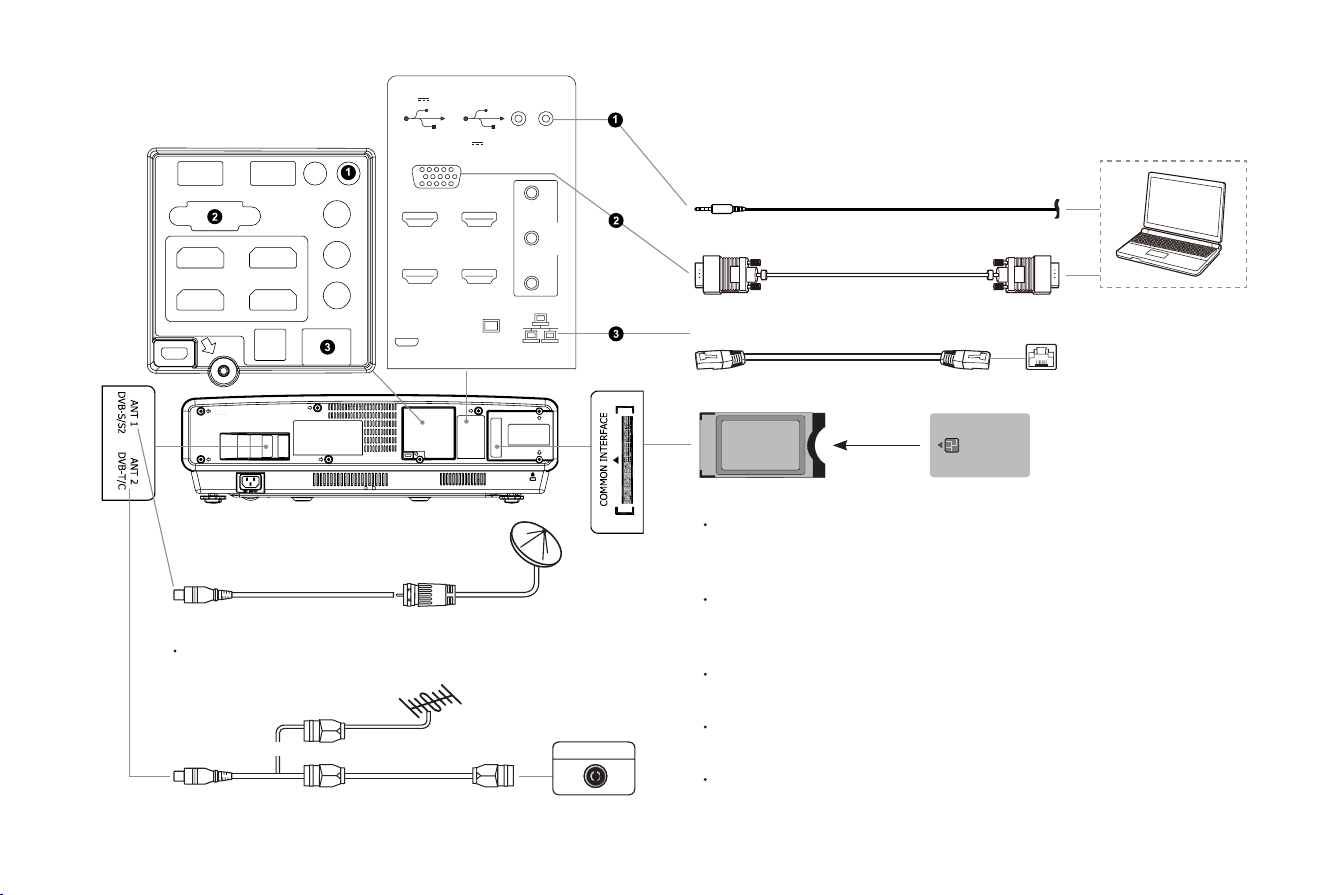

Adjust the Display

• Image and the Screen Follow the steps in the order shown below, only if they apply to your situation.

NOTE:

1. Before adjusting, fold the wall-mount bracket wands so that screen is vertically level. Rotate feet from an overlooking view, but do not look directely at the lens when the Laser TV is on because the laser light may damage your eyes.

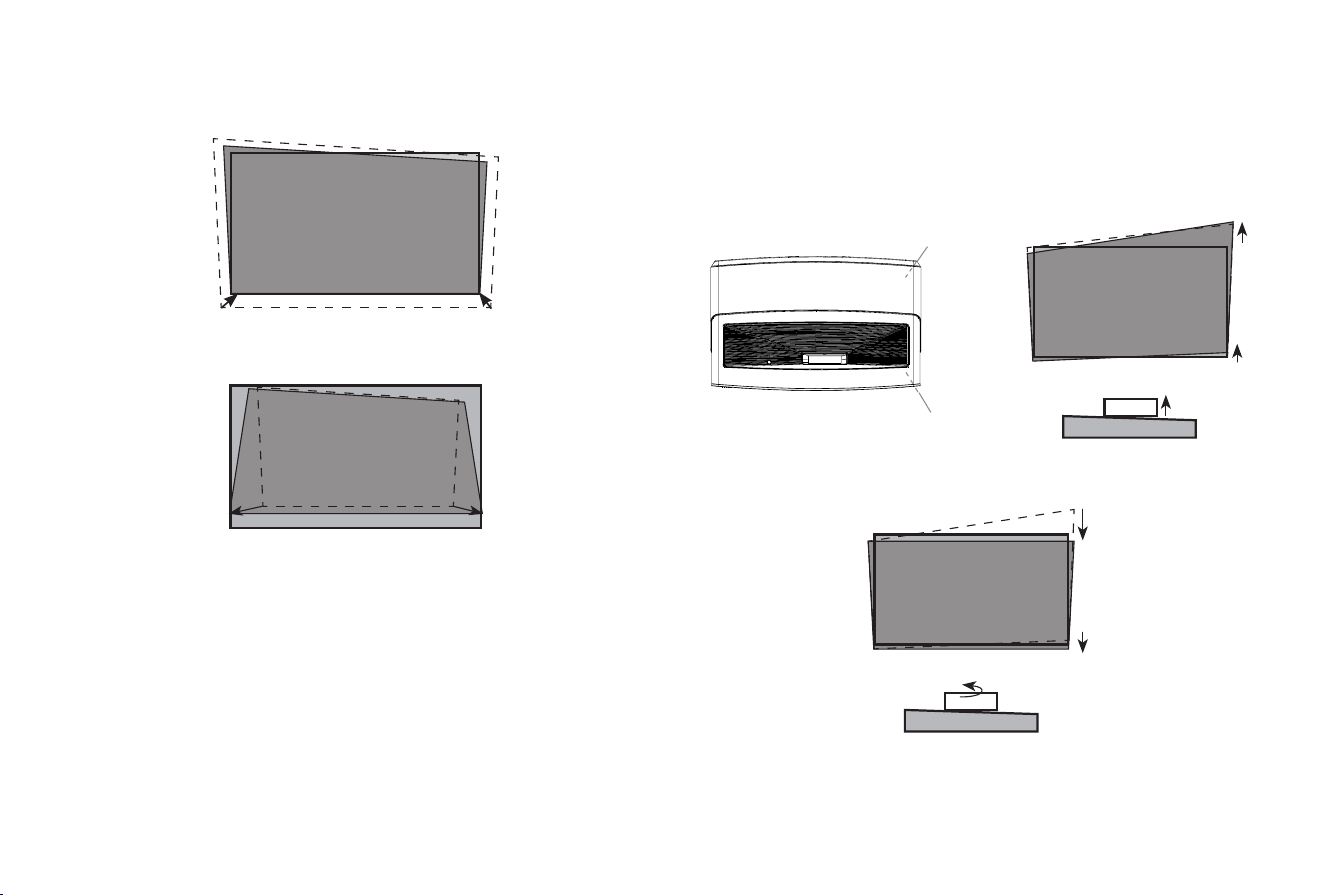

2. PARALLEL THE BOTTOM OF THE IMAGE WITH THE SCREEN If the bottom of the image is lower on the left and higher on the right, rotate the device counterclockwise.
3. If the bottom of the image is lower on the right and higher on the left, rotate the device clockwise.

ADJUST THE UPPER-RIGHT CORNER OF THE IMAGE

•  If the top of the image is lower on the left and higher on the right, then use the wrench to rotate the front-right foot and the back-right foot clockwise to the same height.
•  Now, rotate the TV counterclockwise so that the bottom of the image is parallel with the screen.
• Repeat the steps above until the top of the image is parallel with the screen.
•  If the bottom of the image is wider than the screen, then move the Laser TV closer to the screen. If the bottom of the image is narrower than the screen, then move the Laser TV farther from the screen.
• Now, rotate the TV clockwise so that the bottom of the image is parallel with the screen.
•  Repeat the steps above until the top of the image parallel with the screen.
• If the upper-left corner is inside the screen after adjusting, use the wrench to rotate the front-left foot and the backleft foot counterclockwise to the same height, and rotate the TV counterclockwise, to make the image is parallel with the screen.
• If the upper-right corner is inside the screen after adjusting, use the wrench to rotate the front-right foot and the backright foot counterclockwise to the same height, and rotate the TV clockwise, to make the image parallel with the screen.

NOTE:

• Make sure the bottom of the image always stays parallel with the screen. If not, rotate the TV following previous instructions. back-right foot front-right foot 11

FILL THE TOP OF THE IMAGE TO THE SCREEN

• If the top of the image is wider than the screen, then use the wrench to rotate the left- and right-front feet of the Laser TV clockwise.
• If the top of the image is narrower than the screen, then use the wrench to rotate the left- and right-back feet of the Laser TV clockwise, until the left and right borders of the image are parallel with the screen borders.
• Next, move the projector further from the screen to fill the image to screen width. If the back feet are already at their maximum height, rotate the the left- and right-front feet counterclockwise

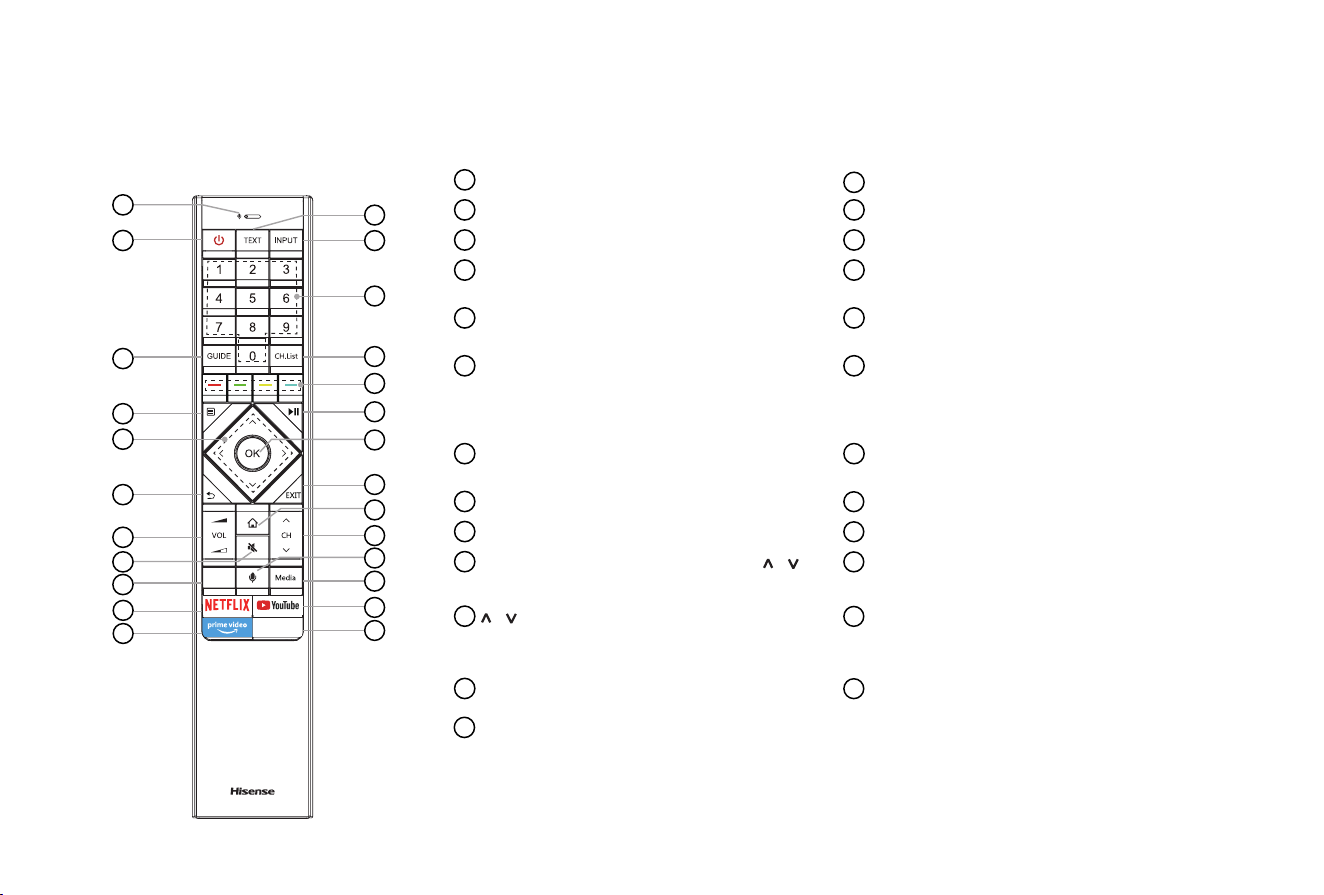

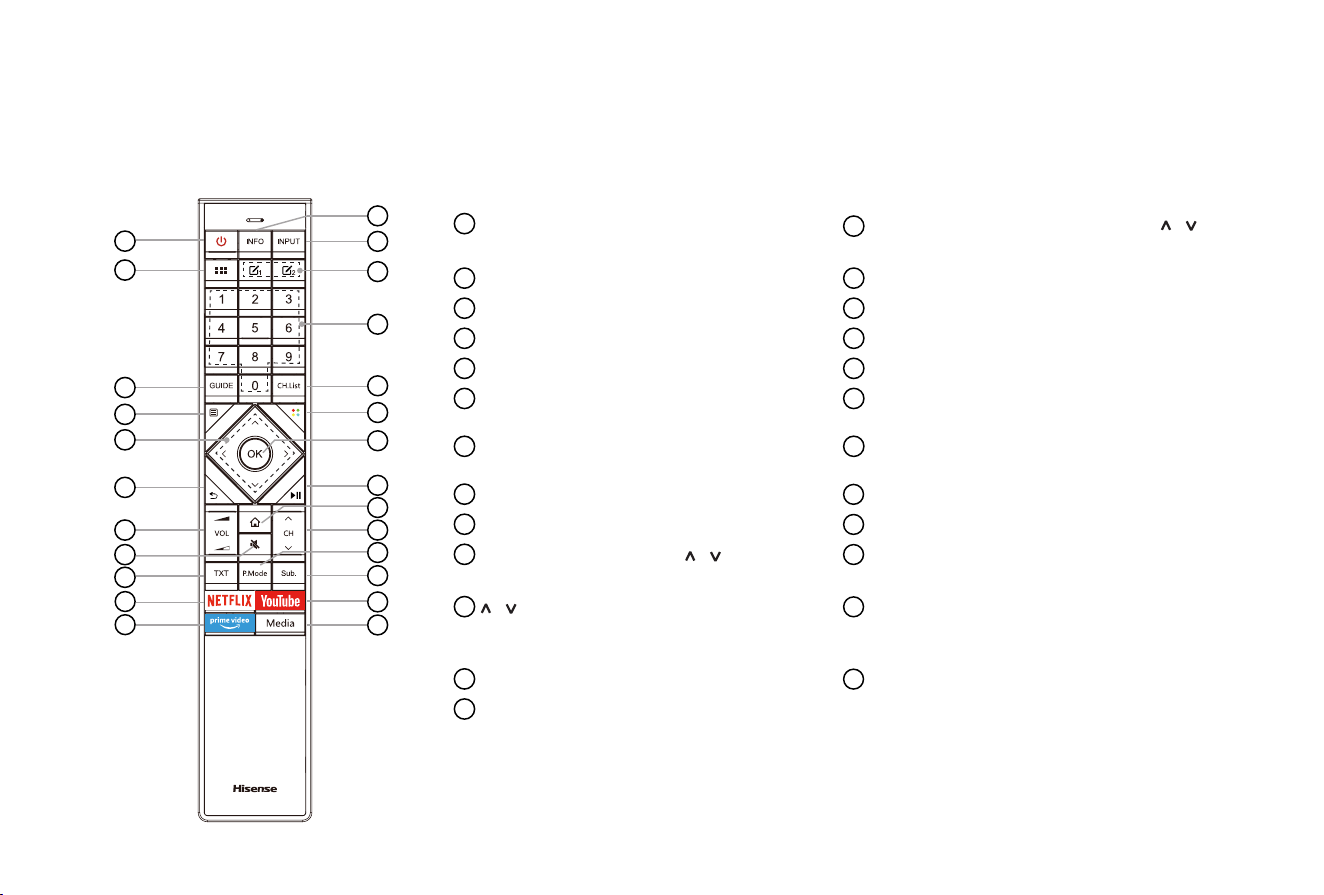

PAIRING THE REMOTE CONTROL

• .Pair the remote to the TV after you power it on. Keep the remote control within 20 feet from the TV. Press and hold the [ ] button at least 3 seconds to start pairing.
• If the remote paired successfully then a confirmation will display on the screen. If it did not pair successfully then an 'unsuccessful' message will display. Repeat step 1

NOTE:

• If an unknown error occurred with the remote then it could have been caused by interference. Try to remove what's causing the interference and pair it again.
• If an unknown error occurred in the remote control while the battery power is normal, you can take out the batteries and press any key for 1~2 seconds, then the remote control can work normally.
• The remote cannot be paired to the TV while the TV is in standby mode.

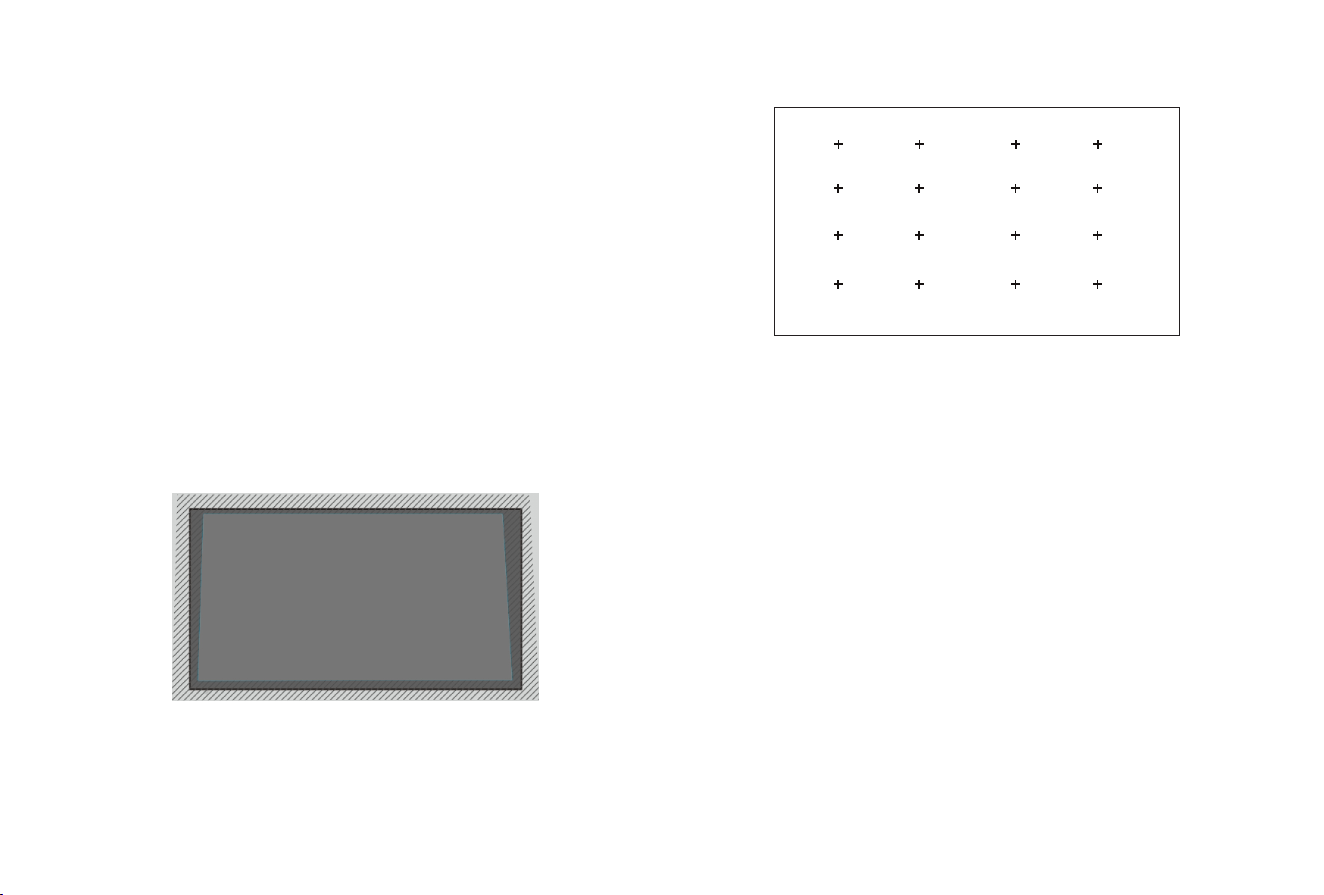

AUTO GEOMETRIC CORRECTION

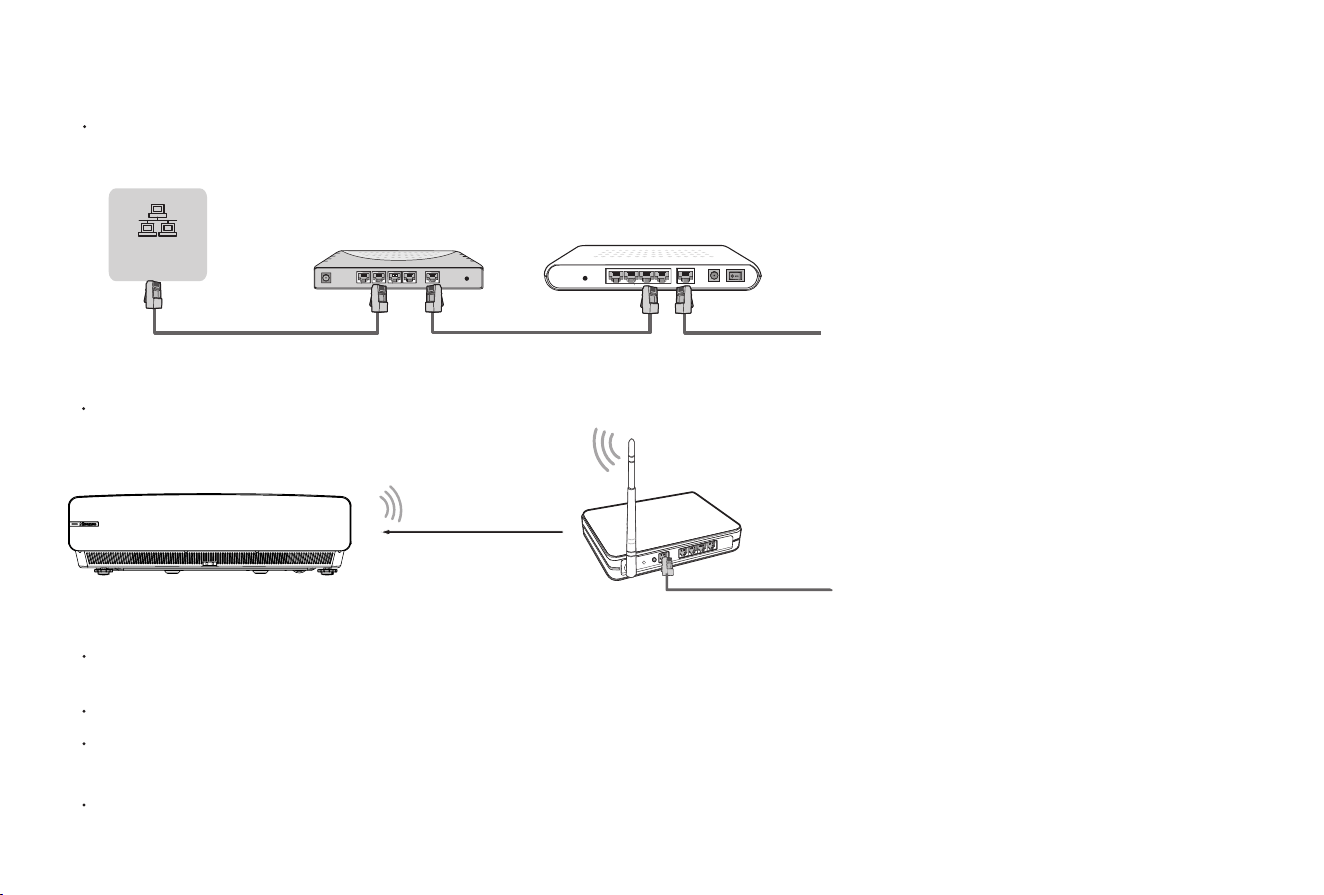

Before you use Auto Geometric Correction function, ensure that the Laser TV and your mobile device are connected to the same Wi-Fi network.

• Position the Laser TV and use the leveling feet as needed to fit the entire display border within the screen area.
• Scan the QR Code with your mobile device to begin automatic geometric correction. When the app loads, the Laser TV will display an alignment grid.
• Click "+" on your mobile device to take a photo of the entire screen and image. For best results, stand about 10 feet away from the screen and use landscape mode.
• Click "upload" on your mobile device to complete the automatic geometric correction.

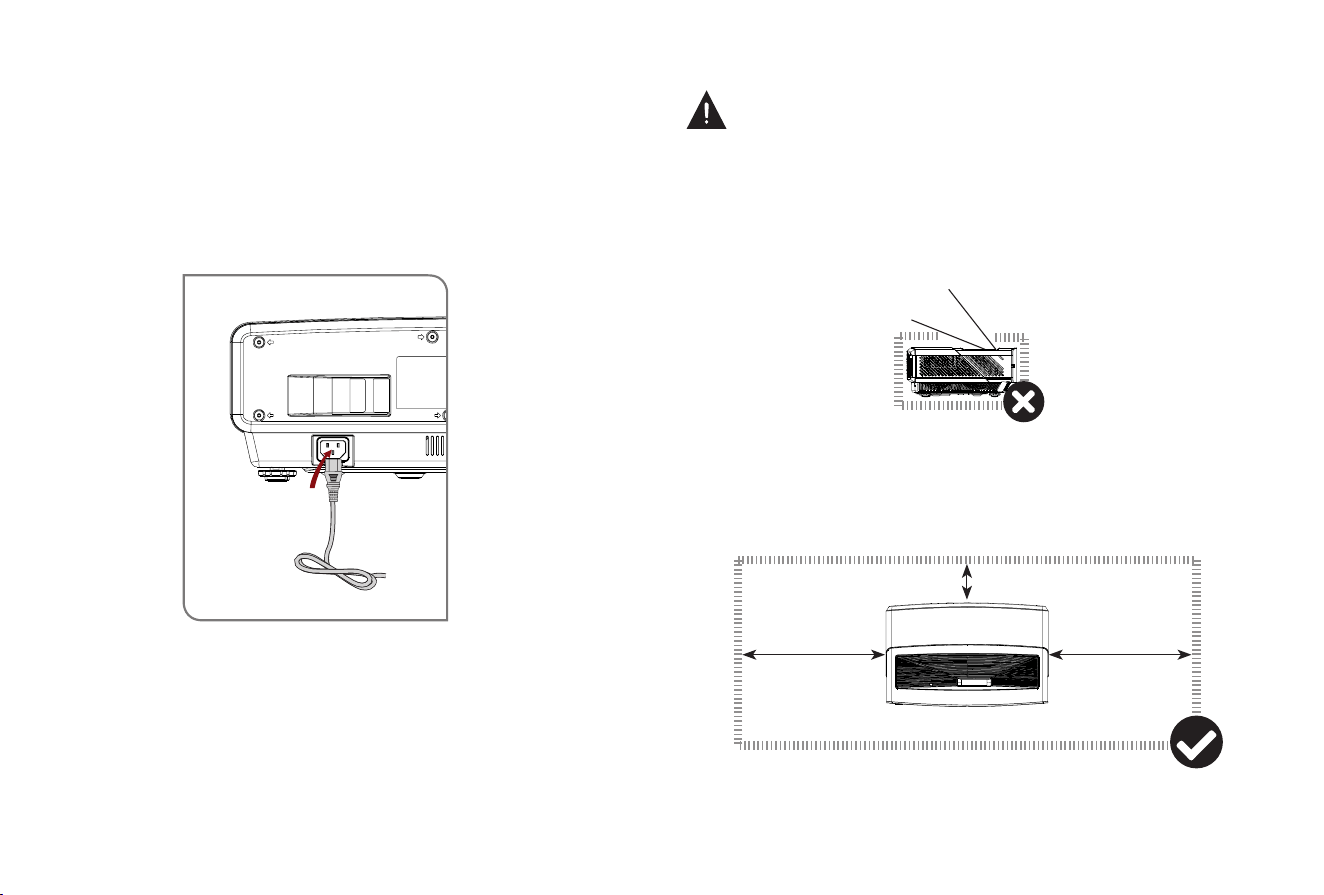

Maintenance

1. Do not touch this device when it is running or just turned off because it may be hot.
2. Do not wipe this device with oil because it may deteriorate the exterior or damage the paint. Contact with rubber or ethylene products for a long time may cause stains on this device.
3. If the outside of the TV is dirty, turn off the TV and wipe with a damped soft cloth.
4. Do not touch the lens with your hands.
5. Do not touch or wipe the lens with ordinary cleaning cloth. Use a dust blower to remove the dust on the lens.
6. Grease, dirt and fingerprints should be cleaned carefully by the professional by using optical cleaning cloth, lens wiping paper or professional cleaning solutions to avoid destroying the optical filming and affecting the image quality.
7. To turn off this device, press the Power button on the remote control. Do not cut off the power directly when the device is working.
