EXER-90H
USER MANUAL
NOTE:
Product may vary slightly from the item pictured due to model upgrades. This manual may be subject to updates or changes.
Up to date manuals are available through our website at www.lifespanfitness.com.au
Read all instructions carefully before using this product.
Retain this owner’s manual for future reference.
IMPORTANT
All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and
other moving parts. Failure to do so may cause damage to your threads and void your warranty.
2
TABLE OF
CONTENTS
I. Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03
II. Care Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04
III. Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05
IV. Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06
V. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07
VI. Computer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
VII. Exercise Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
VIII. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
| TABLE OF CONTENTS
3
I. IMPORTANT SAFETY
INSTRUCTIONS
WARNING: Read all instructions before using this machine.
It is important your machine receives regular maintenance to prolong its useful life. Failing to
regularly maintain your machine may void your warranty.
Please keep this manual with you at all times.
• It is important to read this entire manual before assembling and using the equipment. Safe and
effective use can only be achieved if the equipment is assembled, maintained and used properly.
PLEASE NOTE: It is your responsibility to ensure that all users of the equipment are informed of all
warnings and precautions
• Before starting any exercise program you should consult your doctor to determine if you have any
medical or physical conditions that could put your health and safety at risk, or prevent you from
using the equipment properly. Your doctor’s advice is essential if you are taking medication that
affects your heart rate, blood pressure or cholesterol level.
• Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, and extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you
do experience any of these symptoms, you should consult your doctor before continuing with your
exercise program.
• Keep children and pets away from the equipment. This equipment is designed for adult use only.
• Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 meters of free space around it.
• Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any
unusual noises coming from the equipment during use and assembly, stop immediately. Do not use
the equipment until the problem has been rectified.
• Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught
in the equipment or that may restrict or prevent movement.
• This equipment is designed for indoor and family use only.
• Care must be taken when lifting or moving the equipment so as not to injure your back.
IMPORTANT SAFETY INSTRUCTIONS |
4
• Always keep this instruction manual and assembly tools at hand for reference.
• The equipment is not suitable for therapeutic use.
• The pulse or heart rate sensors are not medical devices. Various factors, including the user’s
movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as
exercise aids in determining heart rate trends in general.
II. CARE INSTRUCTIONS
• All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other
moving parts. Failure to do so may cause damage to your thread and void your warranty.
• Lubricate moving joints with grease after periods of usage.
• Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects.
• The machine can be kept clean by wiping it down using dry cloth.
| CARE INSTRUCTIONS
• Batteries are to be installed or replaced by adult only.
• Do not use rechargeable batteries. Do not mix
different battery types. Do not mix old and new
batteries. Do not mix alkaline, standard (Carbon-
Zinc), or rechargeable (Nickel-Cadmium) batteries.
• Remove batteries when product is not in use.
• Remove exhausted batteries from product and
dispose of in accordance with the
manufacturer’s recommendation.
• Do not attempt to recharge non-rechargeable
batteries.
• Batteries are to be inserted with correct polarity.
• The supply terminals are not to be short-circuited.
• Do not dispose of batteries in fire, batteries may
explode or leak.
BATTERY USAGE
5

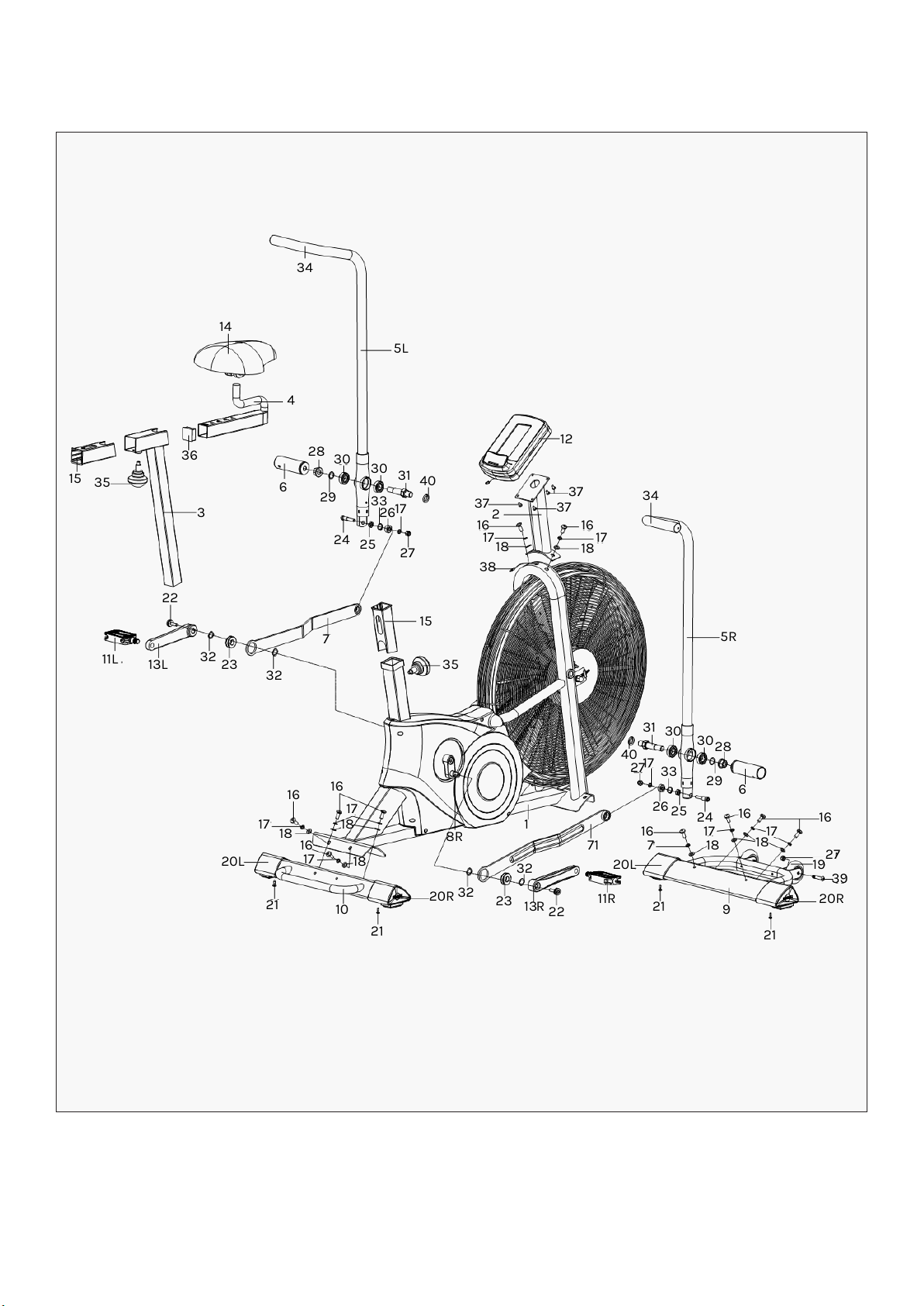

III. EXPLODED DIAGRAM
5L
34
14
4
36
35
15
22
11L
13L
32
32
6
28
29
24
25
27
15
35
16
16
17
17
20L
20R
32
8R
71 7
16
9
17
18
18
1
32
11R
23
13R
22
20L
21
21
20R
39
19
27
16
1717
16
29
24
25
26
33
17
27
40
31
30
30
28
5R
34
37
37
37
2
12
38
1616
1717
18
18
6
18
18
21
10
21
18
16
17
26
33
30
30
31
40
7
23
3
EXPLODED DIAGRAM |
6
IV. PARTS LIST
| PARTS LIST
Some items on this list may come pre-installed on your equipment. If you feel
like you’re missing anything, please double check your equipment.
Part No. Description Qty
1
Main frame 1
2
Handlebar 1
3
Seat tube 1
4
Slide rail 1
5L/R
Swing Tube 1pr
6
Foot tube 2
7
Connecting tube 2
8L/R
Small crank 1pr
9
Front stabilizer
1
10
Rear stabilizer
1
11L/R
Pedal
1pr
12
Computer
1
13L/R
Crank
1pr
14
Saddle
1
15
Bushing
2
16
Hex pan head screw M8*20
10
17
Spring washer D8
12
18
Flat washer Φ8*Φ16*1.5
10
19
Wheel
2pr
20L/R
End Cap
2pr
Part No. Description Qty
21
Cross pan head screw ST4.2*18
4
22
Central axle Screw
2
23
Bearing
2
24
Bolt
2
25
Hex thin nut M8*H5
2
26
Bearing
2
27
Nylon nut M8
2
28
Flange nut M14*1.5
2
29
Flat washer Φ17*Φ22*1
2
30
Bearing 6003Z
4
31
Pedal tube axle
2
32
Wave washer Φ17*Φ25*0.3
4
33
Stop ring Φ22
2
34
Foam grip
2
35
Spring knob
2
36
End cap
1
37
Cross pan head screw
4
38
Sensor wire
1
39
Hex pan head screw M8*40
2
40
Spring washer D16
2
7
V. ASSEMBLY INSTRUCTIONS
1. Disassemble the Hex Pan Head Screws (16), Spring Washers (17) and Flat washers (18) from the Front
Stabilizer (9) and Rear Stabilizer (10).
2. Attach the Front Stabilizer (9) and the Rear Stabilizer (10) to the Main Frame (1) with the Hex Pan Head
Screws (16), Spring Washers (17) and Flat washers (18) again.
3. Attach the Wheel (19) to the Front Stabilizer (9) with the Hex pan head screw (39) and Nylon nut (27).
ASSEMBLY INSTRUCTIONS |
STEP 1
NOTE! Before assembly ensure there is enough space around the item.
Some nuts and bolts may be already attached to the machine
16
16
16
17
18
27
19
39
9
17
16
17
18
10
1
8
1. Disassemble Nylon Nuts (27) from the Swing Tube (5L/R).
2. Attach the Pedal Tube Axle (31) of the Swing Tube (5L/R) and Spring Washer (40) to the two sides
of the Main Frame (1). (Do not tighten yet.)
3. Lock the Swing Tube (5L/R) to the Pedal Tube (7) tightly with Spring washer (17) and Nylon Nuts
(27). Now tighten the Pedal Tube Axle (31).
4. Put the Saddle (14) onto the Slide Rail (4), and lock them tightly with cross wrench.
STEP 2
| ASSEMBLY INSTRUCTIONS
5L
14
4
31
31
40
40
17
27
17
27
5R
9ASSEMBLY INSTRUCTIONS |
1. Attach the Pedal (11L/R) to the Crank (13L/R) with the cross wrench.
NOTE: Make sure to attach Right Pedal, marked (R), to the Right Crank (R). It should be
tightened clockwise. Attach the Left Pedal, marked (L), to the Left Crank (L). It should be
tightened counter- clockwise. Attaching the Pedal to the wrong Crank or turning it the wrong
direction will damage the Crank.
STEP 3
-
11L
11R
13L
13R
10 | ASSEMBLY INSTRUCTIONS
1. First, disassemble the Hex Pan Head Screws (16), Spring Washers (17) and Flat Washers (18) from the
Main Frame (1). Thread the Sensor Wire (38) from the bottom of the Handlebar Post (2) and bring out
from the top. Then attach the Handlebar Post (2) to the Main Frame (1) with Hex Pan Head Screws
(16), Spring Washers (17) and Flat Washers (18).
2. Disassemble the Hex Pan Head Screws (37) from the Computer (12).
Connect the Sensor Wire (38) with the wire of the Computer (12), then lock the Computer (12) on the
bracket of the Handlebar Post (2) with Hex Pan Head Screws (37).
STEP 4
12
37
38
1
16
17
18
2
16
17
18
11COMPUTER OPERATION |
VI. COMPUTER OPERATION
DISPLAY FUNCTION
FUNCTIONS
ITEM DESCRIPTION
RPM Display the rotation per minute with range from 0~ 199.
SPEED Display current training speed. Maximum speed is 99.9 KM/H or ML/H.
TIME
- Count up - No preset target, Time will count up from 00:00 to maximum
1:59:59 with each increment is 1 minute.
- Count down – The console will countdown from preset time to 00:00:00 and
each preset increment or decrement will be 1 minute between 00:01:00 to
1:59:00.
DISTANCE
Accumulates total distance from 0.0 up to 999.9 KM or ML or count down from
preset value. User may preset target distance value with UP/DOWN key. Each
increment is 1.0KM or ML.
CALORIES
Accumulates calories consumption or count down during training from 0 to
maximum 999 calories. User may preset target Calories with UP/DOWN key.
WATT
- Display the power consumption during training.
- Display Range: 0~1999.
Pulse
User may set up target pulse value from 0~30 to 230 and the console buzzer
will beep when the actual heart rate is over the target value during workout.
ITEM DESCRIPTION
START To start work-out quickly or resume workout in Stop mode.
STOP
- To stop/pause workout.
- To clear up all settings.
- Hold on this key for 2 seconds to reboot the console.
DOWN To adjust Distance, Calories, Heart-rate, Time, Age value down.
UP To adjust Distance, Calories, Heart-rate, Time, Age value up.
Target Distance Fast access to Target Distance training mode.
Target Calories Fast access to Target Calories training mode.
Target Heart-rate Fast access to Target Heart Rate training mode.
Target Time Fast access to Target Time training mode.
Interval There are 3 programs: INTERVAL 10/20, INTERVAL 20/10, Custom.
ENTER To confirm settings or enter program.
12 | COMPUTER OPERATION

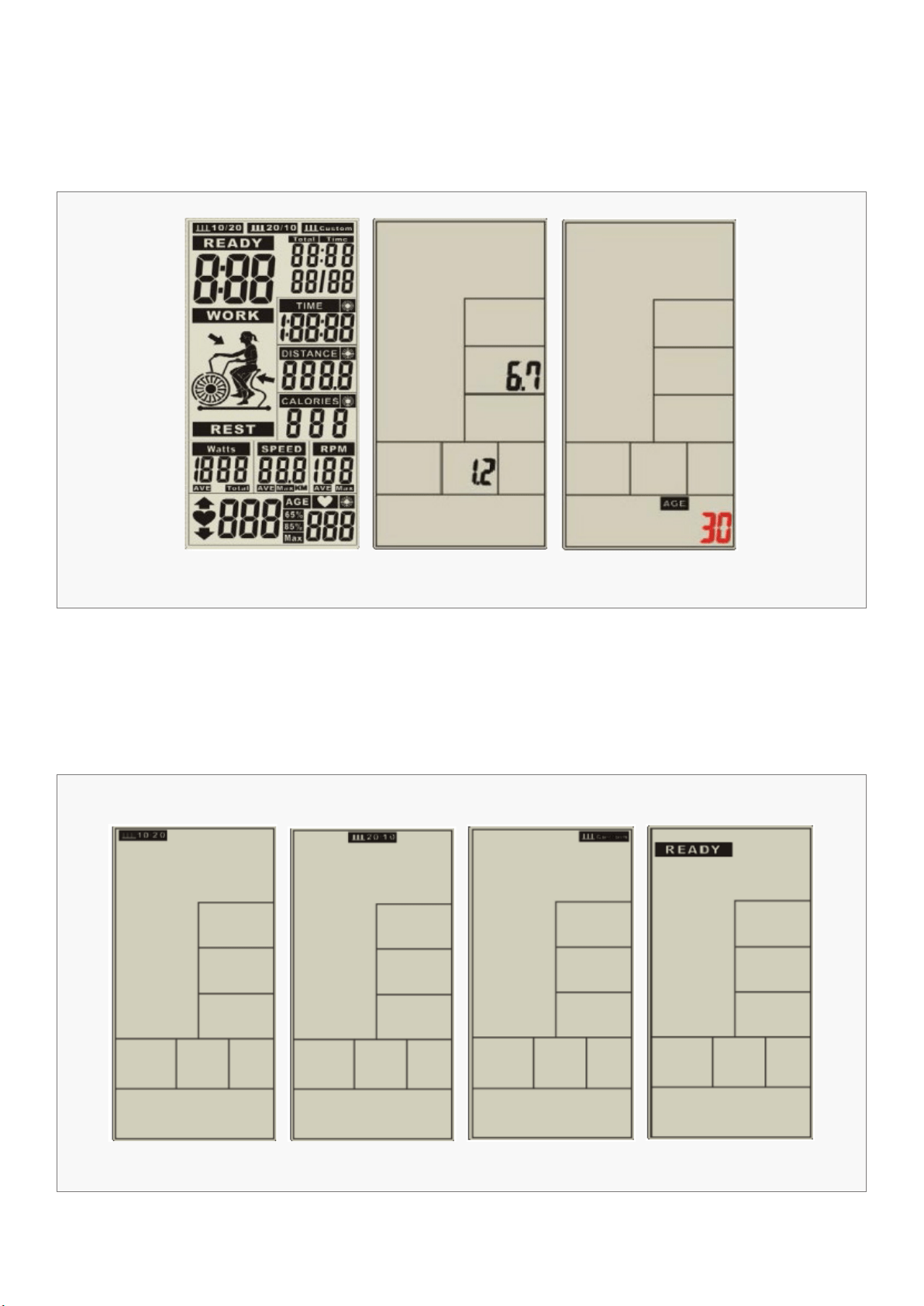

1. When POWER ON, LCD will full display 2s (Figure 1) with long beep sound, then display wheel
diameter 1s in DIST area (Figure 2). Then enter into AGE setting mode, the AGE flashing to be set
(Figure 3). Press the UP/DOWN to set age and press ENTER to confirm then go to Standby mode.

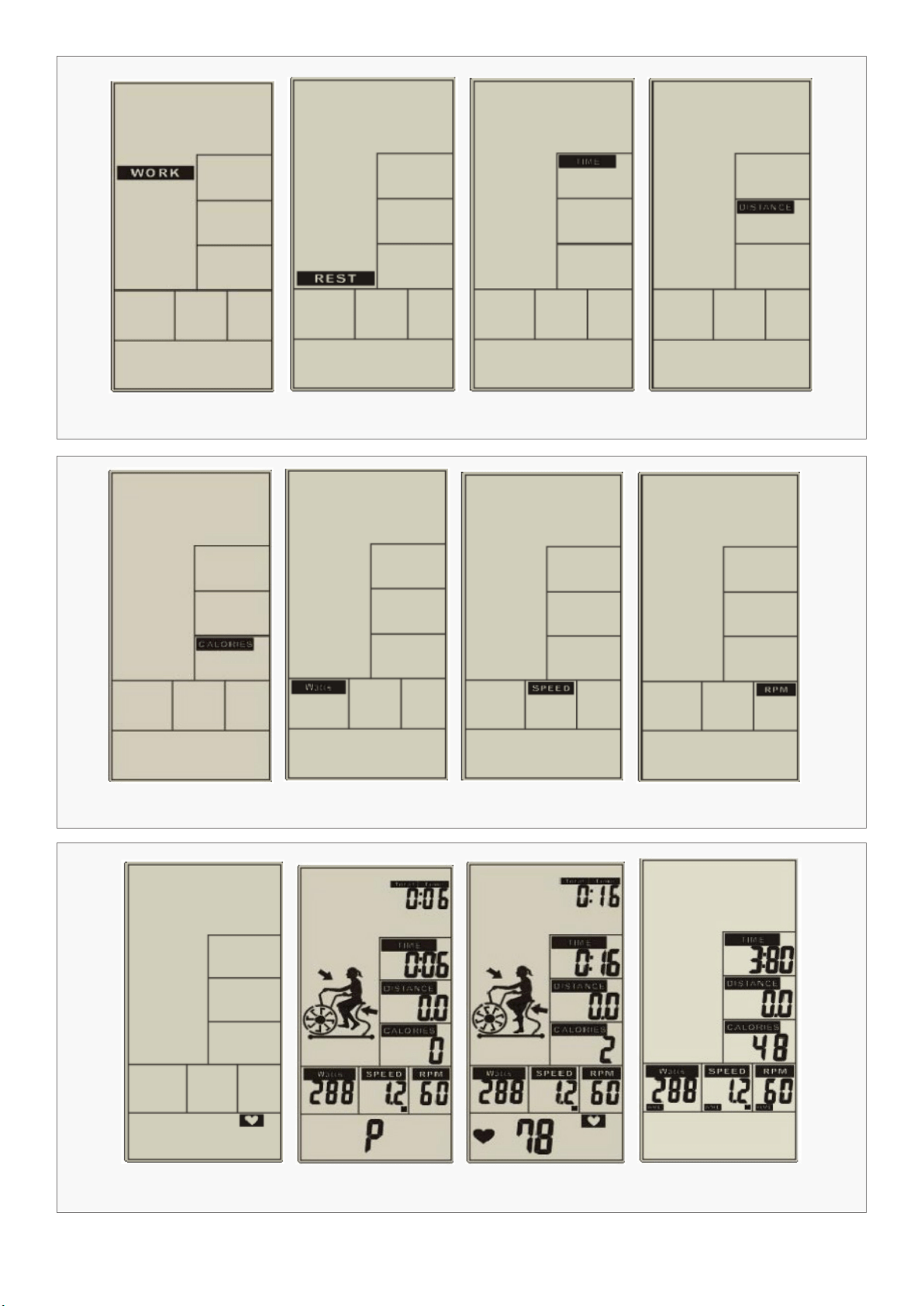

2. The window of INTERVAL10/20, INTERVAL10/20, INTERVAL CUSTOM, READY, WORK, REST, TIME,
DISTANCE, CALORIES, WATTS, SPEEED, RPM and HEART RATE will flash by sequence in every
1s (Figure 4~Figure 16).
If no input of key operation or RPM signal or pulse input for 60s, computer will go to Sleeping mode.
OPERATION
Figure 1
Figure 4 Figure 5 Figure 6 Figure 7
Figure 2 Figure 3
13
DISPLAY MANUAL |
Figure 8
Figure 12
Figure 16
Figure 9
Figure 13
Figure 17
Figure 10
Figure 14
Figure 18
Figure 11
Figure 15
Figure 19
COMPUTER OPERATION |
14
1. In Standby mode, press START to start work out quickly, the buzzer sound 1 second. TOTAL TIME/
TIME DISTANCE/ CALORIES/ WATTS/ SPEED/ RPM start to count up (Figure 17).

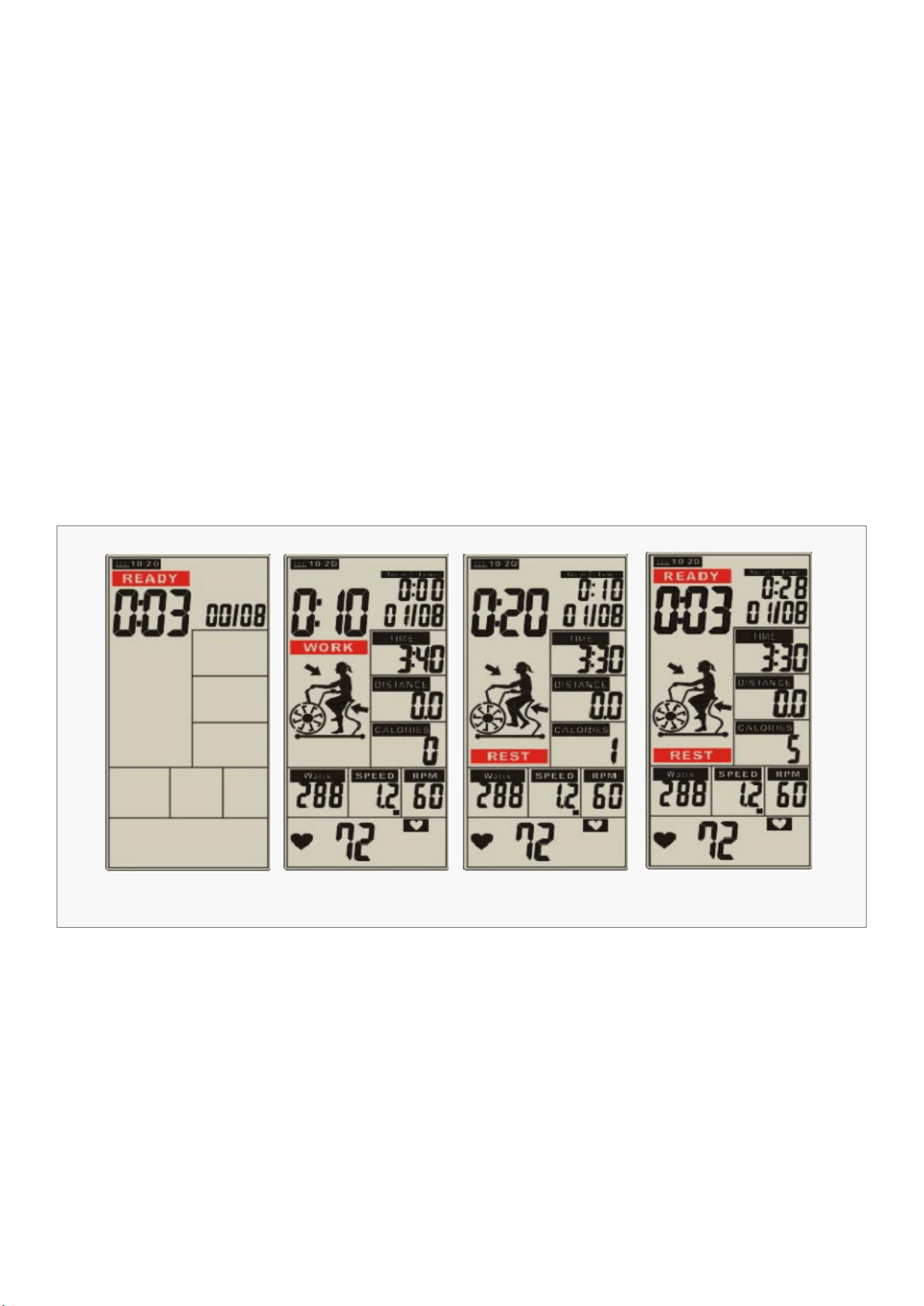

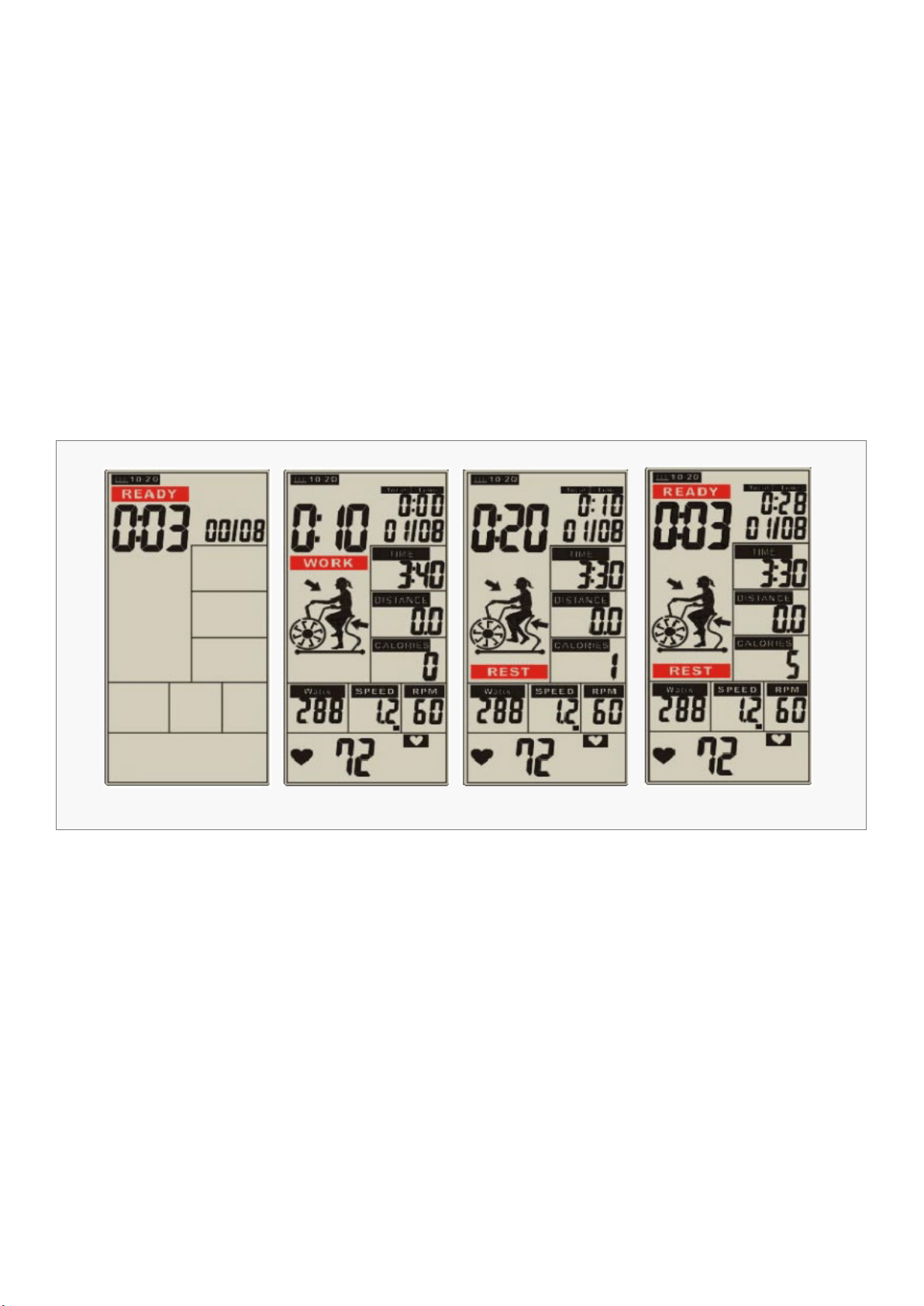

1. Press INIERVAL key to select INTERVAL20/10, press ENTER then INTERVAL20/10 will light up, along
with a long sound for 1s.
2. Cycle time counts down from 3 to 0 then console start, meanwhile buzzer beeps once per second
and READY flashes once per second, counting displays ‘00/08’ (Figure 24).
3. No signal input for 30s, buzzer sounds 1 short beep and enter to Wake-up mode. Press any to wake
up the console.
4. Press START key once to pause training, Buzzer will sound for 0.5s in every 30s. All values are
displaying on LCD and flashing in every 4s. If continue to stop training for 5 minutes, buzzer
sounds 2s and enter to Wake-up mode. Press START to resume workout.
5. Press STOP key, TIME will display total workout time; DISTANCE will display total workout distance;
CALORIES will display total consumption during workout; WATT, SPEED and RPM will switch to
display AVG. & MAX. in every 5s.
6. With pulse signal input, PULSE window will display user actual pulse and 65%, 85% MAX (Figure

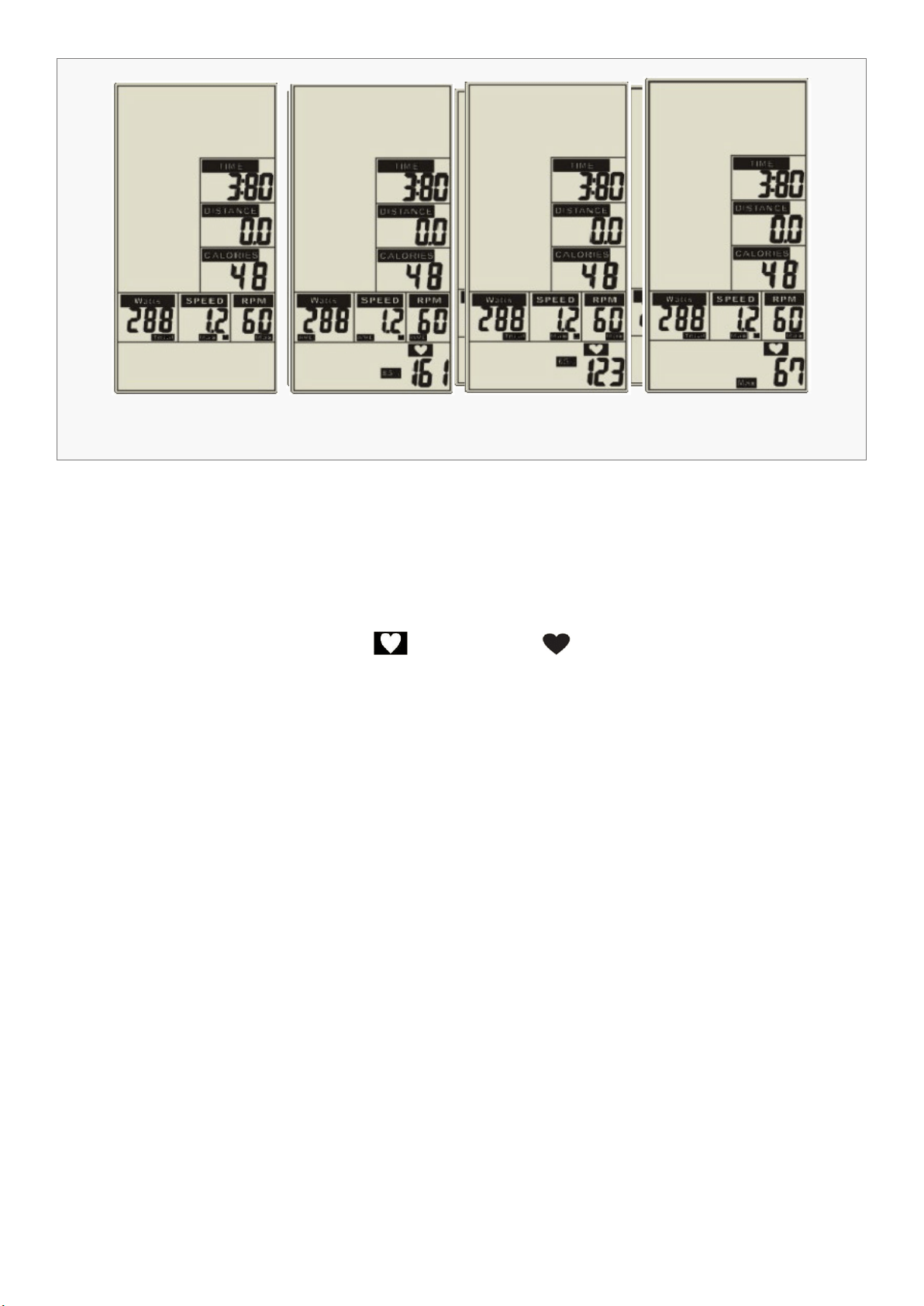

21~23). Pulse window displays nothing if no pulse signal input (Figure 19~20).
7. Press any PROGRAM key then perform the program accordingly.
2. Whenever there is Pulse signal input, will light up and symbol will flash and display pulse
value (Figure 18). Without pulse input, it will display "P" (Figure 17).
3. Select Manual, Interval, Target Distance, Target Calories, Target HR, Target Time program
3.1 Manual mode
3.2 Interval 20/10 mode
Figure 20 Figure 21 Figure 22 Figure 23
| COMPUTER OPERATION
15COMPUTER OPERATION |
3. Cycle time counts down from 20 to 0 and WORK flashes once per second along with 20 beeps.
Meantime windows displays rotation animation and count down from 4 minutes. Then TOTAL TIME,
DISTANCE, CALORIES, WATTS, SPEED & RPM start calculating, counting displays ‘01/08’ (Figure 25).
4. Cycle time counts down from 10 to 0 and REST flashes once per second along with 10 beeps(Figure
26), meanwhile READY will flash in last 3s (Figure 27).
5. The above 3 & 4 continue cycle counting and add 1 per each cycle, until displays 08/08WORK, then
go to End page.
6. In WORK mode, buzzer beeps 1s then enter into wake up mode if no any signal inputs within 30s.
7. Press START button once enter into PAUSE mode, Buzzer will sound for 0.5s in every 30s. All values
are displaying on LCD and flashing in every 4s. If continue to stop training for 5 minutes, buzzer
sounds 2s and enter to Wake-up mode. Press START to resume workout.
8. Press STOP or end up training, buzzer beeps 1s then displays TOTAL TIME, DISTANCE,CALORIES
for 30s, and WATT, SPEED & RPM will switch to display AVG. & MAX. each 5s.
9. With pulse signal input, PULSE window will display user actual pulse and 65%, 85% MAX (Figure
21~23). Pulse window displays nothing if no pulse signal input (Figure 19~20).
10. Press any PROGRAM key then perform the program accordingly.
Figure 24 Figure 25 Figure 26 Figure 27
1. Press INTERVAL to select INTERVAL10/20, press ENTER then INTERVAL10/20 will light up along
with buzzer beeps 1s.
2. Cycle time counts down from 3 to 0 then console start, meanwhile buzzer beeps once per second
and READY flashes once per second, counting displays ‘00/08’(Figure 28).
3. Cycle time counts down from 10 to 0 and WORK flashes once per second along with 20 beeps.
Meantime REMAINING will light up and count down from 4 minutes. Then TOTAL TIME, DISTANCE,
CALORIES, WATTS, SPEED & RPM start calculating, counting displays ‘01/08’ (Figure 29).
3.3 Interval 10-20 mode
16 | COMPUTER OPERATION
4. Cycle time counts down from 20 to 0 and REST flashes once per second along with beeps (Figure
30),meanwhile READY will flash in last 3s(Figure 31).
5. The above 3 & 4 continue cycle counting and add 1 per each cycle, until displays 08/08WORK, then
go to End page.
6. In WORK mode, buzzer beeps 1s then enter into wake up mode if no any signal inputs within 30s.
7. Press START button once enter into PAUSE mode, Buzzer will sound for 0.5s in every 30s. All values
are displaying on LCD and flashing in every 4s. If continue to stop training for 5 minutes, buzzer
sounds 2s and enter to Wake-up mode. Press START to resume workout.
8. Press STOP or end up training, buzzer beeps 1s then displays TOTAL TIME, DISTANCE,CALORIES
for 30s, and WATT, SPEED & RPM will switch to display AVG. & MAX. each 5s.
9. With pulse signal input, PULSE window will display user actual pulse and 65%, 85% MAX (Figure
21~23). Pulse window displays nothing if no pulse signal input (Figure 19~20).
10. Press any PROGRAM key then perform the program accordingly.
Figure 28 Figure 29 Figure 30 Figure 31
1. Press INTERVAL to select INTERVAL CUSTOM, press ENTER to enter into this mode then INTERVAL
CUSTOM 00/XX flashes to be set along with buzzer beeps 1s. Press UP/DOWN to set
00/XX within 1~99 Circularly. Press ENTER to confirm along with buzzer beeps 1s then enter into
next setting.(Figure 32).
2. The TIME continues lighting up, WORK and 0:01 will flash, press UP/DOWN to set training time
within 0:00~9:59 circularly (Figure 34). Press ENTER to confirm along with buzzer beeps 1s and
INTERVAL CUSTOM continues lighting up.
3. Cycle time counts down from 3 to 0 then console start, meanwhile buzzer beeps once per second
and READY flashes once per second, counting displays ‘00/XX’(Figure 35).
4. Cycle time counts down from the preset total time and WORK flashes once per second along with
buzzer beeps. Then TOTAL TIME, DISTANCE, CALORIES, WATTS, SPEED & RPM start
calculating, counting displays ‘01/XX’(Figure 36).
3.4 Interval CUSTOM
17COMPUTER OPERATION |
5. Cycle time counts down from and REST flashes once per second along with buzzer beeps(Figure
37), meanwhile READY will flash in last 3s(Figure 38).
6. The above 3 & 4 continue cycle counting and add 1 per each cycle, until the WORK setting value
finished then go to End page.
7. In WORK mode, buzzer beeps 1s then enter into wake up mode if no any signal inputs within 30s.
8. Press START button once enter into PAUSE mode, Buzzer will sound for 0.5s in every 30s. All
values are displaying on LCD and flashing in every 4s. If continue to stop training for 5 minutes,
buzzer sounds 2s and enter to Wake-up mode. Press START to resume workout.
9. Press STOP or end up training, buzzer beeps 1s then displays TOTAL TIME,
DISTANCE,CALORIES for 30s, and WATT, SPEED & RPM will switch to display AVG. & MAX.
each 5s.
10. With pulse signal input, PULSE window will display user actual pulse and 65%, 85% MAX (Figure
21~23). Pulse window displays nothing if no pulse signal input (Figure 19~20).
11. Press any PROGRAM key then perform the program accordingly.
Figure 32 Figure 33
Figure 36
Figure 34
Figure 37
Figure 35
Figure 38
18
1. In Standby mode, press Target Time key then go to mode. TIME will light up, along with a
long sound for 1s.
1. In Standby mode, press Target Distance key and TARGET DISTANCE will light up, along with a
long sound for 1s.
2. DISTANCE value is flashing, press UP and DOWN to adjust (Figure 41). Press ENTER to confirm
meanwhile buzzer beeps 1s and TARGET DISTANCE lasting lighting up.
3. Preset value & workout distance switch to display in every 5s until counts down to 0, then TIME,
CALORIES, WATTS, SPEEED, RPM start to count up. (Figure 42)
4. Press START button once enter into PAUSE mode, Buzzer will sound for 0.5s per second within
30s. All values are displaying on LCD and flashing in every 2s. If continue to stop training for 5
minutes, buzzer sounds 2s and enter to Wake-up mode. Press START to resume workout.
2. TIME value is flashing, press UP and DOWN to adjust value (Figure 39) and press ENTER to
confirm meanwhile buzzer beeps 1s and TARGET TIME lasting lighting up.
3. Preset value & workout time switch to display in every 5s until counts down to 0, then DISTANCE,
CALORIES, WATTS, SPEEED, RPM start to count up. (Figure 40)
4. Press START button once enter into PAUSE mode, Buzzer will sound for 0.5s per second within
30s. All values are displaying on LCD and flashing in every 2s. If continue to stop training for 5
minutes, buzzer sounds 2s and enter to Wake-up mode. Press START to resume workout.
6. Press STOP or end up training, TIME will display total workout time; DISTANCE will display total
workout distance; CALORIES will display total consumption during workout; WATT, SPEED and
RPM will switch to display AVG. & MAX. in every 5s.
7. With pulse signal input, PULSE window will display user actual pulse and 65%, 85% MAX (Figure
21~23). Pulse window displays nothing if no pulse signal input (Figure 19~20).
8. Press any PROGRAM key then perform the program accordingly.
5. No signal inputs for 30s, buzzer sounds 1 short beep and enter to Wake-up mode.
3.5 Target TIME mode
3.6 Target Distance mode

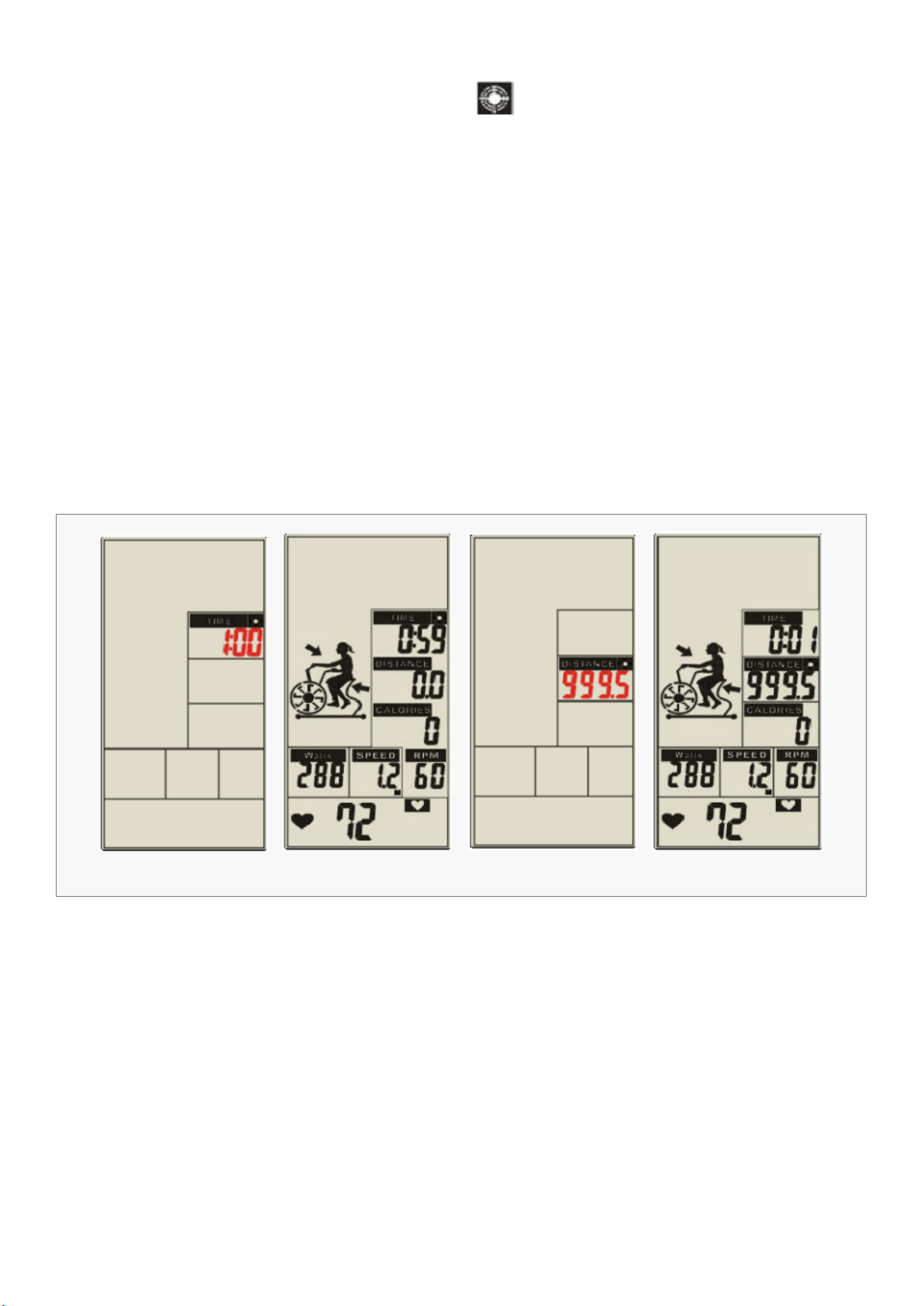

Figure 39 Figure 40 Figure 41 Figure 42
| COMPUTER OPERATION
19
5. No signal input for 30s, buzzer sounds 1s and enter to Wake-up mode. minutes, buzzer sounds 2s
and enter to Wake-up mode. Press START to resume workout.
6. Press STOP key or end up training, TIME will display total workout time; DISTANCE will display
total workout distance; CALORIES will display total consumption during workout; WATT, SPEED
and RPM will switch to display AVG. & MAX. in every 5s.
7. With pulse signal input, PULSE window will display user actual pulse and 65%, 85% MAX (Figure
21~23). Pulse window displays nothing if no pulse signal input (Figure 19~20).
8. Press any PROGRAM key then perform the program accordingly.
1. In Standby mode, press Target Calories key and TARGET CALORIE will light up, along with a long
sound for 1s.
2. CALORIES value is flashing, press UP and DOWN to adjust (Figure 43). Press ENTER to confirm
meanwhile buzzer beeps 1s and TARGET CALORIE lasting lighting up.
3. Preset value & workout calorie switch to display in every 5s until counts down to 0, then TIME,
DISTANCE, WATTS, SPEEED & RPM start to count up.(Figure 44)
4. Press START button once enter into PAUSE mode, Buzzer will sound for 0.5s per second within
30s. All values are displaying on LCD and flashing in every 2s. If continue to stop training for 5
minutes, buzzer sounds 2s and enter to Wake-up mode. Press START to resume workout.
5. No signal input for 30s, buzzer sounds 1s and enter to Wake-up mode.
6. Press STOP key or end up training, TIME will display total workout time; DISTANCE will display
total workout distance; CALORIES will display total consumption during workout; WATT, SPEED
and RPM will switch to display AVG. & MAX. in every 5s.
7. With pulse signal input, PULSE window will display user actual pulse and 65%, 85% MAX (Figure
21~23). Pulse window displays nothing if no pulse signal input (Figure 19~20).
8. Press any PROGRAM key then perform the program accordingly.
3.7 Target Calories mode

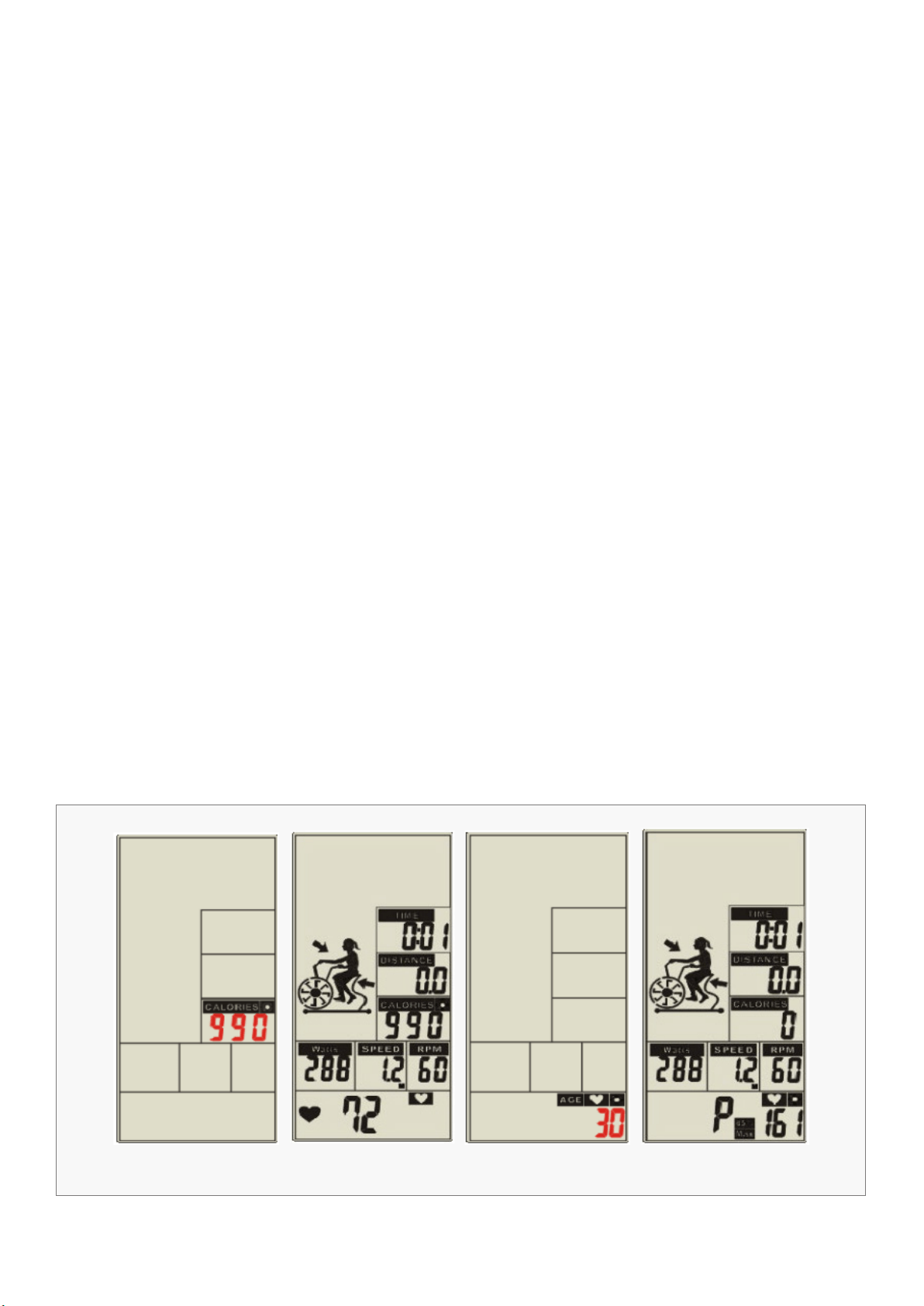

Figure 43 Figure 44 Figure 45 Figure 46
COMPUTER OPERATION |
20| COMPUTER OPERATION
1. In Standby mode, press Target Heart-Rate key and TARGET HEART RATE will light up, along
with a long sound for 1s.
2. AGE value is flashing, press UP and DOWN to preset your Age (Figure 45). Press ENTER to
confirm along with buzzer beeps 1s and TARGET HEART RATE and HEART RATE last lighting up.
3. When start workout, MAX HR lights up, 65% & 85% Heart rate will switch to display. TIME/
DISTANCE/ CALORIES/ WATTS/ SPEED/ RPM will calculate workout value (Figure 46).
4. When Heart Rate goes below to 65%, & & value will flash. And buzzer sounds in every 10s
until user HR achieve above 65% (Figure 47).
5. When Heart Rate exceeds to 85%, & & value will flash. And buzzer sounds in every 10s
until user HR goes below 85% (Figure 48).
6. When Heart Rate goes between 65% ~ 85%, only will flash (Figure 49).
7. No signal input for 30s, buzzer sounds 1 short beep and enter to Wake-up mode.
8. Press START button once enter into PAUSE mode, Buzzer will sound for 0.5s per second within
30s. All values are displaying on LCD and flashing in every 2s. If continue to stop training for 5
minutes, buzzer sounds 2s and enter to Wake-up mode. Press START to resume workout.
9. Press STOP again or end up training in 15s, TIME will display total workout time; DISTANCE will
display total workout distance; CALORIES will display total consumption during workout; WATT,
SPEED and RPM will switch to display AVG. & MAX. in every 5s.
10. With pulse signal input, PULSE window will display user actual pulse and 65%, 85% MAX (Figure
21~23). Pulse window displays nothing if no pulse signal input (Figure 19~20).
11. Press any PROGRAM key then perform the program accordingly.
3.8 Target HR mode:

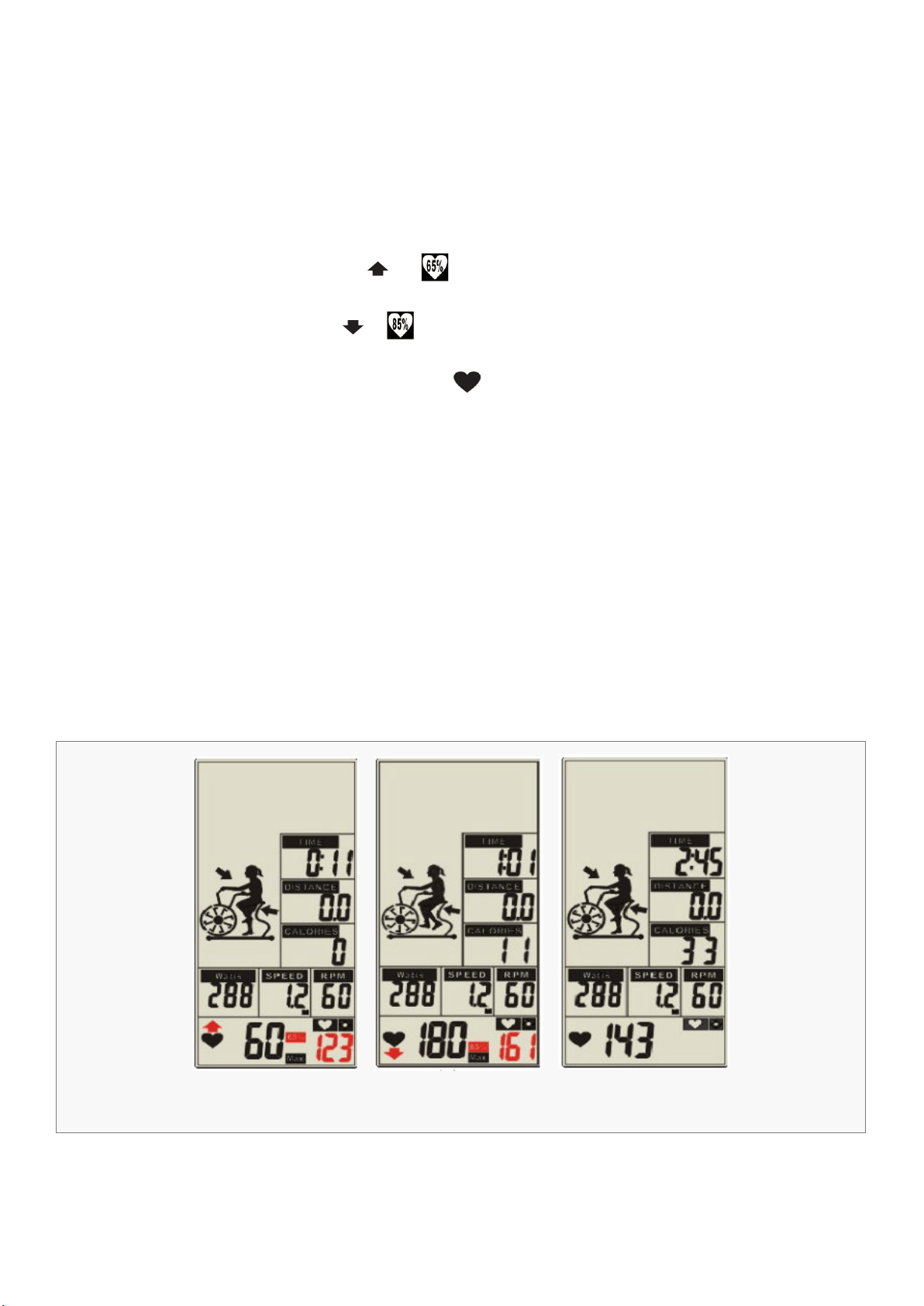

Figure 47 Figure 48 Figure 49
21COMPUTER OPERATION |
1. Hold on STOP & ENTER key for 2s, buzzer will sound 1 long beep. DISTANCE keep lighting up,
M/KM flash once per second (Figure 50~51).
2. Press UP or DOWN to select KM or ML, press ENTER to confirm then skip to Standby mode.
3. No action to console for 30s, it will go to Standby mode.
OPTION SETTING
SETTING mode
RESET mode
SLEEPING mode
In any mode, press STOP for 2s, system will do TOTAL RESET.
LCD flash in every 2 seconds, buzzer sound for 2 seconds.
Reverse to Standby page, all setting resume to preset value.
In Standby mode, if no key press/RPM/pulse input for 30s, console will go to SLEEPING mode.
Figure 50 Figure 51
22
V. EXERCISE GUIDE
PLEASE NOTE:
Before beginning any exercise program, consult your physician. This is important especially if you are
over the age of 45 or individuals with pre-existing health problems.
The pulse sensors are not medical devices. Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in
determining heart rate trends in general.
Exercising is great way to control your weight, improving your fitness and reduce the effect of aging and
stress. The key to success is to make exercise a regular and enjoyable part of your everyday life.
The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to
your muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough
energy for daily activity. This is called aerobic activity. When you are fit, your heart will not have to work
so hard. It will pump a lot fewer times per minute, reducing the wear and tear of your heart.
So as you can see, the fitter you are, the healthier and greater you will feel.
WARM UP
Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up
increases your body temperature, heart rate and circulation in preparation for exercise. Ease into your
exercise.
After warming up, increase the intensity to your desired exercise program. Be sure to maintain your
intensity for maximum performance. Breathe regularly and deeply as you exercise.
| EXERCISE GUIDE
COOL DOWN
Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of
stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-
exercise problems.
23
WORKOUT GUIDELINES
This is how your pulse should behave during general fitness exercise. Remember to warm up and
cool down for a few minutes.
TARGET ZONE
MAXIMUM
85%
70%
COOL DOWN
AGE
HEART RATE
200
180
160
140
120
100
80
20 25 30 35 40 45 50 55 60 65 70 75
WARRANTY |
VIII. WARRANTY
AUSTRALIAN CONSUMER LAW
Many of our products come with a guarantee or warranty from the manufacturer. In addition,
they come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and compensation for any other
reasonably foreseeable loss or damage.
You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and
the failure does not amount to a major failure. Full details of your consumer rights may be found at
www.consumerlaw.gov.au.
Please visit our website to view our full warranty terms and conditions:
http://www.lifespanfitness.com.au/warranty-repairs
WARRANTY AND SUPPORT
Please email us at [email protected] for all warranty or support issues.
For all warranty or support related enquiries, please lodge a support ticket first by sending us an email.
Scan this QR code with your device to go to lifespanfitness.com.au/warranty-form
WWW.LIFESPANFITNESS.COM.AU
