User Manual Emerson 1F78-151 5-2 Day Classic 70 Series Thermostat, Single-Stage Programmable Digital Thermostat

Emerson 1F78-151 5-2 Day Classic 70 Series Thermostat, Single-Stage Programmable Digital Thermostat - Use Manual - Use Guide PDF.
Documents: Go to download!
Installation Instruction
  • Installation Instruction - (English, Spanish)
  • Installation Instructions - (French)
Warranty
  • Warranty - (English)
Specification Other Documents
  • Thermostat Cross Reference - (English)



See other models: UP310 1F83H-21PR WS1200VA ER108002 EAD50SE1

Emerson 1F78-151 | Series: 70 Series | File type: PDF | Filename: 52761871_1f78-151.pdf | Size: 3.41 MB | Language: English, Spanish | Other documents: 5 files.

Download User Manual

Specs Sheet

  • Program Options: Programmable - 5+2 Day
  • Program Periods Per Day Options: 4
  • Energy Mgt. Recovery/Early Start: Yes
  • Set-Point Range: 45 to 99°F (7 to 37°C)
  • Display Temperature Range : 32˚F to +99˚F (0˚C to 37˚C)
  • Millivolt Compatible: Yes
  • Power Source: Battery
  • Voltage: 20 to 30 Vac 50/60 Hz
  • Amp Rating: 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
  • Battery Power: MV to 30 VAC
  • Display Type: 1.2 square in.
  • Thermostat Dimensions: 3-13/16"H x 5-1/8"W x 1-1/8"D

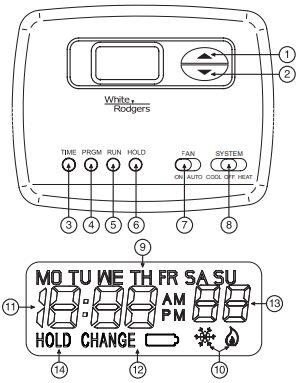

Product Infomation and Reviews - 1F78-151 photo

1F78 151 Photo

T: @manualsFile

https://manualsFile.com

Emerson 1F78-151 Questions and Answers

Find answers or Ask a question.
  • Total questions: 3
  • Questions unAnswered : 3

#1 What does the flame symbol mean?
The flame symbol is displayed when the SYSTEM switch is in the HEAT position.

#2 How does the backlight work?
The backlight must be enabled by simultaneously depressing the Time and Run buttons and the display shows dL or Off. Press up arrow or down arrow to change Off to On. Select Run when done. Light only comes on when adjusting temp up or down. No permanent backlight. Check your Installation sheet with your unit.
