Hisense HV603D40UK Integrated Dishwasher with 14 place settings

User Manual - Transcript

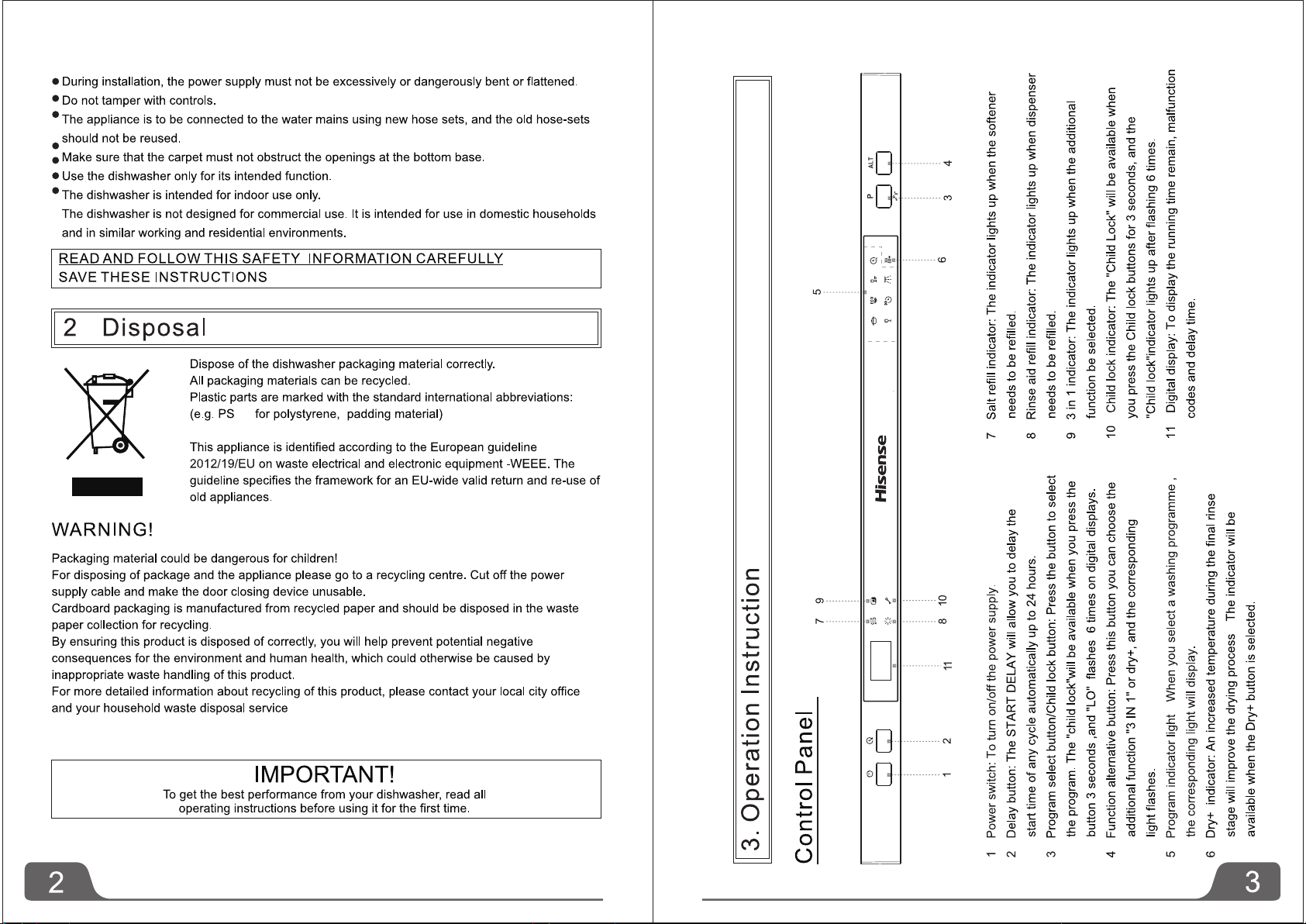

• Page 2 - English - : Read this Manual Dear Customer Please read this User Information carefully and keep it to refer to at a later date Pass it on to any subsequent owner of the appliance This manual contains sections of Safety Instructions Operating Instructions Installation Instructions and Troubleshooting Tips etc Carefully read it before using the dishwasher will help you to use and maintain the dishwasher properly Before Calling for Service To review the section on Troubleshooting Tips will help you to solve some common problems by yourself and not need to ask for the help of professional technicians NOTE The manufacturer following a policy of constant development and updating of the product may make modifications without giving prior notice 1 Safety Information 12 2 Disposal 2 3 Ope ration Inst ruction 34 Control Panel 3 Dishwasher Features 4 4 Prior using for the first time 49 Water Softener 45 Loading the Salt into the Softener56 Fill the Rinse Aid Dispenser67 Function of Detergent 79 5 Loading t h e D i s h washer Bask e t s 1 0 13 6 Starting a washing programme 1415 Wash Cycle Table 14 Turning on the Appliance14 Change the Programme15 Forget to Add Dish 15 7 Main t enance and cl e aning 1618 8 Troubles h o o t ing Tips 19 2 3 Error codes19 Before calling for service2021 Technical information 2223 WARNING When using your dishwasher follow the basic precautions including the following Do not abuse sit on or stand on the door or dish basket of the dishwasher Do not touch the heating element during or immediately after use Do not operate your dishwasher unless all enclosure panels are properly in place Open the door very carefully if the dishwasher is operating There is a risk of water squirting out Do not place any heavy objects or stand on the door when it is open The appliance could tip forward When loading items to be washed Locate sharp items so that they are not likely to damage the door seal Load sharp knives with the handles up to reduce the risk of cuttype injuries Warning Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position When using your dishwasher you should prevent plastic items from contacting with heating element Check that the detergent receptacle is empty after completion of the wash cycle Do not wash plastic items unless they are marked dishwasher safe or the equivalent For plastic items not so marked check the manufacturers recommendations Use only detergent and rinse additives designed for an automatic dishwasher Never use soap laundry detergent or hand washing detergent in your dishwasher Other means for disconnection from the supply must be incorporated in the fixed wiring with at least 3mm contact separation in all poles Keep children away from detergent and rinse aid keep children away from the open door of the dishwasher there could still be some detergent left inside Young children should be supervised to ensure that they do not play with the appliance This product is not designed for use by persons including children who have reduced physical sensory or mental capacities or persons with no experience or knowledge unless they are instructed and supervised in the use of the appliance by a person responsible for their safety Dishwasher detergents are strongly alkaline They can be extremely dangerous if swallowed Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open The door should not be left in the open position since this could present a tripping hazard If the supply cord is damaged it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard Please dispose of packing materials properly 1 Safety Information Under certain conditions Hydrogen gas may be produced in a hotwater system that has not been used for two weeks or more HYDROGEN GAS IS EXPLOSIVE If the hotwater system has not been used for such a period before using the dishwasher turn on all hotwater faucets and let the water flow from each for several minutes This will release any accumulated hydrogen gas As the gas is flammable do not smoke or use an open flame during this time WARNING PROPER USE WARNING HYDROGEN GAS IS EXPLOSIVE
• Page 4 - English - : Dishwasher Features Front View 1 Upper Basket 2 Spray Arms 3 Lower Basket 4 Water Softener 5 Detergent Dispenser 6 Rinse Aid Dispenser 7 Cutlery Tray 8 Cup Holder 4Prior Using for the First Time Before using your dishwasher for the first time A Set the water softener B Pour 500ml of water inside the salt container and then fill with dishwasher salt C Fill the rinse aid dispenser D Function of detergent B Loading the Salt into the Softener Always use salt intended for using with dishwasher NOTE If your model has no water softener you may skip this section WATER SOFTENER The hardness of the water varies from place to place If hard water is used in the dishwasher deposits will form on the dishes and utensils The appliance is equipped with a special softener that uses salts specifically designed to eliminate lime and minerals from the water The salt conta i n e r i s l o c a t e d beneath the lower b a s k e t a n d s h o u ld be filled as foll o w s Attention Only use salt s p e c i f i c a l l y d e signed for use in d i s h w a s h e r s All other types o f s a l t n o t specificall y d e s i g n e d f o r u se in a dishwasher especially tabl e s a l t w i l l d a m age the water softene r I n c a s e o f damages caused b y t h e u s e o f u n s u itable salt the manufacturer d o e s n o t g i v e a n y warranty nor is l i a b l e f o r a n y c a used damages Only fill with s a l t j u s t b e f o re starting one of t h e c o m p l e t e w a shing programmes This will prev e n t a n y g r a i n s o f salt or salty wat e r w h i c h m ay have been split remaining on t h e b o t t o m o f t h e machine for any pe r i o d o f t i m e w hich may cause corrosion After the fir s t w a s h c y c l e t h e control panel li g h t e x p i r e s A Remove the lower basket and then unscrew and remove the cap from the salt container B If you are filling the container for the first time fill 23 of its volume with water around 500ml A Water Softener The water softener is designed to remove minerals and salts from the water which would have a detrimental or adverse effect on the operation of the appliance The higher the content of these minerals and salts the harder the water is The softener should be adjusted according to the hardness of the water in your area Your local Water Authority can advise you on the hardness of the water in your area Setting The amount of salt dispensed can be set from H0 to H7 Salt is not required at the set value H0 1 Find out about the hardness value of your tap water Your water utility company will help you with this 2 Set value can be found in the water hardness table 3 Close the door 4 Switch on quotPowerquot switch 5 Hold down quot Delayquot button and then press quotProgramquot button for 5 secondsThe buzzer rings one time and H flashes on the digital displayfactory setting is H4 Clark Water hardness Range Mmoll Set value on the machine 08 910 1112 1315 1620 2126 2738 3962 soft soft medium medium medium hard hard hard 011 1214 1518 1921 2229 3037 3854 5589 H0 H1 H2 H3 H4 H5 H6 H7 Water hardness table To change the setting 1 Press quot Delay quot button Each time the button is pressed the set value increases by one levelwhen the value of H7 has been reached the display jumps back to H0off 2 Press quot Program quot button The chosen setting has now been stored Contact your local water board for infor mation on the hardness of your water supply
• Page 5 - English - : MAX 1 The salt container must be refilled when the salt warning light in the control panel comes on Though the salt container is filled enough the indicator light may not black out before the salt fully dissolve If there is no salt warning light in the control panel for some models you can judge when to load the salt into the softener by the cycles that the dishwasher had run see the following schema 2 If there are spills of the salt a soak program could be run to wipe them out NOTE MAX D Function of Detergent To open the dispenser turn the cap to the quotopenquot left arrow and lift it out Pour the rinse aid into the dispenser be careful not to overfill Replace the cap by inserting it aligned with quotopenquot arrow and turning it to the quotclosedquot right arrow The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes that can leave spots and streaks It also improves drying by allowing water to sheet off the dishes Your dishwashers are designed to use liquid rinse aids The rinse aid dispenser is located inside the door next to the detergent dispenser To fill the dispenser open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black The volume of the rinse aid container is about 140ml Be careful not to overfill the dispenser because this could cause over sudsing Wipe away any spills with a damp cloth Dont forget to replace the cap before you close dishwasher door Attention Clean up any rinse aid split during filling with an absorbent cloth to avoid excess foaming during the next wash Adjusting Rinse Aid Dispenser The rinse aid dispenser has four or six settings Always start with the dispenser set on quot4quot If spots and poor drying are problems increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to quot5quot If the dishes still are not drying properly or are spotted adjust the dial to the next higher number until your dishes are spotfree The dose is factory set in position 5 NOTE Increase the dose if there are drops of water or lime spots on the dishes after washing Reduce it if there are sticky whitish streaks on the dishes or a bluish film on glassware or knife blades Detergents with its chemical ingredients are necessary to remove dirt crush dirt and transport it out of the dishwasher Most of commercial quality detergents are suitable for this purpose Concentrated Detergent Based on their chemical composition dishwasher can be split in two basic types conventional alkaline detergents with caustic components low alkaline concentrated detergents with natural enzymes The use of quotEcoquot washing programme in conjunction with concentrated detergents reduces pollution and is good for your dishes these washing programmes are specially matched to the dirtdissolving properties of the enzymes of the concentrated detergent For this reasonquotEcoquot washing programme in which concentrated detergents are used can achieve the same results that can otherwise only be achieved usingquotintensivequot programme Detergent Tablets Detergent tablets of different brands dissolve at different speeds For this reason some detergent Adjust lever Rinse C Fill the Rinse Aid Dispenser Function of Rinse Aid Rinse aid is automatically added during the last rinse ensuring thorough rinsing spot and streak free drying Attention Only use branded rinse aid for dishwasher Never fill the rinse aid dispenser with any other substances eg dishwasher cleaning agent liquid detergent This would damage the appliance When to Refill the Rinse Aid Dispenser If there is no rinseaid warning light on the control panel you can judge the amount of rinseaid by the color of the optical level indicator quotDquot located next to the cap When the rinseaid container is full the whole indicator will be dark As the rinse aid diminishes the size of the dark dot decreases You should never let the rinse aid get below 1 4 full As the rinse aid diminishes the size of the black dot on the rinse aid level indicator changes as illustrated below Full 3 4 full 1 2 full 1 4 full Should refill to eliminate spotting Empty D RinseAid indicator RINSE AID DISPENSER C Place the end of the funnel supplied into the hole and introduce about 2kg of salt It is normal for a small amount of water to come out of the salt container D Carefully screw the cap back on E Usually the salt warning light will be off in 26 days after the salt container is filled with salt
• Page 6 - English - : NOTE If the lid is closed press release button The lid springs open Always add the detergent just before starting each wash cycle Only use branded detergent aid for dishwasher WARNING Dishwasher detergent is corrosive Take care to keep it out of reach of children Use only detergent specifically made for use in dishwashers Keep your detergent fresh and dry Dont put powder detergent into the dispenser until youre ready to wash dishes Fill in the detergent Fill the detergent dispenser with detergent The marking indicates the dosing levels as illustrated on the right The place of main wash cycle detergent placed MIN means approximately 20g of detergent The place of prewash cycle detergent placed approximately 5g of detergent quot quot If the dishes are heavily soiled place an additional detergent dose in the prewash detergent chamber This detergent will take effect during the prewash phase NOTE You find information about the amount of detergent for the single programme on the last page Please be aware that according to the level soiling and the specific hardness of water differences are possible Please observe the manufacturers recommendations on the detergent packaging Detergents There are 3 sorts of detergents 1With phosphate and with chlorine 2With phosphate and without chlorine 3Without phosphate and without chloride Normally new pulverized detergent is without phosphate The water softener function of phosphate is not given In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 dH If detergents without phosphate were used in case of hard water often white spots appear at dishes and glasses In this case please add more detergent to reach better results Detergents without chlorine do only bleach a little Strong and coloured spots will not removed completely In this case please choose a programme with higher temperature cannot dissolve and develop their full cleaning power during short programmes Therefore please use long programmes when using detergent tablets to ensure the complete removal of detergent residuals Detergent Dispenser The dispenser must be refilled before the start of each washing cycle following the instructions provided in the Wash Cycle Table Your dishwashers use less detergent and rinse aid than conventional dishwashers Generally only one tablespoon of detergent is needed fora normal wash load Also more heavily soiled items need more detergent Always add the detergent just before starting dishwasher otherwise it could get damp and will not dissolve properly Amount of Detergent to Use Please observe the manufacturers dosing and storage recommendations as stated on the detergent packaging Close the lid and press until it locks in place MAX 1 2

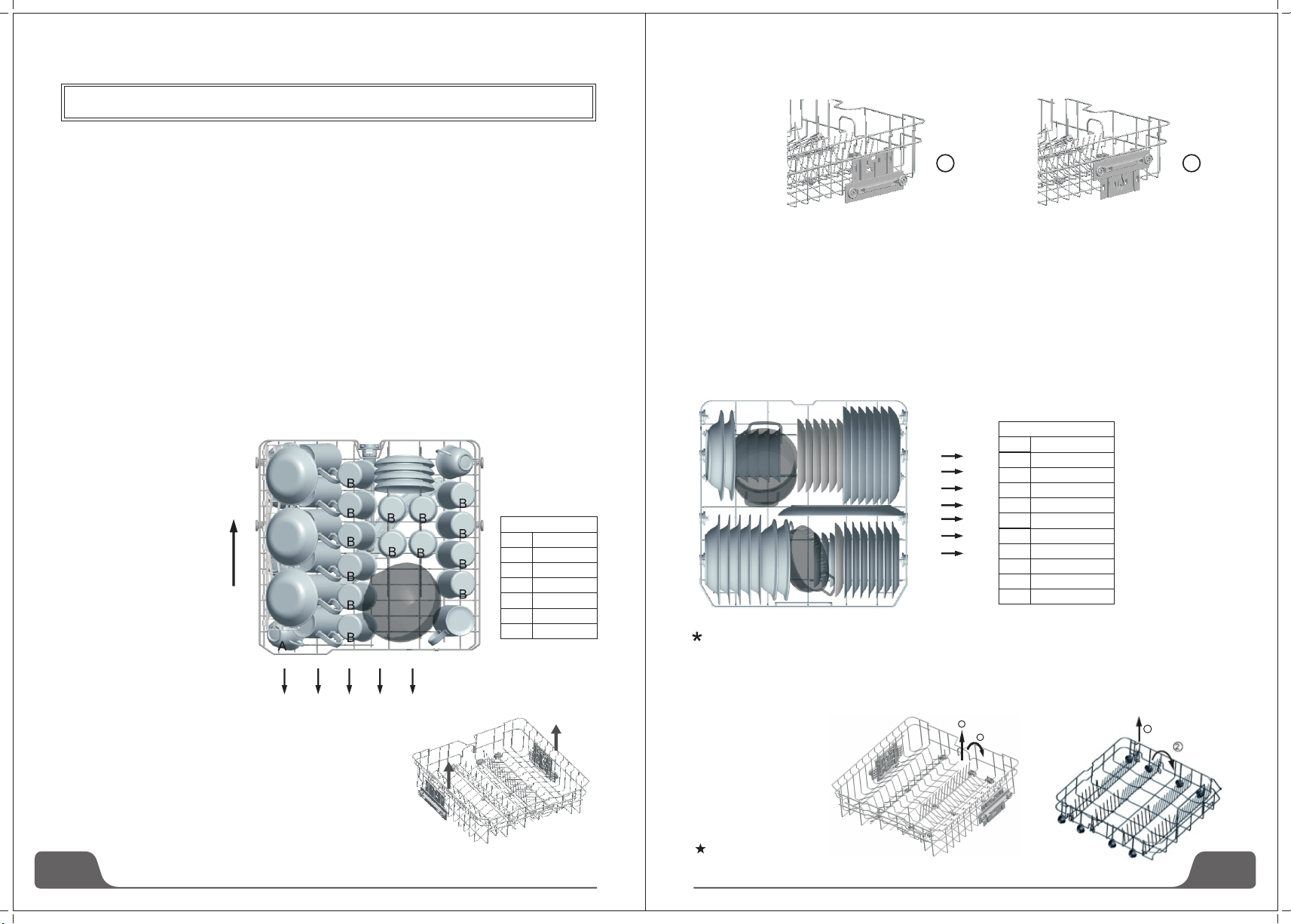

• Page 7 - English - : For best performance of the dishwasher follow these loading guidelines Features and appearance of baskets and silverware baskets may vary from your model Attention before or after Loading the Dishwasher Baskets Scrape off any large amounts of leftover food It is not necessary to rinse the dishes under running water Place objects in the dishwasher in the following way 1Items such as cups glasses potspans etc are stood upside down 2Curve items or those with recesses should be at a slant so that water can run off 3They are stacked securely and can not tip over 4They do not prevent the spray arms from rotating while washing takes place Very small items should not be washed in the dishwasher as they could easily fall out of the baskets Removing the Dishes To prevent water dripping from the upper basket into the lower basket we recommend that you empty the lower basket first and then the upper basket Loading the Upper Basket The upper basket is designed to hold more delicate and lighter dishware such as glasses coffee and tea cup and saucers as well as plates small bowls and shallow pans as long as they are not too dirty Position the dishes and cookware so that they do not get moved by the spray of water 5Loading the Dishwasher Baskets Loading the Lower Basket We recommend that you place large items which are most difficult to clean in to the lower basket pots pans lids serving dishes and bowls as shown in the figure below It is preferable to place serving dishes and lids on the side of the baskets in order to avoid blocking the rotation of the top spray arm Pots serving bowls etc must always be placed top down Deep pots should be slanted to allow water to flow out The bottom basket features fold down tine rows so that larger or more pots and pans can be loaded Upper Basket IN A7 A1 D7 D1 B14 B1 Upper basket Type Item Cup Glass Saucer Mug Dessert bowl Class bowl A B C D E L D C4 C1 E E C L E A E3 E1 Upper Basket Height Adjustment Basket height adjustment mechan ism on the upper basket of your machine is designed to let you adjust the height of your upper basket upwards or downwardswithout removing it from your machine when it is fulland create large spaces at the top or bottom area of your machine as neededBasket of your machine is set to lower position in factory settings In order to raise your baskethold it from both sides and pull it upwardsIn order to lower ithold it from both sides againand leave it In loaded basket adjustment mechanism make sure that both sides are in the same position up or down Upper position Lower position Lower Basket Lower basket C Type Saucer Item Dessert bowl Soup plate Dinner plate Dessert plate Oval plate Small bowl Melamine dessert plate Melamine bowl E H I J K F M N H7 H1 E7 E4 J7 J1 M7 M1 N2 N1 I7 I1 C7 C5 I I M E J K H E H H H J J M N N F G C C Oven potG For optional UpperLower basket Folding racks Folding racks consisting of threetwo parts in the upperlower basket of your machine are designed in order to let you place big items easier as pots pans etc If requested each part can be folded separately or all of them can be folded and larger can be obtained You can use folding racks by rasing thenupwards or by folding Upper Basket Lower Basket
• Page 8 - English - : For washing in the dishwasher the following cutlerydishes Are not suitable Cutlery with wooden horn china or motherofpearl handles Plastic items that are not heat resistant Older cutlery with glued parts that is not temperature resistant Bonded cutlery items or dishes Pewter or cooper items Lead crystal glass Steel items subject to rusting Wooden platters Items made from synthetic fibre WARNING Do not let any item extend through bottom Are of limited suitability Some types of glasses can become dull after a large number of washes Silver and aluminium parts have a tendency to discolour during washing Glazed patterns may fade if machine washed frequently NOTE new dishes please make sure that they are suitable for dishwashers Do not put in items that are dirty of cigarette ash candle wax lacquer or paint If you buy NOTE Do not use dish that is not suitable for dishwashers This is important for good results and for reasonable energy consumption Please do not overload your dishwasher There is only space for 14 standard dishes Before loading the dishes you should Remove large leftover Soften remnants of burnt food in pans Loading Cutlery and Dishes When Loading the Dishes and Cutlery Please Note Dishes and cutlery must not impede the rotation of the spray arms Load hollow items such as cups glasses pans etc with the opening downwards so that water cannot collect in the container or a deep base Dishes and items of cutlery must not lie inside one another or cover each other To avoid damage to glasses they must not touch Load large items which are most difficult to clean into the lower basket The upper basket is designed to hold more delicate and lighter dishware such as glasses coffee and tea cups Long bladed knives stored in an upright position are a potential hazard Long andor sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket Attention Damage to Glassware and other Dishes Possible causes Type of glass or manufacturing process Chemical composition of detergent Water temperature and duration of dishwasher programme Suggested remedy Use glassware or porcelain dishes that have been marked dishwasherproof by the manufacturer Use a mild detergent that is described as kind of dishes If necessary seek further information from detergent manufacturers Select a programme with a low temperature To prevent damage take glass and cutlery out of the dishwasher as soon as possible after the programme has ended At the End of the Wash When the working cycle has finished the buzzer of dishwasher will ring for 6 times then stop Turn off the appliance using the ONOFF button shut off the water supply and open the door of the dishwasher Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage They will also dry better Cutlery tray Arrange the cutlery in the tray as shown Cutlery should be placed to ensure that water runs off freely Cutlery tray Type Item Tea spoons Dessert spoons Soup spoons Forks Knives Serving fork Serving spoons Gravy ladle 1 2
• Page 9 - English - : Programme Standard NOTE A click could be heard when the door is closed perfectly When the washing is over you can shut off the switch by pressing ONOFF button NOTE main power and water supply before calling a service If all the lights begin to glimmer that indicates the machine is out of order please turn off the Forget to Add Dish A forgotten dish can be added any time before the detergent cup opens 1 Open the door a little to stop the washing 2 After the spray arms stop working you can open the door completely 3 Add forgotten dishes 4 Close the door the dishwasher will work after ten seconds WARNING It is dangerous to open the door when washing because the hot water may scald you Switch Off the Dishwasher The digital display appears quotquot and the buzzer rings 6 times only in this case the programme has ended 1Switch off the dishwasher by pressing the ONOFF button 2Turn off the water tap Open the door carefully Hot steam may escape when the door is opened Hot dishes are sensitive to knocks The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance Open the dishwashers door leave it ajar and wait a few minutes before removing the dishes In this way they will be cooler and the drying will be improved Unloading the dishwasher It is normal that the dishwasher is wet inside Empty the lower basket first and then the upper one This will avoid water dripping from the upper basket onto the dishes in the lower one Change the Programme Premise A cycle that is underway can only be modified if it has only been running for a short time Otherwise the detergent may have already been released and the appliance may have already drained the wash water If this is the case the detergent dispenser must be refilled see the section entitled quot Fill in the Detergent quot Open the door Press current prog button more than three seconds to cancel the programme then you can change the programme to the desired cycle setting see the section entitled quotStarting a wash cycle quot Then close the door NOTE If you open the door when washing the machine pauses and warning alarm rings the display appears E1 When you close the door the machine will keep on working after 10 seconds The 6 programme lights show the state of the dishwasher a All program lights off gt stand by b One of the program lights on gt cycle running c One of the program lights blinking gt pause 2 Insert the plug into the socket The power supply is 220240V AC 50 Hz the specification of the socket is 12 A 250 VAC50 Hz Make sure that the water supply is turned on to full pressure Open the door press the ONOFF button Press the quotprogramquot button to select a desired quotWash cyclequot See the section entitled quotWash Cycle Tablequot With a little force to ensure the door is properly closed 6 Starting a Washing Programme Starting a wash cycle Draw out the lower and upper basket load the dishes and 1 push them back It is recommended to load the lower basket first then the upper one see the section entitled quotLoading the Dishwasherquot Pour in the detergent see the section entitled quotSalt Detergent and Rinse Aidquot 2 Insert the plug into the socket The power supply is 220240V AC 50 Hz the specification of the socket is 12 A 250 VAC50 Hz Make sure that the water supply is turned on to full pressure Close the door press the quotPowerquot button press the quotprogramquot button to select a desired quotWash cyclequot See the section entitled quotWash Turning on the Appliance 60436this program is the test cycle EN The information for comparability test in accordance with EN 60436as follows Position of upper basket Low position Capacity14 settings Rinse aid setting6or 4 for four setting dispenser Wash cycle table 60 min For lightly and normally soiled plates and pans for everyday Hot rinse 1 Hot rinse 2 Hot rinse60 Drying Program Cycle Selection Information Description of Cycle Detergent Premain Running Timemin Energy kWh Water L Intensive Light Crystal Rapid PreRinse For the heaviest soiled loads such as pots pans casserole dishes and dishes that have been sitting with dried food on them for a while For normally soiled loads such as pots plates glasses and lightly soiled pans standard daily cycle For lightly soiled loads such as plates glasses bowls and lightly soiled pans Crystal wash cycle to be used for more delicate items which are sensitive to high temperatures immediately after A shorter wash for lightly soiled loads that do not need drying To rinse dishes that you plan to wash later that day Prewash Main wash60 Rinse1 Rinse2 Hot rinse Drying Prewash Main wash46 Hot rinse Drying Prewash Main wash45 Rinse Hot rinse Drying Rinse Hot rinse Drying Main wash40 Main wash40 Hot rinse Prewash 418 418 316 316 316 60 100 115 E 60436 N Or 3in1 Or 3in1 Or 3in1 Run cycle use 3Washing tableware in a household dishwasher usually consumes less energy and water than hand dishwashing when the household dishwasher is used according to this instruction manual 2Manual prerinsing of tableware items leads to increased water and energy consumption and is not recommended 1The ECO program is suitable to clean normally soiled tablewareit is the most efficent program in terms of its combined energy and water consumption
• Page 10 - English - : WARNING 1 2 WARNING Filtering System The filter is used to avoid the big remnants and other sundries getting inside the pump The residue can obstruct the filter in sometime The filter system consists of a coarse filter a flat Main filter and a micro filter fine filter 1 Flat filter Food and debris will be trapped by a special jet on the lower spray arm 2 Coarse filter Big debris such as bone and glass that could clog the drain will be trapped in the coarse filter To remove an item caught in this filter gently squeeze the taps on the top of this filter and lift it out 3 Micro filter This filter holds soil and food residue in the sump area and prevents it from being redeposit on the dishes during a cycle Inspect the filters for obstructions every time the dishwasher has been used By unscrewing the coarse filter you can remove the filter system Remove any food remnants and clean the filters under running water Step 1contrarotate the Coarse filter and then lift it up Step 2lift the filter upFlat 7 Maintenance and cleaning NOTE to step 1 the filter system will be installed If operate from step 1 to step 2 the filter system will be removed while operate from step 2 Filter assembly For best performance and results the filter assembly must be cleaned The filter efficiently removes food particles from the wash water allowing it to be recirculated during the cycle For this reason it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water To remove the filter assembly pull on the cup handle in the upward direction The entire filter assembly should be cleaned once a week To clean the coarse filter and the micro filter use a cleaning brush Then reassemble the filter parts as shown in the figures above and reinsert the entire assembly in the dishwasher positioning in its seat and pressing downward The dishwasher must never be used without the filters Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils Never run the dishwasher without the filters in place When cleaning the filters dont knock on them Otherwise the filters could be contorted and the performance of dishwasher could be debased Cleaning the Spray Arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings To remove the spray arms screw off the nut clockwise to take out the washer on top of the spray arm and remove the arm Wash the arms in soapy and warm water and use a soft brush to clean the jets Replace them after rinsing thoroughly Caring for the Dishwasher To clean the control panel use a lightly dampened cloth then dry thoroughly To clean the exterior use a good appliance polish wax Never use sharp objects scouring pads or harsh cleaners on any part of the dishwasher Protect Against Freezing If your dishwasher is left in an unheated place during the winter ask a service technical to 1Cut off electrical power to the dishwasher 2Turn off the water supply and disconnect the water inlet pipe from the water valve 3Drain water from the inlet pipe and water valve Use a pan to catch the water 4Reconnect the water inlet pipe to the water valve 5Remove the filter in the tub and the bottom and use a sponge to use up water in sump Cleaning the Door To clean the edge around the door you should use only a soft warm damp rag To prevent penetration of water into the door lock and electrical components do not use a spray cleaner of any kind Also never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the finish Some papers towels can also scratch or leave marks on the surface Never use a spray cleaner to clean the door panel for it could damage the door lock and electrical components It is not allowed to use the abrasive agent or some paper towel because of the risk of scratching or leaving spots on the stainless steel surface If the above chart does not solve your problem contact a dedicated repairman
• Page 11 - English - : How to Keep Your Dishwasher in Shape After Every Wash After every wash turn off the water supply to the appliance and leave the door slightly ajar so that moisture and odors are not trapped inside Remove the Plug Before cleaning or performing maintenance always remove the plug from the socket Do not run risks No Solvents or Abrasive Cleaning To clean the exterior and rubber parts of the dishwasher do not use solvents or abrasive cleaning products Use only a cloth and warm soapy water To remove spots or stains from the surface of the interior use a cloth dampened with water and a little white vinegar or a cleaning product made specifically for dishwashers When You Go on holiday When you go on holiday it is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the socket turn off the water supply and leave the door of the appliance slightly ajar This will help the seals last longer and prevent odors from forming in the appliance Moving the Appliance If the appliance must be moved try to keep it in the vertical position If absolutely necessary it can be positioned on its back Seals One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals Periodic cleaning with a damp sponge will prevent this Attention The installation of the pipes and electrical equipments should be done by professionals Electrical Shock Hazard Disconnect electrical power before installing dishwasher Failure to do so can result in death or electrical shock Warning 8 Troubleshooting Tips ERROR CODES When some malfunctions happen the appliance will display error codes to warn you Codes Meanings Possible Causes Water drainage malfunction E1 E2 E3 E4 E5 E6 E7 Door open Water inlet Water drainage Temperature sensor Overflowleakage Water leakage The door is opened when the dishwasher is operating Water inlet malfunction Temperature sensor malfunction Overflow occursWater leakage occurs Water leakage occurs Heating element Abnormal heating WARNING If overflow occurs turn off the main water supply before calling a service If there is water in the base pan because of an overfill or small leak the water should be removed before restarting the dishwasher Availability of Spare Parts Dependant upon the spare partthese are available for a minimum period of seven years for professional repairers or a minimum of ten years for professional repairers and endusers Contact the Customer Service helpline for assistance
• Page 12 - English - : Stained tub interior Detergent with colorant was used Make sure that the detergent is the one without colorant Dishes and flatware not clean Make sure that the action of the detergent dispenser and spray arms are not blocked by large dishware Improper program Improper basket loading Select a stronger programme Spots and filming on glasses and flatware 1 Extremely hard water 2 Low inlet temperature 3 Overloading the dishwasher 4 Improper loading 5 Old or damp powder detergent 6 Empty rinse agent dispenser 7 Incorrect dosage of detergent To remove spots from glassware 1 Take out all metal utensils out of the dishwasher 2 Do not add detergent 3 Choose the longest cycle 4 Start the dishwasher and allow it to run for about 18 to 22 minutes then it will be in the main wash 5 Open the door to pour 2 cups of white vinegar into the bottom of the dishwasher 6 Close the door and let the dishwasher complete the cycle If the vinegar does not work Repeat as above except use 14 cup 60 mlof citric acid crystals instead of vinegar Before Calling for Service Reviewing the charts on the following pages may make you be free of calling for service Use only the special dishwasher detergent to avoid sudsIf this occurs open the dishwasher and let suds evaporate Add 1 gallon of cold water to the tub Close and latch the dishwasher then start the quotprerinsequot wash cycle to drain out the water Repeat if necessary Problem Dishwasher doesnt run Drain pump doesnt stop Noise Suds in the tub Possible Causes What To Do Spilled rinse agent Always wipe up rinse agent spills immediately Fuse blown or the circuit breaker acted Power supply is not turned on Water pressure is low Overflow The system is designed to detect an overflow When it does it shuts off the circulation pump and turns on the drain pump Some audible sounds are normal Utensils are not secure in the baskets or something small has dropped into the basket Motor hums Improper detergent Dishwasher has not been used regularly If you do not use it often remember to set it to fill and pump out every week which will help keep the seal moist To ensure everything is secured in the dishwasher Sound from detergent cup opening Check that the water supply is connected properly and the water is turned on Make sure the dishwasher is turned on and the door is closed securely Make sure the power cord is properly plugged into the wall socket Replace fuse or reset circuit breaker Remove any other appliances sharing the same circuit with the dishwasher Cloudiness on glassware Combination of soft water and too much detergent Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean Yellow or brown film on inside surfaces White film on inside surface The Detergent dispenser lid cannot be closed properly Detergent left in dispenser cups Steam Black or gray marks on dishes Water standing on the bottom of the tub Iron deposits in water can cause an overall film Dishes block detergent Cups Using a solution of 12 cup of bleach and 3 cups of warm water to remove the stains by hand WARNING You have to wait for 20 minutes after a cycle to let the heating elements cool down before cleaning interior otherwise burns will happen To clean the interior use a damp sponge with dishwasher detergent and wear rubber gloves Never use any other cleaner than dishwasher detergent for the risk of foaming or suds Hard water minerals Clogged detergent residue is blocking the catch Tea or coffee stains A small amount of clean water around the outlet on the tub bottom keeps the water seal lubricated Use a mild abrasive cleaner to eliminate those marks There is some steam coming through the vent by the door latch during drying and water draining Reloading the dishes properly Clean the detergent from the catch You have to call a water softener company for a special filter This is normal Aluminum utensils have rubbed against dishes Normal phenomenon Dishwasher leaks Dishwasher isnt level Make sure the dishwasher is level Be careful not to overfill the rinse aid dispenser Spilled rinse aid could cause oversudsing and lead to overflowing Wipe away any spills with a damp cloth Overfill dispenser or rinse aid spills If the above chart does not solve your problem contact a dedicated repairman Selfmaintenance unprofessional maintenance will affect the safety of the product use affect the implementation of the warranty policy Customer helpline toll free www
• Page 13 - English - : Technical Data Sheet Sheet of household dishwasher according to EU Directive 20192017 The device meets the European standards and the directives in the current version at delivery LVD 201435EU EMC 201430EU EUP 20192022 NOTE The above values have been measured in accordance with standards under specified operating conditions Results may vary greatly according to quantity and pollution of the dishes water hardness amount of detergent etc Technical Data Sheet The manual is based on the European Unions standards and rules Manufacture Standard place settings Model Energy efficiency class 1 PARAMETER Eco programme energy consumption EPEC rounded to three decimal places Standard programme energy consumption SPEC rounded to three decimal places Energy Efficiency Index EEI Eco programme water consumption EPWC rounded to one decimal place Cleaning performance index IC Drying performance index ID Duration of the eco programme Tt rounded to the nearest minute Power consumption in offmode Po rounded to two decimal places Power consumption in standby mode Psm rounded to two decimal places Does standby mode include the display of information Power consumption in standby mode Psm in condition of networked standby if applicable rounded to two decimal places Power consumption in delay start Pds if applicable rounded to two decimal places Airborne acoustical noise emissions Mounting Could be built in Height Width Depth with connectors Power consumption Rated voltage frequency Water pressure flow pressure D UNIT kWhcycle kWhcycle lcycle hmin W W VALUE No W W dBA re 1 pW Freestanding Yes 815cm 596cm 558cm 1850 W AC 220240 V 50Hz 04 10bar0 04 1 0MPa Hisense HV603 40UKD NOTE 1 Ahighest efficiency to Glowest efficiency
