Digital Still Camera DSC-RX100
How to Use
Before Use
Names of parts
Checking the camera and the supplied items [1]
Identifying parts [2]
Icons and indicators
List of icons on the screen [3]
Using the strap
Using the wrist strap [4]
Using the shoulder strap (sold separately) [5]
Using guides
In-Camera Guide [6]
Shooting tips [7]
Preparing the camera
Charging the battery pack
Inserting the battery pack into the camera [8]
Charging the battery pack while it is inserted in the camera [9]
Charging by connecting to a computer [10]
Battery life and the number of images that can be recorded/played back using a battery
pack [11]
Supplying power from a wall outlet (wall socket) [12]
Removing the battery pack [13]
Inserting a memory card (sold separately)
Inserting a memory card [14]
Removing the memory card [15]
Usable memory cards [16]
Setting the language, date and time
Setting language, date and time [17]
Confirming the operation method
Confirming the operation method
Using the control wheel [18]
Using the control ring [19]
Using MENU items [20]
Using the Fn (Function) button [21]
Shooting
Shooting still images/movies
Shooting still images [22]
Shooting movies [23]
Selecting a shooting mode
List of mode dial functions [24]
Intelligent Auto [25]
Superior Auto [26]
About Scene Recognition [27]
The advantages of automatic shooting [28]
Program Auto [29]
Sweep Panorama [30]
Scene Selection [31]
Shutter Priority [32]
Aperture Priority [33]
Manual Exposure [34]
BULB [35]
Memory recall [36]
Movie [37]
Using shooting functions
Using the zoom
Zoom [38]
The zoom features available with this product [39]
Zoom Setting [40]
About zoom scale [41]
Using the flash
Using flash [42]
Flash Mode [43]
Flash Comp. [44]
Selecting a screen display mode
Switching the screen display (Shooting) [45]
DISP Button [46]
Selecting still image size/image quality
Image Size (still image) [47]
Aspect Ratio (still image) [48]
Quality (still image) [49]
Panorama: Size [50]
Panorama: Direction [51]
Adjusting the focus
Focus Mode [52]
Focus Area [53]
Center Lock-on AF [54]
Focus-lock [55]
Manual Focus [56]
Direct manual focus (DMF) [57]
MF Assist (still image) [58]
Focus Magnifier [59]
Focus Magnif. Time [60]
Peaking Level [61]
Peaking Color [62]
AF/MF control [63]
AF Illuminator (still image) [64]
Adjusting the exposure
Exposure Comp. [65]
Metering Mode [66]
AE lock [67]
Selecting a drive mode (Continuous shooting/Self-timer)
Drive Mode [68]
Cont. Shooting [69]
Spd Priority Cont. [70]
Self-timer [71]
Self-portrait [72]
Self-timer(Cont) [73]
Cont. Bracket [74]
WB bracket [75]
Selecting the ISO sensitivity
ISO [76]
Multi Frame NR [77]
Correcting the brightness or contrast
D-Range Opt. (DRO) [78]
Auto HDR [79]
Adjusting color tones
White Balance [80]
Capturing a basic white color in [Custom Setup] mode [81]
Selecting an effect mode
Picture Effect [82]
Creative Style [83]
Recording movies
File Format (movie) [84]
Record Setting (movie) [85]
Capturing still images while recording movies (Dual Rec) [86]
Img. Size(Dual Rec) [87]
SteadyShot (movie) [88]
Audio Recording [89]
Wind Noise Reduct. [90]
MOVIE Button [91]
Customizing the shooting functions for convenient use
Memory [92]
Function Menu Set. [93]
Custom Key Settings [94]
Function of the control ring [95]
Function of the Center button [96]
Function of the Left button [97]
Function of the Right button [98]
Setting the other functions of this product
Photo Creativity [99]
Smile/Face Detect. [100]
Soft Skin Effect (still image) [101]
Face Registration (New Registration) [102]
Face Registration (Order Exchanging) [103]
Face Registration (Delete) [104]
Red Eye Reduction [105]
Auto Obj. Framing (still image) [106]
SteadyShot (still image) [107]
Long Exposure NR (still image) [108]
High ISO NR (still image) [109]
Write Date (still image) [110]
Shooting Tip List [111]
Color Space (still image) [112]
Grid Line [113]
Auto Review [114]
Viewing
Viewing still images
Playing back images [115]
Playback zoom [116]
Image Index [117]
Switching the screen display (during playback) [118]
Deleting images
Deleting a displayed image [119]
Deleting multiple selected images [120]
Playing back movies
Playing back movies [121]
Viewing panoramic images
Playing back panoramic images [122]
Printing
Specify Printing [123]
Using viewing functions
View Mode [124]
Display Rotation [125]
Slide Show [126]
Protect [127]
Viewing images on a TV
Viewing images on an HD TV [128]
Viewing images on a “BRAVIA” Sync-compatible TV [129]
Changing settings
Setup menu
Monitor Brightness [130]
Volume Settings [131]
Audio signals [132]
Upload Settings(Eye-Fi) [133]
Mode Dial Guide [134]
Pwr Save Start Time [135]
Demo Mode [136]
HDMI Resolution [137]
CTRL FOR HDMI [138]
USB Connection [139]
USB LUN Setting [140]
USB Power Supply [141]
Language [142]
Date/Time Setup [143]
Area Setting [144]
Format [145]
File Number [146]
Select REC Folder [147]
New Folder [148]
Recover Image DB [149]
Display Media Info. [150]
Version [151]
Setting Reset [152]
Using a computer
Recommended computer environment
Recommended computer environment [153]
Using the software
PlayMemories Home [154]
Installing PlayMemories Home [155]
Software for Mac computers [156]
Image Data Converter [157]
Installing Image Data Converter [158]
Accessing Image Data Converter Guide [159]
Connecting this product and a computer
Connecting the product to a computer [160]
Importing images to the computer [161]
Disconnecting the product from the computer [162]
Creating a movie disc
Selecting a disc to be created [163]
Creating Blu-ray Discs from high-definition image quality movies [164]
Creating DVD discs (AVCHD recording discs) from high-definition image quality movies
[165]
Creating DVD discs from standard image quality movies [166]
Precautions/This product
Precautions
Precautions [167]
On the internal rechargeable battery [168]
Notes on the battery pack [169]
Charging the battery pack [170]
Notes on memory card [171]
Cleaning this product
On cleaning [172]
Number of recordable still images and recordable time of
movies
Number of still images [173]
Recordable time of movies [174]
Using this product abroad
Using the AC Adaptor/battery charger abroad [175]
On TV color systems [176]
Other information
ZEISS lens [177]
AVCHD format [178]
License [179]
Trademarks
Trademarks [180]
Troubleshooting
If you have problems
If you have problems
Troubleshooting [181]
Messages
Messages
Self-diagnosis display [182]
Warning messages [183]
[1] How to Use Before Use Names of parts
Checking the camera and the supplied items
The number in parentheses indicates the number of pieces.
Camera (1)
NP-BX1 Rechargeable battery pack (1)
Micro USB Cable (1)
AC Adaptor (1)
Power cord (mains lead) (1)* (supplied in some countries/regions)
*
Multiple power cords may be supplied with your camera. Use the appropriate one that
matches your country/region.
Wrist Strap (1)
Strap adapter (2)
Instruction Manual (1)
Reference Guide (1)
[2] How to Use Before Use Names of parts

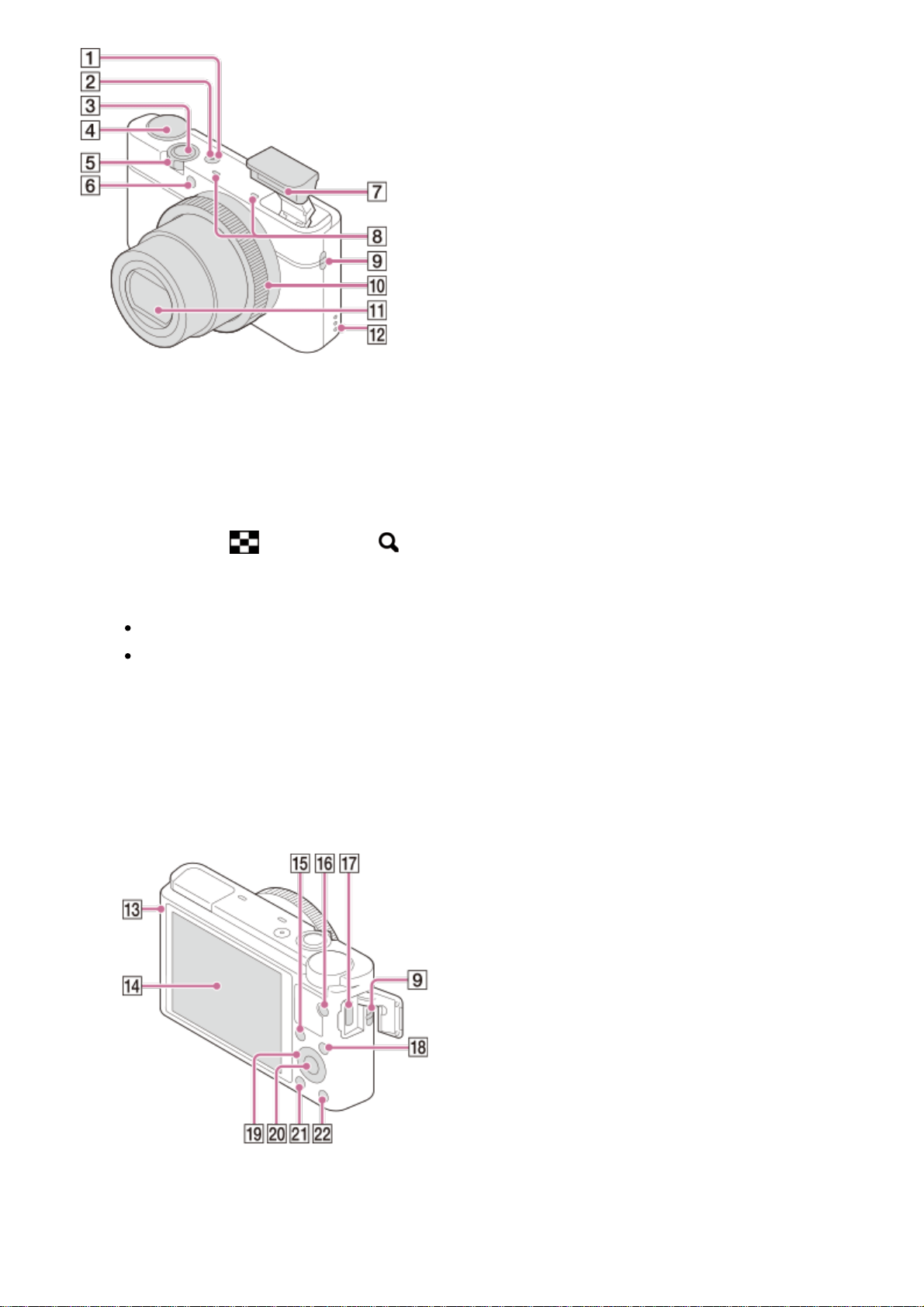

Identifying parts
1. ON/OFF (Power) button
2. Power/Charge lamp
3. Shutter button
4. Mode dial
5. For shooting: W/T (zoom) lever
For viewing: (Index) lever/ (Playback zoom) lever
6. Self-timer lamp/Smile Shutter lamp/AF Illuminator
7. Flash
Do not cover the flash with your finger.
When using the flash, the flash pops up automatically. If not using the flash, press it
down manually.
8. Microphone
9. Hook for strap
10. Control ring
11. Lens
12. Speaker
13. Light sensor
14. Monitor
15. Fn (Function) button
16. MOVIE (Movie) button
17. Micro USB connector
18. MENU button
19. Control wheel
20. Center button
21. (Playback) button
22. / (In-Camera Guide/Delete) button
23. Battery insertion slot
24. Battery lock lever
25. Tripod socket hole
Use a tripod with a screw less than 5.5 mm (7/32 inches) long. Otherwise, you
cannot firmly secure the camera, and damage to the camera may occur.
26. Access lamp
27. Memory card slot
28. HDMI micro jack
29. Battery/Memory card cover
[3] How to Use Before Use Icons and indicators
List of icons on the screen
The displayed contents and their positions shown below are just a guideline, and may differ
from the actual display.
For shooting
For playback
1. P P* A S M
Shoot Mode
Memory recall
NO CARD
Memory card/Upload
Scene Recognition icons
Scene Selection
100
Remaining number of recordable images
Aspect ratio of still images
20M / 18M / 17M / 13M / 10M / 7.5M / 6.5M / 5.0M / 4.2M / 3.7M / 3.2M /
VGA
Image size of still images
Image quality of still images
Frame rate of movies
Record setting of movies
Remaining battery
Remaining battery warning
Flash charge in progress
AF Illuminator
SteadyShot Off/On, Camera shake warning
Overlay icon
No audio recording of movies
Wind Noise Reduct.
Write Date
Database file full/Database file error
Overheating warning
Smart Zoom/ Clear Image Zoom/Digital Zoom
Spot metering area
C:32:00
Self-diagnosis display
Digital level gauge
View Mode
100-0003
Folder-File number
File format of movies
Protect
DPOF
DPOF set
Auto object framing image
Writing data
CAPTURE
Capturing still image
Unable to shoot Still images
2.
Drive Mode
Metering Mode
Flash Mode/Red Eye Reduction
±0.0
Flash Comp.
Focus Mode
7500K A5 G5
White Balance
Focus Area
DRO/Auto HDR
Soft Skin Effect
+3 +3 +3
Creative Style/Contrast, Saturation, Sharpness
Smile/Face Detect.
Picture Effect
Smile detection sensitivity indicator
3. Lock-on AF
Lock-on AF Cancel
Guide display for Lock-on AF
Switch Av/Tv
Guide display for switching aperture value and shutter speed
REC 0:12
Recording time of the movie (m:s)
Control ring function
Control wheel function
Focus
1/250
Shutter speed
F3.5
Aperture Value
±0.0
Metered Manual
±0.0
Exposure compensation
ISO400
ISO sensitivity
AE lock
Shutter speed indicator
Aperture indicator
Histogram
Picture Effect error
Auto HDR image warning
2017-1-1
10:37AM
Date of recording
3/7
File number/Number of images in the view mode
[4] How to Use Before Use Using the strap
Using the wrist strap
Attach the wrist strap and place your hand through the loop to prevent damage caused by
dropping the product.
[5] How to Use Before Use Using the strap
Using the shoulder strap (sold separately)
Attach the shoulder strap to prevent damage caused by dropping the product.
1. Attach the strap adaptors to the strap hooks on either side of the product.
2. Attach the shoulder strap (sold separately) to the strap adaptors.
[6] How to Use Before Use Using guides
In-Camera Guide
The [In-Camera Guide] displays descriptions of MENU items, Fn (Function) button, and
settings, and if a function cannot be set, the reason why.
1. Press the MENU or Fn button.
2. Select the desired MENU item using up/down/left/right side on the control wheel.
3. Press the / (In-Camera Guide/Delete) button.
The operation guide for the MENU item you have selected in step 2 is displayed.
If you press the center button after selecting an item shown in gray, the reason the
item cannot be set is displayed.
[7] How to Use Before Use Using guides
Shooting tips
The camera displays shooting tips for the selected shooting mode.
1. Press the / (In-Camera Guide/Delete) button in one of the shooting modes.
2. Select a shooting tip by pressing the top/bottom of the control wheel, and then press
the center button.
The shooting tip will be displayed.
You can scroll using the top/bottom of the control wheel.
You can browse other shooting tips using the left/right side of the control wheel.
Hint
You can display all the shooting tips by selecting MENU → (Camera Settings) →
[Shooting Tip List]. Use [Shooting Tip List] when you want to review shooting tips that you
have seen before.
[8] How to Use
Preparing the camera Charging the battery pack
Inserting the battery pack into the camera
How to insert the battery pack into the camera
1. Open the battery/memory card cover.
2. Insert the battery pack while pressing the battery lock lever (A) with the tip of the
battery until the battery locks into place.
3. Close the cover.
[9] How to Use Preparing the camera Charging the battery pack
Charging the battery pack while it is inserted in the
camera
When using the camera for the first time, be sure to charge the battery pack. The charged
battery pack will discharge little by little, even if you do not use it. To avoid missing a
shooting opportunity, charge the battery pack before shooting.
1. Turn the power off.
2. Connect the camera with the battery pack inserted to the AC Adaptor (supplied) using
the micro USB cable (supplied), and connect the AC Adaptor to the wall outlet (wall
socket).
Charge lamp
Lit: Charging
Off: Charging finished
Flashing: Charging error or charging paused temporarily because the camera is not
within the proper temperature range
If the charge lamp lights up once and then immediately turns off, the battery pack is
fully charged.
Charging time (Full charge)
The charging time is approximately 155 min. using the AC Adaptor (supplied).
The charging time may differ depending on the remaining capacity of the battery pack or
the charging conditions.
The battery pack can be charged even when it is not fully depleted.
The above charging time applies when charging a fully depleted battery pack (supplied) at
a temperature of 25°C (77°F). Charging may take longer depending on the conditions of
use and the environment.
Note
If the charge lamp flashes when the battery pack is not fully charged, remove the battery
pack or disconnect the USB cable from the camera and then re-insert it to recharge.
If the charge lamp on the camera flashes when the AC Adaptor is connected to the wall
outlet (wall socket), this indicates that charging is temporarily stopped because the
temperature is outside the recommended range. When the temperature gets back within
the appropriate range, the charging resumes. We recommend charging the battery pack
at an ambient temperature of between 10°C to 30°C (50ºF to 86ºF).
Use a nearby wall outlet (wall socket) when using the supplied or recommended AC
Adaptor/battery charger. If any malfunction occurs while using this product, disconnect the
plug from the wall outlet (wall socket) immediately to disconnect from the power source. If
you use the product with a charge lamp, note that the product is not disconnected from
the power source even when the lamp turns off.
When you use a completely new battery pack or a battery pack that has not been used for
a long time, the charge lamp may flash quickly when the battery is charged. If this
happens, remove the battery pack or disconnect the USB cable from the camera and then
re-insert it to recharge.
Do not continuously or repeatedly charge the battery pack without using it if it is already
fully charged or close to fully charged. Doing so may cause a deterioration in battery
performance.
When charging is finished, disconnect the AC Adaptor from the wall outlet (wall socket).
Be sure to use only genuine Sony brand battery packs, micro USB cables (supplied) and
AC Adaptors (supplied).
[10] How to Use
Preparing the camera Charging the battery pack
Charging by connecting to a computer
The battery pack can be charged by connecting the camera to a computer using a micro
USB cable.
1. Turn off the product, and connect to the USB terminal of the computer.
Note
Note the following points when charging via a computer:
If the product is connected to a laptop computer that is not connected to a power source, the
laptop battery level decreases. Do not leave the product connected to a laptop computer for an
extended period of time.
Do not turn on/off or restart the computer, or wake the computer from sleep mode when a USB
connection has been established between the computer and the camera. Doing so may cause a
malfunction. Before turning on/off or restarting the computer, or waking the computer from sleep
mode, disconnect the camera from the computer.
Proper operation cannot be guaranteed on all types of computers.
Charging cannot be guaranteed with a custom-built computer, modified computer, or a computer
connected through a USB hub.
The camera may not operate correctly when other USB devices are used at the same time.
[11] How to Use Preparing the camera Charging the battery pack
Battery life and the number of images that can be
recorded/played back using a battery pack
Shooting (still images):
Battery life: approx. 165 min., Number of images: approx. 330
Viewing (still images):
Battery life: approx. 250 min., Number of images: approx. 5000
Shooting (movies):
Battery life: approx. 80 min.
Note
The above estimates for battery life and number of recordable images apply when the
battery pack has been fully charged. The battery life and number of images may decrease
depending on the conditions of use.
The battery life and number of recordable images are estimates based on shooting with
the default settings under the following conditions:
Using the battery pack at an ambient temperature of 25°C (77°F).
Using Sony Memory Stick PRO Duo (Mark2) media (sold separately)
The numbers for “Shooting (still images)” are based on the CIPA standard and shooting
under the following conditions (CIPA: Camera & Imaging Products Association):
One picture is taken every 30 seconds.
The power is turned on and off once every ten times.
The flash strobes once for every two times.
The zoom is switched alternately between the W and T ends.
The number of minutes for movie shooting is based on the shooting under the following
conditions:
The image quality is set to AVCHD 60i 17M (FH)/50i 17M (FH).
Battery life based on non-stop shooting until the limit (29 minutes) has been reached, and then
continued by pressing the MOVIE (Movie) button again. Other functions, such as zooming, are not
operated.
[12] How to Use Preparing the camera Charging the battery pack
Supplying power from a wall outlet (wall socket)
The camera can be supplied with power from the wall outlet (wall socket) by connecting to
the AC Adaptor (supplied), using the micro USB cable (supplied). This way, you do not need
to worry about draining the battery when shooting or playing back for extended periods of
time. Shooting and playback are possible without a battery pack in the camera.
[13] How to Use Preparing the camera Charging the battery pack
Removing the battery pack
How to remove the battery pack
1. Make sure that the access lamp is not lit, and turn off the camera.
2. Open the battery/memory card cover.
3. Slide the battery lock lever (A) and remove the battery pack.
Be careful not to drop the battery pack.
[14] How to Use Preparing the camera Inserting a memory card (sold separately)
Inserting a memory card
How to insert a memory card
1. Open the battery/memory card cover.
2. Insert the memory card.
Ensure that the notched corner is facing in the correct direction.
With the notched corner facing in the direction illustrated, insert the memory card
until it clicks into place.
3. Close the cover.
Hint
When you use a memory card with this product for the first time, it is recommended that
you format the card using the product for stable performance of the memory card.
[15] How to Use
Preparing the camera Inserting a memory card (sold separately)
Removing the memory card
How to remove the memory card
1. Open the battery/memory card cover.
2. Make sure that the access lamp (A) is not lit.
3. Push in on the memory card once to remove it.
4. Close the cover.
[16] How to Use Preparing the camera Inserting a memory card (sold separately)
Usable memory cards
You can use the following types of memory cards with this camera.
For movies, refer to “Memory cards that can be used for movie recording” on this page.
Usable Memory Stick media
Memory Stick PRO Duo / Memory Stick PRO Duo (Mark2)
Memory Stick PRO-HG Duo
Memory Stick Micro (M2)
Memory Stick Micro (M2) (Mark2)
*Memory Stick media with a capacity of up to 32 GB have been tested and proven to operate
with this camera.
Usable SD cards
SD memory card
SDHC memory card
SDXC memory card
microSD memory card
microSDHC memory card
microSDXC memory card
*SD cards with a capacity of up to 256 GB have been tested and proven to operate with this
camera.
Memory cards that can be used for movie recording
Memory Stick PRO Duo (Mark2)
Memory Stick PRO-HG Duo
Memory Stick Micro (M2) (Mark2)
SD memory card / microSD memory card (SD Speed Class 4 or faster)
SDHC memory card / microSDHC memory card (SD Speed Class 4 or faster)
SDXC memory card / microSDXC memory card (SD Speed Class 4 or faster)
Note
Not all memory cards are guaranteed to operate correctly.
When you use a memory card with the camera for the first time, it is recommended that
you format the card on the camera before use for more stable performance of the memory
card.
Note that formatting erases all data on the memory card permanently, and is irreversible.
Save valuable data on a computer, etc.
Images recorded on an SDXC memory card cannot be imported to or played on
computers or AV devices that are not compatible with exFAT when connected using a
micro USB cable. Make sure that the device is compatible with exFAT before connecting
it to the camera. If you connect your camera to an incompatible device, you may be
prompted to format the card. Never format the card in response to this prompt, as doing
so will erase all data on the card. (exFAT is the file system used on SDXC memory
cards.)
This camera does not support UHS-I high-speed transferring.
[17] How to Use Preparing the camera Setting the language, date and time
Setting language, date and time
When you turn on the camera for the first time or after you have initialized the functions, the
setting screen for language, date and time will appear.
1. Turn on the camera.
The language setting screen will appear and then setting screen for date and time will
appear.
2. Select your language, and then press the center of the control wheel.
3. Check that [Enter] is selected on the screen, then press the center on the control
wheel.
4. Select your desired geographic location, and then press the center of the control wheel.
5. Select a setting item using the up/down side of the control wheel or by turning the
control wheel, then press the center.
6. Set [Daylight Savings], [Date/Time], and [Date Format] using the up/down/left/right
sides, then press the center.
Midnight is indicated as 12:00 AM, and noon as 12:00 PM.
7. Repeat steps 5 and 6 to set other items, then select [Enter] and press the center.
To cancel the date and time setting procedure, press the MENU button.
Note
If the date and time setting is cancelled halfway, the setting screen for the date and time
appears every time you turn on the camera.
[18] How to Use
Confirming the operation method Confirming the operation method
Using the control wheel
You can select setting items by turning or pressing the top/bottom/right/left side of the control
wheel. Your selection is determined when you press the center of the control wheel.
The DISP (Display Setting), (Exposure Comp./Photo Creativity), / (Drive
Mode), (Flash Mode) functions are assigned to the top/bottom/left/right sides of the
control wheel. You can assign functions to the left/right sides of the control wheel or to the
center button.
During playback, you can display the next/previous image by pressing the right/left side of
the control wheel or by turning the control wheel.
[19] How to Use Confirming the operation method Confirming the operation method
Using the control ring
By turning the control ring (A), you can change the desired settings instantly for various
shooting modes.
You can also allocate frequently used functions to the control ring by selecting MENU →
(Custom Settings) → [Custom Key Settings] → [Control Ring].
Icons and function names are displayed on the screen as follows.
Ex.
: Adjust zoom by turning the control ring.
[20] How to Use Confirming the operation method Confirming the operation method
Using MENU items
In this section, you learn how to change settings related to all camera operations and
execute camera functions including shooting, playback, and operation methods.
1. Press MENU button to display the MENU items.
2. Select the desired setting item by pressing the up/down/left/right side on the control
wheel or by turning the control wheel, and then press the center of the control wheel.
Select an icon at the top of the screen and press the left/right side of the control
wheel to move to another MENU item.
3. Select the desired setting value, and press the center to confirm.
[21] How to Use Confirming the operation method Confirming the operation method
Using the Fn (Function) button
You can register frequently used functions to the Fn (function) button and recall them while
shooting. Up to 12 frequently used functions can be registered to the Fn (Function) button.
1. Press the Fn button in shooting mode.
2. Select a function to be registered by pressing the up/down/left/right side of the control
wheel.
3. Set the desired setting by turning the control wheel.
Some functions can be fine-tuned using the control ring.
Performing settings on the dedicated screen
Select the desired function in step 2, then press the center of the control wheel. The
dedicated setting screen for the function appears. Follow the operating guide (A) to perform
the settings.
[22] How to Use Shooting Shooting still images/movies
Shooting still images
Shoots still images.
1. Set the shooting mode to (Intelligent Auto).
2. Hold the camera steady, with your arms against your body, and compose your shot.
3. Press the shutter button halfway down to focus.
When the image is in focus, a beep sounds and the focus indicator ( ) lights.
The shortest shooting distance is approximately 5 cm (0.16 ft) (W), 55 cm (1.8 ft) (T)
(from the lens).
4. Press the shutter button fully down.
Focus indicator
lights:
Image is in the focus.
flashes:
The focusing has failed.
lights:
Image is in the focus. The focused position will change to suit the motion of the subject.
lights:
The focusing is in progress.
Hint
When the product cannot focus automatically, the focus indicator flashes and the beep
does not sound. Either recompose the shot or change the focus setting. When
[Continuous AF] is set, the beep does not sound when focus is achieved.
Focusing may be difficult in the following situations:
It is dark and the subject is distant.
The contrast of the subject is poor.
The subject is seen through glass.
The subject is moving quickly.
There is reflective light or shiny surfaces.
There is a flashing light.
The subject is backlit.
The subjects in the focus area have different focal distances.
[23] How to Use Shooting Shooting still images/movies
Shooting movies
You can record movies by pressing the MOVIE (Movie) button.
1. Press the MOVIE button to start recording.
2. Press the MOVIE button again to stop recording.
Note
To adjust the shutter speed and aperture value to the desired settings, set the shooting
mode to (Movie).
If you use a function such as zoom while shooting a movie, the noise of the lens operating
will be recorded. The sound of the MOVIE button operating may also be recorded when
you press the MOVIE button to stop recording.
For the continuous shooting time of a movie recording, refer to “Recordable time of
movies.” When movie recording is finished, you can restart recording by pressing the
MOVIE button again. Recording may stop to protect the product, depending on the
temperature of the product or the battery.
[24] How to Use
Shooting Selecting a shooting mode
List of mode dial functions
You can select the desired shooting mode by turning the mode dial.
Available functions
(Intelligent Auto):
Allows you to shoot with automatic scene recognition.
(Superior Auto):
Allows you to shoot with automatic scene recognition. This mode takes clear images of dark
or backlit scenes.
(Program Auto):
Allows you to shoot with the exposure adjusted automatically (both the shutter speed and
the aperture value (F value)). Also you can select various settings using the menu.
(Aperture Priority):
Allows you to adjust the aperture and shoot when you want to blur the background, etc.
(Shutter Priority):
Allows you to shoot fast-moving subjects etc., by manually adjusting the shutter speed.
(Manual Exposure):
Allows you to shoot still images with the desired exposure by adjusting the exposure (both
the shutter speed and the aperture value (F value)).
MR (Memory recall):
Allows you to shoot an image after recalling often-used modes or numeric settings
registered in advance.
(Movie):
Allows you to change the setting for movie recording.
(Sweep Panorama):
Allows you to shoot a panoramic image by compositing the images.
SCN (Scene Selection):
Allows you to shoot with preset settings according to the scene.
[25] How to Use Shooting Selecting a shooting mode
Intelligent Auto
The camera shoots with automatic scene recognition.
1. Set the mode dial to (Intelligent Auto).
2. Point the camera to the subject.
When the camera recognized the scene, the icon for the recognized scene appears on
the screen.
3. Adjust the focus and shoot the image.
Note
The product will not recognize the scene when you shoot images with zoom functions
other than optical zoom.
The product may not properly recognize the scene under certain shooting conditions.
[26] How to Use
Shooting Selecting a shooting mode
Superior Auto
The camera shoots with automatic scene recognition. This mode takes clear images of dark
or backlit scenes.
For low-lit or backlit scenes, if necessary the camera may shoot multiple images and create
a composite image, etc., to record higher quality images than in Intelligent Auto mode.
1. Set the mode dial to (Superior Auto).
2. Point the camera to the subject.
When the camera recognizes a scene, the scene recognition icon appears on the
screen. If necessary, (overlay icon) may appear.
3. Adjust the focus and shoot the image.
Note
When the product is used to create composite images, the recording process takes longer
than usual.
The product will not recognize the scene when you use zoom functions other than optical
zoom.
The product may not properly recognize a scene under some shooting conditions.
When [ Quality] is set to [RAW] or [RAW & JPEG], the product cannot create a
composite image.
[27] How to Use
Shooting Selecting a shooting mode
About Scene Recognition
Scene Recognition operates in [Intelligent Auto] mode and [Superior Auto] mode.
This function allows the product to automatically recognize the shooting conditions and
shoot the image.
Scene Recognition:
When the product recognizes certain scenes, the following icons and guides are displayed
on the first line:
(Portrait)
(Infant)
(Night Portrait)
(Night Scene)
(Backlight Portrait)
(Backlight)
(Landscape)
(Macro)
(Spotlight)
(Low Light)
When the product recognizes certain conditions, the following icons are displayed on the
second line:
(Tripod)
(Walk)
*
(Move)
(Move (Bright))
(Move (Dark))
*
The condition (Walk) is recognized only when [ SteadyShot] is set to [Active].
Note
When [Smile/Face Detect.] is set to [Off], the [Portrait], [Backlight Portrait], [Night Portrait]
and [Infant] scenes are not recognized.
[28] How to Use
Shooting Selecting a shooting mode
The advantages of automatic shooting
This camera is equipped with the following three automatic shooting modes: [Intelligent
Auto], [Superior Auto], and [Program Auto].
(Intelligent Auto):
Allows you to shoot with automatic scene recognition.
(Superior Auto):
Allows you to shoot with automatic scene recognition. This mode takes clear images of dark
or backlit scenes.
P (Program Auto):
Allows you to adjust various shooting settings such as white balance or ISO value, etc.
Aperture value and shutter speed are automatically set by the camera.
Hint
In [Superior Auto] mode and when the (overlay icon) is displayed, be sure not to
move the camera before the multiple shots are recorded.
In [Program Auto] mode, you can change the combination of shutter speed and aperture
value while maintaining the correct exposure by turning the control wheel. This function is
called "Program Shift" (P*).
Note
In [Superior Auto] mode, the recording process takes longer, since the product creates a
composite image. In this case, the (overlay icon) is displayed and the shutter sound
is heard multiple times, but only one image is recorded.
For [Intelligent Auto] and [Superior Auto] mode, most of the functions are set
automatically, and you cannot adjust the settings on your own.
[29] How to Use
Shooting Selecting a shooting mode
Program Auto
Allows you to shoot with the exposure adjusted automatically (both the shutter speed and
the aperture value).
You can set shooting functions such as [ISO].
1. Set the mode dial to P (Program Auto).
2. Set the shooting functions to your desired settings.
3. Adjust the focus and shoot the subject.
Program Shift
You can change the shutter speed and aperture (F-value) combination by rotating the
control wheel, without changing the appropriate exposure that is set by this product. This
function is available when [Flash Mode] is set to [Flash Off].
“P” on the screen changes to “P*” when you turn the control wheel.
To cancel program shift, set the shooting mode to other than [Program Auto], or turn off
the camera.
Note
According to the brightness of the environment, the program shift may not be used.
Set the shooting mode to another one than “P” or turn off the power to cancel the setting
you made.
When the brightness changes, the aperture (F-value) and shutter speed also change
while maintaining the shift amount.
[30] How to Use
Shooting Selecting a shooting mode
Sweep Panorama
Allows you to create a single panoramic image from multiple images shot while panning the
camera.
1. Set the mode dial to (Sweep Panorama).
2. Point the camera at the subject.
3. While pressing the shutter button halfway down, aim the camera at one end of the
desired panoramic composition.
(A) This part will not be shot.
4. Press the shutter button fully down.
5. Pan the camera to the end of the guide in the direction of the arrow on the monitor.
(B) Guidance bar
Note
If the entire angle of the panoramic shot is not achieved within the set time, a gray area
occurs in the composite image. If this happens, move the product faster to record the full
panoramic image.
When [Wide] is selected for [Panorama: Size], the entire angle of the panoramic shot may
not be achieved within the given time. If this happens, try shooting after changing
[Panorama: Size] to [Standard].
Since several images are stitched together, the stitched part may not be recorded
smoothly in some cases.
The images may be blurred in dark scenes.
When a light source such as a fluorescent light flickers, the brightness and color of a
stitched image may not be consistent.
When the whole angle of panoramic shooting and the AE/AF locked angle are very
different in brightness and focus, the shooting may not be successful. If this happens,
change AE/AF locked angle and shoot again.
The following situations are not suited for shooting Sweep Panorama:
Moving subjects.
Subjects that are too close to the product.
Subjects with continuously similar patterns, such as the sky, beach, or a lawn.
Subjects with constant change such as waves or water falls.
Subjects with brightness widely different from its surroundings such as the sun or a light bulb.
The Sweep Panorama shooting may be interrupted in the following situations.
When the camera is panned too fast or too slow.
The subject is too blurry.
Hint
You can turn the control wheel on the shooting screen to select the shooting direction.
[31] How to Use
Shooting Selecting a shooting mode
Scene Selection
Allows you to shoot with preset settings according to the scene.
1. Set the mode dial to SCN (Scene Selection).
2. Turn the control wheel to select the desired setting.
When [Mode Dial Guide] is set to [On], you can select the desired settings after you
have changed the position of the mode dial.
Menu item details
Portrait:
Blurs background and sharpens the subject. Accentuates the skin tones softly.
Sports Action:
Shoots a moving subject at a fast shutter speed so that the subject looks as if it is standing
still. The product shoots images continuously while the shutter button is pressed.
Macro:
Shoots close-ups of the subjects, such as flowers, insects, food, or small items.
Landscape:
Shoots the entire range of a scenery in sharp focus with vivid colors.
Sunset:
Shoots the red of the sunset beautifully.
Night Scene:
Shoots night scenes without losing the dark atmosphere.
Hand-held Twilight:
Shoots night scenes with less noise and blur without using a tripod. A burst of shots are
taken, and image processing is applied to reduce subject blur, camera-shake, and noise.
Night Portrait:
Shoots night scene portraits using the flash.
Anti Motion Blur:
Allows you to shoot indoor shots without using the flash and reduces subject blur. The
product shoots burst images and combines them to create the image, reducing subject blur
and noise.
Pet:
Allows you to shoot images of your pet with the best settings.
Gourmet:
Allows you to shoot food arrangements in delicious and bright colors.
Fireworks:
Allows you to shoot images of fireworks in all their splendor.
High Sensitivity:
Allows you to shoot still images even in dark locations without using the flash, and reduces
subject blur. Also allows you to shoot dark movie scenes more brightly.
Note
Under the following settings, the shutter speed is slower, so use of a tripod is
recommended to prevent the image from blurring:
[Night Scene]
[Night Portrait]
[Fireworks]
In the [Hand-held Twilight] or [Anti Motion Blur] mode, the shutter clicks 4 times and an
image is recorded.
If you select [Hand-held Twilight] or [Anti Motion Blur] with [RAW] or [RAW & JPEG], the
image quality becomes [Fine] temporarily.
Reducing blur is less effective even in [Hand-held Twilight] or [Anti Motion Blur] when
shooting the following subjects:
Subjects with erratic movement.
Subjects that are too close to the product.
Subjects with continuously similar patterns, such as the sky, a beach, or a lawn.
Subjects with constant change such as waves or water falls.
In the case of [Hand-held Twilight] or [Anti Motion Blur], block noise may occur when
using a light source that flickers, such as fluorescent lighting.
The minimum distance that you can come close to a subject does not change even if you
select [Macro]. For the minimum in-focus range, refer to the minimum distance of the lens
attached to the product.
Hint
To change the scene, rotate the control wheel on the shooting screen and select a new
scene.
[32] How to Use Shooting Selecting a shooting mode
Shutter Priority
You can express the movement of a moving subject in various ways by adjusting the shutter
speed, for example, at the instant of the movement with high speed shutter, or as a trailing
image with low speed shutter. The shutter speed can be changed while recording movies.
1. Set the mode dial to S (Shutter Priority).
2. Select the desired value by turning the control wheel.
3. Adjust the focus and shoot the subject.
The aperture is automatically adjusted to obtain proper exposure.
Note
If proper exposure cannot be obtained after setup, the aperture value on the shooting
screen blinks. Although you can shoot as it is, resetting is recommended.
Use a tripod to prevent blurring when you use a slow shutter speed.
The SteadyShot warning indicator does not appear in shutter speed priority mode.
When the shutter speed is 1/3 second(s) or longer, noise reduction will be done after
shooting for the same amount of time that the shutter was open. However, you cannot
shoot any more while noise reduction is in progress.
The brightness of the image on the monitor may differ from the actual image being shot.
Hint
When a faster shutter speed is used, moving subjects, such as a running person, cars, or
sea spray come out as if they are frozen in their movements. When a slower shutter
speed is used, a trailing image of the movement of the subject is captured to create a
more natural and dynamic image.
[33] How to Use
Shooting Selecting a shooting mode
Aperture Priority
You can shoot by adjusting the aperture and changing the range in focus, or by defocusing
the background. The aperture value can be changed while recording movies.
1. Set the mode dial to A (Aperture Priority).
2. Select the desired value by turning the control wheel.
Smaller F-value: The subject is in focus, but objects in front of and beyond the
subject are blurred.
Larger F-value: The subject and its foreground and background are all in focus.
3. Adjust the focus and shoot the subject.
The shutter speed is automatically adjusted to obtain proper exposure.
Hint
Smaller F-value (opening the aperture) narrows the range that is in focus. This allows you
to put the subject in sharp focus and blur objects in front of and beyond the subject (depth
of field becomes shallower). Larger F-value (narrowing down the aperture) widens the
range that is in focus. This allows you to shoot the depth of the scenery (depth of field
becomes deeper).
Note
If proper exposure cannot be obtained after setup, the shutter speed on the shooting
screen blinks. Although you can shoot as it is, resetting is recommended.
The brightness of the image on the screen may differ from the actual image being shot.
[34] How to Use
Shooting Selecting a shooting mode
Manual Exposure
You can shoot with the desired exposure setting by adjusting both the shutter speed and
aperture. The shutter speed and the aperture value can be changed while recording movies.
1. Set the mode dial to M (Manual Exposure).
2. Press the bottom side of the control wheel to select the shutter speed or aperture value,
then turn the control wheel to select a value.
When [ISO] is set to other than [ISO AUTO], use MM (Metered Manual) to check the
exposure value.
Toward +: Images become brighter.
Toward -: Images become darker.
0: Appropriate exposure analyzed by the product.
3. Adjust the focus and shoot the subject.
Note
When [ISO] is set to [ISO AUTO], the ISO value automatically changes to achieve the
appropriate exposure using the aperture value and shutter speed you have set. If the
aperture value and shutter speed you have set are not suitable for appropriate exposure,
the ISO value indicator will blink.
The Metered Manual indicator does not appear when [ISO] is set to [ISO AUTO].
When the amount of ambient light exceeds the metering range of the Metered Manual,
the Metered Manual indicator flashes.
The SteadyShot warning indicator does not appear in manual exposure mode.
The brightness of the image on the monitor may differ from the actual image being shot.
Hint
When [AEL toggle] is assigned to the center button in [Custom Key Settings], you can
change the shutter speed and aperture (F-value) combination without changing the set
exposure value by pressing the center button and then turning the control ring or the
control wheel (Manual shift).
[35] How to Use
Shooting Selecting a shooting mode
BULB
You can shoot a trailing image of the movement of a subject with long exposure.
BULB is suitable for shooting trails of light, such as fireworks.
1. Set the mode dial to M (Manual Exposure).
2. Press the bottom side of the control wheel to select the shutter speed, then turn the
control wheel counterclockwise until [BULB] is indicated.
3. Press the bottom side of the control wheel to select the aperture value (F-value), and
turn the control wheel to set the value.
4. Press the shutter button halfway down to adjust the focus.
5. Press and hold the shutter button for the duration of the shooting.
As long as the shutter button is pressed, the shutter remains open.
Hint
Images shot in [BULB] mode tend to be blurry. We recommend that you use a tripod.
Note
The longer the exposure time, the more noise will be visible on the image.
After shooting, noise reduction will be done for the same amount of time that the shutter
was open. However, you cannot shoot any more while noise reduction is in progress.
You cannot set the shutter speed to [BULB] in the following situations:
When the [Smile Shutter] function is activated.
When the [Auto HDR] function is activated.
When [Picture Effect] is set to [HDR Painting] or [Rich-tone Mono.].
When the [Multi Frame NR] function is activated.
When the [Drive Mode] function is set to the following modes:
[Cont. Shooting]
[Spd Priority Cont.]
[Self-timer(Cont)]
[Cont. Bracket]
If you use the above functions when the shutter speed is set to [BULB], the shutter speed
is temporarily set to 30 seconds.
[36] How to Use
Shooting Selecting a shooting mode
Memory recall
Allows you to shoot an image after recalling often-used modes or camera settings registered
in advance.
1. Set the mode dial to MR (Memory recall).
2. Press the left/right side of the control wheel or turn the control wheel to select the
desired number, then press the center.
You can also recall registered modes or settings by selecting MENU →
(Camera Settings) → [Memory recall].
Note
Register shooting settings in advance by [Memory].
If you set [Memory recall] after completing the shooting settings, the registered settings
are given priority and the original settings may become invalid. Check the indicators on
the screen before shooting.
[37] How to Use
Shooting Selecting a shooting mode
Movie
You can adjust the shutter speed or aperture value to your desired settings for recording
movies. You can also check the image angle before shooting.
1. Set the mode dial to (Movie).
2. MENU → (Camera Settings) → [Movie] → desired setting.
When [Mode Dial Guide] is set to [On], you can select the desired settings after you
have changed the position of the mode dial.
3. Press the MOVIE (movie) button to start recording.
Press the MOVIE button again to stop recording.
Menu item details
Program Auto:
Allows you to shoot with the exposure adjusted automatically (both the shutter speed and
the aperture value).
Aperture Priority:
Allows you to shoot after adjusting the aperture value manually.
Shutter Priority:
Allows you to shoot after adjusting the shutter speed manually.
Manual Exposure:
Allows you to shoot after adjusting the exposure (both the shutter speed and the aperture
value) manually.
[38] How to Use Using shooting functions Using the zoom
Zoom
Enlarge images using the W/T (zoom) lever when shooting.
1. Enlarge images with the W/T (zoom) lever when shooting.
Move the W/T (zoom) lever to the T side to zoom in and to the W side to zoom out.
Hint
When you select other than [Optical zoom only] for [Zoom Setting], you can exceed the
zoom range of the optical zoom to zoom images.
You can assign the zoom function to the control ring.
[39] How to Use Using shooting functions Using the zoom
The zoom features available with this product
The zoom feature of the product provides a higher magnification zoom by combining various
zoom features. The icon displayed on the screen changes, according to the selected zoom
feature.
1. Optical zoom range
Images are magnified within the optical zoom range of this product.
2. Smart Zoom range ( )
Zoom images without causing the original quality to deteriorate by partially cropping an
image (only when the image size is [M], [S] or [VGA]).
3. Clear Image Zoom range ( )
Zoom images using an image process with less deterioration. Set [Zoom Setting] to
[On:ClearImage Zoom] or [On:Digital Zoom] first.
4. Digital Zoom range ( )
You can magnify images using an image process. When you select [On:Digital Zoom]
for [Zoom Setting], you can use this zoom function.
Note
The default setting for the [Zoom Setting] is [Optical zoom only].
The default setting for [ Image Size] is [L]. To use the smart zoom change [ Image
Size] to [M], [S] or [VGA].
Zoom functions other than the optical zoom are not available when shooting in the
following situations:
When shooting mode is set to [Sweep Panorama]
When [
Quality] is set to [RAW] or [RAW & JPEG]
When [Smile/Face Detect.] is set to [Smile Shutter]
When [Drive Mode] is set to [Self-portrait: One Person] or [Self-portrait: Two People]
You cannot use the Smart Zoom function with movies.
When you use a zoom function other than the optical zoom, [Metering Mode] fixed to
[Multi].
When using a zoom function other than the optical zoom, the following functions are not
available.
[Smile/Face Detect.]
Lock-on AF
[
Auto Obj. Framing]
[40] How to Use Using shooting functions Using the zoom
Zoom Setting
You can select the zoom setting of the product.
1. MENU → (Custom Settings) → [Zoom Setting] → desired setting.
Menu item details
Optical zoom only:
Optical zoom is activated. You can use the Smart Zoom function if you set [ Image Size]
to [M], [S] or [VGA].
On:ClearImage Zoom:
Even if the zoom range of the optical zoom is exceeded, the product magnifies images within
the range in which image quality does not deteriorate significantly.
On:Digital Zoom:
When the zoom range of the Clear Image Zoom is exceeded, the product magnifies images
to the largest scale. However, the image quality will deteriorate.
Note
Set [Optical zoom only] if you want to magnify images within the range in which image
quality does not deteriorate.
[41] How to Use
Using shooting functions Using the zoom
About zoom scale
The zoom scale that is used in combination with the zoom of the lens changes according to
the selected image size.
When [ Aspect Ratio] is [3:2]
[Zoom Setting] : [Optical zoom only] (including smart zoom)
[ Image Size] : L -, M 1.4×, S 2×
[Zoom Setting] : [On:ClearImage Zoom]
[ Image Size] : L 2×, M 2.8×, S 4×
[Zoom Setting] : [On:Digital Zoom]
[ Image Size] : L 4×, M 5.6×, S 8×
[42] How to Use Using shooting functions Using the flash
Using flash
In dark environments, use the flash to light up the subject while shooting and to prevent
camera-shake. When shooting against the sun, use the flash to lighten the image of the
backlit subject.
1. MENU → (Camera Settings) → [Flash Mode] → desired setting.
2. Press the shutter button fully down.
When you do not use the flash
When not using the flash, press it back into the camera body.
Hint
When using the flash, the flash pops up automatically. Do not cover the flash with your
fingers.
If you do not need the flash, set [Flash Mode] to [Flash Off] beforehand. The flash will not
pop up automatically.
Note
When shooting with the flash and the zoom is set to W, the shadow of the lens may
appear on the screen, depending on the shooting conditions. If this happens, shoot away
from the subject or set the zoom to T and shoot with the flash again.
When using flash to shoot pictures of yourself, be careful not to look directly at the light,
because the flash will go off at a close distance.
[43] How to Use
Using shooting functions Using the flash
Flash Mode
You can set the flash mode.
1. MENU → (Camera Settings) → [Flash Mode] → desired setting.
You can also set the flash mode by pressing the (Flash Mode) on the control
wheel.
Menu item details
Flash Off:
The flash does not operate.
Autoflash:
The flash works in dark environments or when shooting towards bright light.
Fill-flash:
The flash works every time you trigger the shutter.
Slow Sync.:
The flash works every time you trigger the shutter. Slow sync shooting allows you to shoot a
clear image of both the subject and the background by slowing the shutter speed.
Rear Sync.:
The flash works right before the exposure is completed every time you trigger the shutter.
Rear sync shooting allows you to shoot a natural image of the trail of a moving subject such
as a moving car or a walking person.
Note
The default setting depends on the shooting mode.
Available flash mode depends on the shooting mode.
[44] How to Use
Using shooting functions Using the flash
Flash Comp.
Adjusts the amount of flash light in a range of –2.0 EV to +2.0 EV.
Flash compensation changes the amount of flash light only. Exposure compensation
changes the amount of flash light along with the change of the shutter speed and aperture.
1. MENU → (Camera Settings) → [Flash Comp.] → desired setting.
Selecting higher values (+ side) makes the flash level higher, and lower values (– side)
makes the flash level lower.
Note
[Flash Comp.] does not work when the shooting mode is set to the following modes:
[Intelligent Auto]
[Superior Auto]
[Sweep Panorama]
[Scene Selection]
The higher flash effect may not be visible due to the limited amount of flash light
available, if the subject is outside the maximum range of the flash. If the subject is very
close, the lower flash effect may not be visible.
[45] How to Use
Using shooting functions Selecting a screen display mode
Switching the screen display (Shooting)
You can change the display contents on the screen.
1. Press the DISP (Display Setting) button.
Each time you press the DISP button, the recording information display changes.
Graphic Display
Display All Info.
No Disp. Info.
Histogram
Level
Some display modes are not available in the default settings.
To change the display modes, press MENU → (Custom Settings) → [DISP Button] and
change the setting.
Note
Histogram is not displayed during panorama shooting.
Hint
To hide the grid lines displayed during still image shooting, select MENU → (Custom
Settings) → [Grid Line] → [Off].
[46] How to Use
Using shooting functions Selecting a screen display mode
DISP Button
Allows you to set the screen display modes that can be selected for the monitor using
(Display Setting) in shooting mode.
1. MENU → (Custom Settings) → [DISP Button] → desired setting → [Enter].
The items marked with are available.
Menu item details
Graphic Display:
Shows basic shooting information. Graphically shows the shutter speed and aperture value.
Display All Info.:
Shows recording information.
No Disp. Info.:
Does not show recording information.
Histogram:
Displays the luminance distribution graphically.
Level:
Indicates whether the product is level in both the horizontal and front-back directions. When
the product is level in both directions, the indicator turns to green.
[47] How to Use Using shooting functions Selecting still image size/image quality
Image Size (still image)
The larger the image size, the more detail will be reproduced when the image is printed on
large-format paper. The smaller the image size, the more images can be recorded.
1. MENU → (Camera Settings) → [ Image Size] → desired setting.
Menu item details
Image size when [ Aspect Ratio] is 3:2
L: 20M
5472×3648 pixels
M: 10M
3888×2592 pixels
S: 5.0M
2736×1824 pixels
Image size when [ Aspect Ratio] is 4:3
L: 18M
4864×3648 pixels
M: 10M
3648×2736 pixels
S: 5.0M
2592×1944 pixels
VGA
640×480 pixels
Image size when [ Aspect Ratio] is 16:9
L: 17M
5472×3080 pixels
M: 7.5M
3648×2056 pixels
S: 4.2M
2720×1528 pixels
Image size when [ Aspect Ratio] is 1:1
L: 13M
3648×3648 pixels
M: 6.5M
2544×2544 pixels
S: 3.7M
1920×1920 pixels
Note
When [ Quality] is set to [RAW] or [RAW & JPEG], the image size for RAW images
corresponds to [L].
[48] How to Use
Using shooting functions Selecting still image size/image quality
Aspect Ratio (still image)
Sets the aspect ratio of still images.
1. MENU → (Camera Settings) → [ Aspect Ratio] → desired setting.
Menu item details
3:2:
Suitable for standard prints.
4:3:
For shooting in a size suitable for viewing on a computer.
16:9:
For viewing on a high-definition TV.
1:1:
For shooting in composition as a medium format camera.
[49] How to Use Using shooting functions Selecting still image size/image quality
Quality (still image)
Selects the compression format of still images.
1. MENU → (Camera Settings) → [ Quality] → desired setting.
Menu item details
RAW:
File format: RAW (Records using the RAW compression format.)
Digital processing is not performed on this file format. Select this format to process images
on a computer for professional purposes.
The image size is fixed to the maximum size. The image size is not displayed on the
screen.
RAW & JPEG:
File format: RAW (Records using the RAW compression format.) + JPEG
A RAW image and a JPEG image are created at the same time. This is suitable when you
need 2 image files, a JPEG for viewing, and a RAW for editing.
The JPEG image quality is set to [Fine].
Fine:
File format: JPEG
The image is compressed in the JPEG format when recorded.
Standard:
File format: JPEG
The image is compressed in the JPEG format when recorded. Since the compression rate of
[Standard] is higher than that of [Fine], the file size of [Standard] is smaller than that of
[Fine]. This will allow more files to be recorded on 1 memory card, but the image quality will
be lower.
About RAW images
To open a RAW image file recorded with this camera, the software Image Data Converter
is needed. With Image Data Converter, you can open a RAW image file, then convert it
into a popular image format such as JPEG or TIFF, or readjust the white balance,
saturation or contrast of the image.
You cannot apply [Auto HDR] or [Picture Effect] functions with RAW images.
Note
If you do not intend to edit the images on your computer, we recommend that you record
in JPEG format.
You cannot add DPOF (print order) registration marks to RAW images.
[50] How to Use
Using shooting functions Selecting still image size/image quality
Panorama: Size
Sets the image size when shooting panoramic images. The image size varies depending on
the [Panorama: Direction] setting.
1. MENU → (Camera Settings) → [Panorama: Size] → desired setting.
Menu item details
When [Panorama: Direction] is [Up] or [Down]
Standard: 3872×2160
Wide: 5536×2160
When [Panorama: Direction] is [Left] or [Right]
Standard: 8192×1856
Wide: 12416×1856
[51] How to Use Using shooting functions Selecting still image size/image quality
Panorama: Direction
Sets the direction to pan the camera when shooting panoramic images.
1. MENU → (Camera Settings) → [Panorama: Direction] → desired setting.
Menu item details
Right:
Pan the camera from the left to the right.
Left:
Pan the camera from the right to the left.
Up:
Pan the camera from the bottom to the top.
Down:
Pan the camera from the top to the bottom.
[52] How to Use Using shooting functions Adjusting the focus
Focus Mode
Selects the focus method to suit the movement of the subject.
1. MENU → (Camera Settings) → [Focus Mode] → desired setting.
Menu item details
(Single-shot AF):
The product locks the focus when the focus adjustment is achieved. Use [Single-shot AF]
when the subject is motionless.
(Continuous AF):
The product continues to focus while the shutter button is pressed and held halfway down.
Use this when the subject is in motion.
(Direct Manual Focus):
Allows you to use manual focus and auto focus in combination.
(Manual Focus):
Adjusts the focus manually. If you cannot focus on the intended subject using auto focus,
use manual focus.
Note
If the subject is too close, the image may show any dust or fingerprints on the lens. Wipe
the lens with a soft cloth, etc.
When [Focus Mode] is set to [Continuous AF], the beep does not sound when focus is
achieved.
Hint
If you shoot movies when [Focus Mode] is set to [Single-shot AF] or [DMF], the [Focus
Mode] will automatically change to (Continuous AF) and then continue to focus.
[53] How to Use
Using shooting functions Adjusting the focus
Focus Area
Selects the focusing area. Use this function when it is difficult to get the proper focus in auto
focus mode.
1. MENU → (Camera Settings) → [Focus Area] → desired setting.
Menu item details
Wide:
Focuses automatically on a subject in all ranges of the image.
When you press the shutter button halfway down in still image shooting mode, a green frame
is displayed around the area that is in focus.
Center:
Focuses automatically on a subject in the center of the image. When used together with the
AF lock function, you can compose the image you want.
Flexible Spot:
Allows you to move the focusing frame to the desired point on the screen and focus on an
extremely small subject in a narrow area.
Hint
When shooting in [Single-shot AF], if you cannot focus on the subject by setting the
[Focus Area] to [Wide], change the setting to [Center] and position the subject within the
focusing frame. Press the shutter button halfway down to lock the focus, and return to the
original composition to shoot images with the focus locked (Focus Lock).
Note
A dotted square may appear around the whole screen in the clear image zoom, digital
zoom, or smart zoom range in order to focus using the entire frame.
[54] How to Use
Using shooting functions Adjusting the focus
Center Lock-on AF
When you press the center button, the camera detects the subject positioned in the center of
the screen and continues to track the subject.
1. MENU → (Camera Settings) → [Center Lock-on AF] → [On].
2. Align the target frame (A) over the subject and press the center of the control wheel.
Press the center again to stop tracking.
If the camera loses track of the subject, it can detect when the subject reappears on
the monitor and resume tracking.
3. Press the shutter button fully down to shoot the image.
Note
[Center Lock-on AF] may not function very well in the following situations:
The subject is moving too quickly.
The subject is too small, or too large.
The contrast between the subject and the background is poor.
It is dark.
The ambient light changes.
Lock-on AF does not work in the following situations:
In [Sweep Panorama] mode
When [Scene Selection] is set to [Hand-held Twilight] or [Anti Motion Blur]
When shooting in Manual Focus mode
When using the digital zoom
The camera may not be able to resume tracking for a while after it loses the track of the
subject.
[55] How to Use
Using shooting functions Adjusting the focus
Focus-lock
Shoots images with the focus locked on the desired subject in auto focus mode.
1. MENU → (Camera Settings) → [Focus Mode] → [Single-shot AF].
2. Place the subject within the AF area and press the shutter button halfway down.
The focus is locked.
3. Keep pressing the shutter button halfway down, and place the subject back in the
original position to re-compose the shot.
4. Press the shutter button down fully to take the picture.
[56] How to Use Using shooting functions Adjusting the focus
Manual Focus
When it is difficult to get the proper focus in autofocus mode, you can adjust the focus
manually. The setting applies to both still images and movies.
1. MENU → (Camera Settings) → [Focus Mode] → [Manual Focus].
2. Rotate the control ring to achieve sharp focus.
3. Press the shutter button fully down to take the picture.
Note
If you re-select the [Focus Mode], any focus distance that you set manually will be
canceled.
[57] How to Use
Using shooting functions Adjusting the focus
Direct manual focus (DMF)
You can make fine adjustments manually after the focus is locked.
You can quickly focus on a subject rather than using the manual focus from the beginning.
This is convenient in cases such as macro shooting.
1. MENU → (Camera Settings) → [Focus Mode] → [DMF].
2. Press the shutter button halfway down to focus automatically.
3. Keep the shutter button halfway down, rotate the control ring to achieve a sharper
focus.
4. Press the shutter button fully down to shoot an image.
[58] How to Use Using shooting functions Adjusting the focus
MF Assist (still image)
Enlarges the image on the screen automatically to make manual focusing easier. This works
in Manual Focus or Direct Manual Focus shooting.
1. MENU → (Custom Settings) → [ MF Assist] → [On].
2. Turn the control ring to adjust the focus.
The image is enlarged. You can magnify images further by pressing the center of the
control wheel.
Note
You cannot use [ MF Assist] when shooting movies.
Hint
You can set how long the image is to be shown magnified by selecting MENU →
(Custom Settings) → [Focus Magnif. Time].
[59] How to Use
Using shooting functions Adjusting the focus
Focus Magnifier
You can check the focus by enlarging the image before shooting.
1. MENU → (Camera Settings) → [Focus Magnifier].
2. Press the center of the control wheel to enlarge the image and select the position you
want to enlarge using up/down/left/right side of the control wheel.
Each time you press the center, the magnification scale will switch.
3. Confirm the focus.
4. Press the shutter button fully down to shoot the image.
Hint
You can adjust the focus while an image is magnified. The [Focus Magnifier] function will
be canceled when the shutter button is pressed halfway.
You can record images while an image is enlarged, but the product records a full-display
image.
The [Focus Magnifier] function will be canceled after shooting.
You can set how long the image is to be shown magnified by selecting MENU →
(Custom Settings) → [Focus Magnif. Time].
[60] How to Use
Using shooting functions Adjusting the focus
Focus Magnif. Time
Set the duration for which an image is to be magnified using the [ MF Assist] or [Focus
Magnifier] function.
1. MENU → (Custom Settings) → [Focus Magnif. Time] → desired setting.
Menu item details
2 Sec:
Magnifies the images for 2 seconds.
5 Sec:
Magnifies the images for 5 seconds.
No Limit:
Magnifies the images until you press the shutter button.
[61] How to Use Using shooting functions Adjusting the focus
Peaking Level
Enhances the outline of in-focus ranges using a specific color in Manual Focus or Direct
Manual Focus shooting. This function allows you to confirm the focus easily. The setting
applies to both still images and movies.
1. MENU → (Custom Settings) → [Peaking Level] → desired setting.
Menu item details
High:
Sets the peaking level to high.
Mid:
Sets the peaking level to middle.
Low:
Sets the peaking level to low.
Off:
Does not use the peaking function.
Note
Since the product determines that sharp areas are in focus, the effect of peaking differs,
depending on the subject and shooting conditions.
The outline of in-focus ranges is not enhanced when the product is connected using an
HDMI cable.
[62] How to Use Using shooting functions Adjusting the focus
Peaking Color
Sets the color used for the peaking function in Manual Focus or Direct Manual Focus
shooting. The setting applies to both still images and movies.
1. MENU → (Custom Settings) → [Peaking Color] → desired setting.
Menu item details
Red:
Enhances outlines in red.
Yellow:
Enhances outlines in yellow.
White:
Enhances outlines in white.
[63] How to Use Using shooting functions Adjusting the focus
AF/MF control
You can easily switch the focusing mode from auto to manual and vice versa while shooting
without changing your holding position. The setting applies to both still images and movies.
1. MENU → (Custom Settings) → [Custom Key Settings] → button to be assigned →
[AF/MF Ctrl Toggle].
During auto focus:
When you press the button to which [AF/MF Ctrl Toggle] is assigned, the focusing mode
temporarily switches to manual.
During manual focus:
When you press the button to which [AF/MF Ctrl Toggle] is assigned, the focusing mode
temporarily switches to auto, and the focus is locked.
[64] How to Use Using shooting functions Adjusting the focus
AF Illuminator (still image)
The AF illuminator supplies fill light to focus more easily on a subject in dark surroundings.
The red AF illuminator allows the product to focus easily when the shutter button is pressed
halfway, until the focus is locked.
1. MENU → (Camera Settings) → [ AF Illuminator] → desired setting.
Menu item details
Auto:
Uses the AF illuminator.
Off:
Does not use the AF illuminator.
Note
You cannot use [ AF Illuminator] in the following situations:
In movie mode
In [Sweep Panorama] mode
When [Focus Mode] is set to [Continuous AF].
When [Scene Selection] is set to the following modes:
[Landscape]
[Sports Action]
[Night Scene]
[Pet]
[Fireworks]
The AF illuminator emits a very bright light. Although there is no health hazard, do not
look directly into the AF illuminator at close range.
[65] How to Use
Using shooting functions Adjusting the exposure
Exposure Comp.
Based on the exposure value set by auto exposure, you can make the entire image brighter
or darker if you adjust [Exposure Comp.] to the plus side or minus side, respectively
(exposure compensation). Normally, exposure is set automatically (auto exposure).
1. / (Exposure Comp.) on the control wheel → press the left/right side of the
control wheel or turn the control wheel, and select the desired exposure range.
When using [Intelligent Auto] or [Superior Auto], you can display the settings screen
for [Photo Creativity] by pressing / .
You can adjust the exposure in a range of –3.0 EV to +3.0 EV.
Note
You can adjust the exposure in a range of –2.0 EV to +2.0 EV for movies.
If you shoot a subject in extremely bright or dark conditions, or when you use the flash,
you may not be able to get a satisfactory effect.
When you use [Manual Exposure], you can compensate for the exposure only when [ISO]
is set to [ISO AUTO].
[66] How to Use
Using shooting functions Adjusting the exposure
Metering Mode
Selects the metering mode that sets which part of the screen to measure for determining the
exposure.
1. MENU → (Camera Settings) → [Metering Mode] → desired setting.
Menu item details
Multi:
Measures light on each area after dividing the total area into multiple areas and determines
the proper exposure of the entire screen (Multi-pattern metering).
Center:
Measures the average brightness of the entire screen, while emphasizing the central area of
the screen (Center-weighted metering).
Spot:
Measures only the central area (Spot metering). This function is useful when the subject is
backlit or when there is strong contrast between the subject and the background.
Note
The setting is fixed to [Multi] in the following shooting modes:
[Intelligent Auto]
[Superior Auto]
[Scene Selection]
Zoom functions other than optical zoom
[67] How to Use Using shooting functions Adjusting the exposure
AE lock
When the contrast between the subject and background is high, such as when shooting a
backlit subject or a subject near a window, meter the light at a spot where the subject
appears to have the appropriate brightness and lock the exposure before shooting. To
reduce the brightness of the subject, meter the light at a spot brighter than the subject and
lock the exposure of the entire screen. To make the subject brighter, meter the light at a spot
darker than the subject and lock the exposure of the entire screen.
1. MENU → (Custom Settings) → [Custom Key Settings], then assign the [AEL
toggle] to the desired key.
2. Adjust the focus on the spot at which the exposure is adjusted.
3. Press the button to which the [AEL toggle] function is assigned.
The exposure is locked, and (AE lock) lights up.
4. Focus on the subject again and press the shutter button.
To cancel the exposure lock, press the button to which the [AEL toggle] function is
assigned.
[68] How to Use Using shooting functions Selecting a drive mode (Continuous
shooting/Self-timer)
Drive Mode
You can set the drive mode, such as continuous or self-timer shooting.
1. MENU → (Camera Settings) → [Drive Mode] → desired setting.
You can also set the drive mode by pressing / (Drive Mode) button of the
control wheel.
Menu item details
Single Shooting:
Shoots one still image. Normal shooting mode.
Cont. Shooting:
Shoots images continuously while you press and hold down the shutter button.
Spd Priority Cont.:
Shoots images continuously at high speed while you press and hold down the shutter button.
Self-timer:
Shoots an image using the self-timer after a designated number of seconds have elapsed
since the shutter button was pressed.
Self-portrait:
When the product detects the number of faces you have selected, a beep will sound and the
shooting starts after two seconds.
Self-timer(Cont):
Shoots a designated number of images using the self-timer after 10 seconds have elapsed
since the shutter button was pressed.
Cont. Bracket:
Shoots images while holding the shutter button down, each with different degrees of
brightness.
WB bracket:
Shoots a total of three images, each with different color tones according to the selected
settings for white balance, color temperature and color filter.
Note
When the shooting mode is set to [Scene Selection] and [Sports Action] is selected,
[Single Shooting] cannot be performed.
[69] How to Use
Using shooting functions Selecting a drive mode (Continuous
shooting/Self-timer)
Cont. Shooting
Shoots images continuously while you press and hold down the shutter button.
1. MENU→ (Camera Settings) → [Drive Mode] → [Cont. Shooting].
Note
Continuous shooting is unavailable in the following situations:
The shooting mode has been set to [Sweep Panorama].
The shooting mode is set to [Scene Selection] and a scene other than [Sports Action] is selected.
The [Picture Effect] is set to [Soft Focus], [HDR Painting], [Rich-tone Mono.], [Miniature],
[Watercolor], or [Illustration].
The [DRO/Auto HDR] is set to [Auto HDR].
[ISO] is set to [Multi Frame NR].
[Smile Shutter] is being used.
Hint
To hold the focus and exposure during burst, change the following settings.
Set [Focus Mode] to [Continuous AF].
[70] How to Use Using shooting functions Selecting a drive mode (Continuous
shooting/Self-timer)
Spd Priority Cont.
The product continues to shoot as long as the shutter button is pressed. You can
continuously shoot at a rate faster than that of [Cont. Shooting].
1. MENU→ (Camera Settings) → [Drive Mode] → [Spd Priority Cont.].
Note
Between continuous shooting frames, an image of each frame is immediately displayed.
Continuous shooting is unavailable in the following situations:
The shooting mode has been set to [Sweep Panorama].
The shooting mode is set to [Scene Selection] and a scene other than [Sports Action] is selected.
The [Picture Effect] is set to [Soft Focus], [HDR Painting], [Rich-tone Mono.], [Miniature],
[Watercolor], or [Illustration].
The [DRO/Auto HDR] is set to [Auto HDR].
[ISO] is set to [Multi Frame NR].
[Smile Shutter] is being used.
Hint
The focus and exposure is fixed for the first shot.
[71] How to Use
Using shooting functions Selecting a drive mode (Continuous
shooting/Self-timer)
Self-timer
Shoots an image using the self-timer after a designated number of seconds have elapsed
since the shutter button was pressed.
1. MENU → (Camera Settings) → [Drive Mode] → [Self-timer].
2. Select the desired mode using the right/left side of the control wheel.
Menu item details
Self-timer: 10 Sec:
Sets the 10-second delay self-timer.
When you press the shutter button, the self-timer lamp flashes, a beep sounds, and the
shutter operates after 10 seconds. To cancel the self-timer, press the shutter button again.
Self-timer: 2 Sec:
Sets the 2-second delay self-timer. This reduces the camera-shake caused by pressing the
shutter button.
Hint
Press the / button of the control wheel and select (Single Shooting) to cancel
the self-timer.
Note
The self-timer is unavailable in the following situations:
The shooting mode is set to [Sweep Panorama].
[Sports Action], [Hand-held Twilight] or [Anti Motion Blur] in [Scene Selection]
[Picture Effect] is set to [Soft Focus], [HDR Painting], [Rich-tone Mono.], [Miniature], [Watercolor]
or [Illustration]
[DRO/Auto HDR] is set to [Auto HDR]
[ISO] is set to [Multi Frame NR]
[Smile Shutter]
[72] How to Use Using shooting functions Selecting a drive mode (Continuous
shooting/Self-timer)
Self-portrait
Images are shot automatically when the camera detects people’s faces.
1. MENU → (Camera Settings) → [Drive Mode] → [Self-portrait].
2. Select the desired number of people using the left/right side of the control wheel.
3. Point the lens at yourself.
When the camera detects the specified number of faces, it beeps and then shoots an
image 2 seconds later.
Hint
You can also shoot an image by pressing the shutter button during this operation.
[73] How to Use
Using shooting functions Selecting a drive mode (Continuous
shooting/Self-timer)
Self-timer(Cont)
Shoots a designated number of images using the self-timer after 10 seconds have elapsed
since the shutter button was pressed. You can choose the best from multiple shots.
1. MENU → (Camera Settings) → [Drive Mode] → [Self-timer(Cont)].
2. Select the desired mode using the right/left side of the control wheel.
Menu item details
Self-timer(Cont.): 10 Sec. 3 Img.:
Shoots three frames in succession 10 seconds after you press the shutter button.
When you press the shutter button, the self-timer lamp flashes, a beep sounds, and the
shutter operates after 10 seconds.
Self-timer(Cont.): 10 Sec. 5 Img.:
Shoots five frames in succession 10 seconds after you press the shutter button.
When you press the shutter button, the self-timer lamp flashes, a beep sounds, and the
shutter operates after 10 seconds.
Hint
Press the shutter button again to stop the self-timer countdown.
Press the / button of the control wheel and select (Single Shooting) to cancel
the self-timer.
[74] How to Use
Using shooting functions Selecting a drive mode (Continuous
shooting/Self-timer)
Cont. Bracket
Shoots multiple images while automatically shifting the exposure from base to darker and
then to lighter. Press and hold down the shutter button until the bracket recording is
completed.
You can select an image that suits your intention, after recording.
1. MENU→ (Camera Settings) → [Drive Mode] → [Cont. Bracket].
2. Select the desired mode using the right/left side of the control wheel.
Menu item details
Cont. Bracket: 0.3EV 3 Image:
This setting shoots three images continuously with an exposure value shifted by plus or
minus 0.3 EV.
Cont. Bracket: 0.7EV 3 Image:
This setting shoots three images continuously with an exposure value shifted by plus or
minus 0.7 EV.
Note
The last shot is shown on the Auto Review.
When [ISO AUTO] is selected in [Manual Exposure] mode, the exposure is changed by
adjusting the ISO value. If a setting other than [ISO AUTO] is selected, the exposure is
changed by adjusting the shutter speed.
When you adjust the exposure, the exposure is shifted based on the compensated value.
Bracket shooting is unavailable in the following situations:
The shooting mode is set to [Intelligent Auto], [Superior Auto], [Scene Selection], or [Sweep
Panorama].
[75] How to Use Using shooting functions Selecting a drive mode (Continuous
shooting/Self-timer)
WB bracket
Shoots three images, each with different color tones according to the selected settings of
white balance, color temperature and color filter.
1. MENU → (Camera Settings) → [Drive Mode] → [WB bracket].
2. Select the desired mode using the right/left side of the control wheel.
Menu item details
White Balance Bracket: Lo:
Records a series of three images with small changes in the white balance.
White Balance Bracket: Hi:
Records a series of three images with large changes in the white balance.
Note
The last shot is shown on the Auto Review.
[76] How to Use
Using shooting functions Selecting the ISO sensitivity
ISO
Sensitivity to light is expressed by the ISO number (recommended exposure index). The
larger the number, the higher the sensitivity.
1. MENU → (Camera Settings) → [ISO] → desired setting.
Menu item details
Multi Frame NR:
Combines continuous shots to create an image with less noise. Select the desired ISO
number from [ISO AUTO] or ISO 200 – 25600.
ISO AUTO:
Sets the ISO sensitivity automatically.
ISO 80 – ISO 6400:
Sets the ISO sensitivity manually. Selecting a larger number increases the ISO sensitivity.
Note
[ISO AUTO] is selected when using the following functions:
[Intelligent Auto]
[Superior Auto]
[Scene Selection]
[Sweep Panorama]
When [ISO] is set to a value lower than ISO 125, the range for recordable subject
brightness (dynamic range) may decrease.
The higher the ISO value, the more noise will appear on the images.
The available ISO settings differ between shooting still images and movies.
When shooting movies, ISO values between ISO 125 and ISO 3200 are available. If the
ISO value is set to larger value than ISO 3200, the setting is automatically switched to
ISO 3200. When you finished the movie recording, the ISO value returns to the original
setting.
When shooting movies, ISO values between ISO 125 and ISO 3200 are available. If the
ISO value is set to a value smaller than ISO 125, the setting is automatically switched to
ISO 125. When you finish recording the movie, the ISO value returns to the original
setting.
When you use [Multi Frame NR], it takes some time for the product to perform the overlay
processing of images.
Hint
You can change the automatically set ISO sensitivity range for the [ISO AUTO] mode.
Select [ISO AUTO] and press the right side of the control wheel, and set the desired
values for [ISO AUTO Maximum] and [ISO AUTO Minimum]. The values for [ISO AUTO
Maximum] and [ISO AUTO Minimum] are also applied when shooting in [ISO AUTO]
mode under [Multi Frame NR].
[77] How to Use
Using shooting functions Selecting the ISO sensitivity
Multi Frame NR
The product automatically shoots multiple images continuously, combines them, reduces the
noise, and records them as one image. The image recorded is one combined image.
1. MENU → (Camera Settings) → [ISO] → [Multi Frame NR].
2. Press the right side of the control wheel to display the setting screen, then select a
desired value using the top/bottom side of the control wheel.
Note
When [ Quality] is set to [RAW] or [RAW & JPEG], this function cannot be used.
The flash, [D-Range Opt.], and [Auto HDR] cannot be used.
When [Picture Effect] is set to something other than [Off], you cannot set [Multi Frame
NR].
Hint
You can change the automatically set range of ISO sensitivity in the [ISO AUTO] mode
under [Multi Frame NR]. Select [ISO AUTO] under [ISO] and press the right side of the
control wheel, and set the desired values for [ISO AUTO Maximum] and [ISO AUTO
Minimum]. The values for [ISO AUTO Maximum] and [ISO AUTO Minimum] are also
applied when shooting in [ISO AUTO] mode under [Multi Frame NR].
[78] How to Use
Using shooting functions Correcting the brightness or contrast
D-Range Opt. (DRO)
By dividing the image into small areas, the product analyzes the contrast of light and shadow
between the subject and the background, and creates an image with the optimal brightness
and gradation.
1. MENU → (Camera Settings) → [DRO/Auto HDR] → [D-Range Opt.].
2. Select the desired setting using the left/right side of the control wheel.
Menu item details
D-Range Optimizer: Auto:
Corrects the brightness automatically.
D-Range Optimizer: Lv1 ― D-Range Optimizer: Lv5:
Optimizes the gradation of a recorded image for each divided area. Select the optimization
level from Lv1 (weak) to Lv5 (strong).
Note
[DRO/Auto HDR] is fixed to [Off] when the shooting mode is set to [Sweep Panorama], or
when [Multi Frame NR] or [Picture Effect] is set to other than [Off].
[DRO/Auto HDR] is fixed to [Off] when the following modes are selected in [Scene
Selection].
[Sunset]
[Night Scene]
[Night Portrait]
[Hand-held Twilight]
[Anti Motion Blur]
[Fireworks]
The setting is fixed to [D-Range Optimizer: Auto] when [Scene Selection] modes other
than the above modes are selected.
When shooting with [D-Range Opt.], the image may be noisy. Select the proper level by
checking the recorded image, especially when you enhance the effect.
[79] How to Use
Using shooting functions Correcting the brightness or contrast
Auto HDR
Widens the range (gradation) so that you can record from bright parts to dark parts with
correct brightness (HDR: High Dynamic Range). One image with proper exposure and one
overlaid image are recorded.
1. MENU → (Camera Settings) → [DRO/Auto HDR] → [Auto HDR].
2. Select the desired setting using the left/right side of the control wheel.
Menu item details
Auto HDR: Exposure Diff. Auto:
Corrects the exposure difference automatically.
Auto HDR: Exposure Diff. 1.0EV ― Auto HDR: Exposure Diff. 6.0EV:
Sets the exposure difference, based on the contrast of the subject. Select the optimal level
between 1.0 EV (weak) and 6.0 EV (strong).
For example, if you set the exposure value to 2.0 EV, three images will be composed with
the following exposure levels: −1.0 EV, correct exposure and +1.0 EV.
Note
[Auto HDR] is not available when the [ Quality] is [RAW] or [RAW & JPEG].
[Auto HDR] is not available in the following shooting modes.
[Intelligent Auto]
[Superior Auto]
[Sweep Panorama]
[Scene Selection]
When [Multi Frame NR] is selected, you cannot select [Auto HDR].
When [Picture Effect] is set to something other than [Off], you cannot select [Auto HDR].
You cannot start the next shot until the capture process is completed after you shoot.
You may not obtain the desired effect depending on the luminance difference of a subject
and the shooting conditions.
When the flash is used, this function has little effect.
When the contrast of the scene is low or when product shake or subject blur occurs, you
may not obtain good HDR images. will be displayed over the recorded image to
inform you when the camera detects image blurring. Change the composition or re-shoot
the image carefully to avoid image blur, as needed.
[80] How to Use
Using shooting functions Adjusting color tones
White Balance
Adjusts the color tones according to the ambient light conditions. Use this feature when the
color tones of the image did not come out as you expected, or when you want to change the
color tones on purpose for photographic expression.
1. MENU → (Camera Settings) → [White Balance] → desired setting.
Menu item details
Auto:
The product automatically detects the light source and adjusts the color tones.
Daylight:
The color tones are adjusted for the daylight.
Shade:
The color tones are adjusted for shadiness.
Cloudy:
The color temperature is adjusted for a cloudy sky.
Incandescent:
The color temperature is adjusted for places under an incandescent lamp, or under bright
lighting, such as in a photo studio.
Fluor.: Warm White:
The color temperature is adjusted for warm white fluorescent lighting.
Fluor.: Cool White:
The color temperature is adjusted for white fluorescent lighting.
Fluor.: Day White:
The color temperature is adjusted for neutral white fluorescent lighting.
Fluor.: Daylight:
The color temperature is adjusted for daylight fluorescent lighting.
Flash:
The color temperature is adjusted for flash light.
C.Temp./Filter:
Adjusts the color tones depending on the light source. Achieves the effect of CC (Color
Compensation) filters for photography.
Custom 1/Custom 2/Custom 3:
Uses the white balance setting saved in [Custom Setup].
Custom Setup:
Memorizes the basic white color under the light conditions for the shooting environment.
Select a memorized custom white balance number.
Hint
You can use the right side of the control wheel to display the fine adjustment screen and
perform fine adjustments of the color tones as required.
In [C.Temp./Filter], you can use the right button to display the color temperature setting
screen and perform a setting. When you press the right button again, the fine adjustment
screen appears to allow you perform fine adjustments as required.
Note
[White Balance] is fixed to [Auto] in the following situations:
[Intelligent Auto]
[Superior Auto]
[Scene Selection]
[81] How to Use Using shooting functions Adjusting color tones
Capturing a basic white color in [Custom Setup] mode
In a scene where the ambient light consists of multiple types of light sources, it is
recommended to use the custom white balance in order to accurately reproduce the
whiteness.
1. MENU → (Camera Settings) → [White Balance] → [Custom Setup].
2. Hold the product so that the white area fully covers the circle located in the center, and
then press the center of the control wheel.
The calibrated values (Color Temperature and Color Filter) are displayed.
3. Select a registration number using the right/left button.
The monitor returns to the recording information display while retaining the memorized
custom white balance setting.
Note
The message [Custom WB Error] indicates that the value is higher than the expected
range, when the flash is used on a subject with too bright colors in the frame. If you
register this value, the indicator turns orange on the recording information display.
You can shoot at this point, but it is recommended that you set the white balance again to
get a more accurate white balance value.
[82] How to Use
Using shooting functions Selecting an effect mode
Picture Effect
Select the desired effect filter to achieve more impressive and artistic images.
1. MENU → (Camera Settings) → [Picture Effect] → desired setting.
Menu item details
Off:
Disables the [Picture Effect] function.
Toy Camera:
Creates a soft image with shaded corners and reduced sharpness.
Pop Color:
Creates a vivid look by emphasizing color tones.
Posterization:
Creates a high contrast, abstract look by heavily emphasizing primary colors, or in black and
white.
Retro Photo:
Creates the look of an aged photo with sepia color tones and faded contrast.
Soft High-key:
Creates an image with the indicated atmosphere: bright, transparent, ethereal, tender, soft.
Partial Color:
Creates an image which retains a specific color, but converts others to black and white.
High Contrast Mono.:
Creates a high-contrast image in black and white.
Soft Focus:
Creates an image filled with a soft lighting effect.
HDR Painting:
Creates the look of a painting, enhancing the colors and details.
Rich-tone Mono.:
Creates an image in black and white with rich gradation and reproduction of details.
Miniature:
Creates an image which enhances the subject vividly, with the background defocused
considerably. This effect may often be found in pictures of miniature models.
Watercolor:
Creates an image with ink bleed and blurring effects as if painted using watercolors.
Illustration:
Creates an illustration-like image by emphasizing the outlines.
Hint
You can perform detailed settings for the following [Picture Effect] modes using the
left/right side of the control wheel.
[Toy Camera]
[Posterization]
[Partial Color]
[Soft Focus]
[HDR Painting]
[Miniature]
[Illustration]
Note
When you use a zoom function other than the optical zoom, setting the zoom scale larger
makes [Toy Camera] less effective.
When [Partial Color] is selected, images may not retain the selected color, depending on
the subject or shooting conditions.
You cannot check the following effects on the shooting screen, because the product
processes the image after the shot. Also, you cannot shoot another image until image
processing is finished. You cannot use these effects with movies.
[Soft Focus]
[HDR Painting]
[Rich-tone Mono.]
[Miniature]
[Watercolor]
[Illustration]
In the case of [HDR Painting] and [Rich-tone Mono.], the shutter is released three times
for one shot. Be careful about the following:
Use this function when the subject is motionless or does not flash light.
Do not change the composition before shooting.
When the contrast of the scene is low or when significant camera-shake or subject blur
has occurred, you may not be able to obtain good HDR images. If the product detects
such a situation, / appear on the recorded image to inform you of this situation. If
necessary, change the composition or otherwise adjust the settings, be careful of blurring,
and shoot again.
[Picture Effect] cannot be set when the shooting mode is set to [Intelligent Auto],
[Superior Auto], [Scene Selection] or [Sweep Panorama].
[Picture Effect] cannot be set when [ Quality] is set to [RAW] or [RAW & JPEG].
[83] How to Use
Using shooting functions Selecting an effect mode
Creative Style
Allows you to select the desired image processing. You can adjust exposure (shutter speed
and aperture) as you like with [Creative Style], unlike with [Scene Selection] where the
product adjusts the exposure.
1. MENU → (Camera Settings) → [Creative Style] → desired setting.
Menu item details
Standard:
For shooting various scenes with rich gradation and beautiful colors.
Vivid:
The saturation and contrast are heightened for shooting striking images of colorful scenes
and subjects such as flowers, spring greenery, blue sky, or ocean views.
Portrait:
For capturing skin in a soft tone, ideally suited for shooting portraits.
Landscape:
The saturation, contrast, and sharpness are heightened for shooting vivid and crisp scenery.
Distant landscapes also stand out more.
Sunset:
For shooting the beautiful red of the setting sun.
Black & White:
For shooting images in black and white monotone.
To set [Contrast], [Saturation] and [Sharpness]
[Contrast], [Saturation], and [Sharpness] can be adjusted for each image style preset such
as [Standard] and [Landscape]. Select an item to be set by pressing the right/left side of the
control wheel, then set the value using the top/bottom side of the control wheel.
Contrast:
The higher the value selected, the more the difference of light and shadow is accentuated,
and the bigger the effect on the image.
Saturation:
The higher the value selected, the more vivid the color. When a lower value is selected, the
color of the image is restrained and subdued.
Sharpness:
Adjusts the sharpness. The higher the value selected, the more the contours are
accentuated, and the lower the value selected, the more the contours are softened.
Note
[Standard] is selected when using the following functions:
[Intelligent Auto]
[Superior Auto]
[Scene Selection]
[Picture Effect] is set to other than [Off].
When [Creative Style] is set to [Black & White], [Saturation] cannot be adjusted.
[84] How to Use Using shooting functions Recording movies
File Format (movie)
Selects the movie file format.
1. MENU → (Camera Settings) → [ File Format] → desired setting.
Menu item details
AVCHD:
Records HD movies in AVCHD format. This file format is suitable for high-definition TV.
Audio: Dolby Digital
MP4:
Records mp4 (AVC) movies. This format is suitable for playback on smartphones or tablets,
web uploads, email attachments, etc.
Audio: AAC
Hint
You can save images to a computer or copy them to a disc compatible with your playback
device using the software PlayMemories Home.
Note
When [ File Format] is set to [AVCHD], the file size of movies is limited to approx. 2
GB. If the movie file size reaches approx. 2 GB during recording, a new movie file will be
created automatically.
When [ File Format] is set to [MP4], the file size of movies is limited to approx. 4 GB. If
the movie file size reaches approx. 4 GB during recording, recording will stop
automatically.
[85] How to Use
Using shooting functions Recording movies
Record Setting (movie)
Selects the image size, frame rate, and image quality for movie recording. The higher the bit-
rate, the higher the image quality.
1. MENU → (Camera Settings) → [ Record Setting] → desired setting.
When [ File Format] is set to [AVCHD]
60i/50i: Movies are recorded at approximately 60 fields/sec (for 1080 60i-compatible
devices) or 50 fields/sec (for 1080 50i-compatible devices), in interlaced mode, with Dolby
Digital audio, in AVCHD format.
60p/50p: Movies are recorded at approximately 60 frames/sec (for 1080 60i-compatible
devices) or 50 frames/sec (for 1080 50i-compatible devices), in progressive mode, with
Dolby Digital audio, in AVCHD format.
When [ File Format] is set to [MP4]
Movies shot are recorded in MPEG-4 format, at approximately 60 frames/sec (for 1080 60i-
compatible devices), approximately 50 frames/sec (for 1080 50i-compatible devices),
approximately 30 frames/sec (for 1080 60i-compatible devices) or approximately 25
frames/sec (for 1080 50i-compatible devices), in progressive mode, with AAC audio, MP4
format.
Menu item details
When [ File Format] is set to [AVCHD]
60i 24M(FX)/50i 24M(FX):
Records the movies in 1920 × 1080 (60i/50i).
Bit-rate: 24 Mbps (Max.)
60i 17M(FH)/50i 17M(FH):
Records the movies in 1920 × 1080 (60i/50i).
Bit-rate: Approx. 17 Mbps (Avg.)
60p 28M(PS)/50p 28M(PS):
Records the movies in 1920 × 1080 (60p/50p).
Bit-rate: 28 Mbps (Max.)
When [ File Format] is set to [MP4]
1440×1080 12M:
Records the movies in 1440×1080.
Bit-rate: Approx. 12 Mbps (Avg.)
VGA 3M:
Records movies in the VGA size.
Bit-rate: Approx. 3 Mbps (Avg.)
Note
60p/50p movies can be played back only on compatible devices.
Movies recorded with the [60p 28M(PS)]/[50p 28M(PS)]/[60i 24M(FX)]/[50i 24M(FX)]
setting in [ Record Setting] are converted by PlayMemories Home in order to create
an AVCHD recording disc. This conversion can take a long time. Also, you cannot create
a disc in the original image quality. If you want to keep the original image quality, store
your movies on a Blu-ray Disc.
[86] How to Use
Using shooting functions Recording movies
Capturing still images while recording movies (Dual Rec)
You can capture still images while recording movies without stopping recording. Use Dual
Rec when you want to record both movies and still images at the same time.
1. Press the MOVIE button to start recording the movie.
2. Press the shutter button to capture a still image.
If you press the shutter button halfway down, the remaining number of still images
you can shoot will be displayed on the screen.
While shooting still images, the message [CAPTURE] is displayed on the screen.
3. Press the MOVIE button again to finish recording the movie.
Hint
The image size of the still images can be selected from MENU → (Camera
Settings)→[Img. Size(Dual Rec)].
Note
Dual Rec may be unavailable depending on the recording setting or mode setting.
Depending on the memory card you use, it may take a while to record a still image.
The shutter button sound may be recorded.
You cannot use the flash while using Dual Rec.
[87] How to Use Using shooting functions Recording movies
Img. Size(Dual Rec)
Selects the size of still images to be shot while recording movies.
1. MENU → (Camera Settings) → [Img. Size(Dual Rec)] → desired setting.
Menu item details
When [ Record Setting] is set to other than [VGA 3M]
L: 17M/S: 4.2M
When [ Record Setting] is set to [VGA 3M]
L: 13M/S: 3.2M
[88] How to Use Using shooting functions Recording movies
SteadyShot (movie)
Sets [ SteadyShot] effect when shooting movies. If you set the [ SteadyShot] effect
to [Off] when using a tripod (sold separately), a natural image is produced.
1. MENU→ (Camera Settings) → [ SteadyShot] → desired setting.
Menu item details
Active:
Provides a more powerful SteadyShot effect.
Standard:
Reduces camera shake under stable movie shooting conditions.
Off:
Does not use [ SteadyShot].
Note
If you change the setting for [ SteadyShot], the angle of view will change.
[89] How to Use Using shooting functions Recording movies
Audio Recording
Sets whether to record sounds when shooting movies.
1. MENU → (Camera Settings) → [Audio Recording] → desired setting.
Menu item details
On:
Records sound (stereo).
Off:
Does not record sound.
Note
The noise of the lens and the product in operation will also be recorded, when [On] is
selected.
[90] How to Use
Using shooting functions Recording movies
Wind Noise Reduct.
Sets whether or not to reduce wind noise during movie recording.
1. MENU → (Camera Settings) → [Wind Noise Reduct.] → desired setting.
Menu item details
On:
Reduces wind noise.
Off:
Does not reduce wind noise.
Note
Setting this item to [On] where wind is not blowing sufficiently hard may cause normal
sound to be recorded with too low volume.
[91] How to Use
Using shooting functions Recording movies
MOVIE Button
Sets whether or not to activate the MOVIE button.
1. MENU → (Custom Settings) → [MOVIE Button] → desired setting.
Menu item details
Always:
Starts movie recording when you press the MOVIE button in any mode.
Movie Mode Only:
Starts movie recording when you press the MOVIE button only if the shooting mode is set to
[Movie] mode.
[92] How to Use Using shooting functions Customizing the shooting functions for
convenient use
Memory
Allows you to register up to 3 often-used modes or product settings in the product. You can
recall the settings using just the mode dial.
1. Set the product to the setting you want to register.
2. MENU → (Camera Settings) → [Memory] → desired number.
Items that can be registered
Shooting mode
Aperture (F number)
Shutter speed
Camera Settings
Optical zoom scale
To recall registered settings
Set the mode dial to MR, then press the right/left side of the control wheel or turn the control
wheel to select the desired memory number.
To change registered settings
Change the setting to the desired one and re-register the setting to the same mode number.
Note
Program Shift cannot be registered.
[93] How to Use
Using shooting functions Customizing the shooting functions for
convenient use
Function Menu Set.
You can assign the functions to be called up when you press the Fn (Function) button.
1. MENU → (Custom Settings) → [Function Menu Set.] → set a function to the
desired location.
The functions that can be assigned are displayed on the setup item selection screen.
[94] How to Use Using shooting functions Customizing the shooting functions for
convenient use
Custom Key Settings
Assigning functions to the desired keys allows you to speed up operations by pressing the
appropriate key when the shooting information screen is displayed to execute an assigned
function.
1. MENU → (Custom Settings) → [Custom Key Settings] → set a function to the
desired key.
Examples of functions that can only be assigned with custom
keys
Standard:
Depending on the options selected in [Focus Area] or [Center Lock-on AF], the available
functions varies when pressing the key.
When you press the key while [Focus Area] is set to [Flexible Spot], you can change the
position of the focusing frame by pressing the top/bottom/right/left side of the control
wheel.
When you press the key when the [Focus Area] is set to [Wide] or [Center] and [Center
Lock-on AF] is [On], [Center Lock-on AF] will activate.
Note
Some functions cannot be assigned to certain keys.
[95] How to Use
Using shooting functions Customizing the shooting functions for
convenient use
Function of the control ring
Once you assign a function to the control ring, you can perform that function by simply
turning the control ring when the shooting information screen is displayed.
1. MENU → (Custom Settings) → [Custom Key Settings] → [Control Ring] → desired
setting.
Note
When [Focus Mode] is set to [DMF] or [Manual Focus], you cannot recall the assigned
function. You can use the control ring to adjust the focus manually.
When [Photo Creativity] is used, you cannot recall the assigned function.
[96] How to Use
Using shooting functions Customizing the shooting functions for
convenient use
Function of the Center button
Once you assign a function to the center button, you can perform that function by simply
pressing the center button when the shooting information screen is displayed.
1. MENU → (Custom Settings) → [Custom Key Settings] → [Center Button] → desired
setting.
The functions that can be assigned are displayed on the setup item selection screen.
[97] How to Use Using shooting functions Customizing the shooting functions for
convenient use
Function of the Left button
Once you assign a function to the left button, you can perform that function by simply
pressing the left button when the shooting information screen is displayed.
1. MENU → (Custom Settings) → [Custom Key Settings] → [Left Button] → desired
setting.
The functions that can be assigned are displayed on the setup item selection screen.
[98] How to Use Using shooting functions Customizing the shooting functions for
convenient use
Function of the Right button
Once you assign a function to the right button, you can perform that function by simply
pressing the right button when the shooting information screen is displayed.
1. MENU → (Custom Settings) → [Custom Key Settings] → [Right Button] → desired
setting.
The functions that can be assigned are displayed on the setup item selection screen.
[99] How to Use Using shooting functions Setting the other functions of this product
Photo Creativity
[Photo Creativity] is a mode that allows you to operate the camera intuitively with a different
screen display. When the shooting mode is set to (Intelligent Auto) or (Superior
Auto), you can change the settings easily and shoot images.
1. Set the shooting mode to (Intelligent Auto) or (Superior Auto).
2. Press (Photo Creativity) on the control wheel.
3. Select the item to be changed using the control wheel.
(Bkground Defocus):
Adjusts the blurring of the background.
(Brightness):
Adjusts brightness.
(Color):
Adjusts color.
(Vividness):
Adjusts vividness.
(Picture Effect):
You can select a desired effect and shoot images with the specific texture.
4. Select the desired settings.
You can use some settings together by repeating steps 3 and 4.
To reset the changed settings to the default settings, press the (Delete) button.
(Bkground Defocus), (Brightness), (Color) and (Vividness) are set to
[AUTO], and (Picture Effect) is set to .
5. For shooting still images: Press the shutter button.
When recording movies: Press the MOVIE button to start recording.
Note
When [ Quality] is set to [RAW] or [RAW & JPEG], you cannot use [Photo Creativity].
When you record movies using the [Photo Creativity] function, you can change the
(Bkground Defocus) settings only.
If you switch the shooting mode to [Intelligent Auto] mode or [Superior Auto] mode, or turn
off the product, the settings you have changed revert to the default settings.
When the shooting mode is set to [Superior Auto], and you use [Photo Creativity], the
product does not perform the overlay processing of images.
[100] How to Use
Using shooting functions Setting the other functions of this product
Smile/Face Detect.
Detects the faces of your subjects and adjusts the focus, exposure, flash settings and
performs image processing automatically.
1. MENU → (Camera Settings) → [Smile/Face Detect.] → desired setting.
Menu item details
Off:
Does not use the Face Detection function.
On (Regist. Faces):
Detects the registered face with higher priority using [Face Registration].
On:
Detects a face without giving higher priority to the registered face.
Smile Shutter:
Automatically detects and shoots a smile.
Face Detection frame
When the product detects a face, the gray face detection frame appears. When the
product determines that autofocus is enabled, the face detection frame turns white. When
you press the shutter button halfway down, the frame turns green.
In case you have registered the priority order for each face using [Face Registration], the
product automatically selects the first prioritized face and the face detection frame over
that face turns white. The face detection frames of other registered faces turn reddish-
purple.
Tips for capturing smiles more effectively
Do not cover the eyes with front hair and keep the eyes narrowed.
Do not obscure the face by a hat, masks, sunglasses, etc.
Try to orient the face in front of the product and be as level as possible.
Give a clear smile with an open mouth. The smile is easier to be detected when the teeth
are shown.
If you press the shutter button during Smile Shutter, the product shoots the image. After
shooting, the product returns to Smile Shutter mode.
Hint
When the [Smile/Face Detect.] is set to [Smile Shutter], you can select the Smile
Detection Sensitivity from [On: Slight Smile], [On: Normal Smile] and [On: Big Smile].
Note
You cannot use the Face Detection function with the following functions:
Zoom functions other than the optical zoom
[Sweep Panorama]
[Picture Effect] is set to [Posterization].
When using the [Focus Magnifier] function.
[Scene Selection] is set to [Landscape], [Night Scene] or [Sunset].
Up to eight faces of your subjects can be detected.
The product may not detect faces at all or may accidentally detect other objects as faces
in some conditions.
If the product cannot detect a face, set the Smile Detection Sensitivity.
If you track a face using [Lock-on AF] while executing Smile Shutter function, Smile
Detection is performed only for that face.
[101] How to Use
Using shooting functions Setting the other functions of this product
Soft Skin Effect (still image)
Sets the effect used for shooting the skin smoothly in the Face Detection function.
1. MENU → (Camera Settings) → [ Soft Skin Effect] → desired setting.
Menu item details
Off:
Does not use the [ Soft Skin Effect] function.
On:
Uses the [ Soft Skin Effect].
Hint
When [ Soft Skin Effect] is set to [On], you can select the effect level. Select the effect
level by pressing the right/left side of the control wheel.
Note
[ Soft Skin Effect] is not available when [ Quality] is [RAW].
[ Soft Skin Effect] is not available for RAW images when the [ Quality] is [RAW &
JPEG].
[102] How to Use
Using shooting functions Setting the other functions of this product
Face Registration (New Registration)
If you register faces in advance, the product can detect the registered face as a priority when
[Smile/Face Detect.] is set to [On (Regist. Faces)].
1. MENU → (Custom Settings) → [Face Registration] → [New Registration].
2. Align the guide frame with the face to be registered, and press the shutter button.
3. When a confirmation message appears, select [Enter].
Note
Up to eight faces can be registered.
Shoot the face from the front in a brightly lit place. The face may not be registered
correctly if it is obscured by a hat, a mask, sunglasses, etc.
[103] How to Use
Using shooting functions Setting the other functions of this product
Face Registration (Order Exchanging)
When multiple faces are registered to be given priority, the face registered first will be given
priority. You can change the priority order.
1. MENU → (Custom Settings) → [Face Registration] → [Order Exchanging].
2. Select a face to change the order of priority.
3. Select the destination.
[104] How to Use Using shooting functions Setting the other functions of this product
Face Registration (Delete)
Deletes a registered face.
1. MENU → (Custom Settings) → [Face Registration] → [Delete].
If you select [Delete All], you can delete all registered faces.
Note
Even if you execute [Delete], the data for registered face will remain in the product. To
delete the data for registered faces from the product, select [Delete All].
[105] How to Use Using shooting functions Setting the other functions of this product
Red Eye Reduction
When using the flash, it is fired two or more times before shooting to reduce the red-eye
phenomenon.
1. MENU → (Camera Settings) → [Red Eye Reduction] → desired setting.
Menu item details
On:
The flash is always fired to reduce the red-eye phenomenon.
Off:
Does not use Red Eye Reduction.
Note
Red Eye Reduction may not produce the desired effects. It depends on individual
differences and conditions, such as distance to the subject, or whether the subject looks
at the pre-strobe or not.
[106] How to Use
Using shooting functions Setting the other functions of this product
Auto Obj. Framing (still image)
When this product detects and shoots faces, macro shooting subjects or subjects that are
tracked by [Lock-on AF], the product automatically trims the image into an appropriate
composition, and then saves it. Both the original and the trimmed images are saved. The
trimmed image is recorded in the same size as the original image size.
1. MENU → (Camera Settings) → [ Auto Obj. Framing] → desired setting.
Menu item details
Off:
Does not trim images.
Auto:
Automatically trims images into an appropriate composition.
Note
The trimmed image may not be the best possible composition, depending on the shooting
conditions.
[ Auto Obj. Framing] cannot be set when using zoom functions other than the optical
zoom.
[ Auto Obj. Framing] cannot be set when [ Quality] is set to [RAW] or [RAW &
JPEG].
[107] How to Use
Using shooting functions Setting the other functions of this product
SteadyShot (still image)
Sets whether or not to use the SteadyShot function.
1. MENU → (Camera Settings) → [ SteadyShot] → desired setting.
Menu item details
On:
Uses [ SteadyShot].
Off:
Does not use [ SteadyShot].
We recommend that you set the camera to [Off] when using a tripod.
[108] How to Use Using shooting functions Setting the other functions of this product
Long Exposure NR (still image)
When you set the shutter speed to 1/3 second(s) or longer (long exposure shooting), noise
reduction is turned on for the duration that the shutter is open. With the function turned on,
the grainy noise typical of long exposures is reduced.
1. MENU → (Camera Settings) → [ Long Exposure NR] → desired setting.
Menu item details
On:
Activates noise reduction for the same duration that the shutter is open. When noise
reduction is in progress, a message appears and you cannot take another picture. Select this
to prioritize the image quality.
Off:
Does not activate noise reduction. Select this to prioritize the timing of shooting.
Note
Noise reduction may not be activated even if [ Long Exposure NR] is set to [On] in the
following situations:
The shooting mode is set to [Sweep Panorama].
[Drive Mode] is set to [Cont. Shooting], [Spd Priority Cont.] or [Cont. Bracket].
The shooting mode is set to [Scene Selection] and [Sports Action], [Hand-held Twilight] or [Anti
Motion Blur] is selected.
The ISO sensitivity is set to [Multi Frame NR].
You cannot set [ Long Exposure NR] to [Off] when the shooting mode is set to
[Intelligent Auto], [Superior Auto] or [Scene Selection] (excluding [Sports Action], [Hand-
held Twilight], and [Anti Motion Blur]).
Depending on the shooting conditions, the camera may not perform noise reduction, even
if the shutter speed is 1/3 second(s) or longer.
[109] How to Use Using shooting functions Setting the other functions of this product
High ISO NR (still image)
When shooting with high ISO sensitivity, the product reduces noise that becomes more
noticeable when the product sensitivity is high. A message may be displayed during noise
reduction processing; you cannot shoot another image until the message disappears.
1. MENU → (Camera Settings) → [ High ISO NR] → desired setting.
Menu item details
High:
Activates high ISO noise reduction strongly.
Normal:
Activates high ISO noise reduction normally.
Low:
Activates high ISO noise reduction moderately.
Note
[ High ISO NR] is locked to [Normal]:
When the shooting mode is set to [Intelligent Auto], [Superior Auto], [Scene Selection] or [Sweep
Panorama].
[ High ISO NR] is not available when [ Quality] is [RAW].
[ High ISO NR] does not work for RAW images when the [ Quality] is [RAW &
JPEG].
[110] How to Use
Using shooting functions Setting the other functions of this product
Write Date (still image)
Sets whether to record a shooting date on the still image.
1. MENU → (Custom Settings) → [ Write Date] → desired setting.
Menu item details
On:
Records a shooting date.
Off:
Does not record a shooting date.
Note
If you shoot images with the date once, you cannot delete the date from the images later.
The dates are doubly printed if you set the product to print dates when printing the
images using PCs or printers.
The recorded time of the image cannot be superimposed on the image.
[ Write Date] cannot be set when [ Quality] is set to [RAW] or [RAW & JPEG].
[111] How to Use
Using shooting functions Setting the other functions of this product
Shooting Tip List
Displays all shooting tips installed on this camera.
1. MENU → (Camera Settings) → [Shooting Tip List] .
Select a desired item from [Table of contents] and display it.
[112] How to Use Using shooting functions Setting the other functions of this product
Color Space (still image)
The way colors are represented using combinations of numbers or the range of color
reproduction is called “color space.” You can change the color space depending on the
purpose of the image.
1. MENU → (Camera Settings) → [ Color Space] → desired setting.
Menu item details
sRGB:
This is the standard color space of the digital camera. Use [sRGB] in normal shooting, such
as when you intend to print out the images without any modification.
AdobeRGB:
This color space has a wide range of color reproduction. When a large part of the subject is
vivid green or red, Adobe RGB is effective. The file name of the recorded image starts with
“_.”
Note
[AdobeRGB] is for applications or printers that support color management and DCF2.0
option color space. Images may not be printed or viewed in the correct colors if you use
applications or printers that do not support Adobe RGB.
When displaying images that were recorded with [AdobeRGB] on non-Adobe RGB-
compliant devices, the images will be displayed with low saturation.
[113] How to Use
Using shooting functions Setting the other functions of this product
Grid Line
Sets whether the grid line is displayed or not. The grid line will help you to adjust the
composition of images.
1. MENU → (Custom Settings) → [Grid Line] → desired setting.
Menu item details
Rule of 3rds Grid:
Place main subjects close to one of the grid lines that divide the image into thirds for a well-
balanced composition.
Square Grid:
Square grids make it easier to confirm the horizontal level of your composition. This is
suitable to determine the quality of the composition when shooting landscape, close-up, or
duplicated images.
Diag. + Square Grid:
Place a subject on the diagonal line to express an uplifting and powerful feeling.
Off:
Does not display the grid line.
[114] How to Use Using shooting functions Setting the other functions of this product
Auto Review
You can check the recorded image on the screen right after the shooting. You can also set
the display time for Auto Review.
1. MENU → (Custom Settings) → [Auto Review] → desired setting.
Menu item details
10 Sec/5 Sec/2 Sec:
Displays the recorded image on the screen right after shooting for the selected duration of
time. If you perform a magnifying operation during Auto Review, you can check that image
using the magnified scale.
Off:
Does not display the Auto Review.
Note
When the product is enlarging an image using image processing, it may temporarily
display the original image prior to enlarging and then display the enlarged image.
The DISP (Display Setting) settings are applied for the Auto Review display.
[115] How to Use Viewing Viewing still images
Playing back images
Plays back the recorded images.
1. Press the (Playback) button to switch to the playback mode.
2. Select the image with the control wheel.
Hint
You can rotate the image by pressing the Fn (Function) button. Press the Fn (Function)
button and then the center button to rotate the image counter-clockwise. The image
rotates each time you press the center. Once you have rotated an image, it remains
rotated even after the product is turned off.
The product creates an image database file on a memory card to record and play back
images. An image that is not registered in the image database file may not be played
back correctly. To play back images shot using other devices, register those images to
the image database file using MENU → [Setup] → [Recover Image DB].
Note
You cannot rotate the movies.
You may not be able to rotate images shot using other products.
When viewing rotated images on a computer, the images may be displayed in their
original orientation depending on the software.
[116] How to Use
Viewing Viewing still images
Playback zoom
Enlarges the image being played back.
1. Display the image you want to enlarge, and slide the W/T (zoom) lever to the T side.
Slide the W/T (zoom) lever to the W side to adjust the zoom scale.
2. Select the portion you want to enlarge by pressing the top/bottom/right/left side of the
control wheel.
3. Press the MENU button, or the center of the control wheel to exit the playback zoom.
Hint
You can also enlarge an image being played back using MENU.
Note
You cannot enlarge movies.
[117] How to Use
Viewing Viewing still images
Image Index
You can display multiple images at the same time in playback mode.
1. Slide the W/T (zoom) lever to the W side while the image is being played back.
To change the number of images to be displayed
MENU → (Playback) → [Image Index] → desired setting.
Menu item details
9 Images/25 Images
To return to single-image playback
Select the desired image and press the center of the control wheel.
To display a desired image quickly
Select the bar on the left of the image index screen using the control wheel, then press the
top/bottom side of the control wheel. While the bar is being selected, you can display the
calendar screen or folder selection screen by pressing the center. In addition, you can switch
View Mode by selecting an icon.
[118] How to Use Viewing Viewing still images
Switching the screen display (during playback)
Switches the screen display.
1. Press the DISP (Display Setting) button.
The screen display switches in the order “Display Info. → Histogram → No Disp.
Info. → Display Info.” each time you press the DISP button.
The DISP (Display Setting) settings are applied for the Auto Review display.
Note
The histogram is not displayed in the following situations:
During movie playback
During scrolling playback of panoramic images
During slideshows
During Folder View (MP4)
During AVCHD View
[119] How to Use Viewing Deleting images
Deleting a displayed image
You can delete an image displayed.
1. Display the image you want to delete.
2. Press the (Delete) button.
3. Select [Delete] using the control wheel.
[120] How to Use Viewing Deleting images
Deleting multiple selected images
You can delete multiple selected images.
1. MENU → (Playback) → [Delete] → desired setting.
Menu item details
Multiple Img.:
Deletes the selected images.
(1) Select the images to be deleted, then press the center of the control wheel. The
mark is displayed in the check box. To cancel the selection, press the center again to
remove the mark.
(2) To delete other images, repeat step (1).
(3) Select MENU → [OK].
All in this Folder:
Deletes all images in the selected folder.
All with this date:
Deletes all images in the selected date range.
Hint
Perform [Format] to delete all images, including protected images.
Note
The menu items that can be selected differ depending on the [View Mode] setting.
[121] How to Use
Viewing Playing back movies
Playing back movies
Plays back the recorded movies.
1. Press the (playback) button to switch to playback mode.
2. Select a movie to play back using the control wheel, and then press the center to play
back the movie.
Available operations during movie playback
You can perform slow playback and sound volume adjustment, etc. by pressing the bottom
side of the control wheel.
: Playback
: Pause
: Fast-forward
: Fast-rewind
: Forward slow playback
: Reverse slow playback
: Next movie file
: Previous movie file
: Displays the next frame
: Displays the previous frame
: Sound volume adjustment
: Closes the operation panel
Hint
“Forward slow playback,” “Reverse slow playback,” “Displays the next frame” and
“Displays the previous frame” are available during pause.
[122] How to Use
Viewing Viewing panoramic images
Playing back panoramic images
The product automatically scrolls a panoramic image from end to end.
1. Press the (playback) button to switch to playback mode.
2. Select a panoramic image to play back using the control wheel, and then press the
center to play back the image.
To pause playback, press the center again.
To return to the display of the entire image, press the MENU button.
Note
Panoramic images shot using other products may be displayed in a different size from the
actual size, or may not scroll correctly.
[123] How to Use
Viewing Printing
Specify Printing
You can specify in advance on the memory card which still images you want to print out
later.
The (print order) icon will appear on the specified images. DPOF refers to “Digital
Print Order Format.”
1. MENU → (Playback) → [Specify Printing] → desired setting.
Menu item details
Multiple Img.:
Selects images to order printing.
(1) Select an image and press the center of the control wheel. The mark is displayed in
the check box. To cancel the selection, press the center again to remove the mark.
(2) Repeat step (1) to print other images.
(3) Select MENU → [OK].
Cancel All:
Clears all DPOF marks.
Print Setting:
Sets whether to print the date on images registered with DPOF marks.
Note
You cannot add the DPOF mark to the following files:
Movies
RAW images
[124] How to Use Viewing Using viewing functions
View Mode
Sets the View Mode (image display method).
1. MENU → (Playback) → [View Mode] → desired setting.
Menu item details
Date View:
Displays the images by date.
Folder View(Still):
Displays only still images.
Folder View(MP4):
Displays only MP4-format movies.
AVCHD View:
Displays only AVCHD-format movies.
[125] How to Use Viewing Using viewing functions
Display Rotation
Selects the orientation when playing back recorded still images.
1. MENU → (Playback) → [Display Rotation] → desired setting.
Menu item details
Auto:
When you rotate the camera, the displayed image rotates automatically detecting the
orientation of the camera.
Manual:
A portrait image is displayed as a vertical image. If you have set the image orientation using
the [Rotate] function, the image will be displayed accordingly.
Off:
Always displays in landscape orientation.
[126] How to Use Viewing Using viewing functions
Slide Show
Automatically plays back images continuously.
1. MENU → (Playback) → [Slide Show] → desired setting.
2. Select [Enter].
Menu item details
Repeat:
Select [On], in which images are played back in a continuous loop, or [Off], in which the
product exits the slideshow when all the images are played back once.
Interval:
Select the display interval for images from among [1 Sec], [3 Sec], [5 Sec], [10 Sec] or [30
Sec].
To quit the slideshow in the middle of playback
Press the MENU button to quit the slideshow. You cannot pause the slideshow.
Hint
You can activate a slideshow only when [View Mode] is set to [Date View] or [Folder
View(Still)].
[127] How to Use
Viewing Using viewing functions
Protect
Protects recorded images against accidental erasure. The mark is displayed on
protected images.
1. MENU → (Playback) → [Protect] → desired setting.
Menu item details
Multiple Img.:
Applies or cancels the protection of the selected multiple images.
(1) Select the image to be protected, then press the center of the control wheel. The
mark is displayed in the check box. To cancel the selection, press the center again to
remove the mark.
(2) To protect other images, repeat step (1).
(3) Select MENU → [OK].
All in this Folder:
Protects all images in the selected folder.
All with this date:
Protects all images in the selected date range.
Cancel All in this Folder:
Cancels the protection of all images in the selected folder.
Cancel All with this date:
Cancels the protection of all images in the selected date range.
Note
The menu items that can be selected differ depending on the [View Mode] setting.
[128] How to Use
Viewing Viewing images on a TV
Viewing images on an HD TV
To view images stored on this product using a TV, an HDMI cable (sold separately) and an
HD TV equipped with an HDMI jack are required.
1. Turn off both this product and the TV.
2. Connect the HDMI micro terminal of this product to the HDMI jack of the TV using an
HDMI cable (sold separately).
3. Turn on the TV and switch the input.
4. Turn on this product.
Images shot with the product appear on the TV screen.
Hint
This product is compatible with the PhotoTV HD standard. If you connect Sony PhotoTV
HD-compatible devices using an HDMI cable (sold separately), the TV is set to the image
quality suitable for viewing still images, and a whole new world of photos can be enjoyed
in breathtaking high quality.
You can connect this product to Sony PhotoTV HD-compatible devices with a USB
terminal using the supplied micro USB cable.
The PhotoTV HD allows for a highly-detailed, photo-like expression of subtle textures and
colors.
For details, refer to the operating instructions supplied with the compatible TV.
Note
Do not connect this product and another device using the output terminals of both. Doing
so may cause a malfunction.
Some devices may not work properly when connected to this product. For example, they
may not output video or audio.
Use an HDMI cable with the HDMI logo or a genuine Sony cable.
Use an HDMI cable that is compatible with the HDMI micro terminal of the product and
the HDMI jack of the TV.
If images do not appear on the TV screen properly, select [1080i] or [1080p] using
(Setup) → [HDMI Settings] → [HDMI Resolution] according to the TV to be connected.
[129] How to Use Viewing Viewing images on a TV
Viewing images on a “BRAVIA” Sync-compatible TV
By connecting this product to a TV that supports “BRAVIA” Sync using an HDMI cable (sold
separately), you can operate this product's playback functions with the TV remote control.
1. Turn off both this product and the TV.
2. Connect the HDMI micro terminal of the product to the HDMI jack of the TV using an
HDMI cable (sold separately).
3. Turn on the TV and switch the input.
4. Turn on this product.
5. MENU → (Setup) → [HDMI Settings] → [CTRL FOR HDMI] → [On].
6. Press the SYNC MENU button on the TV remote control, and select the desired mode.
Note
If the product is not in playback mode, press the (Playback) button.
Only TVs that support “BRAVIA” Sync can provide SYNC MENU operations. For details,
refer to the operating instructions supplied with the TV.
If the product performs unwanted operations in response to the TV remote control when
the product is connected to another manufacturer’s TV using an HDMI connection, select
MENU → (Setup) → [HDMI Settings] → [CTRL FOR HDMI] → [Off].
[130] How to Use
Changing settings Setup menu
Monitor Brightness
You can adjust the brightness of the screen.
1. MENU → (Setup) → [Monitor Brightness] → desired setting.
Menu item details
Auto:
Adjusts the brightness automatically.
Manual:
Adjusts the brightness within the range of –2 to +2.
Sunny Weather:
Sets the brightness appropriately for shooting outdoors.
Note
The [Sunny Weather] setting is too bright for shooting indoors. Set [Monitor Brightness] to
[Auto] or [Manual] for indoor shooting.
Do not cover the light sensor with your hand, etc., when [Monitor Brightness] is set to
[Auto] .
[131] How to Use
Changing settings Setup menu
Volume Settings
Sets the sound volume for movie playback.
1. MENU → (Setup) → [Volume Settings] → desired setting.
Adjusting the volume during playback
Press the bottom of the control wheel while playing back movies to display the operation
panel, then adjust the volume. You can adjust the volume while listening to the actual sound.
[132] How to Use Changing settings Setup menu
Audio signals
Selects whether the product produces a sound or not.
1. MENU → (Setup) → [Audio signals] → desired setting.
Menu item details
On:
Sounds are produced for example when the focus is achieved by pressing the shutter button
halfway down.
Off:
Sounds are not produced.
Note
If [Focus Mode] is set to [Continuous AF], the camera will not beep when it focuses on a
subject.
[133] How to Use
Changing settings Setup menu
Upload Settings(Eye-Fi)
Sets whether to use the upload function when using an Eye-Fi card (commercially
available). This item appears when an Eye-Fi card is inserted into the product’s memory
card slot.
1. MENU → (Setup) → [Upload Settings] → desired setting.
2. Set your Wi-Fi network or destination on the Eye-Fi card.
For details, refer to the manual supplied with the Eye-Fi card.
3. Insert the Eye-Fi card you have set up into the product, and shoot still images.
Images are transferred to your computer, etc., automatically via the Wi-Fi network.
Menu item details
On:
Enables the upload function.
Off:
Disables the upload function.
Communication status screen display
: Standby. No images are to be sent.
: Upload standby
: Connecting
: Uploading
: Error
Note
Eye-Fi cards are only sold in certain countries/regions.
For more information on Eye-Fi cards, please contact the manufacturer or vendor directly.
Eye-Fi cards can be used only in the countries/regions where they were purchased. Use
Eye-Fi cards in accordance with the law of the countries/regions where you purchased
the card.
Eye-Fi cards are equipped with a wireless LAN function. Do not insert an Eye-Fi card into
the product in locations in which their use is prohibited, such as on an airplane. When an
Eye-Fi card is inserted into the product, set [Upload Settings] to [Off]. When the upload
function is set to [Off], the indicator will be displayed on the product.
Power save mode will not function during uploading.
If (error) is displayed, remove the memory card and reinsert it, or turn the product
off and then on again. If the indicator appears again, the Eye-Fi card may be damaged.
Wireless LAN communication may be influenced by other communication devices. If the
communication status is poor, move closer to the access point to be connected.
This product does not support Eye-Fi “Endless Memory Mode.” Before using an Eye-Fi
card, be sure that “Endless Memory Mode” is turned off.
[134] How to Use
Changing settings Setup menu
Mode Dial Guide
You can display the description of a shooting mode when you turn the mode dial and change
the settings available for that shooting mode.
1. MENU → (Setup) → [Mode Dial Guide] → desired setting.
Menu item details
On:
Displays the Mode Dial Guide.
Off:
Does not display the Mode Dial Guide.
[135] How to Use Changing settings Setup menu
Pwr Save Start Time
You can set the time by which the power goes off automatically.
1. MENU → (Setup) → [Pwr Save Start Time] → desired setting.
Menu item details
30 Min/5 Min/2 Min/1 Min
Note
The power save function is not activated when power is being supplied via USB, when
playing back slideshows, when recording movies, or when connected to a computer or
TV.
[136] How to Use
Changing settings Setup menu
Demo Mode
The [Demo Mode] function displays the movies recorded on the memory card automatically
(demonstration), when the camera has not been operated for a certain time. Normally select
[Off].
1. MENU → (Setup) → [Demo Mode] → desired setting.
Menu item details
On:
The movie playback demonstration starts automatically if the product is not operated for
about one minute. Only protected AVCHD movies are played back.
Set the view mode to [AVCHD View], and protect the movie file with the oldest recorded
date and time.
Off:
Does not show the demonstration.
Note
Even if [On] is selected, the product does not start a demonstration if there is no movie file
on the memory card.
When [On] is selected, the product does not switch to power save mode.
[137] How to Use
Changing settings Setup menu
HDMI Resolution
When you connect the product to a High Definition (HD) TV with HDMI terminals using an
HDMI cable (sold separately), you can select HDMI Resolution to output images to the TV.
1. MENU → (Setup) → [HDMI Settings] → [HDMI Resolution] → desired setting.
Menu item details
Auto:
The product automatically recognizes an HD TV and sets the output resolution.
1080p:
Outputs signals in HD picture quality (1080p).
1080i:
Outputs signals in HD picture quality (1080i).
Note
If the images are not displayed properly using the [Auto] setting, select either [1080i] or
[1080p], based on which TV is to be connected.
[138] How to Use
Changing settings Setup menu
CTRL FOR HDMI
When connecting this product to a “BRAVIA” Sync-compatible TV using an HDMI cable (sold
separately), you can operate this product by aiming the TV remote control at the TV.
1. MENU → (Setup) → [HDMI Settings] → [CTRL FOR HDMI] → desired setting.
Menu item details
On:
You can operate this product with a TV’s remote control.
Off:
You cannot operate this product with a TV’s remote control.
Note
[CTRL FOR HDMI] is available only with a “BRAVIA” Sync-compatible TV.
[139] How to Use Changing settings Setup menu
USB Connection
Selects the appropriate USB connection method for each computer or USB device
connected to this product.
1. MENU → (Setup) → [USB Connection] → desired setting.
Menu item details
Auto:
Establishes a Mass Storage or MTP connection automatically, depending on the computer or
other USB devices to be connected. Windows 7 or Windows 8 computers are connected in
MTP, and their unique functions are enabled for use.
Mass Storage:
Establishes a Mass Storage connection between this product, a computer, and other USB
devices.
MTP:
Establishes an MTP connection between this product, a computer, and other USB devices.
Windows 7 or Windows 8 computers are connected in MTP, and their unique functions are
enabled for use.
Note
It may take some time to make the connection between this product and a computer
when [USB Connection] is set to [Auto].
If Device Stage* is not displayed with Windows 7 or Windows 8, set [USB Connection] to
[Auto].
* Device Stage is a menu screen used to manage connected devices, such as a camera
(Function of Windows 7 or Windows 8).
[140] How to Use
Changing settings Setup menu
USB LUN Setting
Enhances compatibility by limiting of USB connection functions.
1. MENU → (Setup) → [USB LUN Setting] → desired setting.
Menu item details
Multi:
Normally, use [Multi].
Single:
Set [USB LUN Setting] to [Single] only if you cannot make a connection.
[141] How to Use Changing settings Setup menu
USB Power Supply
Sets whether to supply power via the micro USB cable when the product is connected to a
computer or an USB device.
1. MENU → (Setup) → [USB Power Supply] → desired setting.
Menu item details
On:
Power is supplied to the product via a micro USB cable when the product is connected to a
computer, etc.
Off:
Power is not supplied to the product via a micro USB cable when the product is connected to
a computer, etc. If you use the supplied AC Adaptor, power will be supplied even when [Off]
is selected.
[142] How to Use Changing settings Setup menu
Language
Selects the language to be used in the menu items, warnings and messages.
1. MENU → (Setup) → [ Language] → desired language.
[143] How to Use Changing settings Setup menu
Date/Time Setup
Sets the date and time again.
1. MENU → (Setup) → [Date/Time Setup] → desired setting.
Menu item details
Daylight Savings:
Selects Daylight Savings [On]/[Off].
Date/Time:
Sets the date and time.
Date Format:
Selects the date and time display format.
[144] How to Use Changing settings Setup menu
Area Setting
Sets the area where you are using the product.
1. MENU → (Setup) → [Area Setting] → desired area.
[145] How to Use Changing settings Setup menu
Format
Formats (initializes) the memory card. When you use a memory card with this product for the
first time, it is recommended that you format the card using the product for stable
performance of the memory card. Note that formatting permanently erases all data on the
memory card, and is unrecoverable. Save valuable data on a computer, etc.
1. MENU → (Setup) → [Format].
Note
Formatting permanently erases all data including even protected images.
[146] How to Use Changing settings Setup menu
File Number
Selects how to assign file numbers to recorded still images and MP4 movies.
1. MENU → (Setup) → [File Number] → desired setting.
Menu item details
Series:
The product will assign numbers to files sequentially up to “9999” without resetting.
Reset:
The product resets numbers when a file is recorded in a new folder and assigns numbers to
files starting with “0001.”
(When the recording folder contains a file, a number one higher than the largest number is
assigned.)
[147] How to Use Changing settings Setup menu
Select REC Folder
You can change the folder on the memory card where still images and MP4 movies are to be
recorded.
1. MENU → (Setup) → [Select REC Folder] → desired folder.
[148] How to Use Changing settings Setup menu
New Folder
Creates a new folder on the memory card for recording still images and MP4 movies. A new
folder is created with a folder number one greater than the largest folder number currently
used. Images are recorded in the newly created folder. A folder for still images and a folder
for MP4 movies that have the same number are created at the same time.
1. MENU → (Setup) → [New Folder].
Note
When you insert a memory card that was used with other equipment into this product and
shoot images, a new folder may be automatically created.
Up to 4,000 images in total can be stored in one folder. When the folder capacity is
exceeded, a new folder may be automatically created.
[149] How to Use
Changing settings Setup menu
Recover Image DB
If image files were processed on a computer, problems may occur in the image database file.
In such cases, the images on the memory card will not be played back on this product. If
these problems happen, repair the file using [Recover Image DB].
1. MENU → (Setup) → [Recover Image DB] → [Enter].
Note
Use a sufficiently charged battery pack. Low battery power during repairing can cause
damage to data.
[150] How to Use
Changing settings Setup menu
Display Media Info.
Displays the recordable time of movies and the number of recordable still images for the
inserted memory card.
1. MENU → (Setup) → [Display Media Info.].
[151] How to Use Changing settings Setup menu
Version
Displays the version of this product’s software.
1. MENU → (Setup) → [Version].
[152] How to Use Changing settings Setup menu
Setting Reset
Resets the product to the default settings. Even if you perform [Setting Reset], the recorded
images are retained.
1. MENU → (Setup) → [Setting Reset] → desired setting.
Menu item details
Camera Settings Reset:
Initializes the main shooting settings to the default settings.
Initialize:
Initializes all the settings to the default settings.
Note
Be sure not to eject the battery pack while resetting.
[153] How to Use
Using a computer Recommended computer environment
Recommended computer environment
You can confirm the operating computer environment of the software from the following
URL:
http://www.sony.net/pcenv/
[154] How to Use Using a computer Using the software
PlayMemories Home
With PlayMemories Home, you can do the following:
You can import images shot with this product to your computer.
You can play back the images imported to your computer.
You can share your images using PlayMemories Online.
You can edit movies such as by cutting or merging.
You can add various effects such as BGM and subtitles to movies.
Also for Windows, you can do the following:
You can organize images on the computer on a calendar by shooting date to view them.
You can edit and correct images, such as by trimming and resizing.
You can upload images to a network service. (An internet connection is required.)
For other details, please refer to the Help of PlayMemories Home.
[155] How to Use Using a computer Using the software
Installing PlayMemories Home
1. Using your computer's Internet browser, go to the URL below and download
PlayMemories Home by following the on-screen instructions.
http://www.sony.net/pm/
An internet connection is required.
For detailed instructions, visit the PlayMemories Home support page.
http://www.sony.co.jp/pmh-se/
2. Connect the product to your computer using the micro USB cable (supplied), then turn
the product on.
New functions may be added to PlayMemories Home. Even if PlayMemories Home
has already been installed on your computer, connect this product and your
computer again.
Do not remove the micro USB cable (supplied) from the camera while the camera is
in operation or the access screen is displayed. Doing so may damage the data.
A: To the micro USB connector
B: To the USB jack of the computer
Note
Log on as Administrator.
It may be necessary to restart your computer. When the restart confirmation message
appears, restart the computer following the instructions on the screen.
DirectX may be installed depending on your computer’s system environment.
Hint
For details on PlayMemories Home, refer to the Help of PlayMemories Home or the
PlayMemories Home support page (http://www.sony.co.jp/pmh-se/) (English only).
[156] How to Use
Using a computer Using the software
Software for Mac computers
For details on software for Mac computers, access the following URL:
http://www.sony.co.jp/imsoft/Mac/
Note
The software that can be used varies depending on the region.
[157] How to Use
Using a computer Using the software
Image Data Converter
With Image Data Converter, you can do the following:
You can play back and edit images recorded in RAW format with various corrections,
such as tone curve and sharpness.
You can adjust images with white balance, exposure, and [Creative Style], etc.
You can save the still images displayed and edited on a computer.
You can either save the still image as RAW format or save it in the general file format.
You can display and compare the RAW images and JPEG images recorded by this
product.
You can rank images in five grades.
You can apply color labels.
[158] How to Use Using a computer Using the software
Installing Image Data Converter
1. Download and install the software by accessing the following URL.
Windows:
http://www.sony.co.jp/imsoft/Win/
Mac:
http://www.sony.co.jp/imsoft/Mac/
Note
Log on as Administrator.
[159] How to Use
Using a computer Using the software
Accessing Image Data Converter Guide
Windows:
[Start] → [All Programs] → [Image Data Converter] → [Help] → [Image Data Converter].
For Windows 8, start [Image Data Converter], and select [Help] from the menu bar →
[Image Data Converter Guide].
Mac:
Finder → [Applications] → [Image Data Converter] → [Image Data Converter], and select
[Help] from the menu bar → [Image Data Converter Guide].
Hint
For details on operation, you can also refer to the Image Data Converter support page
(English only).
http://www.sony.co.jp/ids-se/
[160] How to Use
Using a computer Connecting this product and a computer
Connecting the product to a computer
1. Insert a sufficiently charged battery pack into the product.
2. Turn on the product and the computer.
3. Check from (Setup) that [USB Connection] is set to [Mass Storage].
4. Connect the product and your computer using the micro USB cable (supplied) (A) .
If you connect the product to your computer using the micro USB cable when [USB
Power Supply] is set to [On], power is supplied from your computer. (Default setting:
[On])
[161] How to Use Using a computer Connecting this product and a computer
Importing images to the computer
PlayMemories Home allows you to easily import images. For details on PlayMemories Home
functions, see the Help of PlayMemories Home.
Importing images to the computer without using PlayMemories
Home (For Windows)
When the AutoPlay Wizard appears after making a USB connection between this product
and a computer, click [Open folder to view files] → [OK] → [DCIM] or [MP_ROOT]. Then
copy the desired images to the computer.
If Device Stage appears on a Windows 7 or Windows 8 computer, double-click [Browse
Files] → media icon → folder in which the images you want to import are stored.
Importing images to the computer without using PlayMemories
Home (For Mac)
Connect the product to your Mac computer. Double-click the newly recognized icon on the
desktop → the folder in which the image you want to import is stored. Then drag and drop
the image file on to the hard disk icon.
Note
Do not edit or otherwise process AVCHD movie files/folders from the connected
computer. Movie files may be damaged or become unplayable. Do not delete or copy
AVCHD movies on the memory card from the computer. Sony is not held liable for
consequences resulting from such operations via the computer.
[162] How to Use
Using a computer Connecting this product and a computer
Disconnecting the product from the computer
Disconnects the USB connection between this product and the computer.
Perform the procedures from step 1 to 2 below before performing the following operations:
Disconnecting the USB cable.
Removing a memory card.
Turning off the product.
1. Click (Safely remove USB Mass Storage Device) on the taskbar.
2. Click the displayed message.
Note
For Mac computers, drag and drop the icon of the memory card or the drive icon in the
“Trash” icon. The product is disconnected from the computer.
For Windows 7/Windows 8 computers, the disconnect icon may not appear. In that case,
you can skip steps 1 and 2 above.
Do not remove a micro USB cable from this product while the access lamp is illuminated.
The data may be damaged.
[163] How to Use
Using a computer Creating a movie disc
Selecting a disc to be created
You can create a disc that can be played back on other devices from a movie recorded on
this camera.
What devices can play back the disc depends on the disc type. Select a disc type suitable
for the playback devices you will be using.
Depending on the movie type, the movie format may be converted when creating a disc.
High-definition image quality (HD) (Blu-ray Disc)
High-definition image quality (HD) movies can be recorded on a Blu-ray Disc, creating a
high-definition image quality (HD) disc. A Blu-ray Disc enables you to record longer-duration
high-definition image quality (HD) movies than DVD discs.
Writable movie formats: AVCHD, MP4 (AVC)
Players: Blu-ray Disc playback devices (Sony Blu-ray Disc players, PlayStation 3, etc.)
High-definition image quality (HD) (AVCHD recording disc)
High-definition image quality (HD) movies can be recorded on DVD media such as DVD-R
discs, creating a high-definition image quality (HD) disc.
Writable movie formats: AVCHD, MP4 (AVC)
Players: AVCHD format playback devices (Sony Blu-ray Disc players, PlayStation 3, etc.)
You cannot play these kinds of discs on ordinary DVD players.
Standard definition image quality (STD)
Standard definition image quality (STD) movies converted from high-definition image quality
(HD) movies can be recorded on DVD media such as DVD-R discs, creating a standard
image quality (STD) disc.
Writable movie format: AVCHD
Players: Ordinary DVD playback devices (DVD players, computers that can play back DVD
discs, etc.)
Hint
You can use the following types of 12 cm discs with PlayMemories Home.
BD-R*/ DVD-R/DVD+R/DVD+R DL: Non-rewritable
BD-RE*/DVD-RW/DVD+RW: Rewritable
*
Additional recording is not possible.
Always maintain your “PlayStation 3” to use the latest version of the “PlayStation 3”
system software.
[164] How to Use
Using a computer Creating a movie disc
Creating Blu-ray Discs from high-definition image quality
movies
You can create Blu-ray Discs that can be played back on Blu-ray Disc playback devices
(such as Sony Blu-ray Disc players or the PlayStation 3, etc.).
A. How to create using a computer
With a Windows computer, you can copy movies imported to the computer and create Blu-
ray Discs using PlayMemories Home.
Your computer must be able to create Blu-ray Discs.
When you create a Blu-ray Disc for the first time, connect your camera to the computer
using a USB cable. The necessary software is automatically added to your computer. (An
internet connection is needed.)
For details on how to create a disc using PlayMemories Home, refer to the Help guide for
PlayMemories Home.
B. How to create using a device other than a computer
You can also create Blu-ray Discs using a Blu-ray recorder, etc.
For details, refer to the device's operating instructions.
Note
When creating Blu-ray discs using PlayMemories Home from movies recorded in the MP4
movie format, the image quality is converted to 1920×1080 (60i/50i) and it is not possible
to create discs with the original image quality. To record movies with the original image
quality, copy movies to a computer or an external medium.
To create a Blu-ray Disc from movies recorded in the AVCHD movie format with [
Record Setting] set to [60p 28M(PS)]/[50p 28M(PS)], you need to use a device that is
compliant with AVCHD format Ver. 2.0. The created Blu-ray Disc can be played back only
on a device that is compliant with AVCHD format Ver. 2.0.
[165] How to Use Using a computer Creating a movie disc
Creating DVD discs (AVCHD recording discs) from high-
definition image quality movies
You can create DVD discs (AVCHD recording discs) that can be played back on AVCHD-
compatible playback devices (such as Sony Blu-ray Disc players or the PlayStation 3, etc.).
A. How to create using a computer
With a Windows computer, you can copy movies imported to the computer and create DVD
discs (AVCHD recording discs) using PlayMemories Home.
Your computer must be able to create DVD discs (AVCHD recording discs).
When you create a DVD disc for the first time, connect your camera to the computer using a
USB cable. The necessary software is automatically added to your computer. (An internet
connection is needed.)
For details on how to create a disc using PlayMemories Home, refer to the Help guide for
PlayMemories Home.
B. How to create using a device other than a computer
You can also create DVD discs (AVCHD recording discs) using a Blu-ray recorder, etc.
For details, refer to the device's operating instructions.
Note
When creating DVD discs (AVCHD recording discs) using PlayMemories Home from
movies recorded in the MP4 movie format, the image quality is converted to 1920×1080
(60i/50i) and it is not possible to create discs with the original image quality. To record
movies with the original image quality, copy movies to a computer or an external medium.
When creating AVCHD recording discs using PlayMemories Home from movies recorded
in the AVCHD movie format with [ Record Setting] set to [60p 28M(PS)]/[50p
28M(PS)] or [60i 24M(FX)]/[50i 24M(FX)], the image quality is converted and it is not
possible to create discs with the original image quality. Converting the image quality takes
time. To record movies with the original image quality, use a Blu-ray Disc.
[166] How to Use
Using a computer Creating a movie disc
Creating DVD discs from standard image quality movies
You can create DVD discs that can be played back on ordinary DVD playback devices (DVD
players, computers that can play back DVD discs, etc.).
A. How to create using a computer
With a Windows computer, you can copy movies imported to the computer and create DVD
disc using PlayMemories Home.
Your computer must be able to create DVD discs.
When you create a DVD disc for the first time, connect your camera to the computer using a
USB cable. Install the dedicated add-on software following the on-screen instructions. (An
internet connection is needed.)
For details on how to create a disc using PlayMemories Home, refer to the Help for
PlayMemories Home.
B. How to create using a device other than a computer
You can also create DVD discs using a Blu-ray recorder, HDD recorder, etc. For details,
refer to the device's operating instructions.
[167] How to Use Precautions/This product Precautions
Precautions
Backing up memory cards
Data may be corrupted in the following cases. Be sure to back up the data for protection.
When the memory card is removed, the USB cable is disconnected, or the product is
turned off in the middle of a read or write operation.
When the memory card is used in locations subject to static electricity or electrical noise.
Creating an image database file
If you insert a memory card that does not contain an image database file into the product and
turn on the power, the product automatically creates an image database file using some of
the memory card’s capacity. The process may take a long time and you cannot operate the
product until the process is completed.
If a database file error occurs, export all images to your computer using PlayMemories
Home, and then format the memory card using this product.
Do not use/store the product in the following places
In an extremely hot, cold or humid place
In places such as in a car parked in the sun, the camera body may become deformed and
this may cause a malfunction.
Storing under direct sunlight or near a heater
The camera body may become discolored or deformed, and this may cause a
malfunction.
In a location subject to rocking vibration
Near strong magnetic place
In sandy or dusty places
Be careful not to let sand or dust get into the product. This may cause the product to
malfunction, and in some cases this malfunction cannot be repaired.
On carrying
Do not sit down in a chair or other place with the product in the back pocket of your trousers
or skirt, as this may cause a malfunction or damage the product.
On operating temperatures
Your product is designed for use under the temperatures between 0°C and 40 °C (32 °F and
104 °F). Shooting in extremely cold or hot places that exceed this range is not
recommended.
On moisture condensation
If the product is brought directly from a cold to a warm location, moisture may condense
inside or outside the product. This moisture condensation may cause a malfunction of the
product.
To prevent moisture condensation when you bring the product directly from a cold to a
warm location, first put it in a plastic bag and seal it to prevent air from entering. Wait for
about an hour until the temperature of the product has reached the ambient temperature.
If moisture condensation occurs, turn off the product and wait about an hour for the
moisture to evaporate. Note that if you attempt to shoot with moisture remaining inside the
lens, you will be unable to record clear images.
On the functions available with the product
This camera is compatible with 1080 60p or 1080 50p-format movies. Unlike traditional
standard recording modes, which record using an interlacing method, this product records
movies using a progressive method. This increases the resolution, and provides a
smoother, more realistic image.
Notes for when on board an airplane
When on board an airplane, turn off the product.
On image data compatibility
This product conforms with DCF (Design rule for Camera File system) universal standard
established by JEITA (Japan Electronics and Information Technology Industries
Association).
Playback of images recorded with your product on other equipment and playback of
images recorded or edited with other equipment on your product are not guaranteed.
Notes on playing movies on other devices
Movies recorded by your camera may not be playable properly on other devices. Also,
movies recorded by devices other than your camera may not be able to playback on your
camera.
Discs of AVCHD movies recorded by your camera can only be played back on devices
supporting AVCHD format.
DVD players and DVD recorders do not support AVCHD format, so they cannot playback
AVCHD movie discs.
Also, if a high definition image quality (HD) disc recorded with AVCHD format is inserted
in either of DVD players or DVD recorders, the disc may be unable to eject from the
device.
Movies recorded in 1080 60p/1080 50p format can be played back only on 1080 60p/1080
50p supported devices.
On the monitor and lens
The monitor is manufactured using extremely high-precision technology so over 99.99 %
of the pixels are operational for effective use. However, there may be some tiny black
points and/or bright points (white, red, blue or green in color) that constantly appear on
the monitor. These points are normal in the manufacturing process and do not affect the
images in any way.
Exposing the monitor or lens to direct sunlight for long periods may cause a malfunction.
Exercise caution when placing the product near a window or outdoors.
Do not directly expose the lens to beams such as laser beams. That may damage the
image sensor and cause the camera to malfunction.
Do not press against the monitor. The monitor may be discolored and that may cause a
malfunction.
Images may trail across on the monitor in a cold location. This is not a malfunction.
If the monitor has drops of water or other liquids on it, wipe it with a soft cloth. If the
monitor stays wet, the surface of the monitor may change or deteriorate. This may cause
a malfunction.
When the battery pack is discharged, the product may shut off while the lens is still
extended. Insert a charged battery pack, then turn the product on again.
Make sure not to bump the lens or subject it to force.
When the lens is in operation, be careful not to catch your fingers or any other objects in
the lens.
Do not expose the camera to sunlight or shoot sunward for a long time. The internal
mechanism may be damaged.
Do not use the camera in areas where strong radio waves or radiation is being emitted.
Recording and playback may not function correctly.
Notes on the flash
Do not cover the flash with your fingers.
Do not carry the product by the flash unit, or use excessive strength on it.
If water, dust or sand get into the open flash unit, it may cause a malfunction.
When pushing down the flash unit, be careful not to catch your fingers.
Notes on discarding or transferring this product to
others
When discarding or transferring this product to others, make sure to perform the following
operation to protect private information.
Perform [Setting Reset] to reset all the settings.
[168] How to Use Precautions/This product Precautions
On the internal rechargeable battery
This camera has an internal rechargeable battery for maintaining the date and time and
other settings regardless of whether the power is on or off, or whether the battery pack is
charged or discharged. This rechargeable battery is continually charged as long as you are
using the product. However, if you use the product for only short periods, it gradually
discharges. If you do not use the product at all for about 1 month(s) it becomes completely
discharged. In this case, be sure to charge this rechargeable battery before using the
product. However, even if this rechargeable battery is not charged, you can still use the
product as long as you do not record the date and time.
Charging method of the internal rechargeable battery
Insert a charged battery pack into the product, or connect the product to a wall outlet (wall
socket) using the AC Adaptor (supplied), and leave the product for 24 hours or more with the
power off.
[169] How to Use Precautions/This product Precautions
Notes on the battery pack
Charging the battery pack
Charge the battery pack (supplied) before using the product for the first time.
The charged battery pack will discharge little by little even if you do not use it. Charge the
battery pack each time before you use the product so that you do not miss any
opportunities to shoot images.
You can charge the battery pack even if it is not completely discharged. You can use a
partially charged battery pack.
If the charge lamp flashes when the battery pack is not fully charged, remove the battery
pack or disconnect the USB cable from the camera and then reinsert it to recharge.
We recommend charging the battery pack at an ambient temperature between 10°C and
30°C (50°F and 86°F). The battery pack may not charge normally at temperatures outside
this range.
When you connect this product and a laptop computer that is not connected to a power
source, the laptop’s battery charge may decrease. Do not charge this product using the
laptop computer for too long.
Do not turn on/restart a computer, wake a computer from sleep mode, or turn off a
computer while this product is connected to the computer via USB cable. Doing so may
cause a malfunction of this product. Disconnect the product and the computer before
performing the above operations.
We do not guarantee charging if you are using a self-built or modified computer.
Charging time (Full charge)
The charging time is approximately 155 minutes using the AC adaptor (supplied). The above
charging time applies when charging a fully depleted battery pack at a temperature of 25 °C
(77 °F). Charging may take longer depending on conditions of use and circumstances.
Effective use of the battery pack
Battery performance decreases in low temperature environments. So in cold places, the
operational time of the battery pack is shorter. To ensure longer battery pack use, we
recommend putting the battery pack in your pocket close to your body to warm it up, and
insert it in the product immediately before you start shooting. If there are any metal
objects such as keys in your pocket, be careful of causing a short-circuit.
The battery pack will run down quickly if you use the flash or continuous shooting function
frequently, turn the power on/off frequently, or set the monitor very bright.
We recommend preparing spare battery packs and taking trial shots before taking the
actual shots.
Do not expose the battery pack to water. The battery pack is not water-resistant.
Do not leave the battery pack in extremely hot places, such as in a car or under direct
sunlight.
If the battery terminal is dirty, you may not be able to turn on the product or the battery
pack may not be properly charged. In that case, clean the battery by lightly wiping off any
dust using a soft cloth or a cotton swab.
Remaining battery indicator
The remaining battery indicator appears on the screen.
A: Battery level high
B: Battery exhausted
It takes about one minute for the correct remaining battery indicator to appear.
The correct remaining battery indicator may not be displayed under some operating or
environmental conditions.
If you do not operate the product for a certain period of time while the power is on, the
product turns off automatically (Auto power-off function).
If the remaining battery time does not appear on the screen, press the DISP (Display
Setting) button to display it.
How to store the battery pack
To maintain the battery pack’s function, charge the battery pack and then fully discharge it
in the product at least once a year before storing it. Remove the battery pack from the
camera and store the battery in a cool, dry place.
To use the battery pack up, leave the product in slide show playback mode until the
power goes off.
To prevent staining the terminal, short-circuiting, etc., be sure to use a plastic bag to keep
away from metal materials when carrying or storing the battery pack.
On battery life
The battery life is limited. If you use the same battery repeatedly, or use the same battery
for a long period, the battery capacity decreases gradually. If the available time of the
battery is shortened significantly, it is probably time to replace the battery pack with a new
one.
The battery life varies according to how the battery pack is stored and the operating
conditions and environment in which each battery pack is used.
[170] How to Use Precautions/This product Precautions
Charging the battery pack
The supplied AC Adaptor is dedicated to this product. Do not connect with other
electronic devices. Doing so may cause a malfunction.
Make sure to use a genuine Sony AC Adaptor.
If the product's charge lamp flashes while charging, remove the battery pack being
charged, and then insert the same battery pack firmly back into the product. If the charge
lamp flashes again, this may indicate a faulty battery or that a battery pack other than the
specified type has been inserted. Check that the battery pack is the specified type.
If the battery pack is the specified type, remove the battery pack, replace it with a new or
different one and check that the newly inserted battery is charging correctly. If the newly
inserted battery is charging correctly, the previously inserted battery may be faulty.
If the charge lamp flashes even if the AC Adaptor is connected to the product and the wall
outlet (wall socket), this indicates that charging has stopped temporarily and is on
standby. Charging stops and enters standby status automatically when the temperature is
outside of the recommended operating temperature. When the temperature returns to the
appropriate range, charging resumes and the charge lamp lights up again. We
recommend charging the battery pack in an ambient temperature of between 10°C to
30°C (50°F to 86°F).
[171] How to Use Precautions/This product Precautions
Notes on memory card
If you repeatedly shoot and delete images for a long time, fragmentation of data in a file in
the memory card may occur, and movie recording may be interrupted in the middle of
shooting. If this happens, save your images to a computer or other storage location, then
execute [Format].
Memory card formatted with a computer is not guaranteed to operate with the product.
Data read/write speeds differ depending on the combination of the memory card and the
equipment used.
We recommend backing up important data, such as to a hard disk of a computer.
Do not attach a label on the memory card itself nor on a memory card adaptor.
Do not touch the terminal section of the memory card with your hand or a metal object.
Do not strike, bend or drop the memory card.
Do not disassemble or modify the memory card.
Do not expose the memory card to water.
Do not leave the memory card within the reach of small children. They might accidentally
swallow it.
The memory card may be hot just after it has been used for a long time. Be careful when
you handle it.
Do not remove the battery pack or the memory card or turn the camera off while the
access lamp is illuminated. This may cause the data on the memory card to become
damaged.
If the memory card is used near areas with strong magnetization, or used in locations
subject to static electricity or electrical noise, the data on the memory card may become
damaged.
Do not insert a memory card that does not fit the memory card slot. Doing so will cause a
malfunction.
Do not use or store the memory card under the following conditions:
High temperature locations such as in a car parked under the sun
Locations exposed to direct sunlight
Humid locations or locations with corrosive substances present
To use a Memory Stick Micro media with this product, be sure to insert the Memory Stick
Micro media into an M2 Adaptor as large as Duo size. If you insert a Memory Stick Micro
media into the product without an M2 Adaptor as large as Duo size, you might not be able
to remove it from the product.
To use a microSD memory card with this product, be sure to insert the microSD memory
card into a dedicated adaptor.
When inserting a memory card into a memory card adaptor, be sure that the memory card
is inserted in the correct direction and then insert it as far as it will go. If the card is not
inserted properly, it may result in a malfunction.
[172] How to Use Precautions/This product Cleaning this product
On cleaning
Cleaning the lens and flash
Wipe the lens and flash with a soft cloth to remove fingerprints, dust, etc.
Cleaning the lens
Do not use a cleaning solution containing organic solvents, such as thinner, or benzine.
When cleaning the lens surface, remove dust with a commercially available blower. In
case of dust that sticks to the surface, wipe it off with a soft cloth or tissue paper slightly
moistened with lens cleaning solution. Wipe in a spiral pattern from the center to the
outside. Do not spray lens cleaning solution directly onto the lens surface.
Cleaning the flash
Clean the flash surface before use. The heat of the flash emission may cause dirt on the
flash surface to start smoking or burning. Wipe the flash surface with a soft cloth to remove
dirt or dust, etc.
Cleaning the product surface
Clean the product surface with a soft cloth slightly moistened with water, then wipe the
surface with a dry cloth. To prevent damage to the finish or casing:
Do not expose the product to chemical products such as thinner, benzine, alcohol,
disposable cloths, insect repellent, sunscreen or insecticide.
Do not touch the product with any of the above on your hand.
Do not leave the product in contact with rubber or vinyl for a long time.
Cleaning the monitor
If oil from your hand or hand cream, etc., remain on the monitor, the original coating may
become easily removable. Wipe oil or hand cream off as soon as possible.
If you wipe the monitor firmly using tissue paper, etc., the coating may be scratched.
If the monitor becomes dirty with fingerprints or dust, gently remove the dust from the
surface, and then clean the monitor using soft cloth, etc.
[173] How to Use Precautions/This product Number of recordable still images and
recordable time of movies
Number of still images
The number of still images may vary depending on the shooting conditions and the memory
card.
[ Image Size]: [L: 20M]
When [ Aspect Ratio] is set to [3:2]*
Standard
8 GB: 1200 images
16 GB: 2400 images
32 GB: 4800 images
64 GB: 9600 images
Fine
8 GB: 690 images
16 GB: 1400 images
32 GB: 2800 images
64 GB: 5500 images
RAW & JPEG
8 GB: 235 images
16 GB: 470 images
32 GB: 950 images
64 GB: 1900 images
RAW
8 GB: 355 images
16 GB: 710 images
32 GB: 1400 images
64 GB: 2850 images
*
When the [ Aspect Ratio] is set to other than [3:2], you can record more pictures than shown
above. (Except when [ Quality] is set to [RAW].)
Note
Even if the number of remaining shootable images is greater than 9,999, the “9999”
indicator appears.
When an image shot with other products is played back on this product, the image may
not appear in the actual image size.
[174] How to Use
Precautions/This product Number of recordable still images and
recordable time of movies
Recordable time of movies
The table below shows the approximate maximum recording times which can be recorded on
the memory card that is formatted with this product. These numbers are the total times of all
movie files on the memory card. The recordable time may vary depending on the shooting
conditions and the memory card.
(h (hour), m (minute))
[ File Format]: [AVCHD]
60i 24M(FX)
50i 24M(FX)
8 GB: 40 m
32 GB: 3 h
64 GB: 6 h
60i 17M(FH)
50i 17M(FH)
8 GB: 1 h
32 GB: 4 h 5 m
64 GB: 8 h 15 m
60p 28M(PS)
50p 28M(PS)
8 GB: 35 m
32 GB: 2 h 30 m
64 GB: 5 h 5 m
[ File Format]: [MP4]
1440×1080 12M
8 GB: 1 h 20 m
32 GB: 5 h 30 m
64 GB: 11 h 5 m
VGA 3M
8 GB: 4 h 55 m
32 GB: 20 h
64 GB: 40 h 10 m
When using the camera's default settings, continuous shooting is possible for approximately
29 minutes (max.) for each shooting at a temperature of approximately 25°C (77°F). (a
product specification limit)
The recordable time of movies varies because the product is equipped with VBR (Variable
Bit-Rate), which automatically adjusts image quality depending on the shooting scene.
When you record a fast-moving subject, the image is clearer but the recordable time is
shorter because more memory is required for recording. The recordable time also varies
depending on the shooting conditions, the subject or the image quality/size settings.
[175] How to Use Precautions/This product Using this product abroad
Using the AC Adaptor/battery charger abroad
You can use the battery charger (sold separately) and the AC Adaptor (supplied) in any
country or region where the power supply is within 100 V to 240 V AC and 50 Hz/60 Hz.
Depending on the country/region, a converting plug adaptor may be needed to connect to a
wall outlet (wall socket).
Note
Do not use an electronic voltage transformer as doing so may cause a malfunction.
[176] How to Use
Precautions/This product Using this product abroad
On TV color systems
To view movies shot using this product on a television, the product and television must use
the same color television system. Check the TV color system for the country or region where
you are using the product.
NTSC system:
Bahama Islands, Bolivia, Canada, Central America, Chile, Colombia, Ecuador, Jamaica,
Japan, Korea, Mexico, Peru, Surinam, Taiwan, the Philippines, the U.S.A., Venezuela,
etc.
PAL system:
Australia, Austria, Belgium, China, Croatia, Czech Republic, Denmark, Finland, Germany,
Holland, Hong Kong, Hungary, Indonesia, Italy, Kuwait, Malaysia, New Zealand, Norway,
Poland, Portugal, Rumania, Singapore, Slovak Republic, Spain, Sweden, Switzerland,
Thailand, Turkey, United Kingdom, Viet Nam, etc.
PAL-M system:
Brazil
PAL-N system:
Argentina, Paraguay, Uruguay
SECAM system:
Bulgaria, France, Greece, Guiana, Iran, Iraq, Monaco, Russia, Ukraine, etc.
[177] How to Use Precautions/This product Other information
ZEISS lens
The camera is equipped with a ZEISS lens which is capable of reproducing sharp images
with excellent contrast. The lens for the camera has been produced under a quality
assurance system certified by ZEISS in accordance with the quality standards of ZEISS in
Germany.
[178] How to Use Precautions/This product Other information
AVCHD format
The AVCHD format was developed for high-definition digital video cameras when recording
an HD (High-Definition) signal using high-efficiency compression coding technology. The
MPEG-4 AVC/H.264 format is used to compress video data, and the Dolby Digital or Linear
PCM system is used to compress audio data.
The MPEG-4 AVC/H.264 format is capable of compressing images at higher efficiency than
that of the conventional image compressing format.
As the AVCHD format uses compression coding technology, the picture may be unstable
in scenes where the screen, angle of view, or brightness, etc. change drastically, but this
is not a malfunction.
[179] How to Use Precautions/This product Other information
License
Notes on the License
This product comes with software that are used based on licensing agreements with the
owners of that software. Based on requests by the owners of copyright of these software
applications, we have an obligation to inform you of the following. Please read the following
sections. Licenses (in English) are recorded in the internal memory of your product.
Establish a Mass Storage connection between the product and a computer to read licenses
in the “PMHOME” - “LICENSE” folder.
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR
THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT
RECEIVE REMUNERATION TO
(i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”)
AND/OR
(ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A
PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED
TO PROVIDE AVC VIDEO.
NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE
HTTP://WWW.MPEGLA.COM
On GNU GPL/LGPL applied software
The software that is eligible for the following GNU General Public License (hereinafter
referred to as “GPL”) or GNU Lesser General Public License (hereinafter referred to as
“LGPL”) are included in the product.
This informs you that you have a right to have access to, modify, and redistribute source
code for these software programs under the conditions of the supplied GPL/LGPL.
Source code is provided on the web. Use the following URL to download it.
http://oss.sony.net/Products/Linux/
We would prefer you do not contact us about the contents of source code.
[180] How to Use Precautions/This product Trademarks
Trademarks
The following marks are registered trademarks or trademarks of Sony Corporation.
, Cyber-shot, , Memory Stick, ,
Memory Stick PRO, , Memory Stick Duo,
, Memory Stick PRO Duo,
, Memory Stick PRO-HG Duo,
, Memory Stick Micro, , MagicGate,
BRAVIA, PhotoTV HD, PlayMemories Online, PlayMemories Online logo, PlayMemories
Home, PlayMemories Home logo
Blu-ray Disc™ and Blu-ray™ are trademarks of the Blu-ray Disc Association.
AVCHD Progressive and AVCHD Progressive logotype are trademarks of Panasonic
Corporation and Sony Corporation.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
Microsoft, Windows and DirectX are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
Mac is a trademark of Apple Inc.
SDXC logo is a trademark of SD-3C, LLC.
Eye-Fi is a trademark of Eye-Fi Inc.
In addition, system and product names used in this manual are, in general, trademarks or
registered trademarks of their respective developers or manufacturers. However, the ™
or ® marks may not be specified in all cases in this manual.
[181] Troubleshooting If you have problems If you have problems
Troubleshooting
If you experience trouble with the product, try the following solutions.
1. If a message such as “C/E:□□:□□” appears on the screen, refer to the self-diagnosis
display.
2. Remove the battery pack, wait for about one minute, re-insert the battery pack, then
turn on the power.
3. Initialize the settings.
4. Consult your dealer or local authorized service facility. Additional information on this
product and answers to frequently asked questions can be found at our Customer
Support Website.
http://www.sony.net/
[182] Troubleshooting Messages Messages
Self-diagnosis display
If a code starting with a letter of the alphabet appears, the self-diagnosis function on this
product is working. The last two digits (indicated by □□) will differ depending on the state of
this product.
If you cannot solve the problem even after trying the following corrective actions a few times,
this product may need repair. Contact your Sony dealer or local authorized Sony service
facility.
C:32:□□
There is trouble with the product’s hardware. Turn the power off and on again.
C:13:□□
This product cannot read or write data on the memory card. Try turning off and on this
product again, or taking out and inserting the memory card several times.
An unformatted memory card is inserted. Format the memory card.
The inserted memory card cannot be used with this product, or the data is damaged.
Insert a new memory card.
E:61:□□
E:62:□□
E:91:□□
A product malfunction has occurred. Initialize this product, then turn the power on again.
E:94:□□
There is a malfunction when writing or deleting data. Repair is required. Contact your
Sony dealer or local authorized Sony service facility. Be prepared to give all numbers in
the error code beginning from the E.
[183] Troubleshooting Messages Messages
Warning messages
Set Area/Date/Time.
Set the area, date and time. If you have not used the product for a long time, charge the
internal rechargeable backup battery.
Unable to use memory card. Format?
The memory card was formatted on a computer and the file format was modified. Select
[Enter], and then format the memory card. You can use the memory card again, however,
all previous data in the memory card is erased. It may take some time to complete the
format. If the message still appears, change the memory card.
Memory Card Error
An incompatible memory card is inserted.
Formatting has failed. Format the memory card again.
Unable to read memory card. Reinsert memory card.
An incompatible memory card is inserted.
The memory card is damaged.
The terminal section of the memory card is dirty.
Memory card locked.
You are using a memory card with a write-protect switch or a delete-protect switch with
the switch set to the LOCK position. Set the switch to the record position.
This memory card may not be capable of recording and playing normally.
An incompatible memory card is inserted.
Processing...
When performing noise reduction, the reduction process takes place. You cannot do any
further shooting during this reduction process.
Unable to display.
Images recorded with other products or images modified with a computer may not be
displayed.
Processing on the computer such as deletion of the image files may cause
inconsistencies in the image database files. Repair the image database files.
Unable to print.
You tried to mark RAW images with a DPOF mark.
Internal temp. high. Allow it to cool.
The product has become hot because you have been shooting continuously. Turn the
power off. Cool the product and wait until the product is ready to shoot again.
You have been recording images for a long time, the product temperature has risen. Stop
recording images until the product cools.
Recording is unavailable in this movie format.
Set [ File Format] to [MP4].
The number of images exceeds that for which date management in a database file by the
product is possible.
Unable to register to the database file. Import all the images to a computer and recover
the memory card.
Image DataBase File error
There is something wrong in the Image Database File. Select [Setup] → [Recover Image
DB].
System Error
Camera Error. Turn power off then on.
Remove the battery pack, and then re-insert it. If the message appears frequently, consult
your Sony dealer or local authorized Sony service facility.
Unable to magnify.
Unable to rotate image.
Images recorded with other products may not be enlarged or rotated.
Cannot create more folders.
A folder in the memory card has the first three digits “999.” You cannot create any more
folders on this camera.
