These instructions contain important information which will help you get the best from your equipment and
ensure safe and correct assembly, use and maintenance.
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6001714
or visit www.argos-support.co.uk
Assembly & User Instructions-
Please Keep for future reference
793/7365
Important – Please read these instructions fully before assembly or use
T3000 Treadmill
Issue 1 -25/03/20
1
11
TABLE OF CONTENTS
Contents
Safety Information 1-2 错误！未定义书签。-3
Components-Parts 3
Components-Fixings 4
Assembly Instructions 5-9
Workout Area 10 11
Exercise Information 11-24 112-26
Before starting 11 112

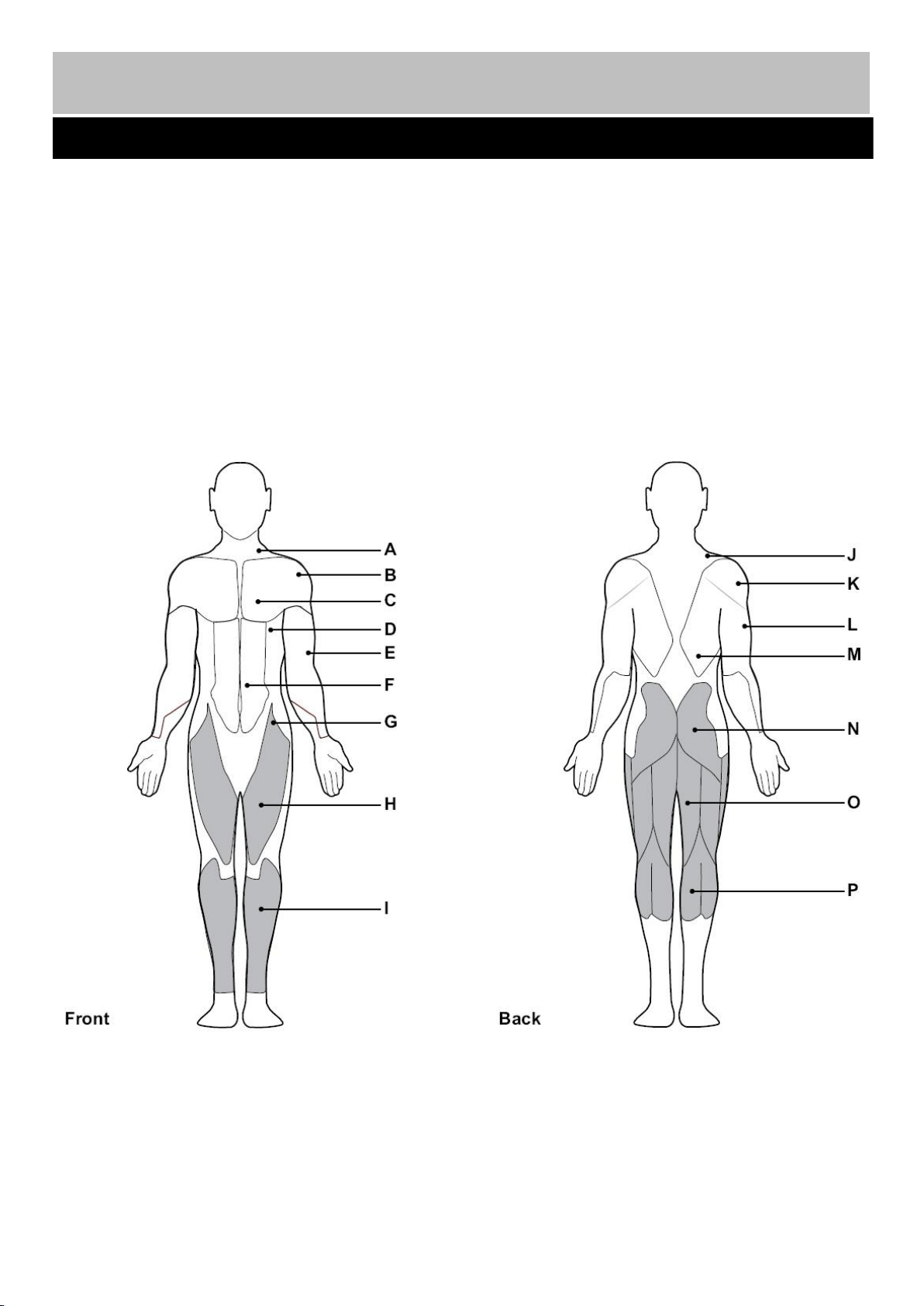

Muscle Chart 12 13
Warming up and Cooling down 13-14 14-15
Getting started 15-16 16-17

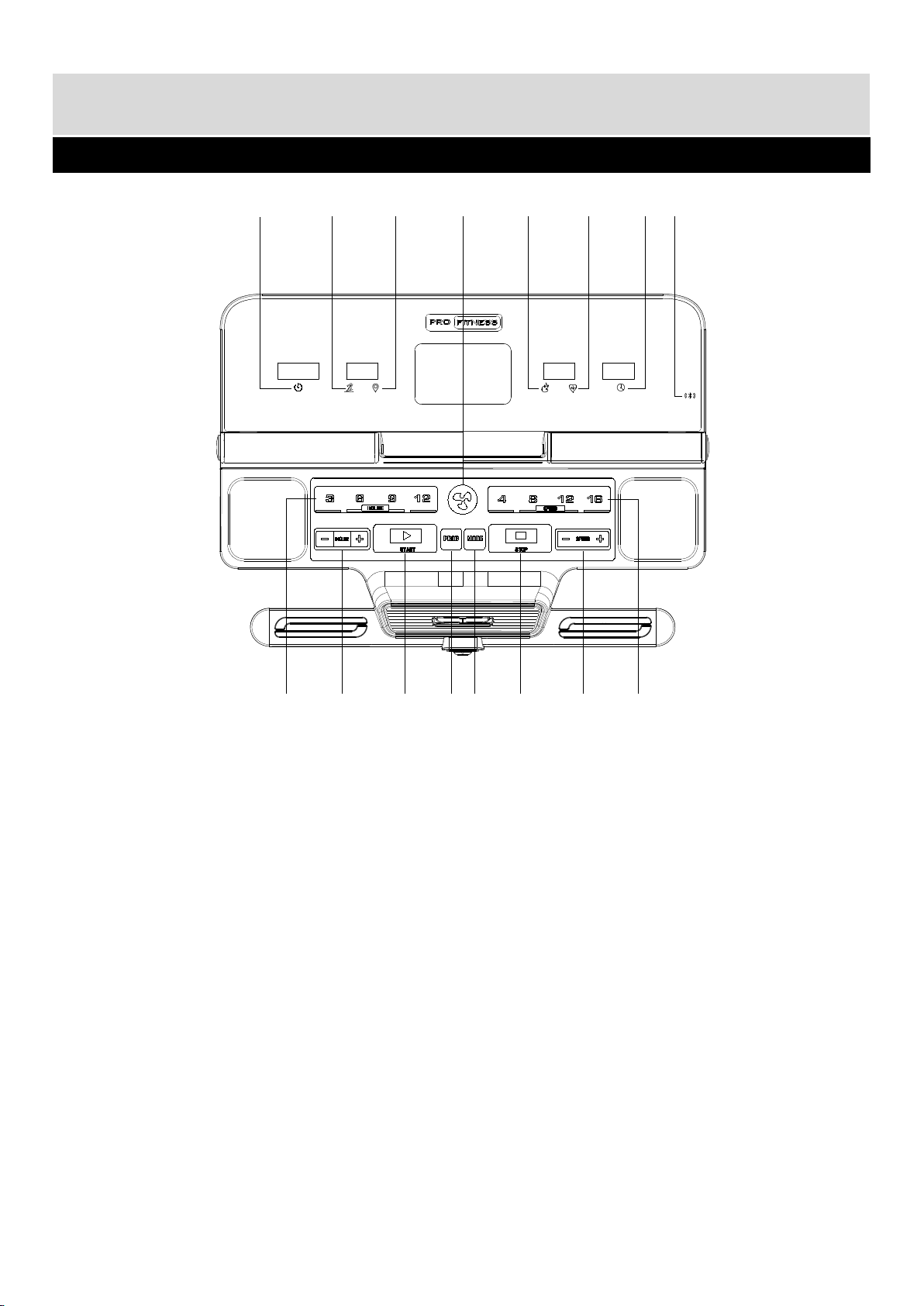

Console operation 17-22

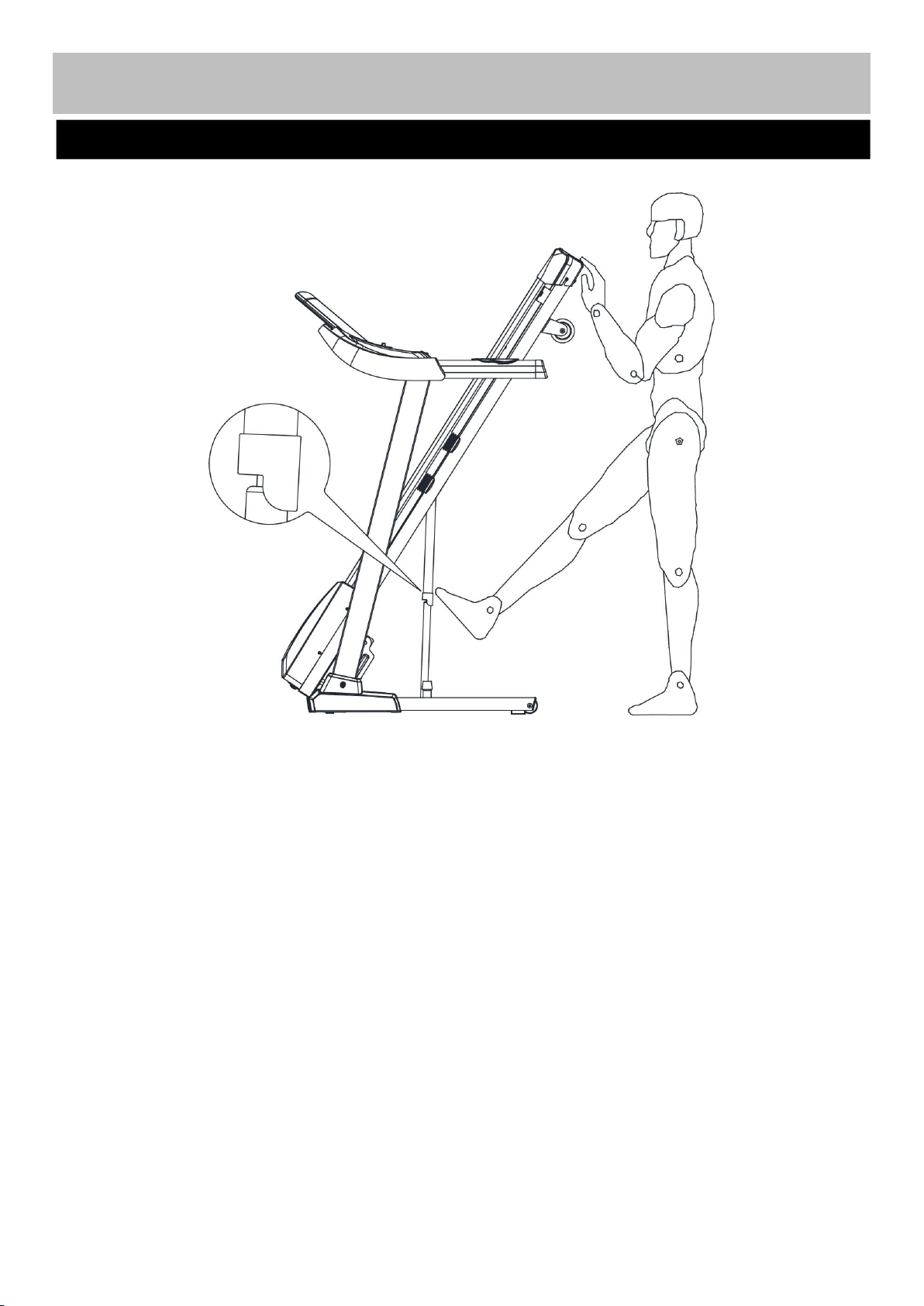

Folding mechanism and incline adjustment 23
Care and Maintenance 24-29

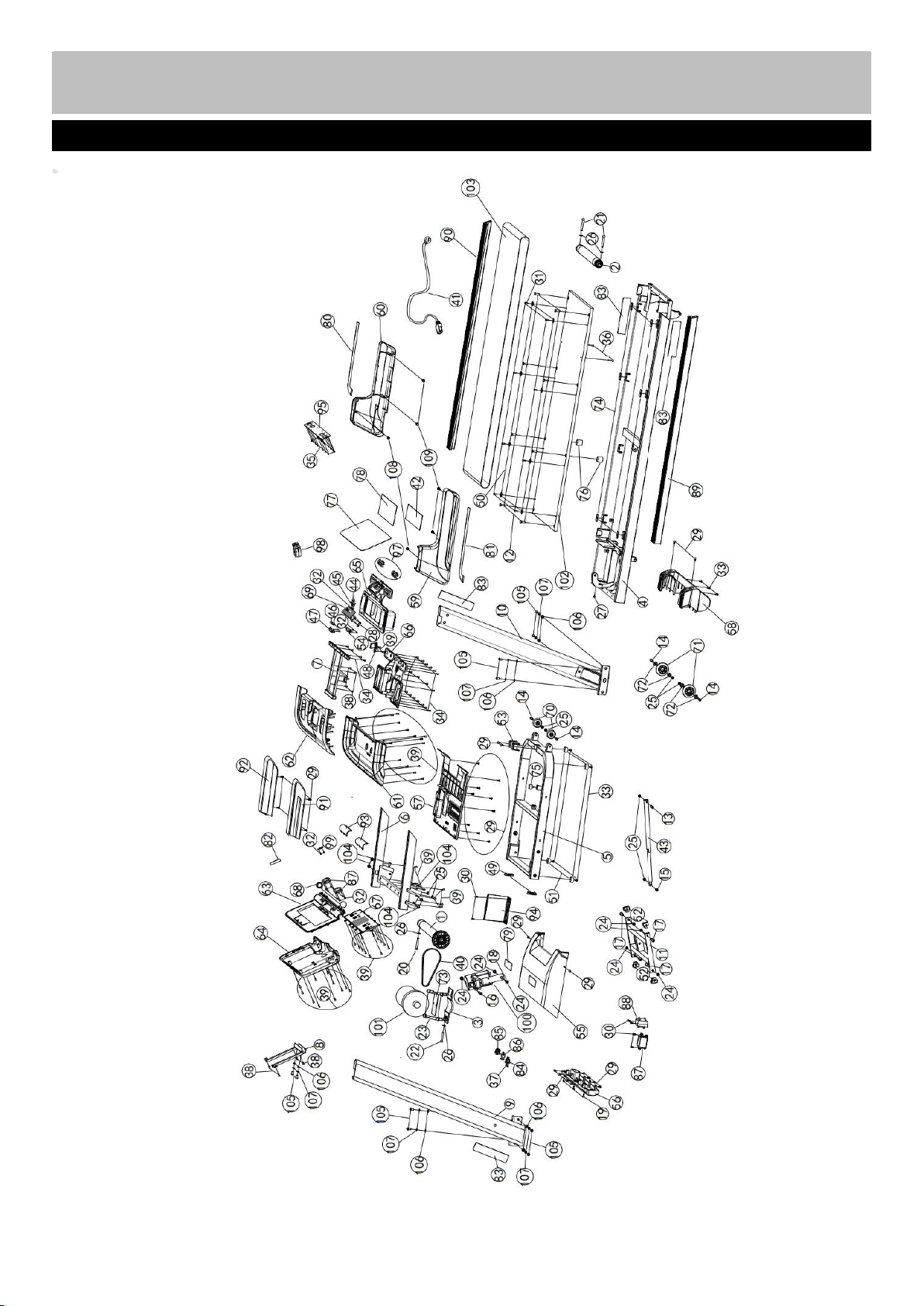

Exploded Parts Diagram 30 33
Parts List 31-32
1
、
This exercise equipment is built for optimum safety. However, certain precautions apply whenever you
operate a piece of exercise equipment. Be sure to read the entire manual before you assemble, operate or
use this equipment.
Assembly
• The product must be installed on a stable and level
surface. Do not place the treadmill on any surface
that blocks air openings. To protect the floor or carpet
from damage, place a mat under the treadmill.
• Assemble the item as close to its final position
(in the same room) as possible.
• Make sure you have enough space to layout the
parts before starting.
• Keep children and animals away from the exercise
area, small parts could pose a choking hazard if
swallowed.
• Dispose of all packaging carefully and responsibly.
• Check you have all the components and tools
listed in the parts list, bearing in mind that, for ease
of assembly, some components are
pre-assembled.
• The assembly of this equipment is best carried out
by 2 people.
• Attention! Take care when unboxing and
assembling your treadmill.
• On unboxing, ensure the treadmill is flat on the
floor (with the wheels in contact with the ground),
before cutting the retaining cable ties on both sides
of the product.
• Do not under any circumstance turn the machine
on its side. Failure to follow these instructions
could result in serious injury.
Use
• It is the responsibility of the owner to ensure that all
users of this product are properly informed as to how
to use this product safely.
• This product is intended for domestic use only.
Do not use in any commercial, rental, or institutional
setting.
• Use the equipment only for intended use, as
described in this manual. Do not use attachments not
recommended by the manufacturer.
• Keep this equipment indoors, away from moisture
and dust. Do not put the equipment in a garage,
outbuilding, covered patio, or near water.
• Your product is intended for use in clean dry
conditions. You should avoid storage in excessively
cold or damp places as this may lead to corrosion
and other related problems that are outside our
control.
• Keep unsupervised children away from the
equipment.
• Disabled persons should not use the equipment
without a qualified person or doctor in attendance.
This product is not suitable for therapeutic
purposes.
• Always wear appropriate workout clothing when
exercising. Do not wear loose or baggy clothing, as
it may get caught in the equipment. Wear trainers to
protect your feet while exercising.
• Do not place any sharp objects around the
equipment.
• Keep hands away from all moving parts.
• If any of the adjustment devices are left projecting,
they could interfere with the user’s movement.
• Before using the equipment to exercise, always
perform stretching exercises to properly warm up.
• Only one person at a time should use the
equipment.
• A spotter is recommended during exercise.
• If the user experiences dizziness, nausea, chest
pain, or other abnormal symptoms stop the workout
and seek immediate medical attention.
• Injuries to health may result from incorrect or
excessive training.
• This product is suitable for a maximum user weight
of: 135 kg.
• This product conforms to: BS EN ISO 20957-1 and
BS EN 957-6 Class (H) - Home Use - Class (C).
• A folded treadmill should not be operated.
• Ensure the running surface comes to a complete
stop before folding.
• The A-weighted emission sound pressure level is
from 50 to 60 dBa.
Important – Please read fully before assembly or use
Safety information
1
2
• The replacement parts could affect the safe use of
the treadmill.
• The max allowed lateral position of the running
surface is around 5-8mm.
• Noise emission under load is higher than without
load.
• When choosing a location for the equipment make
sure that the location and position permit access to a
plug.
• Do not operate this equipment where aerosol
products are used or where oxygen is being
administered.
• When connecting the power cord, plug the power
cord into a grounded circuit. When replacing the fuse,
an approved BS 1362 type should be fitted to the fuse
carrier, A13 amp fuse should be used. No other
appliance should be on the same circuit.
• Keep the power cord away from any heated surface.
• Do not operate the equipment if the power cord or
plug is damaged, or if the equipment is not working
properly.
• Never start the treadmill when you are standing on
the running belt. Stand on the side rail, hold the
handrails, start on a low speed and then step on the
unit. When comfortable increase the speed to one
that you are comfortable with.
• The treadmill is capable of high speeds. Adjust the
speed in small increments to avoid sudden changes
in speed.
• Never leave the treadmill unattended while it is
running. Always remove the safety key when the
treadmill is not in use.
• Always examine your treadmill before use to ensure
all parts are in working order.
• Never insert any object or body parts into any
opening.
Warning: Before beginning any exercise program, consult your Doctor. This is especially important
for persons over the age of 35 or persons with pre-existing health problems. You MUST read all
instructions before using any fitness equipment. Argos and its associates assumes no responsibility for
personal injury or property damage sustained by or through the use of this product. Over exercising may
result in serious injury or death. If you feel faint stop exercising immediately. Warning! Heart rate
monitoring systems may be inaccurate. For the most accurate heart rate measure, please hold both hand
pulse sensors continuously during any programme.
Safety information
2
3
Note: Some of the smaller components may be pre-fitted to larger components. Please check carefully
before contacting Argos regarding any missing components.
M8×15 SUNK BOLT(Qty 6)
? 8mm Spring Washer (Qty 10)
? 8mm Washer (Qty 10)
M8
×
16mm Allen Bolt (Qty 10)
6# Allen Wrench (Qty 1)
5# Allen Wrench (Qty 1)
M4×40 Flathand
Screws (Qty 4)
M4×10 Flathand
Screws (Qty 2)
79 37 36 5 H ard w are P ack
Lubrication Oil x 2

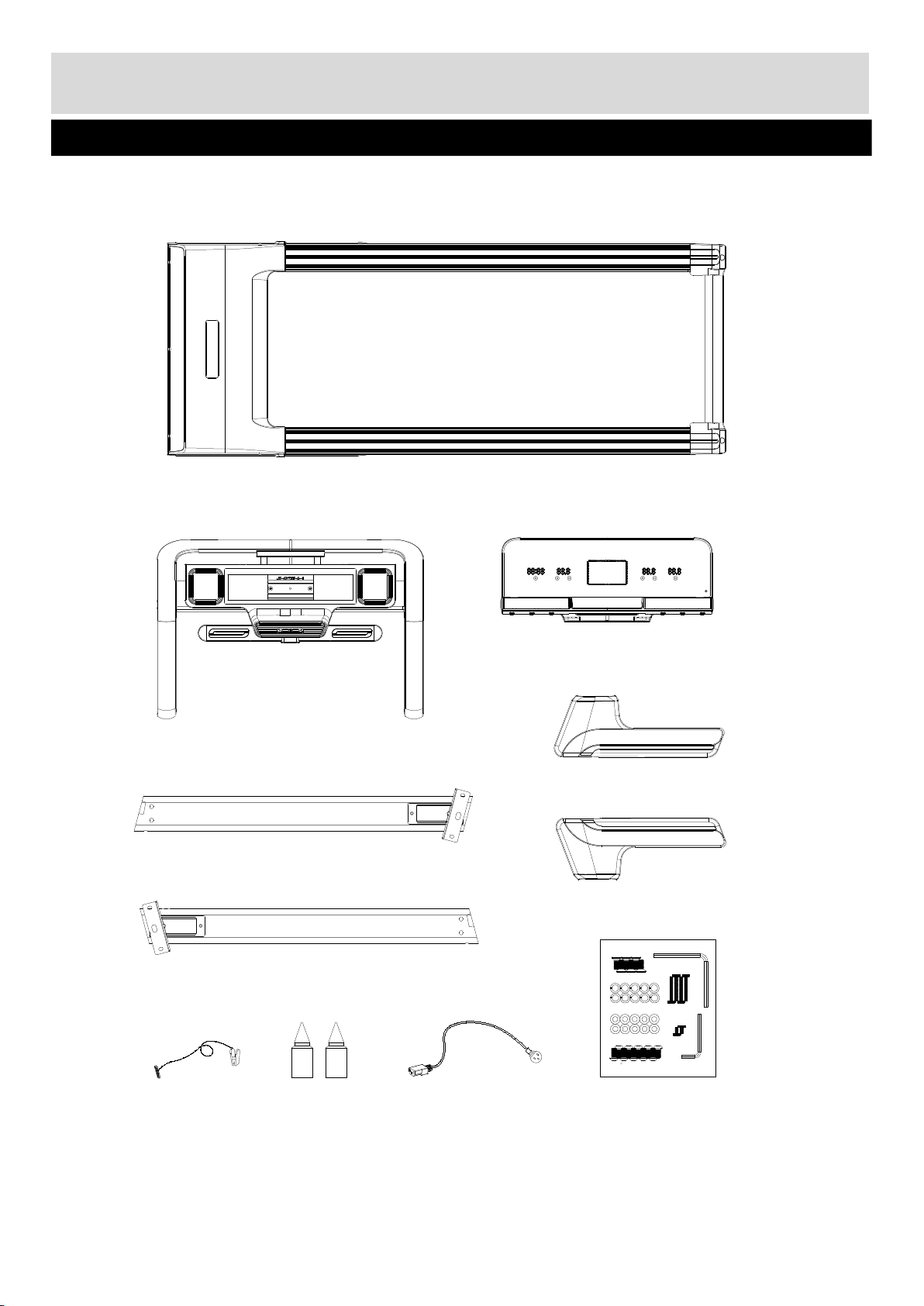

Components - Parts
If you have damaged or missing parts, please
call the Customer Helpline: 0345 6001714.
Please check you have all parts listed below
Console Upper Housingl x 1
41.Power cord x 1
Display screen x 1
59. Left Console Mast Cover x 1
9. Left Console Mast X 1
Hardware pack
Main Frame
60. Right Console Mast Cover x 1
10. Right Console Mast X 1
3
1. 44. Safty Key x 1
4
Note: The quantities below are the correct amount to complete the assembly. In some cases more hardware
may be supplied than are required. Some of the fixings are pre-fitted to the larger components. Please check
carefully before contacting Argos regarding any missing fixings.
Components - Fixings
Please check you have all parts listed below
M8x16mm Allen Bolt × 10
φ8 Spring Washer × 10
φ
8 Washer × 10
M4*40 screws × 4
M8x15 SUNK BOLT × 6
M4*8 screws × 2
4
5# Allen Key × 1
6# Allen Key × 1
104
105
109
107
106
108
5
Total mass of the product is 90 kg. Total size of the equipment is (width) 88cm × (depth) 183cm × (height)
132.5 cm.
`
5

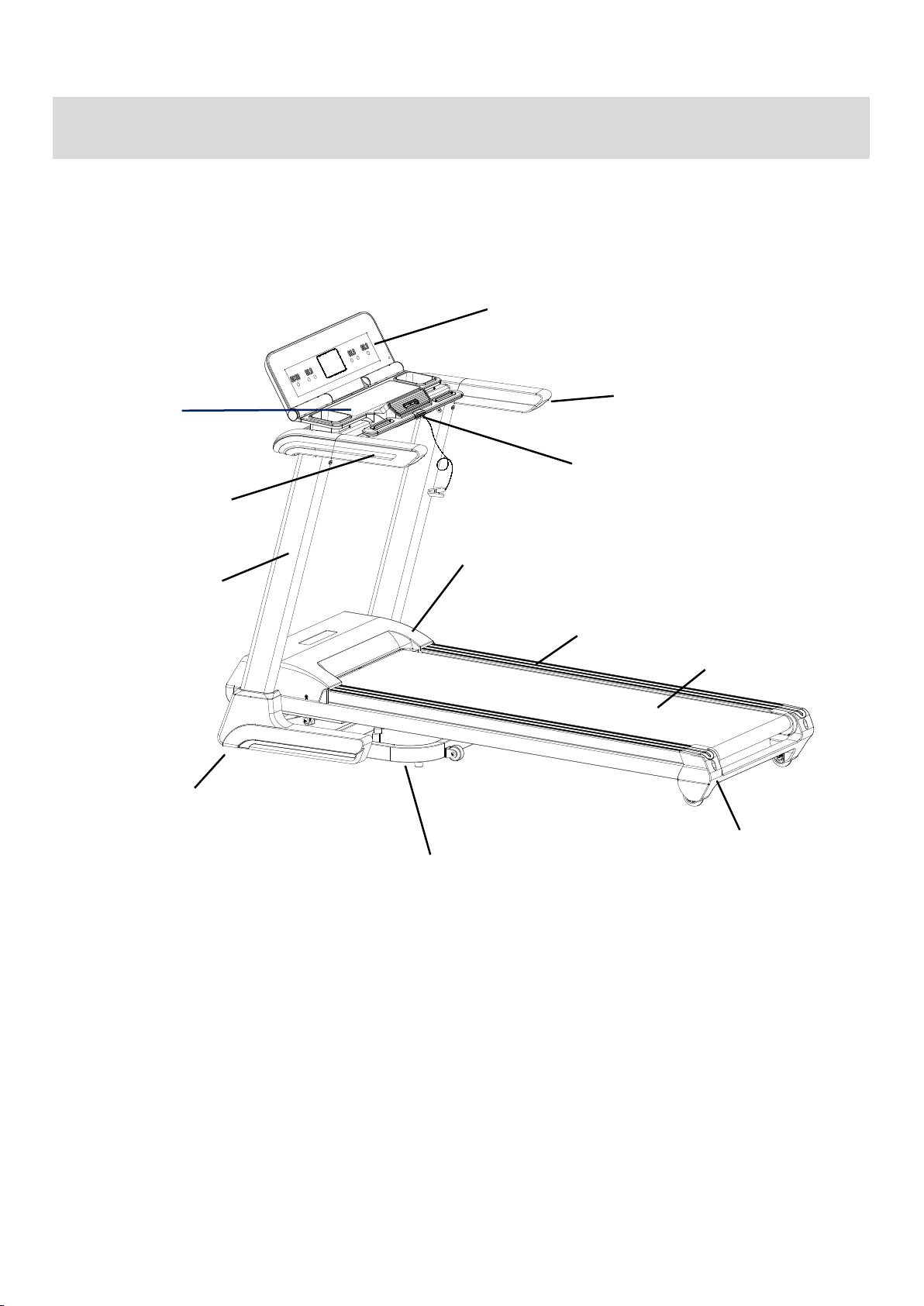

Assembly Instructions
5
44 Safety Key x 1
92 Right Handrail x 1
91 Left Handrail x 1
Console x 1
9 Left Console
Mast x 1
59 Left Console Mast Cover x 1
55 Motor cover x 1
90 Right Side rail x 1
103 Running belt x 1
58 end cap x 1
5 Base frame x 1
Display screen x 1
6

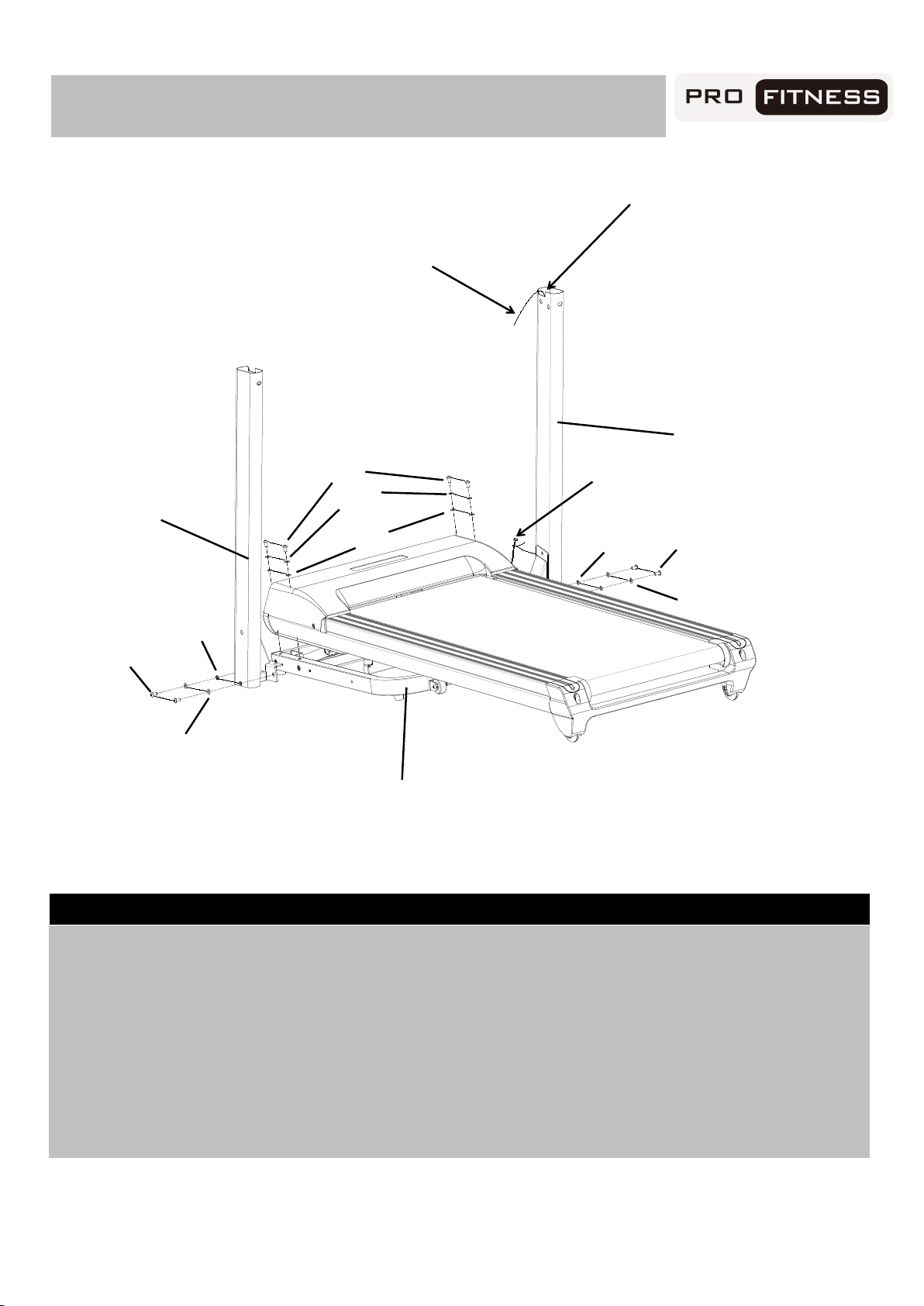

a. Connect the guide wire from bottom of the Right Console Mast (10) with the main wire from the Base
Frame (5), then pull the main wire out from the handrail hole as shown in the diagram.
Notes: Once the main wire is threaded through the Console Mast, ensure it is secured before detaching
the guide wire. Failure to do this could risk the main wire falling out.
b. Fix the Console Mast (9&10) to the Base Frame (5) using 8 x M8x16mm Allen Bolt (105), 8 x φ8 Spring
Washer (107), 8 x
φ
8 Washer (106).
Notes: Do not tighten bolts at this step.
Assembly Instructions
Step 1
10 Right Console Mast
6
9 Left Console Mast
5 Base frame
Main wire
Handrail Hole
Guide wire
105
107
106
105
106
107
105
106
107
7

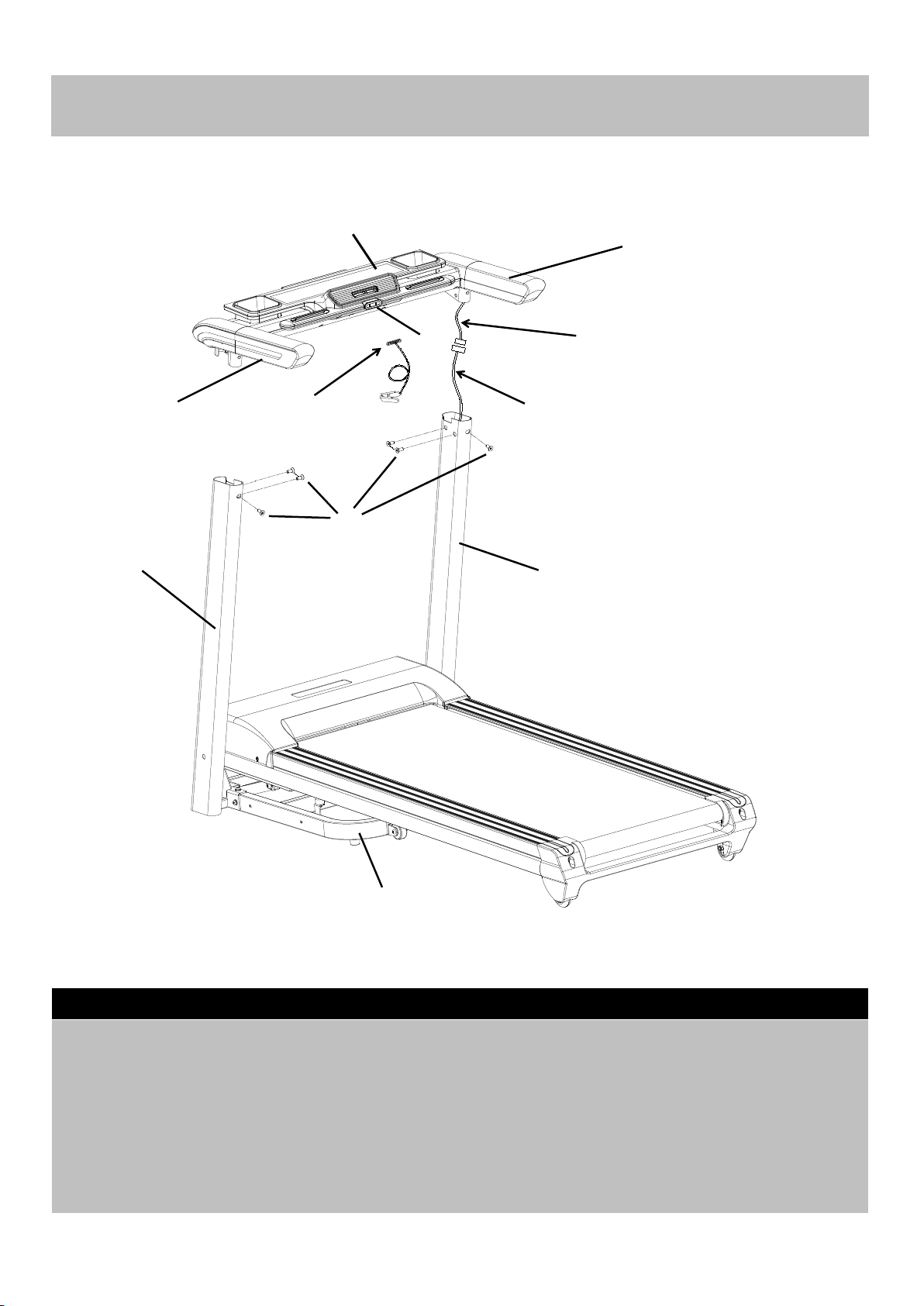

Assembly Instructions
Connect the main wire with the Pulse Sensor Wire as shown in the diagram.
Place the Console on the top of the Console Mast (9 & 10) and fix it using 6 x M8x15 SUNK BOLT
(104).Then insert the safety key(44) into the notch of the console(45).
Notes: Fully tighten all the bolts in above steps.
Console
Step 2
7
5 Base frame
10 Right Console Mast
44 Safety Key
9 Left Console Mast
91 Left Handrail
92 Right Handrail
Pulse Sensor Wire
Main wire
104
45
8
Assembly Instructions

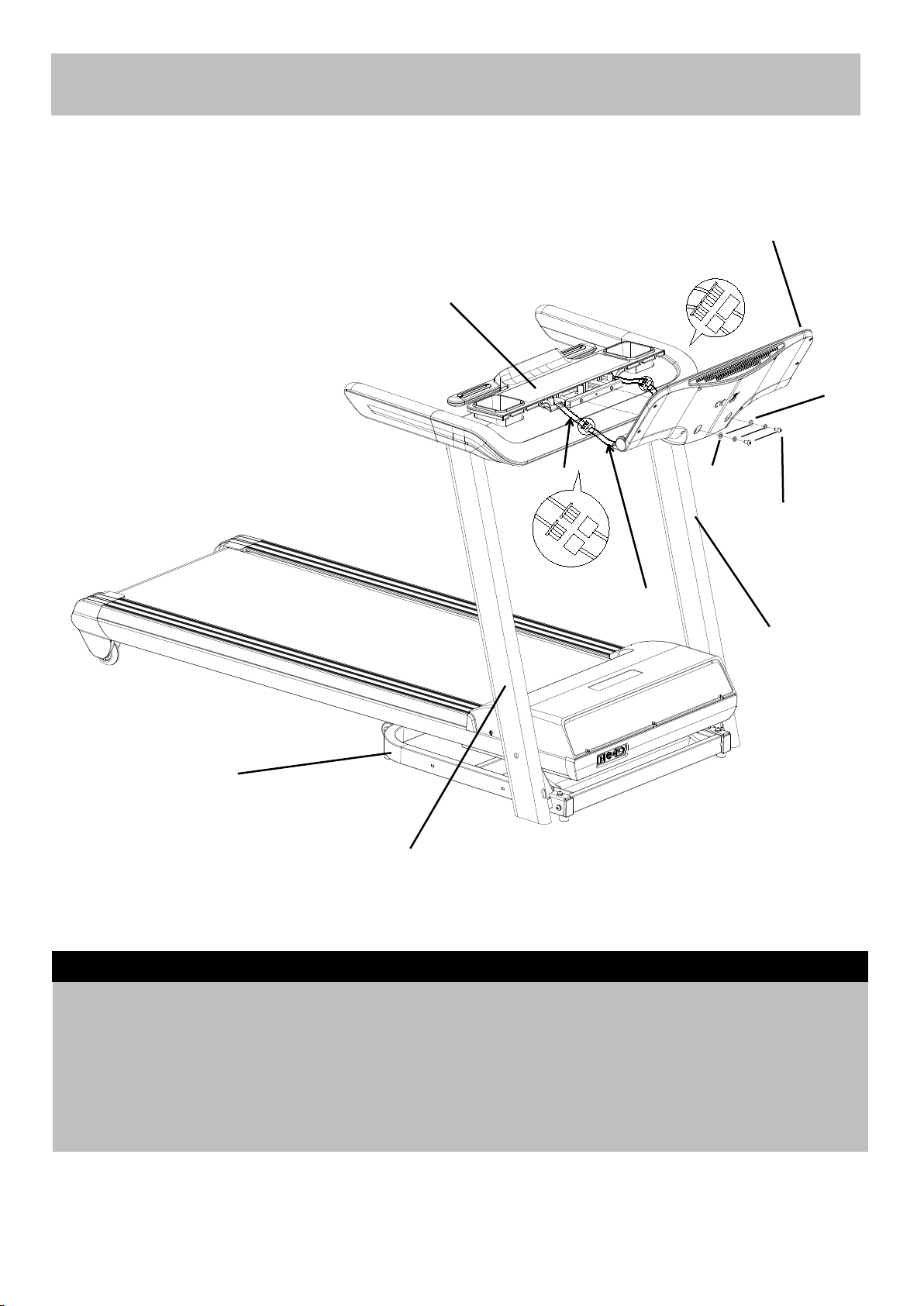

Connect the console wire with the display screen wire as shown in the diagram.
Attach the Display screen to the Console , using 2 x M8x16mm Allen Bolt (105), 2 x φ8 Spring Washer
(107), 2 x
φ
8 Washer (106).
2.
Step 3
Display screen
Console
8
9 Right Console Mast
5 Base frame
10 Left Console Mast
Console Wire
Display Screen Wire
107
105
106
9

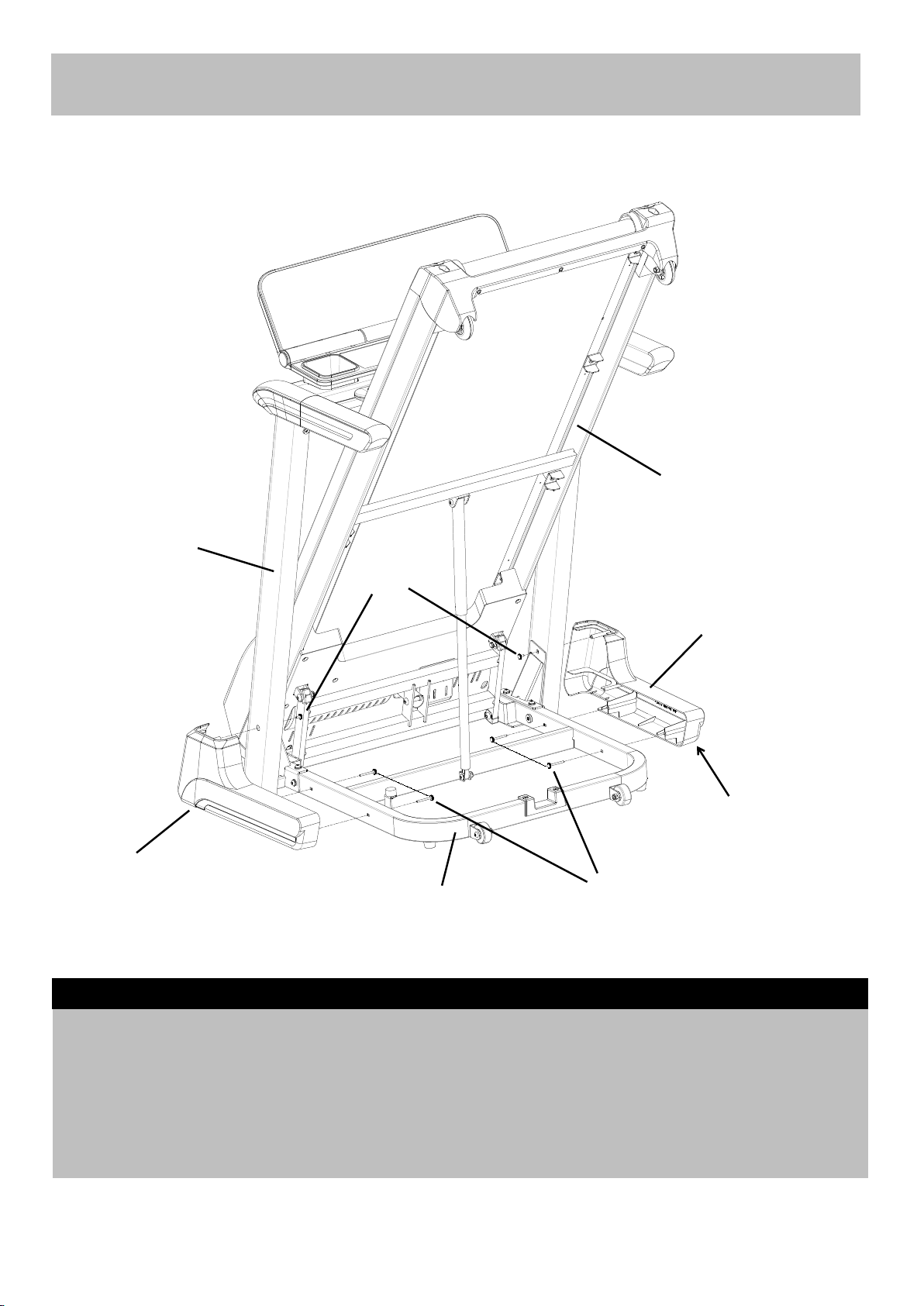

Assembly Instructions
3. Align and press the protrusion on the Console Mast Cover (59 & 60) to the holes on the Base frame
(5) then fix with 4 x M4*40 Flat hand screws (109),2 x M4*8 Flat hand screws (108).
Notes: when installing, the Running Deck should be lifted up as shown in the diagram.
.
Step 4
9 Left Console Mast
Running Deck
60 Right Console Mast Cover
59 Left Console Mast Cover
5 Base frame
9
Protrusion
108
109
10

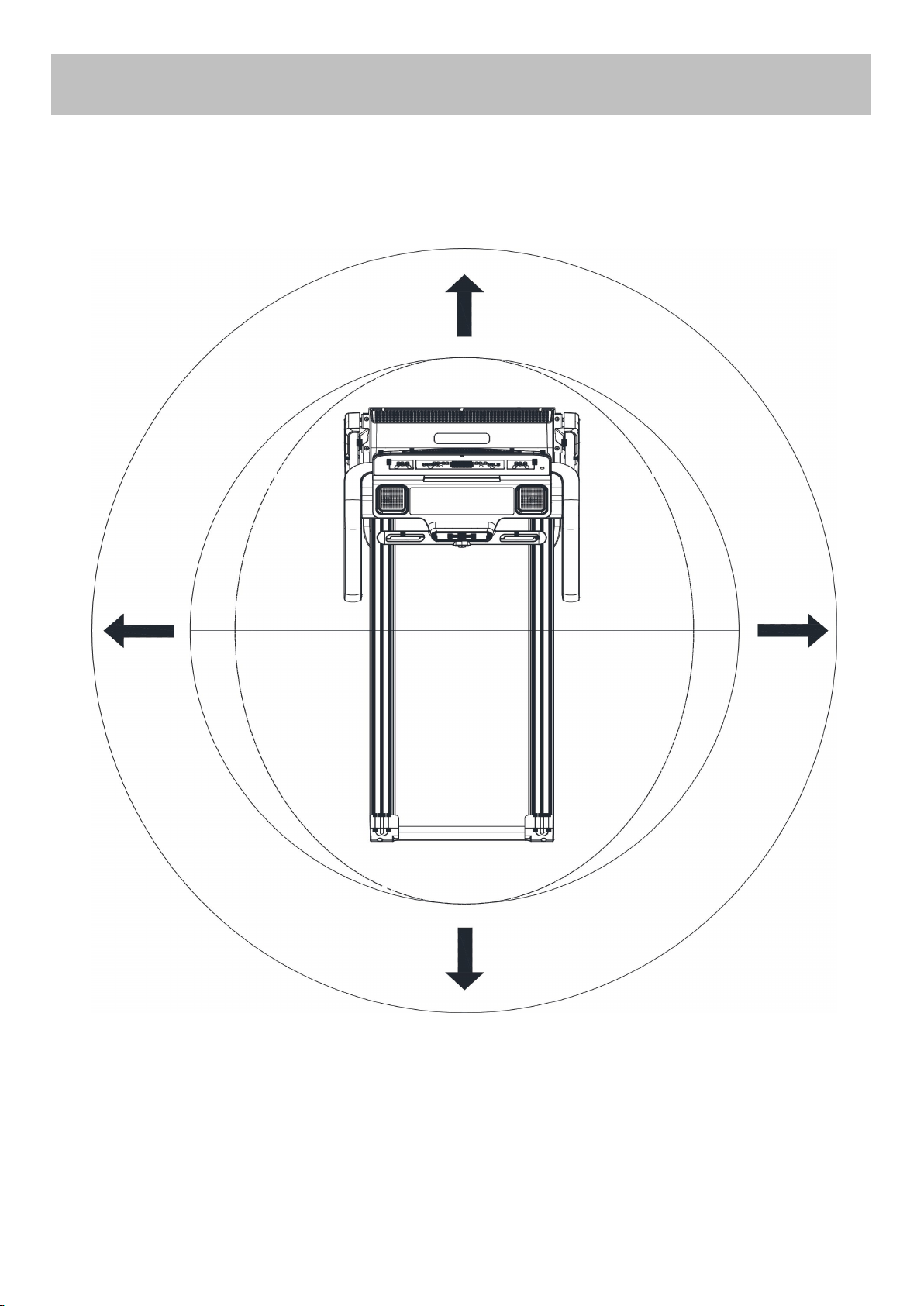

The free area must be at least 0.6m greater than the training area. This is a space where you can safely
dismount, without obstruction, in case of an emergency. Where two pieces of equipment are positioned
adjacent to each other the free area may be shared. The free area behind the treadmill should be 2m in
length and double the width of the product.
Only one person should be within the training area when the equipment is in use.
Workout Area
0.6m
(Free area)
0.6m
(Free area)
0.6m
(Free area)
0.6m
(Free area)
Training
area
1.7m
10
11
85% to Max
65% to 85%
55% to 65%
Up to 55%
Tailor your exercise program according to your physical condition. If you have been inactive for several
years, or are overweight, you must start slowly and increase your time on the equipment; a few minutes per
workout increase is advisable.
Initially, you may be able to exercise only for a few minutes in your target zone, however, your aerobic fitness
will improve over the next six to eight weeks. Don’t be discouraged if it takes longer. It’s important to work at
your own pace.
Please remember these essentials:
• Have your doctor review your training and diet programs to advise you of a workout routine you should adopt.
• Begin your training program slowly with realistic goals.
• Monitor your pulse frequently. Establish your target heart rate based on your age and condition.
• Set up your equipment on a flat even surface with adequate training area, as prescribed in this manual.

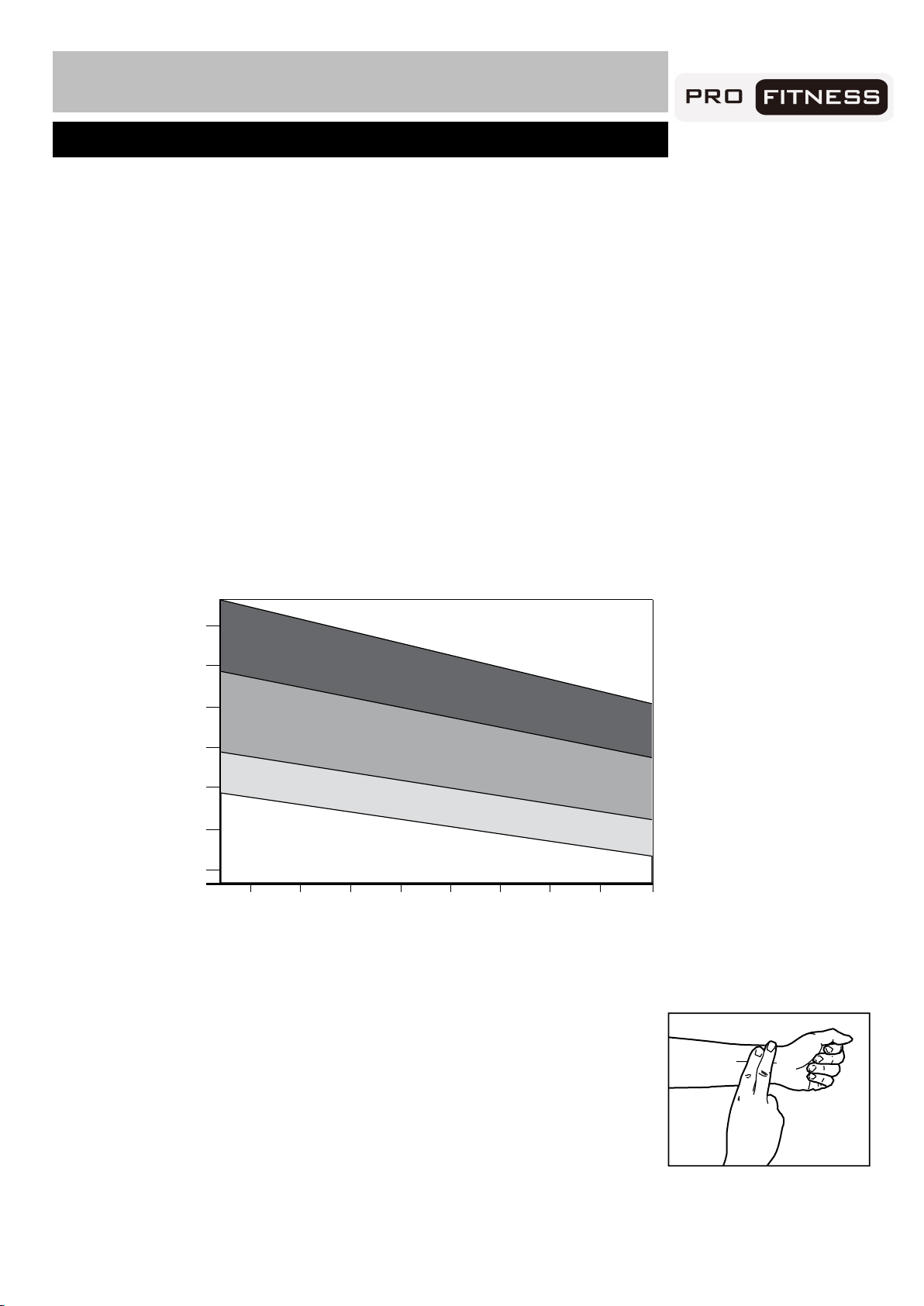

Exercise intensity
To maximize the benefits of exercising, it is important to exercise at an appropriate intensity. The intensity level
can be found by using your heart rate as a guide. For effective aerobic exercise, your heart rate should be
maintained at a level between 65% and 85% of your maximum heart rate as you exercise. This is known as your
target zone. You can find your target zone in the table below.
200
180
160
140
120
100
80
25 30 35 40 45 50 55 60 70
Age
During the first few months of your exercise program, keep your heart rate near the low end of your target zone as
you exercise. After a few months, your heart rate can be increased gradually until it is near the middle of your
target zone as you exercise.
To measure your heart rate, stop exercising but continue moving your legs or
walking around and place two fingers on your wrist. Take a six-second heartbeat
count and multiply the results by 10 to find your heart rate. For example, if your
six-second heartbeat count is 14, your heart rate is 140 beats per minute.
(A six-second count is used because your heart rate will drop rapidly when you
stop exercising.) Adjust the intensity of your exercise until your heart rate is at the
required level.
Exercise Information
Cardiovascular
performance
Intermediate aerobic
Effective fat burning
Before starting
Beats per minutes (bpm)
11
12
Aerobic Exercise
Aerobic exercise improves the fitness of your lungs and heart - your body’s most important muscle. Aerobic
exercise is promoted by any activity that uses your large muscles (arms, legs, or buttock, for example).
Weight Training
Along with aerobic exercising which helps get rid of and keep off the excess fat that our bodies can store,
weight training is an essential part of an exercise routine. Weight training helps tone, build and strengthen
muscle. If you are working above your target zone, you may want to do a lower number of reps.
Targeted Muscle Groups
The exercise routine that is performed on the treadmill will develop the lower body muscle groups. These
muscle groups are highlighted on the muscle chart below.
A: Trapezius
B: Anterior Deltoid
C: Pectoralis Major
D: Serratus Anterior
E: Biceps
F: Abdominal
G: Sartorius
H: Quadriceps
I: Tibialis Anterior
J: Trapezius
K: Posterior Deltoid
L: Triceps
M: Latissimus Dorsi
N: Gluteals
O: Hamstrings
P: Gastrocnemius
Muscle Chart
Exercise Information
12
Each workout should include the following three parts:
1. A warm-up, consisting of 5 to 10 minutes of stretching and light exercise. A proper warm-up increases
your body temperature, heart rate, and circulation in preparation for exercise.
2. Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training zone.
(Note: During the first few weeks of your exercise program, do not keep your heart rate in your training zone
for longer than 20 minutes.)
3. A cool-down, with 5 to 10 minutes of stretching. This will increase the flexibility of your muscles and will help
to reduce post-exercise muscle soreness.
Exercise Frequency
To maintain or improve your fitness, plan three workouts each week, with at least one day of rest between
workouts. After a few months of regular exercise, you may complete up to five workouts each week, if
desired. Remember, the key to success is make exercise a regular and enjoyable part of your everyday
life.
Toe touch stretch
Stand with your knees bent slightly and
slowly bend forward from your hips. Allow
your back and shoulders to relax as you
reach down towards your toes as far as
possible.
Hold for 15 counts, then relax
Repeat 3 times.
Stretches: Hamstrings, back of knees and back.
Hamstring stretch
Sit with one leg extended. Bring the sole
of the opposite foot toward you and rest it
against the inner thigh of your extended
leg. Reach towards your toes as far as
possible.
Hold for 15 counts, and then relax.
Repeat 3 times for each leg.
Stretches: Hamstrings, lower back and groin.
Warming up and Cooling down
Exercise Information
12
13
Inner thigh stretch
Calf/Achilles stretch
With one leg in front of the other, reach
forward and place your hands against a wall.
Keep your back leg straight and your back
foot flat on the floor. Bend your front leg,
lean forward and move your hips toward the
wall.
Hold for 15 counts, then relax.
Repeat 3 times for each leg. To cause
further stretching of the Achilles
tendons, bend your back leg as well.
Stretches: Calves, Achilles tendons and ankles.
Quadriceps stretch
With one hand against the wall for balance,
reach back and grasp one foot with your
other hand. Keeping your bent knee pointing
directly down towards the floor, gently pull
your heel towards your buttock until you feel
a gentle stretch in the target area.
Hold for 15 counts, and then relax.
Repeat 3 times for each leg.
Stretches: Quadriceps and Hip muscles.
Sit with the soles of your feet together
and your knees outwards. Pull your feet
towards your groin area as far as
possible, and push your knee down
towards the ground.
Hold for 15 counts, and then relax.
Repeat 3 times.
Stretches: Quadriceps and Hip muscles.
Exercise Information
14
14

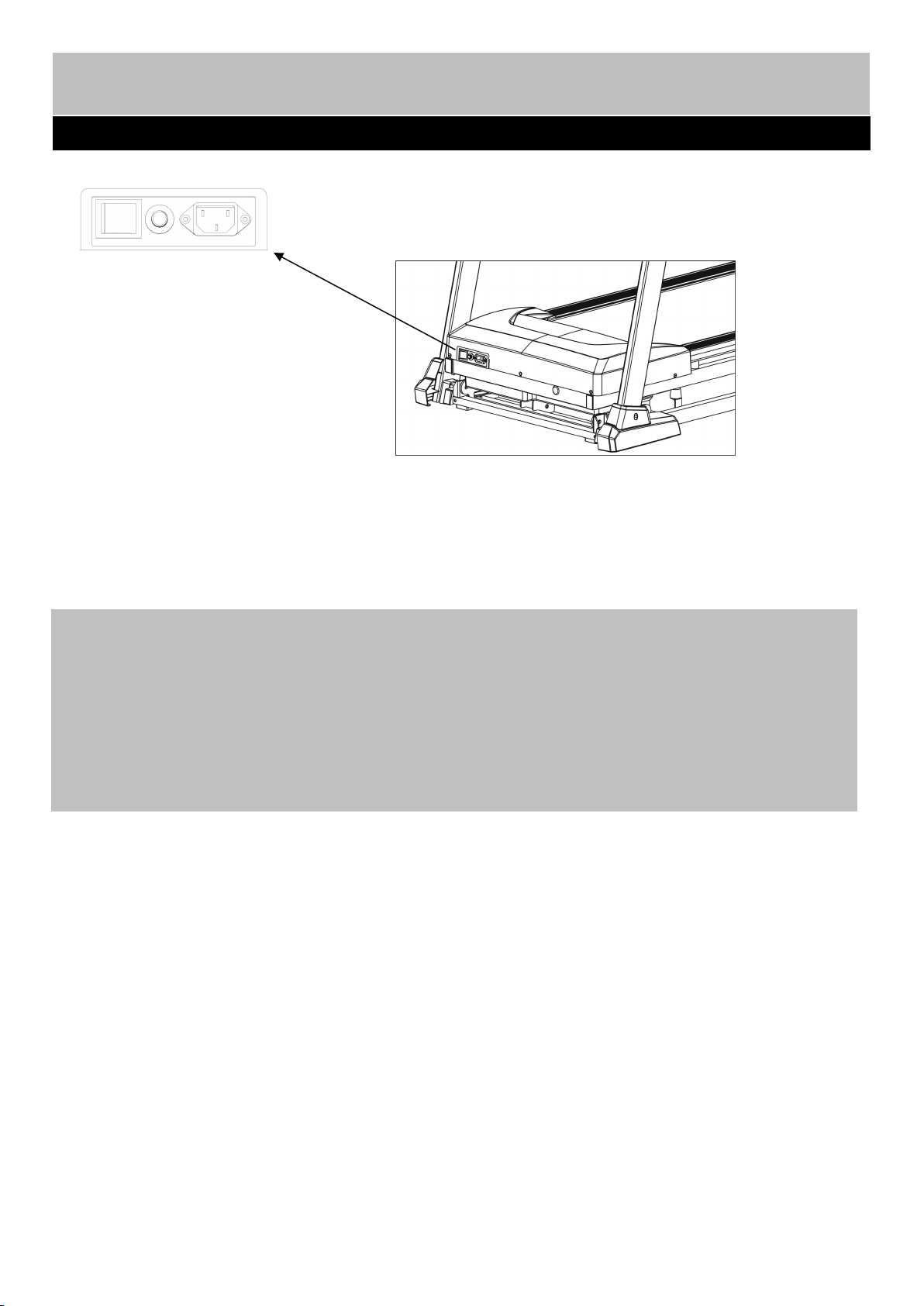

Plug your fitness equipment into the mains power and turn on the switch (85).
You will hear a beep and the computer screen will light up.
OVER-CURRENT PROTECTOR:
There is an over-current protector (86) located on the right side of the switch (85) (see above picture); in
case of short circuit or over-current, the Button of the over current protector will pop up and the treadmill
will power off; please unplug the power source and push down the button. Plug the machine back in and
then turn on the switch to restart your treadmill. If the button pops up again, please contact the Customer
Helpline
0345 600 1714.
Exercise Information
85 86
Getting Started
15

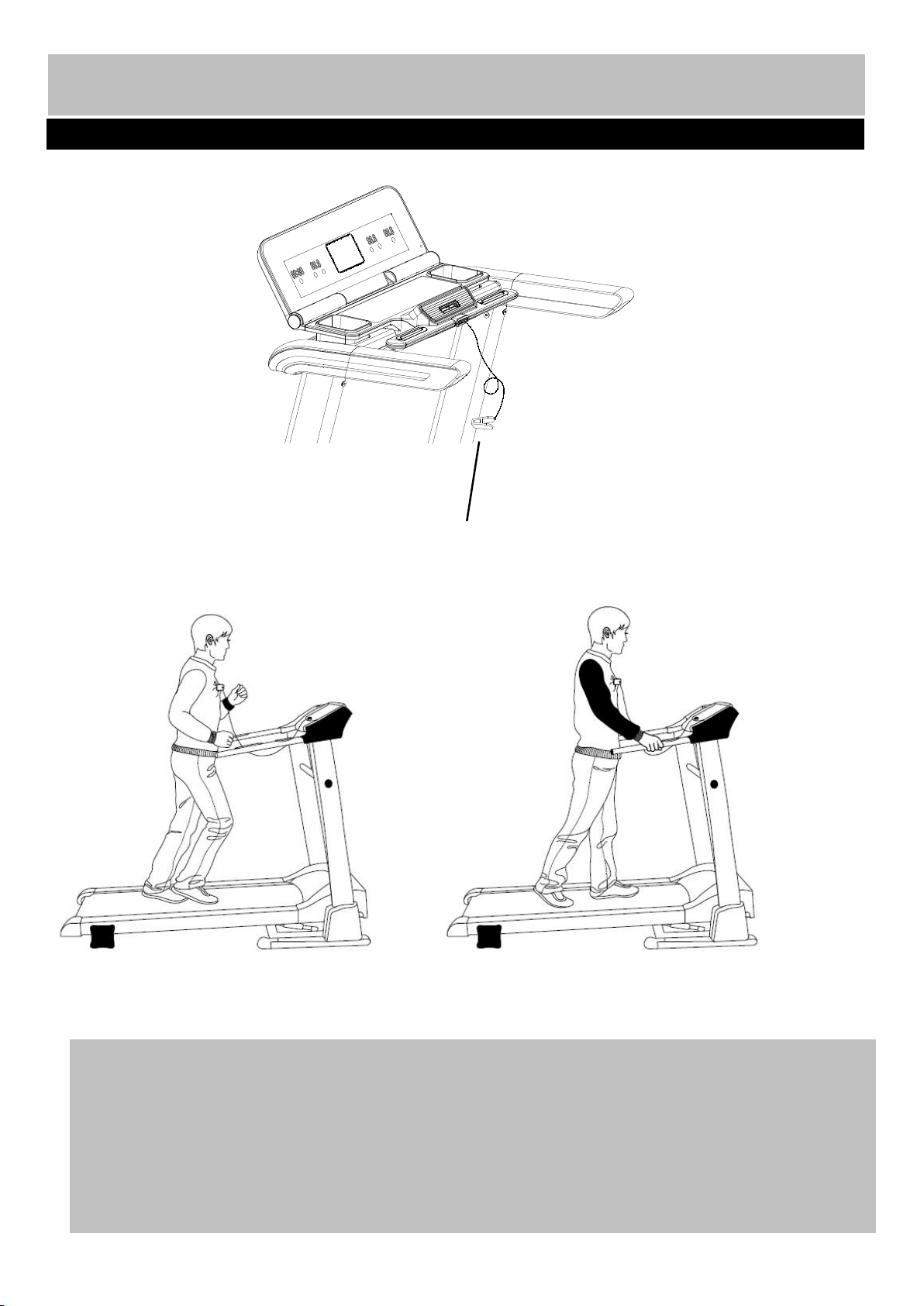

SAFETY KEY:
The treadmill will only work if the safety key (44) is properly locked in the provided notch of the console.
Insert the safety key (44) and attach the clip to your chest or the waist belt of your clothes. Then move
backward to test the safety key. The safety key should be able to be pulled out from the console with the
clip still on your clothes.
If you need to turn the motor off immediately, just pull the safety key (44) out of the console. For
emergency dismount hold the left or right handlebar then jump onto the side rail or the floor.
16
44
Exercise Information
Getting Started
A
B
C
D
E
F
G
H
I
J
K
L
M
N
P
Q
A：Time
B：Incline
C：Distance
D：Fan
E：Calorie
F：Heart
G：Speed
H：Bluetooth
I：Quick Incline select(3%,6%,9%,12%)
J：Incline- / Incline+
K：Start
L：Program
M：Mode
N：Stop
P：Speed- / Speed+
Q：Quick speed select(4km/h,8km/h,12km/h,16km/h)
Exercise Information
Console Operation
17
TECHNICAL SPECIFICATION
Time---------------------------------00:00--99:59 min/sec
Speed-------------------------------0.0--20.0 km/h
Distance----------------------------0.0--99.9 km
Calorie------------------------------0.0--999 Kcal
Incline -------------------------------0-18%
Pulse---------------------------------50-190 BPM
START
Press to start exercise at initial speed 0.8km/h.
STOP
Press the key during workout. The treadmill will stop
by gradually reducing the speed and incline.
QUICK SPEED SELECT
Press to select your desired running speed with
4km/h, 8km/h, 12 km/h, 16km/h
SPEED UP/DOWN
1. Press to increase/decrease exercise speed
by 0.1km/h.
2. Press to select training time within a workout
programme.
3. Press to choose the desired training target
(Time, Distance, and Calories) within the
target workouts.
INCLINE UP/DOWN
1.Press to increase/decrease running deck incline
by 1%.
2.Press to select training time within a workout
programme.
3.Press to choose the desired training target
(Time, Distance, and Calories) within the target
workouts.
MODE
Press to select training target workout mode
(Time-Distance-Calorie count down)
FAN
Press to turn on the fan and press again to turn it off.
PROGRAM
Press to select workout program (P01-P02-…-P36).
IMPORTANT
The console will turn off automatically about ten
minutes after the belt has stopped.
SAFETY KEY
1. The safety key must be placed into the
magnetic recess on the console in order to
operate the treadmill. Always place the
safety key on its position and attach the clip
to your clothing at your waist before
beginning your workout.
2. If you need to stop the motor immediately,
simply pull the safety key away from the
console.
GENERAL OPERATION
1. Turn on the Power Switch at the front of your
Treadmill. This switch is located next to the Mains
Power Cord inlet.
2. Place the Safety Key into the magnetic recess on
the middle front of the Computer Console.
The console will give an audible signal and all
console window displays function with a start
display value of 0.
Note: If the Safety Key is not placed correctly or is
faulty, the “Speed” window will display "E00", which
indicates that the treadmill will not operate.
To stop the treadmill in an emergency, simply pull
the safety key off its mount in the console front or
simply press the red STOP button in the right of the
console. It is important that you connect the clothing
clip to your shirt or other suitable clothing during
exercise to ensure that this safety system can
operate easily.
QUICK INCLINE SELECT
Press to select your desired running deck incline
of 3%, 6%, 9% or 12%.
Bluetooth
Turn your mobile phone Bluetooth on,connect
with your treadmill(JXBLE-7937365), then you can:
Play your mobile phone music,adjust the volume
by your mobile phone;
Exercise Information
Console Operation
18
TRAINING TIME CONTROL WORKOUT MODE
1. Turn on the treadmill，press the “Mode” once,
and the “Time” window flashes and displays
“15:00”, which is the pre-set training time of
the treadmill. Press “Speed +” / “Speed -” or
“Incline+”/”Incline-” to select your desired
training time, (the range is 5:00—99:00).
2. Press “Start” to start your workout, the time
data will reduce gradually during your training
and the treadmill will stop automatically when
the “Time” window displays “0:00”.
TRAINING DISTANCE CONTROL WORKOUT
MODE
1. Turn on the treadmill, press the “Mode” key
twice, and the “Dis” (Distance) window flashes and
displays “1.0”, which is the pre-set training
distance of the treadmill.
2. Press “Speed +” / “Speed -” or “Incline +
“/”Incline-” to select your desired training distance
(the range is 0.50—99.9).
3. Press “Start” to start your workout, the distance
data will reduce gradually during your training and
the treadmill will stop automatically when the “Dis”
(Distance) window displays “0.0”.
BURNING CALORIE CONTROL WORKOUT
MODE
1. Turn on the treadmill，press the “Mode” three
times continuously, the “Cal” (Calorie) window
flashes and displays “50.0”, which is the
pre-set burning calories of the treadmill. Press
“Speed +” / “Speed -” to select target burning
calories (the range is 10.0---999).
2. Press “Start” to start your workout, the
calories data reduce gradually during your
training, and the treadmill will stop
automatically when the “Cal” (Calorie) window
display “0.0”.
SPEED ADJUSTMENT
In any training target control workout MODE,
press “Speed +” /“Speed -” to choose your
desired running speed.
Exercise Information
Console Operation
19
Program Workout Mode (P01—P36)
In this mode, the user has a choice of Program P01
– Program P36.
1. Press the “Prog. ”, the “Speed” window will
display “P01” and the “Time” window will display
“15:00”, which is the preset time of the treadmill
for each program. Press the “Pro.” to select
your desired training program “P01-P36”.
2. The preset workout time of the treadmill for
each program is 15:00 Min, when you finish
selecting workout program, press “Speed +” /
“Speed -” to select your desired workout time
(the range is: 5:00---99:00).
3. Press “Start”and the treadmill will count down
three and start operation. The start speed
depends on the program you have chosen.
4. For all preset values, please refer to following
table and diagrams.
Any of the training program levels has 10 segments,
and each segment time is 1/10 of total setting time;
during any training segments, press the “Speed +” /
“Speed -” to adjust training speed.
TIME
PROG
Set Time/15 =Running time for each program
1
2
3
4
5
6
7
8
9
10
P1
SPEED
1.5
3.0
4.5
6.0
7.5
9.0
10.5
10.5
9.0
7.5
INCLINE
1
1
2
2
2
3
3
2
2
2
P2
SPEED
3.0
4.5
7.5
3.0
4.5
7.5
3.0
4.5
7.5
3.0
INCLINE
1
2
2
2
2
4
4
3
2
2
P3
SPEED
4.5
6.0
7.5
6.0
4.5
6.0
7.5
6.0
4.5
6.0
INCLINE
2
3
3
2
2
6
6
3
2
2
P4
SPEED
3.0
3.0
4.5
4.5
6.0
6.0
7.5
7.5
9.0
9.0
INCLINE
2
3
3
2
2
6
6
3
2
2
P5
SPEED
3.0
4.5
6.0
7.5
9.0
9.0
7.5
6.0
4.5
3.0
INCLINE
3
3
3
4
4
3
3
2
2
2
P6
SPEED
7.5
7.5
6.0
4.5
3.0
1.5
3.0
4.5
6.0
7.5
INCLINE
3
5
5
5
4
3
3
4
3
2
P7
SPEED
3.0
6.0
4.5
9.0
4.5
7.5
3.0
9.0
6.0
4.5
INCLINE
4
4
4
4
3
6
6
5
3
3
P8
SPEED
1.5
3.0
4.5
6.0
6.0
6.0
6.0
4.5
3.0
3.0
INCLINE
4
5
5
5
6
12
12
8
6
3
P9
SPEED
3.0
3.0
4.5
7.5
7.5
7.5
7.5
4.5
3.0
3.0
INCLINE
5
5
5
6
6
9
9
7
4
2
P10
SPEED
1.5
3.0
4.5
7.5
6.0
4.5
3.0
6.0
3.0
1.5
INCLINE
4
6
4
2
5
7
8
3
2
1
P11
SPEED
3.0
4.5
3.0
6.0
4.5
6.0
6.0
4.5
3.0
3.0
INCLINE
4
5
3
2
6
6
2
2
2
2
P12
SPEED
1.5
3.0
3.0
4.5
4.5
6.0
4.5
3.0
1.5
1.5
INCLINE
1
2
3
2
3
5
5
0
0
2
P13
SPEED
3
6
7
5
9
9
7
5
5
7
INCLINE
3
3
5
6
5
3
3
7
5
3
P14
SPEED
2
2
4
5
6
5
4
3
2
1
INCLINE
4
4
4
4
3
3
6
6
6
7
P15
SPEED
2
4
6
8
6
6
4
4
2
2
INCLINE
3
3
3
4
4
5
5
5
4
4
P16
SPEED
2
4
6
8
10
8
6
4
2
2
INCLINE
5
5
5
6
6
6
4
4
6
6
Exercise Information
Console Operation
20
TIME
PROG
Set Time/10 =Running time for each program
1
2
3
4
5
6
7
8
9
10
P17
SPEED
2
2
6
6
8
10
6
6
2
2
INCLINE
4
5
5
5
6
6
6
7
8
9
P18
SPEED
2
3
4
5
2
3
4
5
3
2
INCLINE
4
4
4
4
3
3
6
6
6
7
P19
SPEED
2
4
6
2
4
6
2
4
6
2
INCLINE
3
5
5
5
4
4
4
3
3
3
P20
SPEED
1
3
4
5
6
5
4
3
2
1
INCLINE
3
3
3
4
4
5
5
5
4
4
P21
SPEED
4
5
4
4
4
2
3
3
5
3
INCLINE
1
2
2
1
1
3
3
2
2
2
P22
SPEED
5
6
4
4
4
2
2
5
4
4
INCLINE
2
2
3
3
3
4
4
3
2
2
P23
SPEED
2
4
4
4
4
2
4
5
3
4
INCLINE
2
2
4
4
4
6
6
3
2
3
P24
SPEED
3
5
9
5
5
6
6
4
4
5
INCLINE
2
2
4
4
4
6
6
3
2
3
P25
SPEED
3
4
5
4
3
3
6
5
4
4
INCLINE
4
4
5
5
3
3
3
2
2
3
P26
SPEED
1
3
6
4
4
2
5
4
3
4
INCLINE
3
4
4
4
3
3
3
4
3
5
P27
SPEED
4
5
3
3
3
6
6
5
3
3
INCLINE
2
4
8
9
9
6
6
5
4
4
P28
SPEED
1
3
4
4
4
2
3
4
4
3
INCLINE
3
2
2
4
3
2
2
4
6
5
P29
SPEED
2
5
5
5
4
5
6
3
3
4
INCLINE
5
5
8
8
9
9
9
7
4
5
P30
SPEED
6
6
5
4
4
2
4
4
3
5
INCLINE
4
5
5
8
8
10
10
8
6
6
P31
SPEED
4
2
4
4
3
4
5
5
4
8
INCLINE
2
4
5
6
3
2
5
5
2
3
P32
SPEED
5
5
2
2
4
5
5
7
6
9
INCLINE
3
5
7
3
3
5
6
5
3
3
P33
SPEED
2
3
2
1
3
2
9
9
4
7
INCLINE
2
0
0
5
5
3
2
3
2
5
P34
SPEED
2
3
4
5
6
5
4
3
2
4
INCLINE
4
2
2
4
2
6
6
5
4
4
P35
SPEED
2
4
6
8
6
6
4
4
2
6
INCLINE
4
4
5
5
3
3
3
2
2
3
P36
SPEED
2
4
6
8
6
6
4
4
2
6
INCLINE
5
5
8
8
9
9
9
7
4
5
Exercise Information
Console Operation
BODY FAT ANALYSIS
On standby, press “Prog” until big window
displays “FAT”, and “Distance” window displays:
F1—Sex, F2—Age , F3—Height, F4—Weight，
F5—Body Fat test; press“ Mode” to enter next
setting, press “Speed+/-” to set parameters (see
below table) for F1—F4.
When "Distance" window displays F5, Grasp the
two handle pulse sensor with your two hands
and hold firmly for about 5 seconds, it will
display your body fat score, reflected in the big
window.
Note: The data is only for reference, not for
therapeutic purpose.
Body Fat Scale Parameter Table
FAT
ITEM
SET OR ANALYSIS DATA
F-1
Sex
1-Male
2-Female
F-2
Age
10-99 (25)
F-3
Height
100-220 (170)
F-4
Weight
20-150 (20)
F-5
Body Fat
≦19
Under weight
20~24
Ideal weight
25~29
Over weight
≧30
obesity
Exercise Information
Console Operation
22
23
1. To fold the treadmill, lift the running deck and you can hear a click when the deck locks into position.
2. Hold the running deck, touch the cylinder joint with your tiptoes to unfold it as shown in the diagram.
Warning!
A folded treadmill should not be operated.
Allow the running surface to come to a complete stop before folding.
Exercise Information
Folding Mechanism and Locking System
23
24
1. The safety level of the
equipment can only be
maintained if it is examined
regularly for damage and wear
e.g. ropes, pulleys and
connection points.
2. Lubricate moving parts with
light oil periodically to prevent
premature wear. Never use
abrasives or solvents to clean
the treadmill. To prevent
damage to the computer, keep
liquids away and keep it out of
direct sunlight.
3. Inspect and tighten all parts
before using the equipment.
Replace defective components
immediately and/or keep the
equipment out of use until
repair.
Pay special attention to
components most susceptible
to wear.
4. The equipment can be
cleaned using a damp cloth
and mild non-abrasive
detergent. Do not use
solvents.
5. Do not attempt to repair this
equipment yourself. Should you
have any difficulty with assembly,
operation or use of your exercise
product or if you think that you
may have parts missing, contact
the manufacturer, their approved
service agent or the
Customer Helpline:
0345 600 1714
www.argos-support.co.uk/
Guarantee:
For guarantee purposes,
please retain your purchase
receipt.
Care and Maintenance

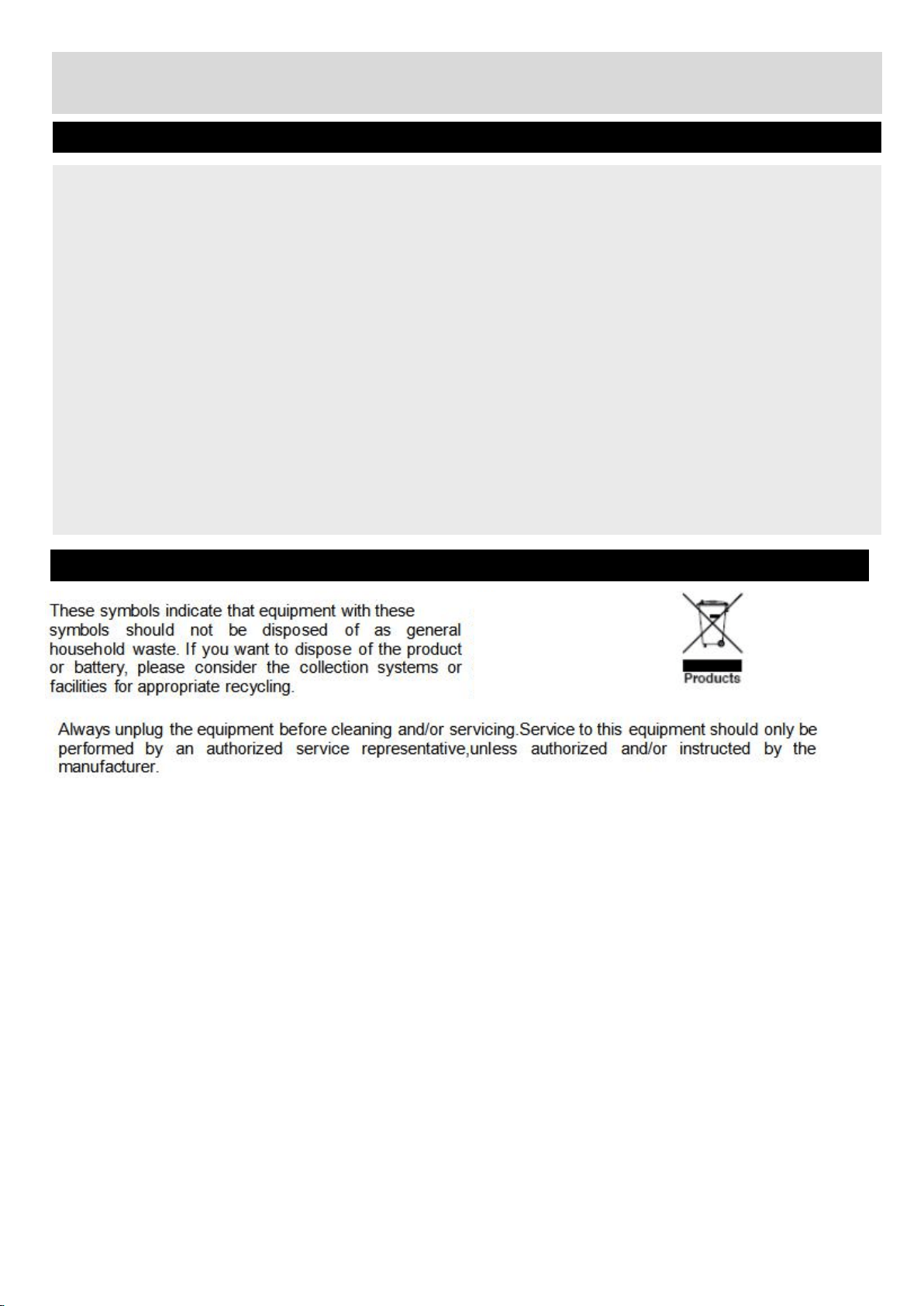

Information for Users on Disposal of old Equipment
24
25
Improper maintenance can cause damage to the
treadmill or shorten the life of the product and
exceed the LIMITED WARRANTY coverage.
Important: Never use abrasives or solvents to
clean the treadmill. To prevent damage to the
computer, keep liquids away and keep it out of
direct sunlight.
All parts of the treadmill must be checked and
tightened regularly. Worn parts must be
replaced immediately.
BELT ADJUSTMENT
You may need to adjust the running belt during the
first few weeks of use. All running belts are
properly set at the factory. It may stretch or
become misaligned following use. Stretching is
normal during the break-in period.
ADJUSTING THE BELT TENSION
If the running belt feels as though it is “slipping” or
hesitating when you plant your foot during a run,
the tension on the running belt may have to be
increased.

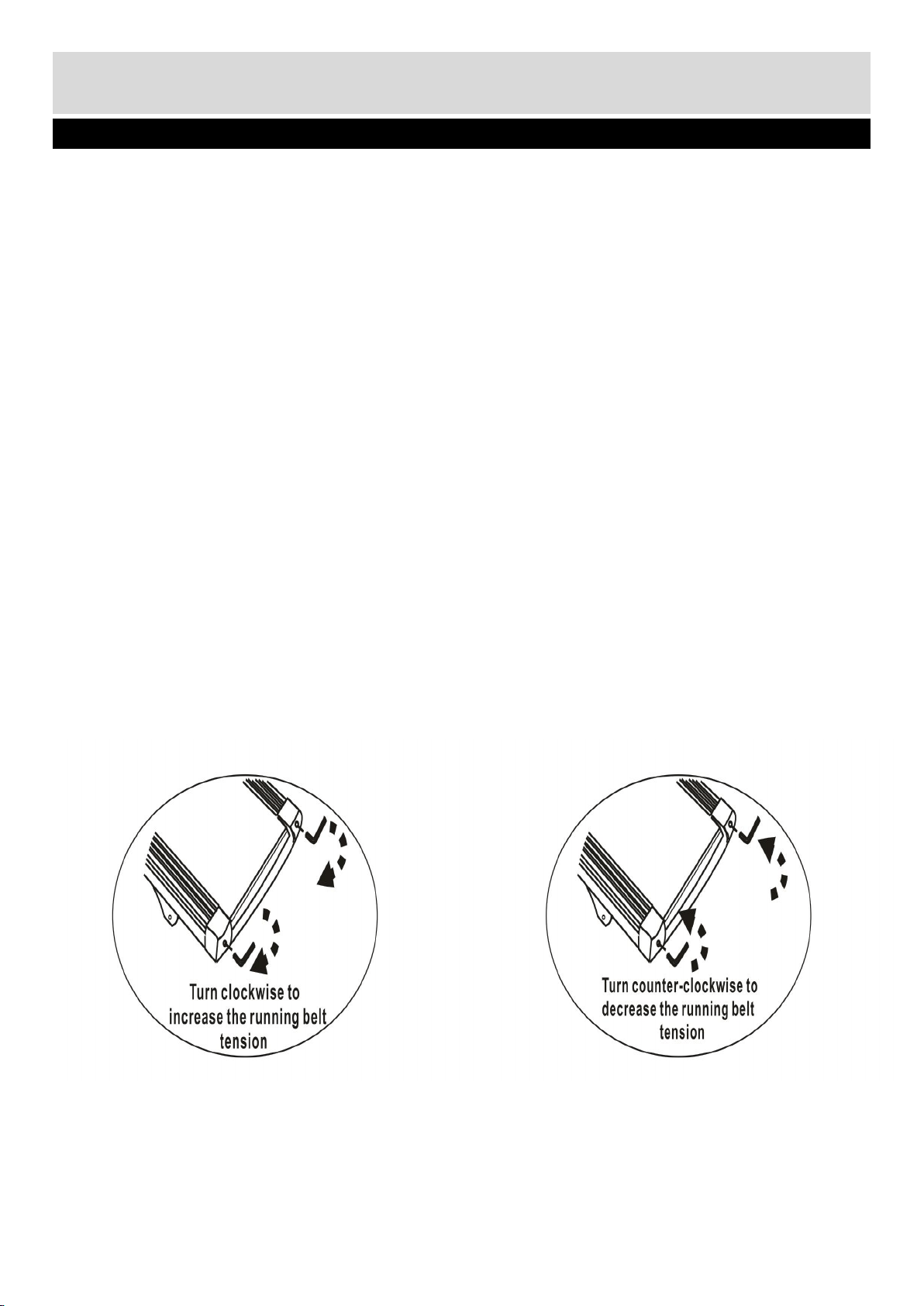

TO INCREASE THE RUNNING BELT TENSION

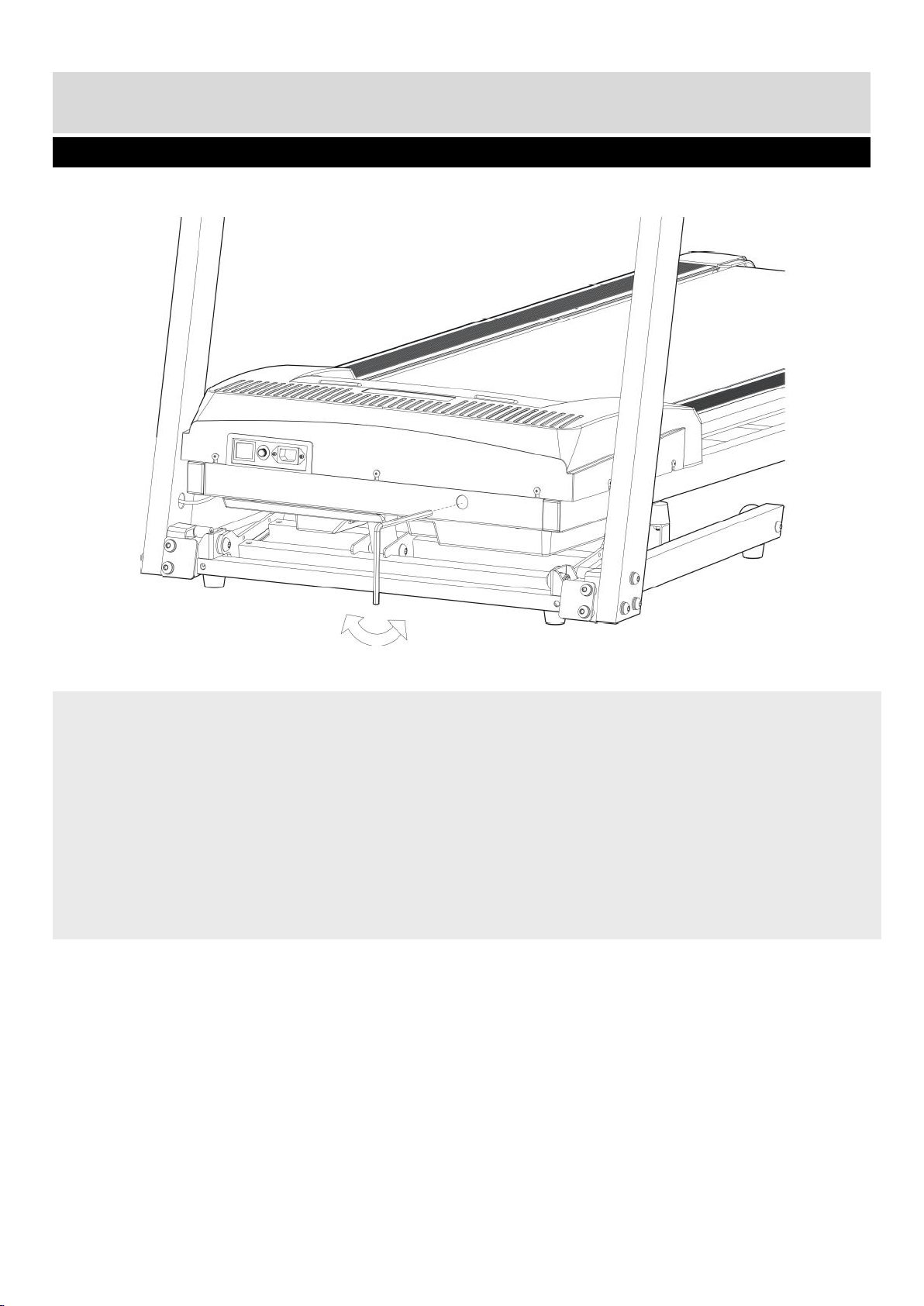

STEP 1: Place 6# Allen wrench on the left belt
tension bolt. Turn the wrench clockwise 1/4 turn to
draw the rear roller and increase the belt tension.
STEP 2: Repeat STEP 1 for the right belt tension
bolt. You must be sure to turn both bolts the same
number of turns, so the rear roller will stay square
relative to the frame.
Repeat STEP 1 and STEP 2 until the slipping
is eliminated.
Be careful not to tighten the running belt
tension too much as you can create excessive
pressure on the front and rear roller bearings.
An excessively tightened running belt may
damage the roller bearings that would result in
bearing noise from the front and rear rollers.

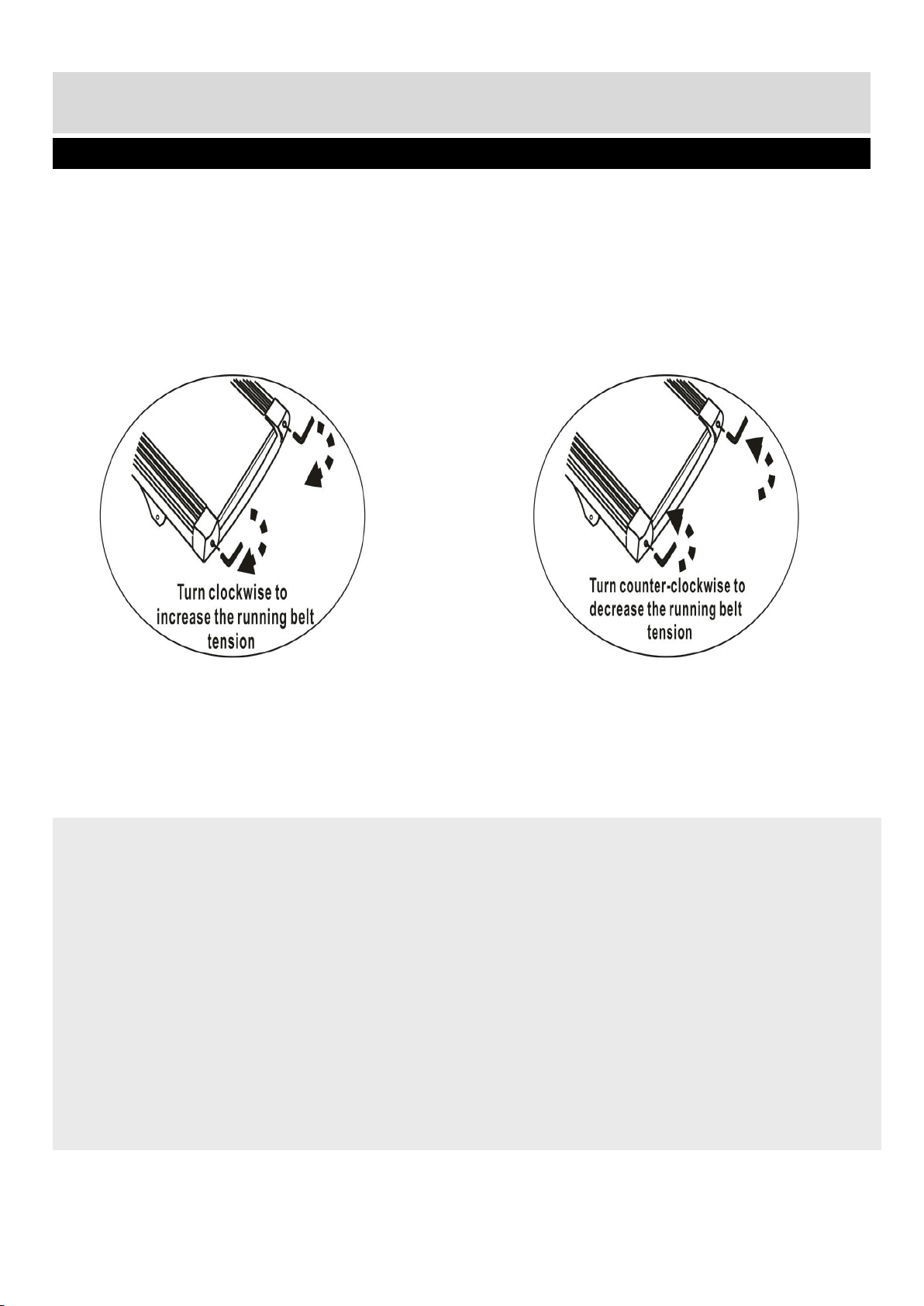

TO DECREASE THE TENSION ON THE
RUNNING BELT, TURN BOTH BOLTS
COUNTER-CLOCKWISE THE SAME NUMBER
OF TURNS.
Care and Maintenance
Belt Adjustment
25
31
CENTRING THE RUNNING BELT
When you run, you may push off harder with one foot than with the other. The severity of the deflection
depends on the amount of force that one foot exerts in relation to the other. This deflection can cause the belt
to move off-centre. This deflection is normal and the running belt will centre when nobody is on the running
belt. If the running belt remains consistently off-centre, you will need to centre the running belt manually.
1. Start the treadmill without anyone on the running belt, press “Speed+” button until speed reaches 6
km/h.
2. Observe whether the running belt is toward the right or left side of the deck.
a) If towards the left side of the deck, using 6# Allen Wrench, turn the left adjustment bolt clockwise 1/4
turn and let the running belt settle into its new position; if it’s still moving towards the left side, turn the
bolt another 1/4 turn.
b) If towards the right side of the deck, using 6# Allen Wrench, turn the right adjustment bolt clockwise
1/4 turn and let the running belt settle into its new position; if it’s still moving towards the right side, turn
the bolt another 1/4 turn.
c) If the belt is still not central, repeat the above steps until the running belt is centred.
3. After the belt is centred, increase the speed to 12km/h and verify that it is running smoothly. Repeat the
above steps if necessary. If the above procedure is unsuccessful in resolving the alignment, you may
need to increase the belt tension.
Care and Maintenance
Belt Adjustment
26
31
During your workout, if you find the running belt is not running smoothly, that means the motor belt is
loosing, please follow the below steps to adjust the motor belt tension:
1. Turn the motor belt adjustment bolt using an M8 Allen wrench 1/4 turn in a clockwise direction.
2. Re-Start the treadmill and run on the treadmill; if the running belt is still not working properly, repeat
the above step.
3. Please do not make the motor belt too tight; if the belt is over tightened it will overload the treadmill
and reduce the motors life.
Care and Maintenance
Motor Belt Tension Adjustment
27
31
The treadmill is pre-lubricated. However, it is
recommended to check the lubrication of the
treadmill regularly, to ensure optimal operation.
After every 2 months of operation, lift the sides of
the treadmill running belt and feel the surface of
the deck, as far as possible. If traces of silicon
spray are found, lubrication is not necessary. If the
surface is dry, refer to the instructions below.
Only use 100% silicon oil to lubricate your
treadmill deck.
To apply lubricant on the belt
Lift the belt at one side and hold the spray
valve at a distance of approximately 15cm
between the running belt and the deck. Spray
from the front to the rear of the deck. Repeat
this process on the other side of the belt.
Spray each side for about 4 seconds.
Wait 1 minute to let the silicon spray spread,
before starting the machine to circulate the oil
over the running deck.
CLEANING
Regular cleaning of the belt ensures a long
product life.
Warning: The treadmill must be turned off to
avoid electric shocks. The power cord must be
pulled out of the socket, before starting the
cleaning or maintenance.
Caution: Do not use any abrasives or
solvents. To avoid damage to the computer,
keep any liquids away. Do not expose the
computer to direct sunlight.
After each training: Wipe the console and
other surfaces with a clean soft and damp
cloth to remove sweat residues.
Weekly: To make cleaning easier, it is
recommended to use a mat under the
treadmill. Shoes can leave dirt on the belt that
can fall beneath the treadmill. Clean the mat
under the treadmill once a week.
STORAGE
Store you treadmill in a clean and dry environment.
Ensure the master power switch is off and is
un-plugged from the electrical wall outlet.
Care and Maintenance
Deck Lubrication
28
1
Error
Code
Check
Solution
E00
Safety Key not in the position
Re-locate the safety key in the correct position
E01
No signal to Controller from
console
A: Check the Main Controller Wire
B: Replace the PCB Board
E02
Motor communication error
A: Check the wire from motor to controller
B: IGBT breakdown, Replace the controller
C: Check the power voltage if 50% lower than rate
voltage
D: replace the motor wire or motor
E04
Incline Motor communication error
A: Check the wire from incline motor to controller
B: Replace the incline motor
C: Replace the controller
E05
Over current protector
A: Over loading or over resistance, restart the
treadmill
B: Transmission parts seized up, check the parts
C: Replace controller
D: Motor breakdown, replace the motor
E06
Motor Open Circuit
Check the Motor wire
E08
IC Driver Error
Replace the IC driver
E09
Folding up protect
A: Do not fold up the running deck when treadmill in is
running
B: If the running deck in laying position and show E09,
replace the controller
E10
Motor instantaneous current
abnormal
A: Adjust the torsion potentiometer of the Controller to
lower
B: Motor Breakdown, replace the motor
E11
Over voltage protector
Voltage over 270v (for 220v) or 150v (for 110v) -- turn
off the treadmill and check the power source
E13
No singnal to console from
Controller
A: Check the Main Controller Wire
B: Change the controller
E14
Lower voltage protector
Voltage lower than 160v (220v) or 70v (110v) -- turn off
the treadmill and check the power source
Care and Maintenance
Trouble Shooting
29
2
Exercise Information
Exploded Parts Diagram
30
3
Key No.
Description
QTY
Key No.
Description
QTY
1
Front roller
1
28
ST4.2
×
10mm Large Fat head Phillips self
tapping screw
4
2
Rear roller
1
29
ST4.8
×
15mm Large Fat head Phillips self
tapping screw
30
3
Motor Support
1
30
ST4.2
×
15mm Large Fat head Phillips self
tapping screw
6
4
Running stage
1
31
ST4.8
×
15mm Dome Head Phillips Screw
16
5
Base frame
1
32
ST2.9
×
8mm Dome Head Phillips Screw
16
6
handle
1
33
ST4.8
×
20mm Dome Head Phillips Screw
7
7
keyboard Support Frame
1
34
ST4.2
×
9mm Dome Head Phillips Screw
20
8
Console Bottom Housing Frame
1
35
ST2.2
×
4.5mm Dome Head Phillips Screw
15
9
Left Console Mast
1
36
ST4.2 x 30mm Sunk Self-tapping Screw
2
10
Right Console Mast
1
37
ST4.2 x 12mm Sunk Self-tapping Screw
2
11
Incline Frame
1
38
ST4.2
×
15mm Large Fat head Phillips self
tapping screw
8
12
M8
×
28mm Phillips Sunk Screw
8
39
ST4.2
×
12mm Large Fat head Phillips self
tapping screw
48
13
M8
×
50mm Allen Bolt
1
40
VEGA Motor belt
1
14
M8
×
40mm Allen Bolt
4
41
Power cord
1
15
M8
×
30mm Allen Bolt
1
42
Console keyboard
1
16
M10
×
42mm Allen Bolt
1
43
Air spring
1
17
M10
×
40mm Allen Bolt
4
44
Safety Key
1
18
M10
×
65mm Allen Bolt
1
45
Notch
1
19
M5x 15 mm Dome Head Phillips
Sunk Screw
3
46
Fan Blade
1
20
M8
×
60mm Hexagon Socket
Head Cap Screw
1
47
wind cover cap
1
21
M8
×
70mm Hexagon Socket
Head Cap Screw
2
48
Fan mounting
1
22
M8
×
50mm Hexagon Socket
Head Cap Screw
1
49
End Cap
2
23
M10
×
25mm Hexagon Socket
Head Cap Screw
4
50
φ
25
×φ
15
×
5 Side rail stator
8
24
M10 locknut
6
51
Cushion
4
25
M8 locknut
8
52
End Cap
4
26
φ
8 Washer
4
53
Base frame cover
1
27
Dome Head Phillips Sunk Screw
1
54
ventilating slot
1
Parts List
31
4
Key No.
Description
QTY
Key No.
Description
QTY
55
Motor cover
1
79
stickers
1
56
Front cover
1
80
stickers
1
57
Motor bottom cover
1
81
stickers
1
58
end cap
1
82
stickers
1
59
Left Console Mast Cover
1
83
stickers
4
60
Right Console Mast Cover
1
84
power outlet
1
61
Console Rear Cover
1
85
power switch
1
62
Console Upper Housing
1
86
Overcurrent protector
1
63
Display screen Upper Housing
1
87
filter
1
64
Display screen Rear Cover
1
88
Inductance
1
65
Console keyboard
1
89
Left Side rail
1
66
Console Bottom Housing
1
90
Right Side rail
1
67
PCB Board
1
91
Left Handrail
1
68
horn net
2
92
Right Handrail
1
69
fan cover
1
93
horn net
2
70
Transport Wheel
2
94
Driving Board
1
71
Wheel
2
95
Console interior
1
72
wheel inner sleeve
4
96
Speaker
1
73
Motor damping pad
1
97
Pulse sensor
1
74
Shock pad bracket
6
98
fan
1
75
Foot Pad
1
99
Bluetooth LED panel
1
76
Rubber Cushion
2
100
Elevating motor
1
77
Display screen
1
101
Motor
1
78
stickers
1
102
Running Deck
1
Parts List
32
5
Key No.
Description
QTY
Key No.
Description
QTY
103
Running belt
1
107
φ
8 Spring Washer
10
104
M8x 15mm Phillips Sunk
Screw
6
108
M4*8 Flat hand screws
2
105
M8
×
16mm Allen Bolt
10
109
M4*40 Flat hand screws
4
106
φ
8 Washer
10
33
6
Guarantee
Year
Product Guarantee
This product is guaranteed against manufacturing defects from a period of
This product is guaranteed for twelve months from the date of original
purchase. Any defect that arises due to faulty materials or workmanship
will either be replaced, refunded or repaired free of charge where possible
during this period by the dealer from whom you purchased the unit.
The guarantee is subject to the following provisions:
• The guarantee does not cover accidental damage, misuse, cabinet parts,
knobs or consumable items.
• The product must be correctly installed and operated in accordance with
the instructions contained in this manual.
• It must be used solely for domestic purpose.
• The guarantee will rendered invalided if the products is re-sold or has been
damaged by inexpert repair.
• Specifications are subject to change without notice.
• The manufacturer disclaims any liability for the incidental or consequential
damages.
• The guarantee is in addition to, and does not diminish your statutory or
legal right.
• In the event of problem with the product with in the guarantee period call
Customer Helpline: 0345 600 1714 www.argos-support.co.uk/
Guarantor: Argos Ltd
489 – 499 Avebury Boulevard
Central Milton Keynes
MK9 2NW
34
7
